4839 torque values pulled clean from the OEM repair manual. Toyota's tri-unit format preserved (N·m, kg·cm, ft-lb). Page references on every row.
Find a torque
Chassis
Section
Showing 4839 of 4839
Section Label N·m kg·cm ft-lb Source

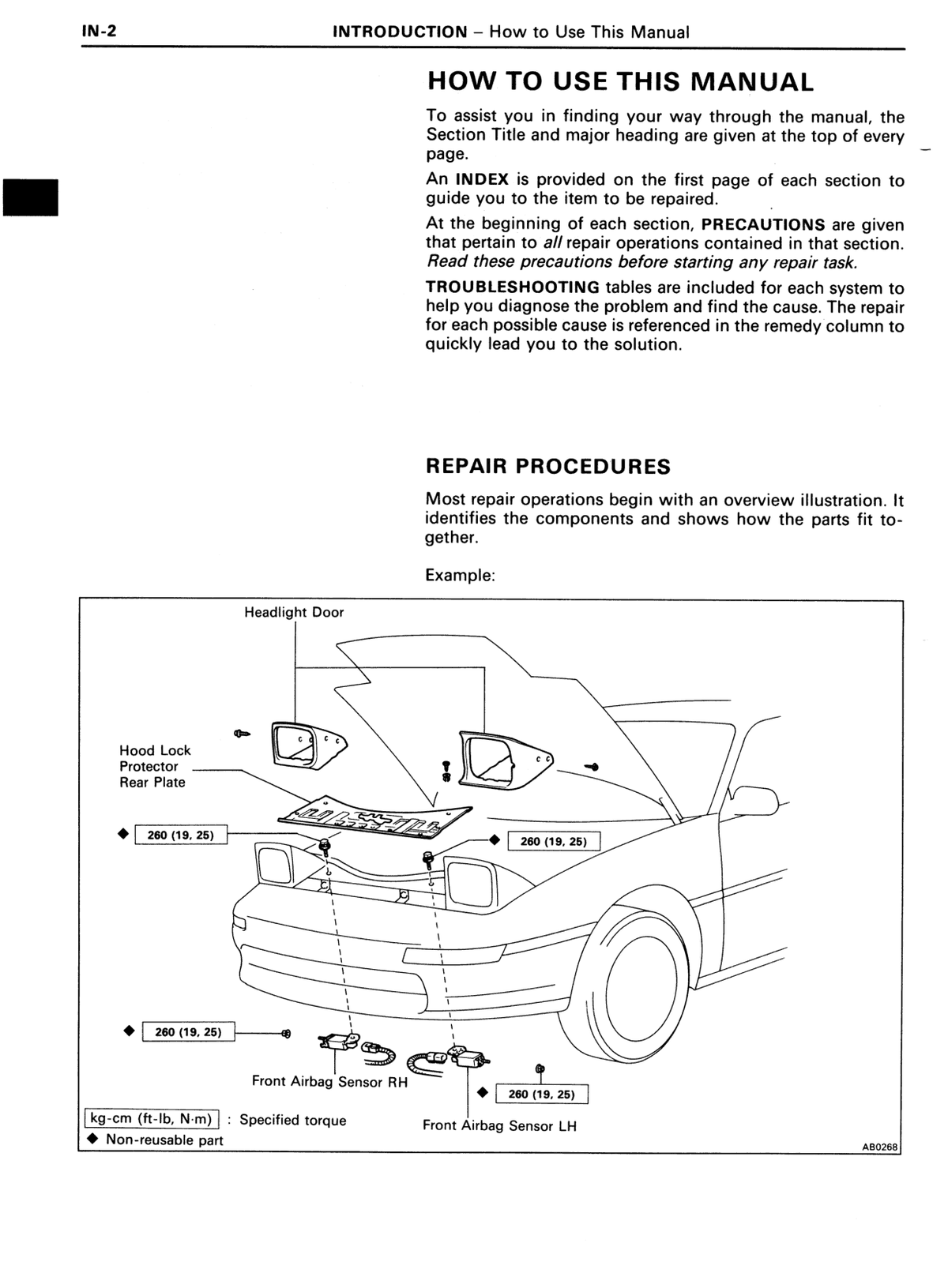

Introduction Front Airbag Sensor RH / Front Airbag Sensor LH / Hood Lock Protector Rear Plate bolts (example illustration) 25 260 19 ↗ RM179U1_1991 · p4 OEM manual

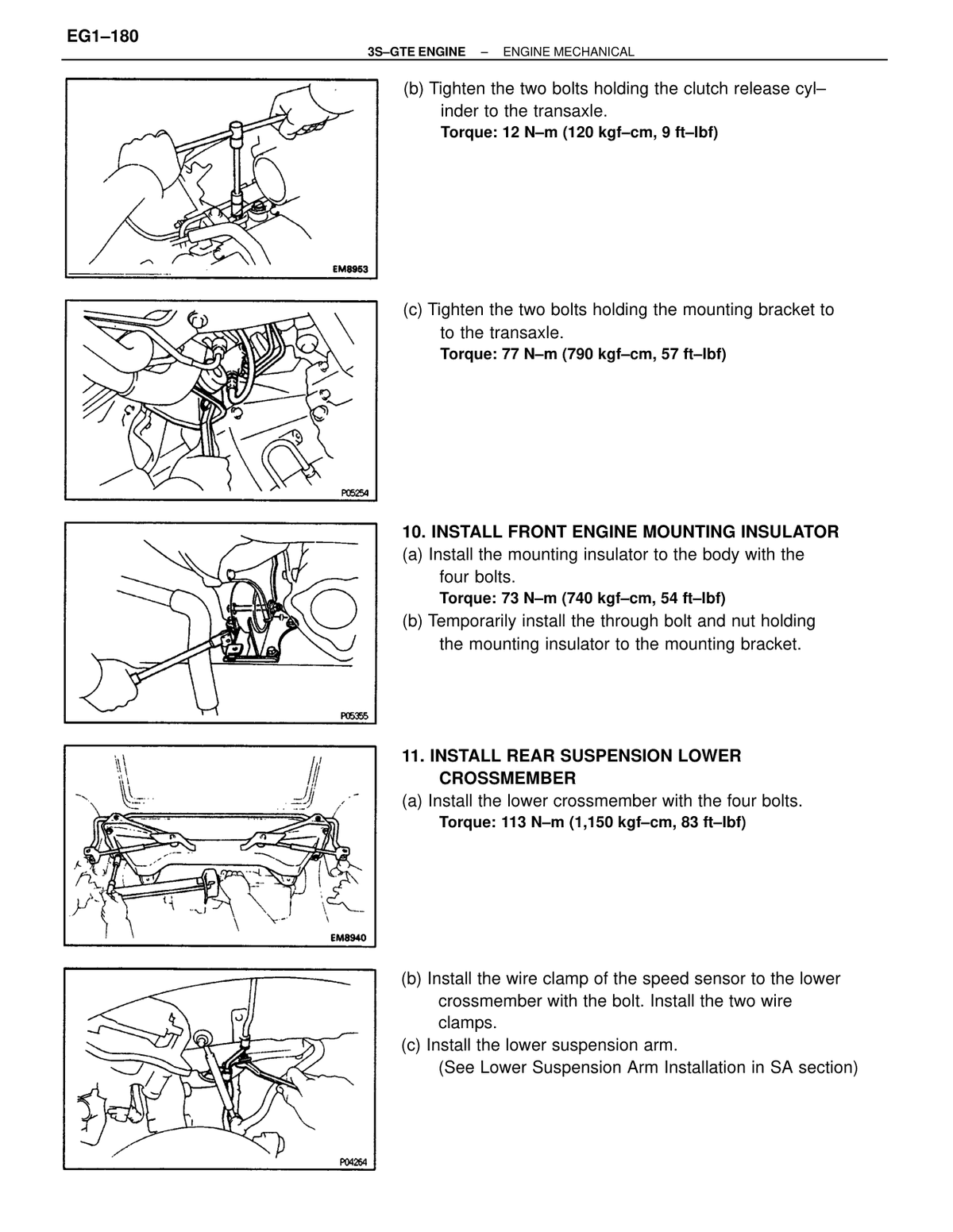

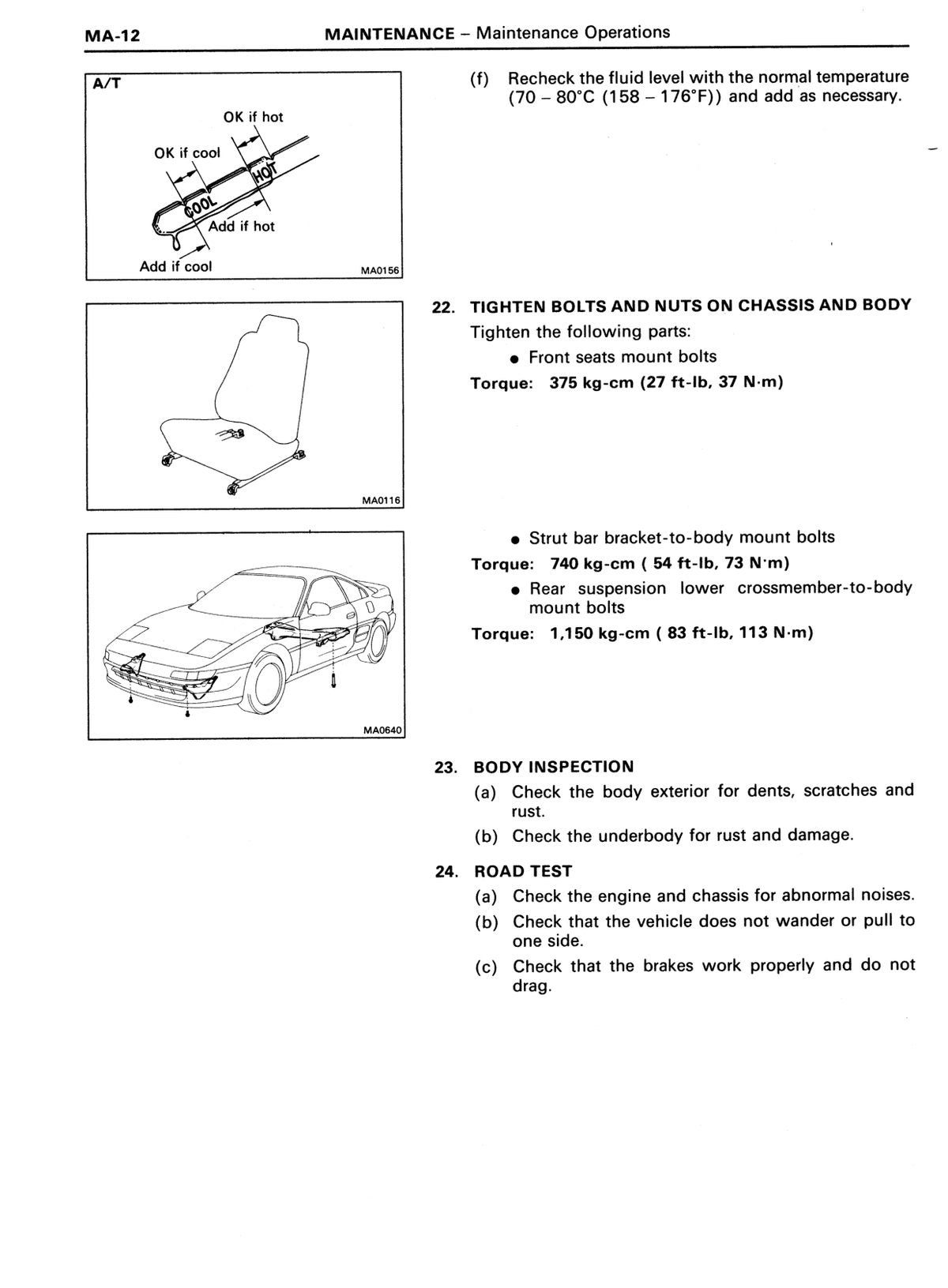

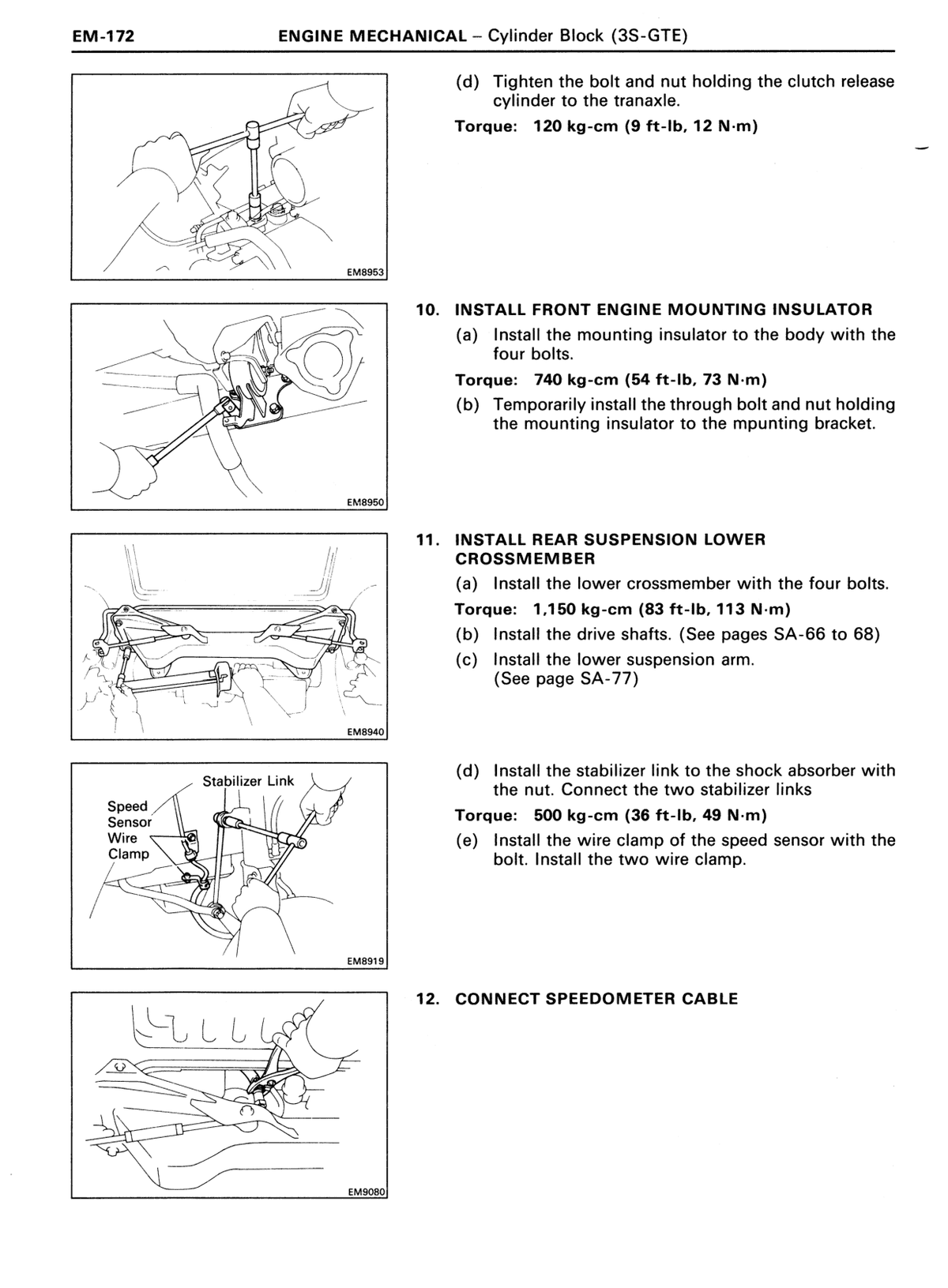

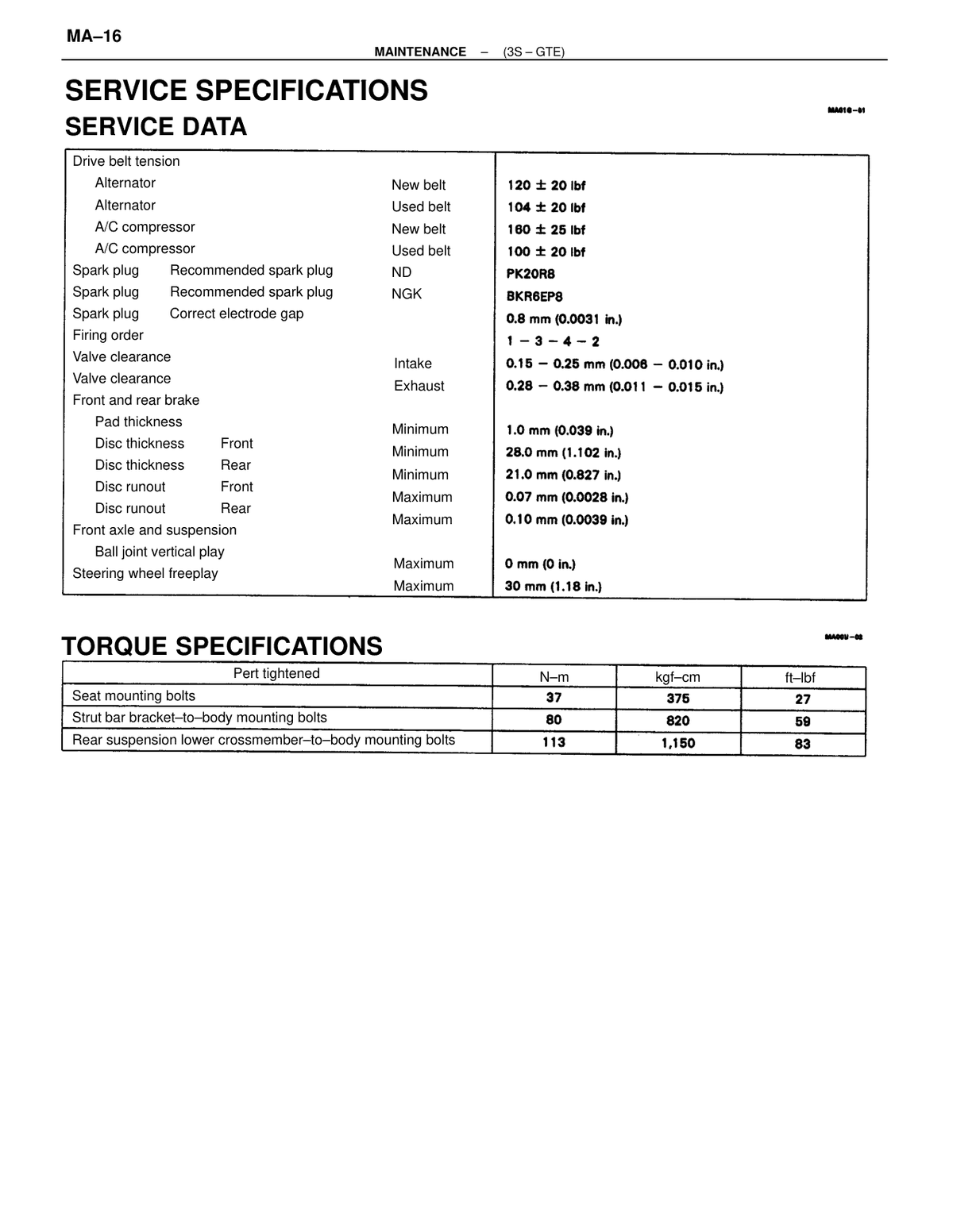

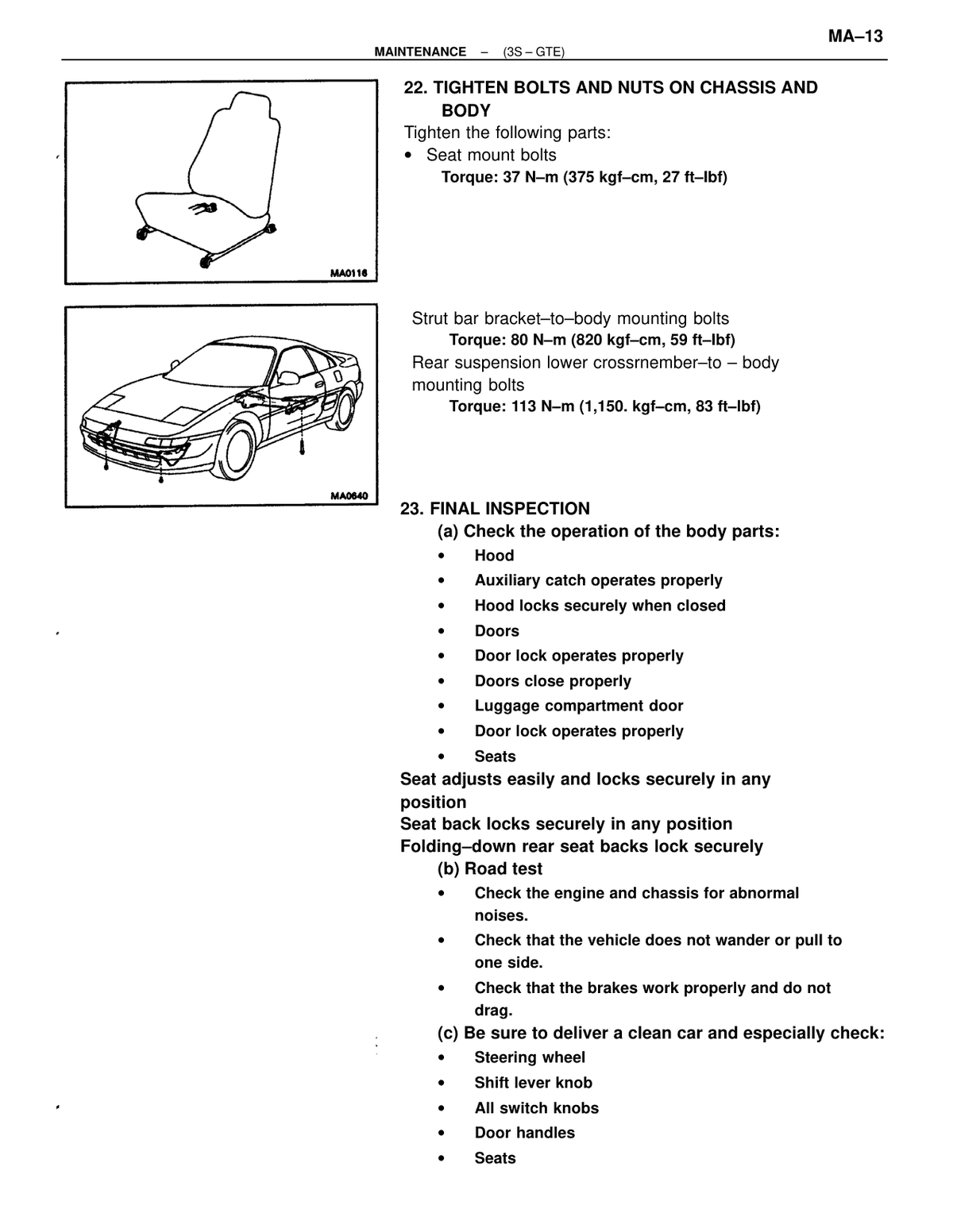

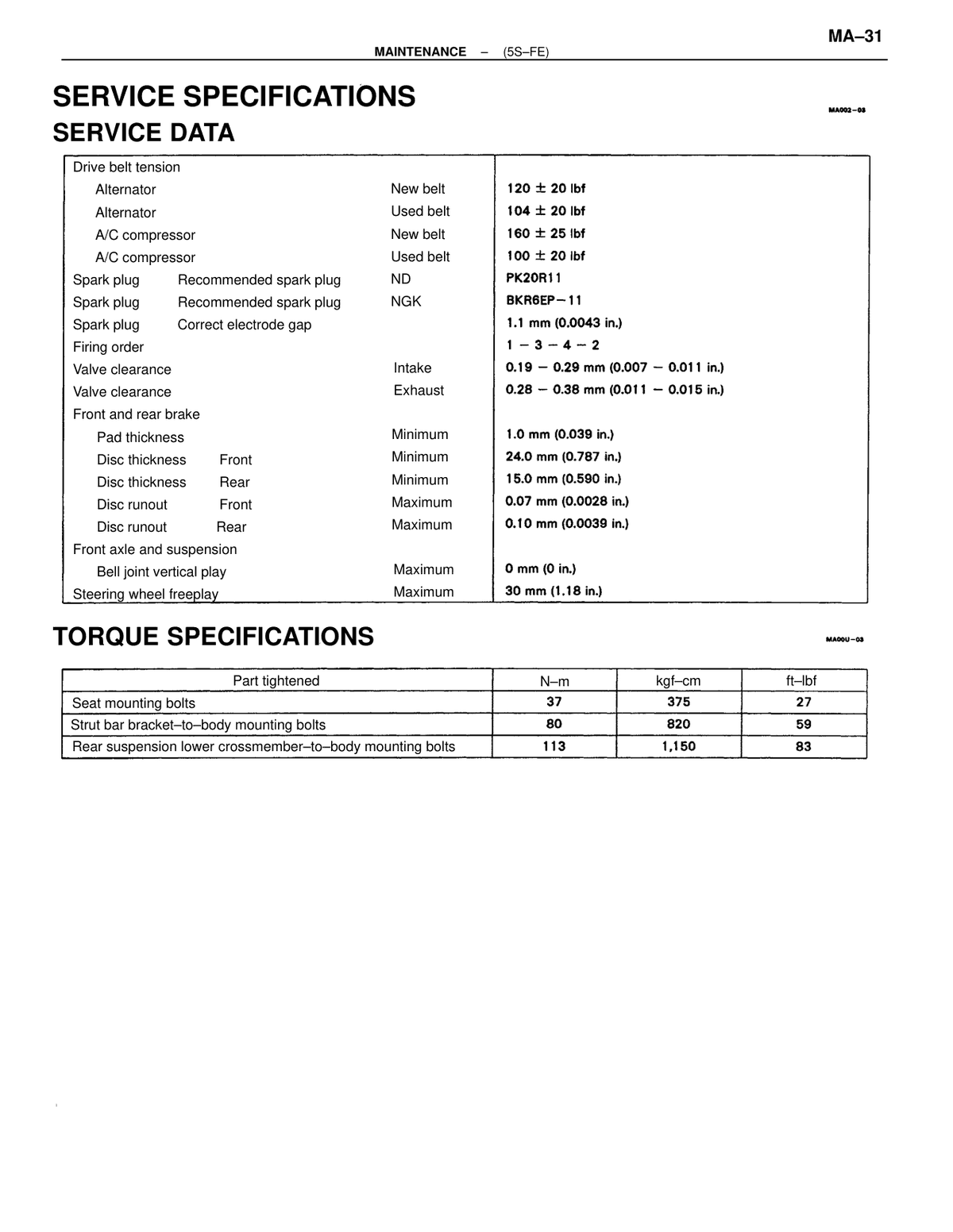

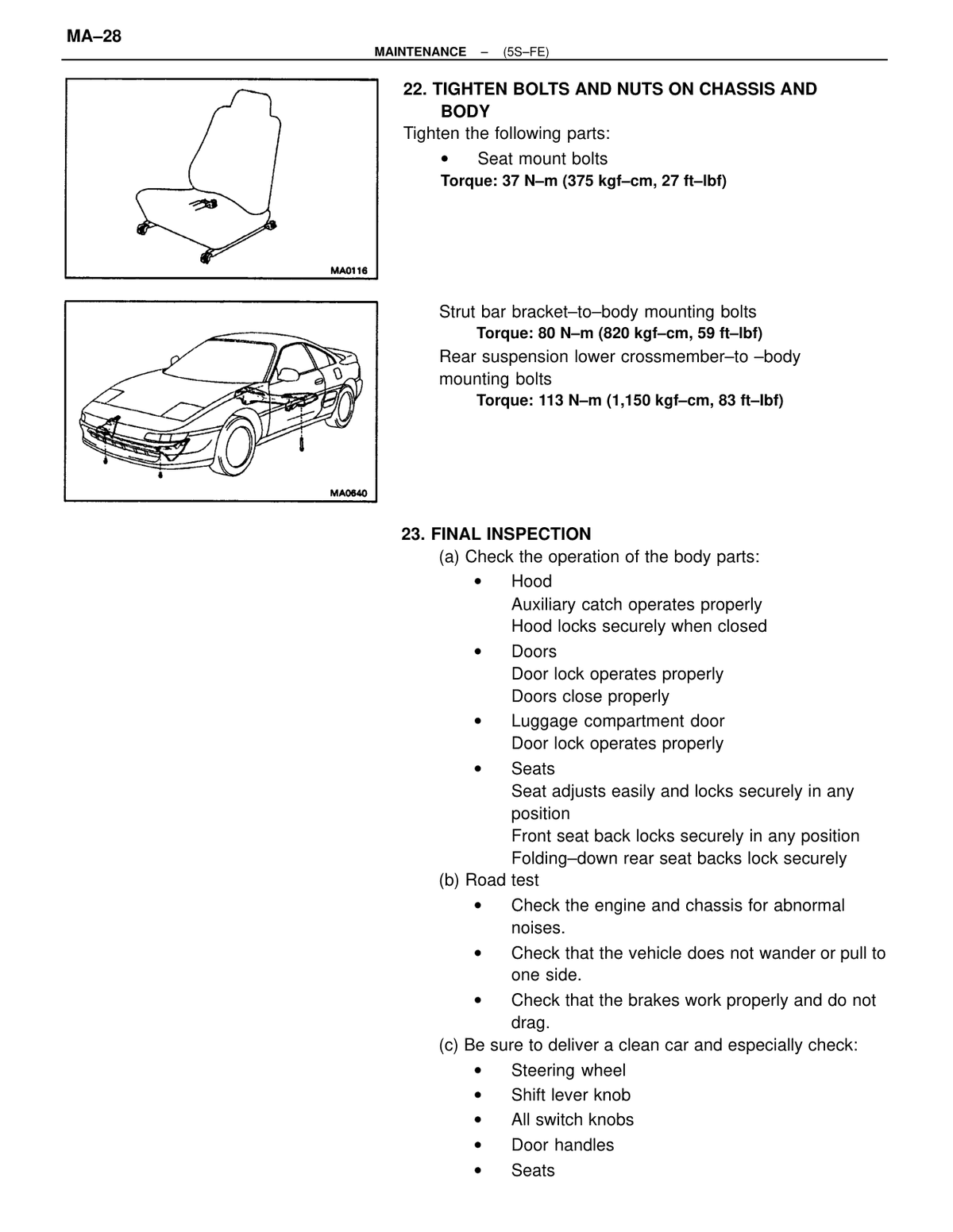

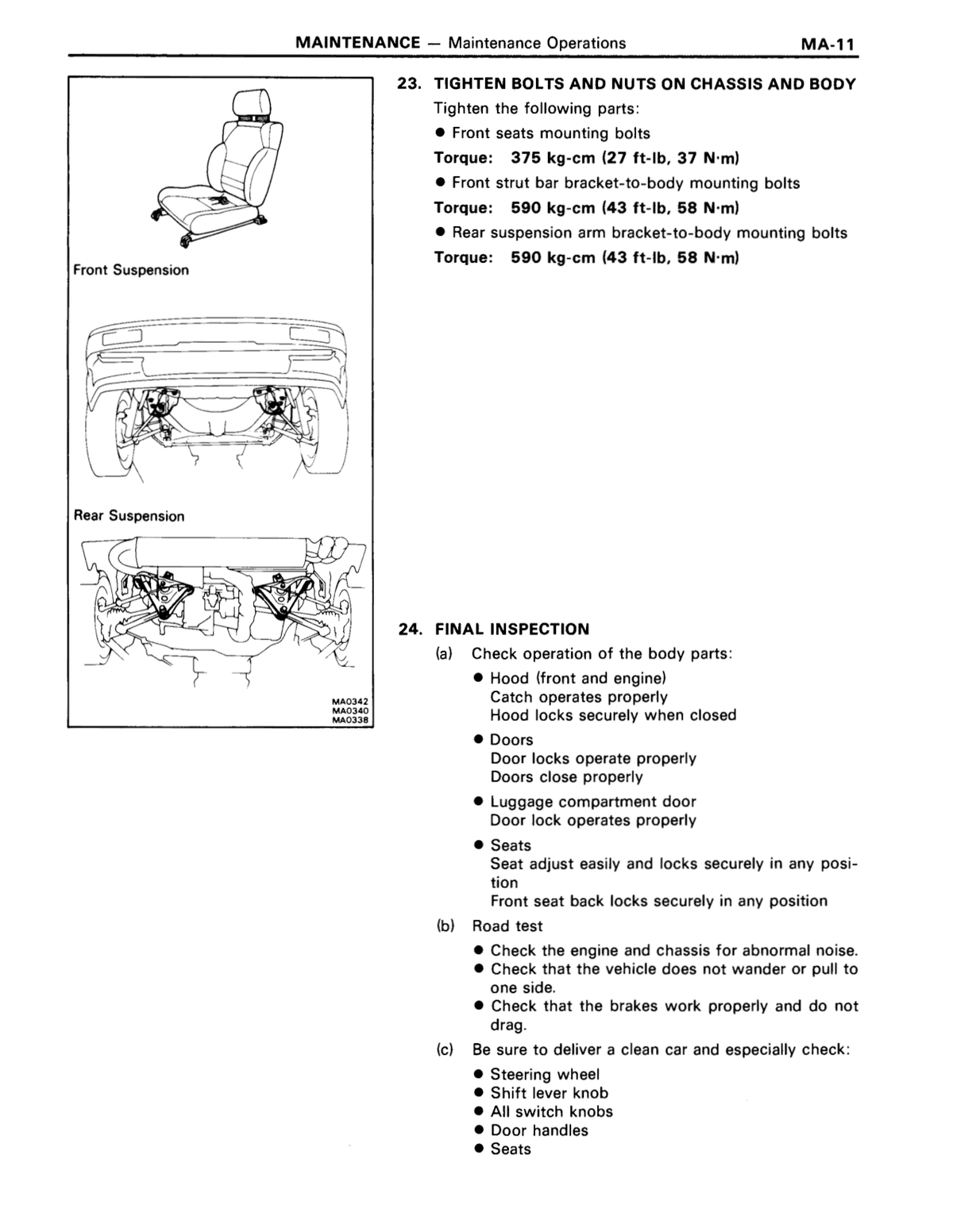

Maintenance Rear suspension lower crossmember-to-body mount bolts 113 1150 83 ↗ RM179U1_1991 · p27 OEM manual

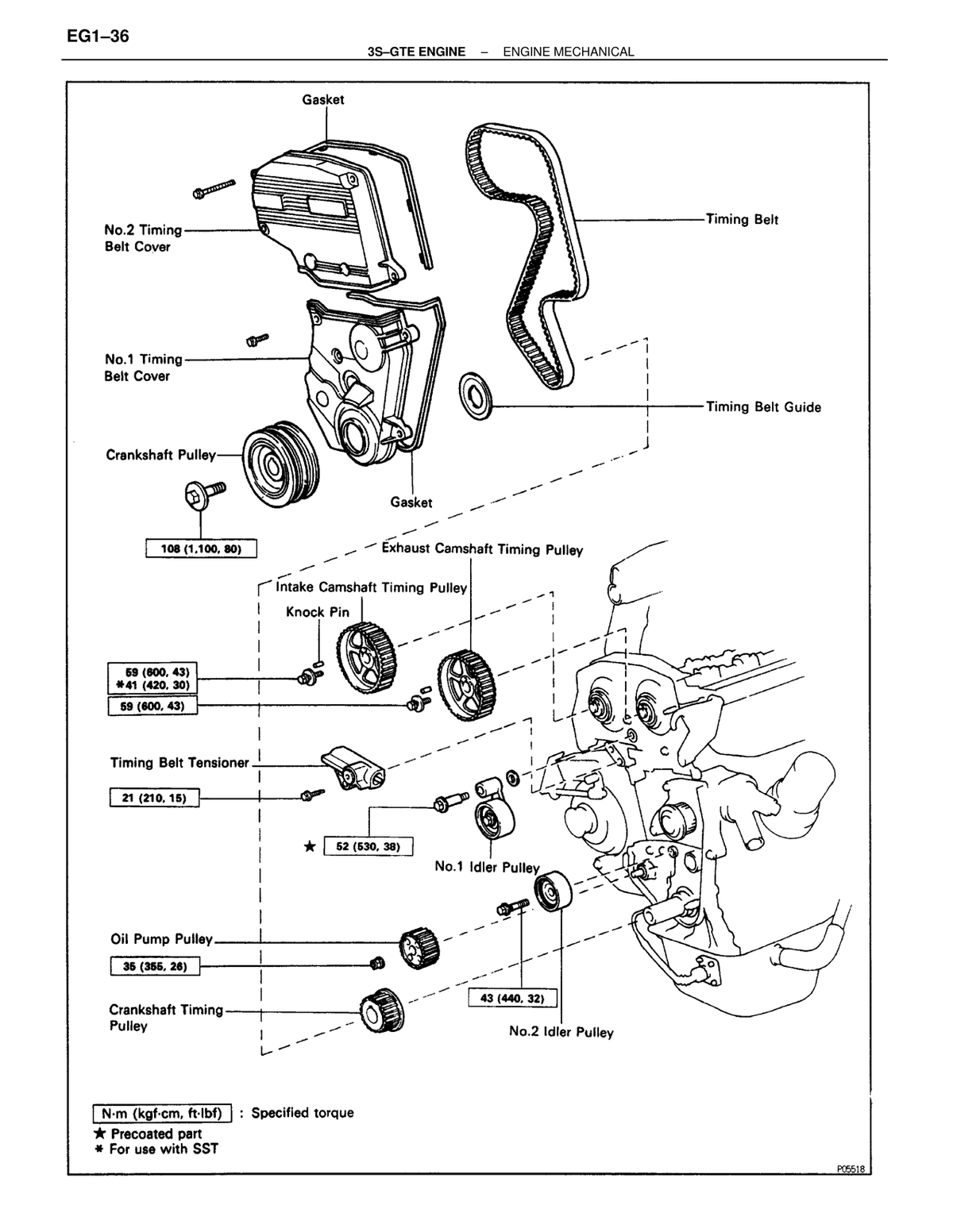

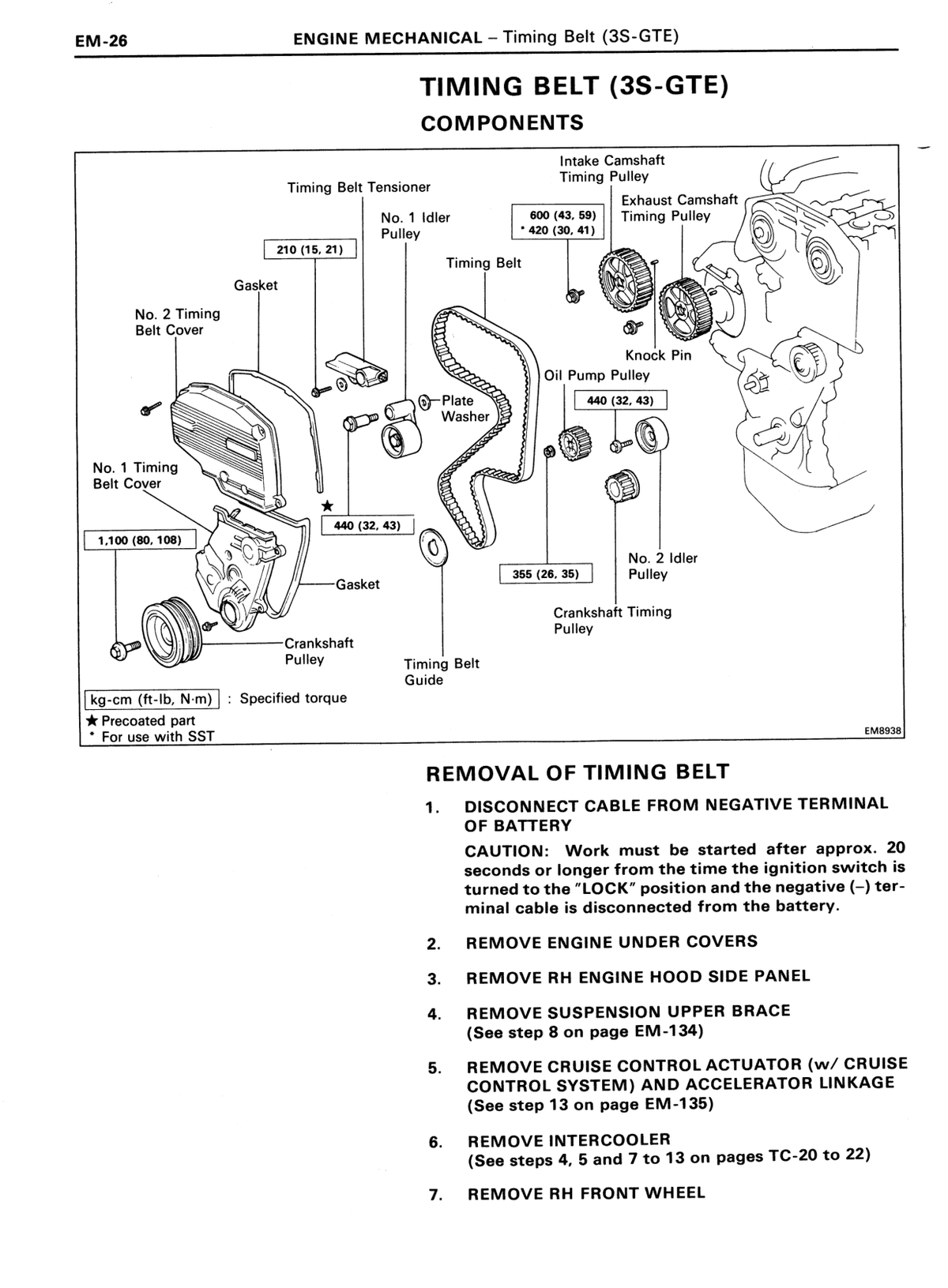

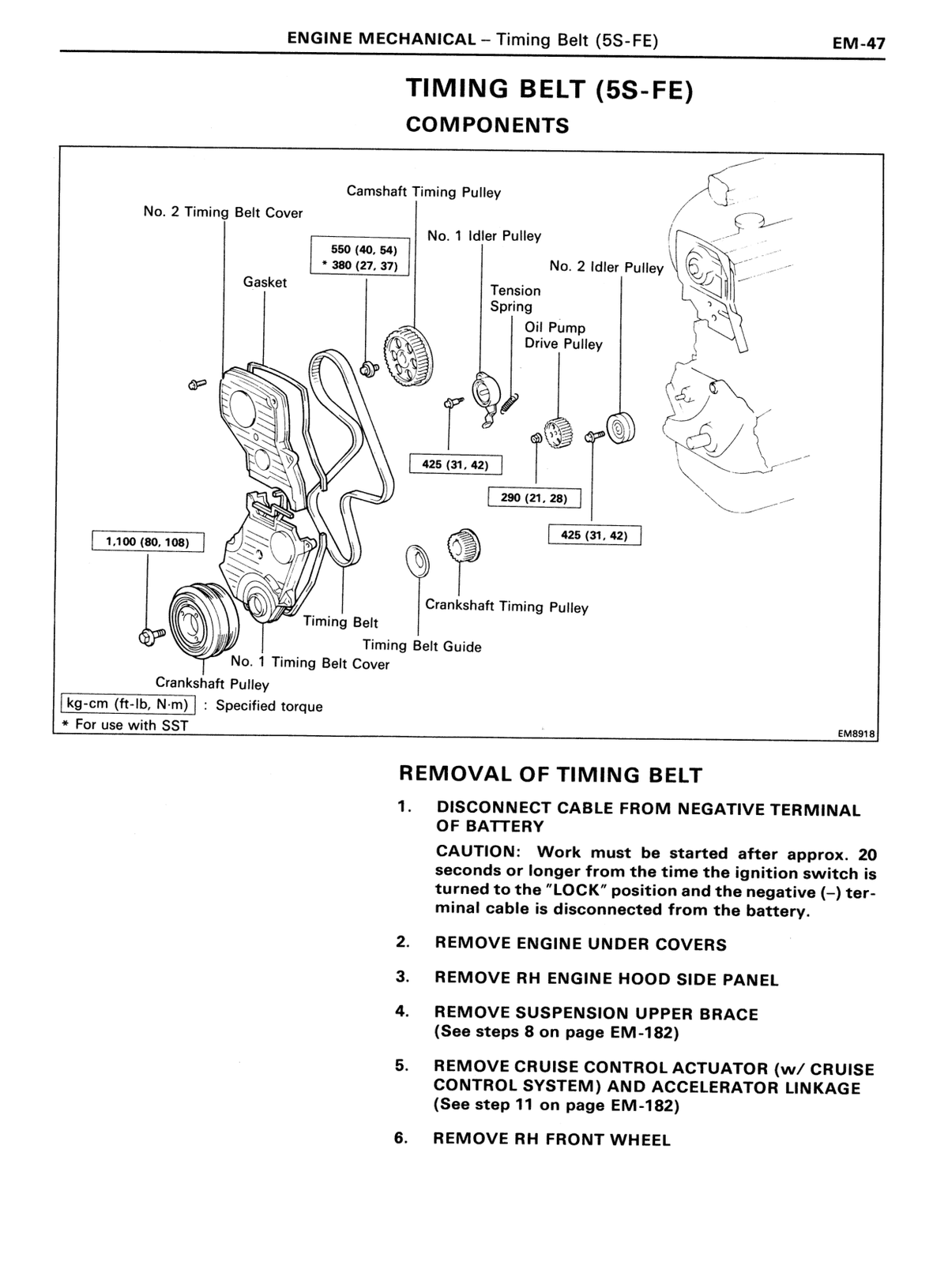

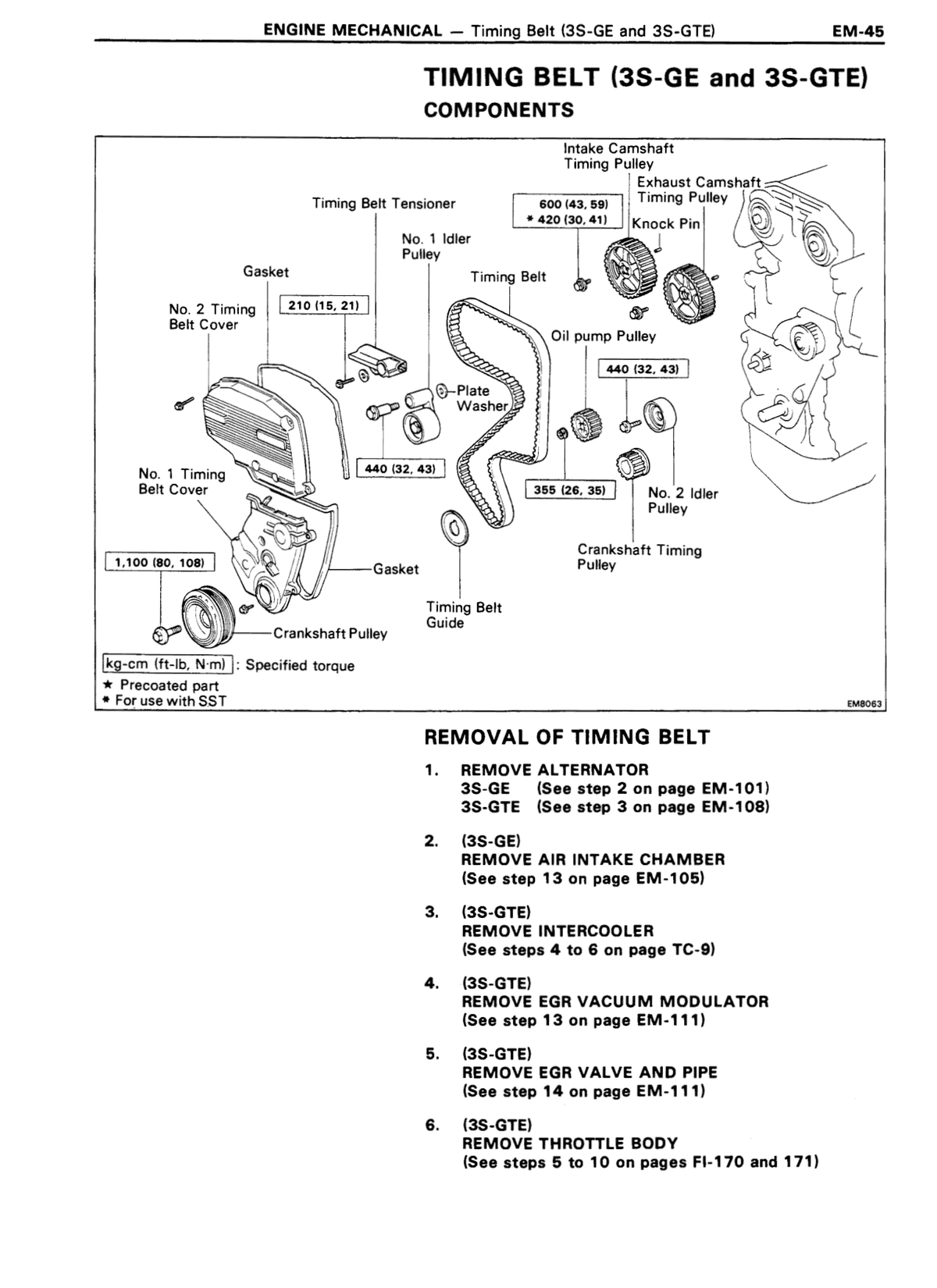

Engine — mechanical No. 1 Idler Pulley / Timing Belt Guide bolt 440 (32, 43) — starred precoated part 43 440 32 ↗ RM179U1_1991 · p56 OEM manual
Engine — mechanical Intake Camshaft Timing Pulley / Exhaust Camshaft Timing Pulley 600 (43, 59); * 420 (30, 41) for use with SST 59 600 43 ↗ RM179U1_1991 · p56 OEM manual
Engine — mechanical Intake Camshaft Timing Pulley / Exhaust Camshaft Timing Pulley (SST) For use with SST 41 420 30 ↗ RM179U1_1991 · p56 OEM manual
Engine — mechanical Crankshaft Timing Pulley / No. 2 Idler Pulley 355 (26, 35) 35 355 26 ↗ RM179U1_1991 · p56 OEM manual

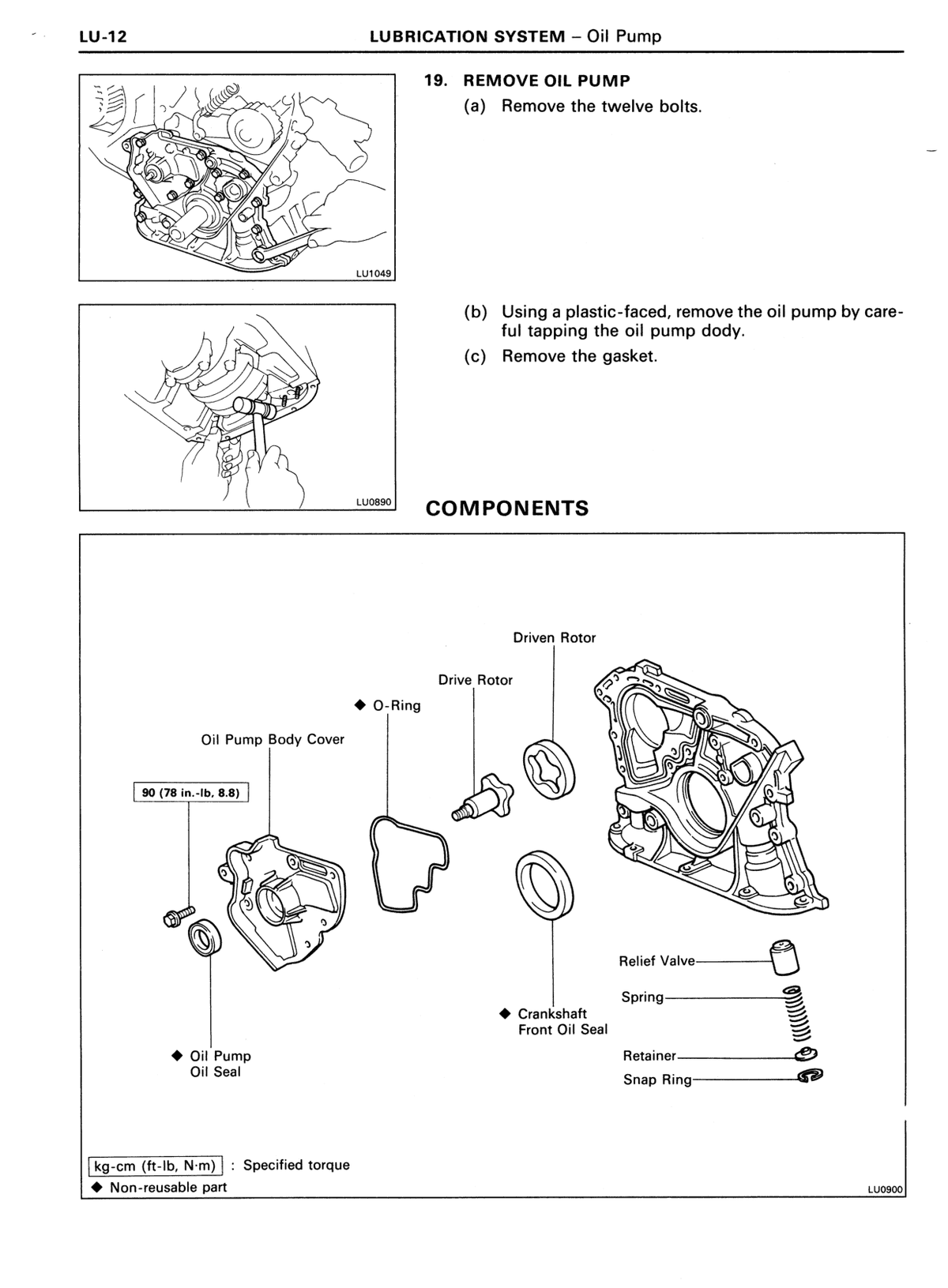

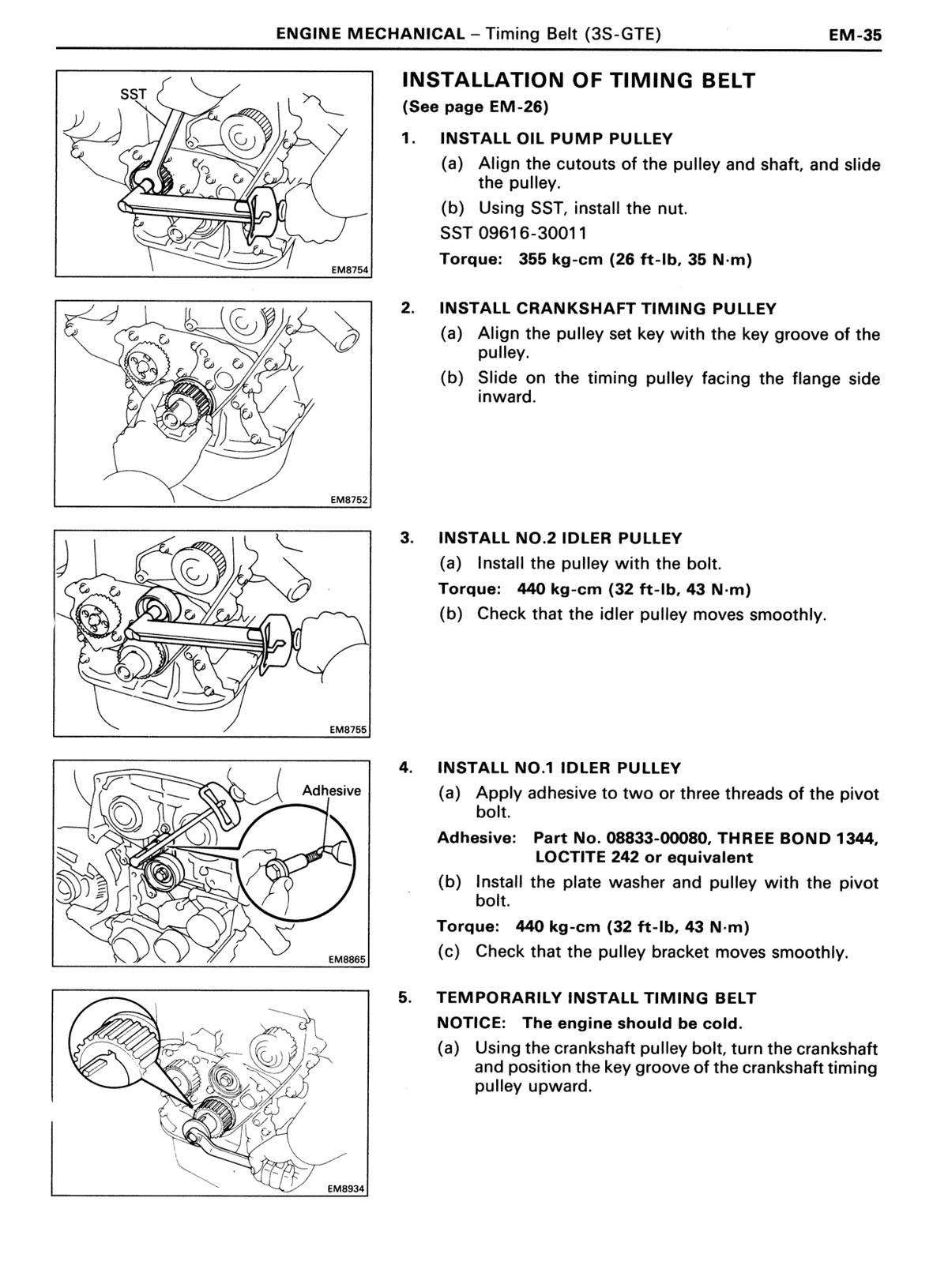

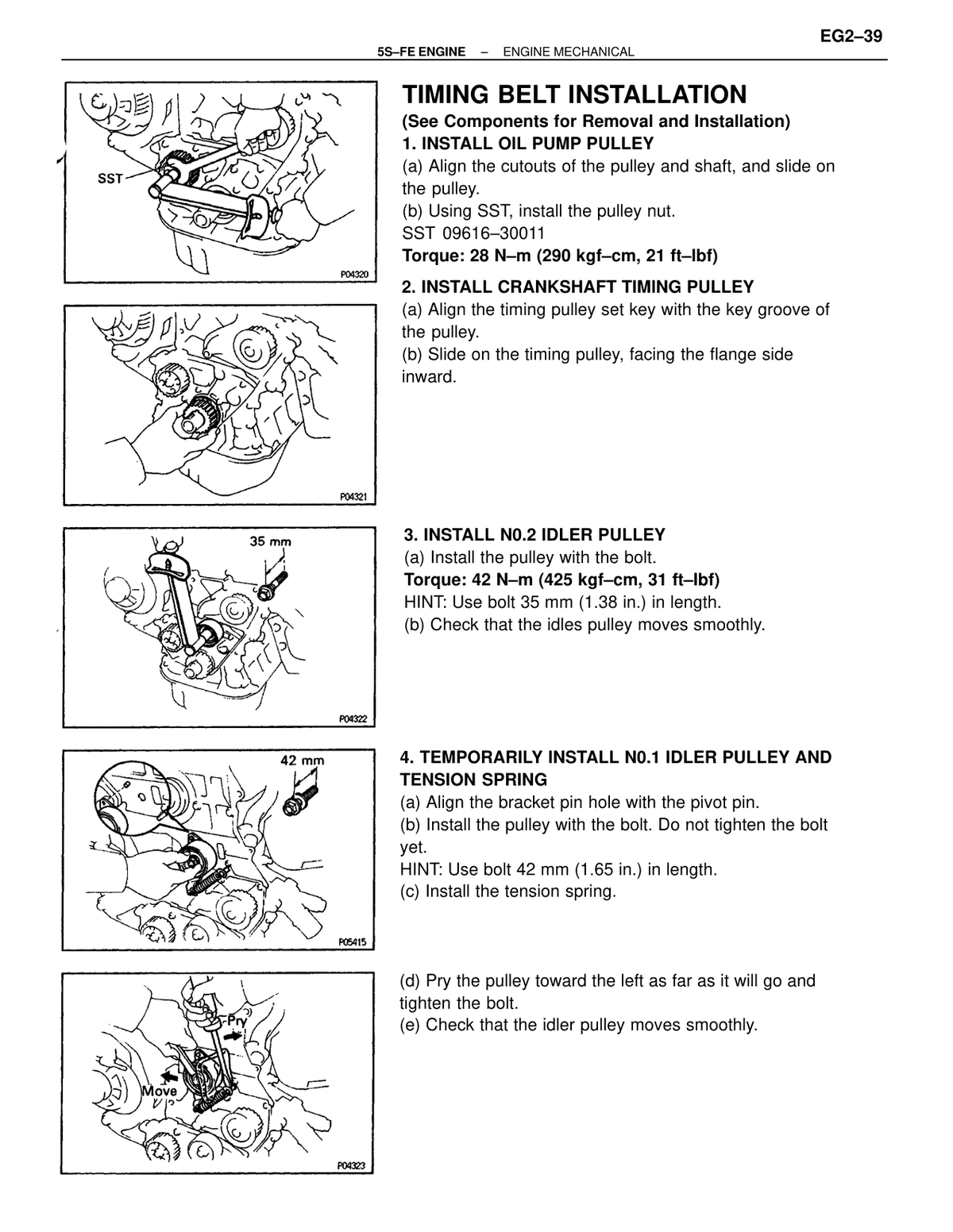

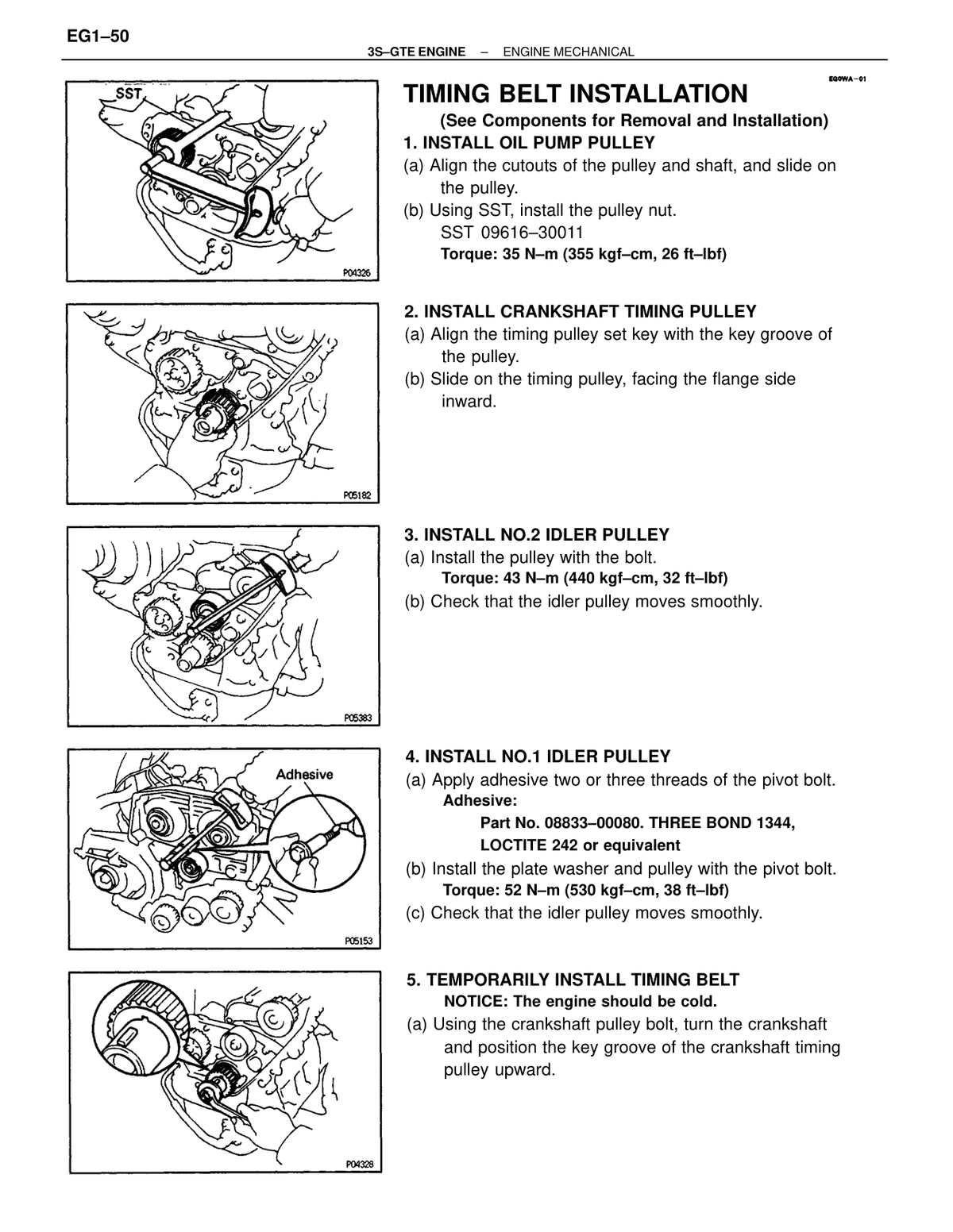

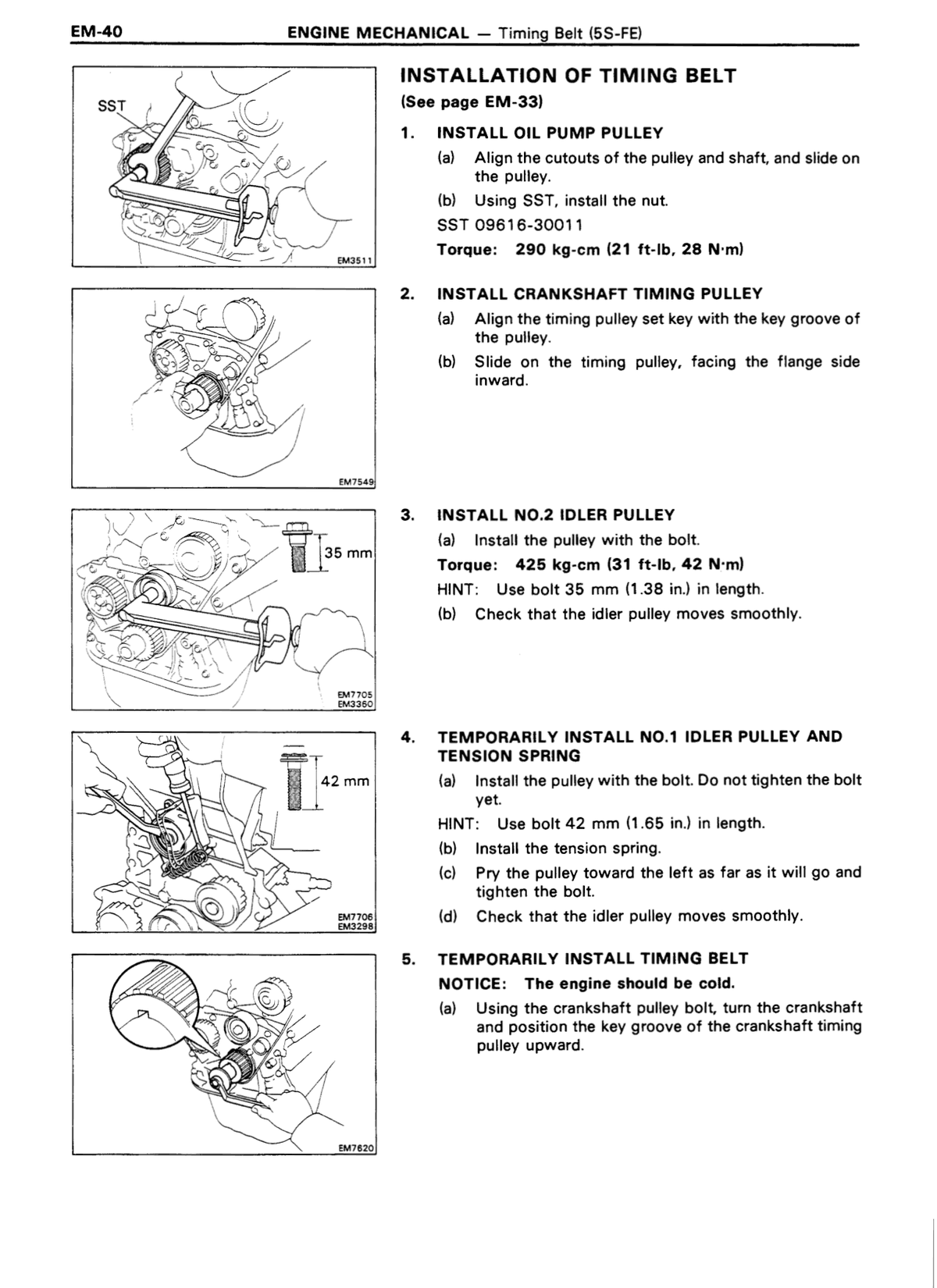

Engine — mechanical Oil pump pulley nut Install using SST 09616-30011 35 355 26 ↗ RM179U1_1991 · p65 OEM manual
Engine — mechanical No.1 idler pulley pivot bolt Apply adhesive Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent to 2-3 threads before installation 43 440 32 ↗ RM179U1_1991 · p65 OEM manual

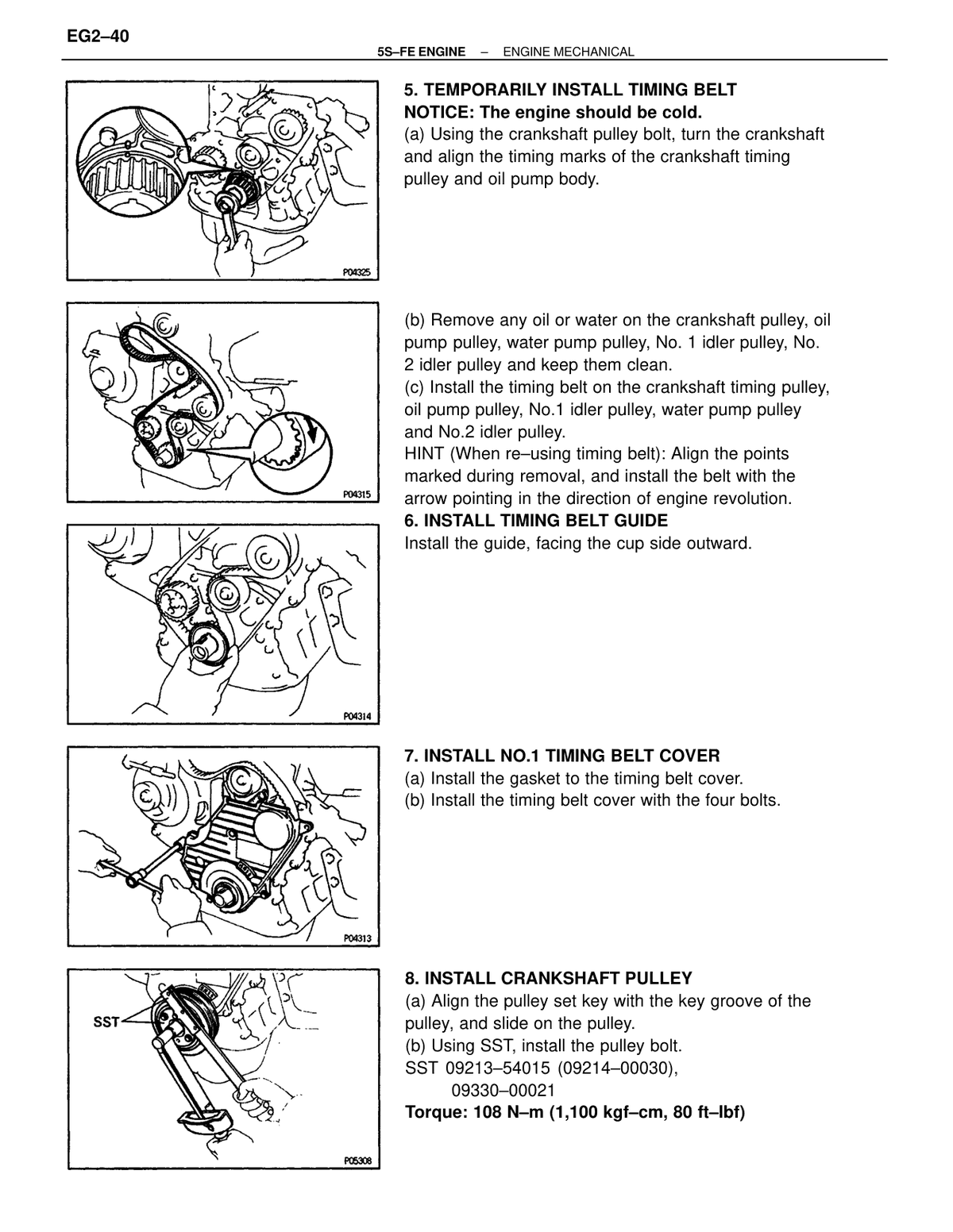

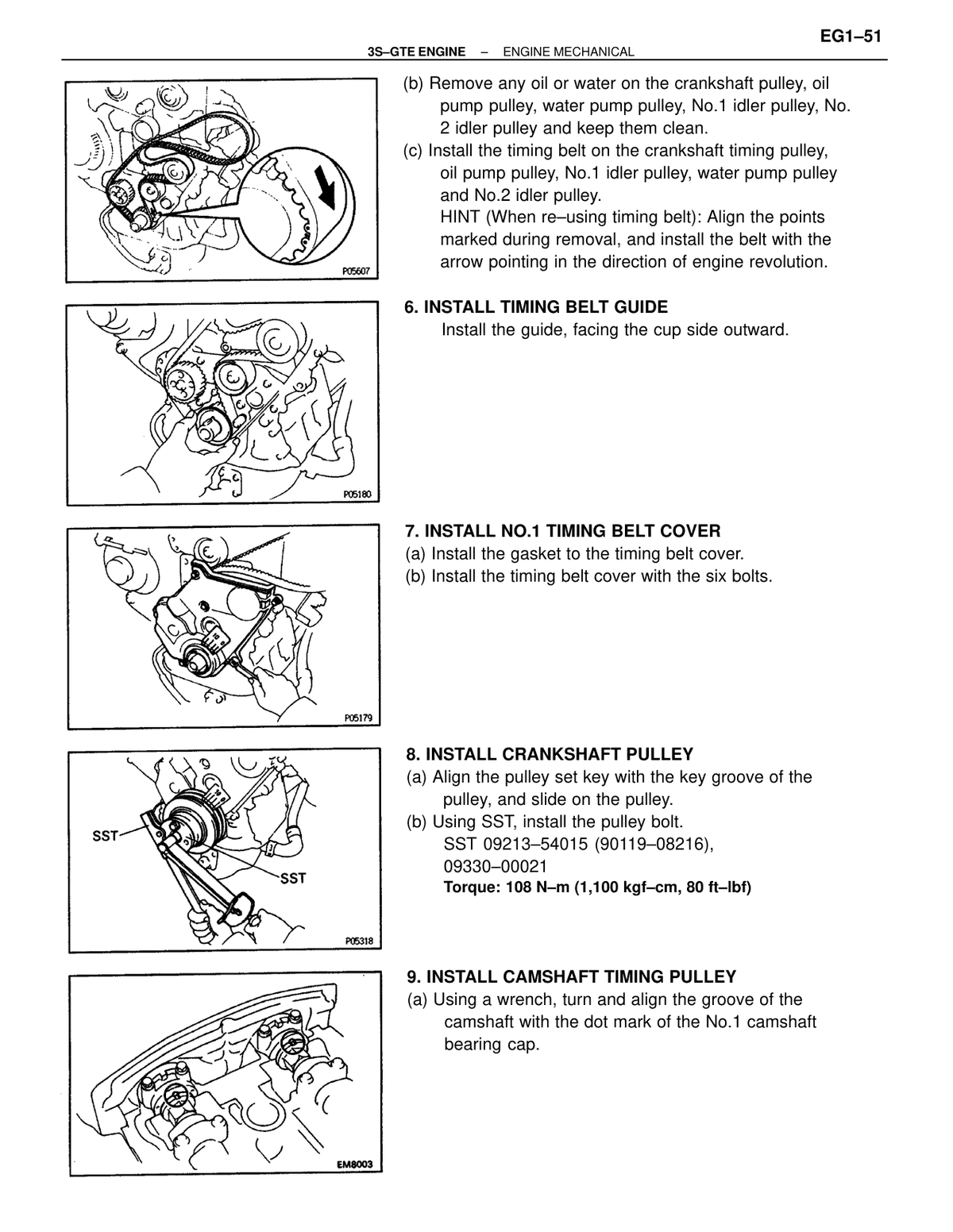

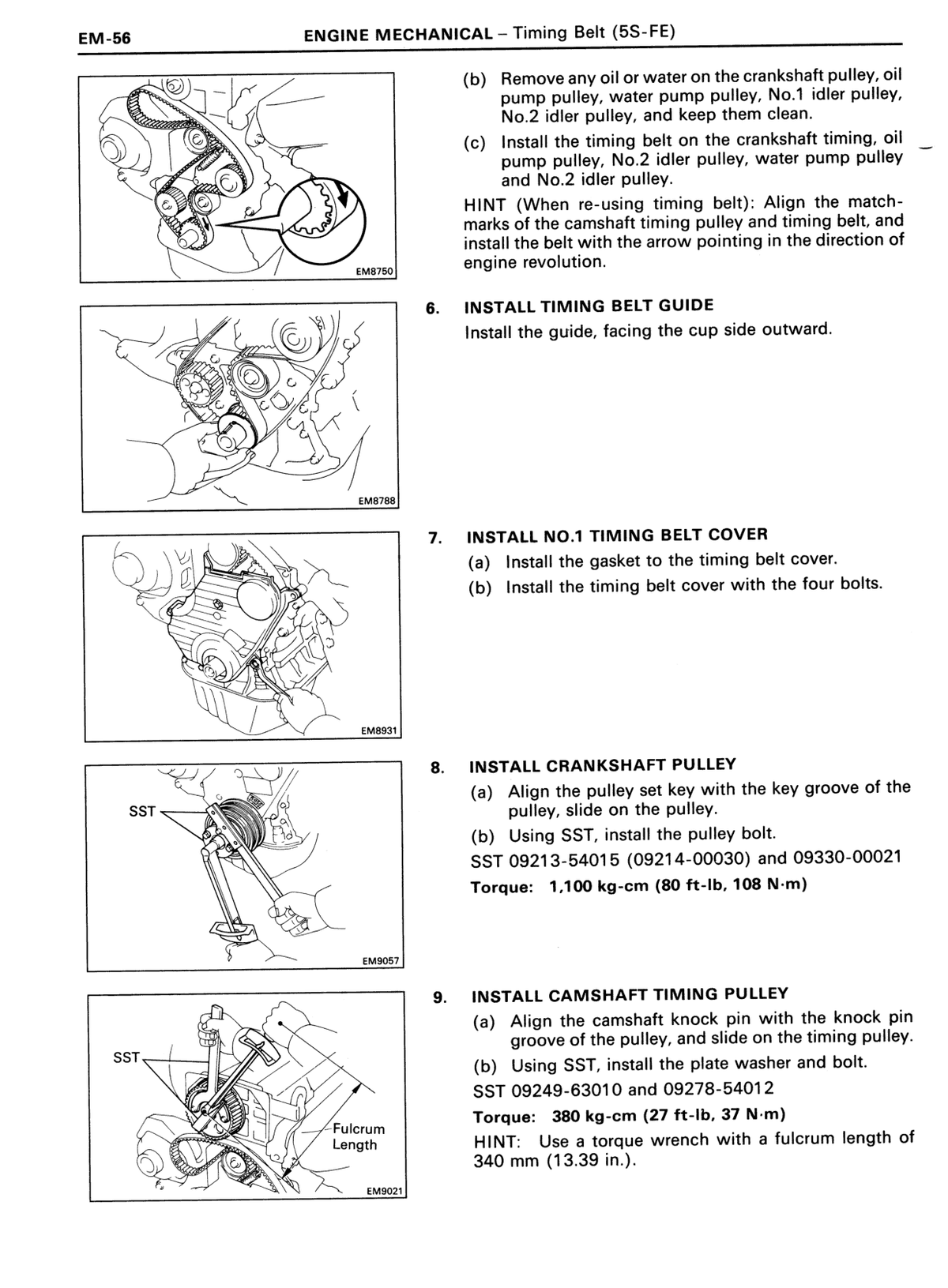

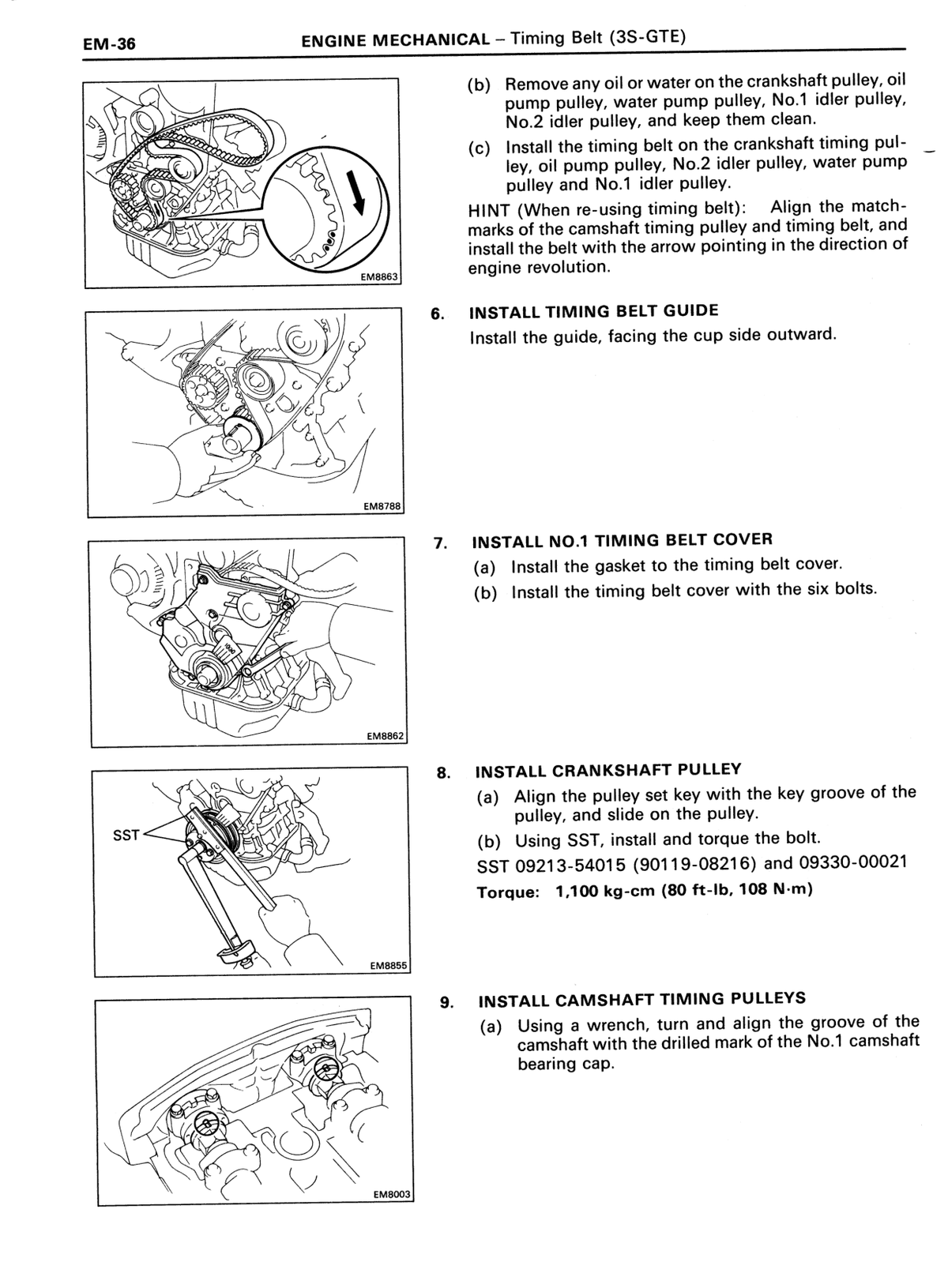

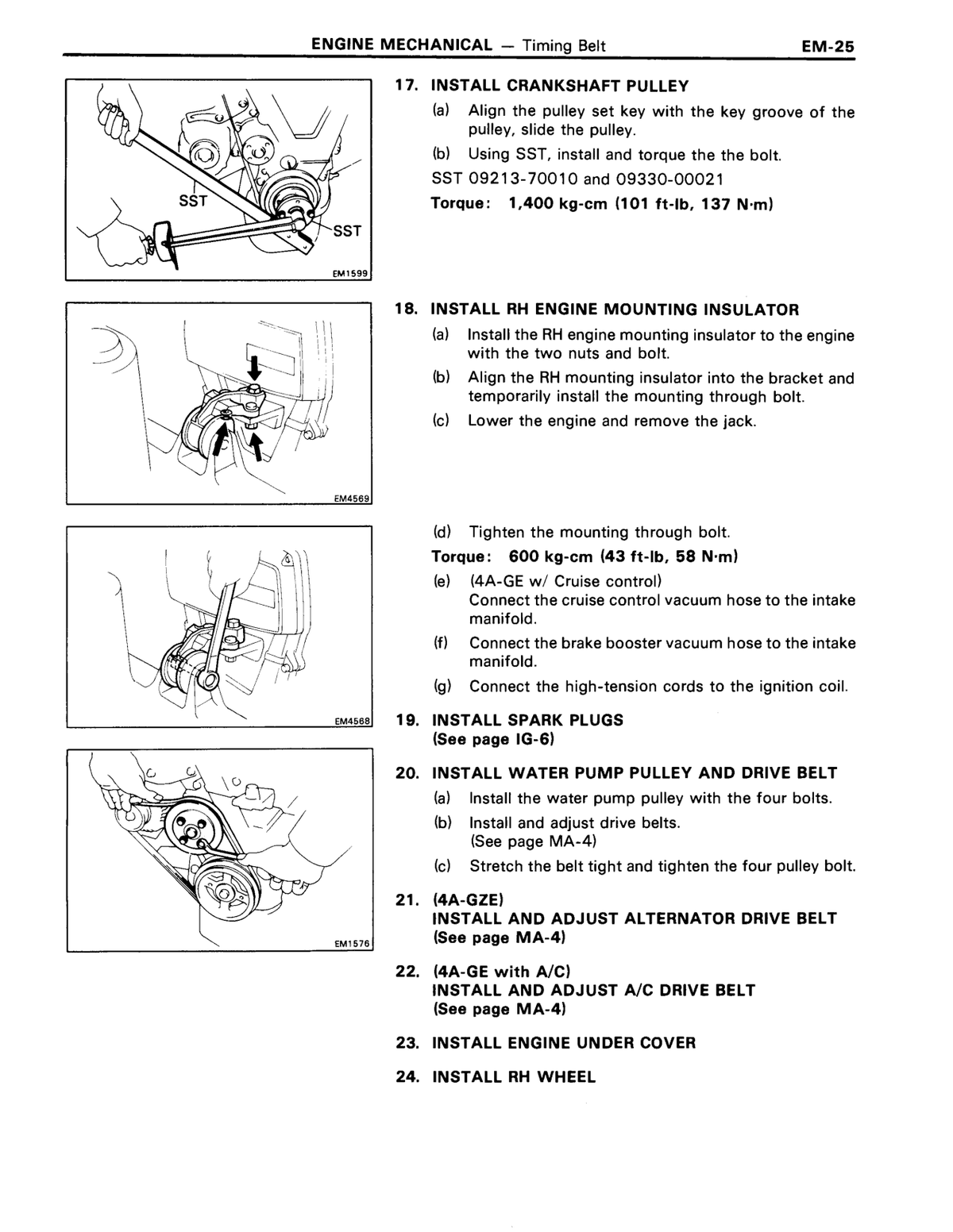

Engine — mechanical Crankshaft pulley bolt Step 8(b), install using SST 09213-54015 (90119-08216) and 09330-00021 108 1100 80 ↗ RM179U1_1991 · p66 OEM manual

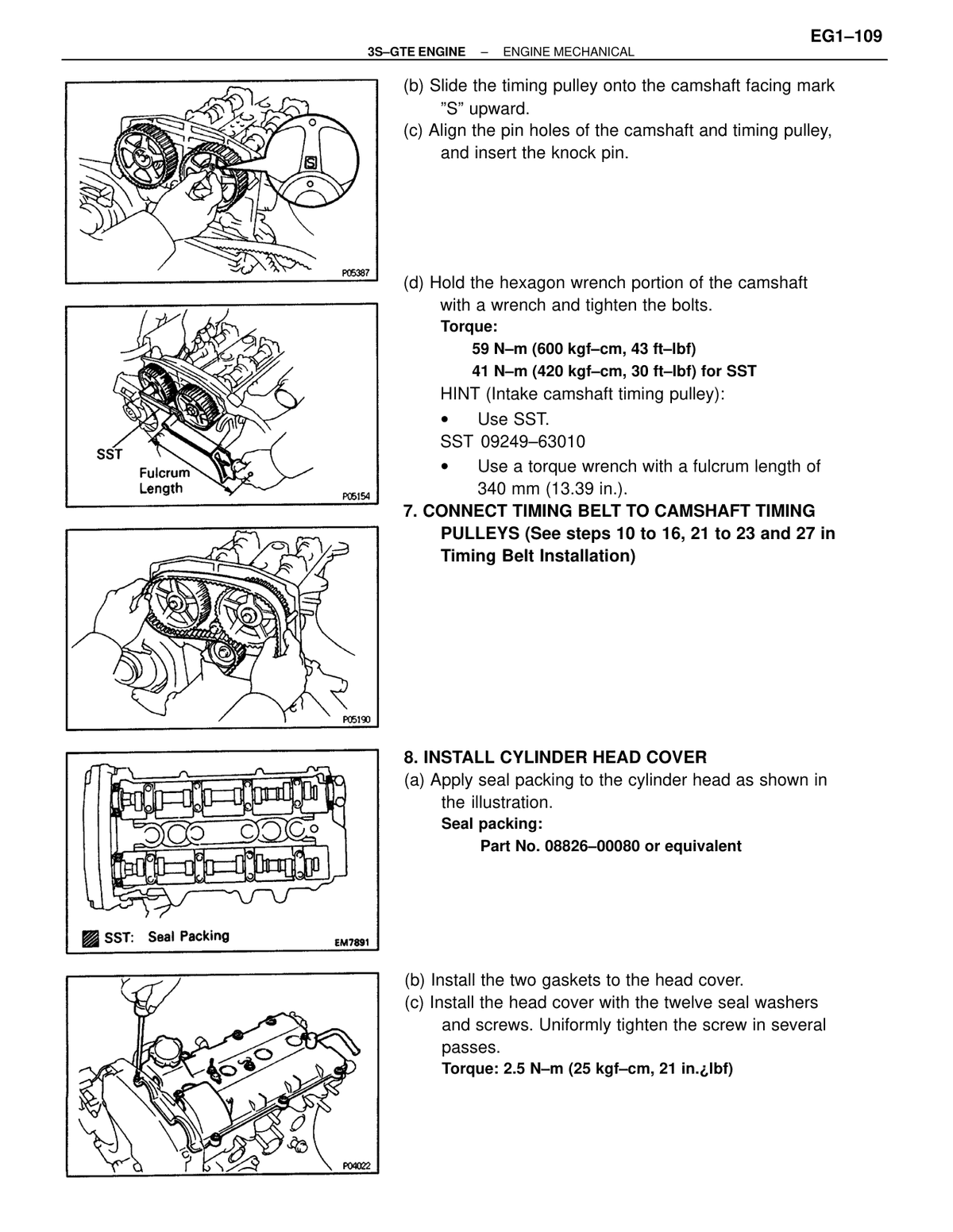

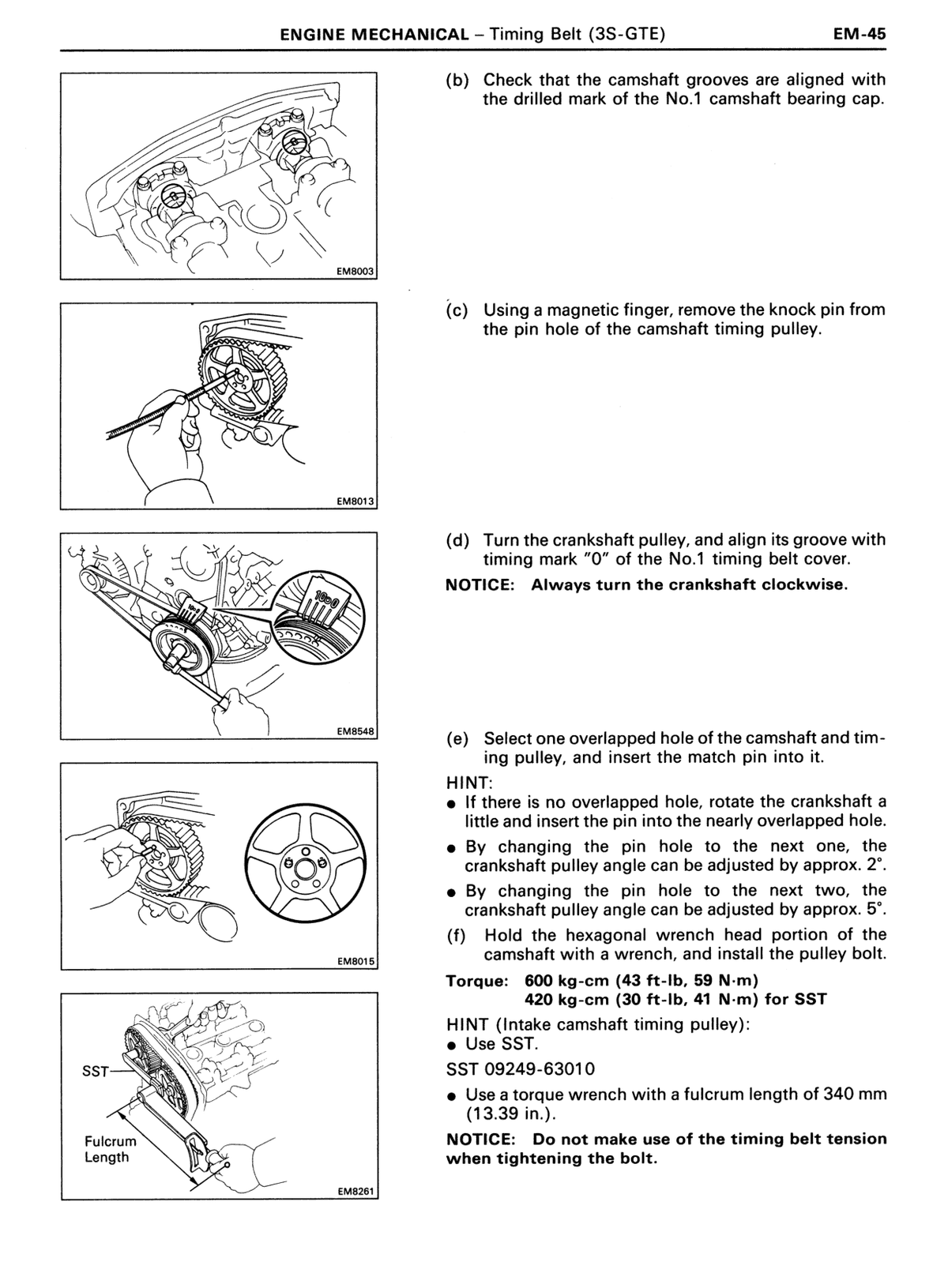

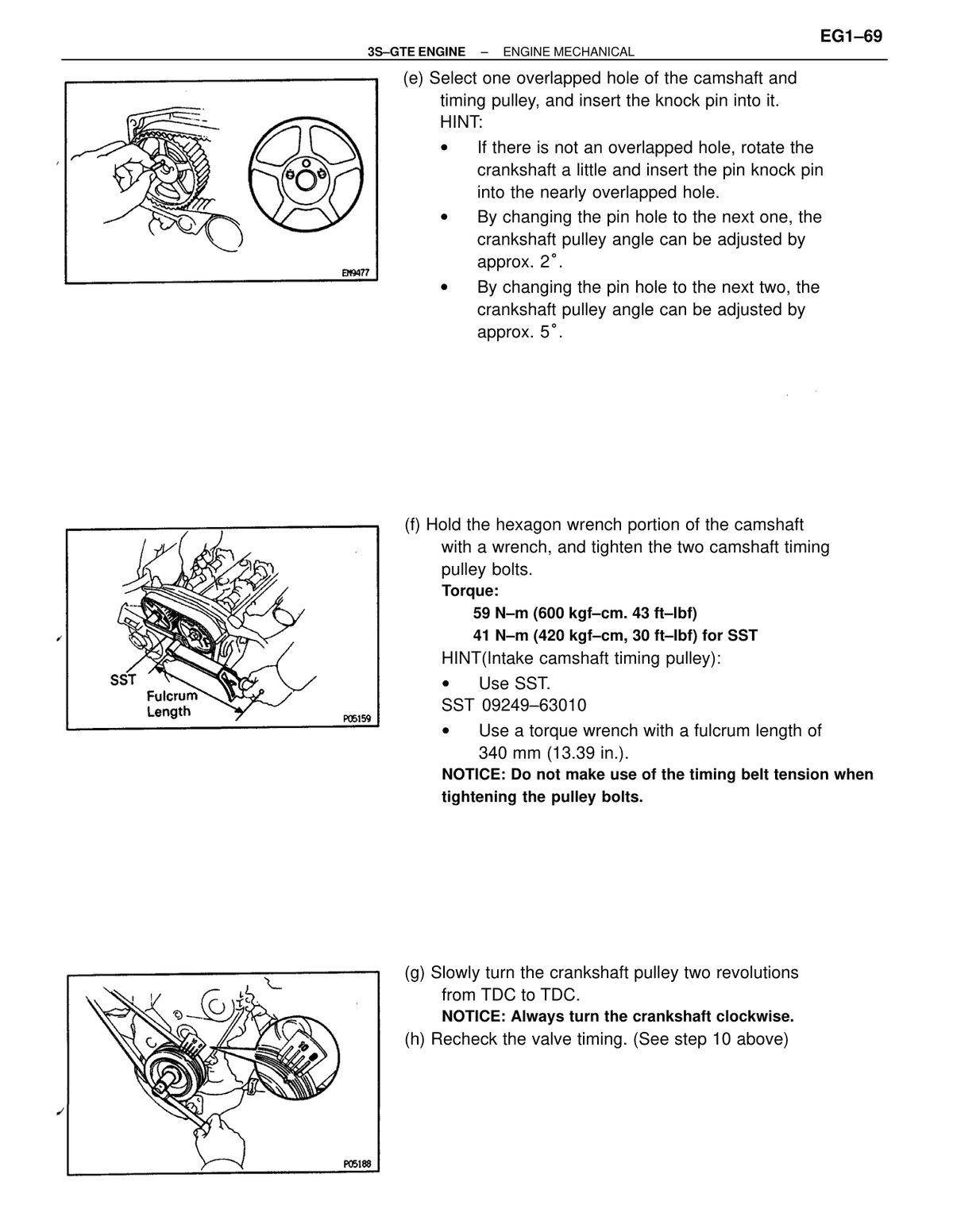

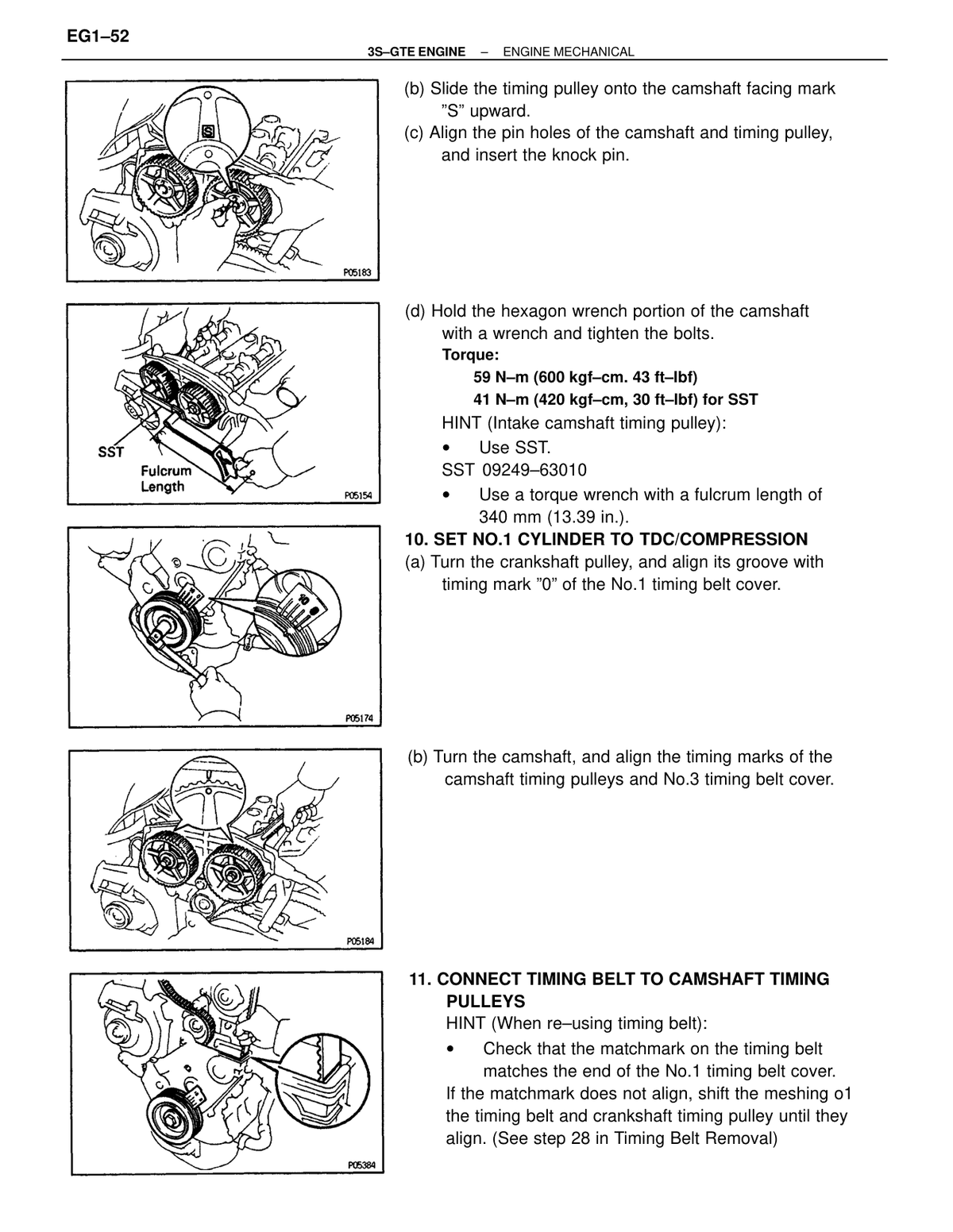

Engine — mechanical Camshaft timing pulley bolt Standard tightening 59 600 43 ↗ RM179U1_1991 · p67 OEM manual

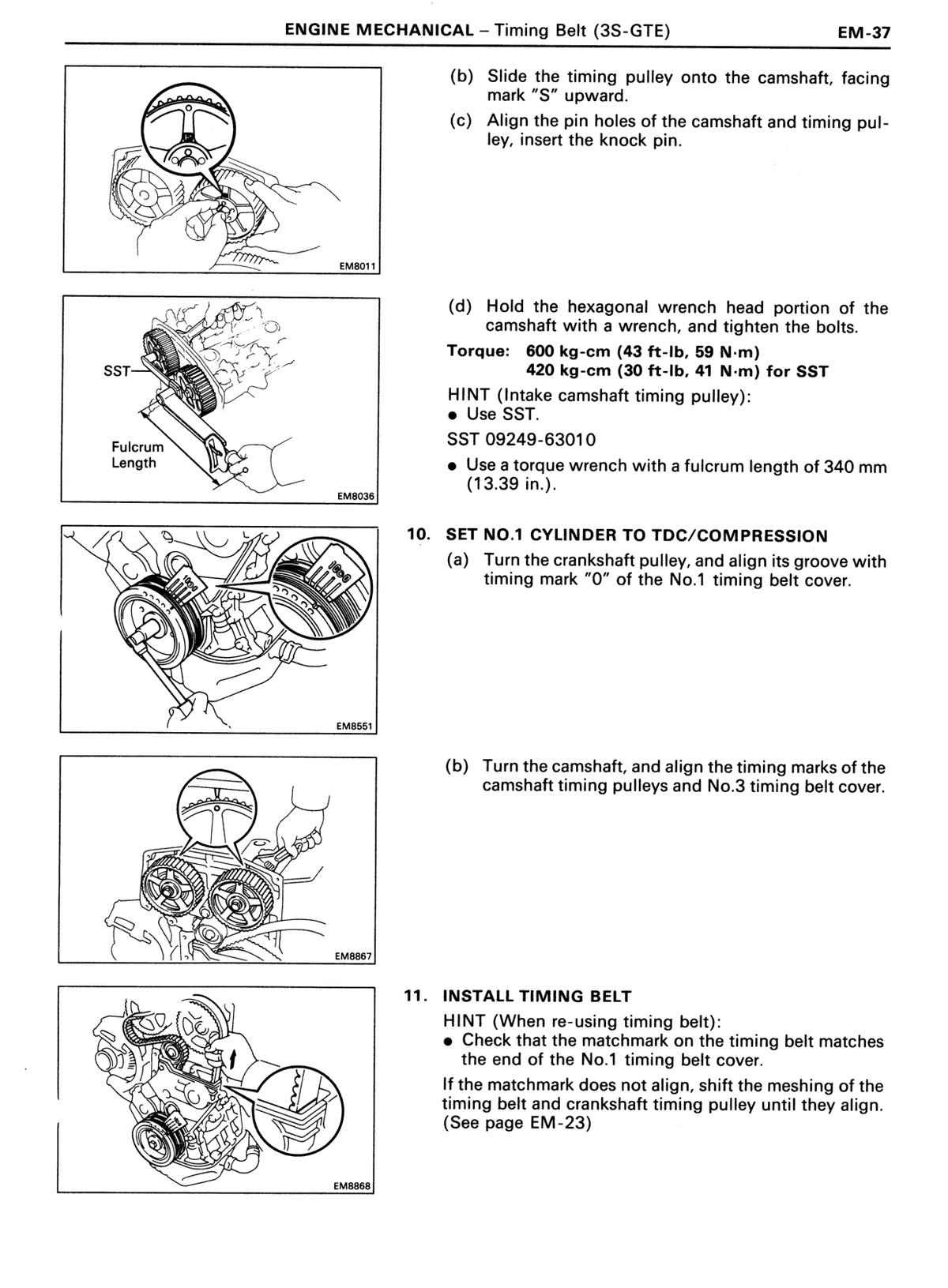

Engine — mechanical Camshaft timing pulley bolt (SST 09249-63010) For SST; use torque wrench with fulcrum length of 340 mm (13.39 in.) 41 420 30 ↗ RM179U1_1991 · p67 OEM manual

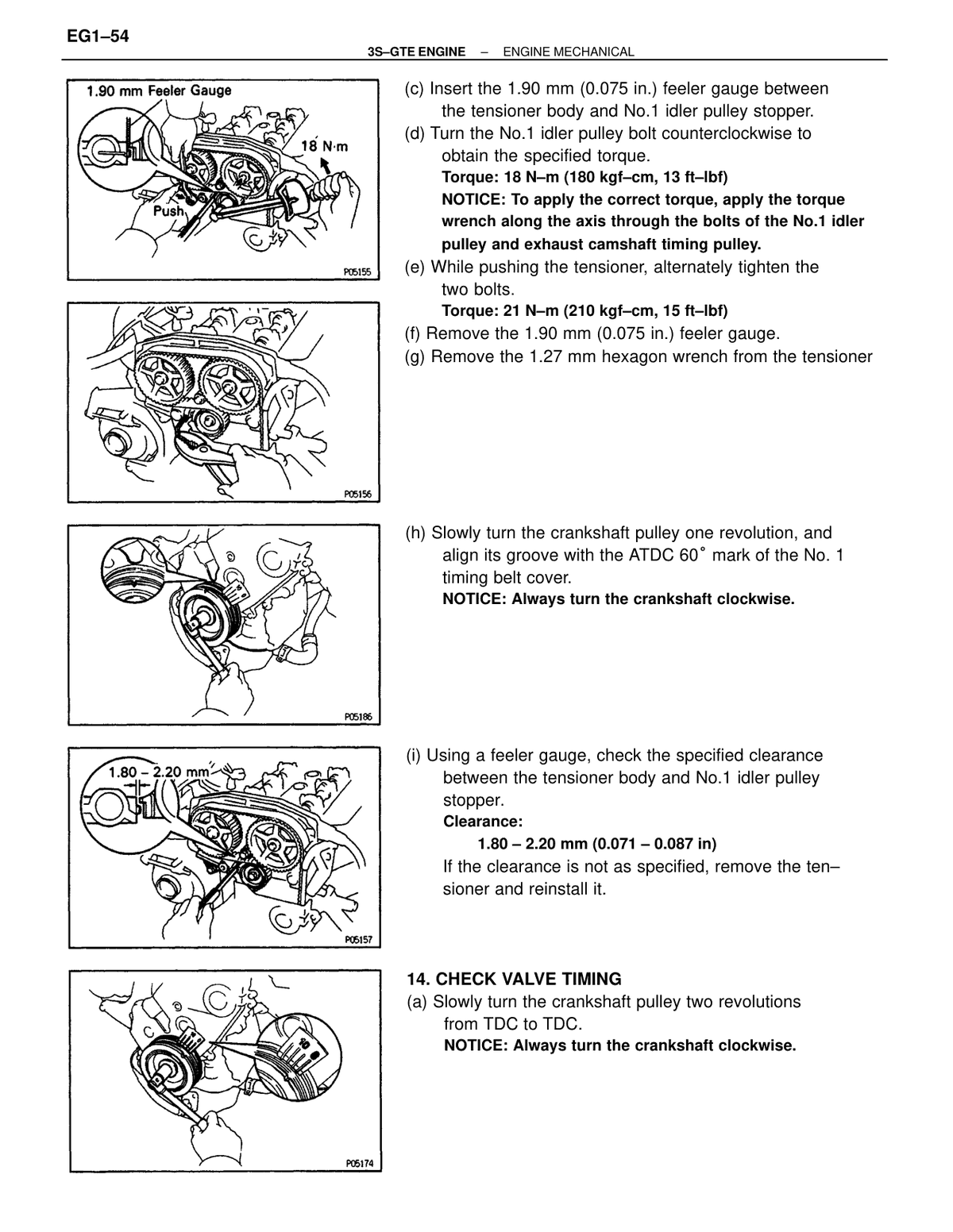

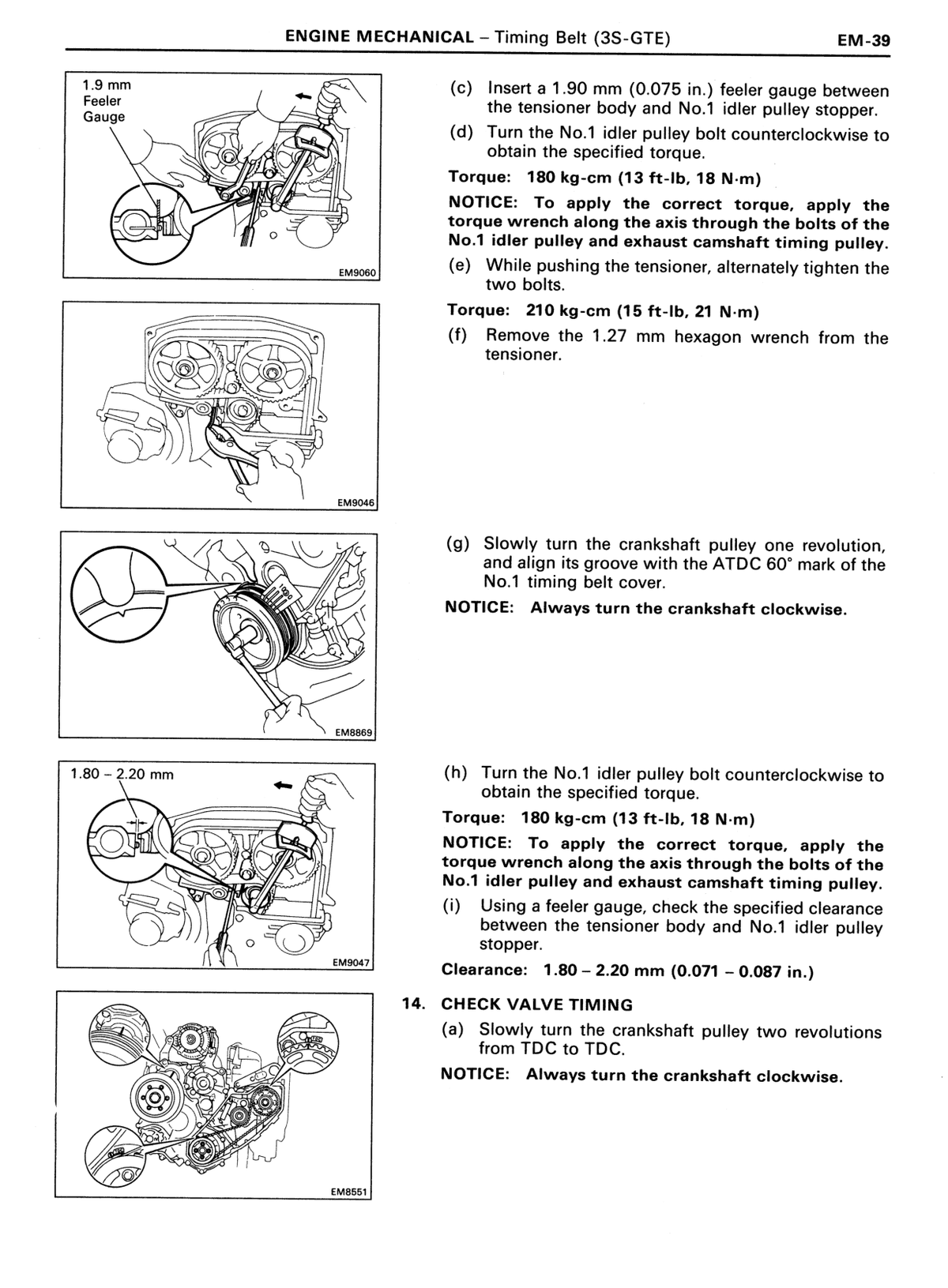

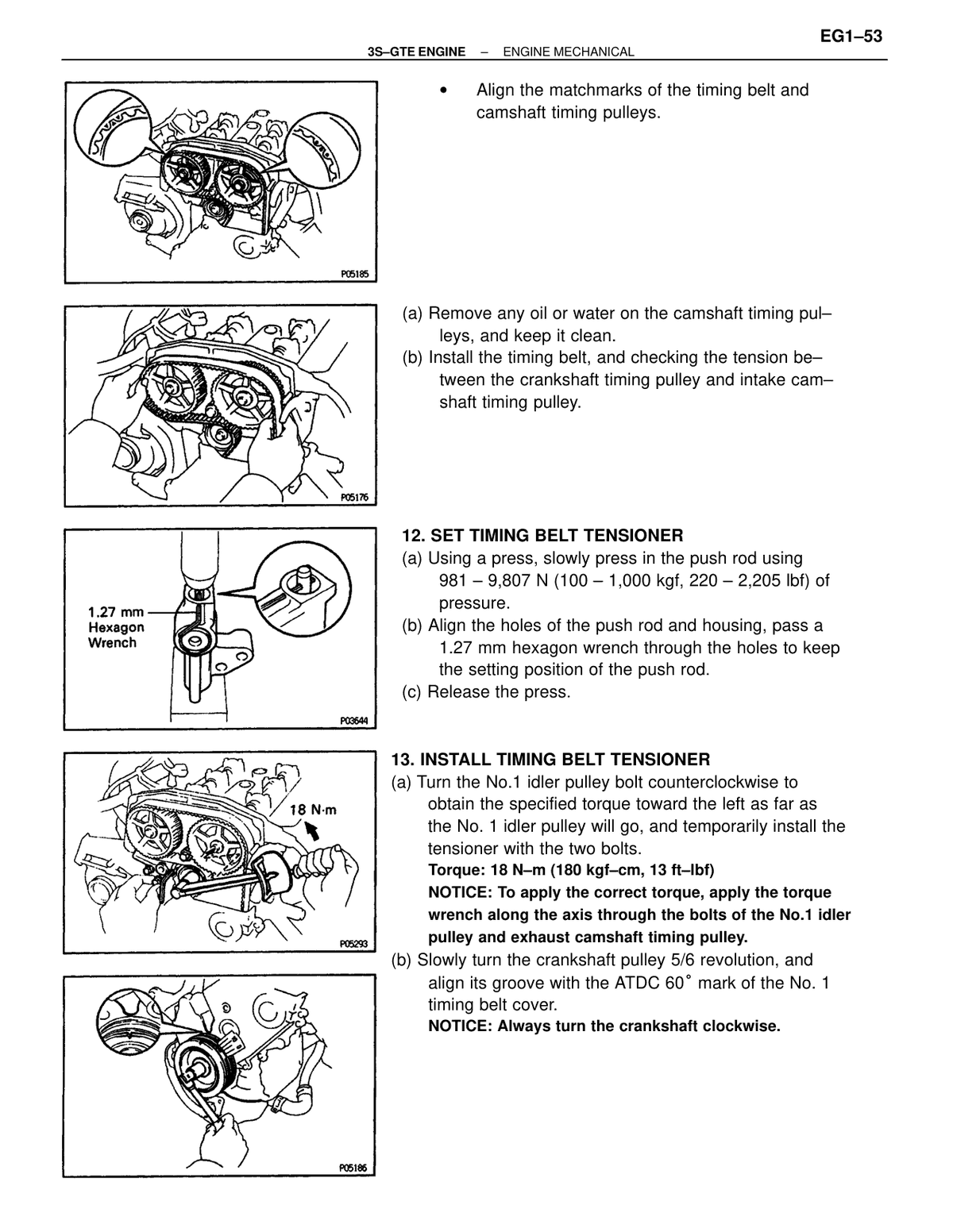

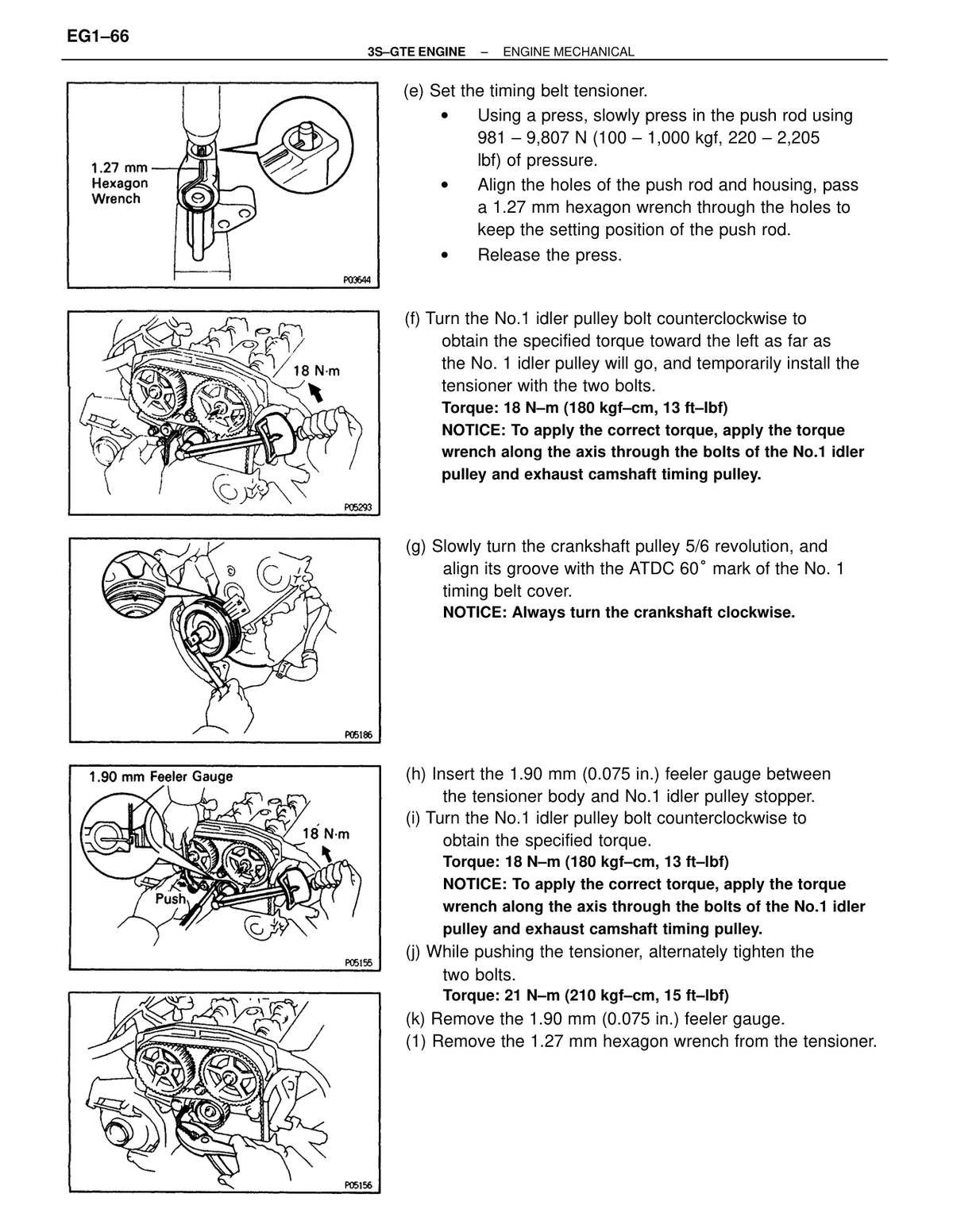

Engine — mechanical No.1 idler pulley bolt (counterclockwise, initial set) Apply torque wrench along axis through bolts of No.1 idler pulley and exhaust camshaft timing pulley — step (d) 18 180 13 ↗ RM179U1_1991 · p69 OEM manual

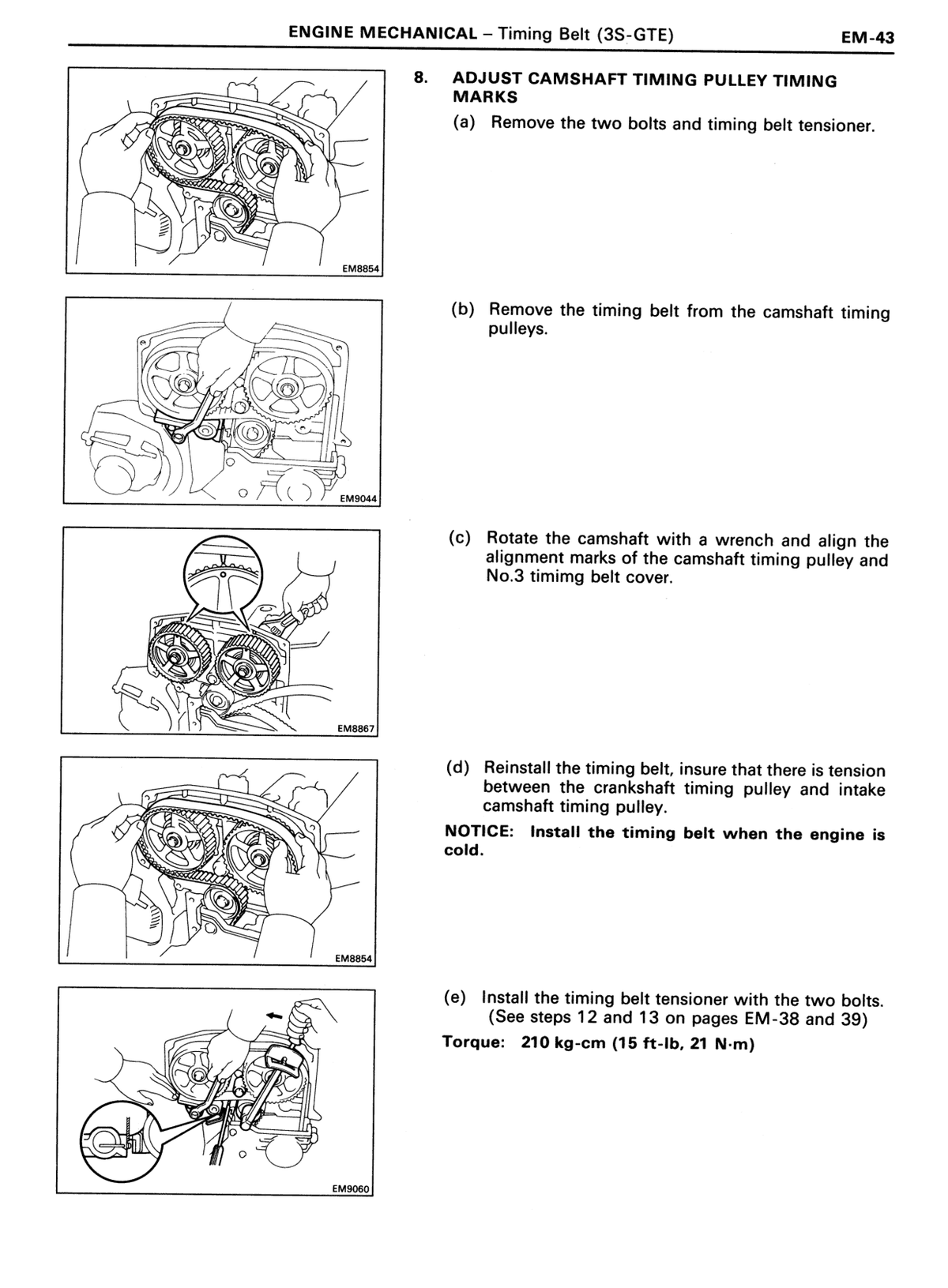

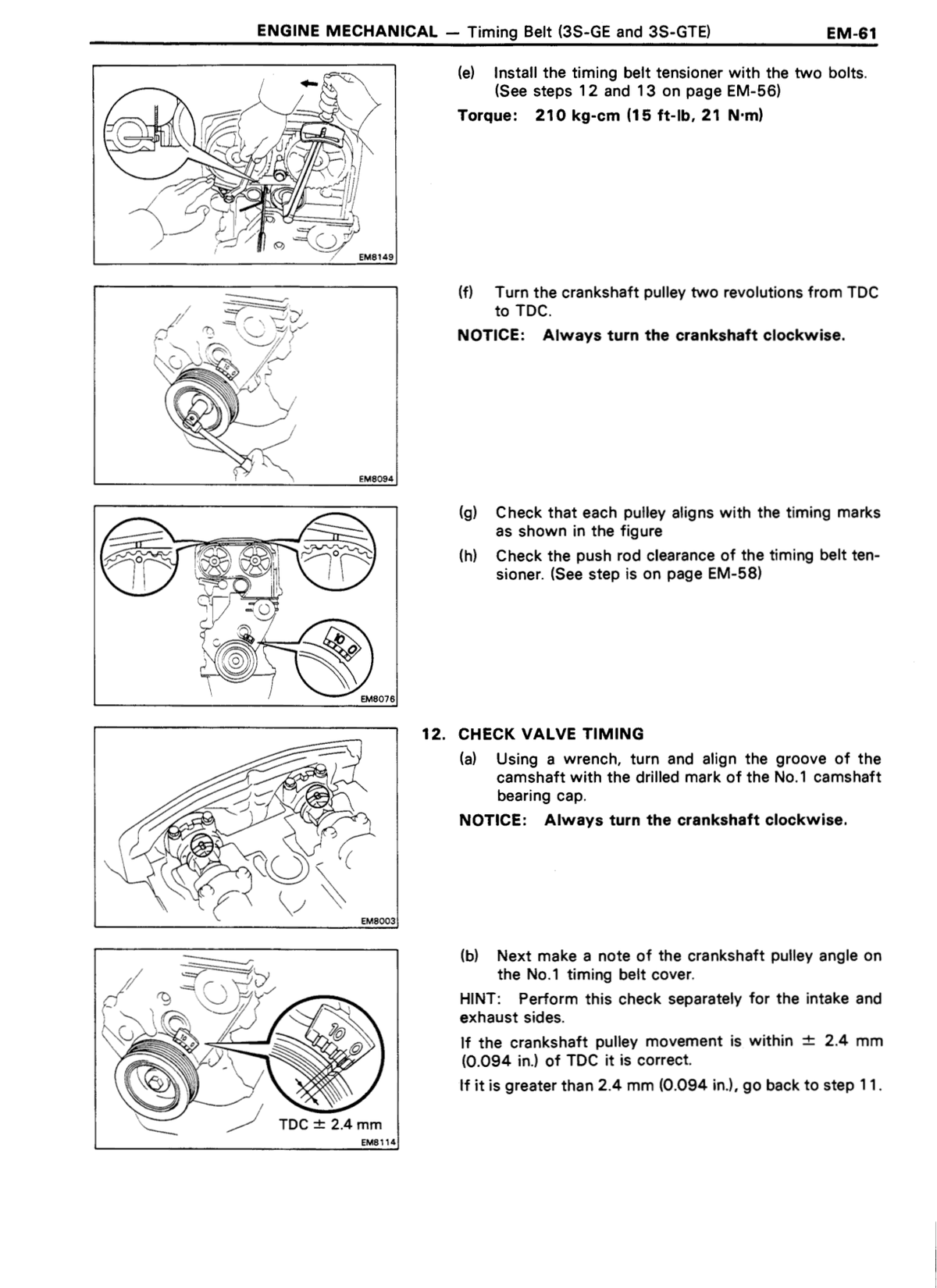

Engine — mechanical Tensioner bolts (alternately tightened while pushing tensioner) Tighten alternately while pushing tensioner — step (e) 21 210 15 ↗ RM179U1_1991 · p69 OEM manual
Engine — mechanical No.1 idler pulley bolt (counterclockwise, final) Apply torque wrench along axis through bolts of No.1 idler pulley and exhaust camshaft timing pulley — step (h) 18 180 13 ↗ RM179U1_1991 · p69 OEM manual

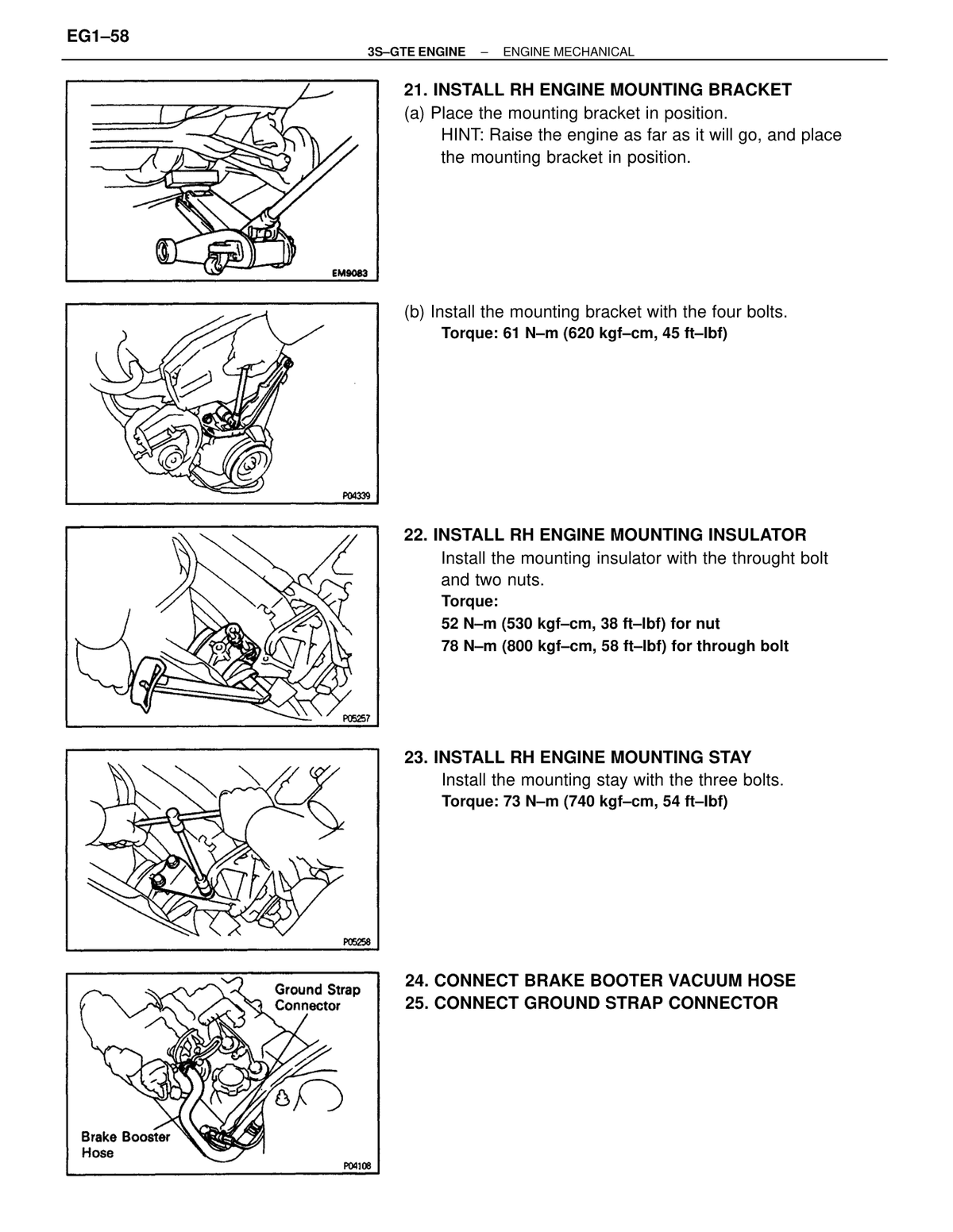

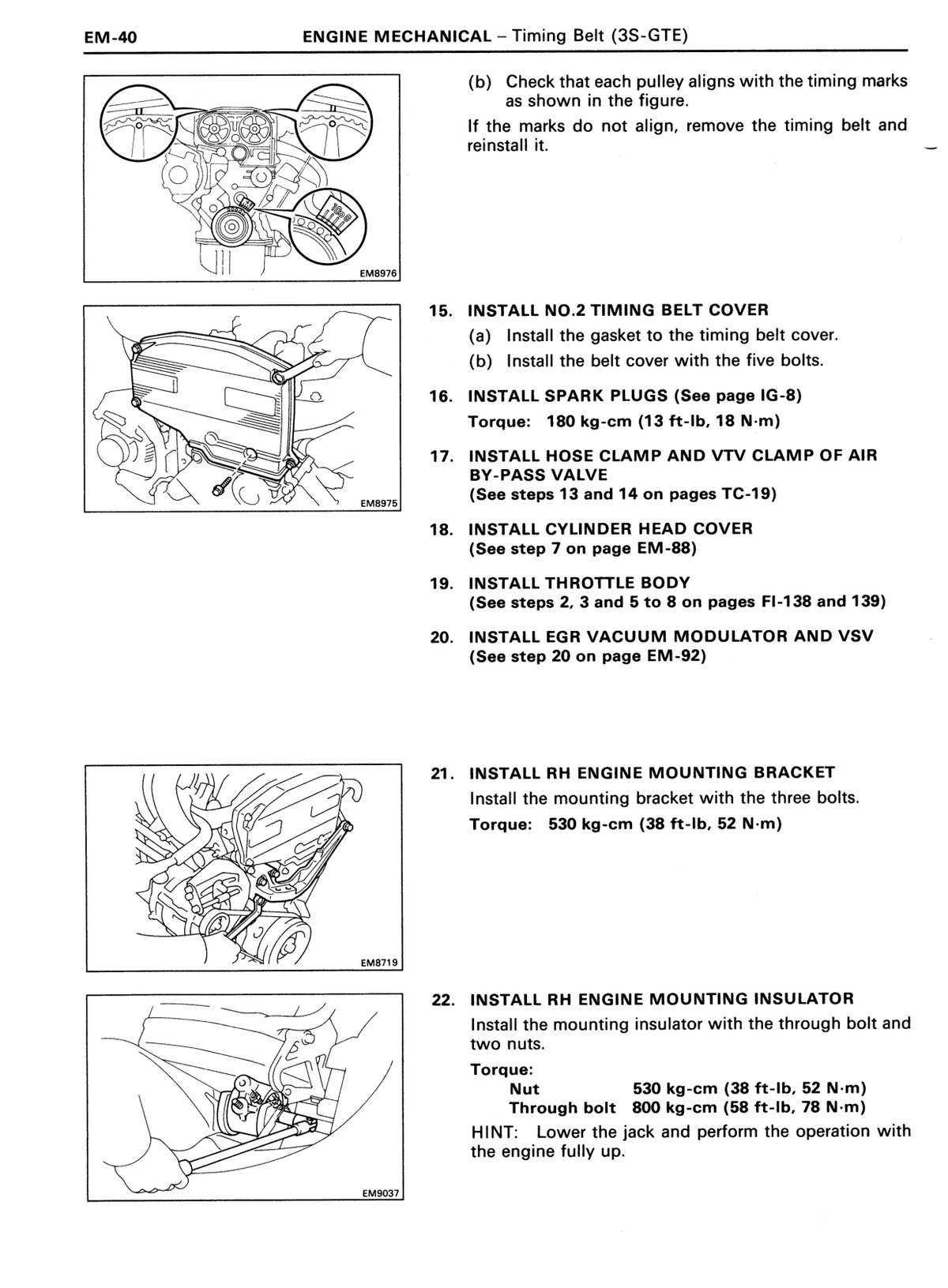

Engine — mechanical RH engine mounting bracket bolts Step 21, three bolts 52 530 38 ↗ RM179U1_1991 · p70 OEM manual
Engine — mechanical RH engine mounting insulator nut Step 22, two nuts 52 530 38 ↗ RM179U1_1991 · p70 OEM manual
Engine — mechanical RH engine mounting insulator through bolt Step 22 78 800 58 ↗ RM179U1_1991 · p70 OEM manual

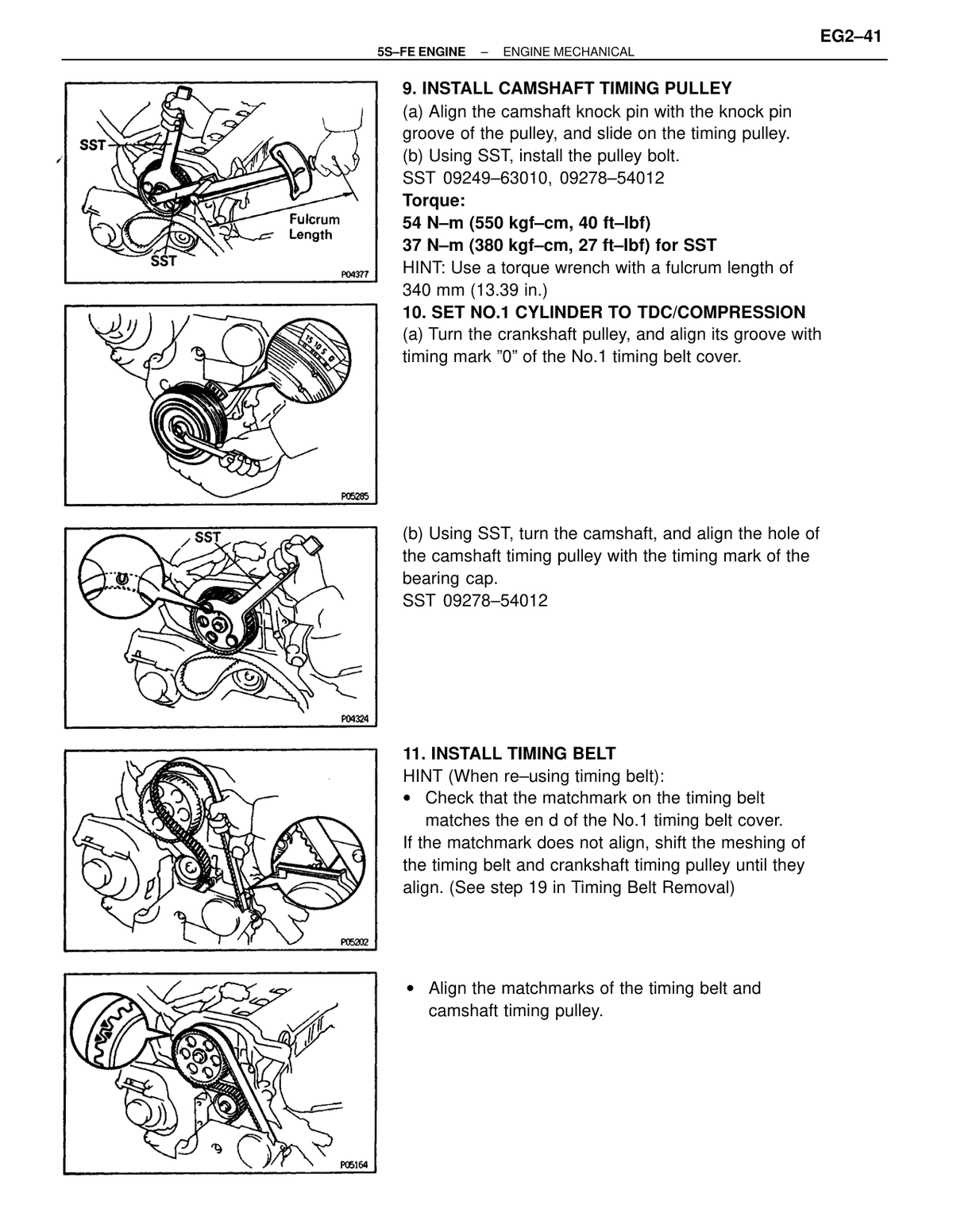

Engine — mechanical Camshaft timing pulley bolt Standard torque wrench 59 600 43 ↗ RM179U1_1991 · p75 OEM manual
Engine — mechanical Camshaft timing pulley bolt When using SST 09249-63010 41 420 30 ↗ RM179U1_1991 · p75 OEM manual

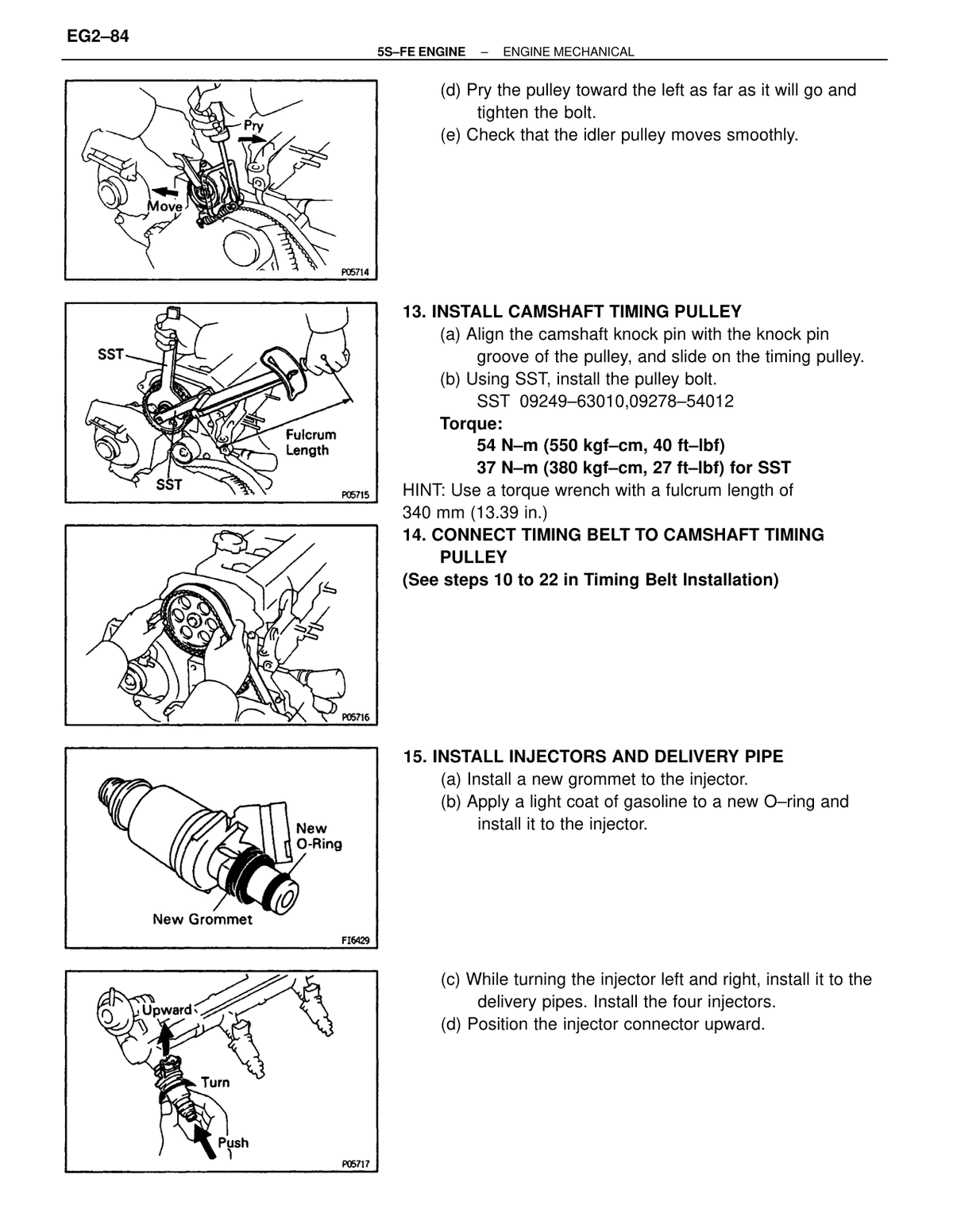

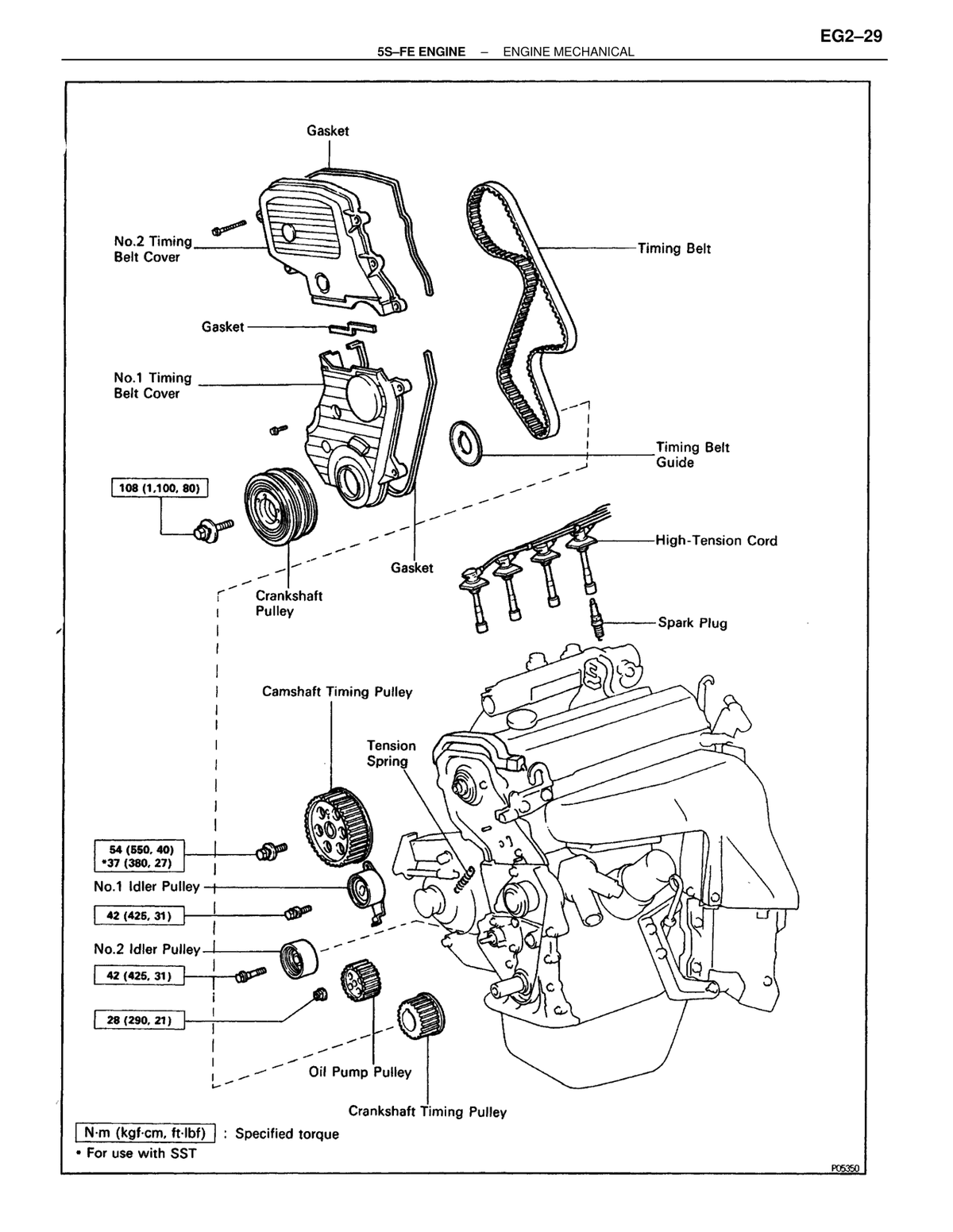

Engine — mechanical Camshaft Timing Pulley bolt Standard torque 54 550 40 ↗ RM179U1_1991 · p77 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt (with SST) For use with SST 37 380 27 ↗ RM179U1_1991 · p77 OEM manual
Engine — mechanical No. 1 Idler Pulley bolt Upper idler pulley 42 425 31 ↗ RM179U1_1991 · p77 OEM manual
Engine — mechanical Camshaft timing pulley bolt Use a torque wrench with a fulcrum length of 340 mm (13.39 in.) 37 380 27 ↗ RM179U1_1991 · p86 OEM manual

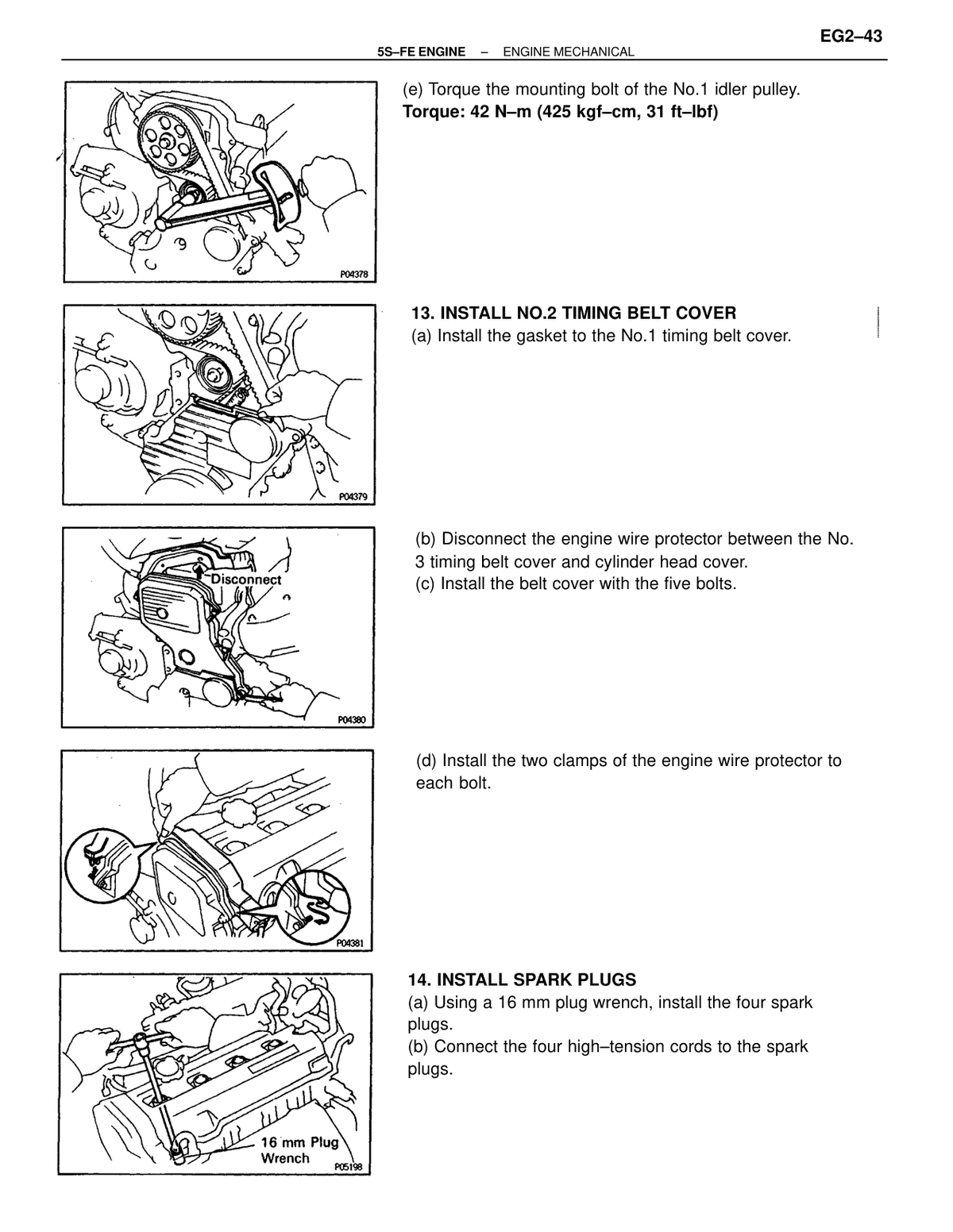

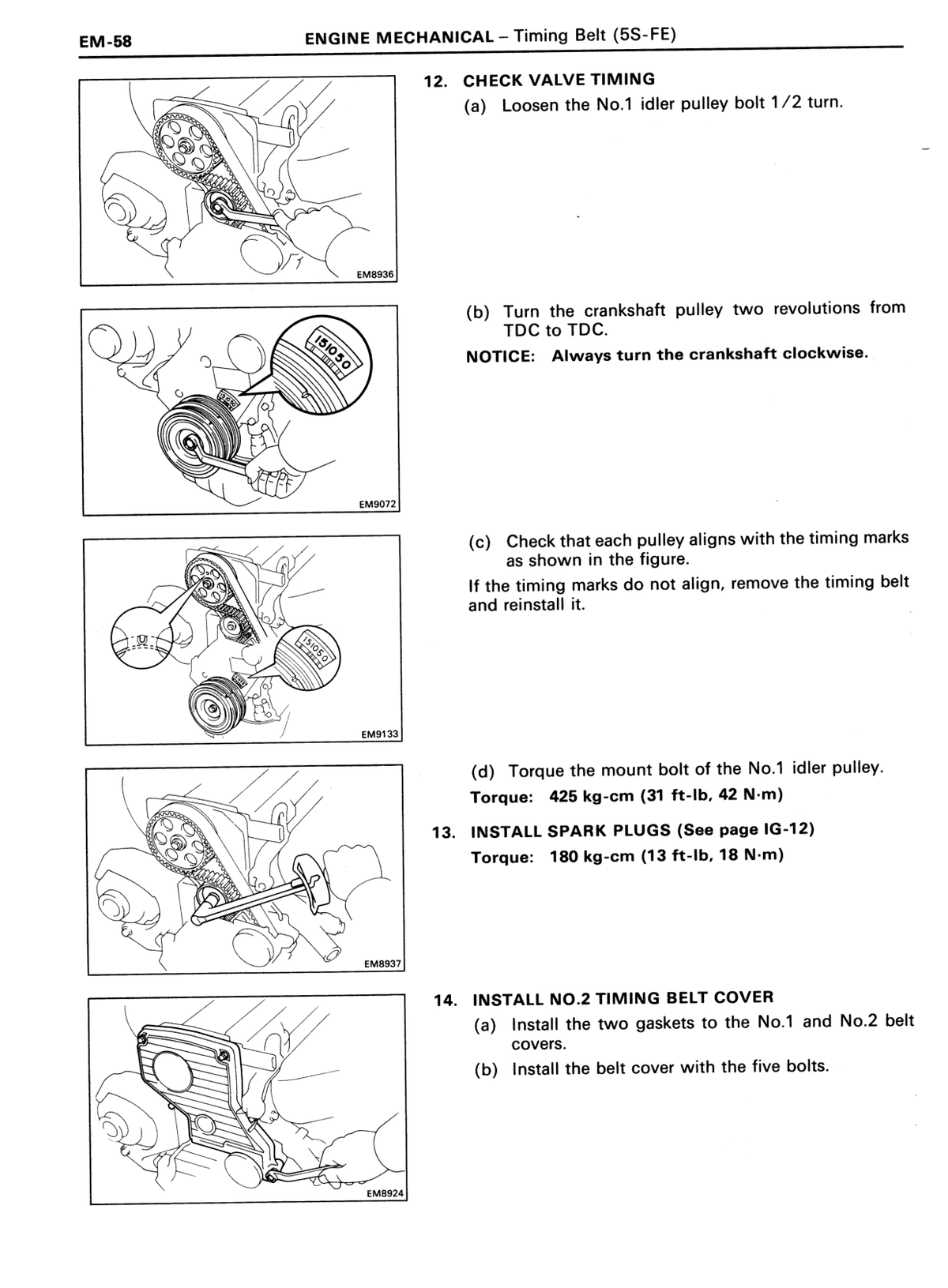

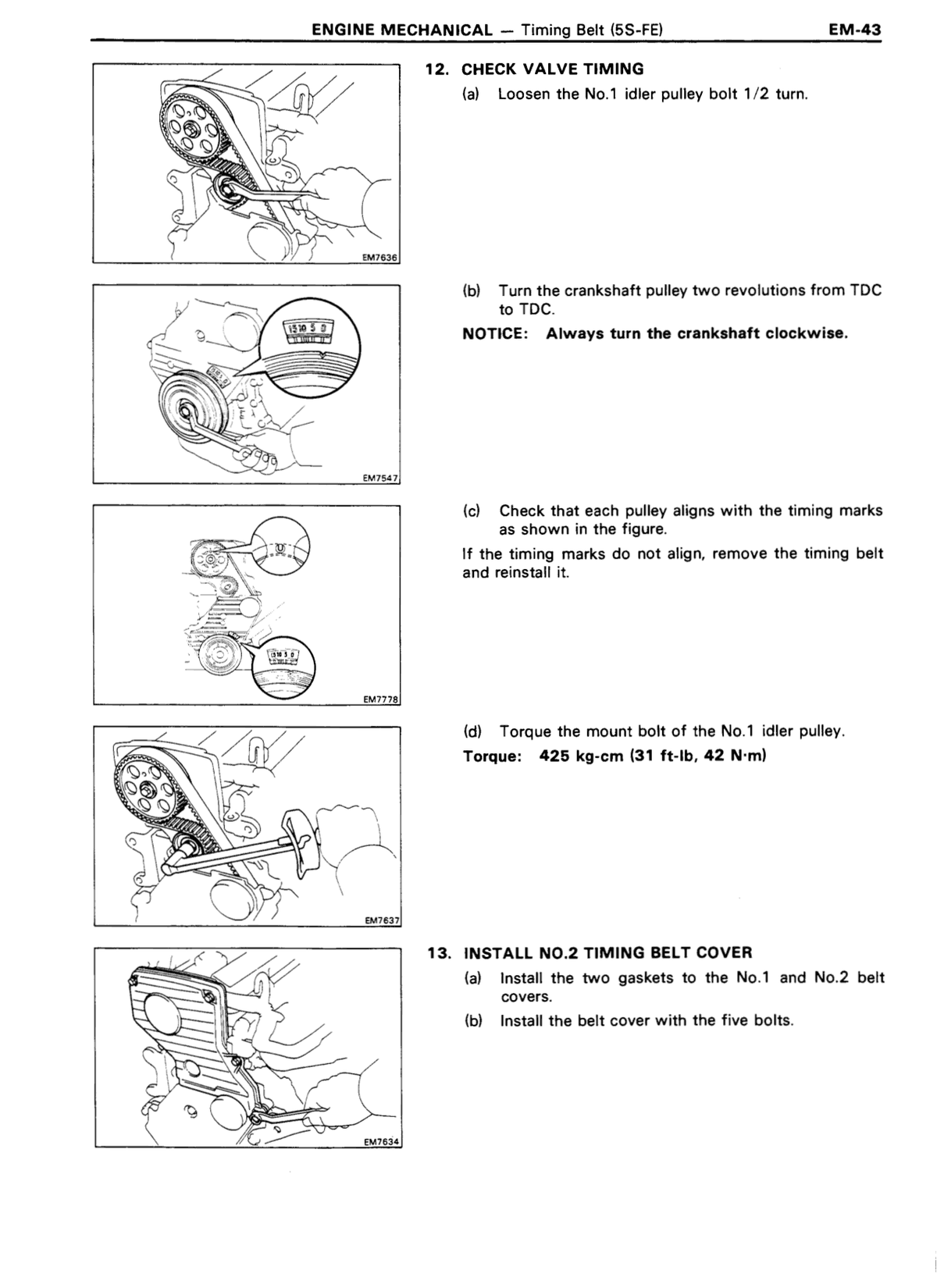

Engine — mechanical No.1 idler pulley mount bolt Step 12(d) 42 425 31 ↗ RM179U1_1991 · p88 OEM manual

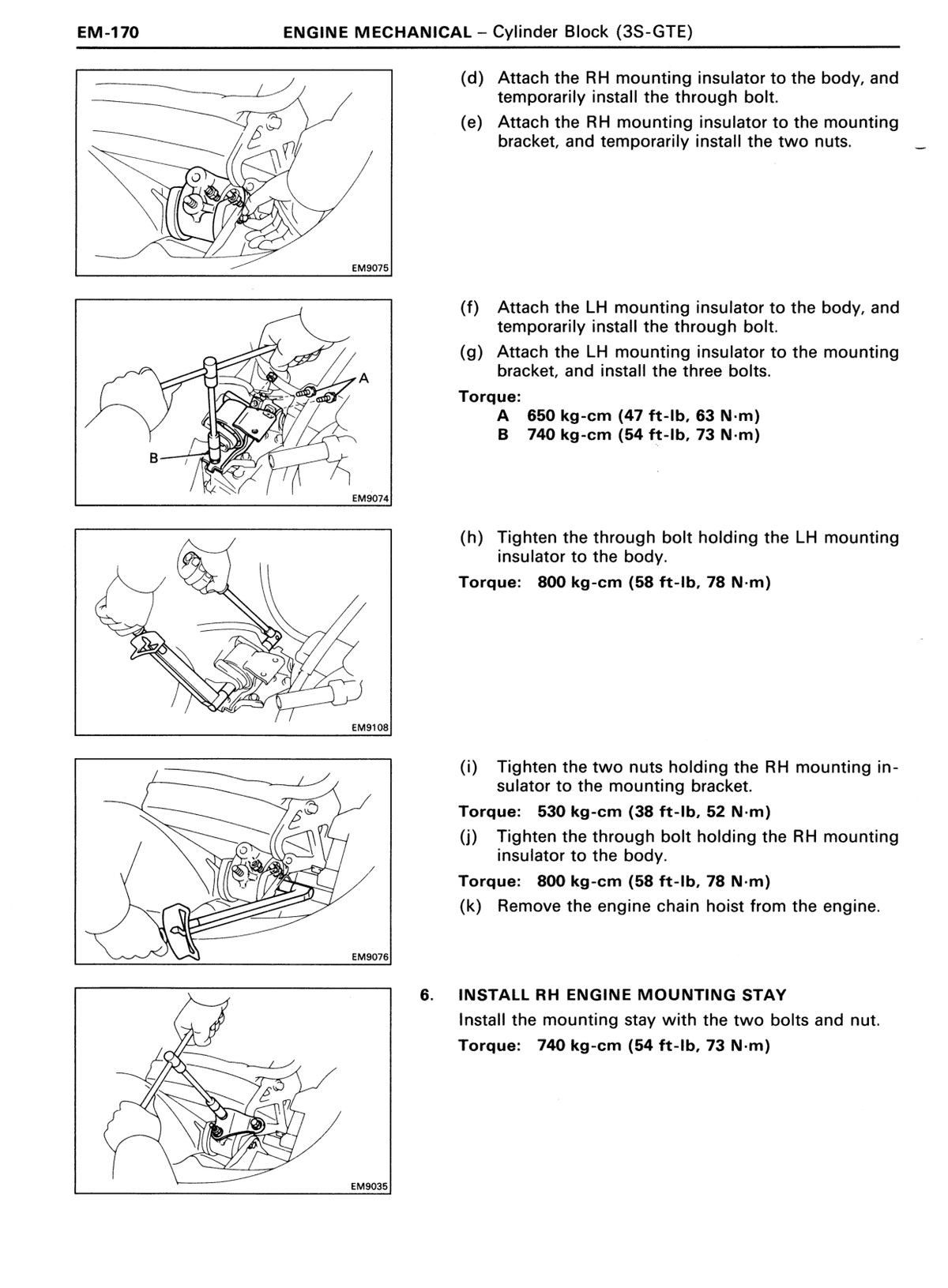

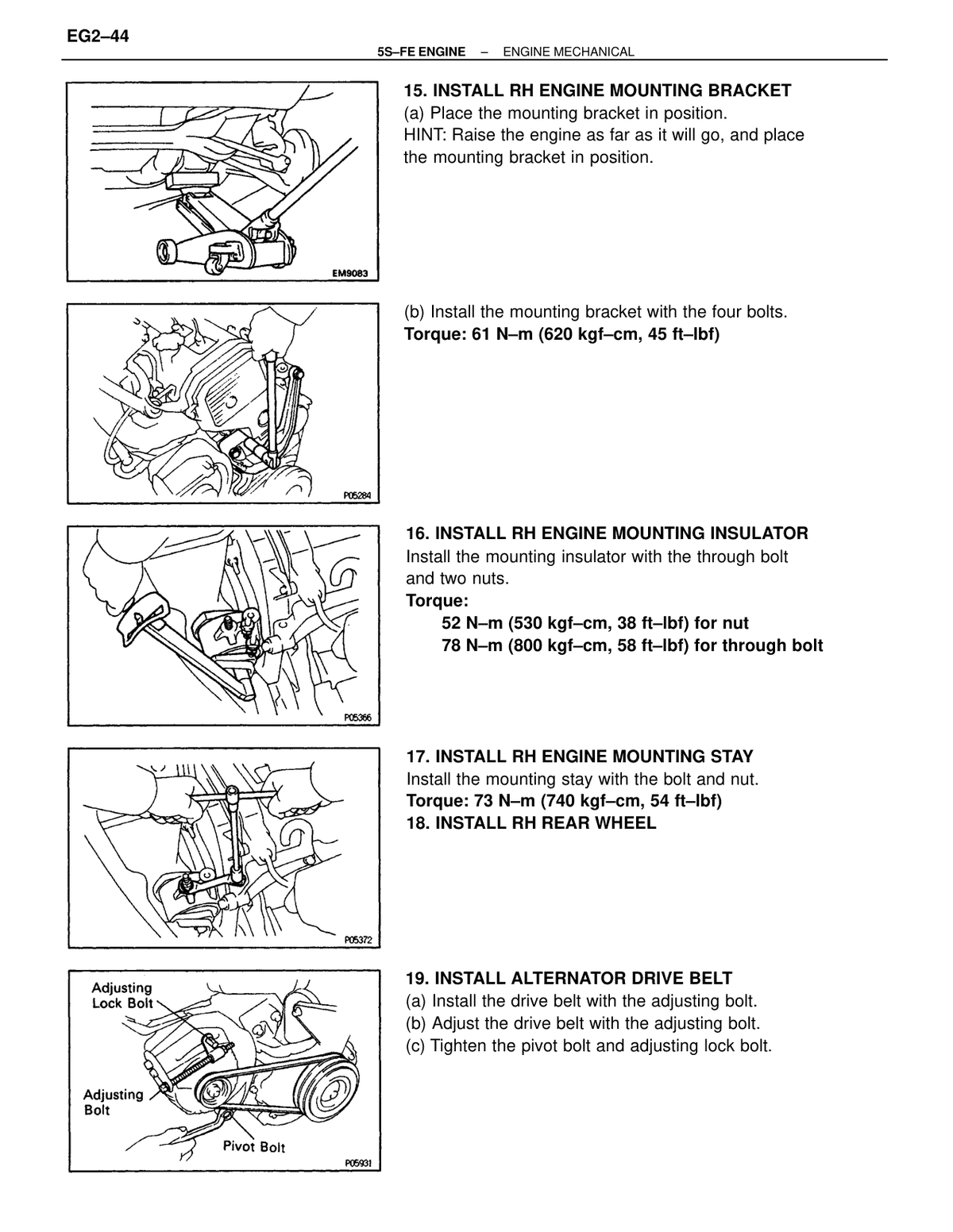

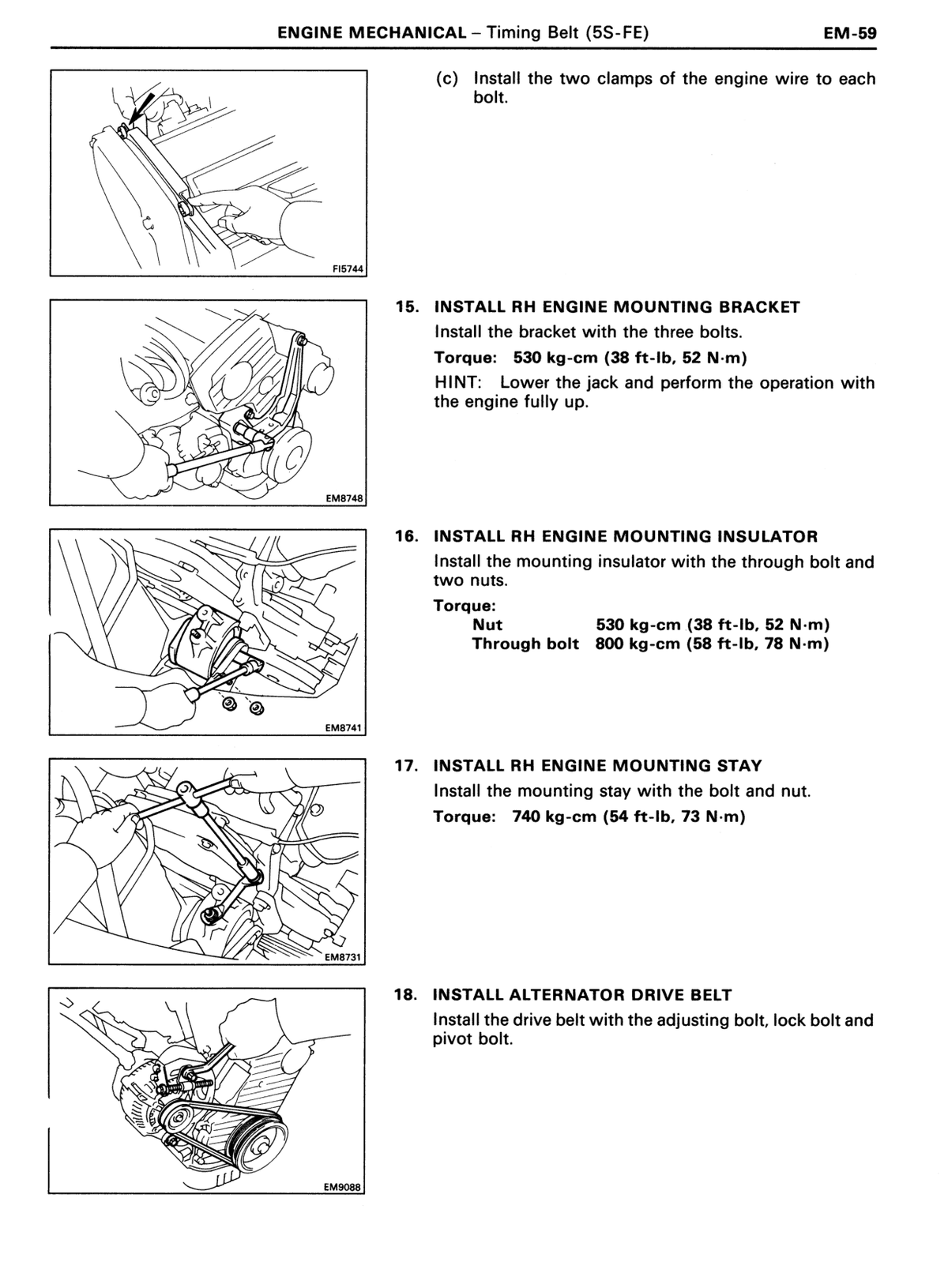

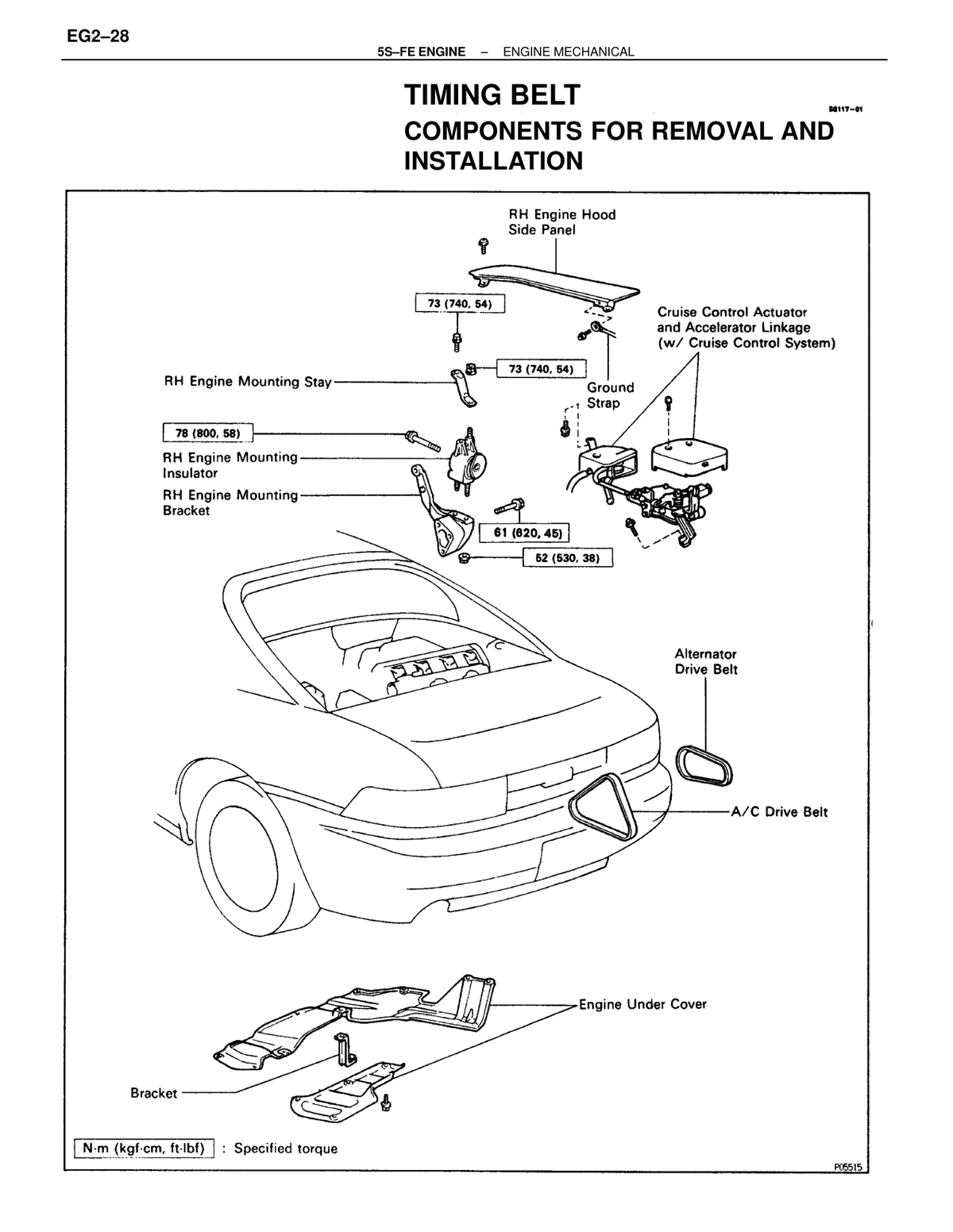

Engine — mechanical RH Engine Mounting Bracket bolt Step 15 — three bolts 52 530 38 ↗ RM179U1_1991 · p89 OEM manual
Engine — mechanical RH Engine Mounting Insulator nut Step 16 — two nuts 52 530 38 ↗ RM179U1_1991 · p89 OEM manual
Engine — mechanical RH Engine Mounting Insulator through bolt Step 16 78 800 58 ↗ RM179U1_1991 · p89 OEM manual

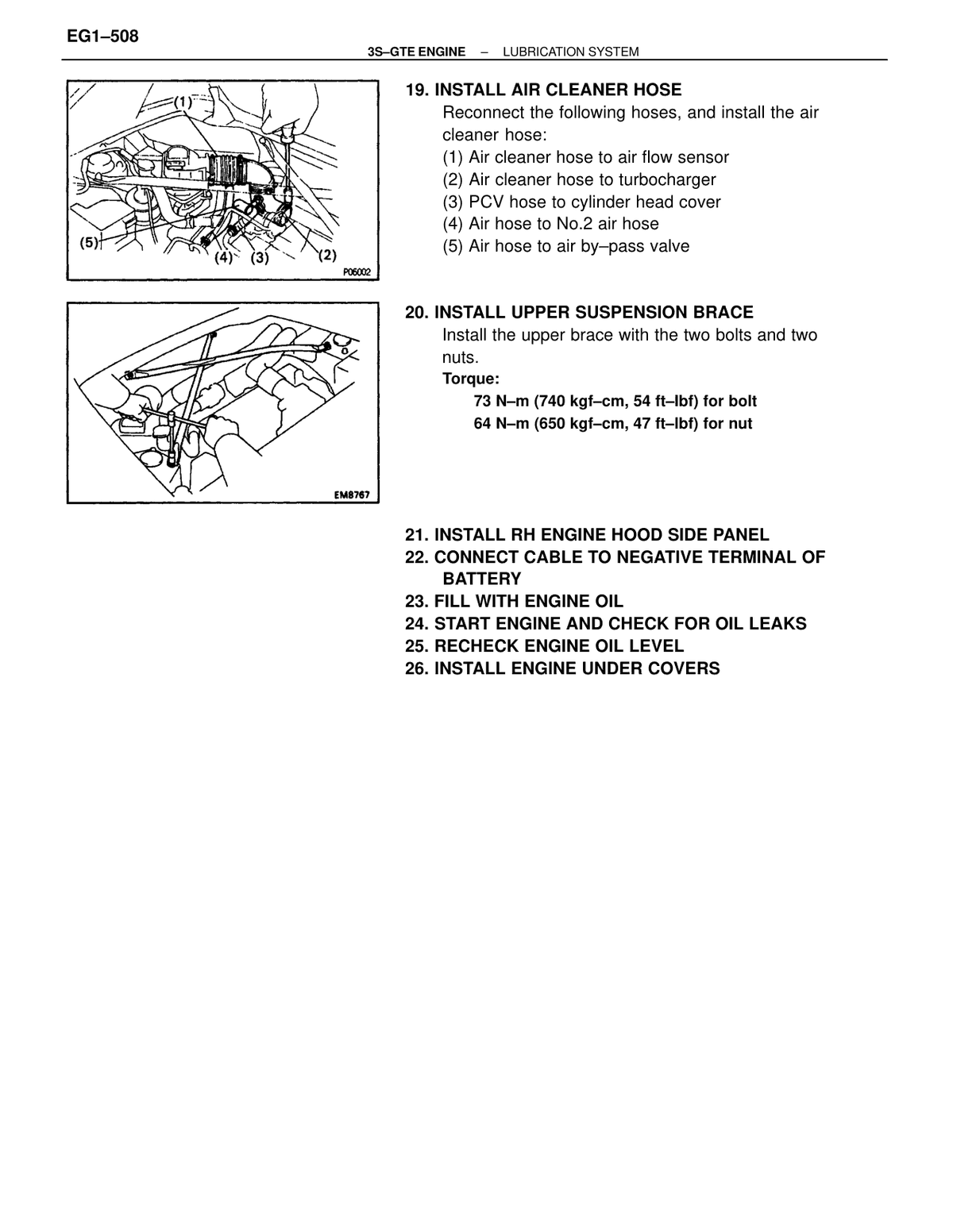

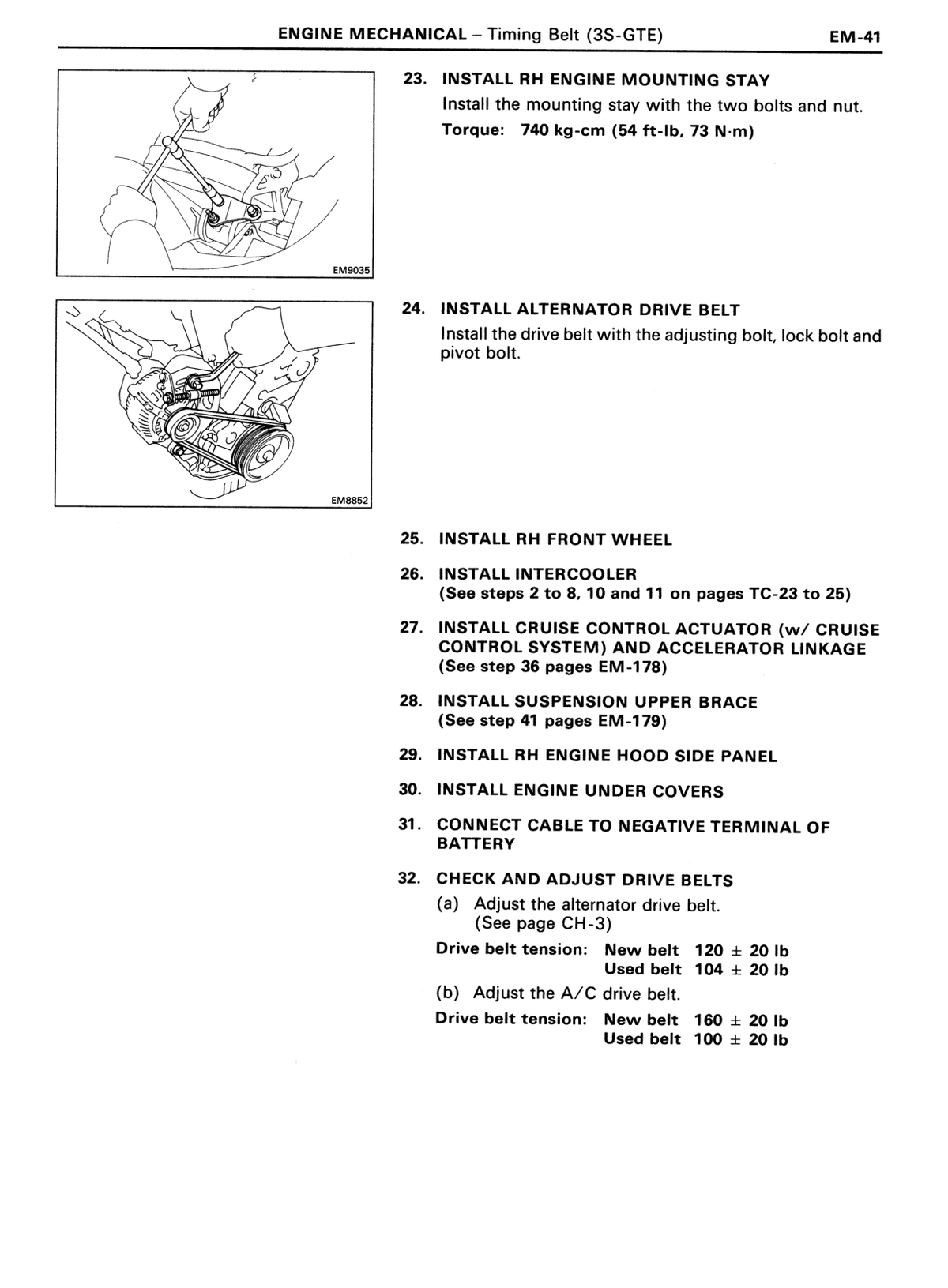

Engine — mechanical RH Engine Mounting Stay bolt and nut Step 17 73 740 54 ↗ RM179U1_1991 · p89 OEM manual

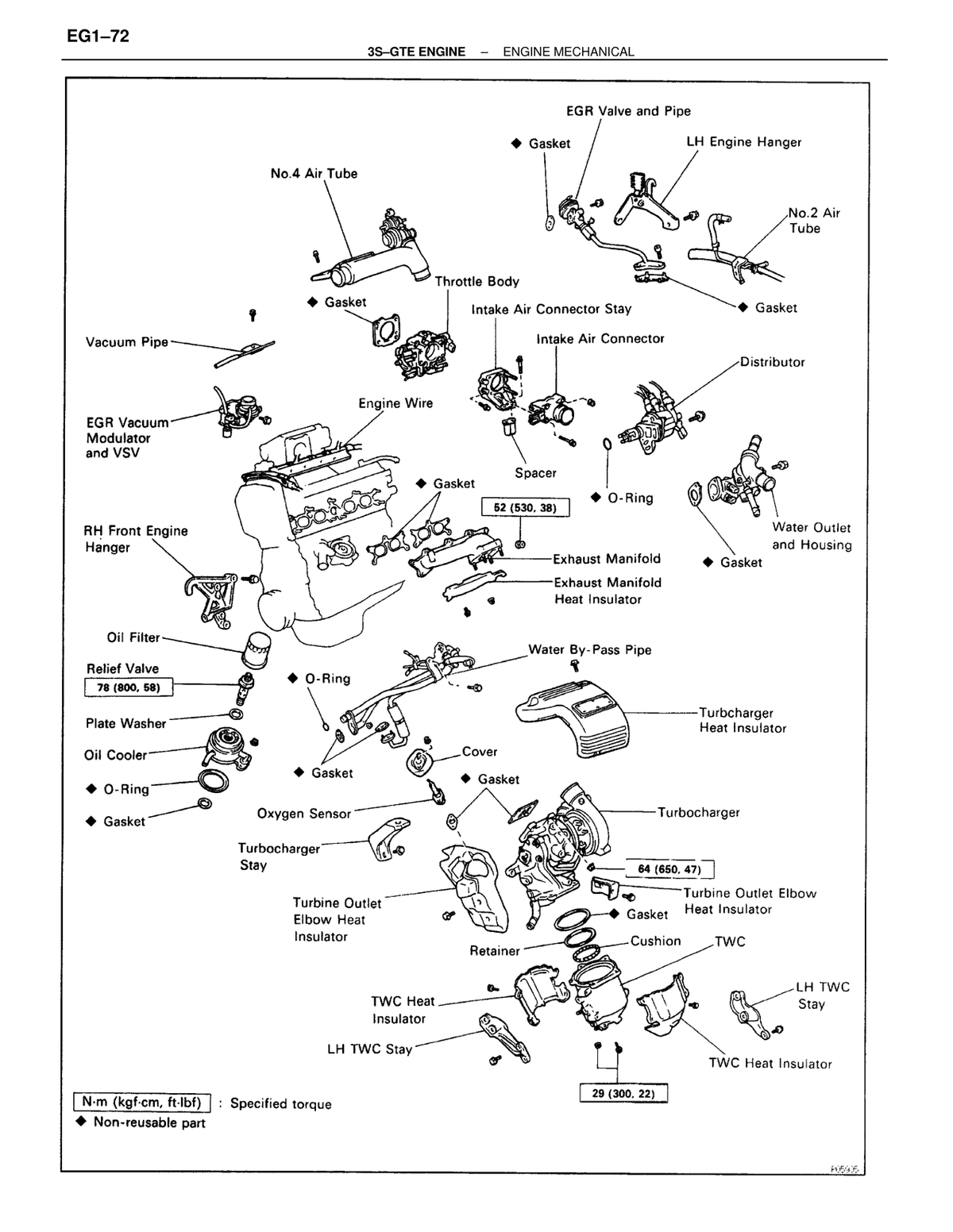

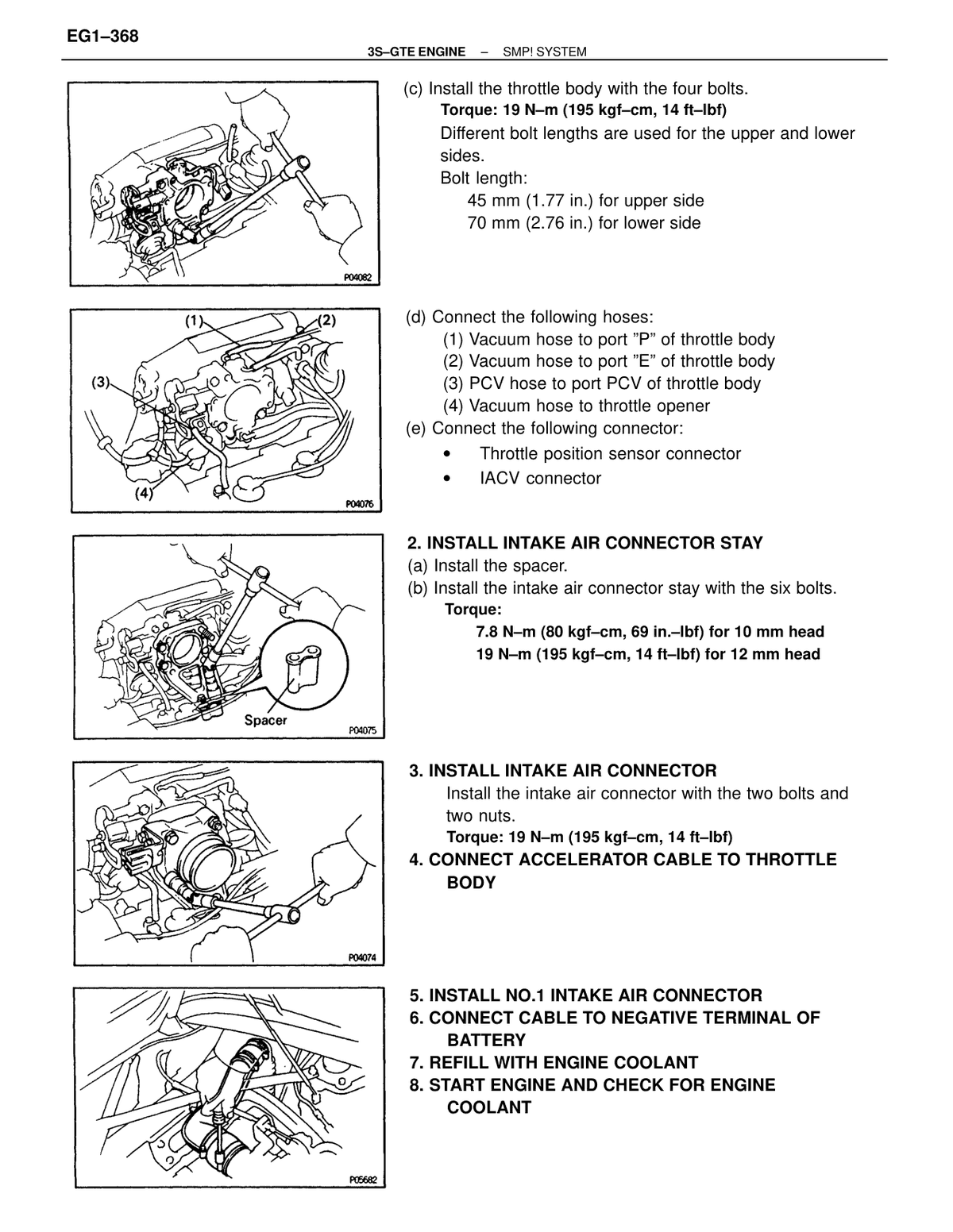

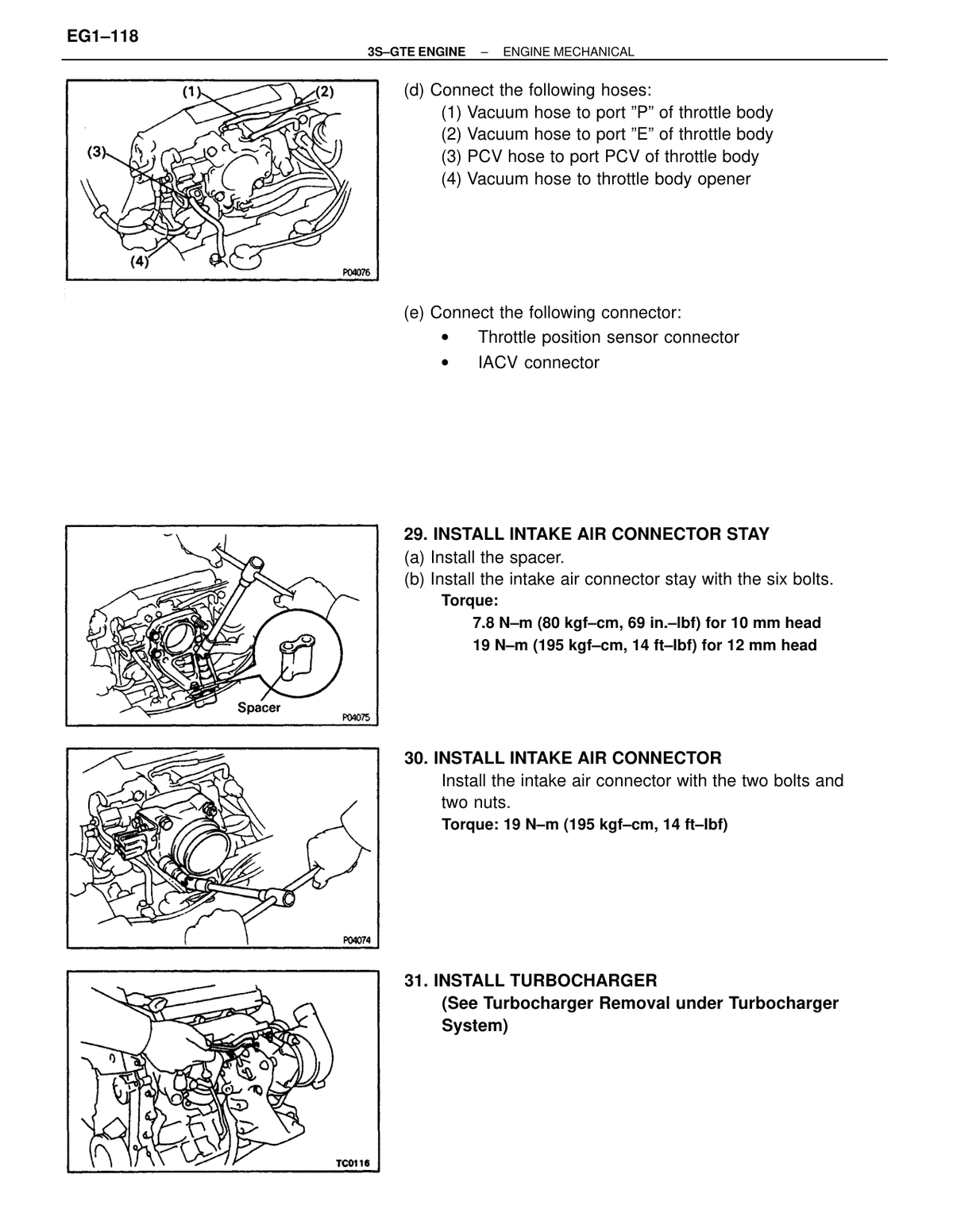

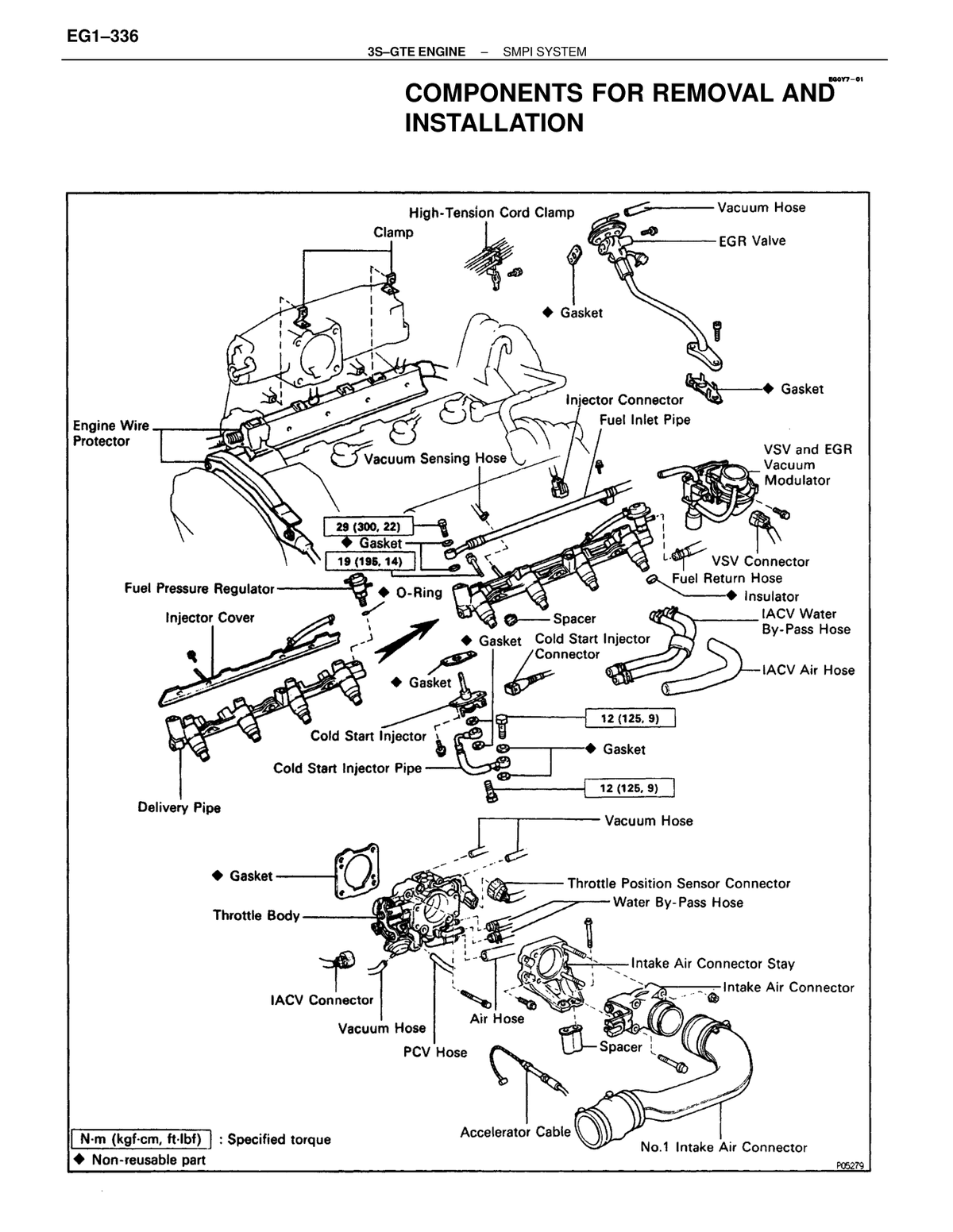

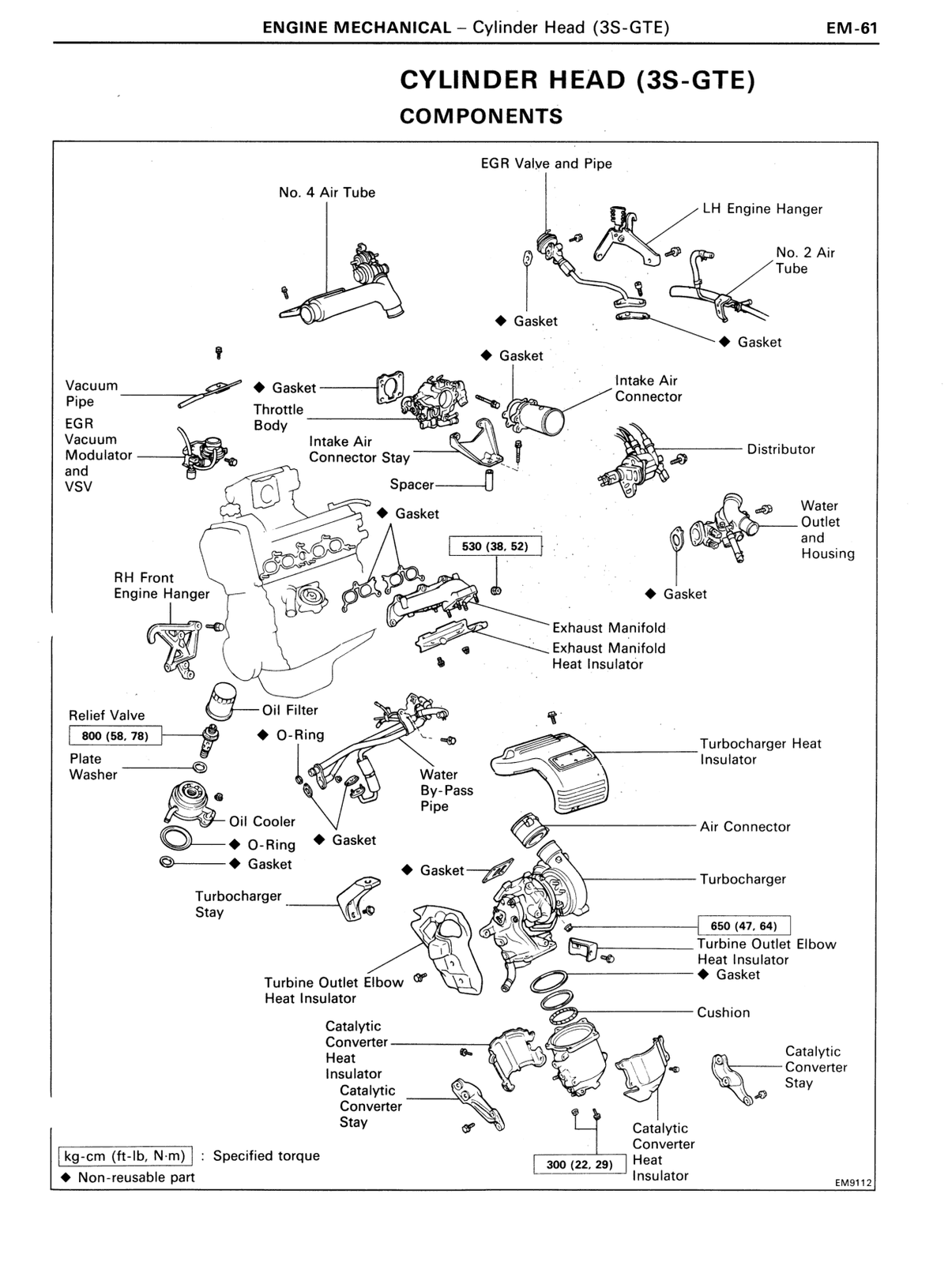

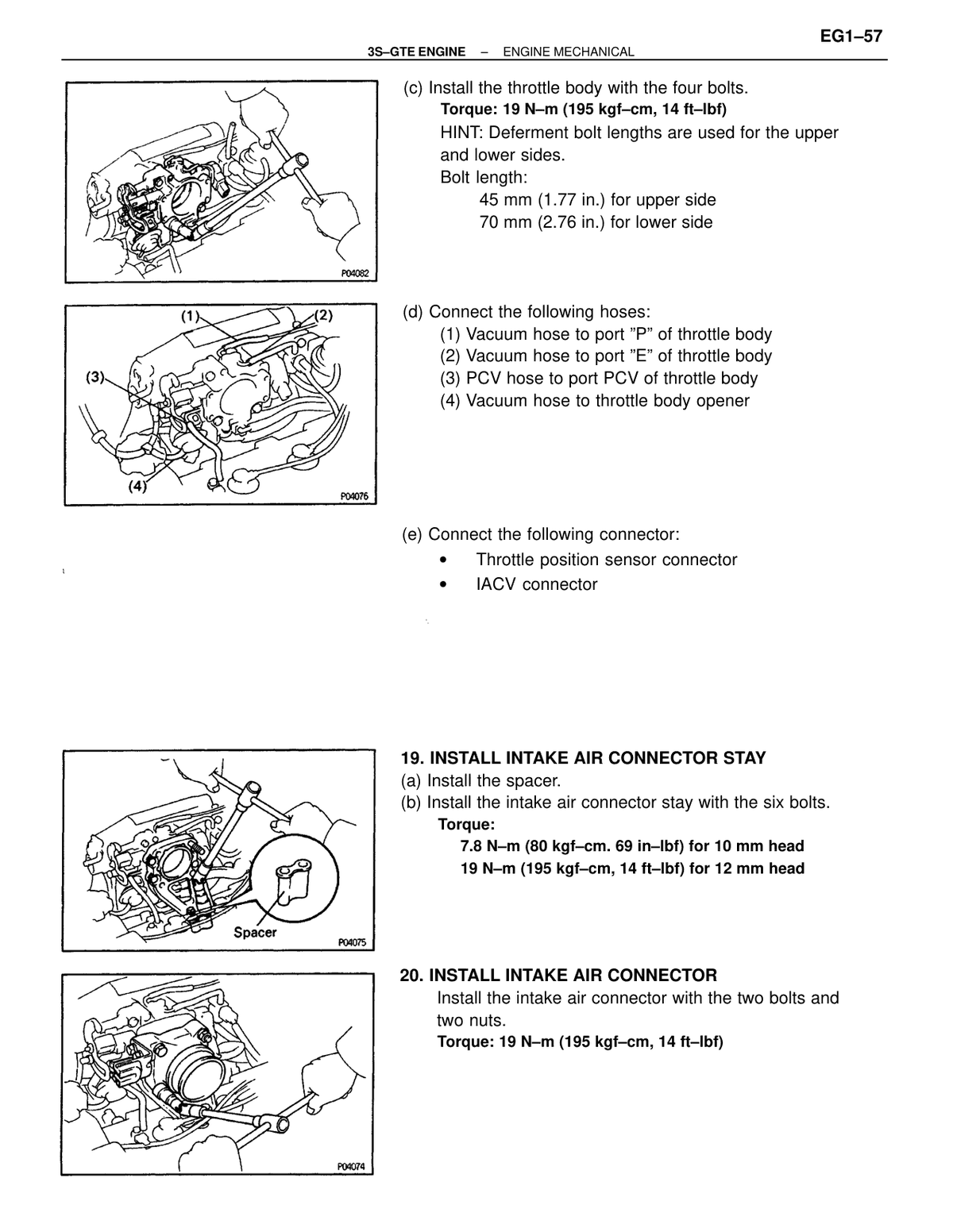

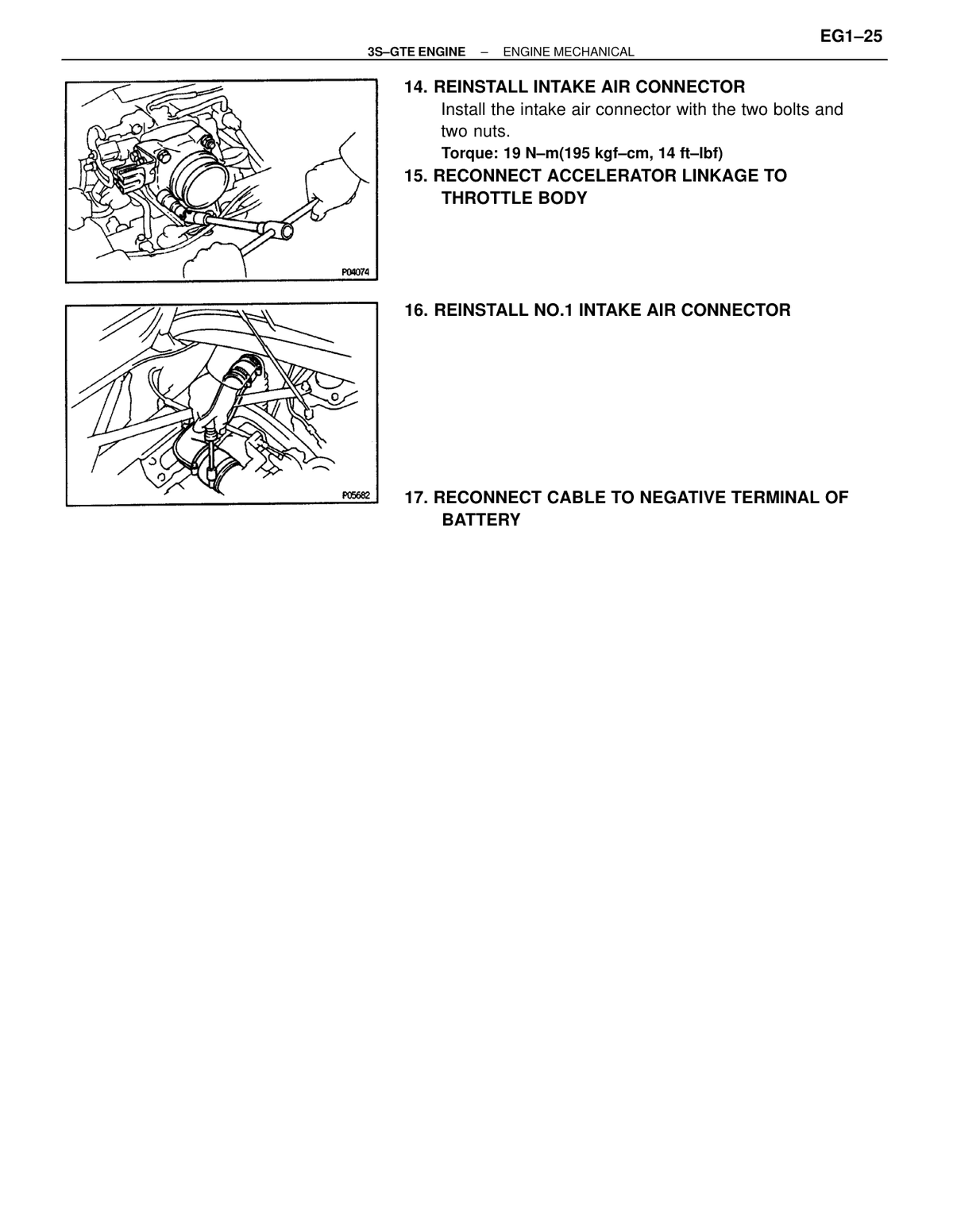

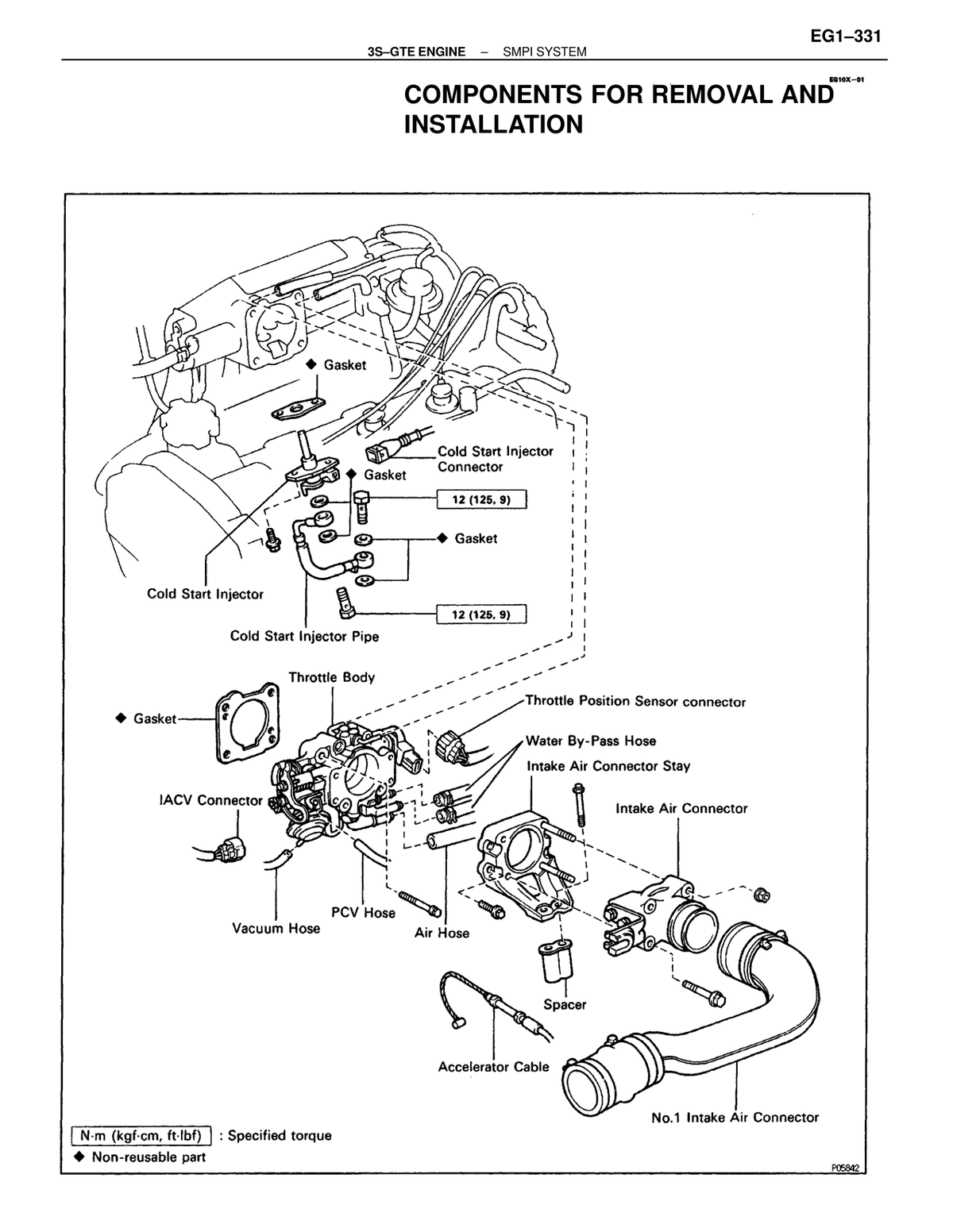

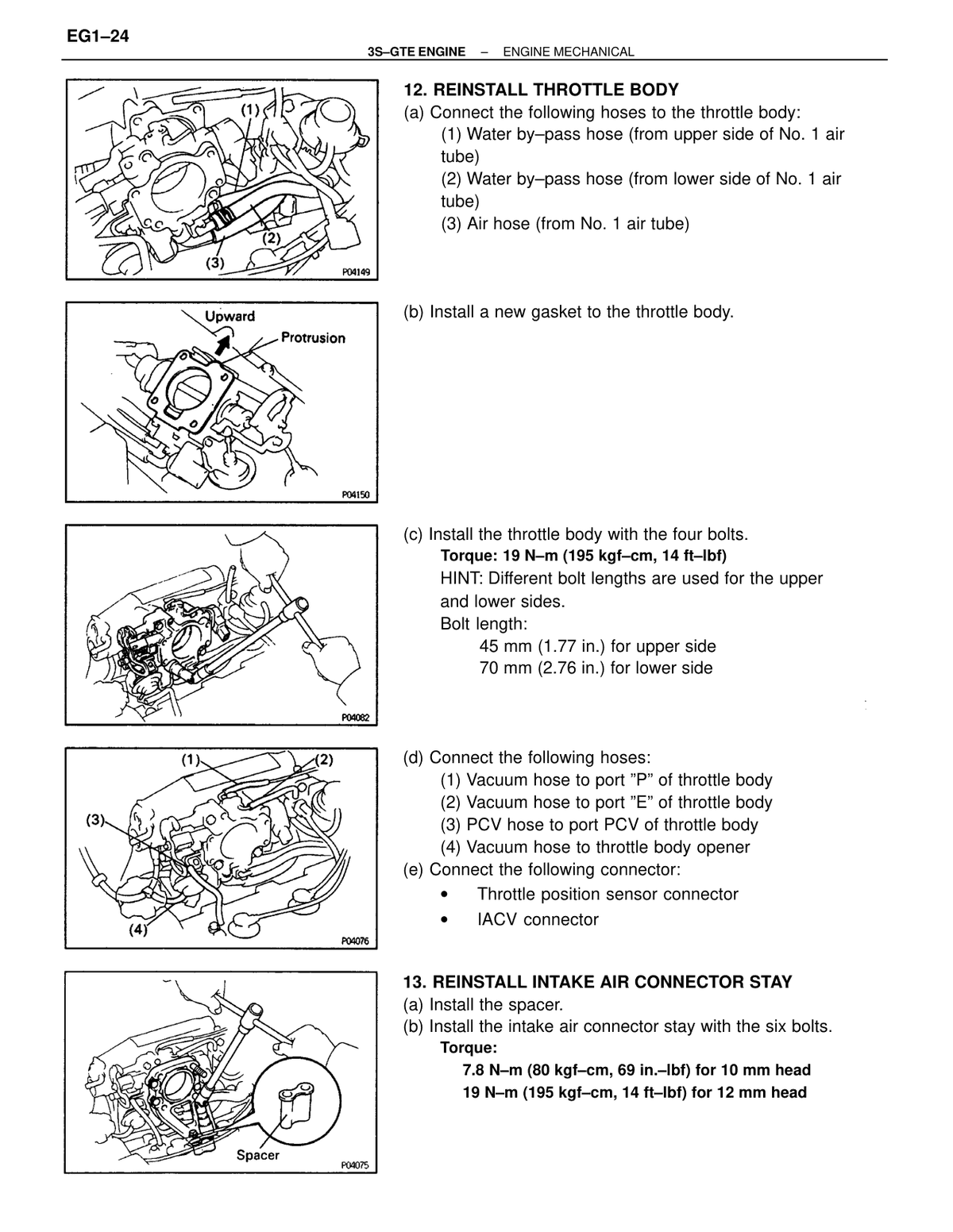

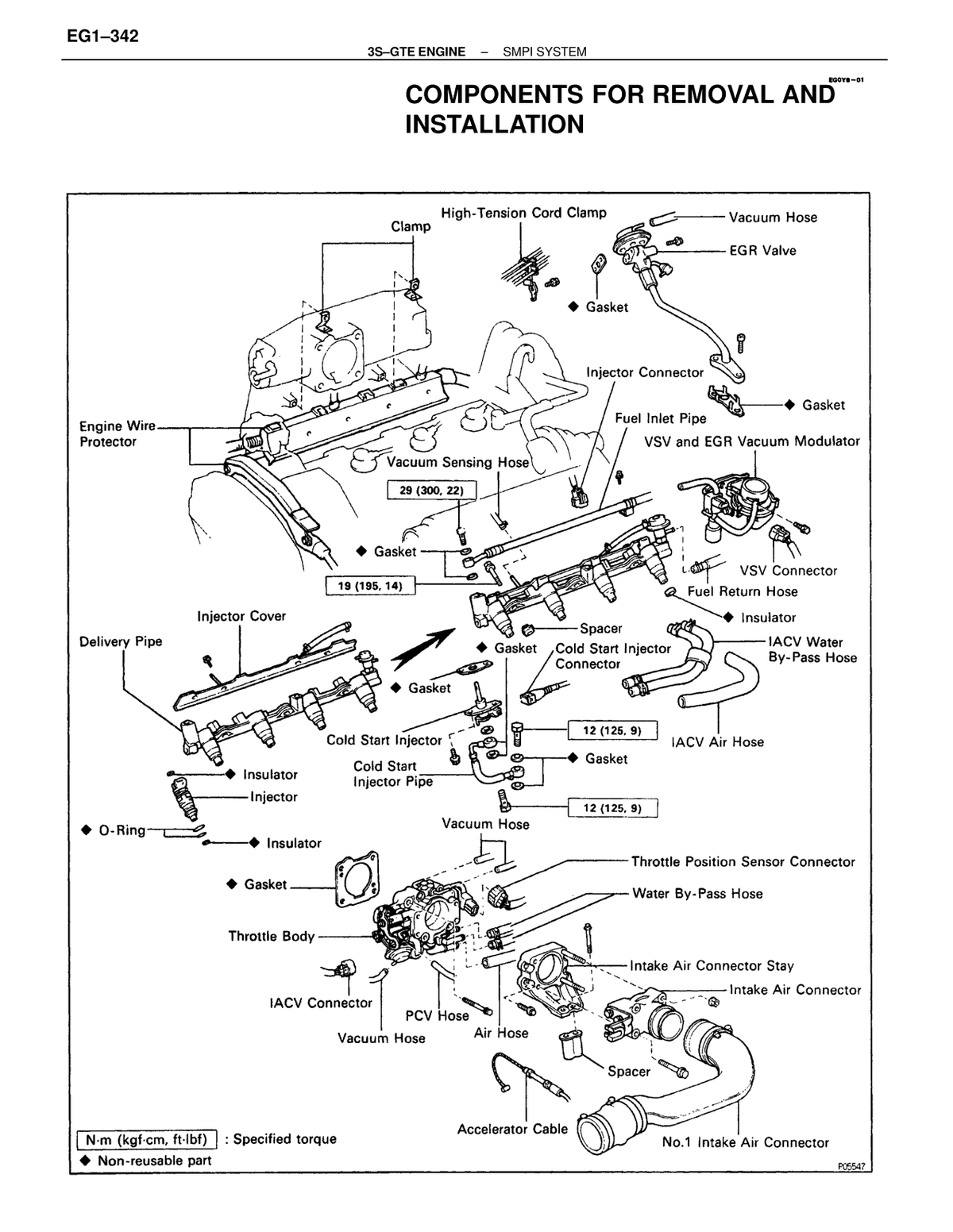

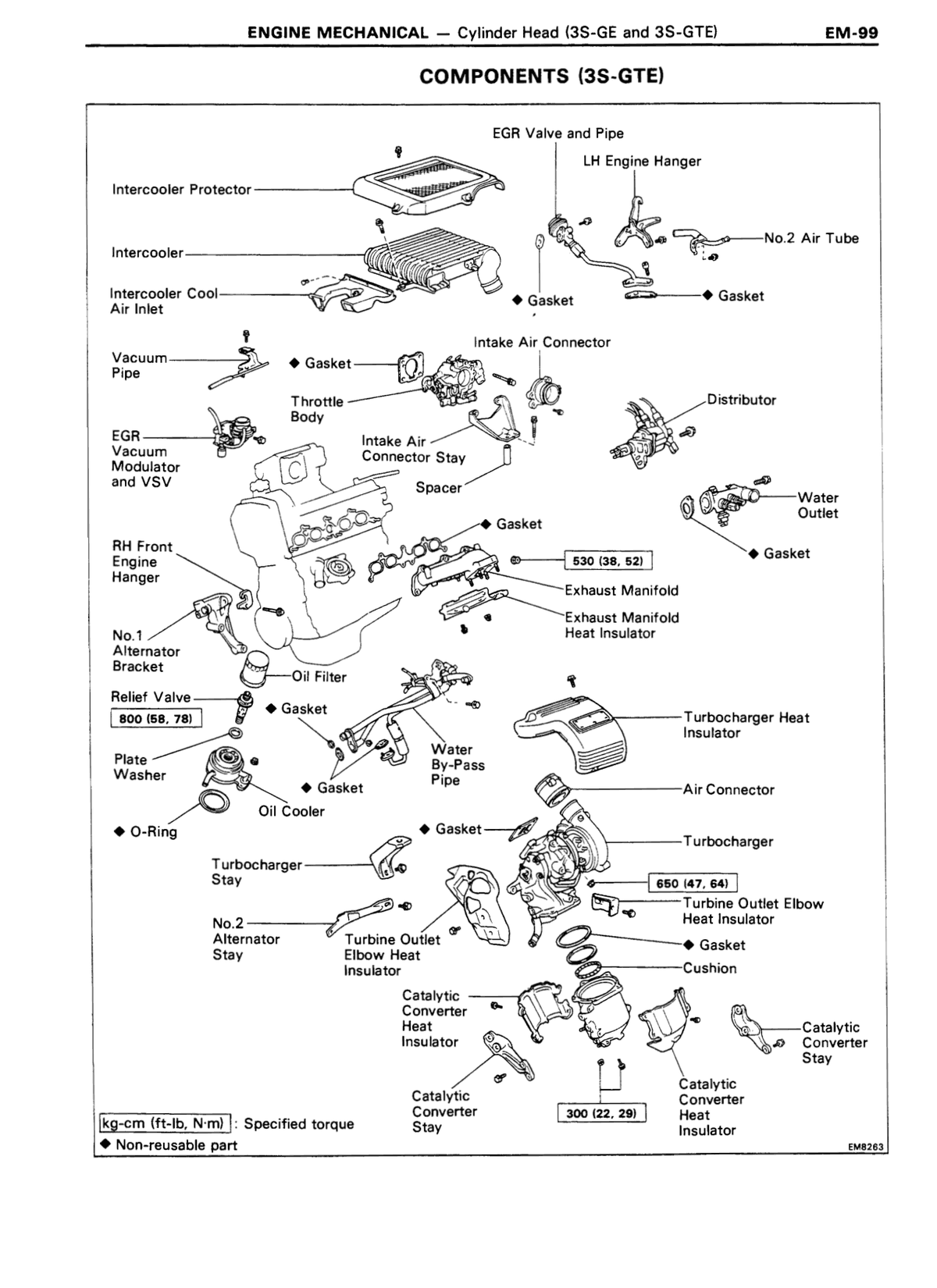

Engine — mechanical Intake Air Connector Stay / Spacer Value shown as 530 (38, 52) 52 530 38 ↗ RM179U1_1991 · p91 OEM manual

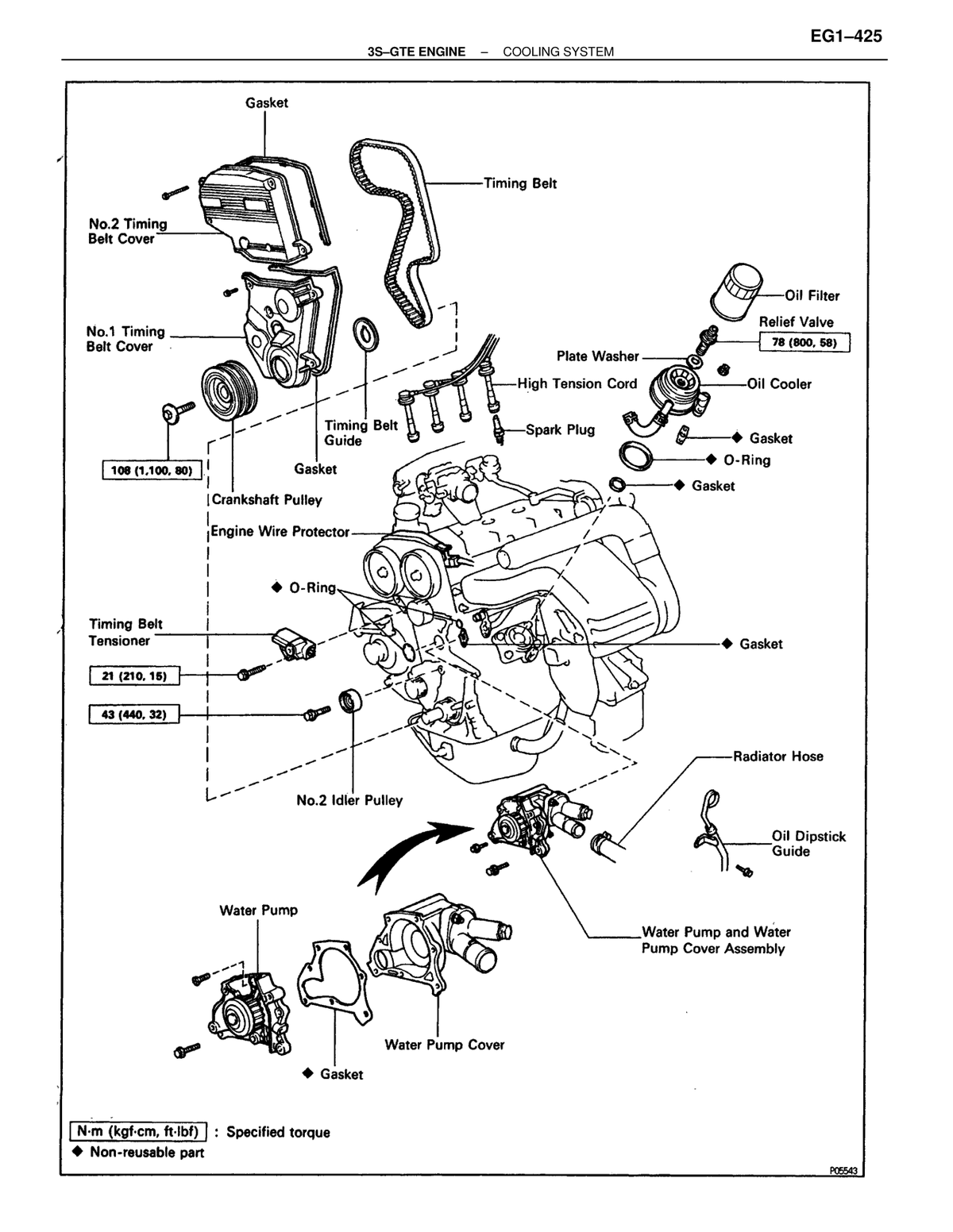

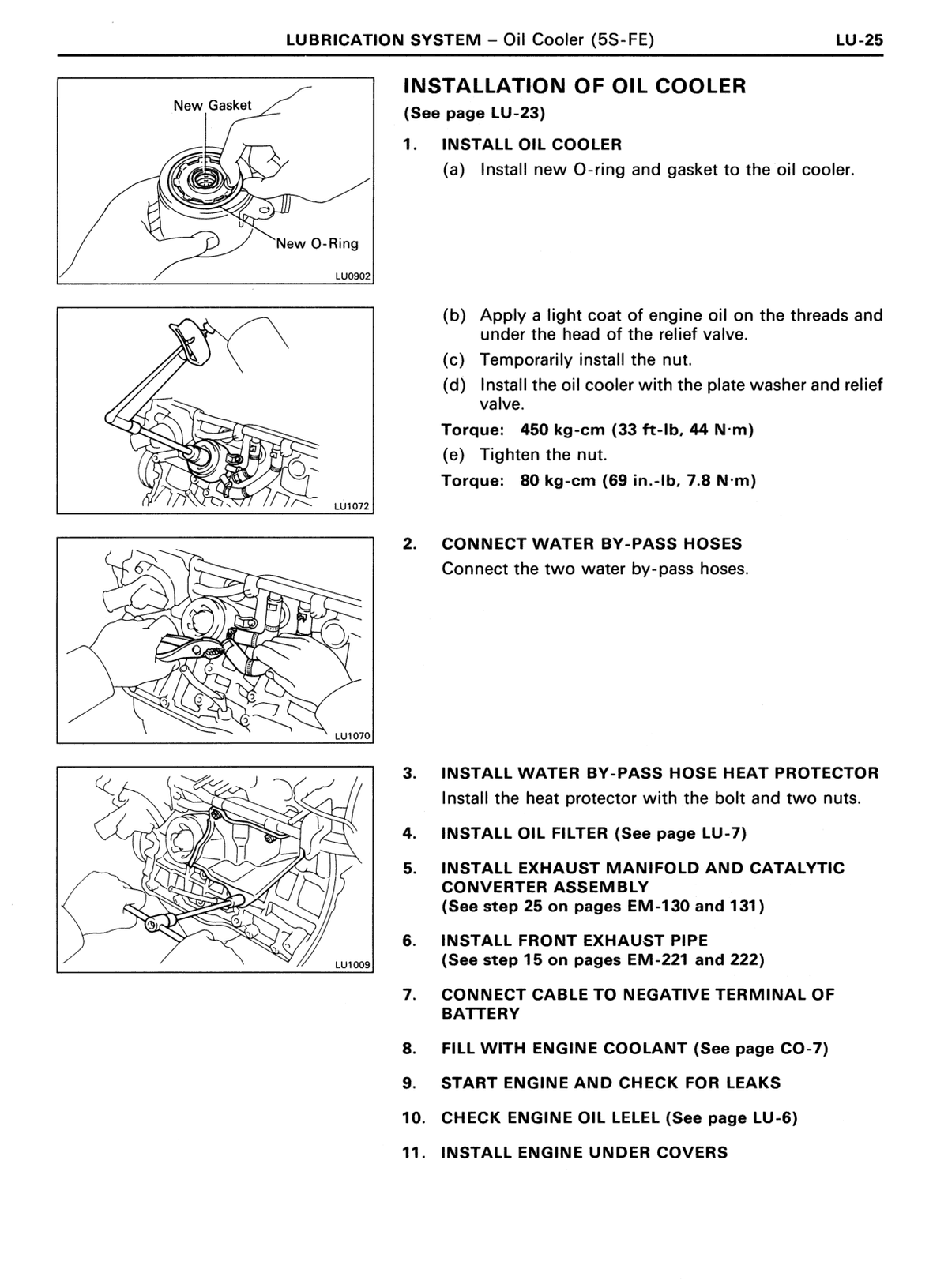

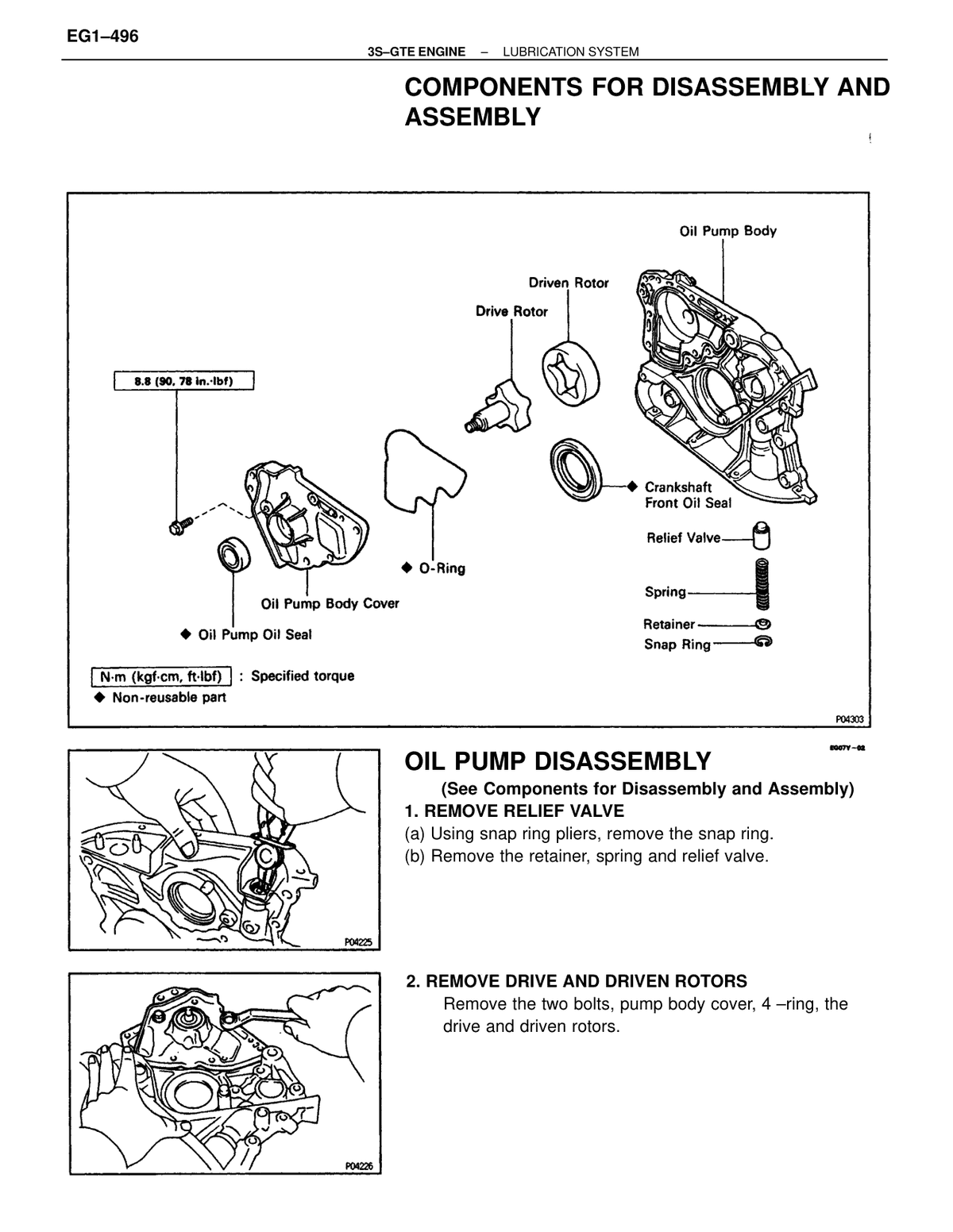

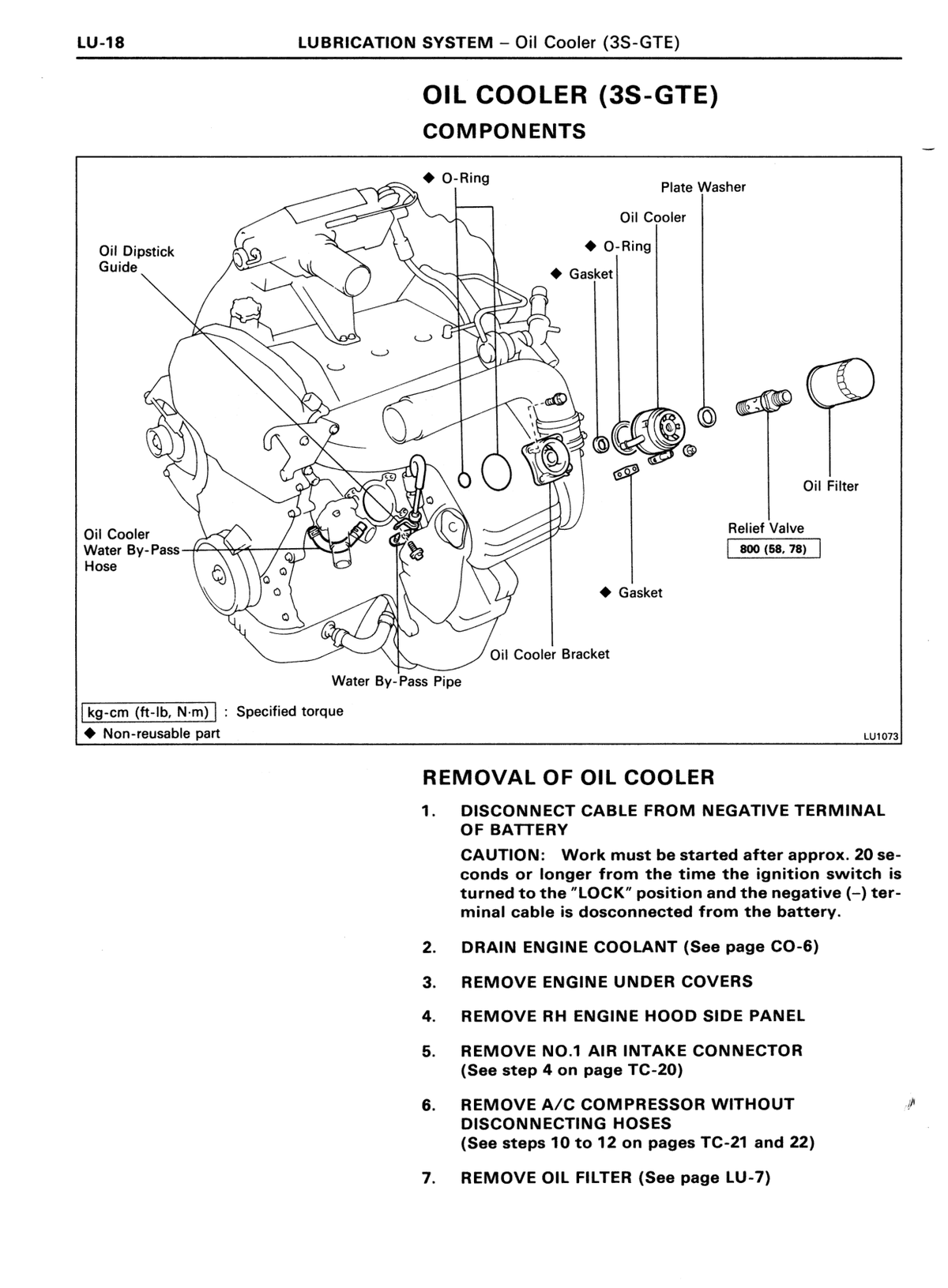

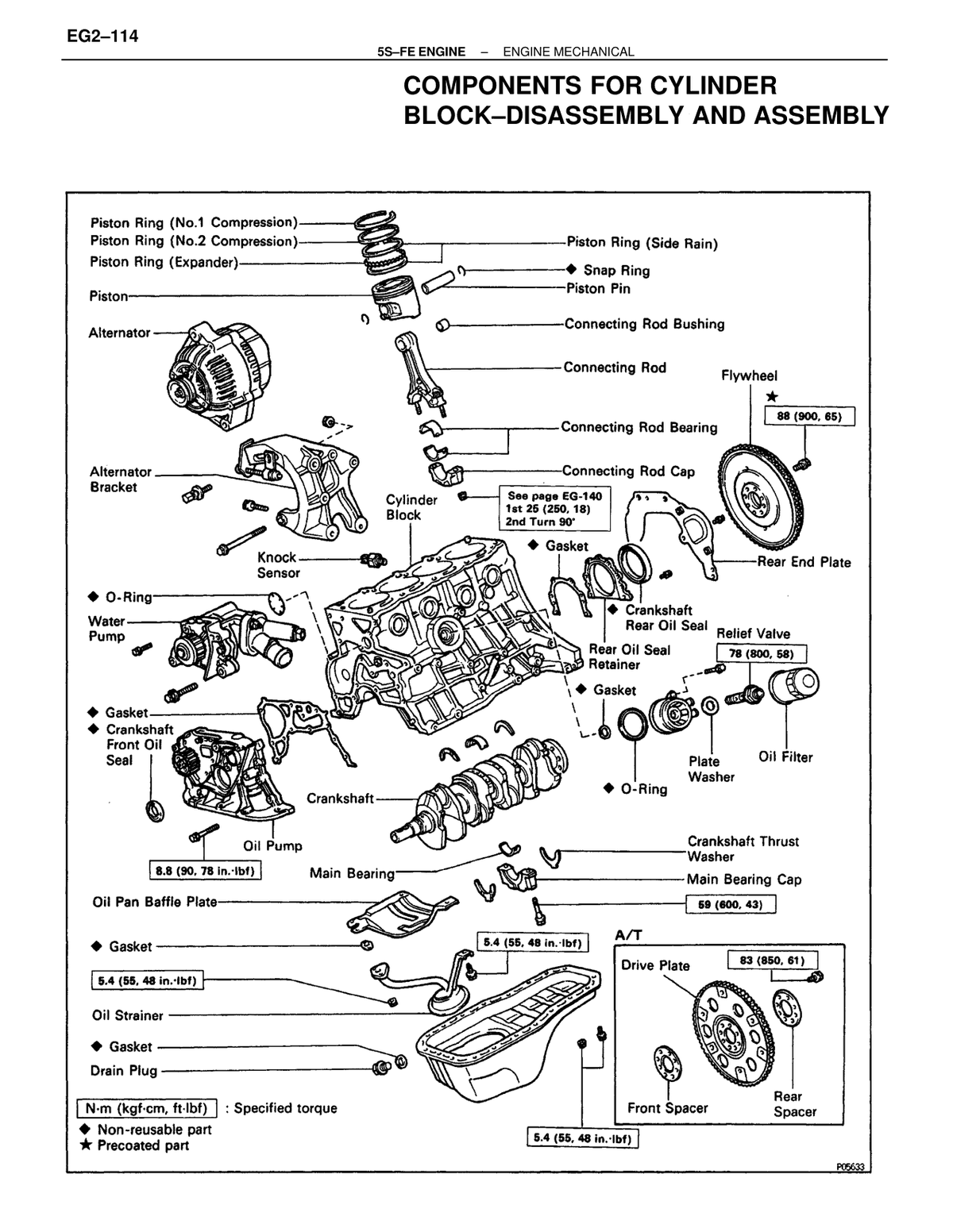

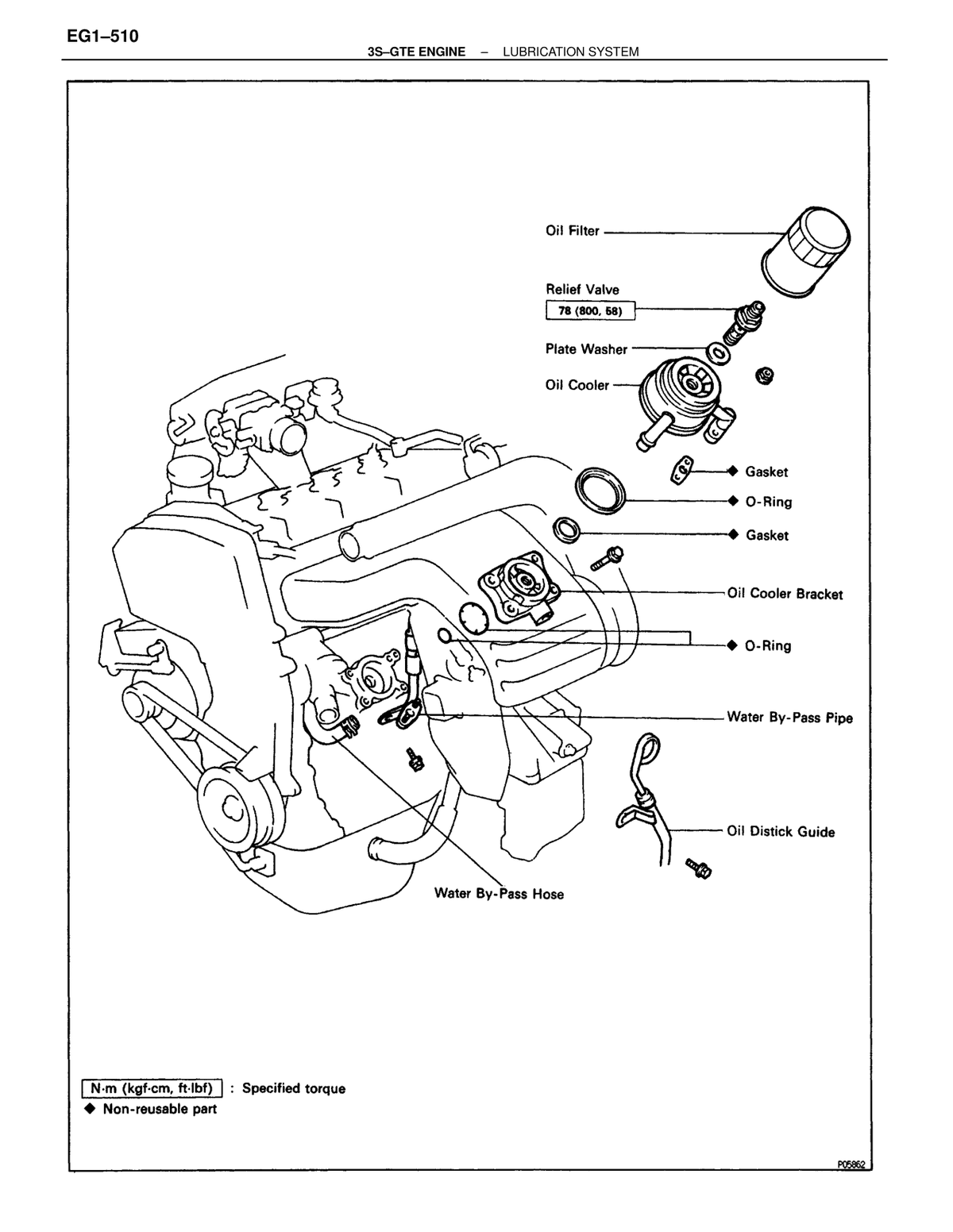

Engine — mechanical Relief Valve Value shown as 800 (58, 78) 78 800 58 ↗ RM179U1_1991 · p91 OEM manual

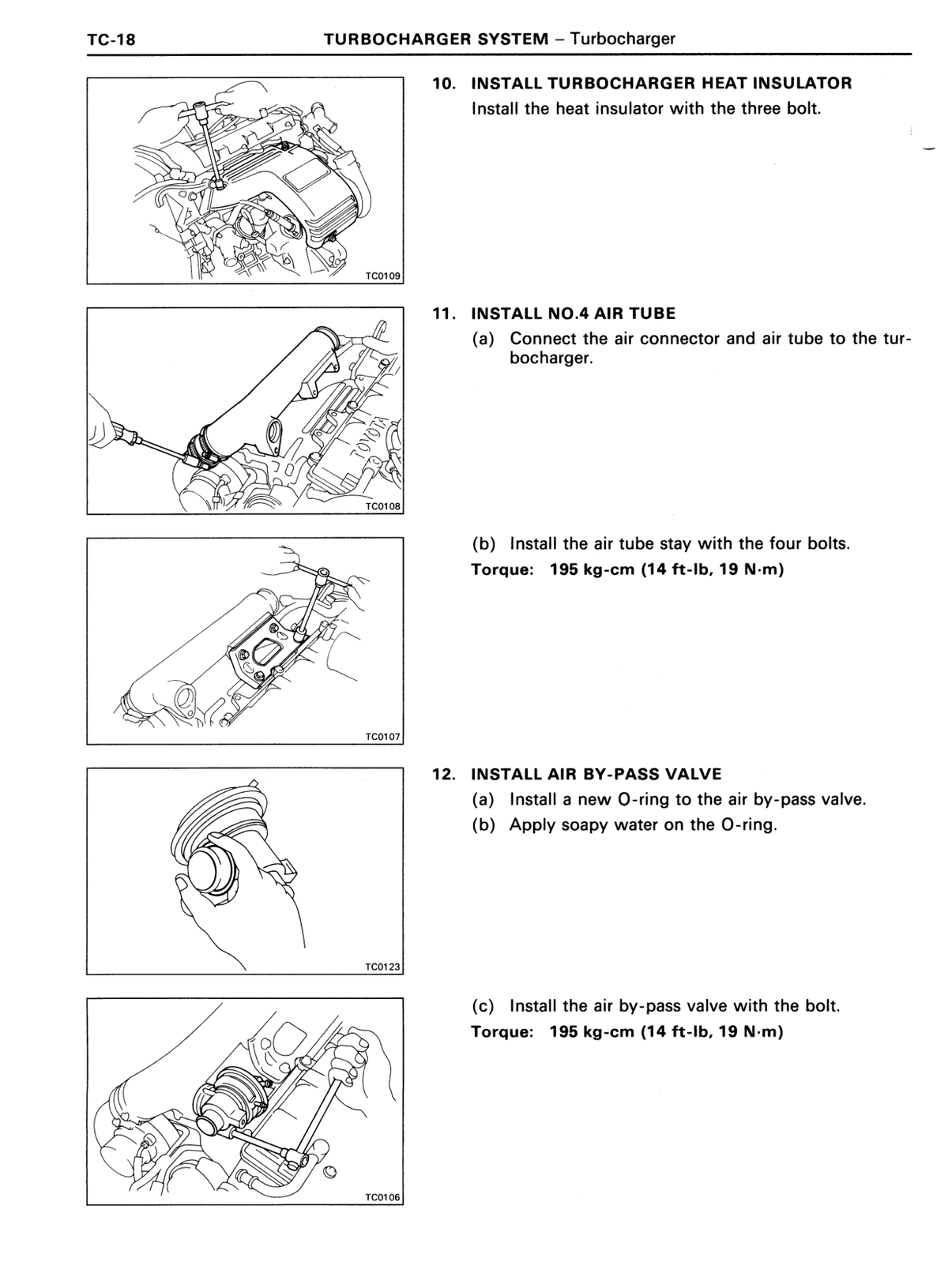

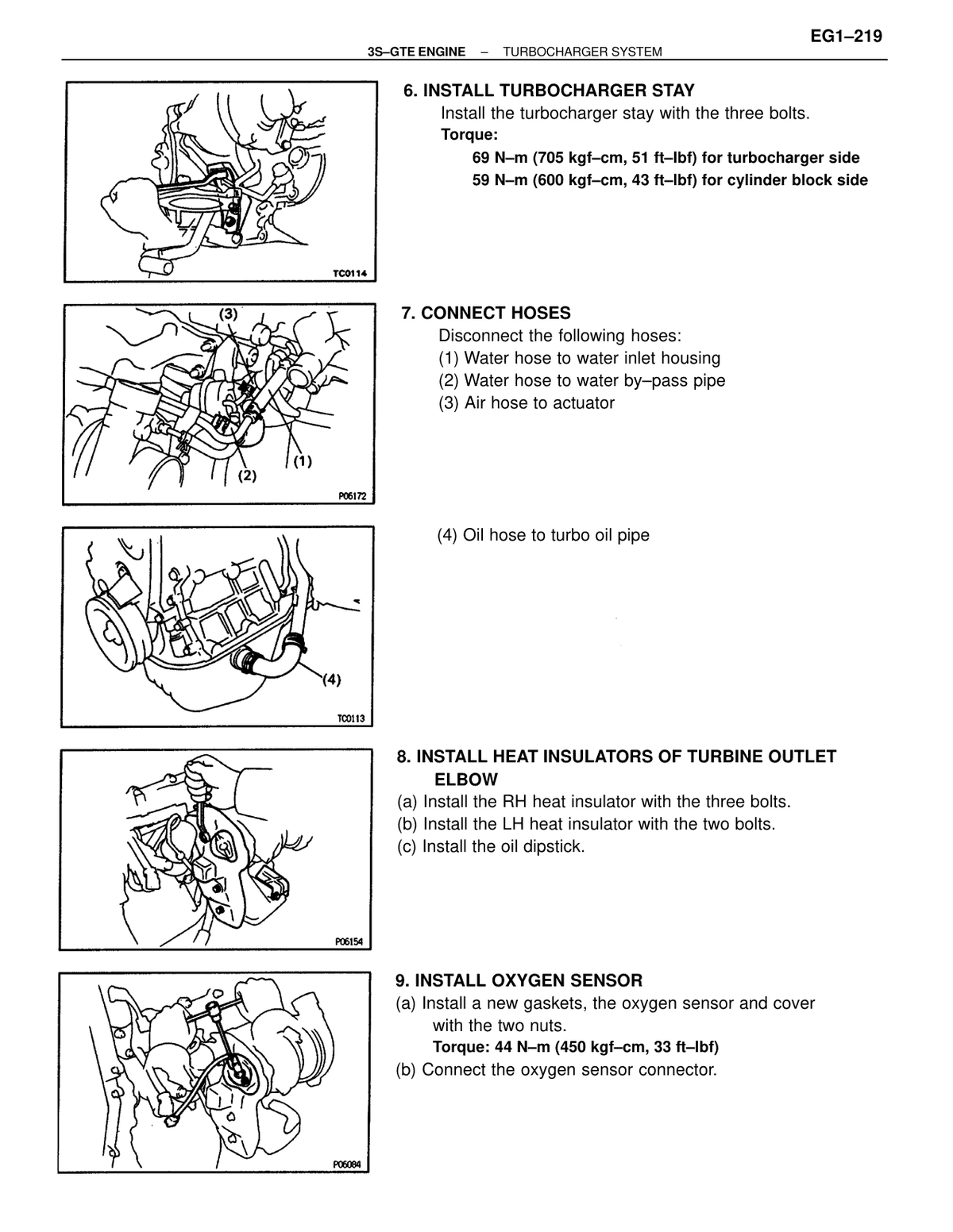

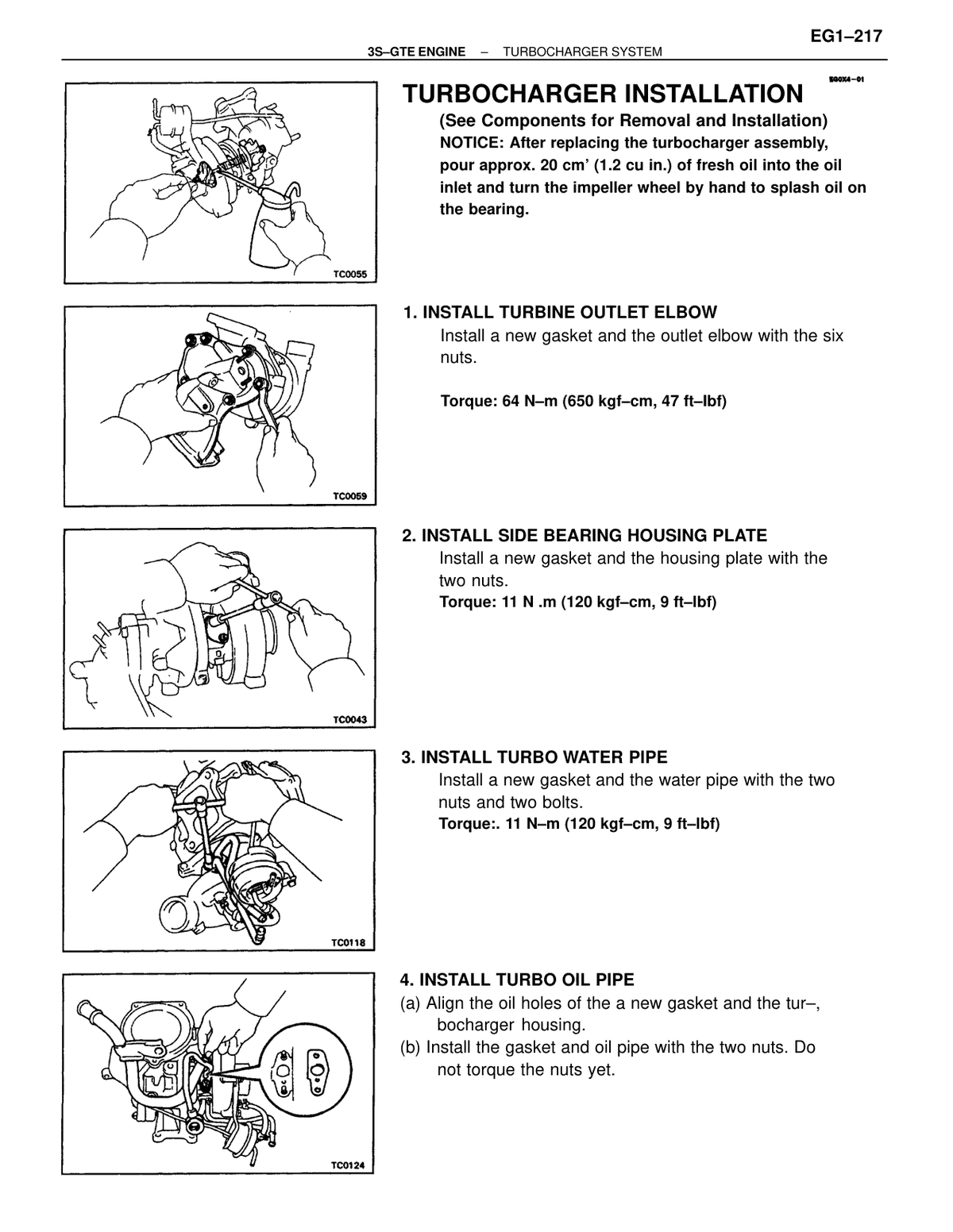

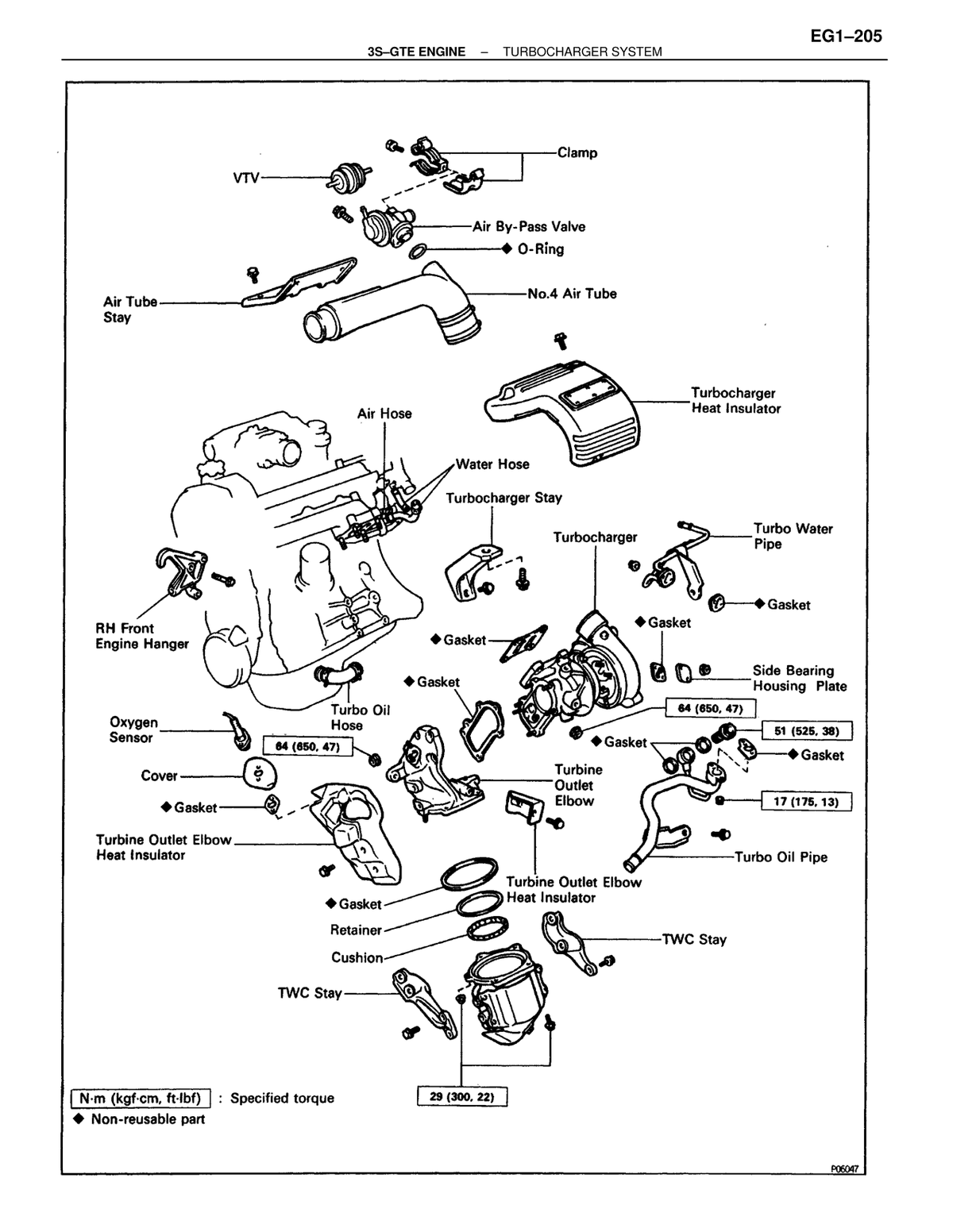

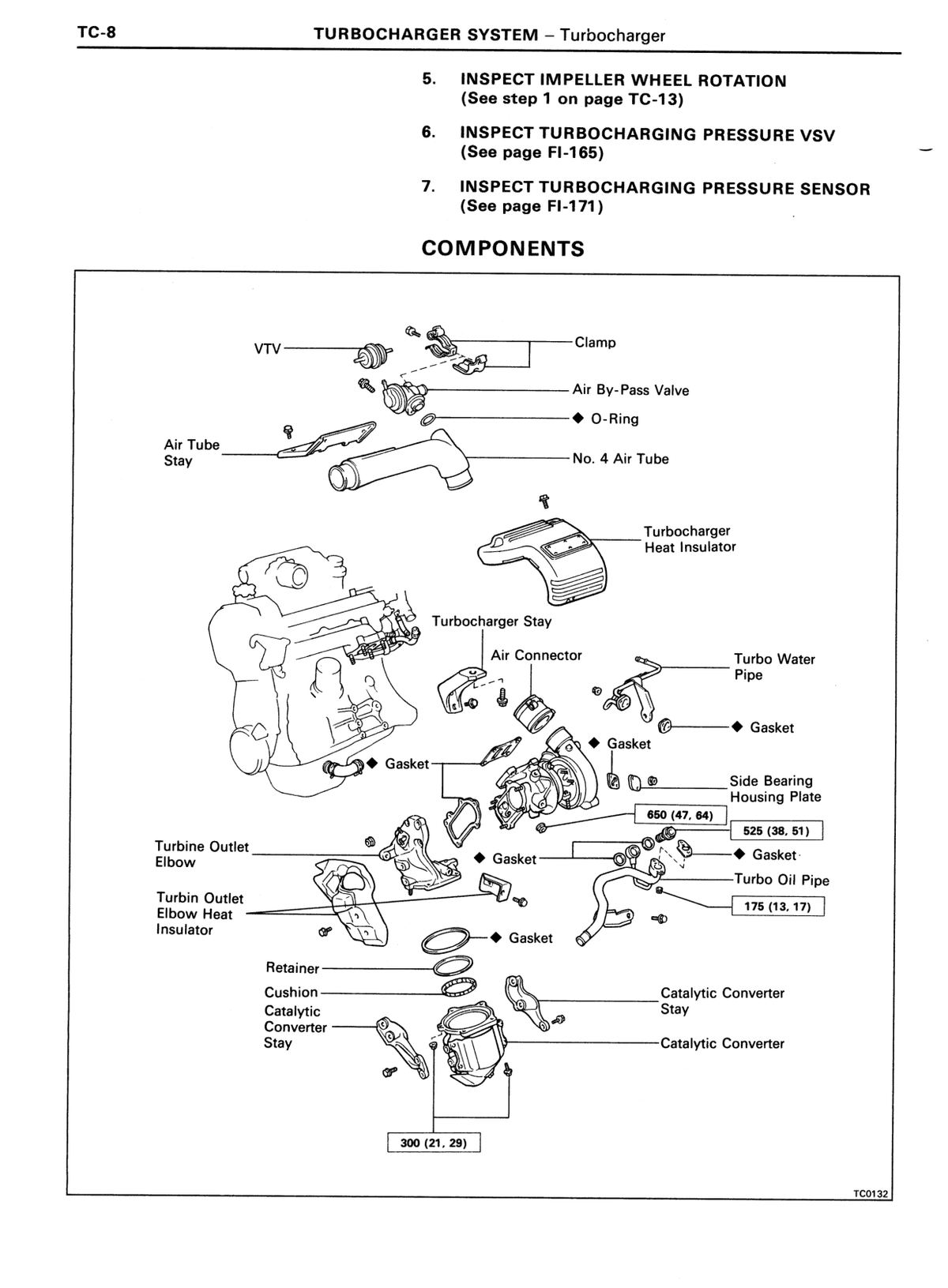

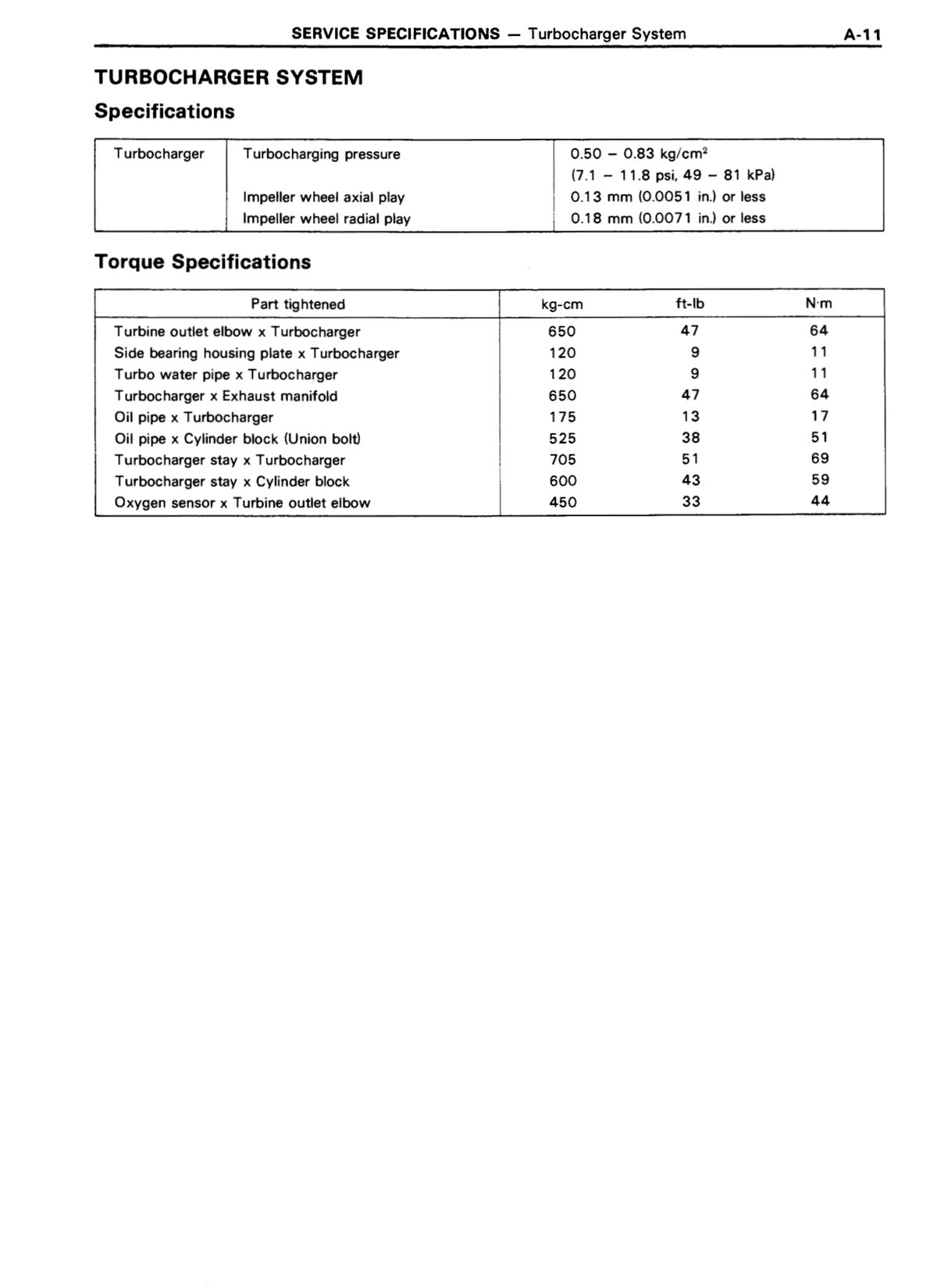

Engine — mechanical Turbine Outlet Elbow / Turbocharger Value shown as 650 (47, 64) 64 650 47 ↗ RM179U1_1991 · p91 OEM manual
Engine — mechanical Catalytic Converter Heat Insulator Value shown as 300 (22, 29) 29 300 22 ↗ RM179U1_1991 · p91 OEM manual

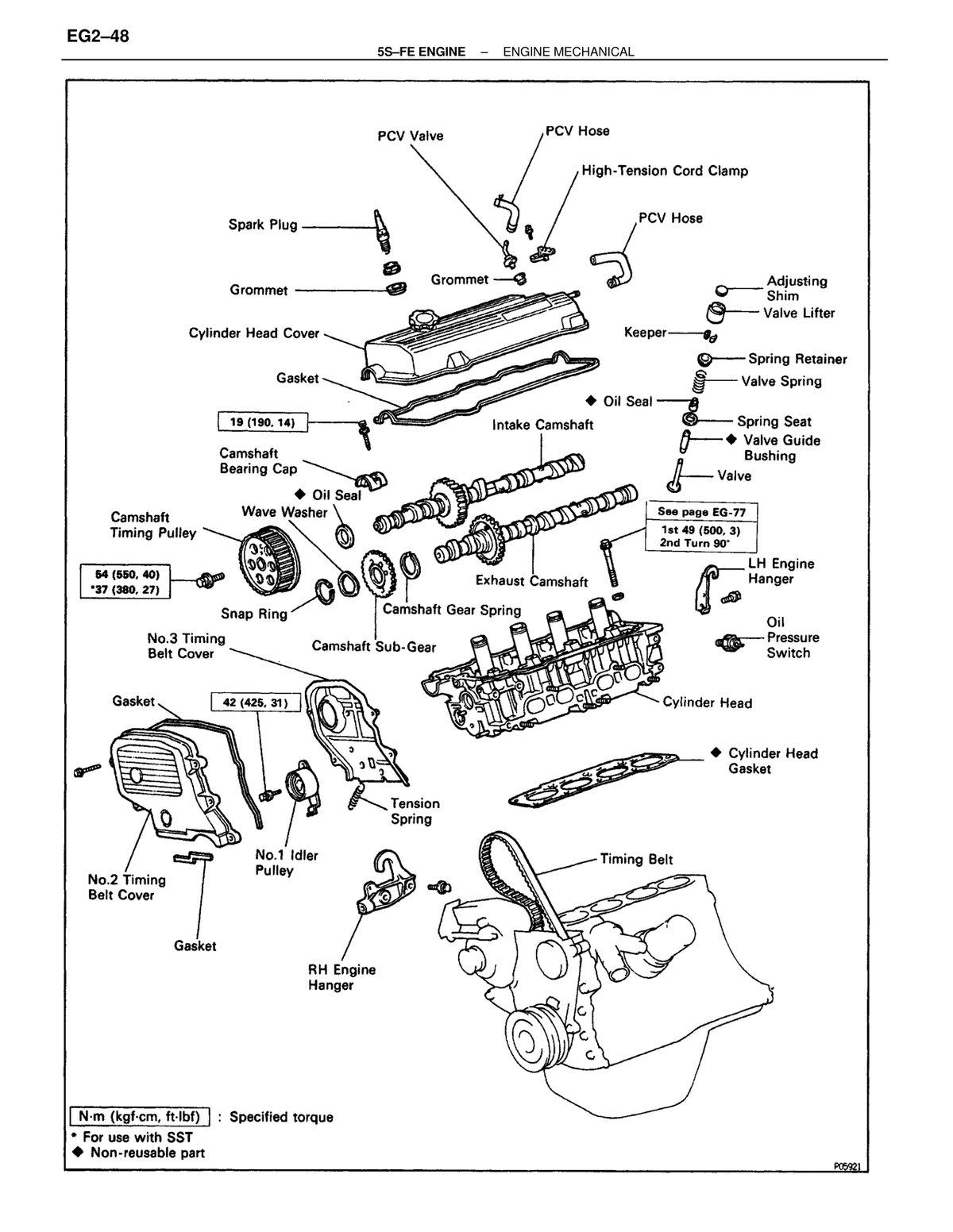

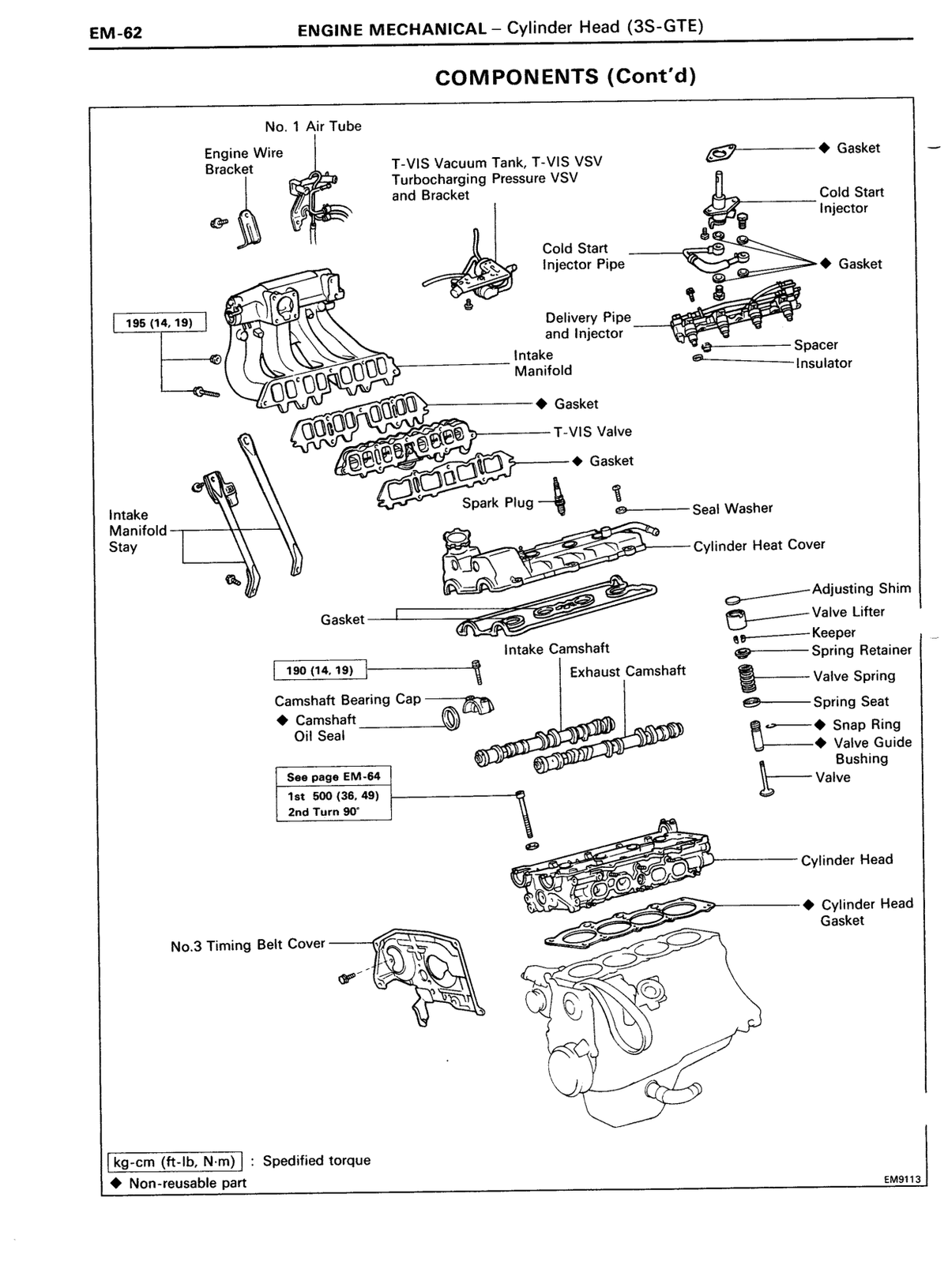

Engine — mechanical Camshaft Bearing Cap bolts — 1st pass 1st 500 (36, 49); See page EM-64 49 500 36 ↗ RM179U1_1991 · p92 OEM manual
Engine — mechanical Camshaft Bearing Cap bolts — 2nd pass 2nd Turn 90°; See page EM-64 — — — ↗ RM179U1_1991 · p92 OEM manual
Engine — mechanical Cylinder Head bolts — 1st pass 190 (14, 19) 19 190 14 ↗ RM179U1_1991 · p92 OEM manual

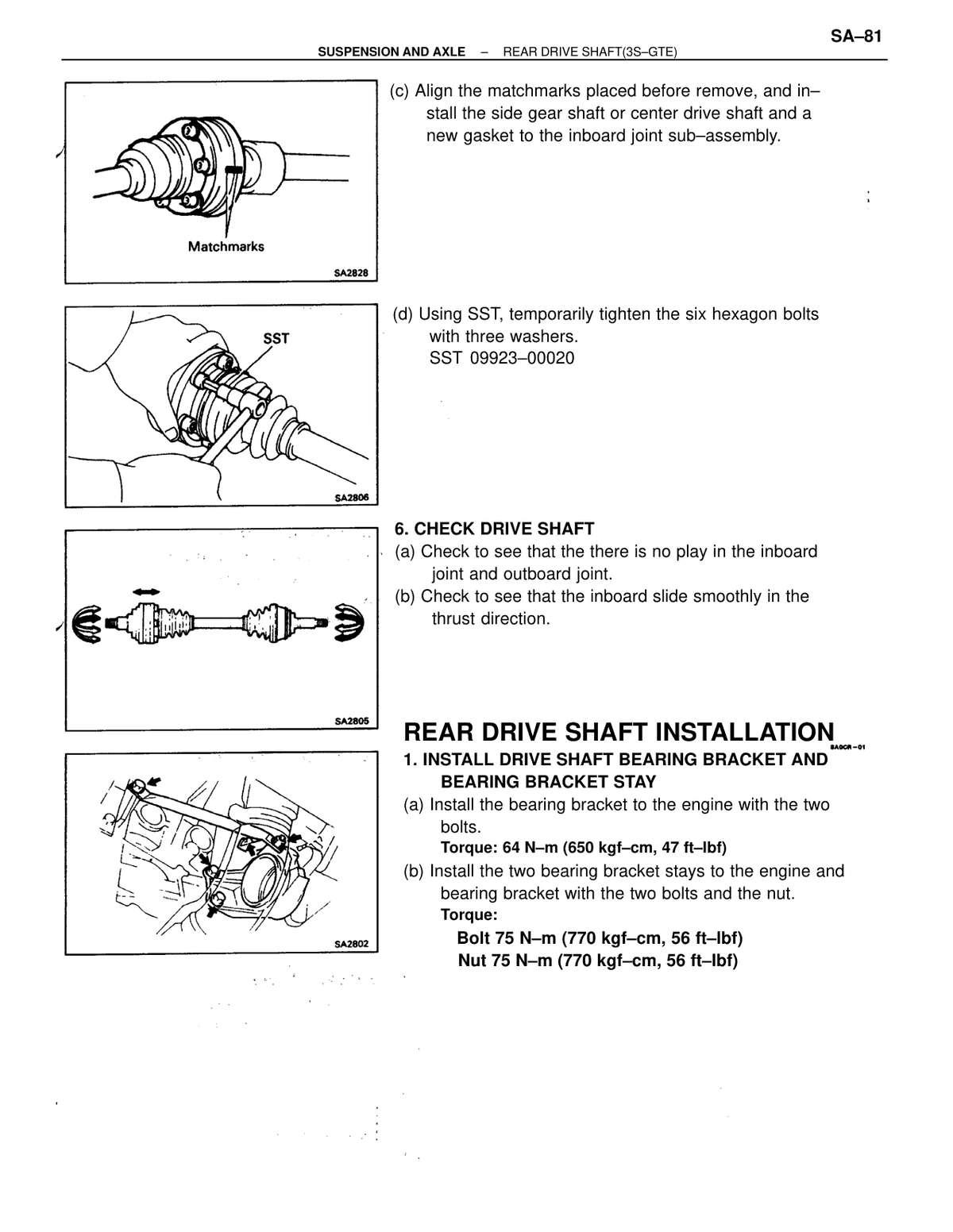

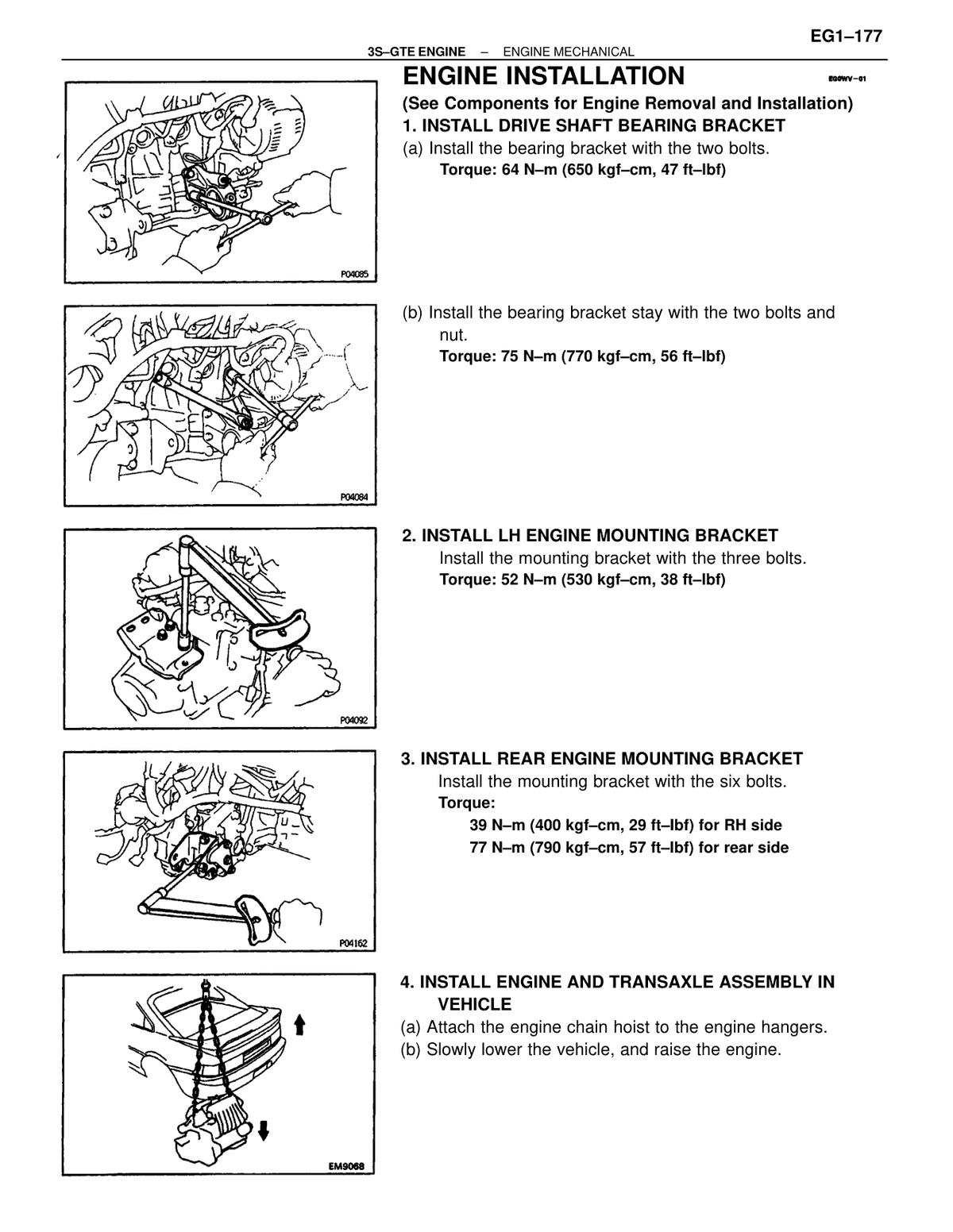

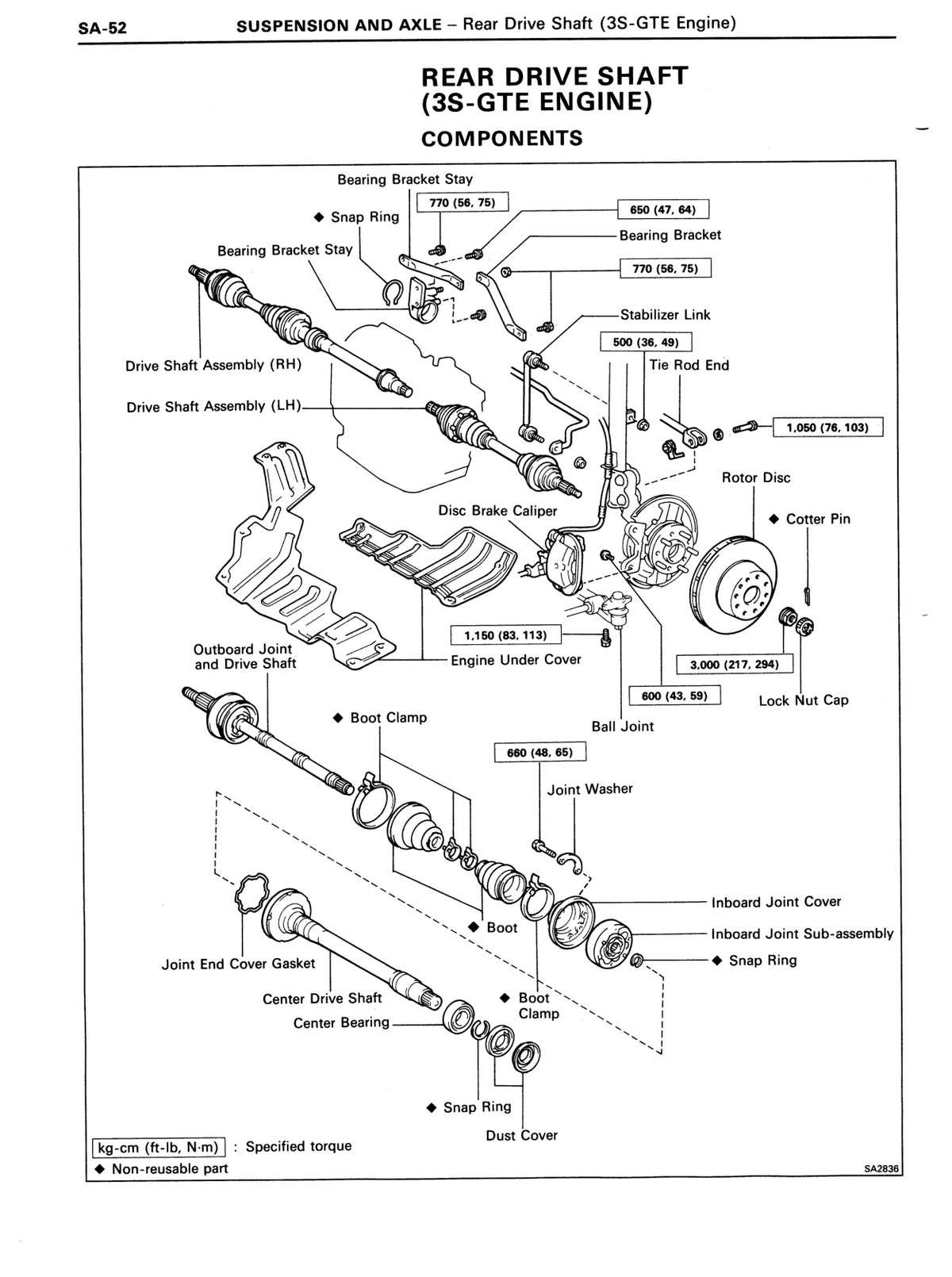

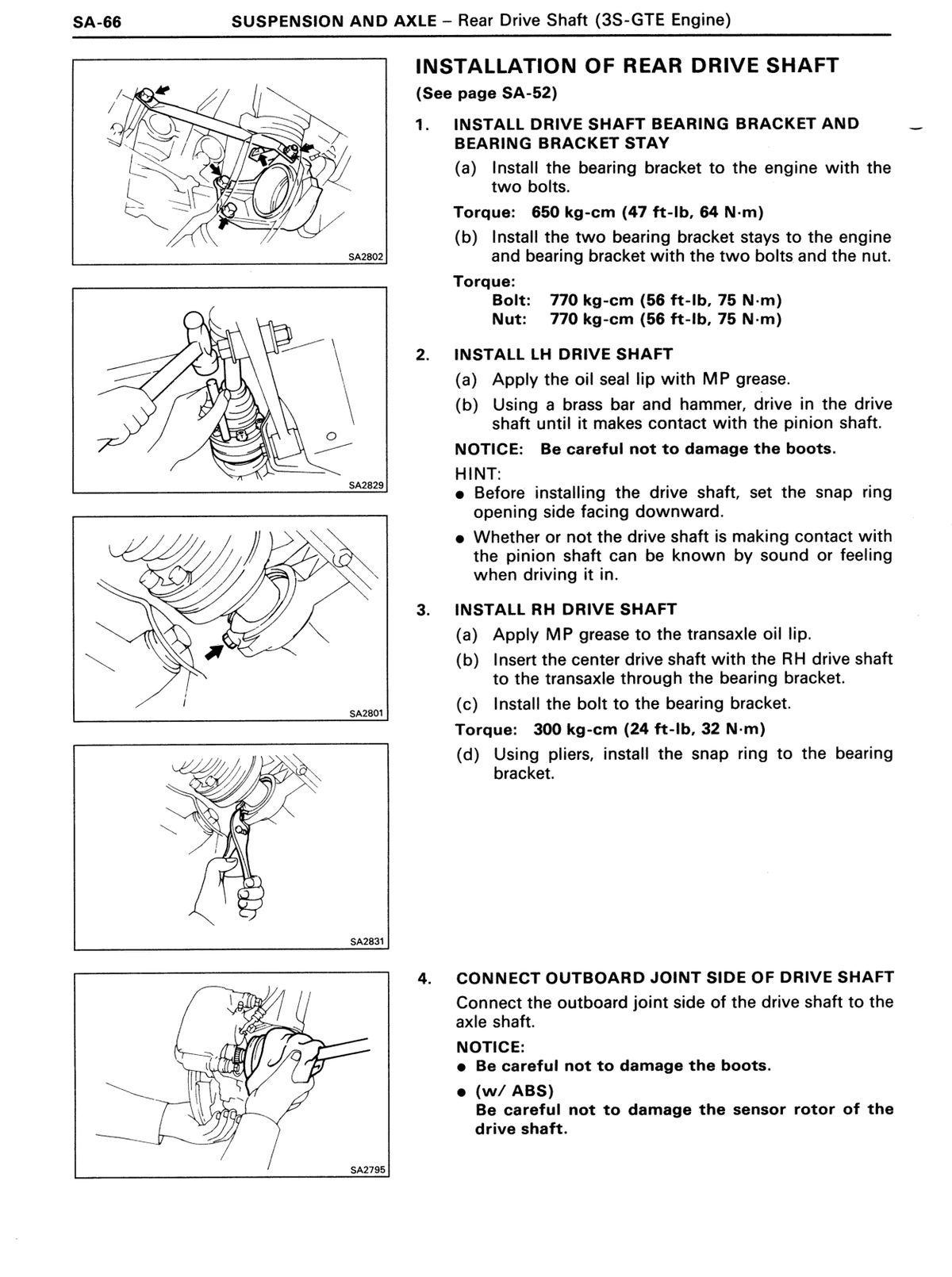

Suspension & axle Bearing bracket to engine bolts Step 1(a) 64 650 47 ↗ RM179U1_1991 · p1010 OEM manual

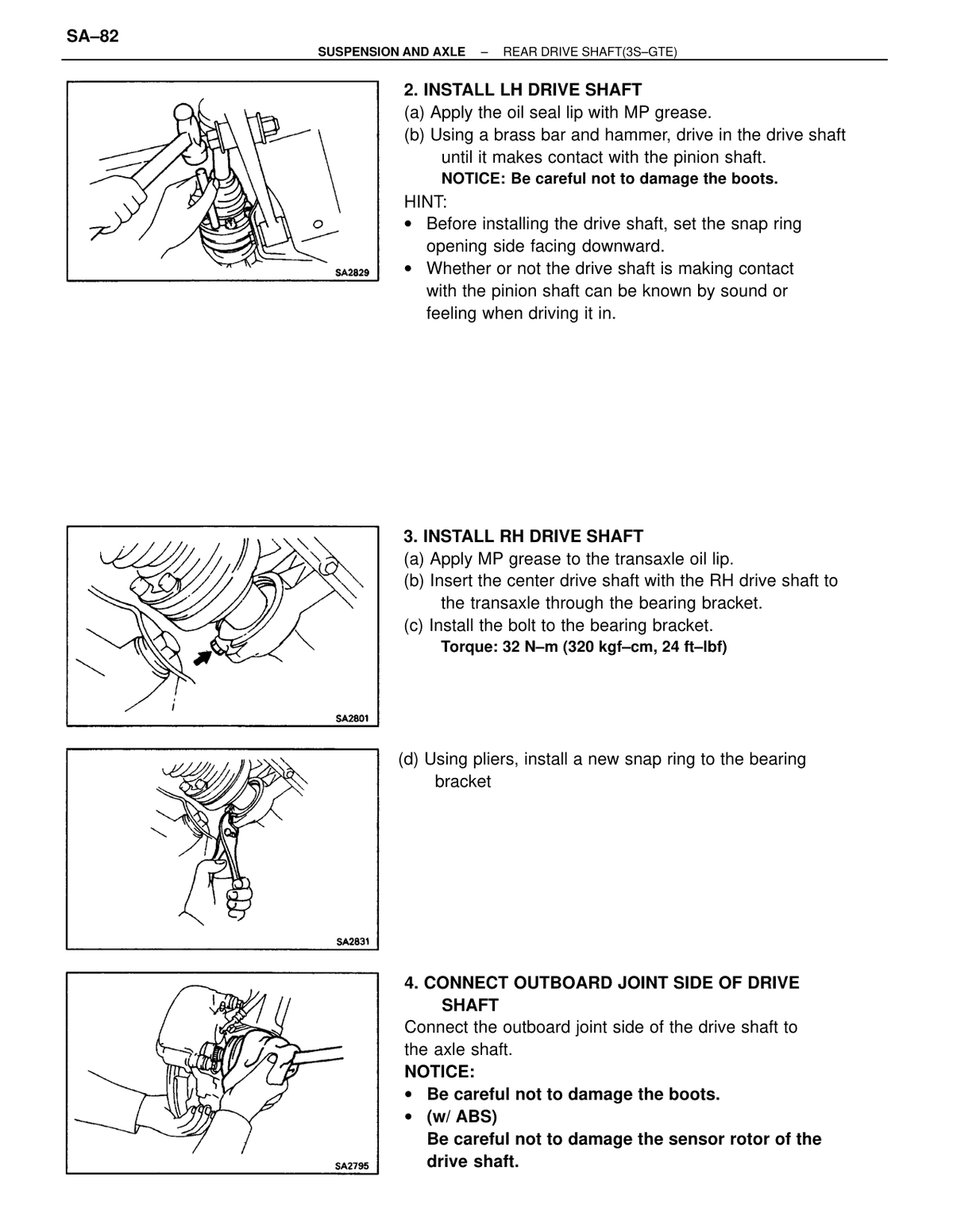

Suspension & axle Bearing bracket bolt (RH drive shaft) Step 3(c) 32 — 24 ↗ RM179U1_1991 · p1010 OEM manual

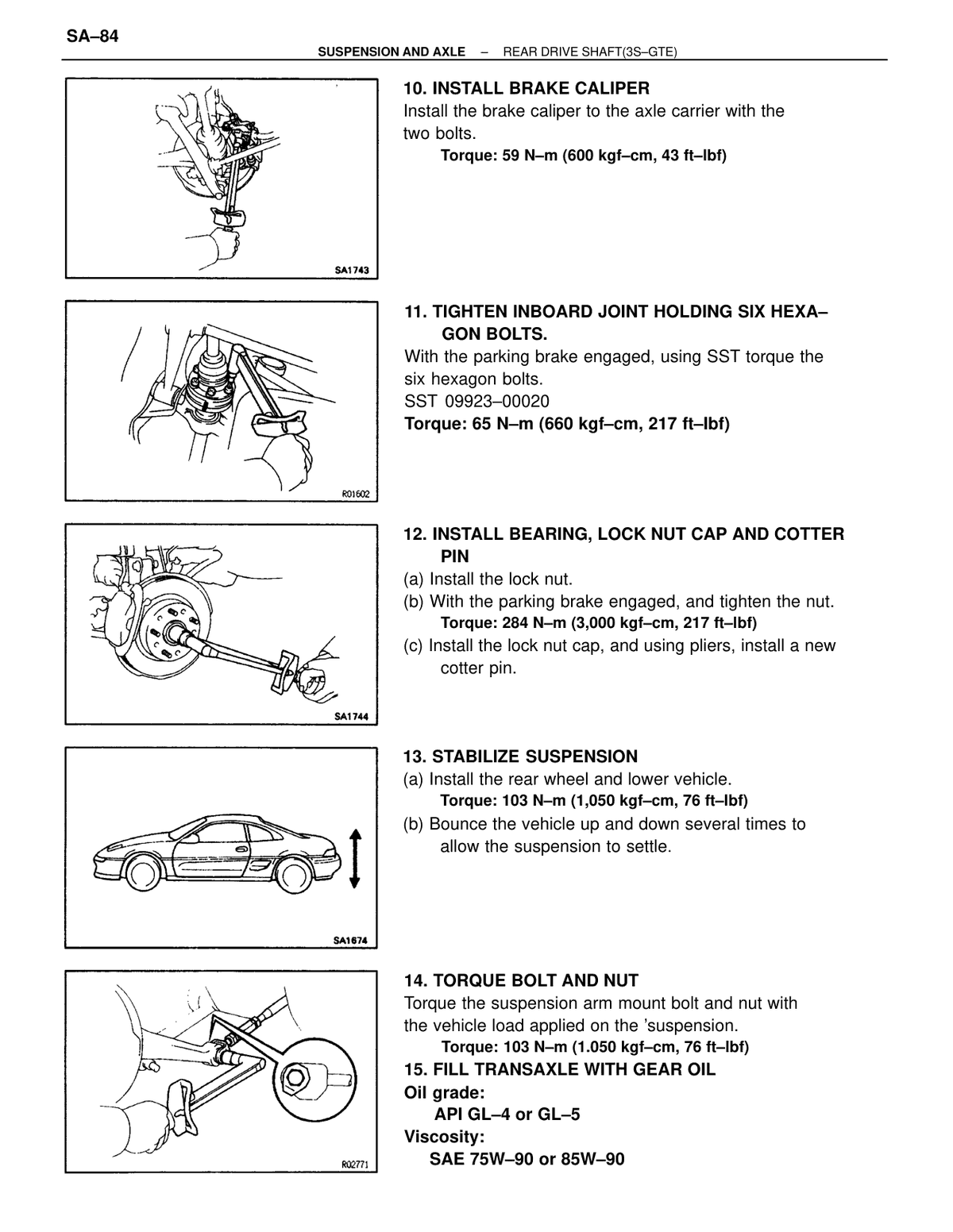

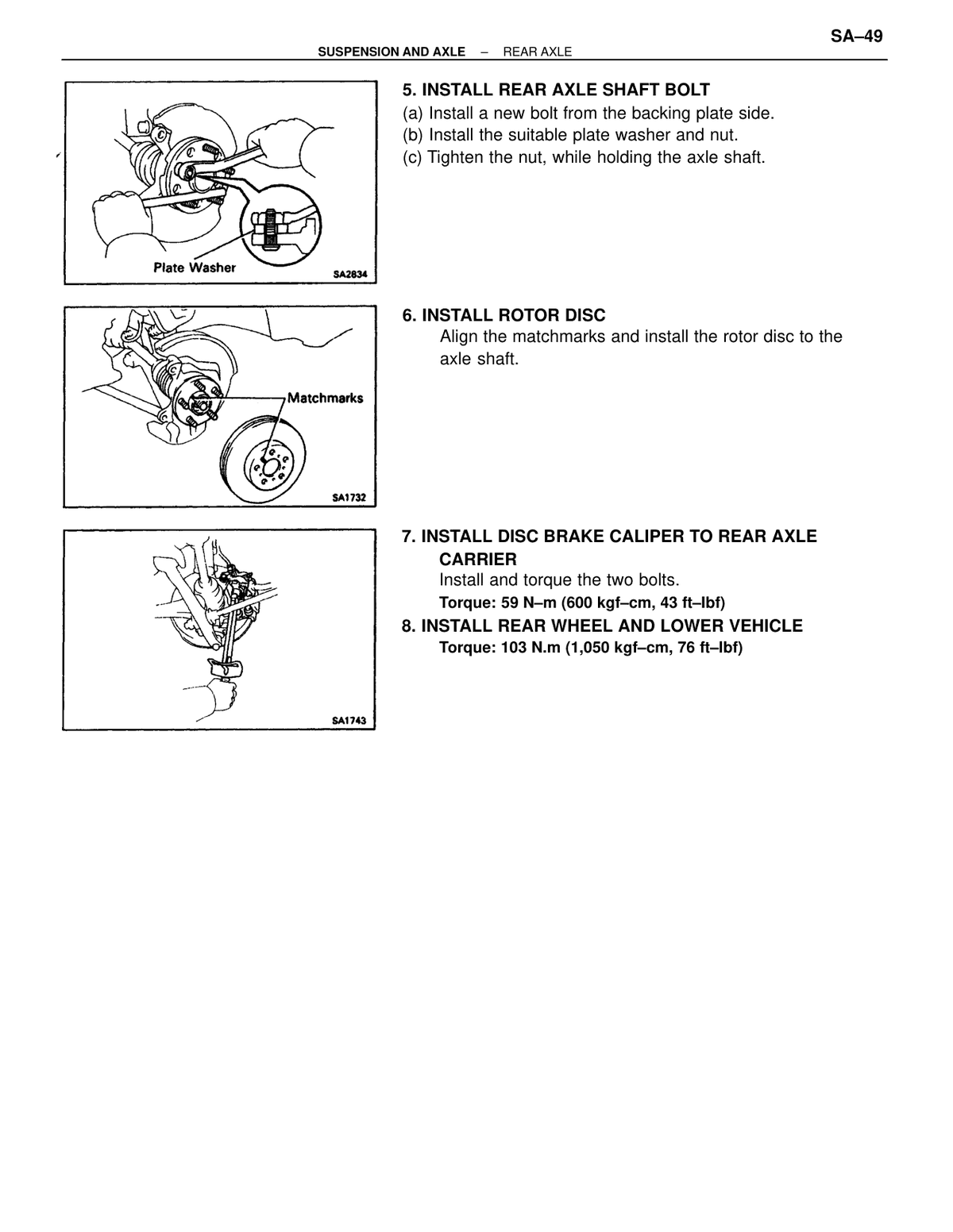

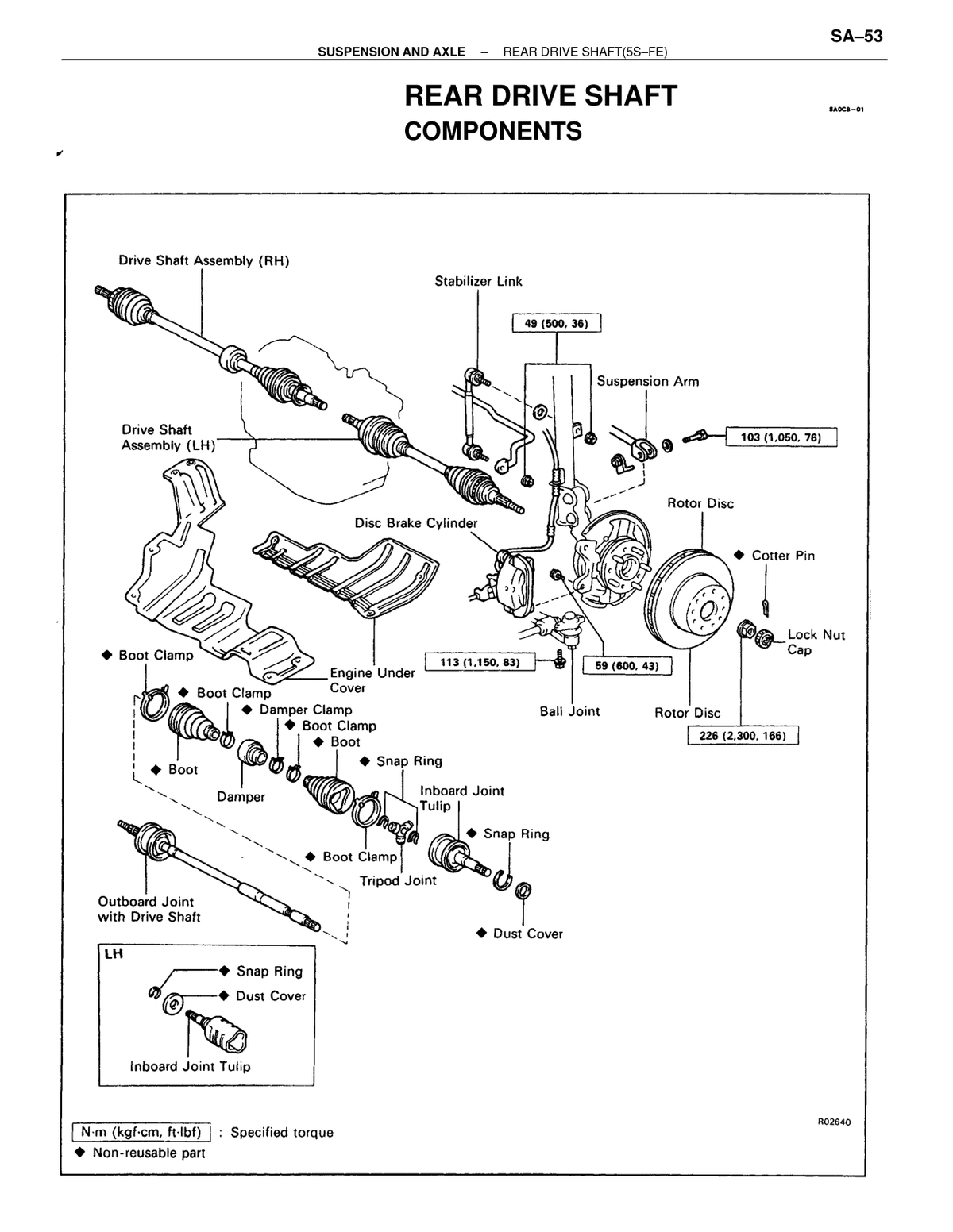

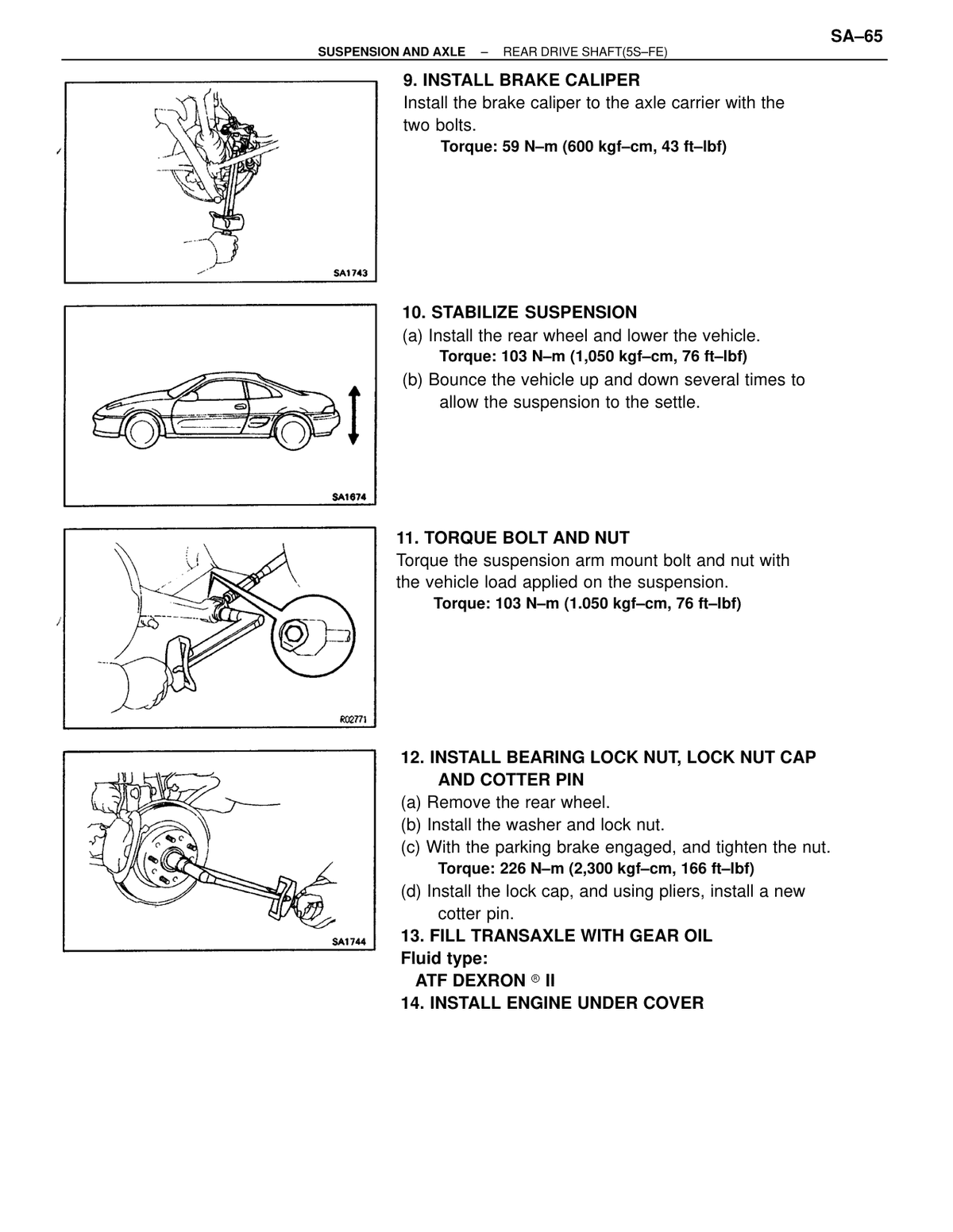

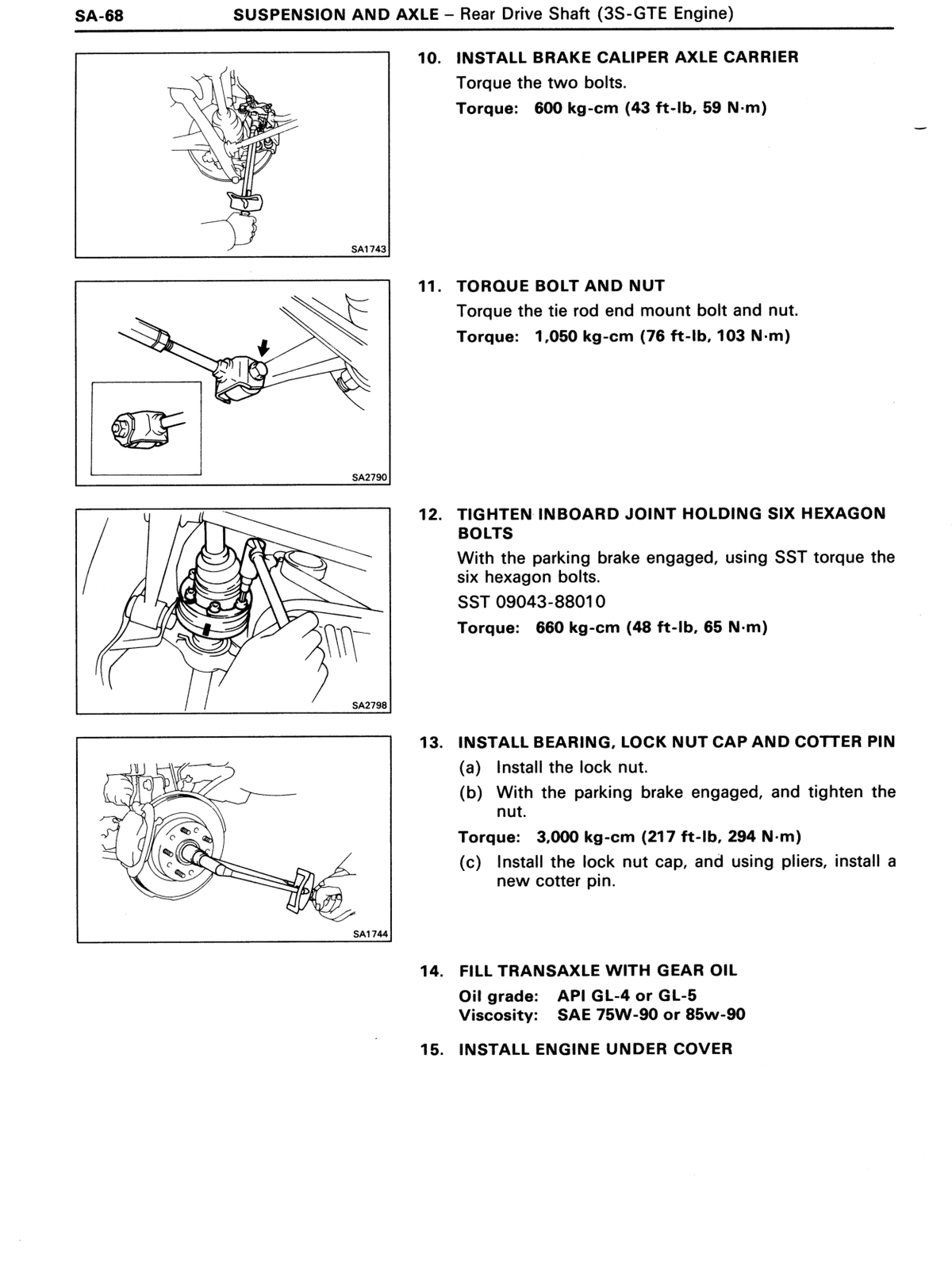

Suspension & axle Brake caliper axle carrier bolts (two bolts) 59 600 43 ↗ RM179U1_1991 · p1012 OEM manual
Suspension & axle Inboard joint six hexagon bolts Parking brake engaged; SST 09043-88010 65 660 48 ↗ RM179U1_1991 · p1012 OEM manual
Suspension & axle Bearing lock nut Parking brake engaged 294 3000 217 ↗ RM179U1_1991 · p1012 OEM manual

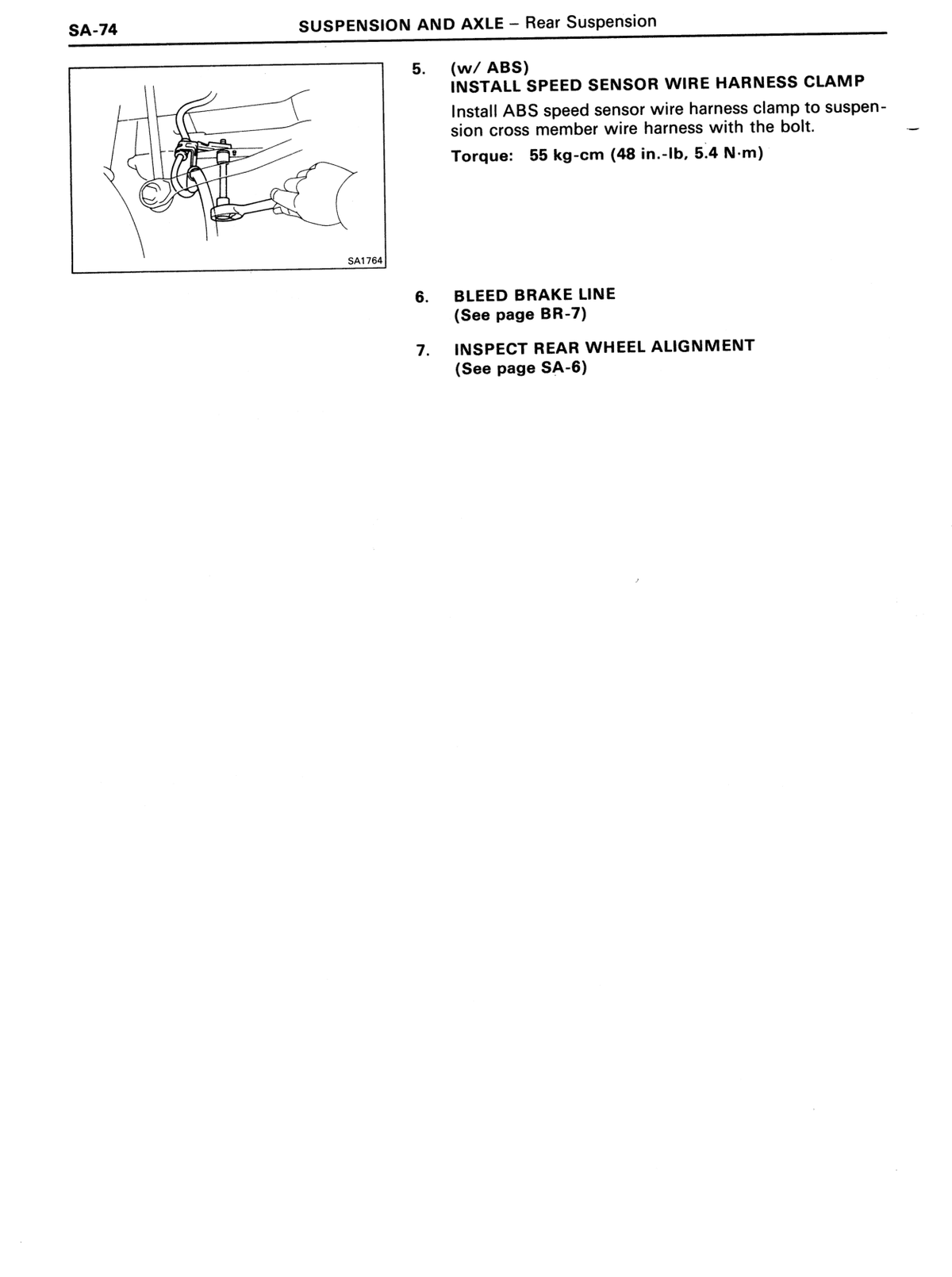

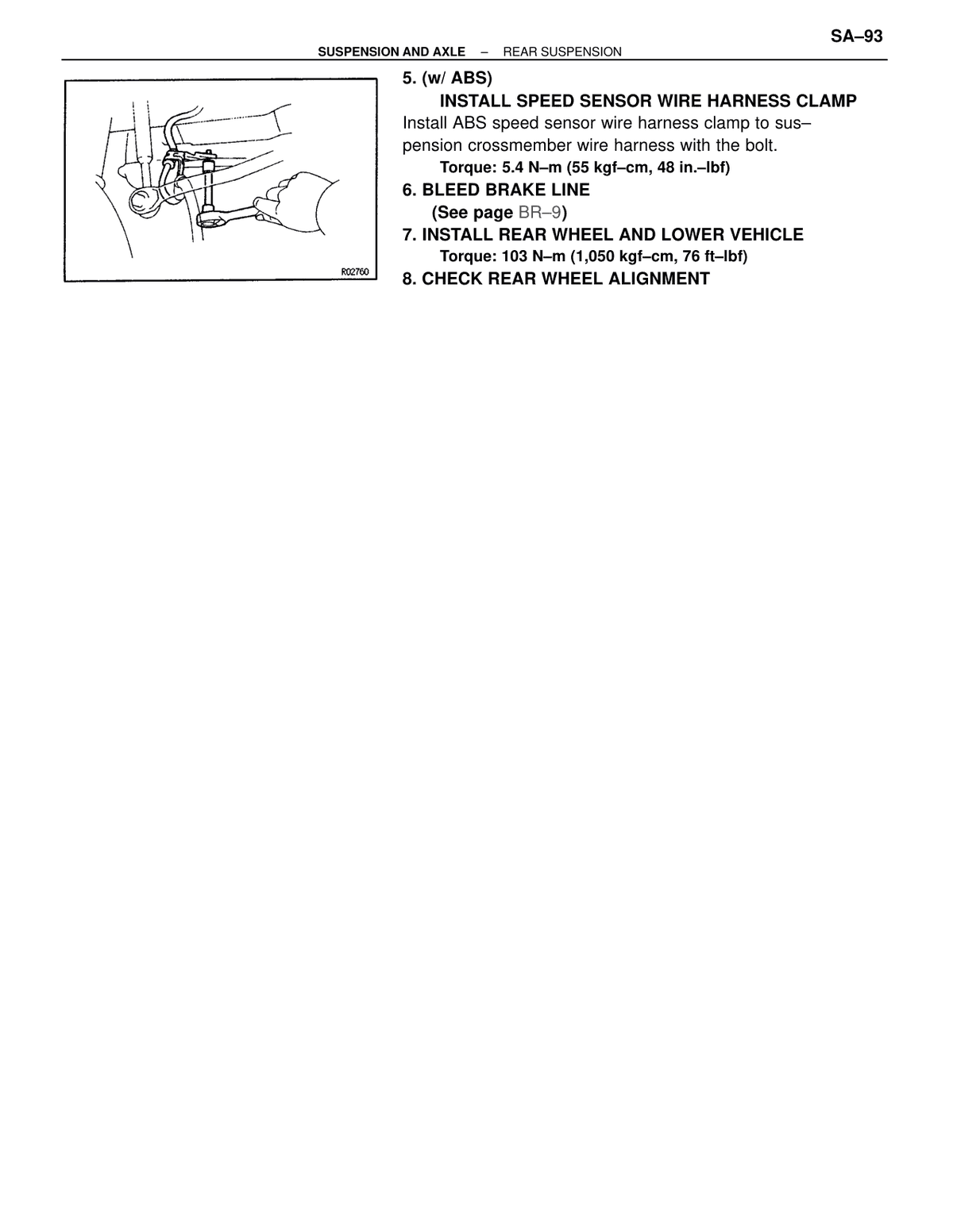

Suspension & axle ABS speed sensor wire harness clamp bolt w/ ABS, step 5 5.4 55 — ↗ RM179U1_1991 · p1018 OEM manual

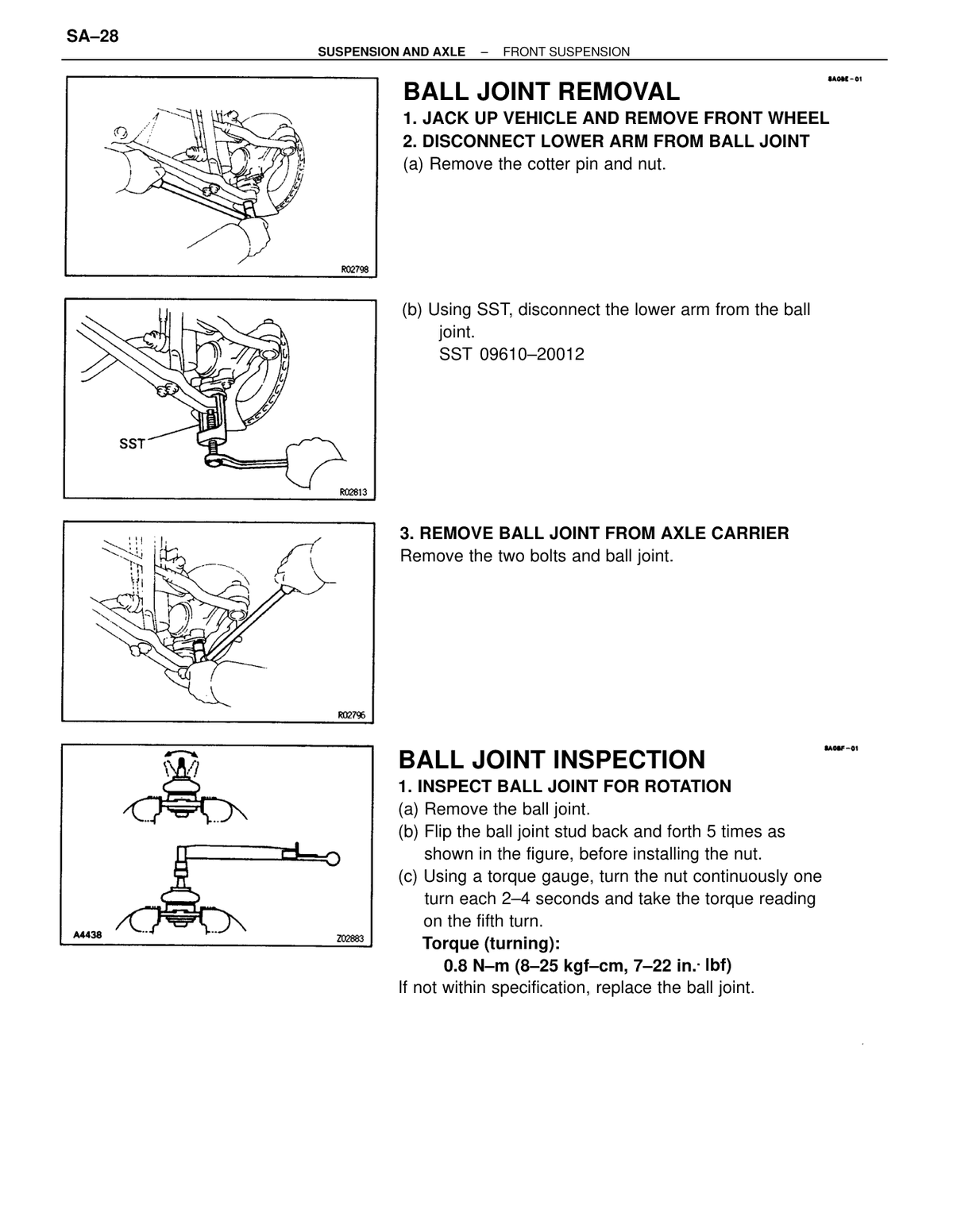

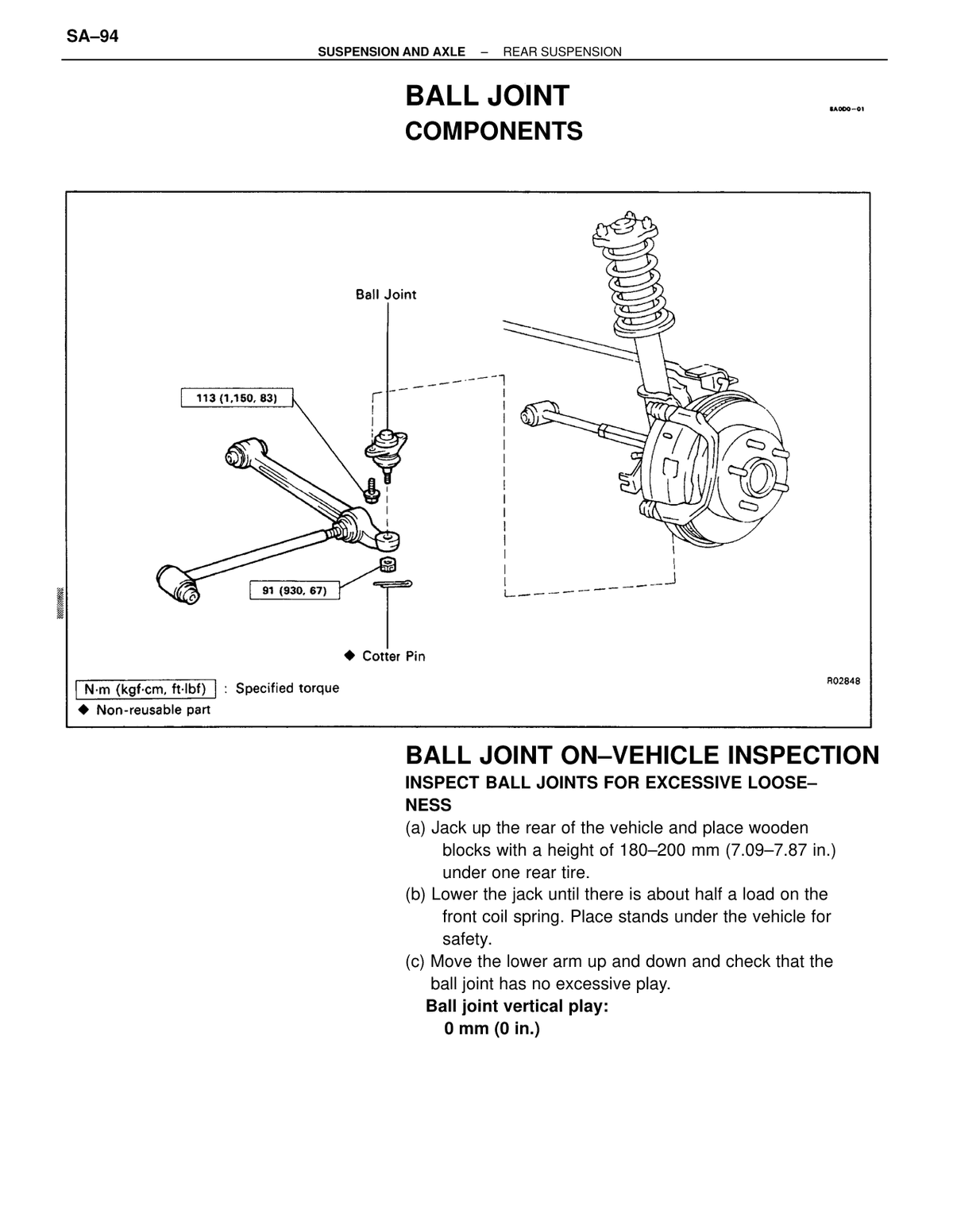

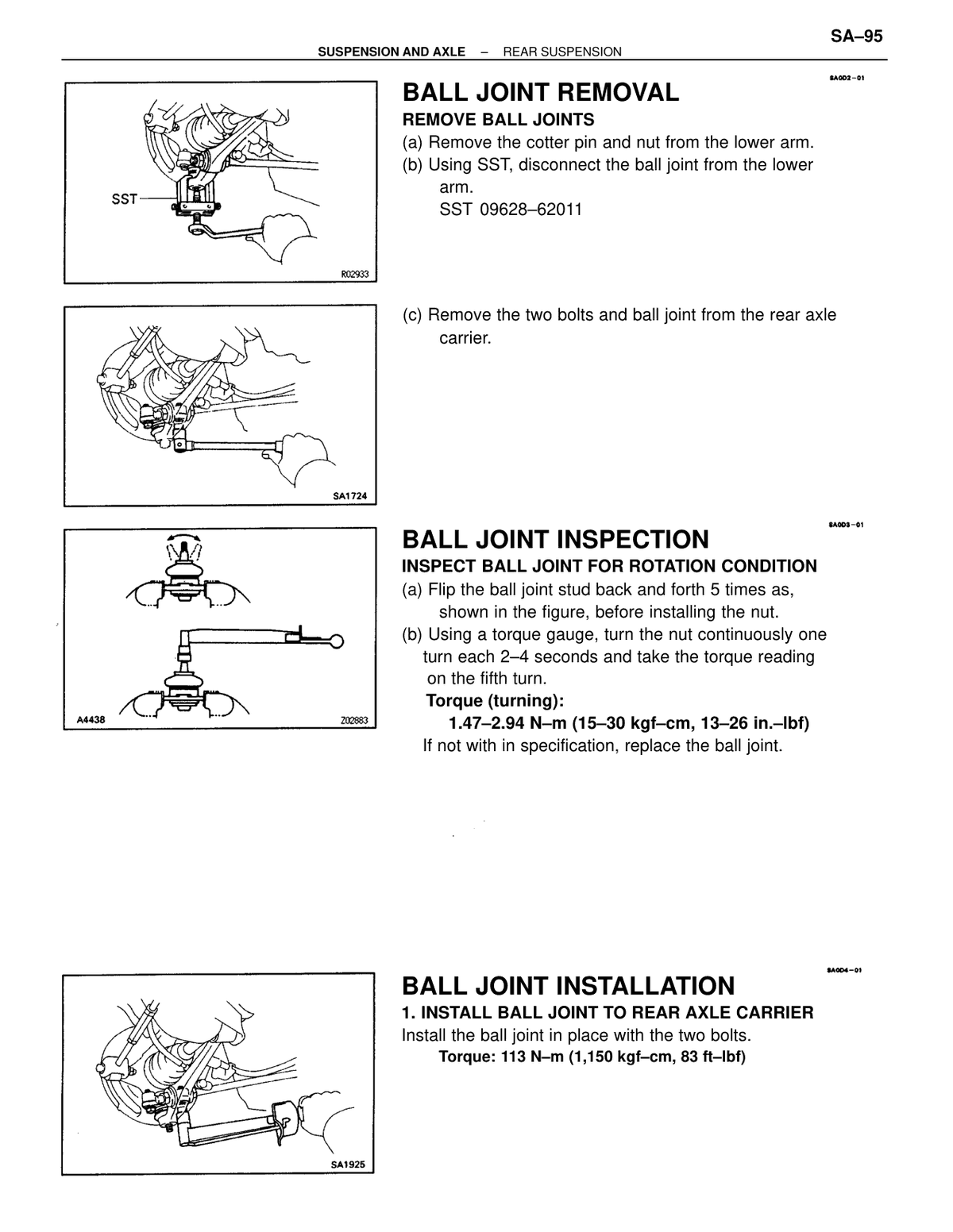

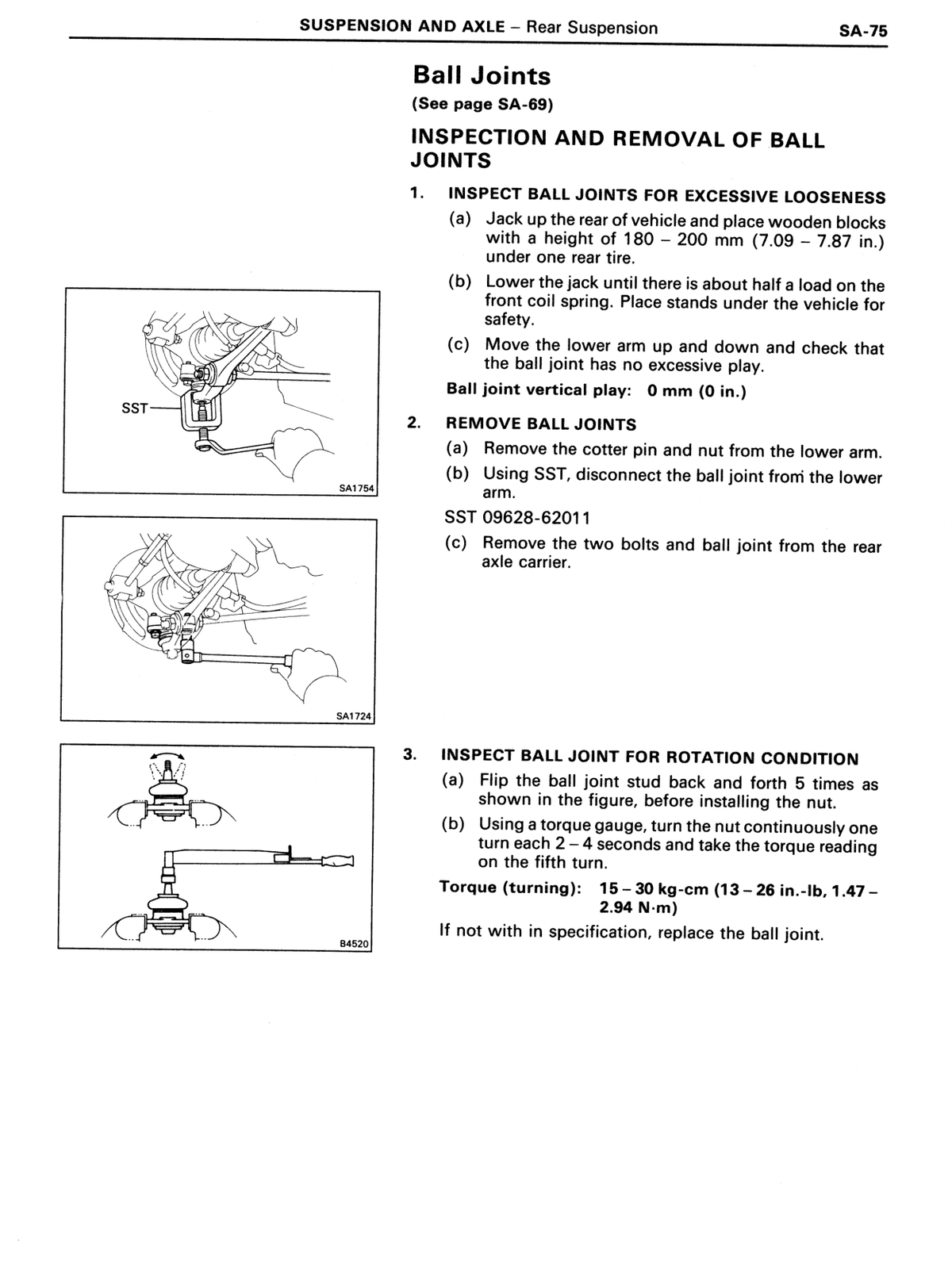

Suspension & axle Ball joint turning torque Turning torque range: 15–30 kg·cm (13–26 in.-lb, 1.47–2.94 N·m). If not within specification, replace the ball joint. 1.47 15 — ↗ RM179U1_1991 · p1019 OEM manual

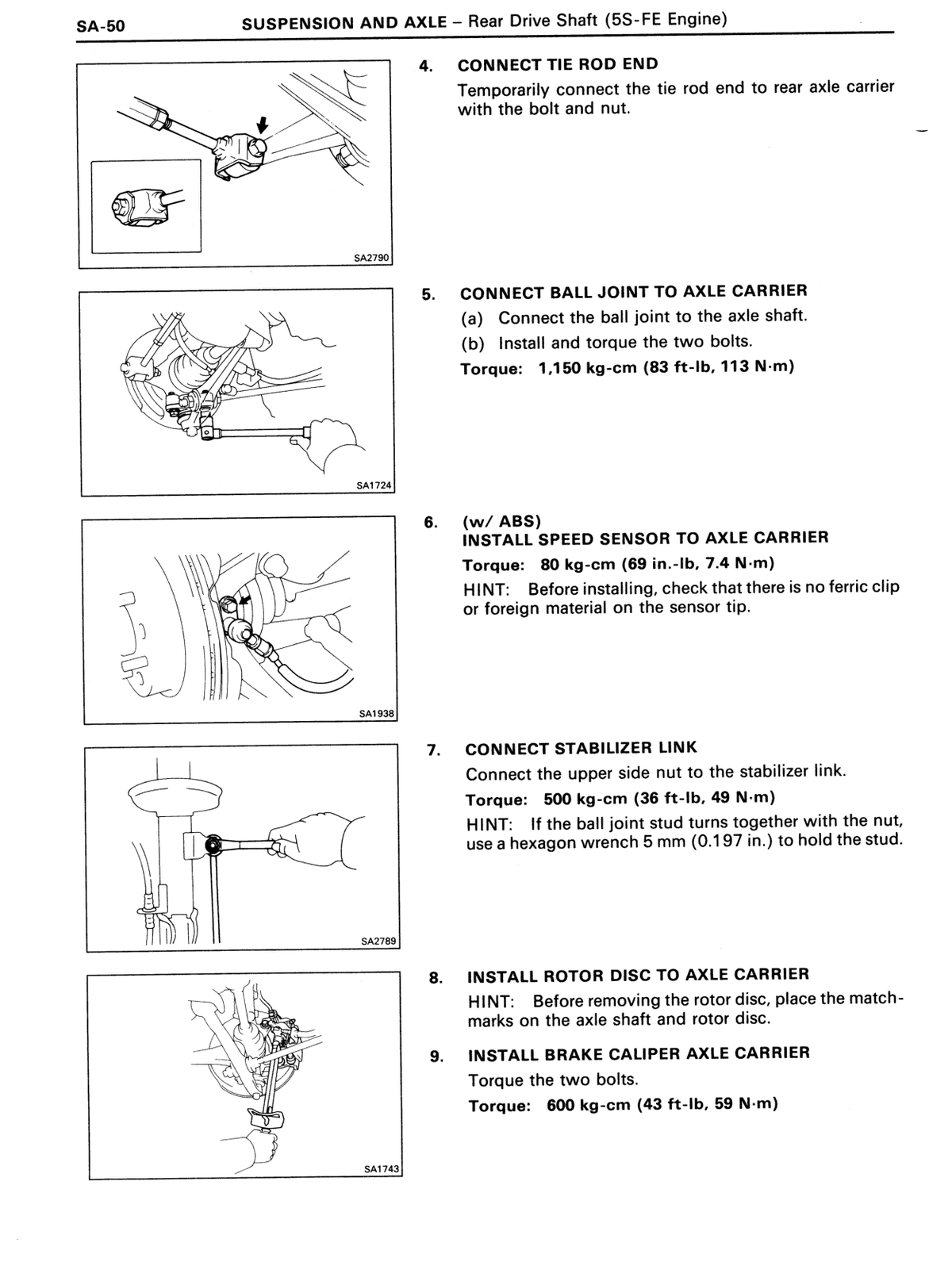

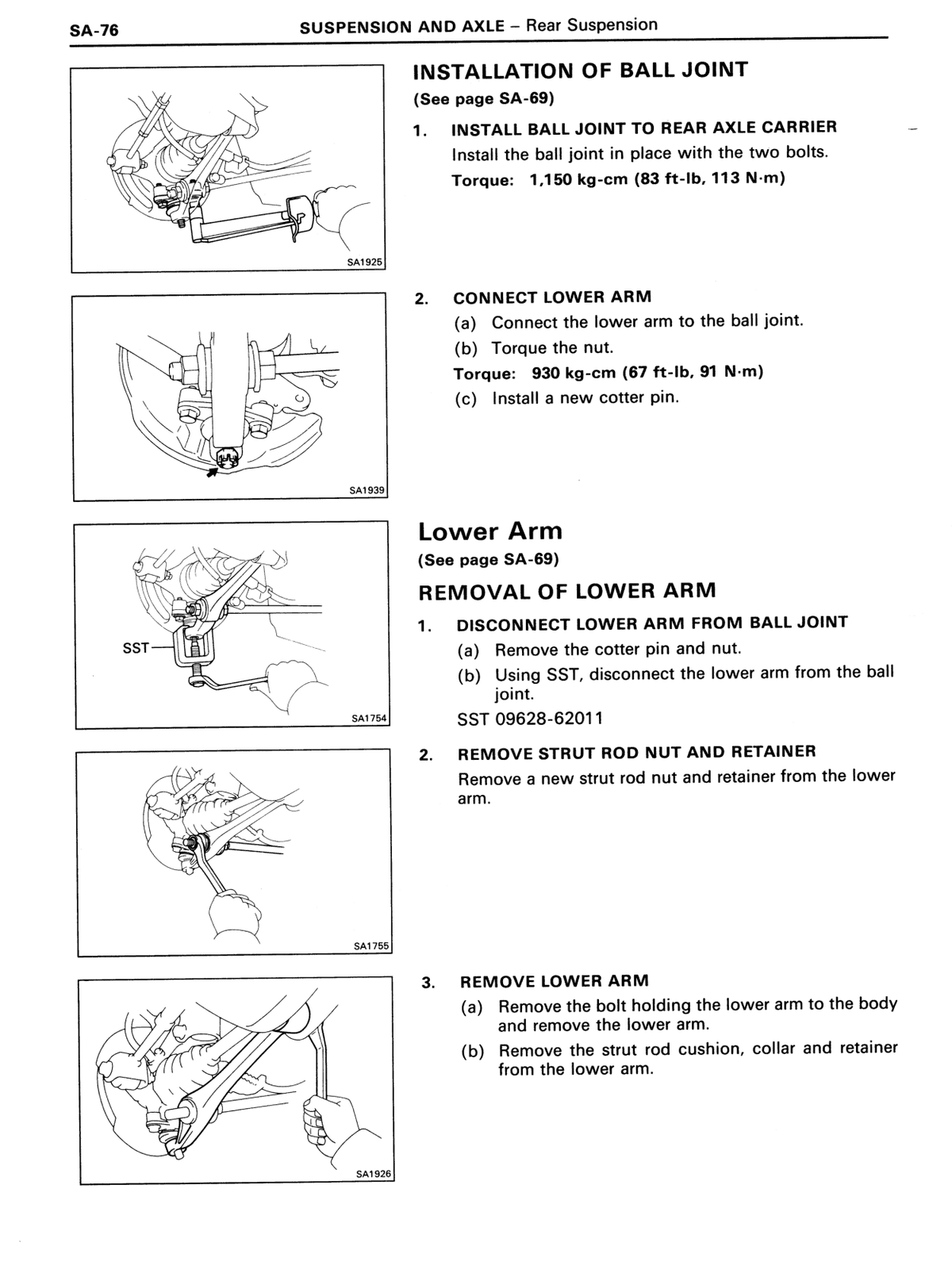

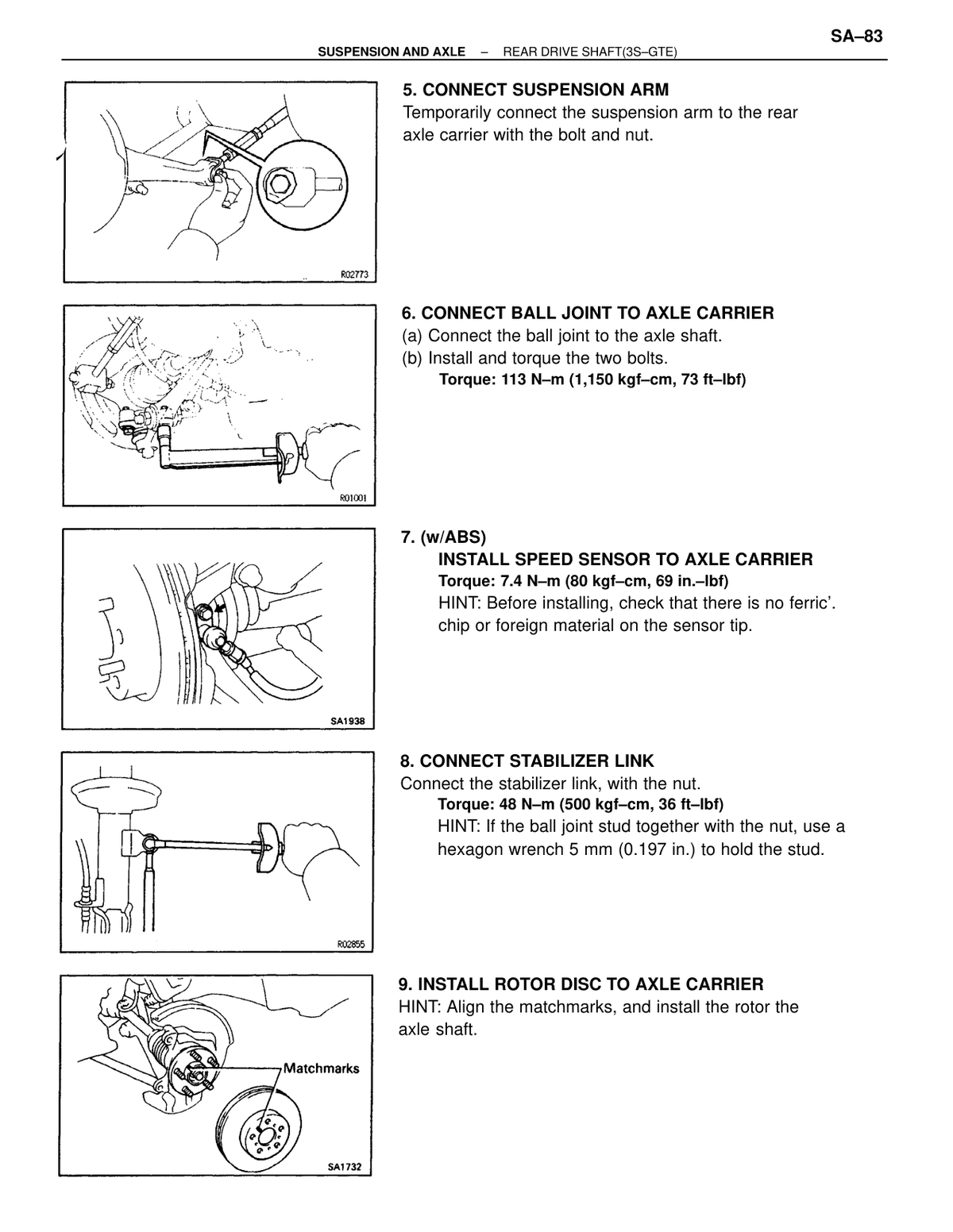

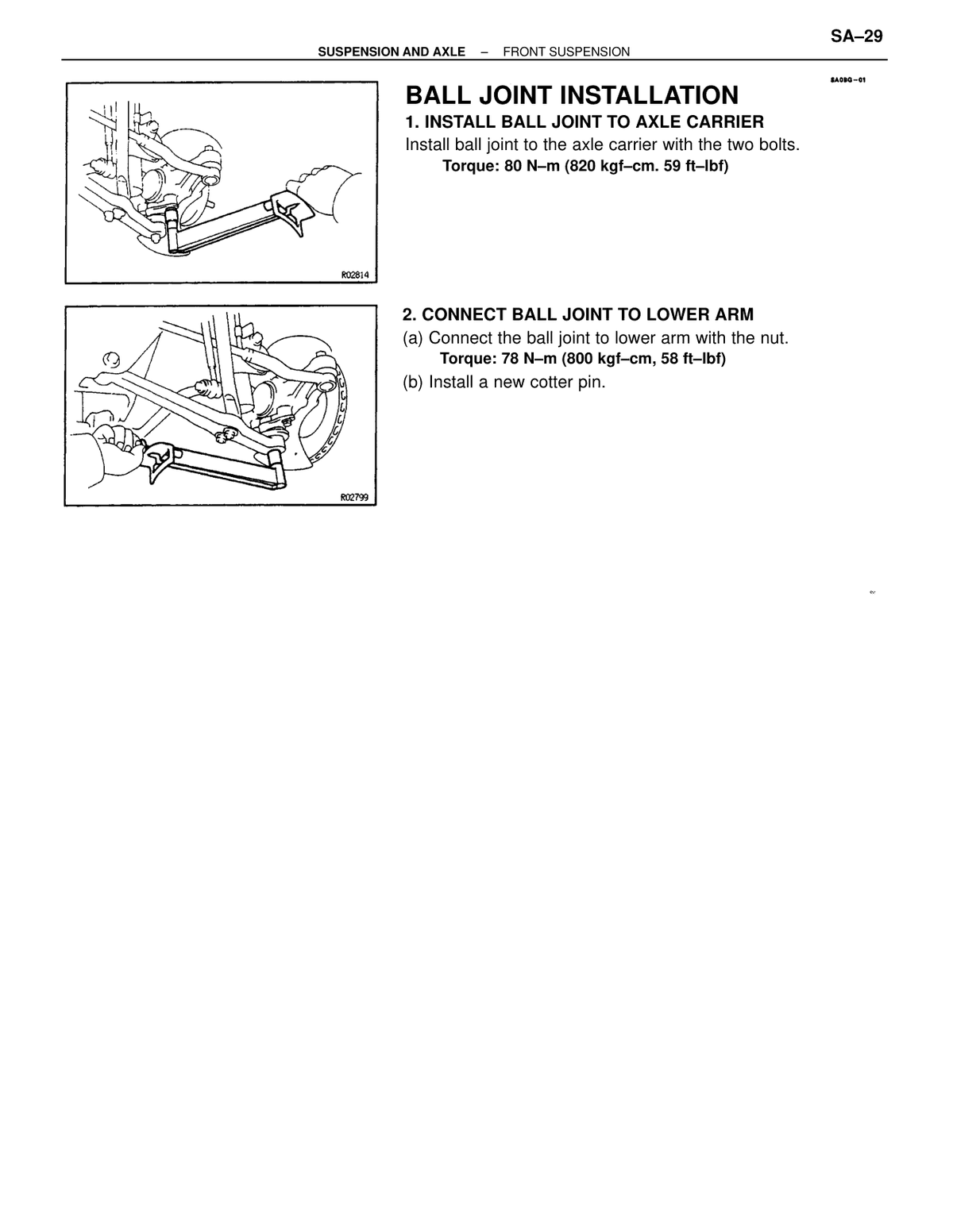

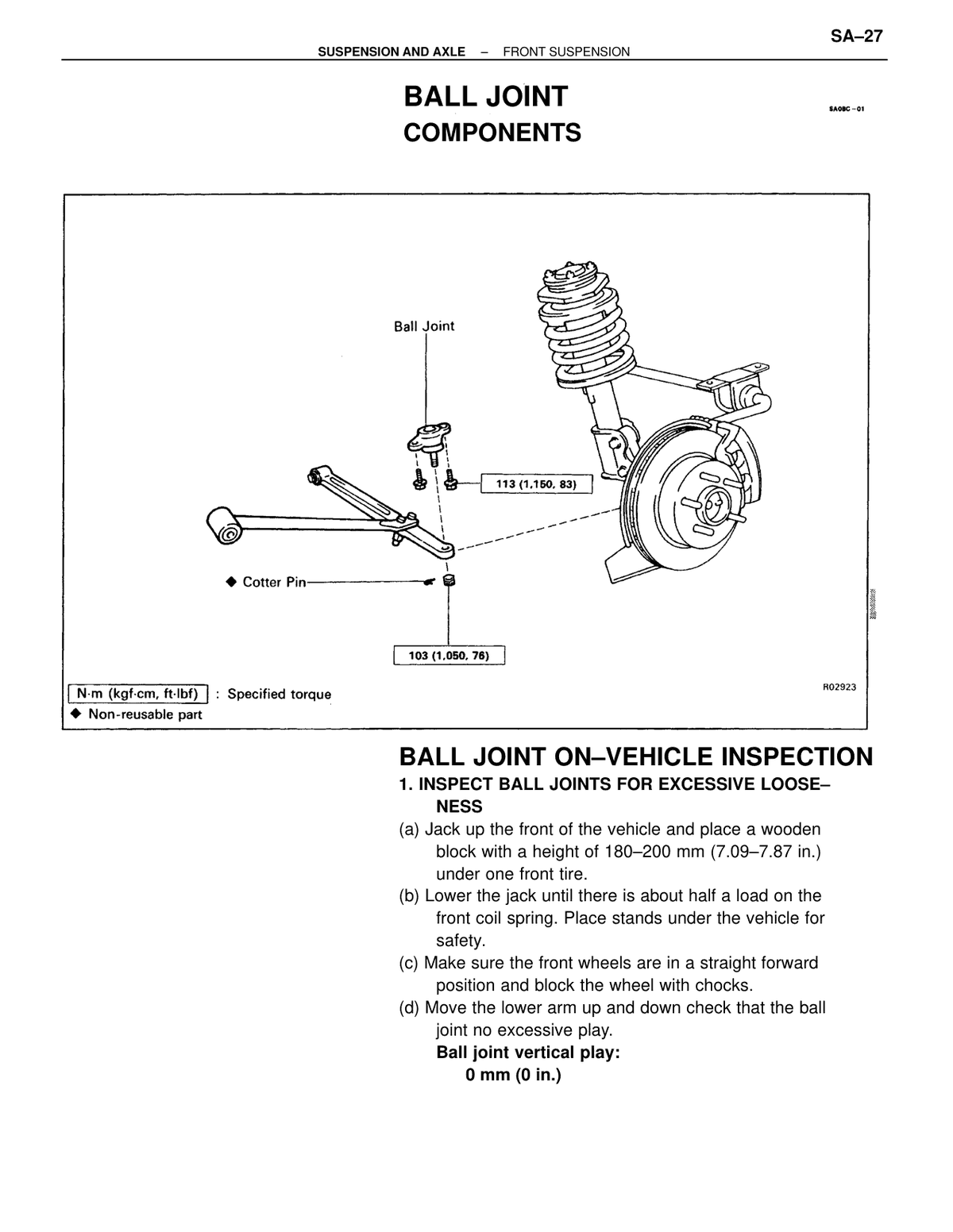

Suspension & axle Ball joint to rear axle carrier bolts Step 1 — Install ball joint to rear axle carrier 113 1150 83 ↗ RM179U1_1991 · p1020 OEM manual

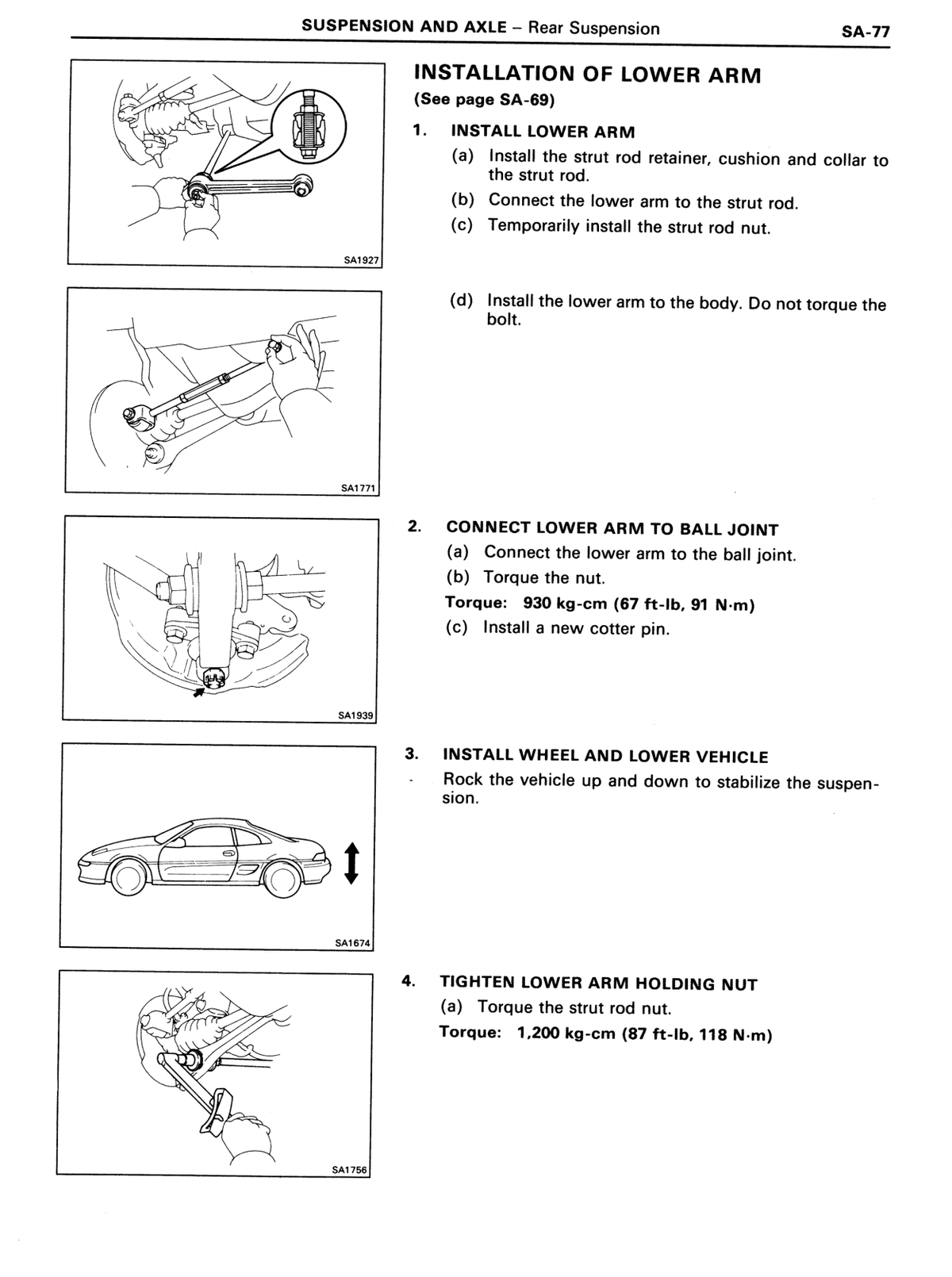

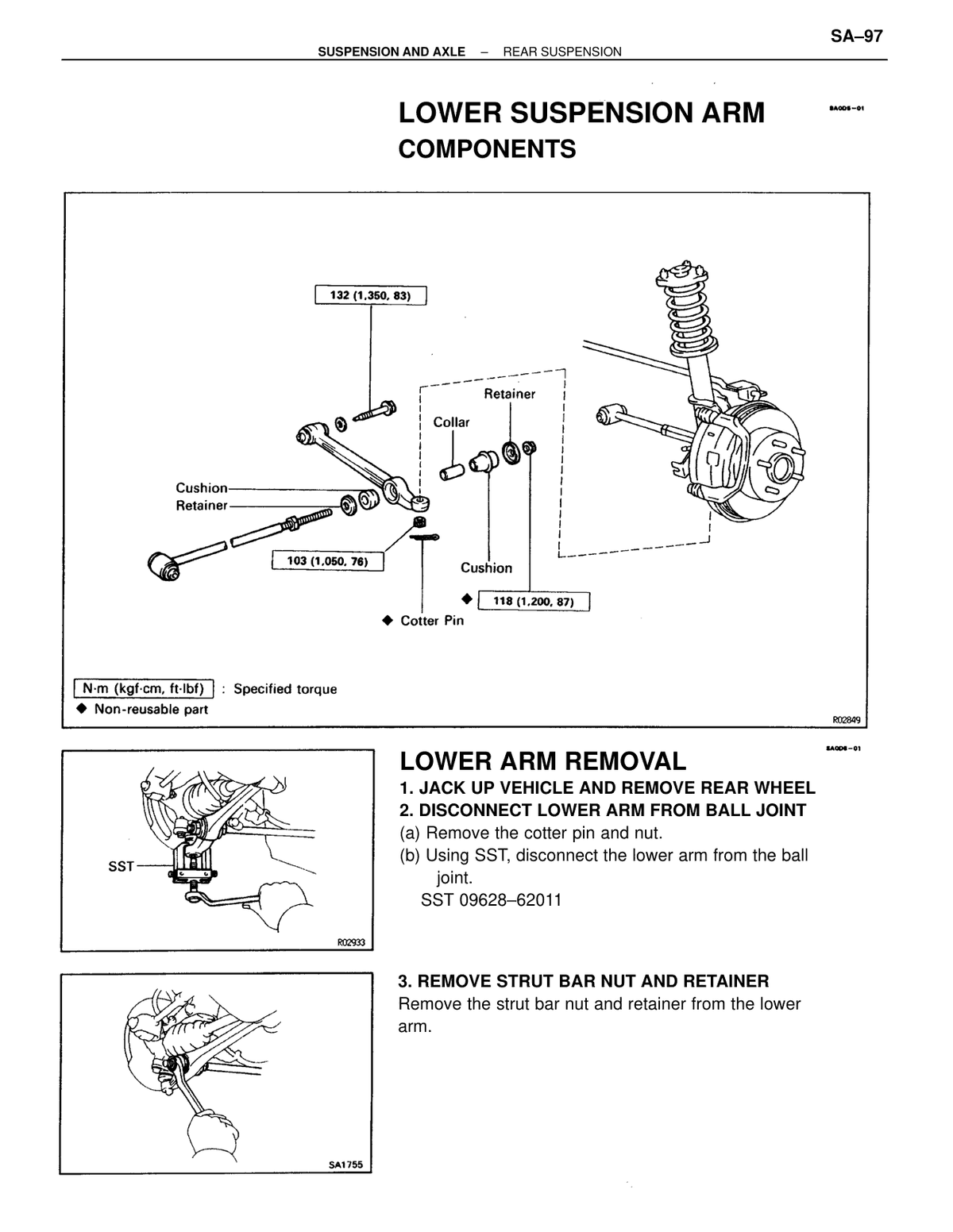

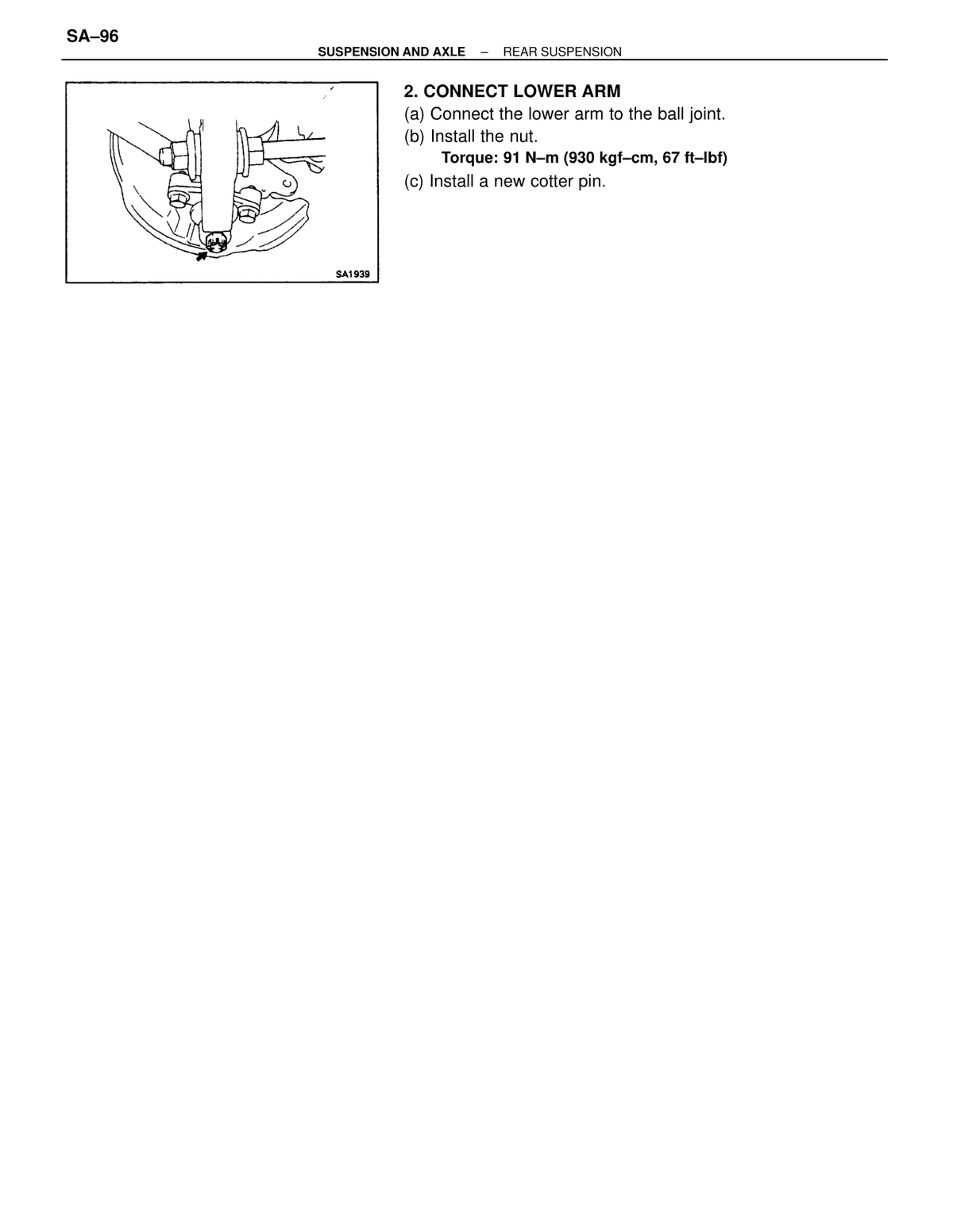

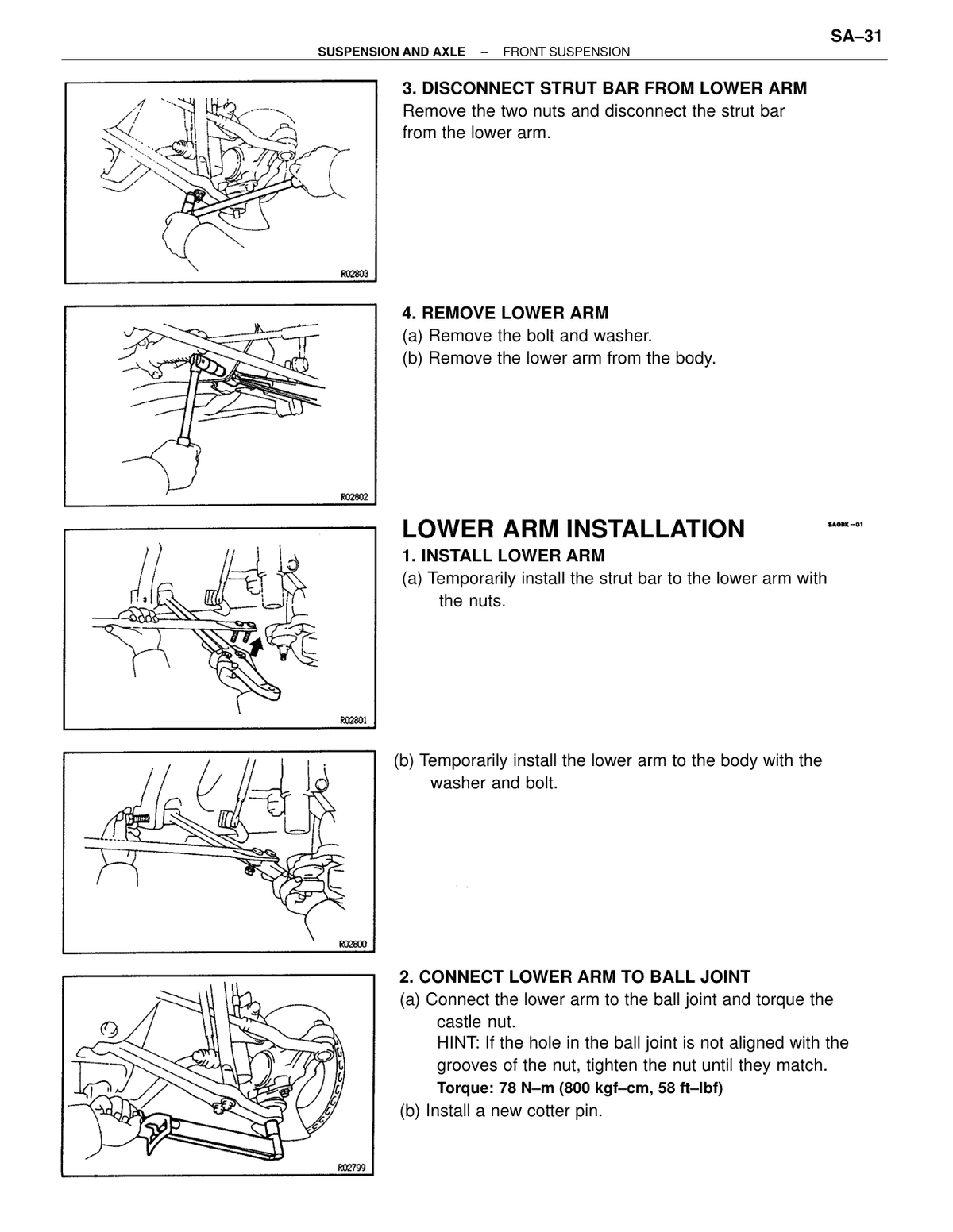

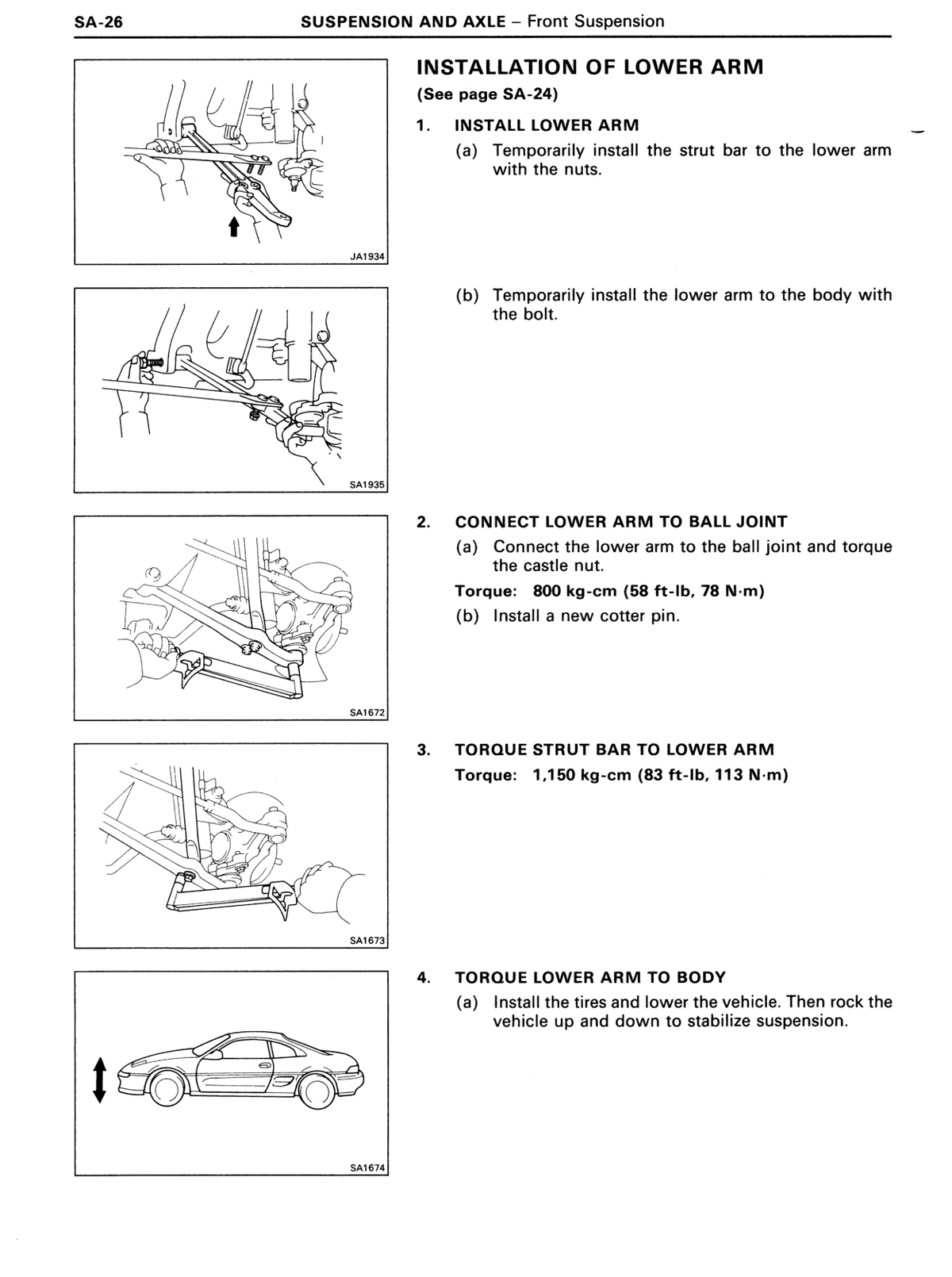

Suspension & axle Lower arm to ball joint nut Step 2 — Connect lower arm 91 930 67 ↗ RM179U1_1991 · p1020 OEM manual

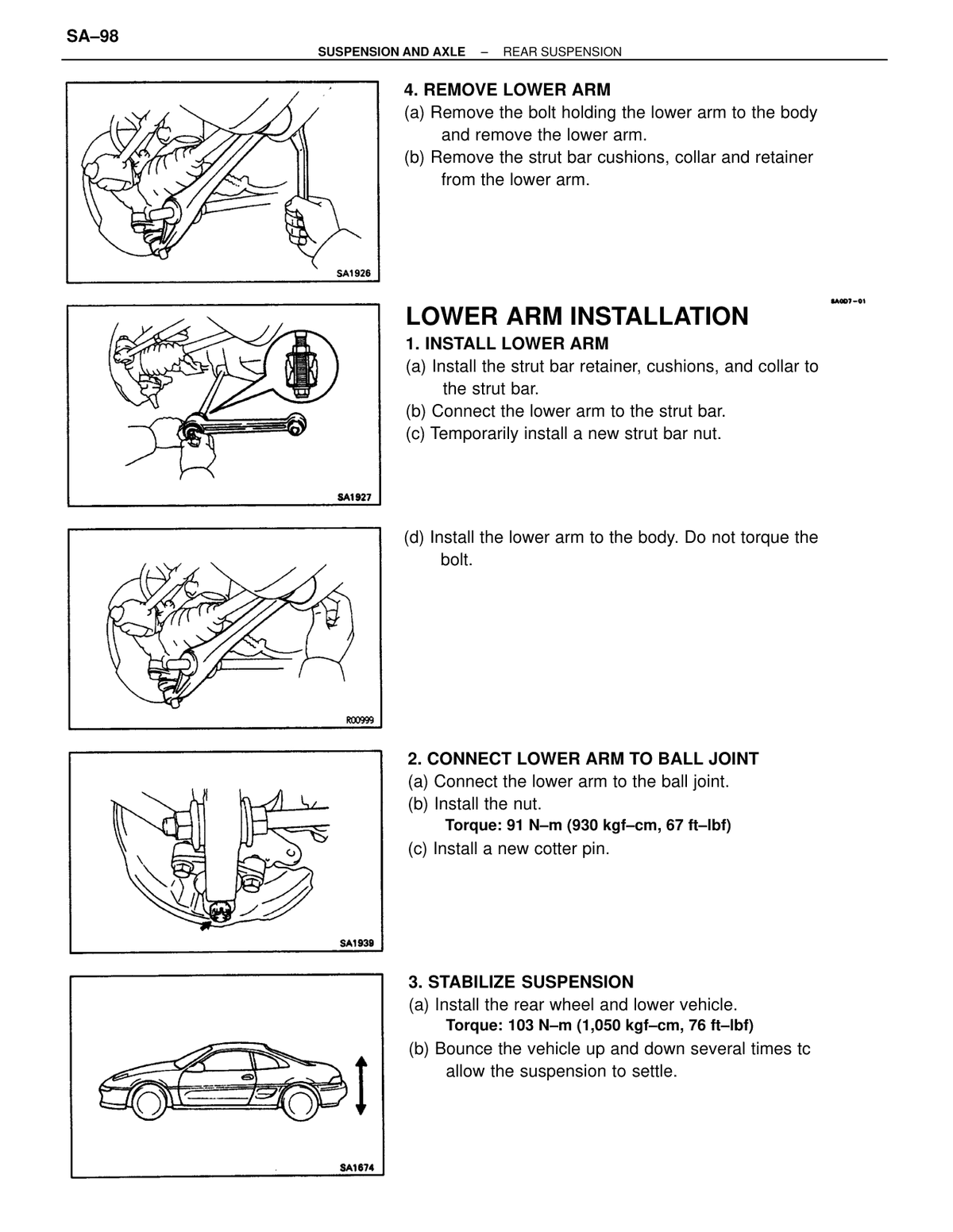

Suspension & axle Lower arm ball joint nut Install new cotter pin after torquing 91 930 67 ↗ RM179U1_1991 · p1021 OEM manual

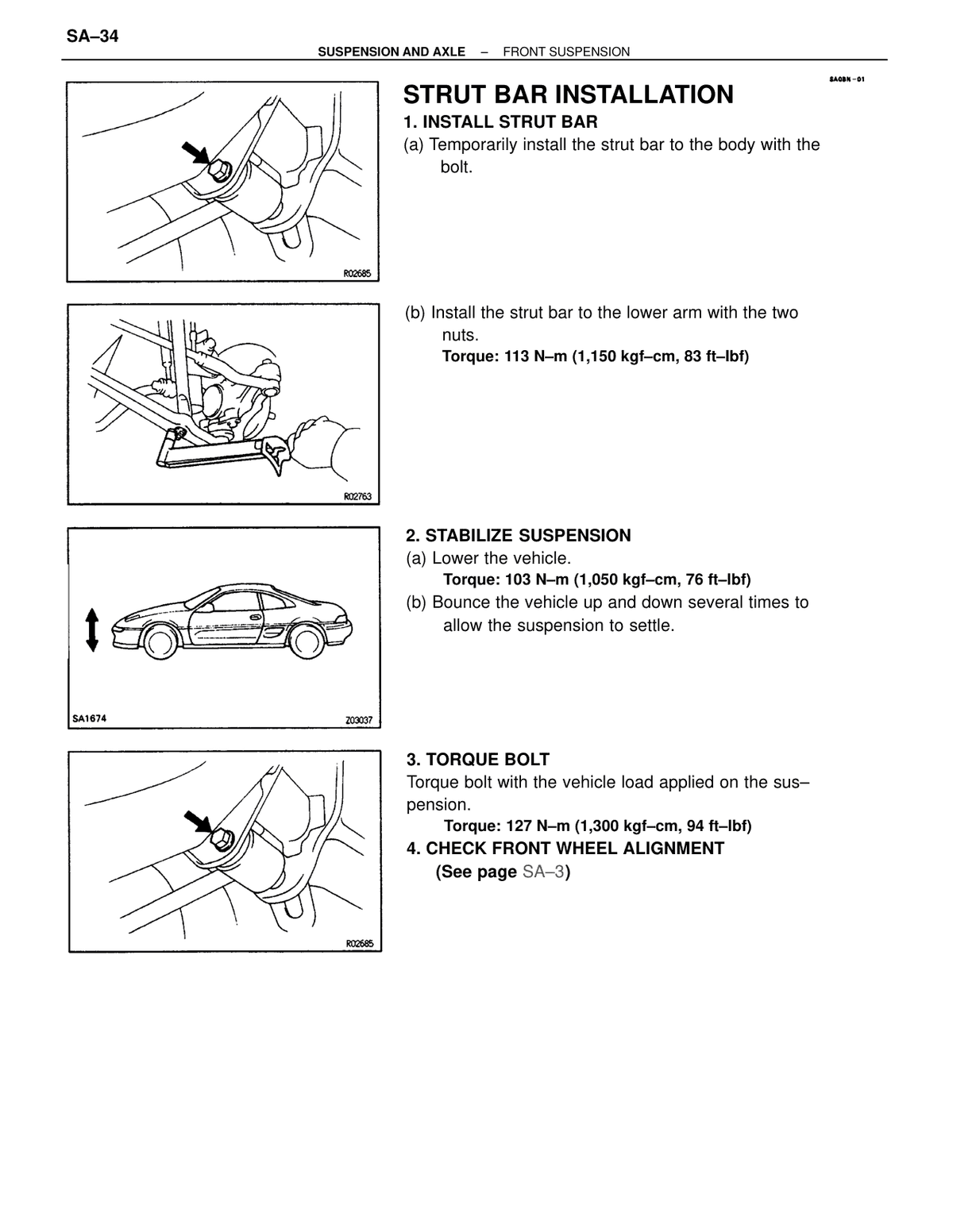

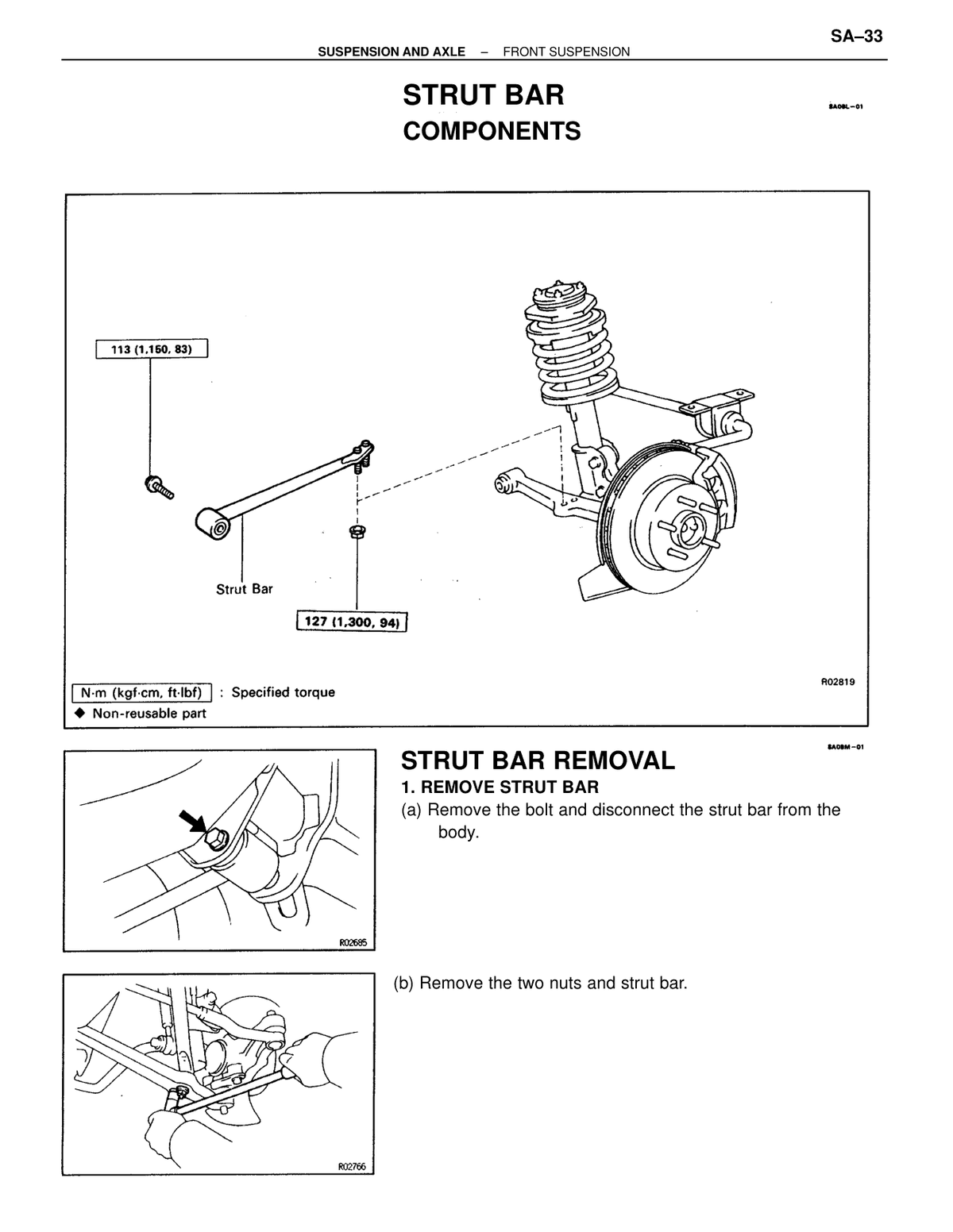

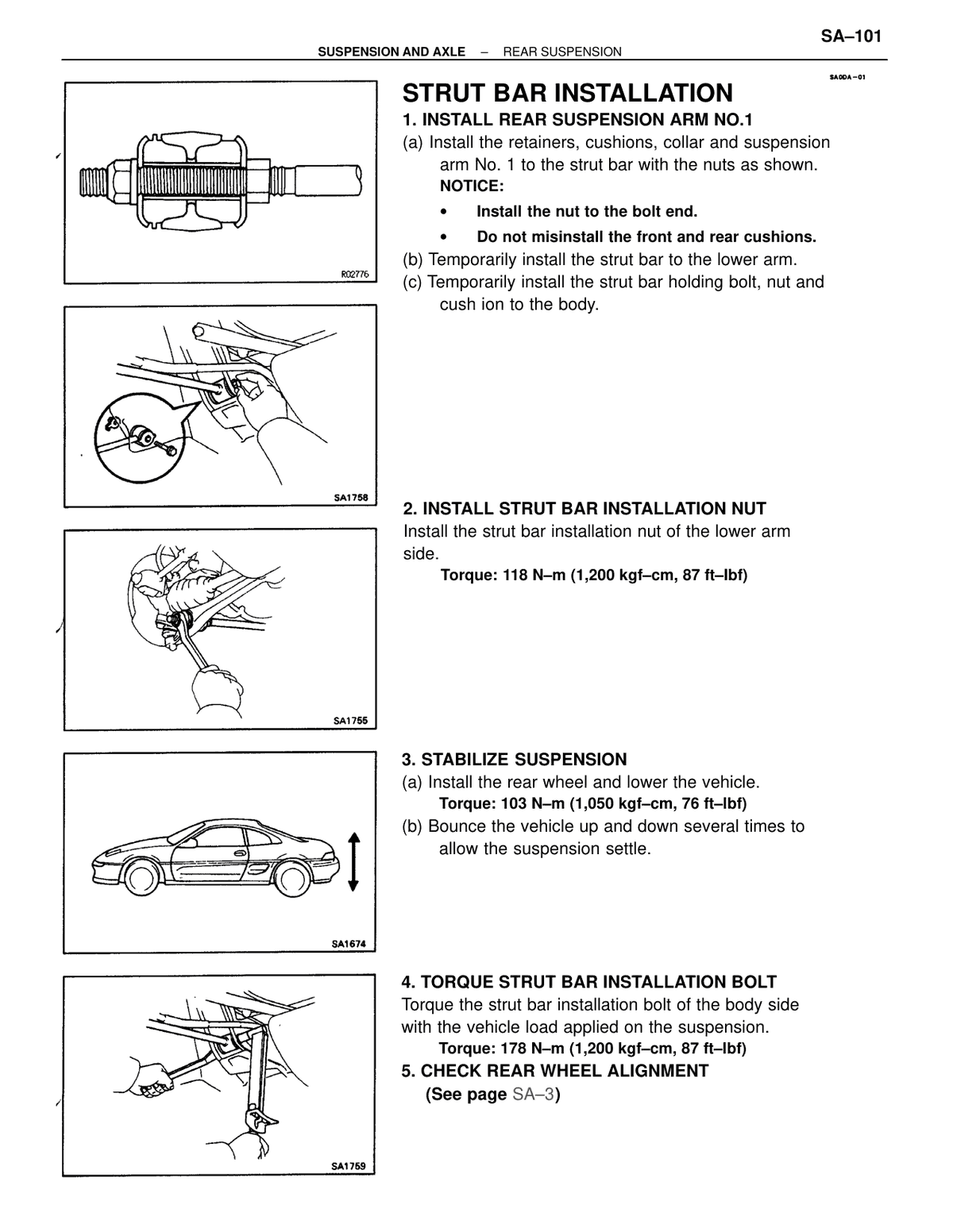

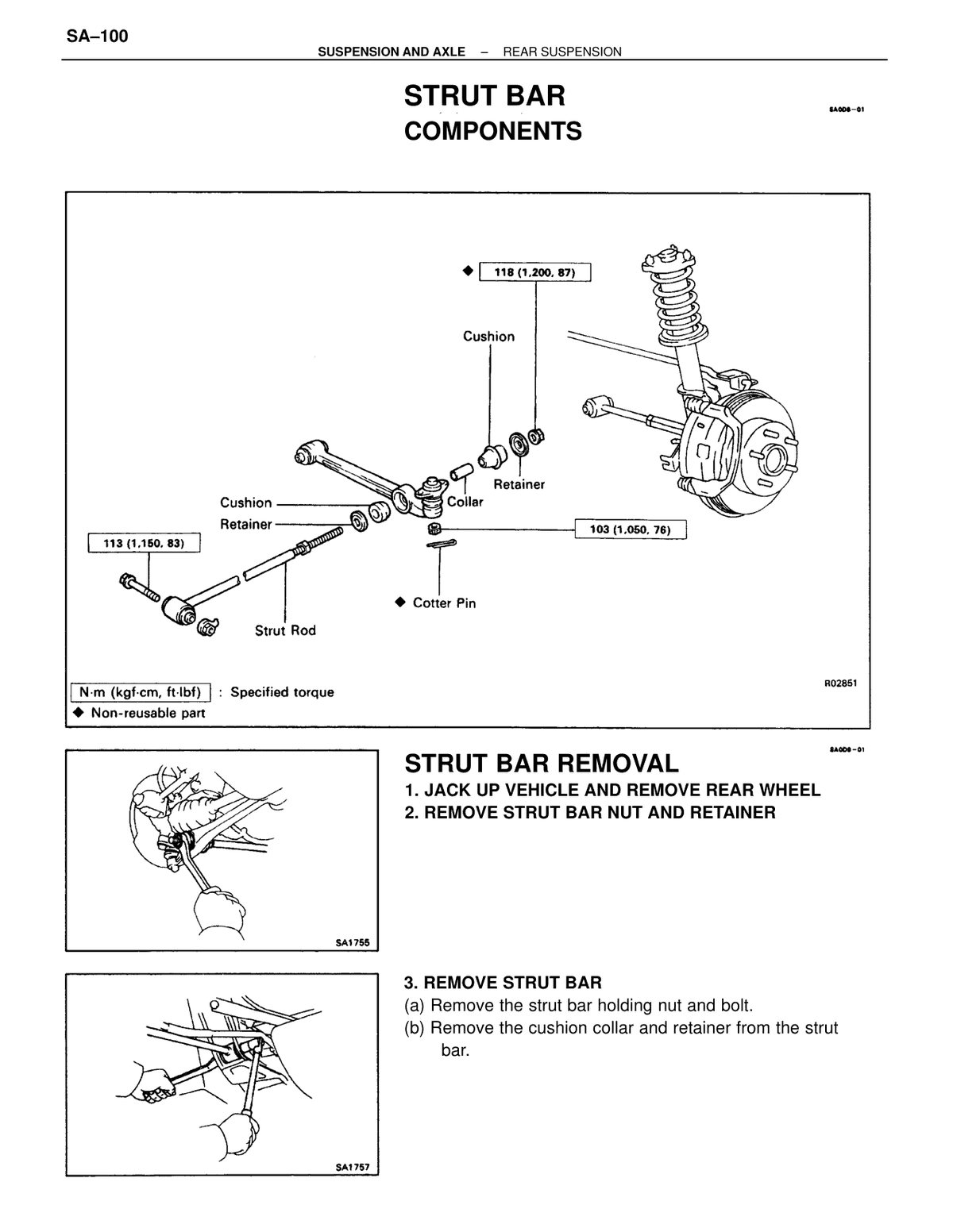

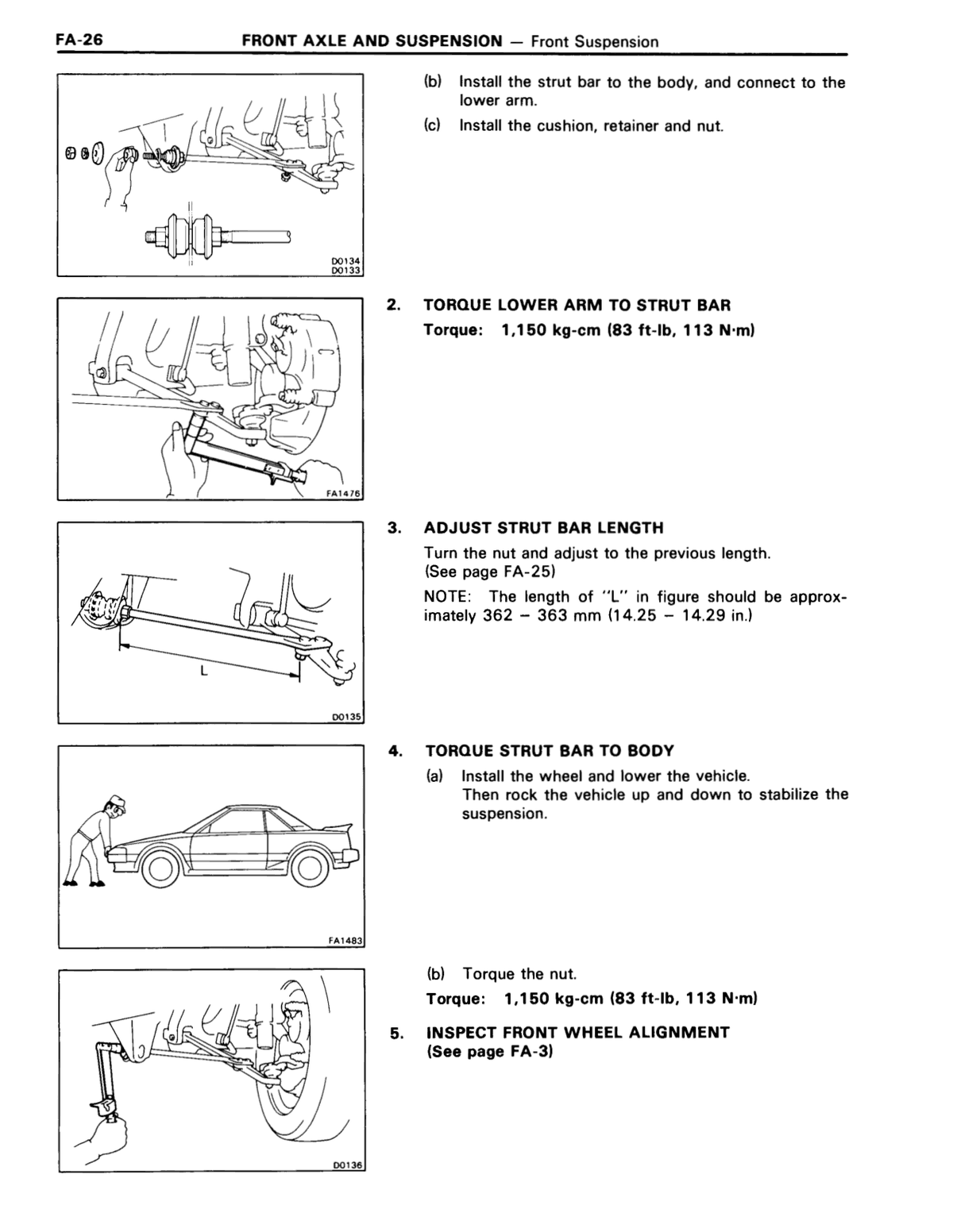

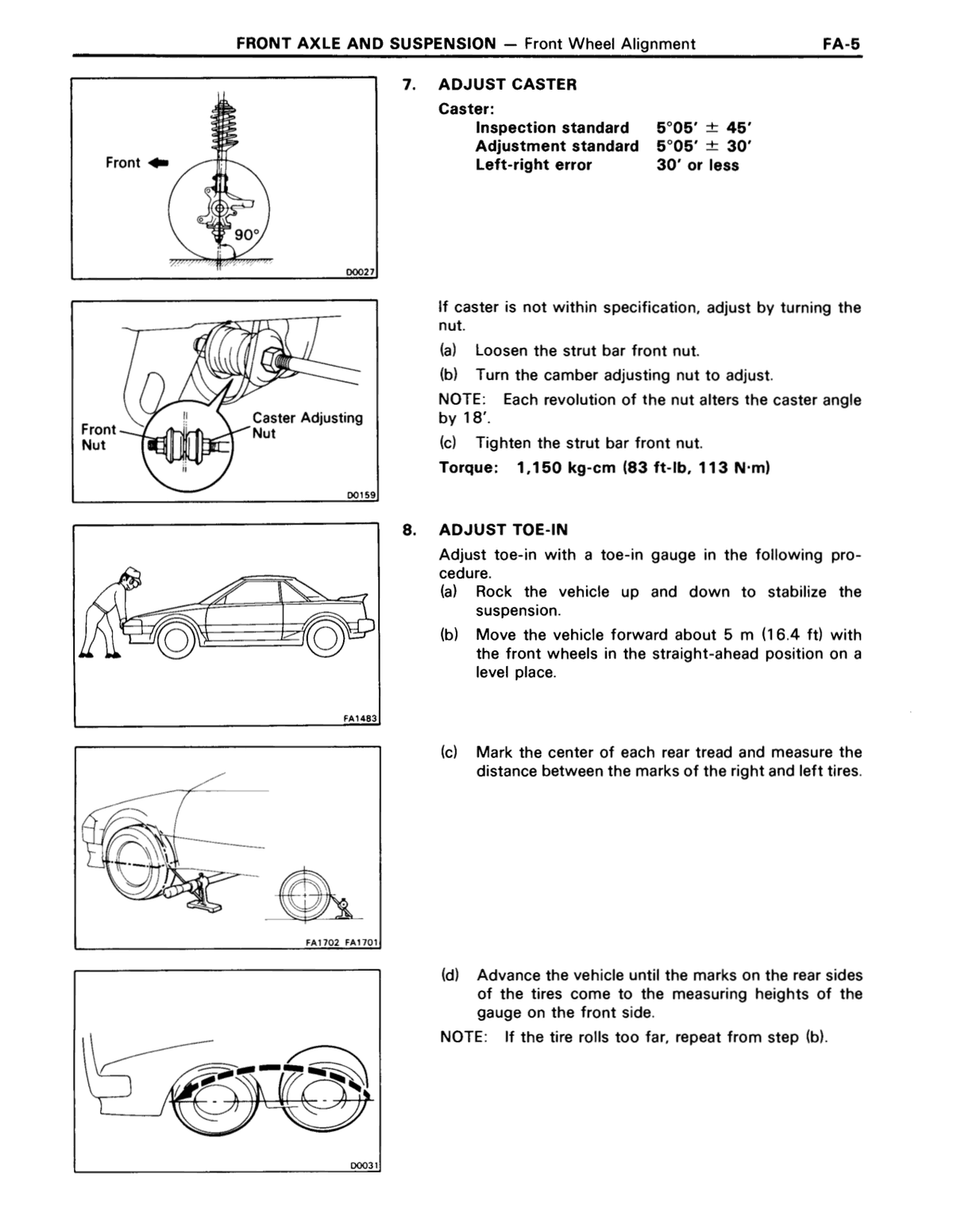

Suspension & axle Strut rod nut Torque after rocking vehicle to stabilize suspension 118 1200 87 ↗ RM179U1_1991 · p1021 OEM manual

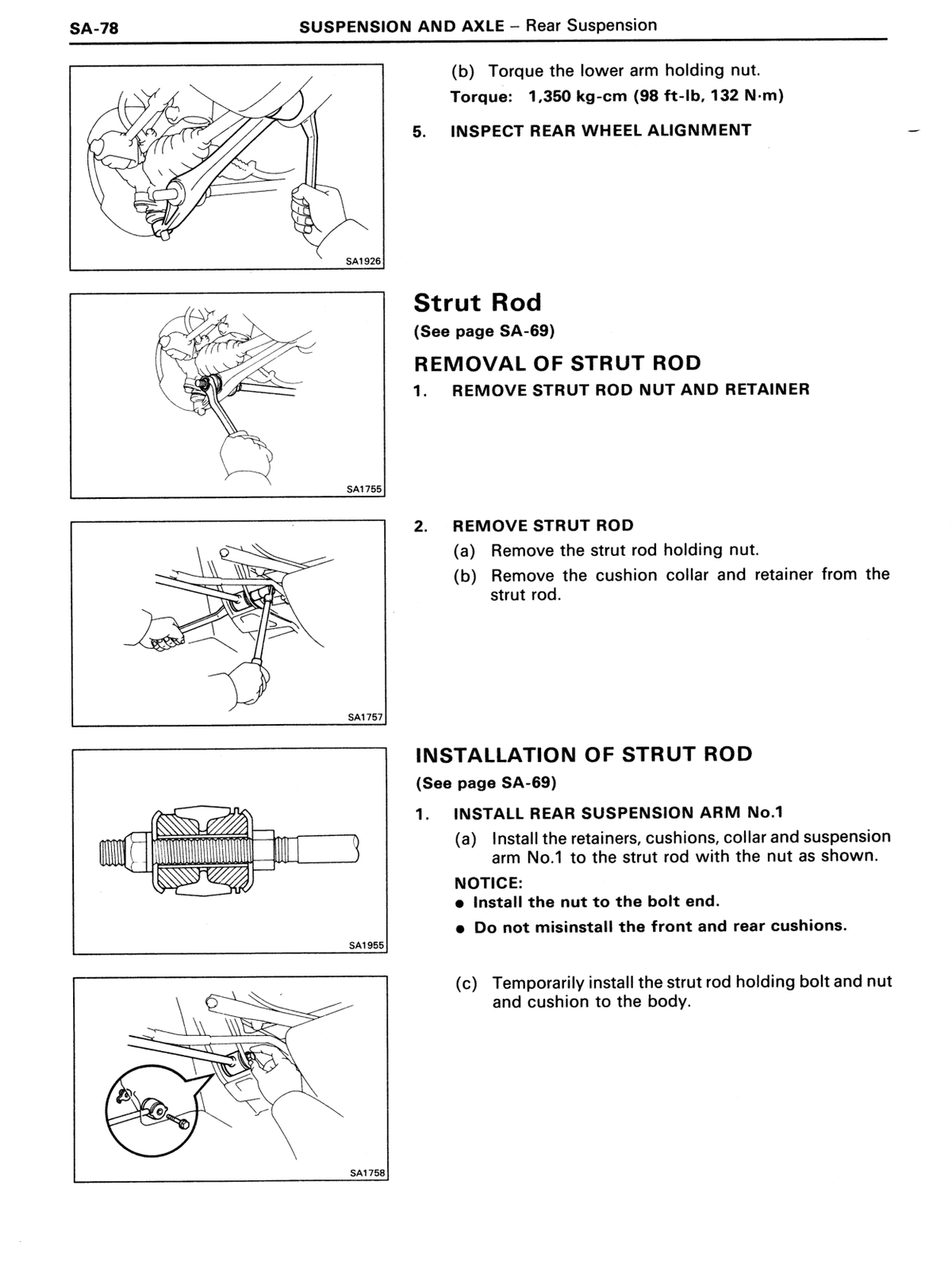

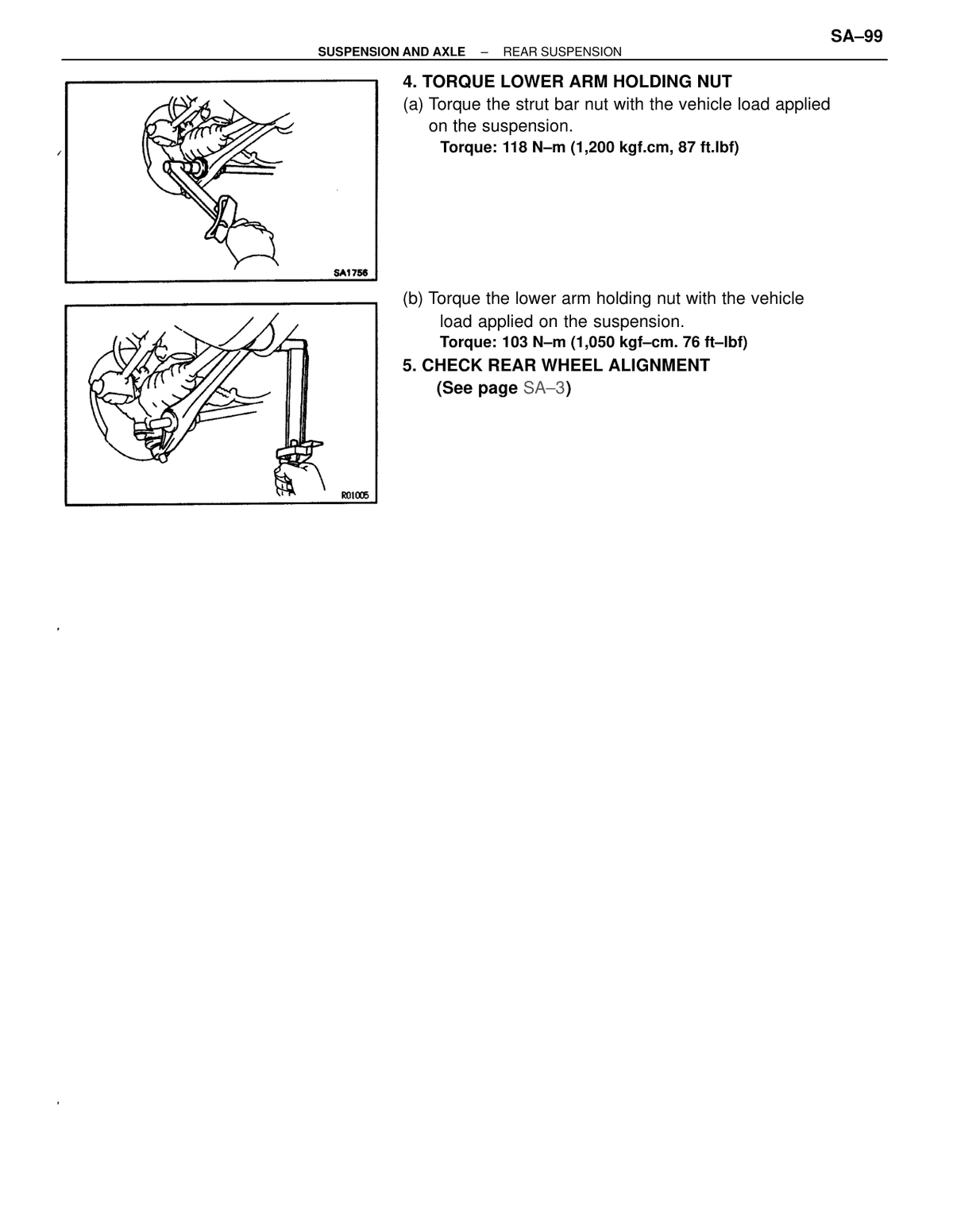

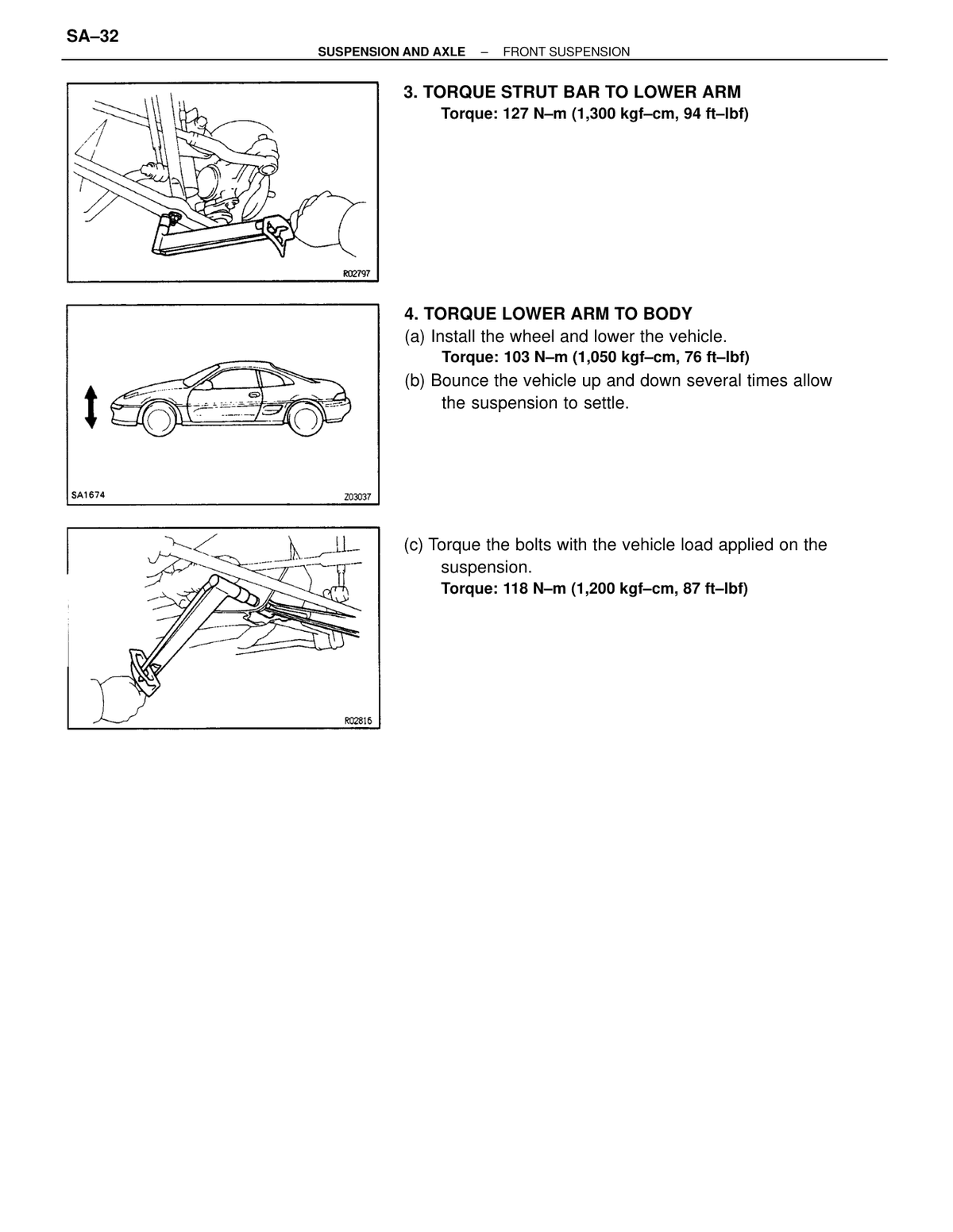

Suspension & axle lower arm holding nut Torque the lower arm holding nut 132 1350 98 ↗ RM179U1_1991 · p1022 OEM manual

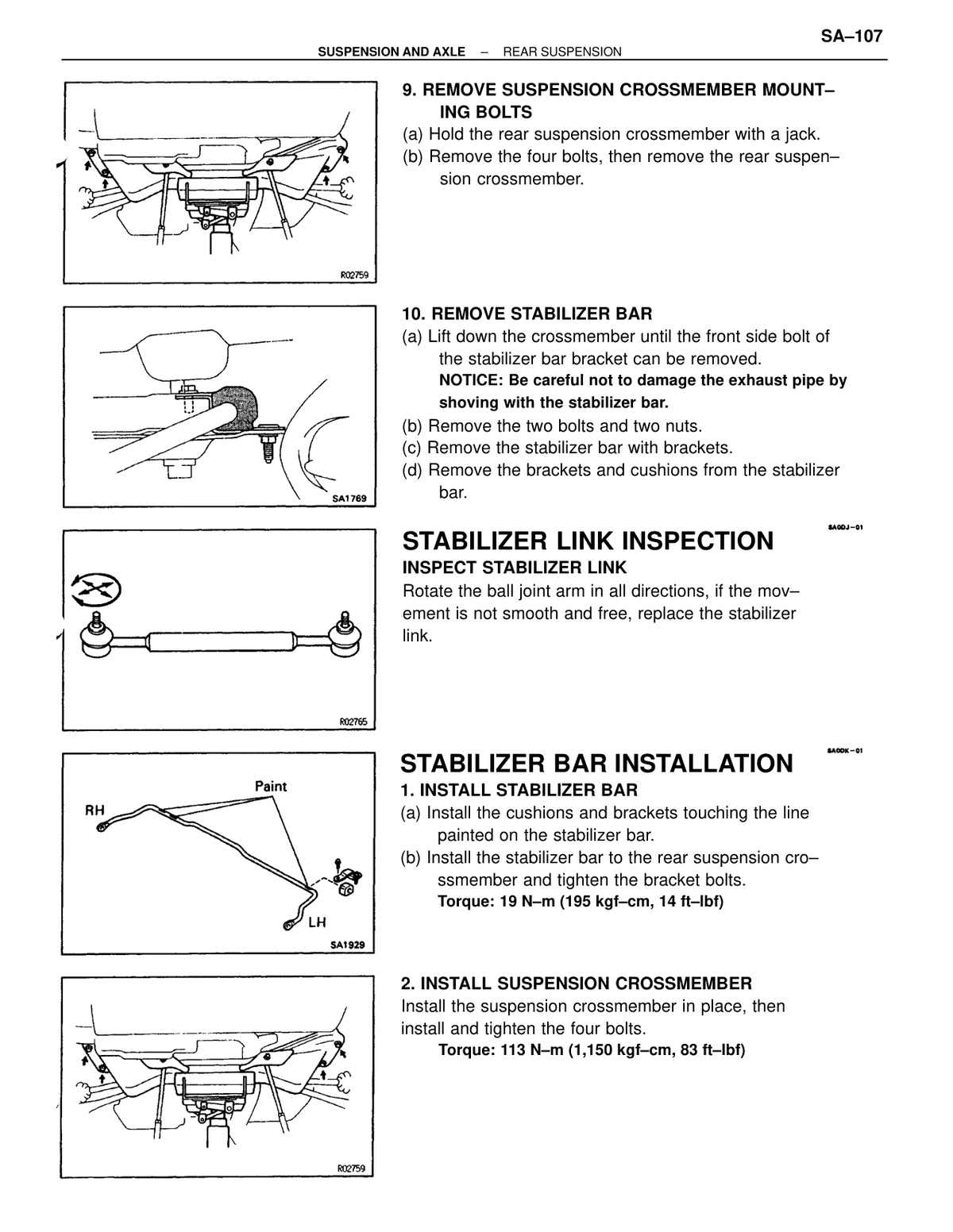

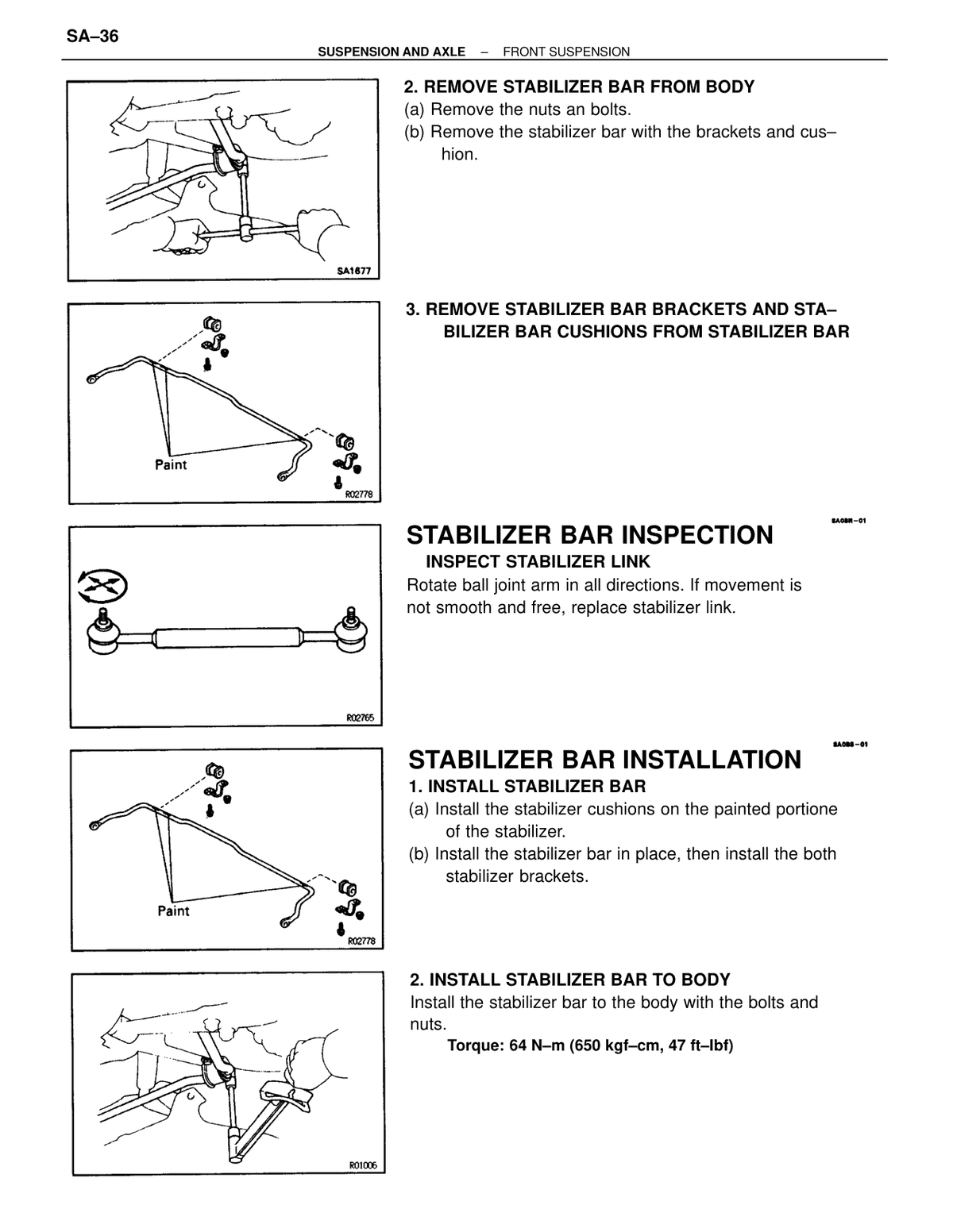

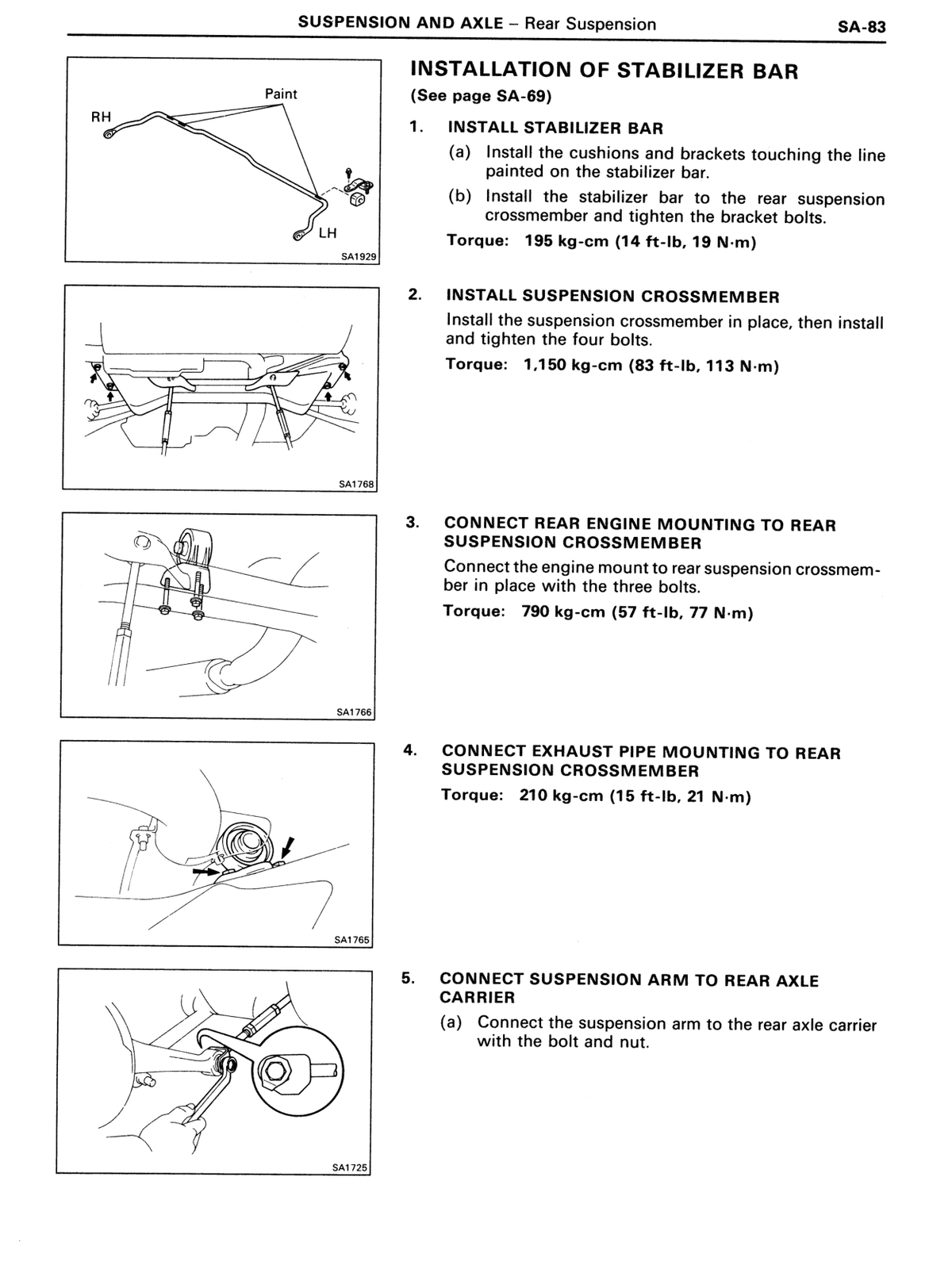

Suspension & axle Stabilizer bar bracket bolts Step 1 — stabilizer bar to rear suspension crossmember 19 195 14 ↗ RM179U1_1991 · p1027 OEM manual
Suspension & axle Suspension crossmember bolts Step 2 — four bolts 113 1150 83 ↗ RM179U1_1991 · p1027 OEM manual

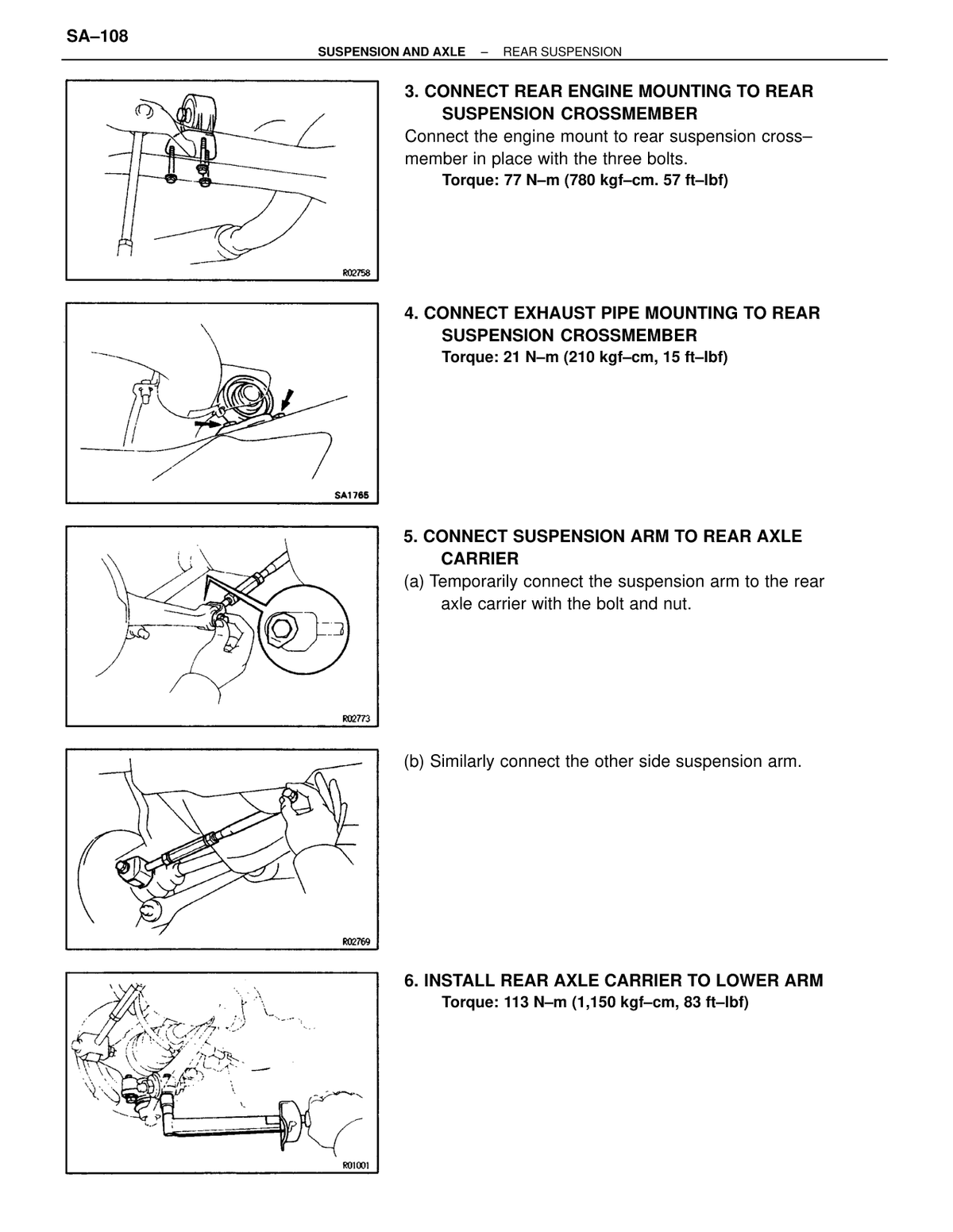

Suspension & axle Rear engine mounting to rear suspension crossmember bolts Step 3 — three bolts 77 790 57 ↗ RM179U1_1991 · p1027 OEM manual
Suspension & axle Exhaust pipe mounting to rear suspension crossmember Step 4 21 210 15 ↗ RM179U1_1991 · p1027 OEM manual

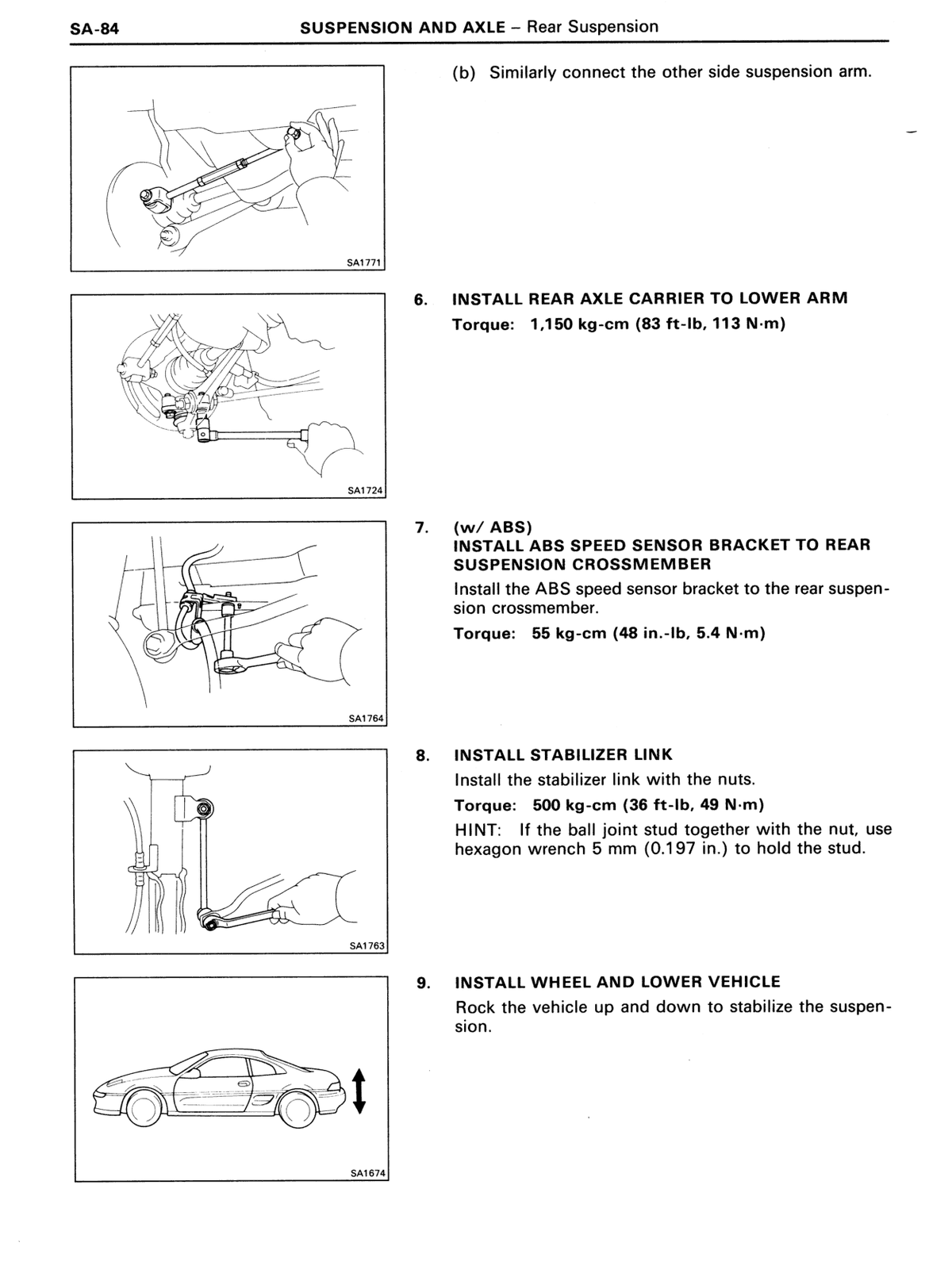

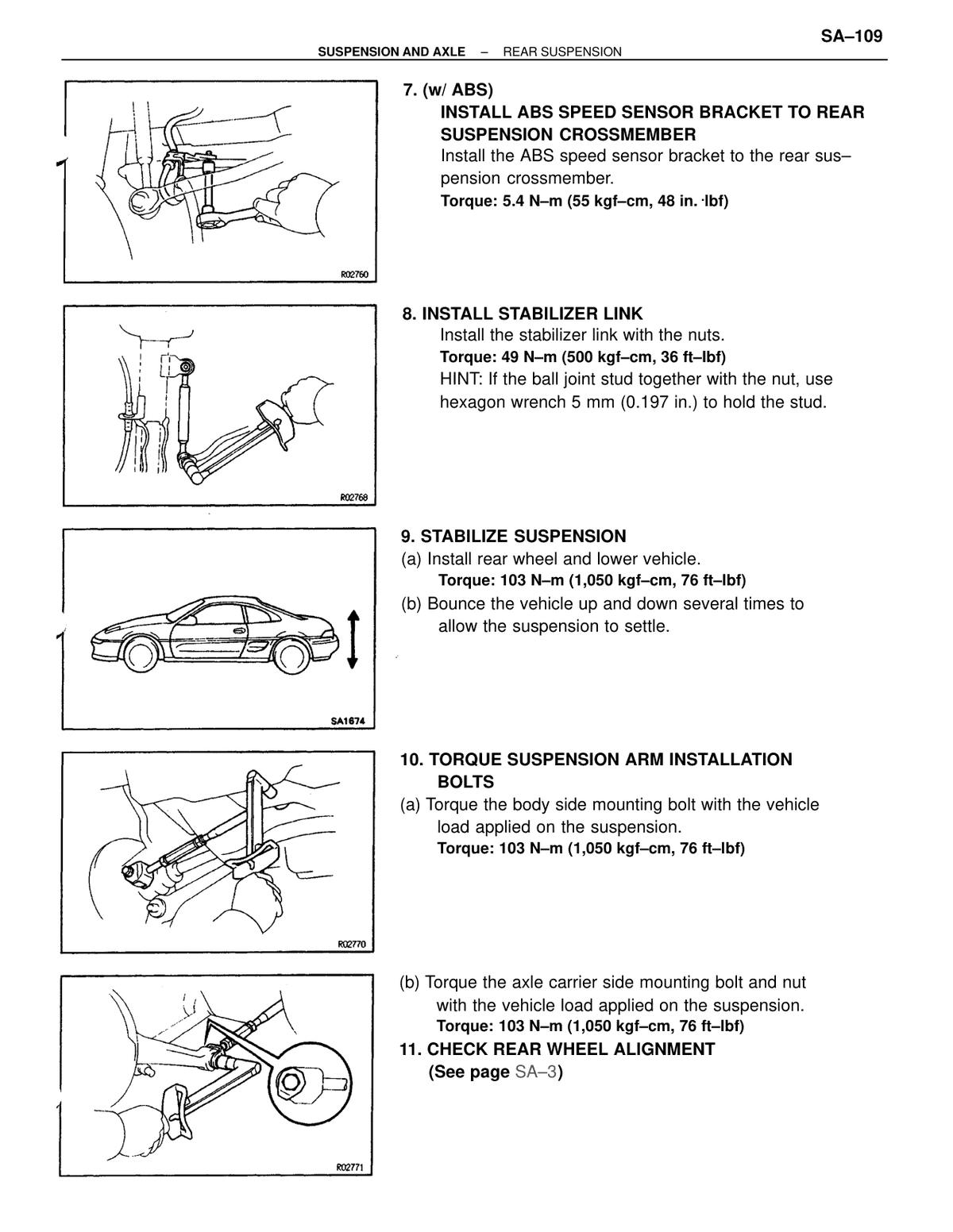

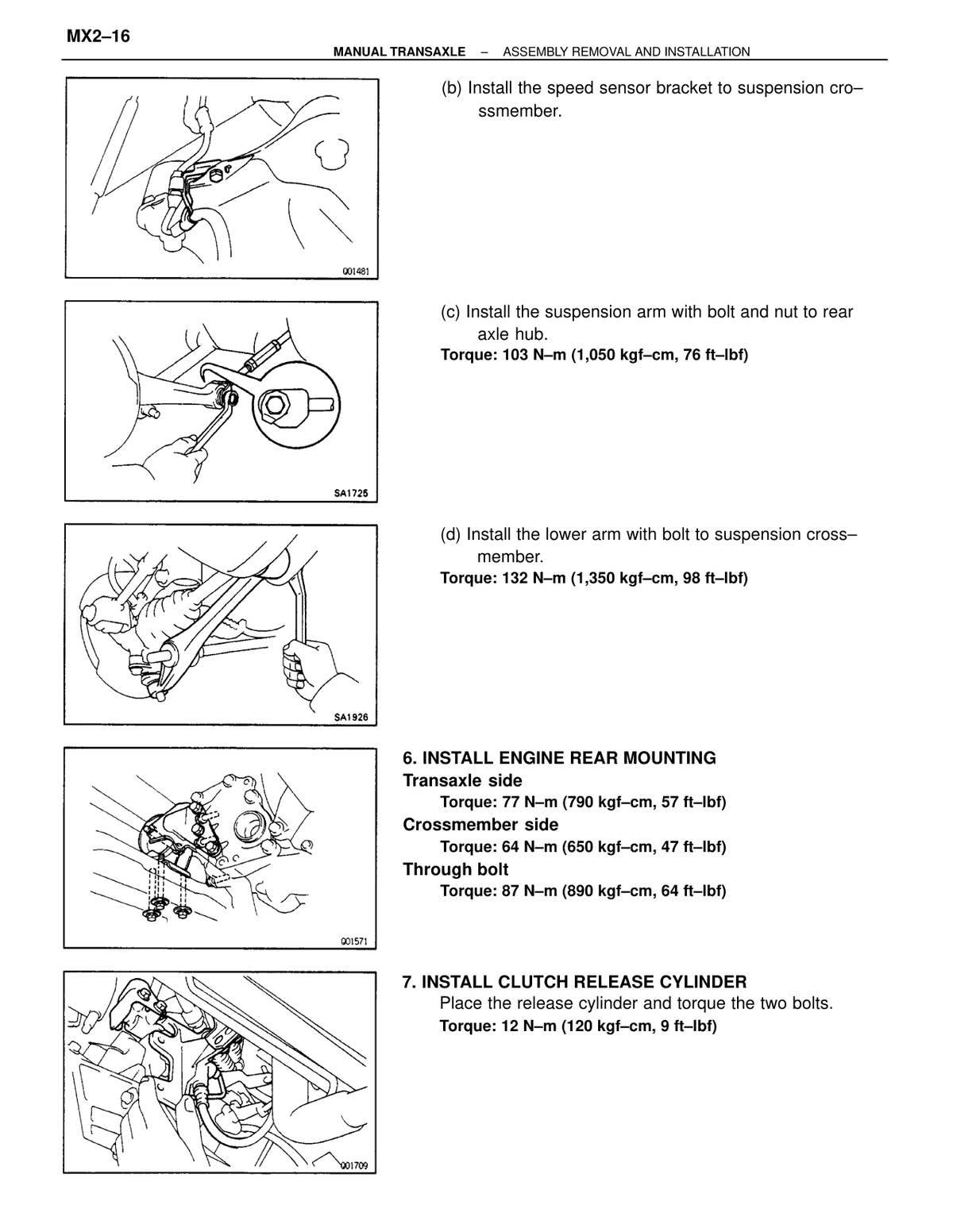

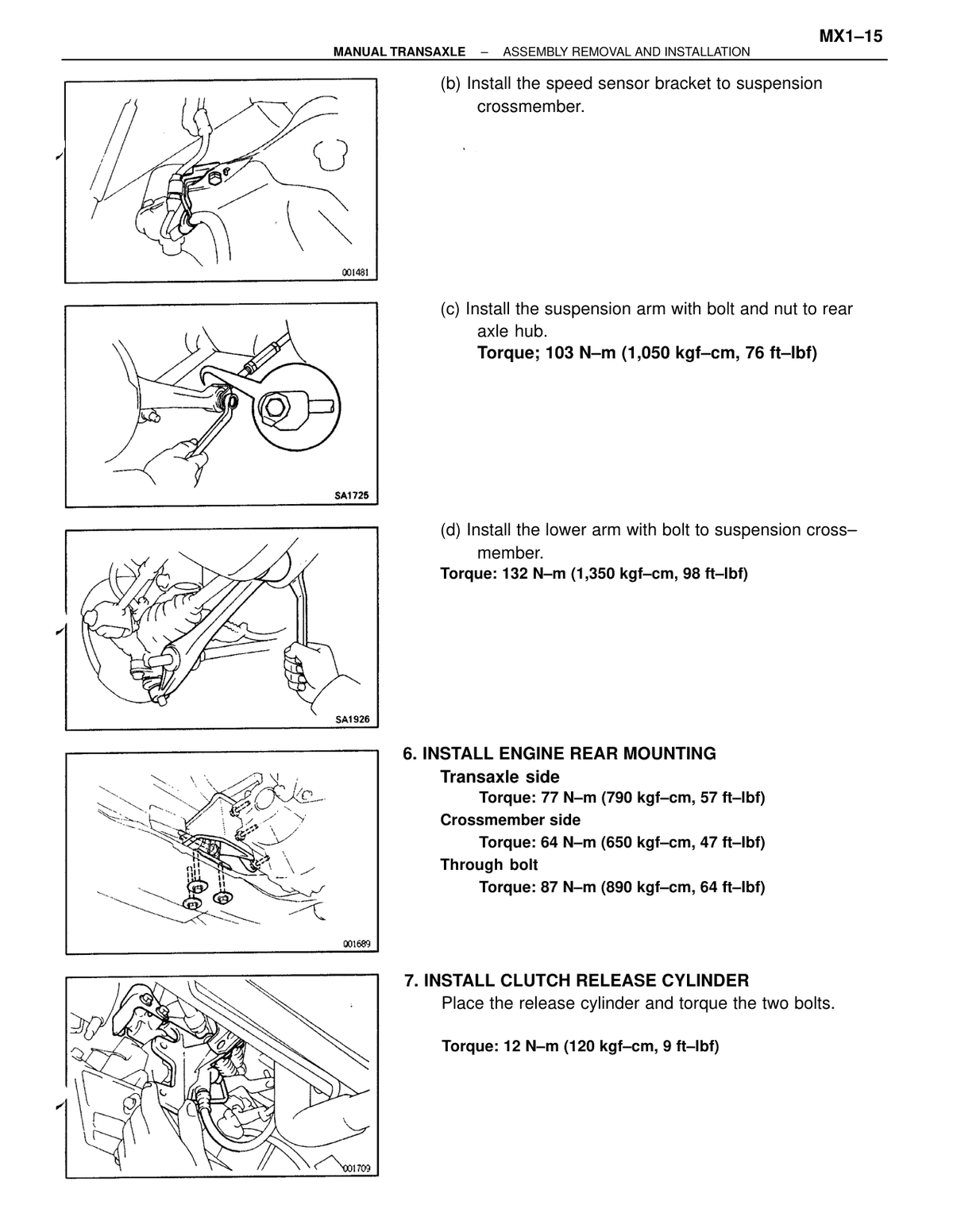

Suspension & axle ABS speed sensor bracket to rear suspension crossmember 48 in.-lb 5.4 55 — ↗ RM179U1_1991 · p1028 OEM manual

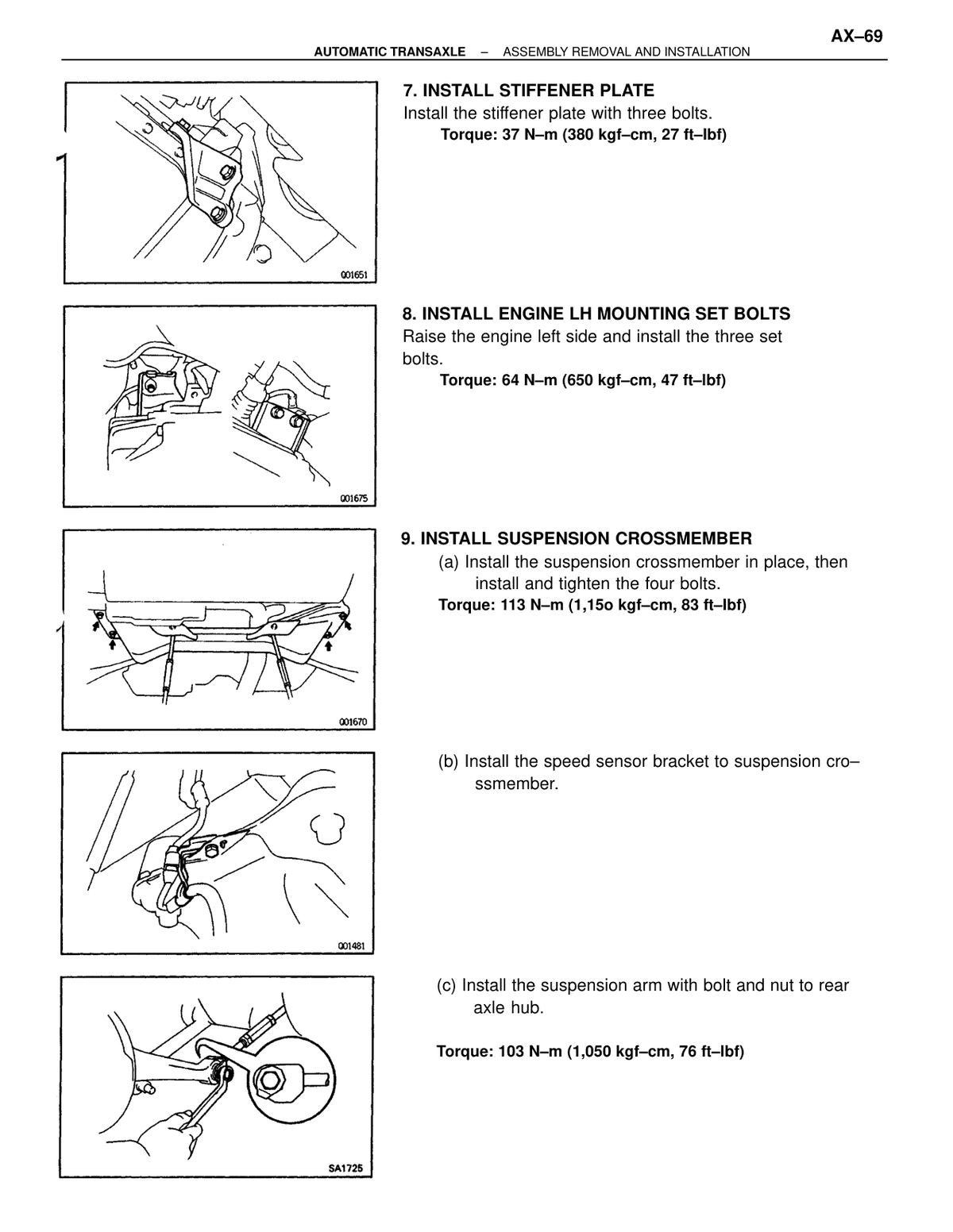

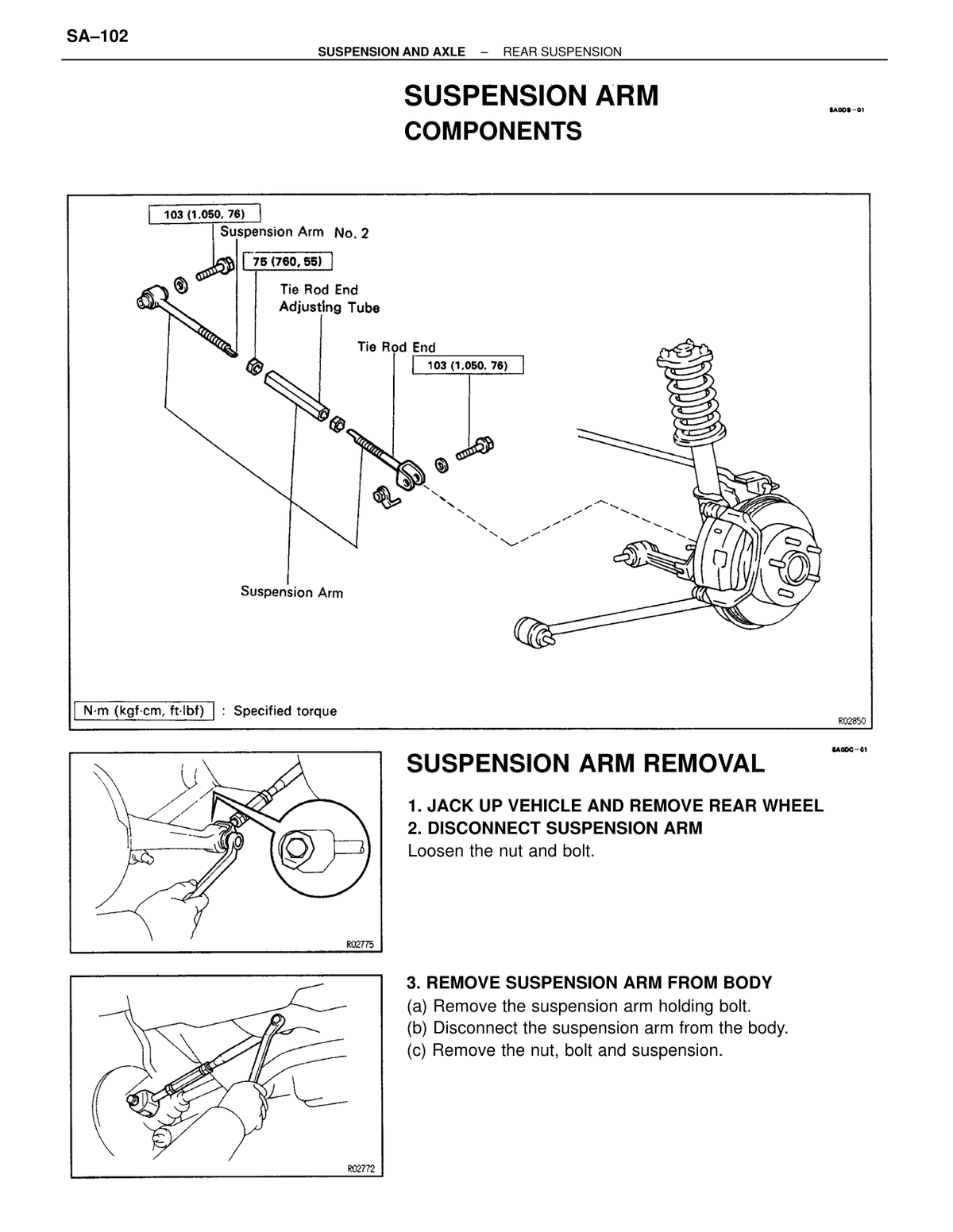

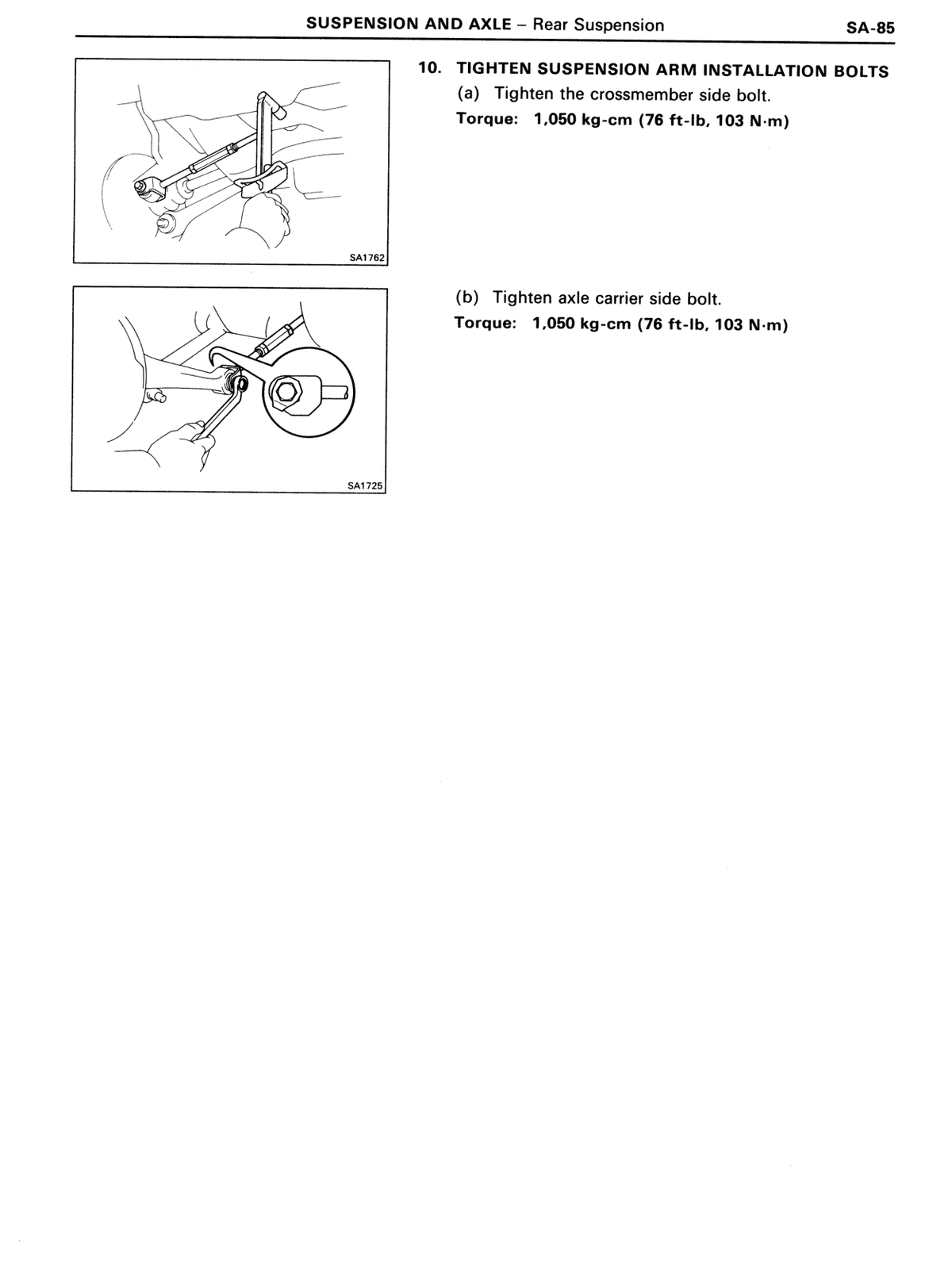

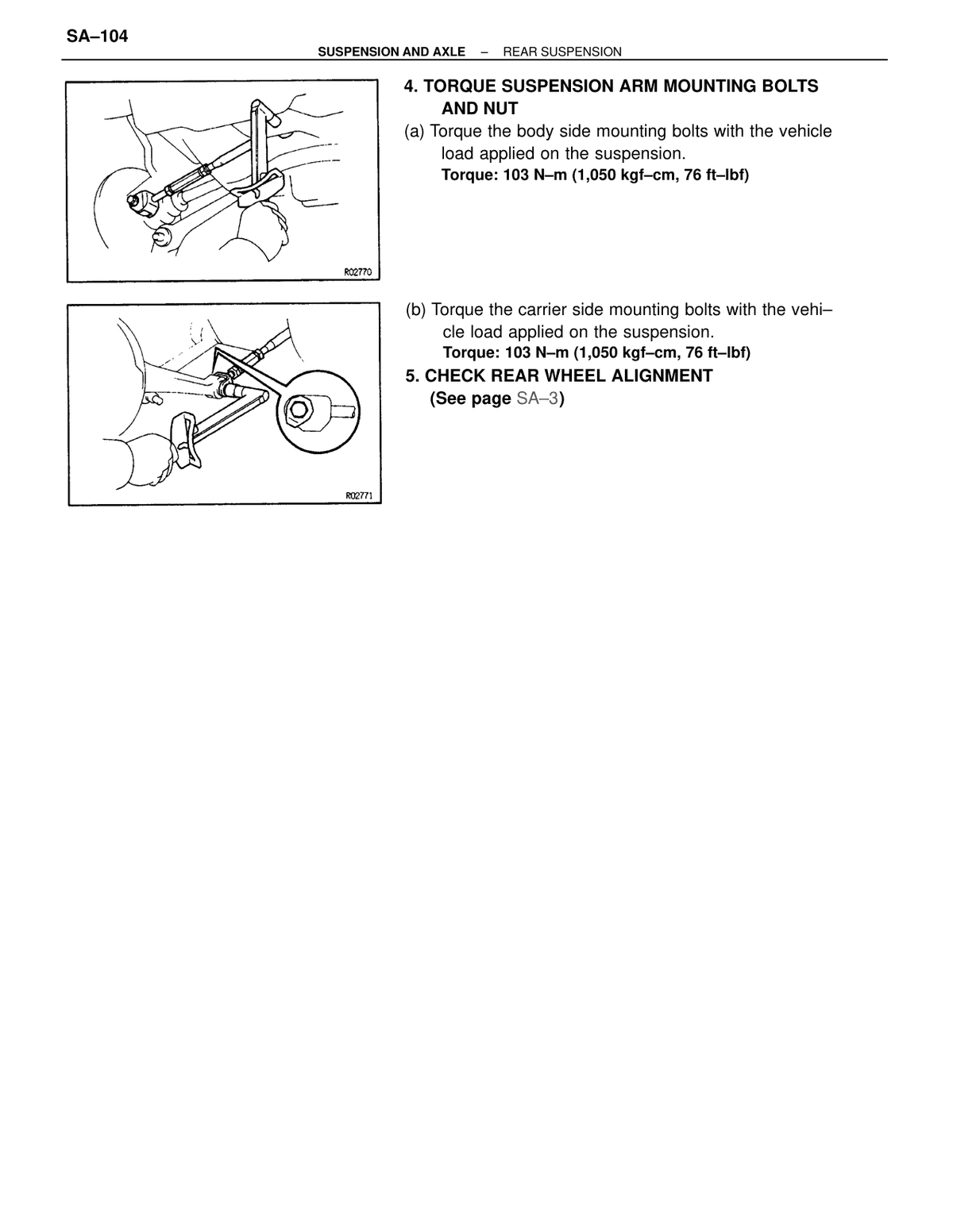

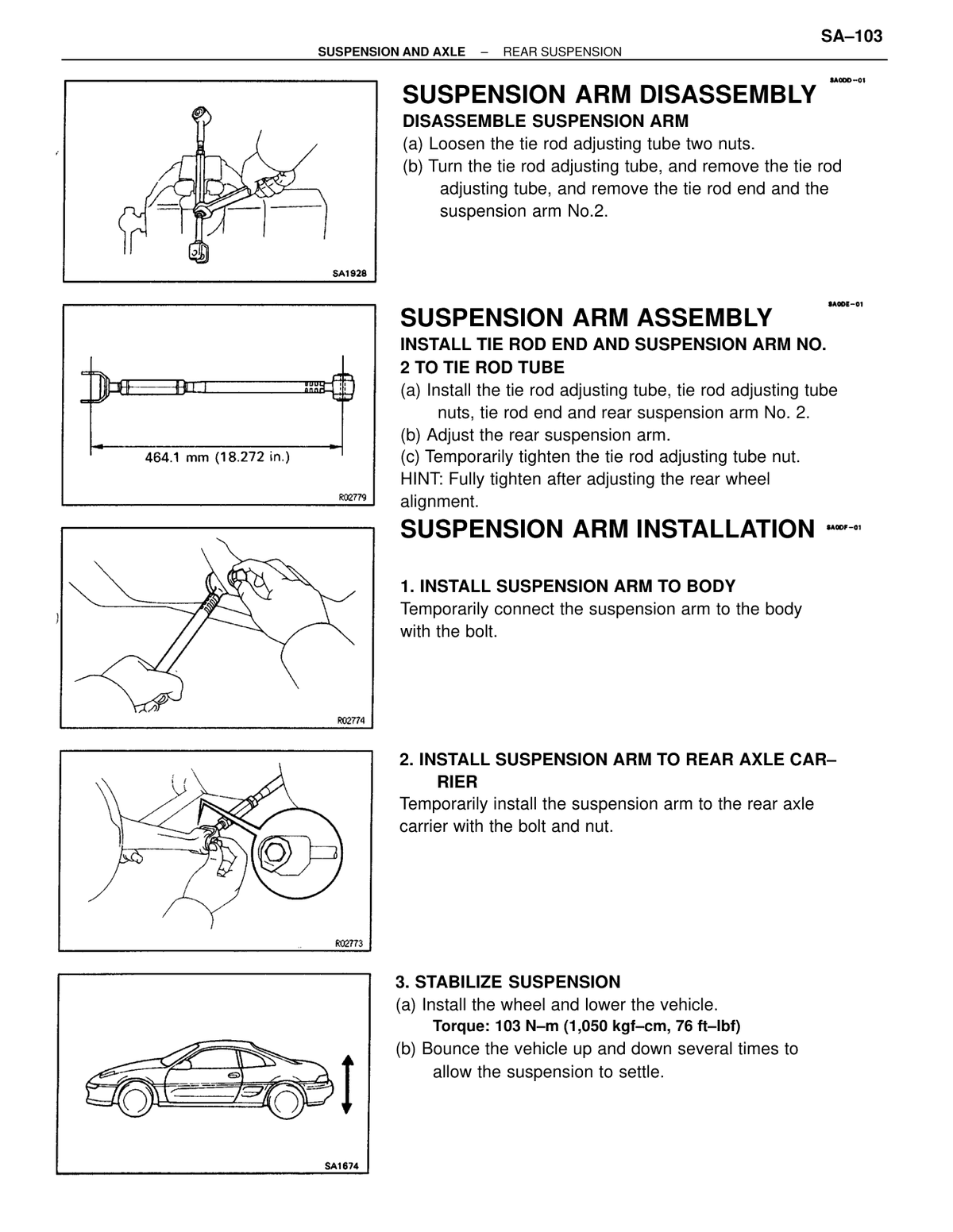

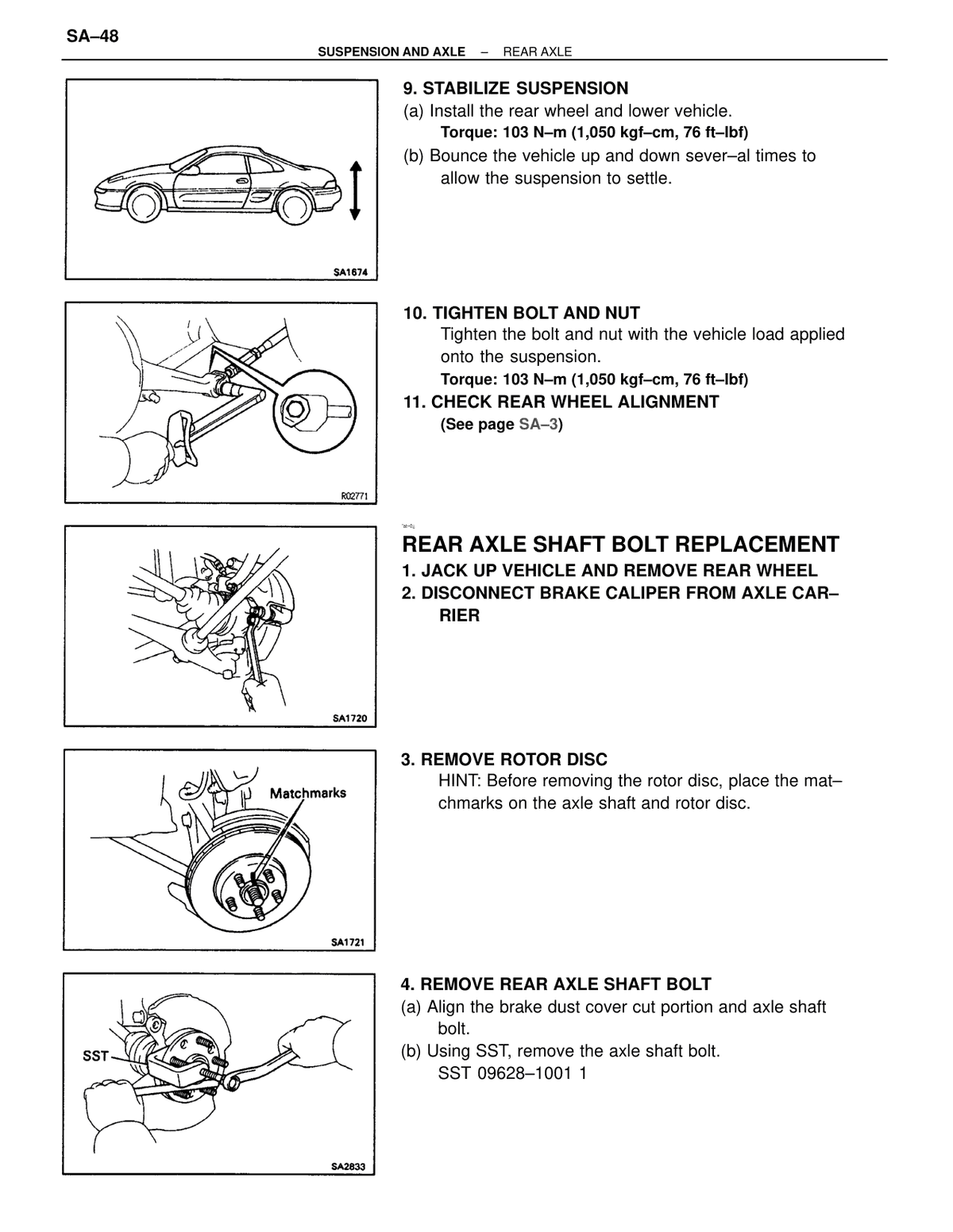

Suspension & axle Crossmember side bolt Suspension arm installation 103 1050 76 ↗ RM179U1_1991 · p1029 OEM manual
Suspension & axle Axle carrier side bolt Suspension arm installation 103 1050 76 ↗ RM179U1_1991 · p1029 OEM manual

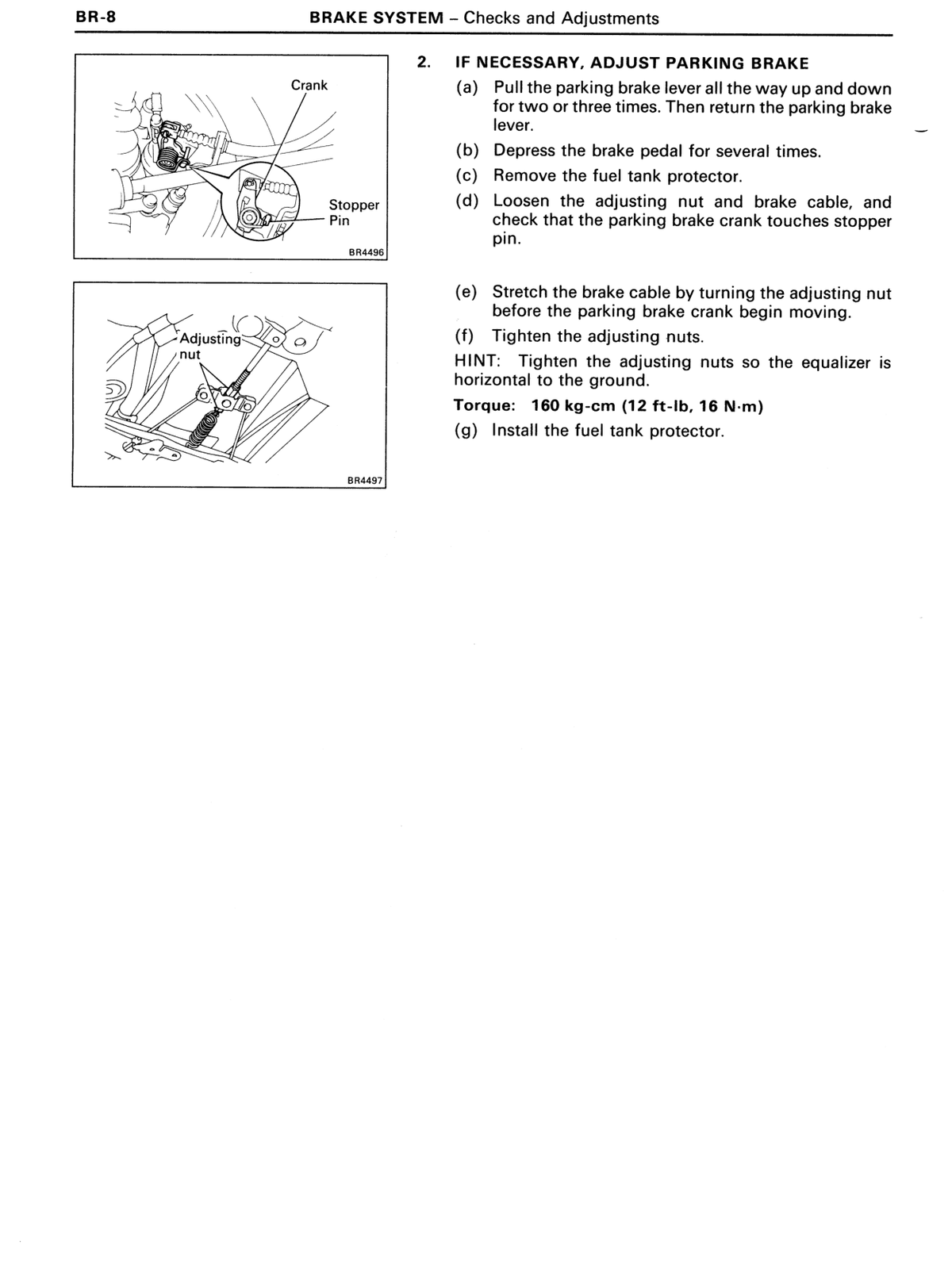

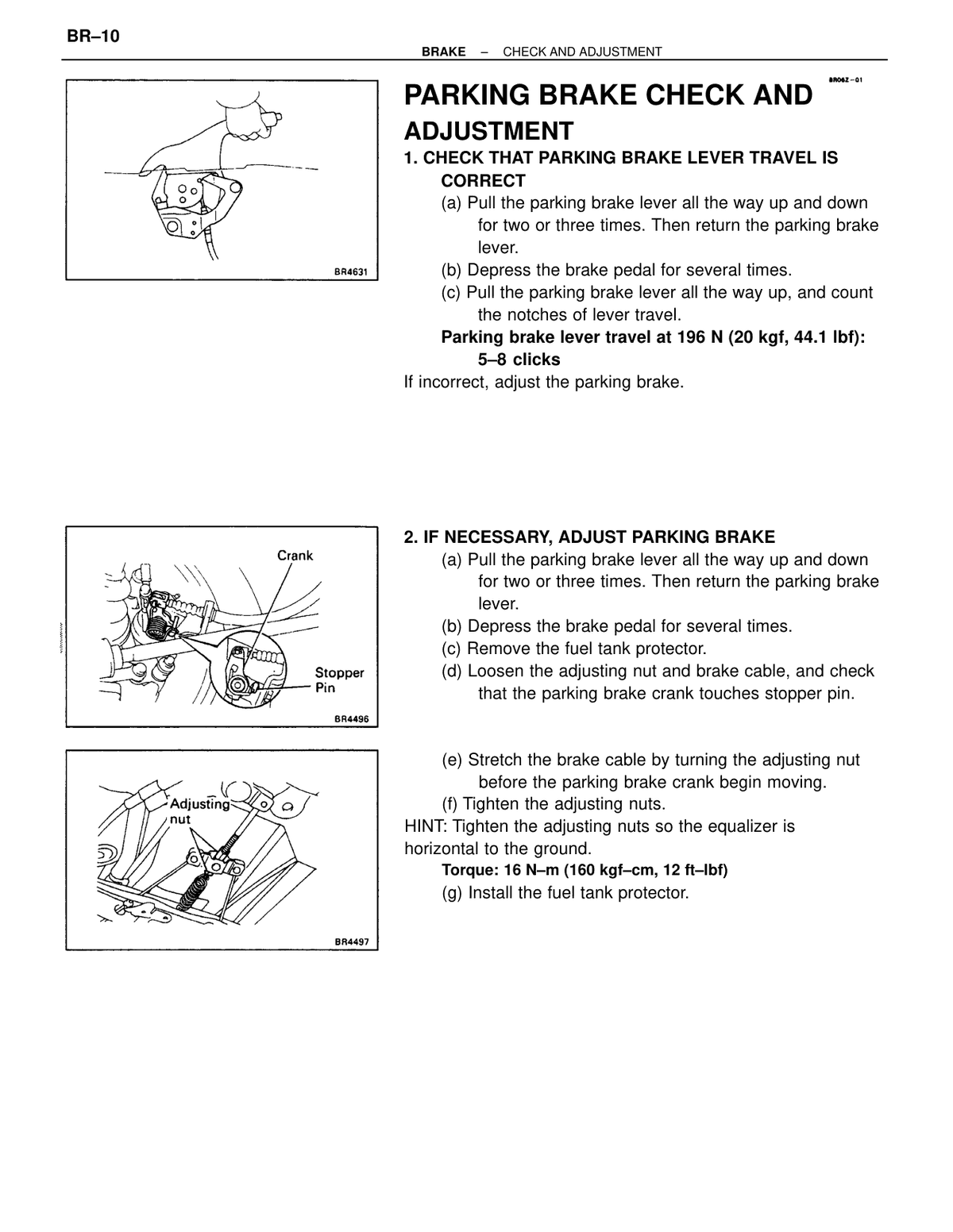

Brakes Adjusting nuts Tighten so equalizer is horizontal to the ground 16 160 12 ↗ RM179U1_1991 · p1039 OEM manual

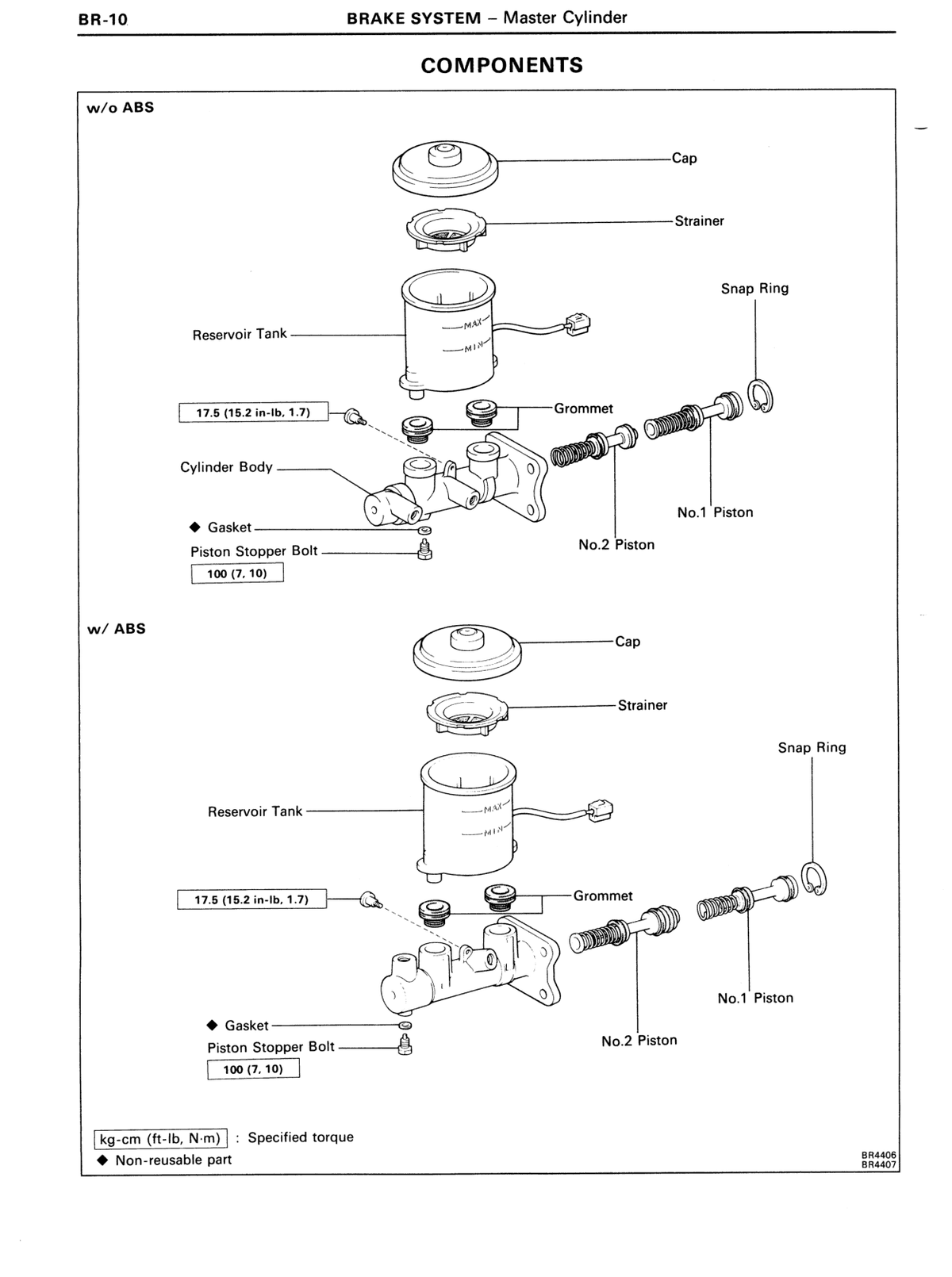

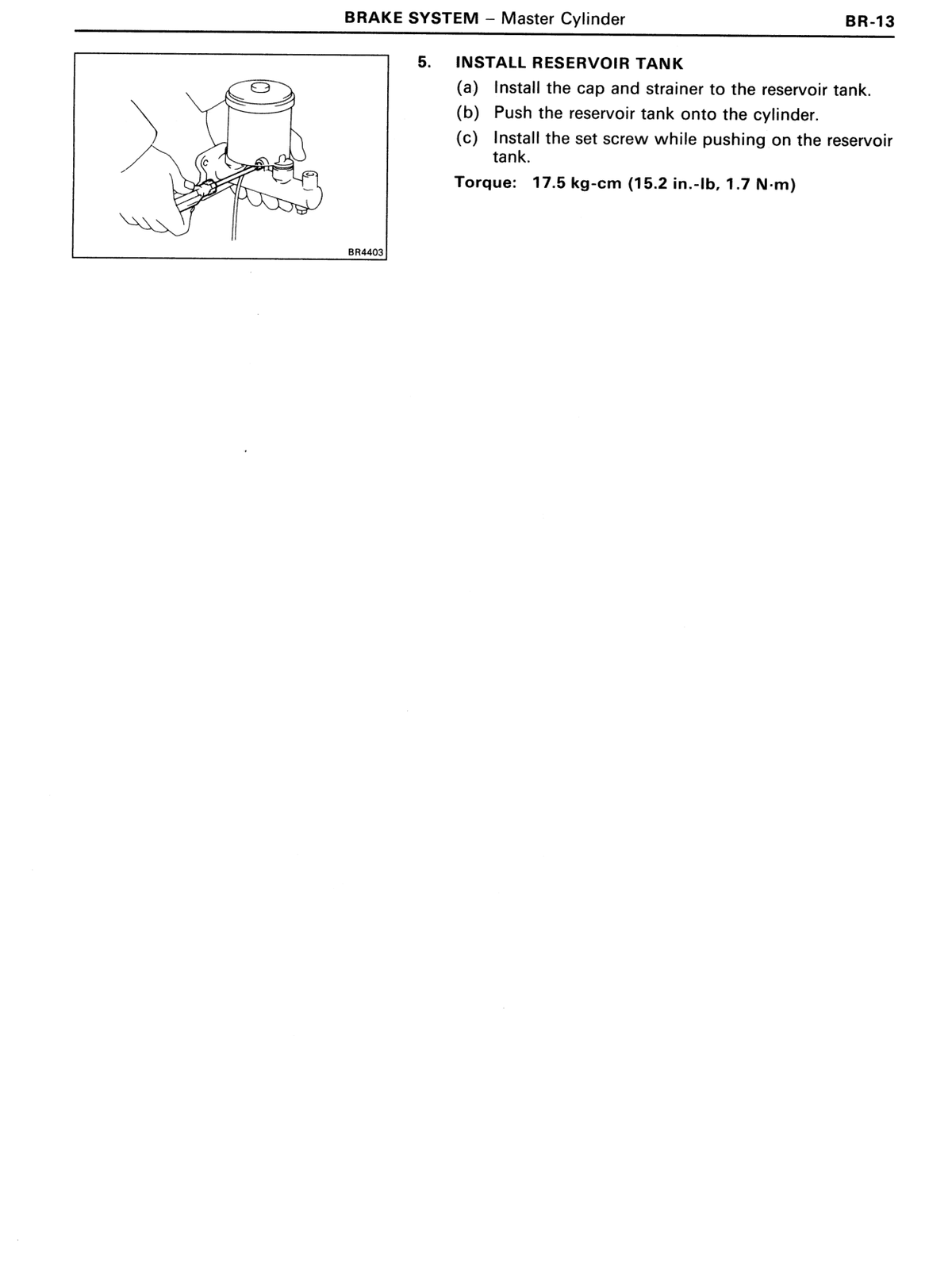

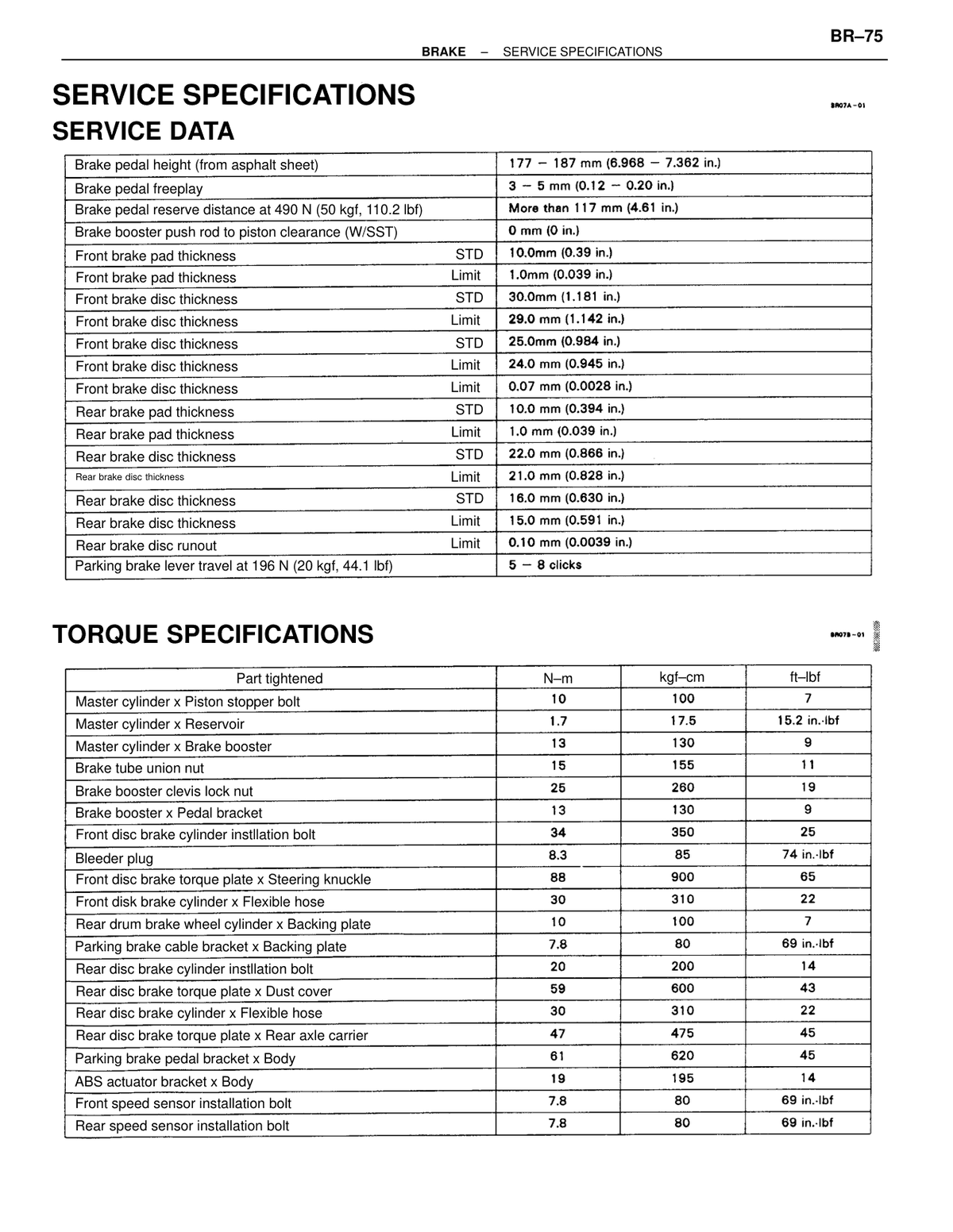

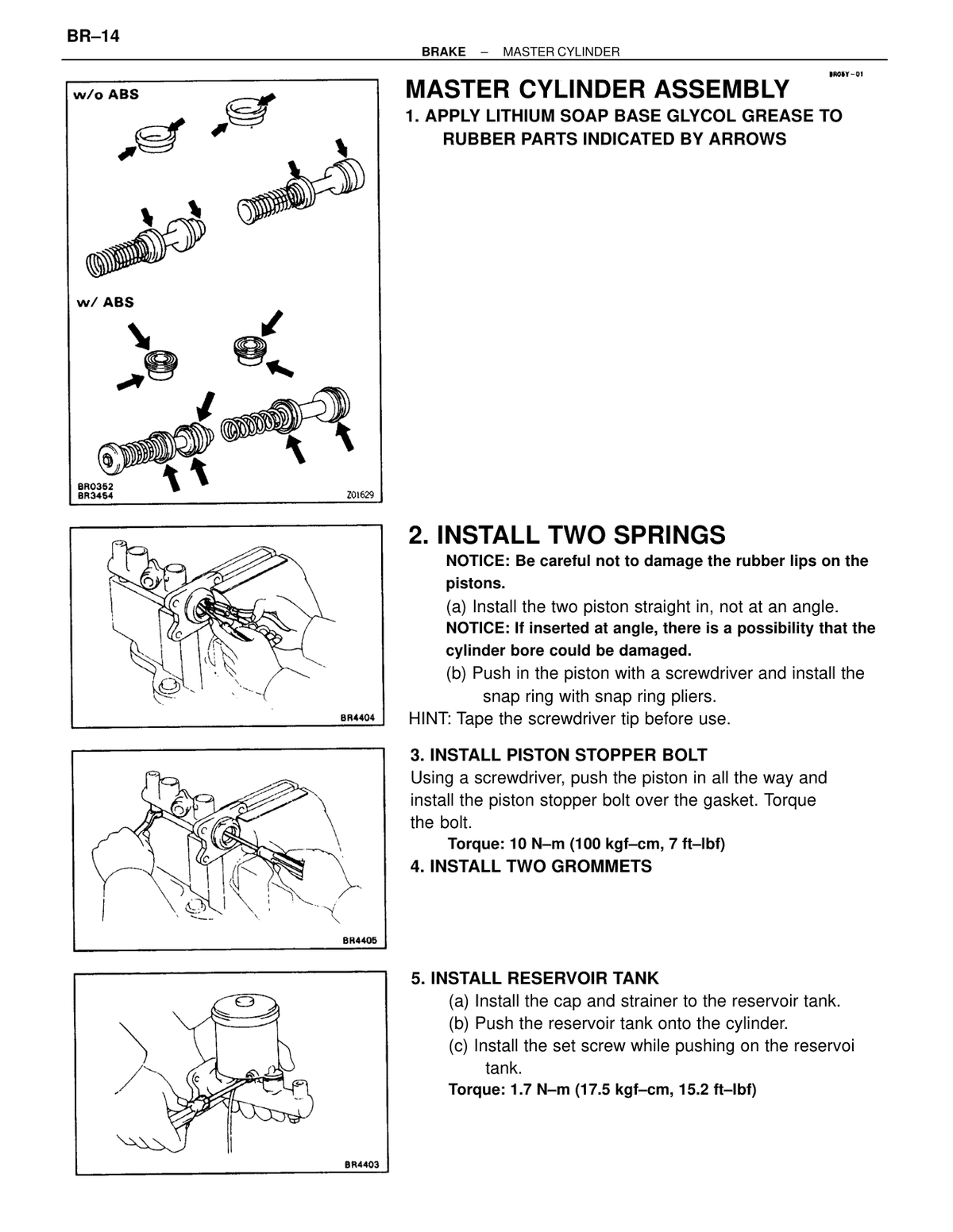

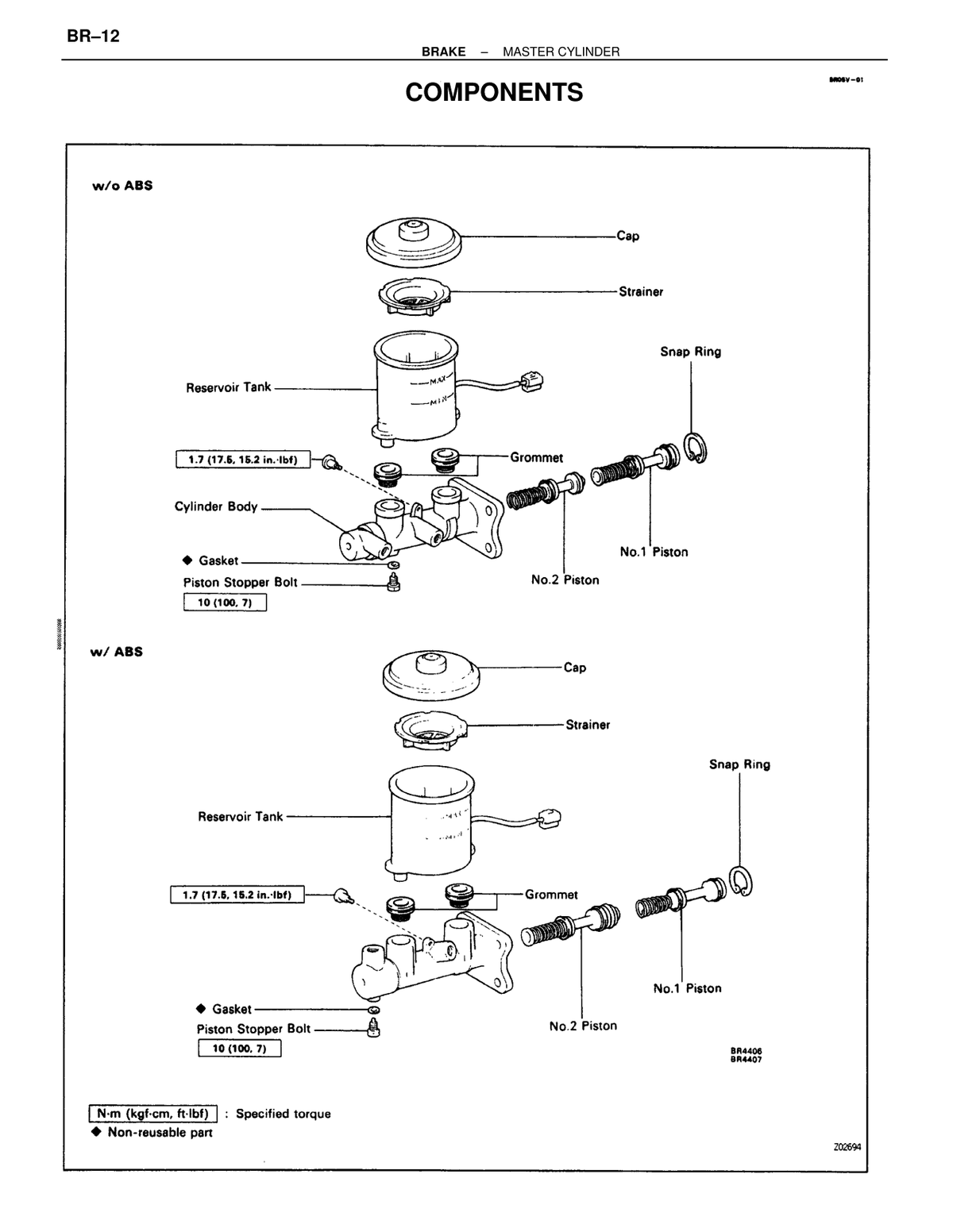

Brakes Reservoir Tank Bolt in-lb value shown as 15.2 in-lb 1.7 17.5 — ↗ RM179U1_1991 · p1041 OEM manual

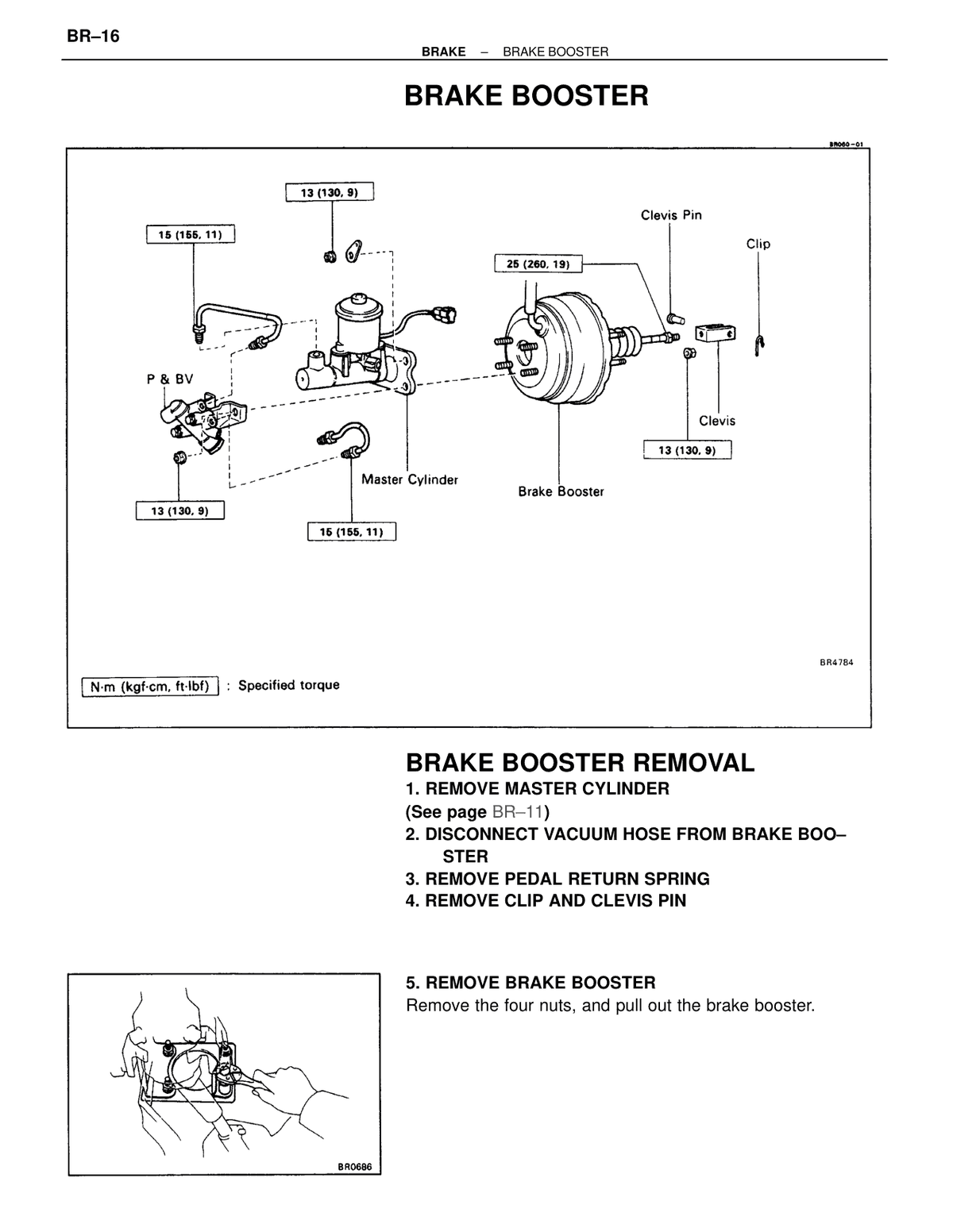

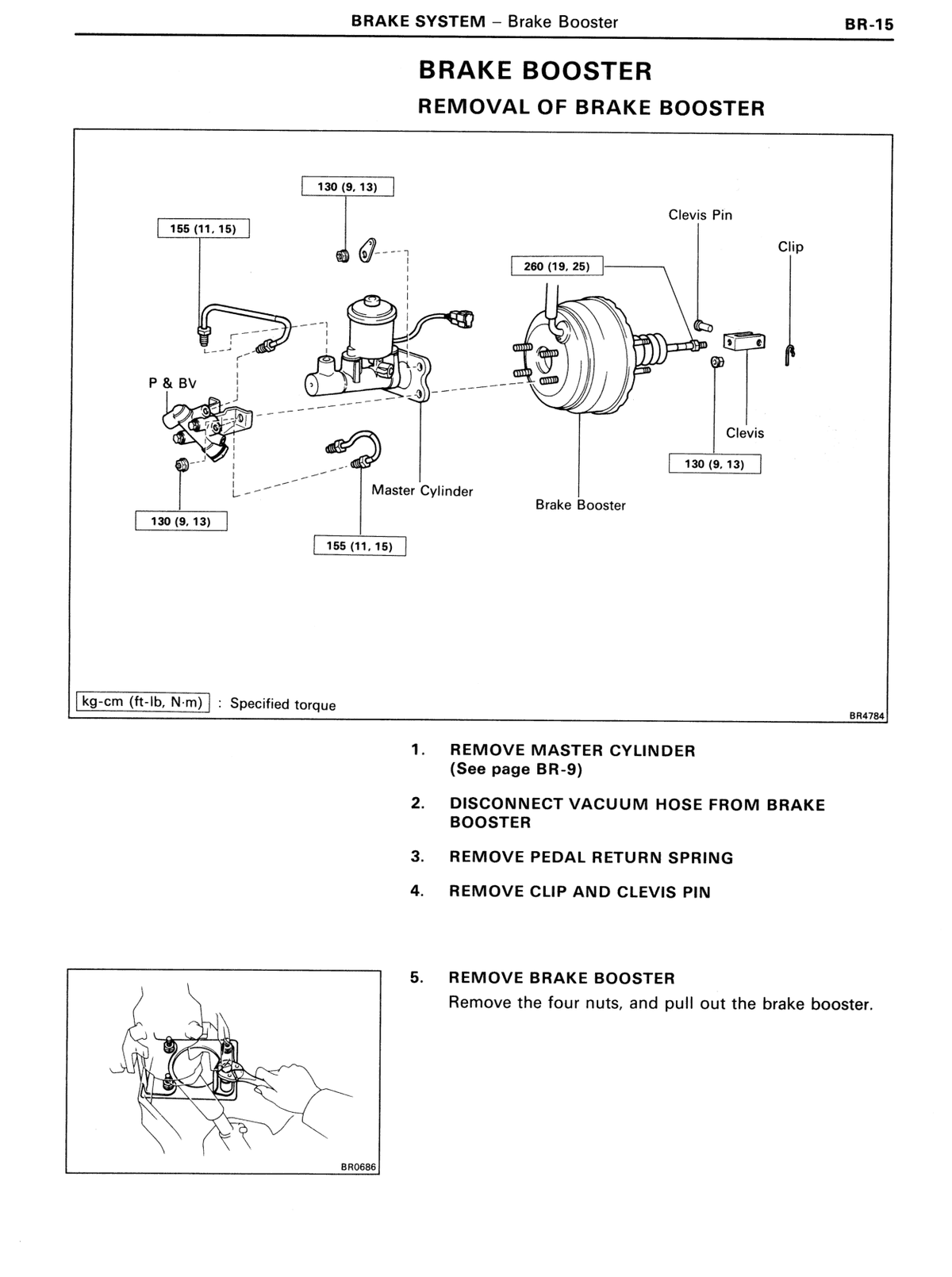

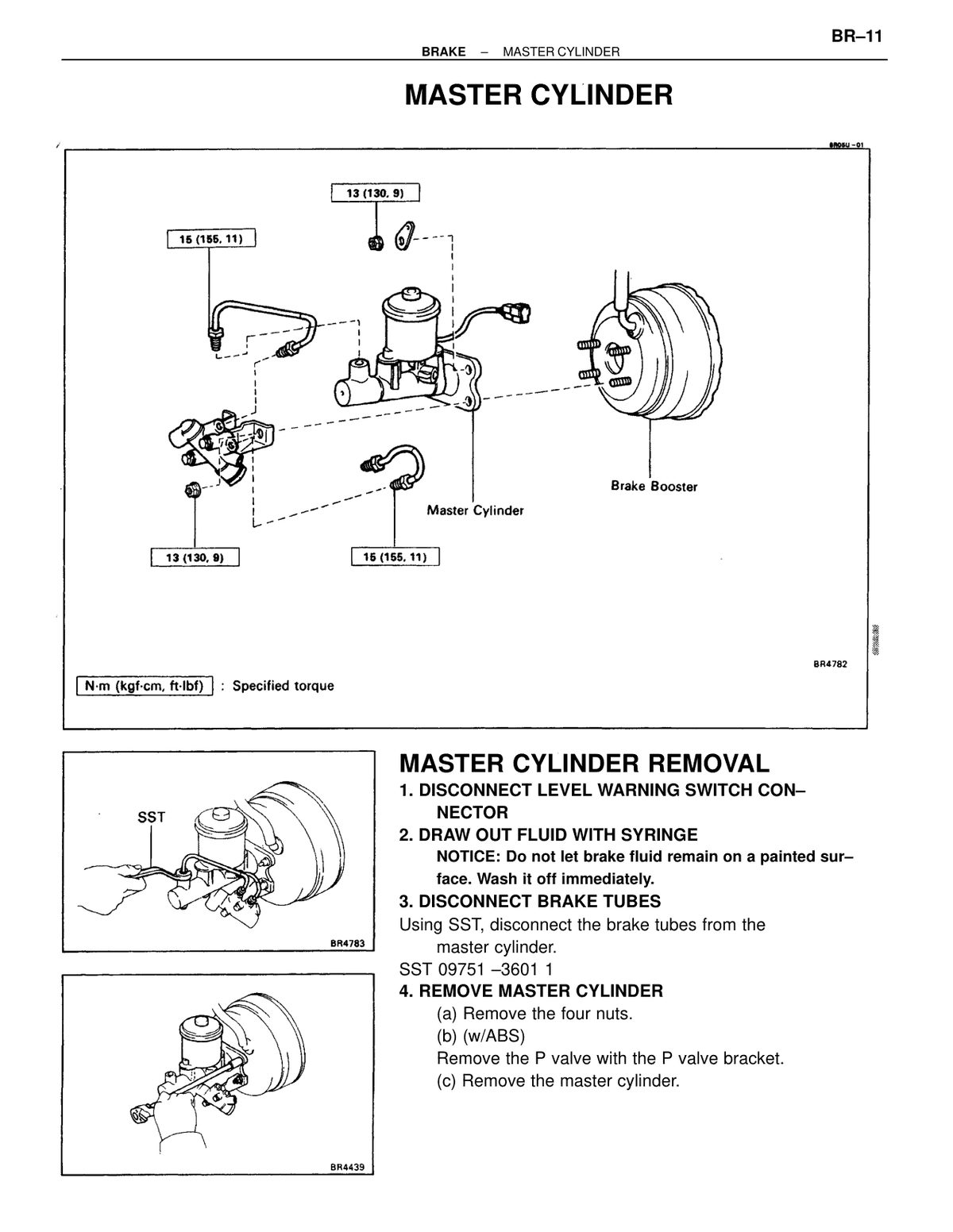

Brakes 130 (9, 13) — upper brake line fitting / P&BV bracket bolt 13 130 9 ↗ RM179U1_1991 · p1046 OEM manual

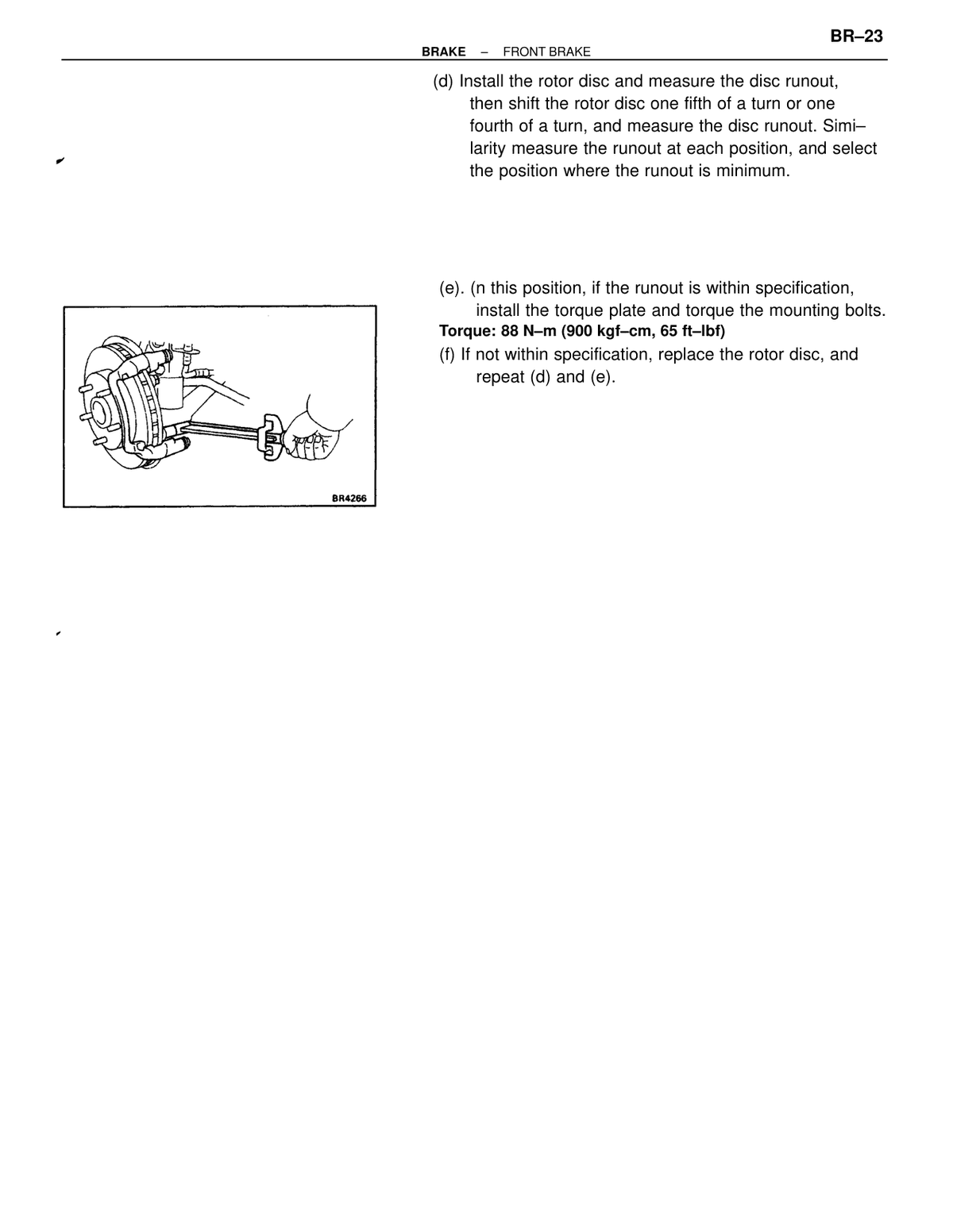

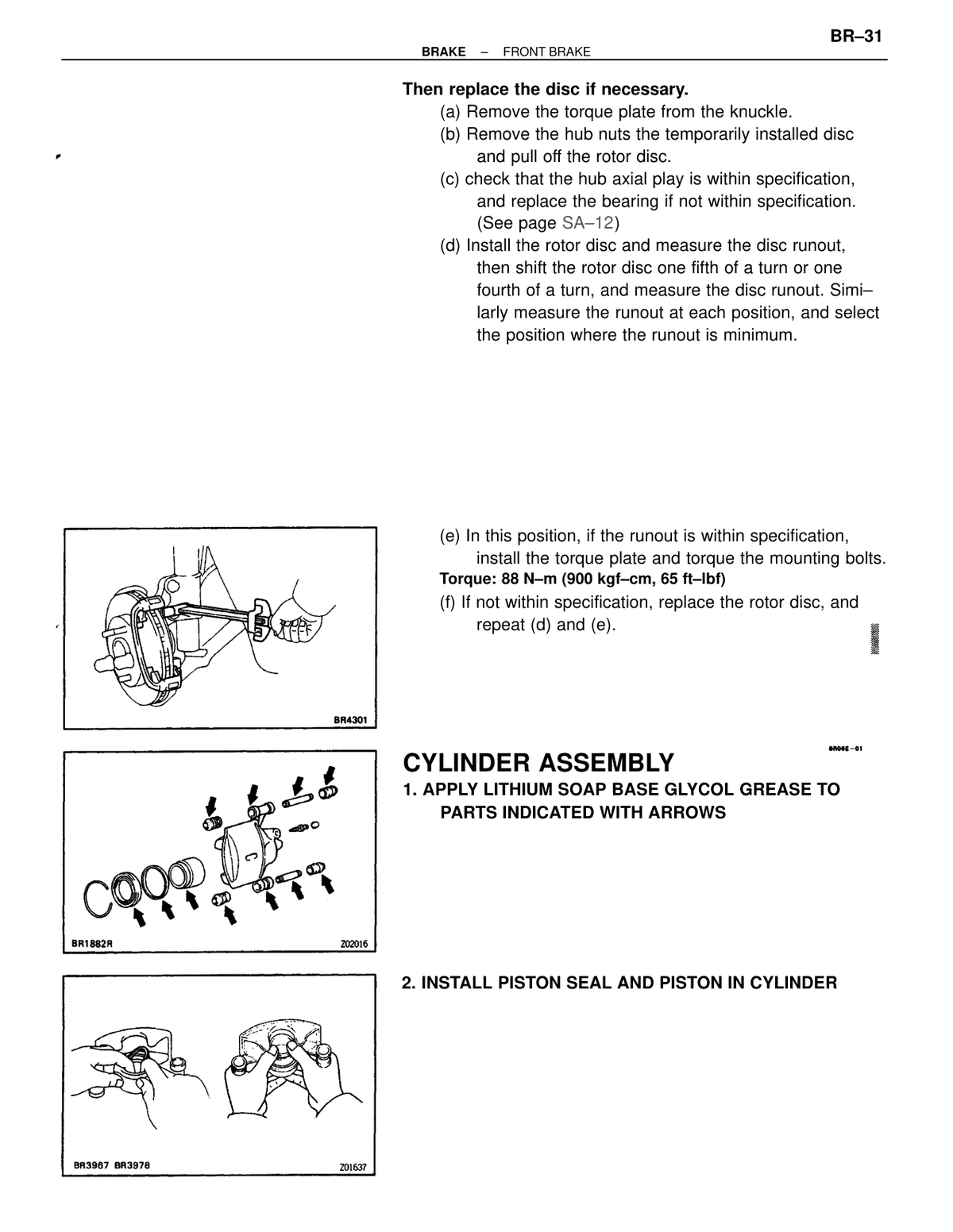

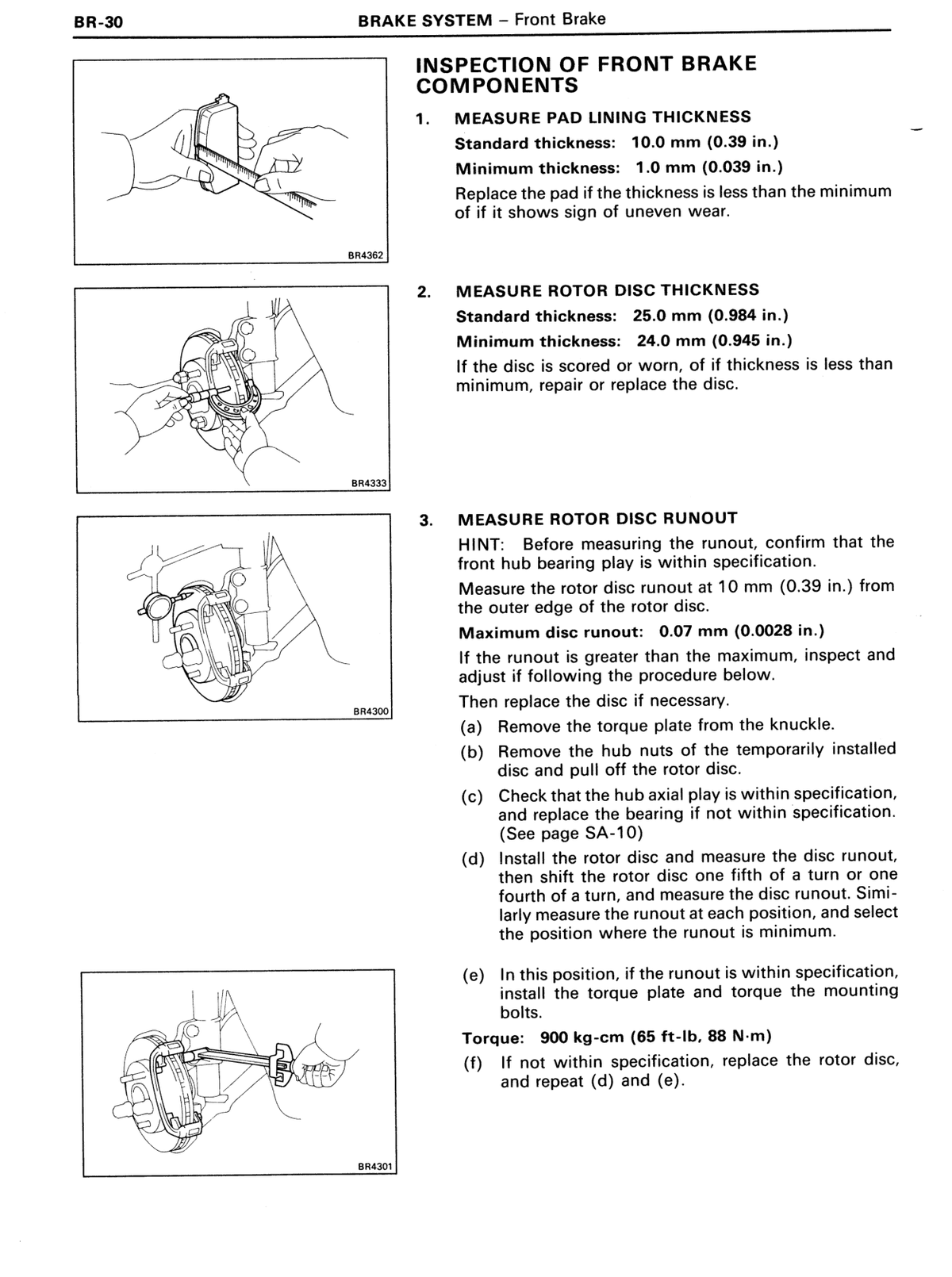

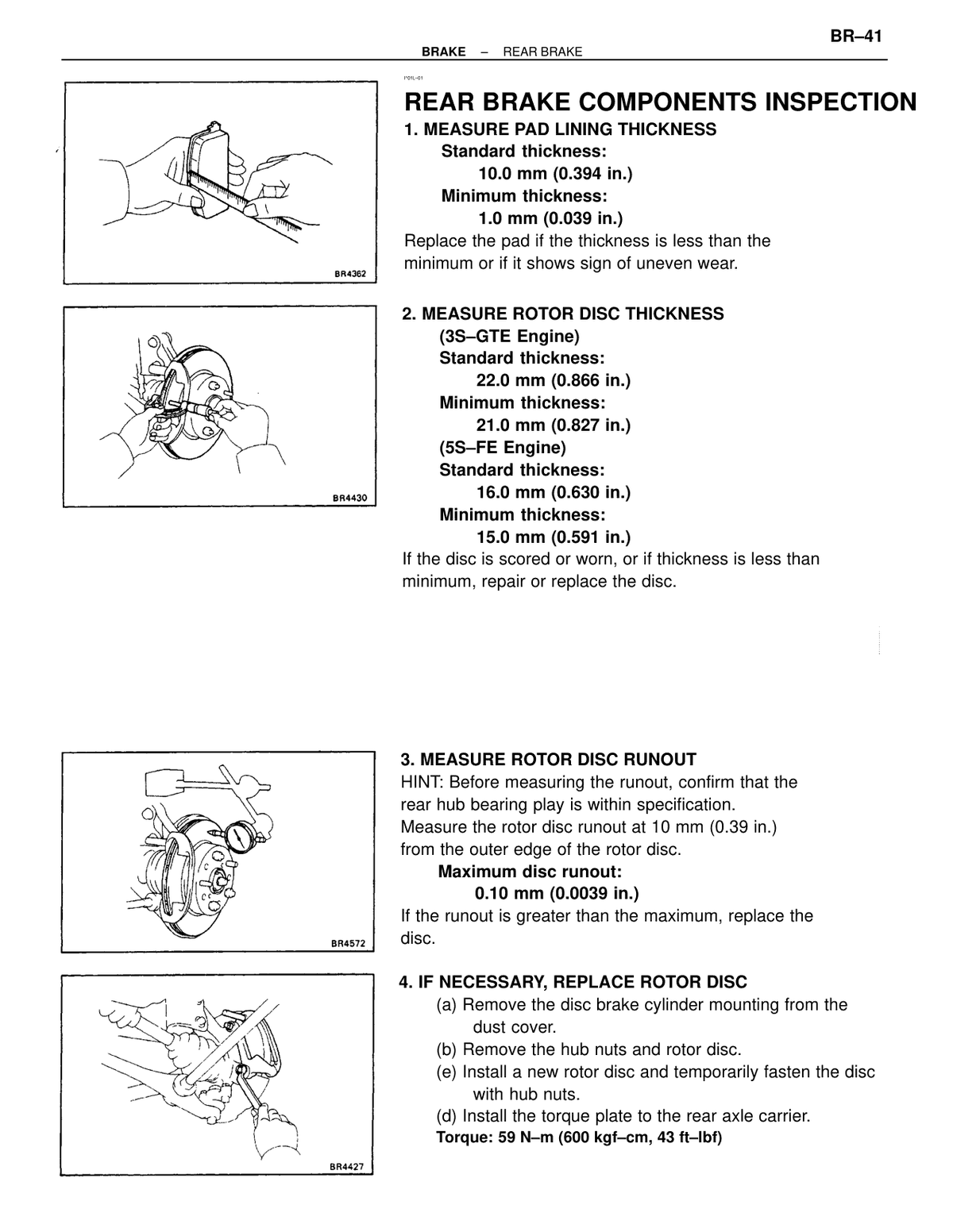

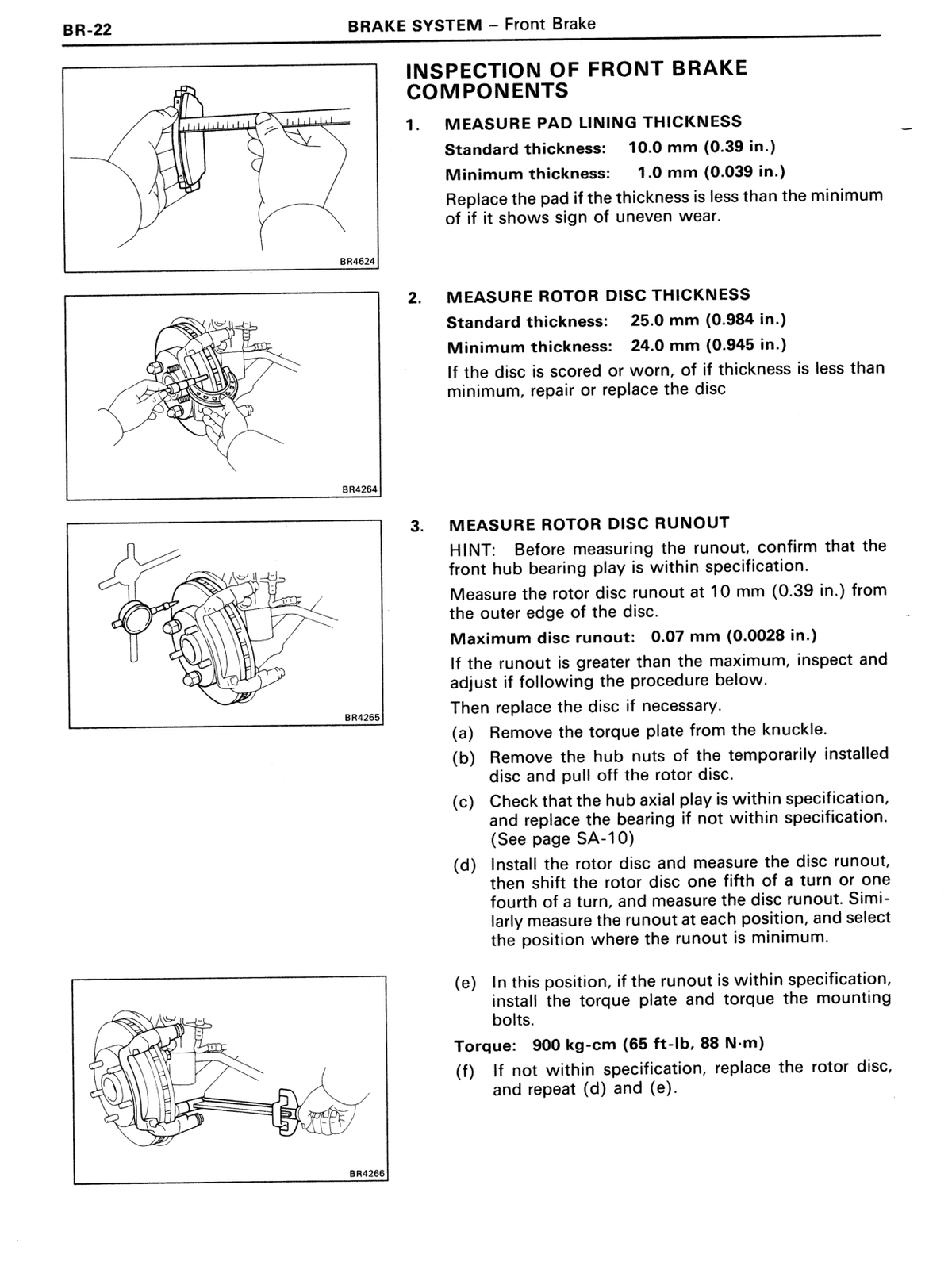

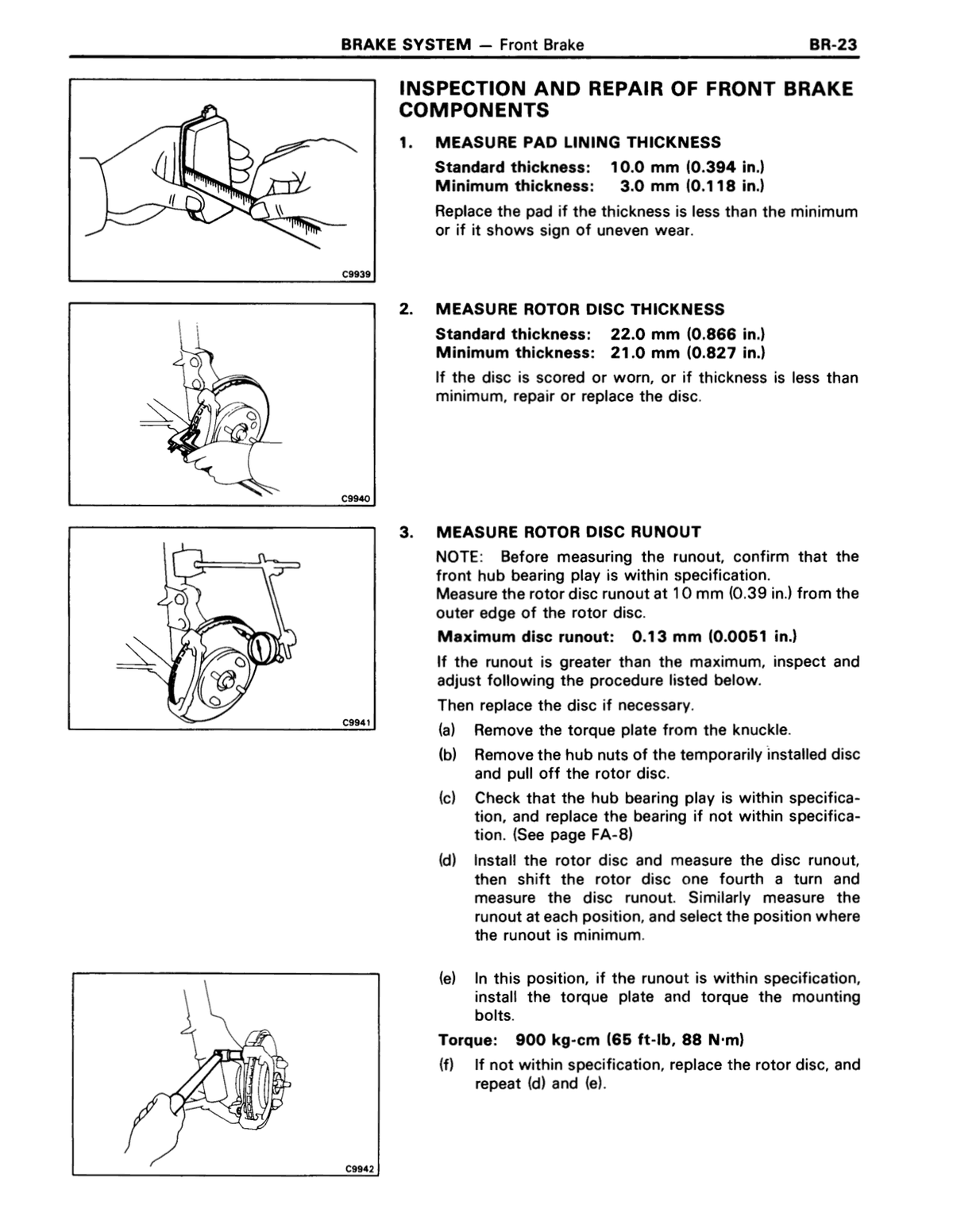

Brakes Torque plate mounting bolts Step 3(e) — install torque plate to knuckle 88 900 65 ↗ RM179U1_1991 · p1061 OEM manual

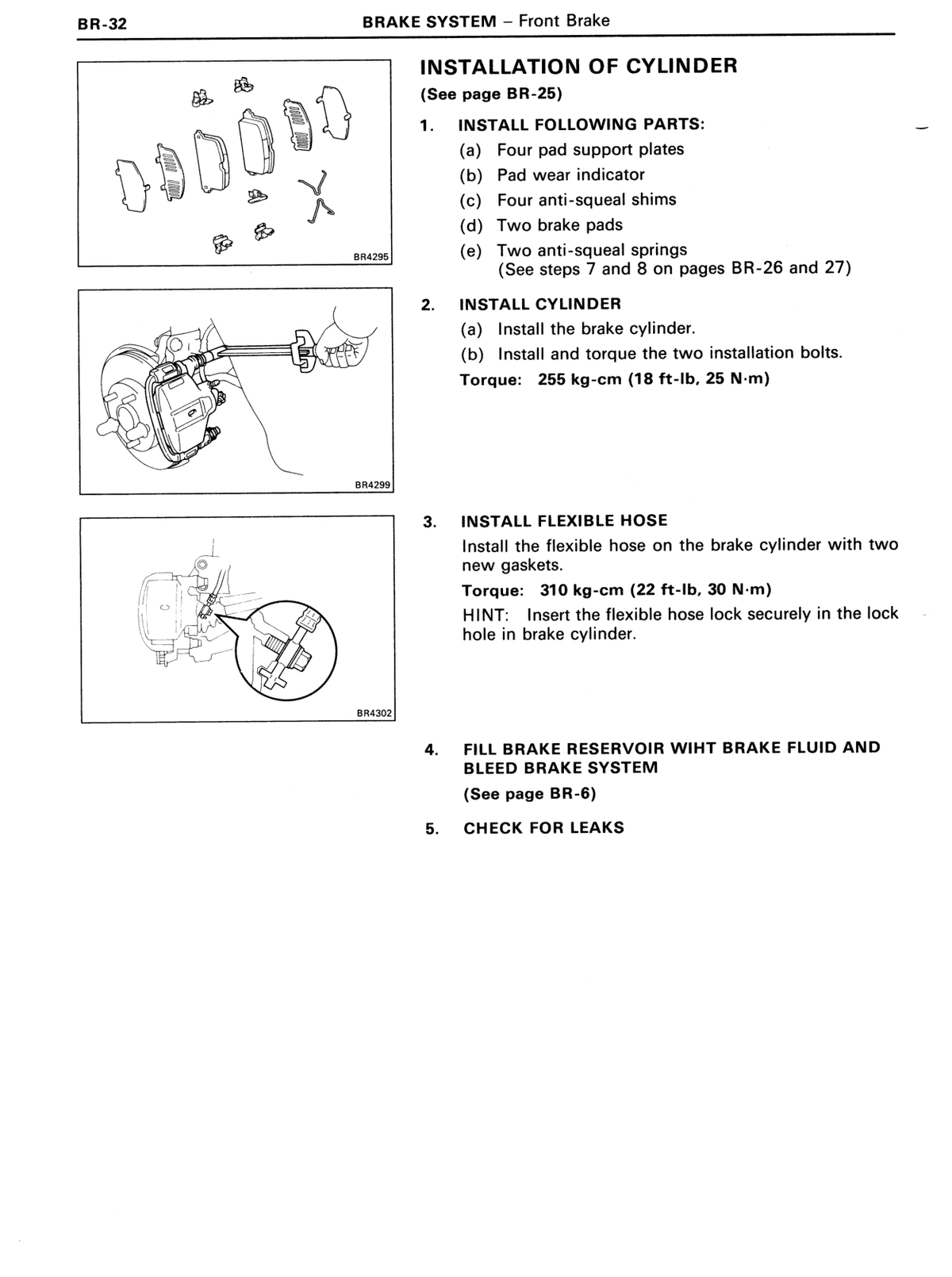

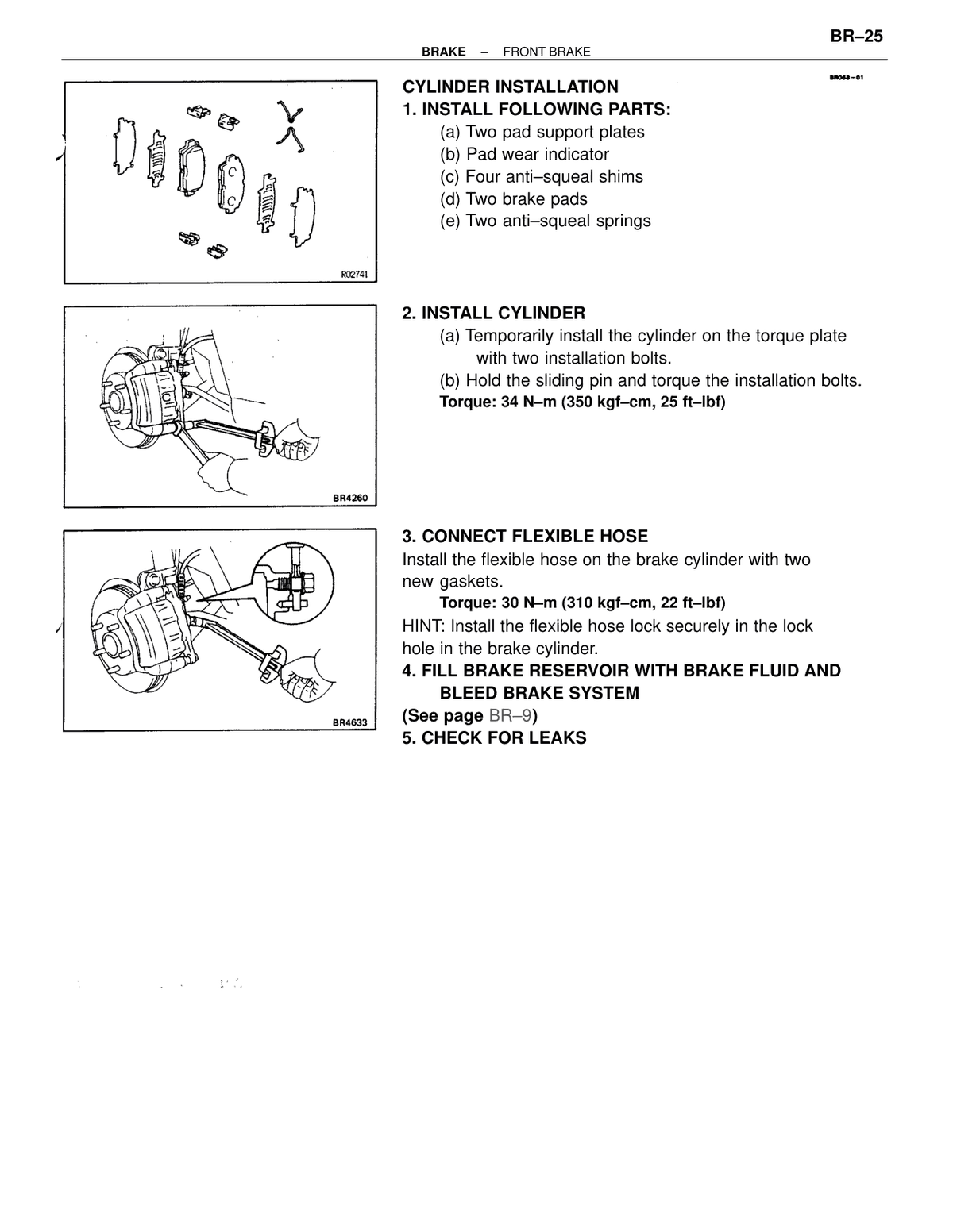

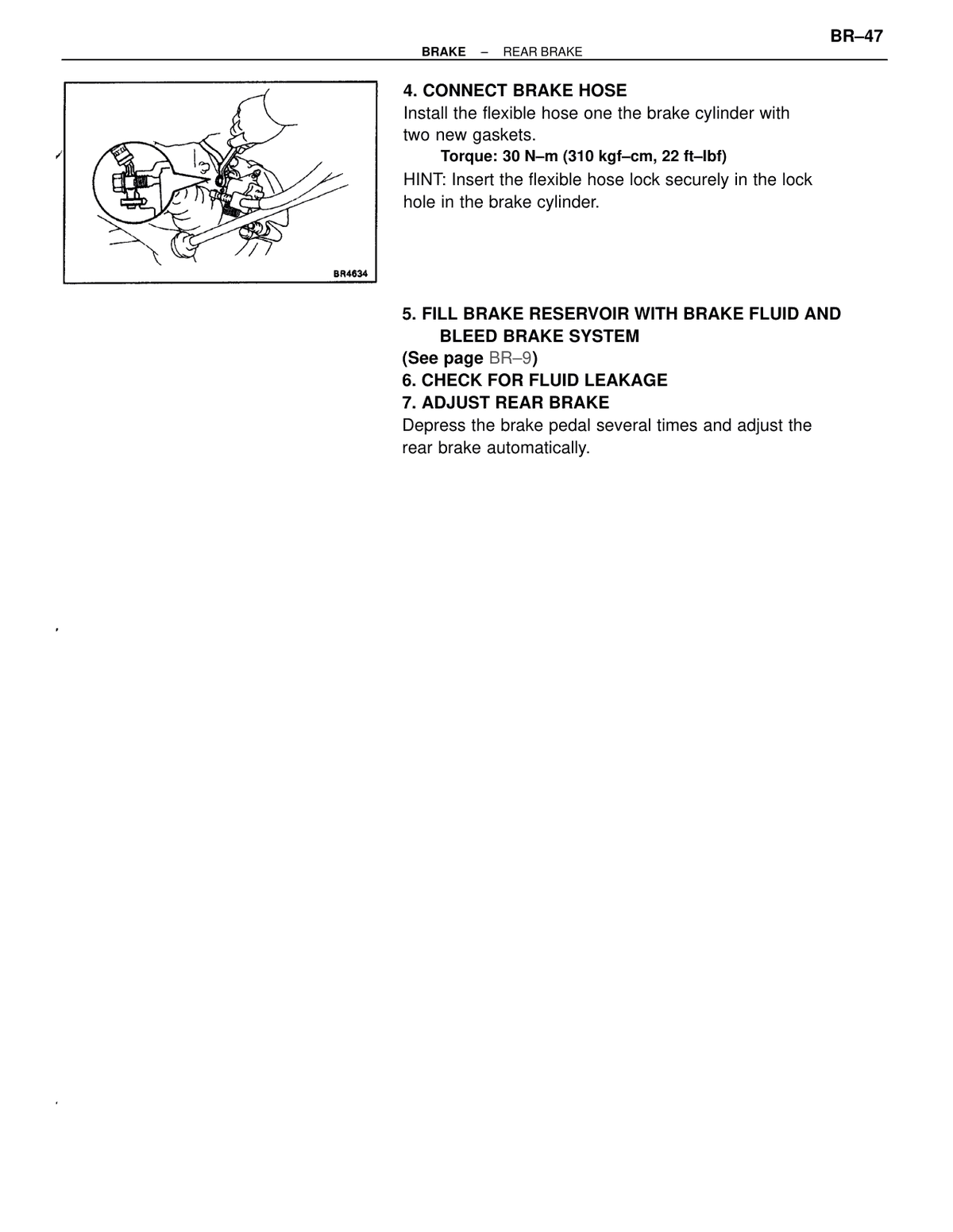

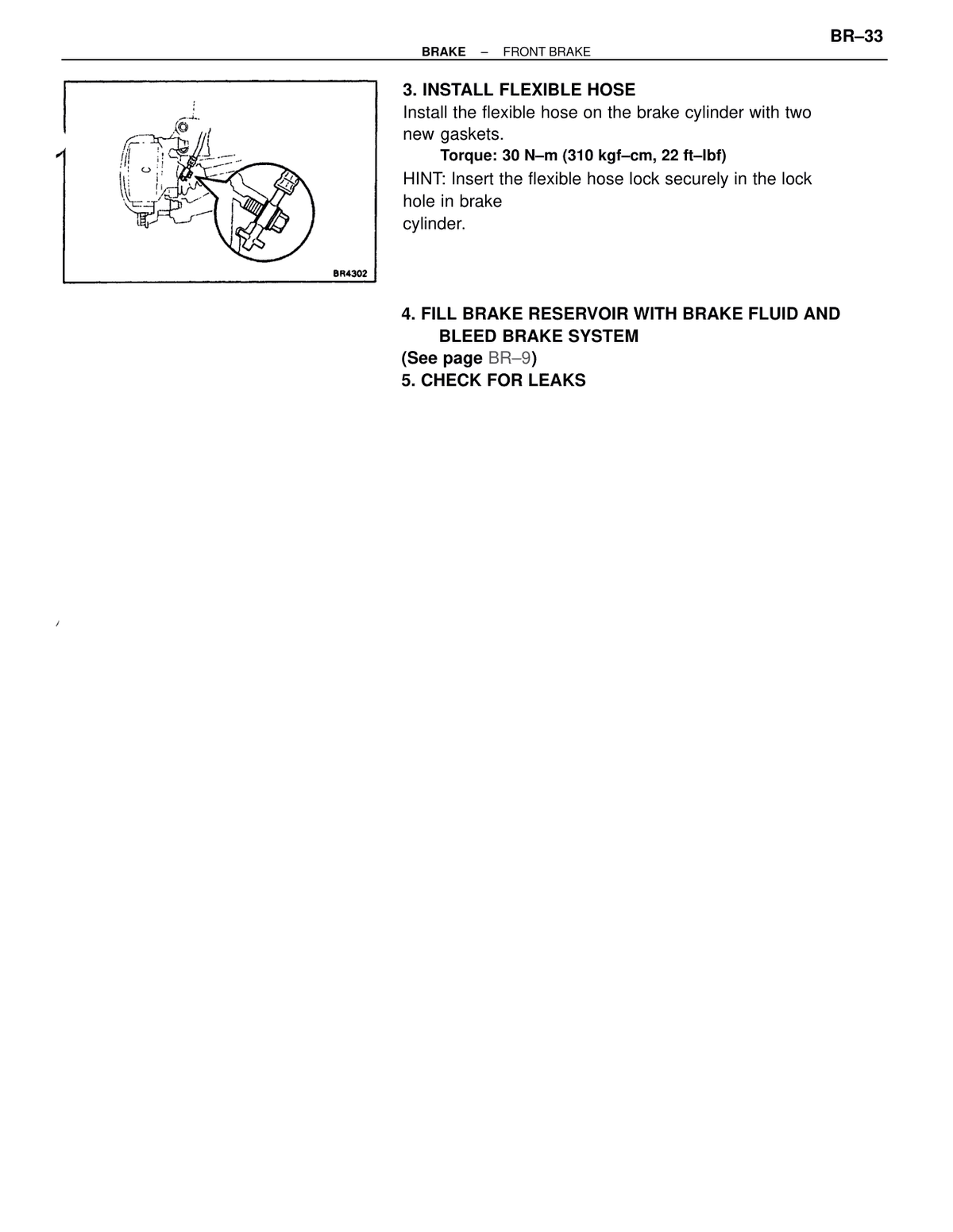

Brakes Flexible hose Step 3, install with two new gaskets 30 310 22 ↗ RM179U1_1991 · p1063 OEM manual

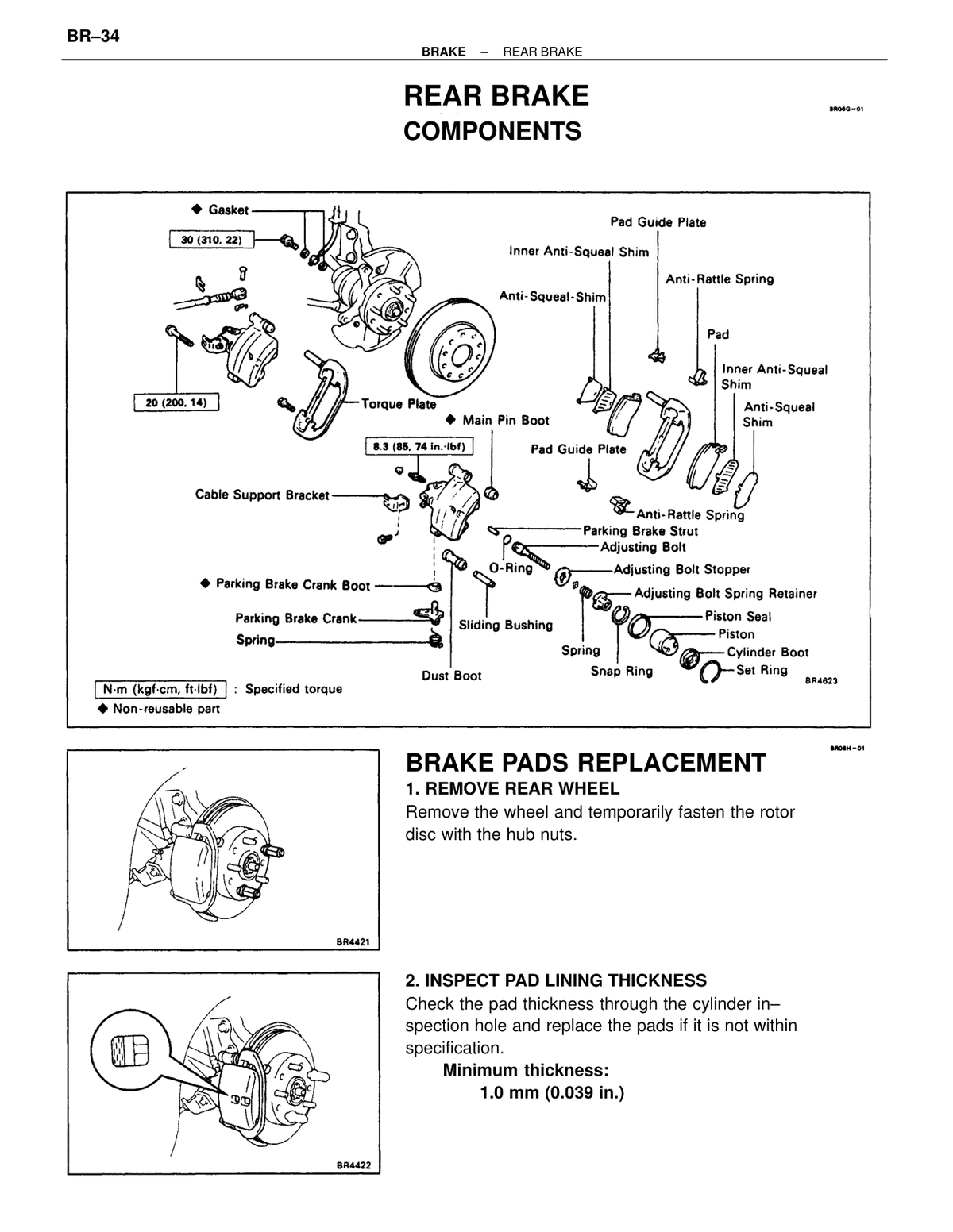

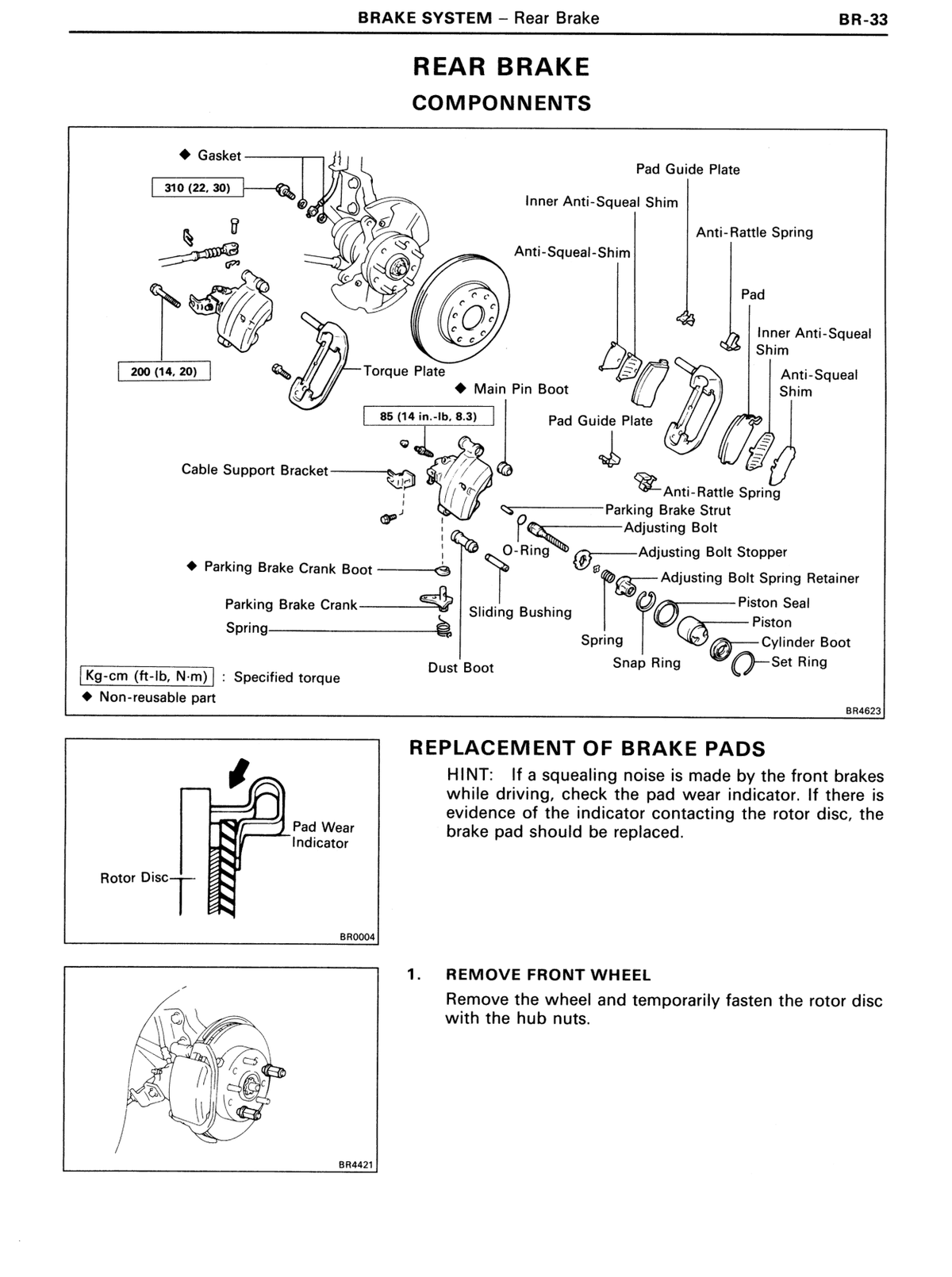

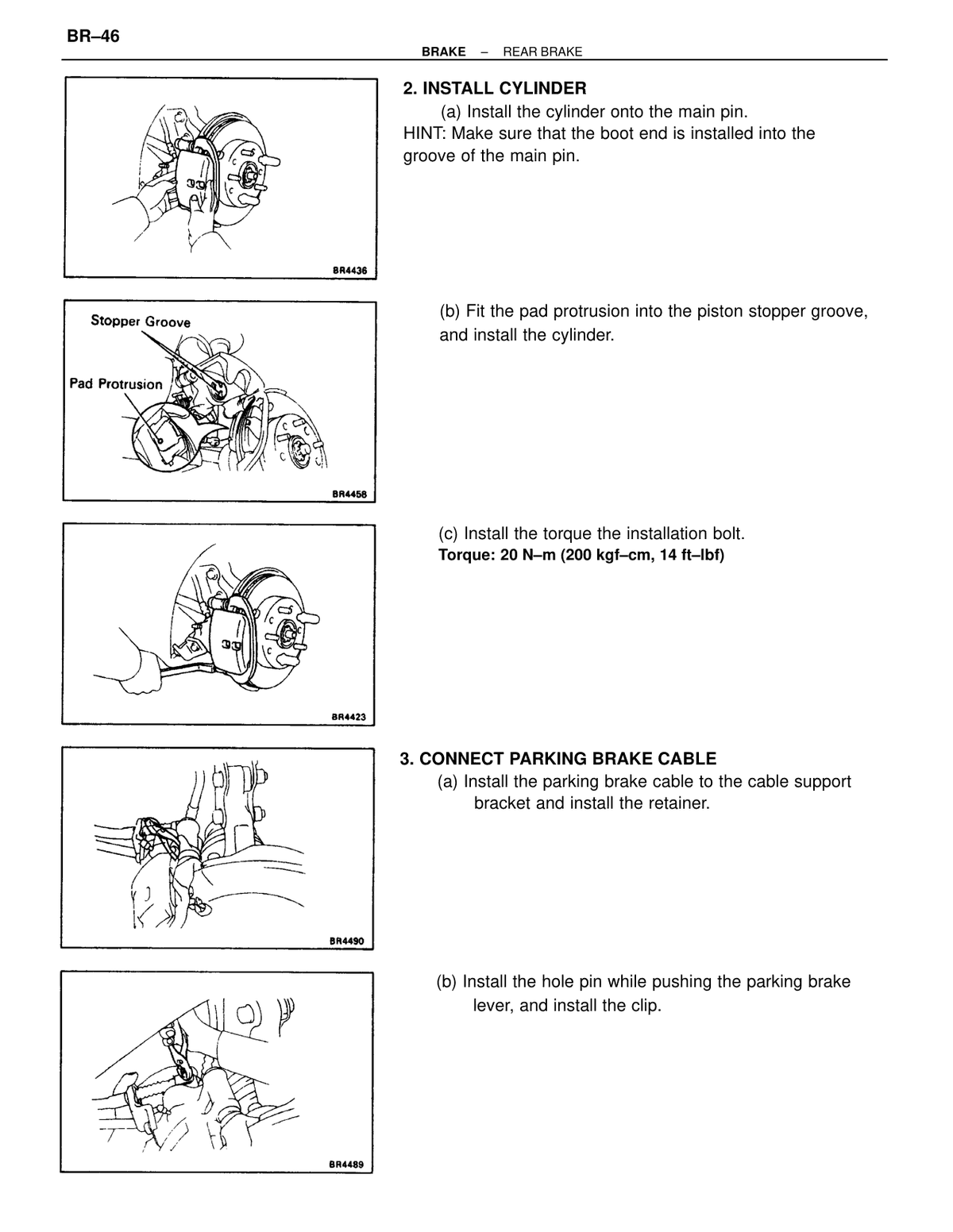

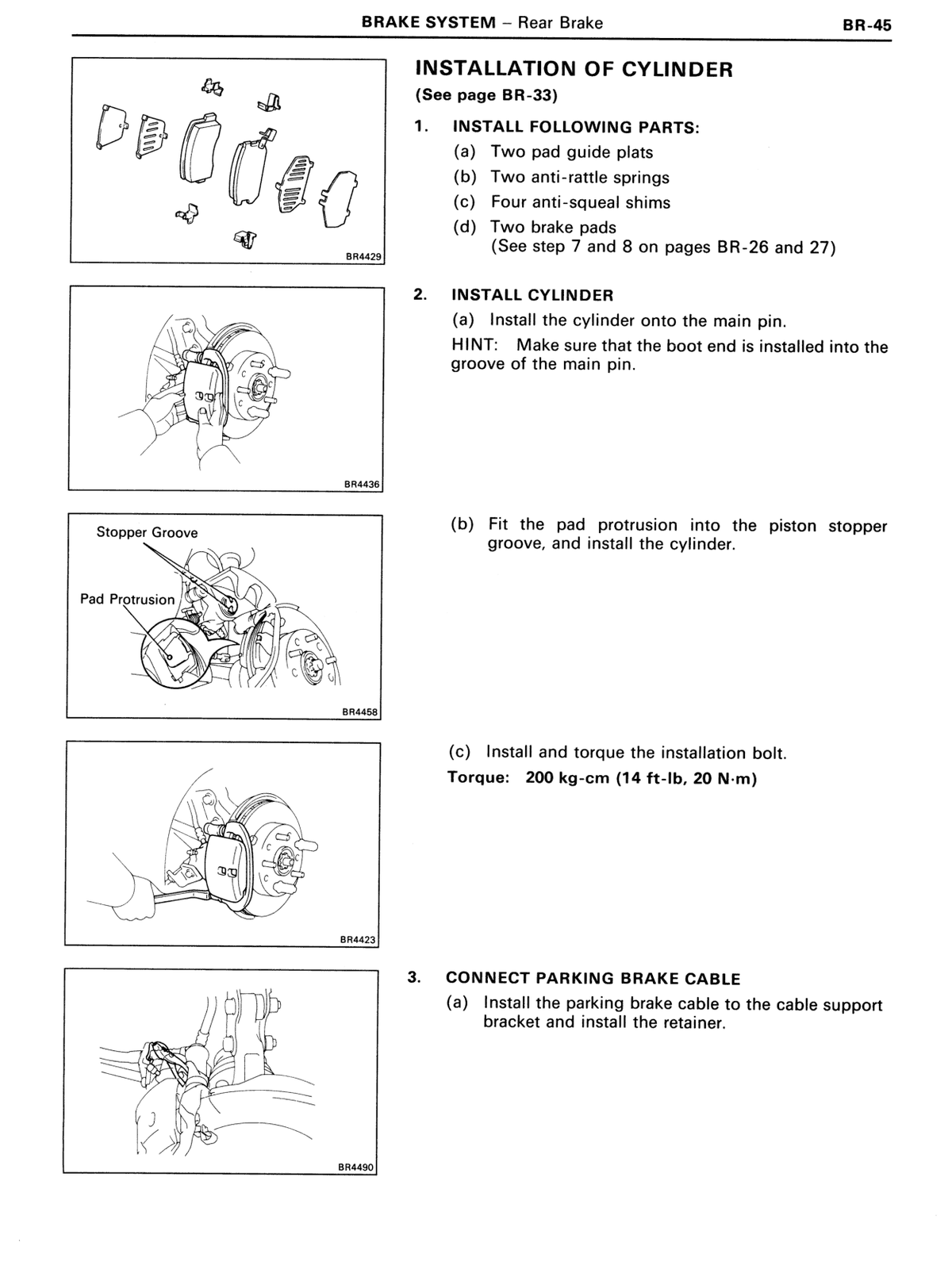

Brakes Main Pin Boot bolt value shown as 85 (14 in.-lb, 8.3) 8.3 85 — ↗ RM179U1_1991 · p1064 OEM manual

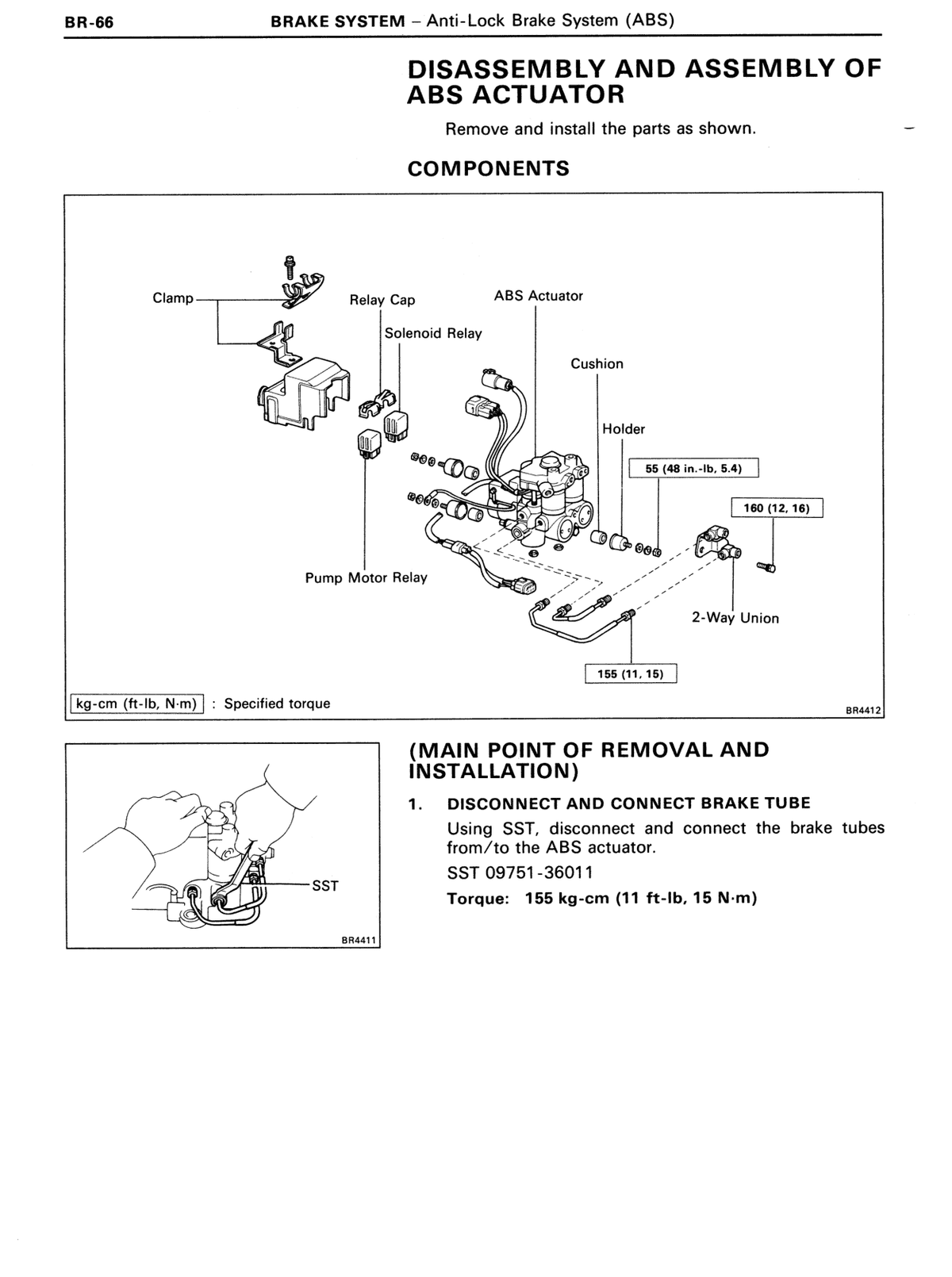

Brakes Holder bolt 55 (48 in.-lb, 5.4) — in.-lb unit used 5.4 55 — ↗ RM179U1_1991 · p1097 OEM manual

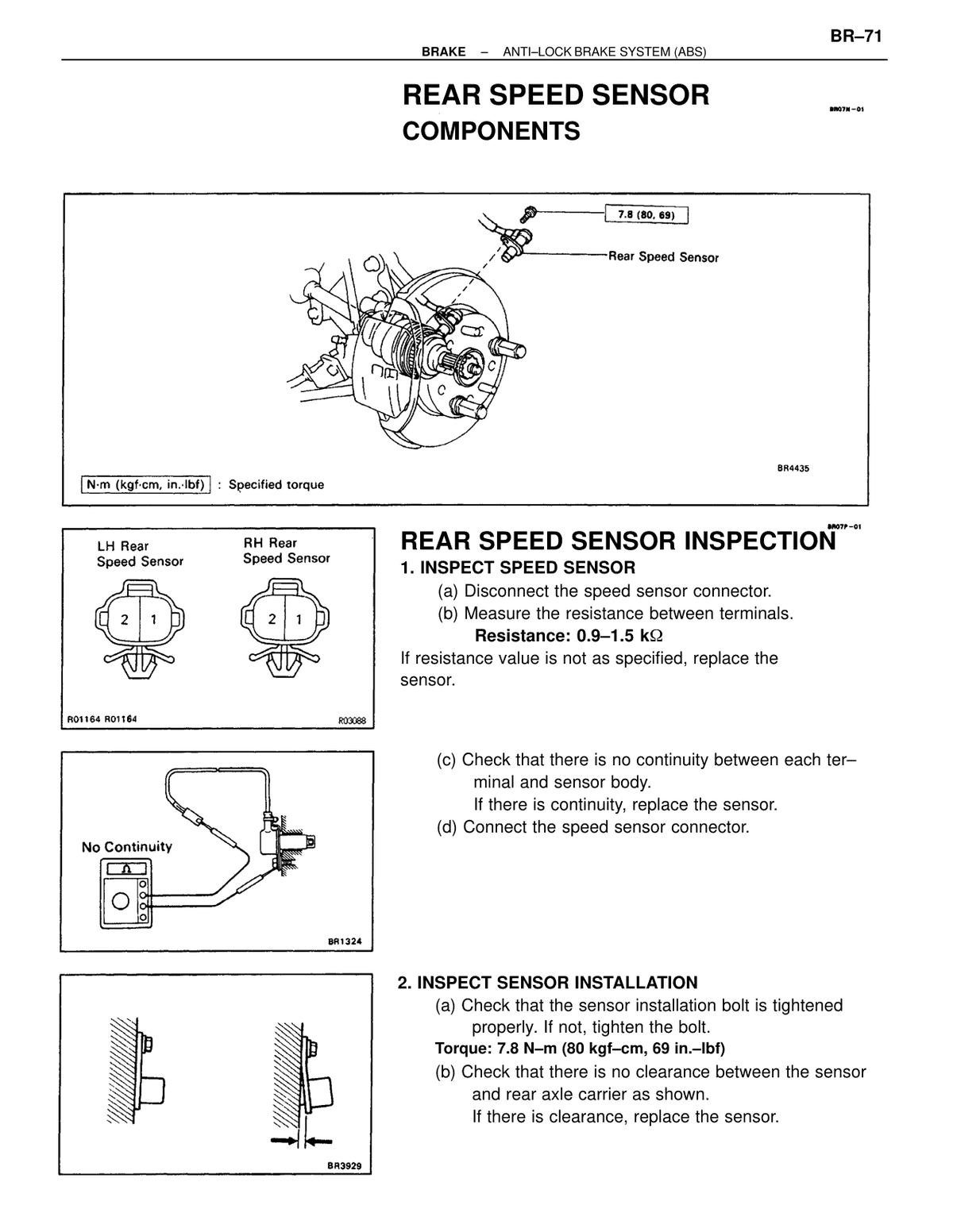

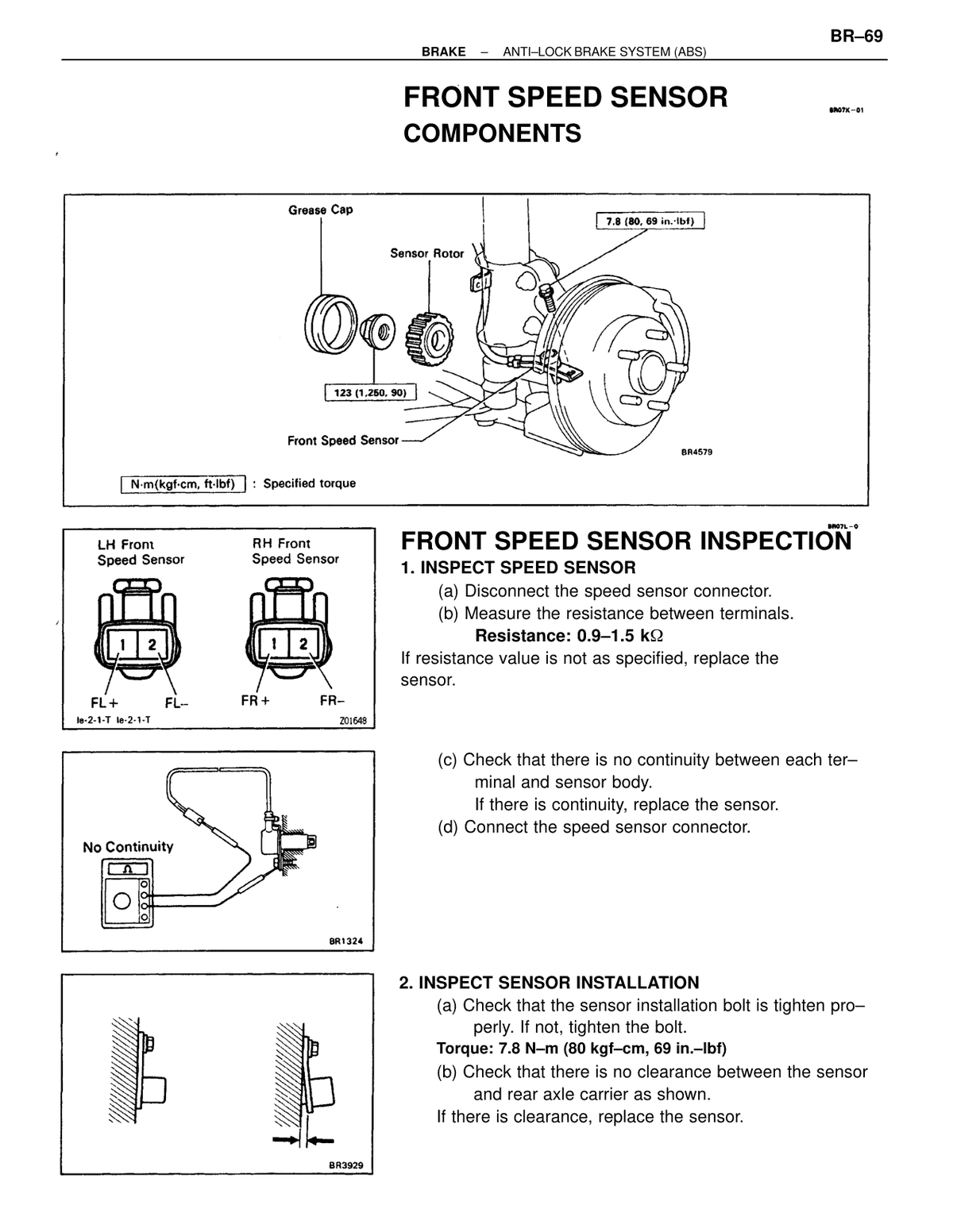

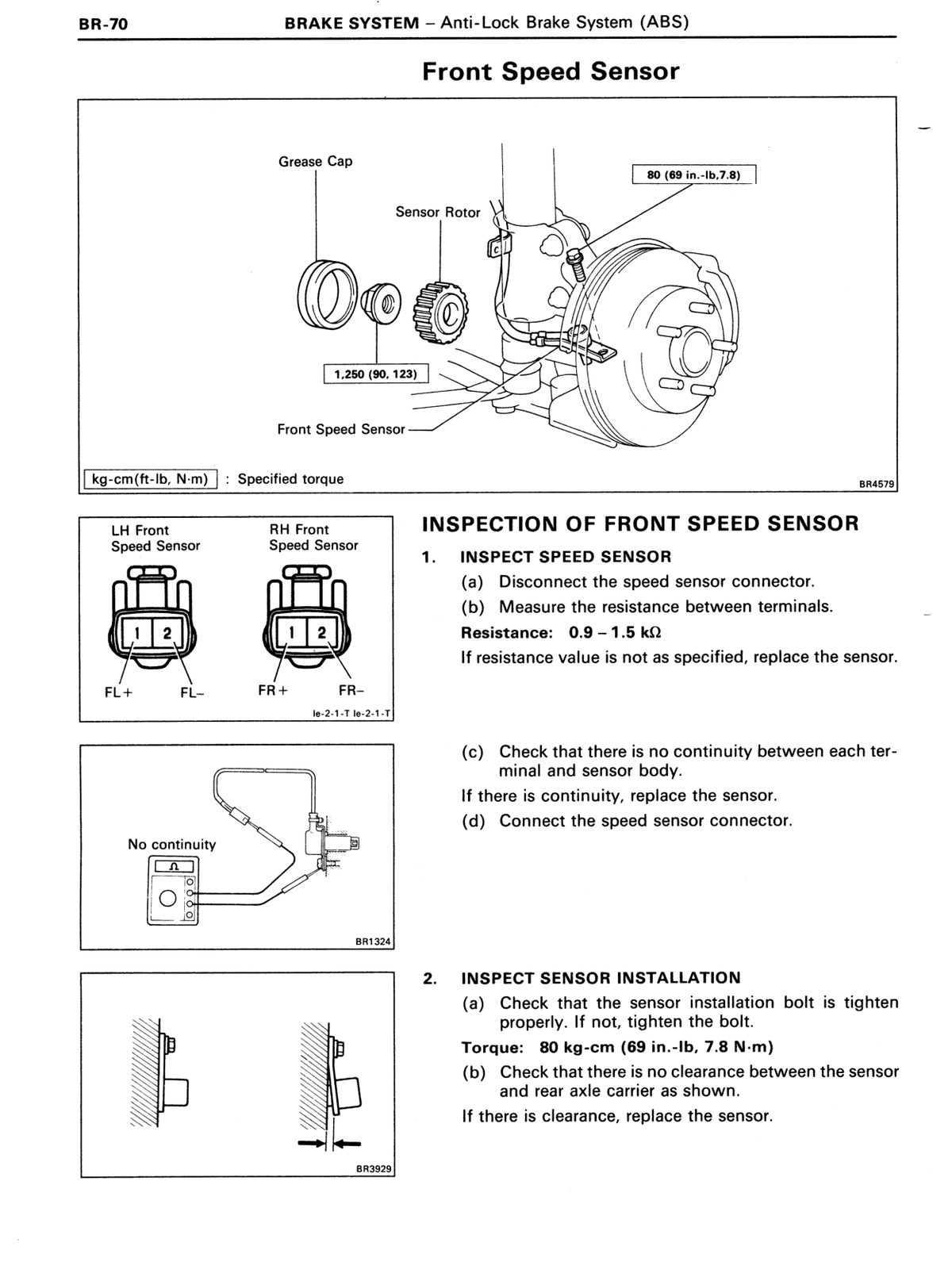

Brakes Sensor installation bolt 69 in.-lb; front speed sensor mounting bolt 7.8 80 — ↗ RM179U1_1991 · p1101 OEM manual

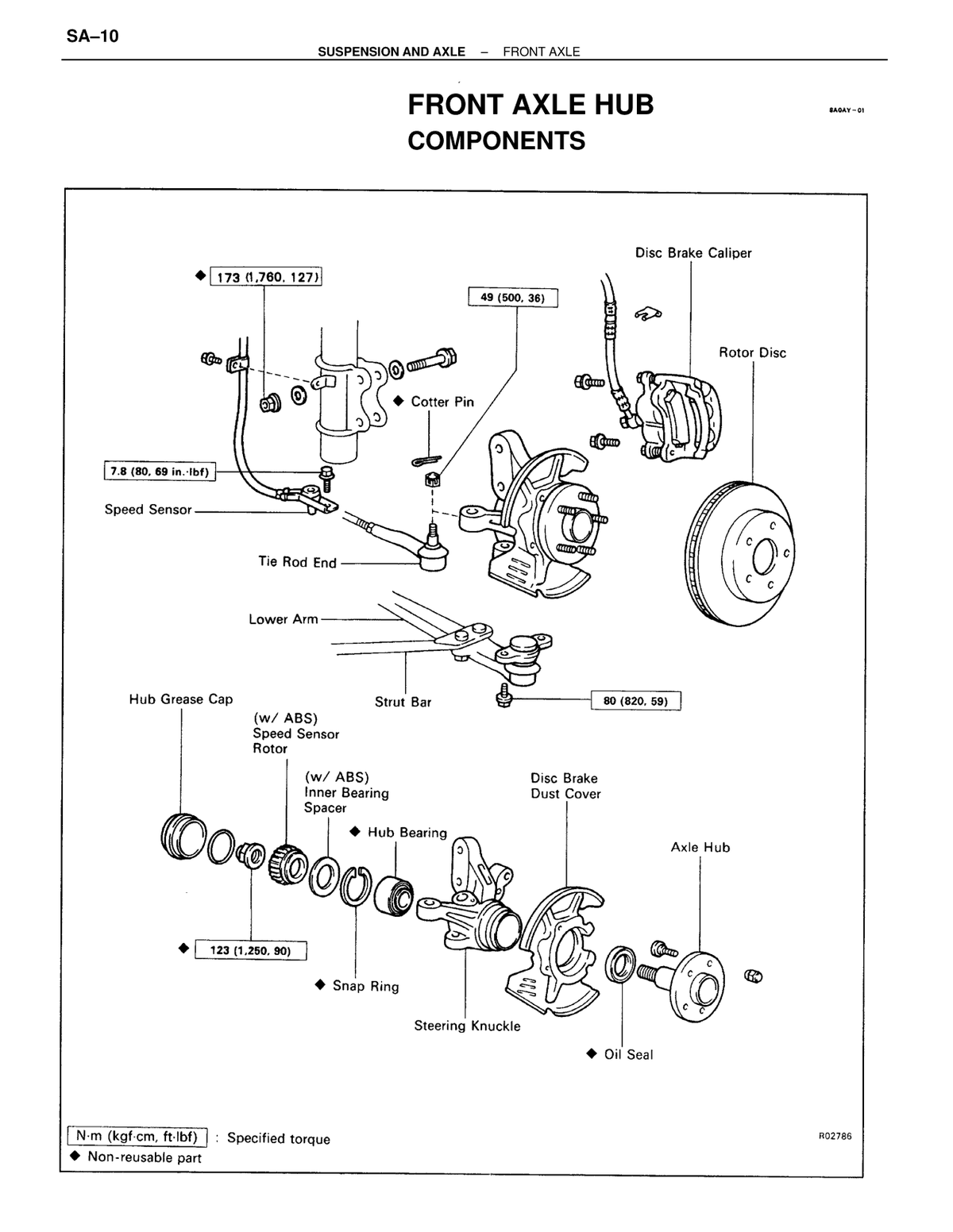

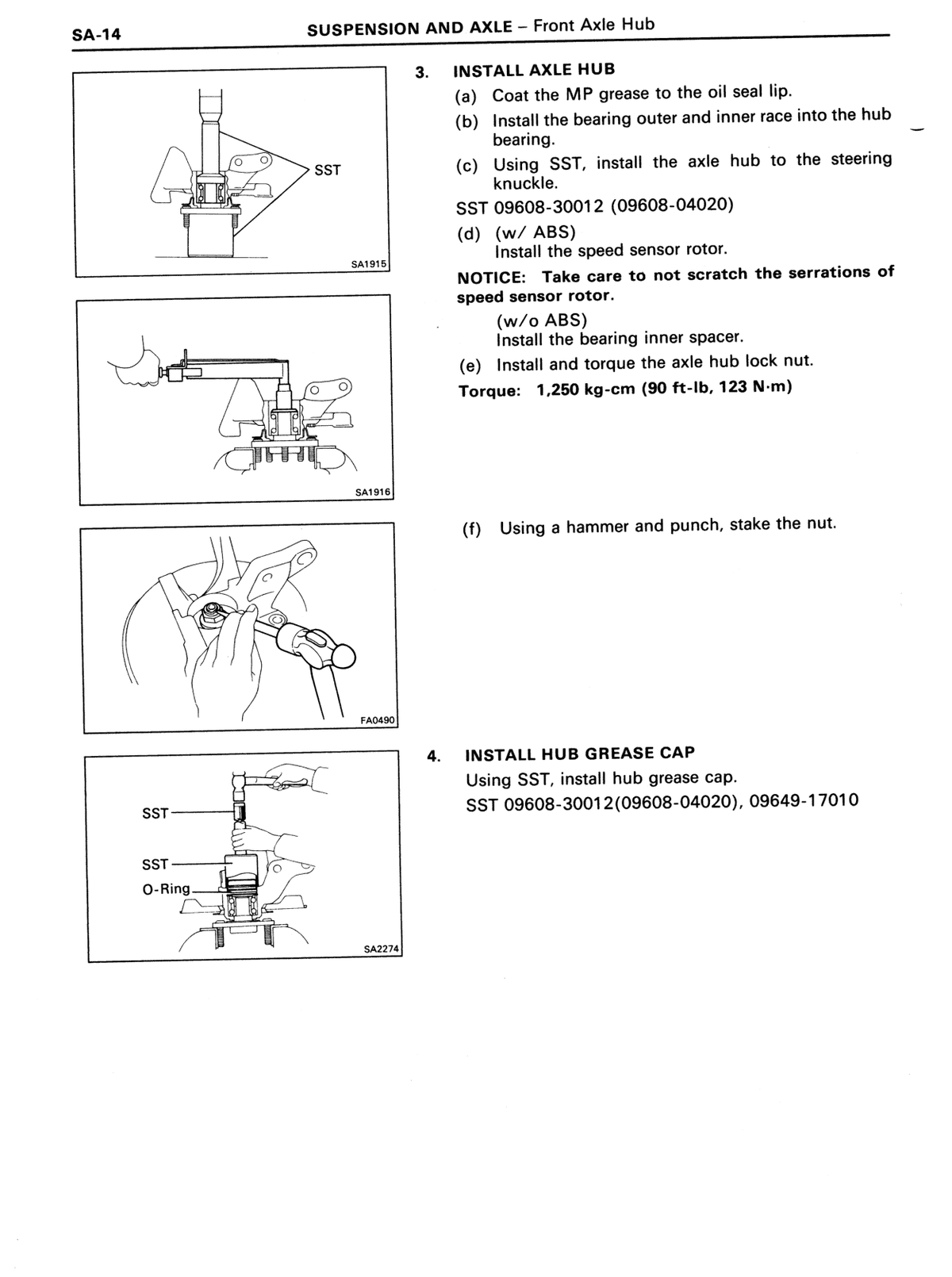

Brakes Hub/axle nut (sensor rotor assembly) 1,250 kg-cm (90 ft-lb, 123 N·m) 123 1250 90 ↗ RM179U1_1991 · p1101 OEM manual

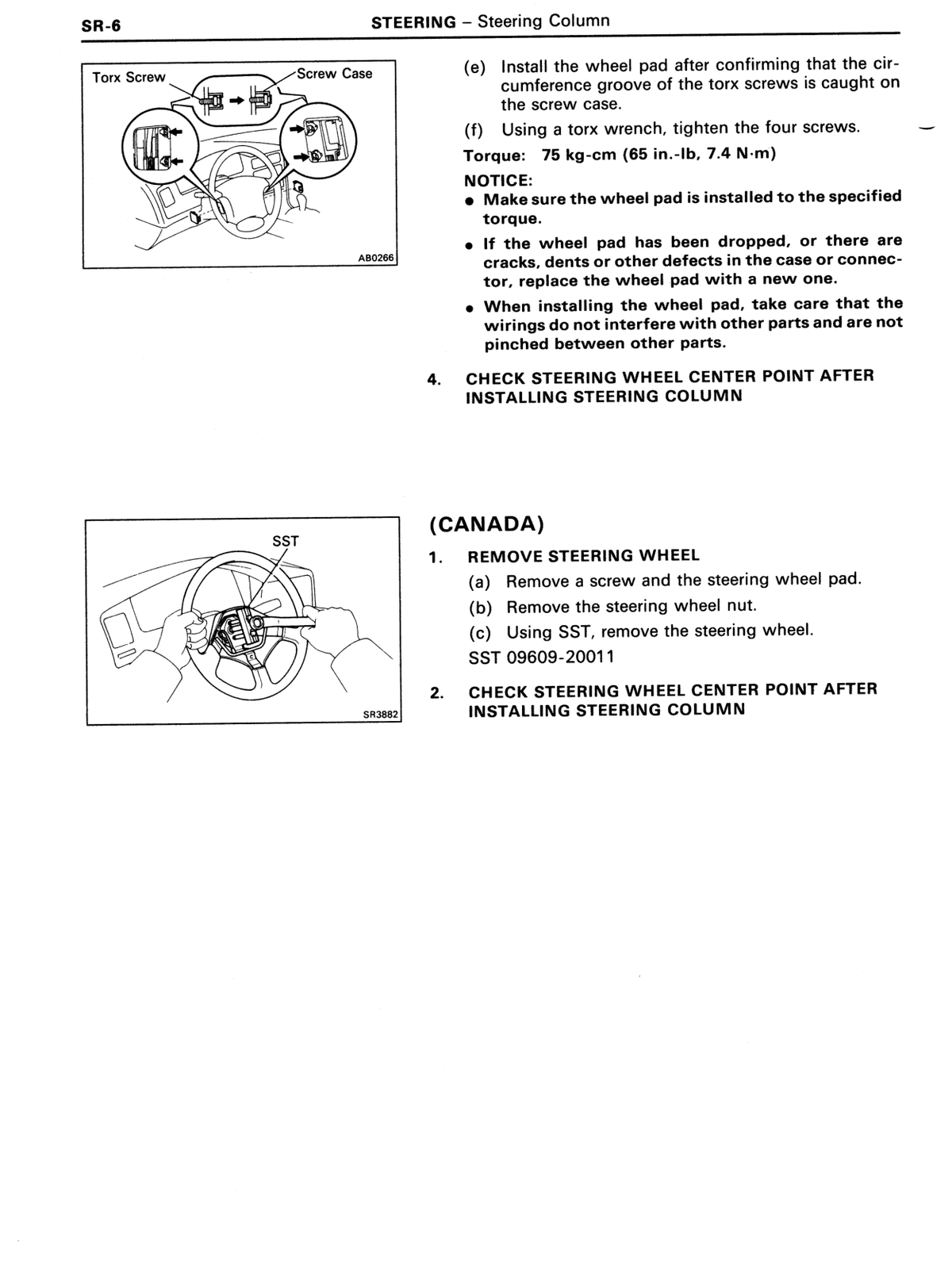

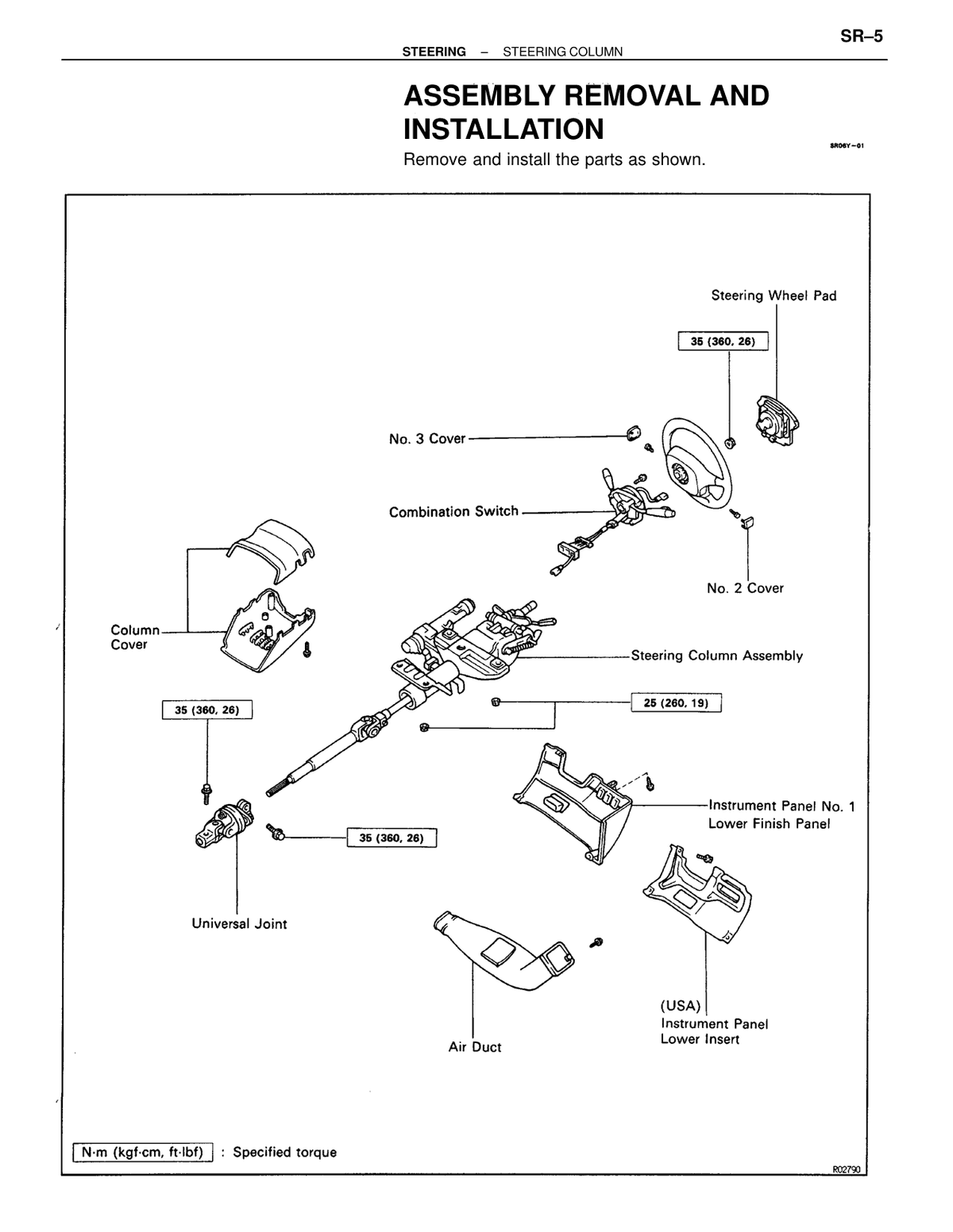

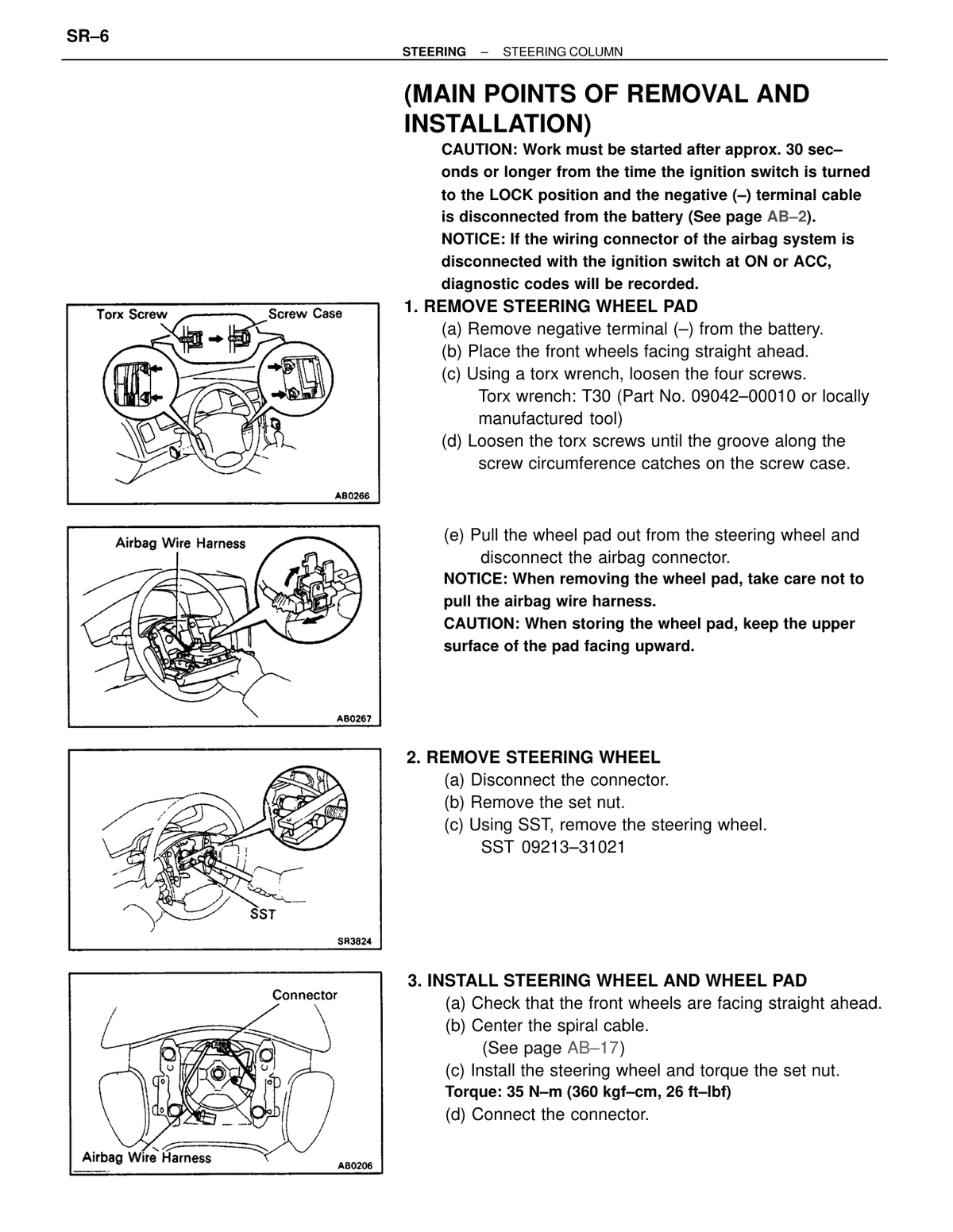

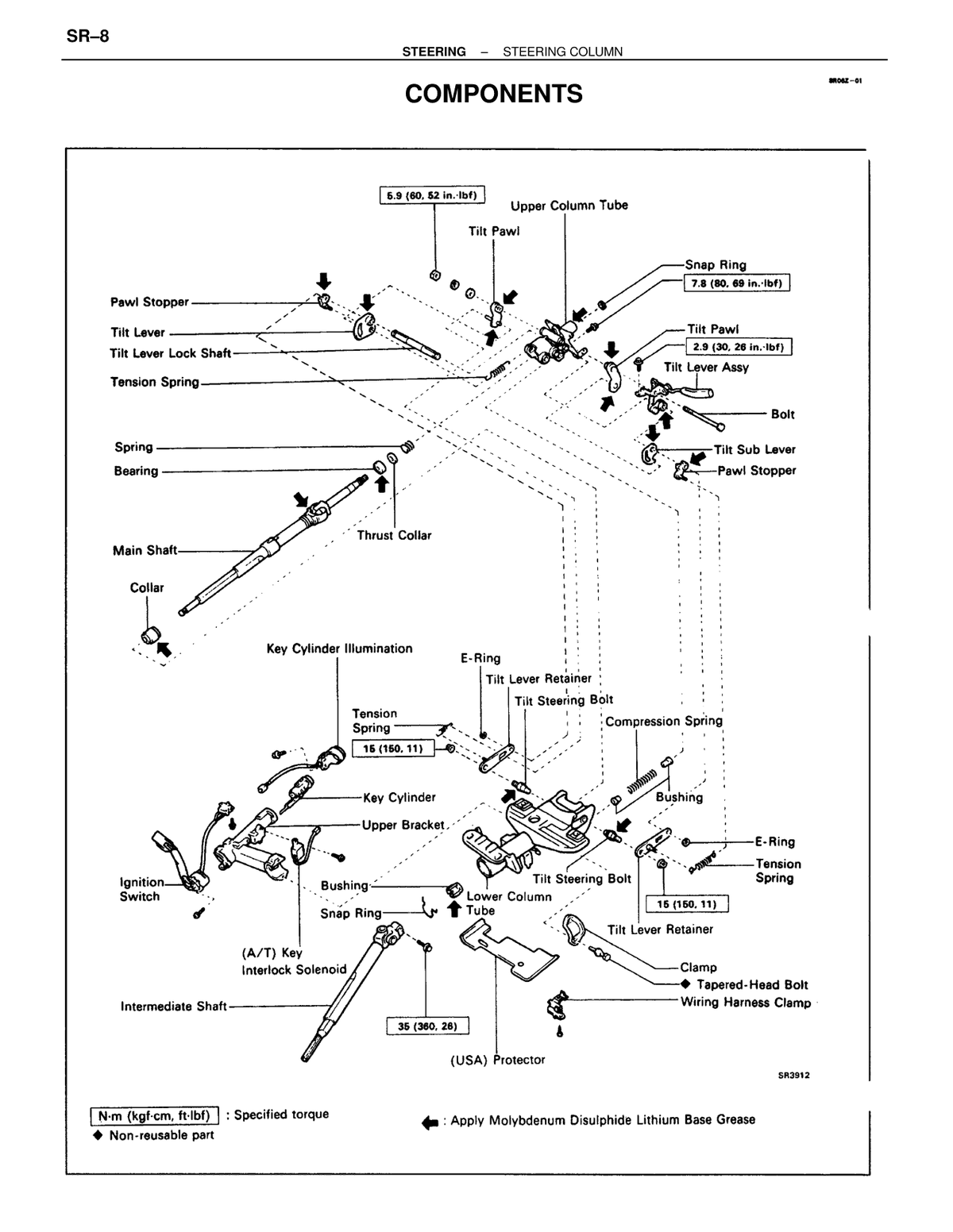

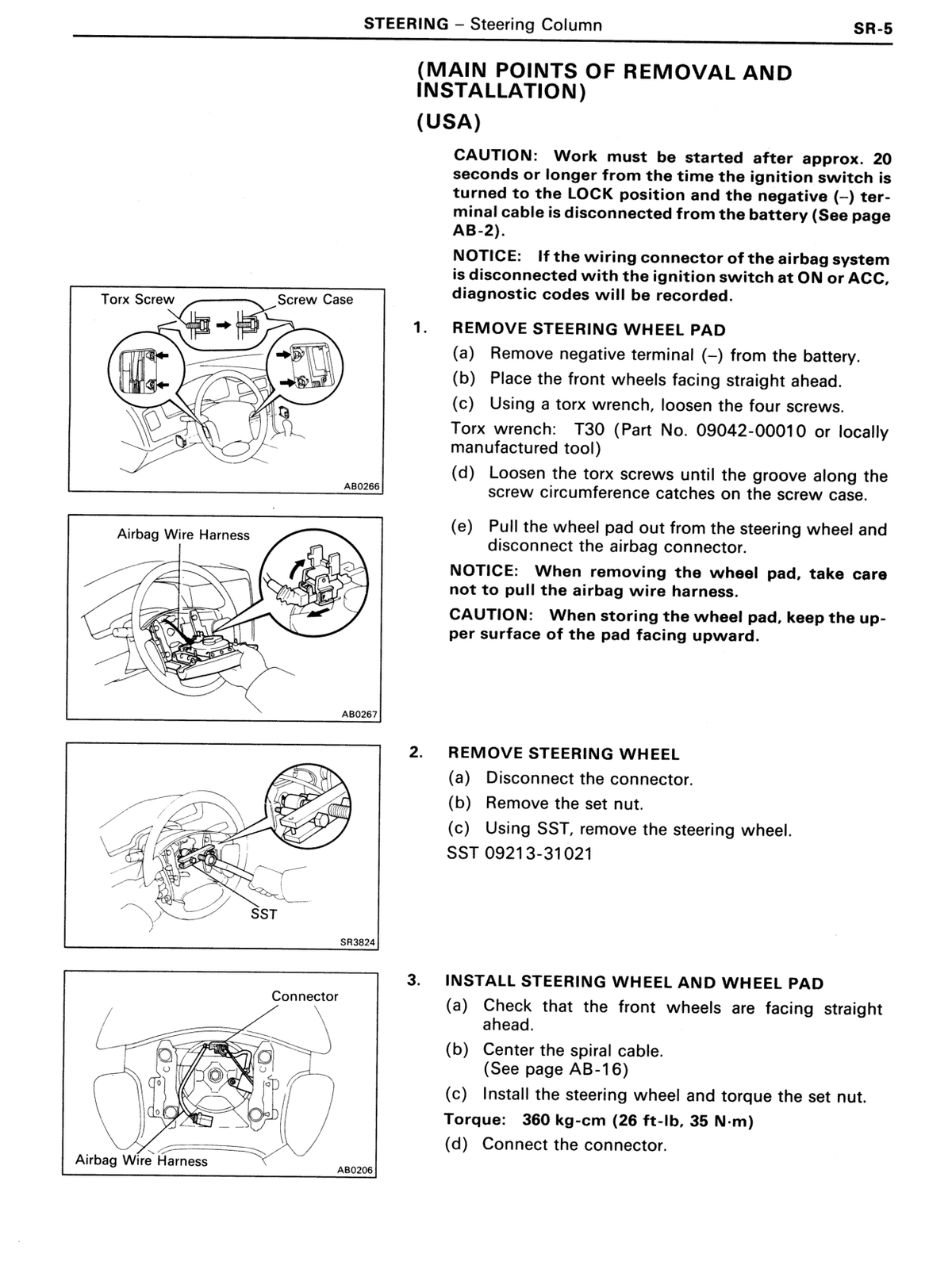

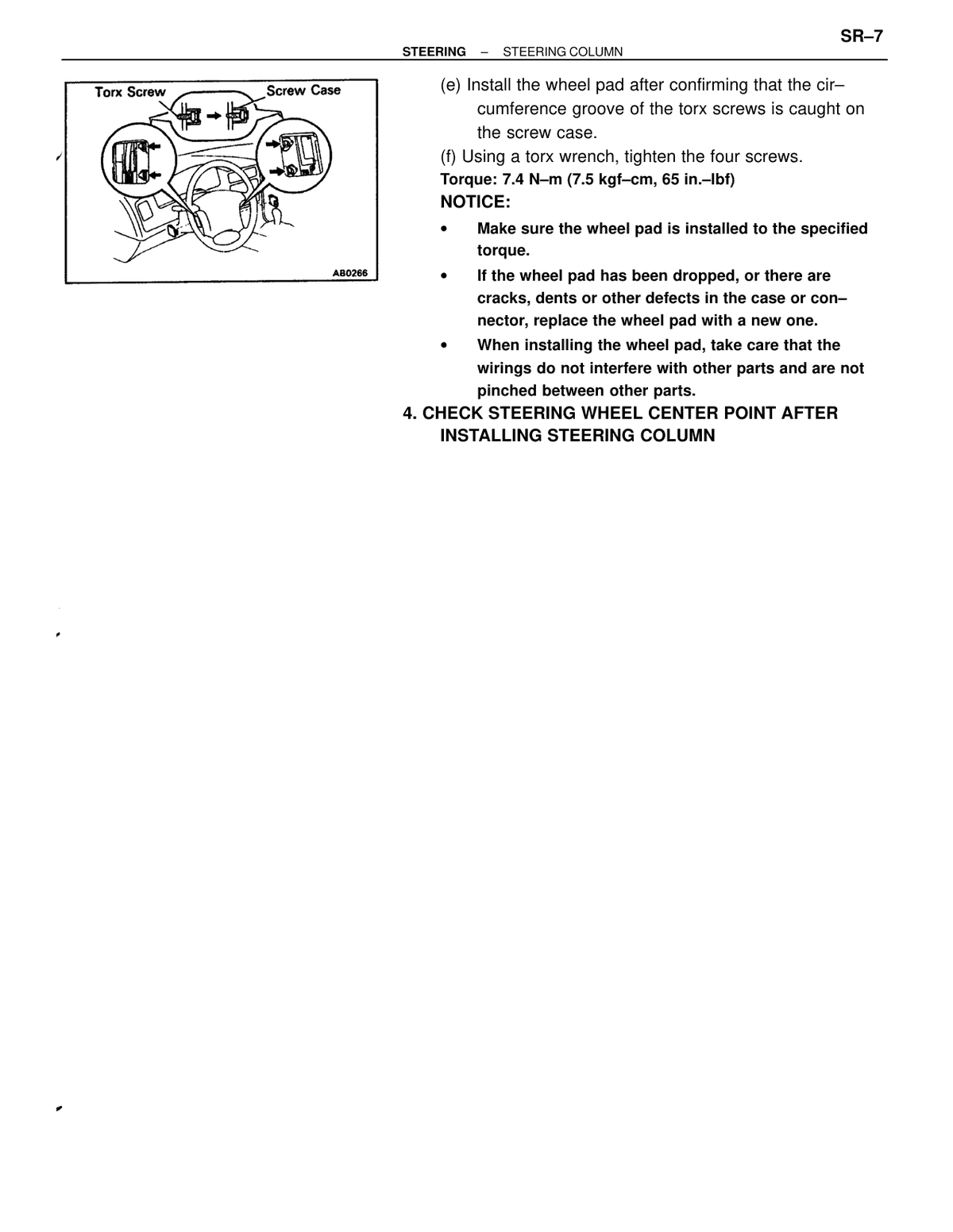

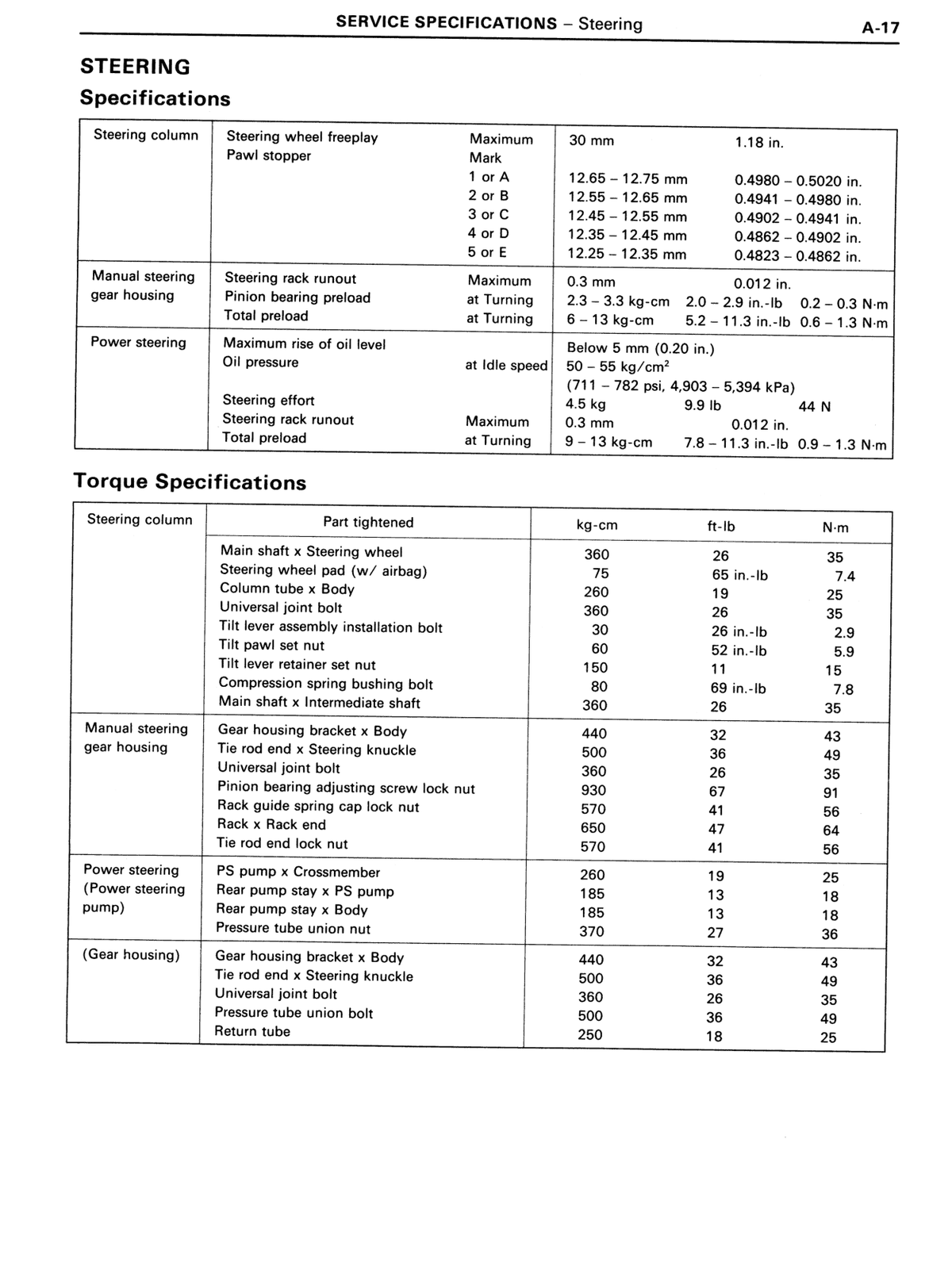

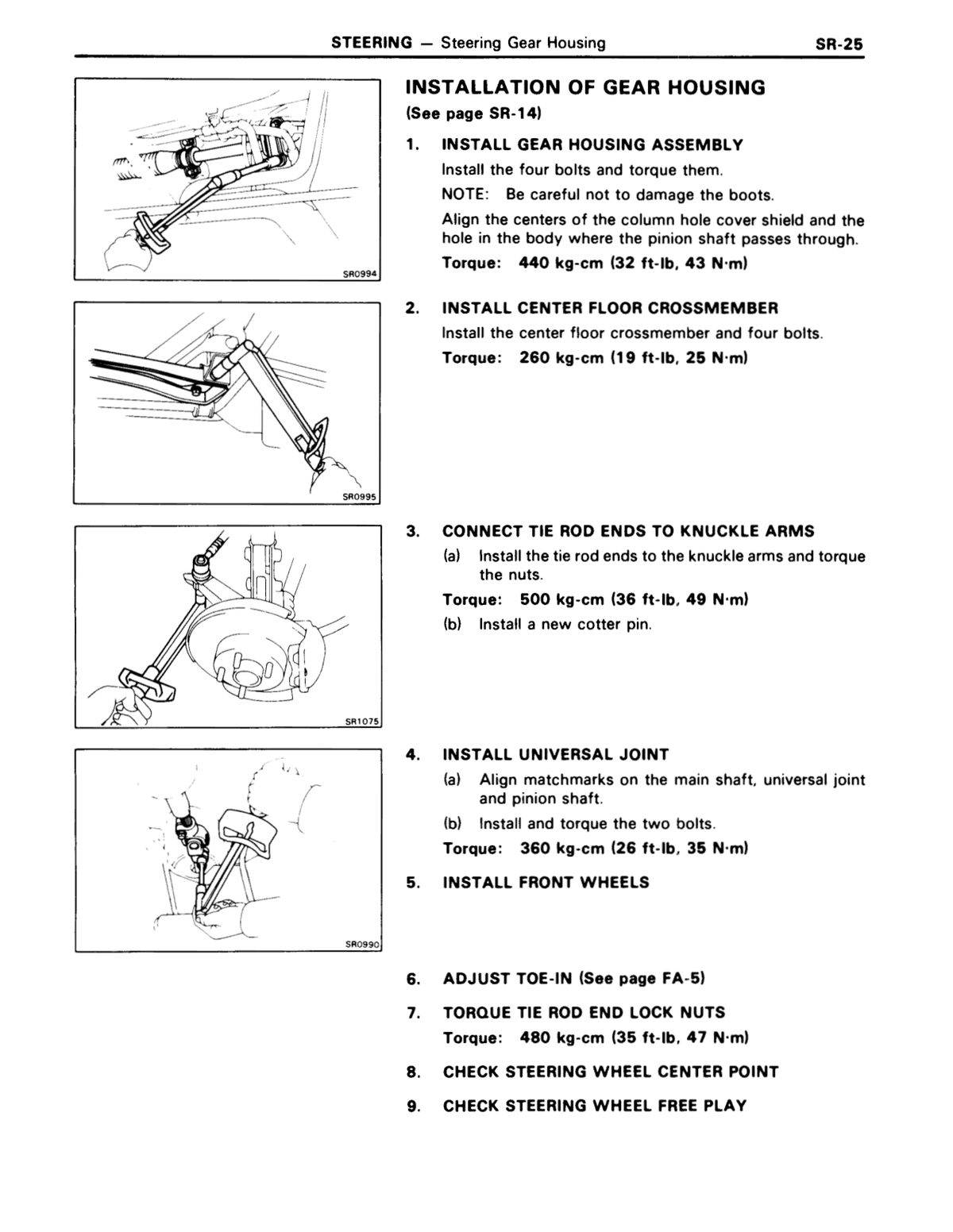

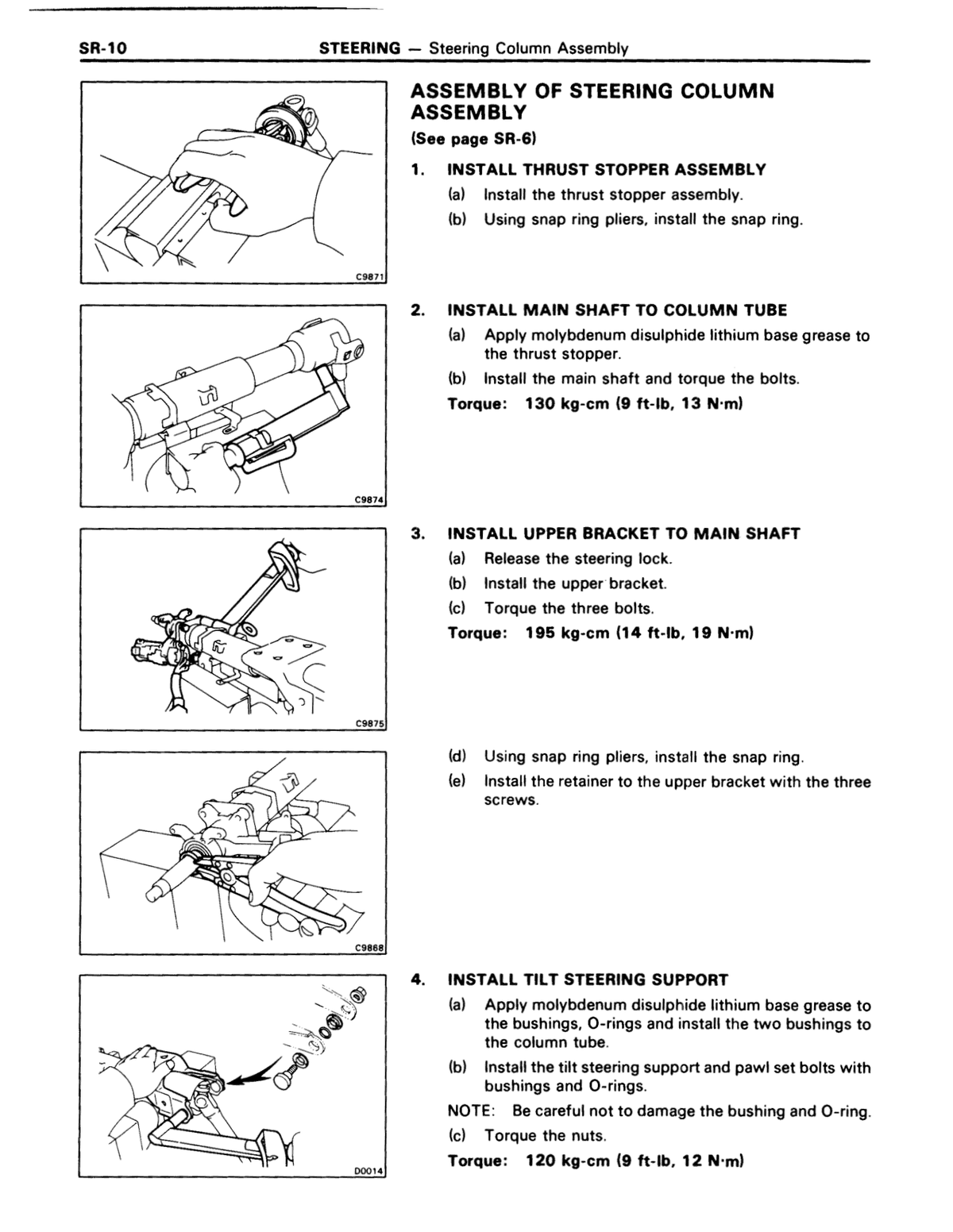

Steering Wheel pad torx screws Tighten four torx screws using a torx wrench 7.4 75 — ↗ RM179U1_1991 · p1112 OEM manual

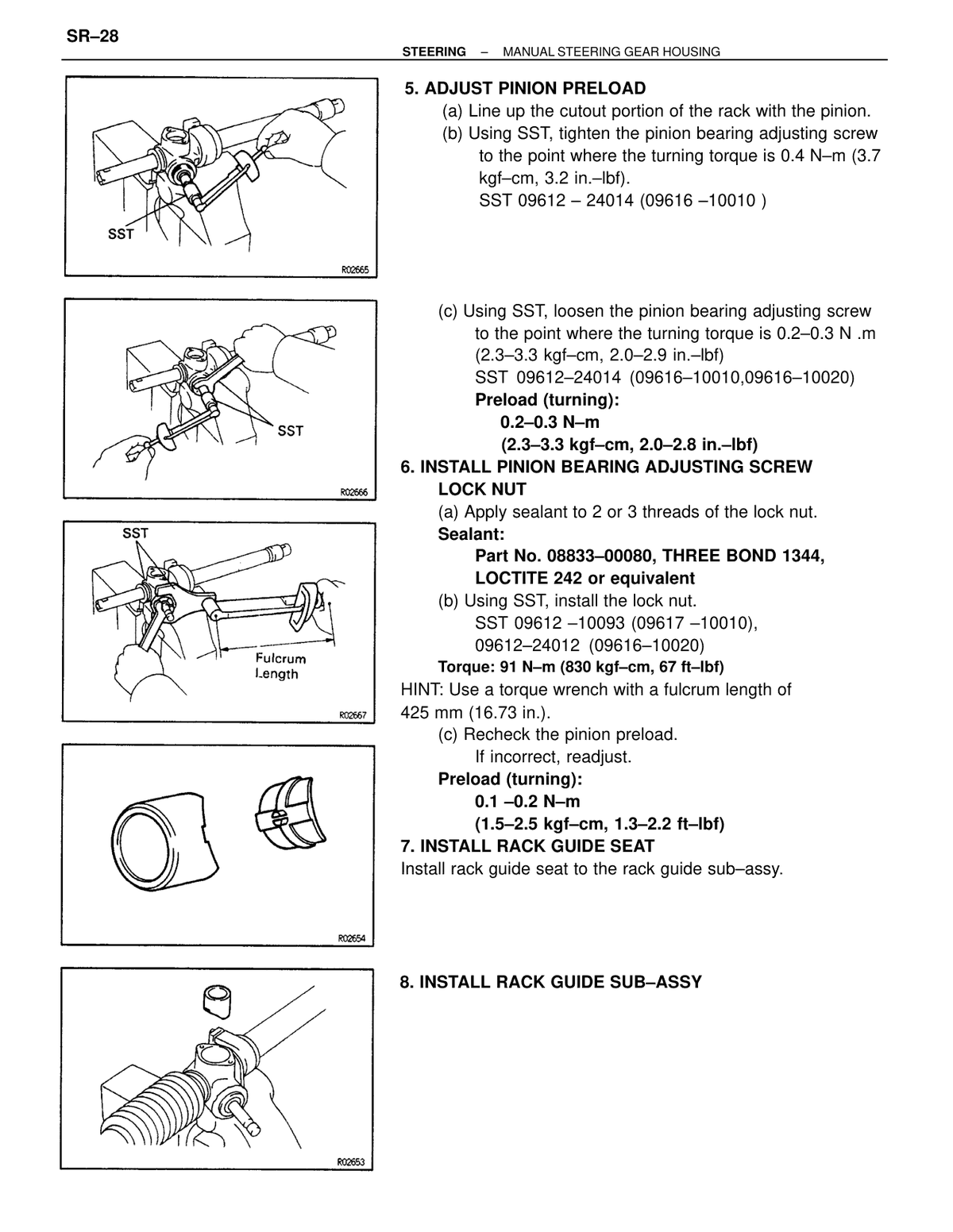

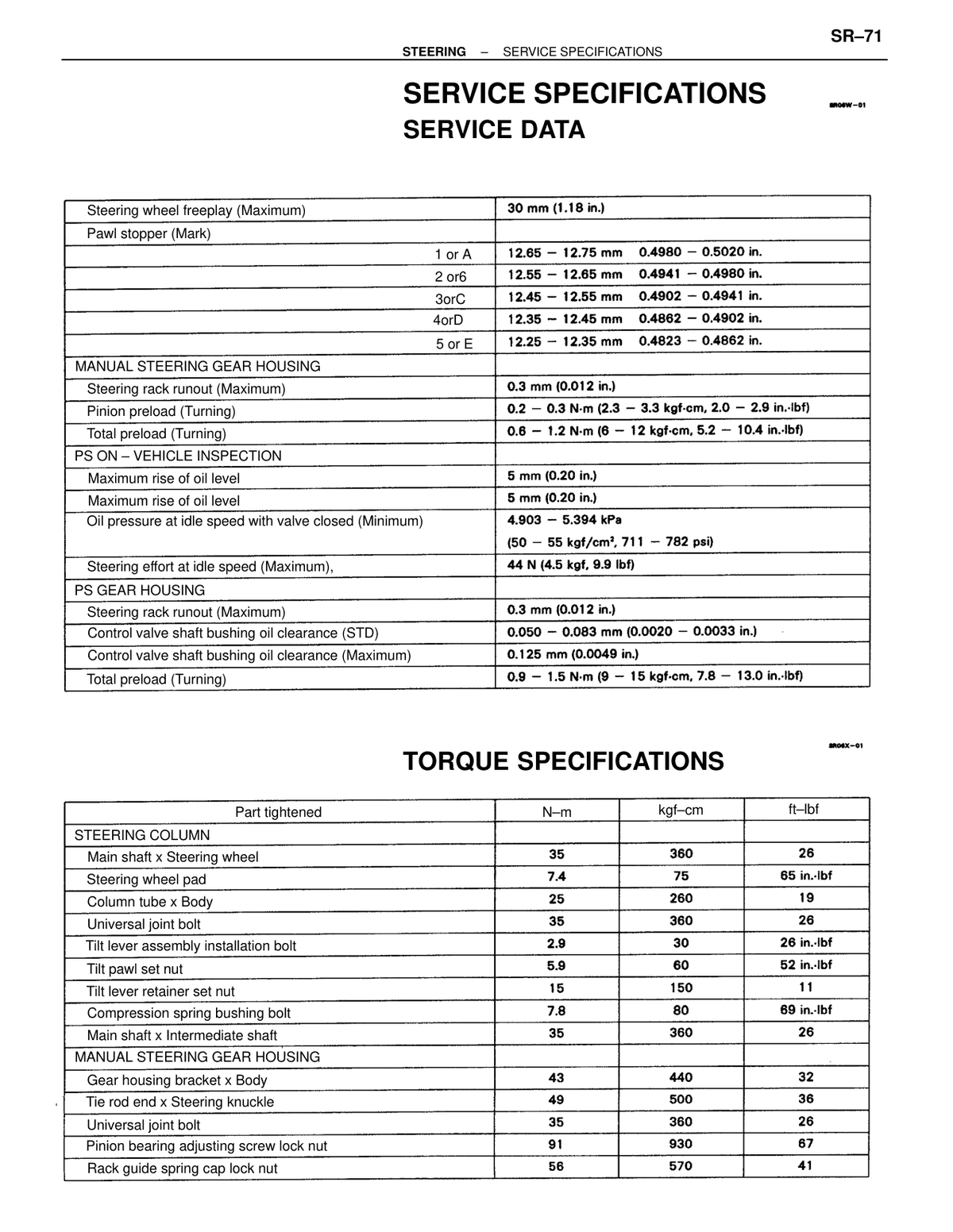

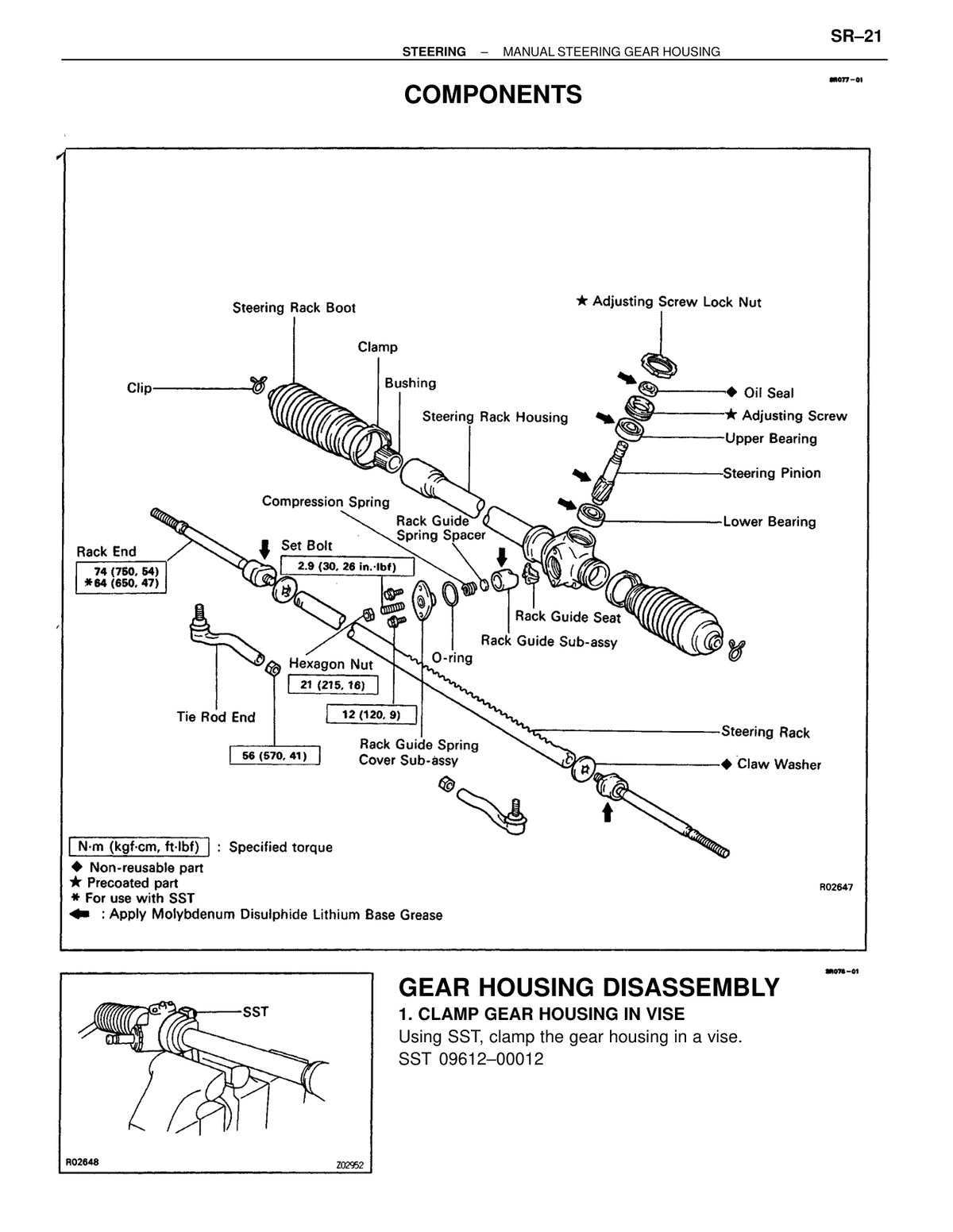

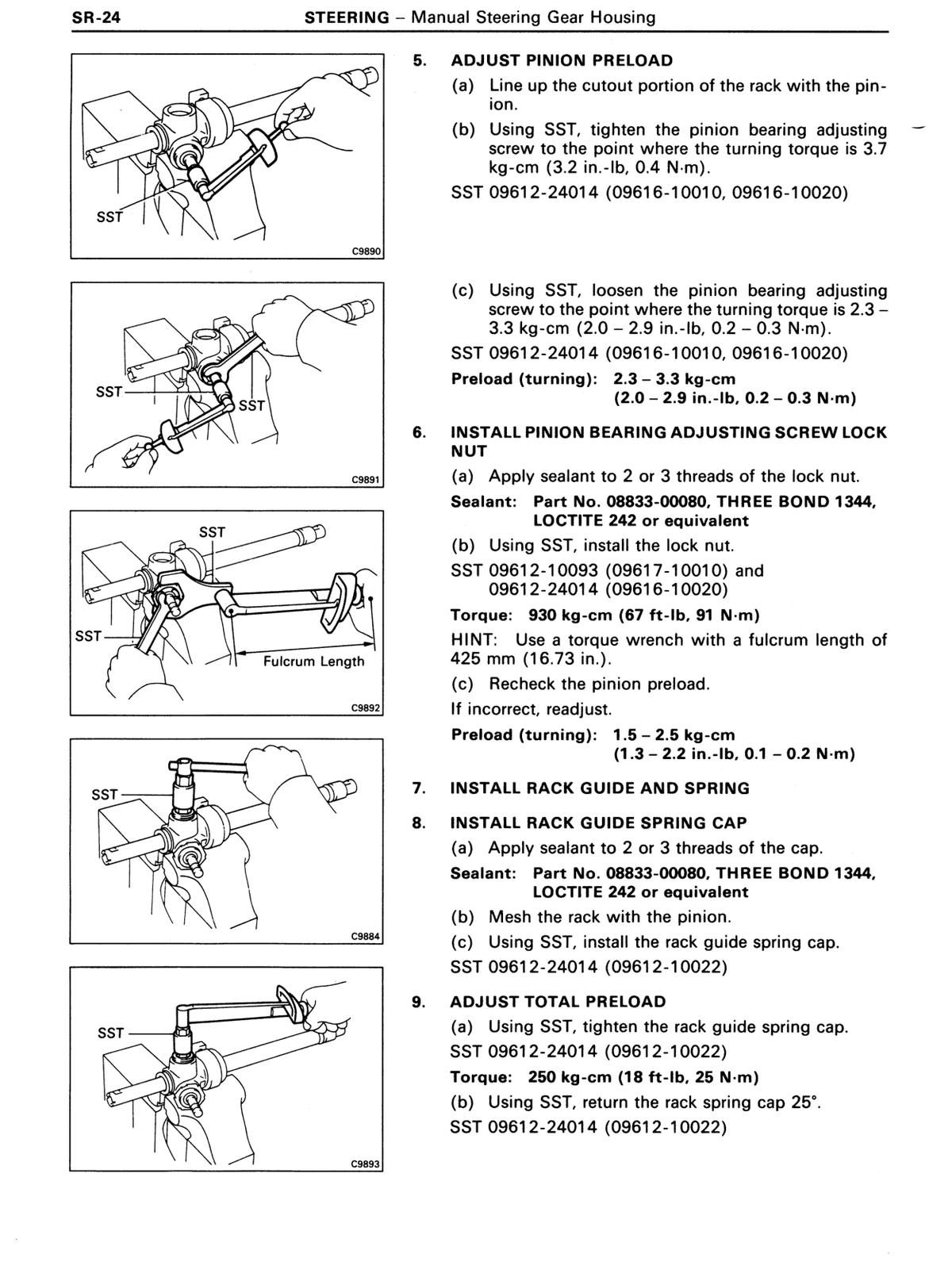

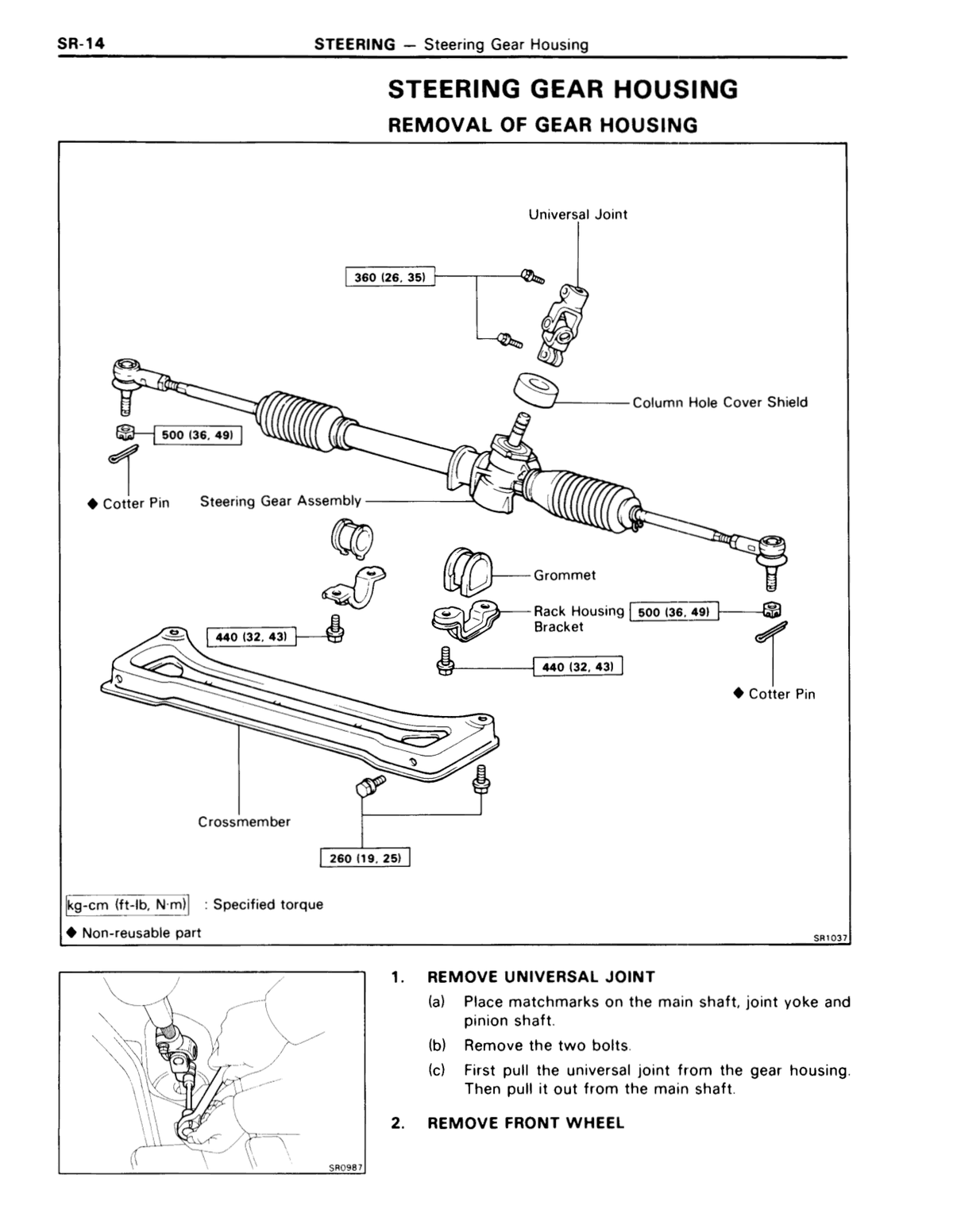

Steering Pinion bearing adjusting screw — initial tighten Step 5(b) — tighten to this point before loosening 0.4 3.7 — ↗ RM179U1_1991 · p1130 OEM manual
Steering Pinion preload (turning) — after loosening Step 5(c) — range 2.3–3.3 kg-cm (2.0–2.9 in.-lb, 0.2–0.3 N·m); upper bound recorded 0.3 3.3 — ↗ RM179U1_1991 · p1130 OEM manual
Steering Pinion bearing adjusting screw lock nut Step 6(b) — use torque wrench with fulcrum length 425 mm (16.73 in.) 91 930 67 ↗ RM179U1_1991 · p1130 OEM manual
Steering Pinion preload (turning) — after lock nut installation Step 6(c) — range 1.5–2.5 kg-cm (1.3–2.2 in.-lb, 0.1–0.2 N·m); upper bound recorded 0.2 2.5 — ↗ RM179U1_1991 · p1130 OEM manual
Steering Rack guide spring cap Step 9(a) — tighten before returning 25° 25 250 18 ↗ RM179U1_1991 · p1130 OEM manual

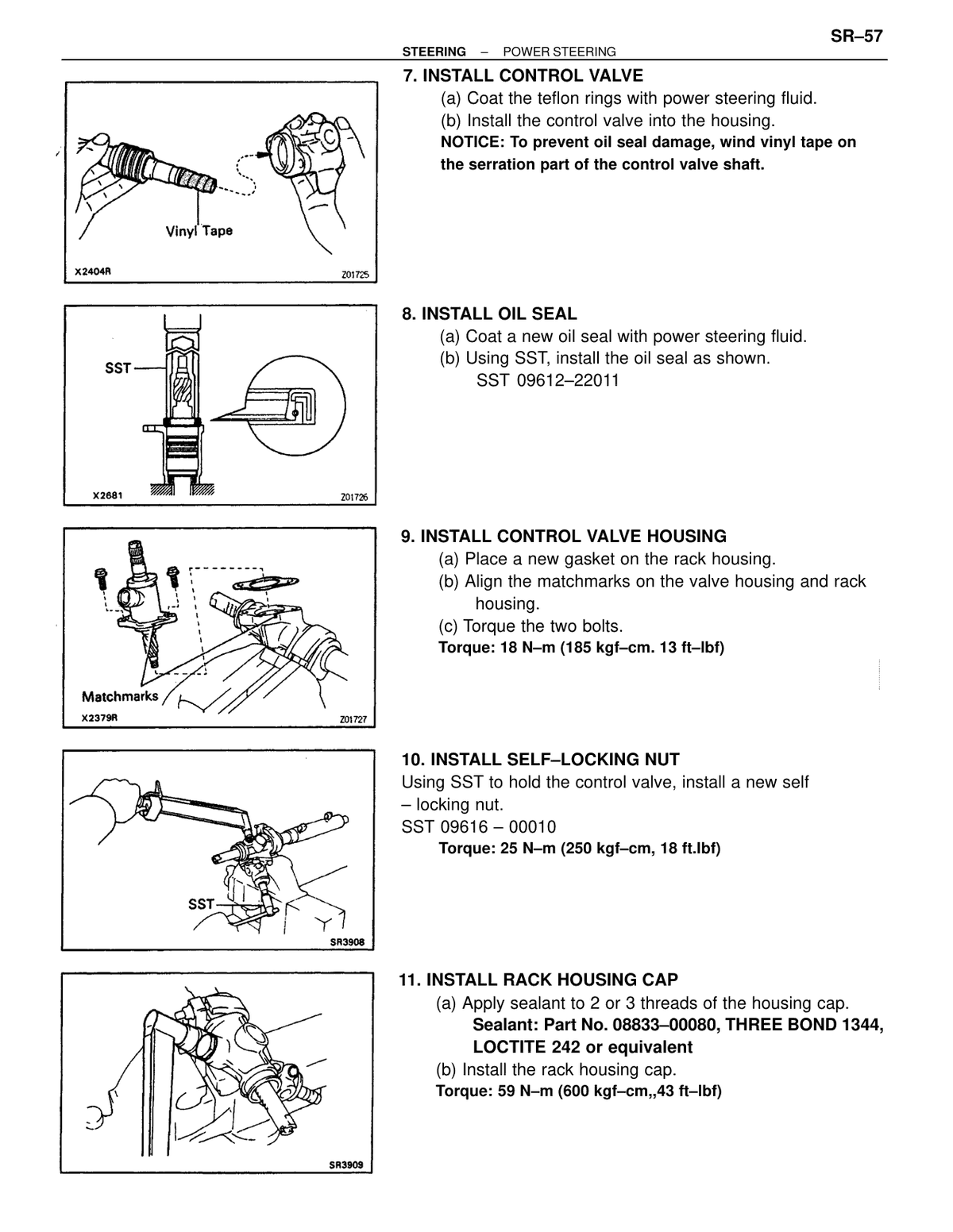

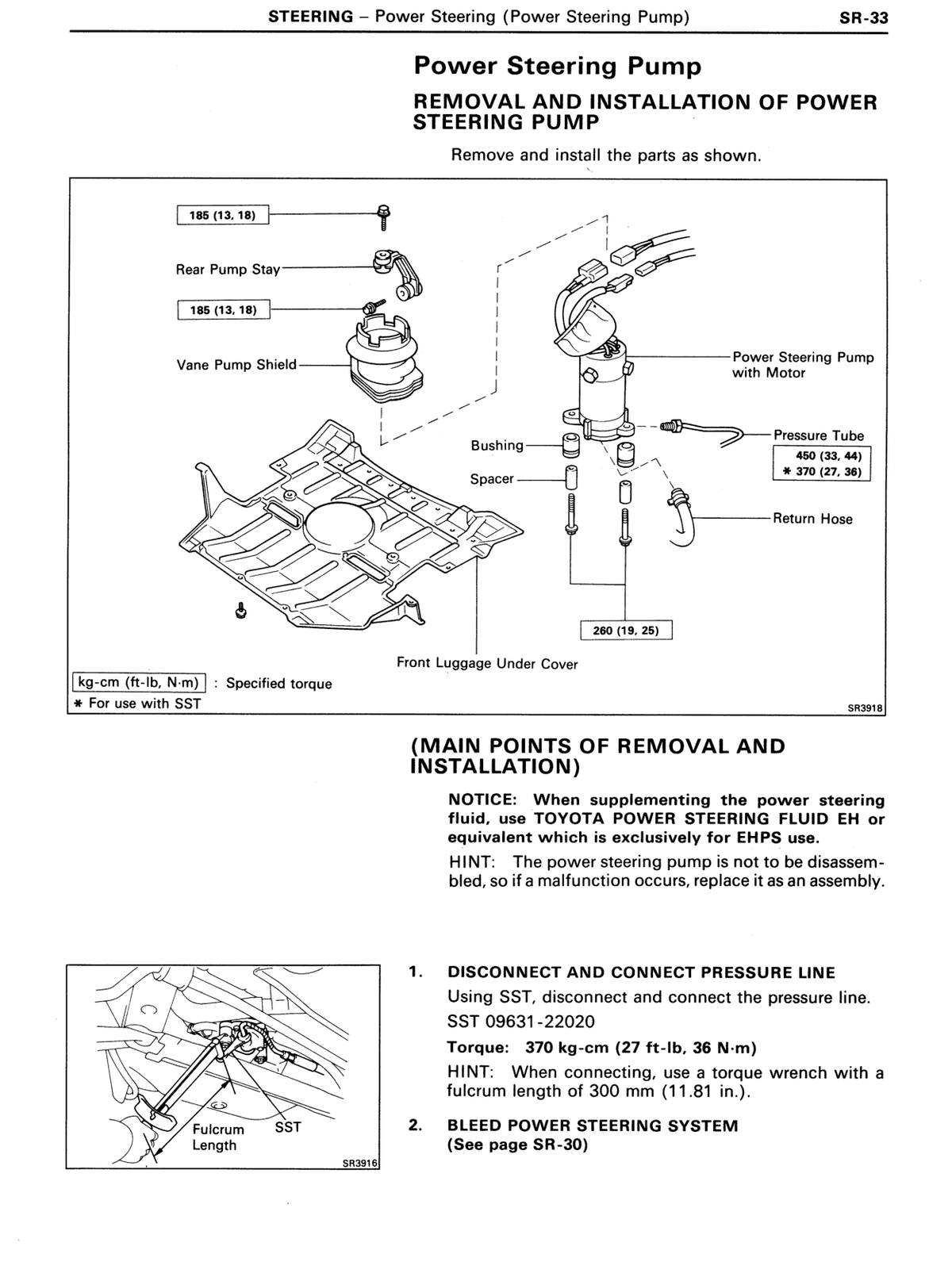

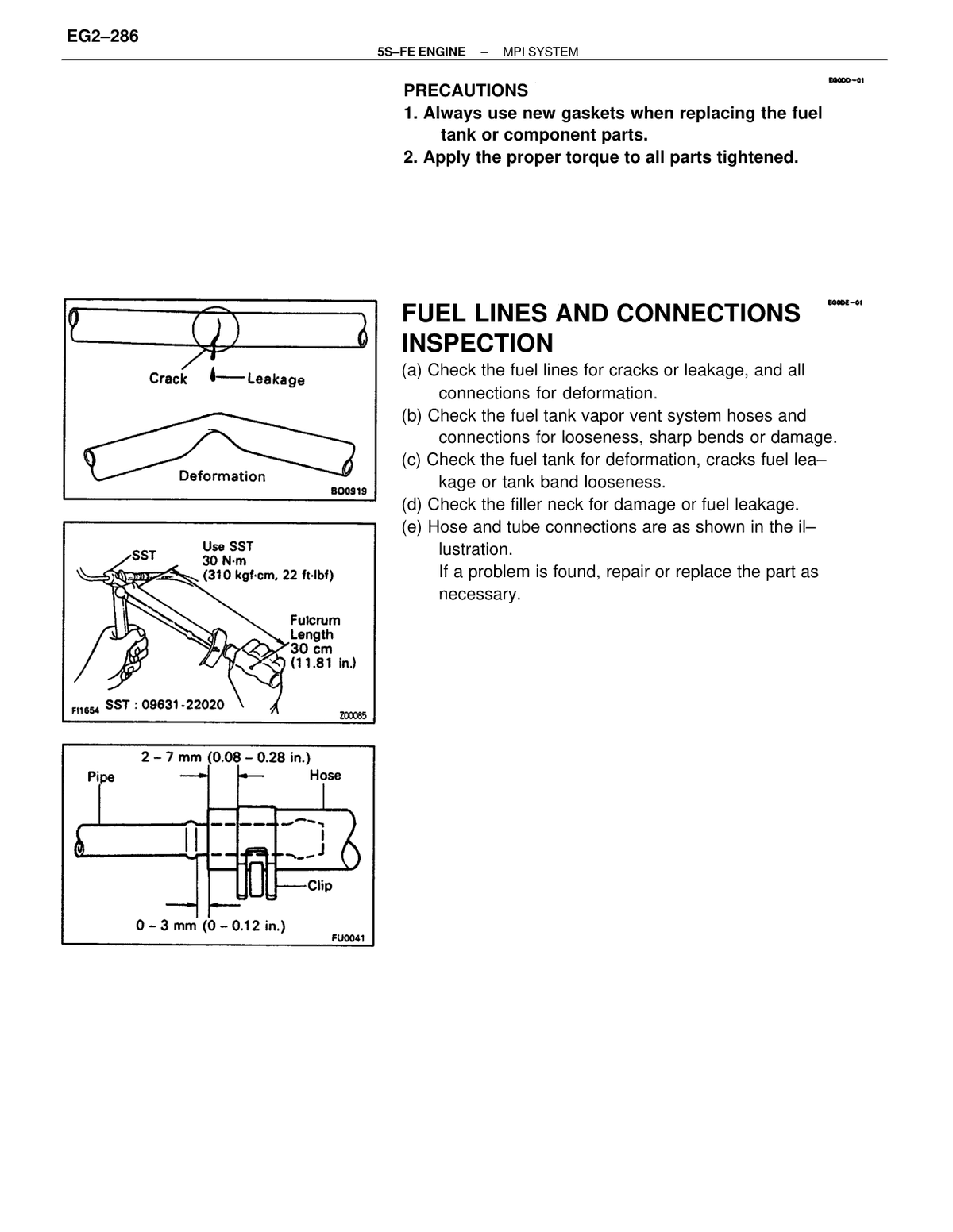

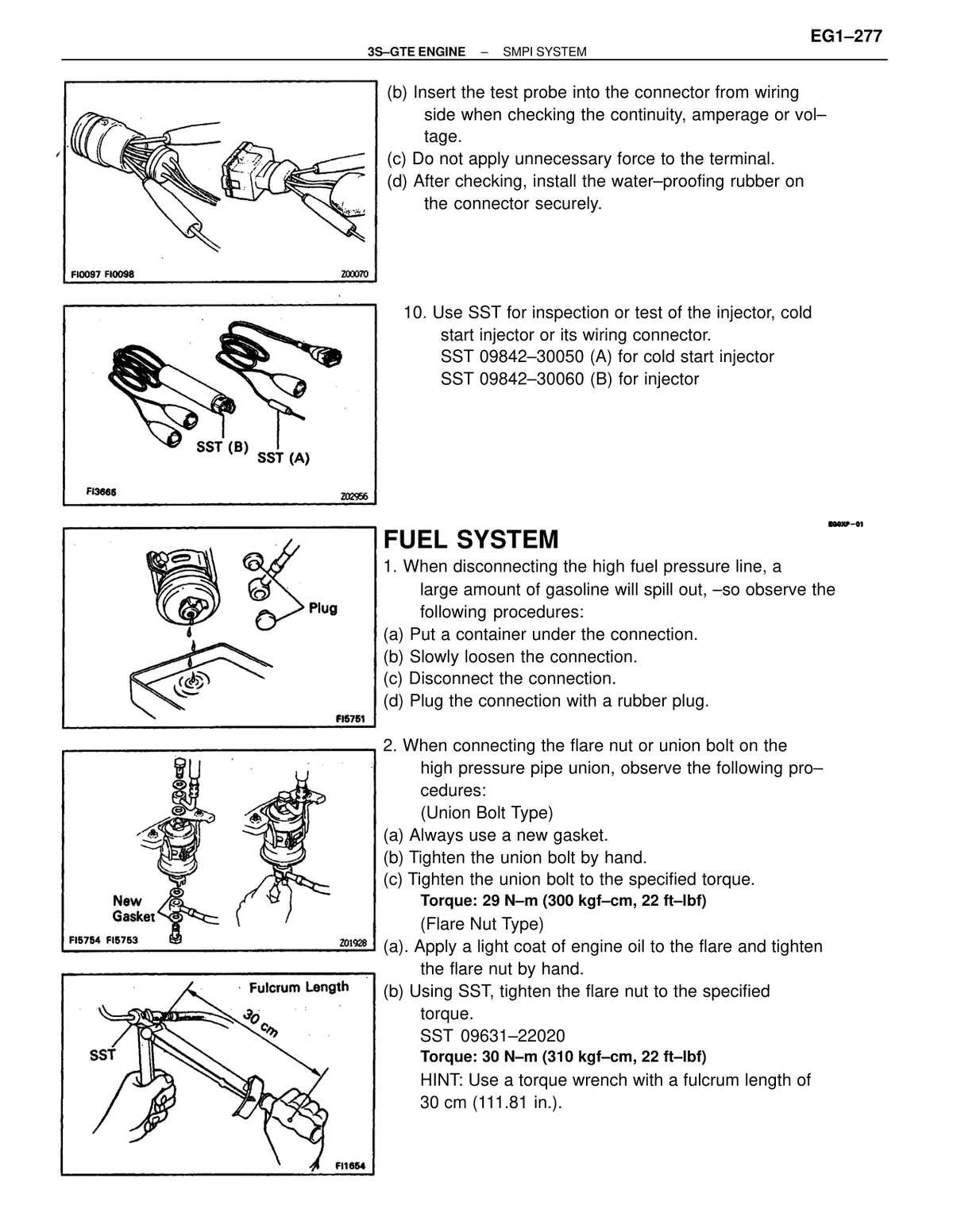

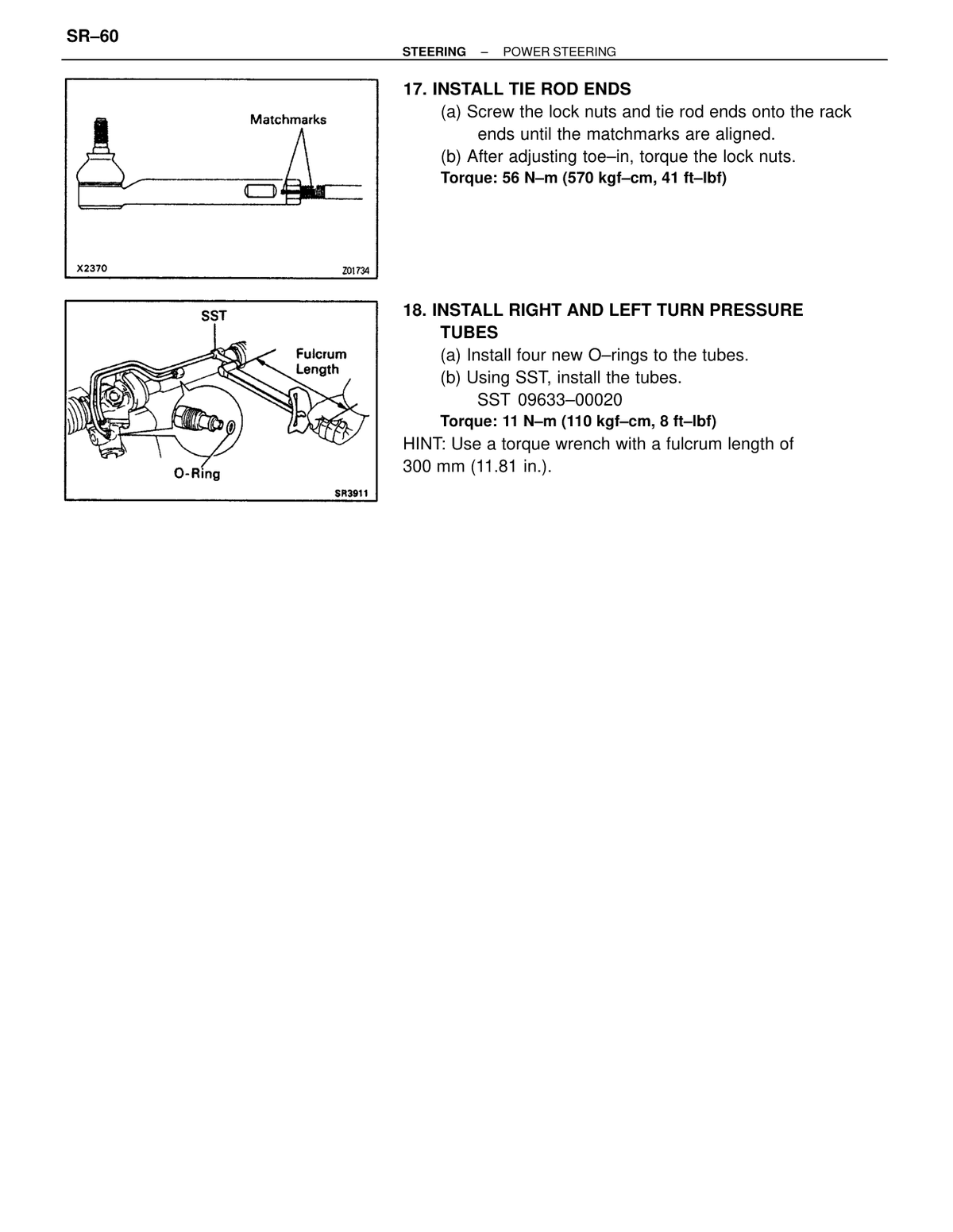

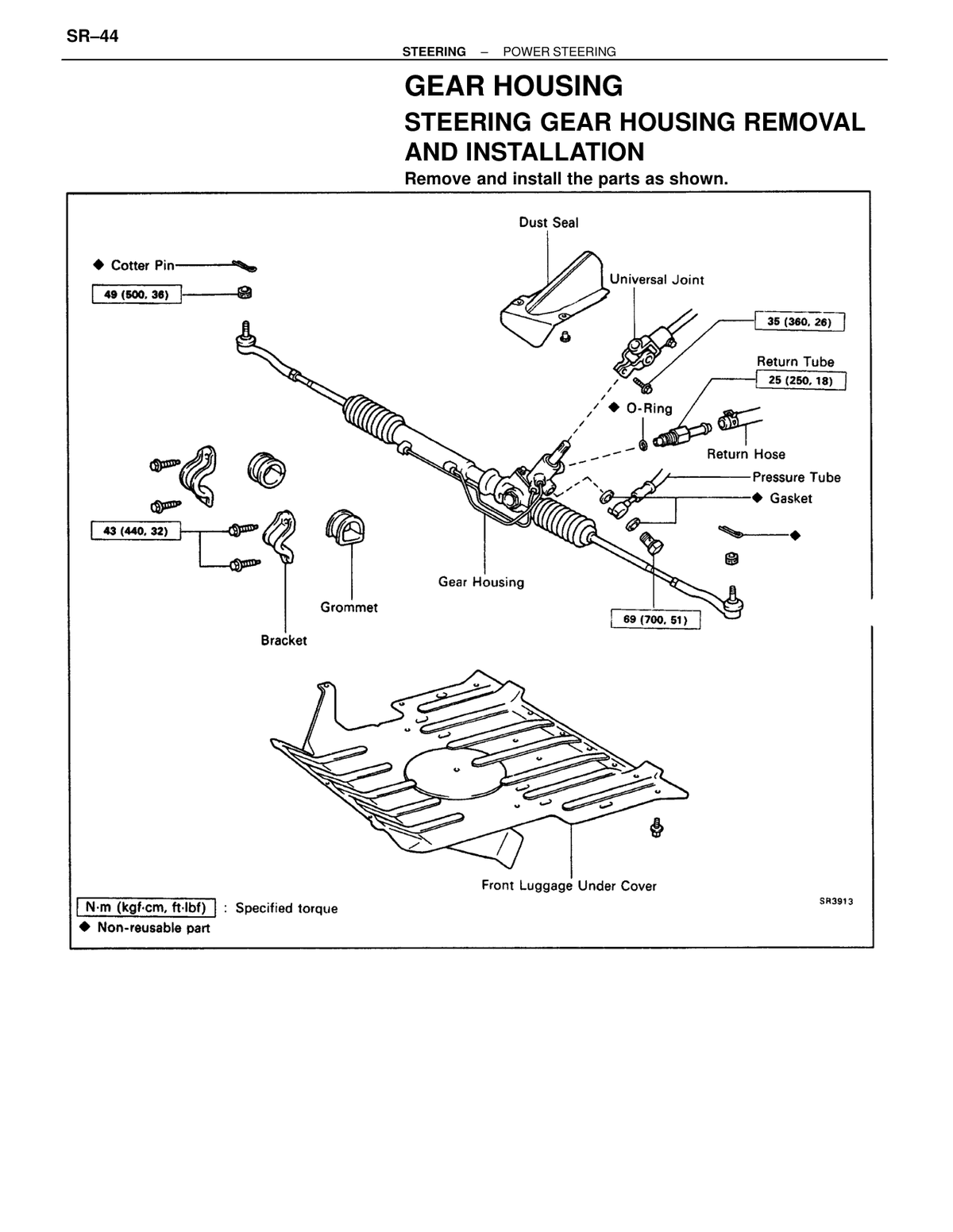

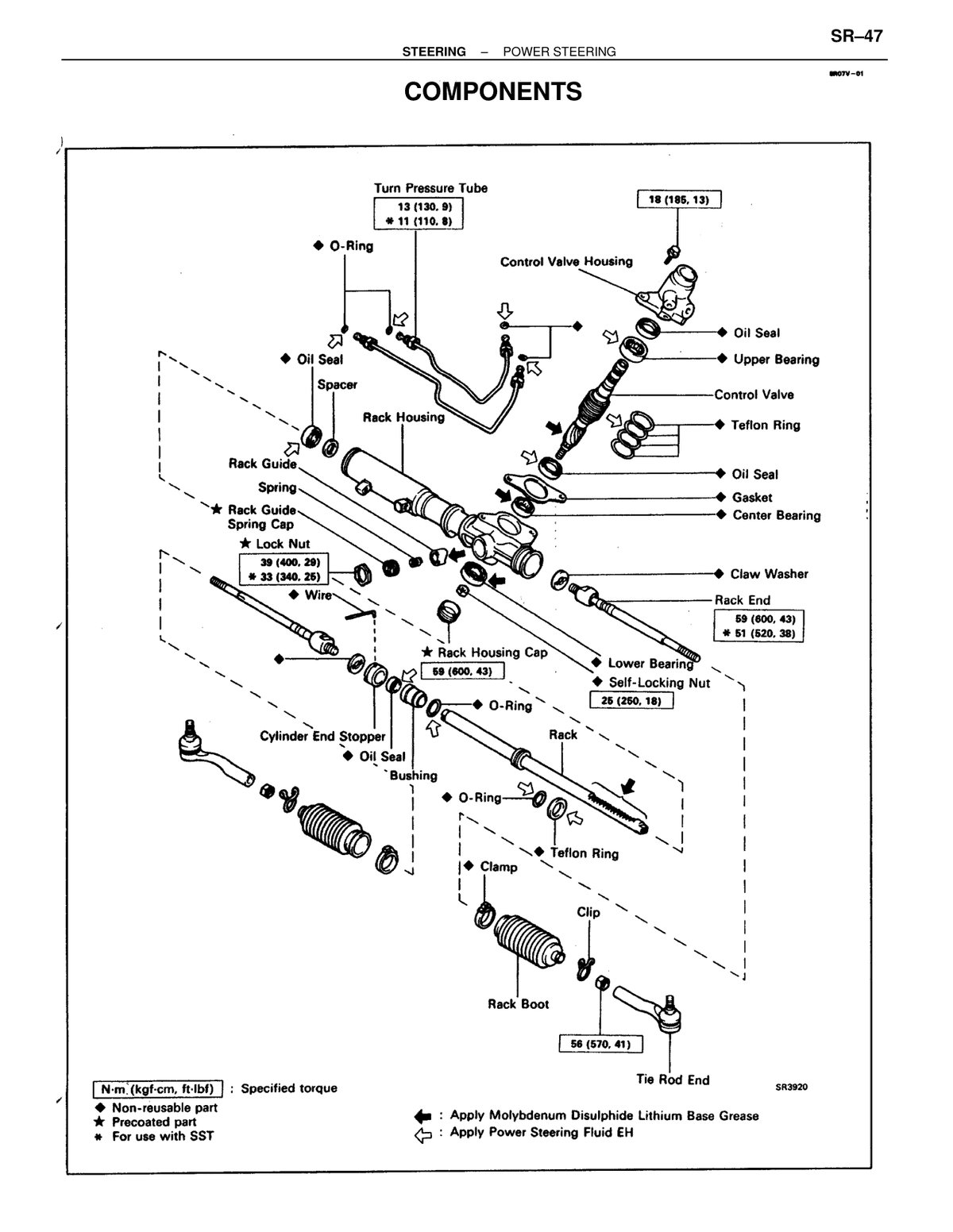

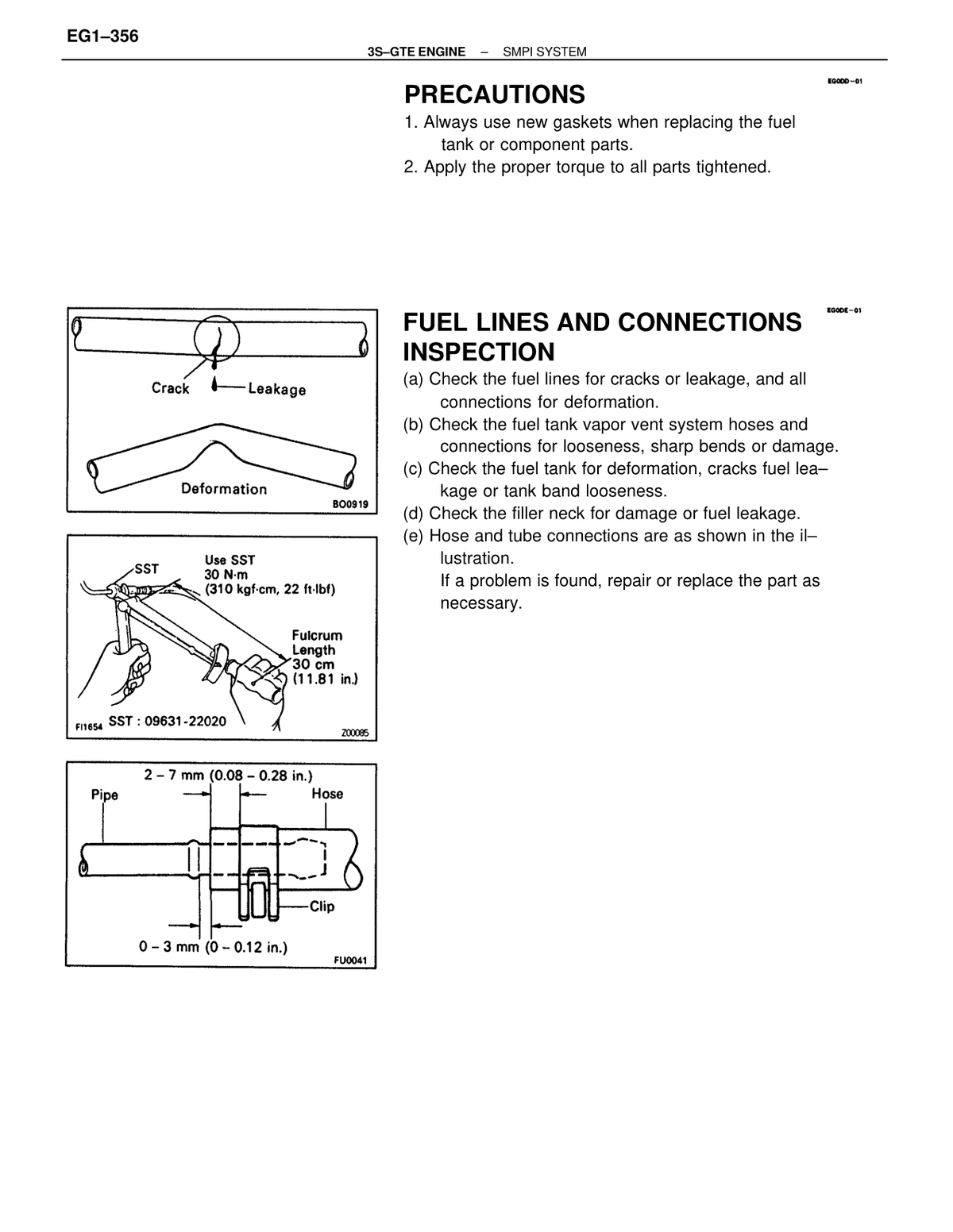

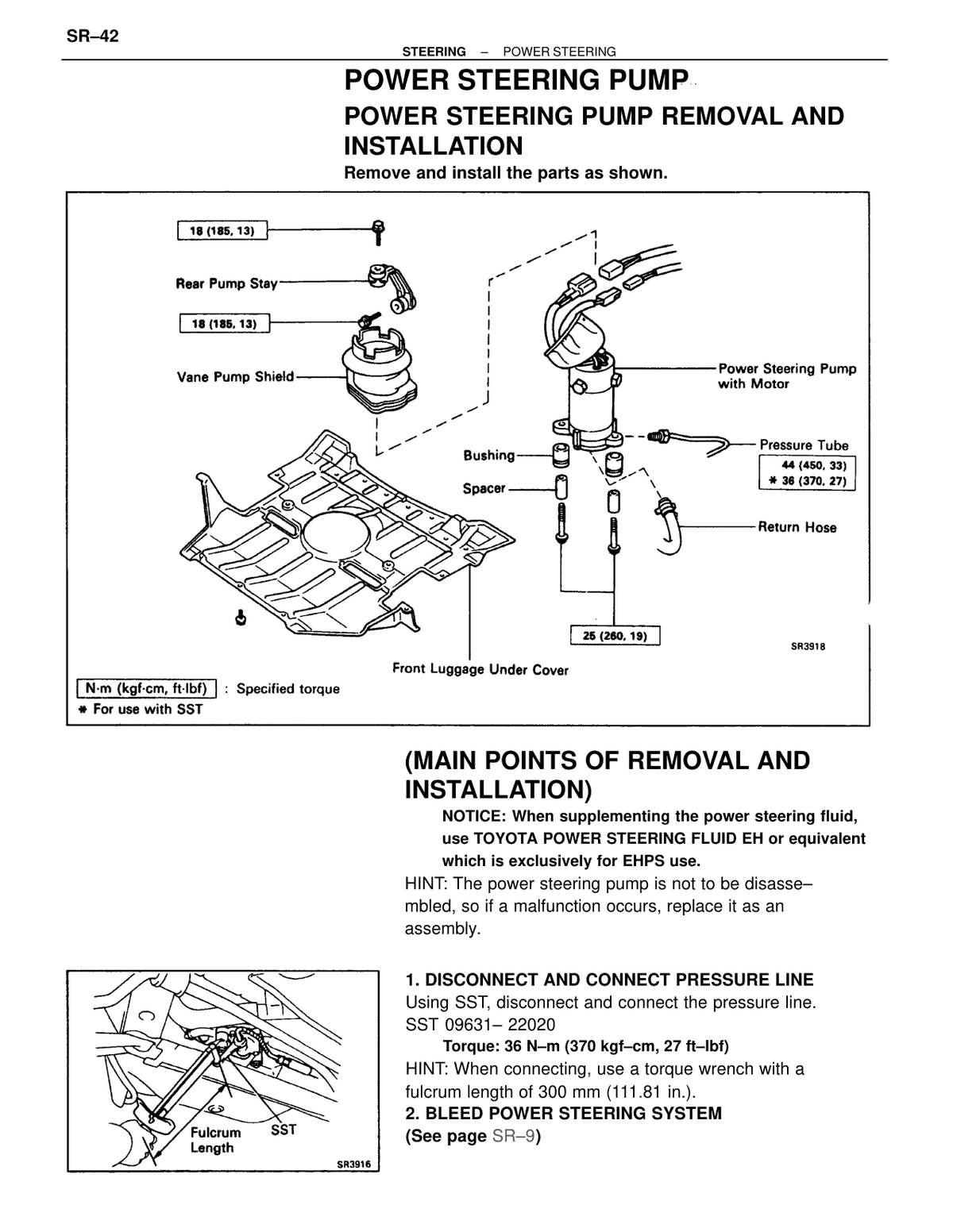

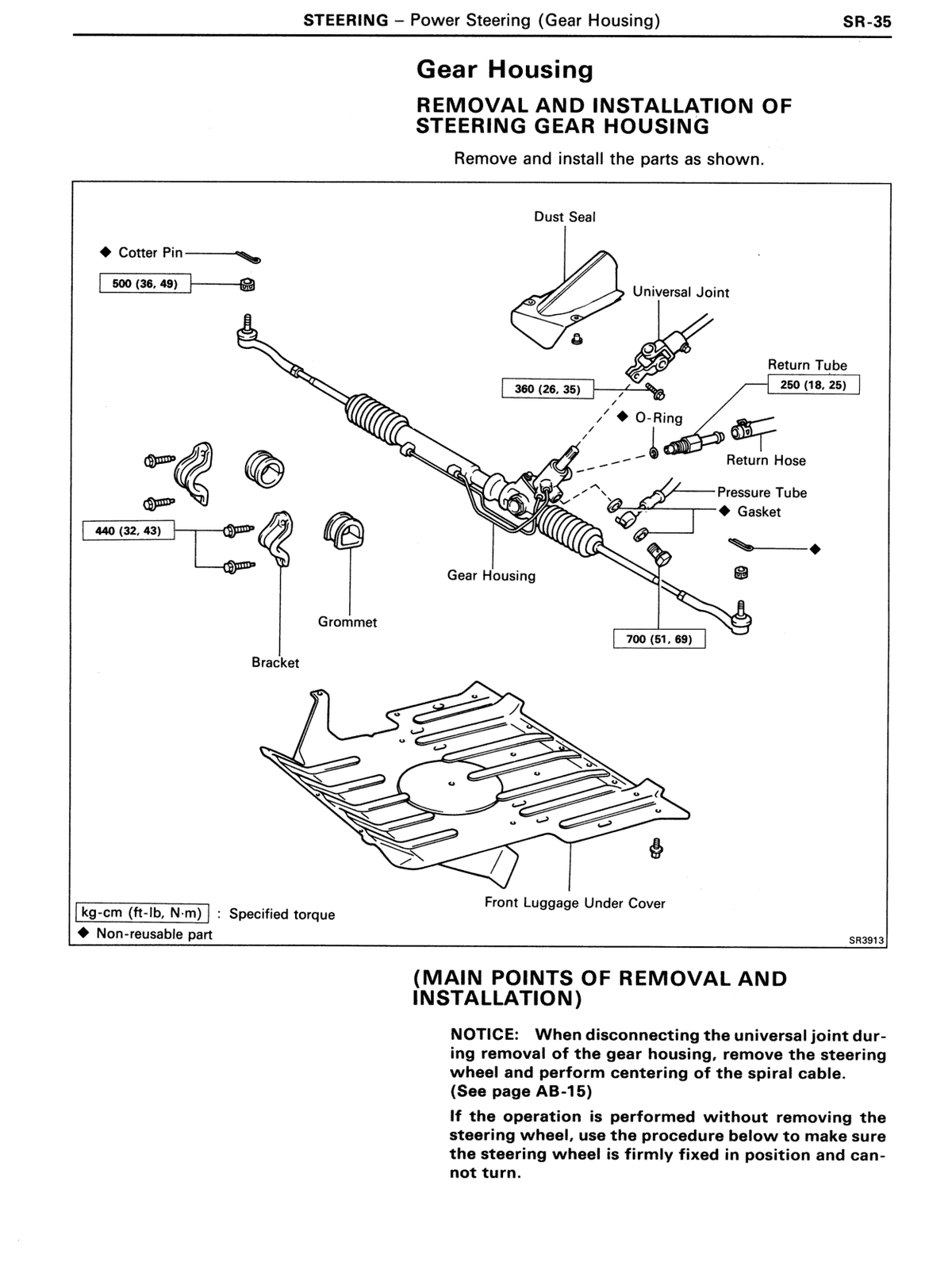

Steering Pressure Tube (with SST) For use with SST 09631-22020; use torque wrench with fulcrum length 300 mm (11.81 in.) 36 370 27 ↗ RM179U1_1991 · p1139 OEM manual

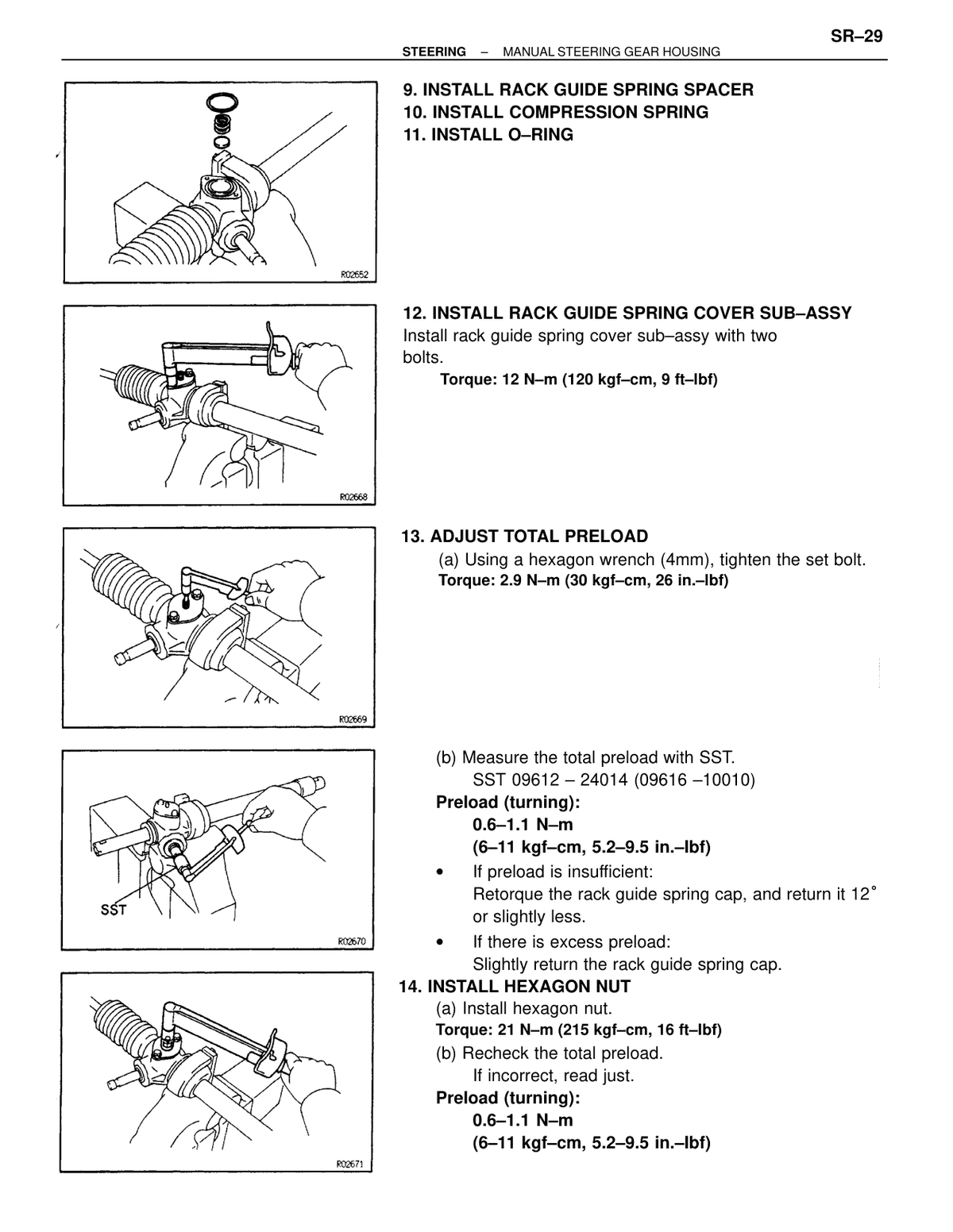

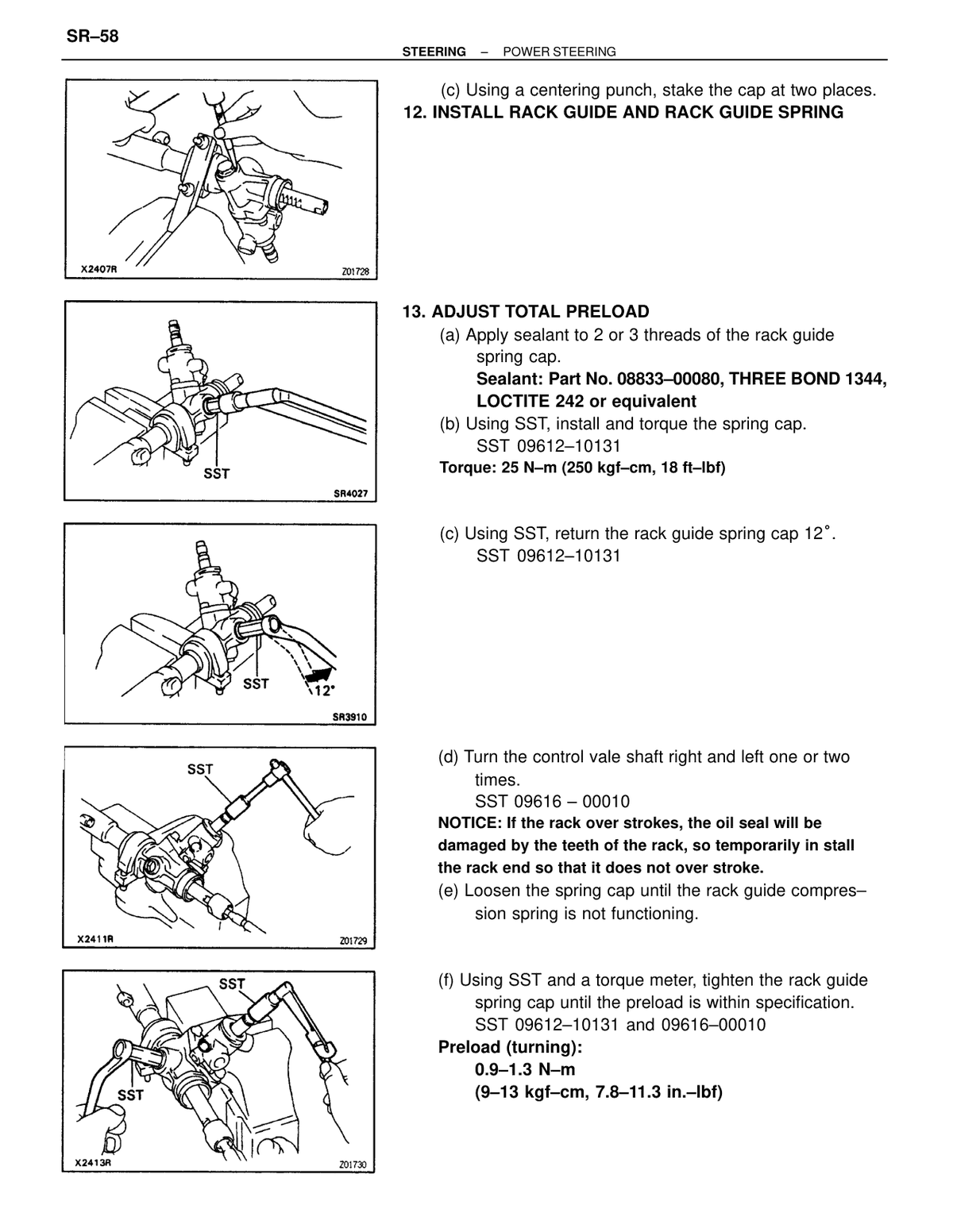

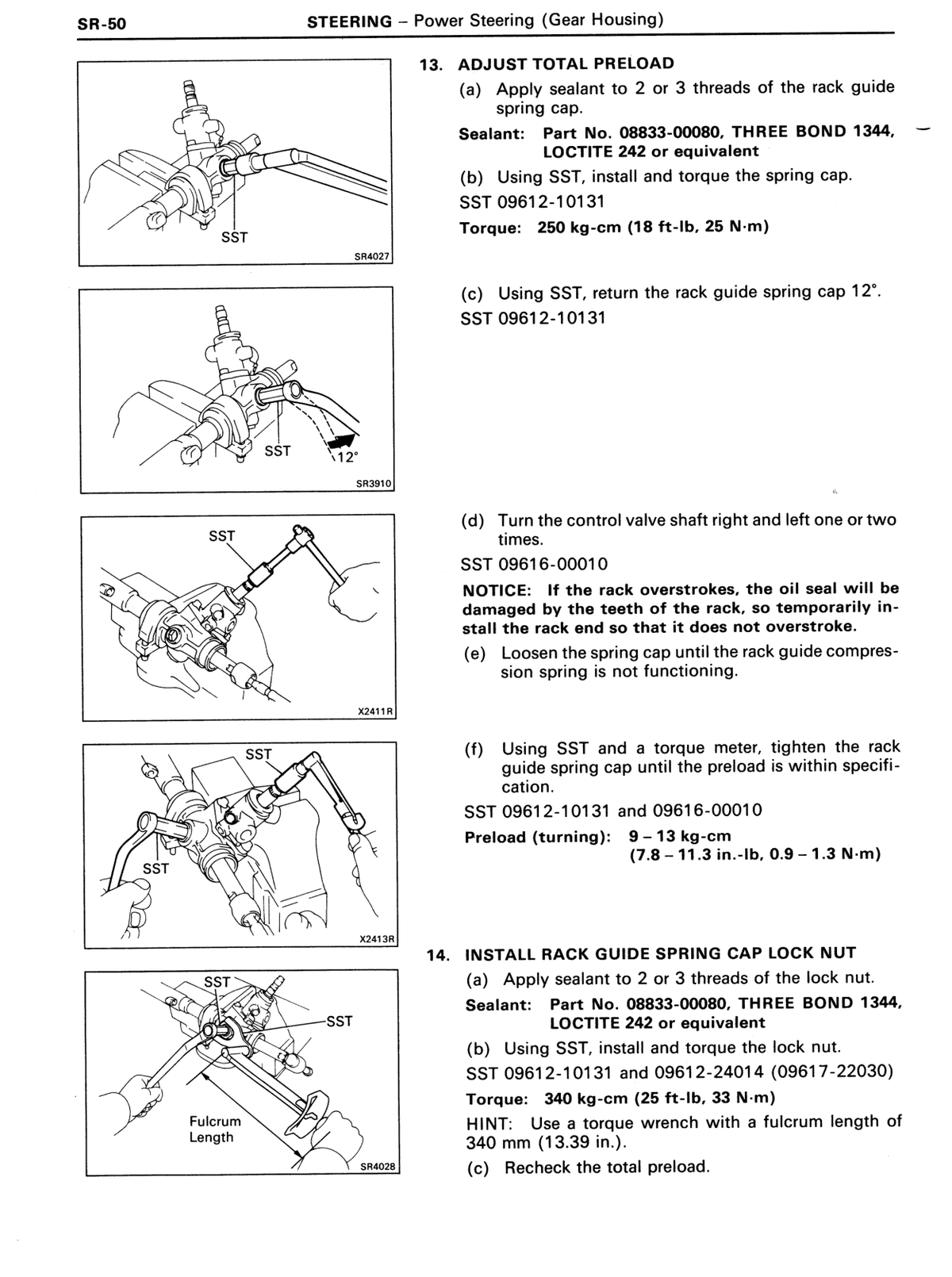

Steering Rack guide spring cap Step 13(b); SST 09612-10131 25 250 18 ↗ RM179U1_1991 · p1156 OEM manual

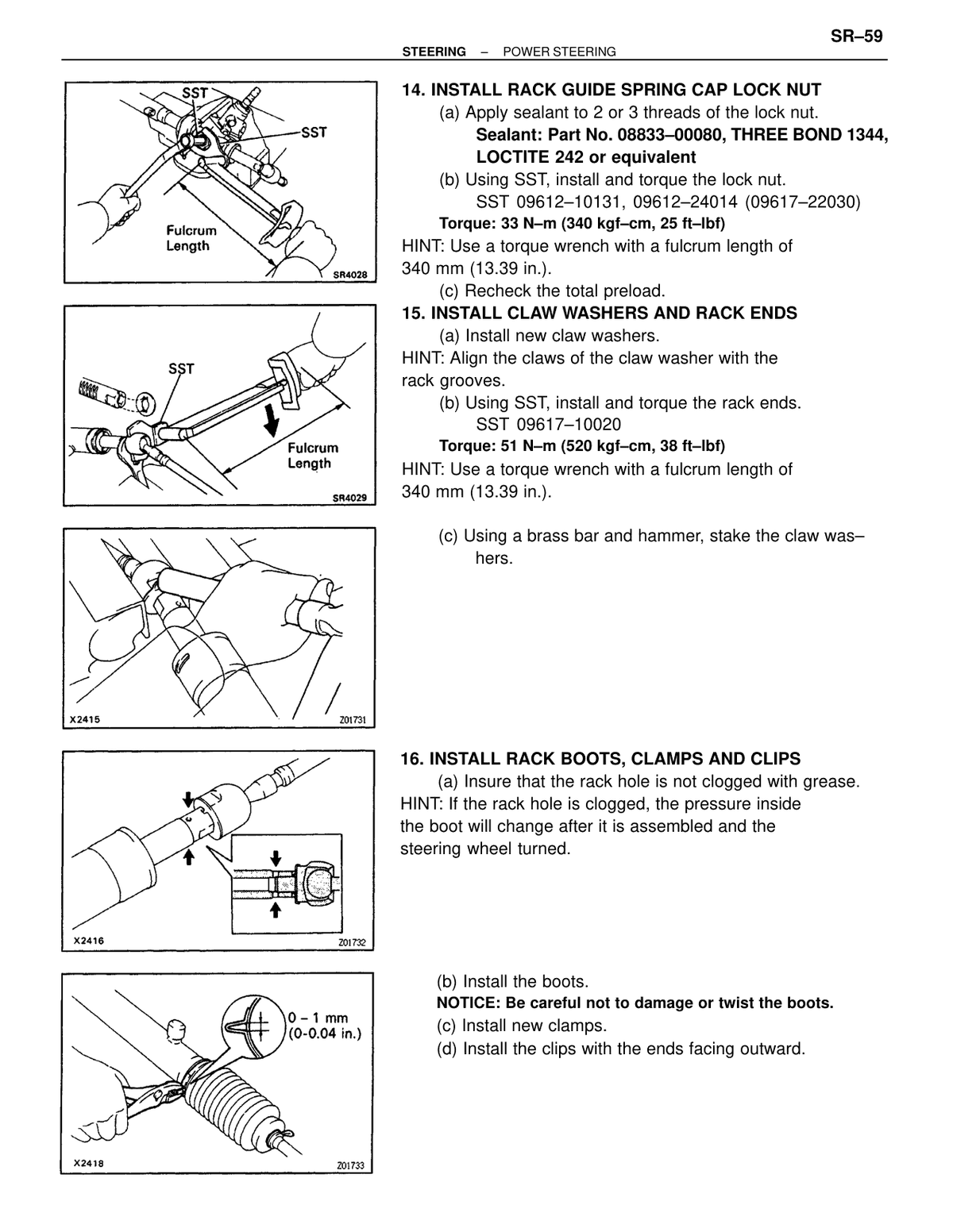

Steering Rack guide spring cap lock nut Step 14(b); SST 09612-10131 and 09612-24014 (09617-22030); use torque wrench with fulcrum length 340 mm (13.39 in.) 33 340 25 ↗ RM179U1_1991 · p1156 OEM manual

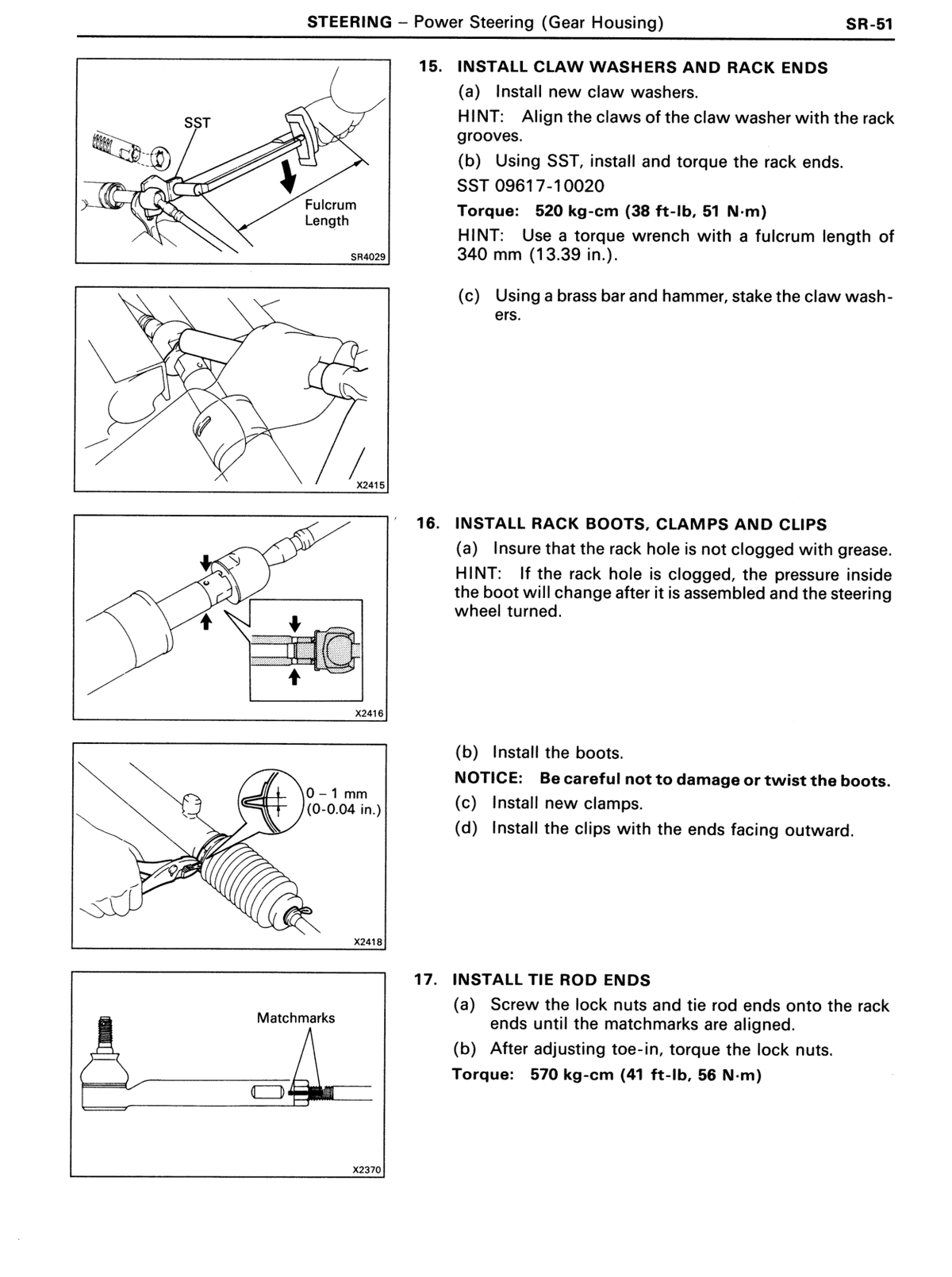

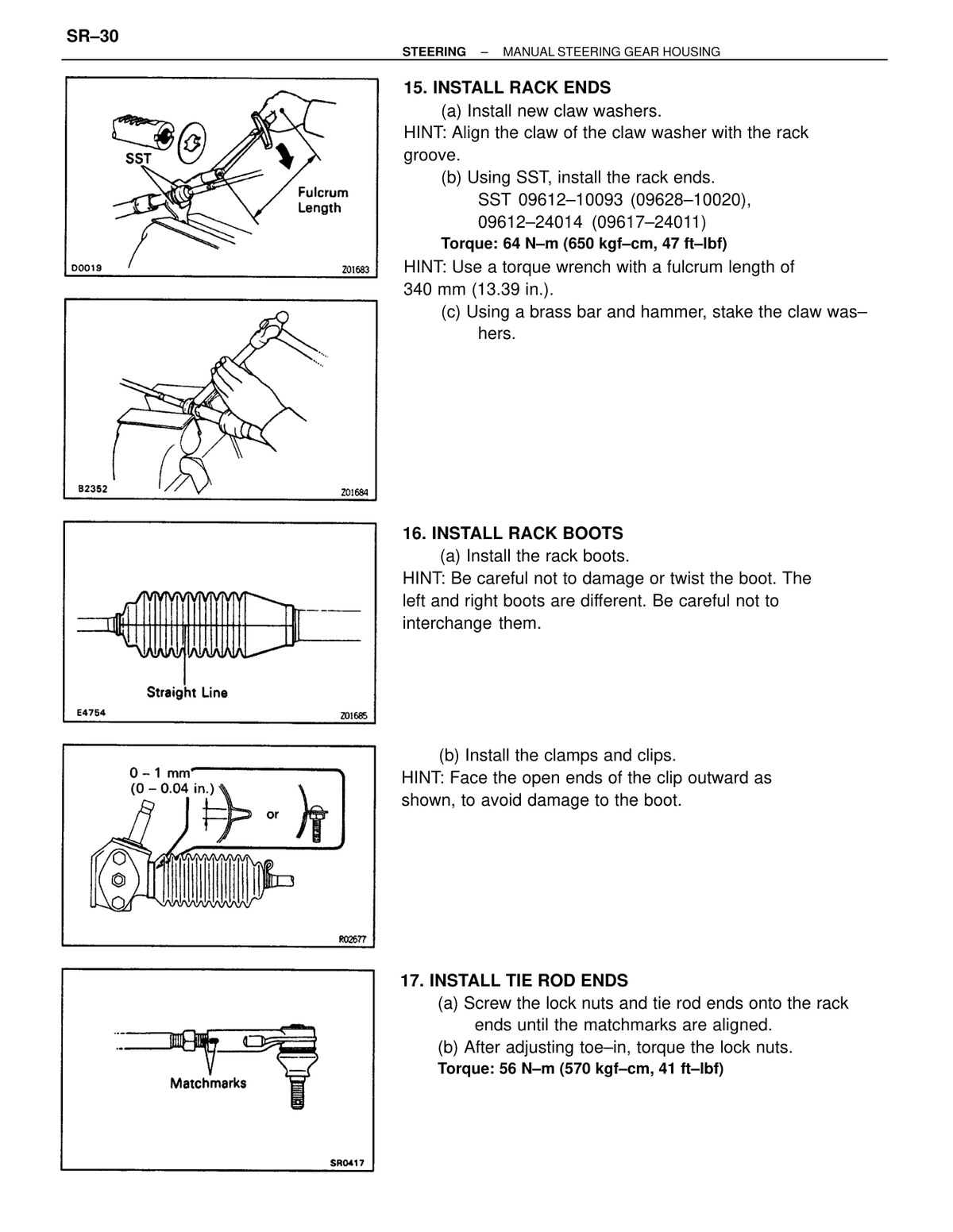

Steering Rack ends Use SST 09617-10020 with fulcrum length 340 mm (13.39 in.) 51 520 38 ↗ RM179U1_1991 · p1157 OEM manual

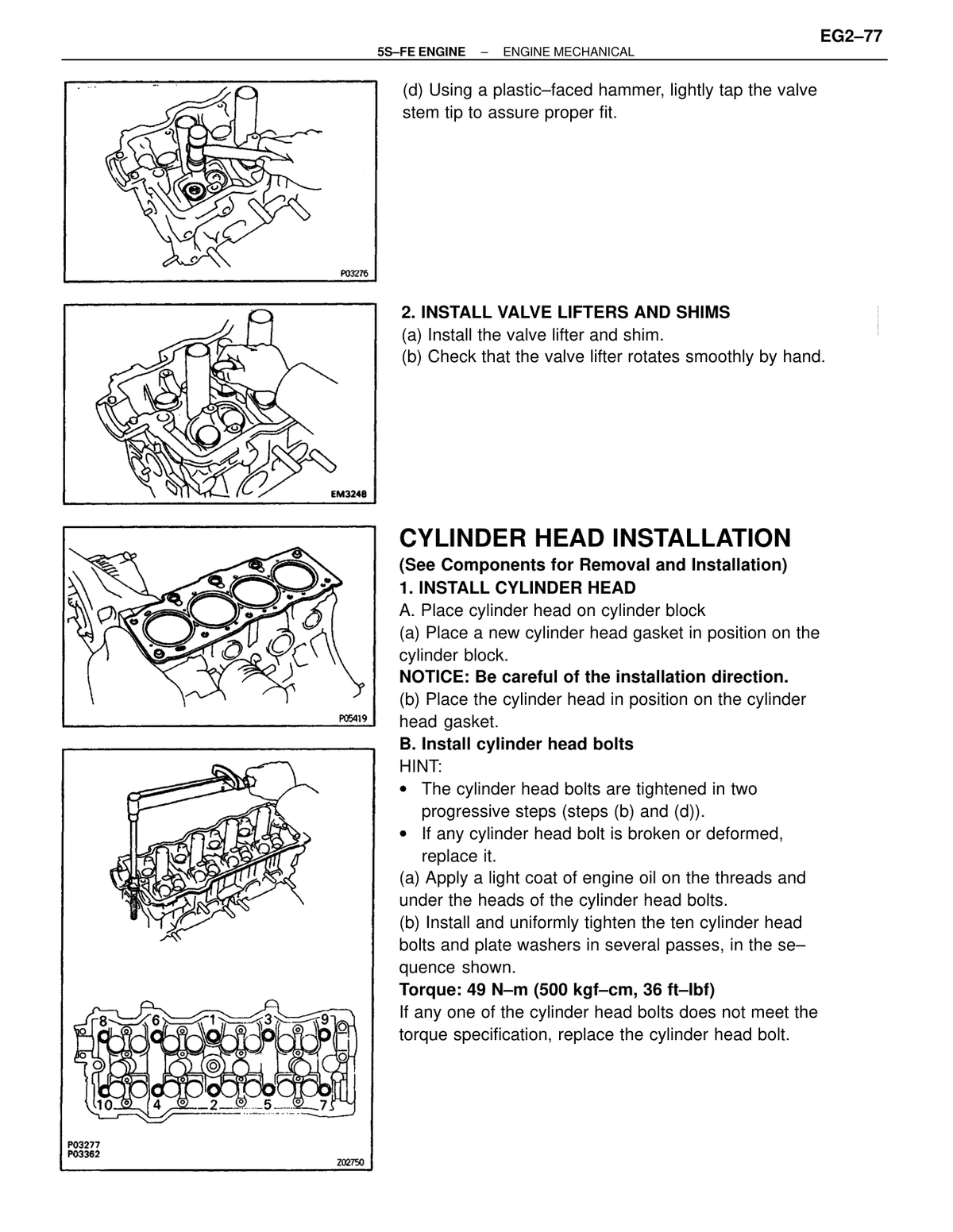

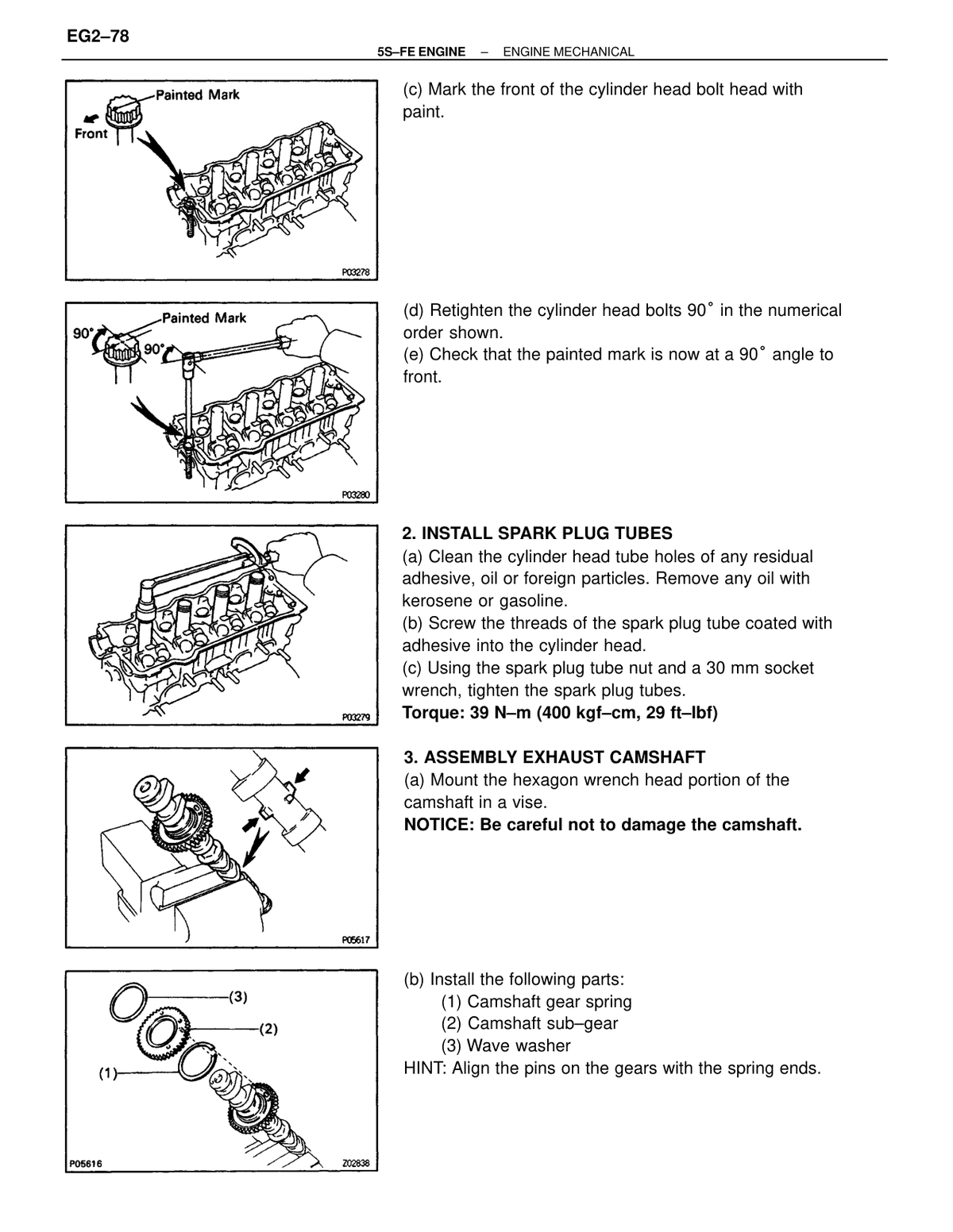

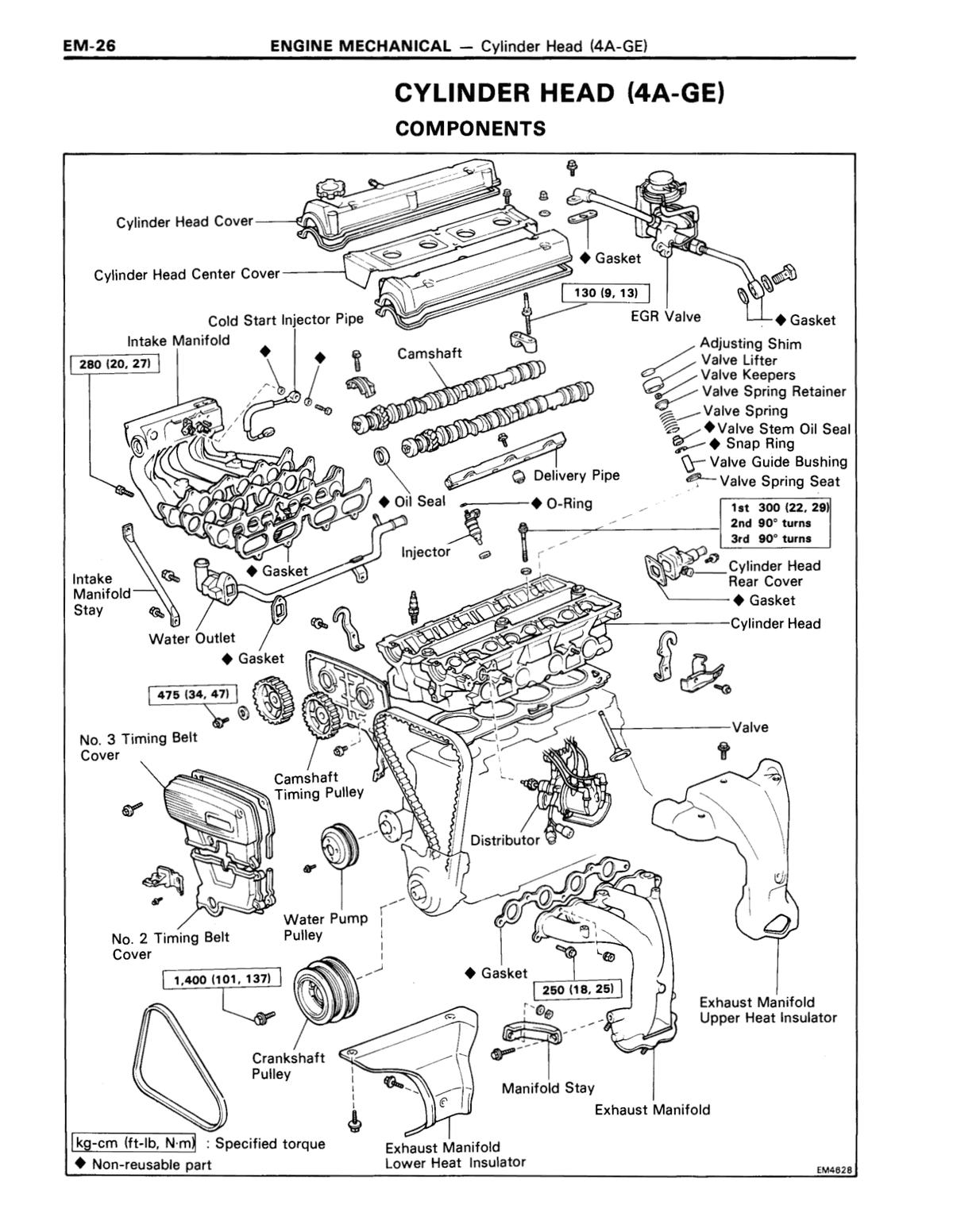

Engine — mechanical Cylinder head bolts Initial pass (step (b)); then retighten 90° in step (d) 49 500 36 ↗ RM179U1_1991 · p116 OEM manual

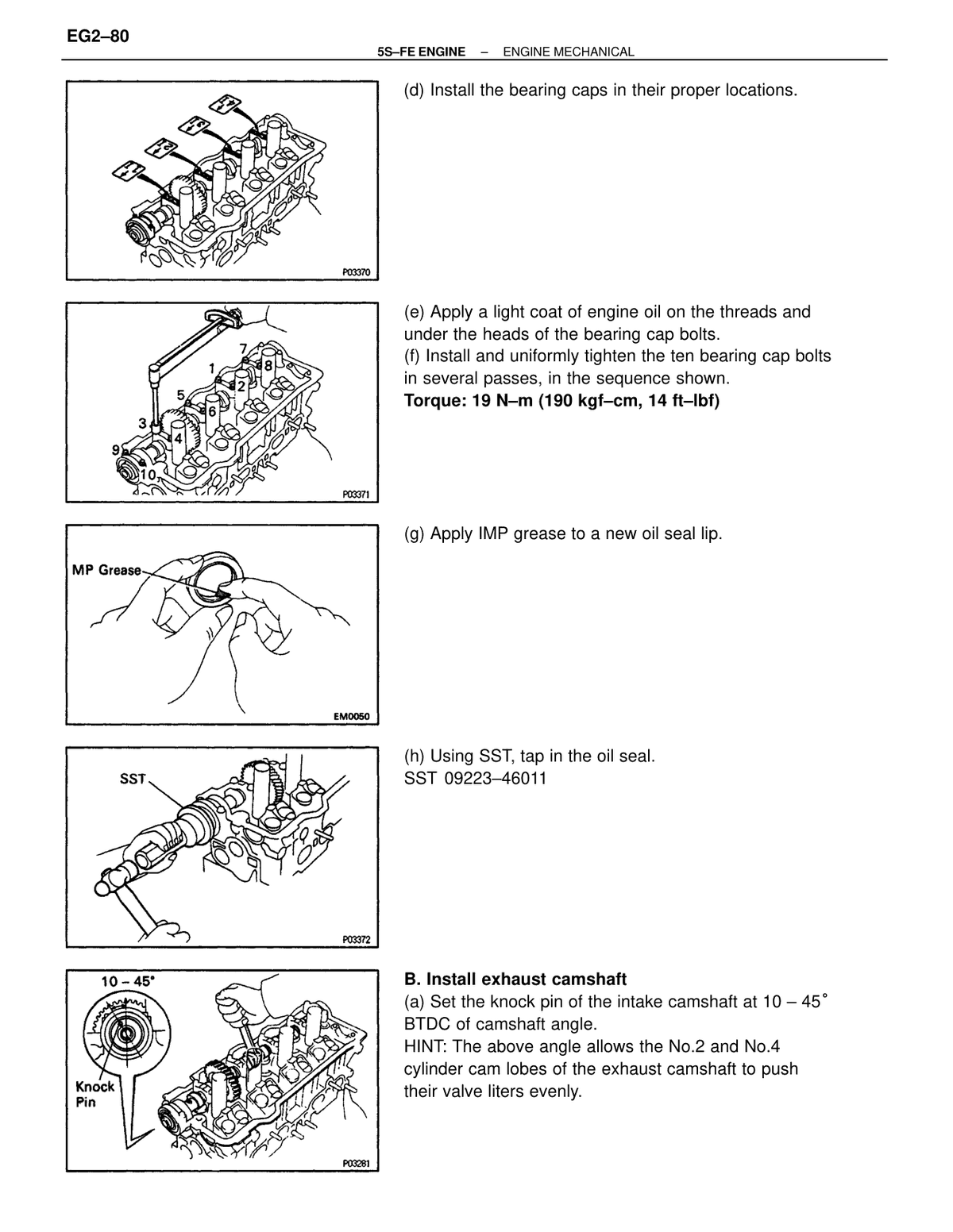

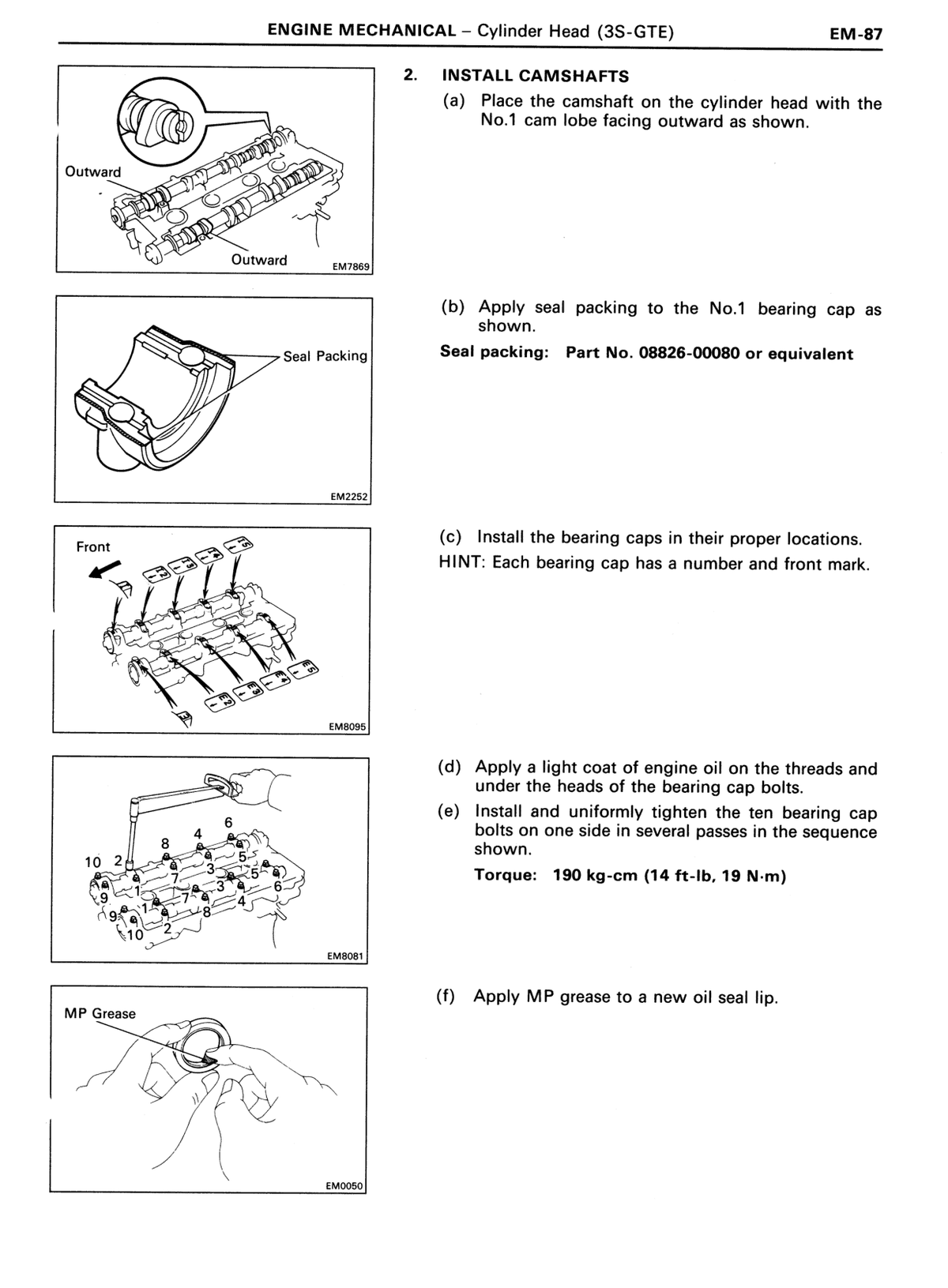

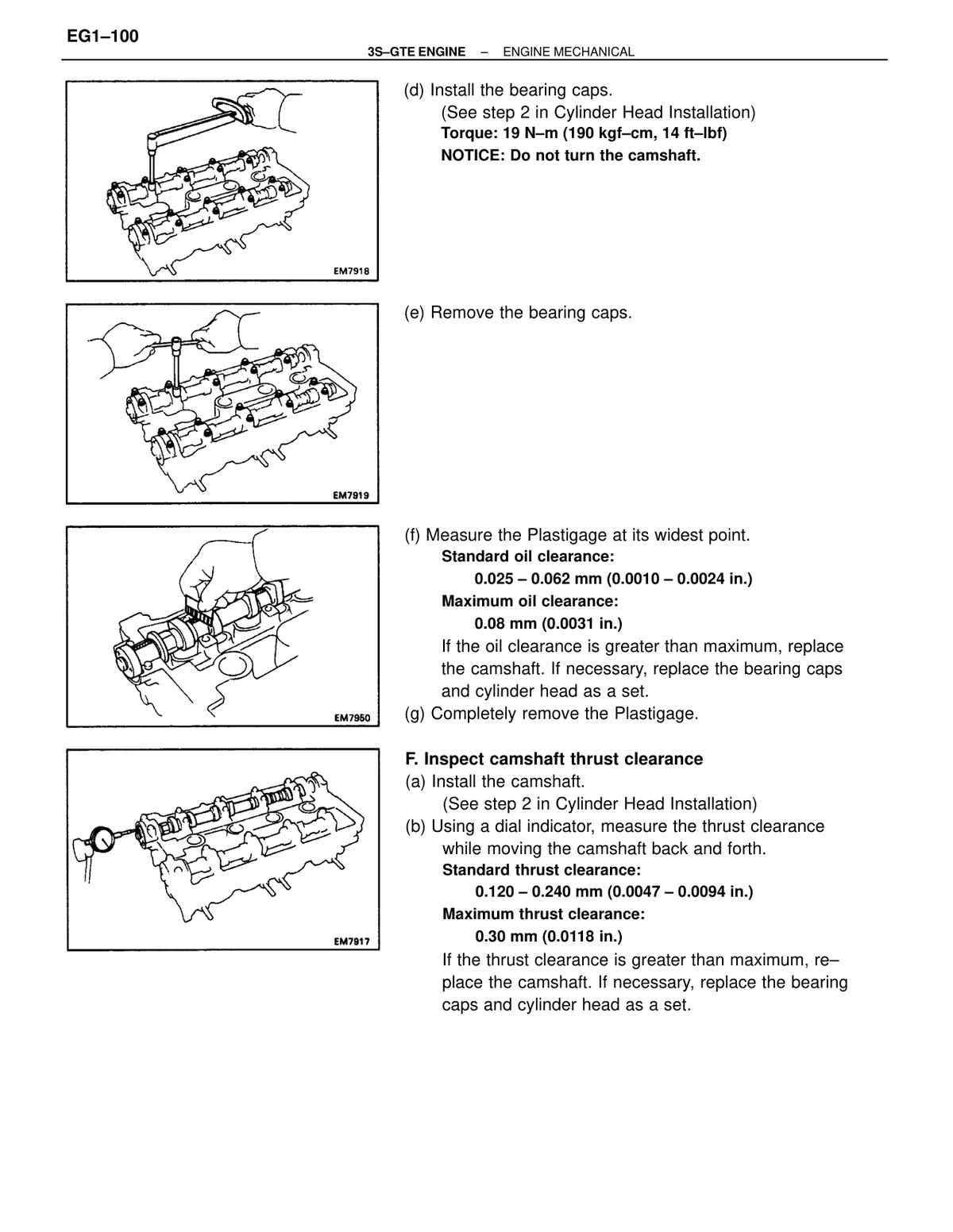

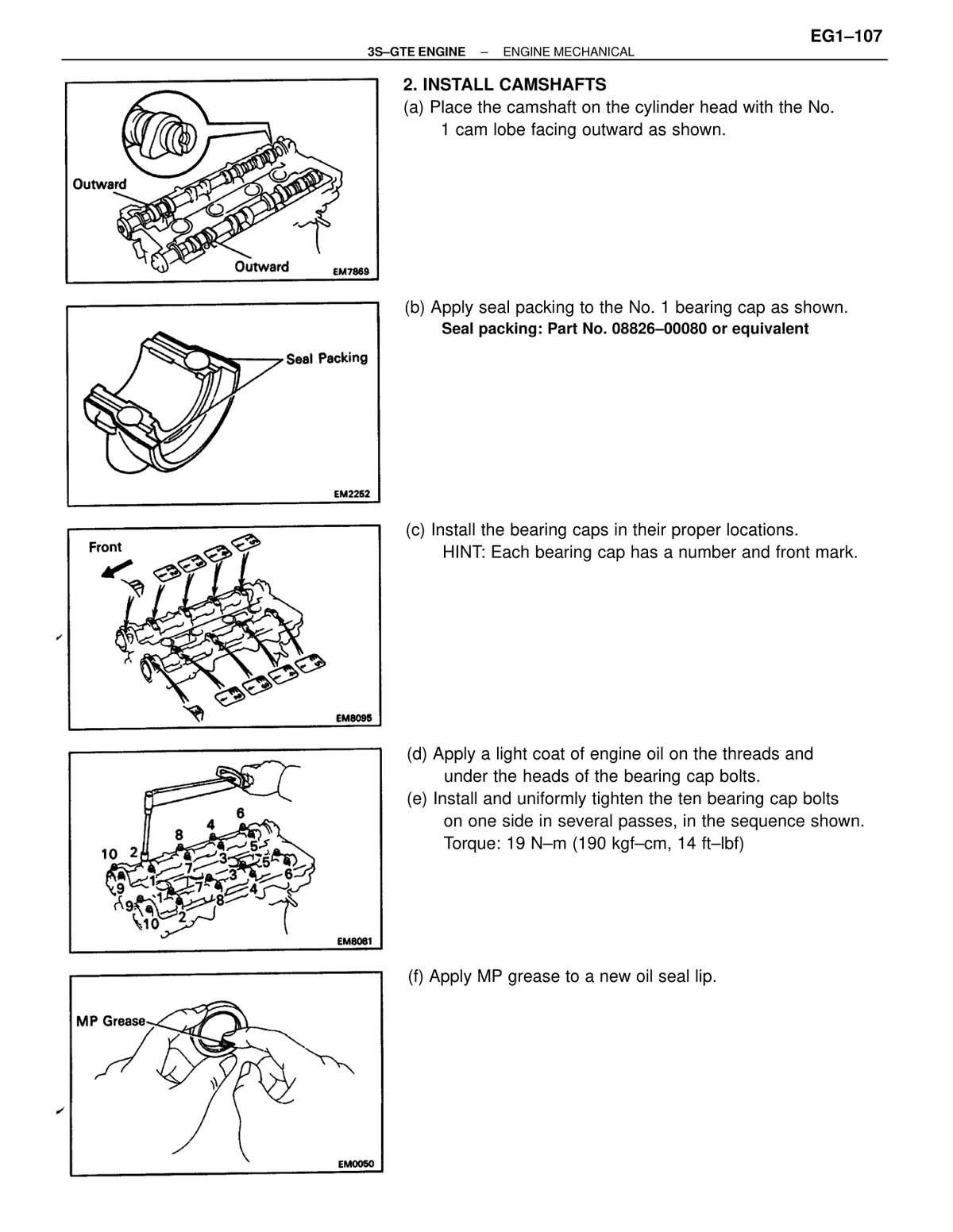

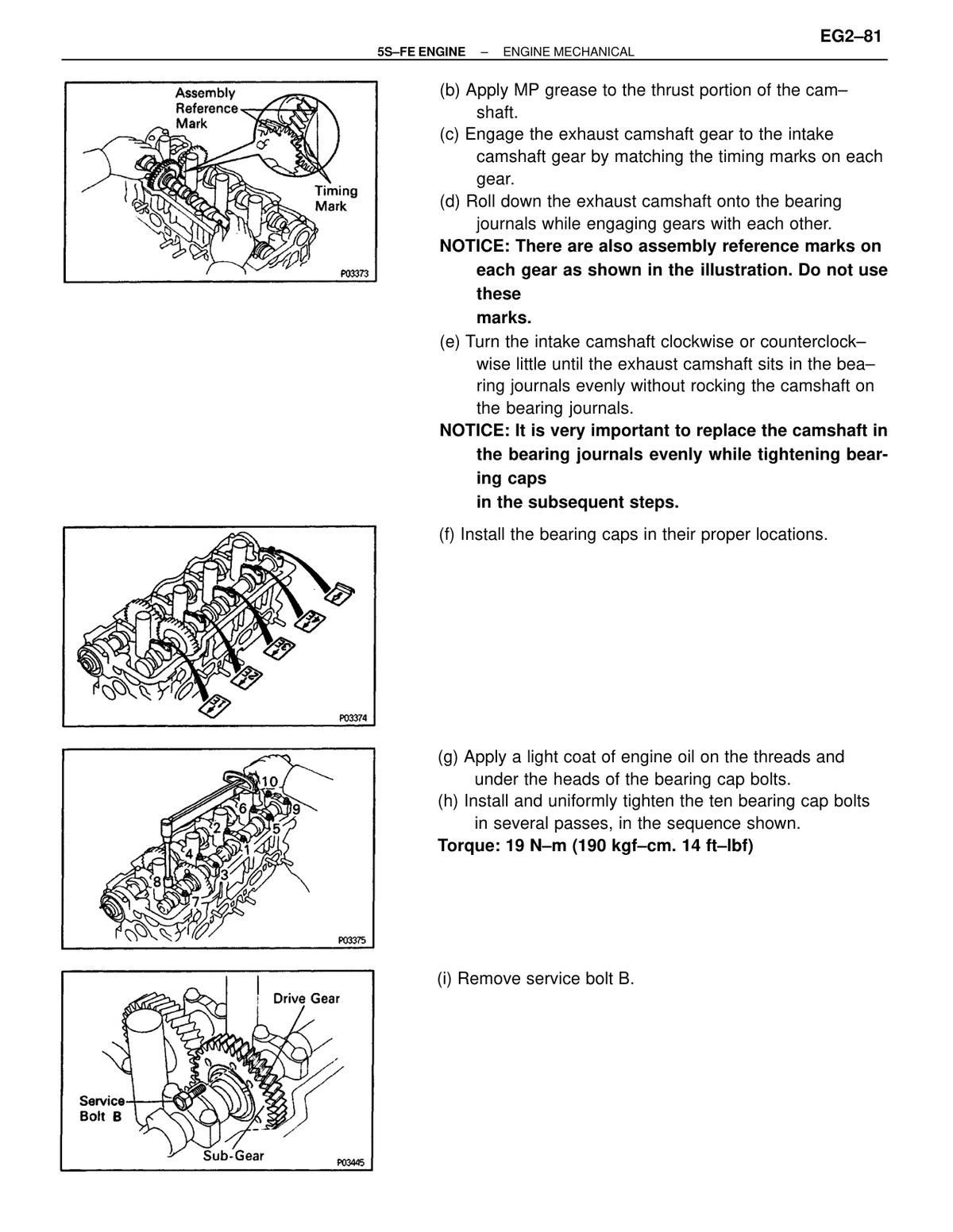

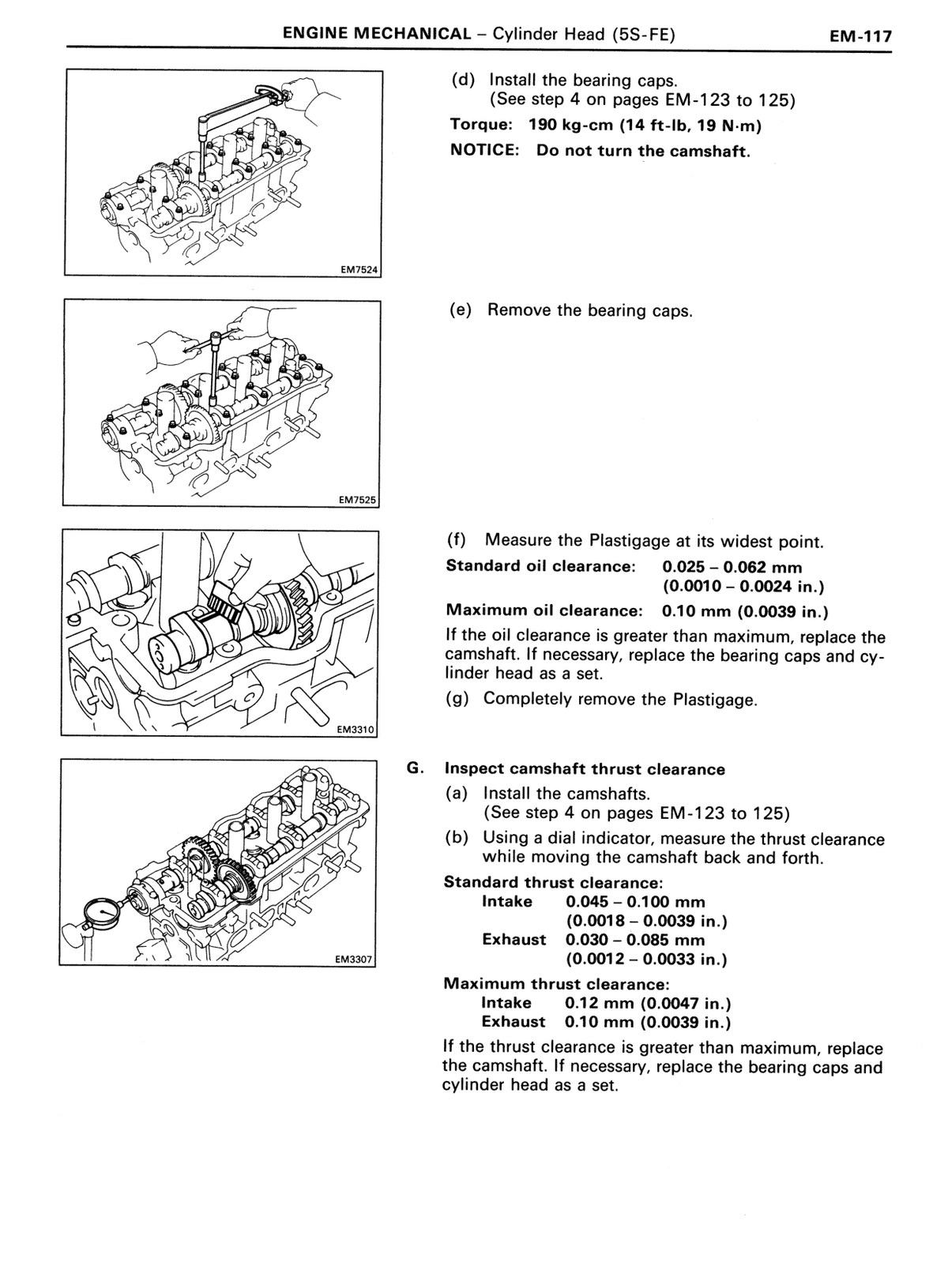

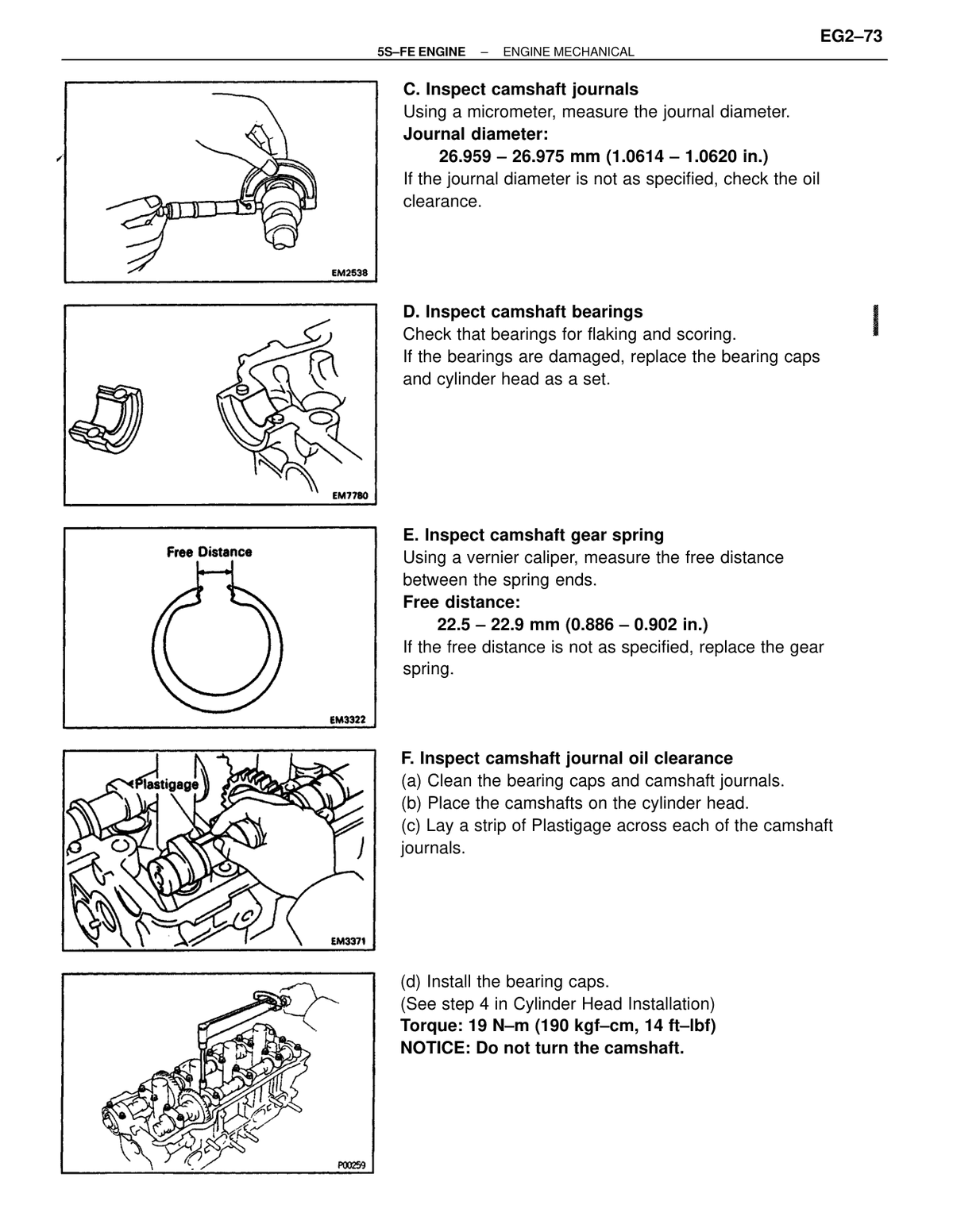

Engine — mechanical Bearing cap bolts Tighten in sequence, several passes, ten bolts per side 19 190 14 ↗ RM179U1_1991 · p117 OEM manual

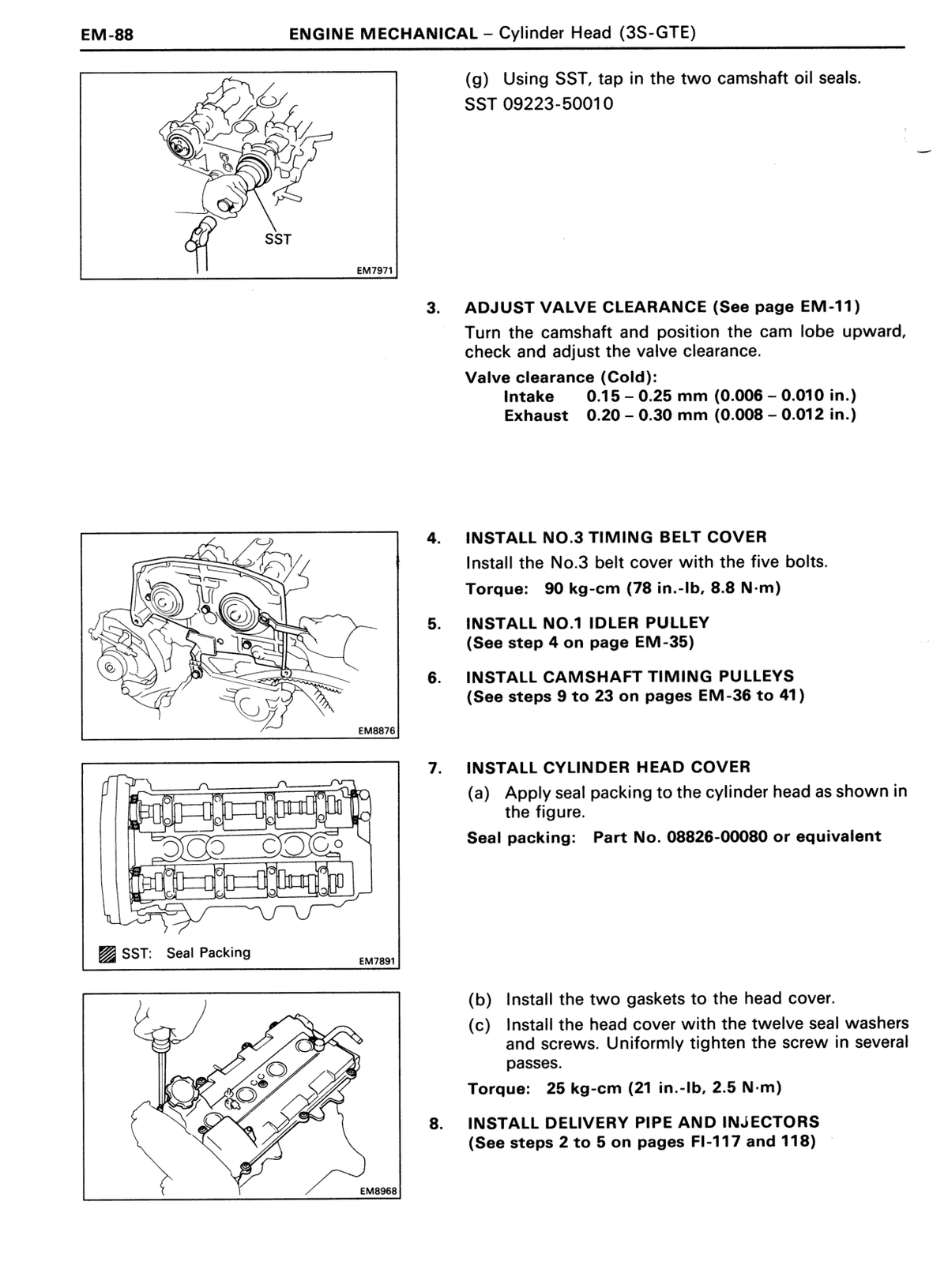

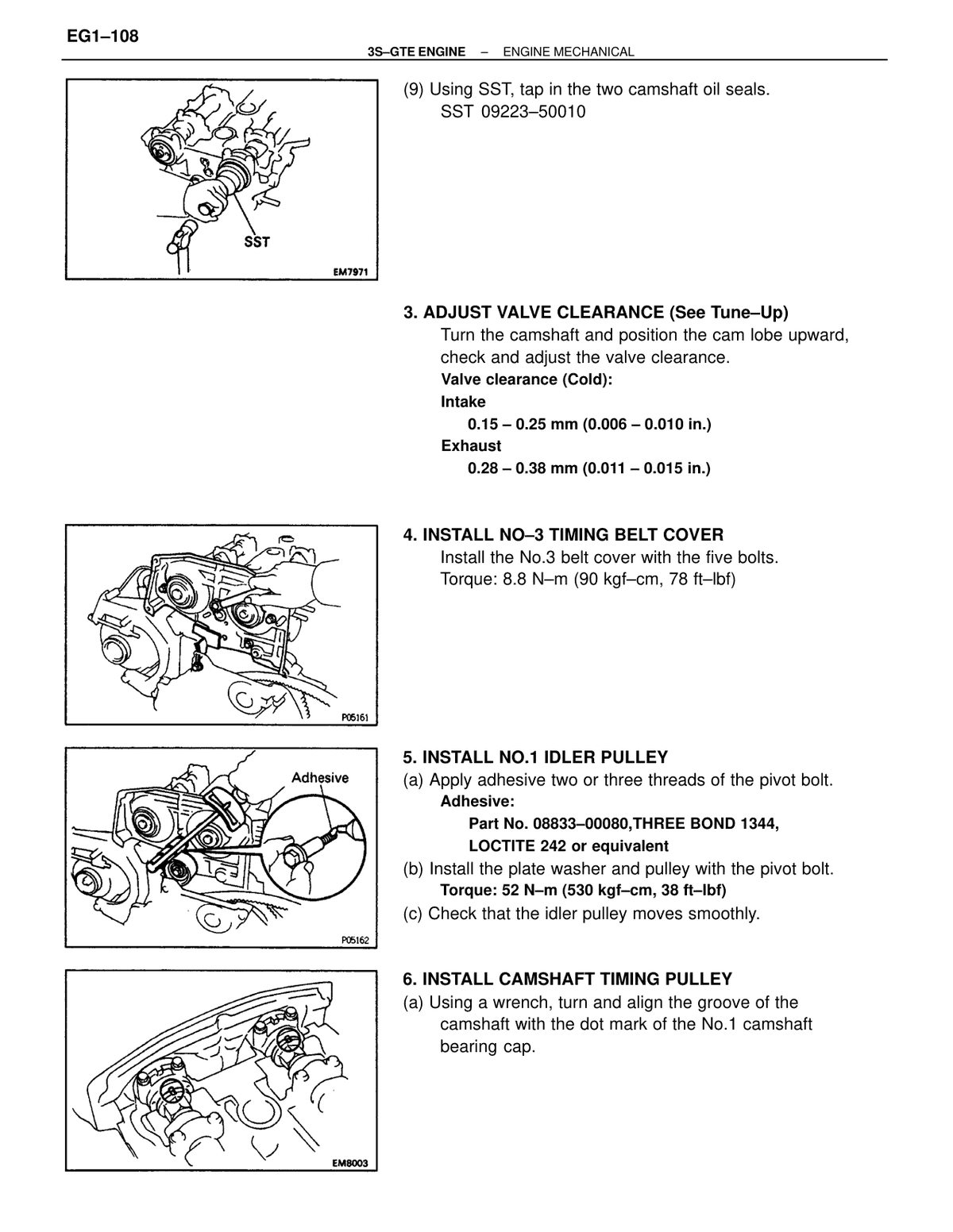

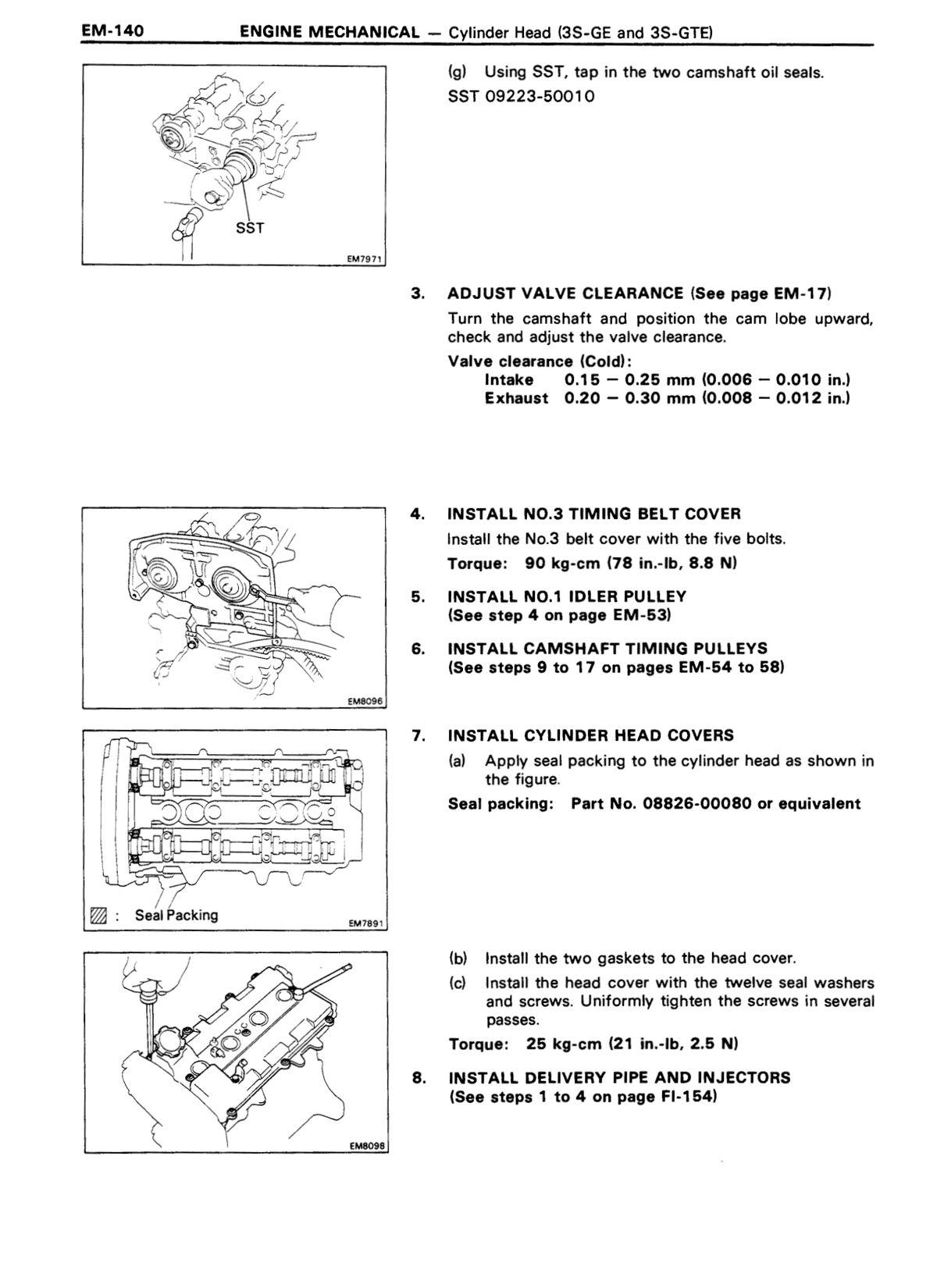

Engine — mechanical No.3 Timing Belt Cover bolts Step 4 — five bolts 8.8 90 — ↗ RM179U1_1991 · p118 OEM manual
Engine — mechanical Cylinder Head Cover screws Step 7(c) — twelve seal washers and screws, uniformly tighten in several passes 2.5 25 — ↗ RM179U1_1991 · p118 OEM manual

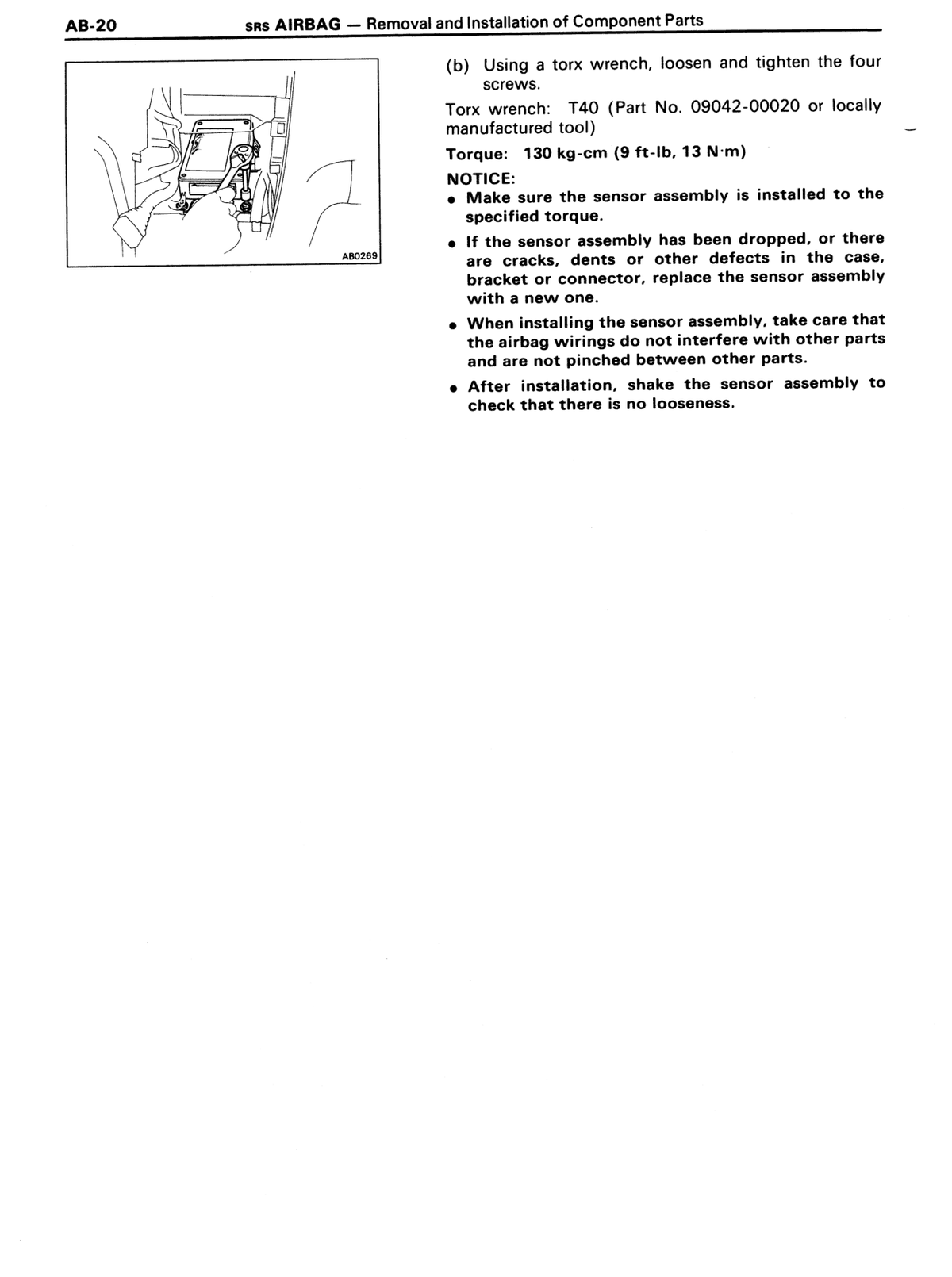

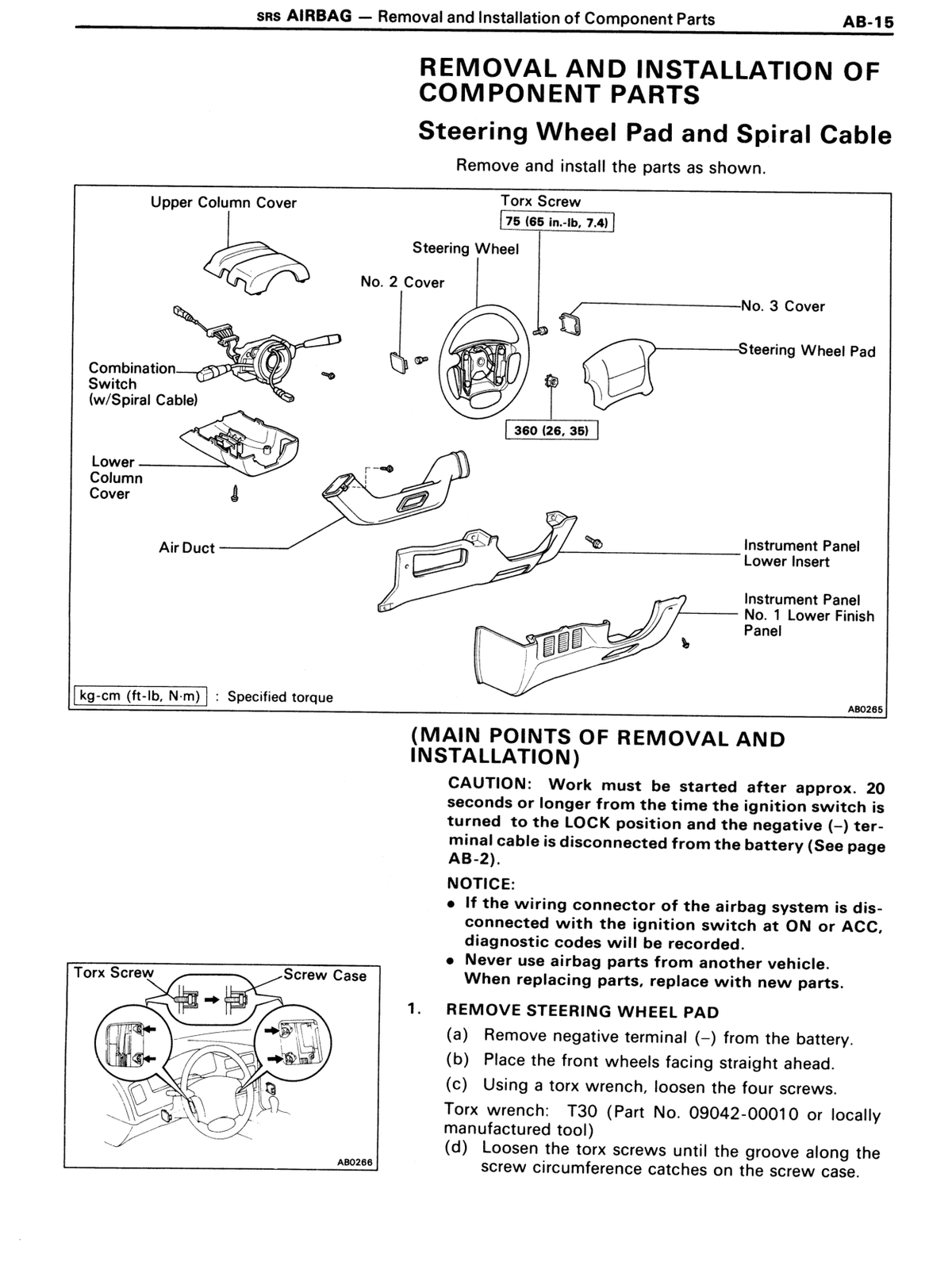

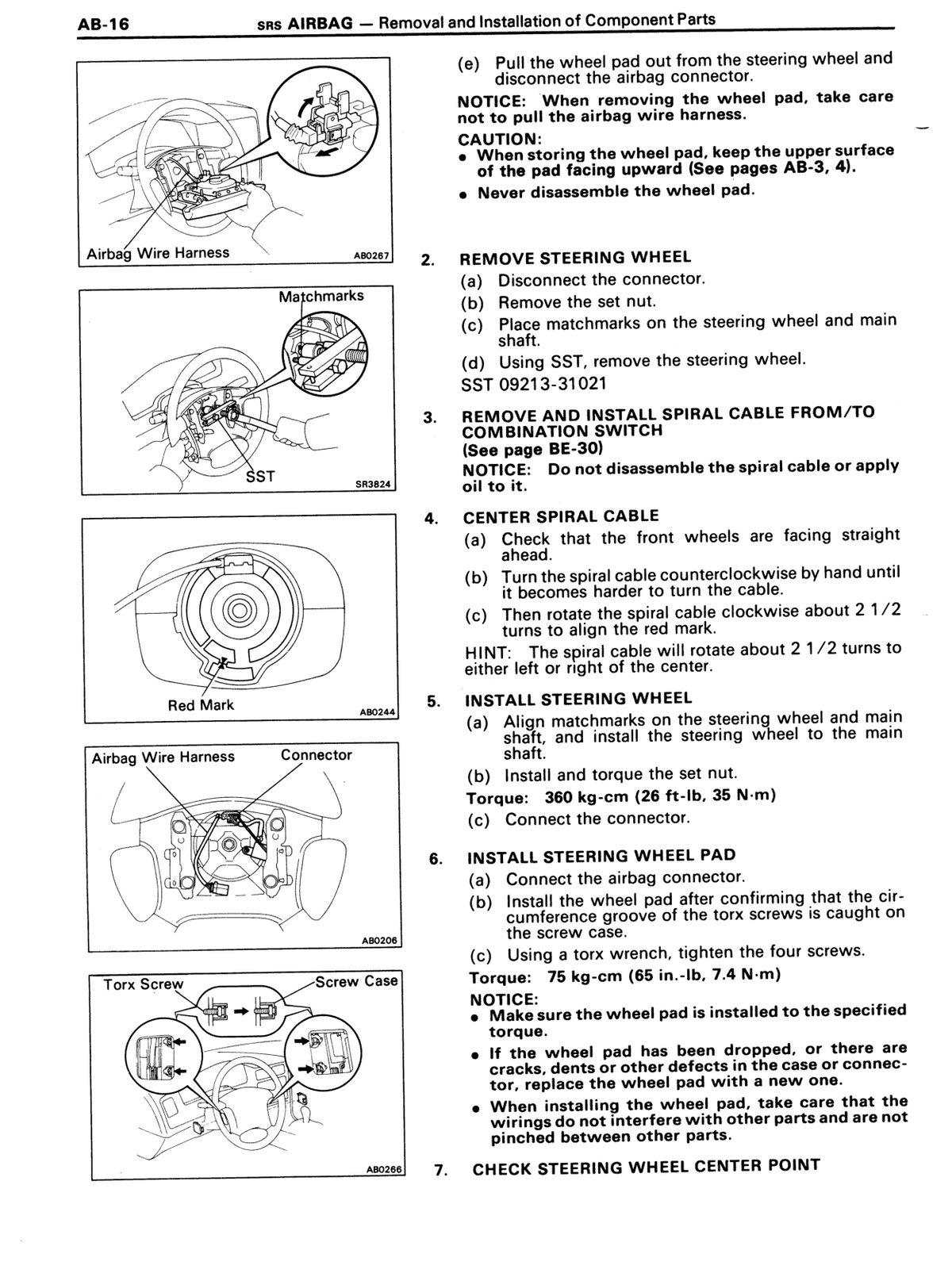

SRS / airbag Steering wheel pad torx screws 65 in.-lb, Step 6(c) 7.4 75 — ↗ RM179U1_1991 · p1183 OEM manual

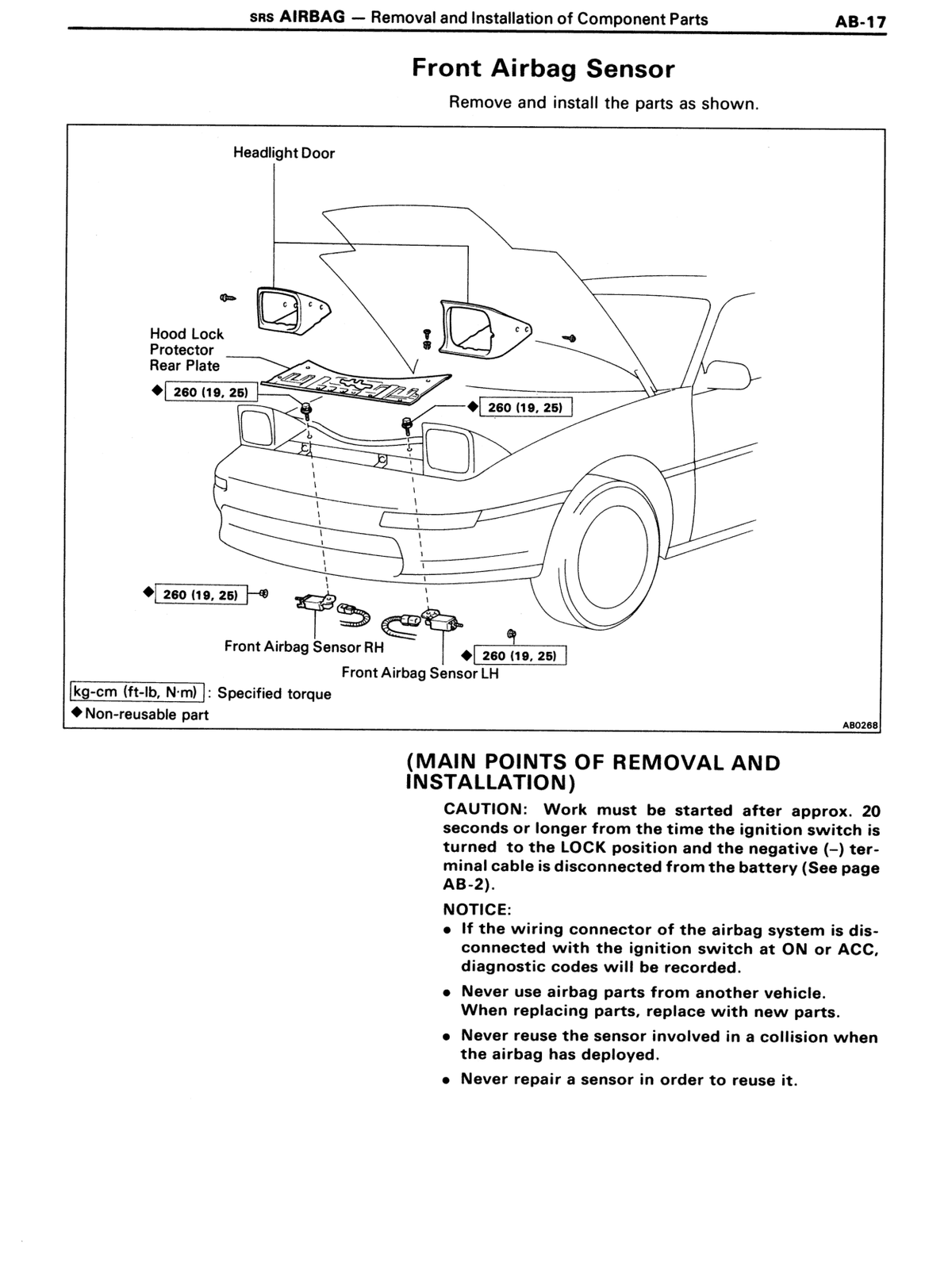

SRS / airbag Front Airbag Sensor RH mounting bolt (left side) Hood Lock Protector Rear Plate area, left sensor bolt 25 260 19 ↗ RM179U1_1991 · p1184 OEM manual
SRS / airbag Front Airbag Sensor RH mounting bolt (right side) Hood Lock Protector Rear Plate area, right sensor bolt 25 260 19 ↗ RM179U1_1991 · p1184 OEM manual
SRS / airbag Front Airbag Sensor RH bolt Front Airbag Sensor RH fastener 25 260 19 ↗ RM179U1_1991 · p1184 OEM manual
SRS / airbag Front Airbag Sensor LH bolt Front Airbag Sensor LH fastener 25 260 19 ↗ RM179U1_1991 · p1184 OEM manual

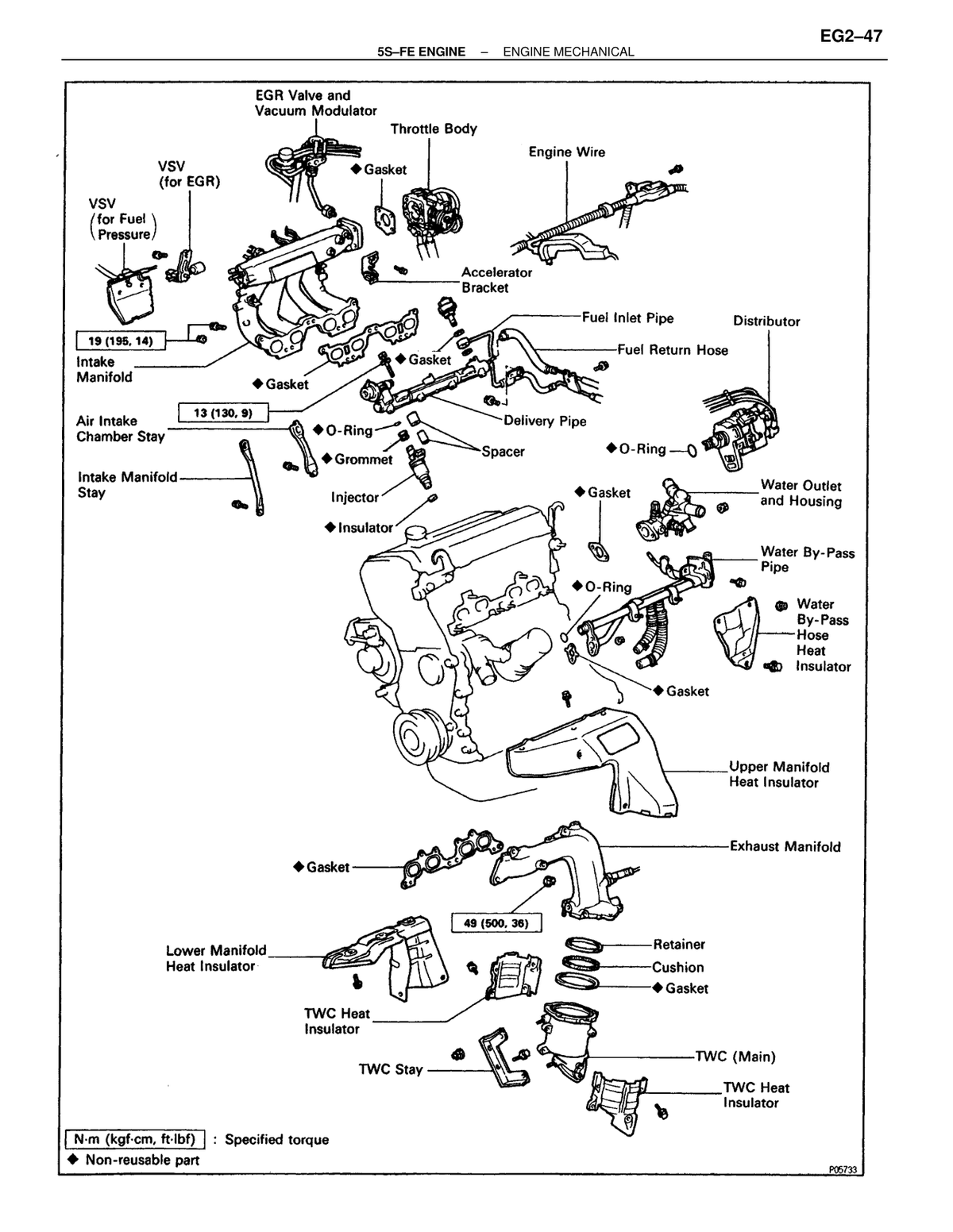

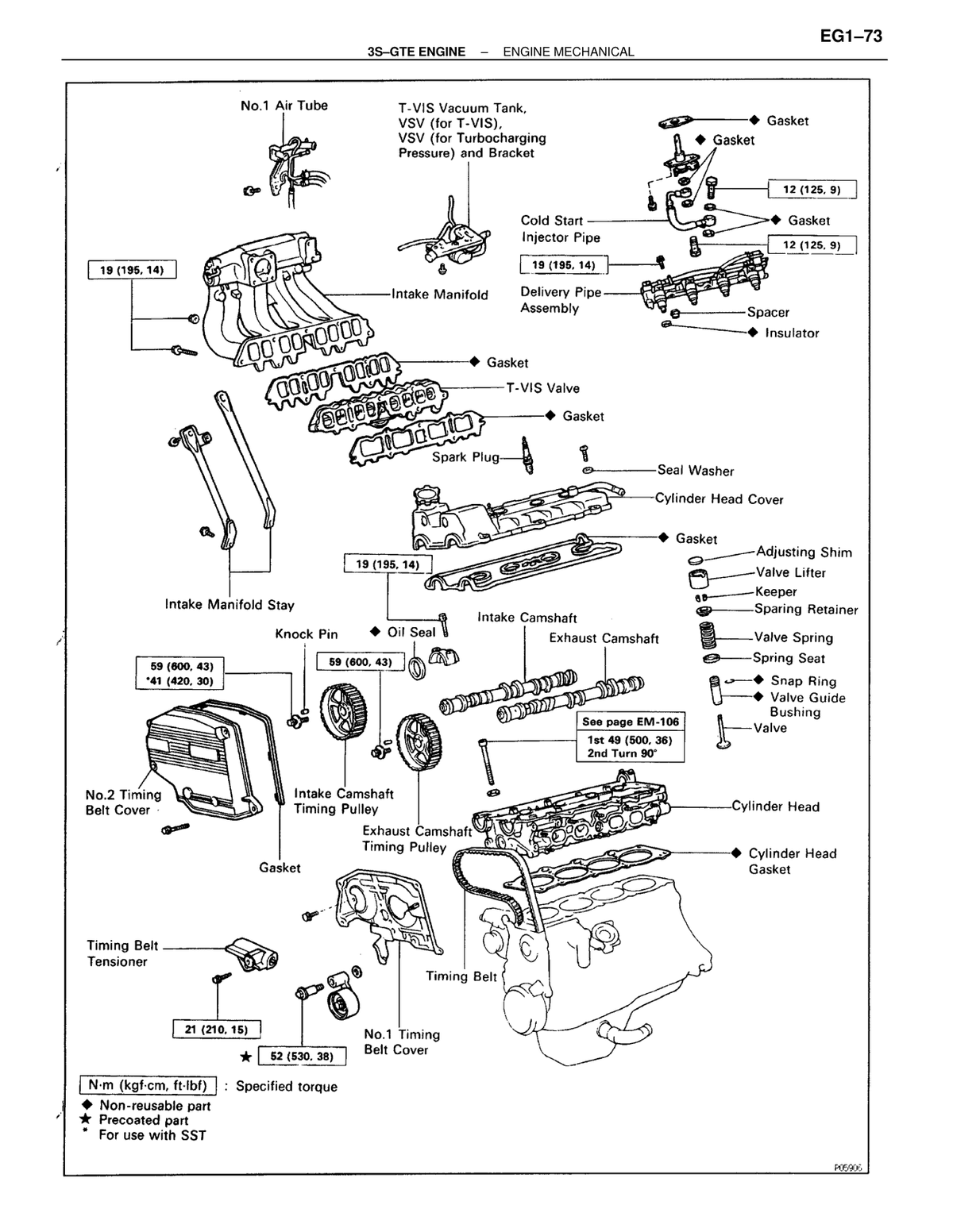

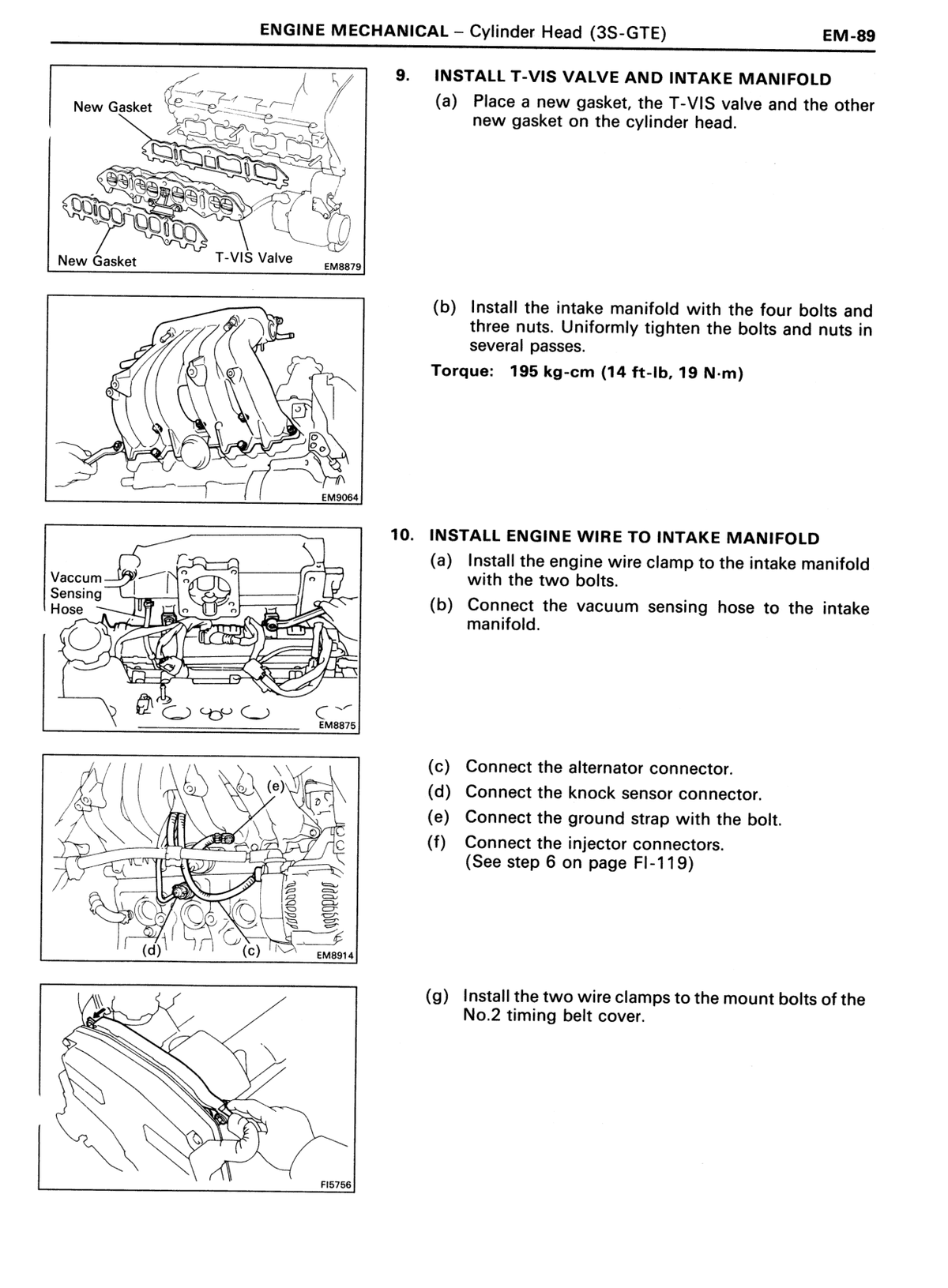

Engine — mechanical Intake manifold bolts and nuts Uniformly tighten in several passes 19 195 14 ↗ RM179U1_1991 · p119 OEM manual

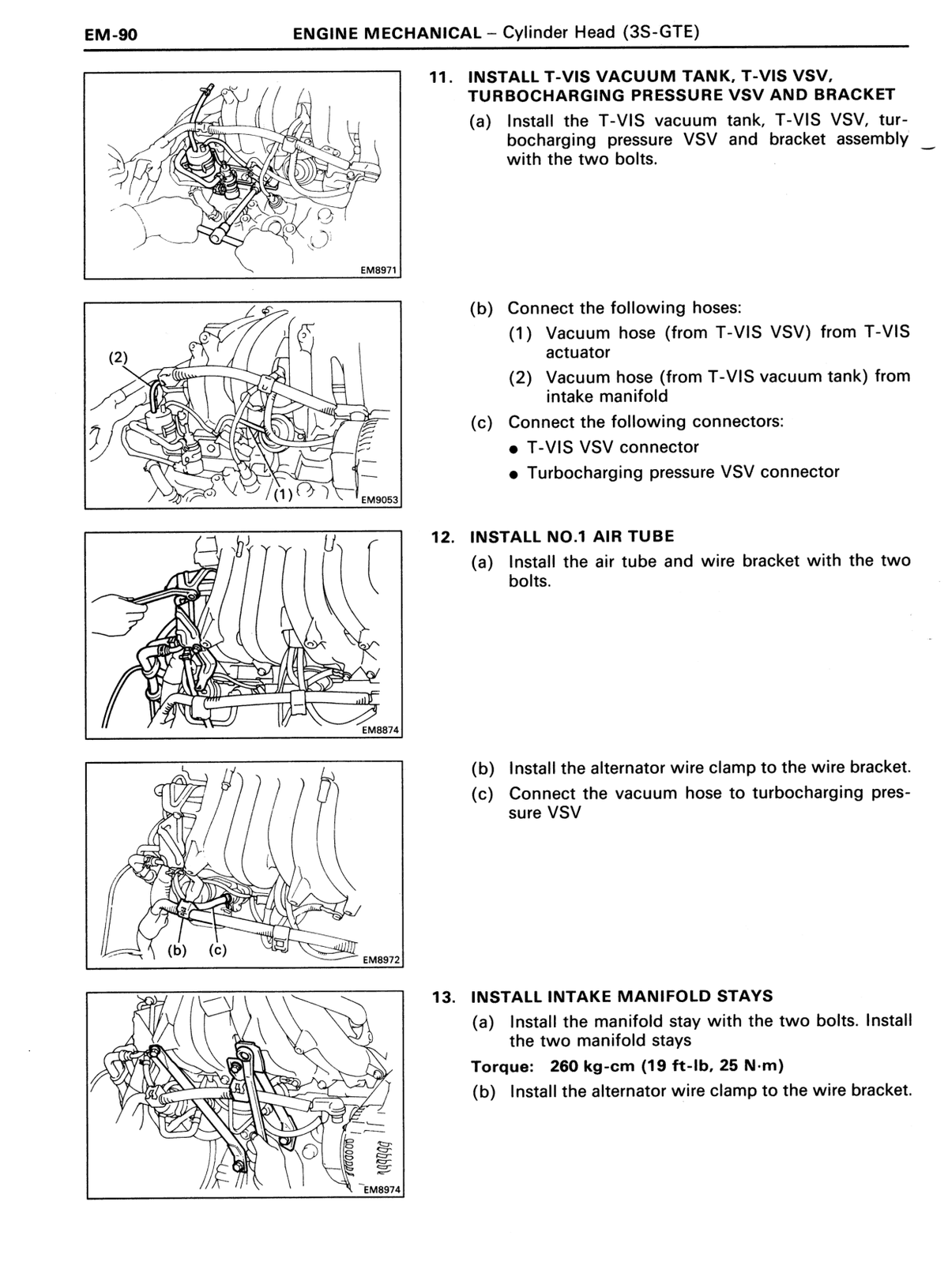

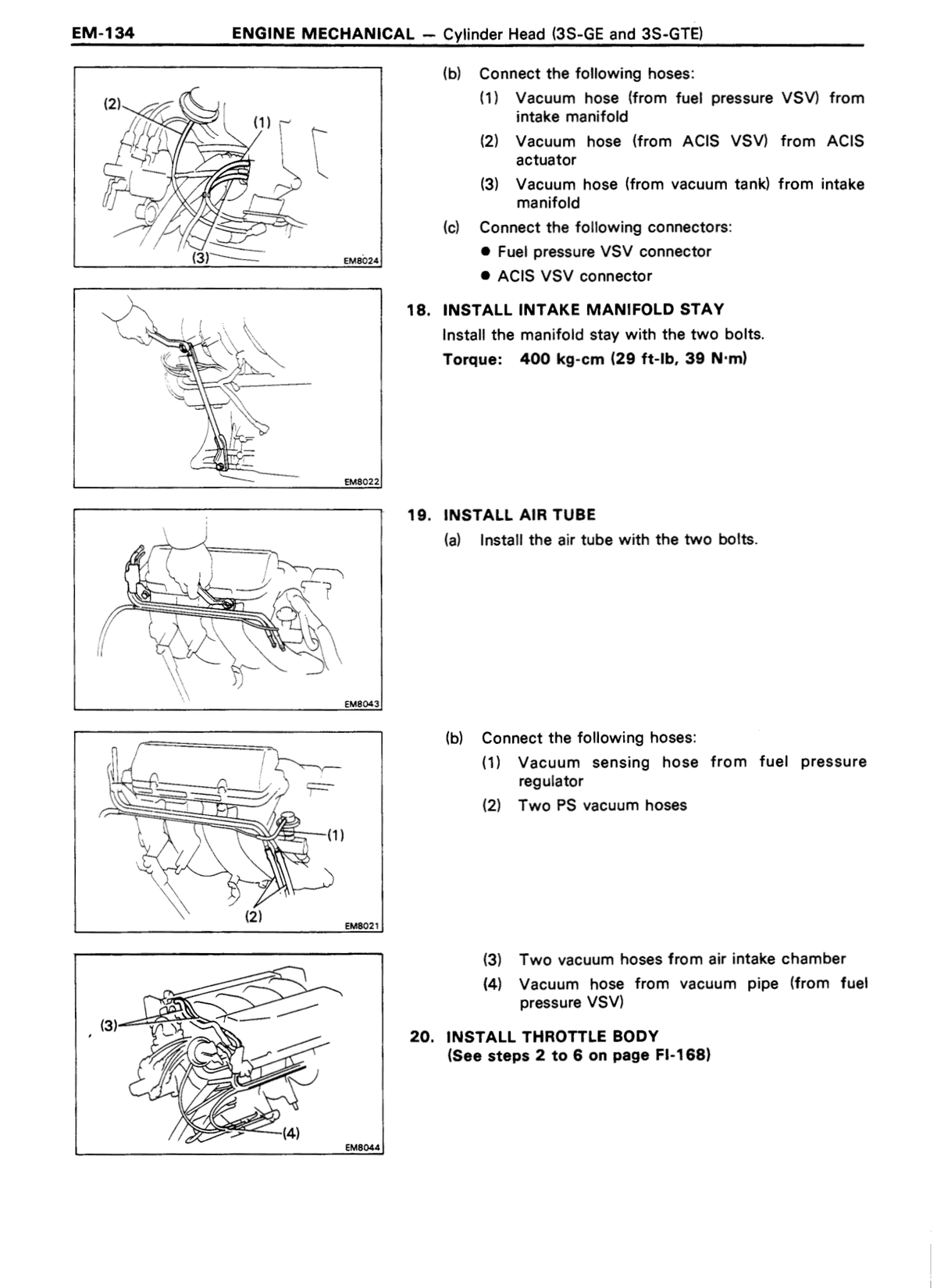

Engine — mechanical Intake manifold stays bolts Step 13(a) 25 260 19 ↗ RM179U1_1991 · p120 OEM manual

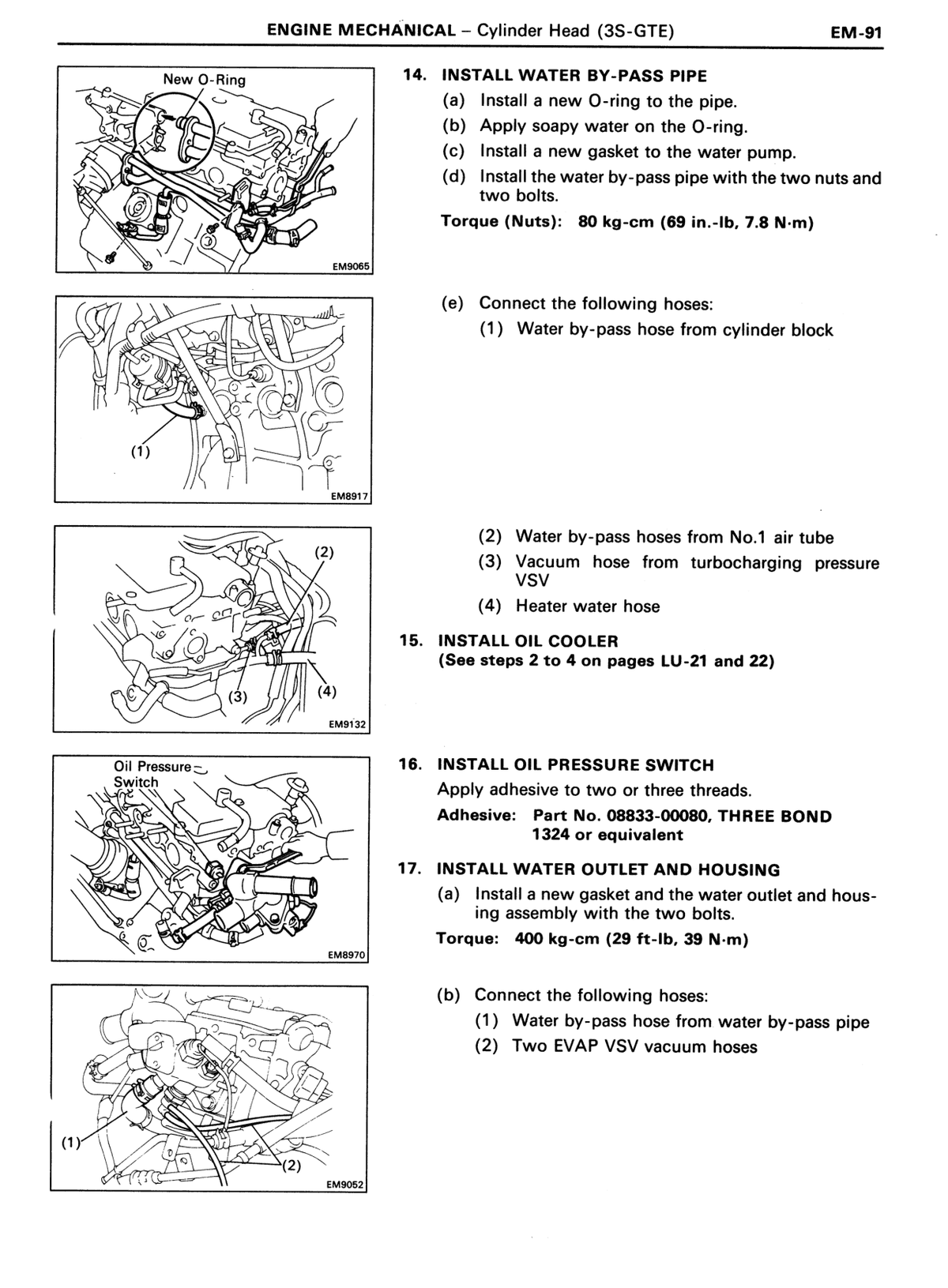

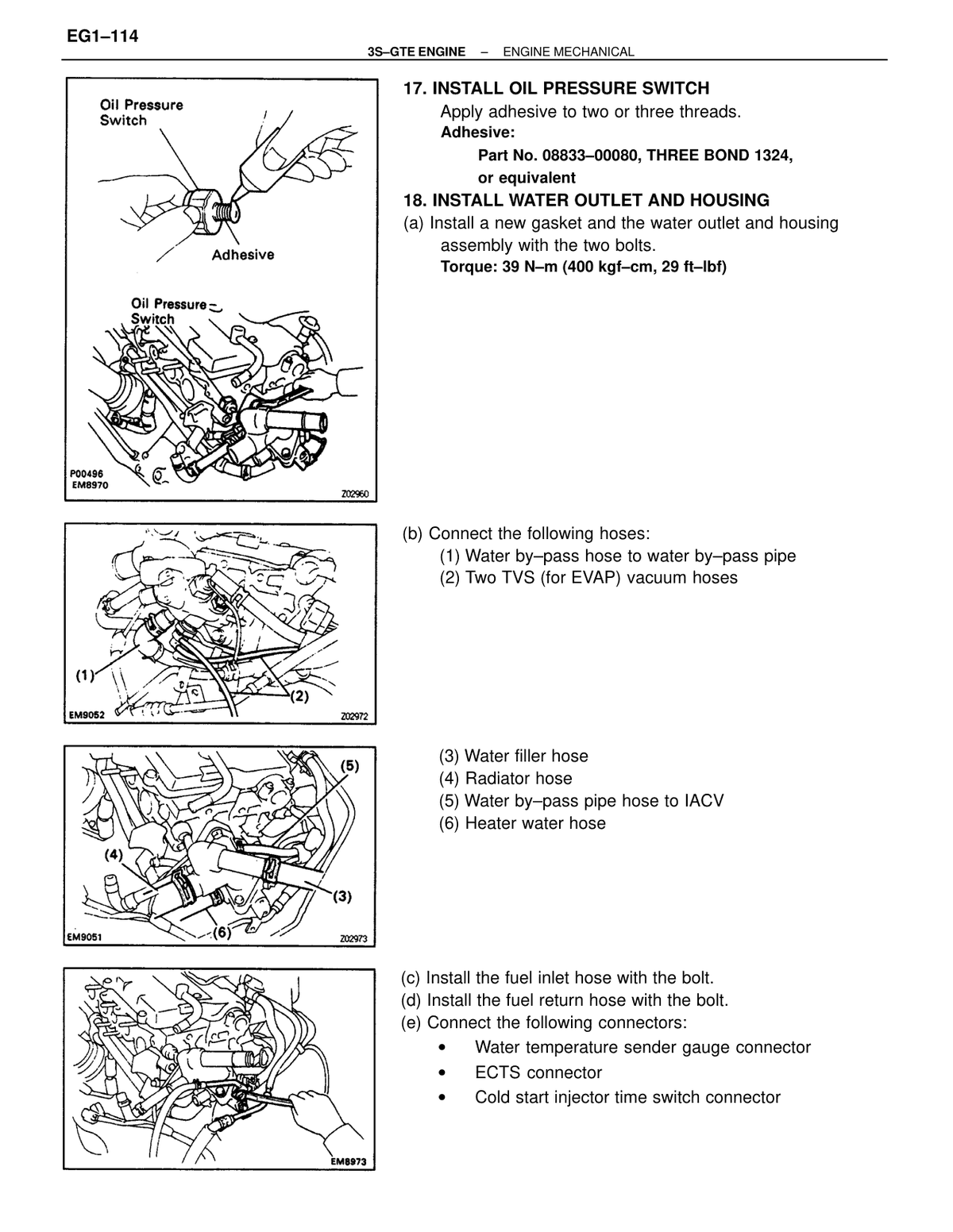

Engine — mechanical Water outlet and housing bolts Step 17(a) 39 400 29 ↗ RM179U1_1991 · p121 OEM manual

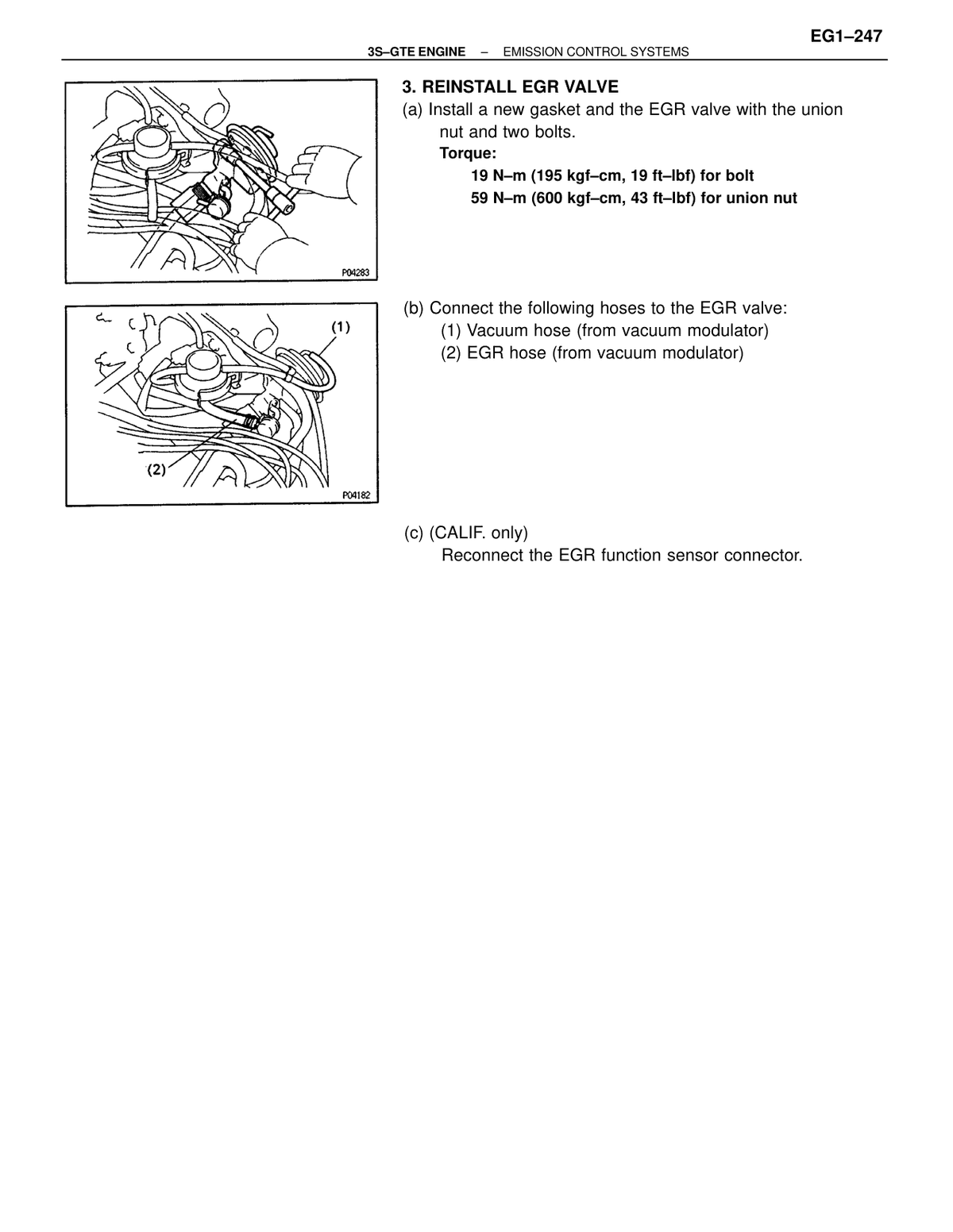

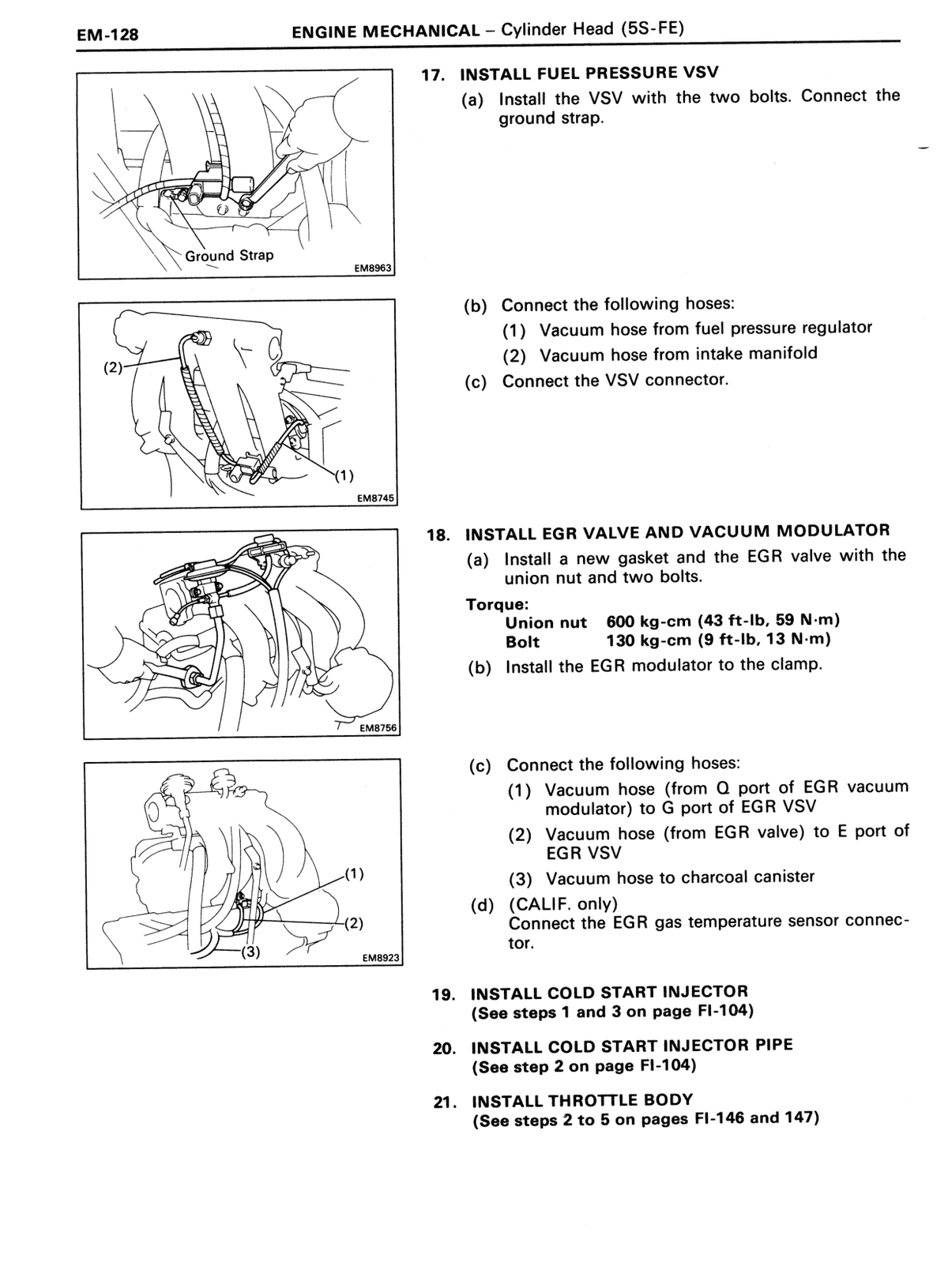

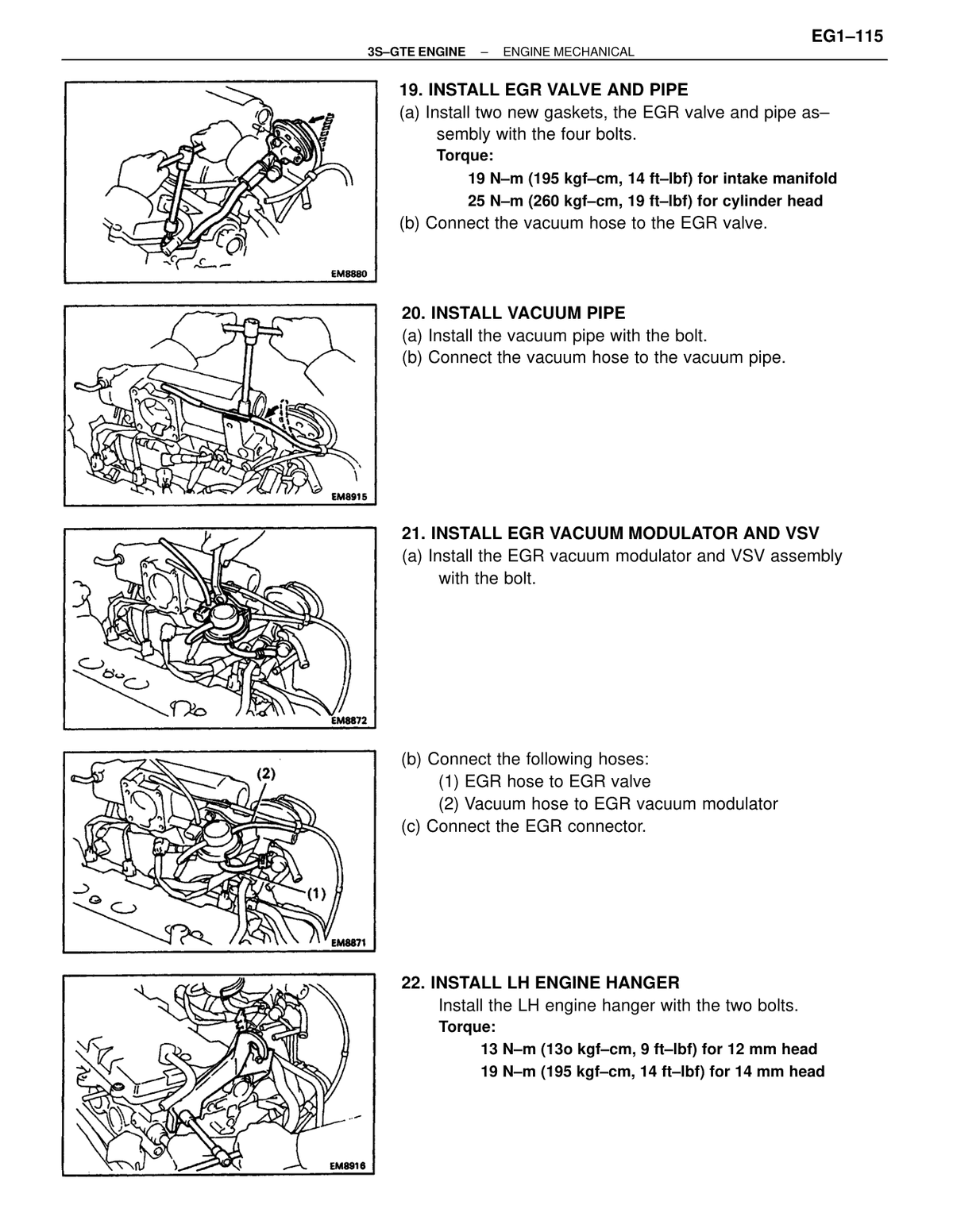

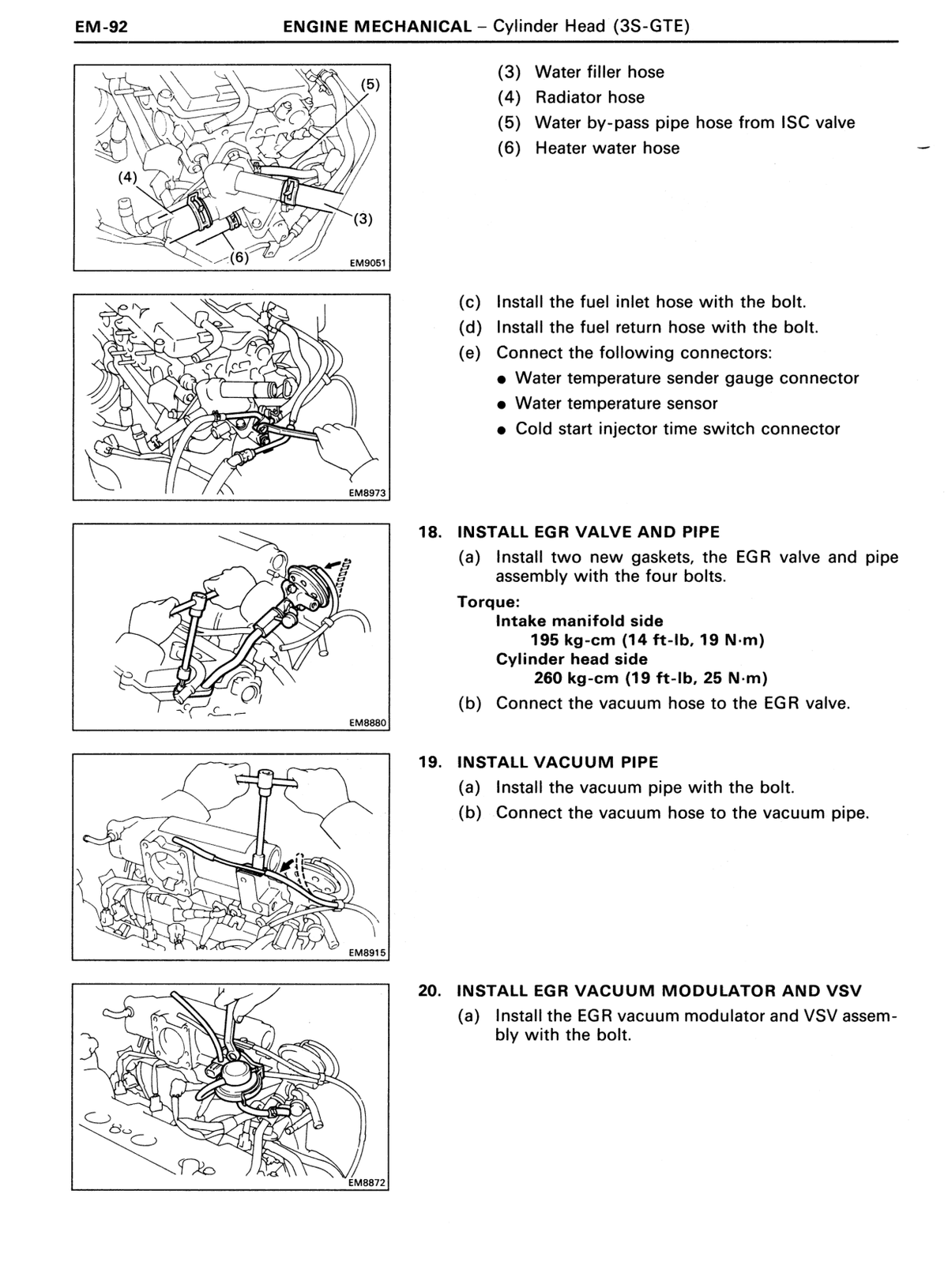

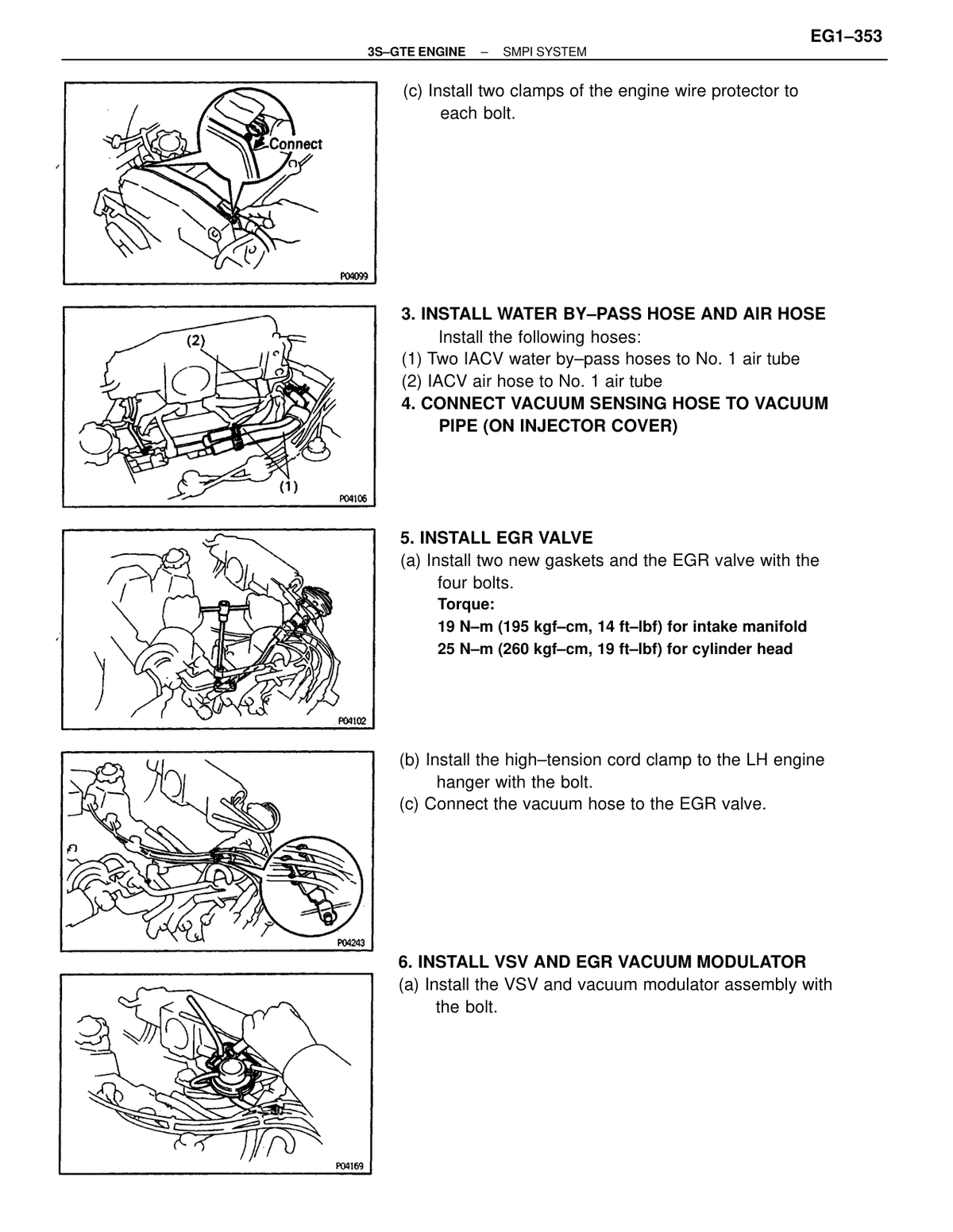

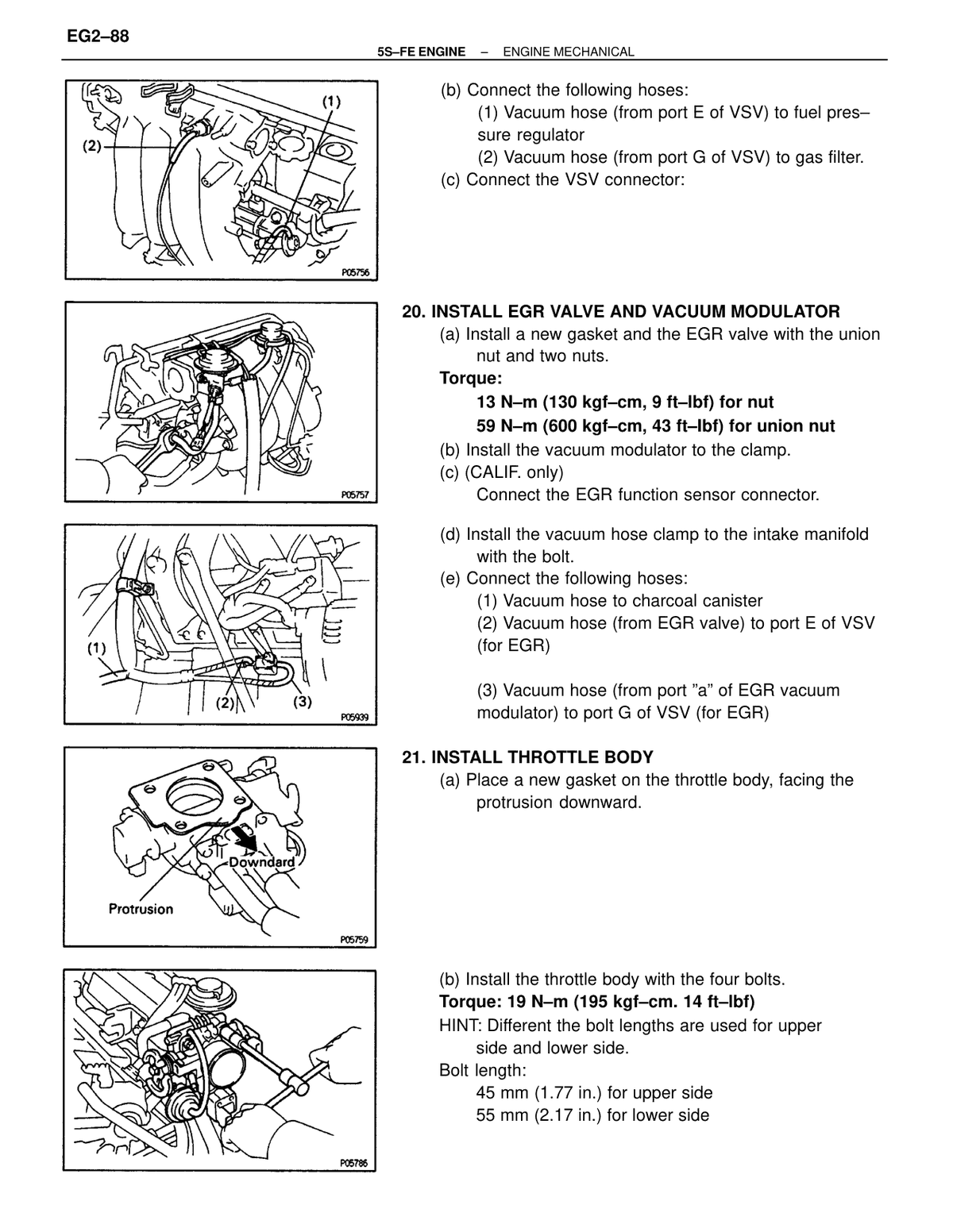

Engine — mechanical EGR valve and pipe — intake manifold side Step 18(a) 19 195 14 ↗ RM179U1_1991 · p122 OEM manual
Engine — mechanical EGR valve and pipe — cylinder head side Step 18(a) 25 260 19 ↗ RM179U1_1991 · p122 OEM manual

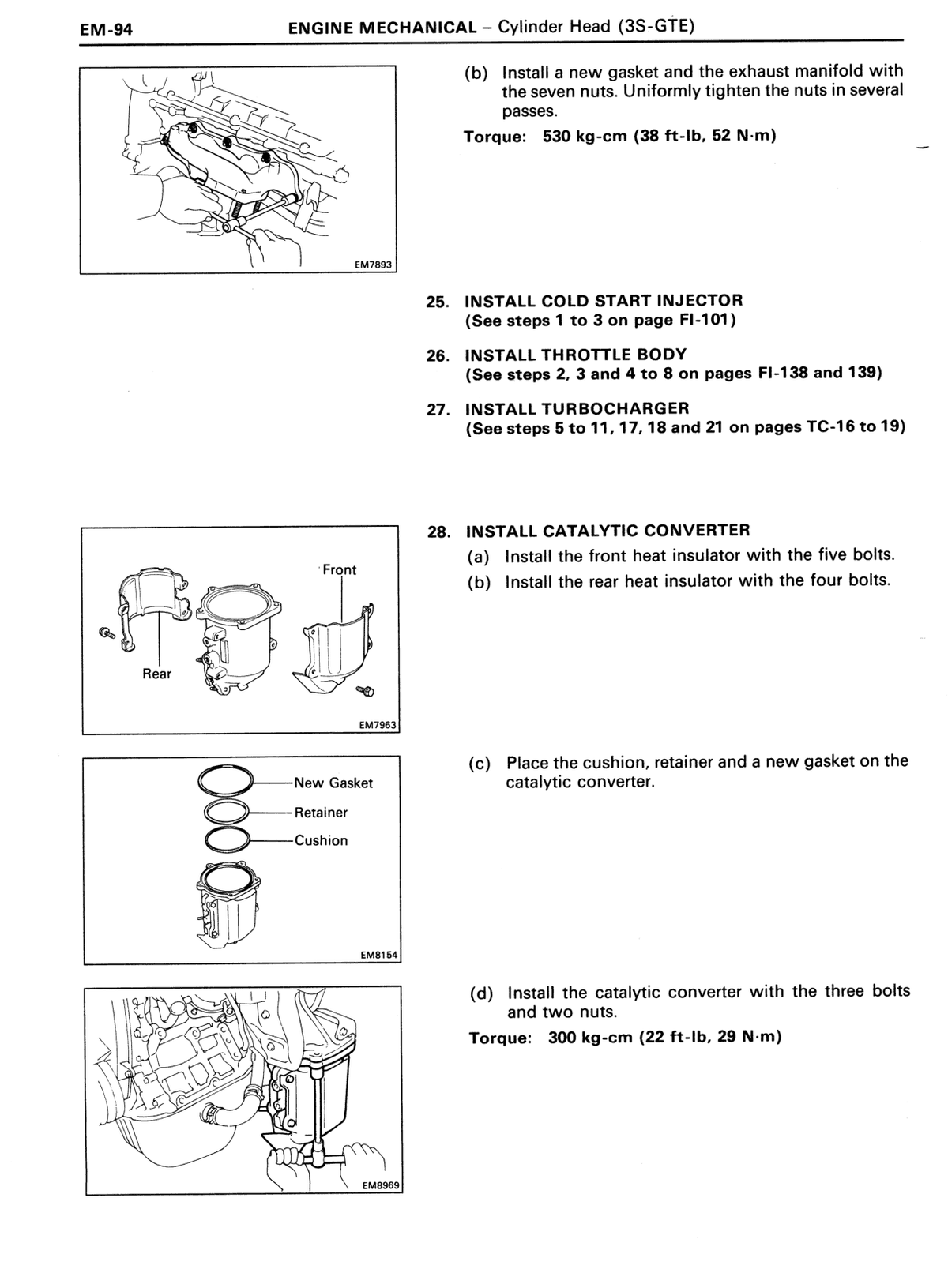

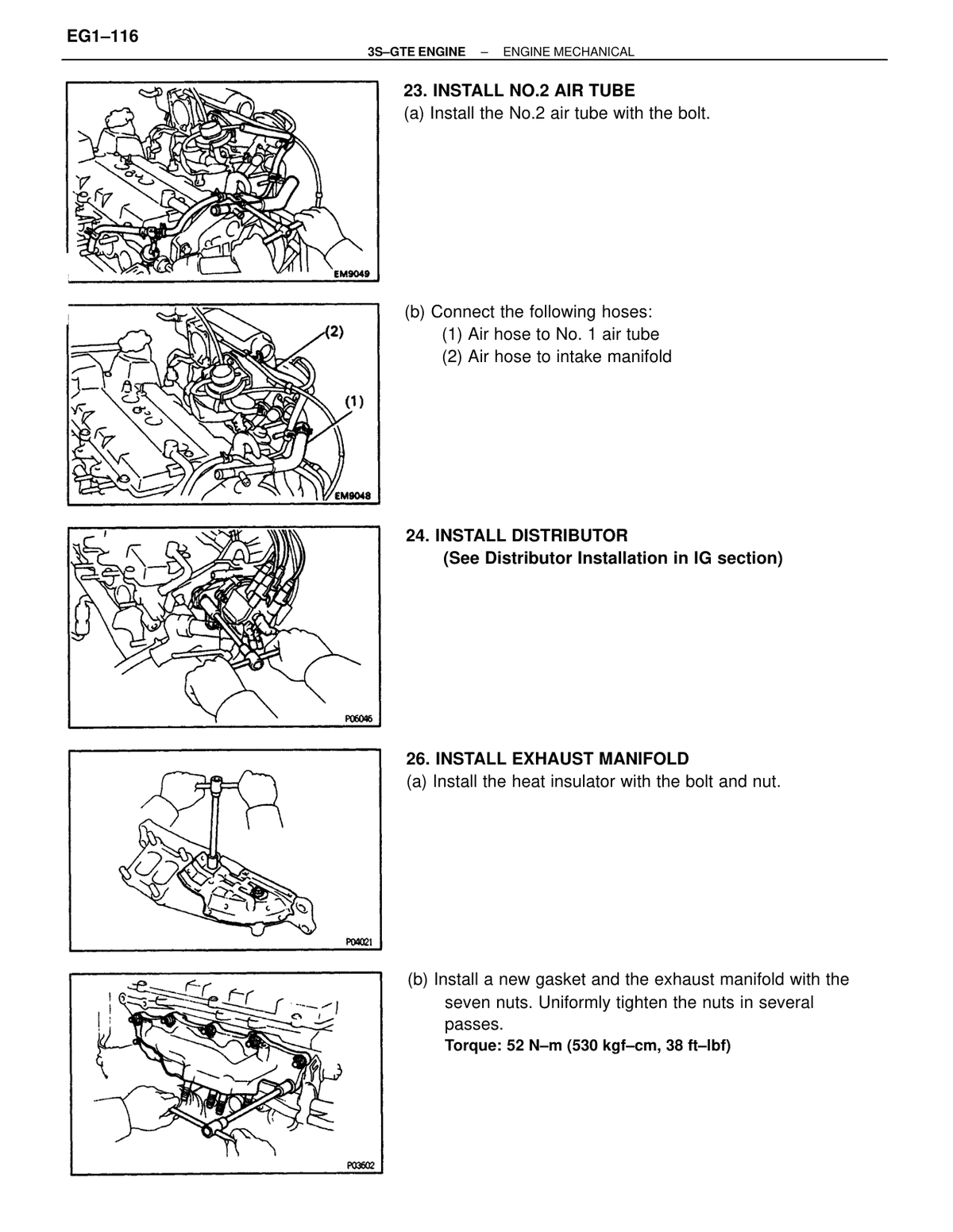

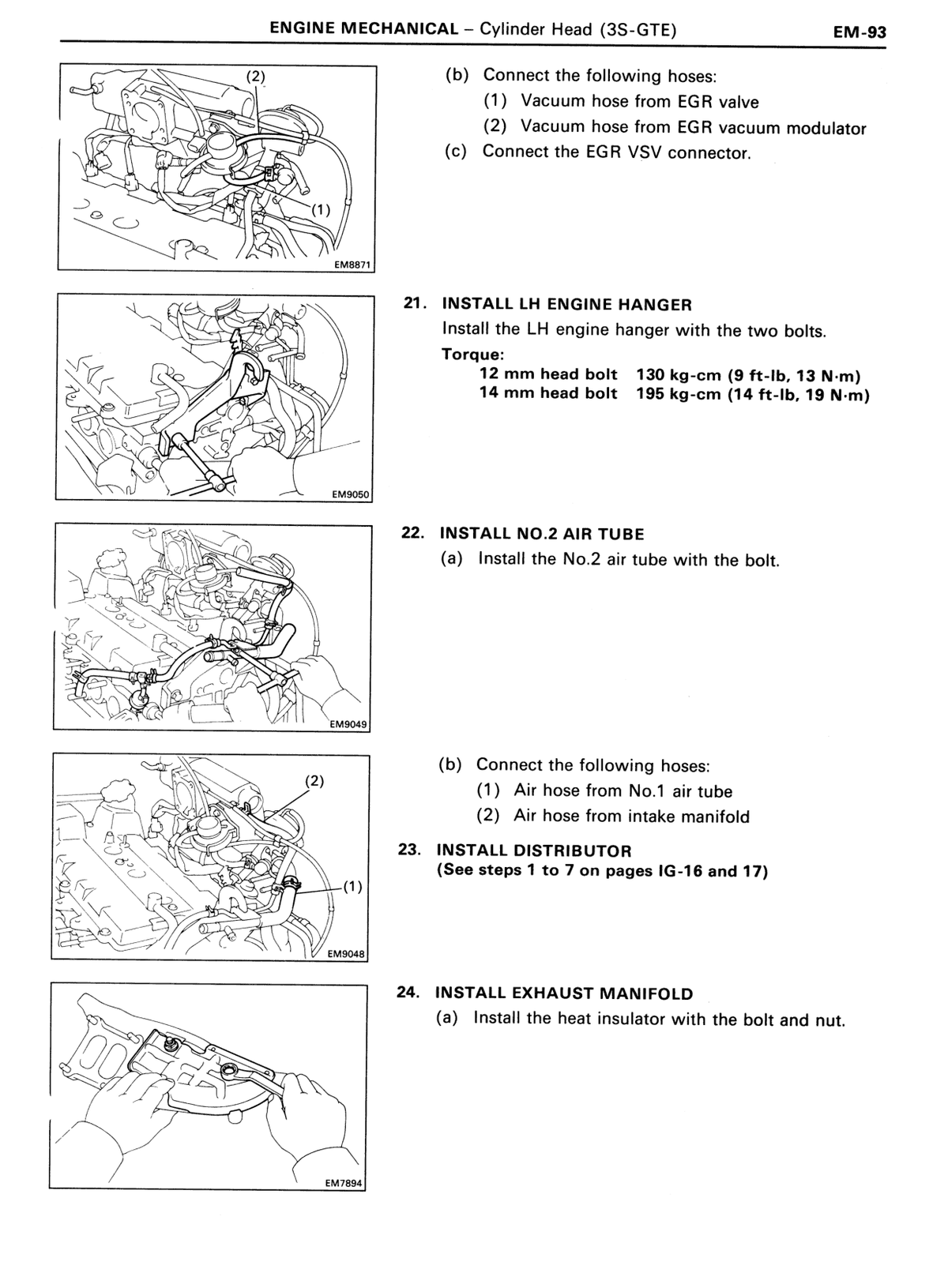

Engine — mechanical Exhaust manifold nuts Install with new gasket; uniformly tighten in several passes — step (b) exhaust manifold installation 52 530 38 ↗ RM179U1_1991 · p124 OEM manual

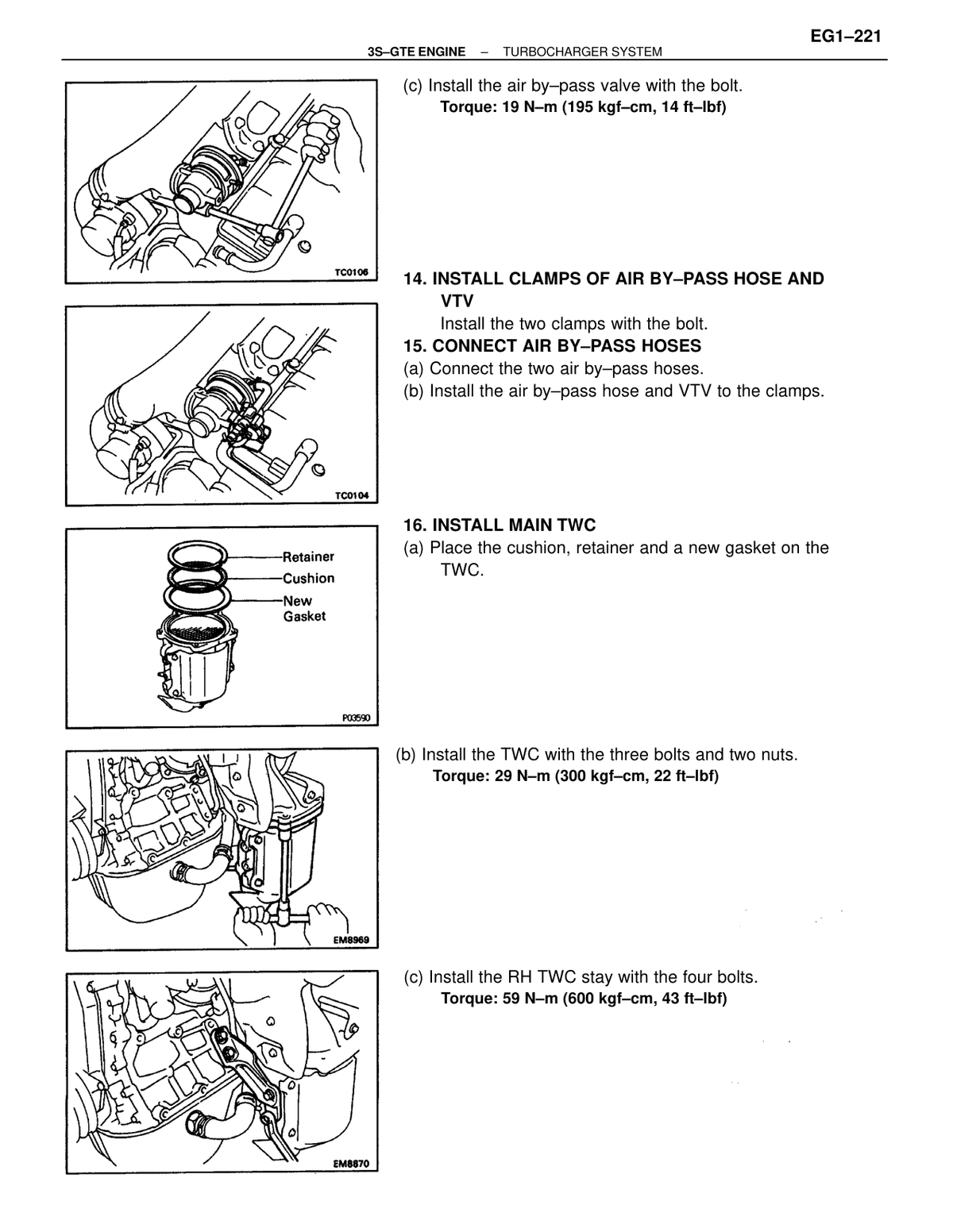

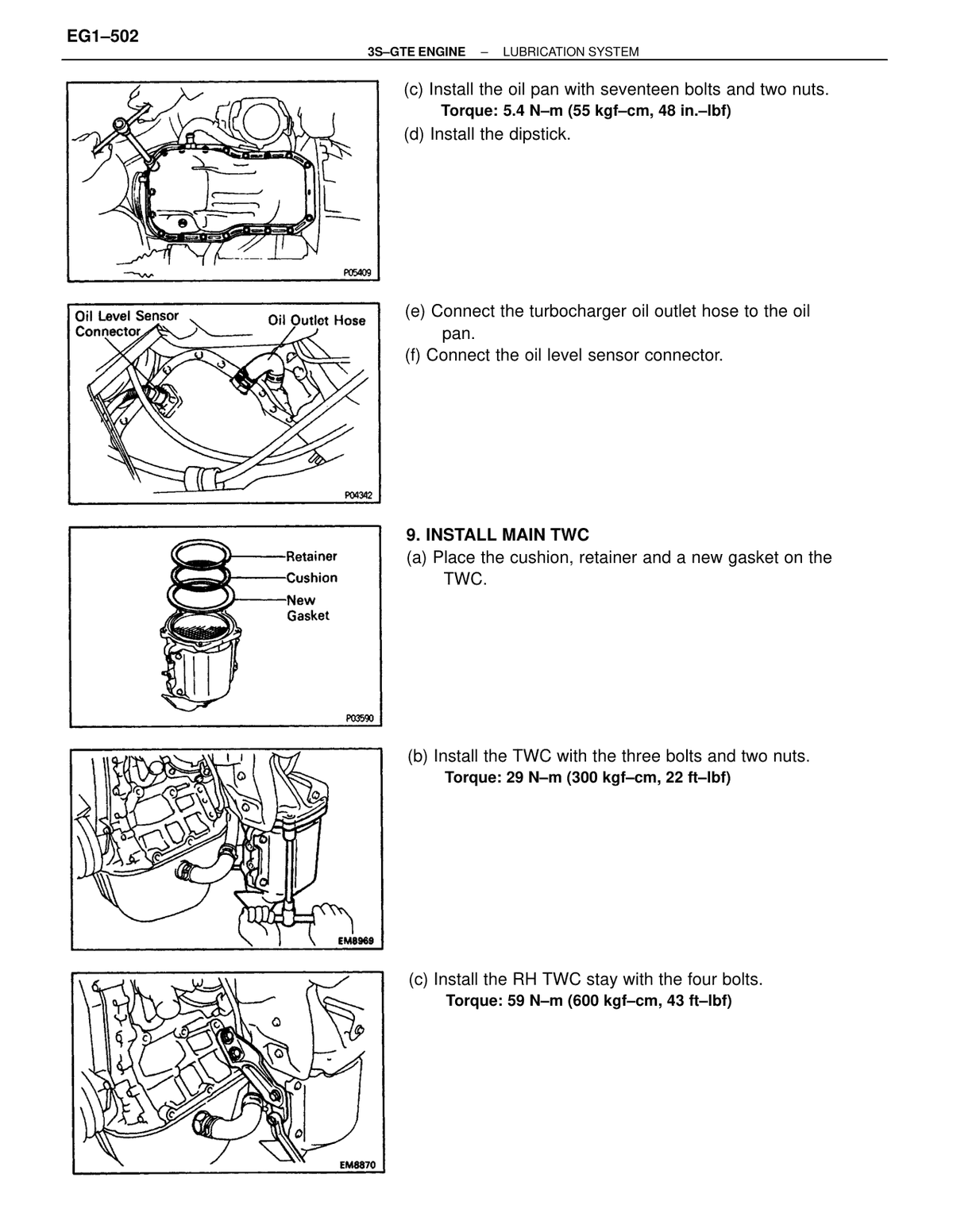

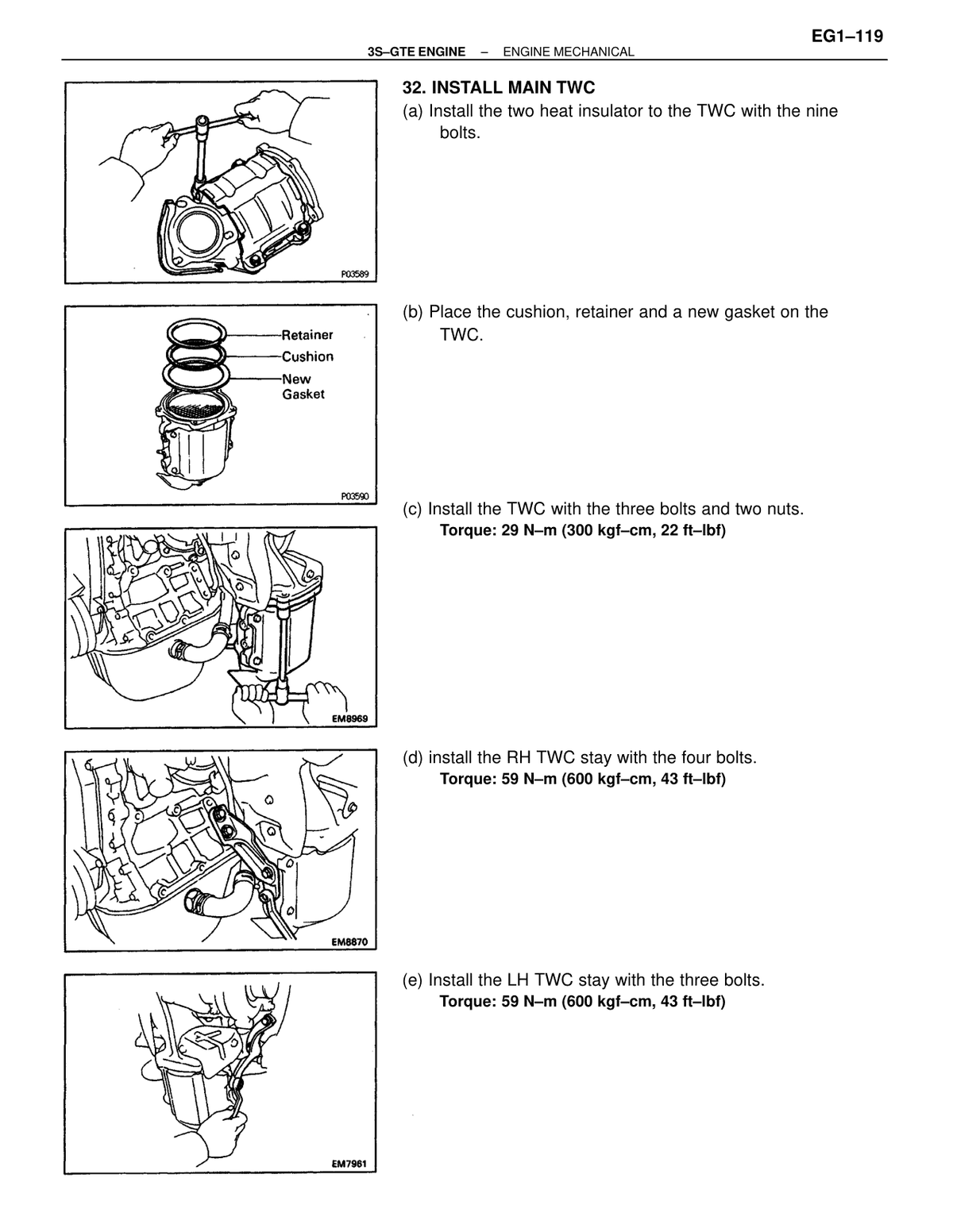

Engine — mechanical Catalytic converter bolts and nuts Three bolts and two nuts — step 28(d) 29 300 22 ↗ RM179U1_1991 · p124 OEM manual

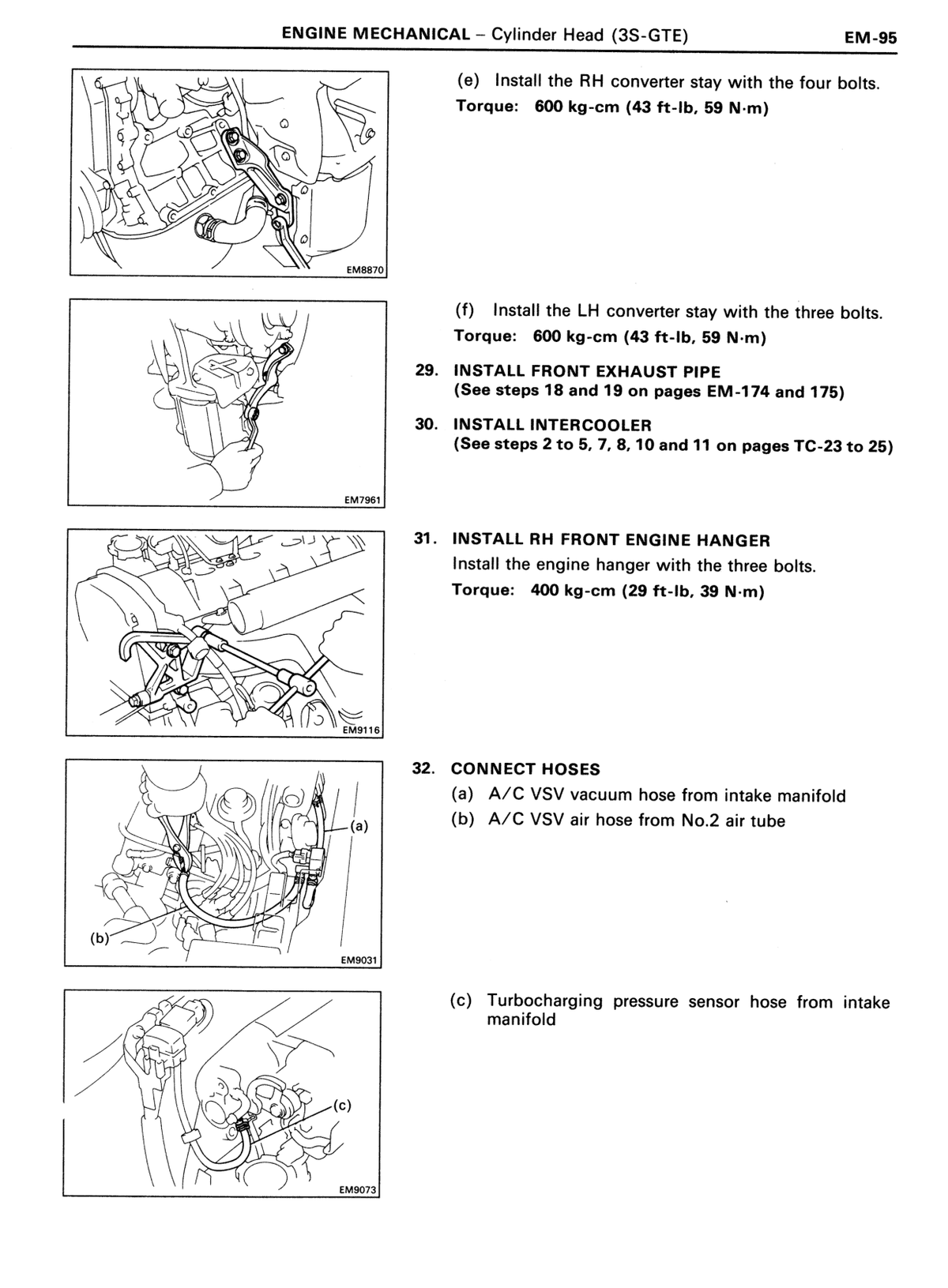

Engine — mechanical RH converter stay bolts (four bolts) Step 28(e) 59 600 43 ↗ RM179U1_1991 · p125 OEM manual
Engine — mechanical LH converter stay bolts (three bolts) Step 28(f) 59 600 43 ↗ RM179U1_1991 · p125 OEM manual

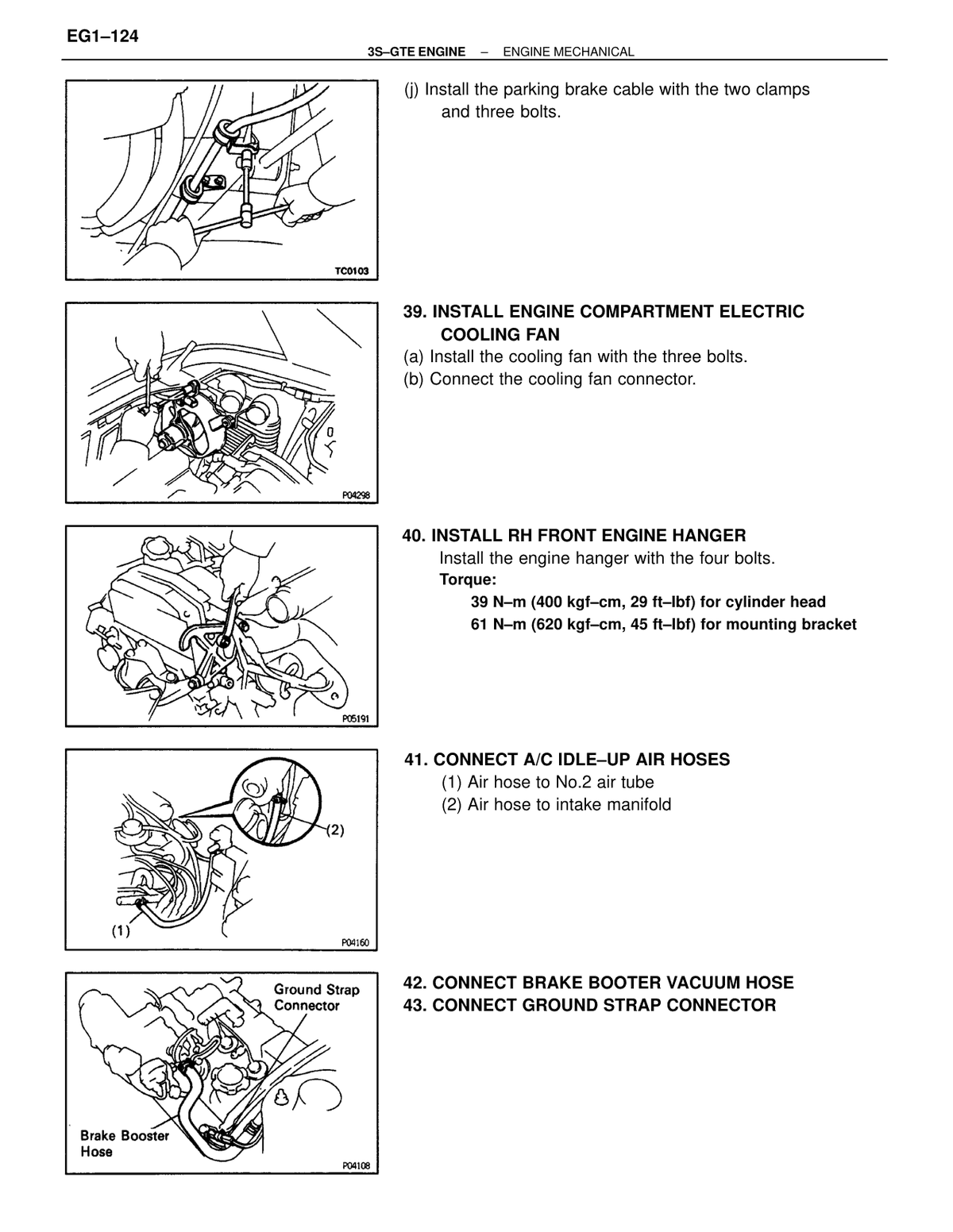

Engine — mechanical RH front engine hanger bolts (three bolts) Step 31 39 400 29 ↗ RM179U1_1991 · p125 OEM manual

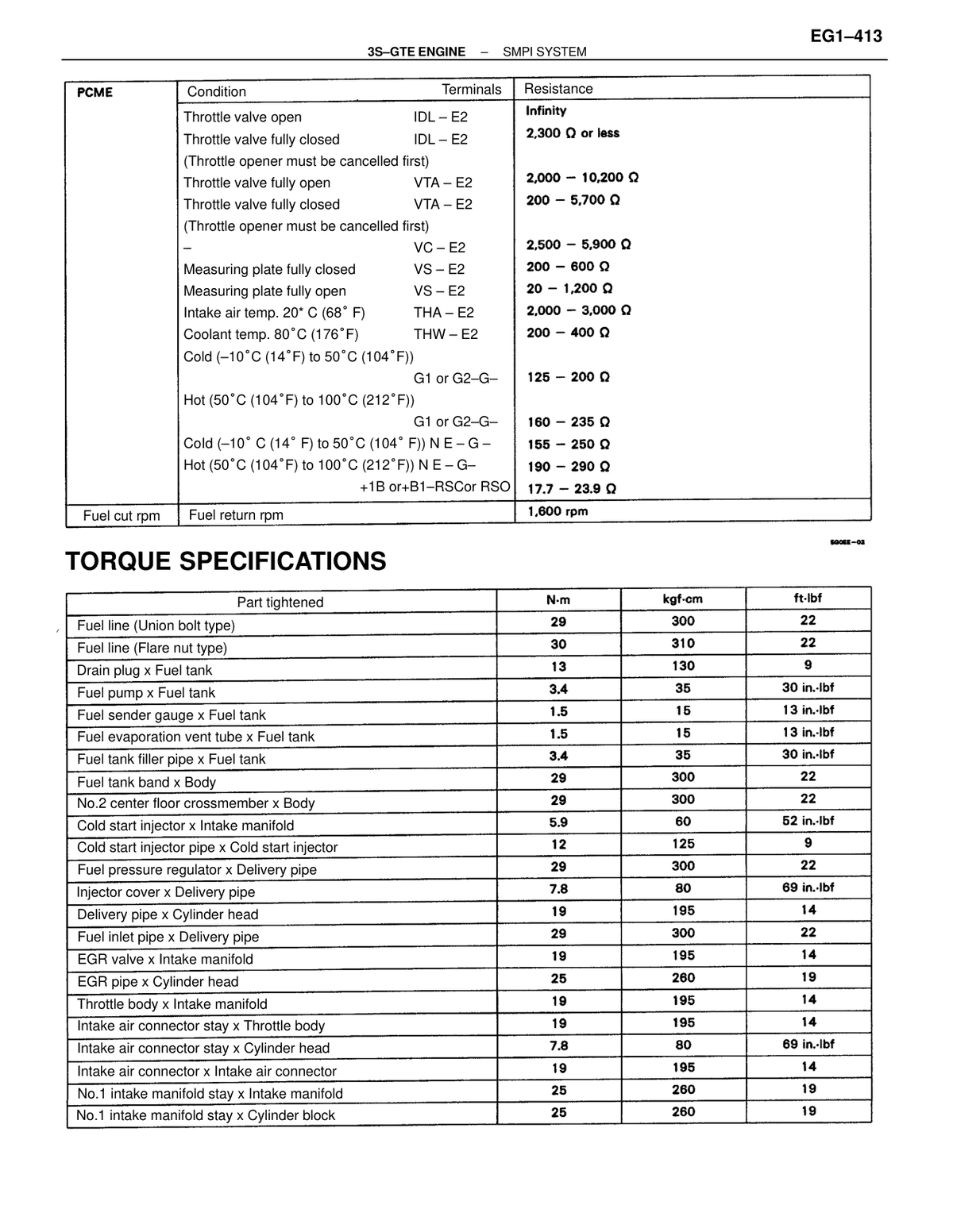

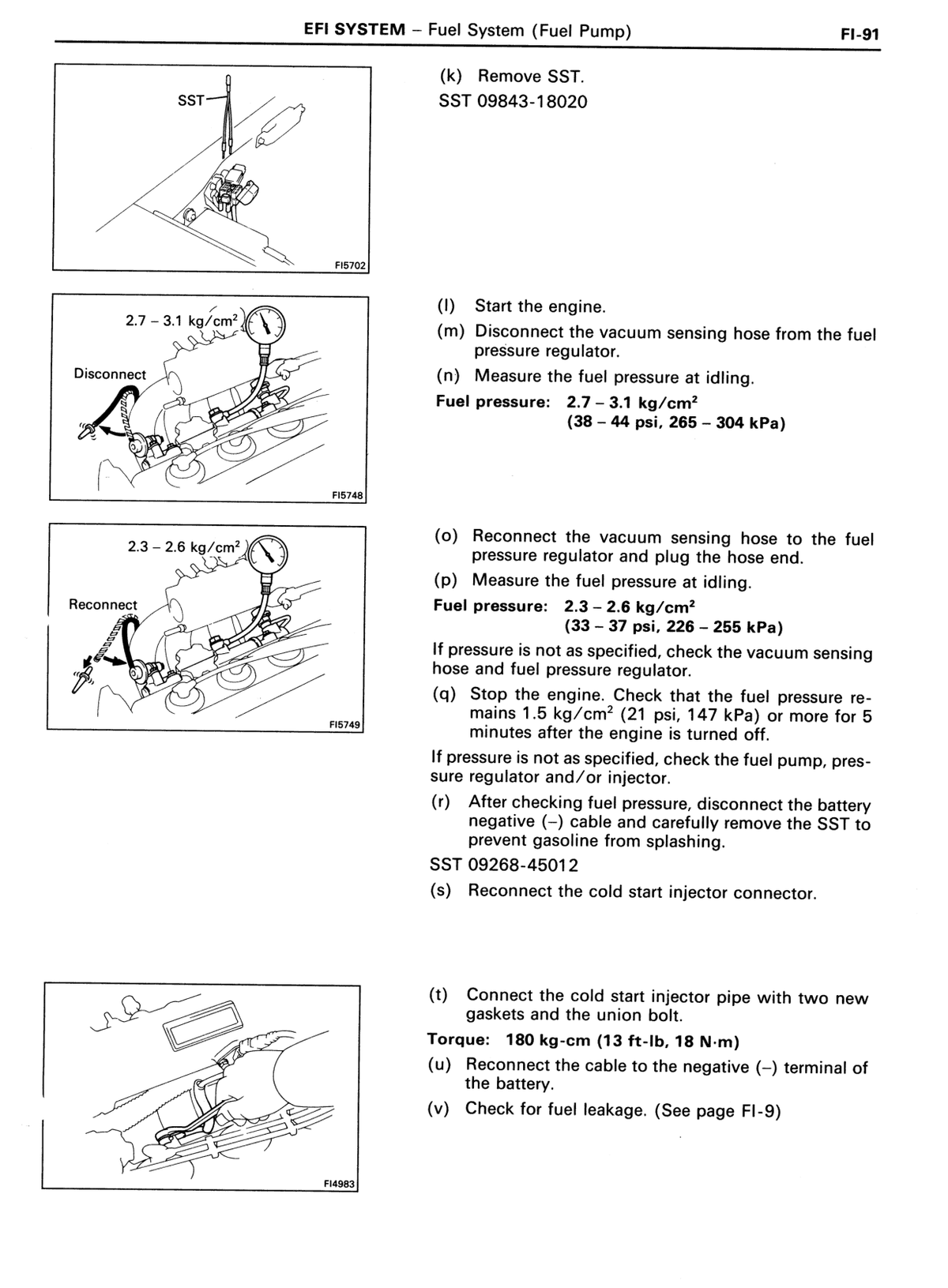

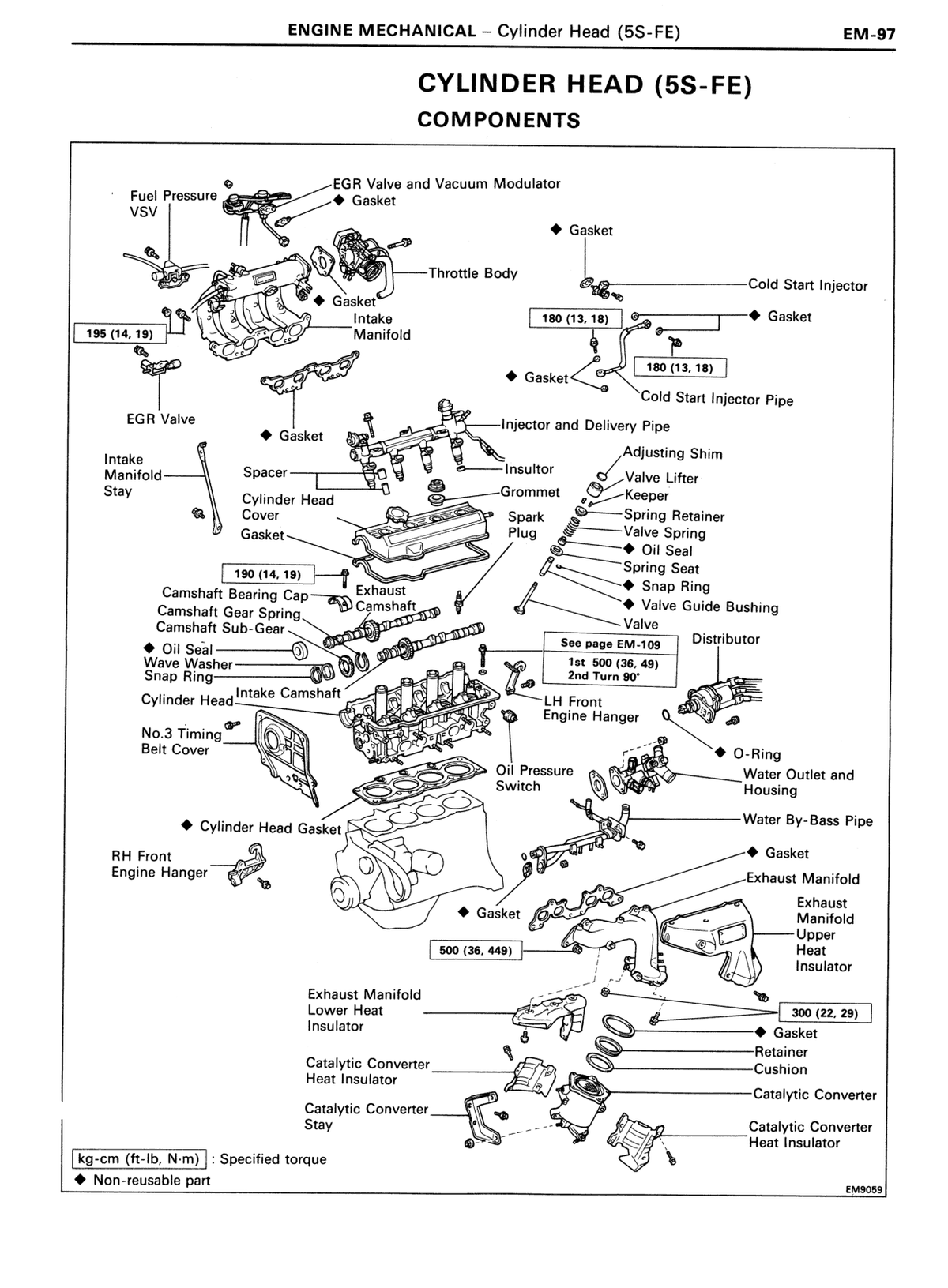

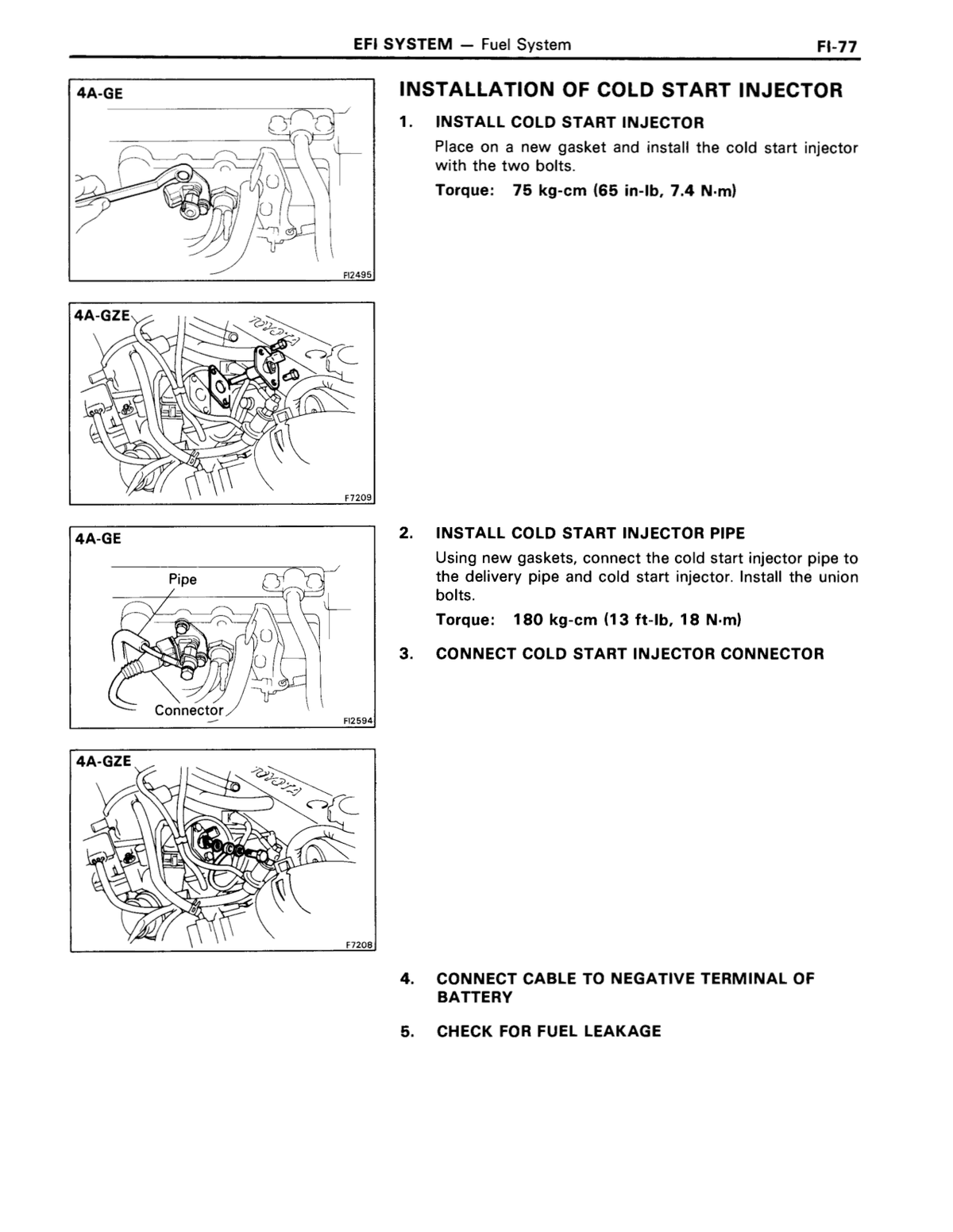

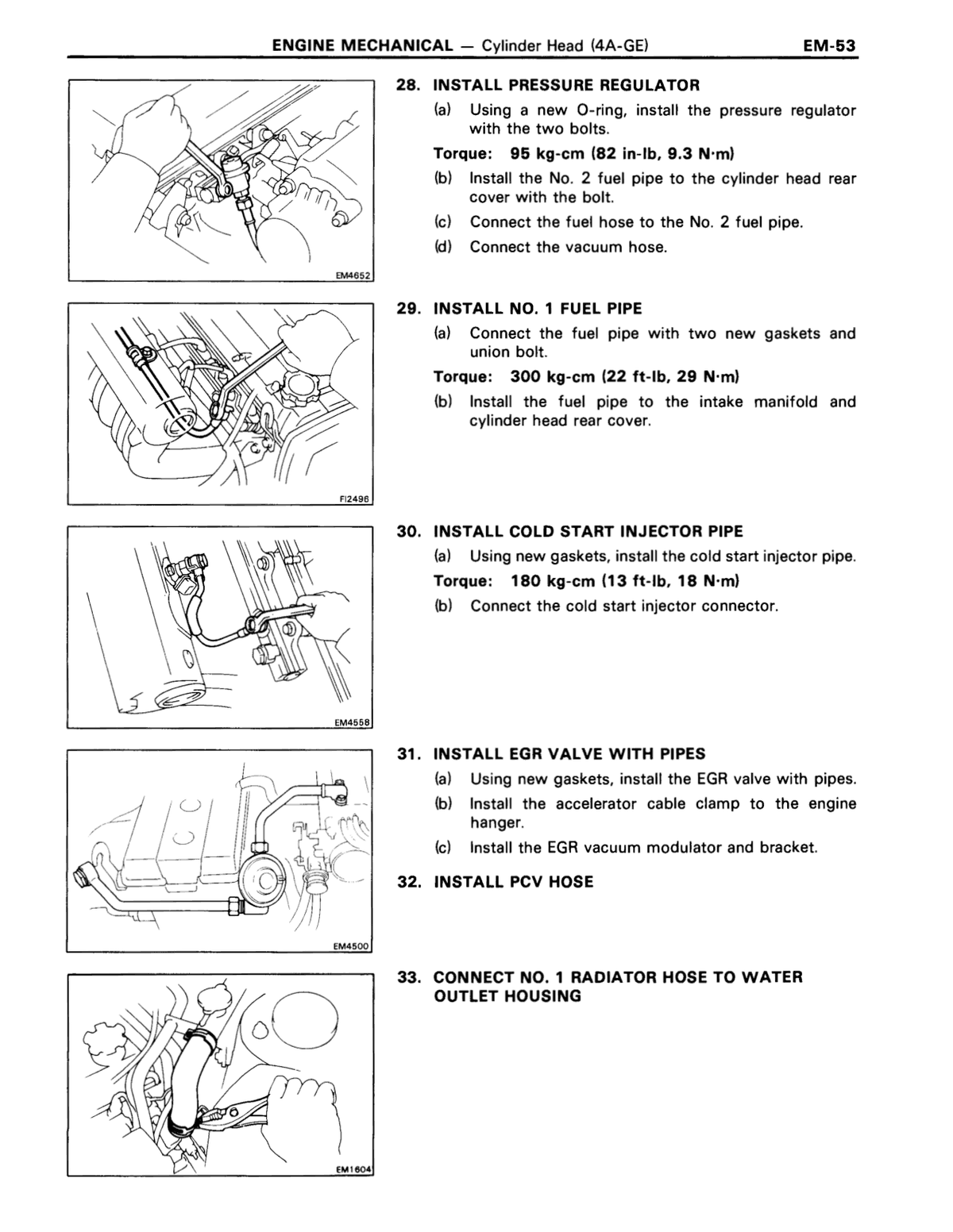

Engine — mechanical Cold Start Injector Pipe 180 (13, 18) — two instances shown 18 180 13 ↗ RM179U1_1991 · p127 OEM manual

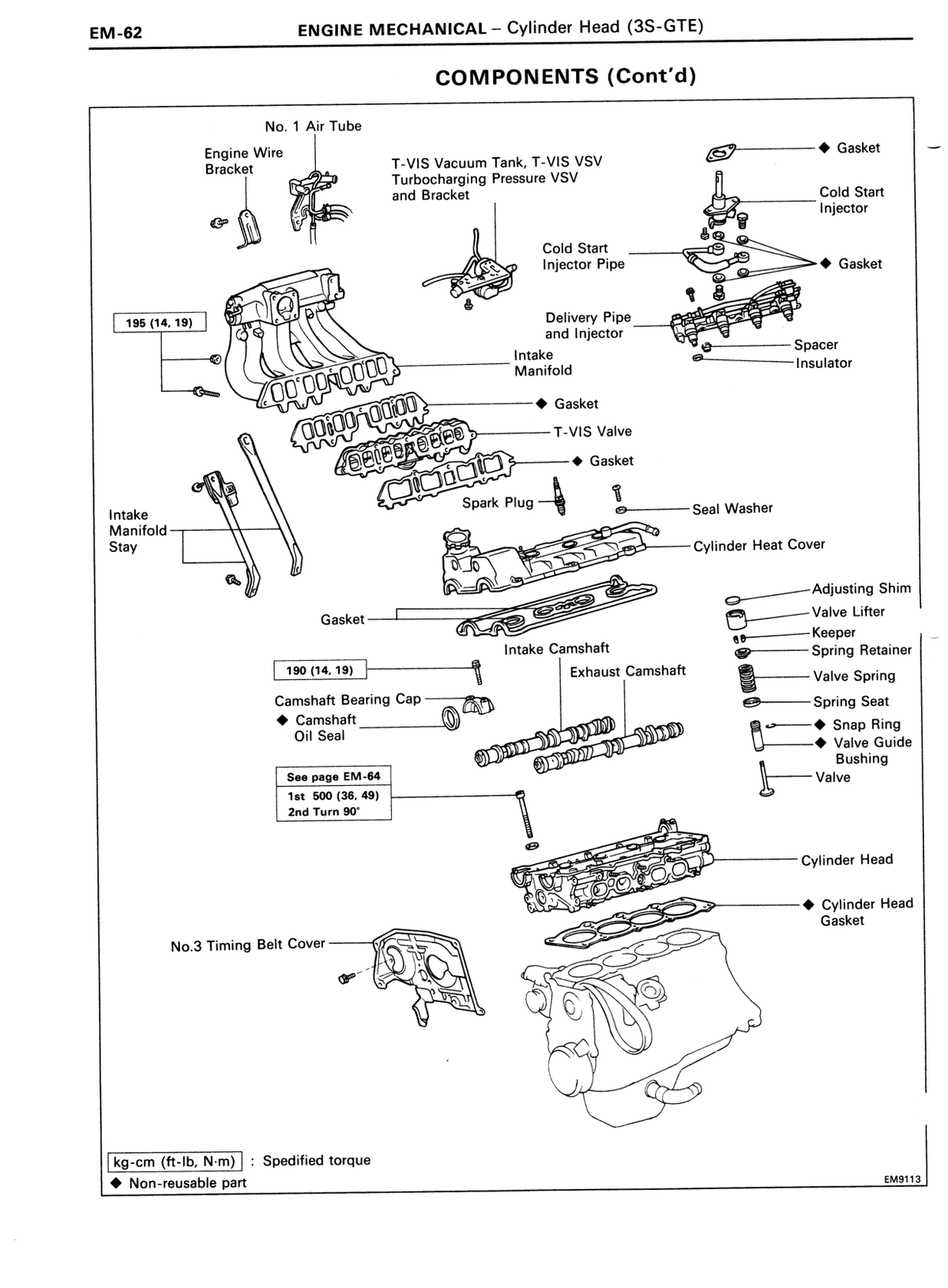

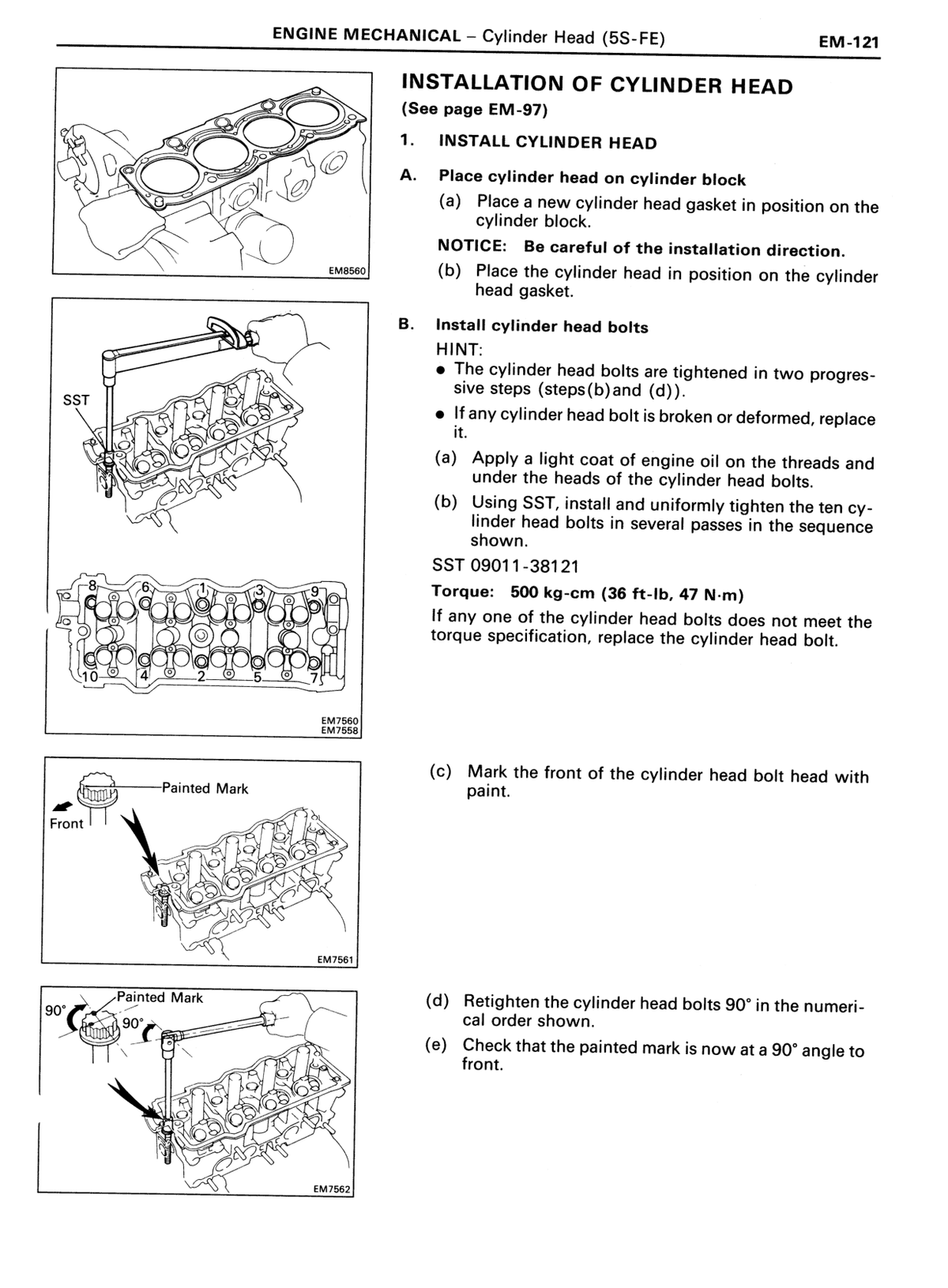

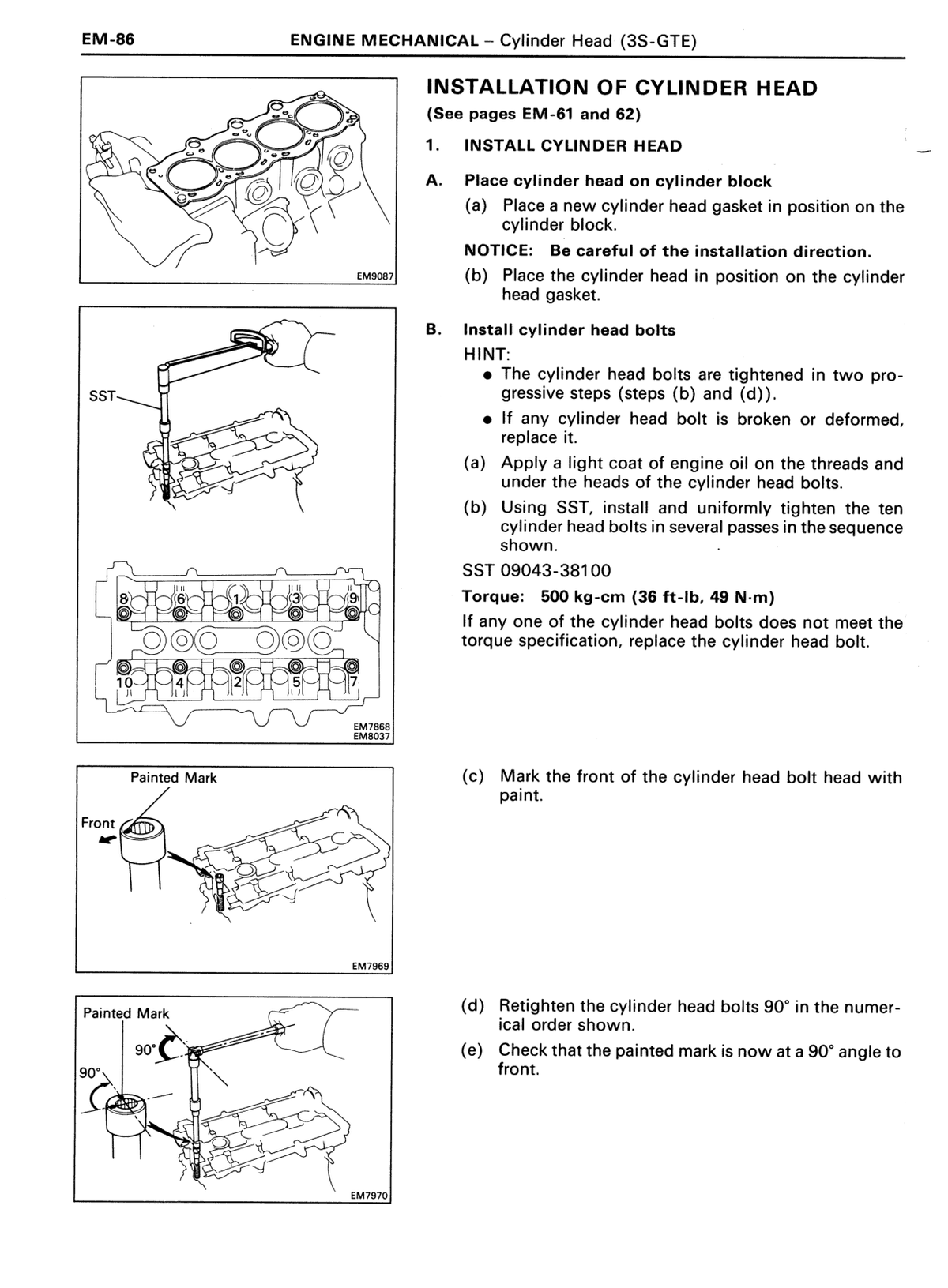

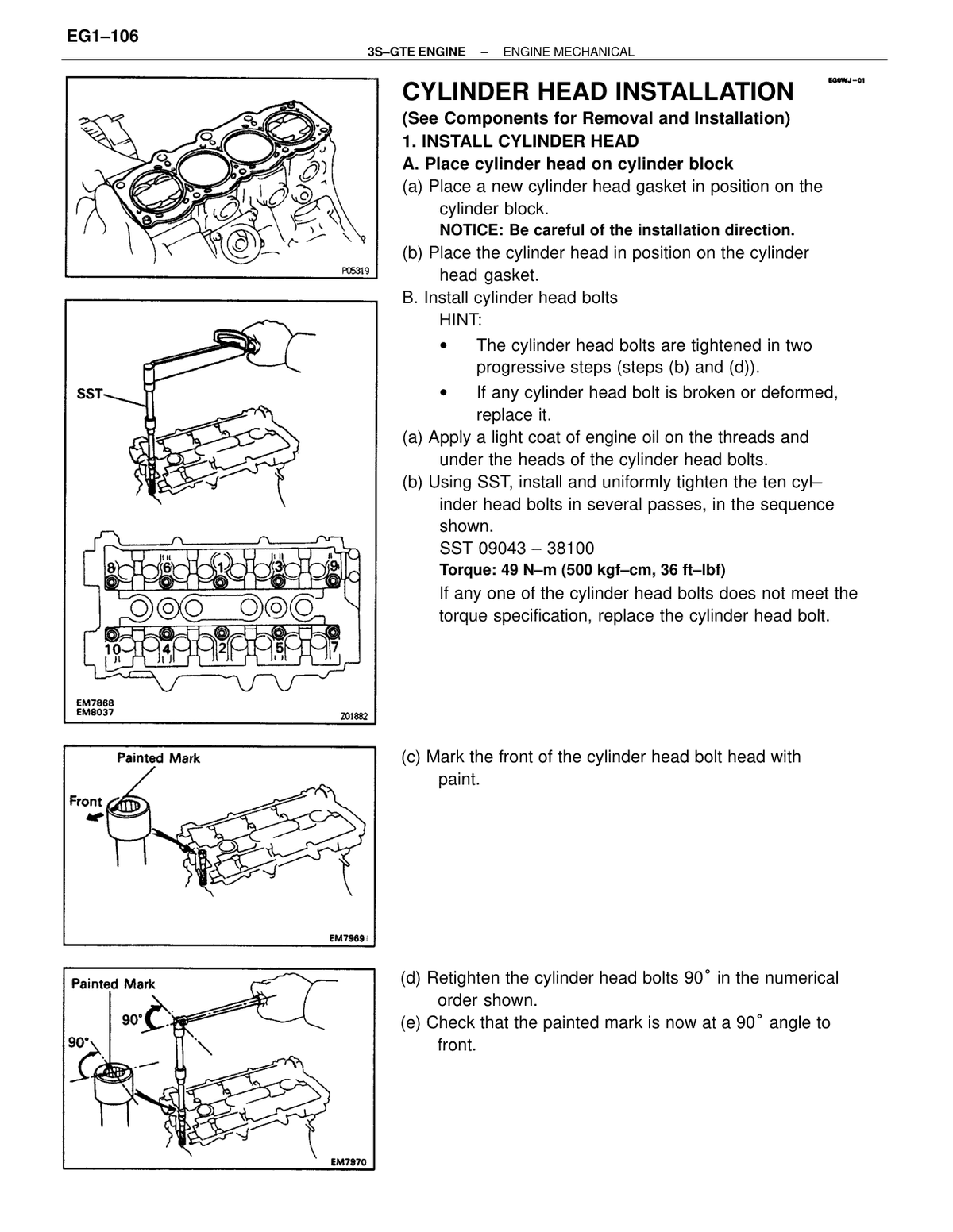

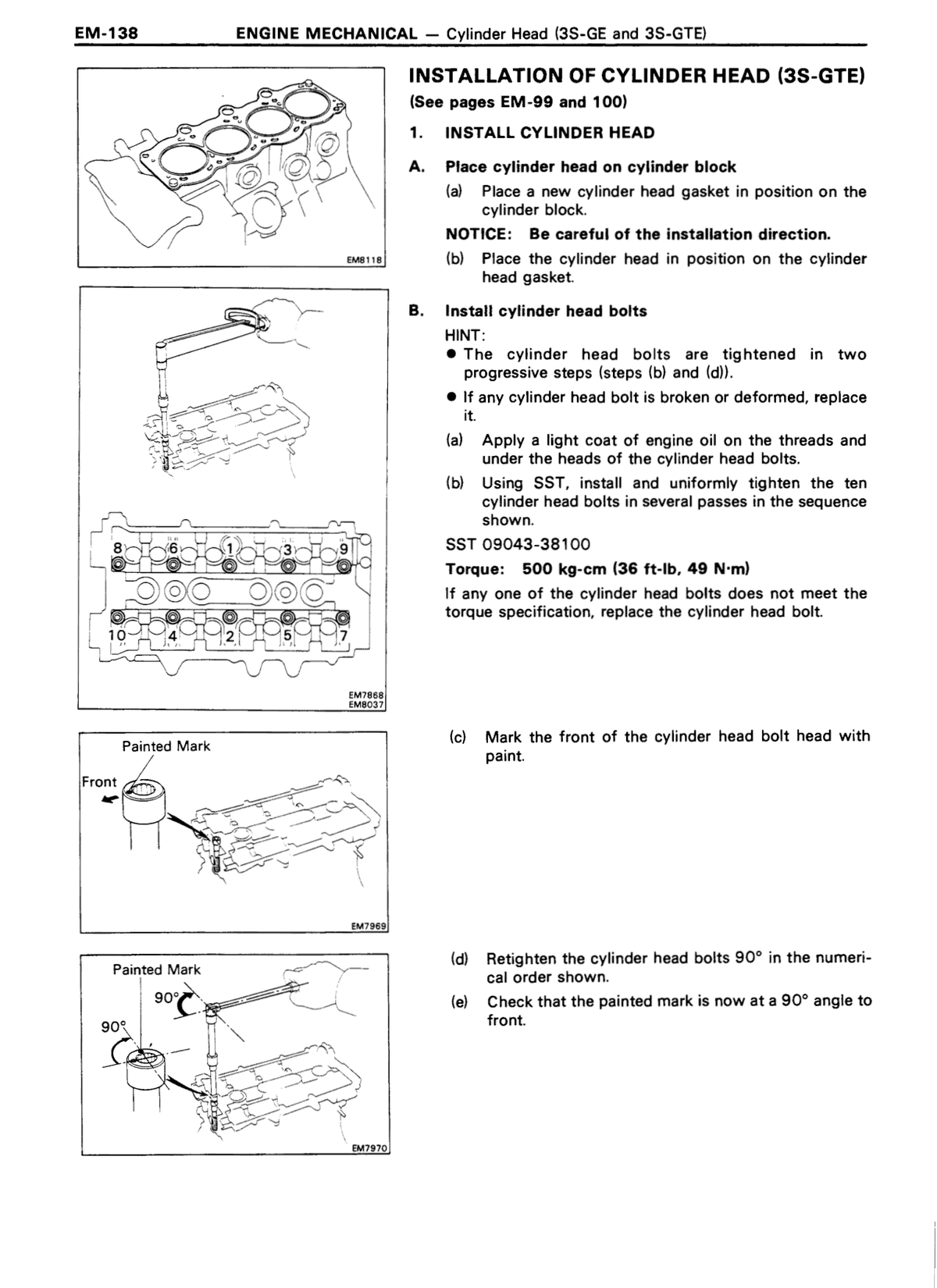

Engine — mechanical Cylinder Head Bolts — 1st pass 1st 500 (36, 49); See page EM-109 49 500 36 ↗ RM179U1_1991 · p127 OEM manual
Engine — mechanical Cylinder Head Bolts — 2nd pass 2nd Turn 90°; See page EM-109 — — — ↗ RM179U1_1991 · p127 OEM manual
Engine — mechanical Exhaust Manifold to Cylinder Head 500 (36, 449) — 500 36 ↗ RM179U1_1991 · p127 OEM manual
Engine — mechanical Catalytic Converter / Exhaust Manifold lower joint 300 (22, 29) 29 300 22 ↗ RM179U1_1991 · p127 OEM manual
Engine — mechanical Cylinder head bolts Step (b) initial pass; then retighten 90° in step (d) 47 500 36 ↗ RM179U1_1991 · p151 OEM manual

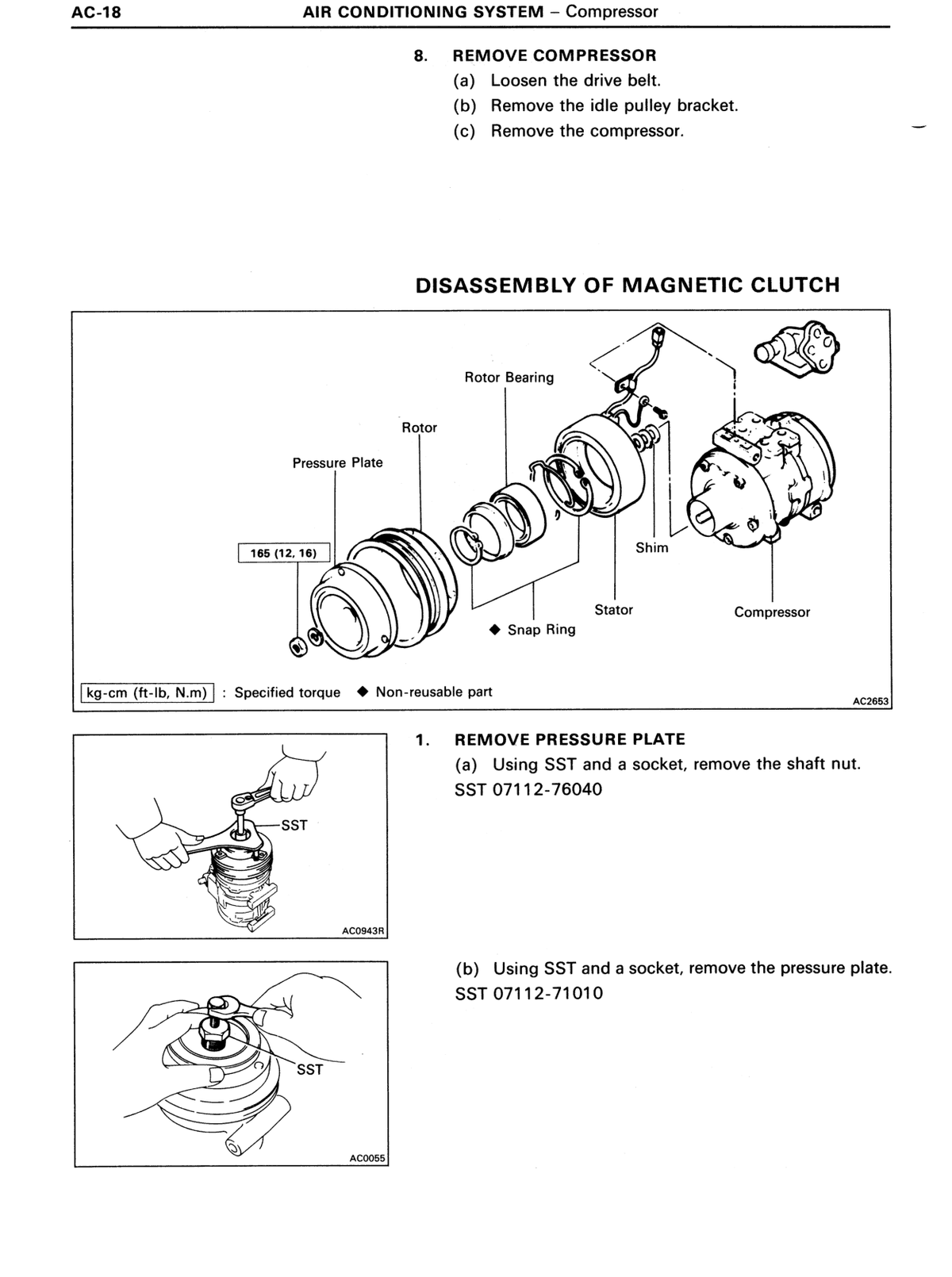

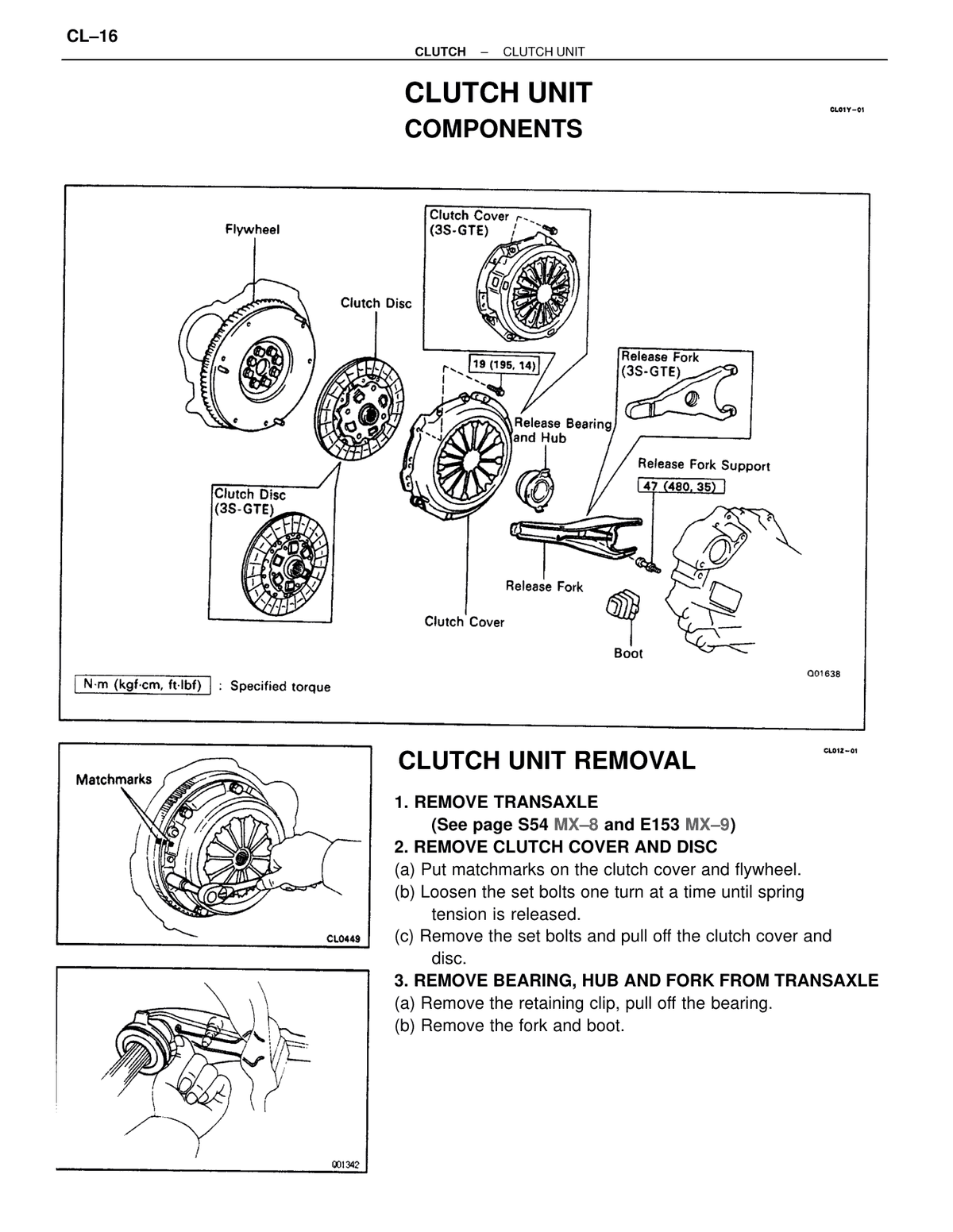

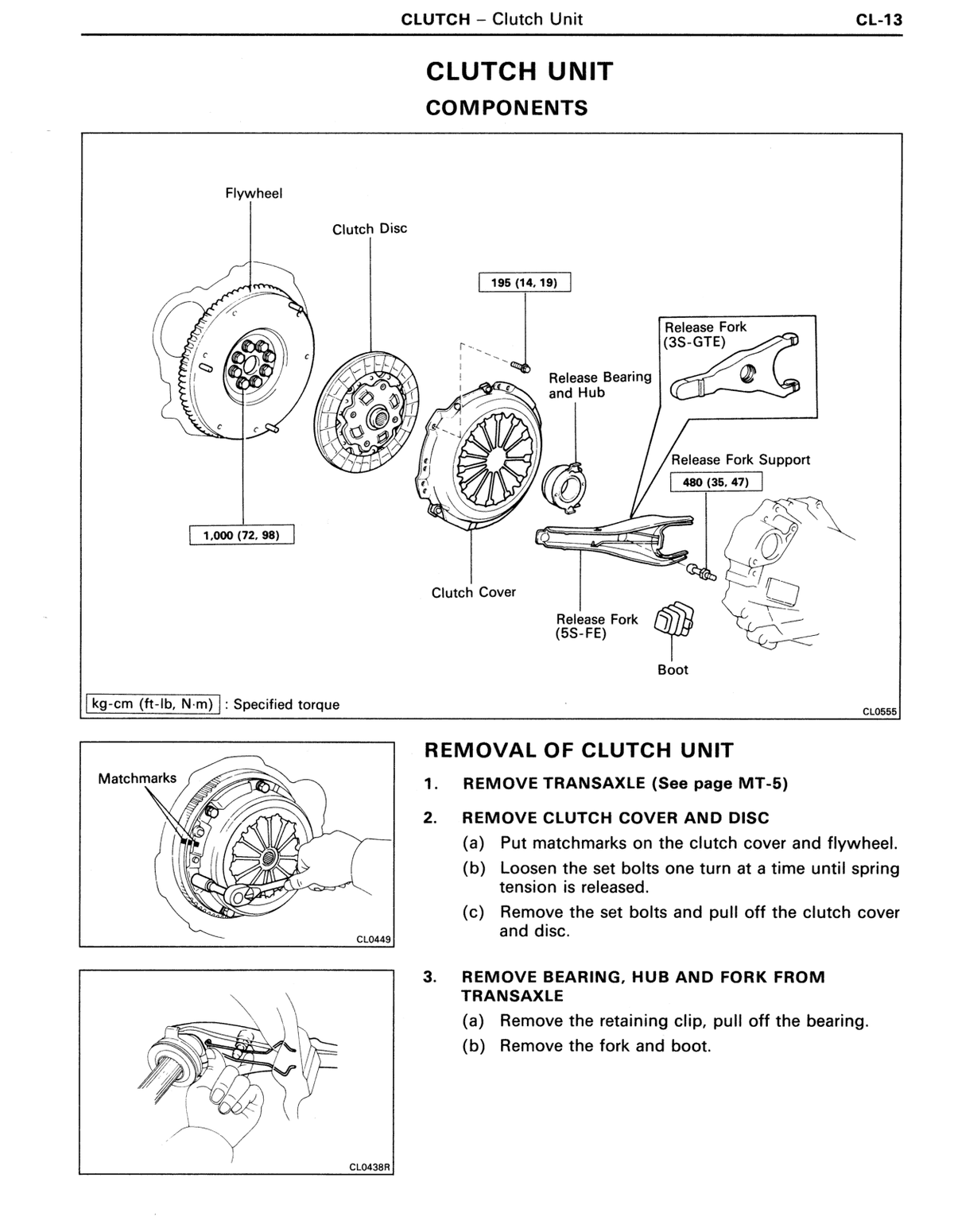

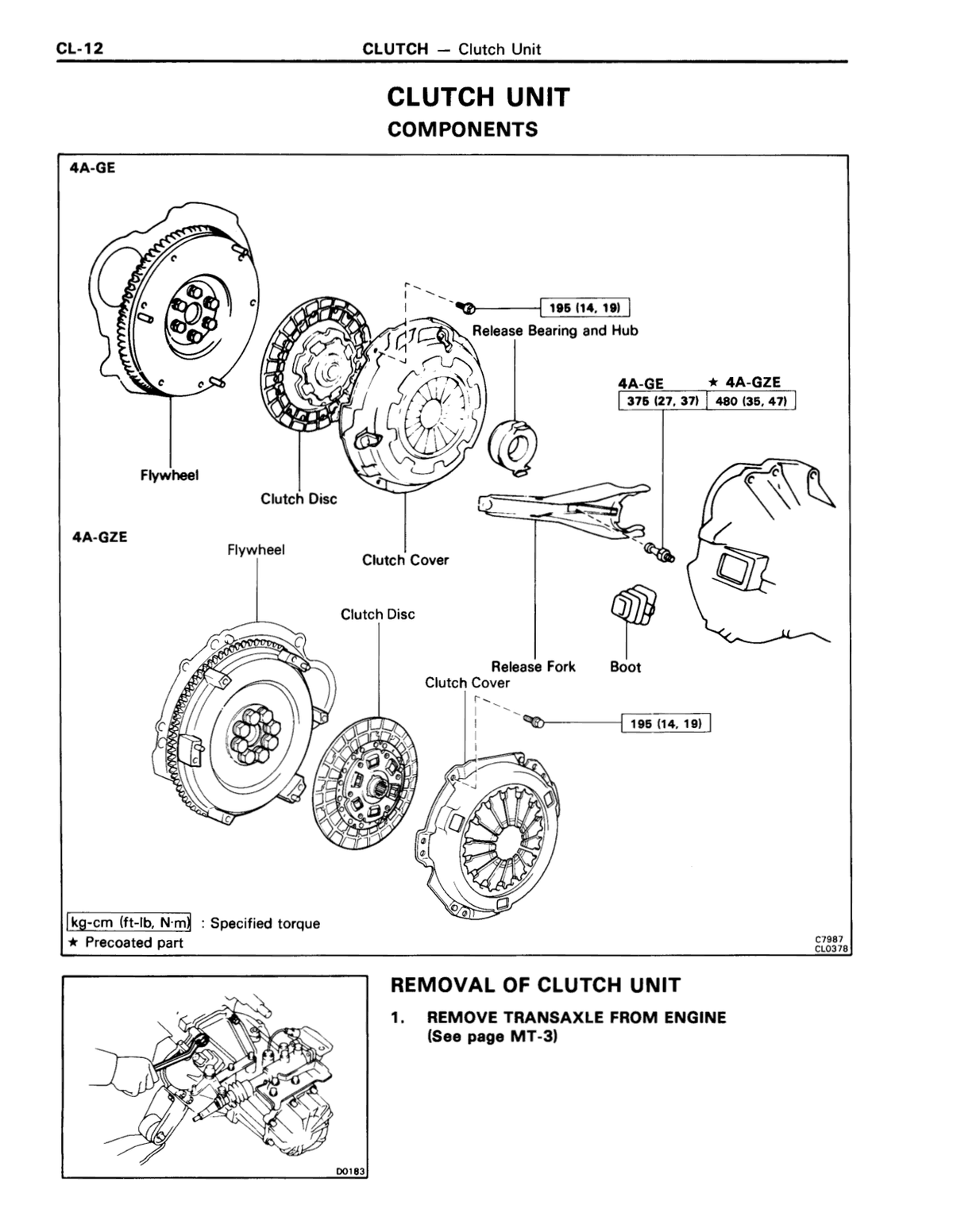

Clutch Pressure Plate shaft nut 165 (12, 16) — shown on exploded diagram for pressure plate 16 165 12 ↗ RM179U1_1991 · p1515 OEM manual

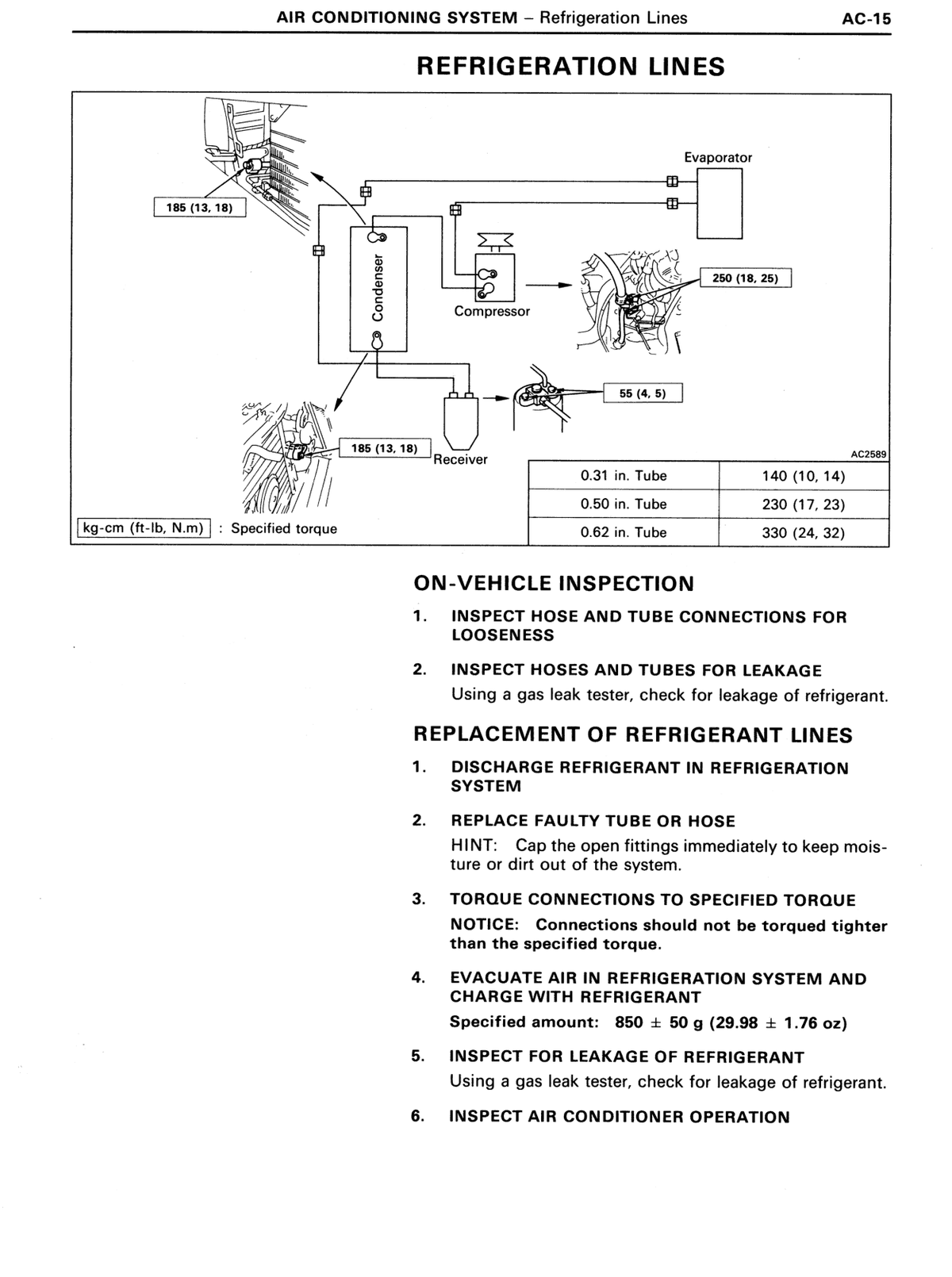

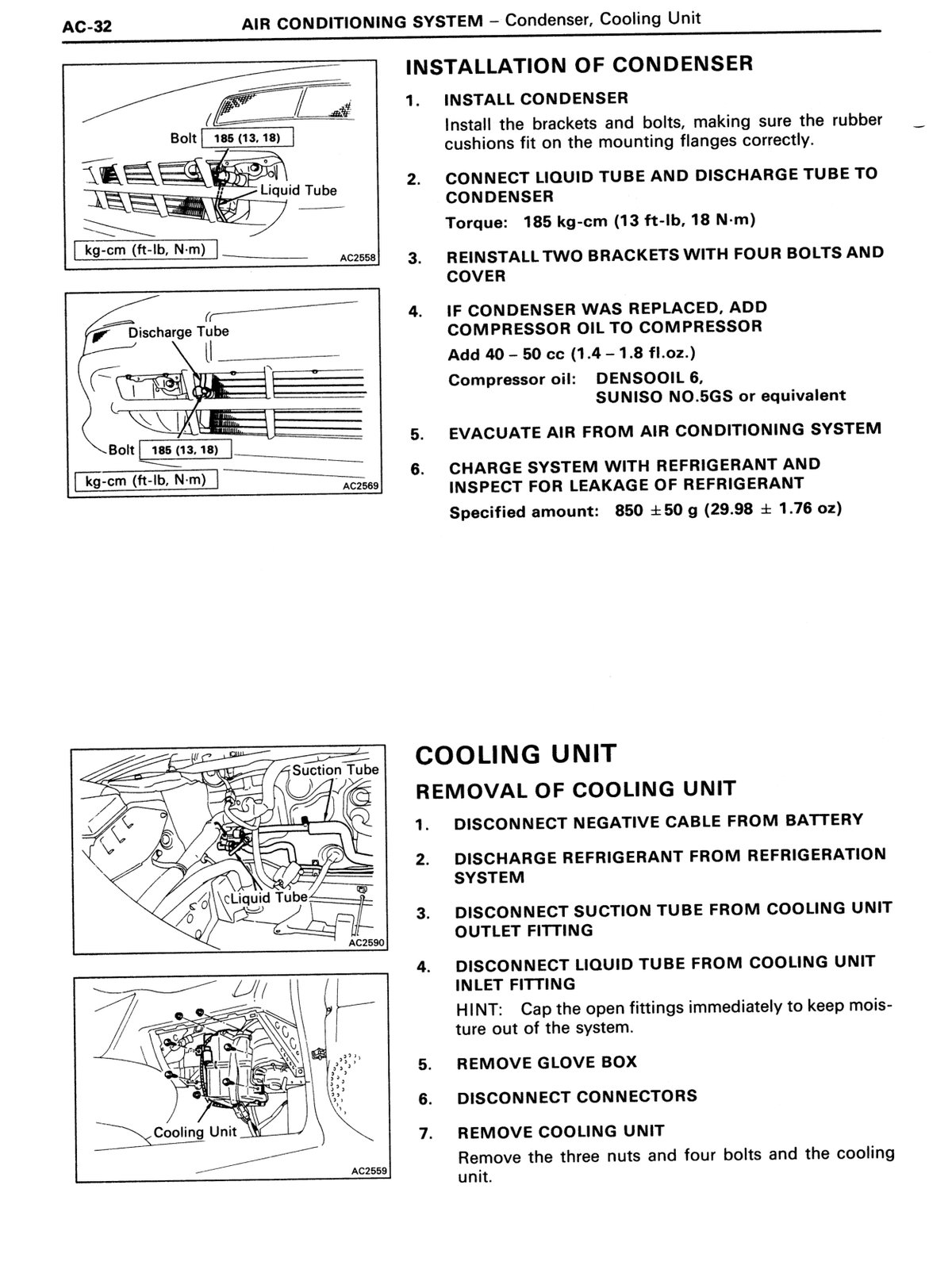

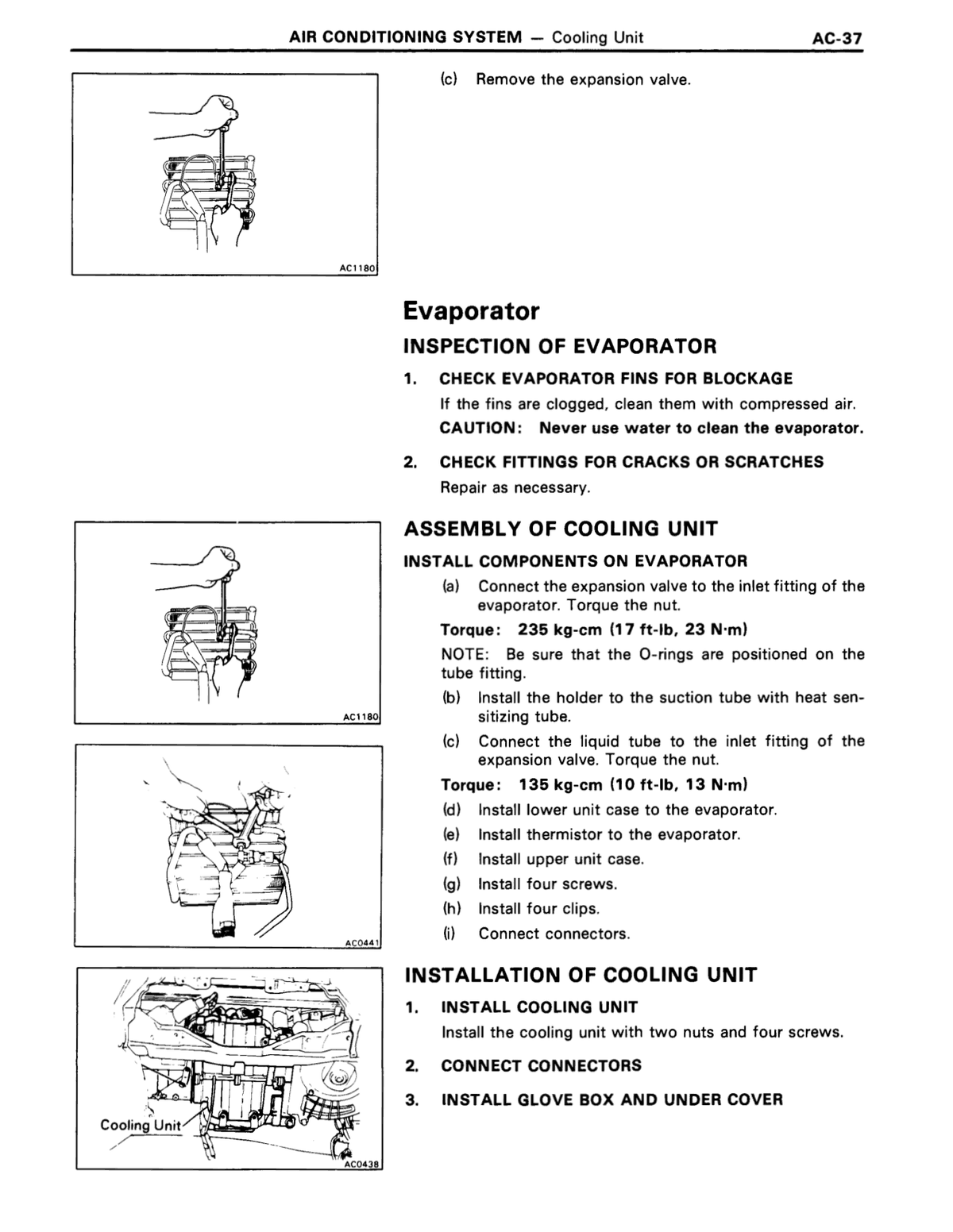

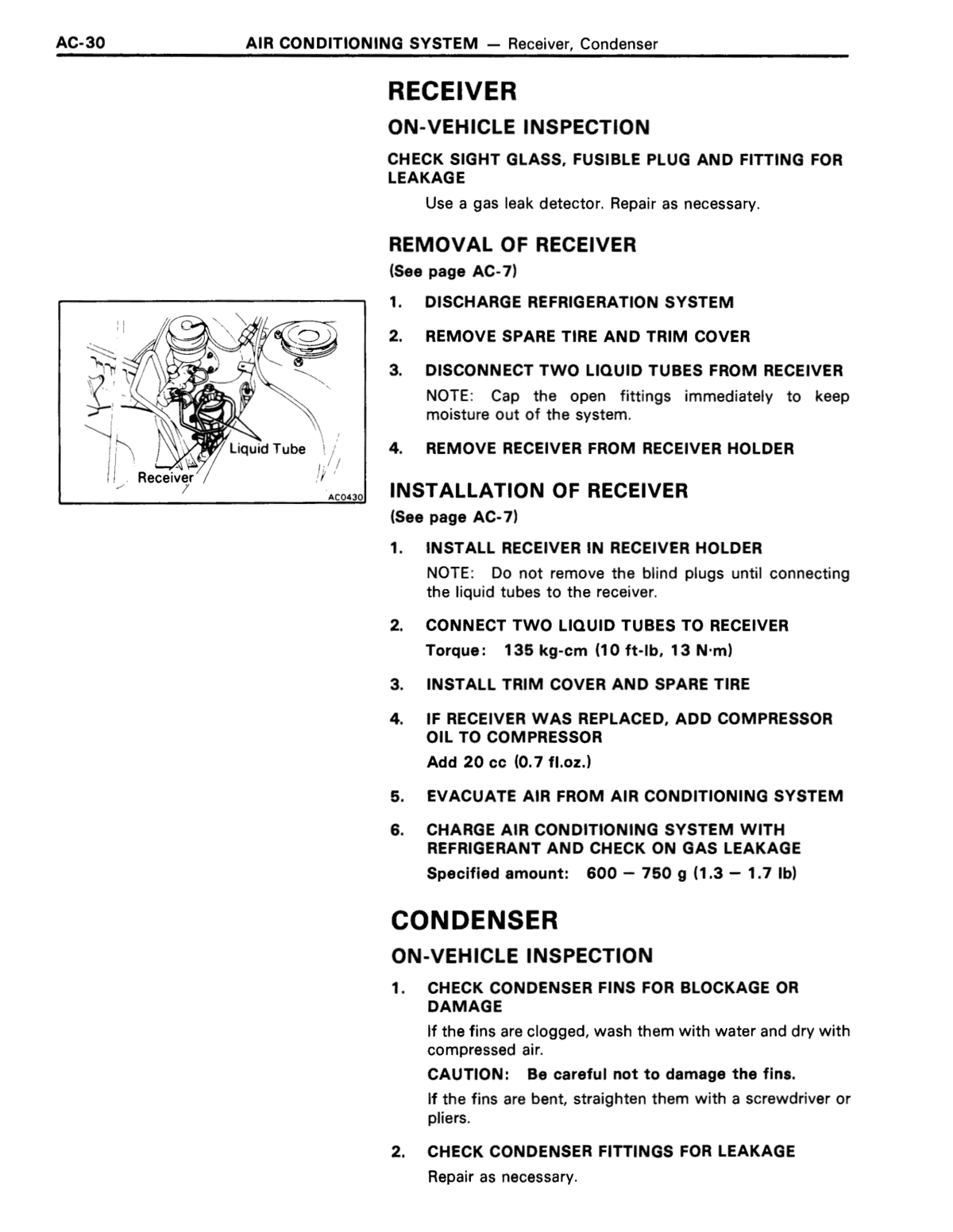

Cooling Liquid Tube and Discharge Tube to Condenser Bolt 18 185 13 ↗ RM179U1_1991 · p1529 OEM manual

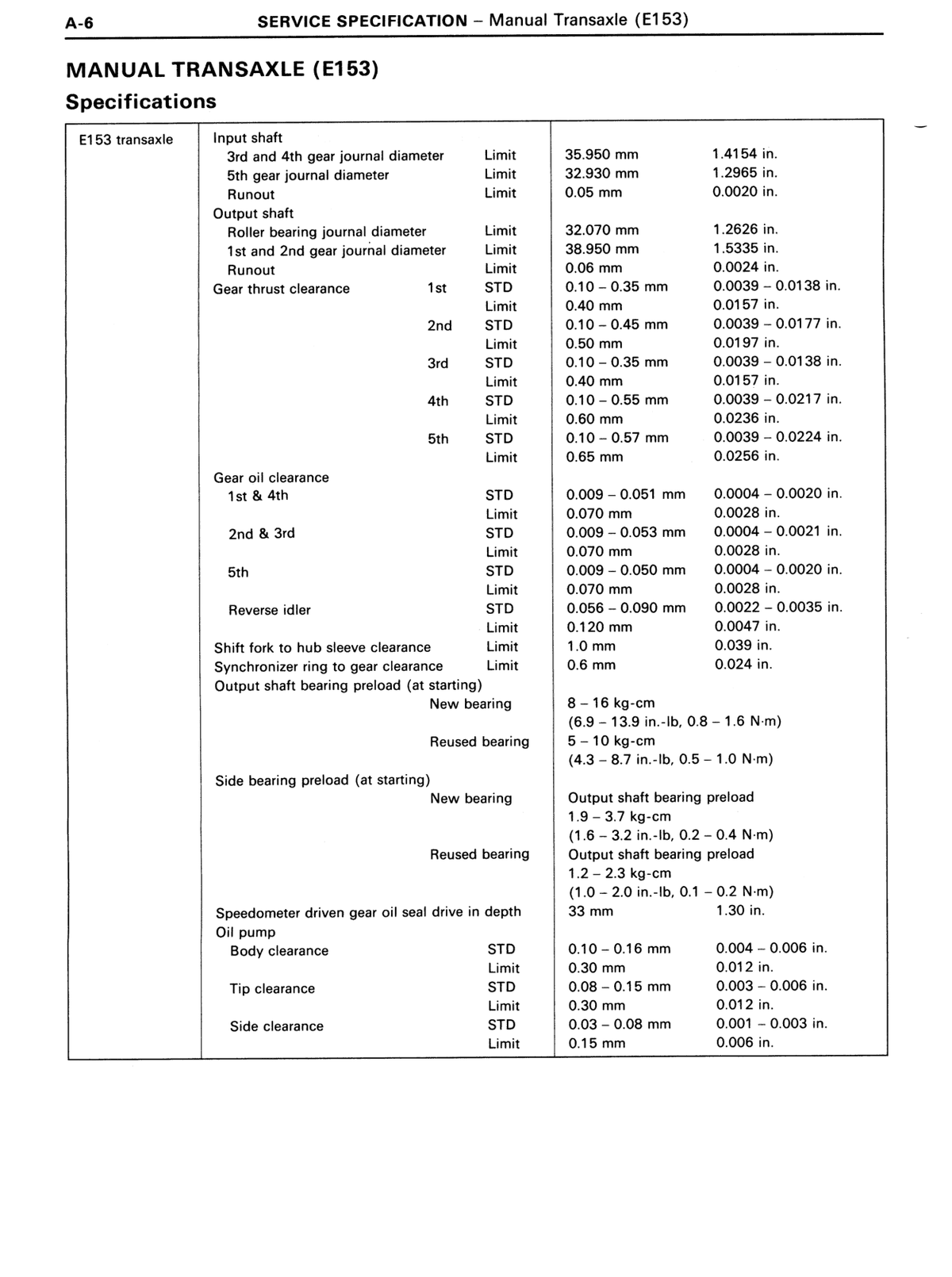

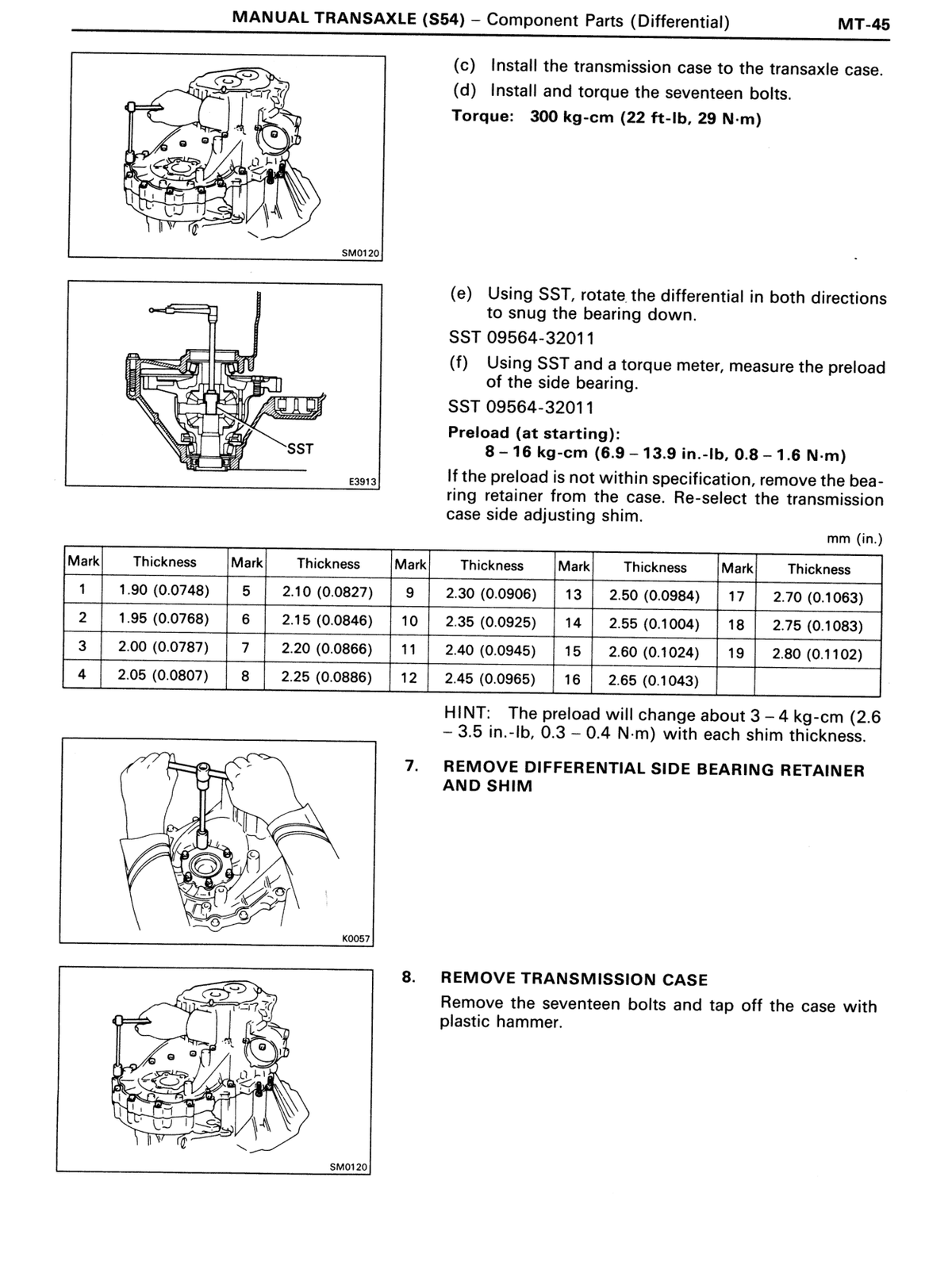

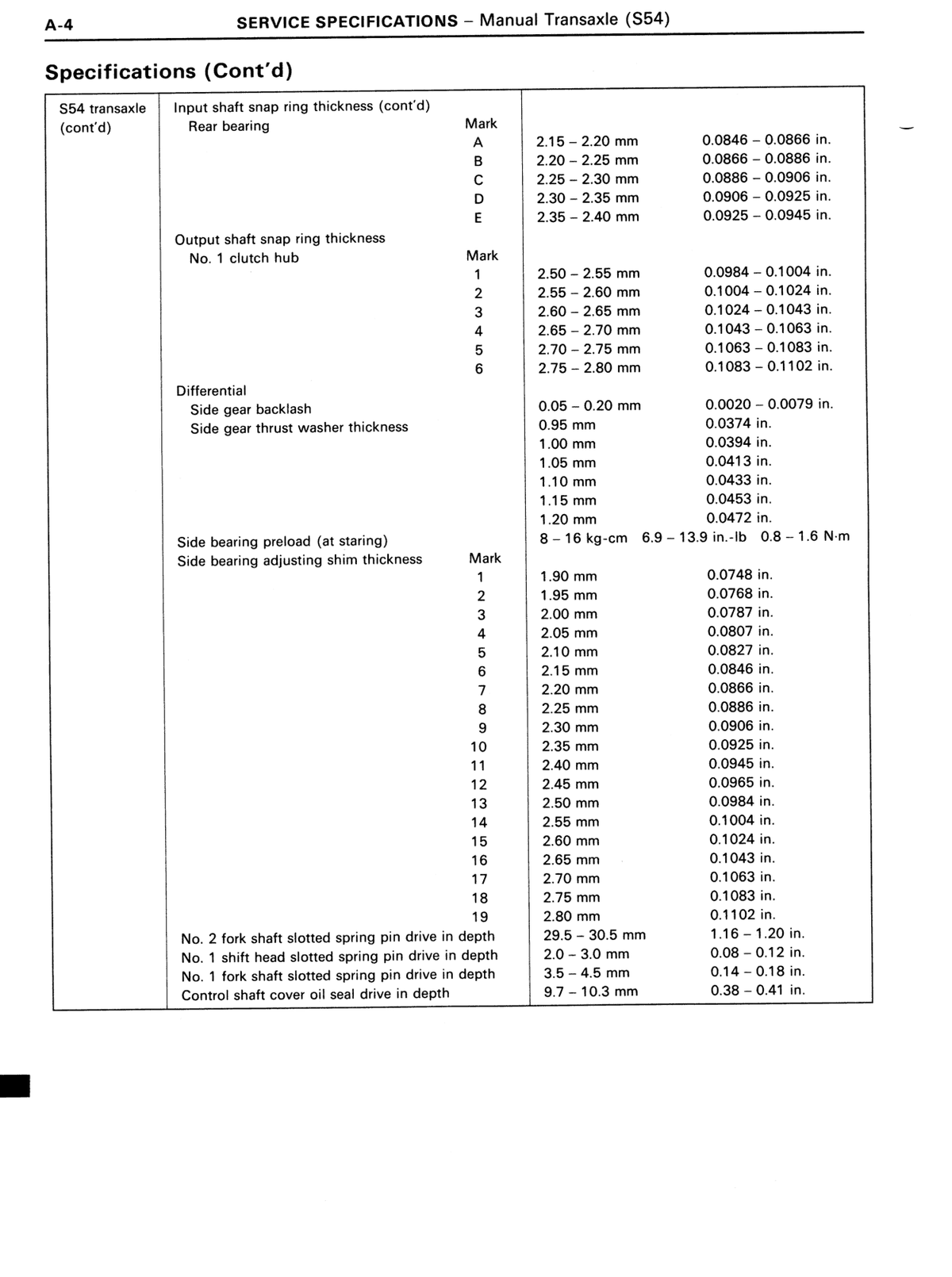

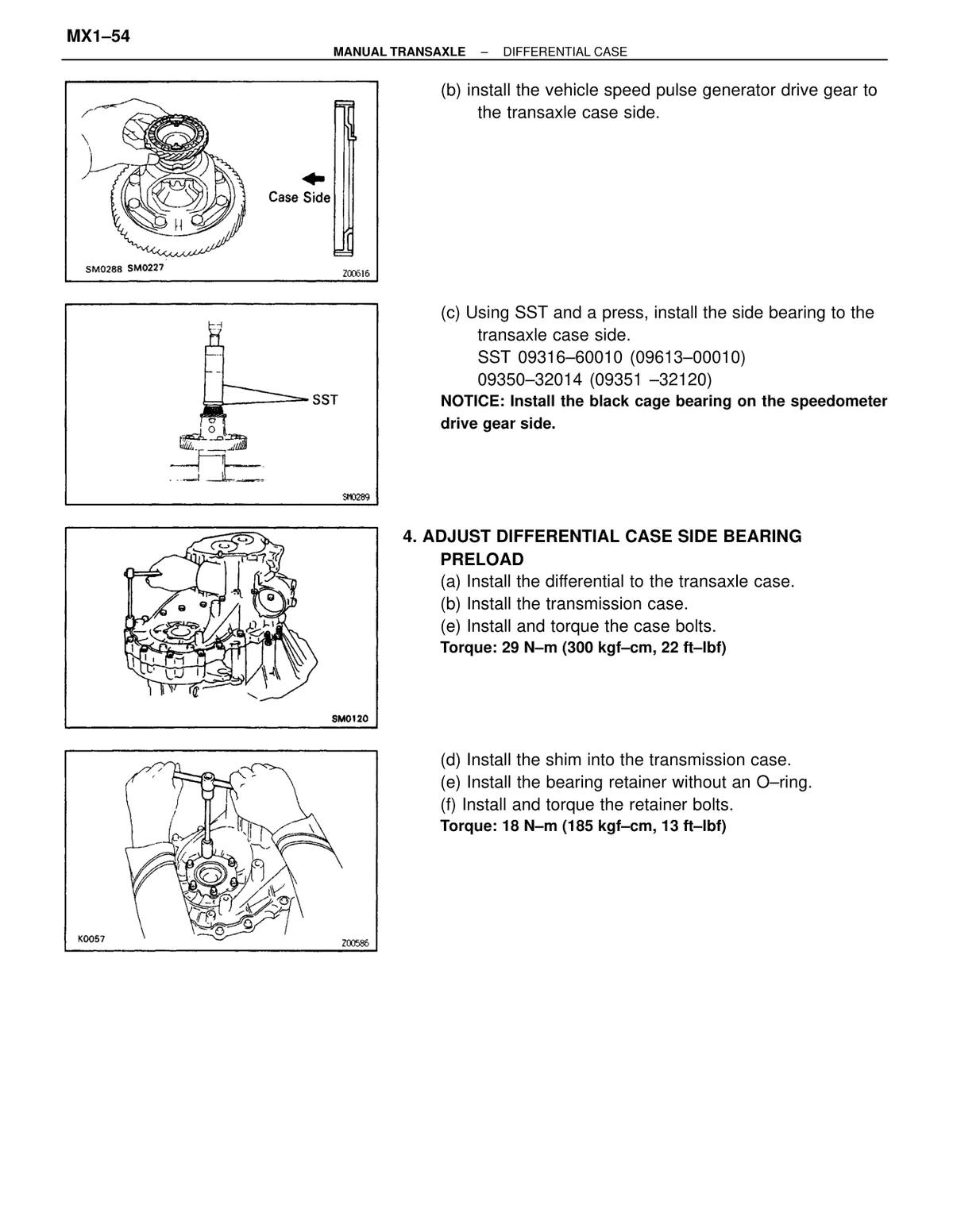

Transmission / transaxle Side bearing preload (at starting) Range: 8-16 kg·cm, 6.9-13.9 in.-lb, 0.8-1.6 N·m 1 12 — ↗ RM179U1_1991 · p1548 OEM manual

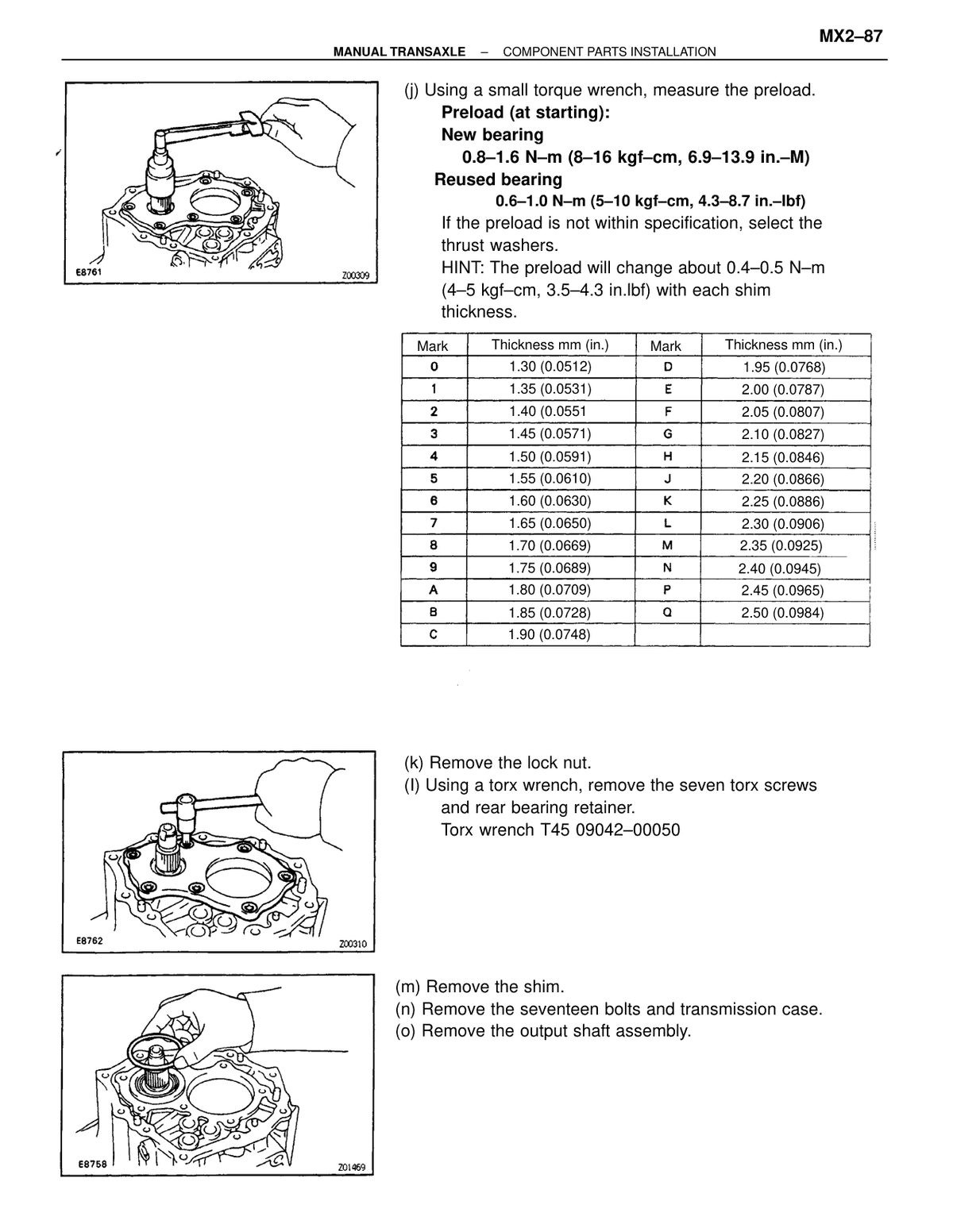

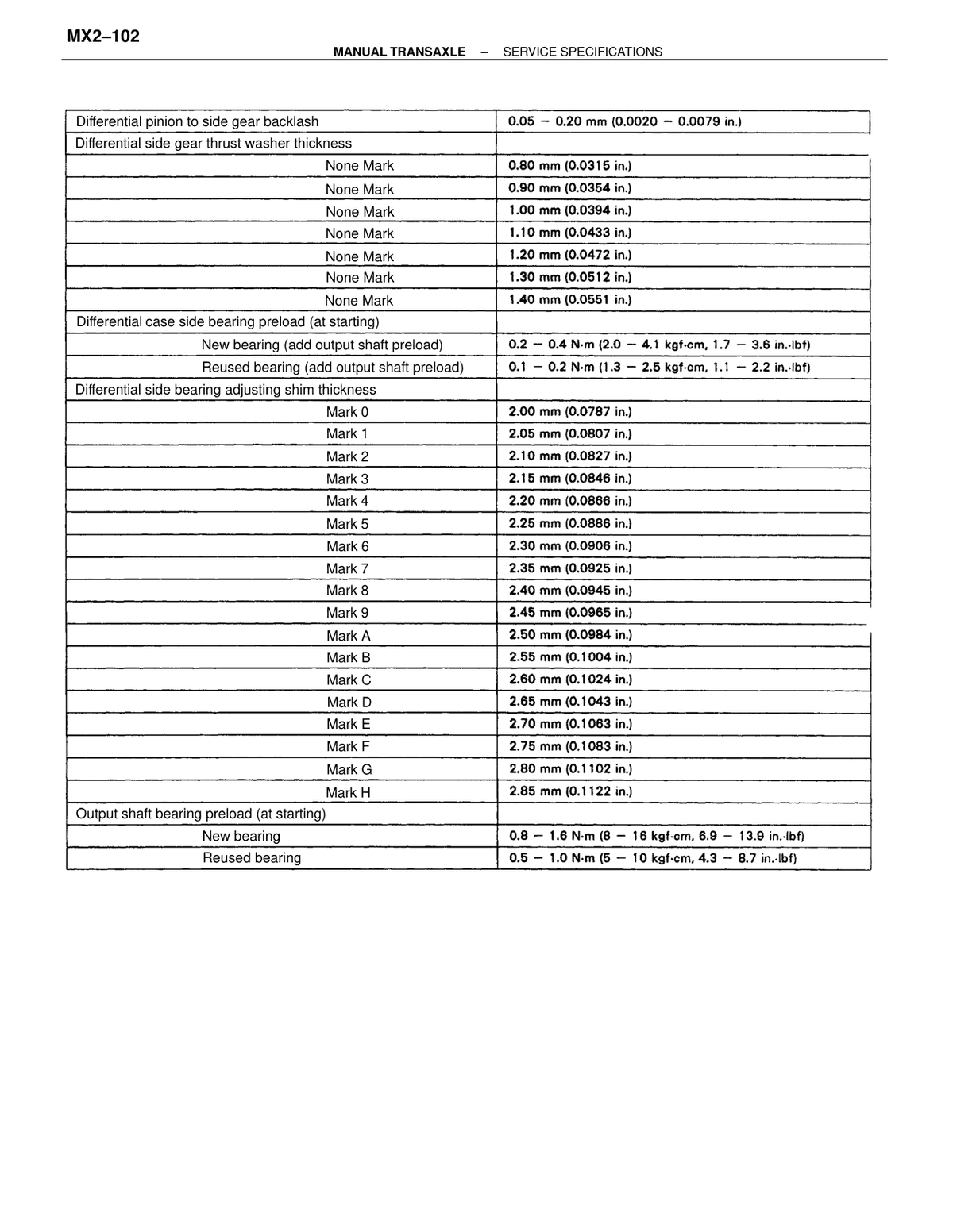

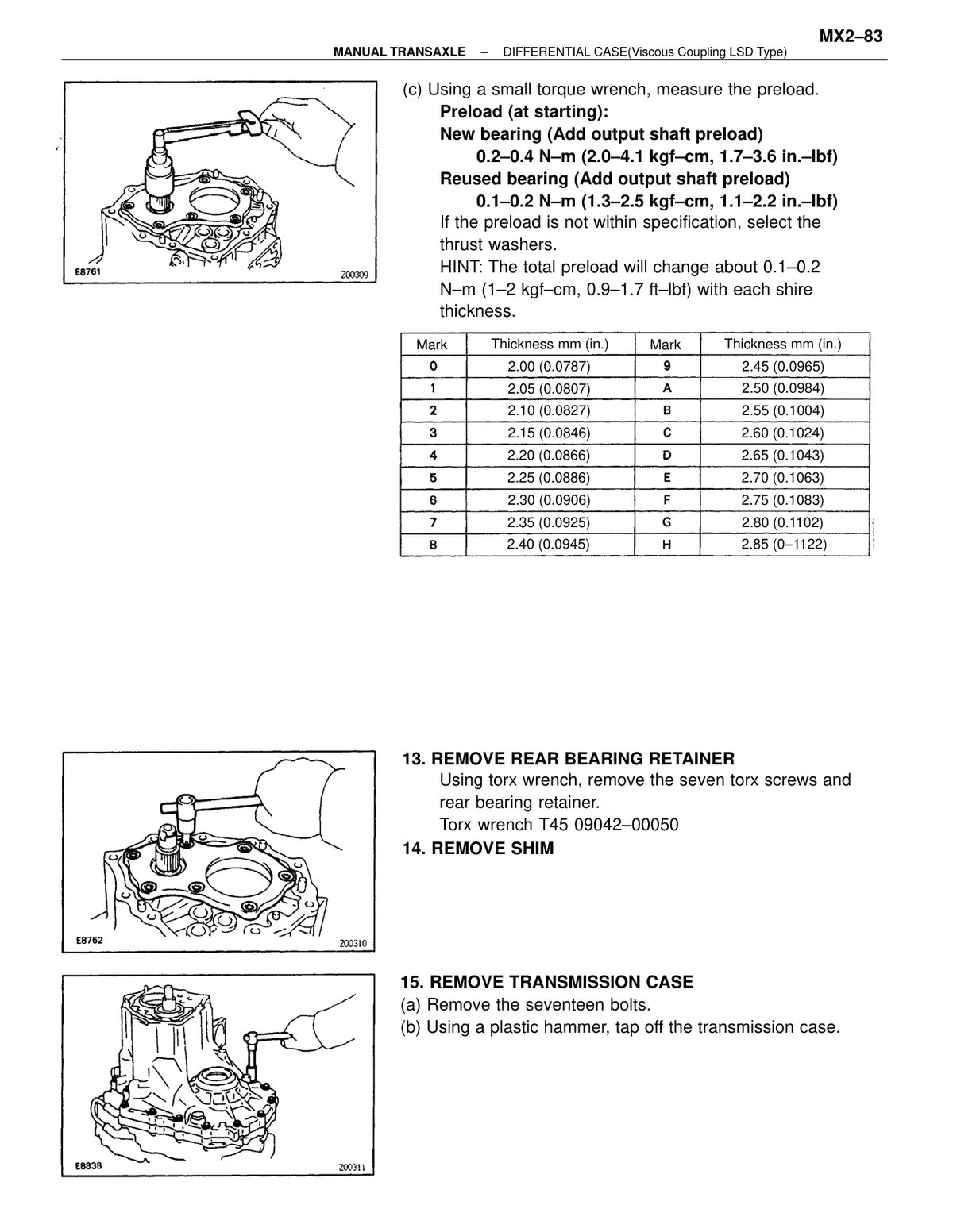

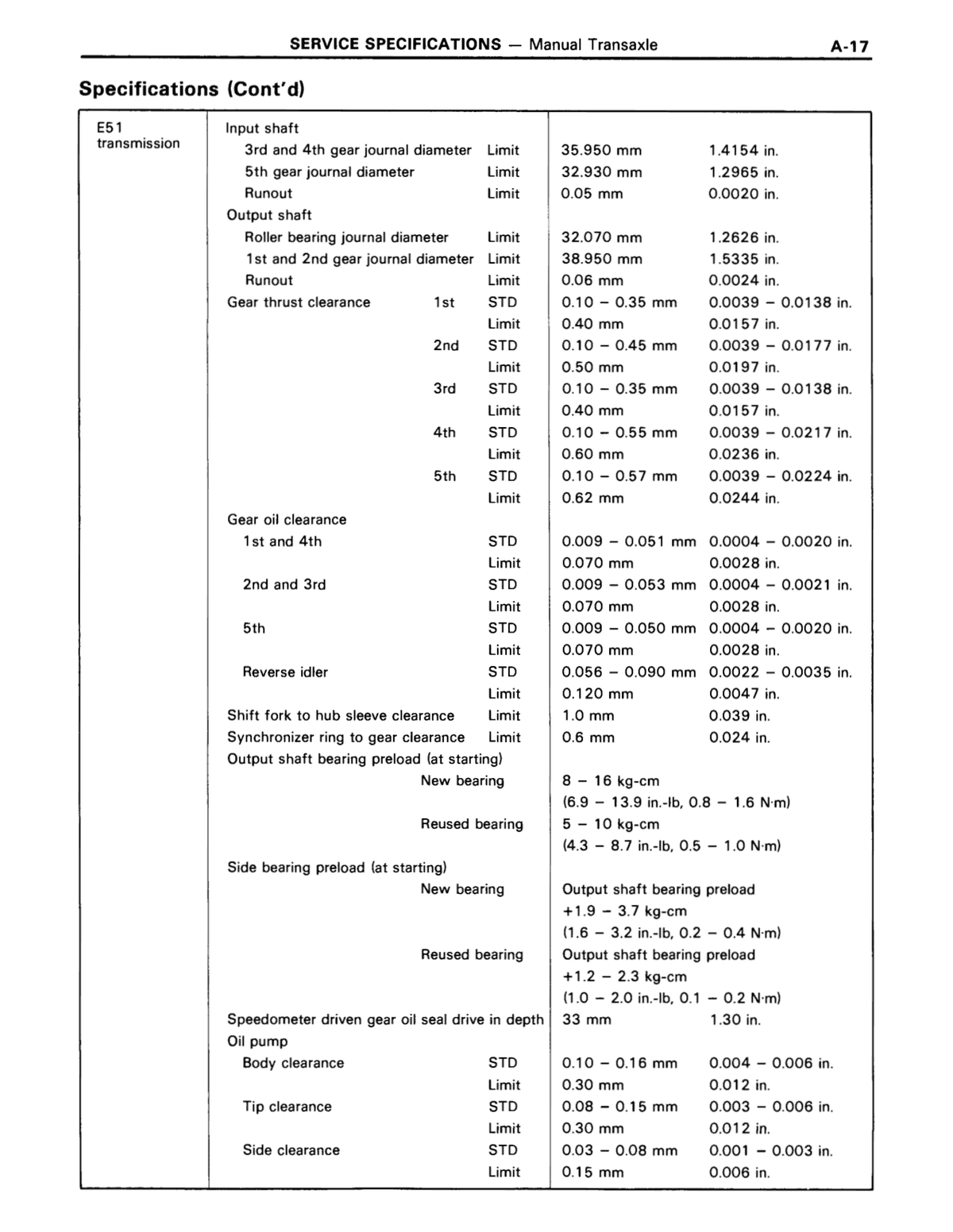

Transmission / transaxle Output shaft bearing preload at starting — New bearing Range: 8-16 kg·cm (6.9-13.9 in.-lb, 0.8-1.6 N·m) 1.6 16 — ↗ RM179U1_1991 · p1550 OEM manual
Transmission / transaxle Output shaft bearing preload at starting — Reused bearing Range: 5-10 kg·cm (4.3-8.7 in.-lb, 0.5-1.0 N·m) 1 10 — ↗ RM179U1_1991 · p1550 OEM manual

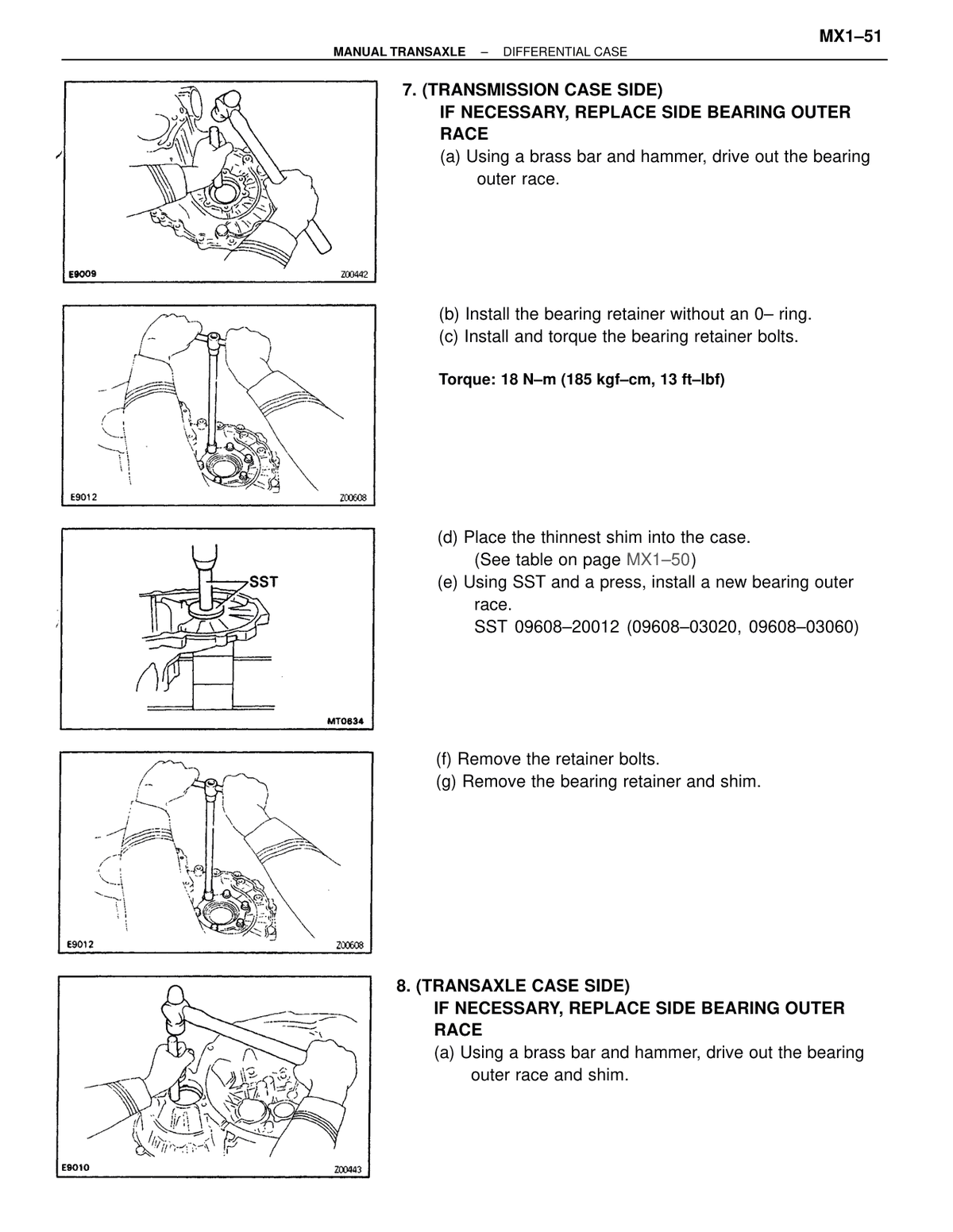

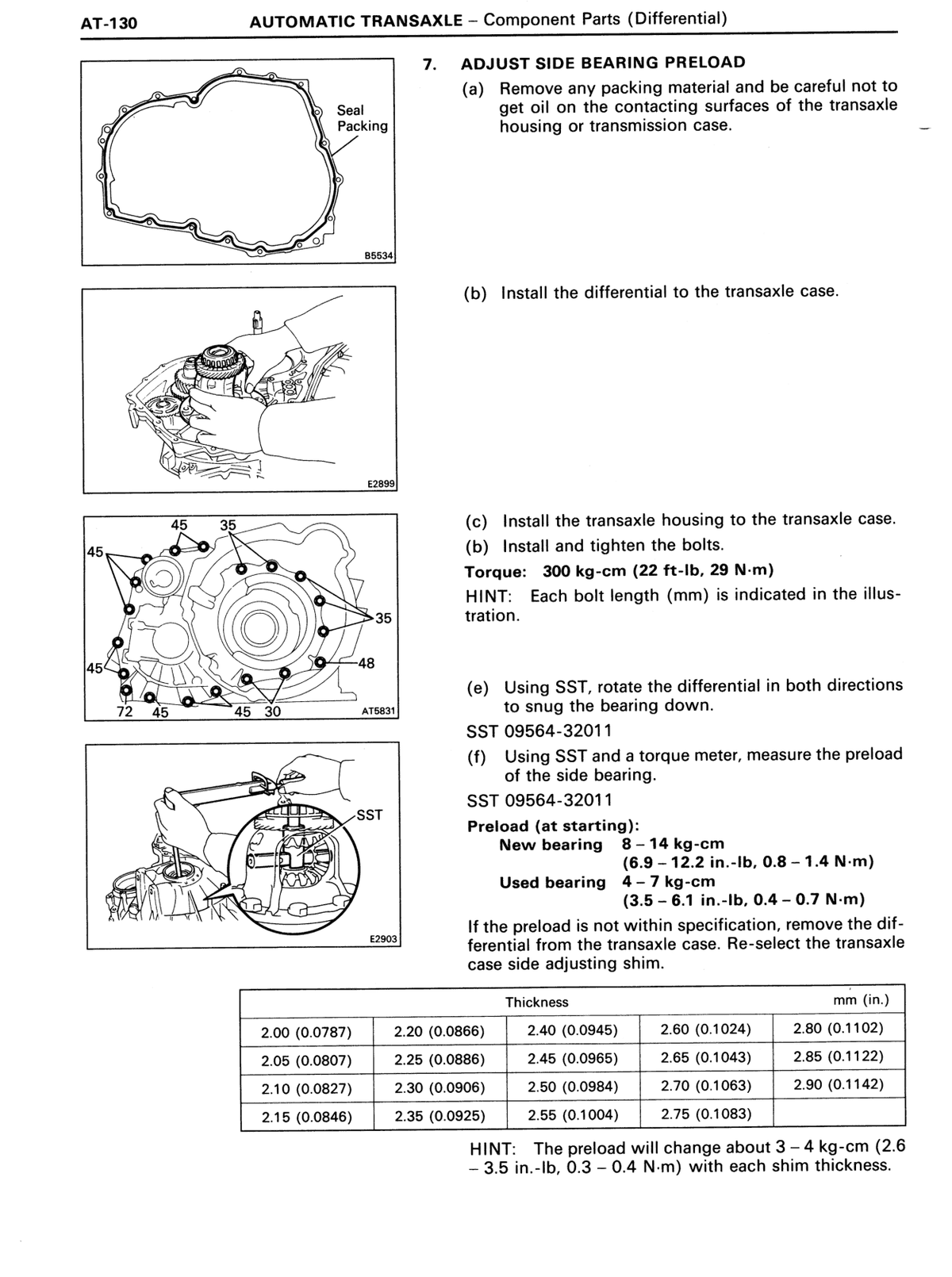

Transmission / transaxle Side bearing preload at starting — New bearing (Output shaft bearing preload) Range: 1.9-3.7 kg·cm (1.6-3.2 in.-lb, 0.2-0.4 N·m) 0.4 3.7 — ↗ RM179U1_1991 · p1550 OEM manual
Transmission / transaxle Side bearing preload at starting — Reused bearing (Output shaft bearing preload) Range: 1.2-2.3 kg·cm (1.0-2.0 in.-lb, 0.1-0.2 N·m) 0.2 2.3 — ↗ RM179U1_1991 · p1550 OEM manual

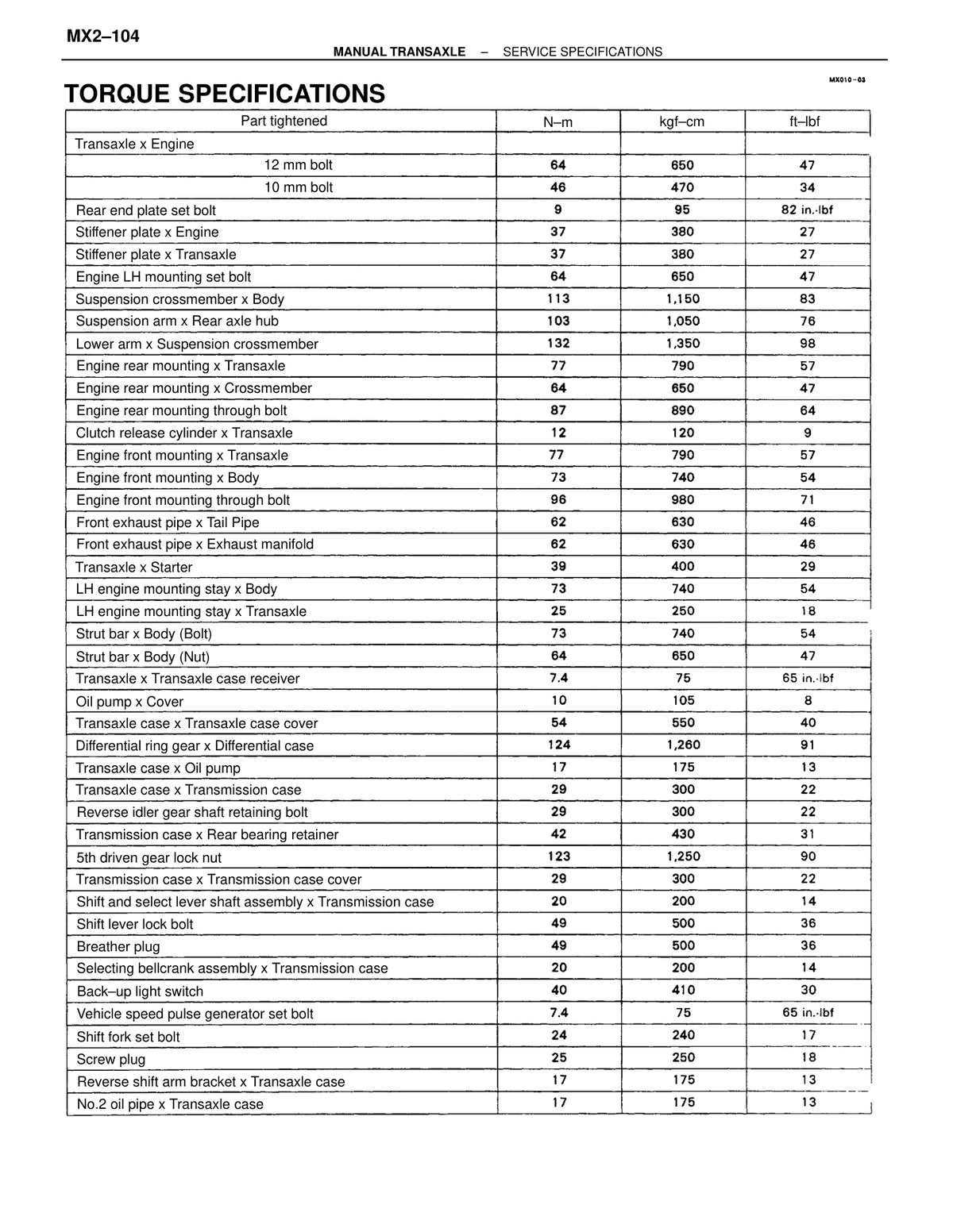

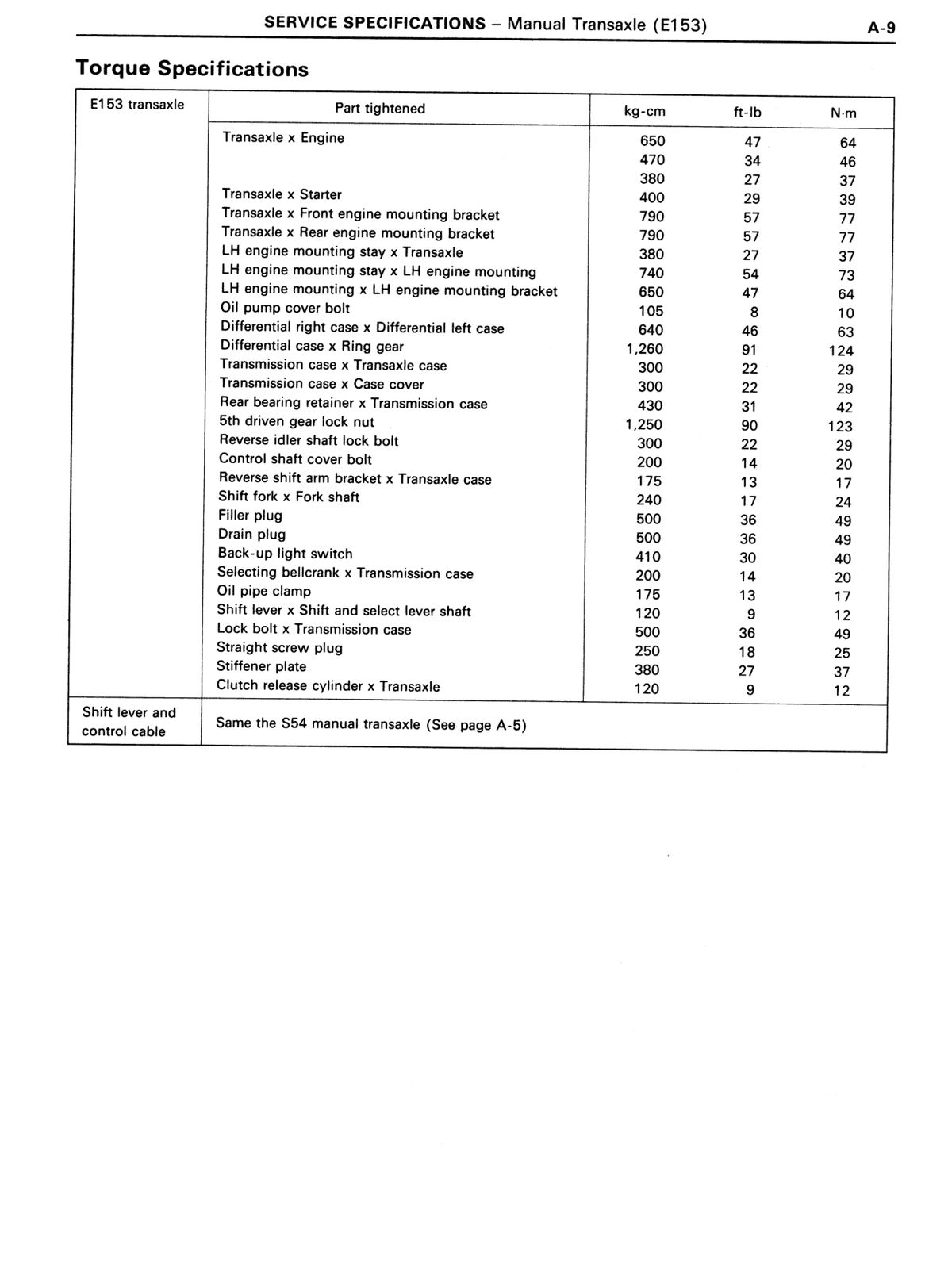

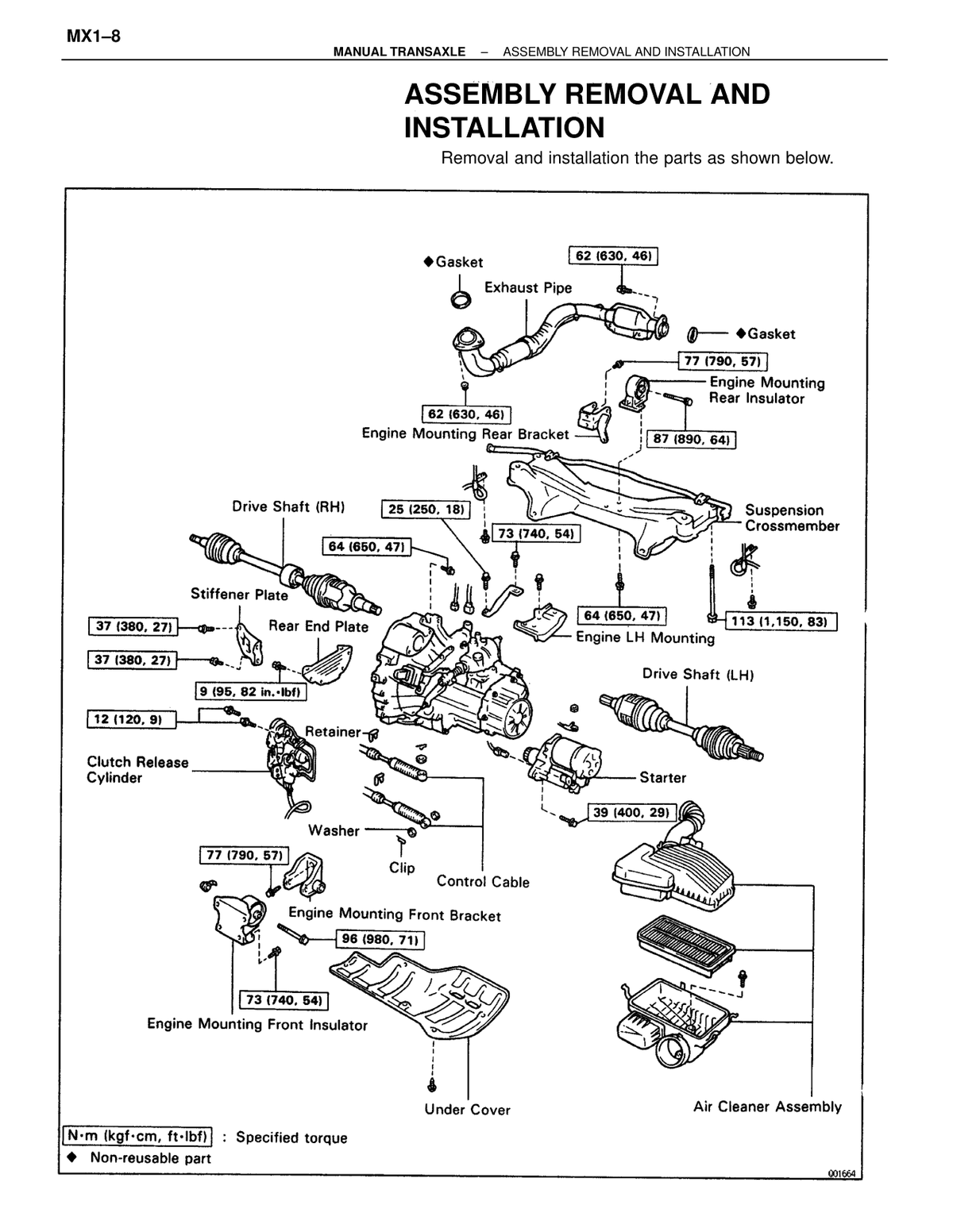

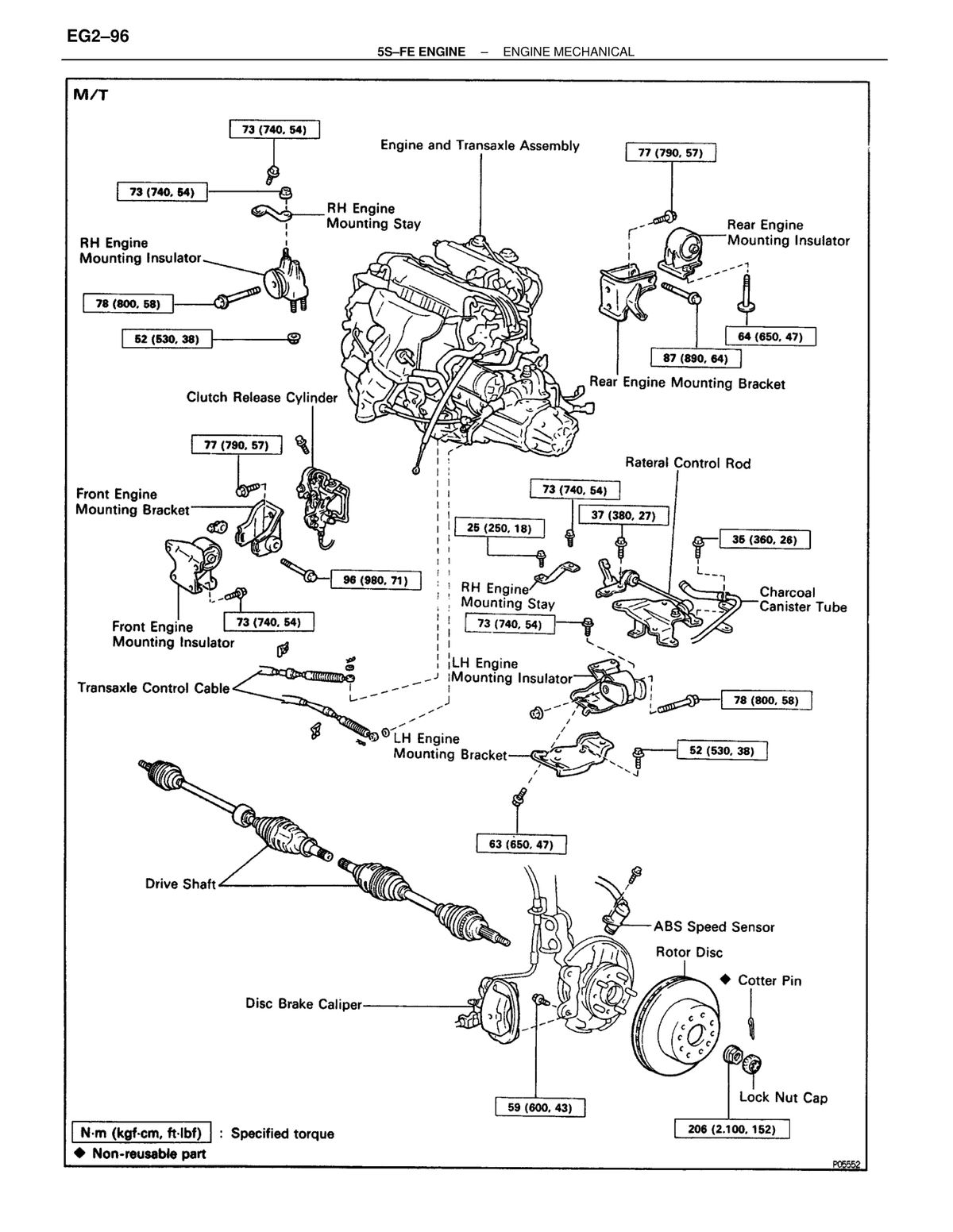

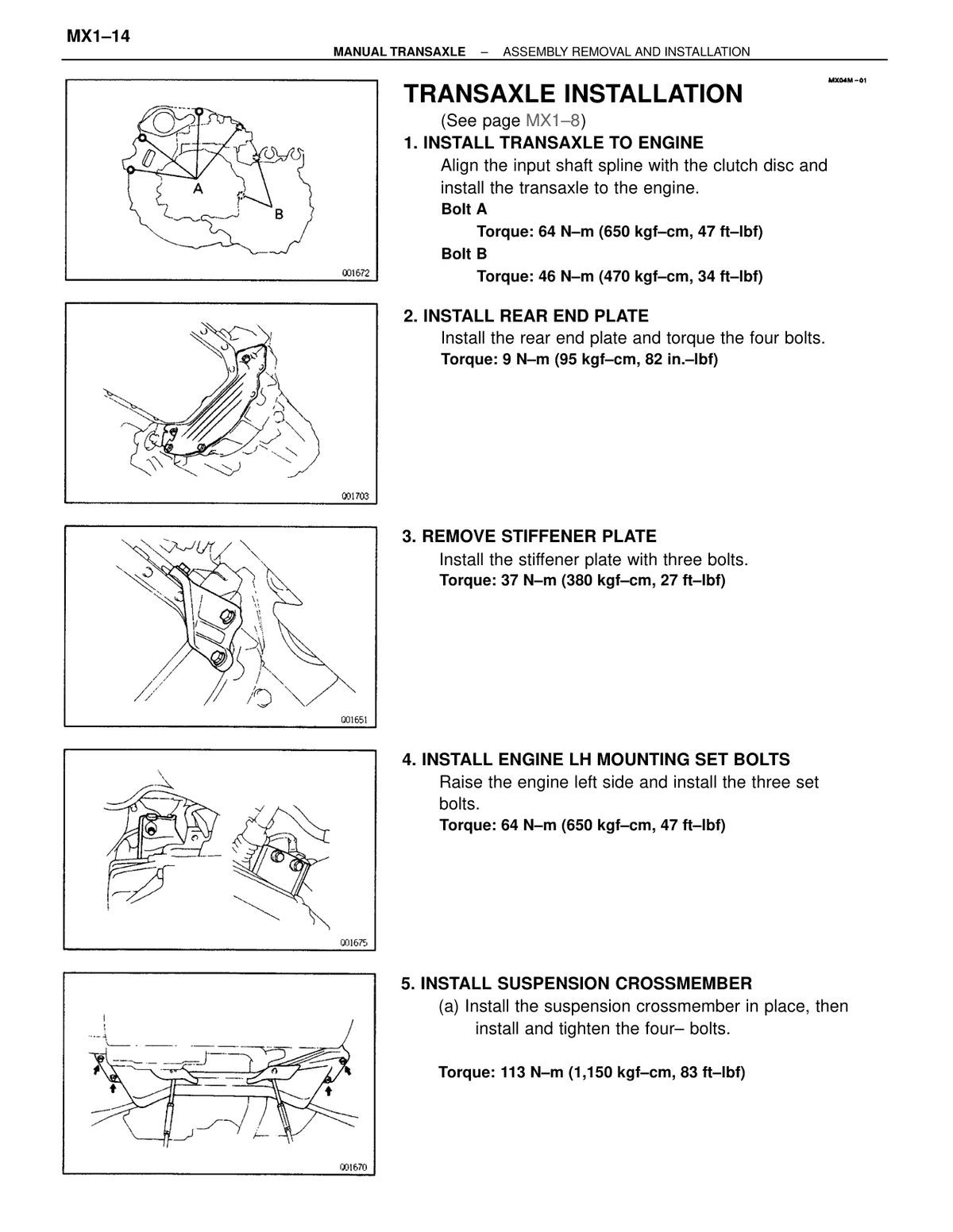

Transmission / transaxle Transaxle x Front engine mounting bracket 77 790 57 ↗ RM179U1_1991 · p1553 OEM manual
Transmission / transaxle Transaxle x Rear engine mounting bracket 77 790 57 ↗ RM179U1_1991 · p1553 OEM manual

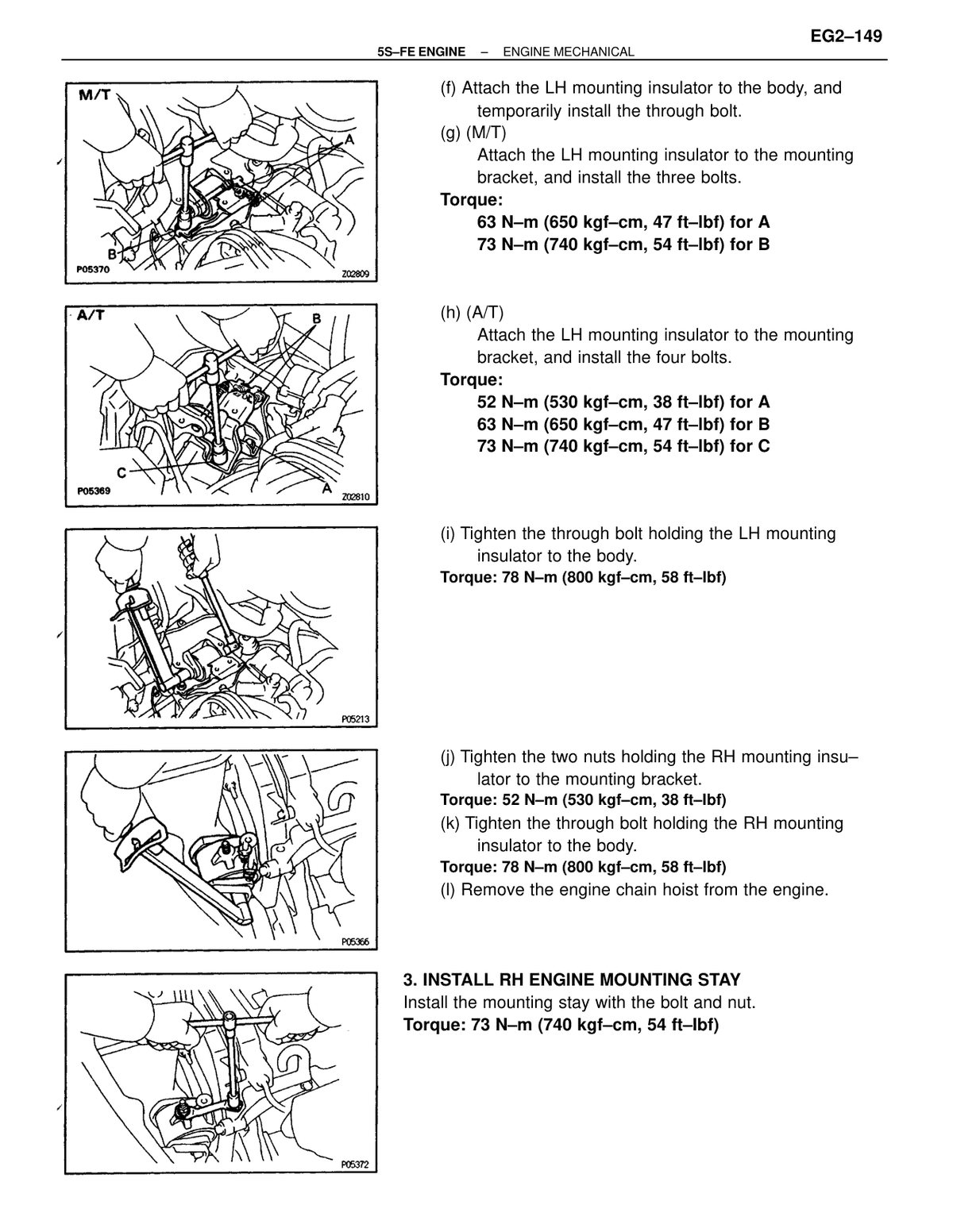

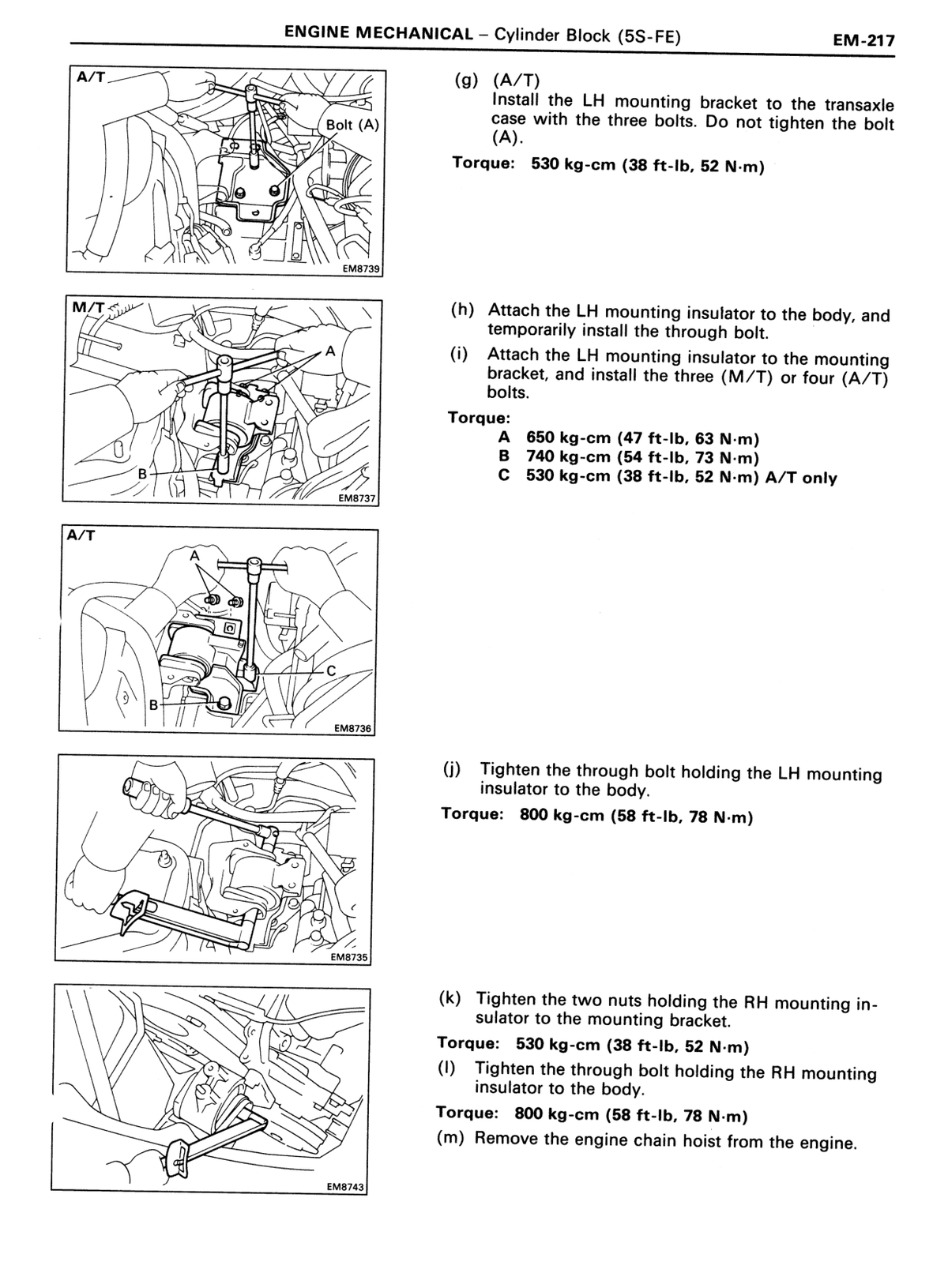

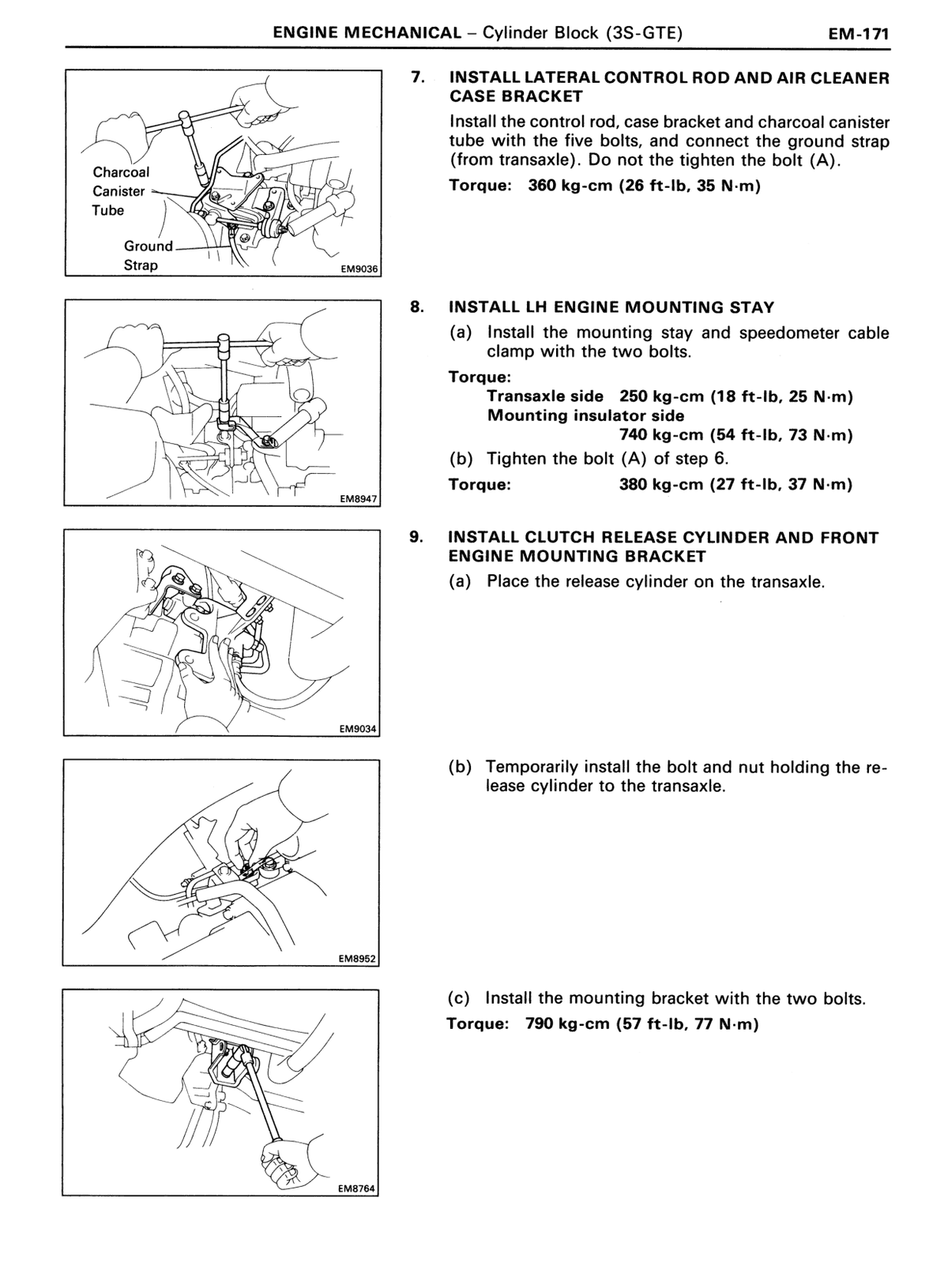

Transmission / transaxle LH engine mounting stay x Transaxle 37 380 27 ↗ RM179U1_1991 · p1553 OEM manual
Transmission / transaxle LH engine mounting stay x LH engine mounting 73 740 54 ↗ RM179U1_1991 · p1553 OEM manual
Transmission / transaxle LH engine mounting x LH engine mounting bracket 64 650 47 ↗ RM179U1_1991 · p1553 OEM manual

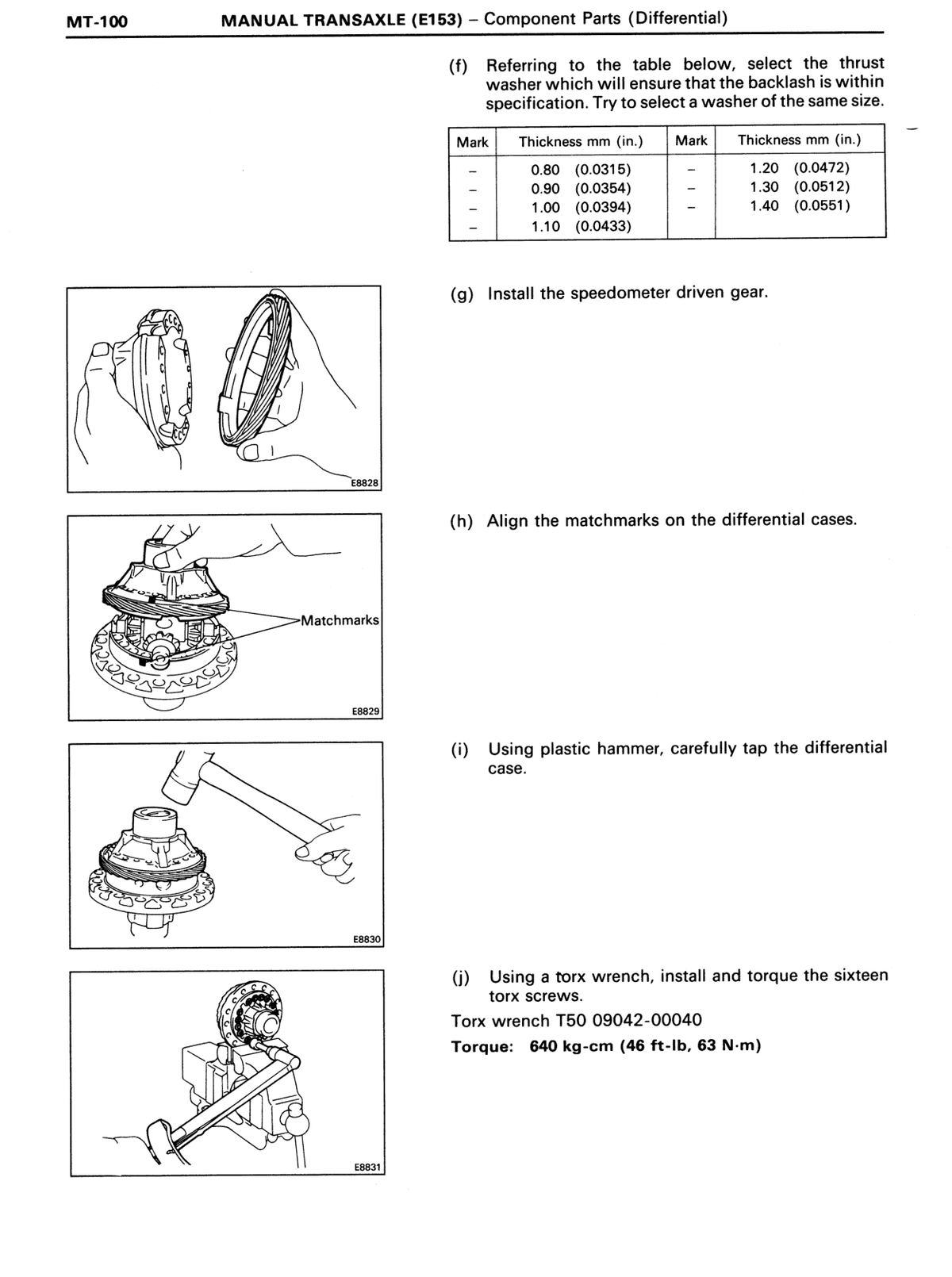

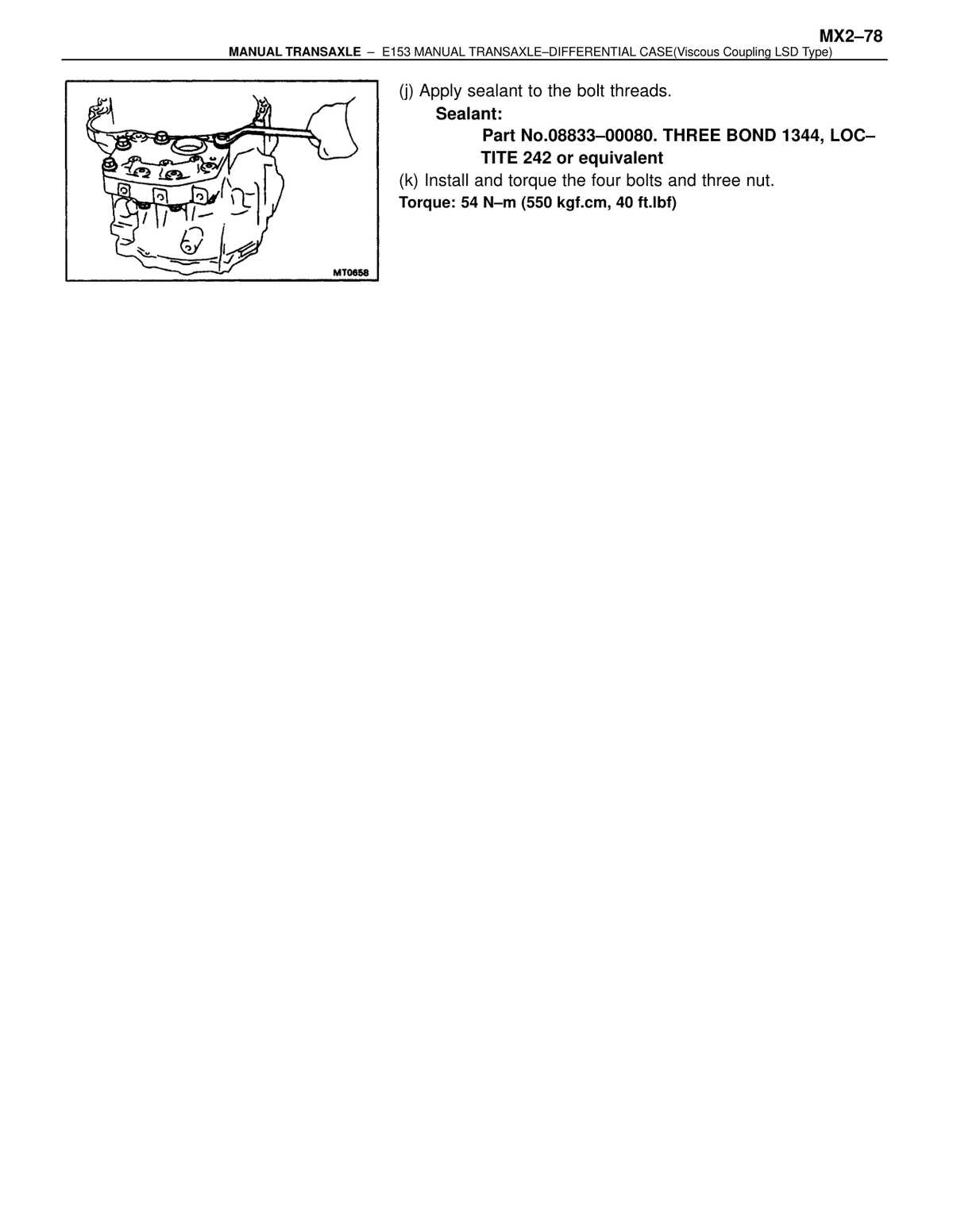

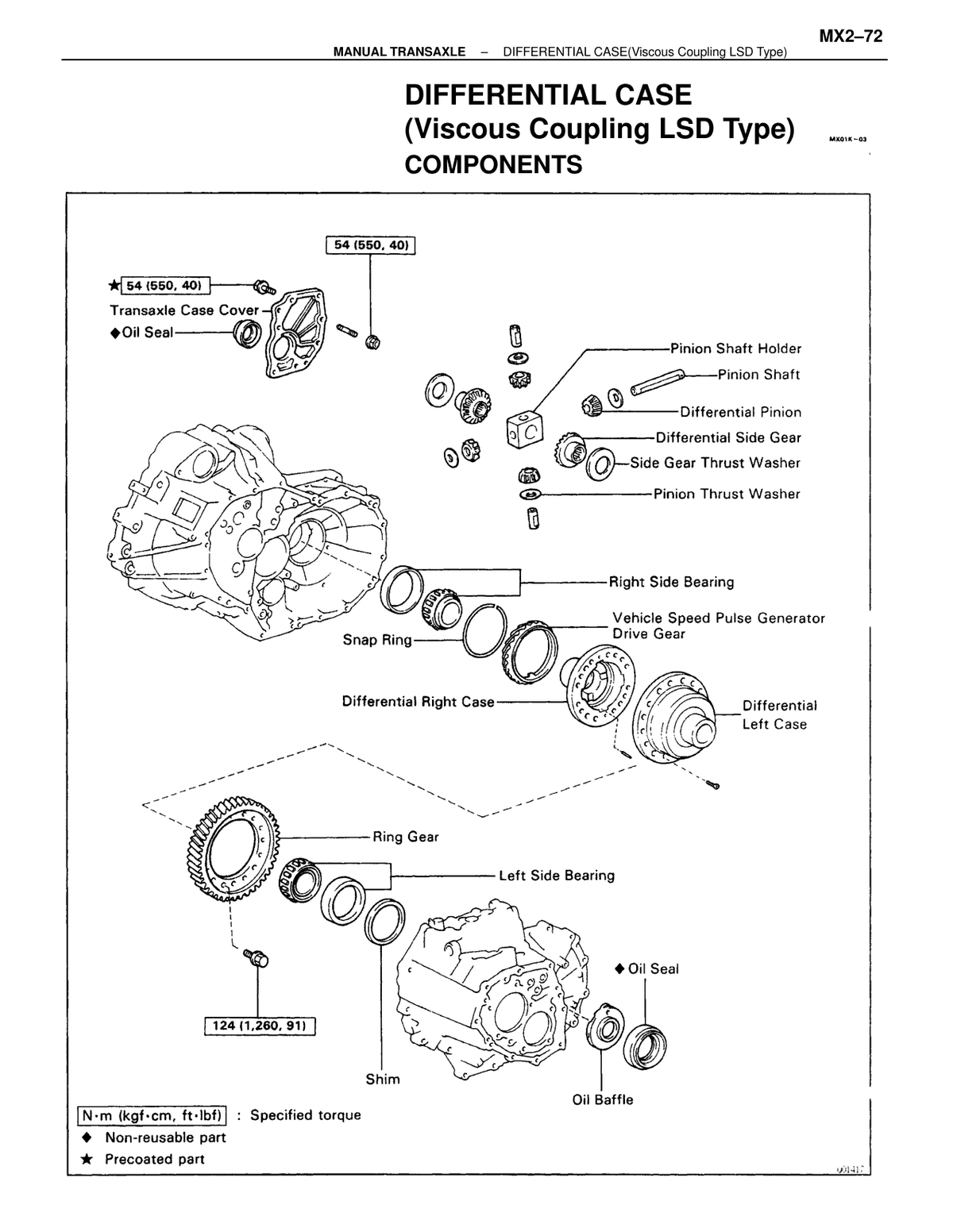

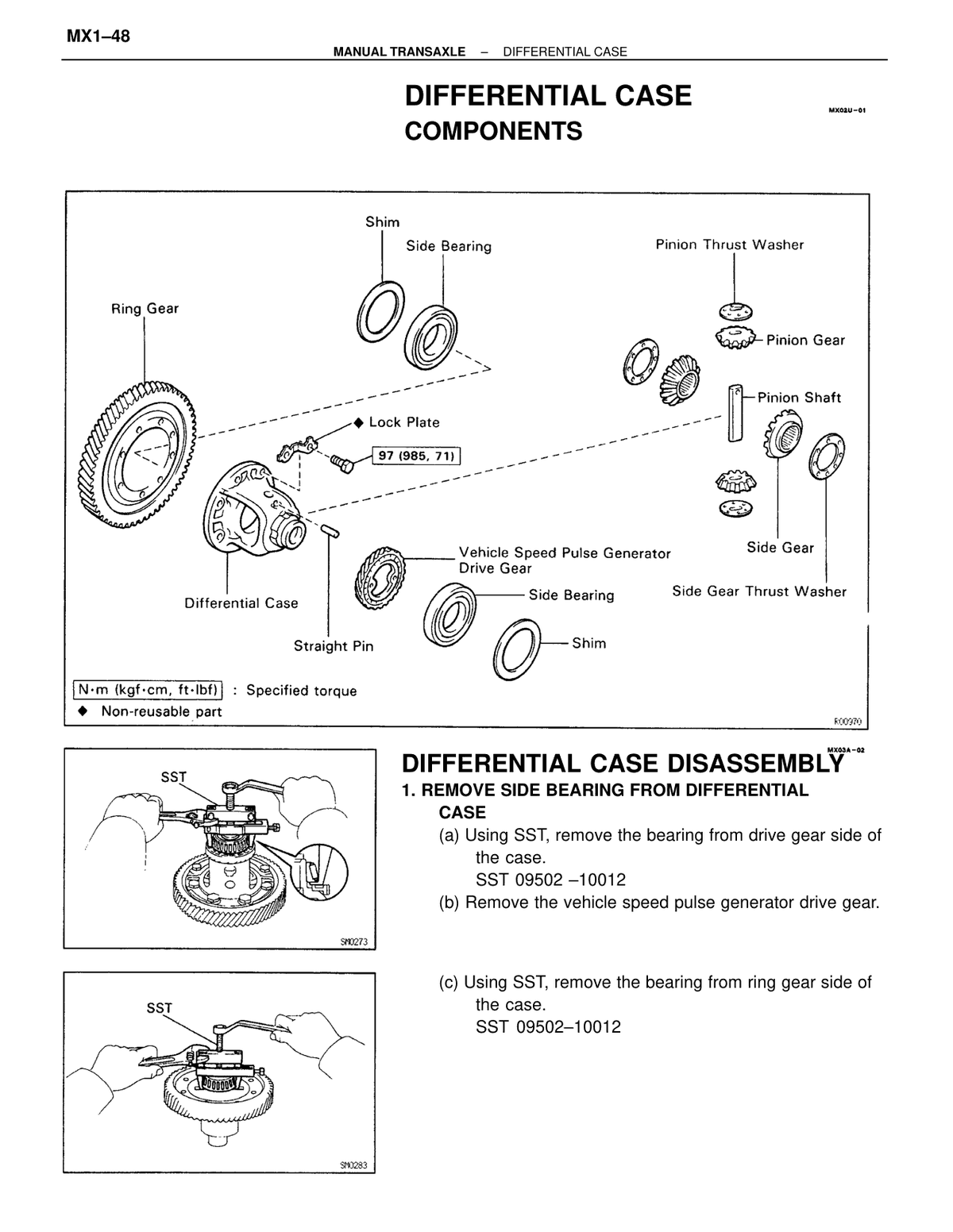

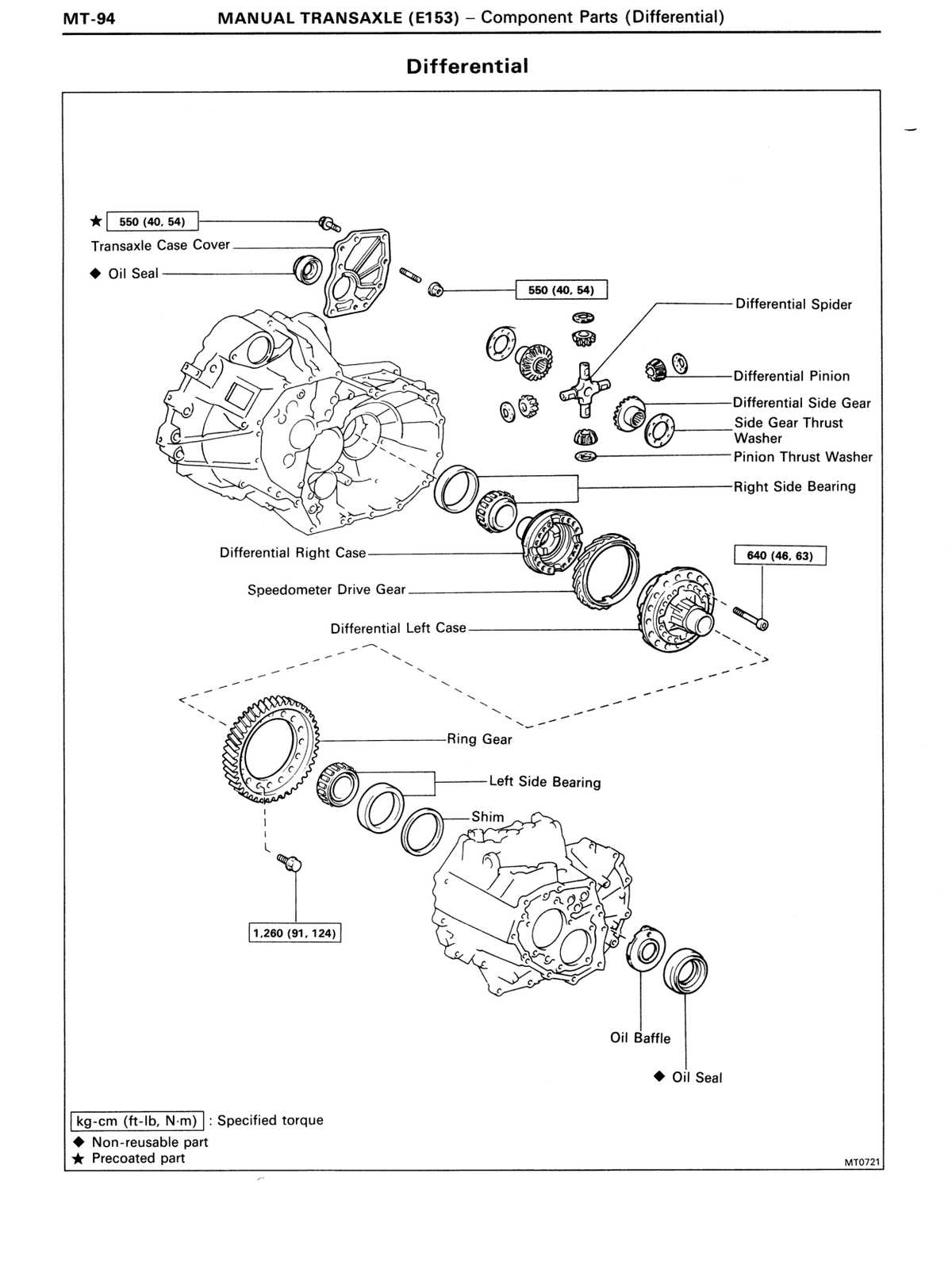

Transmission / transaxle Differential right case x Differential left case 63 640 46 ↗ RM179U1_1991 · p1553 OEM manual

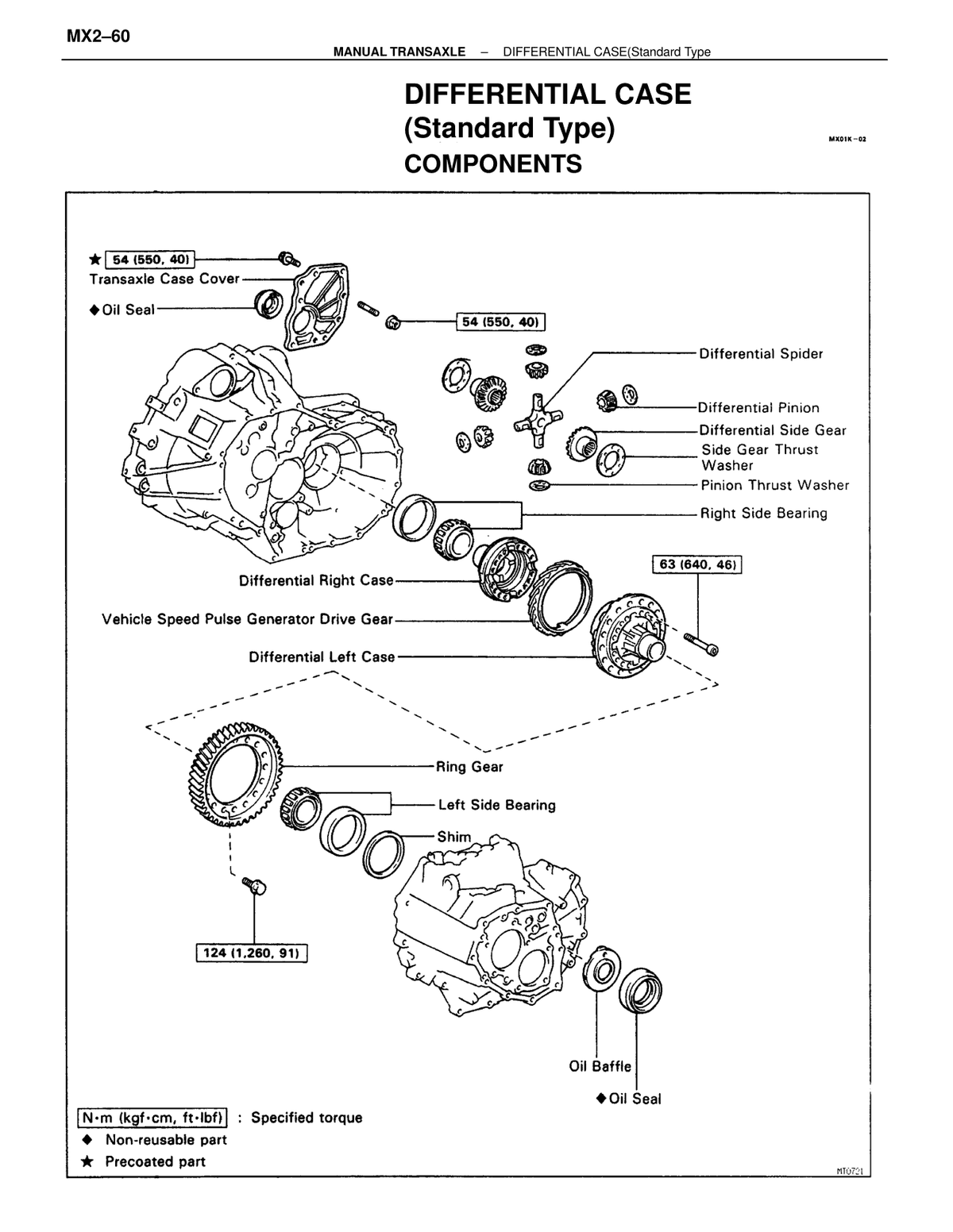

Transmission / transaxle Differential case x Ring gear 124 1260 91 ↗ RM179U1_1991 · p1553 OEM manual

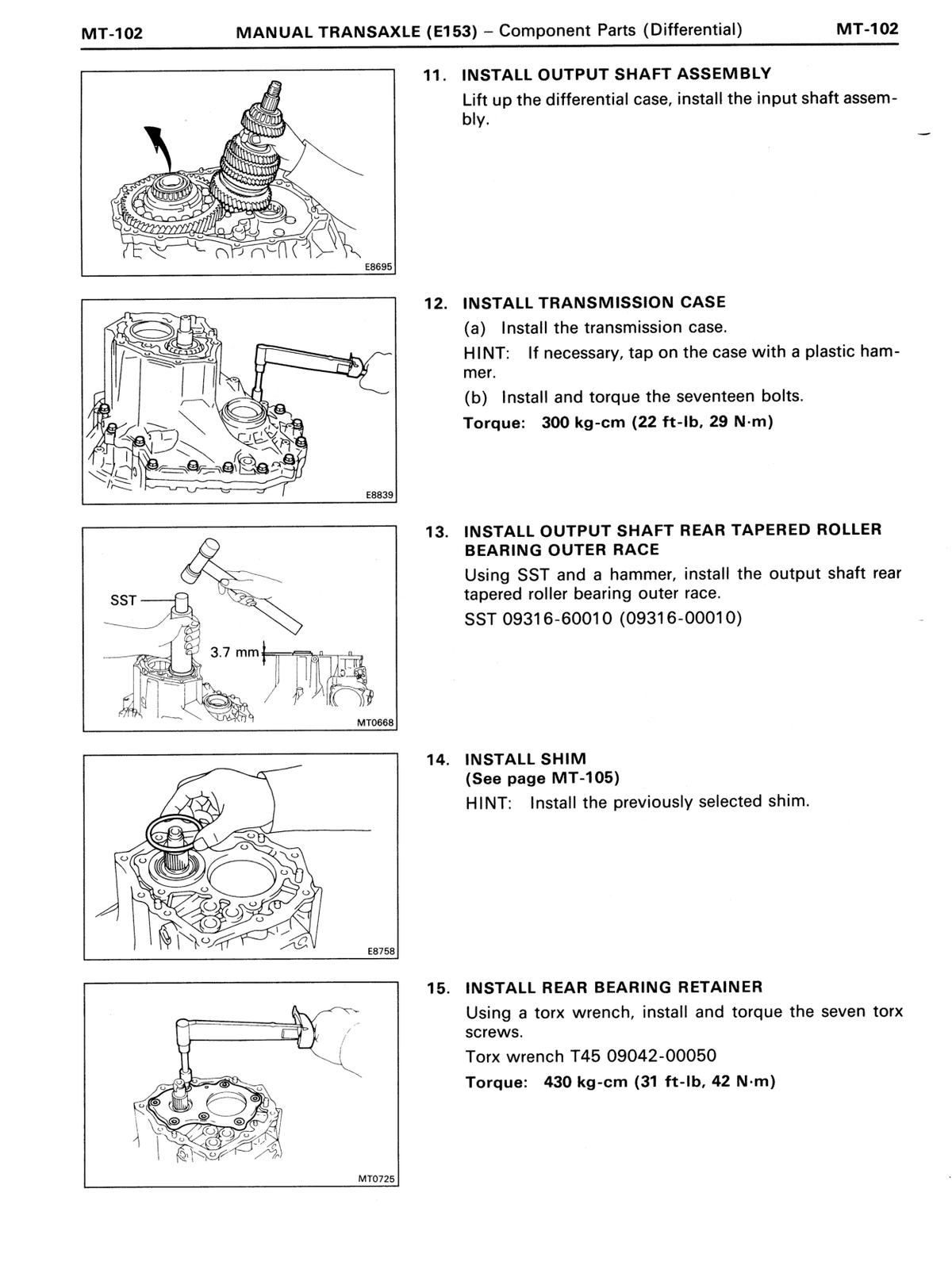

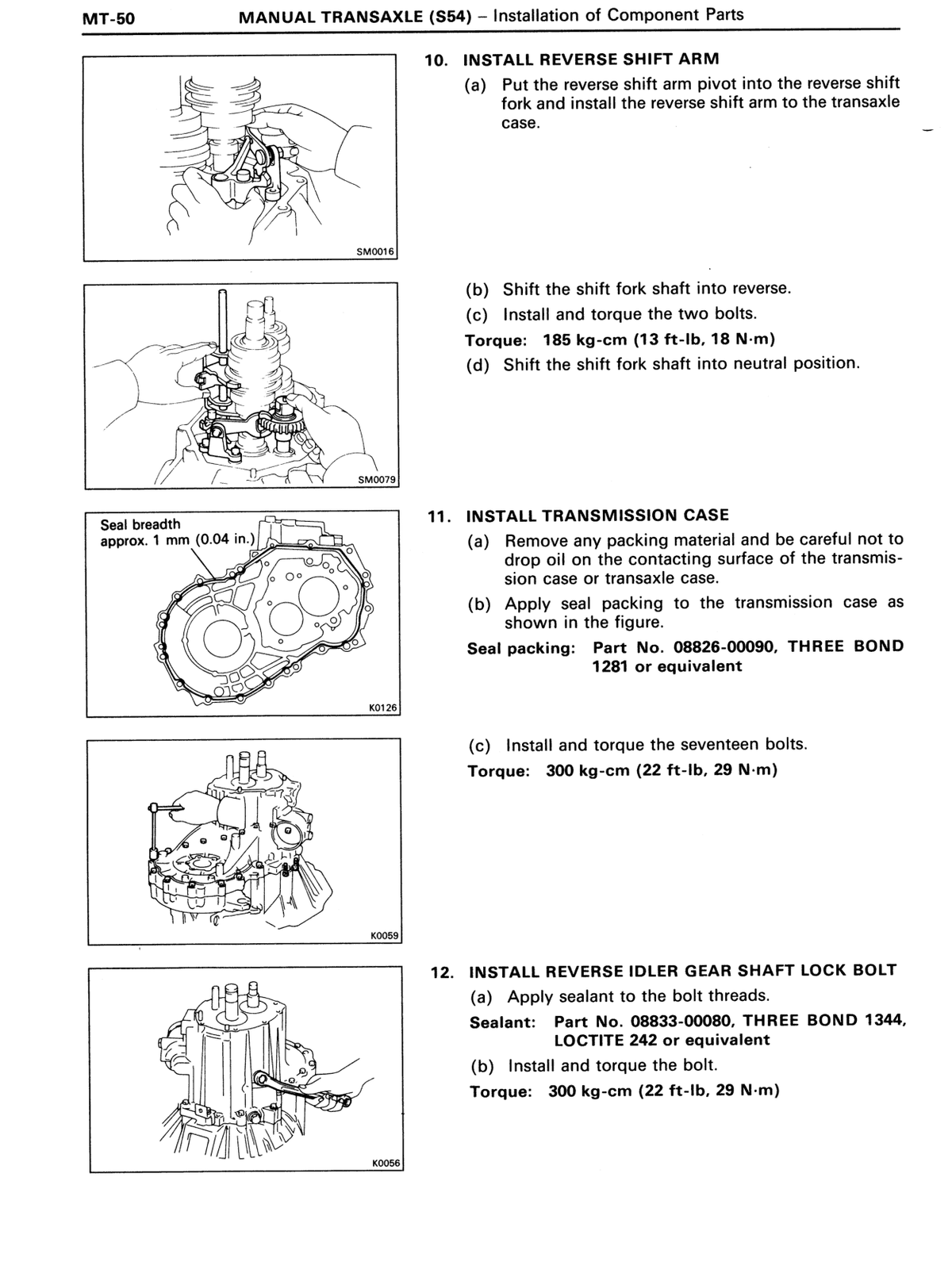

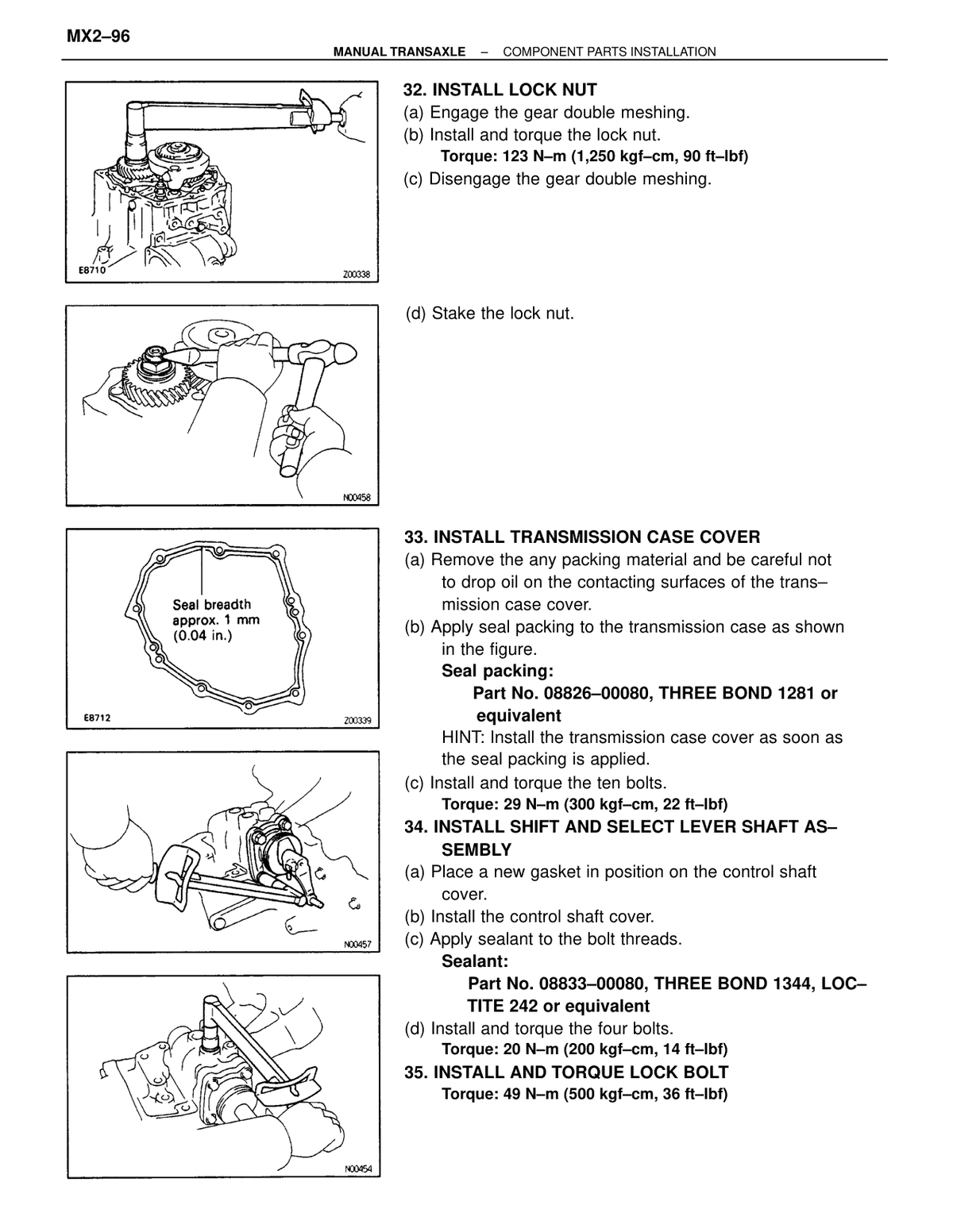

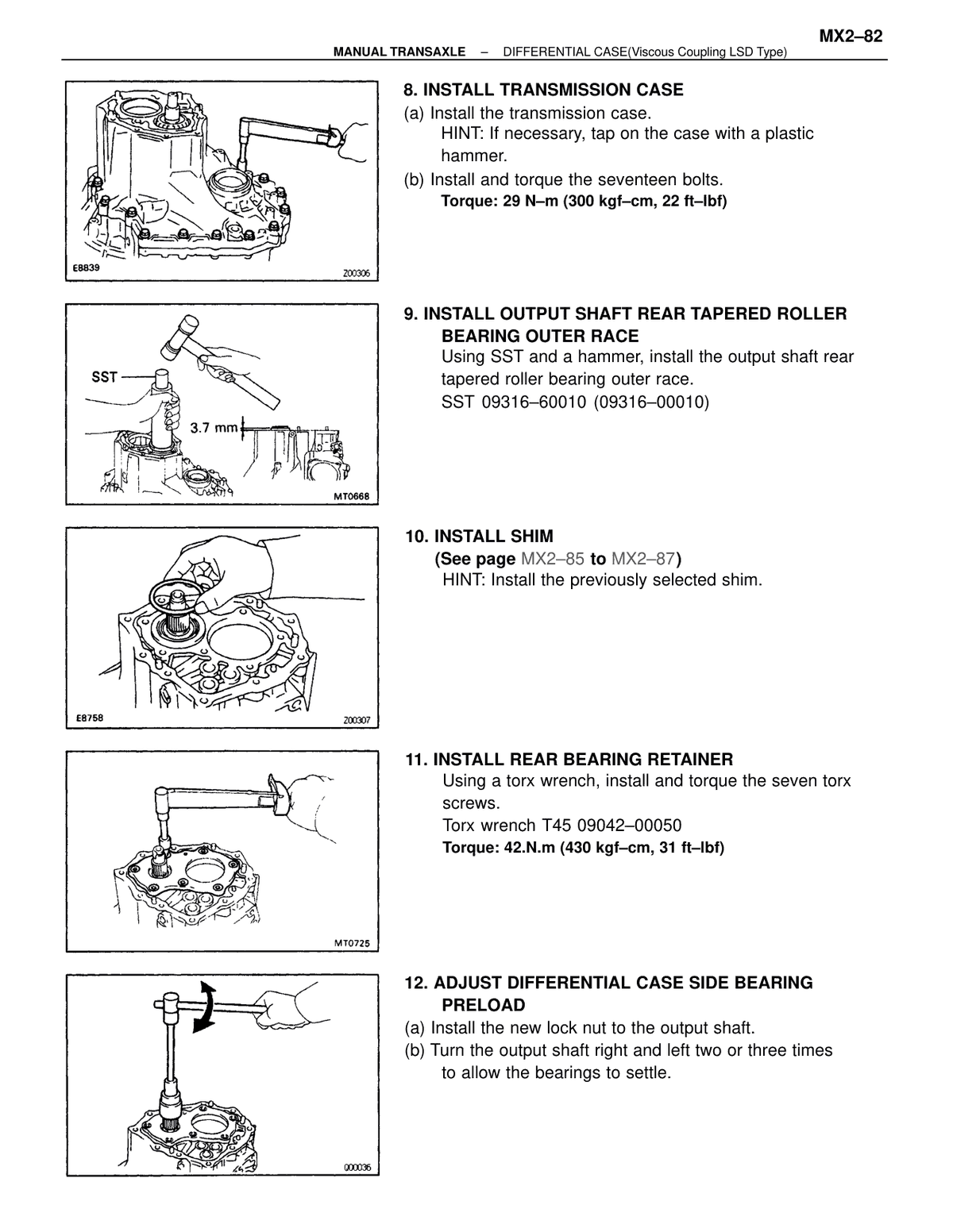

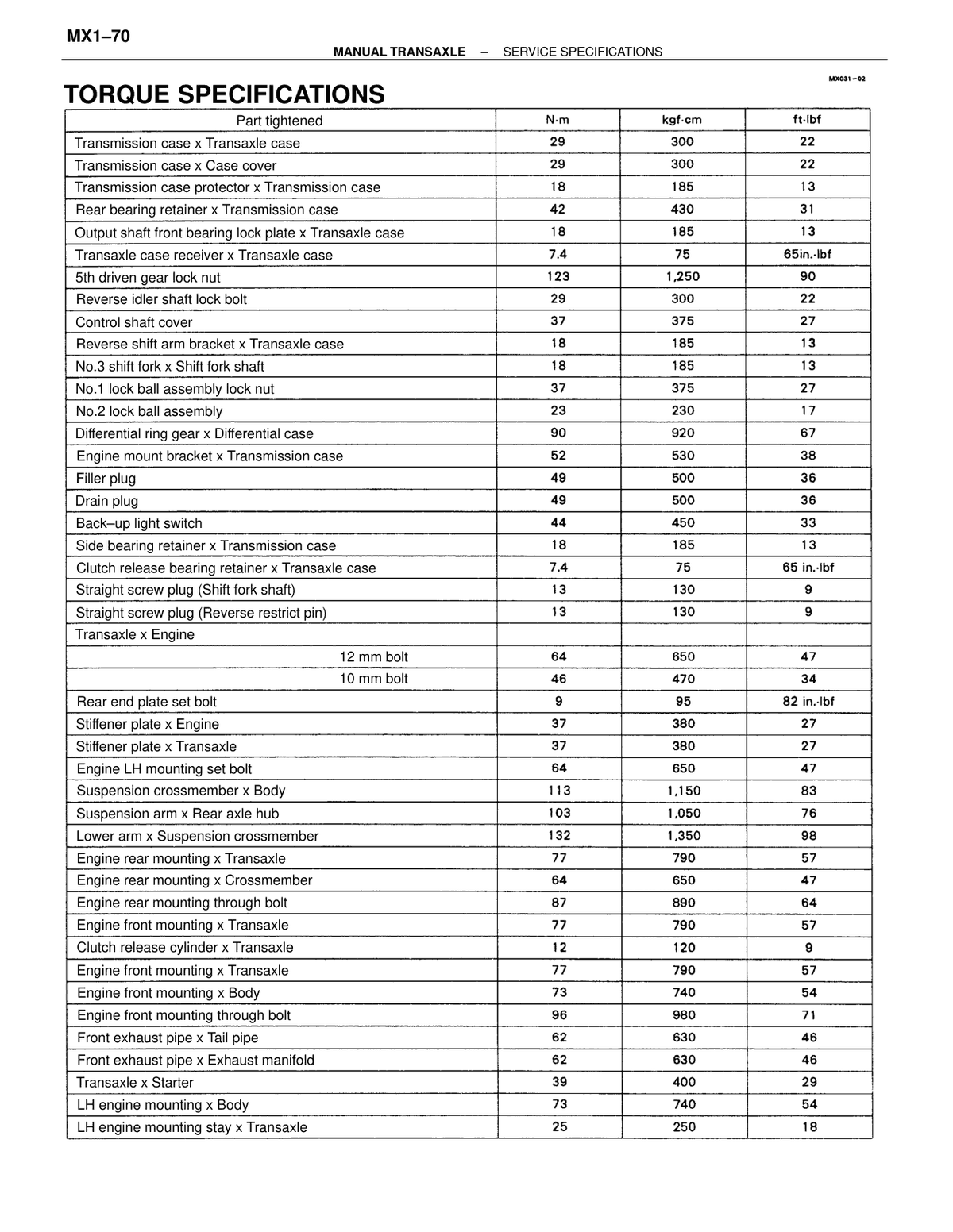

Transmission / transaxle Transmission case x Transaxle case 29 300 22 ↗ RM179U1_1991 · p1553 OEM manual

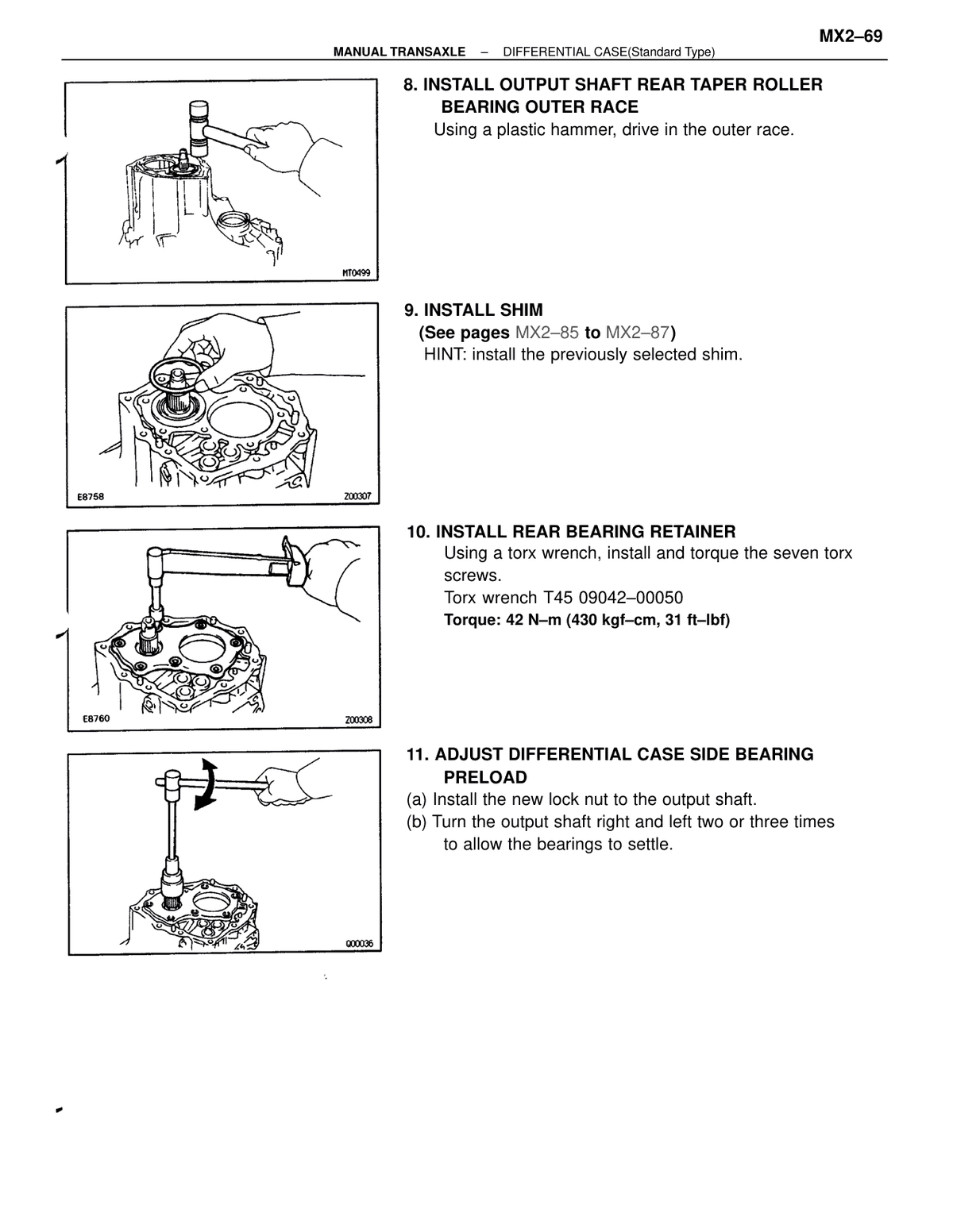

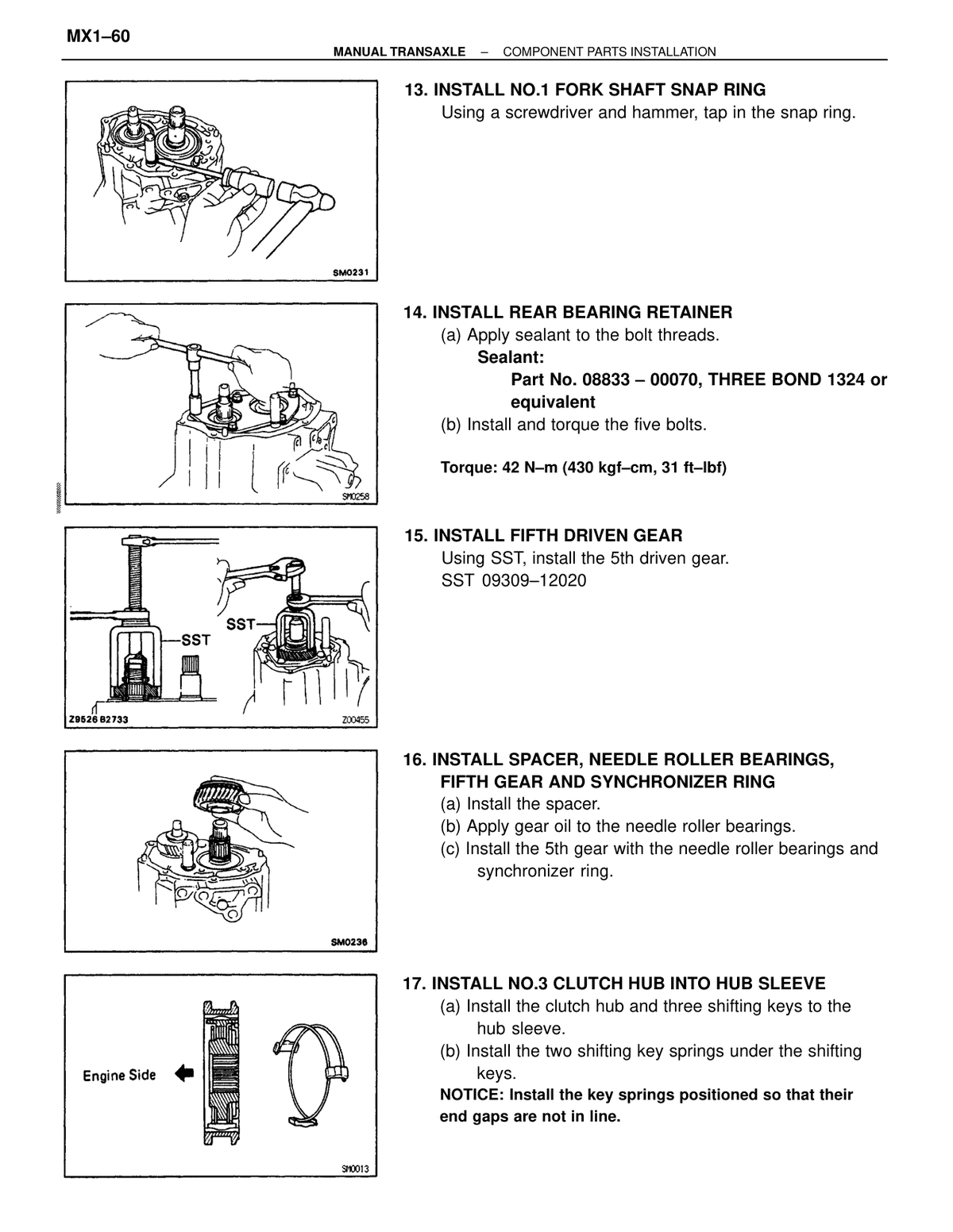

Transmission / transaxle Rear bearing retainer x Transmission case 42 430 31 ↗ RM179U1_1991 · p1553 OEM manual

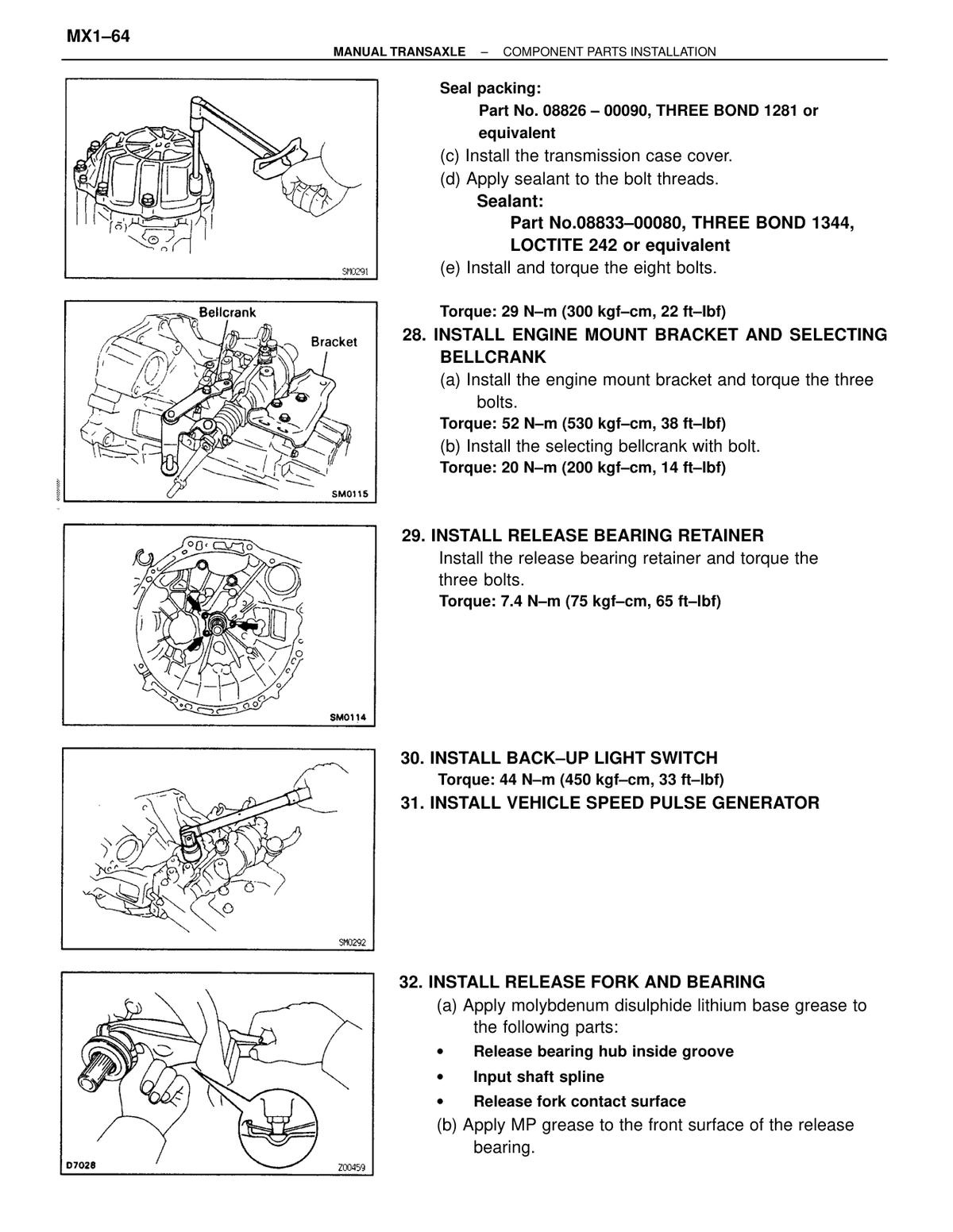

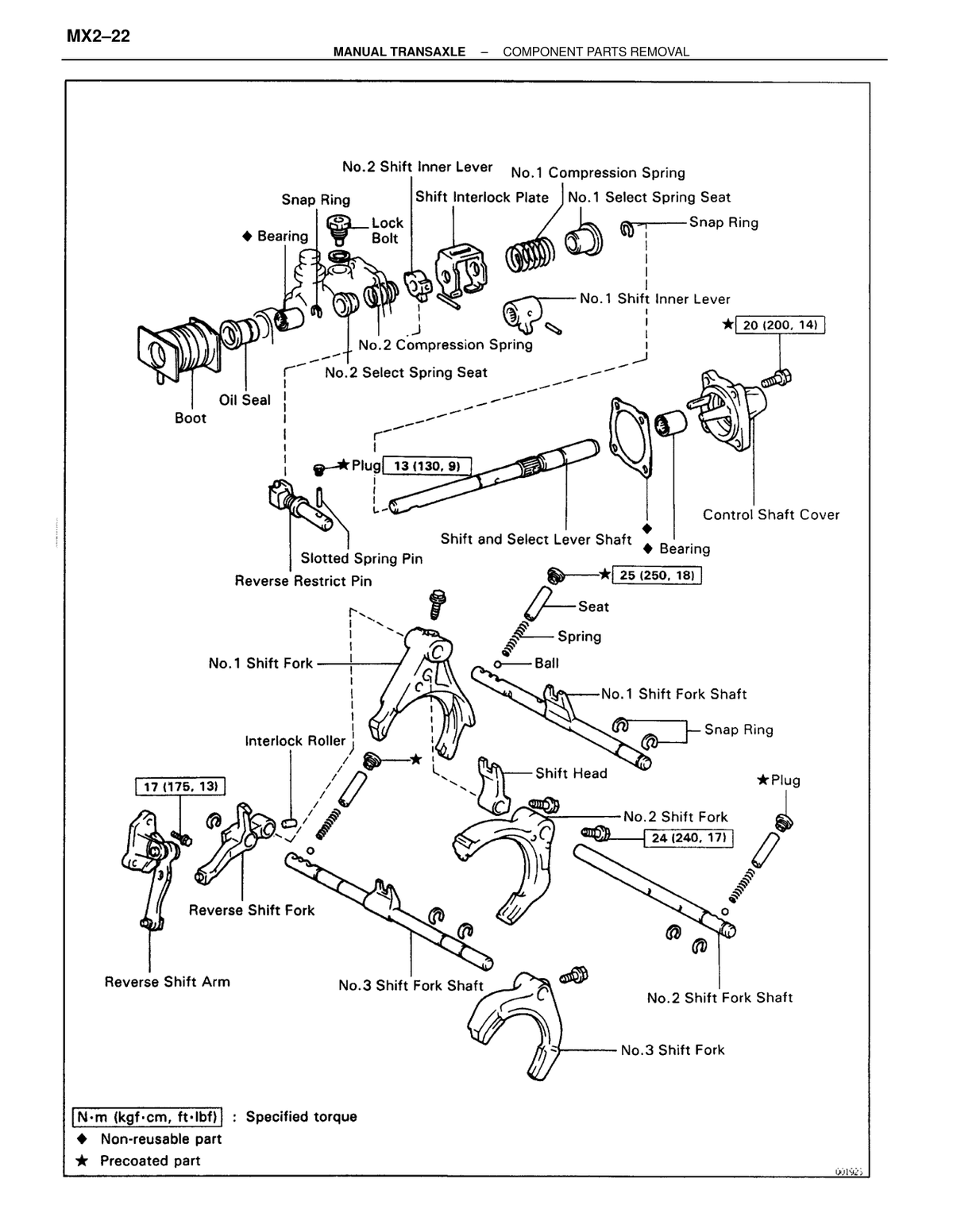

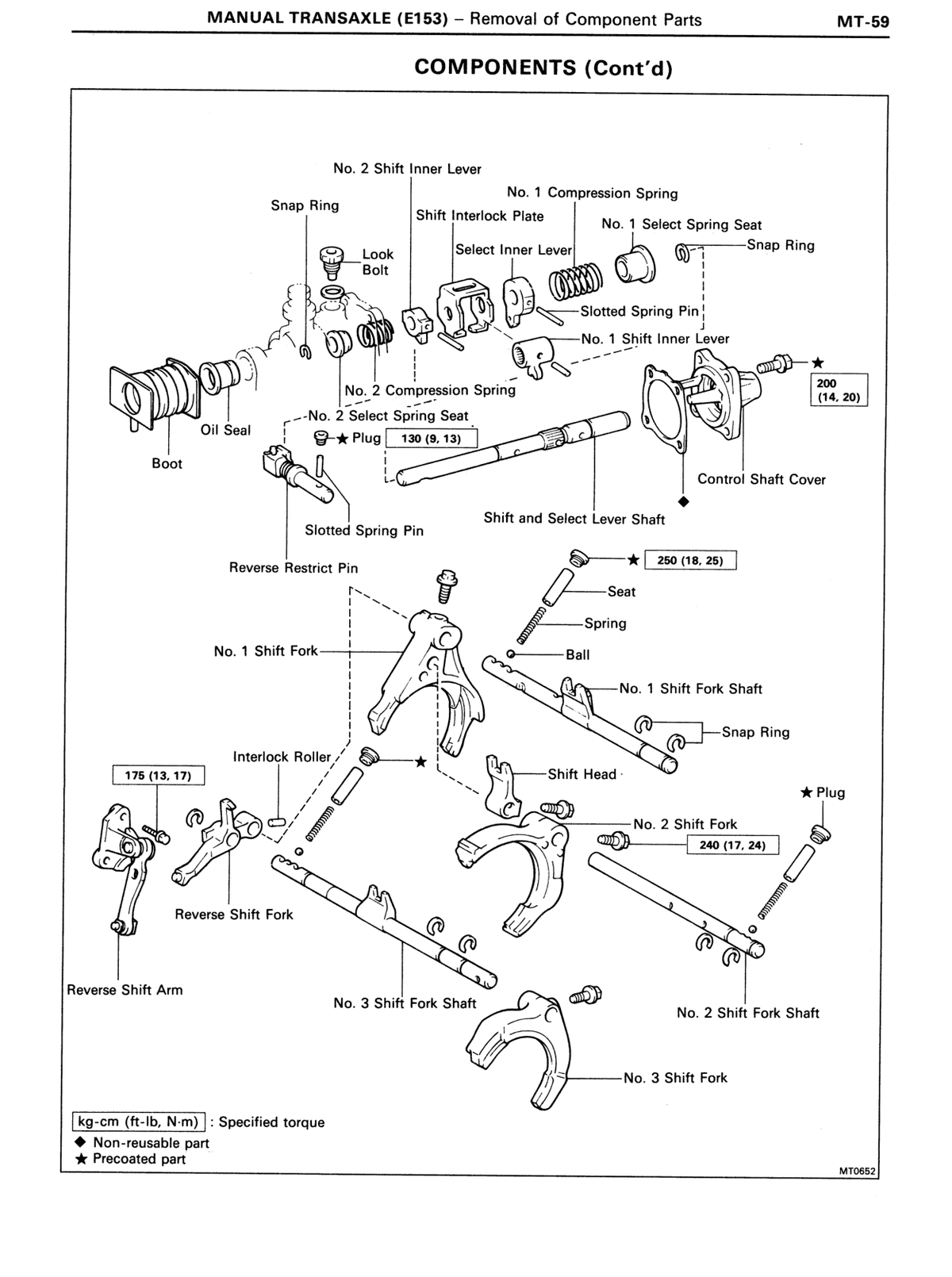

Transmission / transaxle Reverse shift arm bracket x Transaxle case 17 175 13 ↗ RM179U1_1991 · p1553 OEM manual

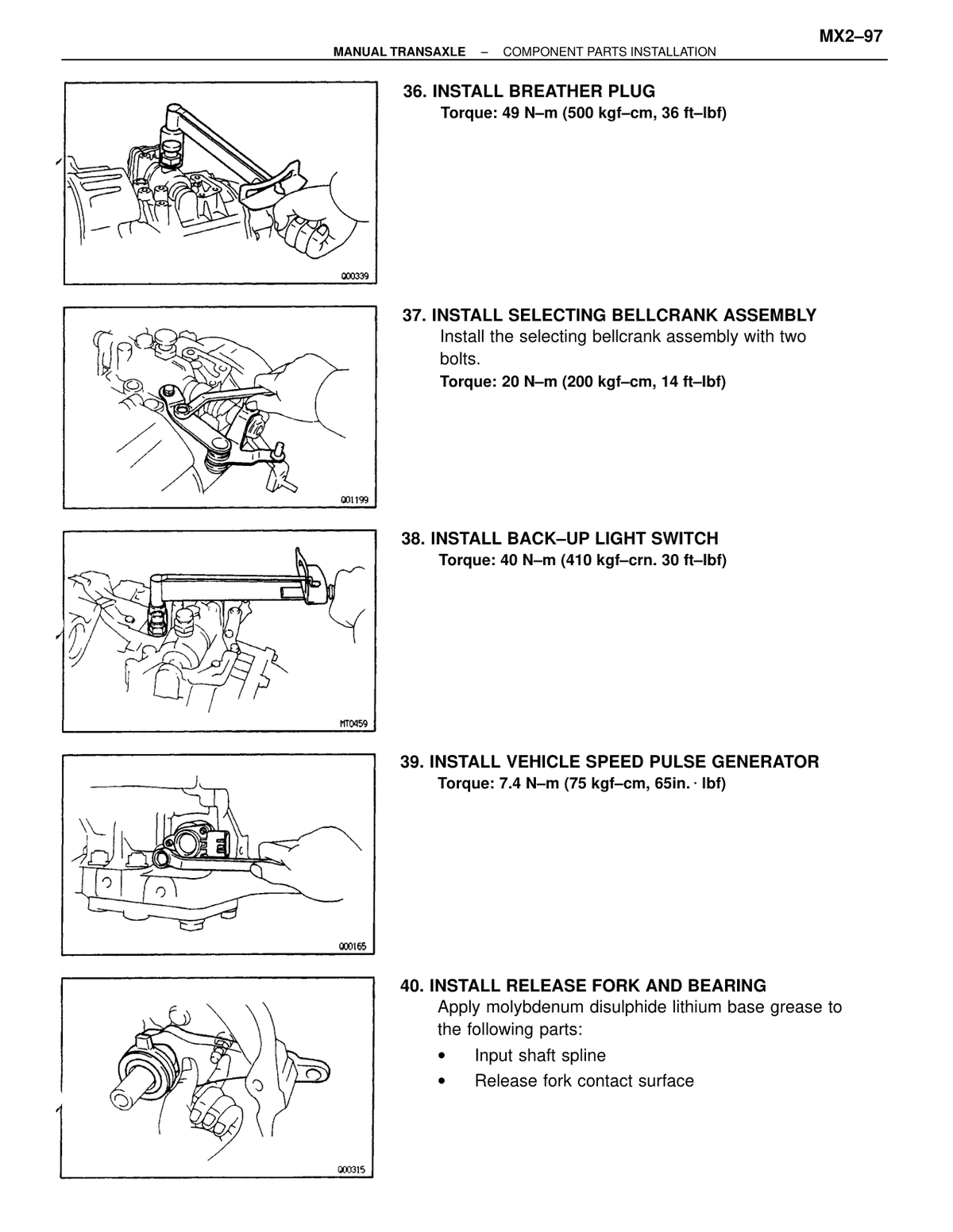

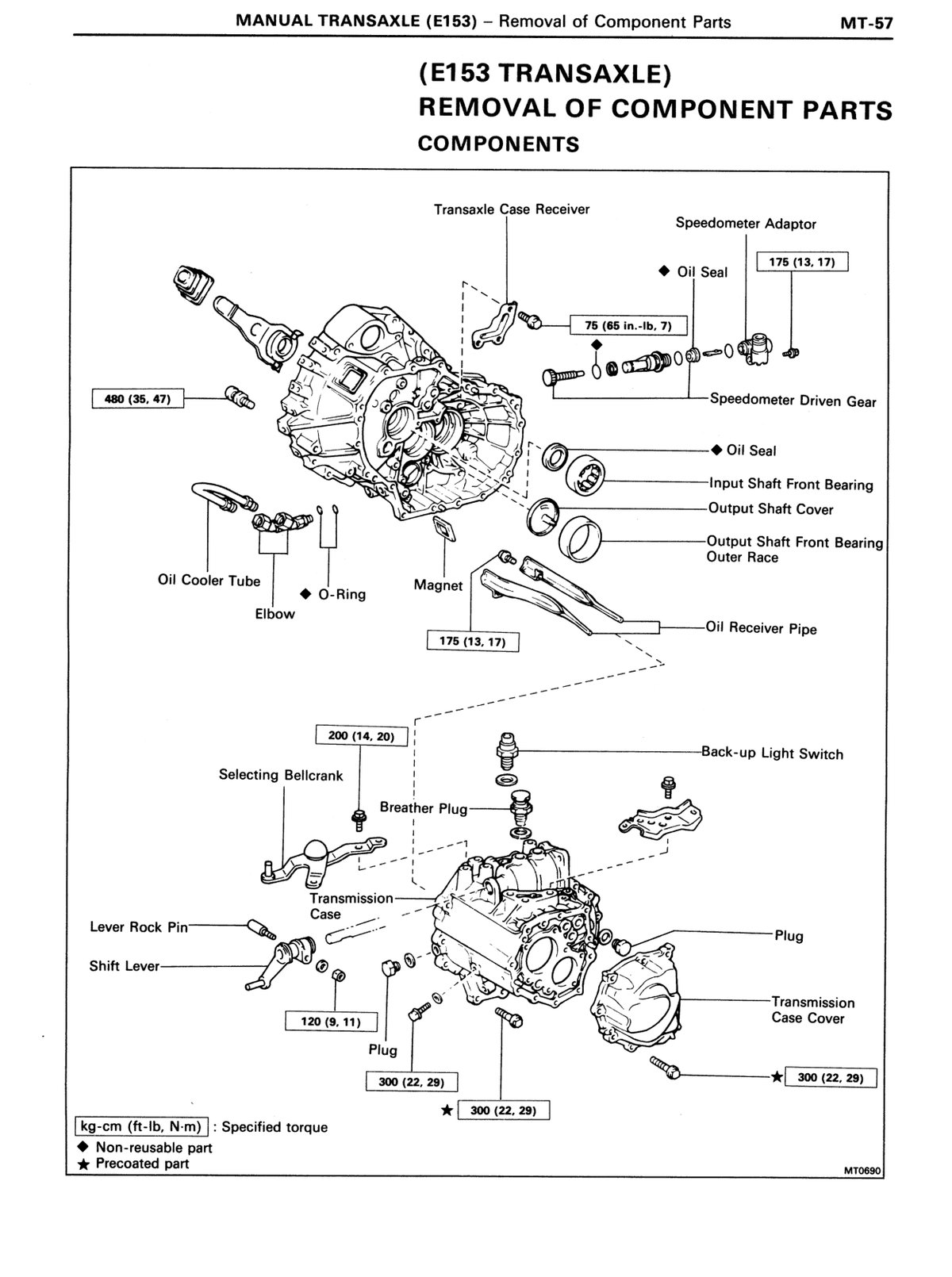

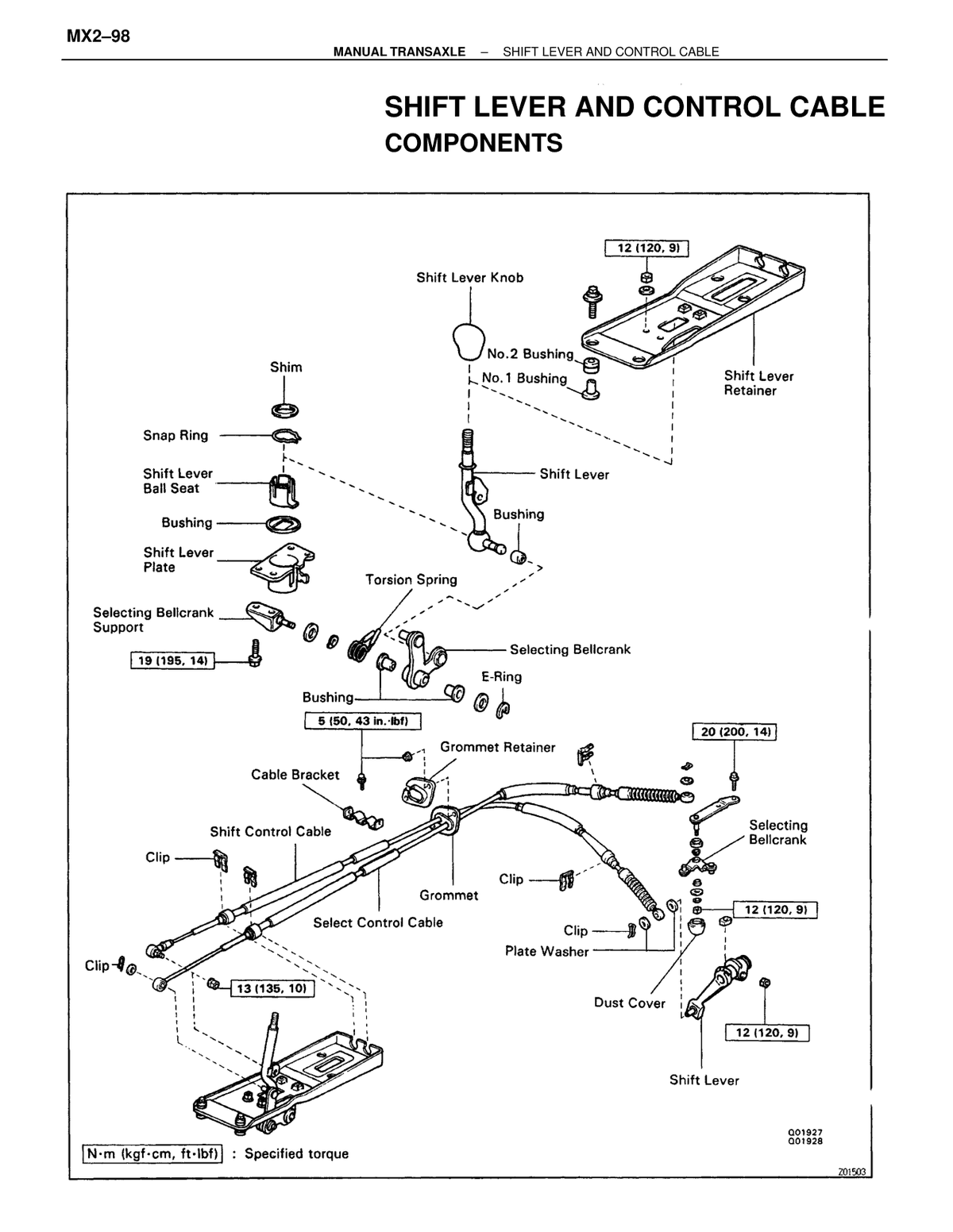

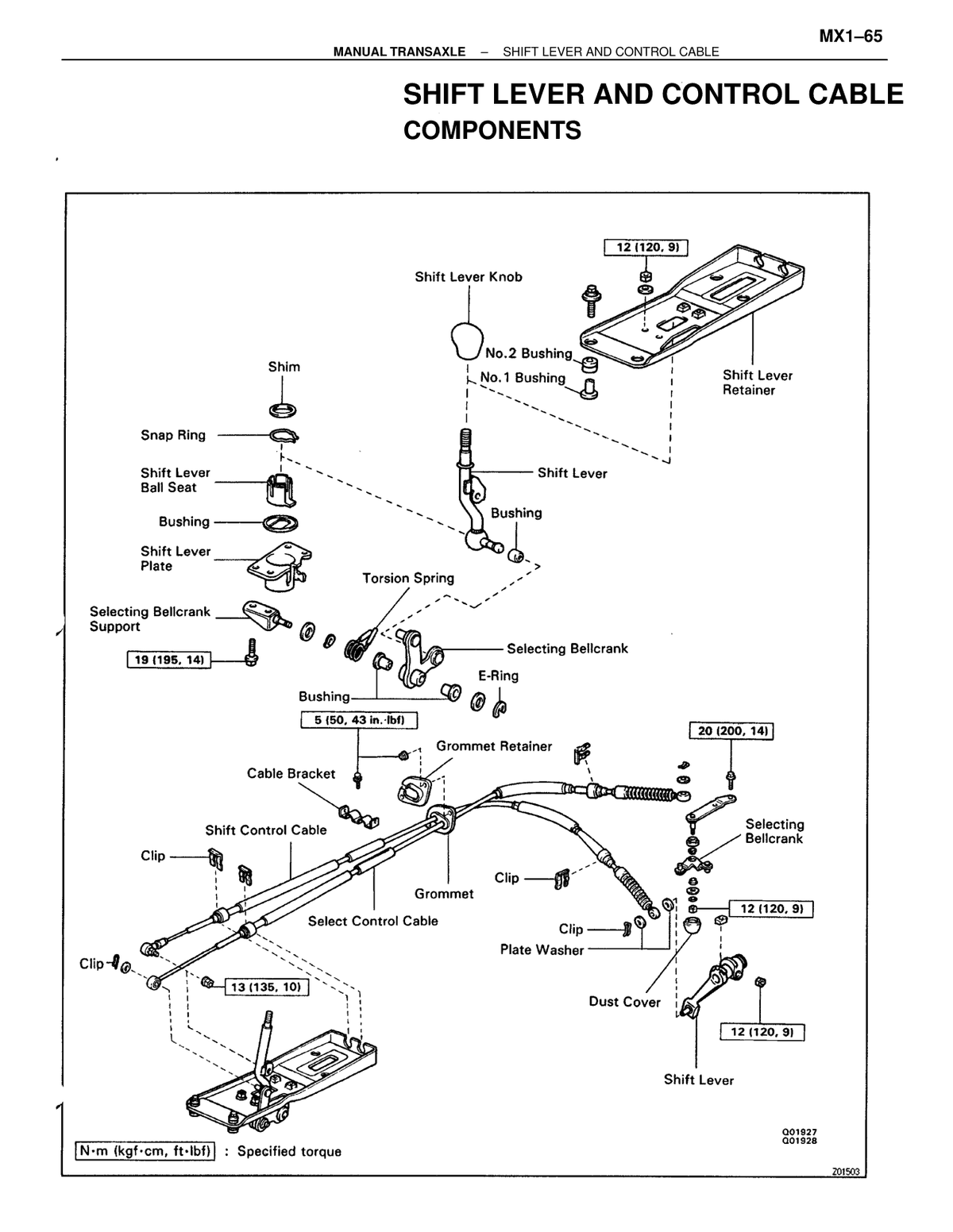

Transmission / transaxle Selecting bellcrank x Transmission case 20 200 14 ↗ RM179U1_1991 · p1553 OEM manual

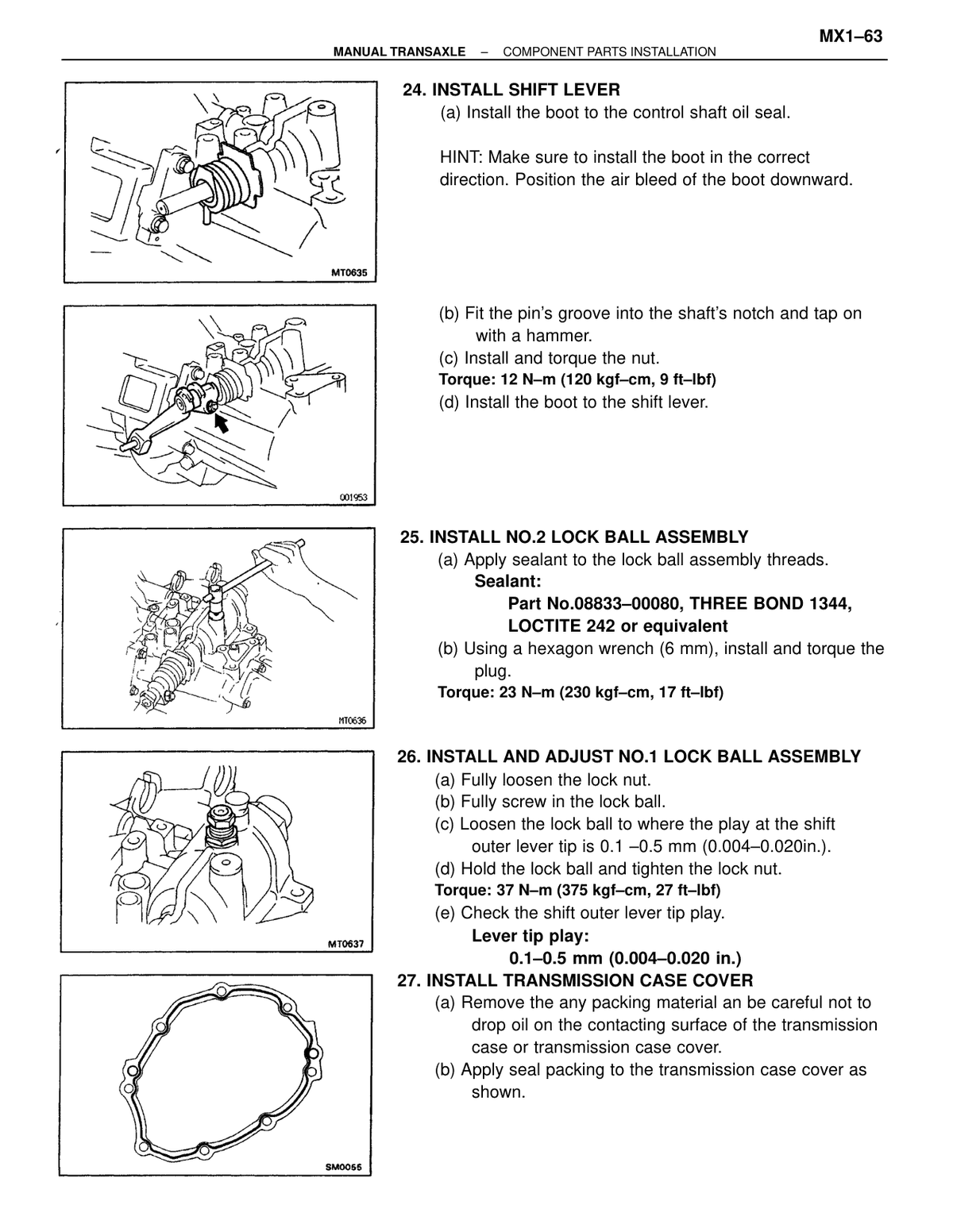

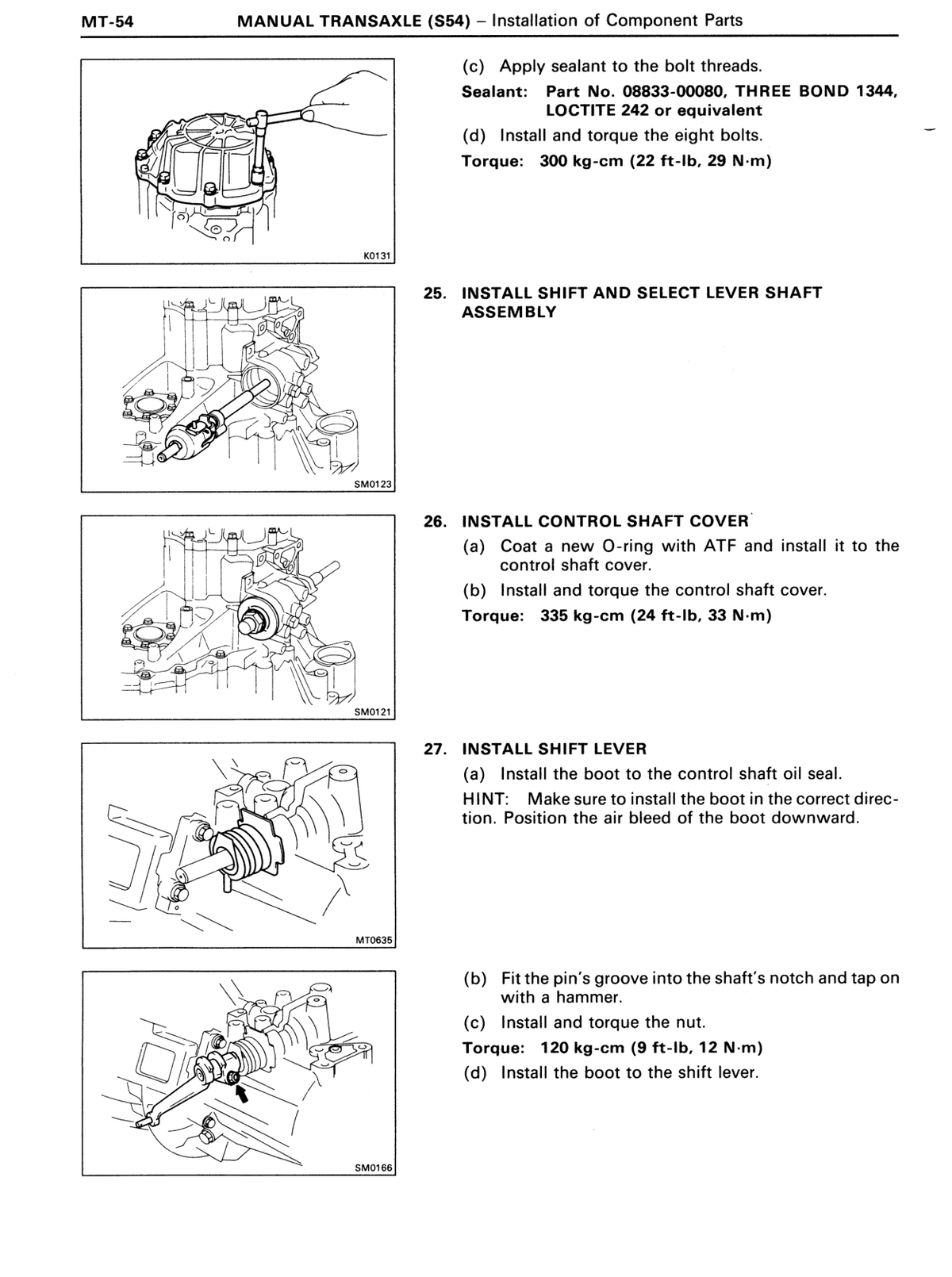

Transmission / transaxle Shift lever x Shift and select lever shaft 12 120 9 ↗ RM179U1_1991 · p1553 OEM manual

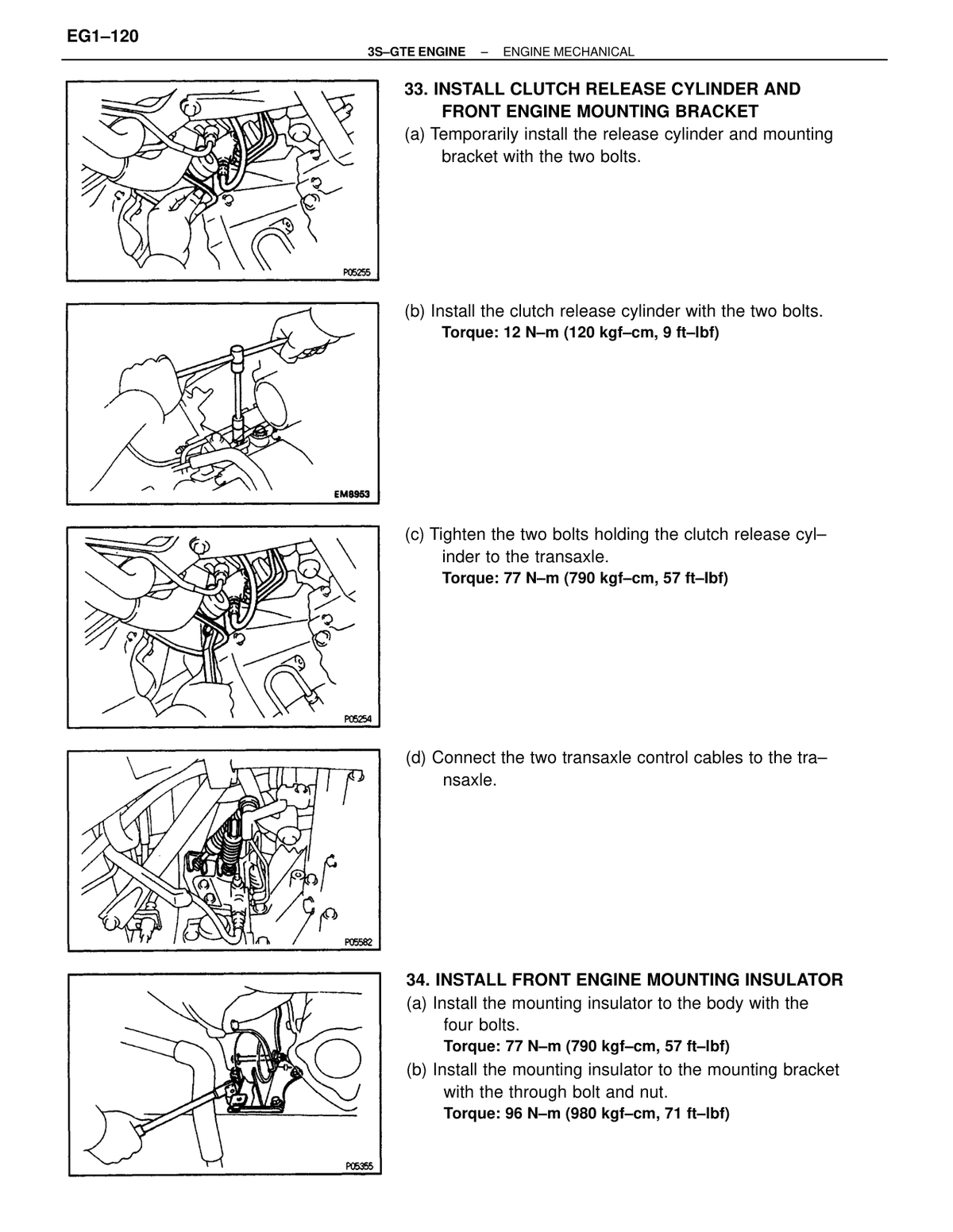

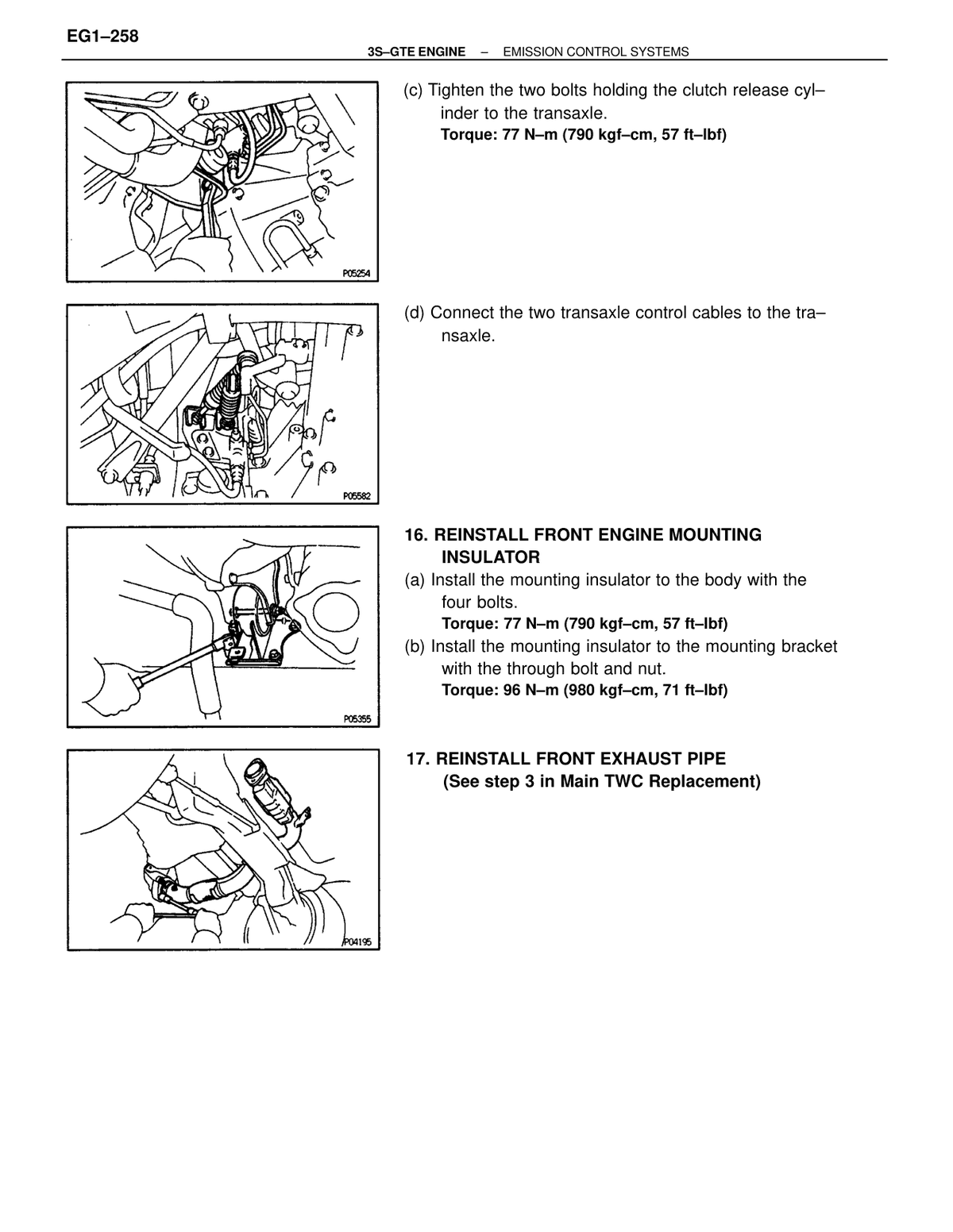

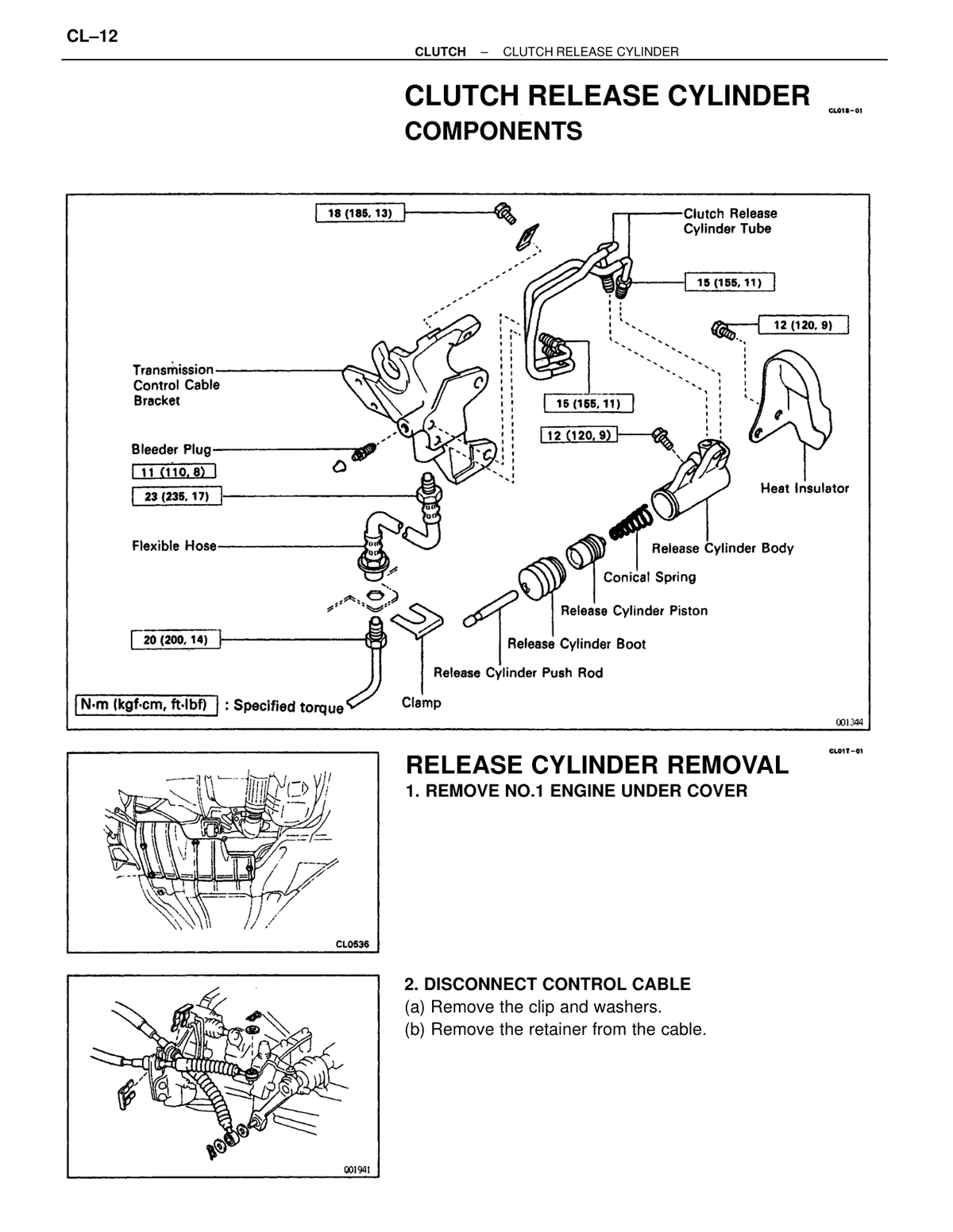

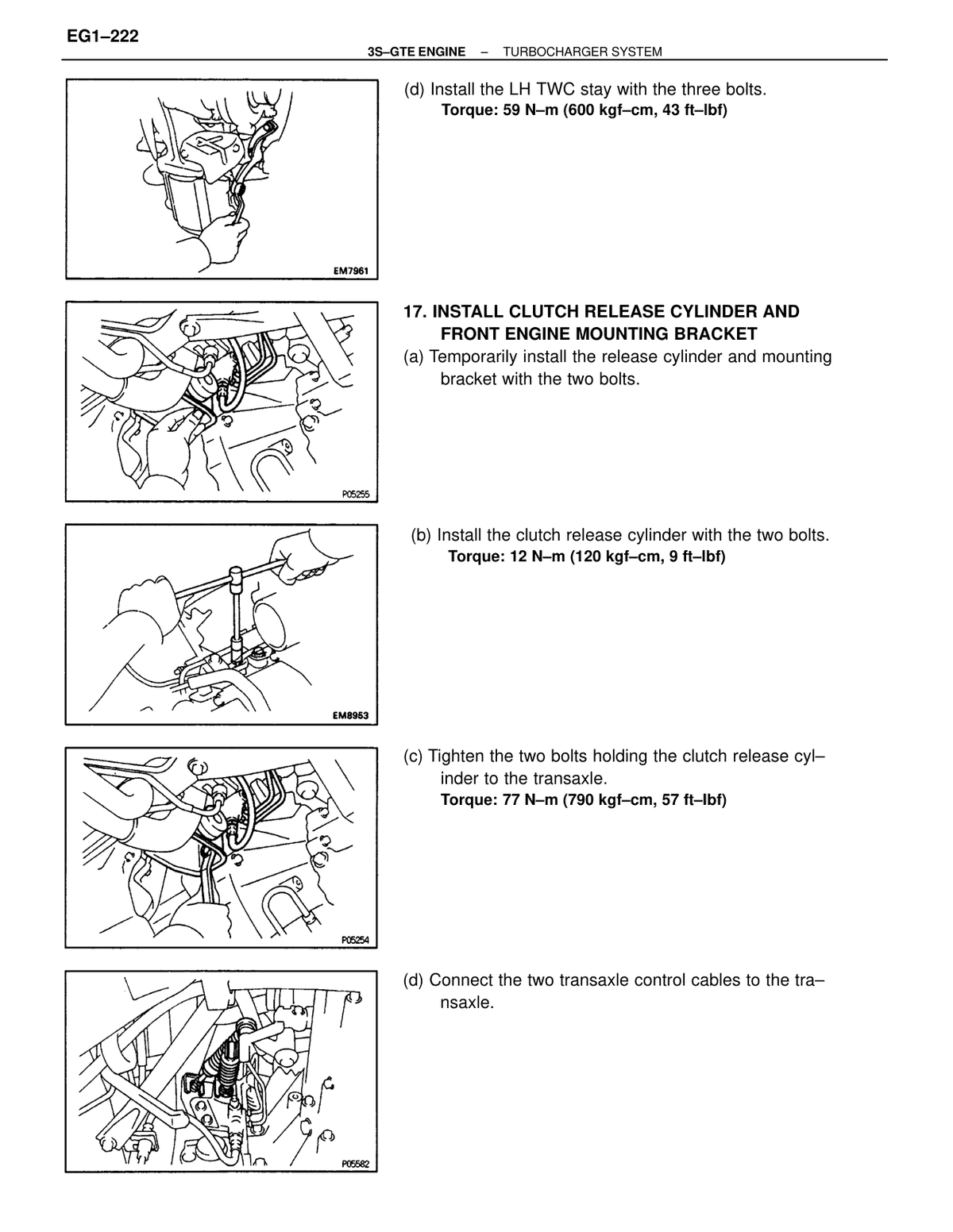

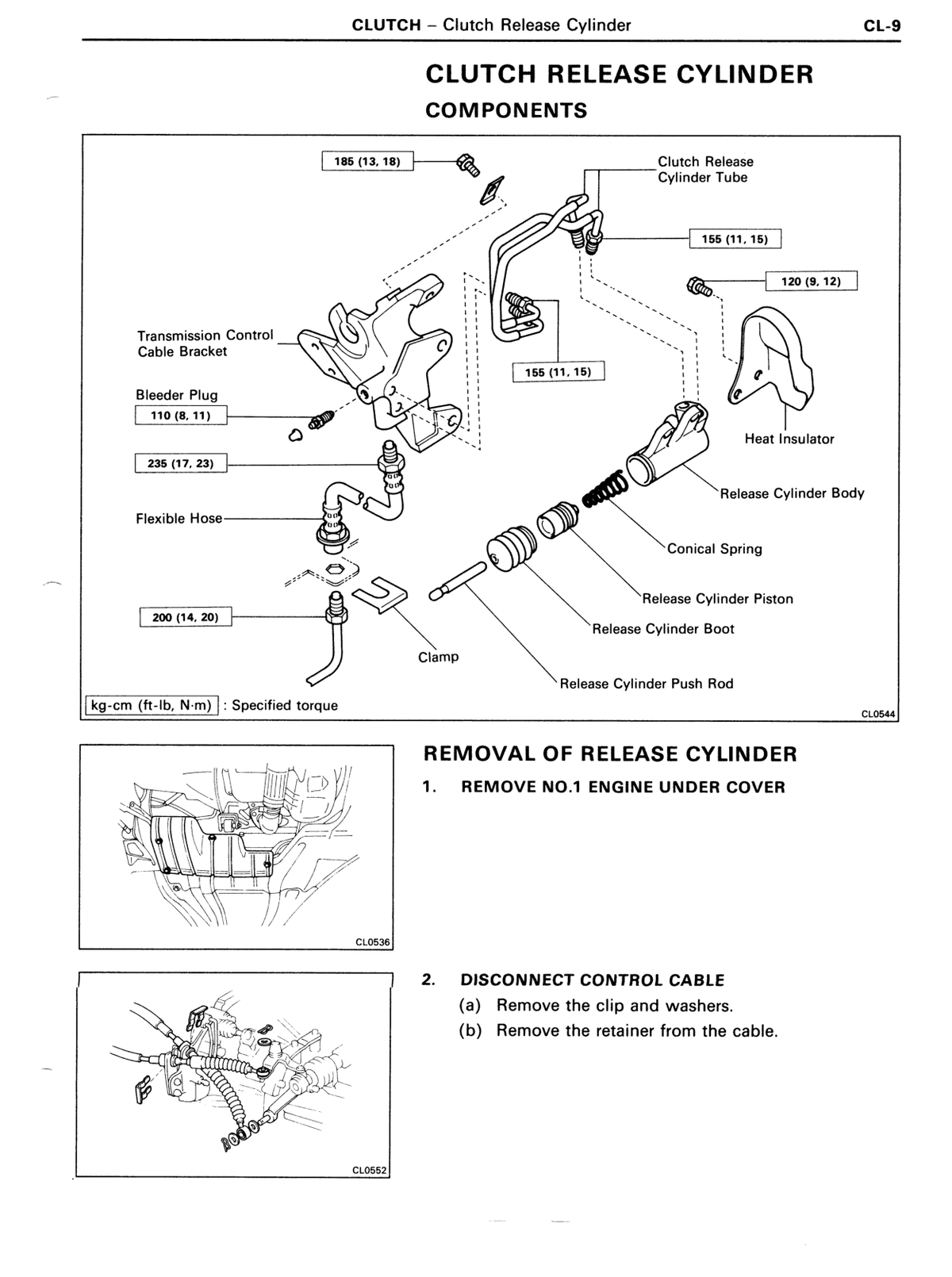

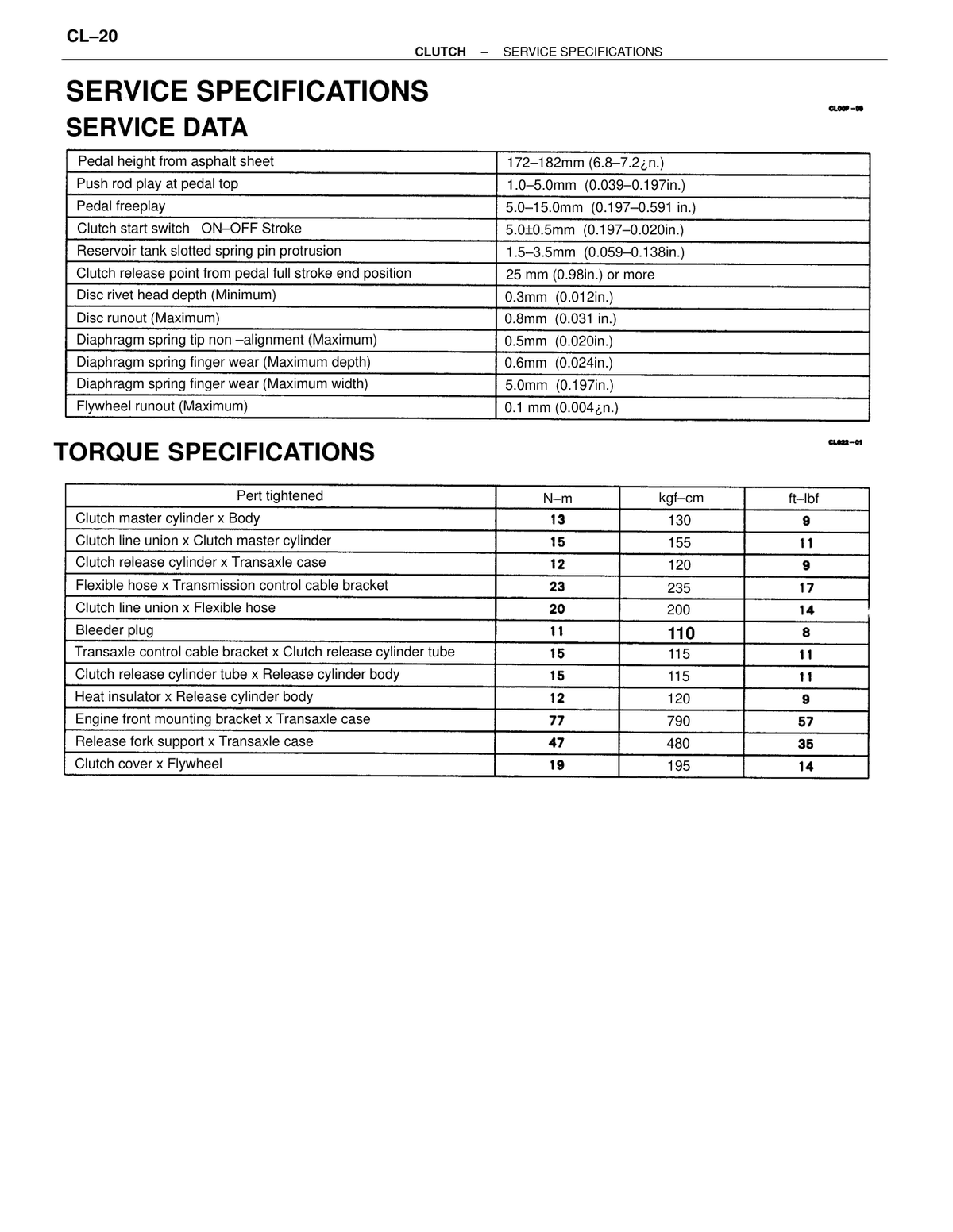

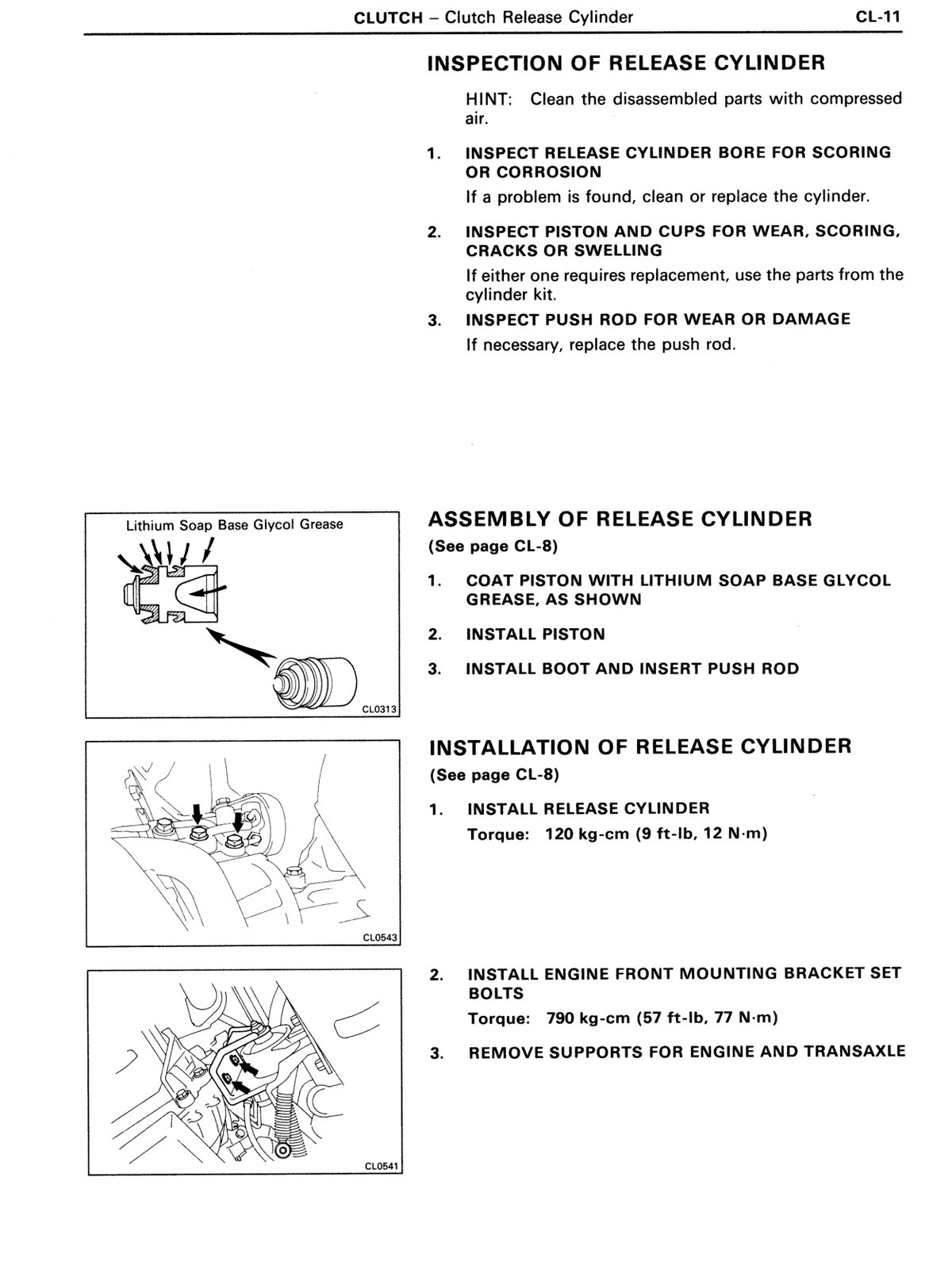

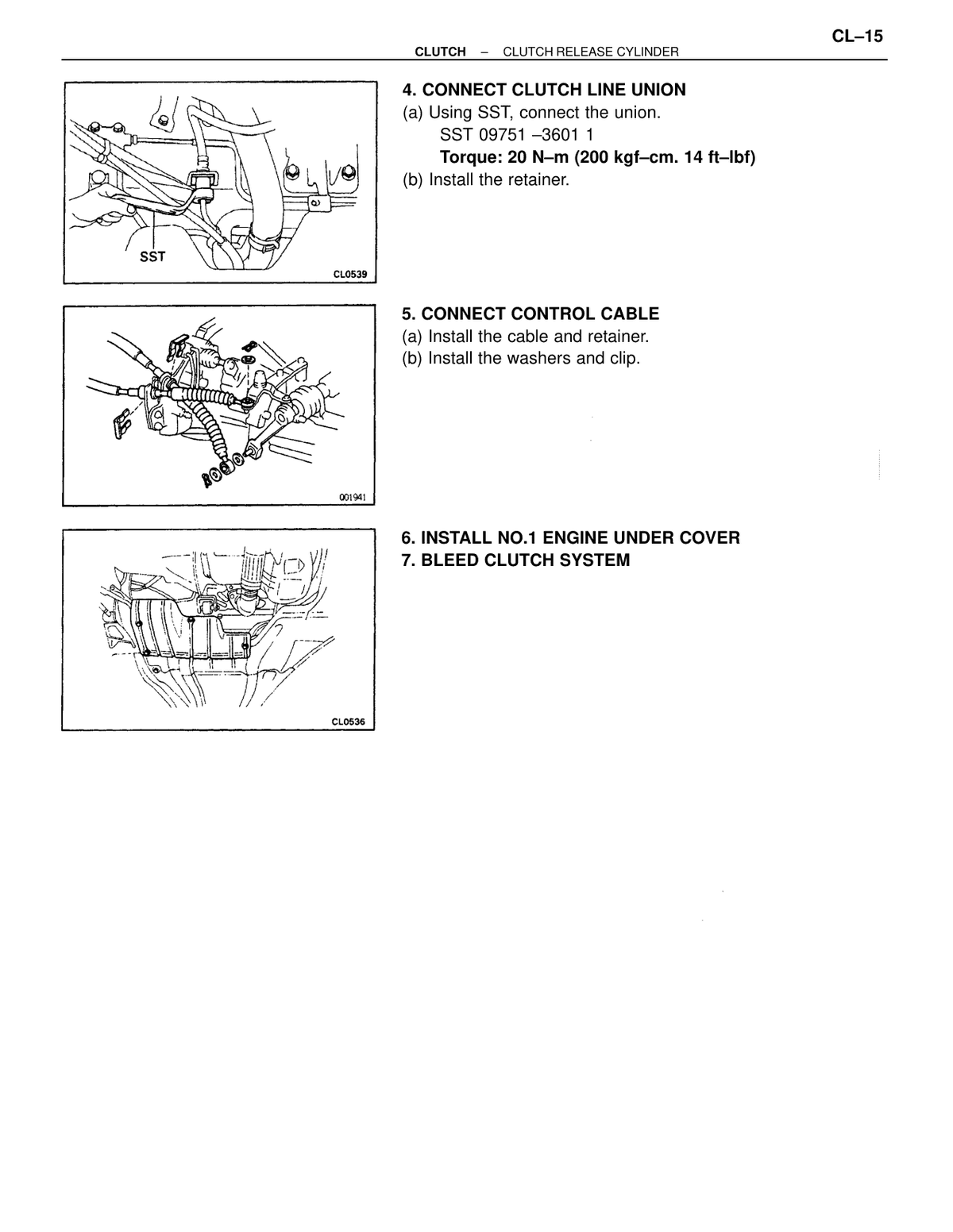

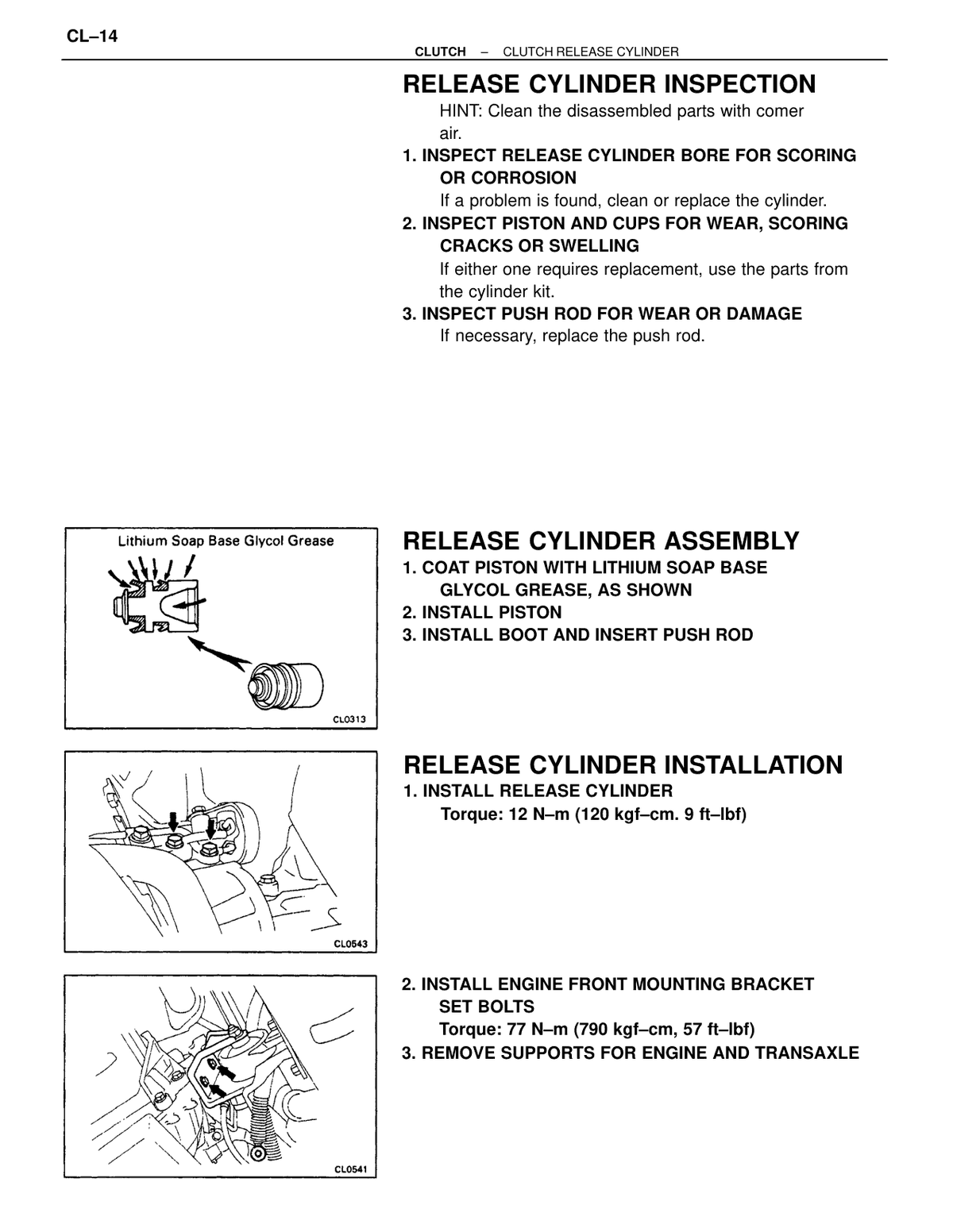

Transmission / transaxle Clutch release cylinder x Transaxle 12 120 9 ↗ RM179U1_1991 · p1553 OEM manual

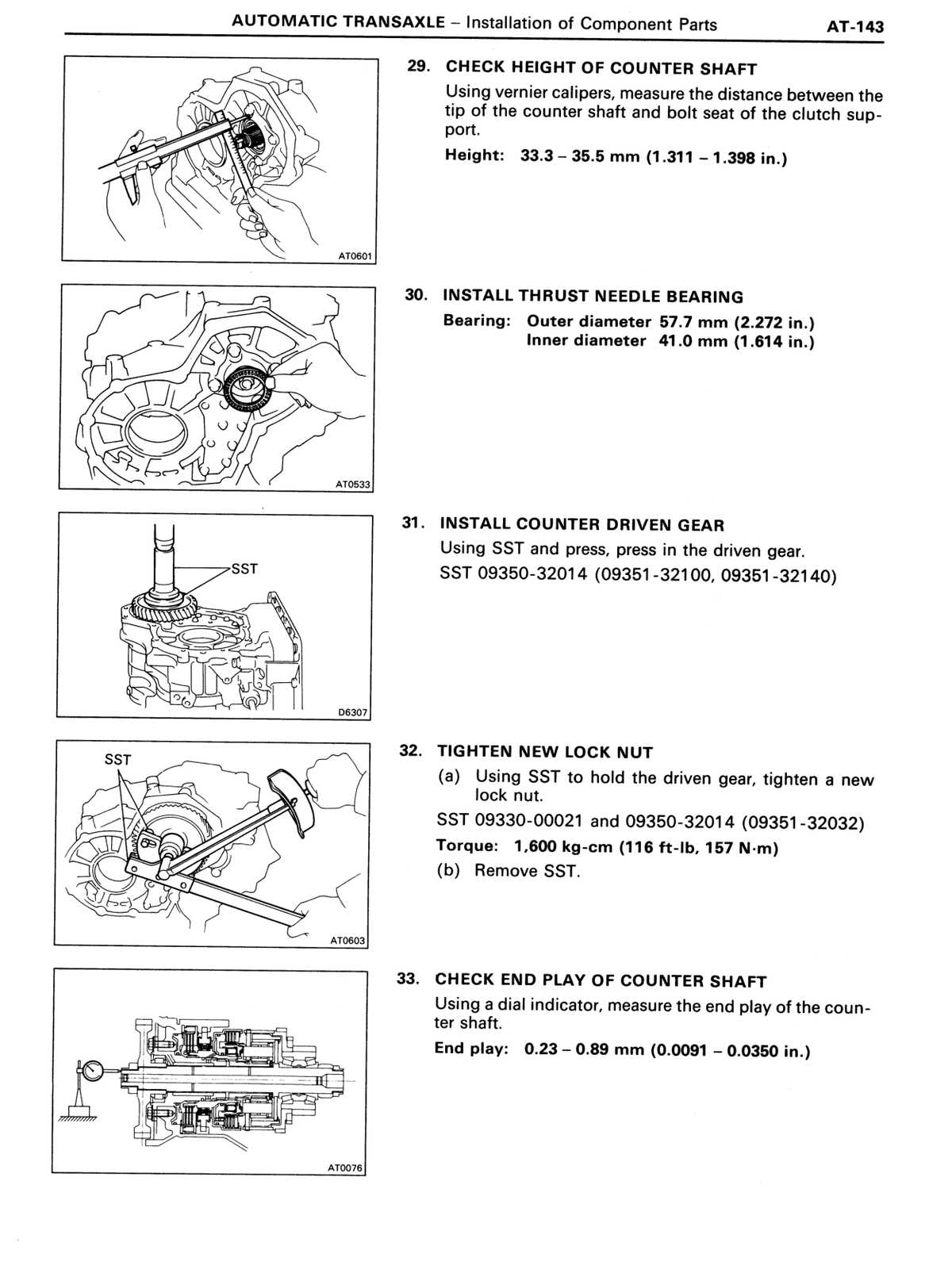

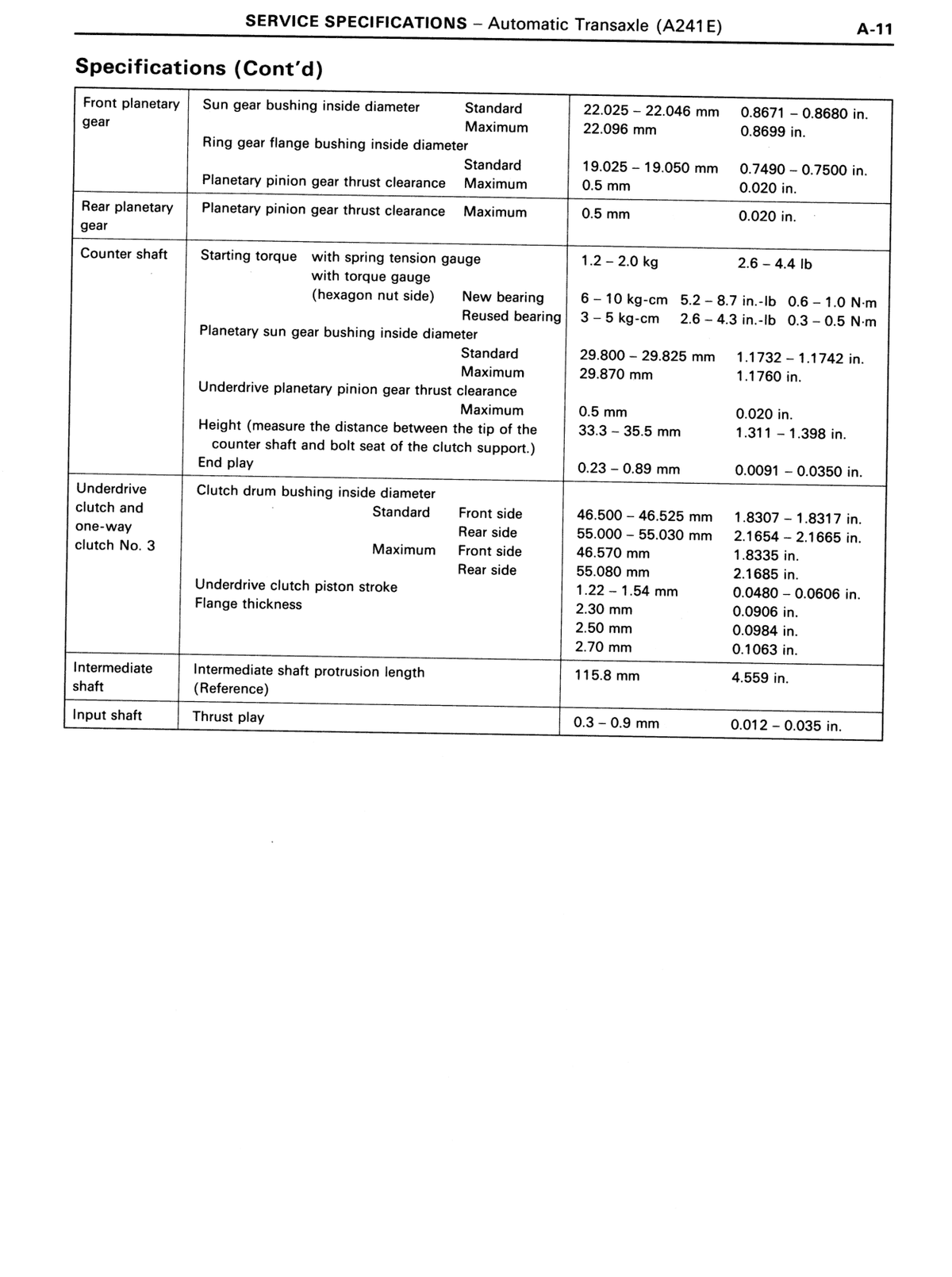

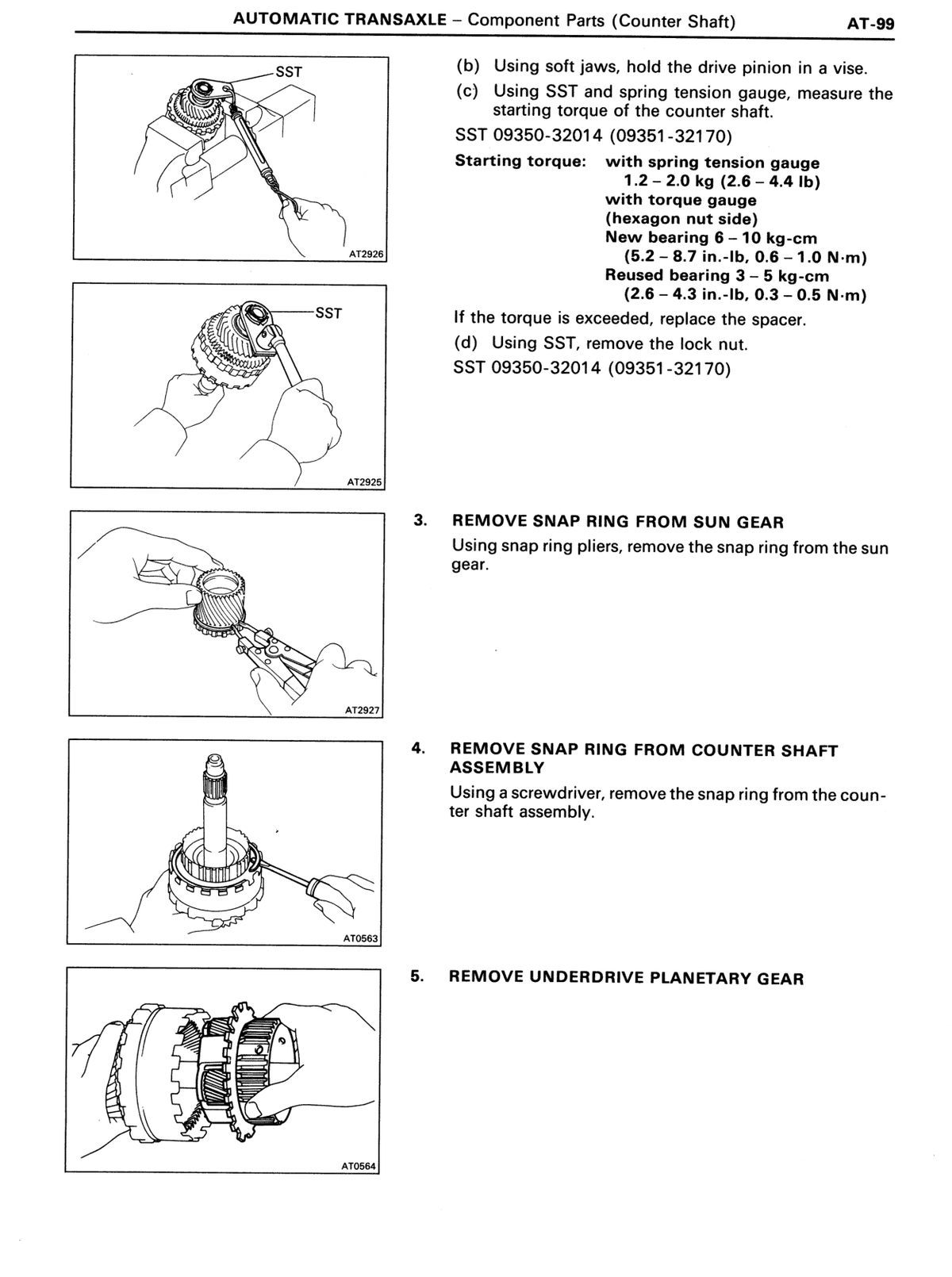

Transmission / transaxle Counter shaft starting torque — new bearing (hexagon nut side) with torque gauge Range: 6–10 kg-cm / 5.2–8.7 in-lb / 0.6–1.0 N·m; new bearing 0.6 6 — ↗ RM179U1_1991 · p1555 OEM manual
Transmission / transaxle Counter shaft starting torque — reused bearing (hexagon nut side) with torque gauge Range: 3–5 kg-cm / 2.6–4.3 in-lb / 0.3–0.5 N·m; reused bearing 0.3 3 — ↗ RM179U1_1991 · p1555 OEM manual

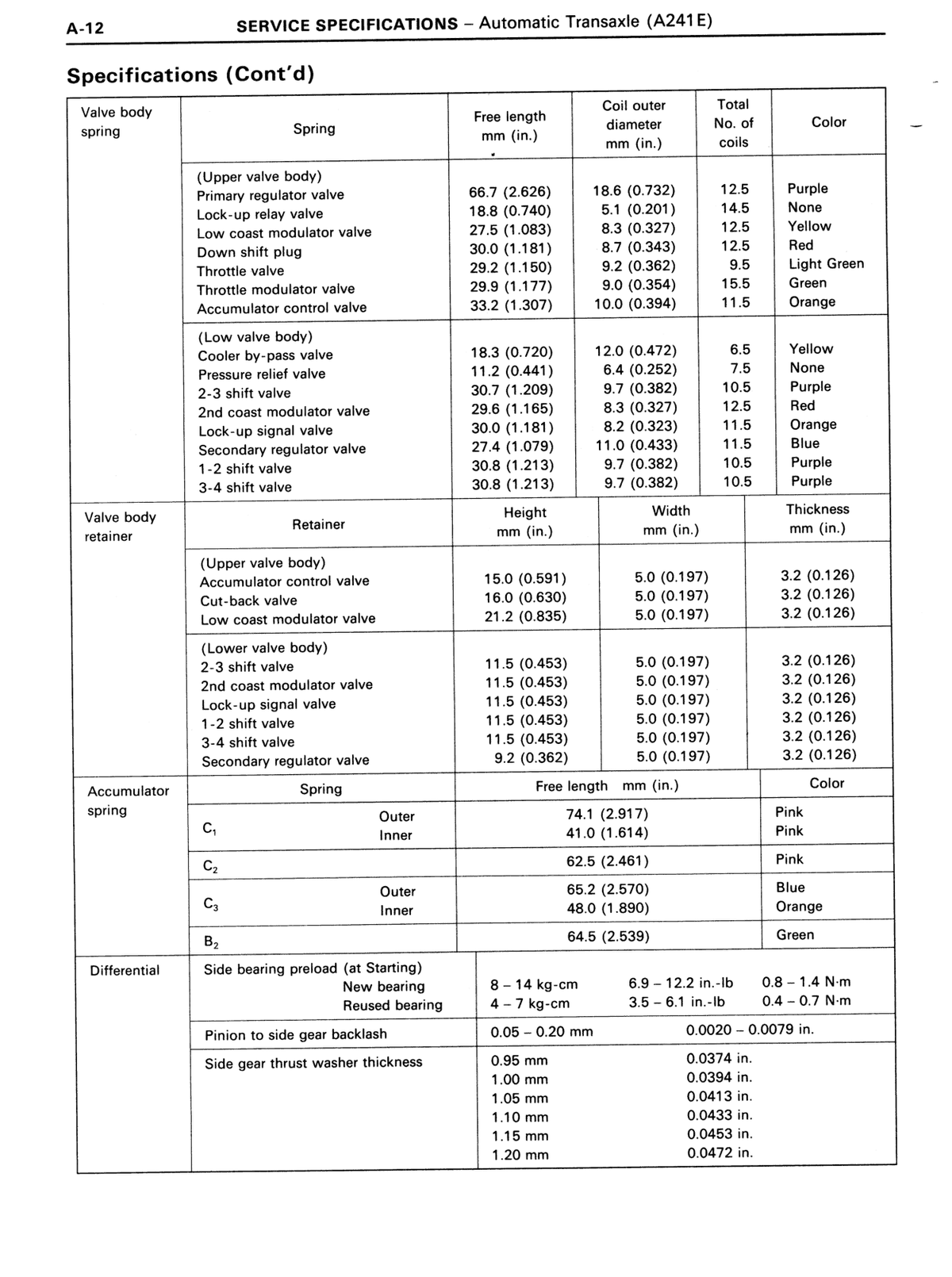

Transmission / transaxle Differential side bearing preload (at Starting) — New bearing range: 8–14 kg·cm / 6.9–12.2 in·lb / 0.8–1.4 N·m 1.1 11 — ↗ RM179U1_1991 · p1556 OEM manual
Transmission / transaxle Differential side bearing preload (at Starting) — Reused bearing range: 4–7 kg·cm / 3.5–6.1 in·lb / 0.4–0.7 N·m 0.55 5.5 — ↗ RM179U1_1991 · p1556 OEM manual

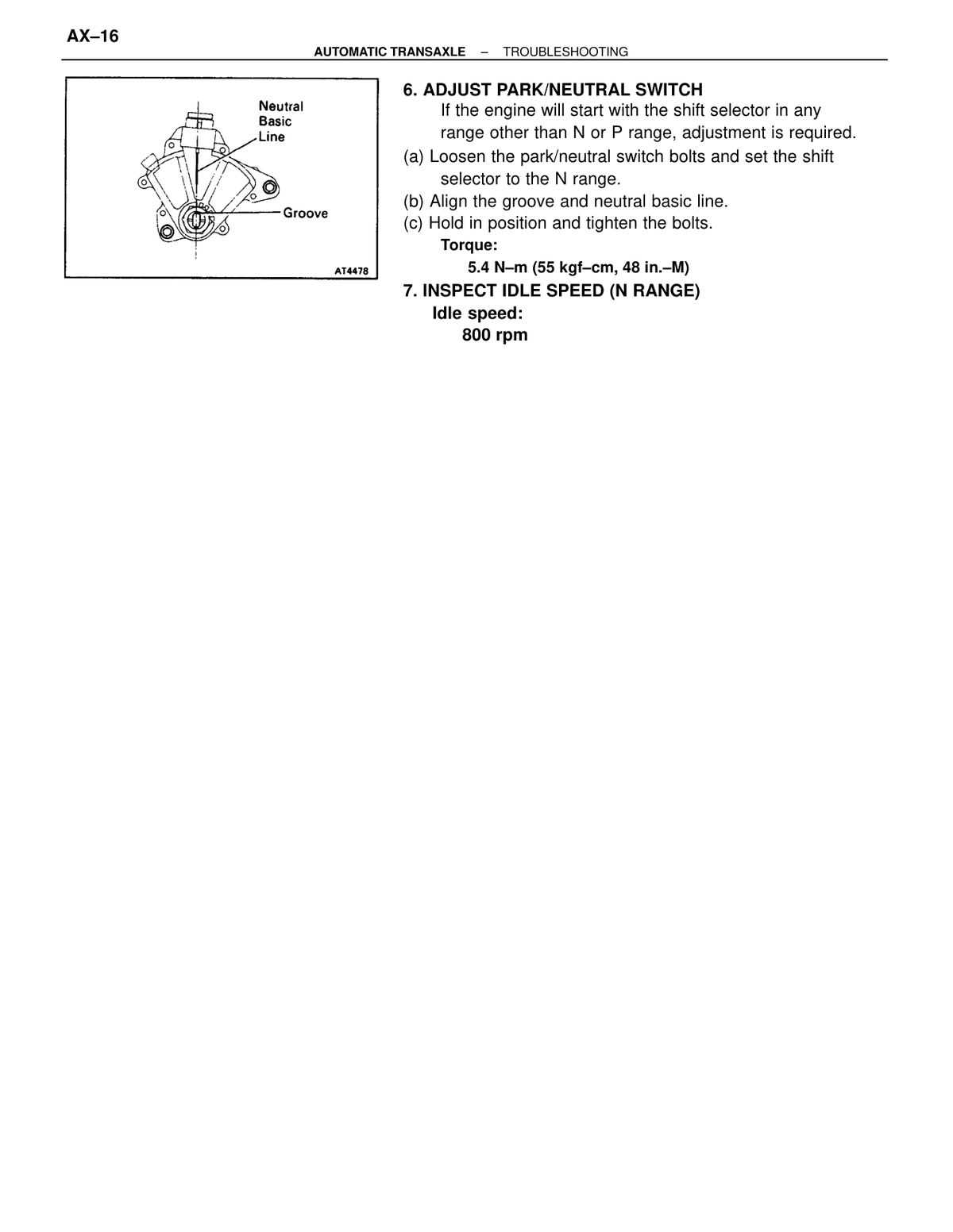

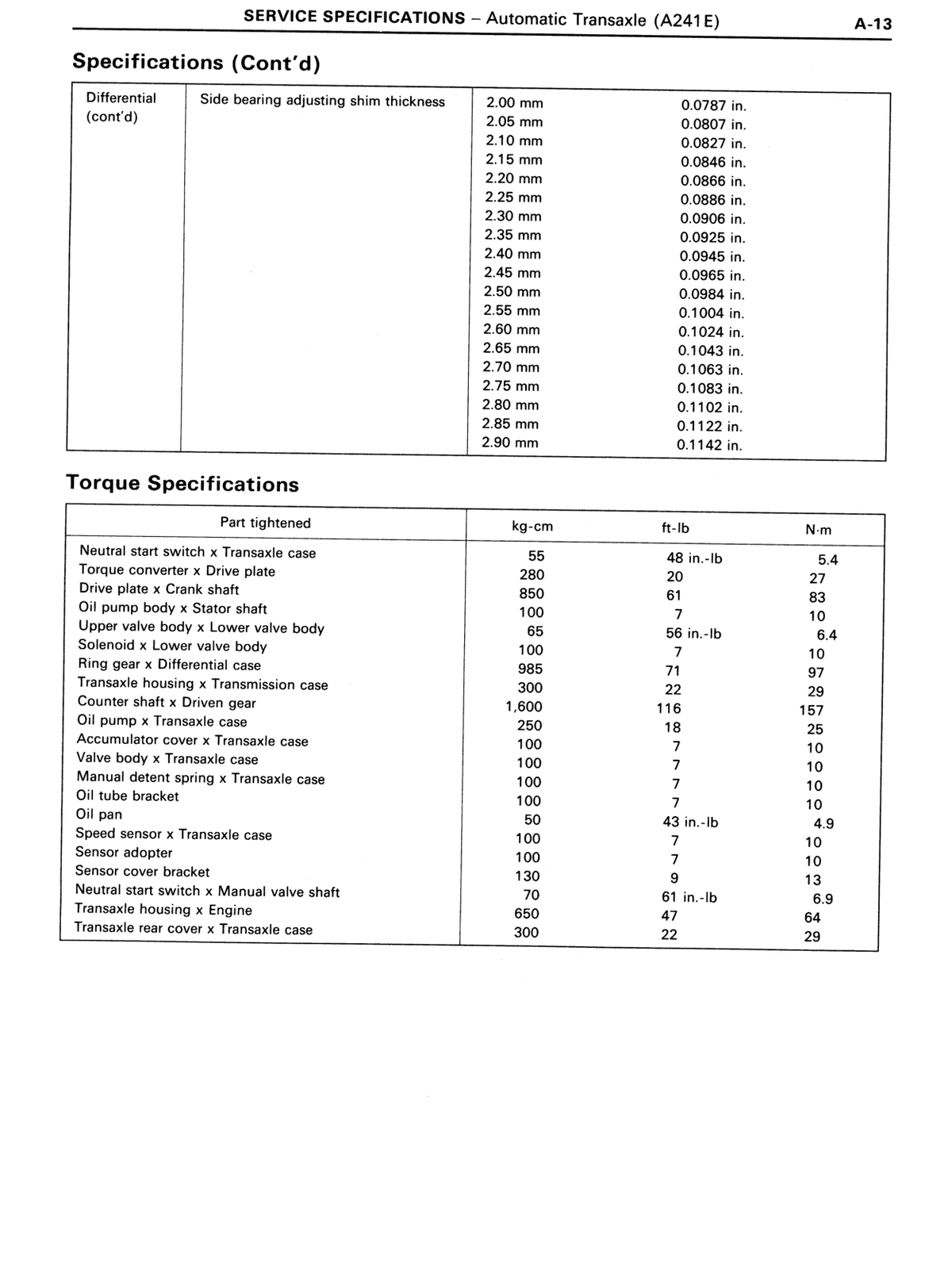

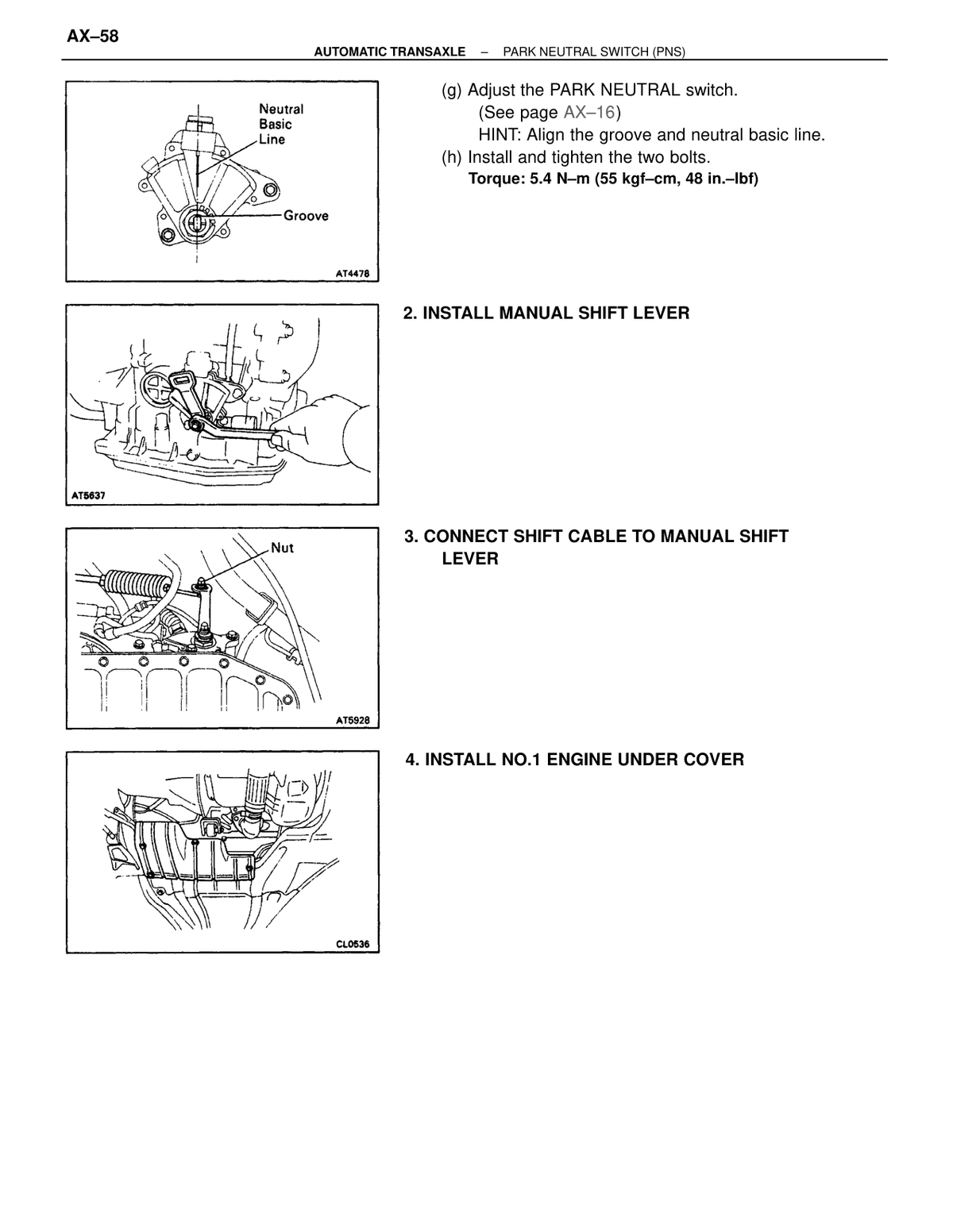

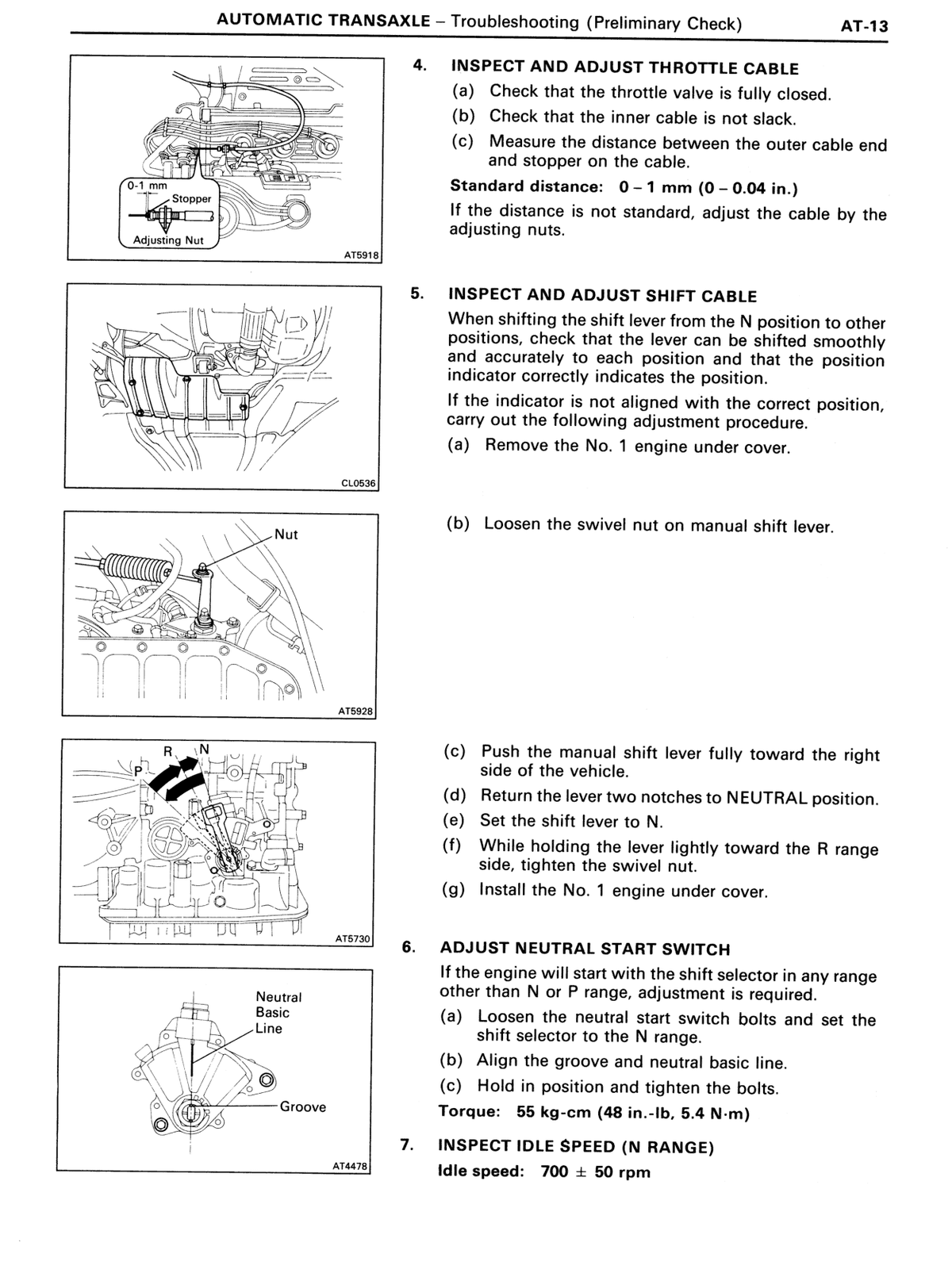

Transmission / transaxle Neutral start switch x Transaxle case 48 in.-lb 5.4 55 4 ↗ RM179U1_1991 · p1557 OEM manual

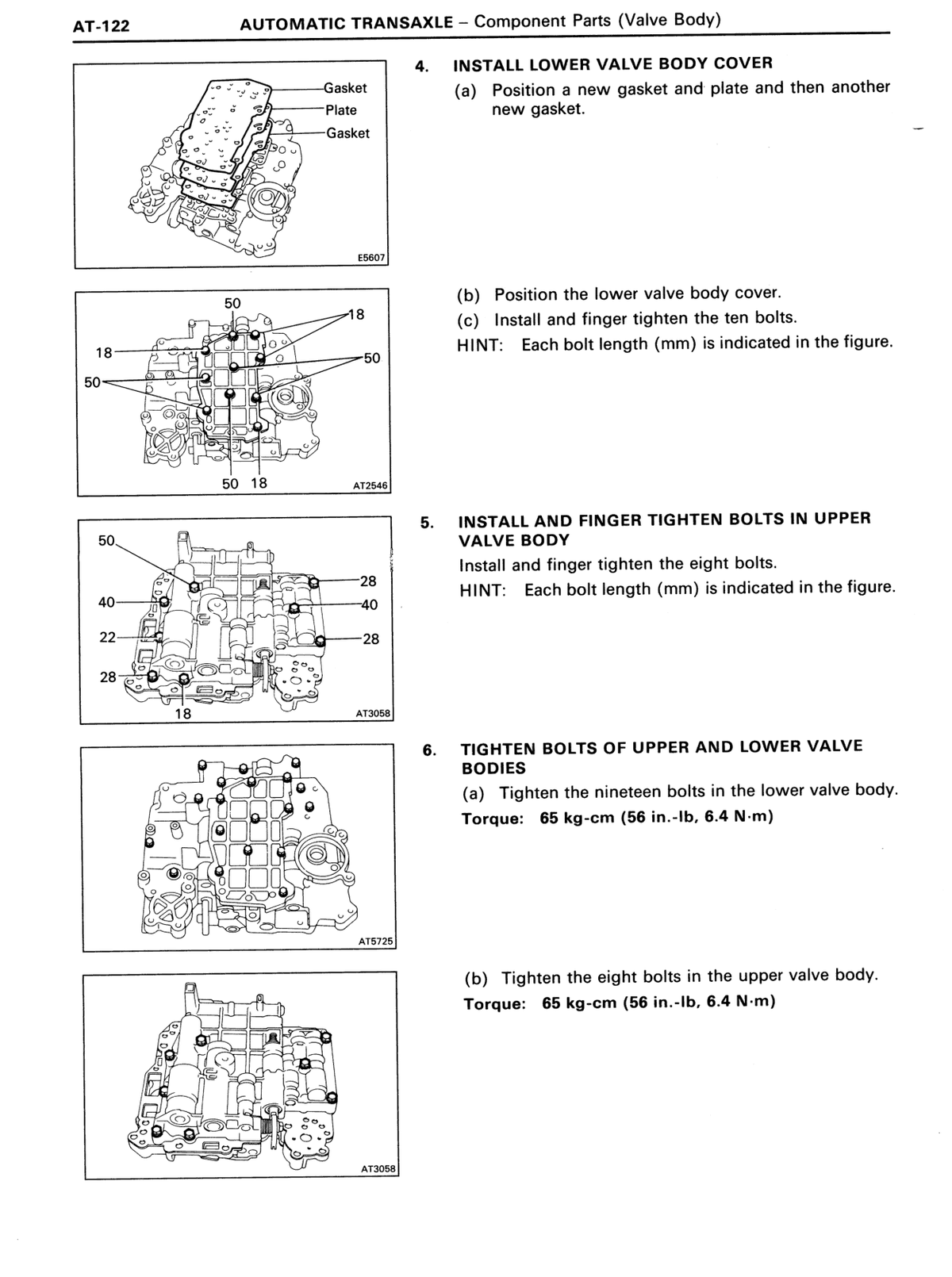

Transmission / transaxle Upper valve body x Lower valve body 56 in.-lb 6.4 65 4.7 ↗ RM179U1_1991 · p1557 OEM manual
Transmission / transaxle Transaxle housing x Transmission case 29 300 22 ↗ RM179U1_1991 · p1557 OEM manual
Transmission / transaxle Accumulator cover x Transaxle case 10 100 7 ↗ RM179U1_1991 · p1557 OEM manual
Transmission / transaxle Manual detent spring x Transaxle case 10 100 7 ↗ RM179U1_1991 · p1557 OEM manual
Transmission / transaxle Neutral start switch x Manual valve shaft 61 in.-lb 6.9 70 5.1 ↗ RM179U1_1991 · p1557 OEM manual

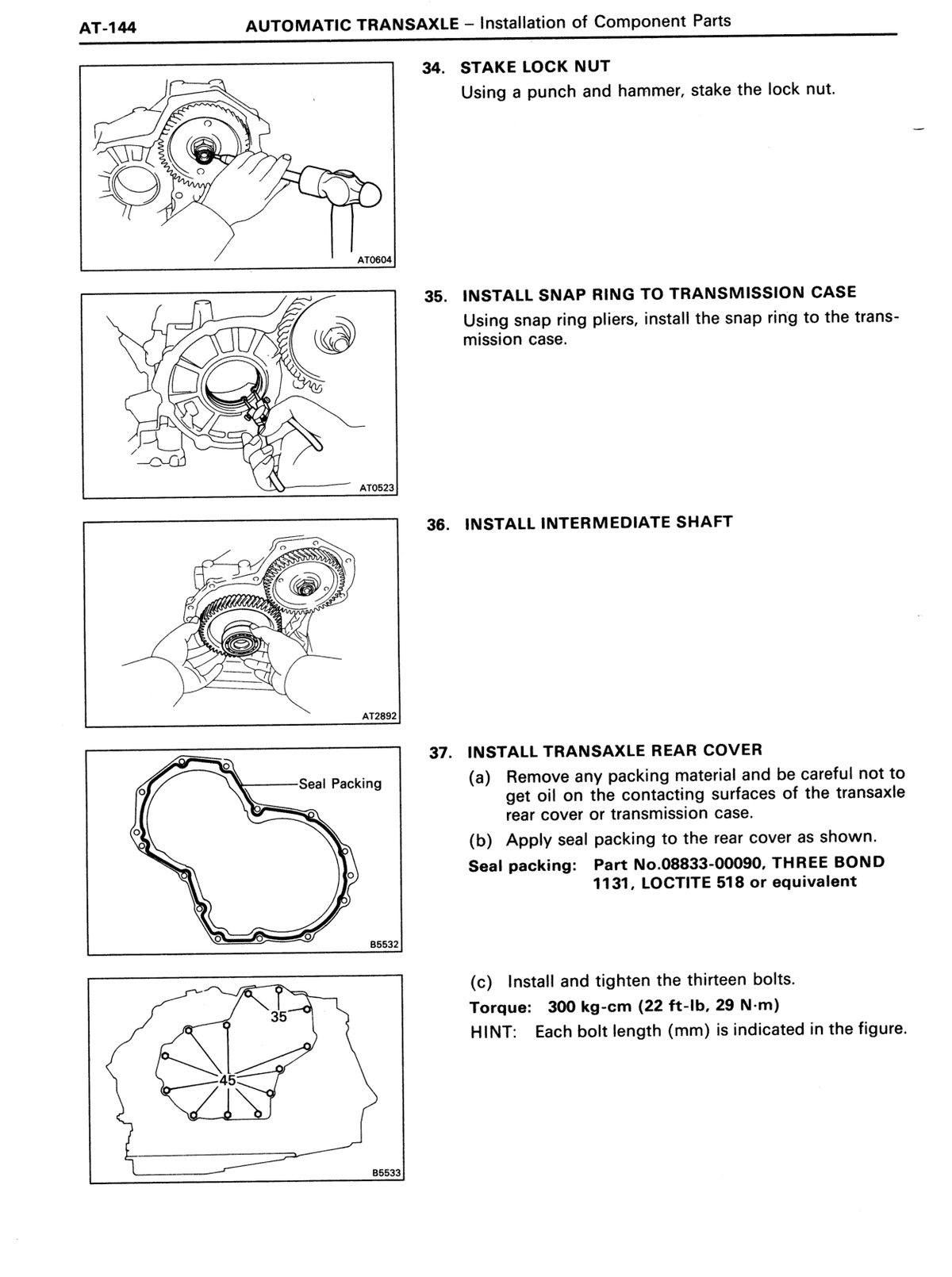

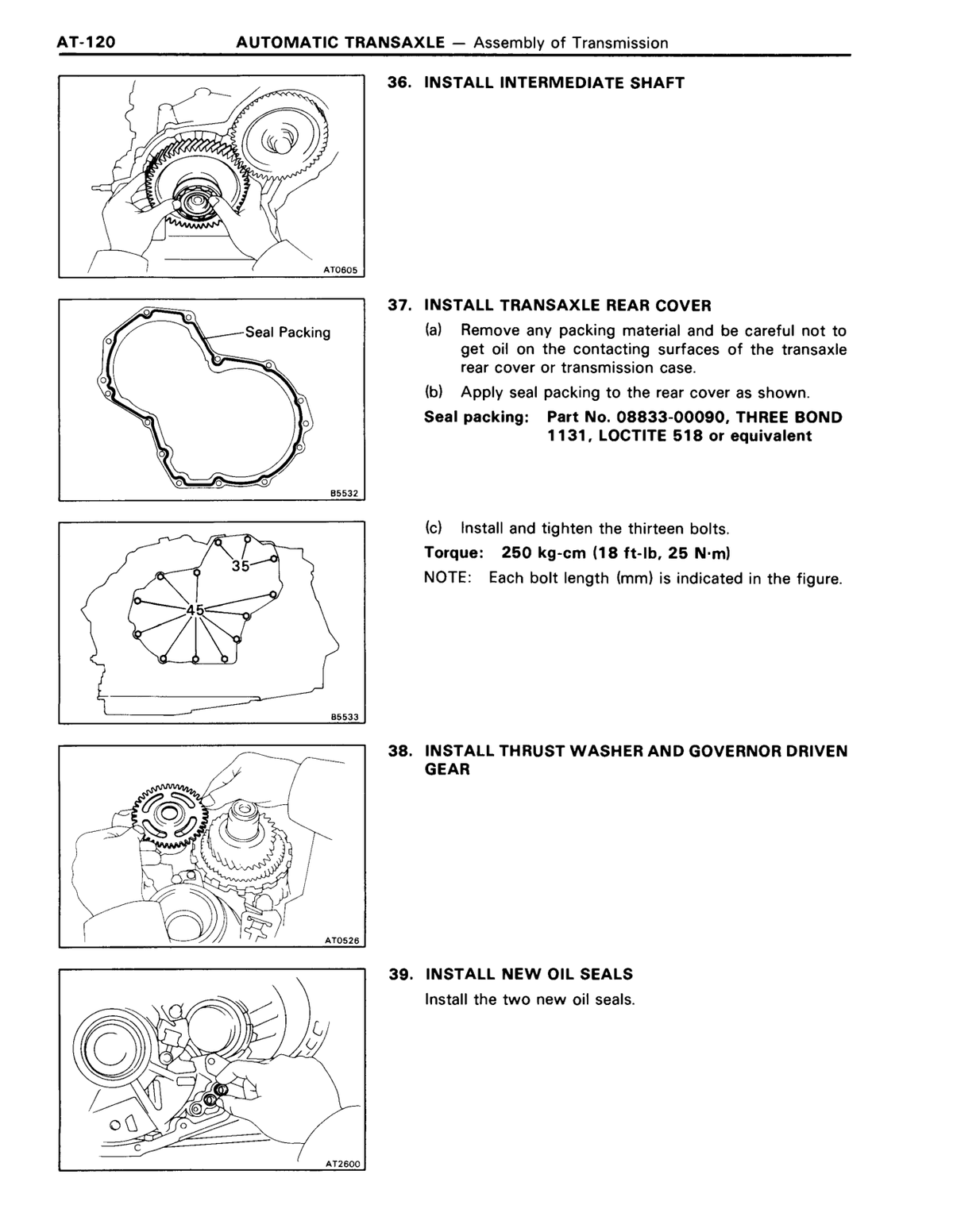

Transmission / transaxle Transaxle rear cover x Transaxle case 29 300 22 ↗ RM179U1_1991 · p1557 OEM manual

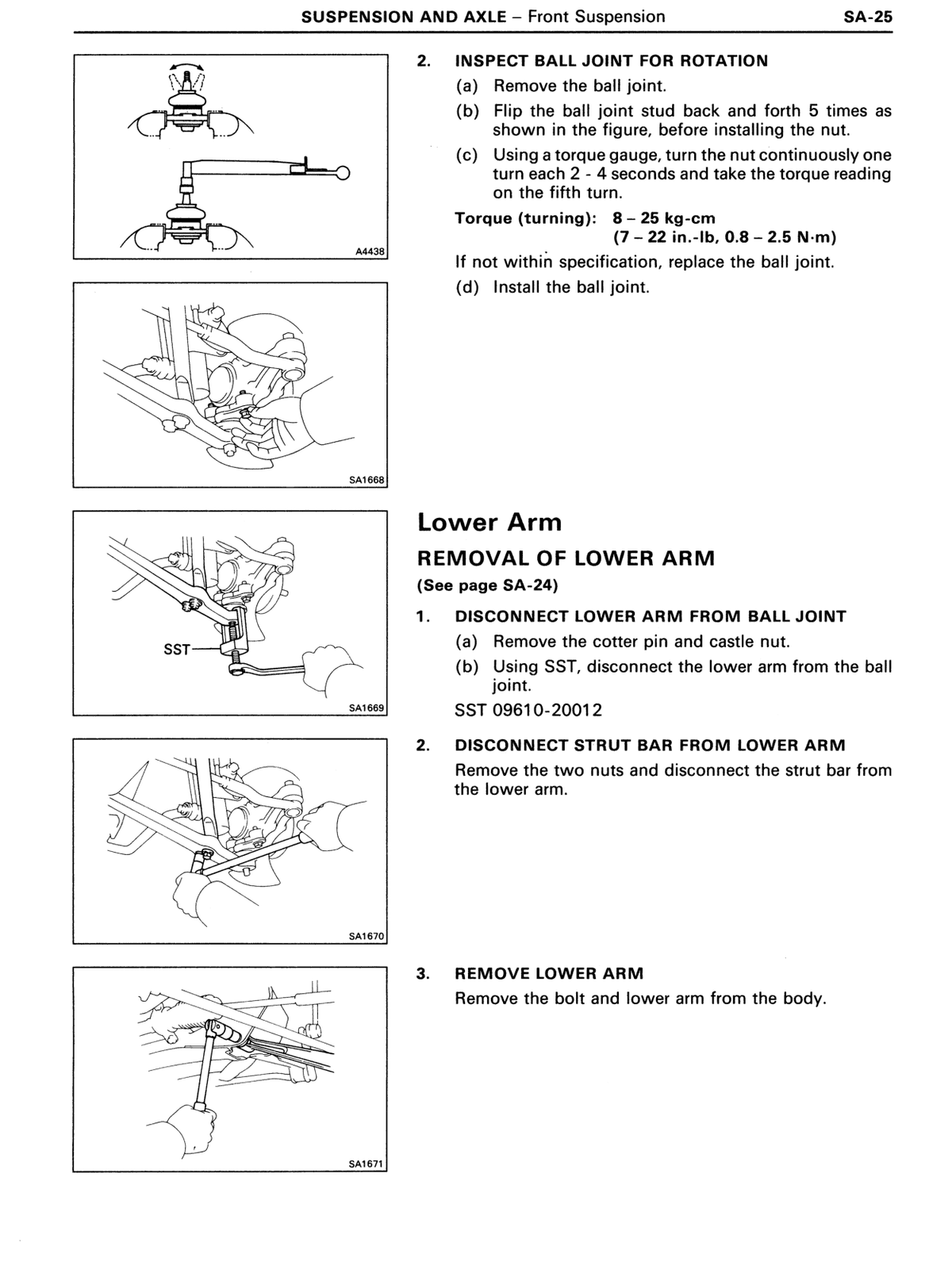

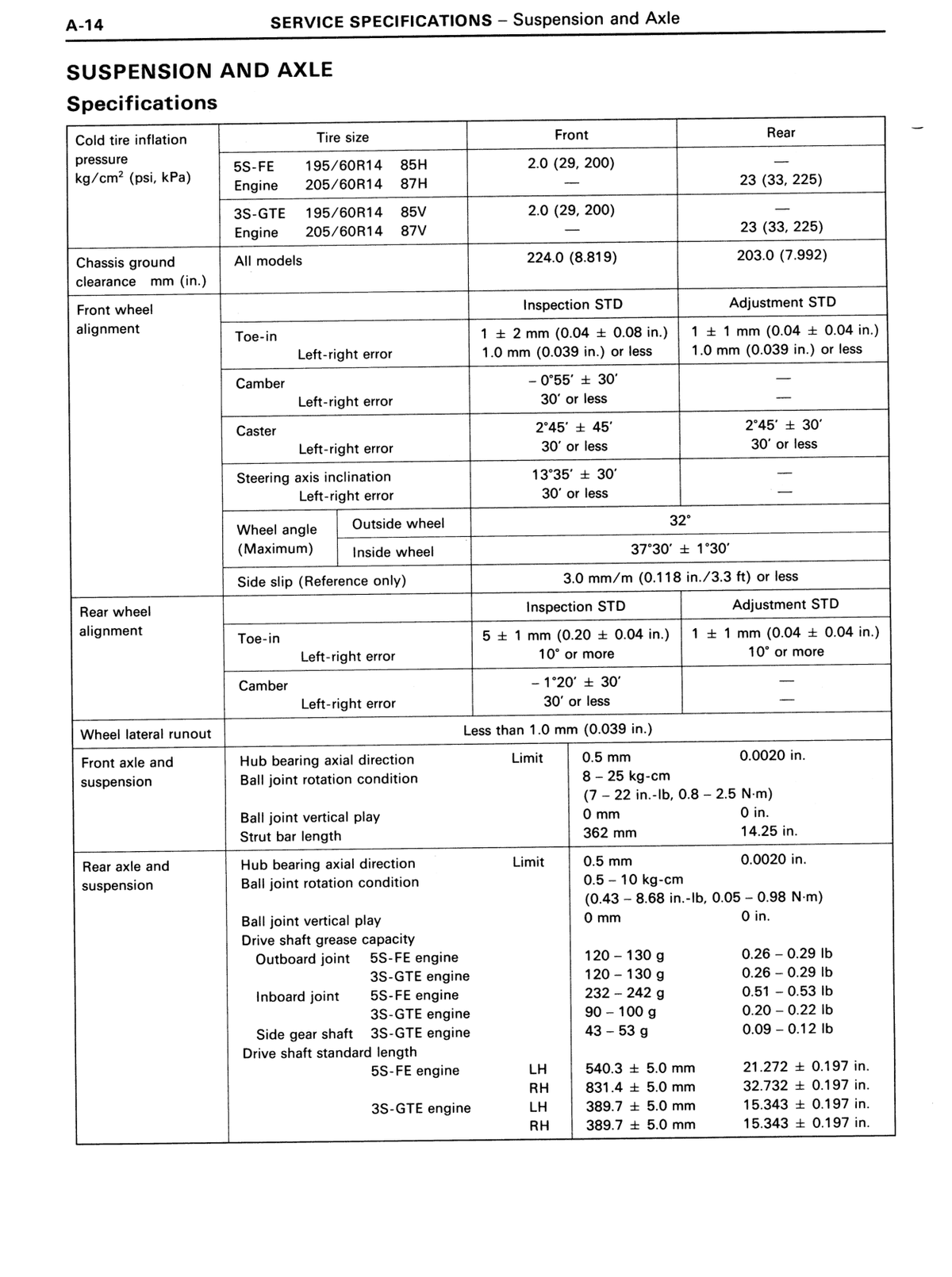

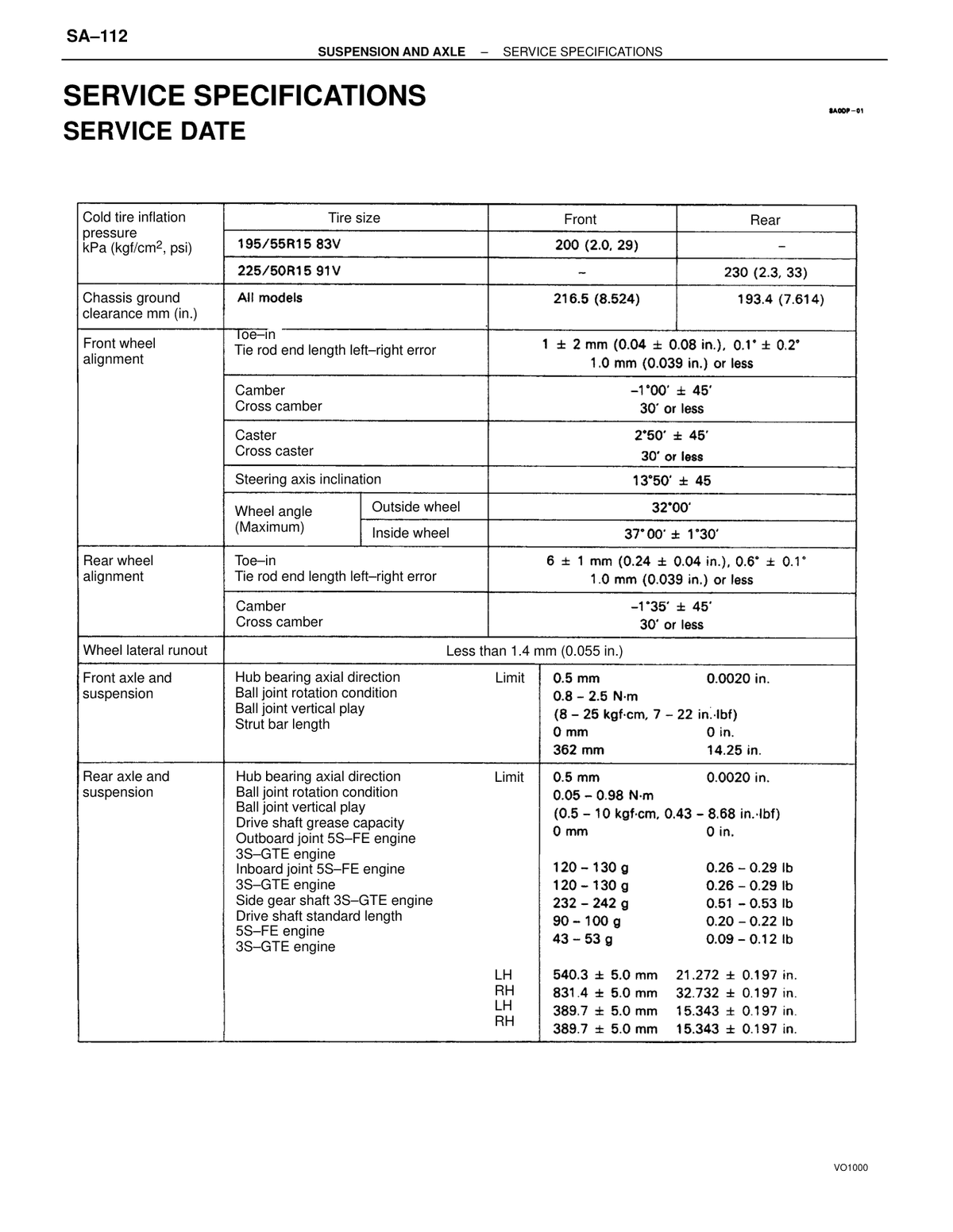

Suspension & axle Front axle — Ball joint rotation condition 8–25 kg-cm (7–22 in.-lb, 0.8–2.5 N·m) — midpoint listed; range: 8–25 kg-cm — 16.5 — ↗ RM179U1_1991 · p1558 OEM manual
Suspension & axle Rear axle — Ball joint rotation condition 0.5–10 kg-cm (0.43–8.68 in.-lb, 0.05–0.98 N·m) — range provided — 5.25 — ↗ RM179U1_1991 · p1558 OEM manual

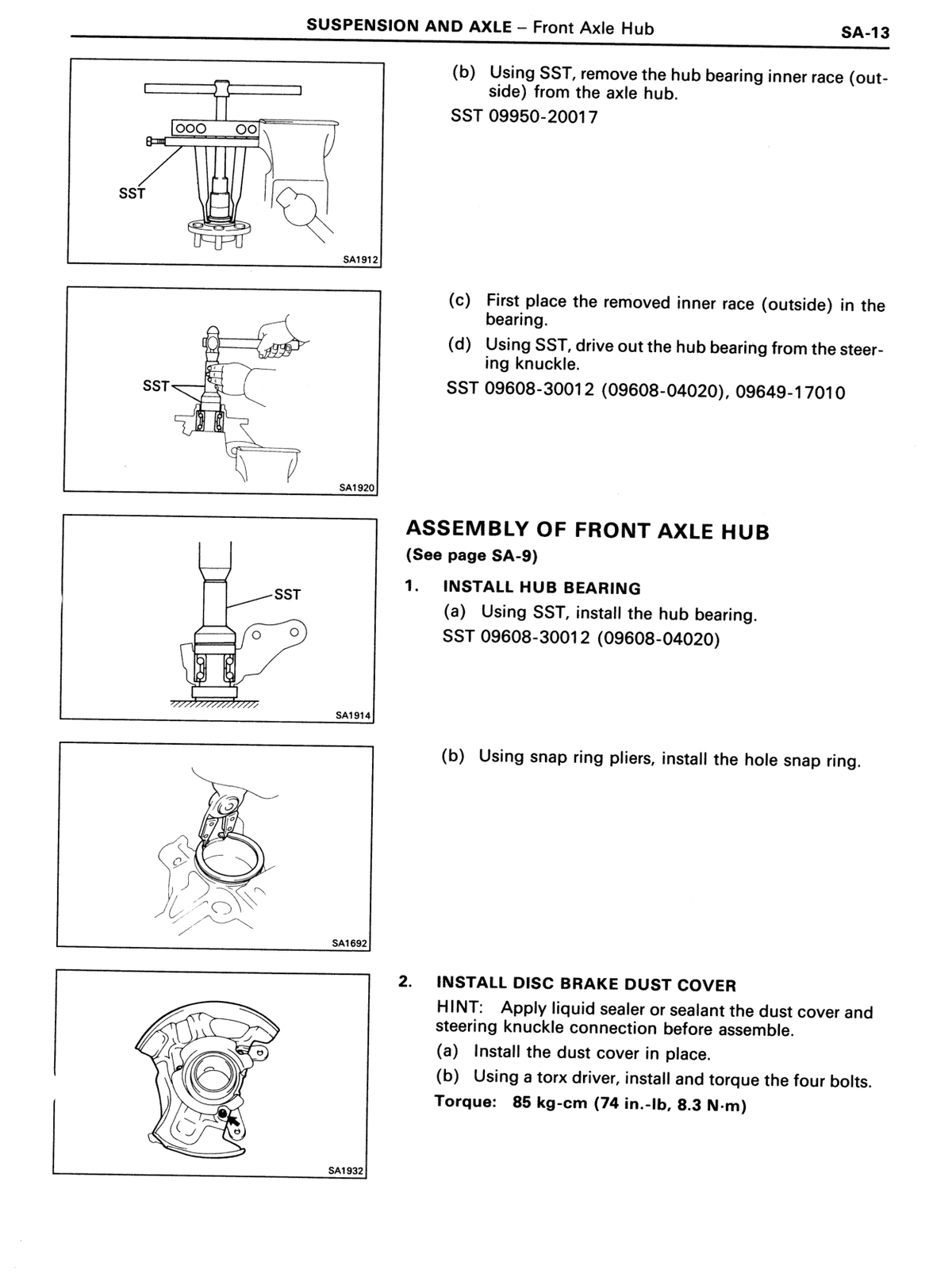

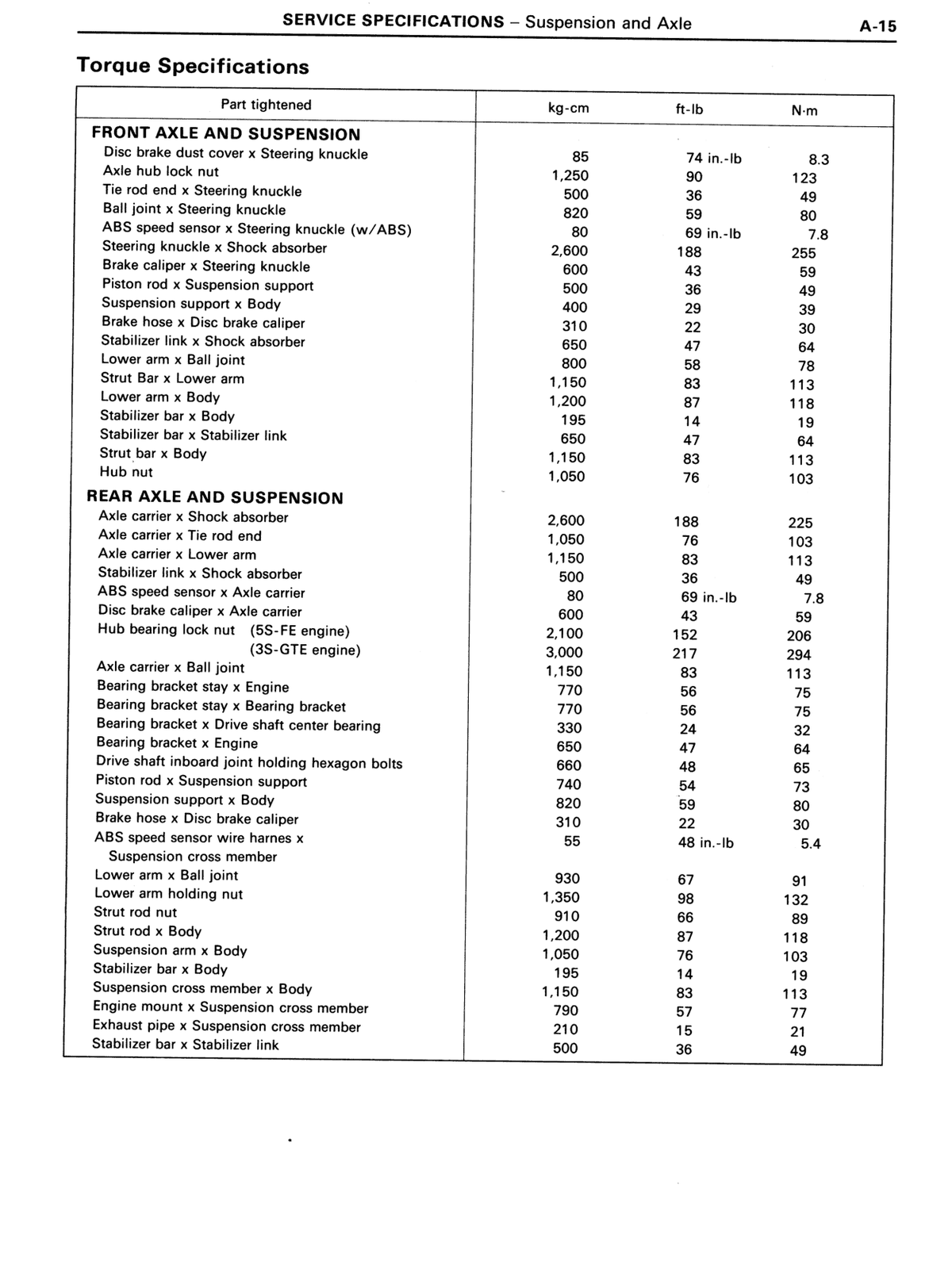

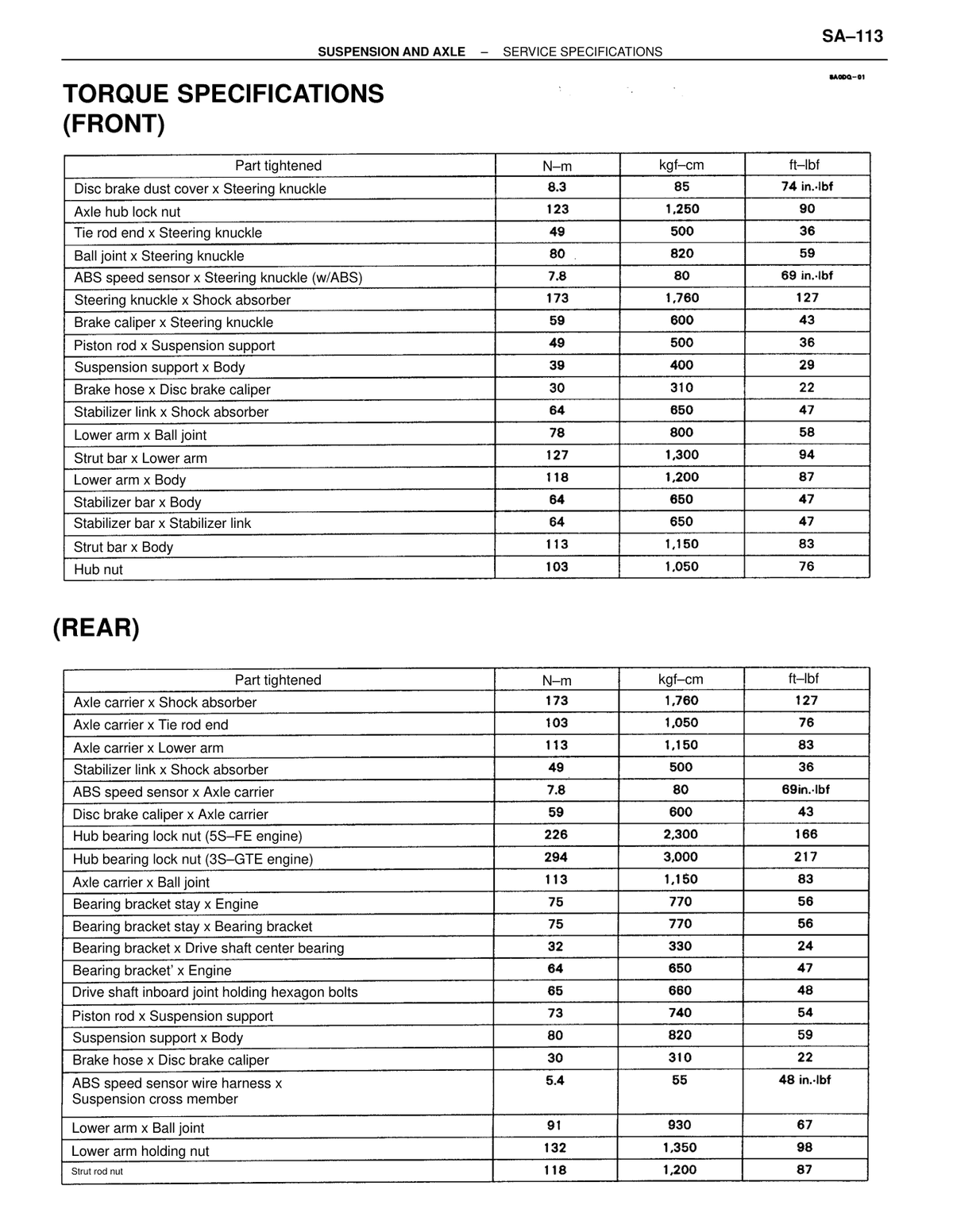

Suspension & axle Disc brake dust cover x Steering knuckle ft-lb value is in in-lb: 74 in-lb 8.3 85 — ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle ABS speed sensor x Steering knuckle (w/ABS) ft-lb value is in in-lb: 69 in-lb 7.8 80 — ↗ RM179U1_1991 · p1559 OEM manual

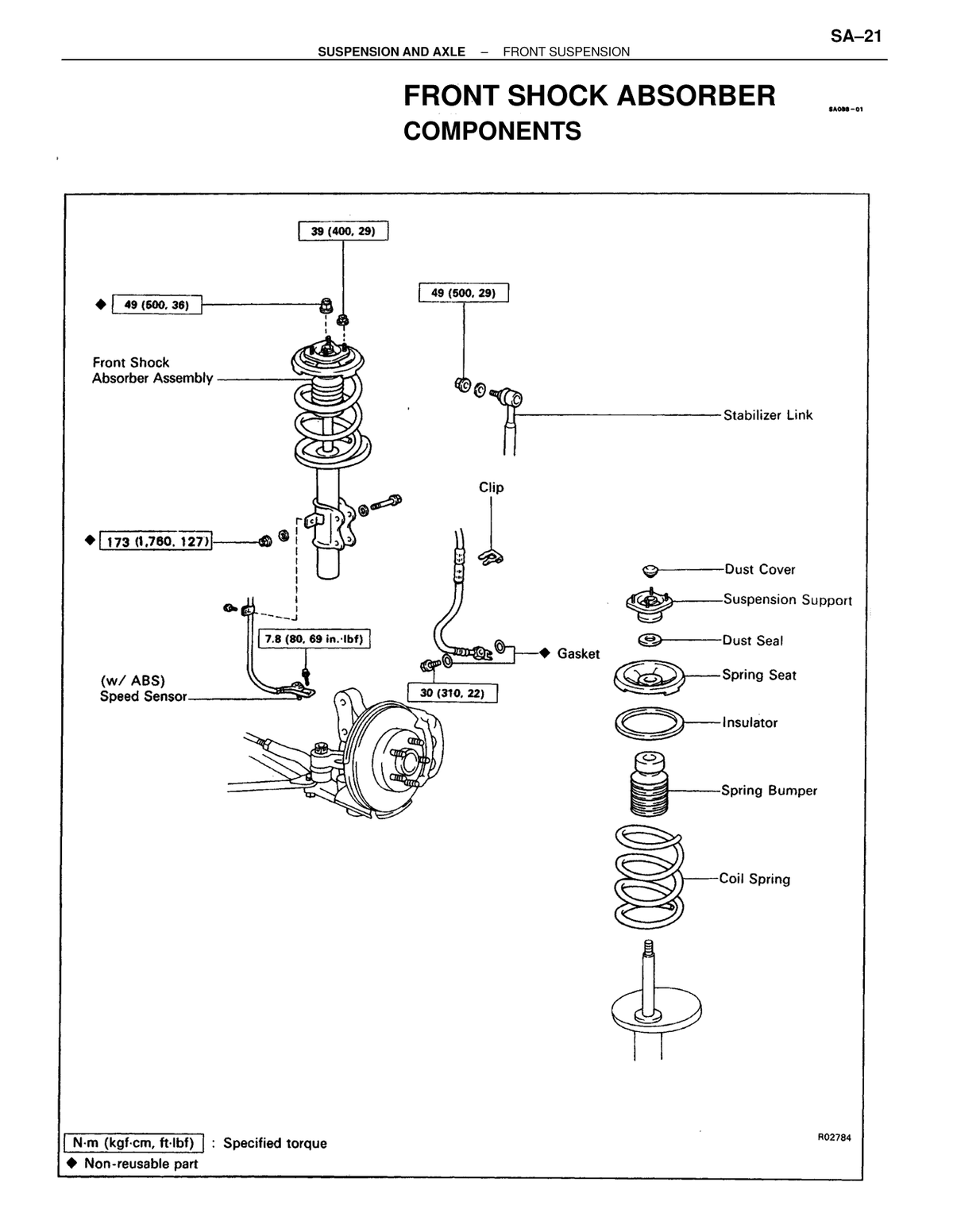

Suspension & axle Stabilizer link x Shock absorber Rear axle and suspension 49 500 36 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle ABS speed sensor x Axle carrier ft-lb value is in in-lb: 69 in-lb 7.8 80 — ↗ RM179U1_1991 · p1559 OEM manual

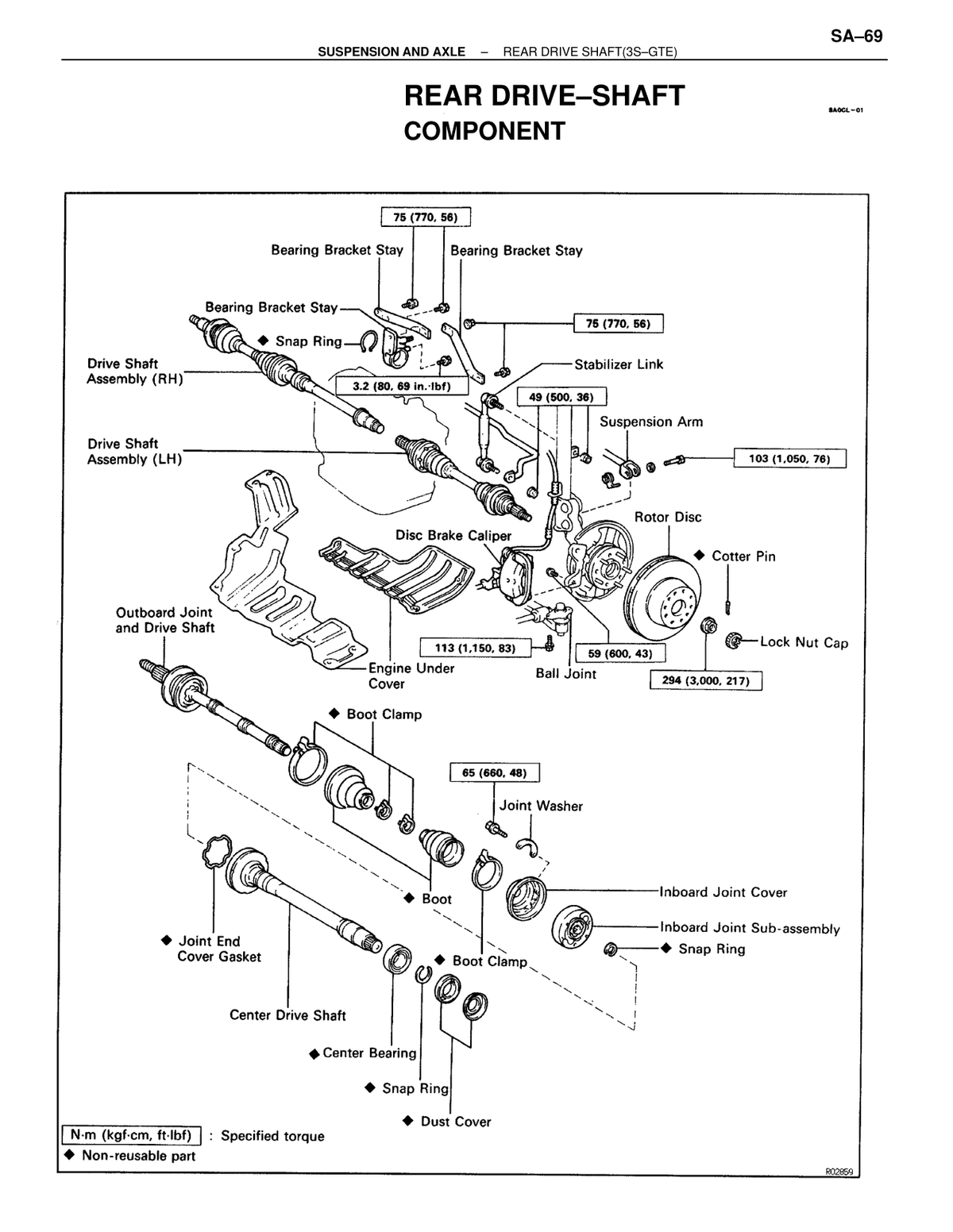

Suspension & axle Hub bearing lock nut (5S-FE engine) 206 2100 152 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Hub bearing lock nut (3S-GTE engine) 294 3000 217 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Bearing bracket stay x Bearing bracket 75 770 56 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Bearing bracket x Drive shaft center bearing 32 330 24 ↗ RM179U1_1991 · p1559 OEM manual

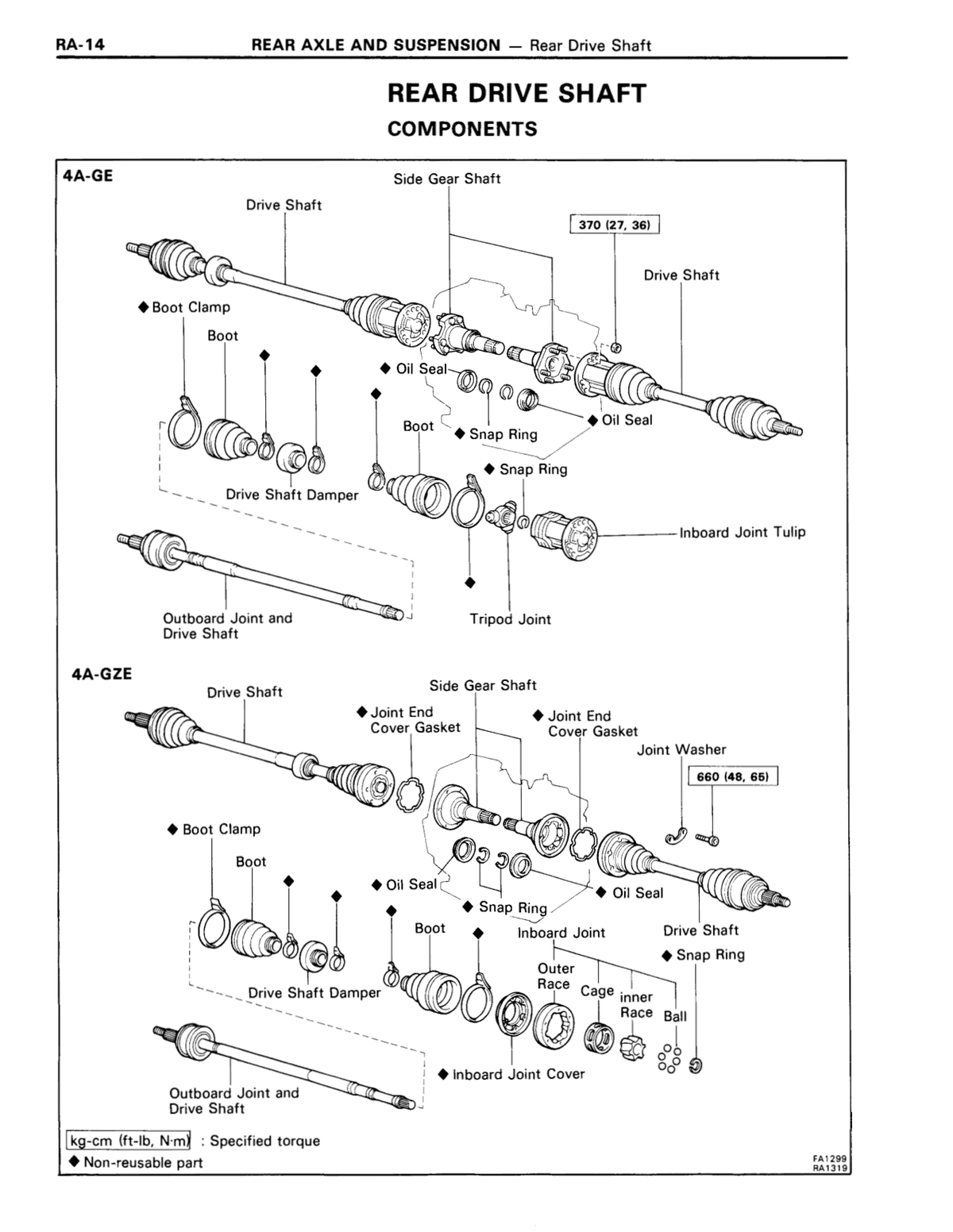

Suspension & axle Drive shaft inboard joint holding hexagon bolts 65 660 48 ↗ RM179U1_1991 · p1559 OEM manual

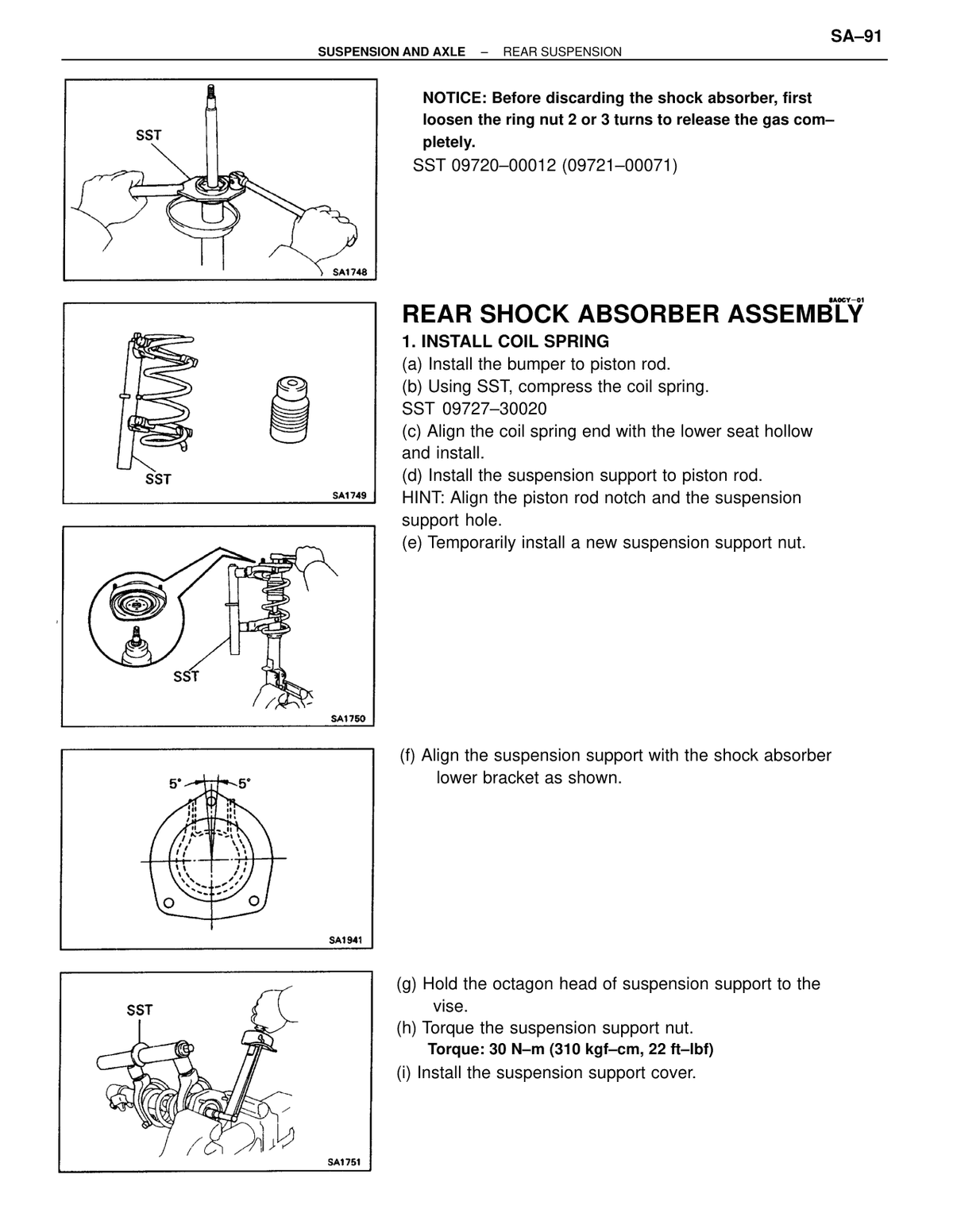

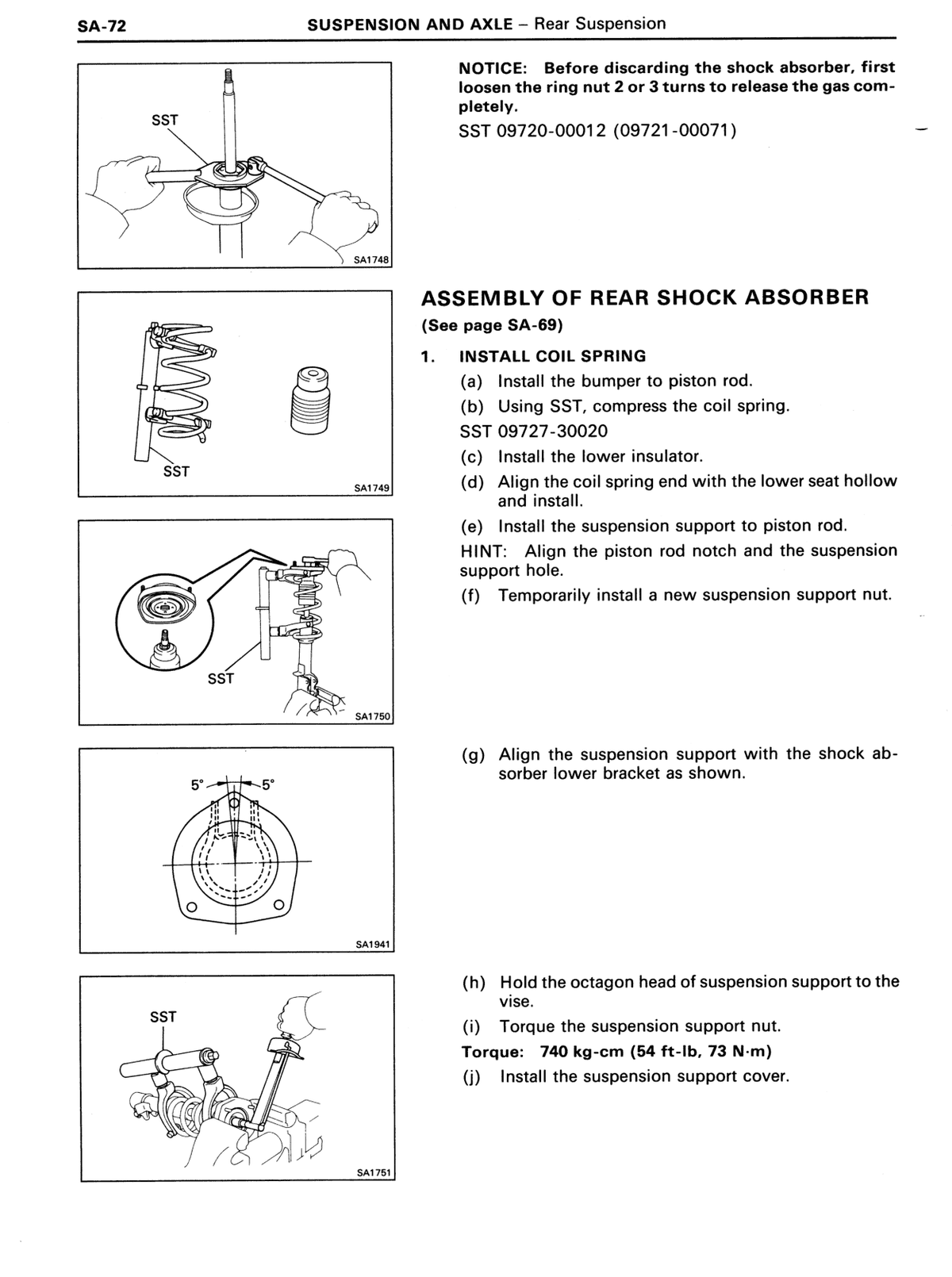

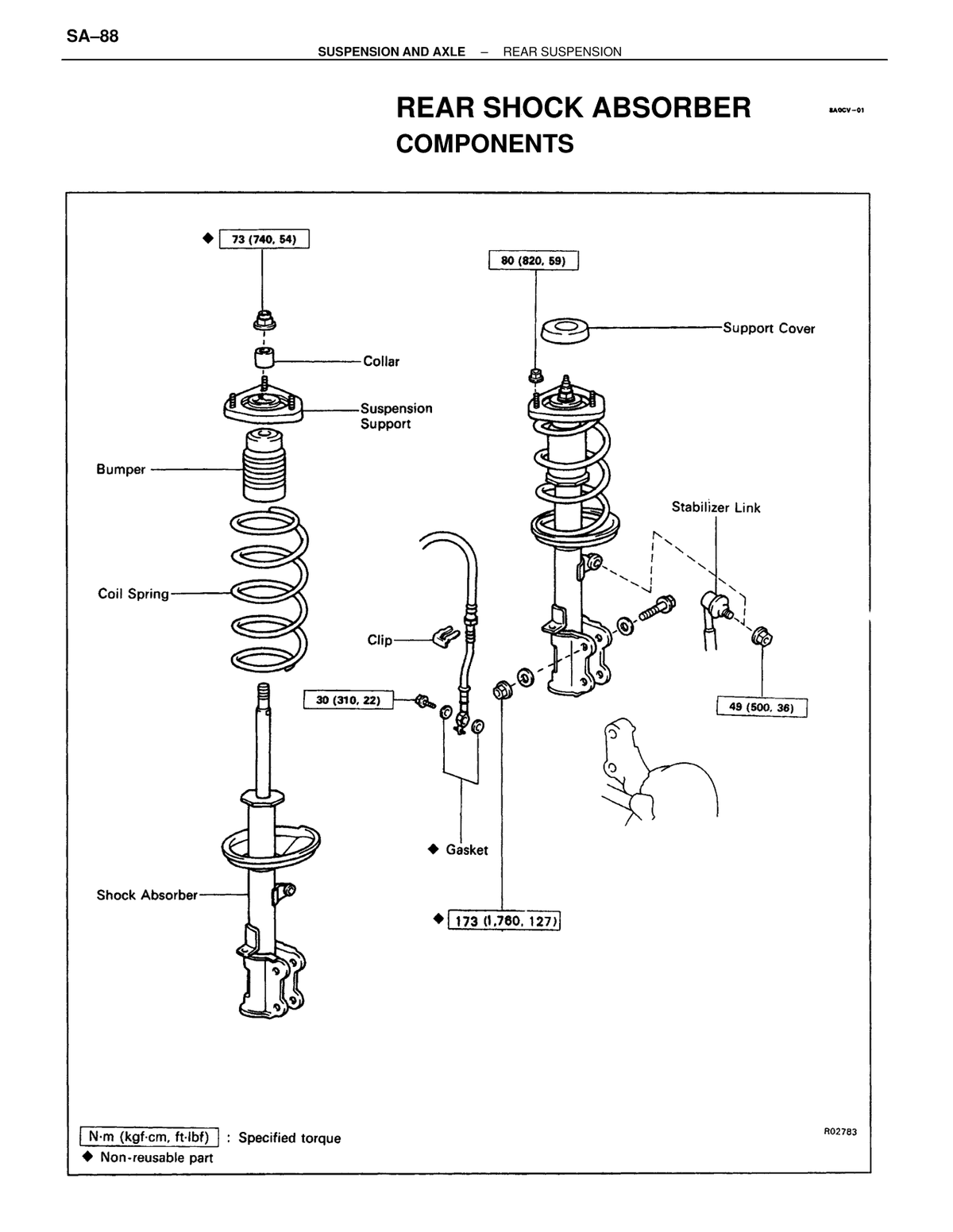

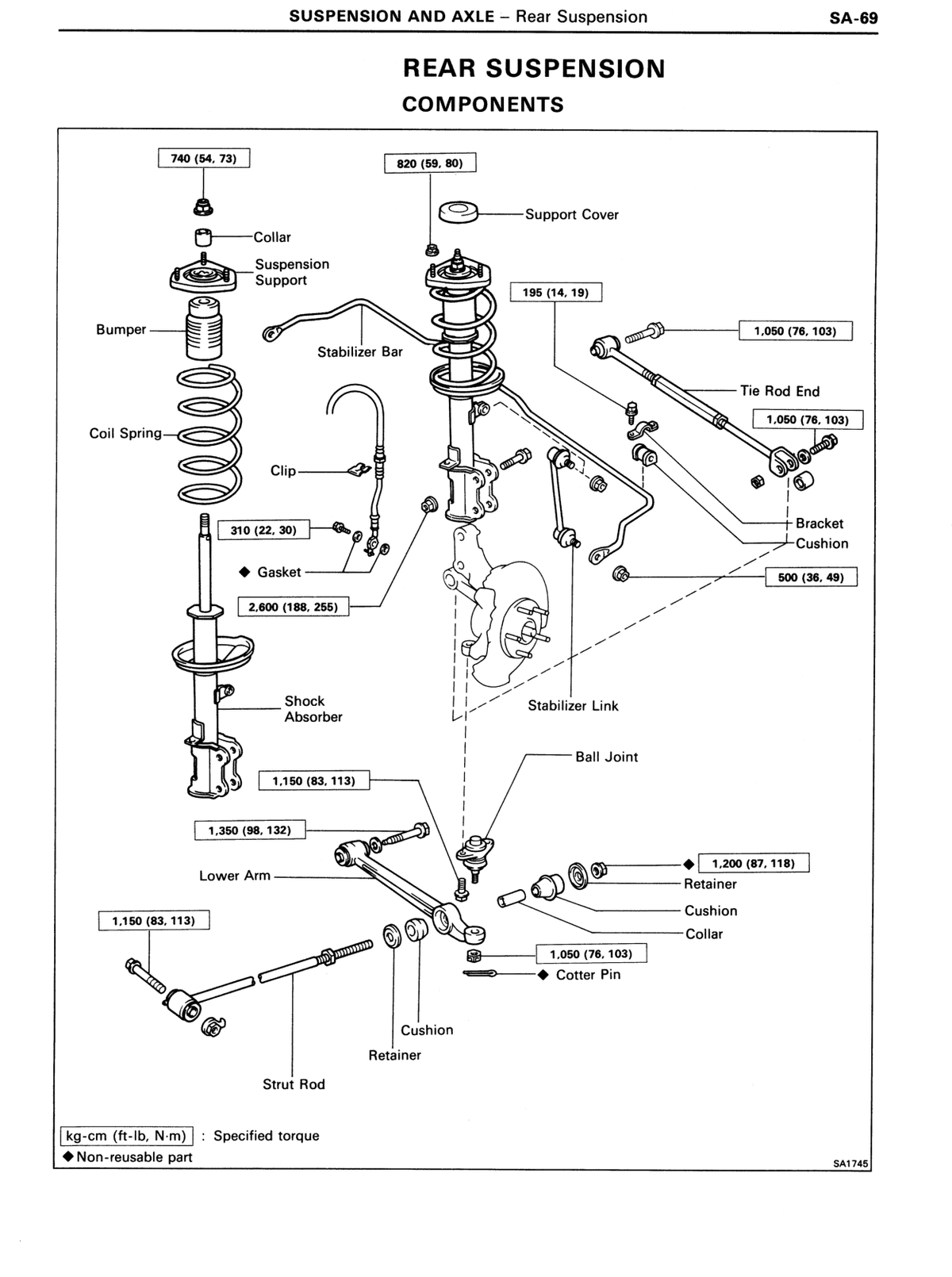

Suspension & axle Piston rod x Suspension support Rear axle and suspension 73 740 54 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Suspension support x Body Rear axle and suspension 80 820 59 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Brake hose x Disc brake caliper Rear axle and suspension 30 310 22 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle ABS speed sensor wire harness x Suspension cross member ft-lb value is in in-lb: 48 in-lb 5.4 55 — ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Lower arm x Ball joint Rear axle and suspension 91 930 67 ↗ RM179U1_1991 · p1559 OEM manual

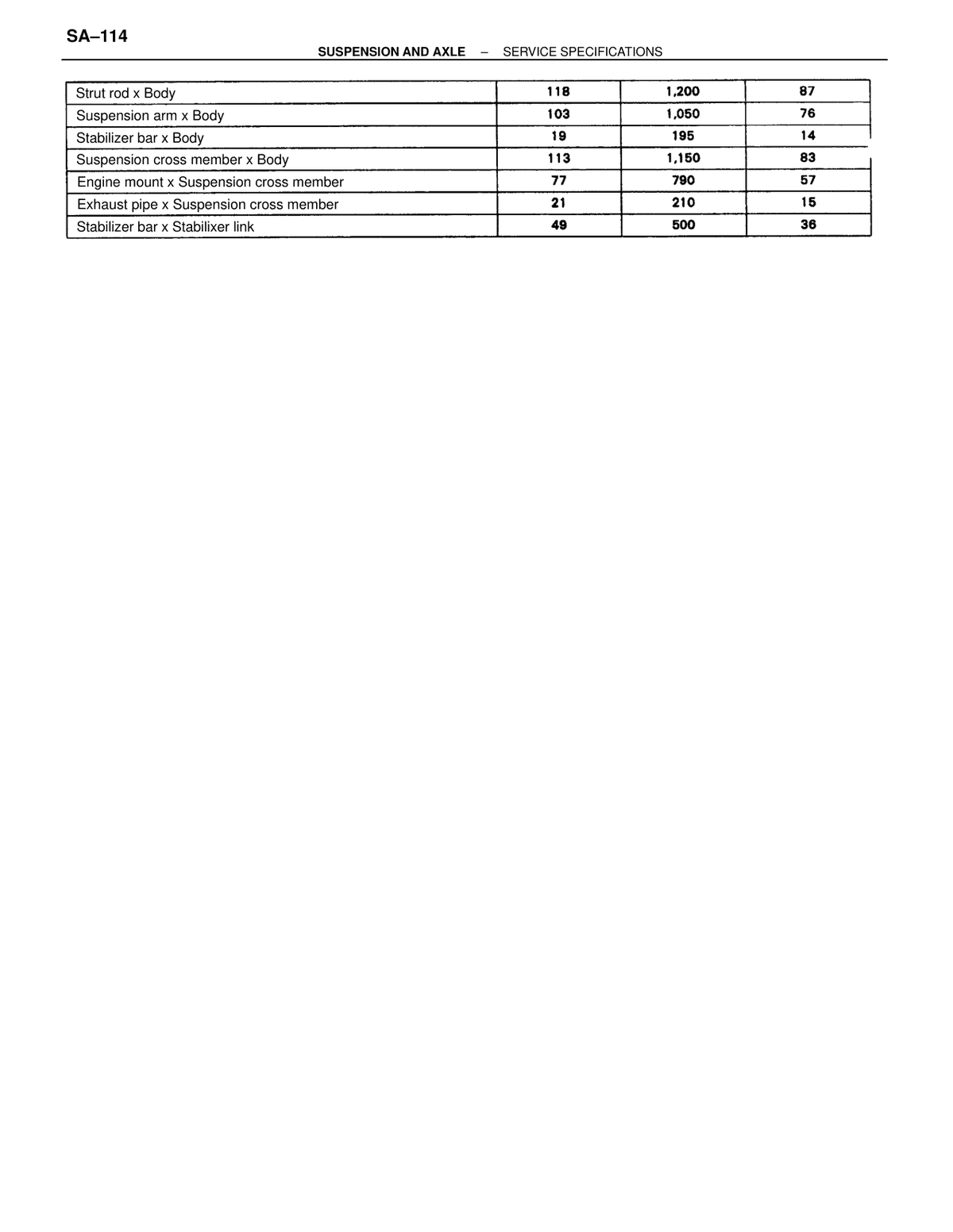

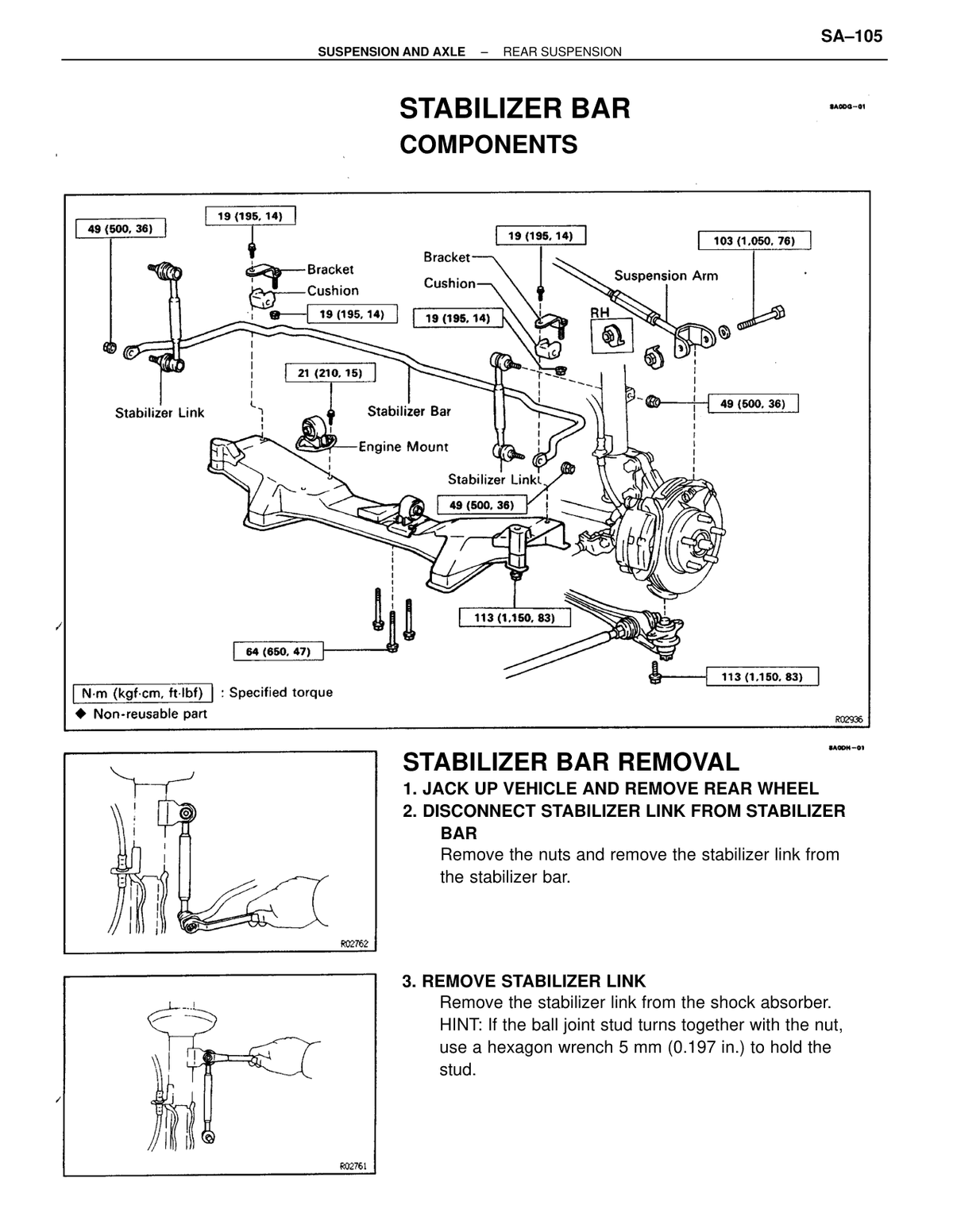

Suspension & axle Stabilizer bar x Body Rear axle and suspension 19 195 14 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Engine mount x Suspension cross member 77 790 57 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Exhaust pipe x Suspension cross member 21 210 15 ↗ RM179U1_1991 · p1559 OEM manual
Suspension & axle Stabilizer bar x Stabilizer link Rear axle and suspension 49 500 36 ↗ RM179U1_1991 · p1559 OEM manual

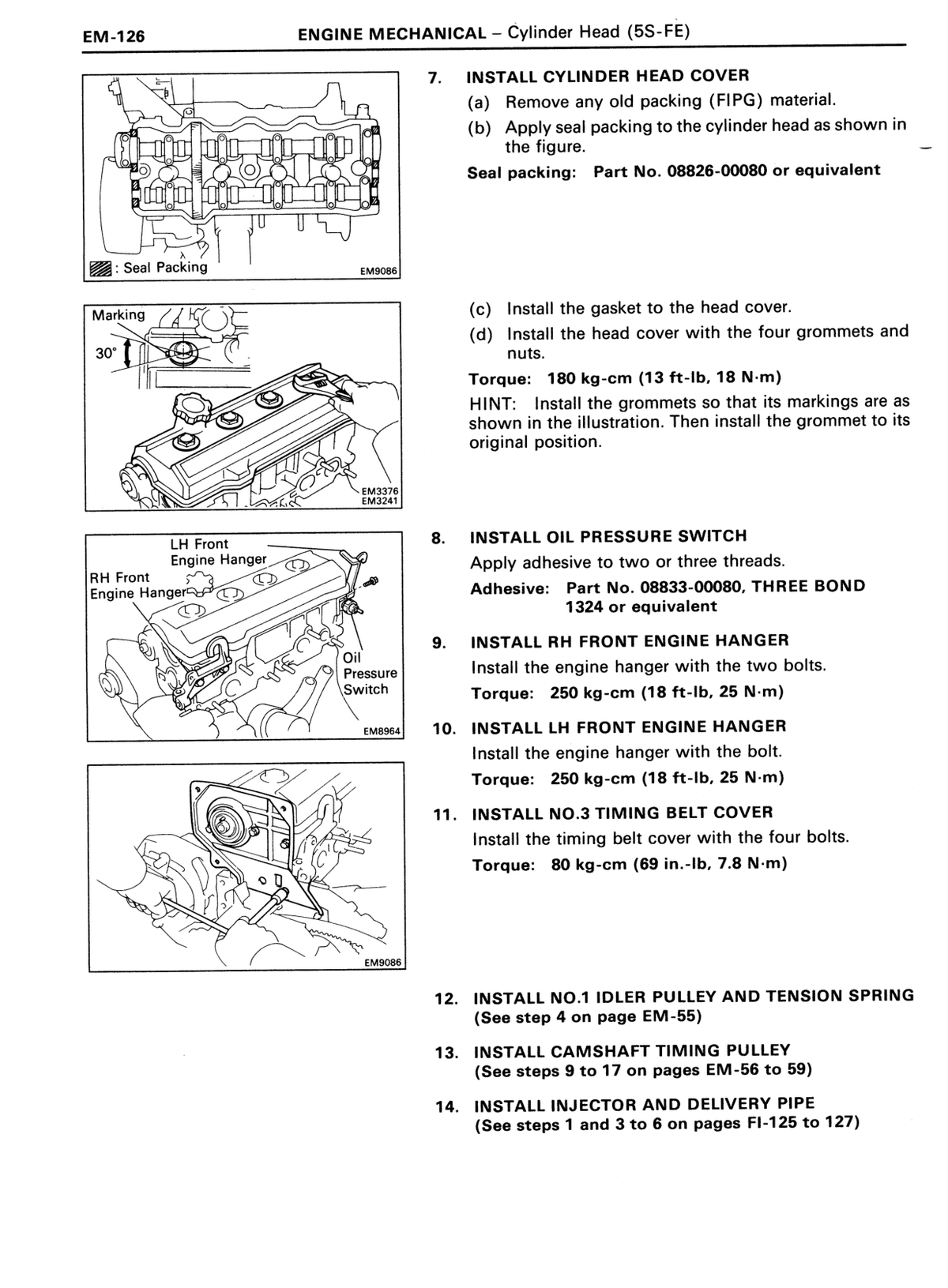

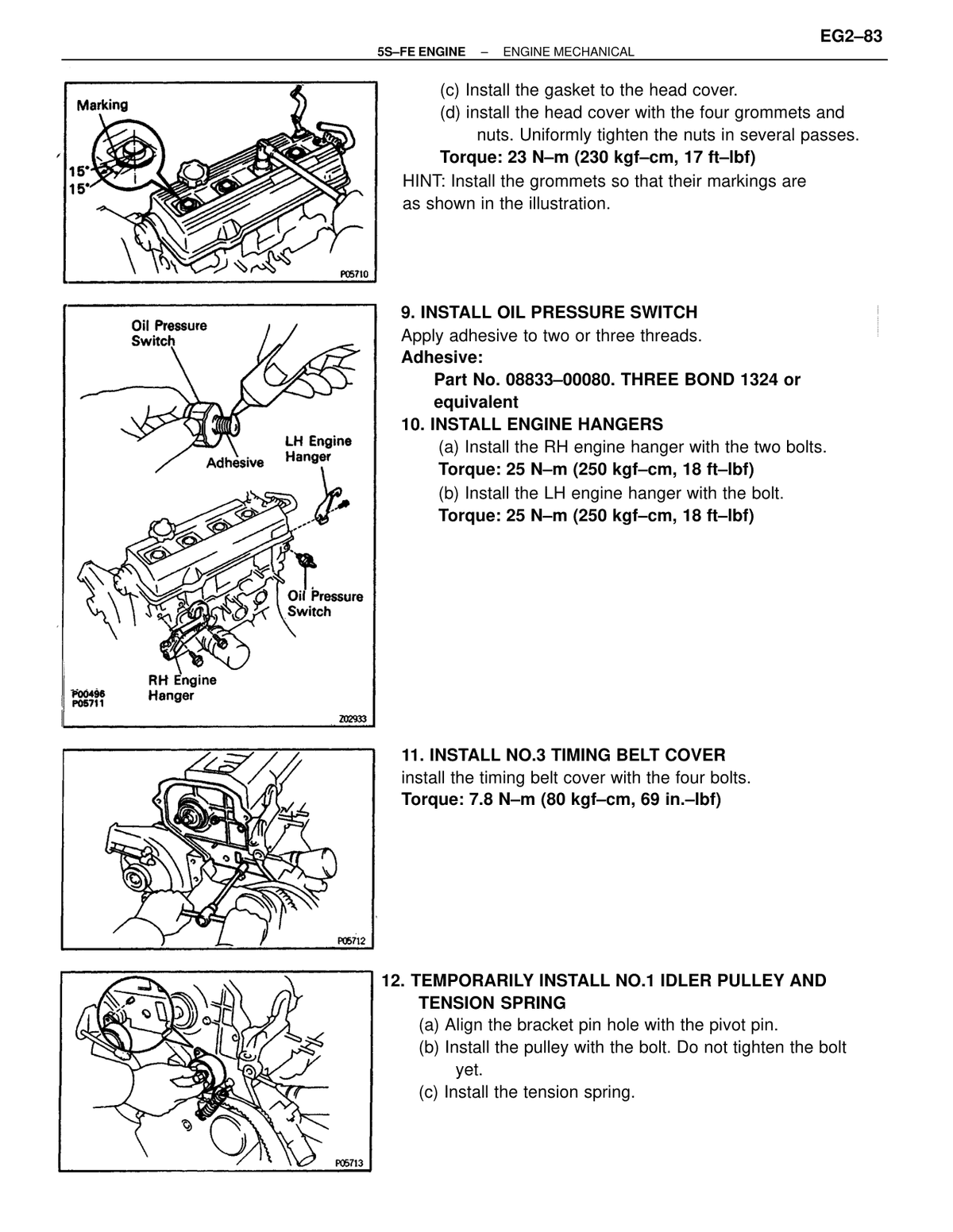

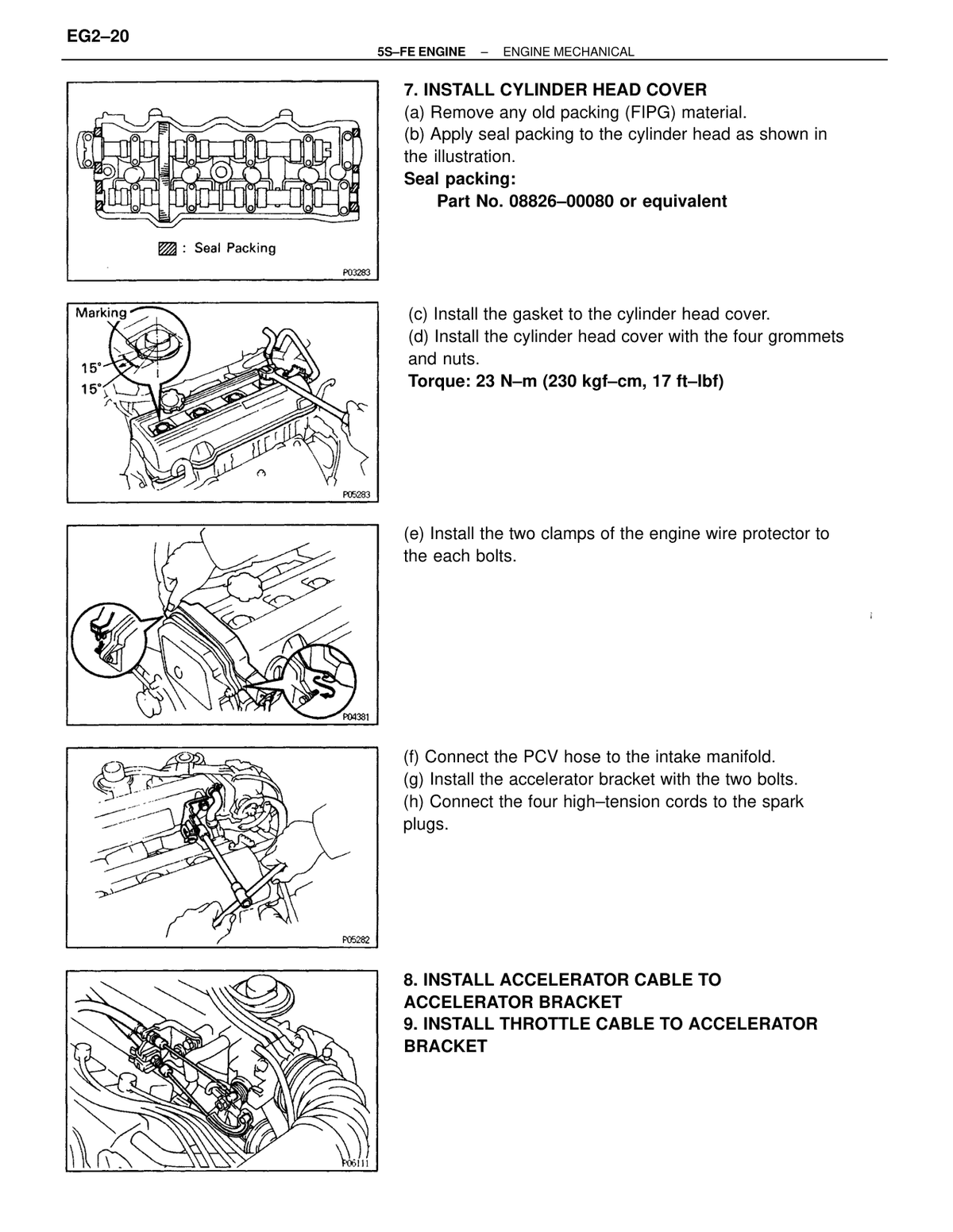

Engine — mechanical Cylinder head cover nuts Step 7(d) — four grommets and nuts 18 180 13 ↗ RM179U1_1991 · p156 OEM manual
Engine — mechanical RH Front Engine Hanger bolts Step 9 — two bolts 25 250 18 ↗ RM179U1_1991 · p156 OEM manual
Engine — mechanical LH Front Engine Hanger bolt Step 10 — one bolt 25 250 18 ↗ RM179U1_1991 · p156 OEM manual
Engine — mechanical No.3 Timing Belt Cover bolts Step 11 — four bolts; 69 in.-lb 7.8 80 — ↗ RM179U1_1991 · p156 OEM manual

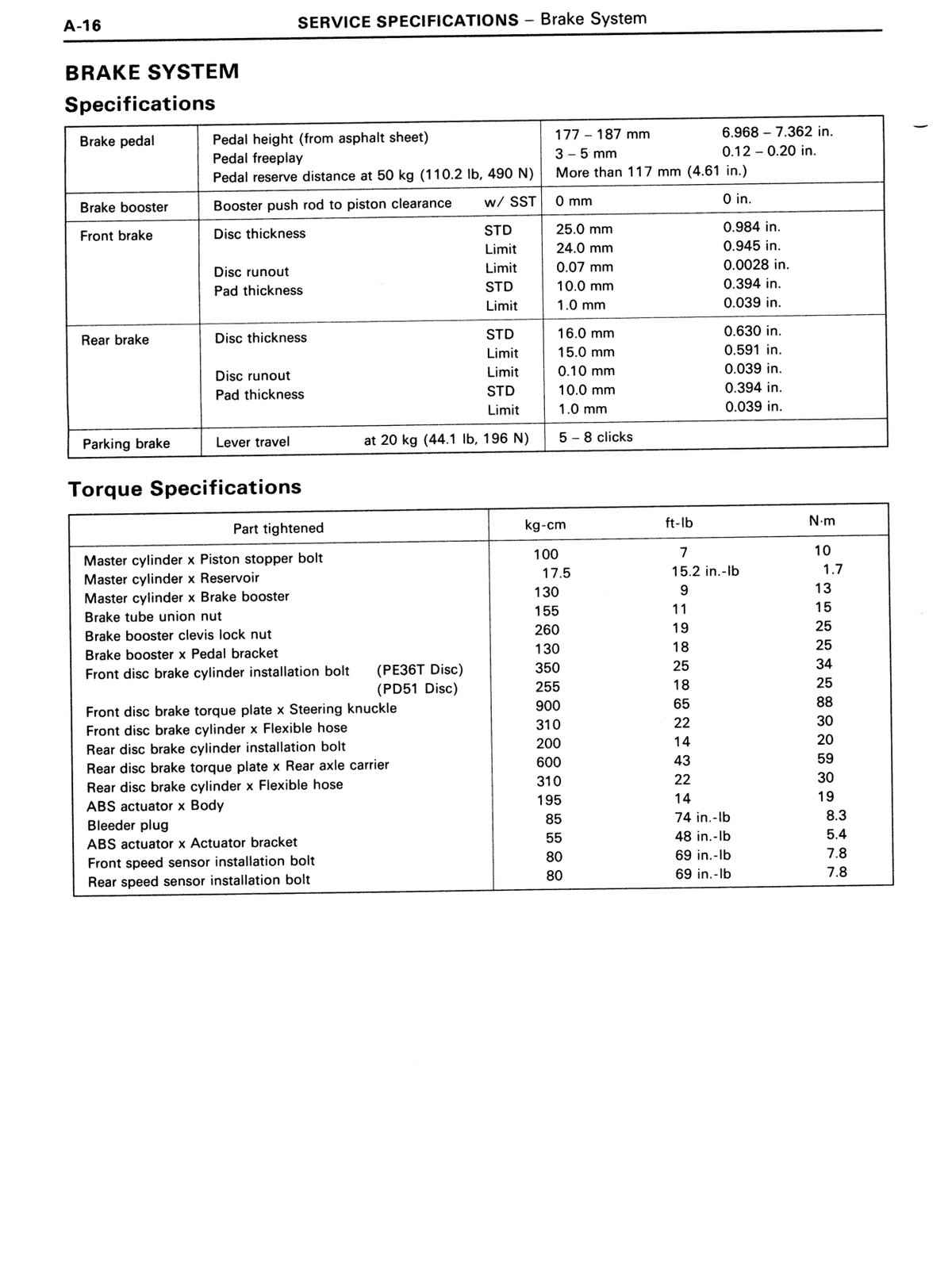

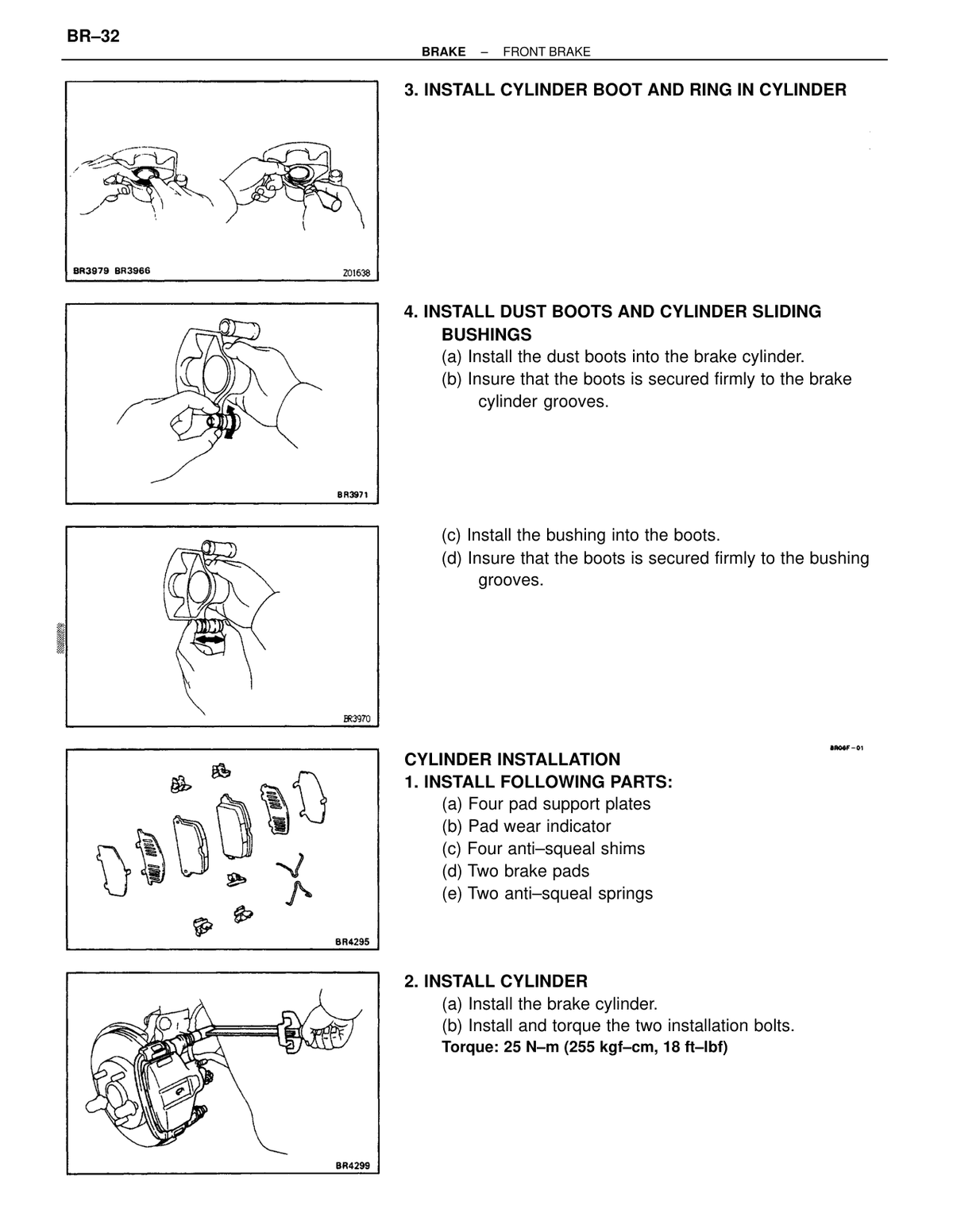

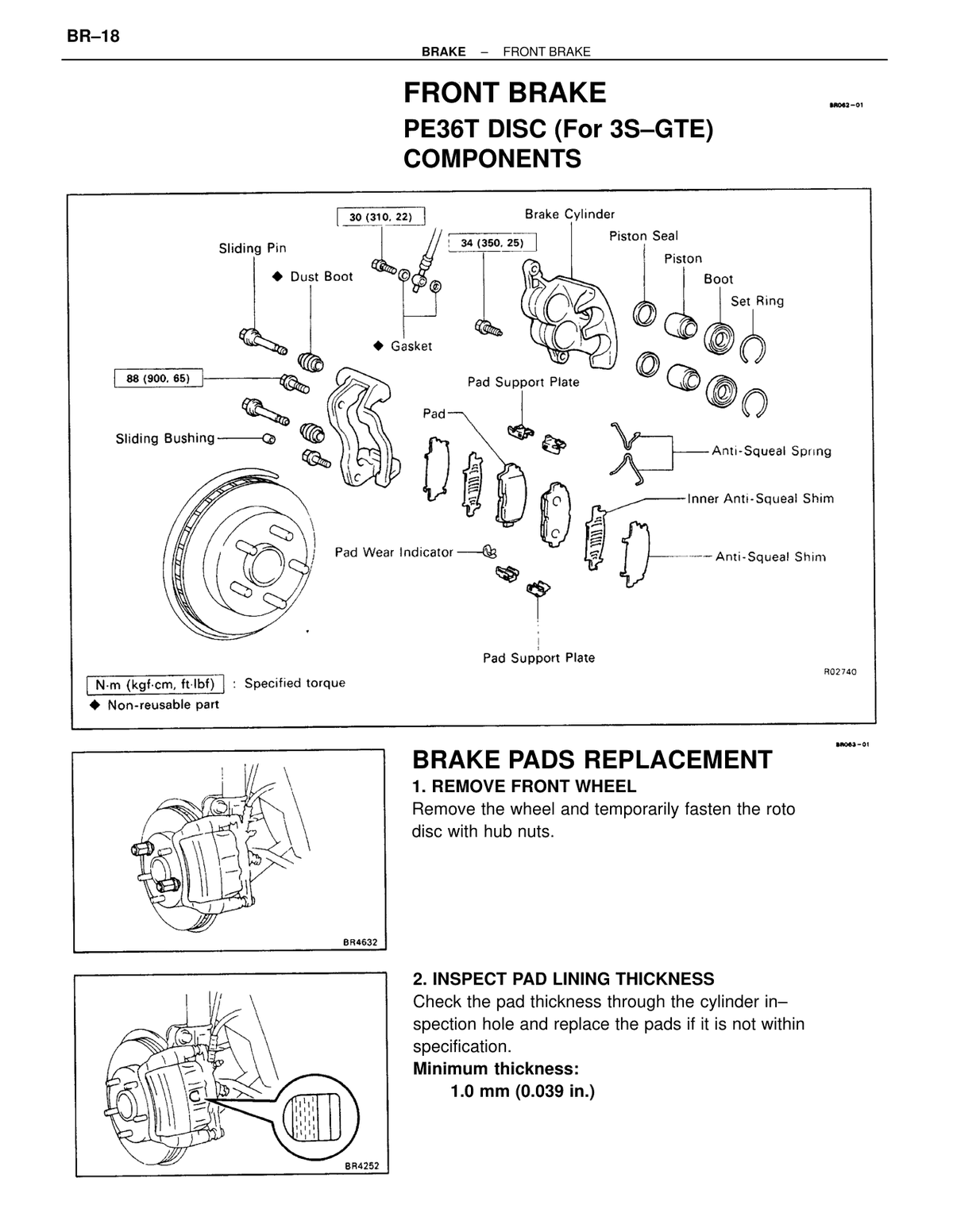

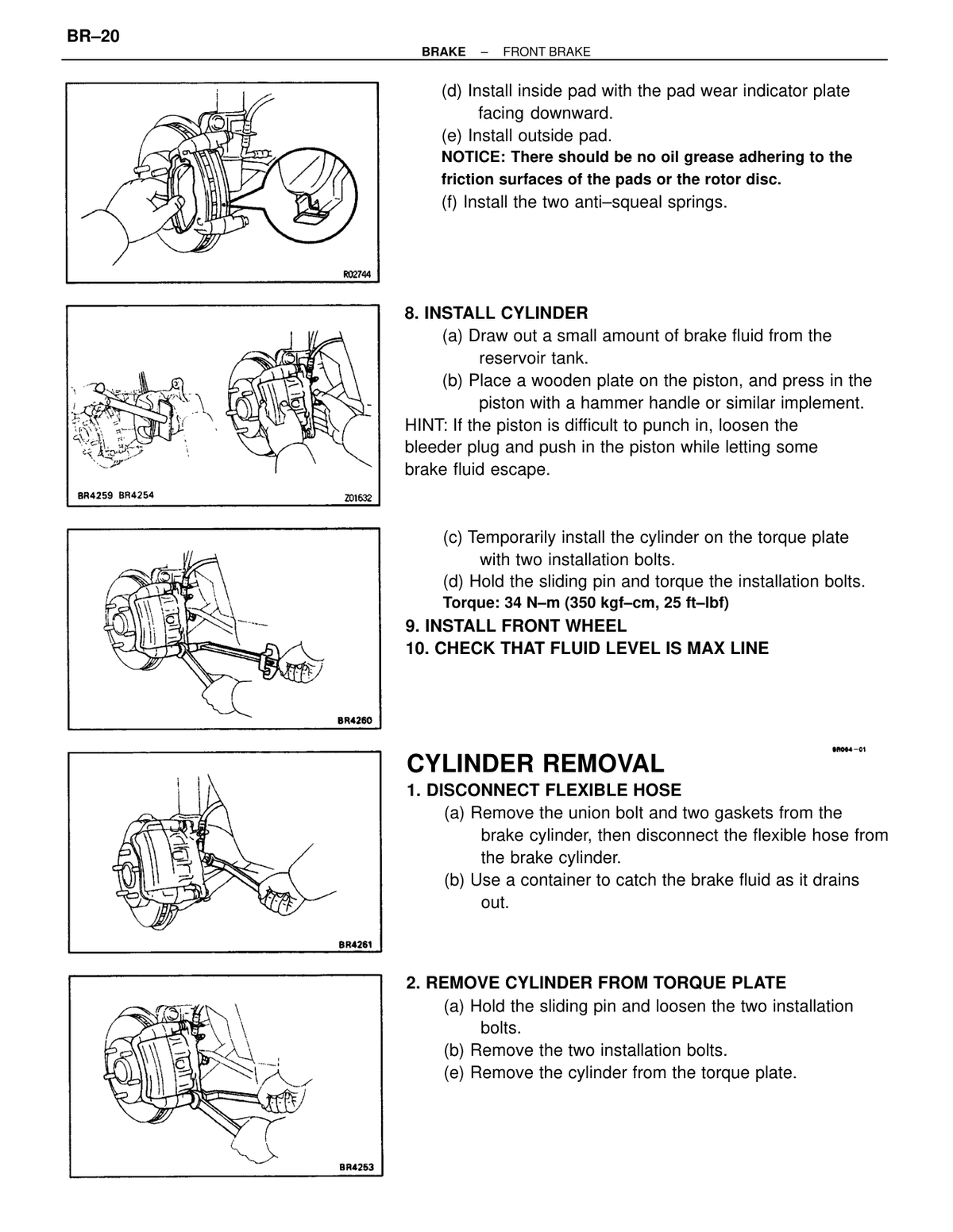

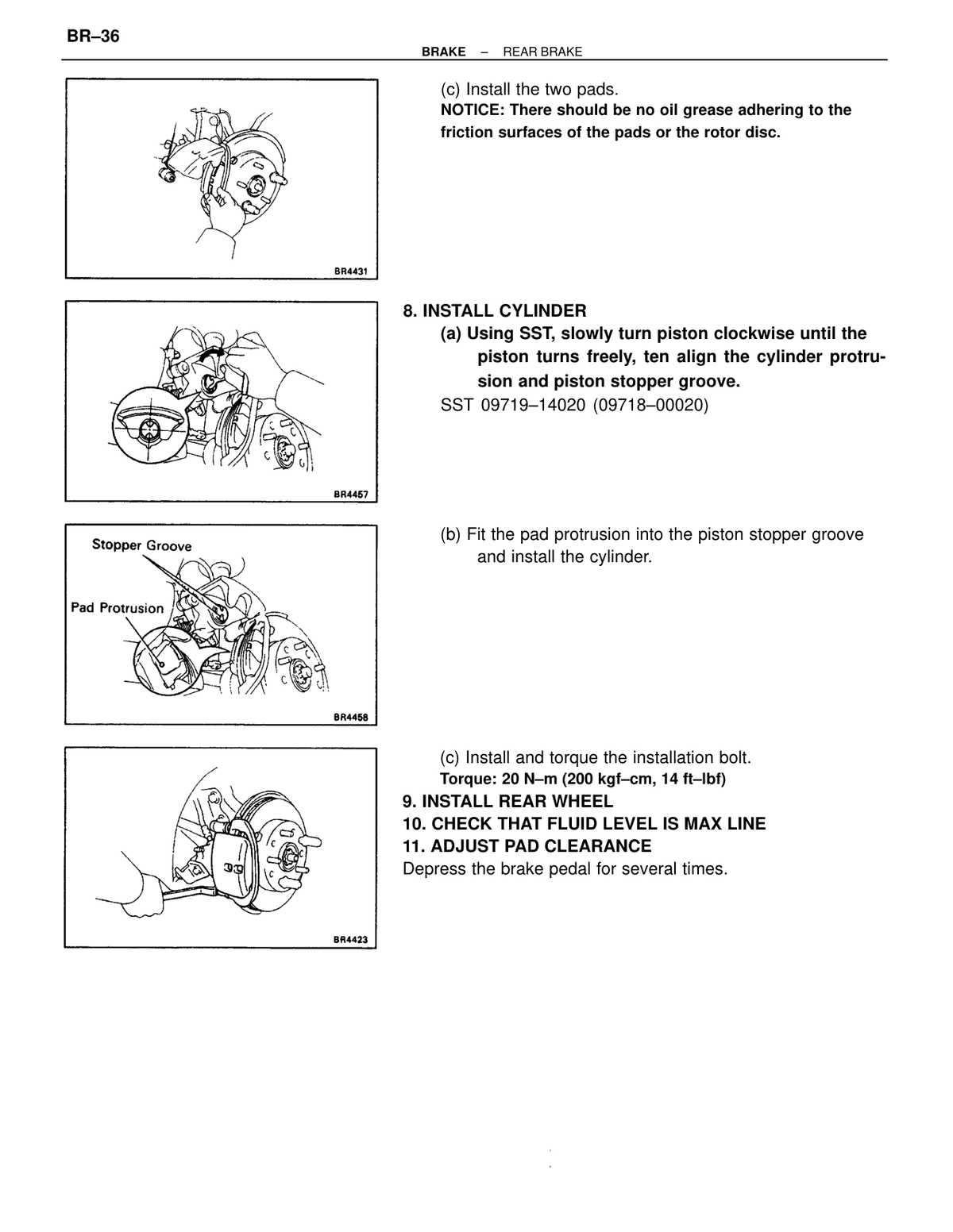

Brakes Front disc brake cylinder installation bolt (PE36T Disc) PE36T Disc 34 350 25 ↗ RM179U1_1991 · p1560 OEM manual

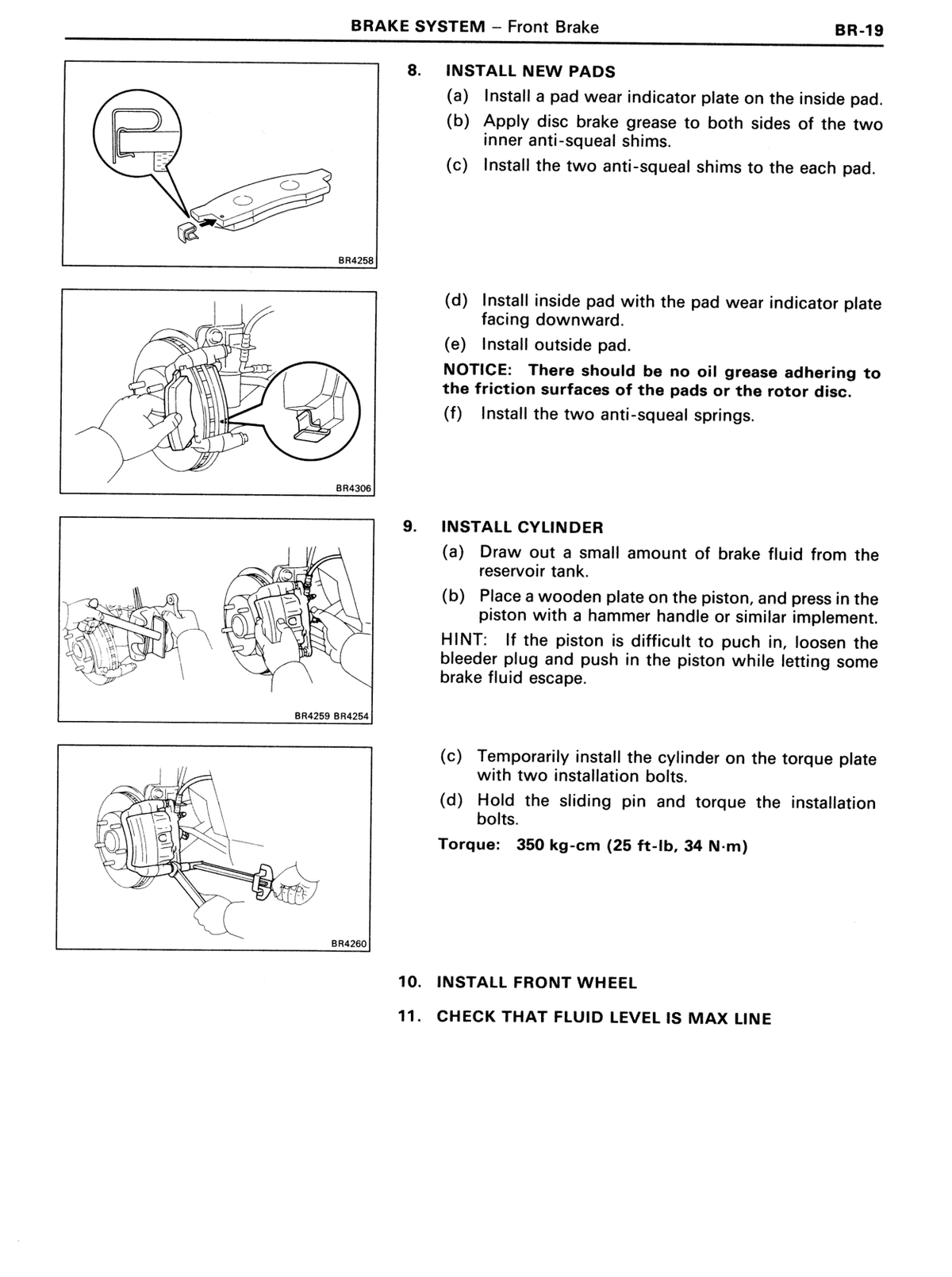

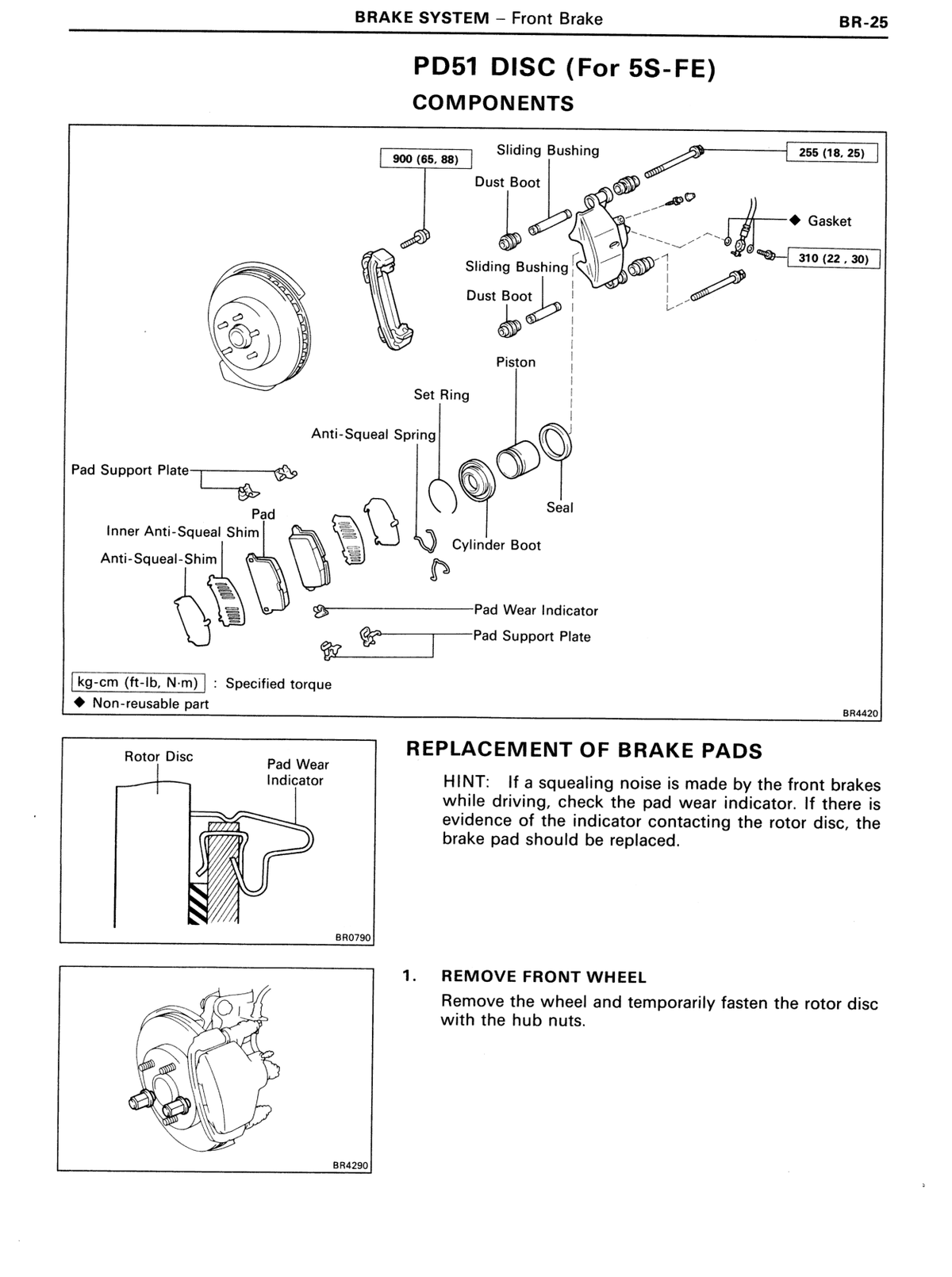

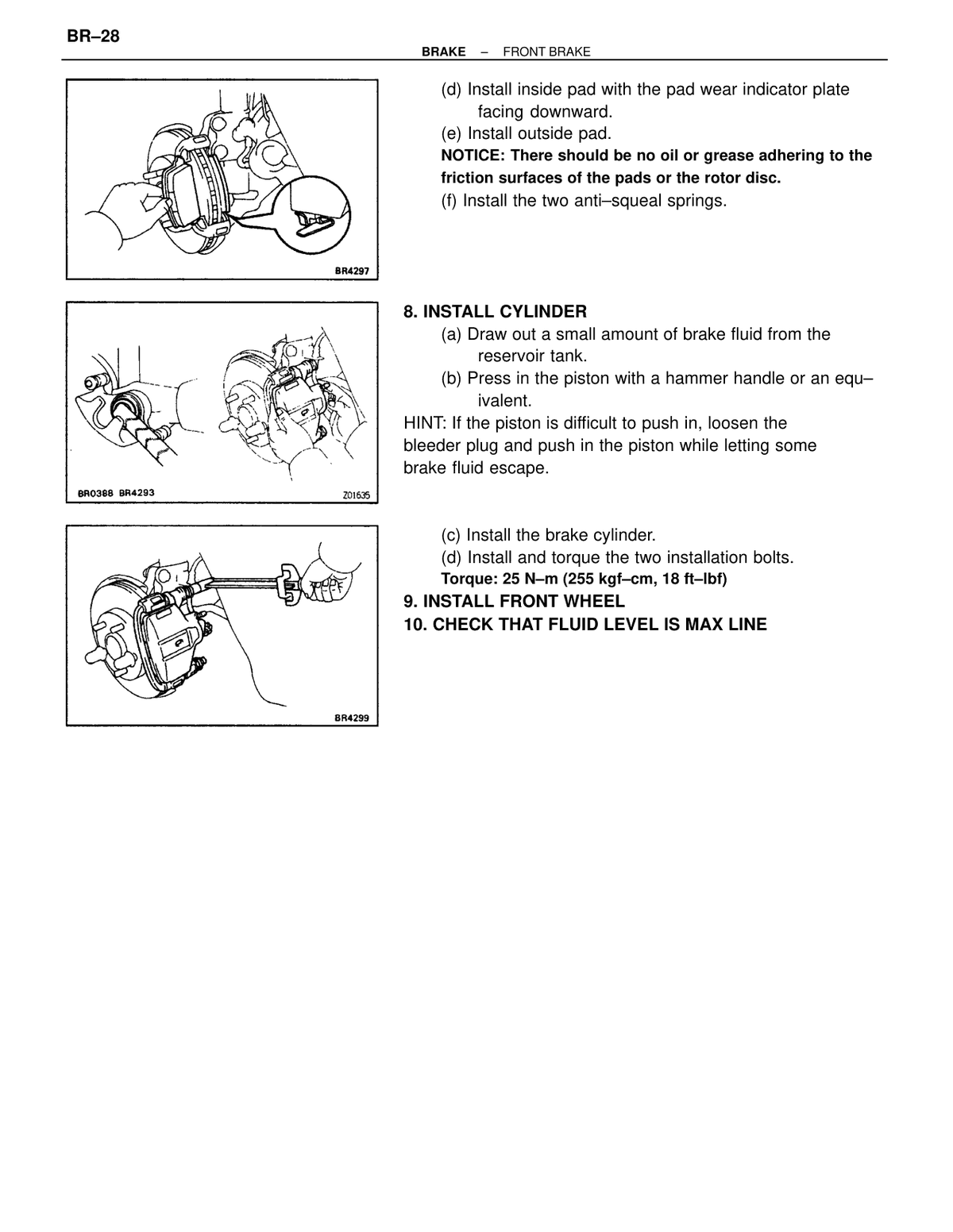

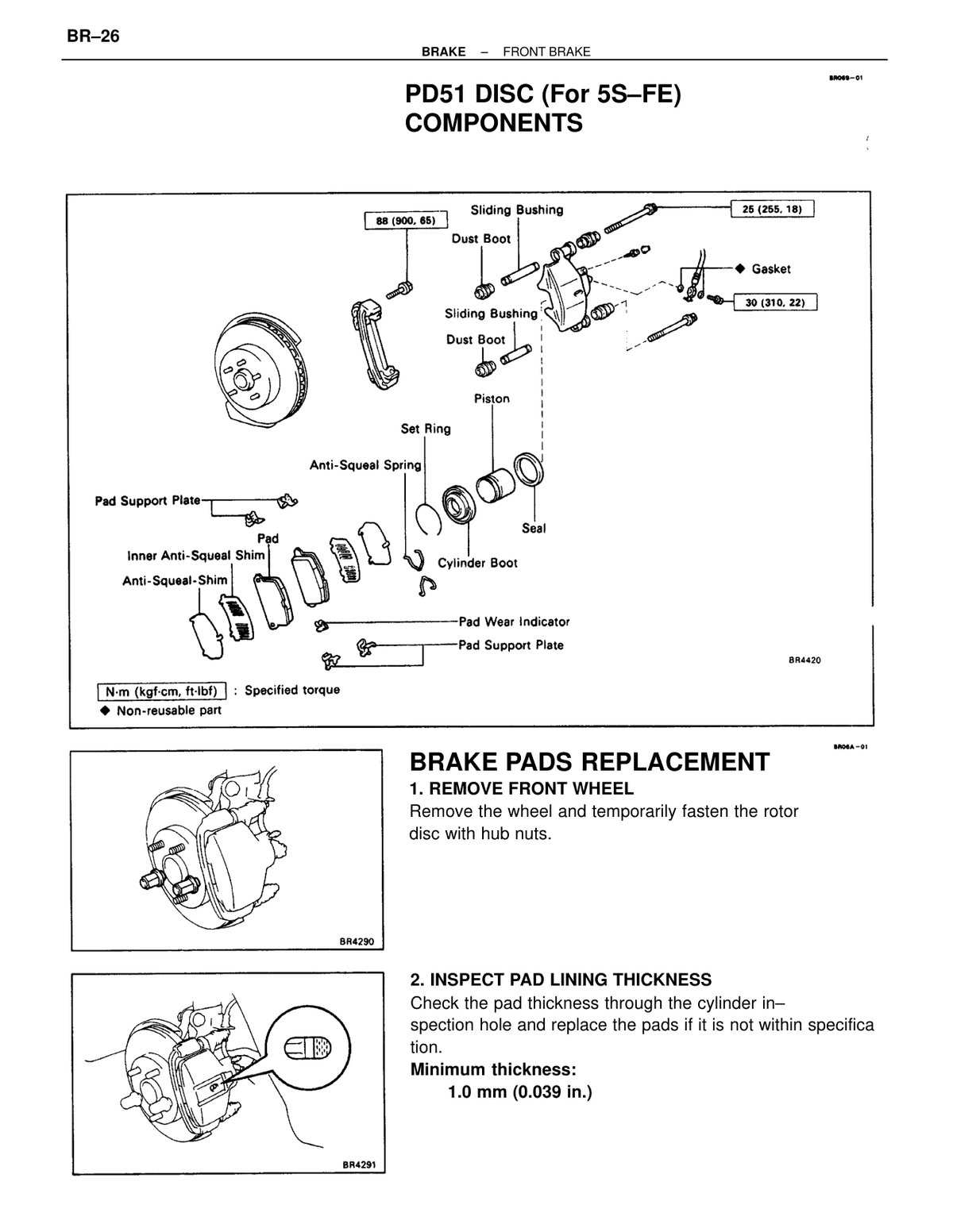

Brakes Front disc brake cylinder installation bolt (PD51 Disc) PD51 Disc 25 255 18 ↗ RM179U1_1991 · p1560 OEM manual

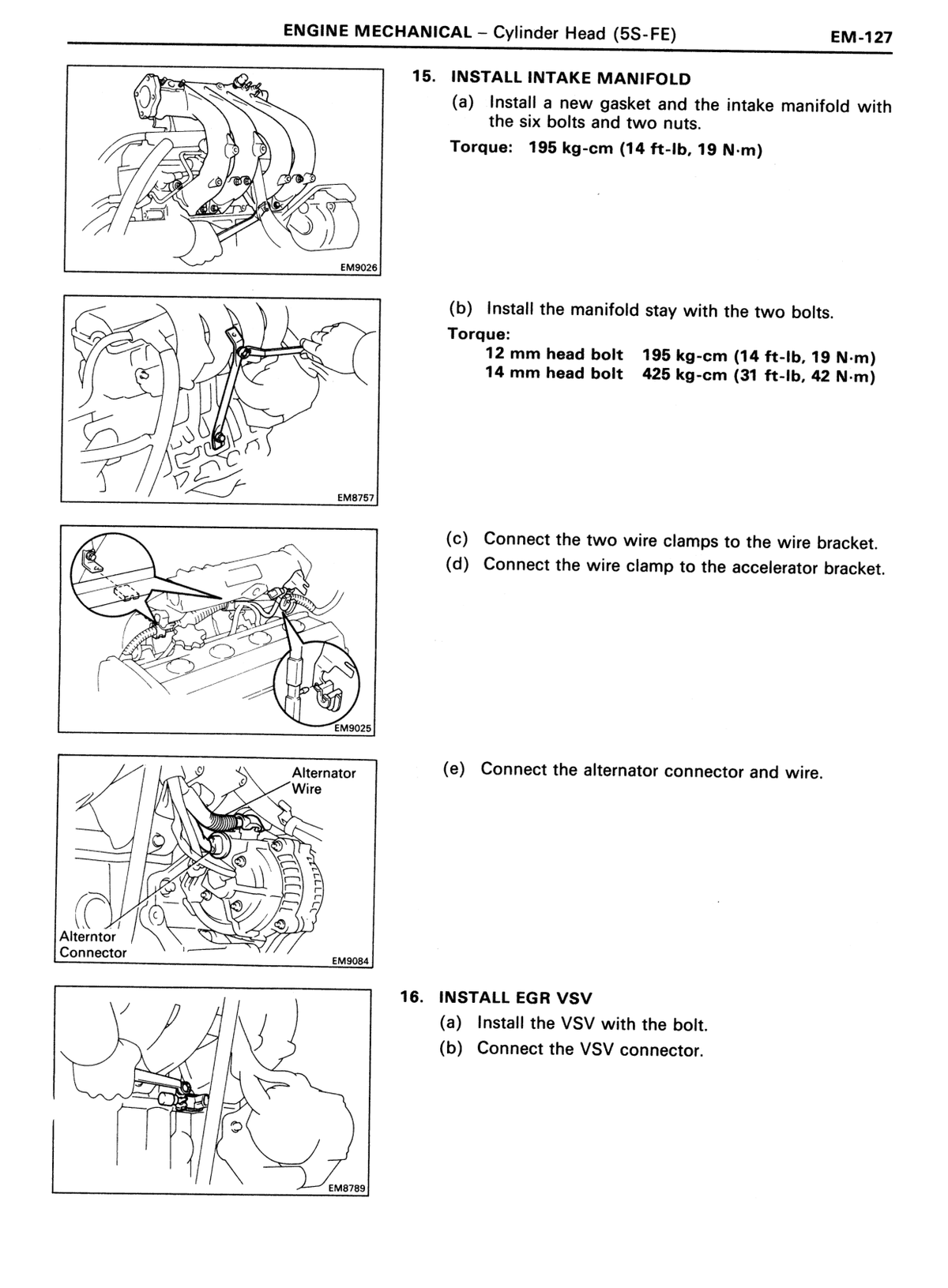

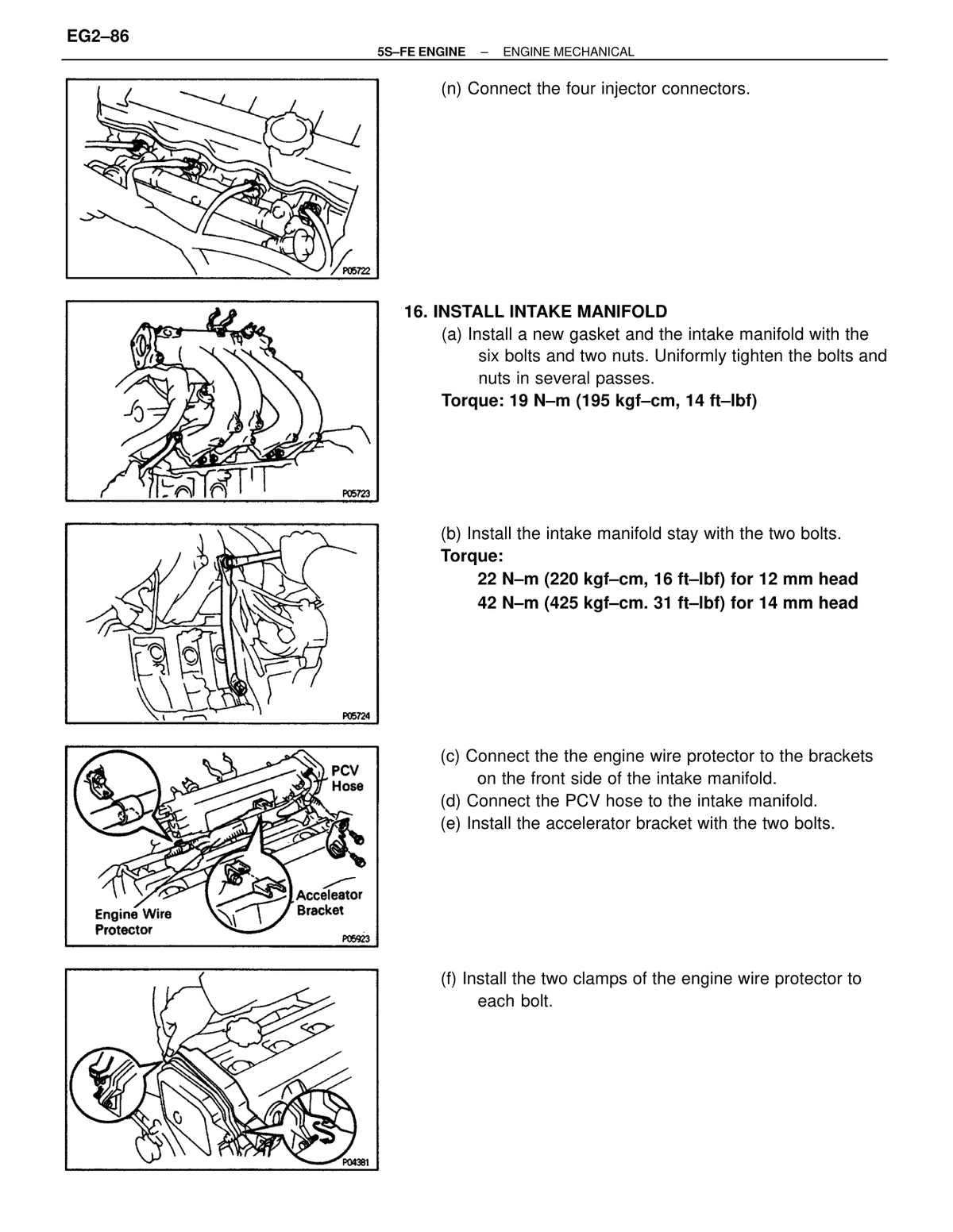

Engine — mechanical Intake manifold bolts and nuts Step 15(a) 19 195 14 ↗ RM179U1_1991 · p157 OEM manual
Engine — mechanical Manifold stay — 12 mm head bolt Step 15(b) 19 195 14 ↗ RM179U1_1991 · p157 OEM manual
Engine — mechanical Manifold stay — 14 mm head bolt Step 15(b) 42 425 31 ↗ RM179U1_1991 · p157 OEM manual

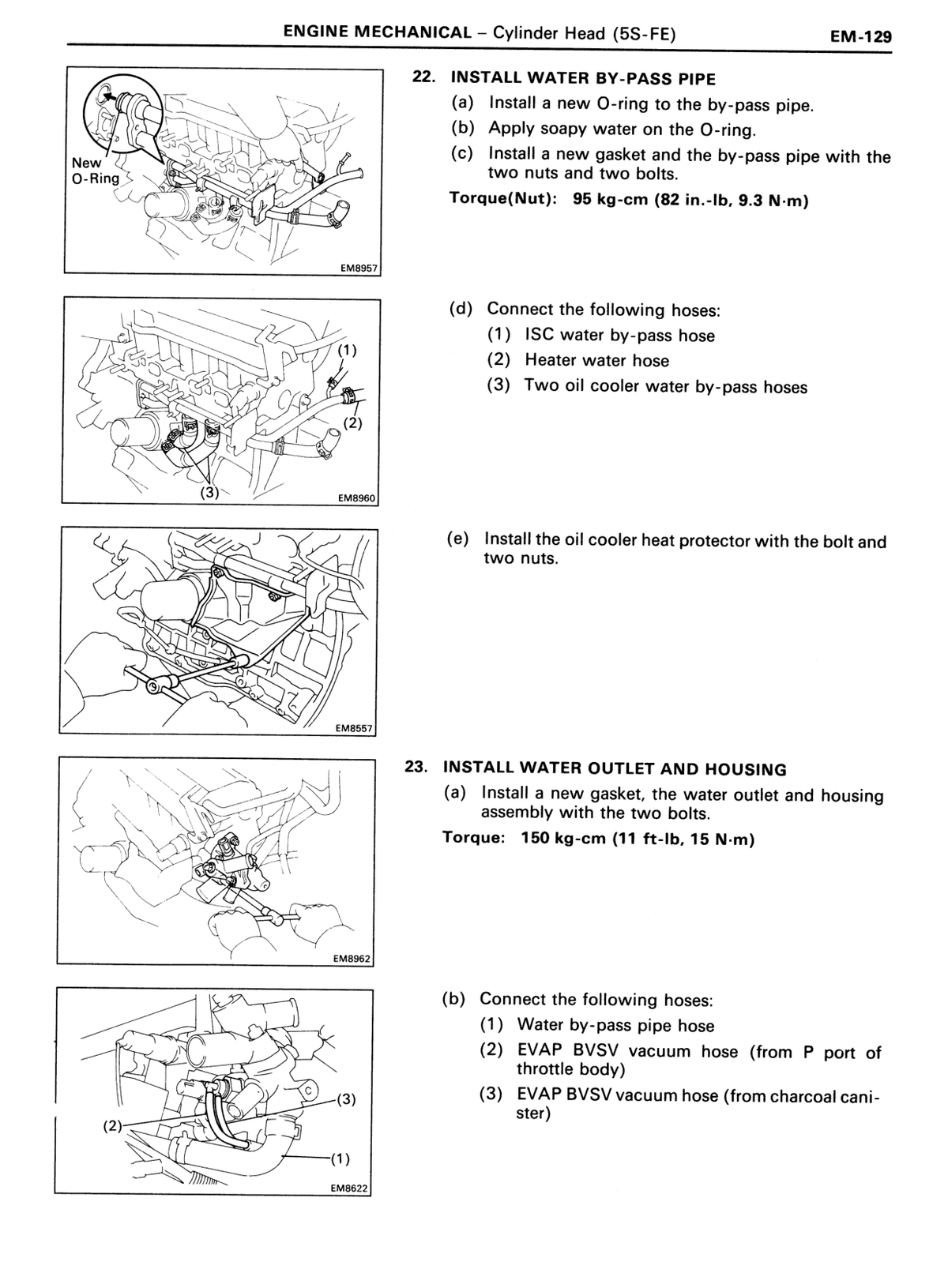

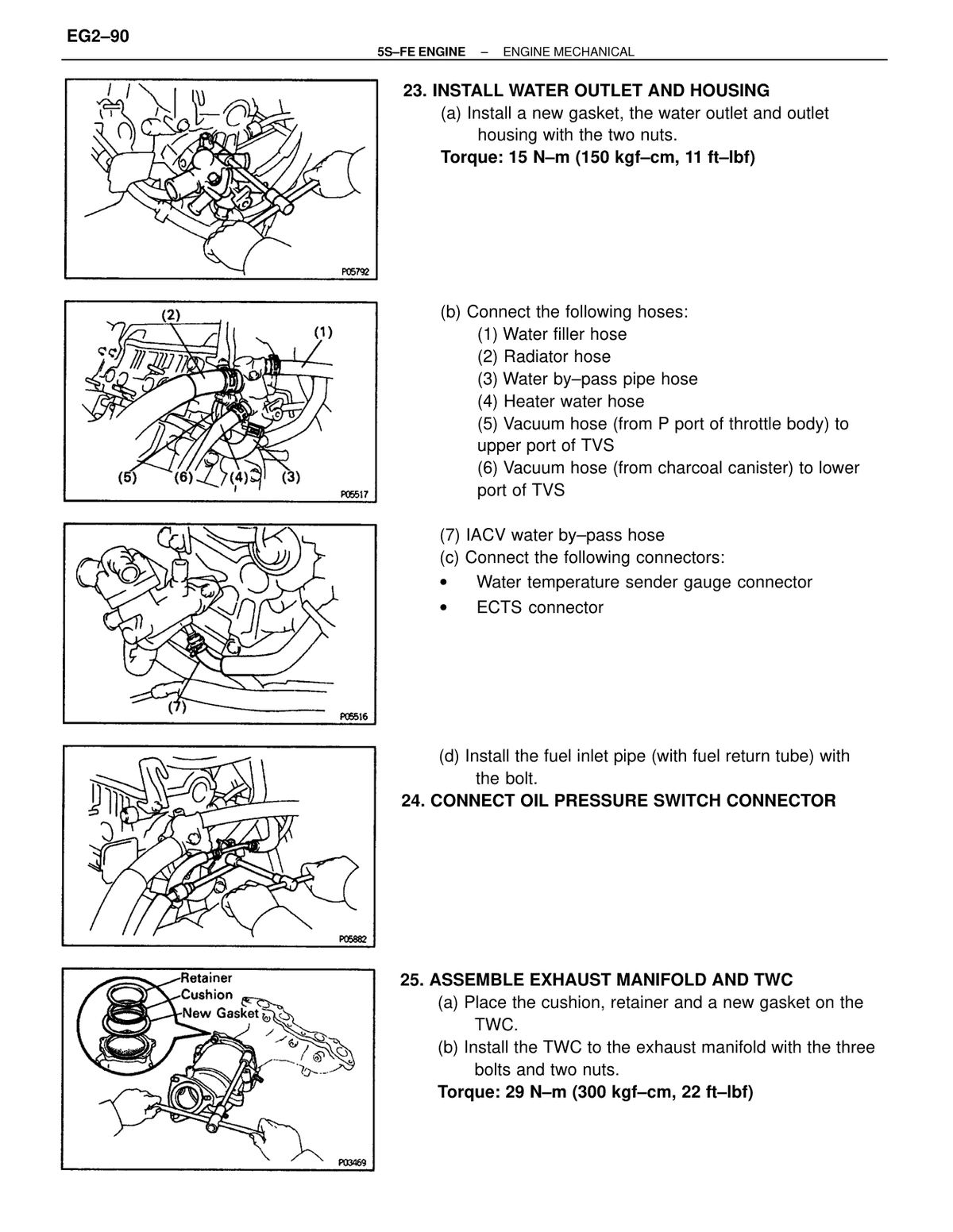

Engine — mechanical Water outlet and housing bolts Step 23(a) 15 150 11 ↗ RM179U1_1991 · p159 OEM manual

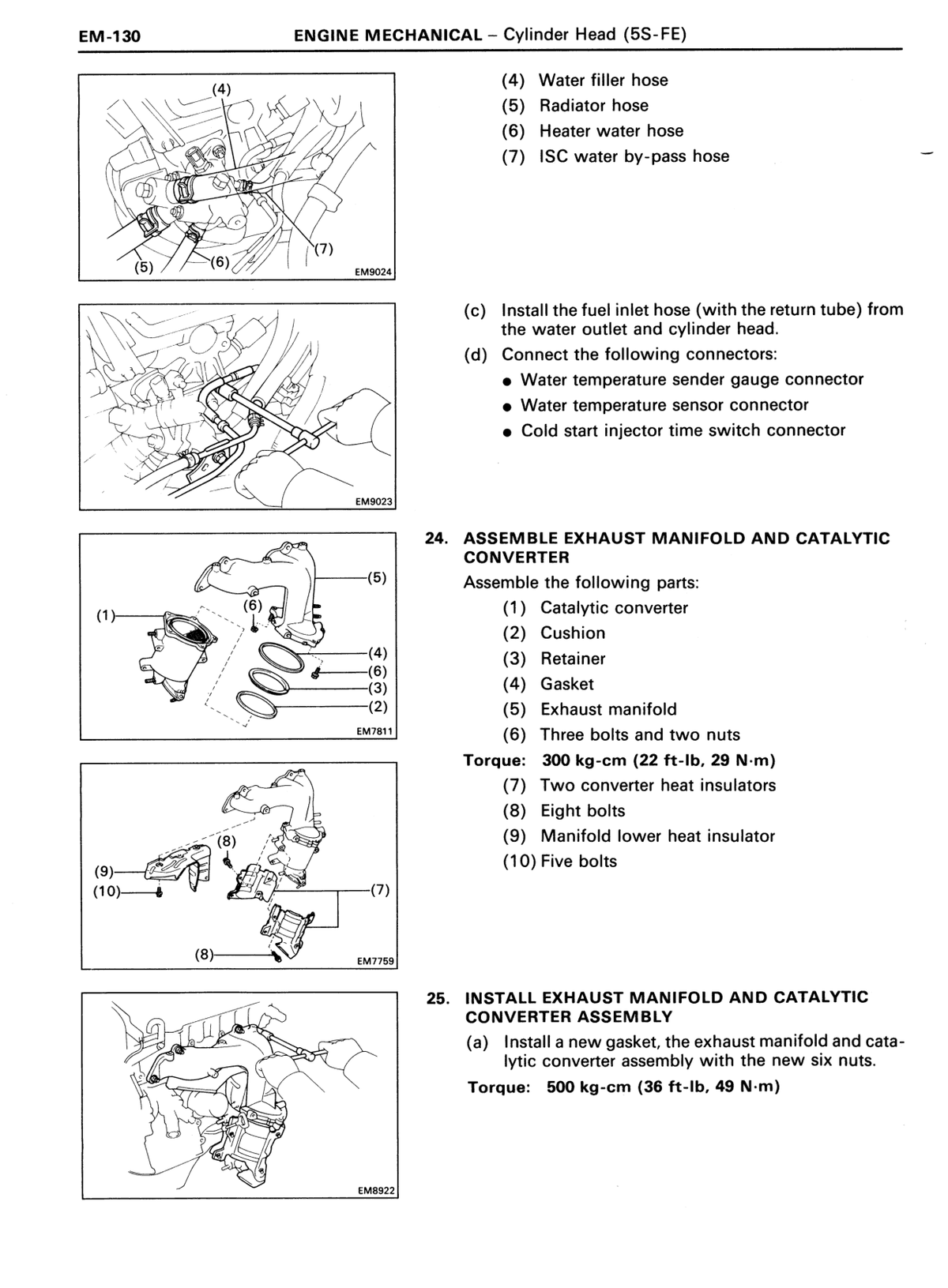

Engine — mechanical Three bolts and two nuts (exhaust manifold to catalytic converter) Step 24-(6) 29 300 22 ↗ RM179U1_1991 · p160 OEM manual

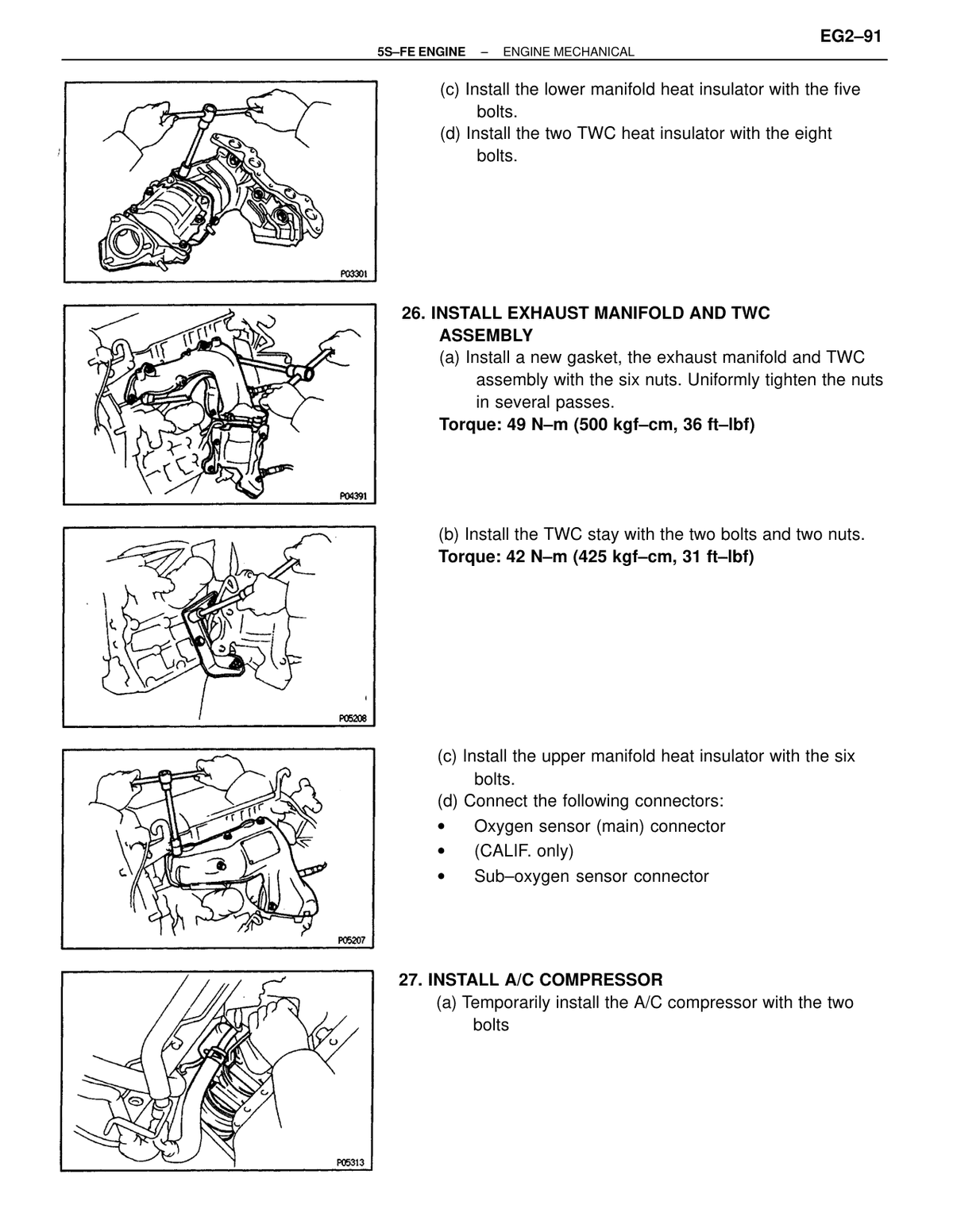

Engine — mechanical Exhaust manifold and catalytic converter assembly — six nuts Step 25-(a) 49 500 36 ↗ RM179U1_1991 · p160 OEM manual

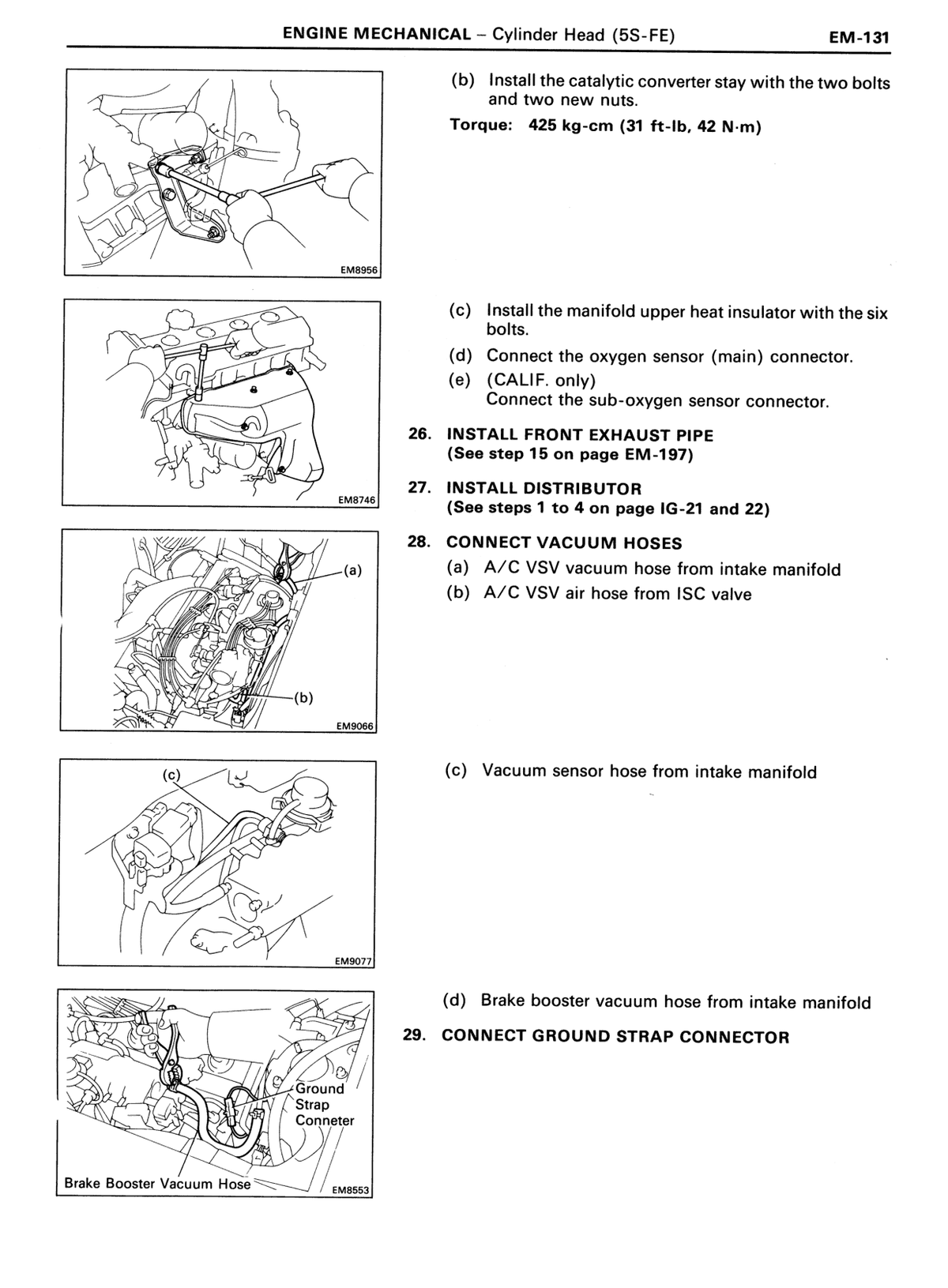

Engine — mechanical Catalytic converter stay bolts and nuts Step 25(b) 42 425 31 ↗ RM179U1_1991 · p161 OEM manual

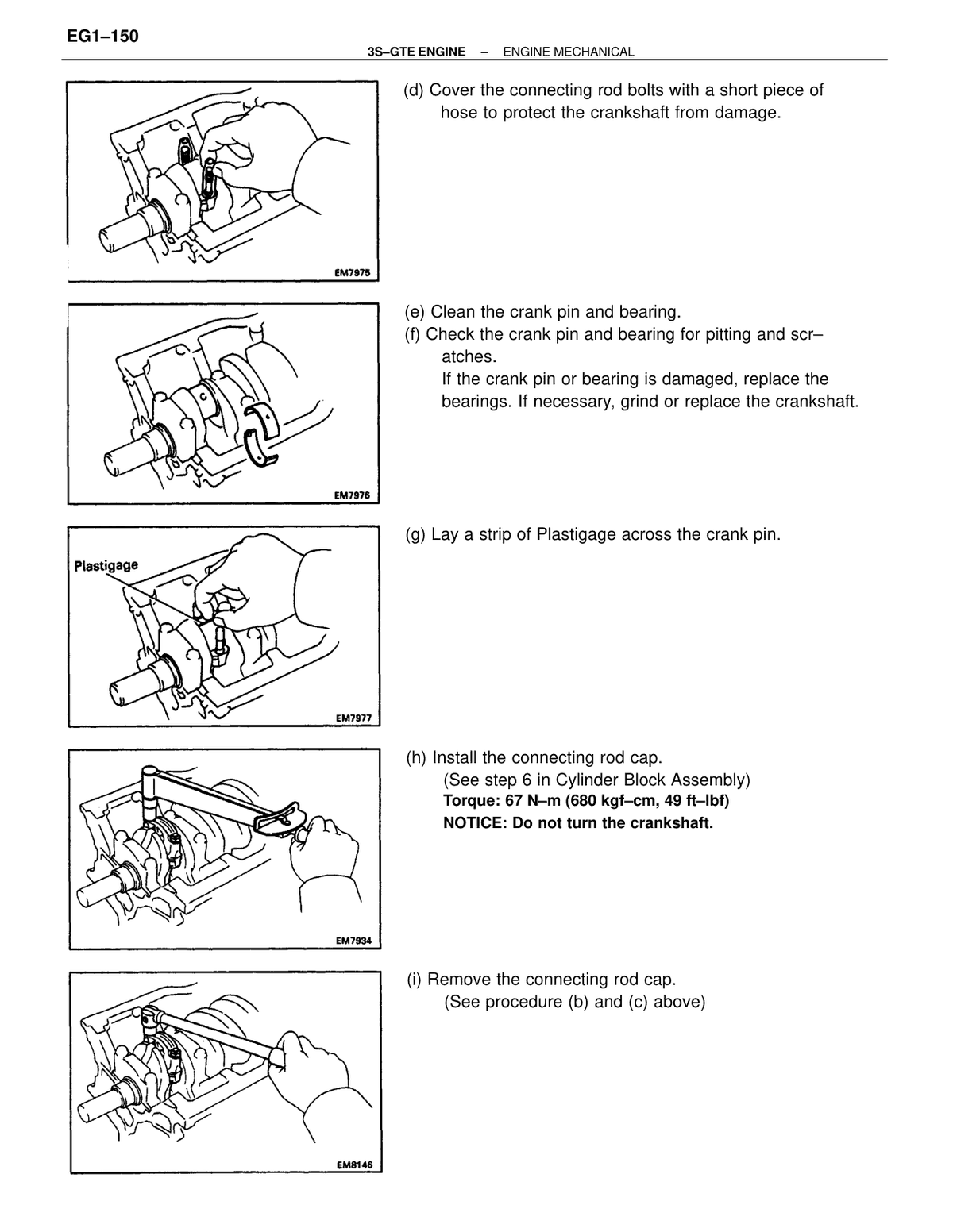

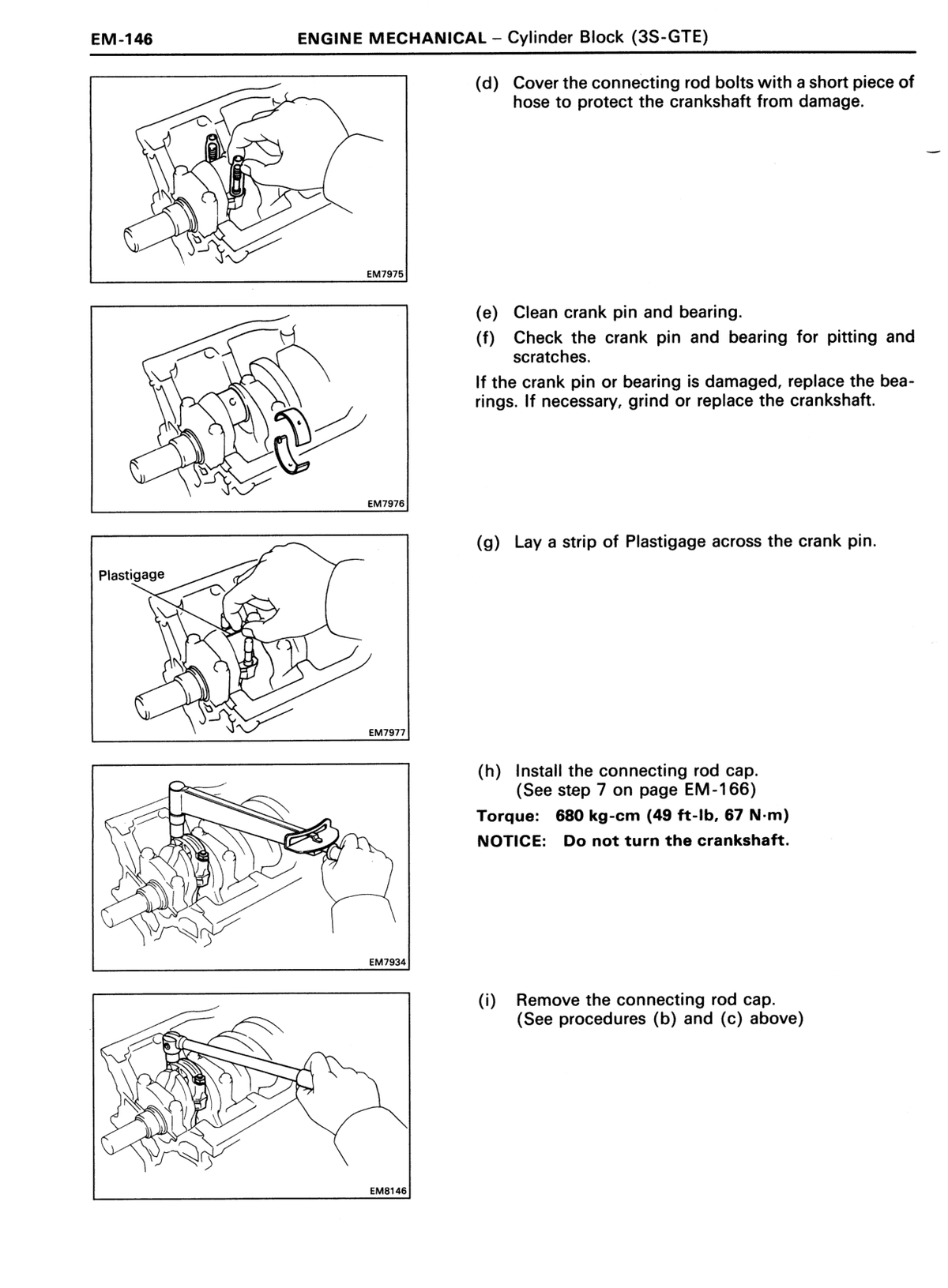

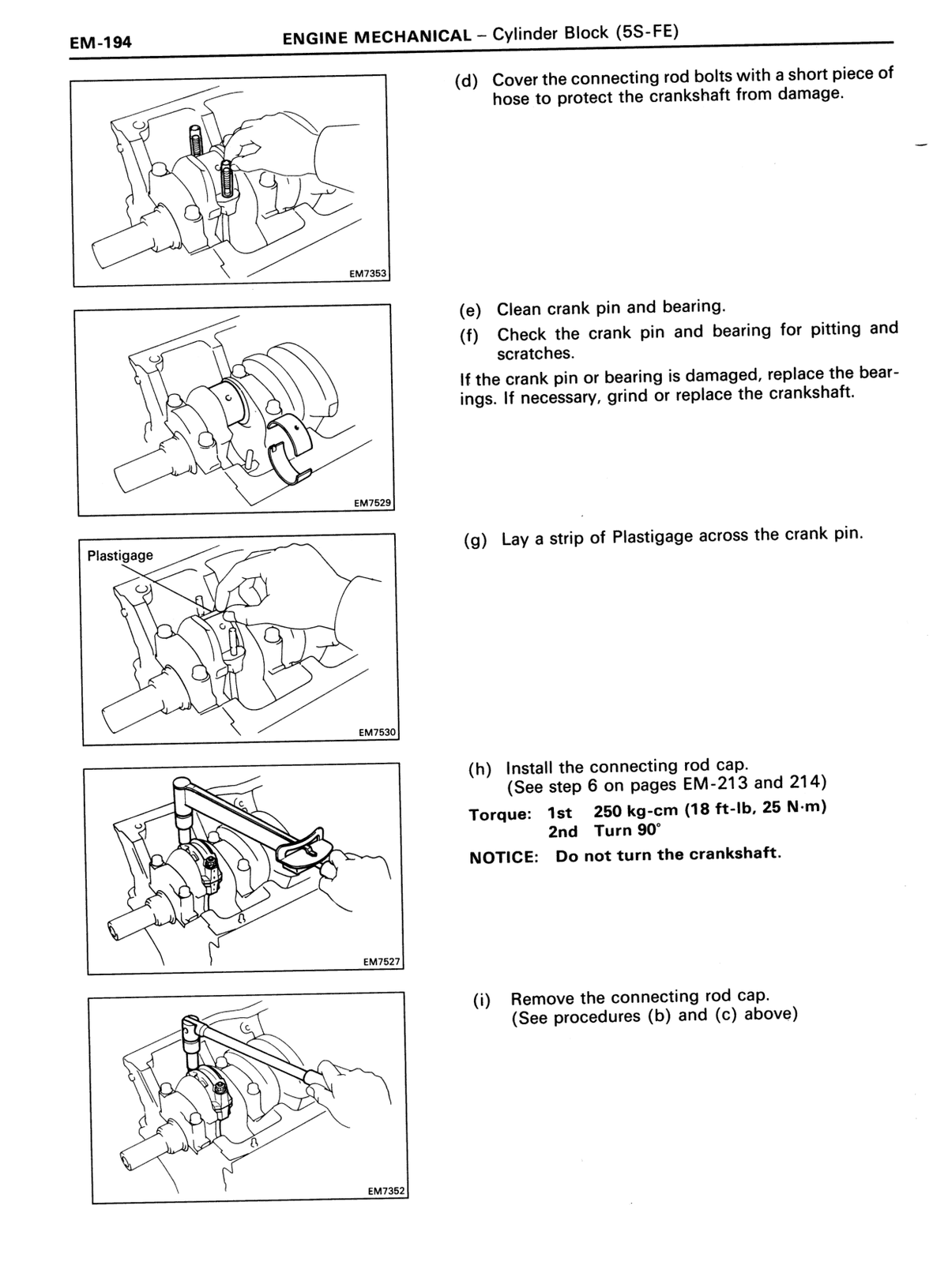

Engine — mechanical Connecting rod cap bolt Step (h) — Install connecting rod cap 67 680 49 ↗ RM179U1_1991 · p176 OEM manual

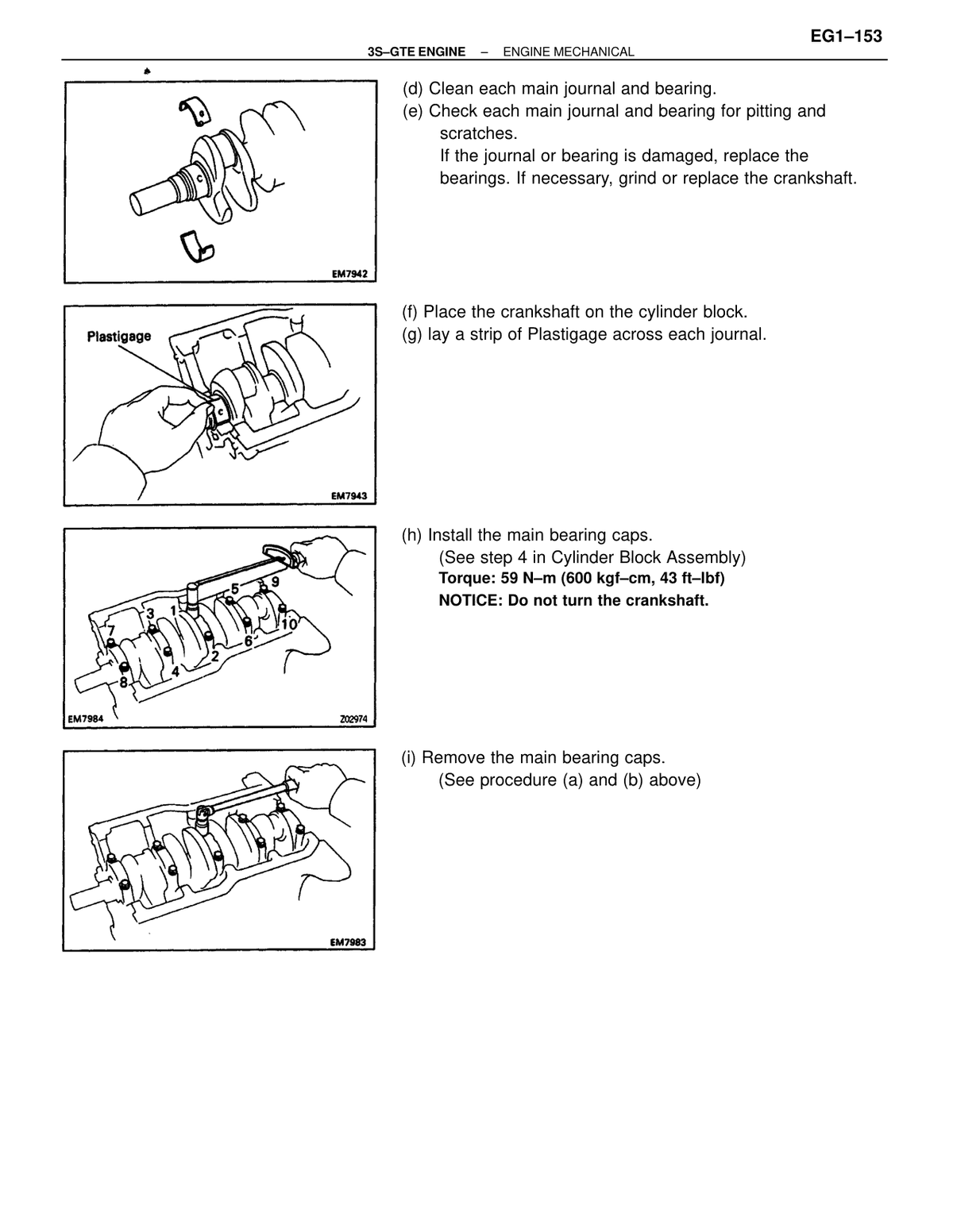

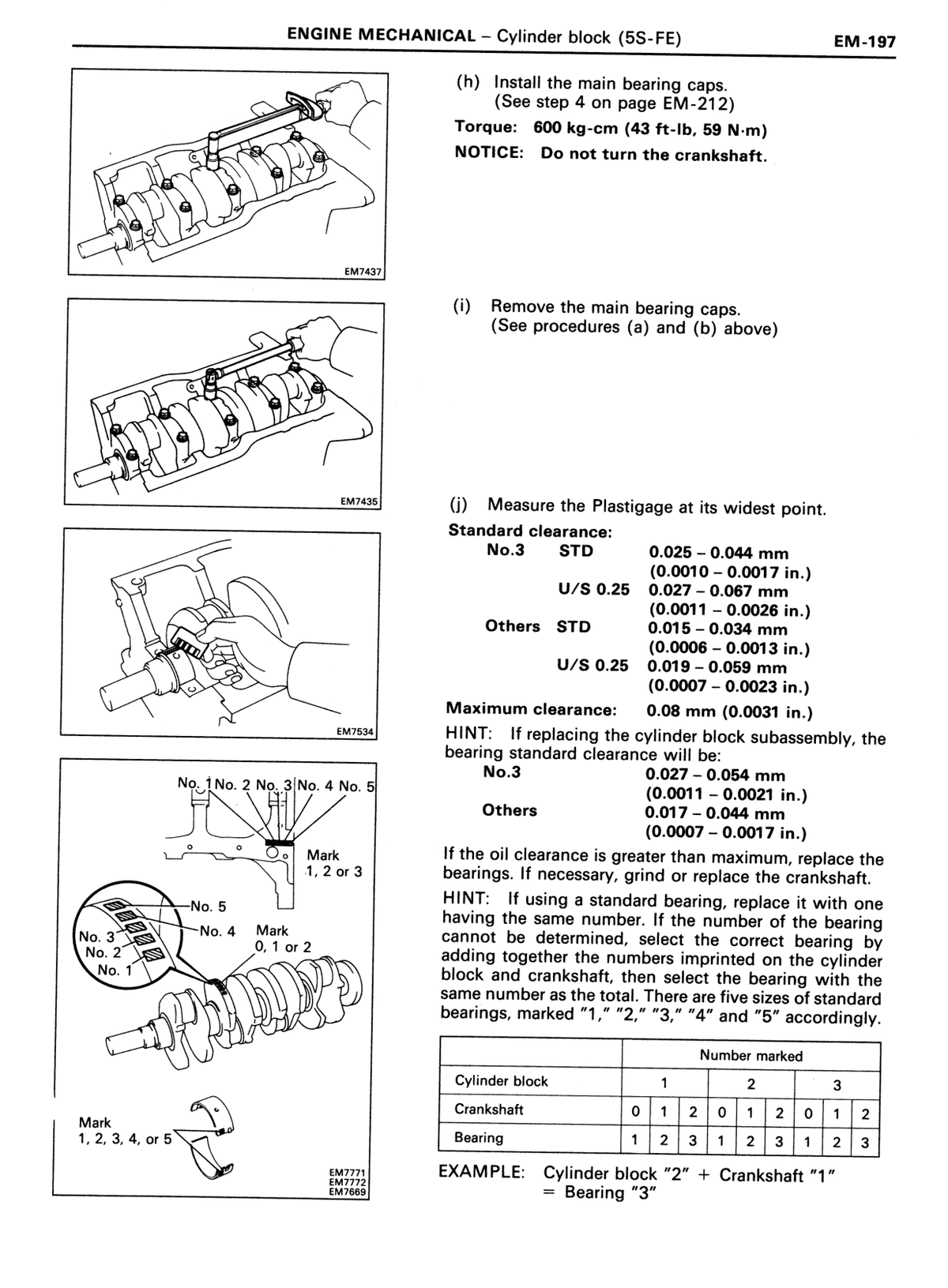

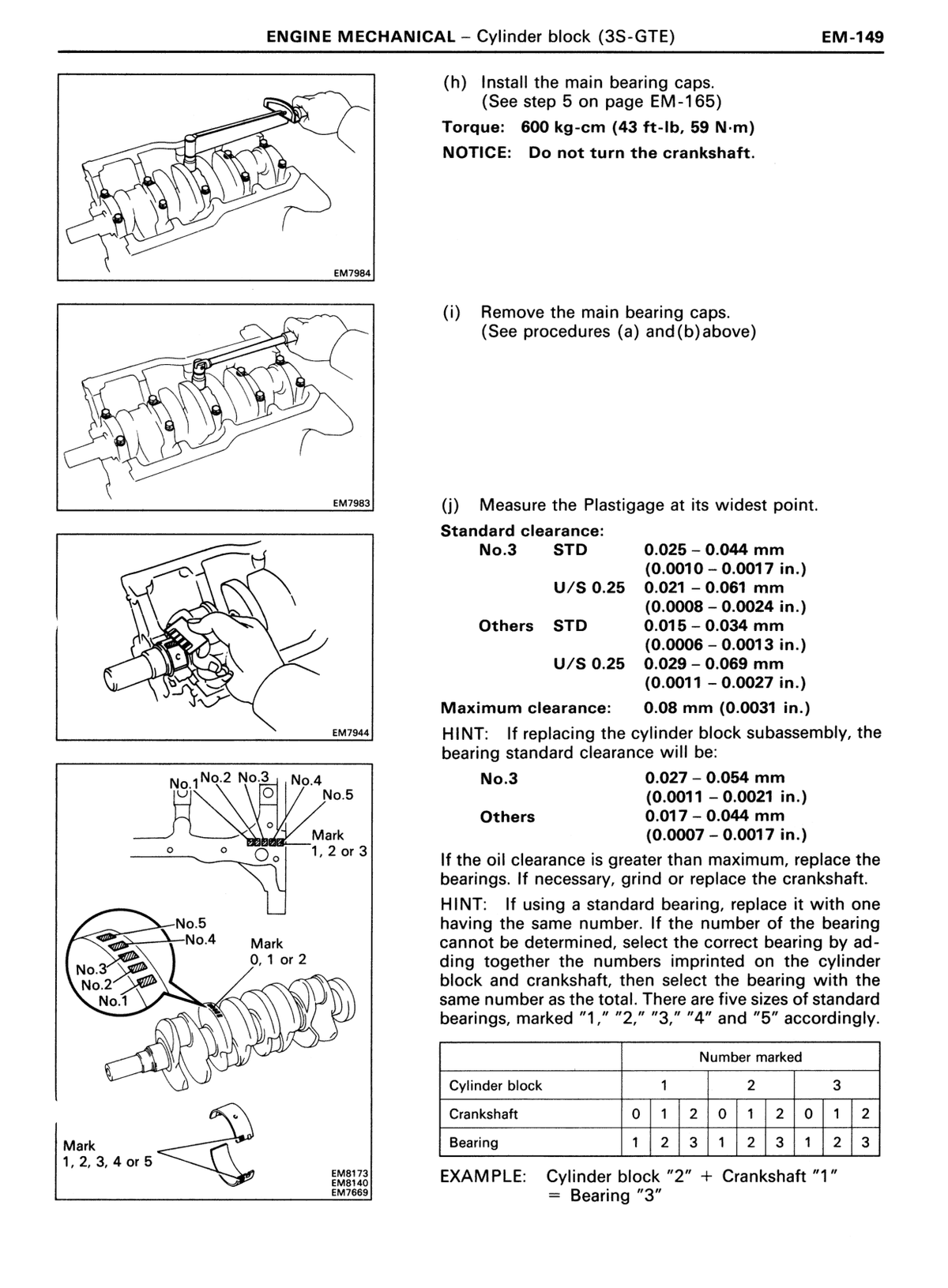

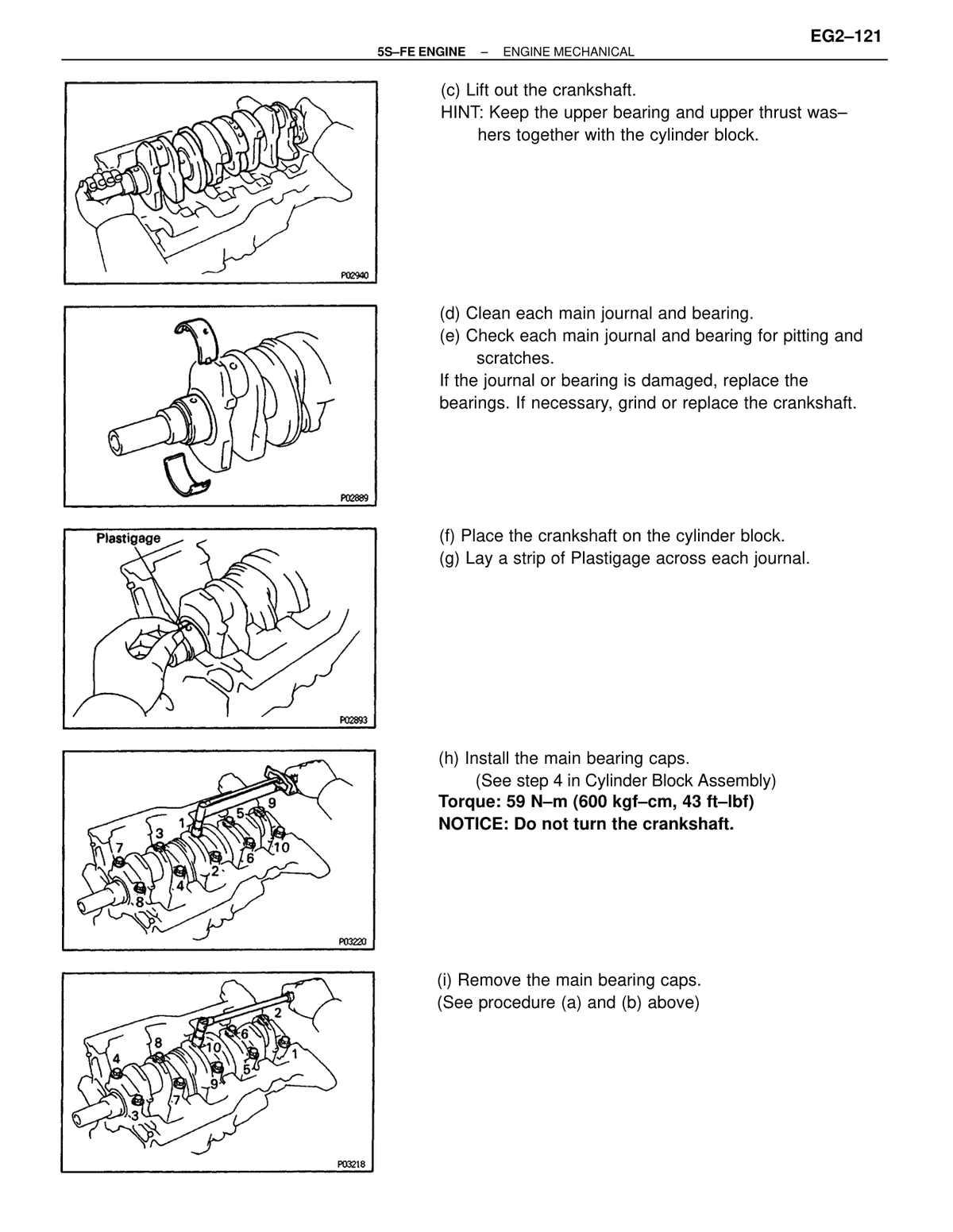

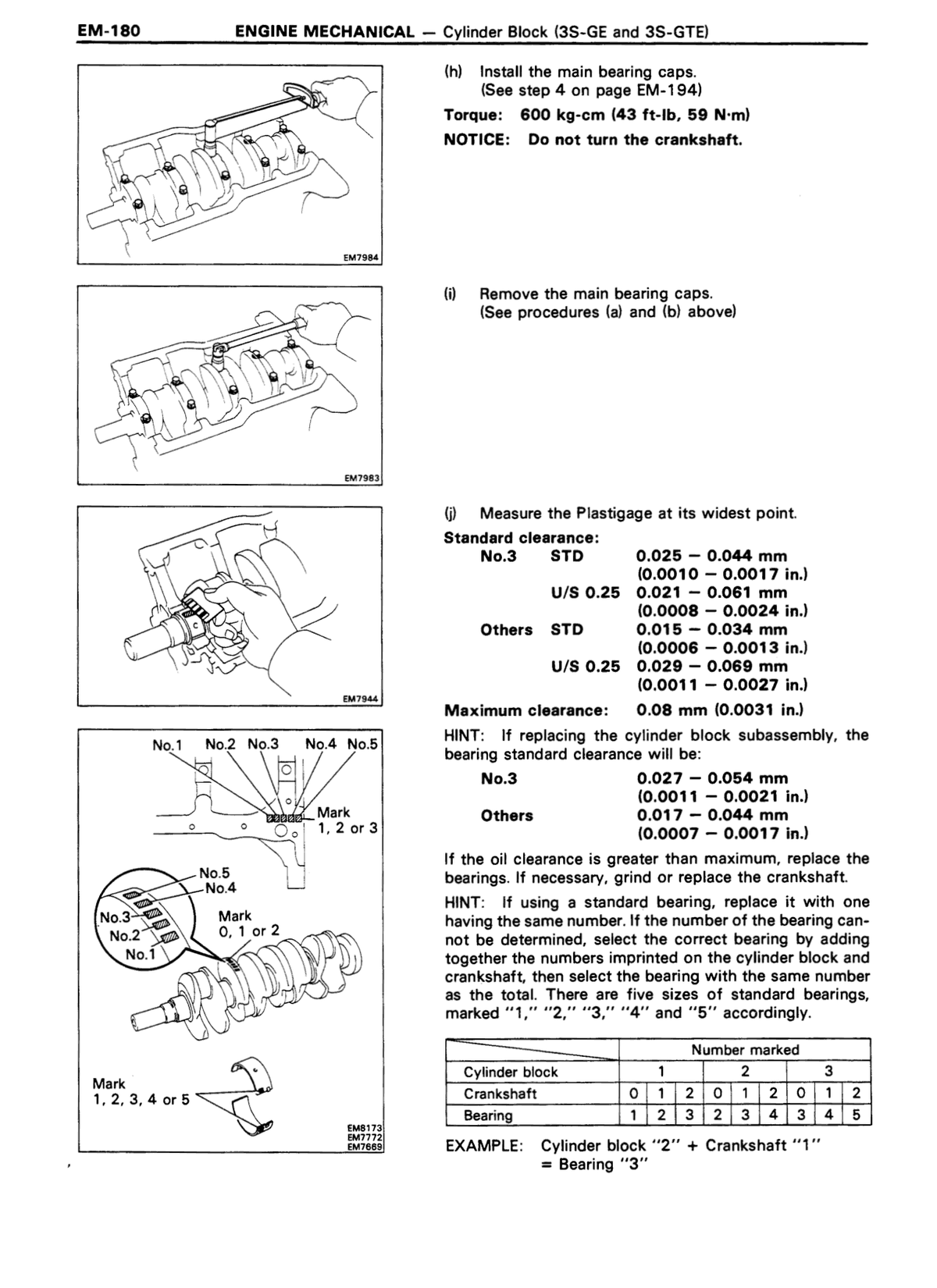

Engine — mechanical Main bearing cap bolts Step (h) — install main bearing caps 59 600 43 ↗ RM179U1_1991 · p179 OEM manual

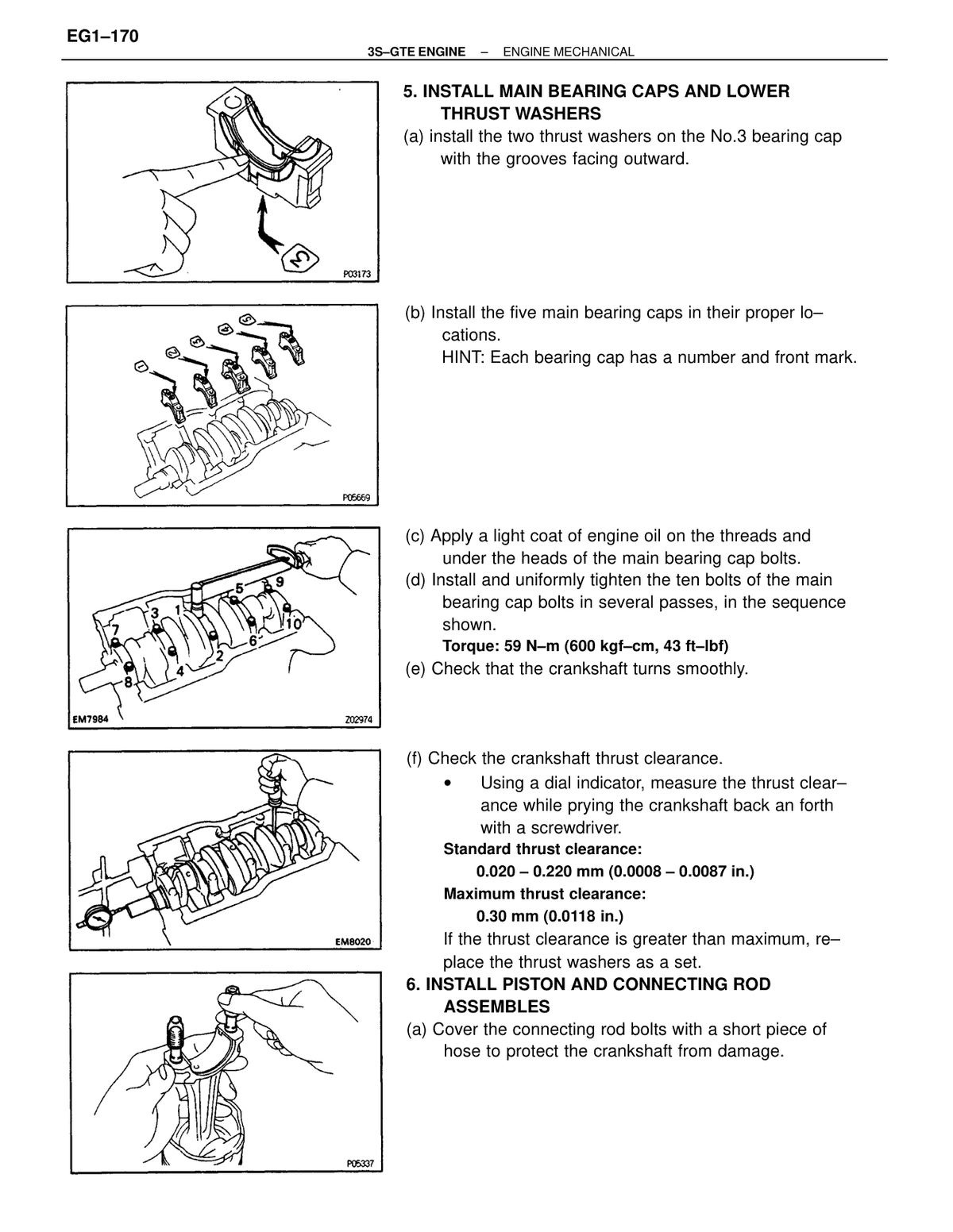

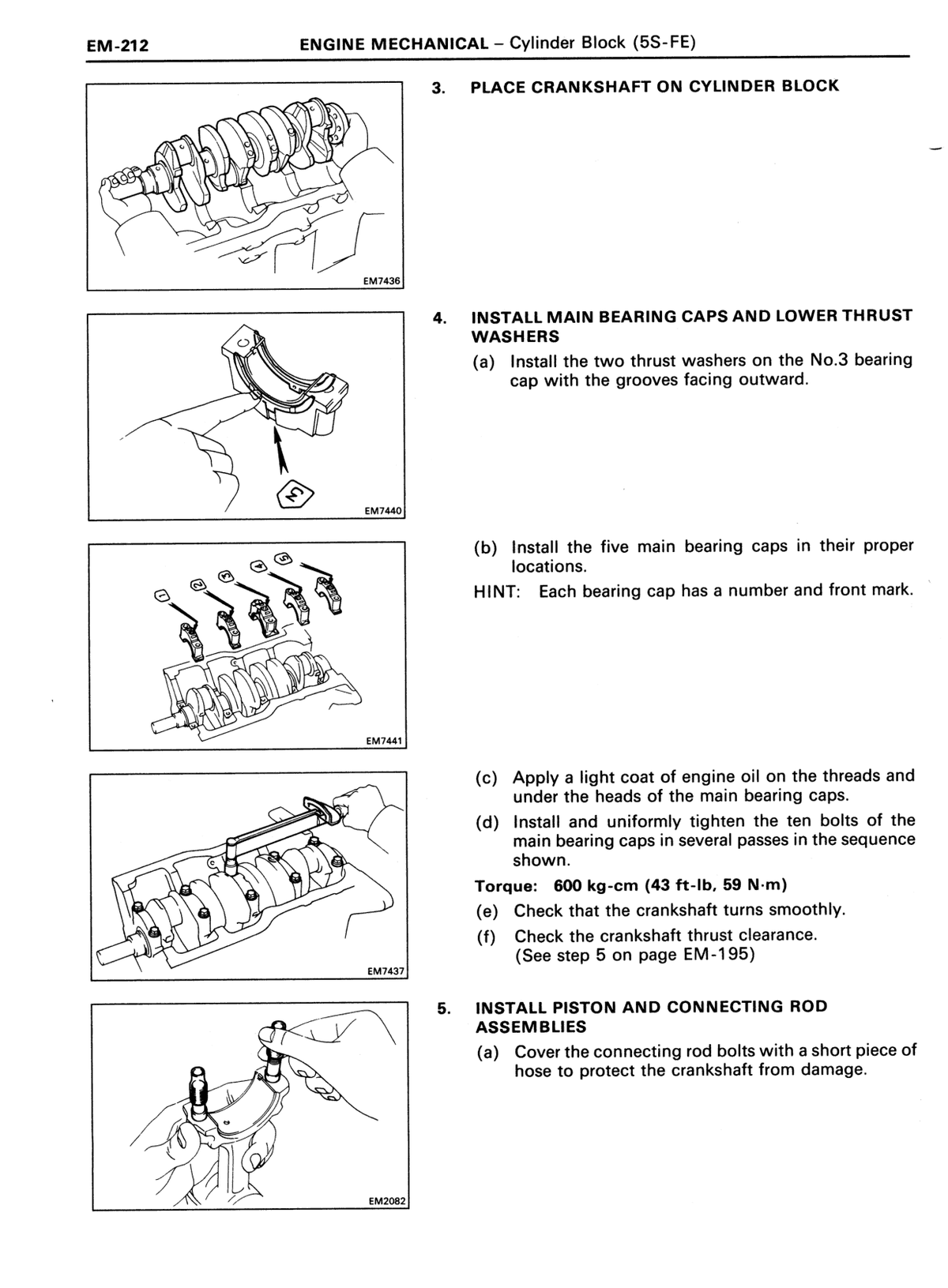

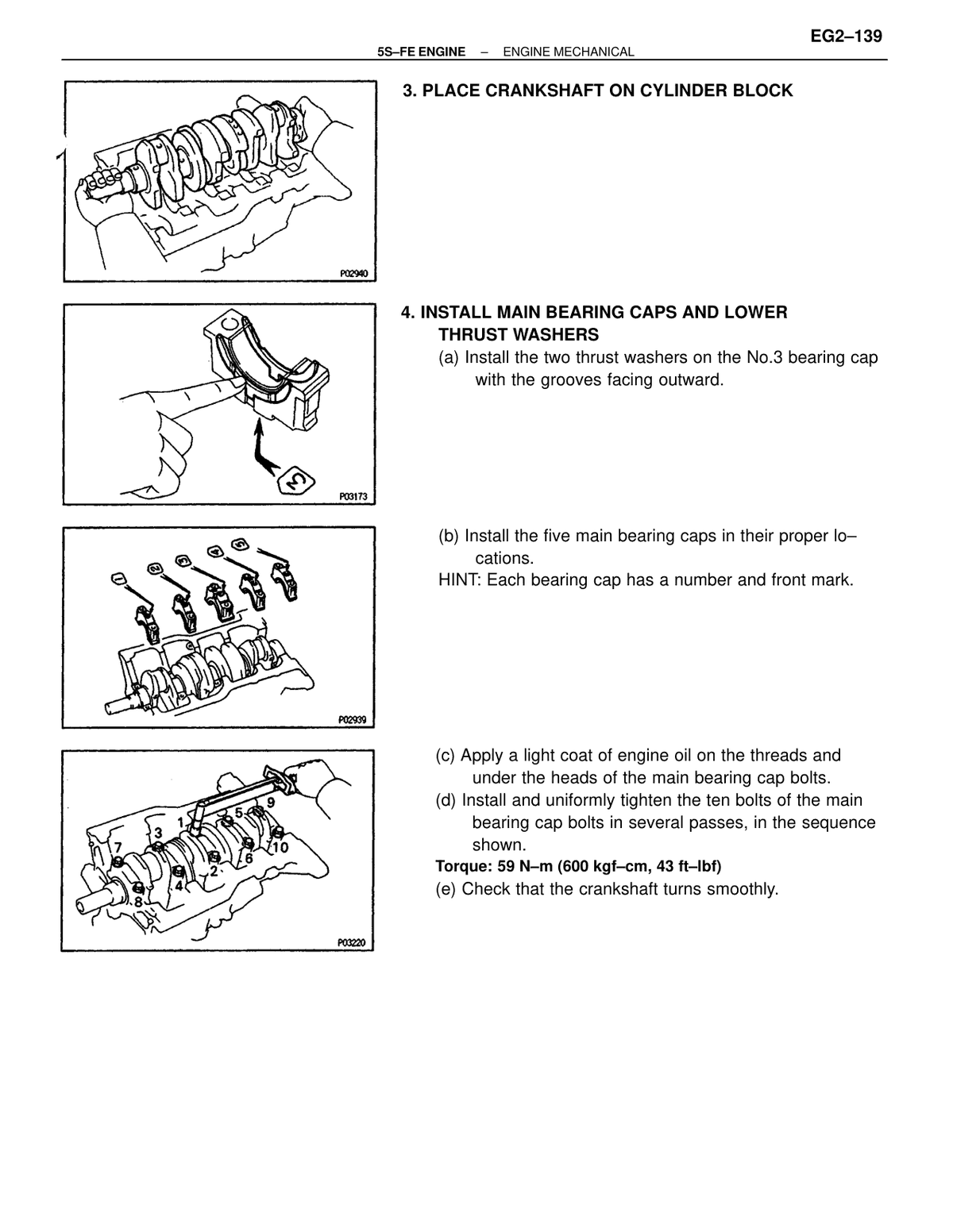

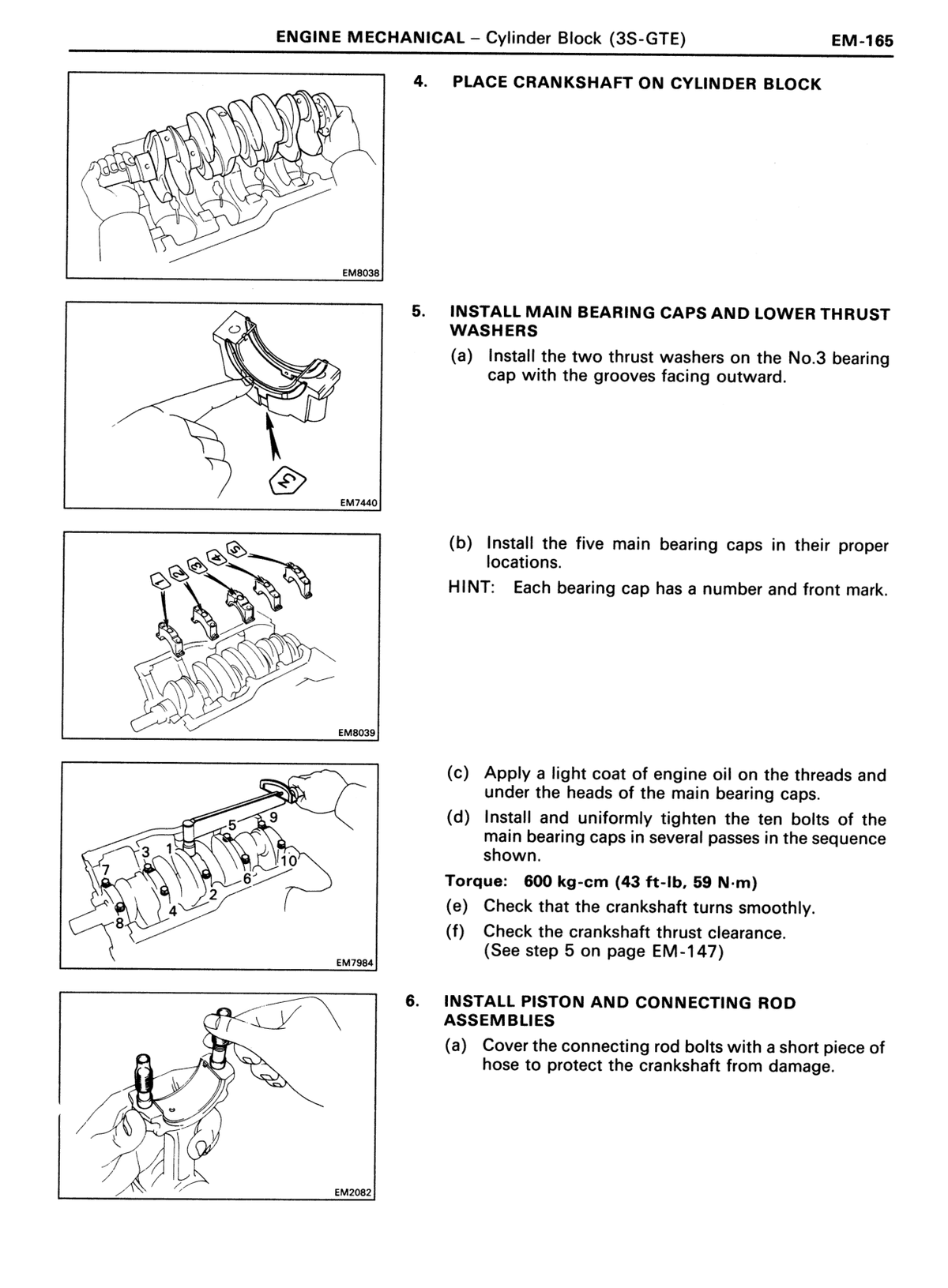

Engine — mechanical Main bearing cap bolts Tighten uniformly in several passes in sequence shown 59 600 43 ↗ RM179U1_1991 · p195 OEM manual

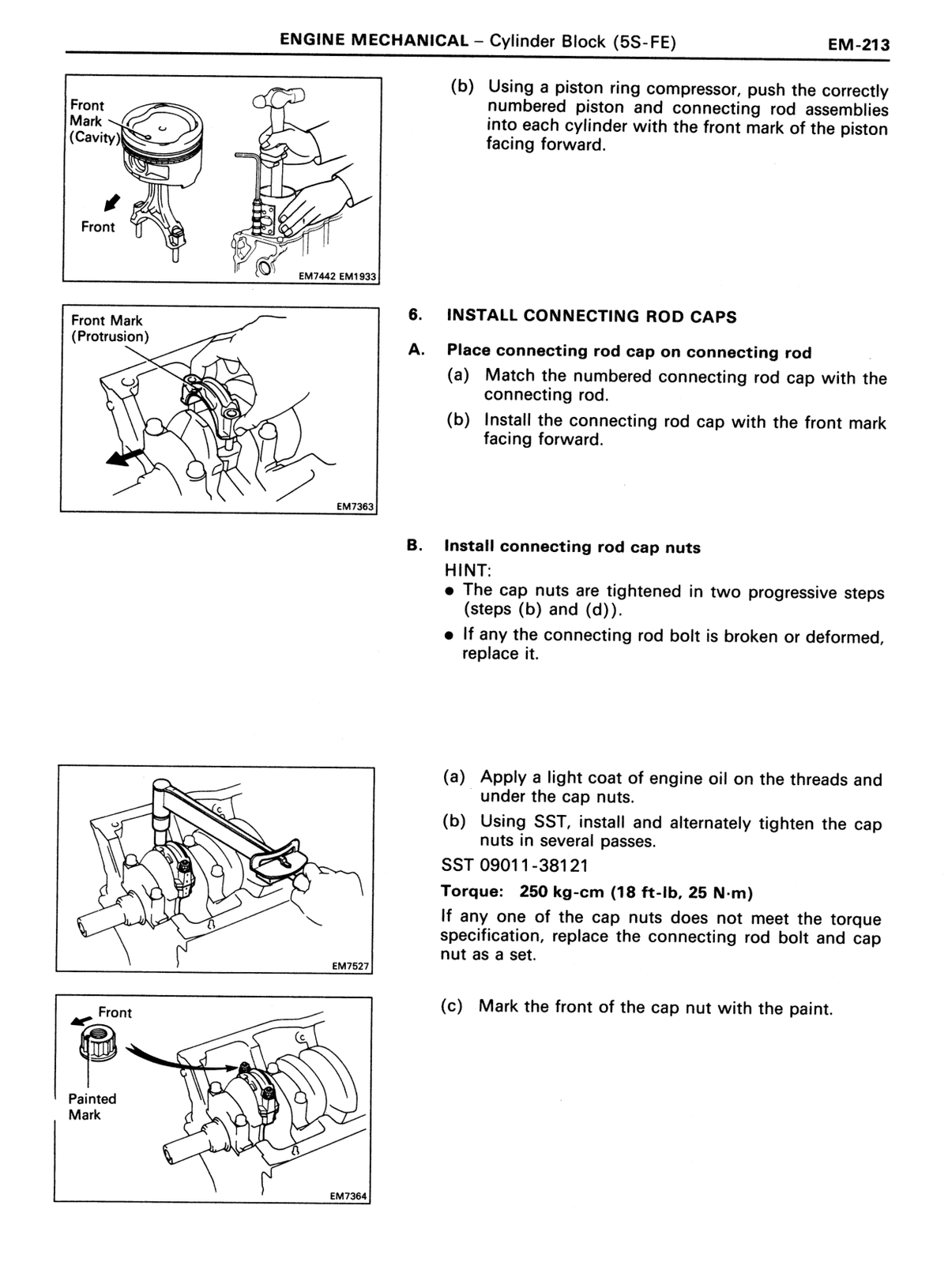

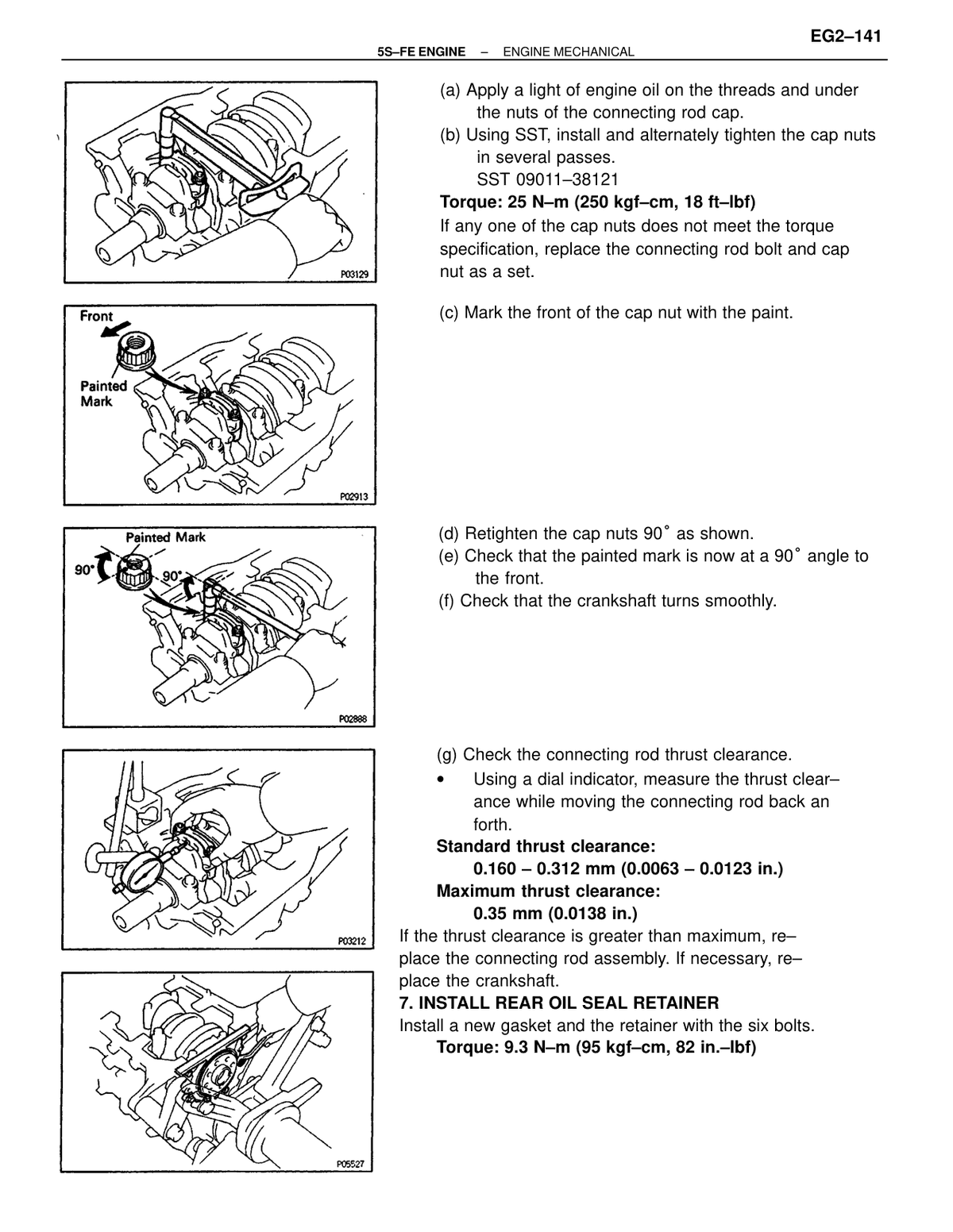

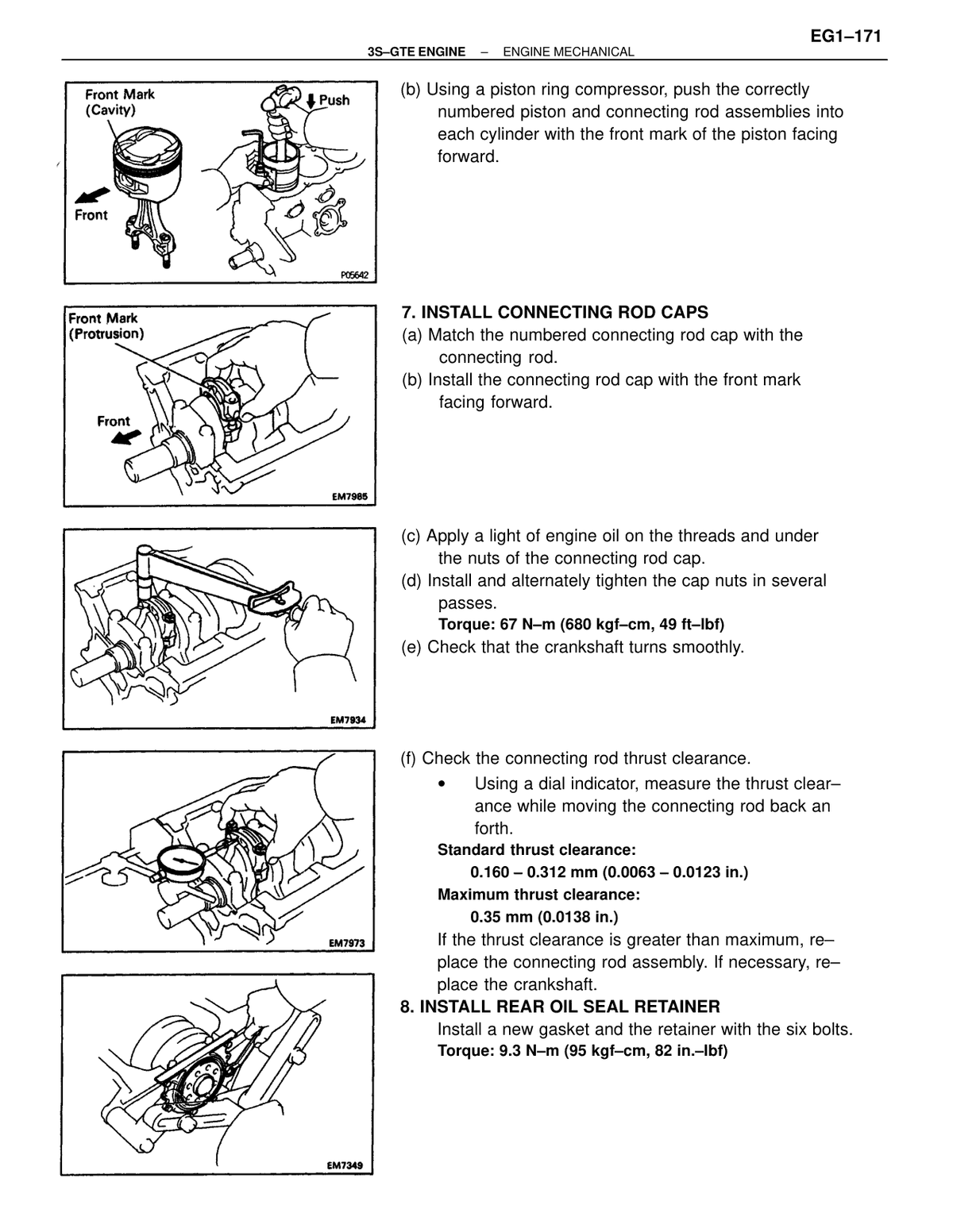

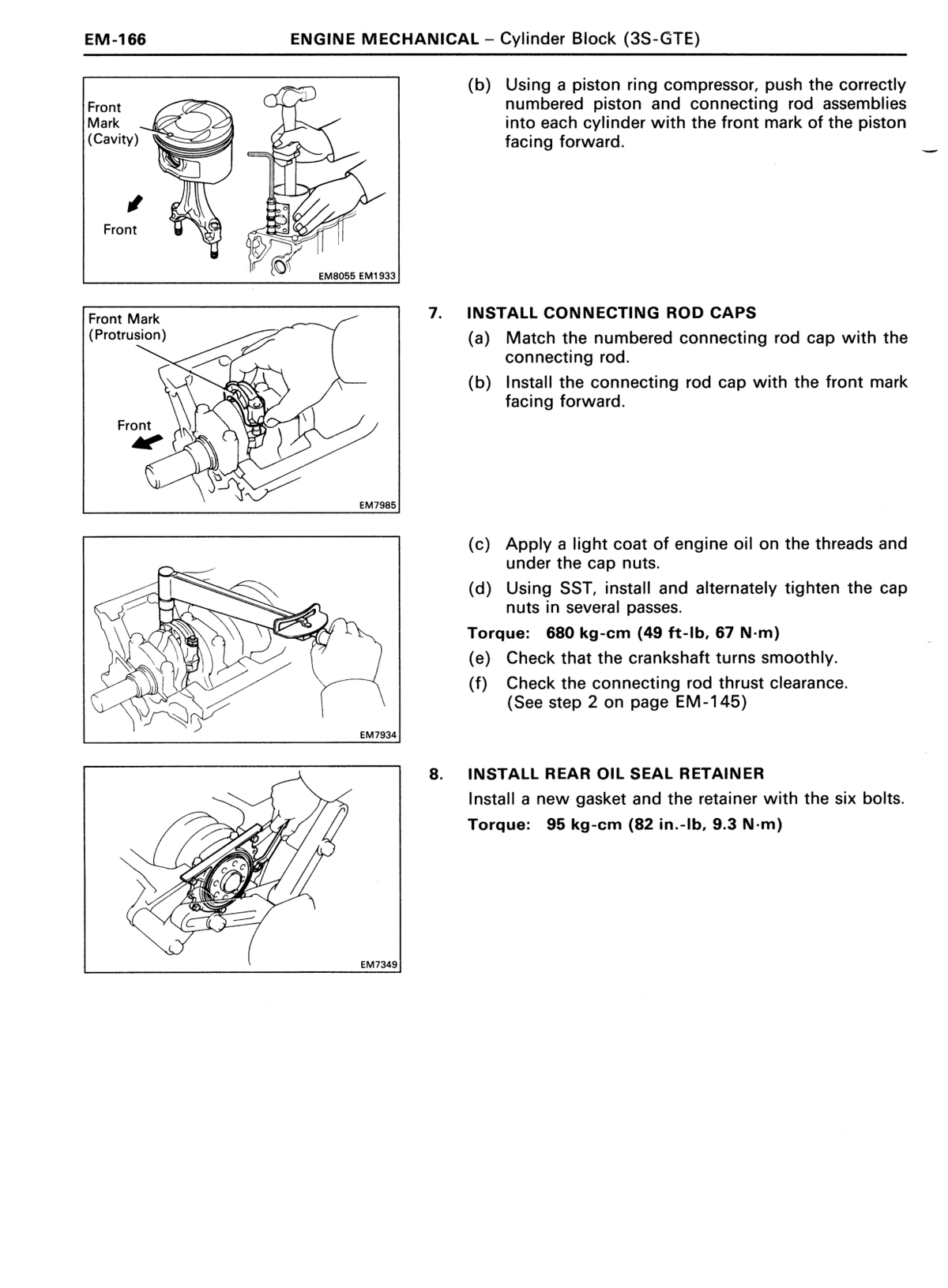

Engine — mechanical Connecting rod cap nuts Alternately tighten in several passes using SST 67 680 49 ↗ RM179U1_1991 · p196 OEM manual
Engine — mechanical Rear oil seal retainer bolts 82 in.-lb; six bolts 9.3 95 — ↗ RM179U1_1991 · p196 OEM manual

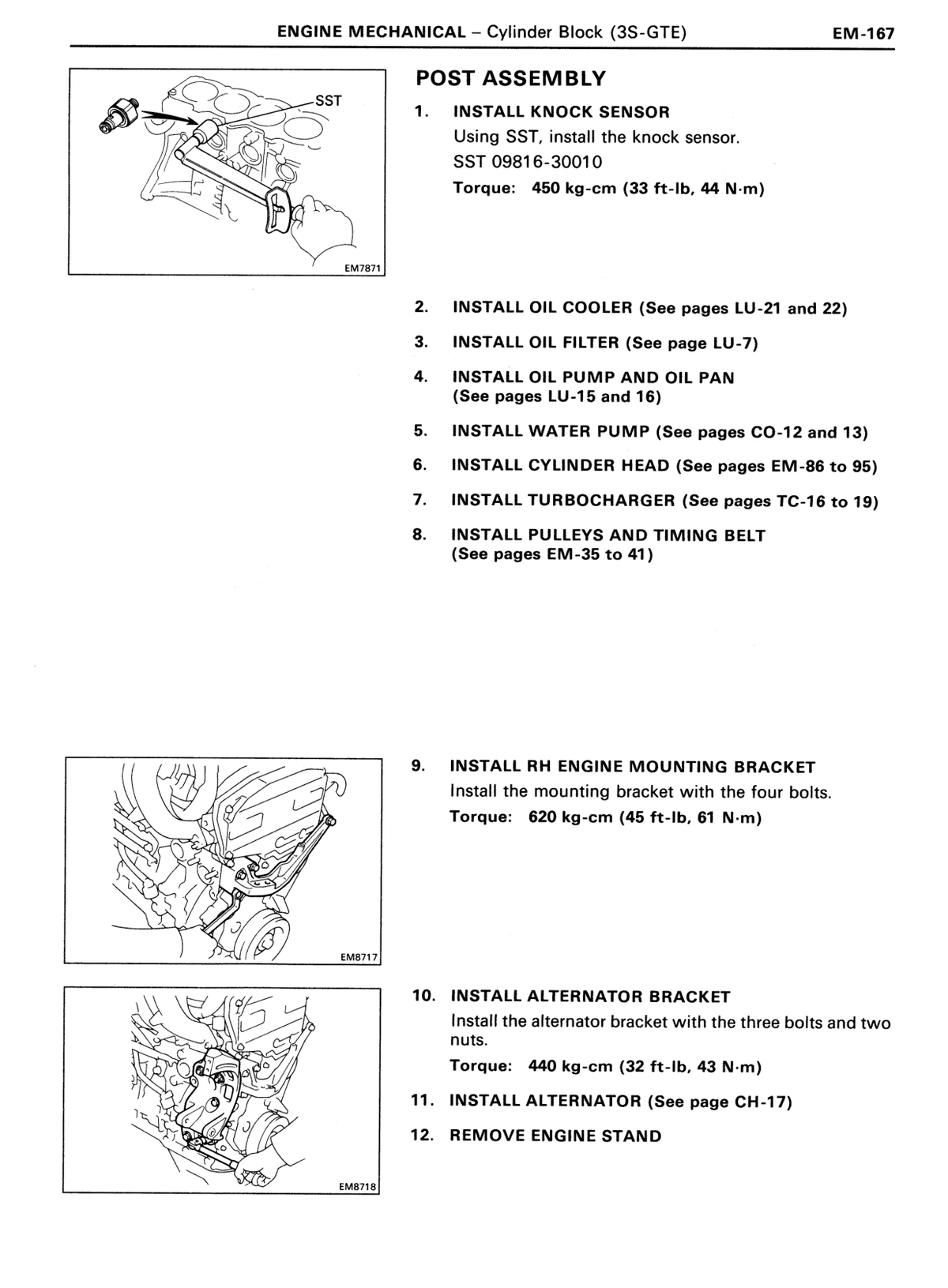

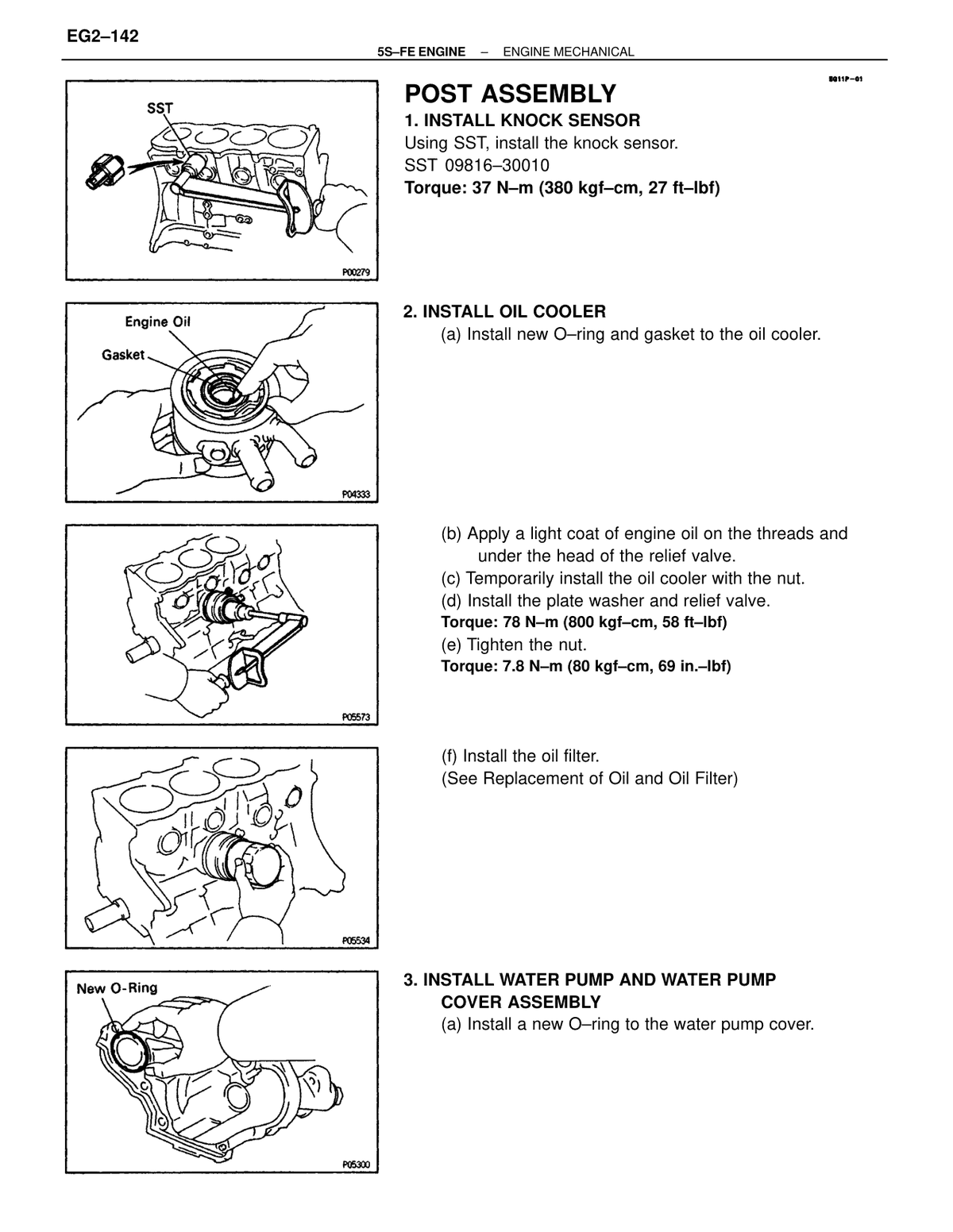

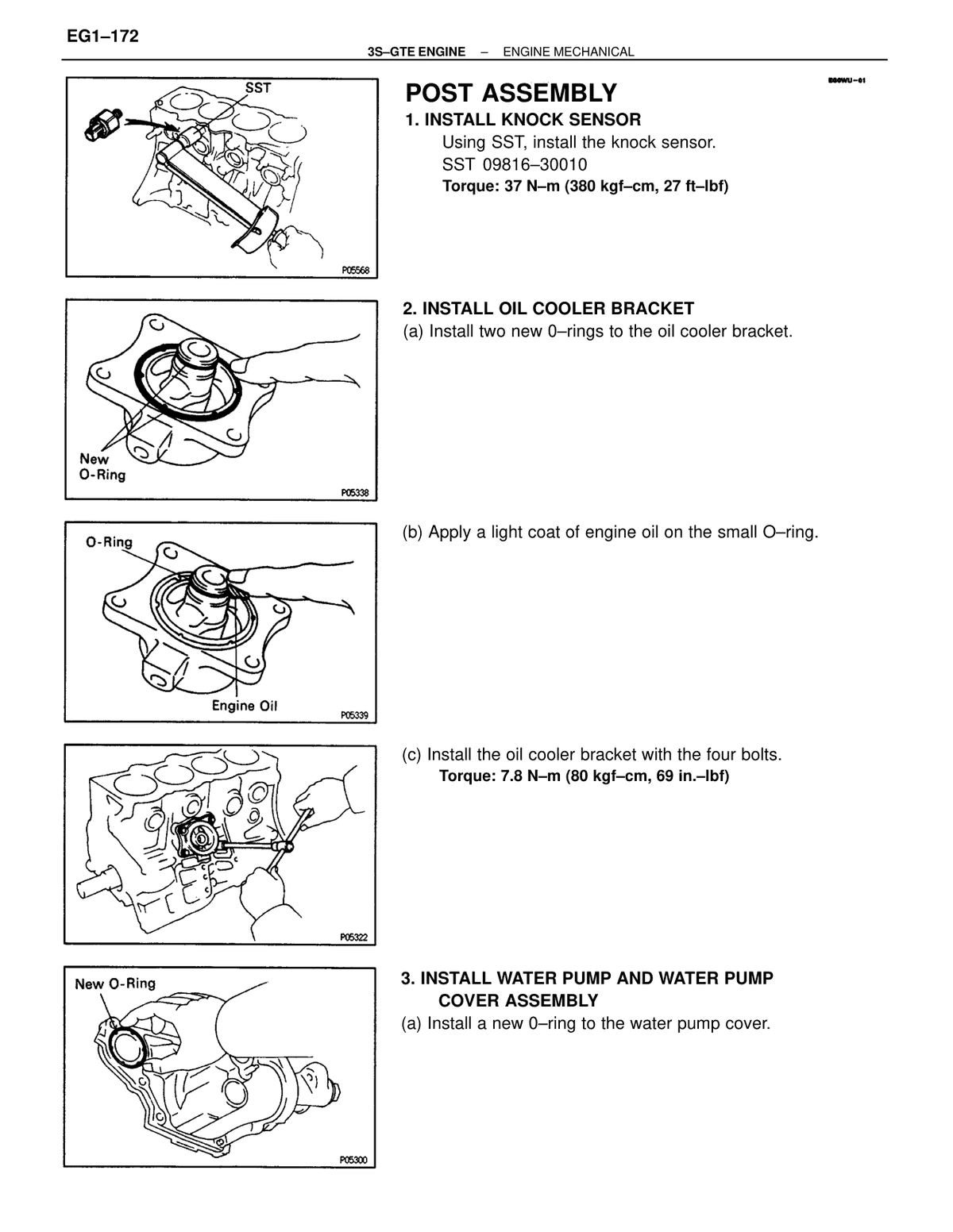

Engine — mechanical Knock sensor Step 1 — Install knock sensor using SST 09816-30010 44 450 33 ↗ RM179U1_1991 · p197 OEM manual

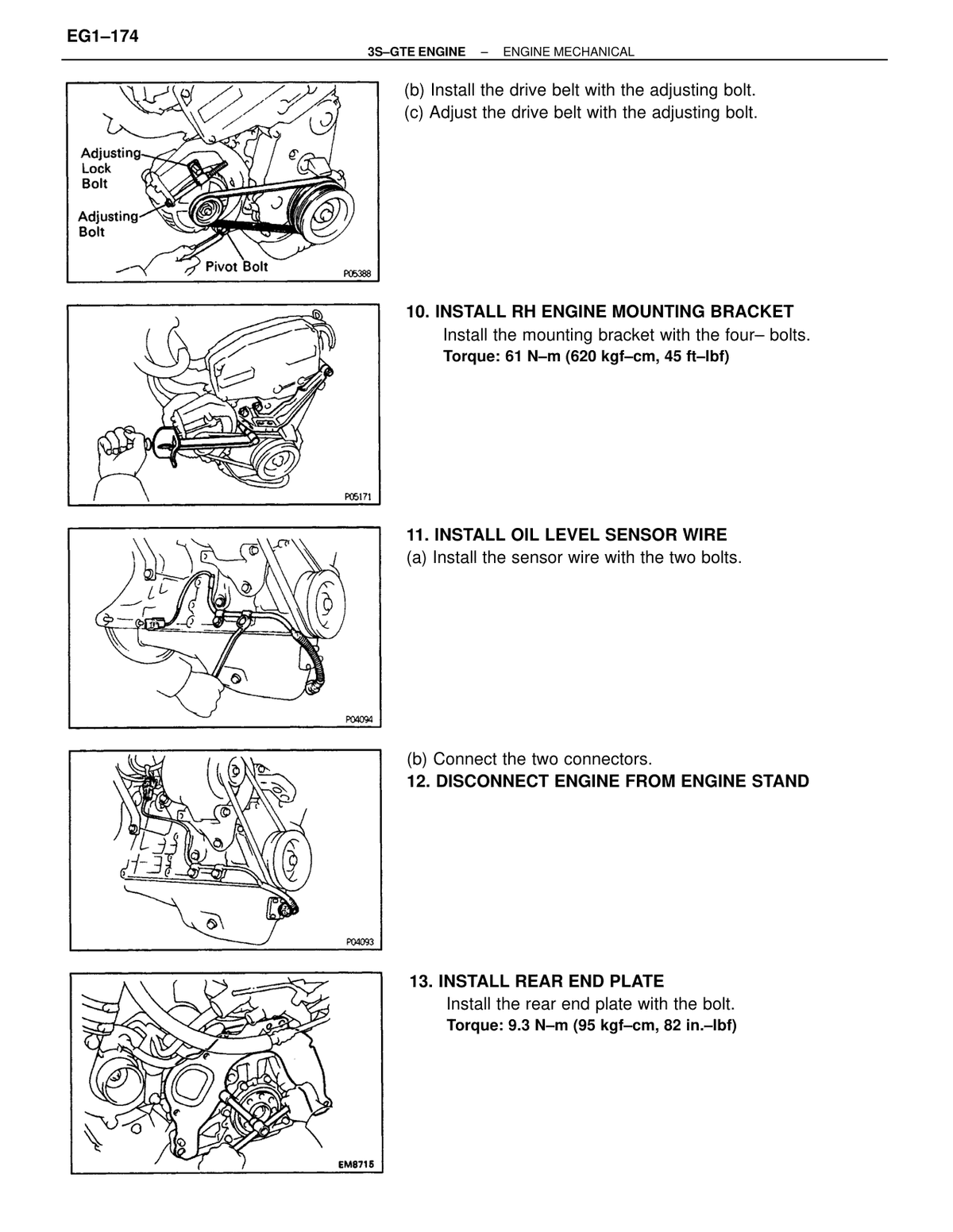

Engine — mechanical RH engine mounting bracket bolts Step 9 — four bolts 61 620 45 ↗ RM179U1_1991 · p197 OEM manual

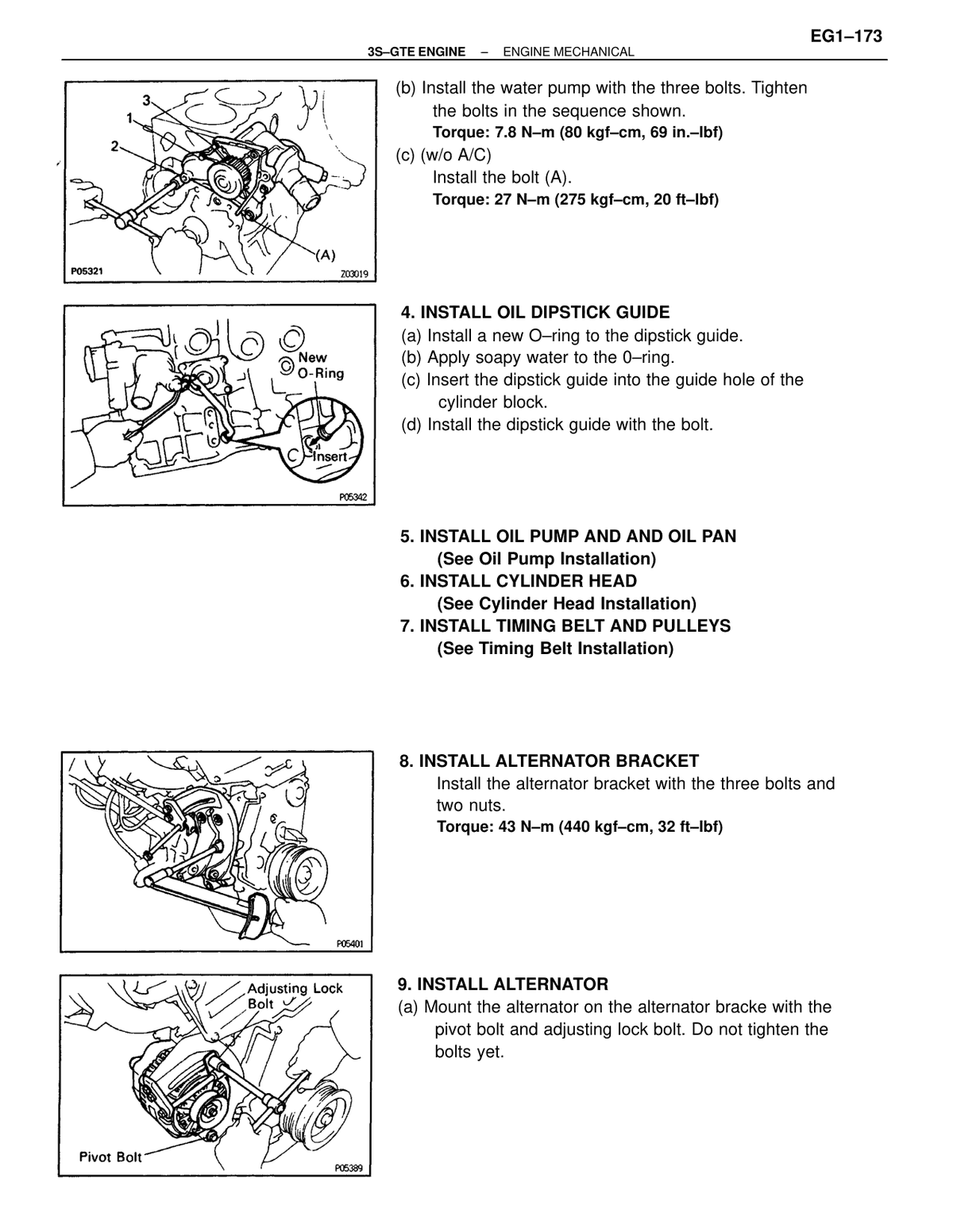

Engine — mechanical Alternator bracket bolts and nuts Step 10 — three bolts and two nuts 43 440 32 ↗ RM179U1_1991 · p197 OEM manual

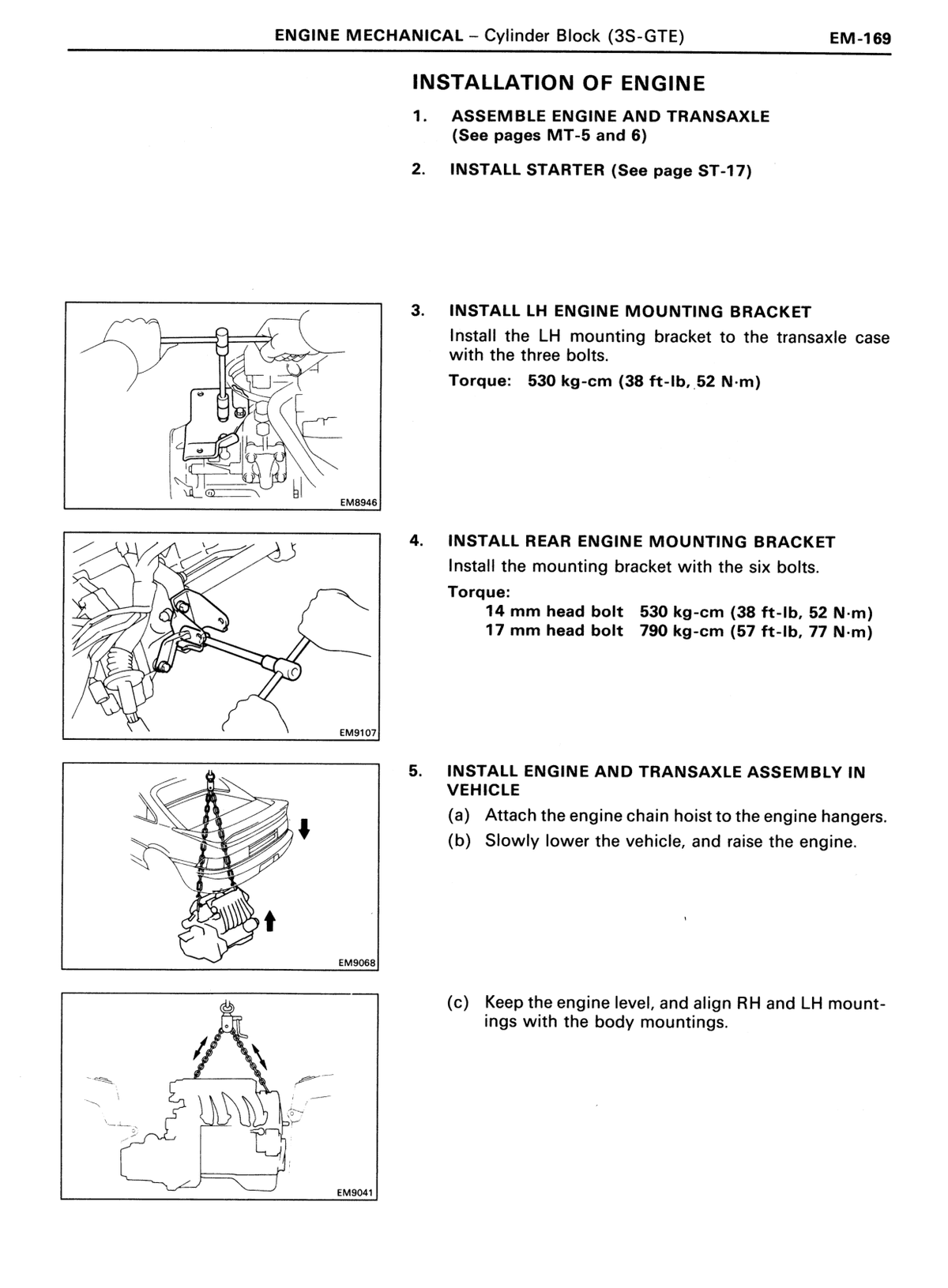

Engine — mechanical LH Engine Mounting Bracket bolts Three bolts to transaxle case 52 530 38 ↗ RM179U1_1991 · p199 OEM manual

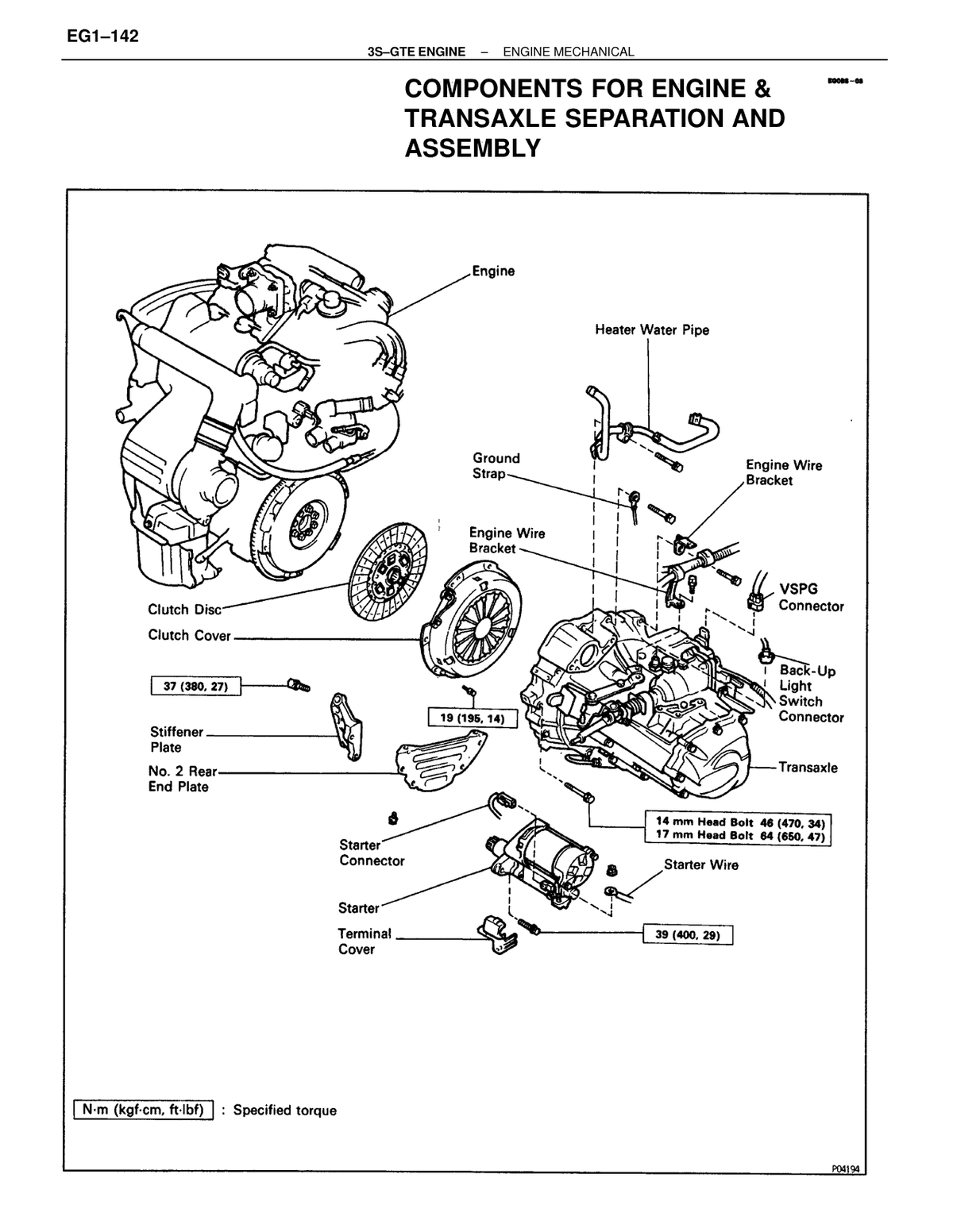

Engine — mechanical Rear Engine Mounting Bracket — 14 mm head bolt Six bolts total 52 530 38 ↗ RM179U1_1991 · p199 OEM manual
Engine — mechanical Rear Engine Mounting Bracket — 17 mm head bolt Six bolts total 77 790 57 ↗ RM179U1_1991 · p199 OEM manual

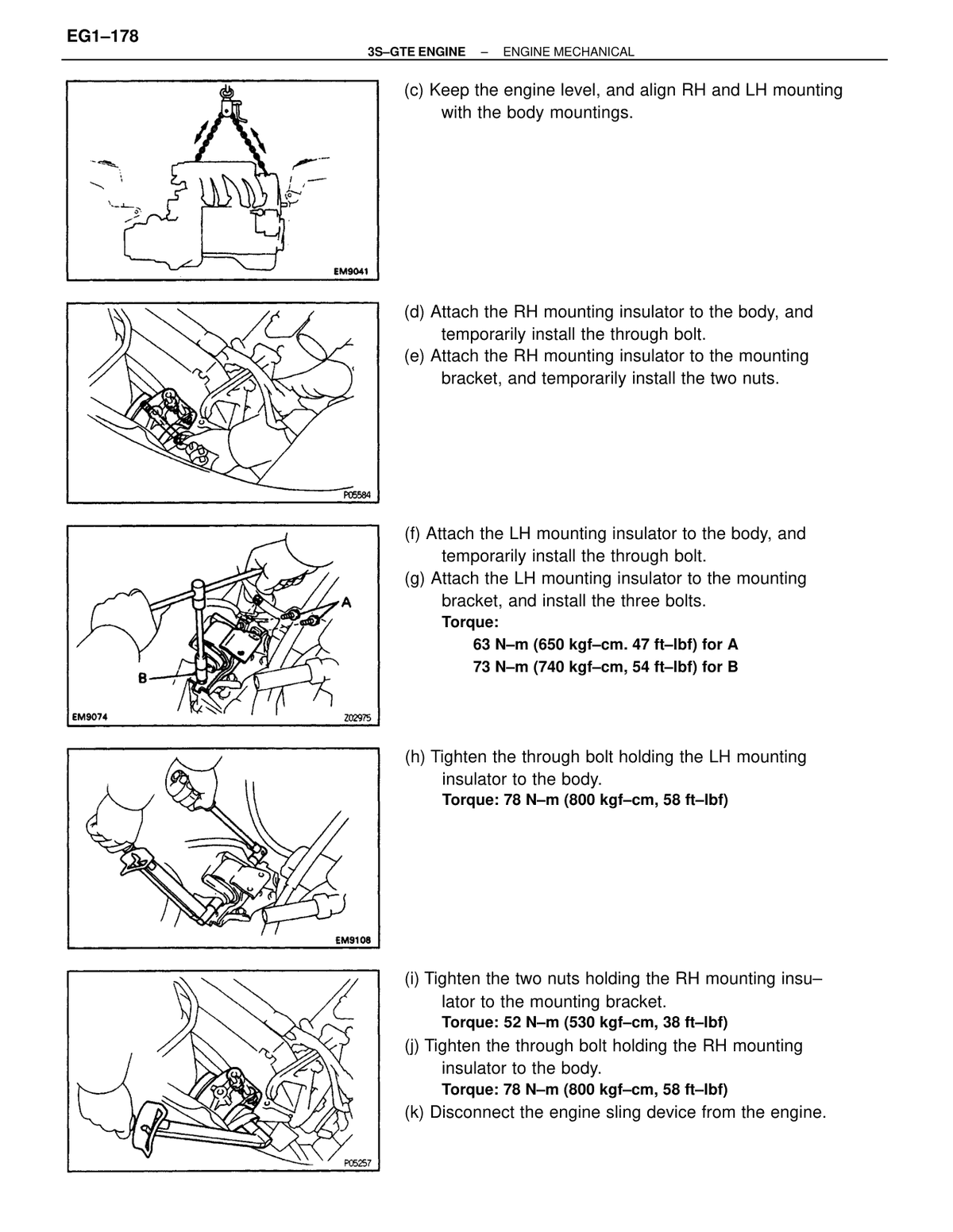

Engine — mechanical LH mounting insulator to mounting bracket — bolt A Step (g), position A 63 650 47 ↗ RM179U1_1991 · p200 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket — bolt B Step (g), position B 73 740 54 ↗ RM179U1_1991 · p200 OEM manual
Engine — mechanical LH mounting insulator through bolt to body Step (h) 78 800 58 ↗ RM179U1_1991 · p200 OEM manual
Engine — mechanical RH mounting insulator to mounting bracket nuts Step (i) 52 530 38 ↗ RM179U1_1991 · p200 OEM manual
Engine — mechanical RH mounting insulator through bolt to body Step (j) 78 800 58 ↗ RM179U1_1991 · p200 OEM manual
Engine — mechanical RH engine mounting stay bolts and nut Step 6 73 740 54 ↗ RM179U1_1991 · p200 OEM manual

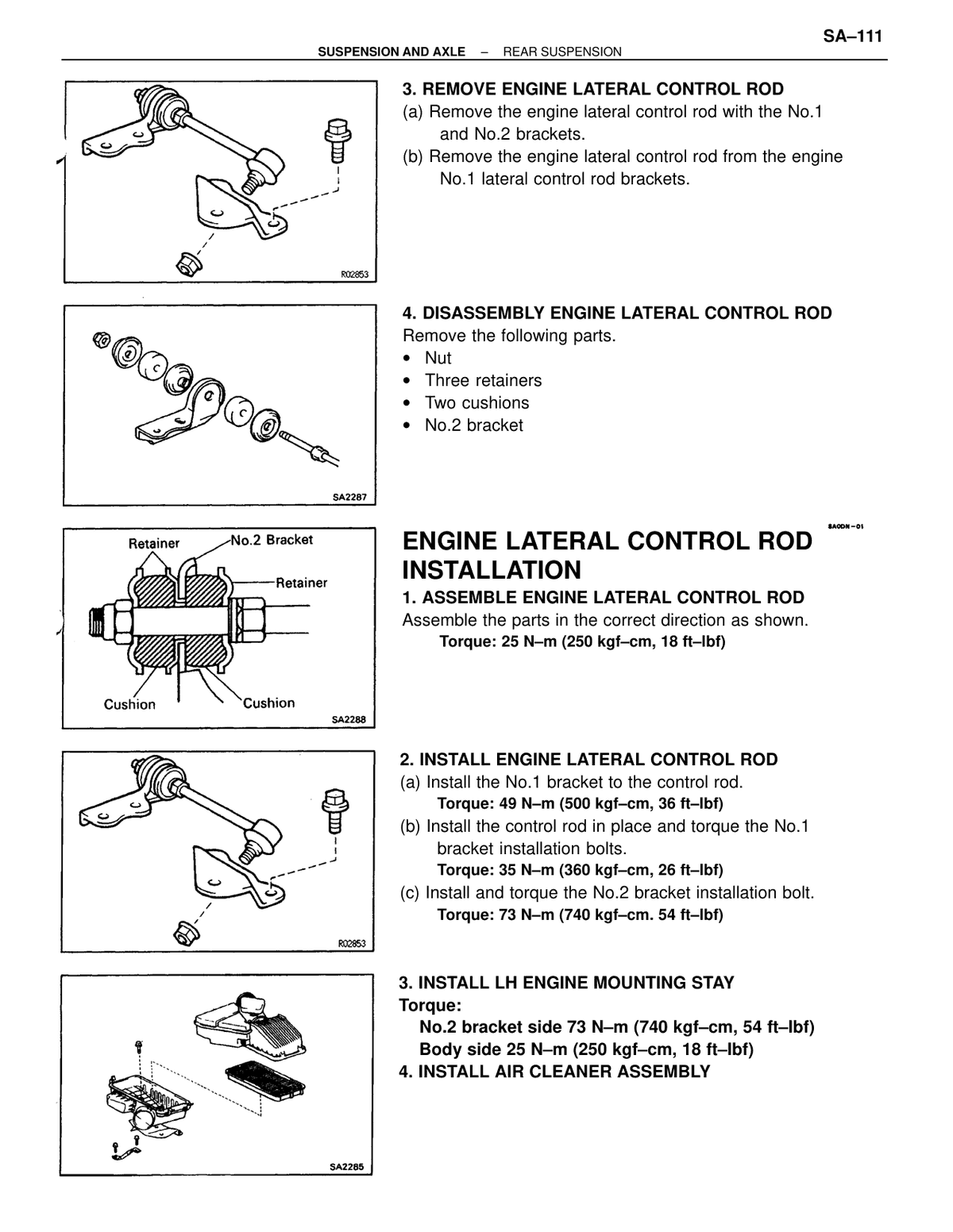

Engine — mechanical Lateral control rod and air cleaner case bracket bolts Step 7 35 360 26 ↗ RM179U1_1991 · p201 OEM manual
Engine — mechanical LH engine mounting stay — transaxle side Step 8(a) 25 250 18 ↗ RM179U1_1991 · p201 OEM manual
Engine — mechanical LH engine mounting stay — mounting insulator side Step 8(a) 73 740 54 ↗ RM179U1_1991 · p201 OEM manual

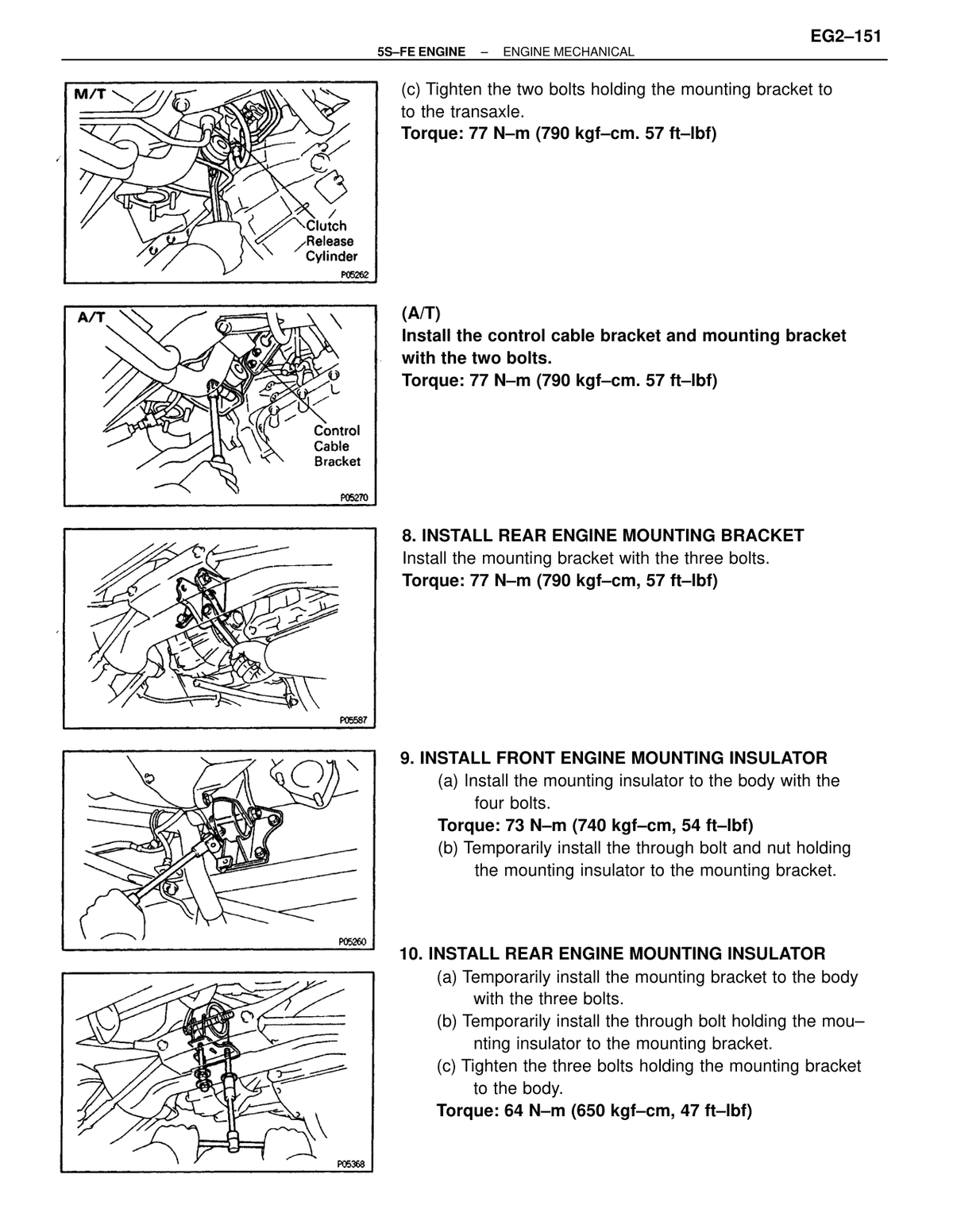

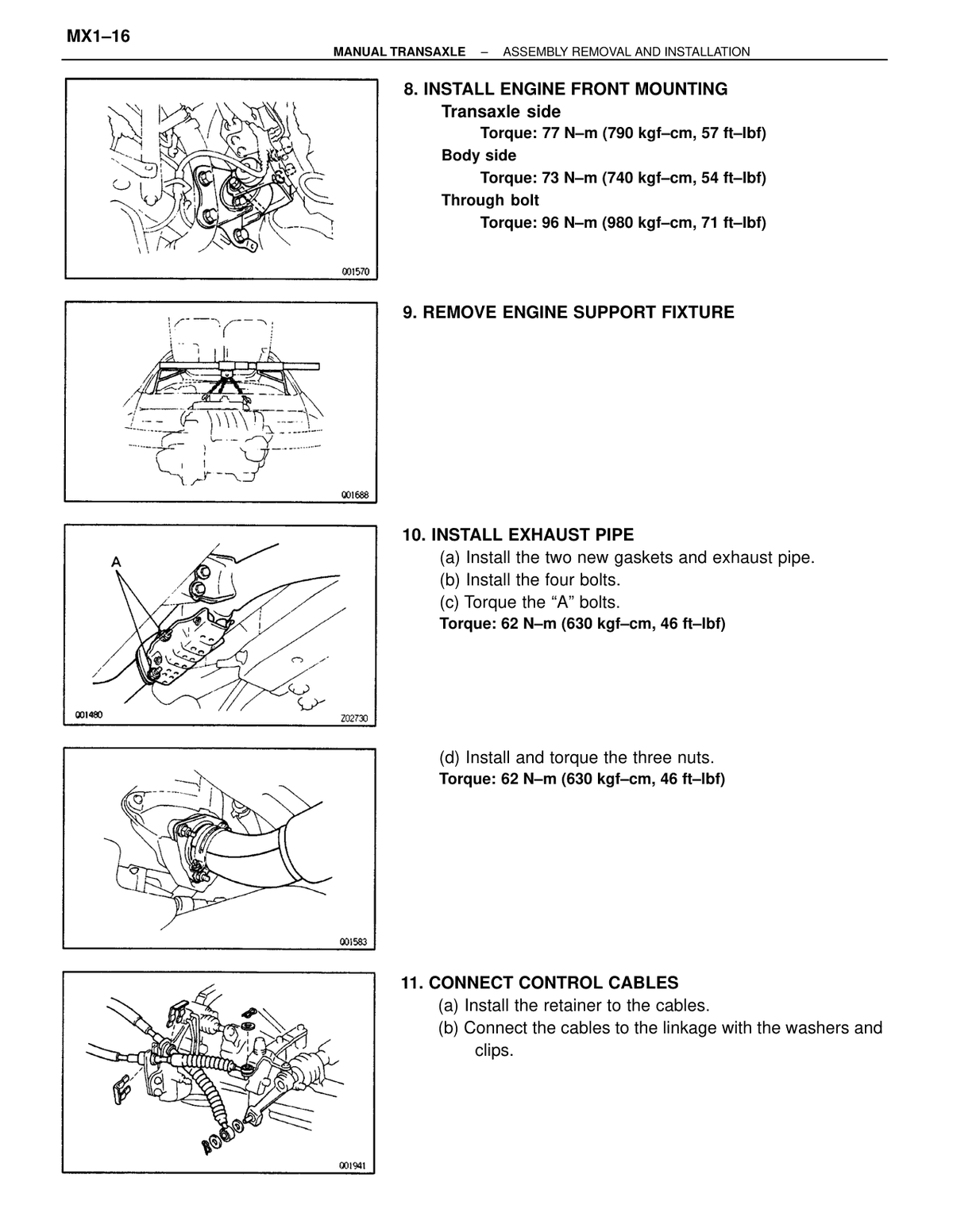

Engine — mechanical Front engine mounting bracket bolts Step 9(c) 77 790 57 ↗ RM179U1_1991 · p201 OEM manual

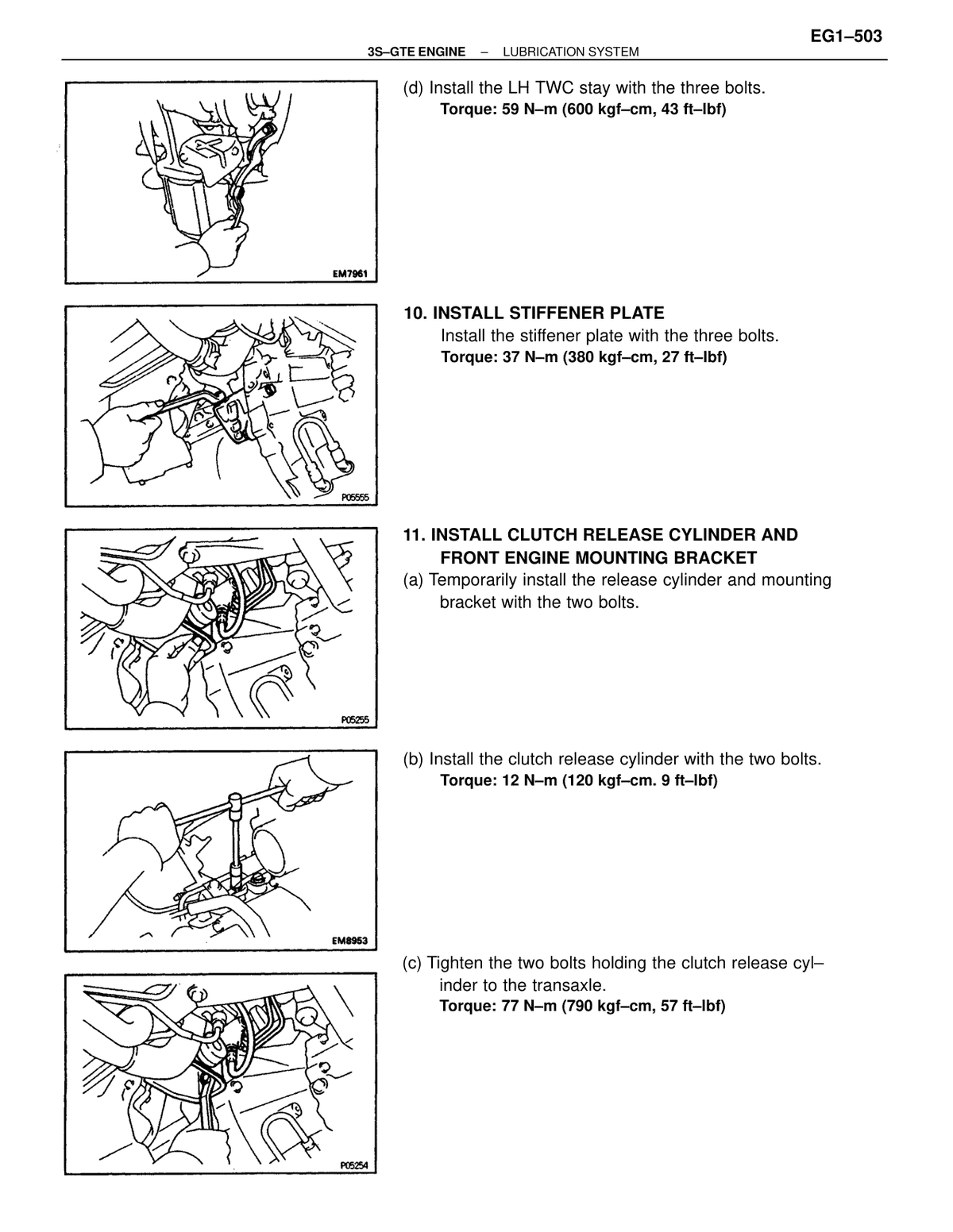

Engine — mechanical Bolt and nut holding clutch release cylinder to transaxle 12 120 9 ↗ RM179U1_1991 · p202 OEM manual

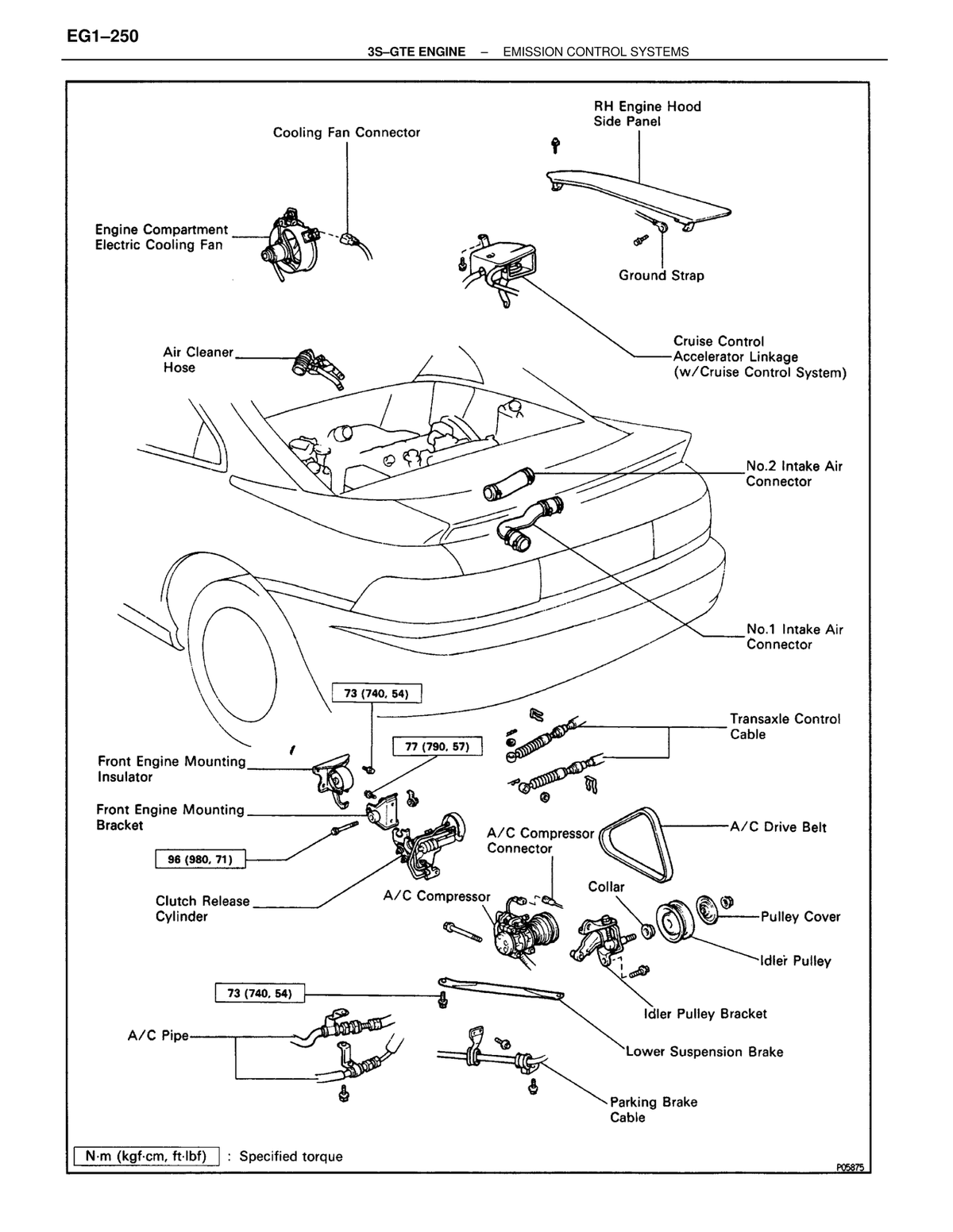

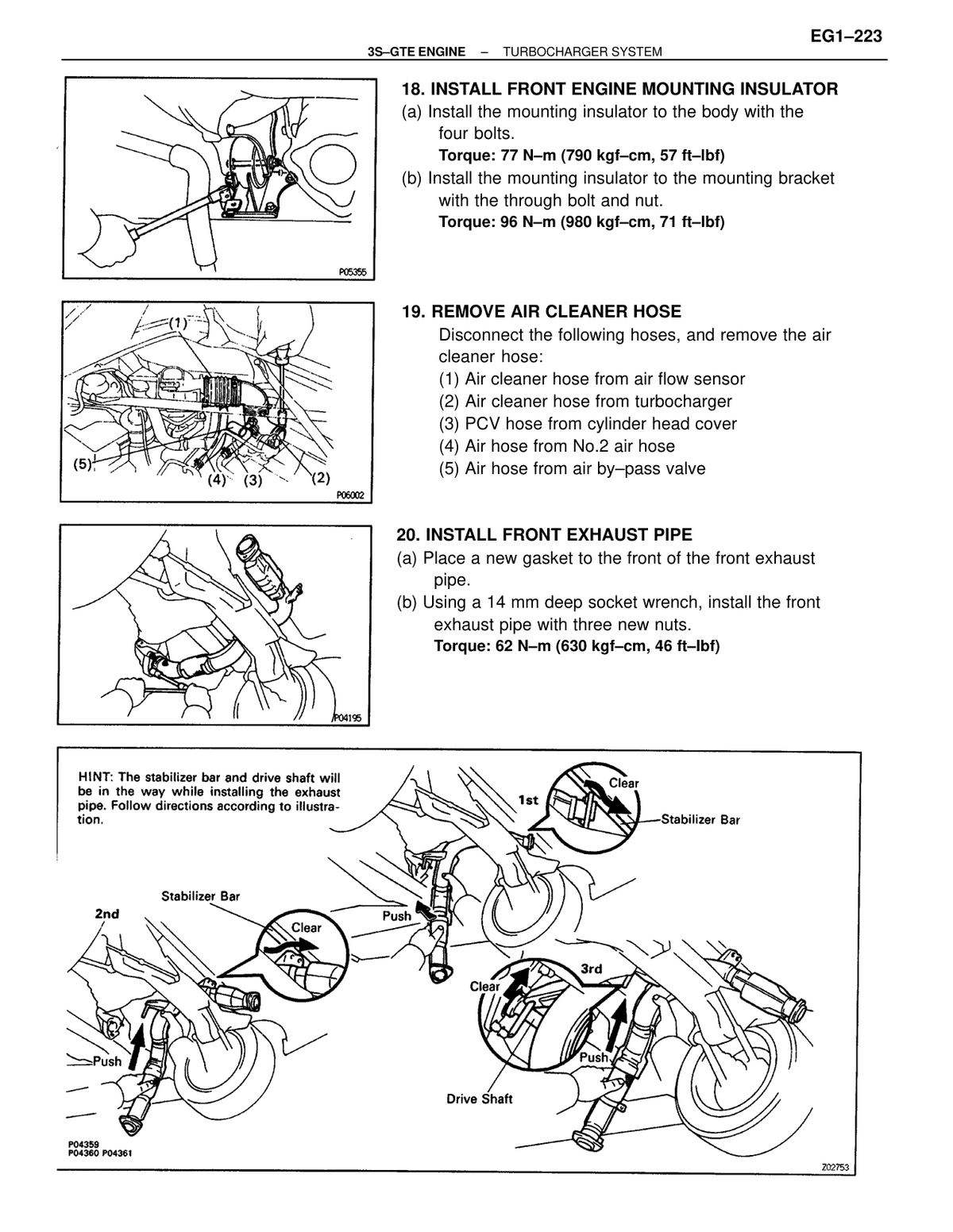

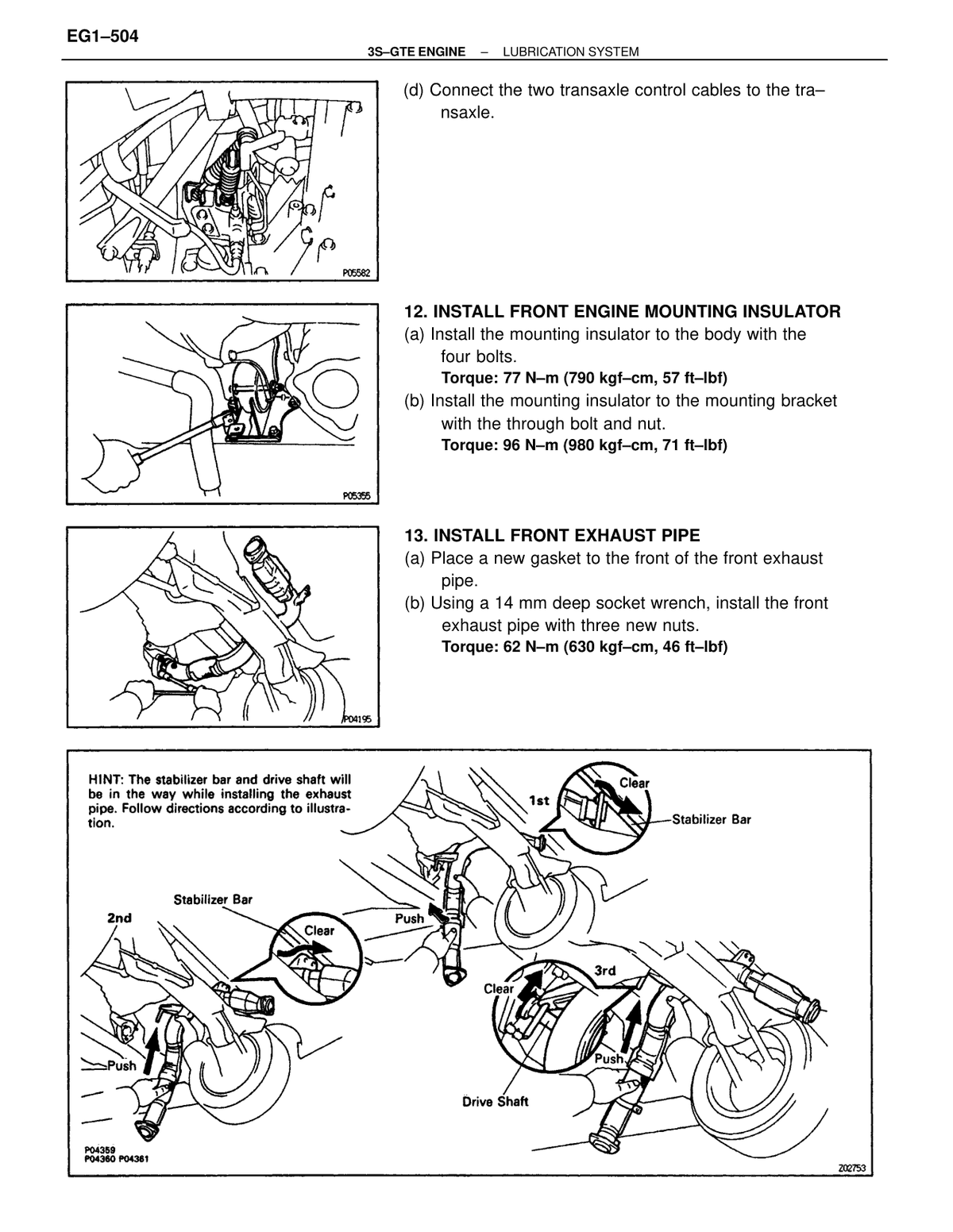

Engine — mechanical Front engine mounting insulator to body bolts 73 740 54 ↗ RM179U1_1991 · p202 OEM manual
Engine — mechanical Rear suspension lower crossmember bolts 113 1150 83 ↗ RM179U1_1991 · p202 OEM manual
Engine — mechanical Stabilizer link to shock absorber nut 49 500 36 ↗ RM179U1_1991 · p202 OEM manual

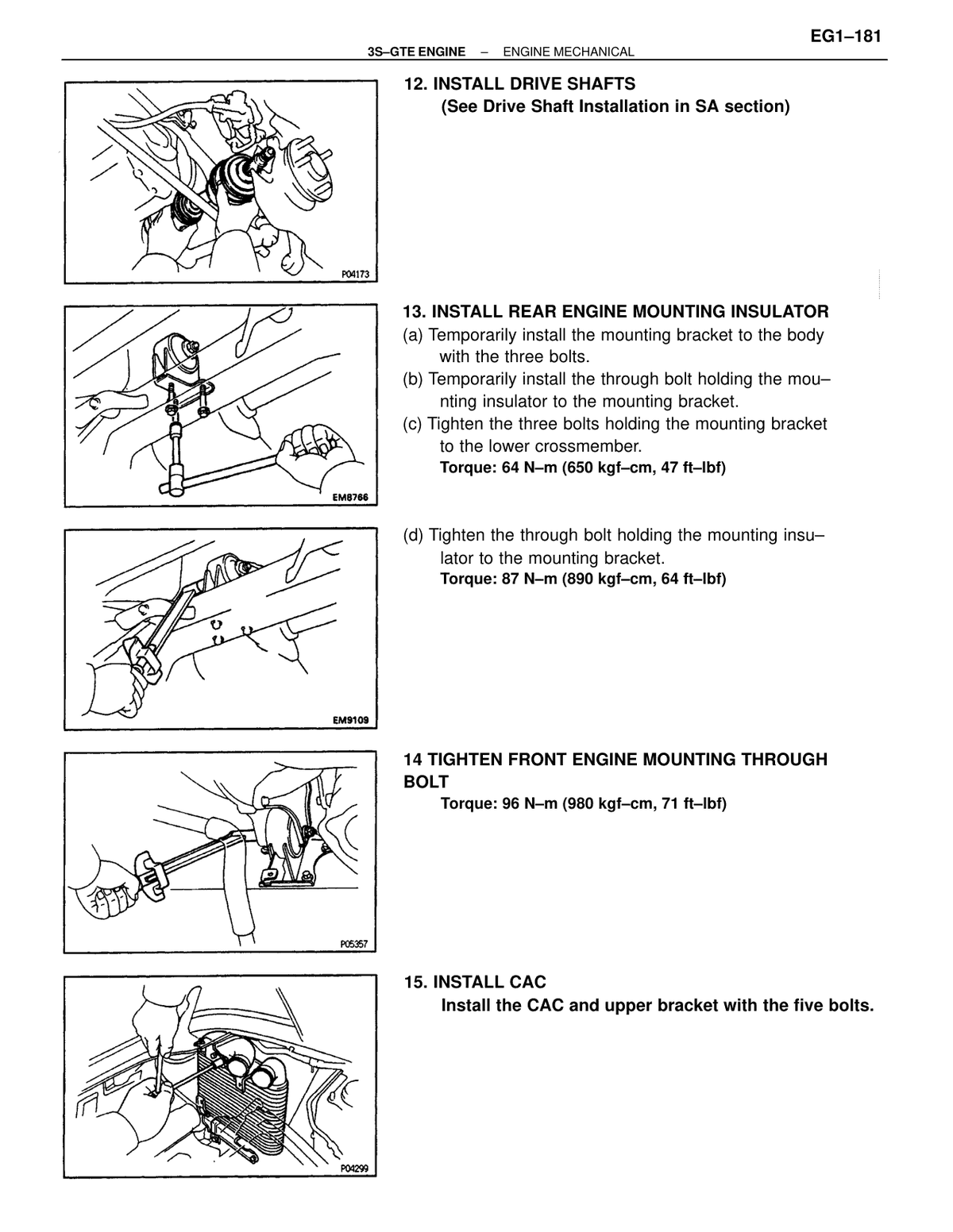

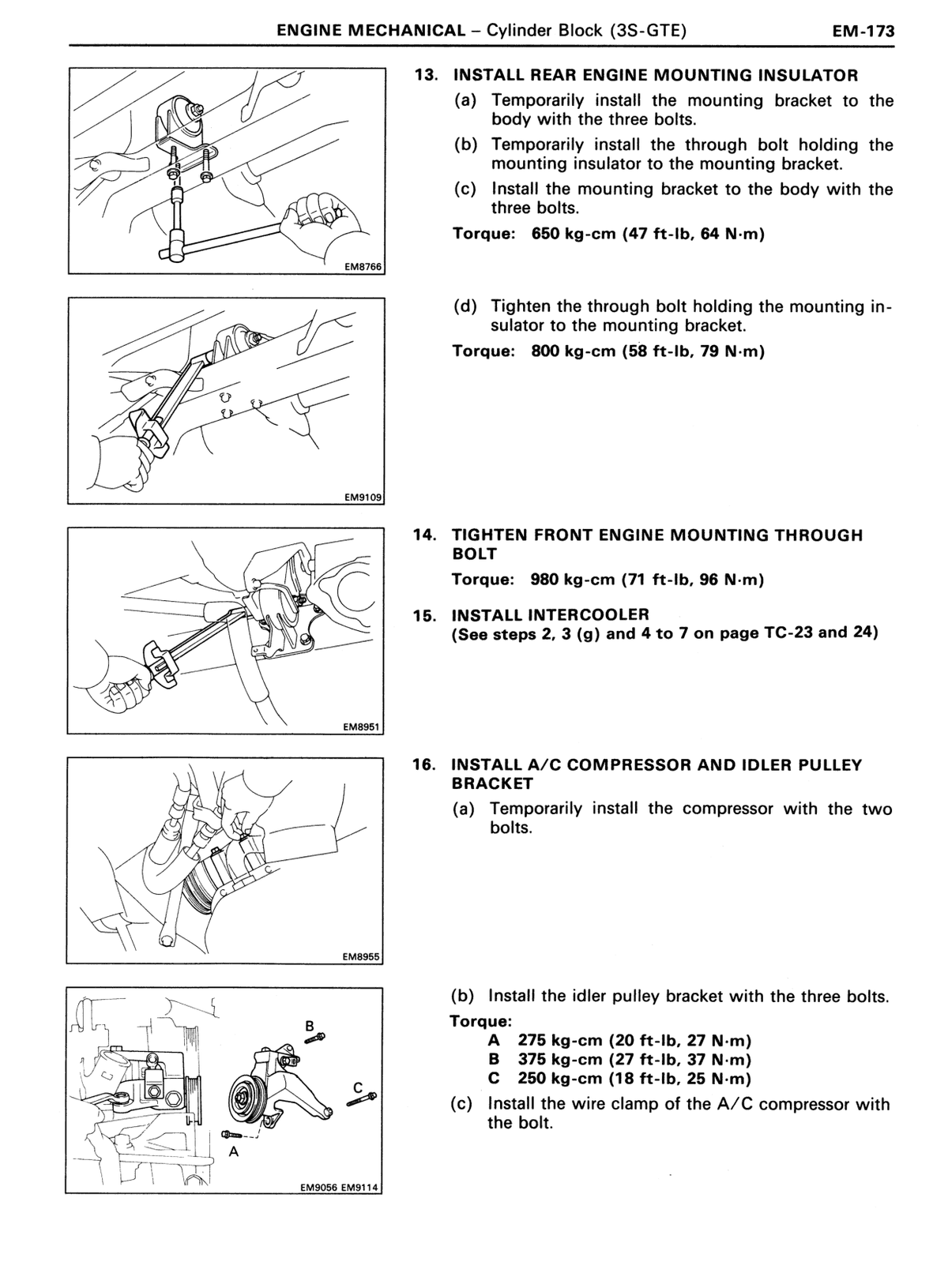

Engine — mechanical Rear engine mounting bracket to body bolts Step 13(c) 64 650 47 ↗ RM179U1_1991 · p203 OEM manual

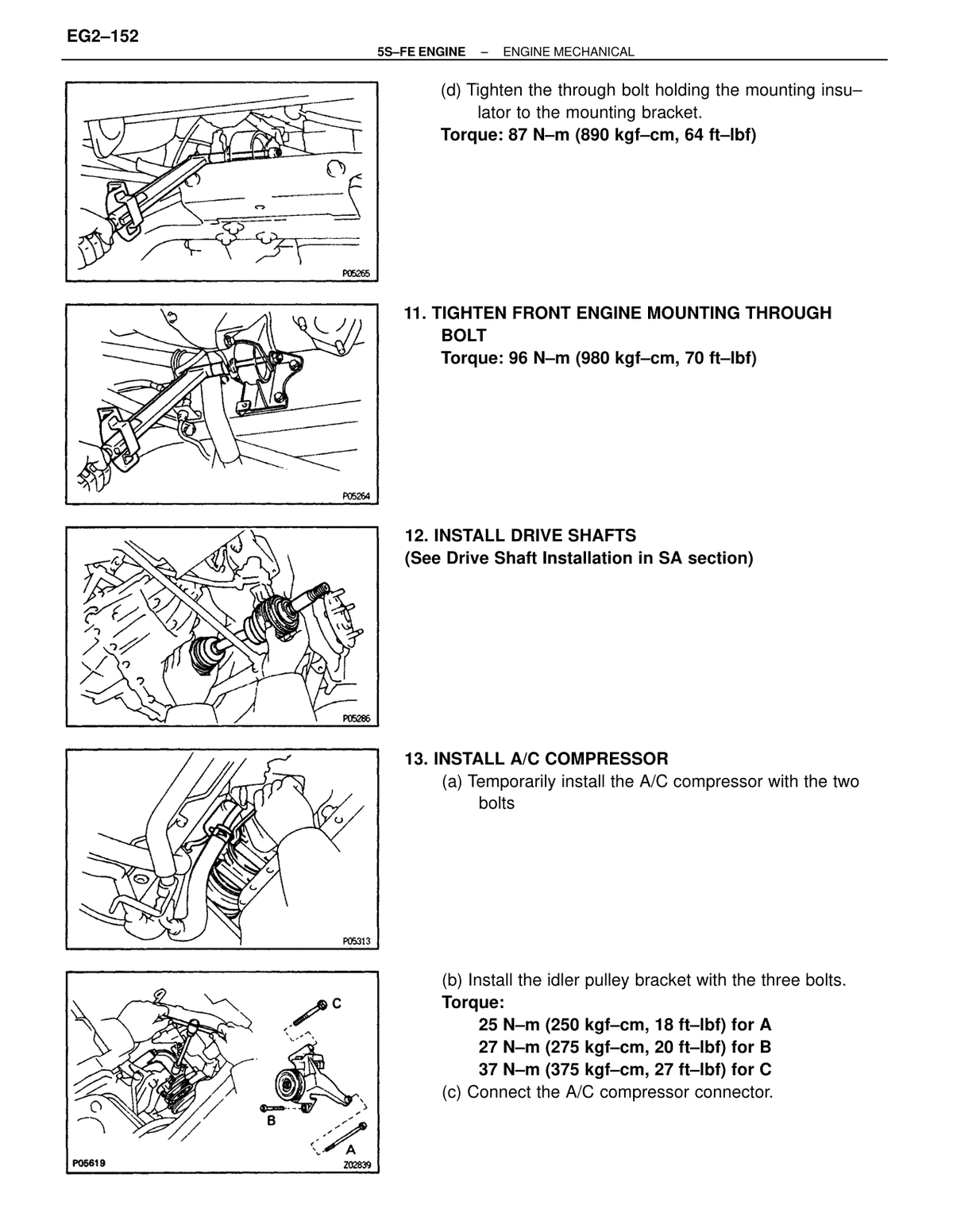

Engine — mechanical Rear engine mounting insulator through bolt Step 13(d) 79 800 58 ↗ RM179U1_1991 · p203 OEM manual
Engine — mechanical Front engine mounting through bolt Step 14 96 980 71 ↗ RM179U1_1991 · p203 OEM manual

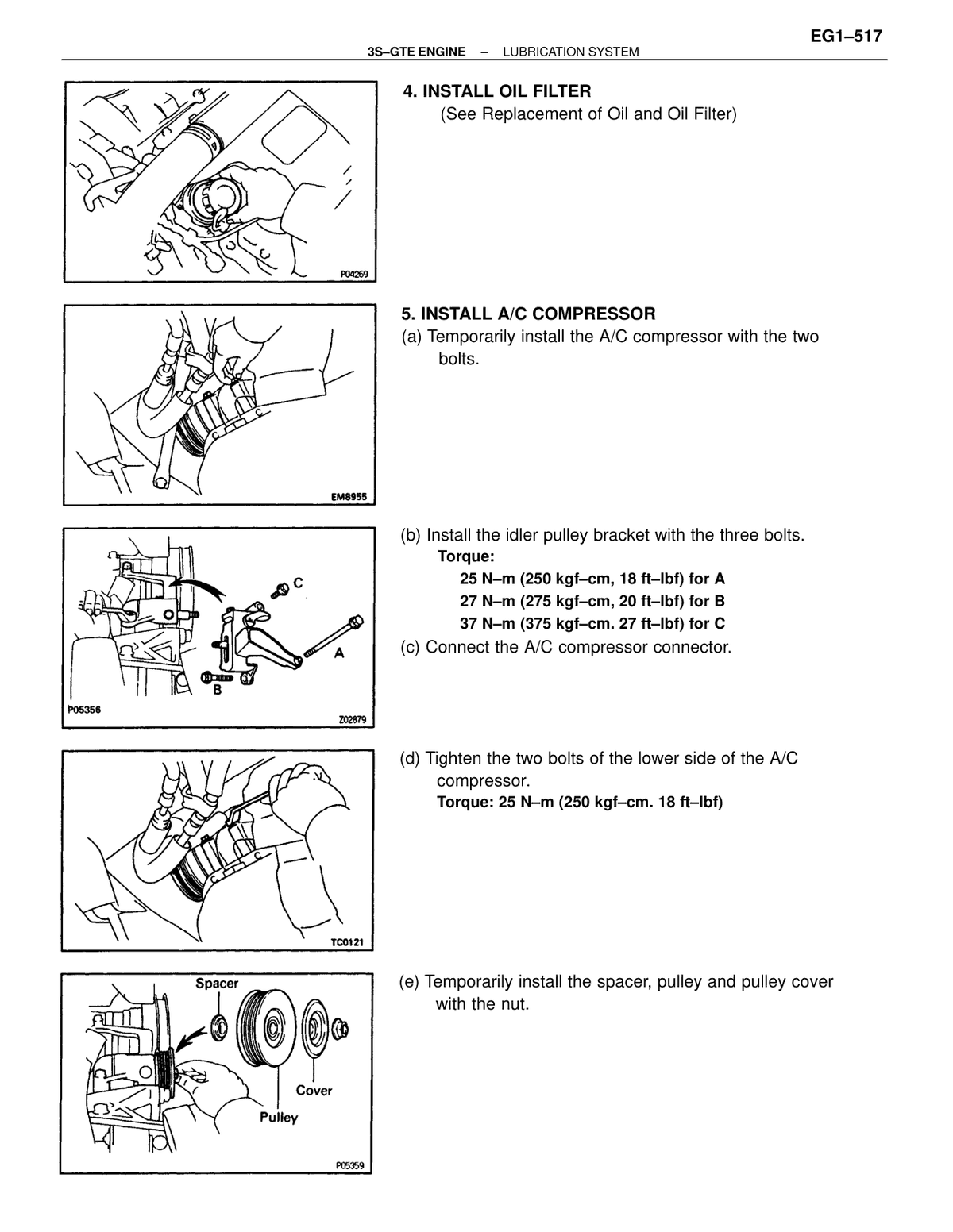

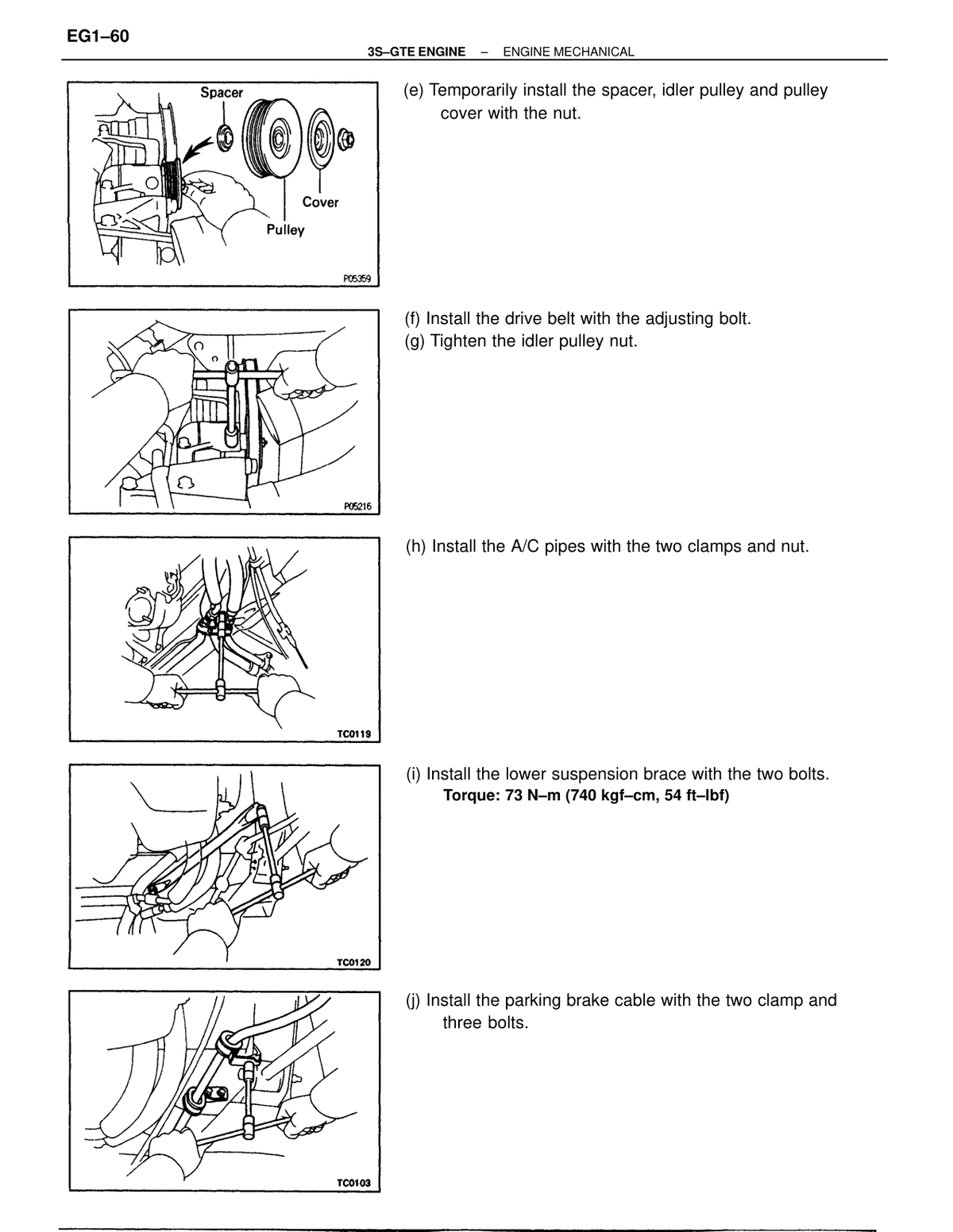

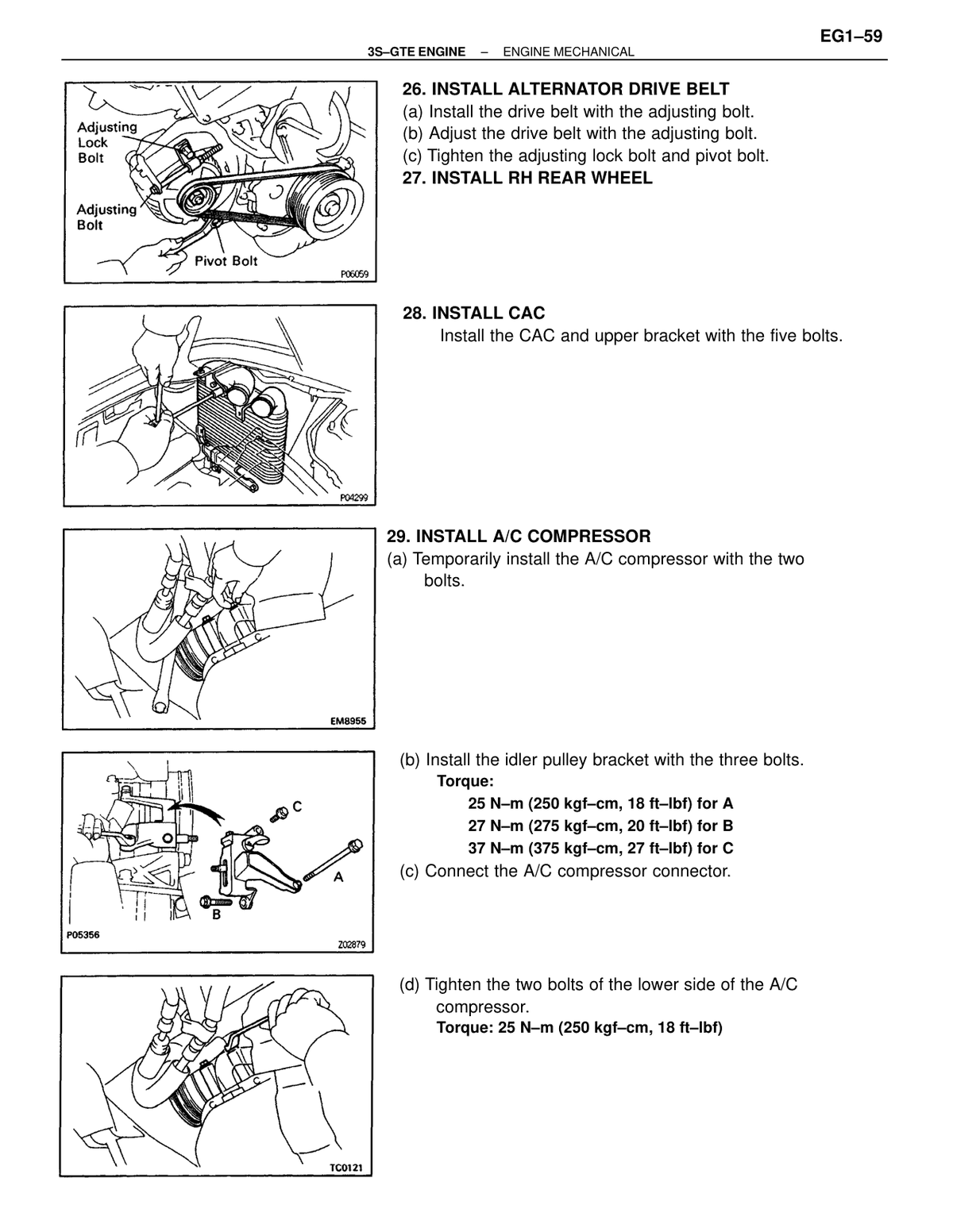

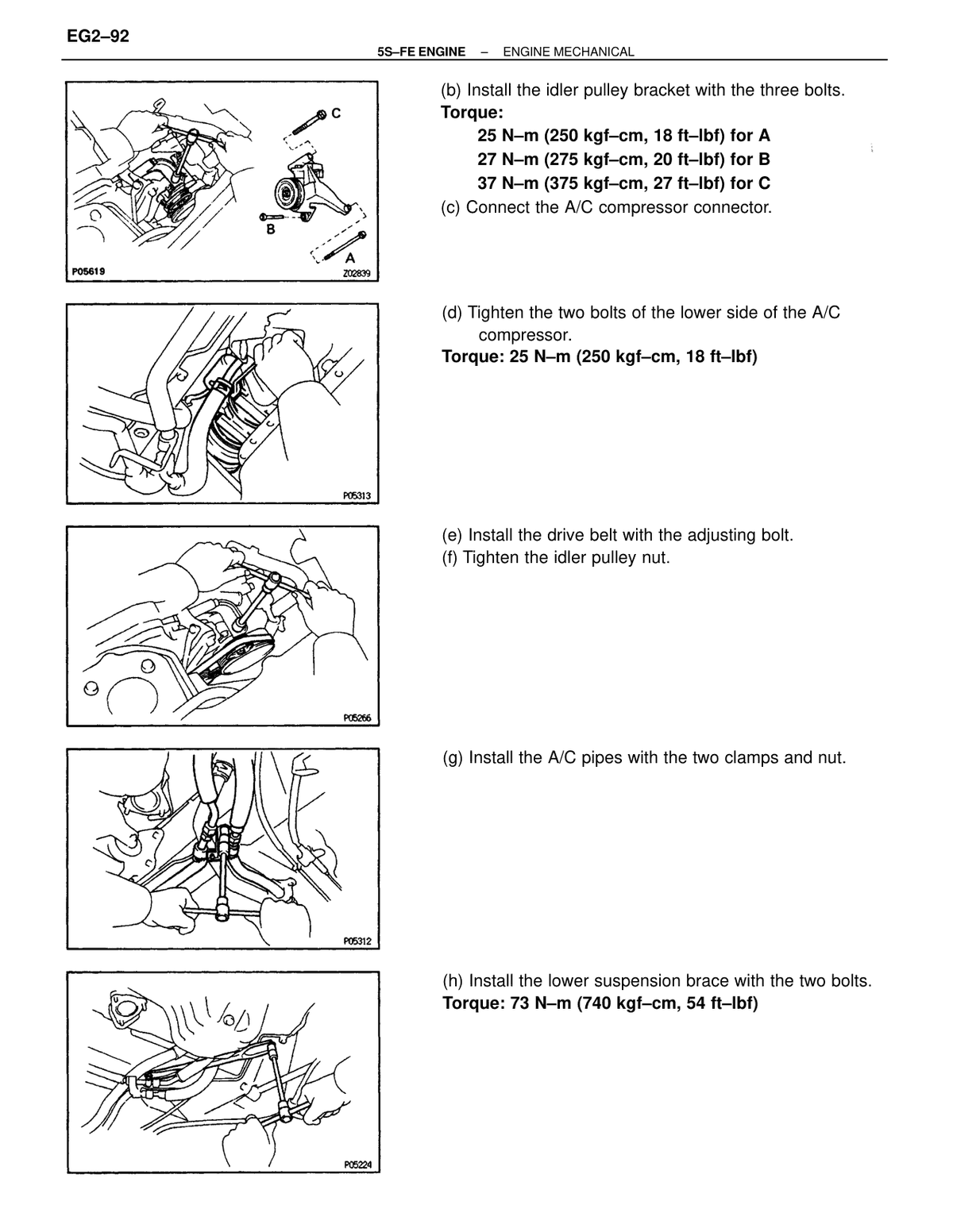

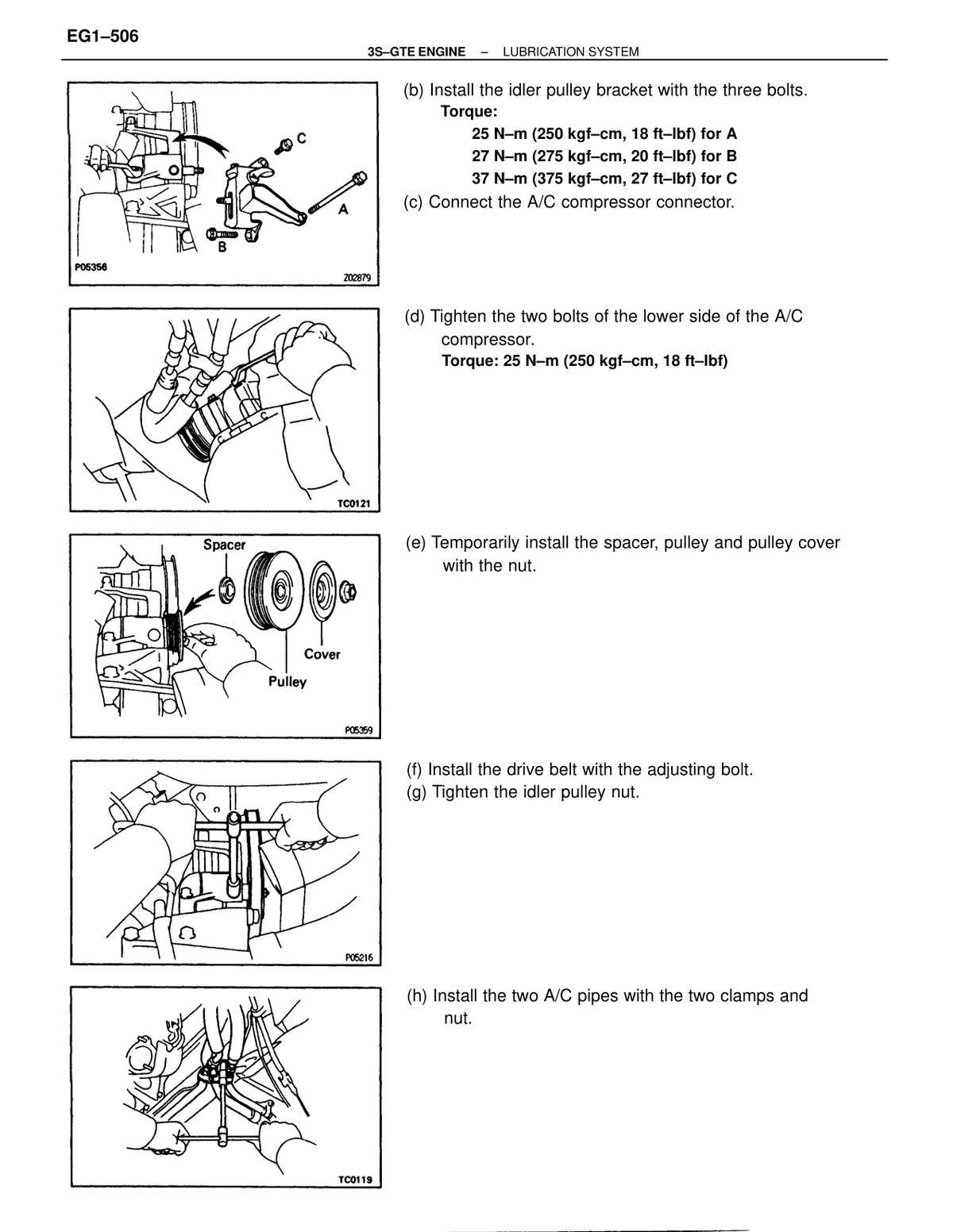

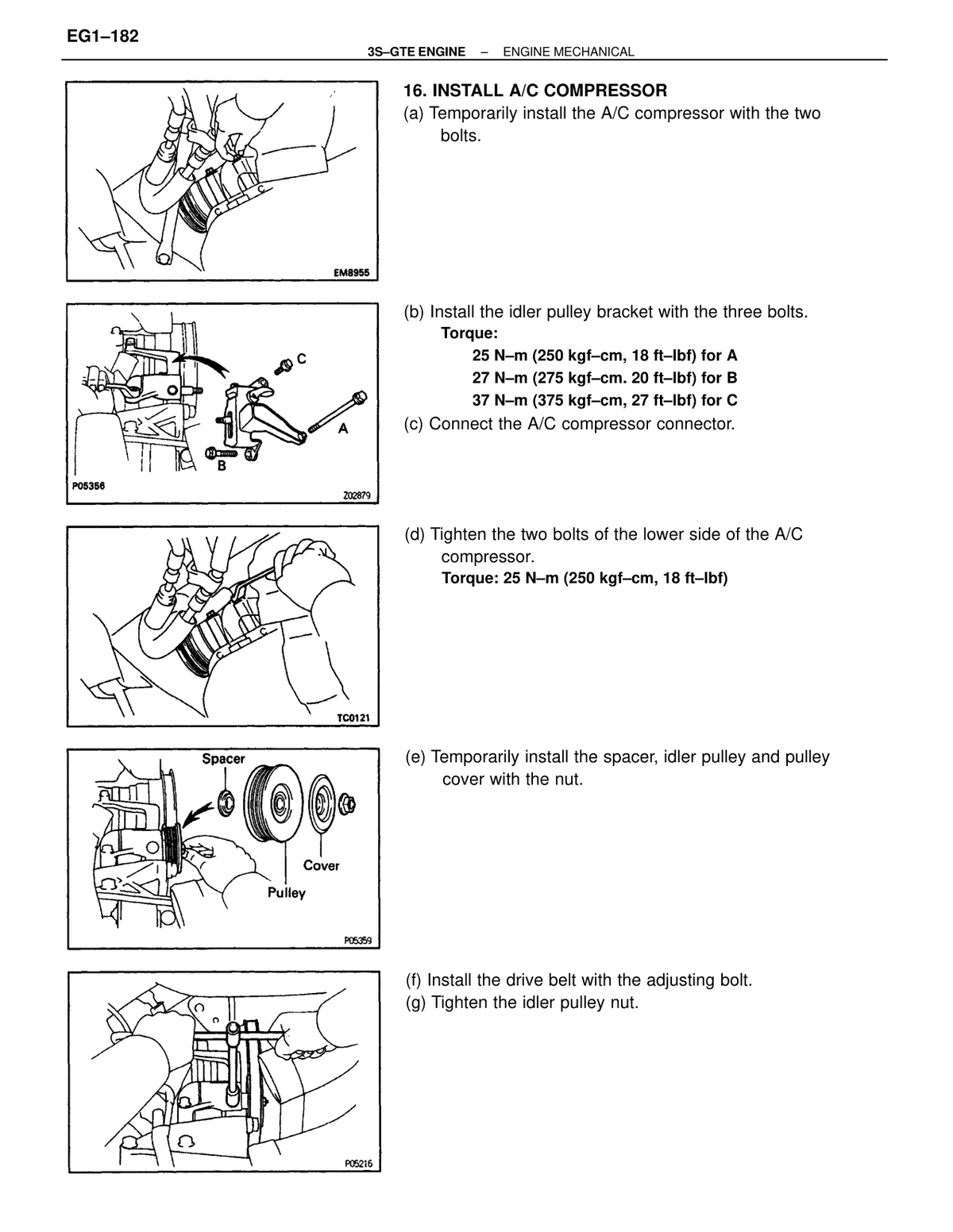

Engine — mechanical Idler pulley bracket bolt A Step 16(b) 27 275 20 ↗ RM179U1_1991 · p203 OEM manual
Engine — mechanical Idler pulley bracket bolt B Step 16(b) 37 375 27 ↗ RM179U1_1991 · p203 OEM manual
Engine — mechanical Idler pulley bracket bolt C Step 16(b) 25 250 18 ↗ RM179U1_1991 · p203 OEM manual
Engine — mechanical A/C compressor lower side bolts to cylinder block Two bolts, lower side 27 280 20 ↗ RM179U1_1991 · p204 OEM manual

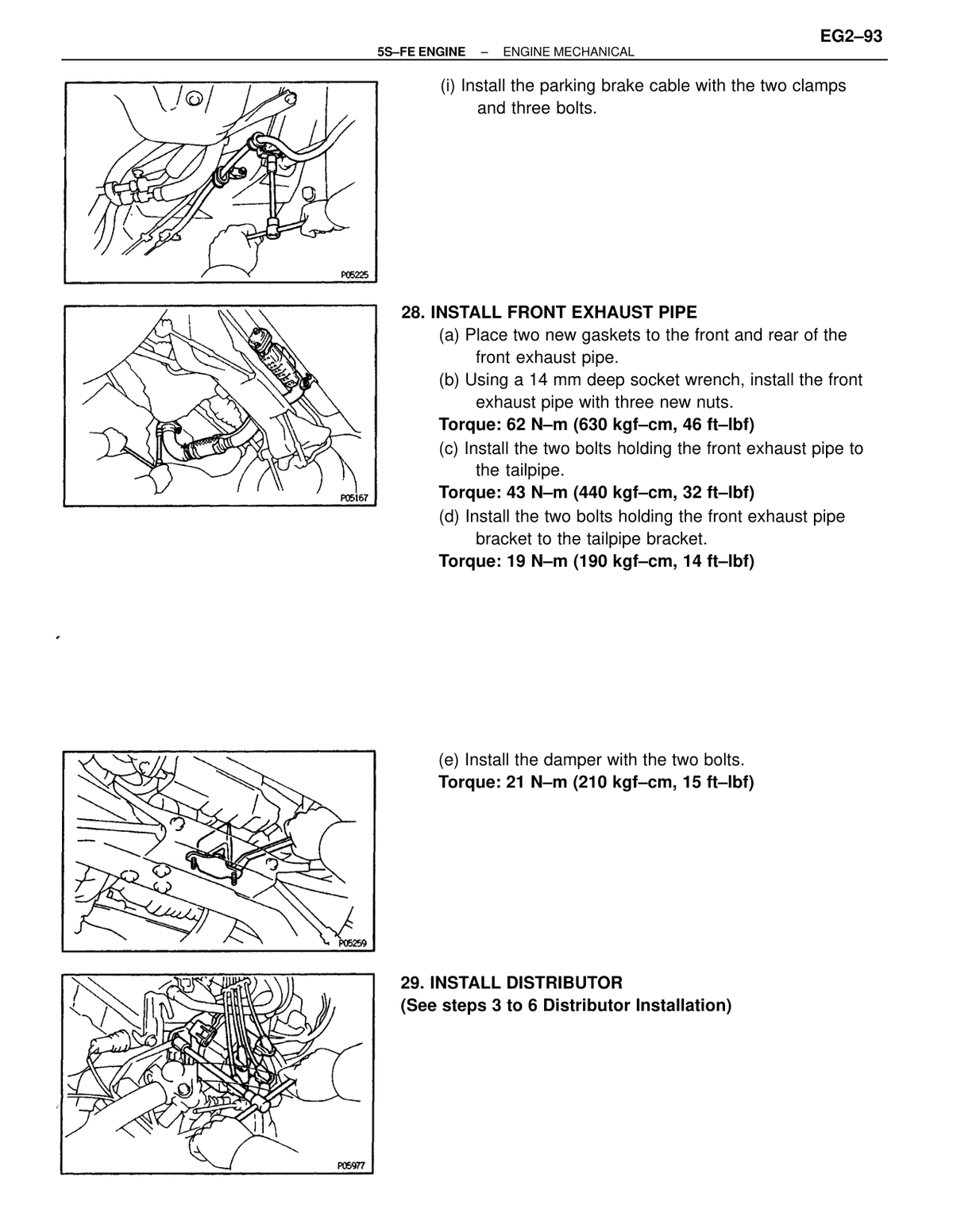

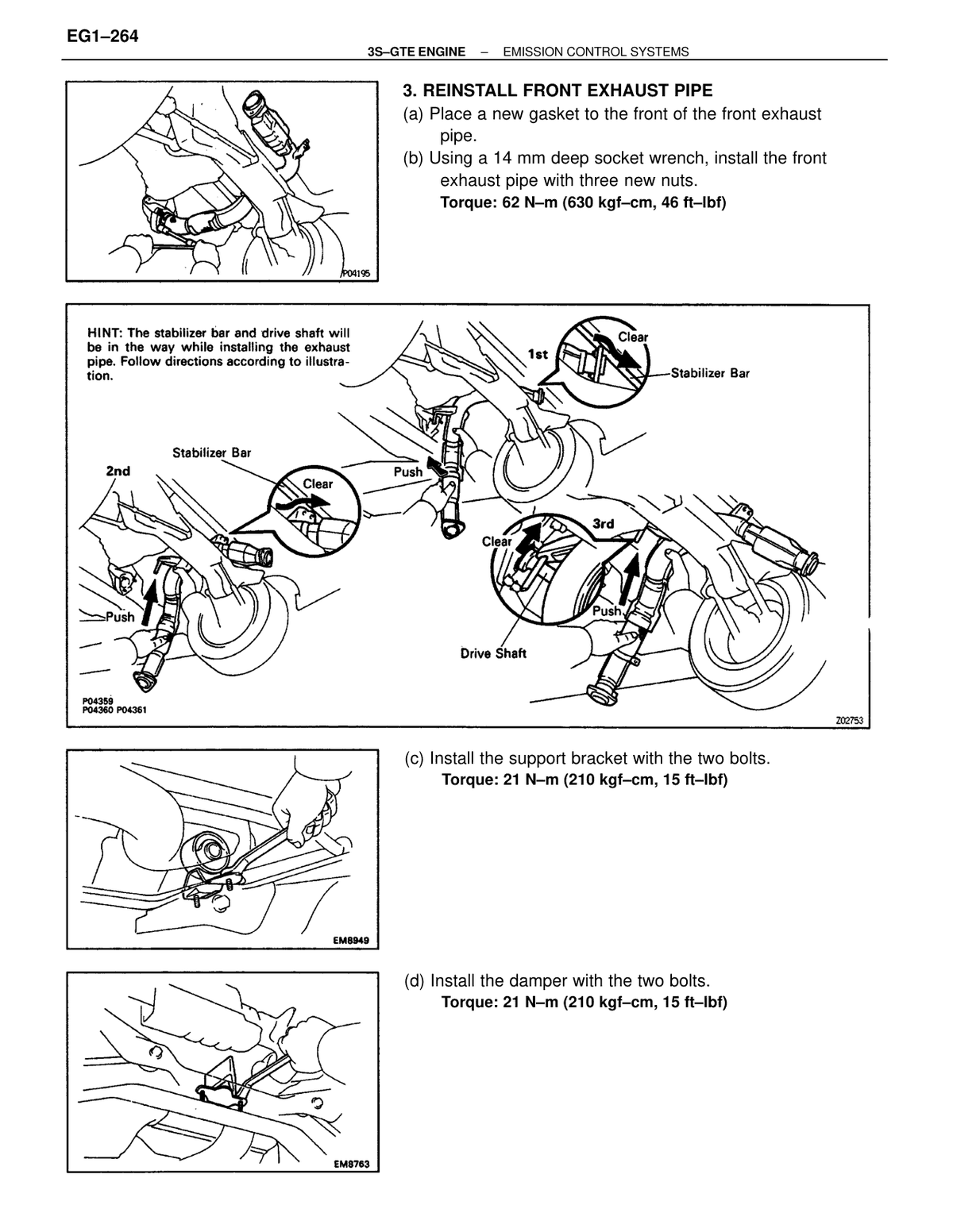

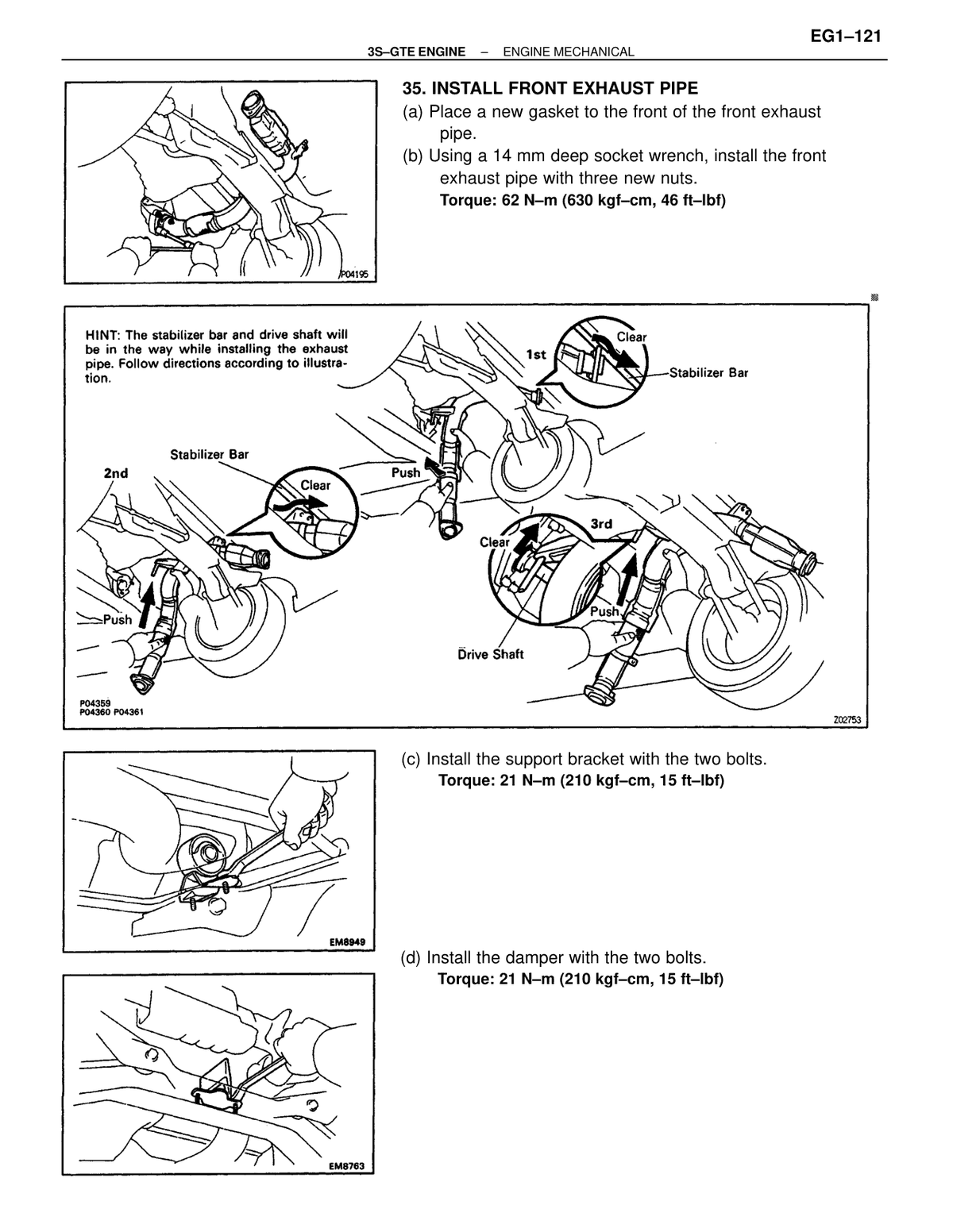

Engine — mechanical Front exhaust pipe nuts to catalytic converter Three new nuts, 14 mm deep socket wrench 62 630 46 ↗ RM179U1_1991 · p204 OEM manual

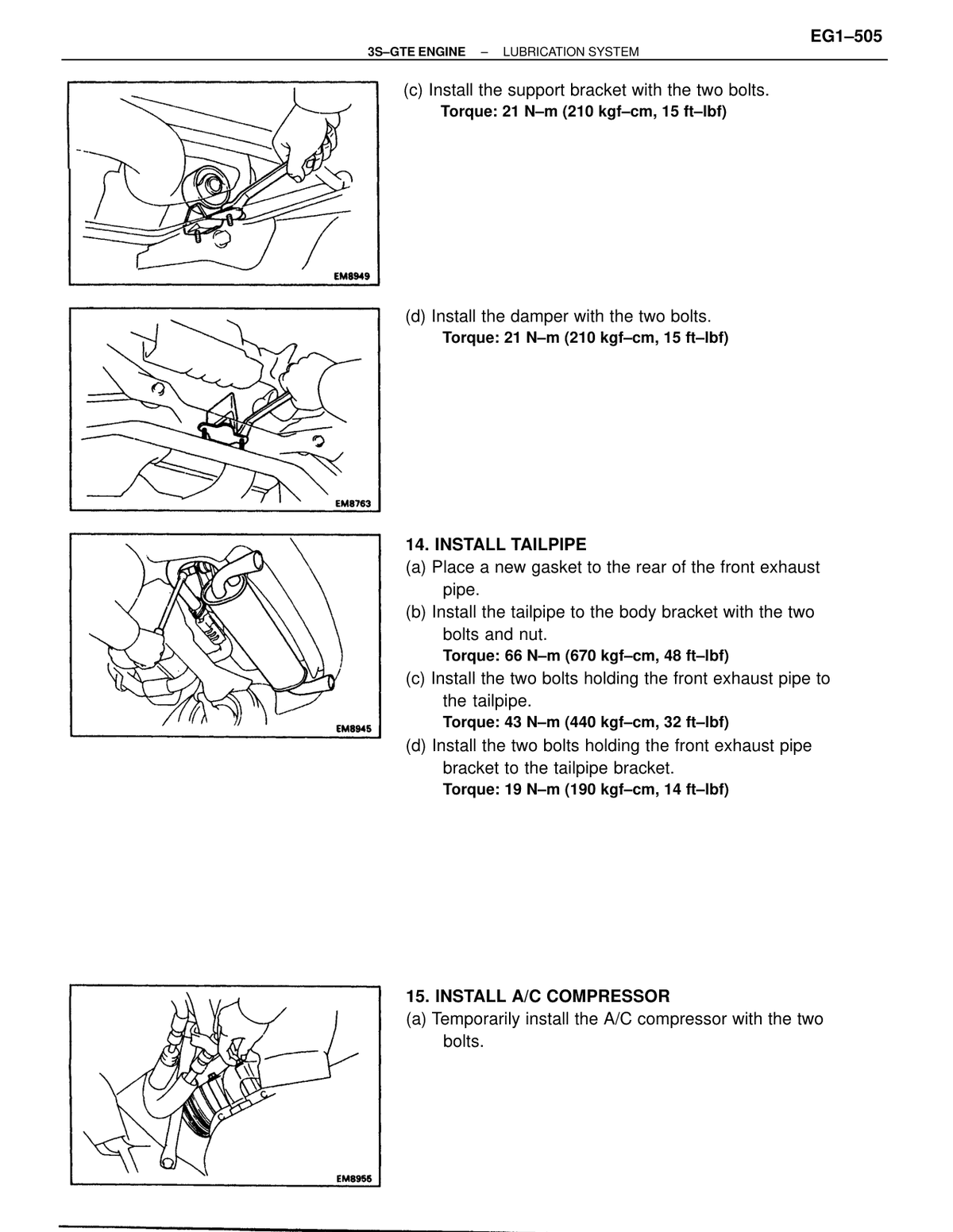

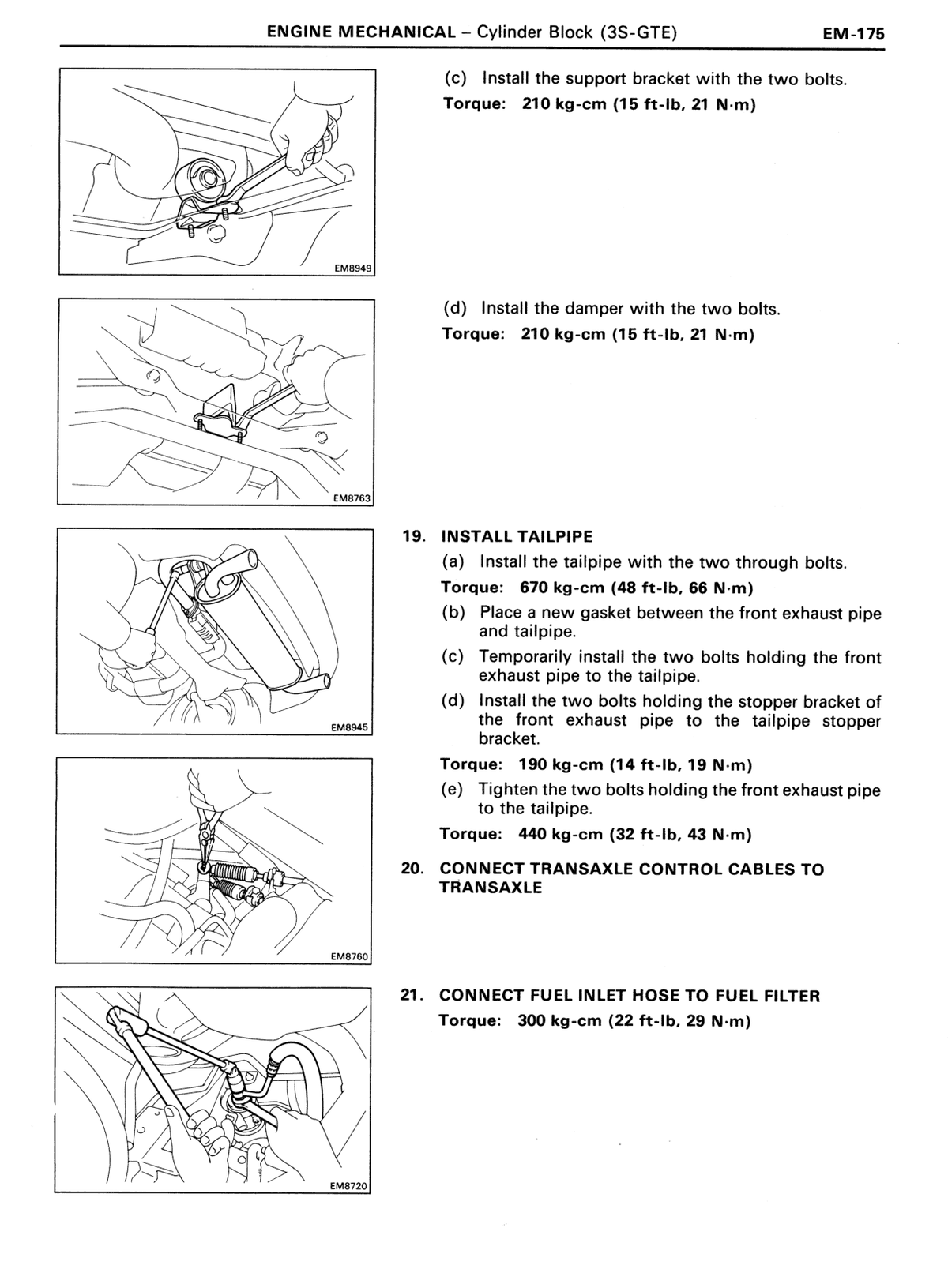

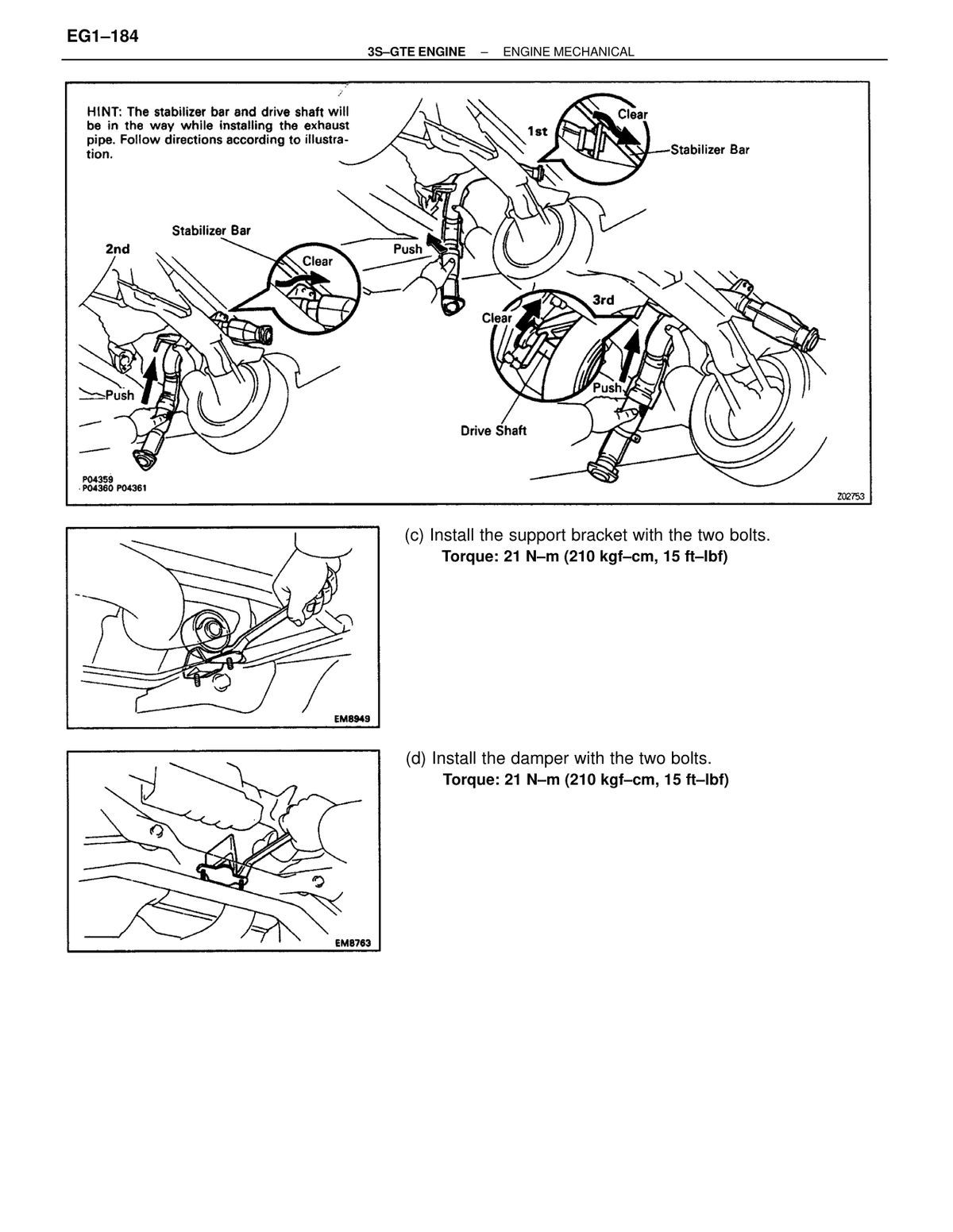

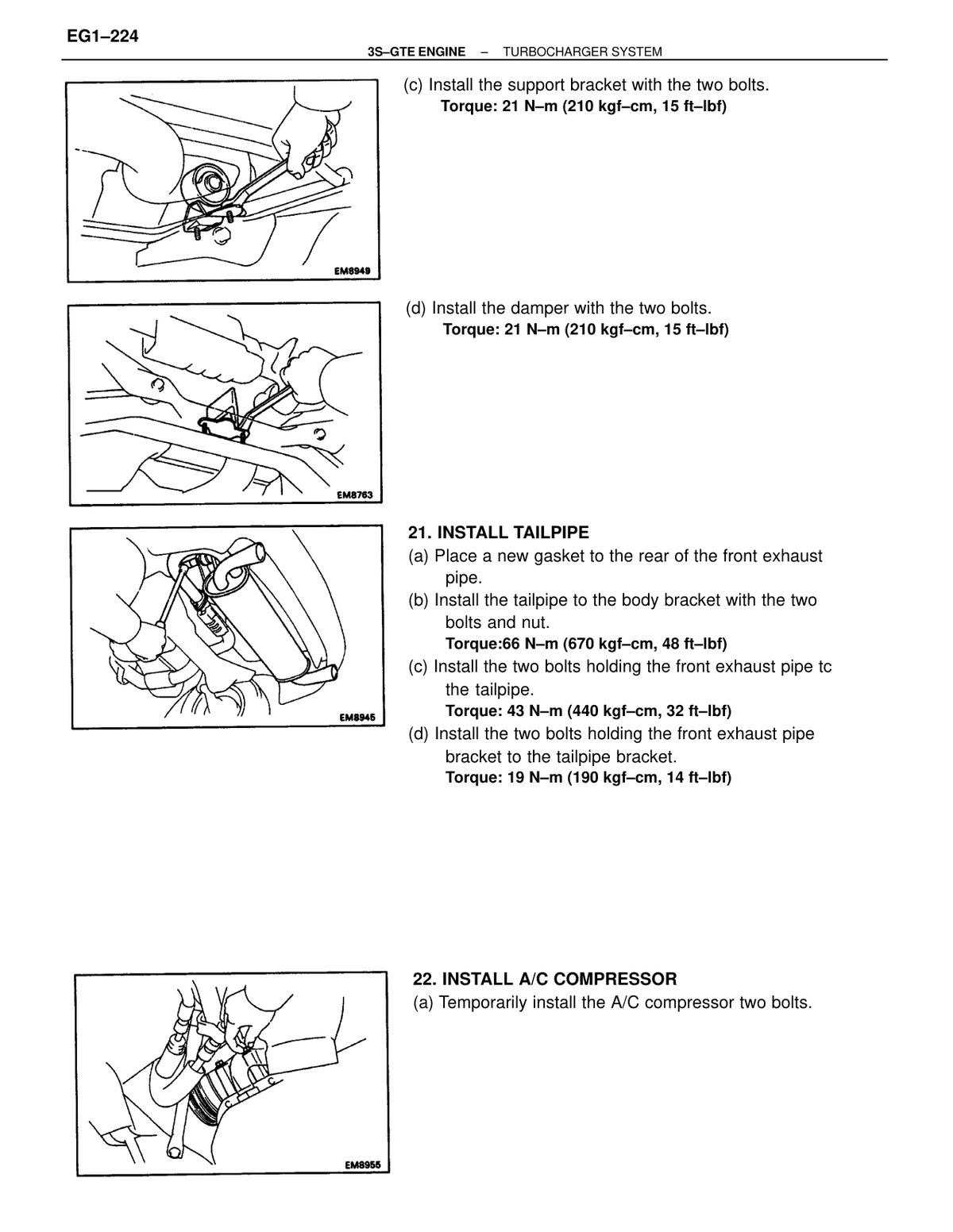

Engine — mechanical Support bracket bolts Step (c) — install support bracket with two bolts 21 210 15 ↗ RM179U1_1991 · p205 OEM manual
Engine — mechanical Damper bolts Step (d) — install damper with two bolts 21 210 15 ↗ RM179U1_1991 · p205 OEM manual

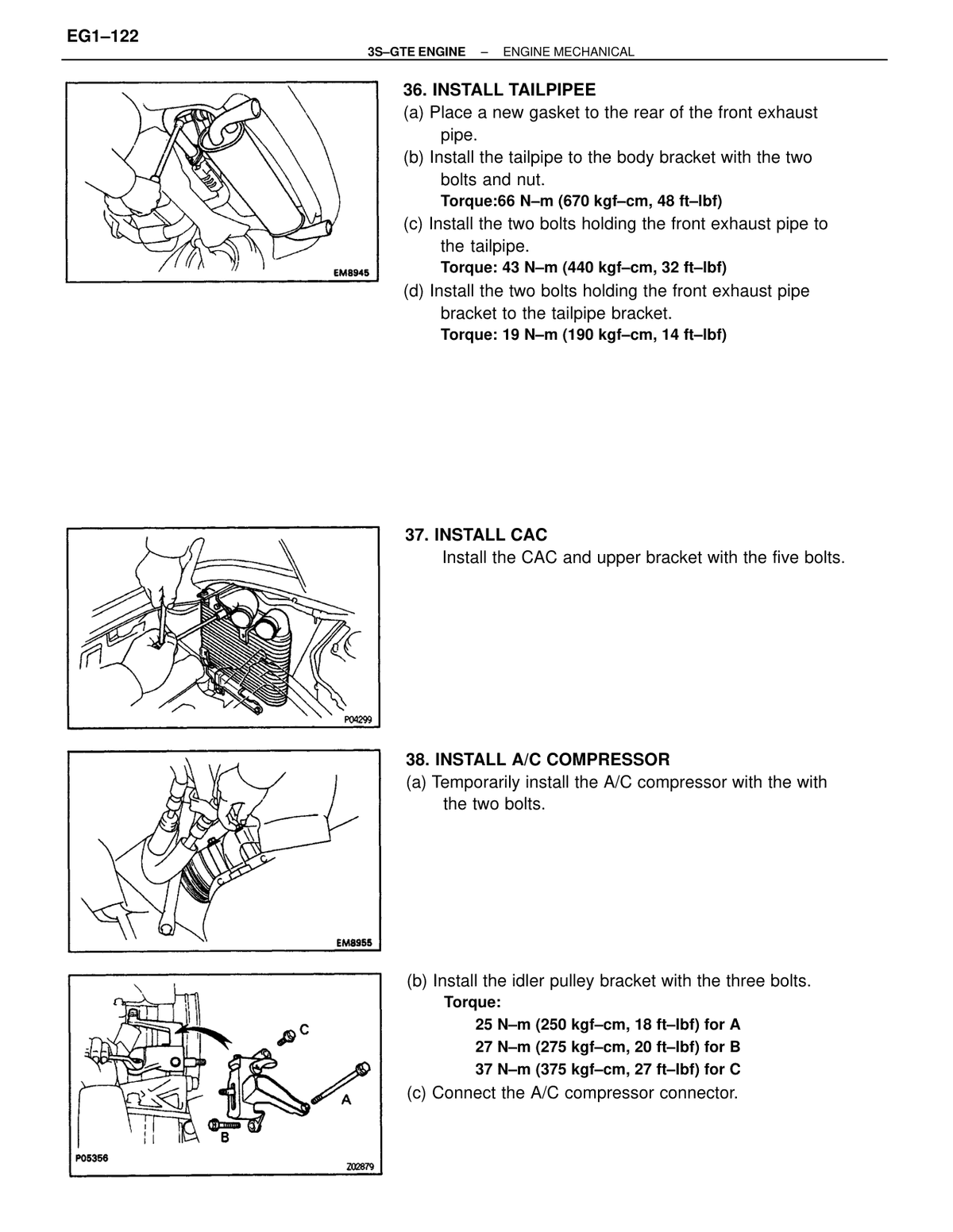

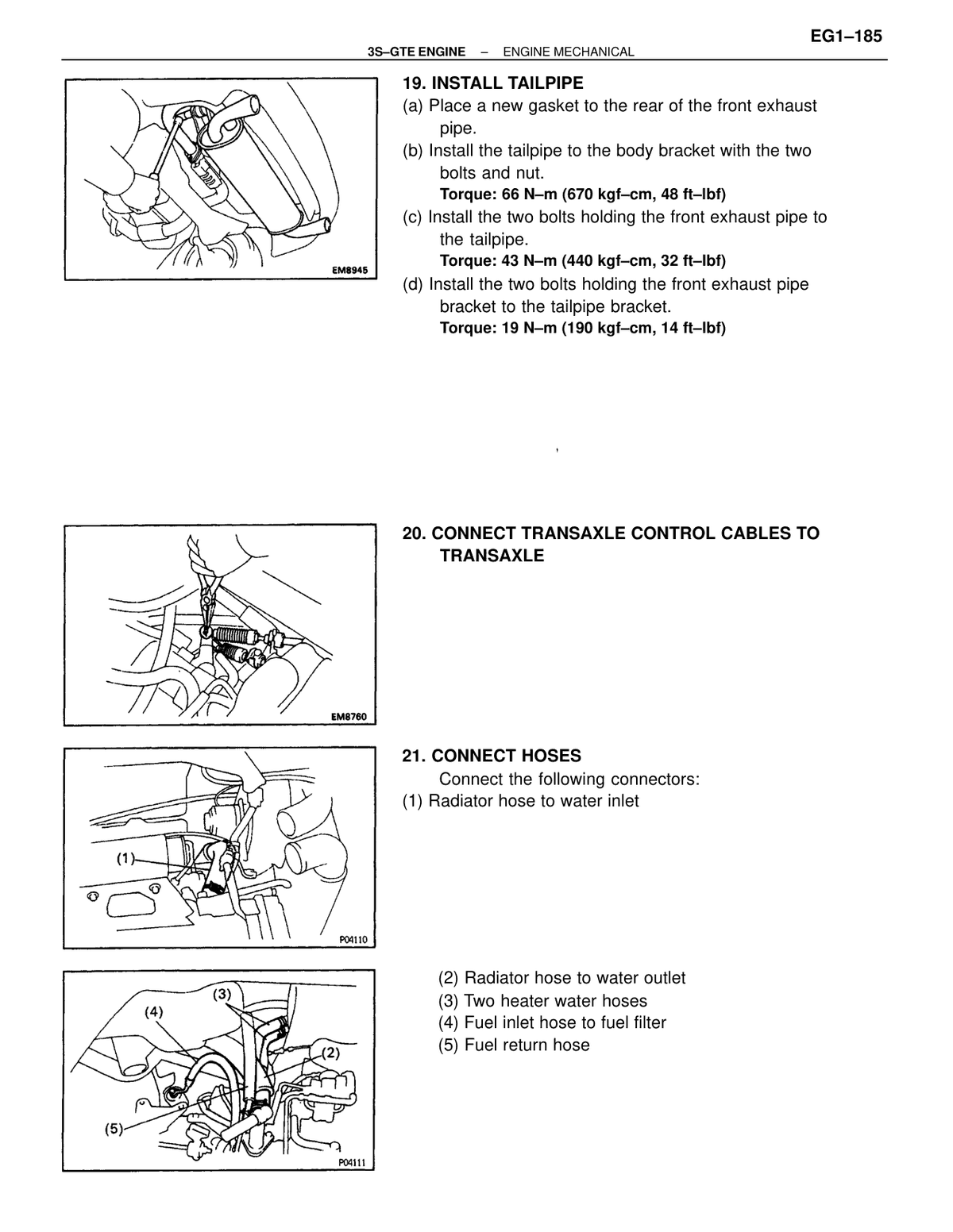

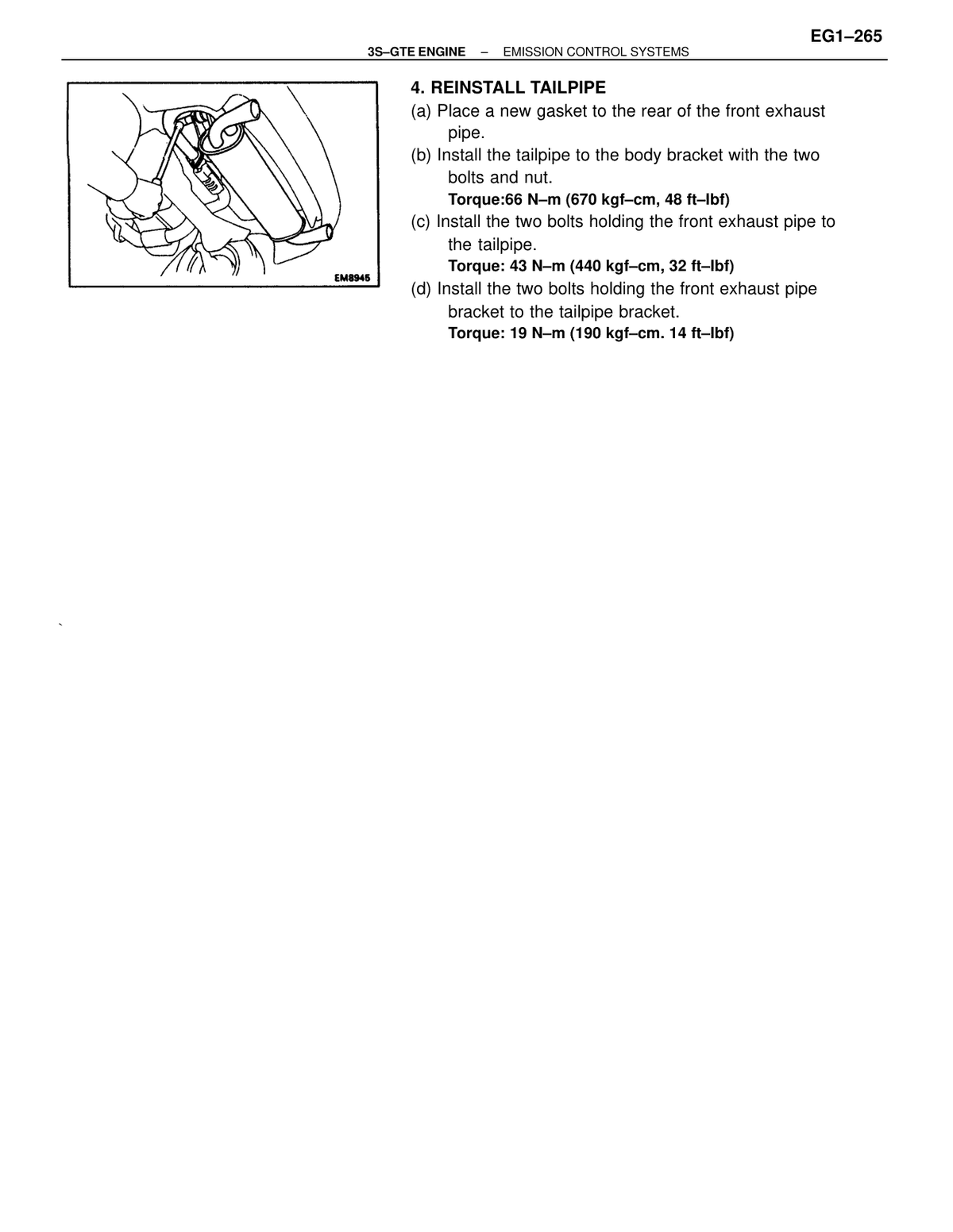

Engine — mechanical Tailpipe through bolts Step 19(a) — tailpipe two through bolts 66 670 48 ↗ RM179U1_1991 · p205 OEM manual
Engine — mechanical Front exhaust pipe stopper bracket to tailpipe stopper bracket bolts Step 19(d) 19 190 14 ↗ RM179U1_1991 · p205 OEM manual
Engine — mechanical Front exhaust pipe to tailpipe bolts Step 19(e) — final tighten 43 440 32 ↗ RM179U1_1991 · p205 OEM manual

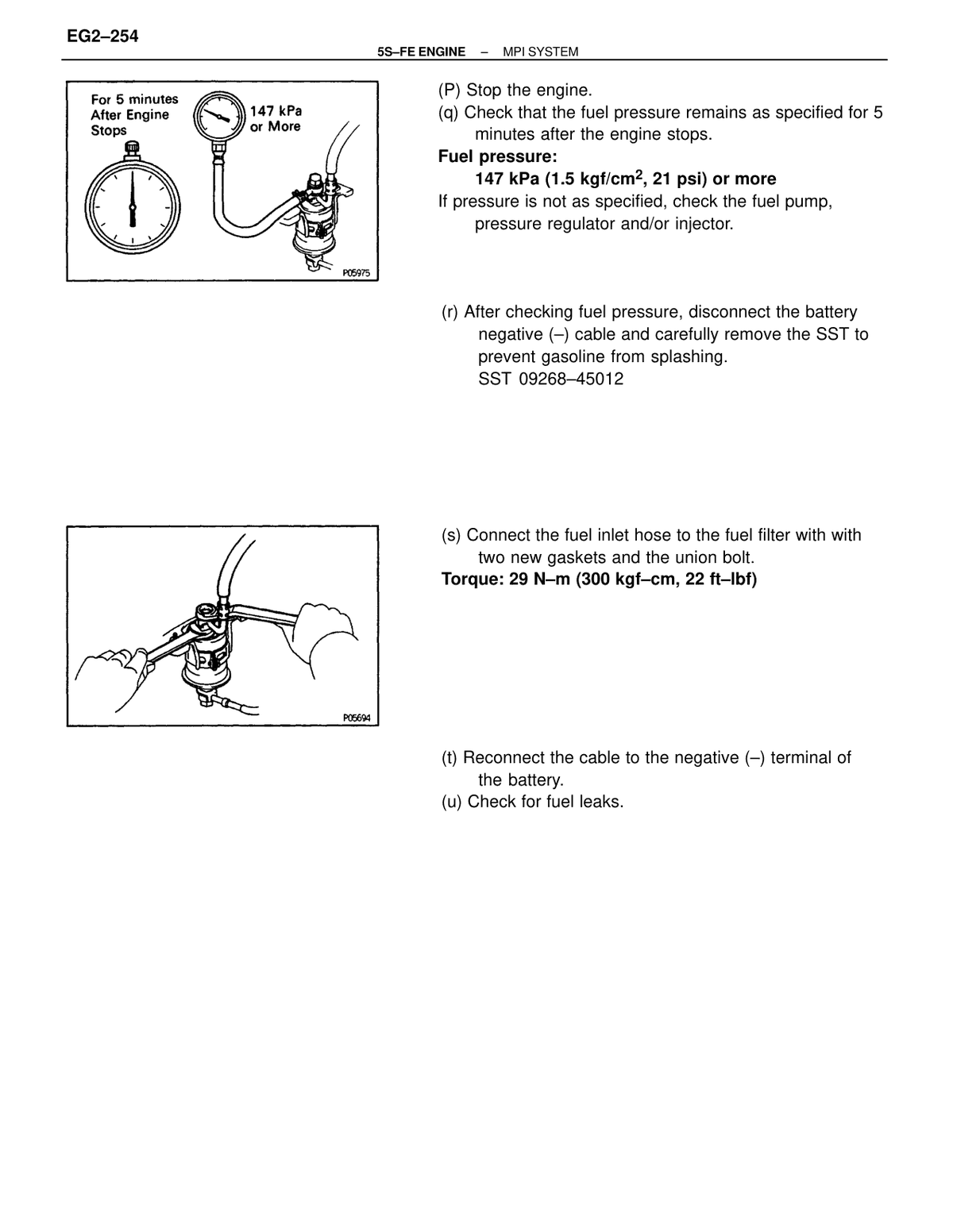

Engine — mechanical Fuel inlet hose to fuel filter Step 21 29 300 22 ↗ RM179U1_1991 · p205 OEM manual
Engine — mechanical Connecting Rod Cap bolts 1st pass 250 (18, 25); See page EM-191 25 250 — ↗ RM179U1_1991 · p211 OEM manual
Engine — mechanical Connecting Rod Cap bolts 2nd pass: Turn 90 degrees; See page EM-191 — — — ↗ RM179U1_1991 · p211 OEM manual
Engine — mechanical Oil Pan Baffle Plate / Oil Pan bolts (lower) 48 in.-lb 5.4 55 — ↗ RM179U1_1991 · p211 OEM manual

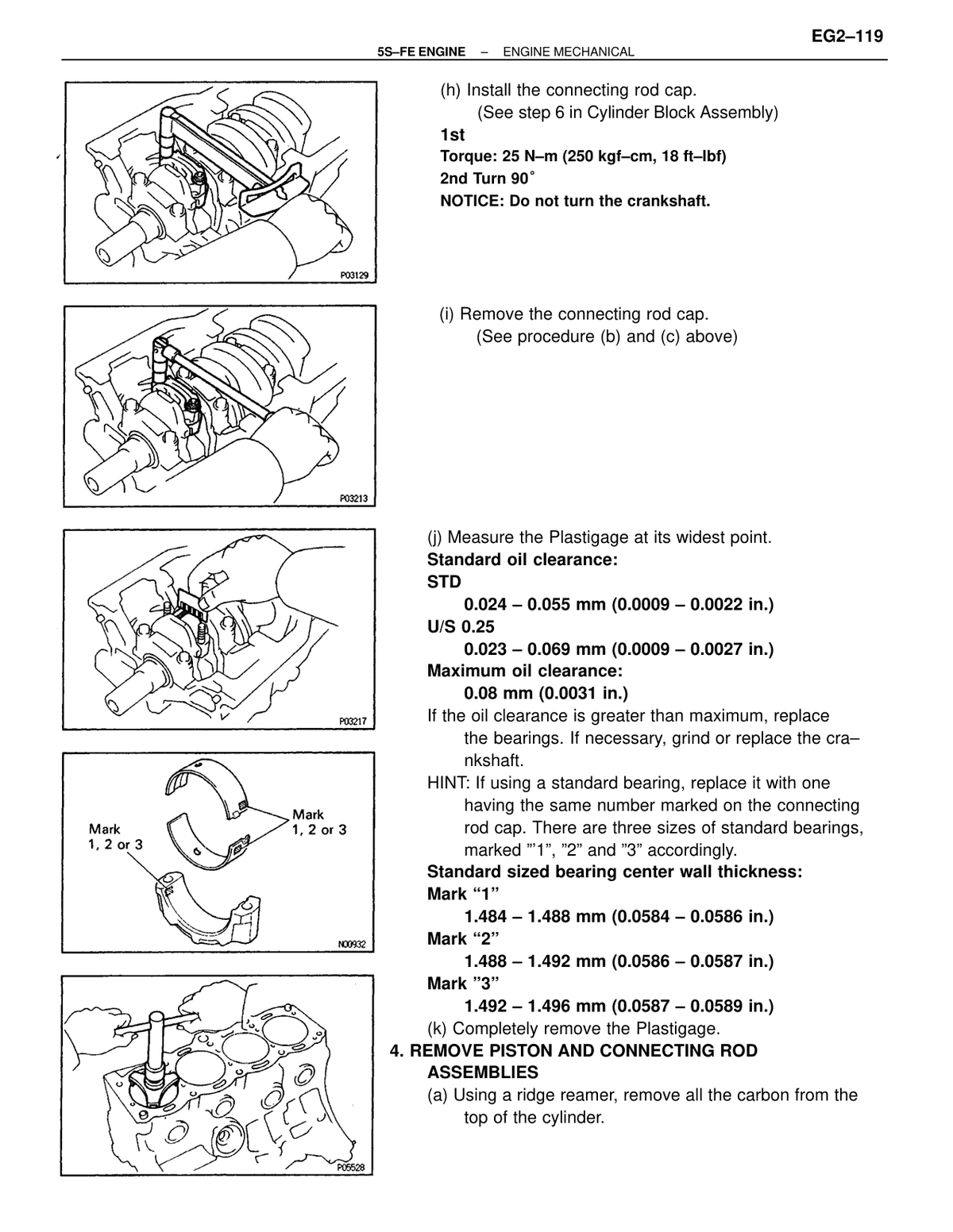

Engine — mechanical Connecting rod cap bolt — 1st pass 1st pass 25 250 18 ↗ RM179U1_1991 · p224 OEM manual
Engine — mechanical Connecting rod cap bolt — 2nd pass 2nd pass — Turn 90° — — — ↗ RM179U1_1991 · p224 OEM manual
Engine — mechanical Main bearing cap bolts Tighten uniformly in several passes in sequence 59 600 43 ↗ RM179U1_1991 · p242 OEM manual

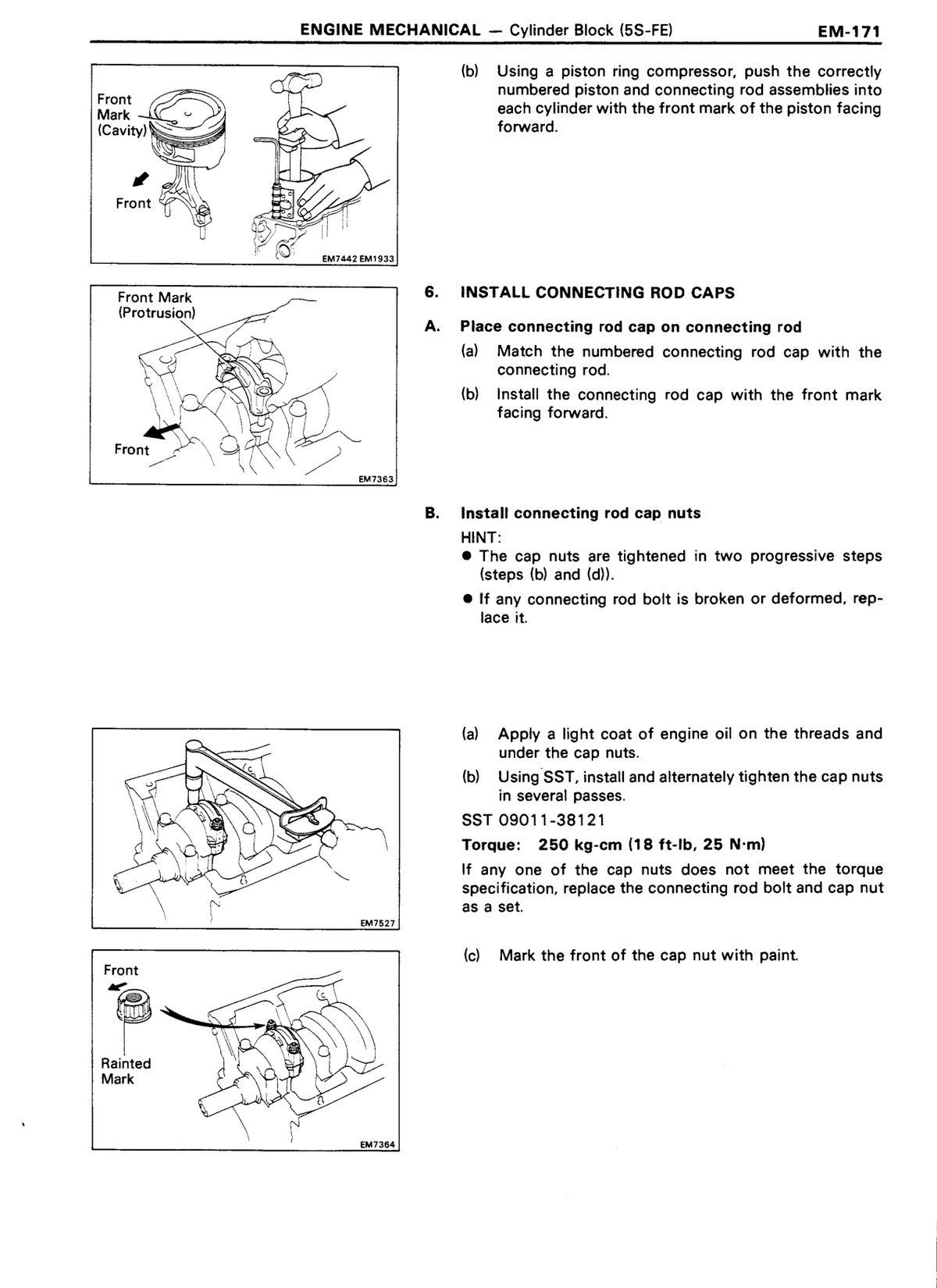

Engine — mechanical Connecting rod cap nuts Step (b), first progressive pass; SST 09011-38121 25 250 18 ↗ RM179U1_1991 · p243 OEM manual

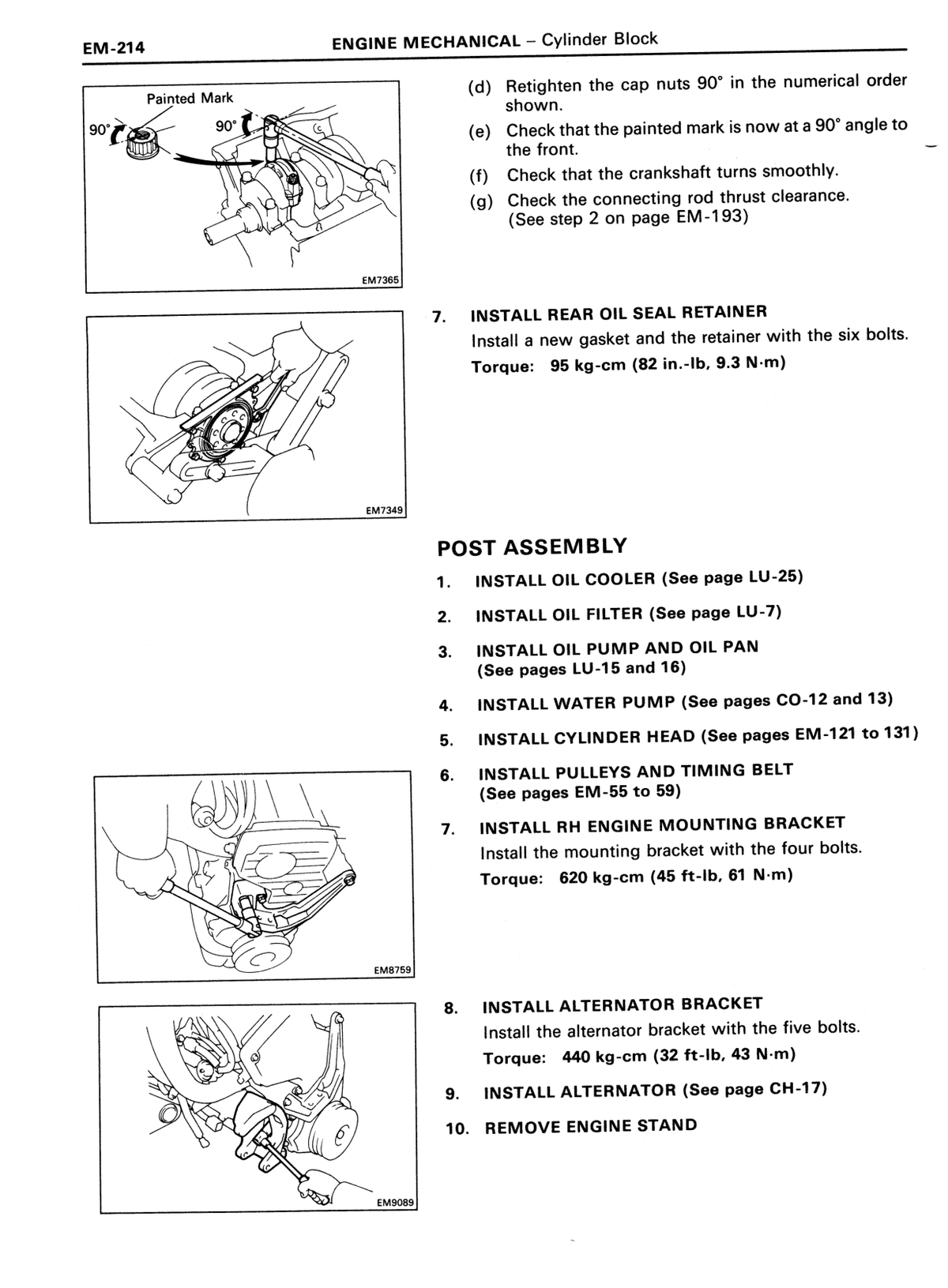

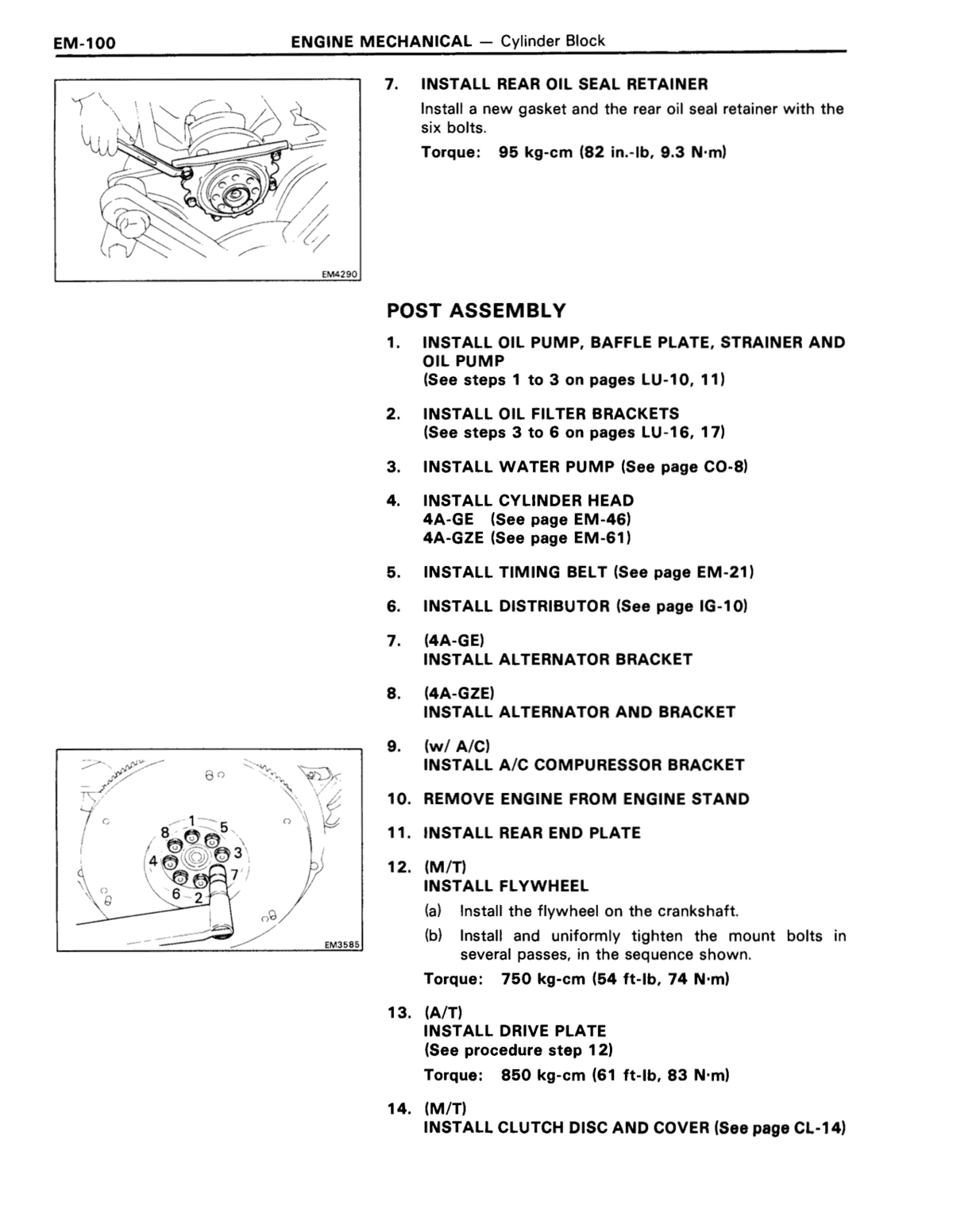

Engine — mechanical Rear oil seal retainer bolts 82 in.-lb; six bolts 9.3 95 — ↗ RM179U1_1991 · p244 OEM manual

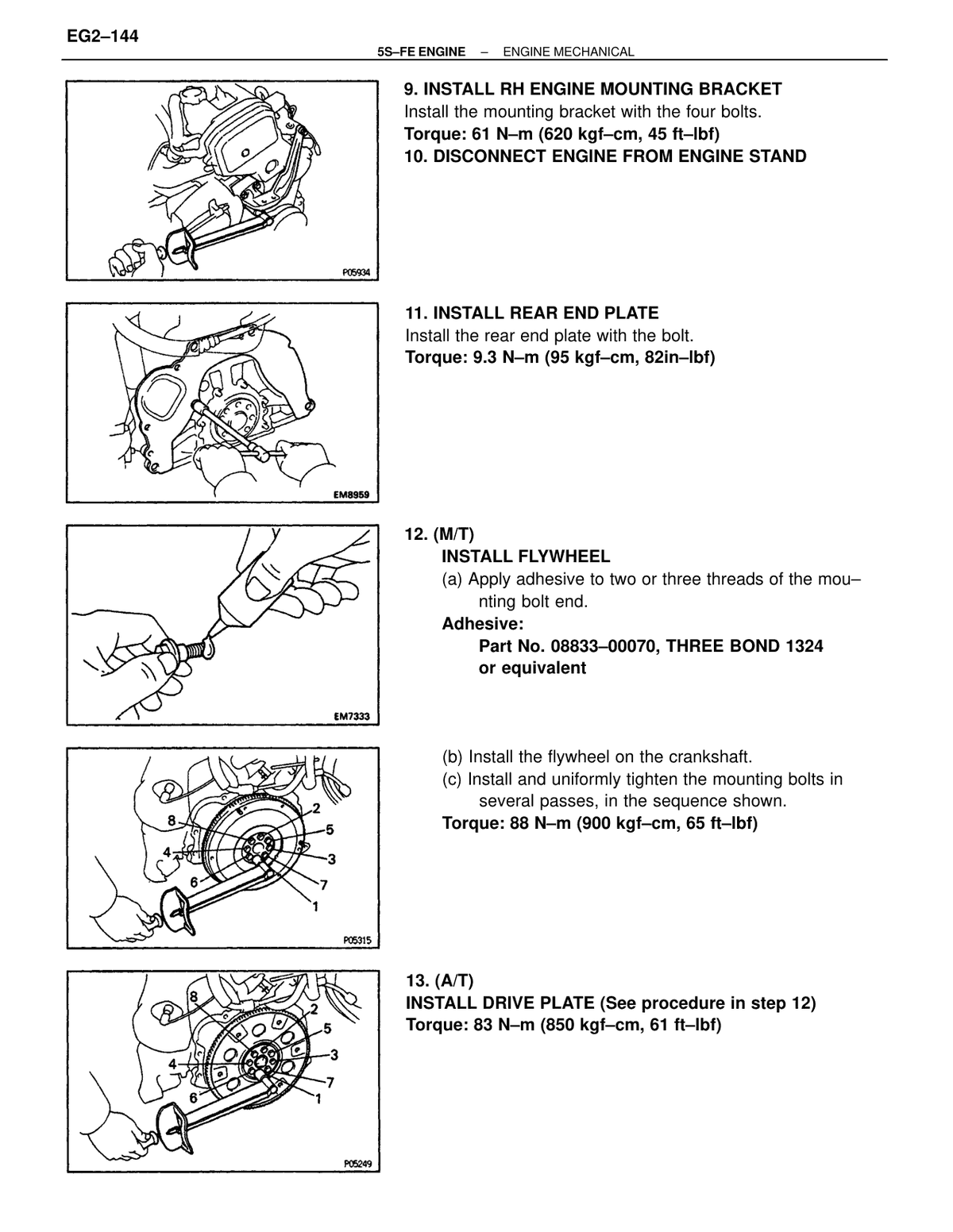

Engine — mechanical RH engine mounting bracket bolts four bolts 61 620 45 ↗ RM179U1_1991 · p244 OEM manual

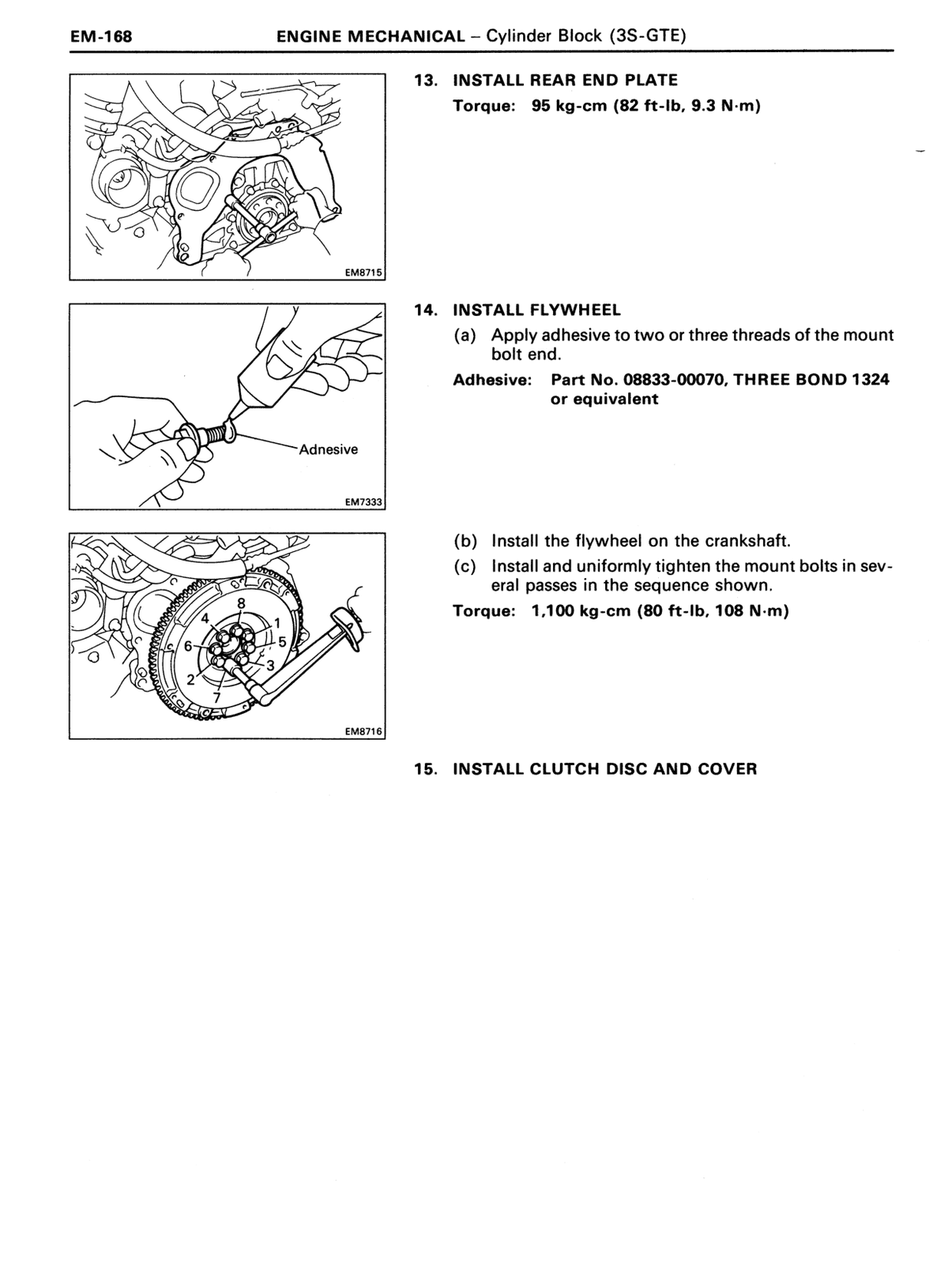

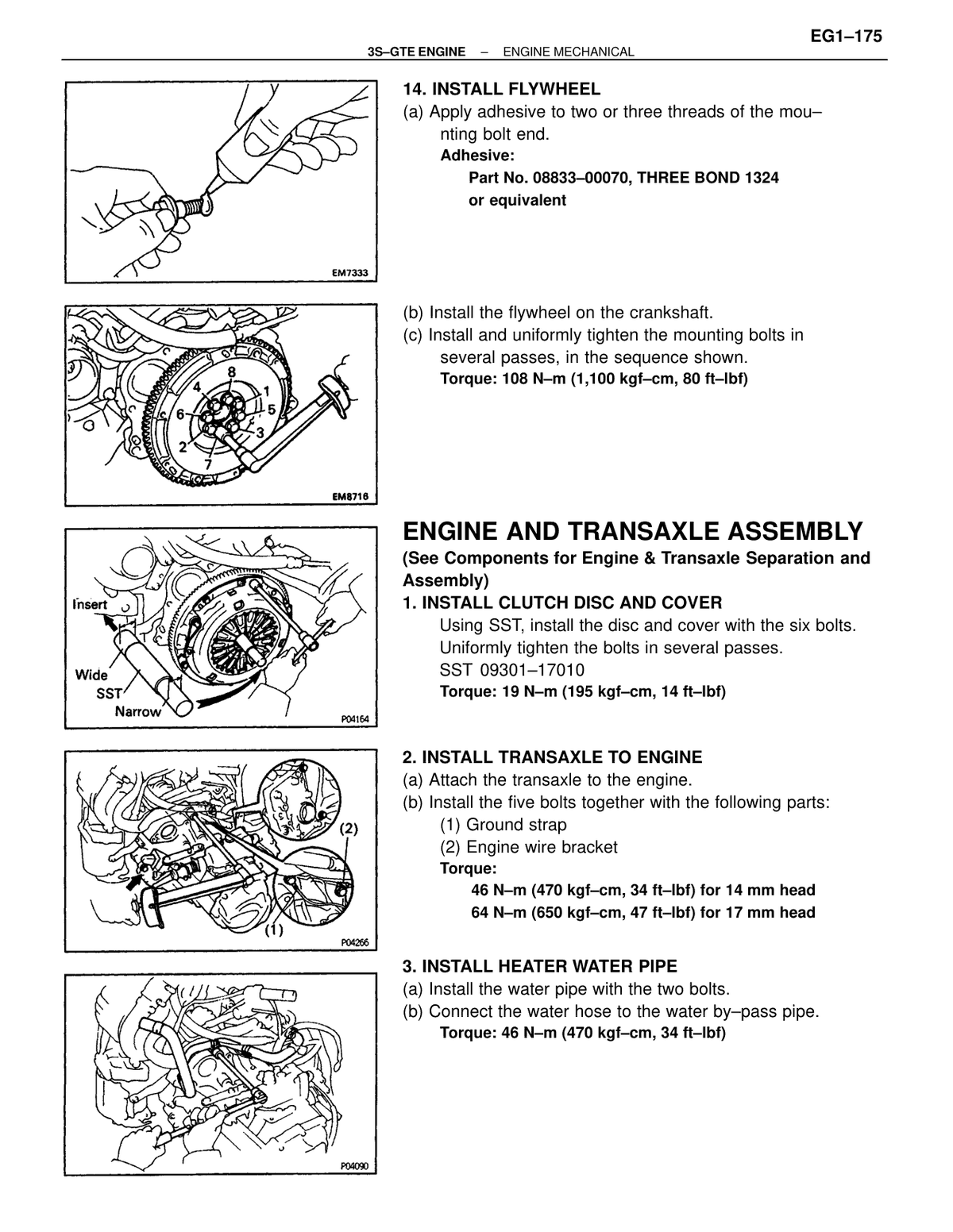

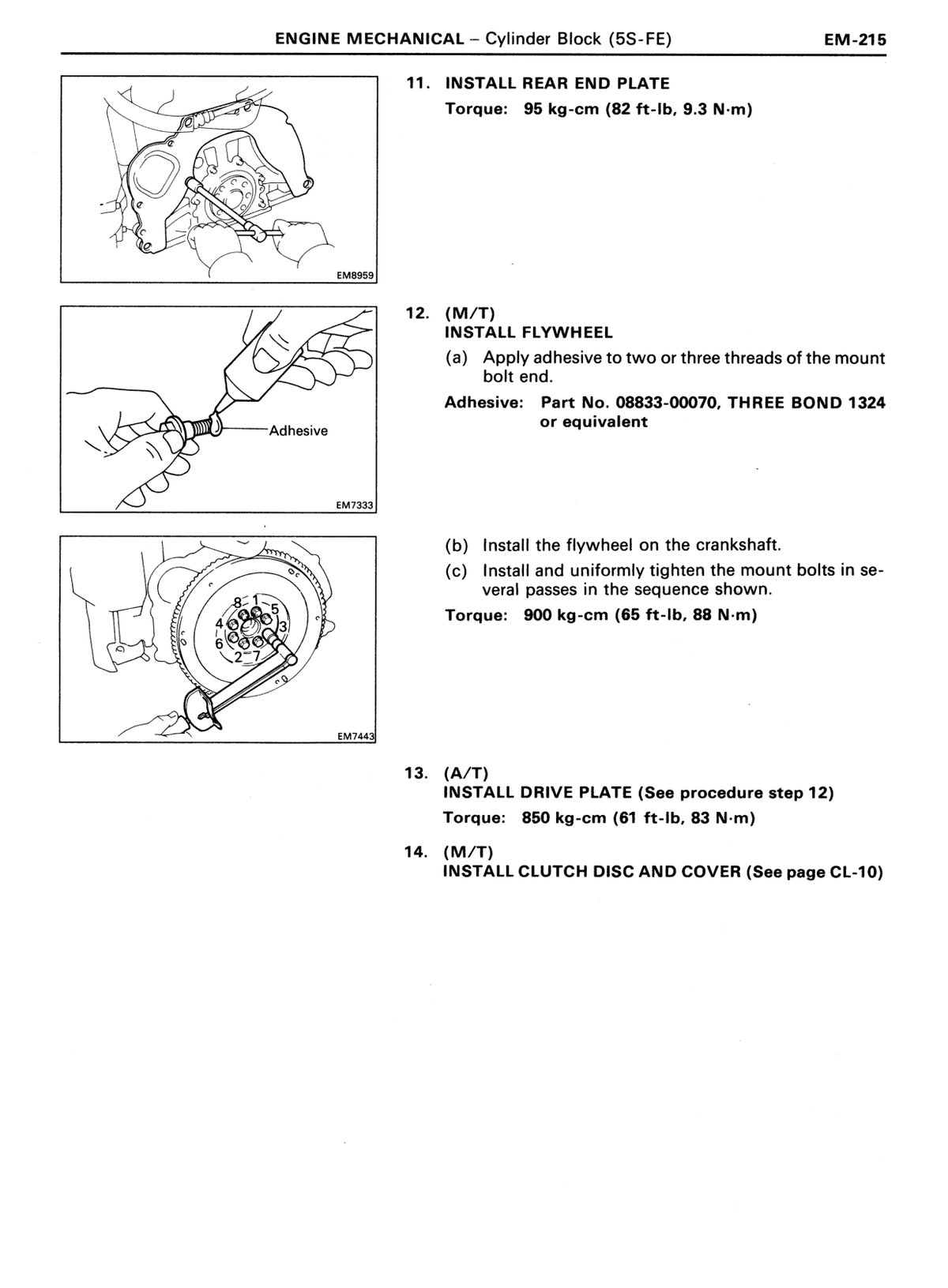

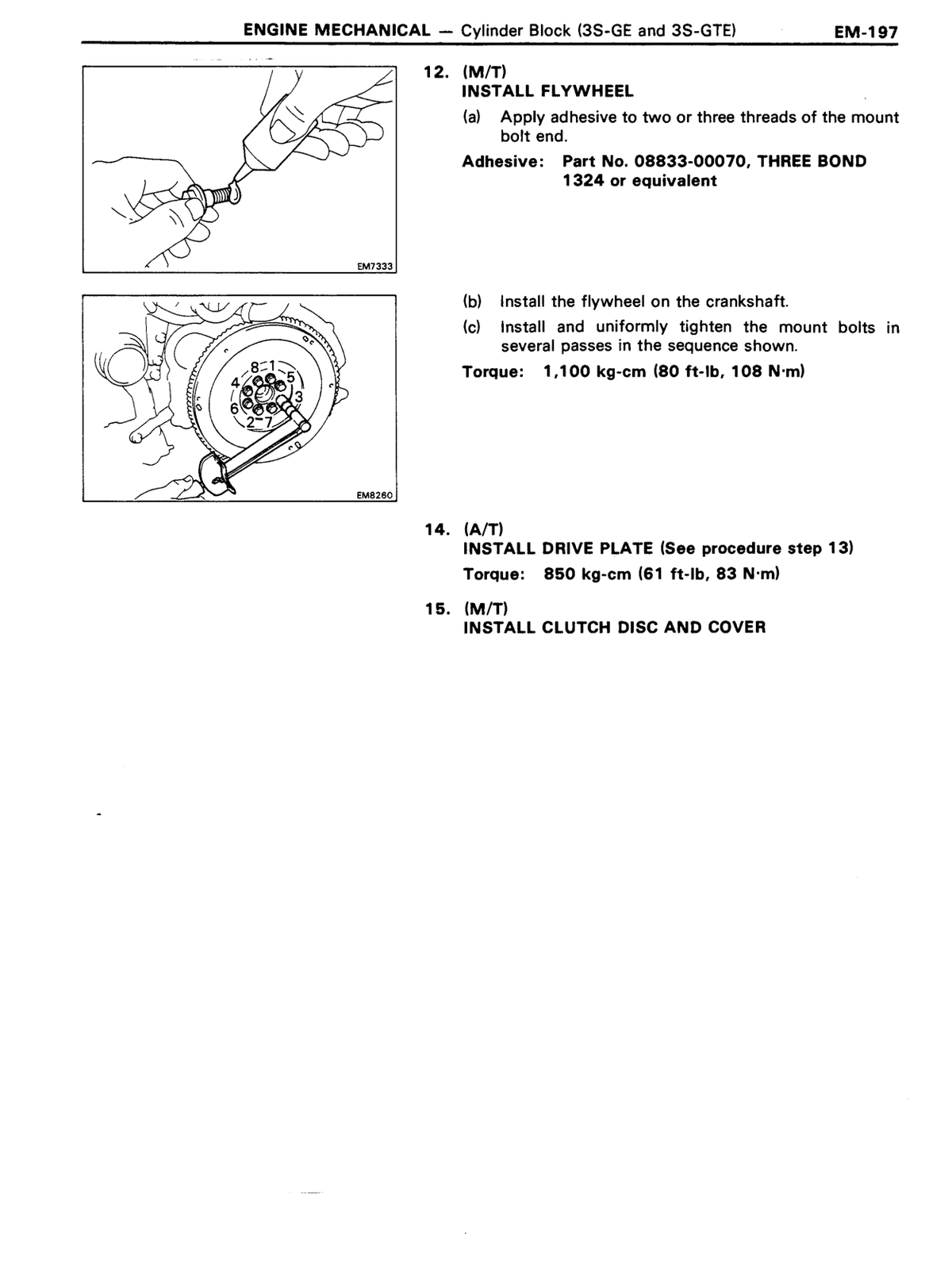

Engine — mechanical Flywheel mount bolts (M/T) Step 12, tighten in sequence in several passes 88 900 65 ↗ RM179U1_1991 · p245 OEM manual

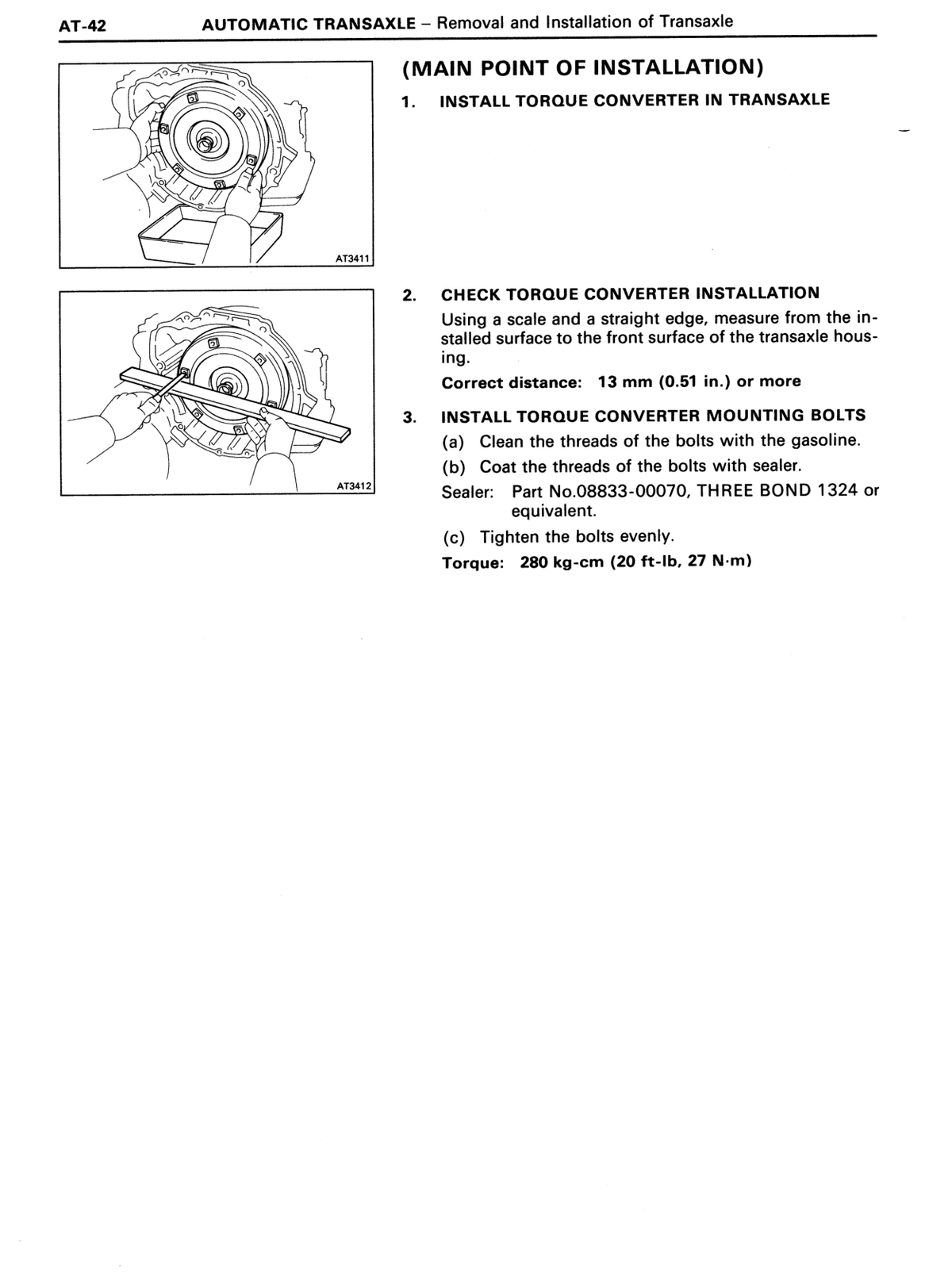

Engine — mechanical Drive plate mount bolts (A/T) Step 13 83 850 61 ↗ RM179U1_1991 · p245 OEM manual

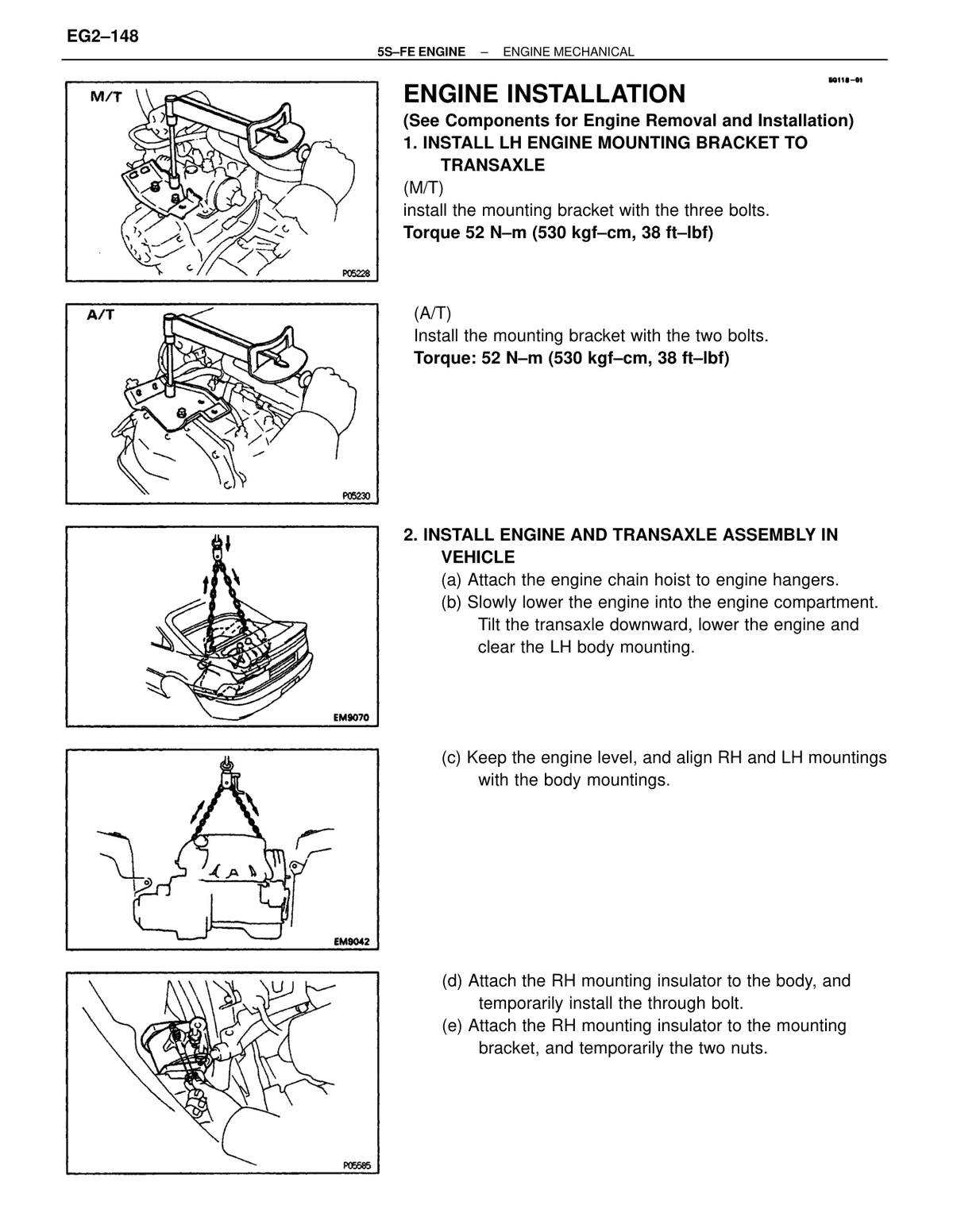

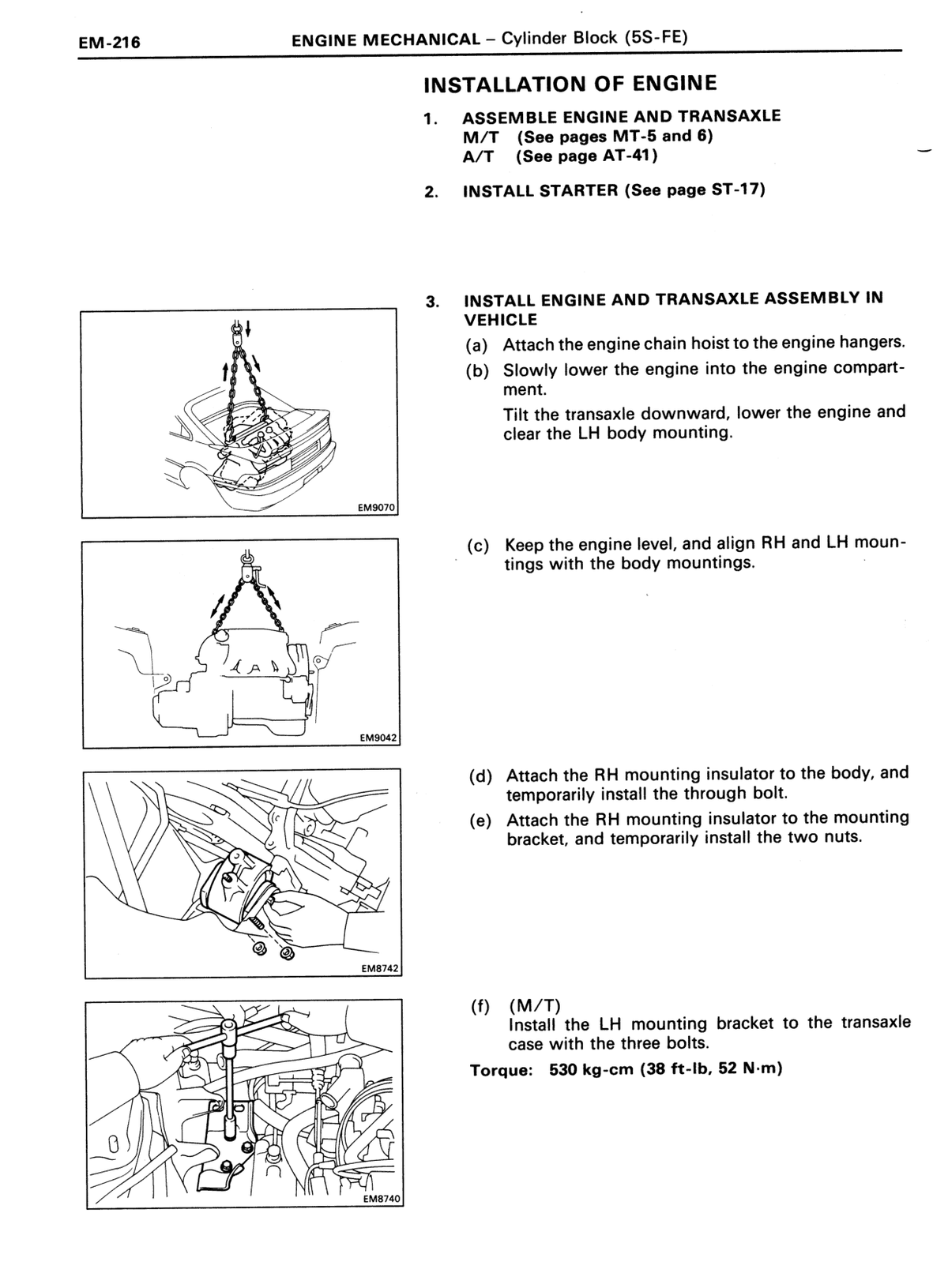

Engine — mechanical LH mounting bracket to transaxle case bolts M/T only, three bolts, step 3(f) 52 530 38 ↗ RM179U1_1991 · p246 OEM manual
Engine — mechanical LH mounting bracket to transaxle case bolts (A/T) Step (g); Do not tighten bolt (A) 52 530 38 ↗ RM179U1_1991 · p247 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket — bolt A Step (i) 63 650 47 ↗ RM179U1_1991 · p247 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket — bolt B Step (i) 73 740 54 ↗ RM179U1_1991 · p247 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket — bolt C (A/T only) Step (i); A/T only 52 530 38 ↗ RM179U1_1991 · p247 OEM manual
Engine — mechanical LH mounting insulator through bolt to body Step (j) 78 800 58 ↗ RM179U1_1991 · p247 OEM manual
Engine — mechanical RH mounting insulator nuts to mounting bracket Step (k) 52 530 38 ↗ RM179U1_1991 · p247 OEM manual
Engine — mechanical RH mounting insulator through bolt to body Step (l) 78 800 58 ↗ RM179U1_1991 · p247 OEM manual

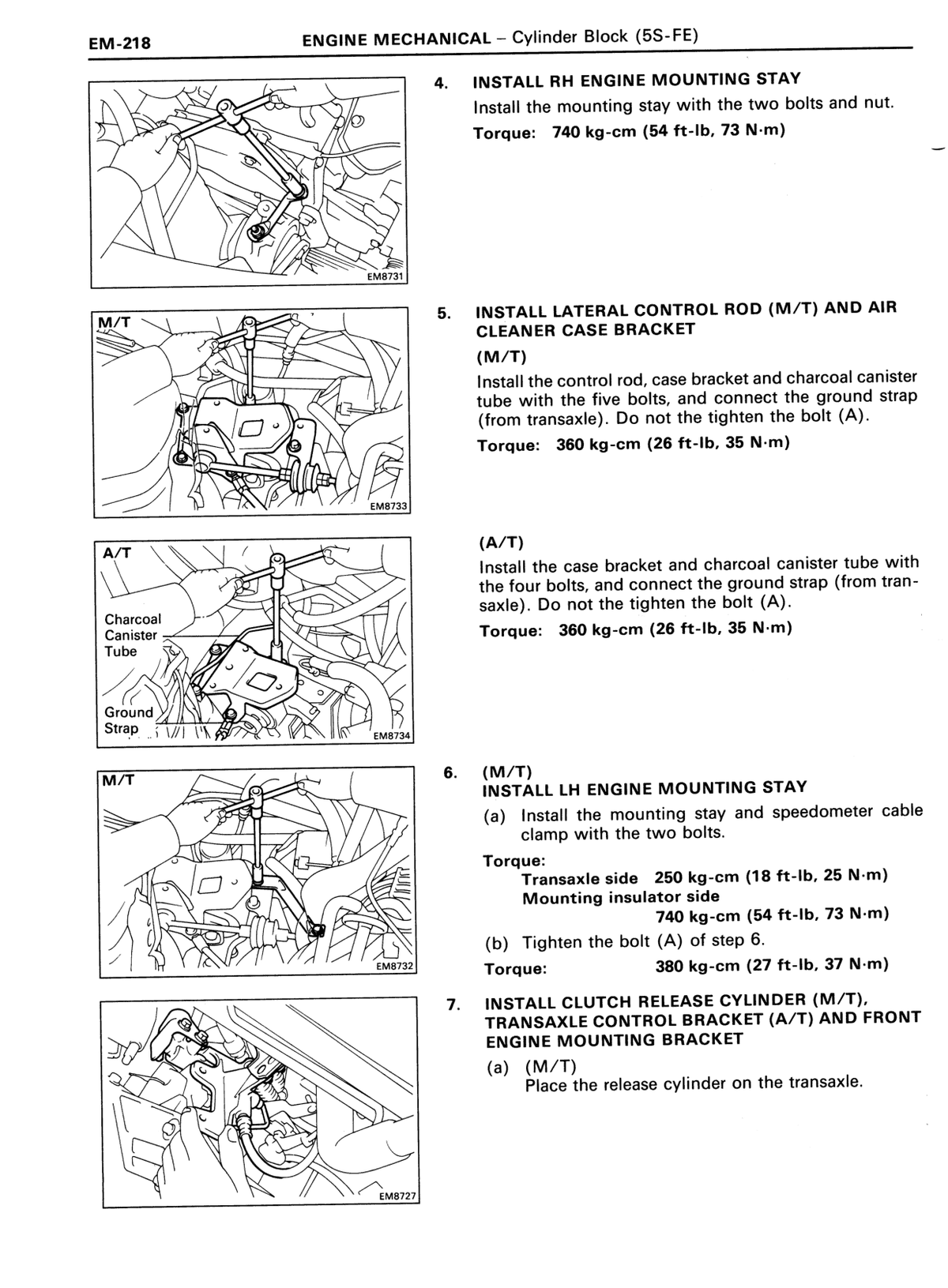

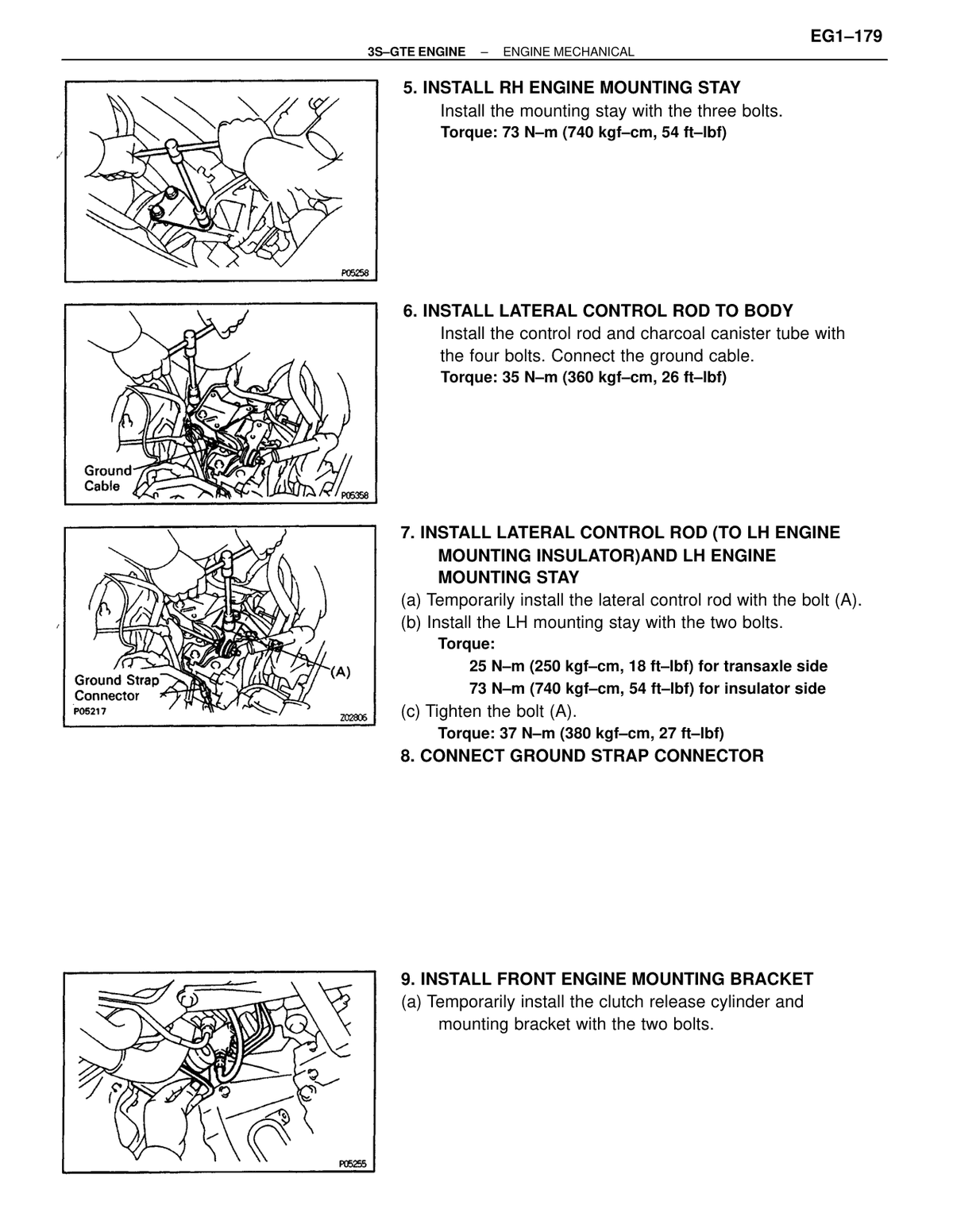

Engine — mechanical RH Engine Mounting Stay bolts and nut 73 740 54 ↗ RM179U1_1991 · p248 OEM manual

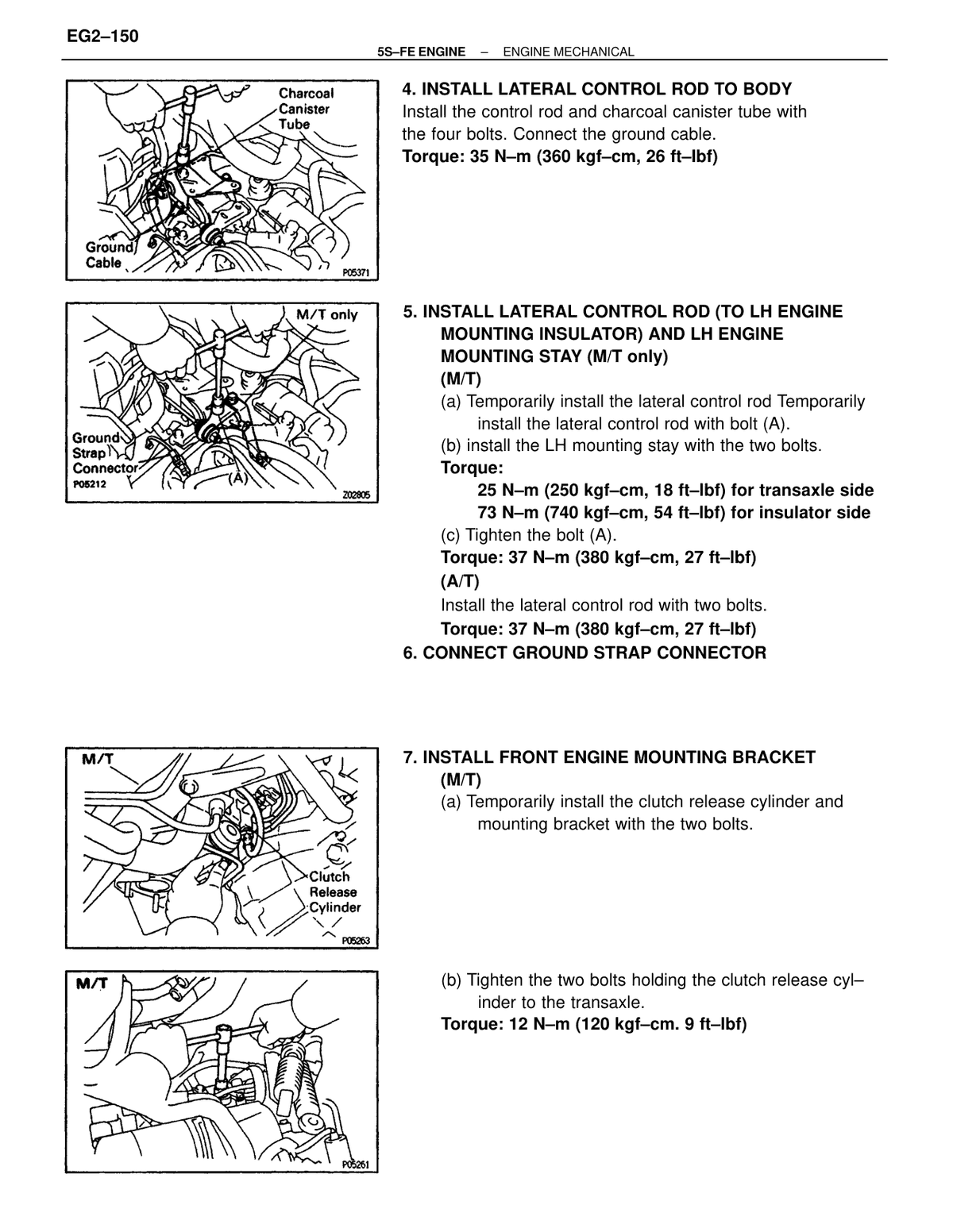

Engine — mechanical Lateral Control Rod / Air Cleaner Case Bracket bolts (M/T — five bolts) 35 360 26 ↗ RM179U1_1991 · p248 OEM manual
Engine — mechanical Air Cleaner Case Bracket bolts (A/T — four bolts) 35 360 26 ↗ RM179U1_1991 · p248 OEM manual
Engine — mechanical LH Engine Mounting Stay — transaxle side Step 6(a) 25 250 18 ↗ RM179U1_1991 · p248 OEM manual
Engine — mechanical LH Engine Mounting Stay — mounting insulator side Step 6(a) 73 740 54 ↗ RM179U1_1991 · p248 OEM manual
Engine — mechanical LH Engine Mounting Stay bolt (A) — final tighten Step 6(b) 37 380 27 ↗ RM179U1_1991 · p248 OEM manual

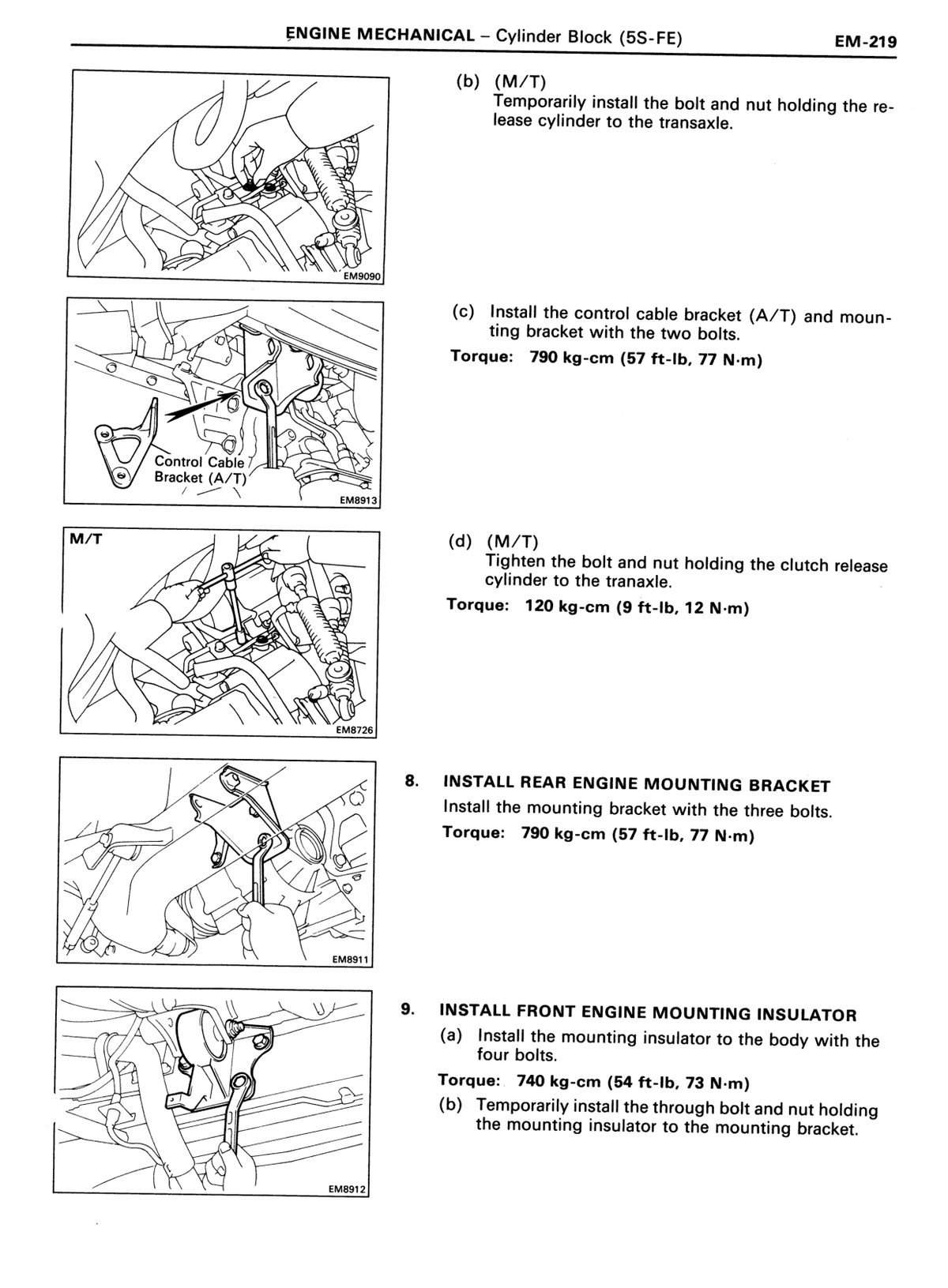

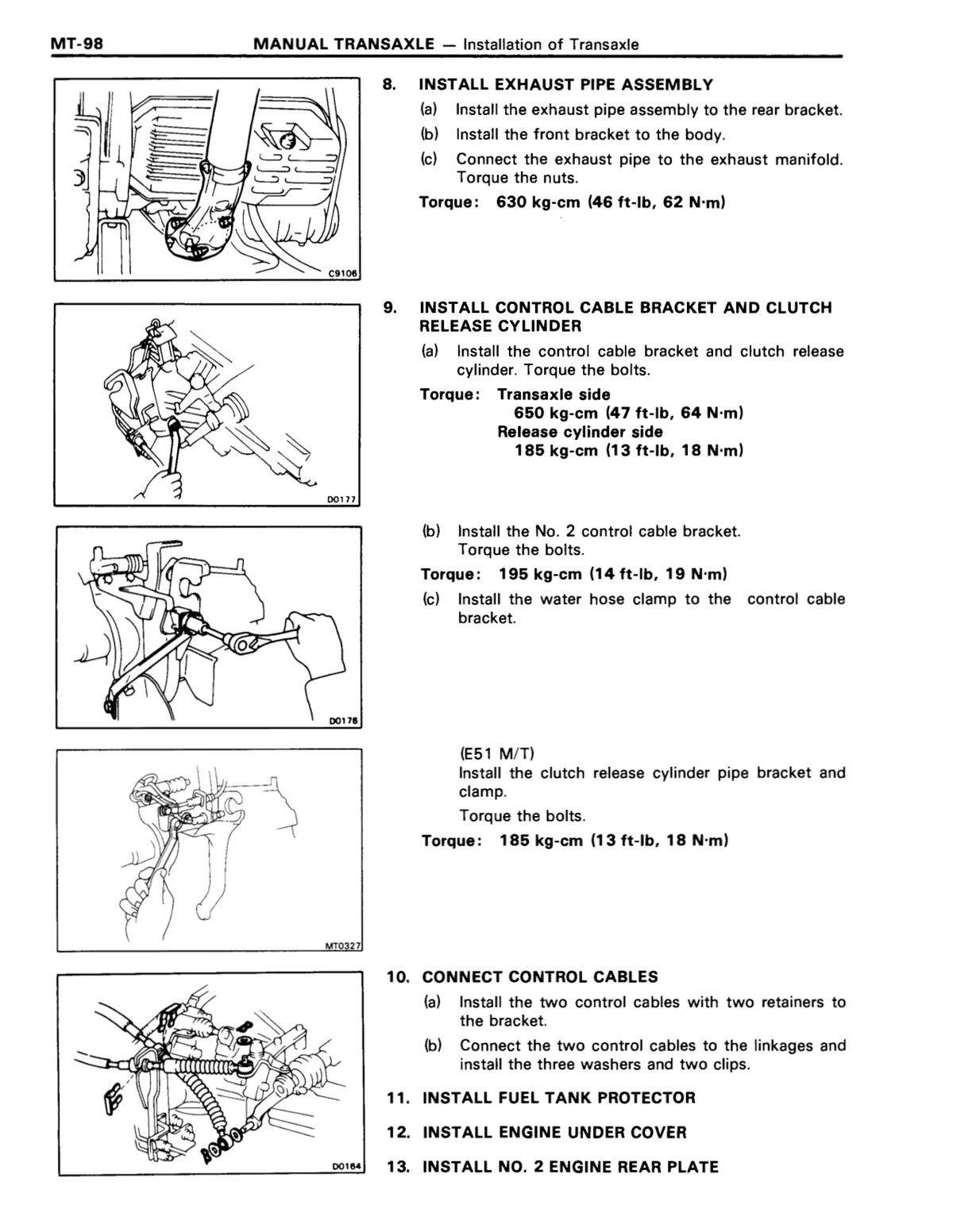

Engine — mechanical Control cable bracket (A/T) and mounting bracket bolts Step 7(c) 77 790 57 ↗ RM179U1_1991 · p249 OEM manual
Engine — mechanical Clutch release cylinder bolt and nut to transaxle (M/T) Step 7(d) 12 120 9 ↗ RM179U1_1991 · p249 OEM manual

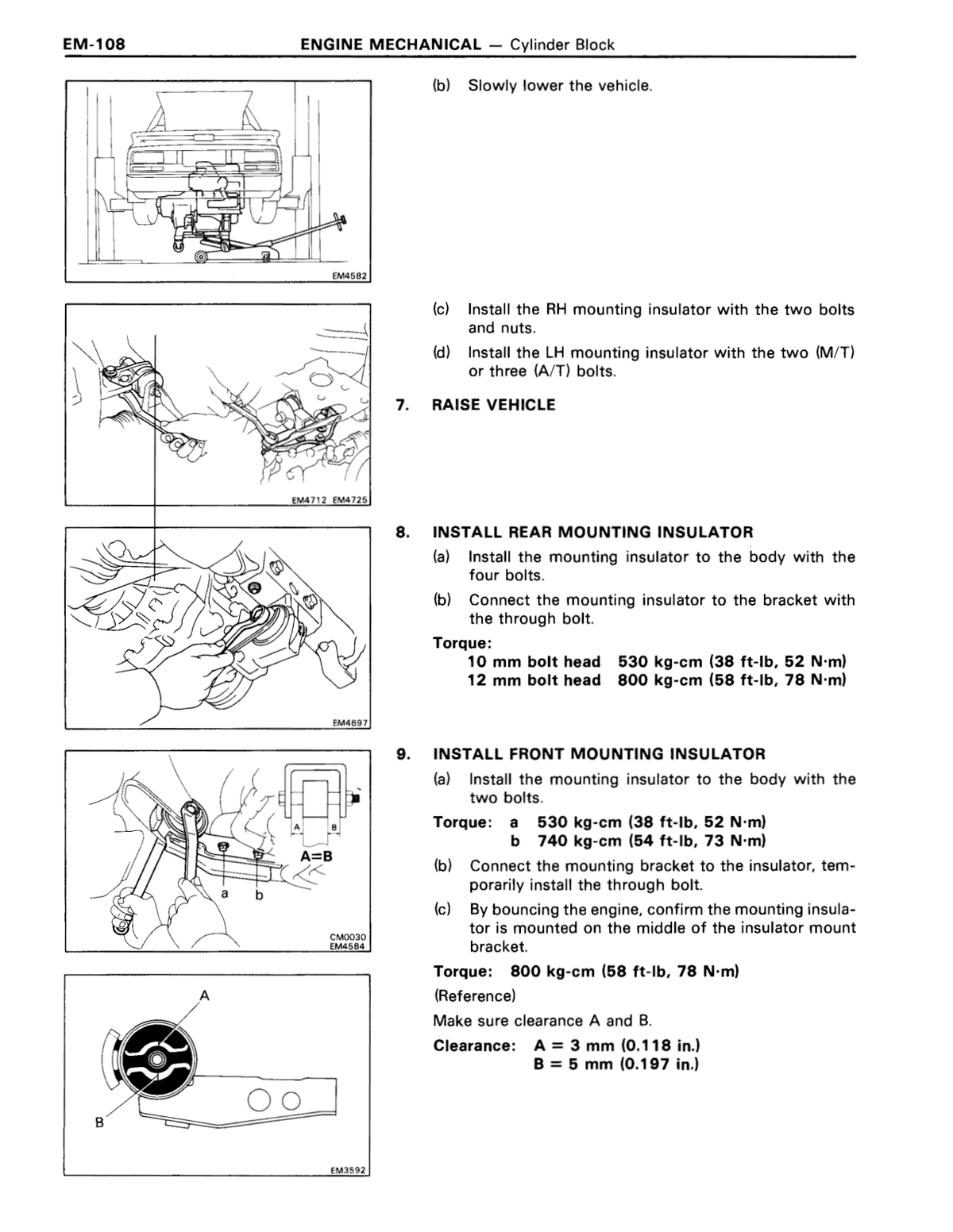

Engine — mechanical Rear engine mounting bracket bolts Step 8, three bolts 77 790 57 ↗ RM179U1_1991 · p249 OEM manual

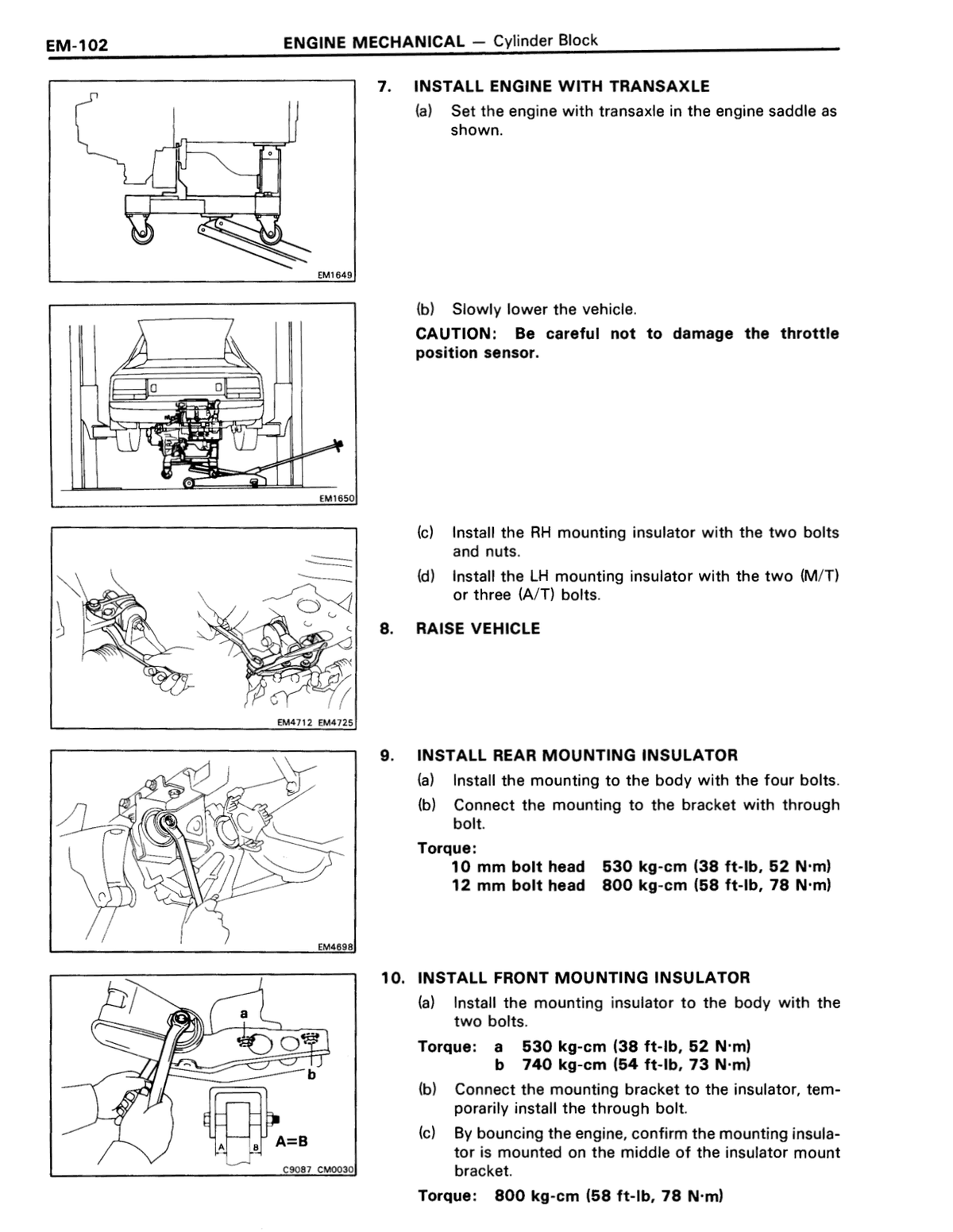

Engine — mechanical Front engine mounting insulator to body bolts Step 9(a), four bolts 73 740 54 ↗ RM179U1_1991 · p249 OEM manual

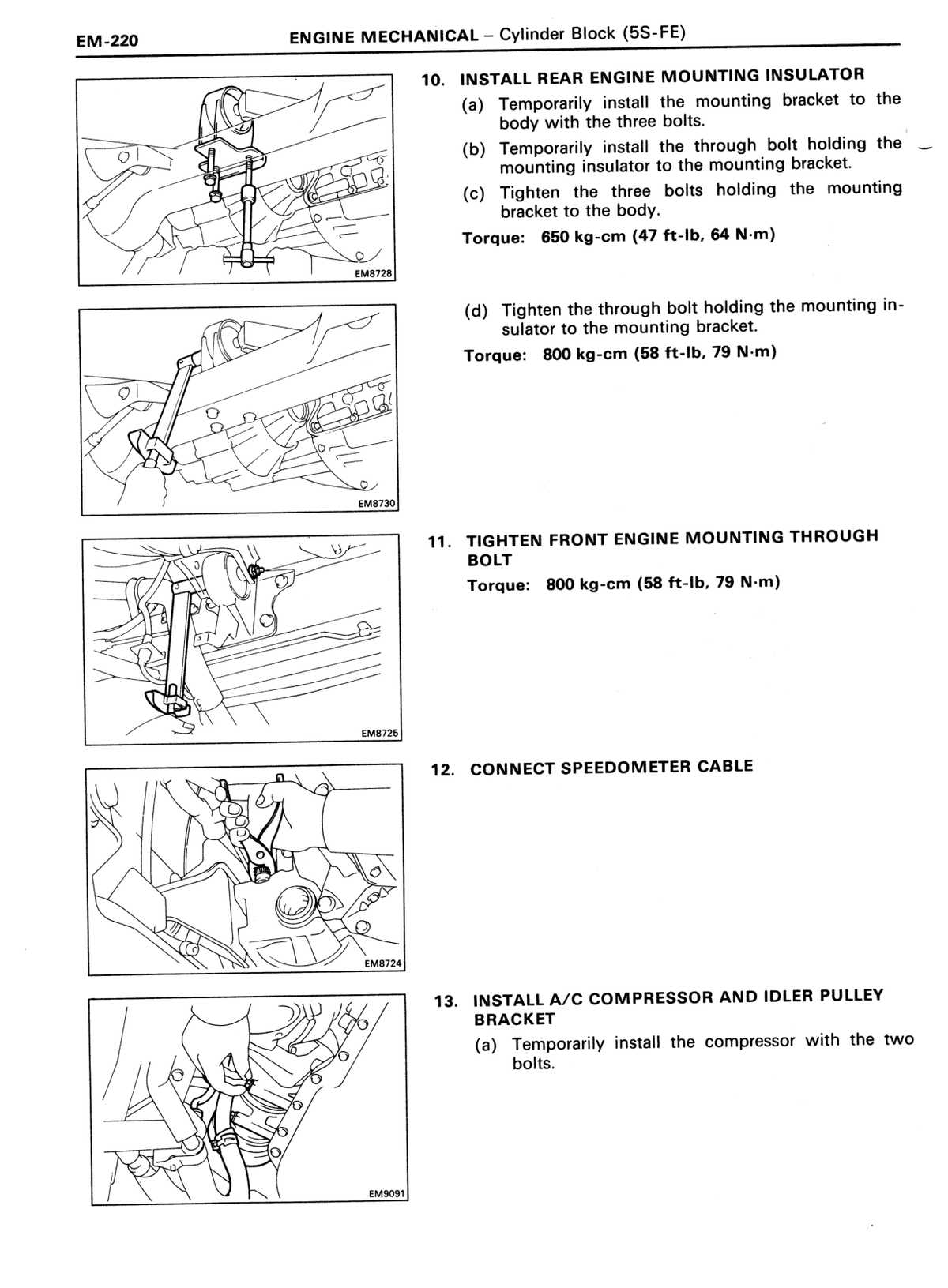

Engine — mechanical Three bolts holding mounting bracket to body Step 10(c) — rear engine mounting insulator 64 650 47 ↗ RM179U1_1991 · p250 OEM manual
Engine — mechanical Through bolt holding mounting insulator to mounting bracket Step 10(d) — rear engine mounting insulator 79 800 58 ↗ RM179U1_1991 · p250 OEM manual
Engine — mechanical Front engine mounting through bolt Step 11 79 800 58 ↗ RM179U1_1991 · p250 OEM manual

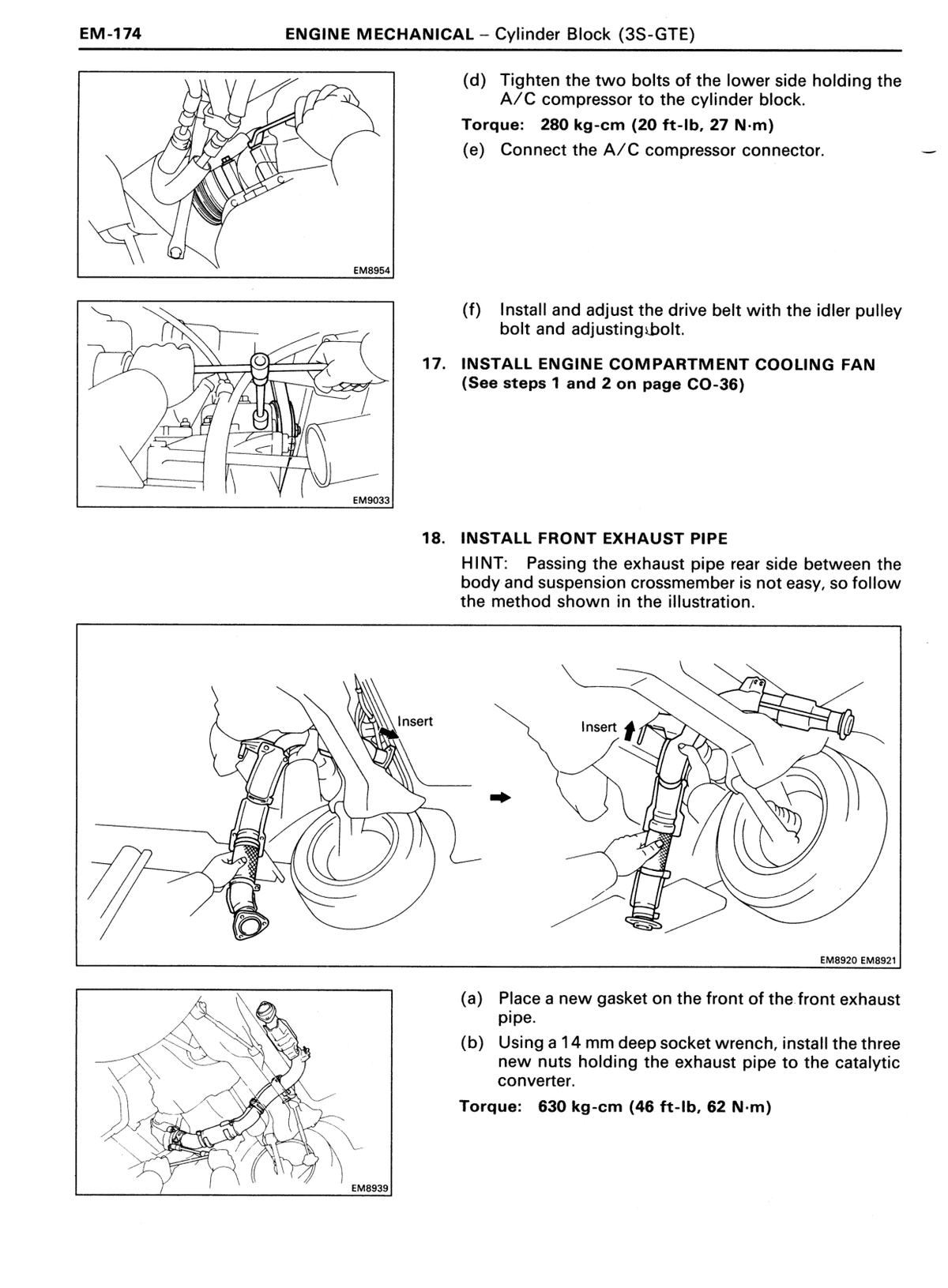

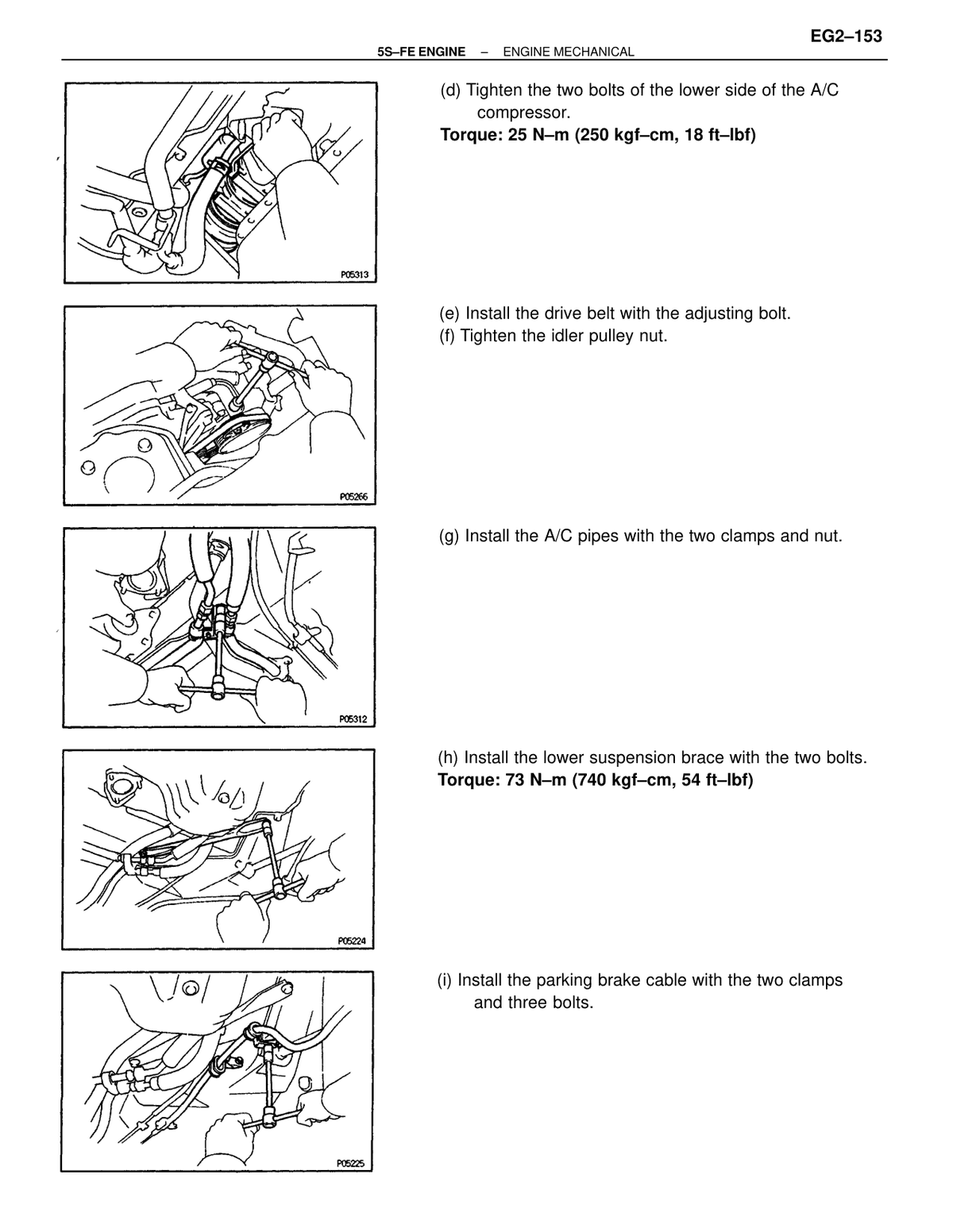

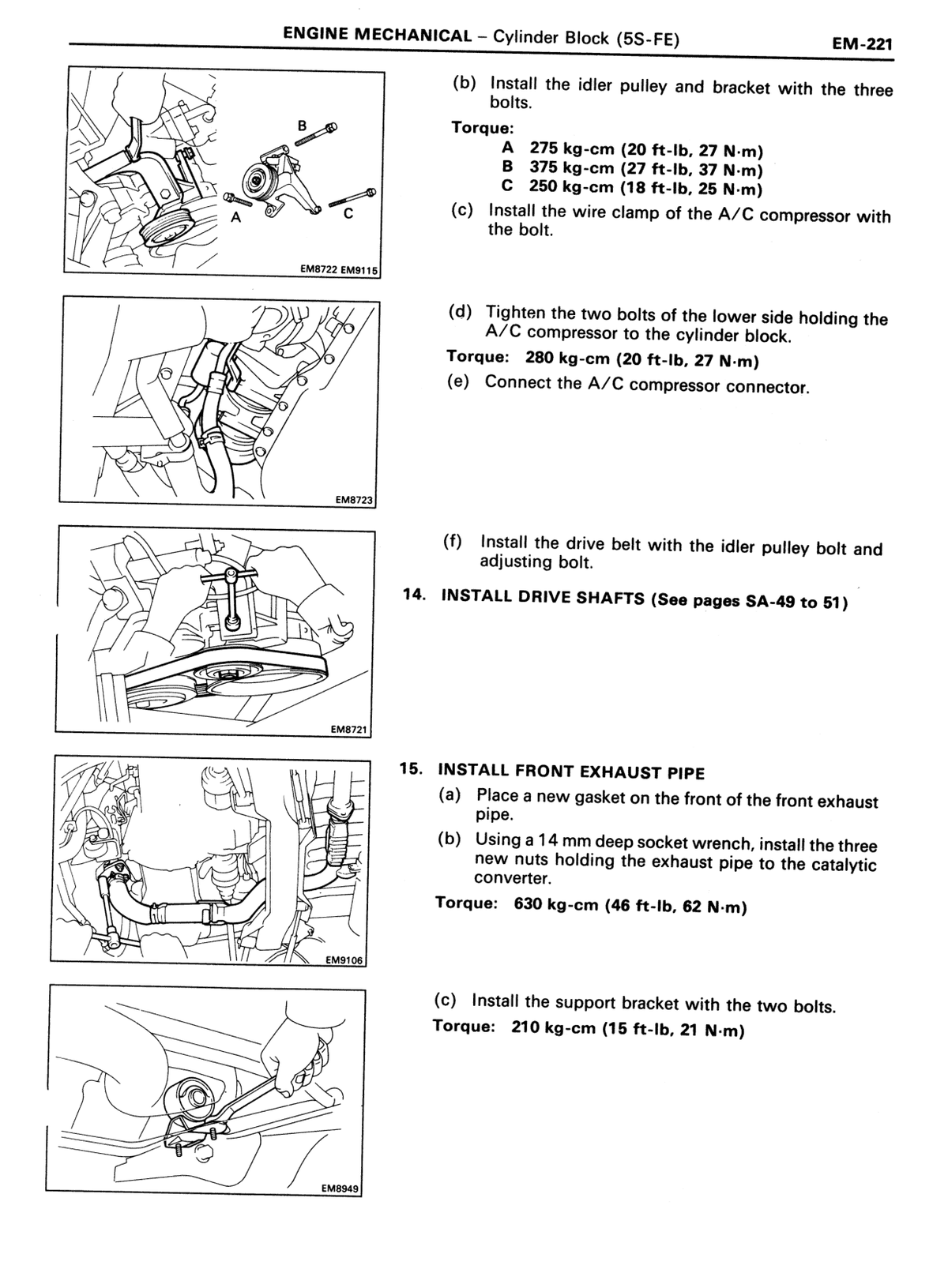

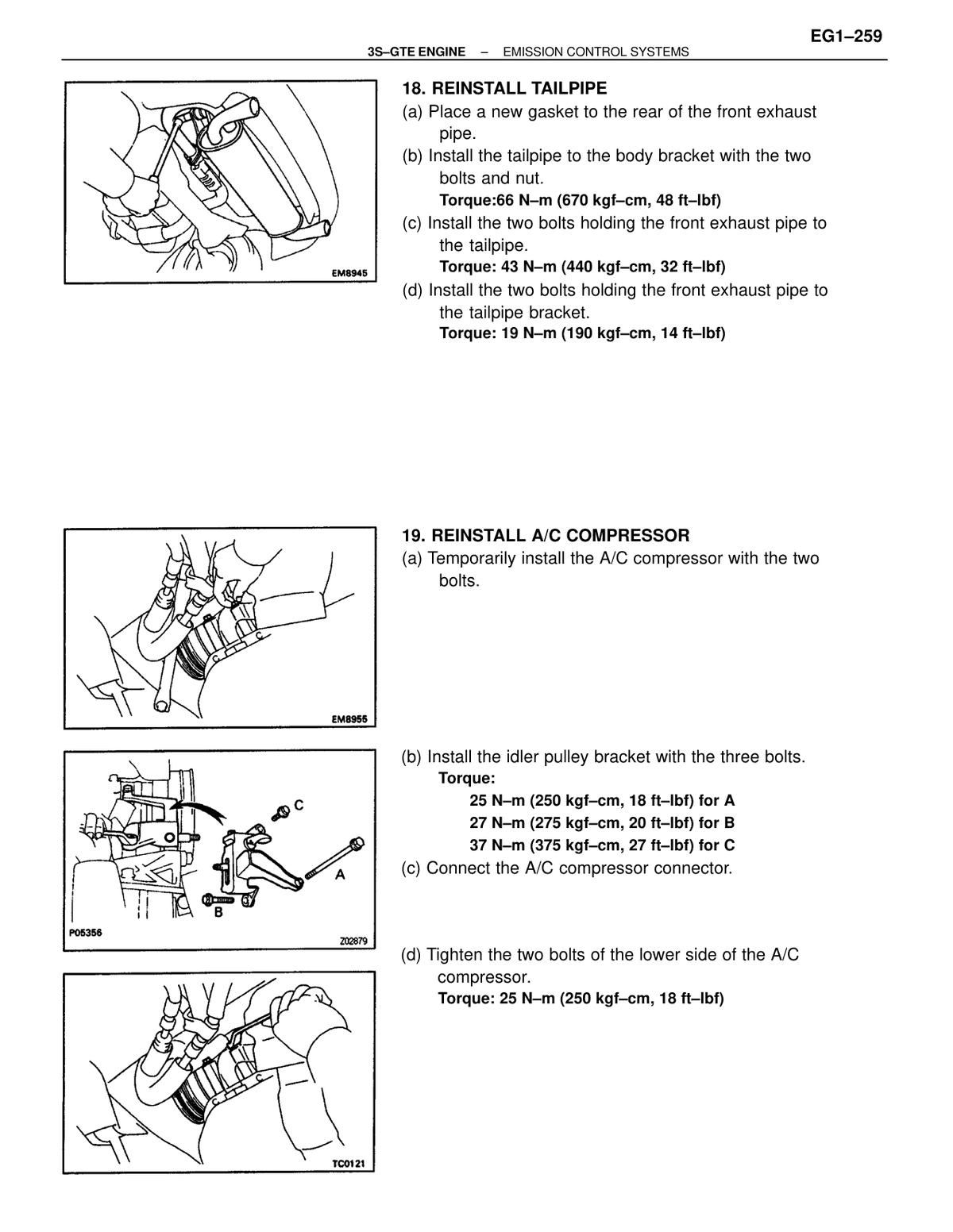

Engine — mechanical A/C compressor lower side bolts to cylinder block 27 280 20 ↗ RM179U1_1991 · p251 OEM manual

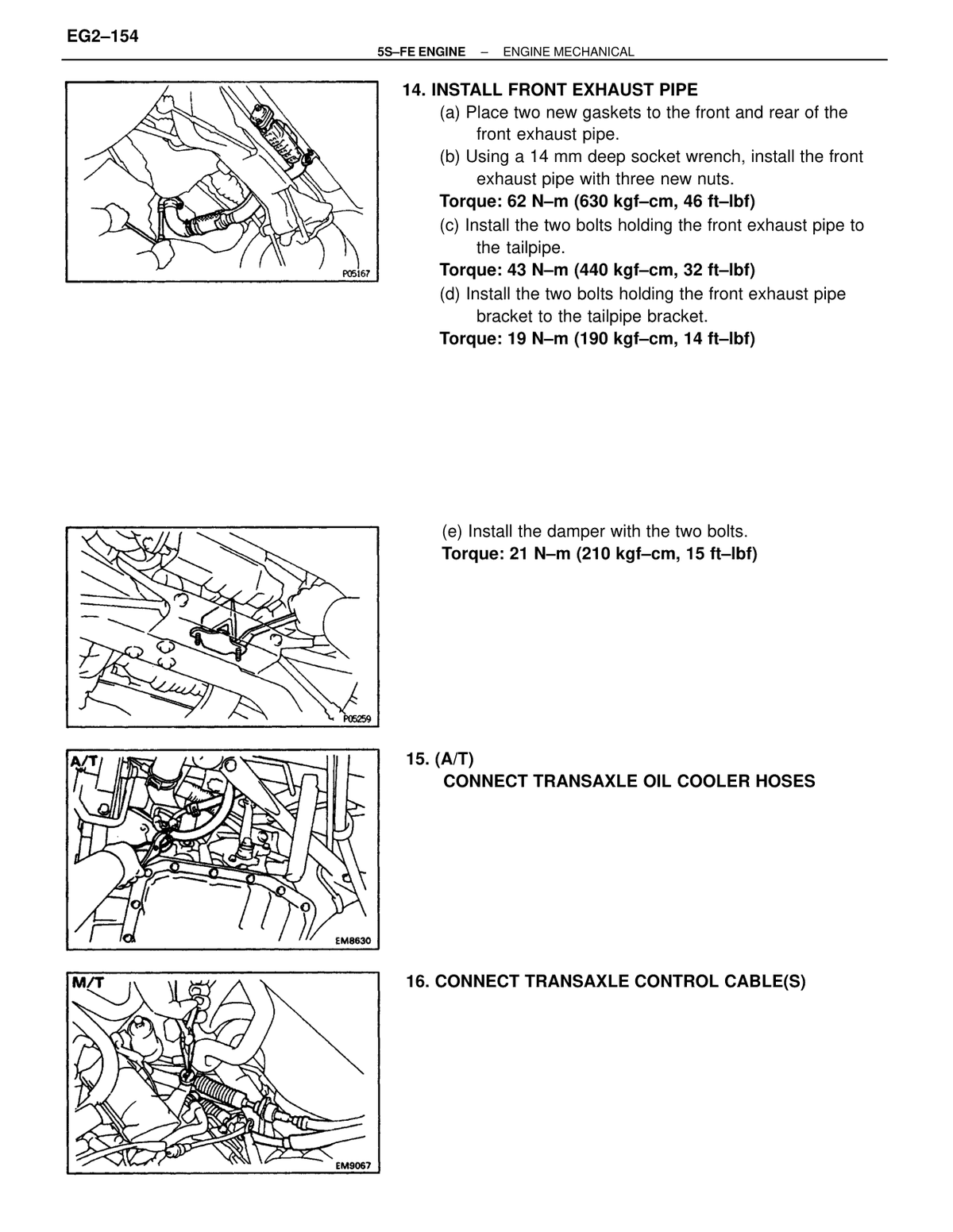

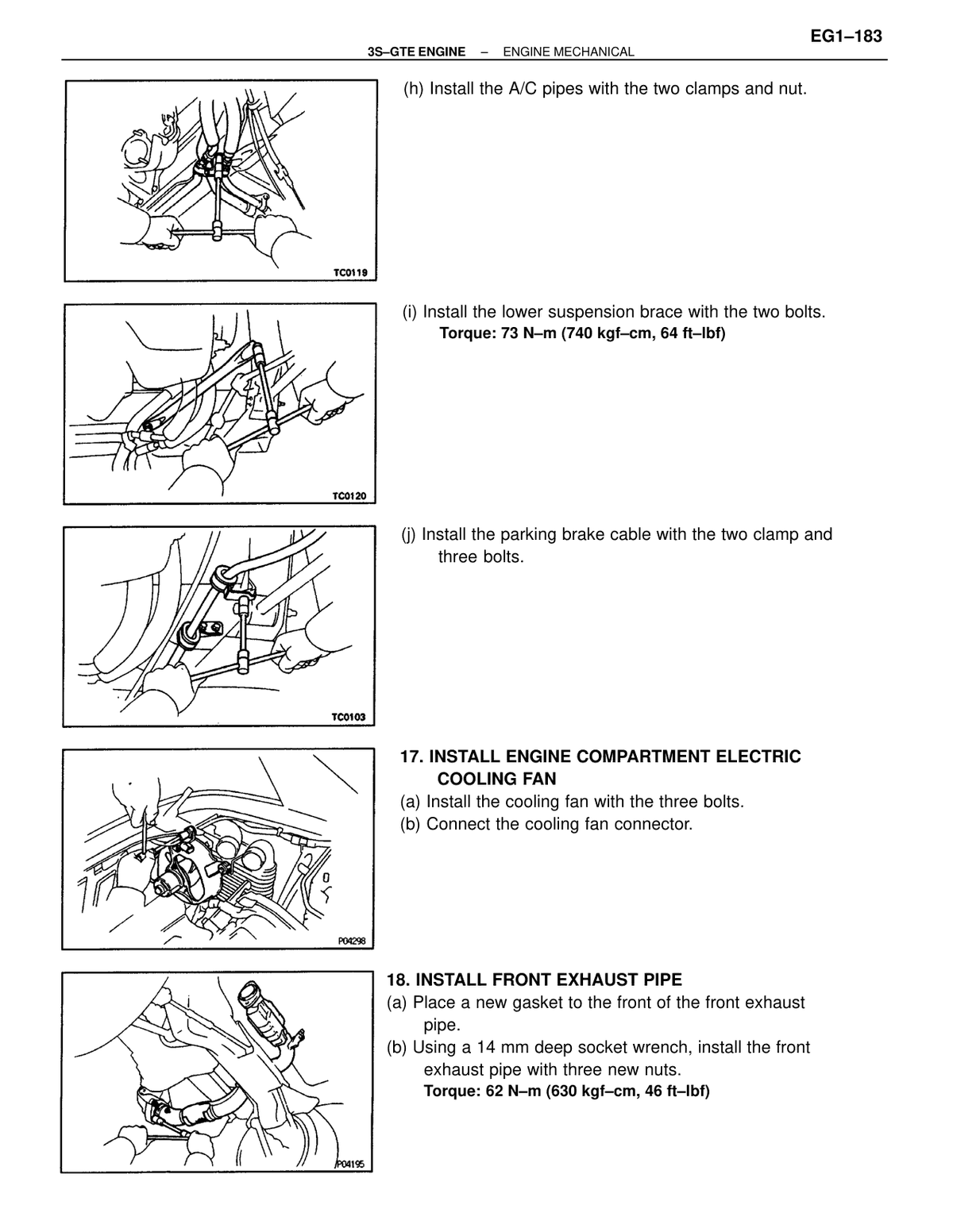

Engine — mechanical Exhaust pipe nuts to catalytic converter 62 630 46 ↗ RM179U1_1991 · p251 OEM manual
Engine — mechanical Front exhaust pipe support bracket bolts 21 210 15 ↗ RM179U1_1991 · p251 OEM manual

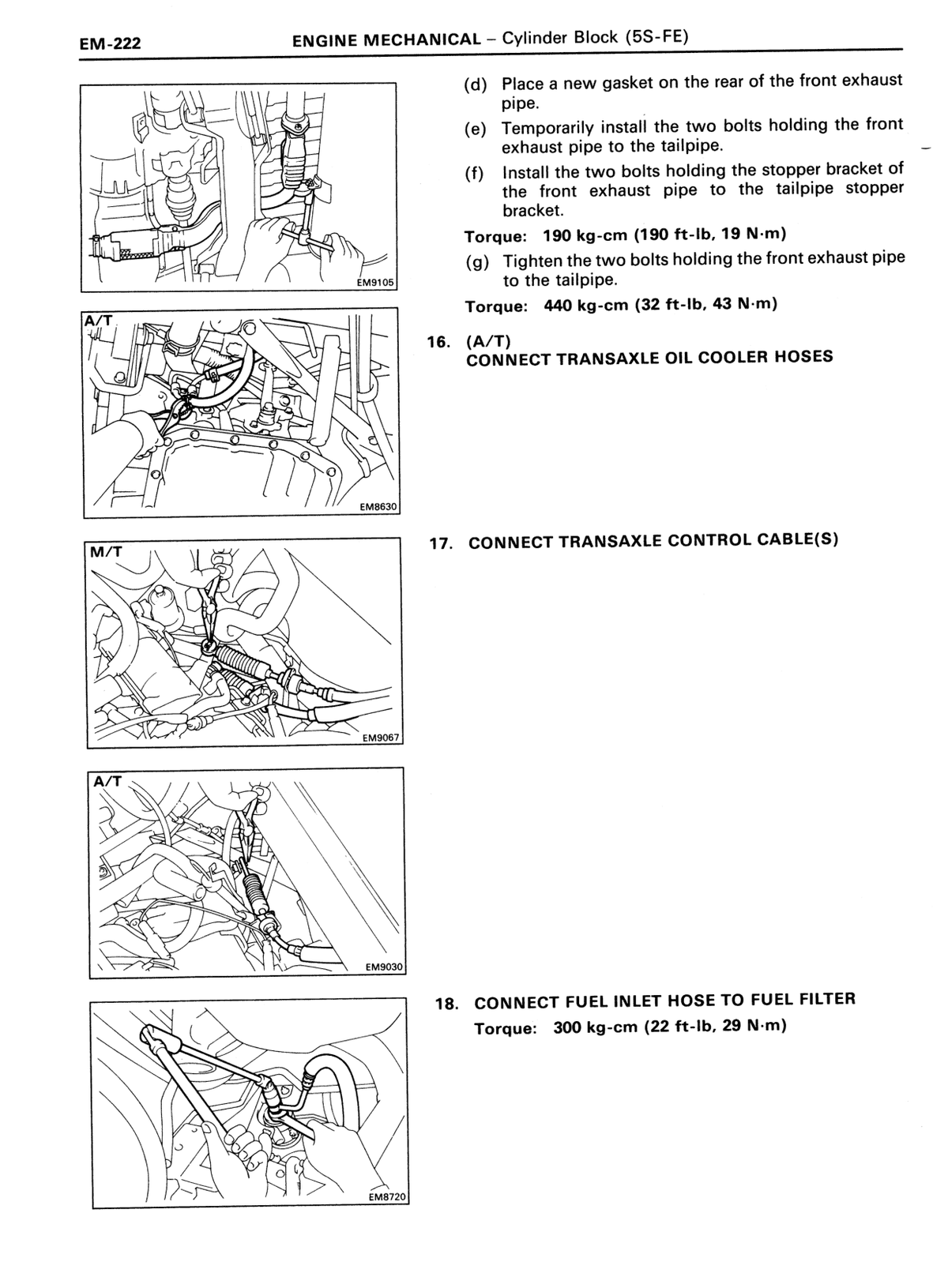

Engine — mechanical Stopper bracket bolts — front exhaust pipe to tailpipe stopper bracket Step 15(f) 19 190 — ↗ RM179U1_1991 · p252 OEM manual
Engine — mechanical Front exhaust pipe to tailpipe bolts Step 15(g) 43 440 32 ↗ RM179U1_1991 · p252 OEM manual

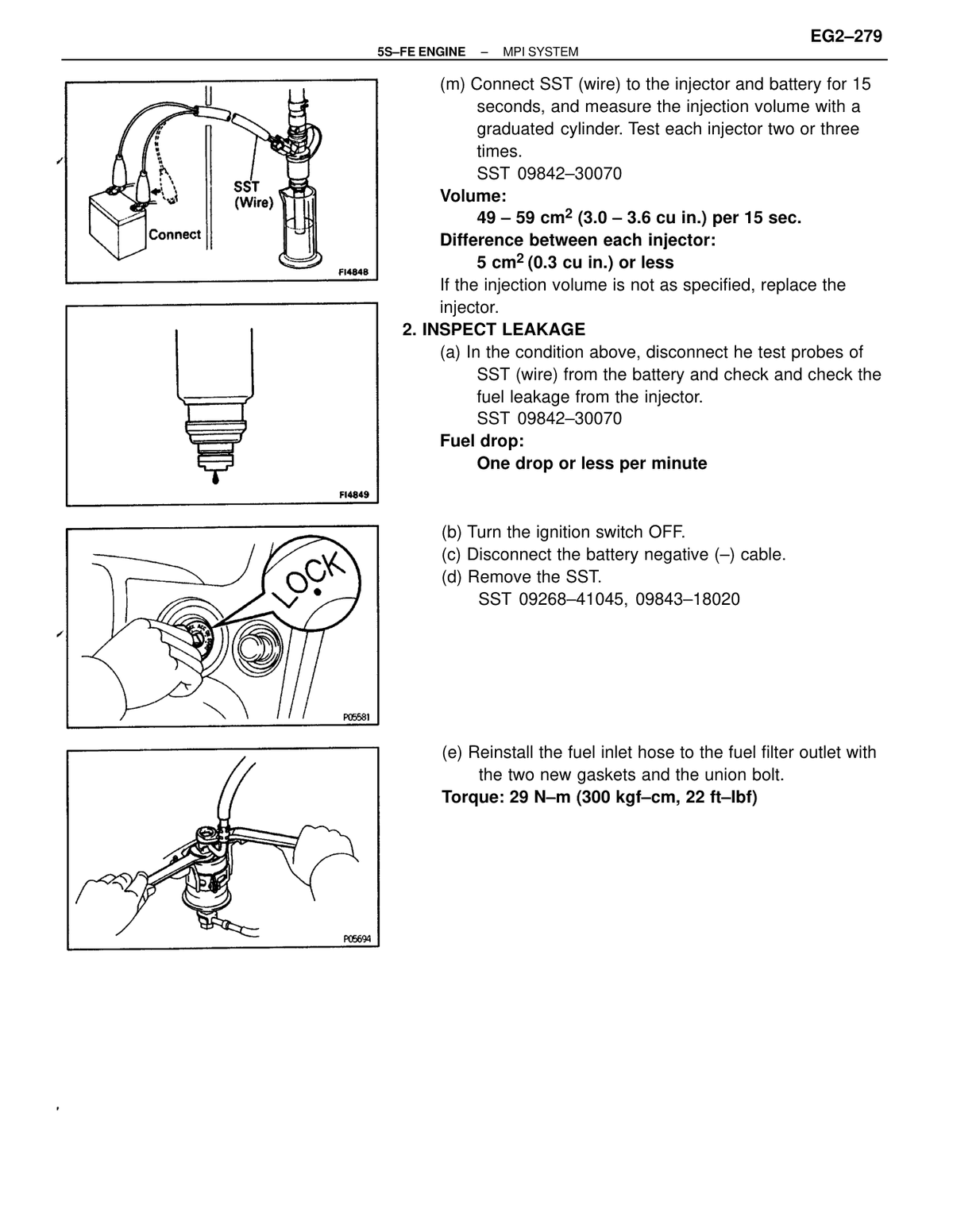

Engine — mechanical Fuel inlet hose to fuel filter Step 18 29 300 22 ↗ RM179U1_1991 · p252 OEM manual

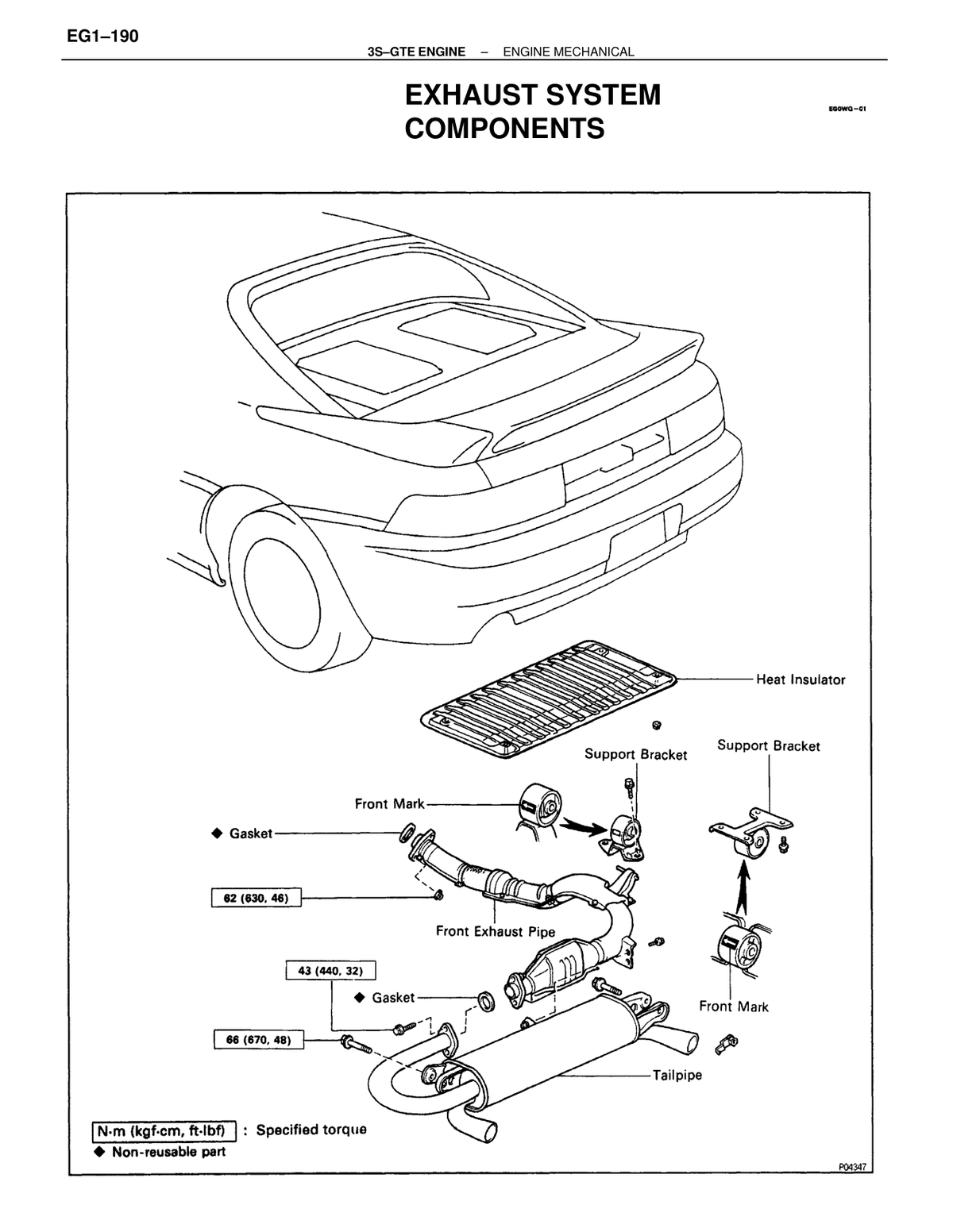

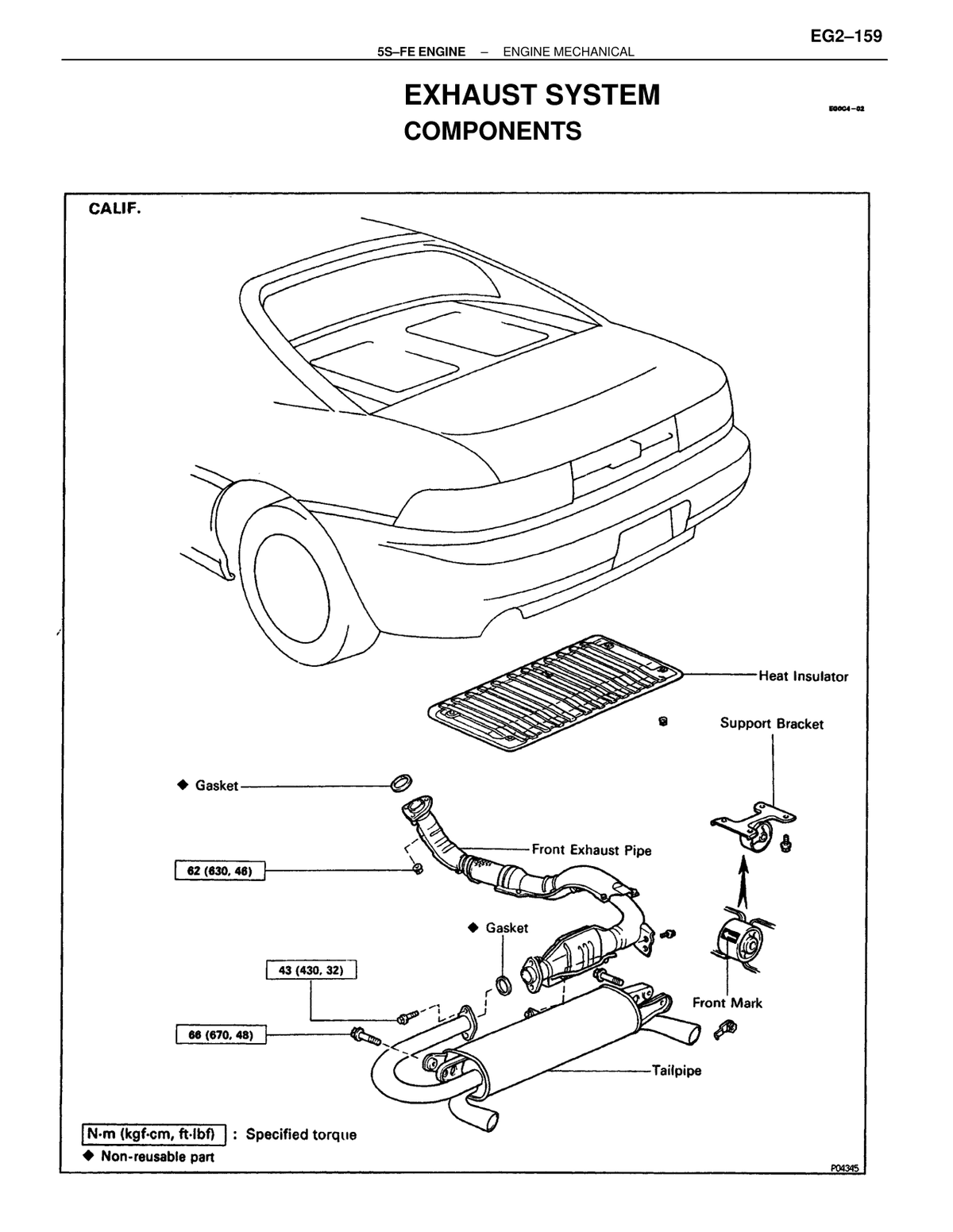

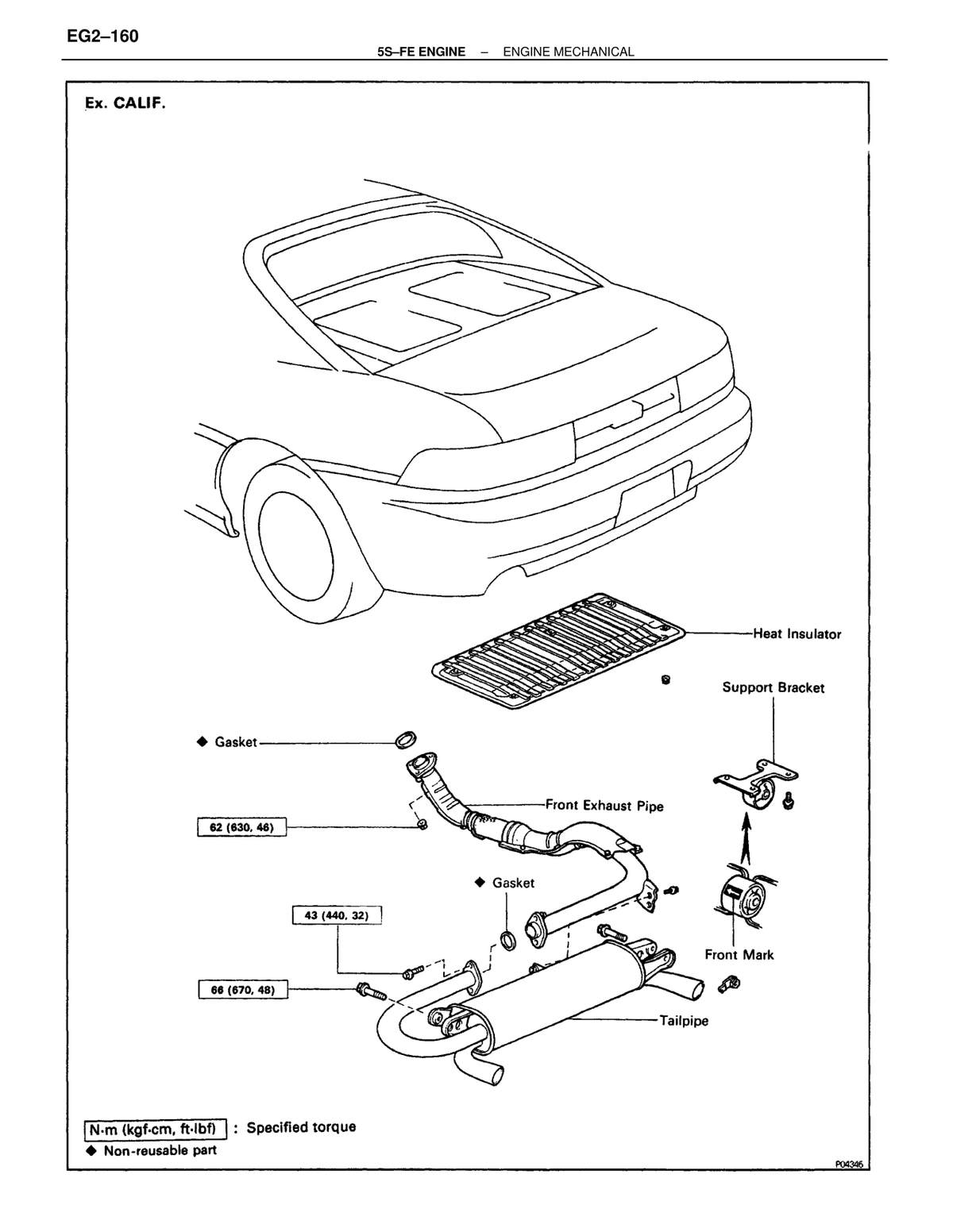

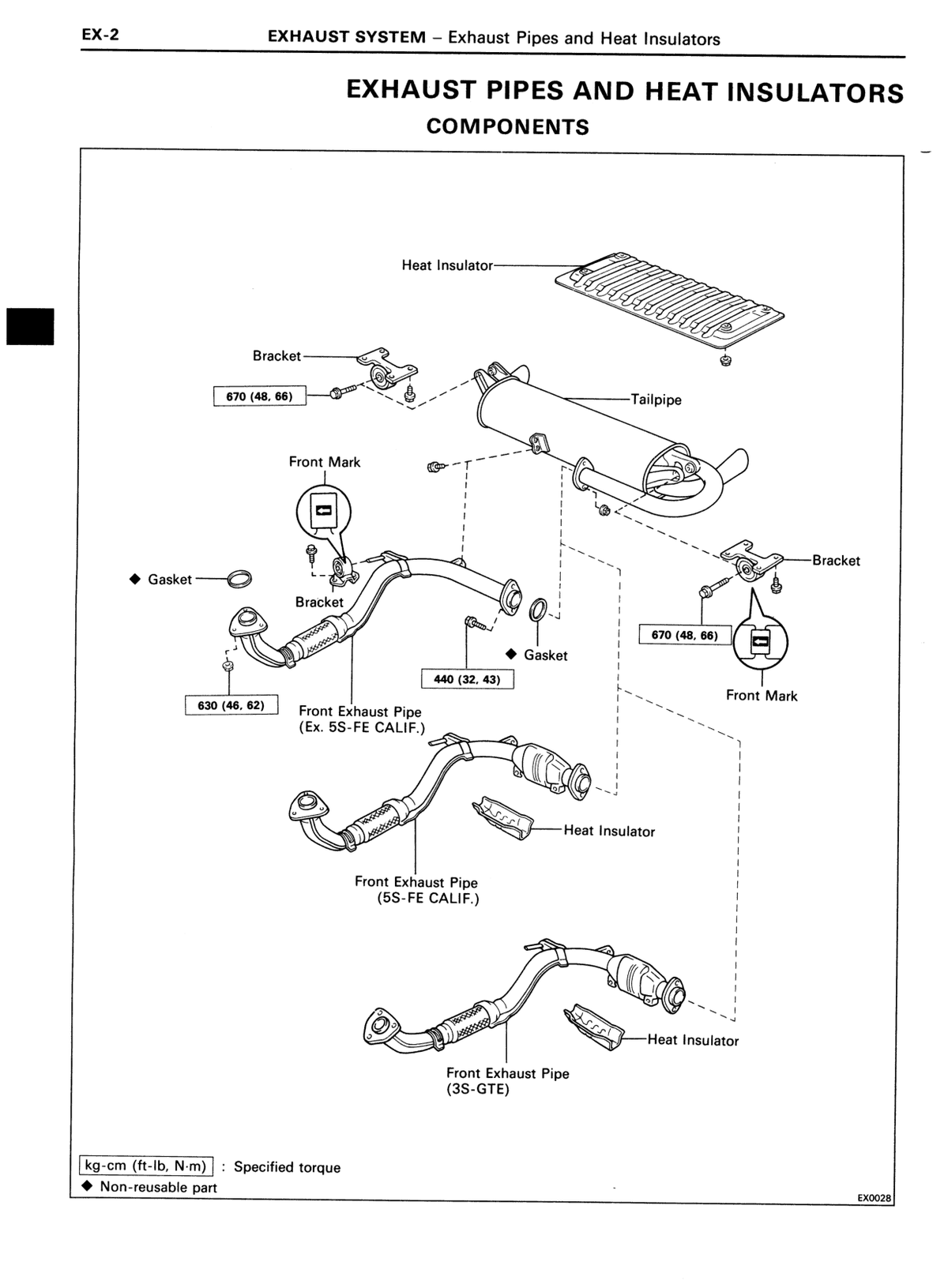

Exhaust Front exhaust pipe to manifold flange nut (Ex. 5S-FE CALIF.) 62 630 46 ↗ RM179U1_1991 · p259 OEM manual

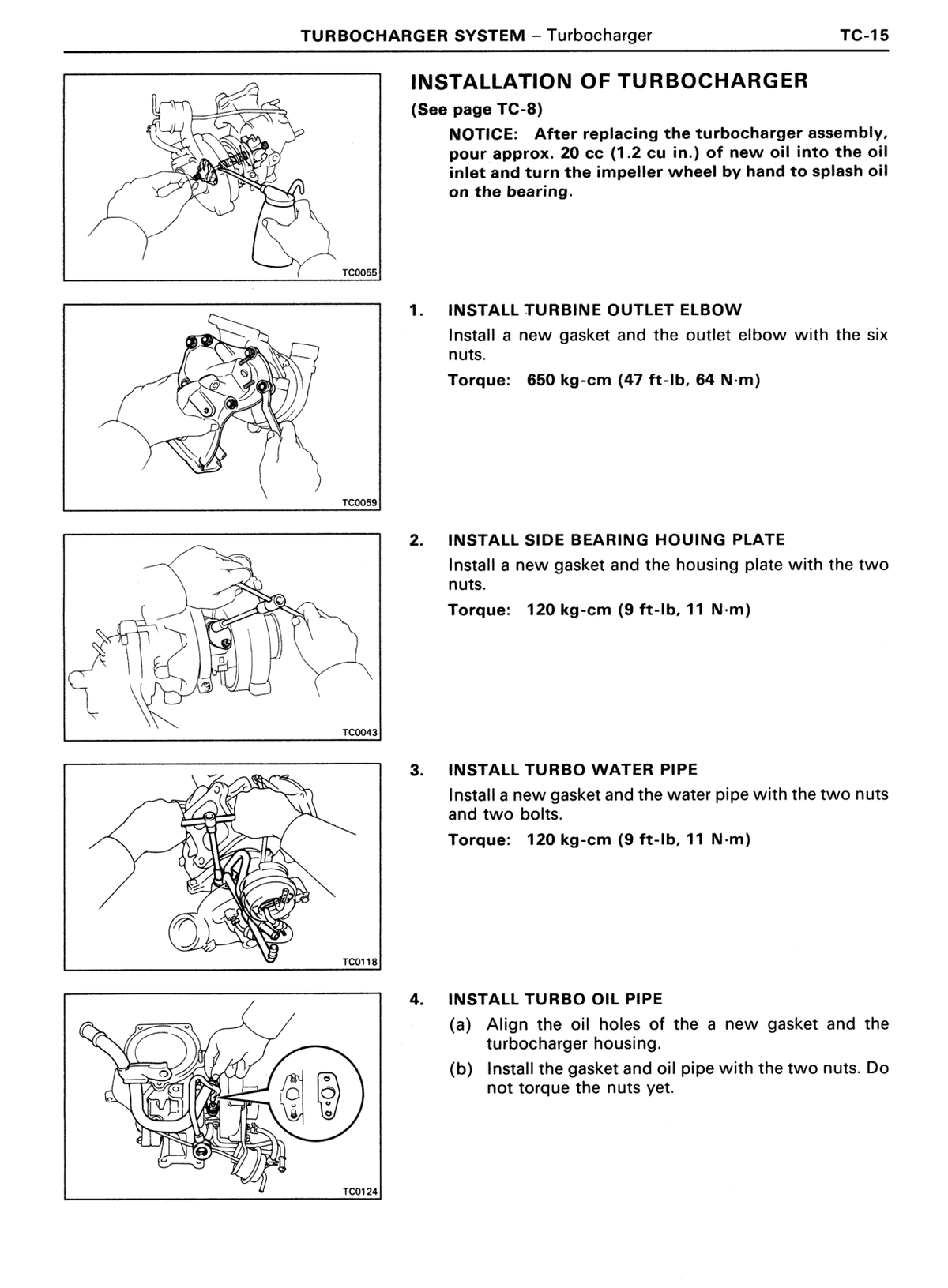

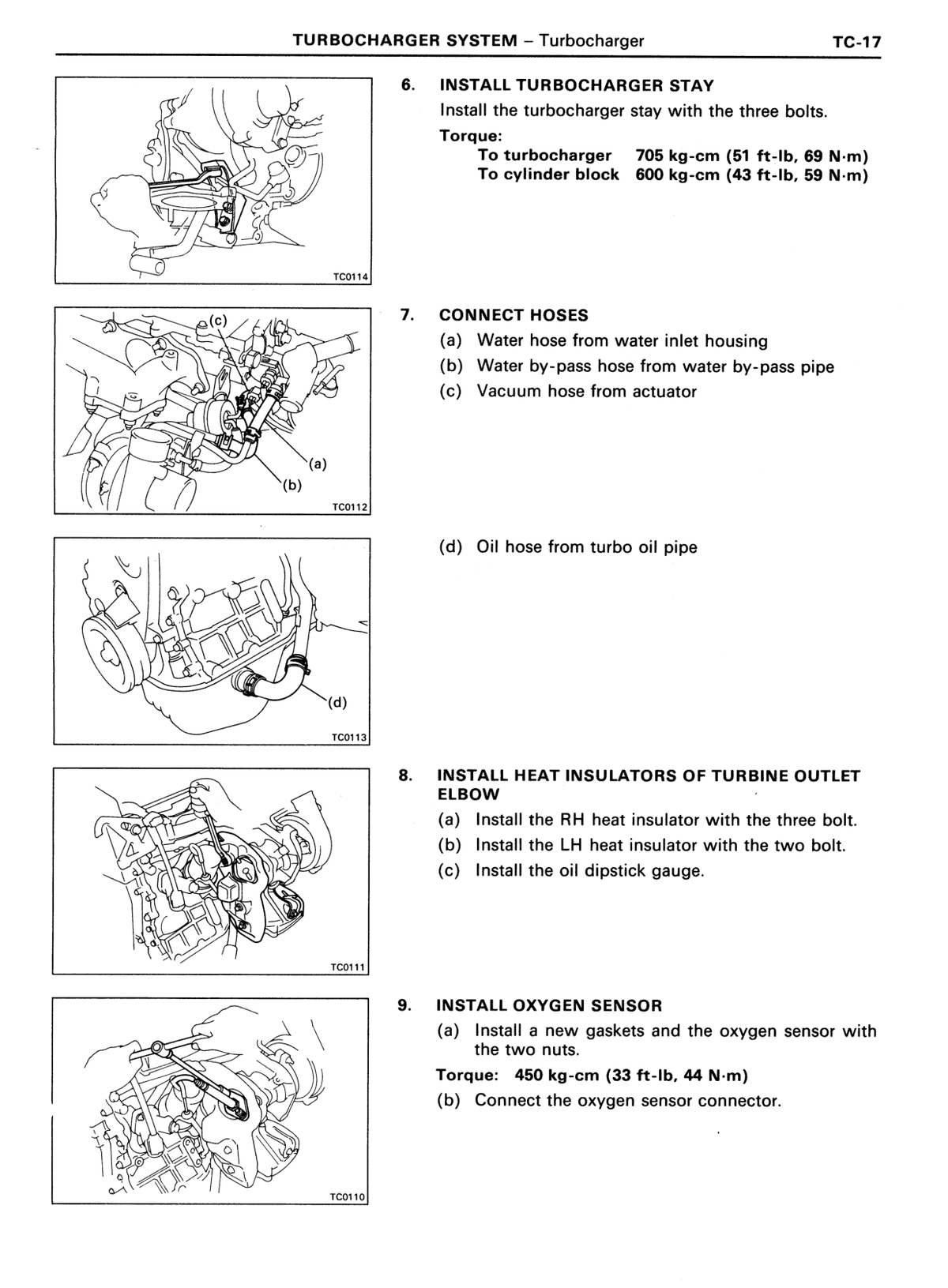

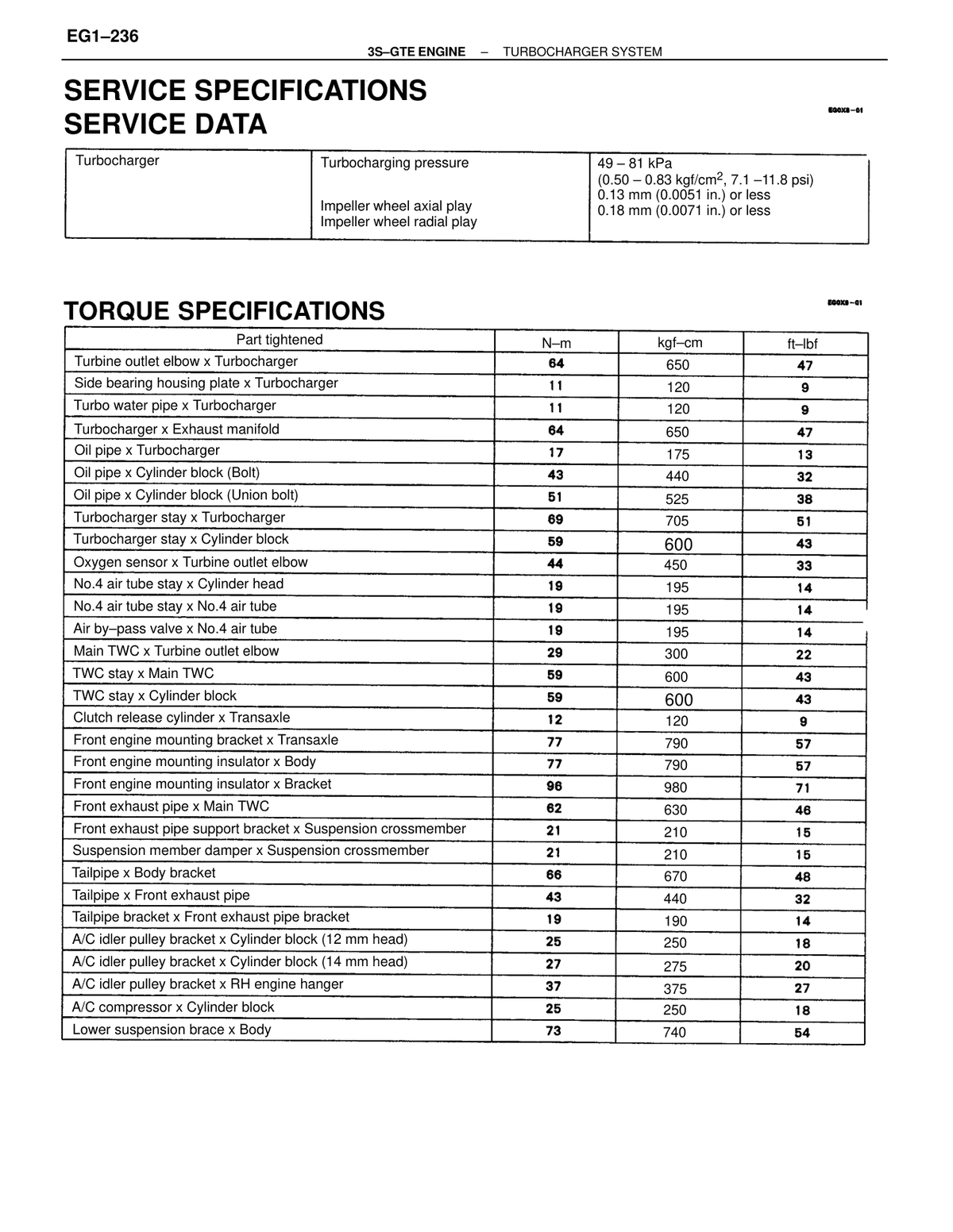

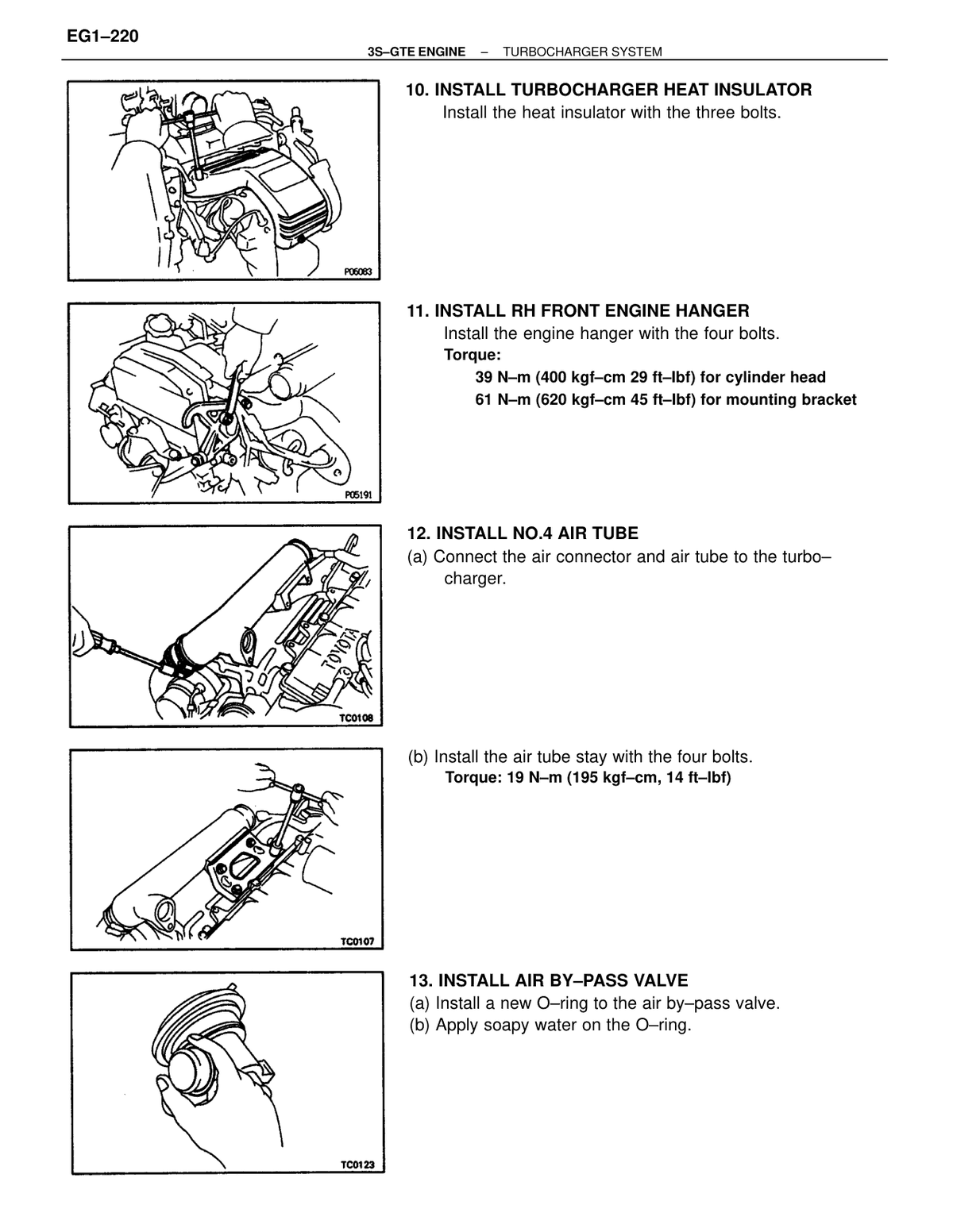

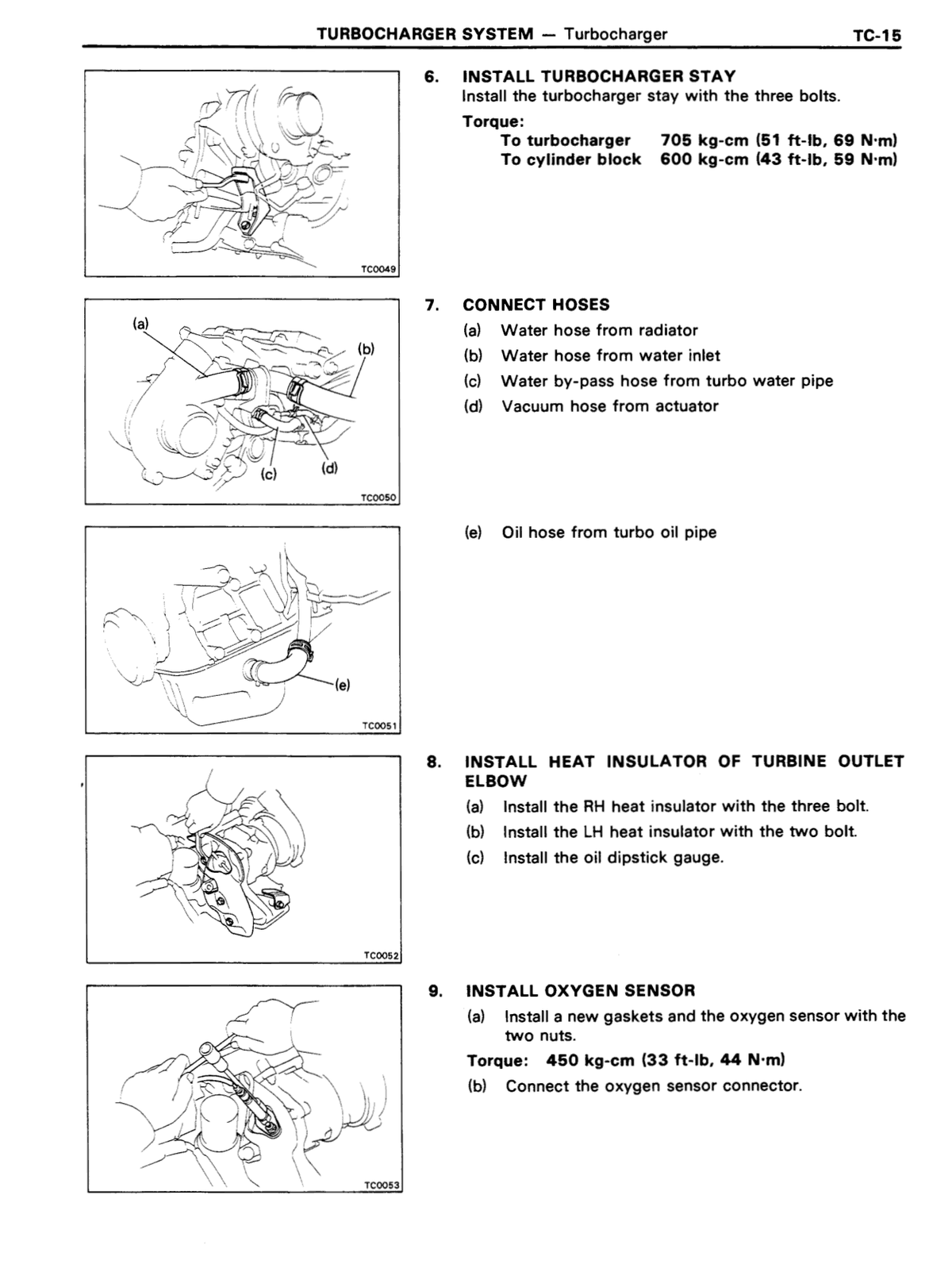

Turbocharger Side bearing housing plate nuts Step 2 — two nuts 11 120 — ↗ RM179U1_1991 · p274 OEM manual
Turbocharger Turbo water pipe nuts and bolts Step 3 — two nuts and two bolts 11 120 — ↗ RM179U1_1991 · p274 OEM manual

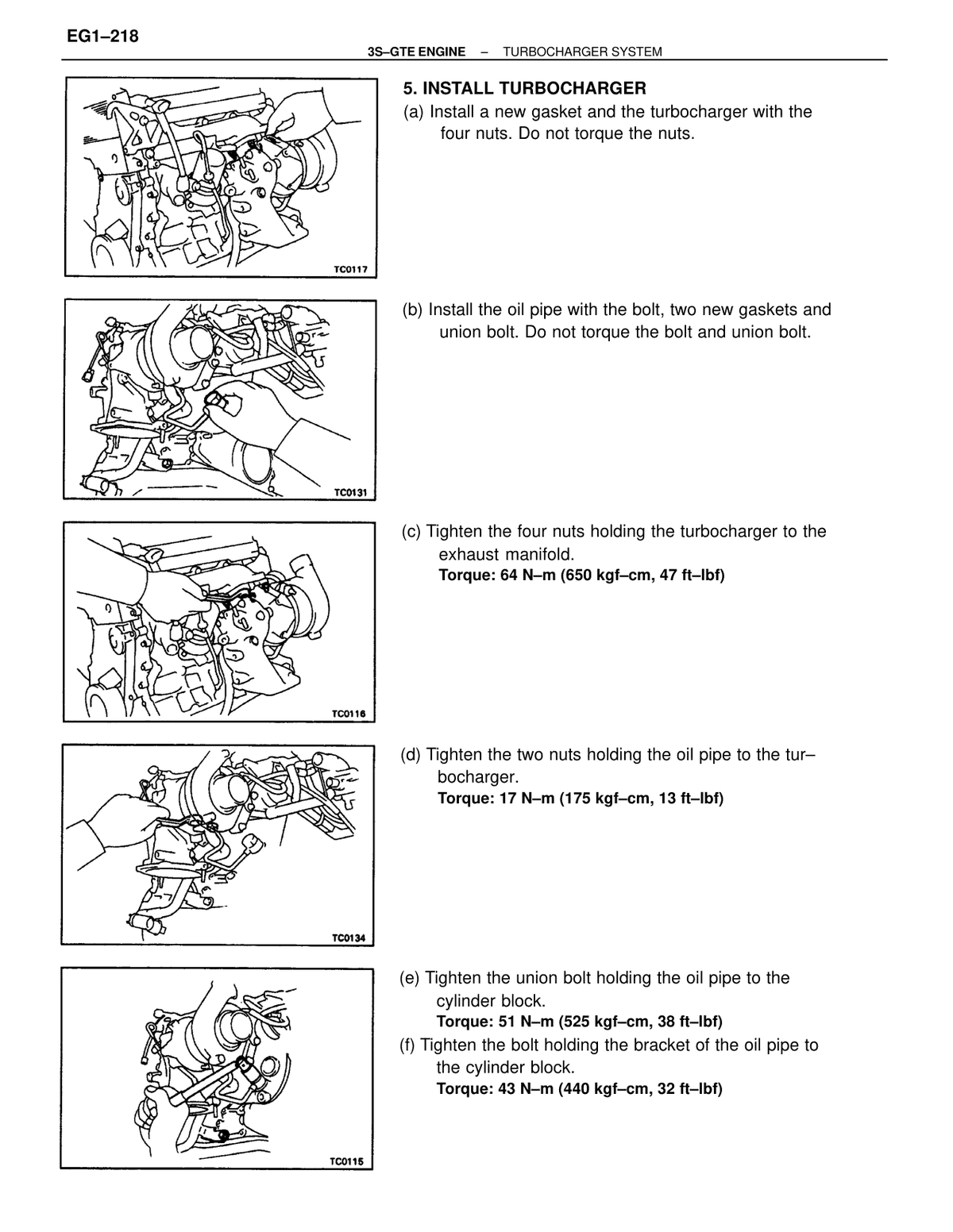

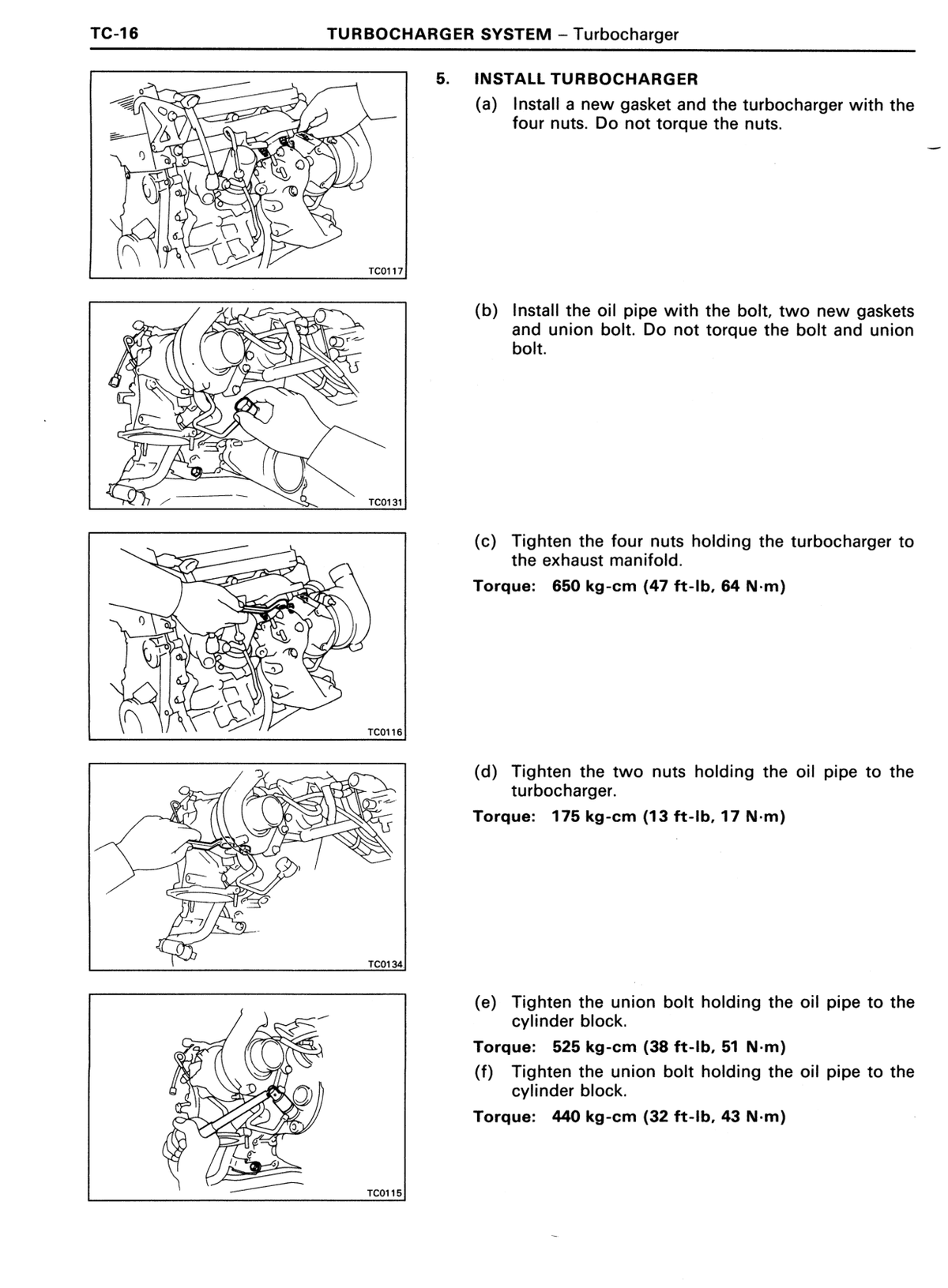

Turbocharger Four nuts holding turbocharger to exhaust manifold step (c) 64 650 47 ↗ RM179U1_1991 · p275 OEM manual
Turbocharger Two nuts holding oil pipe to turbocharger step (d) 17 175 13 ↗ RM179U1_1991 · p275 OEM manual
Turbocharger Union bolt holding oil pipe to cylinder block step (e) 51 525 38 ↗ RM179U1_1991 · p275 OEM manual
Turbocharger Union bolt holding oil pipe to cylinder block step (f) 43 440 32 ↗ RM179U1_1991 · p275 OEM manual

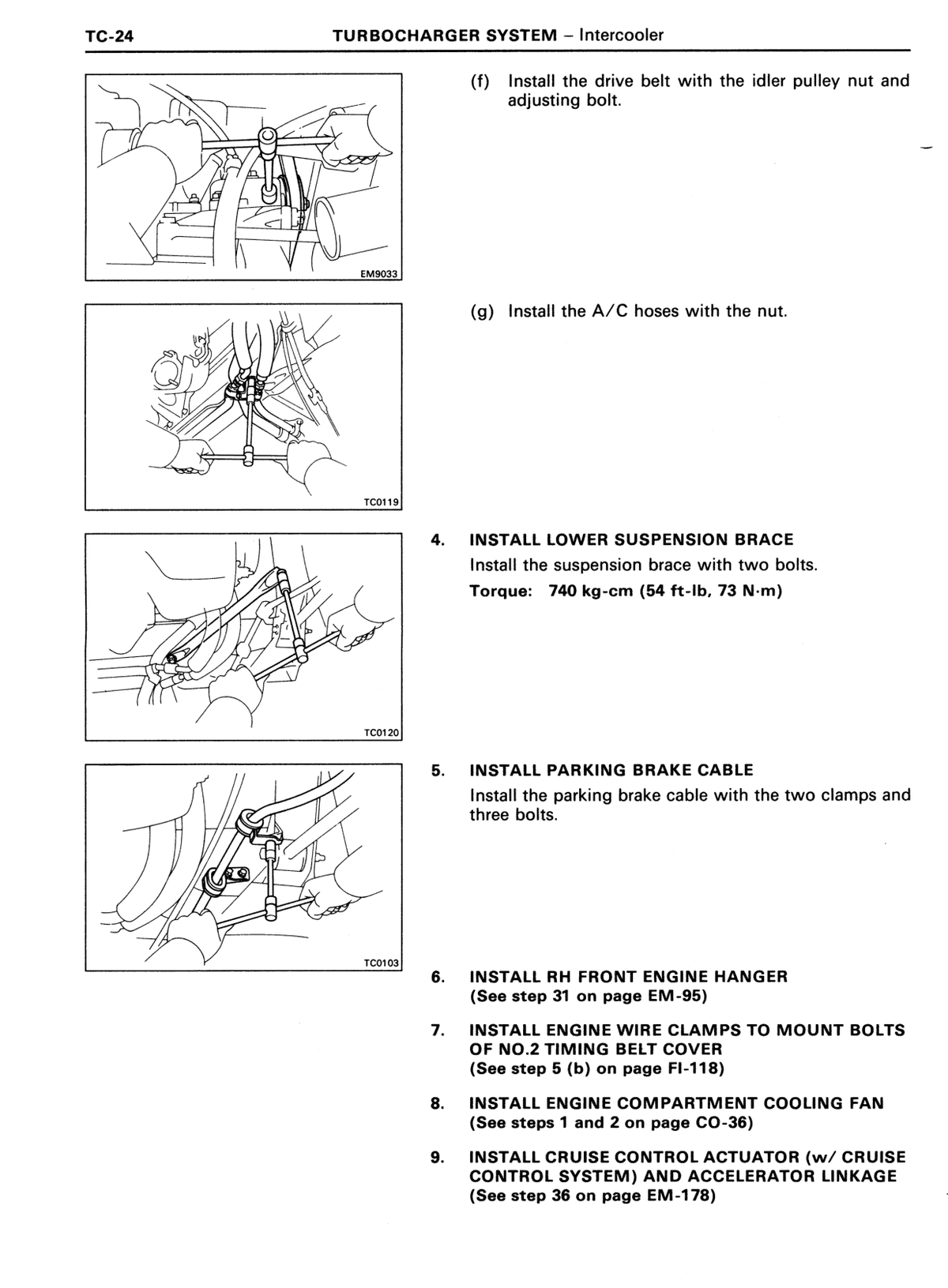

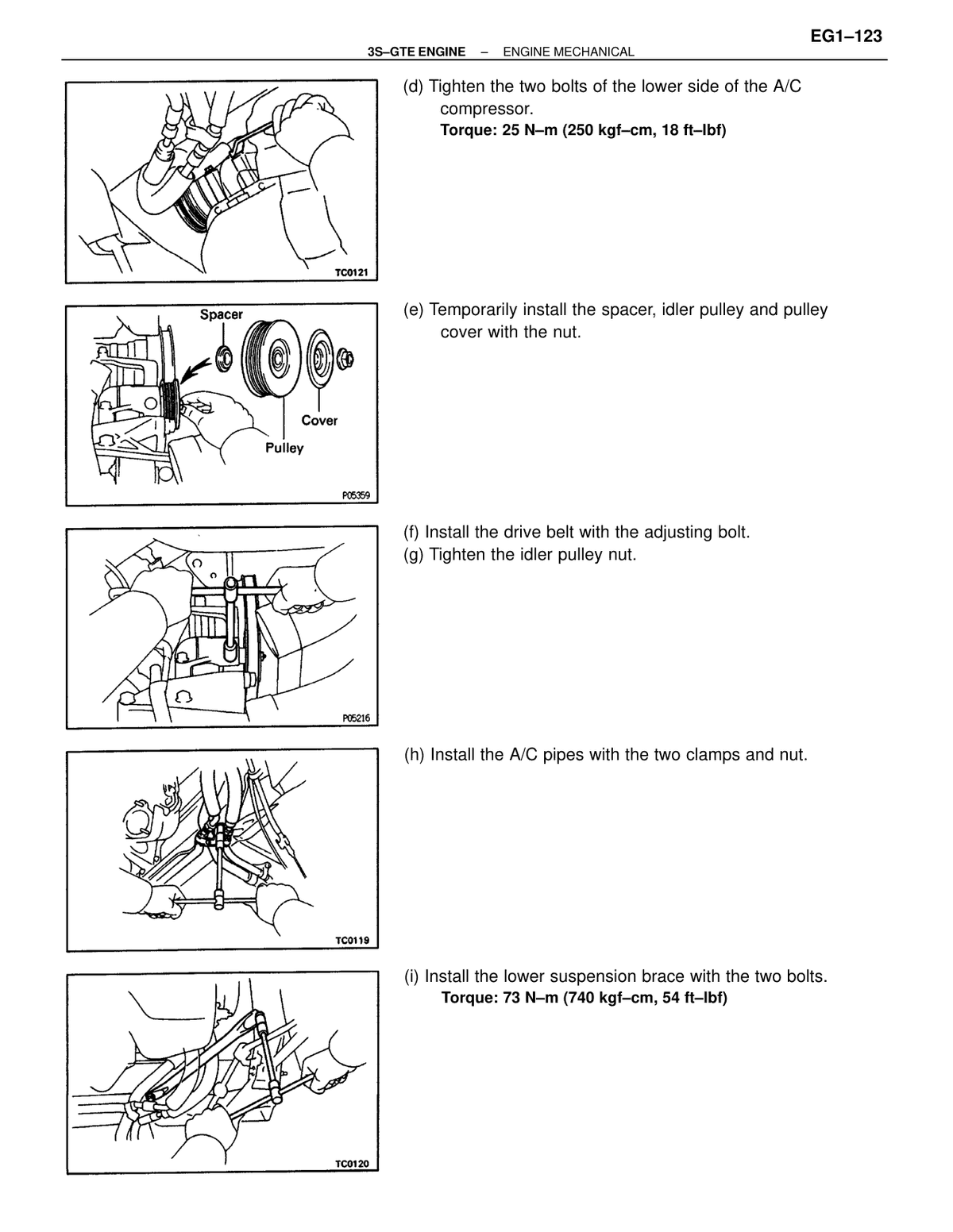

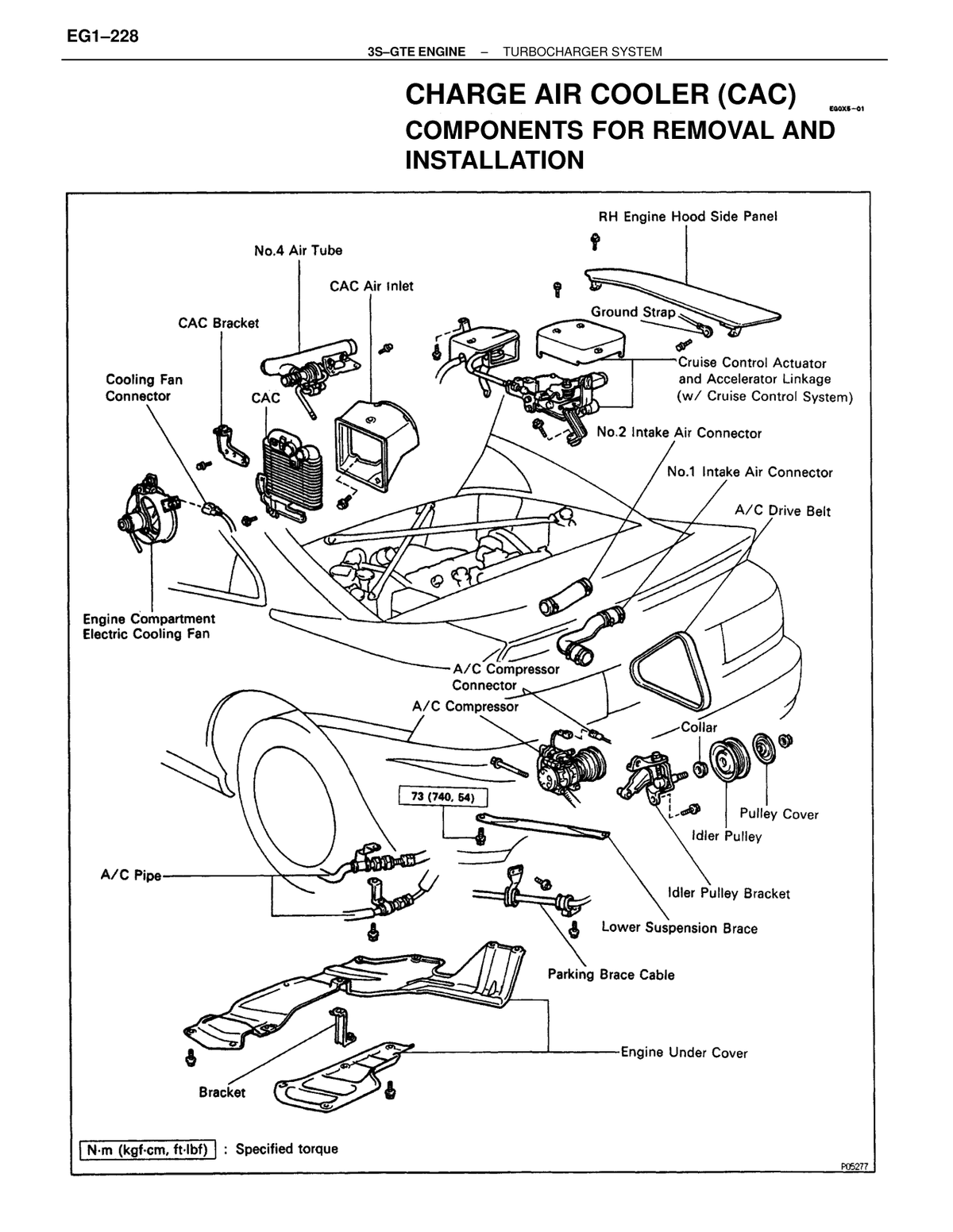

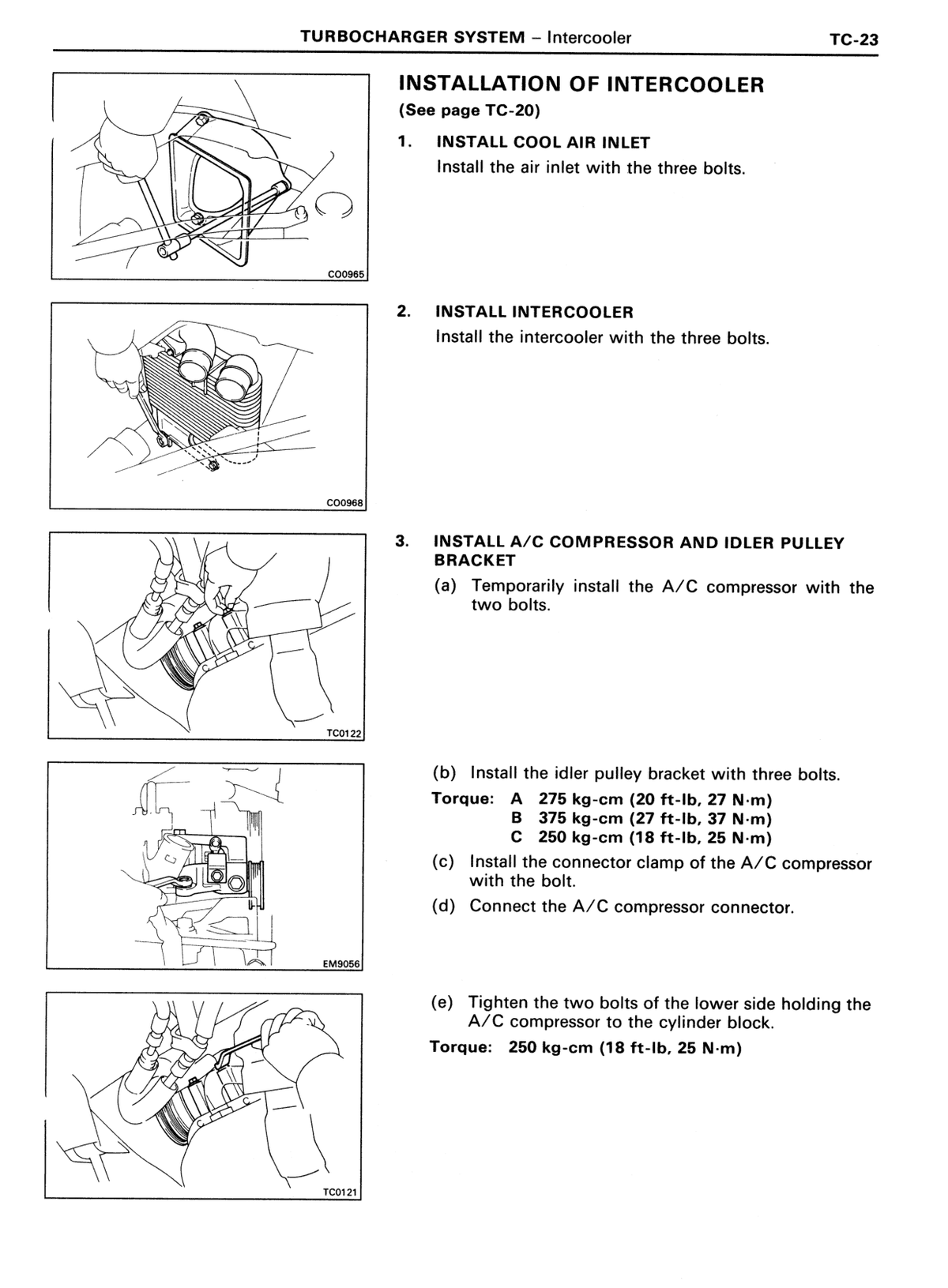

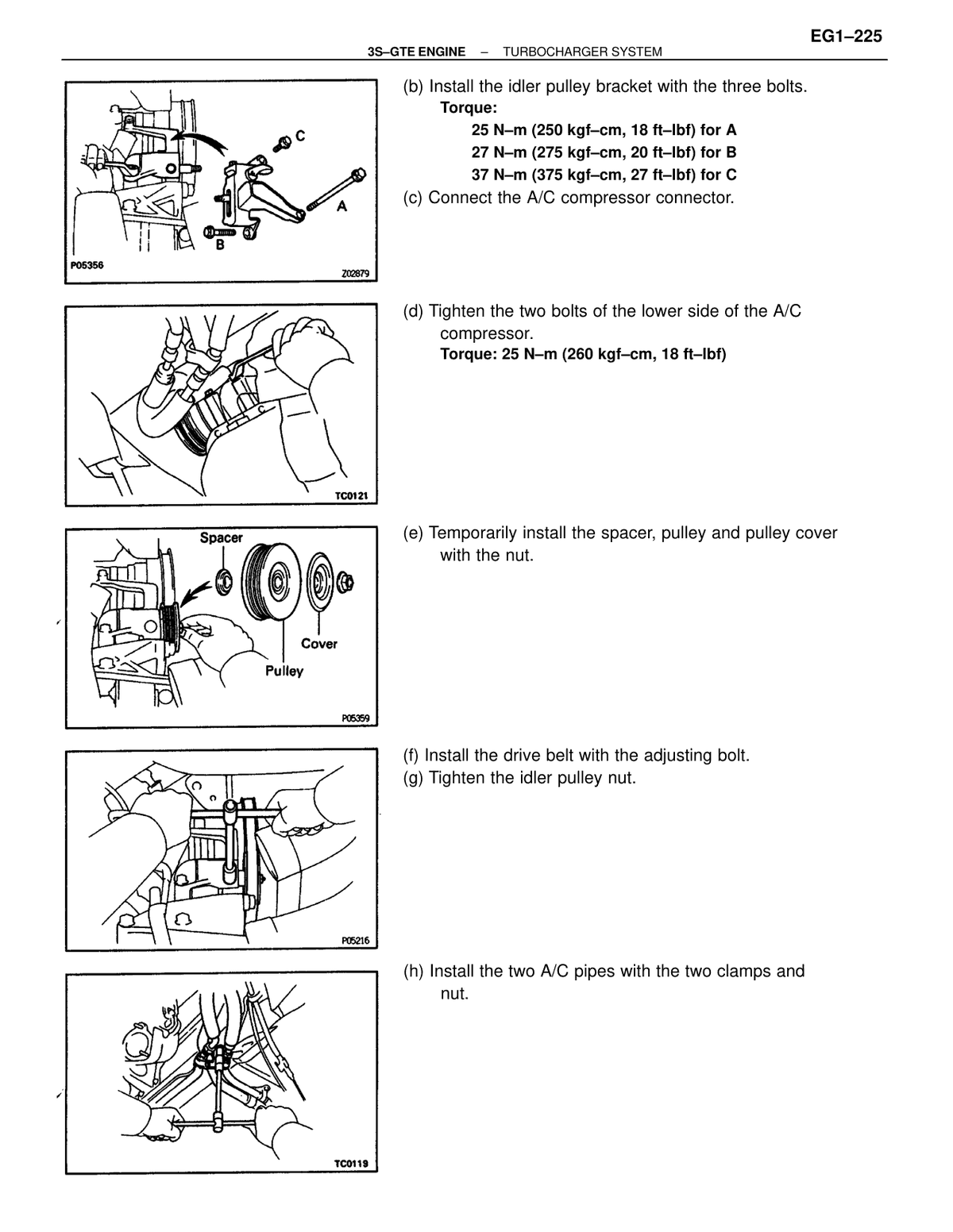

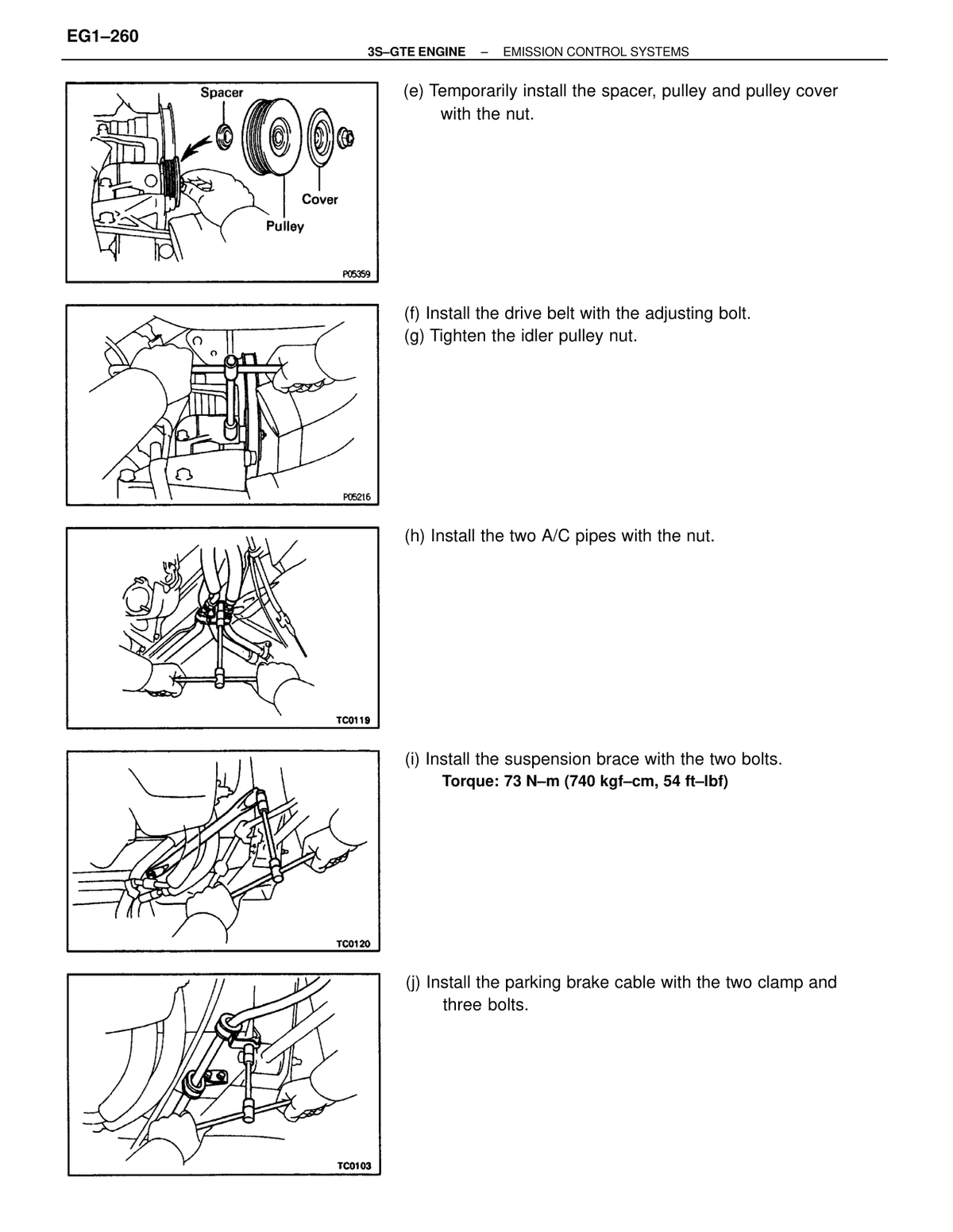

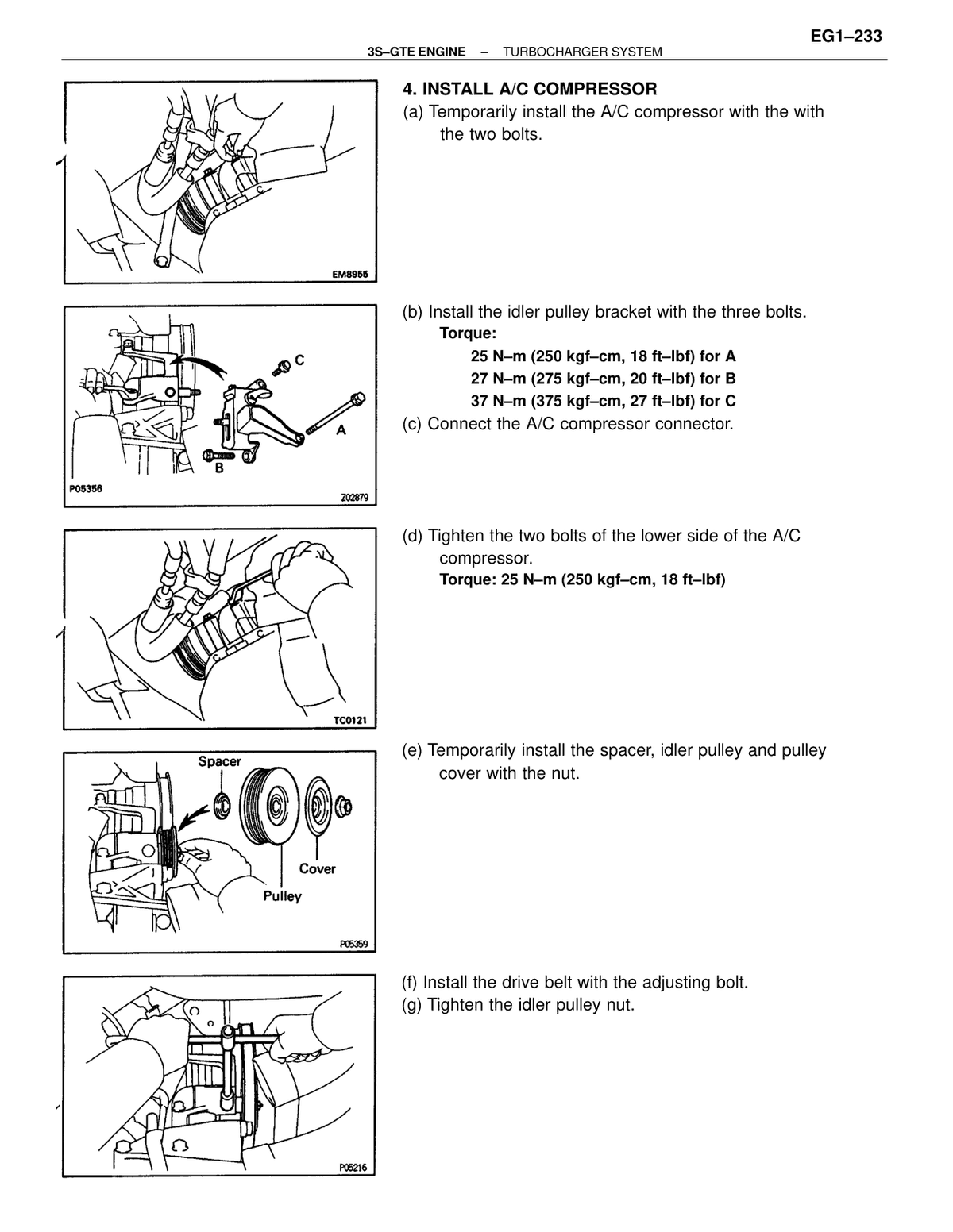

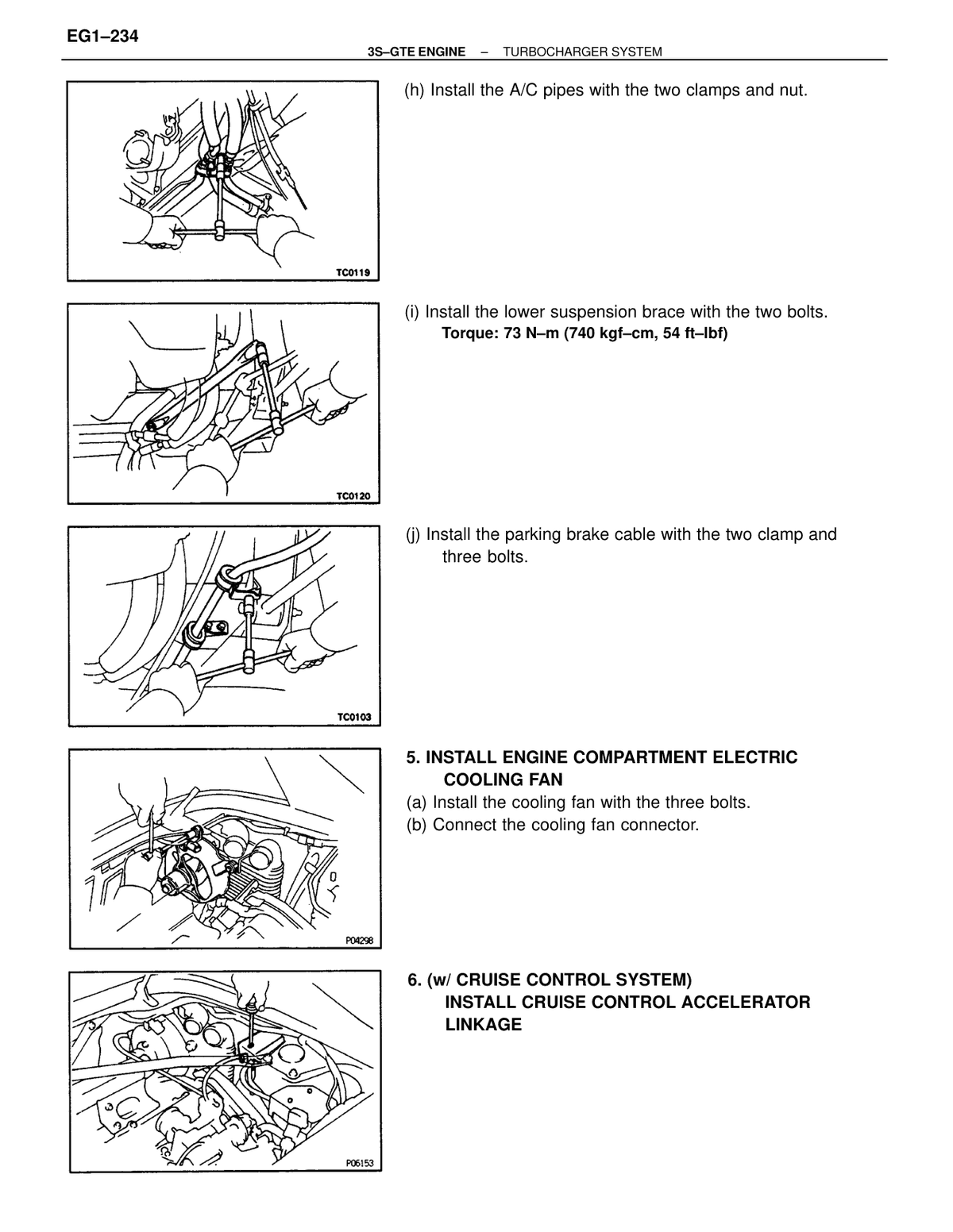

Turbocharger A/C compressor lower side bolts to cylinder block Step 3(e) 25 250 18 ↗ RM179U1_1991 · p282 OEM manual

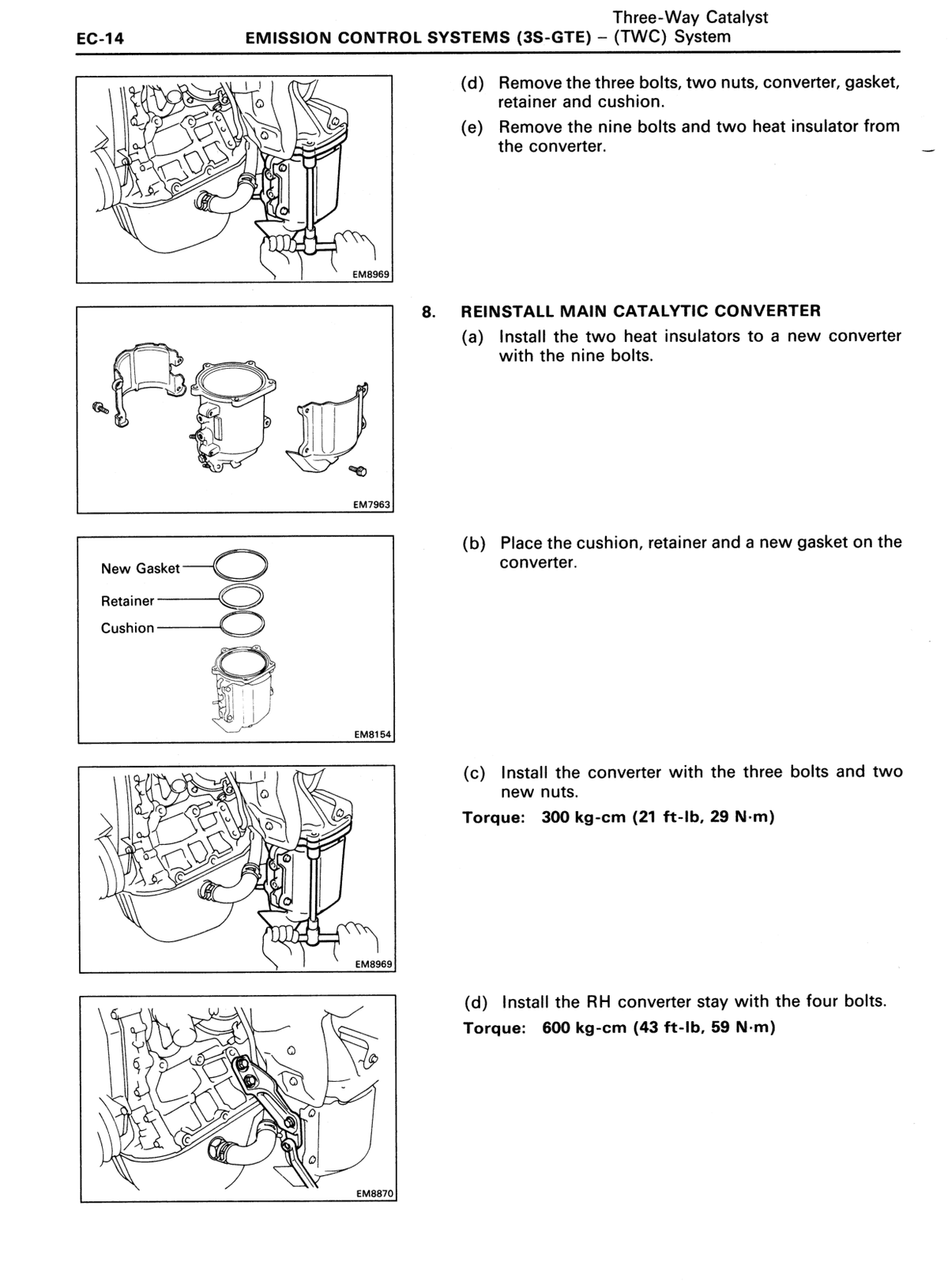

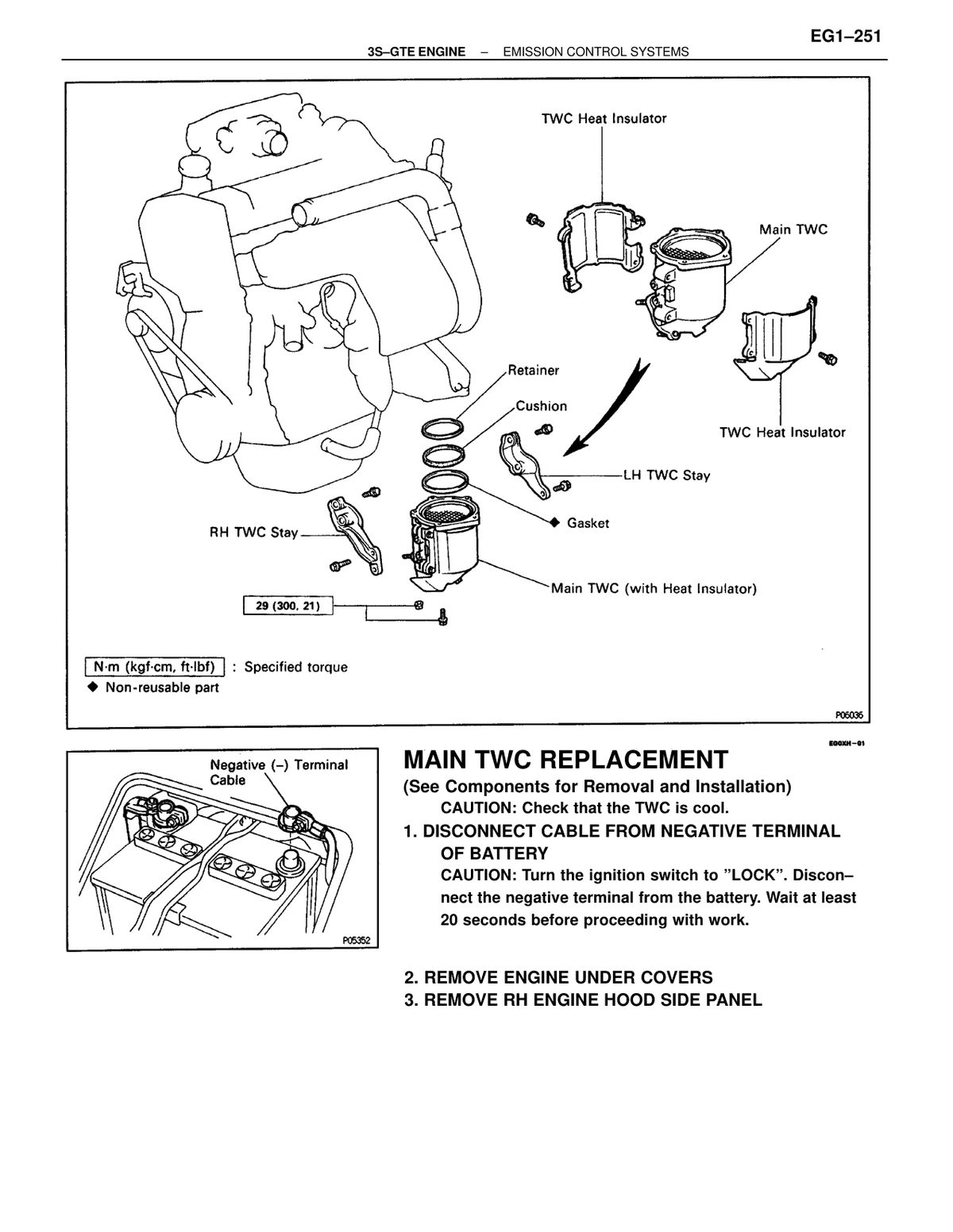

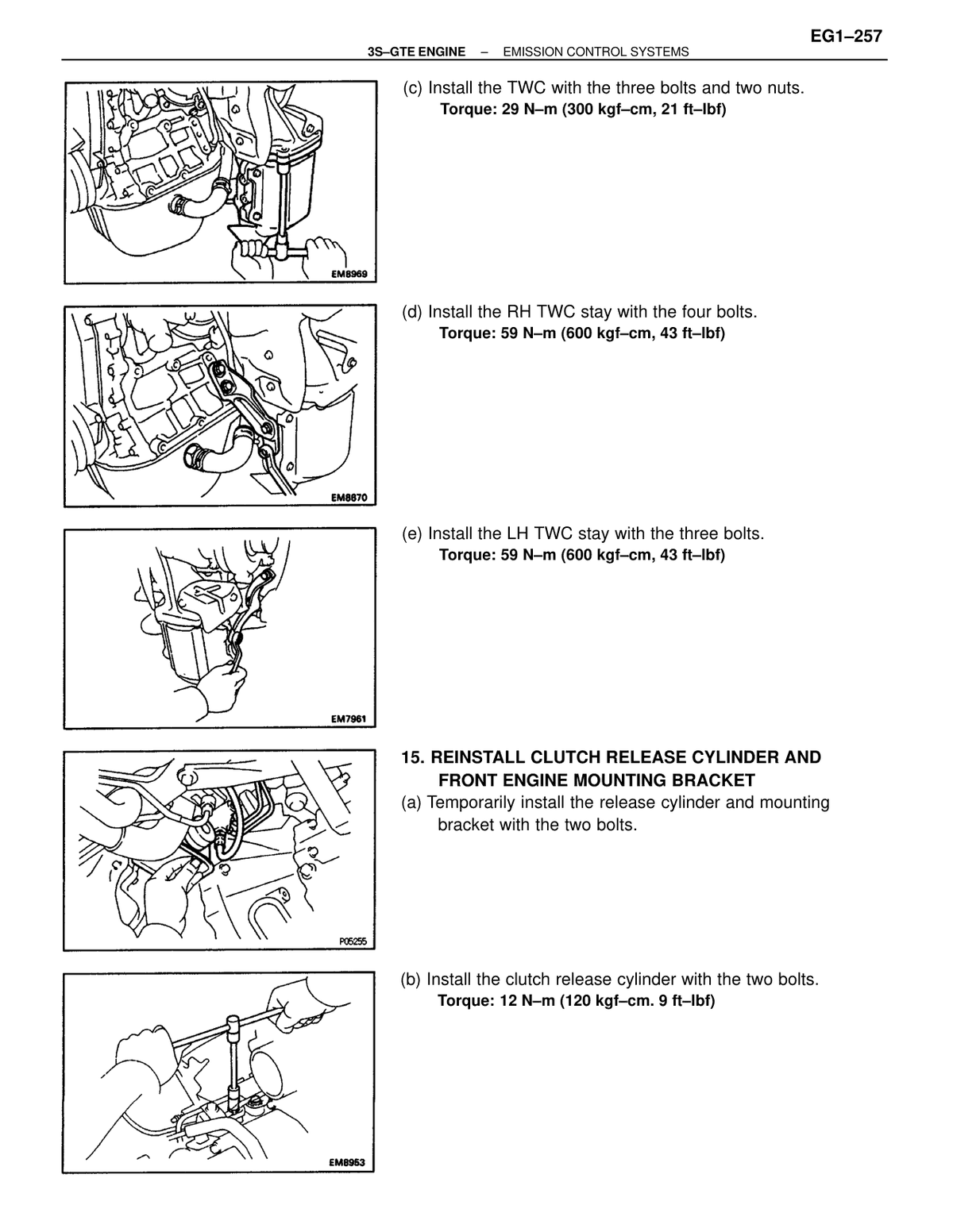

Emission control Converter — three bolts and two new nuts Step 8(c) 29 300 21 ↗ RM179U1_1991 · p299 OEM manual
Emission control RH converter stay — four bolts Step 8(d) 59 600 43 ↗ RM179U1_1991 · p299 OEM manual

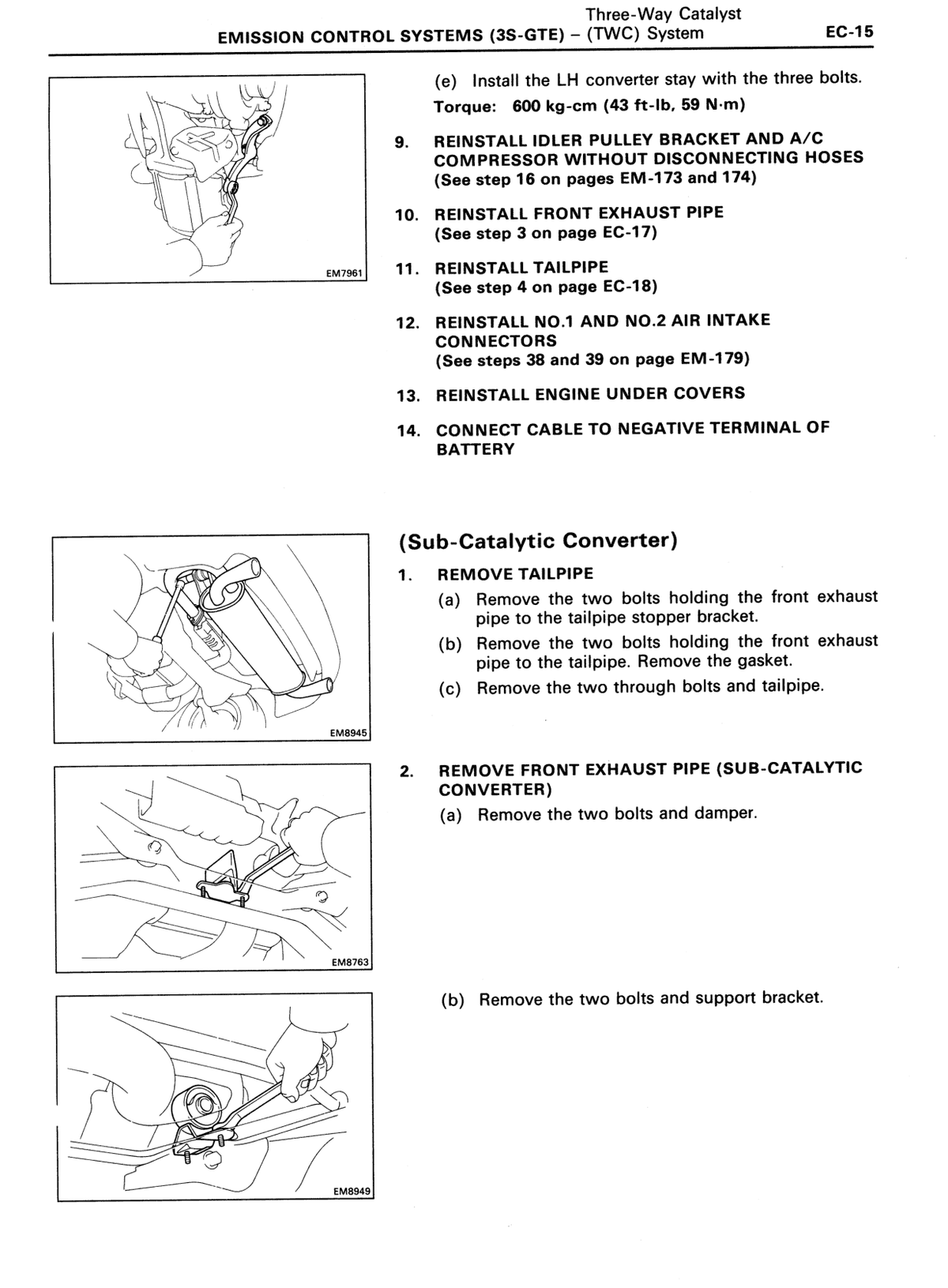

Emission control LH converter stay bolts Install the LH converter stay with the three bolts 59 600 43 ↗ RM179U1_1991 · p300 OEM manual

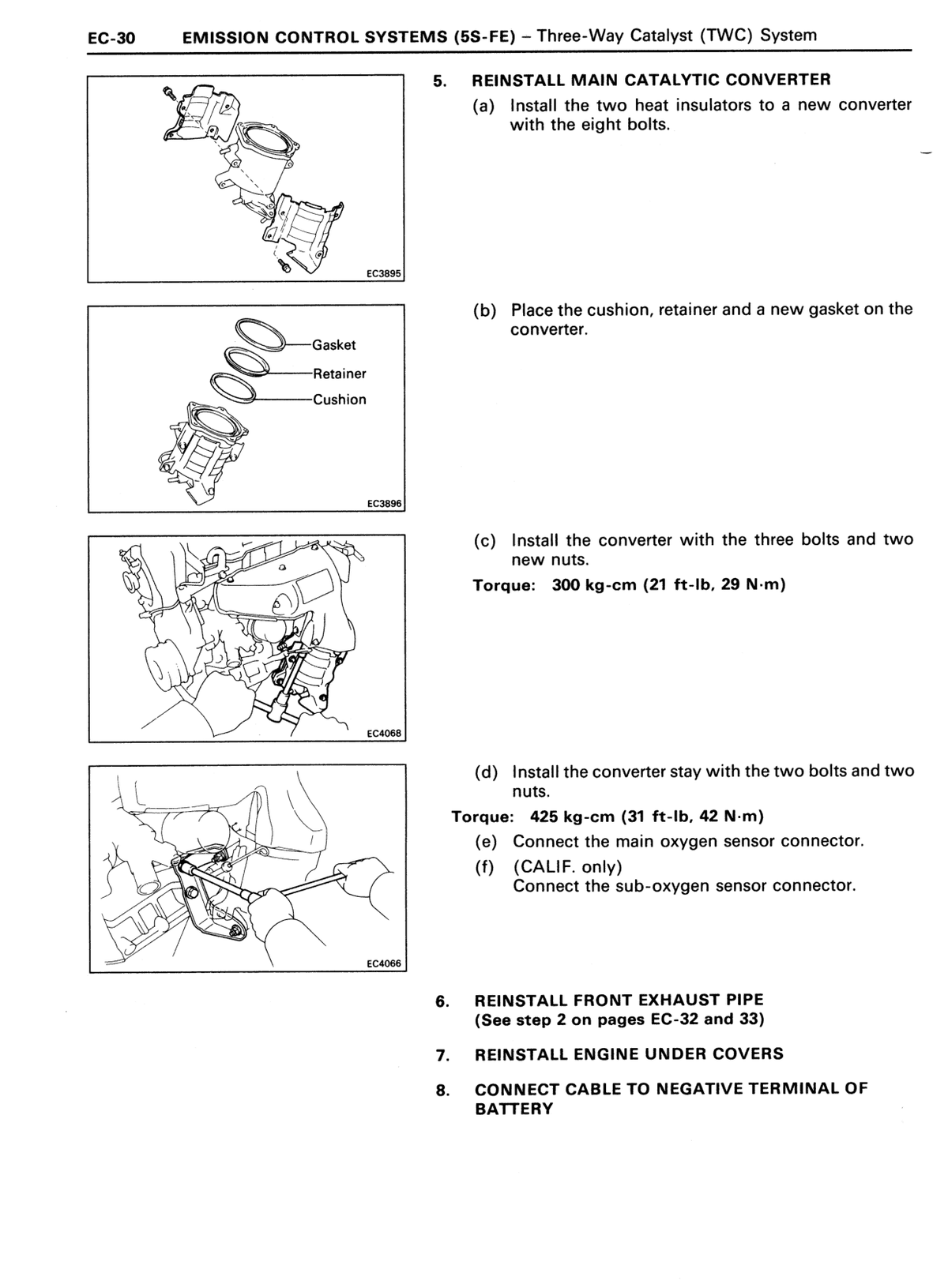

Emission control Converter bolts and nuts Three bolts and two new nuts — step 5(c) 29 300 21 ↗ RM179U1_1991 · p315 OEM manual
Emission control Converter stay bolts and nuts Two bolts and two nuts — step 5(d) 42 425 31 ↗ RM179U1_1991 · p315 OEM manual

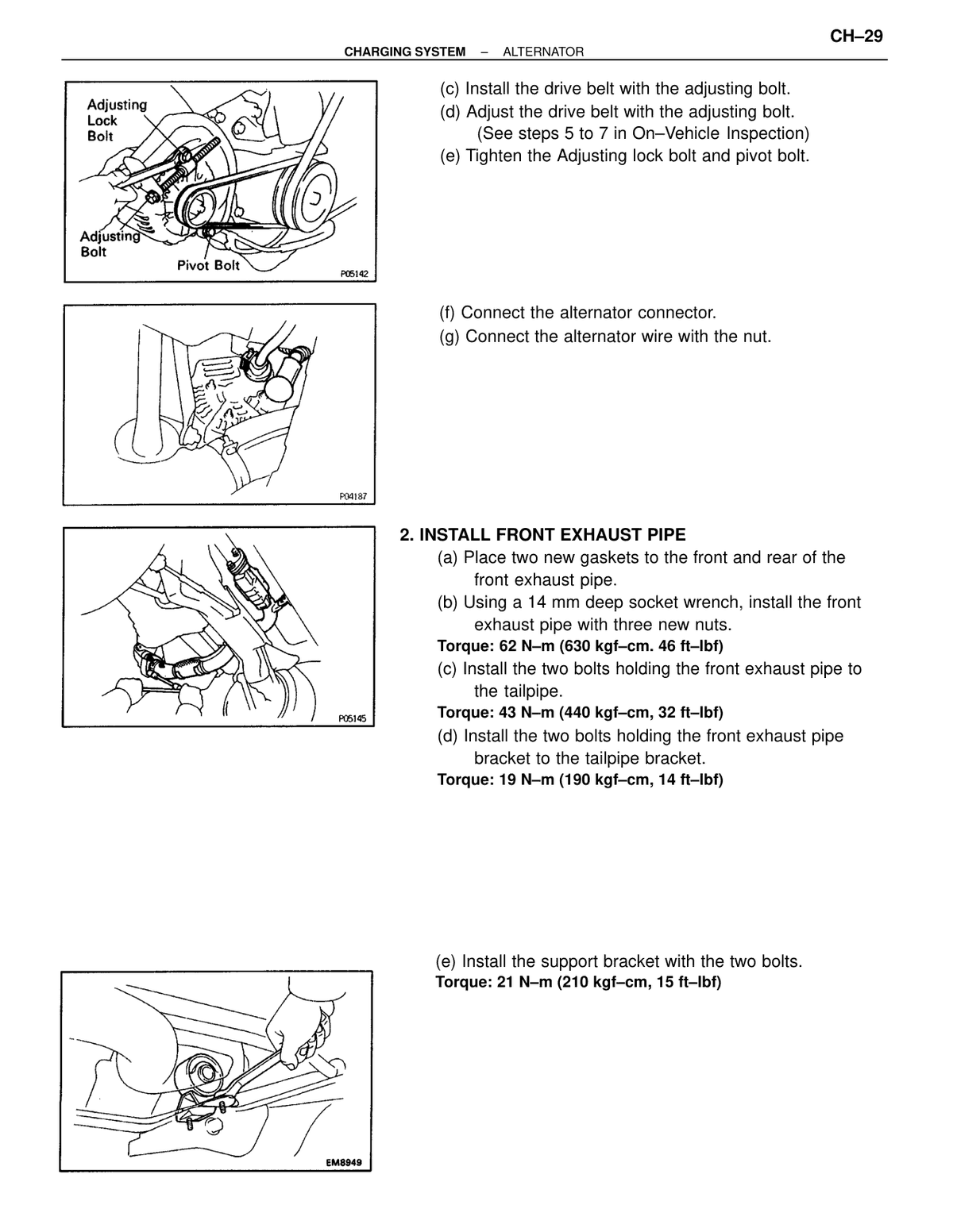

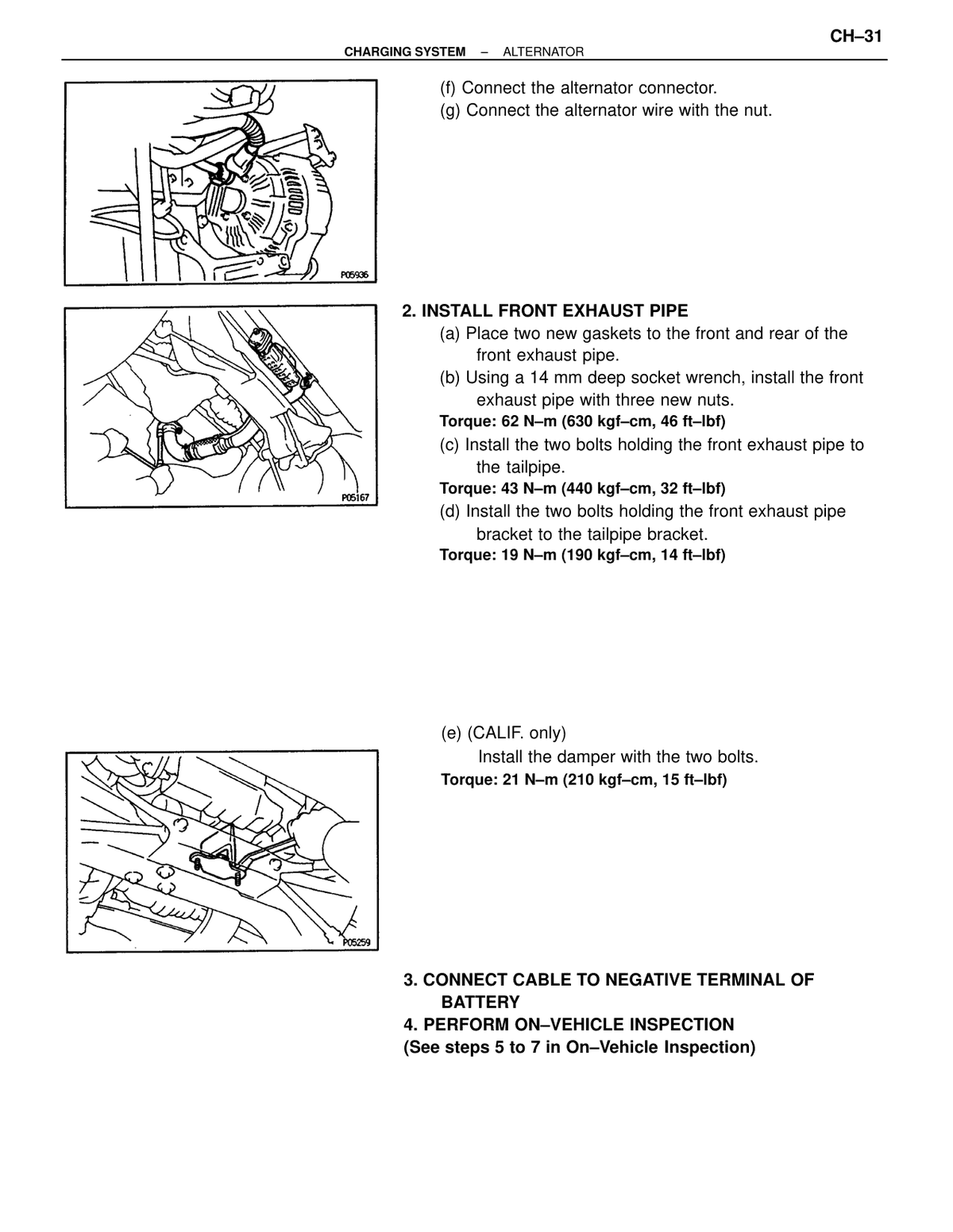

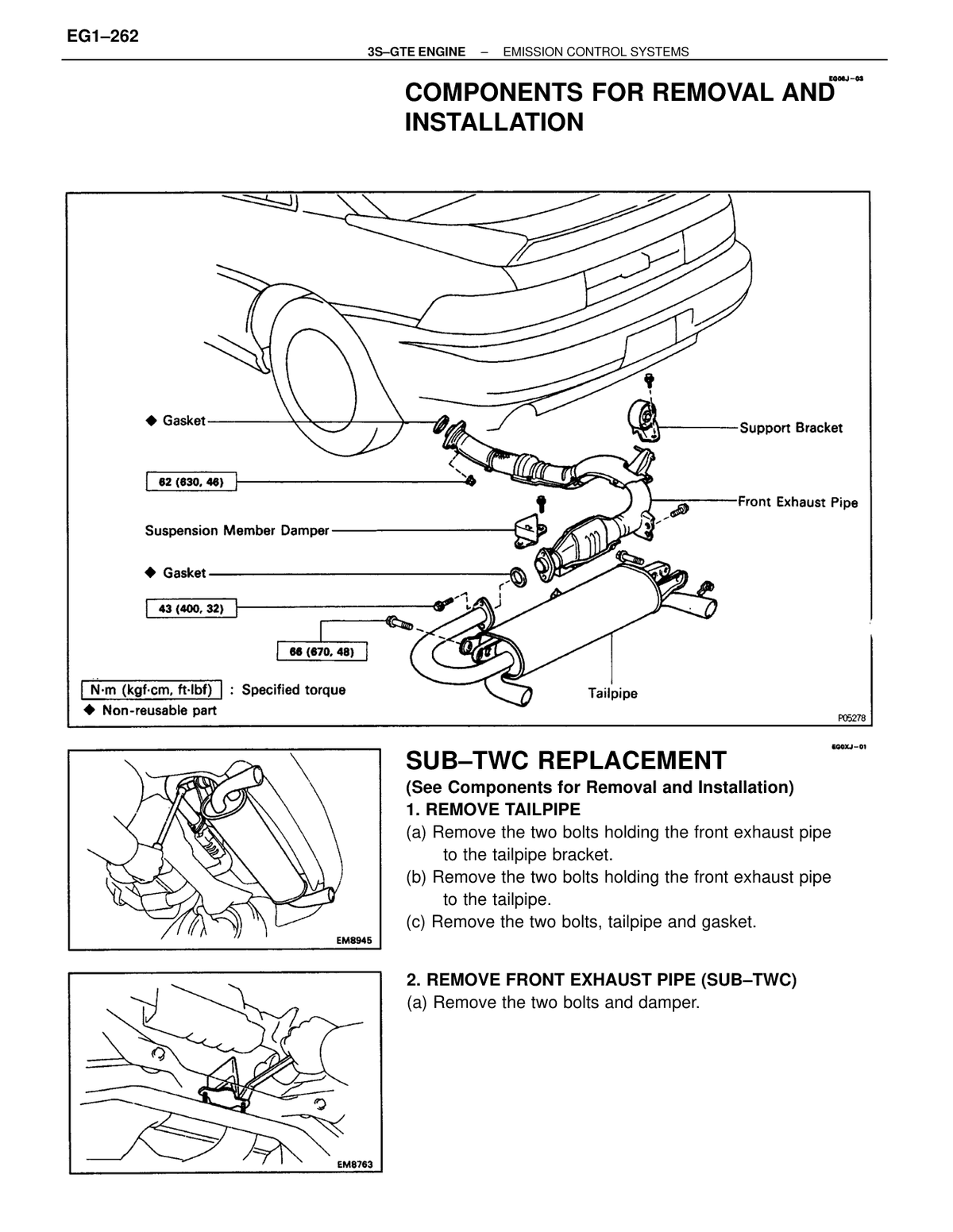

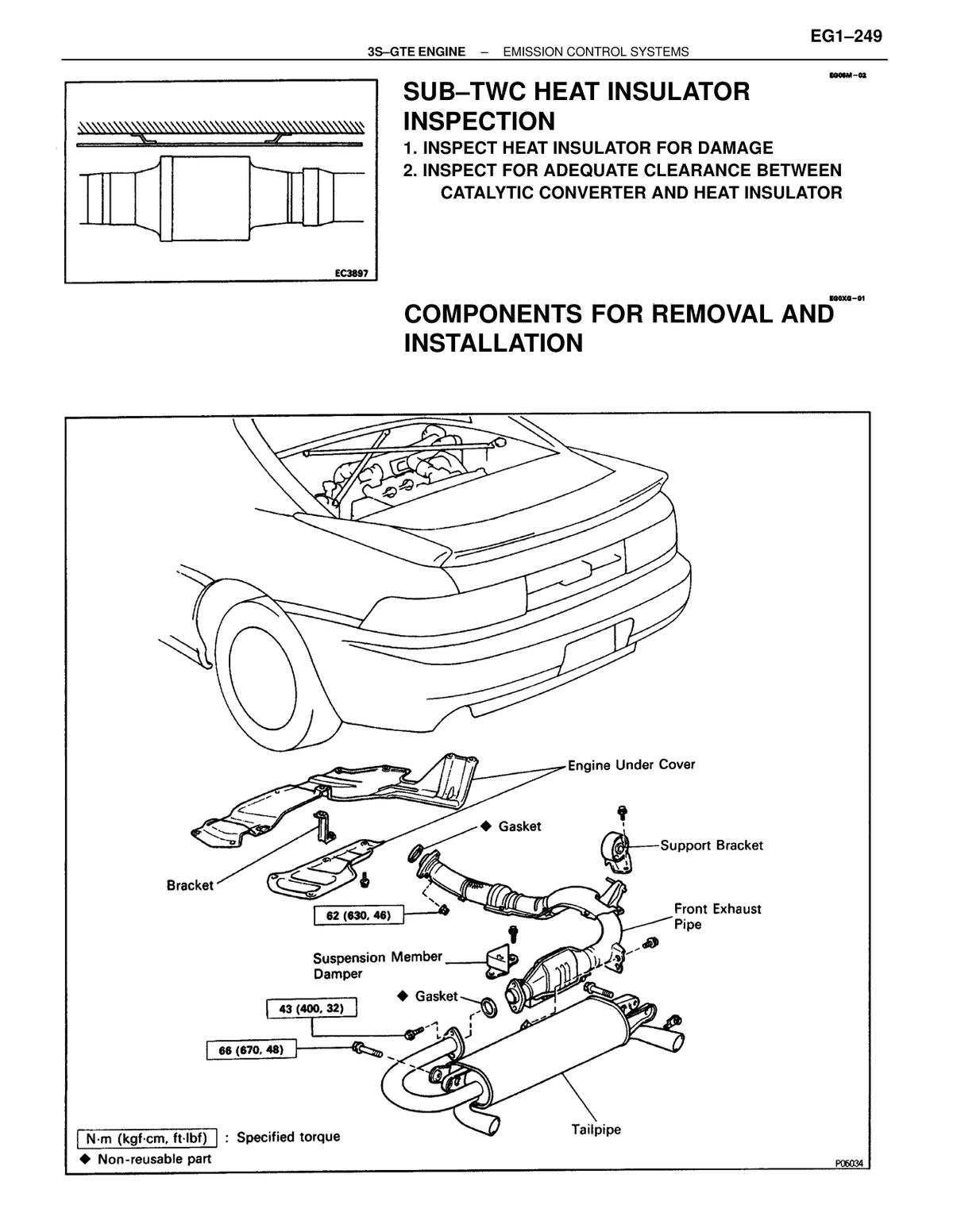

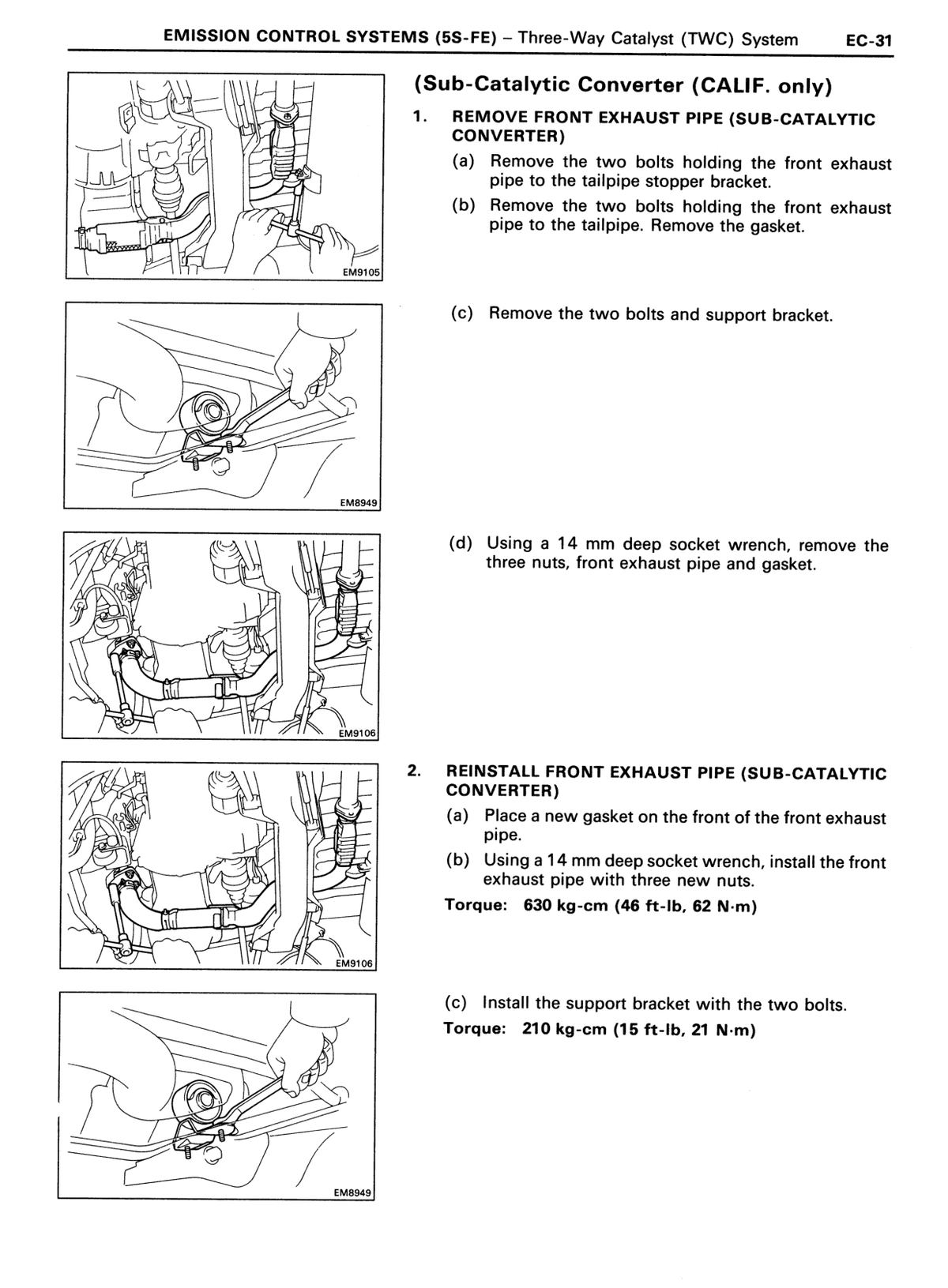

Emission control Front exhaust pipe nuts Three new nuts, step 2(b) 62 630 46 ↗ RM179U1_1991 · p316 OEM manual
Emission control Support bracket bolts Two bolts, step 2(c) 21 210 15 ↗ RM179U1_1991 · p316 OEM manual

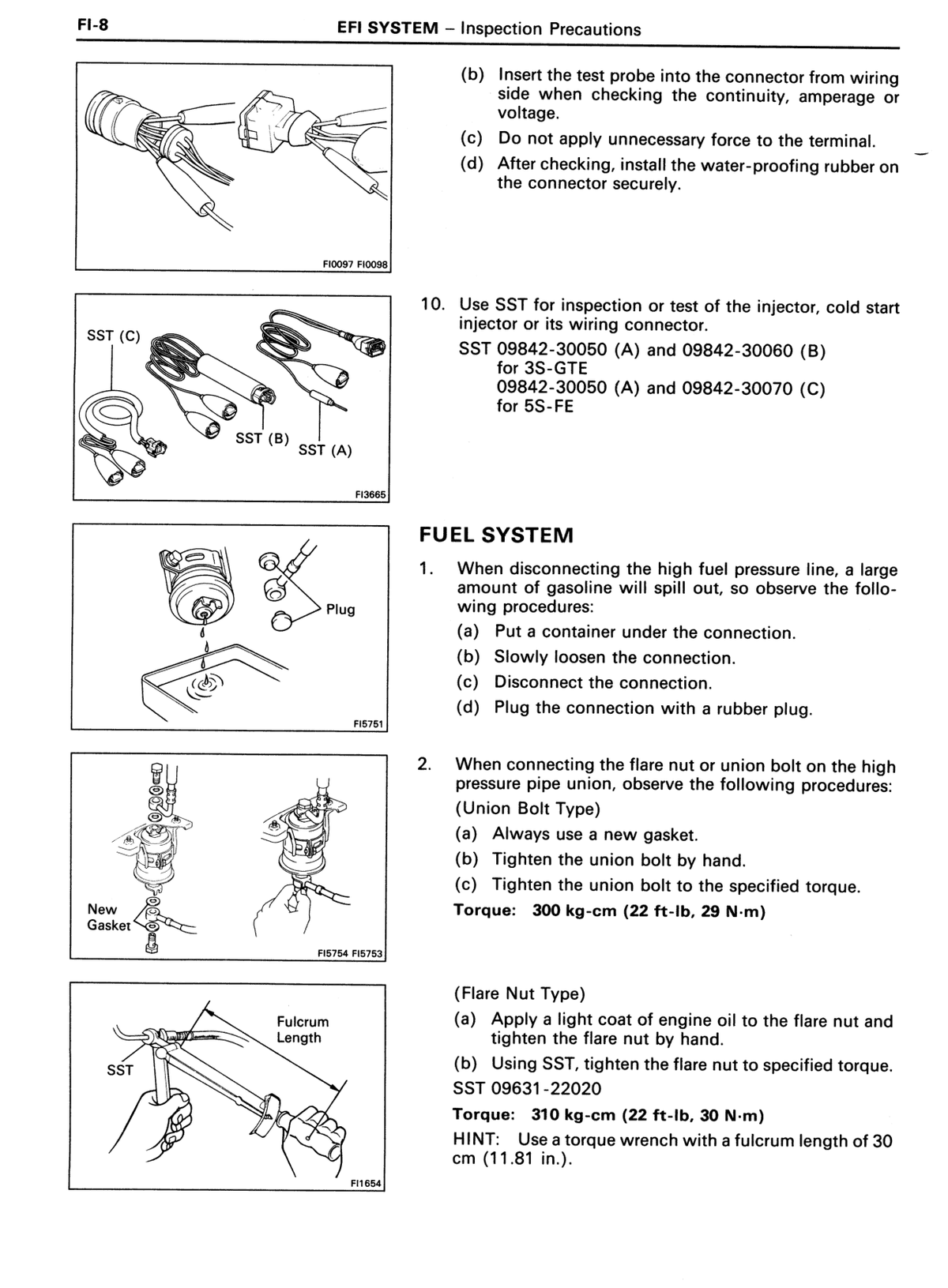

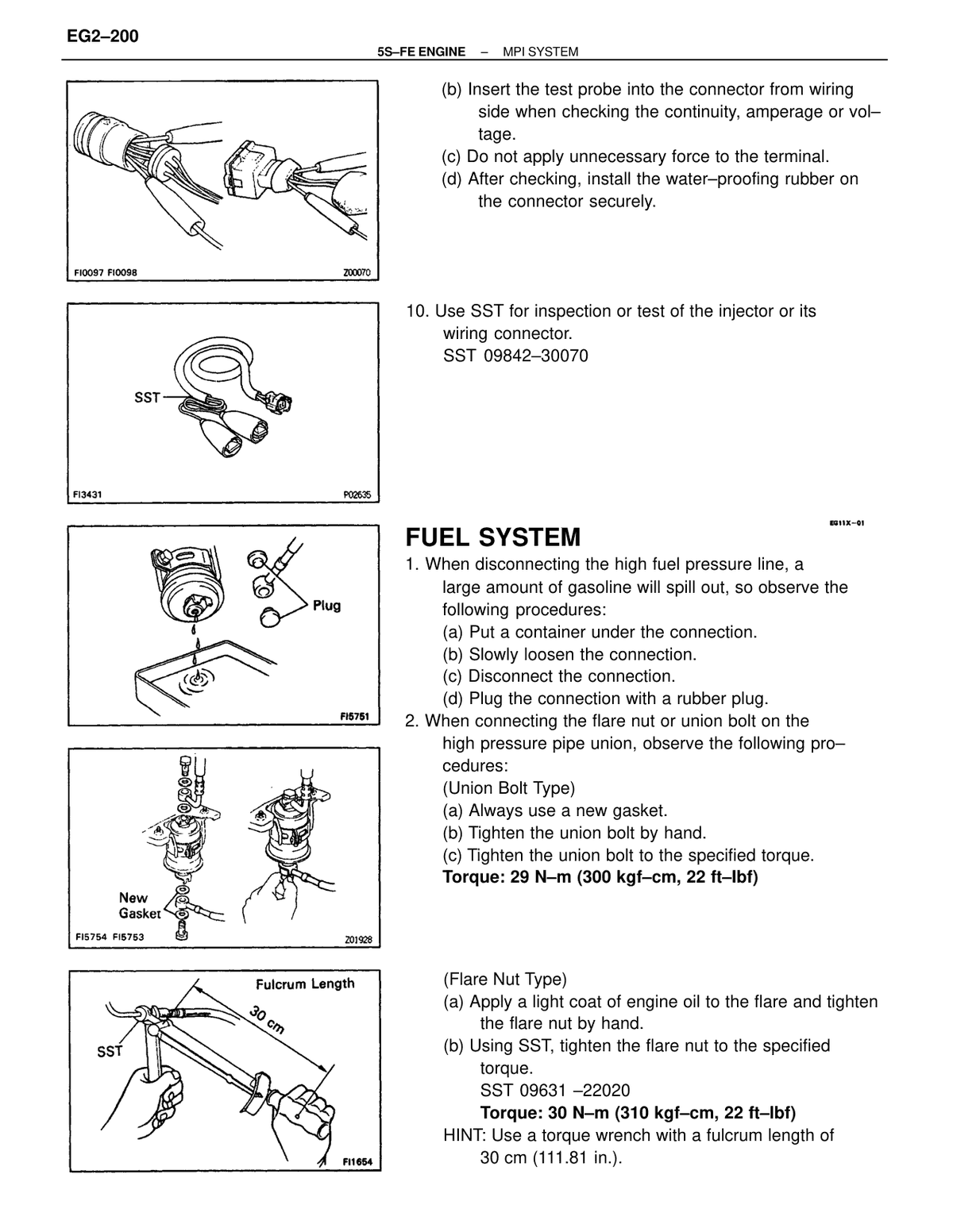

EFI / fuel injection Union bolt — high pressure pipe union Union Bolt Type 29 300 22 ↗ RM179U1_1991 · p325 OEM manual
EFI / fuel injection Flare nut — high pressure pipe union Flare Nut Type; SST 09631-22020; torque wrench fulcrum length 30 cm (11.81 in.) 30 310 22 ↗ RM179U1_1991 · p325 OEM manual

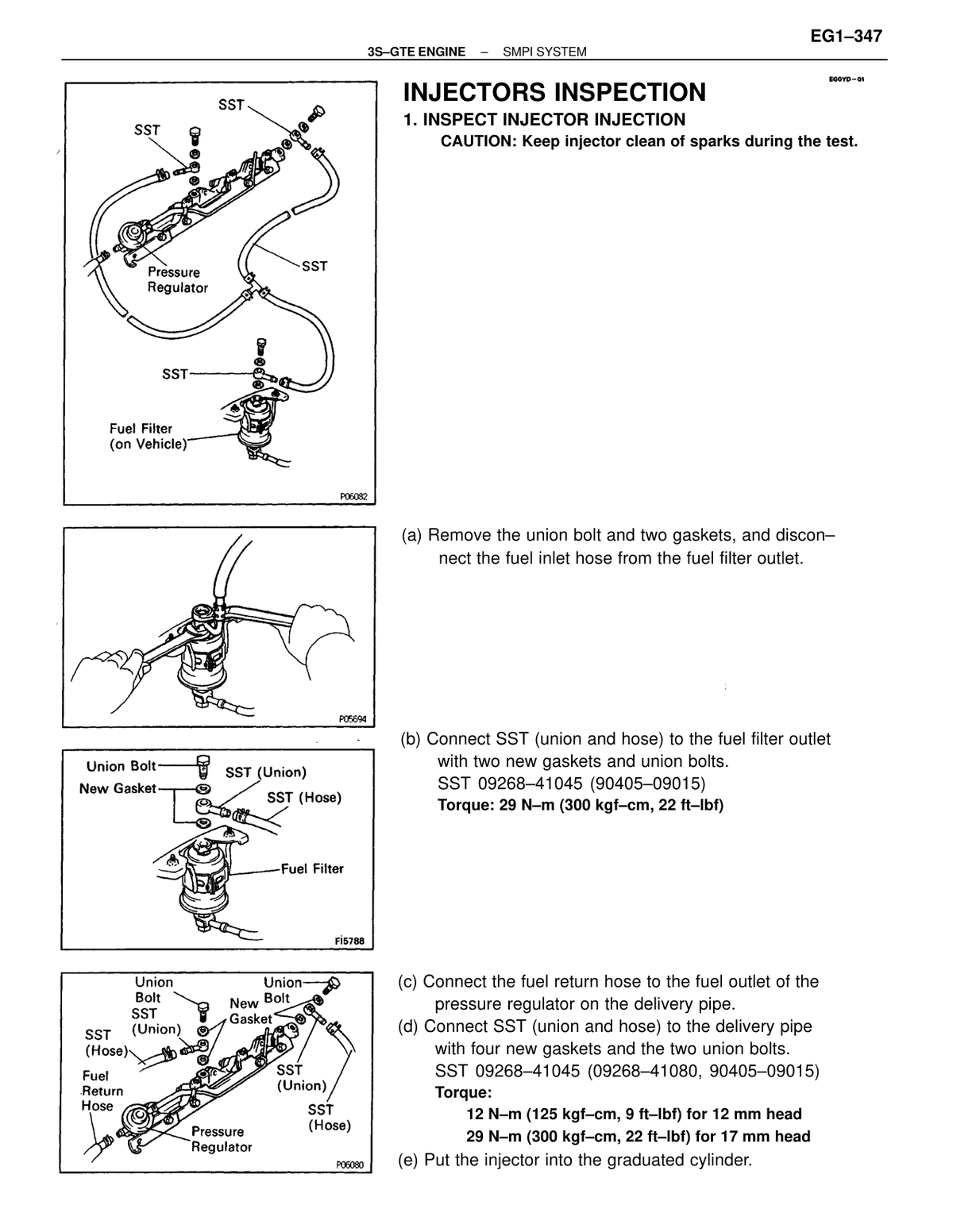

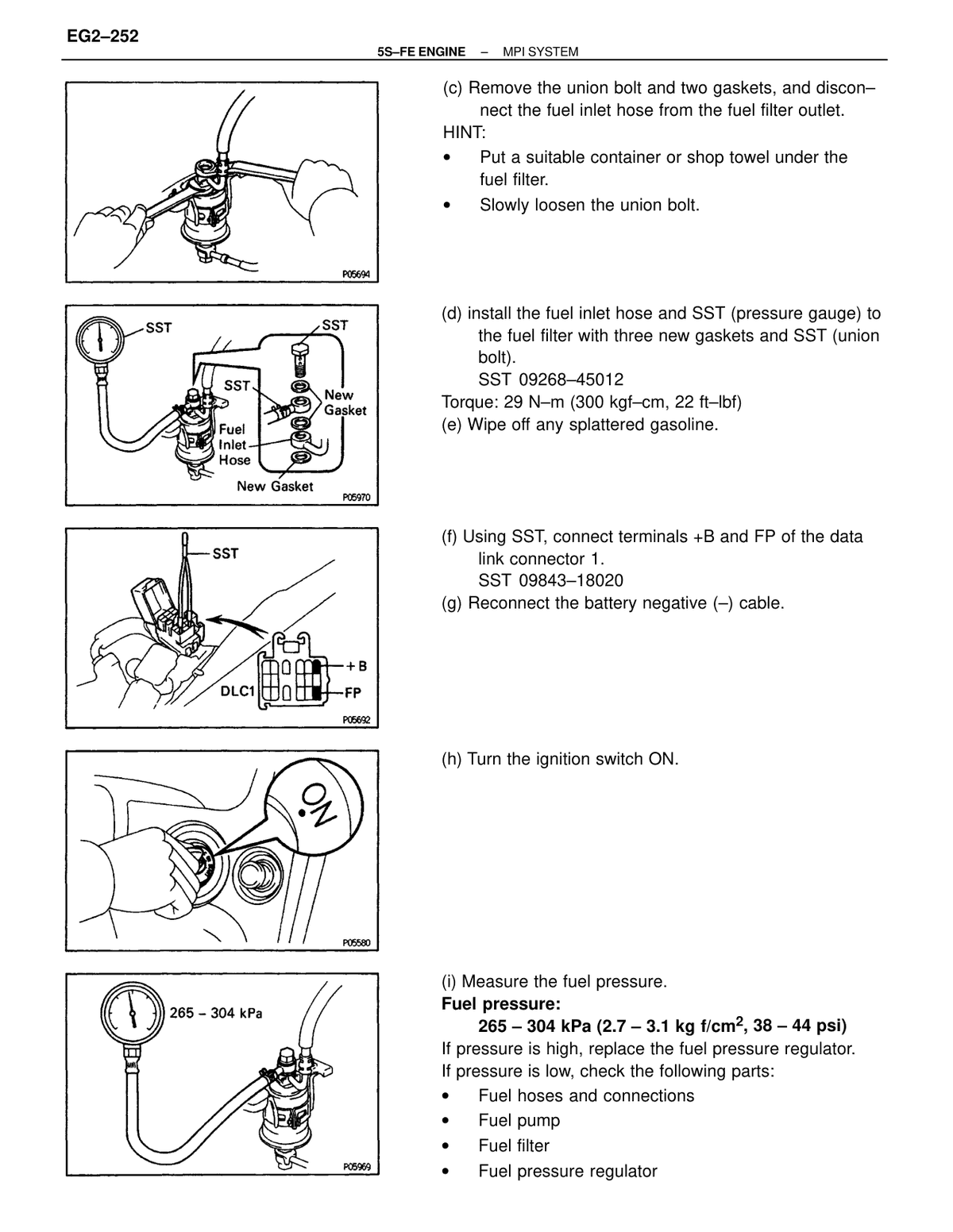

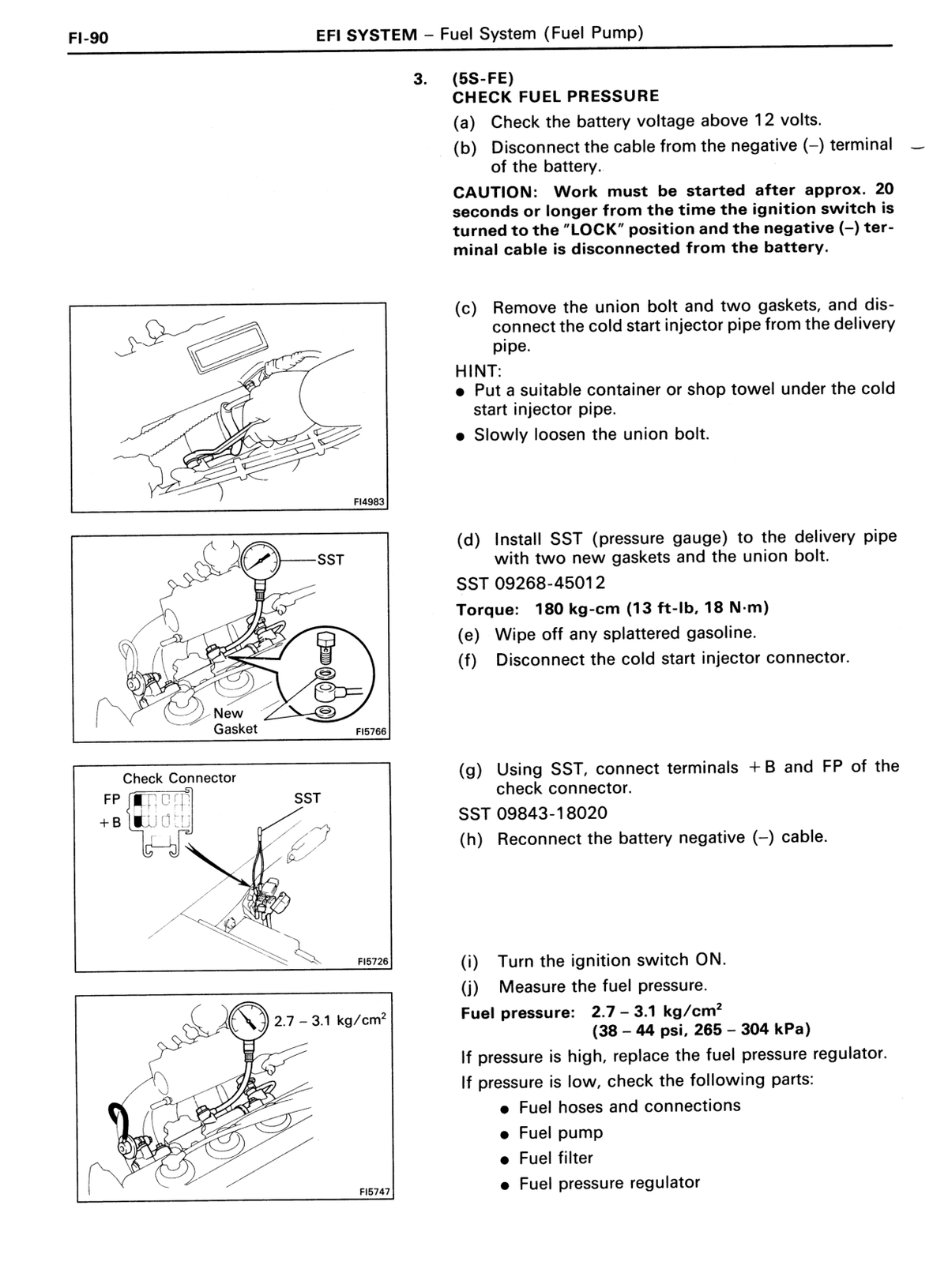

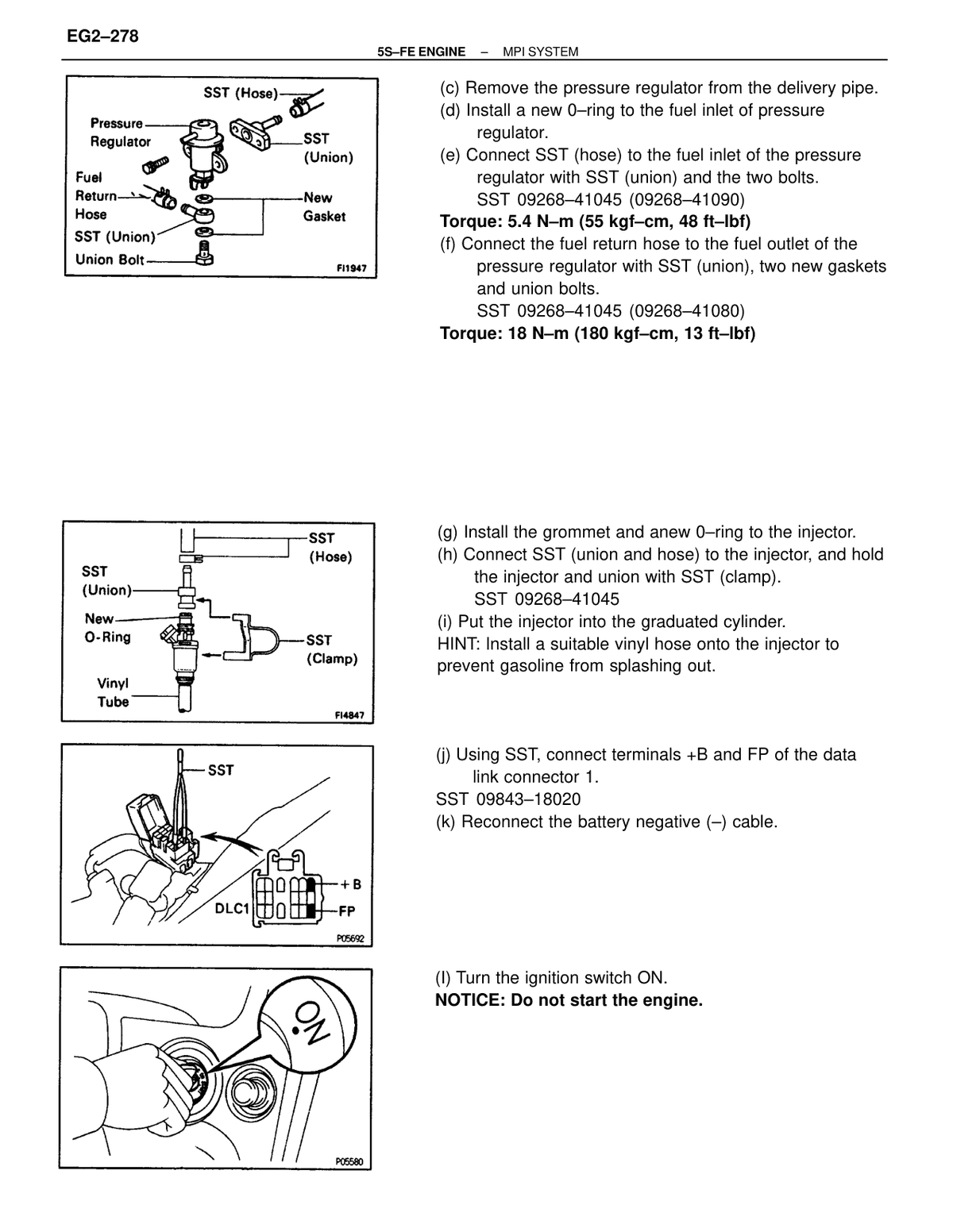

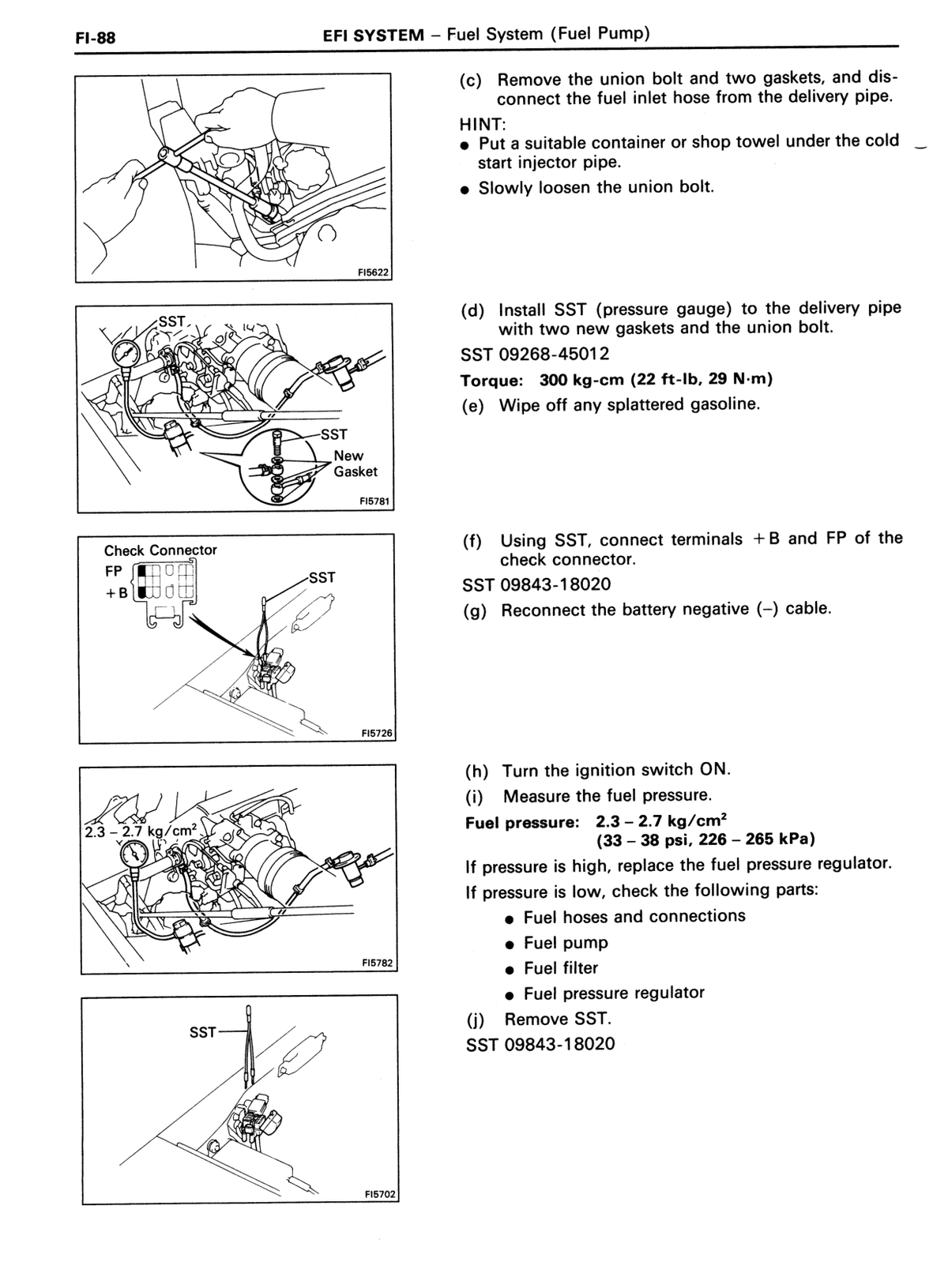

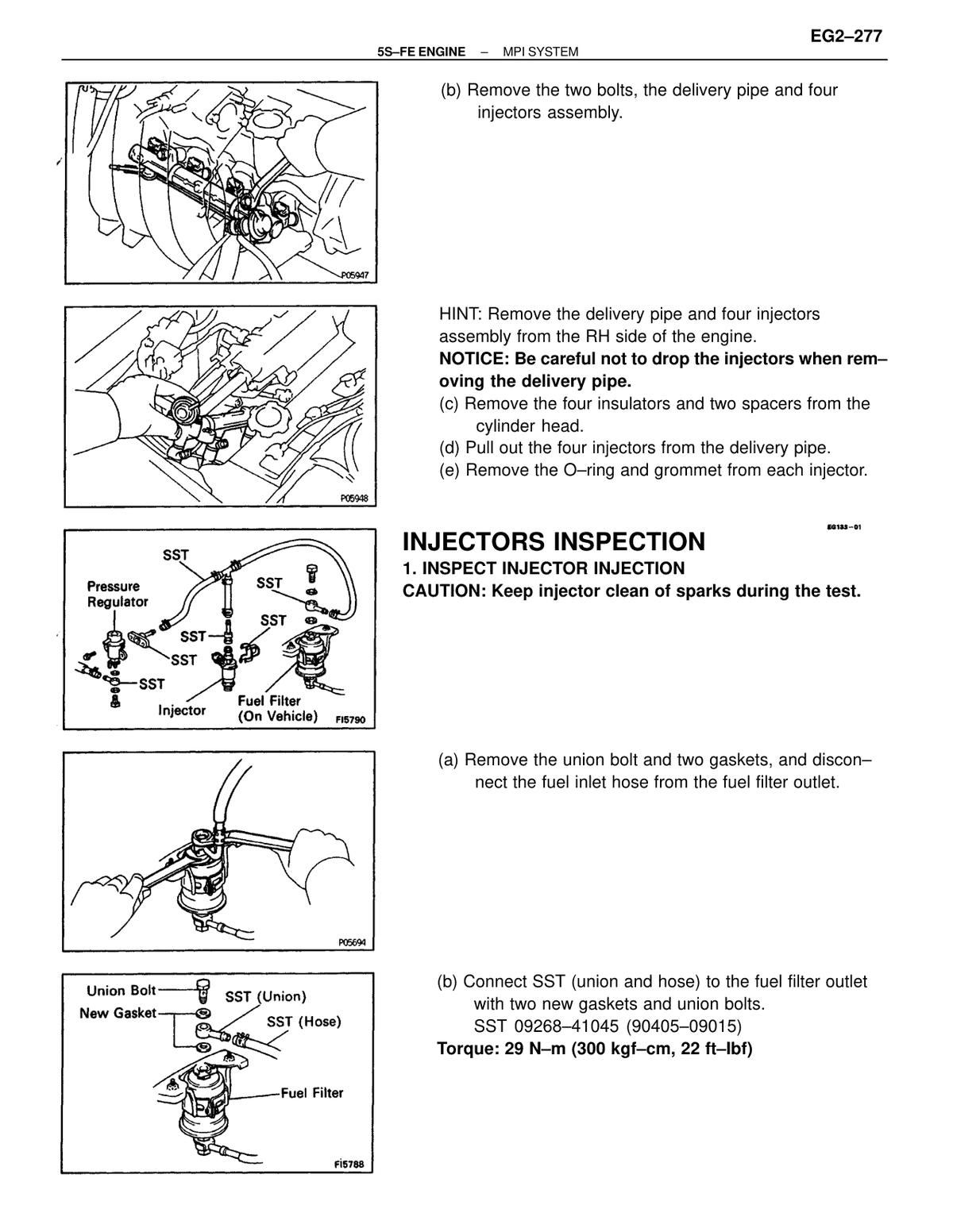

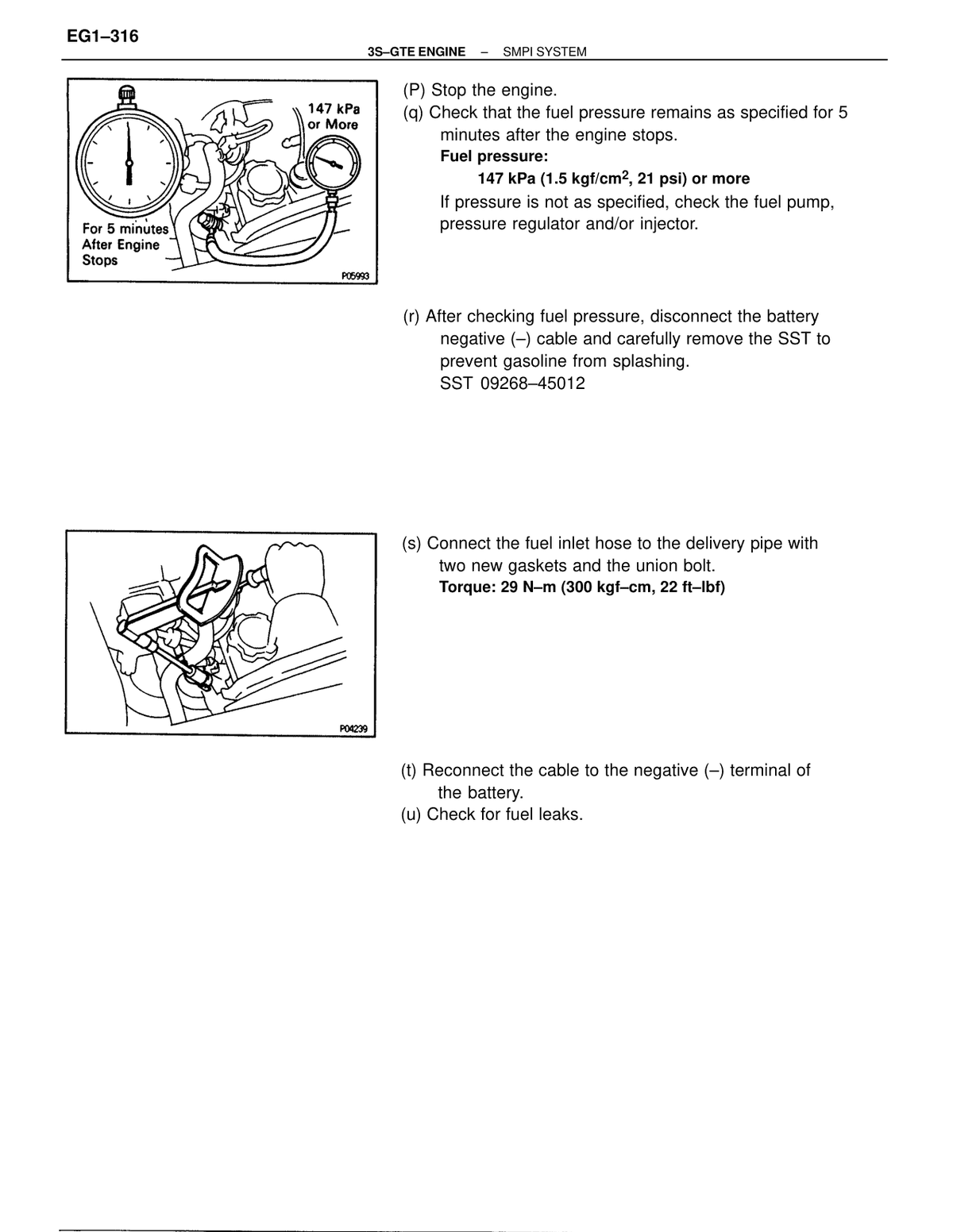

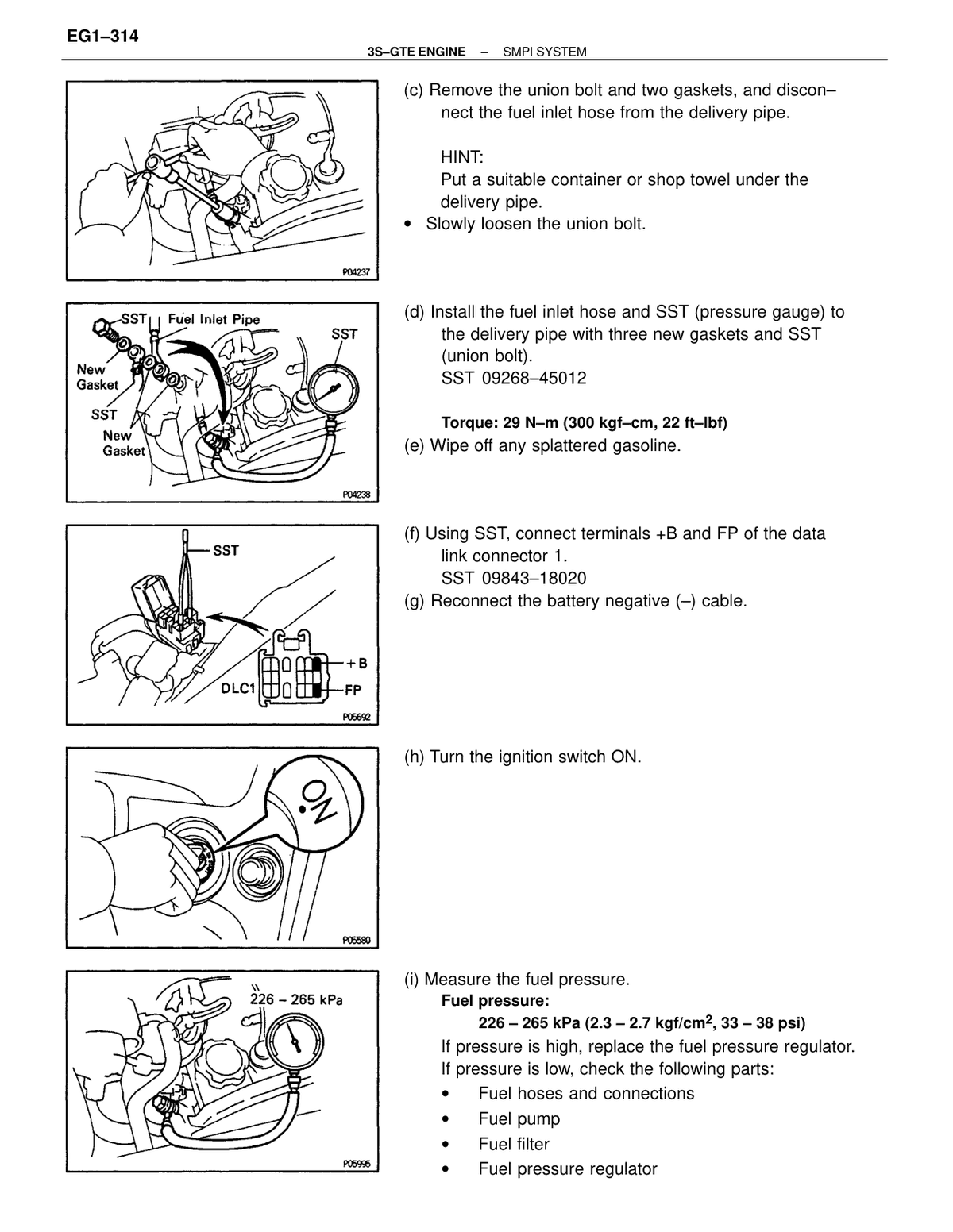

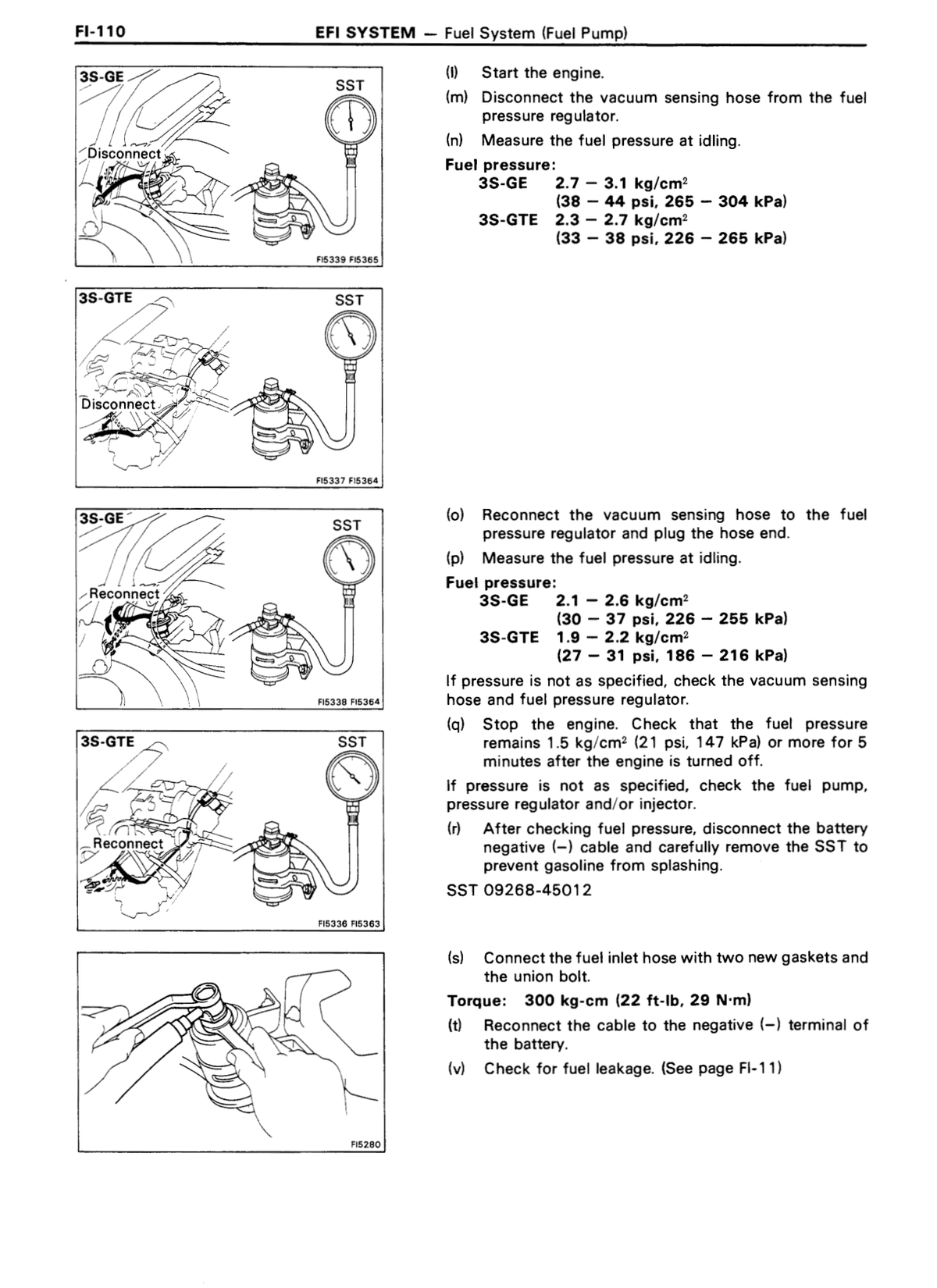

EFI / fuel injection Union bolt (SST pressure gauge to delivery pipe) 29 300 22 ↗ RM179U1_1991 · p405 OEM manual
EFI / fuel injection Union bolt (SST pressure gauge to delivery pipe) SST 09268-45012 installation 18 180 13 ↗ RM179U1_1991 · p407 OEM manual

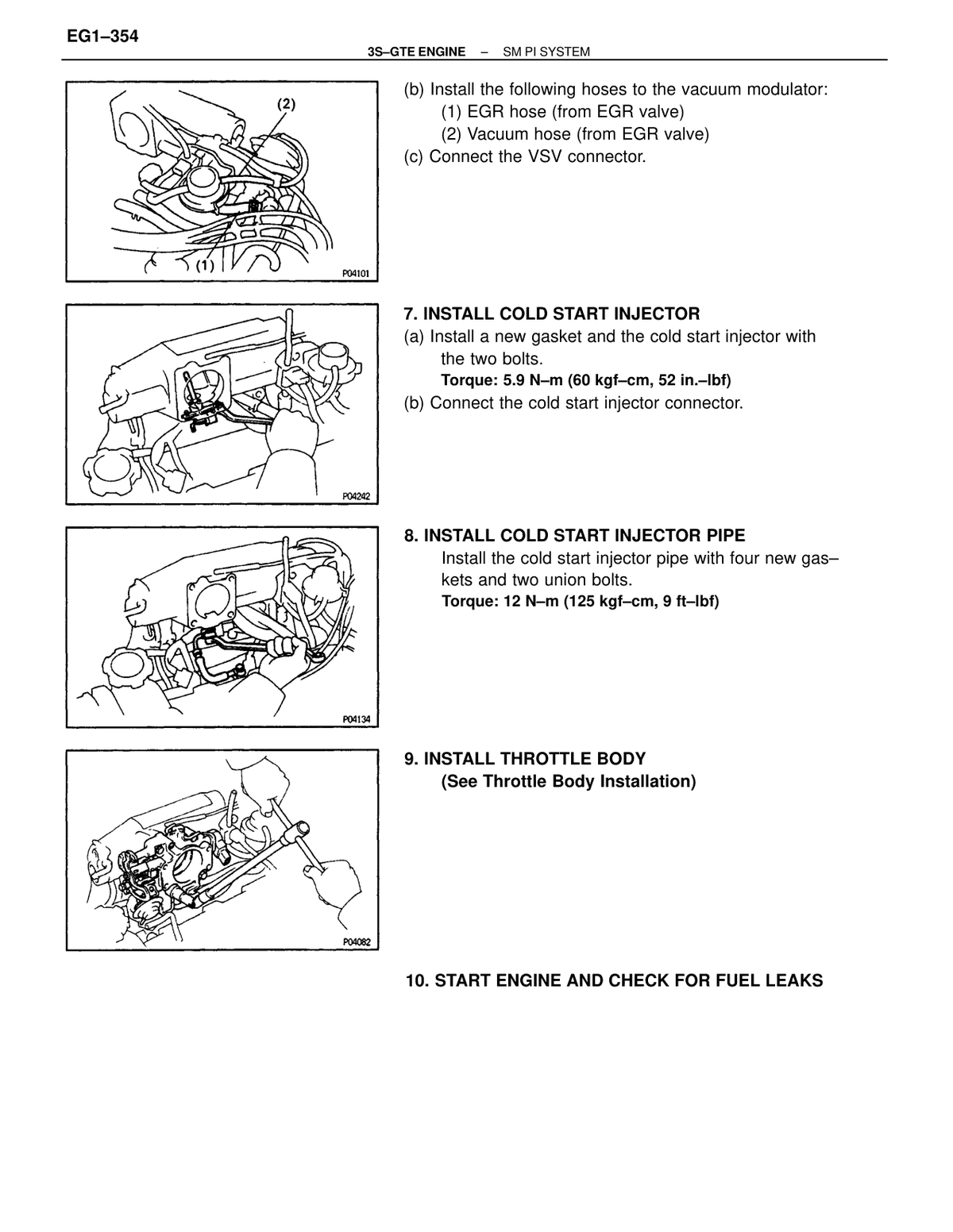

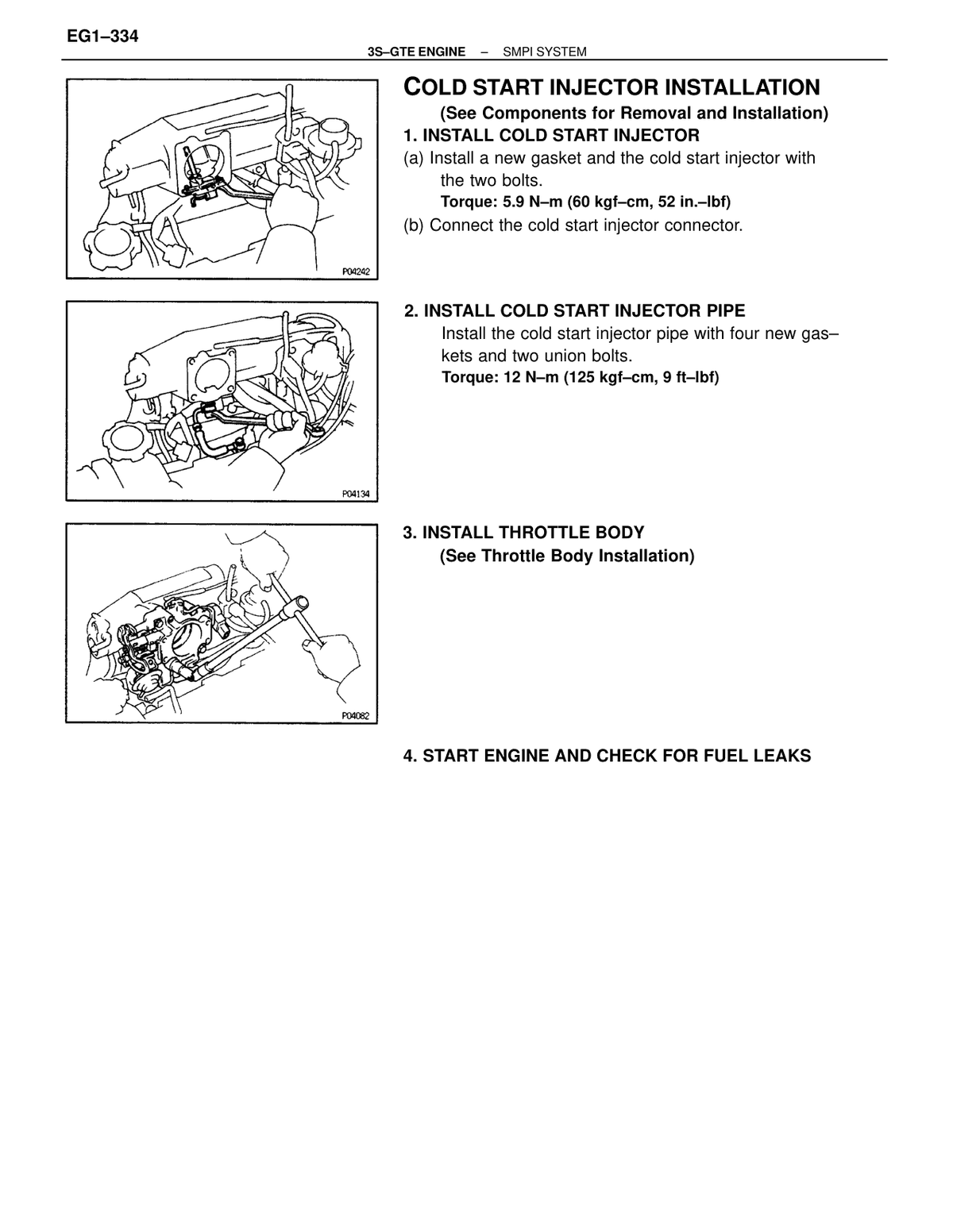

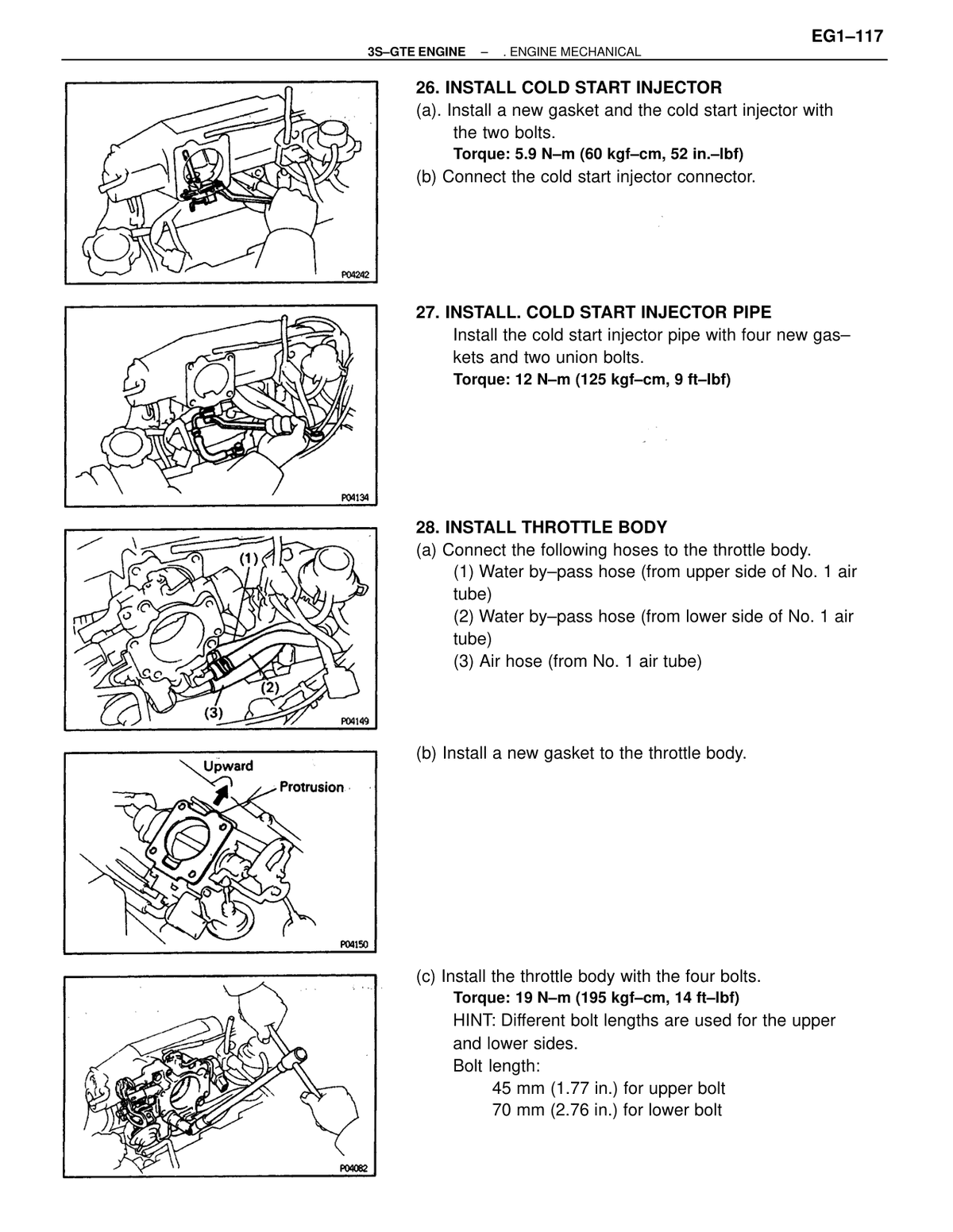

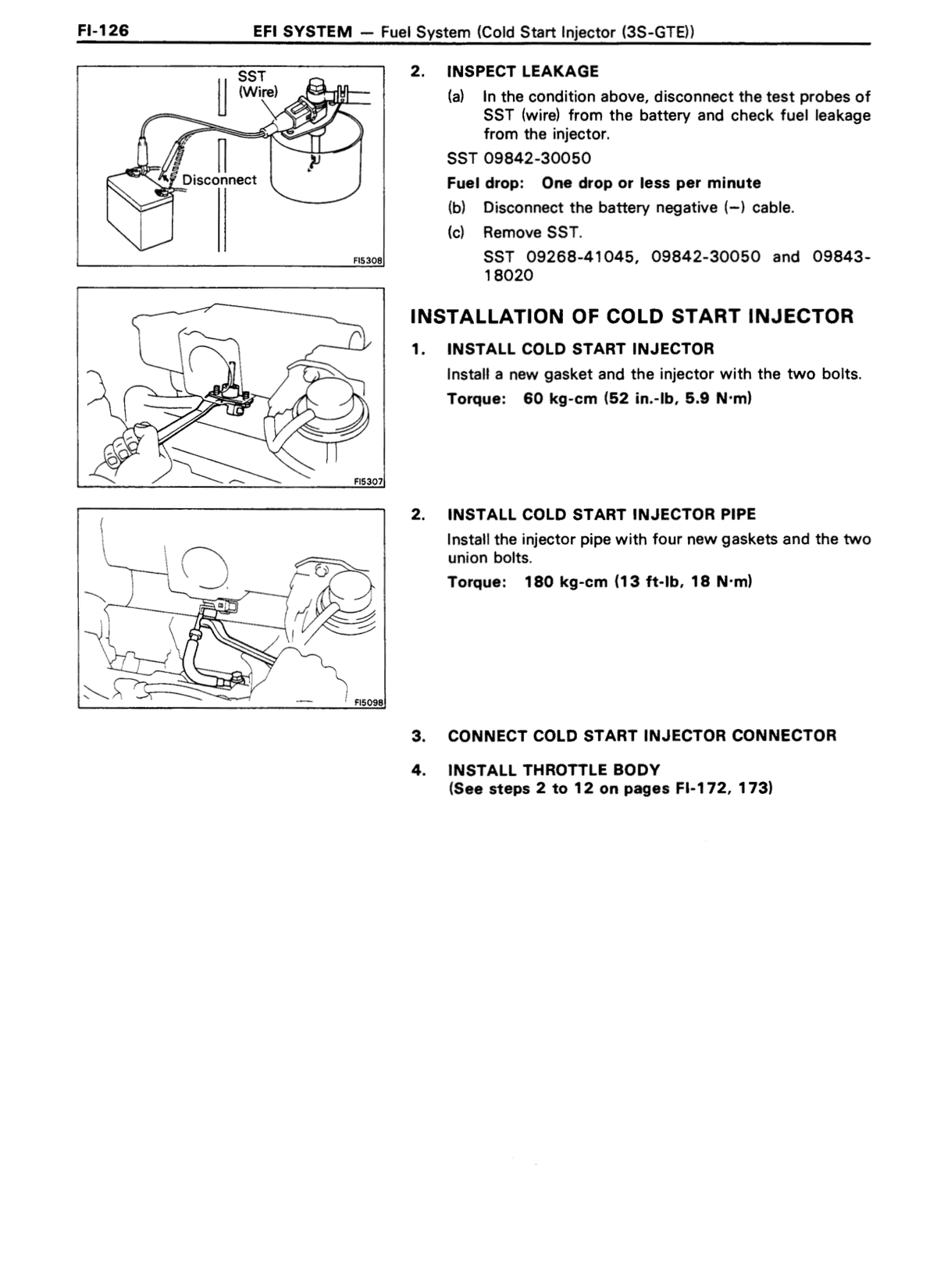

EFI / fuel injection Cold start injector pipe union bolt Two new gaskets required 18 180 13 ↗ RM179U1_1991 · p408 OEM manual

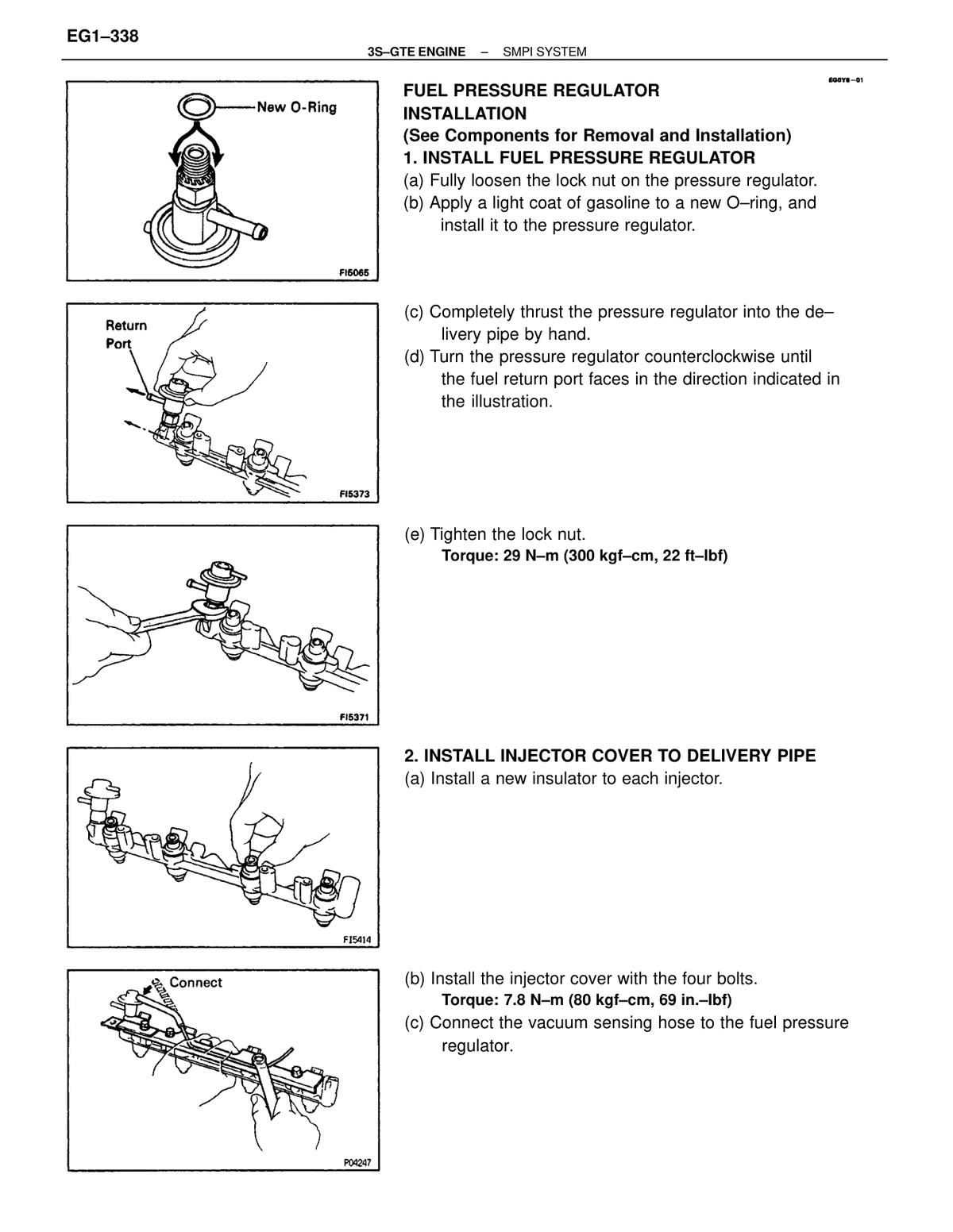

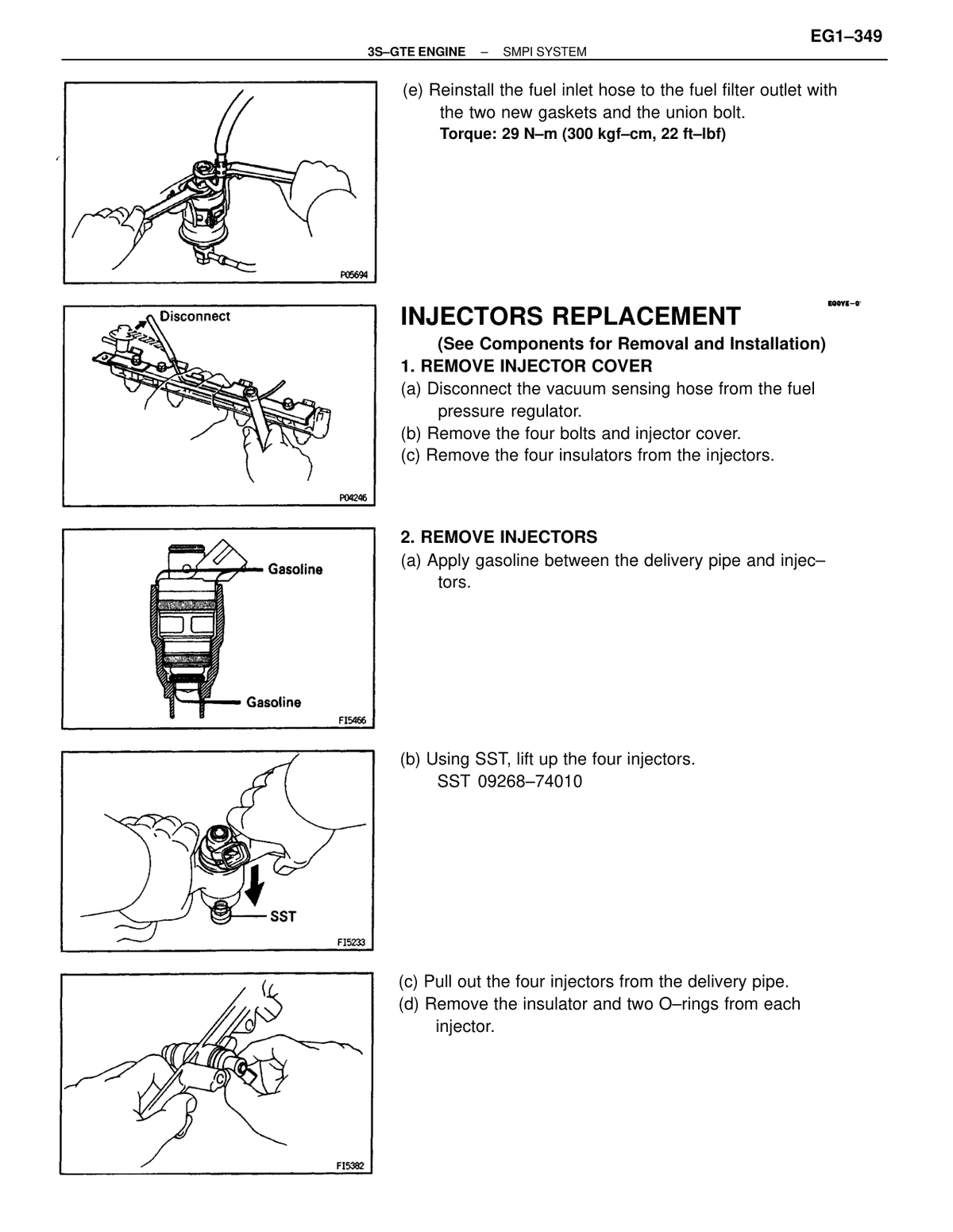

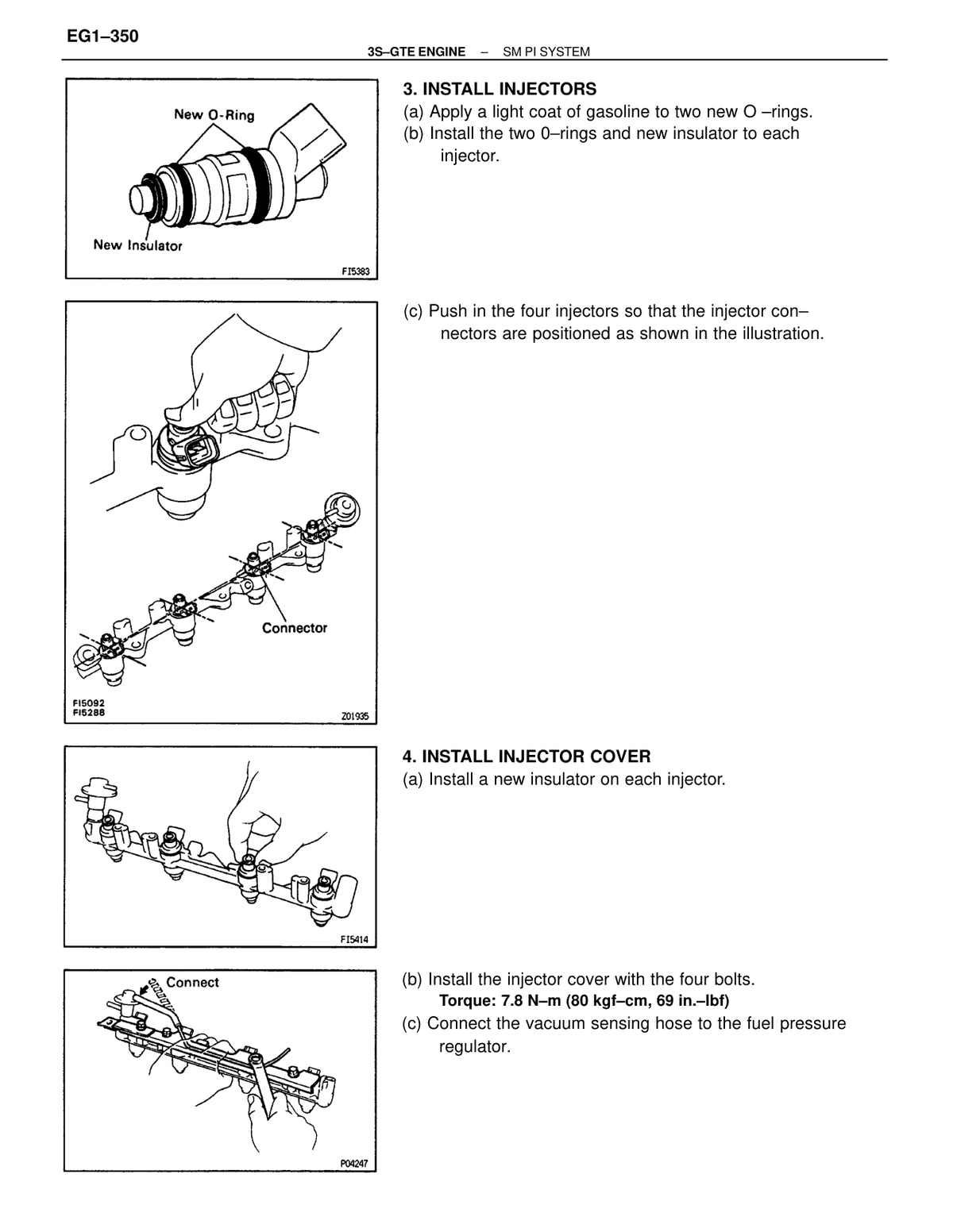

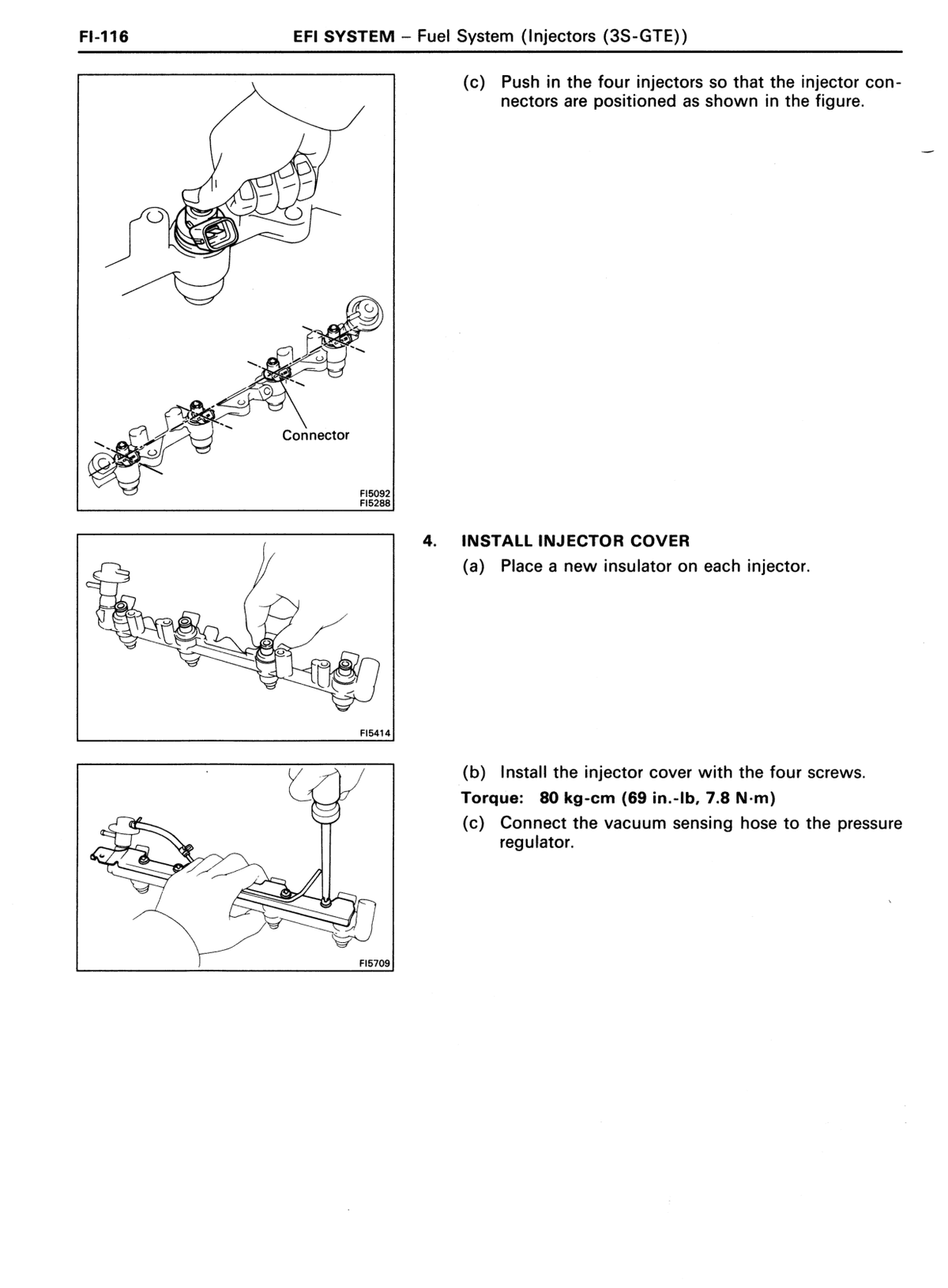

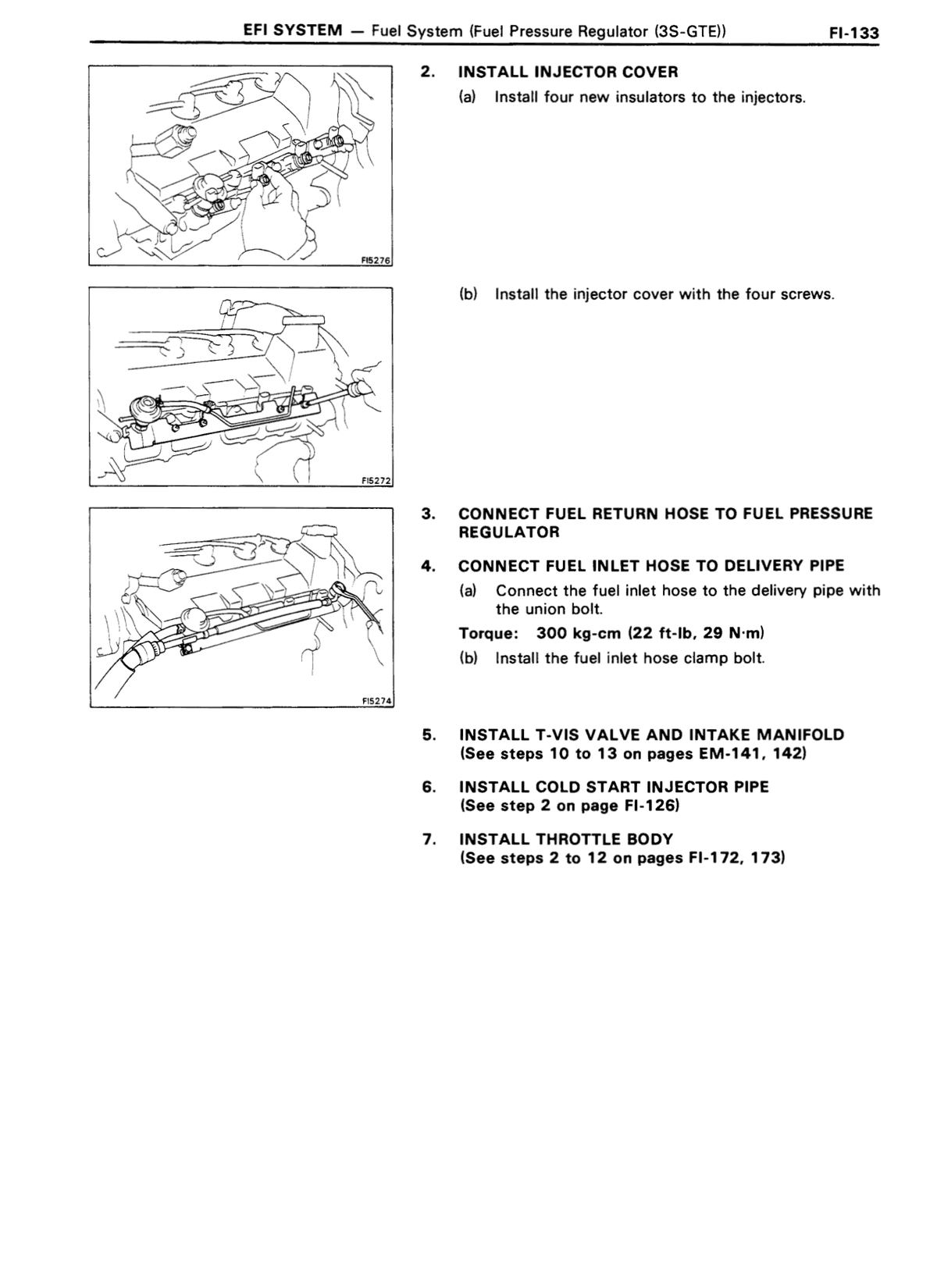

EFI / fuel injection Injector cover screws Four screws securing injector cover 7.8 80 — ↗ RM179U1_1991 · p433 OEM manual

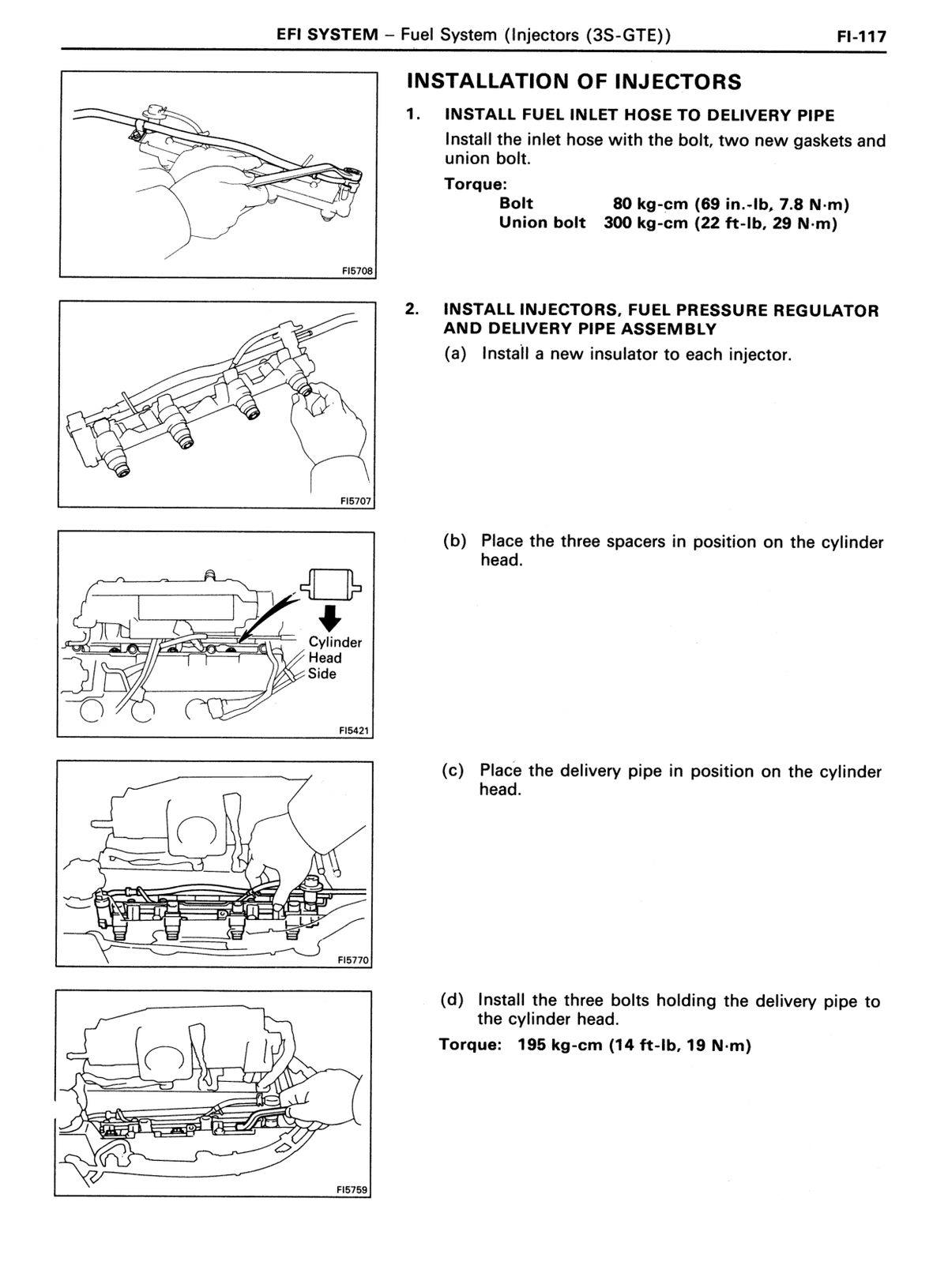

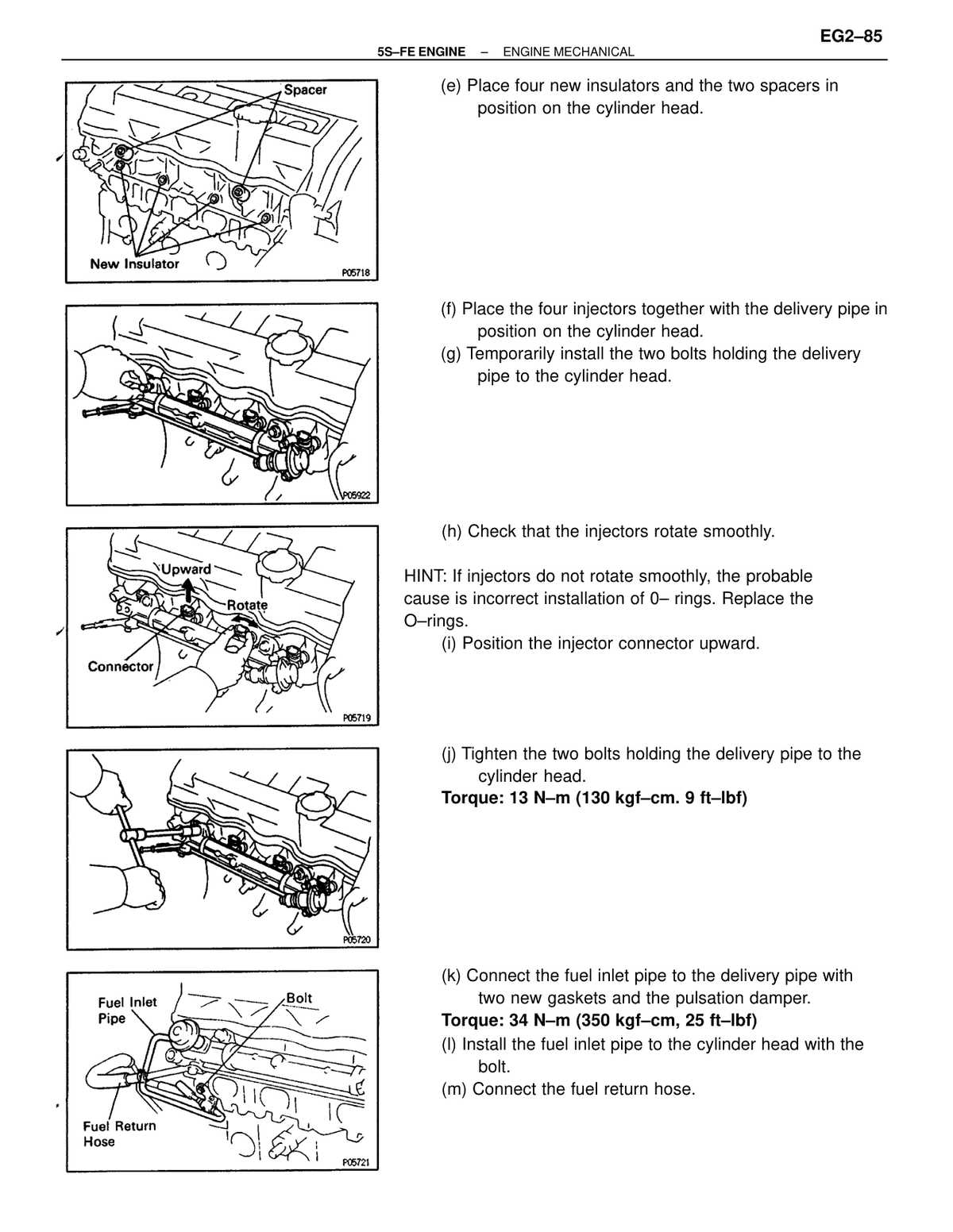

EFI / fuel injection Bolt Fuel inlet hose to delivery pipe — bolt; 69 in.-lb 7.8 80 — ↗ RM179U1_1991 · p434 OEM manual
EFI / fuel injection Union bolt Fuel inlet hose to delivery pipe — union bolt 29 300 22 ↗ RM179U1_1991 · p434 OEM manual

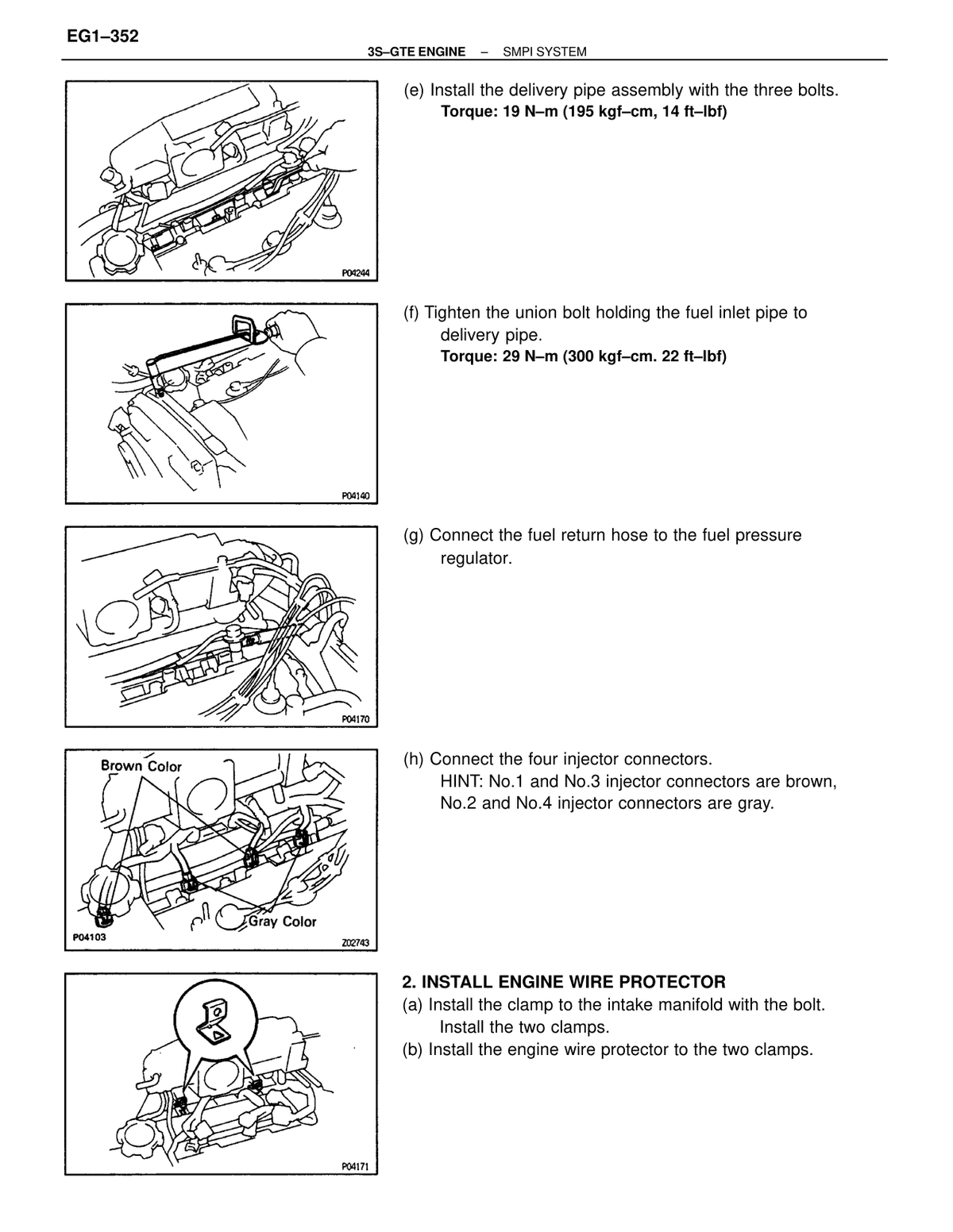

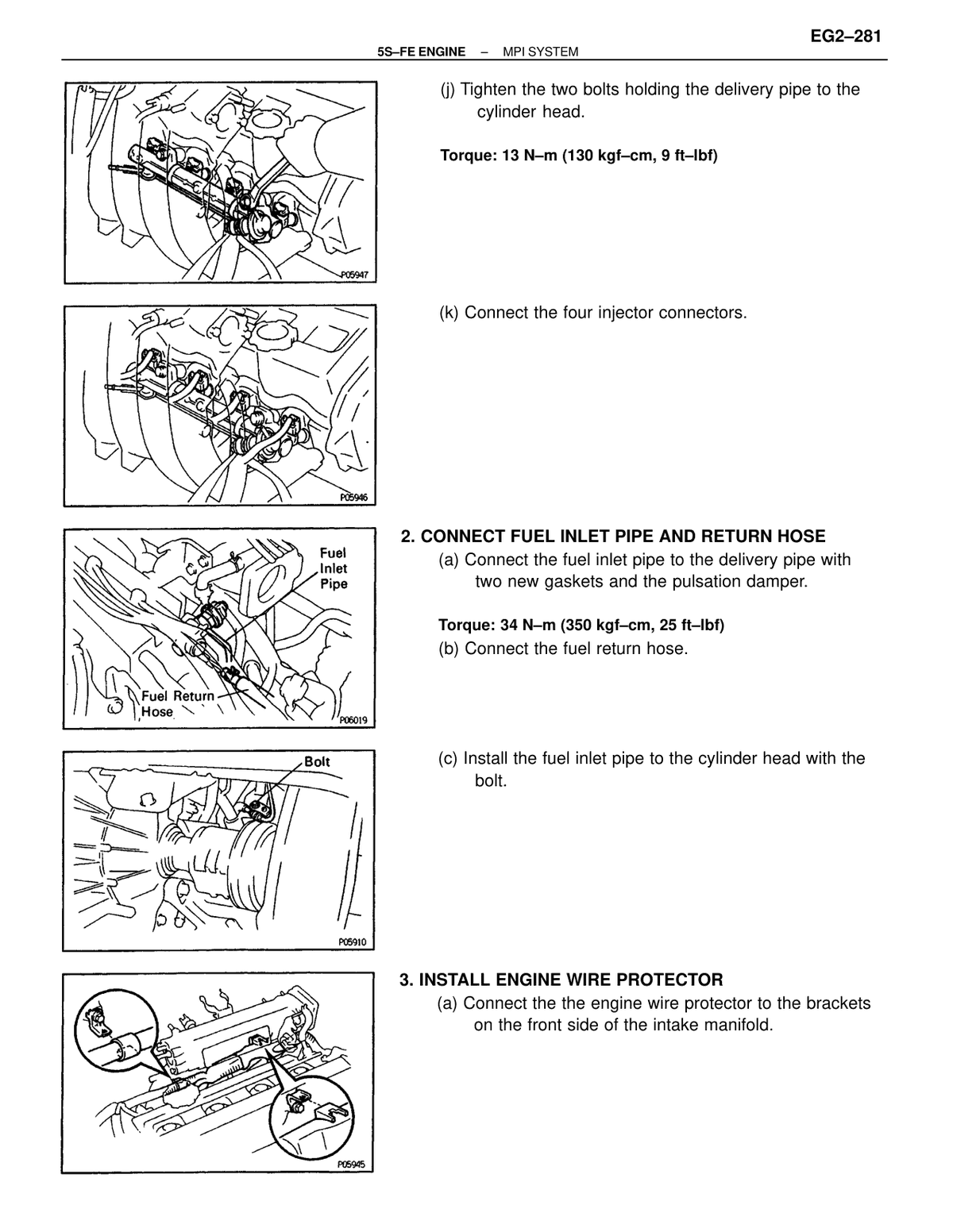

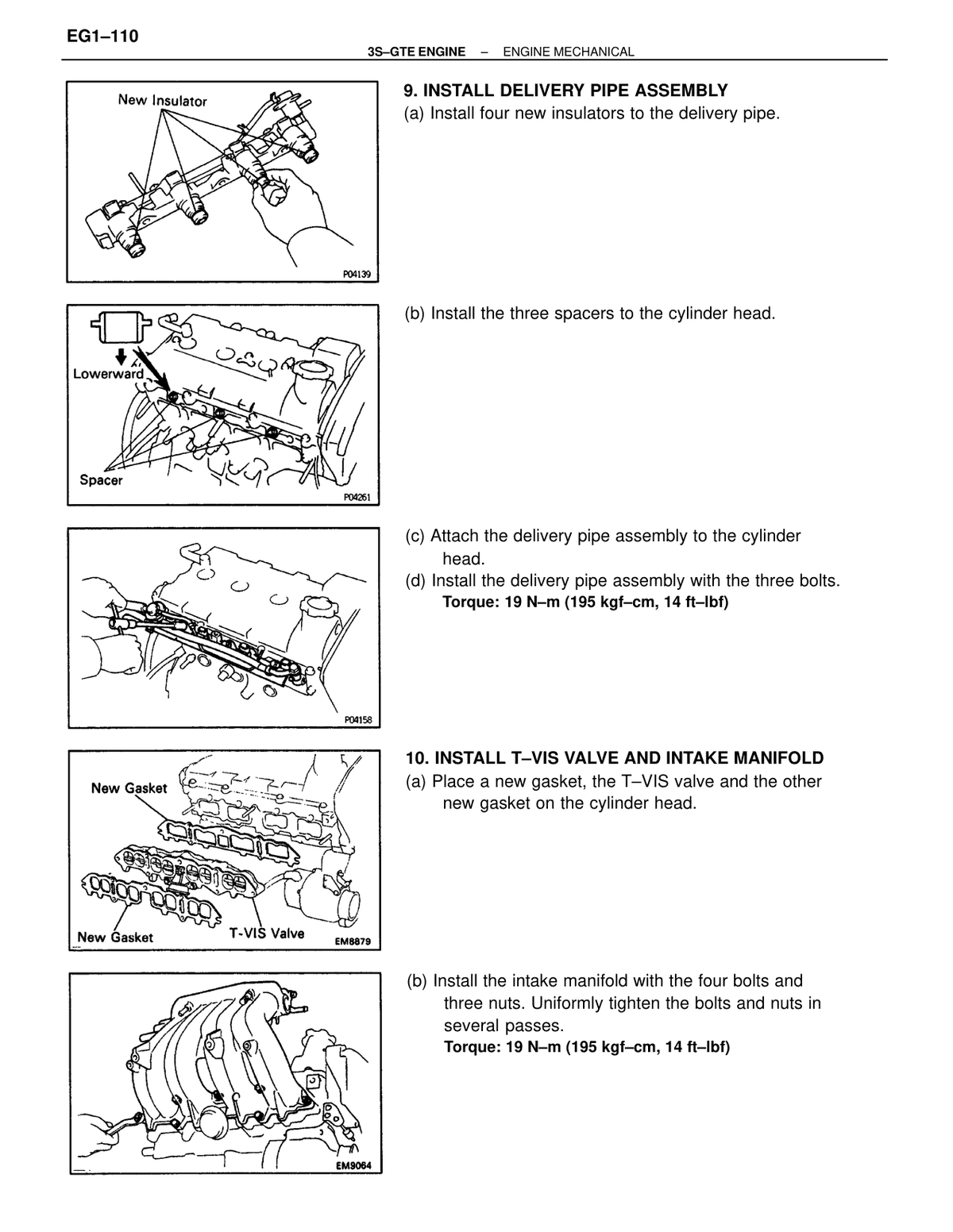

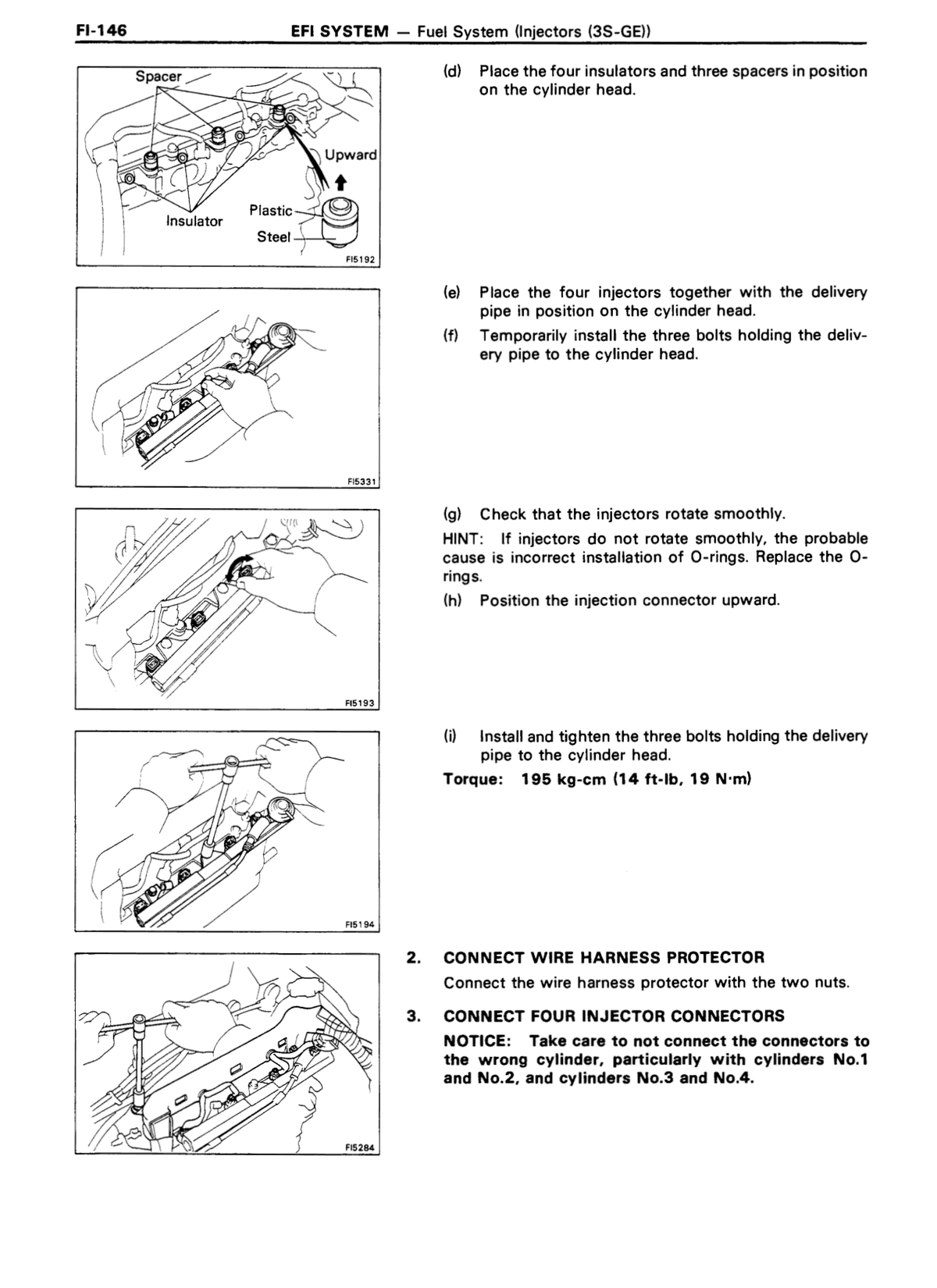

EFI / fuel injection Delivery pipe bolts Three bolts holding delivery pipe to cylinder head 19 195 14 ↗ RM179U1_1991 · p434 OEM manual

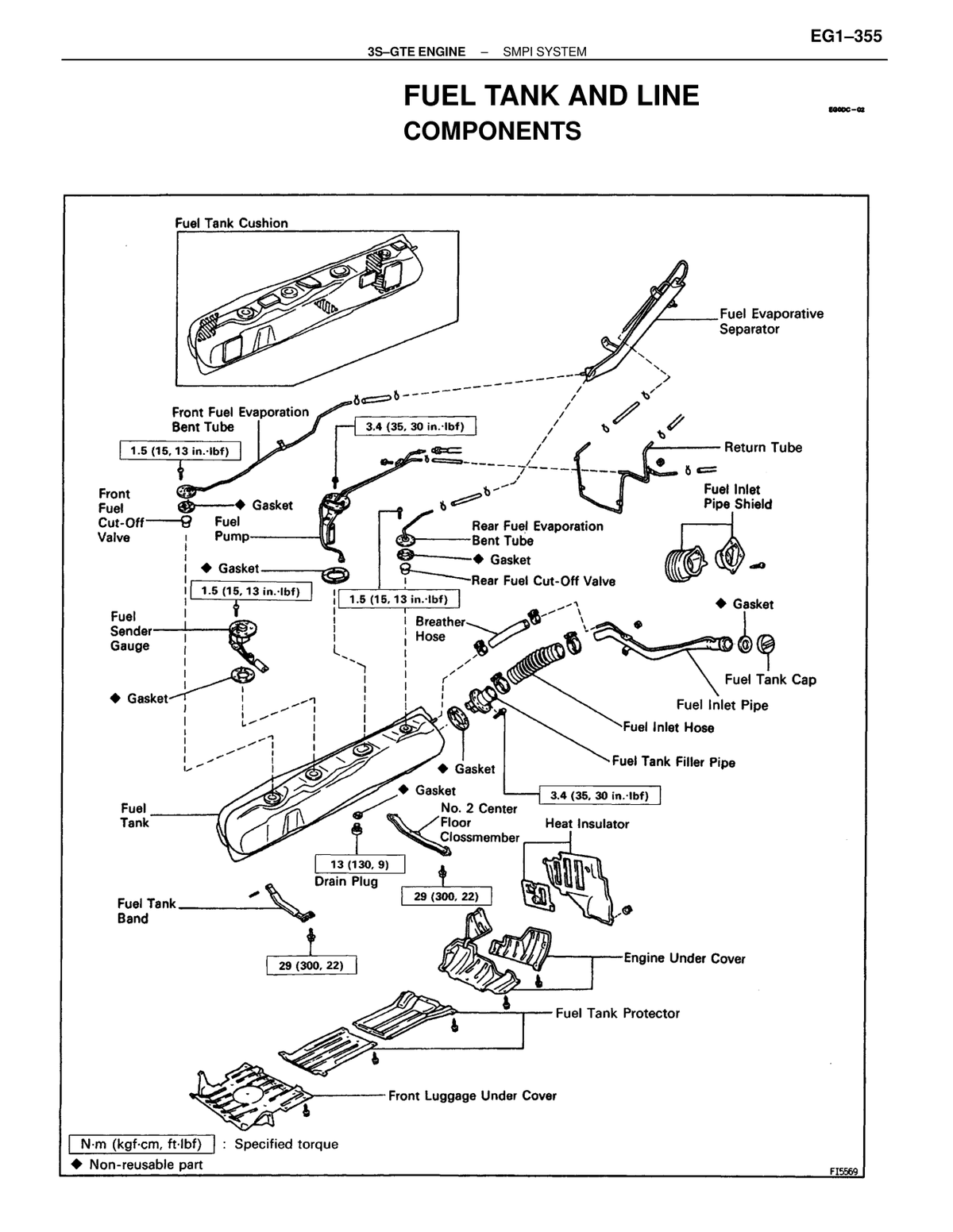

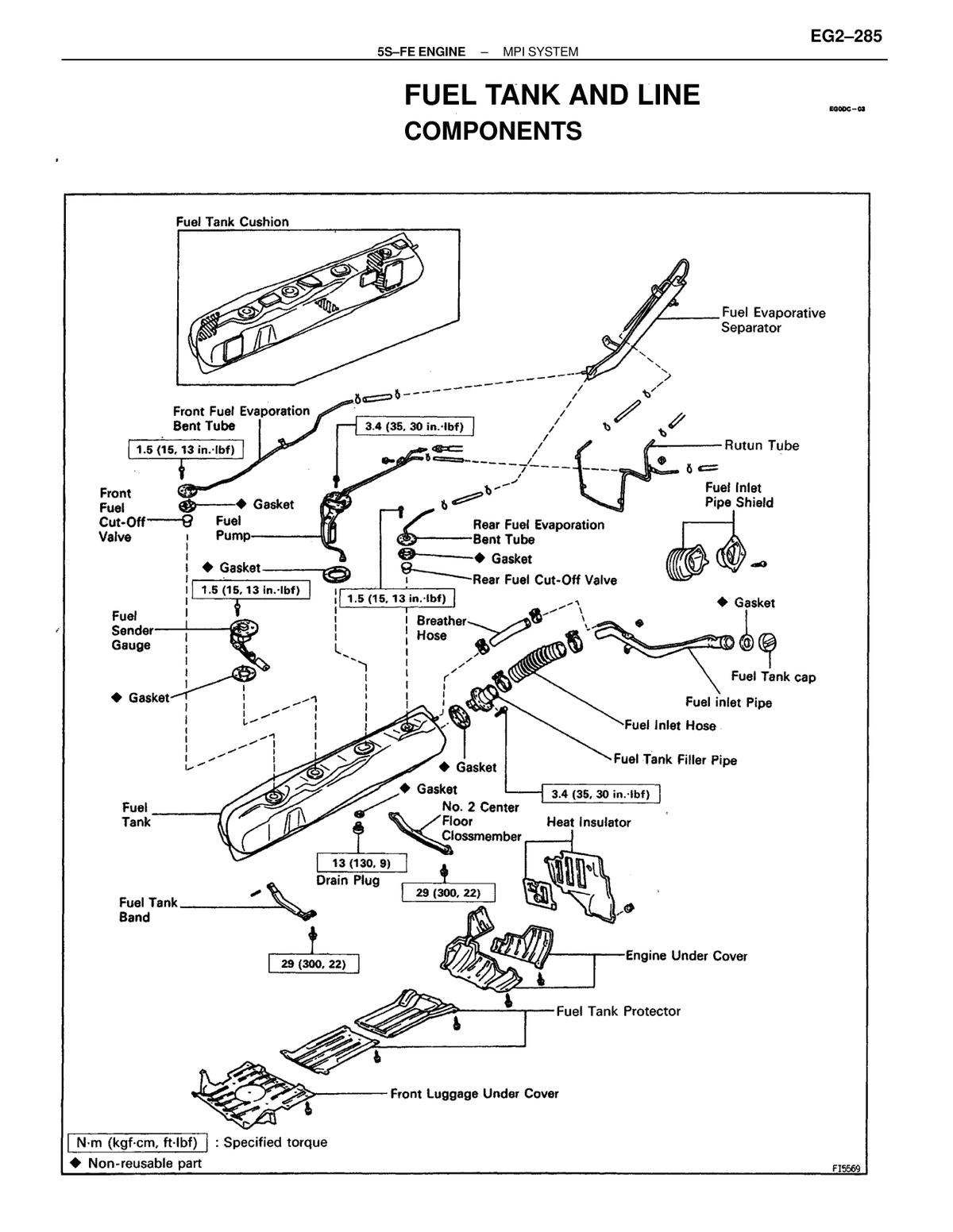

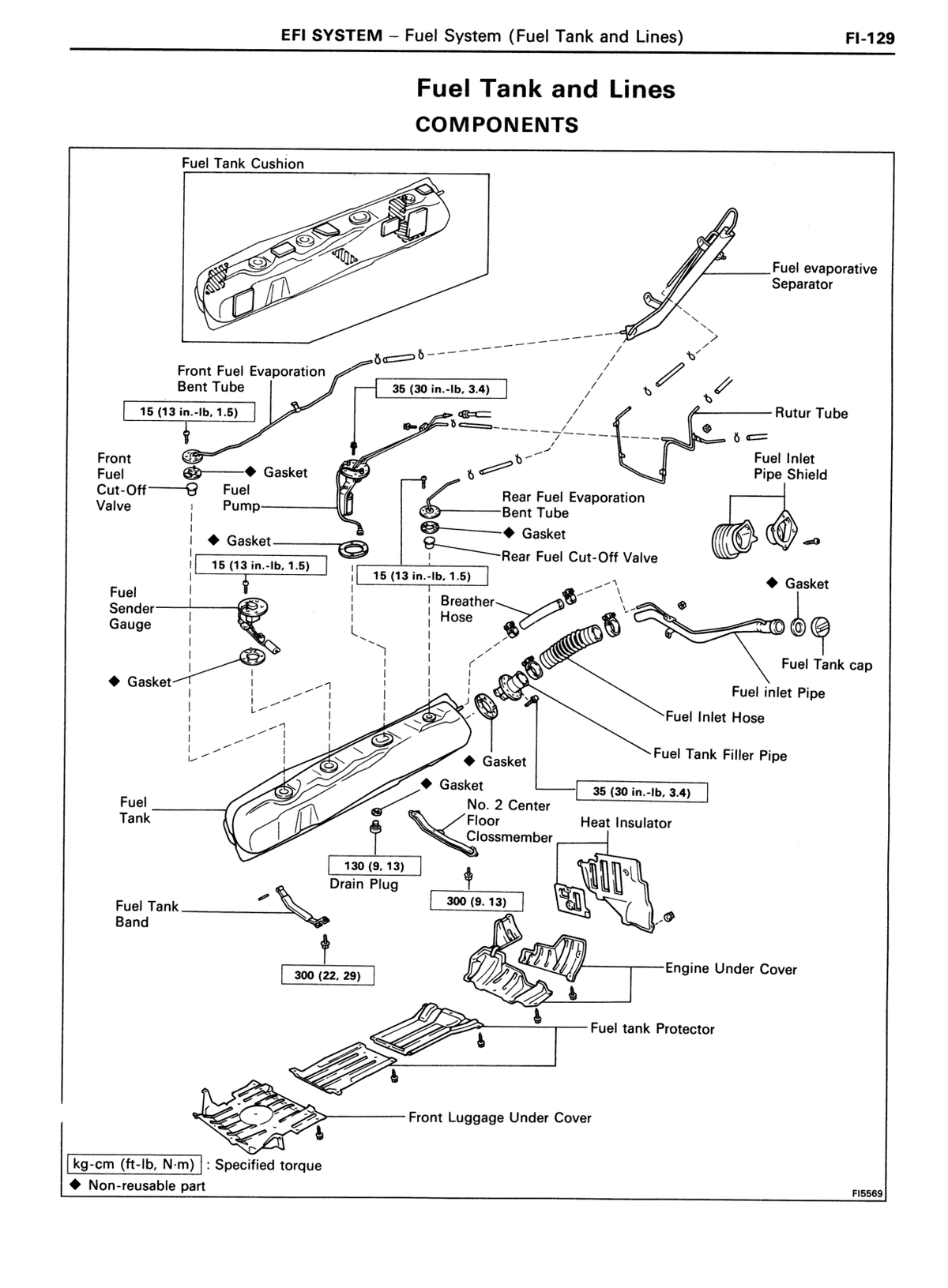

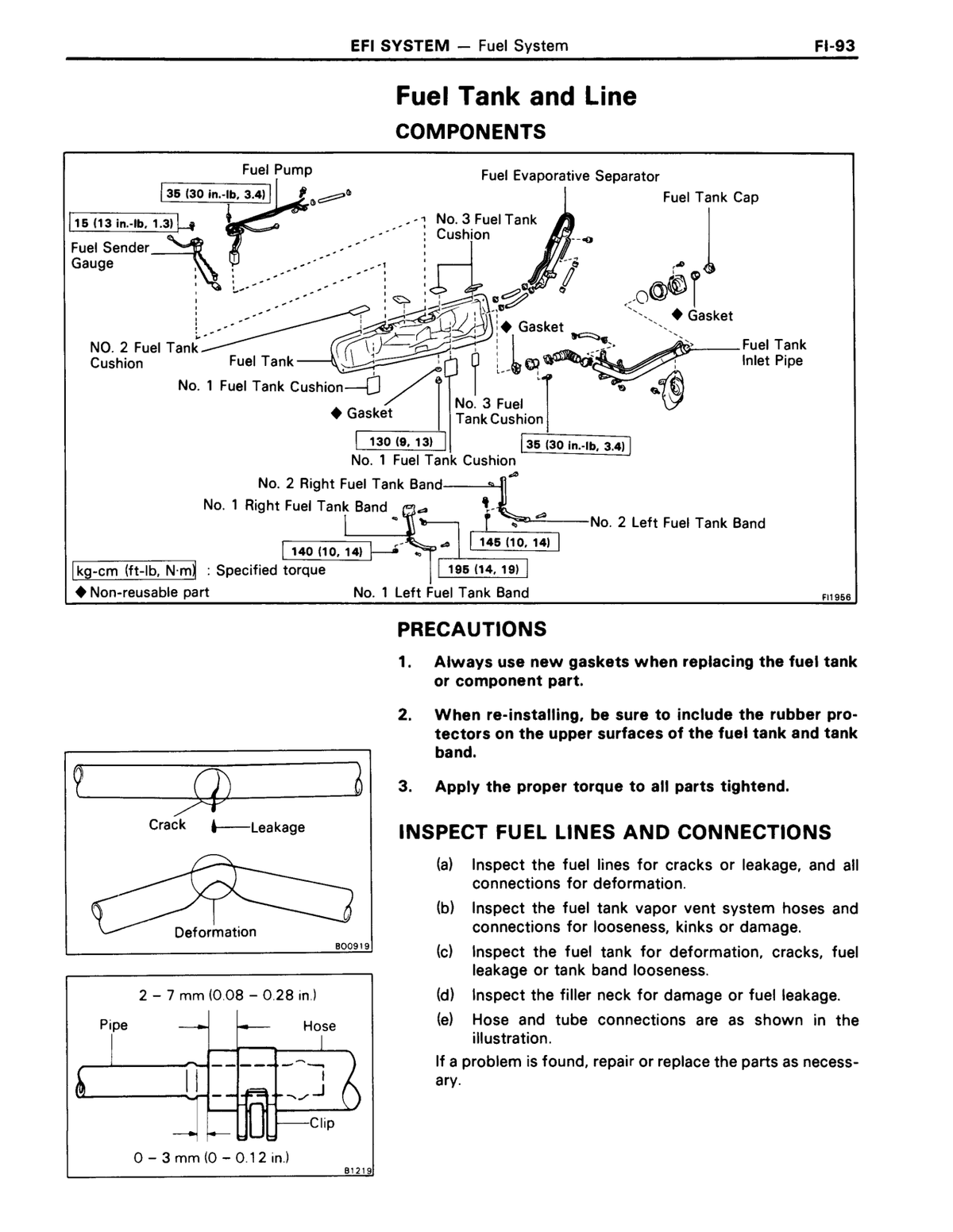

EFI / fuel injection Front Fuel Evaporation Bent Tube in-lb value: 13 in.-lb 1.5 15 — ↗ RM179U1_1991 · p446 OEM manual

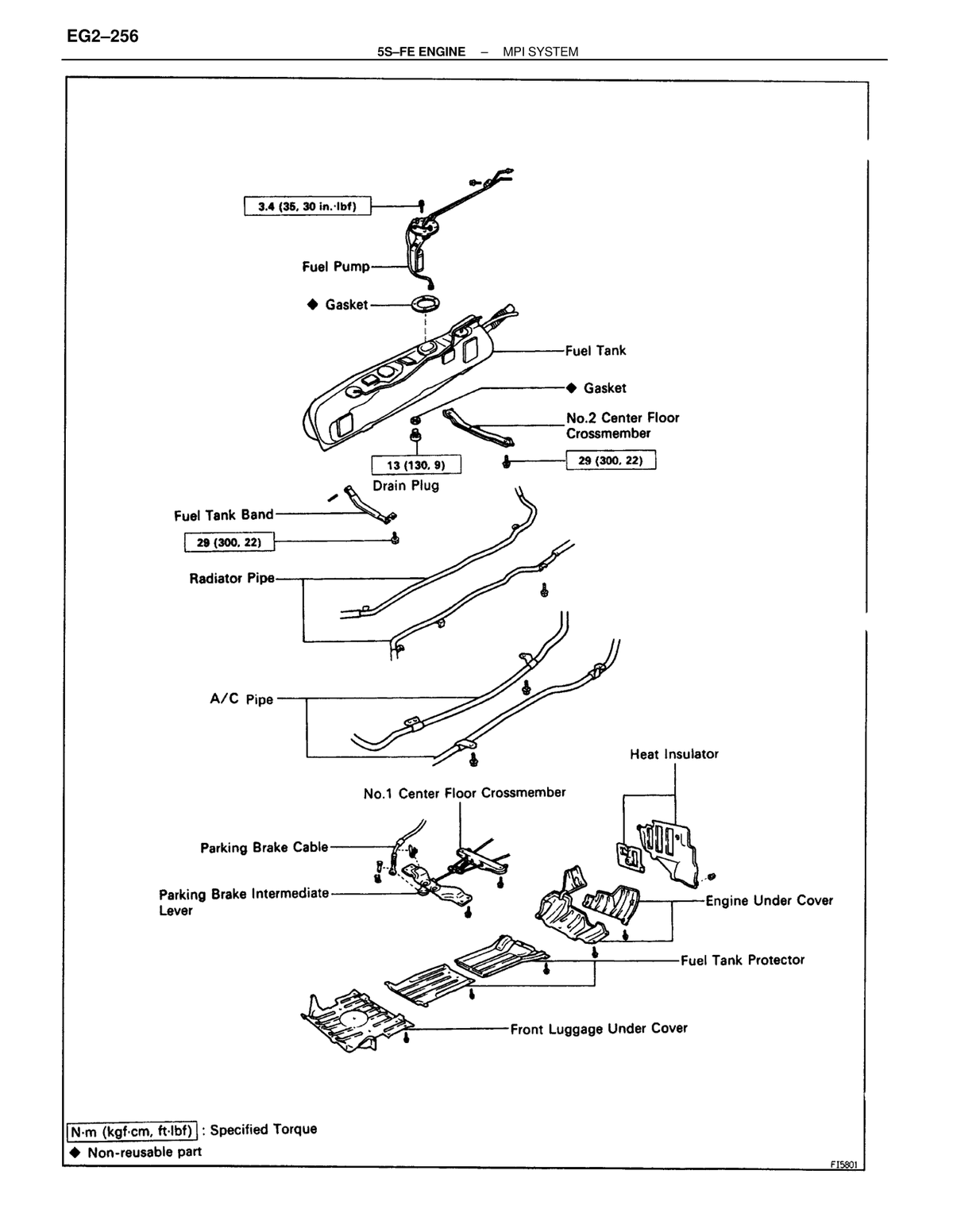

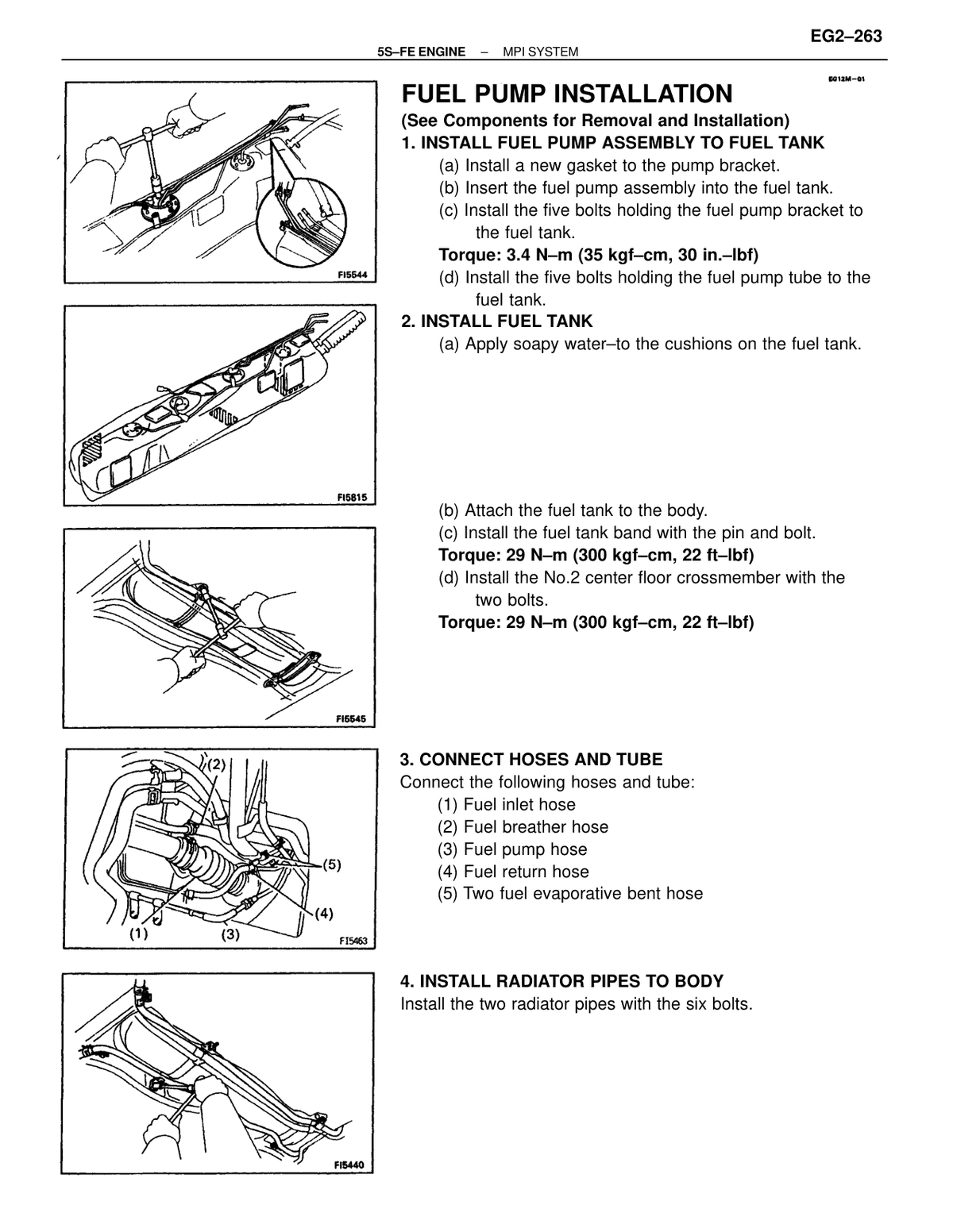

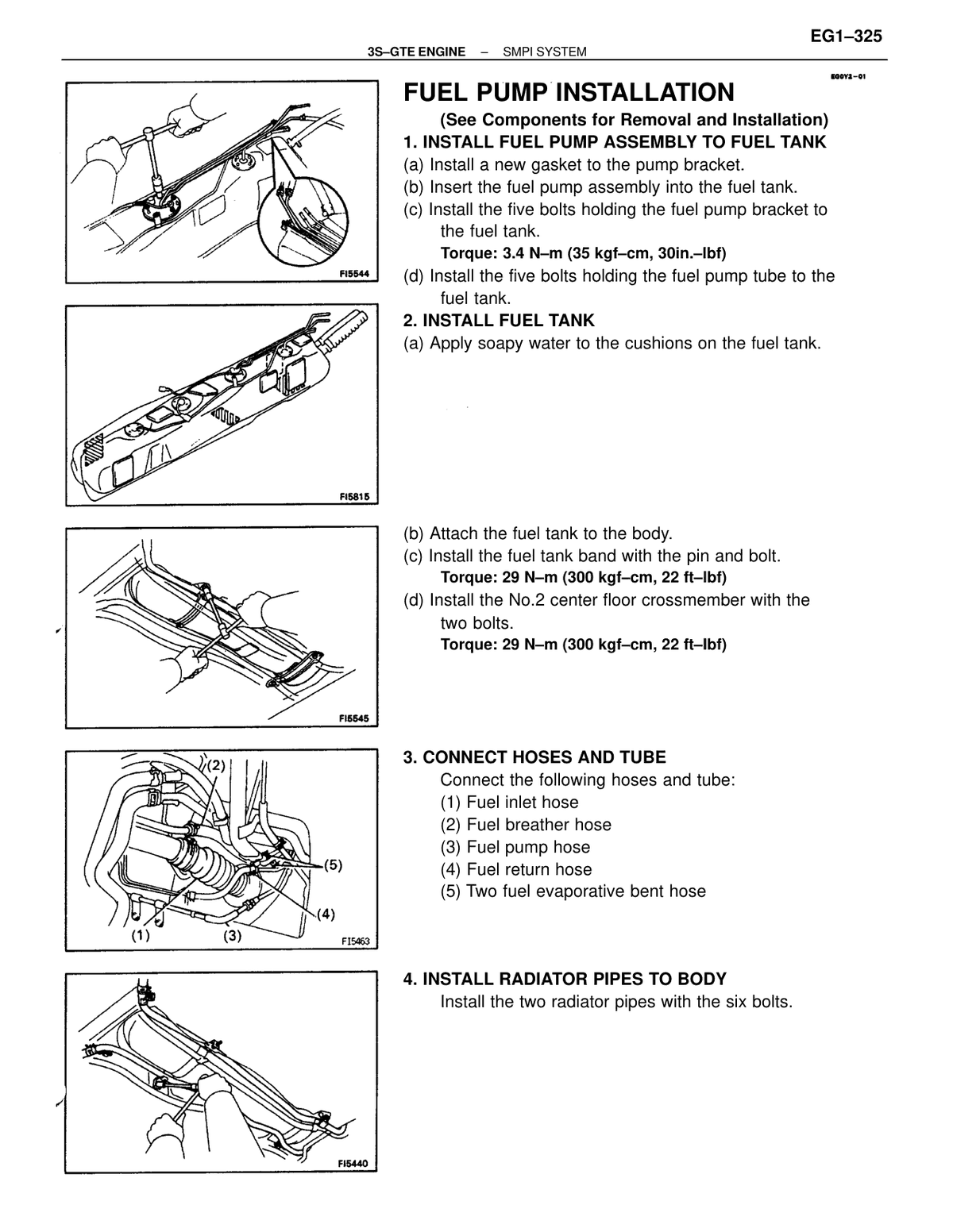

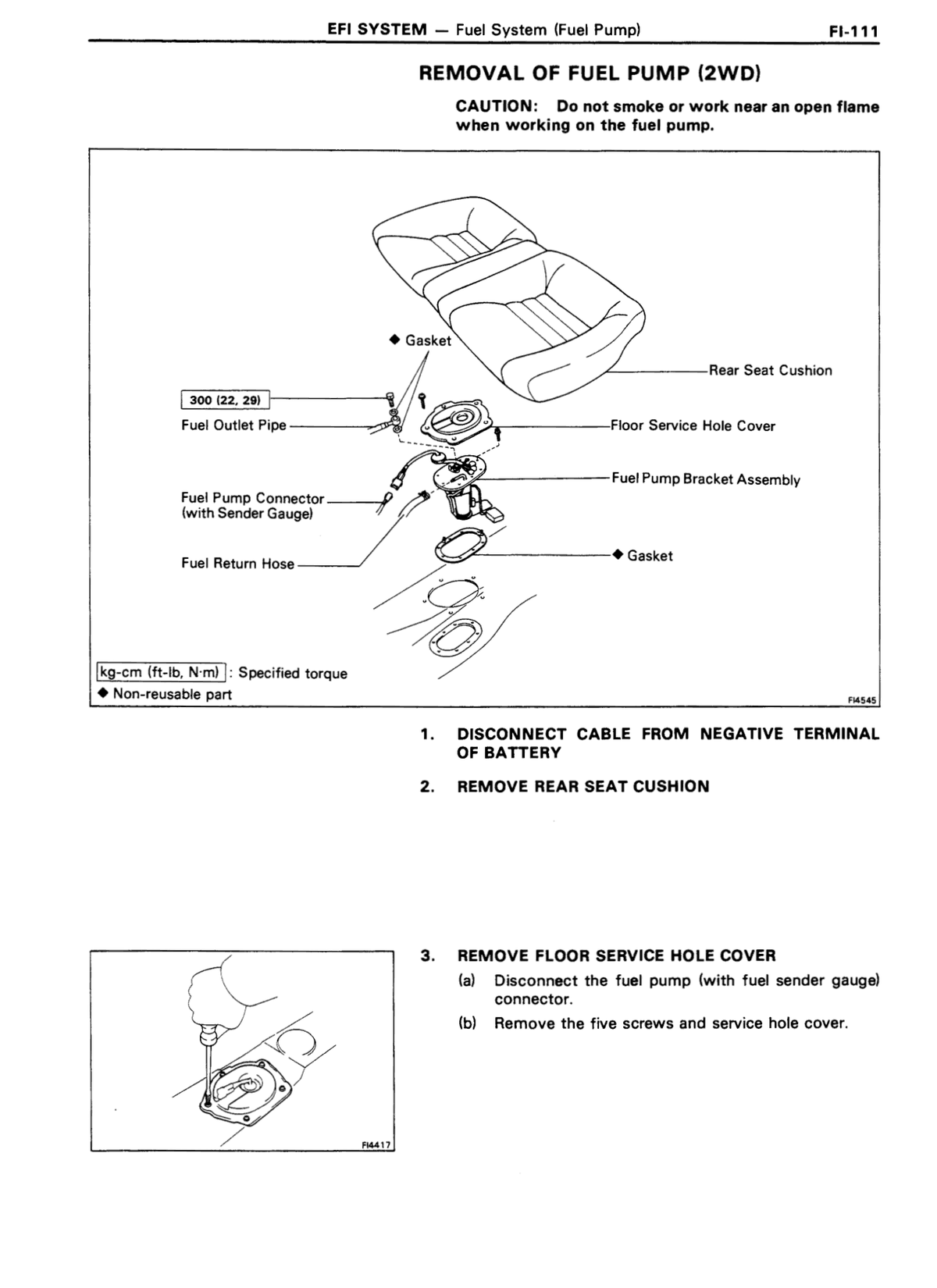

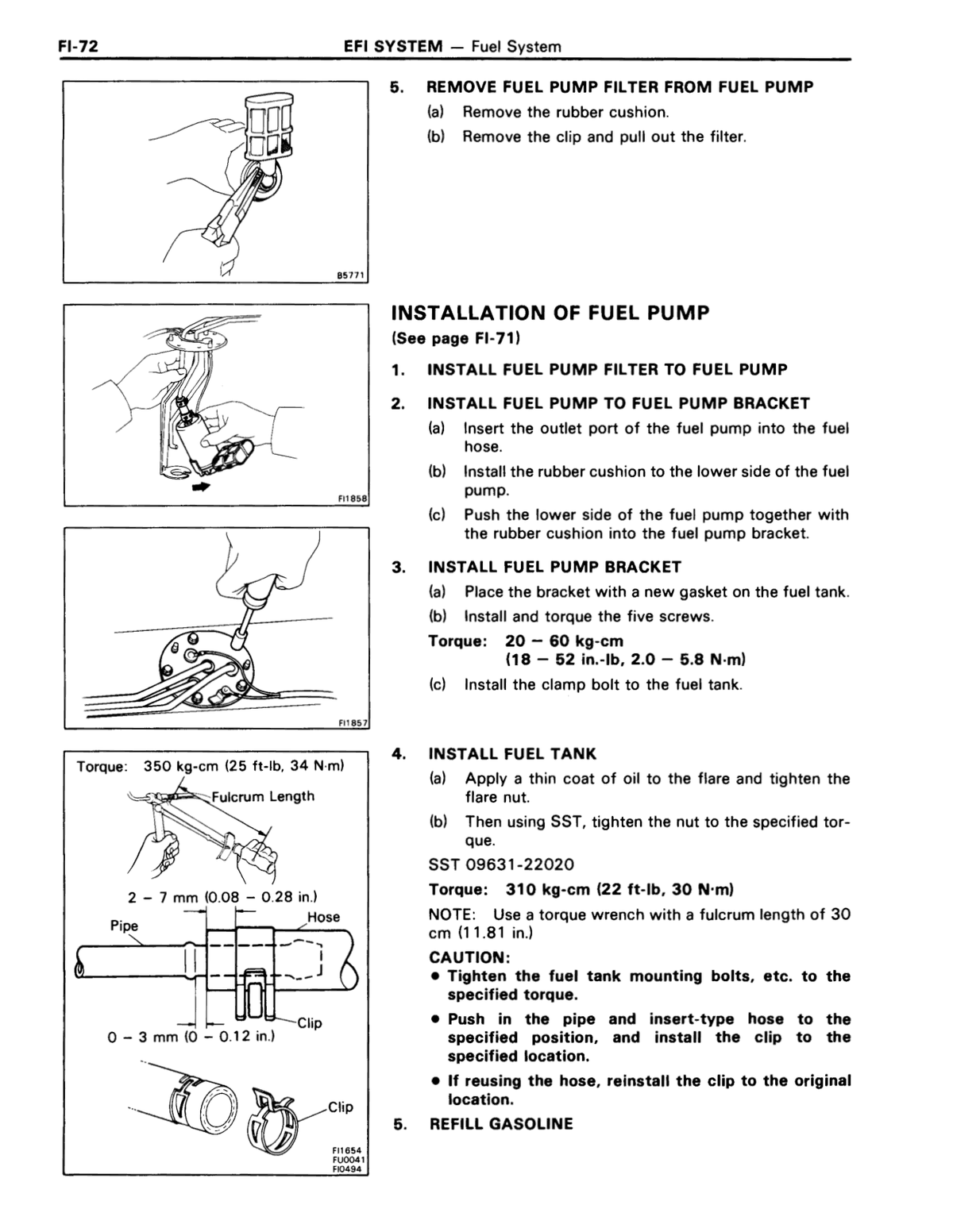

EFI / fuel injection Fuel Pump / Gasket retainer in-lb value: 30 in.-lb 3.4 35 — ↗ RM179U1_1991 · p446 OEM manual
EFI / fuel injection Rear Fuel Evaporation Bent Tube / Rear Fuel Cut-Off Valve in-lb value: 13 in.-lb 1.5 15 — ↗ RM179U1_1991 · p446 OEM manual
EFI / fuel injection Fuel Sender Gauge retainer in-lb value: 13 in.-lb 1.5 15 — ↗ RM179U1_1991 · p446 OEM manual
EFI / fuel injection Fuel Tank Filler Pipe / No. 2 Center Floor Crossmember in-lb value: 30 in.-lb 3.4 35 — ↗ RM179U1_1991 · p446 OEM manual
EFI / fuel injection Fuel Tank Protector / Engine Under Cover bolts kg-cm value reads 300 (9, 13) 13 — 9 ↗ RM179U1_1991 · p446 OEM manual

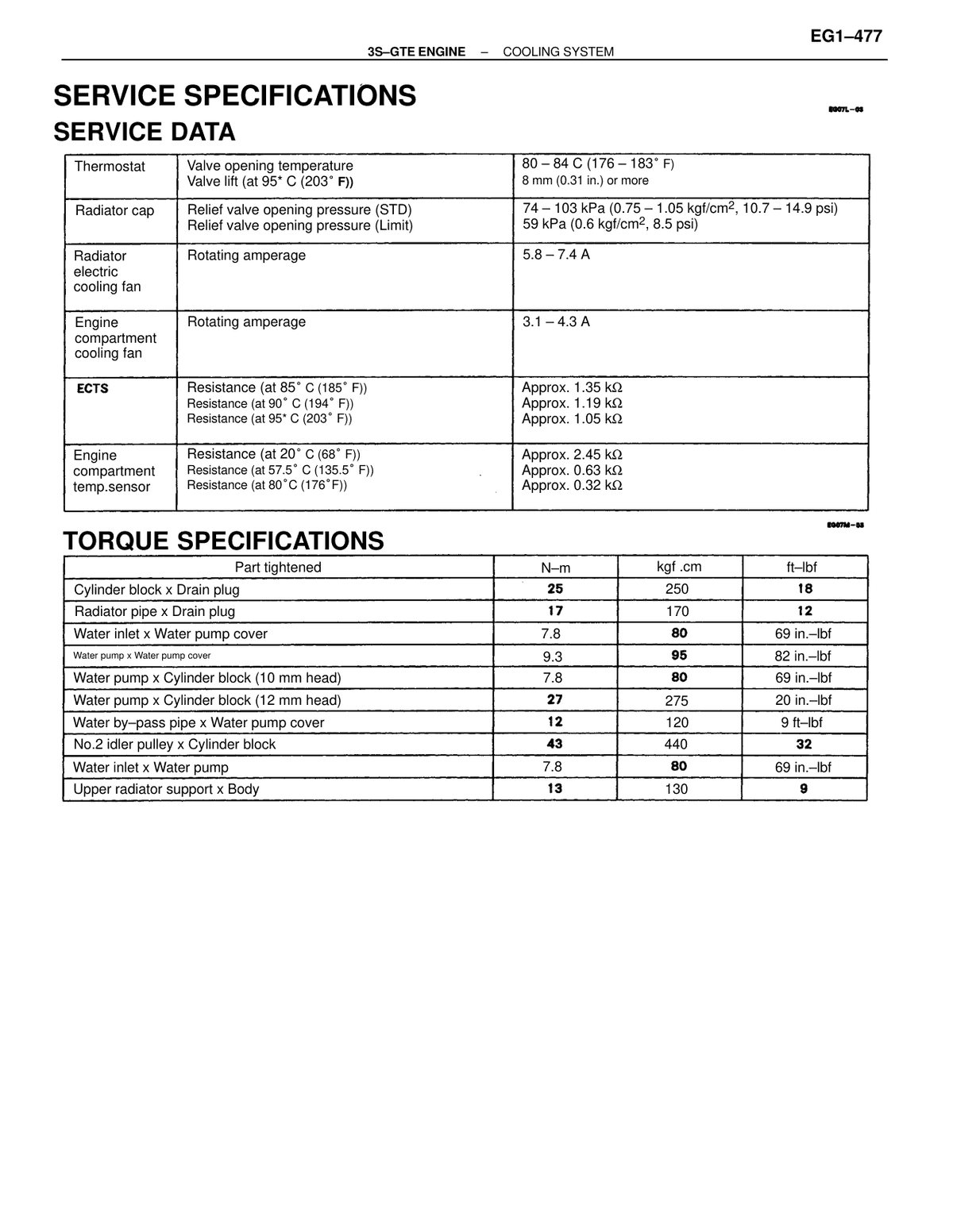

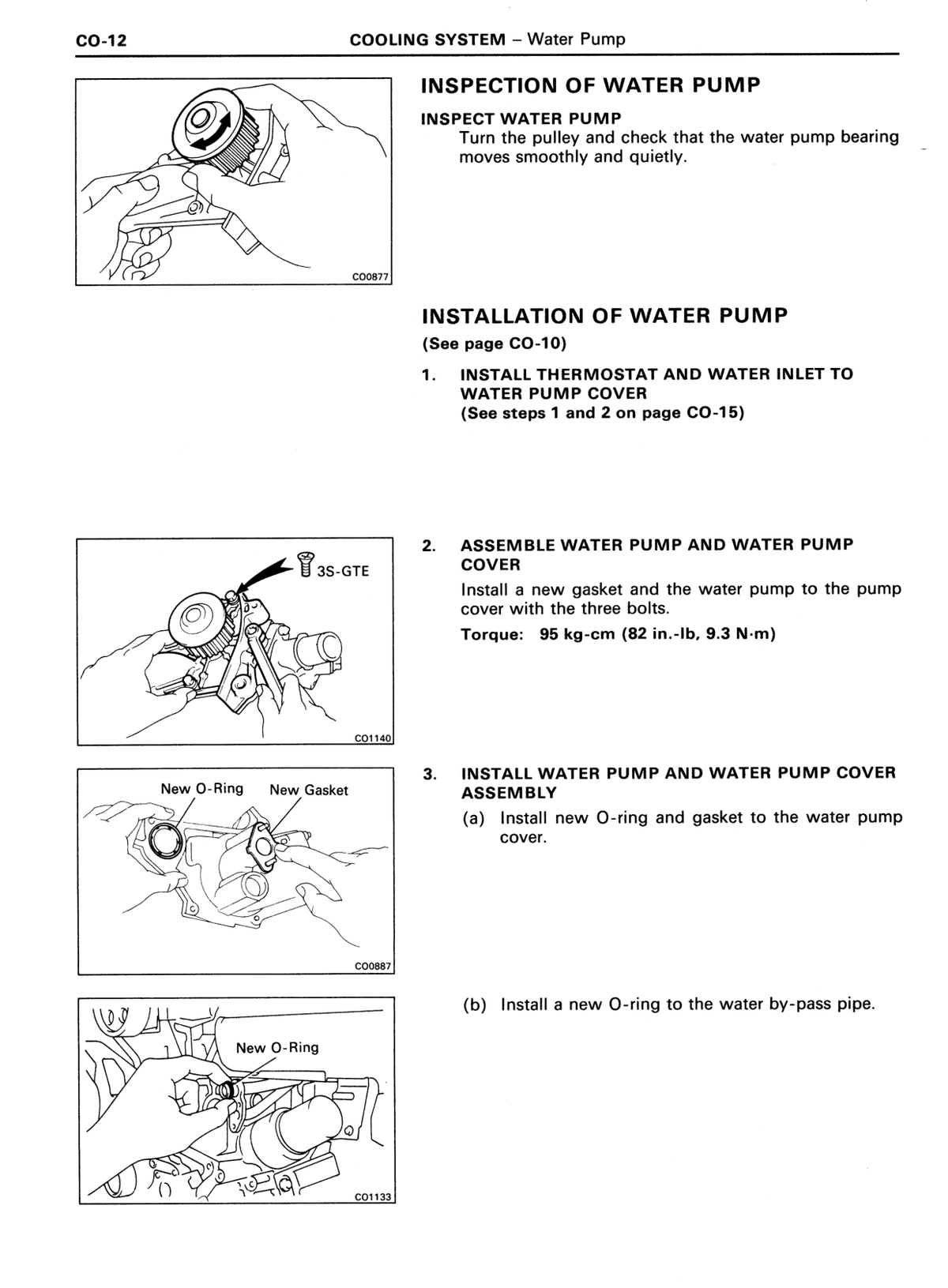

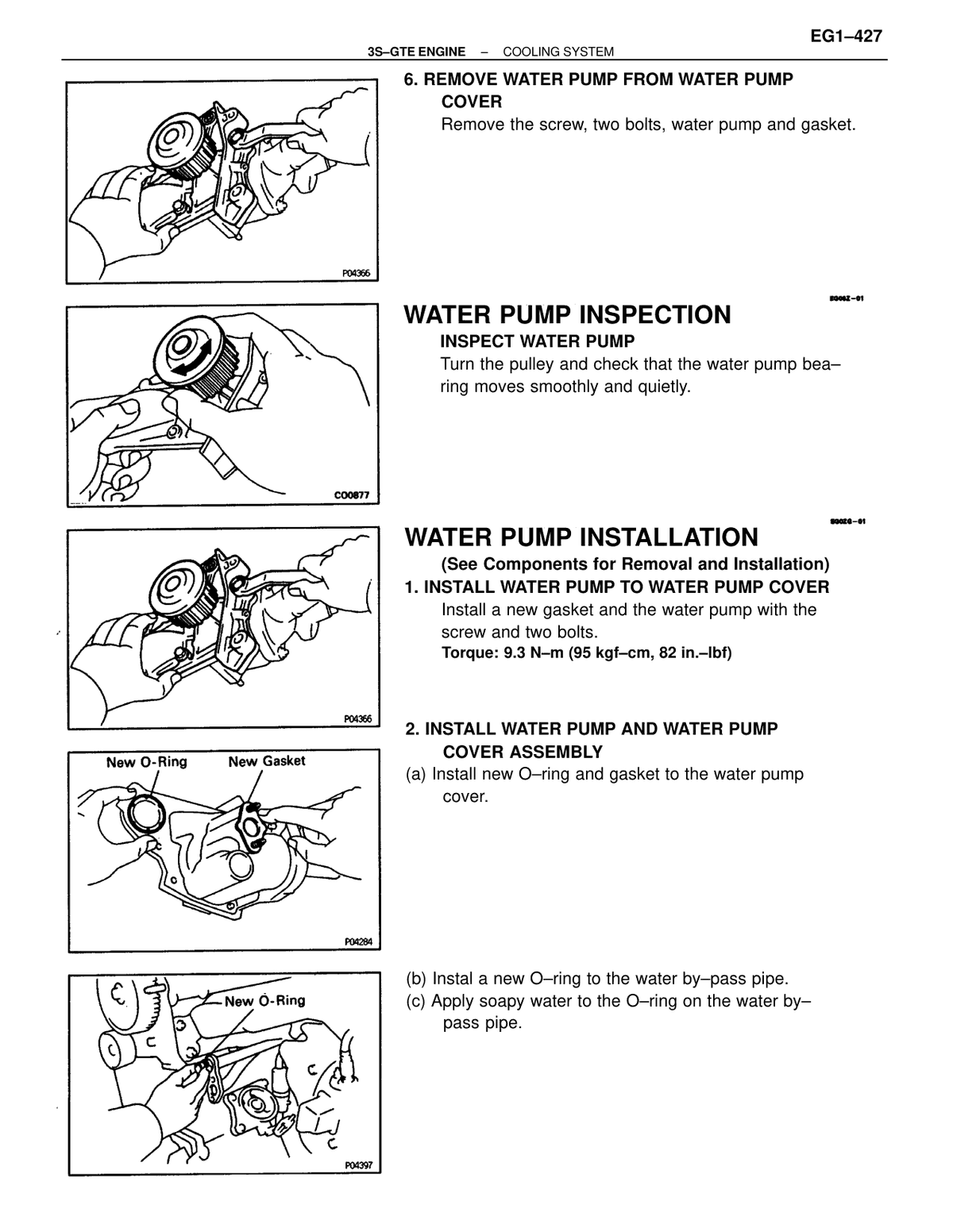

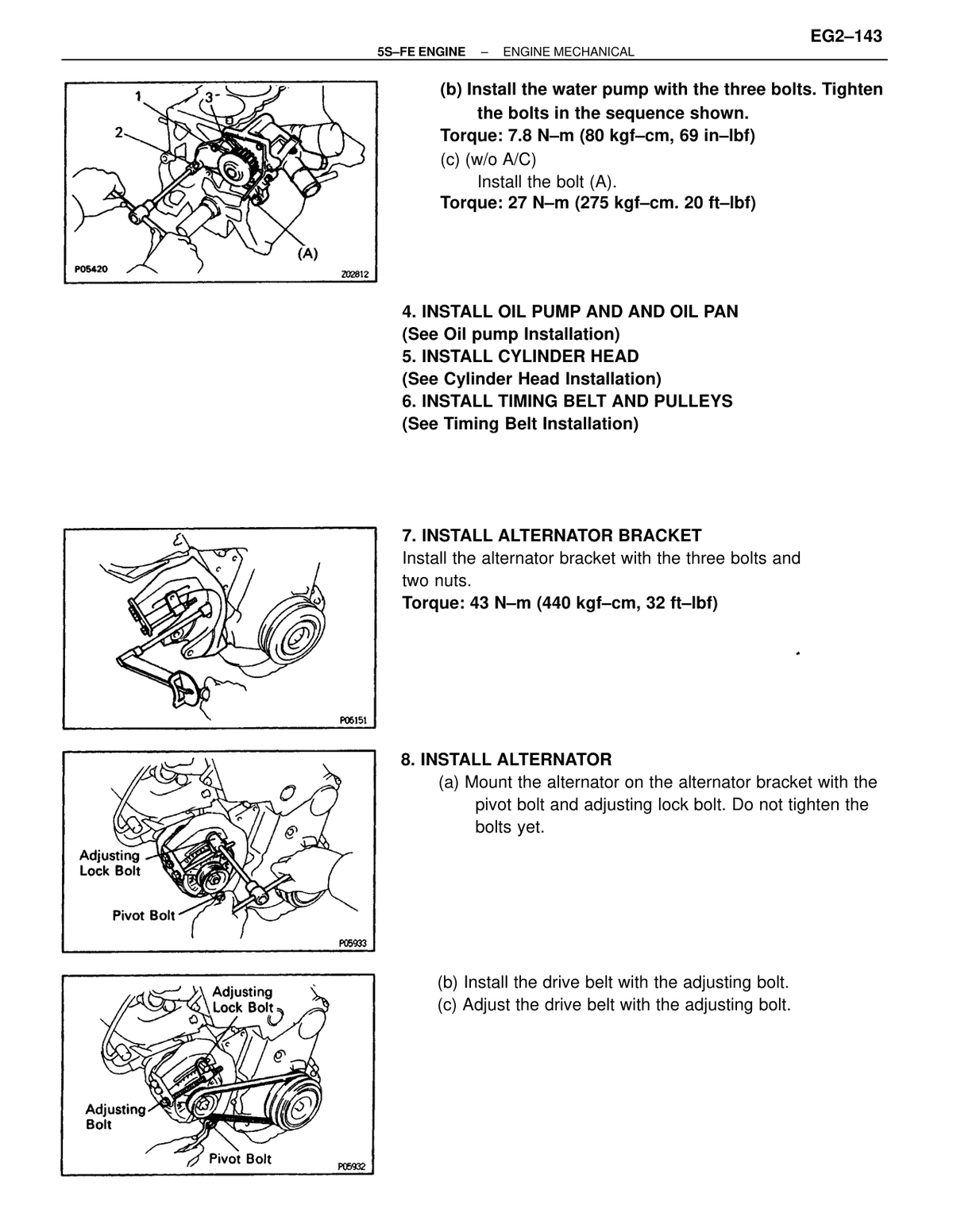

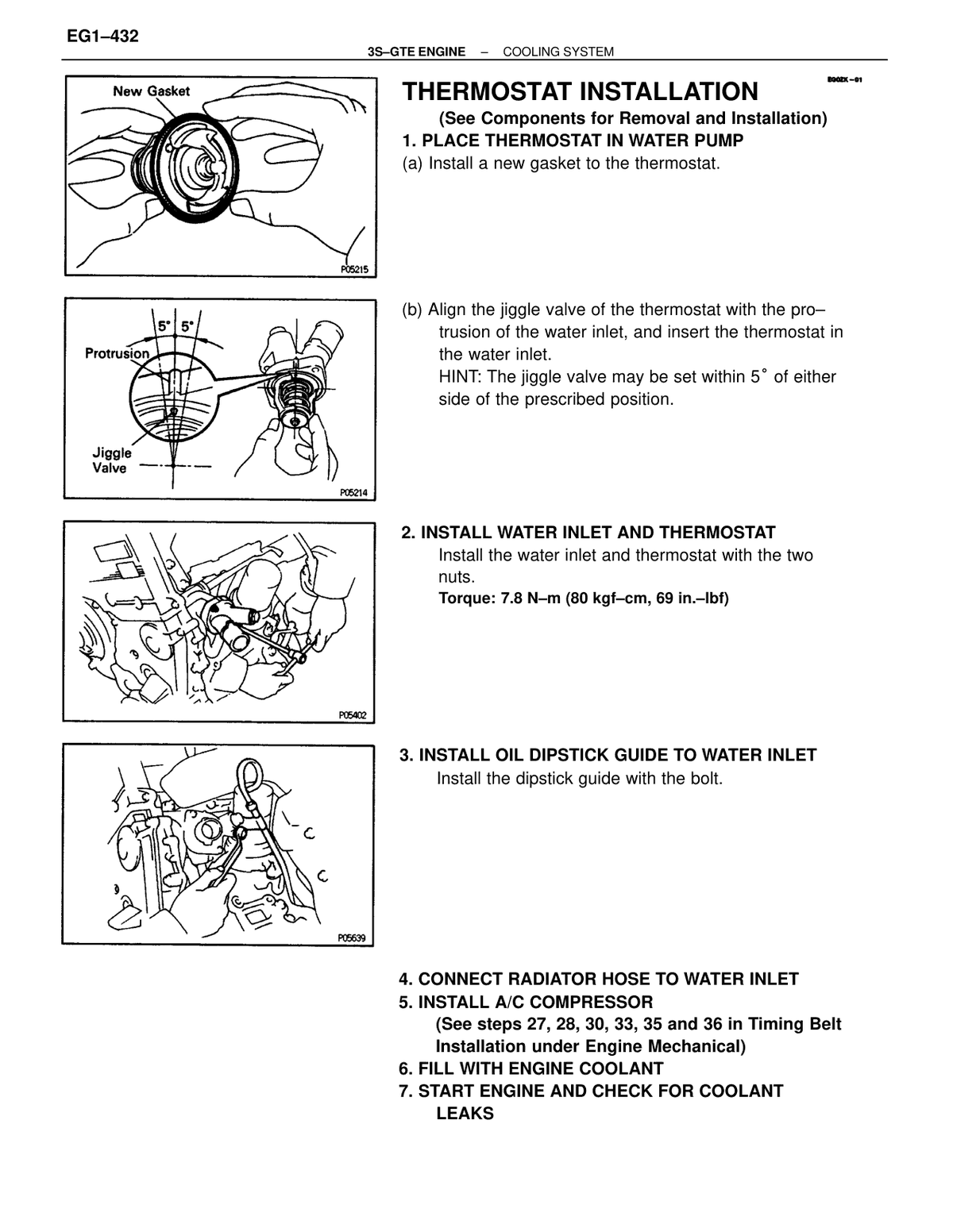

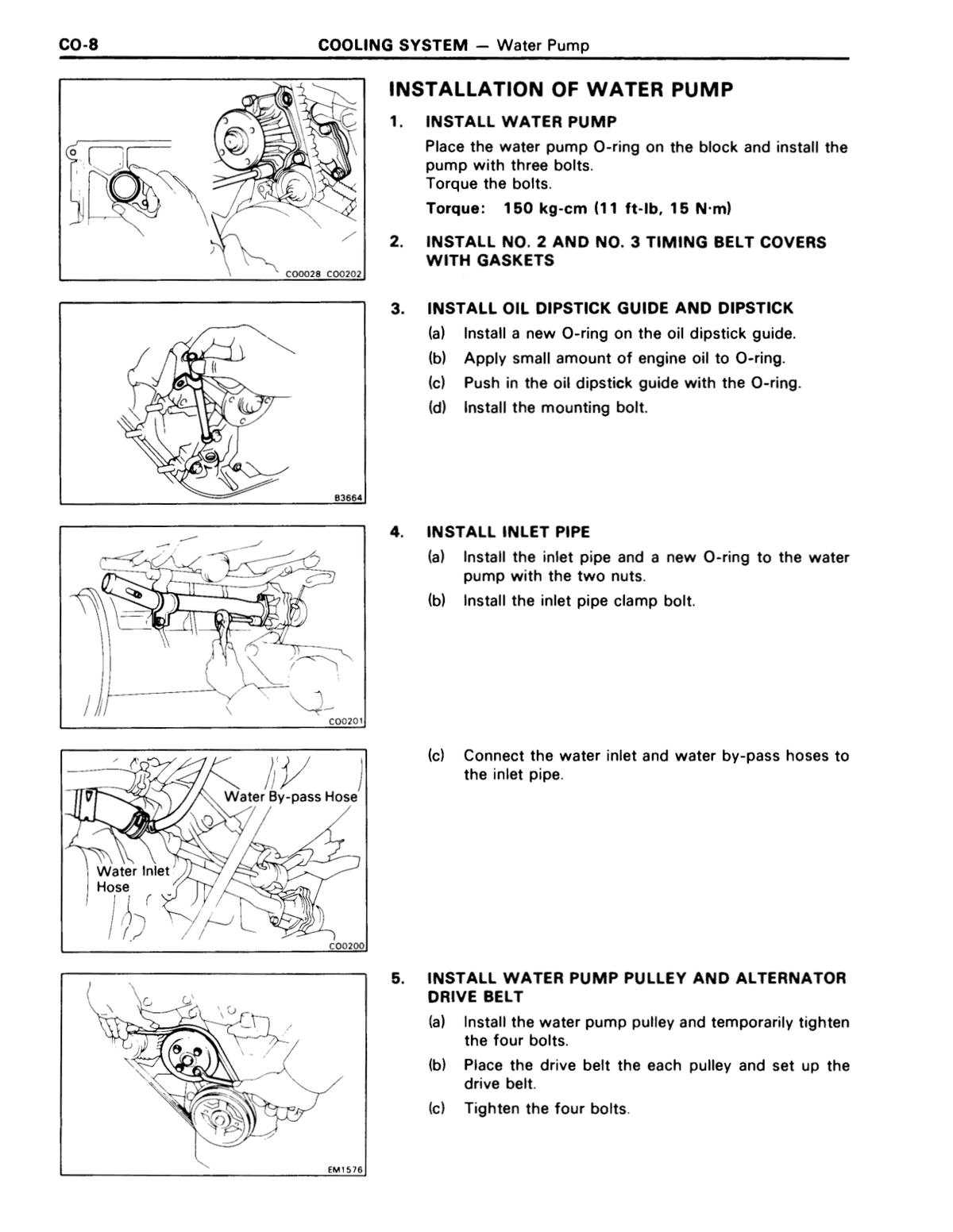

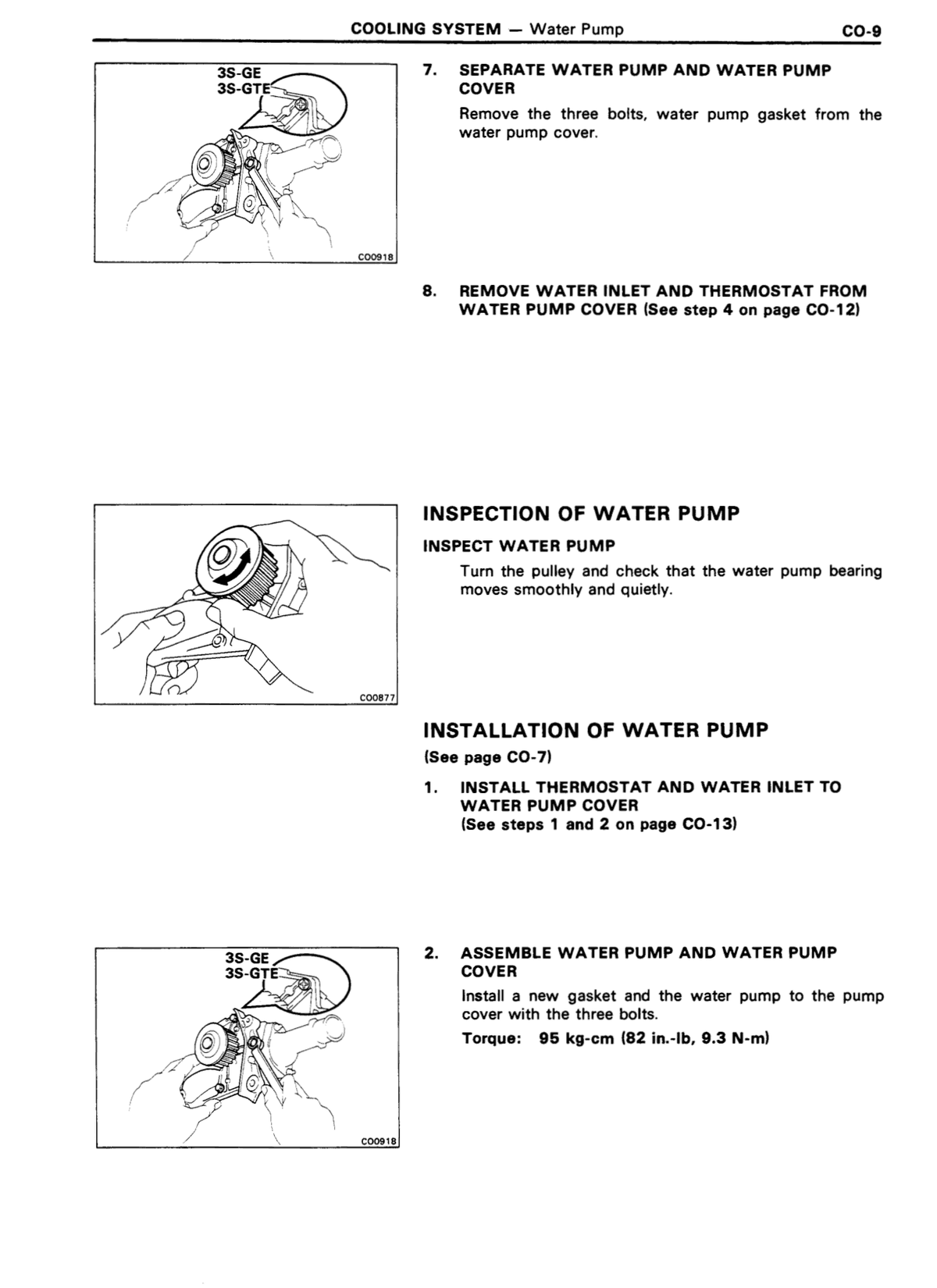

Cooling Water pump to water pump cover bolts Step 2 — three bolts, 3S-GTE 9.3 95 — ↗ RM179U1_1991 · p511 OEM manual

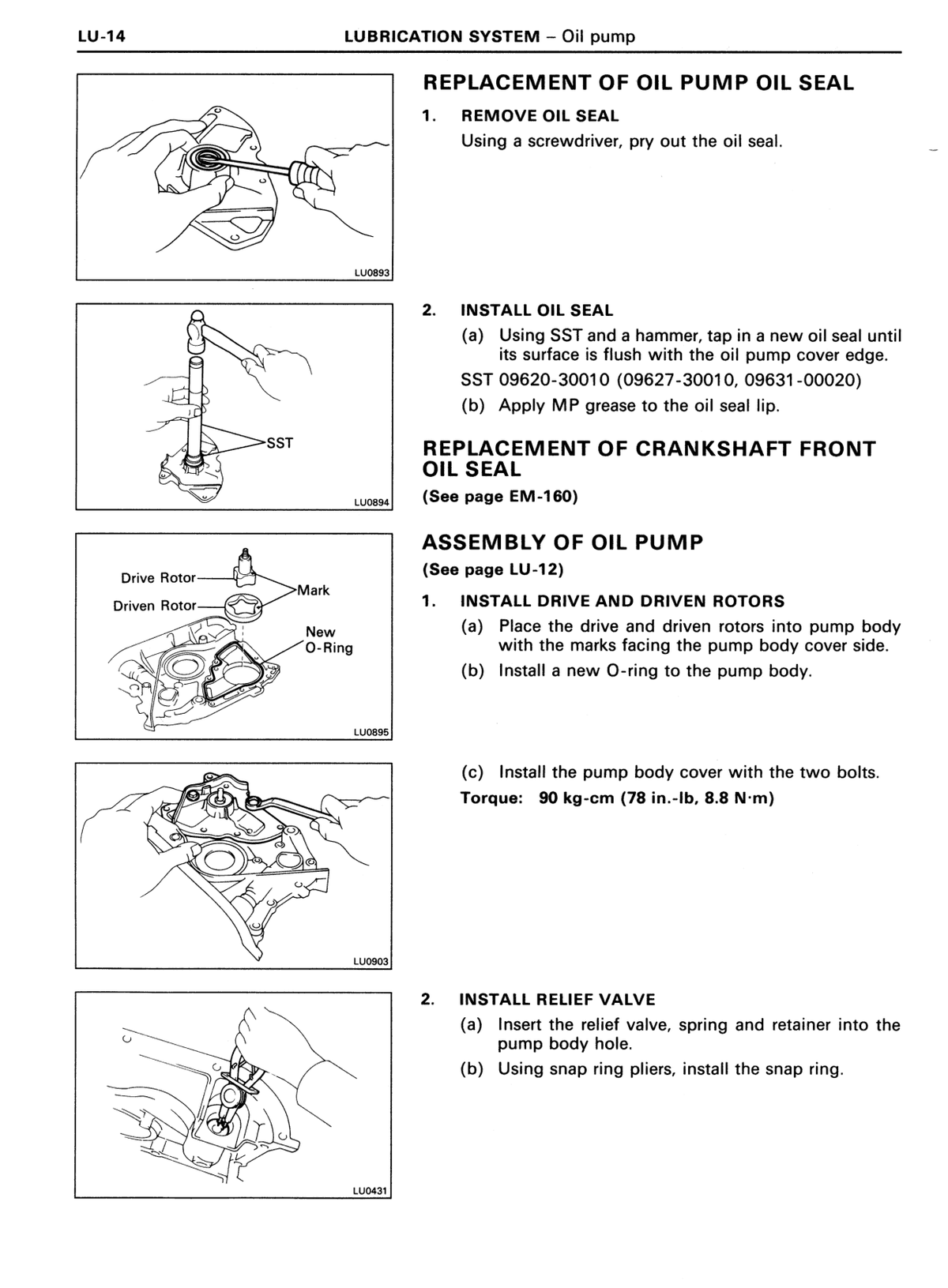

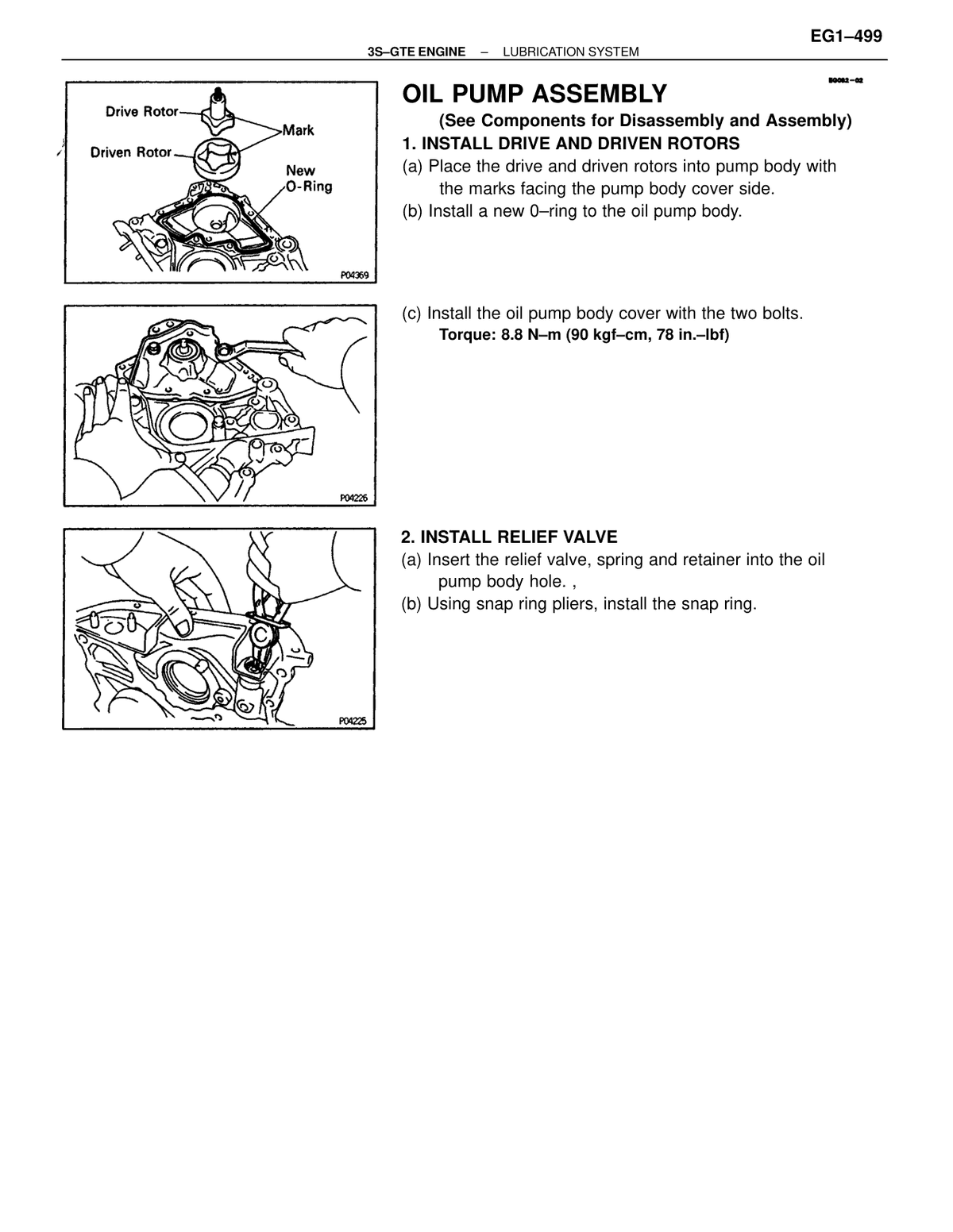

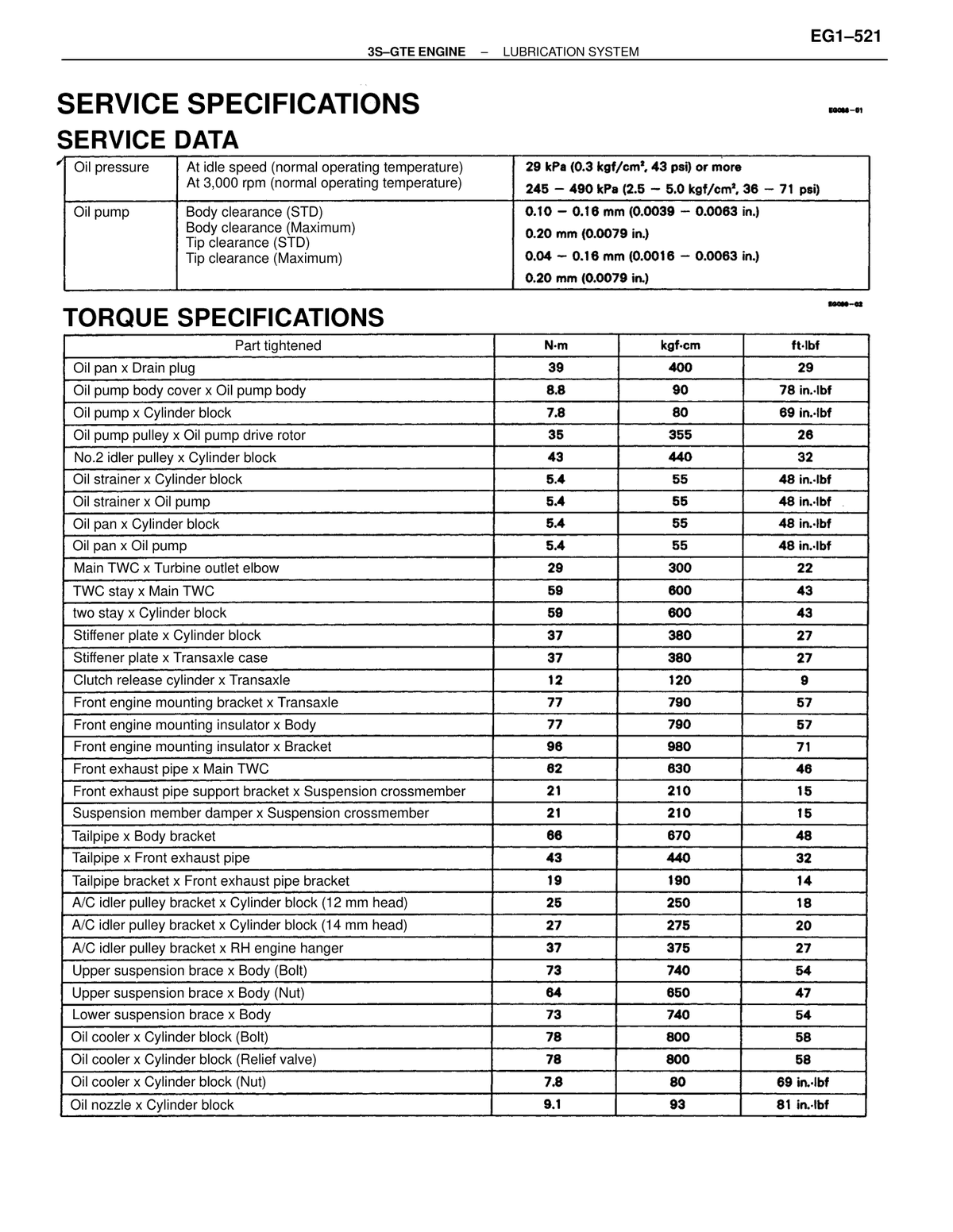

Lubrication / oil Oil Pump Body Cover bolts in-lb value shown as 78 in.-lb 8.8 90 — ↗ RM179U1_1991 · p547 OEM manual

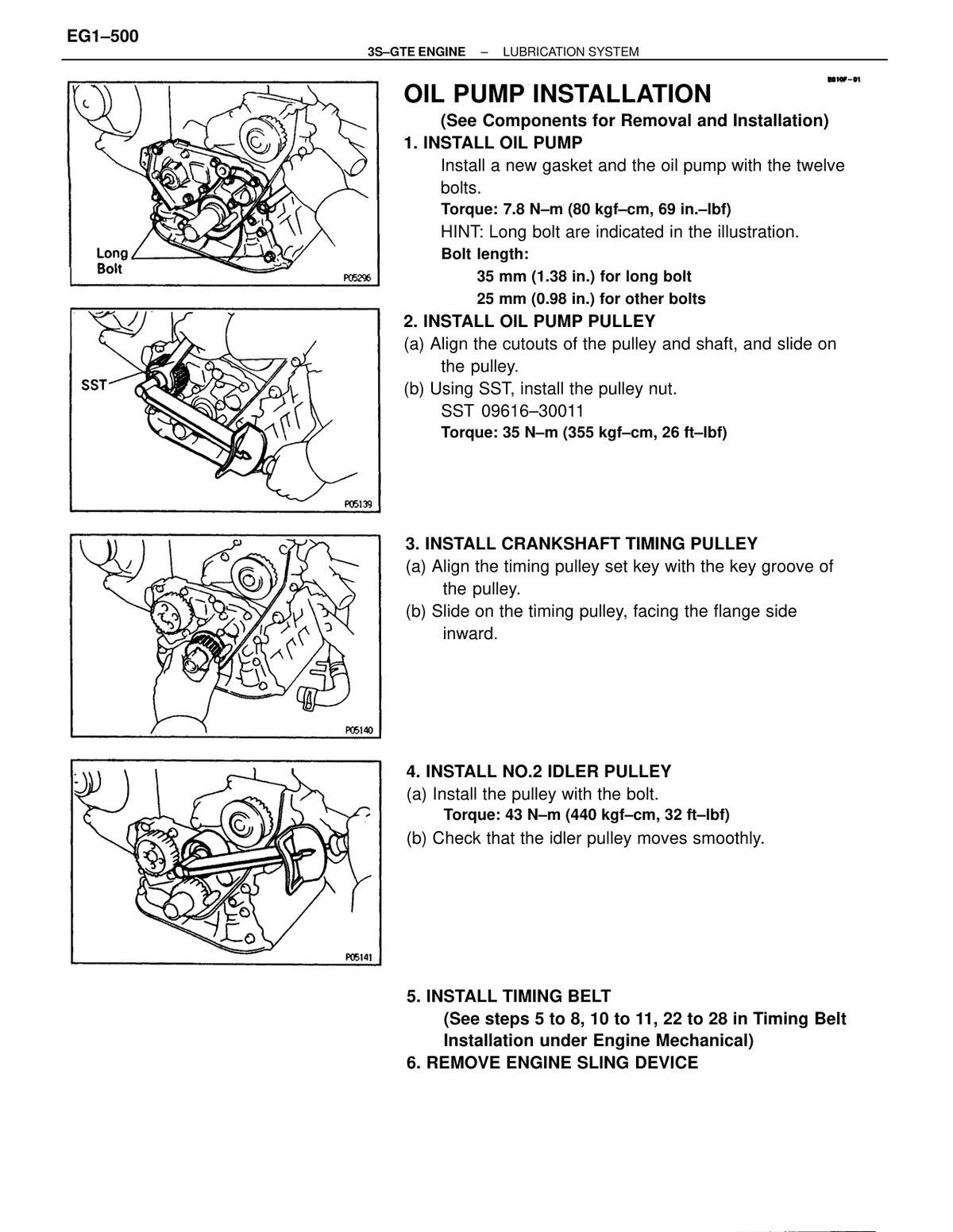

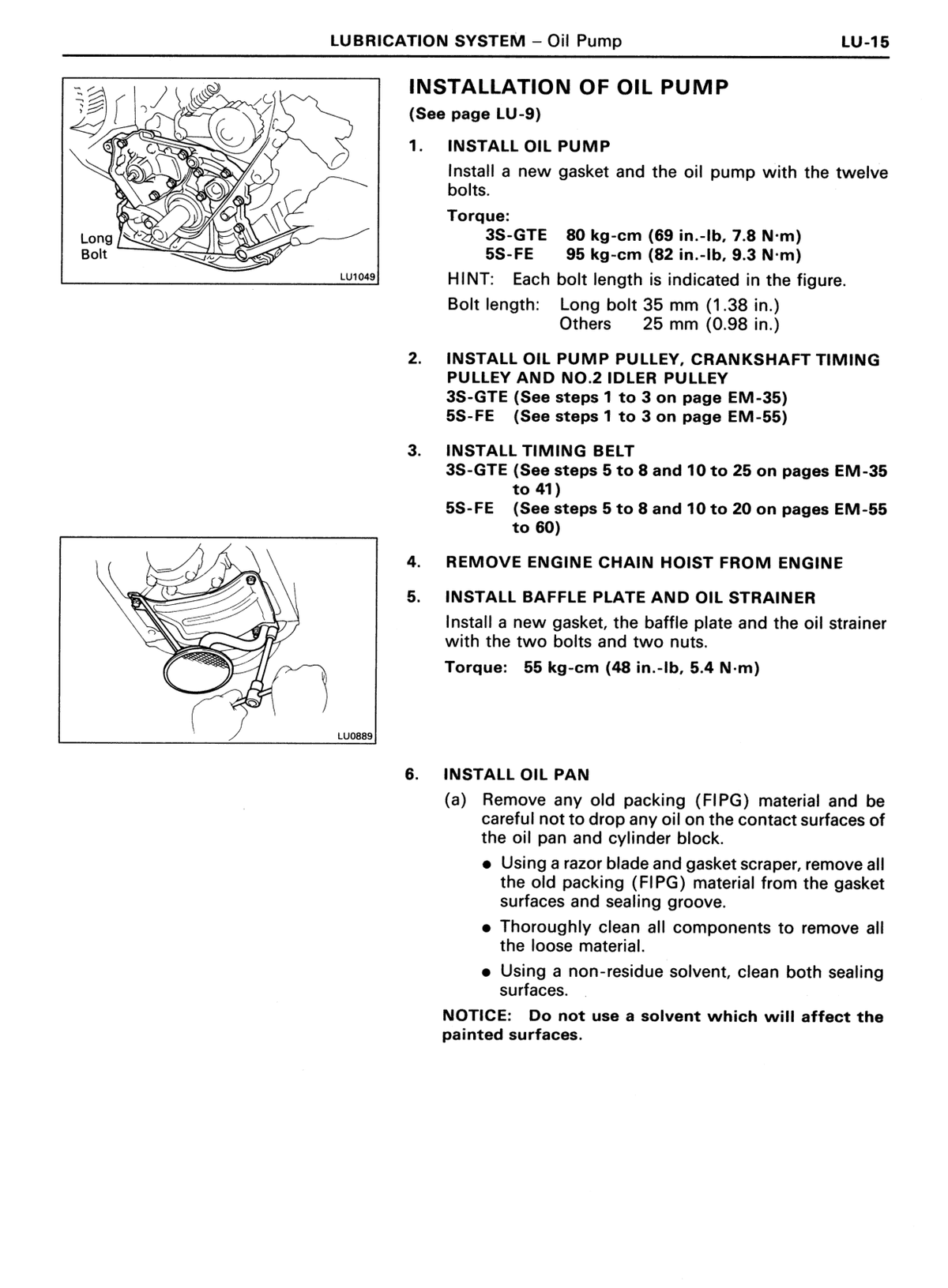

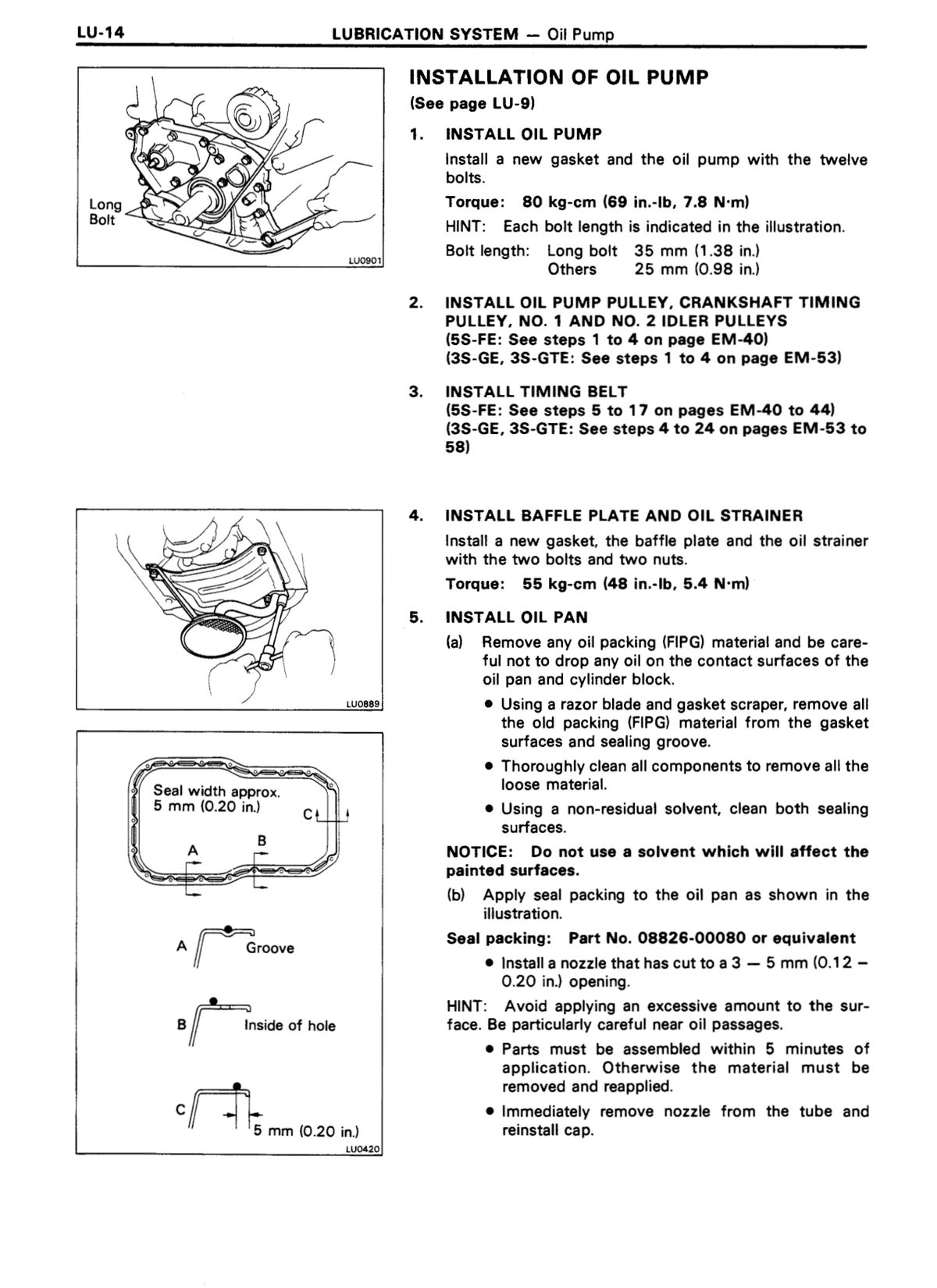

Lubrication / oil Oil pump bolts — 3S-GTE Step 1, 3S-GTE engine 7.8 80 — ↗ RM179U1_1991 · p550 OEM manual
Lubrication / oil Oil pump bolts — 5S-FE Step 1, 5S-FE engine 9.3 95 — ↗ RM179U1_1991 · p550 OEM manual

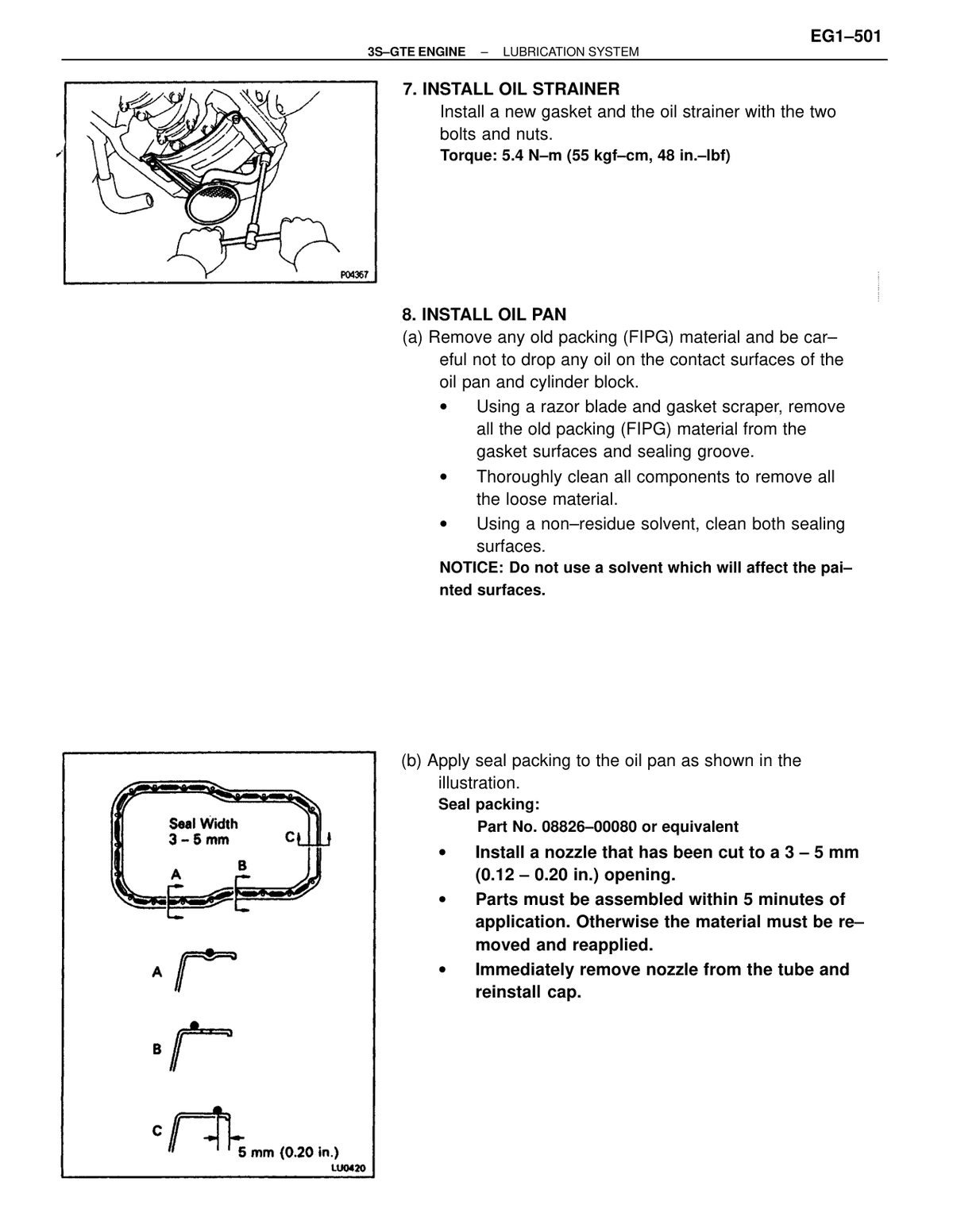

Lubrication / oil Baffle plate and oil strainer bolts and nuts Step 5 5.4 55 — ↗ RM179U1_1991 · p550 OEM manual

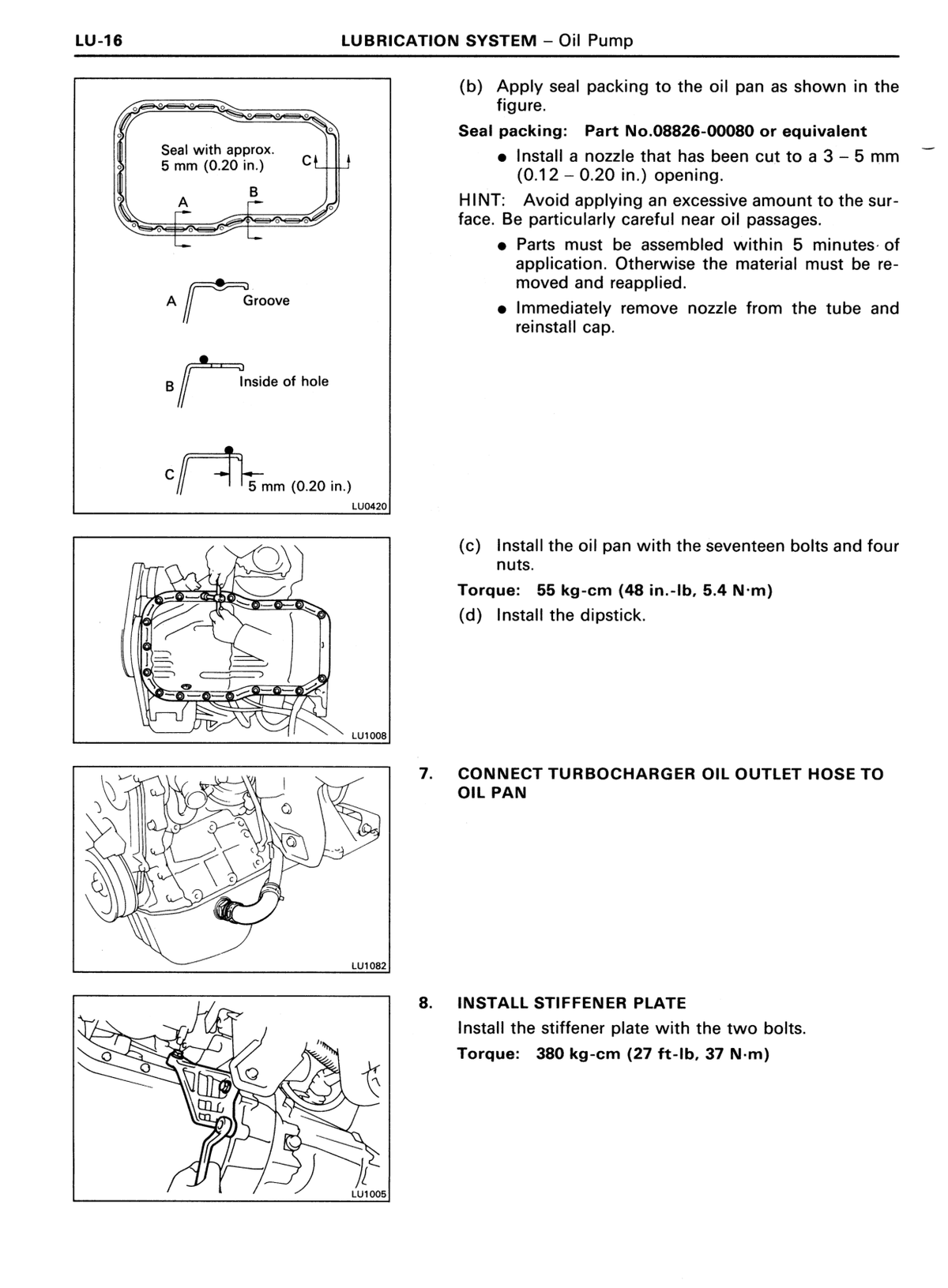

Lubrication / oil Oil pan bolts and nuts Seventeen bolts and four nuts 5.4 55 — ↗ RM179U1_1991 · p551 OEM manual

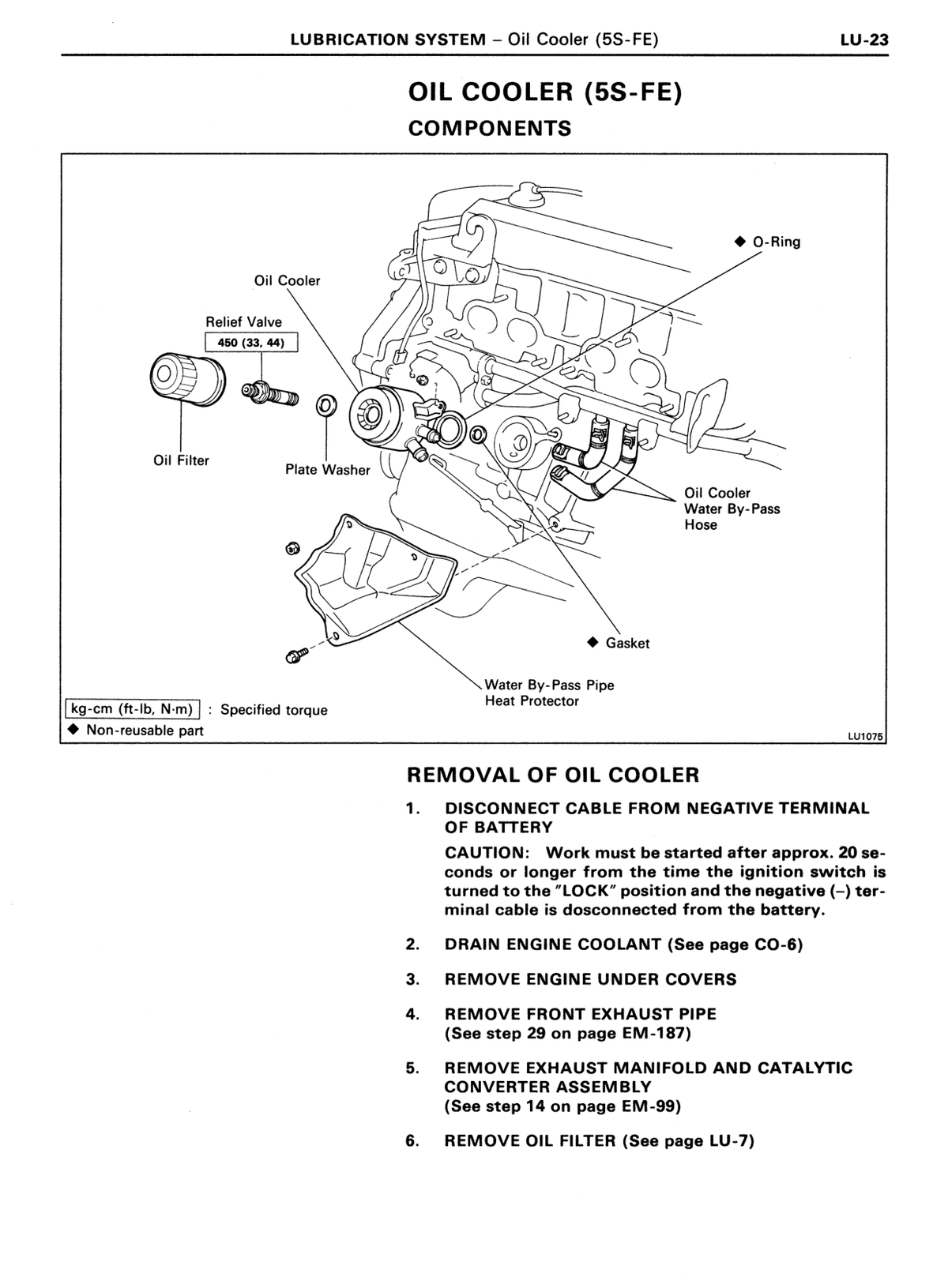

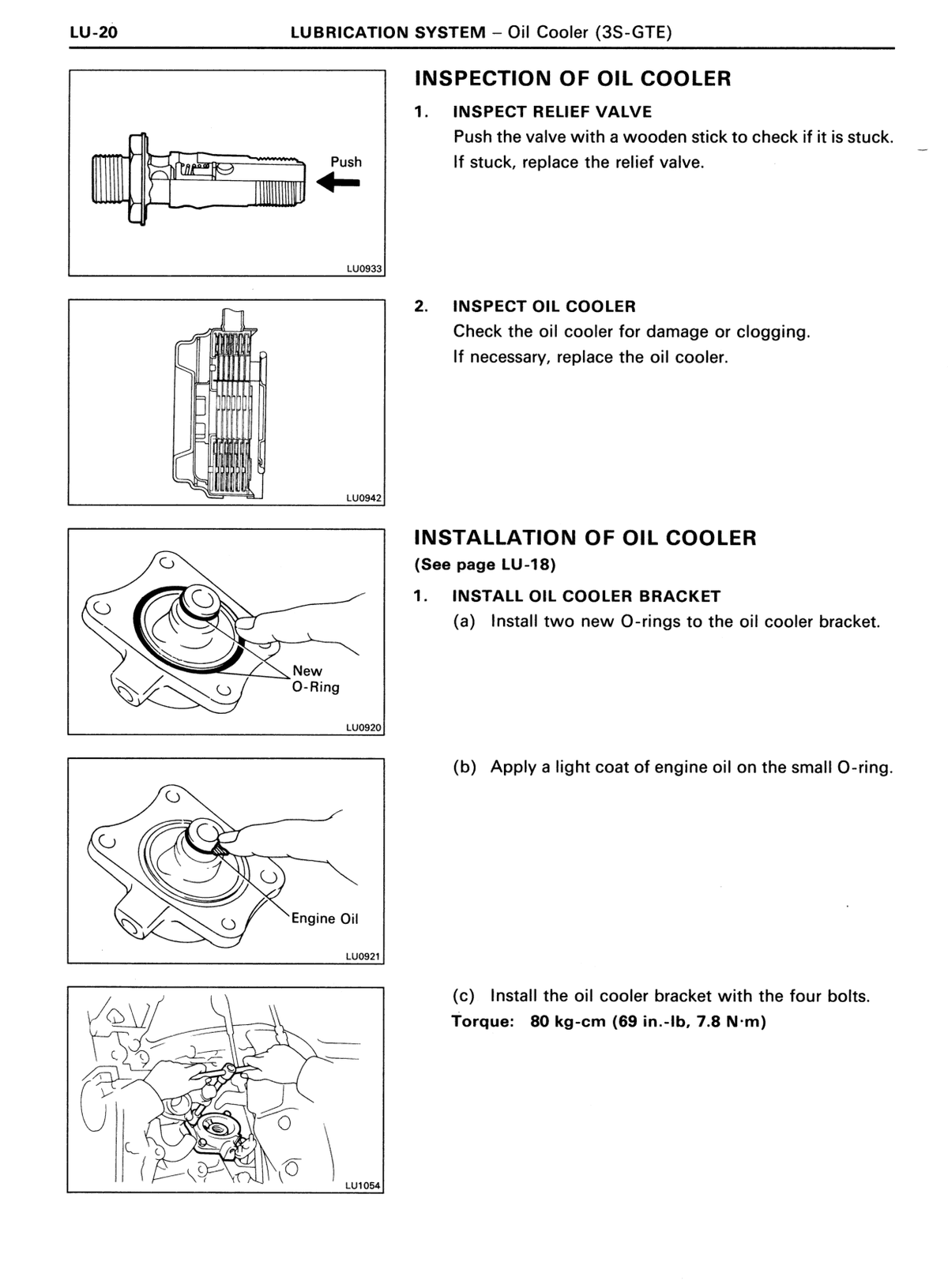

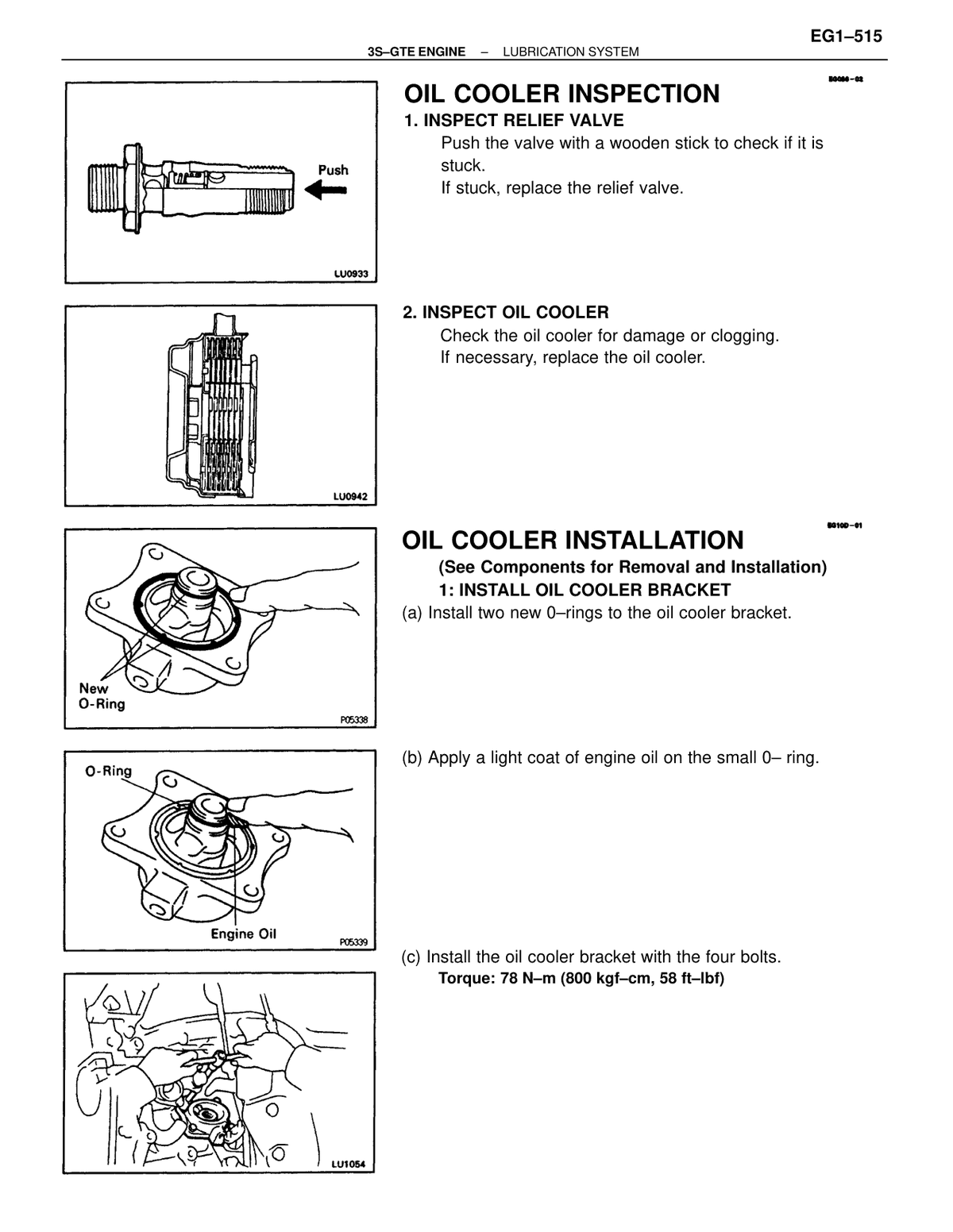

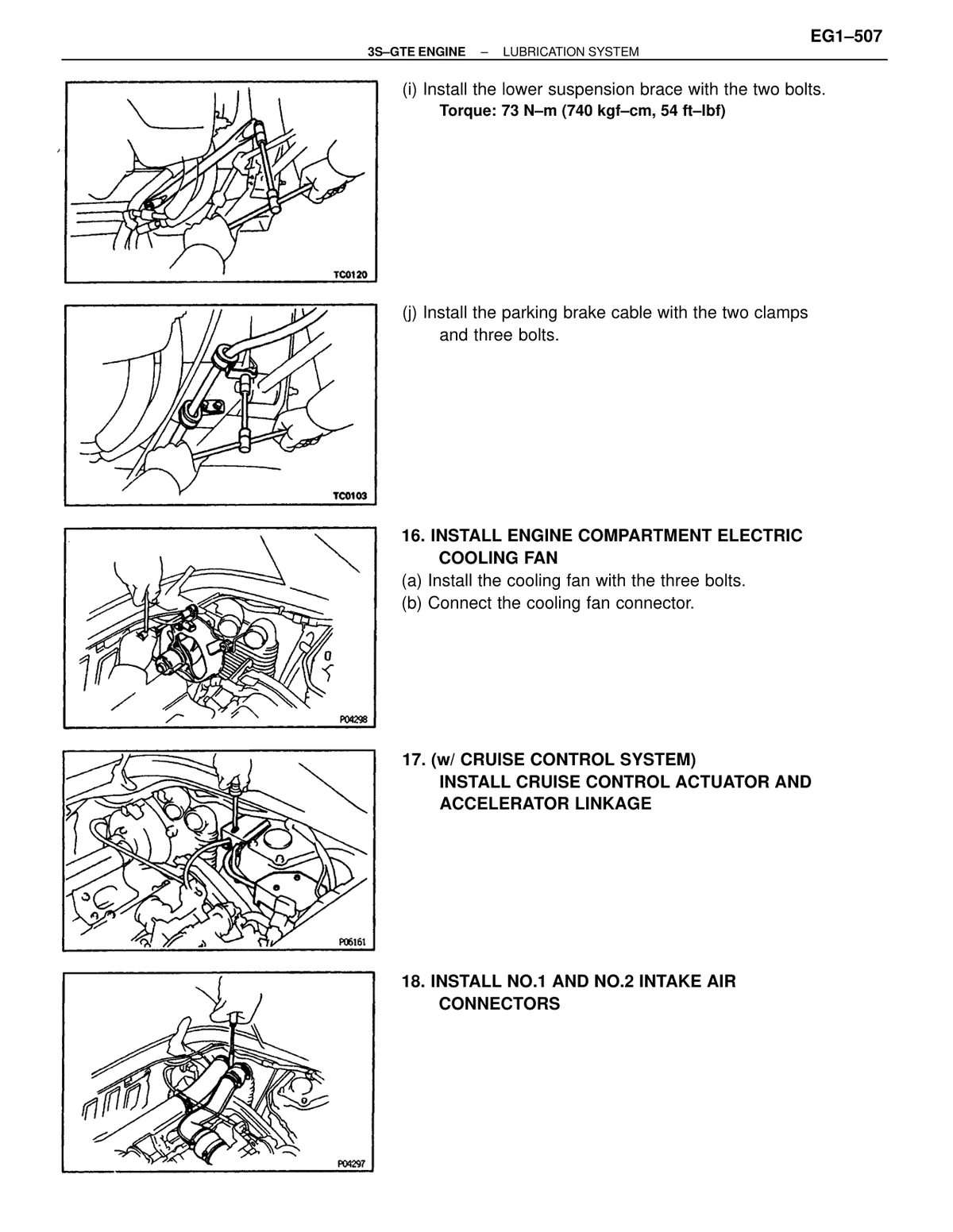

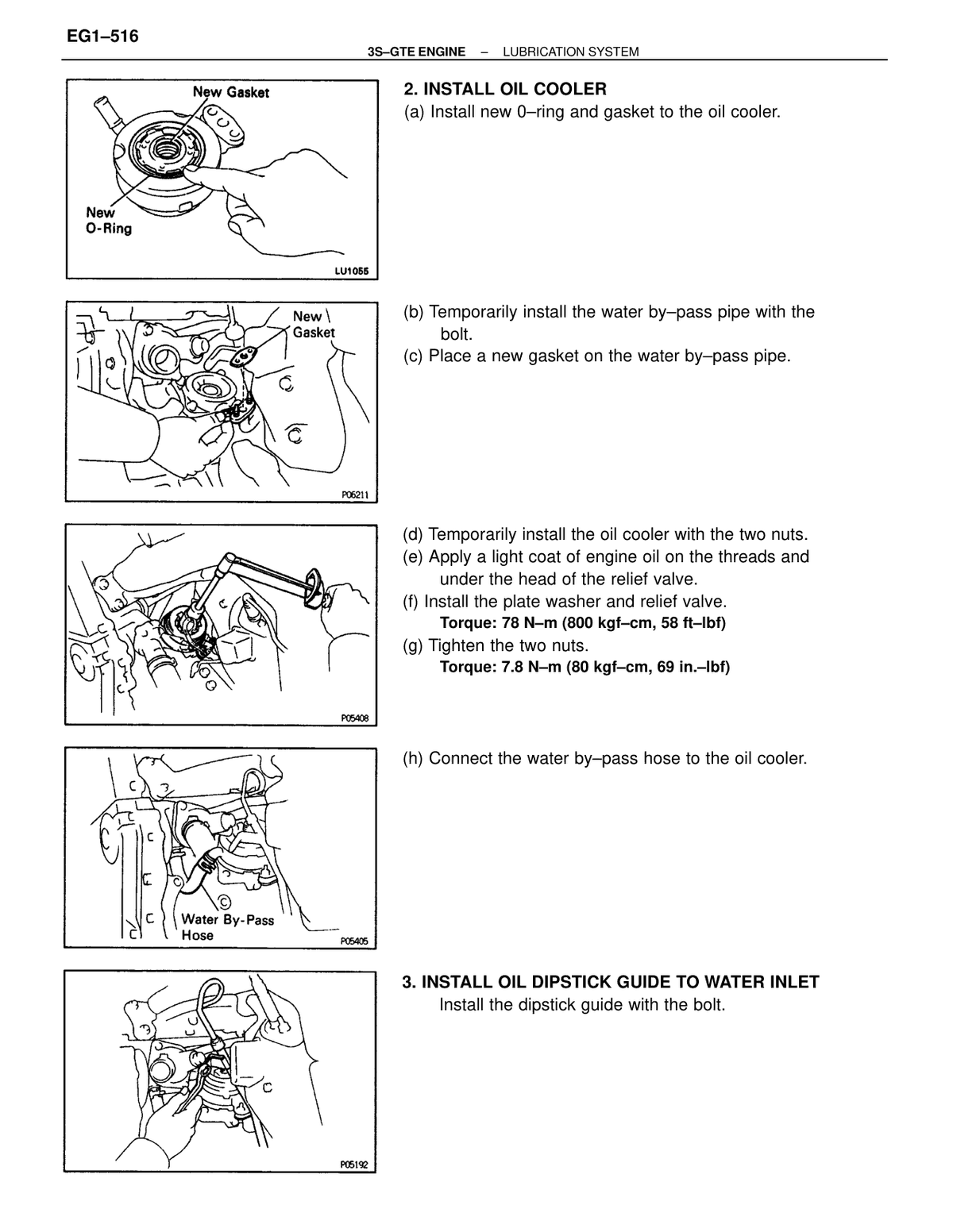

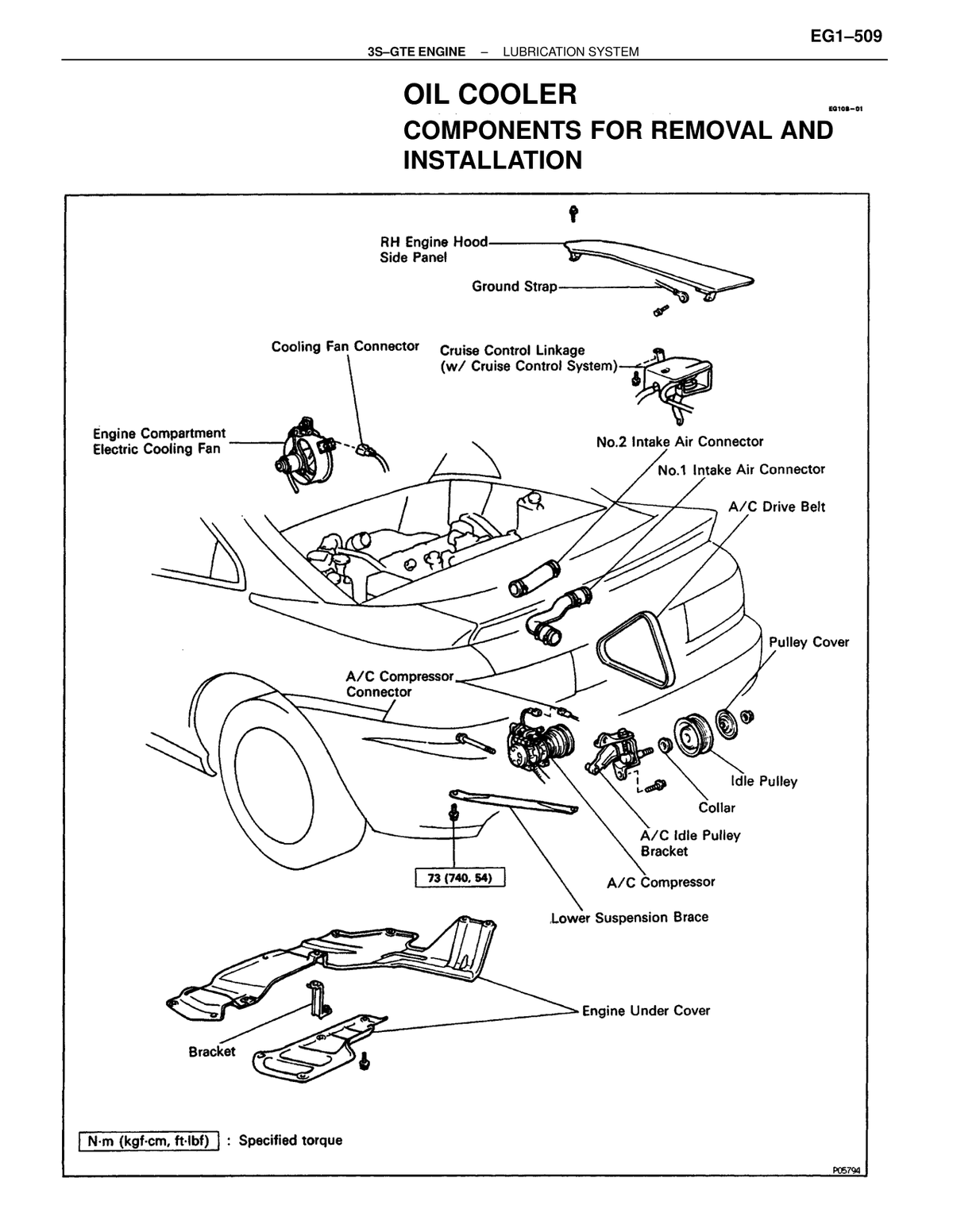

Lubrication / oil Oil cooler bracket bolts (four bolts) Step 1(c) — Install oil cooler bracket with four bolts 7.8 80 — ↗ RM179U1_1991 · p555 OEM manual

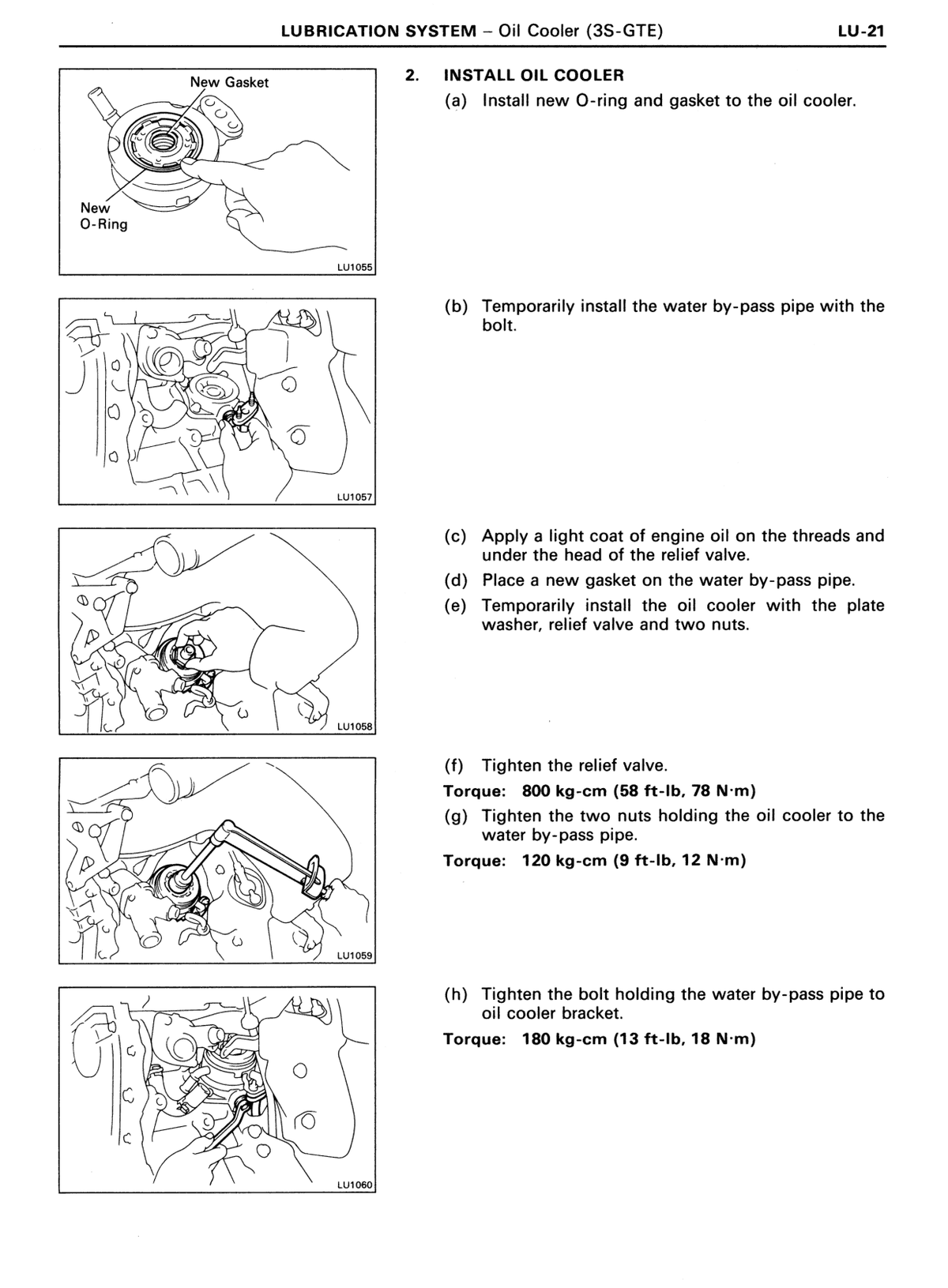

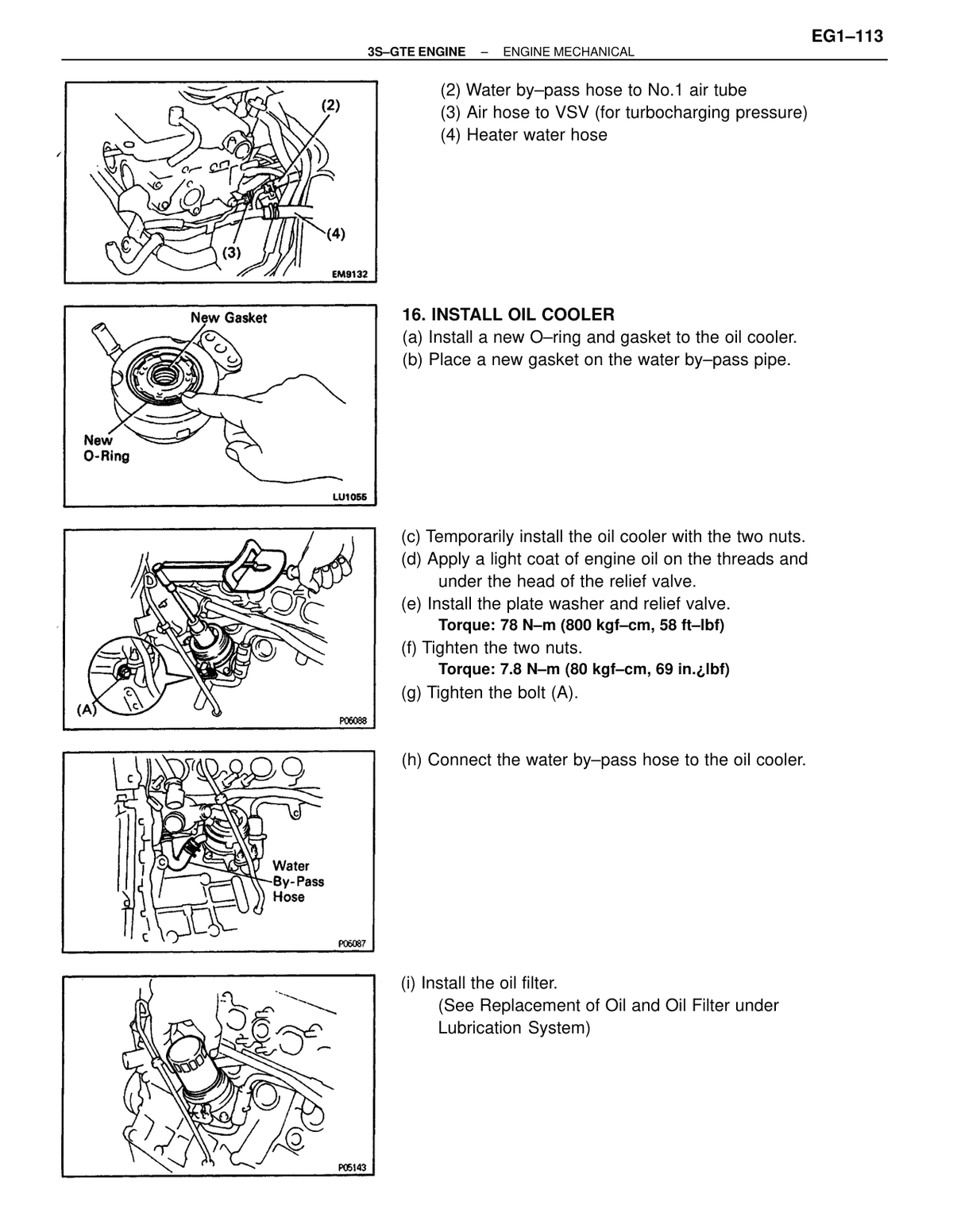

Lubrication / oil Two nuts holding oil cooler to water by-pass pipe Step (g) 12 120 9 ↗ RM179U1_1991 · p556 OEM manual
Lubrication / oil Bolt holding water by-pass pipe to oil cooler bracket Step (h) 18 180 13 ↗ RM179U1_1991 · p556 OEM manual
Lubrication / oil Oil cooler with plate washer and relief valve Step 1(d) 44 450 33 ↗ RM179U1_1991 · p560 OEM manual

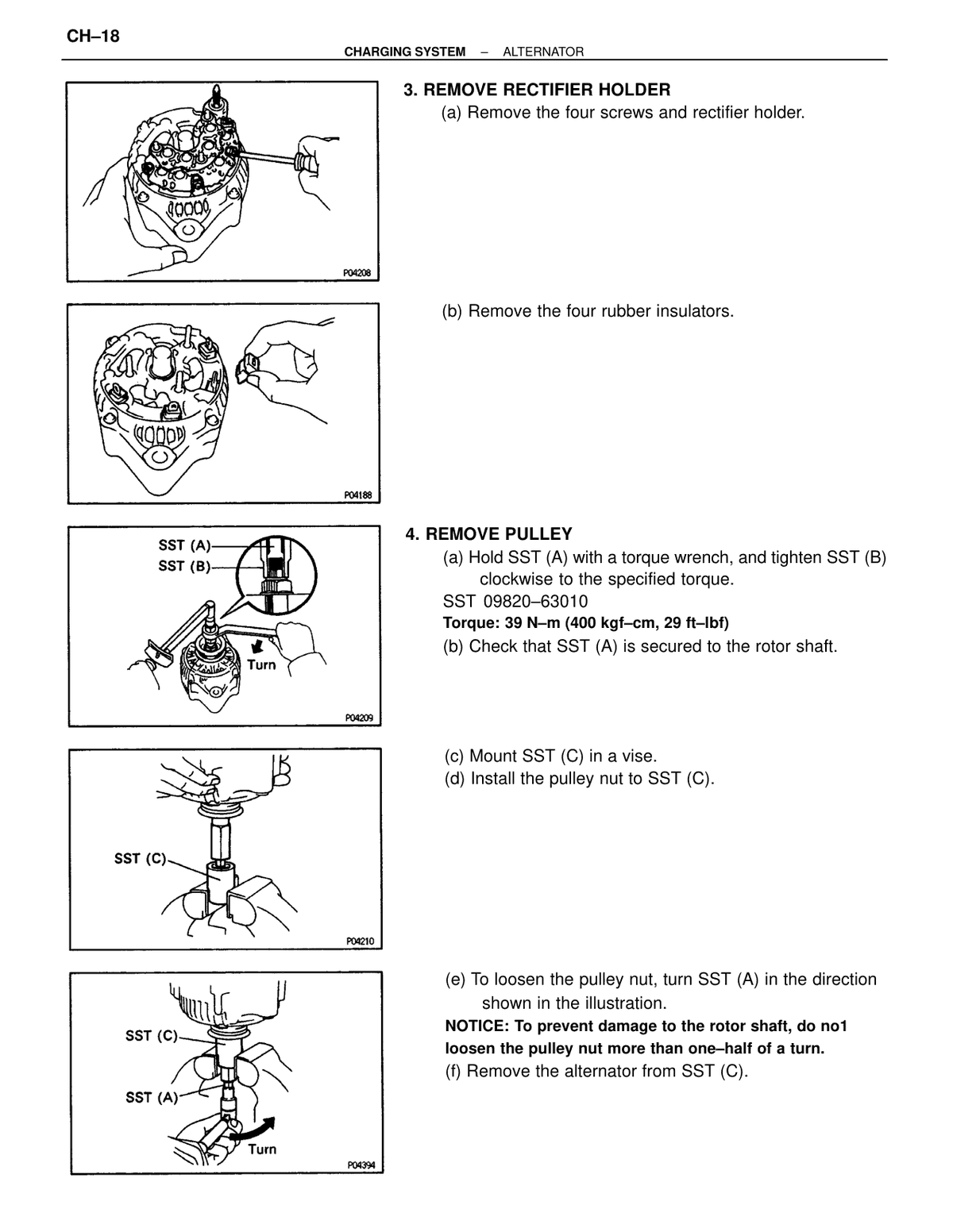

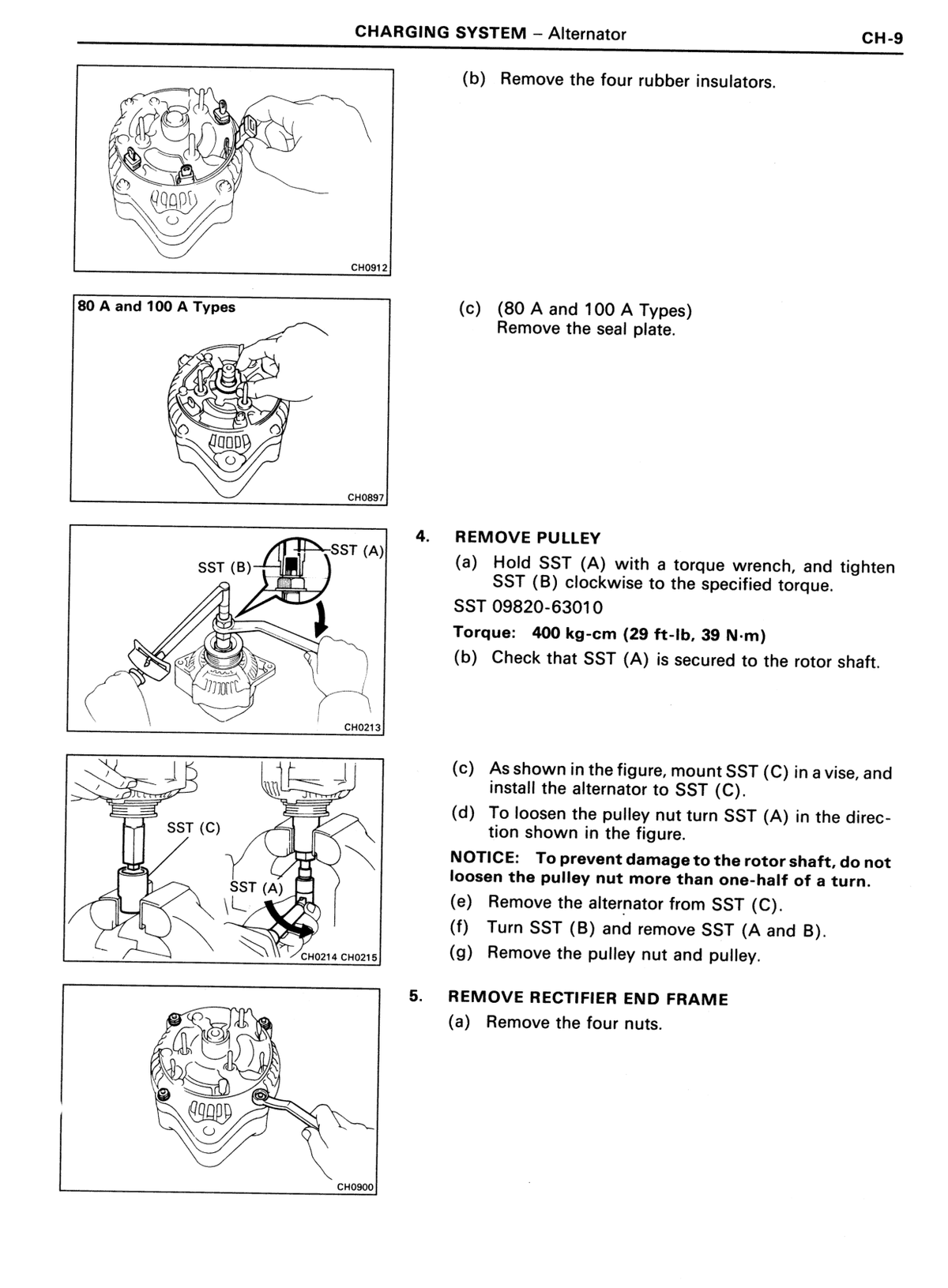

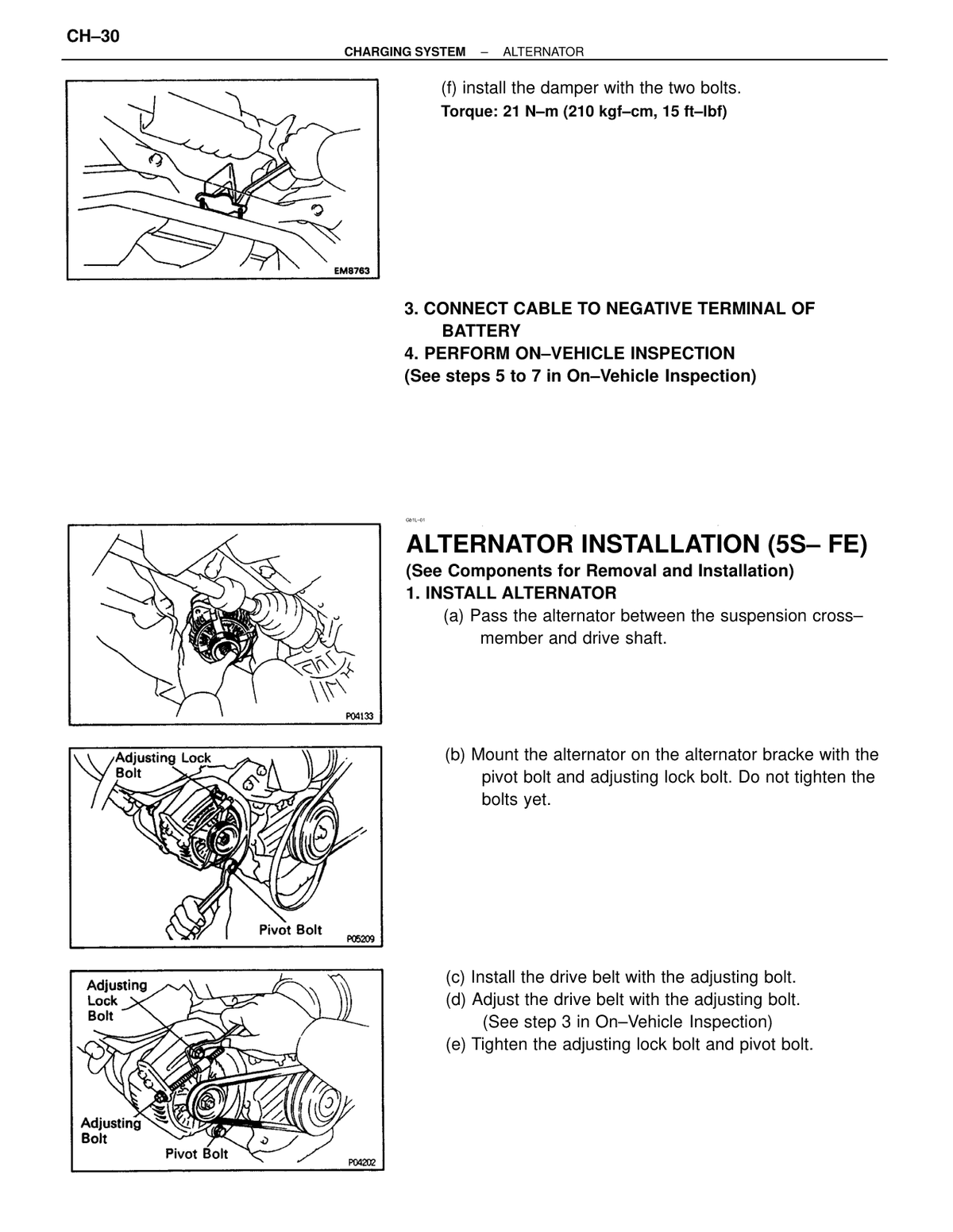

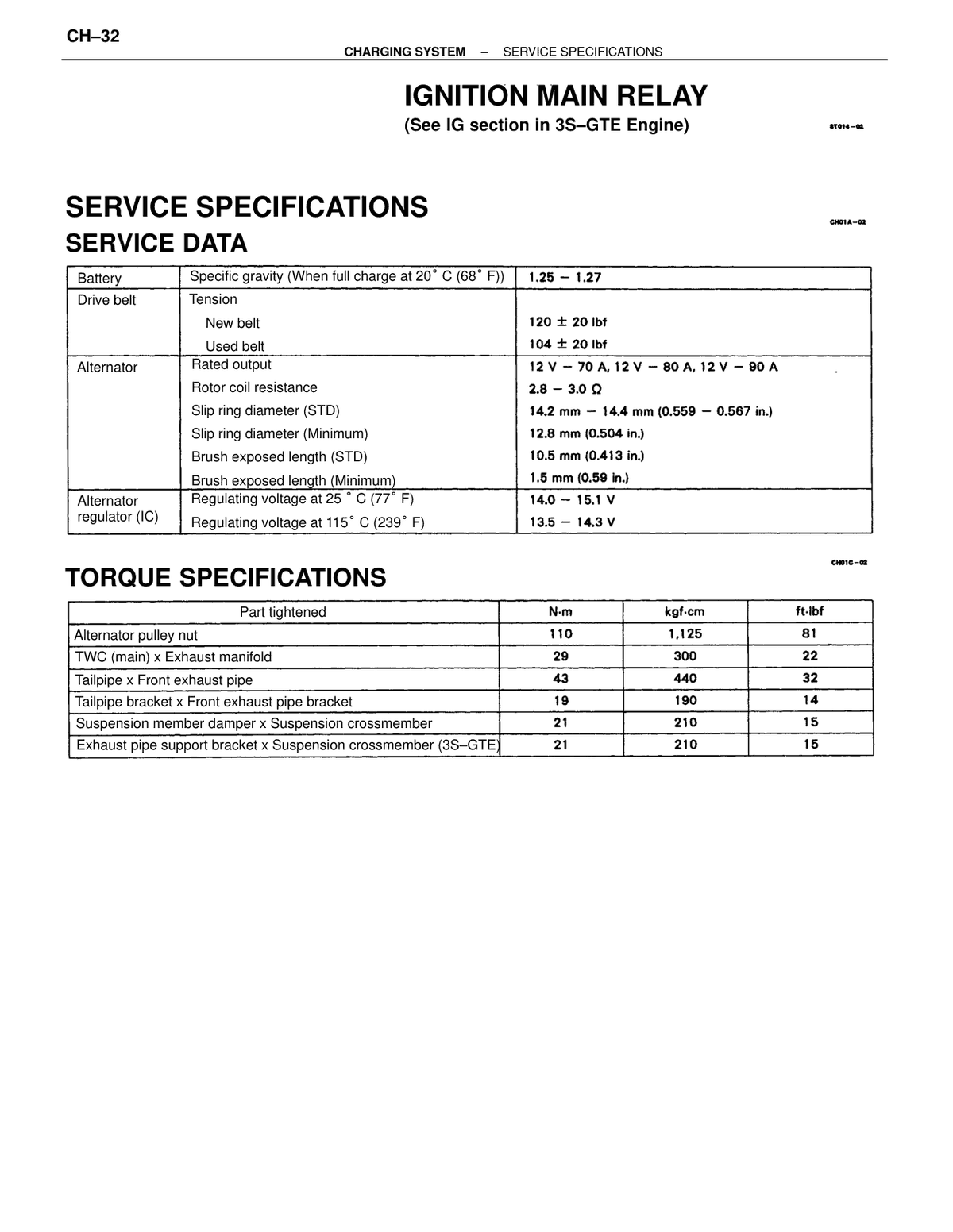

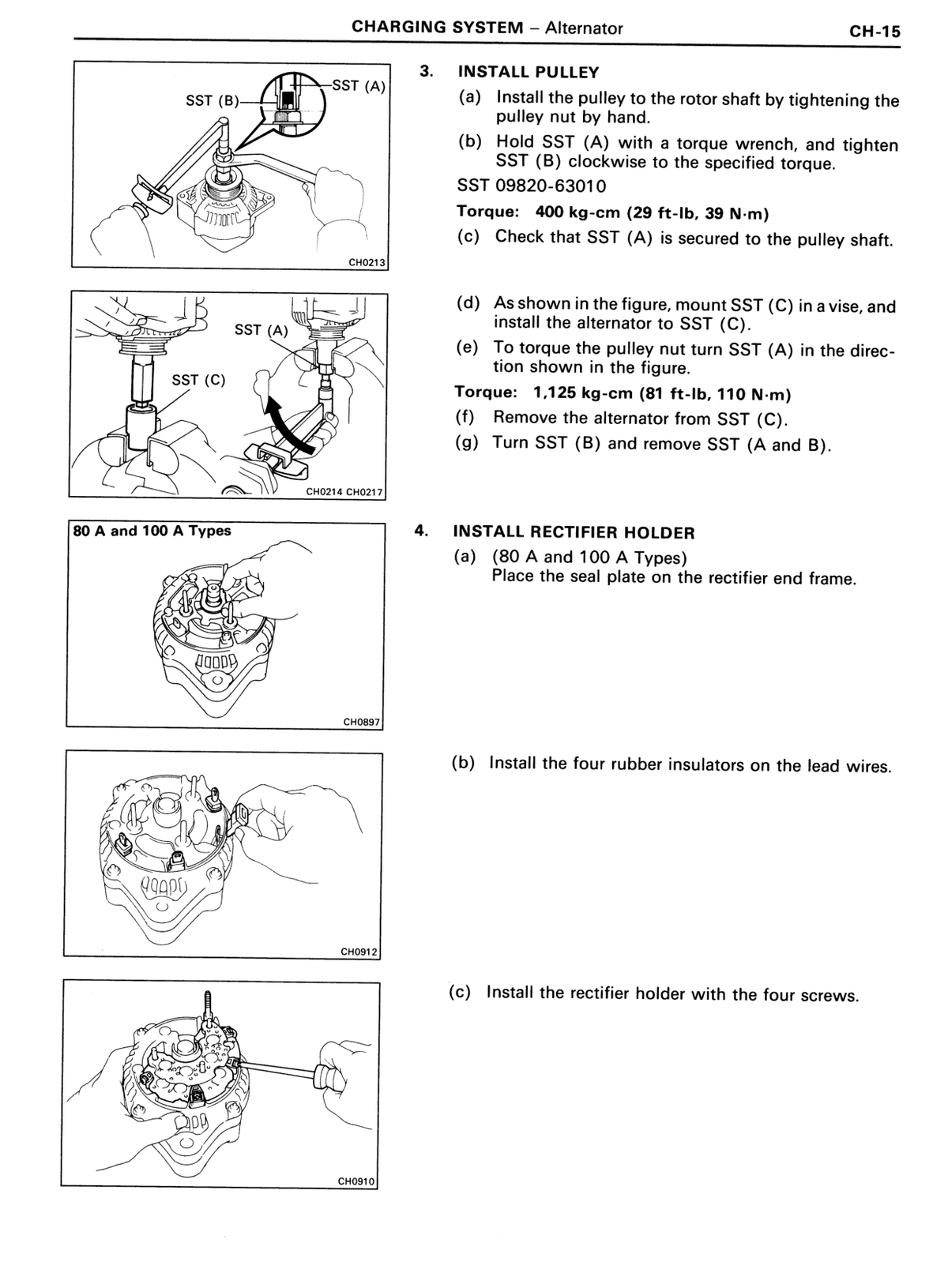

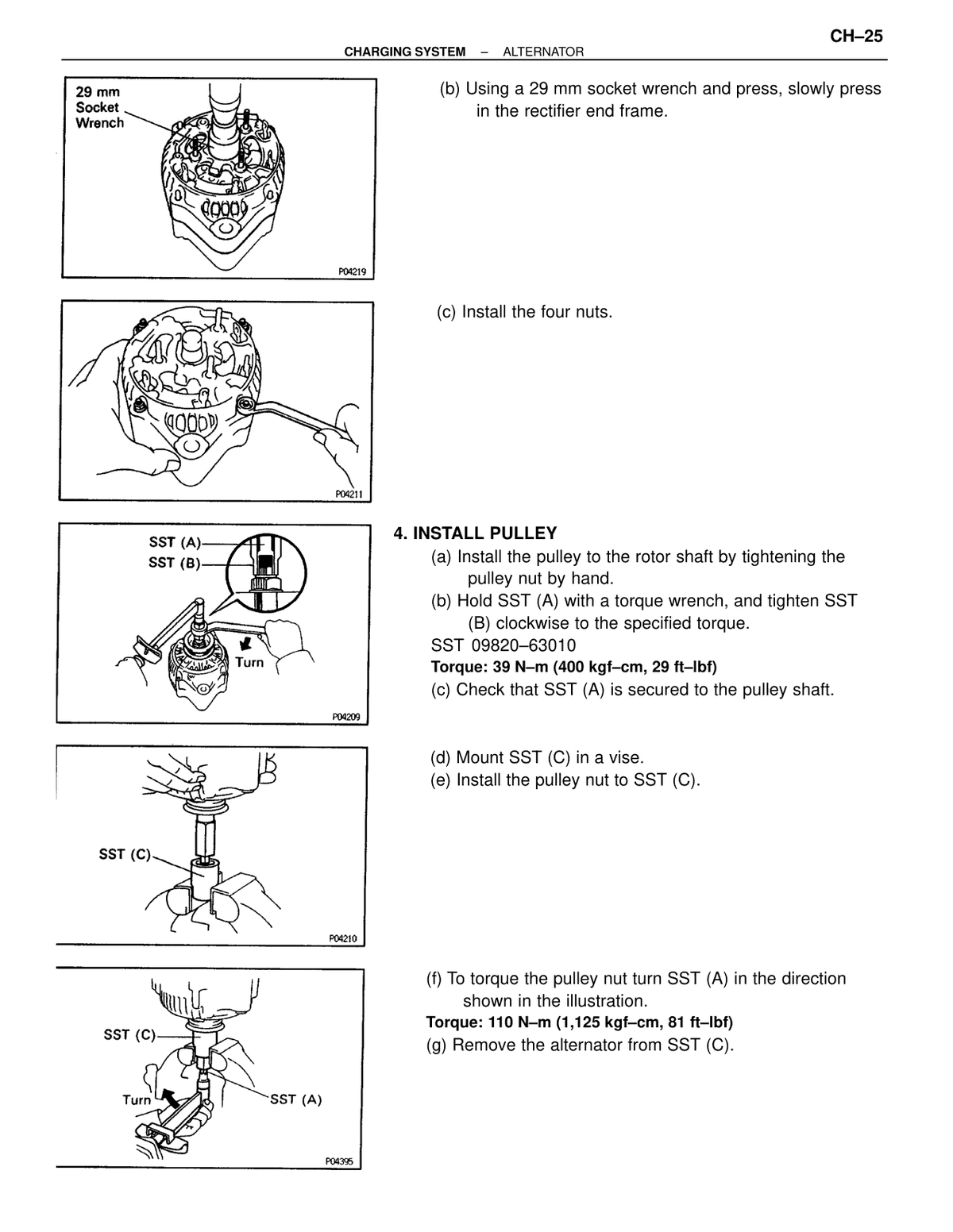

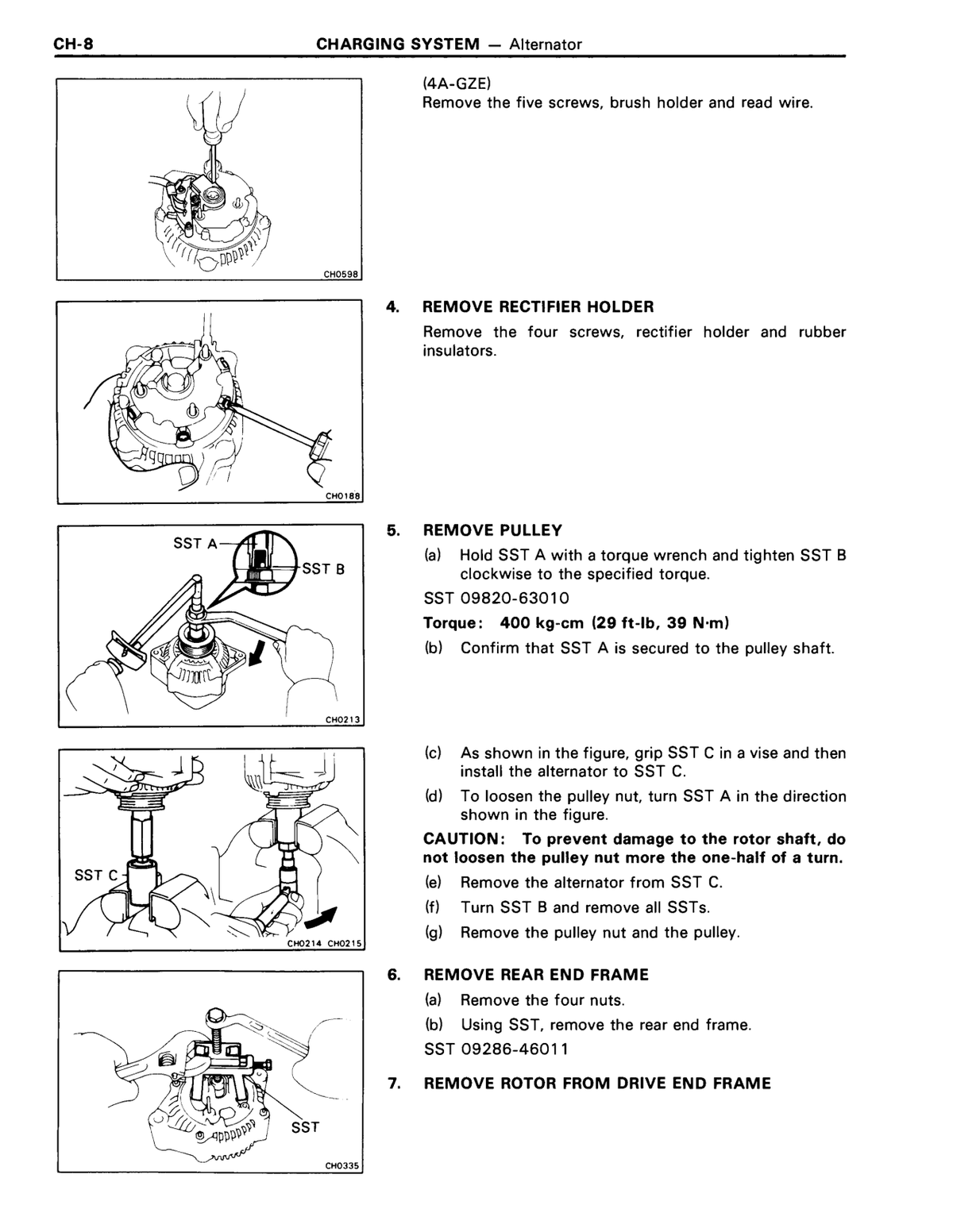

Starting / charging SST (B) — pulley nut installation (SST 09820-63010) 39 400 29 ↗ RM179U1_1991 · p610 OEM manual
Starting / charging Pulley nut — initial hand tighten / SST (B) clockwise Step 3(b), SST 09820-63010, hold SST (A) with torque wrench 39 400 29 ↗ RM179U1_1991 · p616 OEM manual
Starting / charging Pulley nut — final torque Step 3(e), alternator mounted in SST (C) in vise 110 1125 81 ↗ RM179U1_1991 · p616 OEM manual

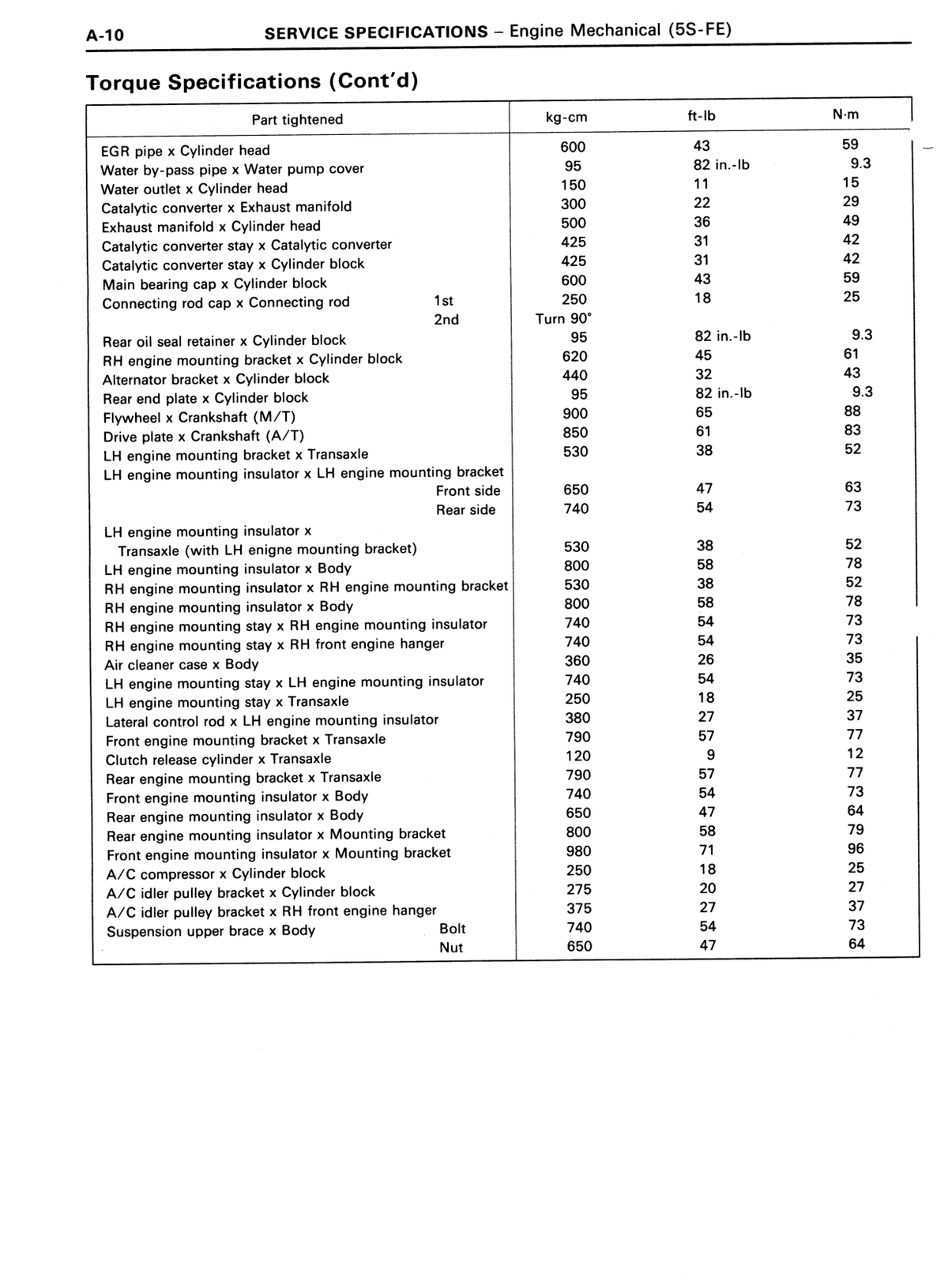

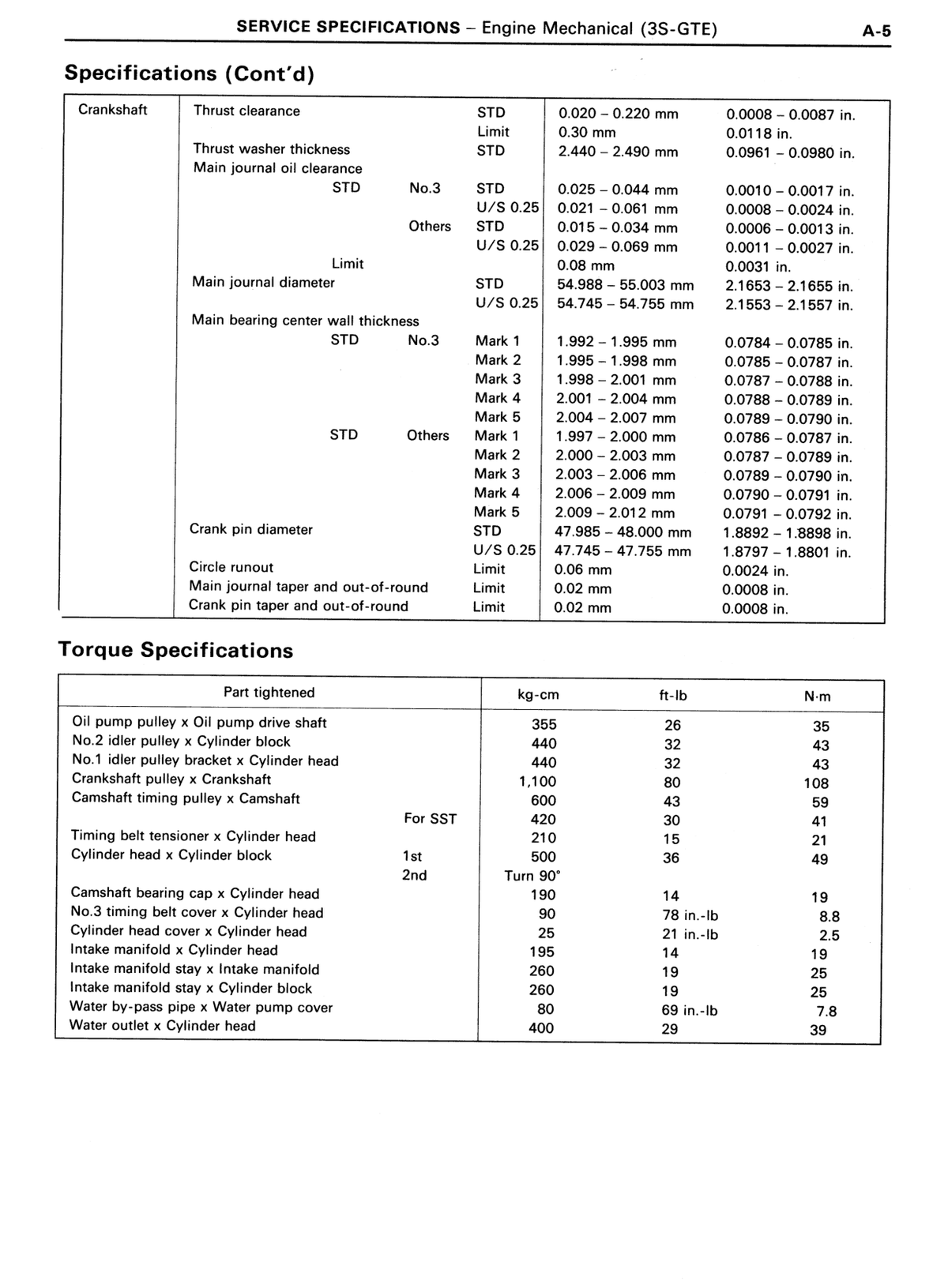

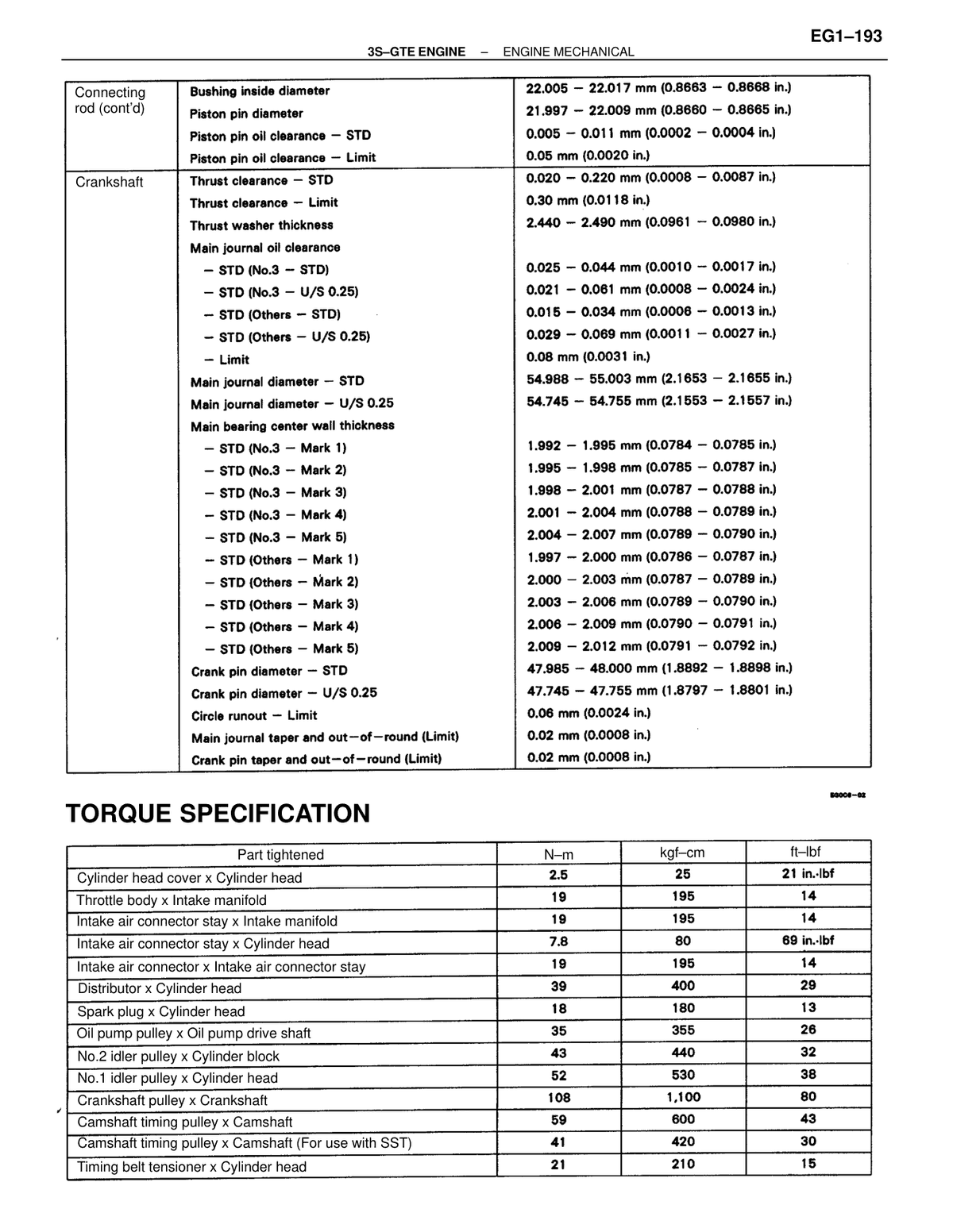

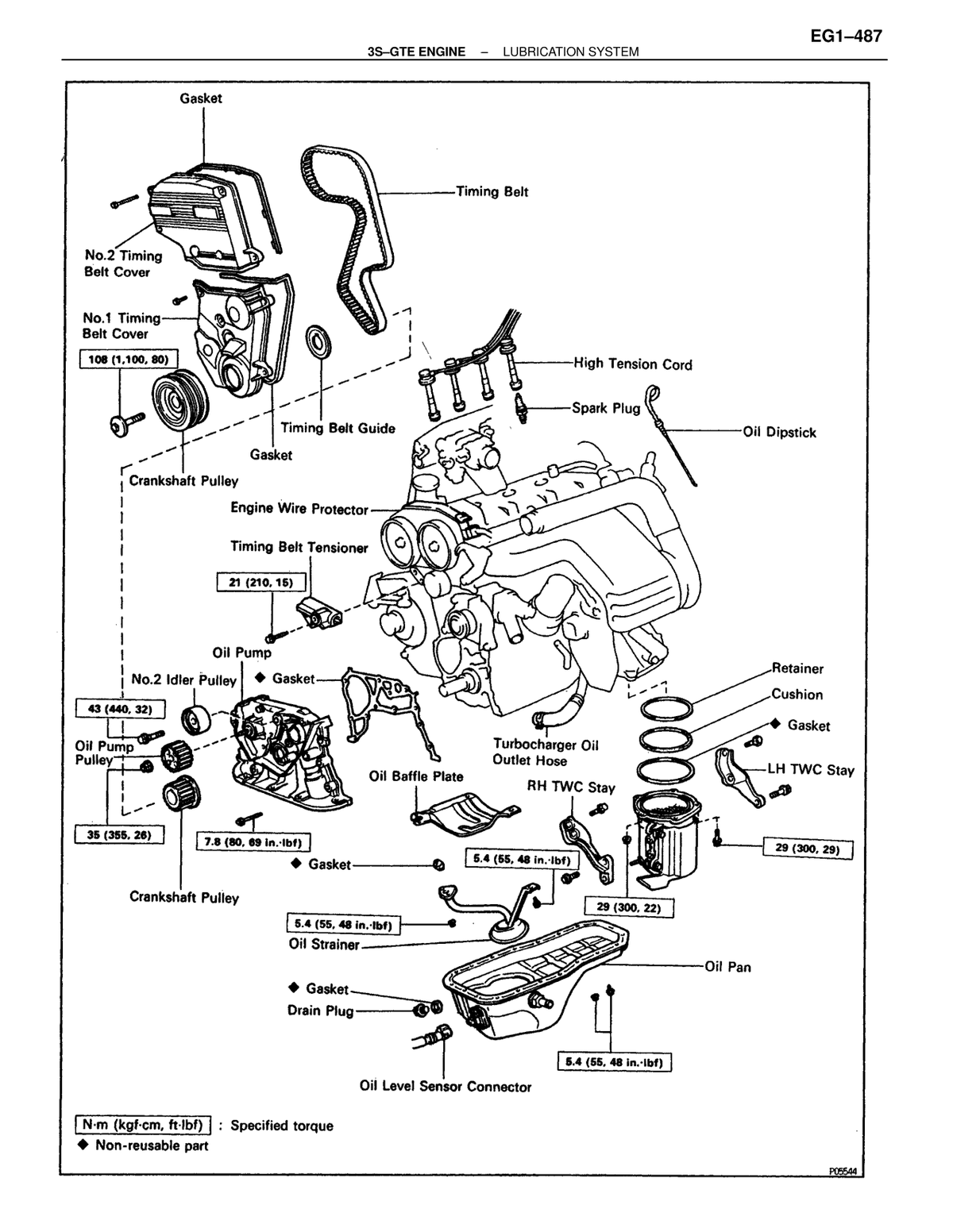

Engine — mechanical Oil pump pulley x Oil pump drive shaft 35 355 26 ↗ RM179U1_1991 · p624 OEM manual
Engine — mechanical No.1 idler pulley bracket x Cylinder head 43 440 32 ↗ RM179U1_1991 · p624 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft For SST 41 420 30 ↗ RM179U1_1991 · p624 OEM manual
Engine — mechanical Timing belt tensioner x Cylinder head 21 210 15 ↗ RM179U1_1991 · p624 OEM manual

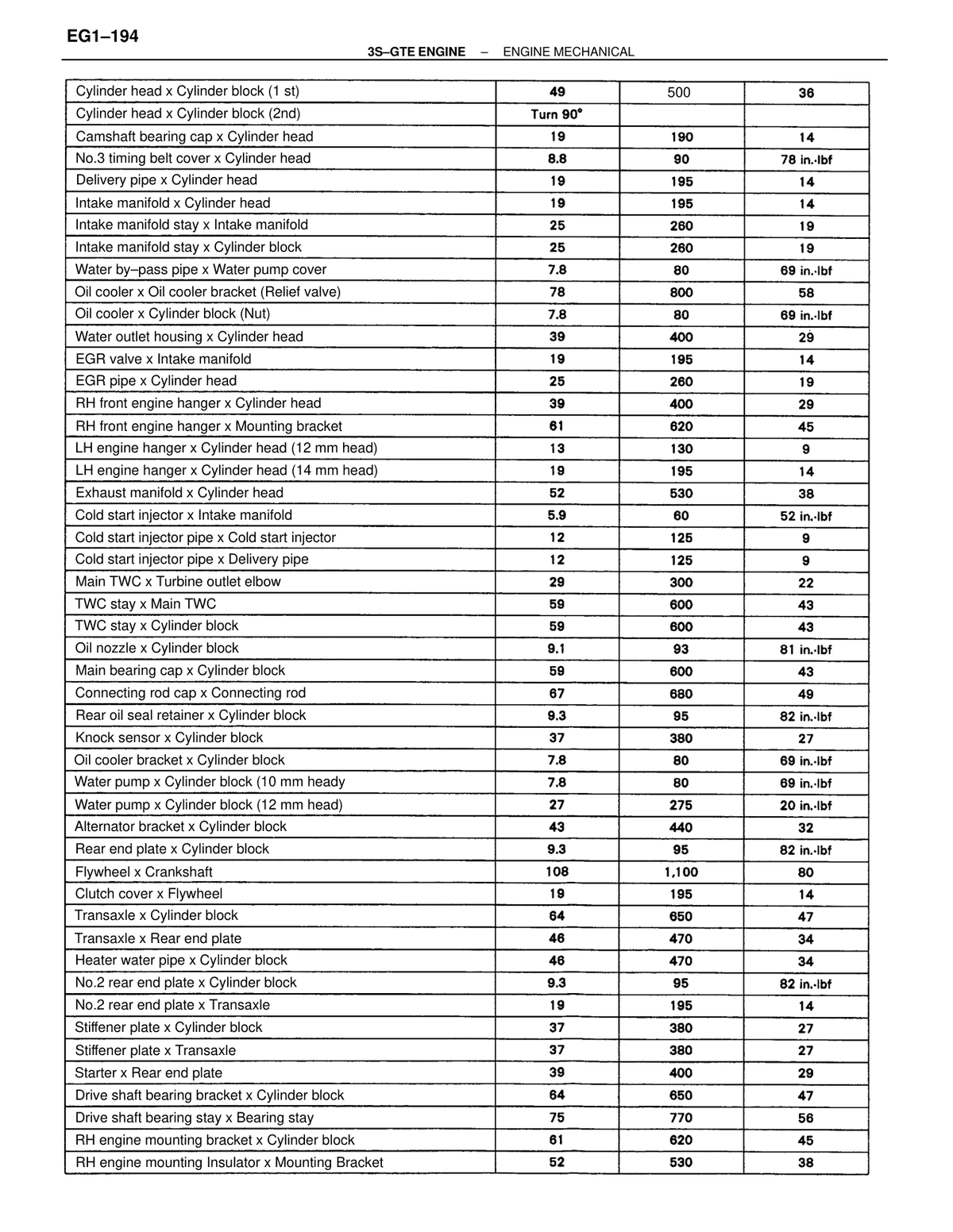

Engine — mechanical Cylinder head x Cylinder block 2nd — Turn 90° — — — ↗ RM179U1_1991 · p624 OEM manual
Engine — mechanical No.3 timing belt cover x Cylinder head 8.8 90 — ↗ RM179U1_1991 · p624 OEM manual

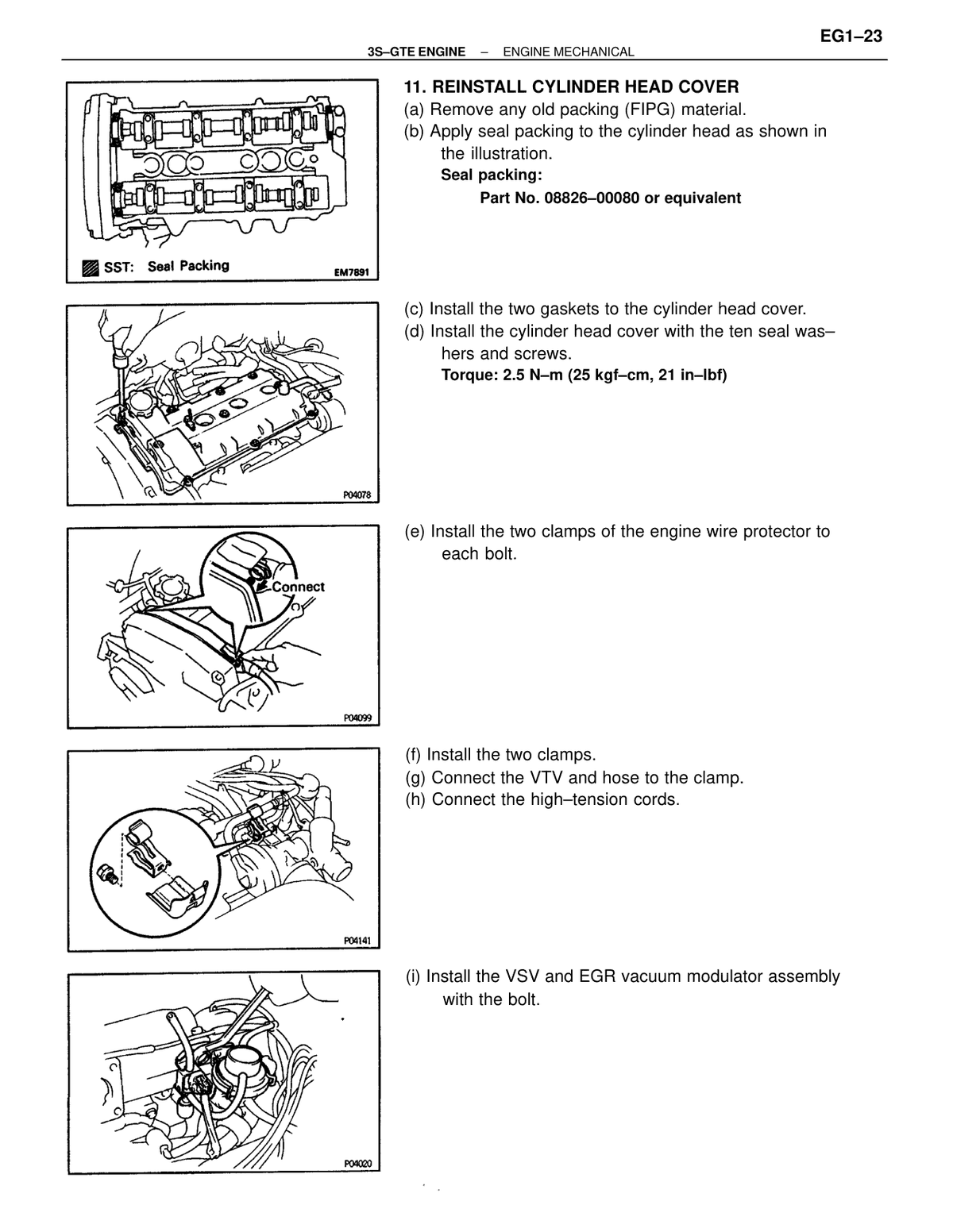

Engine — mechanical Cylinder head cover x Cylinder head 21 in.-lb 2.5 25 — ↗ RM179U1_1991 · p624 OEM manual

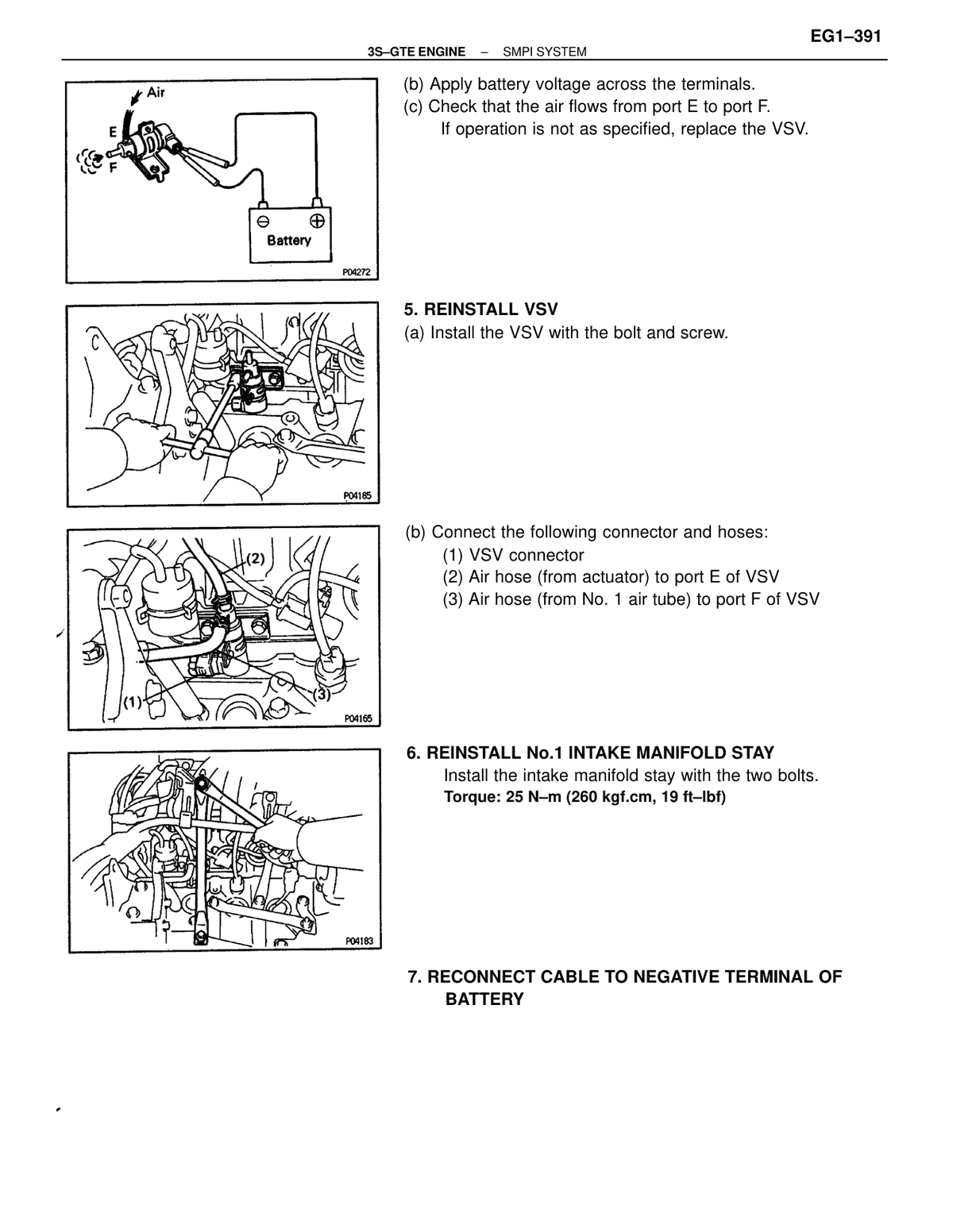

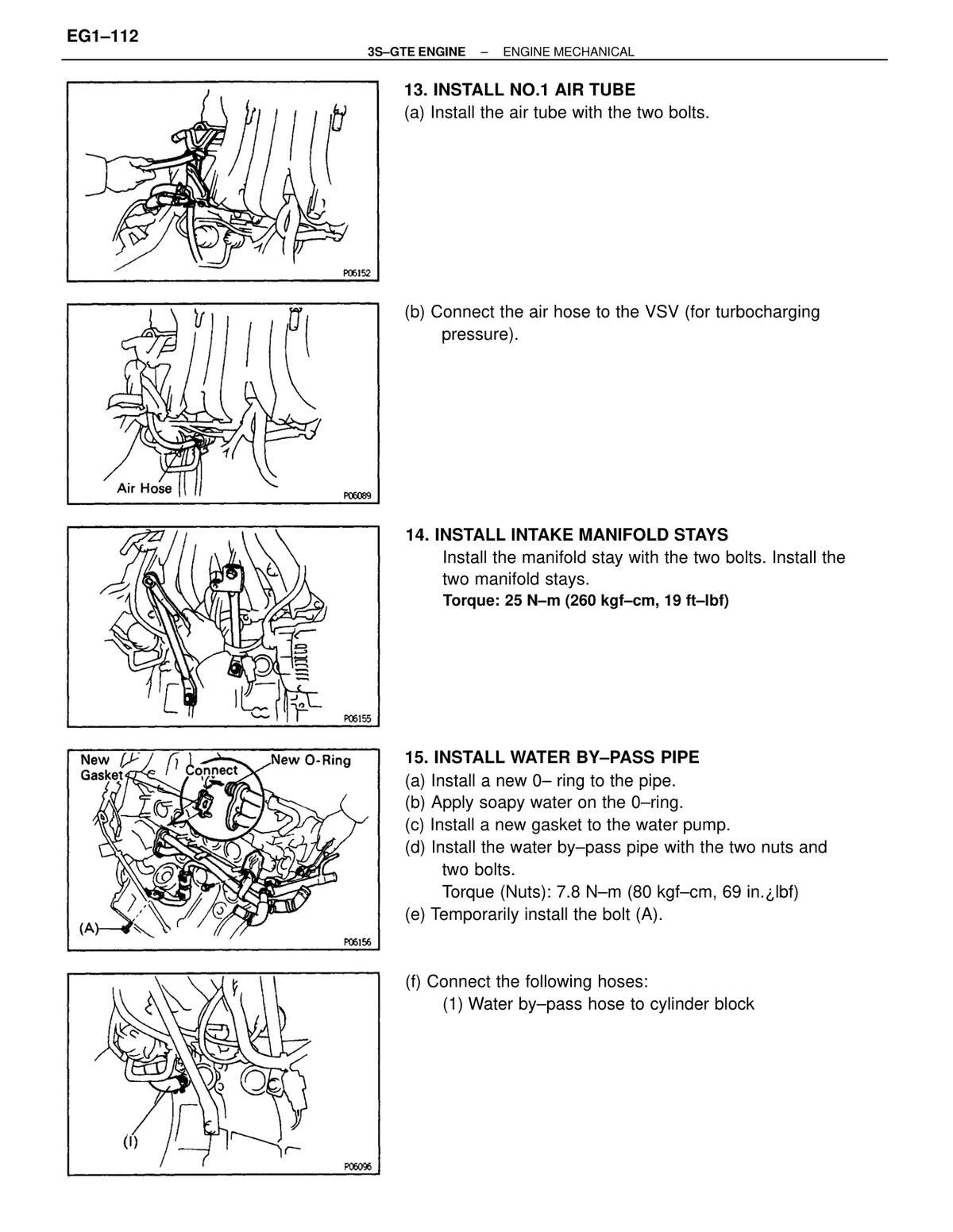

Engine — mechanical Intake manifold stay x Intake manifold 25 260 19 ↗ RM179U1_1991 · p624 OEM manual
Engine — mechanical Intake manifold stay x Cylinder block 25 260 19 ↗ RM179U1_1991 · p624 OEM manual

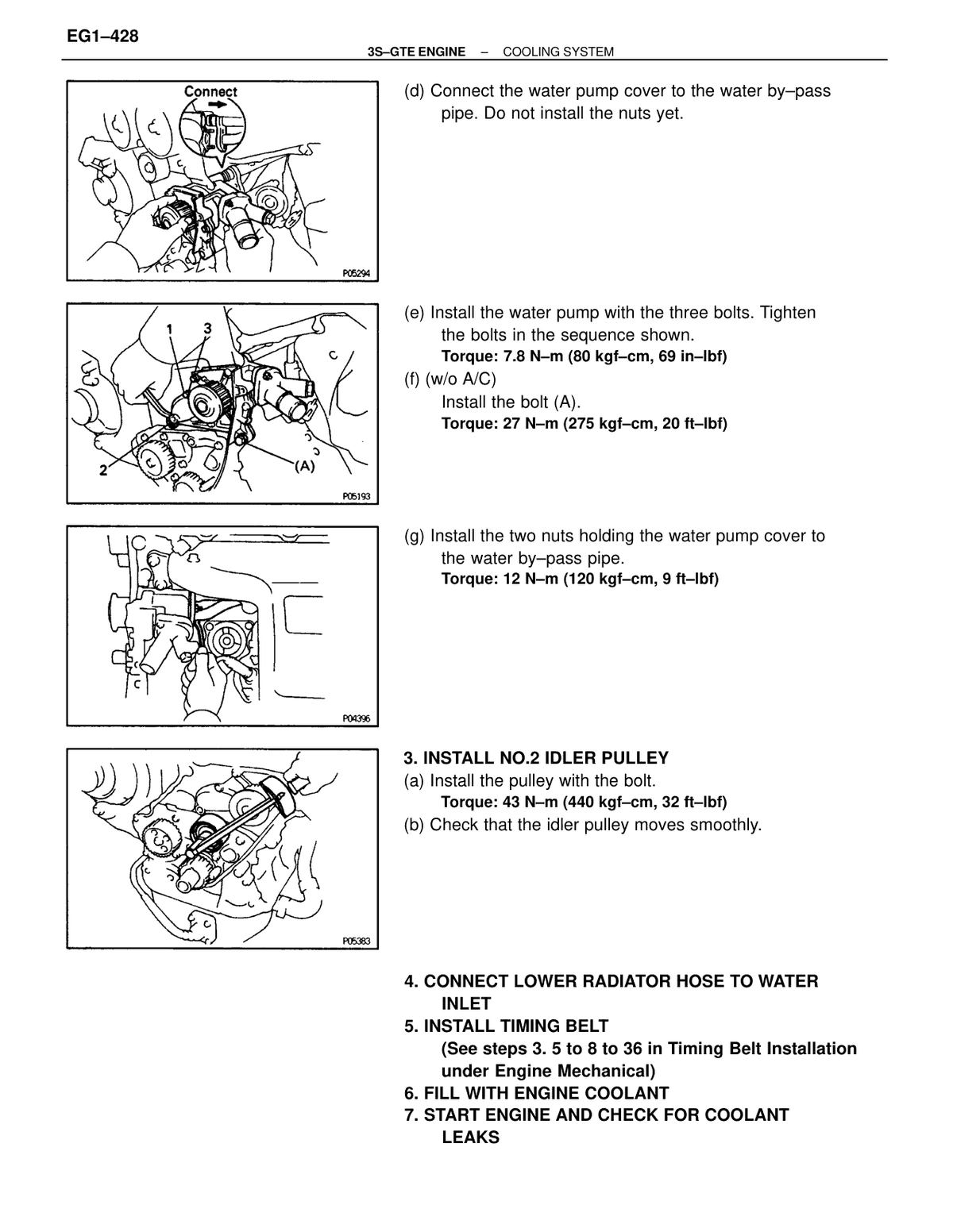

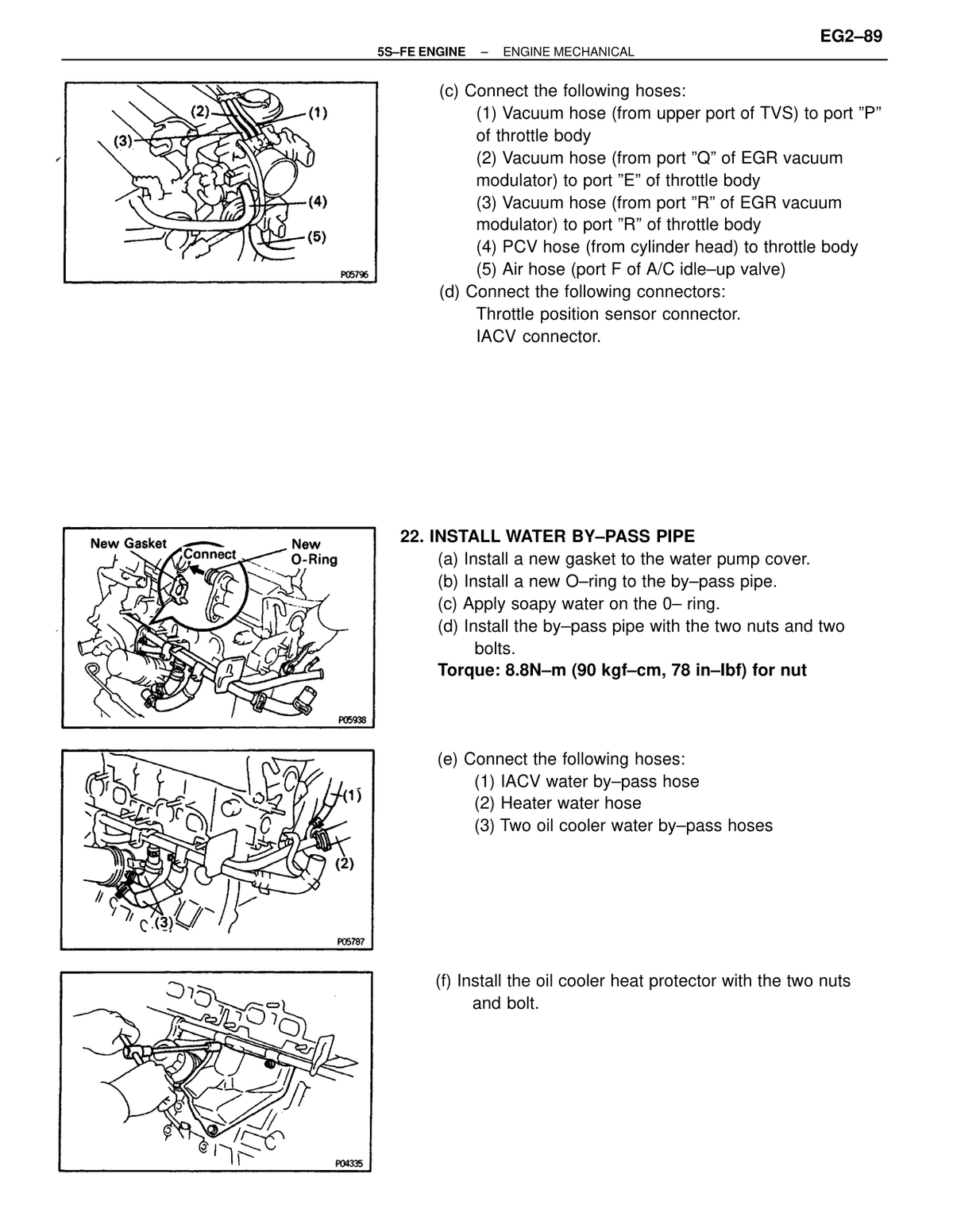

Engine — mechanical Water by-pass pipe x Water pump cover 69 in.-lb 7.8 80 — ↗ RM179U1_1991 · p624 OEM manual
Engine — mechanical Water by-pass pipe x Water pump cover 82 in.-lb 9.3 95 — ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Catalytic converter x Exhaust manifold 29 300 22 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Catalytic converter stay x Catalytic converter 42 425 31 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Catalytic converter stay x Cylinder block 42 425 31 ↗ RM179U1_1991 · p629 OEM manual

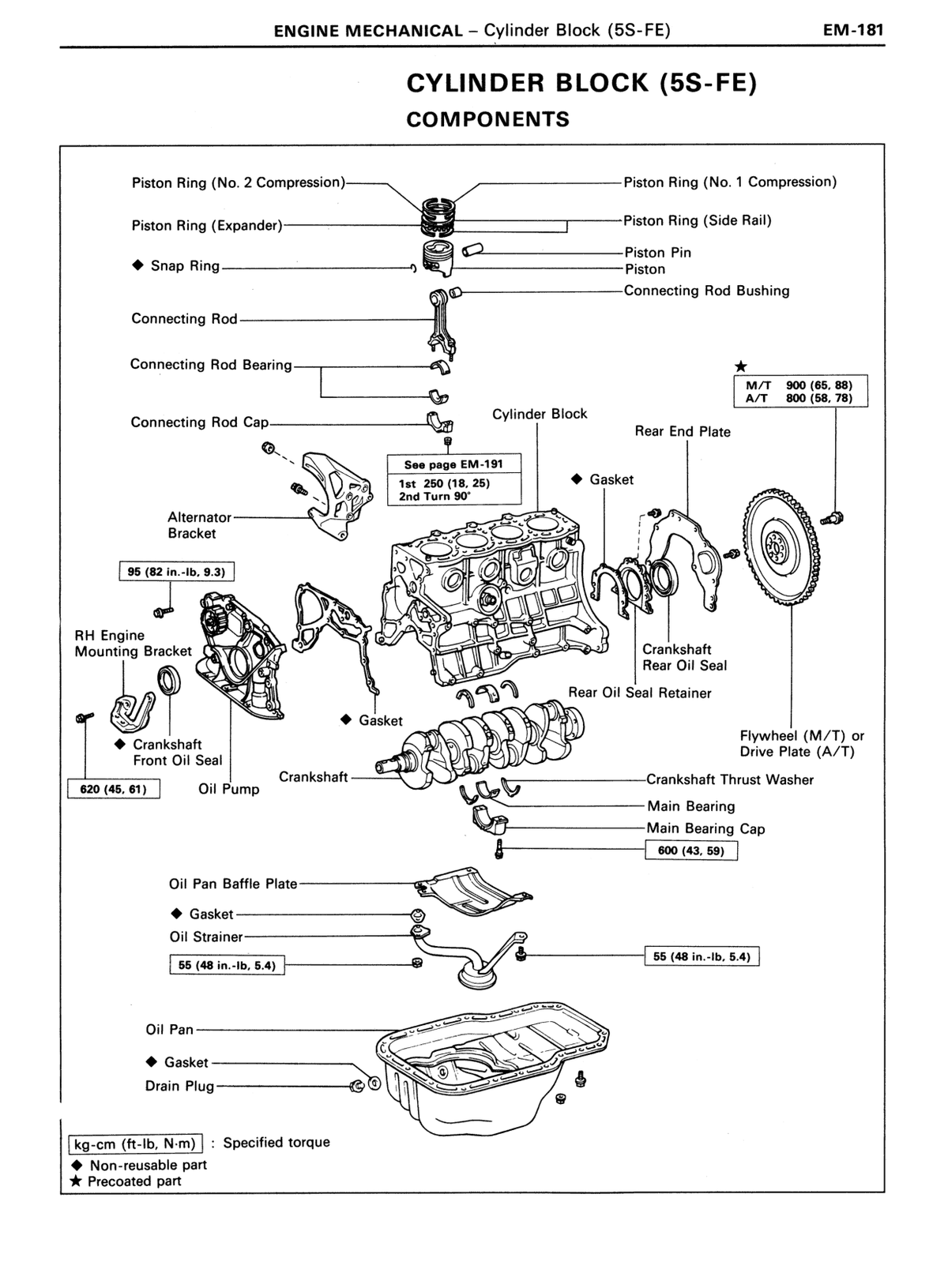

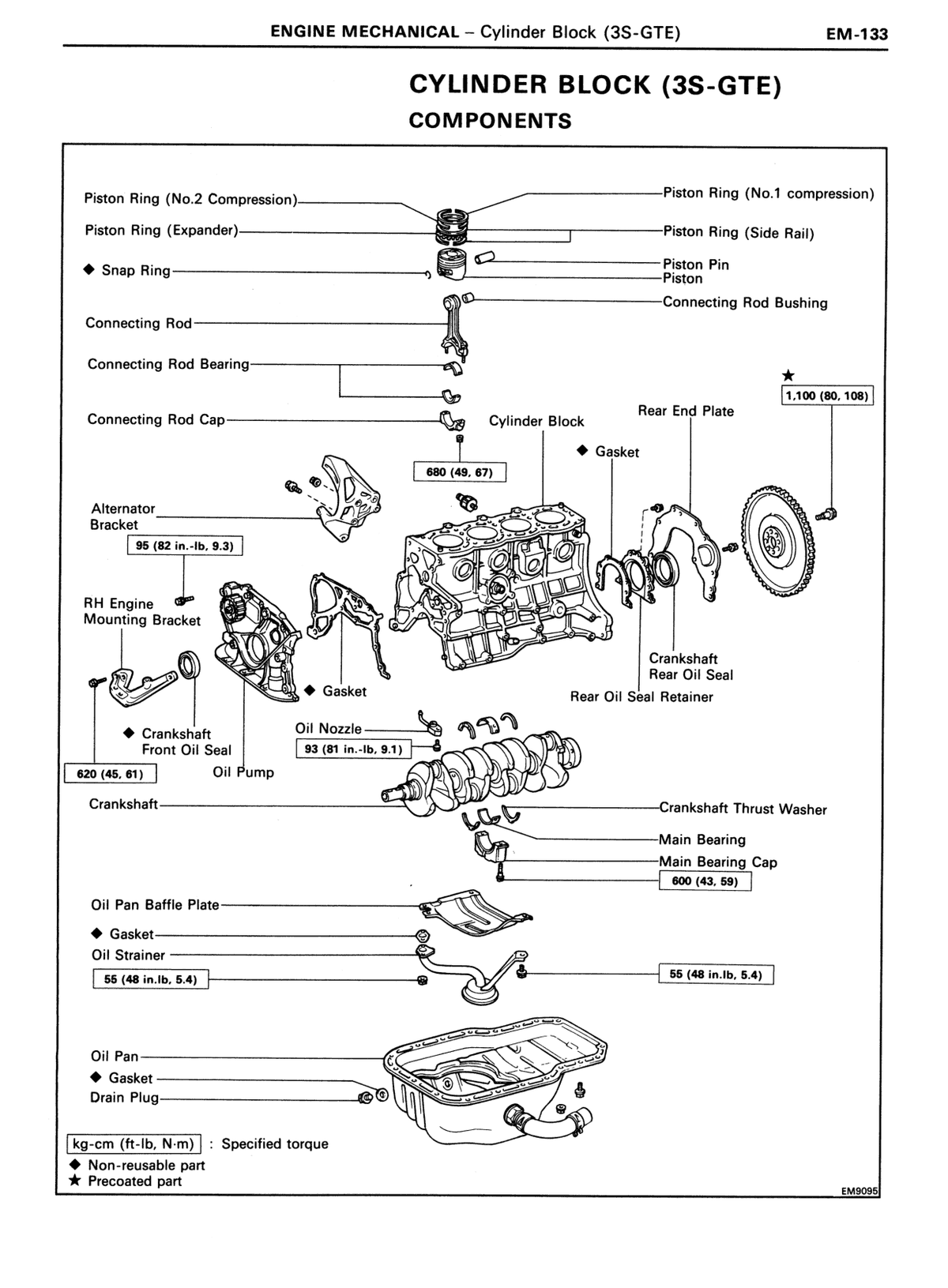

Engine — mechanical Connecting rod cap x Connecting rod 1st pass 25 250 18 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod 2nd pass — Turn 90° — — — ↗ RM179U1_1991 · p629 OEM manual

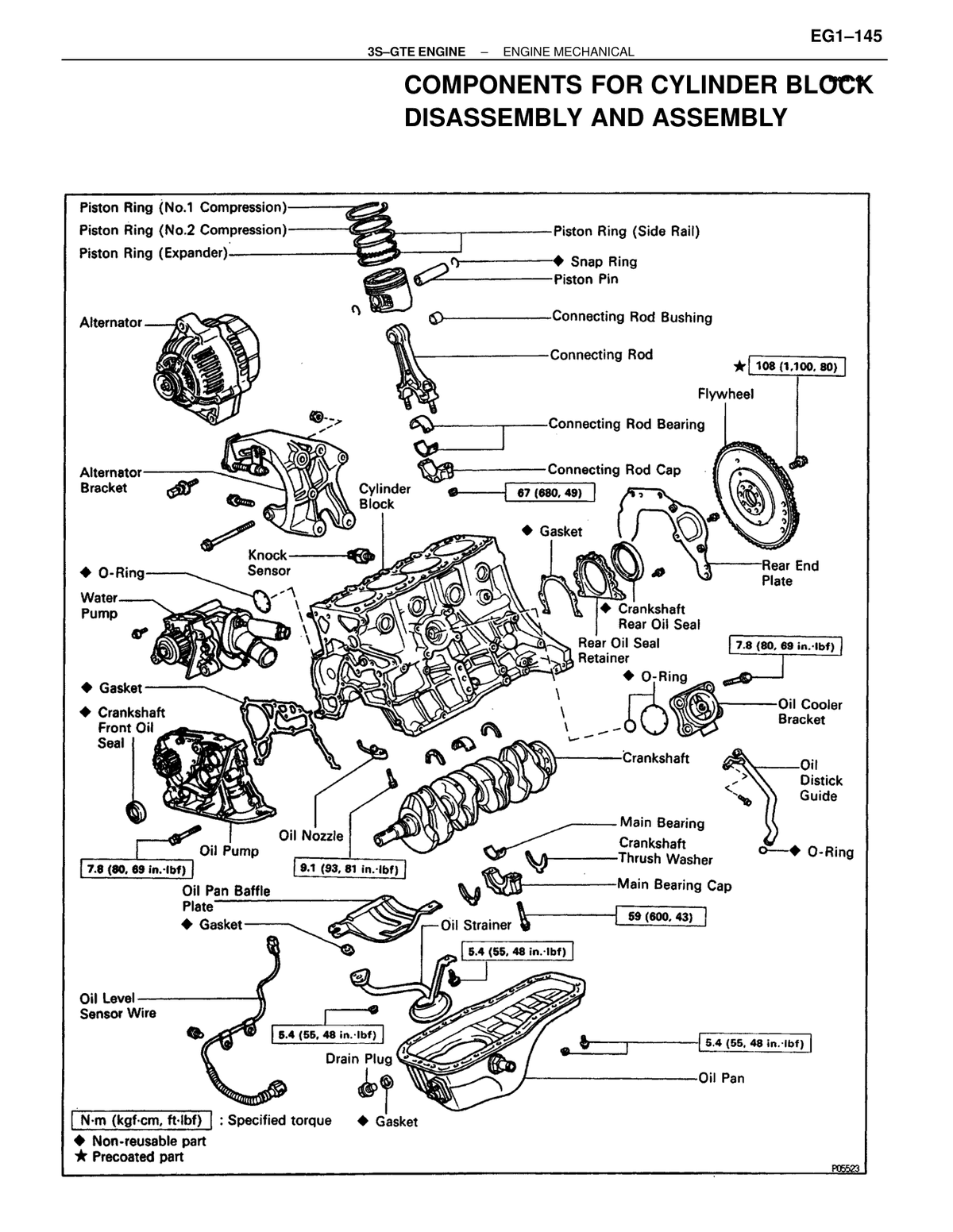

Engine — mechanical Rear oil seal retainer x Cylinder block 82 in.-lb 9.3 95 — ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical RH engine mounting bracket x Cylinder block 61 620 45 ↗ RM179U1_1991 · p629 OEM manual

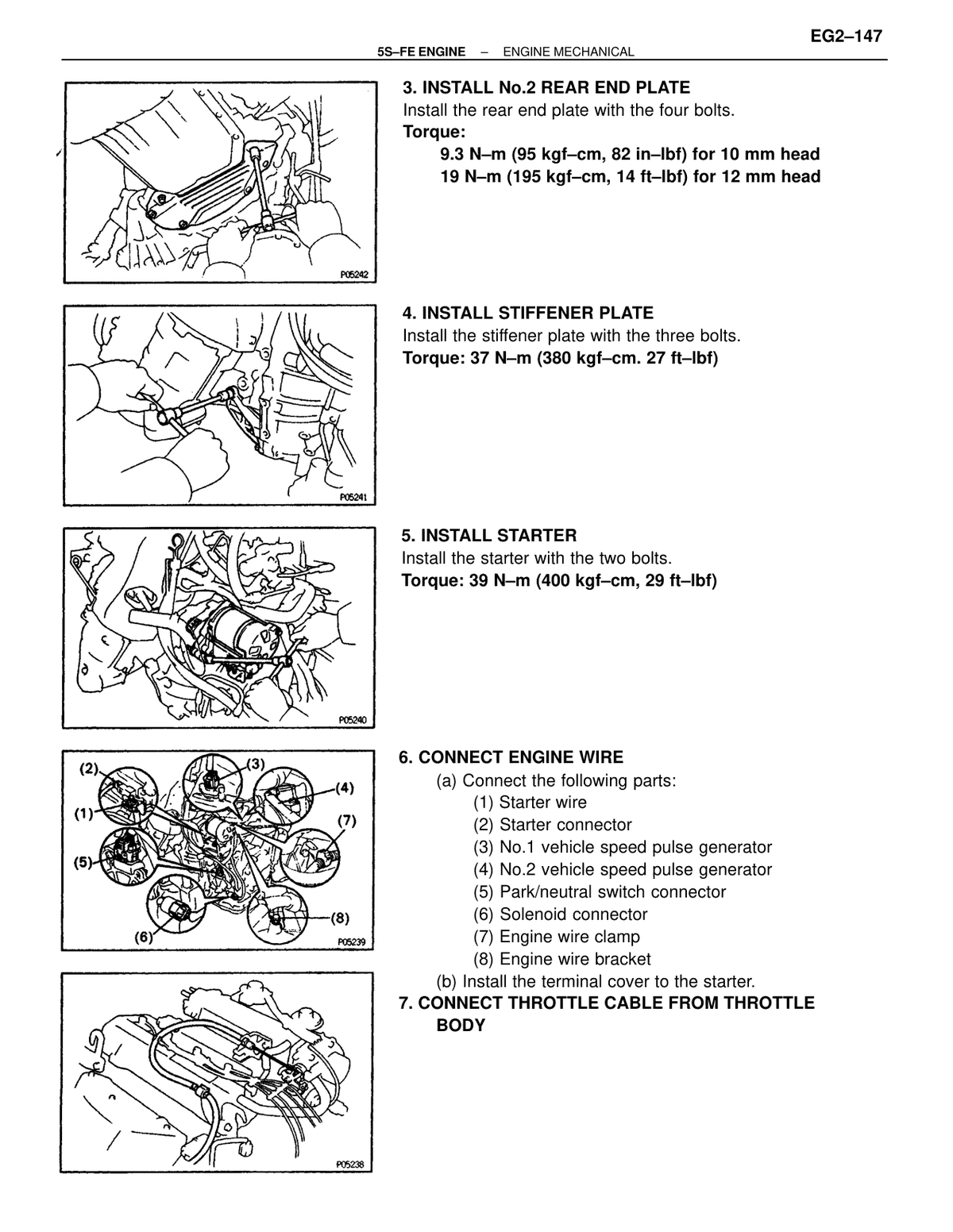

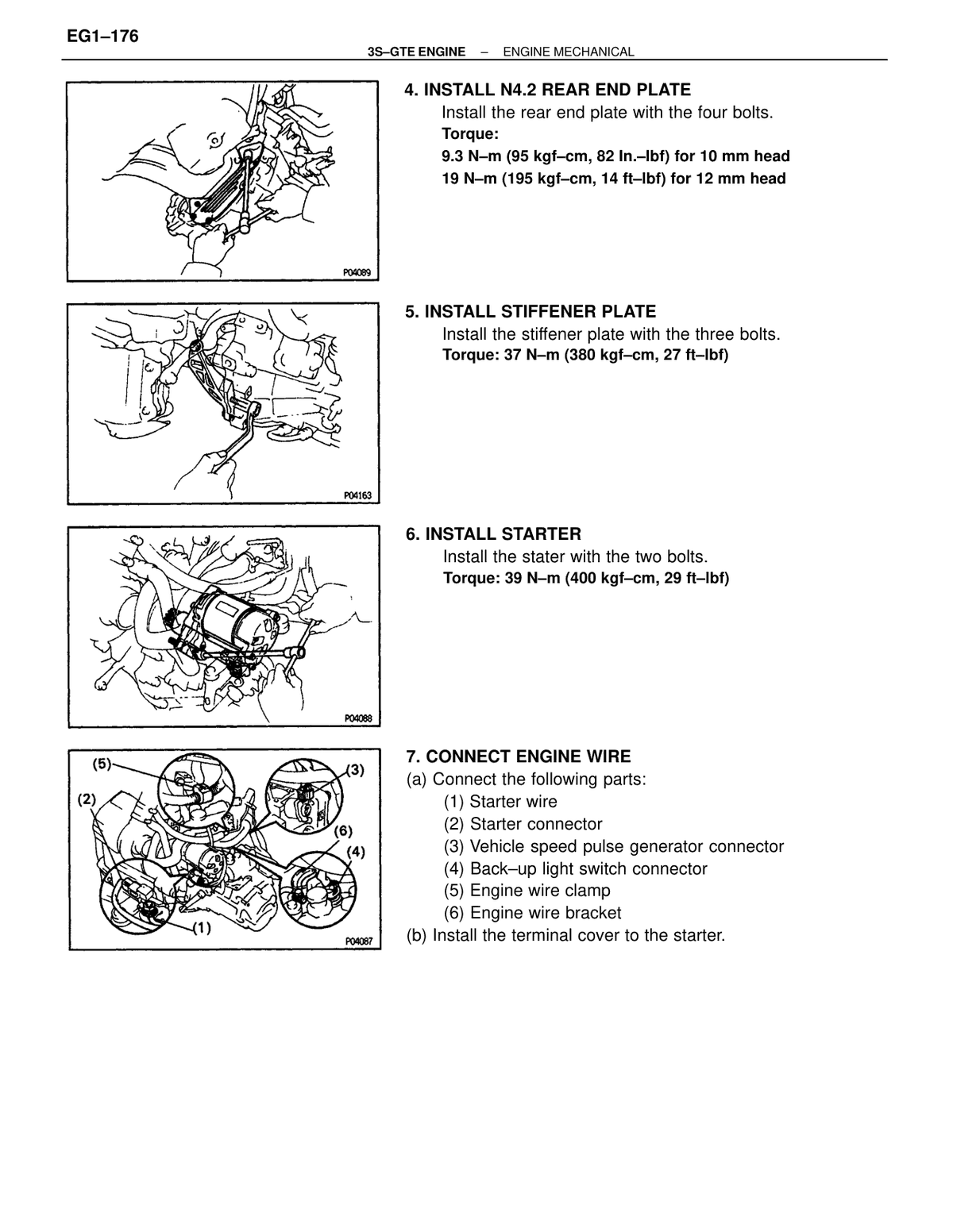

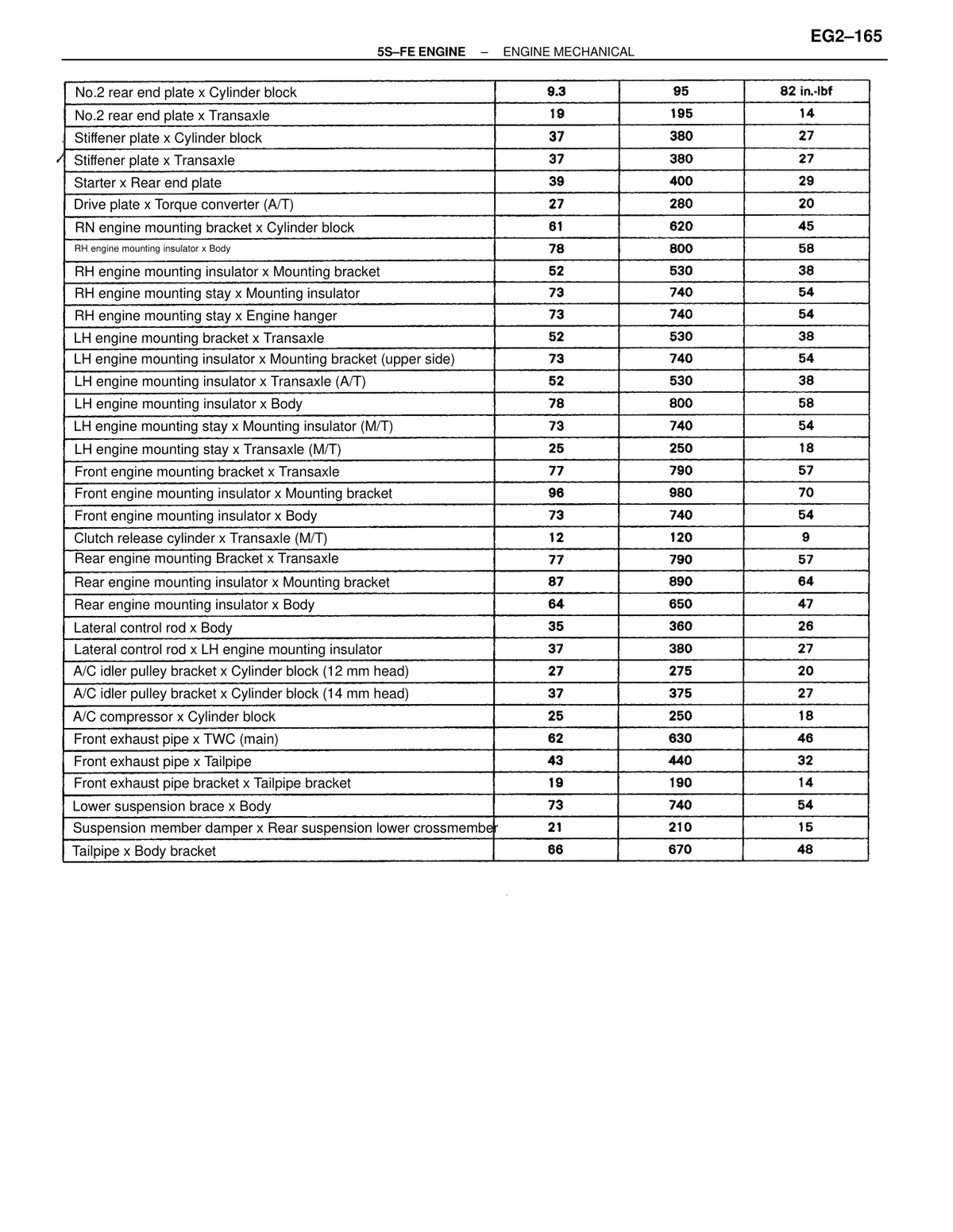

Engine — mechanical Rear end plate x Cylinder block 82 in.-lb 9.3 95 — ↗ RM179U1_1991 · p629 OEM manual

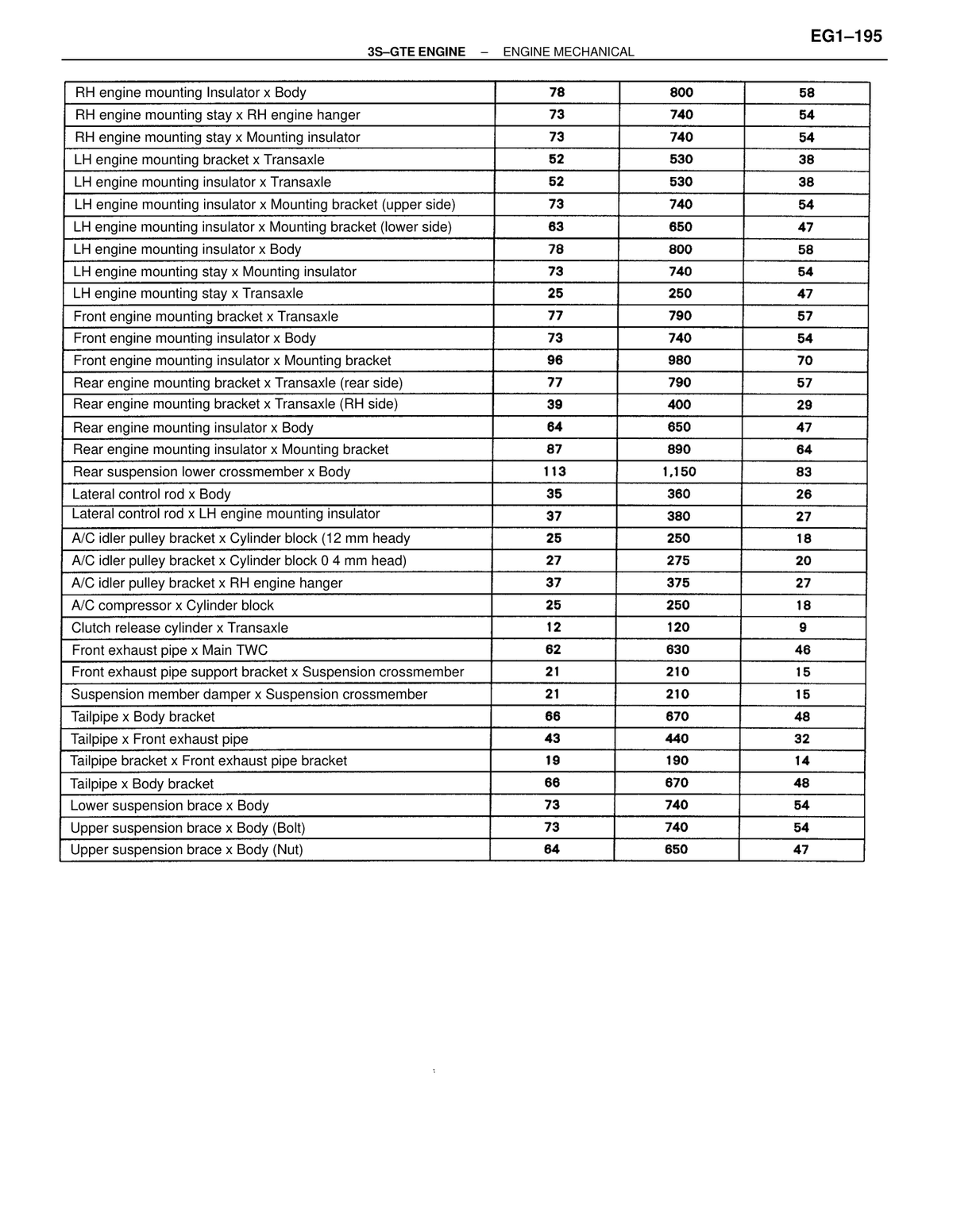

Engine — mechanical LH engine mounting bracket x Transaxle 52 530 38 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical LH engine mounting insulator x LH engine mounting bracket — Front side 63 650 47 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical LH engine mounting insulator x LH engine mounting bracket — Rear side 73 740 54 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical LH engine mounting insulator x Transaxle (with LH engine mounting bracket) 52 530 38 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical RH engine mounting insulator x RH engine mounting bracket 52 530 38 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical RH engine mounting stay x RH engine mounting insulator 73 740 54 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical RH engine mounting stay x RH front engine hanger 73 740 54 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical LH engine mounting stay x LH engine mounting insulator 73 740 54 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Lateral control rod x LH engine mounting insulator 37 380 27 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Front engine mounting bracket x Transaxle 77 790 57 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Rear engine mounting bracket x Transaxle 77 790 57 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Front engine mounting insulator x Body 73 740 54 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Rear engine mounting insulator x Body 64 650 47 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Rear engine mounting insulator x Mounting bracket 79 800 58 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical Front engine mounting insulator x Mounting bracket 96 980 71 ↗ RM179U1_1991 · p629 OEM manual

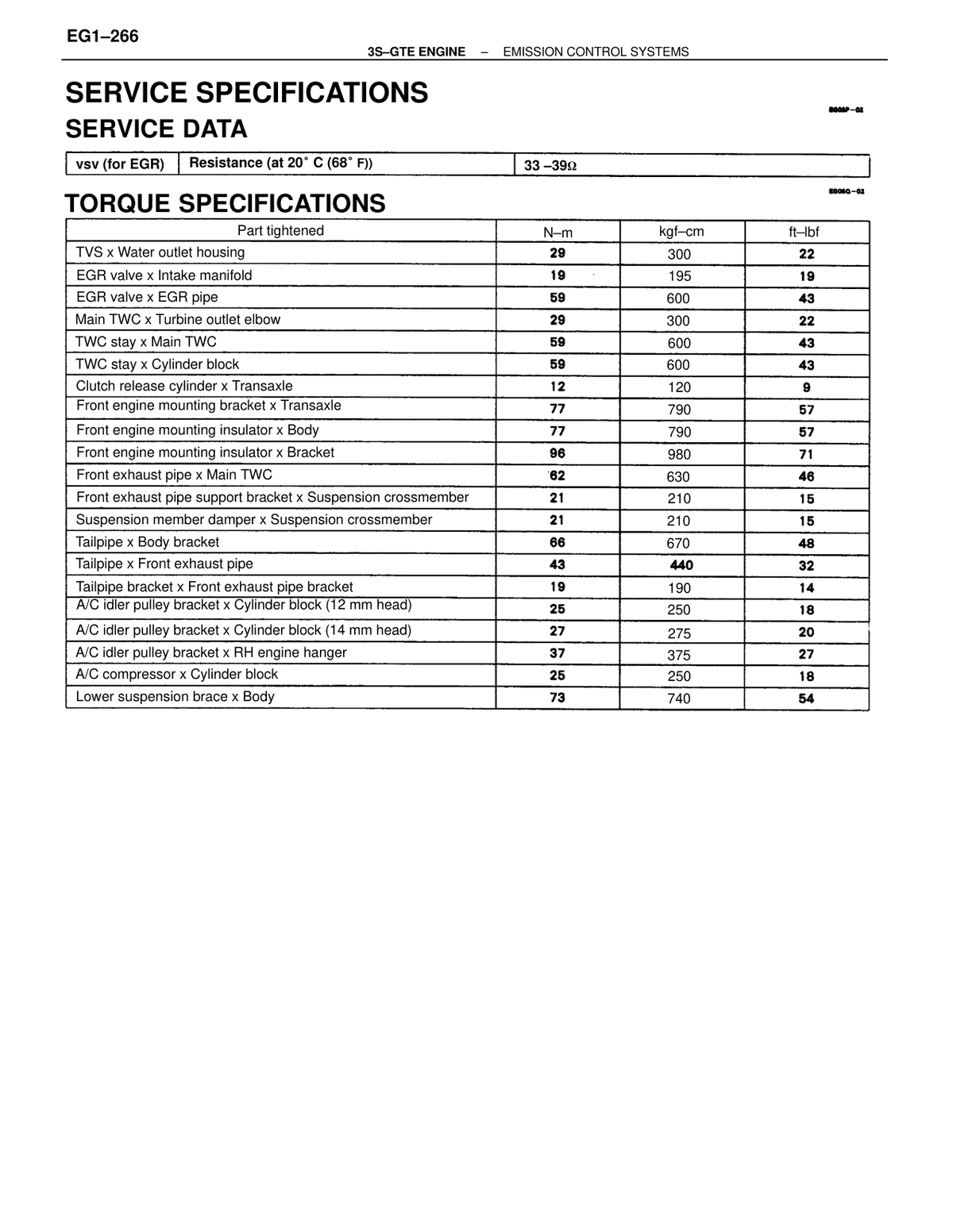

Engine — mechanical A/C idler pulley bracket x Cylinder block 27 275 20 ↗ RM179U1_1991 · p629 OEM manual
Engine — mechanical A/C idler pulley bracket x RH front engine hanger 37 375 27 ↗ RM179U1_1991 · p629 OEM manual

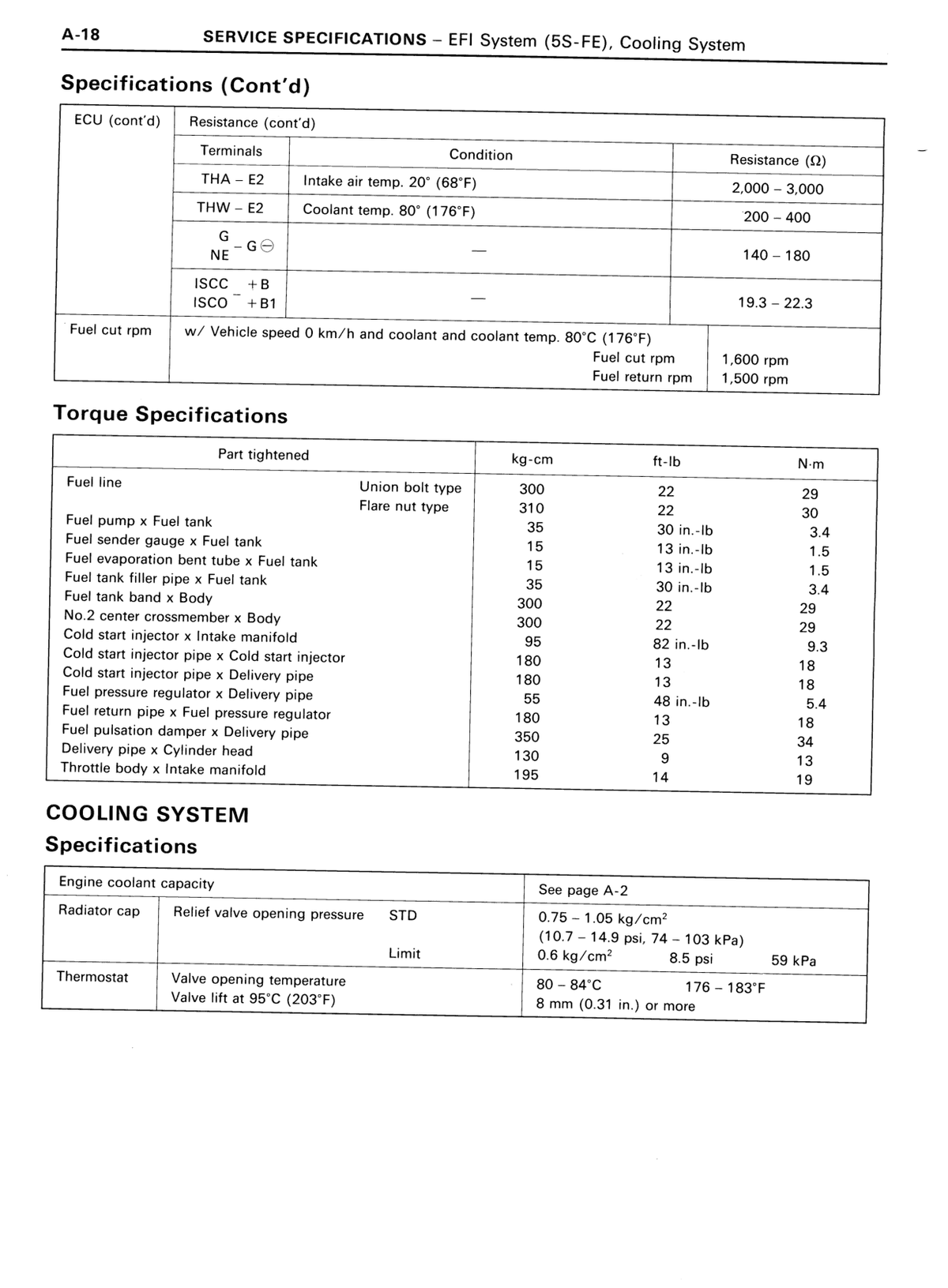

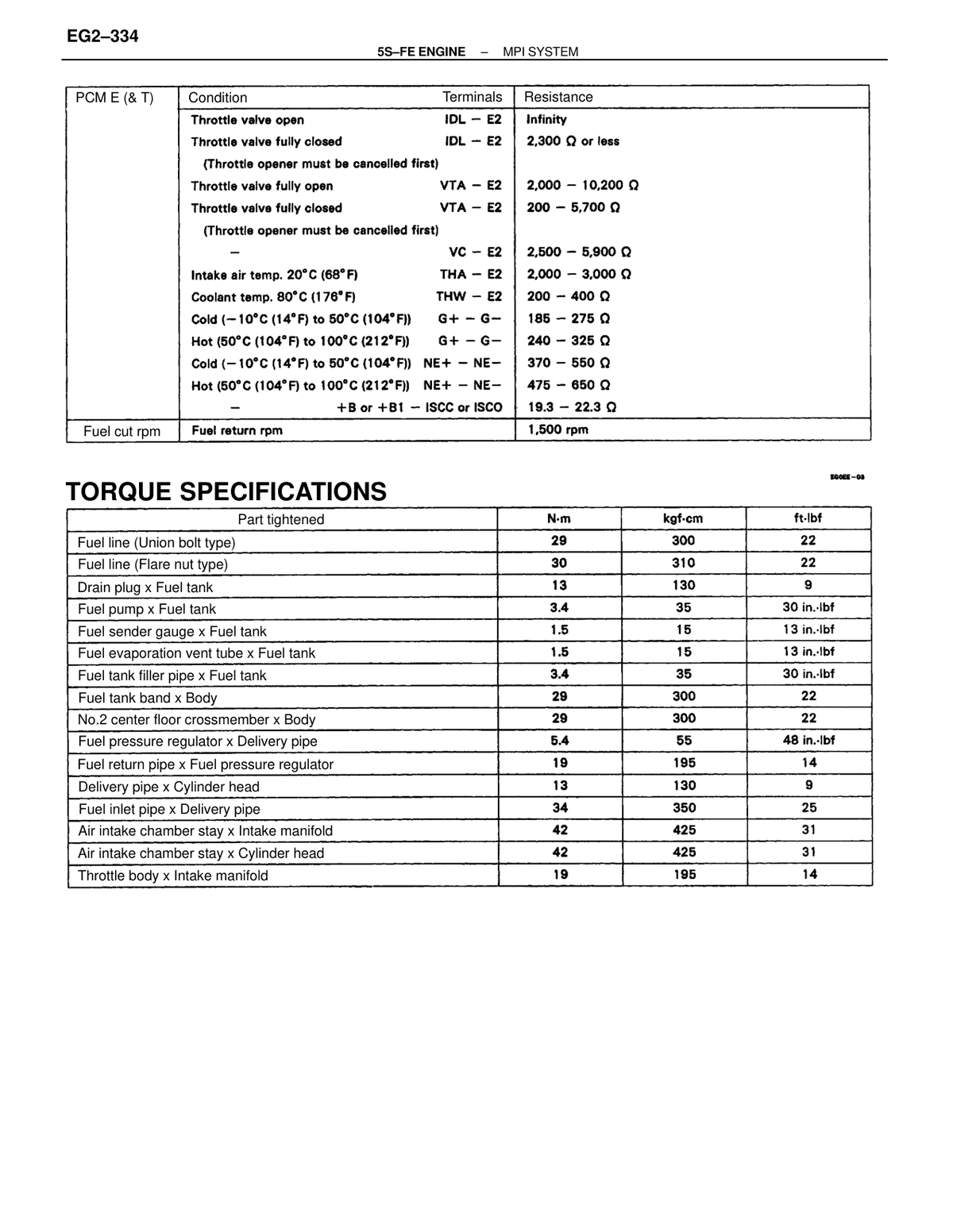

EFI / fuel injection Fuel sender gauge x Fuel tank 13 in.-lb 1.5 15 1.1 ↗ RM179U1_1991 · p637 OEM manual
EFI / fuel injection Fuel evaporation bent tube x Fuel tank 13 in.-lb 1.5 15 1.1 ↗ RM179U1_1991 · p637 OEM manual
EFI / fuel injection Fuel tank filler pipe x Fuel tank 30 in.-lb 3.4 35 2.5 ↗ RM179U1_1991 · p637 OEM manual

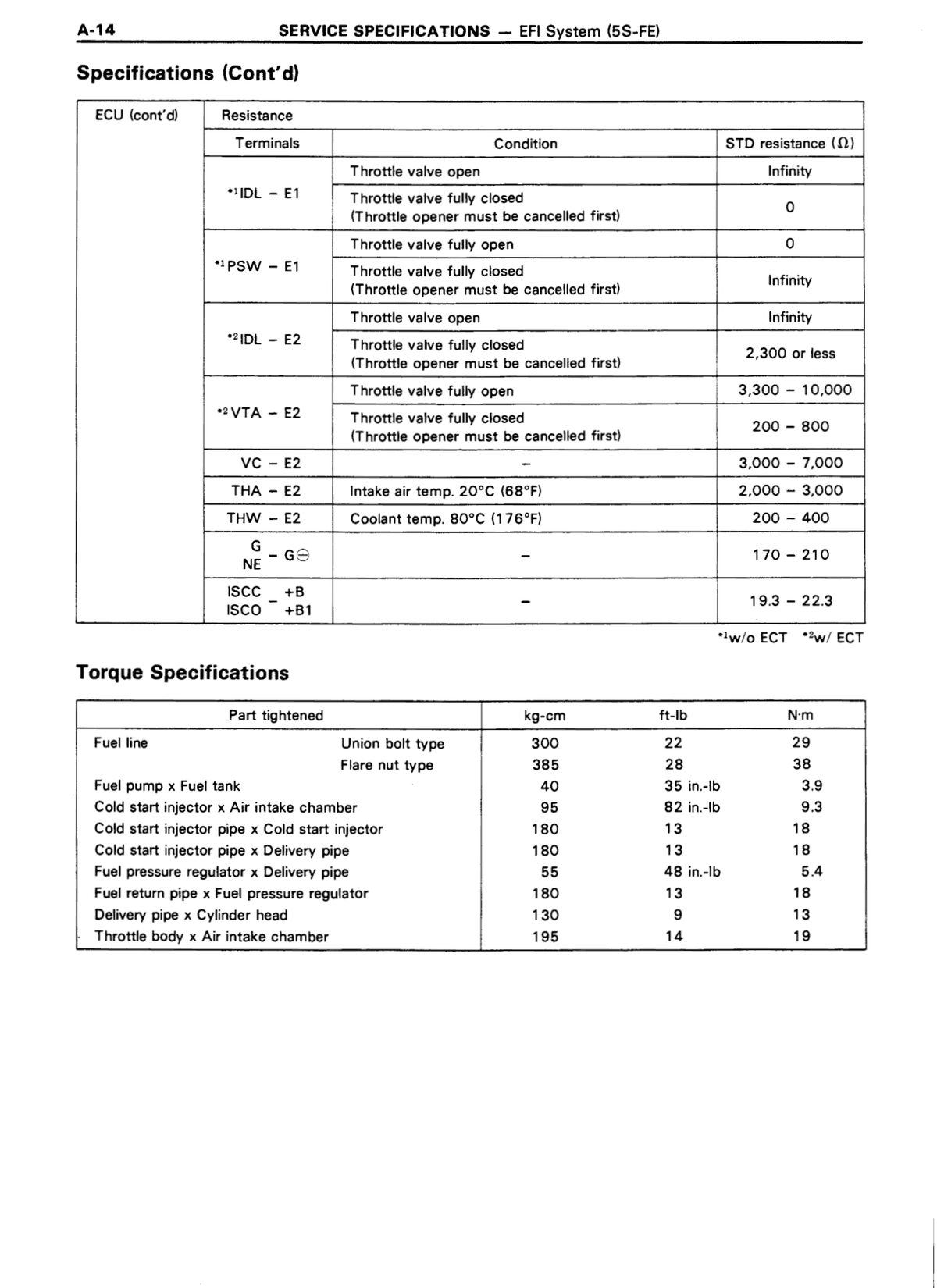

EFI / fuel injection Cold start injector x Intake manifold 82 in.-lb 9.3 95 6.8 ↗ RM179U1_1991 · p637 OEM manual
EFI / fuel injection Cold start injector pipe x Cold start injector 18 180 13 ↗ RM179U1_1991 · p637 OEM manual
EFI / fuel injection Cold start injector pipe x Delivery pipe 18 180 13 ↗ RM179U1_1991 · p637 OEM manual

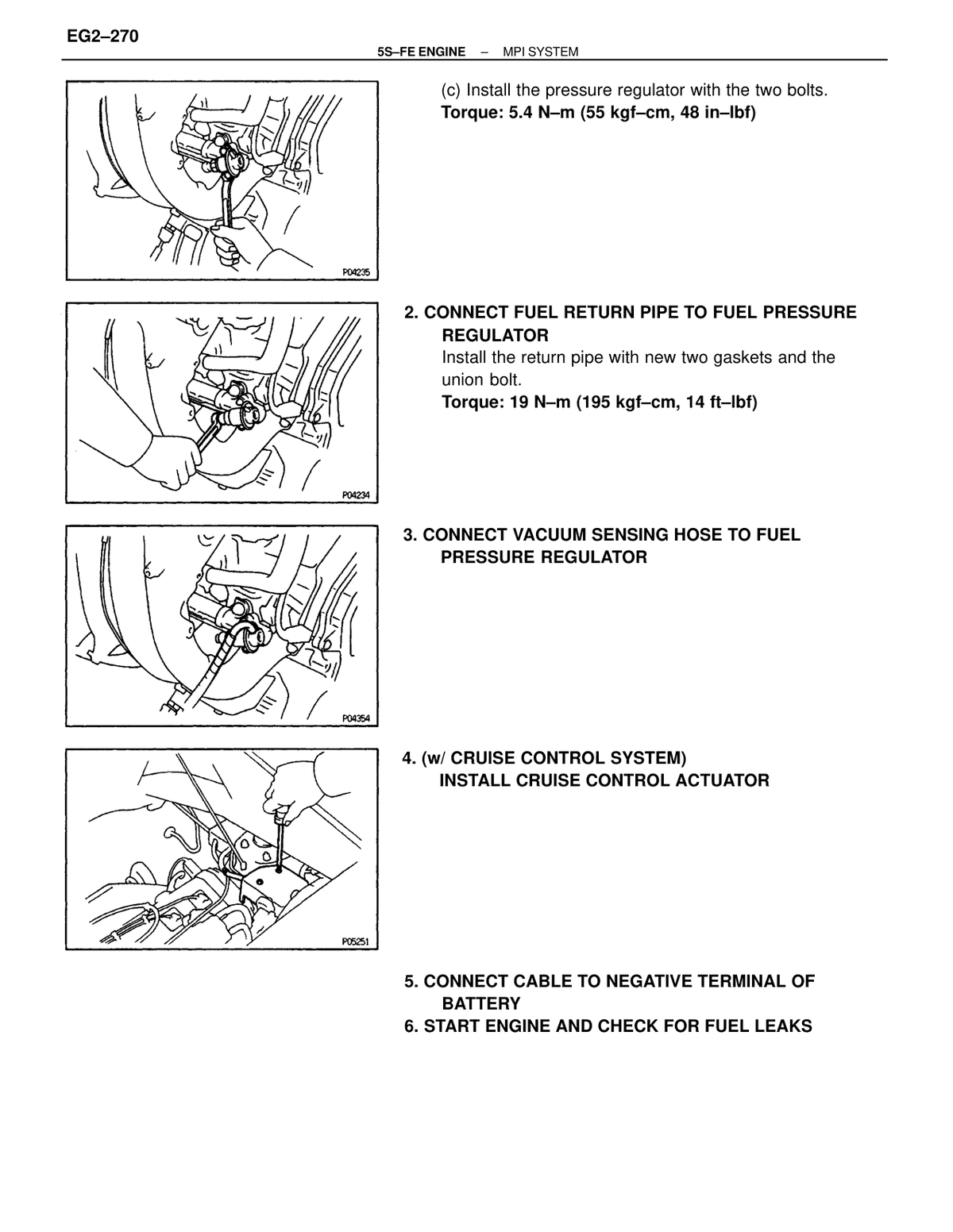

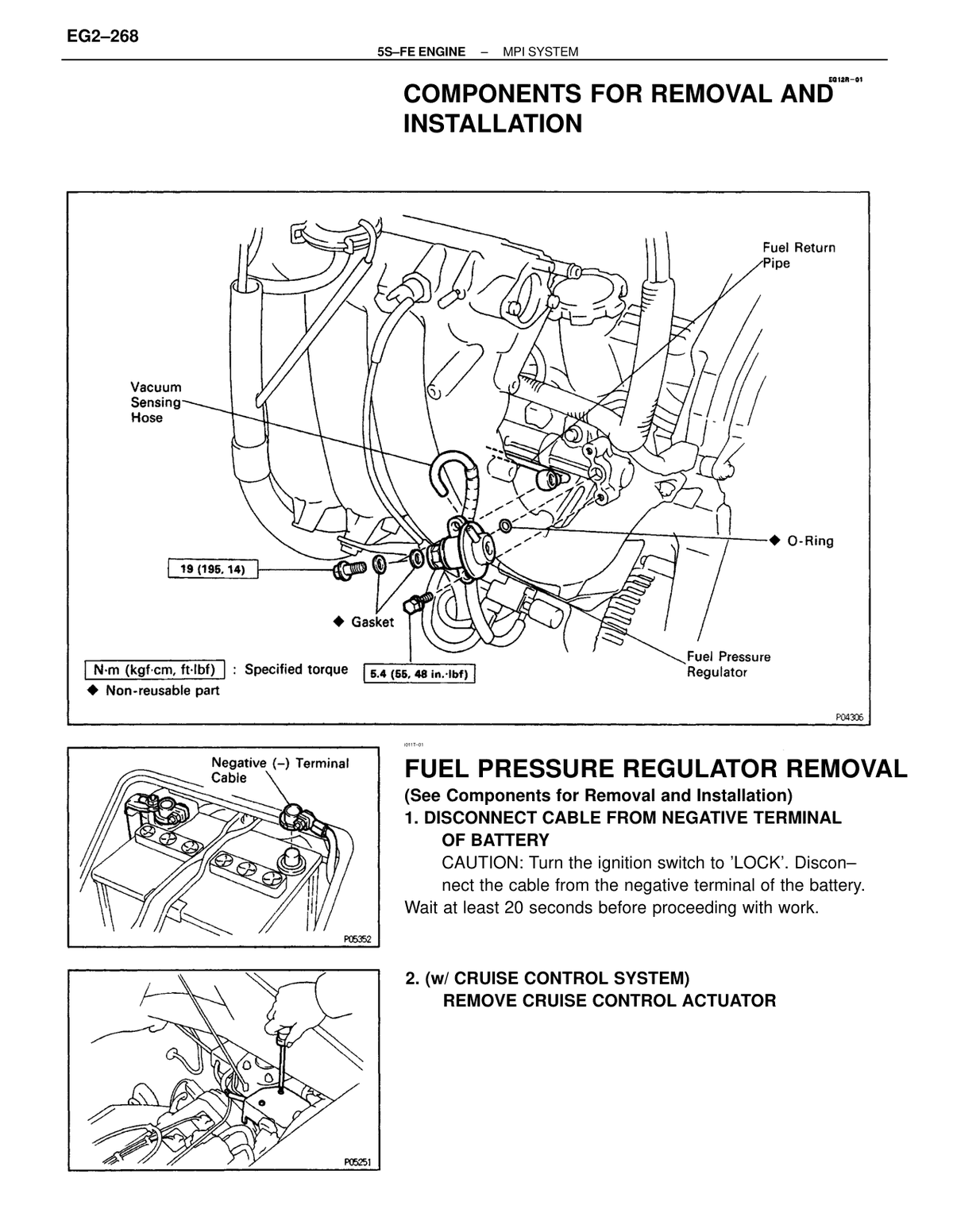

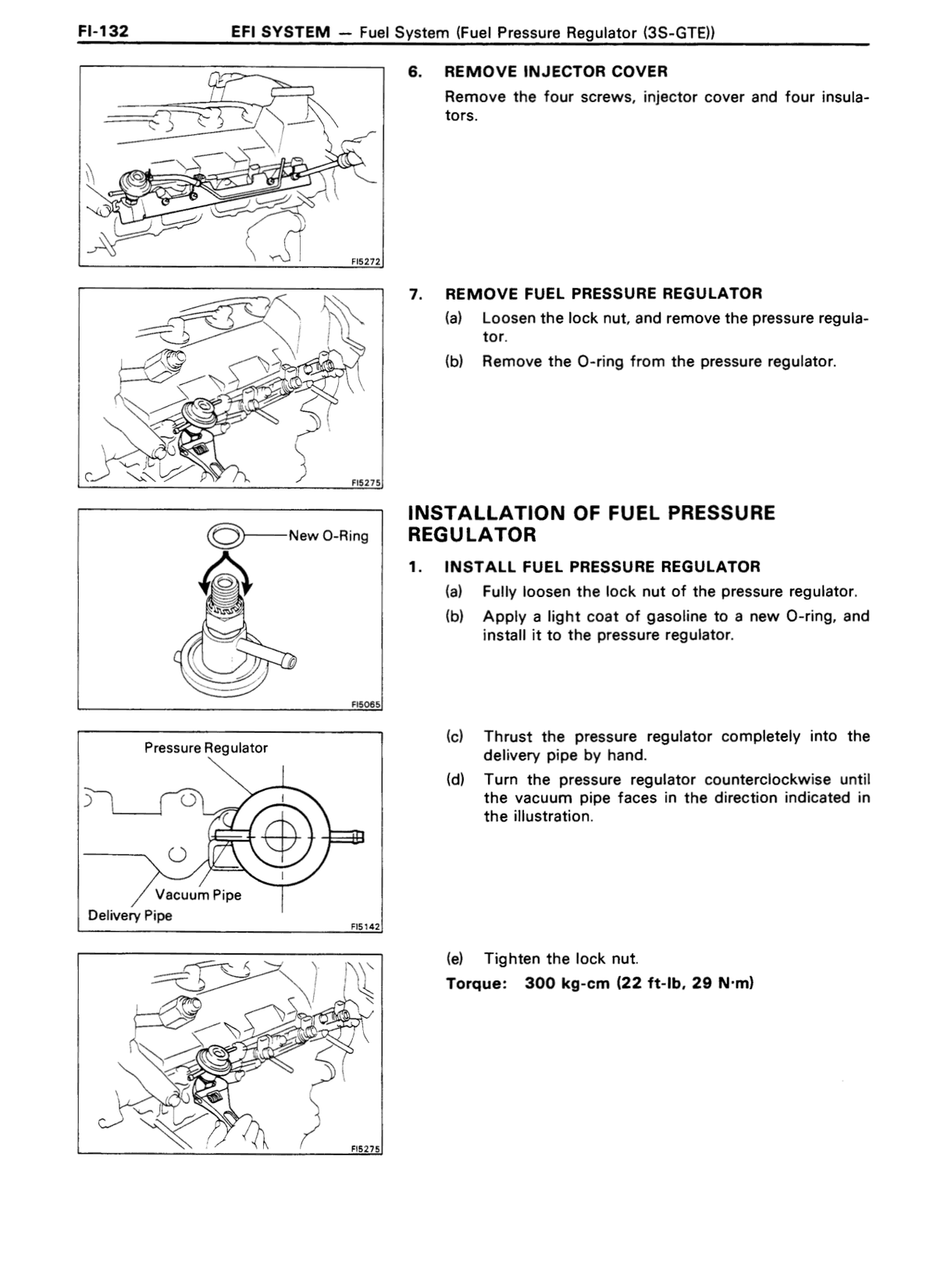

EFI / fuel injection Fuel pressure regulator x Delivery pipe 48 in.-lb 5.4 55 4 ↗ RM179U1_1991 · p637 OEM manual
EFI / fuel injection Fuel return pipe x Fuel pressure regulator 18 180 13 ↗ RM179U1_1991 · p637 OEM manual

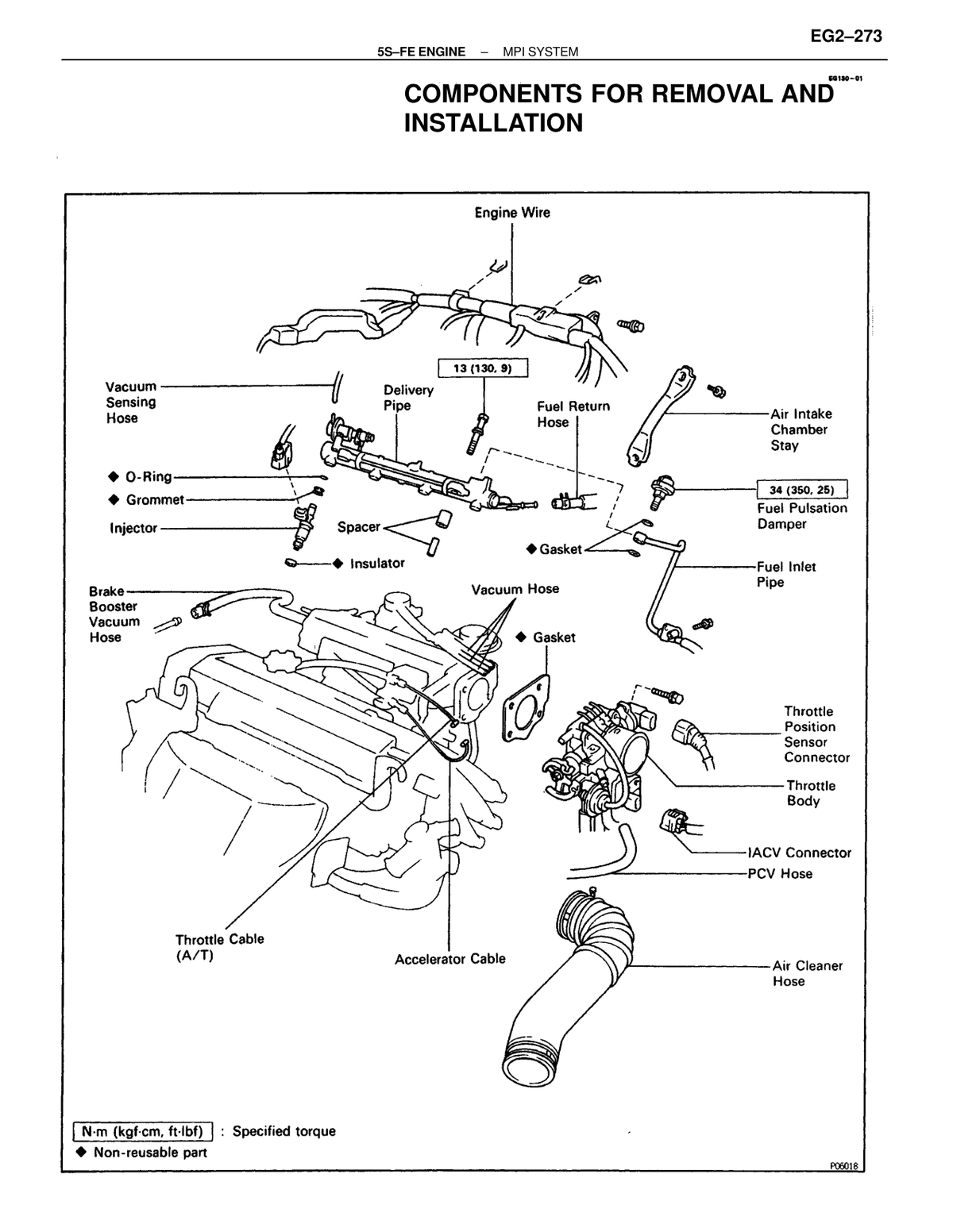

EFI / fuel injection Fuel pulsation damper x Delivery pipe 34 350 25 ↗ RM179U1_1991 · p637 OEM manual

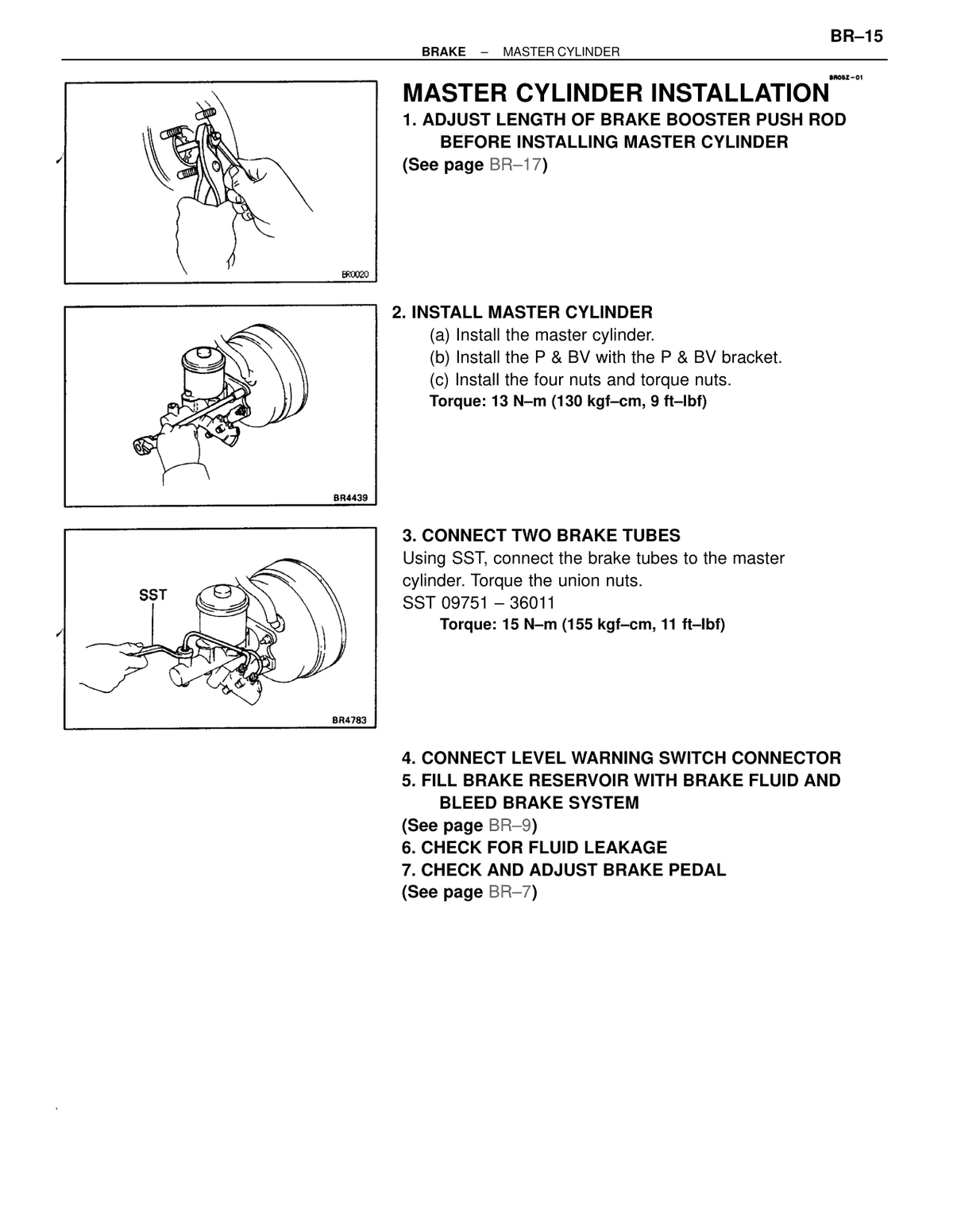

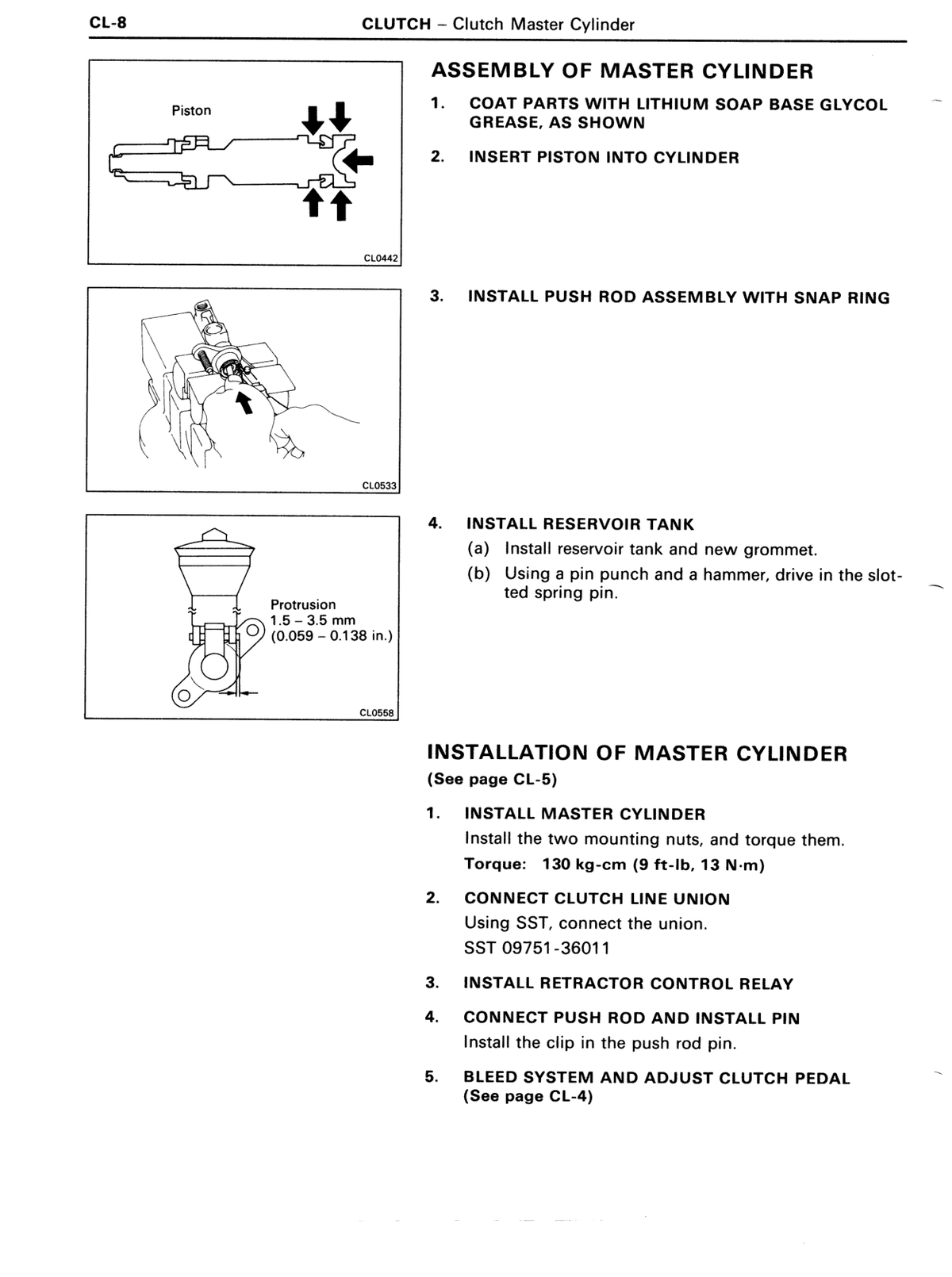

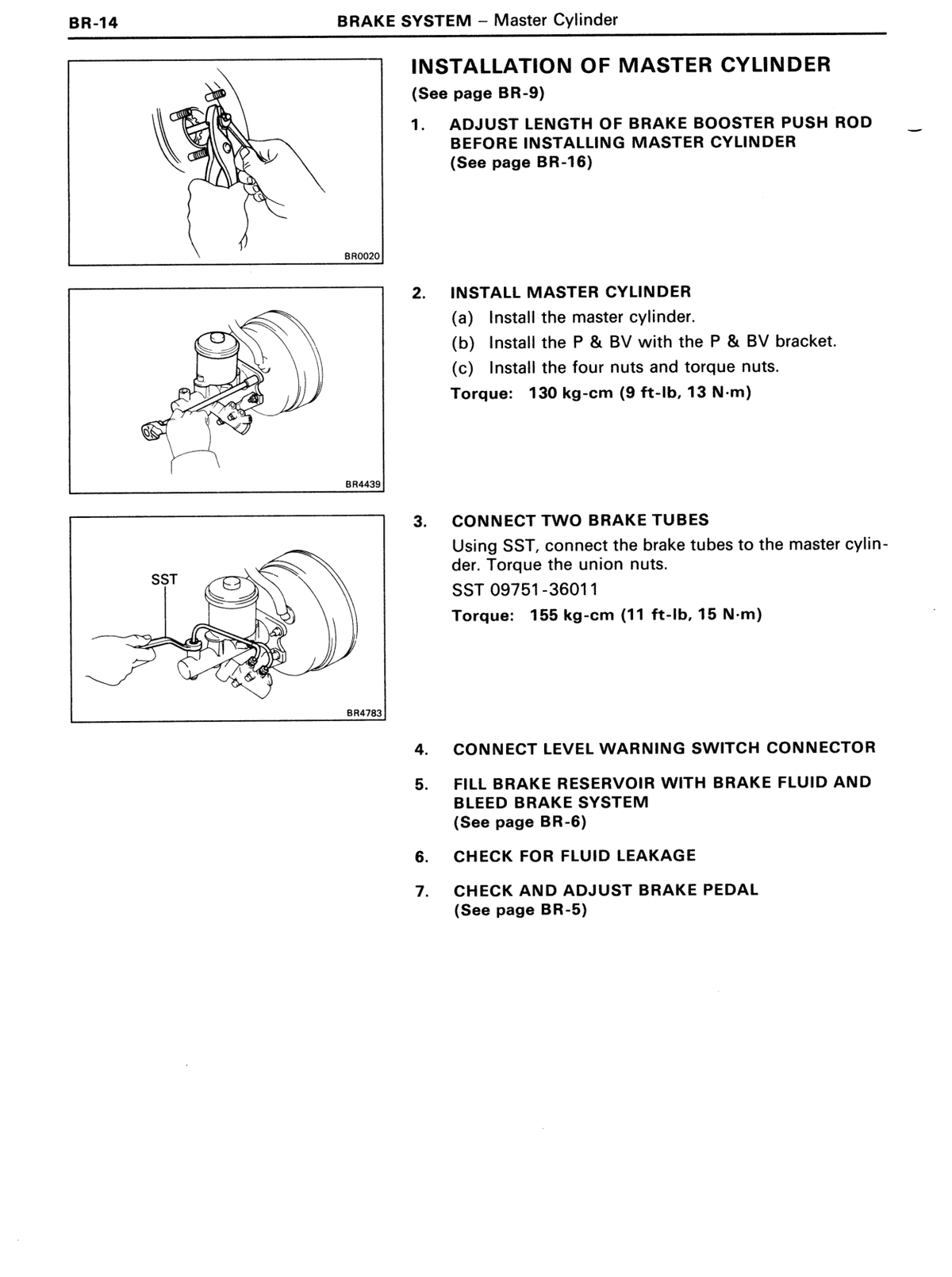

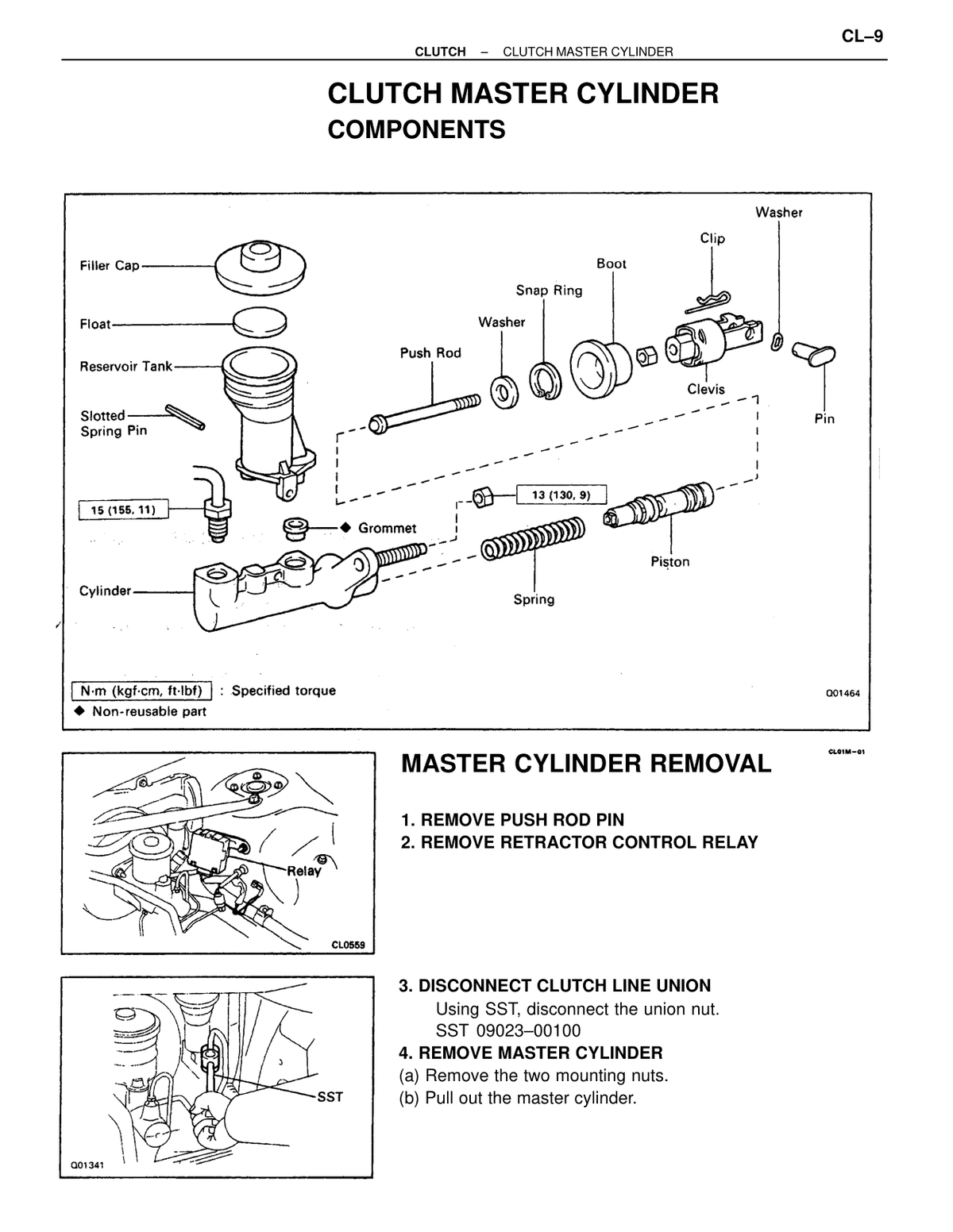

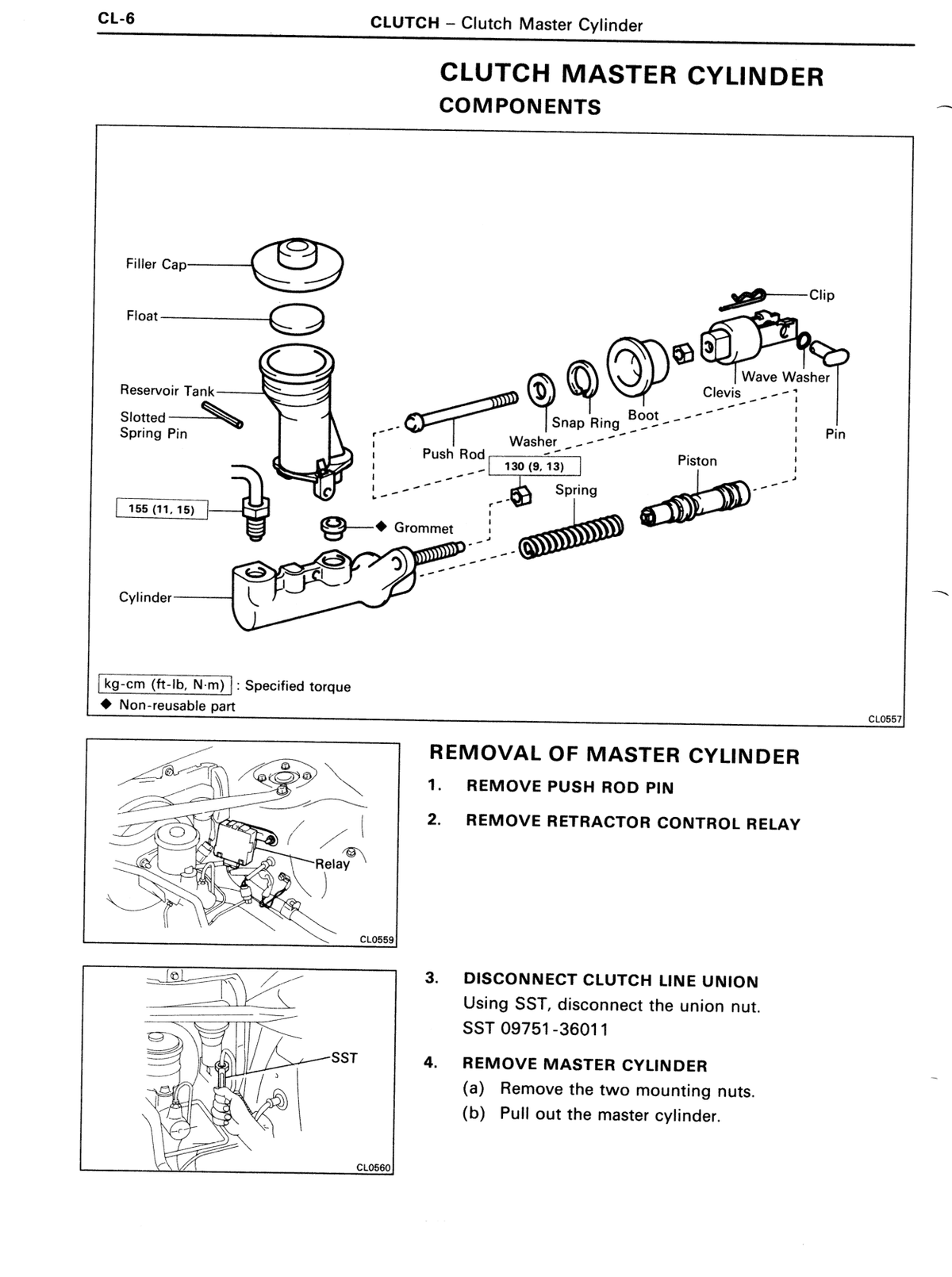

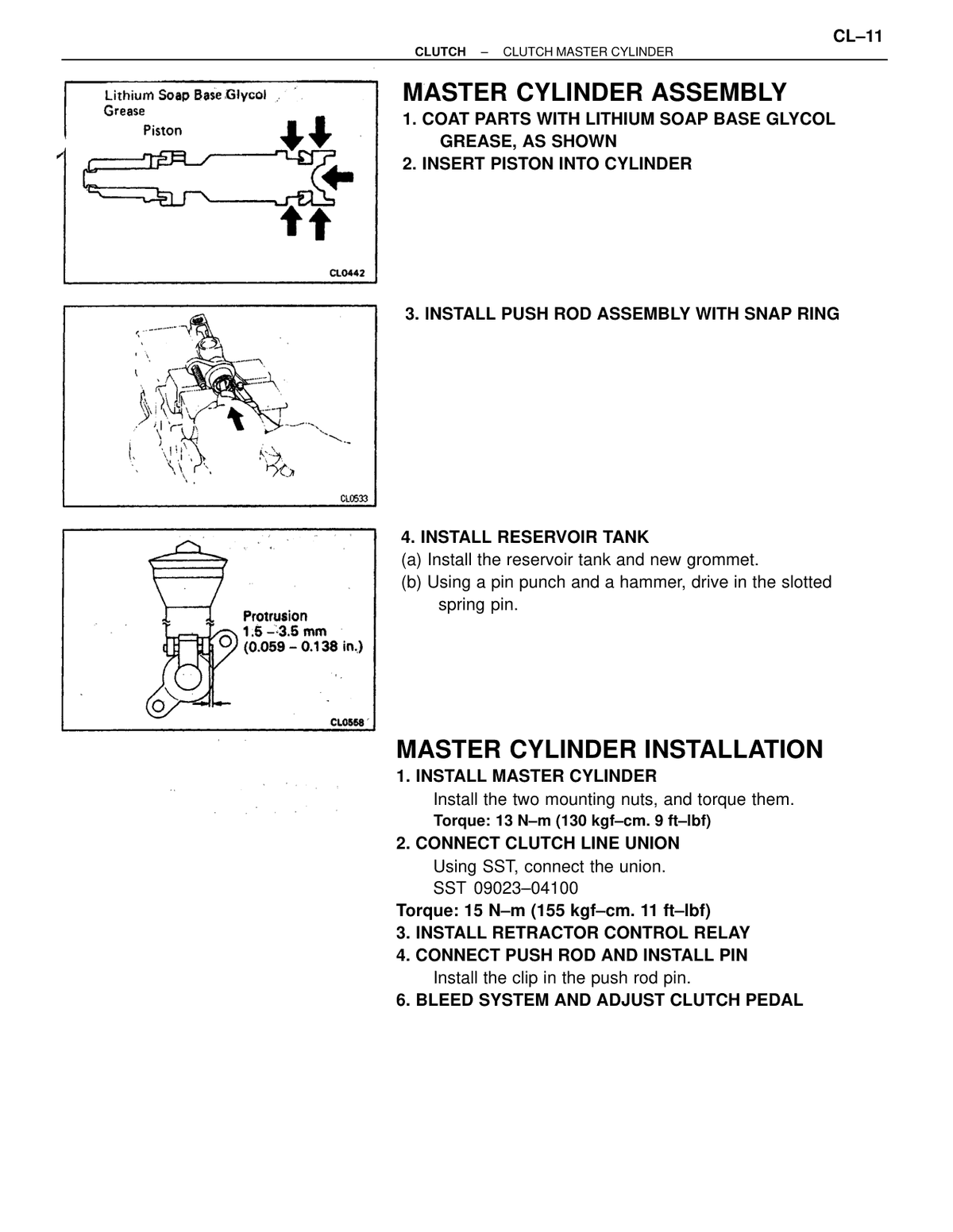

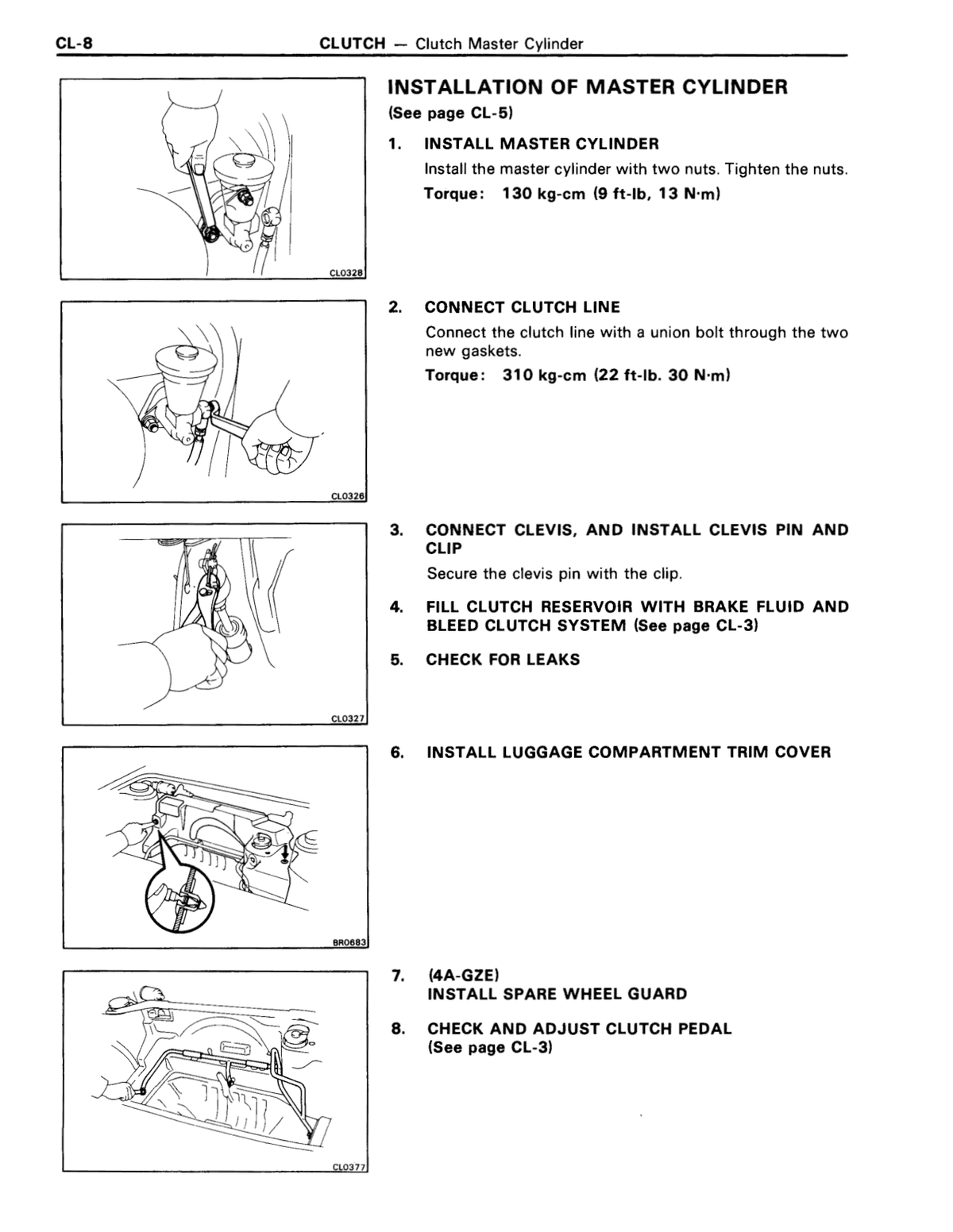

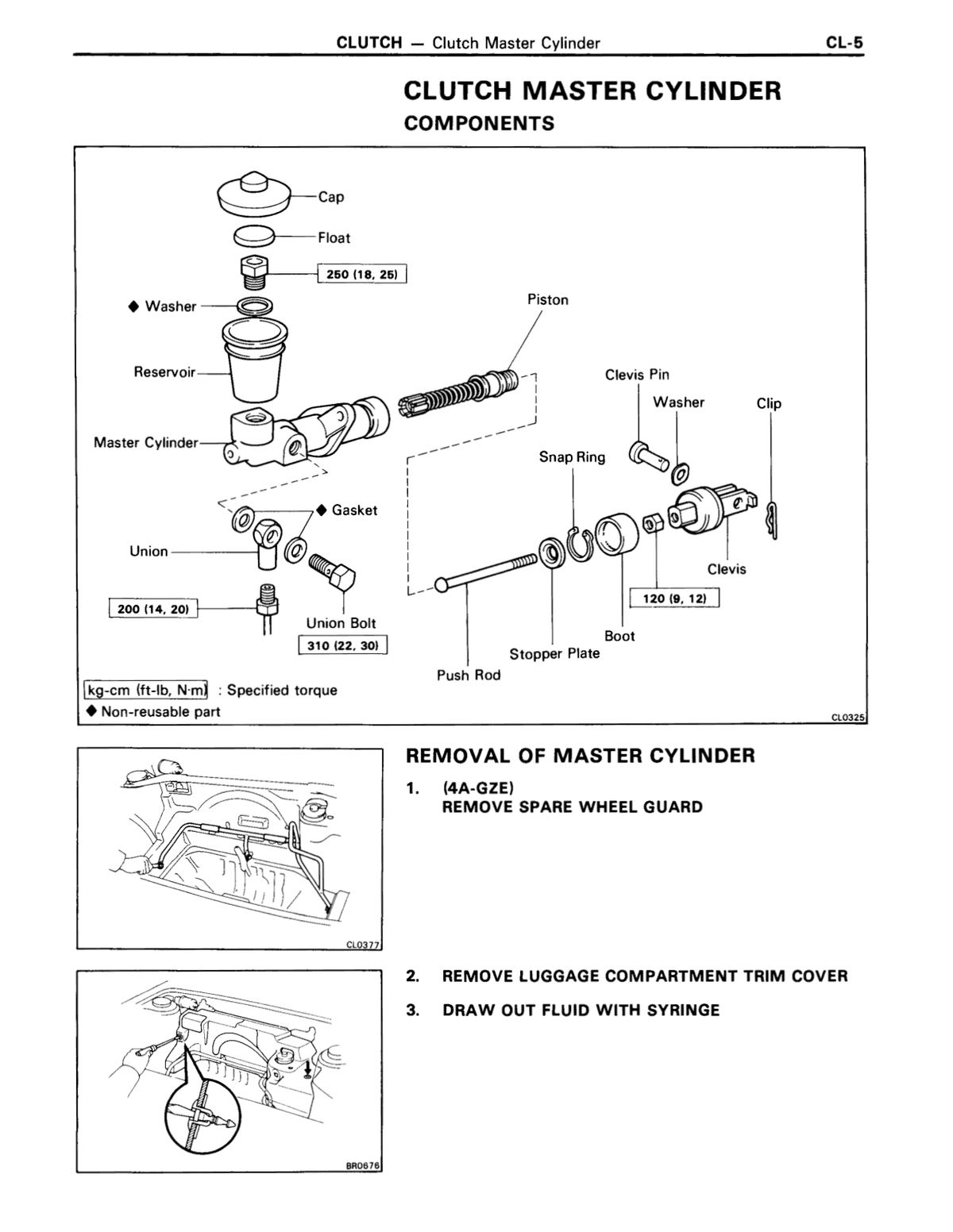

Clutch Master cylinder mounting nuts Install master cylinder step 1 13 130 9 ↗ RM179U1_1991 · p654 OEM manual

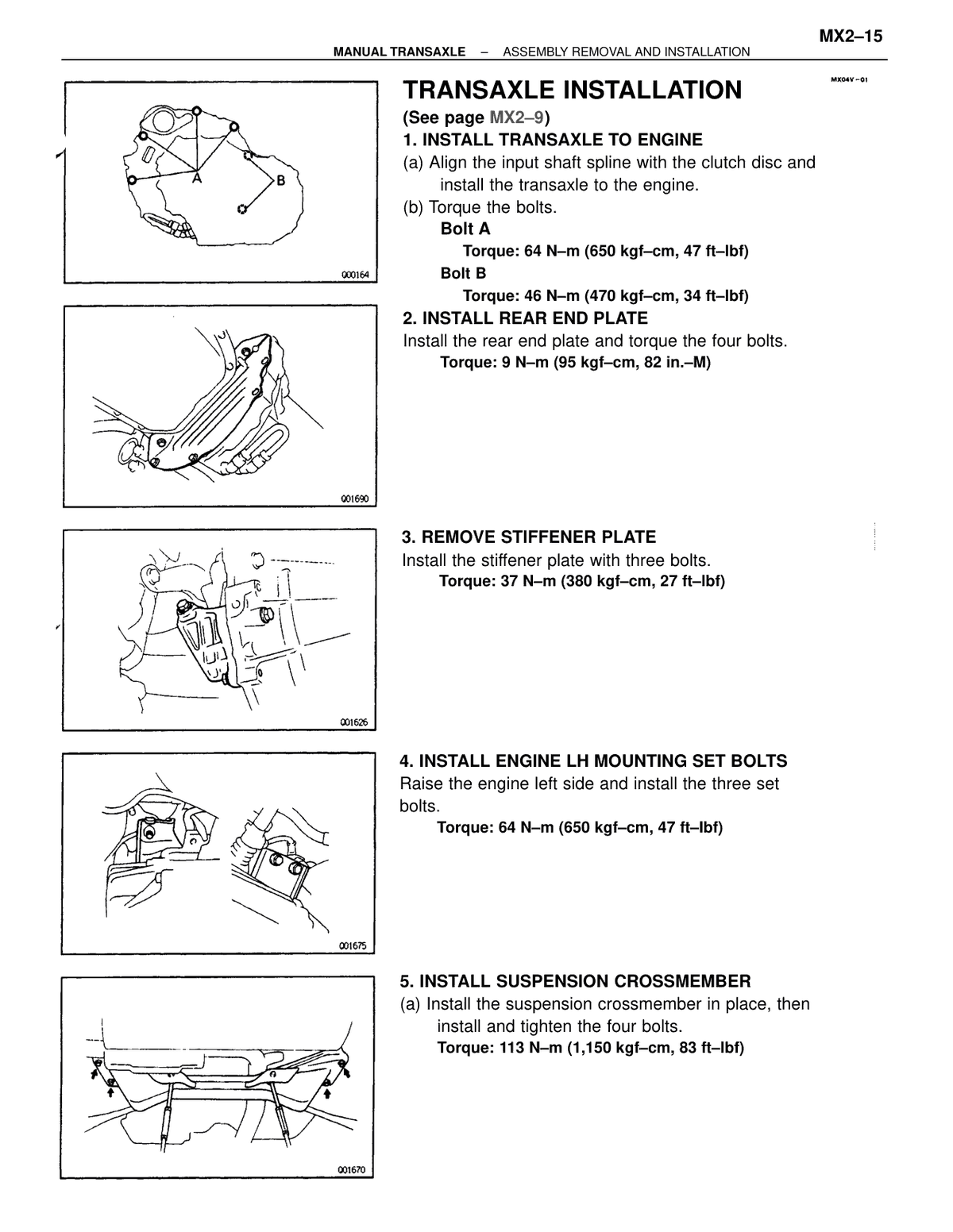

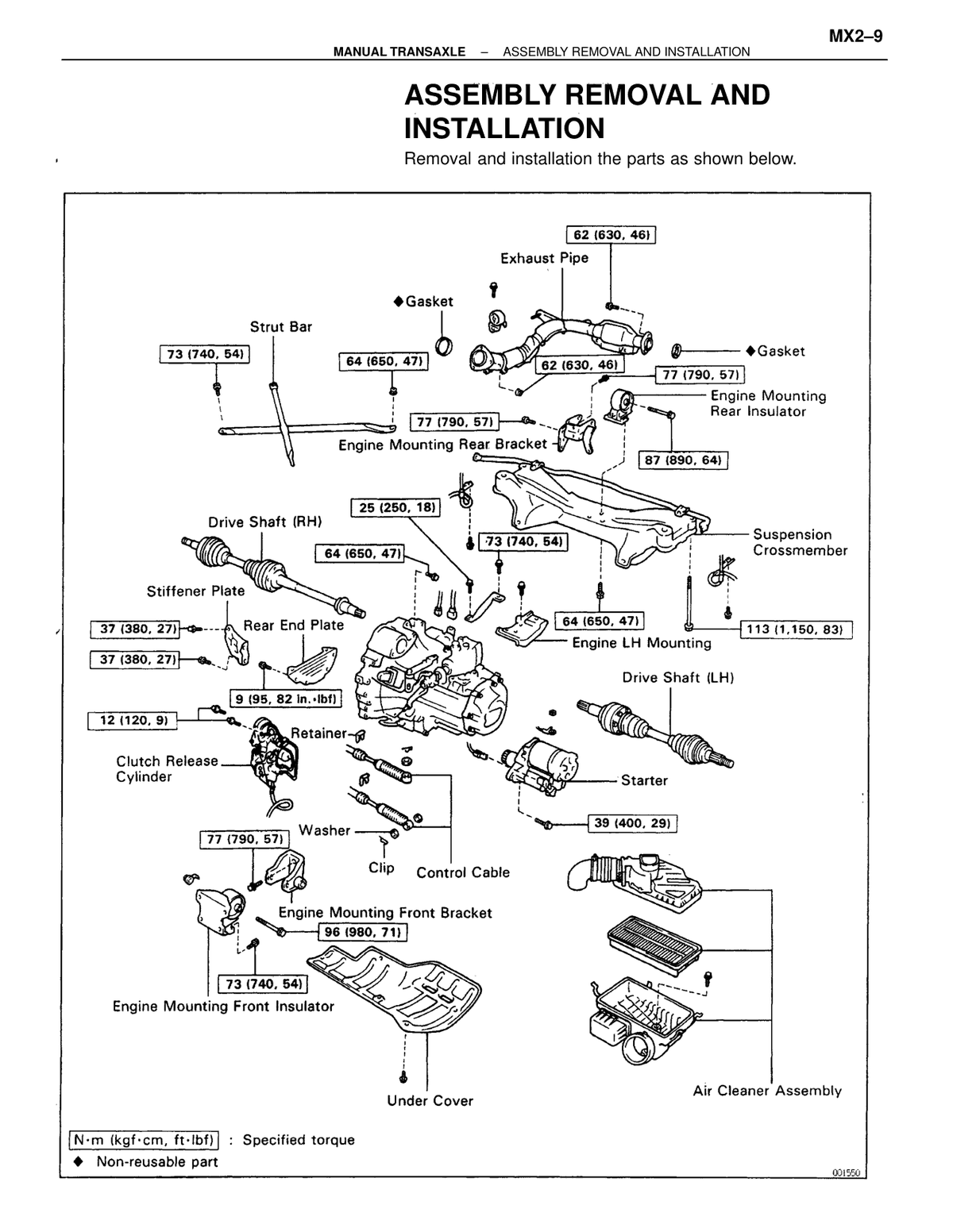

Transmission / transaxle Transaxle mounting bolt (upper center) 64 650 47 ↗ RM179U1_1991 · p667 OEM manual
Transmission / transaxle Transaxle mounting bolt (lower center) 64 650 47 ↗ RM179U1_1991 · p667 OEM manual
Transmission / transaxle Engine Mounting Front Bracket upper bolt 77 790 57 ↗ RM179U1_1991 · p667 OEM manual
Transmission / transaxle Engine Mounting Front Bracket lower bolt 96 980 71 ↗ RM179U1_1991 · p667 OEM manual
Transmission / transaxle Engine Mounting Front Insulator upper 37 380 27 ↗ RM179U1_1991 · p667 OEM manual
Transmission / transaxle Engine Mounting Front Insulator lower 73 740 54 ↗ RM179U1_1991 · p667 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket upper bolt 64 650 47 ↗ RM179U1_1991 · p667 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket lower bolt 87 890 64 ↗ RM179U1_1991 · p667 OEM manual

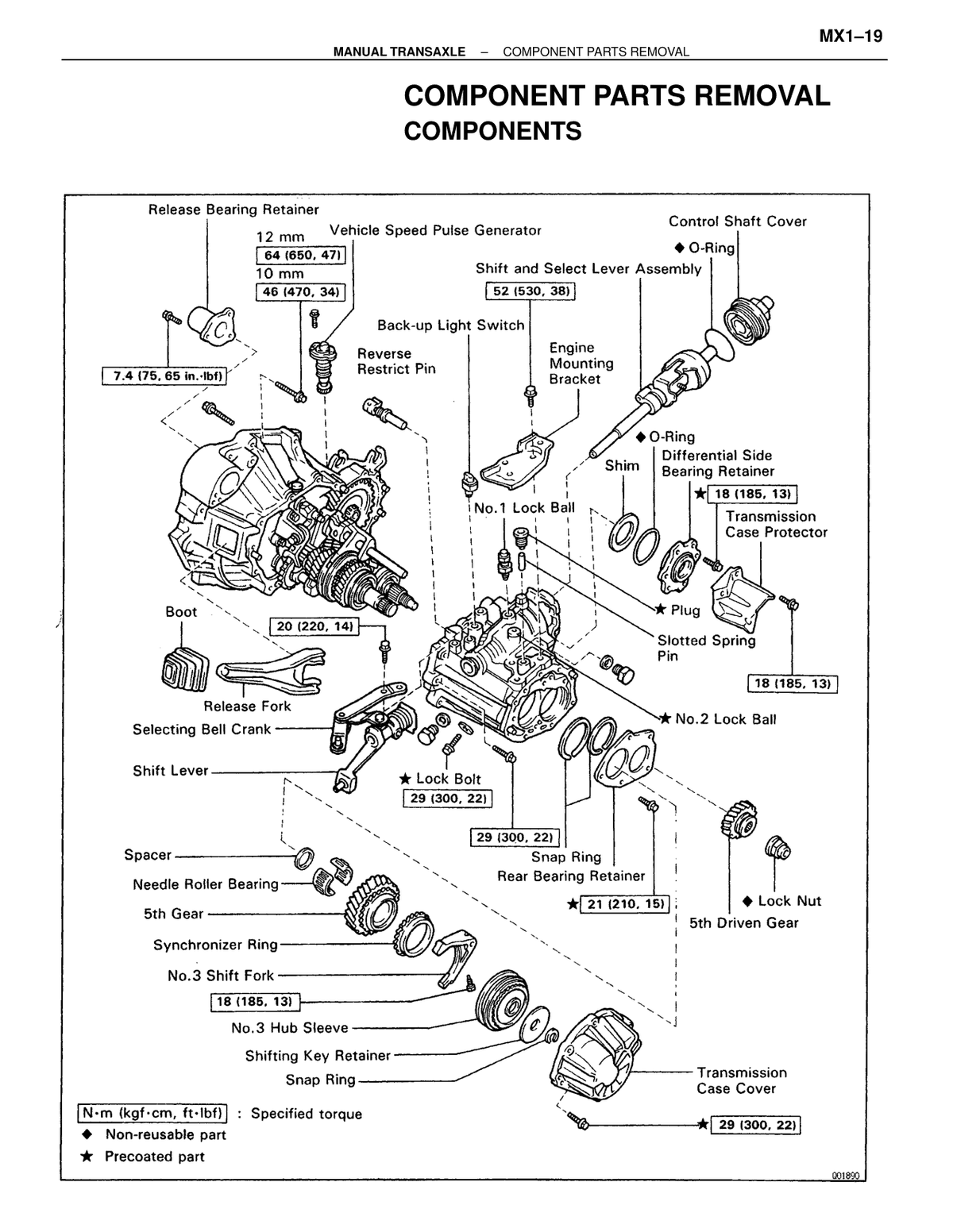

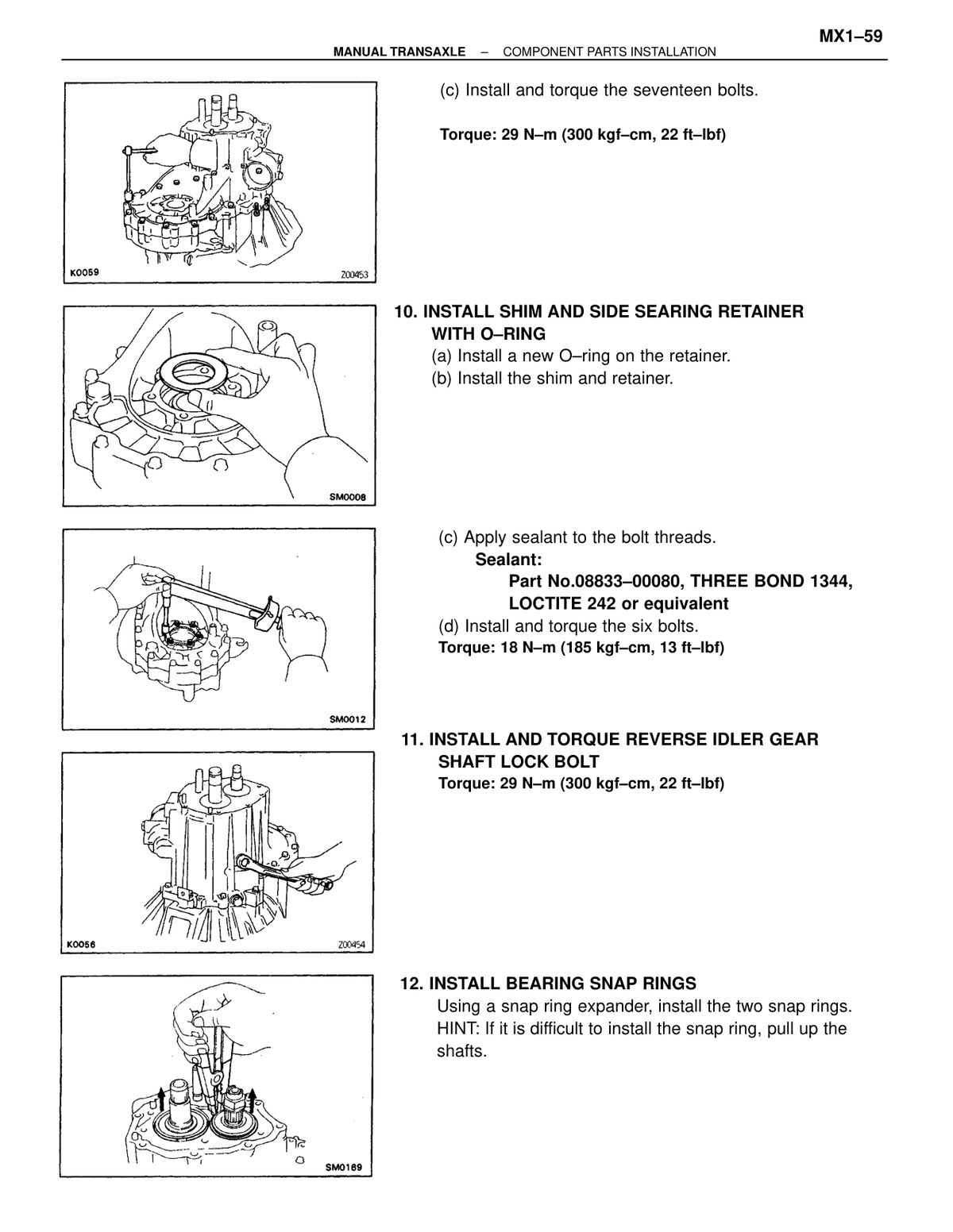

Transmission / transaxle Seventeen bolts (transmission case to transaxle case) Step (d) 29 300 22 ↗ RM179U1_1991 · p707 OEM manual

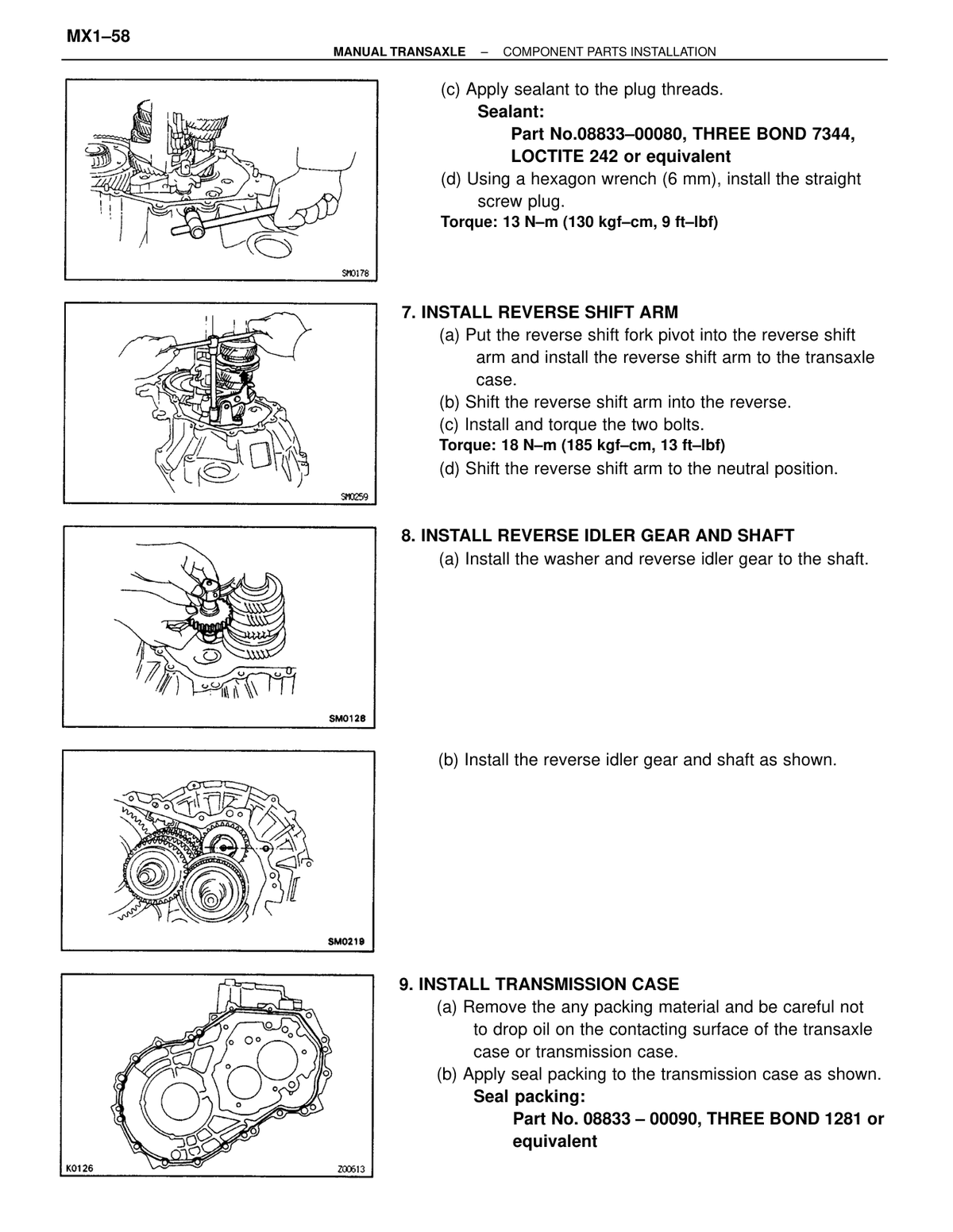

Transmission / transaxle Reverse shift arm bolts (two bolts) Step 10(c) 18 185 13 ↗ RM179U1_1991 · p712 OEM manual
Transmission / transaxle Transmission case bolts (seventeen bolts) Step 11(c) 29 300 22 ↗ RM179U1_1991 · p712 OEM manual

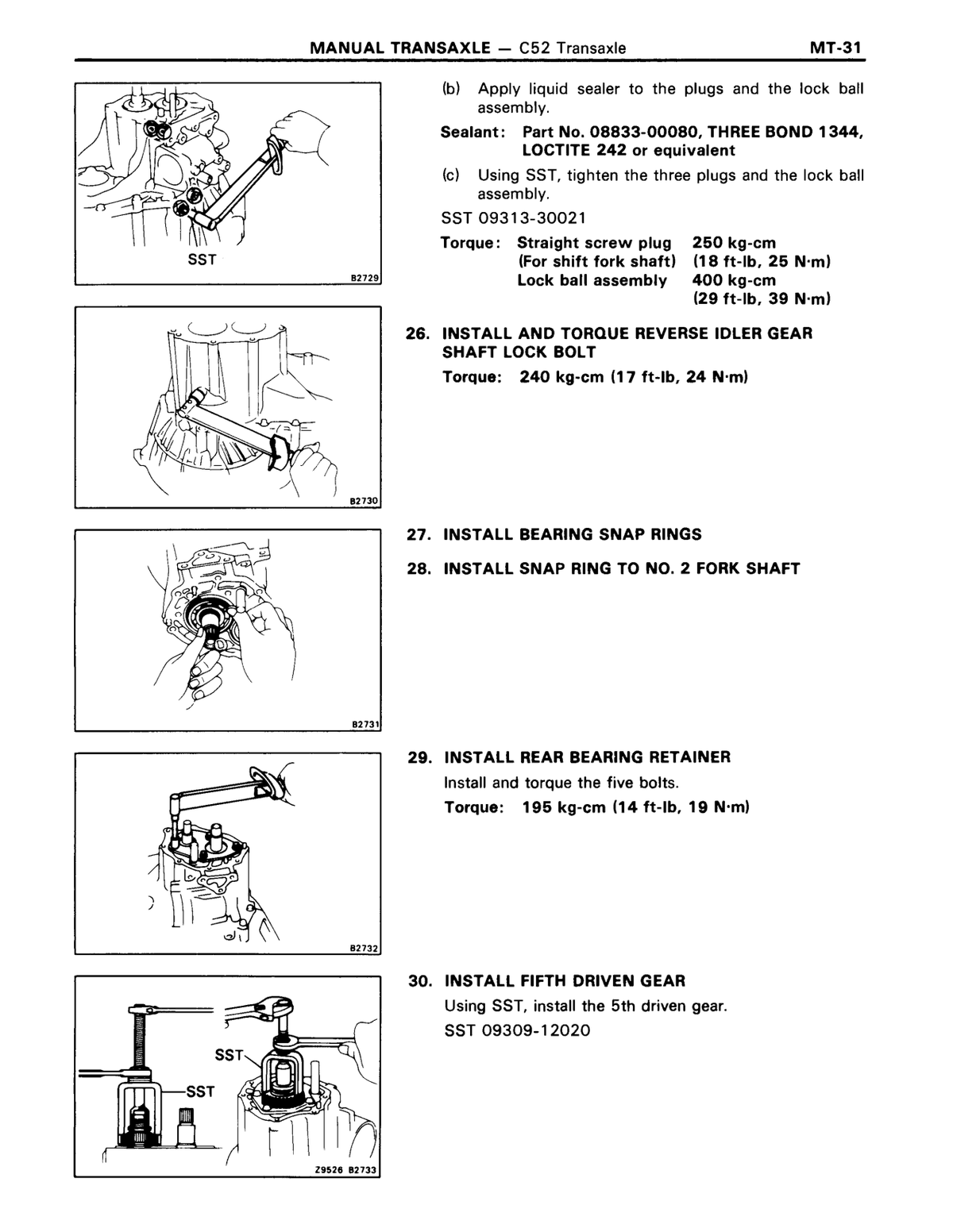

Transmission / transaxle Reverse idler gear shaft lock bolt Step 12(b) 29 300 22 ↗ RM179U1_1991 · p712 OEM manual

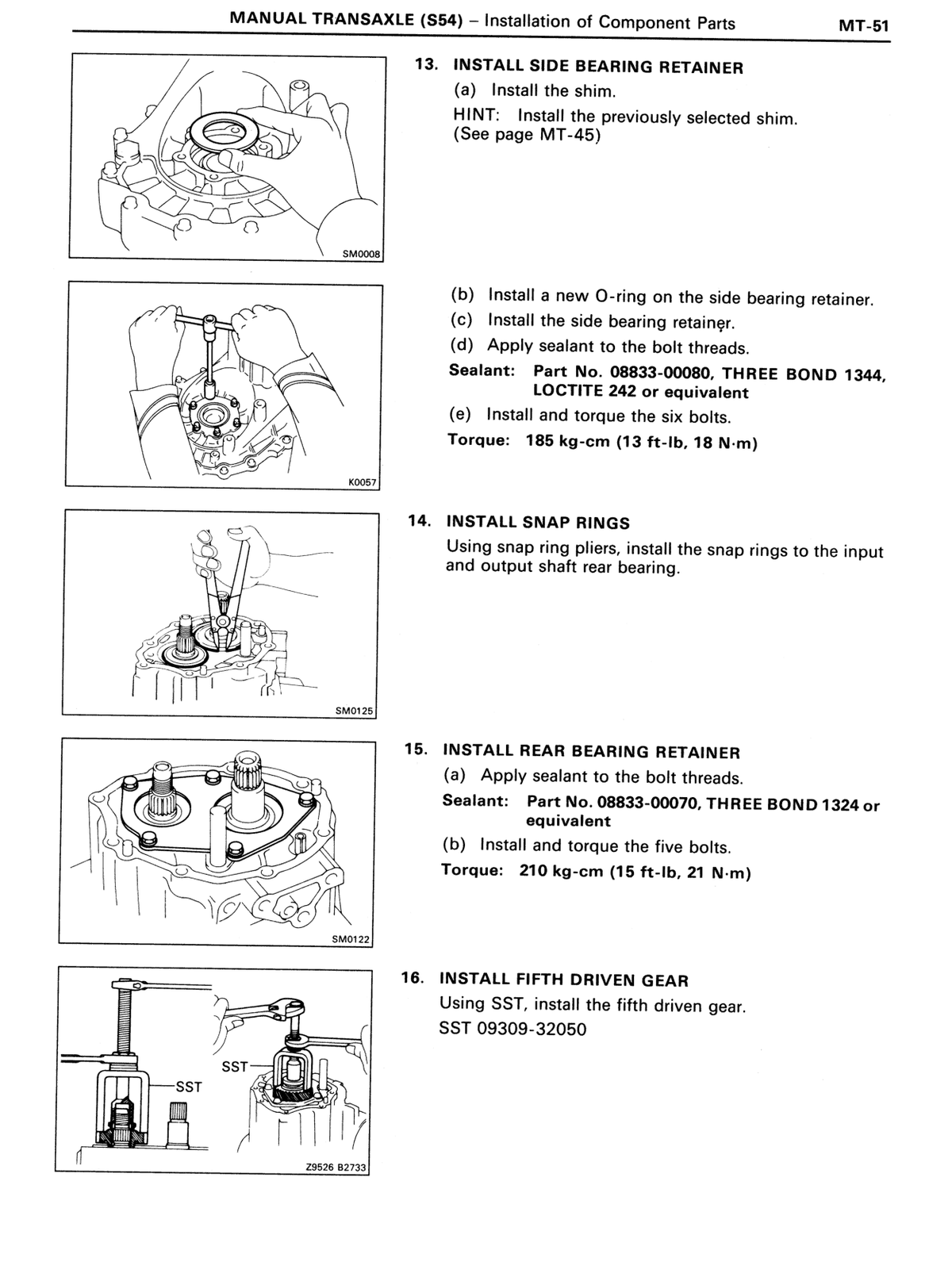

Transmission / transaxle Rear bearing retainer five bolts 21 210 15 ↗ RM179U1_1991 · p713 OEM manual
Transmission / transaxle Eight bolts (preceding step) Apply sealant (Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent) to bolt threads before installation 29 300 22 ↗ RM179U1_1991 · p716 OEM manual

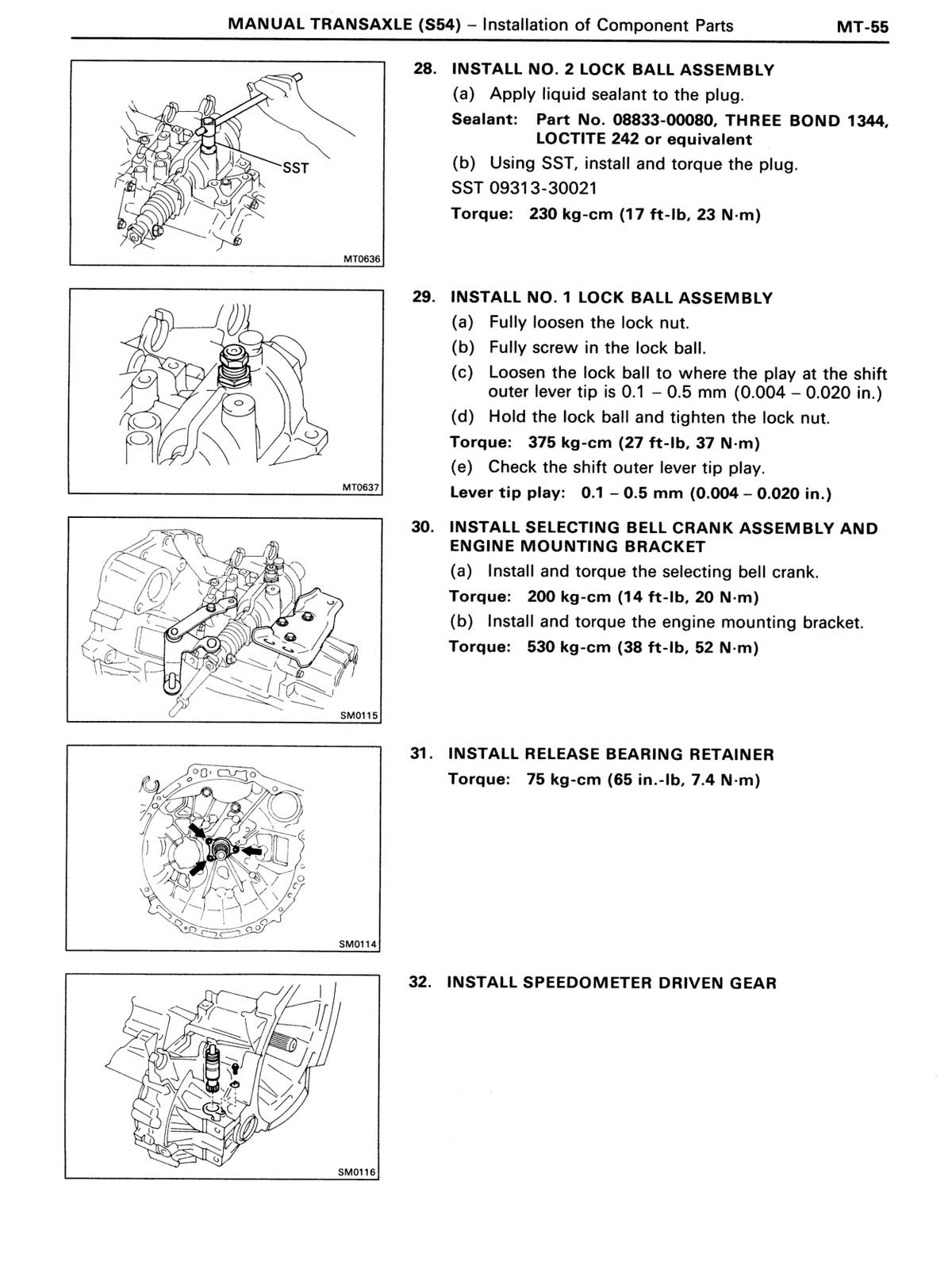

Transmission / transaxle No. 2 Lock Ball Assembly plug Step 28, SST 09313-30021 23 230 17 ↗ RM179U1_1991 · p717 OEM manual
Transmission / transaxle No. 1 Lock Ball Assembly lock nut Step 29(d) 37 375 27 ↗ RM179U1_1991 · p717 OEM manual
Transmission / transaxle Engine mounting bracket Step 30(b) 52 530 38 ↗ RM179U1_1991 · p717 OEM manual
Transmission / transaxle Release bearing retainer Step 31; 65 in.-lb 7.4 75 — ↗ RM179U1_1991 · p717 OEM manual

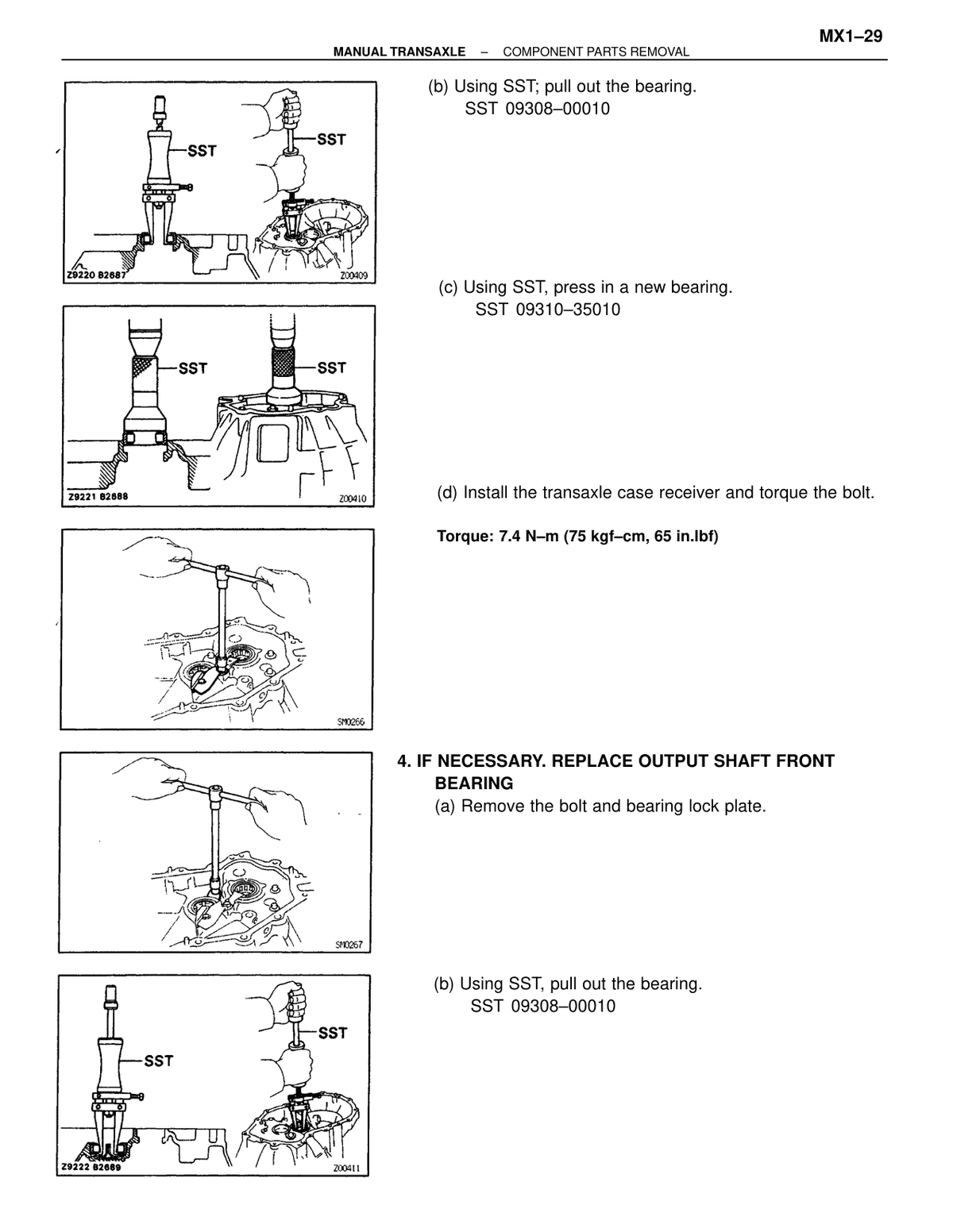

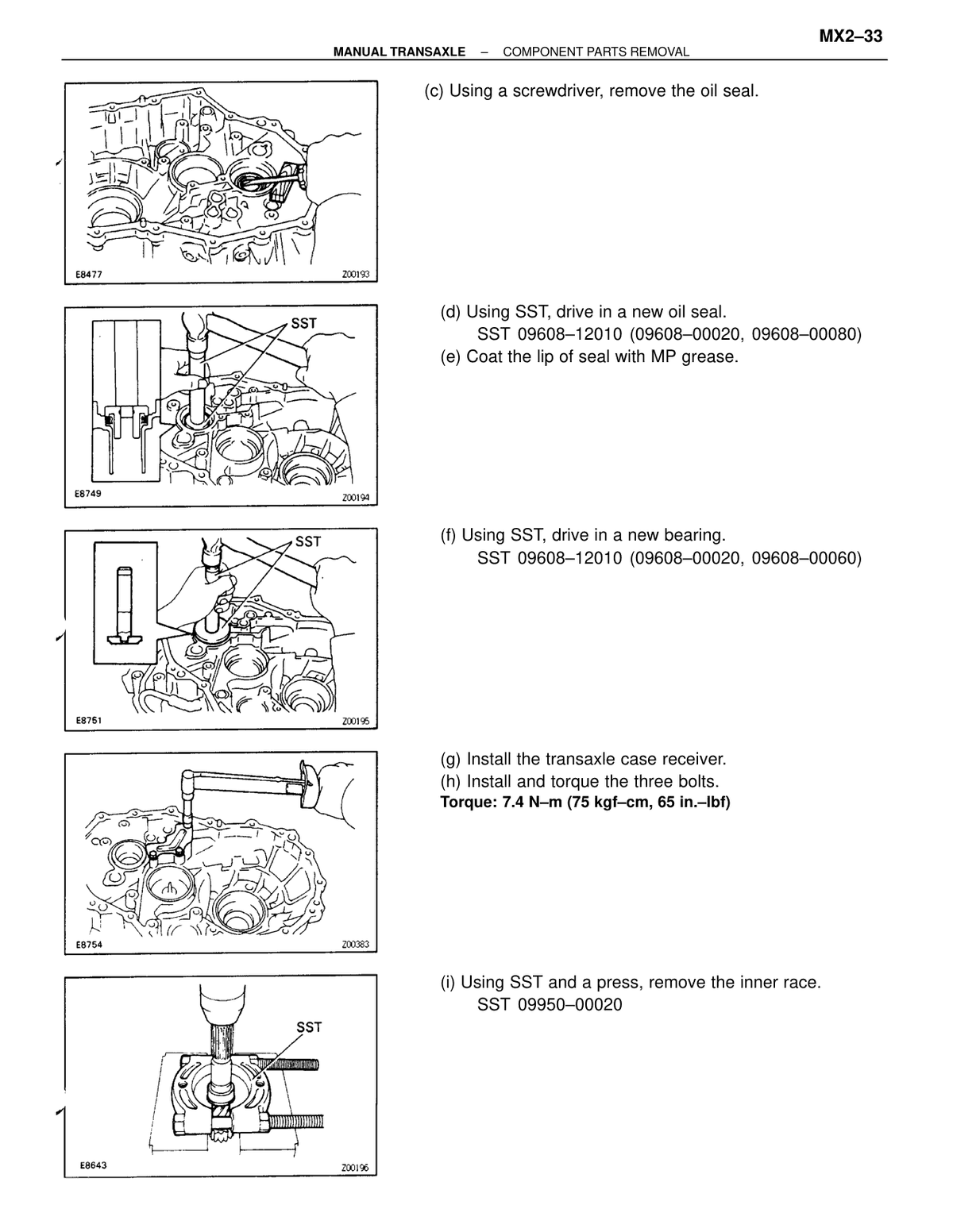

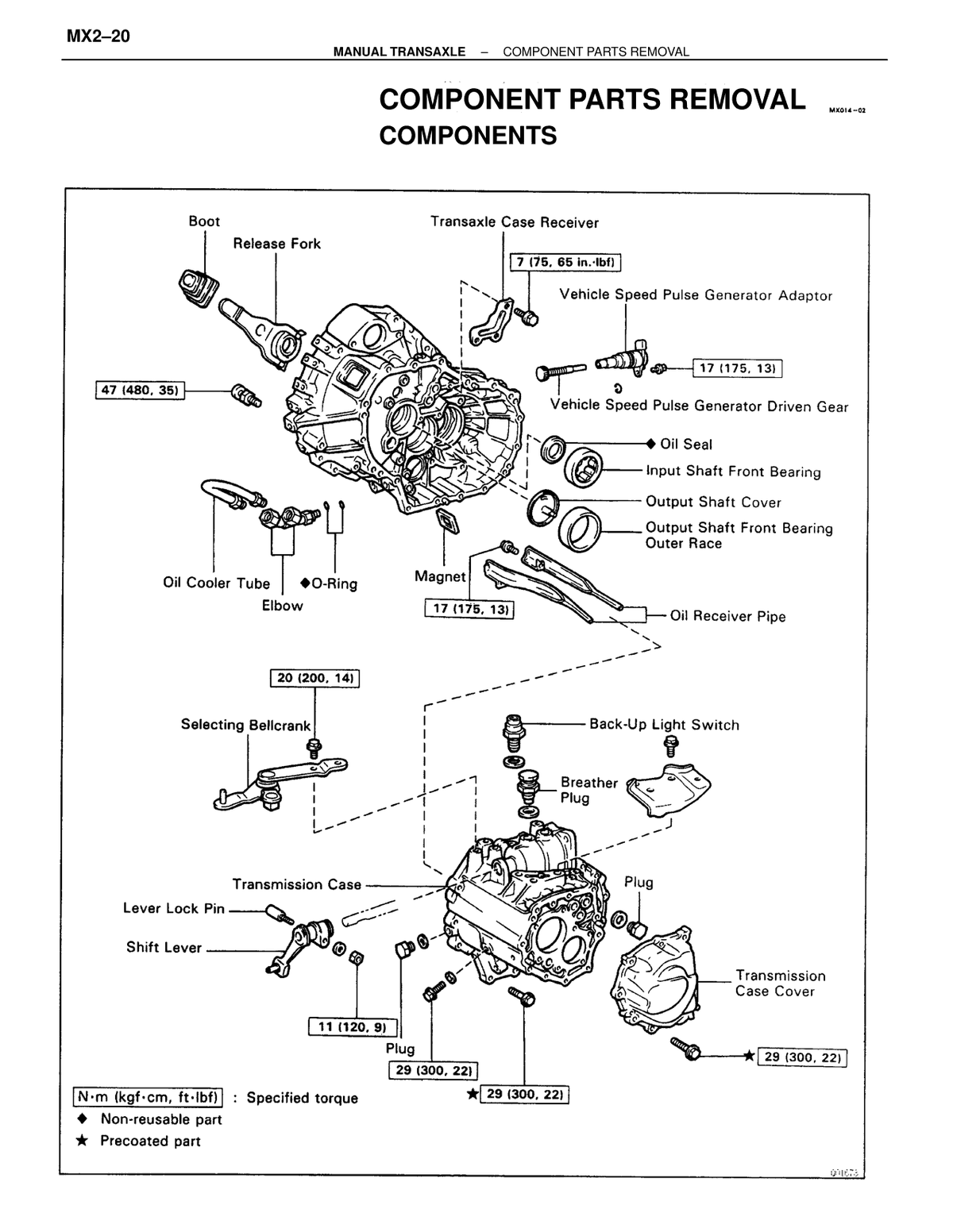

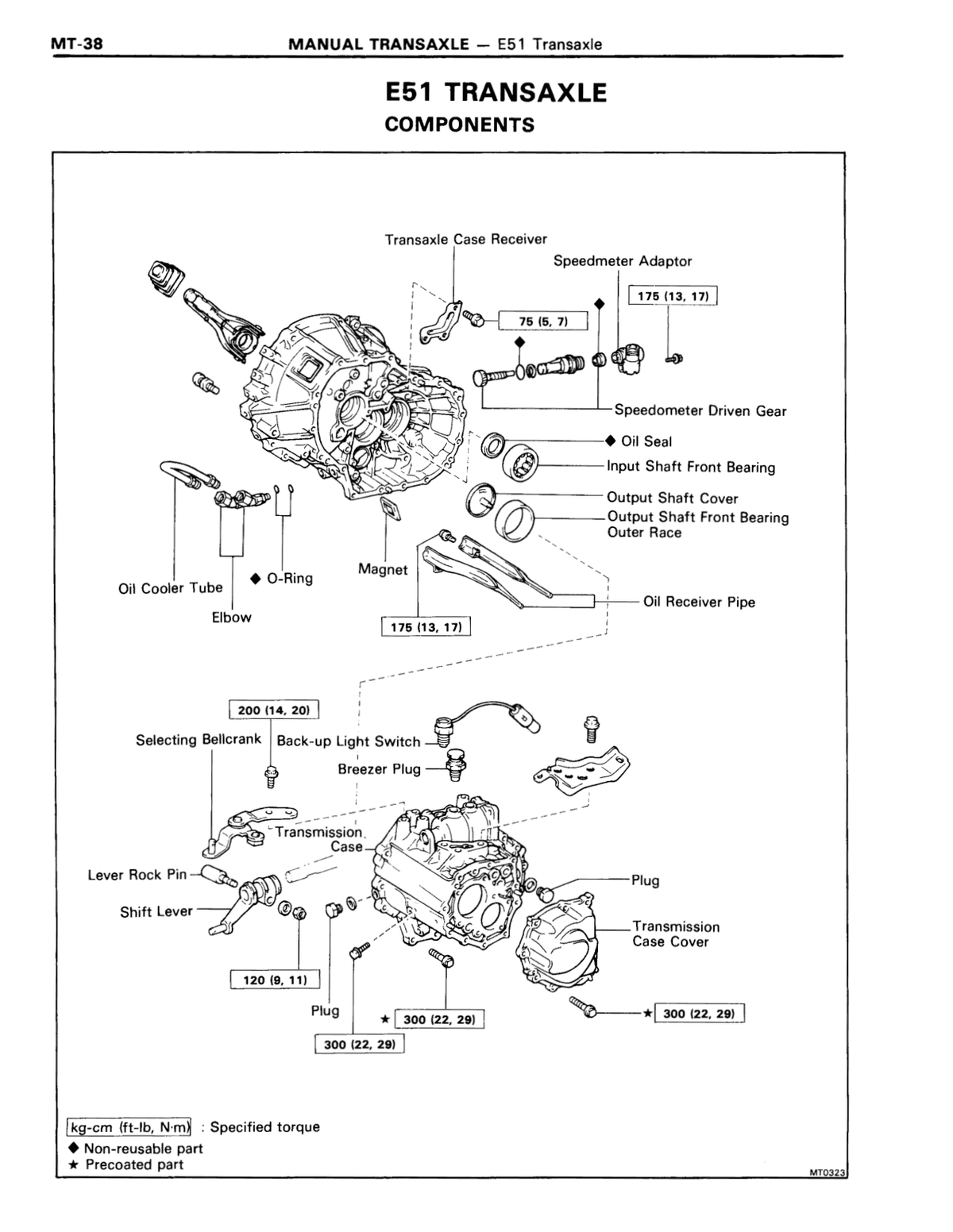

Transmission / transaxle 75 fastener (Transaxle Case Receiver area) 7 75 — ↗ RM179U1_1991 · p719 OEM manual
Transmission / transaxle 175 fastener (lower area of upper assembly) 17 175 13 ↗ RM179U1_1991 · p719 OEM manual
Transmission / transaxle Plug (300, precoated, lower center star) Precoated part 29 300 22 ↗ RM179U1_1991 · p719 OEM manual
Transmission / transaxle Transmission Case Cover bolts (300, precoated, right) Precoated part 29 300 22 ↗ RM179U1_1991 · p719 OEM manual

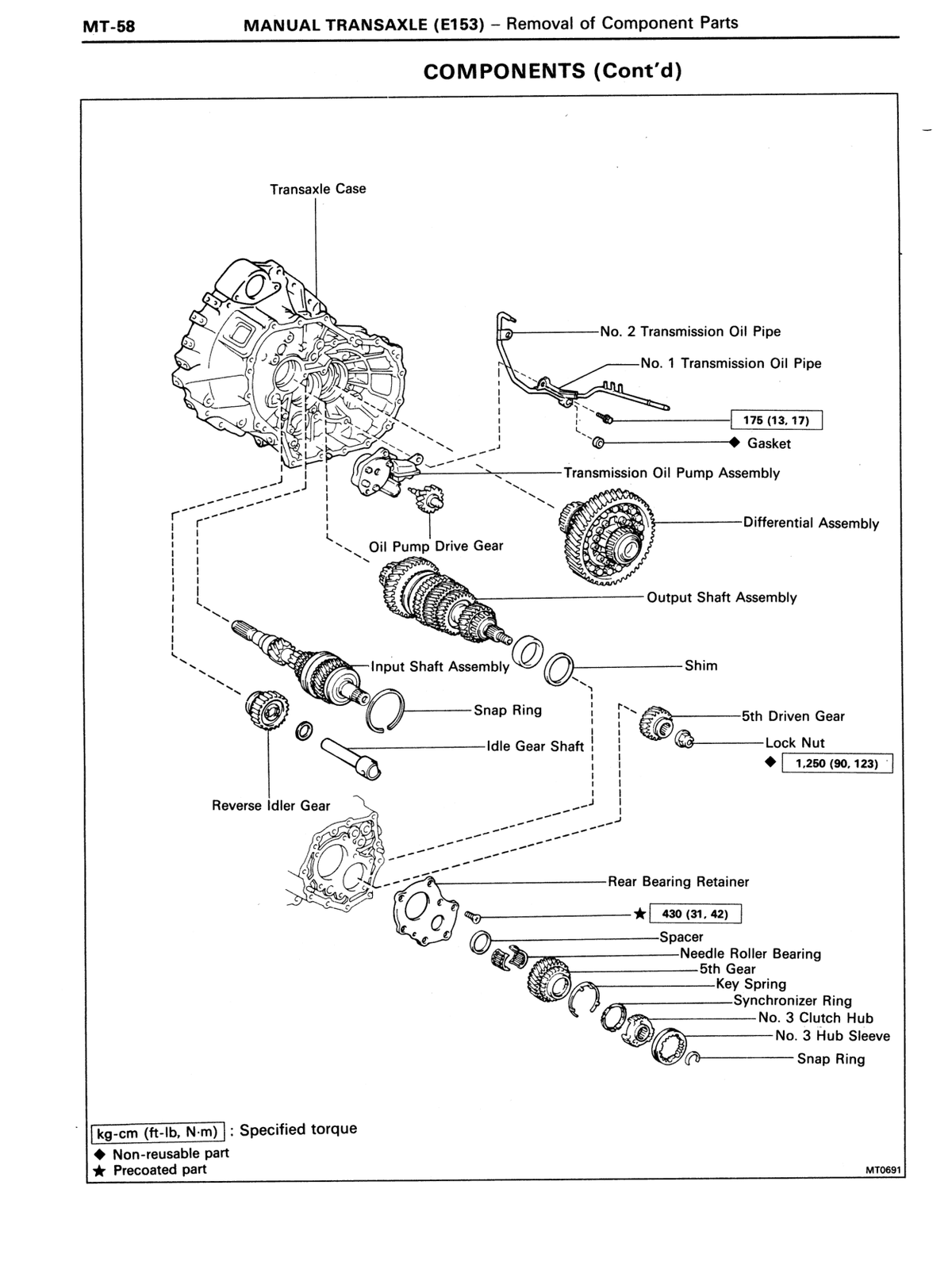

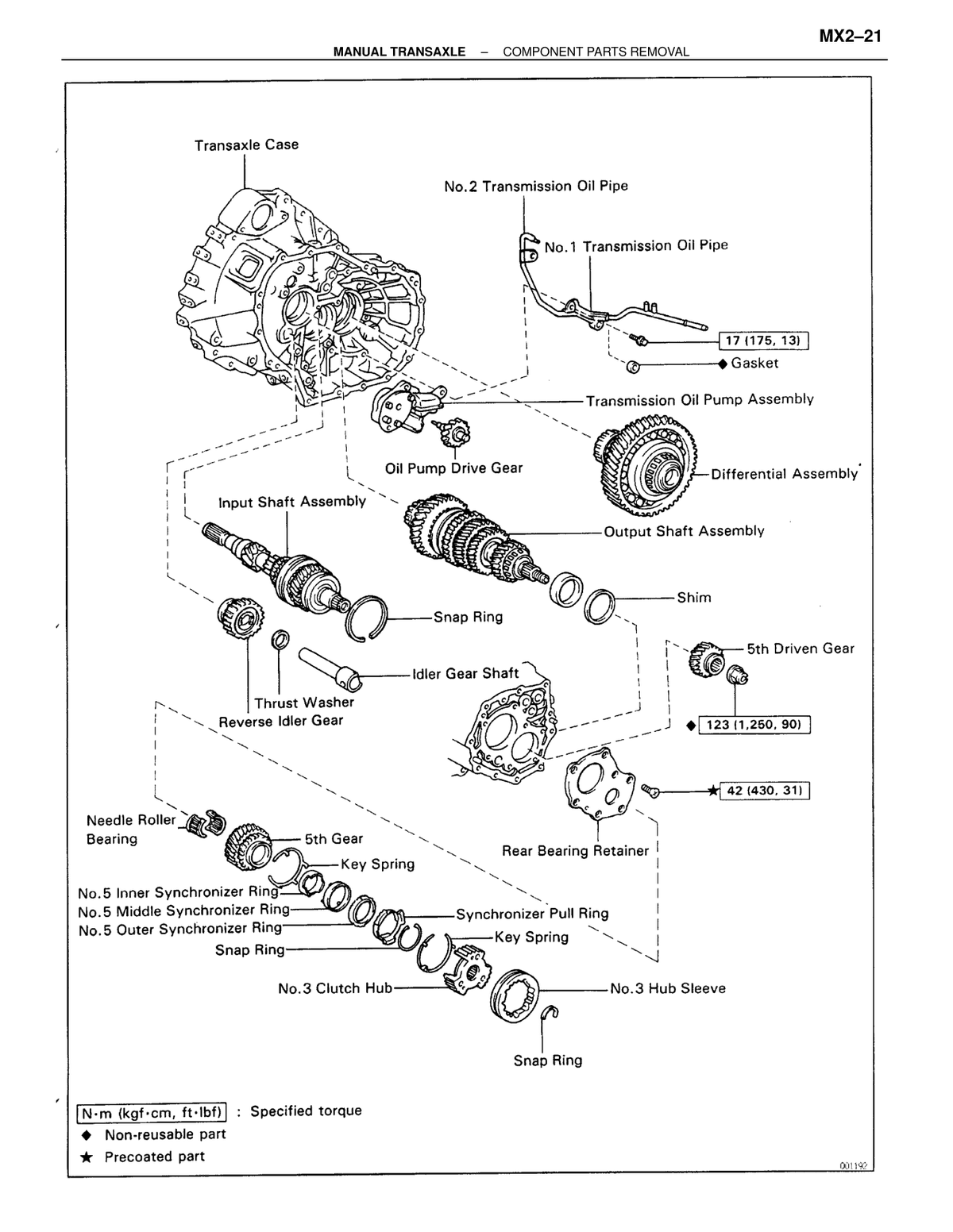

Transmission / transaxle Gasket (Transmission Oil Pump Assembly) Non-reusable part 17 175 13 ↗ RM179U1_1991 · p720 OEM manual

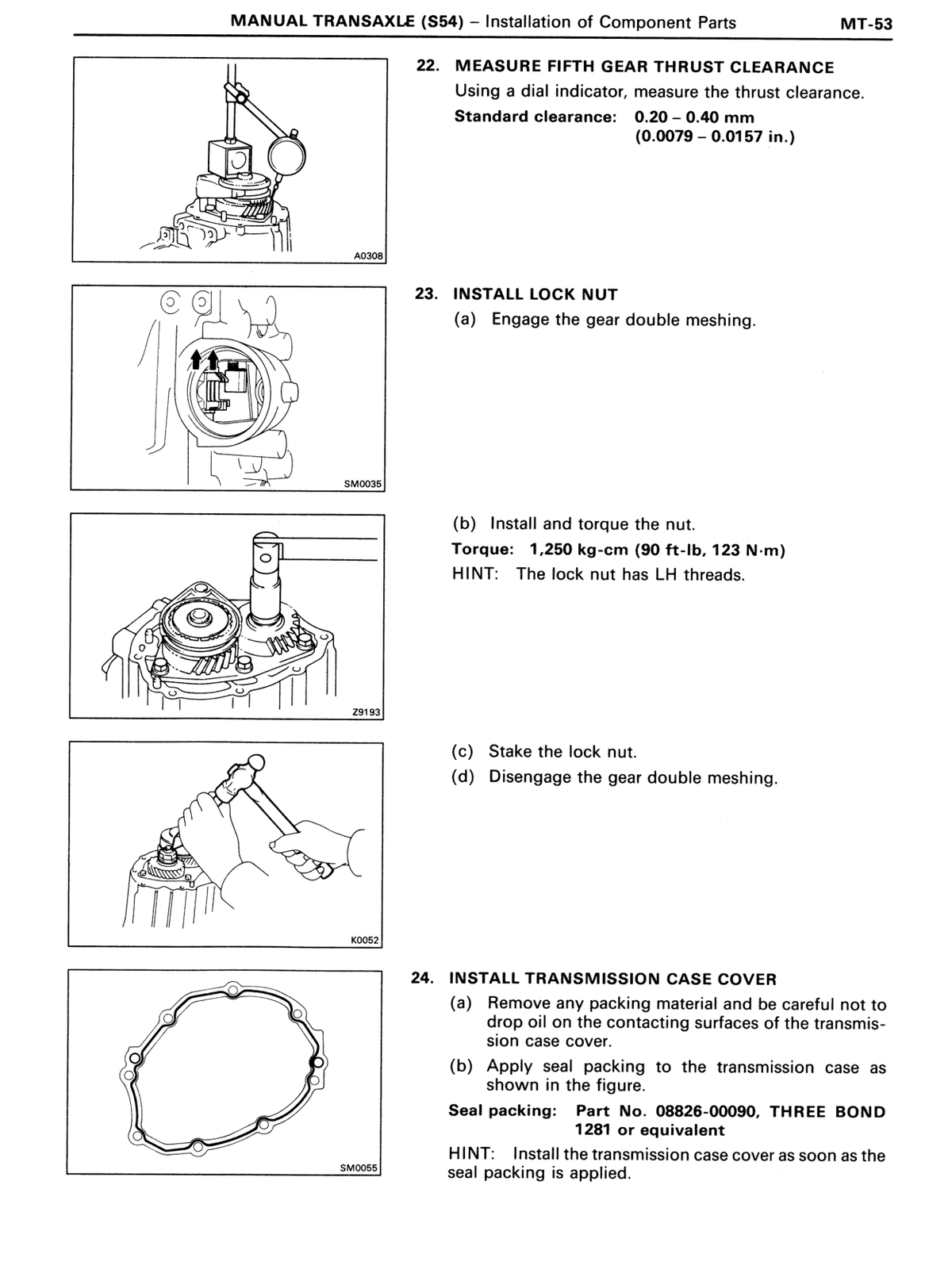

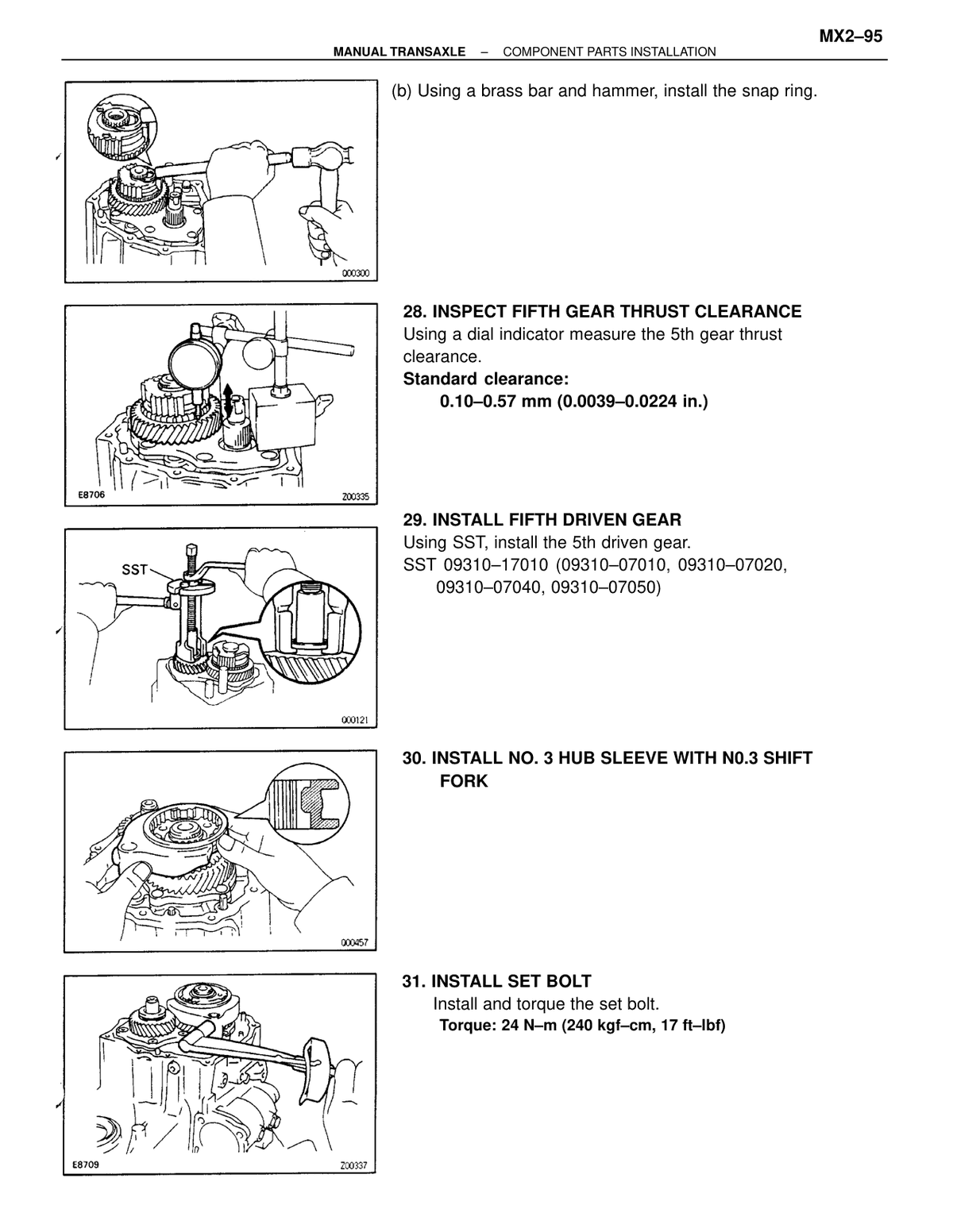

Transmission / transaxle Lock Nut (5th Driven Gear) Non-reusable part 123 1250 90 ↗ RM179U1_1991 · p720 OEM manual
Transmission / transaxle Rear Bearing Retainer Precoated part 42 430 31 ↗ RM179U1_1991 · p720 OEM manual

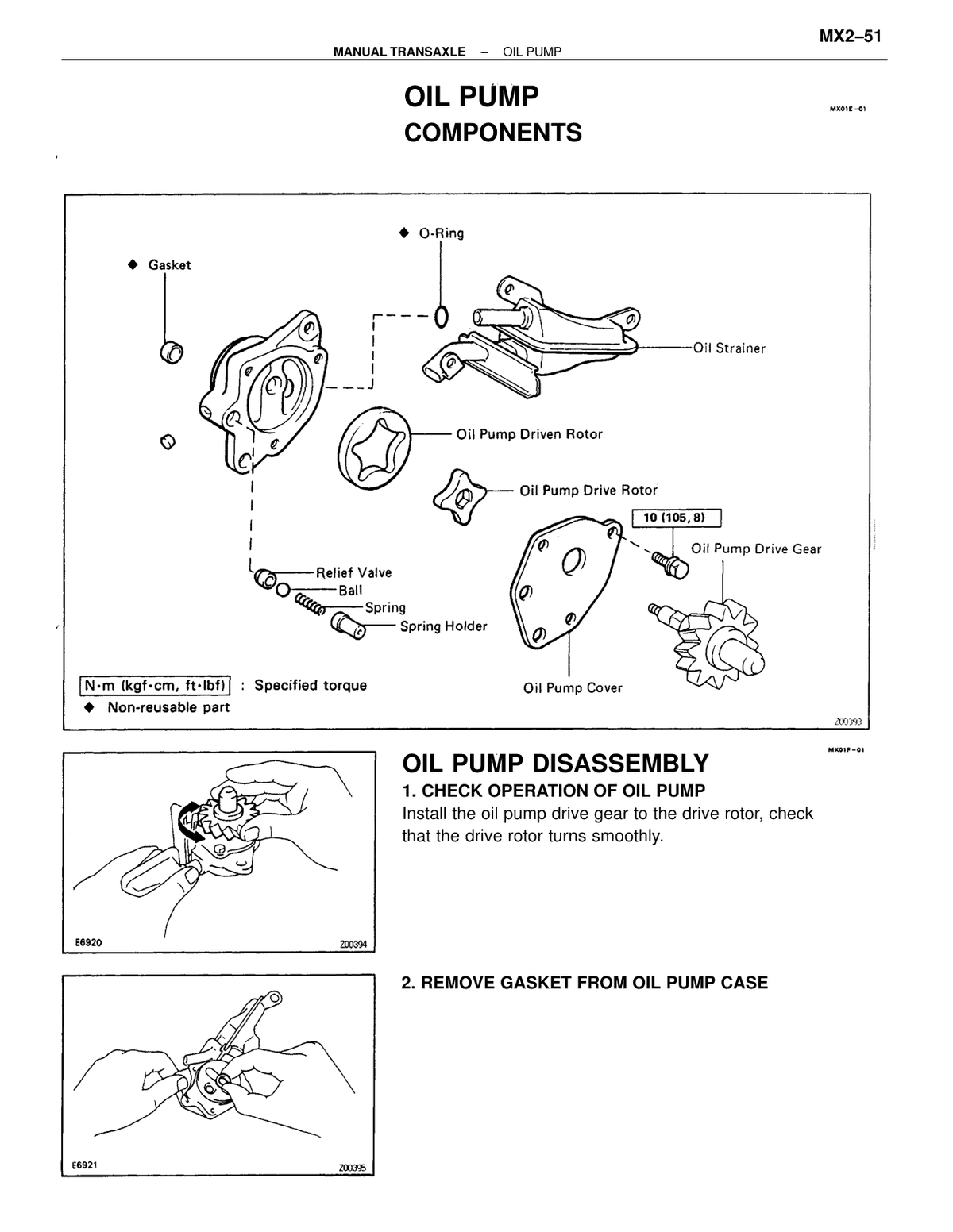

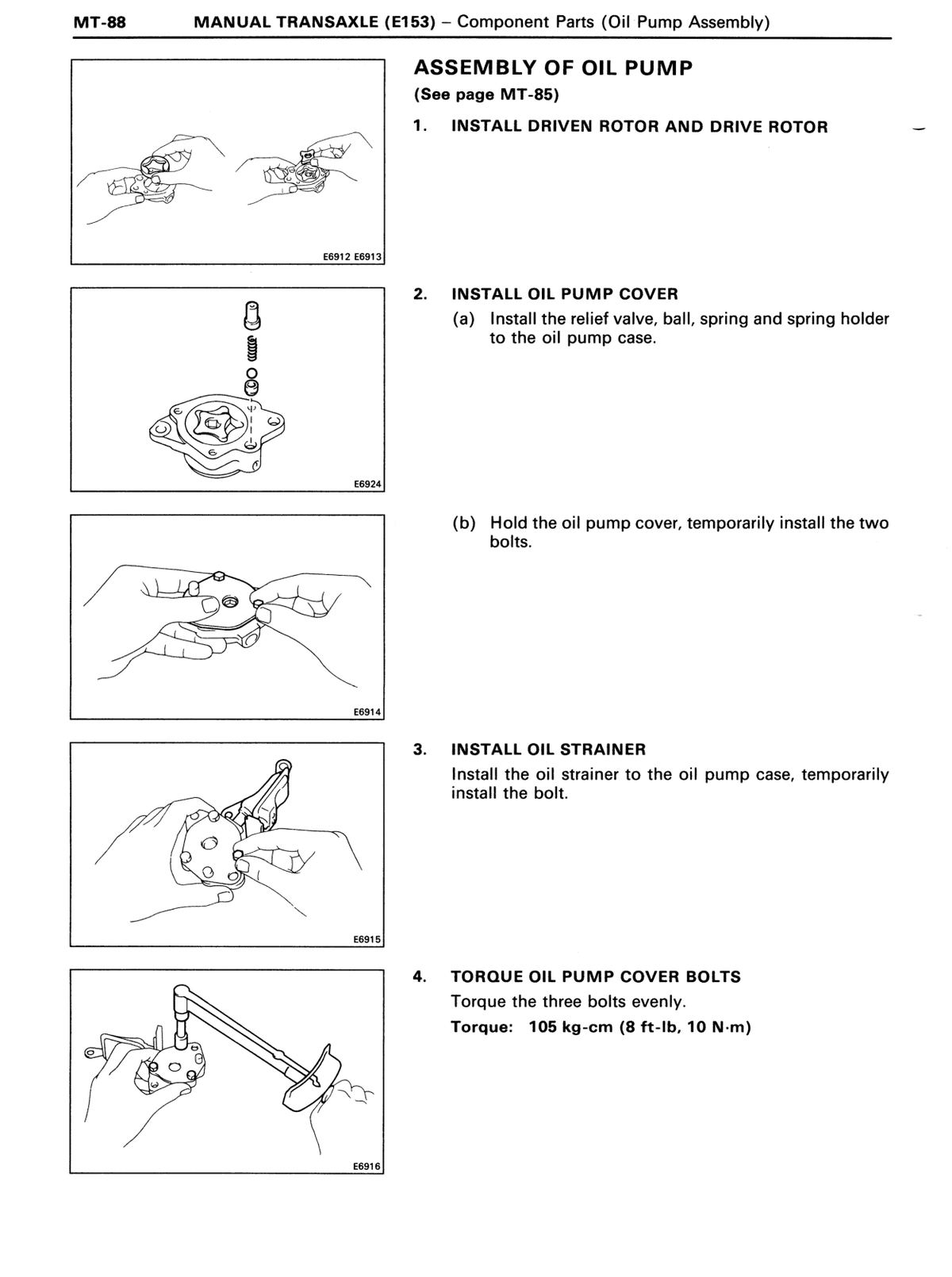

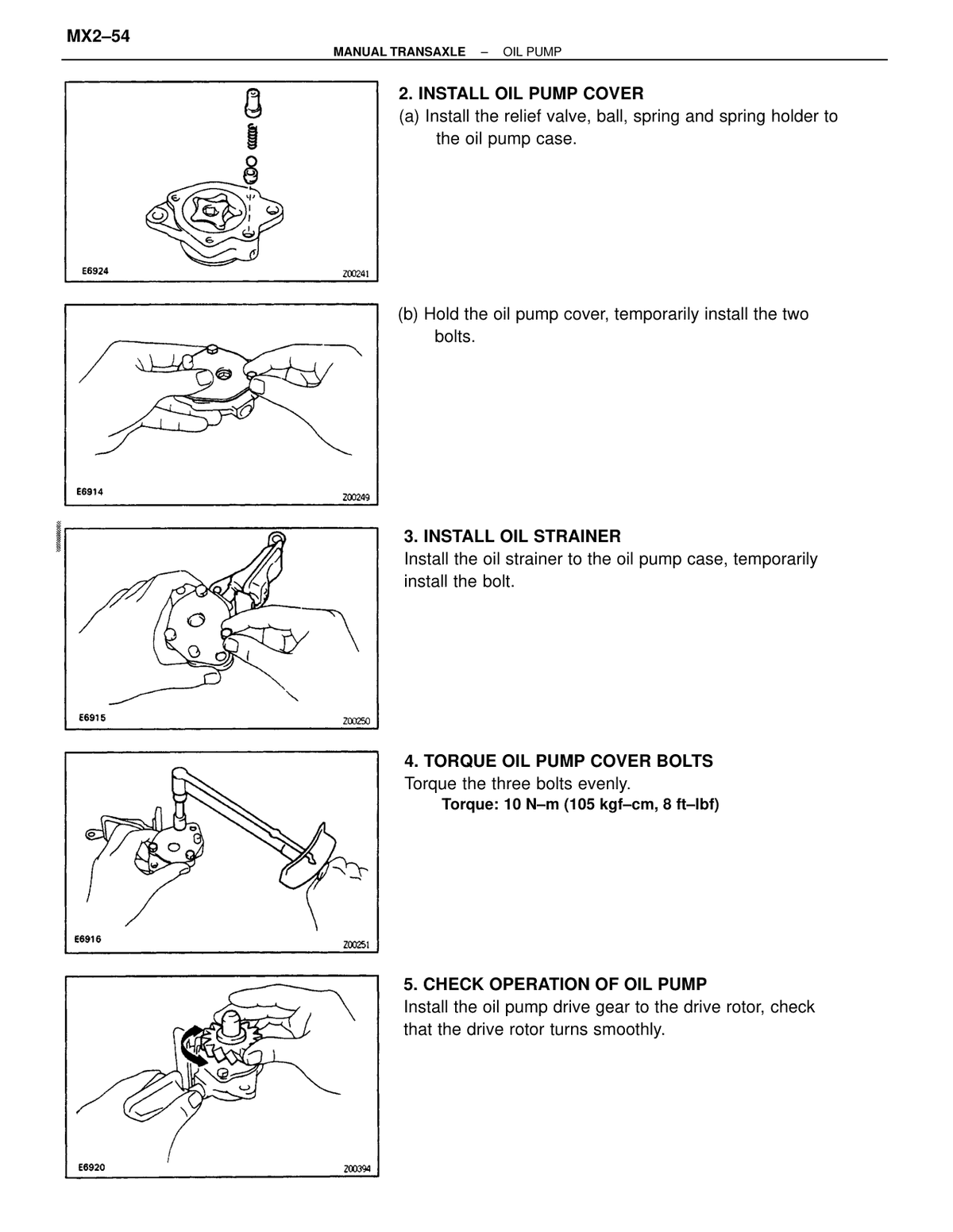

Lubrication / oil Oil pump cover bolts Torque three bolts evenly 10 105 8 ↗ RM179U1_1991 · p750 OEM manual

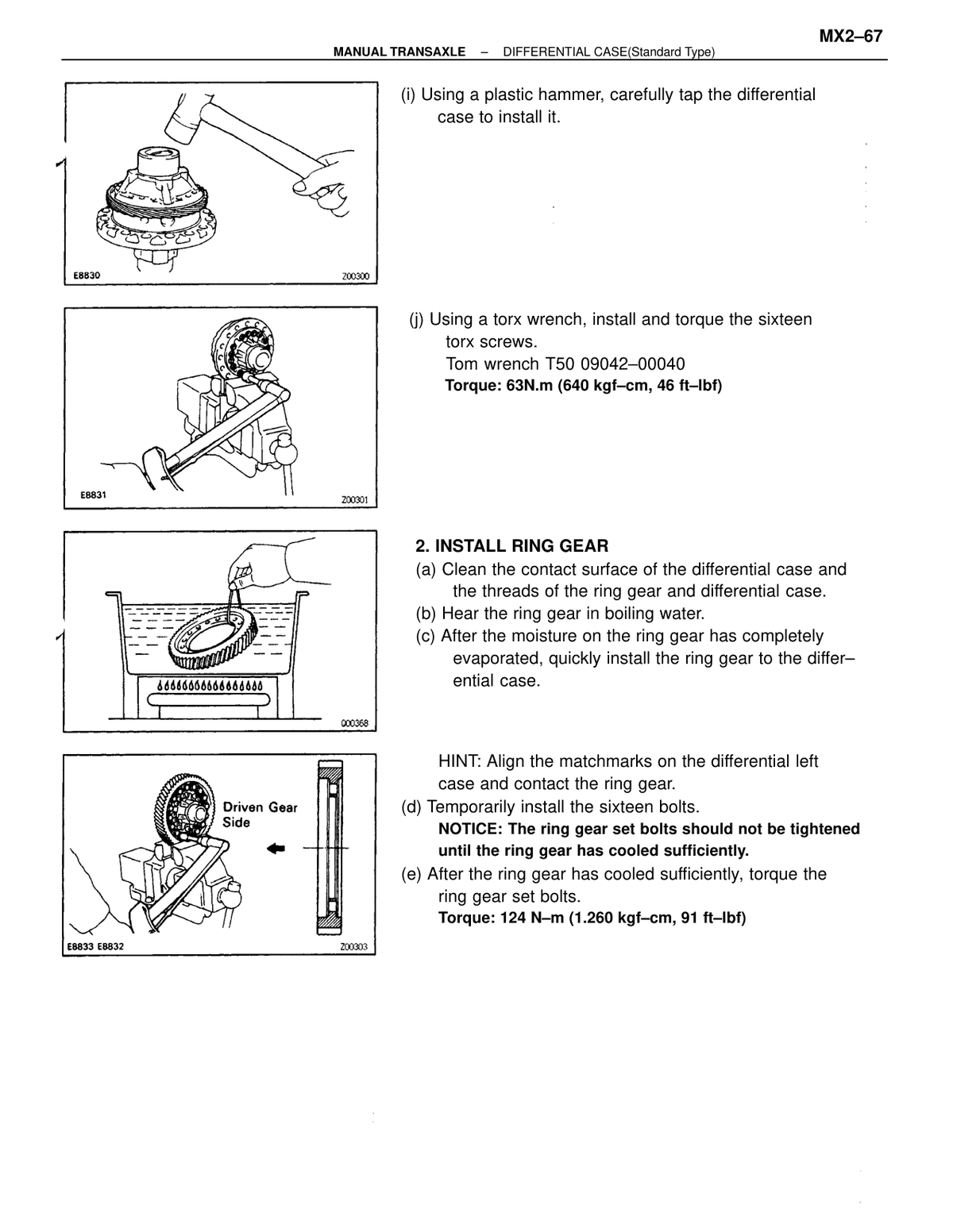

Transmission / transaxle Sixteen torx screws (differential case) Torx wrench T50 09042-00040 63 640 46 ↗ RM179U1_1991 · p762 OEM manual

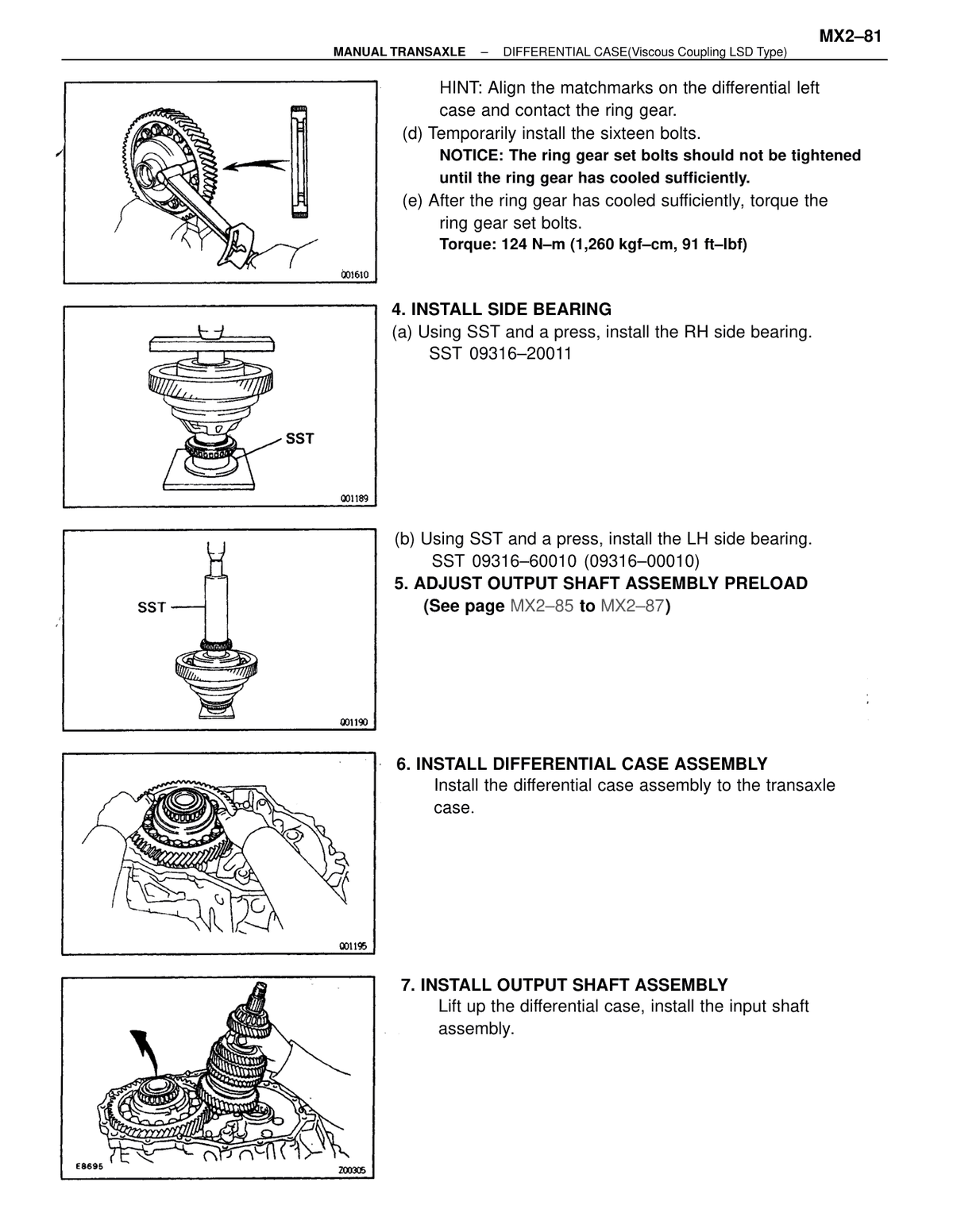

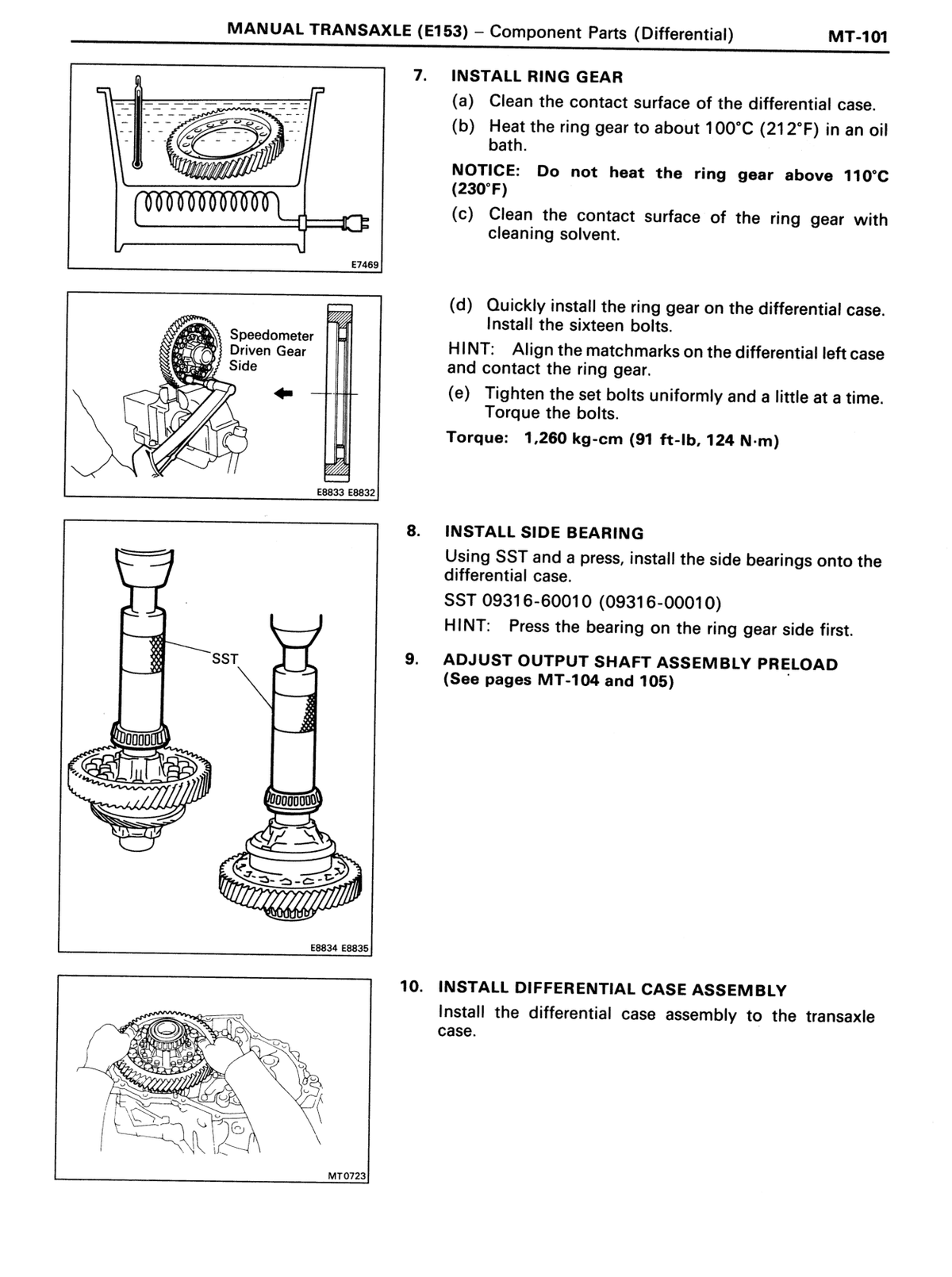

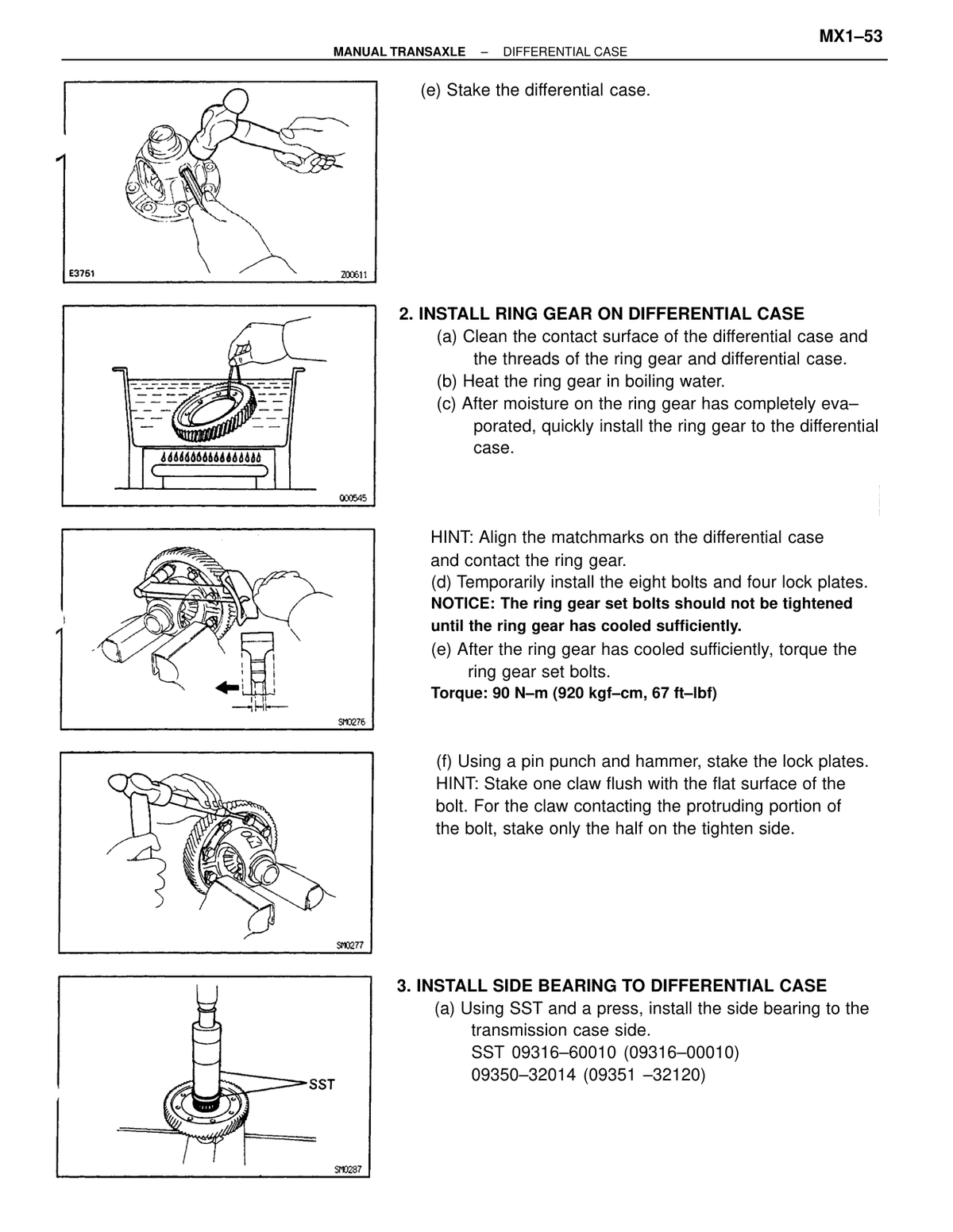

Transmission / transaxle Ring gear set bolts Tighten uniformly a little at a time 124 1260 91 ↗ RM179U1_1991 · p763 OEM manual

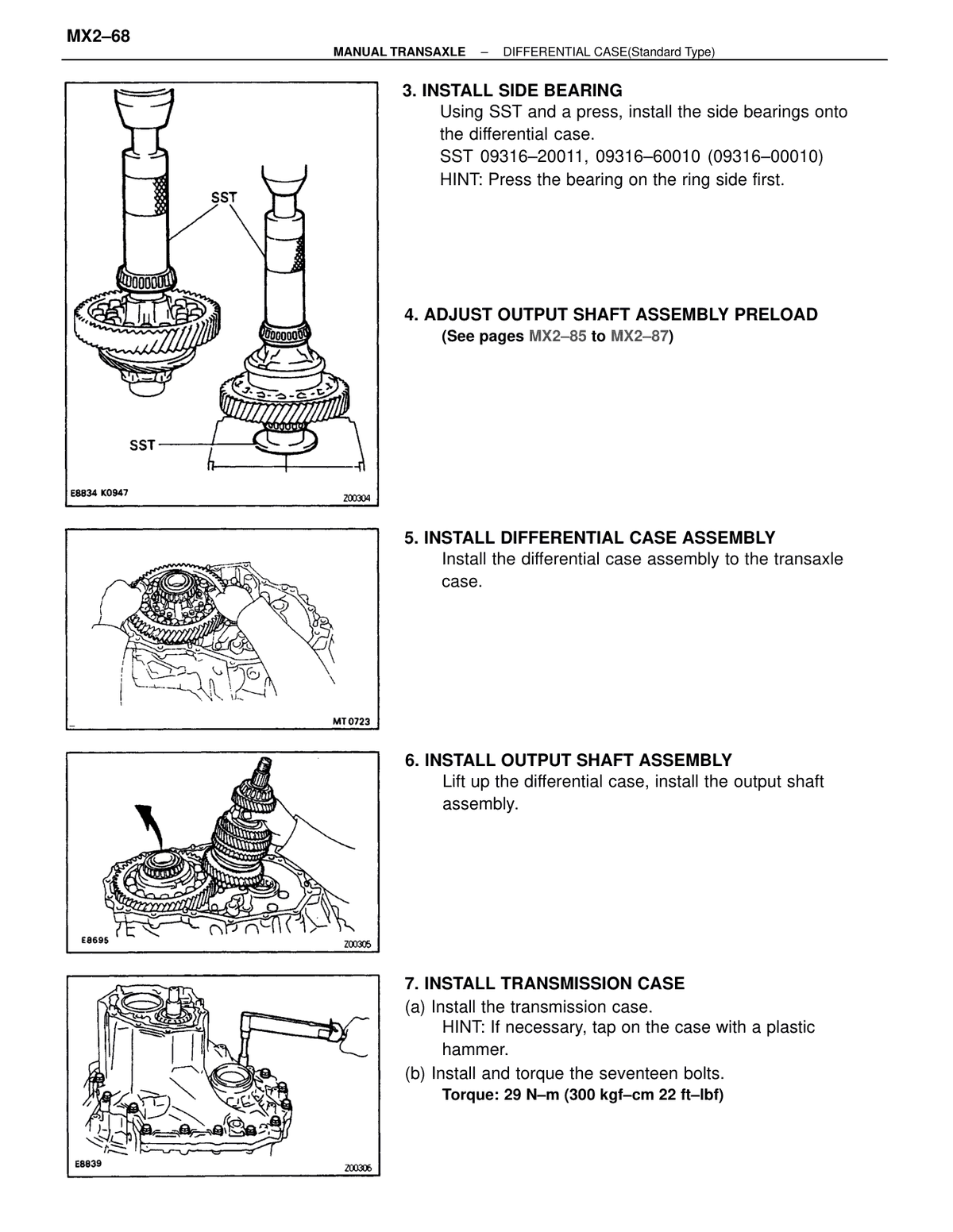

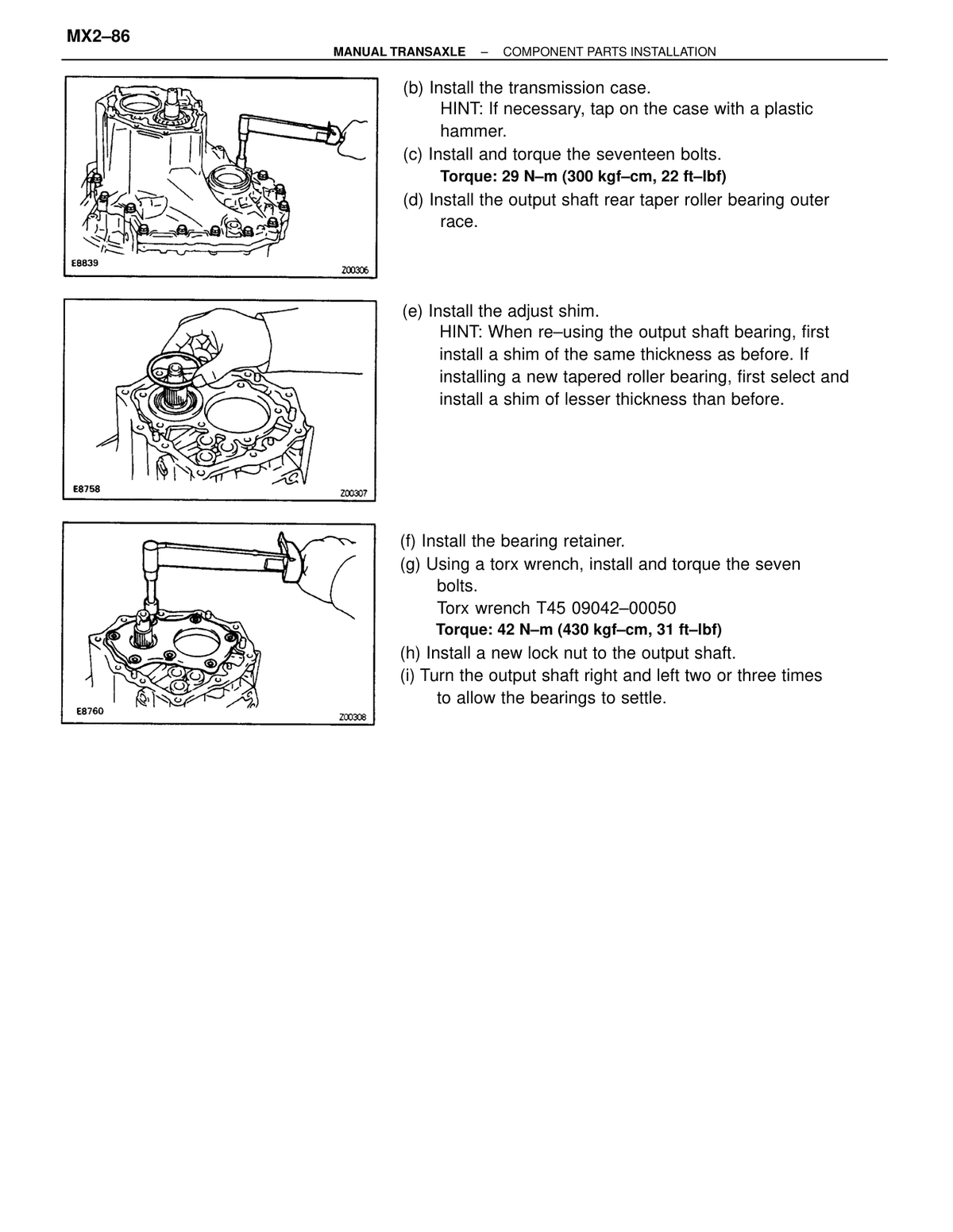

Transmission / transaxle Transmission case bolts (seventeen bolts) 29 300 22 ↗ RM179U1_1991 · p764 OEM manual

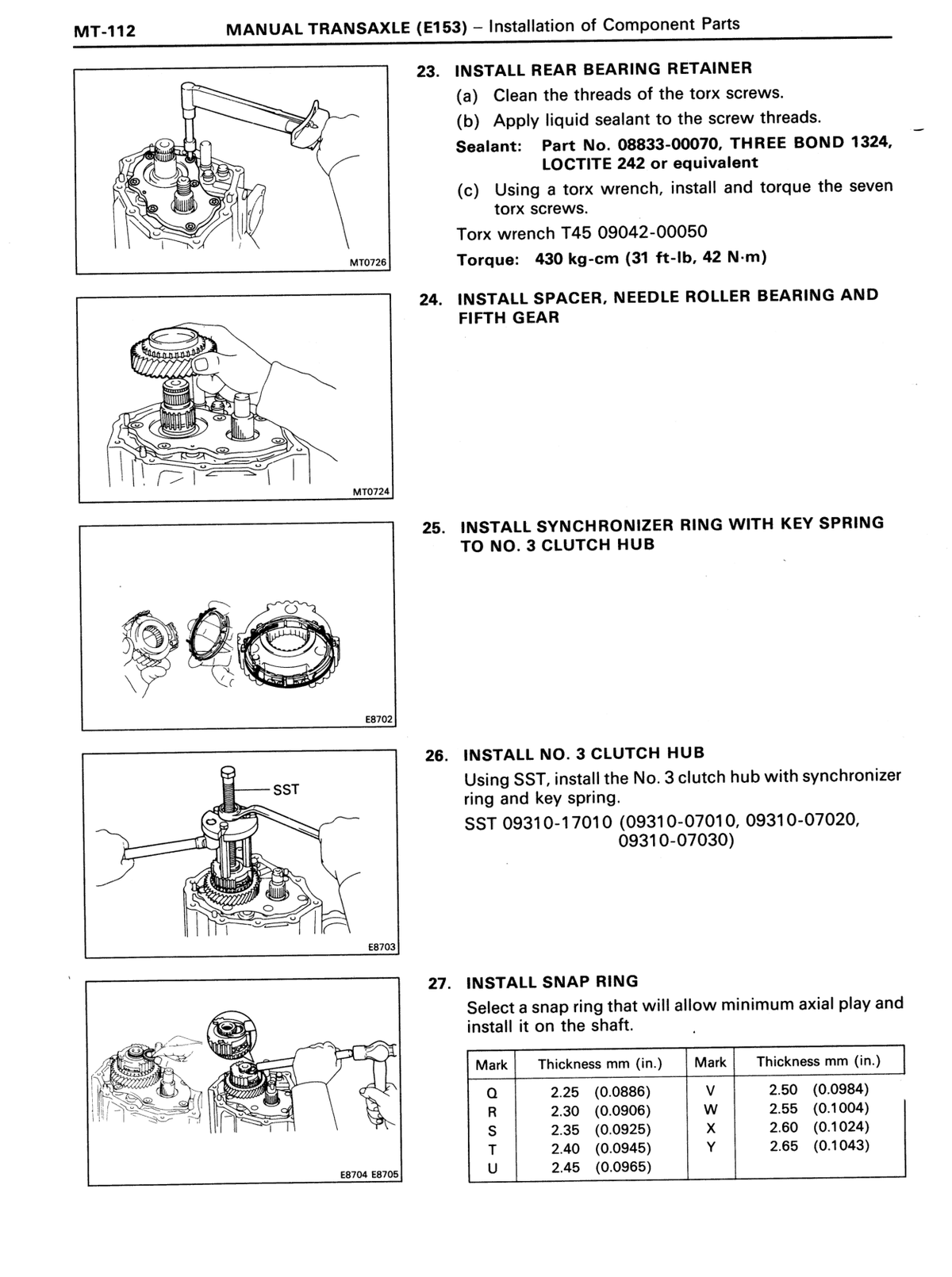

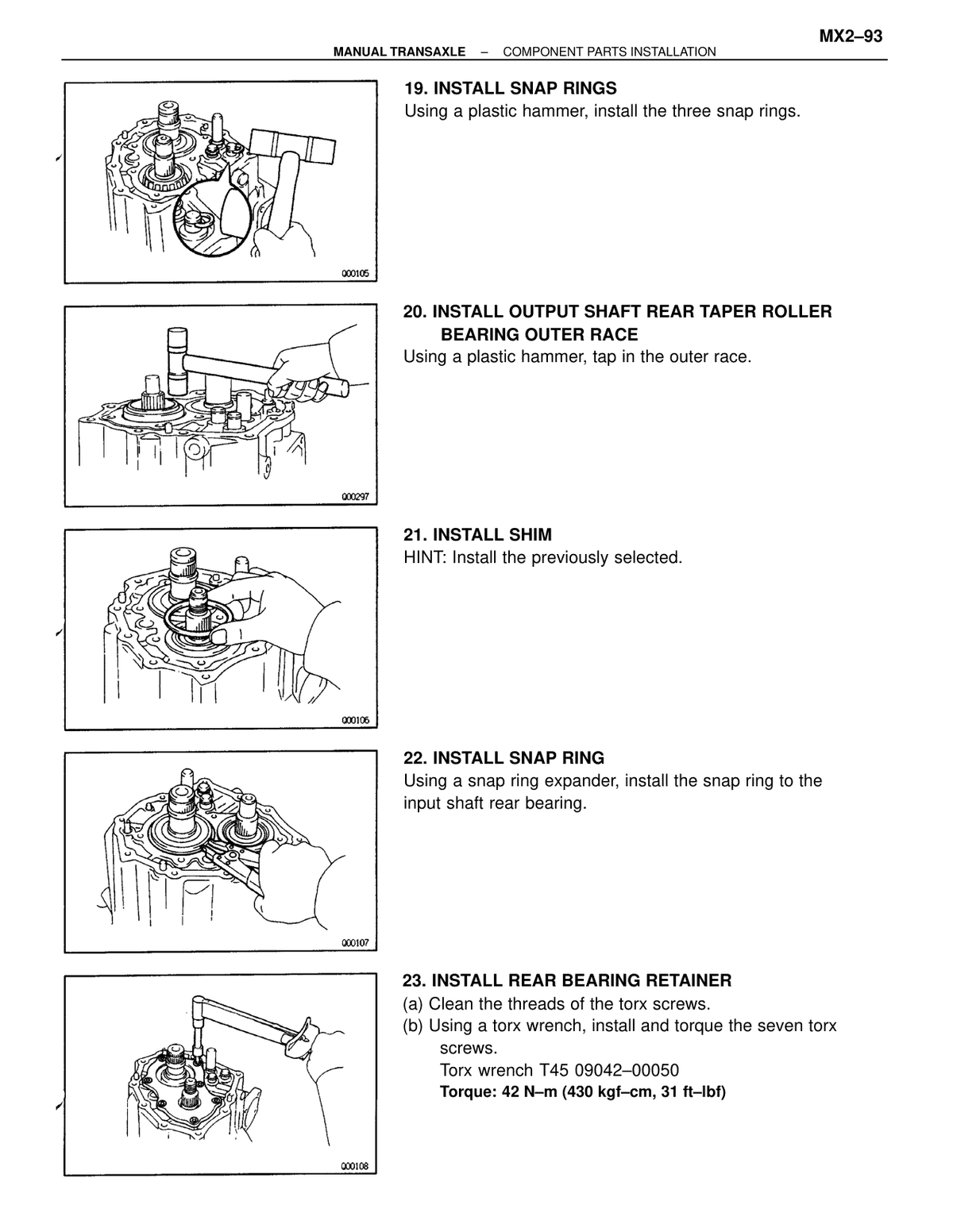

Transmission / transaxle Rear bearing retainer torx screws (seven screws) 42 430 31 ↗ RM179U1_1991 · p764 OEM manual

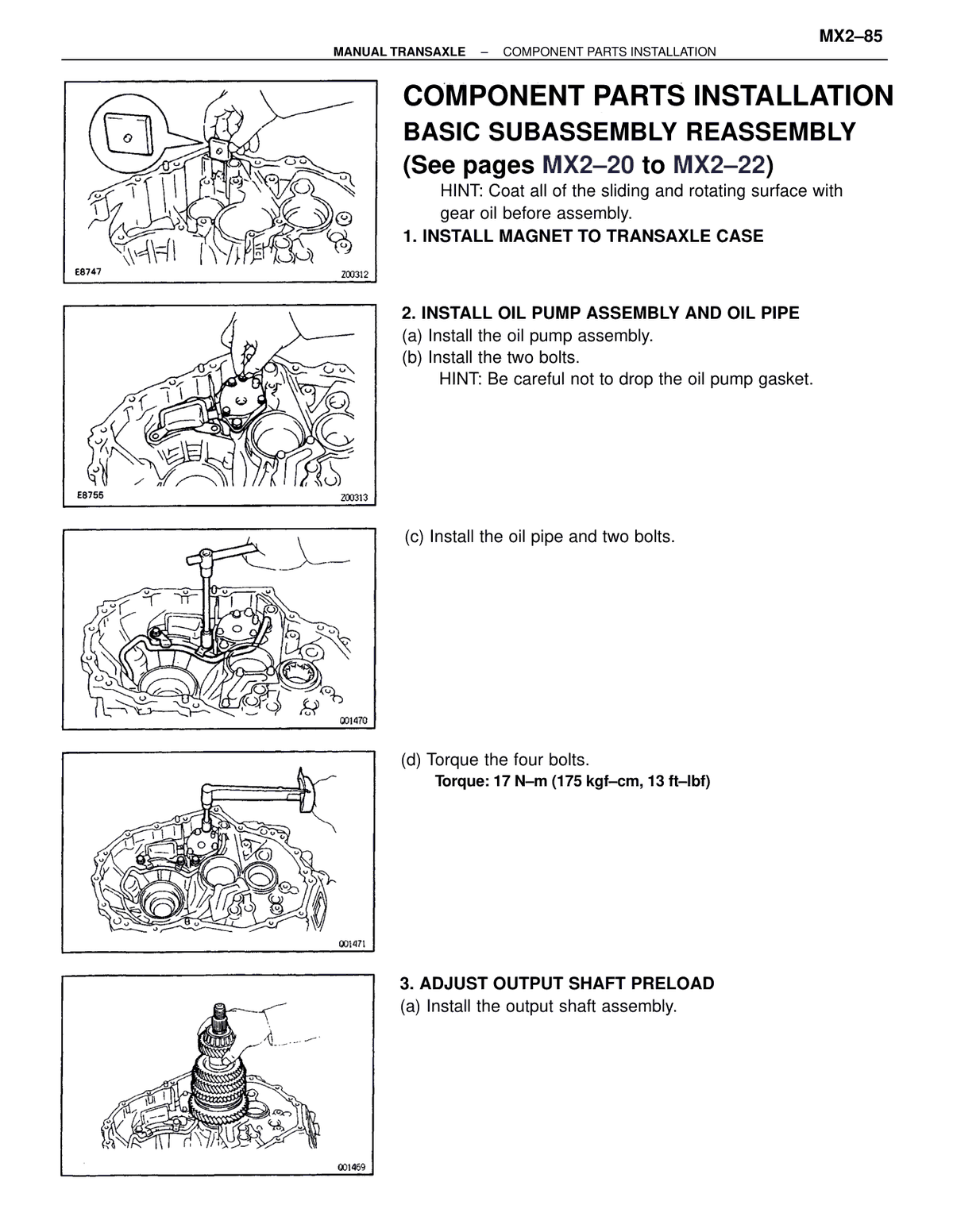

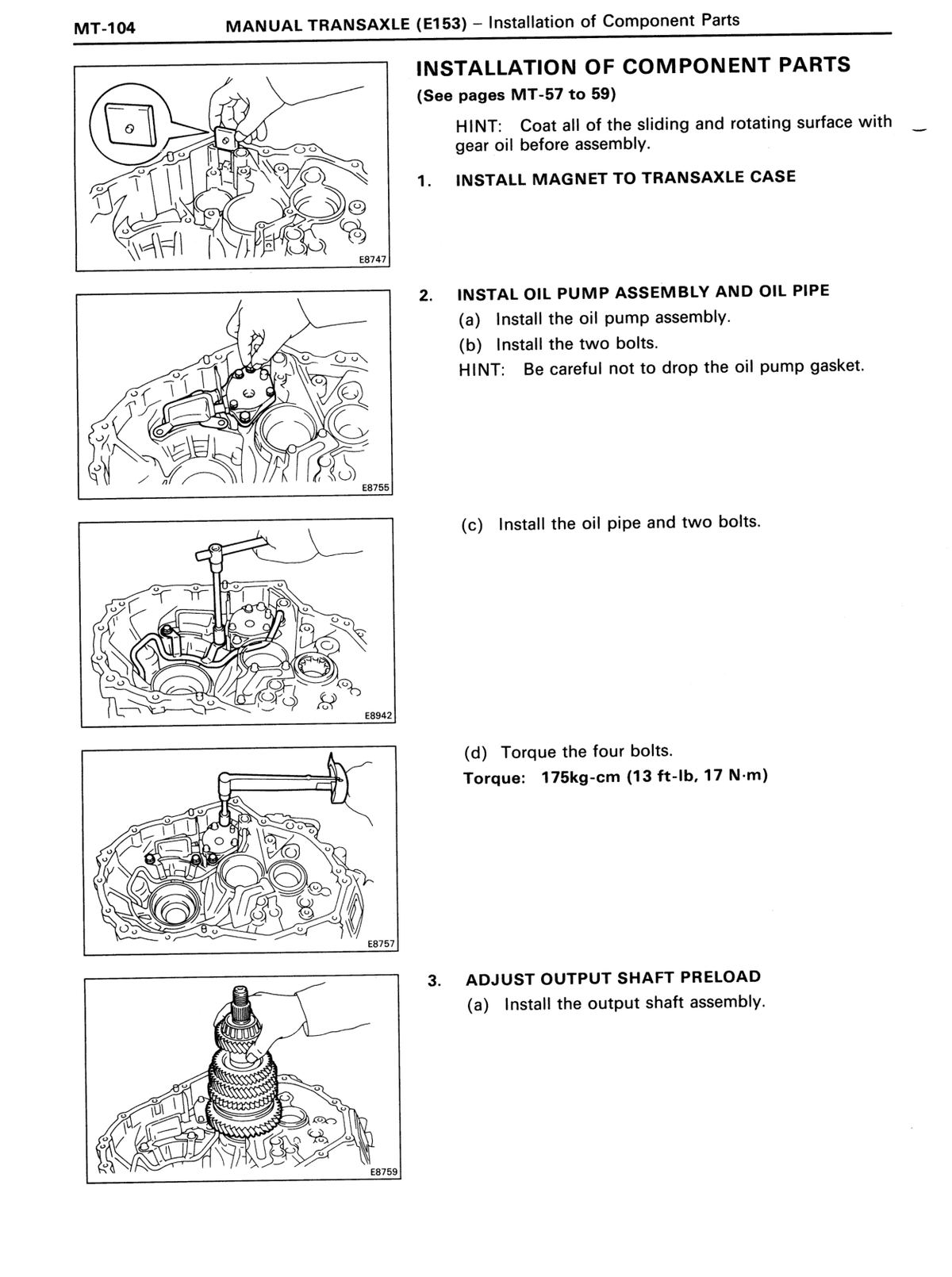

Transmission / transaxle Oil pump assembly and oil pipe bolts (four bolts) Step 2(d) 17 175 13 ↗ RM179U1_1991 · p766 OEM manual

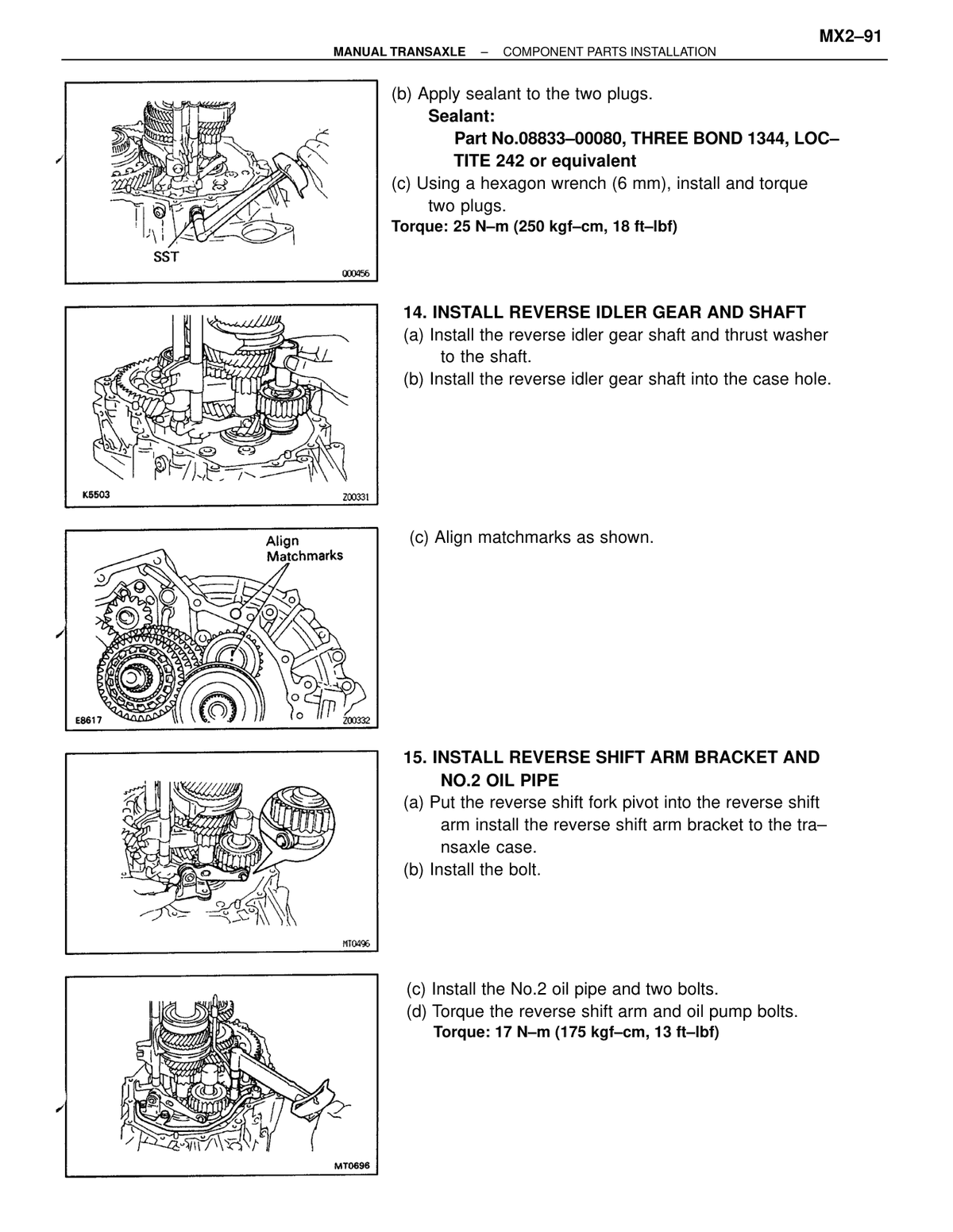

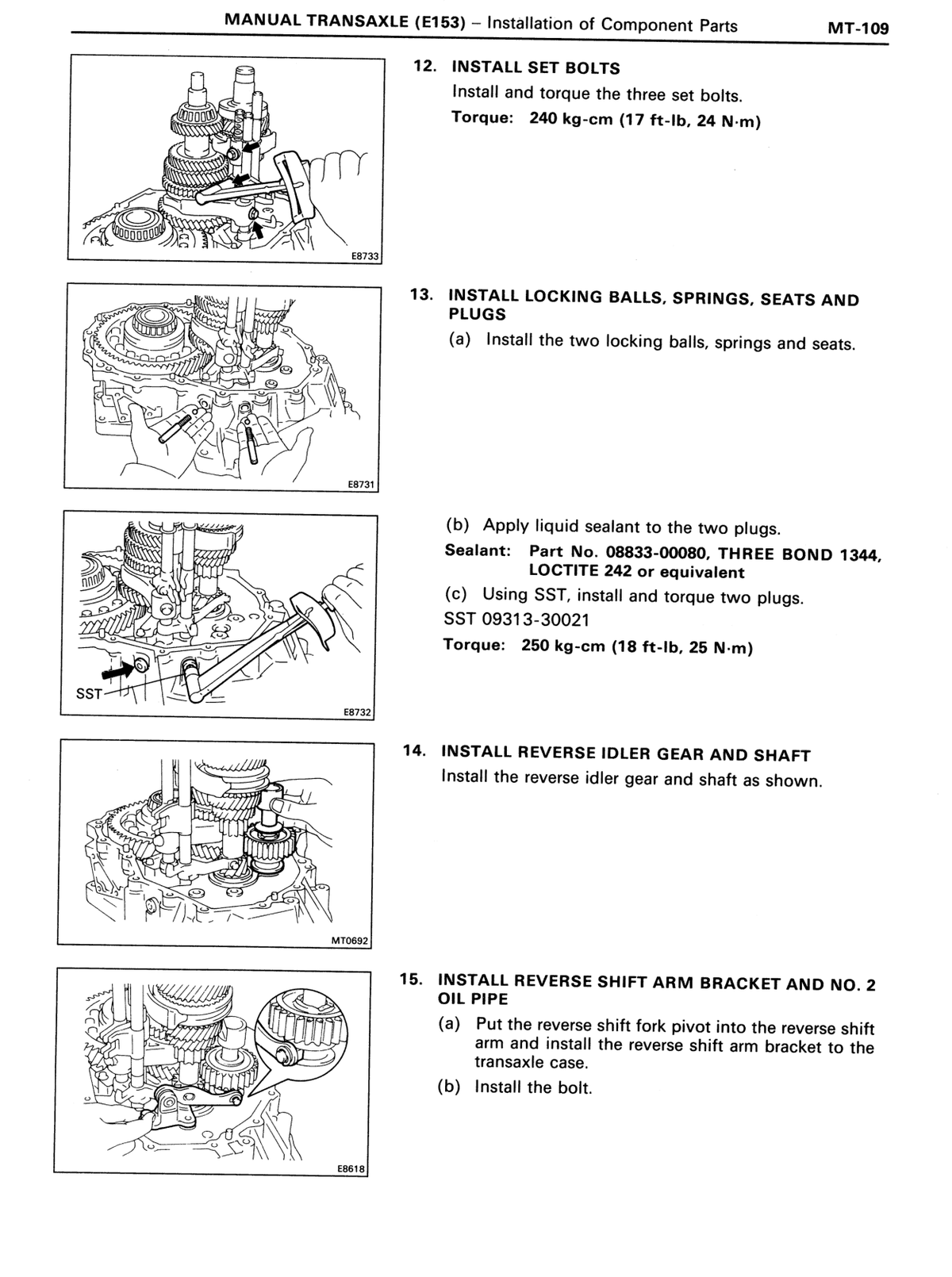

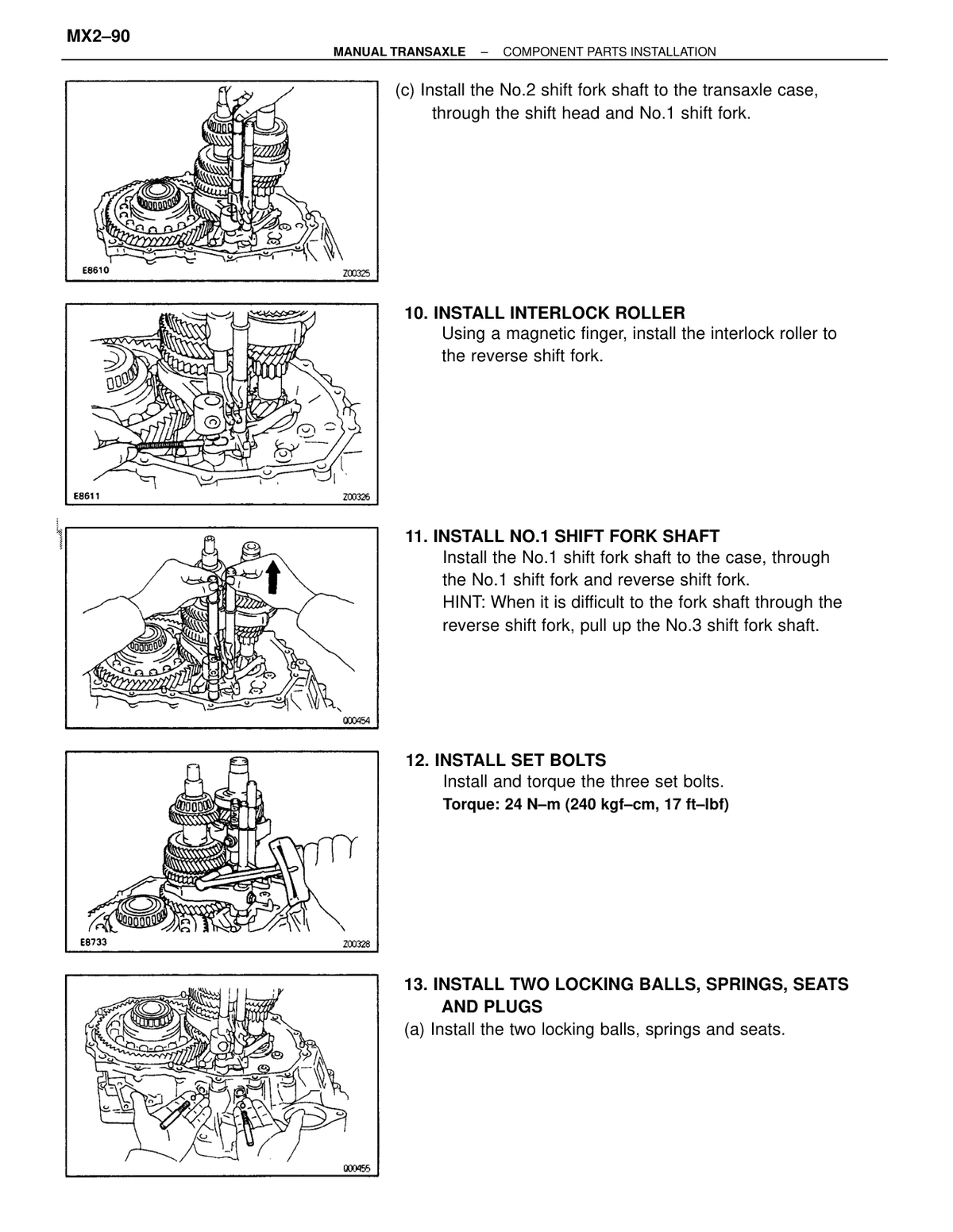

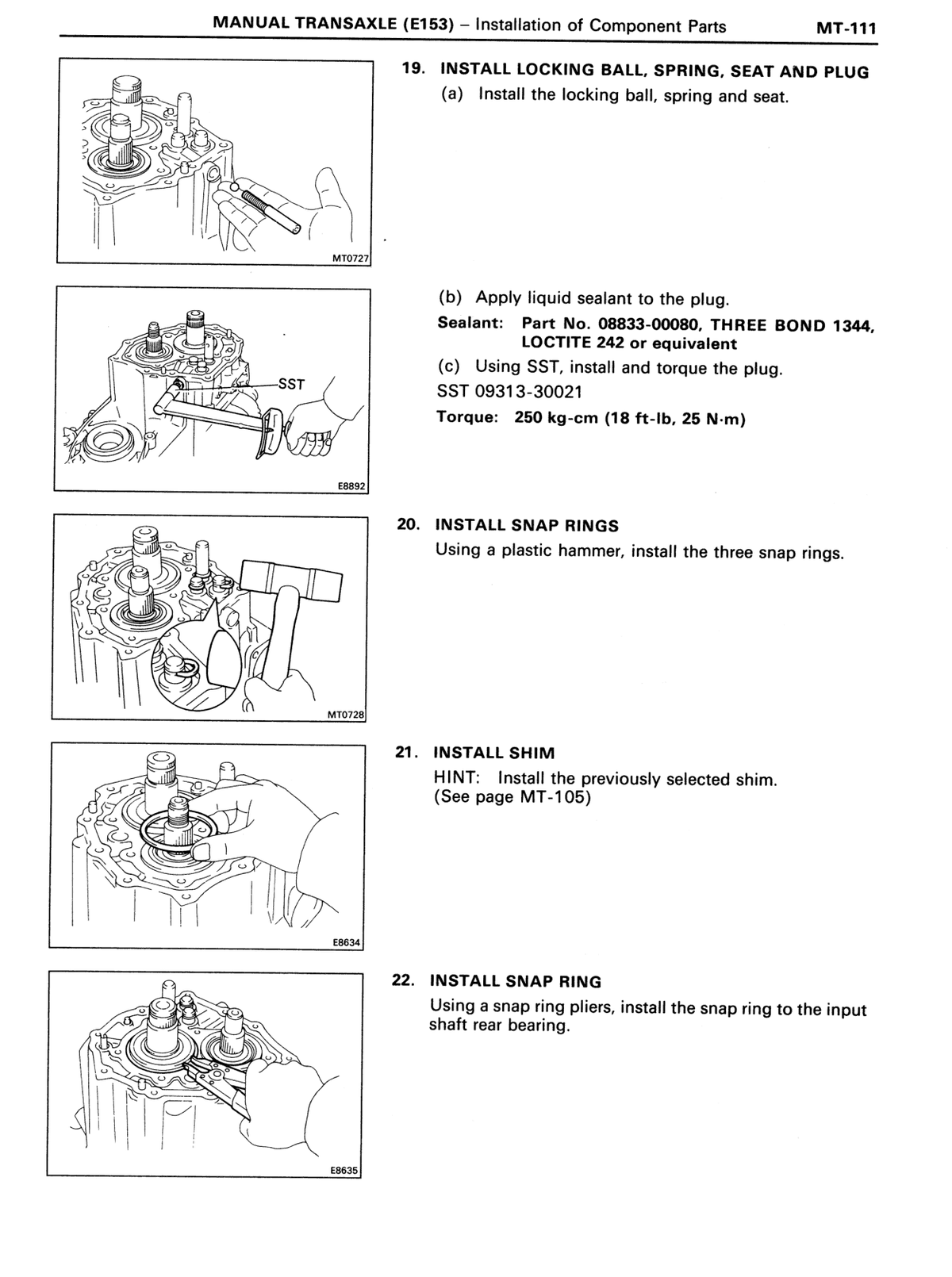

Transmission / transaxle Two plugs (locking ball plugs) Step 13(c), SST 09313-30021 25 250 18 ↗ RM179U1_1991 · p771 OEM manual

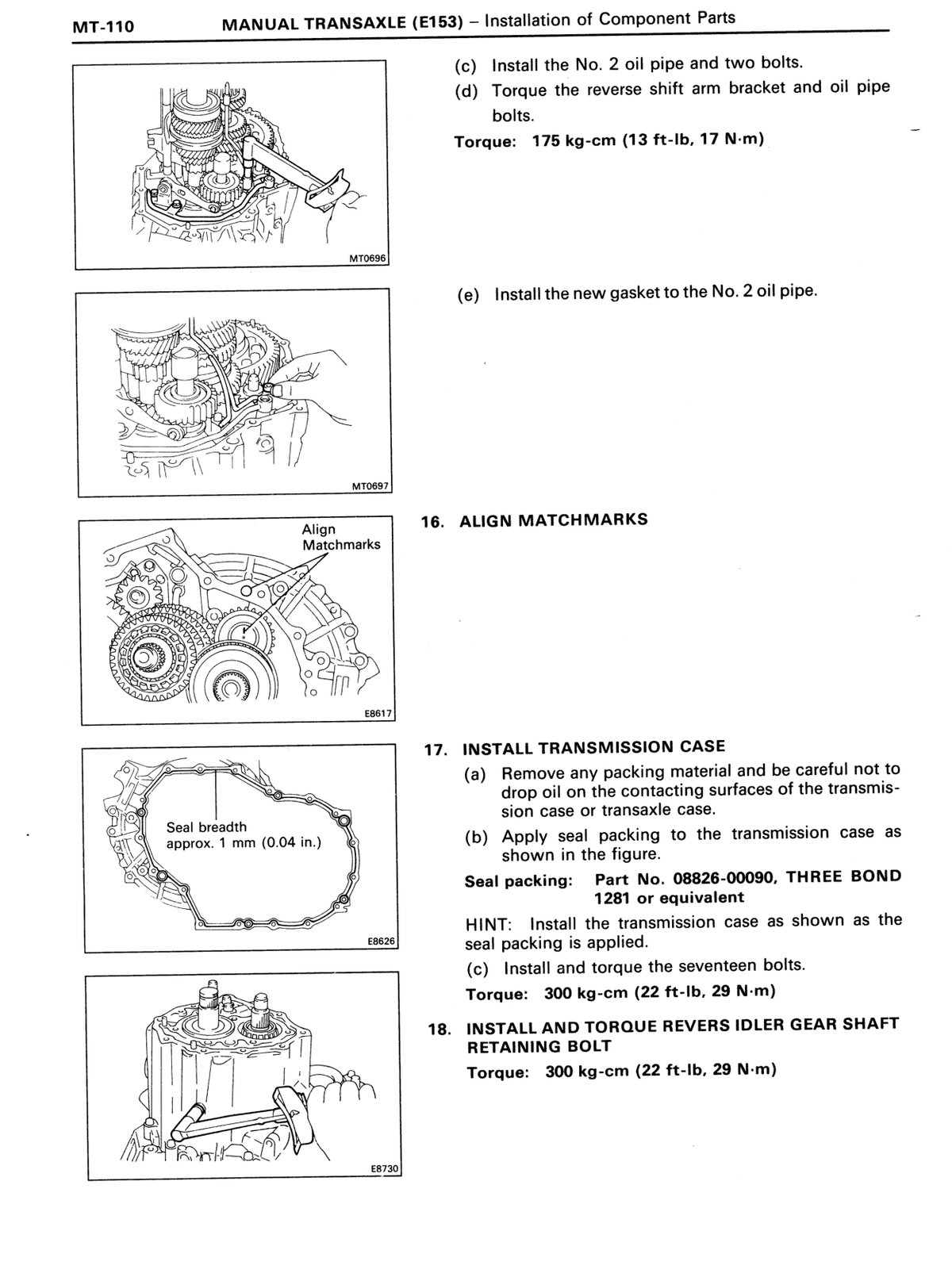

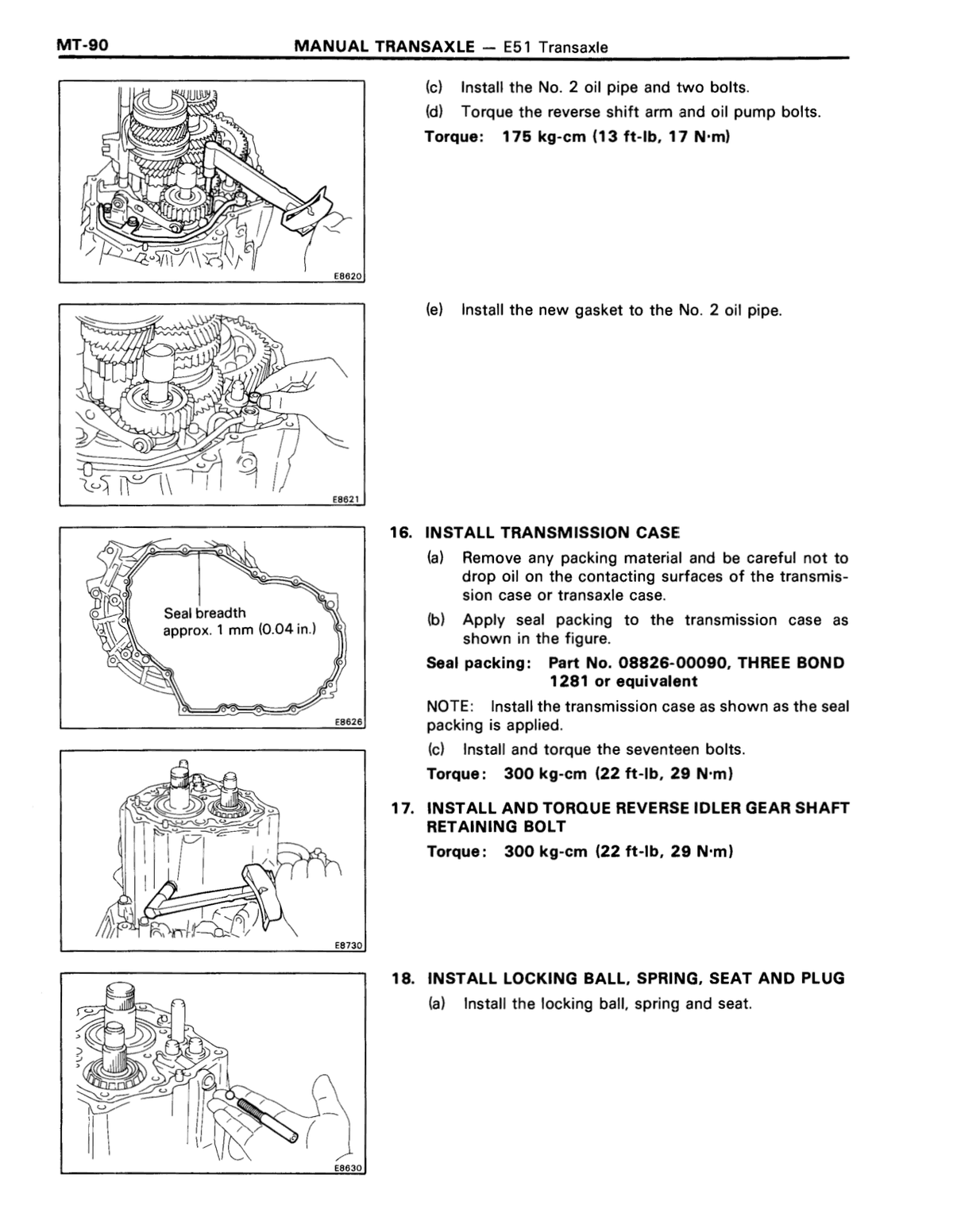

Transmission / transaxle Reverse shift arm bracket and oil pipe bolts Step 15(d) 17 175 13 ↗ RM179U1_1991 · p772 OEM manual

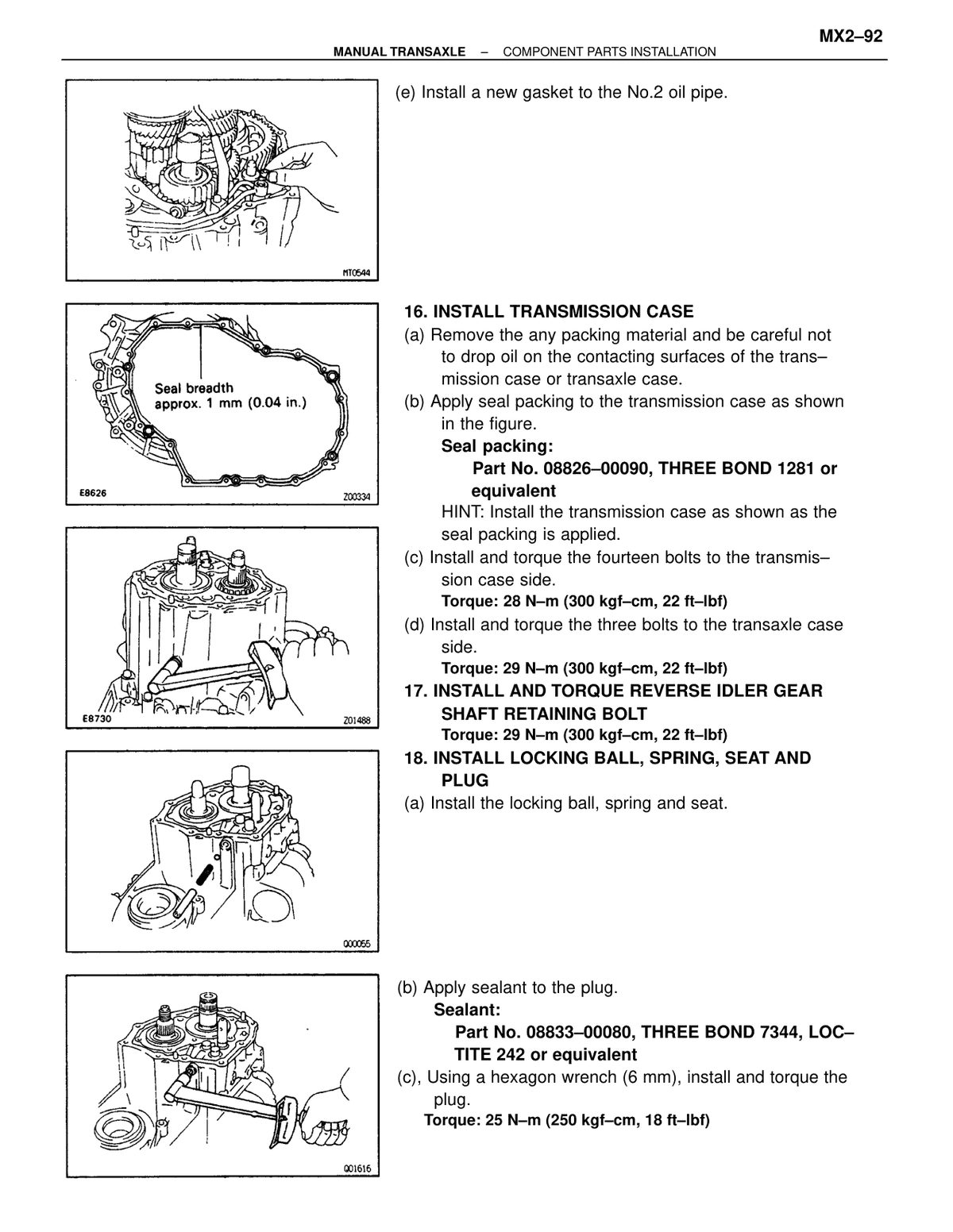

Transmission / transaxle Transmission case bolts (seventeen bolts) Step 17(c) 29 300 22 ↗ RM179U1_1991 · p772 OEM manual
Transmission / transaxle Reverse idler gear shaft retaining bolt Step 18 29 300 22 ↗ RM179U1_1991 · p772 OEM manual
Transmission / transaxle Rear bearing retainer torx screws Seven torx screws, Torx wrench T45 09042-00050 42 430 31 ↗ RM179U1_1991 · p774 OEM manual

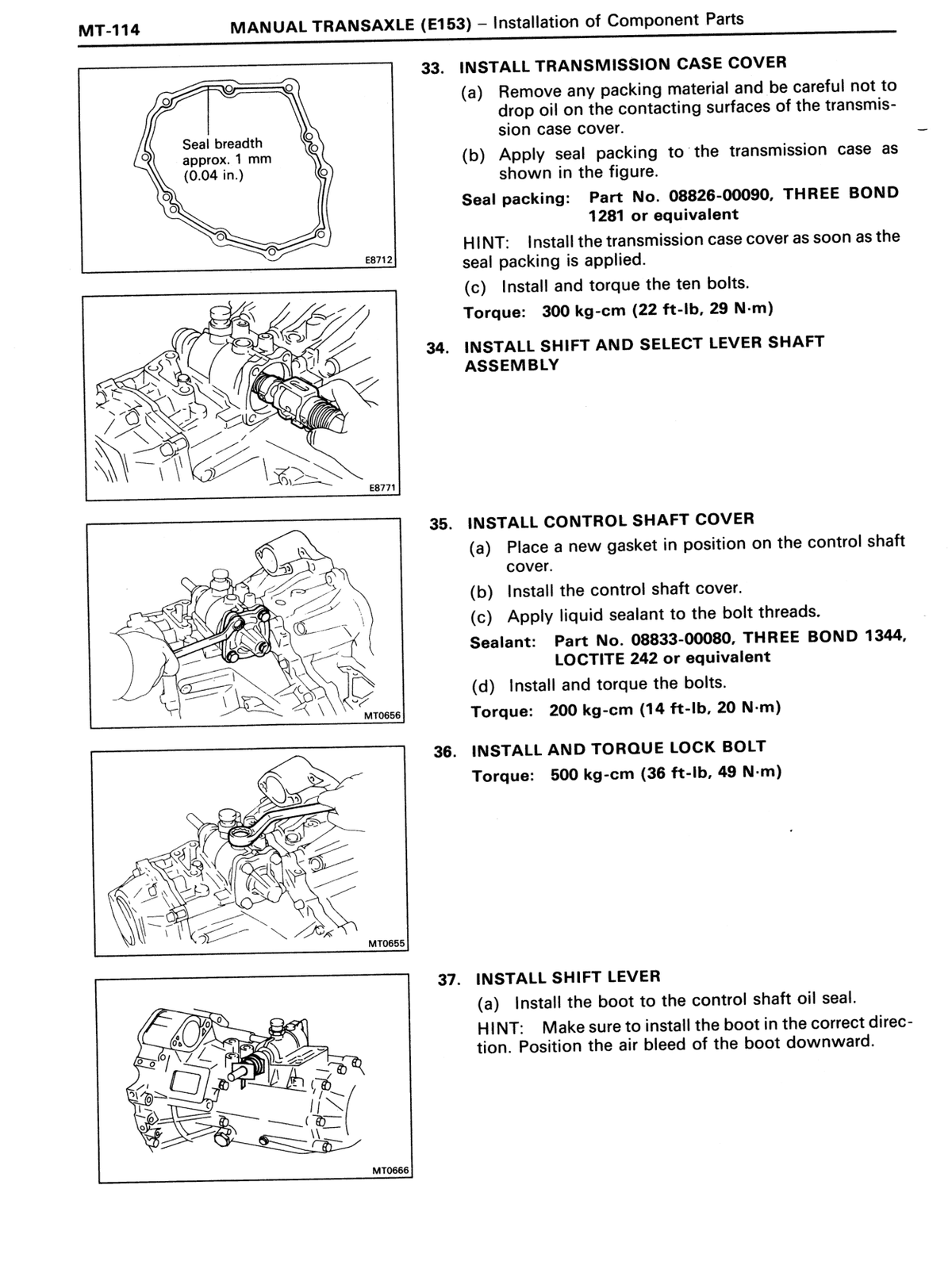

Transmission / transaxle Transmission case cover bolts (ten bolts) Step 33(c) 29 300 22 ↗ RM179U1_1991 · p776 OEM manual
Transmission / transaxle Control shaft cover bolts Step 35(d) 20 200 14 ↗ RM179U1_1991 · p776 OEM manual

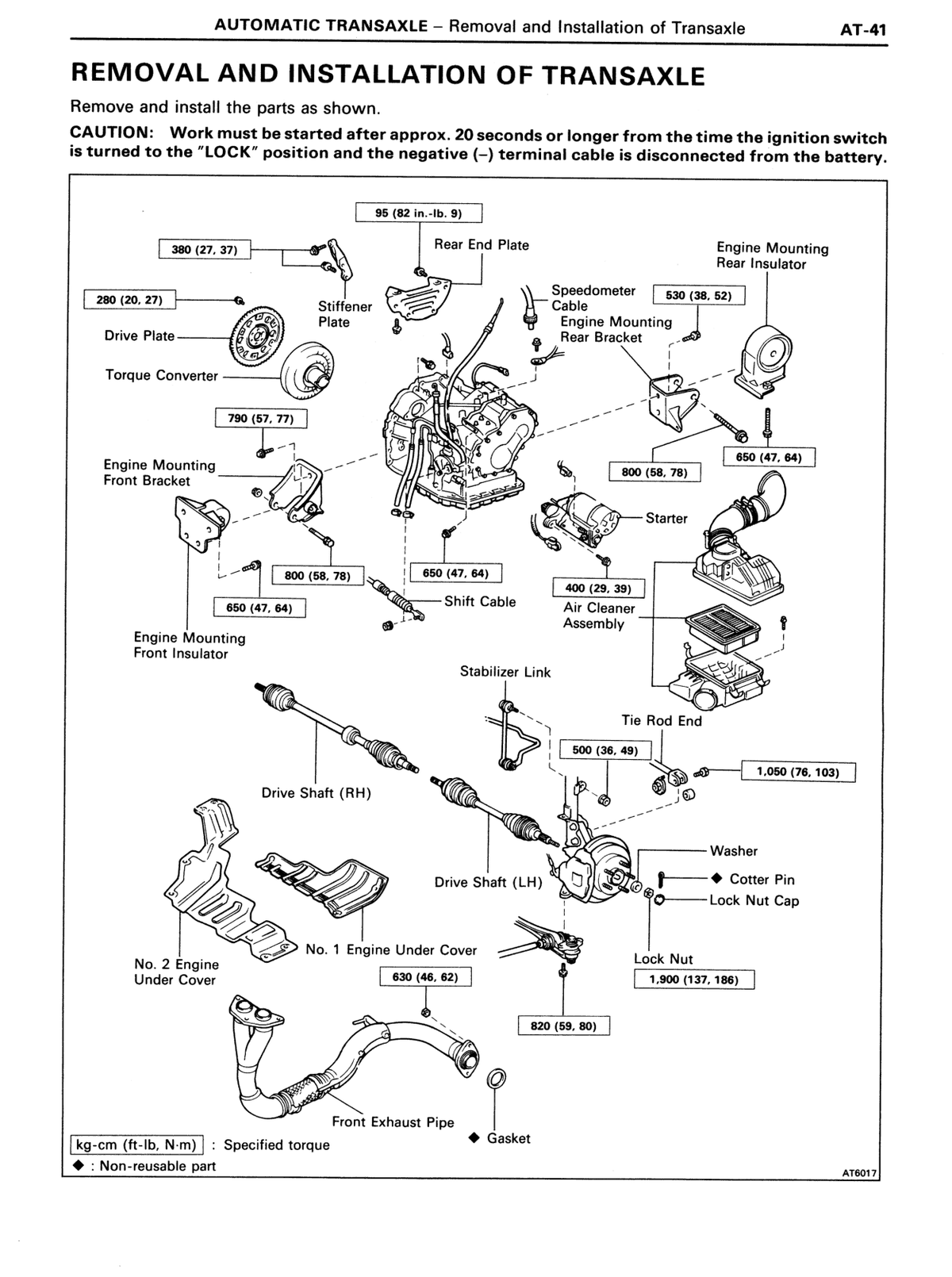

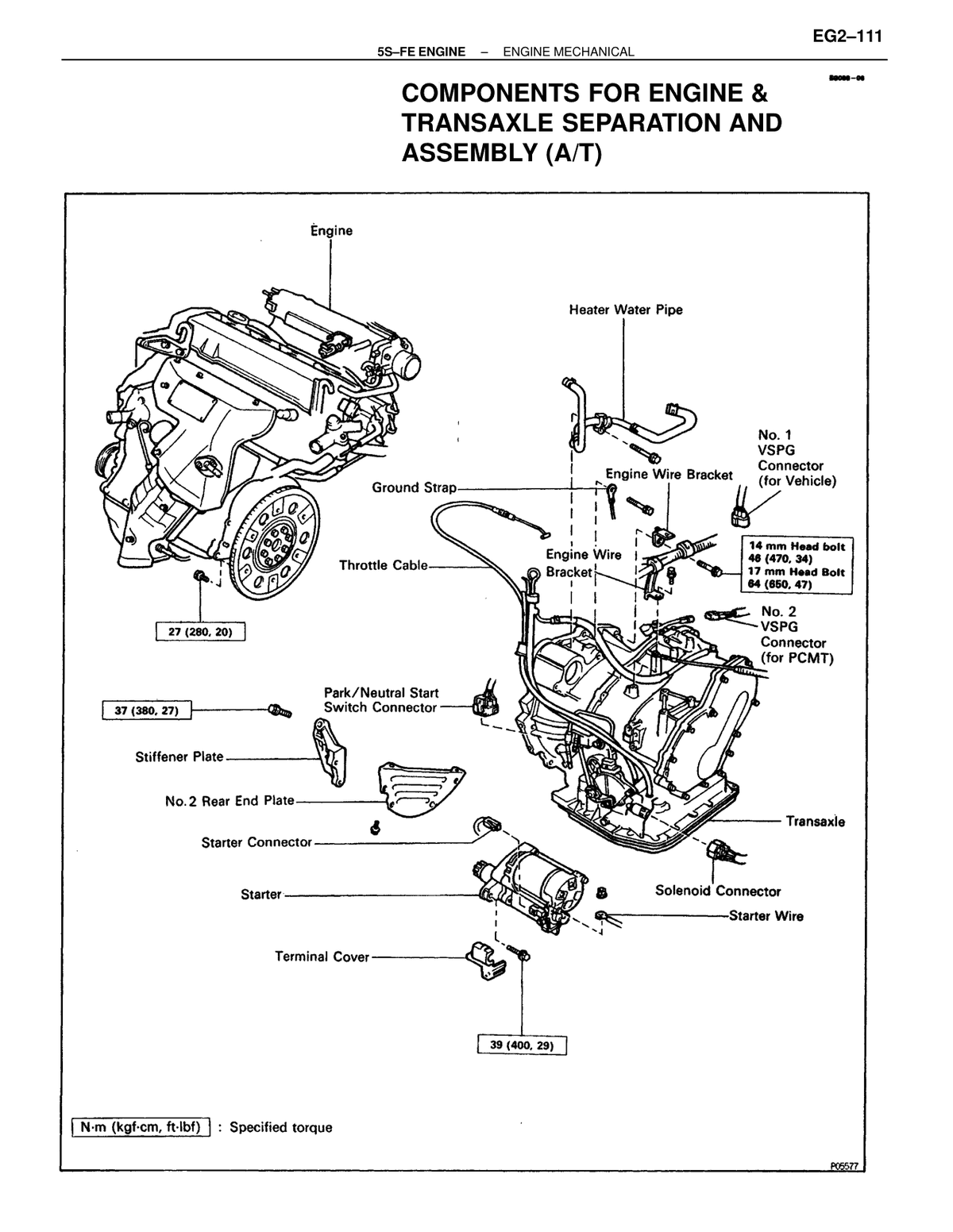

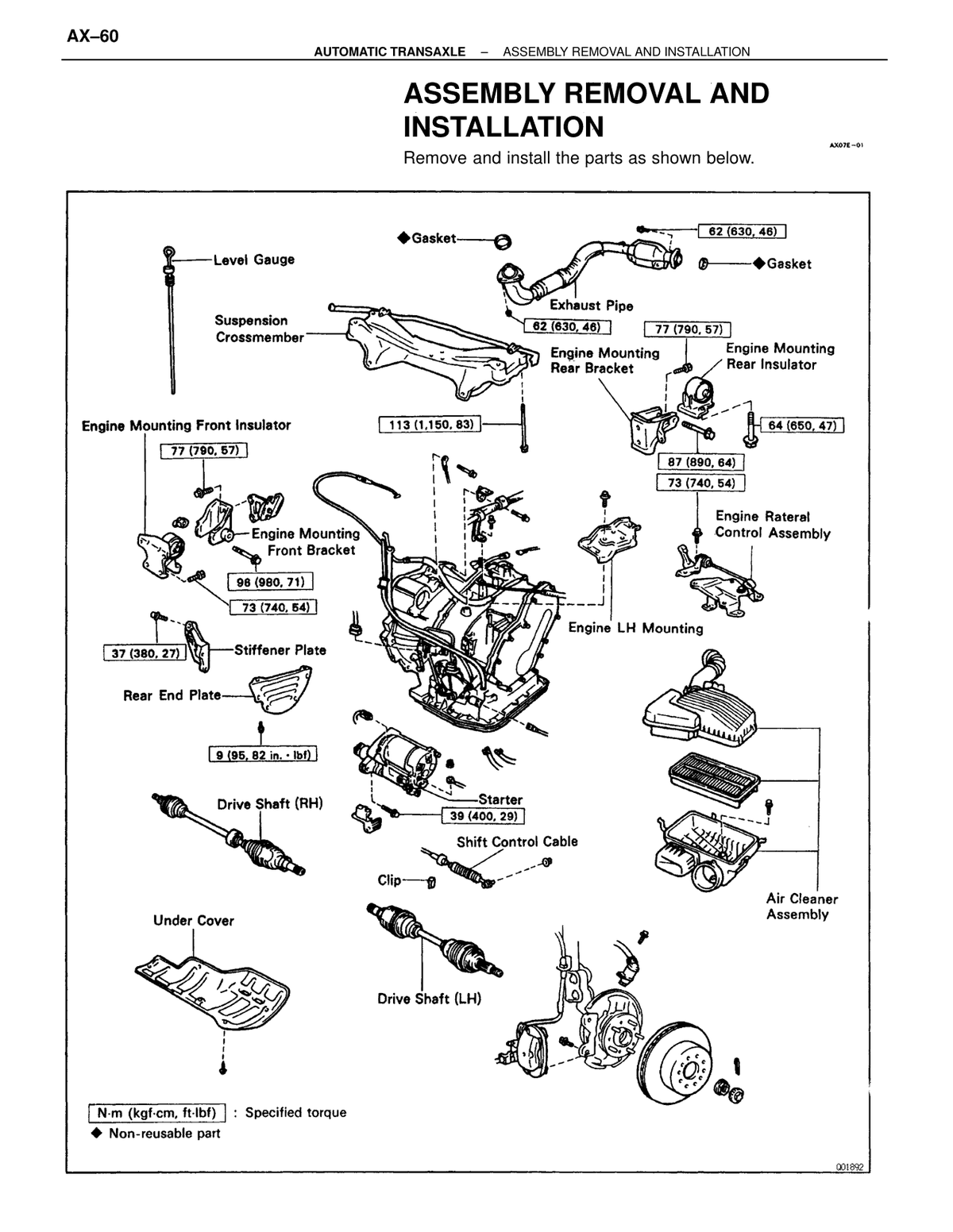

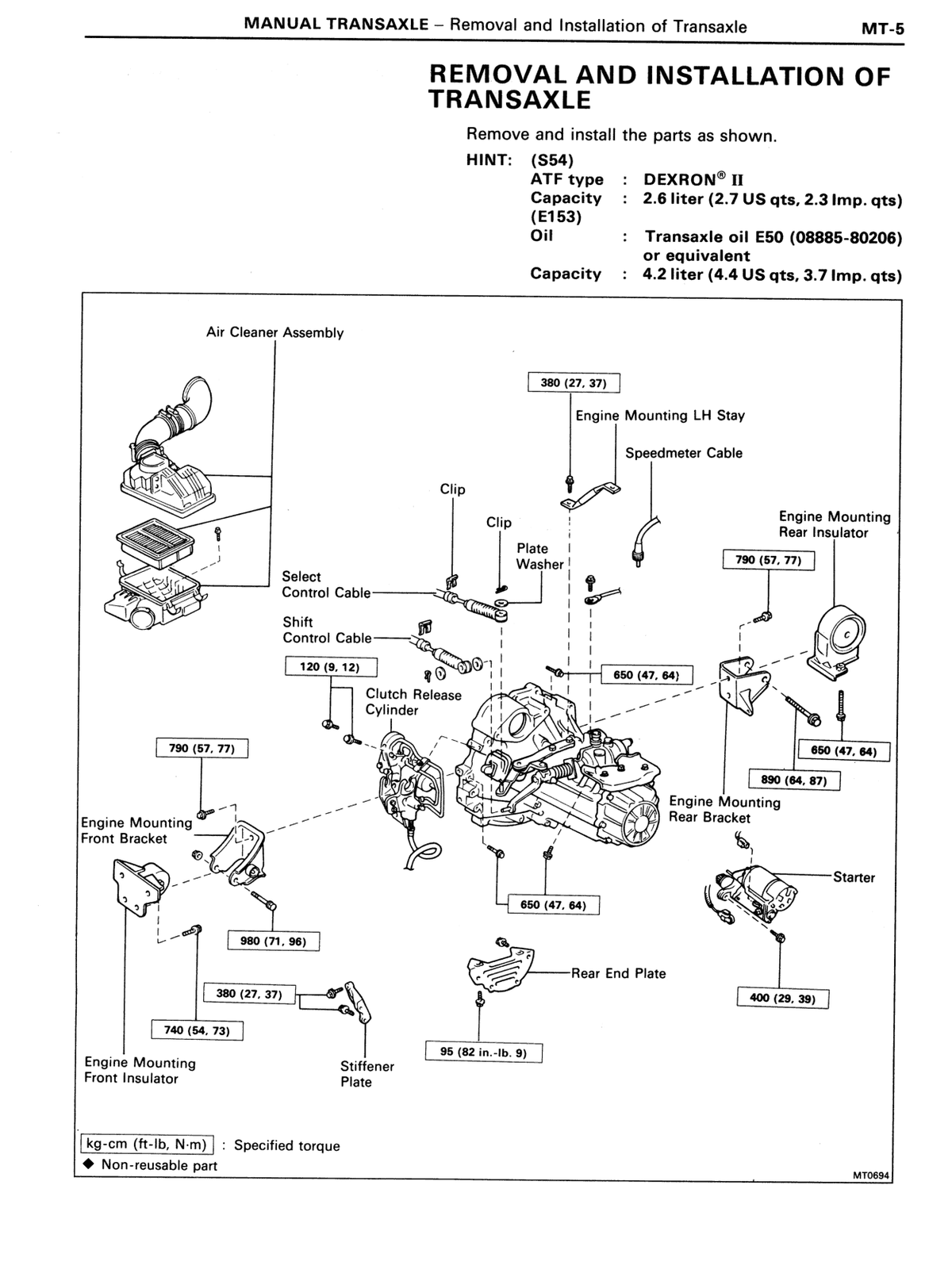

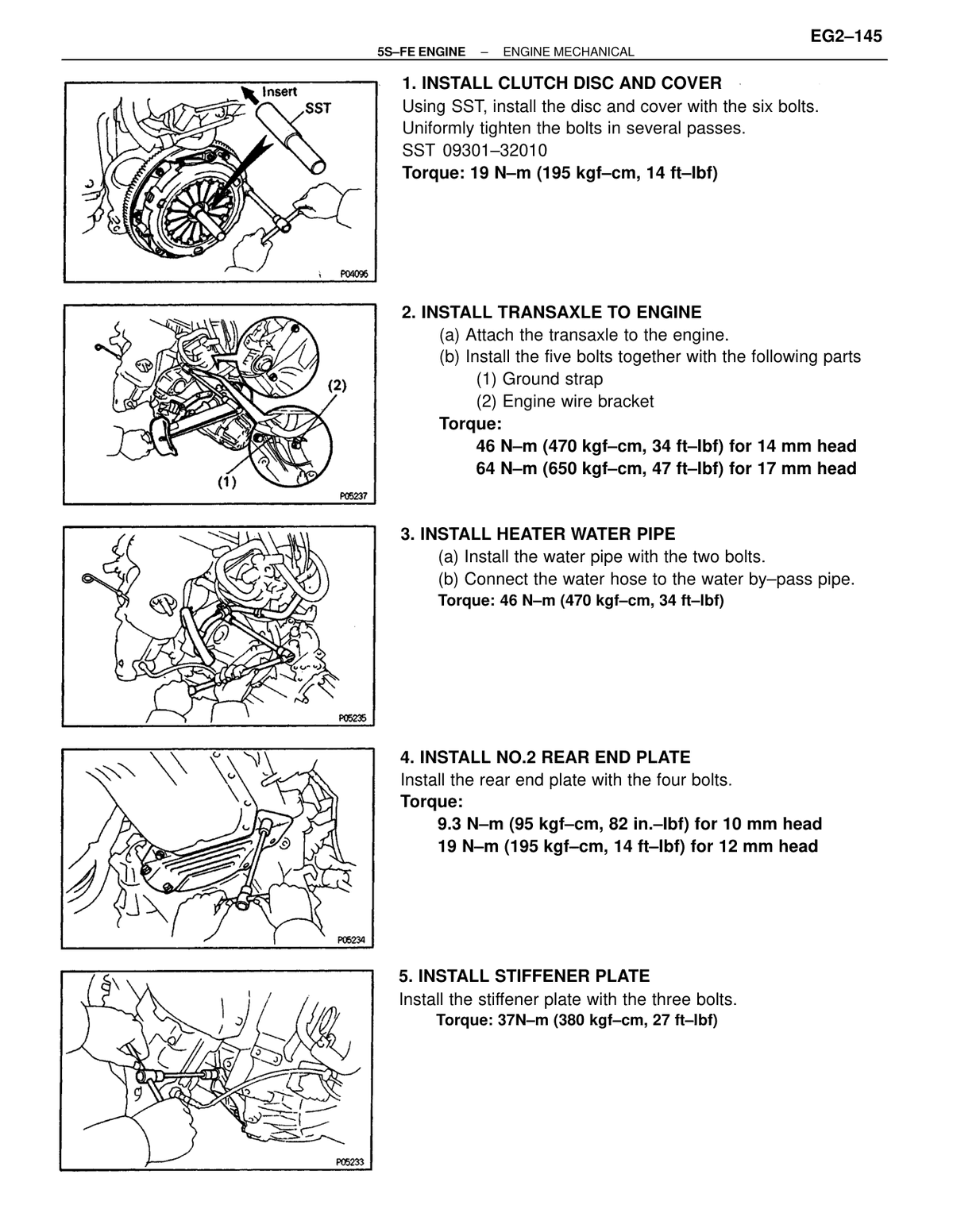

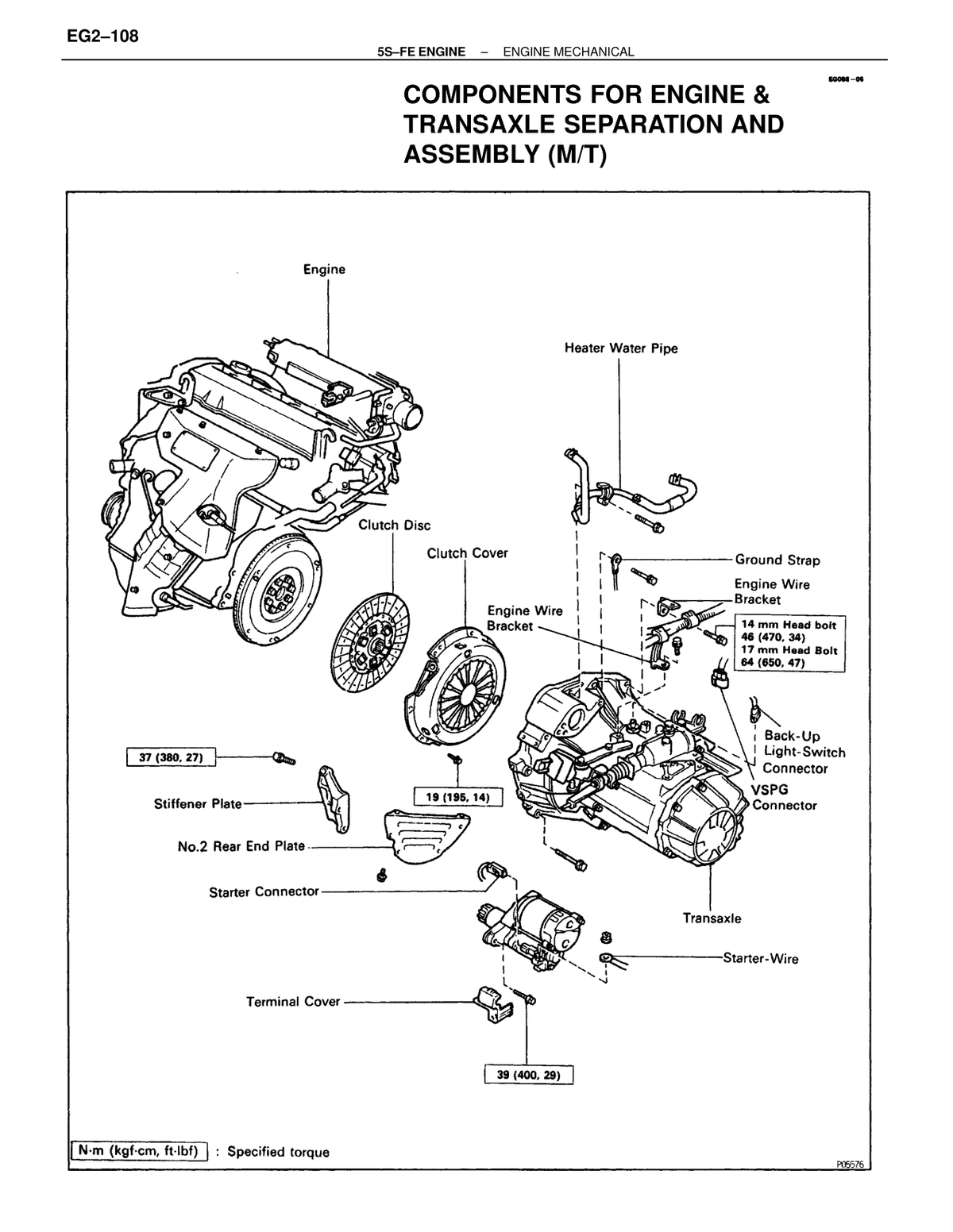

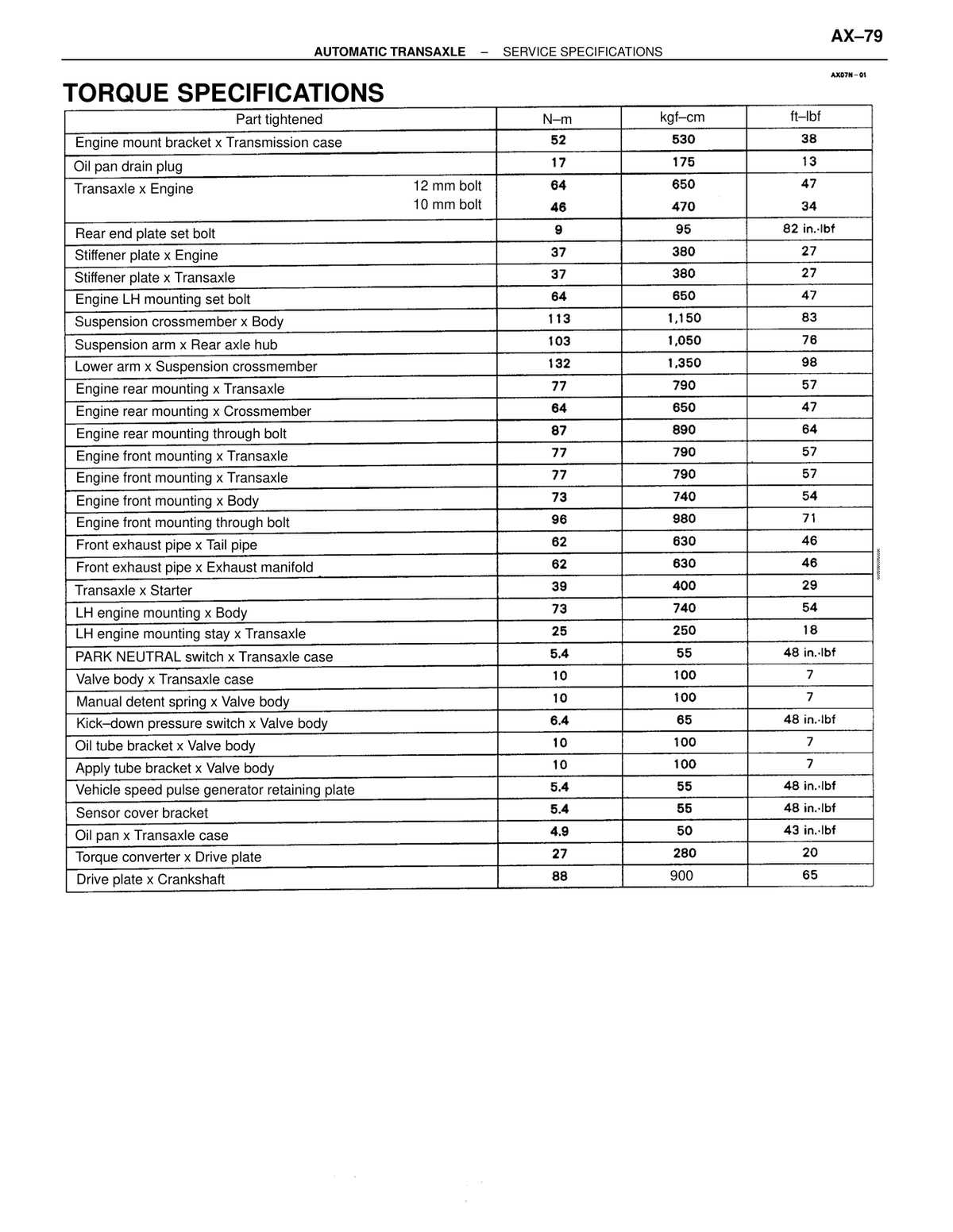

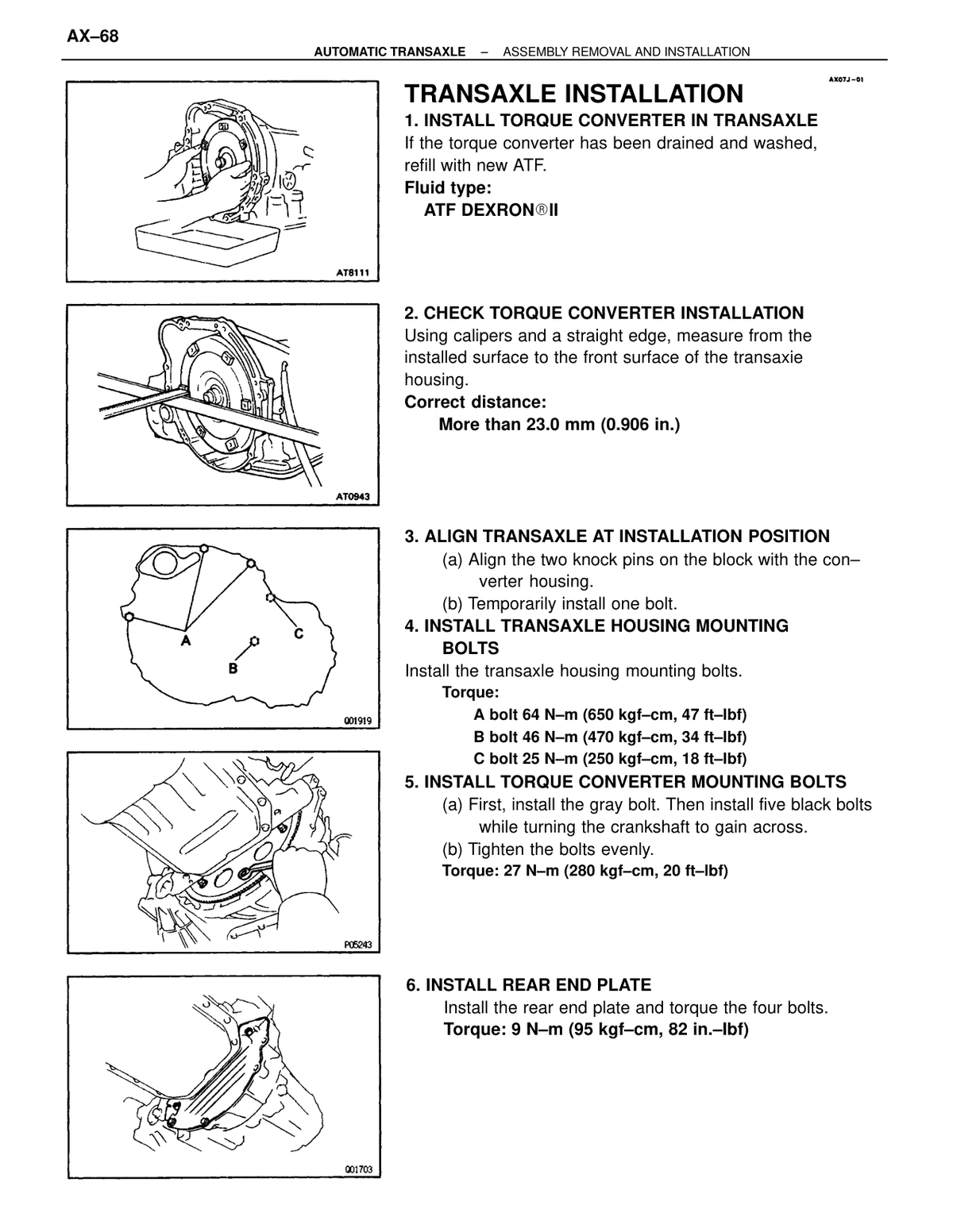

Transmission / transaxle Rear End Plate bolts 95 (82 in.-lb. 9) 9 95 — ↗ RM179U1_1991 · p820 OEM manual

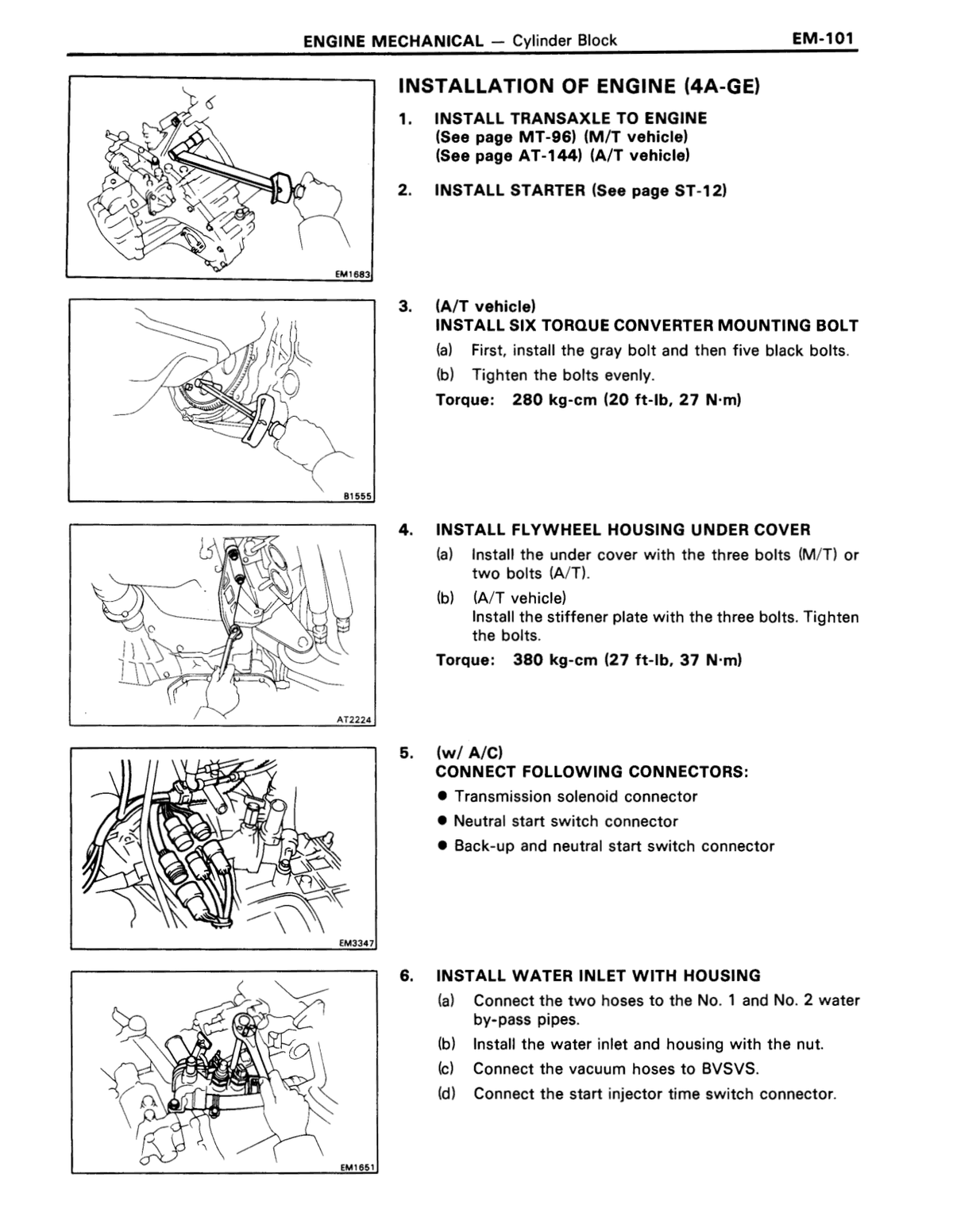

Transmission / transaxle Stiffener Plate bolts (upper) 380 (27, 37) 37 380 27 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Stiffener Plate bolts (lower) 280 (20, 27) 27 280 20 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Drive Plate / Torque Converter bolts 790 (57, 77) 77 790 57 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Engine Mounting Front Bracket bolts (upper) 800 (58, 78) 78 800 58 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Engine Mounting Front Bracket bolts (lower) 650 (47, 64) 64 650 47 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket / Rear Insulator bolts 530 (38, 52) 52 530 38 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator / body bolts 800 (58, 78) 78 800 58 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket bolts 650 (47, 64) 64 650 47 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Shift Cable bracket bolts 650 (47, 64) 64 650 47 ↗ RM179U1_1991 · p820 OEM manual

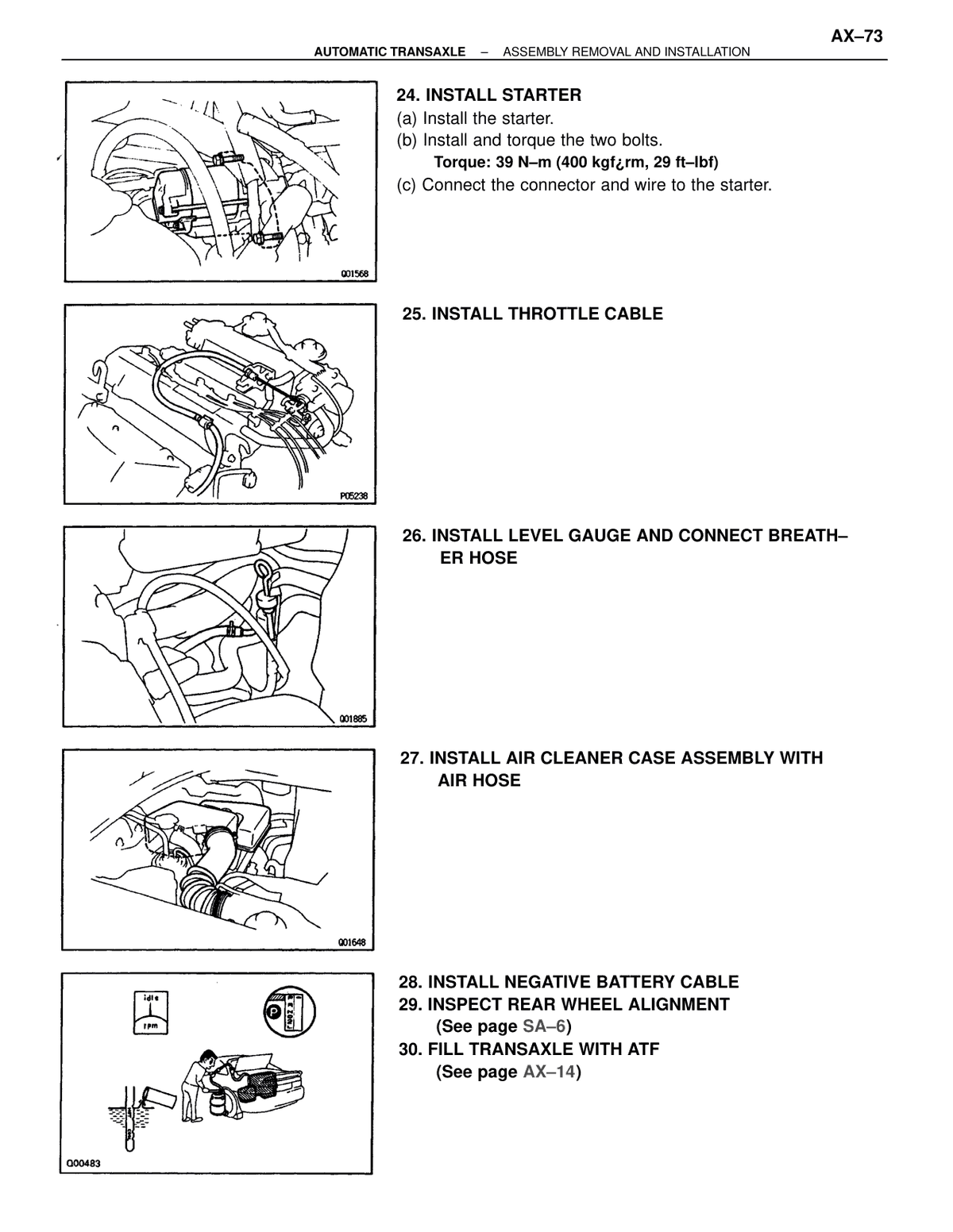

Transmission / transaxle Air Cleaner Assembly bolts 400 (29, 39) 39 400 29 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Drive Shaft / Hub Lock Nut 1,050 (76, 103) 103 1050 76 ↗ RM179U1_1991 · p820 OEM manual

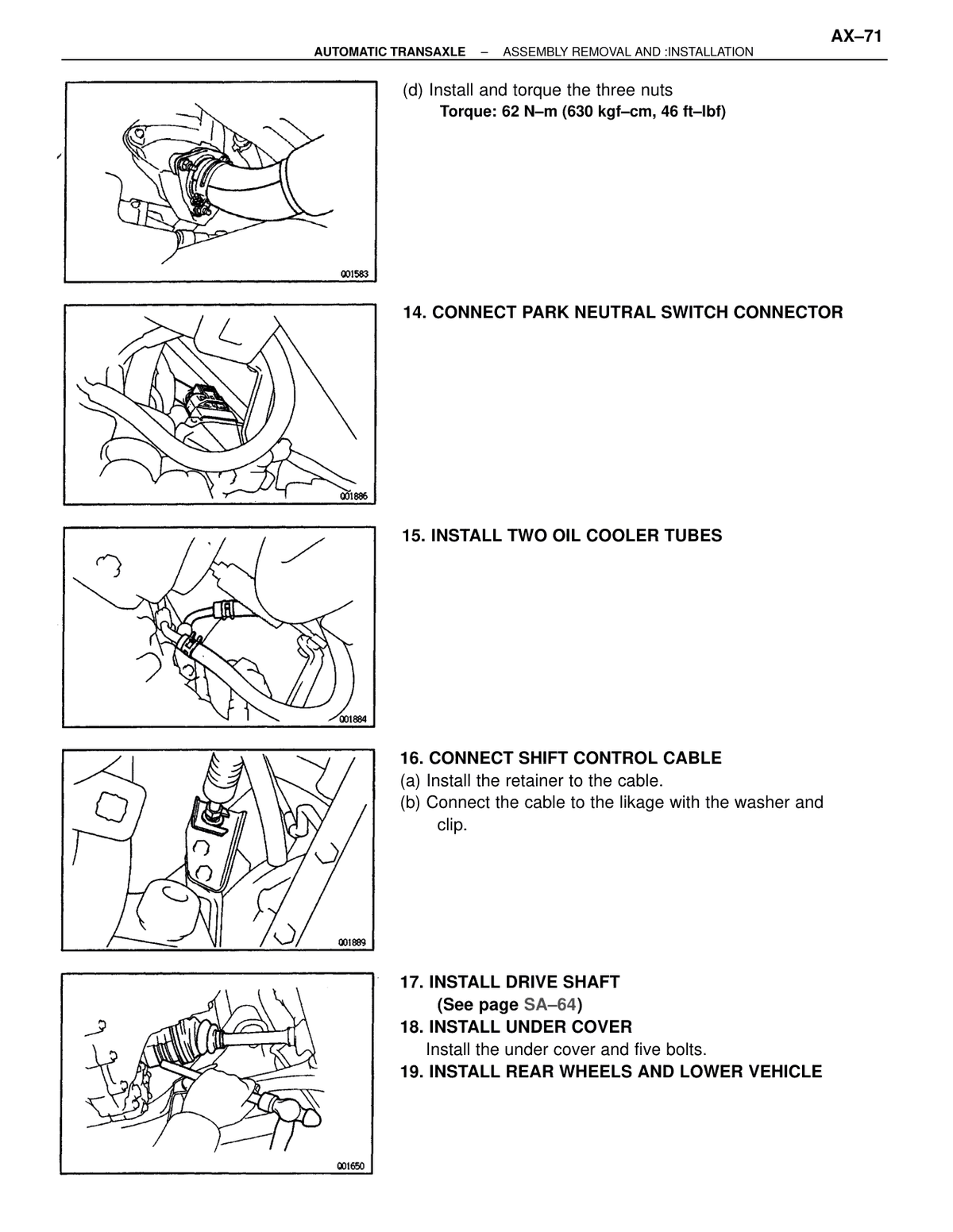

Transmission / transaxle No. 1 Engine Under Cover bolts 630 (46, 62) 62 630 46 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Front Exhaust Pipe bolts 820 (59, 80) 80 820 59 ↗ RM179U1_1991 · p820 OEM manual
Transmission / transaxle Lock Nut (axle hub) 1,900 (137, 186) 186 1900 137 ↗ RM179U1_1991 · p820 OEM manual

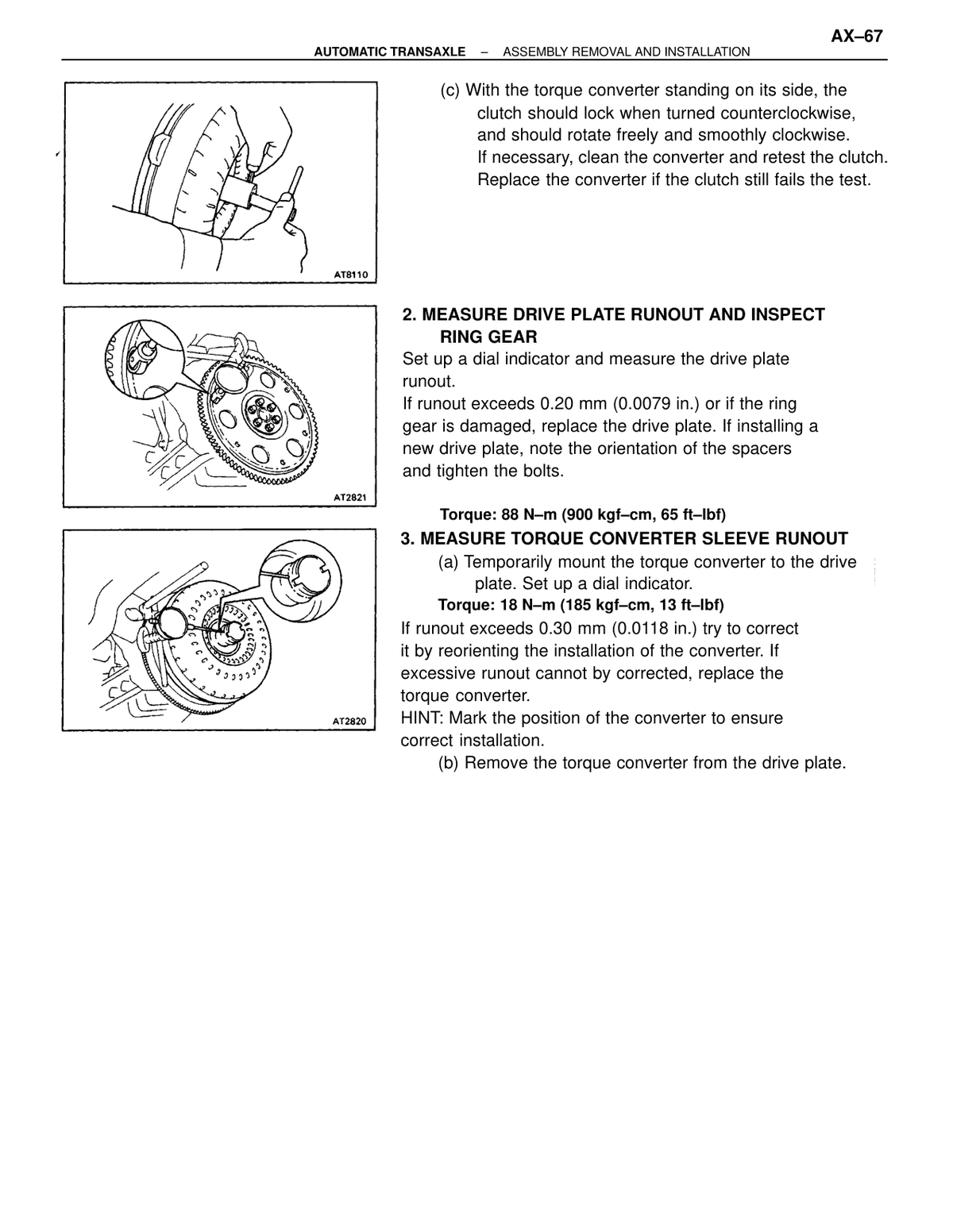

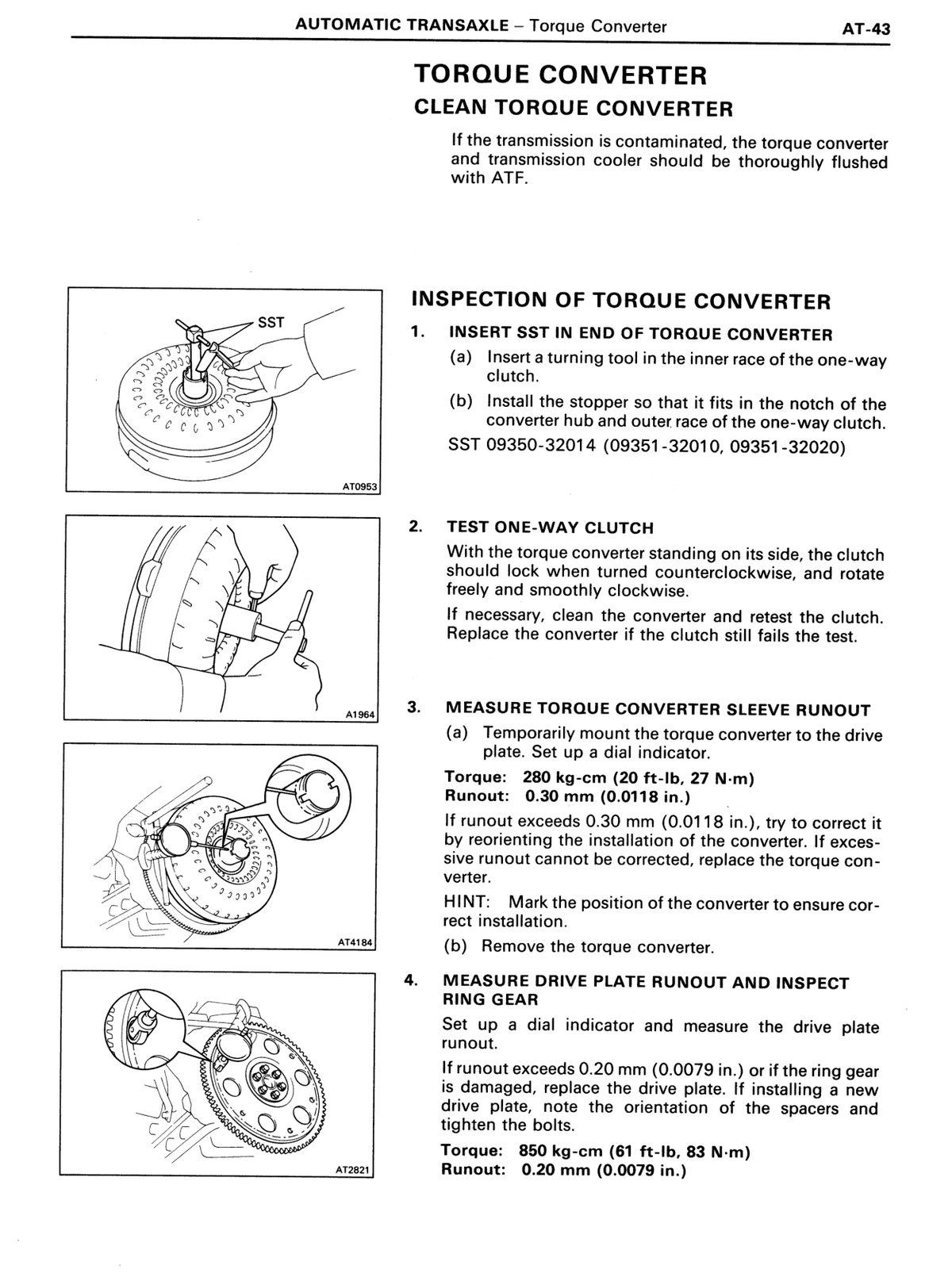

Transmission / transaxle Torque converter to drive plate (sleeve runout check) Temporary mount for runout measurement 27 280 20 ↗ RM179U1_1991 · p822 OEM manual
Transmission / transaxle Drive plate bolts Note orientation of spacers when installing new drive plate 83 850 61 ↗ RM179U1_1991 · p822 OEM manual

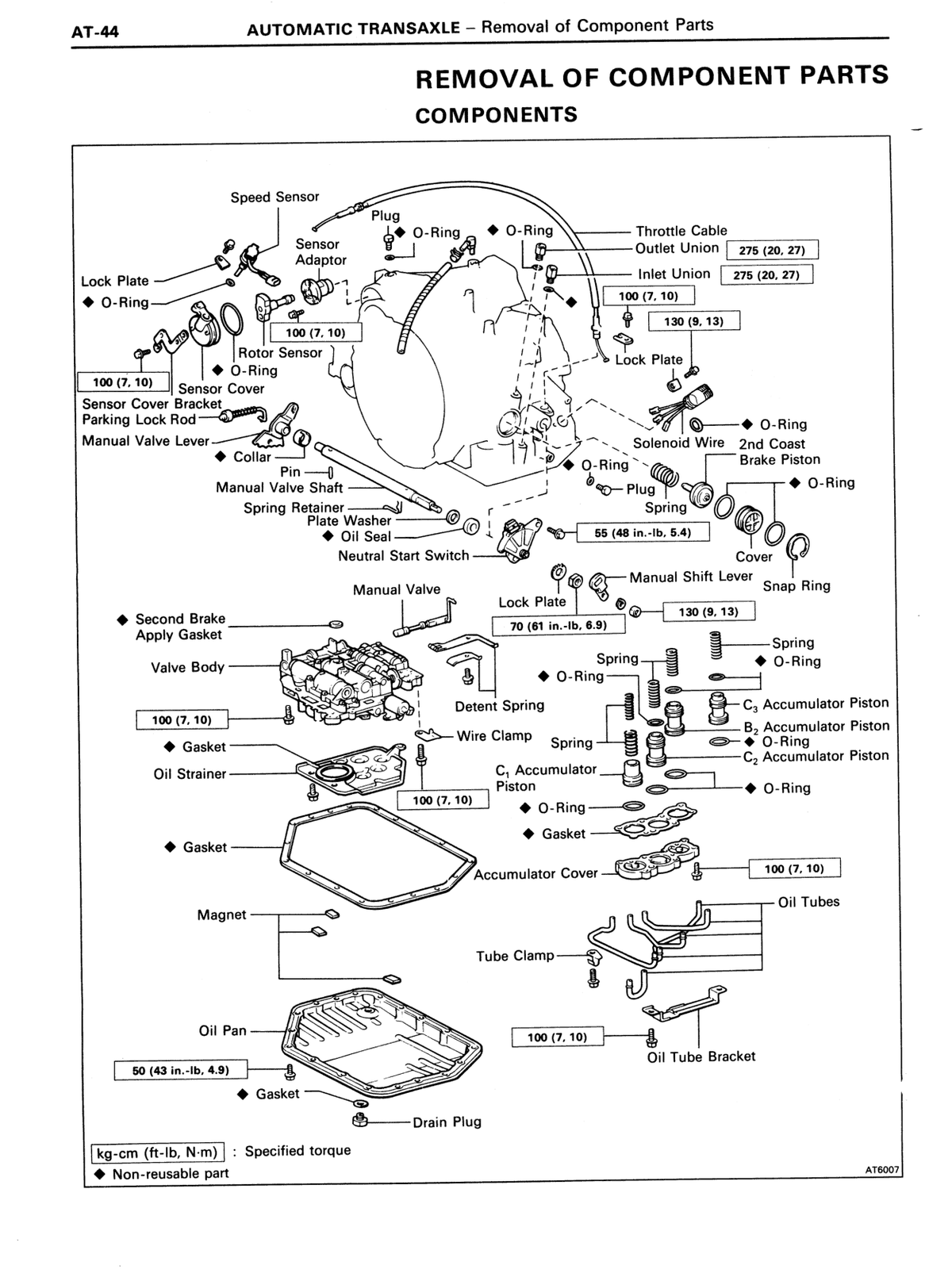

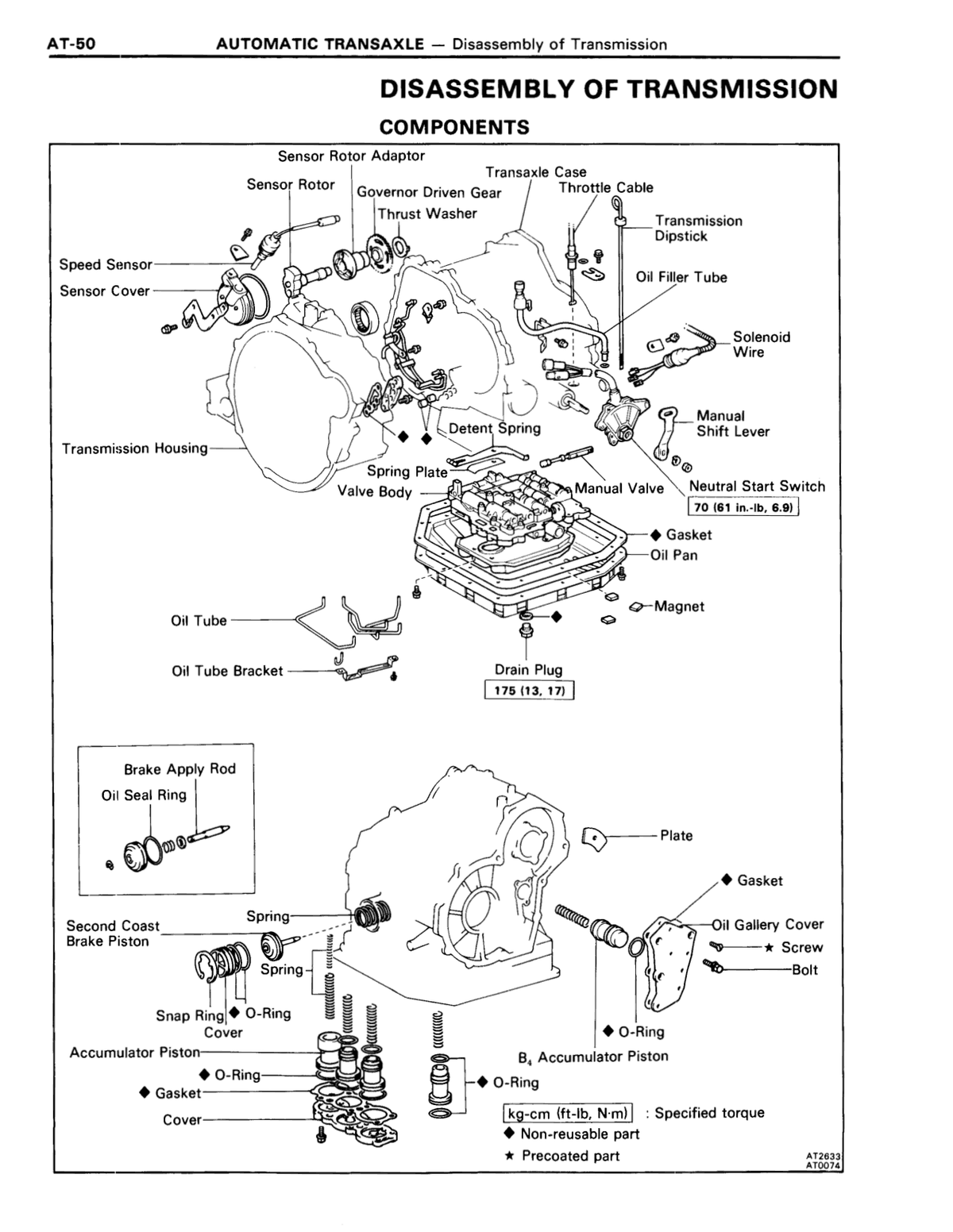

Transmission / transaxle Speed Sensor / Sensor Adaptor bolts 100 (7, 10) 10 100 7 ↗ RM179U1_1991 · p823 OEM manual
Transmission / transaxle Rotor Sensor / Sensor Cover bolts 100 (7, 10) 10 100 7 ↗ RM179U1_1991 · p823 OEM manual
Transmission / transaxle Plug (O-Ring area, top) 100 (7, 10) 10 100 7 ↗ RM179U1_1991 · p823 OEM manual
Transmission / transaxle Outlet Union / Inlet Union (Throttle Cable) 275 (20, 27) 27 275 20 ↗ RM179U1_1991 · p823 OEM manual
Transmission / transaxle Lock Plate (Throttle Cable side) 130 (9, 13) 13 130 9 ↗ RM179U1_1991 · p823 OEM manual

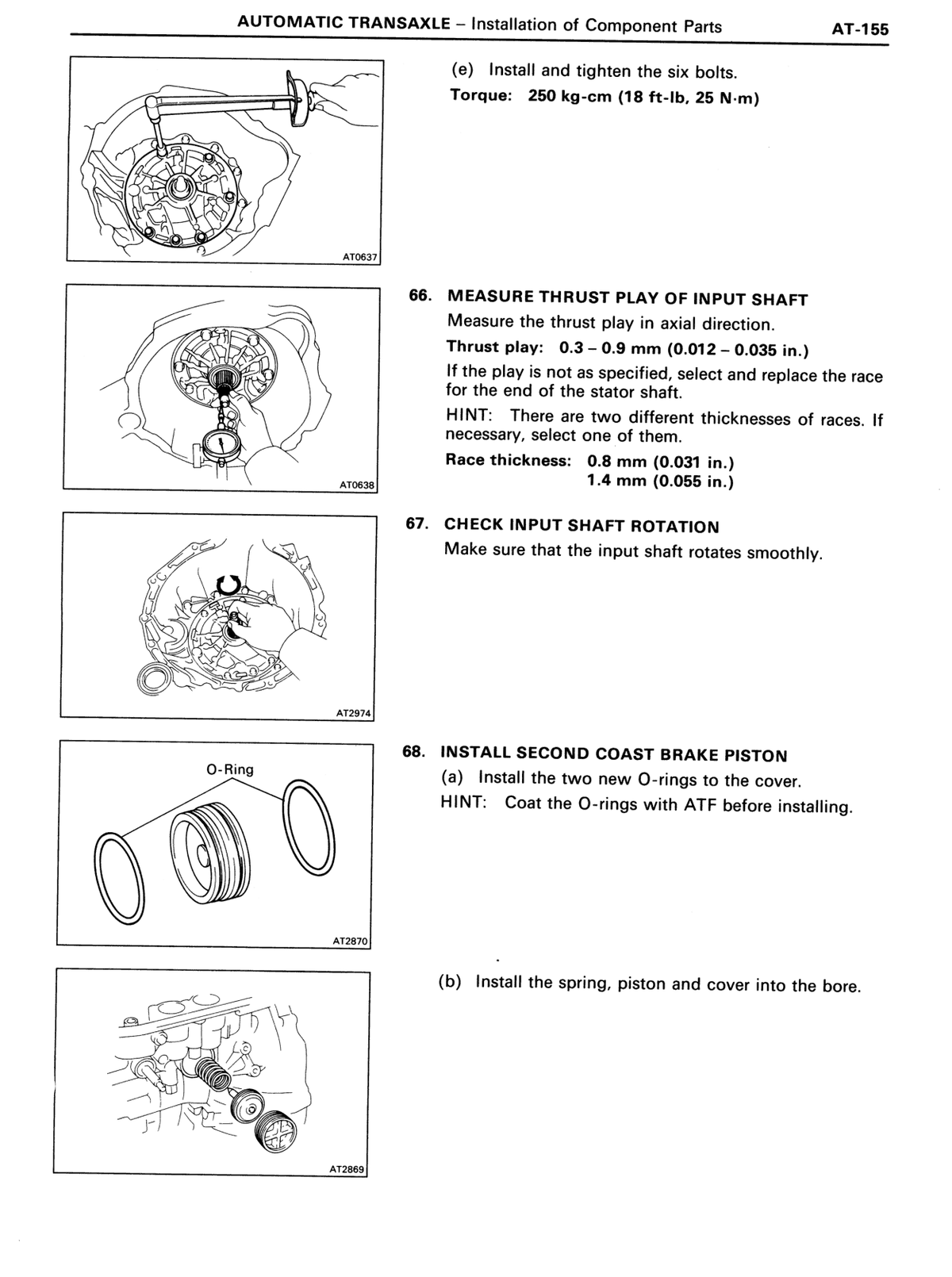

Transmission / transaxle 2nd Coast Brake Piston Plug 55 (48 in.-lb, 5.4) 5.4 55 — ↗ RM179U1_1991 · p823 OEM manual
Transmission / transaxle Manual Shift Lever / Lock Plate bolt 130 (9, 13) 13 130 9 ↗ RM179U1_1991 · p823 OEM manual

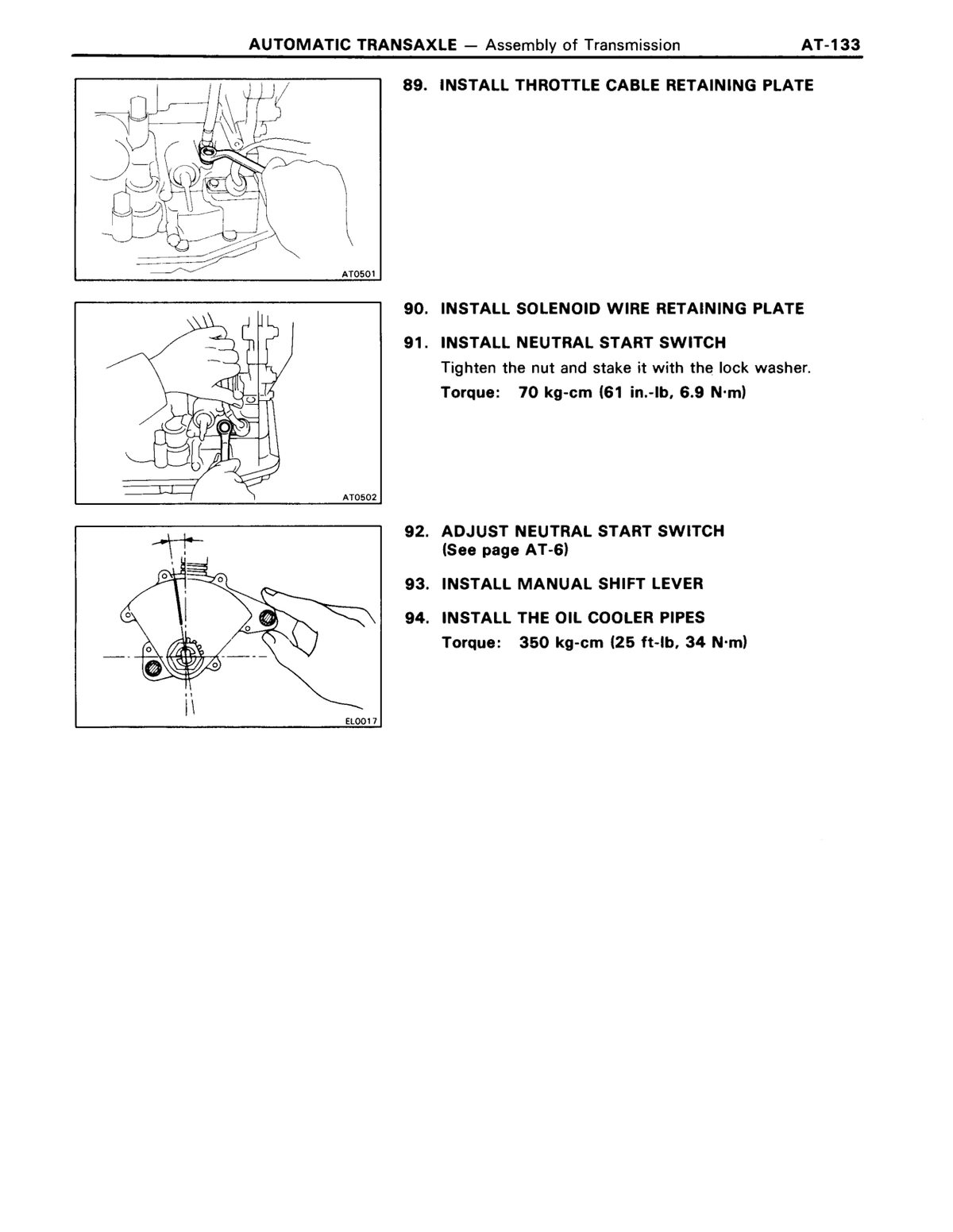

Transmission / transaxle Neutral Start Switch 70 (61 in.-lb, 6.9) 6.9 70 — ↗ RM179U1_1991 · p823 OEM manual
Transmission / transaxle Accumulator Cover bolts 100 (7, 10) 10 100 7 ↗ RM179U1_1991 · p823 OEM manual
Transmission / transaxle Oil Tube Bracket bolts 100 (7, 10) 10 100 7 ↗ RM179U1_1991 · p823 OEM manual
Transmission / transaxle Oil Pan Drain Plug 50 (43 in.-lb, 4.9) 4.9 50 — ↗ RM179U1_1991 · p823 OEM manual

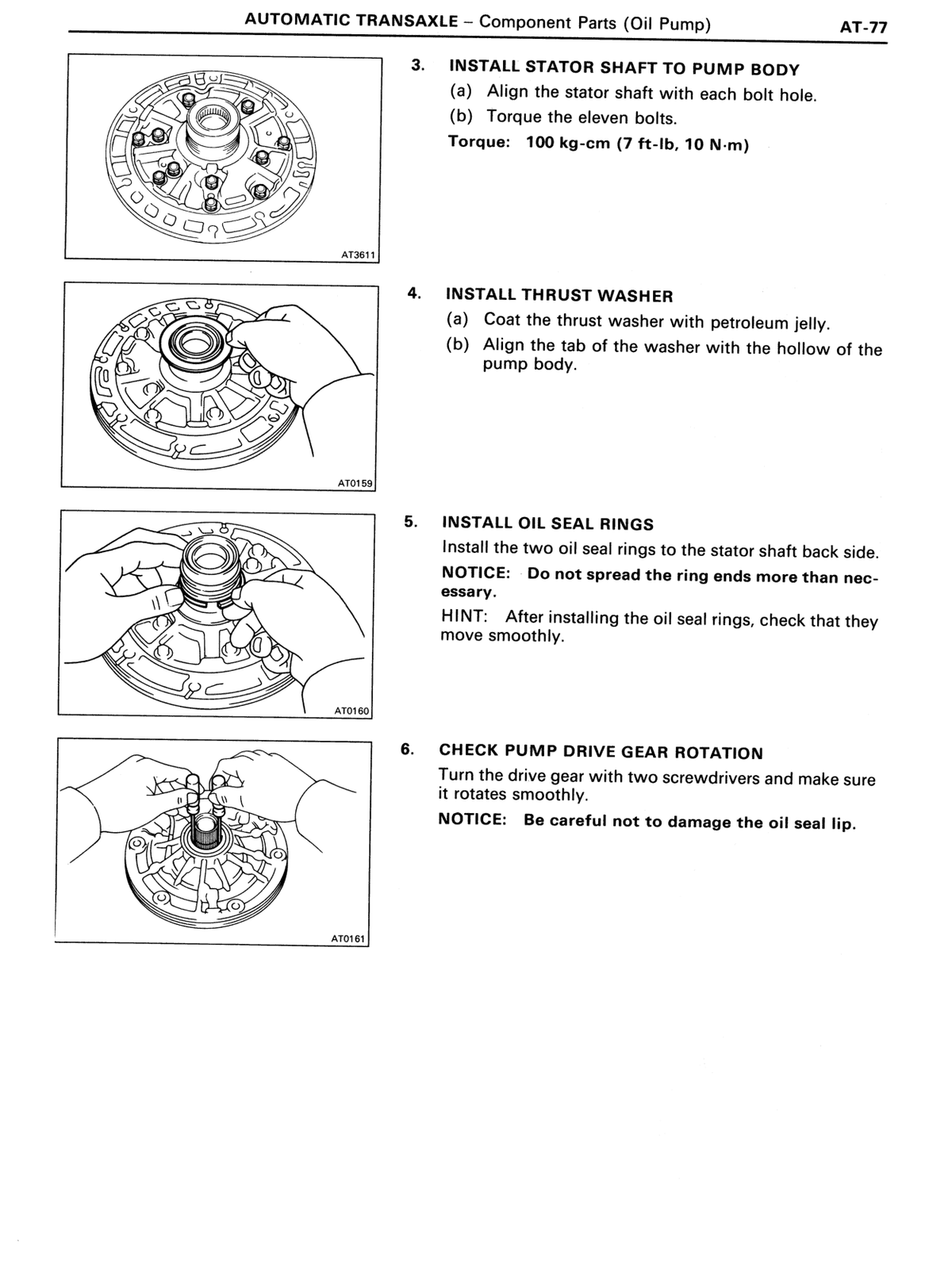

Lubrication / oil Stator shaft bolts (eleven bolts) Step 3 — Install stator shaft to pump body 10 100 7 ↗ RM179U1_1991 · p856 OEM manual
Transmission / transaxle Counter shaft starting torque (new bearing) — hexagon nut side New bearing; range 6–10 kg-cm (5.2–8.7 in.-lb, 0.6–1.0 N·m); measured with torque gauge on hexagon nut side 0.6 6 — ↗ RM179U1_1991 · p878 OEM manual
Transmission / transaxle Counter shaft starting torque (reused bearing) — hexagon nut side Reused bearing; range 3–5 kg-cm (2.6–4.3 in.-lb, 0.3–0.5 N·m); measured with torque gauge on hexagon nut side 0.3 3 — ↗ RM179U1_1991 · p878 OEM manual

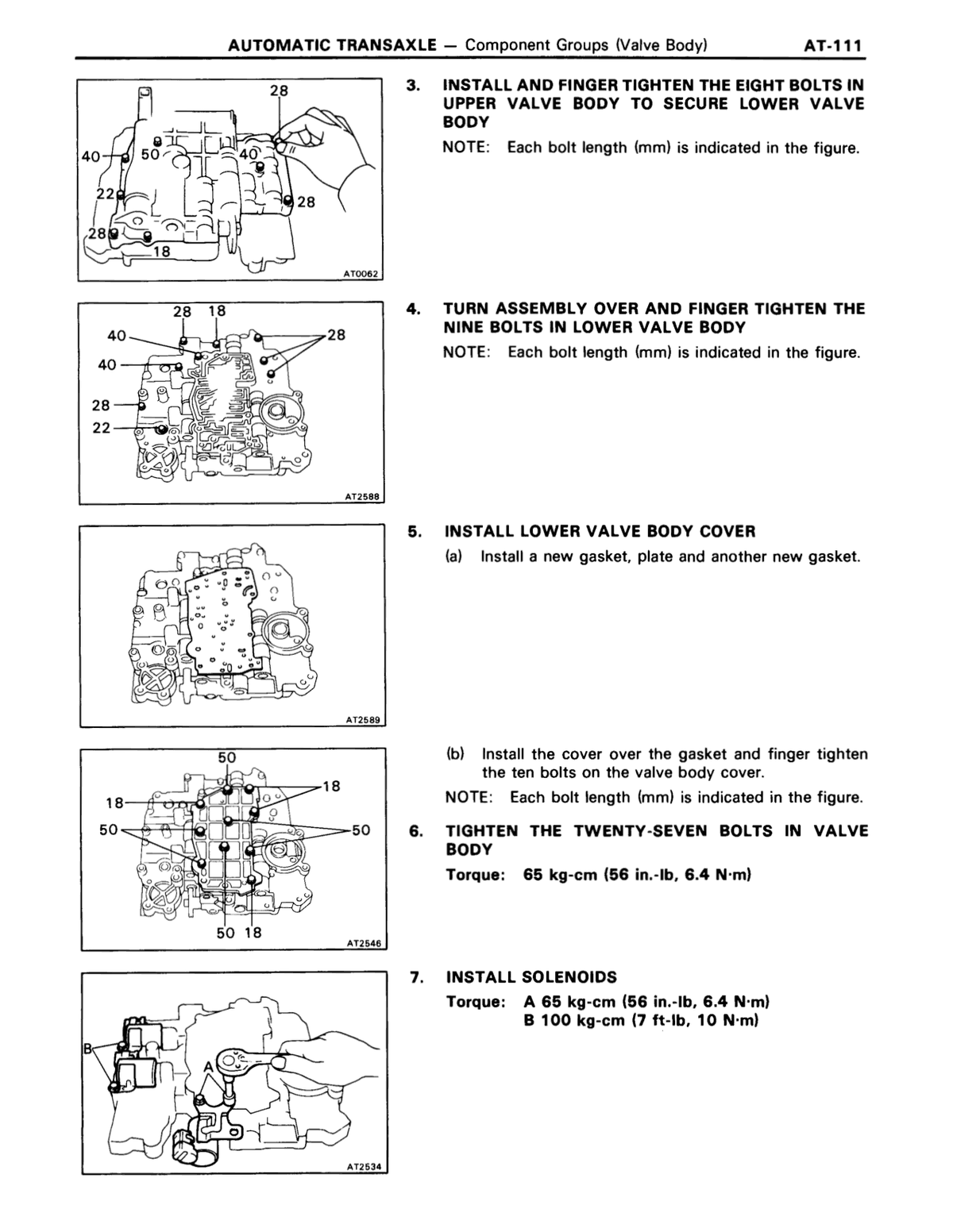

Engine — mechanical Lower valve body bolts (19 bolts) Step 6(a) 6.4 65 — ↗ RM179U1_1991 · p901 OEM manual
Engine — mechanical Upper valve body bolts (8 bolts) Step 6(b) 6.4 65 — ↗ RM179U1_1991 · p901 OEM manual

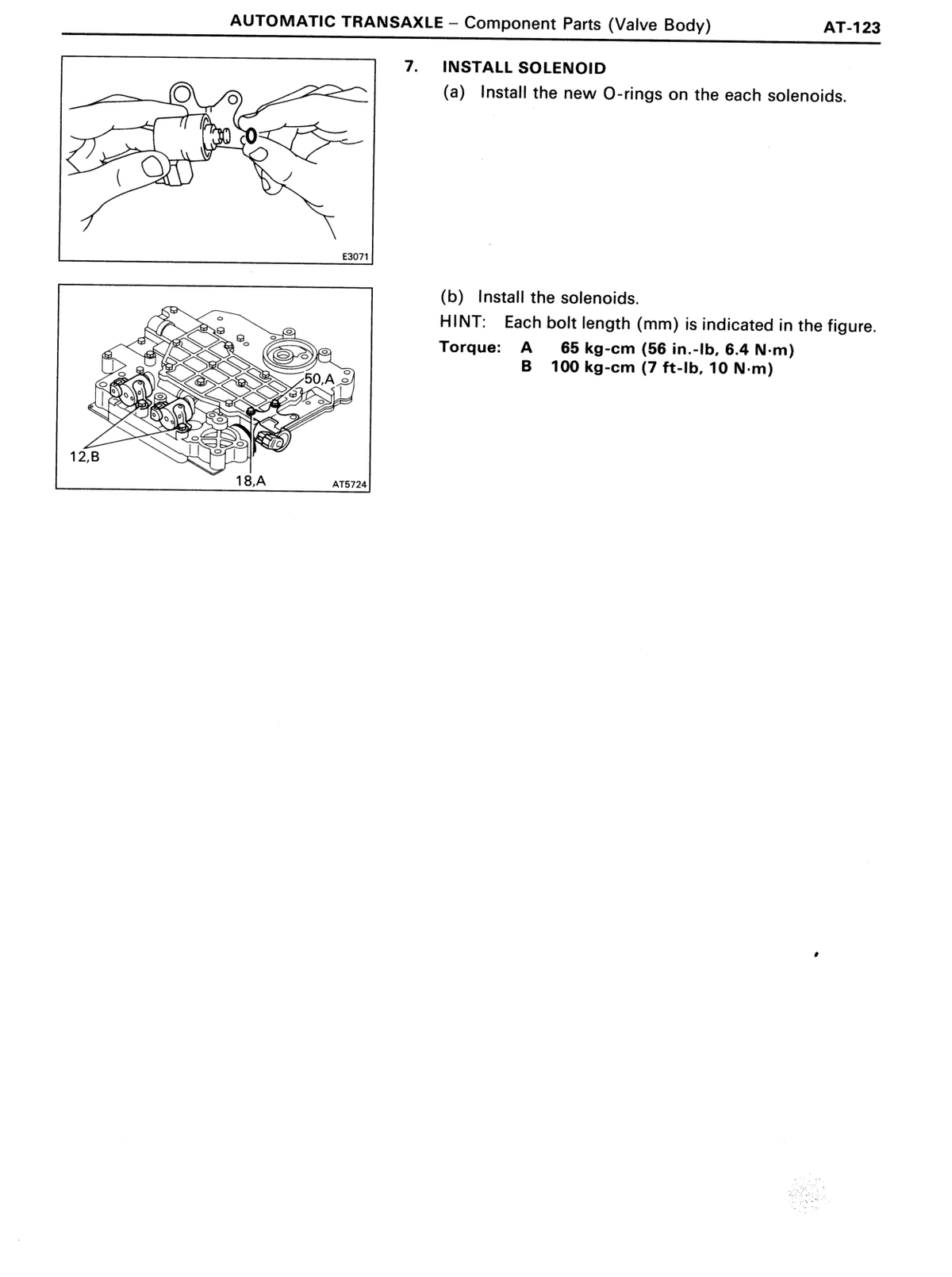

Engine — mechanical Solenoid bolt A 56 in-lb; bolt length 18 mm 6.4 65 4.7 ↗ RM179U1_1991 · p902 OEM manual

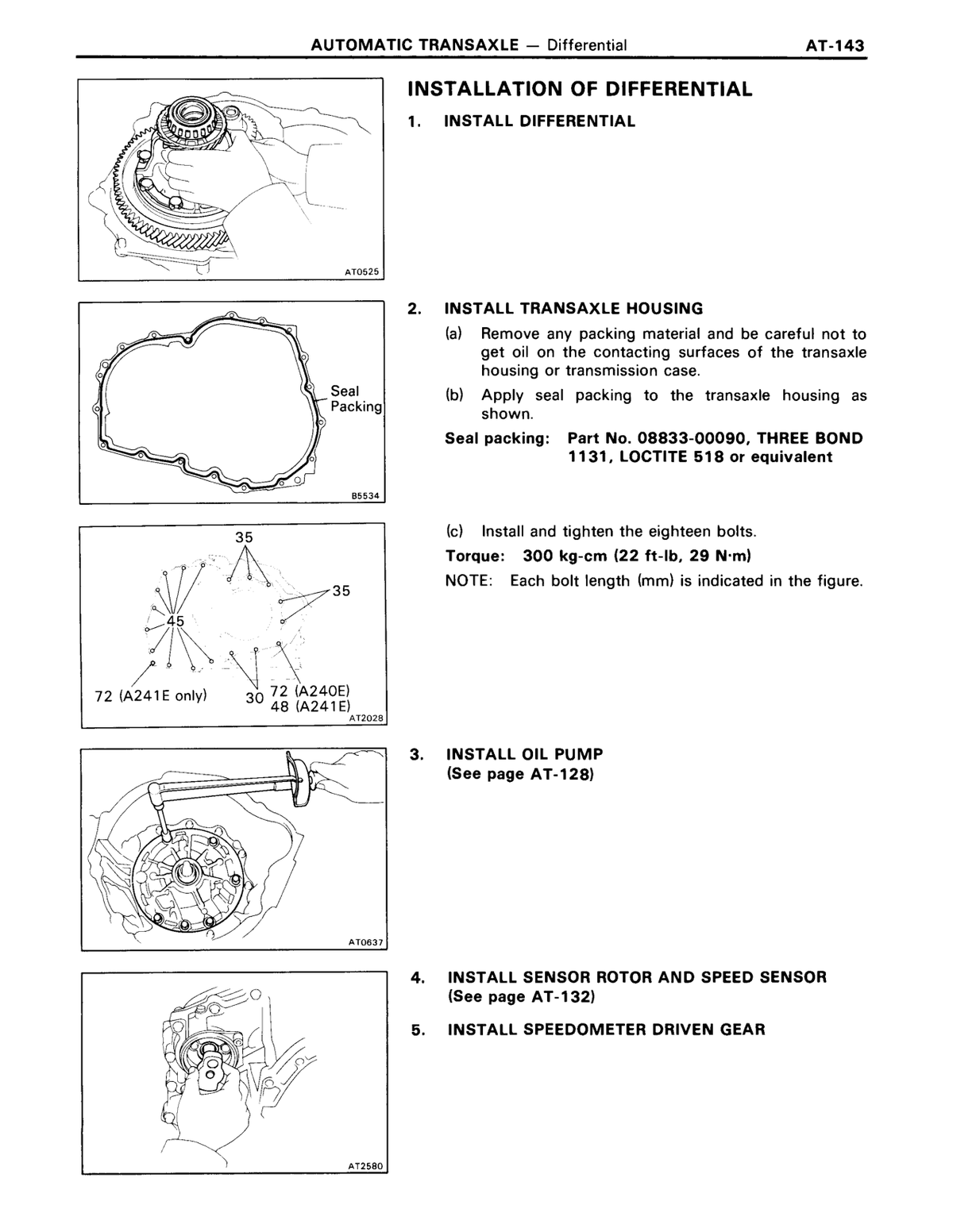

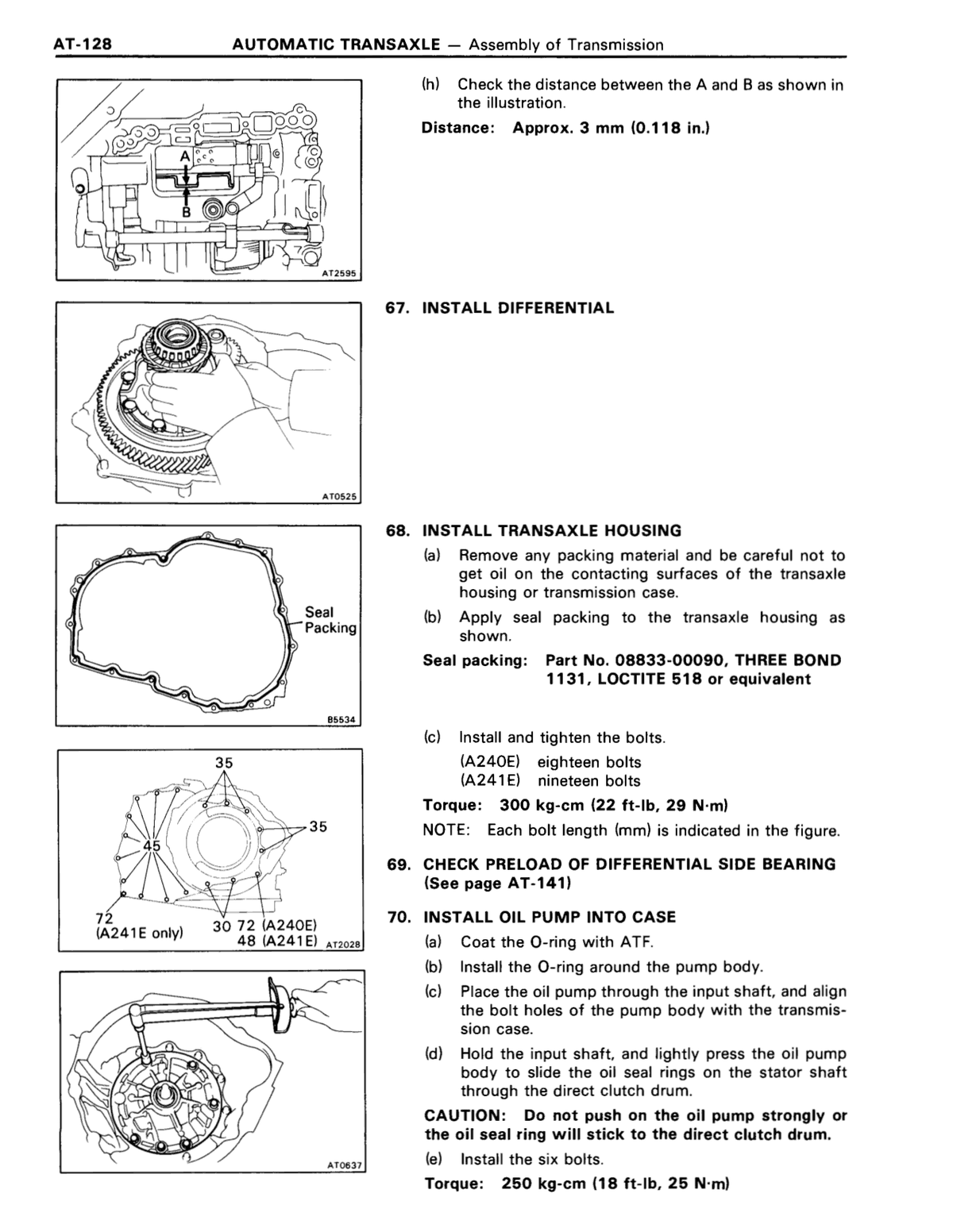

Transmission / transaxle Transaxle housing to transaxle case bolts Each bolt length (mm) indicated in illustration 29 300 22 ↗ RM179U1_1991 · p909 OEM manual

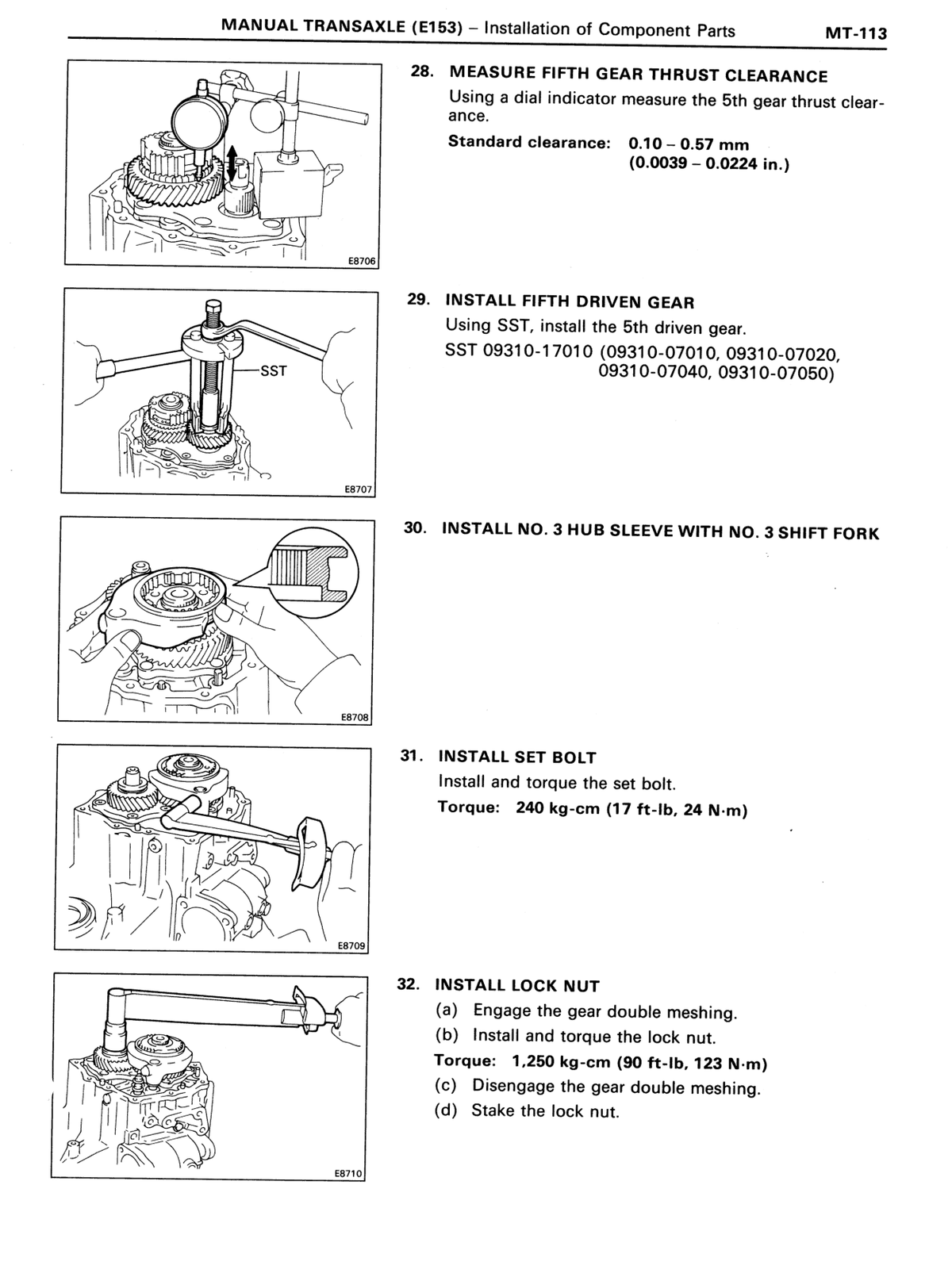

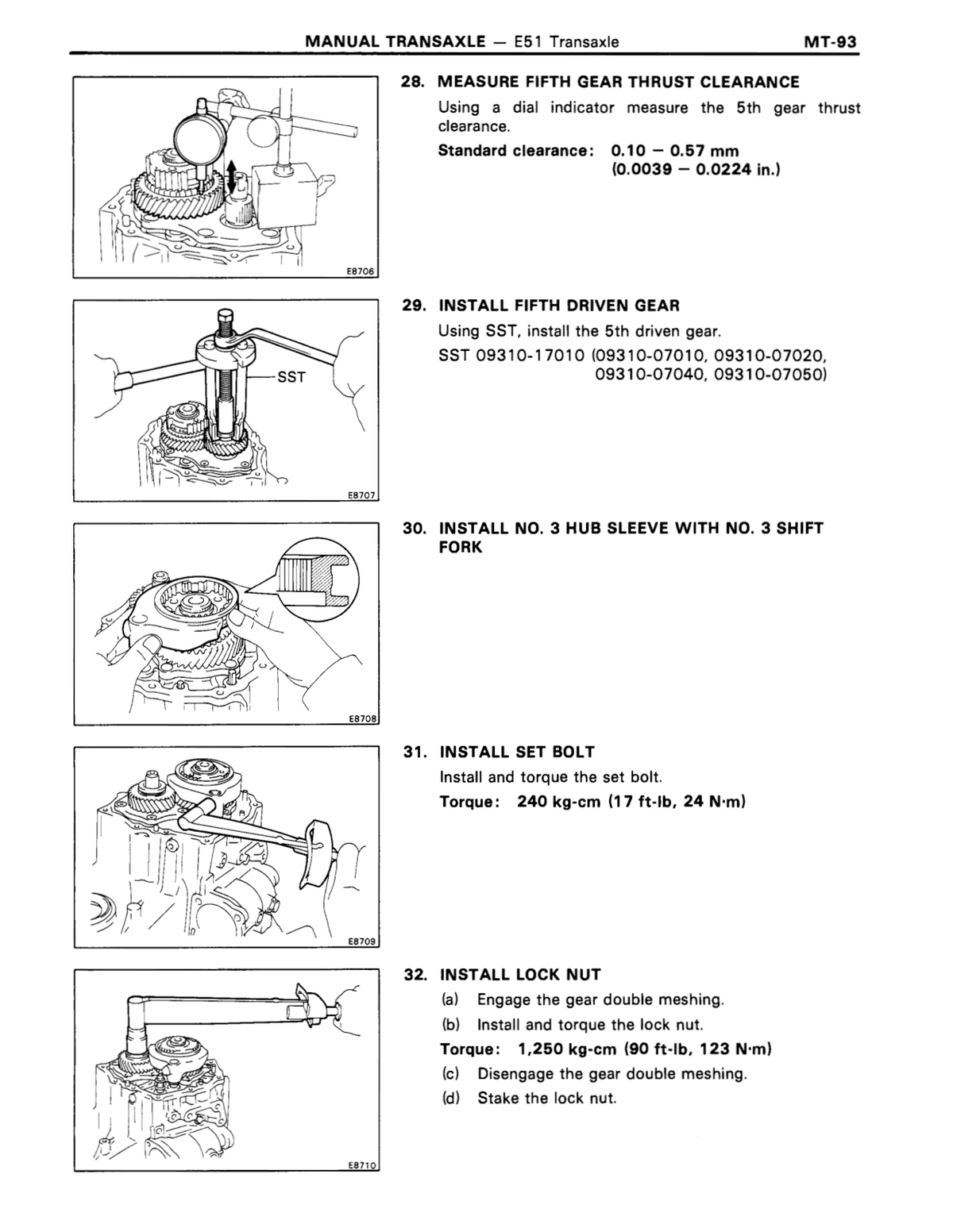

Transmission / transaxle New lock nut (counter driven gear) Step 32 157 1600 116 ↗ RM179U1_1991 · p922 OEM manual

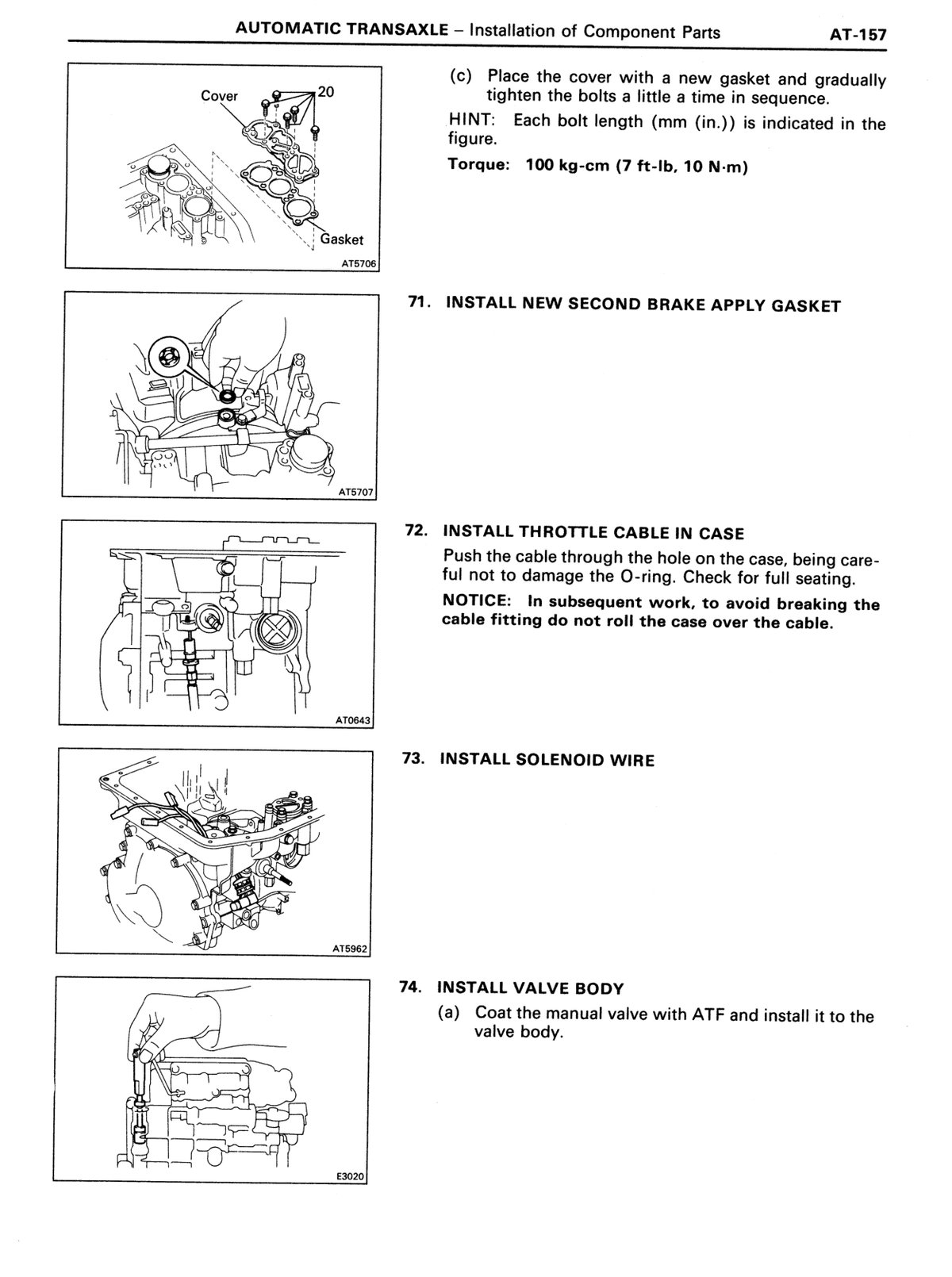

Transmission / transaxle Cover bolts Tighten gradually a little at a time in sequence 10 100 7 ↗ RM179U1_1991 · p936 OEM manual

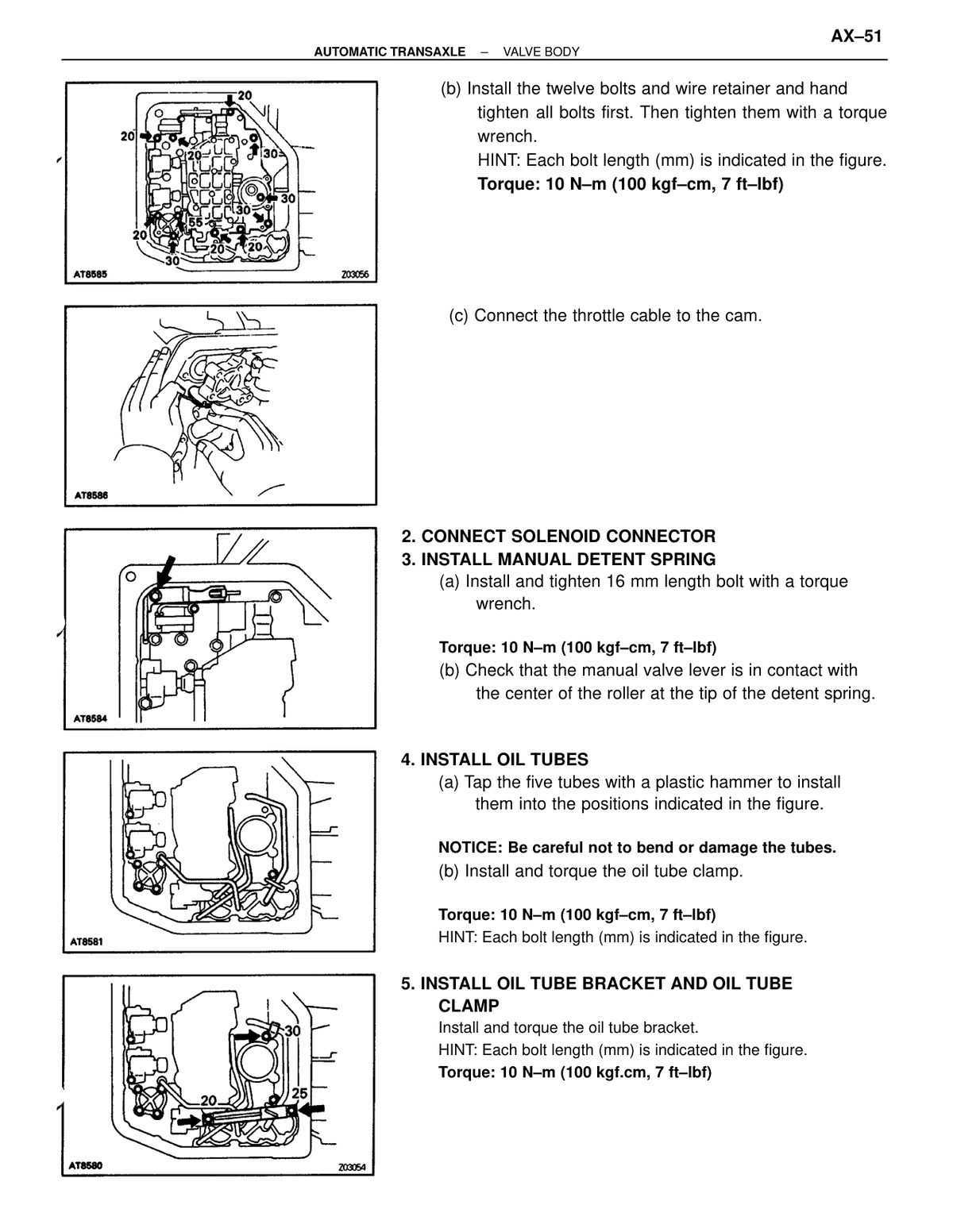

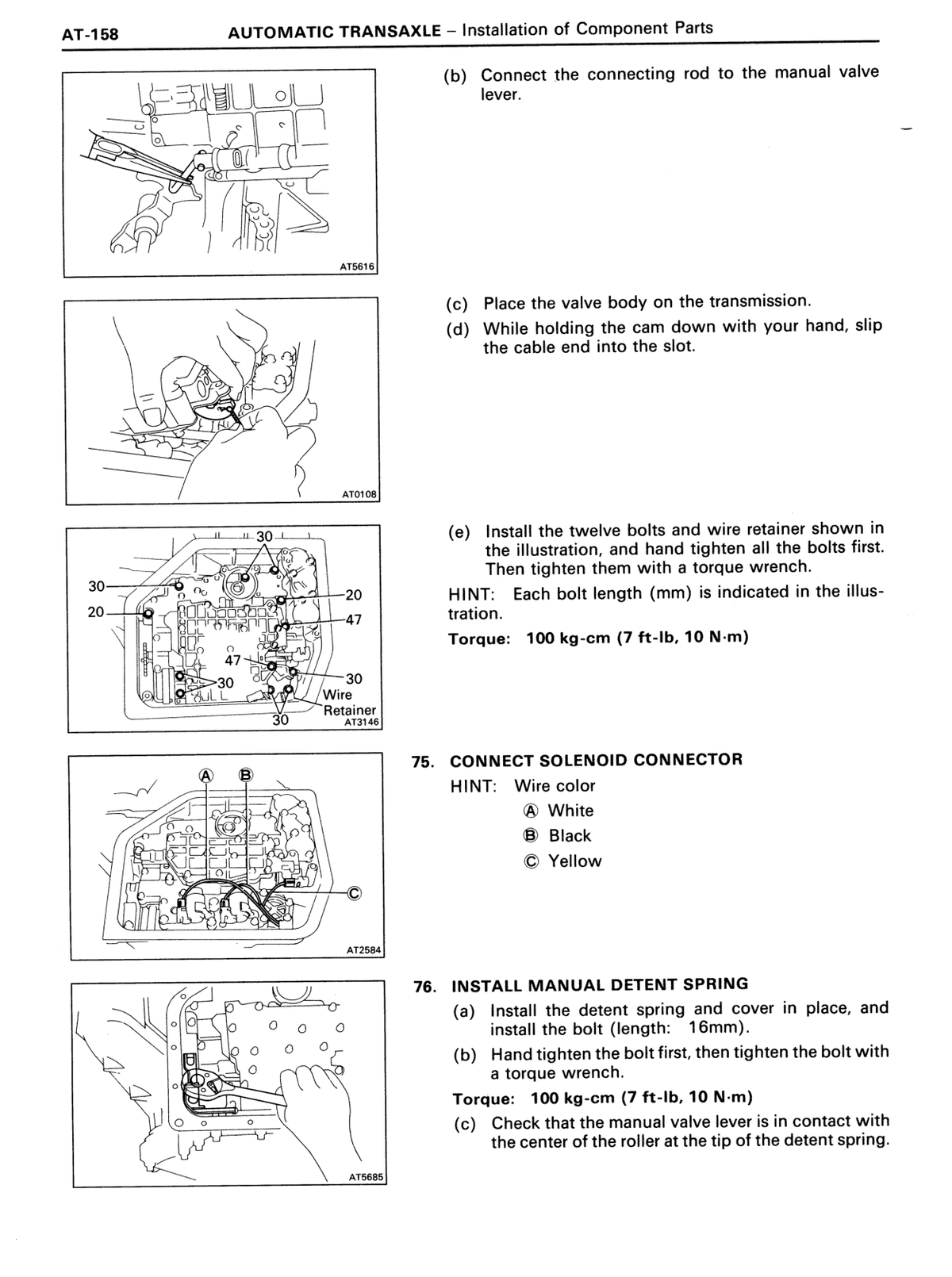

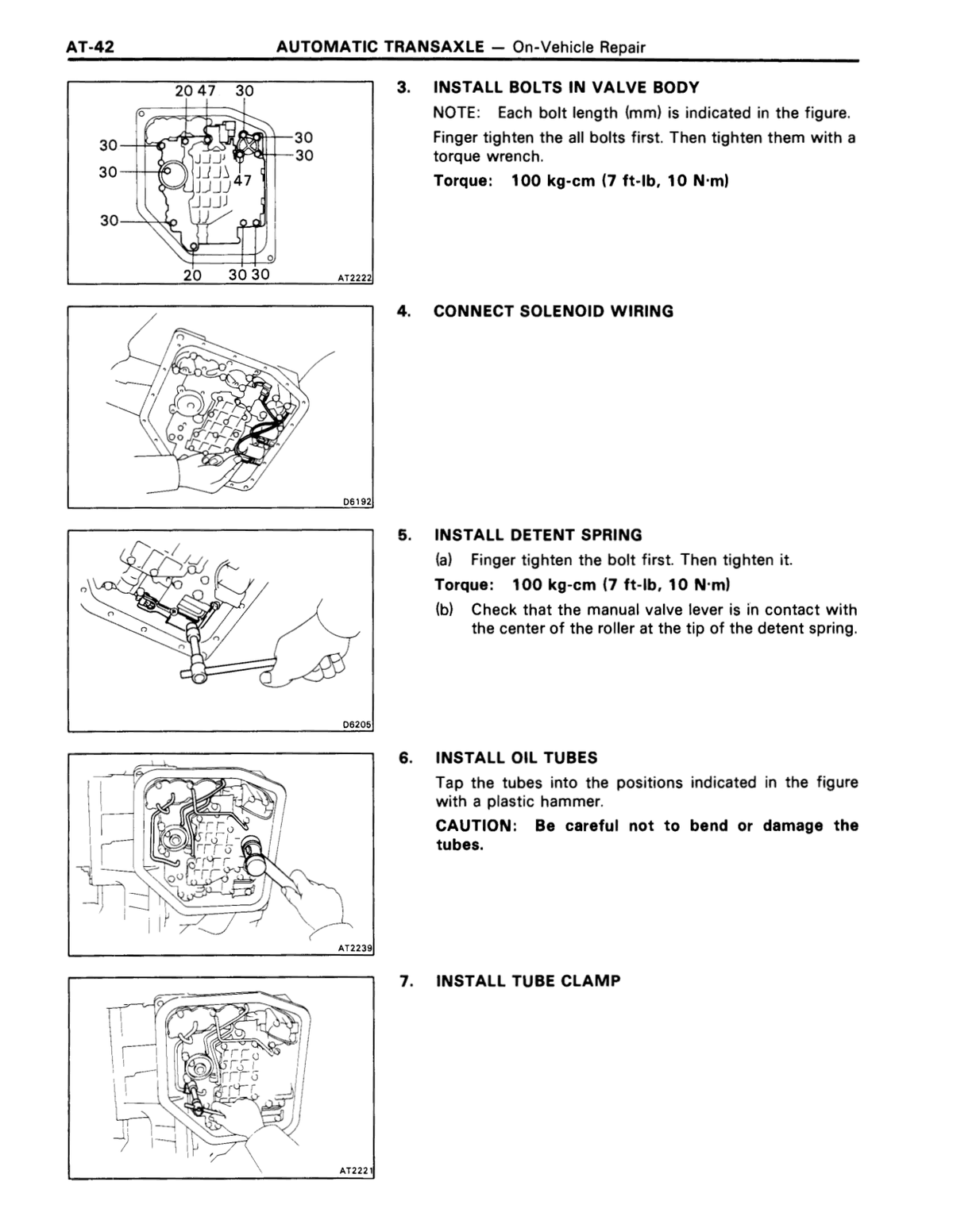

Transmission / transaxle Valve body bolts Twelve bolts and wire retainer; hand tighten first, then torque wrench 10 100 7 ↗ RM179U1_1991 · p937 OEM manual
Transmission / transaxle Manual detent spring cover bolt Bolt length 16mm; hand tighten first, then torque wrench 10 100 7 ↗ RM179U1_1991 · p937 OEM manual

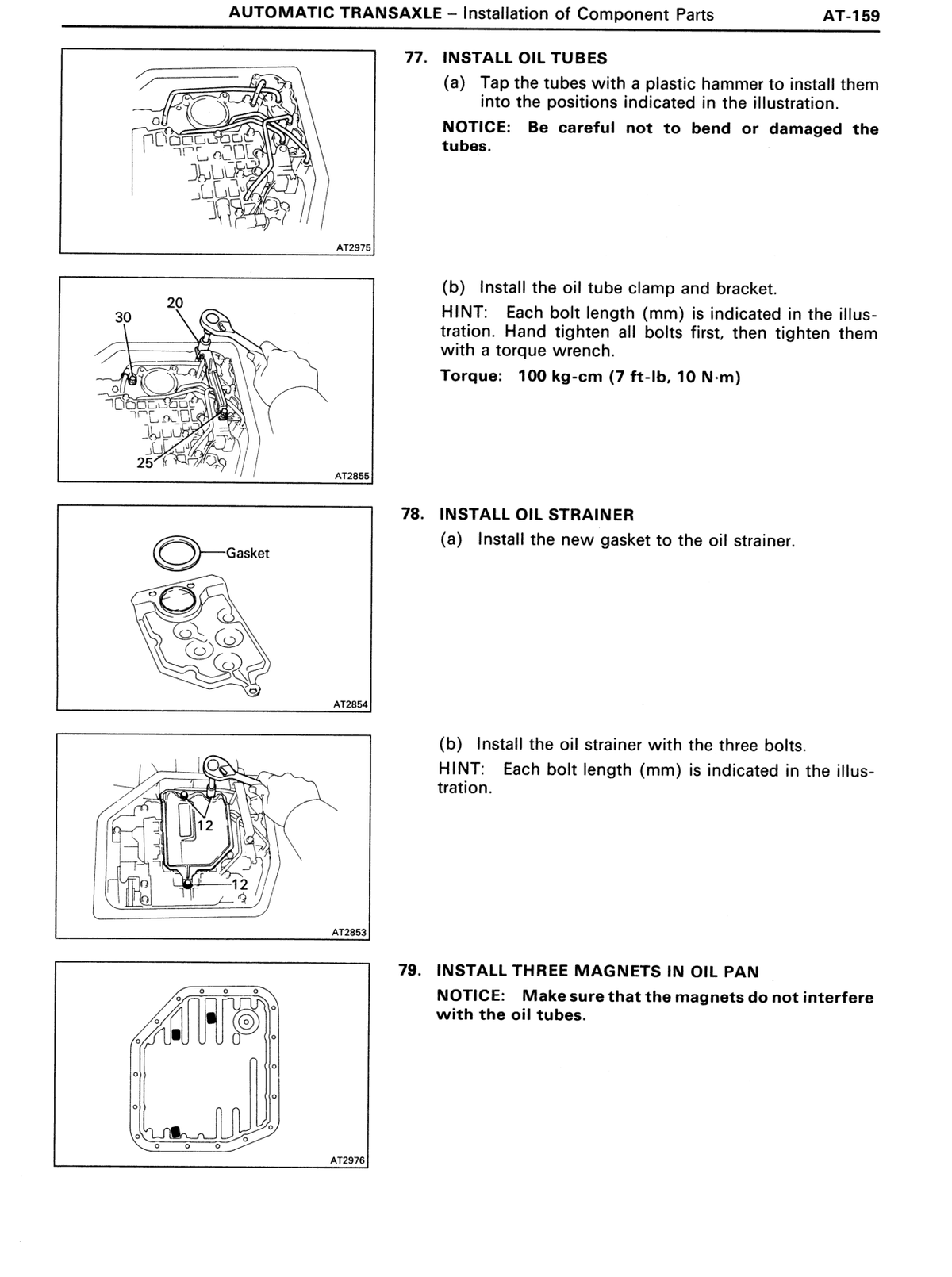

Transmission / transaxle Oil tube clamp and bracket bolts Step 77(b) 10 100 7 ↗ RM179U1_1991 · p938 OEM manual

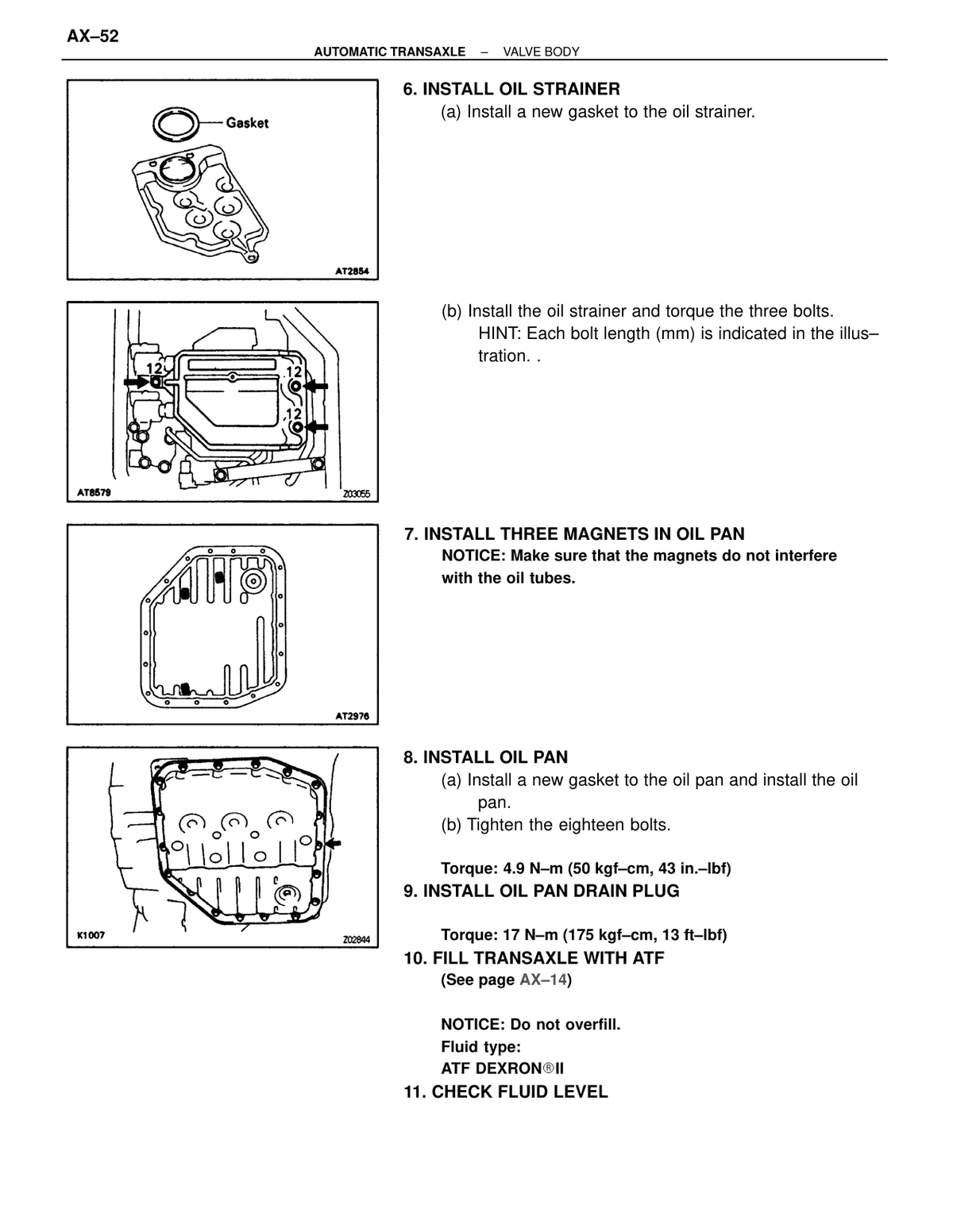

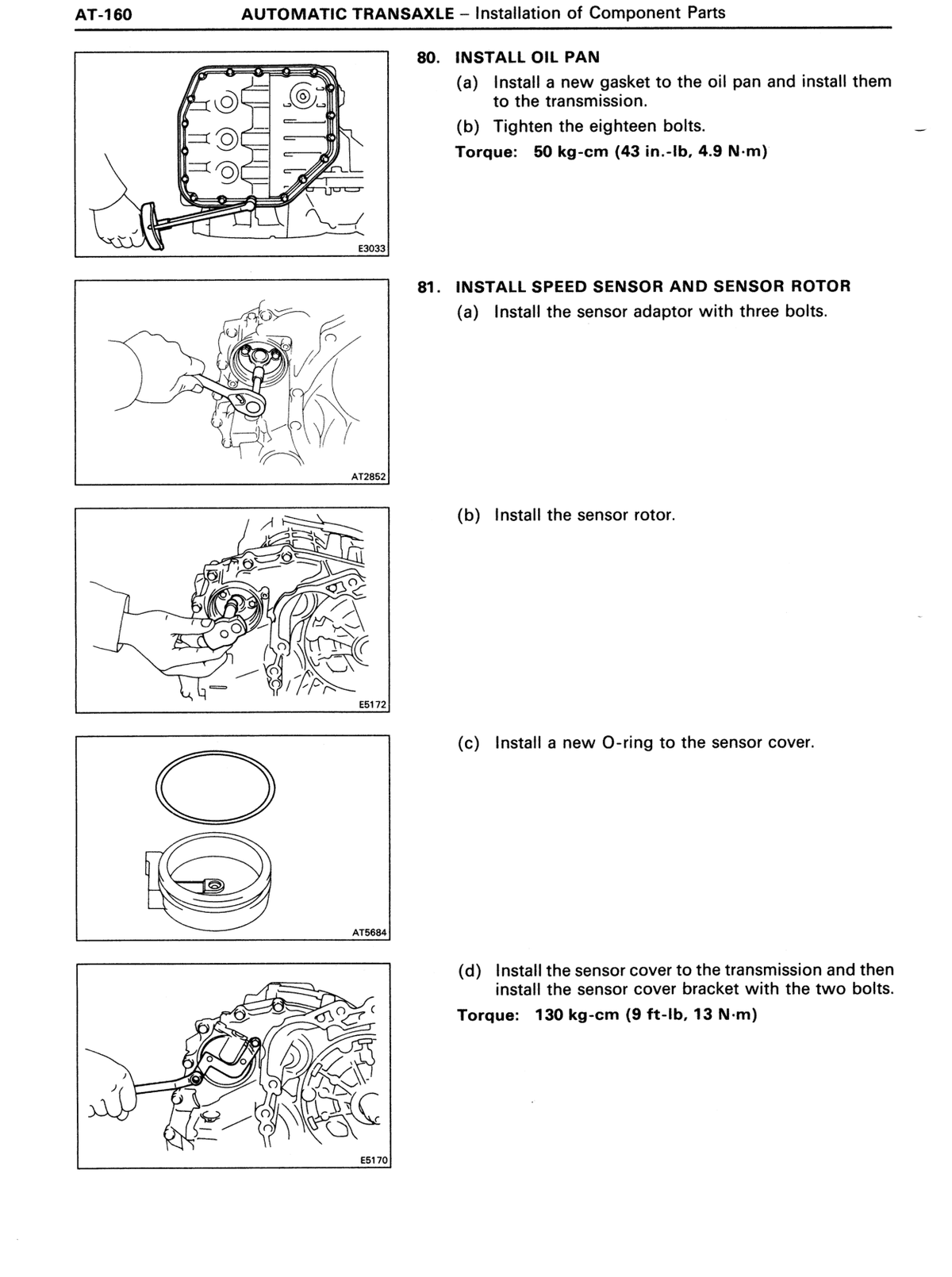

Transmission / transaxle Oil pan bolts (eighteen bolts) 43 in.-lb; Step 80(b) 4.9 50 — ↗ RM179U1_1991 · p939 OEM manual

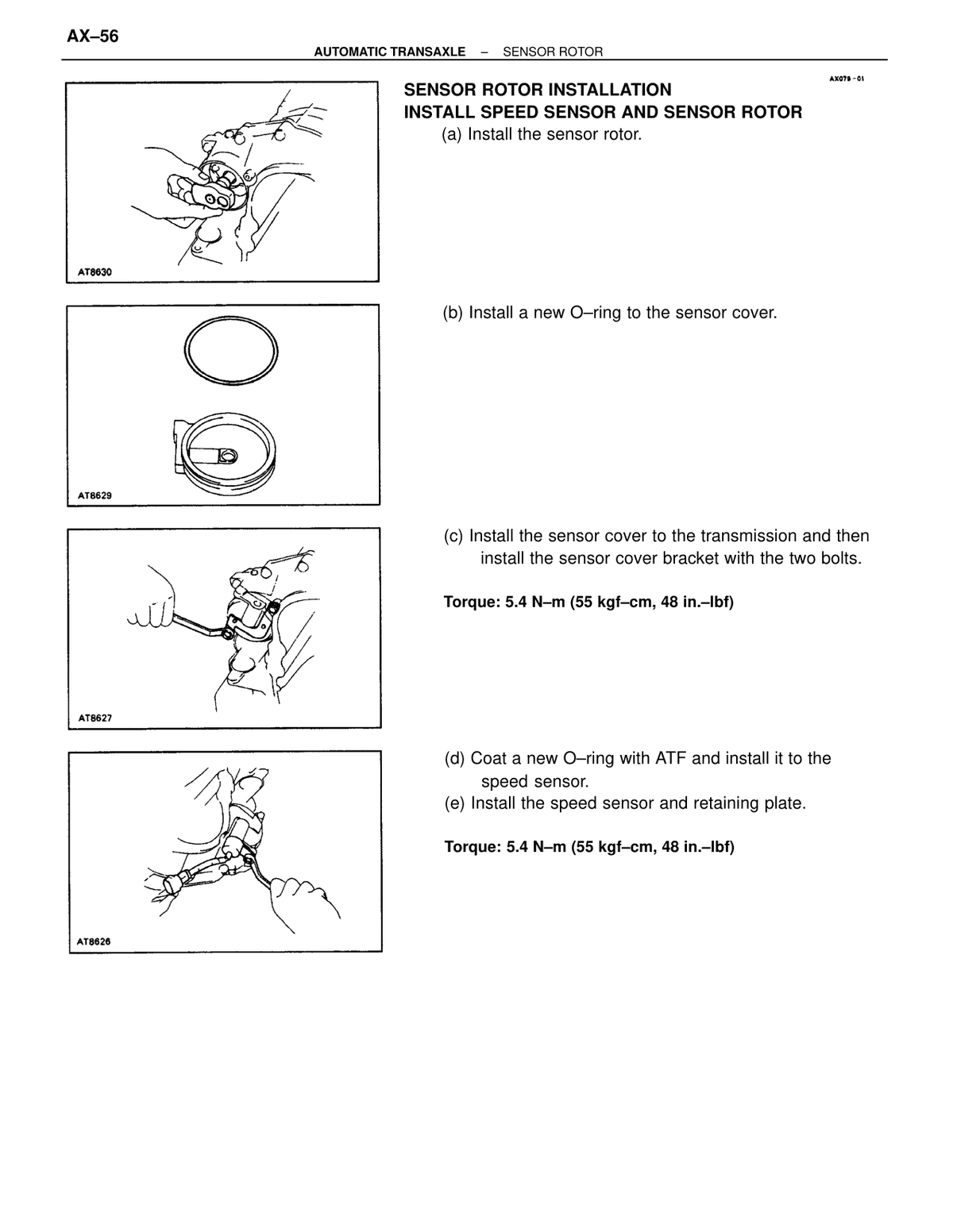

Transmission / transaxle Sensor cover bracket bolts (two bolts) Step 81(d) 13 130 9 ↗ RM179U1_1991 · p939 OEM manual

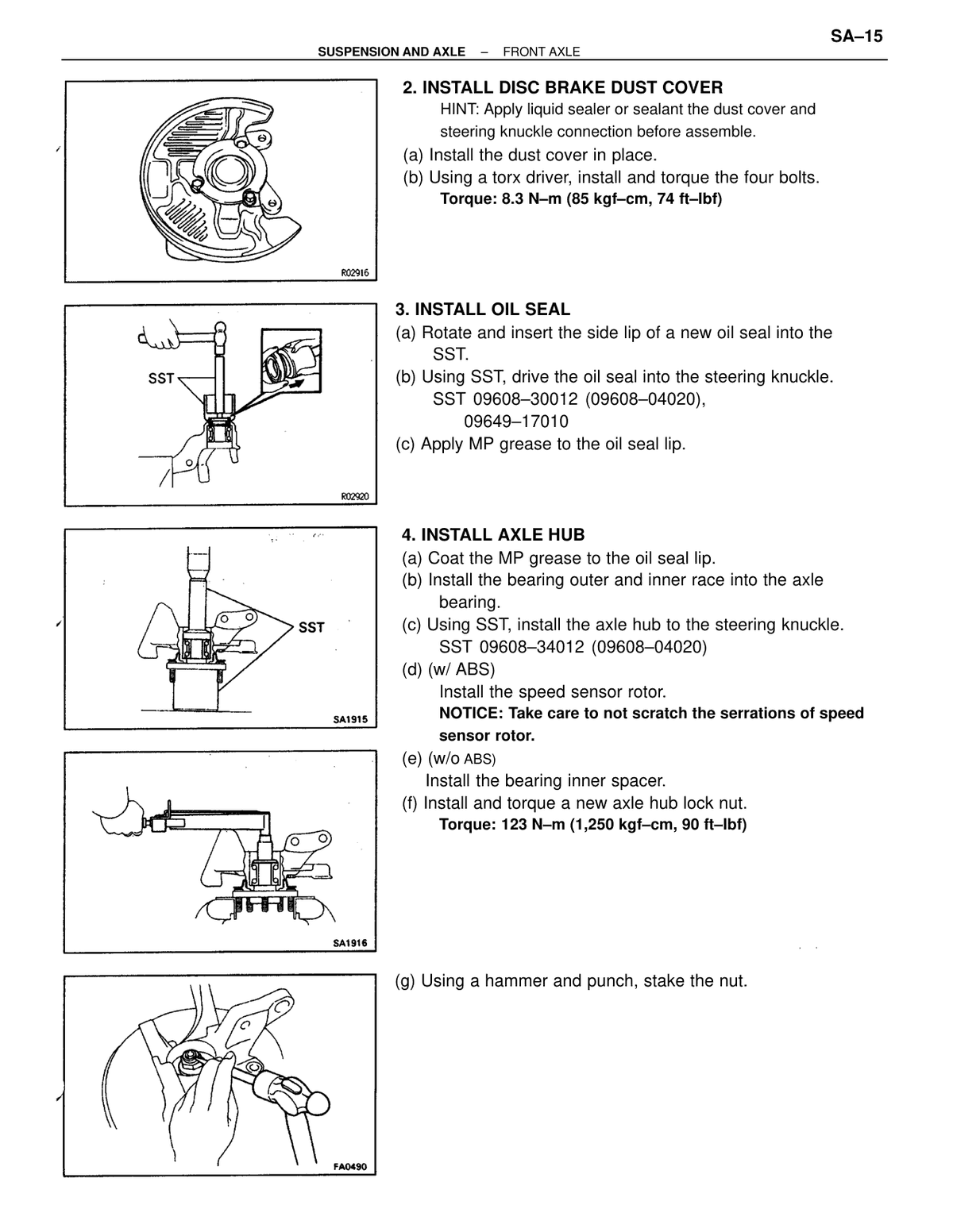

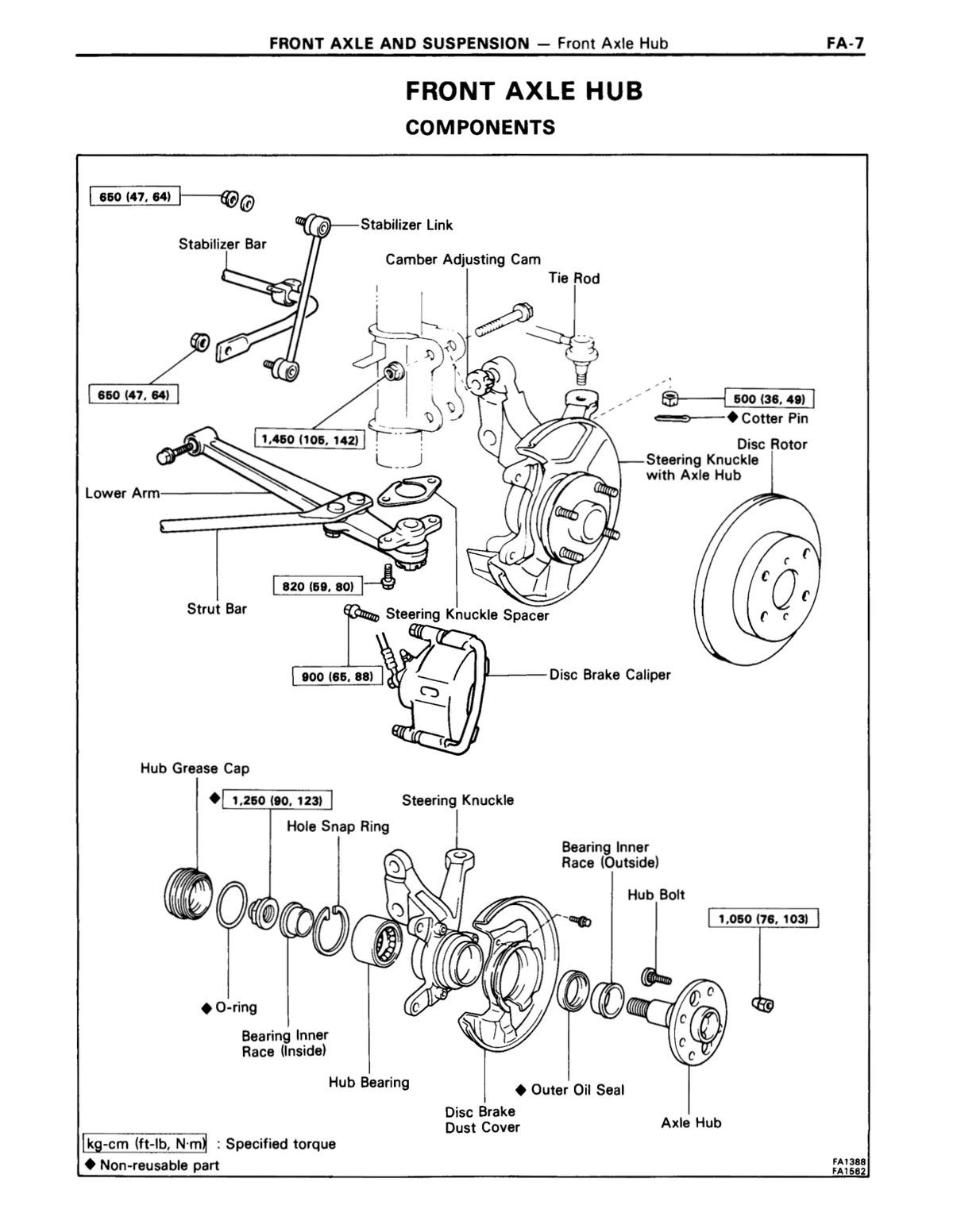

Suspension & axle Disc brake dust cover bolts Four bolts, installed with torx driver 8.3 85 — ↗ RM179U1_1991 · p957 OEM manual

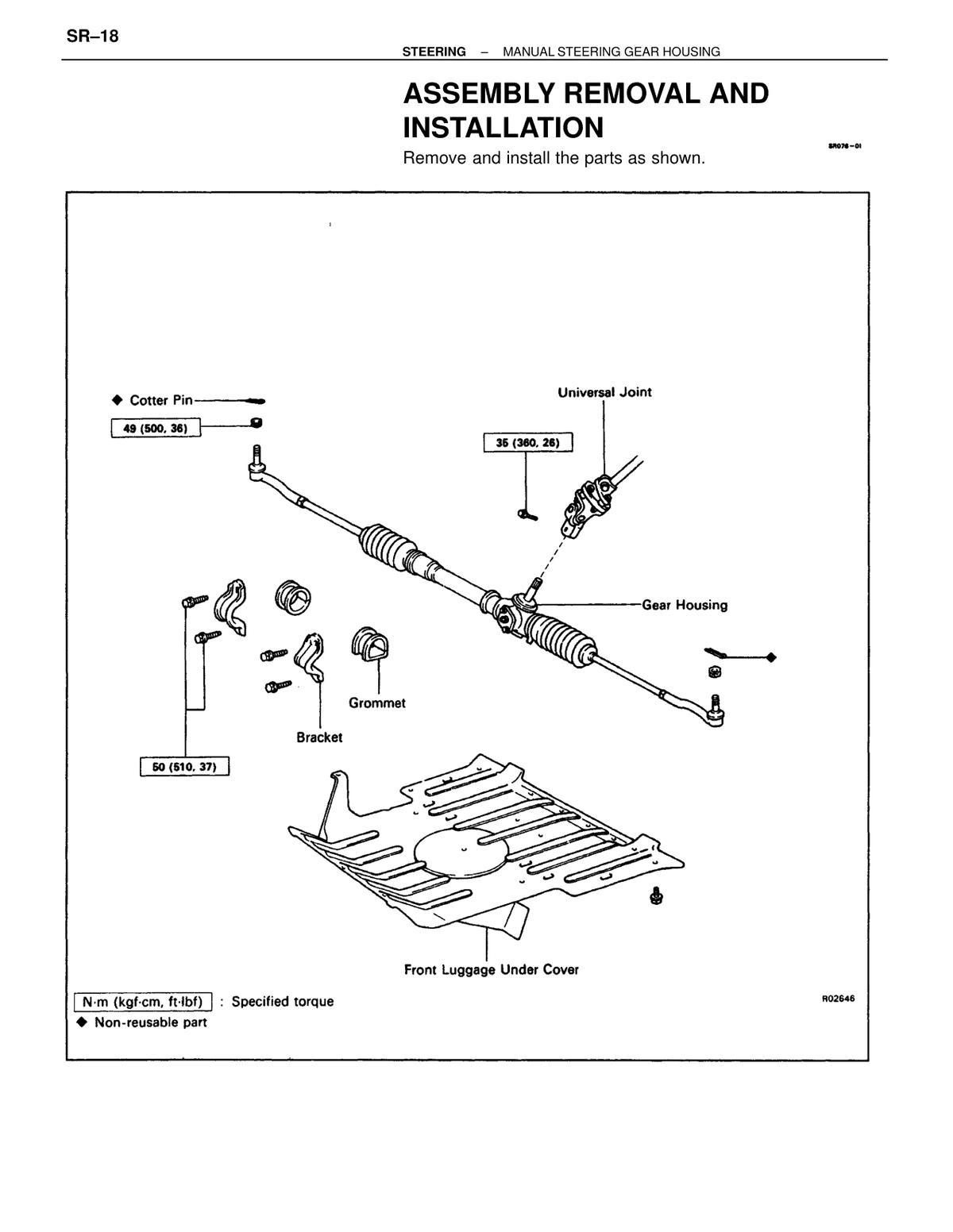

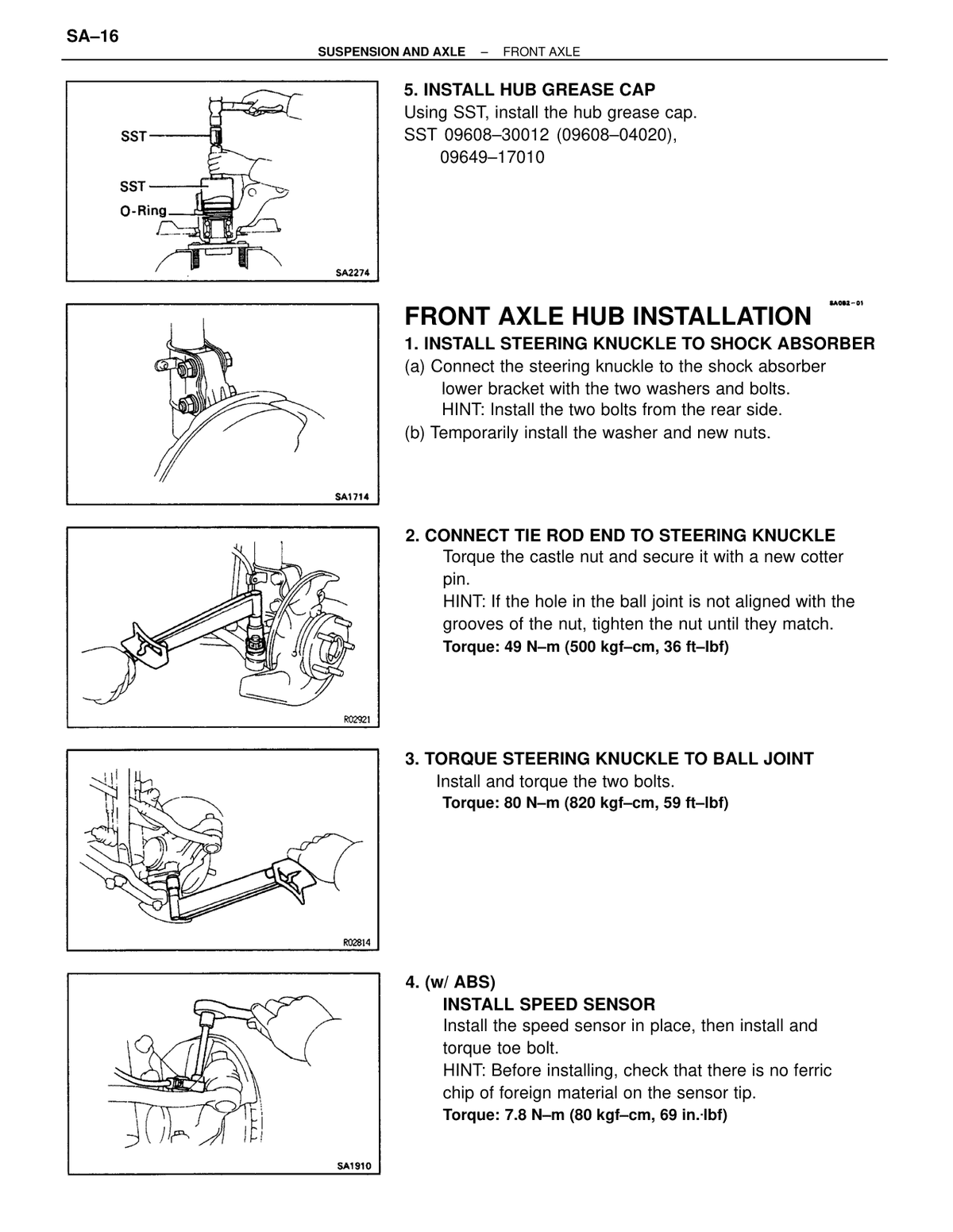

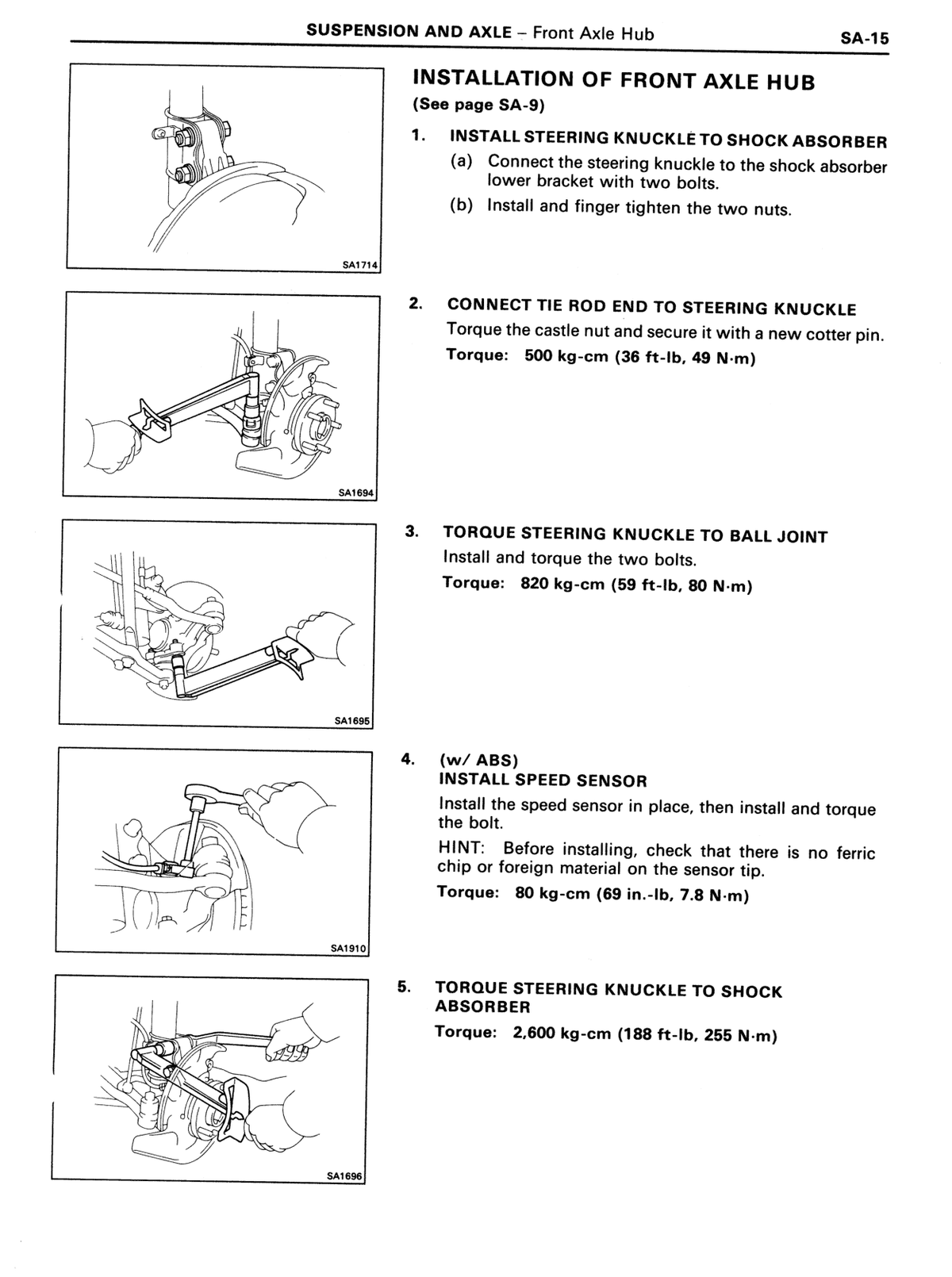

Suspension & axle Tie rod end castle nut to steering knuckle 49 500 36 ↗ RM179U1_1991 · p959 OEM manual
Suspension & axle Speed sensor bolt 69 in.-lb; w/ ABS only 7.8 80 — ↗ RM179U1_1991 · p959 OEM manual

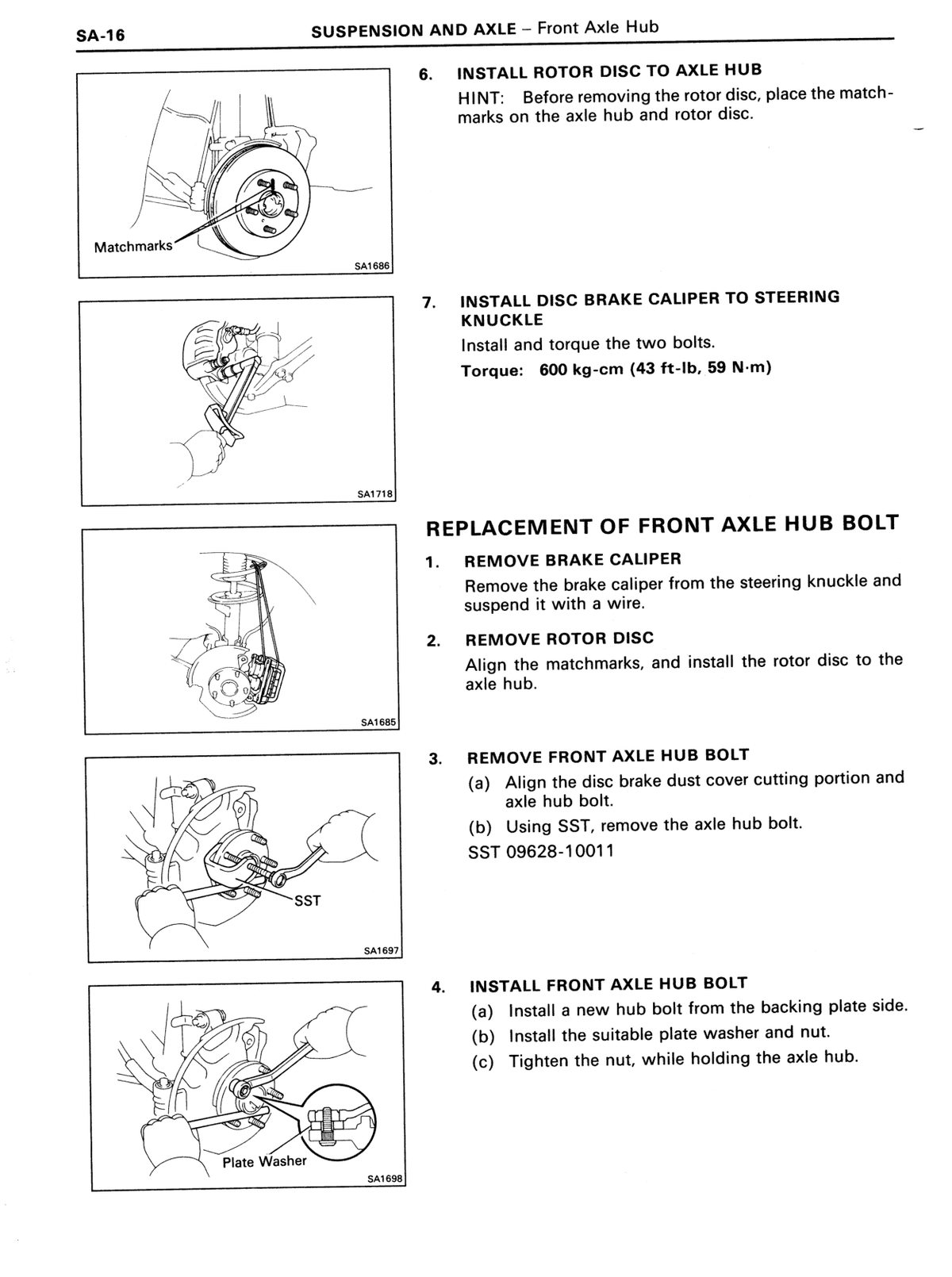

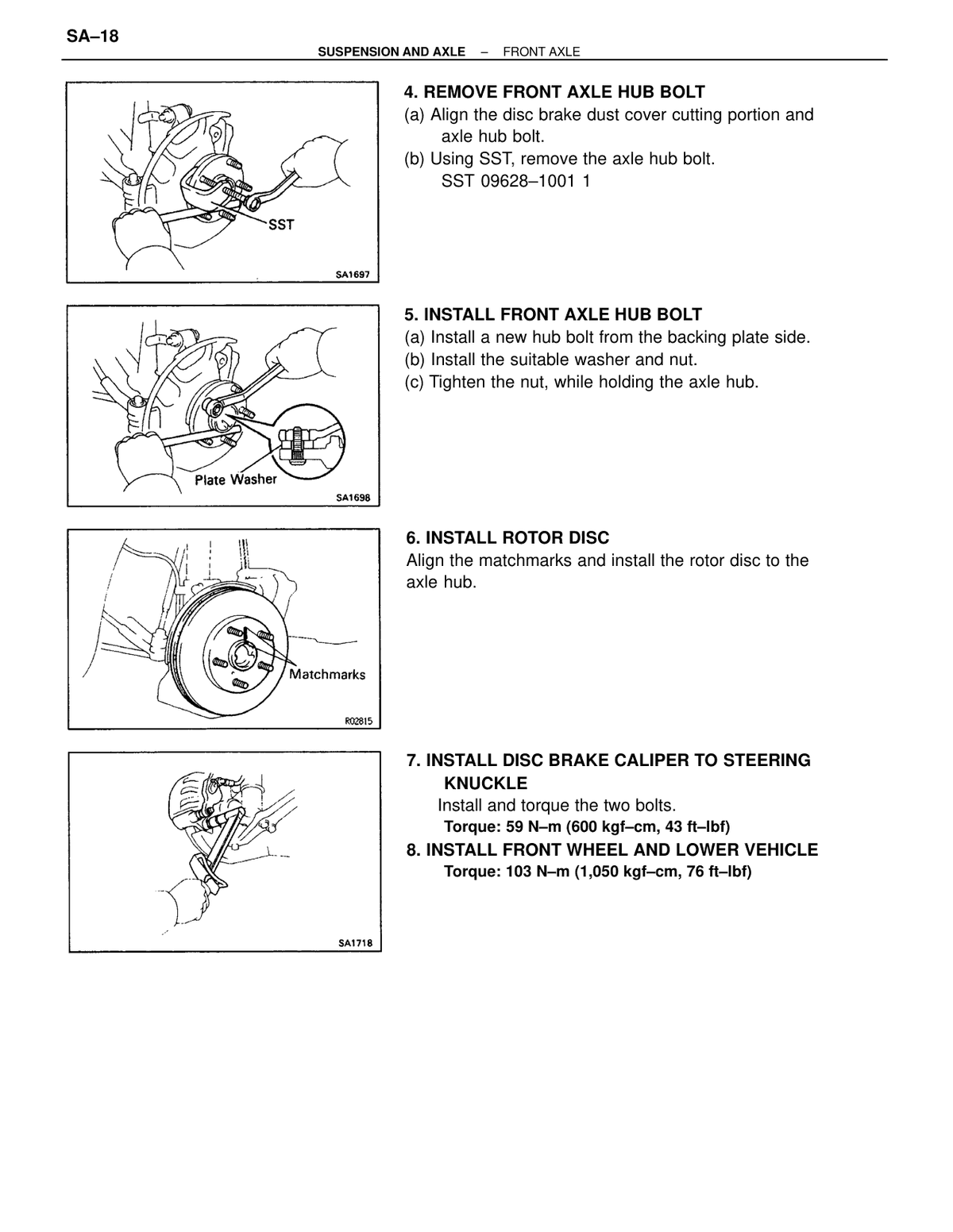

Suspension & axle Disc brake caliper to steering knuckle bolts 59 600 43 ↗ RM179U1_1991 · p960 OEM manual

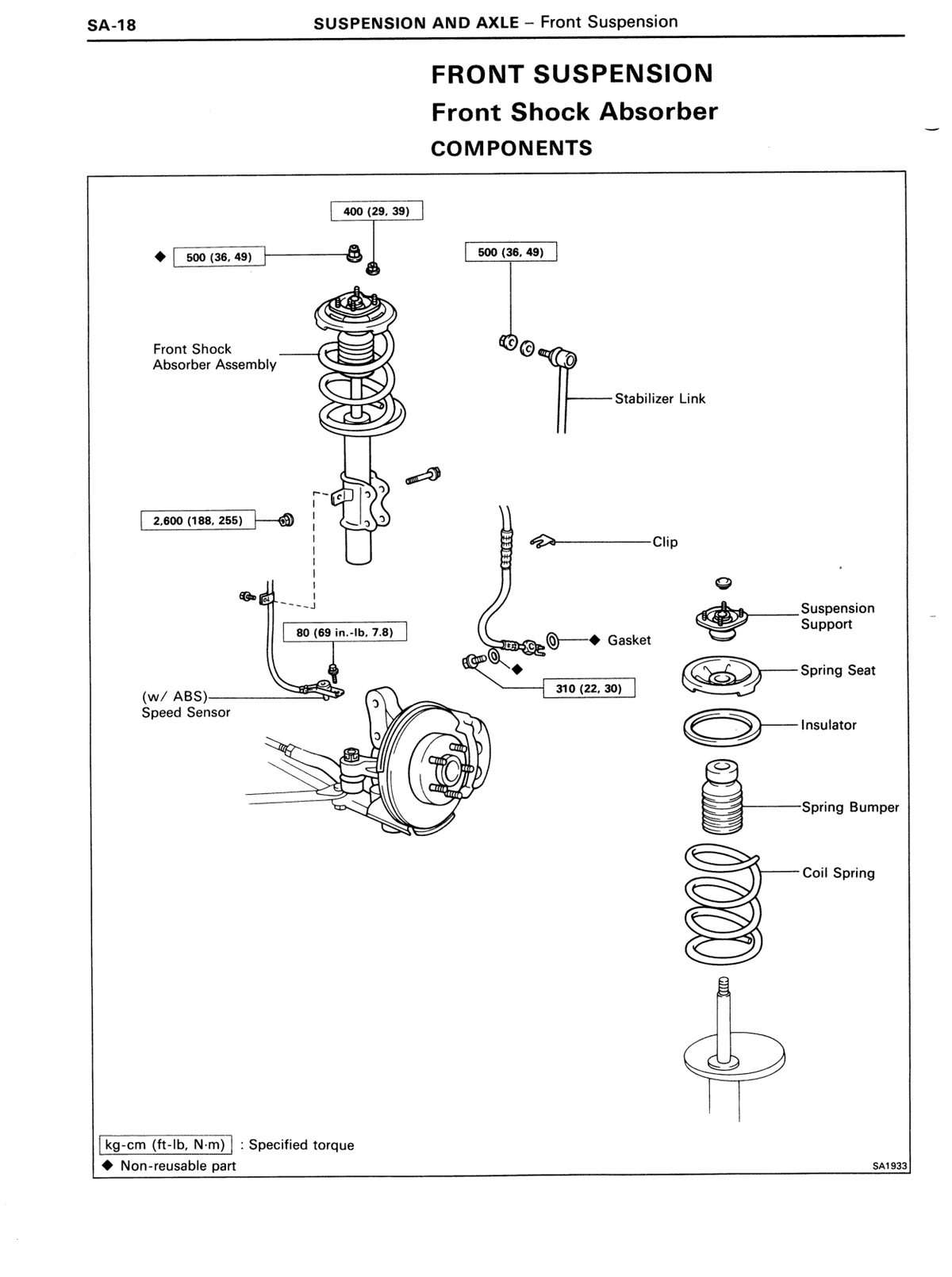

Suspension & axle Suspension support nut (top) 400 (29, 39) 39 400 29 ↗ RM179U1_1991 · p962 OEM manual

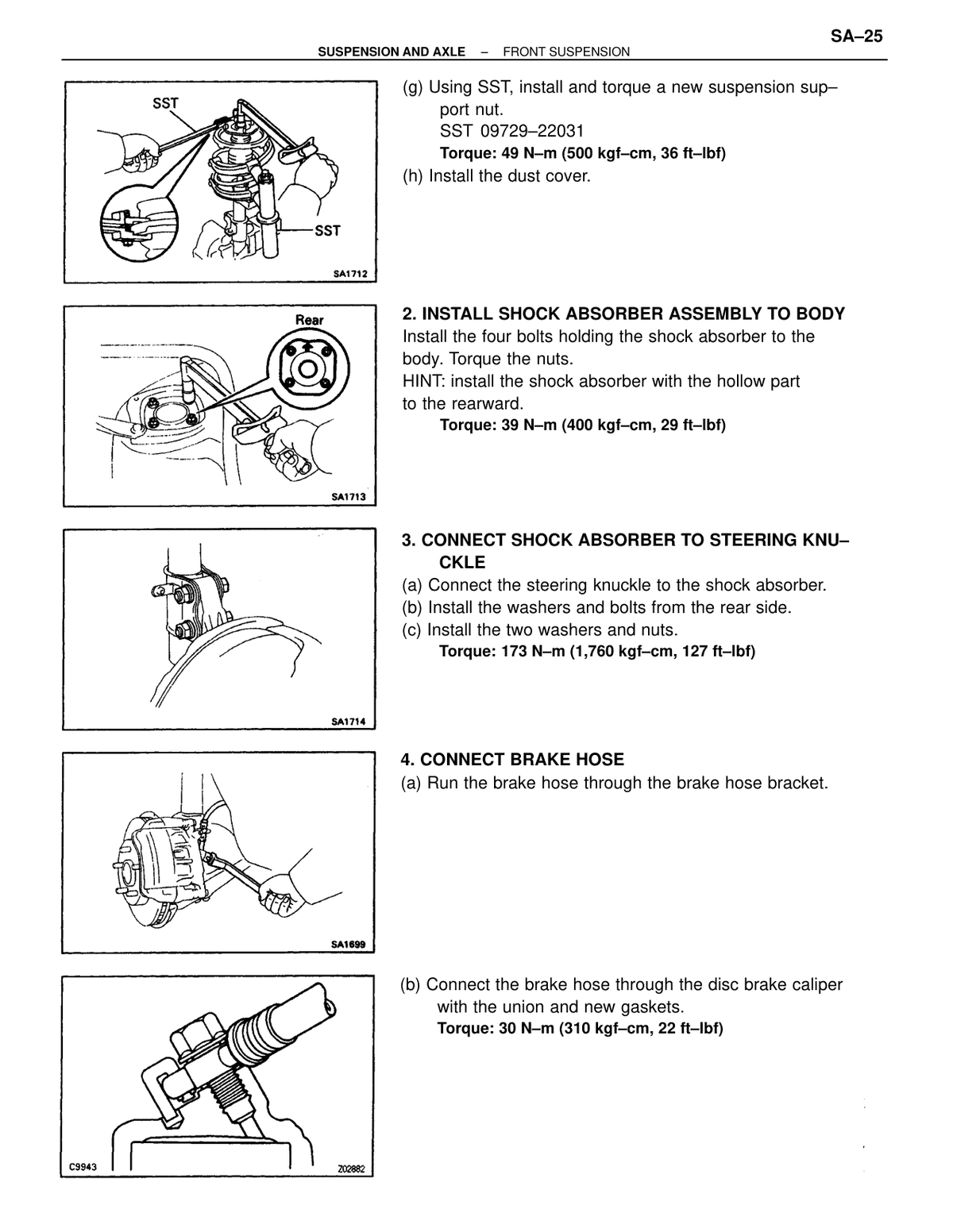

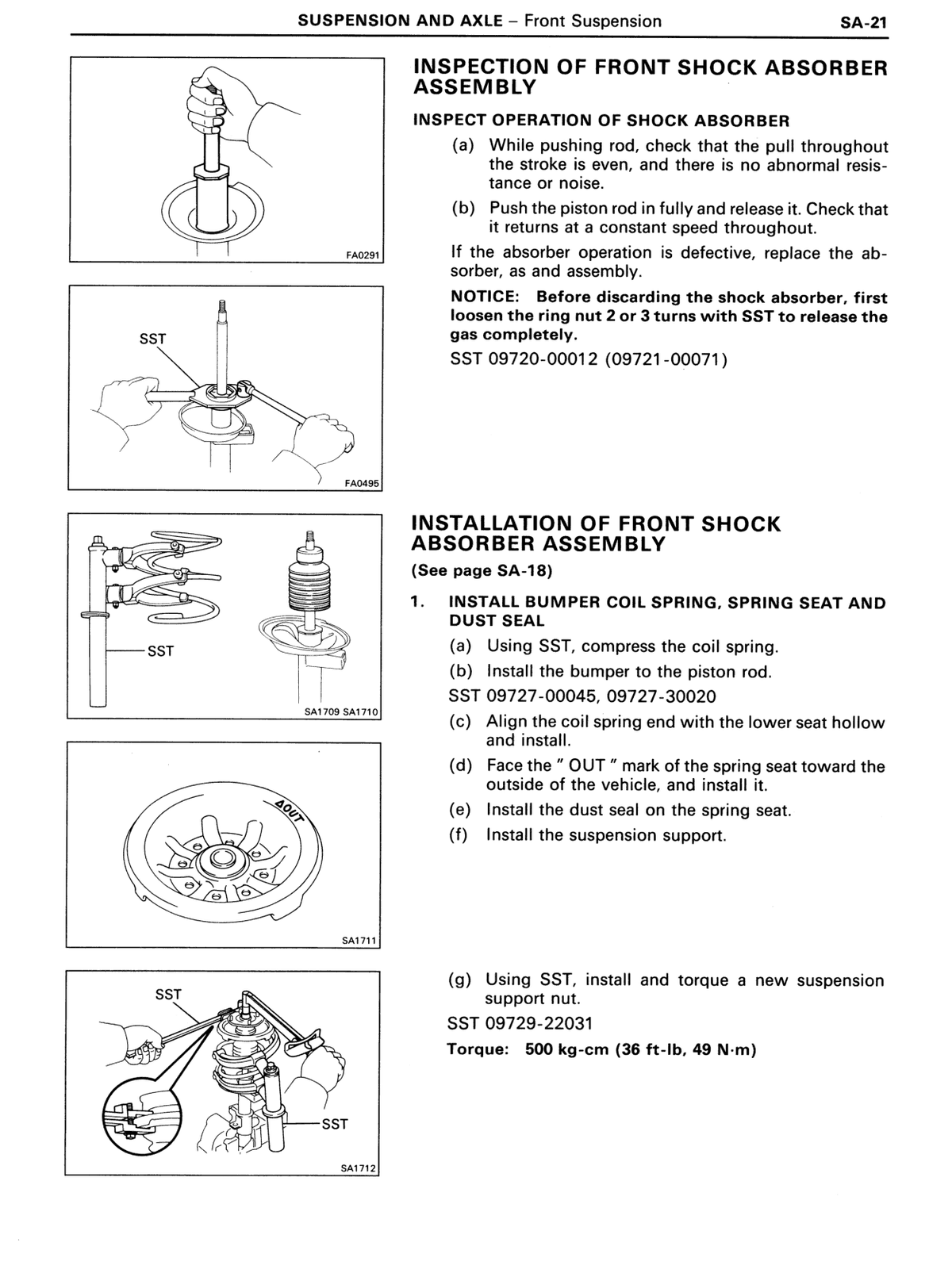

Suspension & axle Piston rod nut (non-reusable) 500 (36, 49) — Non-reusable part 49 500 36 ↗ RM179U1_1991 · p962 OEM manual

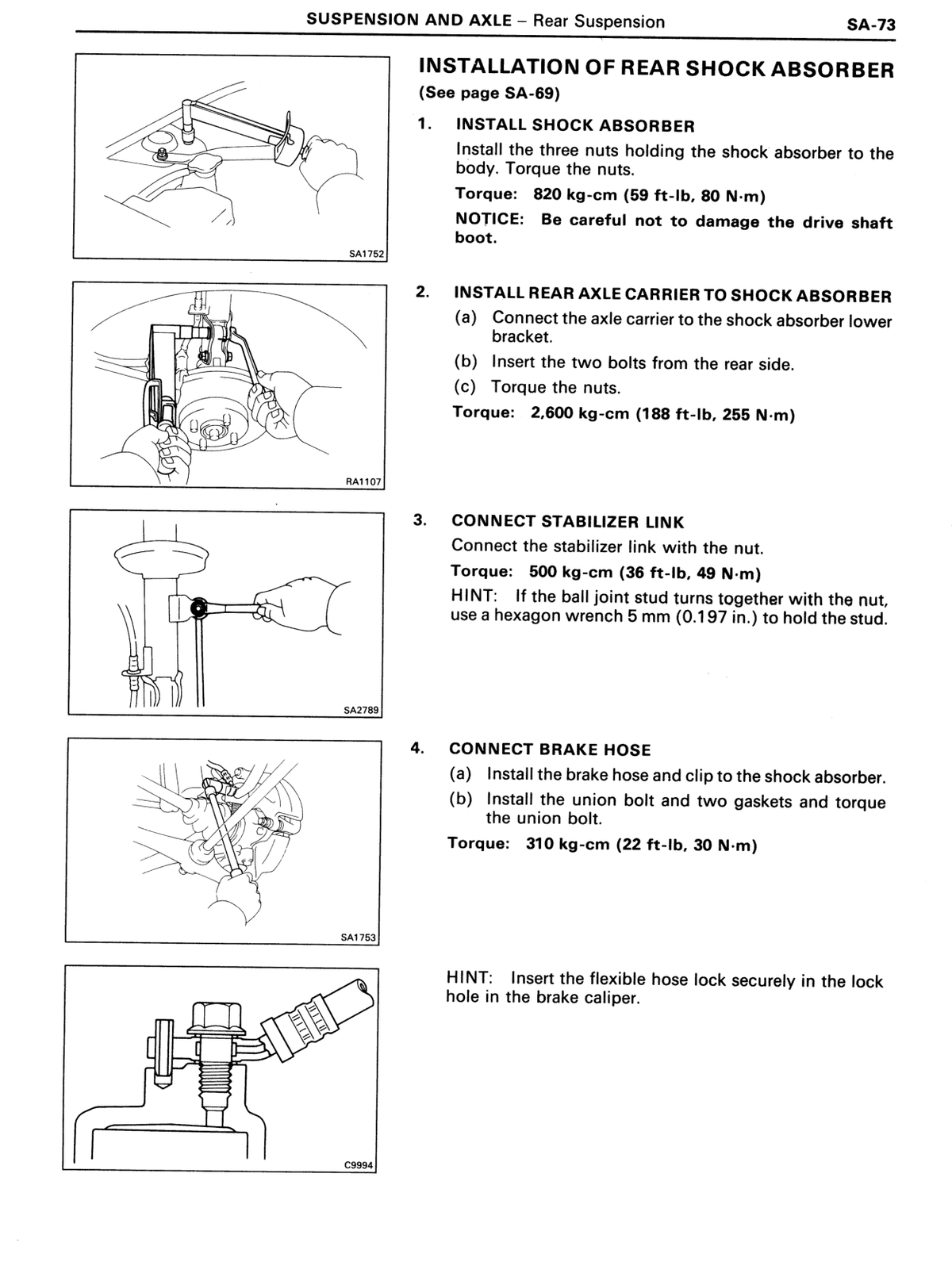

Suspension & axle Steering knuckle to shock absorber bolt 2,600 (188, 255) 255 2600 188 ↗ RM179U1_1991 · p962 OEM manual
Suspension & axle Speed sensor bolt (w/ ABS) 80 (69 in.-lb, 7.8) 7.8 80 — ↗ RM179U1_1991 · p962 OEM manual

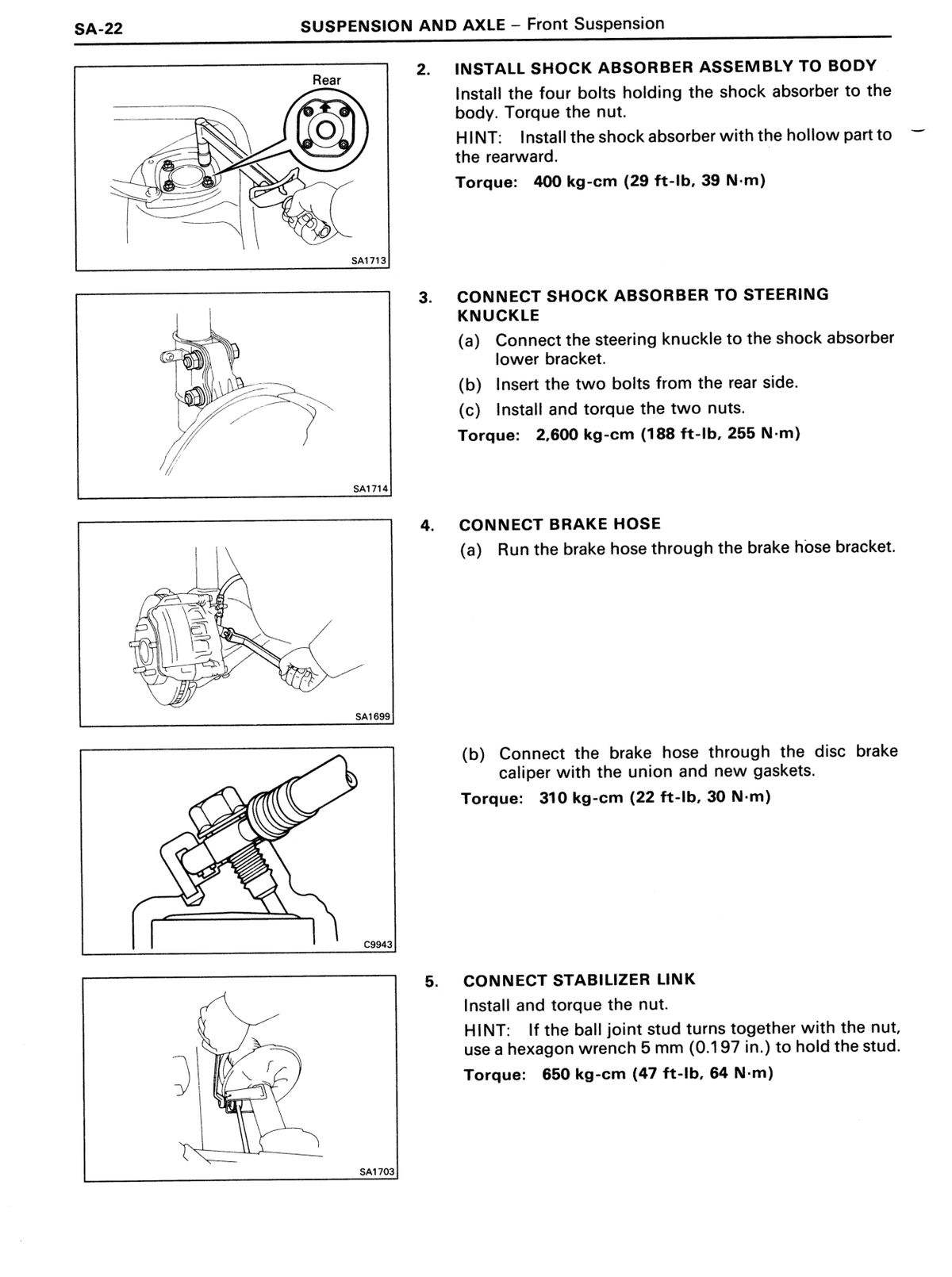

Suspension & axle Shock absorber assembly to body bolts Step 2 39 400 29 ↗ RM179U1_1991 · p966 OEM manual

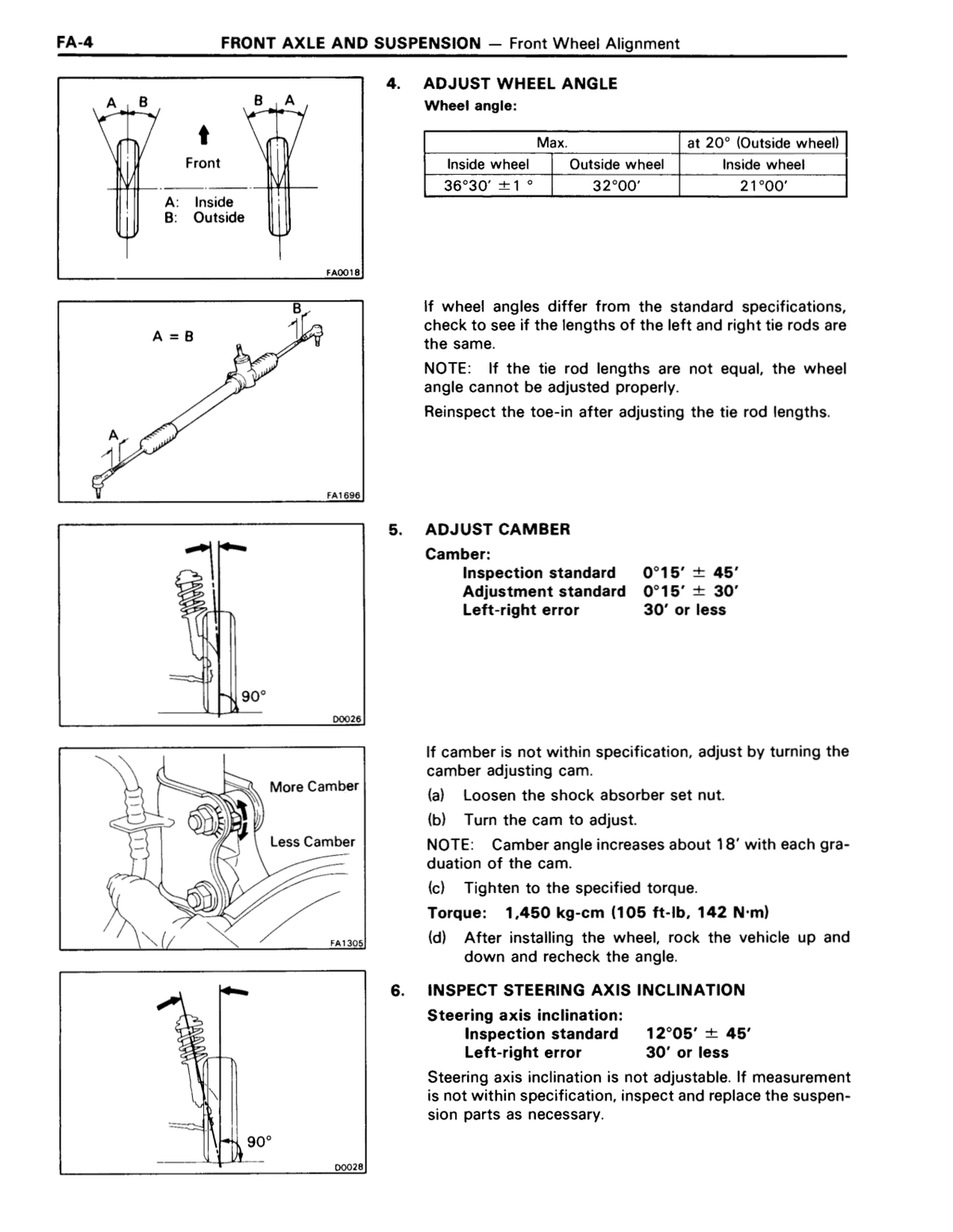

Suspension & axle Steering knuckle to shock absorber lower bracket nuts Step 3 255 2600 188 ↗ RM179U1_1991 · p966 OEM manual
Suspension & axle Brake hose union to disc brake caliper Step 4b, use new gaskets 30 310 22 ↗ RM179U1_1991 · p966 OEM manual

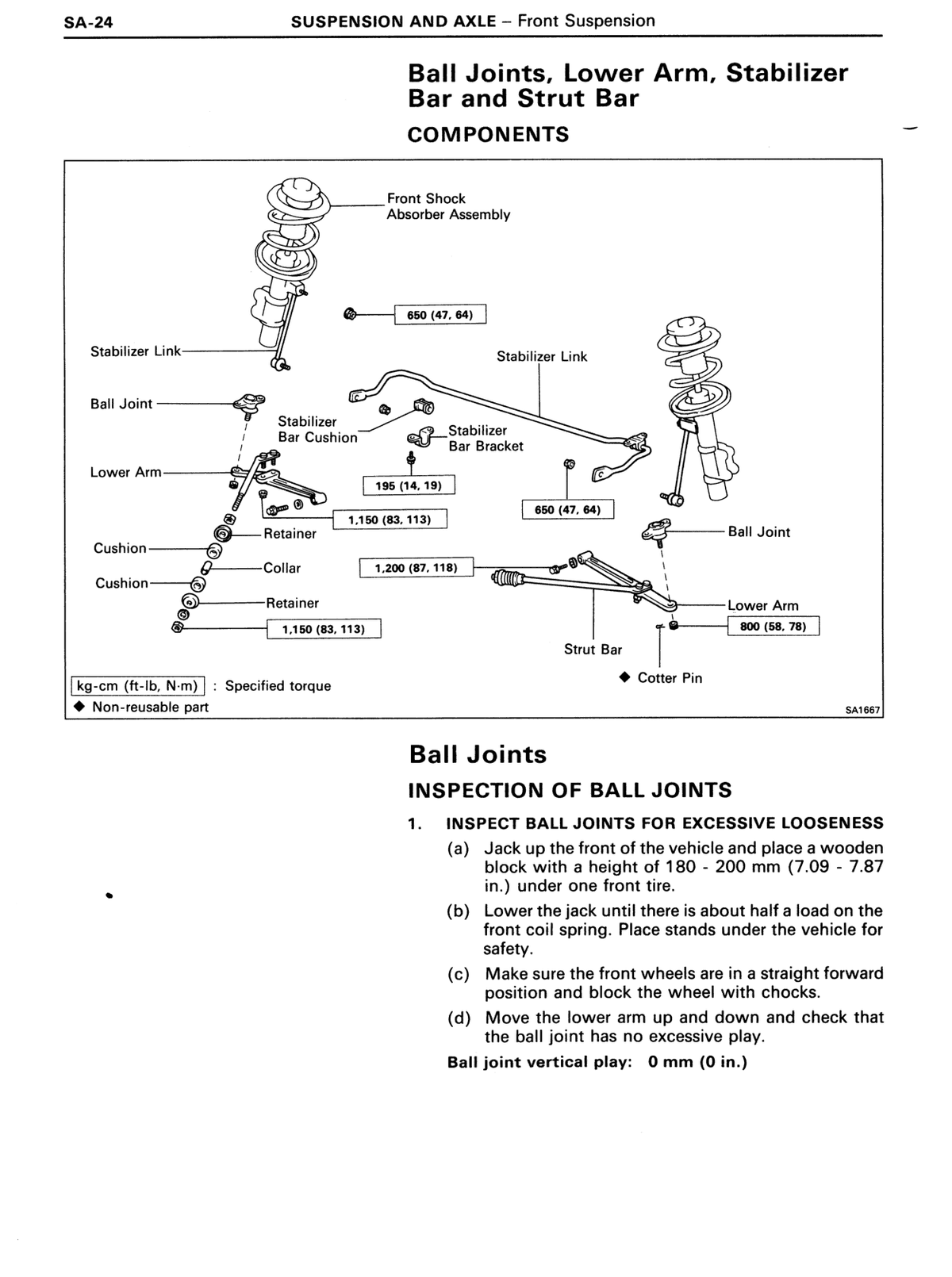

Suspension & axle Front Shock Absorber Assembly upper nut 64 650 47 ↗ RM179U1_1991 · p968 OEM manual

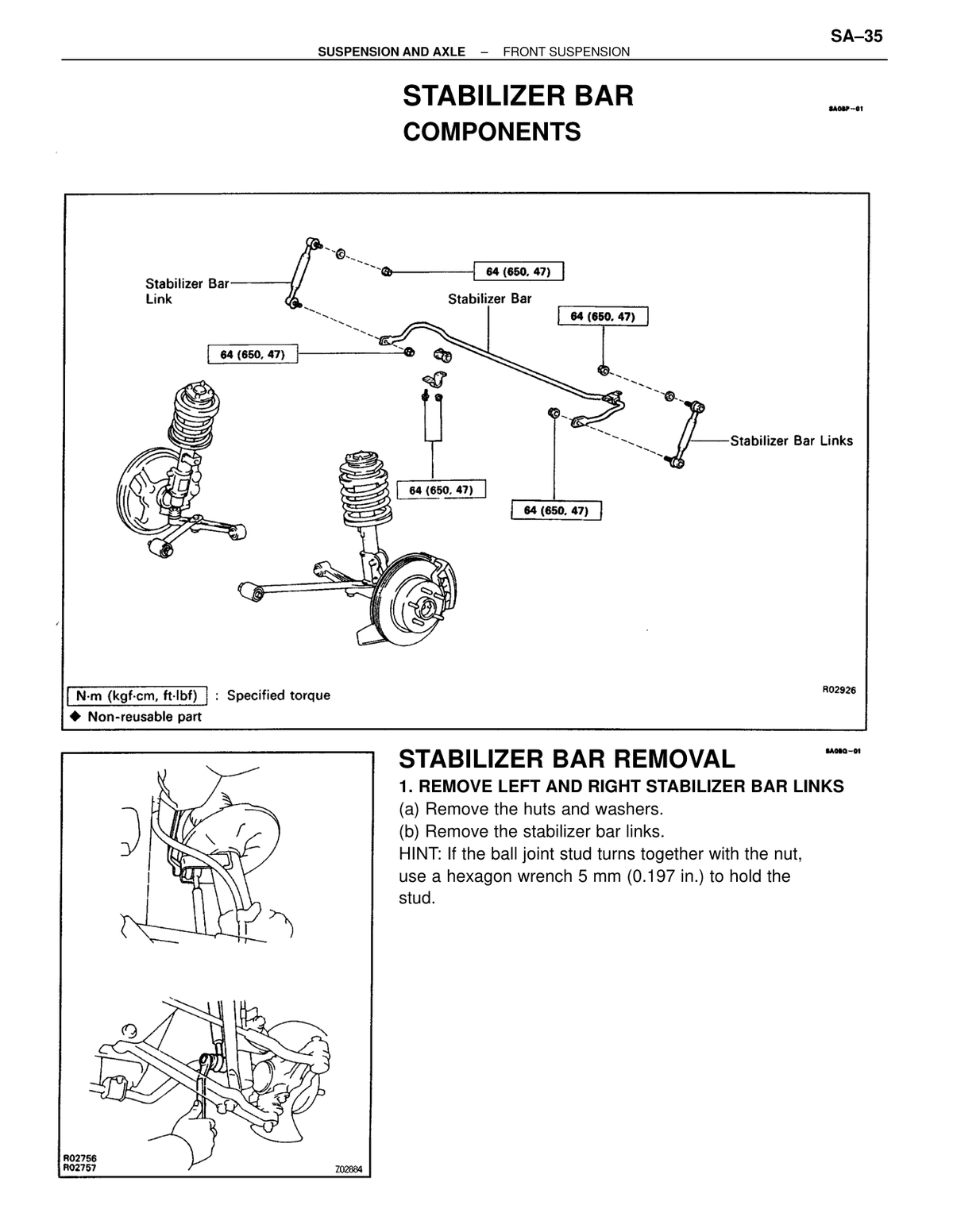

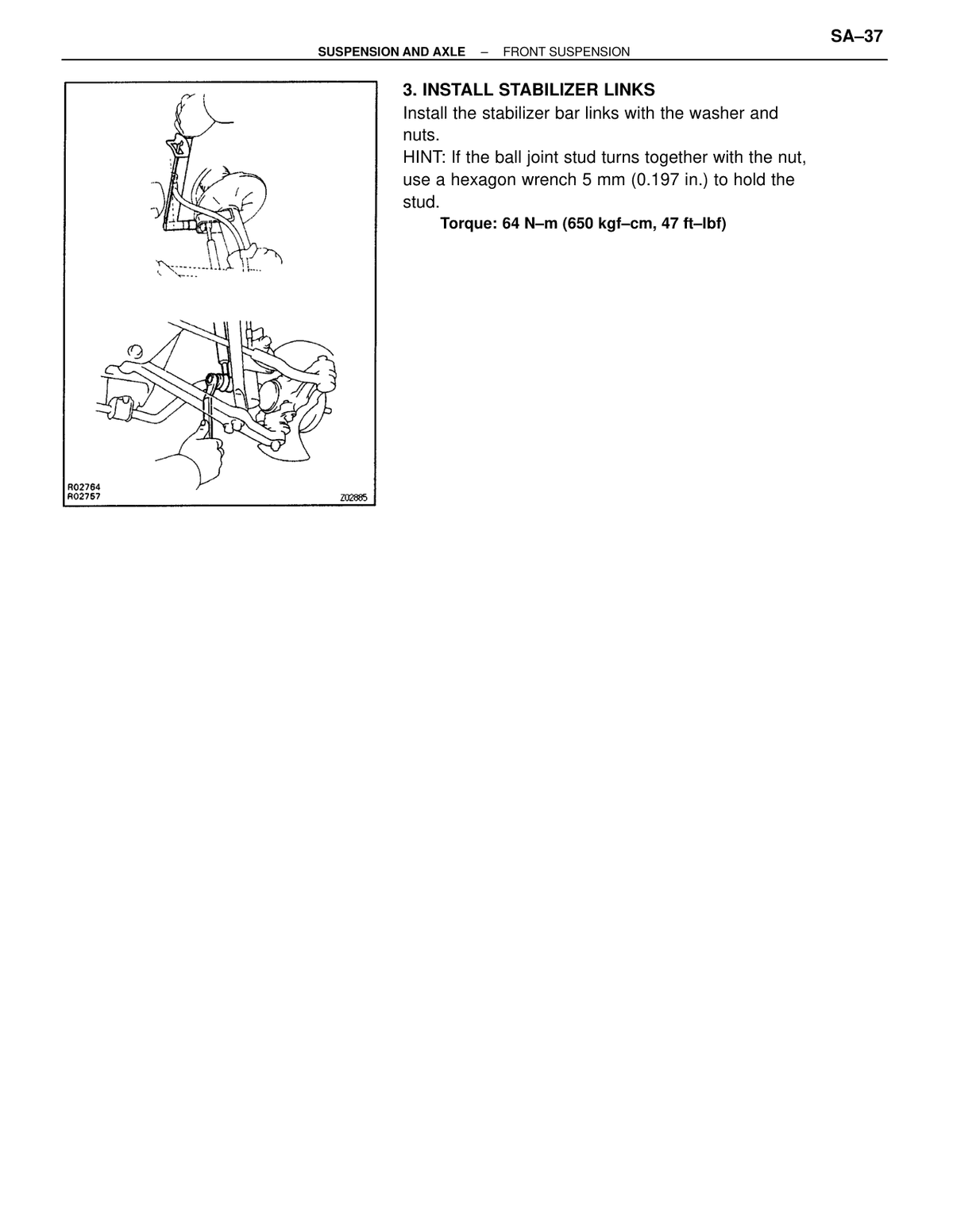

Suspension & axle Stabilizer Link nut (upper / strut side) 64 650 47 ↗ RM179U1_1991 · p968 OEM manual

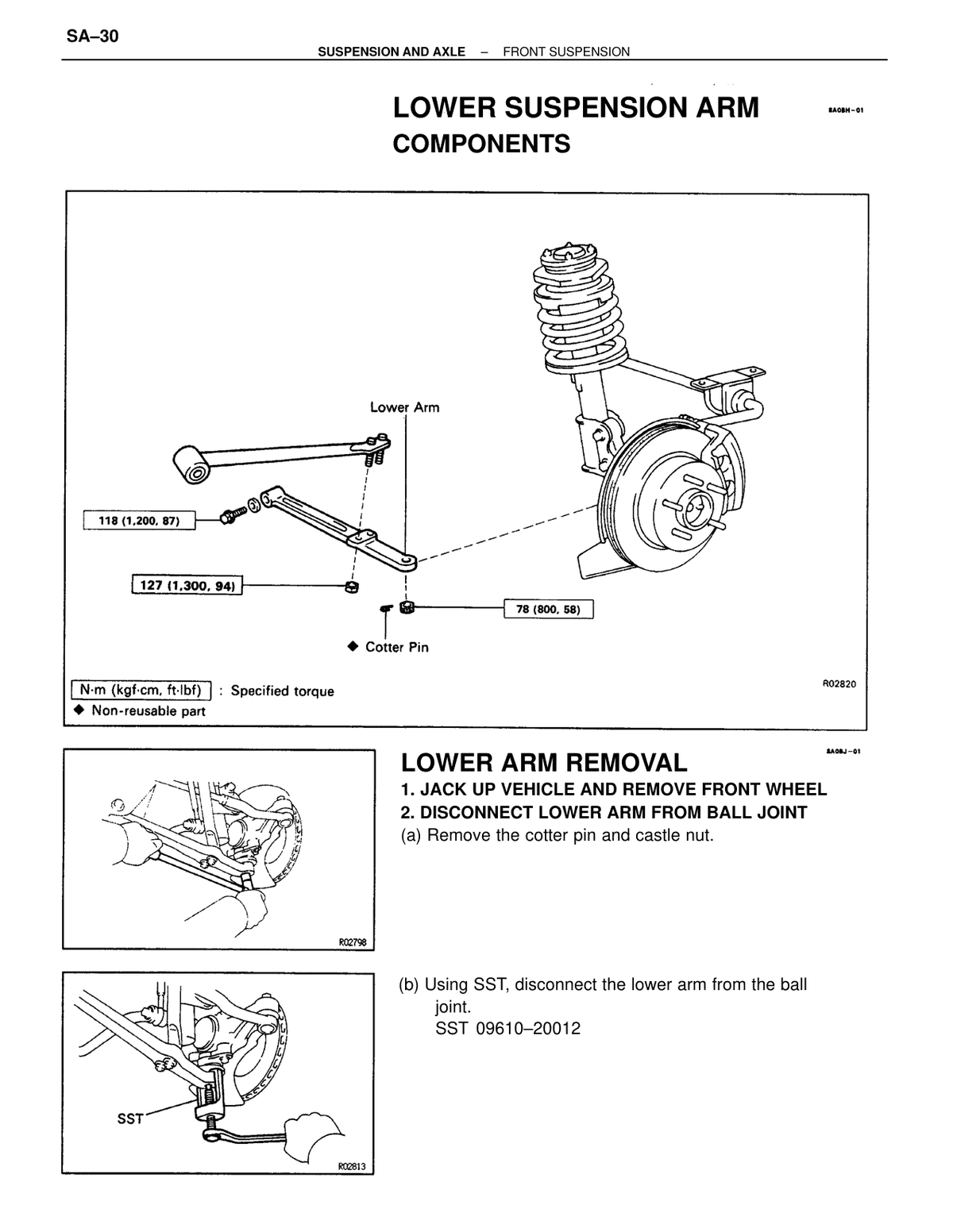

Suspension & axle Ball Joint to Lower Arm / Strut Bar nut 78 800 58 ↗ RM179U1_1991 · p968 OEM manual

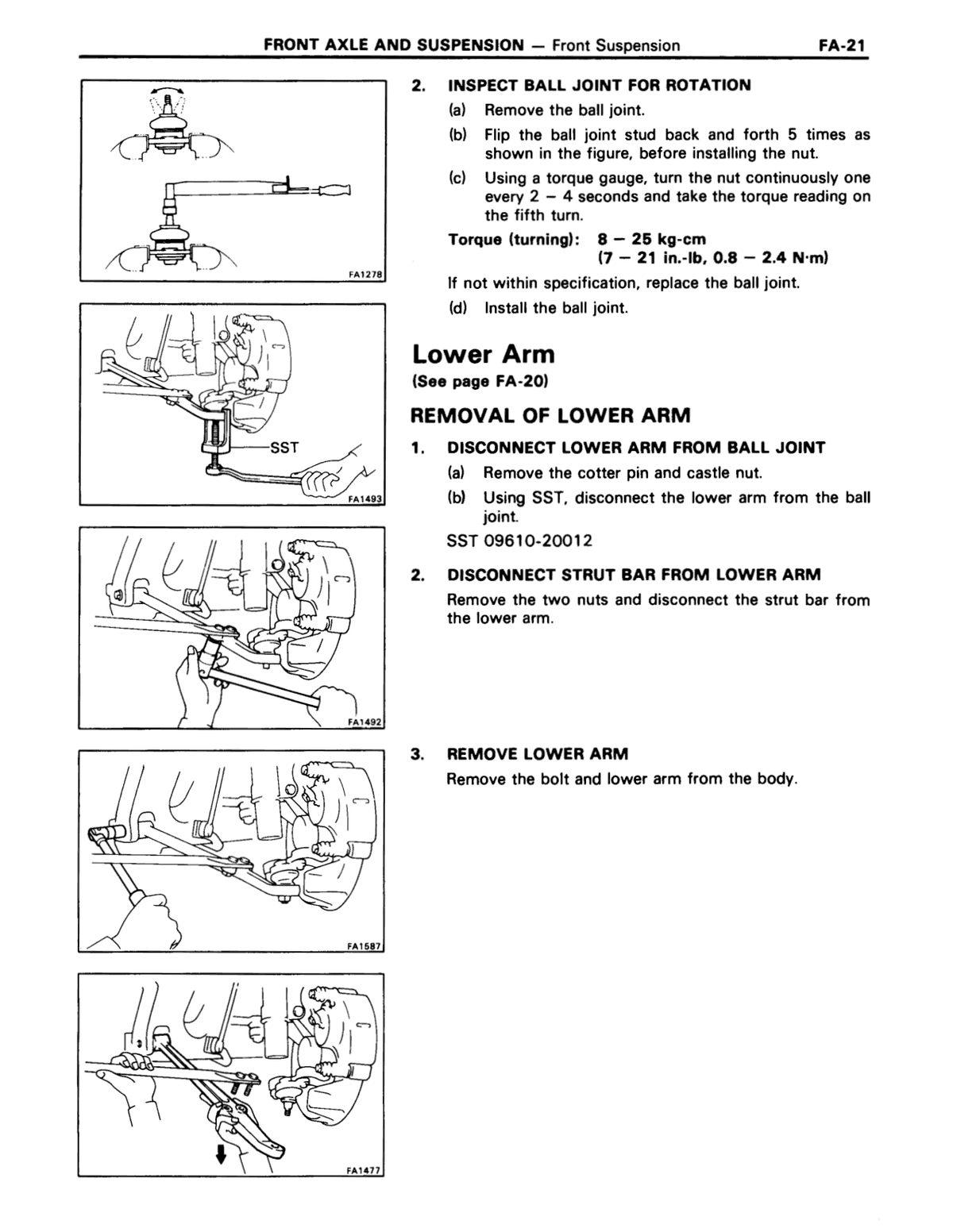

Suspension & axle Ball joint turning torque Minimum value; range 8-25 kg-cm (7-22 in.-lb, 0.8-2.5 N·m); measured on fifth turn 0.8 8 — ↗ RM179U1_1991 · p969 OEM manual

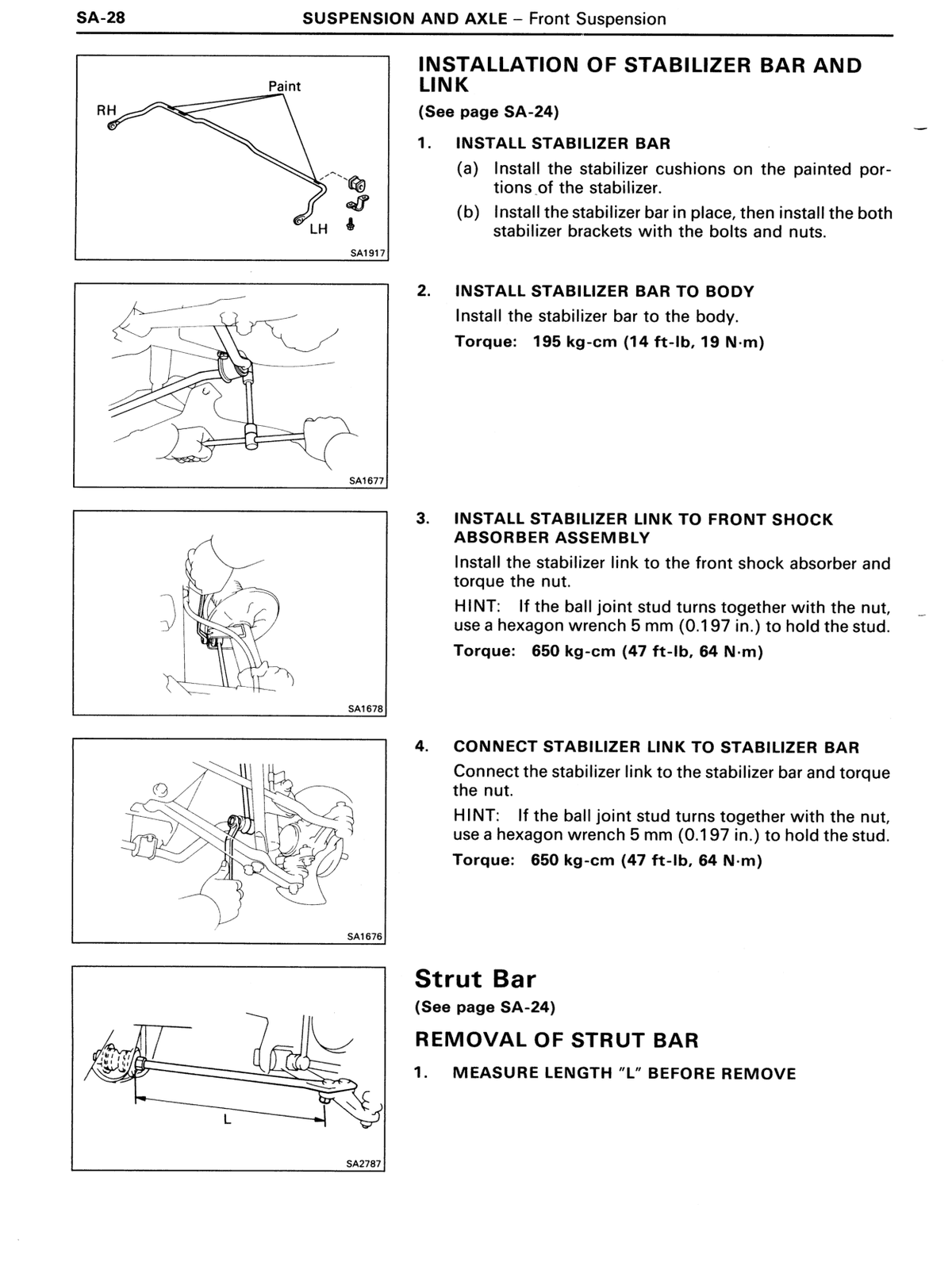

Suspension & axle Stabilizer bar to body bracket bolts/nuts 19 195 14 ↗ RM179U1_1991 · p972 OEM manual

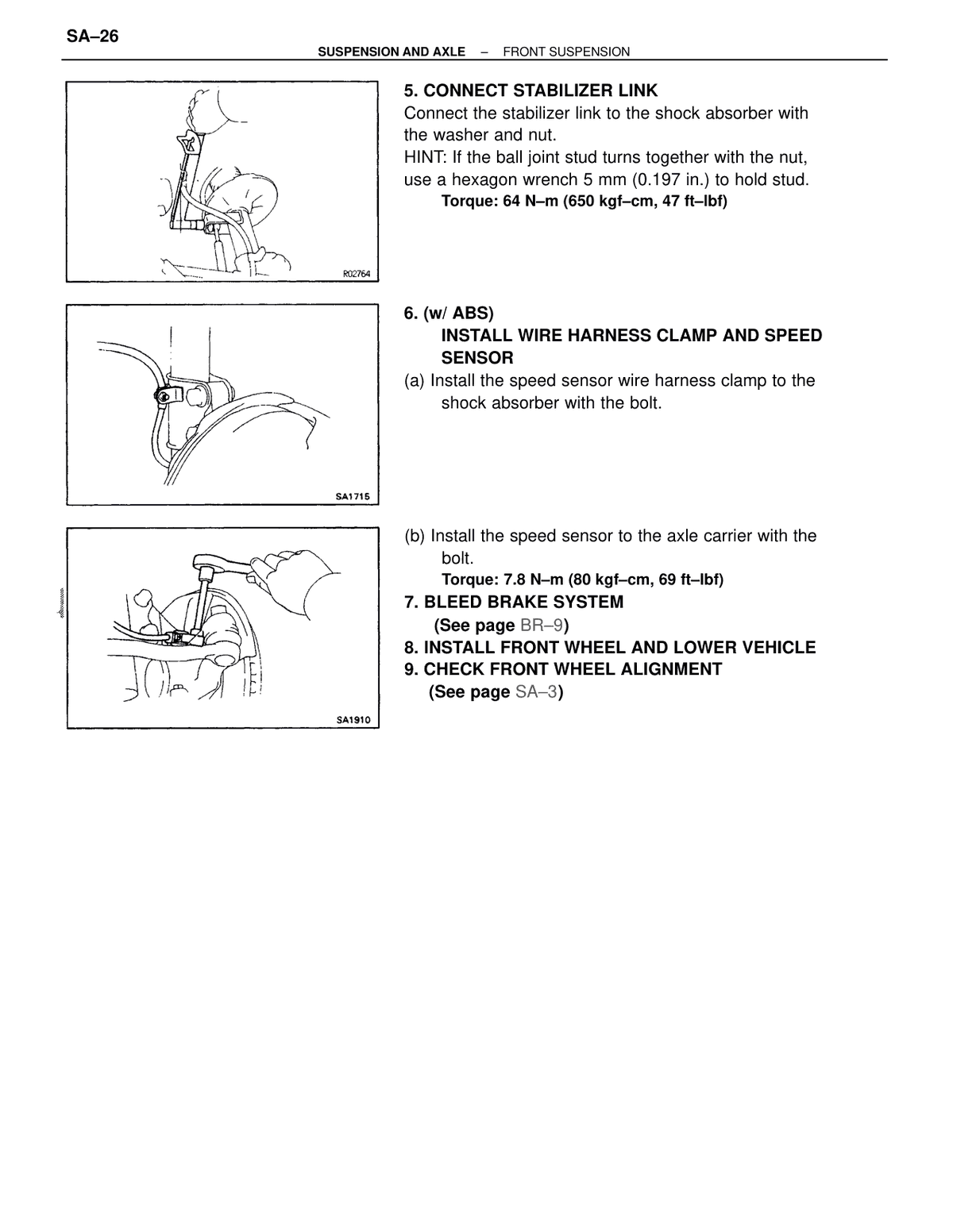

Suspension & axle Stabilizer link to front shock absorber assembly nut 64 650 47 ↗ RM179U1_1991 · p972 OEM manual

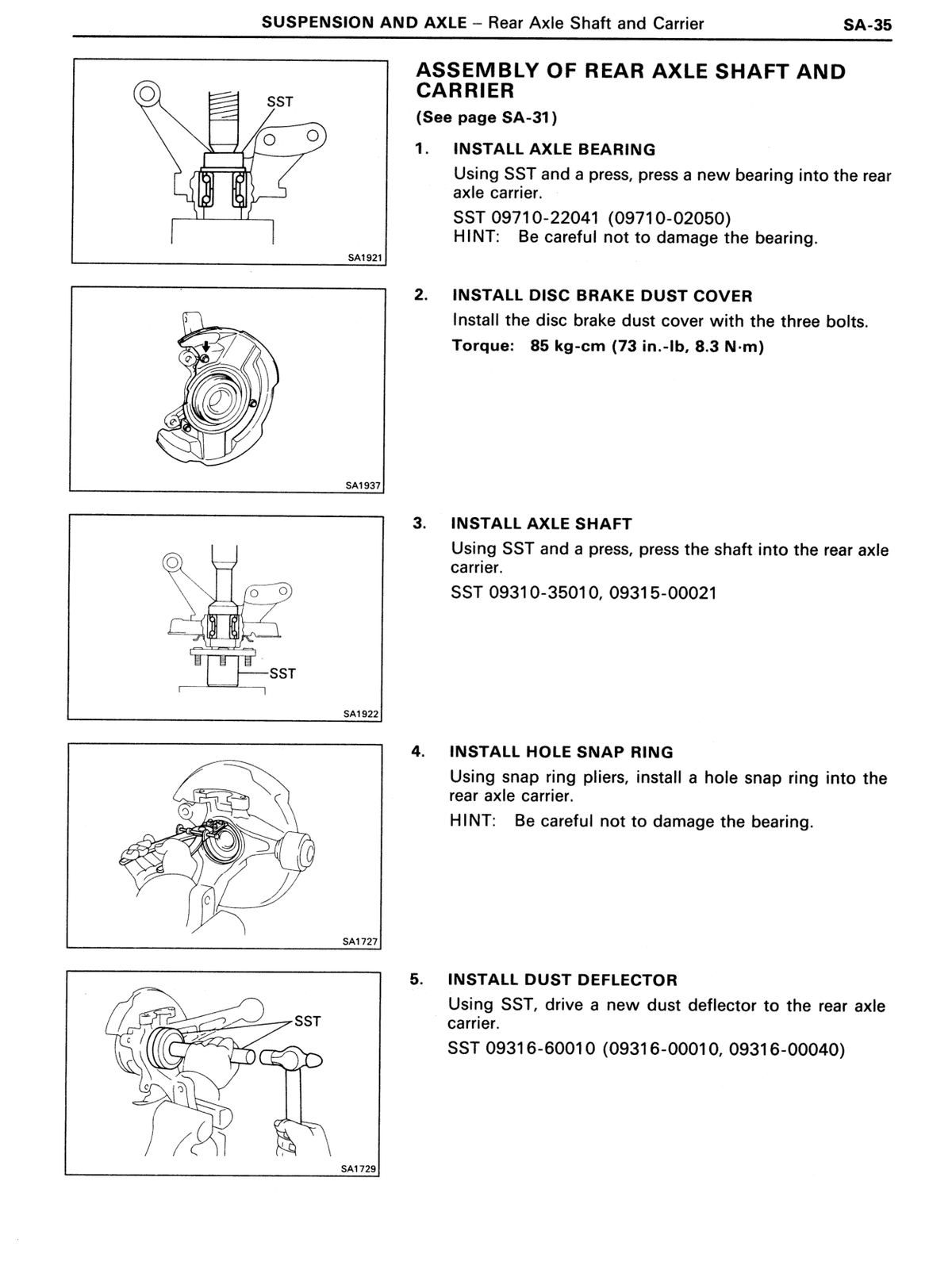

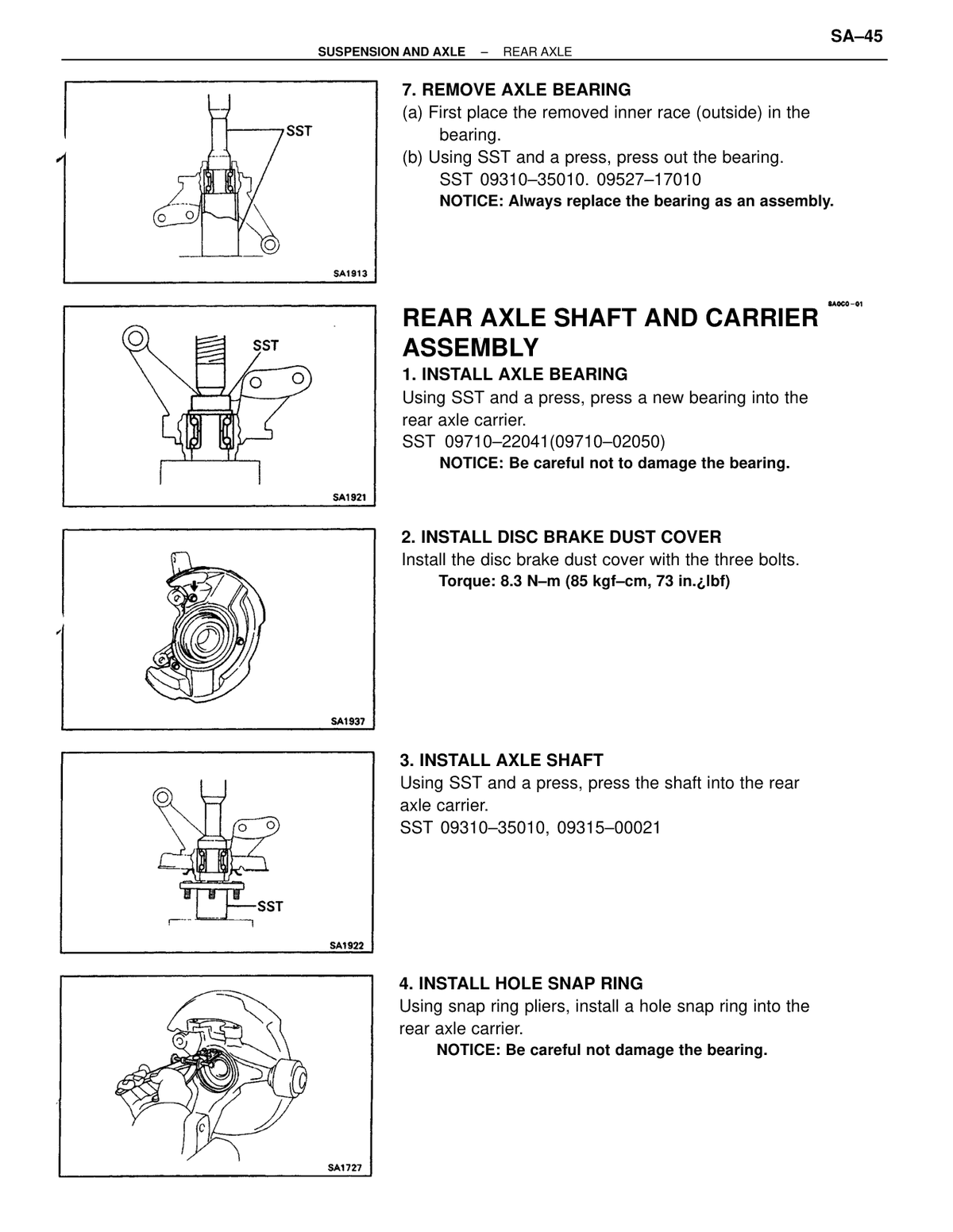

Suspension & axle Disc brake dust cover bolts Step 2 — Install disc brake dust cover 8.3 85 — ↗ RM179U1_1991 · p979 OEM manual

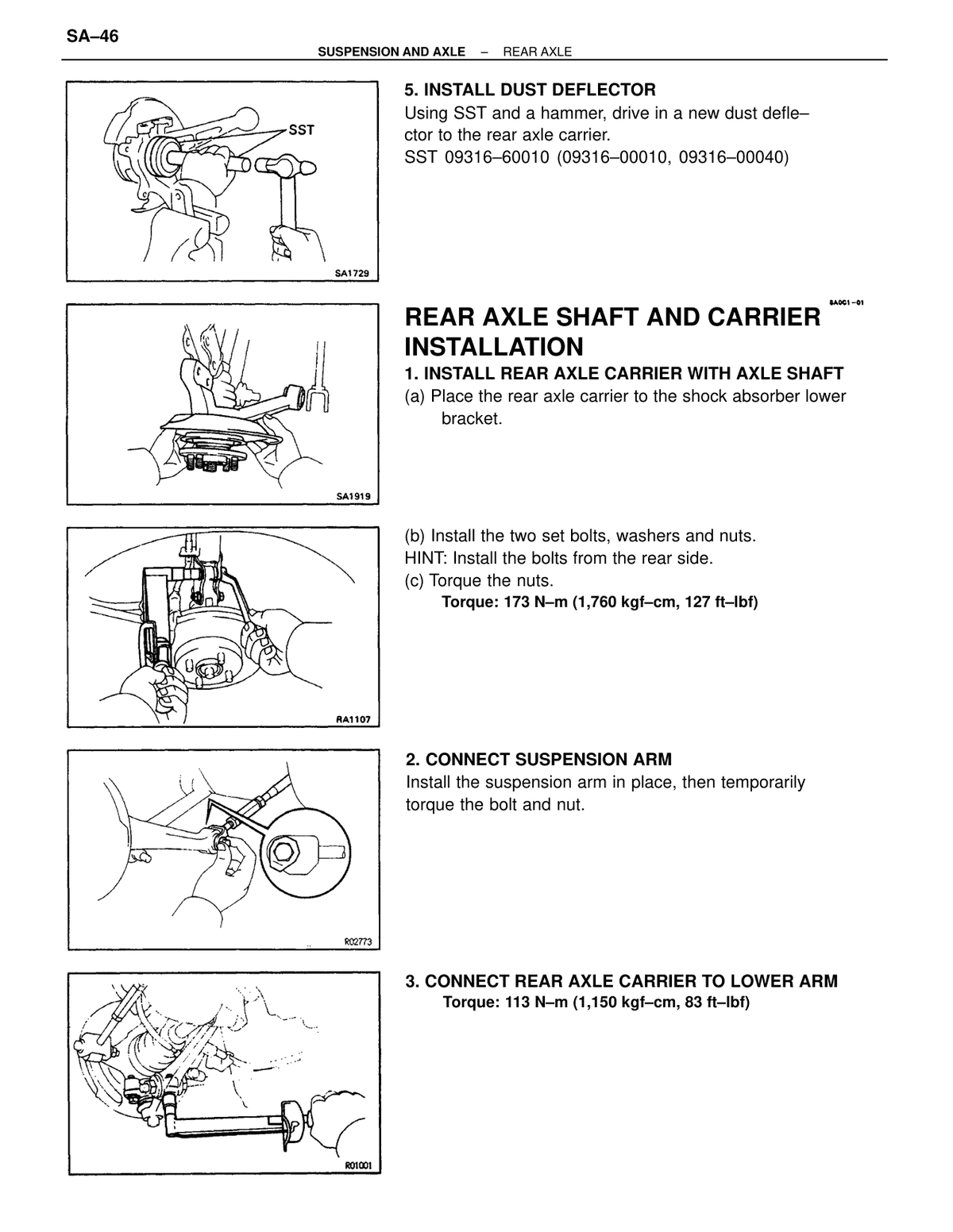

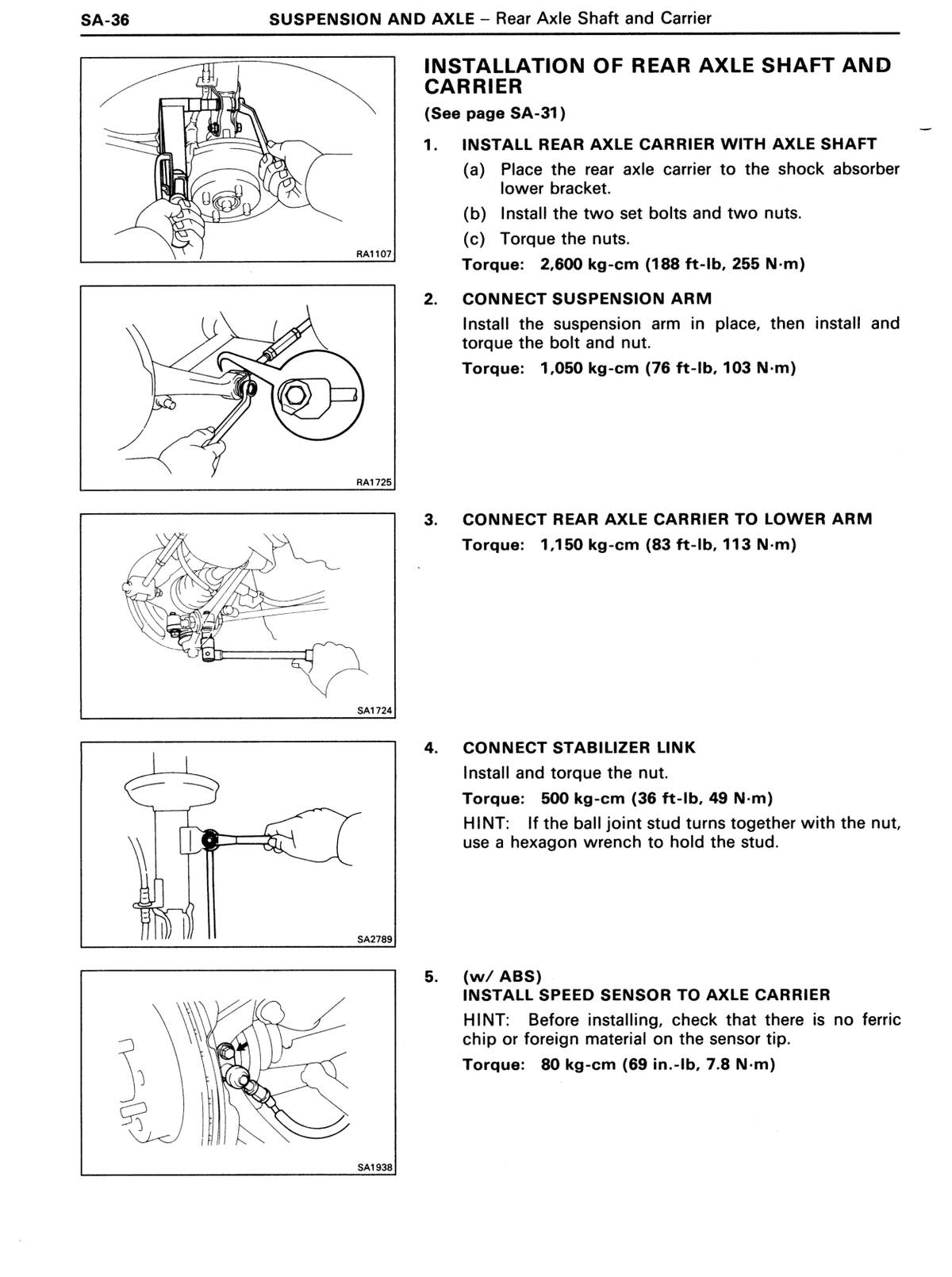

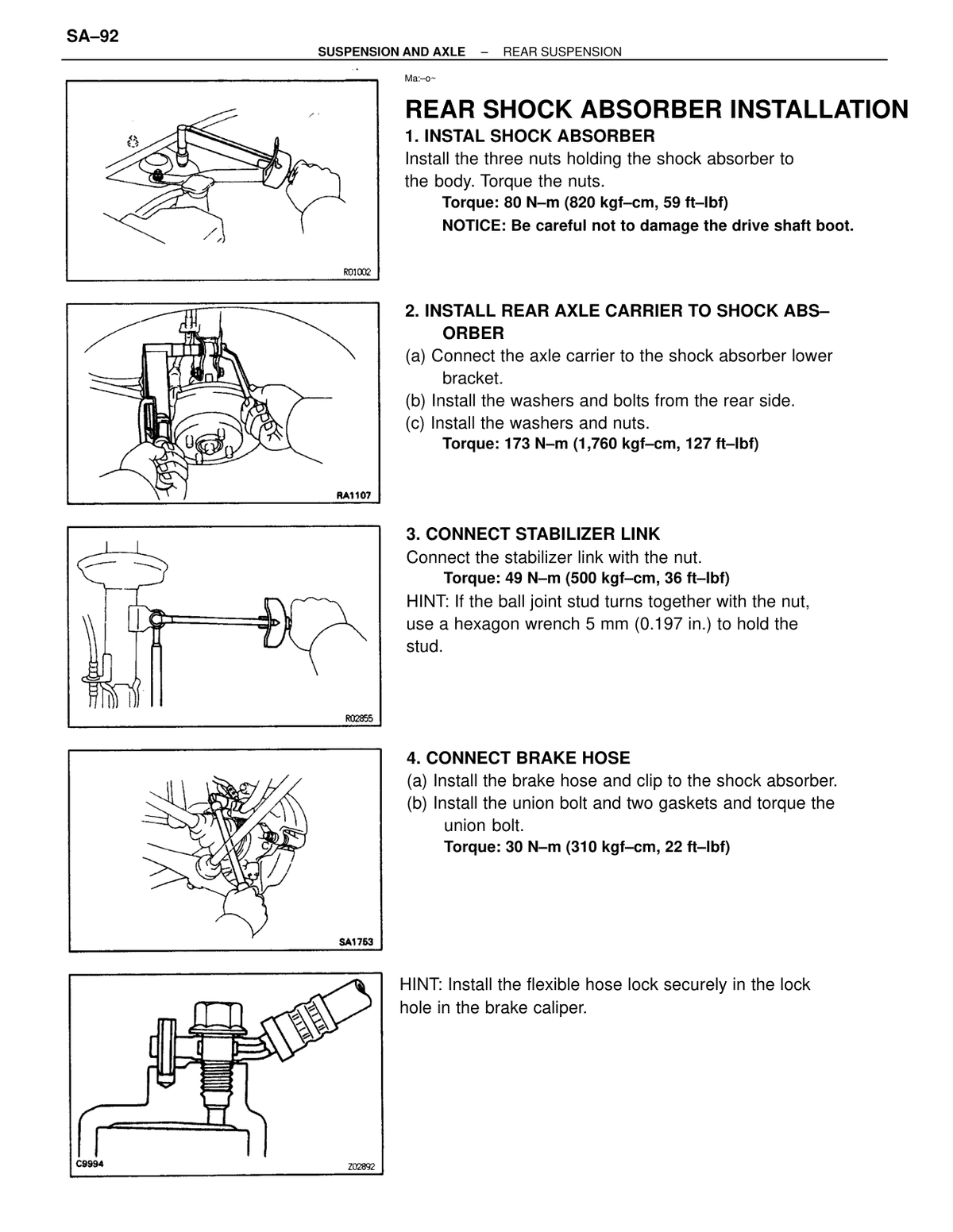

Suspension & axle Rear axle carrier to shock absorber lower bracket nuts Step 1(c) 255 2600 188 ↗ RM179U1_1991 · p980 OEM manual
Suspension & axle Rear axle carrier to lower arm Step 3 113 1150 83 ↗ RM179U1_1991 · p980 OEM manual

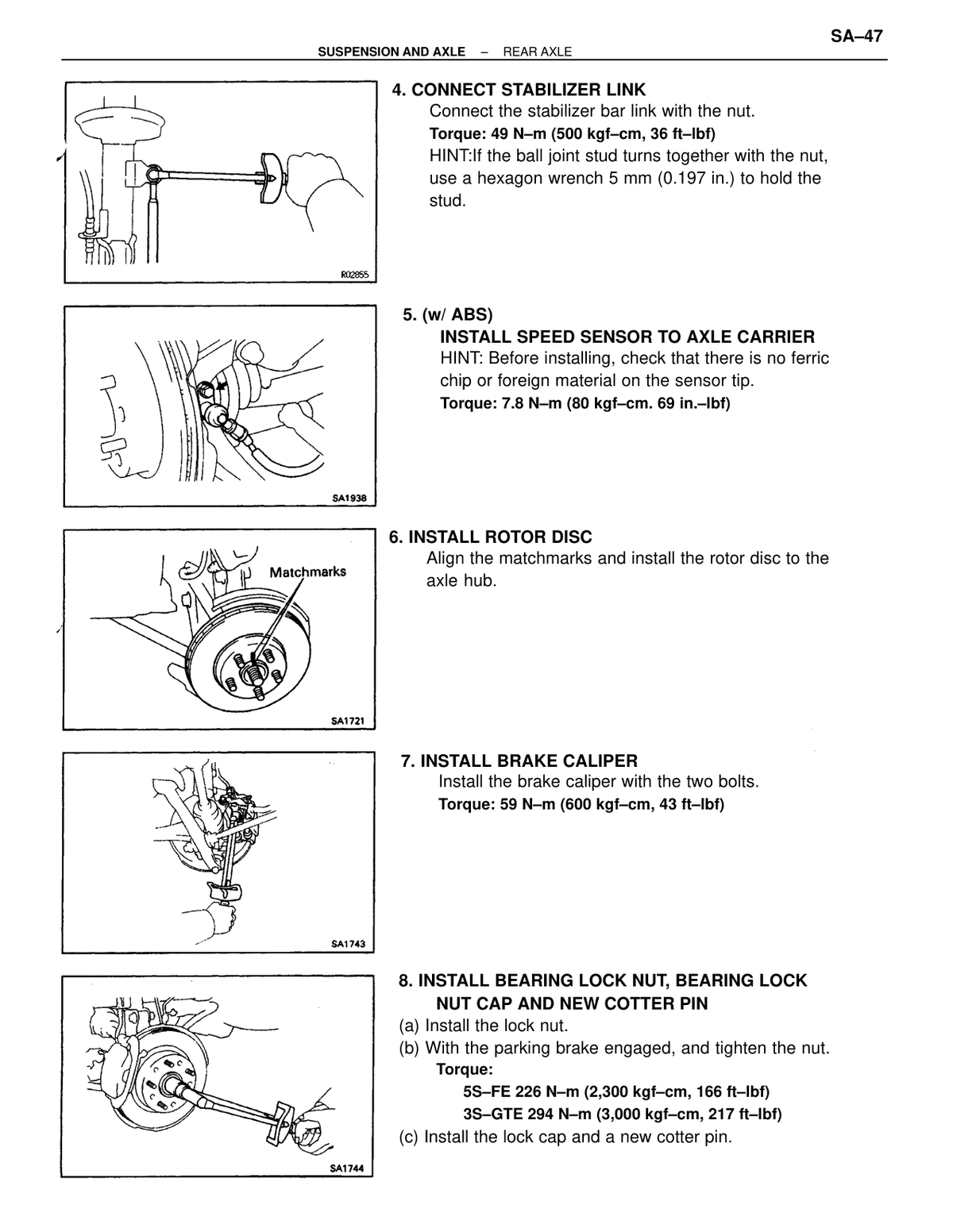

Suspension & axle Stabilizer link nut Step 4; use hexagon wrench to hold stud if it turns with nut 49 500 36 ↗ RM179U1_1991 · p980 OEM manual
Suspension & axle Speed sensor to axle carrier (w/ ABS) Step 5; 69 in.-lb 7.8 80 — ↗ RM179U1_1991 · p980 OEM manual

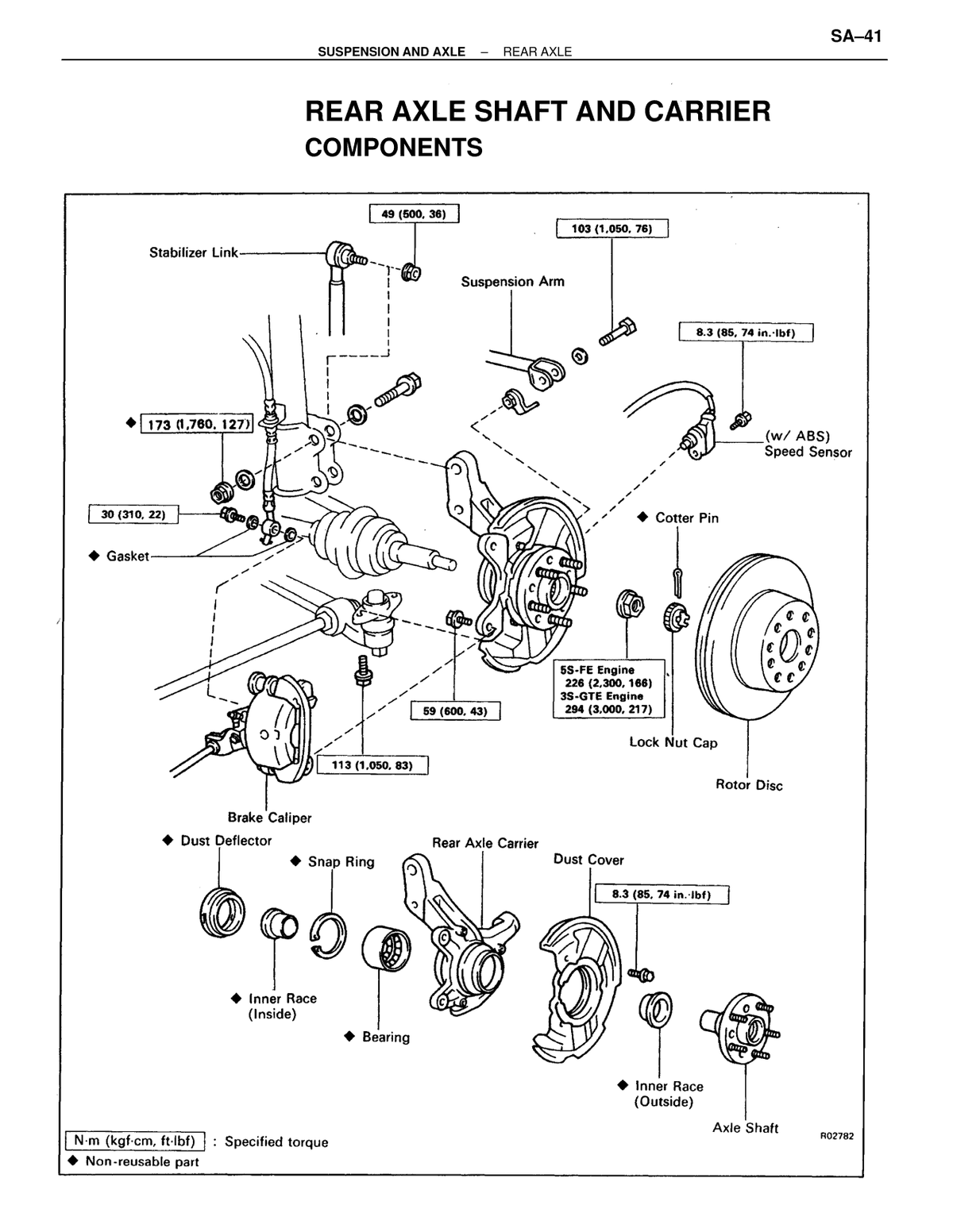

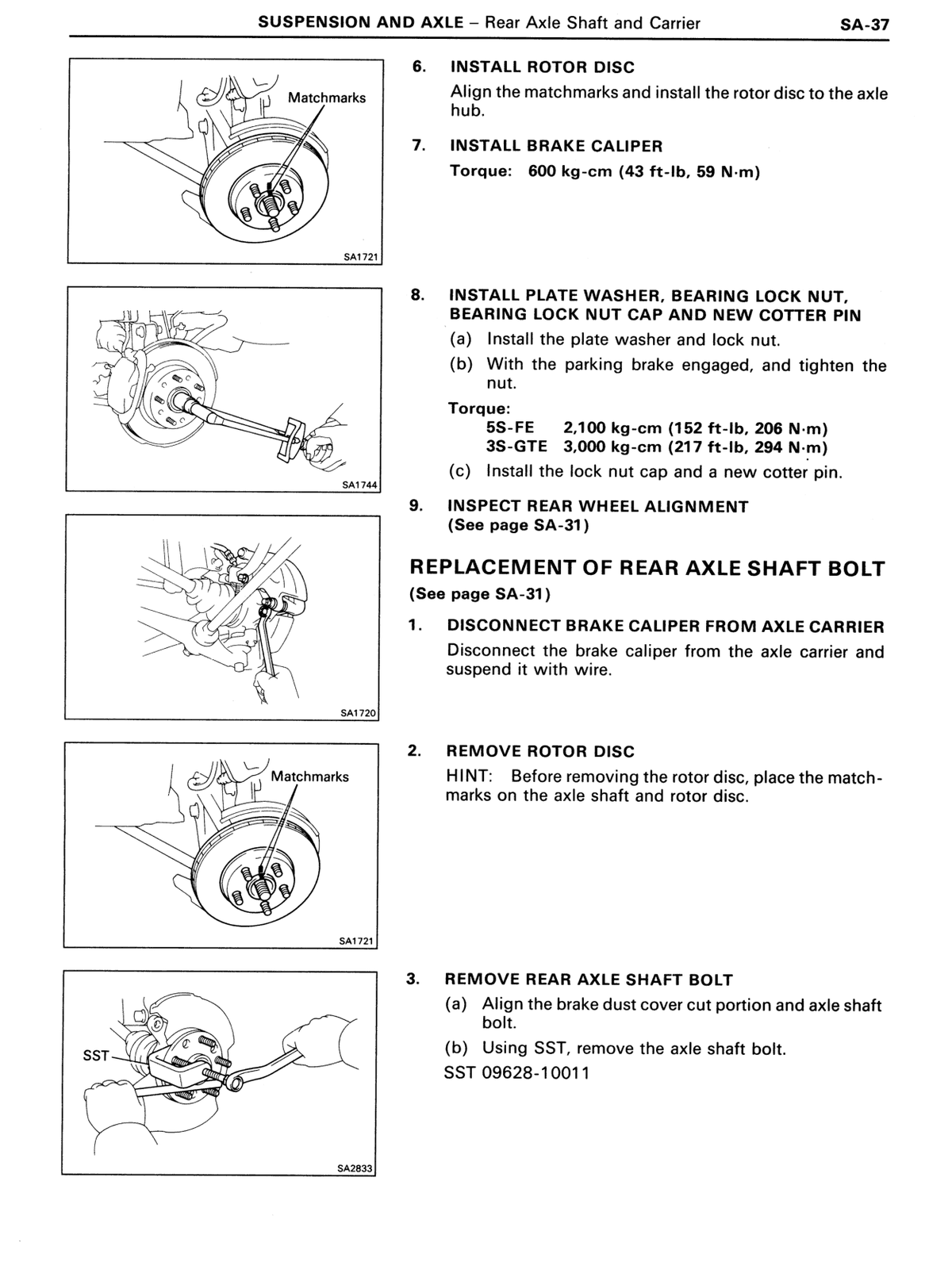

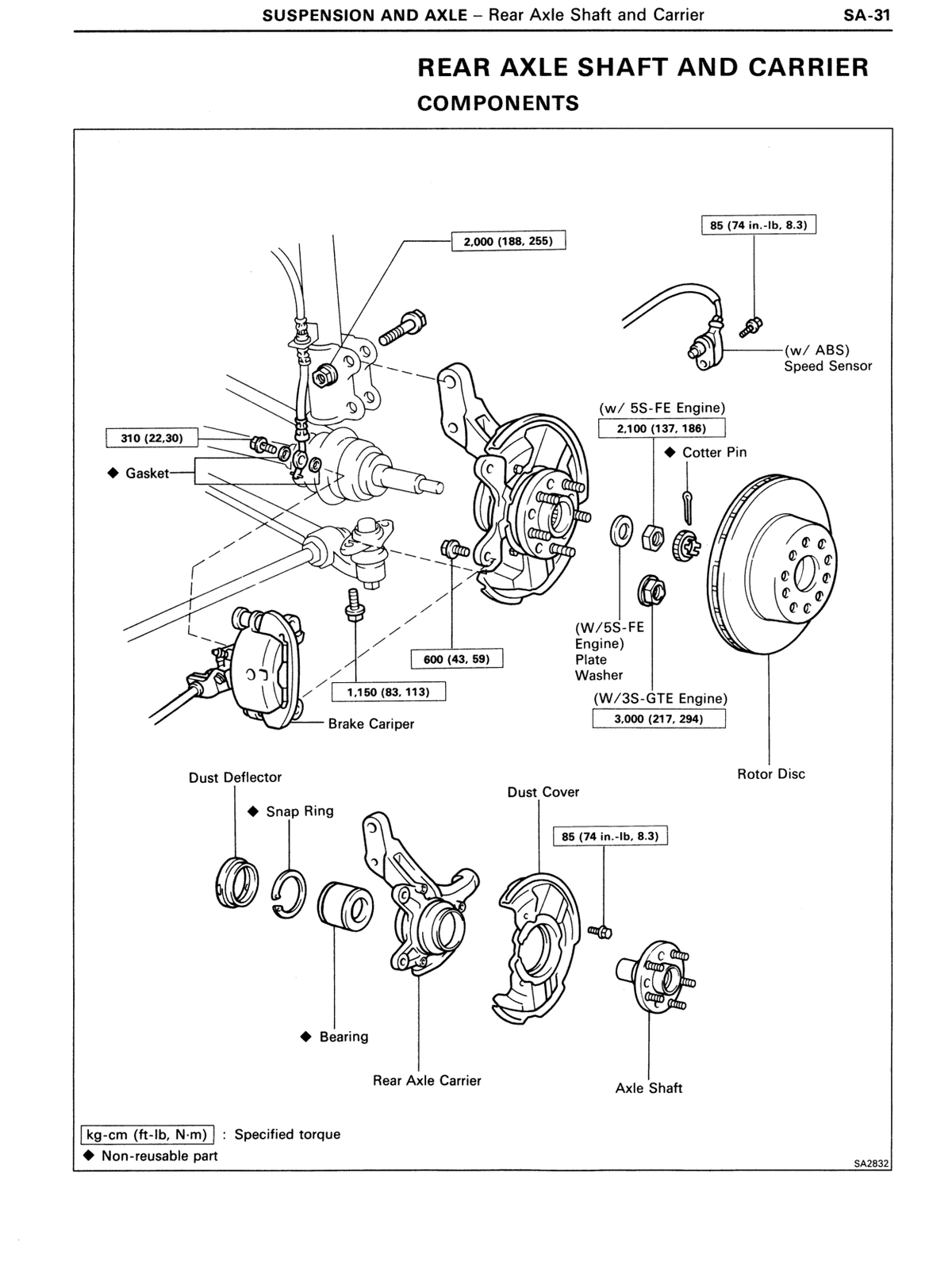

Suspension & axle Bearing Lock Nut (5S-FE) 5S-FE engine 206 2100 152 ↗ RM179U1_1991 · p981 OEM manual
Suspension & axle Bearing Lock Nut (3S-GTE) 3S-GTE engine 294 3000 217 ↗ RM179U1_1991 · p981 OEM manual

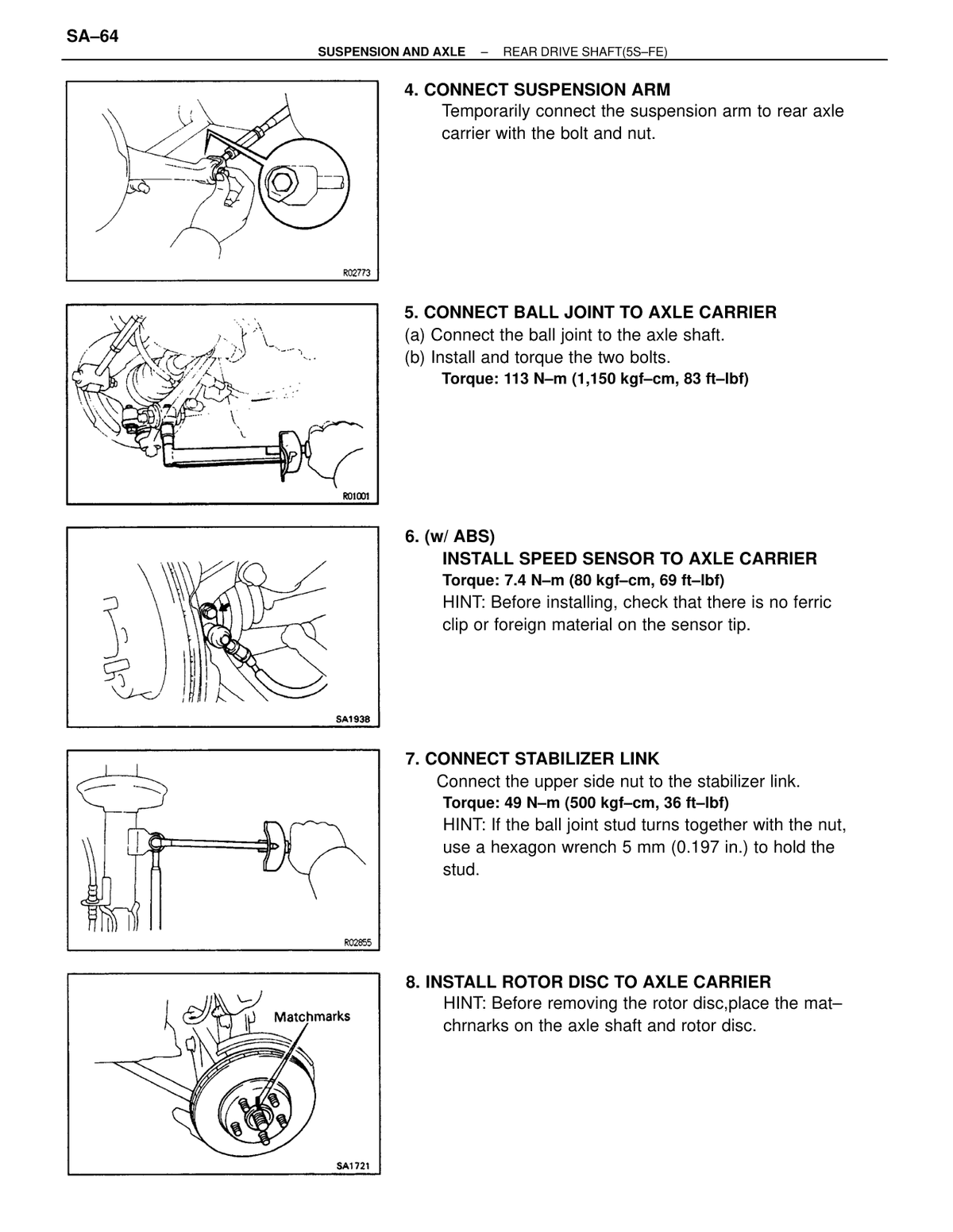

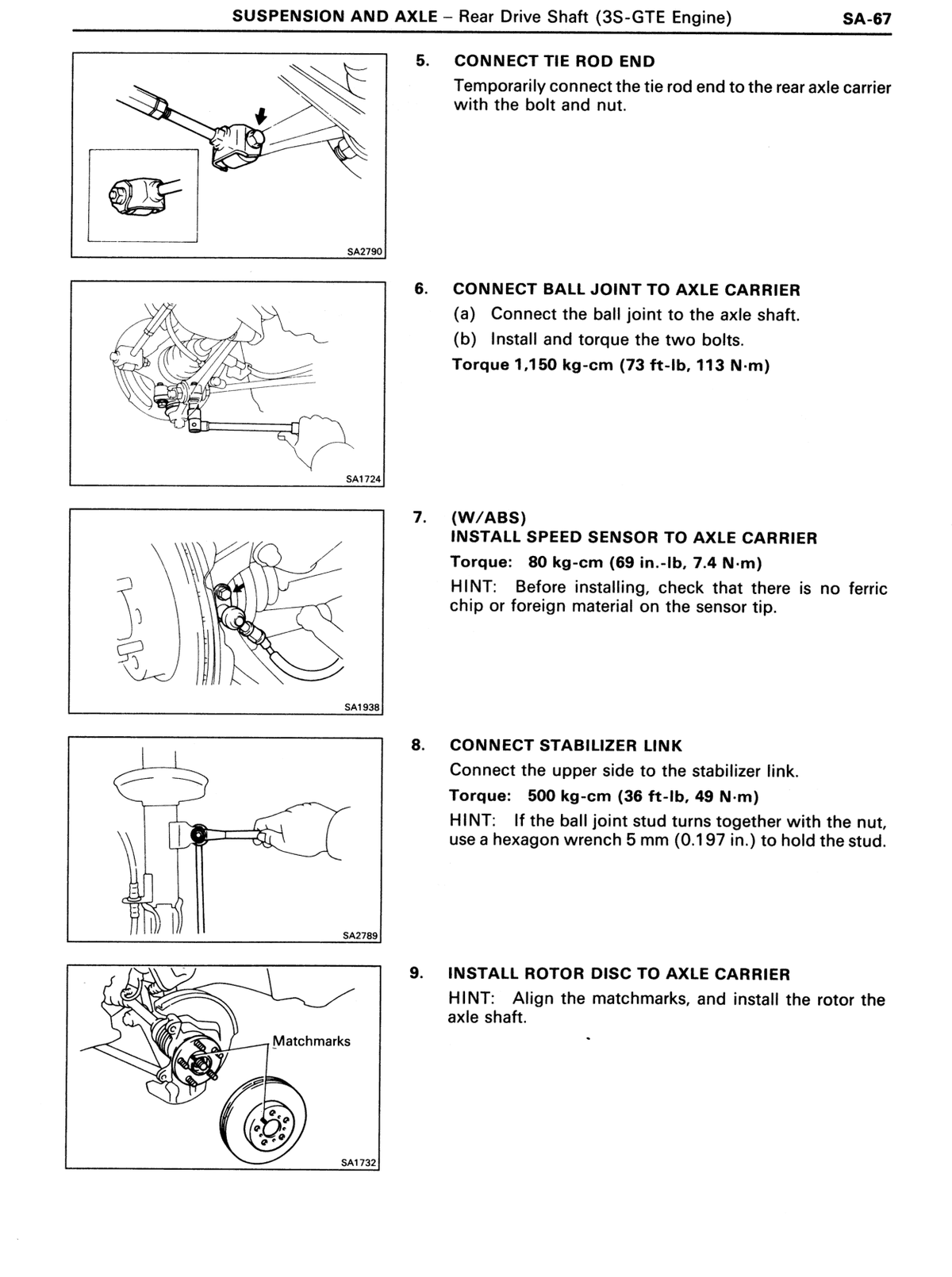

Suspension & axle Ball joint to axle carrier bolts (two bolts) 113 1150 83 ↗ RM179U1_1991 · p994 OEM manual
Suspension & axle Speed sensor to axle carrier w/ ABS; 69 in.-lb 7.4 80 — ↗ RM179U1_1991 · p994 OEM manual
Suspension & axle Brake caliper axle carrier bolts (two bolts) 59 600 43 ↗ RM179U1_1991 · p994 OEM manual

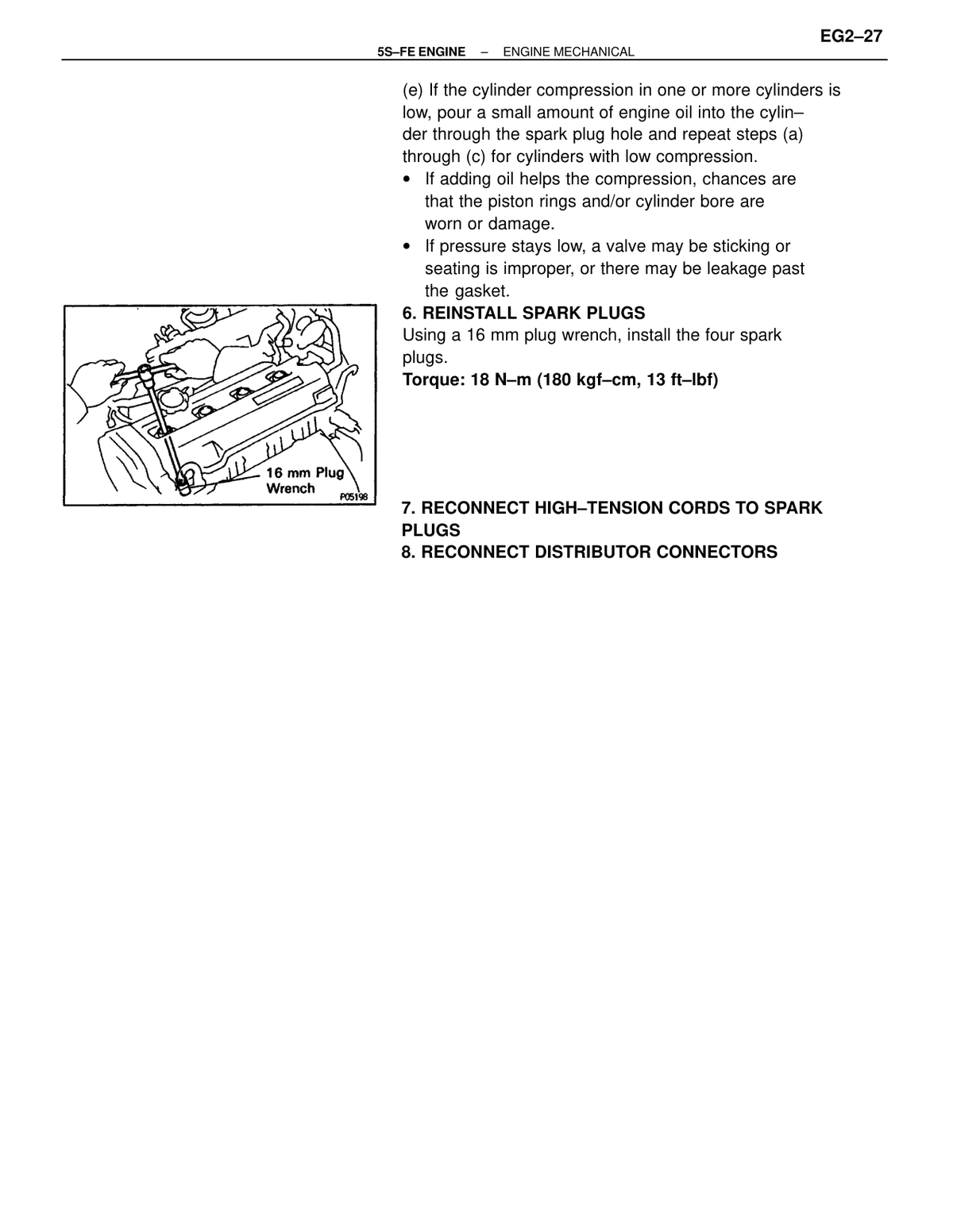

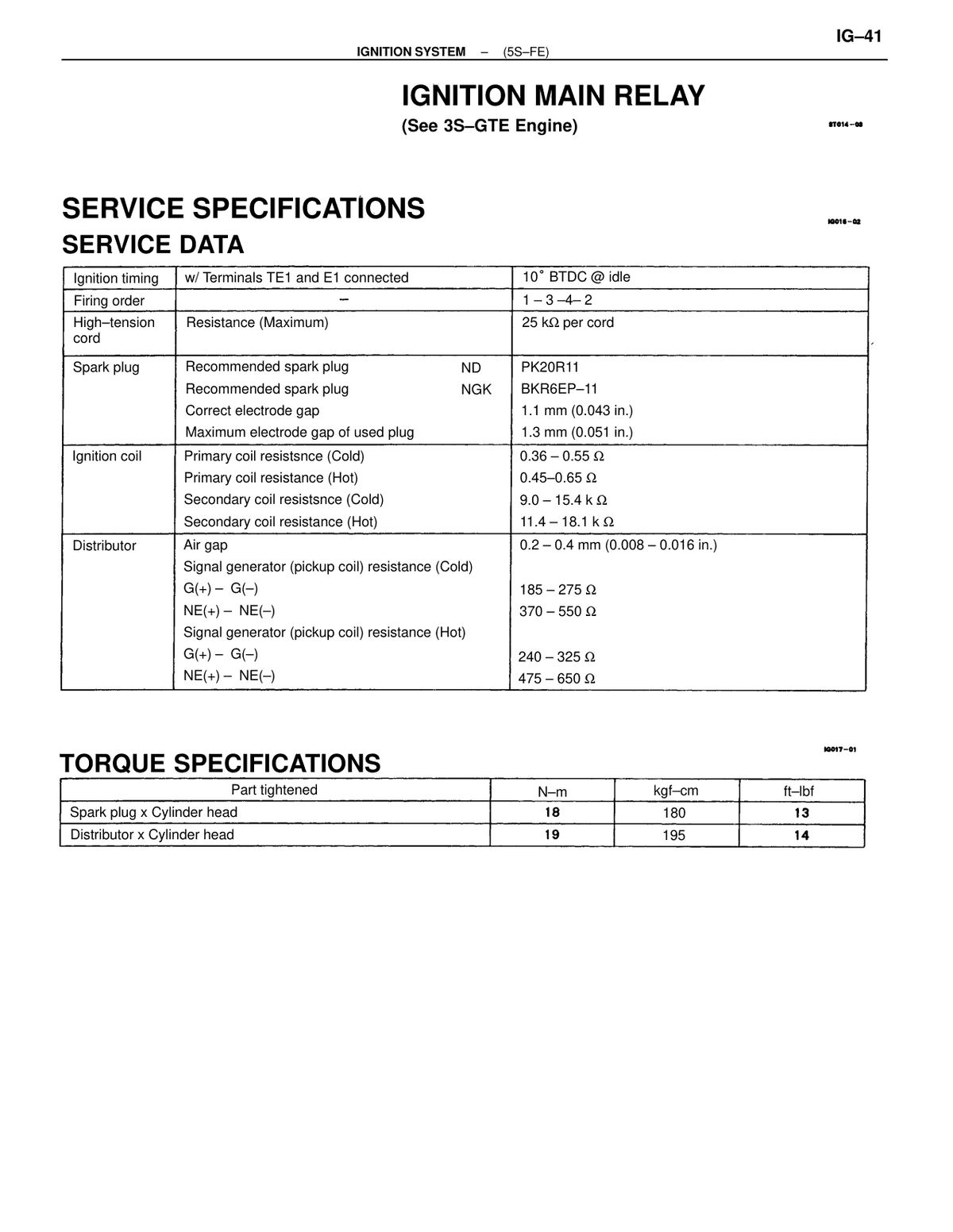

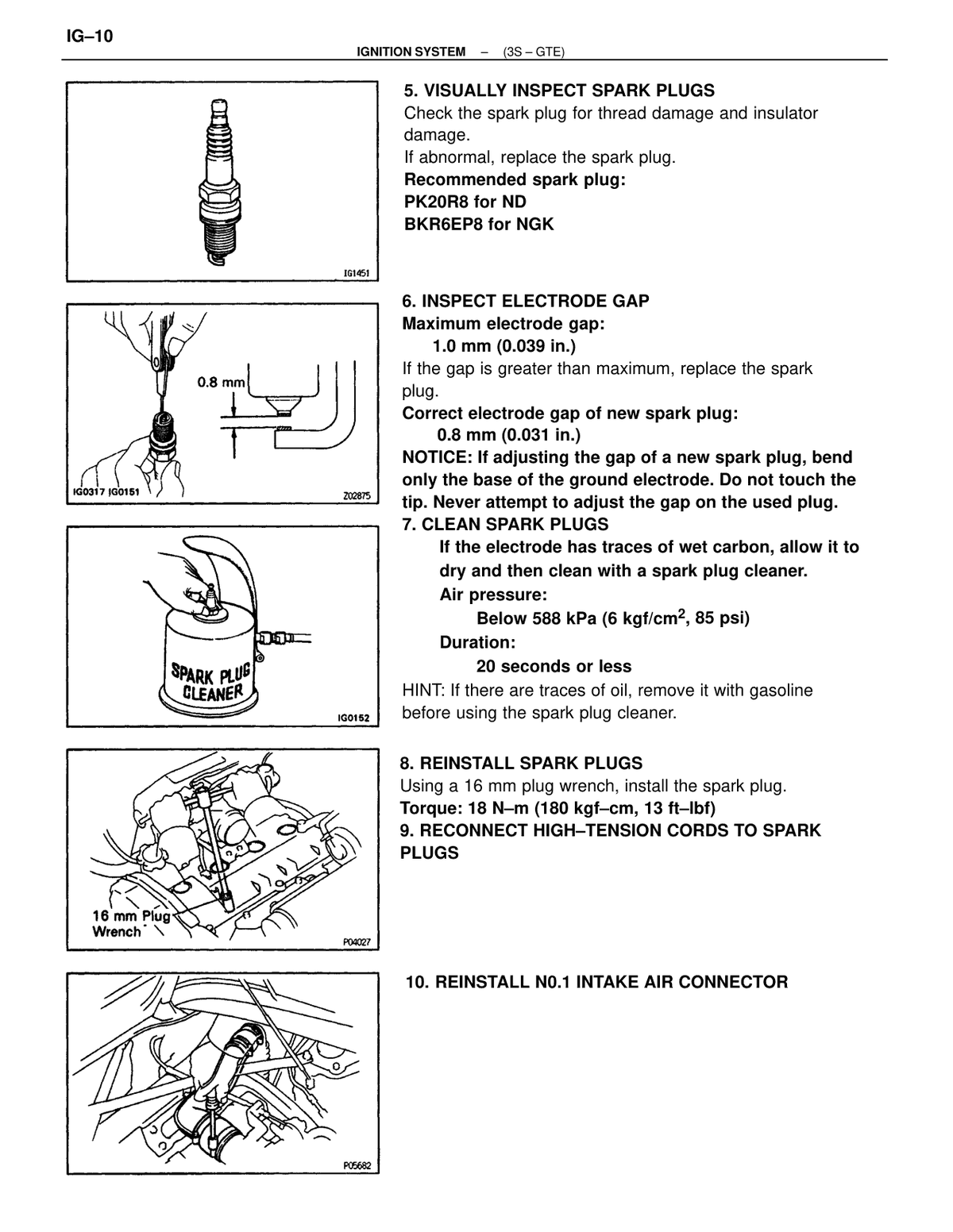

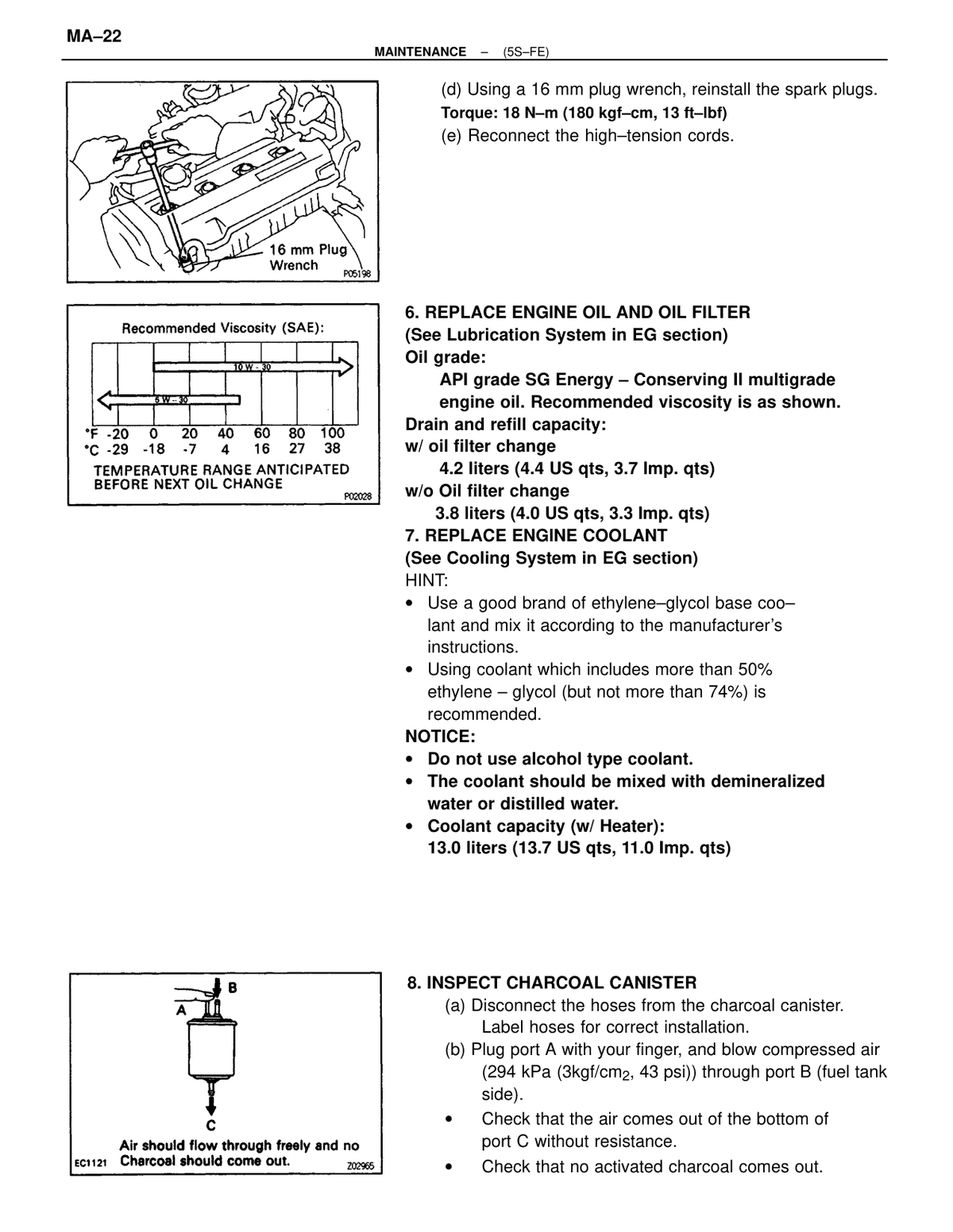

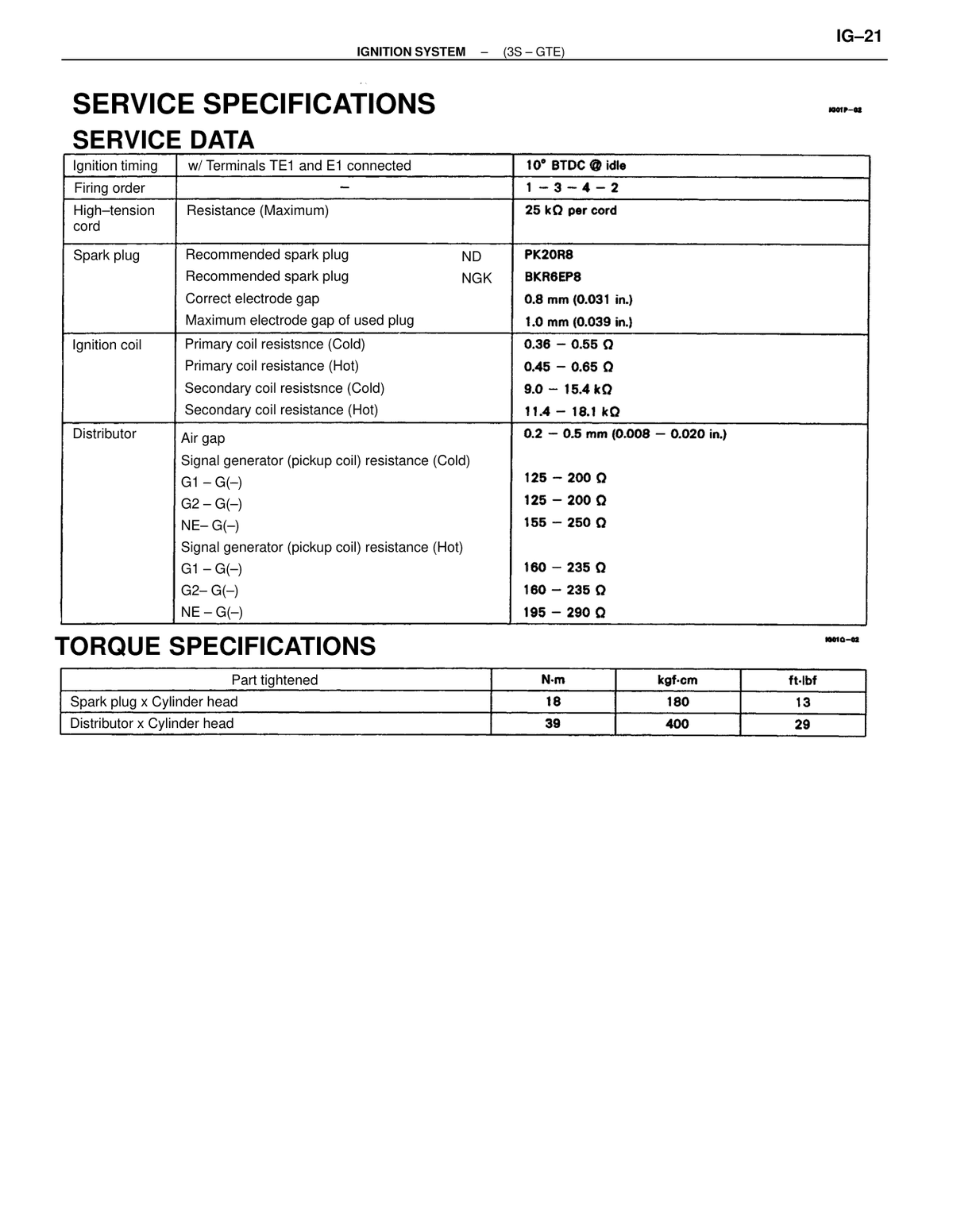

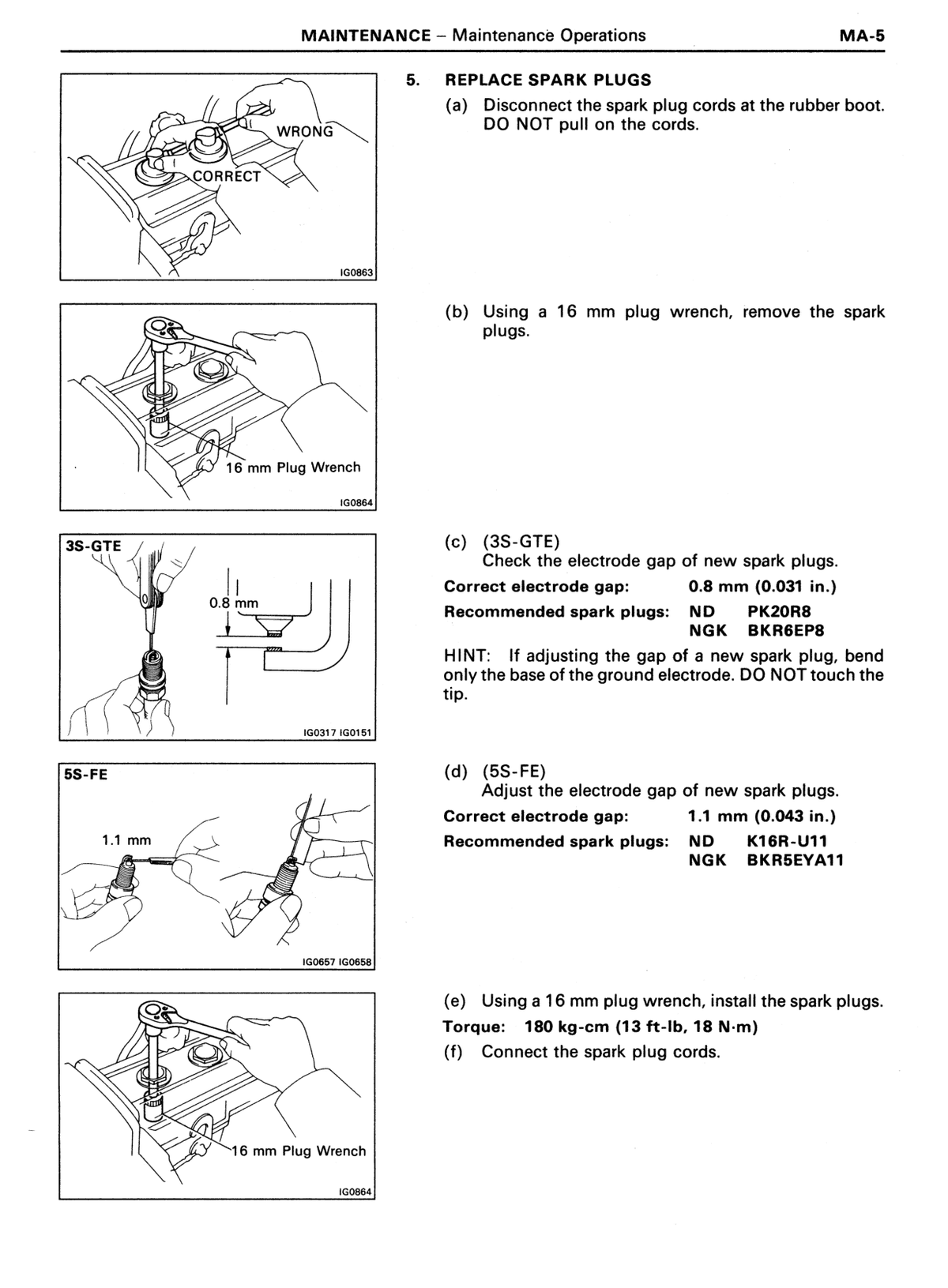

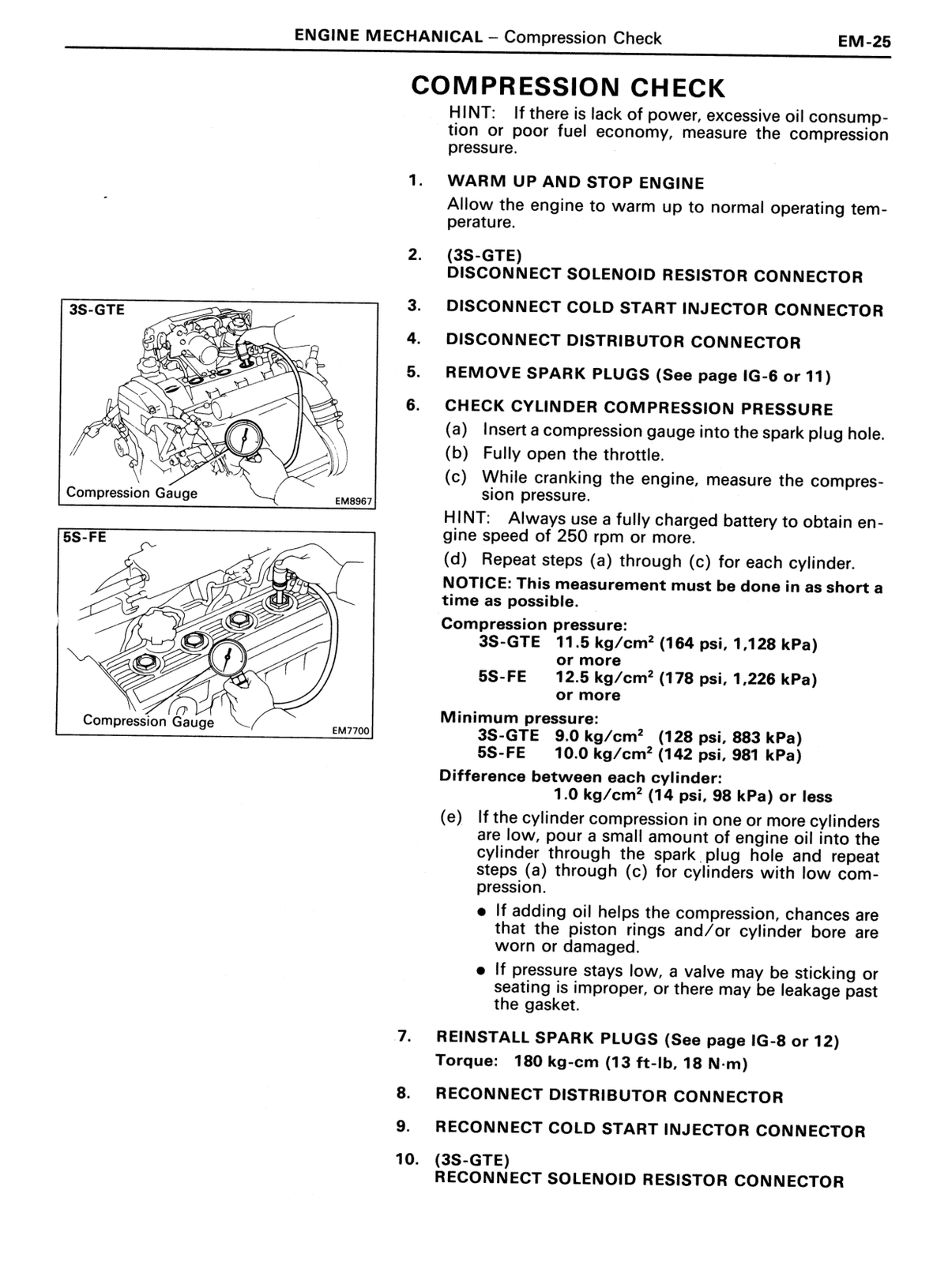

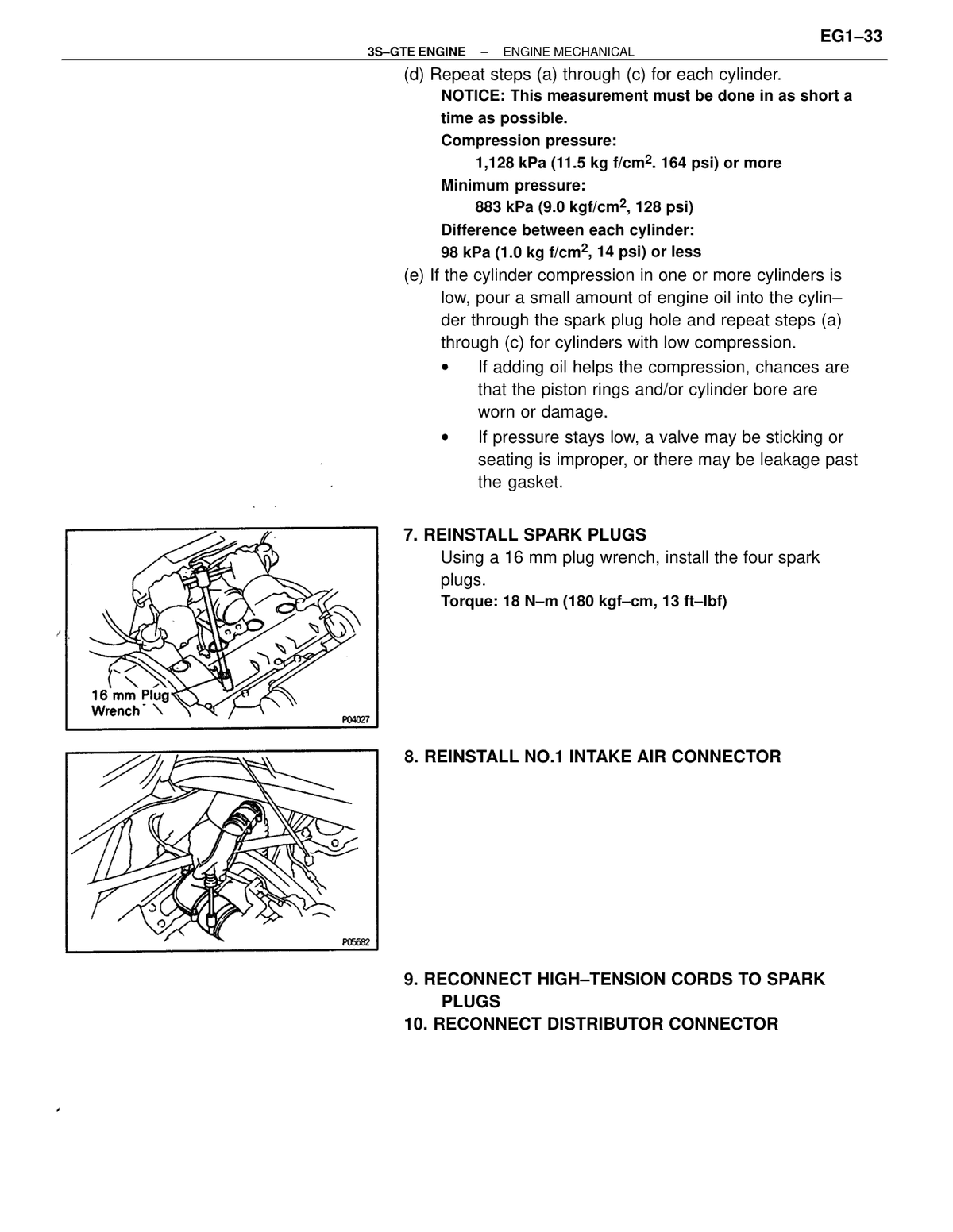

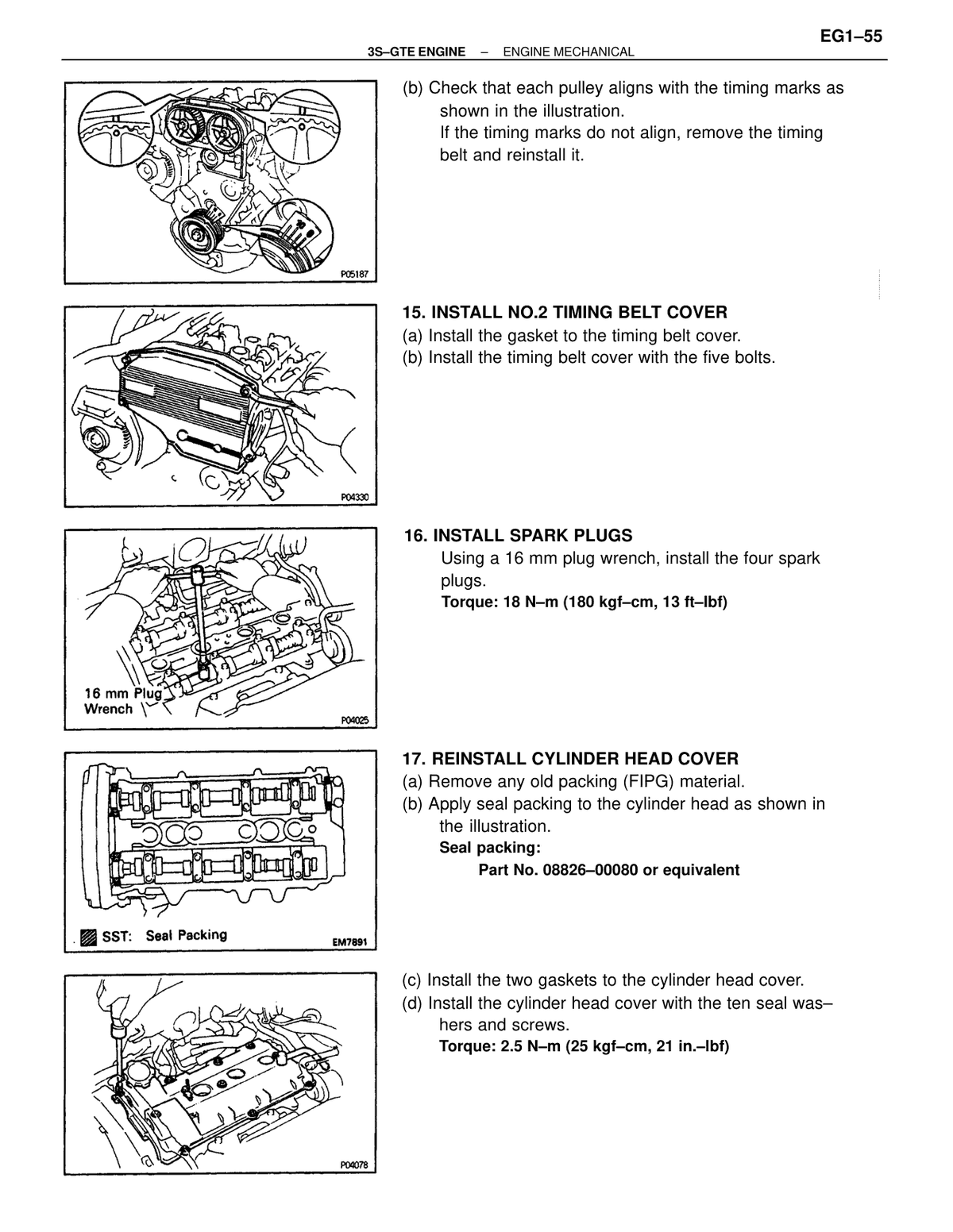

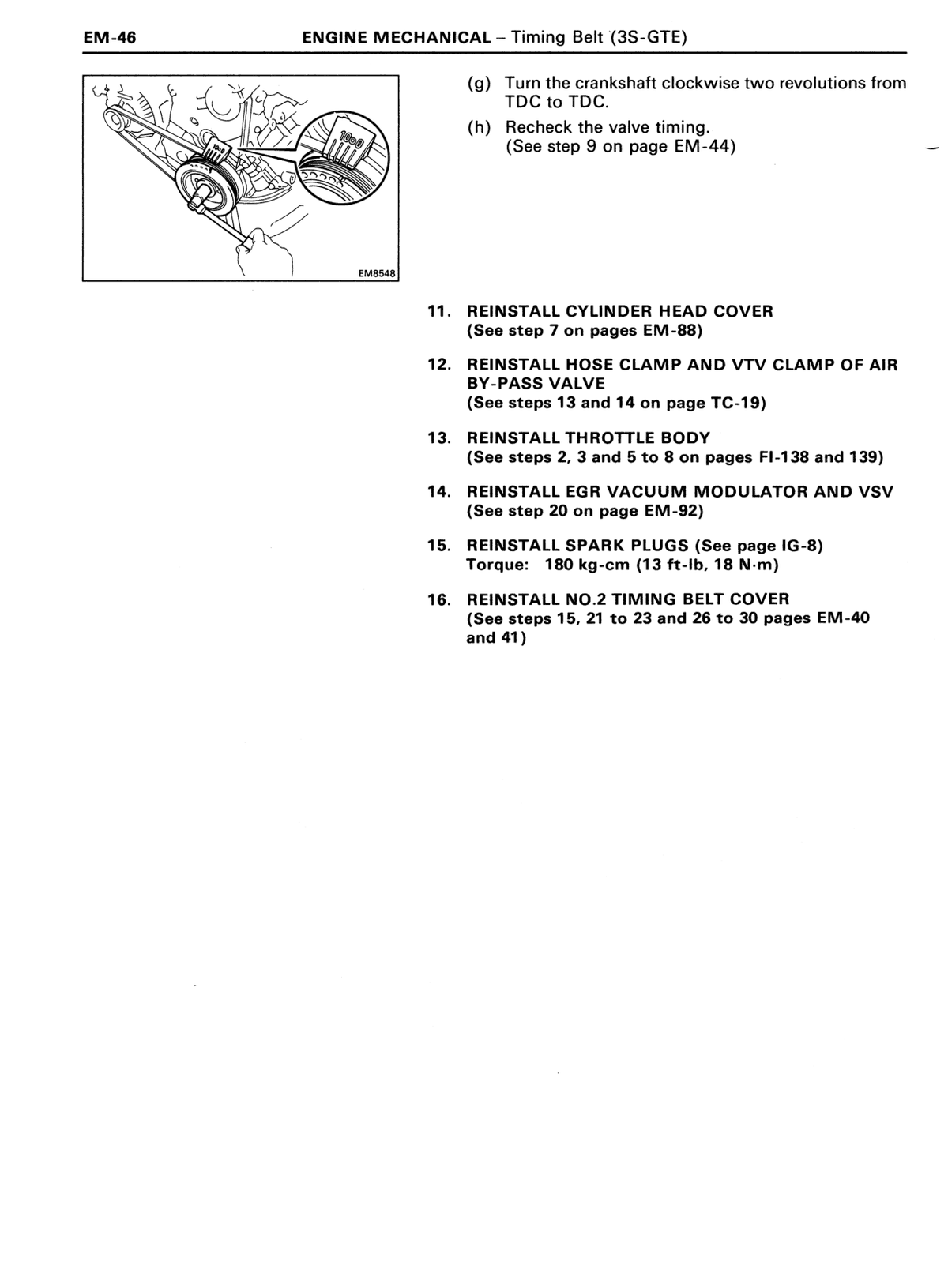

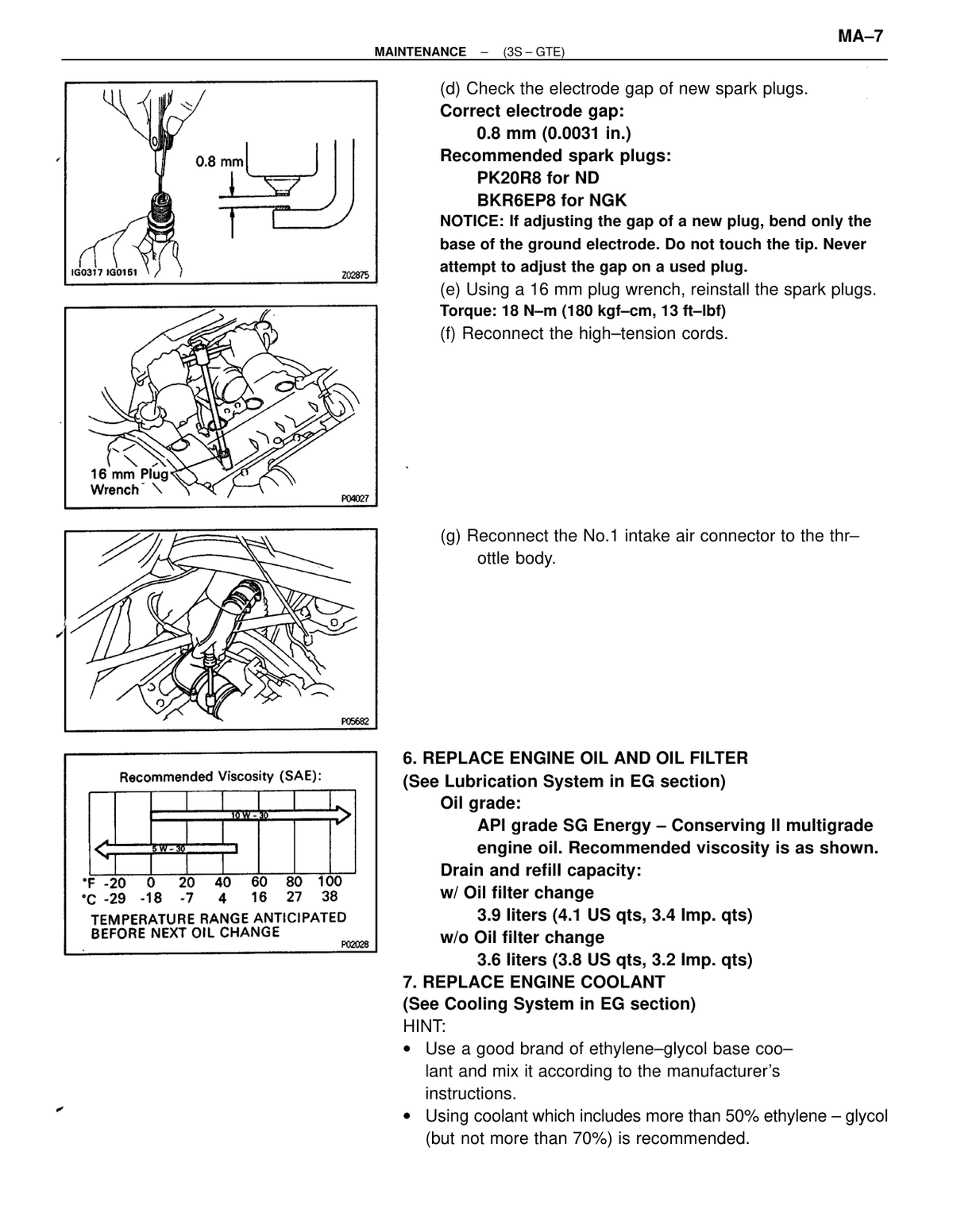

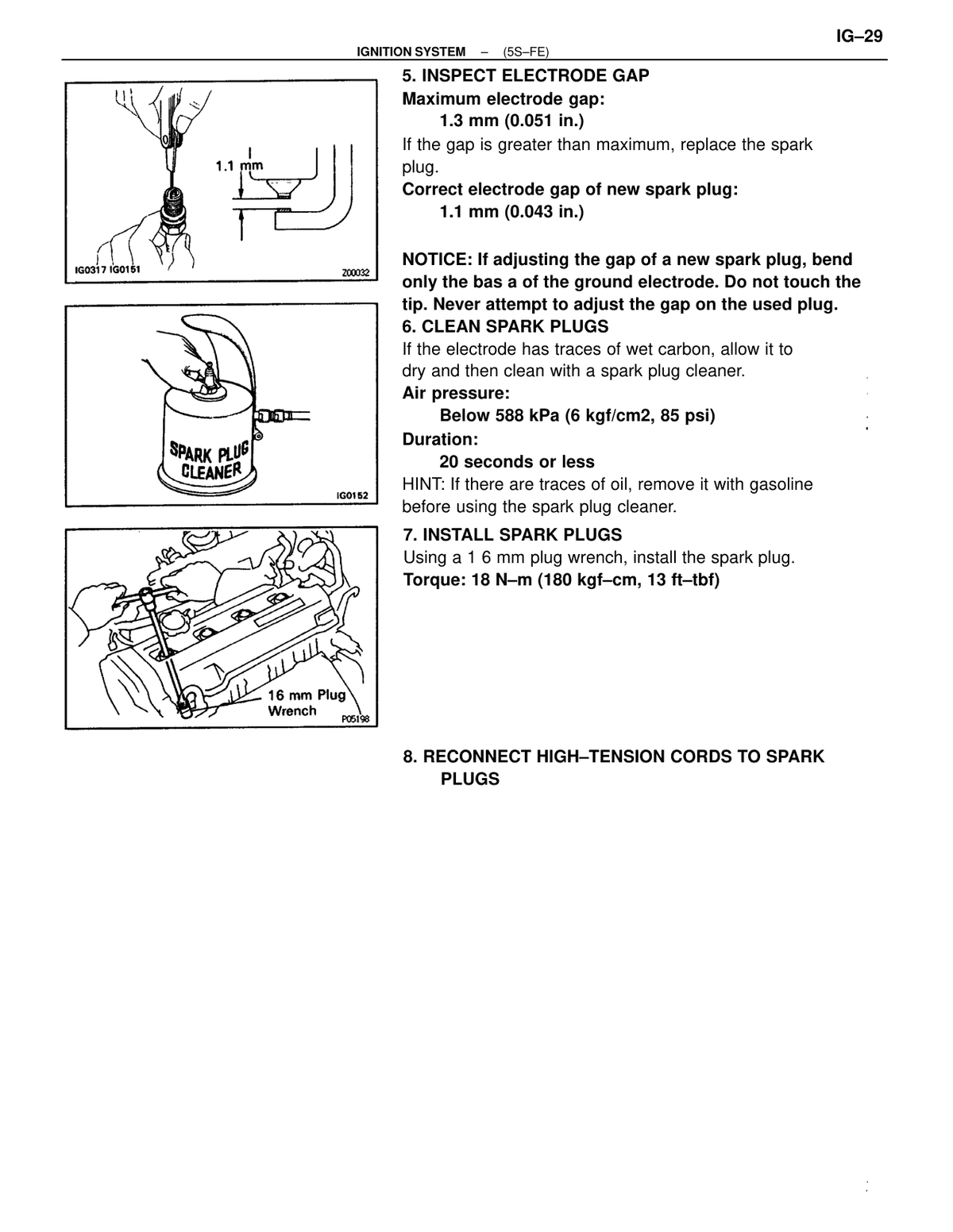

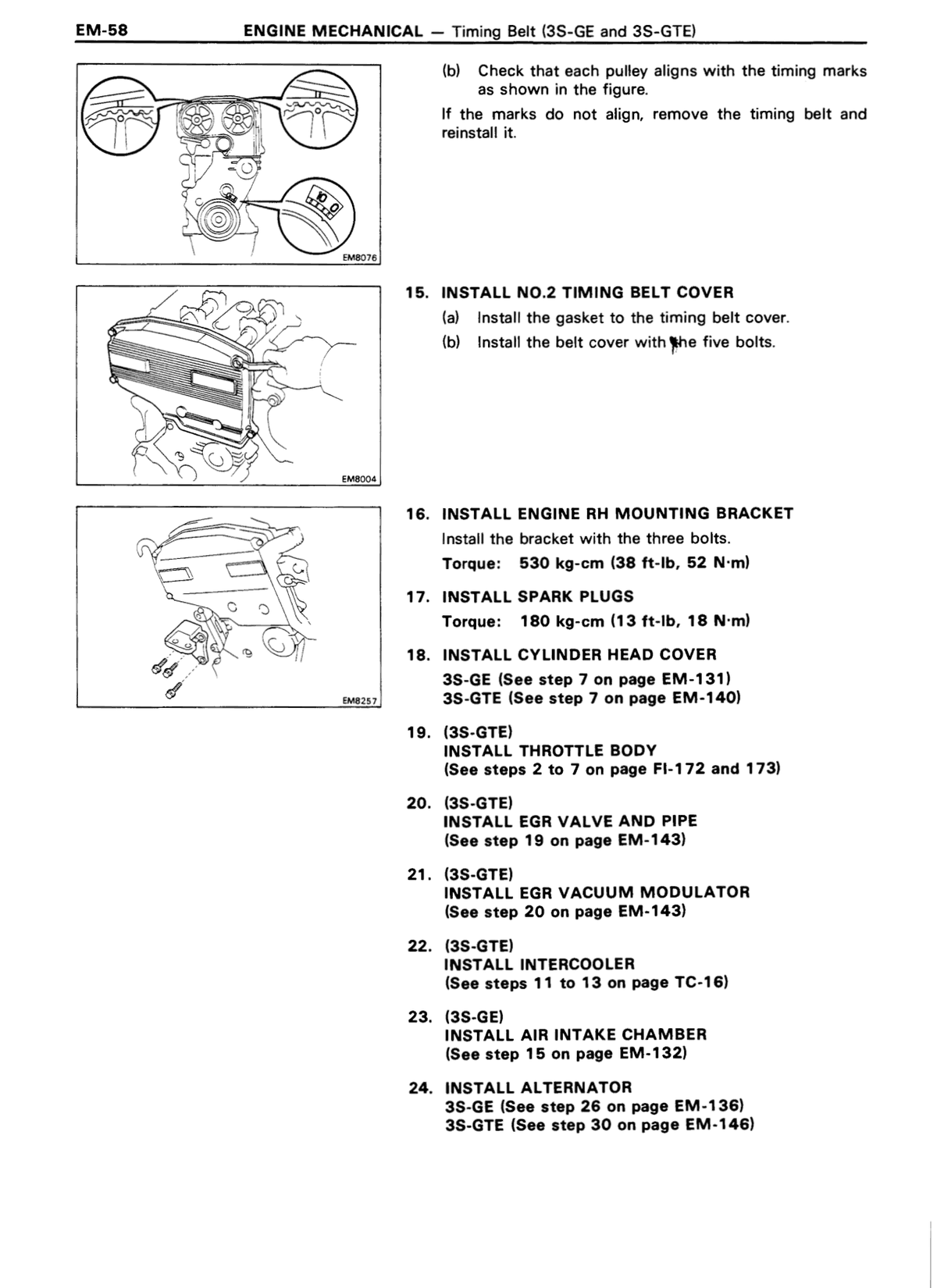

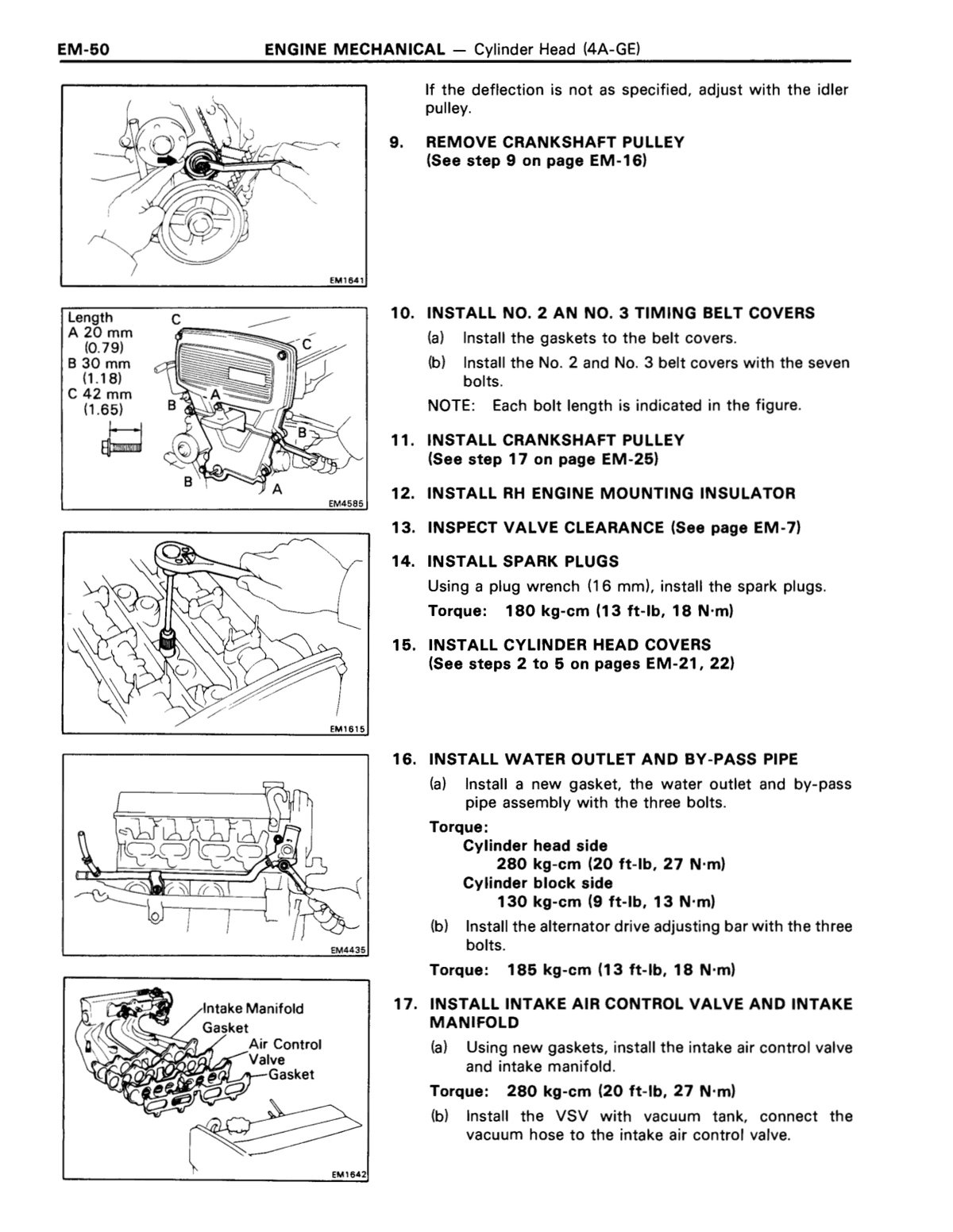

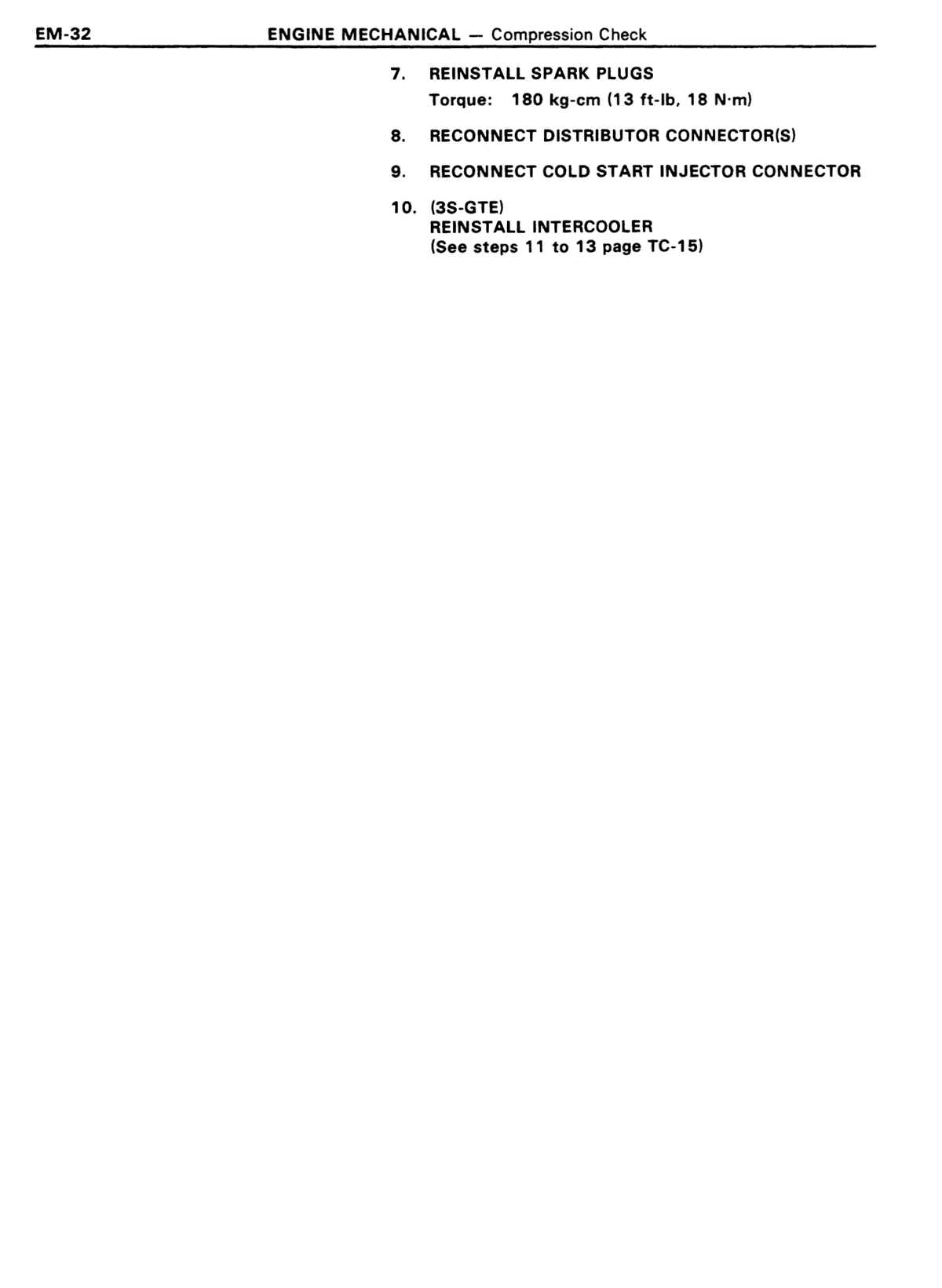

Engine — mechanical Spark plugs Step 7 — reinstall spark plugs 18 180 13 ↗ RM285U_1993_3sgte_engineme · p2 OEM manual

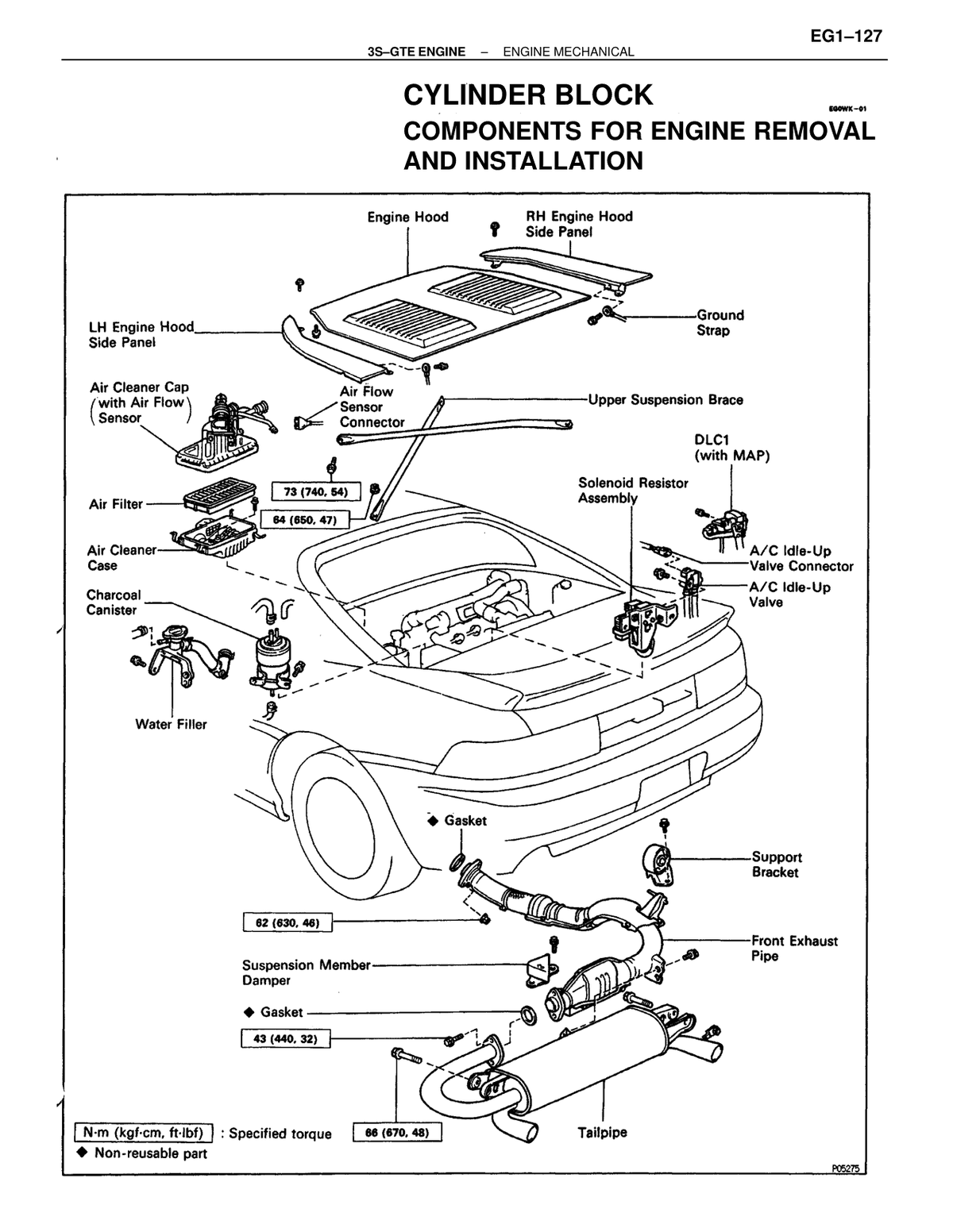

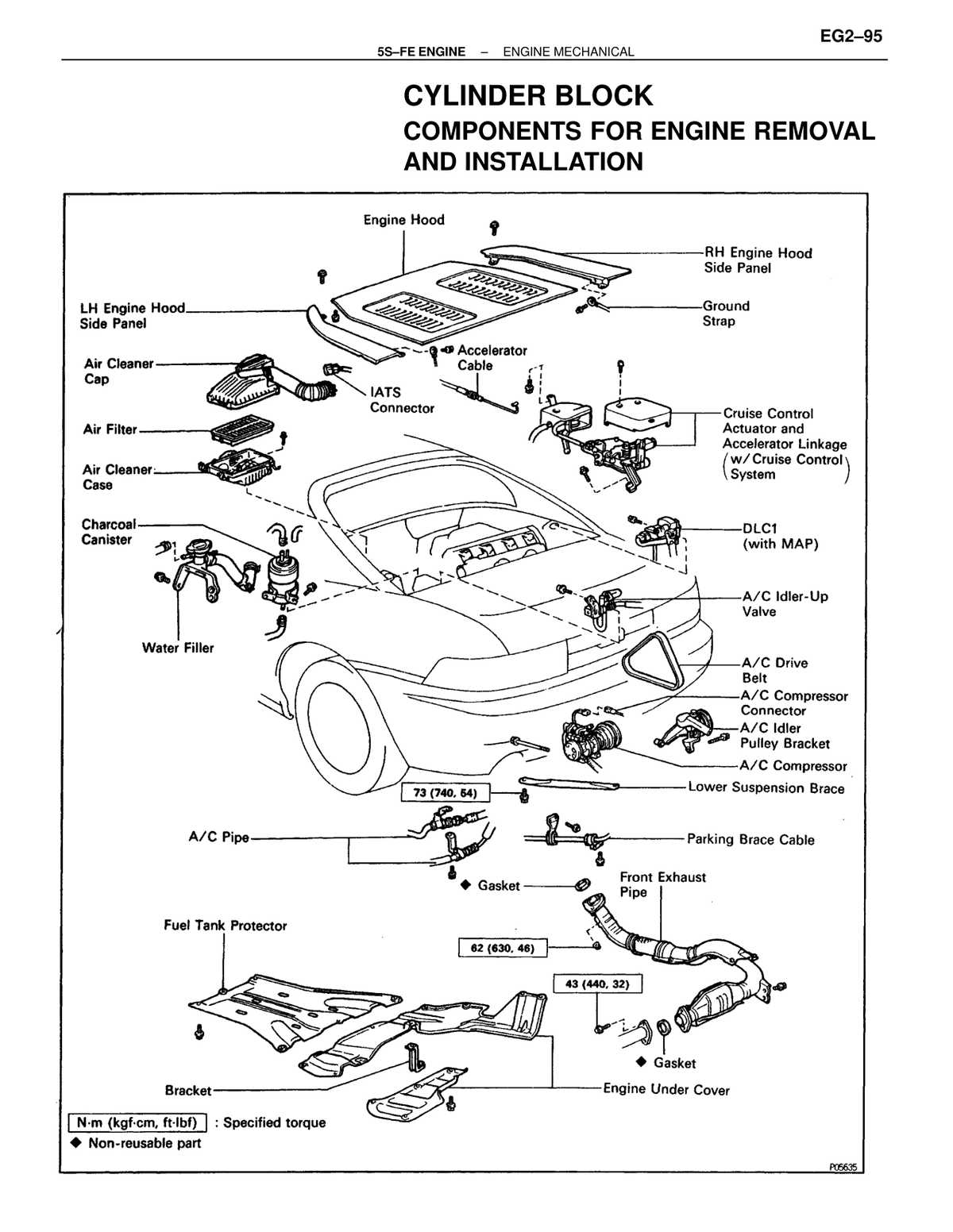

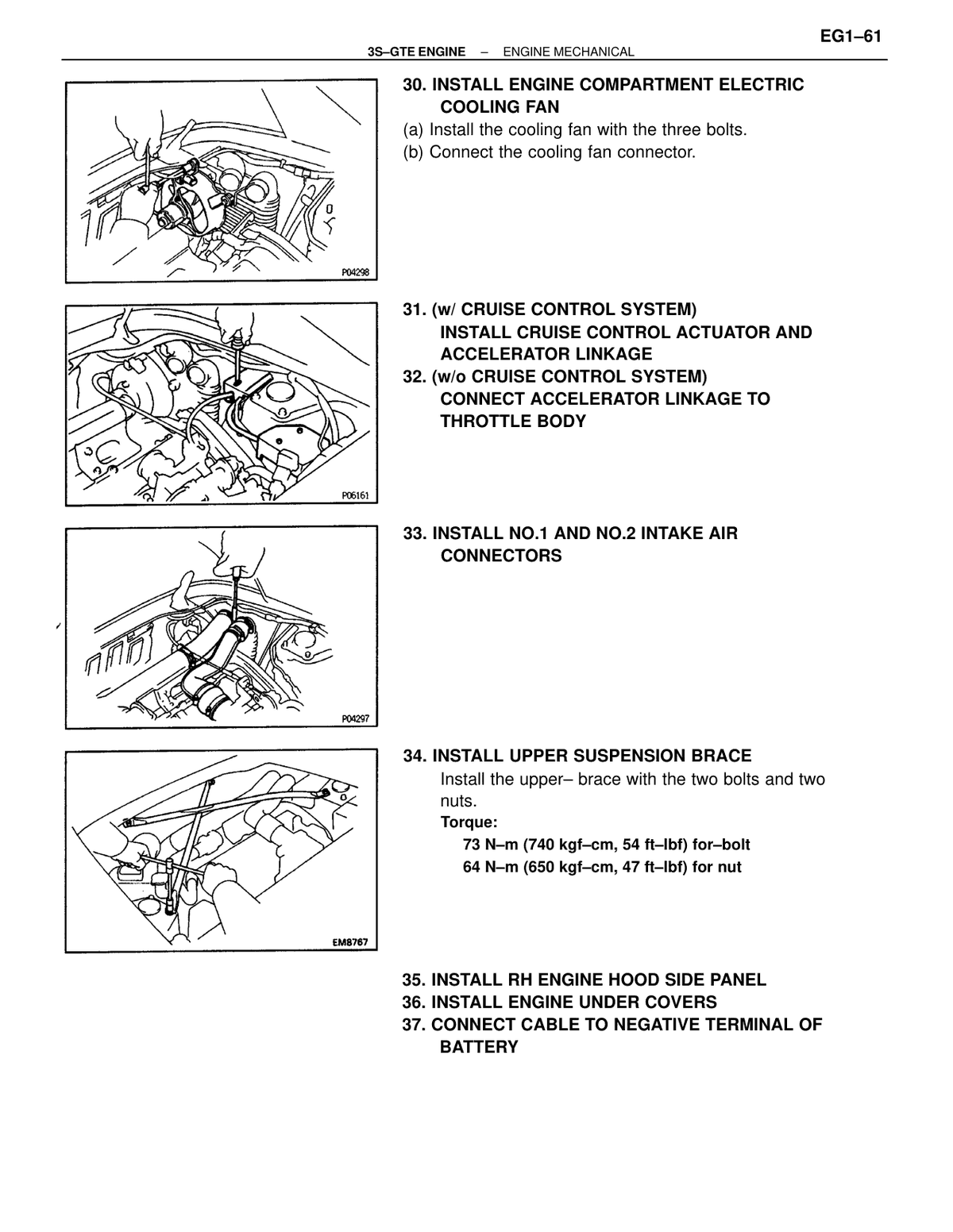

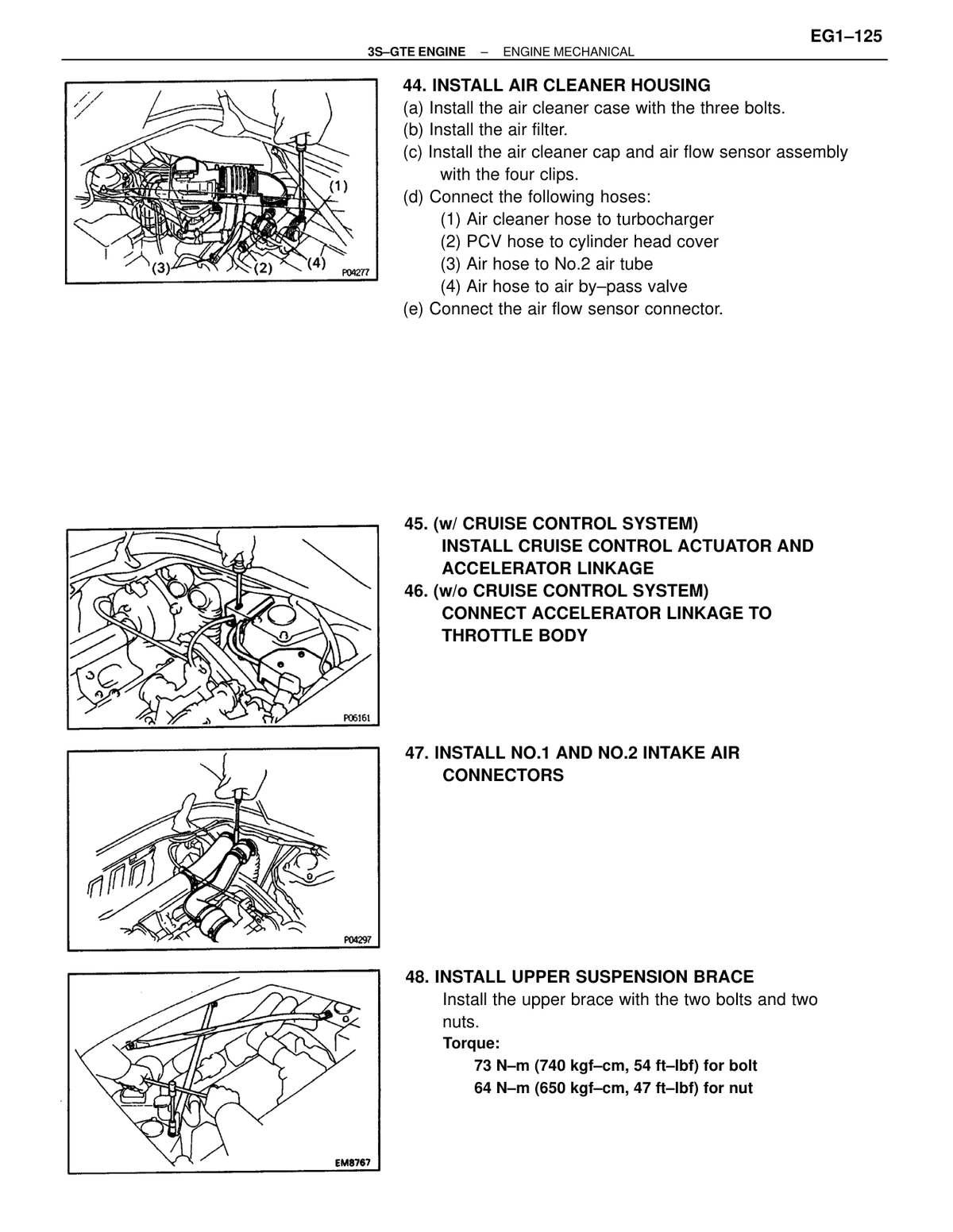

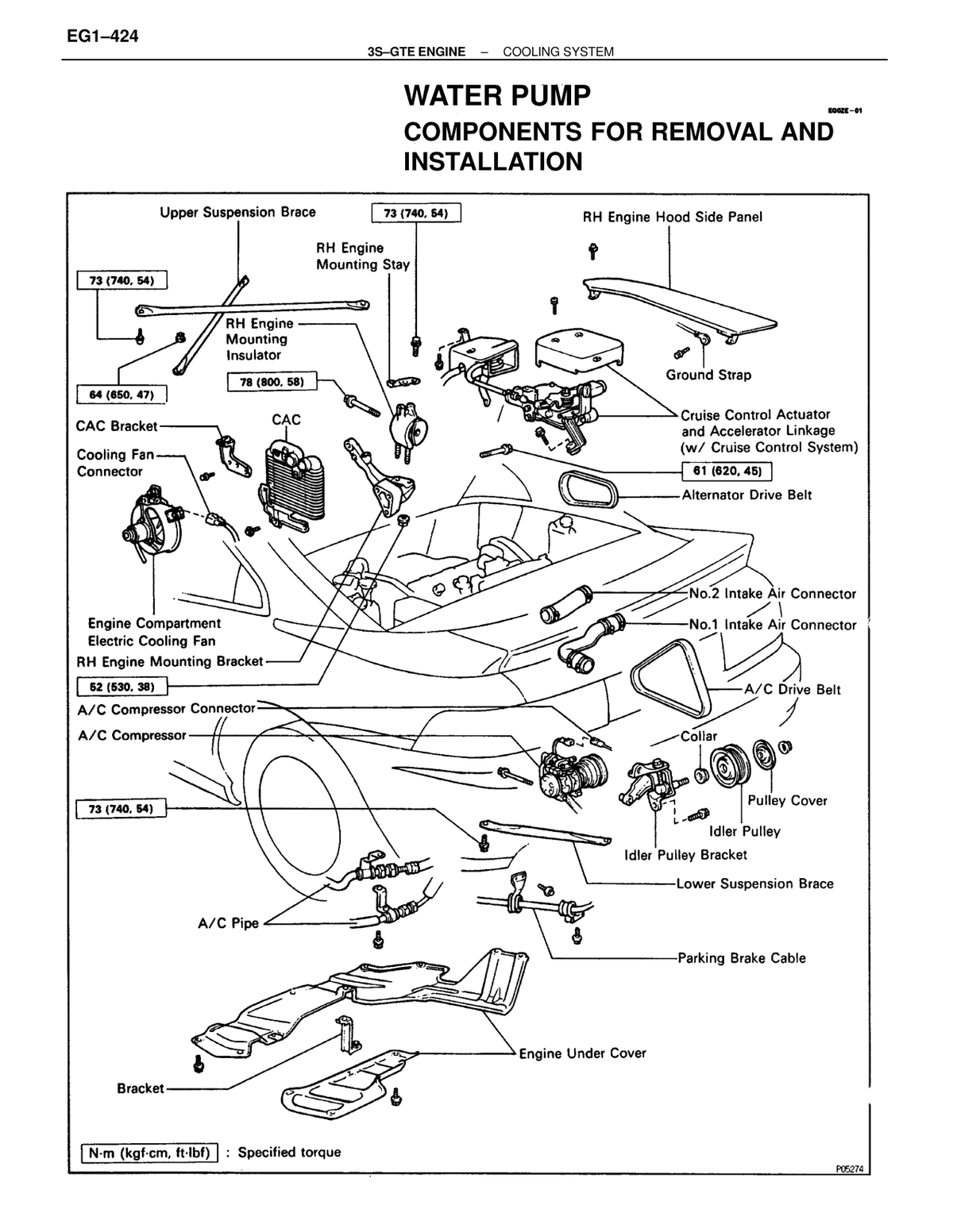

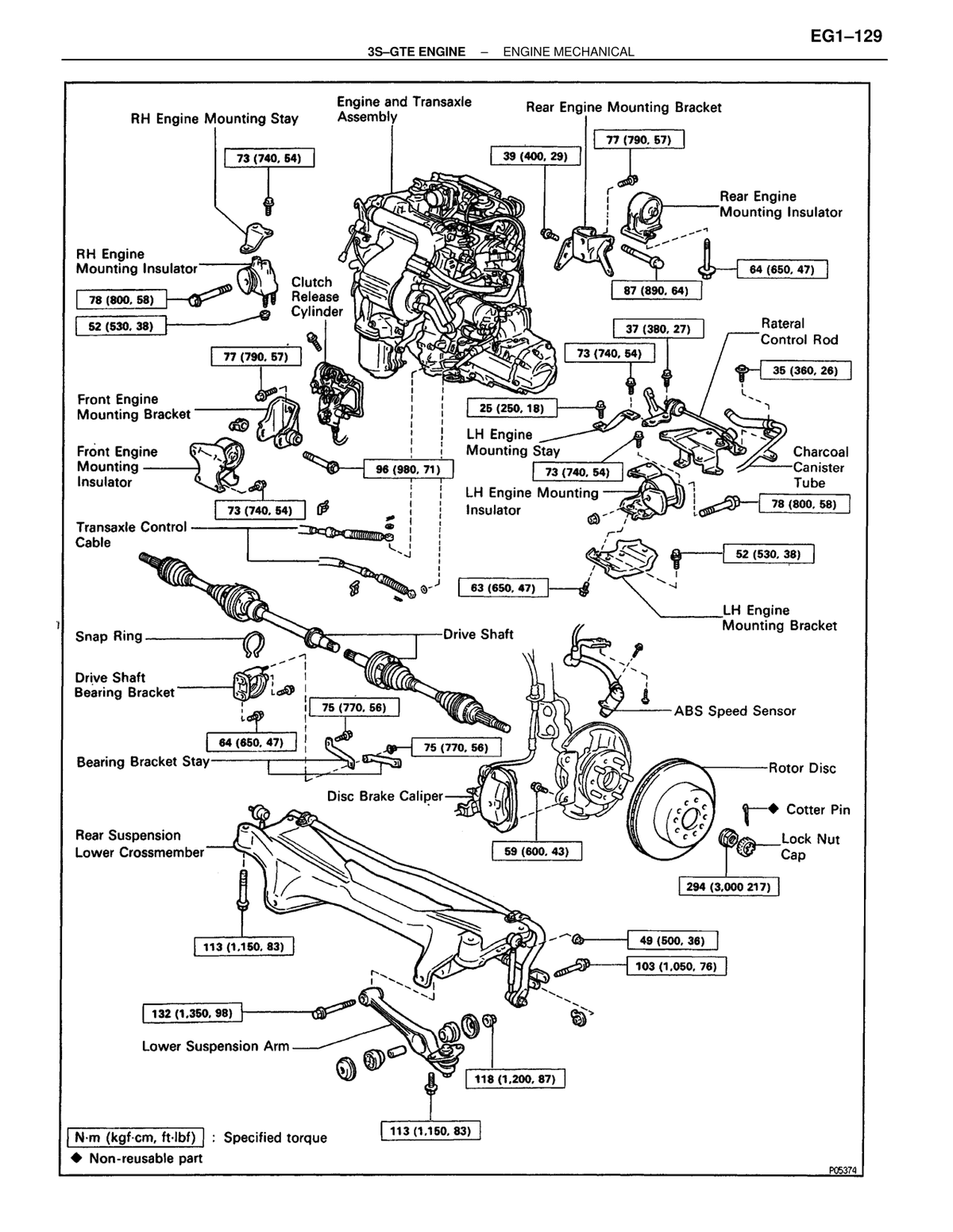

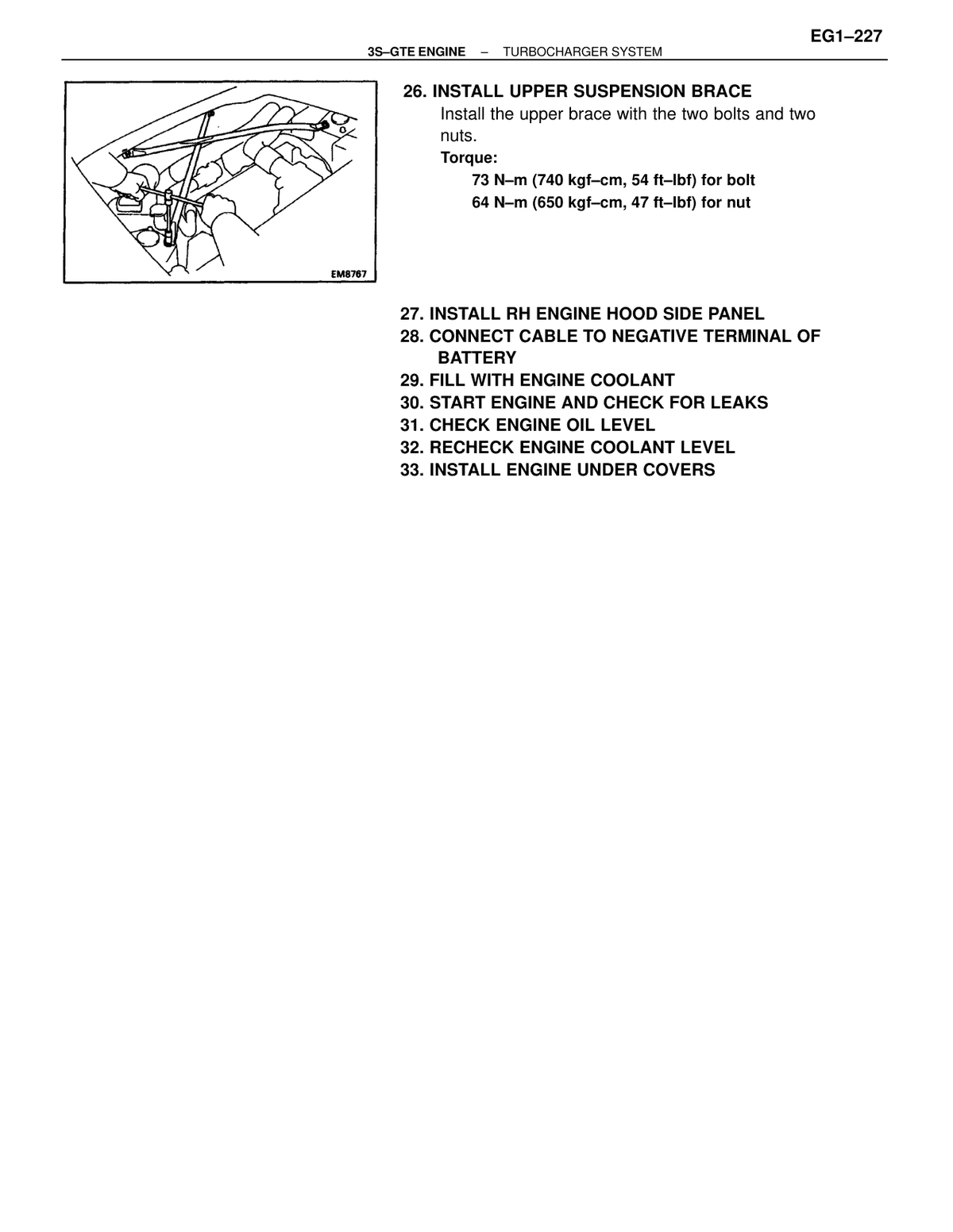

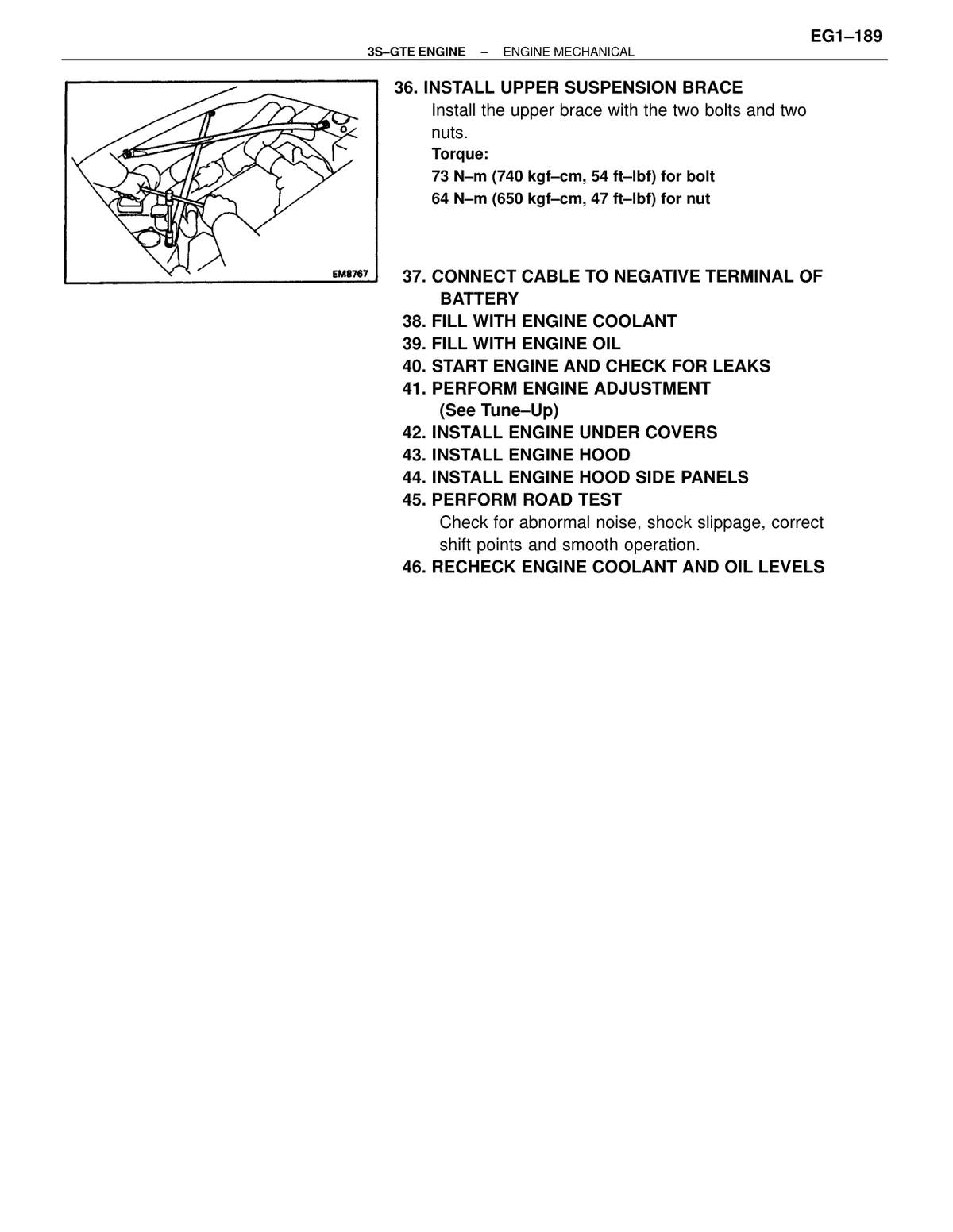

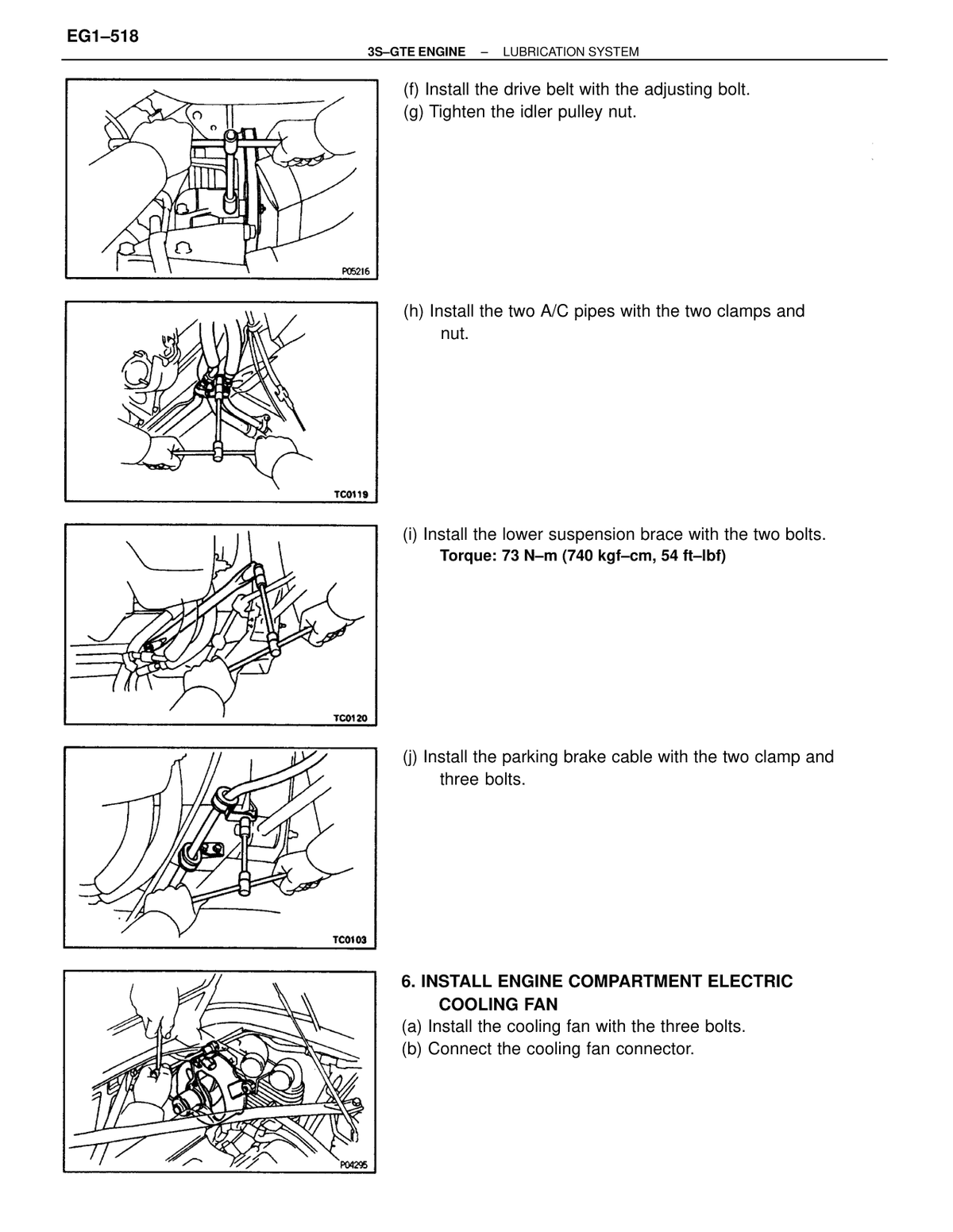

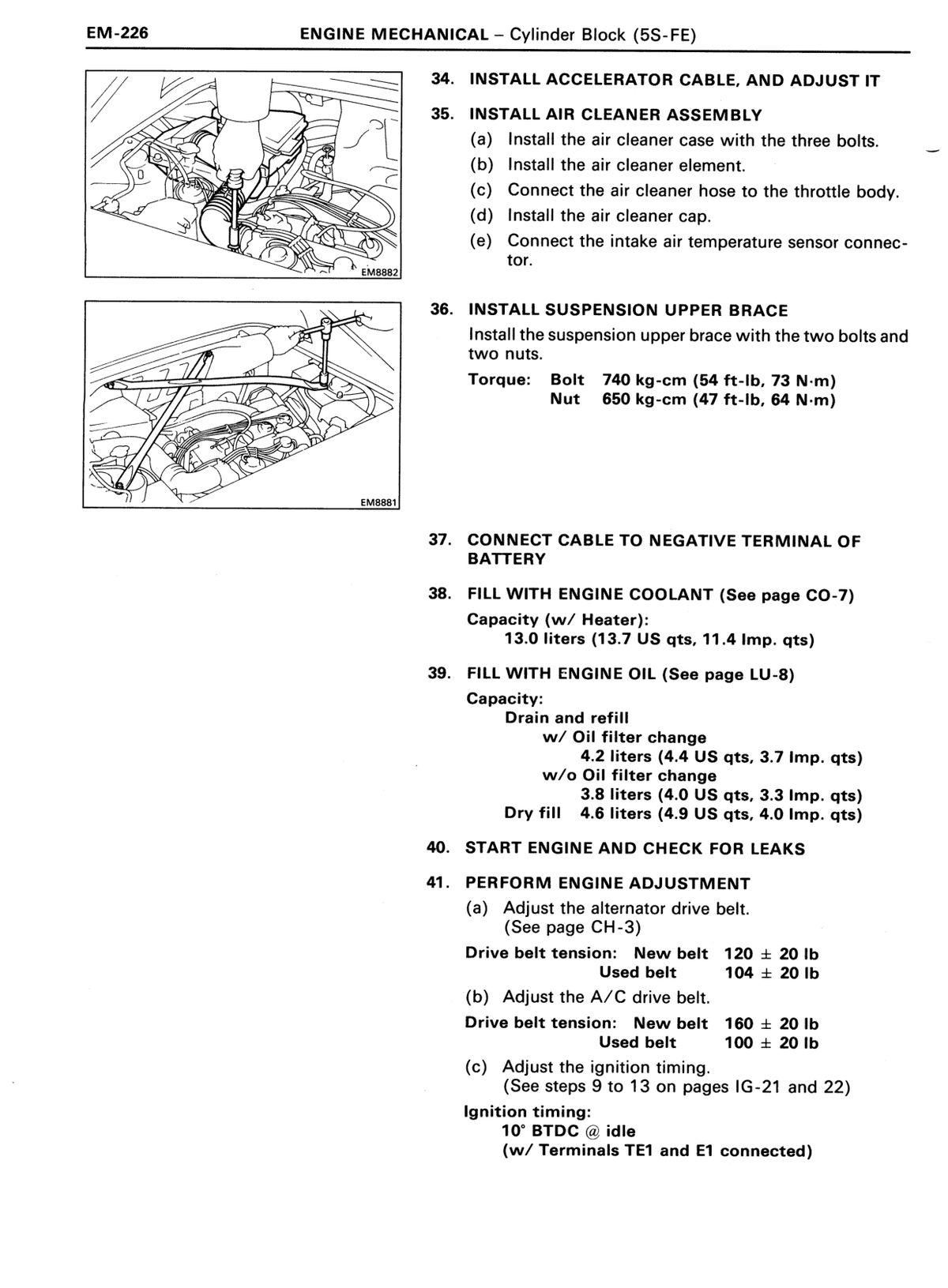

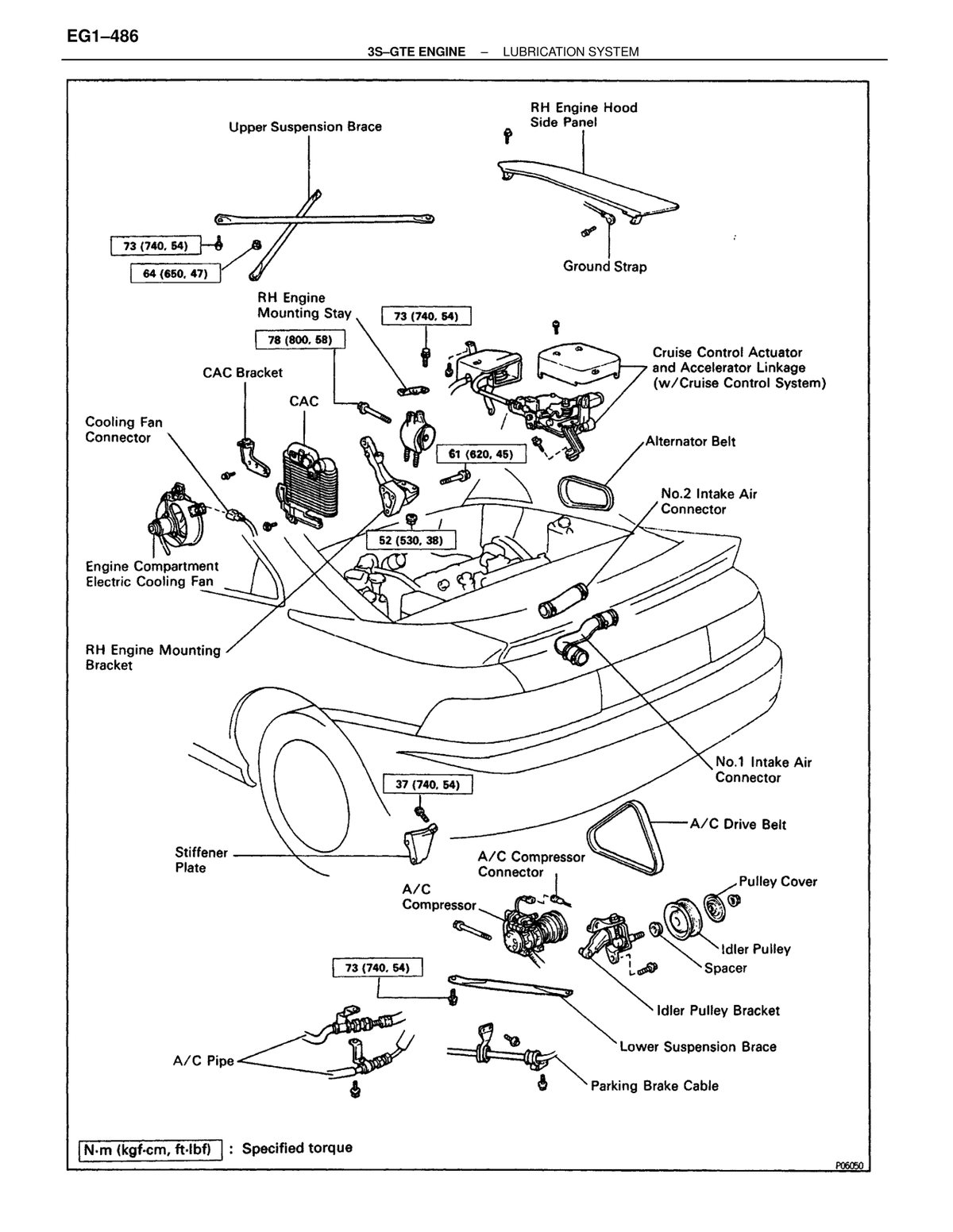

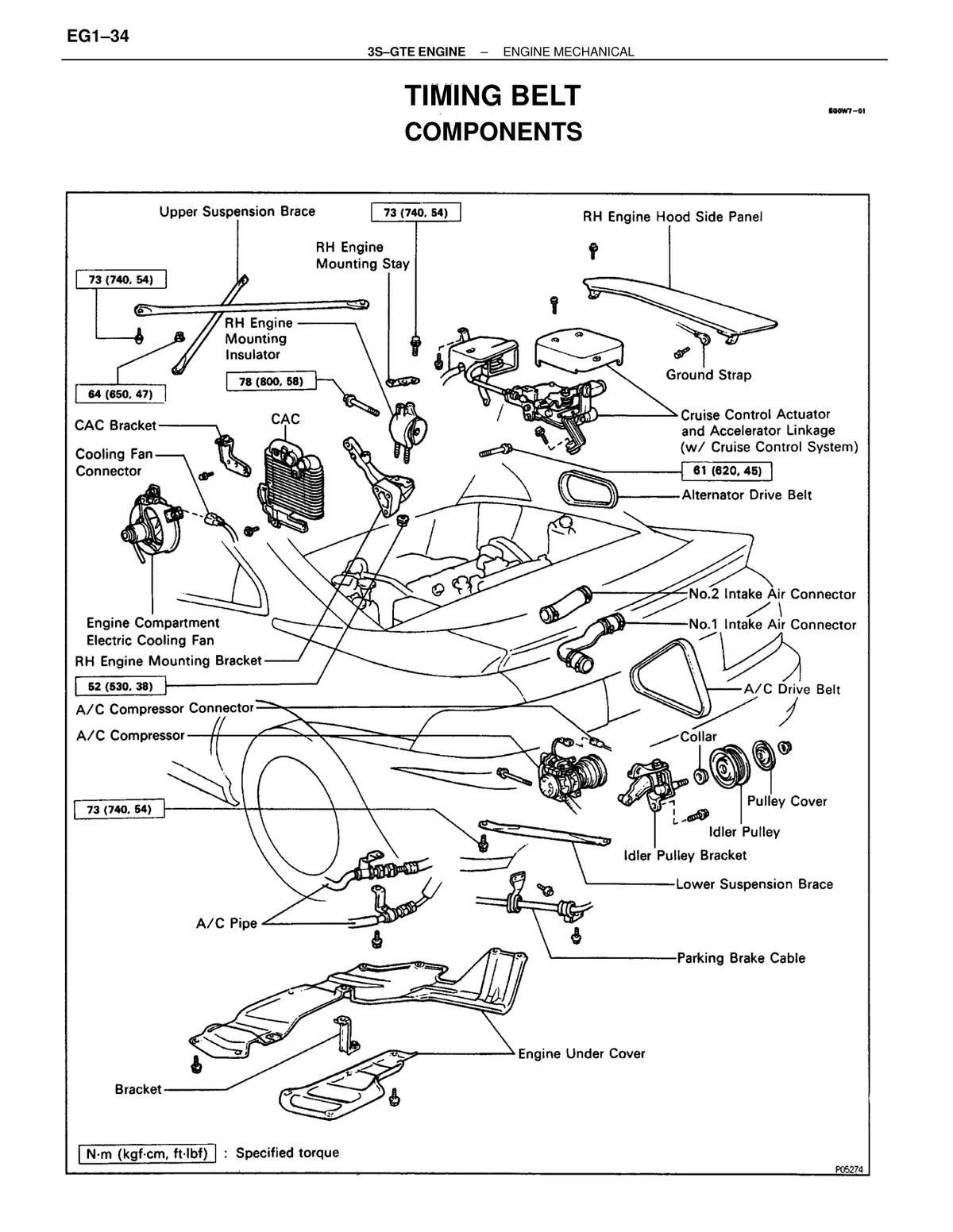

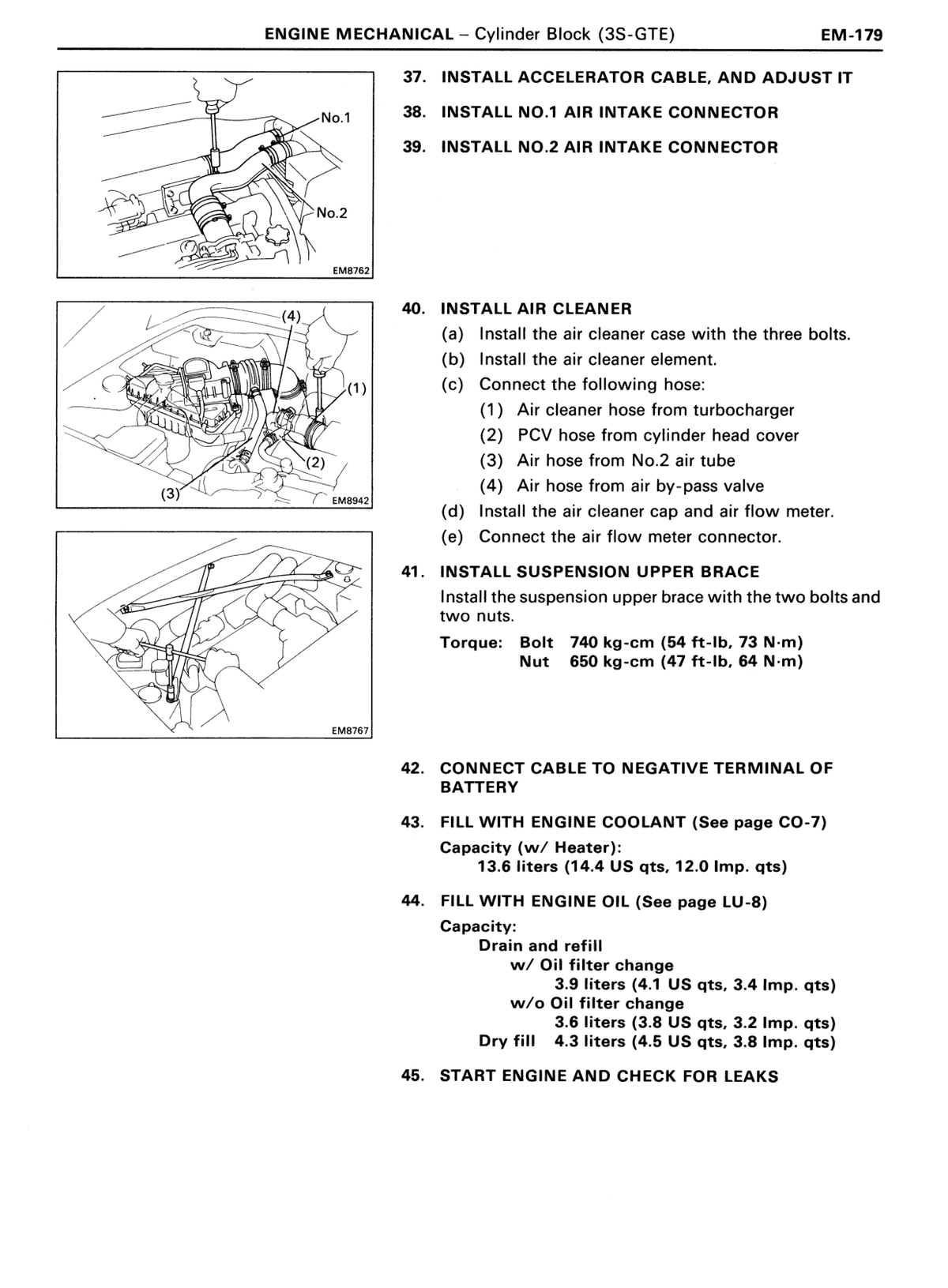

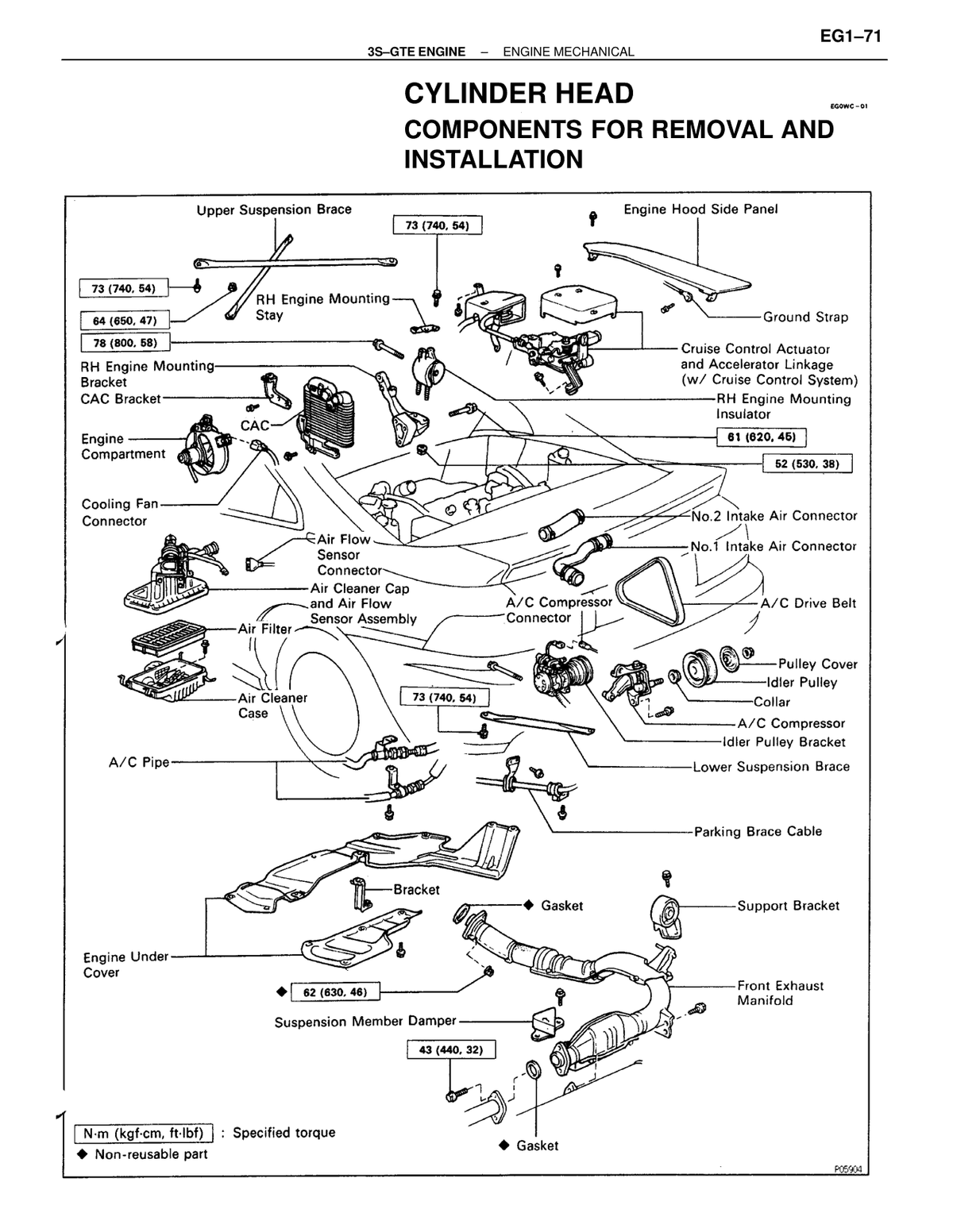

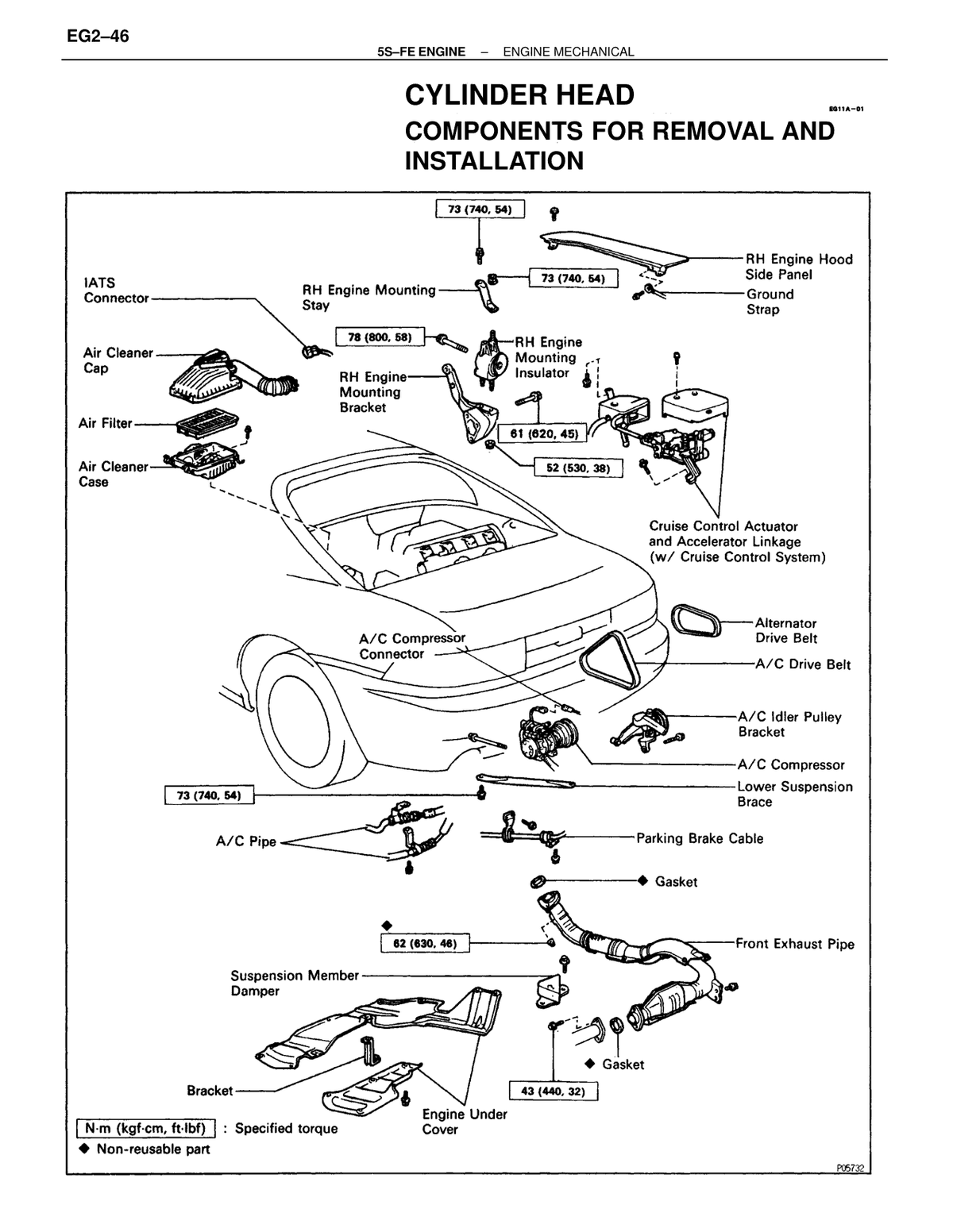

Engine — mechanical Air Cleaner Case bolts (upper value) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p3 OEM manual
Engine — mechanical Air Cleaner Case bolts (lower value) 64 650 47 ↗ RM285U_1993_3sgte_engineme · p3 OEM manual

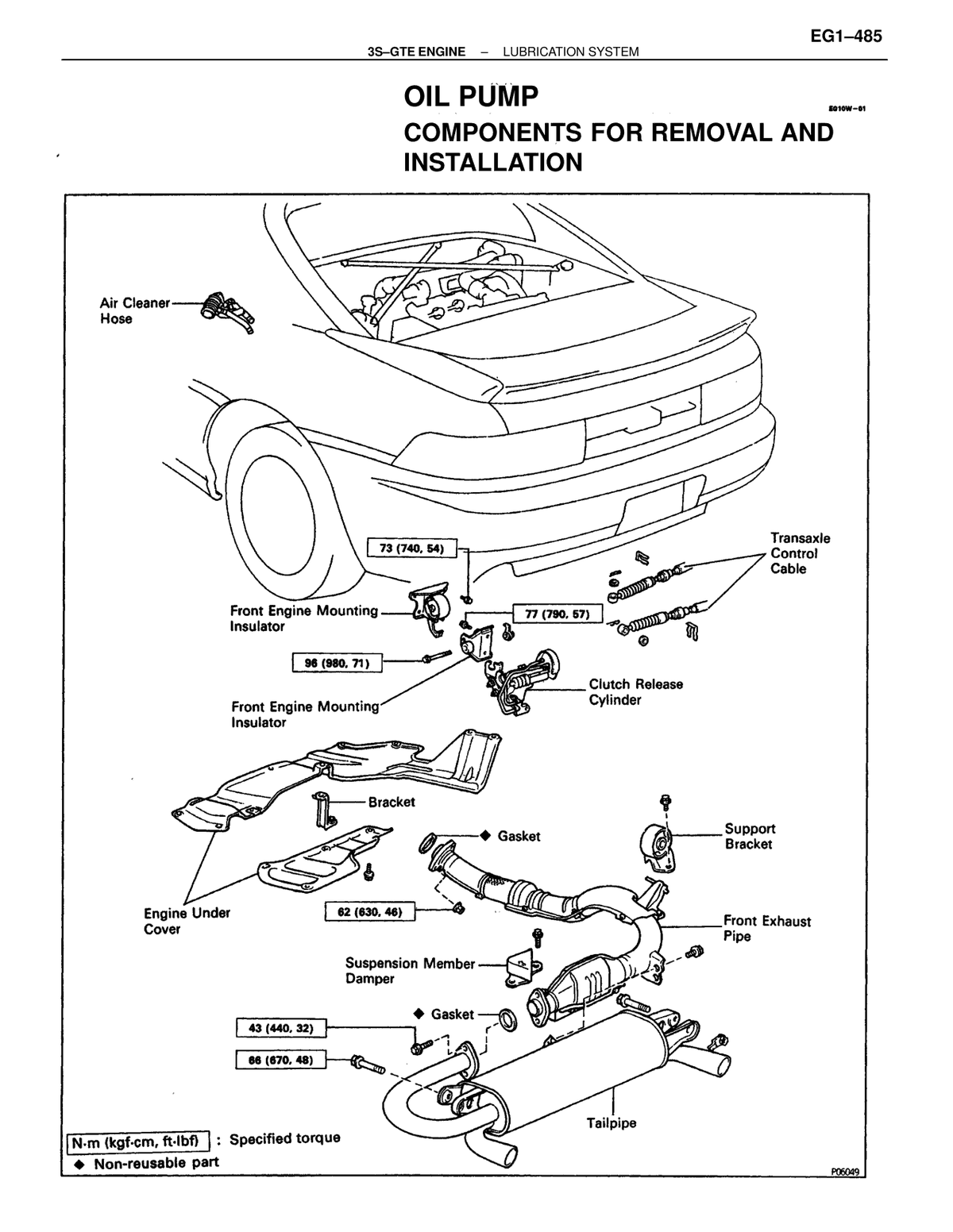

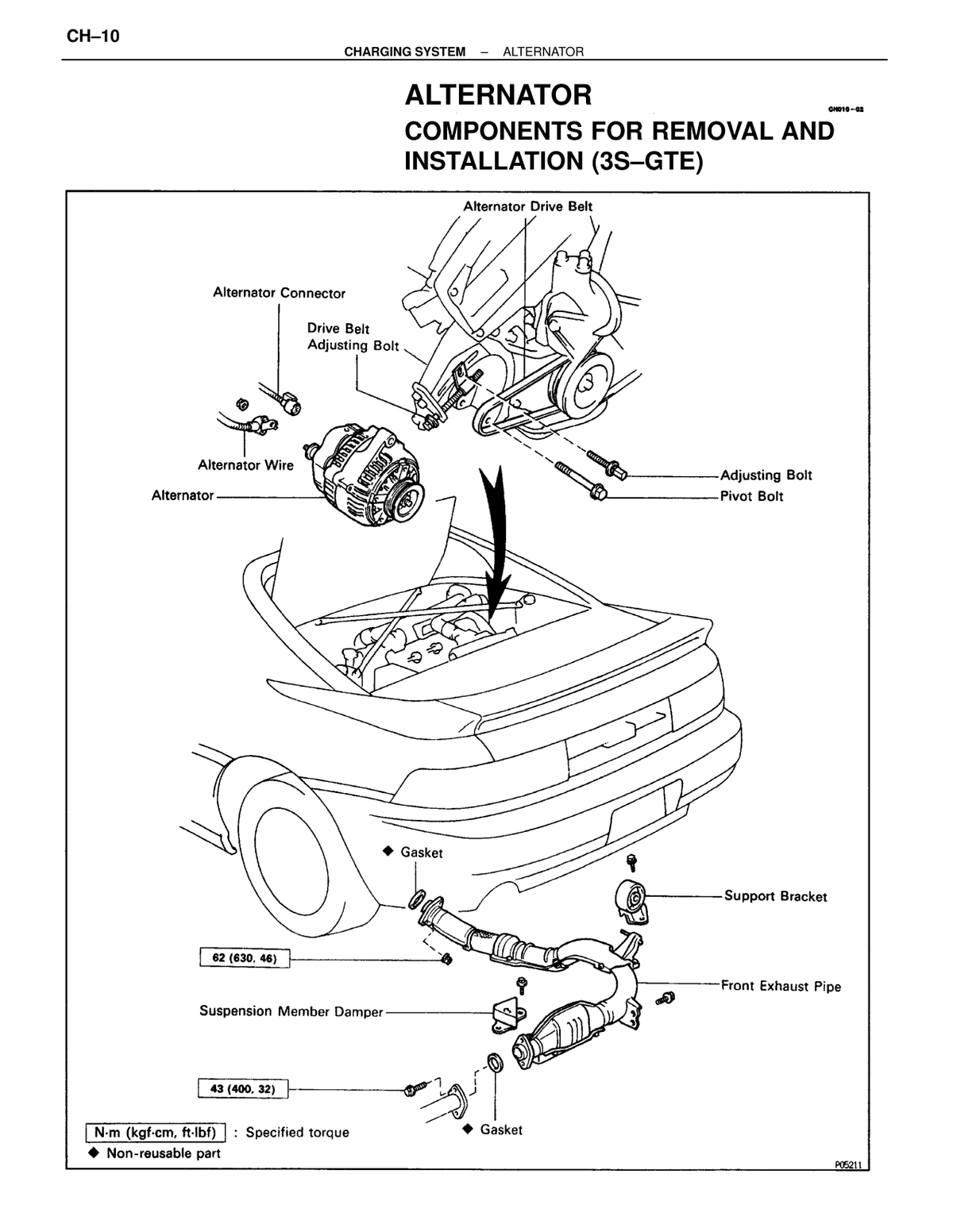

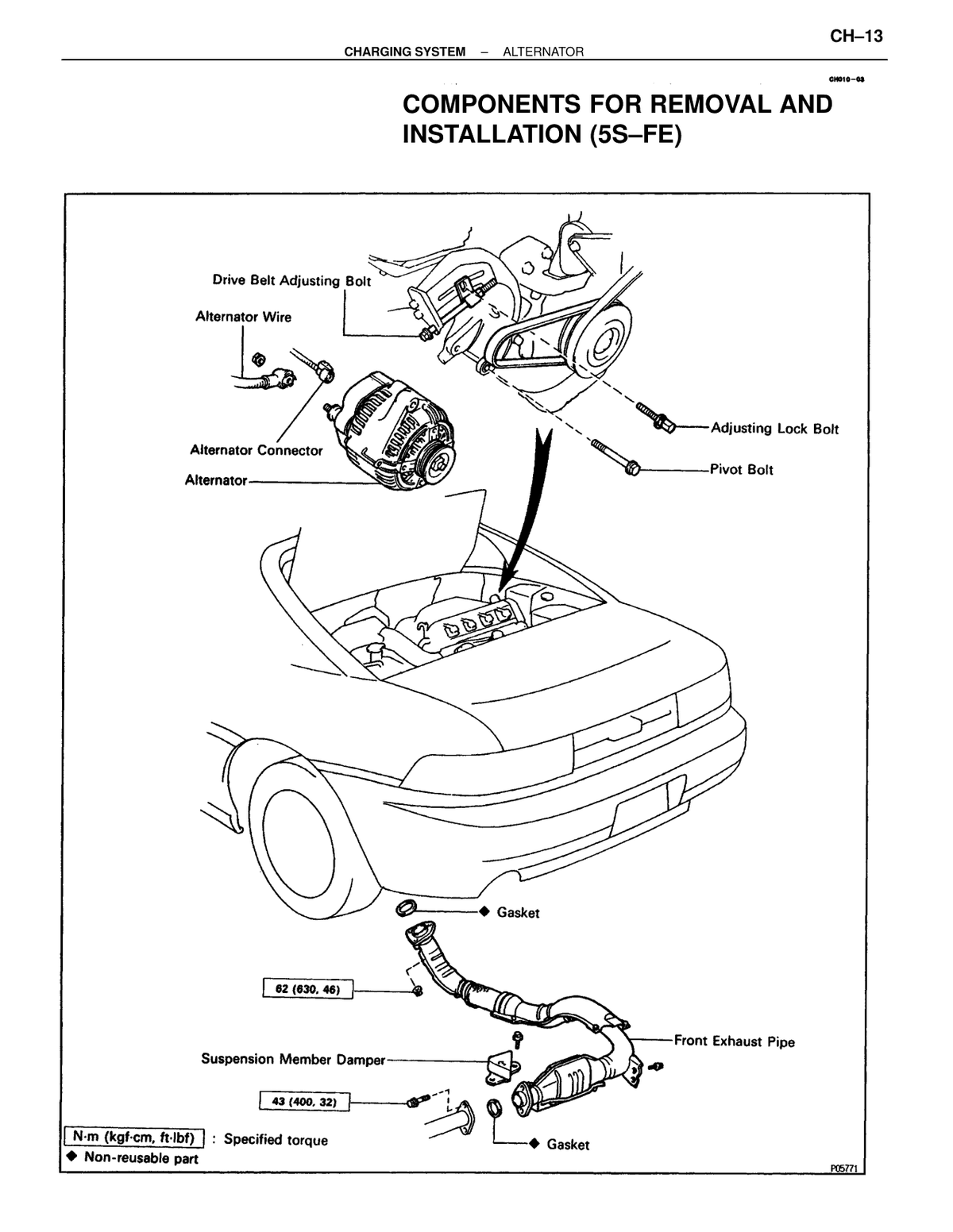

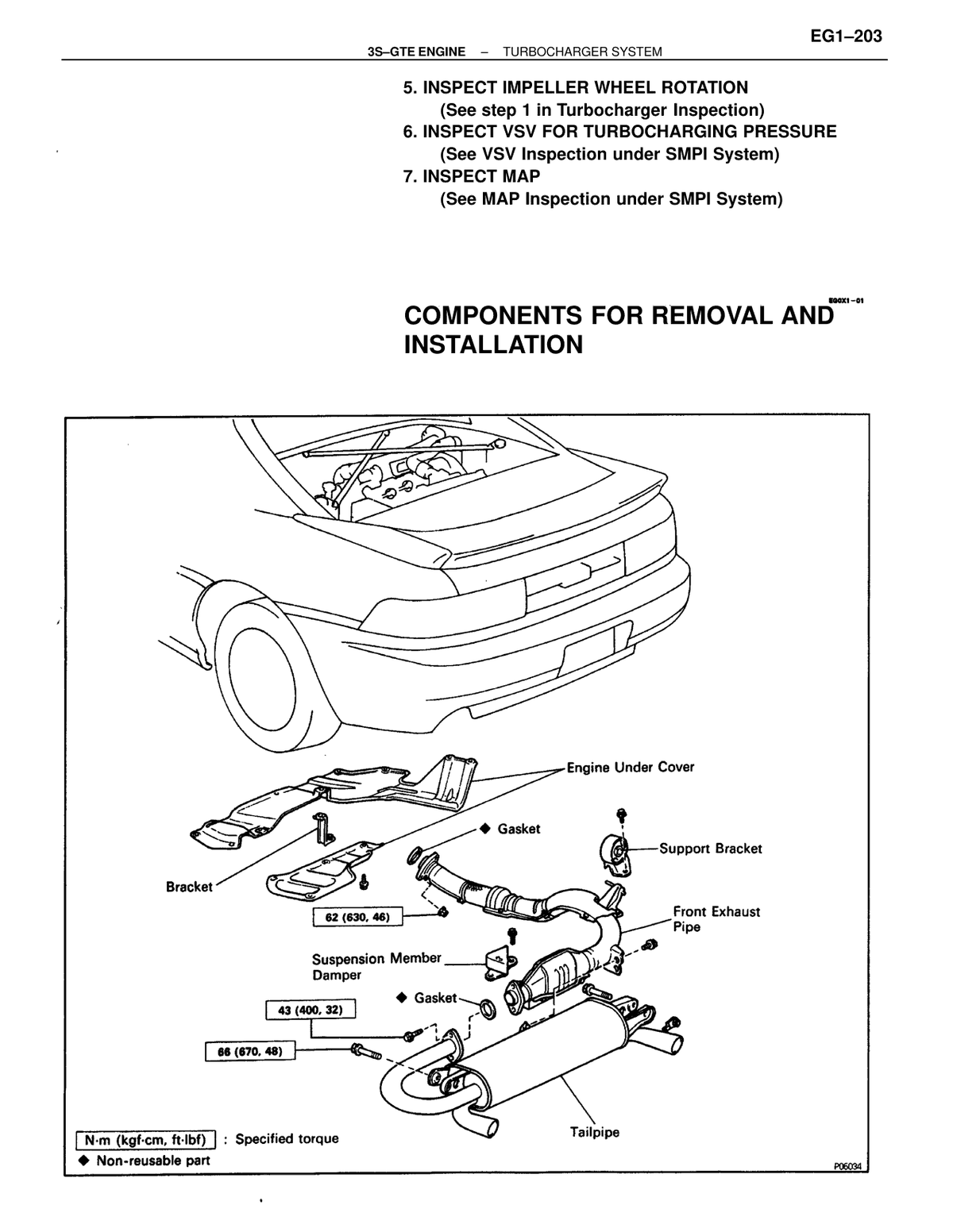

Engine — mechanical Suspension Member Damper bolts 62 630 46 ↗ RM285U_1993_3sgte_engineme · p3 OEM manual

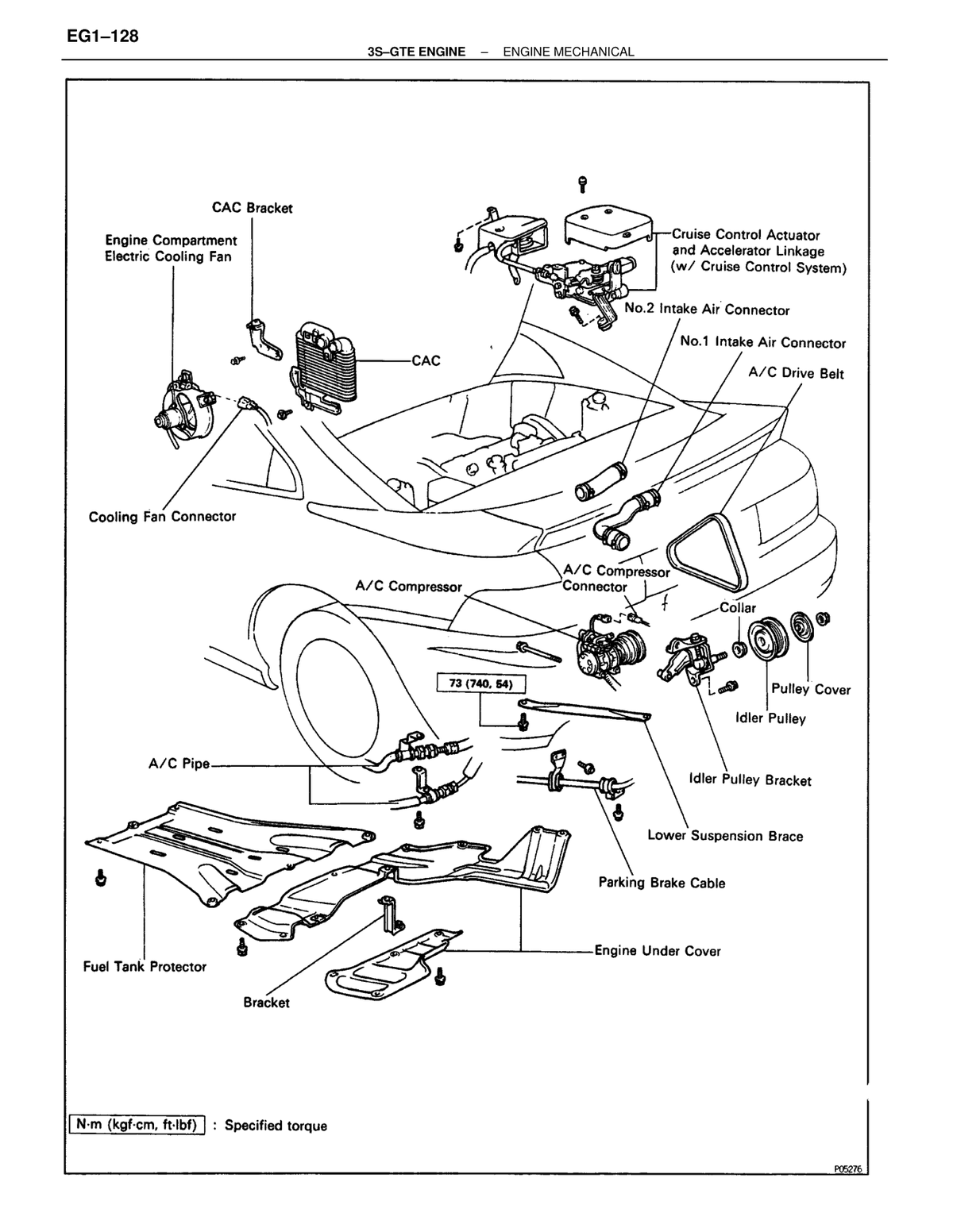

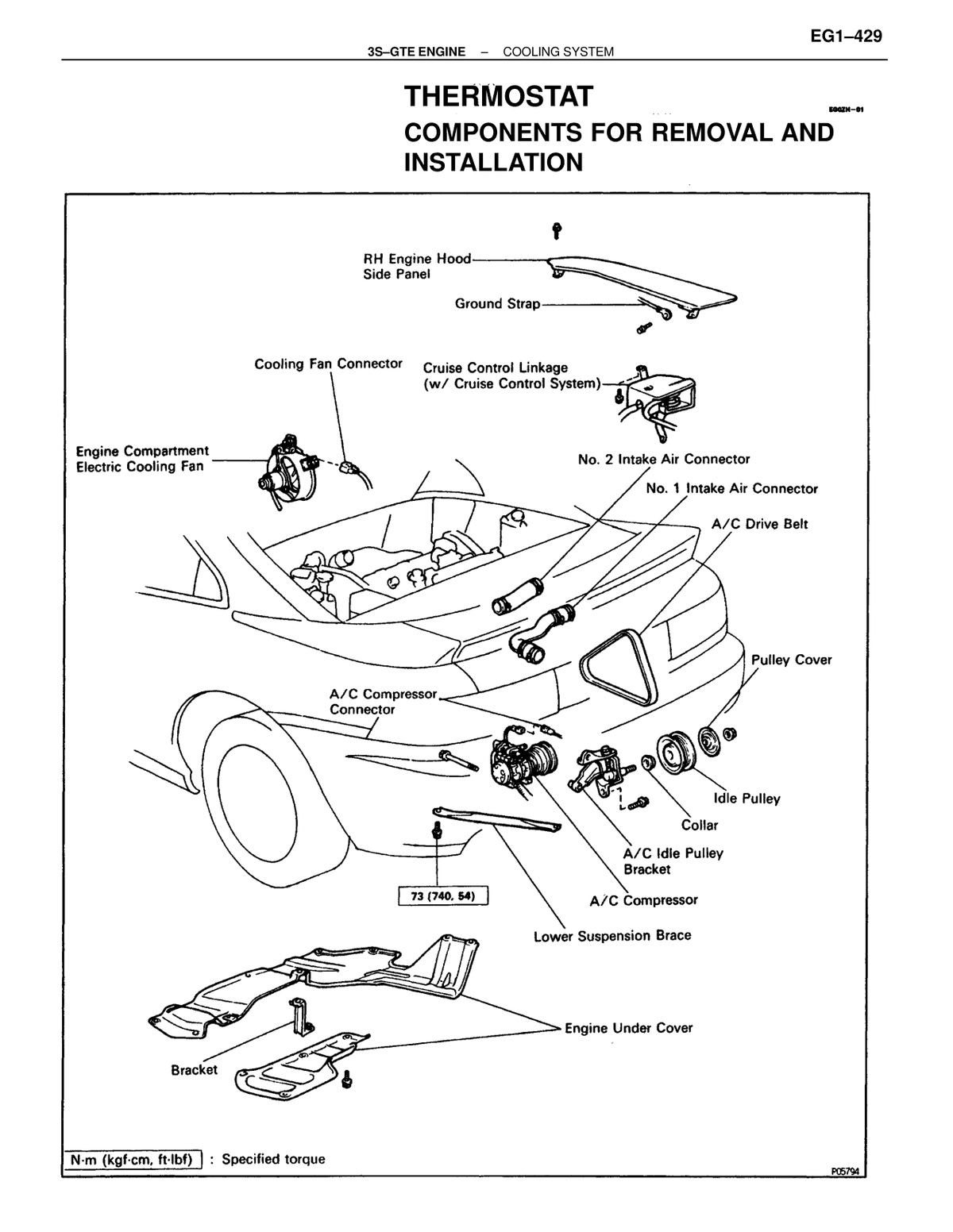

Engine — mechanical A/C Compressor mounting bolt 73 740 54 ↗ RM285U_1993_3sgte_engineme · p4 OEM manual

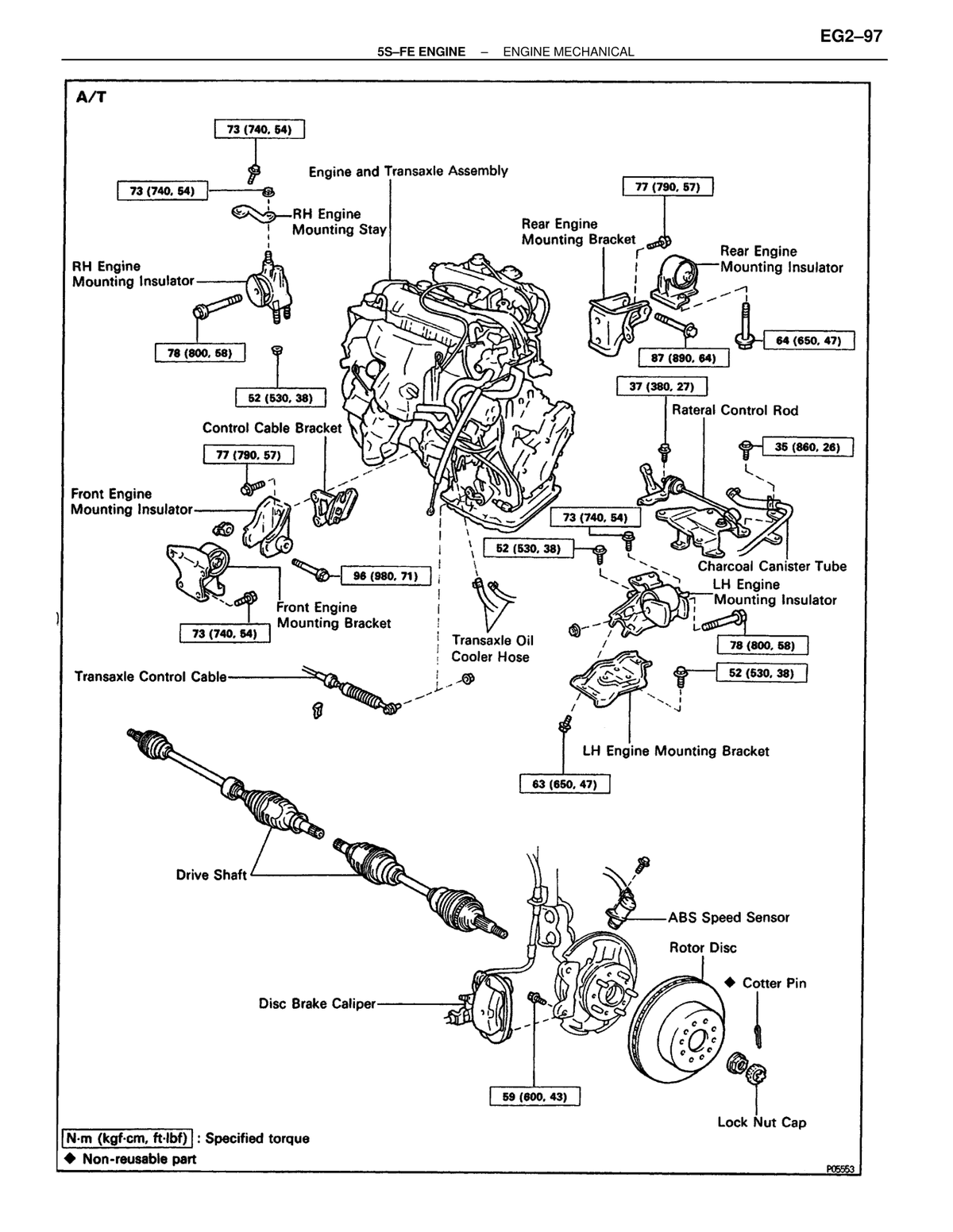

Engine — mechanical RH Engine Mounting Insulator (upper bolt) 78 800 58 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical RH Engine Mounting Insulator (lower bolt) 52 530 38 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual

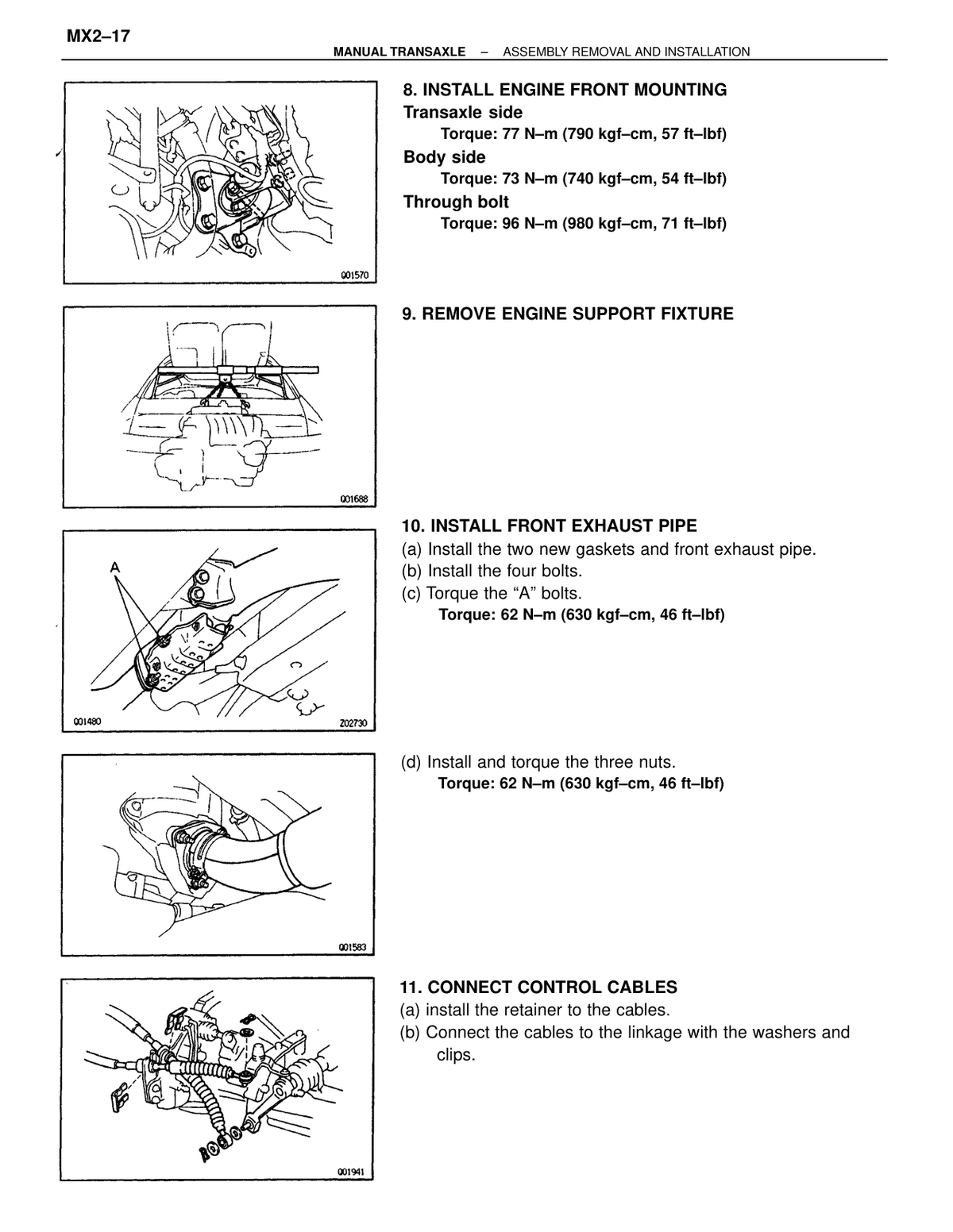

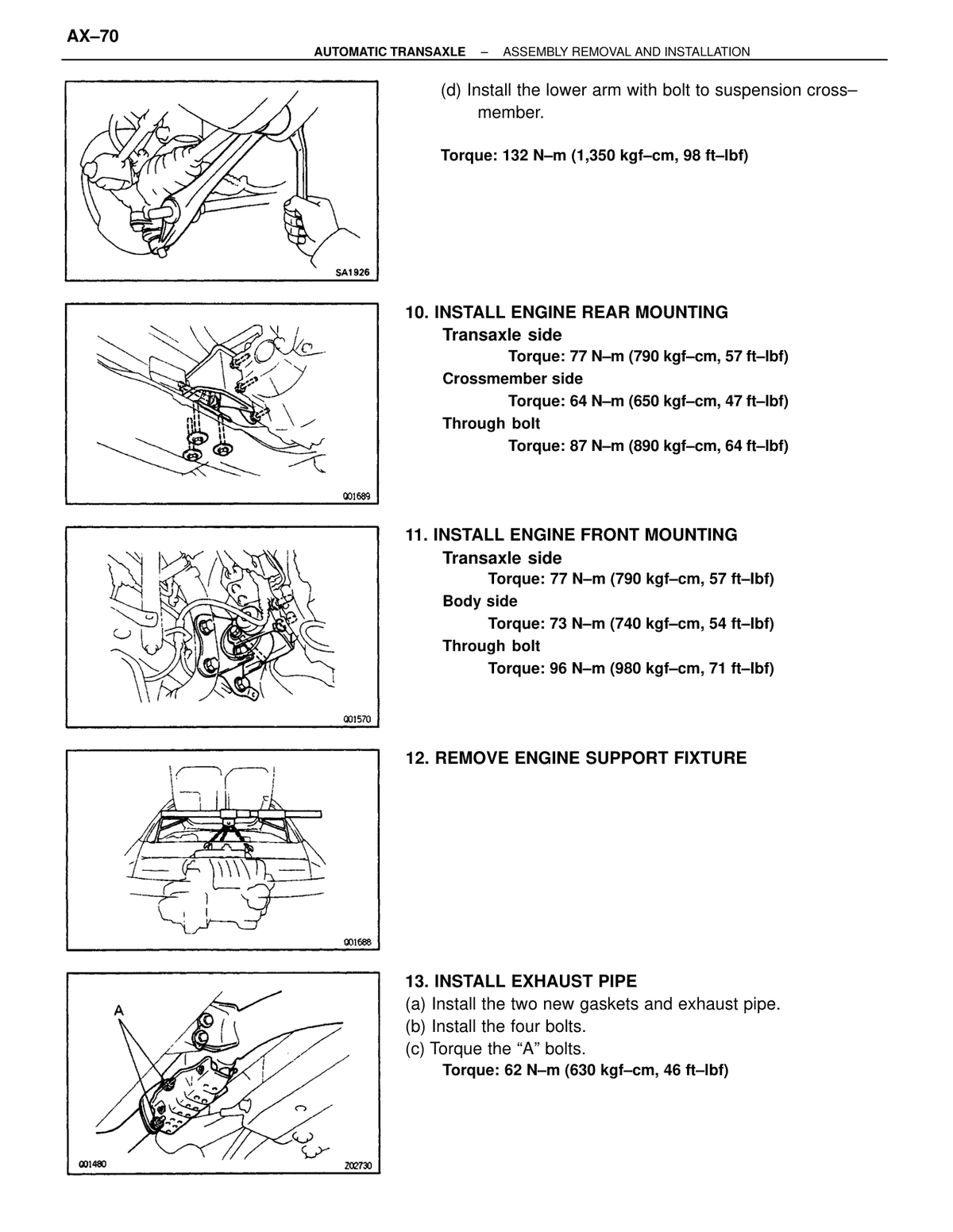

Engine — mechanical Front Engine Mounting Bracket 77 790 57 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Front Engine Mounting Insulator 73 740 54 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Front Engine Mounting Insulator (large bolt) 96 980 71 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Engine and Transaxle Assembly (to rear bracket) 39 400 29 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Rear Engine Mounting Bracket (upper) 77 790 57 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Rear Engine Mounting Bracket (lower) 87 890 64 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Rear Engine Mounting Insulator 64 650 47 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual

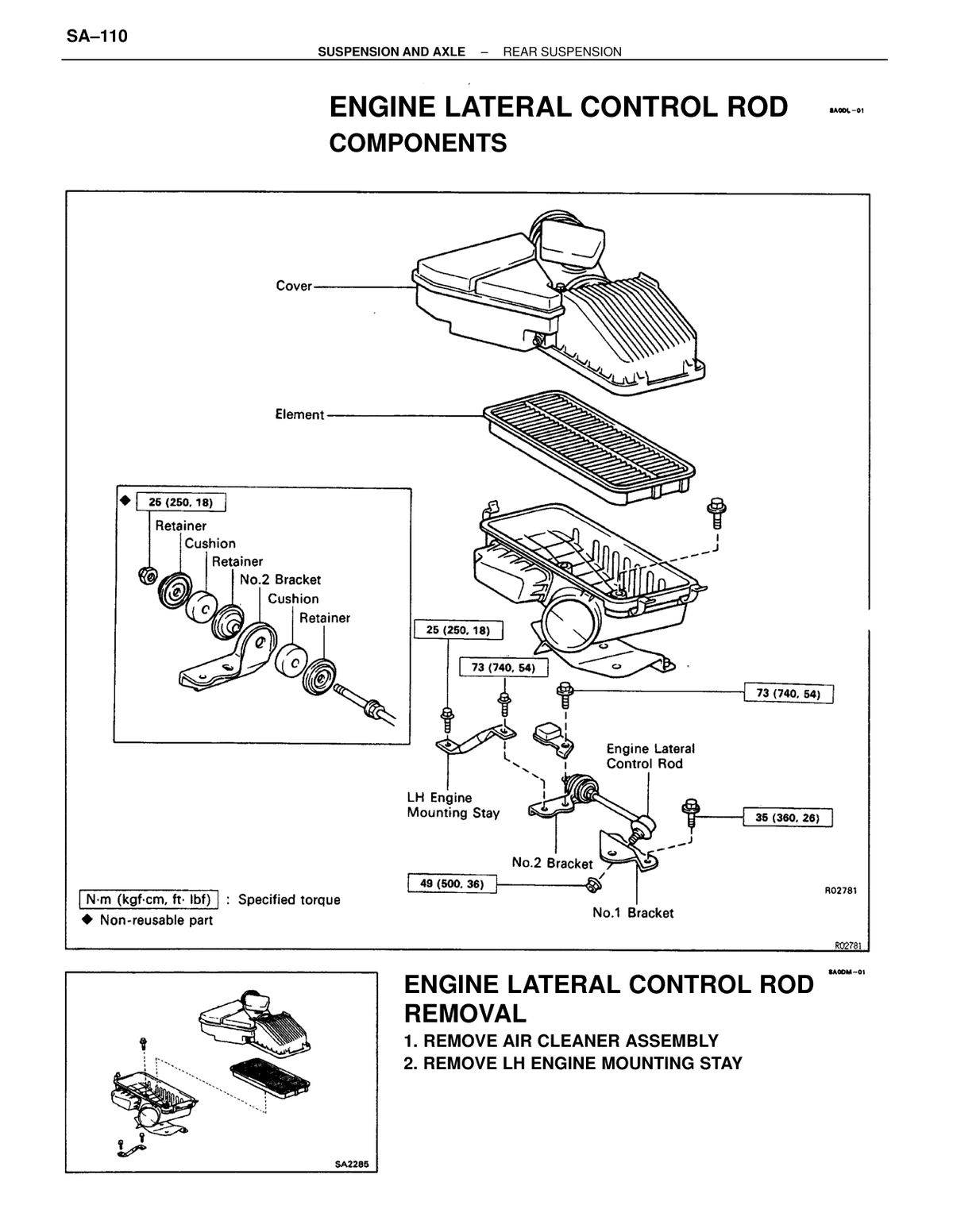

Engine — mechanical Lateral Control Rod (body side) 37 380 27 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Lateral Control Rod (bracket side) 35 360 26 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual

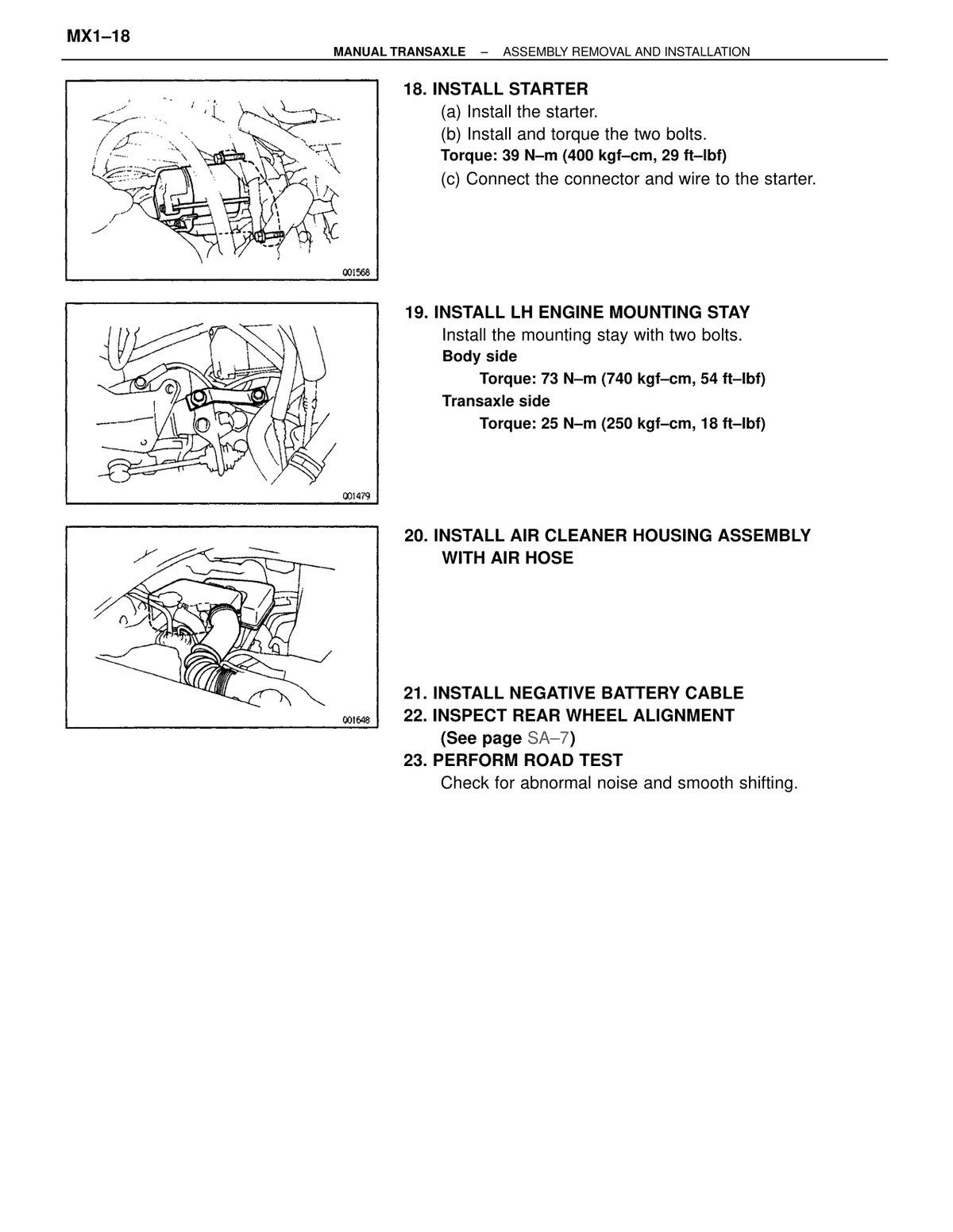

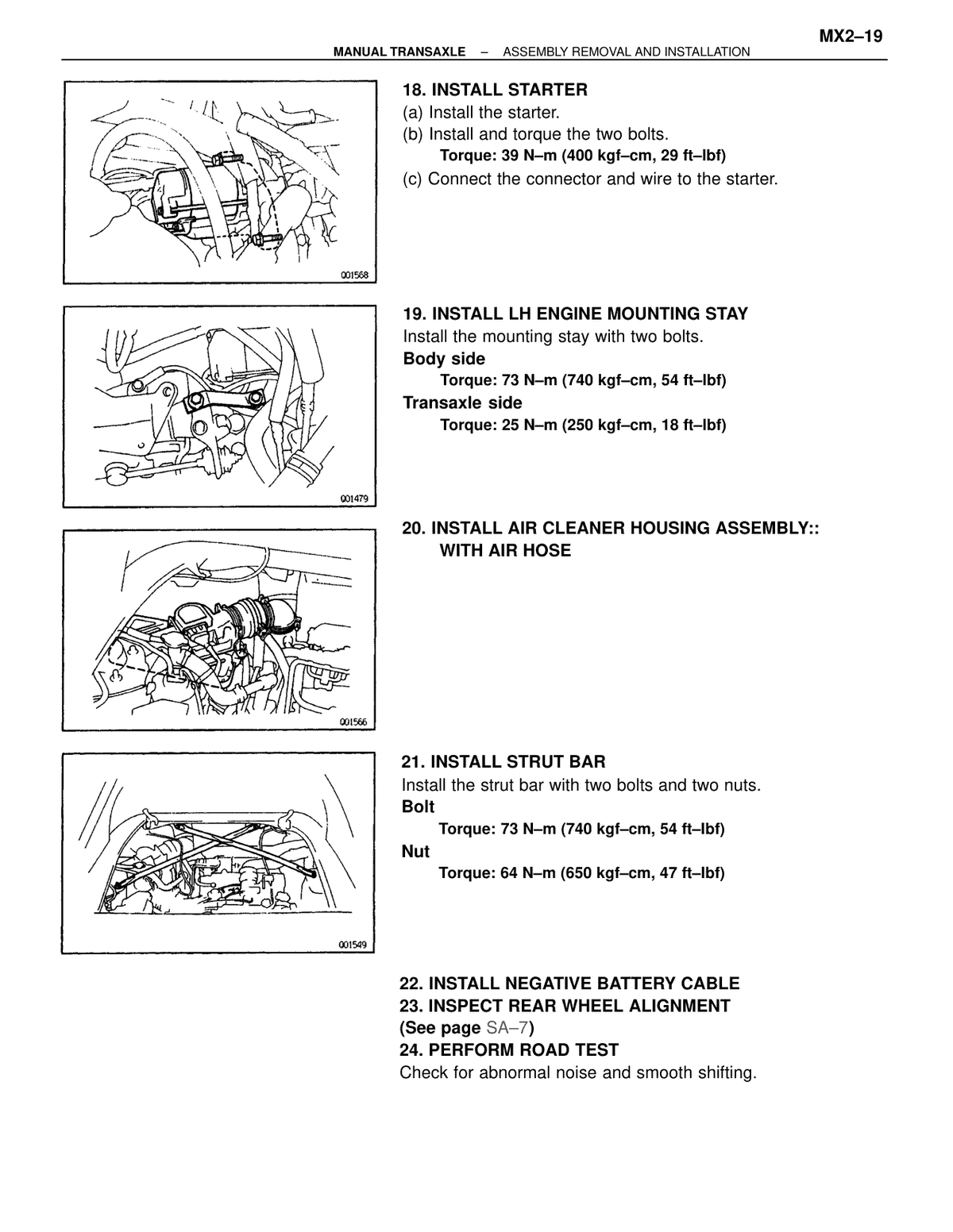

Engine — mechanical LH Engine Mounting Stay (to engine) 25 250 18 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Insulator (upper bolt) 52 530 38 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Insulator (lower bolt) 78 800 58 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Bracket 63 650 47 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Stay upper bolt (to transaxle) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Drive Shaft Bearing Bracket 64 650 47 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Drive Shaft (inboard joint to transaxle) 75 770 56 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Drive Shaft (outboard, right side) 75 770 56 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Rear Suspension Lower Crossmember (front bolt) 113 1150 83 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Rear Suspension Lower Crossmember (rear bolt) 132 1350 98 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Lower Suspension Arm (front bolt) 49 500 36 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Lower Suspension Arm (rear bolt) 103 1050 76 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Lower Suspension Arm (to knuckle) 118 1200 87 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Lower Suspension Arm (crossmember rear) 113 1150 83 ↗ RM285U_1993_3sgte_engineme · p5 OEM manual
Engine — mechanical Engine to Transaxle bolts (19 area) 19 195 14 ↗ RM285U_1993_3sgte_engineme · p18 OEM manual

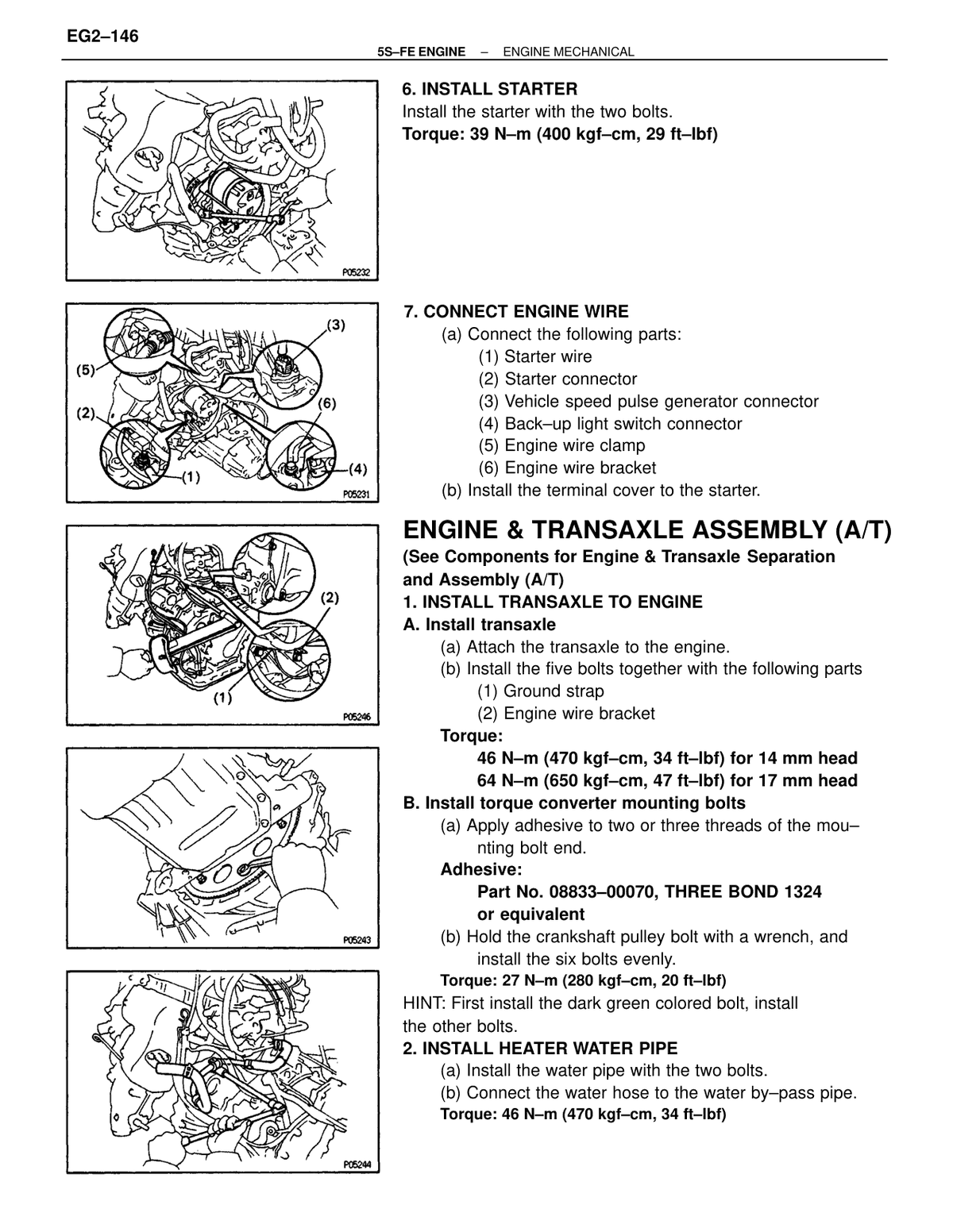

Engine — mechanical 14 mm Head Bolt (Engine to Transaxle) 46 470 34 ↗ RM285U_1993_3sgte_engineme · p18 OEM manual
Engine — mechanical 17 mm Head Bolt (Engine to Transaxle) 64 650 47 ↗ RM285U_1993_3sgte_engineme · p18 OEM manual

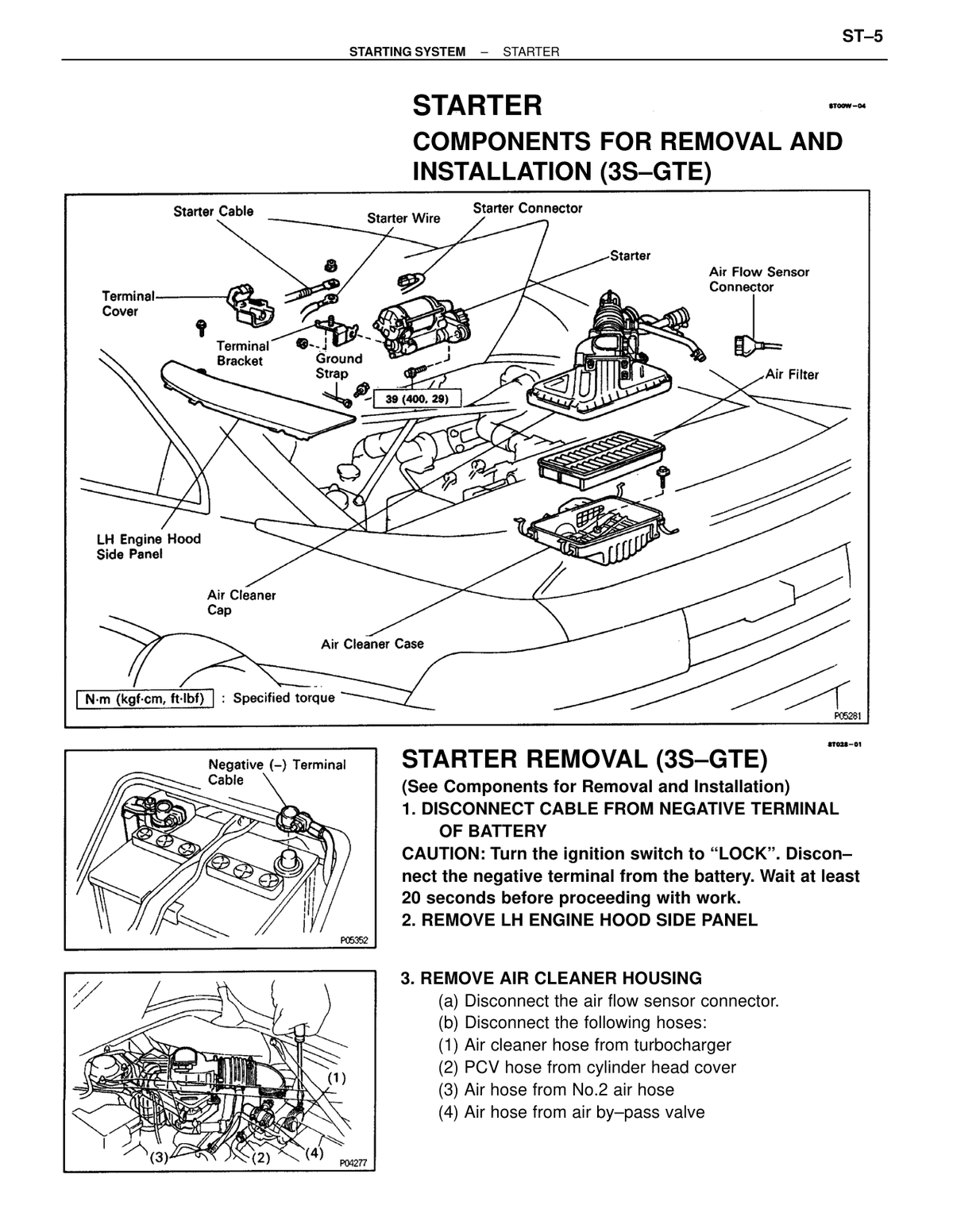

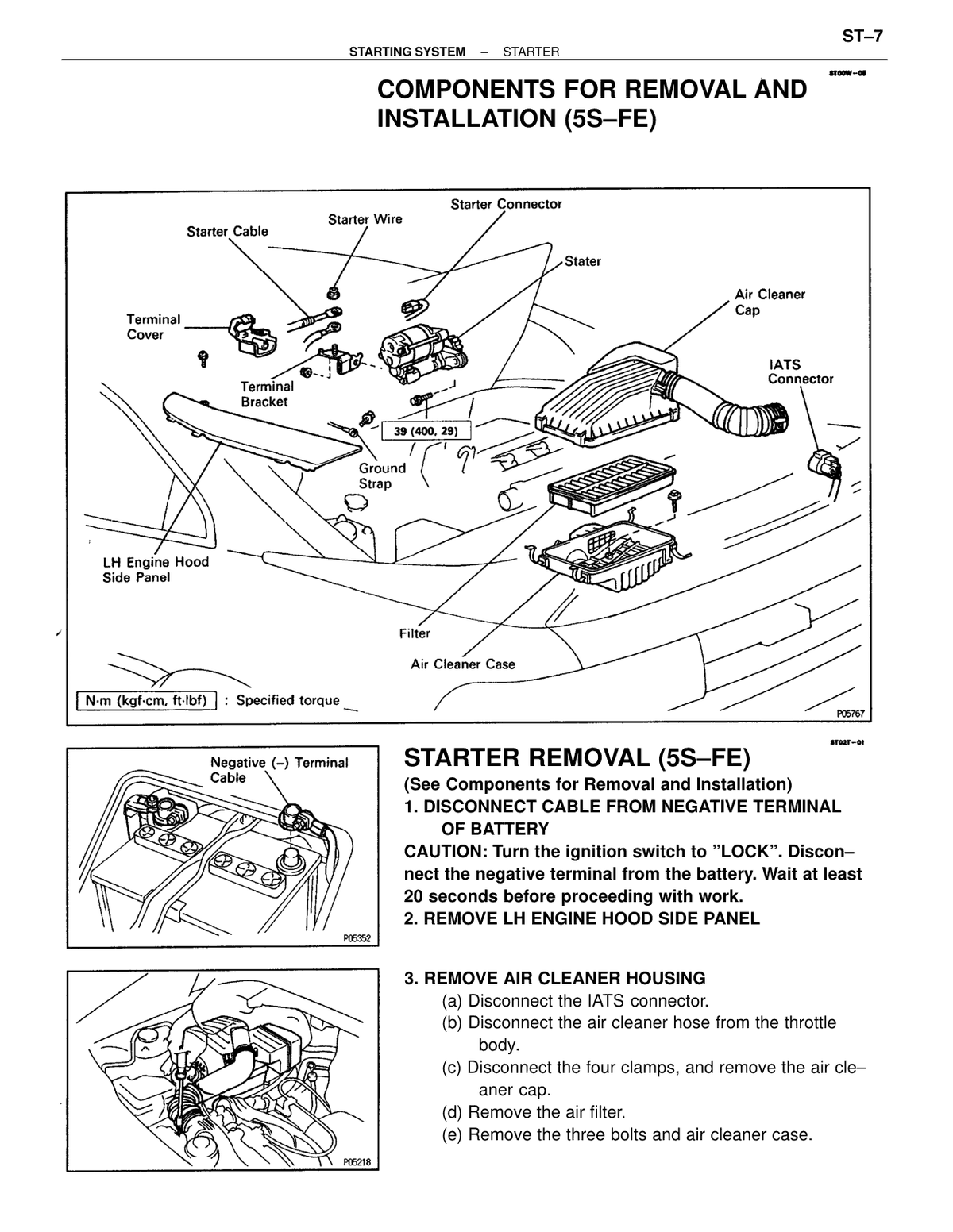

Engine — mechanical Starter Terminal Cover bolt 39 400 29 ↗ RM285U_1993_3sgte_engineme · p18 OEM manual
Engine — mechanical Flywheel Precoated part 108 1100 80 ↗ RM285U_1993_3sgte_engineme · p21 OEM manual
Engine — mechanical Rear Oil Seal Retainer in·lbf 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p21 OEM manual
Engine — mechanical Connecting rod cap Step (h) — Install connecting rod cap; Do not turn the crankshaft 67 680 49 ↗ RM285U_1993_3sgte_engineme · p26 OEM manual
Engine — mechanical Main bearing caps Step (h) — Install main bearing caps 59 600 43 ↗ RM285U_1993_3sgte_engineme · p29 OEM manual

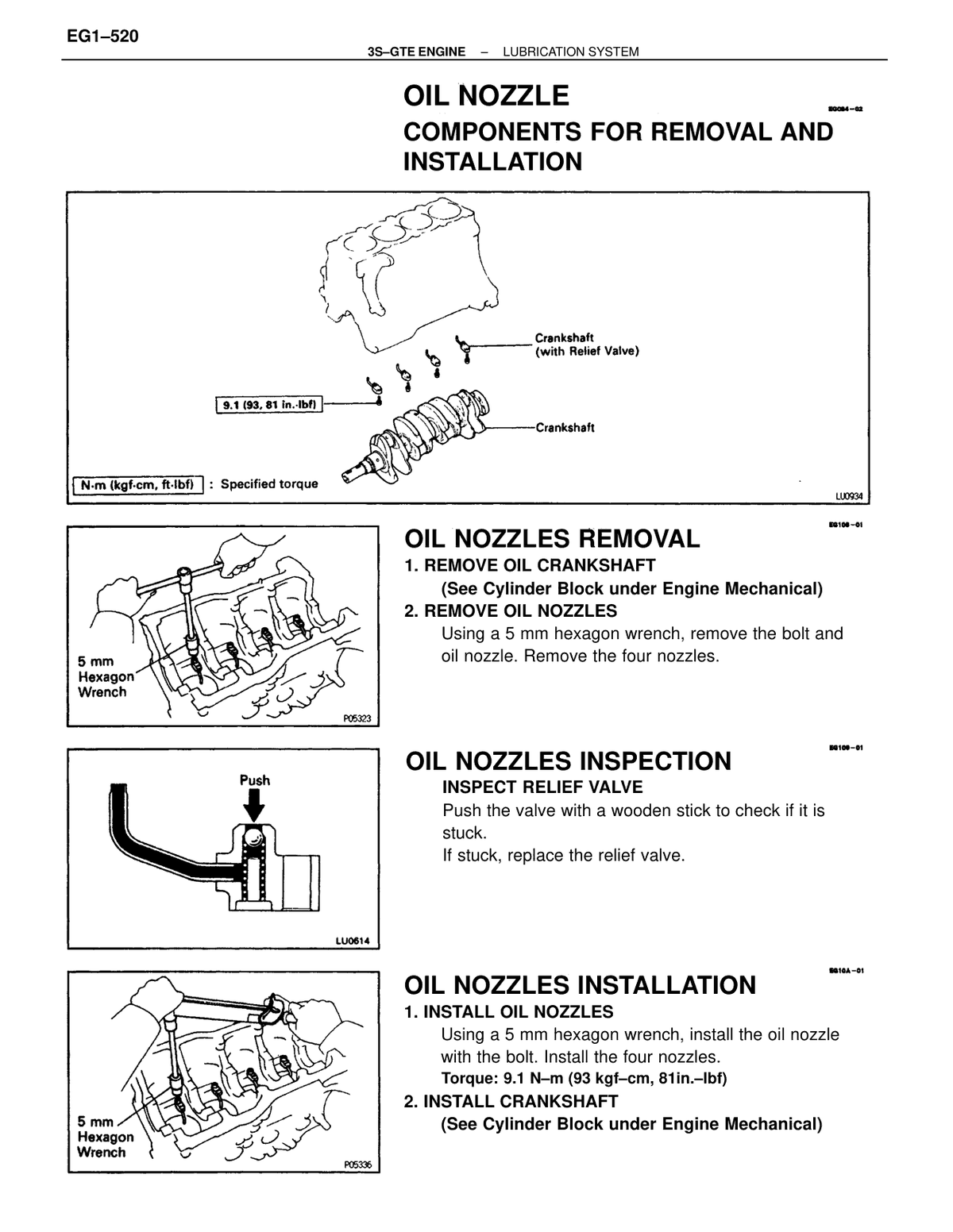

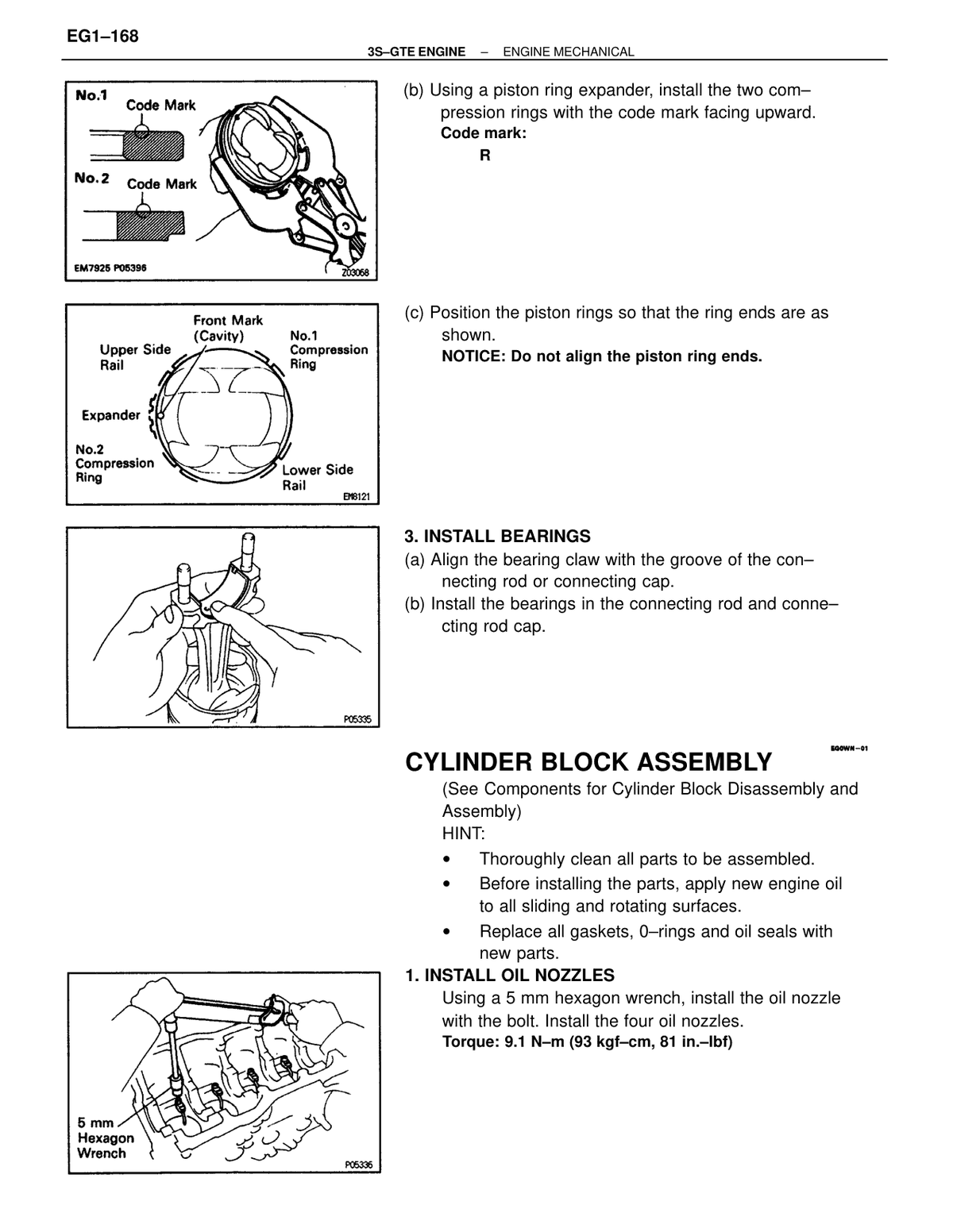

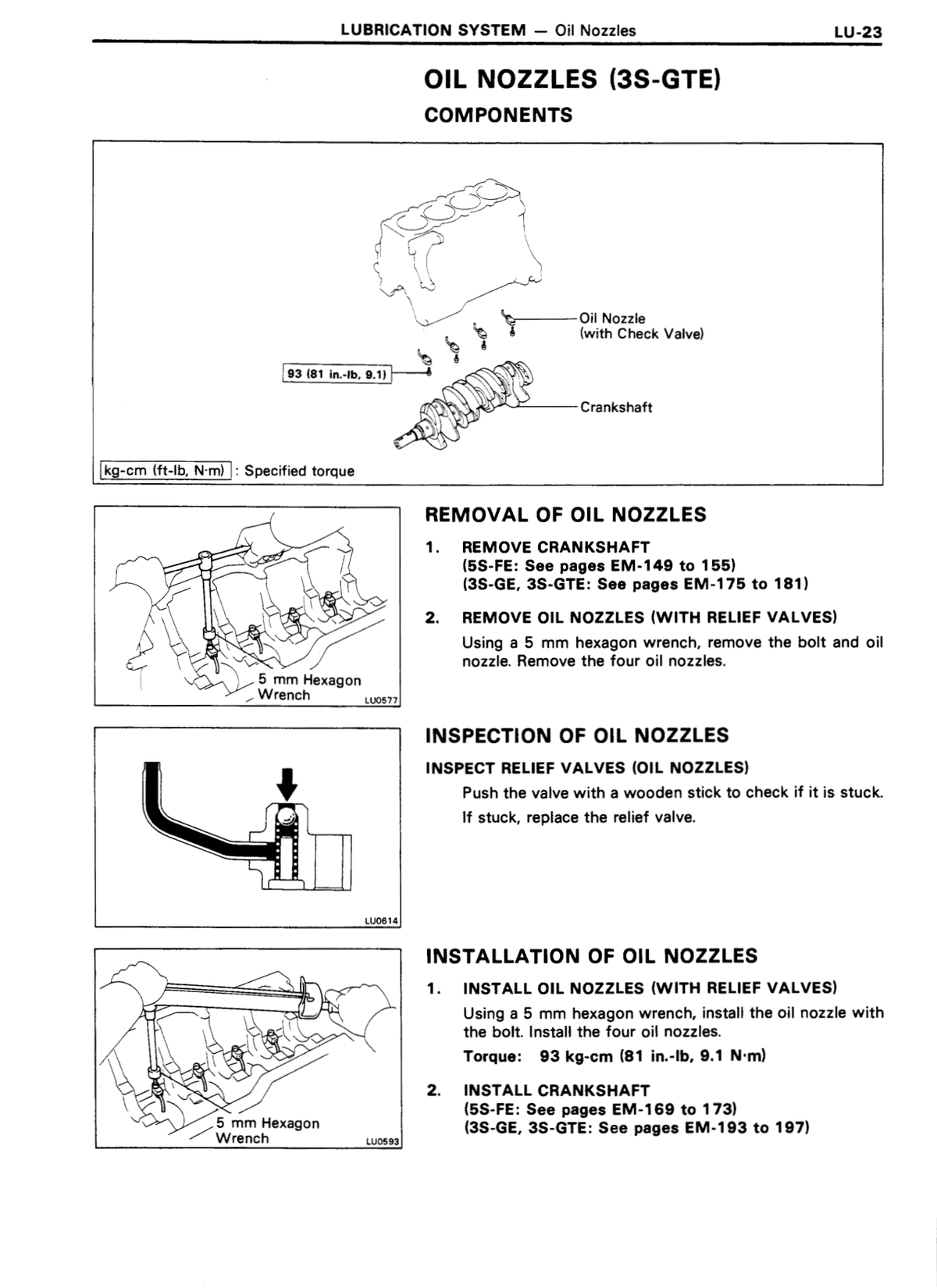

Engine — mechanical Oil nozzle bolt Install with 5 mm hexagon wrench 9.1 93 — ↗ RM285U_1993_3sgte_engineme · p44 OEM manual
Engine — mechanical Main bearing cap bolts Tighten in several passes in the sequence shown 59 600 43 ↗ RM285U_1993_3sgte_engineme · p46 OEM manual
Engine — mechanical Connecting rod cap nuts Install and alternately tighten in several passes 67 680 49 ↗ RM285U_1993_3sgte_engineme · p47 OEM manual
Engine — mechanical Rear oil seal retainer bolts 82 in.-lbf; six bolts 9.3 95 — ↗ RM285U_1993_3sgte_engineme · p47 OEM manual
Engine — mechanical Knock sensor Step 1 — Install knock sensor using SST 09816-30010 37 380 27 ↗ RM285U_1993_3sgte_engineme · p48 OEM manual
Engine — mechanical Oil cooler bracket bolts (four bolts) Step 2(c) — value in in.-lbf: 69 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p48 OEM manual
Engine — mechanical Water pump bolts Tighten in sequence shown 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p49 OEM manual
Engine — mechanical Water pump bolt (A) — w/o A/C 27 275 20 ↗ RM285U_1993_3sgte_engineme · p49 OEM manual
Engine — mechanical Alternator bracket bolts and nuts 43 440 32 ↗ RM285U_1993_3sgte_engineme · p49 OEM manual
Engine — mechanical RH Engine Mounting Bracket bolts Four bolts, step 10 61 620 45 ↗ RM285U_1993_3sgte_engineme · p50 OEM manual
Engine — mechanical Rear End Plate bolt 82 in.-lbf, step 13 9.3 95 — ↗ RM285U_1993_3sgte_engineme · p50 OEM manual
Engine — mechanical Flywheel mounting bolts 108 1100 80 ↗ RM285U_1993_3sgte_engineme · p51 OEM manual

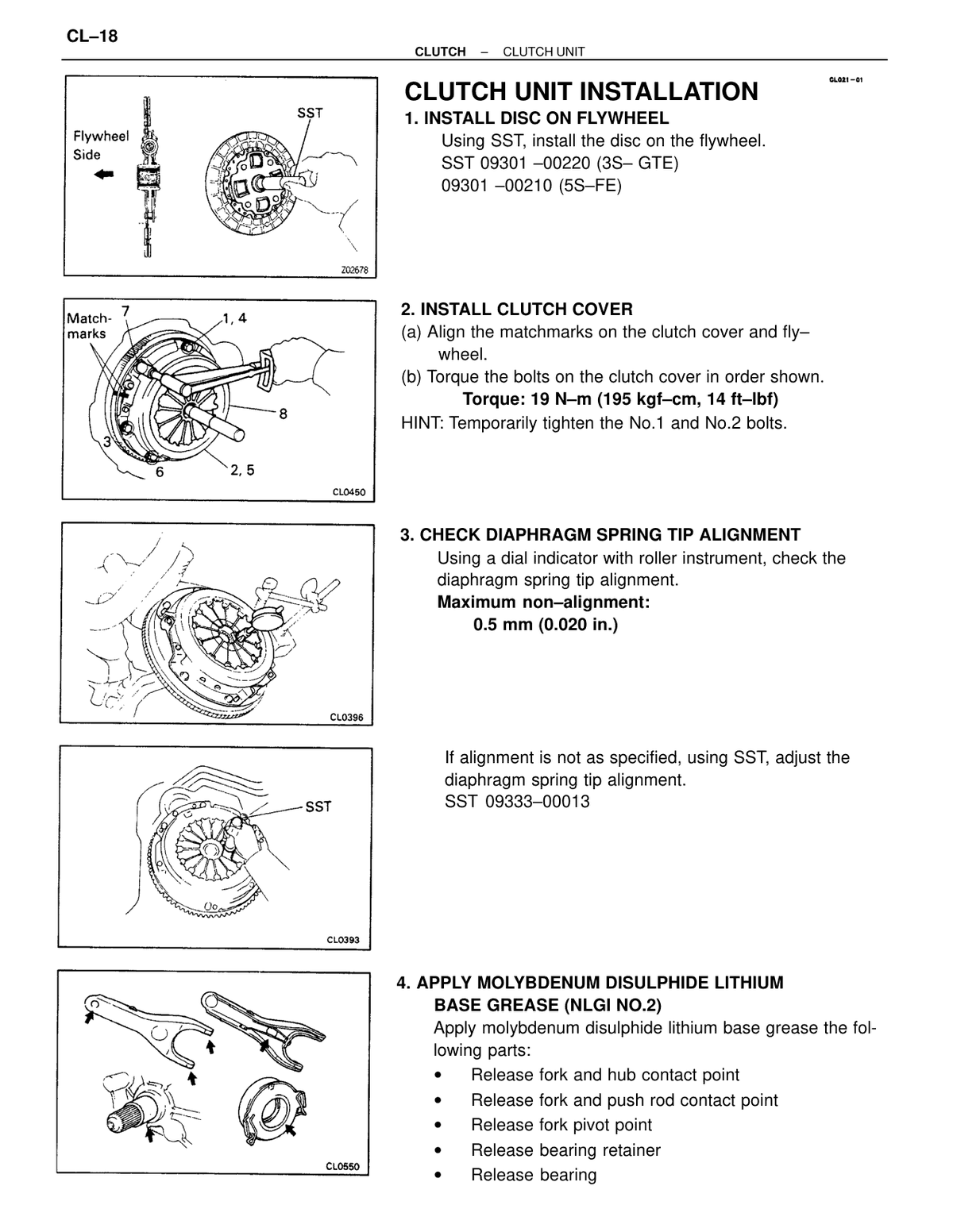

Engine — mechanical Clutch disc and cover bolts 19 195 14 ↗ RM285U_1993_3sgte_engineme · p51 OEM manual
Engine — mechanical Transaxle-to-engine bolts (14 mm head) 46 470 34 ↗ RM285U_1993_3sgte_engineme · p51 OEM manual
Engine — mechanical Transaxle-to-engine bolts (17 mm head) 64 650 47 ↗ RM285U_1993_3sgte_engineme · p51 OEM manual
Engine — mechanical Rear end plate bolt — 10 mm head in-lbf 9.3 95 — ↗ RM285U_1993_3sgte_engineme · p52 OEM manual
Engine — mechanical Rear end plate bolt — 12 mm head 19 195 14 ↗ RM285U_1993_3sgte_engineme · p52 OEM manual
Engine — mechanical Drive shaft bearing bracket bolts 64 650 47 ↗ RM285U_1993_3sgte_engineme · p53 OEM manual
Engine — mechanical Bearing bracket stay bolts and nut 75 770 56 ↗ RM285U_1993_3sgte_engineme · p53 OEM manual
Engine — mechanical LH engine mounting bracket bolts 52 530 38 ↗ RM285U_1993_3sgte_engineme · p53 OEM manual
Engine — mechanical Rear engine mounting bracket bolts — RH side RH side 39 400 29 ↗ RM285U_1993_3sgte_engineme · p53 OEM manual
Engine — mechanical Rear engine mounting bracket bolts — rear side rear side 77 790 57 ↗ RM285U_1993_3sgte_engineme · p53 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket bolts — position A Three bolts, position A 63 650 47 ↗ RM285U_1993_3sgte_engineme · p54 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket bolts — position B Three bolts, position B 73 740 54 ↗ RM285U_1993_3sgte_engineme · p54 OEM manual
Engine — mechanical LH mounting insulator through bolt to body Step (h) 78 800 58 ↗ RM285U_1993_3sgte_engineme · p54 OEM manual
Engine — mechanical RH mounting insulator nuts to mounting bracket Two nuts, step (i) 52 530 38 ↗ RM285U_1993_3sgte_engineme · p54 OEM manual
Engine — mechanical RH mounting insulator through bolt to body Step (j) 78 800 58 ↗ RM285U_1993_3sgte_engineme · p54 OEM manual
Engine — mechanical RH engine mounting stay bolts Step 5 — three bolts 73 740 54 ↗ RM285U_1993_3sgte_engineme · p55 OEM manual
Engine — mechanical Lateral control rod to body bolts Step 6 — four bolts 35 360 26 ↗ RM285U_1993_3sgte_engineme · p55 OEM manual
Engine — mechanical LH mounting stay bolts — transaxle side Step 7(b) — transaxle side 25 250 18 ↗ RM285U_1993_3sgte_engineme · p55 OEM manual
Engine — mechanical LH mounting stay bolts — insulator side Step 7(b) — insulator side 73 740 54 ↗ RM285U_1993_3sgte_engineme · p55 OEM manual
Engine — mechanical Lateral control rod bolt (A) Step 7(c) — final tighten 37 380 27 ↗ RM285U_1993_3sgte_engineme · p55 OEM manual
Engine — mechanical Two bolts holding the clutch release cylinder to the transaxle 12 120 9 ↗ RM285U_1993_3sgte_engineme · p56 OEM manual
Engine — mechanical Two bolts holding the mounting bracket to the transaxle 77 790 57 ↗ RM285U_1993_3sgte_engineme · p56 OEM manual
Engine — mechanical Four bolts holding mounting insulator to body 73 740 54 ↗ RM285U_1993_3sgte_engineme · p56 OEM manual
Engine — mechanical Four bolts holding rear suspension lower crossmember 113 1150 83 ↗ RM285U_1993_3sgte_engineme · p56 OEM manual
Engine — mechanical Mounting bracket bolts to lower crossmember Step 13(c) — rear engine mounting insulator 64 650 47 ↗ RM285U_1993_3sgte_engineme · p57 OEM manual
Engine — mechanical Through bolt — mounting insulator to mounting bracket Step 13(d) — rear engine mounting insulator 87 890 64 ↗ RM285U_1993_3sgte_engineme · p57 OEM manual
Engine — mechanical Front engine mounting through bolt Step 14 96 980 71 ↗ RM285U_1993_3sgte_engineme · p57 OEM manual
Engine — mechanical Idler pulley bracket bolt A Bolt A of idler pulley bracket 25 250 18 ↗ RM285U_1993_3sgte_engineme · p58 OEM manual
Engine — mechanical Idler pulley bracket bolt B Bolt B of idler pulley bracket 27 275 20 ↗ RM285U_1993_3sgte_engineme · p58 OEM manual
Engine — mechanical Idler pulley bracket bolt C Bolt C of idler pulley bracket 37 375 27 ↗ RM285U_1993_3sgte_engineme · p58 OEM manual
Engine — mechanical A/C compressor lower side bolts Two bolts on lower side of A/C compressor 25 250 18 ↗ RM285U_1993_3sgte_engineme · p58 OEM manual
Engine — mechanical Lower suspension brace bolts Step 16(i) 73 740 — ↗ RM285U_1993_3sgte_engineme · p59 OEM manual
Engine — mechanical Front exhaust pipe nuts Step 18(b), three new nuts, 14 mm deep socket wrench 62 630 46 ↗ RM285U_1993_3sgte_engineme · p59 OEM manual
Engine — mechanical Support bracket bolts step (c) 21 210 15 ↗ RM285U_1993_3sgte_engineme · p60 OEM manual
Engine — mechanical Tailpipe to body bracket bolts and nut Step 19(b) 66 670 48 ↗ RM285U_1993_3sgte_engineme · p61 OEM manual
Engine — mechanical Front exhaust pipe to tailpipe bolts Step 19(c) 43 440 32 ↗ RM285U_1993_3sgte_engineme · p61 OEM manual
Engine — mechanical Front exhaust pipe bracket to tailpipe bracket bolts Step 19(d) 19 190 14 ↗ RM285U_1993_3sgte_engineme · p61 OEM manual
Engine — mechanical Upper suspension brace bolt Step 36 — bolt 73 740 54 ↗ RM285U_1993_3sgte_engineme · p65 OEM manual
Engine — mechanical Upper suspension brace nut Step 36 — nut 64 650 47 ↗ RM285U_1993_3sgte_engineme · p65 OEM manual
Engine — mechanical Upper Suspension Brace bolt (upper) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical RH Engine Mounting Stay bolt (upper) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical RH Engine Mounting Bracket bolt 1 64 650 47 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical RH Engine Mounting Bracket bolt 2 78 800 58 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical RH Engine Mounting Insulator bolt 1 — 620 45 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical RH Engine Mounting Insulator bolt 2 52 530 38 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical A/C Compressor bracket bolt 73 740 54 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical Suspension Member Damper bolt Non-reusable part (gasket) 62 630 46 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical Front Exhaust Manifold bolt 43 440 32 ↗ RM285U_1993_3sgte_engineme · p66 OEM manual
Engine — mechanical Exhaust Manifold (Spacer bolt) 52 530 38 ↗ RM285U_1993_3sgte_engineme · p67 OEM manual
Engine — mechanical Turbocharger (Turbine Outlet Elbow / mounting) 64 650 47 ↗ RM285U_1993_3sgte_engineme · p67 OEM manual
Engine — mechanical T-VIS Vacuum Tank / VSV bracket 19 195 14 ↗ RM285U_1993_3sgte_engineme · p68 OEM manual
Engine — mechanical Delivery Pipe Assembly (upper fastener) 12 125 9 ↗ RM285U_1993_3sgte_engineme · p68 OEM manual
Engine — mechanical Delivery Pipe Assembly (lower fastener) 12 125 9 ↗ RM285U_1993_3sgte_engineme · p68 OEM manual
Engine — mechanical Cylinder Head (1st pass) 1st 49 (500, 36) then 2nd Turn 90°; See page EM-106 49 500 36 ↗ RM285U_1993_3sgte_engineme · p68 OEM manual
Engine — mechanical Intake Camshaft Timing Pulley 59 600 43 ↗ RM285U_1993_3sgte_engineme · p68 OEM manual
Engine — mechanical Exhaust Camshaft Timing Pulley For use with SST: 41 (420, 30) 59 600 43 ↗ RM285U_1993_3sgte_engineme · p68 OEM manual
Engine — mechanical No.1 Timing Belt Cover (precoated bolt) Precoated part 52 530 38 ↗ RM285U_1993_3sgte_engineme · p68 OEM manual
Engine — mechanical Bearing cap bolts See step 2 in Cylinder Head Installation 19 190 14 ↗ RM285U_1993_3sgte_engineme · p95 OEM manual
Engine — mechanical Cylinder head bolts Step (b) initial pass; then retighten 90° in step (d) 49 500 36 ↗ RM285U_1993_3sgte_engineme · p101 OEM manual
Engine — mechanical Bearing cap bolts Tighten uniformly in sequence shown, in several passes 19 190 14 ↗ RM285U_1993_3sgte_engineme · p102 OEM manual
Engine — mechanical No.3 timing belt cover bolts 8.8 90 — ↗ RM285U_1993_3sgte_engineme · p103 OEM manual
Engine — mechanical No.1 idler pulley pivot bolt 52 530 38 ↗ RM285U_1993_3sgte_engineme · p103 OEM manual
Engine — mechanical Camshaft timing pulley bolt 59 600 43 ↗ RM285U_1993_3sgte_engineme · p104 OEM manual
Engine — mechanical Camshaft timing pulley bolt (using SST 09249-63010) For SST — intake camshaft timing pulley with fulcrum length 340 mm (13.39 in.) 41 420 30 ↗ RM285U_1993_3sgte_engineme · p104 OEM manual
Engine — mechanical Cylinder head cover screw 21 in·lbf; tighten uniformly in several passes 2.5 25 — ↗ RM285U_1993_3sgte_engineme · p104 OEM manual
Engine — mechanical Delivery pipe assembly bolts Three bolts 19 195 14 ↗ RM285U_1993_3sgte_engineme · p105 OEM manual

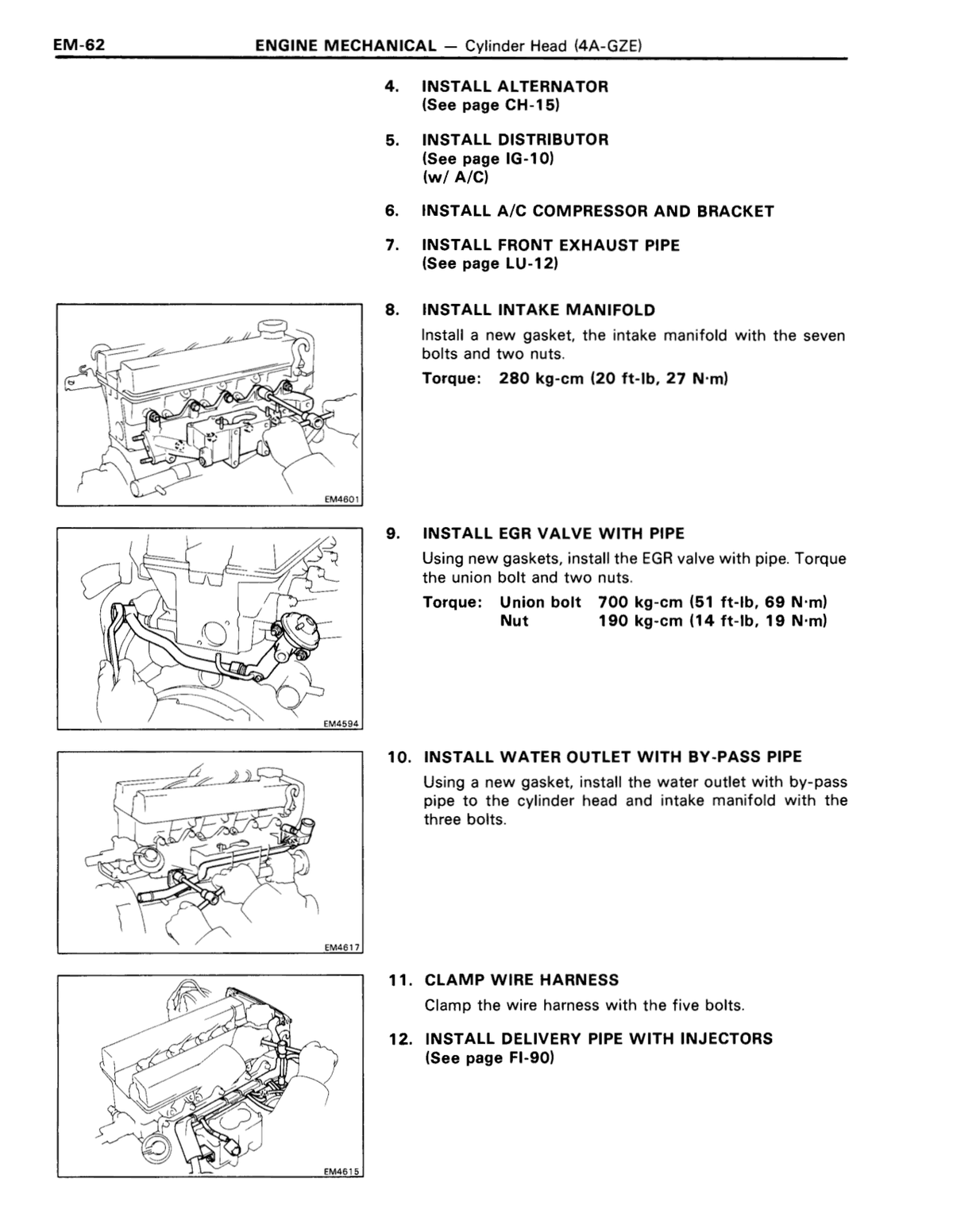

Engine — mechanical Intake manifold bolts and nuts Four bolts and three nuts; uniformly tighten in several passes 19 195 14 ↗ RM285U_1993_3sgte_engineme · p105 OEM manual
Engine — mechanical Intake manifold stay bolts Step 14 — Install Intake Manifold Stays 25 260 19 ↗ RM285U_1993_3sgte_engineme · p107 OEM manual
Engine — mechanical Water by-pass pipe nuts Step 15d — value in in.-lbf: 69 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p107 OEM manual
Engine — mechanical Relief valve Install plate washer and relief valve — step (e) 78 800 58 ↗ RM285U_1993_3sgte_engineme · p108 OEM manual
Engine — mechanical Oil cooler nuts Tighten the two nuts — step (f) 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p108 OEM manual
Engine — mechanical Water outlet and housing bolts Step 18(a) 39 400 29 ↗ RM285U_1993_3sgte_engineme · p109 OEM manual
Engine — mechanical EGR valve and pipe — intake manifold EGR valve and pipe bolts at intake manifold 19 195 14 ↗ RM285U_1993_3sgte_engineme · p110 OEM manual
Engine — mechanical EGR valve and pipe — cylinder head EGR valve and pipe bolts at cylinder head 25 260 19 ↗ RM285U_1993_3sgte_engineme · p110 OEM manual
Engine — mechanical LH engine hanger — 12 mm head LH engine hanger bolts, 12 mm head 13 130 9 ↗ RM285U_1993_3sgte_engineme · p110 OEM manual
Engine — mechanical LH engine hanger — 14 mm head LH engine hanger bolts, 14 mm head 19 195 14 ↗ RM285U_1993_3sgte_engineme · p110 OEM manual
Engine — mechanical Exhaust manifold nuts Seven nuts, uniformly tighten in several passes 52 530 38 ↗ RM285U_1993_3sgte_engineme · p111 OEM manual
Engine — mechanical Cold start injector bolts Step 26(a) 5.9 60 — ↗ RM285U_1993_3sgte_engineme · p112 OEM manual
Engine — mechanical Cold start injector pipe union bolts Step 27 12 125 9 ↗ RM285U_1993_3sgte_engineme · p112 OEM manual

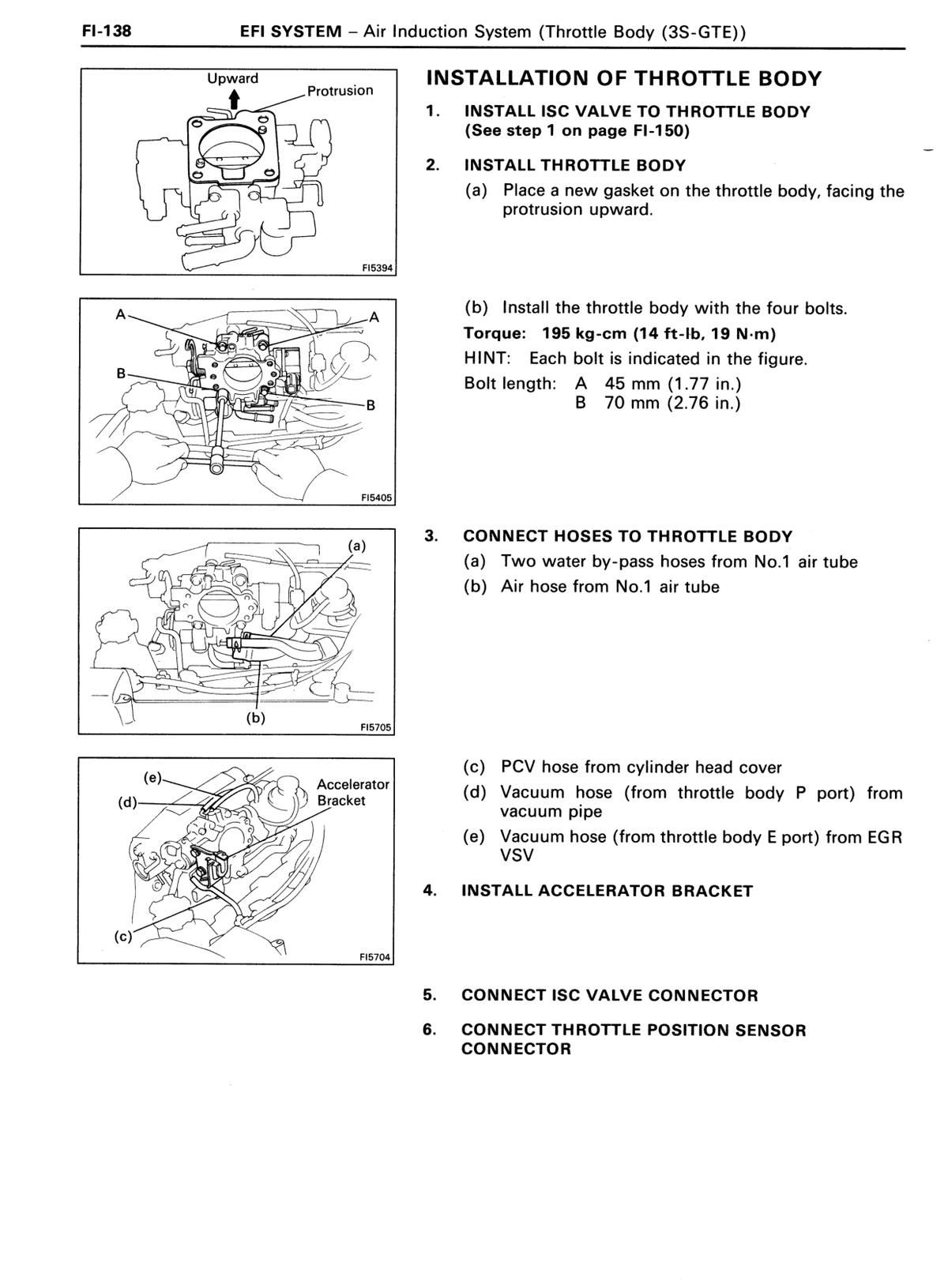

Engine — mechanical Throttle body bolts Step 28(c); upper bolt 45 mm, lower bolt 70 mm 19 195 14 ↗ RM285U_1993_3sgte_engineme · p112 OEM manual
Engine — mechanical Intake air connector stay bolts — 10 mm head 69 in.-lbf; Step 29(b) 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p113 OEM manual
Engine — mechanical Intake air connector stay bolts — 12 mm head Step 29(b) 19 195 14 ↗ RM285U_1993_3sgte_engineme · p113 OEM manual
Engine — mechanical Intake air connector bolts and nuts Step 30 19 195 14 ↗ RM285U_1993_3sgte_engineme · p113 OEM manual
Engine — mechanical TWC — three bolts and two nuts Step (c) 29 300 22 ↗ RM285U_1993_3sgte_engineme · p114 OEM manual
Engine — mechanical RH TWC stay — four bolts Step (d) 59 600 43 ↗ RM285U_1993_3sgte_engineme · p114 OEM manual
Engine — mechanical LH TWC stay — three bolts Step (e) 59 600 43 ↗ RM285U_1993_3sgte_engineme · p114 OEM manual
Engine — mechanical Clutch release cylinder bolts (to mounting bracket) Step 33(b) 12 120 9 ↗ RM285U_1993_3sgte_engineme · p115 OEM manual
Engine — mechanical Clutch release cylinder bolts (to transaxle) Step 33(c) 77 790 57 ↗ RM285U_1993_3sgte_engineme · p115 OEM manual
Engine — mechanical Front engine mounting insulator bolts (to body) Step 34(a) 77 790 57 ↗ RM285U_1993_3sgte_engineme · p115 OEM manual
Engine — mechanical Front engine mounting insulator through bolt and nut (to mounting bracket) Step 34(b) 96 980 71 ↗ RM285U_1993_3sgte_engineme · p115 OEM manual
Engine — mechanical Front exhaust pipe nuts (3 new nuts) Step (b) — 14 mm deep socket wrench 62 630 46 ↗ RM285U_1993_3sgte_engineme · p116 OEM manual
Engine — mechanical Support bracket bolts Step (c) — two bolts 21 210 15 ↗ RM285U_1993_3sgte_engineme · p116 OEM manual
Engine — mechanical Damper bolts Step (d) — two bolts 21 210 15 ↗ RM285U_1993_3sgte_engineme · p116 OEM manual
Engine — mechanical Tailpipe to body bracket bolts and nut 66 670 48 ↗ RM285U_1993_3sgte_engineme · p117 OEM manual
Engine — mechanical Front exhaust pipe to tailpipe bolts 43 440 32 ↗ RM285U_1993_3sgte_engineme · p117 OEM manual
Engine — mechanical Front exhaust pipe bracket to tailpipe bracket bolts 19 190 14 ↗ RM285U_1993_3sgte_engineme · p117 OEM manual
Engine — mechanical Idler pulley bracket bolt A for bolt position A 25 250 18 ↗ RM285U_1993_3sgte_engineme · p117 OEM manual
Engine — mechanical Idler pulley bracket bolt B for bolt position B 27 275 20 ↗ RM285U_1993_3sgte_engineme · p117 OEM manual
Engine — mechanical Idler pulley bracket bolt C for bolt position C 37 375 27 ↗ RM285U_1993_3sgte_engineme · p117 OEM manual
Engine — mechanical Two bolts of the lower side of the A/C compressor Step (d) 25 250 18 ↗ RM285U_1993_3sgte_engineme · p118 OEM manual

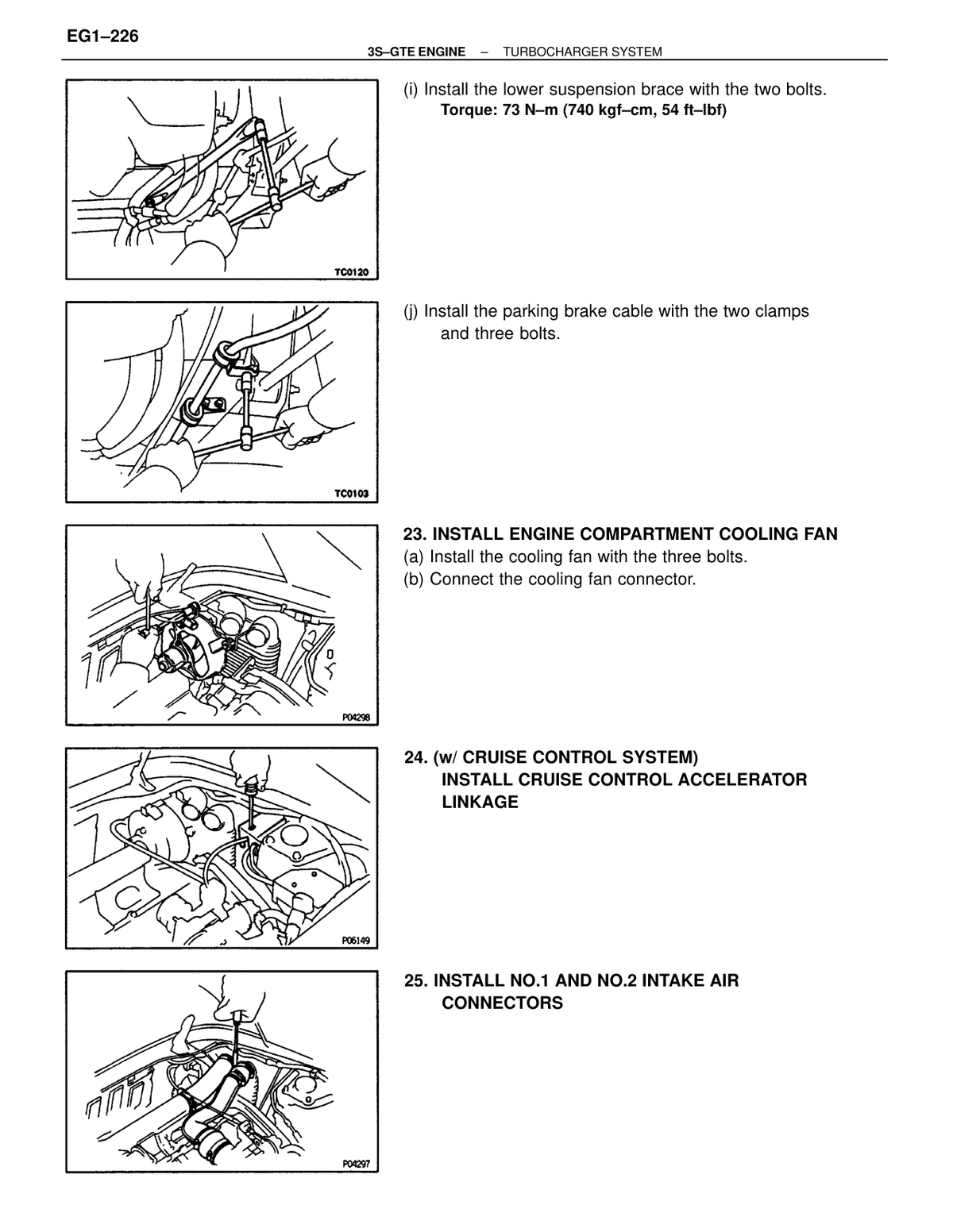

Engine — mechanical Lower suspension brace bolts Step (i) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p118 OEM manual
Engine — mechanical RH front engine hanger — cylinder head cylinder head bolts 39 400 29 ↗ RM285U_1993_3sgte_engineme · p119 OEM manual
Engine — mechanical RH front engine hanger — mounting bracket mounting bracket bolts 61 620 45 ↗ RM285U_1993_3sgte_engineme · p119 OEM manual
Engine — mechanical Upper suspension brace bolt Step 48 73 740 54 ↗ RM285U_1993_3sgte_engineme · p120 OEM manual
Engine — mechanical Upper suspension brace nut Step 48 64 650 47 ↗ RM285U_1993_3sgte_engineme · p120 OEM manual
Engine — mechanical Front exhaust pipe flange bolts (upper) 62 630 46 ↗ RM285U_1993_3sgte_engineme · p125 OEM manual
Engine — mechanical Front exhaust pipe to catalytic converter 43 440 32 ↗ RM285U_1993_3sgte_engineme · p125 OEM manual
Engine — mechanical Tailpipe/rear section bolts 66 670 48 ↗ RM285U_1993_3sgte_engineme · p125 OEM manual

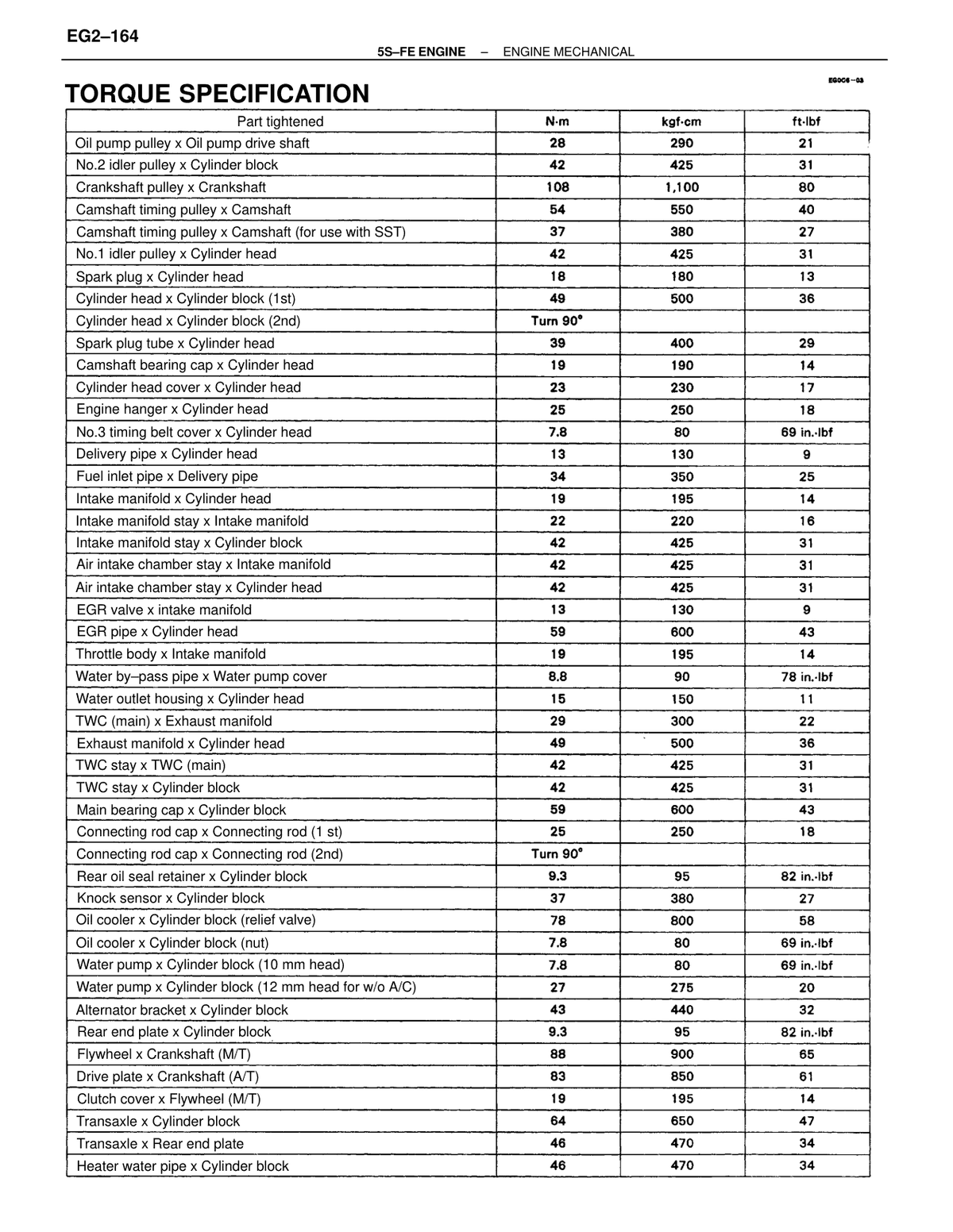

Engine — mechanical Cylinder head cover x Cylinder head 21 in.-lbf 2.5 25 — ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Throttle body x Intake manifold 19 195 14 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Intake air connector stay x Intake manifold 19 195 14 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Intake air connector stay x Cylinder head 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Intake air connector x Intake air connector stay 19 195 14 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Distributor x Cylinder head 39 400 29 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Spark plug x Cylinder head 18 180 13 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Oil pump pulley x Oil pump drive shaft 35 355 26 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical No.2 idler pulley x Cylinder block 43 440 32 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical No.1 idler pulley x Cylinder head 52 530 38 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Crankshaft pulley x Crankshaft 108 1100 80 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft 59 600 43 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft (For use with SST) 41 420 30 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Timing belt tensioner x Cylinder head 21 210 15 ↗ RM285U_1993_3sgte_engineme · p136 OEM manual
Engine — mechanical Cylinder head x Cylinder block (1st) 49 500 36 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Cylinder head x Cylinder block (2nd) Turn 90° — — — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Camshaft bearing cap x Cylinder head 19 190 14 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical No.3 timing belt cover x Cylinder head 78 in.-lbf 8.8 90 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Delivery pipe x Cylinder head 19 195 14 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Intake manifold x Cylinder head 19 195 14 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Intake manifold stay x Intake manifold 25 260 19 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Intake manifold stay x Cylinder block 25 260 19 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Water by-pass pipe x Water pump cover 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Oil cooler x Oil cooler bracket (Relief valve) 78 800 58 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Oil cooler x Cylinder block (Nut) 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Water outlet housing x Cylinder head 39 400 29 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical EGR valve x Intake manifold 19 195 14 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical EGR pipe x Cylinder head 25 260 19 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical RH front engine hanger x Cylinder head 39 400 29 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical RH front engine hanger x Mounting bracket 61 620 45 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical LH engine hanger x Cylinder head (12 mm head) 13 130 9 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical LH engine hanger x Cylinder head (14 mm head) 19 195 14 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Exhaust manifold x Cylinder head 52 530 38 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Cold start injector x Intake manifold 52 in.-lbf 5.9 60 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Cold start injector pipe x Cold start injector 12 125 9 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Cold start injector pipe x Delivery pipe 12 125 9 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Main TWC x Turbine outlet elbow 29 300 22 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical TWC stay x Cylinder block 59 600 43 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Oil nozzle x Cylinder block 81 in.-lbf 9.1 93 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Main bearing cap x Cylinder block 59 600 43 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod 67 680 49 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Rear oil seal retainer x Cylinder block 82 in.-lbf 9.3 95 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Knock sensor x Cylinder block 37 380 27 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Oil cooler bracket x Cylinder block 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Water pump x Cylinder block (10 mm heady) 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Water pump x Cylinder block (12 mm head) 20 in.-lbf 27 275 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Alternator bracket x Cylinder block 43 440 32 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Rear end plate x Cylinder block 82 in.-lbf 9.3 95 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Flywheel x Crankshaft 108 1100 80 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Clutch cover x Flywheel 19 195 14 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Transaxle x Cylinder block 64 650 47 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Transaxle x Rear end plate 46 470 34 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Heater water pipe x Cylinder block 46 470 34 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical No.2 rear end plate x Cylinder block 82 in.-lbf 9.3 95 — ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical No.2 rear end plate x Transaxle 19 195 14 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Stiffener plate x Cylinder block 37 380 27 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Stiffener plate x Transaxle 37 380 27 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual

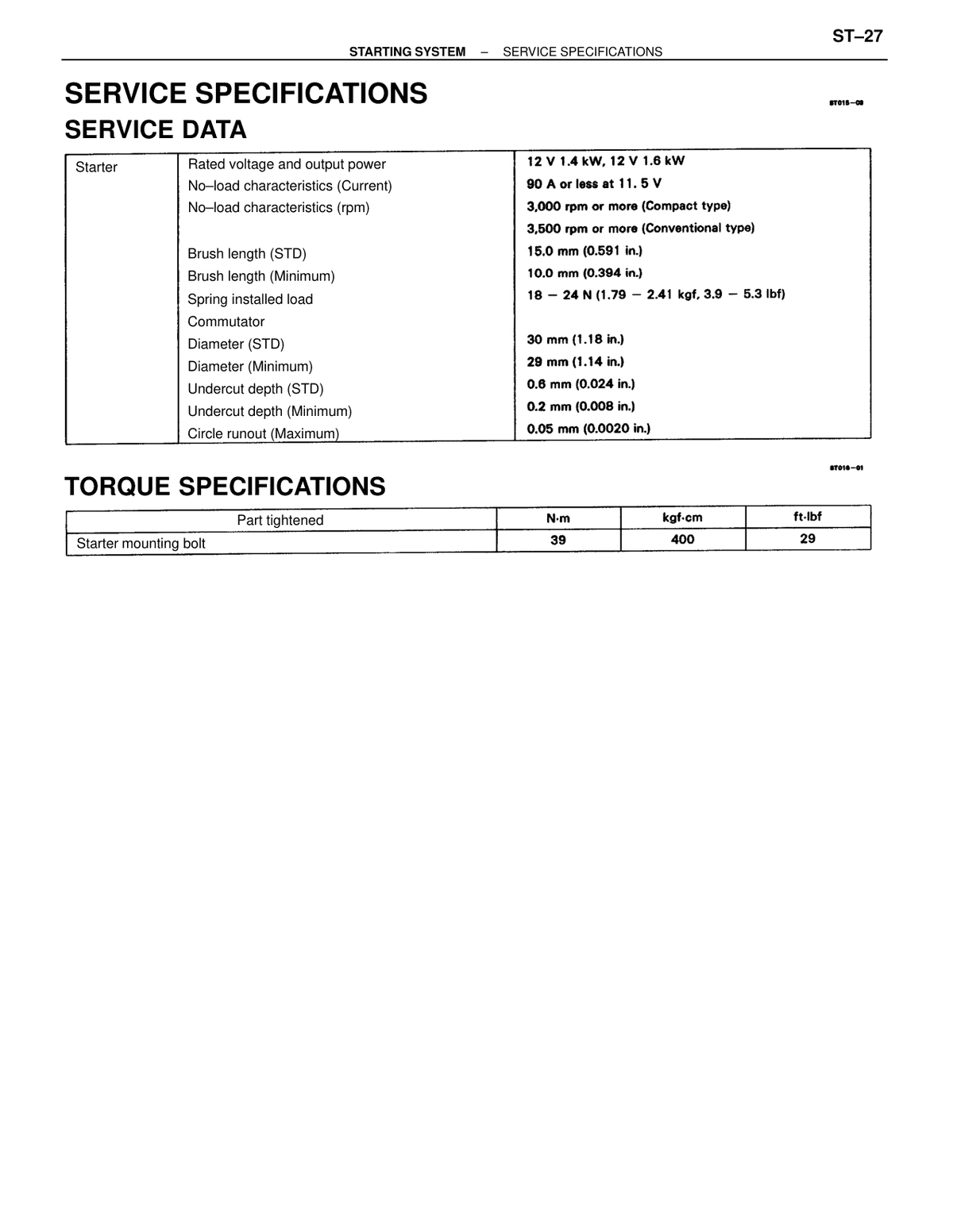

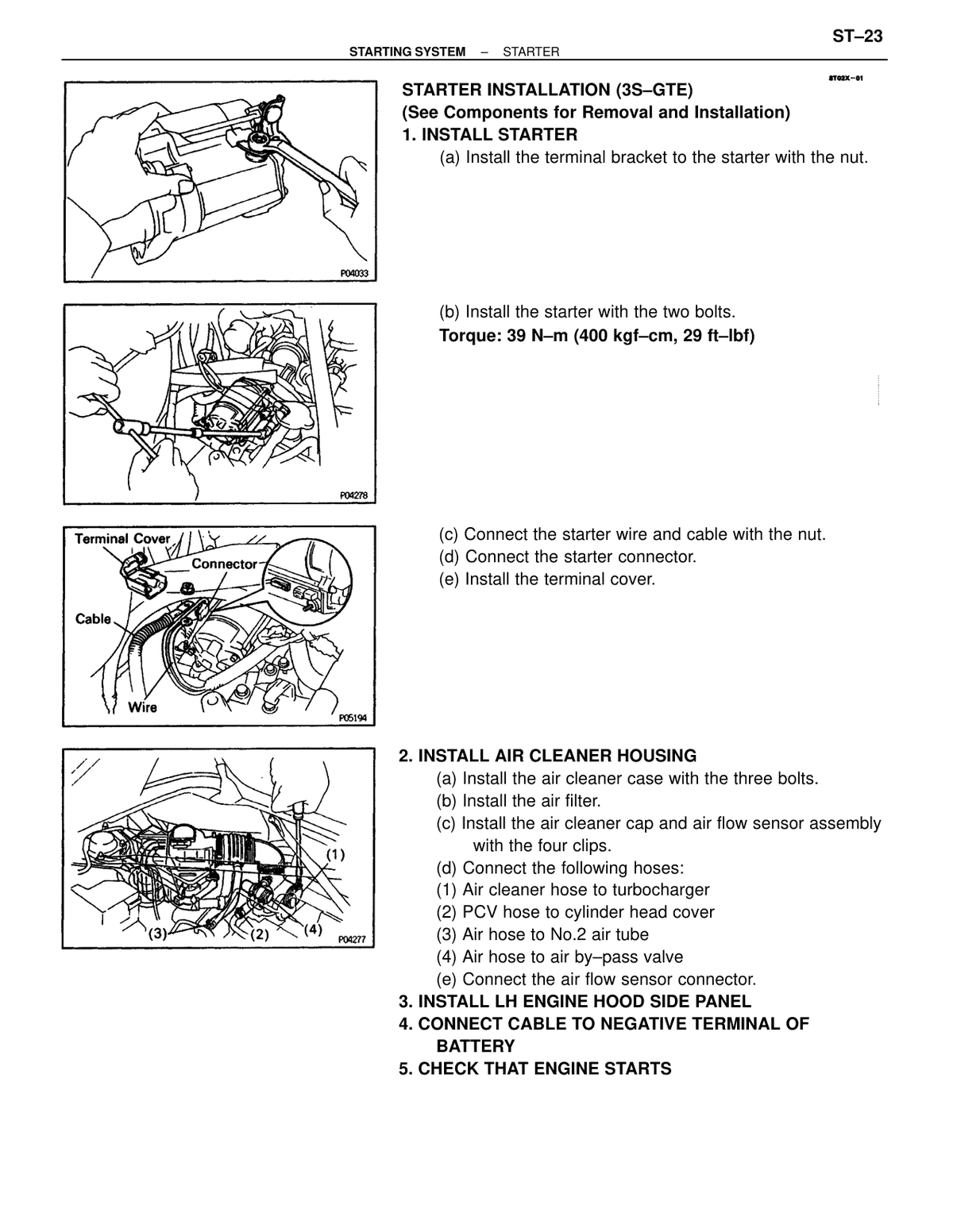

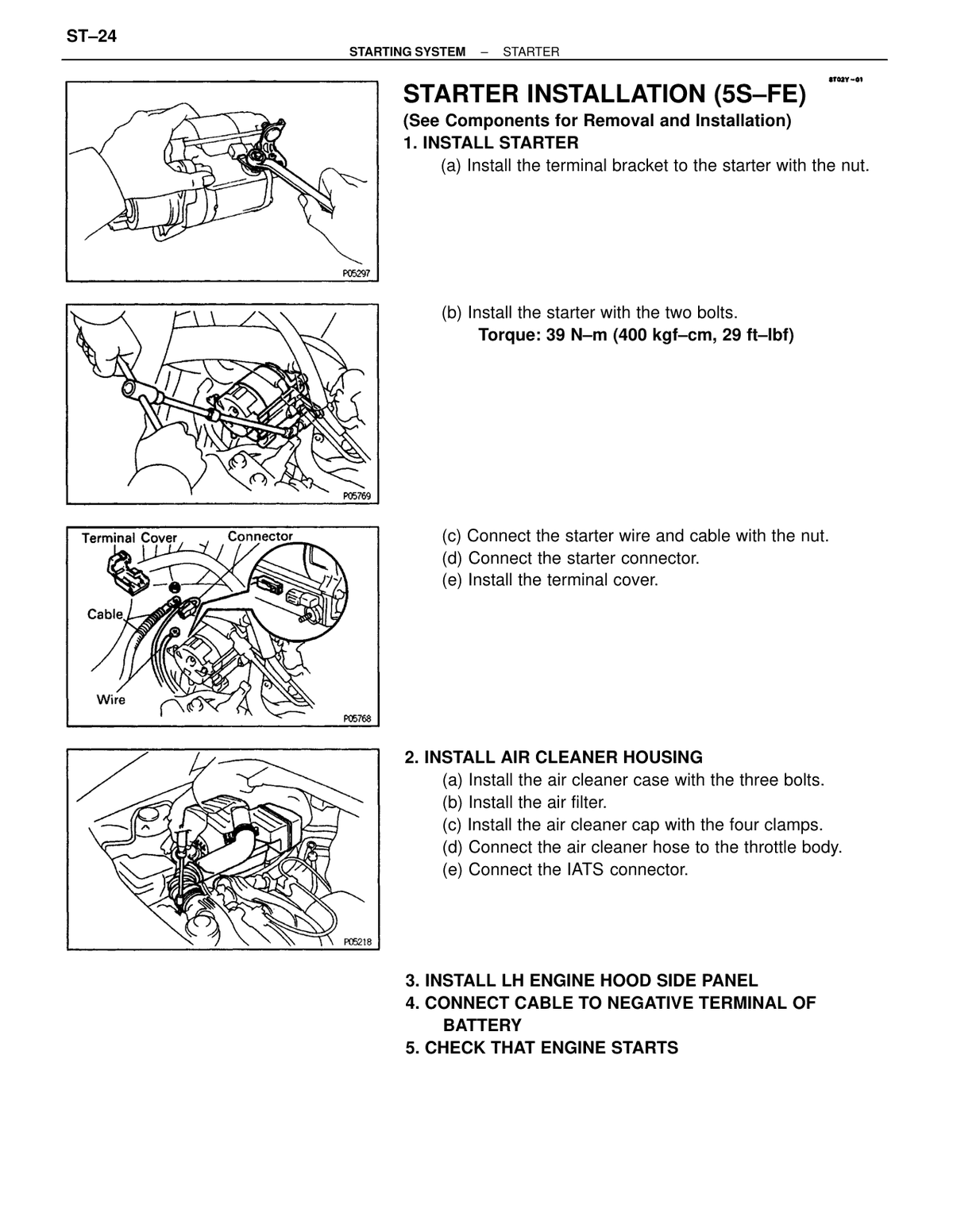

Engine — mechanical Starter x Rear end plate 39 400 29 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Drive shaft bearing bracket x Cylinder block 64 650 47 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical Drive shaft bearing stay x Bearing stay 75 770 56 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical RH engine mounting bracket x Cylinder block 61 620 45 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical RH engine mounting Insulator x Mounting Bracket 52 530 38 ↗ RM285U_1993_3sgte_engineme · p137 OEM manual
Engine — mechanical RH engine mounting Insulator x Body 78 800 58 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical RH engine mounting stay x RH engine hanger 73 740 54 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical RH engine mounting stay x Mounting insulator 73 740 54 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical LH engine mounting bracket x Transaxle 52 530 38 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical LH engine mounting insulator x Transaxle 52 530 38 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical LH engine mounting insulator x Mounting bracket (upper side) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical LH engine mounting insulator x Mounting bracket (lower side) 63 650 47 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical LH engine mounting insulator x Body 78 800 58 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical LH engine mounting stay x Mounting insulator 73 740 54 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical LH engine mounting stay x Transaxle 25 250 — ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Front engine mounting bracket x Transaxle 77 790 57 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Front engine mounting insulator x Body 73 740 54 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Front engine mounting insulator x Mounting bracket 96 980 70 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Rear engine mounting bracket x Transaxle (rear side) 77 790 57 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Rear engine mounting bracket x Transaxle (RH side) 39 400 29 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Rear engine mounting insulator x Body 64 650 47 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Rear engine mounting insulator x Mounting bracket 87 890 64 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Rear suspension lower crossmember x Body 113 1150 83 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Lateral control rod x Body 35 360 26 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Lateral control rod x LH engine mounting insulator 37 380 27 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical A/C idler pulley bracket x Cylinder block (12 mm head) 25 250 18 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical A/C idler pulley bracket x Cylinder block (0 4 mm head) 27 275 20 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical A/C idler pulley bracket x RH engine hanger 37 375 27 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical A/C compressor x Cylinder block 25 250 18 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Clutch release cylinder x Transaxle 12 120 9 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Front exhaust pipe x Main TWC 62 630 46 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Front exhaust pipe support bracket x Suspension crossmember 21 210 15 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Suspension member damper x Suspension crossmember 21 210 15 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Tailpipe x Body bracket 66 670 48 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Tailpipe x Front exhaust pipe 43 440 32 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Tailpipe bracket x Front exhaust pipe bracket 19 190 14 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Tailpipe x Body bracket second occurrence 66 670 48 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Lower suspension brace x Body 73 740 54 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Upper suspension brace x Body (Bolt) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Upper suspension brace x Body (Nut) 64 650 47 ↗ RM285U_1993_3sgte_engineme · p138 OEM manual
Engine — mechanical Upper Suspension Brace (LH) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p139 OEM manual
Engine — mechanical Upper Suspension Brace (RH) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p139 OEM manual
Engine — mechanical RH Engine Mounting Insulator 64 650 47 ↗ RM285U_1993_3sgte_engineme · p139 OEM manual
Engine — mechanical RH Engine Mounting Stay 78 800 58 ↗ RM285U_1993_3sgte_engineme · p139 OEM manual
Engine — mechanical Alternator Drive Belt / Cruise Control Actuator bracket 61 620 45 ↗ RM285U_1993_3sgte_engineme · p139 OEM manual
Engine — mechanical RH Engine Mounting Bracket 52 530 38 ↗ RM285U_1993_3sgte_engineme · p139 OEM manual
Engine — mechanical A/C Compressor mounting 73 740 54 ↗ RM285U_1993_3sgte_engineme · p139 OEM manual
Engine — mechanical Crankshaft Pulley bolt 108 1100 80 ↗ RM285U_1993_3sgte_engineme · p141 OEM manual
Engine — mechanical Intake Camshaft Timing Pulley bolt Standard 59 600 43 ↗ RM285U_1993_3sgte_engineme · p141 OEM manual
Engine — mechanical Intake Camshaft Timing Pulley bolt (with SST) For use with SST (*) 41 420 30 ↗ RM285U_1993_3sgte_engineme · p141 OEM manual
Engine — mechanical Exhaust Camshaft Timing Pulley bolt 59 600 43 ↗ RM285U_1993_3sgte_engineme · p141 OEM manual
Engine — mechanical Timing Belt Tensioner bolt 21 210 15 ↗ RM285U_1993_3sgte_engineme · p141 OEM manual
Engine — mechanical No.1 Idler Pulley bolt (precoated) Precoated part (★) 52 530 38 ↗ RM285U_1993_3sgte_engineme · p141 OEM manual
Engine — mechanical Oil pump pulley nut Install using SST 09616-30011 35 355 26 ↗ RM285U_1993_3sgte_engineme · p155 OEM manual
Engine — mechanical No.1 idler pulley pivot bolt 52 530 38 ↗ RM285U_1993_3sgte_engineme · p155 OEM manual
Engine — mechanical Crankshaft pulley bolt Using SST 09213-54015 (90119-08216), 09330-00021 108 1100 80 ↗ RM285U_1993_3sgte_engineme · p156 OEM manual
Engine — mechanical Camshaft timing pulley bolt Standard torque 59 600 43 ↗ RM285U_1993_3sgte_engineme · p157 OEM manual
Engine — mechanical Camshaft timing pulley bolt (SST — intake camshaft) For SST 09249–63010; use torque wrench with fulcrum length 340 mm (13.39 in.) 41 420 30 ↗ RM285U_1993_3sgte_engineme · p157 OEM manual
Engine — mechanical No.1 idler pulley bolt (tensioner) Apply torque wrench along axis through bolts of No.1 idler pulley and exhaust camshaft timing pulley 18 180 13 ↗ RM285U_1993_3sgte_engineme · p158 OEM manual
Engine — mechanical No.1 idler pulley bolt Turn counterclockwise to obtain specified torque; apply torque wrench along axis through bolts of No.1 idler pulley and exhaust camshaft timing pulley 18 180 13 ↗ RM285U_1993_3sgte_engineme · p159 OEM manual
Engine — mechanical Tensioner body bolts (two bolts, alternately tightened) While pushing tensioner, alternately tighten the two bolts 21 210 15 ↗ RM285U_1993_3sgte_engineme · p159 OEM manual
Engine — mechanical Spark plugs Step 16 — Install spark plugs 18 180 13 ↗ RM285U_1993_3sgte_engineme · p160 OEM manual
Engine — mechanical Cylinder head cover screws Step 17d — cylinder head cover with ten seal washers and screws; value_inlb: 21 2.5 25 — ↗ RM285U_1993_3sgte_engineme · p160 OEM manual
Engine — mechanical Throttle body bolts (four bolts) 19 195 14 ↗ RM285U_1993_3sgte_engineme · p162 OEM manual
Engine — mechanical Intake air connector stay bolts — 10 mm head 69 in-lbf; for 10 mm head 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p162 OEM manual
Engine — mechanical Intake air connector stay bolts — 12 mm head for 12 mm head 19 195 14 ↗ RM285U_1993_3sgte_engineme · p162 OEM manual
Engine — mechanical Intake air connector bolts and nuts 19 195 14 ↗ RM285U_1993_3sgte_engineme · p162 OEM manual
Engine — mechanical RH engine mounting bracket bolts (four bolts) 61 620 45 ↗ RM285U_1993_3sgte_engineme · p163 OEM manual
Engine — mechanical RH engine mounting insulator nut for nut 52 530 38 ↗ RM285U_1993_3sgte_engineme · p163 OEM manual
Engine — mechanical RH engine mounting insulator through bolt for through bolt 78 800 58 ↗ RM285U_1993_3sgte_engineme · p163 OEM manual
Engine — mechanical RH engine mounting stay bolts (three bolts) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p163 OEM manual
Engine — mechanical Idler pulley bracket bolt A Step 29(b), bolt A 25 250 18 ↗ RM285U_1993_3sgte_engineme · p164 OEM manual
Engine — mechanical Idler pulley bracket bolt B Step 29(b), bolt B 27 275 20 ↗ RM285U_1993_3sgte_engineme · p164 OEM manual
Engine — mechanical Idler pulley bracket bolt C Step 29(b), bolt C 37 375 27 ↗ RM285U_1993_3sgte_engineme · p164 OEM manual
Engine — mechanical A/C compressor lower side bolts Step 29(d) 25 250 18 ↗ RM285U_1993_3sgte_engineme · p164 OEM manual
Engine — mechanical Lower suspension brace bolts Step (i) 73 740 54 ↗ RM285U_1993_3sgte_engineme · p165 OEM manual
Engine — mechanical Upper suspension brace bolt for-bolt 73 740 54 ↗ RM285U_1993_3sgte_engineme · p166 OEM manual
Engine — mechanical Upper suspension brace nut for nut 64 650 47 ↗ RM285U_1993_3sgte_engineme · p166 OEM manual
Engine — mechanical No.1 idler pulley bolt (temporary/step f) Step (f) — turn counterclockwise to obtain torque, temporarily install tensioner 18 180 13 ↗ RM285U_1993_3sgte_engineme · p171 OEM manual
Engine — mechanical No.1 idler pulley bolt (step i) Step (i) — with 1.90 mm feeler gauge inserted 18 180 13 ↗ RM285U_1993_3sgte_engineme · p171 OEM manual
Engine — mechanical Tensioner two bolts (step j) Step (j) — alternately tighten while pushing tensioner 21 210 15 ↗ RM285U_1993_3sgte_engineme · p171 OEM manual
Engine — mechanical Camshaft timing pulley bolts Standard 59 600 43 ↗ RM285U_1993_3sgte_engineme · p174 OEM manual
Engine — mechanical Camshaft timing pulley bolts (intake camshaft using SST) For SST 09249-63010 with fulcrum length 340 mm (13.39 in.) 41 420 30 ↗ RM285U_1993_3sgte_engineme · p174 OEM manual
Engine — mechanical Cylinder head cover screws Ten seal washers and screws; step (d) 2.5 25 — ↗ RM285U_1993_3sgte_engineme · p191 OEM manual
Engine — mechanical Throttle body bolts Four bolts; 45 mm upper side, 70 mm lower side 19 195 14 ↗ RM285U_1993_3sgte_engineme · p192 OEM manual
Engine — mechanical Intake air connector stay bolts (10 mm head) 69 in.-lbf; six bolts 7.8 80 — ↗ RM285U_1993_3sgte_engineme · p192 OEM manual
Engine — mechanical Intake air connector stay bolts (12 mm head) Six bolts 19 195 14 ↗ RM285U_1993_3sgte_engineme · p192 OEM manual
Engine — mechanical Intake air connector bolts and nuts Step 14 19 195 14 ↗ RM285U_1993_3sgte_engineme · p193 OEM manual

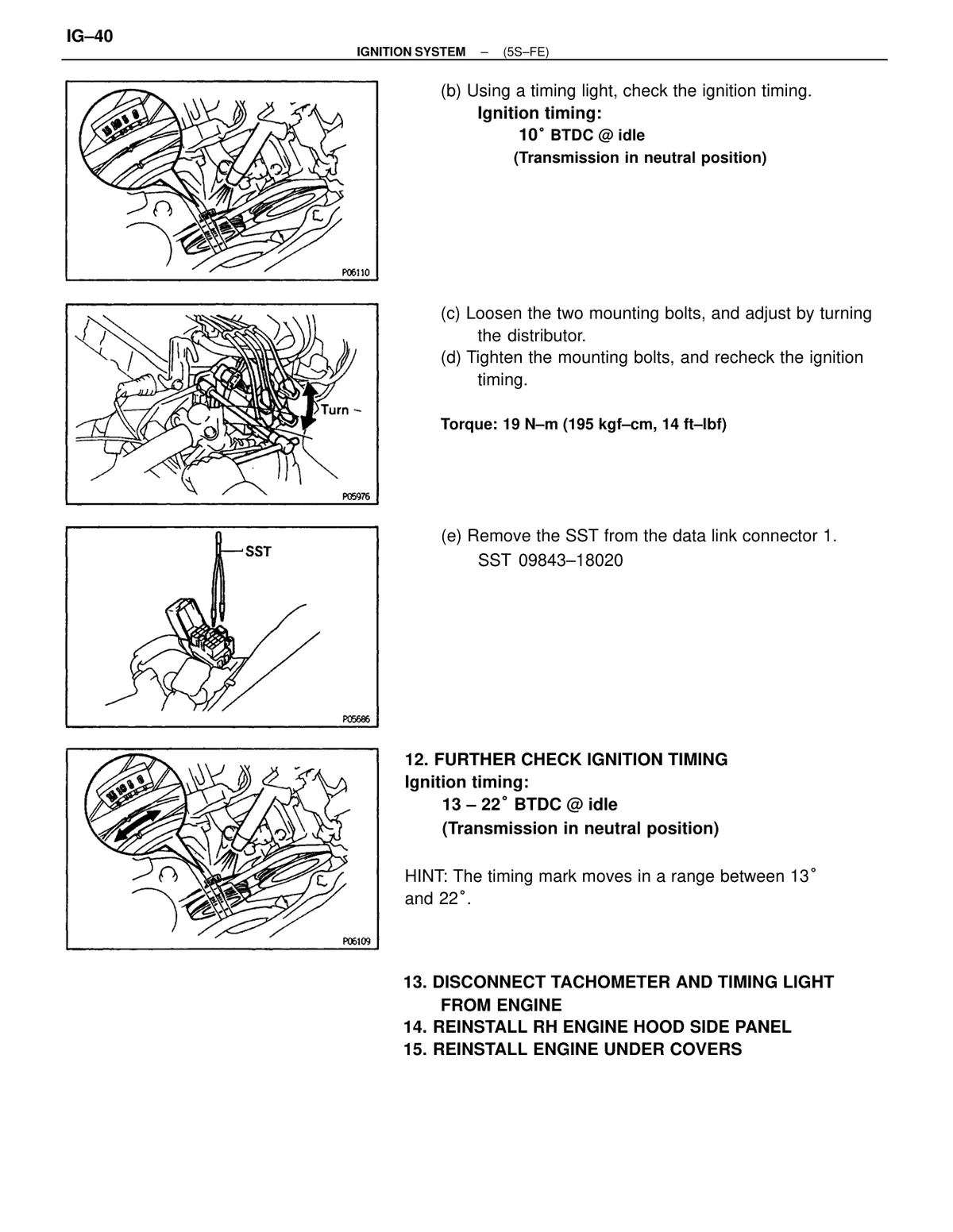

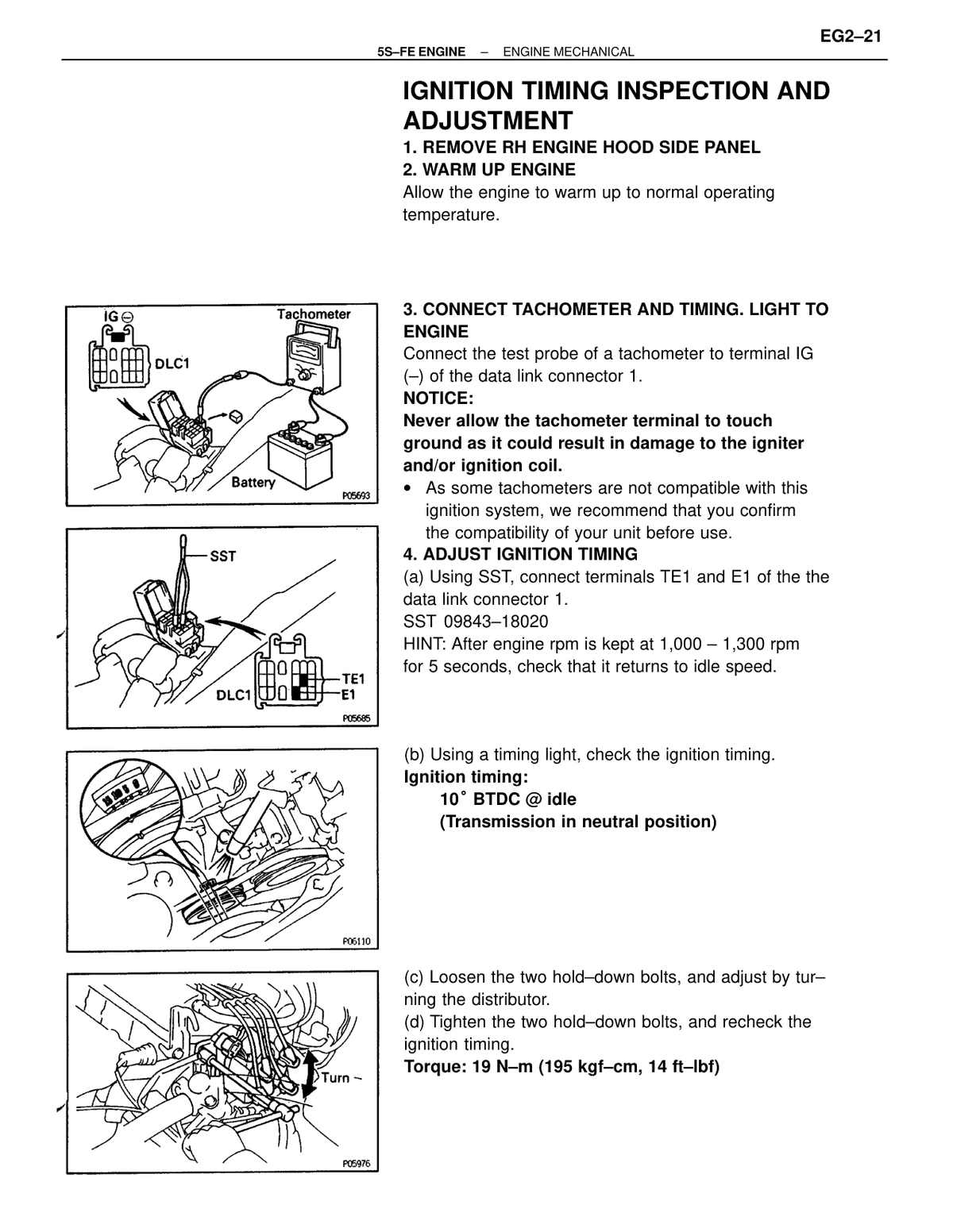

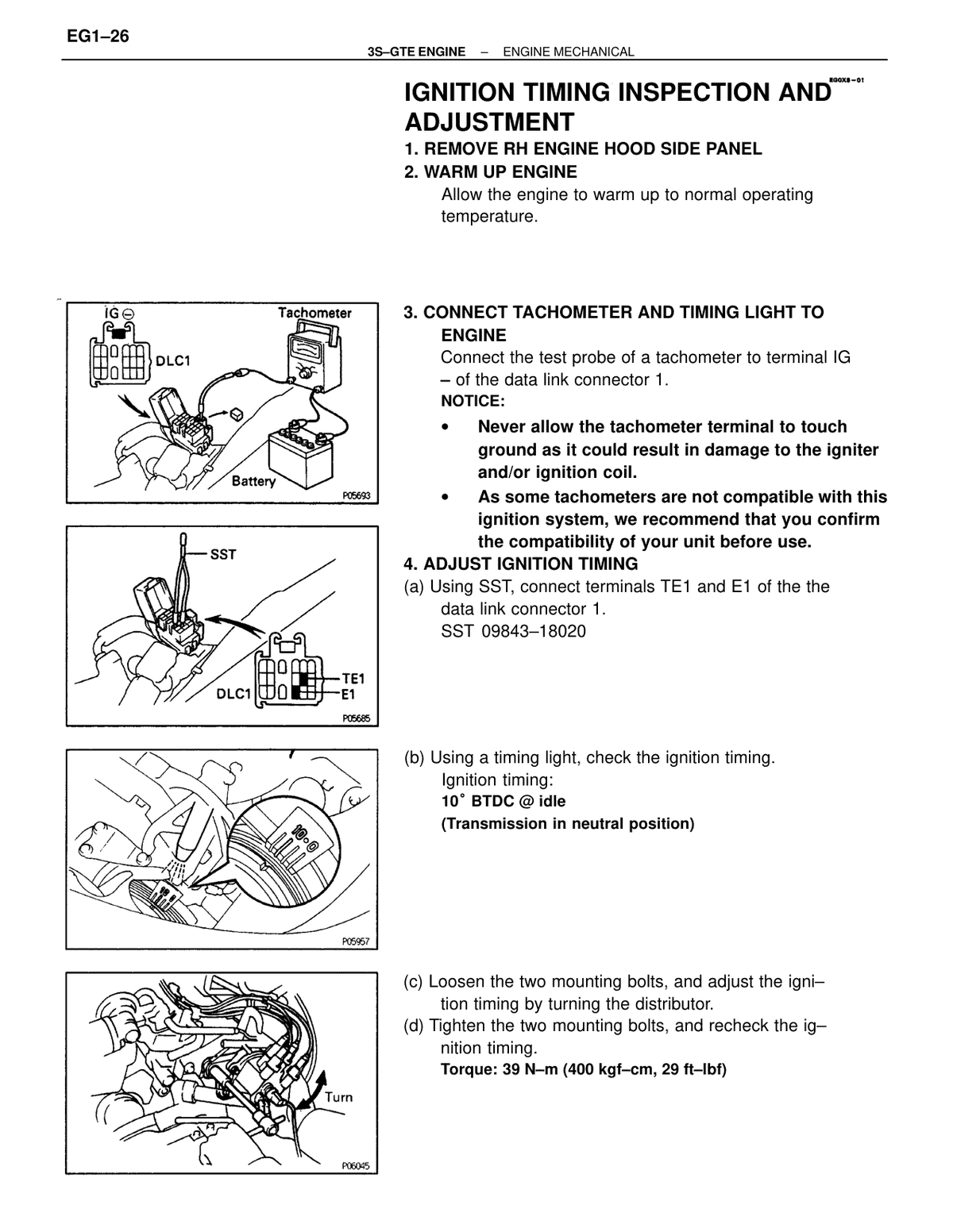

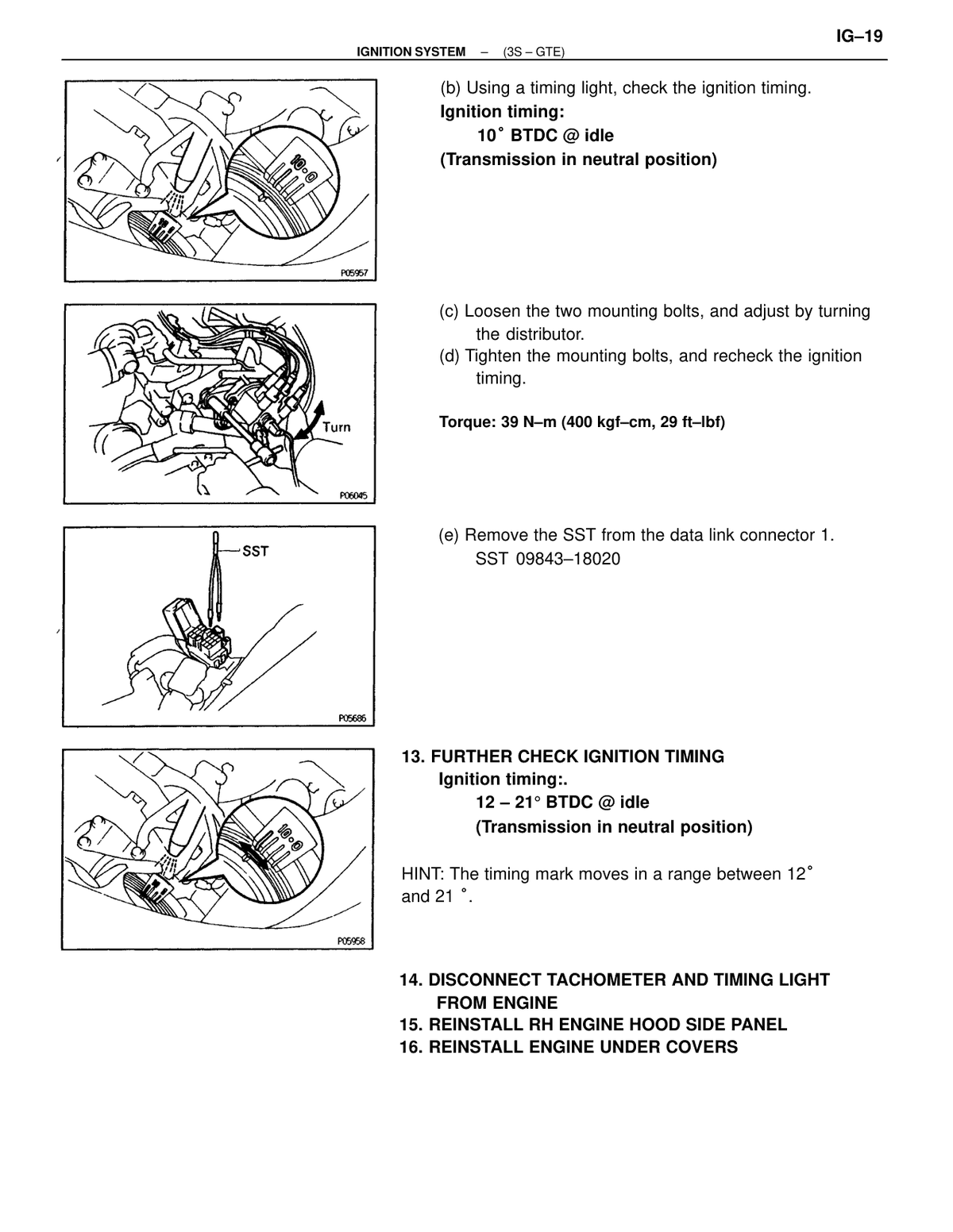

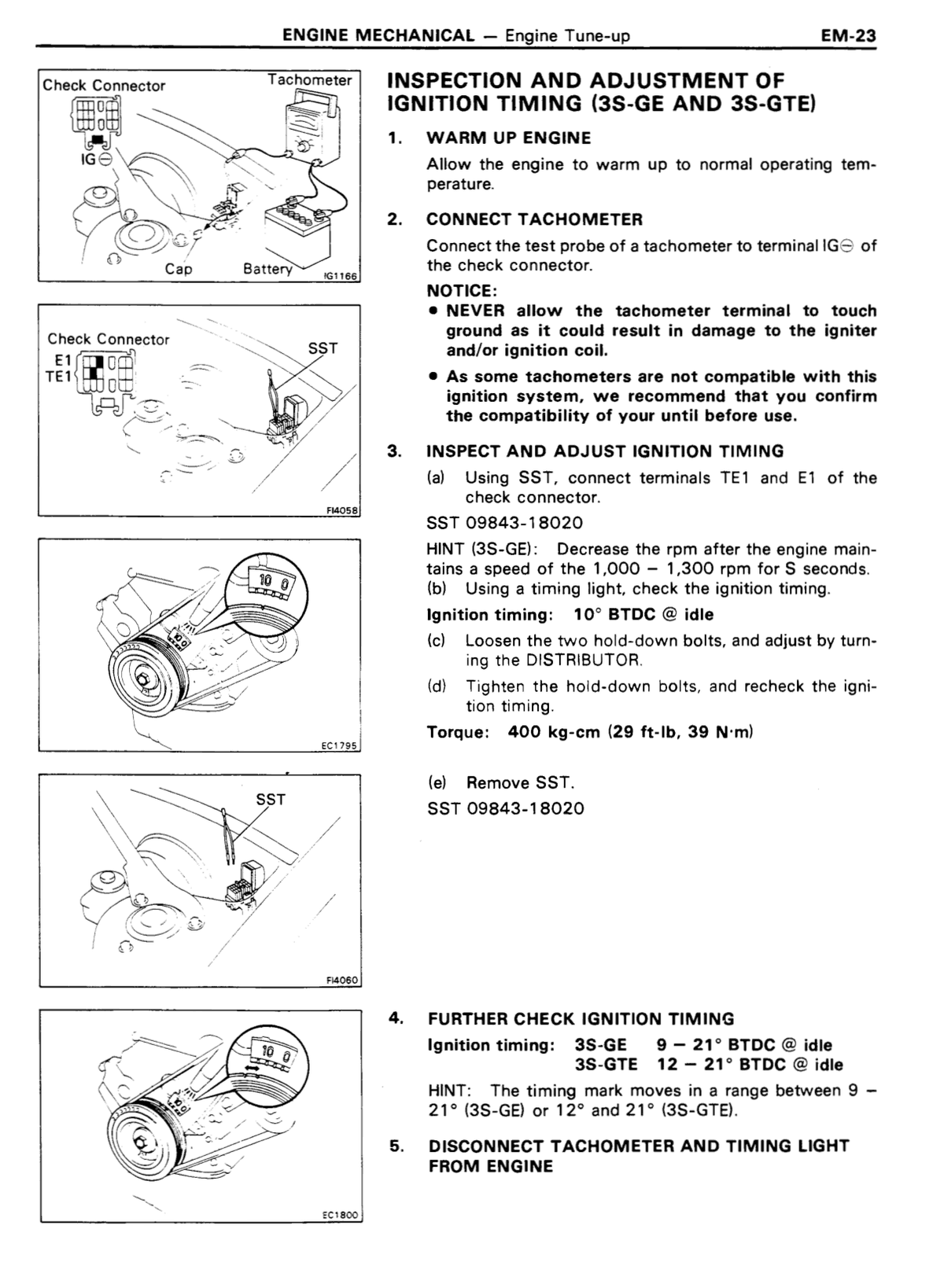

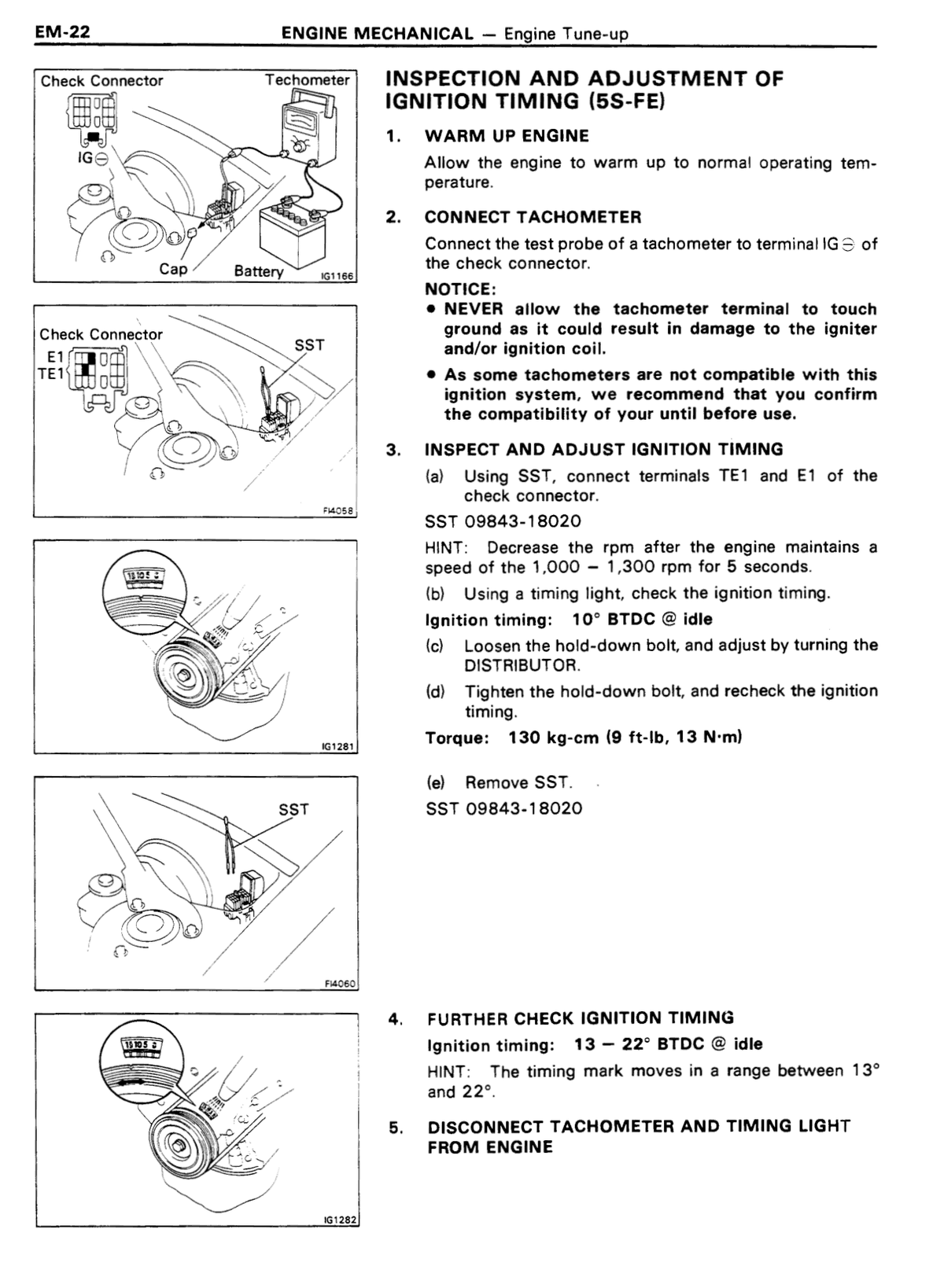

Engine — mechanical Distributor mounting bolts Tighten after ignition timing adjustment 39 400 29 ↗ RM285U_1993_3sgte_engineme · p194 OEM manual

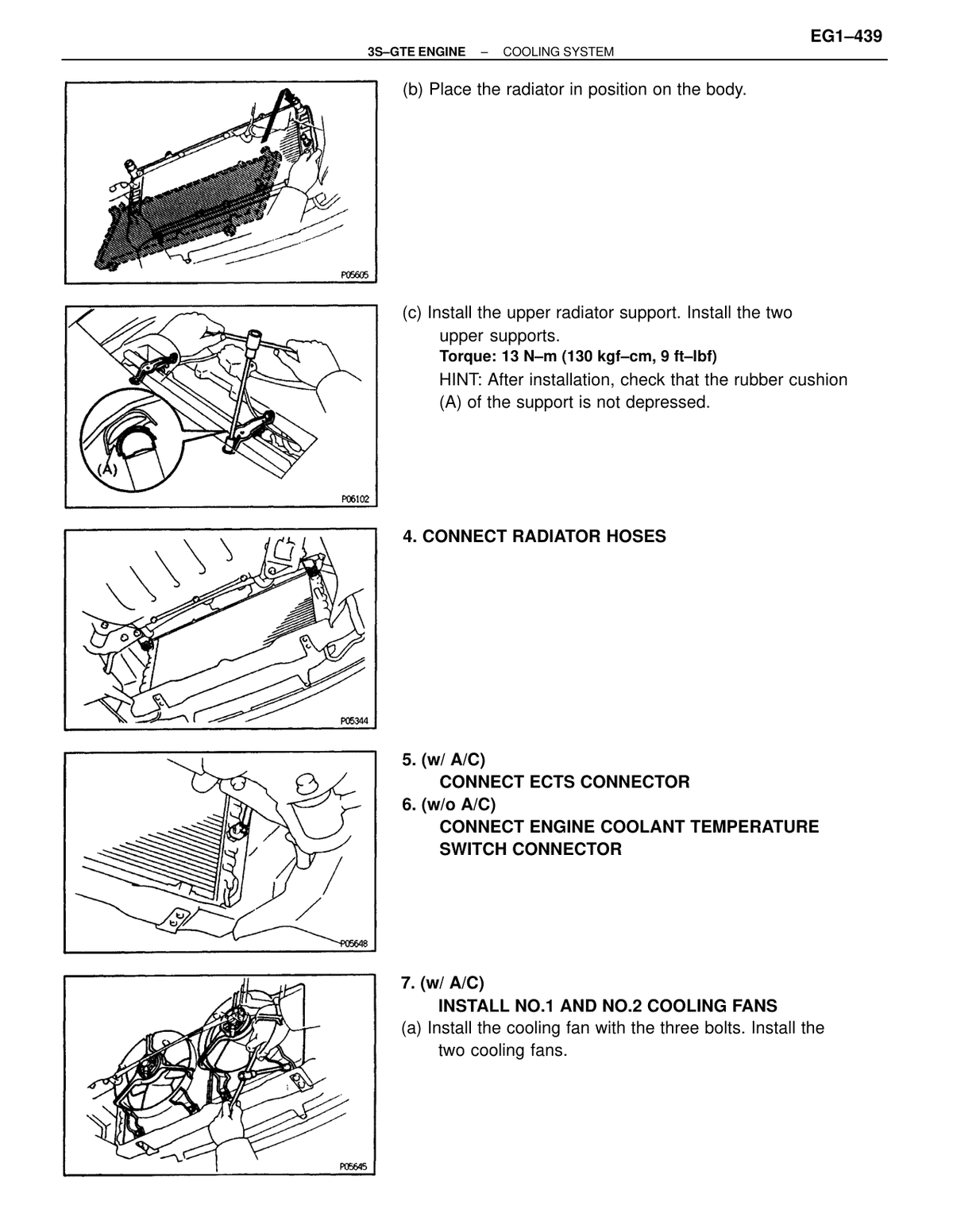

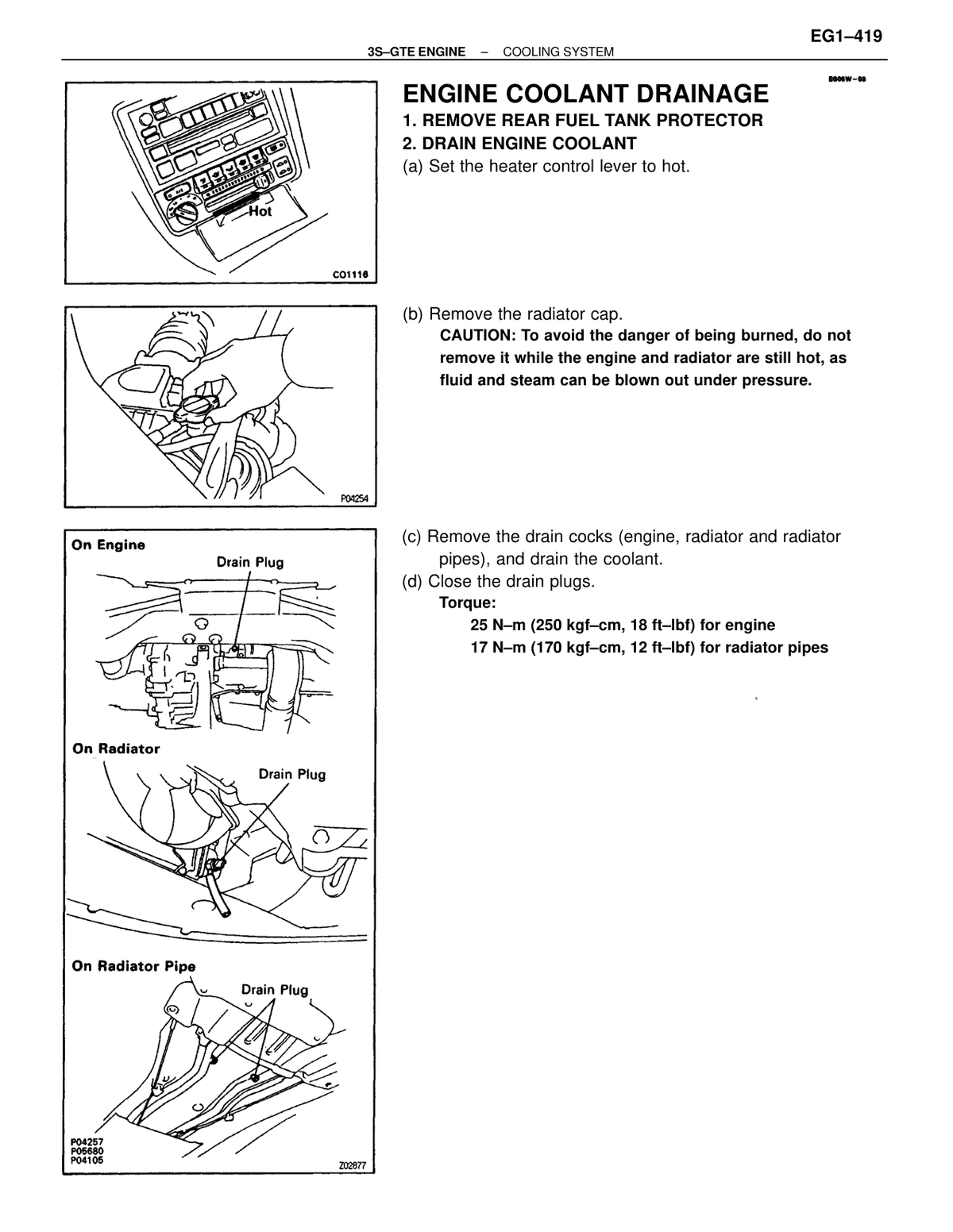

Cooling Upper radiator support bolts Install two upper supports 13 130 9 ↗ RM285U_1993_3sgte_coolings · p54 OEM manual

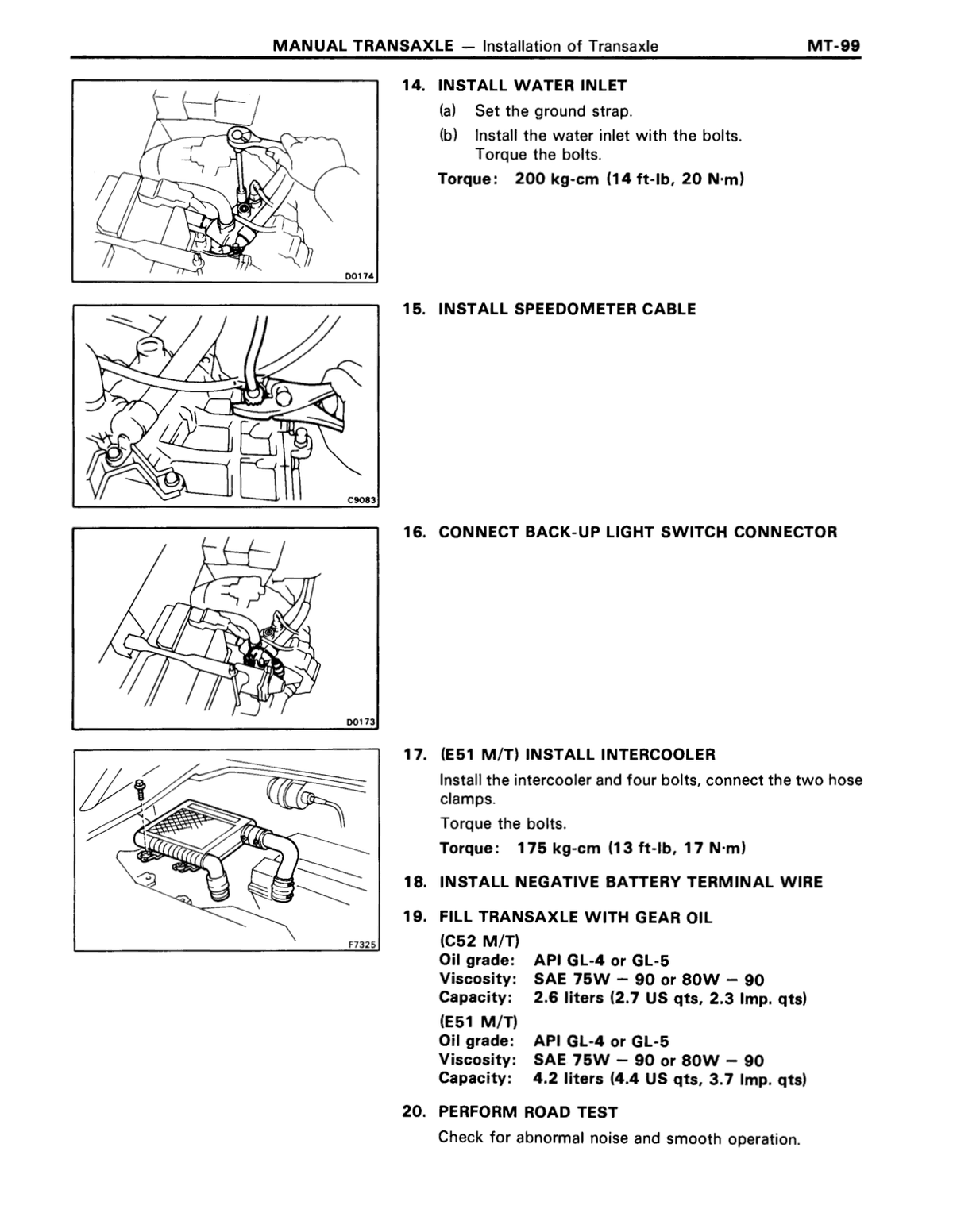

Cooling Water inlet x Water pump cover 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_coolings · p56 OEM manual
Cooling Water pump x Water pump cover 82 in.-lbf 9.3 95 — ↗ RM285U_1993_3sgte_coolings · p56 OEM manual
Cooling Water pump x Cylinder block (10 mm head) 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_coolings · p56 OEM manual
Cooling Water pump x Cylinder block (12 mm head) 20 in.-lbf 27 275 — ↗ RM285U_1993_3sgte_coolings · p56 OEM manual
Cooling Water by-pass pipe x Water pump cover 9 ft-lbf 12 120 — ↗ RM285U_1993_3sgte_coolings · p56 OEM manual

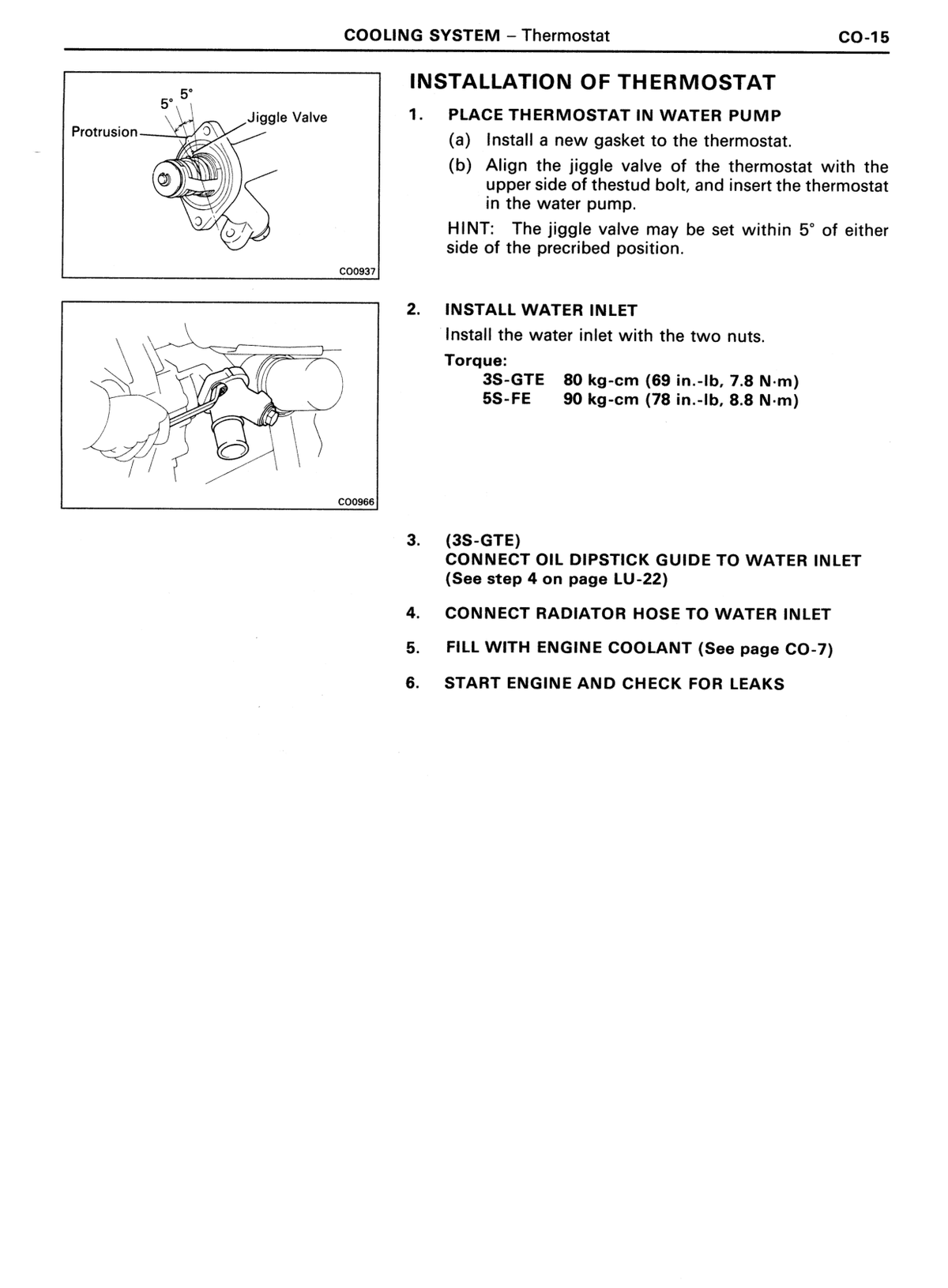

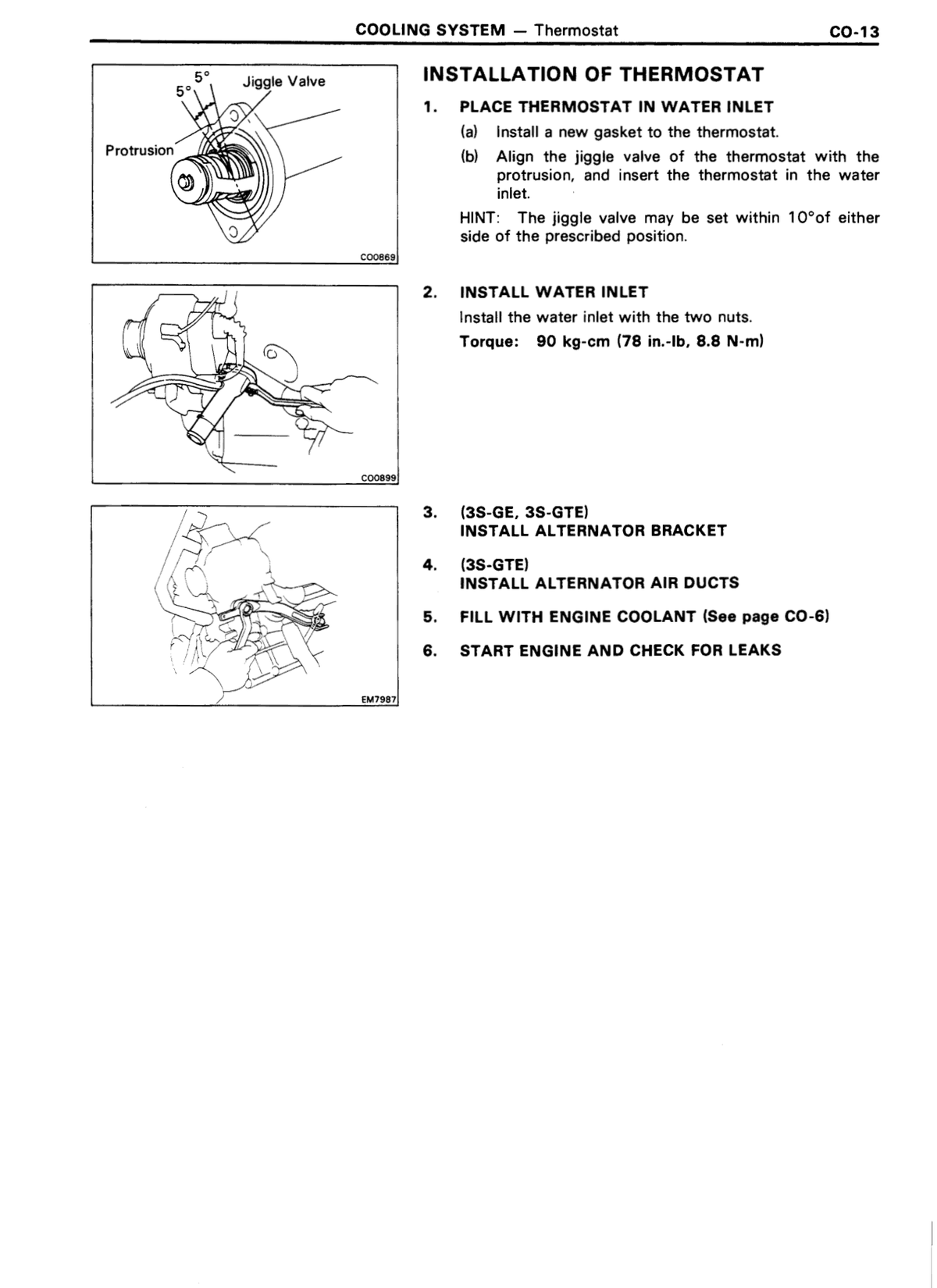

Cooling Water inlet and thermostat nuts 69 in.-lbf; Step 2 7.8 80 5.75 ↗ RM285U_1993_3sgte_coolings · p60 OEM manual
Cooling Upper Suspension Brace / RH Engine Mounting Stay bolts 73 740 54 ↗ RM285U_1993_3sgte_coolings · p61 OEM manual
Cooling CAC Bracket / RH Engine Mounting Insulator upper bolt 78 800 58 ↗ RM285U_1993_3sgte_coolings · p61 OEM manual
Cooling Alternator Drive Belt / Cruise Control Actuator and Accelerator Linkage bracket bolts 61 620 45 ↗ RM285U_1993_3sgte_coolings · p61 OEM manual
Cooling Water pump screw and two bolts Install water pump to water pump cover 9.3 95 — ↗ RM285U_1993_3sgte_coolings · p64 OEM manual
Cooling Water pump bolts (three bolts, tighten in sequence) Tighten in sequence shown 7.8 80 — ↗ RM285U_1993_3sgte_coolings · p65 OEM manual
Cooling Water pump cover nuts to water by-pass pipe 12 120 9 ↗ RM285U_1993_3sgte_coolings · p65 OEM manual
Unclassified Fuel pressure regulator mounting bolt 19 195 14 ↗ RM285U_1993_5sfe_mpisyste · p27 OEM manual
Unclassified Fuel pressure regulator retaining screw 48 in-lbf 5.4 55 — ↗ RM285U_1993_5sfe_mpisyste · p27 OEM manual
Unclassified Pressure regulator bolts 48 in-lbf 5.4 55 4 ↗ RM285U_1993_5sfe_mpisyste · p29 OEM manual
Unclassified Fuel return pipe union bolt Install with new two gaskets 19 195 14 ↗ RM285U_1993_5sfe_mpisyste · p29 OEM manual
Unclassified SST union bolt — fuel inlet hose to fuel filter 29 300 22 ↗ RM285U_1993_5sfe_mpisyste · p32 OEM manual
Unclassified Fuel inlet hose union bolt to fuel filter With two new gaskets 29 300 22 ↗ RM285U_1993_5sfe_mpisyste · p34 OEM manual
Unclassified Fuel Pump in·lbf unit shown on diagram 3.4 35 — ↗ RM285U_1993_5sfe_mpisyste · p36 OEM manual
EFI / fuel injection Fuel pump bracket bolts to fuel tank Step 1(c) 3.4 35 — ↗ RM285U_1993_5sfe_mpisyste · p43 OEM manual
EFI / fuel injection Fuel tank band pin and bolt Step 2(c) 29 300 22 ↗ RM285U_1993_5sfe_mpisyste · p43 OEM manual
EFI / fuel injection No.2 center floor crossmember bolts Step 2(d) 29 300 22 ↗ RM285U_1993_5sfe_mpisyste · p43 OEM manual
Unclassified Front Fuel Evaporation Bent Tube in·lbf 1.5 15 — ↗ RM285U_1993_5sfe_mpisyste · p47 OEM manual
Unclassified Rear Fuel Evaporation Bent Tube / Gasket in·lbf 1.5 15 — ↗ RM285U_1993_5sfe_mpisyste · p47 OEM manual
Unclassified Front Fuel Evaporation Bent Tube upper fitting in·lbf 3.4 35 — ↗ RM285U_1993_5sfe_mpisyste · p47 OEM manual
Unclassified SST 09631-22020 (fuel line fitting) Use SST 09631-22020 with fulcrum length 30 cm (11.81 in.) 30 310 22 ↗ RM285U_1993_5sfe_mpisyste · p48 OEM manual
EFI / fuel injection SST union bolt to fuel filter outlet SST 09268-41045 (90405-09015) 29 300 22 ↗ RM285U_1993_5sfe_mpisyste · p60 OEM manual
Unclassified Fuel inlet of pressure regulator bolts (SST union) Step (e), SST 09268-41045 (09268-41090) 5.4 55 — ↗ RM285U_1993_5sfe_mpisyste · p61 OEM manual
Unclassified Fuel return hose union bolts Step (f), SST 09268-41045 (09268-41080) 18 180 13 ↗ RM285U_1993_5sfe_mpisyste · p61 OEM manual
Unclassified Fuel inlet hose union bolt Reinstall fuel inlet hose to fuel filter outlet with two new gaskets 29 300 22 ↗ RM285U_1993_5sfe_mpisyste · p62 OEM manual
Unclassified Delivery pipe bolts to cylinder head Step (j) 13 130 9 ↗ RM285U_1993_5sfe_mpisyste · p64 OEM manual
Unclassified Fuel inlet pipe to delivery pipe (with pulsation damper) Step 2(a), use two new gaskets 34 350 25 ↗ RM285U_1993_5sfe_mpisyste · p64 OEM manual

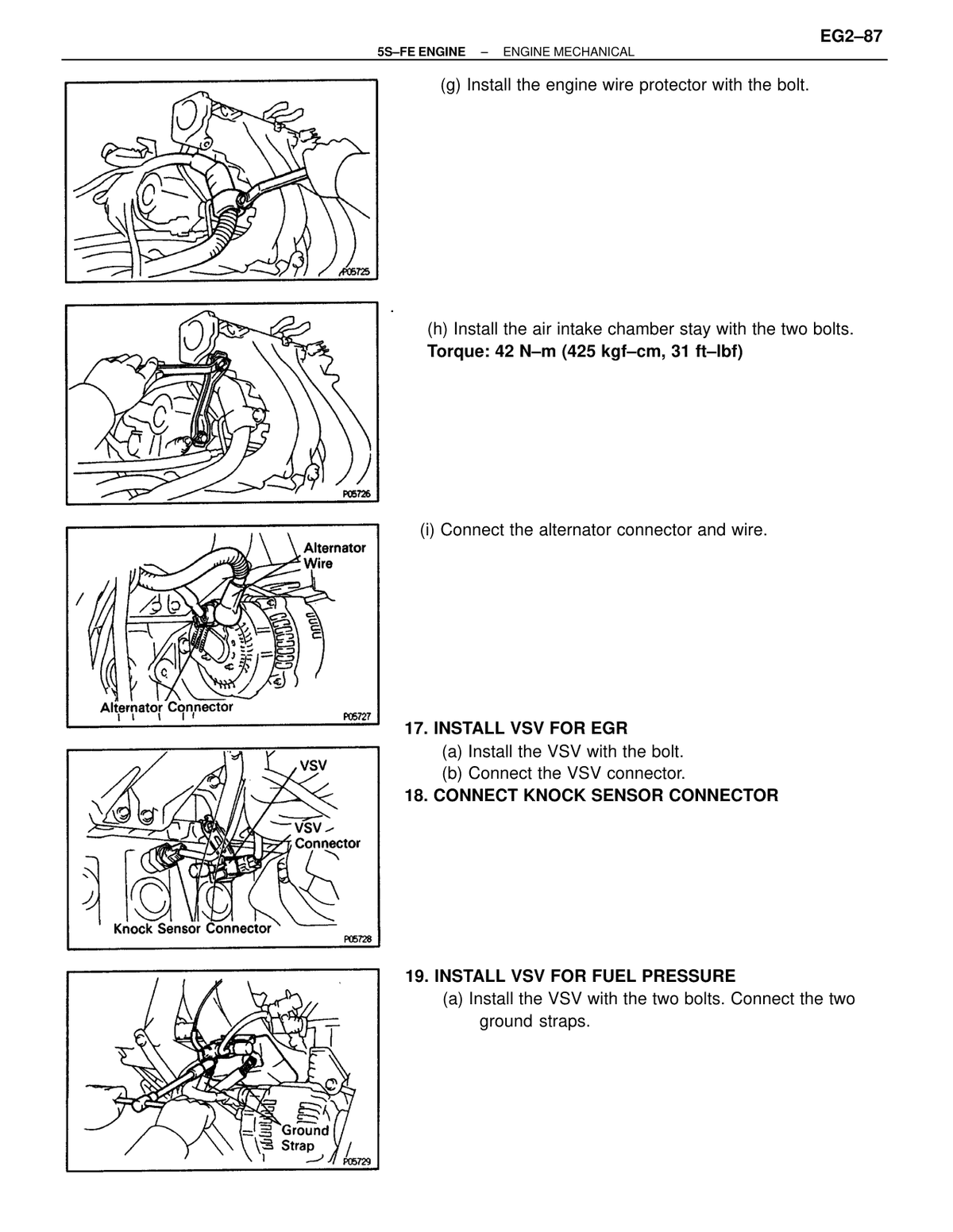

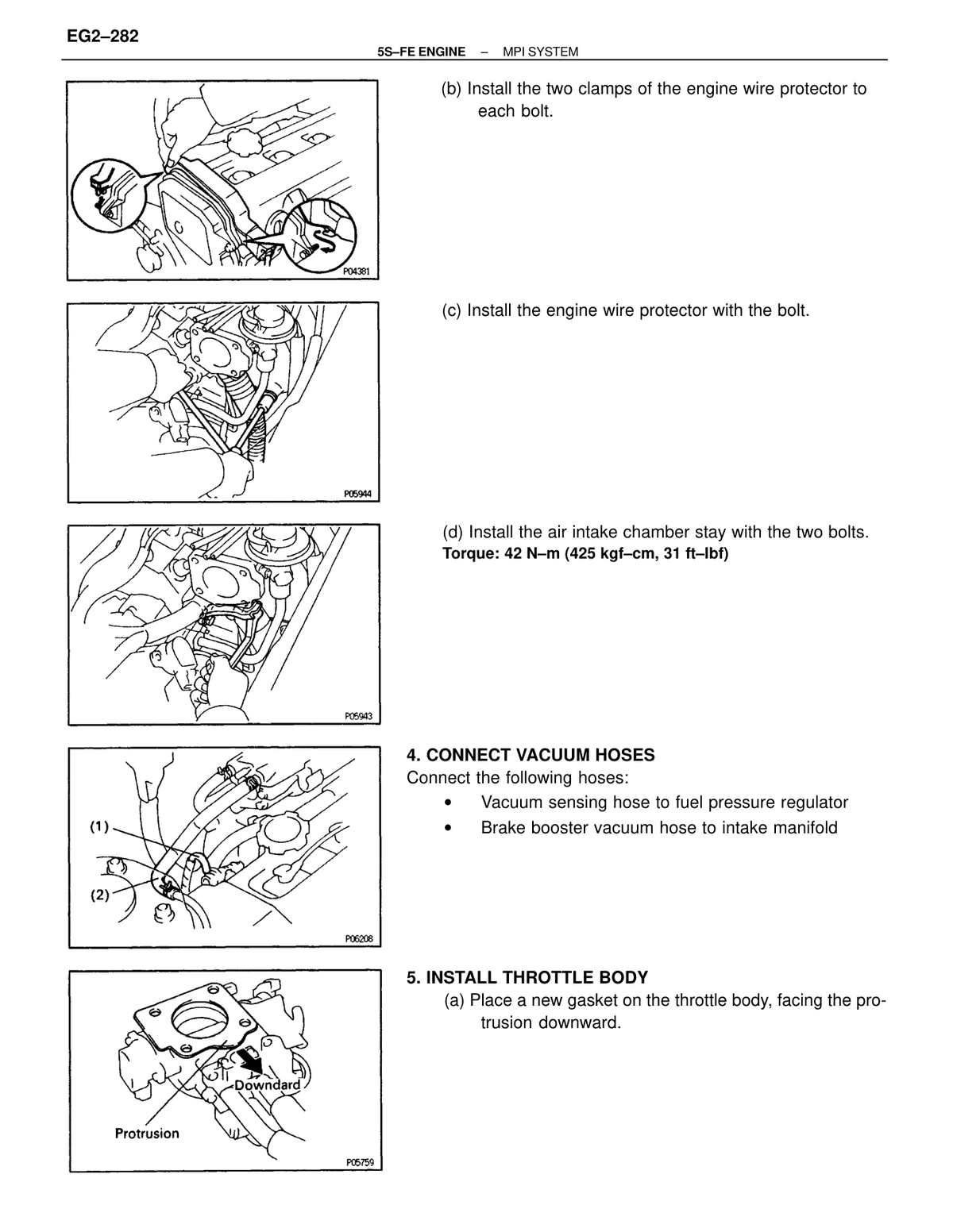

Unclassified Air intake chamber stay bolts Step (d) — install air intake chamber stay with two bolts 42 425 31 ↗ RM285U_1993_5sfe_mpisyste · p65 OEM manual
Unclassified Union bolt — high pressure pipe union Union Bolt Type 29 300 22 ↗ RM285U_1993_5sfe_mpisyste · p86 OEM manual
Unclassified Flare nut — high pressure pipe union Flare Nut Type; use SST 09631-22020 with 30 cm fulcrum length torque wrench 30 310 22 ↗ RM285U_1993_5sfe_mpisyste · p86 OEM manual
Unclassified Fuel sender gauge x Fuel tank 13 in.-lbf 1.5 15 — ↗ RM285U_1993_5sfe_mpisyste · p93 OEM manual
Unclassified Fuel evaporation vent tube x Fuel tank 13 in.-lbf 1.5 15 — ↗ RM285U_1993_5sfe_mpisyste · p93 OEM manual
Unclassified Fuel tank filler pipe x Fuel tank 30 in.-lbf 3.4 35 — ↗ RM285U_1993_5sfe_mpisyste · p93 OEM manual
Unclassified No.2 center floor crossmember x Body 29 300 22 ↗ RM285U_1993_5sfe_mpisyste · p93 OEM manual
Unclassified Fuel pressure regulator x Delivery pipe 48 in.-lbf 5.4 55 — ↗ RM285U_1993_5sfe_mpisyste · p93 OEM manual
Unclassified Fuel return pipe x Fuel pressure regulator 19 195 14 ↗ RM285U_1993_5sfe_mpisyste · p93 OEM manual
Unclassified Air intake chamber stay x Intake manifold 42 425 31 ↗ RM285U_1993_5sfe_mpisyste · p93 OEM manual
Unclassified Air intake chamber stay x Cylinder head 42 425 31 ↗ RM285U_1993_5sfe_mpisyste · p93 OEM manual

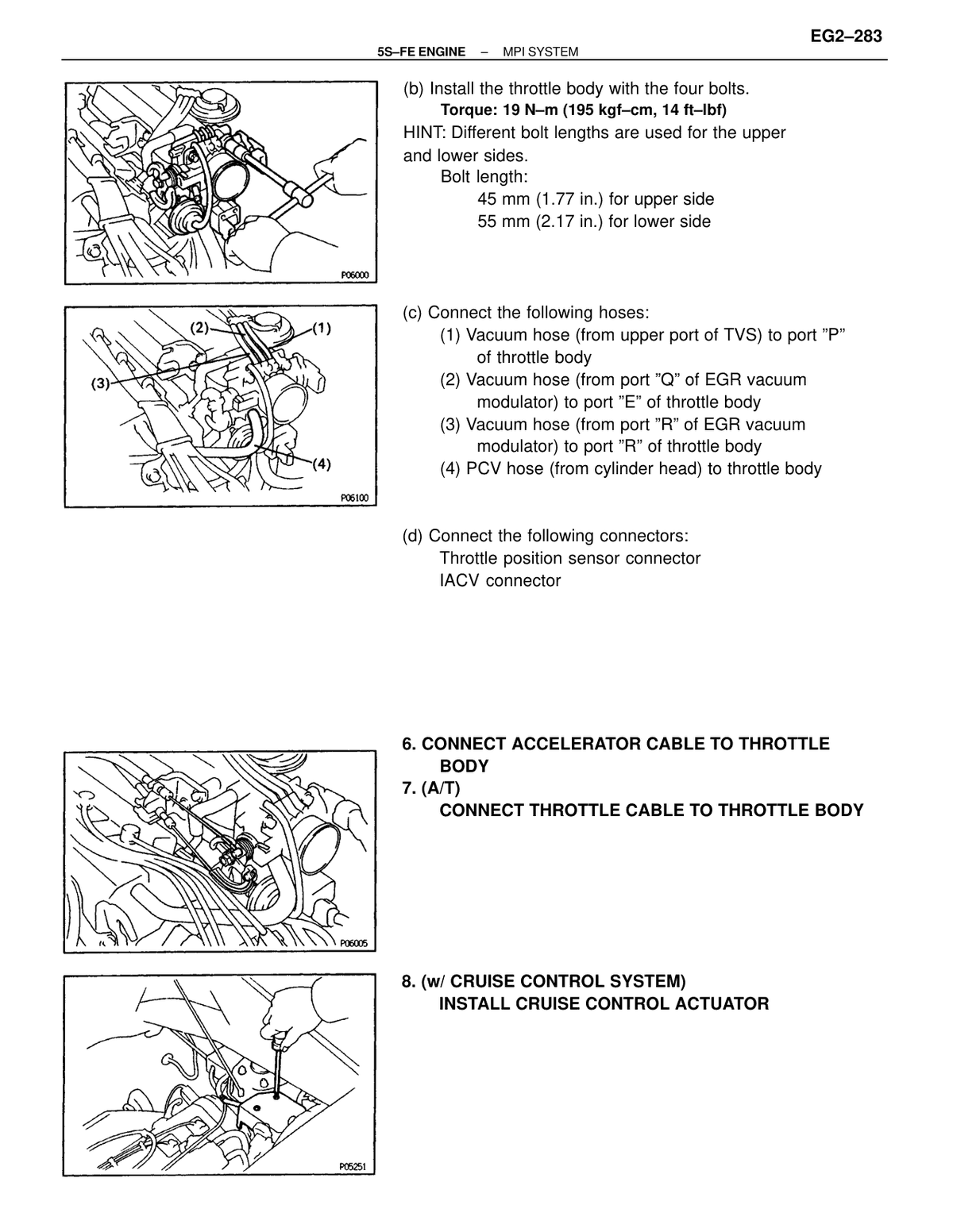

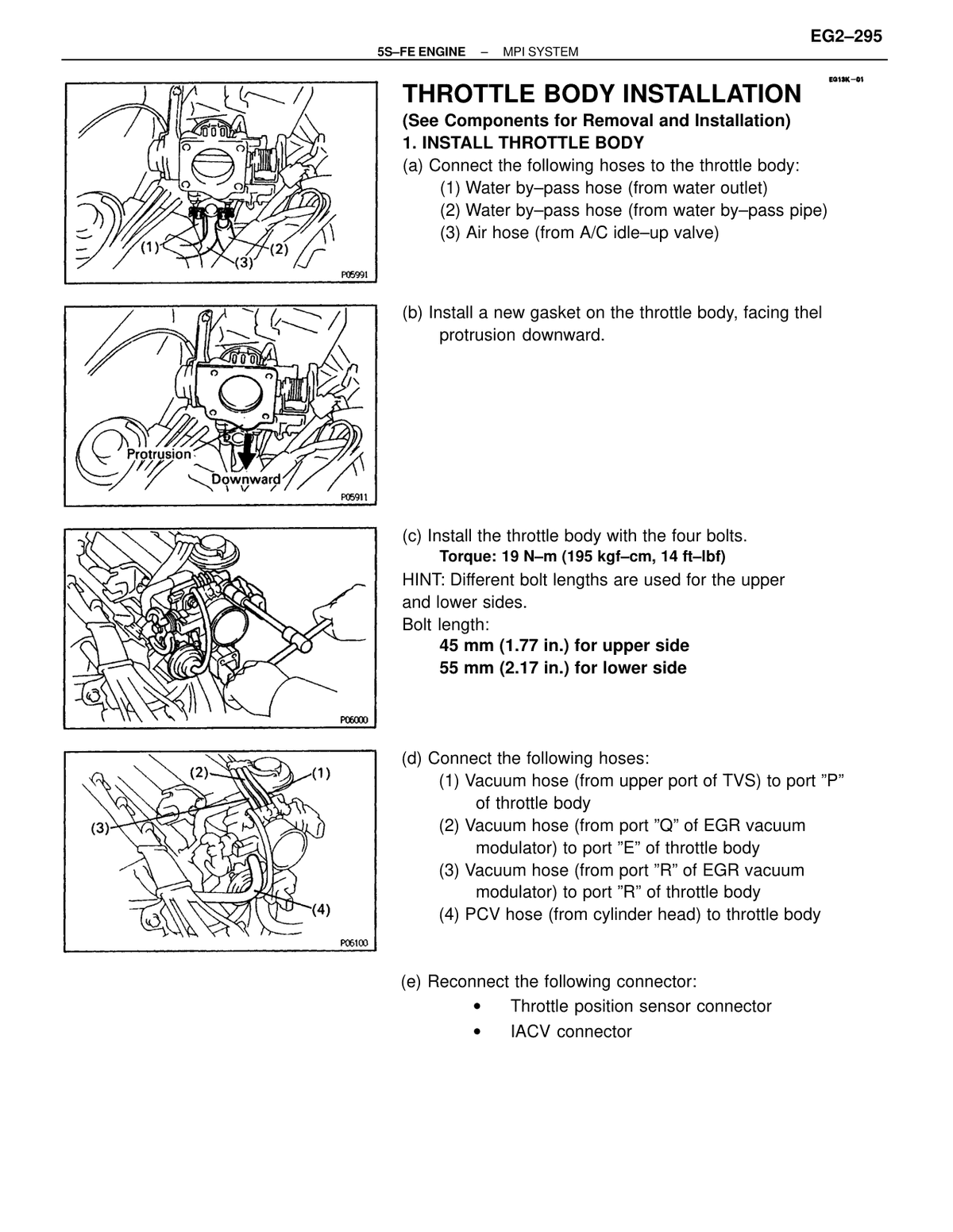

Body Throttle body bolts Four bolts; 45 mm (1.77 in.) for upper side, 55 mm (2.17 in.) for lower side 19 195 14 ↗ RM285U_1993_5sfe_mpisyste · p103 OEM manual
Maintenance Strut bar bracket-to-body mounting bolts 80 820 59 ↗ RM285U_1993_maintenance · p11 OEM manual
Maintenance Rear suspension lower crossmember-to-body mounting bolts 113 1150 83 ↗ RM285U_1993_maintenance · p11 OEM manual
Maintenance Strut bar bracket-to-body mounting bolts 80 820 59 ↗ RM285U_1993_maintenance · p16 OEM manual
Maintenance Rear suspension lower crossmember-to-body mounting bolts 113 1150 83 ↗ RM285U_1993_maintenance · p16 OEM manual
Maintenance Spark plugs Reinstall using 16 mm plug wrench 18 180 13 ↗ RM285U_1993_maintenance · p21 OEM manual
Maintenance Strut bar bracket-to-body mounting bolts 80 820 59 ↗ RM285U_1993_maintenance · p27 OEM manual
Maintenance Rear suspension lower crossmember-to-body mounting bolts 113 1150 83 ↗ RM285U_1993_maintenance · p27 OEM manual
Maintenance Strut bar bracket-to-body mounting bolts 80 820 59 ↗ RM285U_1993_maintenance · p31 OEM manual
Maintenance Rear suspension lower crossmember-to-body mounting bolts 113 1150 83 ↗ RM285U_1993_maintenance · p31 OEM manual

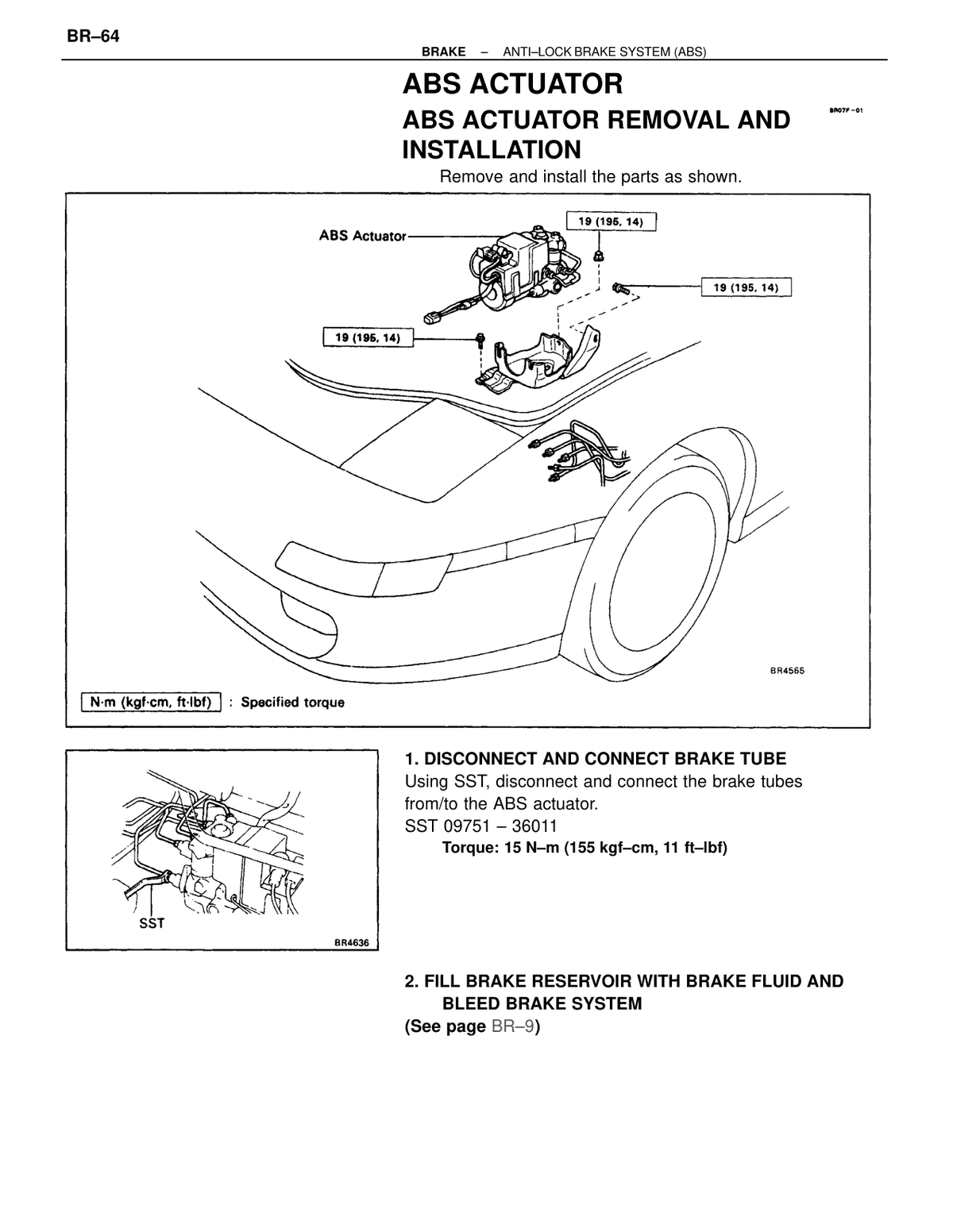

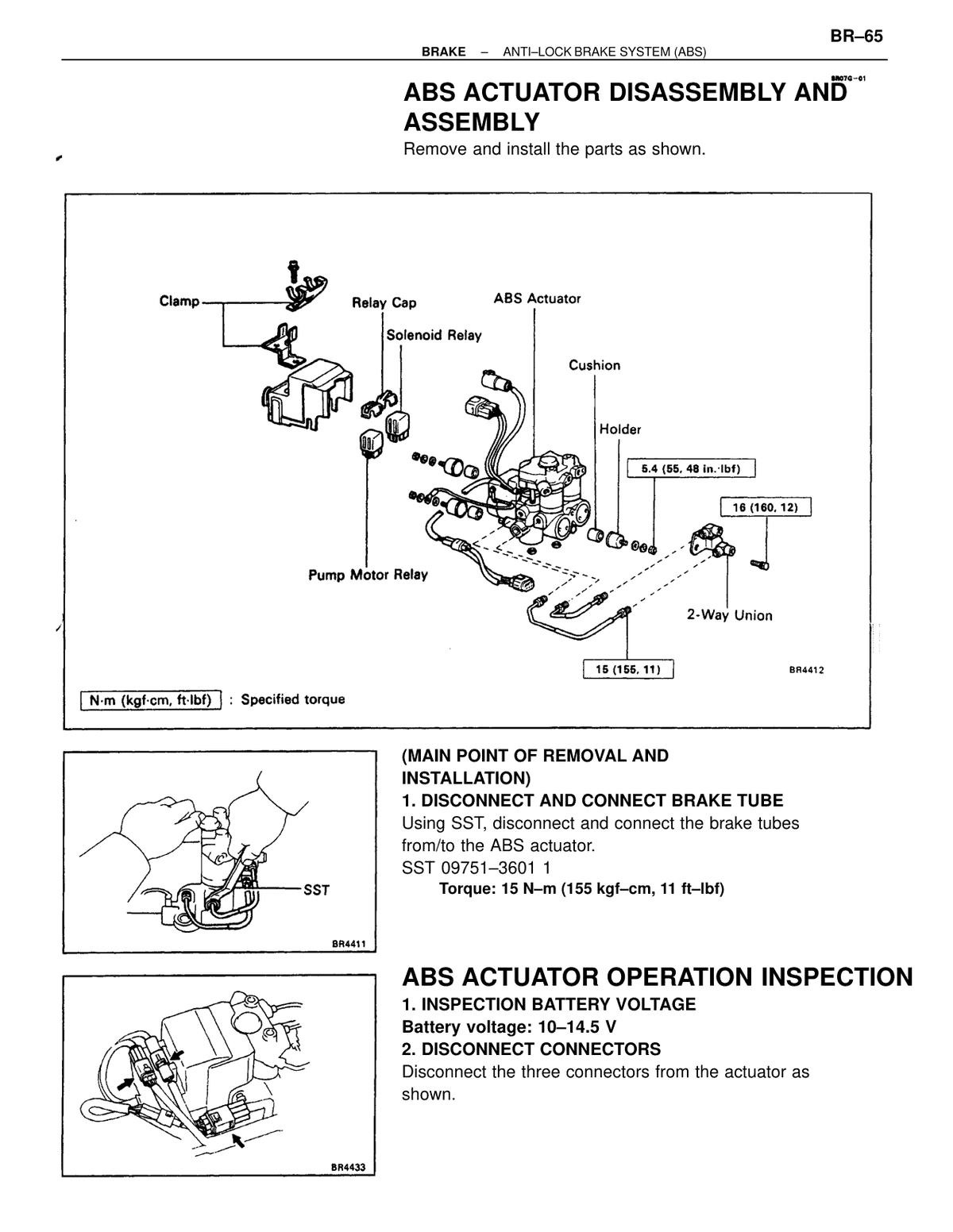

Brakes ABS Actuator mounting bolts Three locations shown in diagram 19 195 14 ↗ RM285U_1993_brake · p1 OEM manual
Brakes Holder in·lbf unit shown on diagram as 48 in·lbf 5.4 55 — ↗ RM285U_1993_brake · p2 OEM manual
Brakes Brake tube to ABS actuator Use SST 09751-3601 1 15 155 11 ↗ RM285U_1993_brake · p2 OEM manual
Brakes Rear Speed Sensor installation bolt in.–lbf (not ft–lbf) 7.8 80 — ↗ RM285U_1993_brake · p18 OEM manual
Brakes Front disc brake torque plate x Steering knuckle 88 900 65 ↗ RM285U_1993_brake · p20 OEM manual
Brakes Parking brake cable bracket x Backing plate 69 in.-lbf 7.8 80 — ↗ RM285U_1993_brake · p20 OEM manual
Brakes Rear disc brake torque plate x Rear axle carrier 47 475 — ↗ RM285U_1993_brake · p20 OEM manual
Brakes Front speed sensor installation bolt 69 in.-lbf 7.8 80 — ↗ RM285U_1993_brake · p20 OEM manual

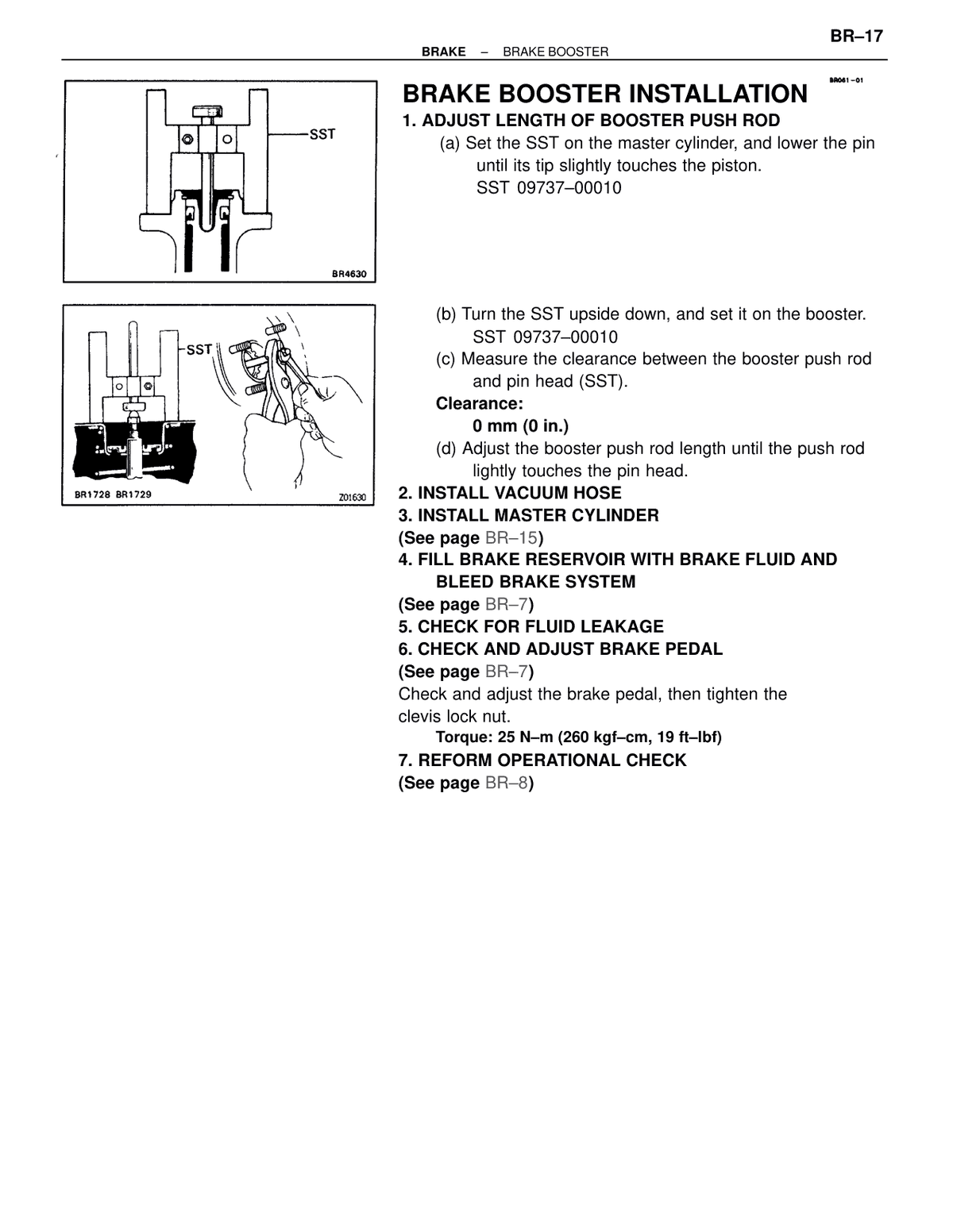

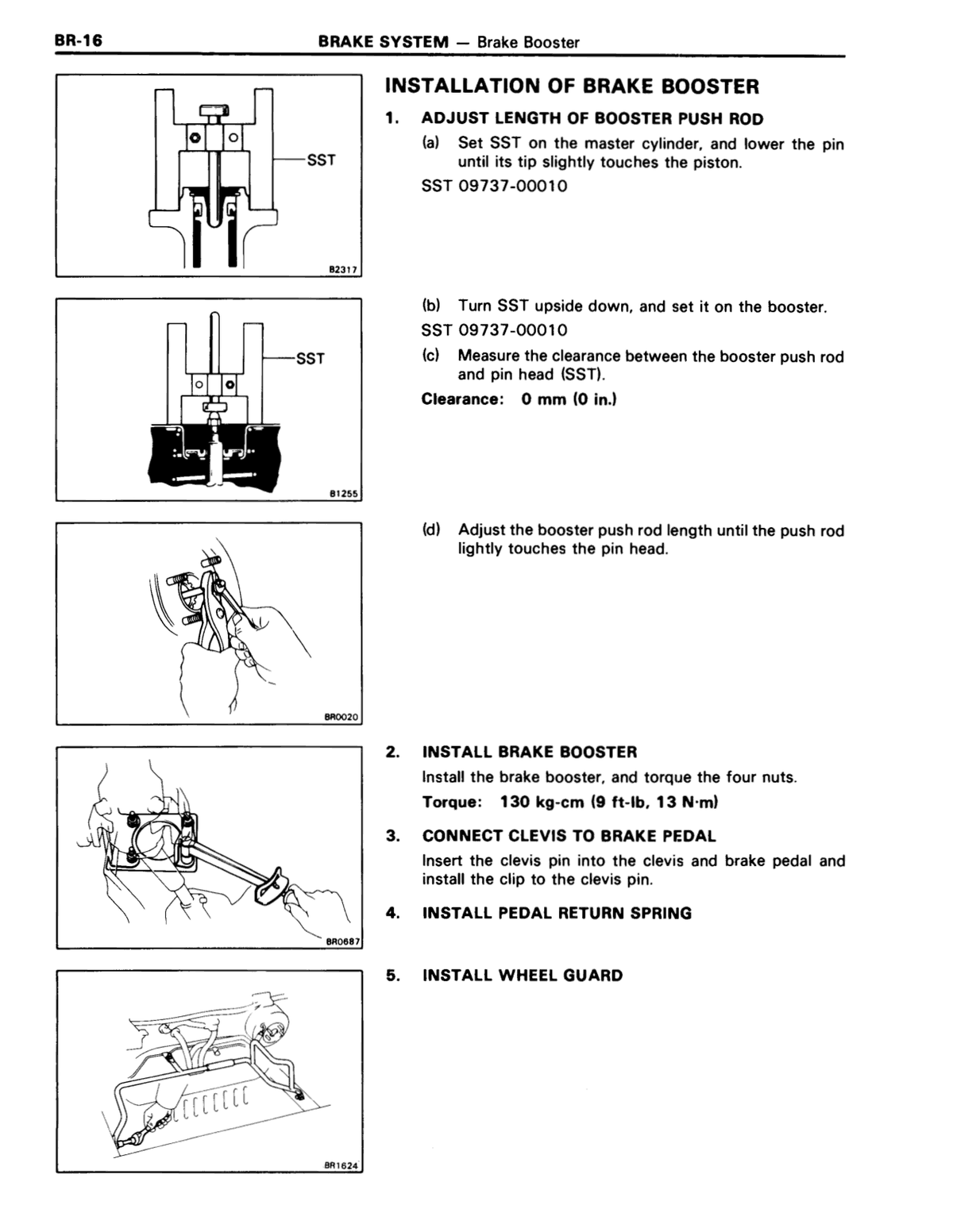

Brakes Clevis lock nut Tighten after checking and adjusting brake pedal 25 260 19 ↗ RM285U_1993_brake · p29 OEM manual
Brakes Adjusting nuts Tighten so equalizer is horizontal to the ground 16 160 12 ↗ RM285U_1993_brake · p33 OEM manual
Brakes Cylinder installation bolts Hold the sliding pin and torque the installation bolts 34 350 25 ↗ RM285U_1993_brake · p37 OEM manual
Brakes Cylinder installation bolts Hold sliding pin while torquing 34 350 25 ↗ RM285U_1993_brake · p42 OEM manual
Brakes Flexible hose to brake cylinder Install with two new gaskets; lock hose securely in lock hole 30 310 22 ↗ RM285U_1993_brake · p42 OEM manual
Brakes Torque plate mounting bolts Install torque plate when disc runout is within specification 88 900 65 ↗ RM285U_1993_brake · p48 OEM manual
Brakes Flexible hose on brake cylinder Install with two new gaskets 30 310 22 ↗ RM285U_1993_brake · p50 OEM manual
Brakes Reservoir tank set screw Step 5 — value listed as 15.2 ft-lbf in source; likely in-lbf 1.7 17.5 — ↗ RM285U_1993_brake · p56 OEM manual

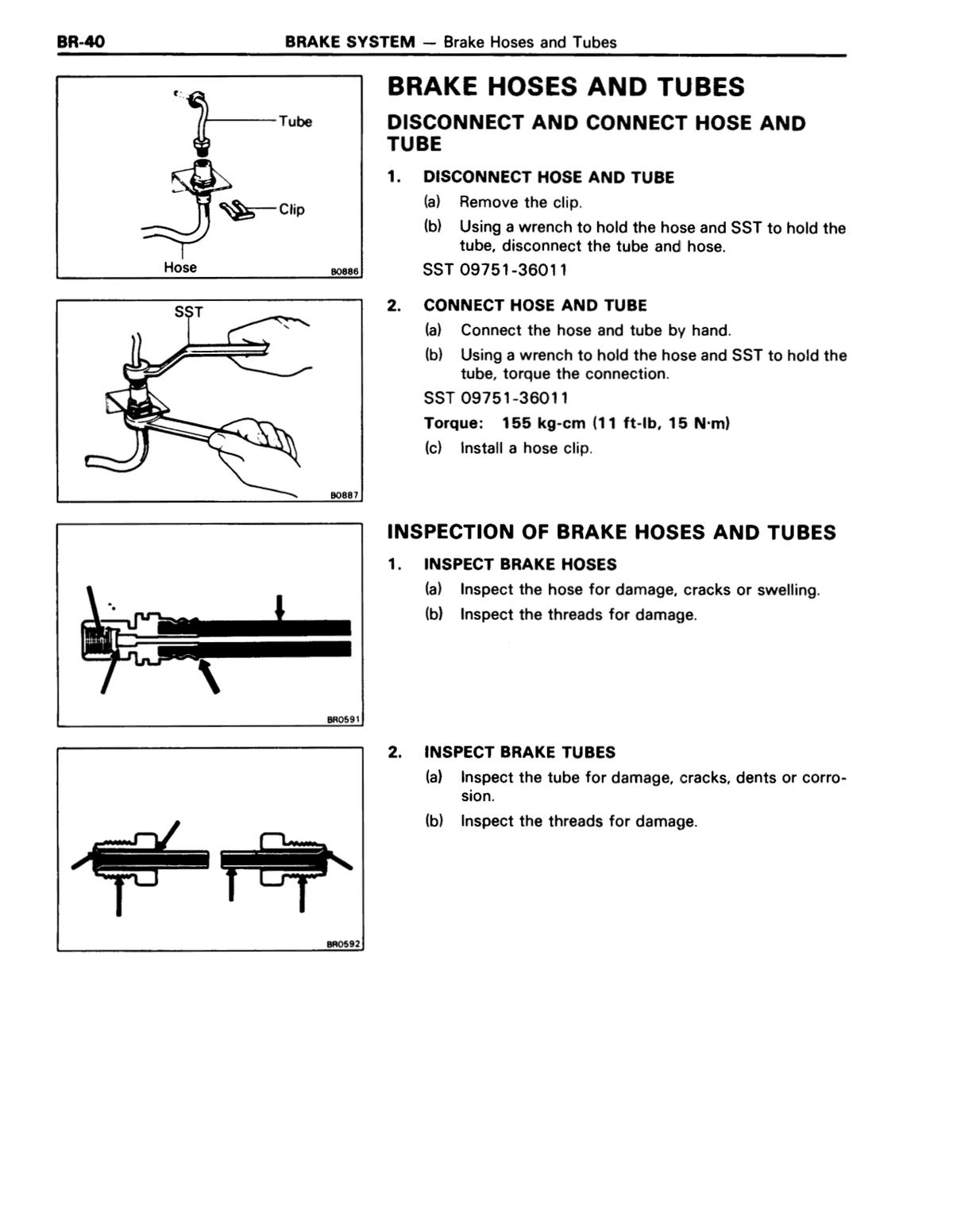

Brakes Union nuts (brake tubes) Step 3, SST 09751-36011 15 155 11 ↗ RM285U_1993_brake · p57 OEM manual

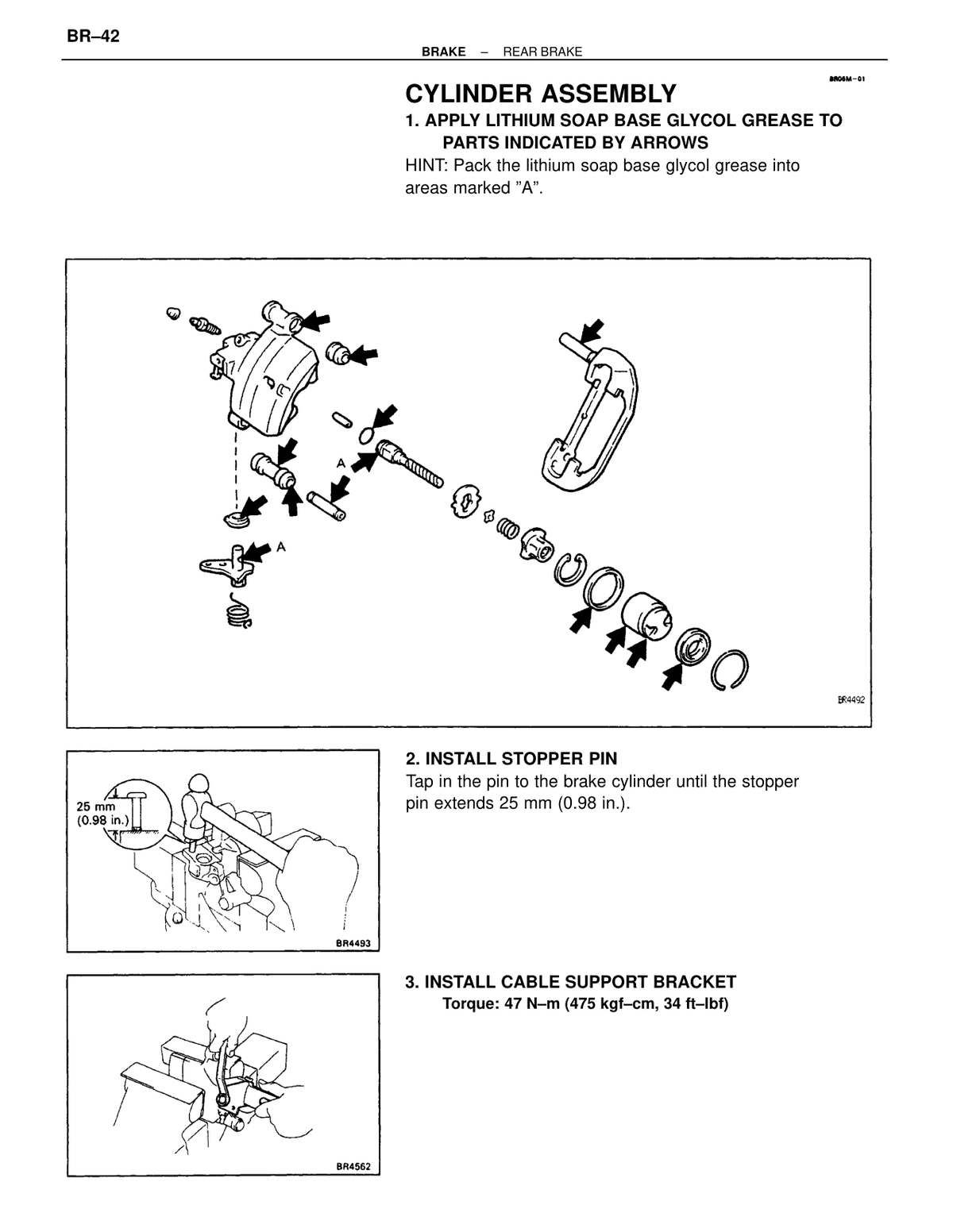

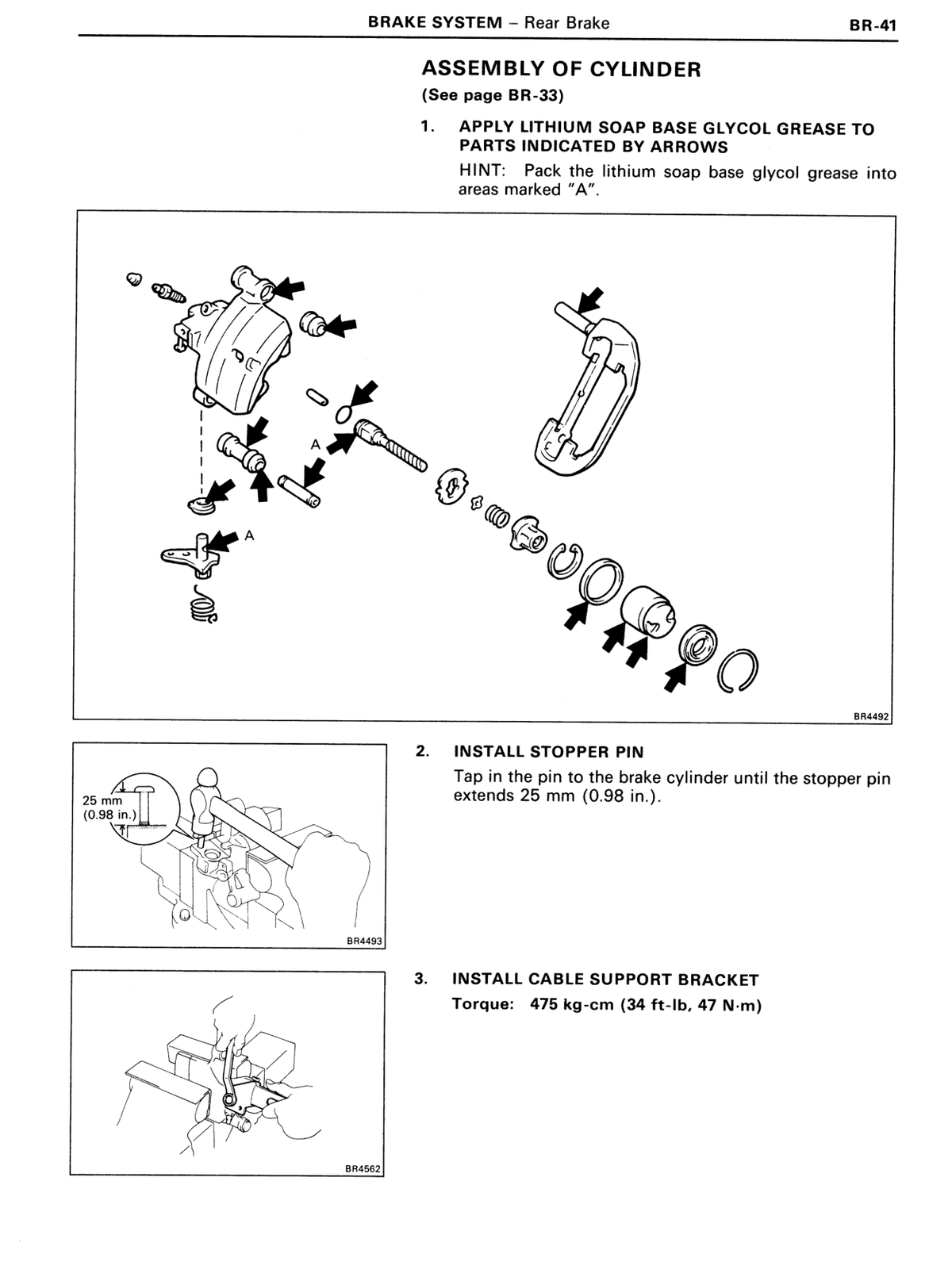

Brakes Cable support bracket Step 3 — Install cable support bracket 47 475 34 ↗ RM285U_1993_brake · p70 OEM manual
Brakes Installation bolt Cylinder installation bolt — step 2(c) 20 200 14 ↗ RM285U_1993_brake · p74 OEM manual
Brakes Flexible hose on brake cylinder Install with two new gaskets 30 310 22 ↗ RM285U_1993_brake · p75 OEM manual
Suspension & axle Front axle hub nut Non-reusable part 173 1760 127 ↗ RM285U_1993_suspension · p2 OEM manual
Suspension & axle Tie rod end nut / Cotter pin fastener 49 500 36 ↗ RM285U_1993_suspension · p2 OEM manual
Suspension & axle Hub bearing lock nut / steering knuckle nut Non-reusable part 123 1250 90 ↗ RM285U_1993_suspension · p2 OEM manual
Suspension & axle Tie rod end castle nut to steering knuckle 49 500 36 ↗ RM285U_1993_suspension · p8 OEM manual
Suspension & axle Steering knuckle to ball joint bolts 80 820 59 ↗ RM285U_1993_suspension · p8 OEM manual
Suspension & axle Speed sensor toe bolt 69 in.·lbf 7.8 80 — ↗ RM285U_1993_suspension · p8 OEM manual

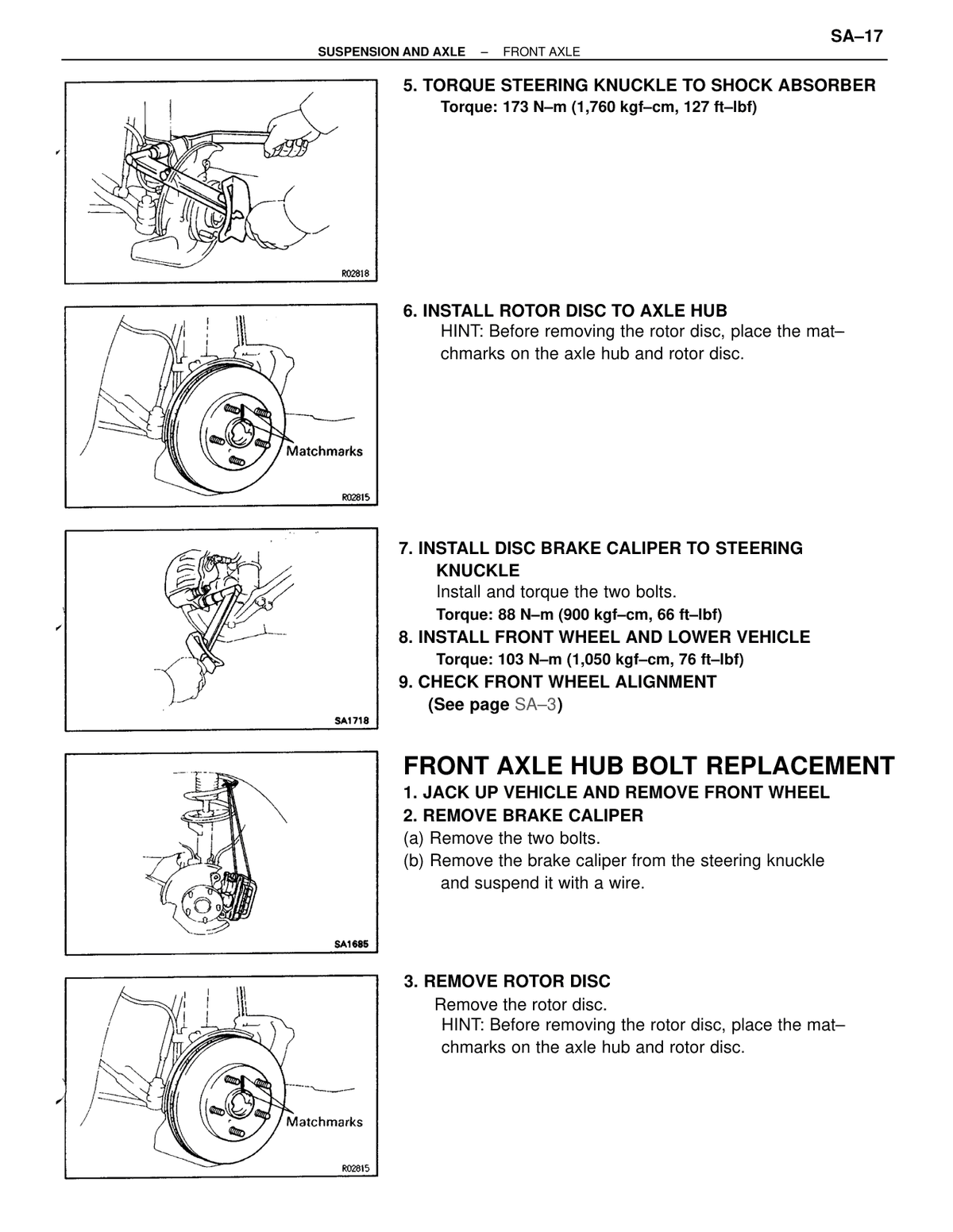

Suspension & axle Steering knuckle to shock absorber 173 1760 127 ↗ RM285U_1993_suspension · p9 OEM manual
Suspension & axle Disc brake caliper to steering knuckle bolts 88 900 66 ↗ RM285U_1993_suspension · p9 OEM manual
Suspension & axle Disc brake caliper to steering knuckle bolts Step 7 59 600 43 ↗ RM285U_1993_suspension · p10 OEM manual
Suspension & axle Ball joint to knuckle (cotter pin nut) 103 1050 76 ↗ RM285U_1993_suspension · p12 OEM manual
Suspension & axle Ball joint turning torque Turning torque measured on fifth turn, 2–4 seconds per turn; range 8–25 kgf-cm, 7–22 in-lbf 0.8 16.5 — ↗ RM285U_1993_suspension · p13 OEM manual
Suspension & axle Ball joint to axle carrier bolts Step 1 — two bolts 80 820 59 ↗ RM285U_1993_suspension · p14 OEM manual
Suspension & axle Ball joint to lower arm nut Step 2(a) 78 800 58 ↗ RM285U_1993_suspension · p14 OEM manual
Suspension & axle Suspension support nut Non-reusable part 49 500 36 ↗ RM285U_1993_suspension · p16 OEM manual
Suspension & axle Shock absorber lower bracket bolt Non-reusable part 173 1780 127 ↗ RM285U_1993_suspension · p16 OEM manual
Suspension & axle ABS speed sensor bolt 69 in·lbf 7.8 80 — ↗ RM285U_1993_suspension · p16 OEM manual
Suspension & axle Shock absorber to steering knuckle nuts 173 1760 127 ↗ RM285U_1993_suspension · p20 OEM manual
Suspension & axle Brake hose union to disc brake caliper 30 310 22 ↗ RM285U_1993_suspension · p20 OEM manual
Suspension & axle Stabilizer link to shock absorber nut Step 5 — Connect Stabilizer Link 64 650 47 ↗ RM285U_1993_suspension · p21 OEM manual
Suspension & axle Speed sensor to axle carrier bolt Step 6(b) — w/ ABS 7.8 80 — ↗ RM285U_1993_suspension · p21 OEM manual
Suspension & axle Castle nut — lower arm to ball joint If hole in ball joint is not aligned with grooves of nut, tighten until they match 78 800 58 ↗ RM285U_1993_suspension · p23 OEM manual
Suspension & axle Strut bar to lower arm Step 3 127 1300 94 ↗ RM285U_1993_suspension · p24 OEM manual
Suspension & axle Lower arm to body Step 4(a) — initial torque after wheel installation and lowering vehicle 103 1050 76 ↗ RM285U_1993_suspension · p24 OEM manual
Suspension & axle Lower arm to body Step 4(c) — final torque with vehicle load applied on suspension 118 1200 87 ↗ RM285U_1993_suspension · p24 OEM manual
Suspension & axle Stabilizer Bar / Stabilizer Bar Link fasteners 64 650 47 ↗ RM285U_1993_suspension · p26 OEM manual
Suspension & axle Stabilizer bar to body bolts and nuts 64 650 47 ↗ RM285U_1993_suspension · p27 OEM manual
Suspension & axle Strut bar to lower arm nuts Step 1(b) 113 1150 83 ↗ RM285U_1993_suspension · p30 OEM manual
Suspension & axle Strut bar body bolt — vehicle lowered Step 2(a) — after lowering vehicle 103 1050 76 ↗ RM285U_1993_suspension · p30 OEM manual
Suspension & axle Strut bar body bolt — final torque with vehicle load Step 3 — torque with vehicle load applied on suspension 127 1300 94 ↗ RM285U_1993_suspension · p30 OEM manual
Suspension & axle ABS Speed Sensor bolt 74 in.-lbf 8.3 85 — ↗ RM285U_1993_suspension · p34 OEM manual
Suspension & axle Axle carrier to body bolt (173 N·m) 173 1760 127 ↗ RM285U_1993_suspension · p34 OEM manual
Suspension & axle Axle hub nut (5S-FE Engine) 5S-FE Engine 226 2300 166 ↗ RM285U_1993_suspension · p34 OEM manual
Suspension & axle Axle hub nut (3S-GTE Engine) 3S-GTE Engine 294 3000 217 ↗ RM285U_1993_suspension · p34 OEM manual
Suspension & axle Disc brake dust cover bolts Step 2 — Install Disc Brake Dust Cover 8.3 85 — ↗ RM285U_1993_suspension · p38 OEM manual
Suspension & axle Rear axle carrier to shock absorber lower bracket nuts Step 1(c) 173 1760 127 ↗ RM285U_1993_suspension · p39 OEM manual
Suspension & axle Rear axle carrier to lower arm bolt and nut Step 3 113 1150 83 ↗ RM285U_1993_suspension · p39 OEM manual
Suspension & axle Stabilizer bar link nut Step 4 — Connect Stabilizer Link 49 500 36 ↗ RM285U_1993_suspension · p40 OEM manual
Suspension & axle Speed sensor to axle carrier bolt Step 5 — w/ ABS; value listed as 69 in-lbf 7.8 80 — ↗ RM285U_1993_suspension · p40 OEM manual
Suspension & axle Brake caliper bolts Step 7 — Install Brake Caliper; two bolts 59 600 43 ↗ RM285U_1993_suspension · p40 OEM manual
Suspension & axle Bearing lock nut (5S-FE) Step 8 — parking brake engaged 226 2300 166 ↗ RM285U_1993_suspension · p40 OEM manual
Suspension & axle Bearing lock nut (3S-GTE) Step 8 — parking brake engaged 294 3000 217 ↗ RM285U_1993_suspension · p40 OEM manual
Suspension & axle Rear wheel — install and lower vehicle Step 9 — Stabilize Suspension 103 1050 76 ↗ RM285U_1993_suspension · p41 OEM manual
Suspension & axle Bolt and nut — tighten with vehicle load applied Step 10 — Tighten Bolt and Nut 103 1050 76 ↗ RM285U_1993_suspension · p41 OEM manual
Suspension & axle Disc brake caliper to rear axle carrier bolts Two bolts 59 600 43 ↗ RM285U_1993_suspension · p42 OEM manual
Suspension & axle Bearing Bracket Stay (second location) 75 770 56 ↗ RM285U_1993_suspension · p46 OEM manual
Suspension & axle Snap Ring / Drive Shaft Assembly fastener 69 in·lbf 3.2 80 — ↗ RM285U_1993_suspension · p46 OEM manual
Suspension & axle Lock Nut Cap / Axle Hub Nut 294 3000 217 ↗ RM285U_1993_suspension · p46 OEM manual
Suspension & axle Inboard Joint Sub-assembly / Joint Washer bolt 65 660 48 ↗ RM285U_1993_suspension · p46 OEM manual
Suspension & axle Bearing bracket to engine bolts Step 1(a) 64 650 47 ↗ RM285U_1993_suspension · p58 OEM manual
Suspension & axle Bearing bracket stay bolts Step 1(b) 75 770 56 ↗ RM285U_1993_suspension · p58 OEM manual
Suspension & axle Bearing bracket stay nut Step 1(b) 75 770 56 ↗ RM285U_1993_suspension · p58 OEM manual
Suspension & axle Bearing bracket bolt RH drive shaft bearing bracket 32 320 24 ↗ RM285U_1993_suspension · p59 OEM manual
Suspension & axle Ball joint to axle carrier bolts 113 1150 — ↗ RM285U_1993_suspension · p60 OEM manual
Suspension & axle Speed sensor to axle carrier 69 in.-lbf 7.4 80 — ↗ RM285U_1993_suspension · p60 OEM manual
Suspension & axle Brake caliper to axle carrier bolts Step 10 59 600 43 ↗ RM285U_1993_suspension · p61 OEM manual
Suspension & axle Inboard joint six hexagon bolts Step 11, SST 09923-00020, parking brake engaged 65 660 — ↗ RM285U_1993_suspension · p61 OEM manual
Suspension & axle Bearing lock nut Step 12(b), parking brake engaged 284 3000 217 ↗ RM285U_1993_suspension · p61 OEM manual
Suspension & axle Rear wheel lug nuts Step 13(a) 103 1050 76 ↗ RM285U_1993_suspension · p61 OEM manual
Suspension & axle Suspension arm mount bolt and nut Step 14, vehicle load applied on suspension 103 1050 76 ↗ RM285U_1993_suspension · p61 OEM manual
Suspension & axle Ball joint to axle carrier bolts 113 1150 83 ↗ RM285U_1993_suspension · p77 OEM manual
Suspension & axle Speed sensor to axle carrier w/ ABS 7.4 80 — ↗ RM285U_1993_suspension · p77 OEM manual
Suspension & axle Stabilizer link upper side nut 49 500 36 ↗ RM285U_1993_suspension · p77 OEM manual
Suspension & axle Brake caliper bolts Install brake caliper to axle carrier — Step 9 59 600 43 ↗ RM285U_1993_suspension · p78 OEM manual
Suspension & axle Rear wheel nut Install rear wheel — Step 10(a) 103 1050 76 ↗ RM285U_1993_suspension · p78 OEM manual
Suspension & axle Suspension arm mount bolt and nut Torque with vehicle load applied on suspension — Step 11 103 1050 76 ↗ RM285U_1993_suspension · p78 OEM manual
Suspension & axle Bearing lock nut With parking brake engaged — Step 12(c) 226 2300 166 ↗ RM285U_1993_suspension · p78 OEM manual
Suspension & axle Ball joint to rear axle carrier bolts Install ball joint to rear axle carrier 113 1150 83 ↗ RM285U_1993_suspension · p80 OEM manual
Suspension & axle Ball joint stud nut turning torque Range 1.47–2.94 N–m (15–30 kgf–cm, 13–26 in.–lbf); inspection turning torque on fifth turn 1.97 22 — ↗ RM285U_1993_suspension · p80 OEM manual
Suspension & axle No.2 Bracket bolt (upper, 25) Non-reusable part fastener 25 250 18 ↗ RM285U_1993_suspension · p83 OEM manual
Suspension & axle Engine Lateral Control Rod to body bracket bolt LH side 73 740 54 ↗ RM285U_1993_suspension · p83 OEM manual
Suspension & axle Engine Lateral Control Rod to No.2 Bracket bolt RH side 73 740 54 ↗ RM285U_1993_suspension · p83 OEM manual
Suspension & axle No.2 Bracket to No.1 Bracket bolt 25 250 18 ↗ RM285U_1993_suspension · p83 OEM manual
Suspension & axle Engine Lateral Control Rod to No.2 Bracket small bolt 35 360 26 ↗ RM285U_1993_suspension · p83 OEM manual
Suspension & axle Engine lateral control rod assembly nut Assemble engine lateral control rod — step 1 25 250 18 ↗ RM285U_1993_suspension · p84 OEM manual
Suspension & axle No.1 bracket to control rod Install engine lateral control rod — step 2(a) 49 500 36 ↗ RM285U_1993_suspension · p84 OEM manual
Suspension & axle No.1 bracket installation bolts Install engine lateral control rod — step 2(b) 35 360 26 ↗ RM285U_1993_suspension · p84 OEM manual
Suspension & axle No.2 bracket installation bolt Install engine lateral control rod — step 2(c) 73 740 54 ↗ RM285U_1993_suspension · p84 OEM manual
Suspension & axle LH engine mounting stay — No.2 bracket side Install LH engine mounting stay — step 3 73 740 54 ↗ RM285U_1993_suspension · p84 OEM manual
Suspension & axle LH engine mounting stay — body side Install LH engine mounting stay — step 3 25 250 18 ↗ RM285U_1993_suspension · p84 OEM manual
Suspension & axle Upper bolt (strut bar to body) 132 1350 — ↗ RM285U_1993_suspension · p85 OEM manual
Suspension & axle Lower arm ball joint nut Install new cotter pin after torquing 91 930 67 ↗ RM285U_1993_suspension · p86 OEM manual
Suspension & axle Rear wheel lug nut Torque after lowering vehicle 103 1050 76 ↗ RM285U_1993_suspension · p86 OEM manual
Suspension & axle Strut bar nut Vehicle load applied on suspension 118 1200 87 ↗ RM285U_1993_suspension · p87 OEM manual
Suspension & axle Lower arm holding nut Vehicle load applied on suspension 103 1050 76 ↗ RM285U_1993_suspension · p87 OEM manual
Suspension & axle Suspension Support nut (top) Non-reusable part 73 740 54 ↗ RM285U_1993_suspension · p89 OEM manual
Suspension & axle Shock absorber lower mounting bolt (axle carrier) Non-reusable part; Gasket also non-reusable 173 1760 127 ↗ RM285U_1993_suspension · p89 OEM manual
Suspension & axle Suspension support nut Step 1(h) 30 310 22 ↗ RM285U_1993_suspension · p92 OEM manual
Suspension & axle Three nuts holding shock absorber to body Step 1 — Install shock absorber 80 820 59 ↗ RM285U_1993_suspension · p93 OEM manual
Suspension & axle Rear axle carrier to shock absorber washers and nuts Step 2 — Install rear axle carrier to shock absorber 173 1760 127 ↗ RM285U_1993_suspension · p93 OEM manual
Suspension & axle Stabilizer link nut Step 3 — Connect stabilizer link 49 500 36 ↗ RM285U_1993_suspension · p93 OEM manual
Suspension & axle Brake hose union bolt Step 4 — Connect brake hose 30 310 22 ↗ RM285U_1993_suspension · p93 OEM manual
Suspension & axle ABS speed sensor wire harness clamp bolt Step 5 — w/ ABS 5.4 55 — ↗ RM285U_1993_suspension · p94 OEM manual
Suspension & axle Rear wheel nut Step 7 — Install rear wheel 103 1050 76 ↗ RM285U_1993_suspension · p94 OEM manual
Suspension & axle Stabilizer Link nut (left side, upper) Left side stabilizer link upper attachment 49 500 36 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Bracket / Cushion bolt (left side, upper) Left side bracket cushion upper bolt 19 195 14 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Bracket / Cushion bolt (left side, lower inner) Left side bracket cushion lower inner bolt 19 195 14 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Stabilizer Bar center mount bolt Engine mount / stabilizer bar center mounting 21 210 15 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Bracket / Cushion bolt (right side, upper) Right side bracket cushion upper bolt 19 195 14 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Bracket / Cushion bolt (right side, lower inner) Right side bracket cushion lower inner bolt 19 195 14 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Suspension Arm bolt (RH) Right side suspension arm 103 1050 76 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Stabilizer Link nut (right side) Right side stabilizer link attachment 49 500 36 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Stabilizer Link nut (center/bar side) Stabilizer link to stabilizer bar 49 500 36 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Subframe bolt (center lower) Center lower subframe mounting bolt 113 1150 83 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Subframe bolt (right lower) Right lower subframe mounting bolt 113 1150 83 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Subframe bolt (left lower) Left lower subframe mounting bolt 64 650 47 ↗ RM285U_1993_suspension · p95 OEM manual
Suspension & axle Stabilizer bar bracket bolts Install stabilizer bar to rear suspension crossmember 19 195 14 ↗ RM285U_1993_suspension · p97 OEM manual
Suspension & axle Suspension crossmember mounting bolts Four bolts securing rear suspension crossmember 113 1150 83 ↗ RM285U_1993_suspension · p97 OEM manual
Suspension & axle Rear engine mounting to rear suspension crossmember bolts Step 3 77 780 57 ↗ RM285U_1993_suspension · p98 OEM manual
Suspension & axle Exhaust pipe mounting to rear suspension crossmember Step 4 21 210 15 ↗ RM285U_1993_suspension · p98 OEM manual
Suspension & axle Rear axle carrier to lower arm Step 6 113 1150 83 ↗ RM285U_1993_suspension · p98 OEM manual
Suspension & axle ABS speed sensor bracket to rear suspension crossmember in·lbf not ft·lbf; value is 48 in·lbf 5.4 55 — ↗ RM285U_1993_suspension · p99 OEM manual
Suspension & axle Rear wheel installation Step 9(a) 103 1050 76 ↗ RM285U_1993_suspension · p99 OEM manual
Suspension & axle Body side mounting bolt Torque with vehicle load applied on suspension; Step 10(a) 103 1050 76 ↗ RM285U_1993_suspension · p99 OEM manual
Suspension & axle Axle carrier side mounting bolt and nut Torque with vehicle load applied on suspension; Step 10(b) 103 1050 76 ↗ RM285U_1993_suspension · p99 OEM manual
Suspension & axle 118 (1,200, 87) — strut bar upper mount nut Non-reusable part (cotter pin) 118 1200 87 ↗ RM285U_1993_suspension · p100 OEM manual
Suspension & axle 113 (1,150, 83) — strut rod end nut 113 1150 83 ↗ RM285U_1993_suspension · p100 OEM manual
Suspension & axle 103 (1,050, 76) — strut bar holding nut/bolt 103 1050 76 ↗ RM285U_1993_suspension · p100 OEM manual
Suspension & axle Strut bar installation nut — lower arm side Step 2 118 1200 87 ↗ RM285U_1993_suspension · p101 OEM manual
Suspension & axle Rear wheel installation nut Step 3a 103 1050 76 ↗ RM285U_1993_suspension · p101 OEM manual
Suspension & axle Strut bar installation bolt — body side Step 4 — with vehicle load applied on suspension — 1200 87 ↗ RM285U_1993_suspension · p101 OEM manual
Suspension & axle Suspension arm bolt (wheel installation / stabilize suspension) Final torque after bouncing vehicle to settle suspension 103 1050 76 ↗ RM285U_1993_suspension · p103 OEM manual
Suspension & axle Body side suspension arm mounting bolts With vehicle load applied on the suspension 103 1050 76 ↗ RM285U_1993_suspension · p104 OEM manual
Suspension & axle Carrier side suspension arm mounting bolts With vehicle load applied on the suspension 103 1050 76 ↗ RM285U_1993_suspension · p104 OEM manual
Suspension & axle Front axle and suspension — Ball joint rotation condition Range: 0.8–2.5 N·m (8–25 kgf·cm, 7–22 in.-lbf) 2.15 16.5 — ↗ RM285U_1993_suspension · p105 OEM manual
Suspension & axle Rear axle and suspension — Ball joint rotation condition Range: 0.05–0.98 N·m (0.5–10 kgf·cm, 0.43–8.68 in.-lbf) 0.515 5.25 — ↗ RM285U_1993_suspension · p105 OEM manual
Suspension & axle Disc brake dust cover x Steering knuckle in·lbf 8.3 85 — ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Tie rod end x Steering knuckle 49 500 36 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Ball joint x Steering knuckle 80 820 59 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle ABS speed sensor x Steering knuckle (w/ABS) in·lbf 7.8 80 — ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Steering knuckle x Shock absorber 173 1760 127 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Brake caliper x Steering knuckle 59 600 43 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Piston rod x Suspension support 49 500 36 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Brake hose x Disc brake caliper 30 310 22 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Stabilizer link x Shock absorber 64 650 47 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Stabilizer bar x Stabilizer link 64 650 47 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Axle carrier x Shock absorber 173 1760 127 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Stabilizer link x Shock absorber rear 49 500 36 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle ABS speed sensor x Axle carrier in·lbf 7.8 80 — ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Disc brake caliper x Axle carrier 59 600 43 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Hub bearing lock nut (5S-FE engine) 226 2300 166 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Hub bearing lock nut (3S-GTE engine) 294 3000 217 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Bearing bracket stay x Engine 75 770 56 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Bearing bracket stay x Bearing bracket 75 770 56 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Bearing bracket x Drive shaft center bearing 32 330 24 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Drive shaft inboard joint holding hexagon bolts 65 660 48 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Piston rod x Suspension support rear 73 740 54 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Suspension support x Body rear 80 820 59 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Brake hose x Disc brake caliper rear 30 310 22 ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle ABS speed sensor wire harness x Suspension cross member in·lbf 5.4 55 — ↗ RM285U_1993_suspension · p106 OEM manual
Suspension & axle Suspension cross member x Body 113 1150 83 ↗ RM285U_1993_suspension · p107 OEM manual
Suspension & axle Engine mount x Suspension cross member 77 790 57 ↗ RM285U_1993_suspension · p107 OEM manual
Suspension & axle Exhaust pipe x Suspension cross member 21 210 15 ↗ RM285U_1993_suspension · p107 OEM manual
Suspension & axle Stabilizer bar x Stabilixer link 49 500 36 ↗ RM285U_1993_suspension · p107 OEM manual

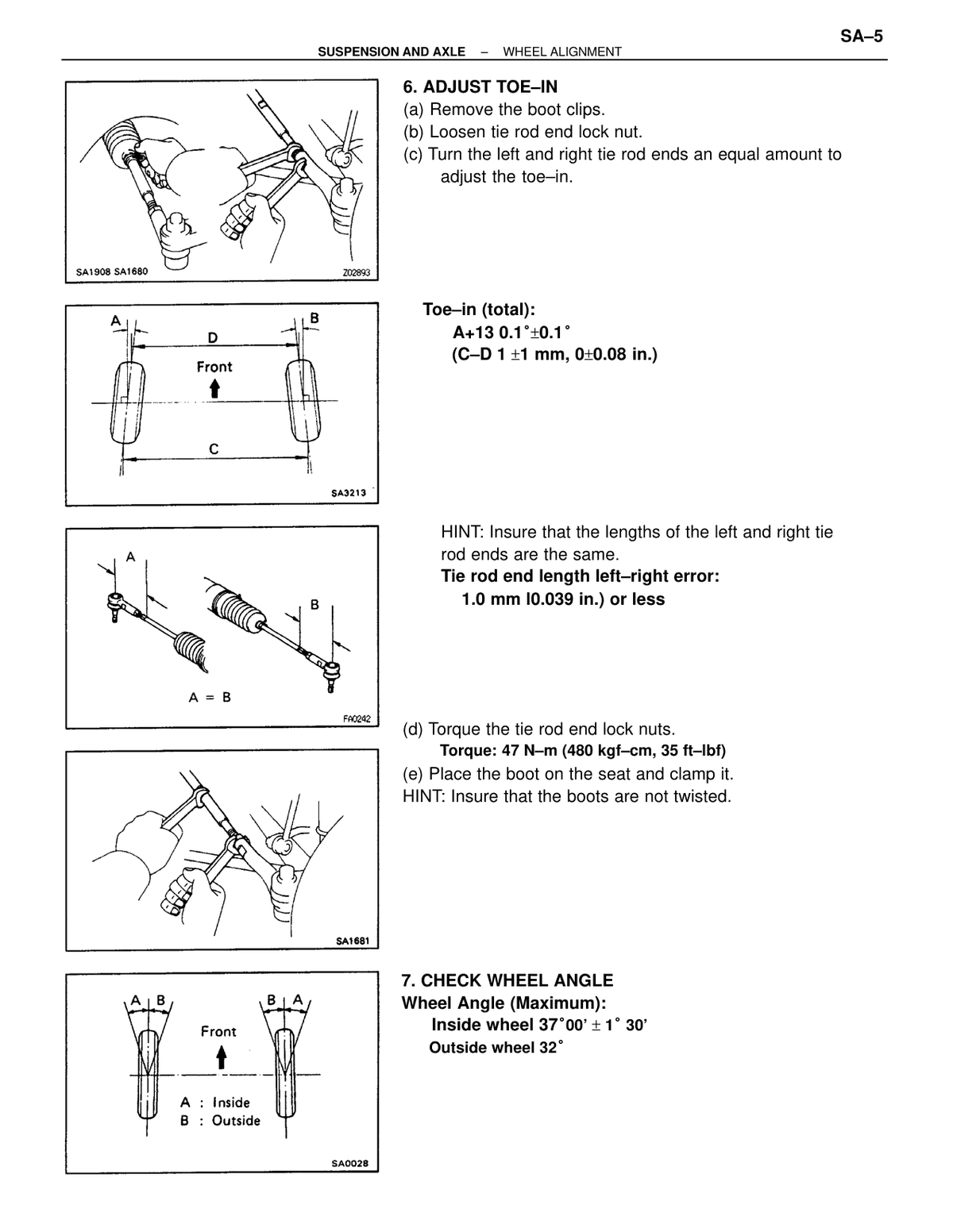

Suspension & axle Tie rod end lock nut Step 6(d) 47 480 35 ↗ RM285U_1993_suspension · p111 OEM manual
Clutch Master cylinder mounting nuts Install the two mounting nuts 13 130 9 ↗ RM285U_1993_clutch · p3 OEM manual
Clutch Clutch line union Connect clutch line union using SST 09023-04100 15 155 11 ↗ RM285U_1993_clutch · p3 OEM manual
Clutch Clutch Release Cylinder Tube fitting (upper, 18) 18 185 13 ↗ RM285U_1993_clutch · p6 OEM manual
Clutch Clutch cover bolts Tighten in order shown; temporarily tighten No.1 and No.2 bolts first 19 195 14 ↗ RM285U_1993_clutch · p13 OEM manual
Clutch Flexible hose x Transmission control cable bracket 23 235 17 ↗ RM285U_1993_clutch · p19 OEM manual
Clutch Transaxle control cable bracket x Clutch release cylinder tube 15 — 11 ↗ RM285U_1993_clutch · p19 OEM manual
Clutch Clutch release cylinder tube x Release cylinder body 15 — 11 ↗ RM285U_1993_clutch · p19 OEM manual
Clutch Engine front mounting bracket x Transaxle case 77 790 57 ↗ RM285U_1993_clutch · p19 OEM manual
Emission control Main TWC x Turbine outlet elbow 29 300 22 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Clutch release cylinder x Transaxle 12 120 9 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Front engine mounting bracket x Transaxle 77 790 57 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Front engine mounting insulator x Body 77 790 57 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Front engine mounting insulator x Bracket 96 980 71 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Front exhaust pipe x Main TWC 62 630 46 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Front exhaust pipe support bracket x Suspension crossmember 21 210 15 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Suspension member damper x Suspension crossmember 21 210 15 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Tailpipe x Front exhaust pipe 43 440 32 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Tailpipe bracket x Front exhaust pipe bracket 19 190 14 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control A/C idler pulley bracket x Cylinder block (12 mm head) 25 250 18 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control A/C idler pulley bracket x Cylinder block (14 mm head) 27 275 20 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control A/C idler pulley bracket x RH engine hanger 37 375 27 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control A/C compressor x Cylinder block 25 250 18 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Lower suspension brace x Body 73 740 54 ↗ RM285U_1993_3sgte_emission · p12 OEM manual
Emission control Suspension Member Damper bolt (43) 43 — 32 ↗ RM285U_1993_3sgte_emission · p15 OEM manual
Emission control Front Engine Mounting Bracket 96 980 71 ↗ RM285U_1993_3sgte_emission · p16 OEM manual
Emission control Front Engine Mounting Insulator (upper) 73 740 54 ↗ RM285U_1993_3sgte_emission · p16 OEM manual
Emission control Front Engine Mounting Insulator (lower / A/C Pipe bracket) 73 740 54 ↗ RM285U_1993_3sgte_emission · p16 OEM manual
Emission control TWC — three bolts and two nuts Step (c) 29 300 21 ↗ RM285U_1993_3sgte_emission · p23 OEM manual
Emission control RH TWC stay — four bolts Step (d) 59 600 43 ↗ RM285U_1993_3sgte_emission · p23 OEM manual
Emission control LH TWC stay — three bolts Step (e) 59 600 43 ↗ RM285U_1993_3sgte_emission · p23 OEM manual
Emission control Clutch release cylinder — two bolts Step 15(b) 12 120 9 ↗ RM285U_1993_3sgte_emission · p23 OEM manual
Emission control Two bolts holding the clutch release cylinder to the transaxle Step (c) 77 790 57 ↗ RM285U_1993_3sgte_emission · p24 OEM manual
Emission control Mounting insulator to body — four bolts Step 16(a) 77 790 57 ↗ RM285U_1993_3sgte_emission · p24 OEM manual
Emission control Mounting insulator to mounting bracket — through bolt and nut Step 16(b) 96 980 71 ↗ RM285U_1993_3sgte_emission · p24 OEM manual
Emission control Tailpipe to body bracket bolts and nut 66 670 48 ↗ RM285U_1993_3sgte_emission · p25 OEM manual
Emission control Front exhaust pipe to tailpipe bolts 43 440 32 ↗ RM285U_1993_3sgte_emission · p25 OEM manual
Emission control Front exhaust pipe to tailpipe bracket bolts 19 190 14 ↗ RM285U_1993_3sgte_emission · p25 OEM manual
Emission control Idler pulley bracket bolt A bolt position A 25 250 18 ↗ RM285U_1993_3sgte_emission · p25 OEM manual
Emission control Idler pulley bracket bolt B bolt position B 27 275 20 ↗ RM285U_1993_3sgte_emission · p25 OEM manual
Emission control Idler pulley bracket bolt C bolt position C 37 375 27 ↗ RM285U_1993_3sgte_emission · p25 OEM manual
Emission control A/C compressor lower side bolts 25 250 18 ↗ RM285U_1993_3sgte_emission · p25 OEM manual
Emission control Suspension brace bolts step (i) 73 740 54 ↗ RM285U_1993_3sgte_emission · p26 OEM manual
Emission control Front exhaust pipe to manifold flange (upper gasket connection) 62 630 46 ↗ RM285U_1993_3sgte_emission · p28 OEM manual
Emission control Front exhaust pipe to tailpipe / center pipe connection 43 — 32 ↗ RM285U_1993_3sgte_emission · p28 OEM manual
Exhaust Front exhaust pipe nuts (3 new nuts) Step (b) — 14 mm deep socket wrench 62 630 46 ↗ RM285U_1993_3sgte_emission · p30 OEM manual
Exhaust Support bracket bolts (2 bolts) Step (c) 21 210 15 ↗ RM285U_1993_3sgte_emission · p30 OEM manual
Emission control Tailpipe to body bracket bolts and nut Step (b) 66 670 48 ↗ RM285U_1993_3sgte_emission · p31 OEM manual
Emission control Front exhaust pipe to tailpipe bolts Step (c) 43 440 32 ↗ RM285U_1993_3sgte_emission · p31 OEM manual
Emission control Front exhaust pipe bracket to tailpipe bracket bolts Step (d) 19 190 14 ↗ RM285U_1993_3sgte_emission · p31 OEM manual
Starting / charging Gasket (upper exhaust pipe flange) 62 630 46 ↗ RM285U_1993_charging · p1 OEM manual
Starting / charging SST (B) pulley nut tightening (SST 09820-63010) Tighten SST (B) clockwise to secure SST (A) to rotor shaft 39 400 29 ↗ RM285U_1993_charging · p9 OEM manual
Starting / charging Pulley nut (SST B tightening step) SST 09820-63010; hold SST (A) with torque wrench, tighten SST (B) clockwise 39 400 29 ↗ RM285U_1993_charging · p16 OEM manual
Starting / charging Pulley nut (final torque) Turn SST (A) in direction shown in illustration with alternator mounted in SST (C) 110 1125 81 ↗ RM285U_1993_charging · p16 OEM manual
Starting / charging Front exhaust pipe nuts (to manifold) Three new nuts, 14 mm deep socket wrench 62 630 46 ↗ RM285U_1993_charging · p20 OEM manual
Starting / charging Front exhaust pipe bolts to tailpipe Two bolts 43 440 32 ↗ RM285U_1993_charging · p20 OEM manual
Starting / charging Front exhaust pipe bracket to tailpipe bracket bolts Two bolts 19 190 14 ↗ RM285U_1993_charging · p20 OEM manual
Starting / charging Support bracket bolts Two bolts 21 210 15 ↗ RM285U_1993_charging · p20 OEM manual
Starting / charging damper bolts install the damper with the two bolts 21 210 15 ↗ RM285U_1993_charging · p21 OEM manual
Starting / charging Front exhaust pipe nuts (front exhaust pipe to manifold) Three new nuts, 14 mm deep socket wrench — step 2(b) 62 630 46 ↗ RM285U_1993_charging · p22 OEM manual
Starting / charging Front exhaust pipe bolts to tailpipe Two bolts — step 2(c) 43 440 32 ↗ RM285U_1993_charging · p22 OEM manual
Starting / charging Front exhaust pipe bracket to tailpipe bracket bolts Two bolts — step 2(d) 19 190 14 ↗ RM285U_1993_charging · p22 OEM manual
Starting / charging Damper bolts (CALIF. only) Two bolts — step 2(e), California spec only 21 210 15 ↗ RM285U_1993_charging · p22 OEM manual
Starting / charging Tailpipe bracket x Front exhaust pipe bracket 19 190 14 ↗ RM285U_1993_charging · p32 OEM manual
Starting / charging Suspension member damper x Suspension crossmember 21 210 15 ↗ RM285U_1993_charging · p32 OEM manual
Starting / charging Exhaust pipe support bracket x Suspension crossmember (3S-GTE) 21 210 15 ↗ RM285U_1993_charging · p32 OEM manual
Transmission / transaxle Exhaust Pipe (upper bracket bolt) 62 630 46 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator 77 790 57 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket (to body) 62 630 46 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket (to transaxle) 87 890 64 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Suspension Crossmember (front bolts) 25 250 18 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Suspension Crossmember (rear bolts) 73 740 54 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Drive Shaft (RH) / Transaxle bolt (64) 64 650 47 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Engine LH Mounting (upper bolts) 64 650 47 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Engine LH Mounting (lower bolt) 113 1150 83 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Stiffener Plate / Rear End Plate (upper bolts) 37 380 27 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Stiffener Plate / Rear End Plate (lower bolts) 37 380 27 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Clutch Release Cylinder 12 120 9 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Engine Mounting Front Insulator (to bracket) 77 790 57 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Engine Mounting Front Bracket (to engine) 96 980 71 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Engine Mounting Front Insulator (to body) 73 740 54 ↗ RM285U_1993_transaxle_s54 · p1 OEM manual
Transmission / transaxle Bolt A — Transaxle to Engine 64 650 47 ↗ RM285U_1993_transaxle_s54 · p7 OEM manual
Transmission / transaxle Bolt B — Transaxle to Engine 46 470 34 ↗ RM285U_1993_transaxle_s54 · p7 OEM manual
Transmission / transaxle Rear End Plate bolts 82 in.-lbf 9 95 — ↗ RM285U_1993_transaxle_s54 · p7 OEM manual
Transmission / transaxle Stiffener Plate bolts 37 380 27 ↗ RM285U_1993_transaxle_s54 · p7 OEM manual
Transmission / transaxle Engine LH Mounting Set Bolts 64 650 47 ↗ RM285U_1993_transaxle_s54 · p7 OEM manual
Transmission / transaxle Suspension Crossmember bolts 113 1150 83 ↗ RM285U_1993_transaxle_s54 · p7 OEM manual
Transmission / transaxle Suspension arm bolt and nut to rear axle hub 103 1050 76 ↗ RM285U_1993_transaxle_s54 · p8 OEM manual
Transmission / transaxle Lower arm bolt to suspension crossmember 132 1350 98 ↗ RM285U_1993_transaxle_s54 · p8 OEM manual
Transmission / transaxle Engine rear mounting — transaxle side 77 790 57 ↗ RM285U_1993_transaxle_s54 · p8 OEM manual
Transmission / transaxle Engine rear mounting — crossmember side 64 650 47 ↗ RM285U_1993_transaxle_s54 · p8 OEM manual
Transmission / transaxle Engine rear mounting — through bolt 87 890 64 ↗ RM285U_1993_transaxle_s54 · p8 OEM manual
Transmission / transaxle Clutch release cylinder bolts 12 120 9 ↗ RM285U_1993_transaxle_s54 · p8 OEM manual
Transmission / transaxle Engine front mounting — transaxle side 77 790 57 ↗ RM285U_1993_transaxle_s54 · p9 OEM manual
Transmission / transaxle Engine front mounting — body side 73 740 54 ↗ RM285U_1993_transaxle_s54 · p9 OEM manual
Transmission / transaxle Engine front mounting — through bolt 96 980 71 ↗ RM285U_1993_transaxle_s54 · p9 OEM manual
Transmission / transaxle Exhaust pipe — "A" bolts 62 630 46 ↗ RM285U_1993_transaxle_s54 · p9 OEM manual
Transmission / transaxle Exhaust pipe — three nuts 62 630 46 ↗ RM285U_1993_transaxle_s54 · p9 OEM manual
Transmission / transaxle LH Engine Mounting Stay — Body side 73 740 54 ↗ RM285U_1993_transaxle_s54 · p11 OEM manual
Transmission / transaxle LH Engine Mounting Stay — Transaxle side 25 250 18 ↗ RM285U_1993_transaxle_s54 · p11 OEM manual
Transmission / transaxle Reverse shift arm bolts 18 185 13 ↗ RM285U_1993_transaxle_s54 · p14 OEM manual
Transmission / transaxle Six bolts (side bearing retainer) 18 185 13 ↗ RM285U_1993_transaxle_s54 · p15 OEM manual
Transmission / transaxle Reverse idler gear shaft lock bolt 29 300 22 ↗ RM285U_1993_transaxle_s54 · p15 OEM manual
Transmission / transaxle Rear bearing retainer bolts (five bolts) Step 14(b) 42 430 31 ↗ RM285U_1993_transaxle_s54 · p16 OEM manual

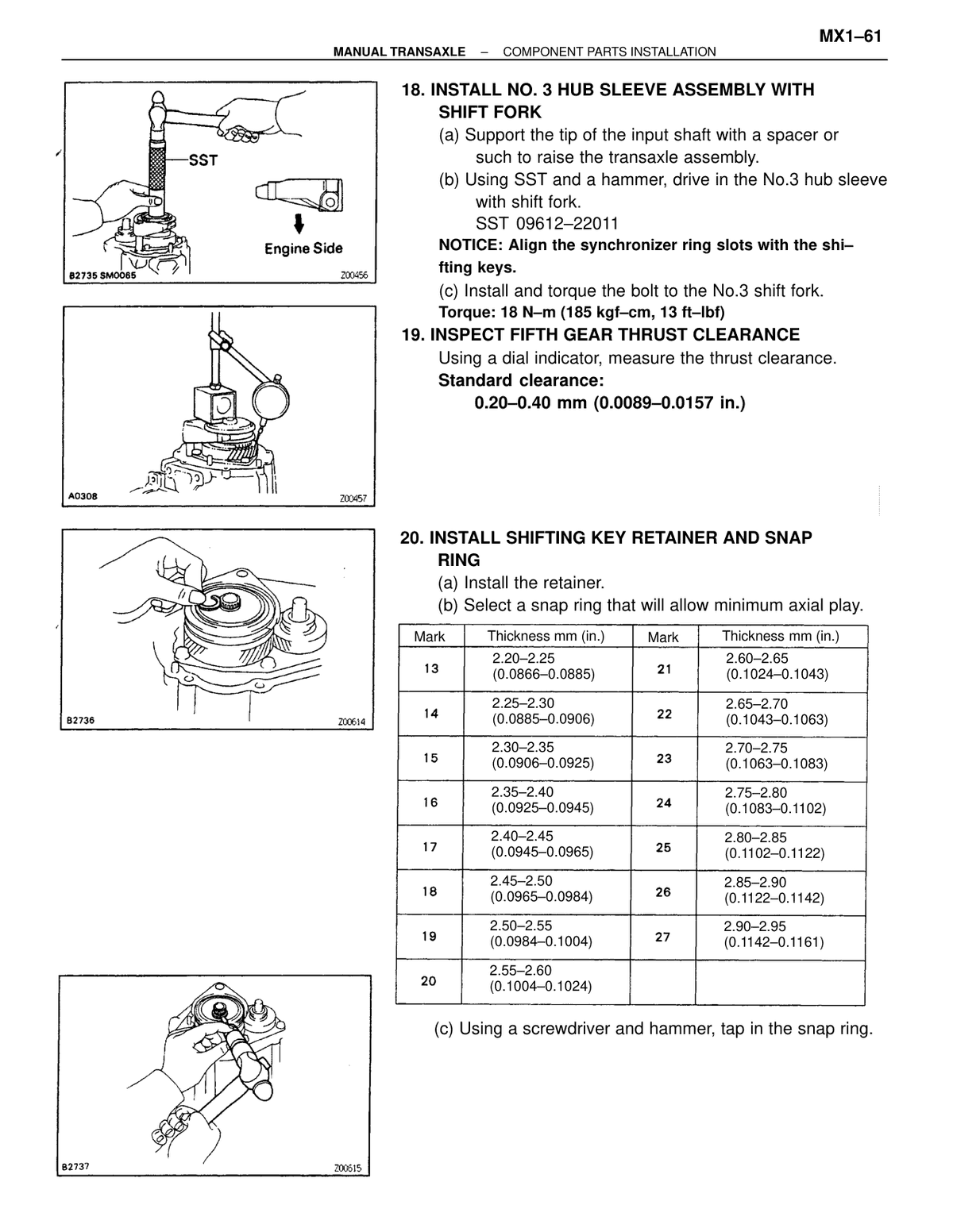

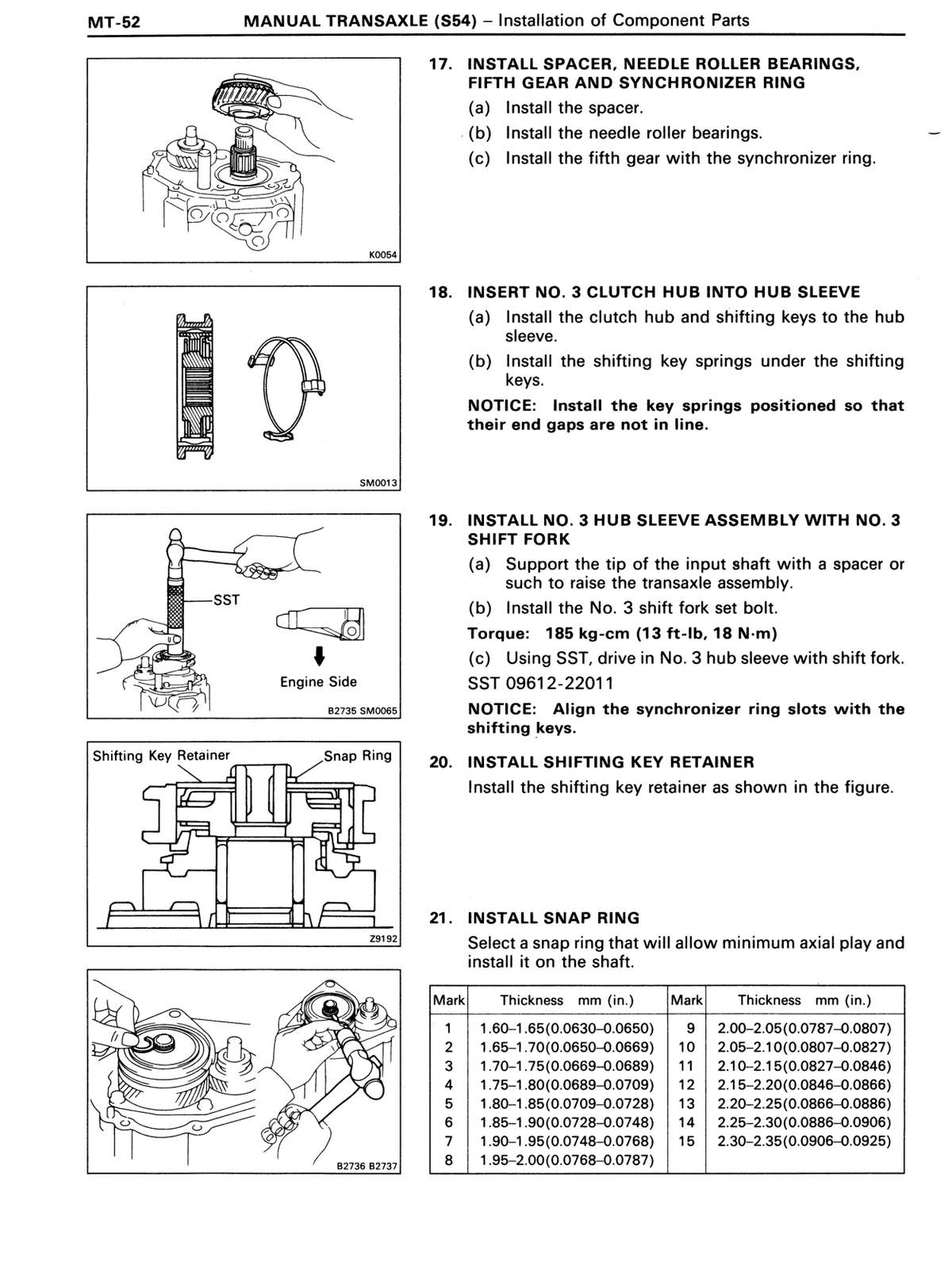

Transmission / transaxle Bolt to No.3 shift fork Step 18(c) 18 185 13 ↗ RM285U_1993_transaxle_s54 · p17 OEM manual

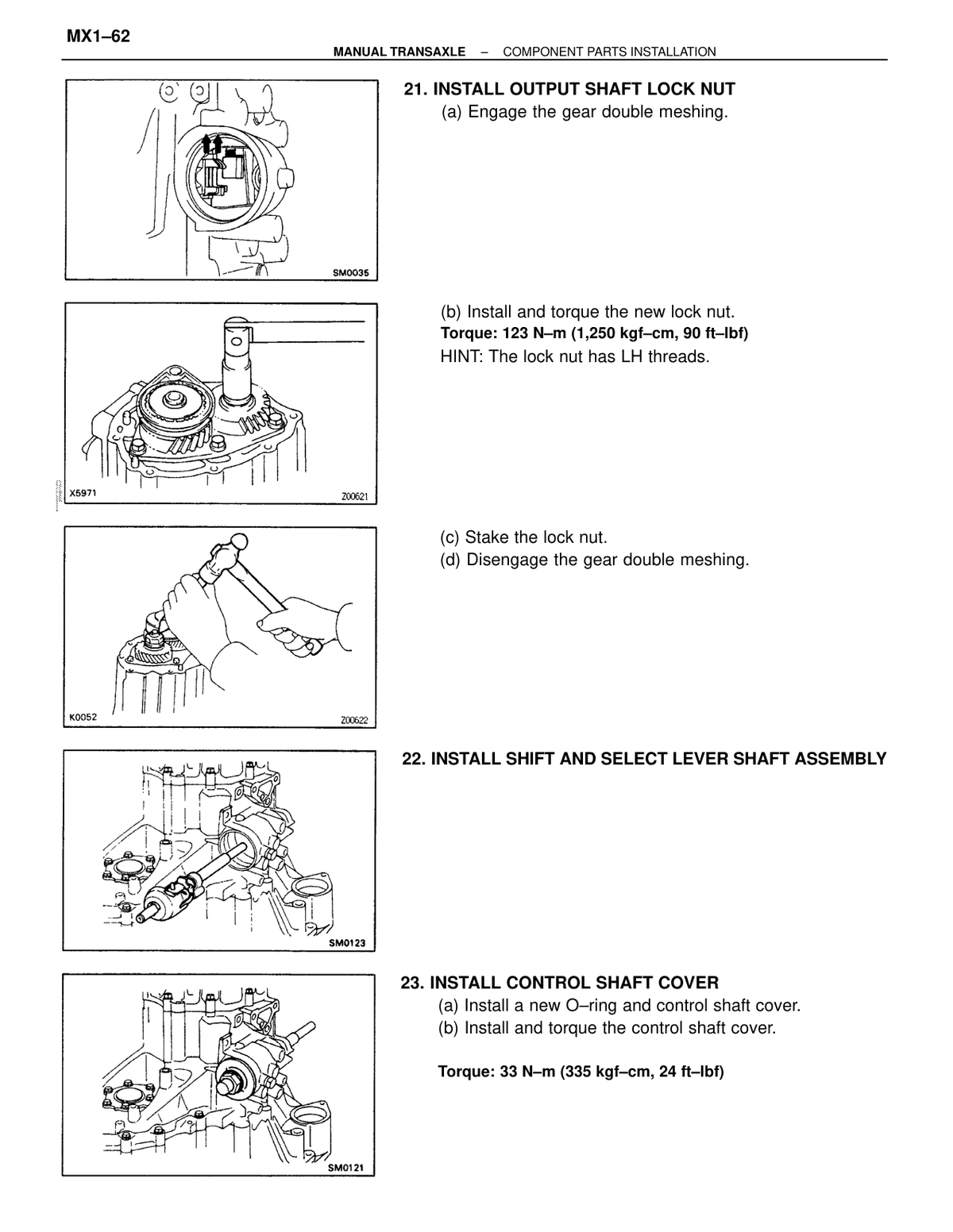

Transmission / transaxle Output shaft lock nut LH threads 123 1250 90 ↗ RM285U_1993_transaxle_s54 · p18 OEM manual
Transmission / transaxle Shift lever nut Step 24(c) 12 120 9 ↗ RM285U_1993_transaxle_s54 · p19 OEM manual
Transmission / transaxle No.2 lock ball assembly plug Step 25(b), using 6 mm hexagon wrench 23 230 17 ↗ RM285U_1993_transaxle_s54 · p19 OEM manual
Transmission / transaxle No.1 lock ball assembly lock nut Step 26(d) 37 375 27 ↗ RM285U_1993_transaxle_s54 · p19 OEM manual
Transmission / transaxle Transmission case cover bolts (eight bolts) 29 300 22 ↗ RM285U_1993_transaxle_s54 · p20 OEM manual
Transmission / transaxle Engine mount bracket bolts (three bolts) 52 530 38 ↗ RM285U_1993_transaxle_s54 · p20 OEM manual
Transmission / transaxle Selecting bellcrank bolt 20 200 14 ↗ RM285U_1993_transaxle_s54 · p20 OEM manual
Transmission / transaxle Release bearing retainer bolts (three bolts) 7.4 75 — ↗ RM285U_1993_transaxle_s54 · p20 OEM manual

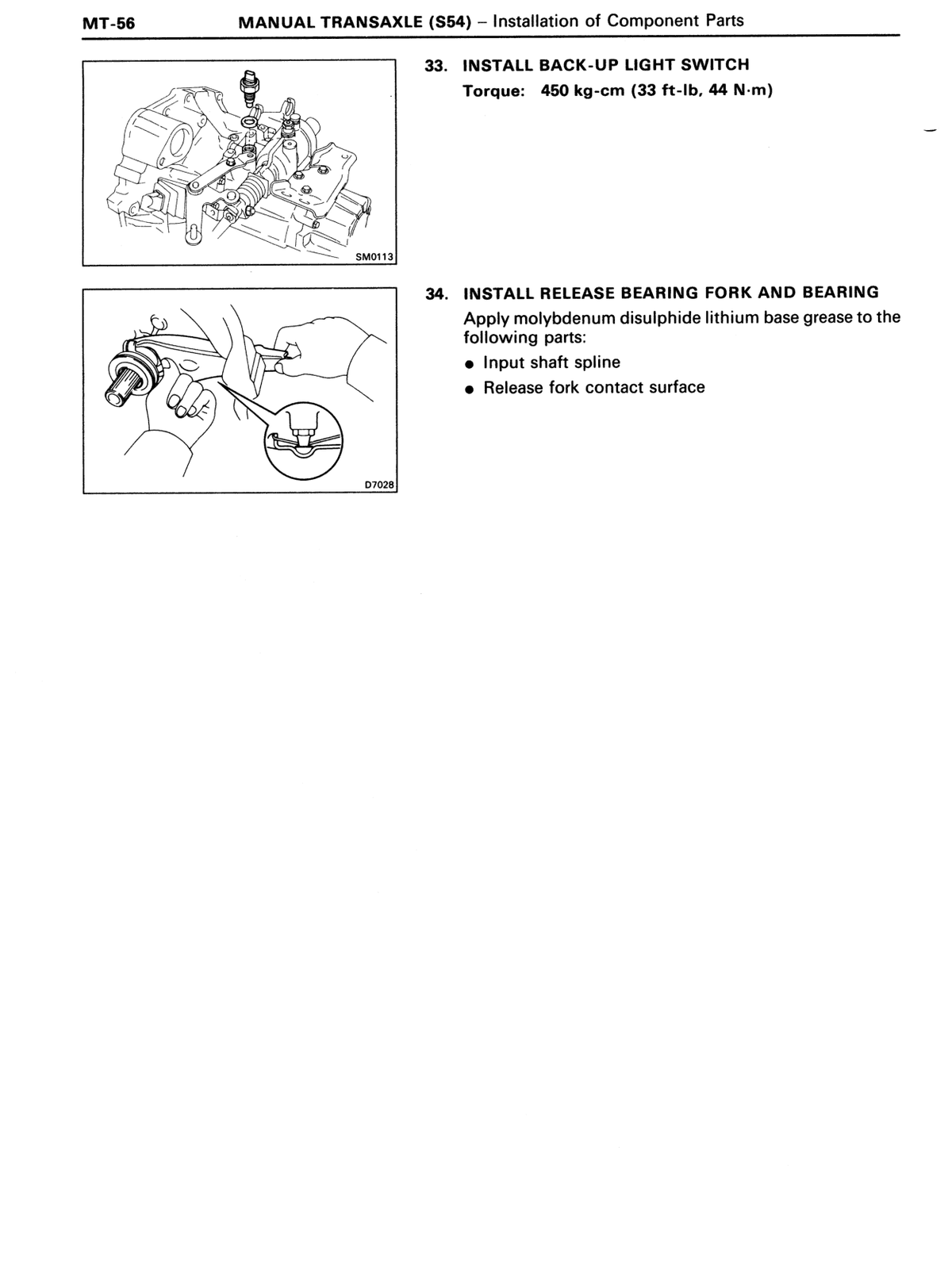

Transmission / transaxle Back–up light switch 44 450 33 ↗ RM285U_1993_transaxle_s54 · p20 OEM manual
Transmission / transaxle Release Bearing Retainer (12 mm bolt) 64 650 47 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle Release Bearing Retainer (10 mm bolt) 46 470 34 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle Shift and Select Lever Assembly 52 530 38 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle Boot / gear lever area bolt 20 — 14 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle Differential Side Bearing Retainer 18 185 13 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle Snap Ring / Rear Bearing Retainer area bolt 29 300 22 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle Rear Bearing Retainer 21 210 15 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle No.3 Shift Fork bolt 18 185 13 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle Transmission Case Cover 29 300 22 ↗ RM285U_1993_transaxle_s54 · p21 OEM manual
Transmission / transaxle Transaxle case receiver bolt 65 in.lbf; step 3(d) 7.4 75 5.4 ↗ RM285U_1993_transaxle_s54 · p31 OEM manual

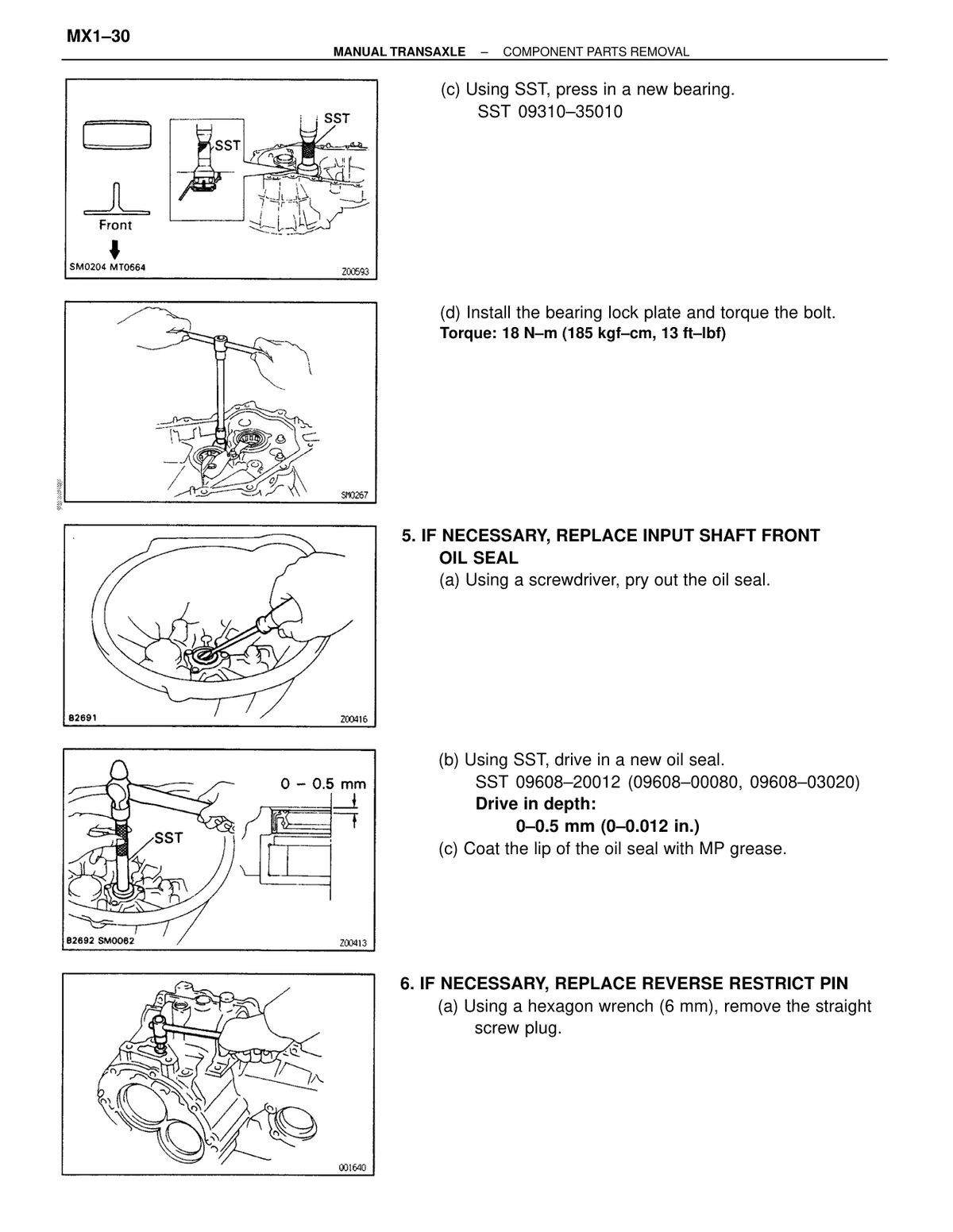

Transmission / transaxle Bearing lock plate bolt 18 185 13 ↗ RM285U_1993_transaxle_s54 · p32 OEM manual
Transmission / transaxle Bearing retainer bolts Transmission case side, step 7(c) 18 185 13 ↗ RM285U_1993_transaxle_s54 · p39 OEM manual
Transmission / transaxle Ring gear set bolts After ring gear has cooled sufficiently 90 920 67 ↗ RM285U_1993_transaxle_s54 · p41 OEM manual
Transmission / transaxle Case bolts Transmission case to transaxle case 29 300 22 ↗ RM285U_1993_transaxle_s54 · p42 OEM manual
Transmission / transaxle Bearing retainer bolts Bearing retainer installed without O-ring 18 185 13 ↗ RM285U_1993_transaxle_s54 · p42 OEM manual

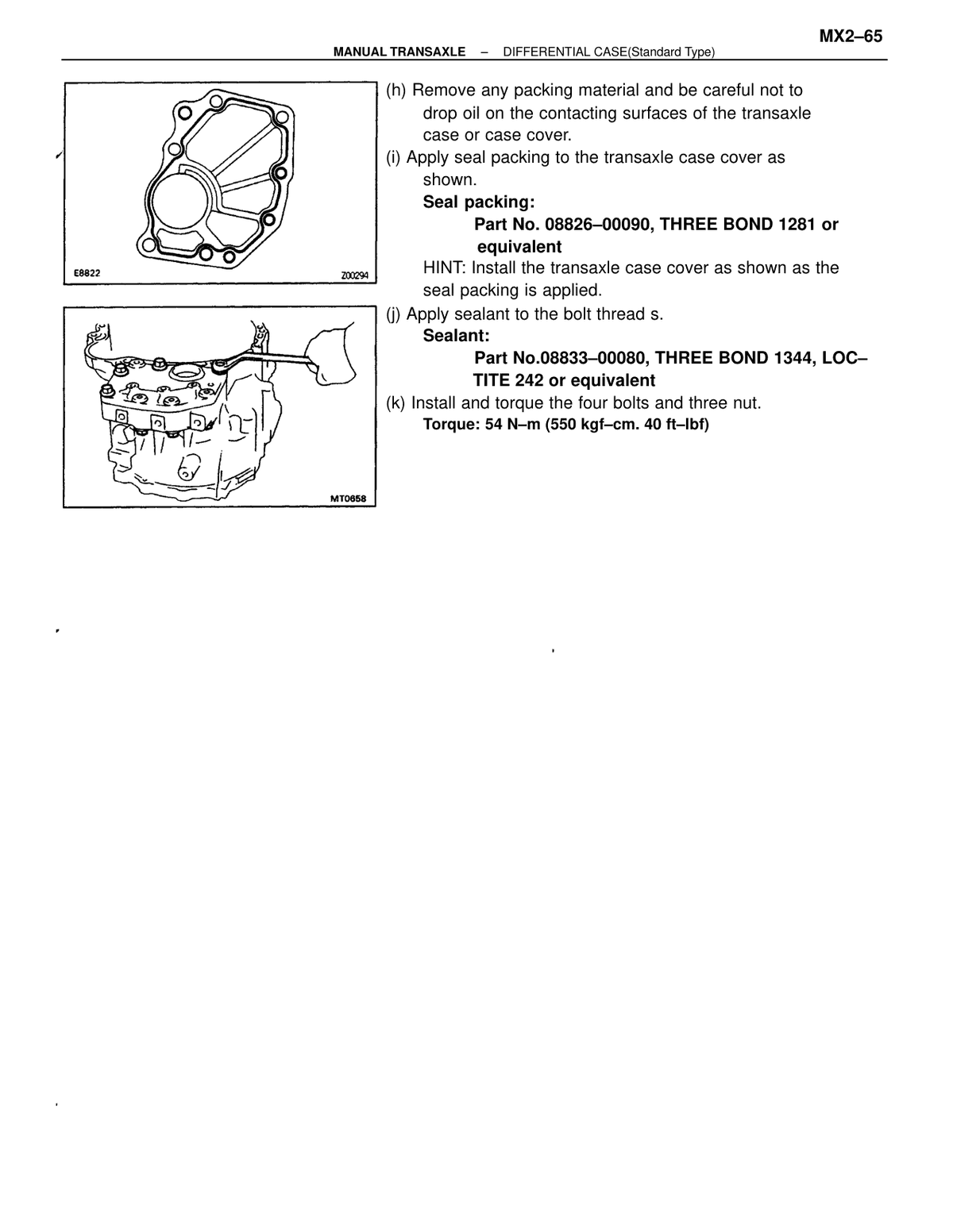

Transmission / transaxle Transmission case x Transaxle case 29 300 22 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Transmission case x Case cover 29 300 22 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Transmission case protector x Transmission case 18 185 13 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Rear bearing retainer x Transmission case 42 430 31 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual

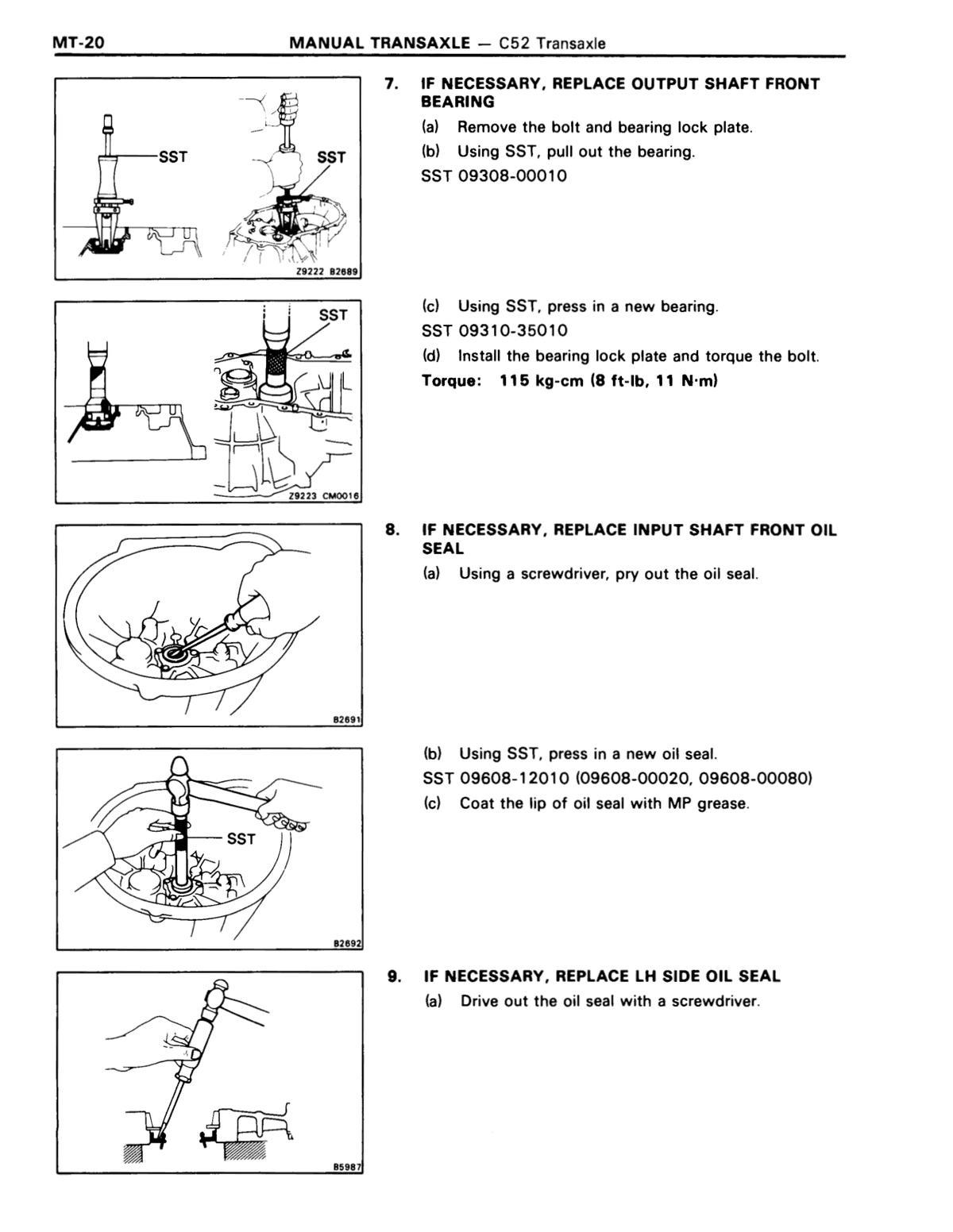

Transmission / transaxle Output shaft front bearing lock plate x Transaxle case 18 185 13 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Transaxle case receiver x Transaxle case 65 in.-lbf 7.4 75 — ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle 5th driven gear lock nut 123 1250 90 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Reverse idler shaft lock bolt 29 300 22 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Reverse shift arm bracket x Transaxle case 18 185 13 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle No.3 shift fork x Shift fork shaft 18 185 13 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle No.1 lock ball assembly lock nut 37 375 27 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle No.2 lock ball assembly 23 230 17 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Differential ring gear x Differential case 90 920 67 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine mount bracket x Transmission case 52 530 38 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Back-up light switch 44 450 33 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Side bearing retainer x Transmission case 18 185 13 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Clutch release bearing retainer x Transaxle case 65 in.-lbf 7.4 75 — ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Straight screw plug (Shift fork shaft) 13 130 9 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual

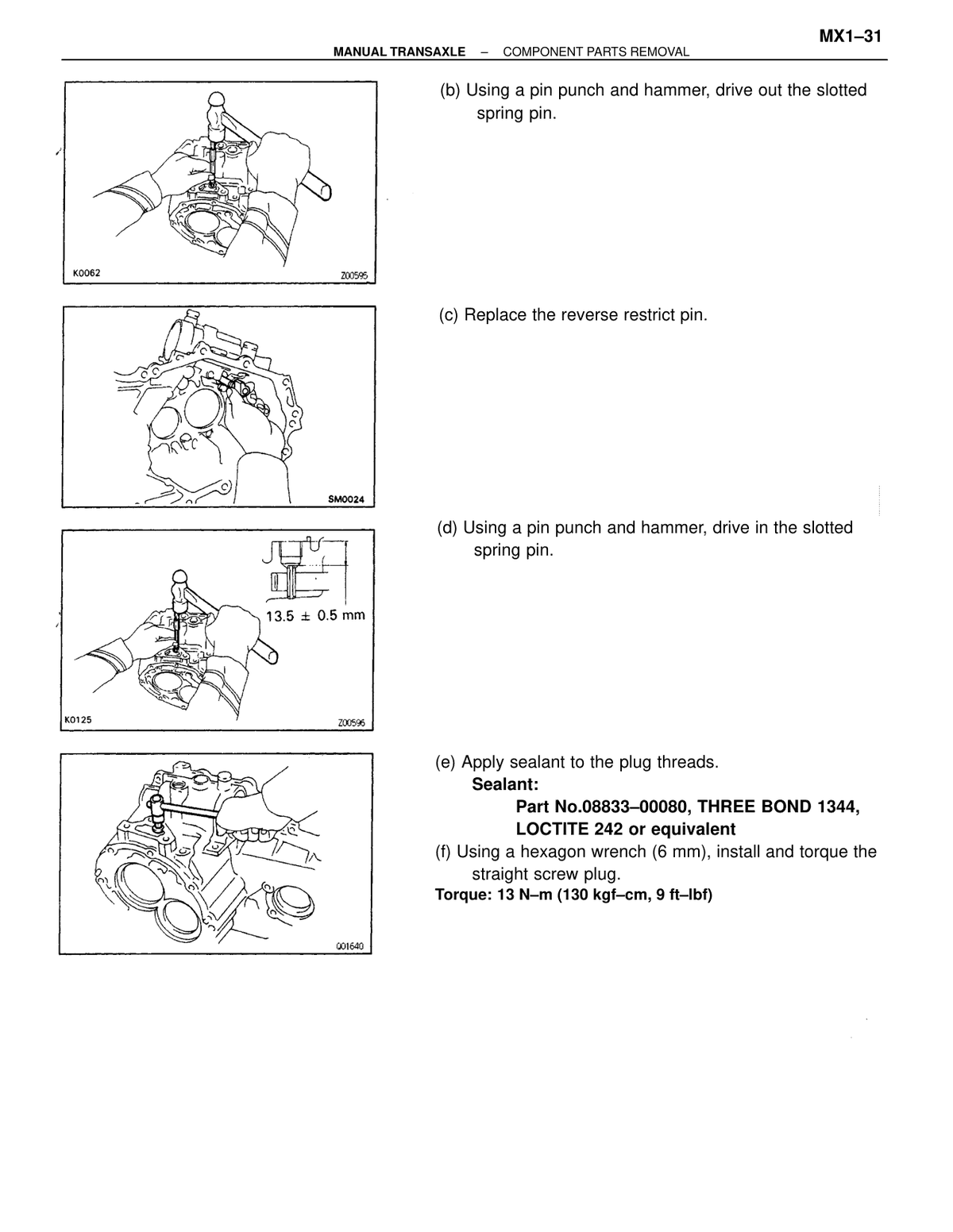

Transmission / transaxle Straight screw plug (Reverse restrict pin) 13 130 9 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Transaxle x Engine — 12 mm bolt 64 650 47 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Transaxle x Engine — 10 mm bolt 46 470 34 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Rear end plate set bolt 82 in.-lbf 9 95 — ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Stiffener plate x Engine 37 380 27 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Stiffener plate x Transaxle 37 380 27 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine LH mounting set bolt 64 650 47 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Suspension crossmember x Body 113 1150 83 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Suspension arm x Rear axle hub 103 1050 76 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Lower arm x Suspension crossmember 132 1350 98 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine rear mounting x Transaxle 77 790 57 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine rear mounting x Crossmember 64 650 47 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine rear mounting through bolt 87 890 64 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine front mounting x Transaxle 77 790 57 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Clutch release cylinder x Transaxle 12 120 9 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine front mounting x Transaxle 77 790 57 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine front mounting x Body 73 740 54 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Engine front mounting through bolt 96 980 71 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Front exhaust pipe x Tail pipe 62 630 46 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Front exhaust pipe x Exhaust manifold 62 630 46 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle LH engine mounting x Body 73 740 54 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle LH engine mounting stay x Transaxle 25 250 18 ↗ RM285U_1993_transaxle_s54 · p64 OEM manual
Transmission / transaxle Shift Lever Retainer bolts 12 120 9 ↗ RM285U_1993_transaxle_s54 · p68 OEM manual
Transmission / transaxle Selecting Bellcrank Support bolt 19 195 14 ↗ RM285U_1993_transaxle_s54 · p68 OEM manual
Transmission / transaxle Selecting Bellcrank bolt (transaxle side) 20 200 14 ↗ RM285U_1993_transaxle_s54 · p68 OEM manual
Transmission / transaxle Plate Washer / Clip bolt (transaxle upper) 12 120 9 ↗ RM285U_1993_transaxle_s54 · p68 OEM manual
Transmission / transaxle Shift Lever bolt (transaxle lower) 12 120 9 ↗ RM285U_1993_transaxle_s54 · p68 OEM manual
Transmission / transaxle Cable bracket / Clip bolt (floor side) 13 135 10 ↗ RM285U_1993_transaxle_s54 · p68 OEM manual
Steering Cotter Pin / Tie Rod End Nut Tie rod end castle nut; non-reusable cotter pin 49 500 36 ↗ RM285U_1993_steering · p3 OEM manual
Steering Universal Joint Bolt Universal joint to steering gear housing 35 360 26 ↗ RM285U_1993_steering · p3 OEM manual
Steering Bracket / Gear Housing Mounting Bolt Steering gear housing bracket mounting 50 510 37 ↗ RM285U_1993_steering · p3 OEM manual
Steering Pinion bearing adjusting screw (initial tighten) Tighten to this value first, then back off — step 5b 0.4 3.7 — ↗ RM285U_1993_steering · p13 OEM manual
Steering Pinion preload (turning) — after loosening Range 0.2–0.3 N–m, 2.3–3.3 kgf–cm, 2.0–2.8 in.–lbf — step 5c 0.25 2.8 — ↗ RM285U_1993_steering · p13 OEM manual
Steering Pinion bearing adjusting screw lock nut Use torque wrench with fulcrum length 425 mm (16.73 in.) — step 6b 91 — 67 ↗ RM285U_1993_steering · p13 OEM manual
Steering Pinion preload (turning) — final recheck Range 0.1–0.2 N–m, 1.5–2.5 kgf–cm, 1.3–2.2 ft–lbf — step 6c 0.15 2 — ↗ RM285U_1993_steering · p13 OEM manual
Steering Rack guide spring cover sub-assy bolts Step 12 — two bolts 12 120 9 ↗ RM285U_1993_steering · p14 OEM manual
Steering Set bolt (rack guide) Step 13(a) — 4mm hexagon wrench; value in in.-lbf: 26 2.9 30 — ↗ RM285U_1993_steering · p14 OEM manual
Steering Rack ends Use torque wrench with fulcrum length of 340 mm (13.39 in.) 64 650 47 ↗ RM285U_1993_steering · p15 OEM manual
Steering Tie rod end lock nuts After adjusting toe–in 56 570 41 ↗ RM285U_1993_steering · p15 OEM manual

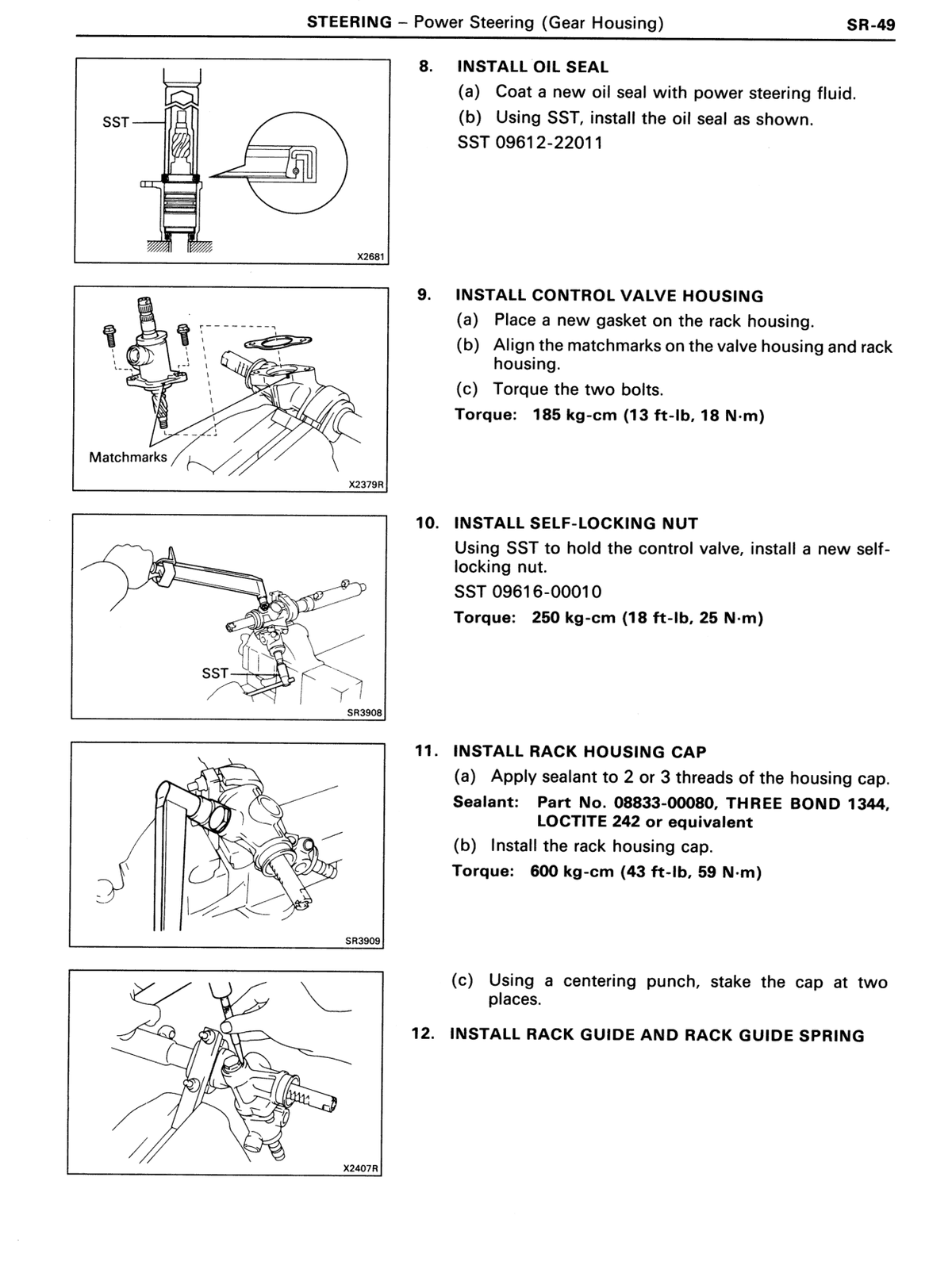

Steering Control valve housing bolts Step 9(c) — two bolts 18 185 13 ↗ RM285U_1993_steering · p47 OEM manual
Steering Rack guide spring cap lock nut Use torque wrench with fulcrum length 340 mm (13.39 in.); SST 09612-10131, 09612-24014 (09617-22030) 33 340 25 ↗ RM285U_1993_steering · p49 OEM manual
Steering Rack ends Use torque wrench with fulcrum length 340 mm (13.39 in.); SST 09617-10020 51 520 38 ↗ RM285U_1993_steering · p49 OEM manual
Steering Tie rod end lock nuts After adjusting toe-in 56 570 41 ↗ RM285U_1993_steering · p50 OEM manual
Steering Right and left turn pressure tubes Use torque wrench with fulcrum length of 300 mm (11.81 in.); SST 09633-00020 11 110 8 ↗ RM285U_1993_steering · p50 OEM manual
Steering Pressure Tube (for use with SST) For use with SST 36 370 27 ↗ RM285U_1993_steering · p54 OEM manual
Steering Tilt lever assembly installation bolt 26 in.-lbf 2.9 30 — ↗ RM285U_1993_steering · p59 OEM manual

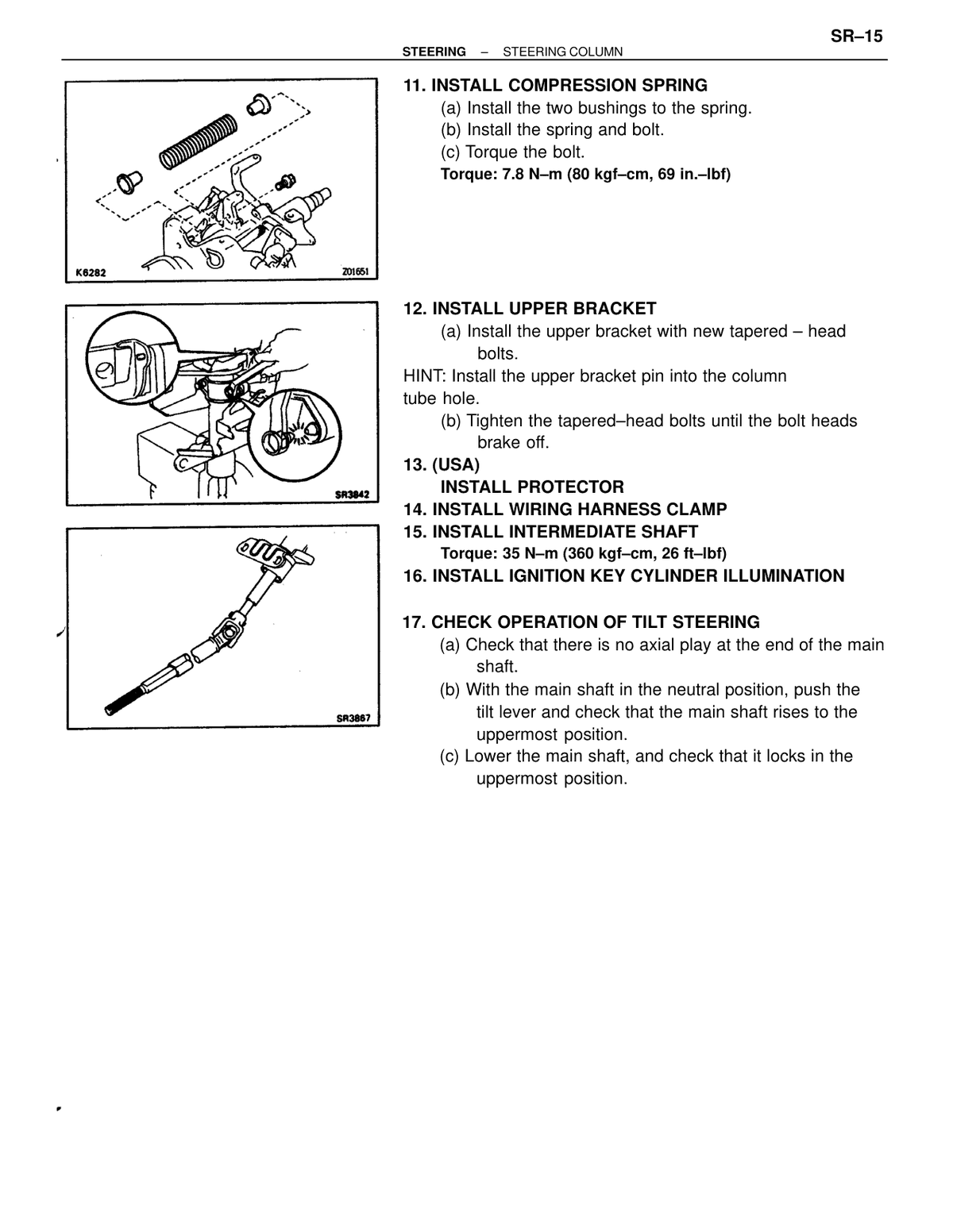

Steering Compression spring bushing bolt 69 in.-lbf 7.8 80 — ↗ RM285U_1993_steering · p59 OEM manual
Steering Gear housing bracket x Body Manual Steering Gear Housing 43 440 32 ↗ RM285U_1993_steering · p59 OEM manual
Steering Universal joint bolt Manual Steering Gear Housing 35 360 26 ↗ RM285U_1993_steering · p59 OEM manual

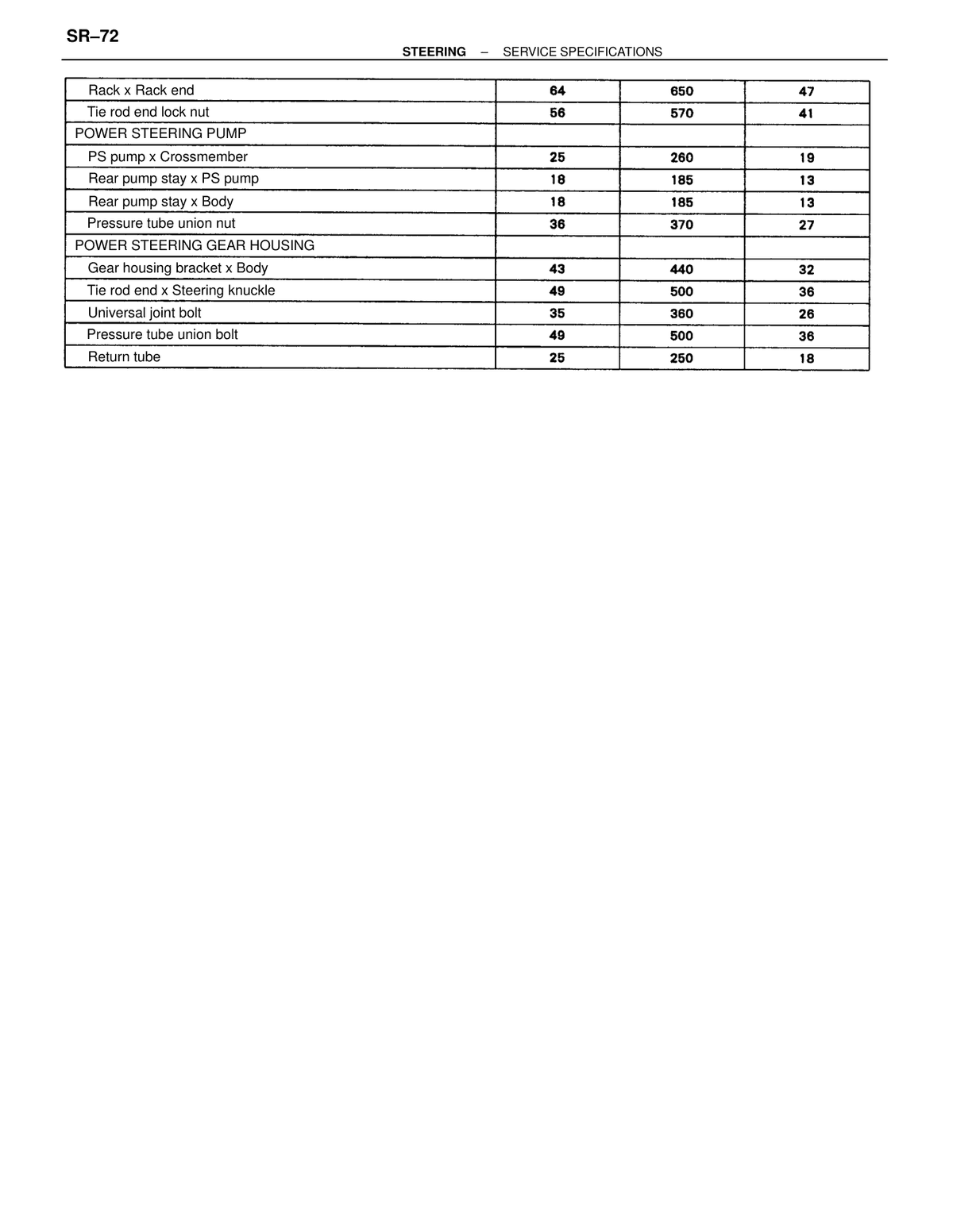

Steering PS pump x Crossmember POWER STEERING PUMP 25 260 19 ↗ RM285U_1993_steering · p60 OEM manual
Steering Rear pump stay x PS pump POWER STEERING PUMP 18 185 13 ↗ RM285U_1993_steering · p60 OEM manual
Steering Rear pump stay x Body POWER STEERING PUMP 18 185 13 ↗ RM285U_1993_steering · p60 OEM manual
Steering Pressure tube union nut POWER STEERING PUMP 36 370 27 ↗ RM285U_1993_steering · p60 OEM manual
Steering Gear housing bracket x Body POWER STEERING GEAR HOUSING 43 440 32 ↗ RM285U_1993_steering · p60 OEM manual
Steering Tie rod end x Steering knuckle POWER STEERING GEAR HOUSING 49 500 36 ↗ RM285U_1993_steering · p60 OEM manual
Steering Universal joint bolt POWER STEERING GEAR HOUSING 35 360 26 ↗ RM285U_1993_steering · p60 OEM manual
Steering Pressure tube union bolt POWER STEERING GEAR HOUSING 49 500 36 ↗ RM285U_1993_steering · p60 OEM manual
Steering Steering wheel set nut Step 3(c) — Install steering wheel 35 360 26 ↗ RM285U_1993_steering · p62 OEM manual
Steering Wheel pad torx screws (four screws) 65 in.-lbf; tighten with torx wrench 7.4 7.5 — ↗ RM285U_1993_steering · p63 OEM manual

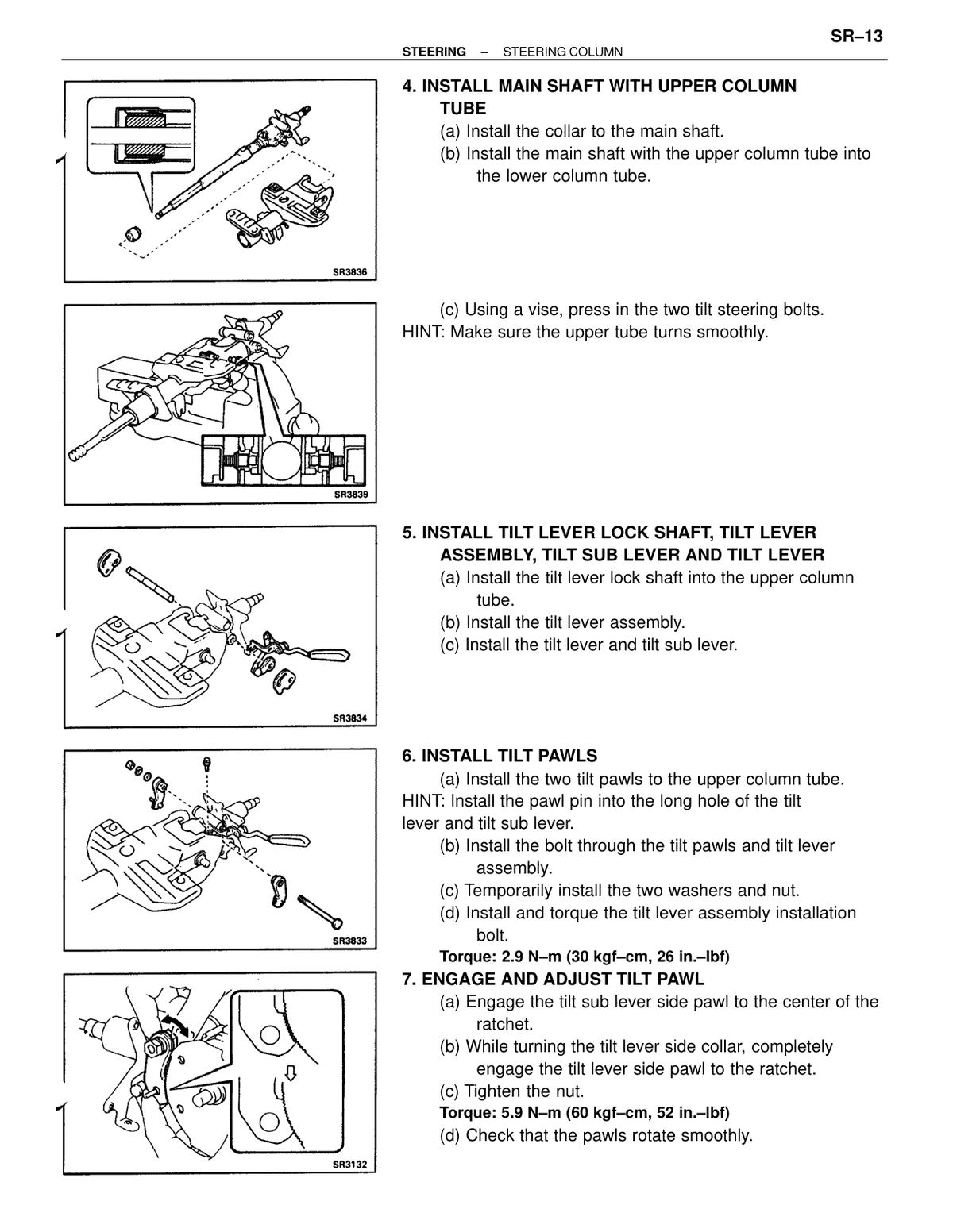

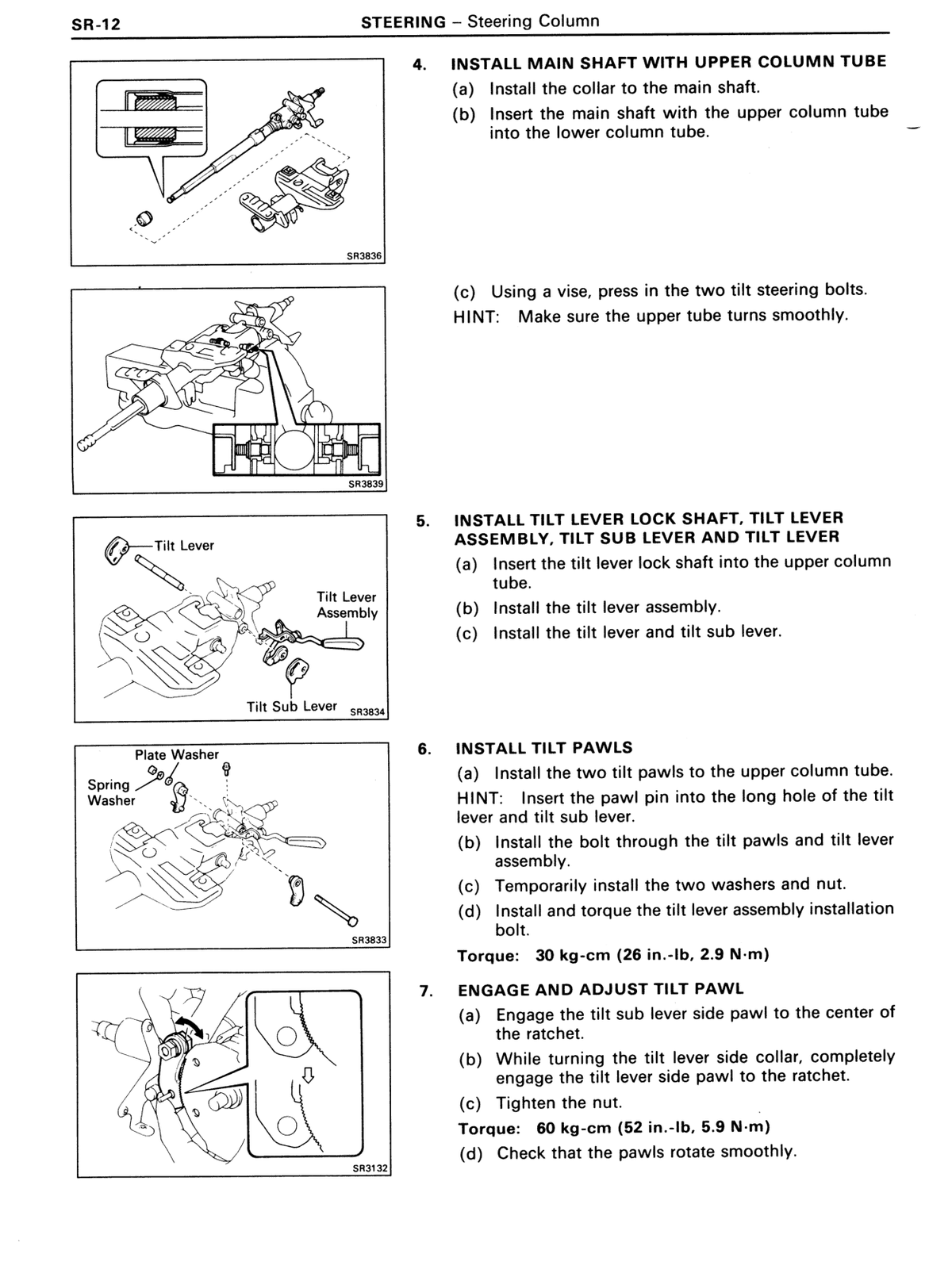

Steering Tilt lever assembly installation bolt Step 6(d) 2.9 30 — ↗ RM285U_1993_steering · p69 OEM manual

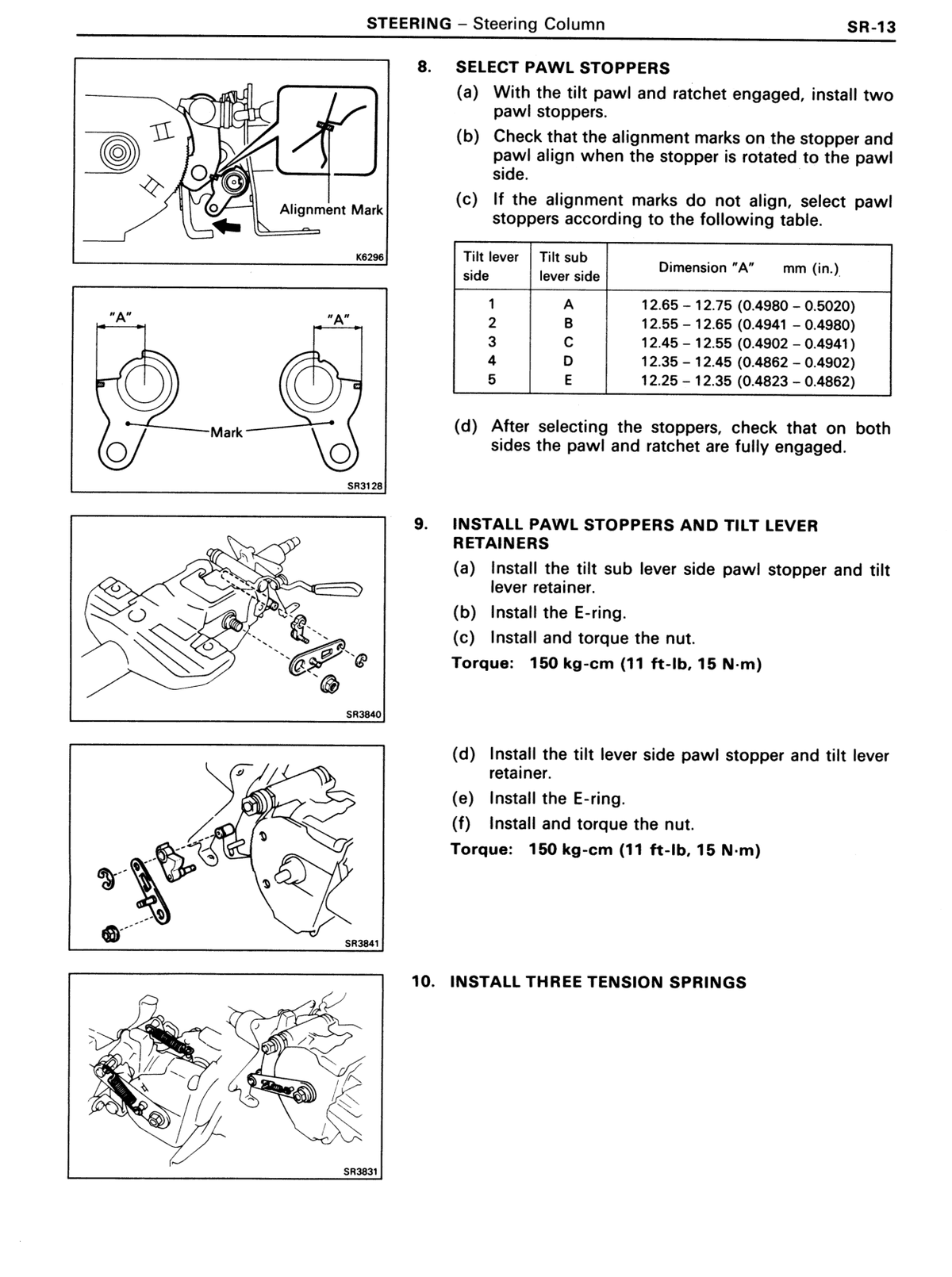

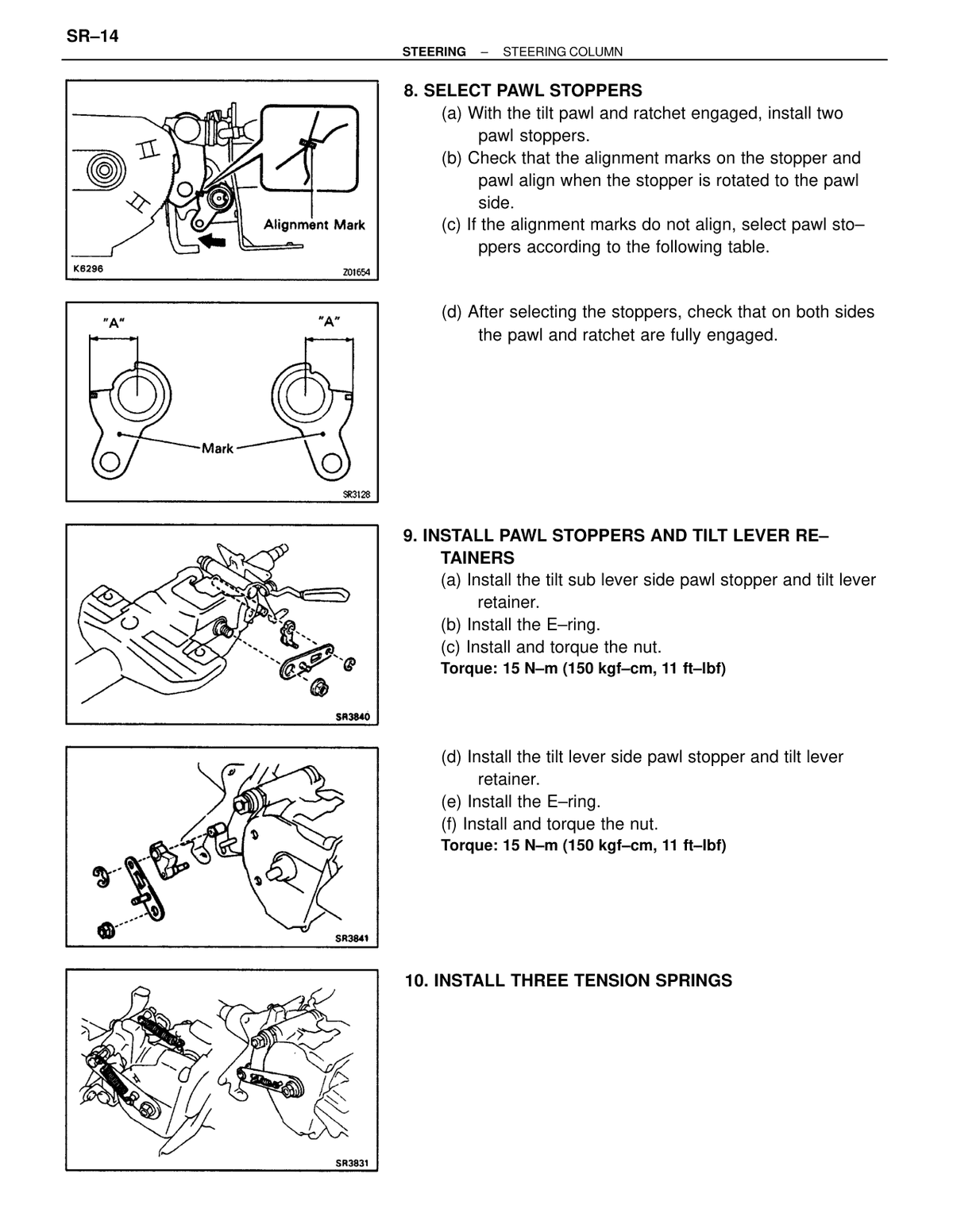

Steering Tilt sub lever side pawl stopper nut Step 9(c) 15 150 11 ↗ RM285U_1993_steering · p70 OEM manual
Steering Tilt lever side pawl stopper nut Step 9(f) 15 150 11 ↗ RM285U_1993_steering · p70 OEM manual
Turbocharger A/C Compressor bolt 73 (740, 54) shown adjacent to A/C Compressor 73 740 54 ↗ RM285U_1993_3sgte_turbocha · p1 OEM manual
Turbocharger Idler pulley bracket bolt A Bolt A — idler pulley bracket 25 250 18 ↗ RM285U_1993_3sgte_turbocha · p6 OEM manual
Turbocharger Idler pulley bracket bolt B Bolt B — idler pulley bracket 27 275 20 ↗ RM285U_1993_3sgte_turbocha · p6 OEM manual
Turbocharger Idler pulley bracket bolt C Bolt C — idler pulley bracket 37 375 27 ↗ RM285U_1993_3sgte_turbocha · p6 OEM manual
Turbocharger A/C compressor lower side bolts Two bolts on lower side of A/C compressor 25 250 18 ↗ RM285U_1993_3sgte_turbocha · p6 OEM manual
Turbocharger Lower suspension brace bolts Step (i) 73 740 54 ↗ RM285U_1993_3sgte_turbocha · p7 OEM manual
Turbocharger Turbine outlet elbow x Turbocharger 64 650 47 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Side bearing housing plate x Turbocharger 11 120 — ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Turbocharger x Exhaust manifold 64 650 47 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Oil pipe x Cylinder block (Bolt) 43 440 32 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Oil pipe x Cylinder block (Union bolt) 51 525 38 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Turbocharger stay x Turbocharger 69 705 51 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Turbocharger stay x Cylinder block 59 600 43 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Oxygen sensor x Turbine outlet elbow 44 450 33 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger No.4 air tube stay x Cylinder head 19 195 14 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger No.4 air tube stay x No.4 air tube 19 195 14 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Air by-pass valve x No.4 air tube 19 195 14 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Main TWC x Turbine outlet elbow 29 300 22 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Clutch release cylinder x Transaxle 12 120 9 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Front engine mounting bracket x Transaxle 77 790 57 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Front engine mounting insulator x Body 77 790 57 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Front engine mounting insulator x Bracket 96 980 71 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Front exhaust pipe support bracket x Suspension crossmember 21 210 15 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Suspension member damper x Suspension crossmember 21 210 15 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Tailpipe bracket x Front exhaust pipe bracket 19 190 14 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger A/C idler pulley bracket x Cylinder block (12 mm head) 25 250 18 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger A/C idler pulley bracket x Cylinder block (14 mm head) 27 275 20 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger A/C idler pulley bracket x RH engine hanger 37 375 27 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger A/C compressor x Cylinder block 25 250 18 ↗ RM285U_1993_3sgte_turbocha · p13 OEM manual
Turbocharger Tailpipe / exhaust fastener (66 N·m) 66 670 48 ↗ RM285U_1993_3sgte_turbocha · p17 OEM manual
Turbocharger Front Engine Mounting Insulator (upper) 73 740 54 ↗ RM285U_1993_3sgte_turbocha · p18 OEM manual
Turbocharger Front Engine Mounting Insulator (lower) 96 980 71 ↗ RM285U_1993_3sgte_turbocha · p18 OEM manual
Turbocharger Turbo Oil Hose / related fastener (64) Box adjacent to Turbo Oil Hose area 64 650 47 ↗ RM285U_1993_3sgte_turbocha · p19 OEM manual
Turbocharger Side Bearing Housing Plate fastener (64) Box adjacent to Side Bearing Housing Plate 64 650 47 ↗ RM285U_1993_3sgte_turbocha · p19 OEM manual
Turbocharger Side Bearing Housing Plate fastener (51) Box adjacent to Side Bearing Housing Plate 51 525 38 ↗ RM285U_1993_3sgte_turbocha · p19 OEM manual
Turbocharger Turbo Oil Pipe fastener Box adjacent to Turbo Oil Pipe 17 175 13 ↗ RM285U_1993_3sgte_turbocha · p19 OEM manual
Turbocharger TWC / Turbine Outlet Elbow lower fastener Box at bottom of diagram adjacent to TWC assembly 29 300 22 ↗ RM285U_1993_3sgte_turbocha · p19 OEM manual
Turbocharger Turbine outlet elbow nuts Step 1 — six nuts 64 650 47 ↗ RM285U_1993_3sgte_turbocha · p31 OEM manual
Turbocharger Side bearing housing plate nuts Step 2 — two nuts 11 120 — ↗ RM285U_1993_3sgte_turbocha · p31 OEM manual
Turbocharger Turbo water pipe nuts and bolts Step 3 — two nuts and two bolts 11 120 — ↗ RM285U_1993_3sgte_turbocha · p31 OEM manual
Turbocharger Four nuts holding turbocharger to exhaust manifold Step (c) 64 650 47 ↗ RM285U_1993_3sgte_turbocha · p32 OEM manual
Turbocharger Two nuts holding oil pipe to turbocharger Step (d) 17 175 13 ↗ RM285U_1993_3sgte_turbocha · p32 OEM manual
Turbocharger Union bolt holding oil pipe to cylinder block Step (e) 51 525 38 ↗ RM285U_1993_3sgte_turbocha · p32 OEM manual
Turbocharger Bolt holding bracket of oil pipe to cylinder block Step (f) 43 440 32 ↗ RM285U_1993_3sgte_turbocha · p32 OEM manual
Turbocharger Turbocharger stay — turbocharger side turbocharger side 69 705 51 ↗ RM285U_1993_3sgte_turbocha · p33 OEM manual
Turbocharger Turbocharger stay — cylinder block side cylinder block side 59 600 43 ↗ RM285U_1993_3sgte_turbocha · p33 OEM manual
Turbocharger RH front engine hanger — cylinder head for cylinder head 39 400 29 ↗ RM285U_1993_3sgte_turbocha · p34 OEM manual
Turbocharger RH front engine hanger — mounting bracket for mounting bracket 61 620 45 ↗ RM285U_1993_3sgte_turbocha · p34 OEM manual
Turbocharger No.4 air tube stay bolts four bolts 19 195 14 ↗ RM285U_1993_3sgte_turbocha · p34 OEM manual
Turbocharger Air by-pass valve bolt Step 13(c) 19 195 14 ↗ RM285U_1993_3sgte_turbocha · p35 OEM manual
Turbocharger TWC bolts and nuts Step 16(b) — three bolts and two nuts 29 300 22 ↗ RM285U_1993_3sgte_turbocha · p35 OEM manual
Turbocharger RH TWC stay bolts Step 16(c) — four bolts 59 600 43 ↗ RM285U_1993_3sgte_turbocha · p35 OEM manual
Turbocharger Clutch release cylinder bolts Two bolts 12 120 9 ↗ RM285U_1993_3sgte_turbocha · p36 OEM manual
Turbocharger Clutch release cylinder to transaxle bolts Two bolts — final tighten 77 790 57 ↗ RM285U_1993_3sgte_turbocha · p36 OEM manual
Turbocharger Mounting insulator to body bolts Step 18(a) — four bolts 77 790 57 ↗ RM285U_1993_3sgte_turbocha · p37 OEM manual
Turbocharger Mounting insulator to mounting bracket through bolt and nut Step 18(b) 96 980 71 ↗ RM285U_1993_3sgte_turbocha · p37 OEM manual
Turbocharger Front exhaust pipe nuts Step 20(b) — three new nuts, 14 mm deep socket wrench 62 630 46 ↗ RM285U_1993_3sgte_turbocha · p37 OEM manual
Turbocharger Support bracket bolts Step 20(c) 21 210 15 ↗ RM285U_1993_3sgte_turbocha · p38 OEM manual
Turbocharger Tailpipe to body bracket bolts and nut Step 21(b) 66 670 48 ↗ RM285U_1993_3sgte_turbocha · p38 OEM manual
Turbocharger Front exhaust pipe to tailpipe bolts Step 21(c) 43 440 32 ↗ RM285U_1993_3sgte_turbocha · p38 OEM manual
Turbocharger Front exhaust pipe bracket to tailpipe bracket bolts Step 21(d) 19 190 14 ↗ RM285U_1993_3sgte_turbocha · p38 OEM manual
Turbocharger Idler pulley bracket bolt A Bolt A of idler pulley bracket 25 250 18 ↗ RM285U_1993_3sgte_turbocha · p39 OEM manual
Turbocharger Idler pulley bracket bolt B Bolt B of idler pulley bracket 27 275 20 ↗ RM285U_1993_3sgte_turbocha · p39 OEM manual
Turbocharger Idler pulley bracket bolt C Bolt C of idler pulley bracket 37 375 27 ↗ RM285U_1993_3sgte_turbocha · p39 OEM manual
Turbocharger A/C compressor lower side bolts Two bolts on lower side of A/C compressor 25 260 18 ↗ RM285U_1993_3sgte_turbocha · p39 OEM manual
Turbocharger Lower suspension brace bolts Step (i) 73 740 54 ↗ RM285U_1993_3sgte_turbocha · p40 OEM manual
Turbocharger Upper suspension brace bolt for bolt 73 740 54 ↗ RM285U_1993_3sgte_turbocha · p41 OEM manual
Turbocharger Upper suspension brace nut for nut 64 650 47 ↗ RM285U_1993_3sgte_turbocha · p41 OEM manual
Unclassified Cold Start Injector Pipe (upper bolt) 12 125 9 ↗ RM285U_1993_3sgte_smpisyst · p13 OEM manual
Unclassified Cold Start Injector Pipe (lower bolt) 12 125 9 ↗ RM285U_1993_3sgte_smpisyst · p13 OEM manual
EFI / fuel injection Cold start injector bolts 52 in.-lbf 5.9 60 — ↗ RM285U_1993_3sgte_smpisyst · p16 OEM manual
EFI / fuel injection Cold start injector pipe union bolts 12 125 9 ↗ RM285U_1993_3sgte_smpisyst · p16 OEM manual
Unclassified Cold Start Injector Pipe (upper) 12 125 9 ↗ RM285U_1993_3sgte_smpisyst · p39 OEM manual
Unclassified Cold Start Injector Pipe (lower) 12 125 9 ↗ RM285U_1993_3sgte_smpisyst · p39 OEM manual
Unclassified Lock nut Fuel pressure regulator lock nut — step 1(e) 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p41 OEM manual
Unclassified Injector cover bolts Four bolts — step 2(b); value in in-lbf: 69 7.8 80 — ↗ RM285U_1993_3sgte_smpisyst · p41 OEM manual
Unclassified SST union bolt (fuel inlet hose to delivery pipe) 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p45 OEM manual
Unclassified Union bolt — fuel inlet hose to delivery pipe 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p47 OEM manual
Unclassified No.2 Center Floor Crossmember bolt 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p49 OEM manual
EFI / fuel injection Fuel pump bracket bolts to fuel tank Step 1(c) — five bolts; value listed as 30 in.-lbf 3.4 35 2.5 ↗ RM285U_1993_3sgte_smpisyst · p56 OEM manual
EFI / fuel injection Fuel tank band bolt Step 2(c) 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p56 OEM manual
EFI / fuel injection No.2 center floor crossmember bolts Step 2(d) — two bolts 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p56 OEM manual
Unclassified Front Fuel Cut-Off Valve / Fuel Pump / Fuel Sender Gauge mounting in·lbf specified; 1.5 (15, 13 in·lbf) 1.5 15 — ↗ RM285U_1993_3sgte_smpisyst · p60 OEM manual
Unclassified Gasket (Fuel Pump area) in·lbf specified; 1.5 (15, 13 in·lbf) 1.5 15 — ↗ RM285U_1993_3sgte_smpisyst · p60 OEM manual
Unclassified Rear Fuel Evaporation Bent Tube / Rear Fuel Cut-Off Valve mounting in·lbf specified; 1.5 (15, 13 in·lbf) 1.5 15 — ↗ RM285U_1993_3sgte_smpisyst · p60 OEM manual
Unclassified Front Fuel Evaporation Bent Tube mounting in·lbf specified; 3.4 (35, 30 in·lbf) 3.4 35 — ↗ RM285U_1993_3sgte_smpisyst · p60 OEM manual
Unclassified No. 2 Center Floor Crossmember / Heat Insulator mounting in·lbf specified; 3.4 (35, 30 in·lbf) 3.4 35 — ↗ RM285U_1993_3sgte_smpisyst · p60 OEM manual
Unclassified Fuel Tank Band mounting bolts 29 (300, 22) — two instances shown for tank band fasteners 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p60 OEM manual
Unclassified SST 09631-22020 Fulcrum length 30 cm (11.81 in.) 30 310 22 ↗ RM285U_1993_3sgte_smpisyst · p61 OEM manual
Unclassified Delivery Pipe / Fuel Inlet Pipe mounting bolt 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p69 OEM manual
Unclassified Cold Start Injector Pipe / related fitting 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p69 OEM manual
EFI / fuel injection SST union bolt to fuel filter outlet (17 mm head) Two new gaskets; SST 09268-41045 (90405-09015) 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p74 OEM manual
EFI / fuel injection SST union bolt to delivery pipe — 12 mm head SST 09268-41045 (09268-41080, 90405-09015) 12 125 9 ↗ RM285U_1993_3sgte_smpisyst · p74 OEM manual
EFI / fuel injection SST union bolt to delivery pipe — 17 mm head SST 09268-41045 (09268-41080, 90405-09015) 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p74 OEM manual
EFI / fuel injection fuel inlet hose union bolt Reinstall fuel inlet hose to fuel filter outlet with two new gaskets 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p76 OEM manual
Unclassified Injector cover bolts in.-lbf: 69 7.8 80 — ↗ RM285U_1993_3sgte_smpisyst · p77 OEM manual
Unclassified Delivery pipe assembly bolts Step (e) 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p79 OEM manual
Unclassified Union bolt — fuel inlet pipe to delivery pipe Step (f) 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p79 OEM manual
Unclassified EGR valve bolts — intake manifold 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p80 OEM manual
Unclassified EGR valve bolts — cylinder head 25 260 19 ↗ RM285U_1993_3sgte_smpisyst · p80 OEM manual
Unclassified Cold start injector bolts Step 7(a) 5.9 60 — ↗ RM285U_1993_3sgte_smpisyst · p81 OEM manual
Unclassified Cold start injector pipe union bolts Step 8 12 125 9 ↗ RM285U_1993_3sgte_smpisyst · p81 OEM manual
Unclassified Union bolt — high pressure pipe union Union Bolt Type 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p98 OEM manual
Unclassified Flare nut — high pressure pipe union Flare Nut Type; SST 09631-22020; torque wrench fulcrum length 30 cm (111.81 in.) 30 310 22 ↗ RM285U_1993_3sgte_smpisyst · p98 OEM manual
Unclassified Fuel pump x Fuel tank 30 in.-lbf 3.4 35 — ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Fuel sender gauge x Fuel tank 13 in.-lbf 1.5 15 — ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Fuel evaporation vent tube x Fuel tank 13 in.-lbf 1.5 15 — ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Fuel tank filler pipe x Fuel tank 30 in.-lbf 3.4 35 — ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified No.2 center floor crossmember x Body 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Cold start injector x Intake manifold 52 in.-lbf 5.9 60 — ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Cold start injector pipe x Cold start injector 12 125 9 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Fuel pressure regulator x Delivery pipe 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Injector cover x Delivery pipe 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Fuel inlet pipe x Delivery pipe 29 300 22 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Throttle body x Intake manifold 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Intake air connector stay x Throttle body 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Intake air connector stay x Cylinder head 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Intake air connector x Intake air connector 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified No.1 intake manifold stay x Intake manifold 25 260 19 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified No.1 intake manifold stay x Cylinder block 25 260 19 ↗ RM285U_1993_3sgte_smpisyst · p105 OEM manual
Unclassified Throttle body bolts Four bolts; 45 mm upper side, 70 mm lower side 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p116 OEM manual
Unclassified Intake air connector stay bolts (10 mm head) 69 in.-lbf; 10 mm head 7.8 80 5.75 ↗ RM285U_1993_3sgte_smpisyst · p116 OEM manual
Unclassified Intake air connector stay bolts (12 mm head) 12 mm head 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p116 OEM manual
Unclassified Intake air connector bolts and nuts Two bolts and two nuts 19 195 14 ↗ RM285U_1993_3sgte_smpisyst · p116 OEM manual
Unclassified No.1 Intake Manifold Stay bolts 25 260 19 ↗ RM285U_1993_3sgte_smpisyst · p143 OEM manual
Introduction Steering knuckle with axle hub / strut bolt — 1450 105 ↗ AW11_1988_full · p4 OEM manual
Maintenance Front strut bar bracket-to-body mounting bolts 58 590 43 ↗ AW11_1988_full · p21 OEM manual
Maintenance Rear suspension arm bracket-to-body mounting bolts 58 590 43 ↗ AW11_1988_full · p21 OEM manual
Engine — mechanical Idler Pulley bolt 475 (34, 47) — upper idler pulley 47 475 34 ↗ AW11_1988_full · p38 OEM manual
Engine — mechanical Idler Pulley bolt 475 (34, 47) — lower idler pulley / camshaft timing pulley area 47 475 34 ↗ AW11_1988_full · p38 OEM manual
Engine — mechanical No. 3 Timing Belt Cover bolt 375 (27, 37) 37 375 27 ↗ AW11_1988_full · p38 OEM manual
Engine — mechanical Pulley Bolt (Crankshaft Pulley) 1,400 (101, 137) 137 1400 101 ↗ AW11_1988_full · p38 OEM manual
Maintenance Front strut bar bracket-to-body mounting bolts 58 590 43 ↗ AW11_1988_full · p40 OEM manual
Maintenance Rear suspension arm bracket-to-body mounting bolts 58 590 43 ↗ AW11_1988_full · p40 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt (No. 3 Timing Belt Cover) 37 375 27 ↗ AW11_1988_full · p57 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt (EX/IN Side) 47 475 34 ↗ AW11_1988_full · p57 OEM manual
Engine — mechanical Camshaft timing pulley bolt Step 1(c) 47 475 34 ↗ AW11_1988_full · p63 OEM manual
Engine — mechanical Cylinder head cover cap nuts Step 2(c) 13 130 9 ↗ AW11_1988_full · p63 OEM manual
Engine — mechanical Crankshaft pulley bolt SST 09213-70010 and 09330-00021 137 1400 101 ↗ AW11_1988_full · p67 OEM manual
Engine — mechanical RH engine mounting insulator through bolt 58 600 43 ↗ AW11_1988_full · p67 OEM manual
Engine — mechanical Water Outlet / Camshaft Timing Pulley 47 475 34 ↗ AW11_1988_full · p68 OEM manual
Engine — mechanical Bearing caps Camshaft oil clearance inspection — step 15(d), See step 2 on page EM-47 13 130 9 ↗ AW11_1988_full · p84 OEM manual
Engine — mechanical Cylinder head bolts 1st pass — uniform tighten in sequence using SST 09205-16010; then 2nd pass +90°; then 3rd pass +90° 29 300 22 ↗ AW11_1988_full · p88 OEM manual
Engine — mechanical Bearing cap bolts Uniformly tighten in several passes in sequence shown 13 130 9 ↗ AW11_1988_full · p89 OEM manual
Engine — mechanical No. 4 Timing Belt Cover bolts Step 3 — seven bolts 9.3 95 — ↗ AW11_1988_full · p90 OEM manual
Engine — mechanical RH Mounting Bracket bolts Step 4 — three bolts 39 400 29 ↗ AW11_1988_full · p90 OEM manual
Engine — mechanical Camshaft timing pulley bolt Step 5(c) — plate washer and bolt 47 475 34 ↗ AW11_1988_full · p90 OEM manual
Engine — mechanical Water outlet and by-pass pipe — cylinder head side 27 280 20 ↗ AW11_1988_full · p92 OEM manual
Engine — mechanical Water outlet and by-pass pipe — cylinder block side 13 130 9 ↗ AW11_1988_full · p92 OEM manual
Engine — mechanical Alternator drive adjusting bar bolts 18 185 13 ↗ AW11_1988_full · p92 OEM manual
Engine — mechanical Intake air control valve and intake manifold 27 280 20 ↗ AW11_1988_full · p92 OEM manual
Engine — mechanical Delivery pipe bolts Three bolts securing delivery pipe with injectors 17 175 13 ↗ AW11_1988_full · p93 OEM manual
Engine — mechanical Exhaust manifold bolts and nuts Three bolts and two nuts 25 250 18 ↗ AW11_1988_full · p93 OEM manual
Engine — mechanical Manifold stay bolt and nut Manifold stay installation 39 400 29 ↗ AW11_1988_full · p93 OEM manual
Engine — mechanical Pressure regulator bolts Step 28(a); 82 in-lb 9.3 95 — ↗ AW11_1988_full · p95 OEM manual
Engine — mechanical No. 1 fuel pipe union bolt Step 29(a) 29 300 22 ↗ AW11_1988_full · p95 OEM manual
Transmission / transaxle Straight screw plug (shift fork shaft) 25 250 18 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Transaxle x Engine — 12 mm bolt 64 650 47 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Transaxle x Engine — 10 mm bolt 46 470 34 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Exhaust pipe x Exhaust manifold 62 630 46 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Control cable bracket — Transaxle side 64 650 47 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Control cable bracket — Release cylinder side 18 185 13 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Selecting bellcrank support set bolt 20 200 14 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Ring gear x Differential case 124 1260 91 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Differential case No. 1 x No. 2 63 640 46 ↗ AW11_1988_full · p1000 OEM manual
Transmission / transaxle Torque converter x Drive plate 27 280 20 ↗ AW11_1988_full · p1005 OEM manual
Transmission / transaxle Second coast brake band guide 48 in.-lb 5.4 55 — ↗ AW11_1988_full · p1005 OEM manual
Transmission / transaxle Upper valve body x Lower valve body 56 in.-lb 6.4 65 — ↗ AW11_1988_full · p1005 OEM manual
Transmission / transaxle Cooler pipe union nut x Union elbow 34 350 25 ↗ AW11_1988_full · p1005 OEM manual
Transmission / transaxle Parking lock pawl bracket 65 in.-lb 7.4 75 — ↗ AW11_1988_full · p1005 OEM manual
Transmission / transaxle Transaxle rear cover x Transaxle case 29 300 22 ↗ AW11_1988_full · p1005 OEM manual
Transmission / transaxle Neutral start switch x Transaxle case 48 in.-lb 5.4 55 — ↗ AW11_1988_full · p1005 OEM manual
Transmission / transaxle Neutral start switch 61 in.-lb 6.9 70 — ↗ AW11_1988_full · p1005 OEM manual
Transmission / transaxle Ring gear x Differential case 97 985 71 ↗ AW11_1988_full · p1006 OEM manual
Transmission / transaxle Transaxle housing x Transmission case 29 300 22 ↗ AW11_1988_full · p1006 OEM manual
Suspension & axle Steering knuckle x Shock absorber 142 1450 105 ↗ AW11_1988_full · p1007 OEM manual
Suspension & axle Stabilizer bar link x Shock absorber 64 650 47 ↗ AW11_1988_full · p1007 OEM manual
Suspension & axle Steering knuckle x Disc brake caliper 88 900 65 ↗ AW11_1988_full · p1007 OEM manual
Suspension & axle Suspension support x Shock absorber piston rod 73 740 54 ↗ AW11_1988_full · p1008 OEM manual
Suspension & axle Side gear shaft x Drive shaft 4A-GZE 65 660 48 ↗ AW11_1988_full · p1008 OEM manual
Brakes Front disc brake torque plate x Steering knuckle 88 900 65 ↗ AW11_1988_full · p1009 OEM manual
Brakes Rear disc brake torque plate x Rear axle carrier 59 600 43 ↗ AW11_1988_full · p1009 OEM manual

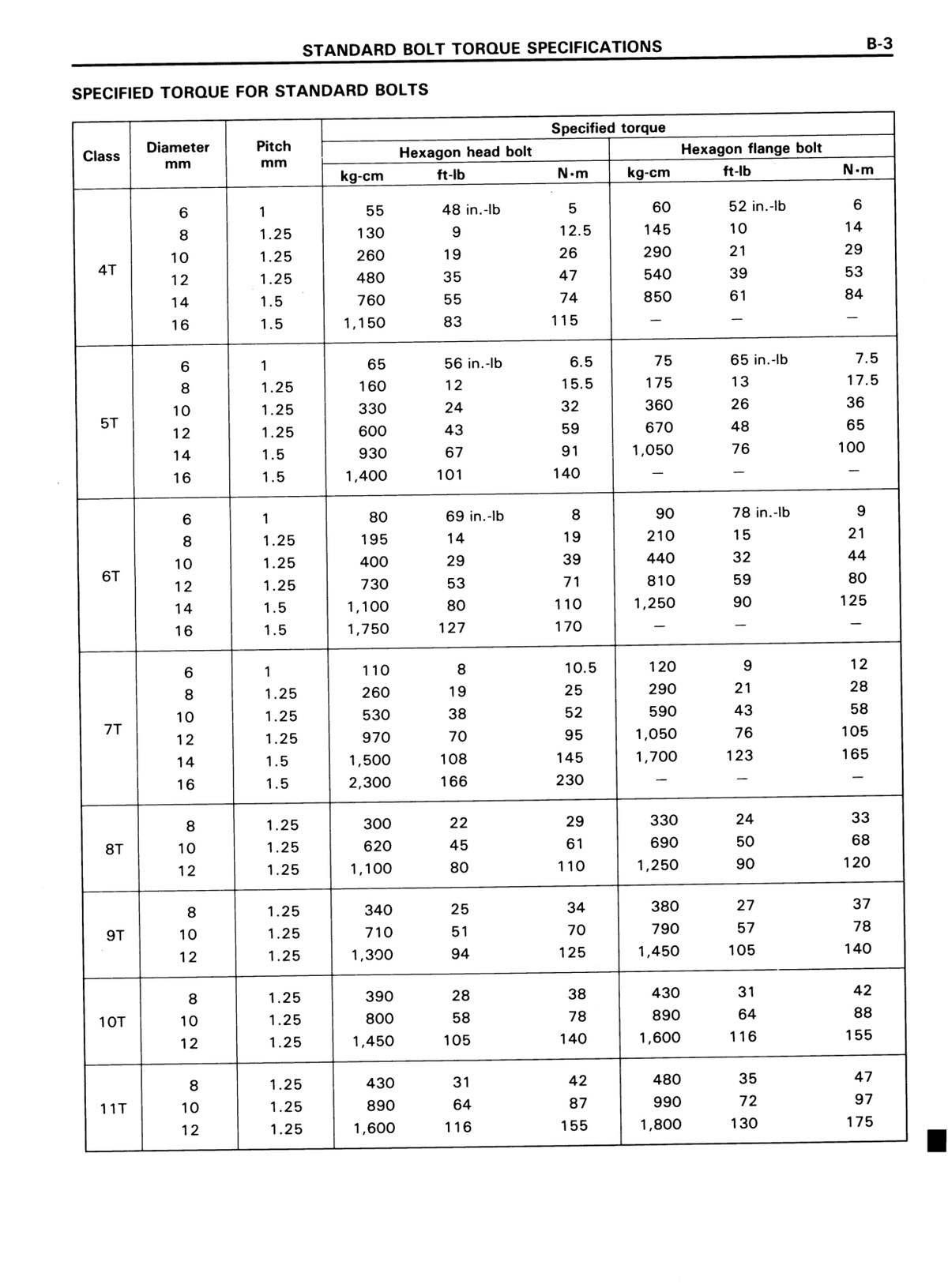

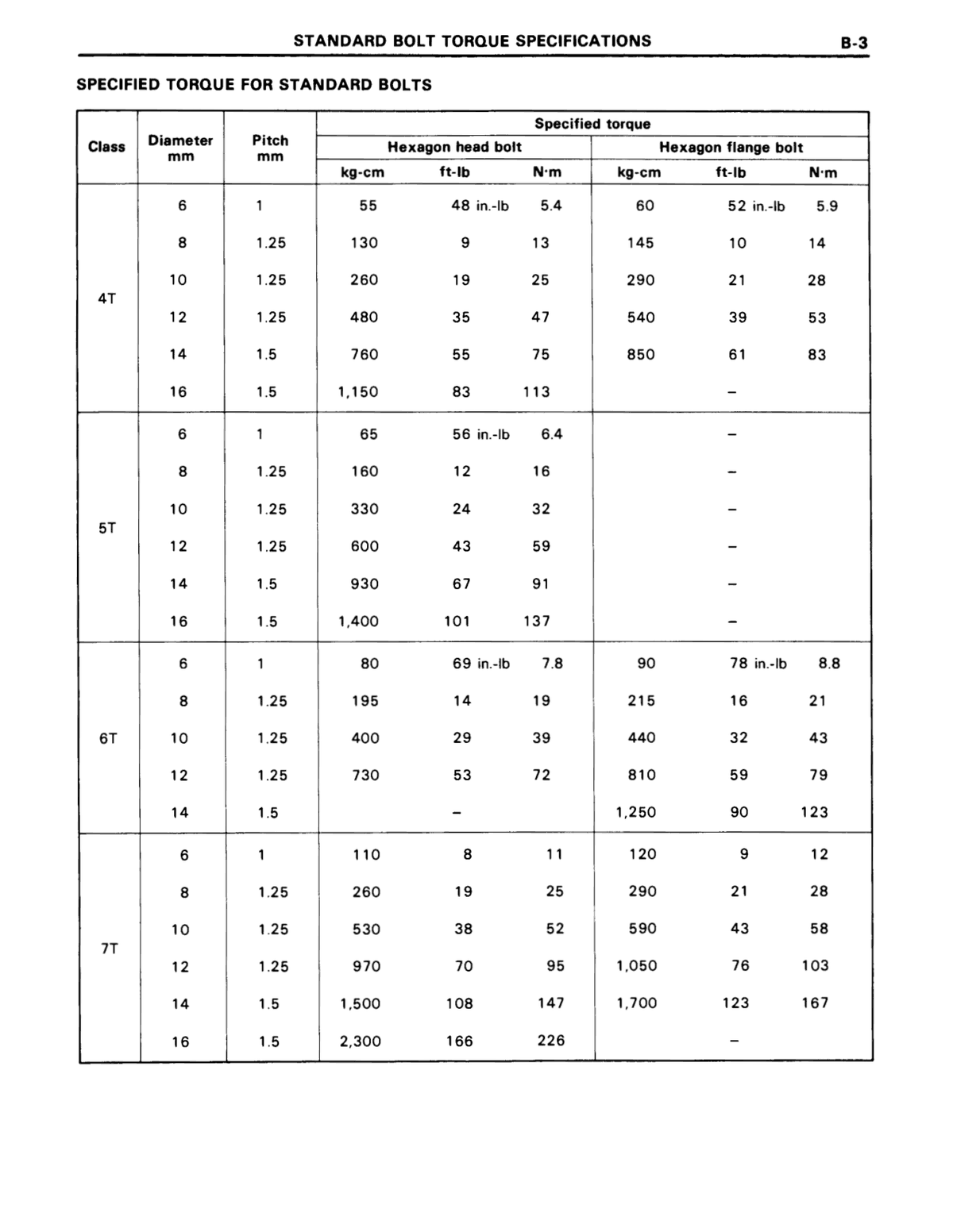

Unclassified 4T Hexagon head bolt — M6 P1.0 48 in-lb; Class 4T, diameter 6mm, pitch 1.0 5.4 55 4 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon head bolt — M8 P1.25 Class 4T, diameter 8mm, pitch 1.25 13 130 9 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon head bolt — M10 P1.25 Class 4T, diameter 10mm, pitch 1.25 25 260 19 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon head bolt — M12 P1.25 Class 4T, diameter 12mm, pitch 1.25 47 480 35 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon head bolt — M14 P1.5 Class 4T, diameter 14mm, pitch 1.5 75 760 55 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon head bolt — M16 P1.5 Class 4T, diameter 16mm, pitch 1.5 113 1150 83 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon flange bolt — M6 P1.0 52 in-lb; Class 4T, diameter 6mm, pitch 1.0 5.9 60 4.3 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon flange bolt — M8 P1.25 Class 4T, diameter 8mm, pitch 1.25 14 145 10 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon flange bolt — M10 P1.25 Class 4T, diameter 10mm, pitch 1.25 28 290 21 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon flange bolt — M12 P1.25 Class 4T, diameter 12mm, pitch 1.25 53 540 39 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 4T Hexagon flange bolt — M14 P1.5 Class 4T, diameter 14mm, pitch 1.5 83 850 61 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 5T Hexagon head bolt — M6 P1.0 56 in-lb; Class 5T, diameter 6mm, pitch 1.0 6.4 65 4.7 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 5T Hexagon head bolt — M8 P1.25 Class 5T, diameter 8mm, pitch 1.25 16 160 12 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 5T Hexagon head bolt — M10 P1.25 Class 5T, diameter 10mm, pitch 1.25 32 330 24 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 5T Hexagon head bolt — M12 P1.25 Class 5T, diameter 12mm, pitch 1.25 59 600 43 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 5T Hexagon head bolt — M14 P1.5 Class 5T, diameter 14mm, pitch 1.5 91 930 67 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 5T Hexagon head bolt — M16 P1.5 Class 5T, diameter 16mm, pitch 1.5 137 1400 101 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon head bolt — M6 P1.0 69 in-lb; Class 6T, diameter 6mm, pitch 1.0 7.8 80 5.7 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon head bolt — M8 P1.25 Class 6T, diameter 8mm, pitch 1.25 19 195 14 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon head bolt — M10 P1.25 Class 6T, diameter 10mm, pitch 1.25 39 400 29 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon head bolt — M12 P1.25 Class 6T, diameter 12mm, pitch 1.25 72 730 53 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon flange bolt — M6 P1.0 78 in-lb; Class 6T, diameter 6mm, pitch 1.0 8.8 90 6.8 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon flange bolt — M8 P1.25 Class 6T, diameter 8mm, pitch 1.25 21 215 16 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon flange bolt — M10 P1.25 Class 6T, diameter 10mm, pitch 1.25 43 440 32 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon flange bolt — M12 P1.25 Class 6T, diameter 12mm, pitch 1.25 79 810 59 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 6T Hexagon flange bolt — M14 P1.5 Class 6T, diameter 14mm, pitch 1.5 123 1250 90 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon head bolt — M6 P1.0 Class 7T, diameter 6mm, pitch 1.0 11 110 8 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon head bolt — M8 P1.25 Class 7T, diameter 8mm, pitch 1.25 25 260 19 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon head bolt — M10 P1.25 Class 7T, diameter 10mm, pitch 1.25 52 530 38 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon head bolt — M12 P1.25 Class 7T, diameter 12mm, pitch 1.25 95 970 70 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon head bolt — M14 P1.5 Class 7T, diameter 14mm, pitch 1.5 147 1500 108 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon head bolt — M16 P1.5 Class 7T, diameter 16mm, pitch 1.5 226 2300 166 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon flange bolt — M6 P1.0 Class 7T, diameter 6mm, pitch 1.0 12 120 9 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon flange bolt — M8 P1.25 Class 7T, diameter 8mm, pitch 1.25 28 290 21 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon flange bolt — M10 P1.25 Class 7T, diameter 10mm, pitch 1.25 58 590 43 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon flange bolt — M12 P1.25 Class 7T, diameter 12mm, pitch 1.25 103 1050 76 ↗ AW11_1988_full · p1014 OEM manual
Unclassified 7T Hexagon flange bolt — M14 P1.5 Class 7T, diameter 14mm, pitch 1.5 167 1700 123 ↗ AW11_1988_full · p1014 OEM manual
Engine — mechanical Exhaust manifold bolts and nuts Step 2(a) 25 250 18 ↗ AW11_1988_full · p103 OEM manual
Engine — mechanical Pulsation damper (No. 2 fuel hose) Install with new gaskets 29 300 22 ↗ AW11_1988_full · p105 OEM manual
Engine — mechanical No. 3 fuel pipe union bolt Install with new gasket 15 150 11 ↗ AW11_1988_full · p105 OEM manual
Engine — mechanical No. 2 air outlet duct bolts and nuts 82 in.-lb; install with new gasket 9 95 — ↗ AW11_1988_full · p105 OEM manual
Engine — mechanical Cold start injector pipe union bolt Connect to delivery pipe with new gaskets 15 150 11 ↗ AW11_1988_full · p105 OEM manual
Engine — mechanical Bearing cap bolts Step (h), No. 3 cap only, do not turn crankshaft 60 610 44 ↗ AW11_1988_full · p126 OEM manual
Engine — mechanical Connecting rod cap nuts (bolt type) — first pass First pass; then retighten additional 90° 39 400 29 ↗ AW11_1988_full · p141 OEM manual
Engine — mechanical Connecting rod cap nuts (hexagon nut type) Final torque 49 500 36 ↗ AW11_1988_full · p141 OEM manual
Engine — mechanical Rear oil seal retainer bolts in.-lb value: 82 in.-lb 9.3 95 — ↗ AW11_1988_full · p142 OEM manual
Engine — mechanical Flywheel mount bolts (M/T) tighten in sequence shown, several passes 74 750 54 ↗ AW11_1988_full · p142 OEM manual
Engine — mechanical Torque Converter Mounting Bolt A/T vehicle — six bolts, install gray bolt first then five black bolts 27 280 20 ↗ AW11_1988_full · p143 OEM manual
Engine — mechanical Flywheel Housing Under Cover / Stiffener Plate Bolt A/T vehicle stiffener plate; M/T three bolts or A/T two bolts for under cover 37 380 27 ↗ AW11_1988_full · p143 OEM manual
Engine — mechanical Rear mounting insulator — 10 mm bolt head Step 9 52 530 38 ↗ AW11_1988_full · p144 OEM manual
Engine — mechanical Rear mounting insulator — 12 mm bolt head Step 9 78 800 58 ↗ AW11_1988_full · p144 OEM manual
Engine — mechanical Front mounting insulator bolt a Step 10(a) 52 530 38 ↗ AW11_1988_full · p144 OEM manual
Engine — mechanical Front mounting insulator bolt b Step 10(a) 73 740 54 ↗ AW11_1988_full · p144 OEM manual
Engine — mechanical Front mounting insulator through bolt Step 10(c), final torque after bouncing engine 78 800 58 ↗ AW11_1988_full · p144 OEM manual
Engine — mechanical Torque converter mounting bolt A/T vehicle — install gray bolt first, then five black bolts 27 280 20 ↗ AW11_1988_full · p149 OEM manual
Engine — mechanical Flywheel housing under cover bolt / stiffener plate bolt A/T vehicle stiffener plate; M/T three bolts or A/T two bolts for under cover 37 380 27 ↗ AW11_1988_full · p149 OEM manual
Engine — mechanical Rear mounting insulator — 10 mm bolt head Step 8 52 530 38 ↗ AW11_1988_full · p150 OEM manual
Engine — mechanical Rear mounting insulator — 12 mm bolt head Step 8 78 800 58 ↗ AW11_1988_full · p150 OEM manual
Engine — mechanical Front mounting insulator — bolt a Step 9(a) 52 530 38 ↗ AW11_1988_full · p150 OEM manual
Engine — mechanical Front mounting insulator — bolt b Step 9(a) 73 740 54 ↗ AW11_1988_full · p150 OEM manual
Engine — mechanical Front mounting insulator — through bolt Step 9(c), final torque after engine bounce alignment 78 800 58 ↗ AW11_1988_full · p150 OEM manual
Unclassified Housing front cover bolts and stud bolt Step 5(c) 4.9 50 — ↗ AW11_1988_full · p168 OEM manual
Unclassified Clutch flange bolts Step 6 — five bolts; value_ftlb is in.-lb converted: 43 in.-lb 4.9 50 — ↗ AW11_1988_full · p169 OEM manual
Unclassified Clutch pulley ring nut Step 8 — SST 09814-22010 25 250 18 ↗ AW11_1988_full · p169 OEM manual
Unclassified No.2 air inlet duct bolts and nuts 82 in.-lb; three bolts and two nuts 9.4 95 — ↗ AW11_1988_full · p170 OEM manual
Unclassified Stud bolts (supercharger) Step 1(b) and Step 1(d) stud bolt side 34 350 25 ↗ AW11_1988_full · p171 OEM manual
Unclassified Pivot bolt side (supercharger) Step 1(d) pivot bolt side 64 — 47 ↗ AW11_1988_full · p171 OEM manual
Unclassified No.1 inlet duct bolts to intake manifold Step 2(b) 19 190 14 ↗ AW11_1988_full · p171 OEM manual
Unclassified No.1 air outlet duct bolts and nuts Step 2(c) 10 100 7 ↗ AW11_1988_full · p171 OEM manual

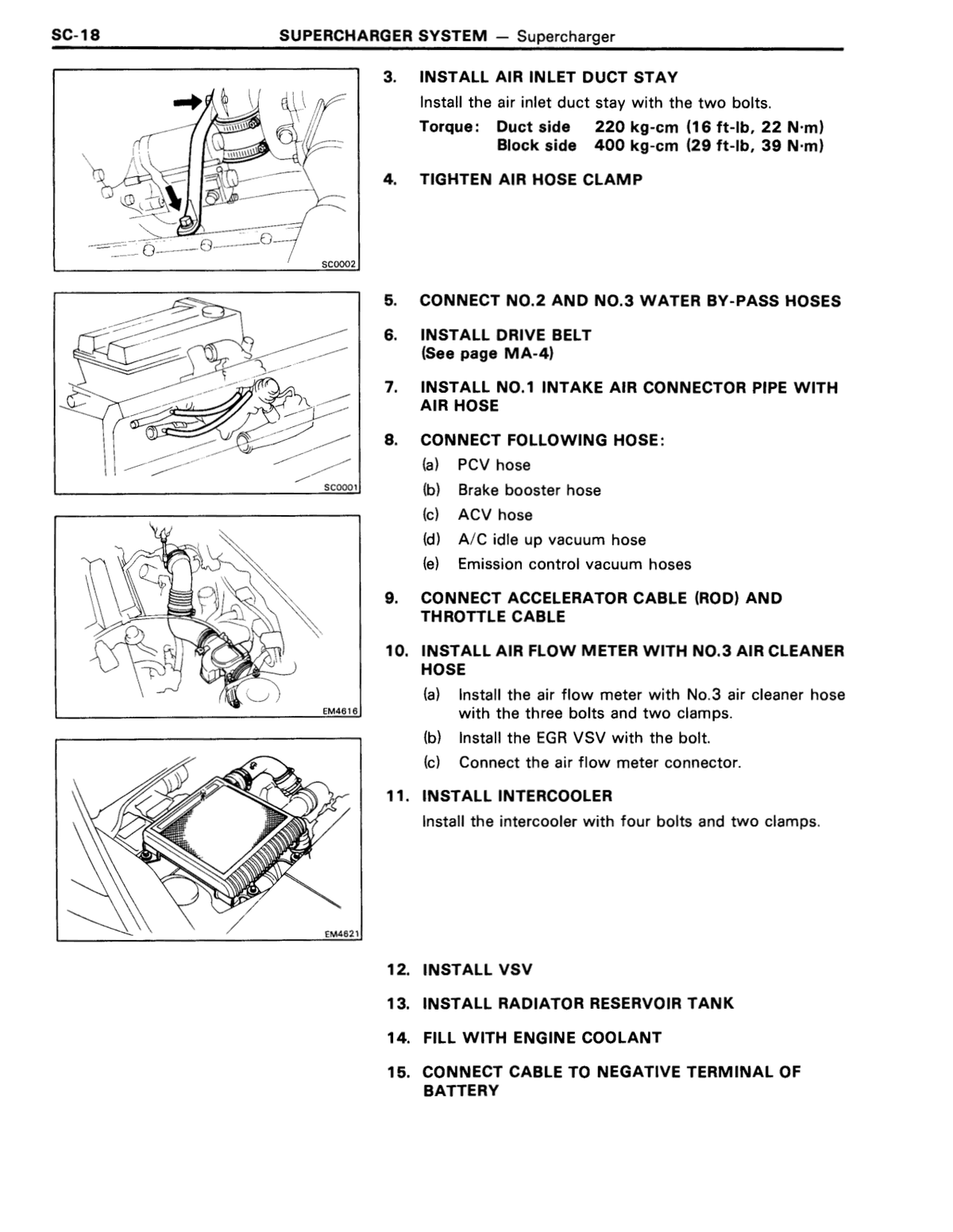

Unclassified Air inlet duct stay — Duct side Step 3 — Duct side 22 220 16 ↗ AW11_1988_full · p172 OEM manual
Unclassified Air inlet duct stay — Block side Step 3 — Block side 39 400 29 ↗ AW11_1988_full · p172 OEM manual
EFI / fuel injection Union bolt (high pressure pipe union) 29 300 22 ↗ AW11_1988_full · p202 OEM manual
EFI / fuel injection Flare nut Tighten using SST with torque wrench fulcrum length of 30 cm (11.81 in.) 30 310 22 ↗ AW11_1988_full · p203 OEM manual
EFI / fuel injection Fuel pump bracket screws Range: 20–60 kg-cm, 18–52 in.-lb, 2.0–5.8 N·m 2 20 — ↗ AW11_1988_full · p267 OEM manual
EFI / fuel injection Flare nut (fuel tank) — using SST 09631-22020 Use torque wrench with fulcrum length of 30 cm (11.81 in.) 30 310 22 ↗ AW11_1988_full · p267 OEM manual
EFI / fuel injection Fuel tank clamp/pipe fitting Fulcrum length 2–7 mm (0.08–0.28 in.) 34 350 25 ↗ AW11_1988_full · p267 OEM manual
EFI / fuel injection Cold start injector bolts 65 in-lb; Step 1 7.4 75 — ↗ AW11_1988_full · p272 OEM manual
EFI / fuel injection Cold start injector pipe union bolts Step 2 18 180 13 ↗ AW11_1988_full · p272 OEM manual
EFI / fuel injection Pressure regulator bolts Install pressure regulator to delivery pipe 7.4 75 — ↗ AW11_1988_full · p273 OEM manual
EFI / fuel injection Fuel pipe flare nut Connect fuel pipe 29 300 22 ↗ AW11_1988_full · p273 OEM manual
EFI / fuel injection Pressure regulator bolts 65 in-lb; Install pressure regulator to delivery pipe 7.4 75 — ↗ AW11_1988_full · p274 OEM manual
EFI / fuel injection Fuel hose union bolt Connect fuel hose 15 150 11 ↗ AW11_1988_full · p274 OEM manual
EFI / fuel injection Three thinner spacers bolts Step e 17 175 13 ↗ AW11_1988_full · p284 OEM manual
EFI / fuel injection Fuel inlet pipe union bolt Step 4(b) 29 300 22 ↗ AW11_1988_full · p284 OEM manual
EFI / fuel injection Fuel inlet pipe union bolt Step 3(b) 29 300 22 ↗ AW11_1988_full · p286 OEM manual
EFI / fuel injection Air outlet duct bolts and nuts Step 10 10 100 7 ↗ AW11_1988_full · p286 OEM manual
EFI / fuel injection Cold start injector pipe union bolt 15 150 11 ↗ AW11_1988_full · p287 OEM manual
EFI / fuel injection Fuel Pump mounting bolt in·lb value: 30 3.4 35 — ↗ AW11_1988_full · p288 OEM manual
EFI / fuel injection Fuel Sender Gauge mounting bolt in·lb value: 13 1.3 15 — ↗ AW11_1988_full · p288 OEM manual
EFI / fuel injection No. 1 Fuel Tank Cushion / Fuel Tank band bolt (130) 13 130 9 ↗ AW11_1988_full · p288 OEM manual
EFI / fuel injection Fuel Tank band bolt (35) in·lb value: 30 3.4 35 — ↗ AW11_1988_full · p288 OEM manual
EFI / fuel injection No. 1 Left Fuel Tank Band bolt (140) 14 140 10 ↗ AW11_1988_full · p288 OEM manual
EFI / fuel injection No. 2 Left Fuel Tank Band / No. 1 Right Fuel Tank Band bolt (145) 14 145 10 ↗ AW11_1988_full · p288 OEM manual
EFI / fuel injection No. 1 Left Fuel Tank Band bolt (195) 19 195 14 ↗ AW11_1988_full · p288 OEM manual
EFI / fuel injection Throttle body bolts and nuts (4A-GE) 4A-GE throttle body installation 22 220 16 ↗ AW11_1988_full · p299 OEM manual
EFI / fuel injection Throttle body bolts and nuts (4A-GZE) 4A-GZE throttle body installation 22 220 16 ↗ AW11_1988_full · p299 OEM manual
EFI / fuel injection Intake air connector bolts and nuts (4A-GZE) 4A-GZE intake air connector installation 10 100 7 ↗ AW11_1988_full · p299 OEM manual
Lubrication / oil Pump body cover screws Five screws securing pump body cover 10 105 8 ↗ AW11_1988_full · p354 OEM manual
Lubrication / oil Oil pan bolts and nuts Nineteen bolts and two nuts 4.9 50 — ↗ AW11_1988_full · p356 OEM manual
Lubrication / oil Pipe to Catalytic converter Front exhaust pipe, four bolts and two nuts 43 440 32 ↗ AW11_1988_full · p356 OEM manual
Lubrication / oil Exhaust pipe to exhaust manifold nuts Three new nuts, two new gaskets 62 630 46 ↗ AW11_1988_full · p356 OEM manual
Lubrication / oil Relief valve plug Step 2 — Install Relief Valve 37 375 27 ↗ AW11_1988_full · p360 OEM manual
Lubrication / oil No.1 oil filter bracket union bolt Step 3 — Install No.1 Oil Filter Bracket 44 450 33 ↗ AW11_1988_full · p360 OEM manual
Lubrication / oil No.2 oil filter bracket bolts and nuts Step 4 — Install No.2 Oil Filter Bracket 20 200 14 ↗ AW11_1988_full · p360 OEM manual
Lubrication / oil Oil cooler pipe union bolt (step 6a) Install with bolt and two new gaskets 29 300 22 ↗ AW11_1988_full · p361 OEM manual
Lubrication / oil Oil cooler pipe union bolt (step 6b) Install with two new gaskets 25 250 18 ↗ AW11_1988_full · p361 OEM manual
Starting / charging Starter motor bolts (flywheel bellhousing) Step 2 — Install starter motor in flywheel bellhousing 39 400 29 ↗ AW11_1988_full · p385 OEM manual
Starting / charging Pulley nut (SST B tightening torque) SST 09820-63010; tighten SST B clockwise to secure SST A to pulley shaft 39 400 29 ↗ AW11_1988_full · p393 OEM manual
Starting / charging Pulley nut — initial tighten (SST B clockwise) Step 3(b), SST 09820-63010 39 400 29 ↗ AW11_1988_full · p398 OEM manual
Starting / charging Pulley nut — final torque (SST A) Step 3(e) 110 1125 81 ↗ AW11_1988_full · p398 OEM manual
Clutch Clutch line and bleeder tubes connection Using SST 09751-36011 20 200 14 ↗ AW11_1988_full · p412 OEM manual
Transmission / transaxle Transaxle Case bolt 12 mm 12 mm bolt 64 650 47 ↗ AW11_1988_full · p423 OEM manual
Transmission / transaxle Transaxle Case bolt 10 mm 10 mm bolt 46 470 34 ↗ AW11_1988_full · p423 OEM manual
Transmission / transaxle Magnet / Reverse Shift Arm bolt 17 175 13 ↗ AW11_1988_full · p423 OEM manual
Transmission / transaxle Shift and Select Lever Shaft / No. 1 Shift Fork area 20 200 14 ↗ AW11_1988_full · p424 OEM manual
Transmission / transaxle Needle Roller Bearing Spacer / 2nd Gear area fastener 115 (8, 11) — non-reusable part indicated nearby 11 115 8 ↗ AW11_1988_full · p425 OEM manual
Transmission / transaxle Snap Ring / Output Gear Spacer area fastener 1,200 (87, 118) — non-reusable part 118 1200 87 ↗ AW11_1988_full · p425 OEM manual
Transmission / transaxle 5th Gear / Rear Bearing Retainer area fastener 195 (14, 19) 19 195 14 ↗ AW11_1988_full · p425 OEM manual
Transmission / transaxle Three bolts (fork shafts) Step (f) 16 160 12 ↗ AW11_1988_full · p445 OEM manual
Transmission / transaxle Transmission case bolts (sixteen) 29 300 22 ↗ AW11_1988_full · p446 OEM manual
Transmission / transaxle Straight screw plug (For shift fork shaft) 25 250 18 ↗ AW11_1988_full · p447 OEM manual
Transmission / transaxle Reverse idler gear shaft lock bolt 24 240 17 ↗ AW11_1988_full · p447 OEM manual
Transmission / transaxle Lock nut Step 36 — engage gear double meshing before torquing 118 1200 87 ↗ AW11_1988_full · p449 OEM manual
Transmission / transaxle Control shaft cover bolts Step 41(d) 20 200 14 ↗ AW11_1988_full · p450 OEM manual
Transmission / transaxle Transmission case cover bolts (nine bolts) Step 44(c) 18 185 13 ↗ AW11_1988_full · p451 OEM manual
Transmission / transaxle Back-up light switch Step 47, SST 09817-16011 40 410 30 ↗ AW11_1988_full · p452 OEM manual
Transmission / transaxle Plug (transmission case bottom) 29 300 22 ↗ AW11_1988_full · p454 OEM manual
Transmission / transaxle Plug (precoated, transmission case) Precoated part 29 300 22 ↗ AW11_1988_full · p454 OEM manual
Transmission / transaxle Plug (precoated, transmission case cover) Precoated part 29 300 22 ↗ AW11_1988_full · p454 OEM manual
Transmission / transaxle Plug (No. 2 Select Spring Seat) 13 130 9 ↗ AW11_1988_full · p456 OEM manual
Transmission / transaxle Transaxle Case Receiver 65 in.-lb 7.4 75 5.4 ↗ AW11_1988_full · p467 OEM manual
Lubrication / oil Oil Pump Drive Gear 105 (8, 10) — format: N·m (ft-lb, N·m) as printed; value box reads 105 (8, 10) 10 105 8 ↗ AW11_1988_full · p481 OEM manual
Lubrication / oil Oil pump cover bolts Torque three bolts evenly 10 105 8 ↗ AW11_1988_full · p485 OEM manual
Transmission / transaxle Transaxle Case Cover bolts (precoated) 54 550 40 ↗ AW11_1988_full · p490 OEM manual
Transmission / transaxle Differential Left Case / Ring Gear bolts 63 640 46 ↗ AW11_1988_full · p490 OEM manual
Transmission / transaxle Four bolts and three nuts — transaxle case cover 54 550 40 ↗ AW11_1988_full · p495 OEM manual
Transmission / transaxle Sixteen torx screws (differential case) Torx wrench T50 09042-00040 63 640 46 ↗ AW11_1988_full · p496 OEM manual
Transmission / transaxle Ring gear set bolts Tighten uniformly and a little at a time 124 1260 91 ↗ AW11_1988_full · p497 OEM manual
Transmission / transaxle Transmission case bolts (seventeen bolts) 29 300 22 ↗ AW11_1988_full · p498 OEM manual
Transmission / transaxle Rear bearing retainer torx screws (seven torx screws) Torx wrench T45 09042-00050 42 430 31 ↗ AW11_1988_full · p498 OEM manual
Transmission / transaxle Oil pipe bolts (four bolts) Step 2(d) — oil pump assembly and oil pipe installation 17 175 13 ↗ AW11_1988_full · p500 OEM manual
Transmission / transaxle Transmission case — seventeen bolts Step (c) 29 300 22 ↗ AW11_1988_full · p501 OEM manual
Transmission / transaxle Bearing retainer — seven bolts (Torx T45) Step (g), Torx wrench T45 09042-00050 42 430 31 ↗ AW11_1988_full · p501 OEM manual
Transmission / transaxle seven torx screws and rear bearing retainer 42 430 31 ↗ AW11_1988_full · p502 OEM manual
Transmission / transaxle Two plugs (locking balls) Step 13(c), SST 09313-30021 25 250 18 ↗ AW11_1988_full · p505 OEM manual
Transmission / transaxle Reverse shift arm and oil pump bolts 17 175 13 ↗ AW11_1988_full · p506 OEM manual
Transmission / transaxle Transmission case bolts (seventeen bolts) 29 300 22 ↗ AW11_1988_full · p506 OEM manual
Transmission / transaxle Reverse idler gear shaft retaining bolt 29 300 22 ↗ AW11_1988_full · p506 OEM manual
Transmission / transaxle Plug SST 09313-30021, with liquid sealant Part No. 08833-00080 / THREE BOND 1344 / LOCTITE 242 25 250 18 ↗ AW11_1988_full · p507 OEM manual
Transmission / transaxle Seven torx screws — rear bearing retainer 42 430 31 ↗ AW11_1988_full · p508 OEM manual
Transmission / transaxle Transmission case cover bolts (ten bolts) Step 33(c) 29 300 22 ↗ AW11_1988_full · p510 OEM manual
Transmission / transaxle Control shaft cover bolts Step 35(d) 20 200 14 ↗ AW11_1988_full · p510 OEM manual
Transmission / transaxle Selecting bellcrank assembly bolt 20 200 14 ↗ AW11_1988_full · p511 OEM manual
Transmission / transaxle Transaxle to engine — 12 mm bolt Step 2 64 650 47 ↗ AW11_1988_full · p512 OEM manual
Transmission / transaxle Transaxle to engine — 10 mm bolt Step 2 46 470 34 ↗ AW11_1988_full · p512 OEM manual
Transmission / transaxle Left engine mounting bolts Step 3 52 530 38 ↗ AW11_1988_full · p512 OEM manual
Transmission / transaxle Rear engine mounting bolts Step 4 52 530 38 ↗ AW11_1988_full · p512 OEM manual
Transmission / transaxle Front engine mounting bolts to body Step 5(a) 52 530 38 ↗ AW11_1988_full · p513 OEM manual
Transmission / transaxle Starter mounting bolts Step 6(a) 39 400 29 ↗ AW11_1988_full · p513 OEM manual
Transmission / transaxle Drive shaft to side gear shaft nuts Step 7(a) 36 370 27 ↗ AW11_1988_full · p513 OEM manual
Transmission / transaxle Transaxle protector bolts Step 7(b) 13 130 9 ↗ AW11_1988_full · p513 OEM manual
Transmission / transaxle Exhaust pipe to exhaust manifold nuts 62 630 46 ↗ AW11_1988_full · p514 OEM manual
Transmission / transaxle Control cable bracket and clutch release cylinder bolts — Transaxle side 64 650 47 ↗ AW11_1988_full · p514 OEM manual
Transmission / transaxle Control cable bracket and clutch release cylinder bolts — Release cylinder side 18 185 13 ↗ AW11_1988_full · p514 OEM manual
Transmission / transaxle No. 2 control cable bracket bolts 19 195 14 ↗ AW11_1988_full · p514 OEM manual
Transmission / transaxle Clutch release cylinder pipe bracket and clamp bolts (E51 M/T) 18 185 13 ↗ AW11_1988_full · p514 OEM manual
Transmission / transaxle Selecting Bellcrank Support bolt 19 195 14 ↗ AW11_1988_full · p516 OEM manual
Transmission / transaxle Selecting Bellcrank bolts (transaxle end) 12 120 9 ↗ AW11_1988_full · p516 OEM manual
Transmission / transaxle Shift Control Cable / Select Control Cable mounting bolts 13 135 10 ↗ AW11_1988_full · p516 OEM manual
Transmission / transaxle Selecting Bellcrank lower mounting bolts 12 120 9 ↗ AW11_1988_full · p516 OEM manual
Transmission / transaxle Neutral start switch bolts 48 in.-lb; tighten after aligning groove and neutral basic line 5.4 55 — ↗ AW11_1988_full · p523 OEM manual
Transmission / transaxle Valve body bolts Step 3 — finger tighten first, then torque wrench 10 100 7 ↗ AW11_1988_full · p559 OEM manual
Transmission / transaxle Detent spring bolt Step 5 — finger tighten first, then torque wrench 10 100 7 ↗ AW11_1988_full · p559 OEM manual
Lubrication / oil Torque converter to drive plate (sleeve runout check) Temporary mount for runout measurement 27 280 20 ↗ AW11_1988_full · p565 OEM manual
Lubrication / oil Drive plate bolts When installing new drive plate 64 650 47 ↗ AW11_1988_full · p565 OEM manual
Lubrication / oil One-way clutch rotation torque (maximum) Less than this value required to rotate clutch; 22 in.-lb 2.5 25 — ↗ AW11_1988_full · p565 OEM manual
Lubrication / oil Oil pump mounting bolt Tighten seven bolts uniformly and a little at a time 25 250 18 ↗ AW11_1988_full · p566 OEM manual
Transmission / transaxle Neutral Start Switch 70 (61 in.-lb, 6.9) 6.9 70 — ↗ AW11_1988_full · p567 OEM manual
Transmission / transaxle Pawl Shaft Clamp bolt 55 (48 in.-lb, 5.4) 5.4 55 — ↗ AW11_1988_full · p569 OEM manual
Transmission / transaxle Counter Driven Gear Lock Nut 1,600 (116, 157) 157 1600 116 ↗ AW11_1988_full · p569 OEM manual
Lubrication / oil Eleven bolts (stator shaft onto pump body) 10 100 7 ↗ AW11_1988_full · p590 OEM manual
Transmission / transaxle Lock Nut (Counter Driven Gear) Lock Nut on counter driven gear side 157 1600 116 ↗ AW11_1988_full · p605 OEM manual
Transmission / transaxle New lock nut — counter shaft (Reference) Reference torque range: 1,800–2,200 kg·cm (130–159 ft-lb, 177–216 N·m); midpoint used; SST 09350-32013 (09351-32170) 196.5 2000 144.5 ↗ AW11_1988_full · p612 OEM manual
Transmission / transaxle Counter shaft starting torque — with torque gauge (hexagon nut side) Range: 6–10 kg·cm (5.2–8.7 in.-lb, 0.6–1.0 N·m); midpoint used 0.8 8 0.069 ↗ AW11_1988_full · p612 OEM manual
Engine — mechanical Twenty-seven bolts in valve body Step 6 6.4 65 — ↗ AW11_1988_full · p628 OEM manual
Transmission / transaxle Lock nut (counter driven gear) Step 32 — new lock nut 157 1600 116 ↗ AW11_1988_full · p636 OEM manual
Transmission / transaxle Transaxle rear cover bolts (thirteen bolts) Step 37(c) 25 250 18 ↗ AW11_1988_full · p637 OEM manual
Transmission / transaxle Transaxle housing bolts A240E: eighteen bolts; A241E: nineteen bolts 29 300 22 ↗ AW11_1988_full · p645 OEM manual
Transmission / transaxle Valve body bolts Step 80 — twelve bolts in valve body 10 100 7 ↗ AW11_1988_full · p648 OEM manual
Transmission / transaxle Oil pan bolts Step 87; 43 in-lb 4.9 50 3.6 ↗ AW11_1988_full · p649 OEM manual
Transmission / transaxle Neutral Start Switch nut Step 91 — stake with lock washer after tightening; value listed as 61 in.-lb 6.9 70 — ↗ AW11_1988_full · p650 OEM manual
Transmission / transaxle Transaxle housing bolts Step 3(b); bolt lengths (mm) indicated in figure: 35, 45, 48 (A241E only), 30, 72 (A240E), 48 (A241E) 29 300 22 ↗ AW11_1988_full · p658 OEM manual
Transmission / transaxle Transaxle housing bolts (eighteen bolts) Step 2(c) 29 300 22 ↗ AW11_1988_full · p660 OEM manual
Transmission / transaxle Transmission housing mounting bolts 64 650 47 ↗ AW11_1988_full · p661 OEM manual
Transmission / transaxle Transmission mounting set bolts 113 1150 83 ↗ AW11_1988_full · p661 OEM manual
Transmission / transaxle Torque converter mounting bolts 27 280 20 ↗ AW11_1988_full · p661 OEM manual
Transmission / transaxle Stiffener plate Step 10 — Install stiffener plate 37 380 27 ↗ AW11_1988_full · p662 OEM manual
Suspension & axle Shock absorber set nut Camber adjustment — step (c) 142 1450 105 ↗ AW11_1988_full · p668 OEM manual
Suspension & axle Strut bar front nut Tighten after caster adjustment 113 1150 83 ↗ AW11_1988_full · p669 OEM manual
Suspension & axle Steering knuckle to shock absorber nuts 142 1450 105 ↗ AW11_1988_full · p676 OEM manual
Suspension & axle Tie rod end castle nut to steering knuckle 49 500 36 ↗ AW11_1988_full · p677 OEM manual
Suspension & axle Disc brake caliper to steering knuckle bolts 88 900 65 ↗ AW11_1988_full · p677 OEM manual
Suspension & axle Disc brake caliper to steering knuckle Step 6 88 900 65 ↗ AW11_1988_full · p678 OEM manual
Suspension & axle Top mount nut (upper) 500 (36, 49) — upper position 49 500 36 ↗ AW11_1988_full · p679 OEM manual
Suspension & axle Top mount nut (lower) 360 (26, 35) — lower position 35 360 26 ↗ AW11_1988_full · p679 OEM manual
Suspension & axle Stabilizer link to shock absorber 650 (47, 64) — upper stabilizer link bolt 64 650 47 ↗ AW11_1988_full · p679 OEM manual
Suspension & axle Stabilizer bar bracket bolt 650 (47, 64) — lower stabilizer bar bracket 64 650 47 ↗ AW11_1988_full · p679 OEM manual
Suspension & axle Lower shock absorber bolt 310 (22, 30) 30 310 22 ↗ AW11_1988_full · p679 OEM manual
Suspension & axle Steering knuckle to shock absorber (axle hub bolt) 1,450 (105, 42) — 1450 105 ↗ AW11_1988_full · p679 OEM manual
Suspension & axle Suspension support nut New nut, step 1(h) 49 500 36 ↗ AW11_1988_full · p682 OEM manual
Suspension & axle Shock absorber to body nuts Four nuts, step 2 35 360 26 ↗ AW11_1988_full · p682 OEM manual
Suspension & axle Camber adjusting cam bolts / shock absorber nuts 142 1450 105 ↗ AW11_1988_full · p683 OEM manual
Suspension & axle Flexible hose union bolt (disc brake caliper) 30 310 22 ↗ AW11_1988_full · p683 OEM manual
Suspension & axle Front Shock Absorber Assembly upper mount 650 (47, 64) 64 650 47 ↗ AW11_1988_full · p684 OEM manual
Suspension & axle Stabilizer Bar bracket / lower arm front bolt 650 (47, 64) 64 650 47 ↗ AW11_1988_full · p684 OEM manual
Suspension & axle Lower arm rear (retainer/cushion/collar) front bolt 1,150 (83, 113) 113 1150 83 ↗ AW11_1988_full · p684 OEM manual
Suspension & axle Lower arm rear (retainer/cushion/collar) rear bolt 1,150 (83, 113) 113 1150 83 ↗ AW11_1988_full · p684 OEM manual
Suspension & axle Stabilizer Bar Bracket bolt 195 (14, 19) 19 195 14 ↗ AW11_1988_full · p684 OEM manual
Suspension & axle Lower Ball Joint to Lower Arm 1,300 (94, 127) 127 1300 94 ↗ AW11_1988_full · p684 OEM manual
Suspension & axle Ball joint turning torque Turning torque range: 8–25 kg·cm (7–21 in.-lb, 0.8–2.4 N·m), measured on fifth turn 0.8 8 — ↗ AW11_1988_full · p685 OEM manual
Suspension & axle Castle nut — lower arm to ball joint Step 2(a) 78 800 58 ↗ AW11_1988_full · p686 OEM manual
Suspension & axle Stabilizer link to front shock absorber assembly If ball joint stud turns with nut, use hexagon wrench to hold stud 64 650 47 ↗ AW11_1988_full · p688 OEM manual
Suspension & axle Stabilizer link to stabilizer bar If ball joint stud turns with nut, use hexagon wrench to hold stud 64 650 47 ↗ AW11_1988_full · p688 OEM manual
Suspension & axle Upper arm / strut rod bolt (2,300) 226 2300 166 ↗ AW11_1988_full · p696 OEM manual
Suspension & axle Dust cover bolt (85) in-lb value given as 74 in.-lb 8.3 85 — ↗ AW11_1988_full · p696 OEM manual
Suspension & axle Rear axle carrier to shock absorber lower bracket nuts Camber adjusting cam nuts 226 2300 166 ↗ AW11_1988_full · p701 OEM manual
Suspension & axle Bearing lock nut Tighten with parking brake engaged 186 1900 137 ↗ AW11_1988_full · p702 OEM manual
Suspension & axle Disc brake caliper to rear axle carrier 59 600 43 ↗ AW11_1988_full · p703 OEM manual
Suspension & axle Side Gear Shaft / Joint Washer (4A-GZE) 65 660 48 ↗ AW11_1988_full · p704 OEM manual
Suspension & axle Suspension arm nut to rear axle carrier Step 5 — Connect Suspension Arm 49 500 36 ↗ AW11_1988_full · p718 OEM manual
Suspension & axle Lower arm to rear axle carrier Step 6 — Connect Lower Arm to Rear Axle Carrier 113 1150 83 ↗ AW11_1988_full · p718 OEM manual
Suspension & axle Inboard joint holding six nuts (4A-GE) Torque while depressing brake pedal 36 370 27 ↗ AW11_1988_full · p719 OEM manual
Suspension & axle Inboard joint holding six hexagon bolts (4A-GZE) Torque while depressing brake pedal; SST 09043-88010 65 660 48 ↗ AW11_1988_full · p719 OEM manual
Suspension & axle Bearing lock nut Torque while depressing brake pedal 186 1900 137 ↗ AW11_1988_full · p719 OEM manual
Suspension & axle Ball joint retainer / cushion collar bolt 117 1190 86 ↗ AW11_1988_full · p720 OEM manual
Suspension & axle Shock absorber upper mounting nuts (to body) Step 1 31 320 23 ↗ AW11_1988_full · p723 OEM manual
Suspension & axle Rear axle carrier to shock absorber nuts Step 3(c) 226 2300 166 ↗ AW11_1988_full · p723 OEM manual
Suspension & axle Ball joint turning torque Range: 10–30 kg·cm, 1.0–2.9 N·m, 9–26 in.-lb; measured on fifth turn 1 10 — ↗ AW11_1988_full · p725 OEM manual
Suspension & axle Lower arm holding bolt (body) Step 4(b) 127 1300 94 ↗ AW11_1988_full · p727 OEM manual
Suspension & axle Strut rod holding nut — lower arm side 117 1190 86 ↗ AW11_1988_full · p729 OEM manual
Suspension & axle Suspension arm to rear axle carrier nut Install new cotter pin after torquing 49 500 36 ↗ AW11_1988_full · p730 OEM manual
Suspension & axle Suspension arm holding bolt Tighten after rocking vehicle to stabilize suspension 98 1000 72 ↗ AW11_1988_full · p730 OEM manual

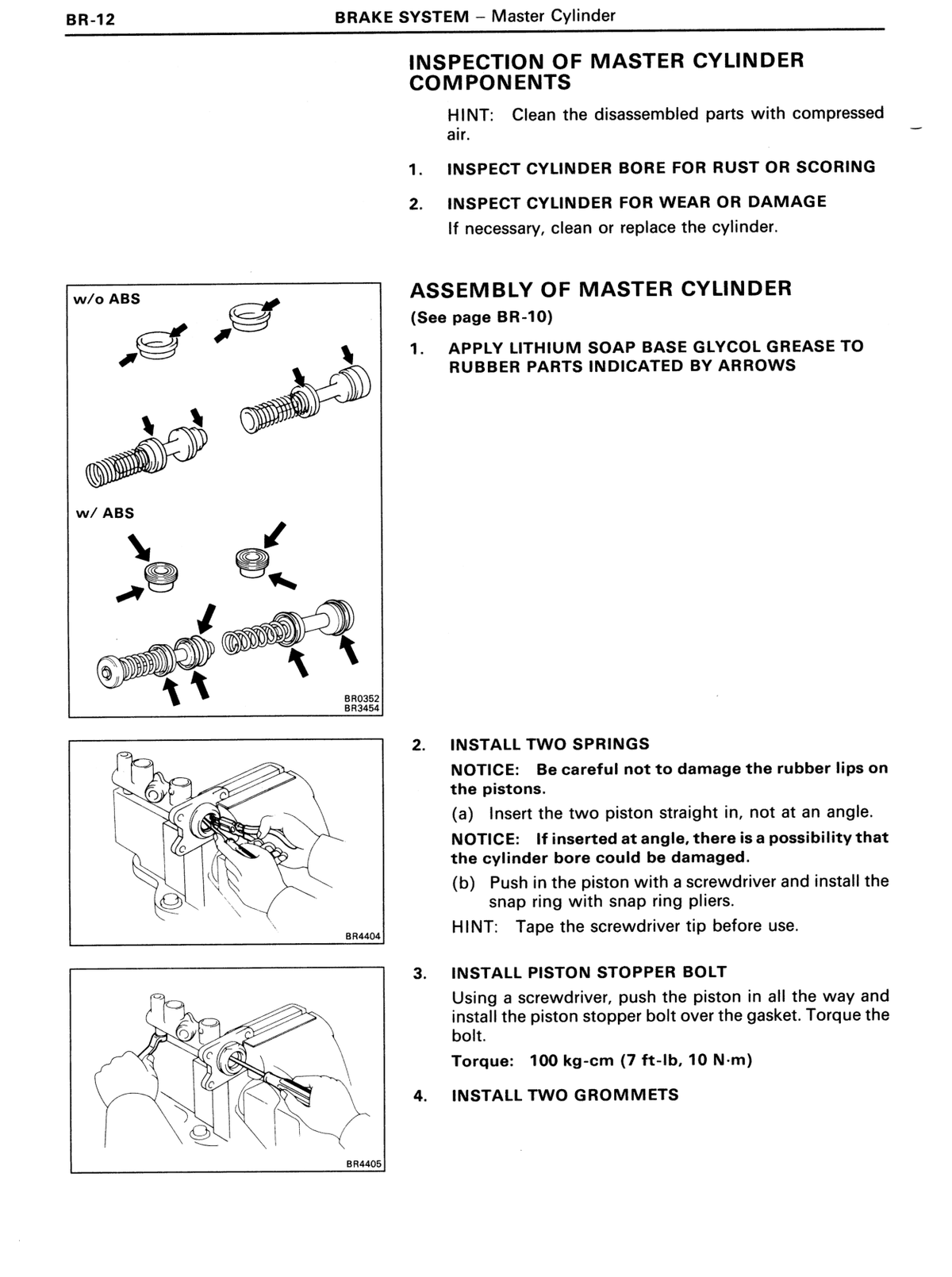

Brakes Master cylinder to brake booster nuts Step 3 — four nuts 13 130 9 ↗ AW11_1988_full · p744 OEM manual
Brakes Check Valve Bracket / Brake Booster mounting nuts 13 130 9 ↗ AW11_1988_full · p745 OEM manual
Brakes two installation bolts Brake cylinder installation bolts 25 255 18 ↗ AW11_1988_full · p750 OEM manual
Brakes Torque plate mounting bolts Install torque plate after runout is within specification 88 900 65 ↗ AW11_1988_full · p753 OEM manual
Brakes Union bolt (flexible hose to brake cylinder) Step 3 30 310 22 ↗ AW11_1988_full · p755 OEM manual
Brakes Cable support bracket bolt Step 3 — Install Cable Support Bracket 47 475 34 ↗ AW11_1988_full · p764 OEM manual
Steering Upper bracket to main shaft bolts (3 bolts) Step 3 19 195 14 ↗ AW11_1988_full · p780 OEM manual
Steering Adjusting nut (tilt lever) LH threads — step 5(c) 10 105 8 ↗ AW11_1988_full · p781 OEM manual
Steering Tilt steering support nuts and breakaway bracket nuts 25 260 19 ↗ AW11_1988_full · p782 OEM manual
Steering Tie Rod End / Steering Gear Assembly nut 500 (36, 49) 49 500 36 ↗ AW11_1988_full · p784 OEM manual
Steering Rack Housing Bracket bolts (second location) 440 (32, 43) 43 440 32 ↗ AW11_1988_full · p784 OEM manual
Steering Rack Housing Bracket bolts to gear housing 500 (36, 49) 49 500 36 ↗ AW11_1988_full · p784 OEM manual
Steering Tie Rod (480 connection) Both left and right tie rod connections 47 480 35 ↗ AW11_1988_full · p786 OEM manual
Steering Pinion bearing adjusting screw (initial torque) Initial tightening before loosening to preload spec 0.4 3.7 — ↗ AW11_1988_full · p792 OEM manual
Steering Pinion bearing adjusting screw preload (torque) Range: 2.3–3.3 kg-cm, 0.2–0.3 N·m, 2.0–2.9 in.-lb 0.2 2.3 — ↗ AW11_1988_full · p792 OEM manual
Steering Pinion bearing adjusting screw lock nut Use torque wrench with fulcrum length of 42.5 cm (16.73 in.) 91 930 67 ↗ AW11_1988_full · p792 OEM manual
Steering Pinion preload (turning) Range: 2.3–3.3 kg-cm, 0.2–0.3 N·m, 2.0–2.9 in.-lb; recheck after lock nut installation 0.2 2.3 — ↗ AW11_1988_full · p792 OEM manual
Steering Rack guide spring cap Step 10(a) — initial tighten before returning 25° 25 250 18 ↗ AW11_1988_full · p793 OEM manual
Steering Rack guide spring cap lock nut Step 11(b) — use torque wrench with fulcrum length of 34 cm (13.39 in.) 56 570 41 ↗ AW11_1988_full · p793 OEM manual
Steering Rack end Use SST 09612-10093 (09628-10020) 09612-24013 (09617-24010); torque wrench fulcrum length 34 cm (13.39 in.) 72 730 53 ↗ AW11_1988_full · p794 OEM manual
Steering Gear housing assembly bolts Step 1 — four bolts 43 440 32 ↗ AW11_1988_full · p795 OEM manual
Steering Center floor crossmember bolts Step 2 — four bolts 25 260 19 ↗ AW11_1988_full · p795 OEM manual

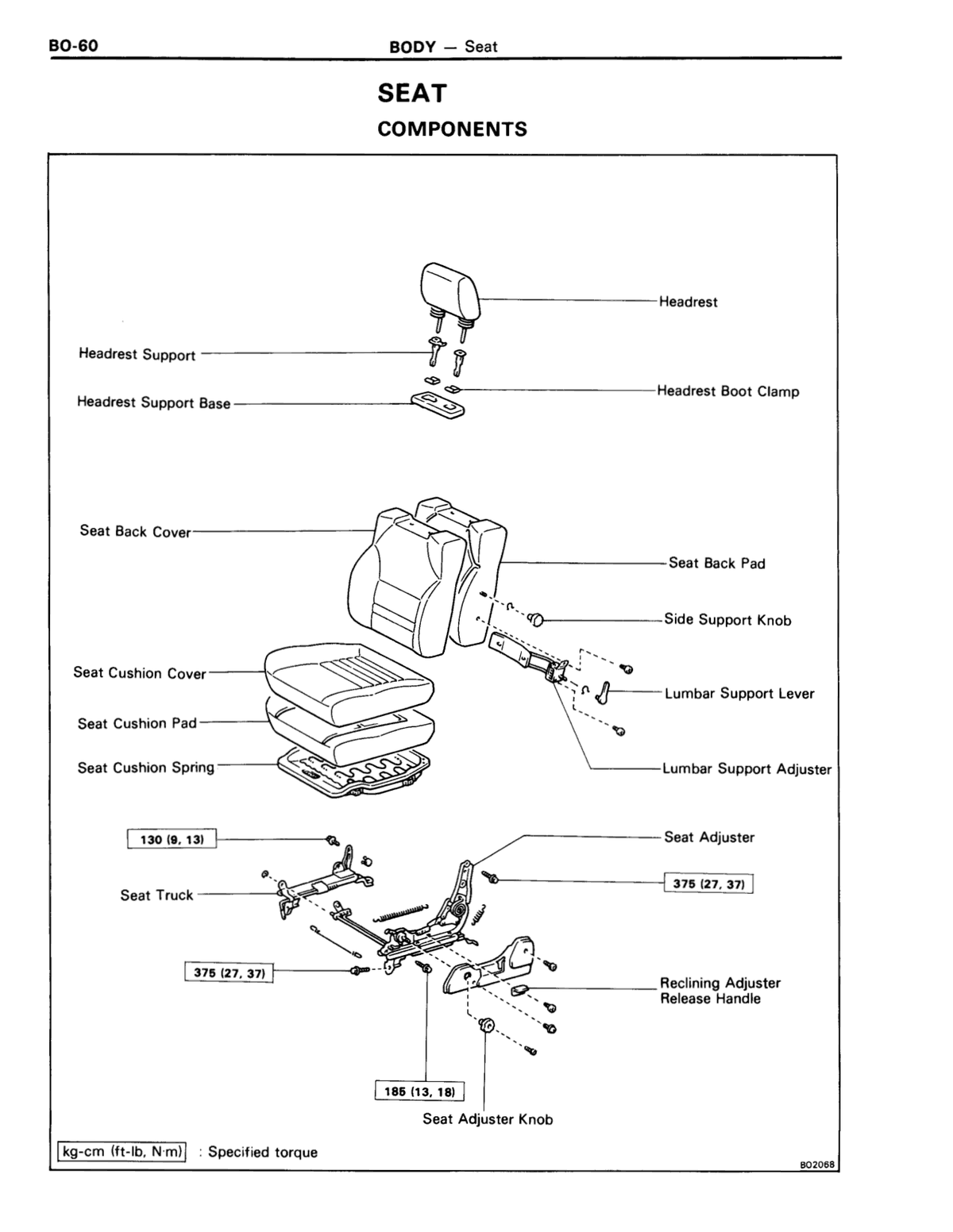

Body Seat belt shoulder anchor belt T-Bar Roof Bracket installation 43 440 32 ↗ AW11_1988_full · p918 OEM manual

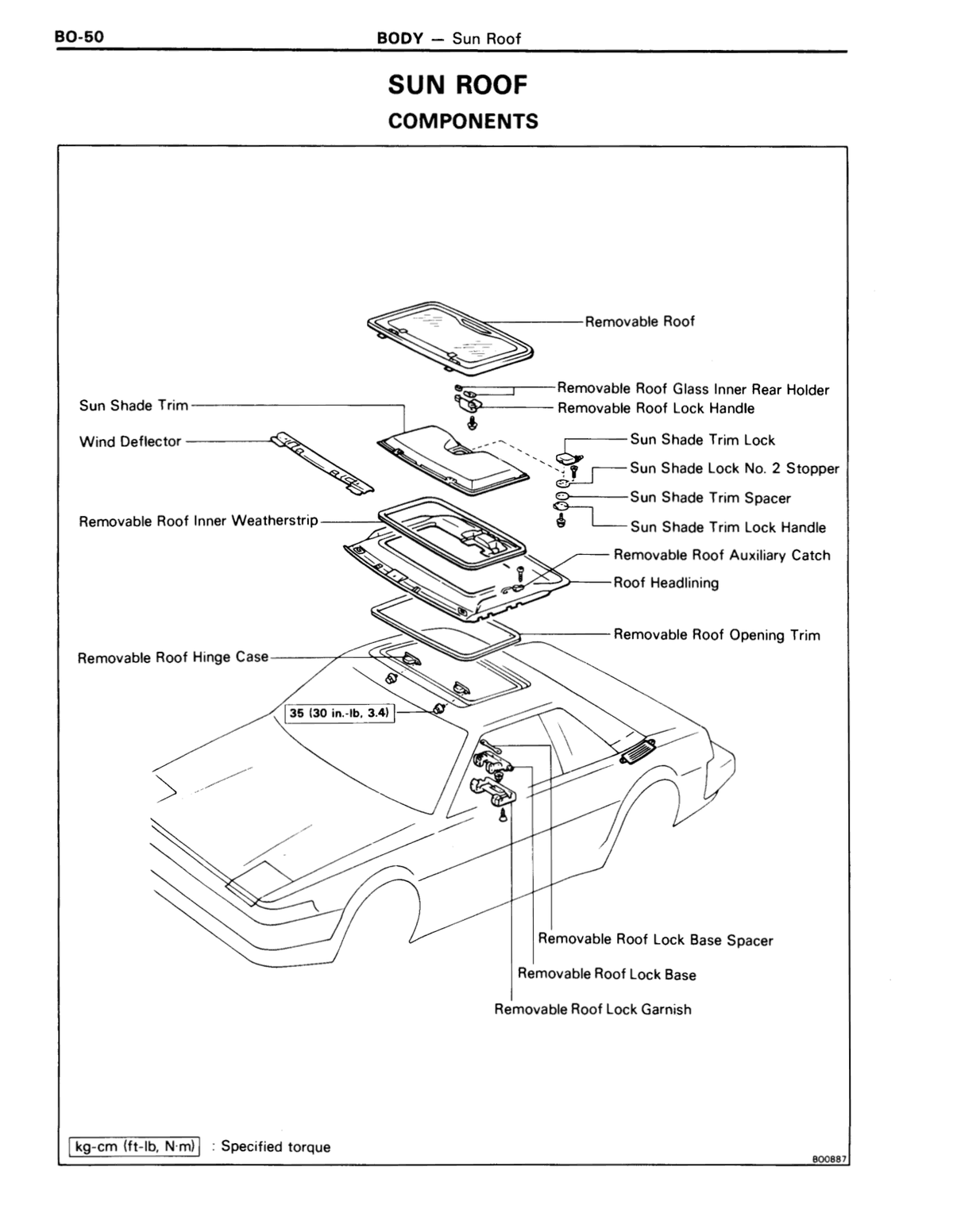

Body Removable Roof Hinge Case Step 1 — Install Removable Roof Hinge Case; in.-lb value listed as 30 3.4 35 — ↗ AW11_1988_full · p924 OEM manual
Body Seat Belt Outer — lower anchor bolt (floor) 400 kg-cm (32 ft-lb, 43 N·m) — floor mount 43 — 32 ↗ AW11_1988_full · p933 OEM manual
Body Seat Belt retractor / shoulder anchor bolt 80 kg-cm (69 in-lb, 7.8 N·m) 7.8 80 — ↗ AW11_1988_full · p933 OEM manual
Air conditioning Compressor mounting (Pressure Plate / Shim area) 16 165 12 ↗ AW11_1988_full · p954 OEM manual
Air conditioning Service Valve bolt (4A-GE ENGINE) 260 (19, 25) shown on diagram for 4A-GE ENGINE service valve 25 260 19 ↗ AW11_1988_full · p957 OEM manual
Air conditioning Front Housing bolt 260 (19, 25) shown on diagram near front housing/washer 25 260 19 ↗ AW11_1988_full · p957 OEM manual
Air conditioning Five through bolts Gradually tighten in two or three passes 25 260 19 ↗ AW11_1988_full · p961 OEM manual
Air conditioning Service valve bolts Step 10, SST 07110-61050 25 260 19 ↗ AW11_1988_full · p963 OEM manual
Air conditioning Shaft starting torque Step 11 — maximum allowable; 26 in.-lb 2.9 30 2.17 ↗ AW11_1988_full · p963 OEM manual

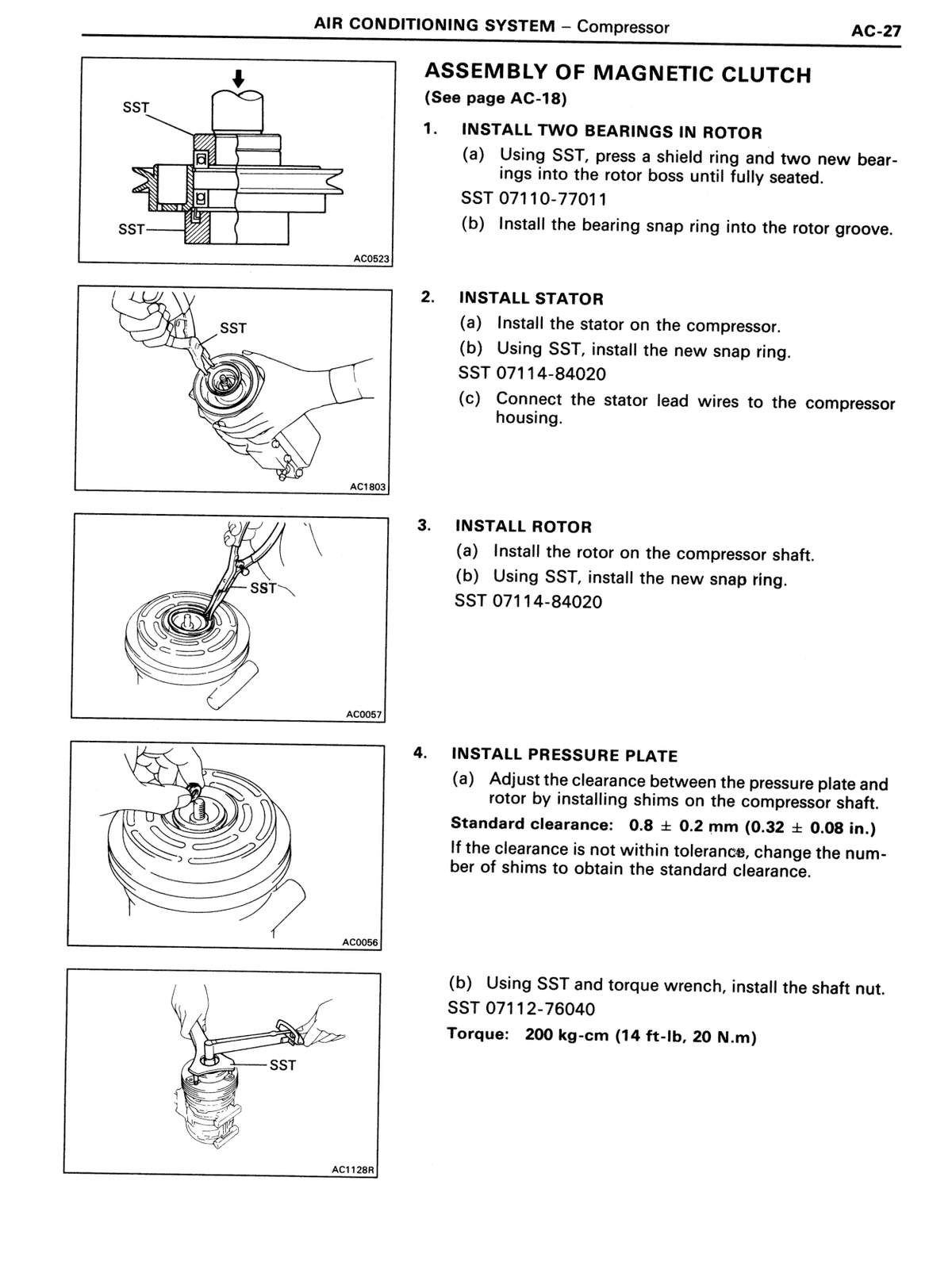

Air conditioning Shaft nut Install pressure plate step (b) 16 165 12 ↗ AW11_1988_full · p964 OEM manual

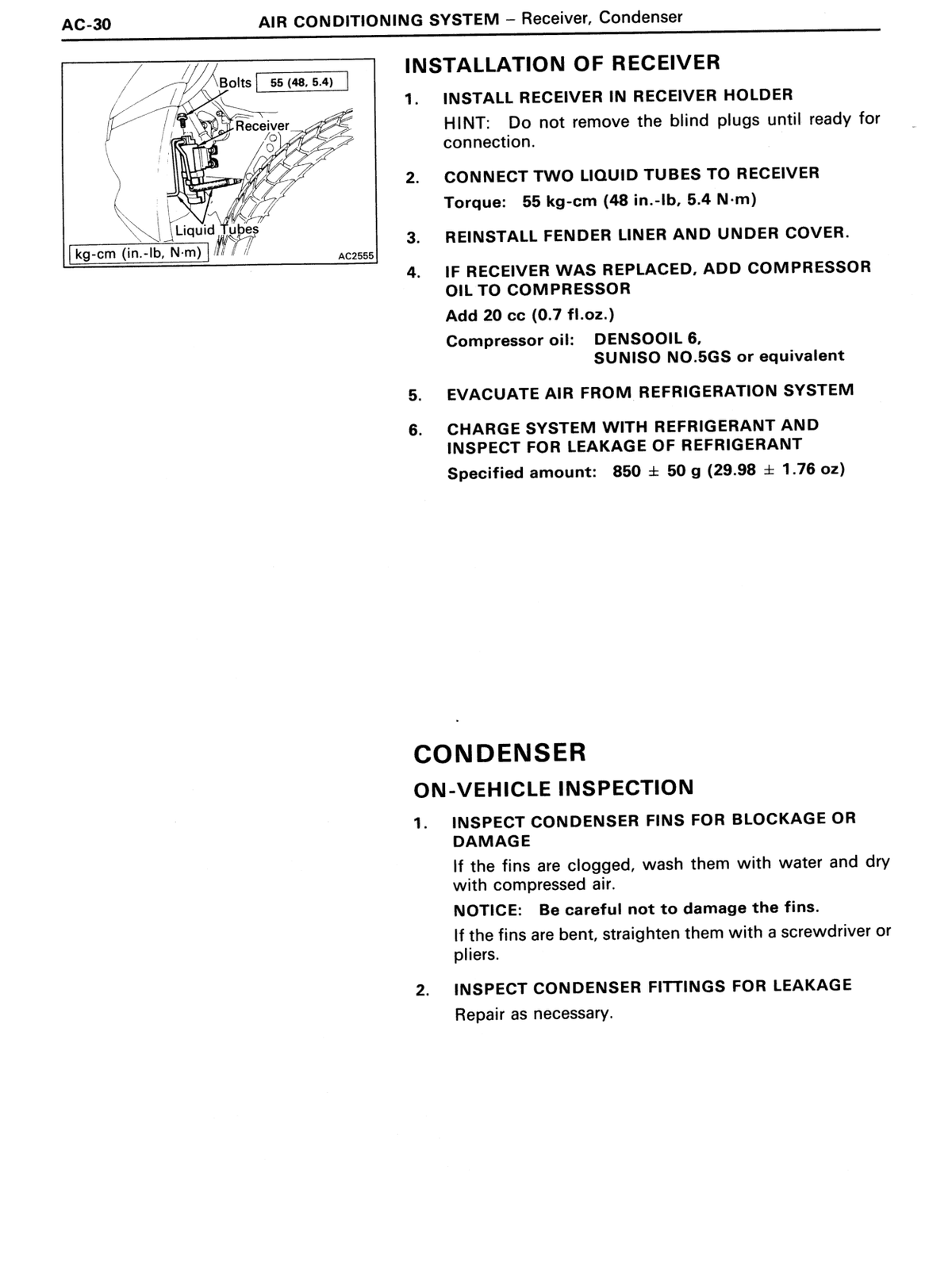

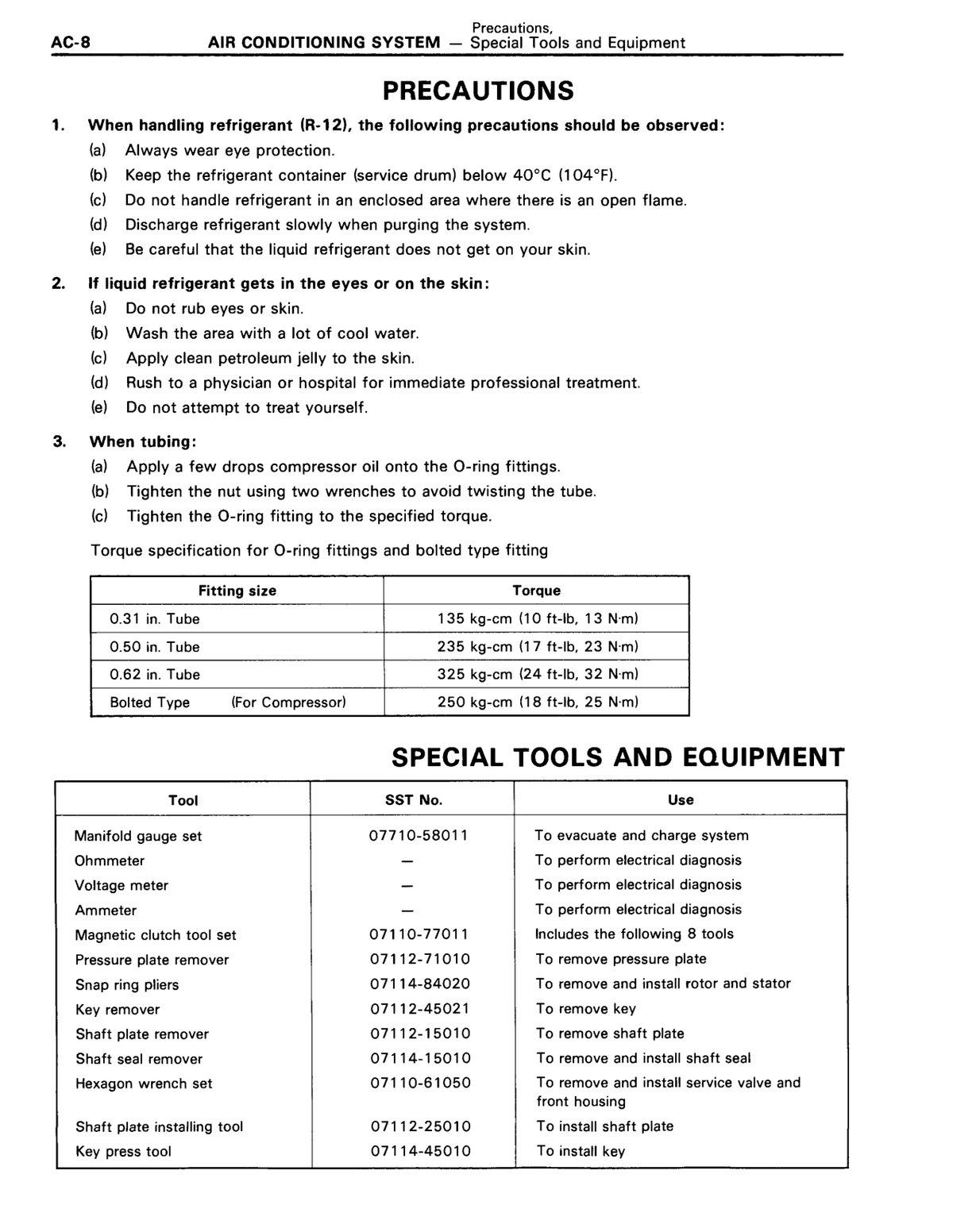

Cooling Expansion valve to evaporator inlet fitting nut Ensure O-rings are positioned on the tube fitting 23 235 17 ↗ AW11_1988_full · p974 OEM manual
Cooling Liquid tube to expansion valve inlet fitting nut 13 135 10 ↗ AW11_1988_full · p974 OEM manual
Cooling Suction tube to cooling unit outlet fitting nut 32 325 24 ↗ AW11_1988_full · p975 OEM manual
Engine — mechanical Cylinder head x Cylinder block 1st pass 29 300 22 ↗ AW11_1988_full · p984 OEM manual
Engine — mechanical Cylinder head x Cylinder block 2nd pass: 90° turns — — — ↗ AW11_1988_full · p984 OEM manual
Engine — mechanical Cylinder head x Cylinder block 3rd pass: 90° turns — — — ↗ AW11_1988_full · p984 OEM manual
Engine — mechanical Camshaft bearing cap x Cylinder head 13 130 9 ↗ AW11_1988_full · p984 OEM manual
Engine — mechanical Intake manifold stay x Cylinder head (4A-GE) 22 220 16 ↗ AW11_1988_full · p984 OEM manual
Engine — mechanical Intake manifold stay x Cylinder block (4A-GE) 22 220 16 ↗ AW11_1988_full · p984 OEM manual
Engine — mechanical Exhaust manifold stay x Exhaust manifold 39 400 29 ↗ AW11_1988_full · p985 OEM manual
Engine — mechanical Exhaust manifold stay x Cylinder block 39 400 29 ↗ AW11_1988_full · p985 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod (Hexagon nut type) 49 500 36 ↗ AW11_1988_full · p985 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod (12-sided nut type) 1st pass 39 400 29 ↗ AW11_1988_full · p985 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod (12-sided nut type) 2nd pass: 90° turns — 0 — ↗ AW11_1988_full · p985 OEM manual
Engine — mechanical Rear plate x Housing (Bolt) 43 in.-lb 4.9 50 — ↗ AW11_1988_full · p985 OEM manual
Engine — mechanical No. 2 air inlet duct x Housing 82 in.-lb 9.4 95 — ↗ AW11_1988_full · p985 OEM manual
Engine — mechanical No. 1 air inlet duct x Intake manifold 19 190 14 ↗ AW11_1988_full · p985 OEM manual
EFI / fuel injection Pressure regulator x Delivery pipe 65 in.-lb 7.4 75 — ↗ AW11_1988_full · p988 OEM manual
EFI / fuel injection Cold start injector pipe x Delivery pipe 18 180 13 ↗ AW11_1988_full · p988 OEM manual
EFI / fuel injection Cold start injector pipe x Cold start injector 18 180 13 ↗ AW11_1988_full · p988 OEM manual
EFI / fuel injection Fuel return pipe x Pressure regulator 29 300 22 ↗ AW11_1988_full · p988 OEM manual
EFI / fuel injection Fuel tank right No. 1 band x Left No. 1 band 14 145 10 ↗ AW11_1988_full · p988 OEM manual
EFI / fuel injection Fuel tank right No. 2 band x Left No. 2 band 14 145 10 ↗ AW11_1988_full · p988 OEM manual
EFI / fuel injection Fuel inlet pipe x Fuel tank 30 in.-lb 3.4 35 — ↗ AW11_1988_full · p988 OEM manual
EFI / fuel injection Fuel sender gauge x Fuel tank 13 in.-lb 1.5 15 — ↗ AW11_1988_full · p988 OEM manual
EFI / fuel injection Pressure regulator x Delivery pipe 65 in-lb 7.4 75 — ↗ AW11_1988_full · p990 OEM manual
EFI / fuel injection Cold start injector pipe x Delivery pipe 18 180 13 ↗ AW11_1988_full · p990 OEM manual
EFI / fuel injection Cold start injector pipe x Cold start injector 18 180 13 ↗ AW11_1988_full · p990 OEM manual
EFI / fuel injection Fuel return pipe x Pressure regulator 15 150 11 ↗ AW11_1988_full · p990 OEM manual
EFI / fuel injection Fuel tank right No. 1 band x Left No. 1 band 14 145 10 ↗ AW11_1988_full · p990 OEM manual
EFI / fuel injection Fuel tank right No. 2 band x Left No. 2 band 14 145 10 ↗ AW11_1988_full · p990 OEM manual
EFI / fuel injection Fuel inlet pipe x Fuel tank 30 in-lb 3.4 35 — ↗ AW11_1988_full · p990 OEM manual
EFI / fuel injection Fuel sender gauge x Fuel tank 13 in-lb 1.5 15 — ↗ AW11_1988_full · p990 OEM manual
Cooling Oil strainer x Cylinder block (oil pump) 82 in.-lb 9.3 95 — ↗ AW11_1988_full · p991 OEM manual
Cooling No. 2 oil filter bracket x No. 1 oil filter bracket 20 200 14 ↗ AW11_1988_full · p991 OEM manual
Transmission / transaxle Side bearing preload (at starting) — New bearing Range 8-16 kg-cm (6.9-13.9 in.-lb, 0.8-1.6 N·m), C52 transmission — 12 — ↗ AW11_1988_full · p994 OEM manual
Transmission / transaxle Side bearing preload (at starting) — Reused bearing Range 5-10 kg-cm (4.3-8.7 in.-lb, 0.5-1.0 N·m), C52 transmission — 7.5 — ↗ AW11_1988_full · p994 OEM manual
Transmission / transaxle E51 Output shaft bearing preload (at starting) — New bearing range 8-16 kg-cm (6.9-13.9 in-lb, 0.8-1.6 N·m); new bearing 1.6 16 — ↗ AW11_1988_full · p996 OEM manual
Transmission / transaxle E51 Output shaft bearing preload (at starting) — Reused bearing range 5-10 kg-cm (4.3-8.7 in-lb, 0.5-1.0 N·m); reused bearing 1 10 — ↗ AW11_1988_full · p996 OEM manual
Transmission / transaxle E51 Side bearing preload (at starting) — New bearing (output shaft bearing preload + additional) Output shaft bearing preload +1.9-3.7 kg-cm (1.6-3.2 in-lb, 0.2-0.4 N·m); new bearing 0.4 3.7 — ↗ AW11_1988_full · p996 OEM manual
Transmission / transaxle E51 Side bearing preload (at starting) — Reused bearing (output shaft bearing preload + additional) Output shaft bearing preload +1.2-2.3 kg-cm (1.0-2.0 in-lb, 0.1-0.2 N·m); reused bearing 0.2 2.3 — ↗ AW11_1988_full · p996 OEM manual
Transmission / transaxle Transmission case x Transaxle case (C52) 29 300 22 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Transmission case x Case cover (C52) 18 185 13 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Transmission case protector (C52) 13 130 9 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Output shaft bearing lock plate (C52) 11 115 8 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle 5th driven gear lock nut (C52) 118 1200 87 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Reverse idler shaft lock bolt (C52) 24 240 17 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Control shaft cover bolt (C52) 20 200 14 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Reverse shift arm bracket (C52) 17 175 13 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Reverse restrict pin holder (C52) 20 200 14 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Speedometer driven gear lock plate (C52) 11 115 8 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Straight screw plug (shift fork shaft) (C52) 25 250 18 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Transaxle x Engine — 12 mm bolt (C52) 64 650 47 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Transaxle x Engine — 10 mm bolt (C52) 46 470 34 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Exhaust pipe x Exhaust manifold (C52) 62 630 46 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Control cable bracket — Transaxle side (C52) 64 650 47 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Control cable bracket — Release cylinder side (C52) 18 185 13 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle No. 2 control cable bracket bolt (C52) 19 195 14 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Selecting bellcrank support set bolt (C52) 19 195 14 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Selecting bellcrank set bolt (C52) 12 120 9 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Transmission case x Transaxle case (E51) 29 300 22 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Transmission case x Case cover (E51) 29 300 22 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Transmission case protector (E51) 17 175 13 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Transaxle case x Transaxle case cover (E51) 54 550 38 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle 5th driven gear lock nut (E51) 123 1250 90 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Reverse idler shaft lock bolt (E51) 29 300 22 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Control shaft cover bolt (E51) 20 200 14 ↗ AW11_1988_full · p999 OEM manual
Transmission / transaxle Reverse shift arm bracket (E51) 17 175 13 ↗ AW11_1988_full · p999 OEM manual
Clutch Master cylinder mounting nuts Install the two mounting nuts 13 130 9 ↗ RM179U2_1991_vol2 · p9 OEM manual
Clutch Release cylinder mounting INSTALL RELEASE CYLINDER 12 120 9 ↗ RM179U2_1991_vol2 · p12 OEM manual
Clutch Engine front mounting bracket set bolts INSTALL ENGINE FRONT MOUNTING BRACKET SET BOLTS 77 790 57 ↗ RM179U2_1991_vol2 · p12 OEM manual
Clutch Clutch cover bolts Tighten in order shown; temporarily tighten No.1 and No.2 bolts first 19 195 14 ↗ RM179U2_1991_vol2 · p16 OEM manual

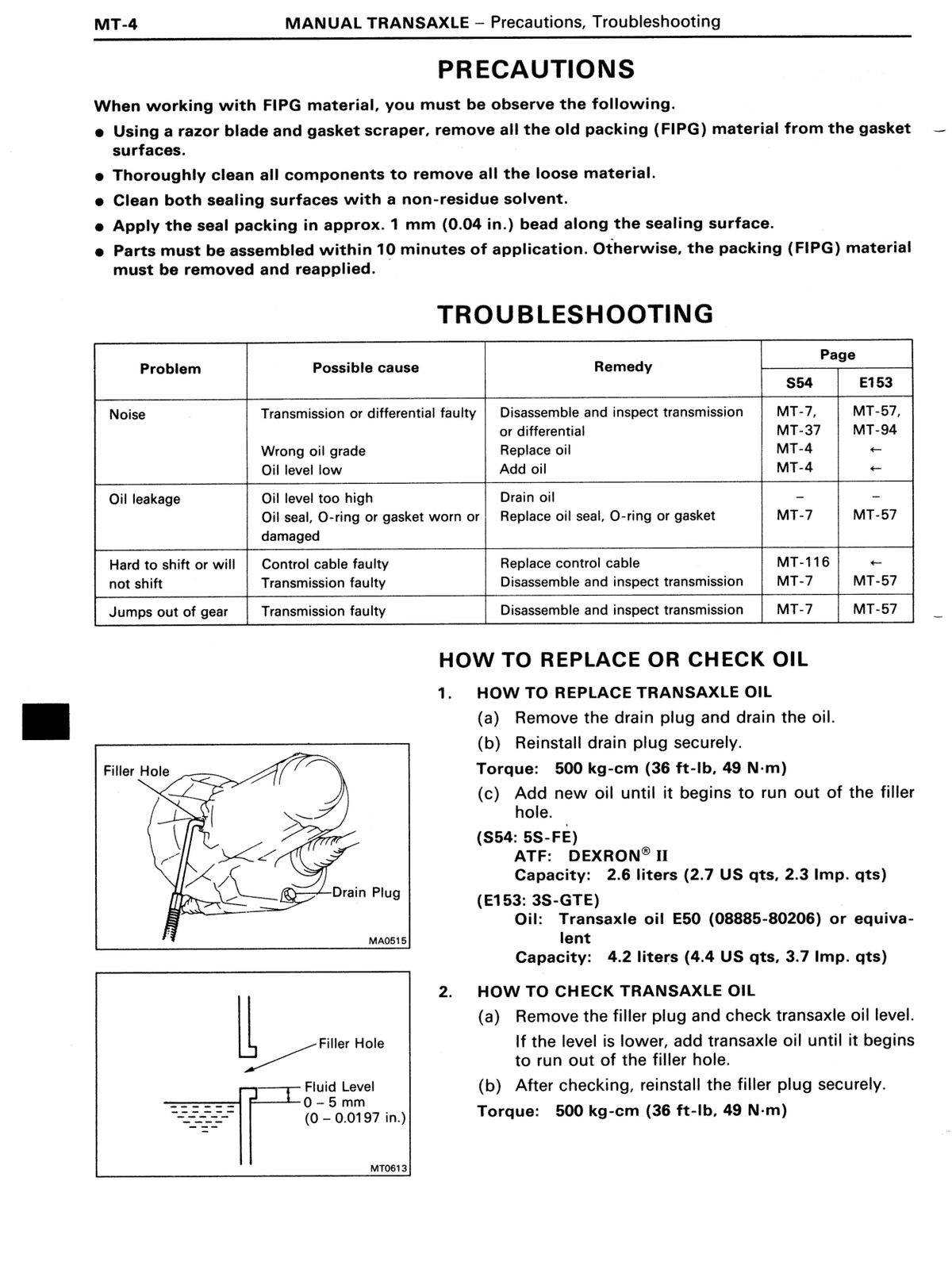

Transmission / transaxle Drain plug Reinstall after draining transaxle oil 49 500 36 ↗ RM179U2_1991_vol2 · p21 OEM manual
Transmission / transaxle Filler plug Reinstall after checking transaxle oil 49 500 36 ↗ RM179U2_1991_vol2 · p21 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator 77 790 57 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket (upper bolts) 64 650 47 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket (lower bolts) 64 650 47 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket (890) 87 890 64 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Engine Mounting Front Bracket (790) 77 790 57 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Engine Mounting Front Bracket (980) 96 980 71 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Engine Mounting Front Insulator (380) 37 380 27 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Engine Mounting Front Insulator (740) 73 740 54 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Stiffener Plate / Transaxle lower bolt (650 center) 64 650 47 ↗ RM179U2_1991_vol2 · p22 OEM manual
Transmission / transaxle Release Bearing Retainer (12 mm) 64 650 47 ↗ RM179U2_1991_vol2 · p24 OEM manual
Transmission / transaxle Release Bearing Retainer (10 mm) 46 470 34 ↗ RM179U2_1991_vol2 · p24 OEM manual
Transmission / transaxle 75 (65 in.-lb, 7.4) fastener 65 in.-lb 7.4 75 5.4 ↗ RM179U2_1991_vol2 · p24 OEM manual
Transmission / transaxle Shift and Select Lever Assembly 52 530 38 ↗ RM179U2_1991_vol2 · p24 OEM manual
Transmission / transaxle Differential Side Bearing Retainer 18 185 13 ↗ RM179U2_1991_vol2 · p24 OEM manual
Transmission / transaxle 185 (13, 18) fastener (right side) 18 185 13 ↗ RM179U2_1991_vol2 · p24 OEM manual
Transmission / transaxle Rear Bearing Retainer (precoated) 21 210 15 ↗ RM179U2_1991_vol2 · p24 OEM manual
Transmission / transaxle Transmission Case Cover (precoated) 29 300 22 ↗ RM179U2_1991_vol2 · p24 OEM manual
Transmission / transaxle Screw plug Step 7(f) — install screw plug after replacing reverse restrict pin 13 130 9 ↗ RM179U2_1991_vol2 · p37 OEM manual
Transmission / transaxle Six bolts (differential side bearing retainer) 18 185 13 ↗ RM179U2_1991_vol2 · p58 OEM manual
Transmission / transaxle Ring gear set bolts Tighten uniformly a little at a time 97 985 71 ↗ RM179U2_1991_vol2 · p61 OEM manual
Transmission / transaxle Seventeen bolts — transmission case to transaxle case Step (d) 29 300 22 ↗ RM179U2_1991_vol2 · p62 OEM manual
Transmission / transaxle No. 1 oil receiver pipe to transmission case 65 in.-lb; Step 1 7.4 75 — ↗ RM179U2_1991_vol2 · p64 OEM manual
Transmission / transaxle Transaxle oil receiver to transaxle case 65 in.-lb; Step 2(a) 7.4 75 — ↗ RM179U2_1991_vol2 · p64 OEM manual
Transmission / transaxle Plate to transaxle case Step 2(b) 18 185 13 ↗ RM179U2_1991_vol2 · p64 OEM manual
Transmission / transaxle No. 2 fork shaft screw plug Use SST 09313-30021; Step 4(d) 13 130 9 ↗ RM179U2_1991_vol2 · p64 OEM manual
Transmission / transaxle Reverse shift arm bolts (two bolts) Step 10(c) 18 185 13 ↗ RM179U2_1991_vol2 · p67 OEM manual
Transmission / transaxle Transmission case bolts (seventeen bolts) Step 11(c) 29 300 22 ↗ RM179U2_1991_vol2 · p67 OEM manual
Transmission / transaxle Reverse idler gear shaft lock bolt Step 12(b) 29 300 22 ↗ RM179U2_1991_vol2 · p67 OEM manual
Transmission / transaxle Side bearing retainer — six bolts 18 185 13 ↗ RM179U2_1991_vol2 · p68 OEM manual
Transmission / transaxle Rear bearing retainer — five bolts 21 210 15 ↗ RM179U2_1991_vol2 · p68 OEM manual
Transmission / transaxle Eight bolts (preceding step) Apply sealant (Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent) to bolt threads before installation 29 300 22 ↗ RM179U2_1991_vol2 · p71 OEM manual
Transmission / transaxle Control shaft cover Step 26(b) 33 335 24 ↗ RM179U2_1991_vol2 · p71 OEM manual
Transmission / transaxle No. 2 Lock Ball Assembly plug Step 28, SST 09313-30021 23 230 17 ↗ RM179U2_1991_vol2 · p72 OEM manual
Transmission / transaxle No. 1 Lock Ball Assembly lock nut Step 29 37 375 27 ↗ RM179U2_1991_vol2 · p72 OEM manual
Transmission / transaxle Selecting bell crank Step 30(a) 20 200 14 ↗ RM179U2_1991_vol2 · p72 OEM manual
Transmission / transaxle Engine mounting bracket Step 30(b) 52 530 38 ↗ RM179U2_1991_vol2 · p72 OEM manual
Transmission / transaxle Release bearing retainer Step 31; 65 in.-lb 7.4 75 — ↗ RM179U2_1991_vol2 · p72 OEM manual
Transmission / transaxle 480 (35, 47) — Oil Cooler Tube / Elbow fitting 47 480 35 ↗ RM179U2_1991_vol2 · p74 OEM manual
Transmission / transaxle 75 (65 in.-lb, 7) — Speedometer Adaptor bolt 65 in.-lb 7 75 5.4 ↗ RM179U2_1991_vol2 · p74 OEM manual
Transmission / transaxle 175 (13, 17) — Speedometer Adaptor 17 175 13 ↗ RM179U2_1991_vol2 · p74 OEM manual
Transmission / transaxle 175 (13, 17) — Magnet / lower transaxle case bolts 17 175 13 ↗ RM179U2_1991_vol2 · p74 OEM manual
Transmission / transaxle 200 (14, 20) — Selecting Bellcrank bolt 20 200 14 ↗ RM179U2_1991_vol2 · p74 OEM manual
Transmission / transaxle 300 (22, 29) — Plug (drain plug) 29 300 22 ↗ RM179U2_1991_vol2 · p74 OEM manual
Transmission / transaxle 300 (22, 29) — Transmission Case Cover bolts (precoated) Precoated part 29 300 22 ↗ RM179U2_1991_vol2 · p74 OEM manual
Transmission / transaxle 300 (22, 29) — Transmission Case bolts (precoated) Precoated part 29 300 22 ↗ RM179U2_1991_vol2 · p74 OEM manual
Transmission / transaxle Gasket (Transmission Oil Pump Assembly) Non-reusable part 17 175 13 ↗ RM179U2_1991_vol2 · p75 OEM manual
Transmission / transaxle Lock Nut (5th Driven Gear) Non-reusable part 123 1250 90 ↗ RM179U2_1991_vol2 · p75 OEM manual
Transmission / transaxle Rear Bearing Retainer Precoated part 42 430 31 ↗ RM179U2_1991_vol2 · p75 OEM manual
Transmission / transaxle Control Shaft Cover bolt Precoated part 20 200 14 ↗ RM179U2_1991_vol2 · p76 OEM manual
Transmission / transaxle Plug (top, shift fork shaft area) Precoated part 25 250 18 ↗ RM179U2_1991_vol2 · p76 OEM manual
Transmission / transaxle Transaxle Case Receiver 65 in.-lb 7.4 75 — ↗ RM179U2_1991_vol2 · p87 OEM manual
Lubrication / oil Oil pump cover bolts Three bolts, torque evenly 10 105 8 ↗ RM179U2_1991_vol2 · p105 OEM manual
Transmission / transaxle Transaxle Case Cover bolt (precoated) 54 550 40 ↗ RM179U2_1991_vol2 · p111 OEM manual
Transmission / transaxle Four bolts and three nuts — transaxle case cover 54 550 40 ↗ RM179U2_1991_vol2 · p116 OEM manual
Transmission / transaxle Sixteen torx screws (differential case) Torx wrench T50 09042-00040 63 640 46 ↗ RM179U2_1991_vol2 · p117 OEM manual
Transmission / transaxle Ring gear set bolts Tighten uniformly a little at a time 124 1260 91 ↗ RM179U2_1991_vol2 · p118 OEM manual
Transmission / transaxle Transmission case seventeen bolts 29 300 22 ↗ RM179U2_1991_vol2 · p119 OEM manual
Transmission / transaxle Rear bearing retainer seven torx screws 42 430 31 ↗ RM179U2_1991_vol2 · p119 OEM manual
Transmission / transaxle Oil pump assembly and oil pipe bolts (four bolts) 17 175 13 ↗ RM179U2_1991_vol2 · p121 OEM manual
Transmission / transaxle Seventeen bolts (transmission case) 29 300 22 ↗ RM179U2_1991_vol2 · p122 OEM manual
Transmission / transaxle Seven bolts — bearing retainer (Torx T45) 42 430 31 ↗ RM179U2_1991_vol2 · p122 OEM manual
Transmission / transaxle Locking ball plugs (two) Step 13(c), using SST 09313-30021 25 250 18 ↗ RM179U2_1991_vol2 · p126 OEM manual
Transmission / transaxle Reverse shift arm bracket and oil pipe bolts 17 175 13 ↗ RM179U2_1991_vol2 · p127 OEM manual
Transmission / transaxle Transmission case bolts (seventeen bolts) 29 300 22 ↗ RM179U2_1991_vol2 · p127 OEM manual
Transmission / transaxle Reverse idler gear shaft retaining bolt 29 300 22 ↗ RM179U2_1991_vol2 · p127 OEM manual
Transmission / transaxle Locking ball plug Step 19(c), using SST 09313-30021 25 250 18 ↗ RM179U2_1991_vol2 · p128 OEM manual
Transmission / transaxle Rear bearing retainer torx screws Seven torx screws, Torx wrench T45 09042-00050 42 430 31 ↗ RM179U2_1991_vol2 · p129 OEM manual
Transmission / transaxle Transmission case cover bolts (ten bolts) 29 300 22 ↗ RM179U2_1991_vol2 · p131 OEM manual
Transmission / transaxle Selecting bellcrank assembly 20 200 14 ↗ RM179U2_1991_vol2 · p132 OEM manual
Transmission / transaxle Back-up light switch with gasket 40 410 30 ↗ RM179U2_1991_vol2 · p132 OEM manual
Transmission / transaxle Selecting Bellcrank Support 19 195 14 ↗ RM179U2_1991_vol2 · p133 OEM manual
Transmission / transaxle Selecting Bellcrank (transaxle side, upper) 20 200 14 ↗ RM179U2_1991_vol2 · p133 OEM manual
Transmission / transaxle Shift Lever (transaxle side, upper) 12 120 9 ↗ RM179U2_1991_vol2 · p133 OEM manual
Transmission / transaxle Shift Lever (transaxle side, lower) 12 120 9 ↗ RM179U2_1991_vol2 · p133 OEM manual
Transmission / transaxle Shift Lever Retainer (floor side) 13 135 10 ↗ RM179U2_1991_vol2 · p133 OEM manual
Transmission / transaxle Neutral start switch bolts Step 6(c) — tighten after aligning groove and neutral basic line 5.4 55 — ↗ RM179U2_1991_vol2 · p147 OEM manual
Transmission / transaxle Drive Plate / Stiffener Plate bolts (outer) 37 380 27 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Drive Plate / Stiffener Plate bolts (inner) 27 280 20 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator / Bracket bolts 52 530 38 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Engine Mounting Front Bracket bolts (upper) 77 790 57 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Engine Mounting Front Bracket bolts (lower) 78 800 58 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Engine Mounting Front Insulator bolts 64 650 47 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket bolts 78 800 58 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator bolts (upper) 64 650 47 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Lock Nut (drive shaft hub) 186 1900 137 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Stabilizer Link / suspension nut 103 1050 76 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle No. 1 Engine Under Cover bolts 62 630 46 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Front Exhaust Pipe bolts (upper flange) 80 820 59 ↗ RM179U2_1991_vol2 · p175 OEM manual
Transmission / transaxle Torque converter mounting bolts 27 280 20 ↗ RM179U2_1991_vol2 · p176 OEM manual
Transmission / transaxle Torque converter to drive plate (sleeve runout check) Temporary mount for runout measurement 27 280 20 ↗ RM179U2_1991_vol2 · p177 OEM manual
Transmission / transaxle Drive plate bolts Note orientation of spacers when installing new drive plate 83 850 61 ↗ RM179U2_1991_vol2 · p177 OEM manual
Transmission / transaxle Speed Sensor / Sensor Adaptor bolts 100 (7, 10) 10 100 7 ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Rotor Sensor / Sensor Cover bolts 100 (7, 10) 10 100 7 ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Lock Plate (throttle cable side) 100 (7, 10) 10 100 7 ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Lock Plate / Throttle Cable area bolt 130 (9, 13) 13 130 9 ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle 2nd Coast Brake Piston cover bolt 55 (48 in.-lb, 5.4) 5.4 55 — ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Manual Shift Lever / Lock Plate bolt 130 (9, 13) 13 130 9 ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Neutral Start Switch / Manual Valve Lever bolt 70 (61 in.-lb, 6.9) 6.9 70 — ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Valve Body bolts 100 (7, 10) 10 100 7 ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Accumulator Cover bolts 100 (7, 10) 10 100 7 ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Oil Tube Bracket bolts 100 (7, 10) 10 100 7 ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Oil Pan bolts / Drain Plug 50 (43 in.-lb, 4.9) 4.9 50 — ↗ RM179U2_1991_vol2 · p178 OEM manual
Transmission / transaxle Transaxle Housing bolts (star) 29 300 22 ↗ RM179U2_1991_vol2 · p180 OEM manual
Transmission / transaxle Transaxle Housing bolts (lower) 29 300 22 ↗ RM179U2_1991_vol2 · p180 OEM manual
Transmission / transaxle Oil Tube Apply Cover bolts / Cam Guide Bracket screws 13 130 9 ↗ RM179U2_1991_vol2 · p180 OEM manual
Transmission / transaxle Counter Driven Gear Lock Nut 157 1600 116 ↗ RM179U2_1991_vol2 · p180 OEM manual
Lubrication / oil Stator shaft bolts (eleven bolts) Step 3 — Install stator shaft to pump body 10 100 7 ↗ RM179U2_1991_vol2 · p211 OEM manual
Transmission / transaxle Counter shaft starting torque (new bearing, hexagon nut side) New bearing, measured with torque gauge on hexagon nut side; range 6–10 kg-cm (5.2–8.7 in-lb, 0.6–1.0 N·m) 0.6 6 — ↗ RM179U2_1991_vol2 · p233 OEM manual
Transmission / transaxle Counter shaft starting torque (reused bearing, hexagon nut side) Reused bearing, measured with torque gauge on hexagon nut side; range 3–5 kg-cm (2.6–4.3 in-lb, 0.3–0.5 N·m) 0.3 3 — ↗ RM179U2_1991_vol2 · p233 OEM manual
Transmission / transaxle Counter shaft lock nut Reference torque range: 1,800–2,200 kg-cm (130–159 ft-lb, 177–216 N·m). Use torque wrench with fulcrum length of 42 cm (16.54 in.) 196.5 2000 144.5 ↗ RM179U2_1991_vol2 · p238 OEM manual
Engine — mechanical Gasket bolt (precoated) in.-lb value listed as 65 in.-lb; precoated part 7.4 75 — ↗ RM179U2_1991_vol2 · p245 OEM manual
Engine — mechanical Valve Body bolt (upper) in.-lb value: 56 6.5 65 — ↗ RM179U2_1991_vol2 · p246 OEM manual
Engine — mechanical Valve Body bolt (No. 3 Solenoid) in.-lb value: 56 6.5 65 — ↗ RM179U2_1991_vol2 · p246 OEM manual
Engine — mechanical Solenoid bolts (No. 1 and No. 2 Solenoid) 10 100 7 ↗ RM179U2_1991_vol2 · p246 OEM manual
Engine — mechanical Cam / Low Coast Modulator Valve assembly 10 100 7 ↗ RM179U2_1991_vol2 · p249 OEM manual
Engine — mechanical Lower valve body bolts (nineteen bolts) Step 6(a) 6.4 65 — ↗ RM179U2_1991_vol2 · p256 OEM manual
Engine — mechanical Upper valve body bolts (eight bolts) Step 6(b) 6.4 65 — ↗ RM179U2_1991_vol2 · p256 OEM manual
Engine — mechanical Solenoid bolt A 56 in.-lb; bolt length 18 mm 6.4 65 — ↗ RM179U2_1991_vol2 · p257 OEM manual
Engine — mechanical Solenoid bolt B bolt length 12 mm 10 100 7 ↗ RM179U2_1991_vol2 · p257 OEM manual
Transmission / transaxle Transaxle housing to transaxle case bolts Step (d); bolt lengths indicated in illustration 29 300 22 ↗ RM179U2_1991_vol2 · p264 OEM manual
Transmission / transaxle Ring gear set bolts Tighten uniformly a little at a time 97 985 71 ↗ RM179U2_1991_vol2 · p265 OEM manual
Transmission / transaxle New lock nut — counter driven gear Step 32 157 1600 116 ↗ RM179U2_1991_vol2 · p277 OEM manual
Transmission / transaxle Transaxle rear cover bolts (thirteen bolts) Step 37(c) 29 300 22 ↗ RM179U2_1991_vol2 · p278 OEM manual
Transmission / transaxle Transaxle housing bolts Step 63(d) 29 300 22 ↗ RM179U2_1991_vol2 · p288 OEM manual
Transmission / transaxle Cover bolts Cover installation step 70(c) 10 100 7 ↗ RM179U2_1991_vol2 · p291 OEM manual
Transmission / transaxle Valve body bolts Twelve bolts and wire retainer; hand tighten first then torque wrench 10 100 7 ↗ RM179U2_1991_vol2 · p292 OEM manual
Transmission / transaxle Manual detent spring cover bolt Bolt length 16mm; hand tighten first then torque wrench 10 100 7 ↗ RM179U2_1991_vol2 · p292 OEM manual
Transmission / transaxle Oil tube clamp and bracket bolts Step 77(b) 10 100 7 ↗ RM179U2_1991_vol2 · p293 OEM manual
Transmission / transaxle Oil pan bolts (eighteen bolts) 43 in.-lb; step 80(b) 4.9 50 — ↗ RM179U2_1991_vol2 · p294 OEM manual
Transmission / transaxle Sensor cover bracket bolts (two bolts) step 81(d) 13 130 9 ↗ RM179U2_1991_vol2 · p294 OEM manual
Transmission / transaxle Speed sensor retaining plate Step 81(f) 10 100 7 ↗ RM179U2_1991_vol2 · p295 OEM manual
Transmission / transaxle Union to transaxle case Step 84(b) 27 275 20 ↗ RM179U2_1991_vol2 · p295 OEM manual
Transmission / transaxle Neutral start switch nut Step 85(b); 61 in.-lb 6.9 70 — ↗ RM179U2_1991_vol2 · p295 OEM manual
Transmission / transaxle Neutral start switch bolts Step 85(i) 5.4 55 — ↗ RM179U2_1991_vol2 · p296 OEM manual
Suspension & axle Strut bar front nut Tighten after caster adjustment 113 1150 83 ↗ RM179U2_1991_vol2 · p304 OEM manual
Suspension & axle Strut Bar / Lower Arm bolt 69 in-lb; lower diagram fastener 7.8 80 — ↗ RM179U2_1991_vol2 · p308 OEM manual
Suspension & axle Disc brake dust cover bolts Four bolts, installed with torx driver 8.3 85 — ↗ RM179U2_1991_vol2 · p312 OEM manual
Suspension & axle Tie rod end castle nut Secure with new cotter pin 49 500 36 ↗ RM179U2_1991_vol2 · p314 OEM manual
Suspension & axle Steering knuckle to ball joint bolts 80 820 59 ↗ RM179U2_1991_vol2 · p314 OEM manual
Suspension & axle Speed sensor bolt (w/ ABS) 69 in.-lb; check sensor tip for ferric chip or foreign material before installing 7.8 80 — ↗ RM179U2_1991_vol2 · p314 OEM manual
Suspension & axle Steering knuckle to shock absorber 255 2600 188 ↗ RM179U2_1991_vol2 · p314 OEM manual
Suspension & axle Disc brake caliper to steering knuckle bolts 59 600 43 ↗ RM179U2_1991_vol2 · p315 OEM manual
Suspension & axle Disc brake caliper to steering knuckle bolts 59 600 43 ↗ RM179U2_1991_vol2 · p316 OEM manual
Suspension & axle Suspension support nut (top) 400 (29, 39) 39 400 29 ↗ RM179U2_1991_vol2 · p317 OEM manual
Suspension & axle Suspension support nut (piston rod) 500 (36, 49) — non-reusable part 49 500 36 ↗ RM179U2_1991_vol2 · p317 OEM manual
Suspension & axle Shock absorber lower mounting bolt 2,600 (188, 255) 255 2600 188 ↗ RM179U2_1991_vol2 · p317 OEM manual
Suspension & axle Speed sensor bolt (w/ ABS) 80 (69 in.-lb, 7.8) 7.8 80 — ↗ RM179U2_1991_vol2 · p317 OEM manual
Suspension & axle Brake caliper / hub nut 310 (22, 30) — non-reusable part (gasket) 30 310 22 ↗ RM179U2_1991_vol2 · p317 OEM manual
Suspension & axle Suspension support nut New nut; install using SST 09729-22031 49 500 36 ↗ RM179U2_1991_vol2 · p320 OEM manual
Suspension & axle Shock absorber assembly to body bolts Step 2 39 400 29 ↗ RM179U2_1991_vol2 · p321 OEM manual
Suspension & axle Steering knuckle to shock absorber lower bracket nuts Step 3 255 2600 188 ↗ RM179U2_1991_vol2 · p321 OEM manual
Suspension & axle Brake hose union to disc brake caliper Step 4(b), use new gaskets 30 310 22 ↗ RM179U2_1991_vol2 · p321 OEM manual
Suspension & axle Front Shock Absorber Assembly upper nut 64 650 47 ↗ RM179U2_1991_vol2 · p323 OEM manual
Suspension & axle Lower Arm rear bolt (strut bar side) 113 1150 83 ↗ RM179U2_1991_vol2 · p323 OEM manual
Suspension & axle Lower Arm front bolt (collar/retainer side) 113 1150 83 ↗ RM179U2_1991_vol2 · p323 OEM manual
Suspension & axle Ball Joint (lower arm to knuckle) nut 78 800 58 ↗ RM179U2_1991_vol2 · p323 OEM manual
Suspension & axle Ball joint turning torque Minimum value; range 0.8–2.5 N·m (8–25 kg-cm, 7–22 in.-lb); measured on fifth turn 0.8 8 — ↗ RM179U2_1991_vol2 · p324 OEM manual
Suspension & axle Castle nut — lower arm to ball joint 78 800 58 ↗ RM179U2_1991_vol2 · p325 OEM manual
Suspension & axle Stabilizer bar to body bracket bolt/nut 19 195 14 ↗ RM179U2_1991_vol2 · p327 OEM manual
Suspension & axle Stabilizer link to front shock absorber assembly nut 64 650 47 ↗ RM179U2_1991_vol2 · p327 OEM manual
Suspension & axle Stabilizer link to stabilizer bar nut 64 650 47 ↗ RM179U2_1991_vol2 · p327 OEM manual
Suspension & axle Strut bar to body Step 4(c) — after bouncing vehicle to stabilize suspension 113 1150 83 ↗ RM179U2_1991_vol2 · p329 OEM manual
Suspension & axle Upper mount / strut rod bolt 2,000 (188, 255) — format is kg·cm based; reinterpreted: 2,000 kg·cm = 196 N·m; label as printed 255 — 188 ↗ RM179U2_1991_vol2 · p330 OEM manual
Suspension & axle Ball joint mount bolt 600 (43, 59) 59 600 43 ↗ RM179U2_1991_vol2 · p330 OEM manual
Suspension & axle Brake Caliper bolt 1,150 (83, 113) 113 1150 83 ↗ RM179U2_1991_vol2 · p330 OEM manual
Suspension & axle Axle shaft nut (w/ 5S-FE Engine) 2,100 (137, 186) — w/ 5S-FE Engine 186 — 137 ↗ RM179U2_1991_vol2 · p330 OEM manual
Suspension & axle Axle shaft nut (w/ 3S-GTE Engine) 3,000 (217, 294) — w/ 3S-GTE Engine 294 3000 217 ↗ RM179U2_1991_vol2 · p330 OEM manual
Suspension & axle ABS Speed Sensor / Dust Cover bolt 85 (74 in.-lb, 8.3) — appears twice on diagram for w/ ABS Speed Sensor and Dust Cover 8.3 85 — ↗ RM179U2_1991_vol2 · p330 OEM manual
Suspension & axle Disc brake dust cover bolts Step 2 — install disc brake dust cover 8.3 85 — ↗ RM179U2_1991_vol2 · p334 OEM manual
Suspension & axle Rear axle carrier to shock absorber lower bracket nuts Step 1(c) 255 2600 188 ↗ RM179U2_1991_vol2 · p335 OEM manual
Suspension & axle Suspension arm bolt and nut Step 2 103 1050 76 ↗ RM179U2_1991_vol2 · p335 OEM manual
Suspension & axle Rear axle carrier to lower arm Step 3 113 1150 83 ↗ RM179U2_1991_vol2 · p335 OEM manual
Suspension & axle Stabilizer link nut Step 4; use hexagon wrench to hold stud if it turns with nut 49 500 36 ↗ RM179U2_1991_vol2 · p335 OEM manual
Suspension & axle Speed sensor to axle carrier (w/ ABS) Step 5; 69 in.-lb 7.8 80 — ↗ RM179U2_1991_vol2 · p335 OEM manual
Suspension & axle Bearing Lock Nut (5S-FE) 5S-FE engine 206 2100 152 ↗ RM179U2_1991_vol2 · p336 OEM manual
Suspension & axle Bearing Lock Nut (3S-GTE) 3S-GTE engine 294 3000 217 ↗ RM179U2_1991_vol2 · p336 OEM manual
Suspension & axle Disc brake caliper to rear axle carrier bolts Two bolts 59 600 43 ↗ RM179U2_1991_vol2 · p337 OEM manual
Suspension & axle Ball joint to axle carrier bolts Step 5(b) 113 1150 83 ↗ RM179U2_1991_vol2 · p349 OEM manual
Suspension & axle Speed sensor to axle carrier Step 6, w/ ABS; value listed as 69 in.-lb 7.4 80 — ↗ RM179U2_1991_vol2 · p349 OEM manual
Suspension & axle Stabilizer link upper side nut Step 7 49 500 36 ↗ RM179U2_1991_vol2 · p349 OEM manual
Suspension & axle Brake caliper axle carrier bolts Step 9 59 600 43 ↗ RM179U2_1991_vol2 · p349 OEM manual
Suspension & axle Drive shaft bearing bracket bolt to engine Step 1(a) 64 650 47 ↗ RM179U2_1991_vol2 · p365 OEM manual
Suspension & axle Bearing bracket stay bolt to engine and bearing bracket Step 1(b) 75 770 56 ↗ RM179U2_1991_vol2 · p365 OEM manual
Suspension & axle Bearing bracket stay nut Step 1(b) 75 770 56 ↗ RM179U2_1991_vol2 · p365 OEM manual
Suspension & axle Bearing bracket bolt (RH drive shaft) Step 3(c) 32 — 24 ↗ RM179U2_1991_vol2 · p365 OEM manual
Suspension & axle Ball joint to axle carrier bolts Two bolts 113 1150 — ↗ RM179U2_1991_vol2 · p366 OEM manual
Suspension & axle Speed sensor to axle carrier W/ABS; 69 in.-lb 7.4 80 — ↗ RM179U2_1991_vol2 · p366 OEM manual
Suspension & axle Stabilizer link upper side nut Use 5 mm hexagon wrench to hold stud if it turns with nut 49 500 36 ↗ RM179U2_1991_vol2 · p366 OEM manual
Suspension & axle Brake caliper axle carrier bolts Step 10 — two bolts 59 600 43 ↗ RM179U2_1991_vol2 · p367 OEM manual
Suspension & axle Tie rod end mount bolt and nut Step 11 103 1050 76 ↗ RM179U2_1991_vol2 · p367 OEM manual
Suspension & axle Inboard joint six hexagon bolts Step 12 — parking brake engaged, SST 09043-88010 65 660 48 ↗ RM179U2_1991_vol2 · p367 OEM manual
Suspension & axle Bearing lock nut Step 13(b) — parking brake engaged 294 3000 217 ↗ RM179U2_1991_vol2 · p367 OEM manual
Suspension & axle Collar (top of suspension support) 73 740 54 ↗ RM179U2_1991_vol2 · p368 OEM manual
Suspension & axle Support Cover / Suspension Support upper nut 80 820 59 ↗ RM179U2_1991_vol2 · p368 OEM manual
Suspension & axle Stabilizer Bar bracket / clip bolt (310) 30 310 22 ↗ RM179U2_1991_vol2 · p368 OEM manual
Suspension & axle Shock Absorber piston rod nut (2,600) 255 2600 188 ↗ RM179U2_1991_vol2 · p368 OEM manual
Suspension & axle Shock Absorber lower mount bolt (1,150) 113 1150 83 ↗ RM179U2_1991_vol2 · p368 OEM manual
Suspension & axle Strut Rod / Lower Arm front bolt (1,150) 113 1150 83 ↗ RM179U2_1991_vol2 · p368 OEM manual
Suspension & axle Ball Joint / Retainer nut (1,200) 118 1200 87 ↗ RM179U2_1991_vol2 · p368 OEM manual
Suspension & axle Ball Joint castle nut / Cotter Pin nut (1,050) 103 1050 76 ↗ RM179U2_1991_vol2 · p368 OEM manual
Suspension & axle Shock absorber to body nuts Three nuts holding shock absorber to body 80 820 59 ↗ RM179U2_1991_vol2 · p372 OEM manual
Suspension & axle Rear axle carrier to shock absorber lower bracket nuts Two bolts inserted from rear side 255 2600 188 ↗ RM179U2_1991_vol2 · p372 OEM manual
Suspension & axle Stabilizer link nut Use 5 mm hexagon wrench to hold stud if it turns with nut 49 500 36 ↗ RM179U2_1991_vol2 · p372 OEM manual
Suspension & axle Brake hose union bolt Install with two gaskets 30 310 22 ↗ RM179U2_1991_vol2 · p372 OEM manual
Suspension & axle ABS speed sensor wire harness clamp bolt w/ ABS, step 5 5.4 55 — ↗ RM179U2_1991_vol2 · p373 OEM manual
Suspension & axle Ball joint turning torque Spec range: 15–30 kg·cm (13–26 in.-lb, 1.47–2.94 N·m); midpoint used. If not within specification, replace the ball joint. 2.21 22.5 — ↗ RM179U2_1991_vol2 · p374 OEM manual
Suspension & axle Ball joint to rear axle carrier bolts 113 1150 83 ↗ RM179U2_1991_vol2 · p375 OEM manual
Suspension & axle Ball joint nut Step 2 — connect lower arm to ball joint 91 930 67 ↗ RM179U2_1991_vol2 · p376 OEM manual
Suspension & axle Strut rod nut Step 4 — tighten lower arm holding nut, after stabilizing suspension 118 1200 87 ↗ RM179U2_1991_vol2 · p376 OEM manual
Suspension & axle Strut rod installation nut (lower arm side) Step 3 — TIGHTEN STRUT ROD INSTALLATION NUT 118 1200 87 ↗ RM179U2_1991_vol2 · p378 OEM manual
Suspension & axle Strut rod installation bolt (body side) Step 4 — TIGHTEN STRUT ROD INSTALLATION BOLT 118 1200 87 ↗ RM179U2_1991_vol2 · p378 OEM manual
Suspension & axle Suspension arm to rear axle carrier bolt and nut Step 2 — Install suspension arm to rear axle carrier 103 1050 76 ↗ RM179U2_1991_vol2 · p379 OEM manual
Suspension & axle Suspension arm holding bolt Step 4 — Final torque after bouncing vehicle to stabilize suspension 103 1050 76 ↗ RM179U2_1991_vol2 · p379 OEM manual
Suspension & axle Stabilizer bar bracket bolts Step 1 — Install stabilizer bar 19 195 14 ↗ RM179U2_1991_vol2 · p382 OEM manual
Suspension & axle Suspension crossmember bolts Step 2 — Install suspension crossmember 113 1150 83 ↗ RM179U2_1991_vol2 · p382 OEM manual
Suspension & axle Rear engine mounting to rear suspension crossmember bolts Step 3 — Connect rear engine mounting 77 790 57 ↗ RM179U2_1991_vol2 · p382 OEM manual
Suspension & axle Exhaust pipe mounting to rear suspension crossmember Step 4 — Connect exhaust pipe mounting 21 210 15 ↗ RM179U2_1991_vol2 · p382 OEM manual
Suspension & axle ABS speed sensor bracket to rear suspension crossmember 48 in.-lb 5.4 55 — ↗ RM179U2_1991_vol2 · p383 OEM manual
Suspension & axle Crossmember side bolt Suspension arm installation bolt — crossmember side 103 1050 76 ↗ RM179U2_1991_vol2 · p384 OEM manual
Suspension & axle Axle carrier side bolt Suspension arm installation bolt — axle carrier side 103 1050 76 ↗ RM179U2_1991_vol2 · p384 OEM manual
Suspension & axle No.2 Bracket bolt (retainer/cushion assembly) 25 250 18 ↗ RM179U2_1991_vol2 · p385 OEM manual
Suspension & axle Engine Lateral Control Rod bolt (large) 73 740 54 ↗ RM179U2_1991_vol2 · p385 OEM manual
Suspension & axle Engine Lateral Control Rod bolt (small) 35 360 26 ↗ RM179U2_1991_vol2 · p385 OEM manual
Suspension & axle No.1 Bracket / LH Engine Mounting Stay bolt 49 500 36 ↗ RM179U2_1991_vol2 · p385 OEM manual
Suspension & axle Engine lateral control rod assembly nut Assemble engine lateral control rod 25 250 18 ↗ RM179U2_1991_vol2 · p386 OEM manual
Suspension & axle No.1 bracket to control rod Install engine lateral control rod step (a) 49 500 36 ↗ RM179U2_1991_vol2 · p386 OEM manual
Suspension & axle No.1 bracket installation bolts Install engine lateral control rod step (b) 35 360 26 ↗ RM179U2_1991_vol2 · p386 OEM manual
Suspension & axle No.2 bracket installation bolt Install engine lateral control rod step (c) 73 740 54 ↗ RM179U2_1991_vol2 · p386 OEM manual
Suspension & axle LH engine mounting stay — No.2 bracket side Install LH engine mounting stay 73 740 54 ↗ RM179U2_1991_vol2 · p386 OEM manual
Suspension & axle LH engine mounting stay — Body side Install LH engine mounting stay 25 250 18 ↗ RM179U2_1991_vol2 · p386 OEM manual
Brakes Adjusting nuts Tighten so equalizer is horizontal to the ground 16 160 12 ↗ RM179U2_1991_vol2 · p394 OEM manual
Brakes Brake tube union nuts (lower / P valve bracket) 13 130 9 ↗ RM179U2_1991_vol2 · p395 OEM manual
Brakes Brake tube union nuts Step 3 — using SST 09751-36011 15 155 11 ↗ RM179U2_1991_vol2 · p400 OEM manual
Brakes 130 (9, 13) — P & BV bracket / related fastener 13 130 9 ↗ RM179U2_1991_vol2 · p401 OEM manual
Brakes 155 (11, 15) — Master cylinder / related fastener 15 155 11 ↗ RM179U2_1991_vol2 · p401 OEM manual
Brakes 260 (19, 25) — Brake booster mounting fastener 25 260 19 ↗ RM179U2_1991_vol2 · p401 OEM manual
Brakes 130 (9, 13) — Clevis / brake booster related fastener 13 130 9 ↗ RM179U2_1991_vol2 · p401 OEM manual
Brakes Clevis lock nut Tighten after checking and adjusting brake pedal 25 260 19 ↗ RM179U2_1991_vol2 · p402 OEM manual
Brakes Cylinder installation bolts Hold sliding pin while torquing 34 350 25 ↗ RM179U2_1991_vol2 · p405 OEM manual
Brakes Cylinder installation bolts Hold sliding pin while torquing 34 350 25 ↗ RM179U2_1991_vol2 · p410 OEM manual
Brakes Flexible hose to brake cylinder Install with two new gaskets 30 310 22 ↗ RM179U2_1991_vol2 · p410 OEM manual
Brakes Torque plate mounting bolts Step (e) — install torque plate to knuckle 88 900 65 ↗ RM179U2_1991_vol2 · p416 OEM manual
Brakes Flexible hose Step 3, install with two new gaskets 30 310 22 ↗ RM179U2_1991_vol2 · p418 OEM manual
Brakes Flexible hose on brake cylinder Install with two new gaskets 30 310 22 ↗ RM179U2_1991_vol2 · p432 OEM manual
Brakes ABS actuator mounting bolts Three locations shown in diagram 19 195 14 ↗ RM179U2_1991_vol2 · p451 OEM manual
Brakes Sensor installation bolt 69 in.-lb; sensor installation 7.8 80 — ↗ RM179U2_1991_vol2 · p456 OEM manual
Steering Torx screws (wheel pad) Four screws; tighten with torx wrench 7.4 75 — ↗ RM179U2_1991_vol2 · p467 OEM manual
Steering Tension Spring / Key Cylinder bracket bolt Upper bracket area 15 150 11 ↗ RM179U2_1991_vol2 · p468 OEM manual
Steering Tilt Steering Bolt / Tension Spring Lower column tube area 15 150 11 ↗ RM179U2_1991_vol2 · p468 OEM manual
Steering Tilt lever assembly installation bolt Step 6(d) 2.9 30 — ↗ RM179U2_1991_vol2 · p473 OEM manual
Steering Tilt sub lever side pawl stopper nut Step 9(c) 15 150 11 ↗ RM179U2_1991_vol2 · p474 OEM manual
Steering Compression spring bolt Step 11(c); in-lb value: 69 7.8 80 — ↗ RM179U2_1991_vol2 · p475 OEM manual
Steering Pinion bearing adjusting screw — tighten point Step 5(b); turning torque tighten point; 3.2 in.-lb 0.4 3.7 0.32 ↗ RM179U2_1991_vol2 · p485 OEM manual
Steering Pinion preload (turning) — final Step 5(c); range 2.3–3.3 kg-cm, 2.0–2.9 in.-lb, 0.2–0.3 N·m 0.25 2.8 0.245 ↗ RM179U2_1991_vol2 · p485 OEM manual
Steering Pinion bearing adjusting screw lock nut Step 6(b); use torque wrench with fulcrum length 425 mm (16.73 in.) 91 930 67 ↗ RM179U2_1991_vol2 · p485 OEM manual
Steering Pinion preload (turning) after lock nut install Step 6(c); range 1.5–2.5 kg-cm, 1.3–2.2 in.-lb, 0.1–0.2 N·m 0.15 2 0.175 ↗ RM179U2_1991_vol2 · p485 OEM manual
Steering Rack guide spring cap Step 9(a); then return cap 25° 25 250 18 ↗ RM179U2_1991_vol2 · p485 OEM manual
Steering Rack guide spring cap lock nut Use torque wrench with fulcrum length of 340 mm (13.39 in.) 56 570 41 ↗ RM179U2_1991_vol2 · p486 OEM manual
Steering Rack ends Use torque wrench with fulcrum length of 340 mm (13.39 in.) 64 650 47 ↗ RM179U2_1991_vol2 · p486 OEM manual
Steering Tie rod end lock nuts After adjusting toe-in 56 570 41 ↗ RM179U2_1991_vol2 · p487 OEM manual
Steering Rear Pump Stay bolt Upper bolt — 185 (13, 18) 18 185 13 ↗ RM179U2_1991_vol2 · p494 OEM manual
Steering Rear Pump Stay bolt (lower) Lower bolt — 185 (13, 18) 18 185 13 ↗ RM179U2_1991_vol2 · p494 OEM manual
Steering Pressure Tube Standard torque — 450 (33, 44) 44 450 33 ↗ RM179U2_1991_vol2 · p494 OEM manual
Steering Pressure Tube (with SST) For use with SST — 370 (27, 36) 36 370 27 ↗ RM179U2_1991_vol2 · p494 OEM manual
Steering Front Luggage Under Cover bolt 260 (19, 25) 25 260 19 ↗ RM179U2_1991_vol2 · p494 OEM manual
Steering Control valve housing bolts Step 9(c) — two bolts 18 185 13 ↗ RM179U2_1991_vol2 · p510 OEM manual
Steering Rack guide spring cap Step 13(b); SST 09612-10131 25 250 18 ↗ RM179U2_1991_vol2 · p511 OEM manual
Steering Rack guide spring cap lock nut Step 14(b); SST 09612-10131 and 09612-24014 (09617-22030); use torque wrench with fulcrum length 340 mm (13.39 in.) 33 340 25 ↗ RM179U2_1991_vol2 · p511 OEM manual
Steering Rack ends Use torque wrench with fulcrum length of 340 mm (13.39 in.). SST 09617-10020. 51 520 38 ↗ RM179U2_1991_vol2 · p512 OEM manual
Steering Tie rod end lock nuts After adjusting toe-in 56 570 41 ↗ RM179U2_1991_vol2 · p512 OEM manual
Steering Right and left turn pressure tubes Use torque wrench with fulcrum length of 300 mm (11.81 in.) 11 110 8 ↗ RM179U2_1991_vol2 · p513 OEM manual
Steering Torx Screw (steering wheel pad) in-lb value shown as 65 in-lb 7.4 75 — ↗ RM179U2_1991_vol2 · p537 OEM manual
SRS / airbag Torx screws (wheel pad) 65 in.-lb, Step 6(c) 7.4 75 — ↗ RM179U2_1991_vol2 · p538 OEM manual
Body Seat belt bolt (upper anchor, shoulder anchor, retractor, etc.) 43 440 32 ↗ RM179U2_1991_vol2 · p842 OEM manual
Body Seat belt bolt (pretensioner or small anchor) 69 in-lb 7.8 80 — ↗ RM179U2_1991_vol2 · p842 OEM manual
Air conditioning Condenser inlet/outlet fittings (185) 18 185 13 ↗ RM179U2_1991_vol2 · p867 OEM manual
Clutch Pressure Plate shaft nut 165 (12, 16) as shown on diagram 16 165 12 ↗ RM179U2_1991_vol2 · p870 OEM manual
Air conditioning Service Valve bolt 260 (19, 25) — front housing and rear housing fastener 25 260 19 ↗ RM179U2_1991_vol2 · p872 OEM manual
Air conditioning Five through bolts Gradually tighten in two or three passes 25 260 19 ↗ RM179U2_1991_vol2 · p877 OEM manual
Air conditioning Shaft starting torque 43 in.-lb, or less — Step 10 4.9 50 — ↗ RM179U2_1991_vol2 · p878 OEM manual
Air conditioning Liquid Tubes to Receiver in.-lb value listed as 48 5.4 55 — ↗ RM179U2_1991_vol2 · p882 OEM manual
Cooling Liquid Tube and Discharge Tube to Condenser bolt 18 185 13 ↗ RM179U2_1991_vol2 · p884 OEM manual
Cooling Expansion valve bolt (suction and liquid tubes to evaporator) 48 in.-lb; ensure O-rings are positioned on the tube fitting 5.4 55 — ↗ RM179U2_1991_vol2 · p886 OEM manual
Cooling Liquid tube to cooling unit inlet fitting nut 14 140 10 ↗ RM179U2_1991_vol2 · p887 OEM manual
Cooling Suction tube to cooling unit outlet fitting nut 32 330 24 ↗ RM179U2_1991_vol2 · p887 OEM manual
Clutch Flexible hose x Transmission control cable bracket 23 235 17 ↗ RM179U2_1991_vol2 · p901 OEM manual
Clutch Transmission control cable bracket x Clutch release cylinder tube 15 155 11 ↗ RM179U2_1991_vol2 · p901 OEM manual
Clutch Clutch release cylinder tube x Release cylinder body 15 155 11 ↗ RM179U2_1991_vol2 · p901 OEM manual
Clutch Engine front mounting bracket x Transaxle case 77 790 57 ↗ RM179U2_1991_vol2 · p901 OEM manual
Transmission / transaxle Transaxle x Engine — 12 mm bolt 64 650 47 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Transaxle x Engine — 10 mm bolt 46 470 34 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Transaxle x Front engine mounting bracket 77 790 57 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Transaxle x Rear engine mounting bracket 77 790 57 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle LH engine mounting bracket x Transaxle 52 530 38 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle LH engine mounting stay x Transaxle 37 380 27 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle LH engine mounting stay x LH engine mounting 73 740 54 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle LH engine mounting x LH engine mounting bracket 64 650 47 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Input shaft front bearing lock plate bolt 18 185 13 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Output shaft front bearing lock plate bolt 18 185 13 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Differential side bearing retainer x Transmission case 18 185 13 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Transaxle case x Transmission case 29 300 22 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Reverse shift arm bracket x Transaxle case 18 185 13 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Reverse idler gear shaft lock bolt 29 300 22 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Rear bearing retainer x Transmission case 21 210 15 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Control shaft cover x Transmission case 37 375 27 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle No. 1 lock ball assembly lock nut 37 375 27 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle No. 1 oil receiver pipe x Transmission case 65 in.-lb 7.4 75 — ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Transmission case cover x Transmission case 29 300 22 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Release bearing retainer x Transaxle case 65 in.-lb 7.4 75 — ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Transaxle case oil receiver x Transaxle case 65 in.-lb 7.4 75 — ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Transmission case protector x Transmission case 18 185 13 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Clutch release cylinder x Transaxle 12 120 9 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Selecting bell crank x Transmission case 20 200 14 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Shift lever x Shift and select lever shaft 12 120 9 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Shift lever plate x Shift lever retainer 19 195 14 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Shift lever x Shift control cable 13 135 10 ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Cable bracket x Body 43 in.-lb 5 50 — ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Grommet retainer set nut 43 in.-lb 5 50 — ↗ RM179U2_1991_vol2 · p904 OEM manual
Transmission / transaxle Output shaft bearing preload (at starting) — New bearing Range: 8–16 kg·cm (6.9–13.9 in.-lb, 0.8–1.6 N·m) 1.6 16 — ↗ RM179U2_1991_vol2 · p905 OEM manual
Transmission / transaxle Output shaft bearing preload (at starting) — Reused bearing Range: 5–10 kg·cm (4.3–8.7 in.-lb, 0.5–1.0 N·m) 1 10 — ↗ RM179U2_1991_vol2 · p905 OEM manual
Transmission / transaxle Side bearing preload (at starting) — New bearing — Output shaft bearing preload Range: 1.9–3.7 kg·cm (1.6–3.2 in.-lb, 0.2–0.4 N·m) 0.4 3.7 — ↗ RM179U2_1991_vol2 · p905 OEM manual
Transmission / transaxle Side bearing preload (at starting) — Reused bearing — Output shaft bearing preload Range: 1.2–2.3 kg·cm (1.0–2.0 in.-lb, 0.1–0.2 N·m) 0.2 2.3 — ↗ RM179U2_1991_vol2 · p905 OEM manual
Transmission / transaxle Transaxle x Front engine mounting bracket 77 790 57 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Transaxle x Rear engine mounting bracket 77 790 57 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle LH engine mounting stay x Transaxle 37 380 27 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle LH engine mounting stay x LH engine mounting 73 740 54 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle LH engine mounting x LH engine mounting bracket 64 650 47 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Differential right case x Differential left case 63 640 46 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Differential case x Ring gear 124 1260 91 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Transmission case x Transaxle case 29 300 22 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Transmission case x Case cover 29 300 22 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Rear bearing retainer x Transmission case 42 430 31 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Reverse idler shaft lock bolt 29 300 22 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Reverse shift arm bracket x Transaxle case 17 175 13 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Selecting bellcrank x Transmission case 20 200 14 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Shift lever x Shift and select lever shaft 12 120 9 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Lock bolt x Transmission case 49 500 36 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Clutch release cylinder x Transaxle 12 120 9 ↗ RM179U2_1991_vol2 · p908 OEM manual
Transmission / transaxle Counter shaft starting torque — new bearing (hexagon nut side), with torque gauge Range: 6–10 kg-cm / 5.2–8.7 in-lb / 0.6–1.0 N·m; new bearing 0.6 6 — ↗ RM179U2_1991_vol2 · p910 OEM manual
Transmission / transaxle Counter shaft starting torque — reused bearing (hexagon nut side), with torque gauge Range: 3–5 kg-cm / 2.6–4.3 in-lb / 0.3–0.5 N·m; reused bearing 0.3 3 — ↗ RM179U2_1991_vol2 · p910 OEM manual
Transmission / transaxle Differential side bearing preload (at Starting) — New bearing Range: 8–14 kg-cm / 6.9–12.2 in-lb / 0.8–1.4 N·m 1.1 11 — ↗ RM179U2_1991_vol2 · p911 OEM manual
Transmission / transaxle Differential side bearing preload (at Starting) — Reused bearing Range: 4–7 kg-cm / 3.5–6.1 in-lb / 0.4–0.7 N·m 0.55 5.5 — ↗ RM179U2_1991_vol2 · p911 OEM manual
Transmission / transaxle Neutral start switch x Transaxle case 48 in.-lb 5.4 55 — ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Torque converter x Drive plate 27 280 20 ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Oil pump body x Stator shaft 10 100 7 ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Upper valve body x Lower valve body 56 in.-lb 6.4 65 — ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Ring gear x Differential case 97 985 71 ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Transaxle housing x Transmission case 29 300 22 ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Counter shaft x Driven gear 157 1600 116 ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Accumulator cover x Transaxle case 10 100 7 ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Manual detent spring x Transaxle case 10 100 7 ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Speed sensor x Transaxle case 10 100 7 ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Neutral start switch x Manual valve shaft 61 in.-lb 6.9 70 — ↗ RM179U2_1991_vol2 · p912 OEM manual
Transmission / transaxle Transaxle rear cover x Transaxle case 29 300 22 ↗ RM179U2_1991_vol2 · p912 OEM manual
Suspension & axle Front axle — Ball joint rotation condition 8–25 kg·cm (7–22 in.-lb, 0.8–2.5 N·m) — — — ↗ RM179U2_1991_vol2 · p913 OEM manual
Suspension & axle Rear axle — Ball joint rotation condition 0.5–10 kg·cm (0.43–8.68 in.-lb, 0.05–0.98 N·m) — — — ↗ RM179U2_1991_vol2 · p913 OEM manual
Suspension & axle Disc brake dust cover x Steering knuckle 74 in.-lb; Front Axle and Suspension 8.3 85 — ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Axle hub lock nut Front Axle and Suspension 123 1250 90 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Tie rod end x Steering knuckle Front Axle and Suspension 49 500 36 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Ball joint x Steering knuckle Front Axle and Suspension 80 820 59 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle ABS speed sensor x Steering knuckle (w/ABS) 69 in.-lb; Front Axle and Suspension 7.8 80 — ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Steering knuckle x Shock absorber Front Axle and Suspension 255 2600 188 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Brake caliper x Steering knuckle Front Axle and Suspension 59 600 43 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Piston rod x Suspension support Front Axle and Suspension 49 500 36 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Suspension support x Body Front Axle and Suspension 39 400 29 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Brake hose x Disc brake caliper Front Axle and Suspension 30 310 22 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Stabilizer link x Shock absorber Front Axle and Suspension 64 650 47 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Lower arm x Ball joint Front Axle and Suspension 78 800 58 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Strut Bar x Lower arm Front Axle and Suspension 113 1150 83 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Lower arm x Body Front Axle and Suspension 118 1200 87 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Stabilizer bar x Body Front Axle and Suspension 19 195 14 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Stabilizer bar x Stabilizer link Front Axle and Suspension 64 650 47 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Strut bar x Body Front Axle and Suspension 113 1150 83 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Hub nut Front Axle and Suspension 103 1050 76 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Axle carrier x Shock absorber Rear Axle and Suspension — 2600 188 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Axle carrier x Tie rod end Rear Axle and Suspension 103 1050 76 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Axle carrier x Lower arm Rear Axle and Suspension 113 1150 83 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Stabilizer link x Shock absorber Rear Axle and Suspension 49 500 36 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle ABS speed sensor x Axle carrier 69 in.-lb; Rear Axle and Suspension 7.8 80 — ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Disc brake caliper x Axle carrier Rear Axle and Suspension 59 600 43 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Hub bearing lock nut (5S-FE engine) Rear Axle and Suspension; 5S-FE engine 206 2100 152 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Hub bearing lock nut (3S-GTE engine) Rear Axle and Suspension; 3S-GTE engine 294 3000 217 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Axle carrier x Ball joint Rear Axle and Suspension 113 1150 83 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Bearing bracket stay x Engine Rear Axle and Suspension 75 770 56 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Bearing bracket stay x Bearing bracket Rear Axle and Suspension 75 770 56 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Bearing bracket x Drive shaft center bearing Rear Axle and Suspension 32 330 24 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Bearing bracket x Engine Rear Axle and Suspension 64 650 47 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Drive shaft inboard joint holding hexagon bolts Rear Axle and Suspension 65 660 48 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Piston rod x Suspension support Rear Axle and Suspension 73 740 54 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Suspension support x Body Rear Axle and Suspension 80 820 59 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Brake hose x Disc brake caliper Rear Axle and Suspension 30 310 22 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle ABS speed sensor wire harness x Suspension cross member 48 in.-lb; Rear Axle and Suspension 5.4 55 — ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Lower arm x Ball joint Rear Axle and Suspension 91 930 67 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Lower arm holding nut Rear Axle and Suspension 132 1350 98 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Strut rod nut Rear Axle and Suspension 89 910 66 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Strut rod x Body Rear Axle and Suspension 118 1200 87 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Suspension arm x Body Rear Axle and Suspension 103 1050 76 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Stabilizer bar x Body Rear Axle and Suspension 19 195 14 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Suspension cross member x Body Rear Axle and Suspension 113 1150 83 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Engine mount x Suspension cross member Rear Axle and Suspension 77 790 57 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Exhaust pipe x Suspension cross member Rear Axle and Suspension 21 210 15 ↗ RM179U2_1991_vol2 · p914 OEM manual
Suspension & axle Stabilizer bar x Stabilizer link Rear Axle and Suspension 49 500 36 ↗ RM179U2_1991_vol2 · p914 OEM manual
Brakes Front disc brake cylinder installation bolt (PE36T Disc) PE36T Disc 34 350 25 ↗ RM179U2_1991_vol2 · p915 OEM manual
Brakes Front disc brake cylinder installation bolt (PD51 Disc) PD51 Disc 25 255 18 ↗ RM179U2_1991_vol2 · p915 OEM manual
Brakes Front disc brake torque plate x Steering knuckle 88 900 65 ↗ RM179U2_1991_vol2 · p915 OEM manual
Brakes Rear disc brake torque plate x Rear axle carrier 59 600 43 ↗ RM179U2_1991_vol2 · p915 OEM manual
Steering Tilt lever assembly installation bolt 26 in.-lb 2.9 30 — ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Gear housing bracket x Body (manual steering) 43 440 32 ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Tie rod end x Steering knuckle (manual steering) 49 500 36 ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Universal joint bolt (manual steering gear housing) 35 360 26 ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Pressure tube union nut (power steering pump) 36 370 27 ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Gear housing bracket x Body (power steering gear housing) 43 440 32 ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Tie rod end x Steering knuckle (power steering gear housing) 49 500 36 ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Universal joint bolt (power steering gear housing) 35 360 26 ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Pressure tube union bolt (power steering gear housing) 49 500 36 ↗ RM179U2_1991_vol2 · p916 OEM manual
Steering Control valve housing x Rack housing Gear housing (cont'd) 18 185 13 ↗ RM179U2_1991_vol2 · p917 OEM manual
Steering Control valve shaft-self-locking nut Gear housing (cont'd) 25 250 18 ↗ RM179U2_1991_vol2 · p917 OEM manual
Steering Rack guide spring cap lock nut Gear housing (cont'd) 33 340 25 ↗ RM179U2_1991_vol2 · p917 OEM manual
Steering Turn pressure tube x Housing Gear housing (cont'd) 11 110 8 ↗ RM179U2_1991_vol2 · p917 OEM manual
Steering Steering wheel pad SRS Airbag; ft-lb value is 65 in-lb 7.4 75 — ↗ RM179U2_1991_vol2 · p917 OEM manual
Steering Shoulder anchor x Adjustable anchor Body — Seat Belts 43 440 32 ↗ RM179U2_1991_vol2 · p917 OEM manual
Steering ELR x Body Body — Seat Belts; ft-lb value is 69 in-lb; second row 9.8 80 — ↗ RM179U2_1991_vol2 · p917 OEM manual
Unclassified 4T Hexagon flange bolt — M6 x 1.0 in-lb: 52 6 60 — ↗ RM179U2_1991_vol2 · p921 OEM manual
Unclassified 5T Hexagon head bolt — M6 x 1.0 in-lb: 56 6.5 65 — ↗ RM179U2_1991_vol2 · p921 OEM manual
Unclassified 5T Hexagon flange bolt — M6 x 1.0 in-lb: 65 7.5 75 — ↗ RM179U2_1991_vol2 · p921 OEM manual
Unclassified 6T Hexagon flange bolt — M6 x 1.0 in-lb: 78 9 90 — ↗ RM179U2_1991_vol2 · p921 OEM manual
Unclassified 10T Hexagon flange bolt — M12 x 1.25 155 1600 116 ↗ RM179U2_1991_vol2 · p921 OEM manual
Unclassified 11T Hexagon flange bolt — M12 x 1.25 175 1800 130 ↗ RM179U2_1991_vol2 · p921 OEM manual
Transmission / transaxle Exhaust Pipe (upper gasket side) 62 630 46 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Exhaust Pipe (lower / mid connection) 62 630 46 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket 77 790 57 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator (upper bolt) 64 650 47 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator (lower bolt) 87 890 64 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Engine Rateral Control Assembly (upper) 73 740 54 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Suspension Crossmember / Transaxle mount bolt 113 1150 83 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Engine Mounting Front Insulator 77 790 57 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Engine Mounting Front Bracket (upper) 98 980 71 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Engine Mounting Front Bracket (lower) 73 740 54 ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Drive Shaft (RH) / Rear End Plate bolt 82 in·lbf 9 95 — ↗ RM285U_1993_transaxle_auto · p1 OEM manual
Transmission / transaxle Drive plate bolts Step 2 — MEASURE DRIVE PLATE RUNOUT AND INSPECT RING GEAR 88 900 65 ↗ RM285U_1993_transaxle_auto · p8 OEM manual
Transmission / transaxle Torque converter to drive plate (temporary mount) Step 3a — MEASURE TORQUE CONVERTER SLEEVE RUNOUT 18 185 13 ↗ RM285U_1993_transaxle_auto · p8 OEM manual
Transmission / transaxle A bolt — transaxle housing mounting bolt 64 650 47 ↗ RM285U_1993_transaxle_auto · p9 OEM manual
Transmission / transaxle B bolt — transaxle housing mounting bolt 46 470 34 ↗ RM285U_1993_transaxle_auto · p9 OEM manual
Transmission / transaxle C bolt — transaxle housing mounting bolt 25 250 18 ↗ RM285U_1993_transaxle_auto · p9 OEM manual
Transmission / transaxle Torque converter mounting bolts 27 280 20 ↗ RM285U_1993_transaxle_auto · p9 OEM manual
Transmission / transaxle Rear end plate bolts 82 in.–lbf 9 95 — ↗ RM285U_1993_transaxle_auto · p9 OEM manual
Transmission / transaxle Stiffener plate bolts Step 7 — three bolts 37 380 27 ↗ RM285U_1993_transaxle_auto · p10 OEM manual
Transmission / transaxle Engine LH mounting set bolts Step 8 — three bolts 64 650 47 ↗ RM285U_1993_transaxle_auto · p10 OEM manual
Transmission / transaxle Suspension crossmember bolts Step 9(a) — four bolts 113 1150 83 ↗ RM285U_1993_transaxle_auto · p10 OEM manual
Transmission / transaxle Suspension arm bolt and nut to rear axle hub Step 9(c) 103 1050 76 ↗ RM285U_1993_transaxle_auto · p10 OEM manual
Transmission / transaxle Lower arm bolt to suspension crossmember 132 1350 98 ↗ RM285U_1993_transaxle_auto · p11 OEM manual
Transmission / transaxle Engine rear mounting — transaxle side 77 790 57 ↗ RM285U_1993_transaxle_auto · p11 OEM manual
Transmission / transaxle Engine rear mounting — crossmember side 64 650 47 ↗ RM285U_1993_transaxle_auto · p11 OEM manual
Transmission / transaxle Engine rear mounting — through bolt 87 890 64 ↗ RM285U_1993_transaxle_auto · p11 OEM manual
Transmission / transaxle Engine front mounting — transaxle side 77 790 57 ↗ RM285U_1993_transaxle_auto · p11 OEM manual
Transmission / transaxle Engine front mounting — body side 73 740 54 ↗ RM285U_1993_transaxle_auto · p11 OEM manual
Transmission / transaxle Engine front mounting — through bolt 96 980 71 ↗ RM285U_1993_transaxle_auto · p11 OEM manual
Transmission / transaxle Exhaust pipe "A" bolts 62 630 46 ↗ RM285U_1993_transaxle_auto · p11 OEM manual
Transmission / transaxle Park Neutral Switch bolts Step 1(h) — two bolts; value in in.-lbf: 48 5.4 55 — ↗ RM285U_1993_transaxle_auto · p25 OEM manual
Transmission / transaxle Sensor cover bracket bolts Step (c) 5.4 55 — ↗ RM285U_1993_transaxle_auto · p29 OEM manual
Transmission / transaxle Speed sensor and retaining plate Step (e) 5.4 55 — ↗ RM285U_1993_transaxle_auto · p29 OEM manual
Transmission / transaxle Engine mount bracket x Transmission case 52 530 38 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Transaxle x Engine (12 mm bolt) 12 mm bolt 64 650 47 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Transaxle x Engine (10 mm bolt) 10 mm bolt 46 470 34 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Rear end plate set bolt 82 in.·lbf 9 95 — ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Stiffener plate x Engine 37 380 27 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Stiffener plate x Transaxle 37 380 27 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Engine LH mounting set bolt 64 650 47 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Suspension crossmember x Body 113 1150 83 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Suspension arm x Rear axle hub 103 1050 76 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Lower arm x Suspension crossmember 132 1350 98 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Engine rear mounting x Transaxle 77 790 57 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Engine rear mounting x Crossmember 64 650 47 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Engine rear mounting through bolt 87 890 64 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Engine front mounting x Transaxle 77 790 57 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Engine front mounting x Body 73 740 54 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Engine front mounting through bolt 96 980 71 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Front exhaust pipe x Tail pipe 62 630 46 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Front exhaust pipe x Exhaust manifold 62 630 46 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Transaxle x Starter 39 400 29 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle LH engine mounting x Body 73 740 54 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle LH engine mounting stay x Transaxle 25 250 18 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle PARK NEUTRAL switch x Transaxle case 48 in.·lbf 5.4 55 — ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Valve body x Transaxle case 10 100 7 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Manual detent spring x Valve body 10 100 7 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Kick-down pressure switch x Valve body 48 in.·lbf 6.4 65 — ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Oil tube bracket x Valve body 10 100 7 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Apply tube bracket x Valve body 10 100 7 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Vehicle speed pulse generator retaining plate 48 in.·lbf 5.4 55 — ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Sensor cover bracket 48 in.·lbf 5.4 55 — ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Oil pan x Transaxle case 43 in.·lbf 4.9 50 — ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Torque converter x Drive plate 27 280 20 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Drive plate x Crankshaft 88 900 65 ↗ RM285U_1993_transaxle_auto · p31 OEM manual
Transmission / transaxle Park/neutral switch bolts 48 in.-M 5.4 55 — ↗ RM285U_1993_transaxle_auto · p43 OEM manual
Engine — mechanical Valve body bolts (twelve bolts and wire retainer) Each bolt length (mm) indicated in figure 10 100 7 ↗ RM285U_1993_transaxle_auto · p78 OEM manual
Engine — mechanical Manual detent spring bolt (16 mm length) 10 100 7 ↗ RM285U_1993_transaxle_auto · p78 OEM manual
Engine — mechanical Oil tube clamp bolt Each bolt length (mm) indicated in figure 10 100 7 ↗ RM285U_1993_transaxle_auto · p78 OEM manual
Engine — mechanical Oil tube bracket bolt Each bolt length (mm) indicated in figure 10 100 7 ↗ RM285U_1993_transaxle_auto · p78 OEM manual
Engine — mechanical Oil pan bolts (eighteen bolts) 43 in.-lbf 4.9 50 — ↗ RM285U_1993_transaxle_auto · p79 OEM manual
Ignition Distributor mounting bolts After adjusting ignition timing 39 400 29 ↗ RM285U_1993_ignition · p9 OEM manual
Ignition Distributor mounting bolts Tighten after ignition timing adjustment 19 195 14 ↗ RM285U_1993_ignition · p32 OEM manual
Ignition Spark plug Install with 16 mm plug wrench 18 180 13 ↗ RM285U_1993_ignition · p37 OEM manual
Introduction Timing Belt Tensioner bolt Example illustration value 21 210 15 ↗ engine_3s_family · p4 OEM manual
Introduction RH/LH Camshaft Timing Pulley bolt Example illustration value; standard 59 600 43 ↗ engine_3s_family · p4 OEM manual
Introduction RH/LH Camshaft Timing Pulley bolt Example illustration value; precoated part (★) 41 420 30 ↗ engine_3s_family · p4 OEM manual
Introduction No.1 Idler Pulley bolt Example illustration value; for use with SST (*) 43 440 32 ↗ engine_3s_family · p4 OEM manual
Introduction Component torque 355 Example illustration value; unlabeled fastener 35 355 26 ↗ engine_3s_family · p4 OEM manual
Introduction Component torque 440 (right side) Example illustration value; unlabeled fastener 43 440 32 ↗ engine_3s_family · p4 OEM manual
Introduction No.2 Timing Belt Cover bolt / Crankshaft Pulley bolt Example illustration value 108 1100 80 ↗ engine_3s_family · p4 OEM manual
Introduction Crankshaft pulley bolt Example from INSTALL CRANKSHAFT PULLEY step 6(b) 108 1100 80 ↗ engine_3s_family · p5 OEM manual
Engine — mechanical Distributor hold-down bolt After adjusting ignition timing 13 130 9 ↗ engine_3s_family · p31 OEM manual
Engine — mechanical Distributor hold-down bolts Tighten after adjusting ignition timing 39 400 29 ↗ engine_3s_family · p32 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt Standard torque 54 550 40 ↗ engine_3s_family · p42 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt (with SST) For use with SST 37 380 27 ↗ engine_3s_family · p42 OEM manual
Engine — mechanical Oil pump pulley nut Step 1 — install using SST 09616-30011 28 290 21 ↗ engine_3s_family · p49 OEM manual
Engine — mechanical No.2 idler pulley bolt Step 3 — use bolt 35 mm (1.38 in.) in length 42 425 31 ↗ engine_3s_family · p49 OEM manual
Engine — mechanical Crankshaft pulley bolt Using SST 09213-54015 (09214-00030) and 09330-00021 108 1100 80 ↗ engine_3s_family · p50 OEM manual
Engine — mechanical Camshaft timing pulley bolt Standard torque using SST 09278-54012 (A) 54 550 40 ↗ engine_3s_family · p50 OEM manual
Engine — mechanical Camshaft timing pulley bolt (SST) For SST 09249-63010 (B); use torque wrench with fulcrum length 340 mm (13.39 in.) 37 380 27 ↗ engine_3s_family · p50 OEM manual
Engine — mechanical No.1 idler pulley mount bolt Step 12(d) 42 425 31 ↗ engine_3s_family · p52 OEM manual
Engine — mechanical No.1 idler pulley mount bolt Step 12(d) 42 425 31 ↗ engine_3s_family · p54 OEM manual
Engine — mechanical Intake Camshaft Timing Pulley / Exhaust Camshaft Timing Pulley Standard value; precoated part value: 420 kg-cm (30 ft-lb, 41 N·m) 59 600 43 ↗ engine_3s_family · p55 OEM manual
Engine — mechanical Intake Camshaft Timing Pulley / Exhaust Camshaft Timing Pulley (precoated part) Precoated part (★) 41 420 30 ↗ engine_3s_family · p55 OEM manual
Engine — mechanical No. 1 Timing Belt Cover / Oil Pump Pulley bolt 43 440 32 ↗ engine_3s_family · p55 OEM manual
Engine — mechanical Crankshaft Pulley bolt For use with SST (•) 108 1100 80 ↗ engine_3s_family · p55 OEM manual
Engine — mechanical Oil pump pulley nut Install using SST 09616-30011 35 355 26 ↗ engine_3s_family · p62 OEM manual
Engine — mechanical No.1 idler pulley pivot bolt Apply adhesive (Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent) to two or three threads before installation 43 440 32 ↗ engine_3s_family · p62 OEM manual
Engine — mechanical Crankshaft pulley bolt Step 8(b) 108 1100 80 ↗ engine_3s_family · p63 OEM manual
Engine — mechanical Camshaft timing pulley bolt Standard torque 59 600 43 ↗ engine_3s_family · p64 OEM manual
Engine — mechanical Camshaft timing pulley bolt (SST) When using SST 09249-63010 with fulcrum length 340 mm 41 420 30 ↗ engine_3s_family · p64 OEM manual
Engine — mechanical No.1 idler pulley bolt Temporarily install tensioner; apply torque wrench along axis through bolts of No.1 idler pulley and exhaust camshaft timing pulley 18 180 13 ↗ engine_3s_family · p65 OEM manual
Engine — mechanical No.1 idler pulley bolt (step d) Turn counterclockwise to obtain specified torque; feeler gauge 1.90 mm inserted 18 180 13 ↗ engine_3s_family · p66 OEM manual
Engine — mechanical Tensioner mounting bolts (step e) Alternately tighten while pushing tensioner 21 210 15 ↗ engine_3s_family · p66 OEM manual
Engine — mechanical No.1 idler pulley bolt (step h) After one crankshaft revolution; apply torque wrench along axis through No.1 idler pulley and exhaust camshaft timing pulley bolts 18 180 13 ↗ engine_3s_family · p66 OEM manual
Engine — mechanical Engine RH Mounting Bracket bolts Step 16 — three bolts 52 530 38 ↗ engine_3s_family · p67 OEM manual
Engine — mechanical Timing belt tensioner bolts Step 11e; See steps 12 and 13 on page EM-56 21 210 15 ↗ engine_3s_family · p70 OEM manual
Engine — mechanical Camshaft timing pulley bolt Standard wrench method 59 600 43 ↗ engine_3s_family · p72 OEM manual
Engine — mechanical Camshaft timing pulley bolt (SST 09249-63010) Using SST with fulcrum length 340 mm (13.39 in.) 41 420 30 ↗ engine_3s_family · p72 OEM manual
Engine — mechanical Cylinder Head Bolts — 1st pass 1st 500 (36, 49); See page EM-87 49 500 36 ↗ engine_3s_family · p73 OEM manual
Engine — mechanical Cylinder Head Bolts — 2nd pass 2nd Turn 90°; See page EM-87 — — — ↗ engine_3s_family · p73 OEM manual
Engine — mechanical Exhaust Manifold Upper Heat Insulator 29 300 22 ↗ engine_3s_family · p73 OEM manual

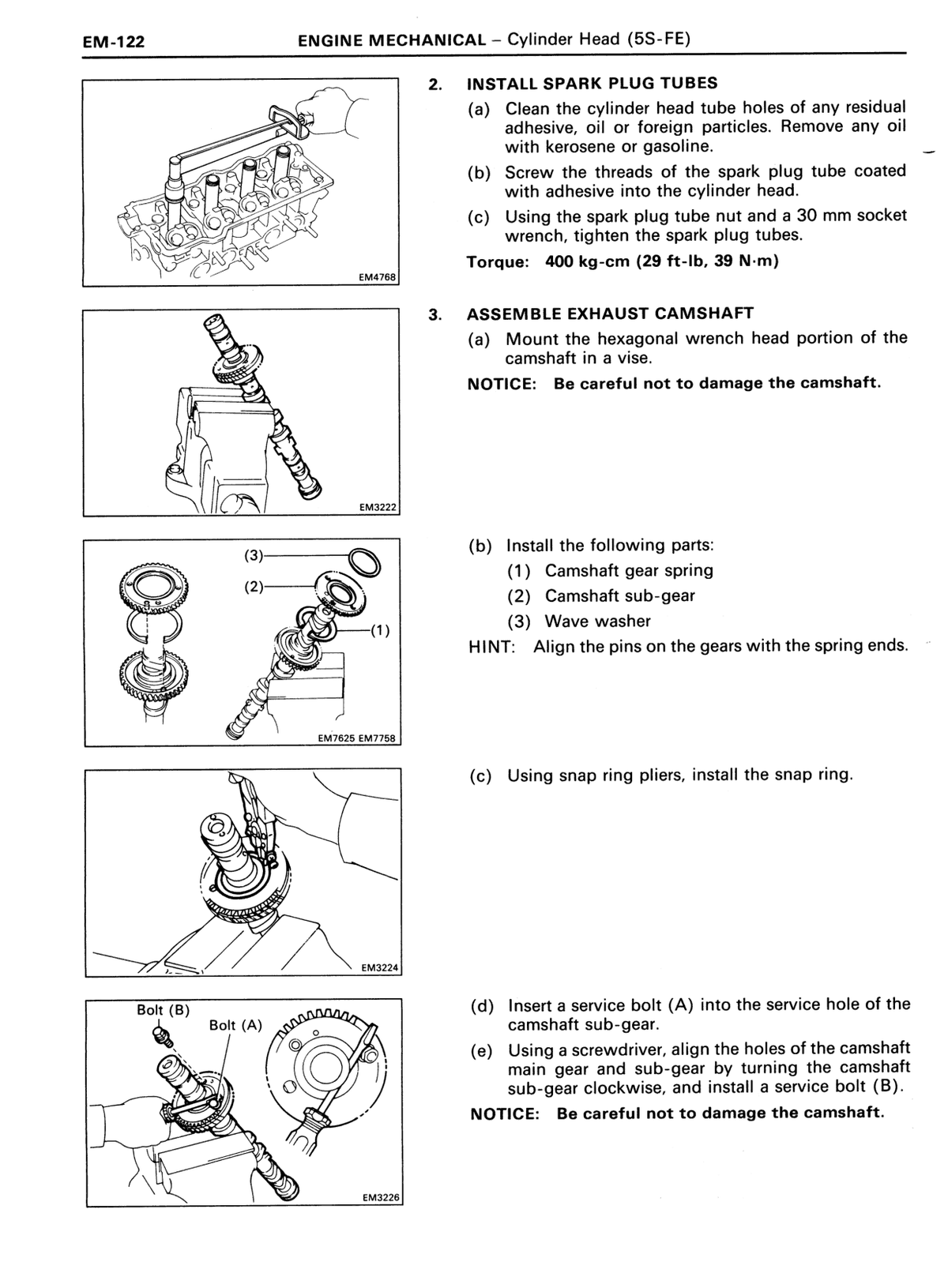

Engine — mechanical Bearing caps Step (d), install bearing caps 19 190 14 ↗ engine_3s_family · p92 OEM manual
Engine — mechanical Cylinder head bolts Initial pass (step b); then retighten 90° (step d) 47 500 36 ↗ engine_3s_family · p96 OEM manual
Engine — mechanical Intake camshaft bearing cap bolts Tighten uniformly in several passes in sequence shown 19 190 14 ↗ engine_3s_family · p98 OEM manual
Engine — mechanical Cylinder head cover nuts Uniformly tighten in several passes 18 180 13 ↗ engine_3s_family · p101 OEM manual
Engine — mechanical No.3 timing belt cover bolts 69 in.-lb 7.8 80 — ↗ engine_3s_family · p101 OEM manual
Engine — mechanical Intake manifold bolts and nuts Uniformly tighten in several passes 19 195 14 ↗ engine_3s_family · p102 OEM manual
Engine — mechanical Water by-pass pipe nut Step 23(c); value in in.-lb: 82 9.3 95 — ↗ engine_3s_family · p103 OEM manual
Engine — mechanical Exhaust manifold and catalytic converter — three bolts and two nuts Step 25 29 300 22 ↗ engine_3s_family · p104 OEM manual
Engine — mechanical Exhaust manifold and catalytic converter assembly nuts Step 26(a) — six new nuts, uniformly tighten in several passes 49 500 36 ↗ engine_3s_family · p105 OEM manual
Engine — mechanical Catalytic converter stay bolts and nuts Step 26(b) — two bolts and two new nuts 42 425 31 ↗ engine_3s_family · p105 OEM manual
Engine — mechanical ACIS Valve bolts 195 (14, 19) — upper left 19 195 14 ↗ engine_3s_family · p107 OEM manual
Engine — mechanical Air Intake Chamber bolts 195 (14, 19) — upper right 19 195 14 ↗ engine_3s_family · p107 OEM manual
Engine — mechanical Intake Manifold bolts 195 (14, 19) — left side 19 195 14 ↗ engine_3s_family · p107 OEM manual
Engine — mechanical Cylinder Head Cover bolts 190 (14, 19) 19 190 14 ↗ engine_3s_family · p107 OEM manual
Engine — mechanical Cylinder Head bolts — 1st pass 1st 500 (36, 49) — See page EM-138 49 500 36 ↗ engine_3s_family · p107 OEM manual
Engine — mechanical Cylinder Head bolts — 2nd pass 2nd Turn 90° — See page EM-138 — — — ↗ engine_3s_family · p107 OEM manual
Engine — mechanical Gasket (between intake manifold and air intake chamber) 180 (13, 18) 18 180 13 ↗ engine_3s_family · p107 OEM manual
Engine — mechanical Exhaust Manifold bolts 440 (32, 43) 43 440 32 ↗ engine_3s_family · p107 OEM manual
Engine — mechanical Turbocharger (Turbine Outlet Elbow) 650 (47, 64) 64 650 47 ↗ engine_3s_family · p108 OEM manual
Engine — mechanical No.1 Air Pipe bolt Box label 195 (14, 19) 19 195 14 ↗ engine_3s_family · p109 OEM manual
Engine — mechanical Camshaft Bearing Cap bolt — 1st pass 1st 500 (36, 49); See page EM-138 49 500 36 ↗ engine_3s_family · p109 OEM manual
Engine — mechanical Camshaft Bearing Cap bolt — 2nd pass 2nd Turn 90°; See page EM-138 — — — ↗ engine_3s_family · p109 OEM manual
Engine — mechanical Intake Manifold Stay bolt Box label 190 (14, 19) 19 190 14 ↗ engine_3s_family · p109 OEM manual
Engine — mechanical Cylinder head bolts (530) Value shown on diagram: 530 (38, 52) 52 530 38 ↗ engine_3s_family · p110 OEM manual
Engine — mechanical Relief Valve Value shown on diagram: 800 (58, 78) 78 800 58 ↗ engine_3s_family · p110 OEM manual
Engine — mechanical Turbocharger / Turbine Outlet Elbow Value shown on diagram: 650 (47, 64) 64 650 47 ↗ engine_3s_family · p110 OEM manual
Engine — mechanical Catalytic Converter Heat Insulator Value shown on diagram: 300 (22, 29) 29 300 22 ↗ engine_3s_family · p110 OEM manual
Engine — mechanical Intake Manifold bolts/nuts Box labeled 195 (14, 19) 19 195 14 ↗ engine_3s_family · p111 OEM manual
Engine — mechanical Camshaft Bearing Cap bolts — 1st pass 1st 500 (36, 49); See page EM-64 49 500 36 ↗ engine_3s_family · p111 OEM manual
Engine — mechanical Camshaft Bearing Cap bolts — 2nd pass 2nd Turn 90°; See page EM-64 — — — ↗ engine_3s_family · p111 OEM manual
Engine — mechanical Cylinder Head bolts — 1st pass 1st 500 (36, 49); See page EM-64 49 500 36 ↗ engine_3s_family · p111 OEM manual
Engine — mechanical Cylinder Head bolts — 2nd pass 2nd Turn 90°; See page EM-64 — — — ↗ engine_3s_family · p111 OEM manual
Engine — mechanical No.3 Timing Belt Cover / related bracket bolts Box labeled 190 (14, 19) 19 190 14 ↗ engine_3s_family · p111 OEM manual
Engine — mechanical Bearing caps Install bearing caps during camshaft journal oil clearance inspection step (d) 19 190 14 ↗ engine_3s_family · p135 OEM manual
Engine — mechanical Cylinder head cover screws (ten seal washers and screws) Uniformly tighten in several passes 2.5 25 1.75 ↗ engine_3s_family · p142 OEM manual
Engine — mechanical LH engine hanger — 12 mm bolt head 13 130 9 ↗ engine_3s_family · p143 OEM manual
Engine — mechanical LH engine hanger — 14 mm bolt head 19 195 14 ↗ engine_3s_family · p143 OEM manual
Engine — mechanical Air intake chamber bolts and nuts (five bolts and two nuts) Step (c) — uniformly in several passes 19 195 14 ↗ engine_3s_family · p144 OEM manual
Engine — mechanical No.1 chamber stay bolt — 12 mm head bolt Step (d) 19 195 14 ↗ engine_3s_family · p144 OEM manual
Engine — mechanical No.1 chamber stay bolt — 14 mm head bolt Step (d) 39 400 29 ↗ engine_3s_family · p144 OEM manual
Engine — mechanical Intake manifold stay bolts Step 18 — Install intake manifold stay 39 400 29 ↗ engine_3s_family · p145 OEM manual
Engine — mechanical Exhaust manifold nuts Uniformly tighten in several passes 43 440 32 ↗ engine_3s_family · p146 OEM manual
Engine — mechanical RH manifold stay bolt Three bolts, step (b) 59 600 43 ↗ engine_3s_family · p147 OEM manual
Engine — mechanical LH manifold stay bolt Two bolts, step (c) 59 600 43 ↗ engine_3s_family · p147 OEM manual
Engine — mechanical Alternator bracket and engine hanger bolt Three bolts, step 25 39 400 29 ↗ engine_3s_family · p147 OEM manual
Engine — mechanical Alternator 12 mm head bolt Step 26(a) 19 195 14 ↗ engine_3s_family · p147 OEM manual
Engine — mechanical Alternator 14 mm head bolt Step 26(a) 52 530 38 ↗ engine_3s_family · p147 OEM manual
Engine — mechanical No.2 alternator bracket bolts Step 26(d) 39 400 29 ↗ engine_3s_family · p148 OEM manual
Engine — mechanical Cylinder head bolts Initial pass (step b); then retighten 90° in numerical order (step d) 49 500 36 ↗ engine_3s_family · p149 OEM manual
Engine — mechanical Bearing cap bolts Ten bearing cap bolts on one side, tightened in several passes in sequence 19 190 14 ↗ engine_3s_family · p150 OEM manual
Engine — mechanical No.3 Timing Belt Cover bolts Step 4 — five bolts 8.8 90 — ↗ engine_3s_family · p151 OEM manual
Engine — mechanical Cylinder Head Cover screws Step 7 — twelve seal washers and screws, tighten uniformly in several passes 2.5 25 — ↗ engine_3s_family · p151 OEM manual
Engine — mechanical Intake manifold bolts and nuts Step 10(b) — uniformly tighten in several passes 19 195 14 ↗ engine_3s_family · p152 OEM manual
Engine — mechanical Intake manifold stays bolts Step 13 — INSTALL INTAKE MANIFOLD STAYS 25 260 19 ↗ engine_3s_family · p153 OEM manual
Engine — mechanical Water by-pass pipe nuts 69 in.-lb; Step 14(d) — INSTALL WATER BY-PASS PIPE (Nuts) 7.8 80 — ↗ engine_3s_family · p153 OEM manual
Engine — mechanical Water outlet bolts Step 17 — INSTALL WATER OUTLET 39 400 29 ↗ engine_3s_family · p153 OEM manual
Engine — mechanical EGR valve and pipe assembly bolts Step 19 — four bolts, use two new gaskets 19 195 14 ↗ engine_3s_family · p154 OEM manual
Engine — mechanical 12 mm head bolt — LH engine hanger Step 21 — Install LH Engine Hanger 13 130 9 ↗ engine_3s_family · p155 OEM manual
Engine — mechanical 14 mm head bolt — LH engine hanger Step 21 — Install LH Engine Hanger 19 195 14 ↗ engine_3s_family · p155 OEM manual
Engine — mechanical Exhaust manifold nuts Step 24 — seven nuts, uniformly tighten in several passes 52 530 38 ↗ engine_3s_family · p155 OEM manual
Engine — mechanical Catalytic converter bolts and nuts Three bolts and two nuts 29 300 22 ↗ engine_3s_family · p156 OEM manual
Engine — mechanical RH converter stay bolts Four bolts 59 600 43 ↗ engine_3s_family · p156 OEM manual
Engine — mechanical LH converter stay bolts Three bolts 59 600 43 ↗ engine_3s_family · p156 OEM manual
Engine — mechanical No.1 alternator bracket and RH front engine hanger bolts 39 400 29 ↗ engine_3s_family · p157 OEM manual
Engine — mechanical Alternator bolt — 12 mm head bolt 19 195 14 ↗ engine_3s_family · p157 OEM manual
Engine — mechanical Alternator bolt — 14 mm head bolt 52 530 38 ↗ engine_3s_family · p157 OEM manual
Engine — mechanical No.2 alternator bracket bolt — to turbine outlet elbow 43 440 32 ↗ engine_3s_family · p157 OEM manual
Engine — mechanical No.2 alternator bracket bolt — to No.1 alternator bracket 39 400 29 ↗ engine_3s_family · p157 OEM manual
Engine — mechanical PS Pump Bracket / RH Engine Mounting Bracket 530 (38, 52) 52 530 38 ↗ engine_3s_family · p159 OEM manual
Engine — mechanical RH Engine Mounting Bracket (lower fastener) 95 (82 in.-lb, 9.3) 9.3 95 — ↗ engine_3s_family · p159 OEM manual
Engine — mechanical Cylinder Block bolts — 1st pass 1st 250 (18, 25); See page EM-171 25 250 18 ↗ engine_3s_family · p159 OEM manual
Engine — mechanical Cylinder Block bolts — 2nd pass 2nd Turn 90°; See page EM-171 — — — ↗ engine_3s_family · p159 OEM manual
Engine — mechanical Flywheel (M/T) M/T 900 (65, 88); precoated part 88 900 65 ↗ engine_3s_family · p159 OEM manual
Engine — mechanical Drive Plate (A/T) A/T 800 (58, 78); precoated part 78 800 58 ↗ engine_3s_family · p159 OEM manual
Engine — mechanical Oil Strainer (upper fastener) 55 (48 in.-lb, 5.4) 5.4 55 — ↗ engine_3s_family · p159 OEM manual
Engine — mechanical Oil Strainer (lower fastener) 55 (48 in.-lb, 5.4) 5.4 55 — ↗ engine_3s_family · p159 OEM manual
Engine — mechanical Connecting rod cap bolt — 1st 1st pass 25 250 18 ↗ engine_3s_family · p162 OEM manual
Engine — mechanical Connecting rod cap bolt — 2nd Turn 90° — — — ↗ engine_3s_family · p162 OEM manual
Engine — mechanical Main bearing cap bolts Tighten in sequence shown, in several passes 59 600 43 ↗ engine_3s_family · p181 OEM manual
Engine — mechanical Connecting rod cap nuts Step (b) — first pass; tightened in two progressive steps 25 250 18 ↗ engine_3s_family · p182 OEM manual
Engine — mechanical Rear oil seal retainer bolts Six bolts; install with new gasket. 82 in-lb noted in manual. 9.3 95 7 ↗ engine_3s_family · p183 OEM manual
Engine — mechanical RH engine mounting bracket bolts Three bolts. 52 530 38 ↗ engine_3s_family · p183 OEM manual
Engine — mechanical PS pump bracket bolts Three bolts. 43 440 32 ↗ engine_3s_family · p183 OEM manual
Engine — mechanical Flywheel mount bolts Step 13 (M/T) 88 900 65 ↗ engine_3s_family · p184 OEM manual
Engine — mechanical Drive plate mount bolts Step 14 (A/T) 83 850 61 ↗ engine_3s_family · p184 OEM manual
Engine — mechanical PS Pump Bracket / RH Engine Mounting Bracket 530 (38, 52) 52 530 38 ↗ engine_3s_family · p185 OEM manual
Engine — mechanical 95 bracket bolt 95 (82 in.-lb, 9.3) 9.3 95 6.8 ↗ engine_3s_family · p185 OEM manual
Engine — mechanical Cylinder Block (680 fastener) 680 (49, 67) 67 680 49 ↗ engine_3s_family · p185 OEM manual
Engine — mechanical Rear End Plate 1,100 (80, 108) — Precoated part 108 1100 80 ↗ engine_3s_family · p185 OEM manual
Engine — mechanical Oil Strainer (second reference) 55 (48 in.-lb, 5.4) 5.4 55 — ↗ engine_3s_family · p185 OEM manual
Engine — mechanical Connecting rod cap Step (h) — Do not turn the crankshaft after torquing 67 680 49 ↗ engine_3s_family · p188 OEM manual
Engine — mechanical Main bearing cap bolts Step (h) — install main bearing caps 59 600 43 ↗ engine_3s_family · p191 OEM manual
Engine — mechanical Main bearing cap bolts Tighten uniformly in several passes in sequence shown 59 600 43 ↗ engine_3s_family · p205 OEM manual
Engine — mechanical Connecting rod cap nuts Install and alternately tighten in several passes 67 680 49 ↗ engine_3s_family · p206 OEM manual
Engine — mechanical Rear oil seal retainer bolts 82 in.-lb; six bolts 9.3 95 — ↗ engine_3s_family · p206 OEM manual
Engine — mechanical Knock sensor Step 1 — Install knock sensor using SST 09816-30010 44 450 33 ↗ engine_3s_family · p207 OEM manual
Engine — mechanical RH engine mounting bracket bolts Step 8 — three bolts 52 530 38 ↗ engine_3s_family · p207 OEM manual
Engine — mechanical PS pump bracket bolts Step 9 — three bolts 43 440 32 ↗ engine_3s_family · p207 OEM manual
Engine — mechanical Flywheel mount bolts M/T — tighten uniformly in several passes in sequence shown 108 1100 80 ↗ engine_3s_family · p208 OEM manual
Engine — mechanical Drive plate mount bolts A/T — see procedure step 13 83 850 61 ↗ engine_3s_family · p208 OEM manual
Turbocharger Turbocharger (to exhaust manifold / turbine inlet) 64 650 47 ↗ engine_3s_family · p218 OEM manual
Turbocharger Turbocharger (compressor outlet / intake air connector side) — 525 38 ↗ engine_3s_family · p218 OEM manual
Turbocharger Turbine outlet elbow nuts Six nuts, step 1 64 650 47 ↗ engine_3s_family · p223 OEM manual
Turbocharger Side bearing housing plate nuts Two nuts, step 2 11 120 — ↗ engine_3s_family · p223 OEM manual
Turbocharger Turbo water pipe nuts and bolts Two nuts and two bolts, step 3 11 120 — ↗ engine_3s_family · p223 OEM manual
Turbocharger Four nuts holding turbocharger to exhaust manifold Step (c) 64 650 47 ↗ engine_3s_family · p224 OEM manual
Turbocharger Two nuts holding oil pipe to turbocharger Step (d) 17 175 13 ↗ engine_3s_family · p224 OEM manual
Turbocharger Union bolt holding oil pipe to cylinder block Step (e) 51 525 38 ↗ engine_3s_family · p224 OEM manual
Turbocharger Bolt holding oil pipe to cylinder block Step (f) 43 440 32 ↗ engine_3s_family · p224 OEM manual
EFI / fuel injection Union bolt — high pressure pipe union (Union Bolt Type) 29 300 22 ↗ engine_3s_family · p235 OEM manual
EFI / fuel injection Flare nut — high pressure pipe union (Flare Nut Type) Use SST 09631-22020 with a torque wrench fulcrum length of 30 cm (11.81 in.) 38 385 28 ↗ engine_3s_family · p235 OEM manual
EFI / fuel injection Union bolt — SST (pressure gauge) to delivery pipe 18 180 13 ↗ engine_3s_family · p334 OEM manual
EFI / fuel injection Cold start injector pipe union bolt Install with two new gaskets 18 180 13 ↗ engine_3s_family · p335 OEM manual
EFI / fuel injection Union bolt (fuel filter outlet) Install fuel inlet hose and SST with three new gaskets 29 300 22 ↗ engine_3s_family · p337 OEM manual
EFI / fuel injection Pump bracket screws (eight screws) Step 1(c) 3.9 40 — ↗ engine_3s_family · p342 OEM manual
EFI / fuel injection Outlet pipe union bolt Step 2(a) 29 300 22 ↗ engine_3s_family · p342 OEM manual
EFI / fuel injection Fuel pump bracket bolts 30 (26 in.-lb, 2.9) — value appears to be 2.9 N·m based on diagram label 2.9 30 — ↗ engine_3s_family · p343 OEM manual
EFI / fuel injection Pump bracket bolts (six bolts) Step 3(c) 2.9 30 — ↗ engine_3s_family · p345 OEM manual
EFI / fuel injection Fuel evaporation bent tube screws (four screws) Step 4(b) 1.5 15 — ↗ engine_3s_family · p345 OEM manual
EFI / fuel injection Bolt holding bent tube to fuel pump bracket Step 4(c) 2.9 30 — ↗ engine_3s_family · p345 OEM manual
EFI / fuel injection Flare nut (fuel tank) Step 5(b); SST 09631-22020; torque wrench fulcrum length 30 cm (11.81 in.) 38 385 28 ↗ engine_3s_family · p345 OEM manual
EFI / fuel injection Five bolts holding fuel pump bracket to fuel tank 35 in.-lb 3.4 35 — ↗ engine_3s_family · p351 OEM manual
EFI / fuel injection No.2 center floor crossmember bolts 29 300 22 ↗ engine_3s_family · p351 OEM manual
EFI / fuel injection Cold start injector bolts Install cold start injector with two bolts 9.3 95 6.8 ↗ engine_3s_family · p355 OEM manual
EFI / fuel injection Cold start injector pipe union bolts Install injector pipe with four new gaskets and two union bolts 18 180 13 ↗ engine_3s_family · p355 OEM manual
EFI / fuel injection Fuel inlet hose union bolt Connect fuel inlet hose with two new gaskets 29 300 22 ↗ engine_3s_family · p358 OEM manual
EFI / fuel injection Cold start injector bolts 52 in.-lb; install with new gasket 5.9 60 — ↗ engine_3s_family · p358 OEM manual
EFI / fuel injection Cold start injector pipe union bolt Install with two new gaskets 18 180 13 ↗ engine_3s_family · p358 OEM manual
EFI / fuel injection Cold start injector bolts 52 in.-lb 5.9 60 4.3 ↗ engine_3s_family · p361 OEM manual
EFI / fuel injection Cold start injector pipe union bolts 18 180 13 ↗ engine_3s_family · p361 OEM manual
EFI / fuel injection Fuel pressure regulator bolts 48 in.-lb 5.4 55 — ↗ engine_3s_family · p363 OEM manual
EFI / fuel injection Fuel pressure regulator lock nut 29 300 22 ↗ engine_3s_family · p365 OEM manual
EFI / fuel injection Fuel pressure regulator lock nut 29 300 22 ↗ engine_3s_family · p367 OEM manual
EFI / fuel injection Fuel inlet hose union bolt Connect fuel inlet hose to delivery pipe 29 300 22 ↗ engine_3s_family · p368 OEM manual
EFI / fuel injection Delivery pipe bolts to cylinder head Step (j) 13 130 9 ↗ engine_3s_family · p374 OEM manual
EFI / fuel injection Delivery pipe to cylinder head bolts Three bolts holding delivery pipe to cylinder head 19 195 14 ↗ engine_3s_family · p381 OEM manual
EFI / fuel injection Intake manifold stays bolts and nuts Step 10 — INSTALL INTAKE MANIFOLD STAYS 39 400 29 ↗ engine_3s_family · p383 OEM manual
EFI / fuel injection Air intake chamber five bolts and two nuts Step 11(a) — air intake chamber with gasket 19 195 14 ↗ engine_3s_family · p383 OEM manual
EFI / fuel injection Bolt holding air intake chamber and intake pipe stay Step 11(b) 39 400 29 ↗ engine_3s_family · p383 OEM manual
EFI / fuel injection Intake chamber stay four bolts Step 11(c) 19 195 14 ↗ engine_3s_family · p383 OEM manual
EFI / fuel injection Delivery pipe bolts to cylinder head Step 1(d) 19 195 14 ↗ engine_3s_family · p389 OEM manual
EFI / fuel injection Fuel inlet hose union bolt to delivery pipe Step 2(a) 29 300 22 ↗ engine_3s_family · p389 OEM manual
EFI / fuel injection Throttle body bolts Step 2 — four bolts 19 195 14 ↗ engine_3s_family · p407 OEM manual
EFI / fuel injection Air connector stay — 10 mm bolt head Step 6; 69 in.-lb 7.8 80 — ↗ engine_3s_family · p407 OEM manual
EFI / fuel injection Air connector stay — 12 mm bolt head Step 6 19 195 14 ↗ engine_3s_family · p407 OEM manual
EFI / fuel injection Air connector bolts Step 7 — four bolts 19 195 14 ↗ engine_3s_family · p408 OEM manual
Cooling Water pump to water pump cover bolts Installation step 2 — assemble water pump and water pump cover 9.3 95 — ↗ engine_3s_family · p460 OEM manual
Cooling Water pump bolts Three bolts, tighten in sequence shown — step (e) 9.3 95 — ↗ engine_3s_family · p461 OEM manual
Cooling Water pump cover nuts to water by-pass pipe Two nuts — step (f) 9.3 95 — ↗ engine_3s_family · p461 OEM manual
Cooling Water pump to pump cover bolts Step 2 — three bolts, 3S-GTE 9.3 95 — ↗ engine_3s_family · p480 OEM manual
Cooling Water pump bolts (5S-FE) Step (e) — in.-lb: 82 9.3 95 — ↗ engine_3s_family · p481 OEM manual
Cooling Water pump cover nuts to water by-pass pipe (3S-GTE) Step (f) 12 120 9 ↗ engine_3s_family · p481 OEM manual
Cooling Water pump cover nuts to water by-pass pipe (5S-FE) Step (f) — in.-lb: 82 9.3 95 — ↗ engine_3s_family · p481 OEM manual
Lubrication / oil Oil Pump / Gasket bolt (80) in.-lb converted; 69 in-lb 7.8 80 — ↗ engine_3s_family · p513 OEM manual
Lubrication / oil Oil Strainer bolt / Oil Pan Baffle Plate bolt (55) in.-lb converted; 48 in-lb 5.4 55 — ↗ engine_3s_family · p513 OEM manual
Lubrication / oil Oil Pump Body Cover bolts in-lb value shown as 78 in.-lb 8.8 90 — ↗ engine_3s_family · p515 OEM manual
Lubrication / oil Oil pump bolts Twelve bolts; long bolt 35 mm (1.38 in.), others 25 mm (0.98 in.) 7.8 80 — ↗ engine_3s_family · p518 OEM manual
Lubrication / oil Baffle plate and oil strainer bolts and nuts Two bolts and two nuts 5.4 55 — ↗ engine_3s_family · p518 OEM manual
Lubrication / oil Oil pan bolts and nuts 17 bolts and 4 nuts 5.4 55 — ↗ engine_3s_family · p519 OEM manual
Lubrication / oil Oil cooler with plate washer and relief valve Step 1(c) 78 800 58 ↗ engine_3s_family · p522 OEM manual
Lubrication / oil Gasket (Oil Filter / top bolt) in-lb value listed as 69 in.-lb 7.8 80 — ↗ engine_3s_family · p523 OEM manual
Lubrication / oil Oil cooler bracket bolts Step 1(c), four bolts; value in in.-lb is 69 7.8 80 — ↗ engine_3s_family · p525 OEM manual
Lubrication / oil Two nuts holding oil cooler to water by-pass pipe 12 120 9 ↗ engine_3s_family · p526 OEM manual
Lubrication / oil Bolt holding water by-pass pipe to oil cooler bracket 18 180 13 ↗ engine_3s_family · p526 OEM manual
Lubrication / oil Oil cooler bracket bolts (four bolts) Install oil cooler bracket with four bolts 7.8 80 — ↗ engine_3s_family · p529 OEM manual
Lubrication / oil Two nuts holding oil cooler to water by-pass pipe Step (g) 12 120 9 ↗ engine_3s_family · p530 OEM manual
Lubrication / oil Bolt holding water by-pass pipe to oil cooler bracket Step (h) 18 180 13 ↗ engine_3s_family · p530 OEM manual
Starting / charging Pulley nut (SST tightening) SST 09820-63010; tighten SST (B) clockwise to this torque to secure SST (A) to rotor shaft 39 400 29 ↗ engine_3s_family · p568 OEM manual
Engine — mechanical Oil pump pulley x Oil pump drive shaft 28 290 21 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical No.2 idler pulley x Cylinder block 42 425 31 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft 57 550 40 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft (For SST) For SST 37 380 27 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical No.1 idler pulley x Cylinder head 42 425 31 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical RH engine mounting bracket x Cylinder block 52 530 38 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Cylinder head x Cylinder block 1st 47 500 36 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Cylinder head x Cylinder block 2nd — Turn 90° — — — ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Camshaft bearing cap x Cylinder head 19 190 14 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Cylinder head cover x Cylinder head 18 180 13 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical No.3 timing belt cover x Cylinder head 69 in.lb 7.8 80 — ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Intake manifold stay x Intake manifold 19 195 14 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Intake manifold stay x Cylinder block 42 425 31 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Water by-pass pipe x Water pump cover 82 in.lb 9.3 95 — ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Catalytic converter x Exhaust manifold 29 300 22 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Exhaust manifold stay x Catalytic converter 42 425 31 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Exhaust manifold stay x Cylinder block 42 425 31 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Main bearing cap x Cylinder block 59 600 43 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod 1st 25 250 18 ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod 2nd — Turn 90° — — — ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Rear oil seal retainer x Cylinder block 82 in.lb 9.3 95 — ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Rear end plate x Cylinder block 82 in.lb 9.3 95 — ↗ engine_3s_family · p582 OEM manual
Engine — mechanical Oil pump pulley x Oil pump drive shaft 35 355 26 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.2 idler pulley x Cylinder block 43 440 32 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.1 idler pulley bracket x Cylinder head 43 440 32 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft 59 600 43 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft — For SST For SST 41 420 30 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Timing belt tensioner x Cylinder head 21 210 15 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical RH engine mounting bracket x Cylinder block 52 530 38 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Cylinder head x Cylinder block — 1st 1st pass 49 500 36 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Cylinder head x Cylinder block — 2nd 2nd pass — Turn 90° — — — ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Camshaft bearing cap x Cylinder head 19 190 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.3 timing belt cover x Cylinder head 21 in.-lb 2.5 25 — ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Cylinder head cover x Cylinder head 18 180 13 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical RH rear engine hanger x Cylinder head 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Intake manifold stay x Intake manifold — 3S-GE 3S-GE 39 400 29 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Intake manifold stay x Intake manifold — 3S-GTE 3S-GTE 25 260 19 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Intake manifold stay x Cylinder block — 3S-GE 3S-GE 39 400 29 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Intake manifold stay x Cylinder block — 3S-GTE 3S-GTE 25 260 19 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical ACIS valve x Intake manifold (3S-GE) 3S-GE 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Air intake chamber x Intake manifold (3S-GE) 3S-GE 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.1 air intake chamber stay x Cylinder head (3S-GE) 3S-GE 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.1 air intake chamber stay x Air intake chamber (3S-GE) 3S-GE 39 400 29 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.2 air intake chamber stay x Cylinder head (3S-GE) 3S-GE 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.2 air intake chamber stay x Air intake chamber (3S-GE) 3S-GE 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Water by-pass pipe x Water pump cover 69 in.-lb 7.8 80 — ↗ engine_3s_family · p587 OEM manual
Engine — mechanical EGR valve x Intake manifold (3S-GTE) 3S-GTE 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical EGR pipe x Cylinder head (3S-GTE) 3S-GTE 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical LH engine hanger x Cylinder head — 12 mm head bolt 12 mm head bolt 13 130 9 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical LH engine hanger x Cylinder head — 14 mm head bolt 14 mm head bolt 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Exhaust manifold x Cylinder head — 3S-GE 3S-GE 43 440 32 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Exhaust manifold x Cylinder head — 3S-GTE 3S-GTE 52 530 38 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Exhaust manifold stay x Cylinder block (3S-GE) 3S-GE 43 — 32 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Exhaust manifold stay x Exhaust manifold (3S-GE) — Bolt 3S-GE, Bolt 59 600 43 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Exhaust manifold stay x Exhaust manifold (3S-GE) — Nut 3S-GE, Nut 43 440 32 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Catalytic converter x Turbine outlet elbow (3S-GTE) 3S-GTE 29 300 22 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Catalytic converter stay x Catalytic converter (3S-GTE) 3S-GTE 59 600 43 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.1 alternator bracket x Cylinder head 39 400 29 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Alternator x No.1 alternator bracket — 12 mm head bolt 12 mm head bolt 19 195 14 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Alternator x No.1 alternator bracket — 14 mm head bolt 14 mm head bolt 52 530 38 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.2 alternator bracket x No.1 alternator bracket 39 400 29 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.2 alternator bracket x Turbine outlet elbow (3S-GTE) 3S-GTE 43 440 32 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical No.2 alternator bracket x Cylinder block (3S-GE) 3S-GE 39 400 29 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Main bearing cap x Cylinder block 59 600 43 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod 67 680 49 ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Rear oil seal retainer x Cylinder block 82 in.-lb 9.3 95 — ↗ engine_3s_family · p587 OEM manual
Engine — mechanical Rear end plate x Cylinder block 82 in.-lb 9.3 95 — ↗ engine_3s_family · p587 OEM manual
Turbocharger Side bearing housing plate x Turbocharger 11 120 — ↗ engine_3s_family · p588 OEM manual
EFI / fuel injection Cold start injector x Air intake chamber 82 in.-lb 9.3 95 — ↗ engine_3s_family · p591 OEM manual
EFI / fuel injection Cold start injector pipe x Cold start injector 18 180 13 ↗ engine_3s_family · p591 OEM manual
EFI / fuel injection Cold start injector pipe x Delivery pipe 18 180 13 ↗ engine_3s_family · p591 OEM manual
EFI / fuel injection Fuel pressure regulator x Delivery pipe 48 in.-lb 5.4 55 — ↗ engine_3s_family · p591 OEM manual
EFI / fuel injection Fuel return pipe x Fuel pressure regulator 18 180 13 ↗ engine_3s_family · p591 OEM manual
EFI / fuel injection Throttle body x Air intake chamber 19 195 14 ↗ engine_3s_family · p591 OEM manual
EFI / fuel injection Cold start injector x Air intake chamber 52 in.-lb 5.9 60 — ↗ engine_3s_family · p594 OEM manual
EFI / fuel injection Cold start injector pipe x Cold start injector 18 180 13 ↗ engine_3s_family · p594 OEM manual
EFI / fuel injection Cold start injector pipe x Delivery pipe 18 180 13 ↗ engine_3s_family · p594 OEM manual
EFI / fuel injection Fuel pressure regulator x Delivery pipe 29 300 22 ↗ engine_3s_family · p594 OEM manual
EFI / fuel injection Fuel return pipe x Fuel pressure regulator 18 180 13 ↗ engine_3s_family · p594 OEM manual
EFI / fuel injection Throttle body x Air intake chamber 19 195 14 ↗ engine_3s_family · p594 OEM manual
EFI / fuel injection Air intake chamber x Intake air control valve 19 195 14 ↗ engine_3s_family · p594 OEM manual
EFI / fuel injection Air intake chamber x Intake pipe stay 39 400 29 ↗ engine_3s_family · p594 OEM manual
EFI / fuel injection Fuel inlet pipe x Fuel tank 26 in.-lb 2.9 30 — ↗ engine_3s_family · p597 OEM manual
EFI / fuel injection Cold start injector x Intake manifold (Air intake chamber) 52 in.-lb 5.9 60 — ↗ engine_3s_family · p597 OEM manual
EFI / fuel injection Cold start injector pipe x Cold start injector 18 180 13 ↗ engine_3s_family · p597 OEM manual
EFI / fuel injection Cold start injector pipe x Delivery pipe 18 180 13 ↗ engine_3s_family · p597 OEM manual
EFI / fuel injection Fuel pressure regulator x Delivery pipe 29 300 22 ↗ engine_3s_family · p597 OEM manual
EFI / fuel injection Throttle body x Intake manifold (Air intake chamber) 19 195 14 ↗ engine_3s_family · p597 OEM manual
EFI / fuel injection Air connector stay x Throttle body 19 195 14 ↗ engine_3s_family · p597 OEM manual
EFI / fuel injection Air connector stay x Cylinder head 69 in.-lb 7.8 80 — ↗ engine_3s_family · p597 OEM manual
Cooling Oil cooler x Cylinder block (5S-FE, 3S-GE) — Relief valve 78 800 58 ↗ engine_3s_family · p598 OEM manual
Cooling Oil cooler x Cylinder block (5S-FE, 3S-GE) — Bolt 69 in-lb 7.8 80 — ↗ engine_3s_family · p598 OEM manual
Cooling Oil cooler bracket x Cylinder block (3S-GTE) 69 in-lb 7.8 80 — ↗ engine_3s_family · p598 OEM manual
Engine — mechanical Lower Suspension Brace bolt 73 740 54 ↗ RM285U_1993_5sfe_engineme · p3 OEM manual
Engine — mechanical Front Exhaust Pipe bolt (upper) 62 630 46 ↗ RM285U_1993_5sfe_engineme · p3 OEM manual
Engine — mechanical Front Exhaust Pipe bolt (lower) 43 440 32 ↗ RM285U_1993_5sfe_engineme · p3 OEM manual
Engine — mechanical RH Engine Mounting Stay (upper bolt) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical RH Engine Mounting Stay (lower bolt) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical RH Engine Mounting Insulator (large bolt) 78 800 58 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical RH Engine Mounting Insulator (small bolt) 52 530 38 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Rear Engine Mounting Insulator (upper bolt) 77 790 57 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Rear Engine Mounting Bracket (large bolt) 87 890 64 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Rear Engine Mounting Bracket (small bolt) 64 650 47 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Front Engine Mounting Bracket (upper bolt) 77 790 57 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Front Engine Mounting Bracket (lower bolt) 96 980 71 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Front Engine Mounting Insulator bolt 73 740 54 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical RH Engine Mounting Stay (center, upper) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Lateral Control Rod (large bolt) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Lateral Control Rod (medium bolt) 37 380 27 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Lateral Control Rod (small bolt) 35 360 26 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Lateral Control Rod / RH Engine Mounting Stay bracket bolt 25 250 18 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical RH Engine Mounting Stay (center, lower) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical LH Engine Mounting Insulator (large bolt) 78 800 58 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical LH Engine Mounting Insulator (small bolt) 52 530 38 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical LH Engine Mounting Bracket bolt 63 650 47 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical Drive Shaft Lock Nut Cap 206 2100 152 ↗ RM285U_1993_5sfe_engineme · p4 OEM manual
Engine — mechanical RH Engine Mounting Stay (upper bolt) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical RH Engine Mounting Stay (lower bolt) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical RH Engine Mounting Insulator 78 800 58 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Front Engine Mounting Insulator to bracket 77 790 57 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Front Engine Mounting Bracket to body 96 980 71 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Front Engine Mounting Bracket lower bolt 73 740 54 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Rear Engine Mounting Bracket upper bolts 77 790 57 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Rear Engine Mounting Bracket to body 87 890 64 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Rear Engine Mounting Insulator 64 650 47 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Lateral Control Rod upper bolt 37 380 27 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Lateral Control Rod lower bolt 35 — 26 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Insulator to transaxle 73 740 54 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Insulator bolt 52 530 38 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Insulator to bracket 78 800 58 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Bracket to body 52 530 38 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical LH Engine Mounting Bracket lower bolt 63 650 47 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical Drive Shaft / Lock Nut Cap 59 600 43 ↗ RM285U_1993_5sfe_engineme · p5 OEM manual
Engine — mechanical 14 mm Head bolt 14 mm Head bolt 46 470 34 ↗ RM285U_1993_5sfe_engineme · p19 OEM manual
Engine — mechanical 17 mm Head Bolt 17 mm Head Bolt 64 650 47 ↗ RM285U_1993_5sfe_engineme · p19 OEM manual
Engine — mechanical Cylinder Block (main bearing cap bolts) 1st pass; See page EG-140 25 250 18 ↗ RM285U_1993_5sfe_engineme · p22 OEM manual
Engine — mechanical Cylinder Block (main bearing cap bolts) 2nd Turn 90° — — — ↗ RM285U_1993_5sfe_engineme · p22 OEM manual
Engine — mechanical Oil Pump in·lbf listed as 78 8.8 90 — ↗ RM285U_1993_5sfe_engineme · p22 OEM manual
Engine — mechanical Oil Pan / Gasket (upper) in·lbf 5.4 55 — ↗ RM285U_1993_5sfe_engineme · p22 OEM manual
Engine — mechanical Oil Strainer / Gasket in·lbf 5.4 55 — ↗ RM285U_1993_5sfe_engineme · p22 OEM manual
Engine — mechanical Front Spacer / Rear Spacer (A/T) in·lbf 5.4 55 — ↗ RM285U_1993_5sfe_engineme · p22 OEM manual
Engine — mechanical Connecting rod cap bolt — 1st pass 1st pass; 2nd pass: Turn 90° 25 250 18 ↗ RM285U_1993_5sfe_engineme · p27 OEM manual
Engine — mechanical Main bearing caps Step (h) — Install main bearing caps 59 600 43 ↗ RM285U_1993_5sfe_engineme · p29 OEM manual
Engine — mechanical Main bearing cap bolts Tighten in several passes in sequence shown 59 600 43 ↗ RM285U_1993_5sfe_engineme · p47 OEM manual
Engine — mechanical Connecting rod cap nuts Initial torque pass using SST 09011-38121; then retighten additional 90° 25 250 18 ↗ RM285U_1993_5sfe_engineme · p49 OEM manual
Engine — mechanical Rear oil seal retainer bolts Six bolts; install with new gasket 9.3 95 — ↗ RM285U_1993_5sfe_engineme · p49 OEM manual
Engine — mechanical Knock sensor SST 09816-30010 37 380 27 ↗ RM285U_1993_5sfe_engineme · p50 OEM manual
Engine — mechanical Relief valve (plate washer and relief valve) Step 2(d) 78 800 58 ↗ RM285U_1993_5sfe_engineme · p50 OEM manual
Engine — mechanical Oil cooler nut 69 in.-lbf; Step 2(e) 7.8 80 — ↗ RM285U_1993_5sfe_engineme · p50 OEM manual
Engine — mechanical Water pump bolts (three bolts) Tighten in sequence shown; 69 in-lbf 7.8 80 5.75 ↗ RM285U_1993_5sfe_engineme · p51 OEM manual
Engine — mechanical Water pump bolt (A) (w/o A/C) 27 275 20 ↗ RM285U_1993_5sfe_engineme · p51 OEM manual
Engine — mechanical Alternator bracket bolts and nuts 43 440 32 ↗ RM285U_1993_5sfe_engineme · p51 OEM manual
Engine — mechanical RH engine mounting bracket bolts Step 9 61 620 45 ↗ RM285U_1993_5sfe_engineme · p52 OEM manual
Engine — mechanical Rear end plate bolt Step 11; 82 in-lbf 9.3 95 — ↗ RM285U_1993_5sfe_engineme · p52 OEM manual
Engine — mechanical Flywheel mounting bolts Step 12 (M/T); tighten in sequence in several passes 88 900 65 ↗ RM285U_1993_5sfe_engineme · p52 OEM manual
Engine — mechanical Drive plate mounting bolts Step 13 (A/T) 83 850 61 ↗ RM285U_1993_5sfe_engineme · p52 OEM manual
Engine — mechanical Clutch disc and cover bolts Step 1 — SST 09301-32010, uniformly tighten in several passes 19 195 14 ↗ RM285U_1993_5sfe_engineme · p53 OEM manual
Engine — mechanical Transaxle-to-engine bolts — 14 mm head Step 2 46 470 34 ↗ RM285U_1993_5sfe_engineme · p53 OEM manual
Engine — mechanical Transaxle-to-engine bolts — 17 mm head Step 2 64 650 47 ↗ RM285U_1993_5sfe_engineme · p53 OEM manual
Engine — mechanical Heater water pipe bolts Step 3 46 470 34 ↗ RM285U_1993_5sfe_engineme · p53 OEM manual
Engine — mechanical No.2 rear end plate bolts — 10 mm head Step 4; 82 in-lbf 9.3 95 6.8 ↗ RM285U_1993_5sfe_engineme · p53 OEM manual
Engine — mechanical No.2 rear end plate bolts — 12 mm head Step 4 19 195 14 ↗ RM285U_1993_5sfe_engineme · p53 OEM manual
Engine — mechanical Stiffener plate bolts Step 5 37 380 27 ↗ RM285U_1993_5sfe_engineme · p53 OEM manual
Engine — mechanical Transaxle-to-engine bolts (14 mm head) 46 470 34 ↗ RM285U_1993_5sfe_engineme · p54 OEM manual
Engine — mechanical Transaxle-to-engine bolts (17 mm head) 64 650 47 ↗ RM285U_1993_5sfe_engineme · p54 OEM manual
Engine — mechanical Torque converter mounting bolts 27 280 20 ↗ RM285U_1993_5sfe_engineme · p54 OEM manual
Engine — mechanical No.2 Rear End Plate bolt — 10 mm head 82 in-lbf; 10 mm head bolt 9.3 95 7 ↗ RM285U_1993_5sfe_engineme · p55 OEM manual
Engine — mechanical No.2 Rear End Plate bolt — 12 mm head 12 mm head bolt 19 195 14 ↗ RM285U_1993_5sfe_engineme · p55 OEM manual
Engine — mechanical Stiffener Plate bolt three bolts 37 380 27 ↗ RM285U_1993_5sfe_engineme · p55 OEM manual
Engine — mechanical LH engine mounting bracket to transaxle bolts (M/T — three bolts) Manual transmission 52 530 38 ↗ RM285U_1993_5sfe_engineme · p56 OEM manual
Engine — mechanical LH engine mounting bracket to transaxle bolts (A/T — two bolts) Automatic transmission 52 530 38 ↗ RM285U_1993_5sfe_engineme · p56 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket bolt A (M/T) Step g, bolt A, M/T 63 650 47 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket bolt B (M/T) Step g, bolt B, M/T 73 740 54 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket bolt A (A/T) Step h, bolt A, A/T 52 530 38 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket bolt B (A/T) Step h, bolt B, A/T 63 650 47 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical LH mounting insulator to mounting bracket bolt C (A/T) Step h, bolt C, A/T 73 740 54 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical LH mounting insulator through bolt to body Step i 78 800 58 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical RH mounting insulator nuts to mounting bracket Step j 52 530 38 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical RH mounting insulator through bolt to body Step k 78 800 58 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical RH engine mounting stay bolt and nut Step 3 73 740 54 ↗ RM285U_1993_5sfe_engineme · p57 OEM manual
Engine — mechanical Lateral control rod to body bolts Step 4 35 360 26 ↗ RM285U_1993_5sfe_engineme · p58 OEM manual
Engine — mechanical LH mounting stay — transaxle side Step 5(b), M/T only 25 250 18 ↗ RM285U_1993_5sfe_engineme · p58 OEM manual
Engine — mechanical LH mounting stay — insulator side Step 5(b), M/T only 73 740 54 ↗ RM285U_1993_5sfe_engineme · p58 OEM manual
Engine — mechanical Lateral control rod bolt (A) Step 5(c), M/T — tighten bolt A 37 380 27 ↗ RM285U_1993_5sfe_engineme · p58 OEM manual
Engine — mechanical Lateral control rod bolts (A/T) Step 5, A/T 37 380 27 ↗ RM285U_1993_5sfe_engineme · p58 OEM manual
Engine — mechanical Clutch release cylinder to transaxle bolts Step 7(b), M/T only 12 120 9 ↗ RM285U_1993_5sfe_engineme · p58 OEM manual
Engine — mechanical Mounting bracket bolts to transaxle (M/T & A/T) Step c (M/T) and A/T control cable bracket installation 77 790 57 ↗ RM285U_1993_5sfe_engineme · p59 OEM manual
Engine — mechanical Rear engine mounting bracket bolts Step 8 — three bolts 77 790 57 ↗ RM285U_1993_5sfe_engineme · p59 OEM manual
Engine — mechanical Front engine mounting insulator bolts to body Step 9(a) — four bolts 73 740 54 ↗ RM285U_1993_5sfe_engineme · p59 OEM manual
Engine — mechanical Rear engine mounting insulator bracket bolts to body Step 10(c) — three bolts 64 650 47 ↗ RM285U_1993_5sfe_engineme · p59 OEM manual
Engine — mechanical Through bolt — mounting insulator to mounting bracket 87 890 64 ↗ RM285U_1993_5sfe_engineme · p60 OEM manual
Engine — mechanical Front engine mounting through bolt 96 980 70 ↗ RM285U_1993_5sfe_engineme · p60 OEM manual
Engine — mechanical Idler pulley bracket bolt A Bolt position A 25 250 18 ↗ RM285U_1993_5sfe_engineme · p60 OEM manual
Engine — mechanical Idler pulley bracket bolt B Bolt position B 27 275 20 ↗ RM285U_1993_5sfe_engineme · p60 OEM manual
Engine — mechanical Idler pulley bracket bolt C Bolt position C 37 375 27 ↗ RM285U_1993_5sfe_engineme · p60 OEM manual
Engine — mechanical Two bolts of the lower side of the A/C compressor step (d) 25 250 18 ↗ RM285U_1993_5sfe_engineme · p61 OEM manual
Engine — mechanical Lower suspension brace bolts step (h) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p61 OEM manual
Engine — mechanical Front exhaust pipe nuts (to manifold) Three new nuts, step (b) 62 630 46 ↗ RM285U_1993_5sfe_engineme · p62 OEM manual
Engine — mechanical Front exhaust pipe bolts (to tailpipe) Two bolts, step (c) 43 440 32 ↗ RM285U_1993_5sfe_engineme · p62 OEM manual
Engine — mechanical Front exhaust pipe bracket bolts (to tailpipe bracket) Two bolts, step (d) 19 190 14 ↗ RM285U_1993_5sfe_engineme · p62 OEM manual
Engine — mechanical Damper bolts Two bolts, step (e) 21 210 15 ↗ RM285U_1993_5sfe_engineme · p62 OEM manual
Engine — mechanical RH Engine Mounting Stay (upper bolt) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p67 OEM manual
Engine — mechanical RH Engine Mounting Stay (lower bolt) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p67 OEM manual
Engine — mechanical RH Engine Mounting Insulator 78 800 58 ↗ RM285U_1993_5sfe_engineme · p67 OEM manual
Engine — mechanical RH Engine Mounting Insulator lower bolt 61 620 45 ↗ RM285U_1993_5sfe_engineme · p67 OEM manual
Engine — mechanical RH Engine Mounting Bracket 52 530 38 ↗ RM285U_1993_5sfe_engineme · p67 OEM manual
Engine — mechanical Front Exhaust Pipe flange nut 62 630 46 ↗ RM285U_1993_5sfe_engineme · p67 OEM manual
Engine — mechanical Engine Under Cover / Bracket bolt 43 440 32 ↗ RM285U_1993_5sfe_engineme · p67 OEM manual
Engine — mechanical TWC (Main) / Exhaust Manifold flange 49 500 36 ↗ RM285U_1993_5sfe_engineme · p68 OEM manual
Engine — mechanical Camshaft Bearing Cap bolts 19 190 14 ↗ RM285U_1993_5sfe_engineme · p69 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt (with SST) 54 550 40 ↗ RM285U_1993_5sfe_engineme · p69 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt (without SST) For use with SST marked with * 37 380 27 ↗ RM285U_1993_5sfe_engineme · p69 OEM manual
Engine — mechanical No.3 Timing Belt Cover bolts 42 425 31 ↗ RM285U_1993_5sfe_engineme · p69 OEM manual
Engine — mechanical Cylinder head bolts — 1st pass 1st pass; see page EG-77 49 500 — ↗ RM285U_1993_5sfe_engineme · p69 OEM manual
Engine — mechanical Cylinder head bolts — 2nd pass 2nd Turn 90°; see page EG-77 — — — ↗ RM285U_1993_5sfe_engineme · p69 OEM manual
Engine — mechanical Bearing caps See step 4 in Cylinder Head Installation. Do not turn the camshaft. 19 190 14 ↗ RM285U_1993_5sfe_engineme · p94 OEM manual
Engine — mechanical Cylinder head bolts Step (b) — first progressive pass; replace bolt if torque specification not met 49 500 36 ↗ RM285U_1993_5sfe_engineme · p98 OEM manual
Engine — mechanical Spark plug tubes Tighten using spark plug tube nut and 30 mm socket wrench 39 400 29 ↗ RM285U_1993_5sfe_engineme · p99 OEM manual
Engine — mechanical Bearing cap bolts Tighten ten bearing cap bolts uniformly in several passes in sequence shown 19 190 14 ↗ RM285U_1993_5sfe_engineme · p101 OEM manual
Engine — mechanical Bearing cap bolts Tighten uniformly in several passes in sequence shown 19 190 14 ↗ RM285U_1993_5sfe_engineme · p102 OEM manual
Engine — mechanical Head cover nuts Uniformly tighten in several passes 23 230 17 ↗ RM285U_1993_5sfe_engineme · p104 OEM manual
Engine — mechanical RH engine hanger bolts Two bolts 25 250 18 ↗ RM285U_1993_5sfe_engineme · p104 OEM manual
Engine — mechanical LH engine hanger bolt One bolt 25 250 18 ↗ RM285U_1993_5sfe_engineme · p104 OEM manual
Engine — mechanical No.3 timing belt cover bolts value_ftlb is in.-lbf; four bolts 7.8 80 — ↗ RM285U_1993_5sfe_engineme · p104 OEM manual
Engine — mechanical Camshaft timing pulley bolt Standard torque wrench 54 550 40 ↗ RM285U_1993_5sfe_engineme · p105 OEM manual
Engine — mechanical Camshaft timing pulley bolt (SST) For SST; use torque wrench with fulcrum length of 340 mm (13.39 in.) 37 380 27 ↗ RM285U_1993_5sfe_engineme · p105 OEM manual
Engine — mechanical Delivery pipe bolts to cylinder head Two bolts holding delivery pipe to cylinder head 13 130 9 ↗ RM285U_1993_5sfe_engineme · p106 OEM manual
Engine — mechanical Fuel inlet pipe to delivery pipe bolt (pulsation damper) Connect with two new gaskets and pulsation damper 34 350 25 ↗ RM285U_1993_5sfe_engineme · p106 OEM manual
Engine — mechanical Intake manifold bolts and nuts Uniformly tighten in several passes 19 195 14 ↗ RM285U_1993_5sfe_engineme · p107 OEM manual
Engine — mechanical Intake manifold stay bolts (12 mm head) For 12 mm head 22 220 16 ↗ RM285U_1993_5sfe_engineme · p107 OEM manual
Engine — mechanical Intake manifold stay bolts (14 mm head) For 14 mm head 42 425 31 ↗ RM285U_1993_5sfe_engineme · p107 OEM manual
Engine — mechanical Air intake chamber stay bolts Step 16(h) 42 425 31 ↗ RM285U_1993_5sfe_engineme · p108 OEM manual
Engine — mechanical EGR valve union nut Step 20(a) 59 600 43 ↗ RM285U_1993_5sfe_engineme · p109 OEM manual
Engine — mechanical Throttle body bolts Step 21(b); upper bolts 45 mm, lower bolts 55 mm 19 195 14 ↗ RM285U_1993_5sfe_engineme · p109 OEM manual
Engine — mechanical Water by-pass pipe nut 78 in-lbf for nut 8.8 90 — ↗ RM285U_1993_5sfe_engineme · p110 OEM manual
Engine — mechanical Water outlet and housing nuts Step 23(a) 15 150 11 ↗ RM285U_1993_5sfe_engineme · p111 OEM manual
Engine — mechanical TWC to exhaust manifold bolts and nuts Step 25(b) 29 300 22 ↗ RM285U_1993_5sfe_engineme · p111 OEM manual
Engine — mechanical Exhaust manifold and TWC assembly nuts Six nuts, uniformly tighten in several passes 49 500 36 ↗ RM285U_1993_5sfe_engineme · p112 OEM manual
Engine — mechanical TWC stay bolts and nuts Two bolts and two nuts 42 425 31 ↗ RM285U_1993_5sfe_engineme · p112 OEM manual
Engine — mechanical Idler pulley bracket bolt A Bolt A 25 250 18 ↗ RM285U_1993_5sfe_engineme · p113 OEM manual
Engine — mechanical Idler pulley bracket bolt B Bolt B 27 275 20 ↗ RM285U_1993_5sfe_engineme · p113 OEM manual
Engine — mechanical Idler pulley bracket bolt C Bolt C 37 375 27 ↗ RM285U_1993_5sfe_engineme · p113 OEM manual
Engine — mechanical A/C compressor lower side bolts Two bolts on lower side of A/C compressor 25 250 18 ↗ RM285U_1993_5sfe_engineme · p113 OEM manual
Engine — mechanical Lower suspension brace bolts Two bolts 73 740 54 ↗ RM285U_1993_5sfe_engineme · p113 OEM manual
Engine — mechanical Front exhaust pipe nuts (front exhaust pipe to manifold) Three new nuts, 14 mm deep socket wrench 62 630 46 ↗ RM285U_1993_5sfe_engineme · p114 OEM manual
Engine — mechanical Front exhaust pipe to tailpipe bolts Two bolts 43 440 32 ↗ RM285U_1993_5sfe_engineme · p114 OEM manual
Engine — mechanical Front exhaust pipe bracket to tailpipe bracket bolts Two bolts 19 190 14 ↗ RM285U_1993_5sfe_engineme · p114 OEM manual
Engine — mechanical Front Exhaust Pipe (upper flange) 62 630 48 ↗ RM285U_1993_5sfe_engineme · p118 OEM manual
Engine — mechanical Front Exhaust Pipe (lower joint) 43 430 32 ↗ RM285U_1993_5sfe_engineme · p118 OEM manual
Engine — mechanical Tailpipe / muffler bracket 66 670 48 ↗ RM285U_1993_5sfe_engineme · p118 OEM manual
Engine — mechanical Front Exhaust Pipe to manifold 62 630 48 ↗ RM285U_1993_5sfe_engineme · p119 OEM manual
Engine — mechanical Front Exhaust Pipe to Tailpipe (middle flange) 43 440 32 ↗ RM285U_1993_5sfe_engineme · p119 OEM manual
Engine — mechanical Tailpipe bracket/support bolt 66 670 48 ↗ RM285U_1993_5sfe_engineme · p119 OEM manual
Engine — mechanical Oil pump pulley x Oil pump drive shaft 28 290 21 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical No.2 idler pulley x Cylinder block 42 425 31 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Crankshaft pulley x Crankshaft 108 1100 80 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft 54 550 40 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Camshaft timing pulley x Camshaft (for use with SST) 37 380 27 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical No.1 idler pulley x Cylinder head 42 425 31 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Spark plug x Cylinder head 18 180 13 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Cylinder head x Cylinder block (1st) 1st pass 49 500 36 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Cylinder head x Cylinder block (2nd) Turn 90° — — — ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Spark plug tube x Cylinder head 39 400 29 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Camshaft bearing cap x Cylinder head 19 190 14 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Cylinder head cover x Cylinder head 23 230 17 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Engine hanger x Cylinder head 25 250 18 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical No.3 timing belt cover x Cylinder head 69 in·lbf 7.8 80 — ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Delivery pipe x Cylinder head 13 130 9 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Fuel inlet pipe x Delivery pipe 34 350 25 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Intake manifold x Cylinder head 19 195 14 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Intake manifold stay x Intake manifold 22 220 16 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Intake manifold stay x Cylinder block 42 425 31 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Air intake chamber stay x Intake manifold 42 425 31 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Air intake chamber stay x Cylinder head 42 425 31 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical EGR valve x intake manifold 13 130 9 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical EGR pipe x Cylinder head 59 600 43 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Throttle body x Intake manifold 19 195 14 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Water by-pass pipe x Water pump cover 78 in·lbf 8.8 90 — ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Water outlet housing x Cylinder head 15 150 11 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical TWC (main) x Exhaust manifold 29 300 22 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Exhaust manifold x Cylinder head 49 500 36 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical TWC stay x Cylinder block 42 425 31 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Main bearing cap x Cylinder block 59 600 43 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod (1st) 1st pass 25 250 18 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Connecting rod cap x Connecting rod (2nd) Turn 90° — — — ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Rear oil seal retainer x Cylinder block 82 in·lbf 9.3 95 — ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Knock sensor x Cylinder block 37 380 27 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Oil cooler x Cylinder block (relief valve) 78 800 58 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Oil cooler x Cylinder block (nut) 69 in·lbf 7.8 80 — ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Water pump x Cylinder block (10 mm head) 69 in·lbf 7.8 80 — ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Water pump x Cylinder block (12 mm head for w/o A/C) 27 275 20 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Alternator bracket x Cylinder block 43 440 32 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Rear end plate x Cylinder block 82 in·lbf 9.3 95 — ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Flywheel x Crankshaft (M/T) 88 900 65 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Drive plate x Crankshaft (A/T) 83 850 61 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Clutch cover x Flywheel (M/T) 19 195 14 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Transaxle x Cylinder block 64 650 47 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Transaxle x Rear end plate 46 470 34 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical Heater water pipe x Cylinder block 46 470 34 ↗ RM285U_1993_5sfe_engineme · p131 OEM manual
Engine — mechanical No.2 rear end plate x Cylinder block 82 in.-lbf 9.3 95 — ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical No.2 rear end plate x Transaxle 19 195 14 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Stiffener plate x Cylinder block 37 380 27 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Stiffener plate x Transaxle 37 380 27 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Starter x Rear end plate 39 400 29 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Drive plate x Torque converter (A/T) 27 280 20 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical RN engine mounting bracket x Cylinder block 61 620 45 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical RH engine mounting insulator x Body 78 800 58 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical RH engine mounting insulator x Mounting bracket 52 530 38 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical RH engine mounting stay x Mounting insulator 73 740 54 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical RH engine mounting stay x Engine hanger 73 740 54 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical LH engine mounting bracket x Transaxle 52 530 38 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical LH engine mounting insulator x Mounting bracket (upper side) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical LH engine mounting insulator x Transaxle (A/T) 52 530 38 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical LH engine mounting insulator x Body 78 800 58 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical LH engine mounting stay x Mounting insulator (M/T) 73 740 54 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical LH engine mounting stay x Transaxle (M/T) 25 250 18 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Front engine mounting bracket x Transaxle 77 790 57 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Front engine mounting insulator x Mounting bracket 96 980 70 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Front engine mounting insulator x Body 73 740 54 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Clutch release cylinder x Transaxle (M/T) 12 120 9 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Rear engine mounting Bracket x Transaxle 77 790 57 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Rear engine mounting insulator x Mounting bracket 87 890 64 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Rear engine mounting insulator x Body 64 650 47 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Lateral control rod x Body 35 360 26 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Lateral control rod x LH engine mounting insulator 37 380 27 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical A/C idler pulley bracket x Cylinder block (12 mm head) 27 275 20 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical A/C idler pulley bracket x Cylinder block (14 mm head) 37 375 27 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical A/C compressor x Cylinder block 25 250 18 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Front exhaust pipe x TWC (main) 62 630 46 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Front exhaust pipe x Tailpipe 43 440 32 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Front exhaust pipe bracket x Tailpipe bracket 19 190 14 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Lower suspension brace x Body 73 740 54 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical Suspension member damper x Rear suspension lower crossmember 21 210 15 ↗ RM285U_1993_5sfe_engineme · p132 OEM manual
Engine — mechanical RH Engine Hood Side Panel bolts 73 740 54 ↗ RM285U_1993_5sfe_engineme · p133 OEM manual
Engine — mechanical RH Engine Mounting Stay bolts 73 740 54 ↗ RM285U_1993_5sfe_engineme · p133 OEM manual
Engine — mechanical RH Engine Mounting Insulator / Bracket upper bolt 78 800 58 ↗ RM285U_1993_5sfe_engineme · p133 OEM manual
Engine — mechanical RH Engine Mounting Bracket lower bolt (61) 61 620 45 ↗ RM285U_1993_5sfe_engineme · p133 OEM manual
Engine — mechanical RH Engine Mounting Bracket lower bolt (52) 52 530 38 ↗ RM285U_1993_5sfe_engineme · p133 OEM manual
Engine — mechanical Crankshaft Pulley bolt 108 1100 80 ↗ RM285U_1993_5sfe_engineme · p134 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt 54 550 40 ↗ RM285U_1993_5sfe_engineme · p134 OEM manual
Engine — mechanical Camshaft Timing Pulley bolt (with SST) For use with SST 37 380 27 ↗ RM285U_1993_5sfe_engineme · p134 OEM manual
Engine — mechanical Oil pump pulley nut SST 09616-30011 28 290 21 ↗ RM285U_1993_5sfe_engineme · p144 OEM manual
Engine — mechanical No.2 idler pulley bolt Use bolt 35 mm (1.38 in.) in length 42 425 31 ↗ RM285U_1993_5sfe_engineme · p144 OEM manual
Engine — mechanical Crankshaft pulley bolt Install using SST 09213-54015 (09214-00030), 09330-00021 108 1100 80 ↗ RM285U_1993_5sfe_engineme · p145 OEM manual
Engine — mechanical Camshaft timing pulley bolt Standard torque wrench 54 550 40 ↗ RM285U_1993_5sfe_engineme · p146 OEM manual
Engine — mechanical Camshaft timing pulley bolt For SST — use torque wrench with fulcrum length of 340 mm (13.39 in.) 37 380 27 ↗ RM285U_1993_5sfe_engineme · p146 OEM manual
Engine — mechanical No.1 idler pulley mounting bolt Step (e) 42 425 31 ↗ RM285U_1993_5sfe_engineme · p148 OEM manual
Engine — mechanical RH engine mounting bracket bolts (four bolts) 61 620 45 ↗ RM285U_1993_5sfe_engineme · p149 OEM manual
Engine — mechanical RH engine mounting insulator nut 52 530 38 ↗ RM285U_1993_5sfe_engineme · p149 OEM manual
Engine — mechanical RH engine mounting insulator through bolt 78 800 58 ↗ RM285U_1993_5sfe_engineme · p149 OEM manual
Engine — mechanical RH engine mounting stay bolt and nut 73 740 54 ↗ RM285U_1993_5sfe_engineme · p149 OEM manual
Engine — mechanical Cylinder head cover nuts Step 7(d) 23 230 17 ↗ RM285U_1993_5sfe_engineme · p163 OEM manual
Engine — mechanical Distributor hold-down bolts Tighten after ignition timing adjustment 19 195 14 ↗ RM285U_1993_5sfe_engineme · p164 OEM manual

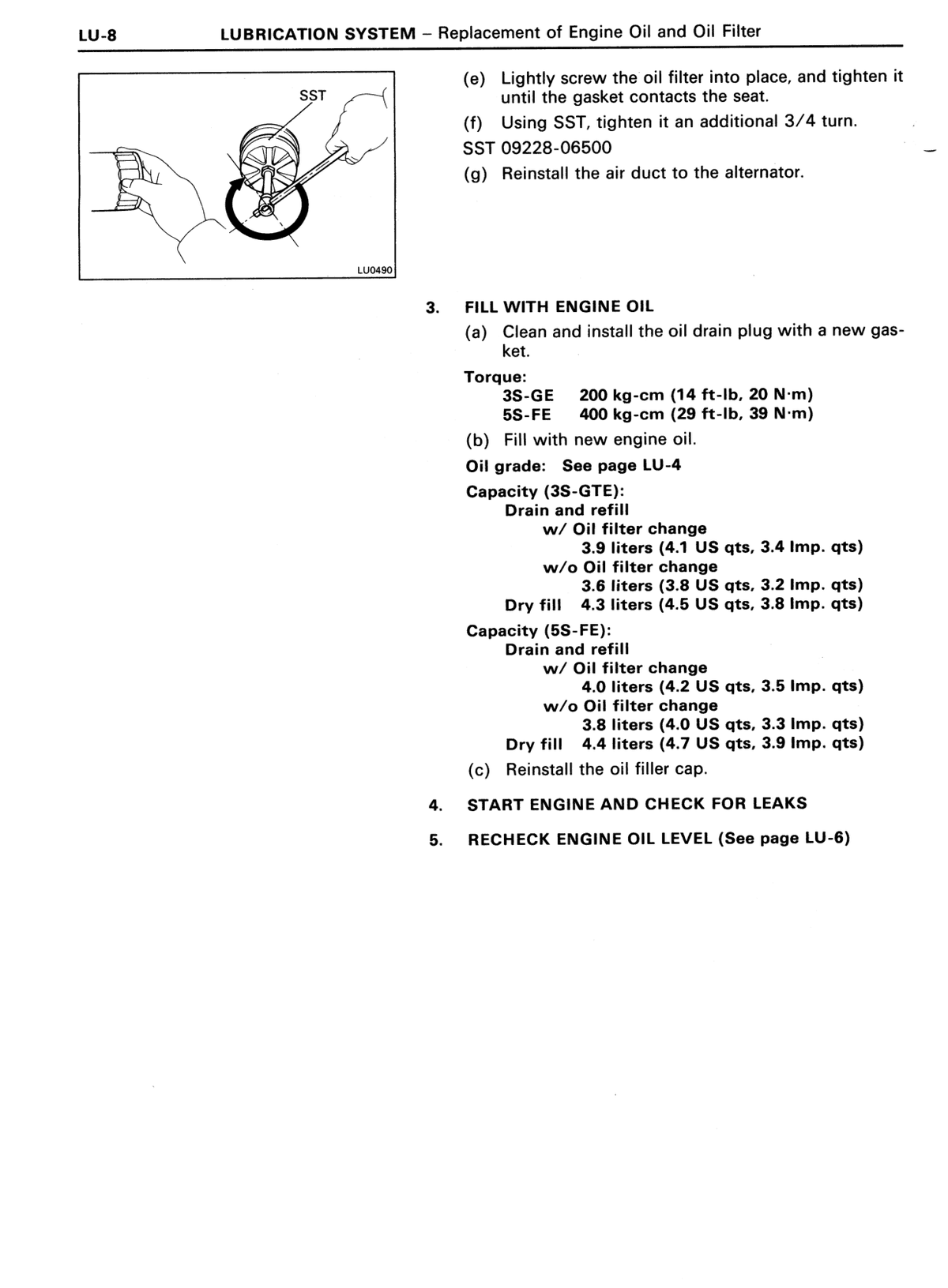

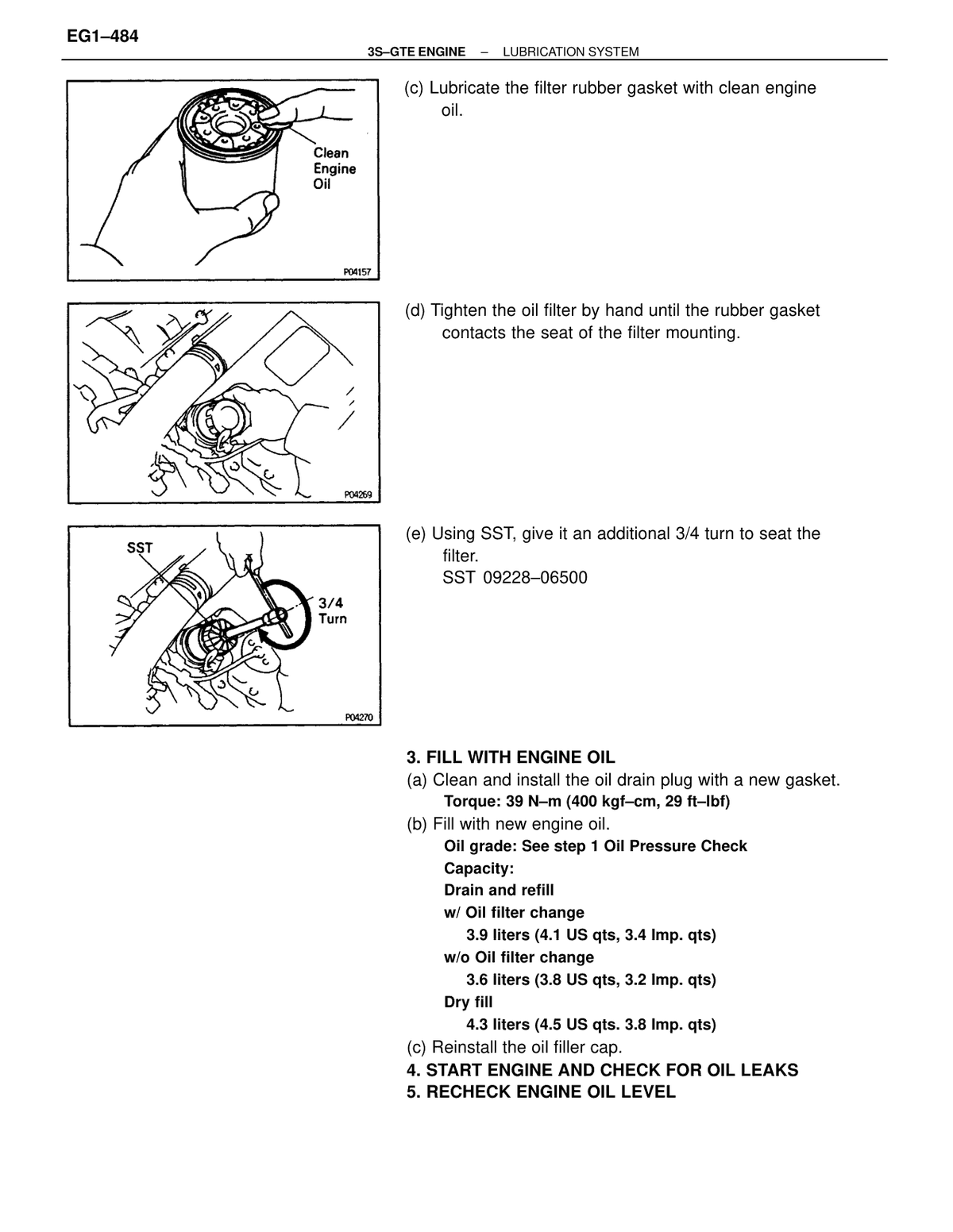

Lubrication / oil Oil drain plug Install with new gasket 39 400 29 ↗ RM285U_1993_3sgte_lubricat · p3 OEM manual
Lubrication / oil Lower Suspension Brace bolt 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p4 OEM manual
Lubrication / oil Oil cooler bracket bolts Four bolts securing oil cooler bracket 78 800 58 ↗ RM285U_1993_3sgte_lubricat · p10 OEM manual
Lubrication / oil Relief valve Install plate washer and relief valve 78 800 58 ↗ RM285U_1993_3sgte_lubricat · p11 OEM manual
Lubrication / oil Oil cooler nuts 69 in.-lbf; tighten the two nuts 7.8 80 — ↗ RM285U_1993_3sgte_lubricat · p11 OEM manual
Lubrication / oil Idler pulley bracket bolt A Bolt position A on idler pulley bracket 25 250 18 ↗ RM285U_1993_3sgte_lubricat · p12 OEM manual
Lubrication / oil Idler pulley bracket bolt B Bolt position B on idler pulley bracket 27 275 20 ↗ RM285U_1993_3sgte_lubricat · p12 OEM manual
Lubrication / oil Idler pulley bracket bolt C Bolt position C on idler pulley bracket 37 375 27 ↗ RM285U_1993_3sgte_lubricat · p12 OEM manual
Lubrication / oil A/C compressor lower side bolts Two bolts on lower side of A/C compressor 25 250 18 ↗ RM285U_1993_3sgte_lubricat · p12 OEM manual
Lubrication / oil Lower suspension brace bolts Step (i) 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p13 OEM manual
Lubrication / oil Oil nozzle bolt Install oil nozzles 9.1 93 — ↗ RM285U_1993_3sgte_lubricat · p15 OEM manual
Lubrication / oil Front Engine Mounting Insulator (upper) 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p17 OEM manual
Lubrication / oil Front Engine Mounting Insulator (lower) 77 790 57 ↗ RM285U_1993_3sgte_lubricat · p17 OEM manual
Lubrication / oil Front Engine Mounting Insulator bracket bolt 96 980 71 ↗ RM285U_1993_3sgte_lubricat · p17 OEM manual
Lubrication / oil Front Exhaust Pipe flange / Suspension Member Damper 62 630 46 ↗ RM285U_1993_3sgte_lubricat · p17 OEM manual
Lubrication / oil Tailpipe / exhaust connection (small) 43 440 32 ↗ RM285U_1993_3sgte_lubricat · p17 OEM manual
Lubrication / oil Tailpipe / exhaust connection (large) 66 670 48 ↗ RM285U_1993_3sgte_lubricat · p17 OEM manual
Lubrication / oil Upper Suspension Brace bolts (upper set) 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p18 OEM manual
Lubrication / oil Upper Suspension Brace bolts (lower set) 64 650 47 ↗ RM285U_1993_3sgte_lubricat · p18 OEM manual
Lubrication / oil RH Engine Mounting Stay upper bolt 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p18 OEM manual
Lubrication / oil CAC / Cruise Control Actuator bracket bolt 61 620 45 ↗ RM285U_1993_3sgte_lubricat · p18 OEM manual
Lubrication / oil RH Engine Mounting Bracket / Stiffener Plate bolt 52 530 38 ↗ RM285U_1993_3sgte_lubricat · p18 OEM manual
Lubrication / oil RH TWC Stay (lower bolt) in·lbf 5.4 55 — ↗ RM285U_1993_3sgte_lubricat · p19 OEM manual
Lubrication / oil Oil Pump Body Cover bolts N·m (kgf·cm, in·lbf) — note: ft·lbf label on diagram reads 78 in·lbf 8.8 90 — ↗ RM285U_1993_3sgte_lubricat · p28 OEM manual
Lubrication / oil Oil pump body cover bolts 78 in.-lbf 8.8 90 — ↗ RM285U_1993_3sgte_lubricat · p31 OEM manual
Lubrication / oil Oil pump bolts 69 in.–lbf; long bolts 35 mm, other bolts 25 mm 7.8 80 5.75 ↗ RM285U_1993_3sgte_lubricat · p32 OEM manual
Lubrication / oil Oil pump pulley nut Using SST 09616–30011 35 355 26 ↗ RM285U_1993_3sgte_lubricat · p32 OEM manual
Lubrication / oil Oil strainer bolts and nuts in.-lbf 5.4 55 — ↗ RM285U_1993_3sgte_lubricat · p33 OEM manual
Lubrication / oil Oil pan bolts and nuts 17 bolts and 2 nuts; value in in.-lbf: 48 5.4 55 — ↗ RM285U_1993_3sgte_lubricat · p34 OEM manual
Lubrication / oil TWC bolts and nuts 3 bolts and 2 nuts 29 300 22 ↗ RM285U_1993_3sgte_lubricat · p34 OEM manual
Lubrication / oil LH TWC stay bolts Step (d) 59 600 43 ↗ RM285U_1993_3sgte_lubricat · p35 OEM manual
Lubrication / oil Stiffener plate bolts Step 10 37 380 27 ↗ RM285U_1993_3sgte_lubricat · p35 OEM manual
Lubrication / oil Clutch release cylinder bolts Step 11(b) 12 120 9 ↗ RM285U_1993_3sgte_lubricat · p35 OEM manual
Lubrication / oil Clutch release cylinder to transaxle bolts Step 11(c) — final tighten 77 790 57 ↗ RM285U_1993_3sgte_lubricat · p35 OEM manual
Lubrication / oil Front engine mounting insulator to body bolts (four bolts) 77 790 57 ↗ RM285U_1993_3sgte_lubricat · p36 OEM manual
Lubrication / oil Front engine mounting insulator to mounting bracket through bolt and nut 96 980 71 ↗ RM285U_1993_3sgte_lubricat · p36 OEM manual
Lubrication / oil Front exhaust pipe nuts (three new nuts) 62 630 46 ↗ RM285U_1993_3sgte_lubricat · p36 OEM manual
Lubrication / oil Support bracket bolts Step 13(c) 21 210 15 ↗ RM285U_1993_3sgte_lubricat · p37 OEM manual
Lubrication / oil Tailpipe to body bracket bolts and nut Step 14(b) 66 670 48 ↗ RM285U_1993_3sgte_lubricat · p37 OEM manual
Lubrication / oil Front exhaust pipe to tailpipe bolts Step 14(c) 43 440 32 ↗ RM285U_1993_3sgte_lubricat · p37 OEM manual
Lubrication / oil Front exhaust pipe bracket to tailpipe bracket bolts Step 14(d) 19 190 14 ↗ RM285U_1993_3sgte_lubricat · p37 OEM manual
Lubrication / oil Idler pulley bracket bolt A Bolt A 25 250 18 ↗ RM285U_1993_3sgte_lubricat · p38 OEM manual
Lubrication / oil Idler pulley bracket bolt B Bolt B 27 275 20 ↗ RM285U_1993_3sgte_lubricat · p38 OEM manual
Lubrication / oil Idler pulley bracket bolt C Bolt C 37 375 27 ↗ RM285U_1993_3sgte_lubricat · p38 OEM manual
Lubrication / oil A/C compressor lower side bolts Two bolts on lower side of A/C compressor 25 250 18 ↗ RM285U_1993_3sgte_lubricat · p38 OEM manual
Lubrication / oil Lower suspension brace bolts Two bolts 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p39 OEM manual
Lubrication / oil Upper suspension brace bolt Step 20 — bolt 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p40 OEM manual
Lubrication / oil Upper suspension brace nut Step 20 — nut 64 650 47 ↗ RM285U_1993_3sgte_lubricat · p40 OEM manual
Lubrication / oil Oil pump body cover x Oil pump body 78 in.-lbf 8.8 90 — ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil pump x Cylinder block 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil pump pulley x Oil pump drive rotor 35 355 26 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil No.2 idler pulley x Cylinder block 43 440 32 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil strainer x Cylinder block 48 in.-lbf 5.4 55 — ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil strainer x Oil pump 48 in.-lbf 5.4 55 — ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil pan x Cylinder block 48 in.-lbf 5.4 55 — ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil pan x Oil pump 48 in.-lbf 5.4 55 — ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Main TWC x Turbine outlet elbow 29 300 22 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Stiffener plate x Cylinder block 37 380 27 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Stiffener plate x Transaxle case 37 380 27 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Clutch release cylinder x Transaxle 12 120 9 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Front engine mounting bracket x Transaxle 77 790 57 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Front engine mounting insulator x Body 77 790 57 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Front engine mounting insulator x Bracket 98 980 71 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Front exhaust pipe x Main TWC 62 630 46 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Front exhaust pipe support bracket x Suspension crossmember 21 210 15 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Suspension member damper x Suspension crossmember 21 210 15 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Tailpipe x Front exhaust pipe 43 440 32 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Tailpipe bracket x Front exhaust pipe bracket 19 190 14 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil A/C idler pulley bracket x Cylinder block (12 mm head) 25 250 18 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil A/C idler pulley bracket x Cylinder block (14 mm head) 27 275 20 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil A/C idler pulley bracket x RH engine hanger 37 375 27 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Upper suspension brace x Body (Bolt) 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Upper suspension brace x Body (Nut) 64 650 47 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Lower suspension brace x Body 73 740 54 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil cooler x Cylinder block (Bolt) 78 800 58 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil cooler x Cylinder block (Relief valve) 78 800 58 ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil cooler x Cylinder block (Nut) 69 in.-lbf 7.8 80 — ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Lubrication / oil Oil nozzle x Cylinder block 81 in.-lbf 9.1 93 — ↗ RM285U_1993_3sgte_lubricat · p45 OEM manual
Starting / charging Starter mounting bolts Step 1(b) 39 400 29 ↗ RM285U_1993_starting · p26 OEM manual
Starting / charging Starter mounting bolts Install starter with two bolts 39 400 29 ↗ RM285U_1993_starting · p27 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket (upper bolt) 64 650 47 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Bracket (lower bolt) 77 790 57 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator 77 790 57 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Engine Mounting Rear Insulator to body 87 890 64 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Suspension Crossmember (small bolt) 25 250 18 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Suspension Crossmember (large bolt — front) 73 740 54 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Suspension Crossmember (large bolt — rear) 64 650 47 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Suspension Crossmember (end bolt) 113 1150 83 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Drive Shaft (RH) — stiffener/rear end plate upper bolts 37 380 27 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Drive Shaft (RH) — stiffener/rear end plate lower bolts 37 380 27 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Engine Mounting Front Bracket (upper) 77 790 57 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Engine Mounting Front Bracket (lower) 96 980 71 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Engine Mounting Front Insulator 73 740 54 ↗ RM285U_1993_e153 · p1 OEM manual
Transmission / transaxle Bolt A — Transaxle to Engine Step 1(b) 64 650 47 ↗ RM285U_1993_e153 · p7 OEM manual
Transmission / transaxle Bolt B — Transaxle to Engine Step 1(b) 46 470 34 ↗ RM285U_1993_e153 · p7 OEM manual
Transmission / transaxle Rear End Plate bolts 82 in.-M; Step 2 9 95 — ↗ RM285U_1993_e153 · p7 OEM manual
Transmission / transaxle Engine LH Mounting Set Bolts Step 4 64 650 47 ↗ RM285U_1993_e153 · p7 OEM manual
Transmission / transaxle Suspension Crossmember bolts Step 5(a) 113 1150 83 ↗ RM285U_1993_e153 · p7 OEM manual
Transmission / transaxle Suspension arm bolt and nut to rear axle hub 103 1050 76 ↗ RM285U_1993_e153 · p8 OEM manual
Transmission / transaxle Lower arm bolt to suspension crossmember 132 1350 98 ↗ RM285U_1993_e153 · p8 OEM manual
Transmission / transaxle Engine rear mounting — transaxle side 77 790 57 ↗ RM285U_1993_e153 · p8 OEM manual
Transmission / transaxle Engine rear mounting — crossmember side 64 650 47 ↗ RM285U_1993_e153 · p8 OEM manual
Transmission / transaxle Engine rear mounting — through bolt 87 890 64 ↗ RM285U_1993_e153 · p8 OEM manual
Transmission / transaxle Engine front mounting — transaxle side 77 790 57 ↗ RM285U_1993_e153 · p9 OEM manual
Transmission / transaxle Engine front mounting — body side 73 740 54 ↗ RM285U_1993_e153 · p9 OEM manual
Transmission / transaxle Engine front mounting — through bolt 96 980 71 ↗ RM285U_1993_e153 · p9 OEM manual
Transmission / transaxle Front exhaust pipe — "A" bolts 62 630 46 ↗ RM285U_1993_e153 · p9 OEM manual
Transmission / transaxle Front exhaust pipe — three nuts 62 630 46 ↗ RM285U_1993_e153 · p9 OEM manual
Transmission / transaxle LH Engine Mounting Stay — Body side 73 740 54 ↗ RM285U_1993_e153 · p11 OEM manual
Transmission / transaxle LH Engine Mounting Stay — Transaxle side 25 250 18 ↗ RM285U_1993_e153 · p11 OEM manual
Transmission / transaxle Oil pump assembly and oil pipe bolts (four bolts) Step 2(d) 17 175 13 ↗ RM285U_1993_e153 · p12 OEM manual
Transmission / transaxle Seventeen bolts — transmission case Step (c) 29 300 22 ↗ RM285U_1993_e153 · p13 OEM manual
Transmission / transaxle Seven bolts — bearing retainer (Torx wrench T45 09042–00050) Step (g) 42 430 31 ↗ RM285U_1993_e153 · p13 OEM manual
Transmission / transaxle Preload at starting — New bearing Range 0.8–1.6 N-m (8–16 kgf-cm, 6.9–13.9 in.-M); at starting preload 1.2 12 — ↗ RM285U_1993_e153 · p14 OEM manual
Transmission / transaxle Preload at starting — Reused bearing Range 0.6–1.0 N-m (5–10 kgf-cm, 4.3–8.7 in.-lbf); at starting preload 0.8 7.5 0.072 ↗ RM285U_1993_e153 · p14 OEM manual
Transmission / transaxle Set bolts (three) Step 12 — Install Set Bolts 24 240 17 ↗ RM285U_1993_e153 · p17 OEM manual
Transmission / transaxle Two plugs Install with hexagon wrench (6 mm), sealant applied 25 250 18 ↗ RM285U_1993_e153 · p18 OEM manual
Transmission / transaxle Reverse shift arm and oil pump bolts Step 15(d) 17 175 13 ↗ RM285U_1993_e153 · p18 OEM manual
Transmission / transaxle Fourteen bolts to transmission case side Step 16(c) 28 300 22 ↗ RM285U_1993_e153 · p19 OEM manual
Transmission / transaxle Three bolts to transaxle case side Step 16(d) 29 300 22 ↗ RM285U_1993_e153 · p19 OEM manual
Transmission / transaxle Reverse idler gear shaft retaining bolt Step 17 29 300 22 ↗ RM285U_1993_e153 · p19 OEM manual
Transmission / transaxle Locking ball plug Step 18(c), 6 mm hexagon wrench 25 250 18 ↗ RM285U_1993_e153 · p19 OEM manual
Transmission / transaxle Rear bearing retainer torx screws (seven) Torx wrench T45 09042-00050 42 430 31 ↗ RM285U_1993_e153 · p20 OEM manual
Transmission / transaxle Lock nut Step 32 — engage gear double meshing before torquing 123 1250 90 ↗ RM285U_1993_e153 · p23 OEM manual
Transmission / transaxle Transmission case cover bolts (ten bolts) Step 33 29 300 22 ↗ RM285U_1993_e153 · p23 OEM manual
Transmission / transaxle Control shaft cover bolts (four bolts) Step 34 — apply sealant to bolt threads before torquing 20 200 14 ↗ RM285U_1993_e153 · p23 OEM manual
Transmission / transaxle Selecting Bellcrank Assembly bolts Step 37 20 200 14 ↗ RM285U_1993_e153 · p24 OEM manual
Transmission / transaxle Vehicle Speed Pulse Generator Step 39; 65 in·lbf 7.4 75 — ↗ RM285U_1993_e153 · p24 OEM manual
Transmission / transaxle Transaxle Case Receiver in·lbf unit shown 7 75 — ↗ RM285U_1993_e153 · p25 OEM manual
Transmission / transaxle Vehicle Speed Pulse Generator Adaptor 17 175 13 ↗ RM285U_1993_e153 · p25 OEM manual
Transmission / transaxle Plug (transmission case, 11 N·m) 11 120 — ↗ RM285U_1993_e153 · p25 OEM manual
Transmission / transaxle Plug (transmission case, 29 N·m) 29 300 22 ↗ RM285U_1993_e153 · p25 OEM manual
Transmission / transaxle Transmission Case Cover bolts (precoated) Precoated part 29 300 22 ↗ RM285U_1993_e153 · p25 OEM manual
Transmission / transaxle Transmission Oil Pump Assembly (Gasket bolt) Non-reusable part (gasket) 17 175 13 ↗ RM285U_1993_e153 · p26 OEM manual
Transmission / transaxle 5th Driven Gear Non-reusable part 123 1250 90 ↗ RM285U_1993_e153 · p26 OEM manual
Transmission / transaxle Rear Bearing Retainer Precoated part 42 430 31 ↗ RM285U_1993_e153 · p26 OEM manual
Transmission / transaxle Plug (Shift and Select Lever Shaft area) 13 130 9 ↗ RM285U_1993_e153 · p27 OEM manual
Transmission / transaxle Control Shaft Cover Bearing fastener 25 250 18 ↗ RM285U_1993_e153 · p27 OEM manual
Transmission / transaxle Three bolts — transaxle case receiver 65 in.-lbf 7.4 75 — ↗ RM285U_1993_e153 · p38 OEM manual
Transmission / transaxle Transaxle Case Cover bolts (precoated) 54 550 40 ↗ RM285U_1993_e153 · p45 OEM manual
Transmission / transaxle Ring gear set bolts After ring gear has cooled sufficiently 124 1260 91 ↗ RM285U_1993_e153 · p54 OEM manual
Transmission / transaxle Transmission case bolts (seventeen bolts) 29 300 22 ↗ RM285U_1993_e153 · p55 OEM manual
Transmission / transaxle Rear bearing retainer torx screws (seven torx screws) 42 430 31 ↗ RM285U_1993_e153 · p55 OEM manual
Transmission / transaxle New bearing preload at starting (Add output shaft preload) Range 0.2–0.4 N–m (2.0–4.1 kgf–cm, 1.7–3.6 in.–lbf); new bearing 0.3 3.05 — ↗ RM285U_1993_e153 · p56 OEM manual
Transmission / transaxle Reused bearing preload at starting (Add output shaft preload) Range 0.1–0.2 N–m (1.3–2.5 kgf–cm, 1.1–2.2 in.–lbf); reused bearing 0.15 1.9 — ↗ RM285U_1993_e153 · p56 OEM manual
Transmission / transaxle Transaxle Case Cover bolts (precoated) 54 550 40 ↗ RM285U_1993_e153 · p58 OEM manual
Transmission / transaxle Differential Right Case bolts 63 640 46 ↗ RM285U_1993_e153 · p58 OEM manual
Transmission / transaxle 54 (550, 40) — second instance (differential assembly bolt) 54 550 40 ↗ RM285U_1993_e153 · p58 OEM manual
Transmission / transaxle Four bolts and three nut — transaxle case cover Step (k) 54 550 40 ↗ RM285U_1993_e153 · p63 OEM manual
Transmission / transaxle Torx screws (sixteen) Tom wrench T50 09042-00040 63 640 46 ↗ RM285U_1993_e153 · p65 OEM manual
Transmission / transaxle Ring gear set bolts (sixteen) Torque only after ring gear has cooled sufficiently 124 1260 91 ↗ RM285U_1993_e153 · p65 OEM manual
Transmission / transaxle Transmission case bolts (seventeen bolts) 29 300 22 ↗ RM285U_1993_e153 · p66 OEM manual
Transmission / transaxle Rear bearing retainer torx screws Seven torx screws, Torx wrench T45 09042-00050 42 430 31 ↗ RM285U_1993_e153 · p67 OEM manual
Lubrication / oil Oil pump cover bolts Three bolts, torque evenly 10 105 8 ↗ RM285U_1993_e153 · p79 OEM manual
Transmission / transaxle Differential case side bearing preload (at starting) — New bearing (add output shaft preload) Range: 0.2-0.4 N·m (2.0-4.1 kgf·cm, 1.7-3.6 in.·lbf) 0.3 3.05 — ↗ RM285U_1993_e153 · p95 OEM manual
Transmission / transaxle Differential case side bearing preload (at starting) — Reused bearing (add output shaft preload) Range: 0.1-0.2 N·m (1.3-2.5 kgf·cm, 1.1-2.2 in.·lbf) 0.15 1.9 — ↗ RM285U_1993_e153 · p95 OEM manual
Transmission / transaxle Output shaft bearing preload (at starting) — New bearing Range: 0.8-1.6 N·m (8-16 kgf·cm, 6.9-13.9 in.·lbf) 1.2 12 — ↗ RM285U_1993_e153 · p95 OEM manual
Transmission / transaxle Output shaft bearing preload (at starting) — Reused bearing Range: 0.5-1.0 N·m (5-10 kgf·cm, 4.3-8.7 in.·lbf) 0.75 7.5 — ↗ RM285U_1993_e153 · p95 OEM manual
Transmission / transaxle Transaxle x Engine — 12 mm bolt 64 650 47 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Transaxle x Engine — 10 mm bolt 46 470 34 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Rear end plate set bolt 82 in·lbf 9 95 — ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Suspension crossmember x Body 113 1150 83 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Suspension arm x Rear axle hub 103 1050 76 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Lower arm x Suspension crossmember 132 1350 98 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Engine rear mounting x Transaxle 77 790 57 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Engine rear mounting x Crossmember 64 650 47 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Engine rear mounting through bolt 87 890 64 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Clutch release cylinder x Transaxle 12 120 9 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Engine front mounting x Transaxle 77 790 57 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Engine front mounting through bolt 96 980 71 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Front exhaust pipe x Tail Pipe 62 630 46 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Front exhaust pipe x Exhaust manifold 62 630 46 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle LH engine mounting stay x Body 73 740 54 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle LH engine mounting stay x Transaxle 25 250 18 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Transaxle x Transaxle case receiver 65 in·lbf 7.4 75 — ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Transaxle case x Transaxle case cover 54 550 40 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Differential ring gear x Differential case 124 1260 91 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Transaxle case x Transmission case 29 300 22 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Reverse idler gear shaft retaining bolt 29 300 22 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Transmission case x Rear bearing retainer 42 430 31 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Transmission case x Transmission case cover 29 300 22 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Shift and select lever shaft assembly x Transmission case 20 200 14 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Selecting bellcrank assembly x Transmission case 20 200 14 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Vehicle speed pulse generator set bolt 65 in·lbf 7.4 75 — ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Reverse shift arm bracket x Transaxle case 17 175 13 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle No.2 oil pipe x Transaxle case 17 175 13 ↗ RM285U_1993_e153 · p97 OEM manual
Transmission / transaxle Selecting Bellcrank (transaxle side) 20 200 14 ↗ RM285U_1993_e153 · p102 OEM manual
Transmission / transaxle Shift Lever (transaxle side, upper) 12 120 9 ↗ RM285U_1993_e153 · p102 OEM manual
Transmission / transaxle Shift Lever (transaxle side, lower) 12 120 9 ↗ RM285U_1993_e153 · p102 OEM manual
Transmission / transaxle Cable Bracket / Select Control Cable end (floor side) 13 135 10 ↗ RM285U_1993_e153 · p102 OEM manual
Introduction cap nuts Install and alternately tighten the cap nuts in several passes. 49 500 36 ↗ engine_4age · p3 OEM manual
Unclassified Hexagon flange bolt w/washer hexagon bolt (Mark: No mark) Class 4T — — — ↗ engine_4age · p7 OEM manual
Unclassified Hexagon head bolt (Mark: Two protruding lines) Class 5T — — — ↗ engine_4age · p7 OEM manual
Unclassified Hexagon flange bolt w/washer hexagon bolt (Mark: Two protruding lines) Class 6T — — — ↗ engine_4age · p7 OEM manual
Unclassified Hexagon head bolt (Mark: Three protruding lines) Class 7T — — — ↗ engine_4age · p7 OEM manual
Engine — mechanical Flywheel (Drive Plate) 4A-GE M/T 750 (74) — — 54 ↗ engine_4age · p189 OEM manual
Engine — mechanical bearing cap bolts Install and uniformly tighten the bearing cap bolts in several passes, in the sequence shown. 13 130 9 ↗ engine_4age · p231 OEM manual
Engine — mechanical Head covers (four seal washers and cap nuts) 13 130 9 ↗ engine_4age · p234 OEM manual
Engine — mechanical Water outlet side (Cylinder head side) 27 280 20 ↗ engine_4age · p234 OEM manual
Engine — mechanical Water outlet side (Cylinder block side) 13 130 9 ↗ engine_4age · p234 OEM manual
Engine — mechanical RH and LH manifold stay bolt and nut (AE and AT) 39 400 29 ↗ engine_4age · p236 OEM manual
Lubrication / oil NO.1 OIL FILTER BRACKET (OIL PRESSURE REGULATOR) 37 375 27 ↗ engine_4age · p281 OEM manual
Engine — mechanical Cylinder head x Cylinder block (1st) 1st 29 300 22 ↗ engine_4age · p285 OEM manual
Engine — mechanical Cylinder head x Cylinder block (2nd) 90° turns — — — ↗ engine_4age · p285 OEM manual
Engine — mechanical Cylinder head x Cylinder block (3rd) 90° turns — — — ↗ engine_4age · p285 OEM manual
Engine — mechanical Exhaust manifold stay x Exhaust manifold 39 400 29 ↗ engine_4age · p285 OEM manual
Engine — mechanical Exhaust manifold stay x Cylinder block 39 400 29 ↗ engine_4age · p285 OEM manual
EFI / fuel injection Cold start injector x Intake manifold 65 in·lb 7.4 75 — ↗ engine_4age · p289 OEM manual
EFI / fuel injection Cold start injector pipe x Cold start injector 15 150 11 ↗ engine_4age · p289 OEM manual
EFI / fuel injection Cold start injector pipe x Delivery pipe 15 150 11 ↗ engine_4age · p289 OEM manual
EFI / fuel injection Fuel pressure regulator x Delivery pipe 65 in·lb 7.4 75 — ↗ engine_4age · p289 OEM manual
EFI / fuel injection Fuel pressure regulator x fuel return pipe (AW) 29 300 22 ↗ engine_4age · p289 OEM manual
EFI / fuel injection Throttle body x Air intake chamber (intake manifold) 22 220 16 ↗ engine_4age · p289 OEM manual
No matches.
How this page is built
Each spec-table page of the 1991 RM179U1 hi-res PDF is rendered to PNG and sent to Claude Vision with a structured-output prompt. The model returns labels, all three Toyota units, and a section-context string. Aggregator (scripts/aggregate_manuals.py) groups rows by section. The original page reference is preserved on every row for verification.
