Dimensions.
1438 OEM dimensions from the manual — bore, stroke, shaft lengths, body measurements, fastener reach, gauge sizes and assembly clearances. Page references on every row.
Find a dimension
Showing 1438 of 1438
Label Value Section Source
Torque wrench fulcrum length (SST use) 13.39 in.; required when using SST 09249-63010 for intake camshaft timing pulley 340 mm Engine — mechanical ↗ RM179U1_1991 · p67 OEM manual
Feeler gauge thickness for tensioner body to No.1 idler pulley stopper (initial setup) 0.075 in. — inserted in step (c) 1.9 mm Engine — mechanical ↗ RM179U1_1991 · p69 OEM manual

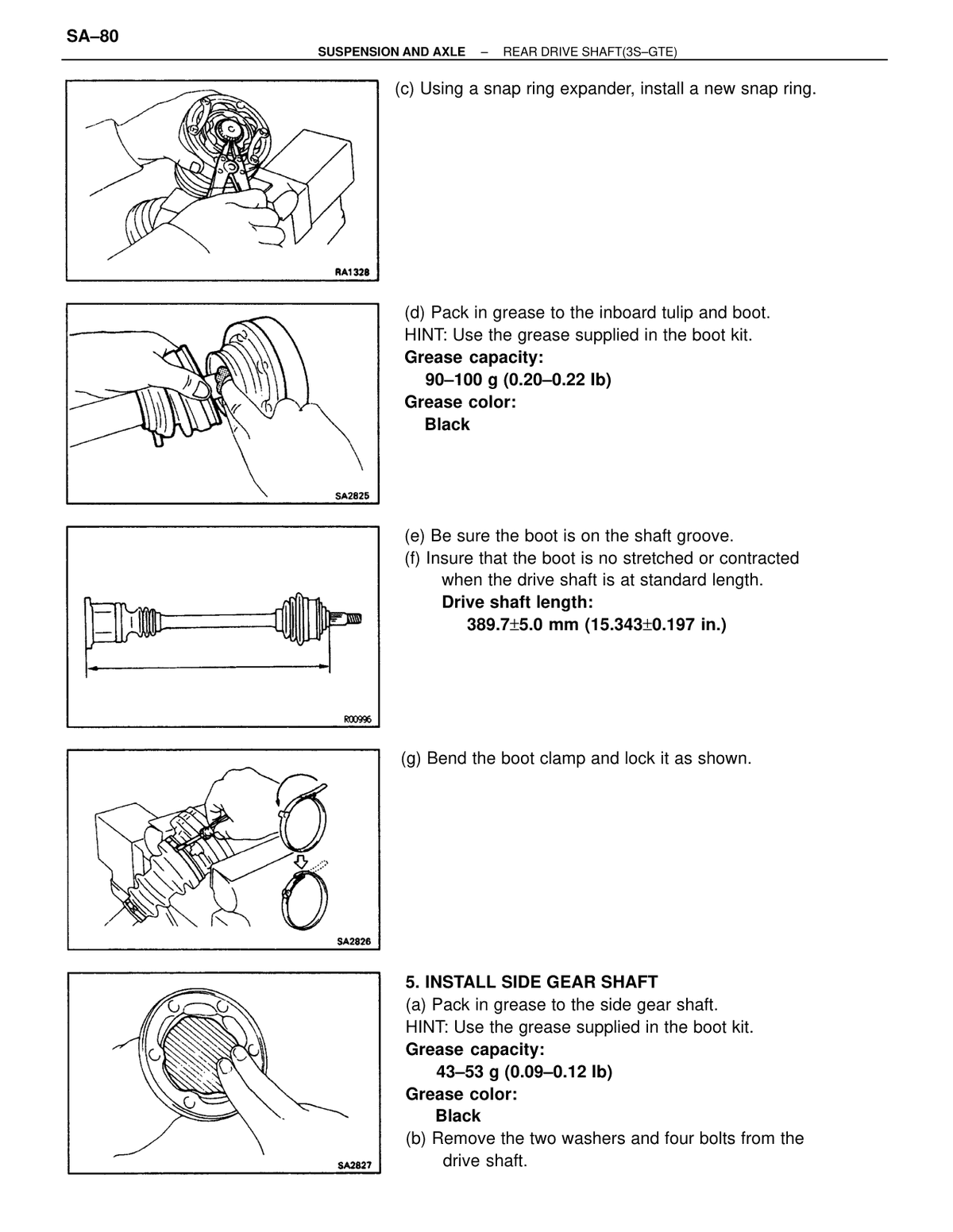

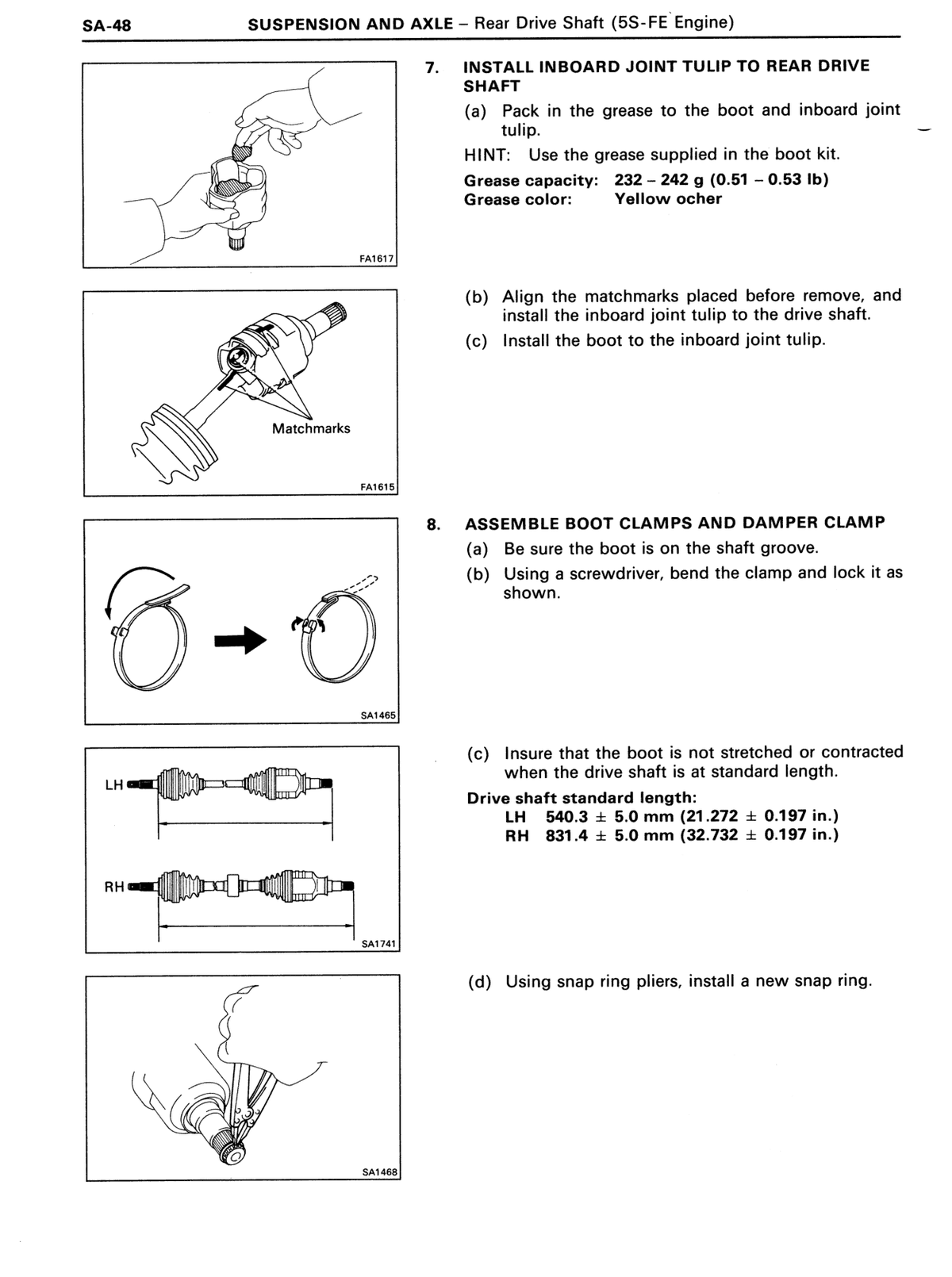

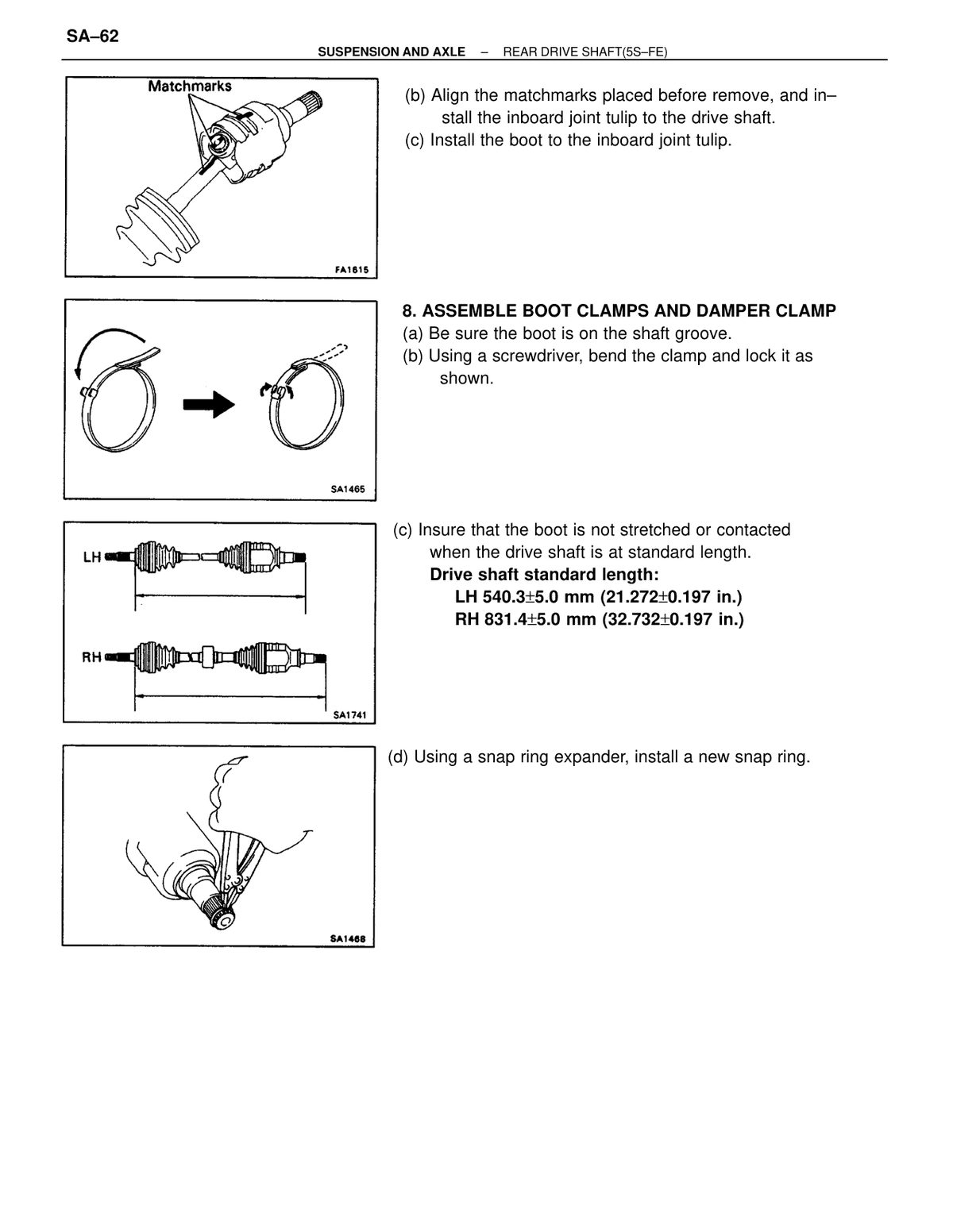

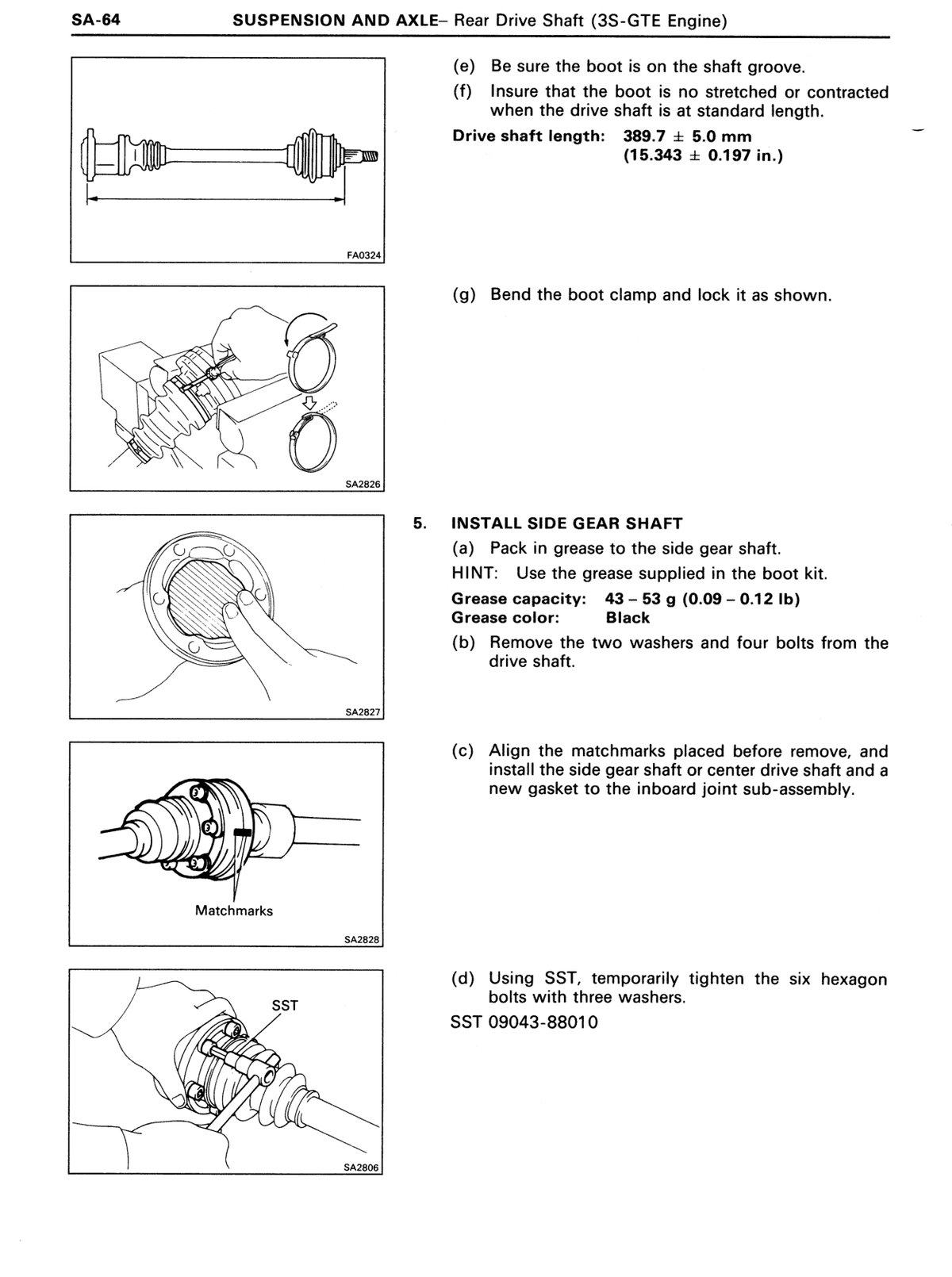

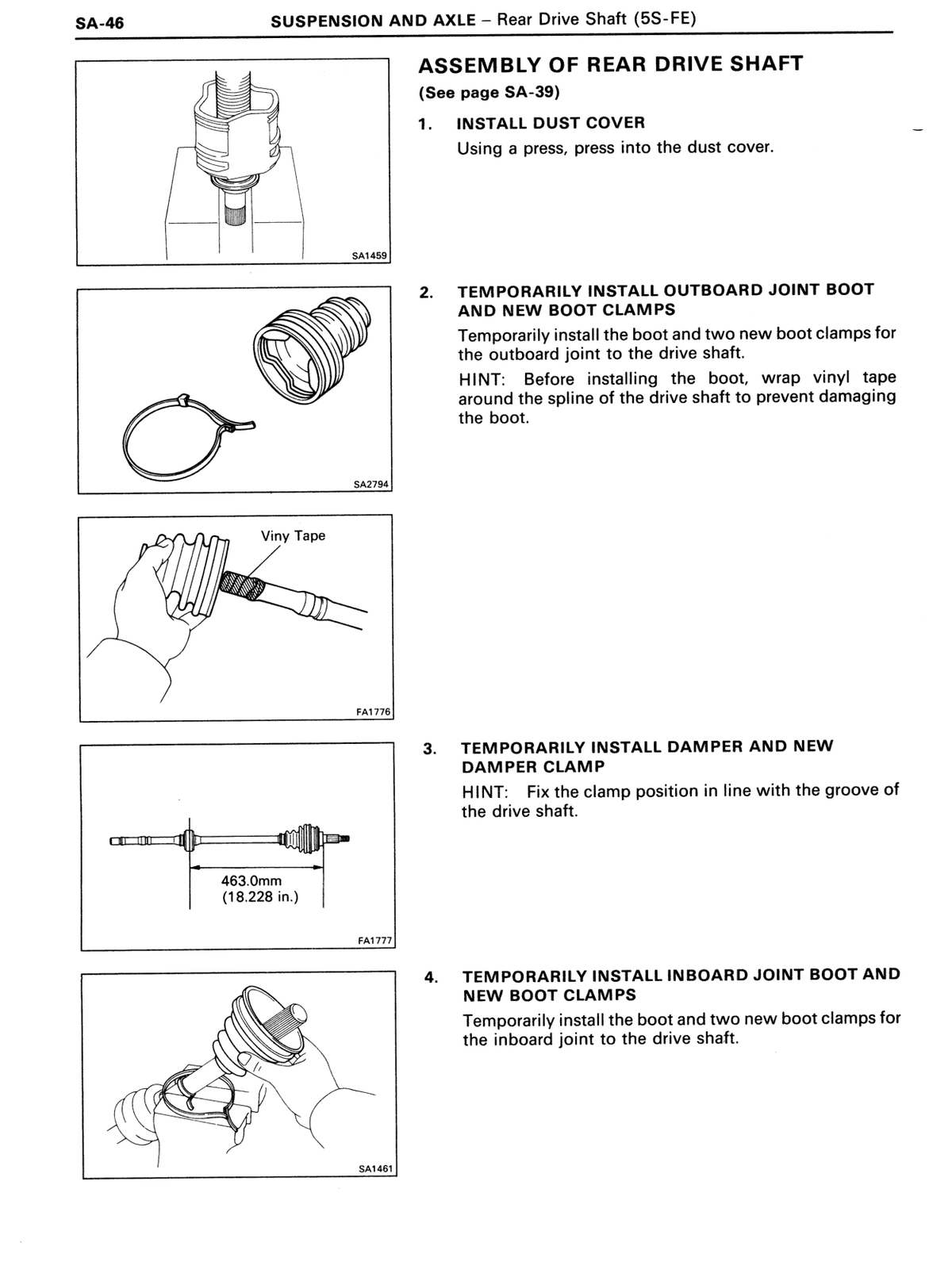

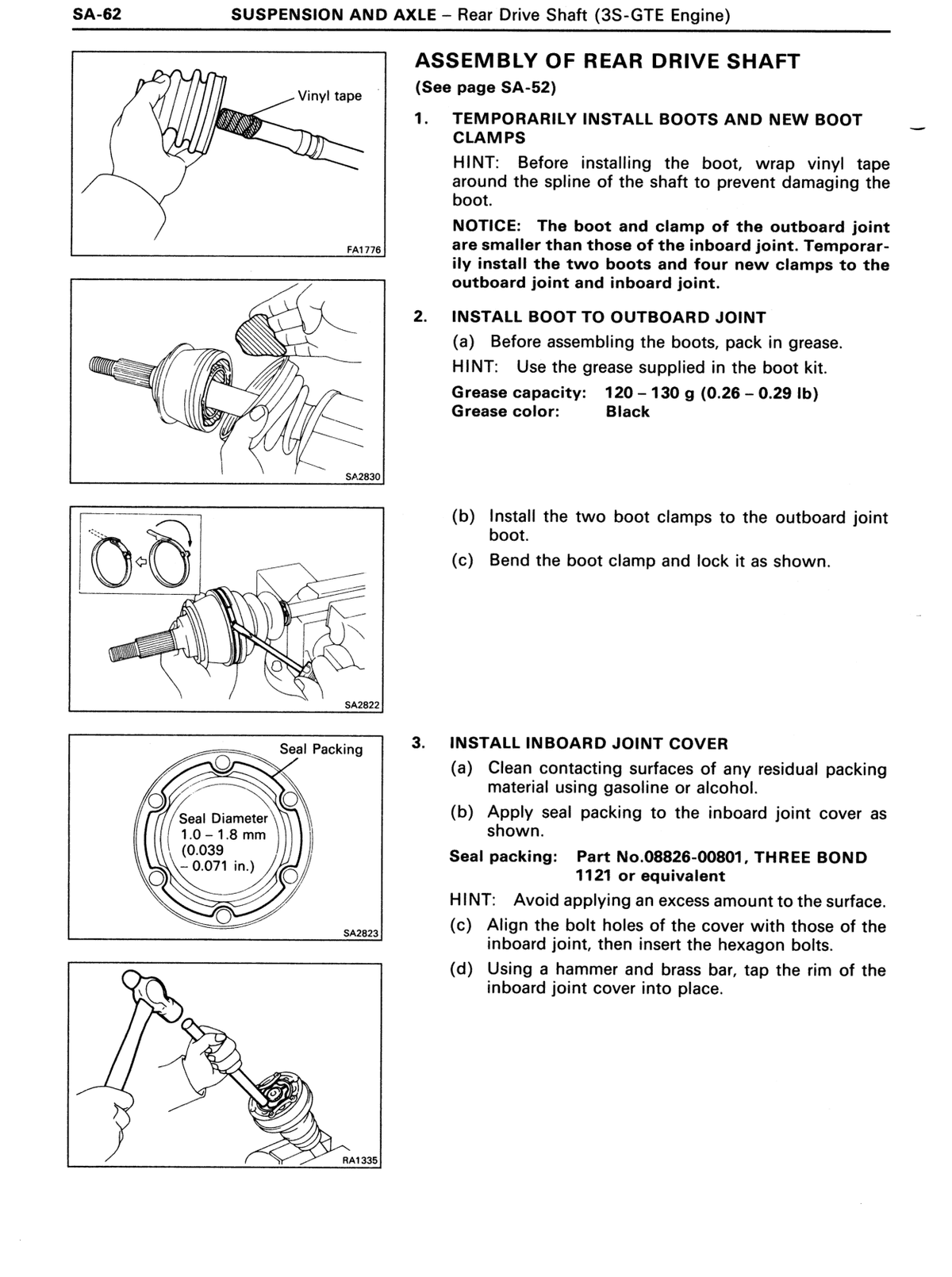

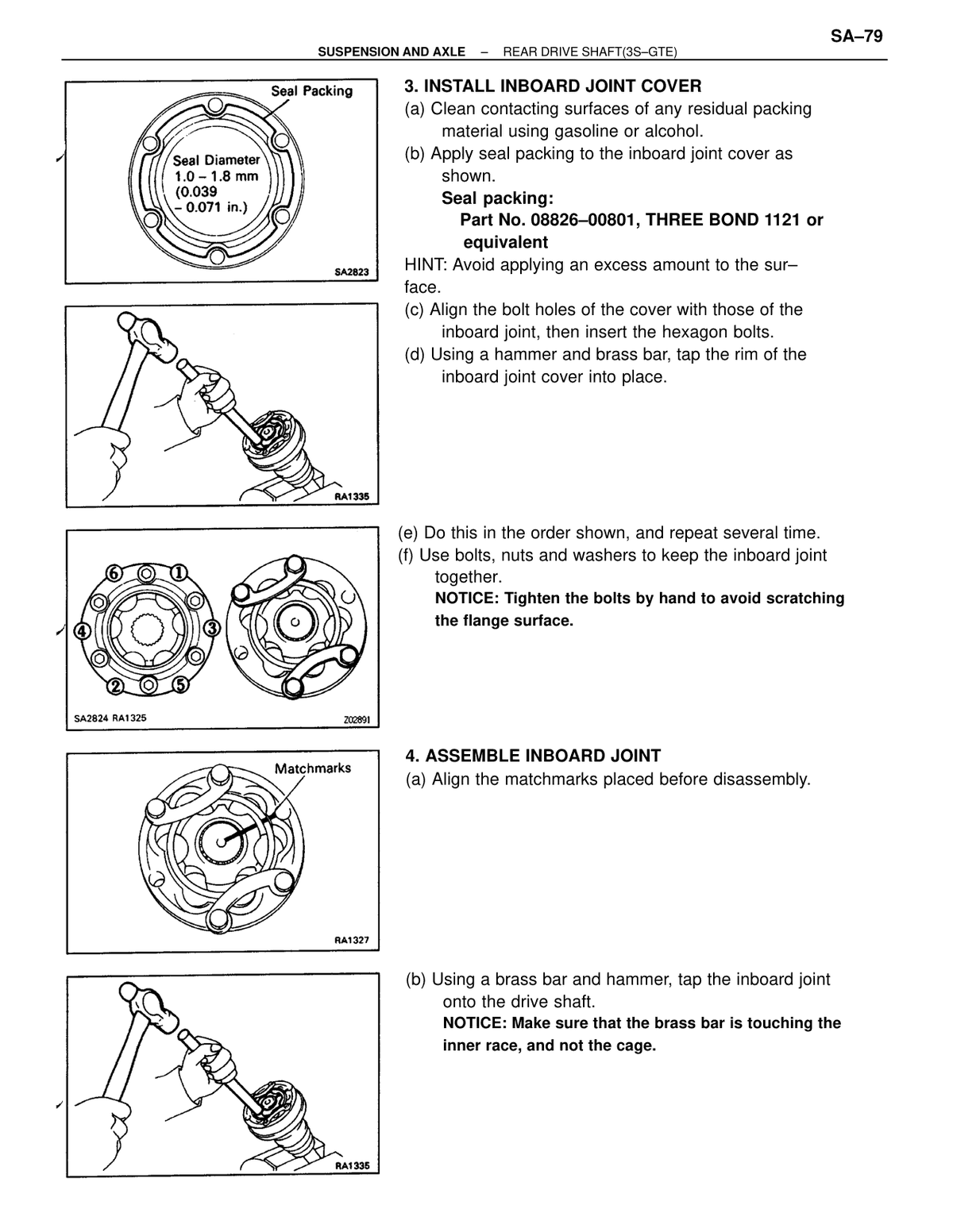

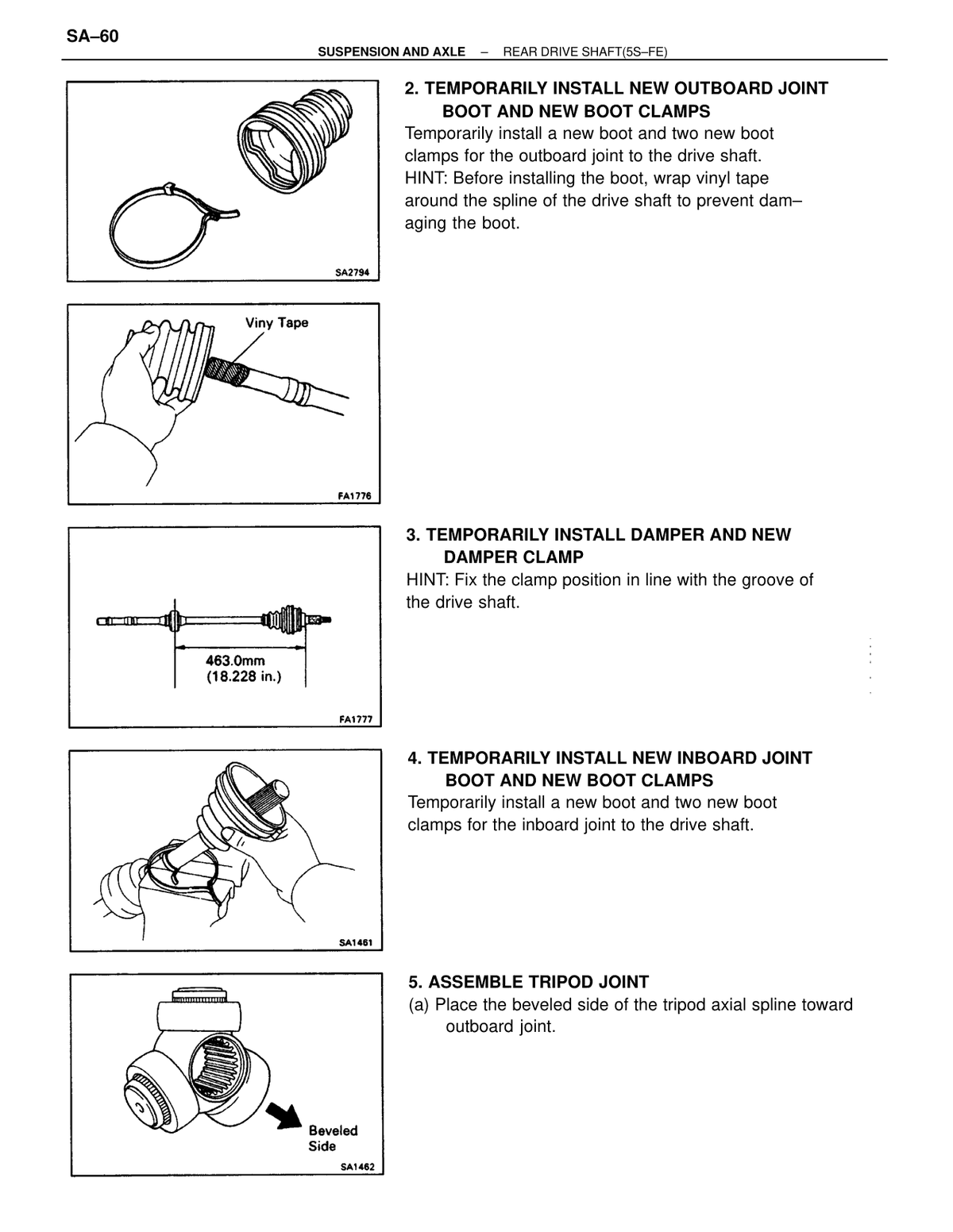

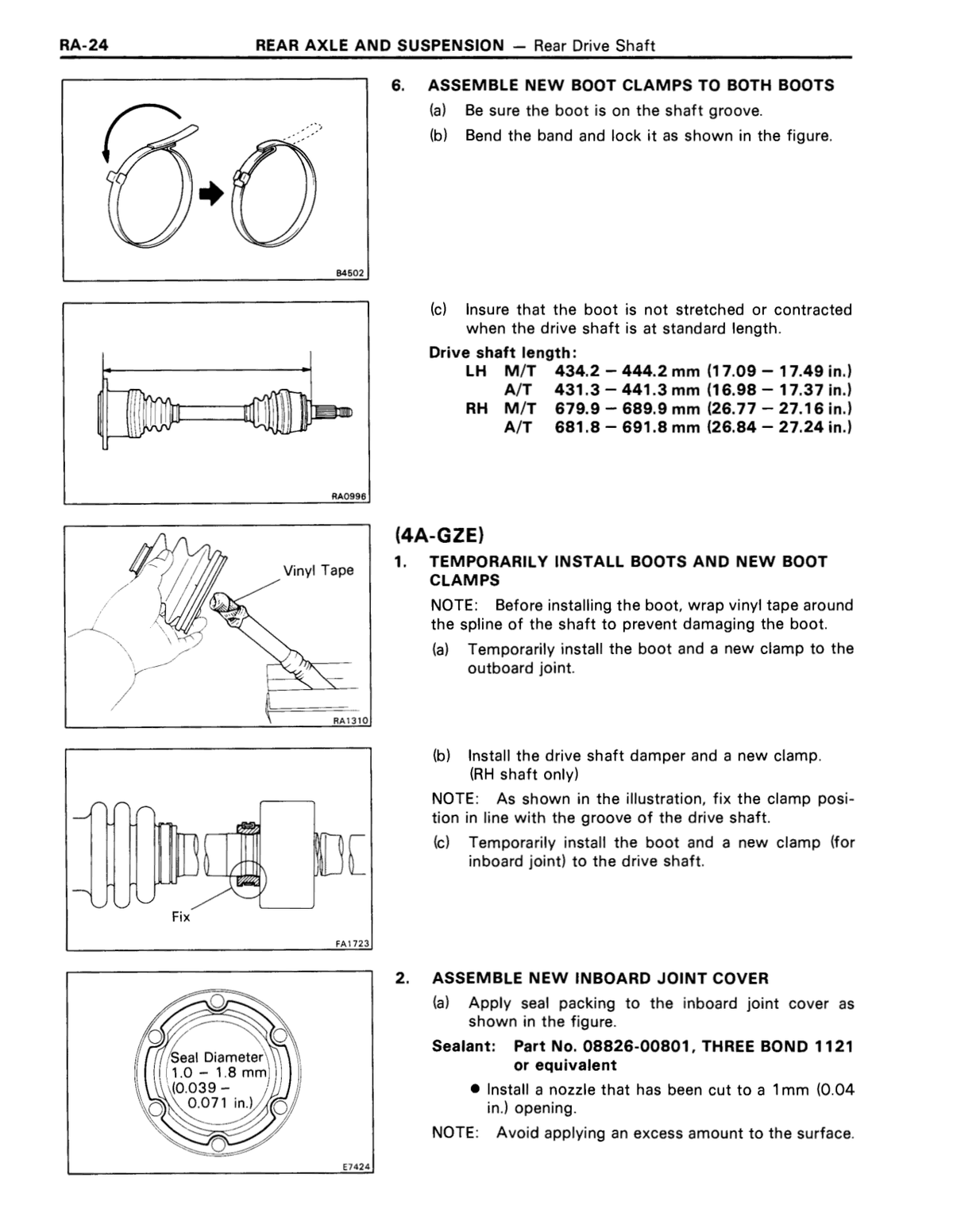

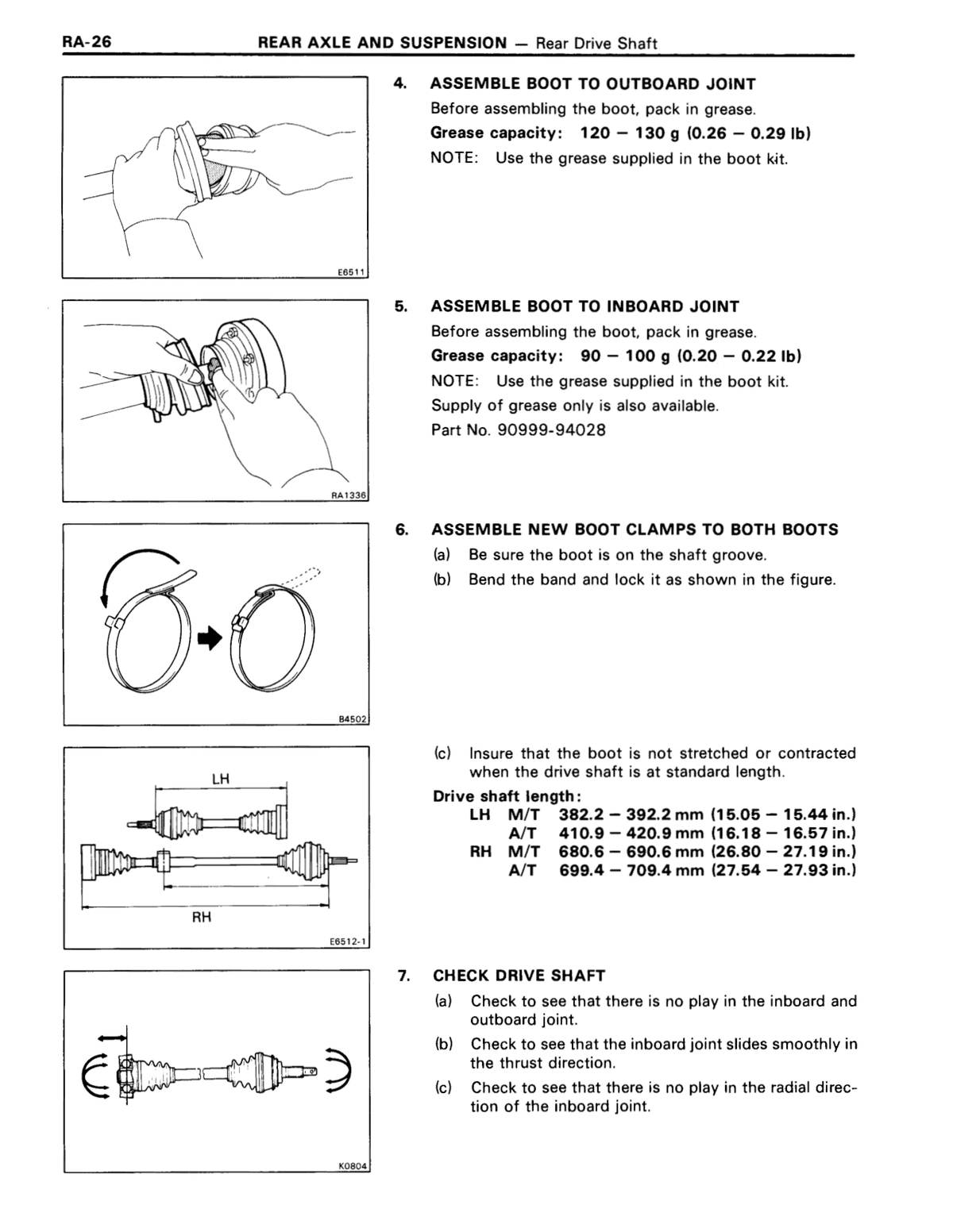

Drive shaft length ± 5.0 mm (15.343 ± 0.197 in.) 389.7 mm Suspension & axle ↗ RM179U1_1991 · p1008 OEM manual
Wooden block height for tire support Range: 180–200 mm (7.09–7.87 in.) 180 mm Suspension & axle ↗ RM179U1_1991 · p1019 OEM manual

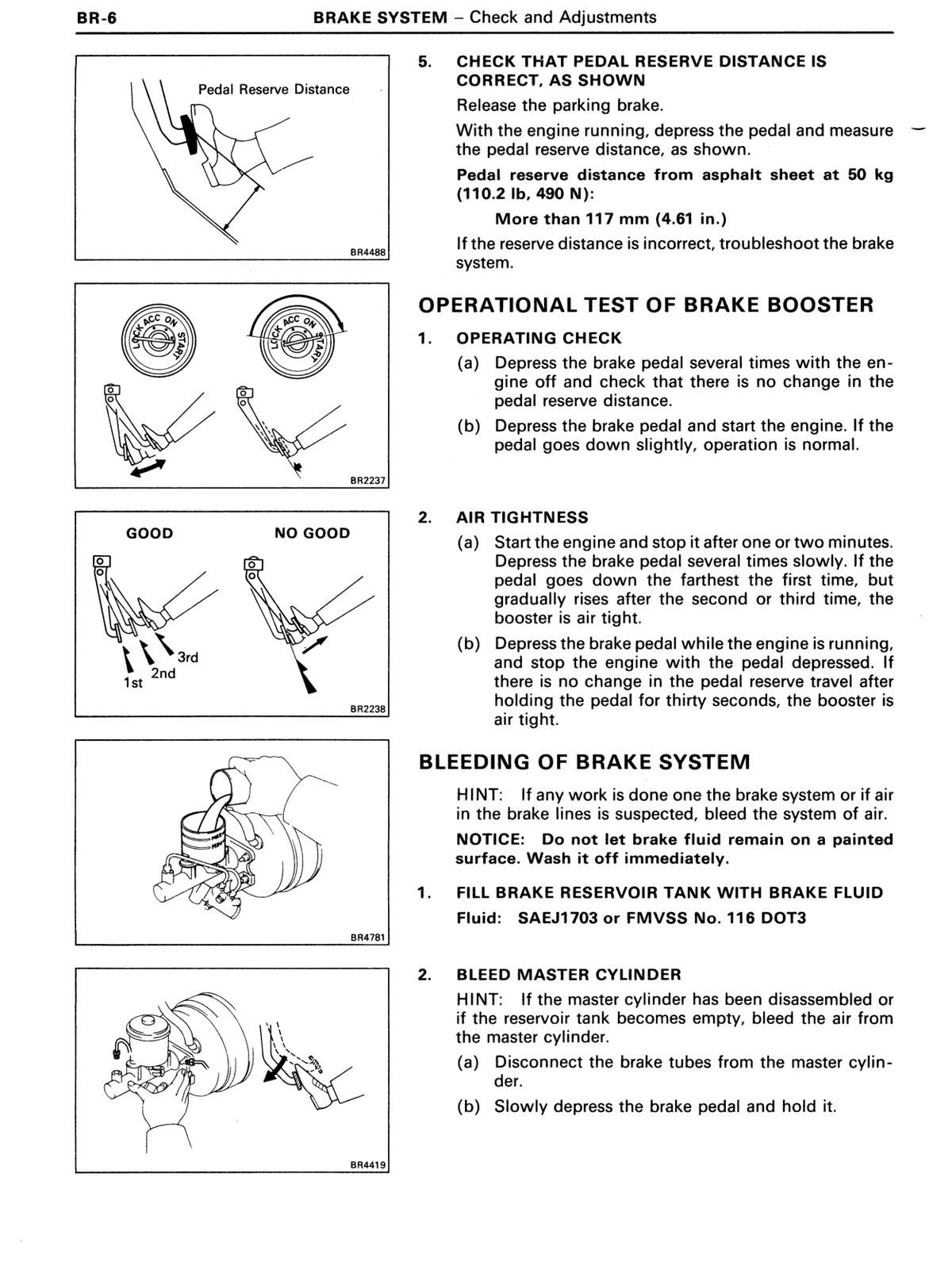

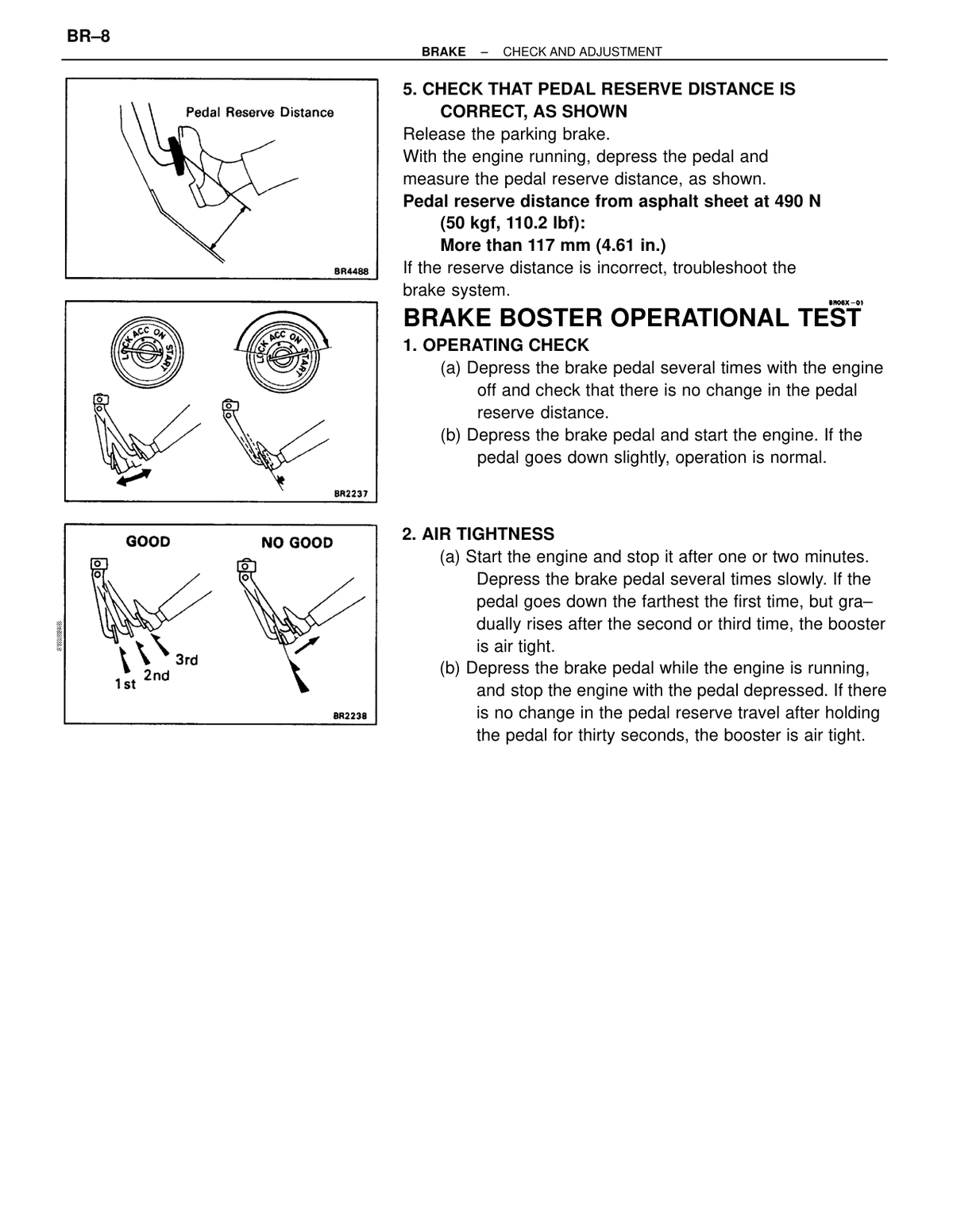

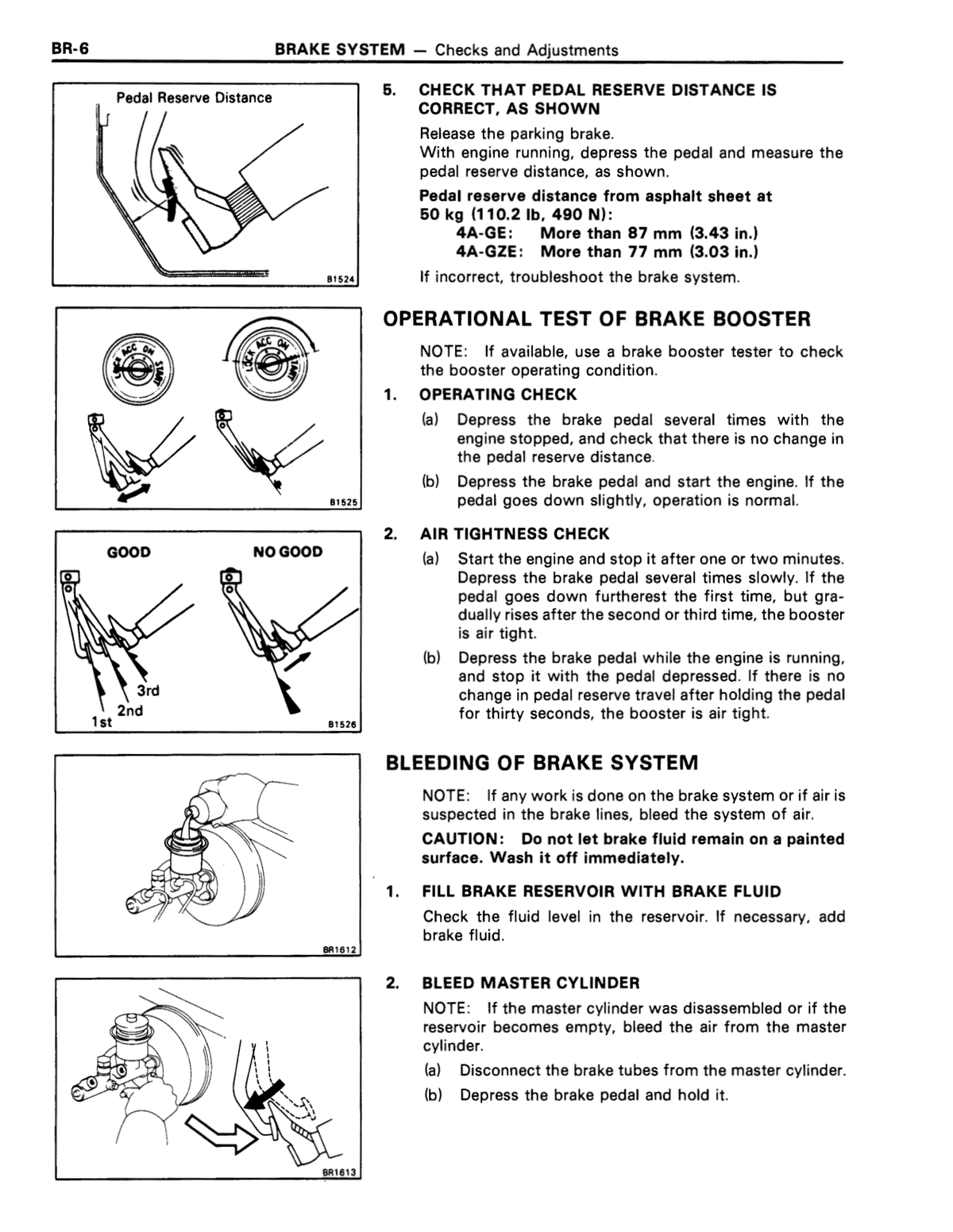

Pedal reserve distance from asphalt sheet at 50 kg (110.2 lb, 490 N) Minimum value; must be more than 117 mm (4.61 in.) with engine running 117 mm Brakes ↗ RM179U1_1991 · p1037 OEM manual

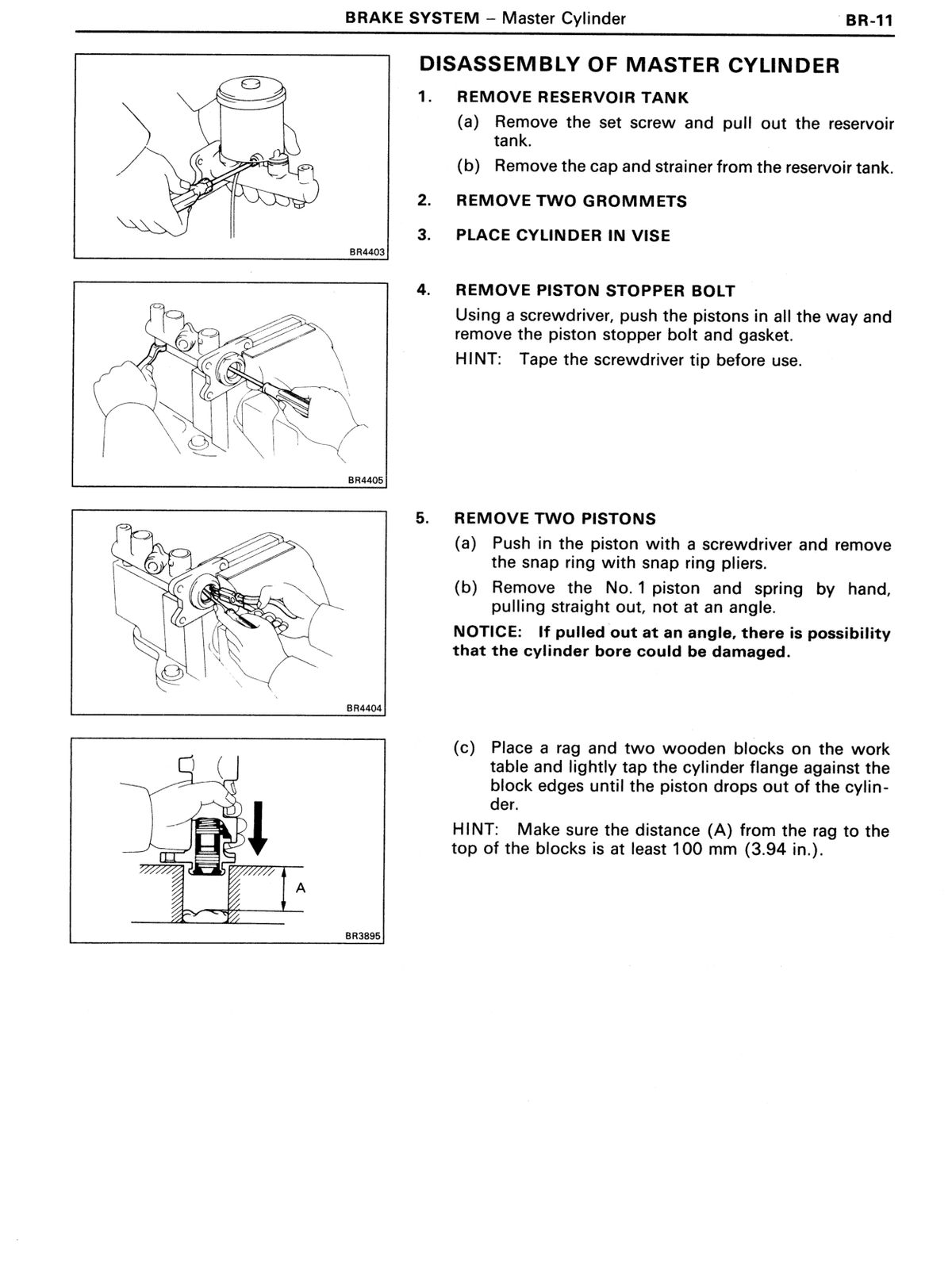

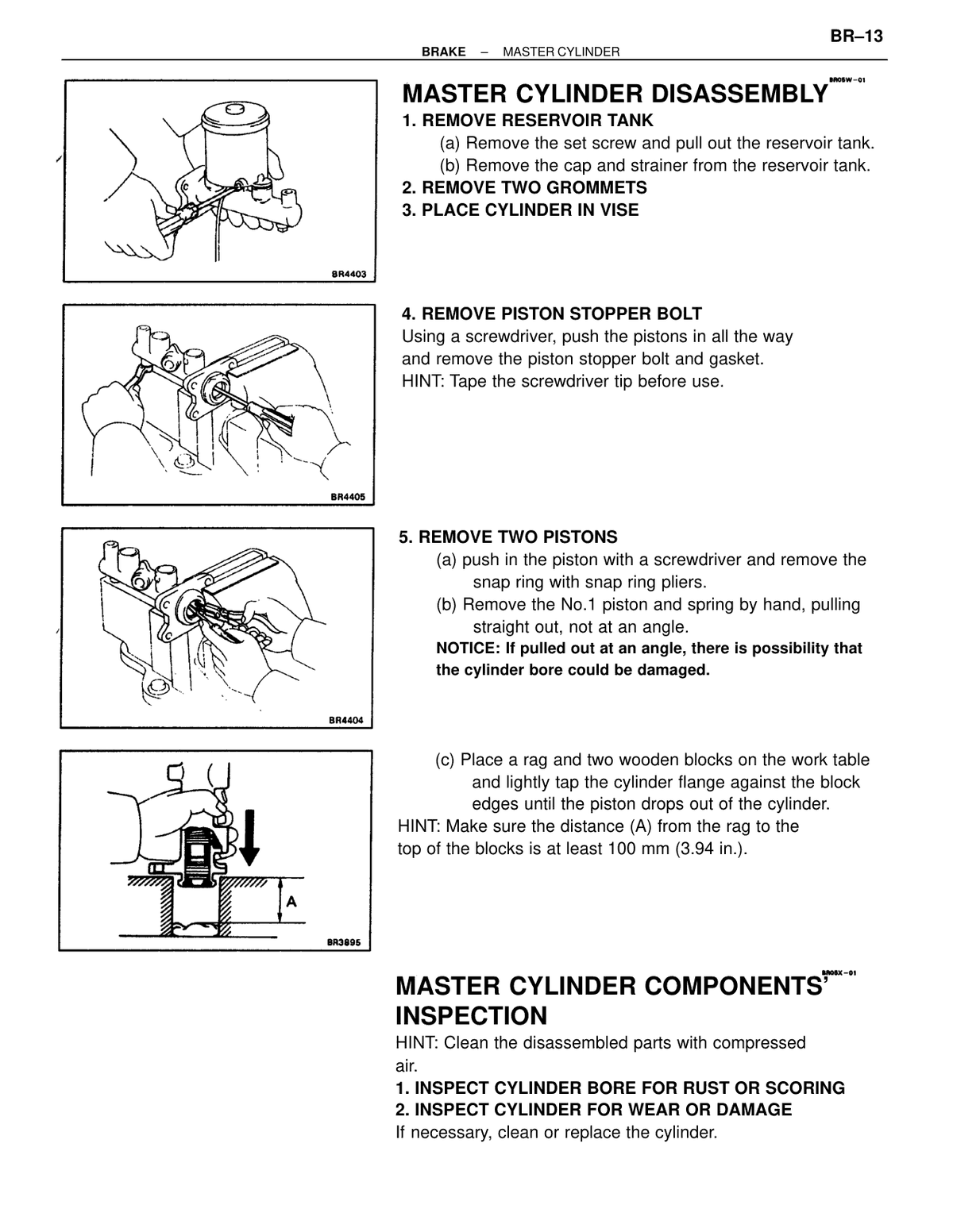

Distance (A) from rag to top of blocks (minimum) 3.94 in.; required clearance when tapping piston out 100 mm Brakes ↗ RM179U1_1991 · p1042 OEM manual

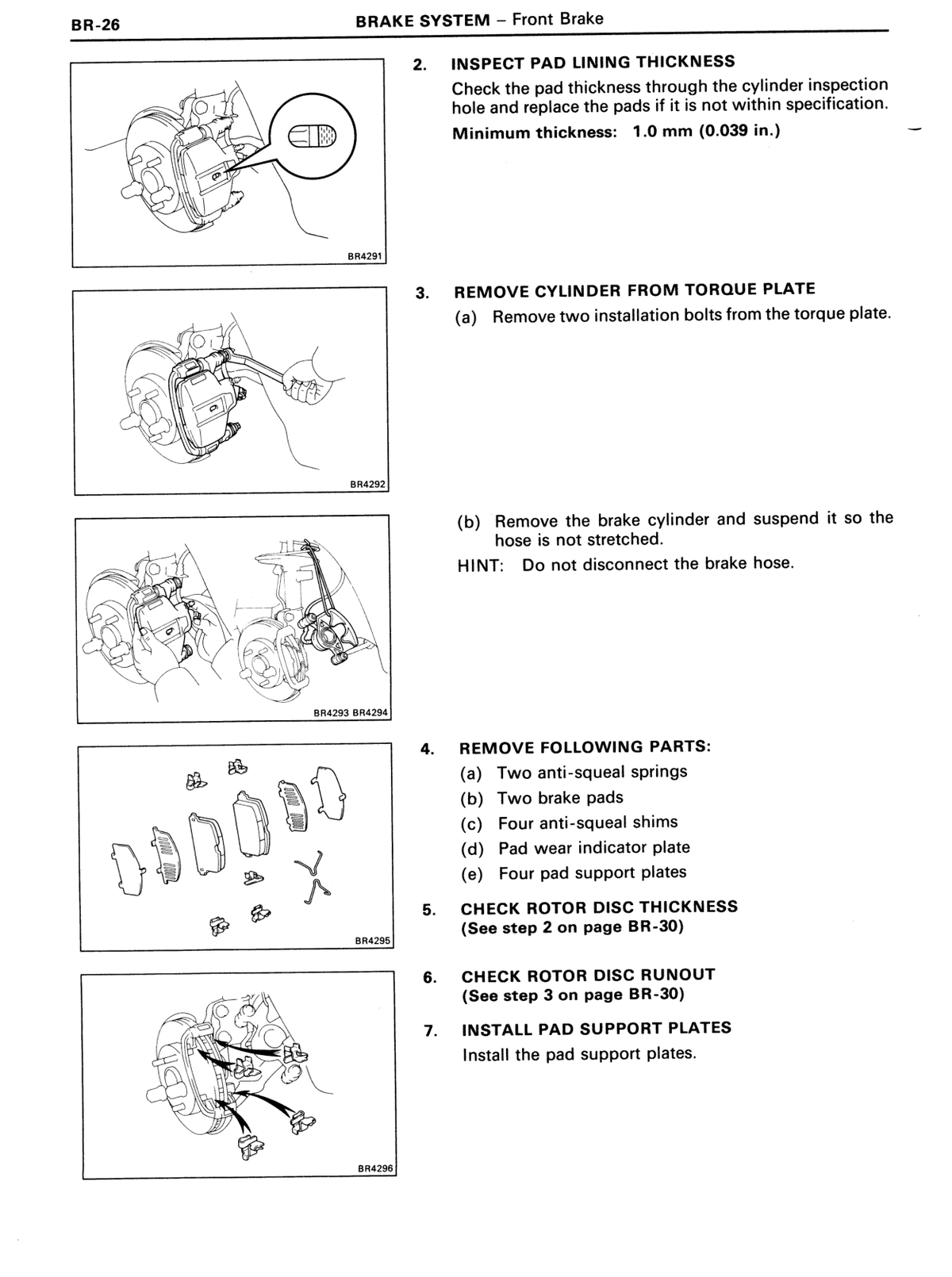

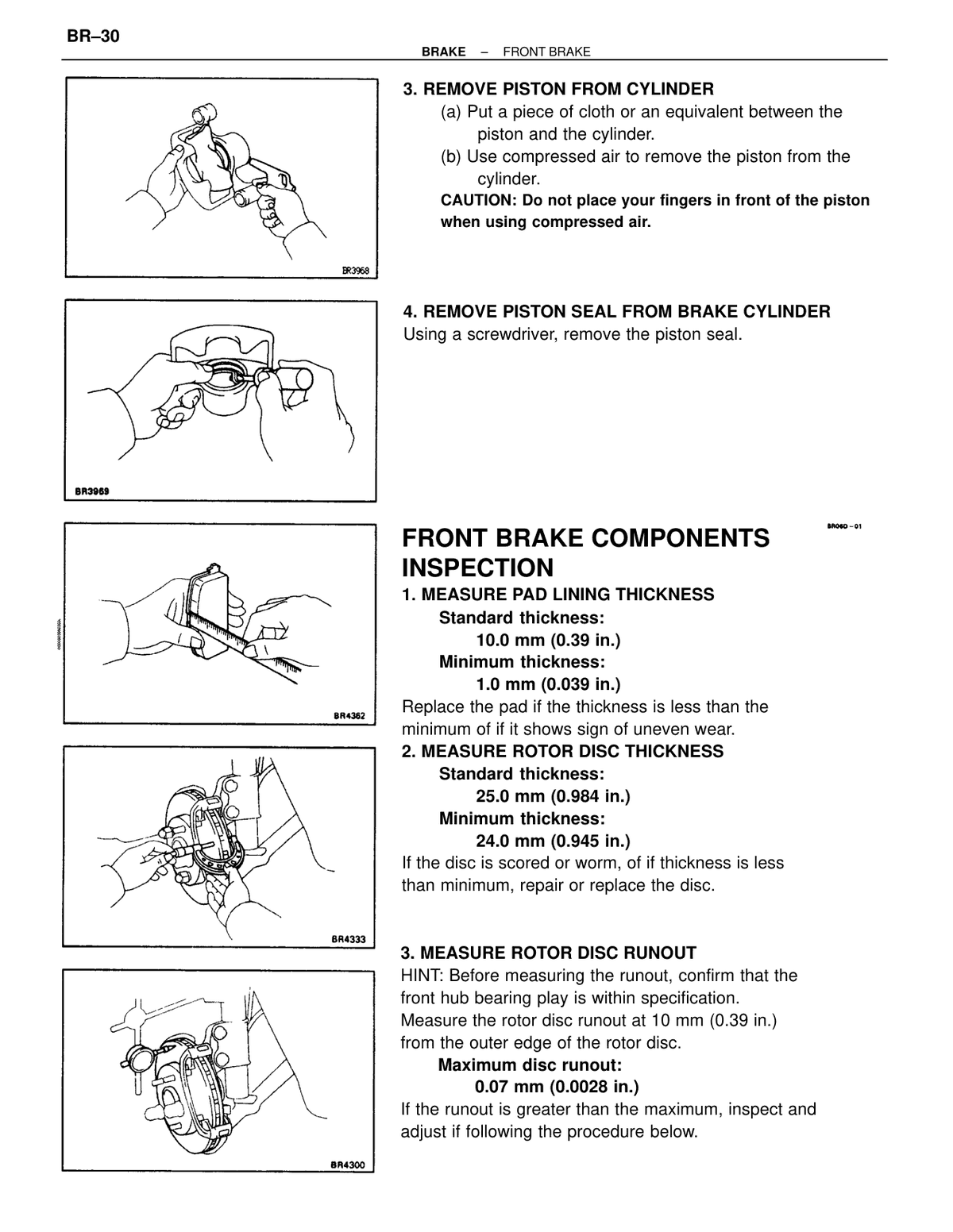

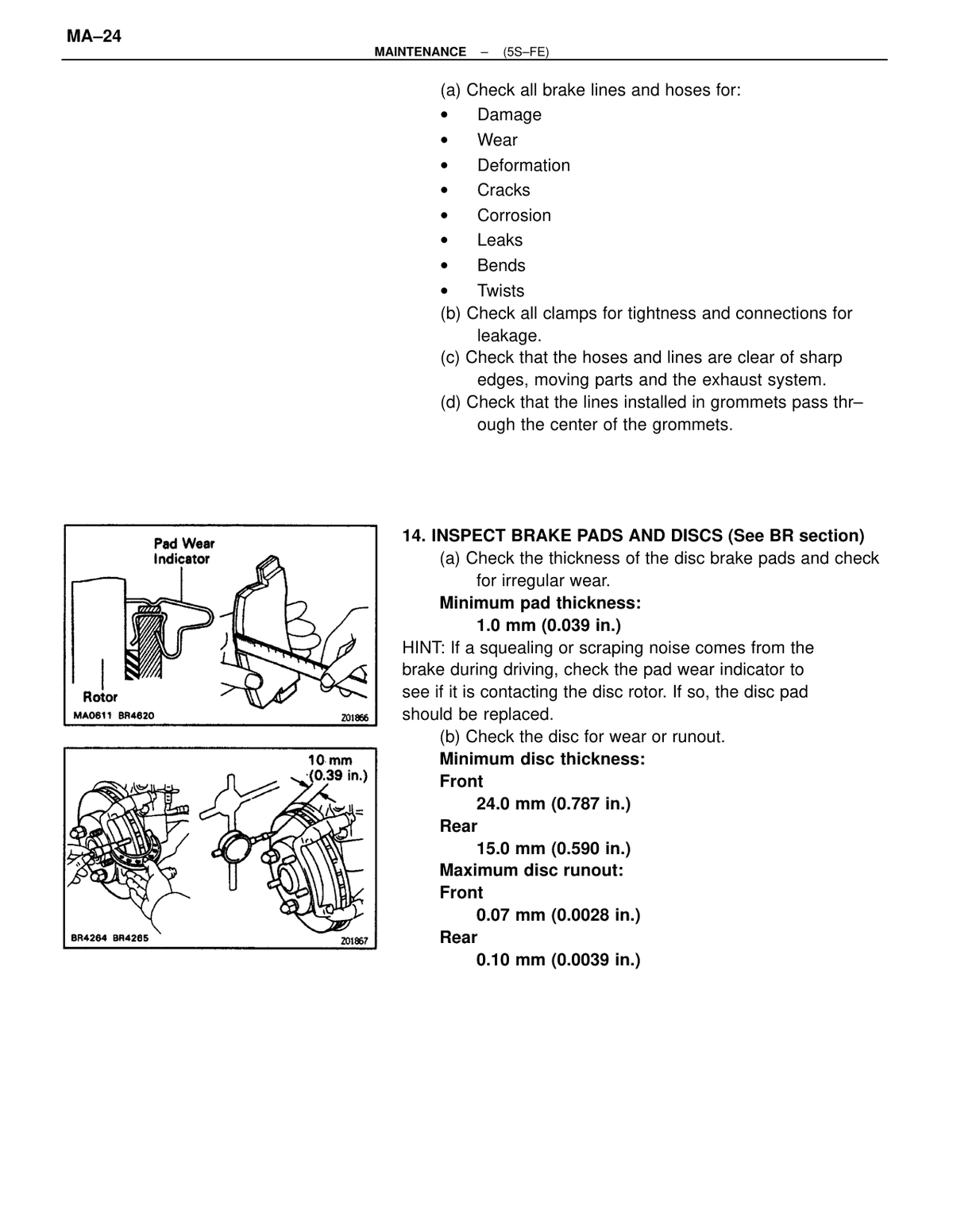

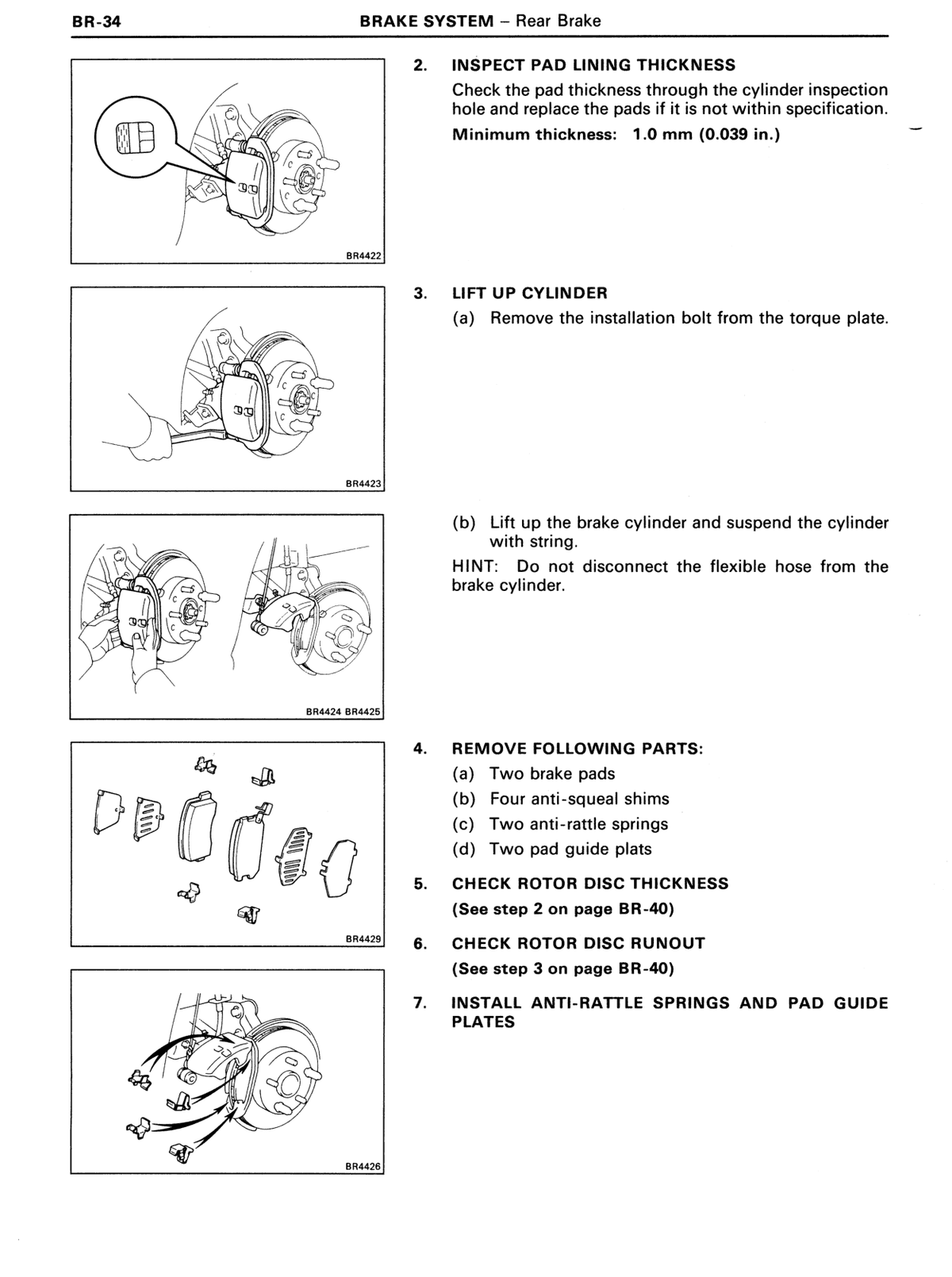

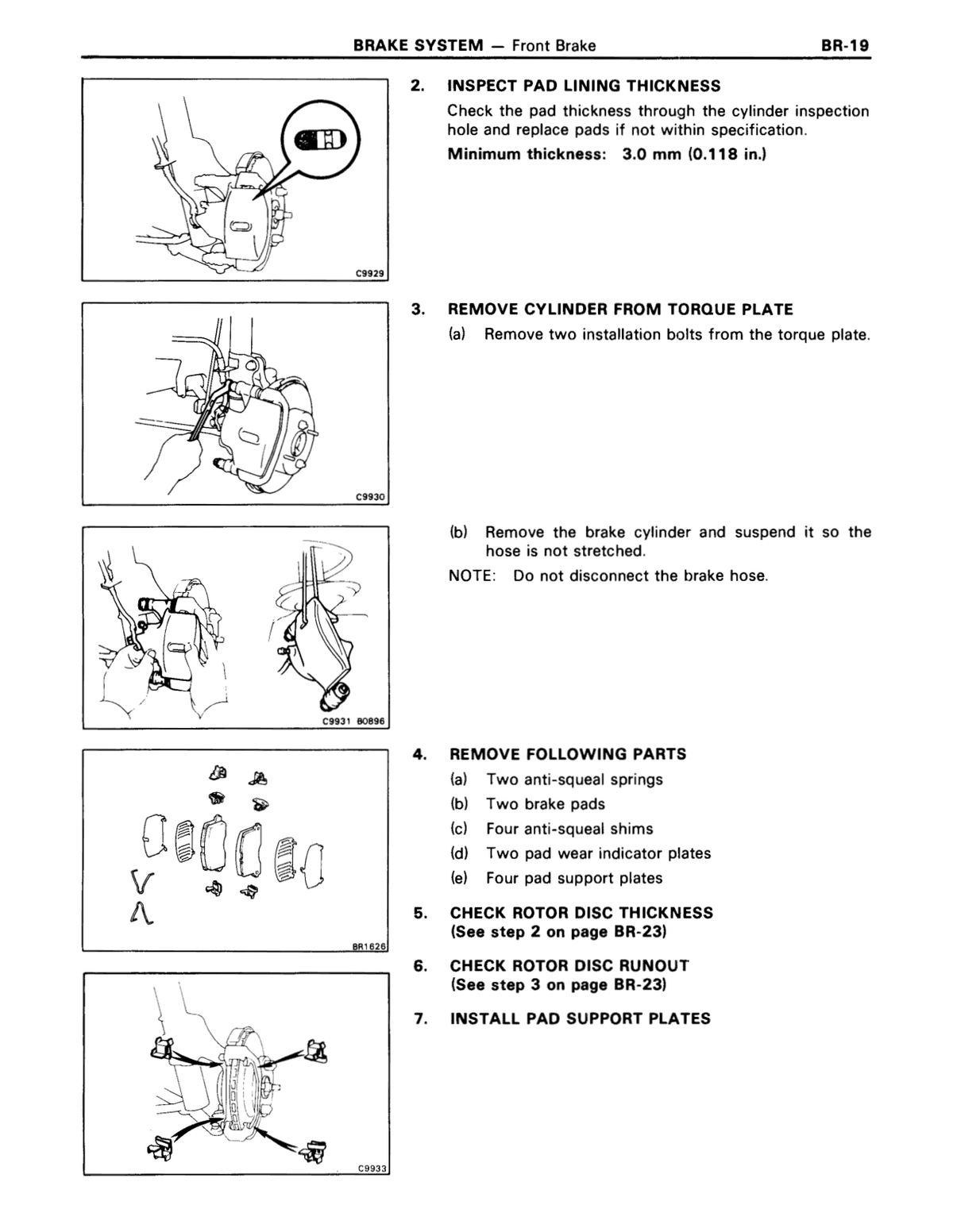

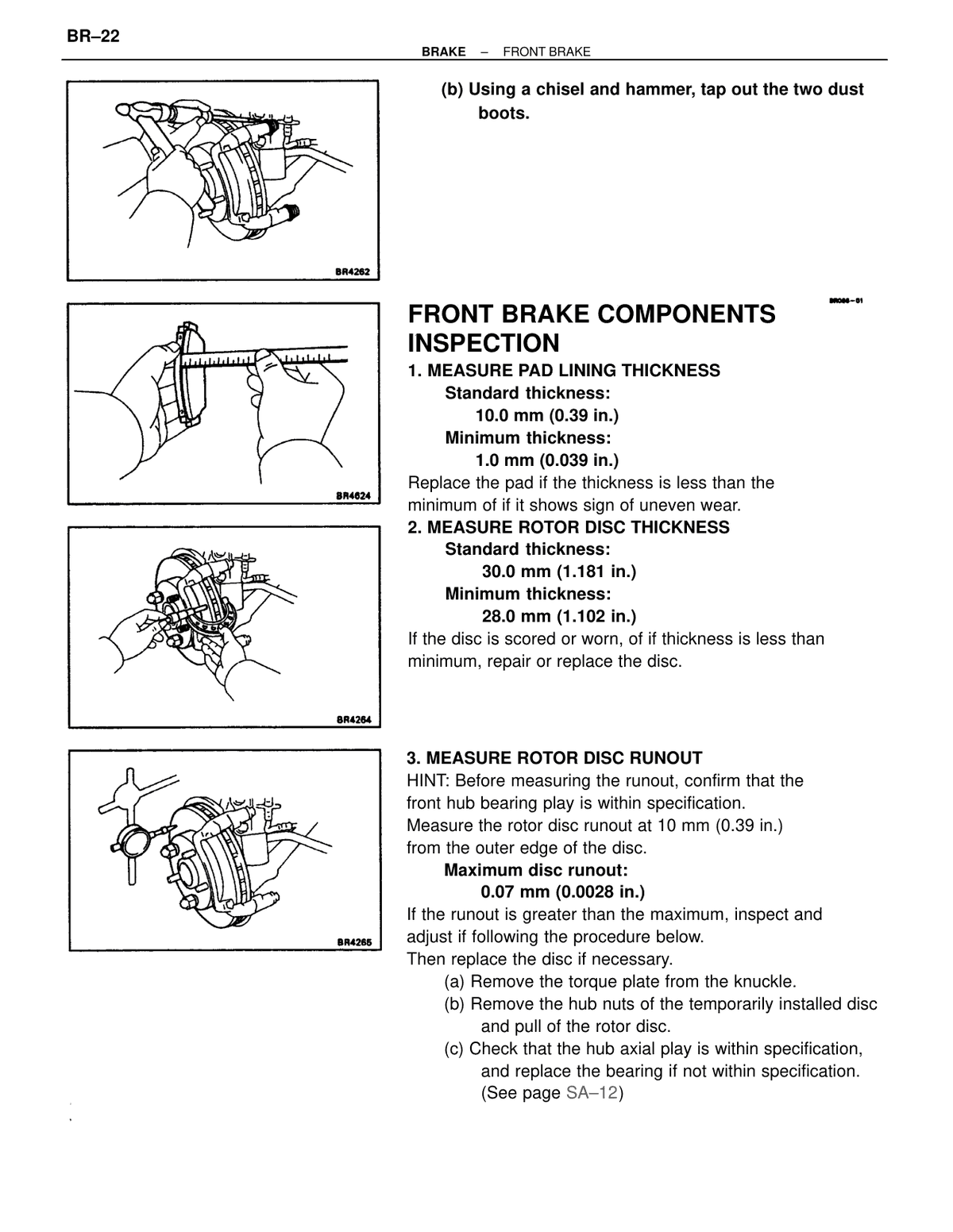

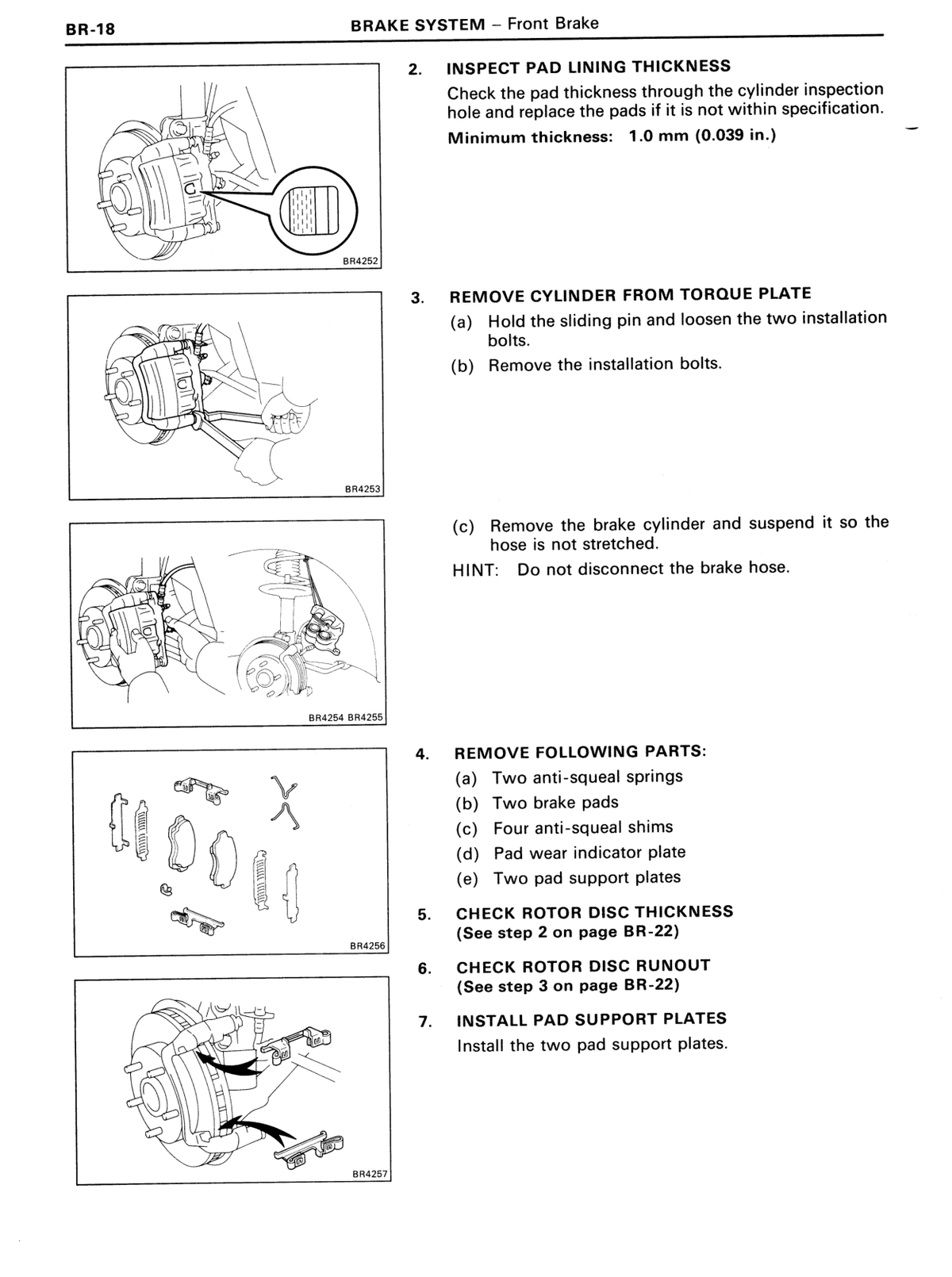

Pad lining thickness — minimum minimum thickness; replace if less than this 1 mm Brakes ↗ RM179U1_1991 · p1053 OEM manual
Rotor disc thickness — minimum minimum thickness; repair or replace if less than this 24 mm Brakes ↗ RM179U1_1991 · p1053 OEM manual

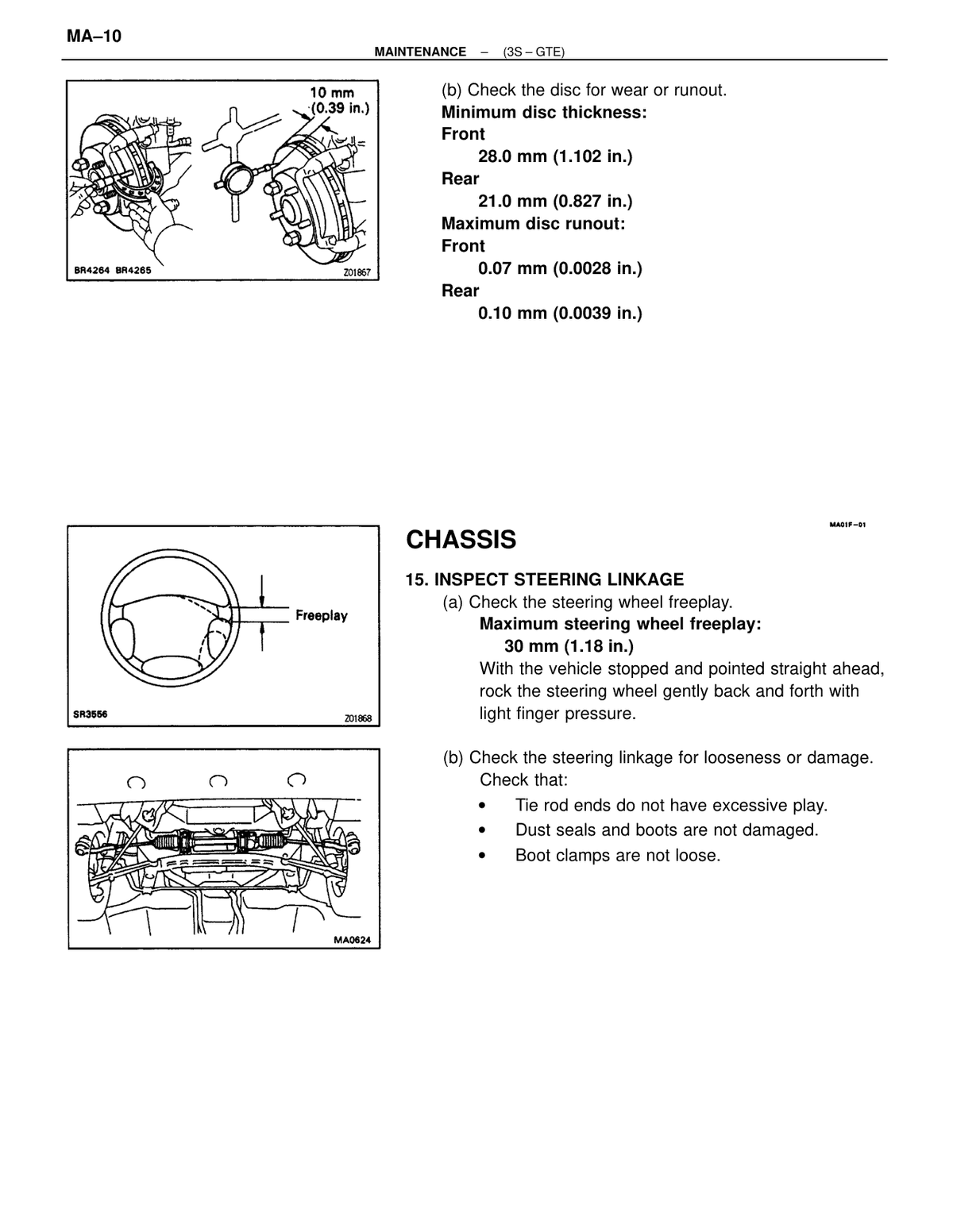

Rotor disc runout — maximum measured at 10 mm from outer edge of disc 0.07 mm Brakes ↗ RM179U1_1991 · p1053 OEM manual
Rotor disc runout — maximum 0.0028 in.; measured at 10 mm (0.39 in.) from outer edge of rotor disc 0.07 mm Brakes ↗ RM179U1_1991 · p1061 OEM manual
Stopper pin extension 0.98 in.; measured from brake cylinder surface after installation 25 mm Brakes ↗ RM179U1_1991 · p1072 OEM manual
Pawl stopper Dimension A — Tilt lever side 1, Tilt sub lever side A 0.4980-0.5020 in 12.65-12.75 mm Steering ↗ RM179U1_1991 · p1119 OEM manual
Pawl stopper Dimension A — Tilt lever side 2, Tilt sub lever side B 0.4941-0.4980 in 12.55-12.65 mm Steering ↗ RM179U1_1991 · p1119 OEM manual
Pawl stopper Dimension A — Tilt lever side 3, Tilt sub lever side C 0.4902-0.4941 in 12.45-12.55 mm Steering ↗ RM179U1_1991 · p1119 OEM manual
Pawl stopper Dimension A — Tilt lever side 4, Tilt sub lever side D 0.4862-0.4902 in 12.35-12.45 mm Steering ↗ RM179U1_1991 · p1119 OEM manual
Pawl stopper Dimension A — Tilt lever side 5, Tilt sub lever side E 0.4823-0.4862 in 12.25-12.35 mm Steering ↗ RM179U1_1991 · p1119 OEM manual

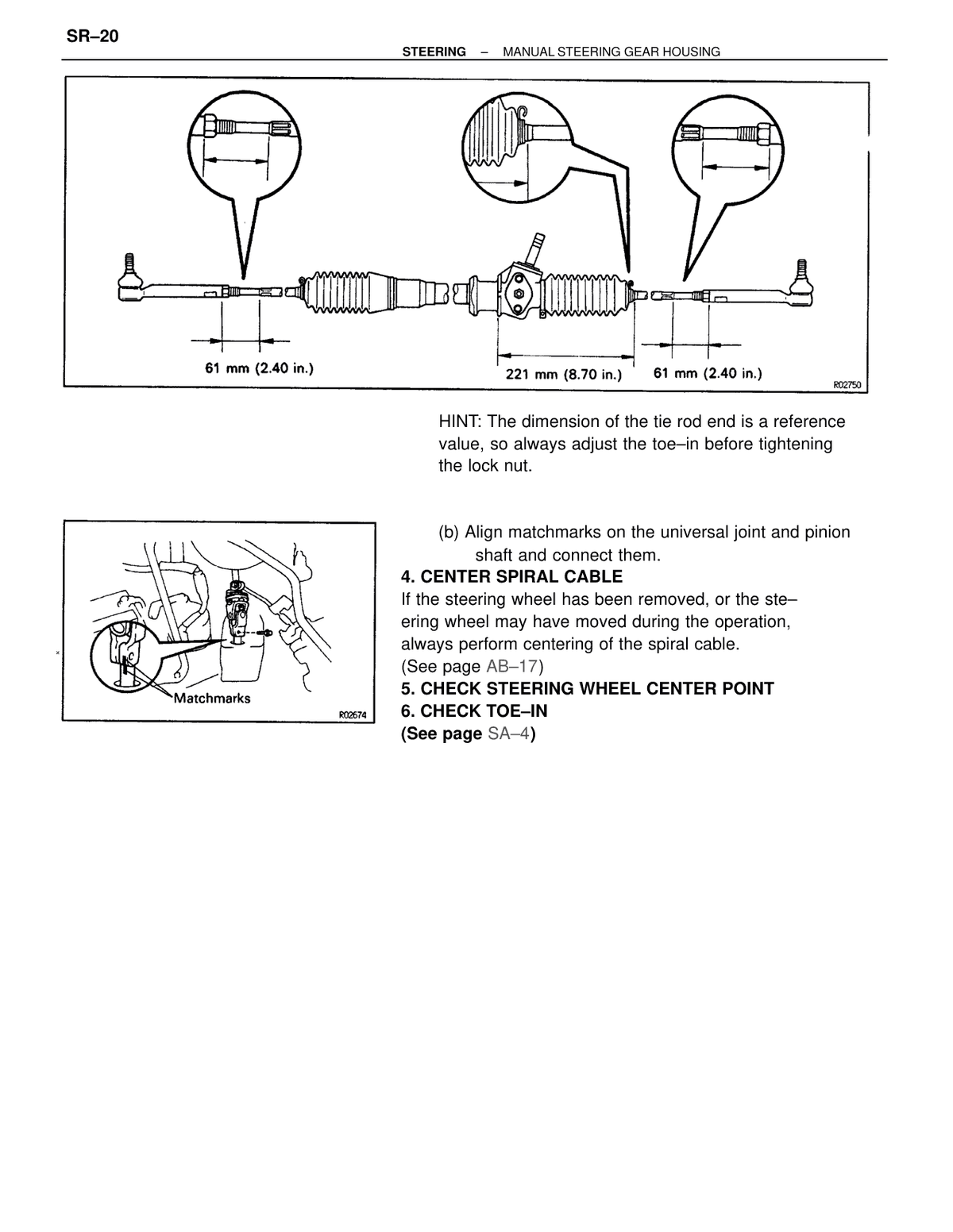

Tie rod end protrusion — left side (from rack end to tie rod end center) 2.40 in.; reference value — adjust toe-in before tightening lock nut 61 mm Steering ↗ RM179U1_1991 · p1122 OEM manual
Tie rod end protrusion — right side (from rack end to tie rod end center) 2.40 in.; reference value — adjust toe-in before tightening lock nut 61 mm Steering ↗ RM179U1_1991 · p1122 OEM manual

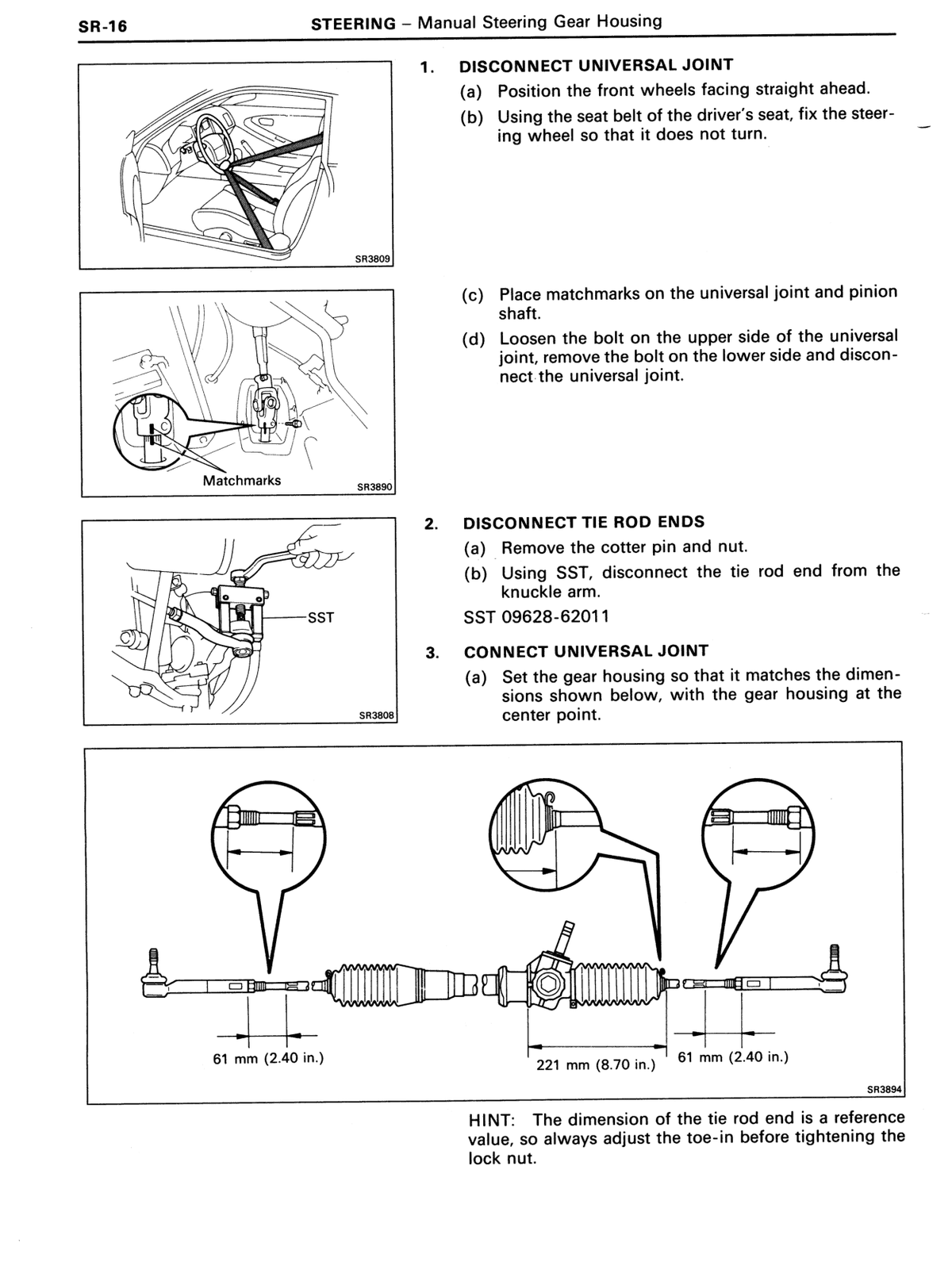

Gear housing center measurement 8.70 in.; gear housing at center point 221 mm Steering ↗ RM179U1_1991 · p1122 OEM manual
Torque wrench fulcrum length for lock nut installation 16.73 in. — Step 6(b) 425 mm Steering ↗ RM179U1_1991 · p1130 OEM manual

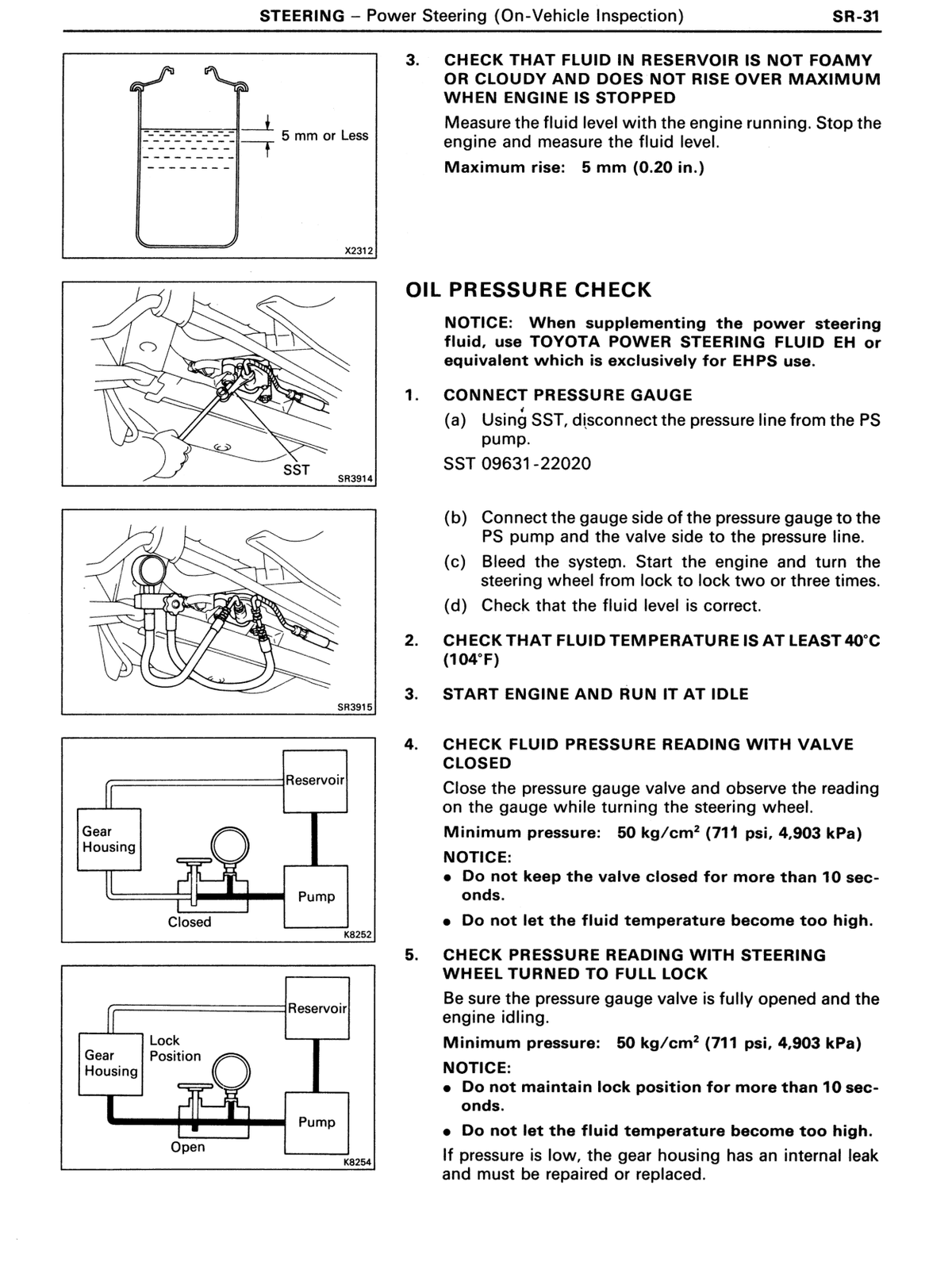

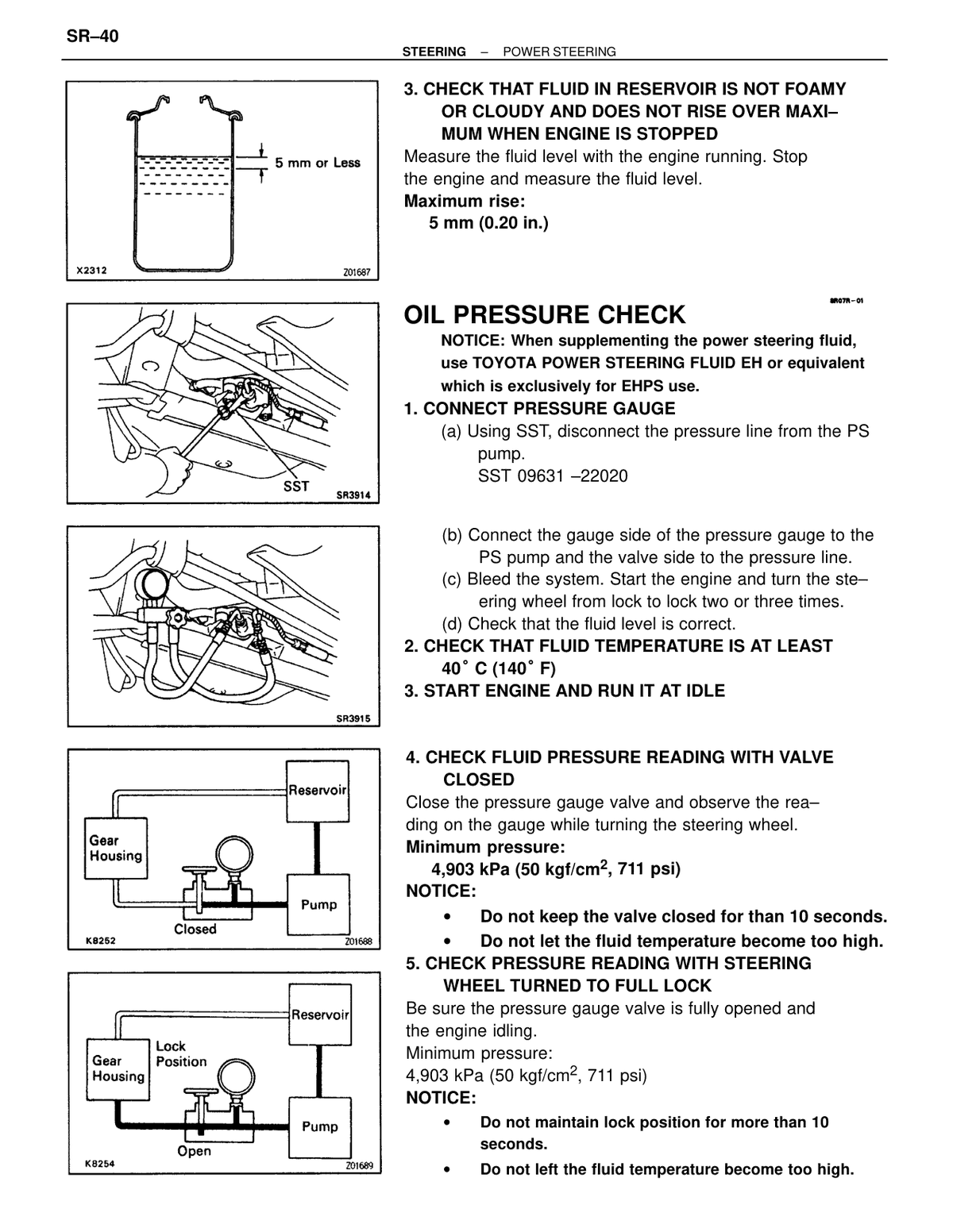

Maximum fluid level rise after engine stop 0.20 in.; fluid must not be foamy or cloudy 5 mm Steering ↗ RM179U1_1991 · p1137 OEM manual

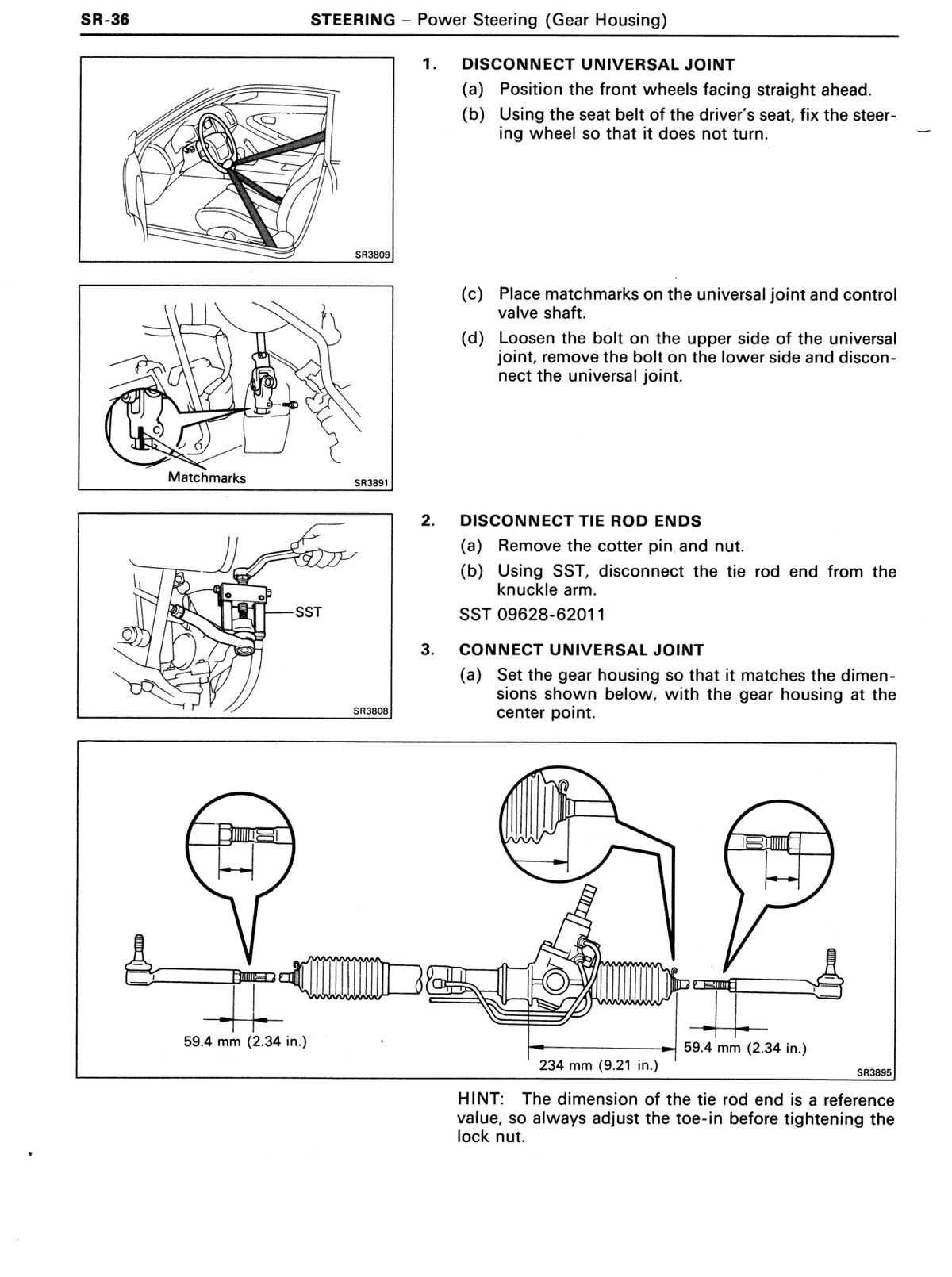

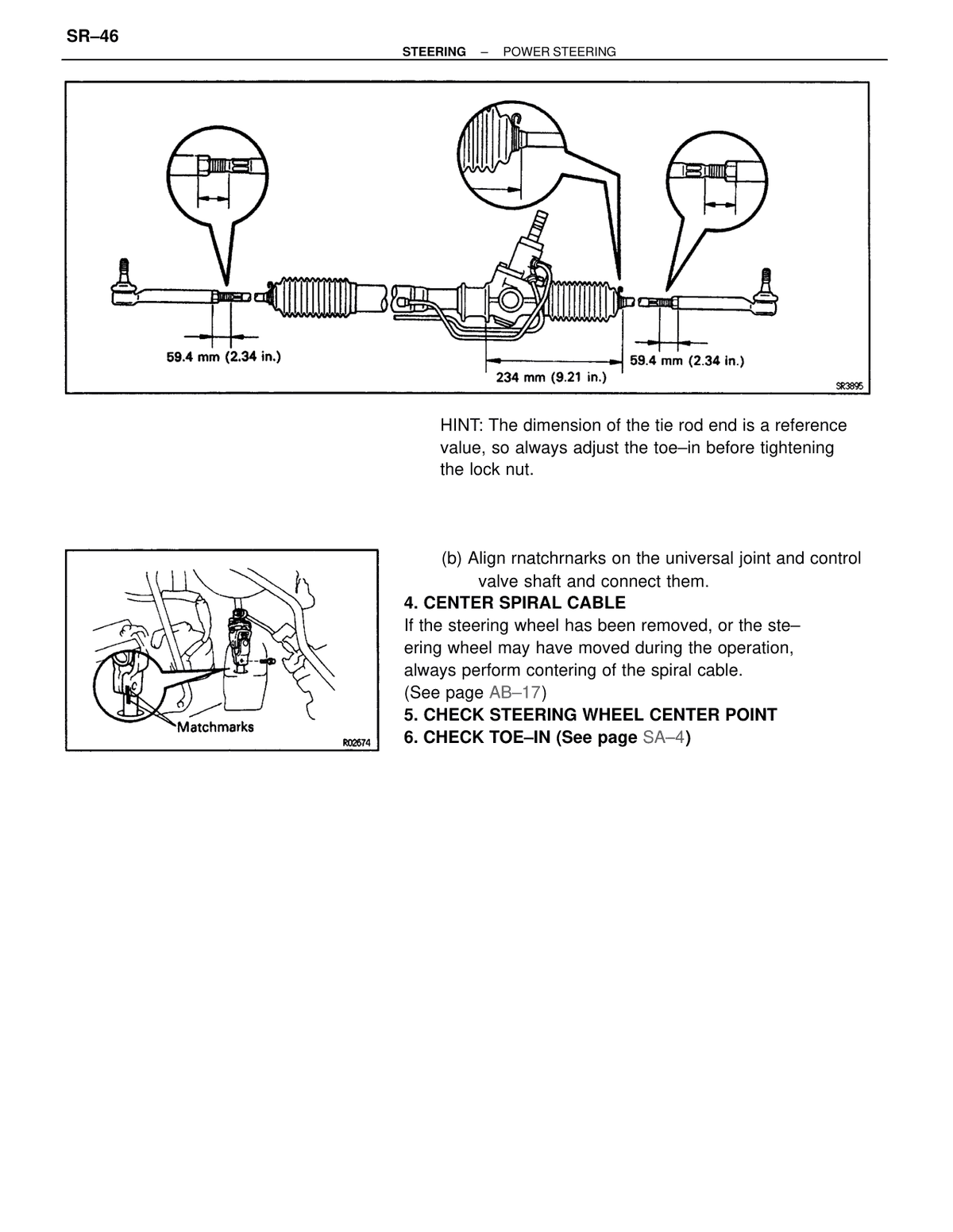

Tie rod end length — left side (from rack end to tie rod end center) 2.34 in. — reference value; adjust toe-in before tightening lock nut 59.4 mm Steering ↗ RM179U1_1991 · p1142 OEM manual
Tie rod end length — right side (from rack end to tie rod end center) 2.34 in. — reference value; adjust toe-in before tightening lock nut 59.4 mm Steering ↗ RM179U1_1991 · p1142 OEM manual
Gear housing center dimension 9.21 in. — center point of gear housing 234 mm Steering ↗ RM179U1_1991 · p1142 OEM manual

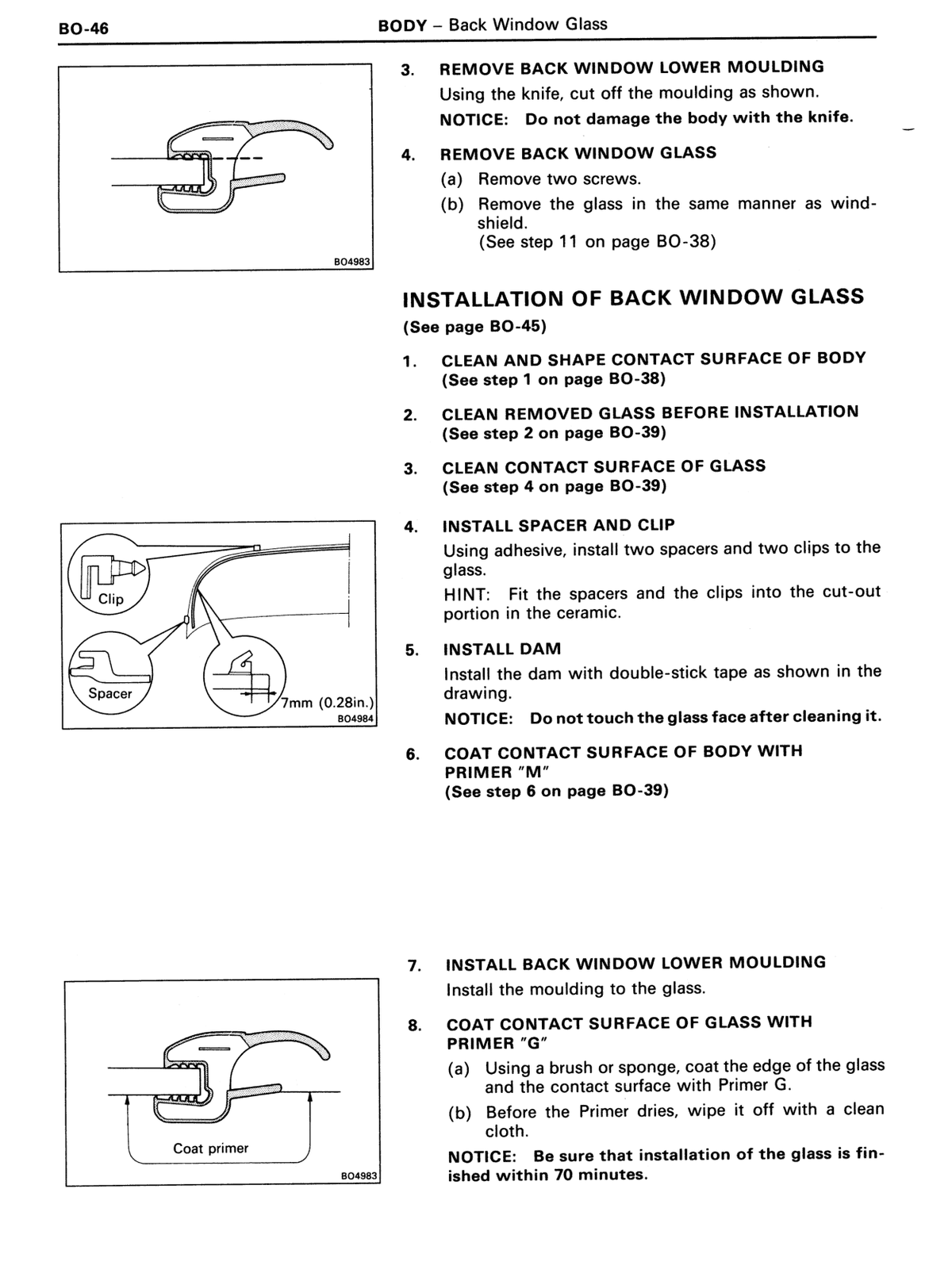

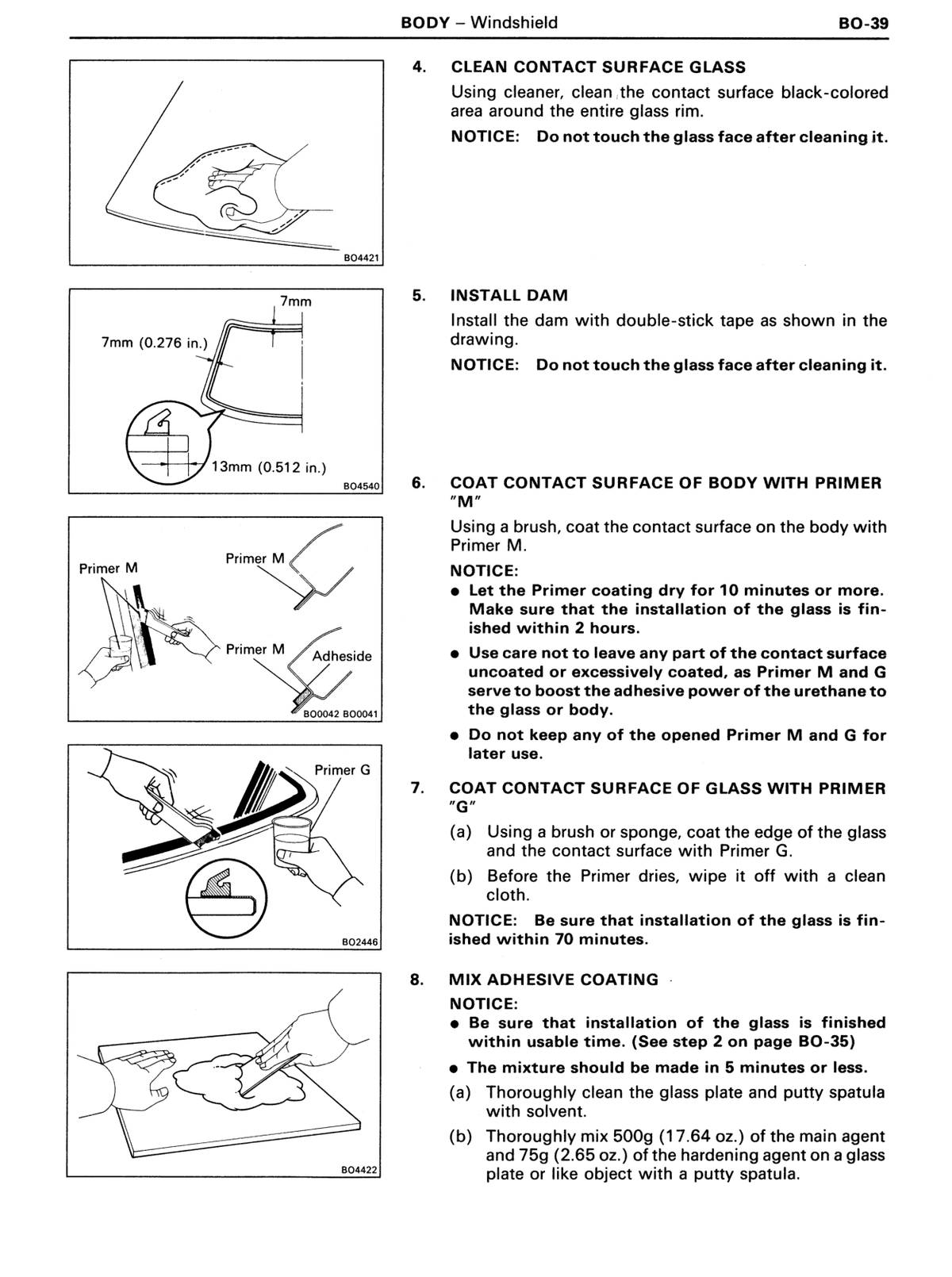

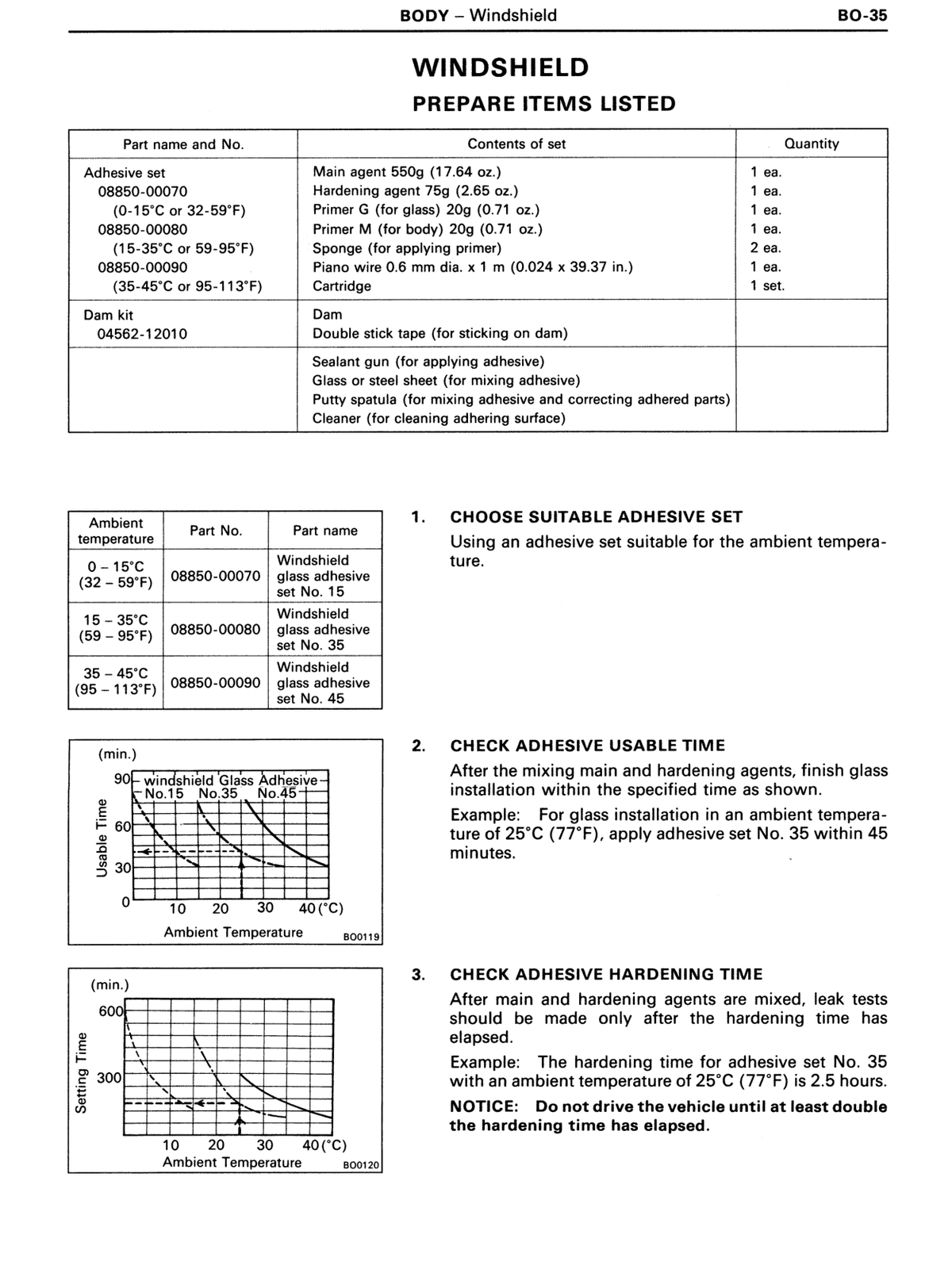

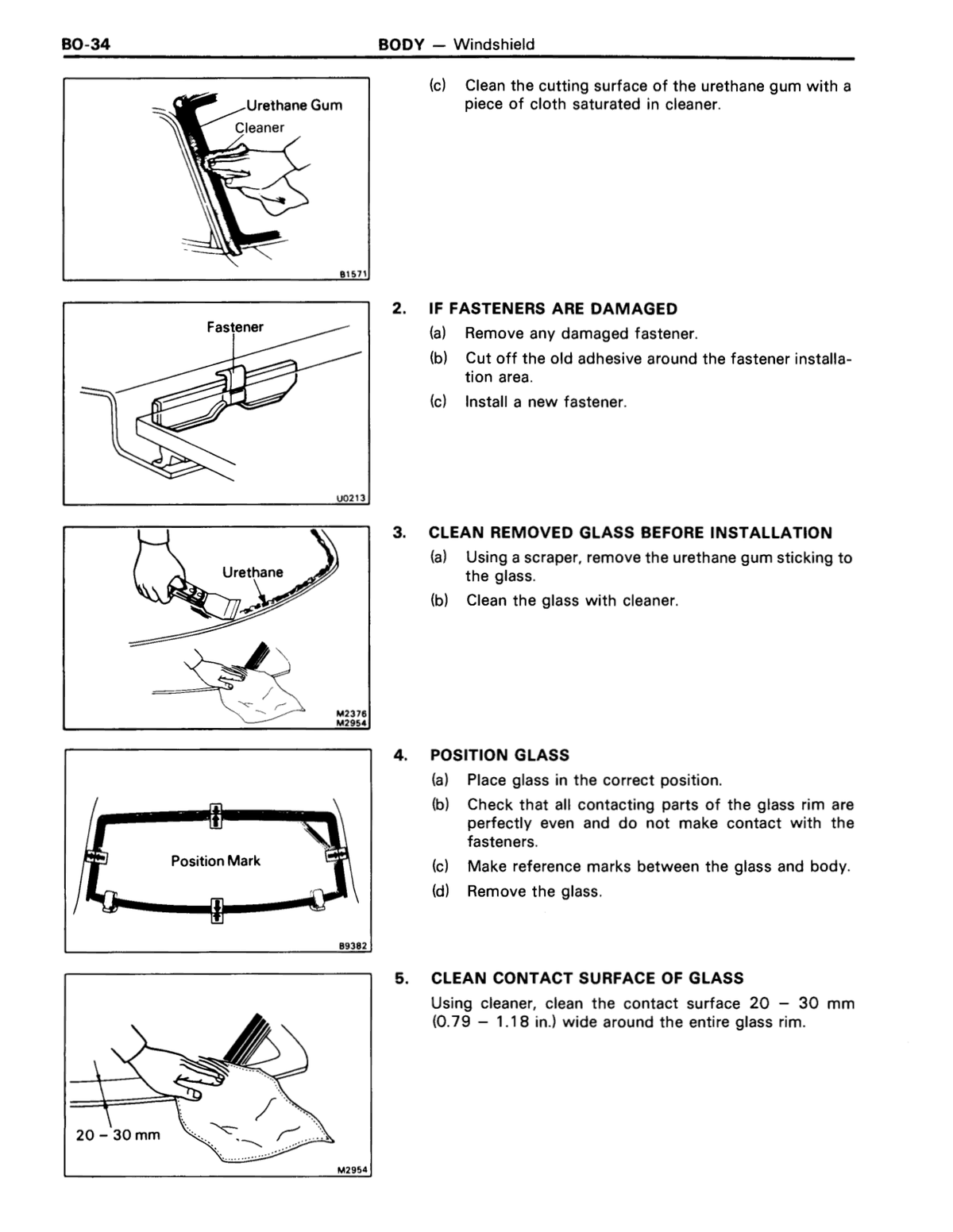

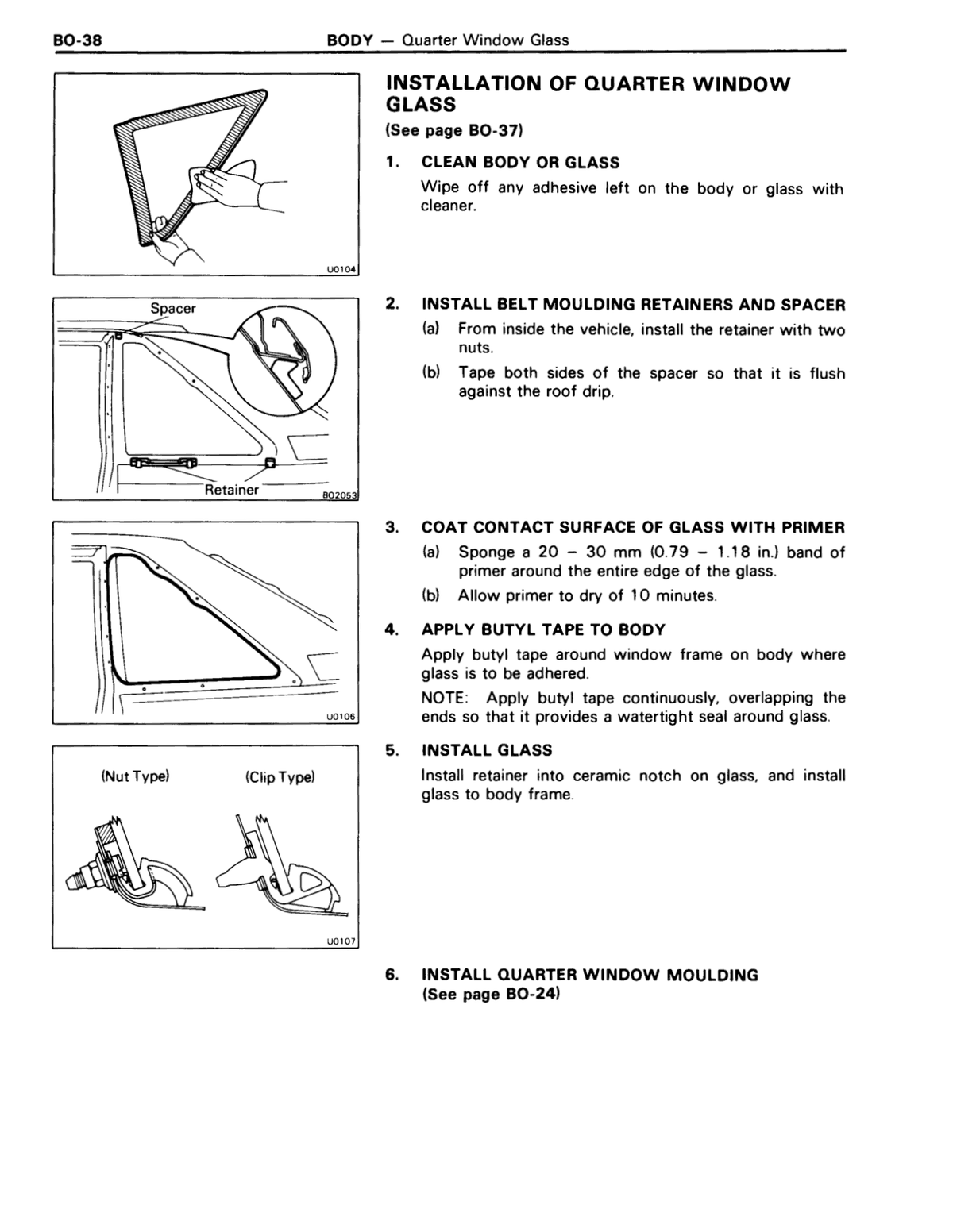

Spacer/clip offset from glass edge 0.28 in.; fit into cut-out portion in ceramic 7 mm Body ↗ RM179U1_1991 · p1462 OEM manual

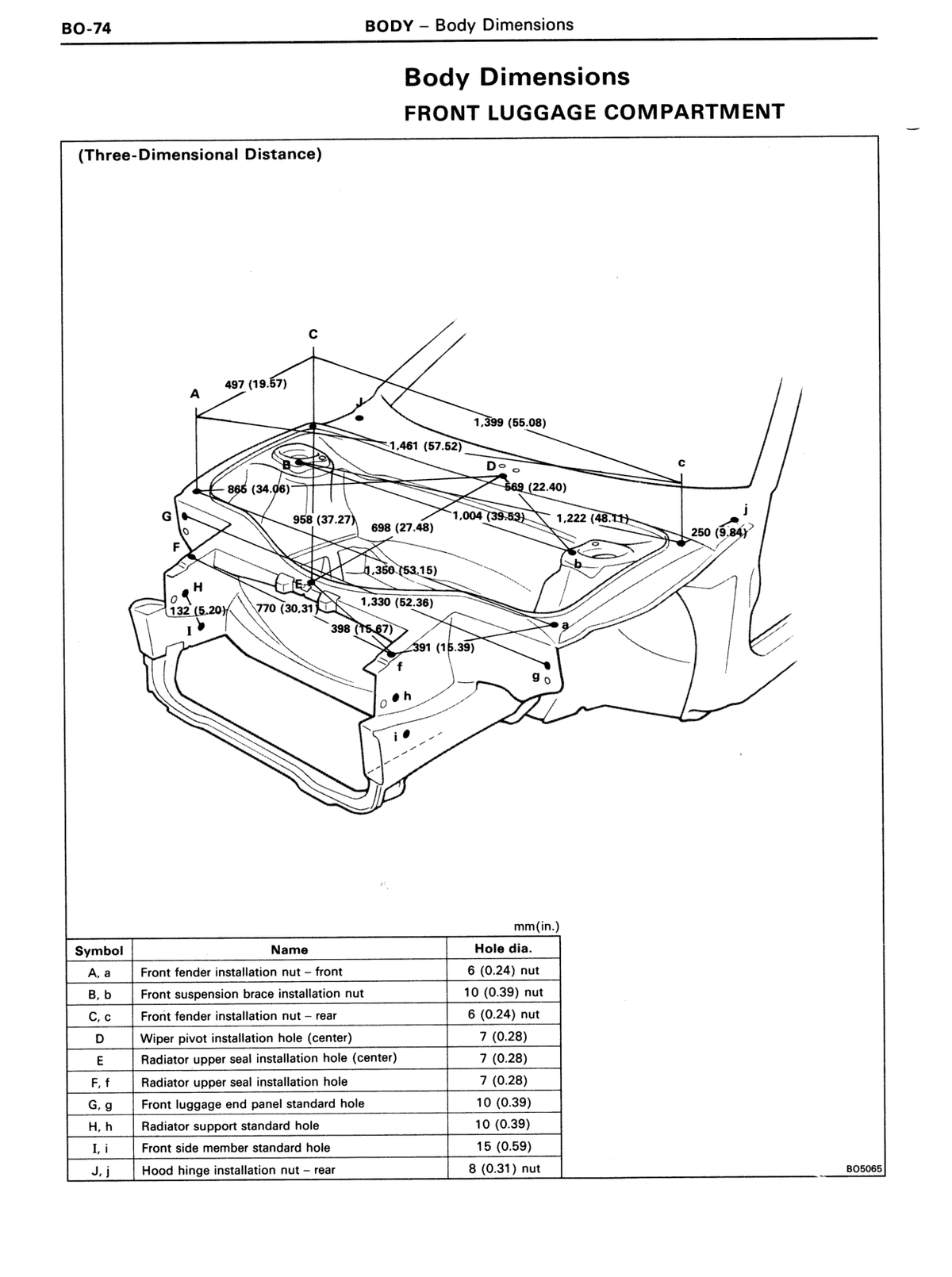

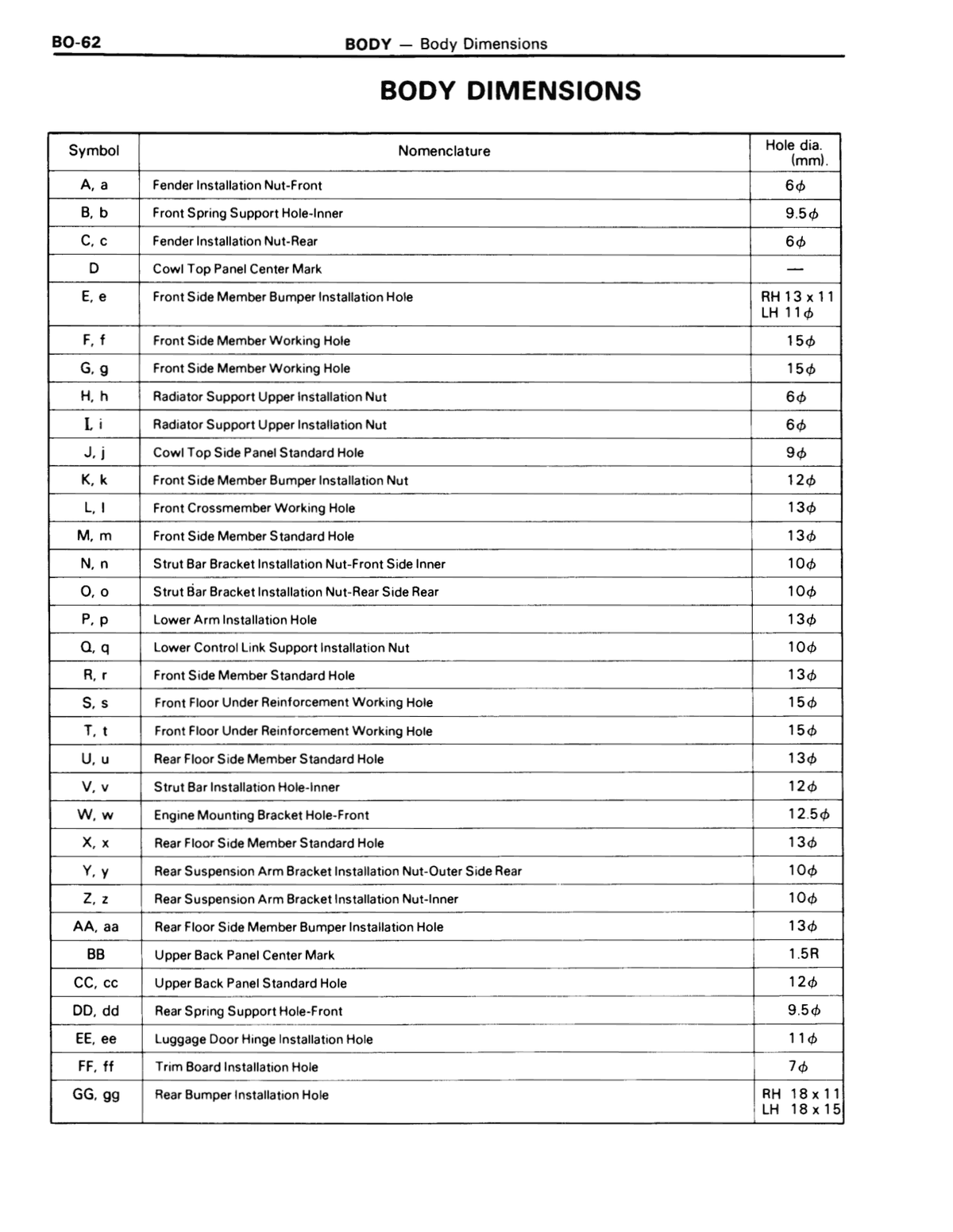

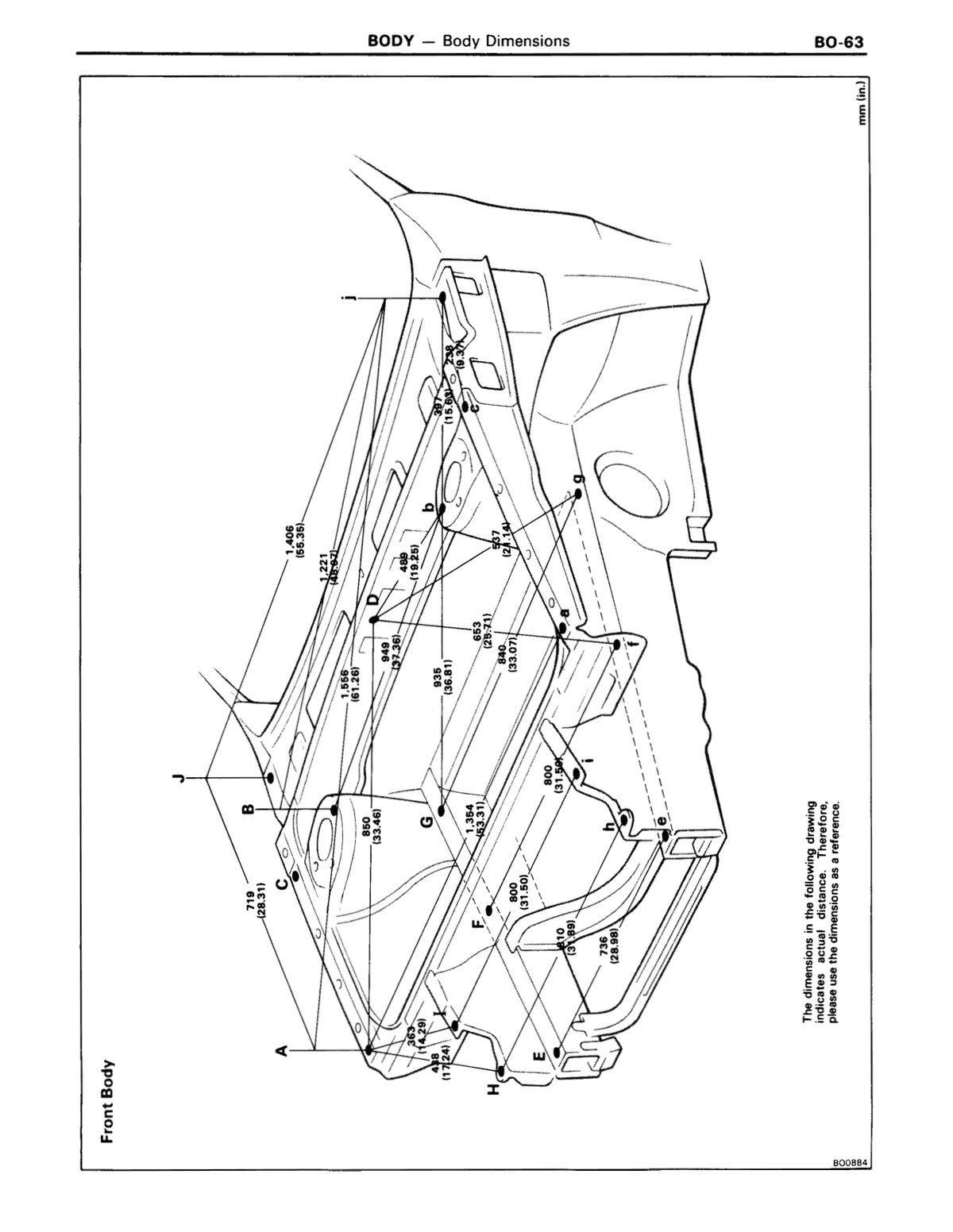

A to a — Front fender installation nut front (longitudinal/diagonal) 19.57 in; three-dimensional distance 497 mm Body ↗ RM179U1_1991 · p1490 OEM manual
A, a — Front fender installation nut front hole diameter 0.24 in; nut 6 mm Body ↗ RM179U1_1991 · p1490 OEM manual
B, b — Front suspension brace installation nut hole diameter 0.39 in; nut 10 mm Body ↗ RM179U1_1991 · p1490 OEM manual
C, c — Front fender installation nut rear hole diameter 0.24 in; nut 6 mm Body ↗ RM179U1_1991 · p1490 OEM manual
D — Wiper pivot installation hole (center) diameter 0.28 in 7 mm Body ↗ RM179U1_1991 · p1490 OEM manual
E — Radiator upper seal installation hole (center) diameter 0.28 in 7 mm Body ↗ RM179U1_1991 · p1490 OEM manual
F, f — Radiator upper seal installation hole diameter 0.28 in 7 mm Body ↗ RM179U1_1991 · p1490 OEM manual
G, g — Front luggage end panel standard hole diameter 0.39 in 10 mm Body ↗ RM179U1_1991 · p1490 OEM manual
I, i — Front side member standard hole diameter 0.59 in 15 mm Body ↗ RM179U1_1991 · p1490 OEM manual
J, j — Hood hinge installation nut rear hole diameter 0.31 in; nut 8 mm Body ↗ RM179U1_1991 · p1490 OEM manual

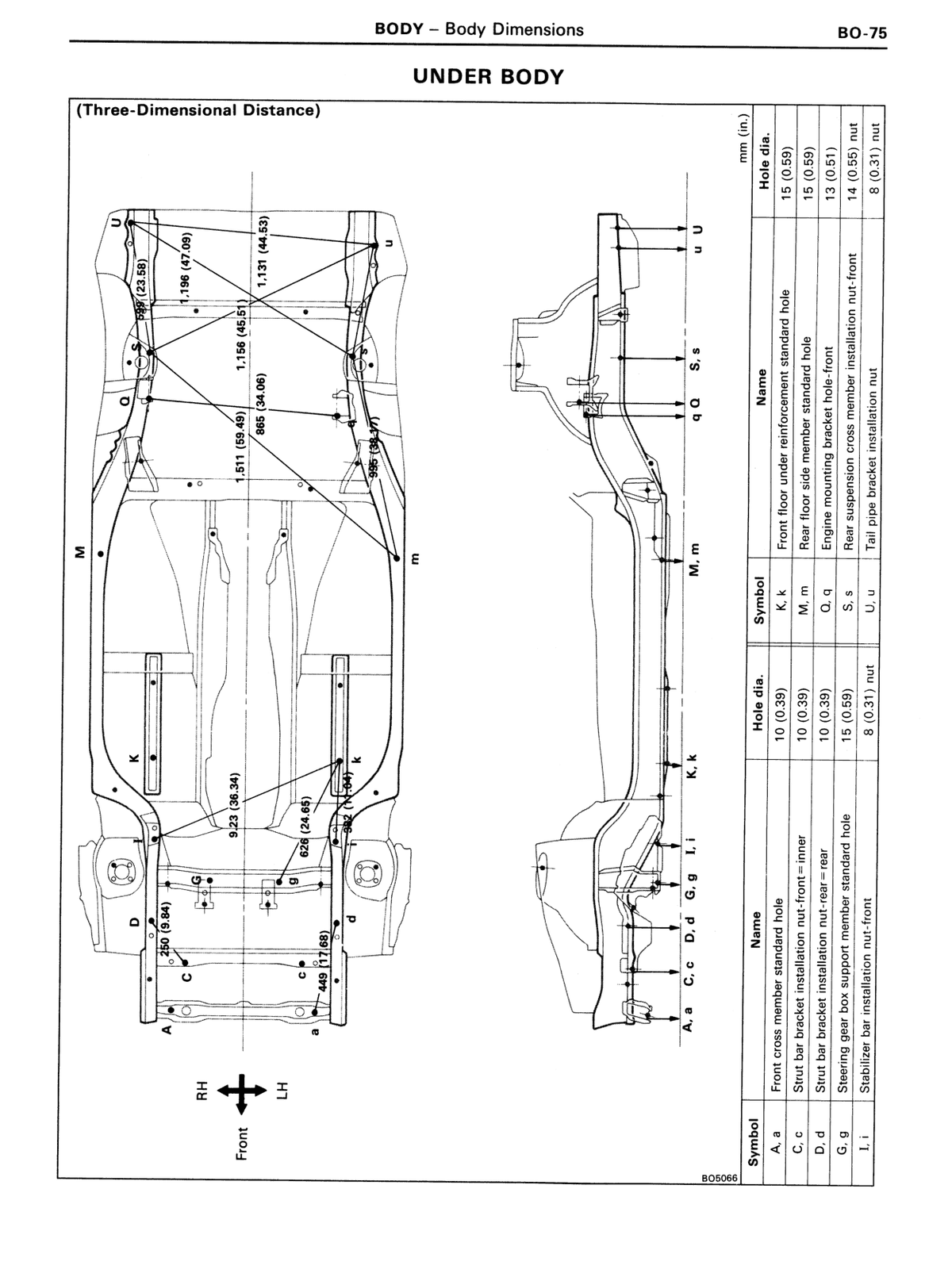

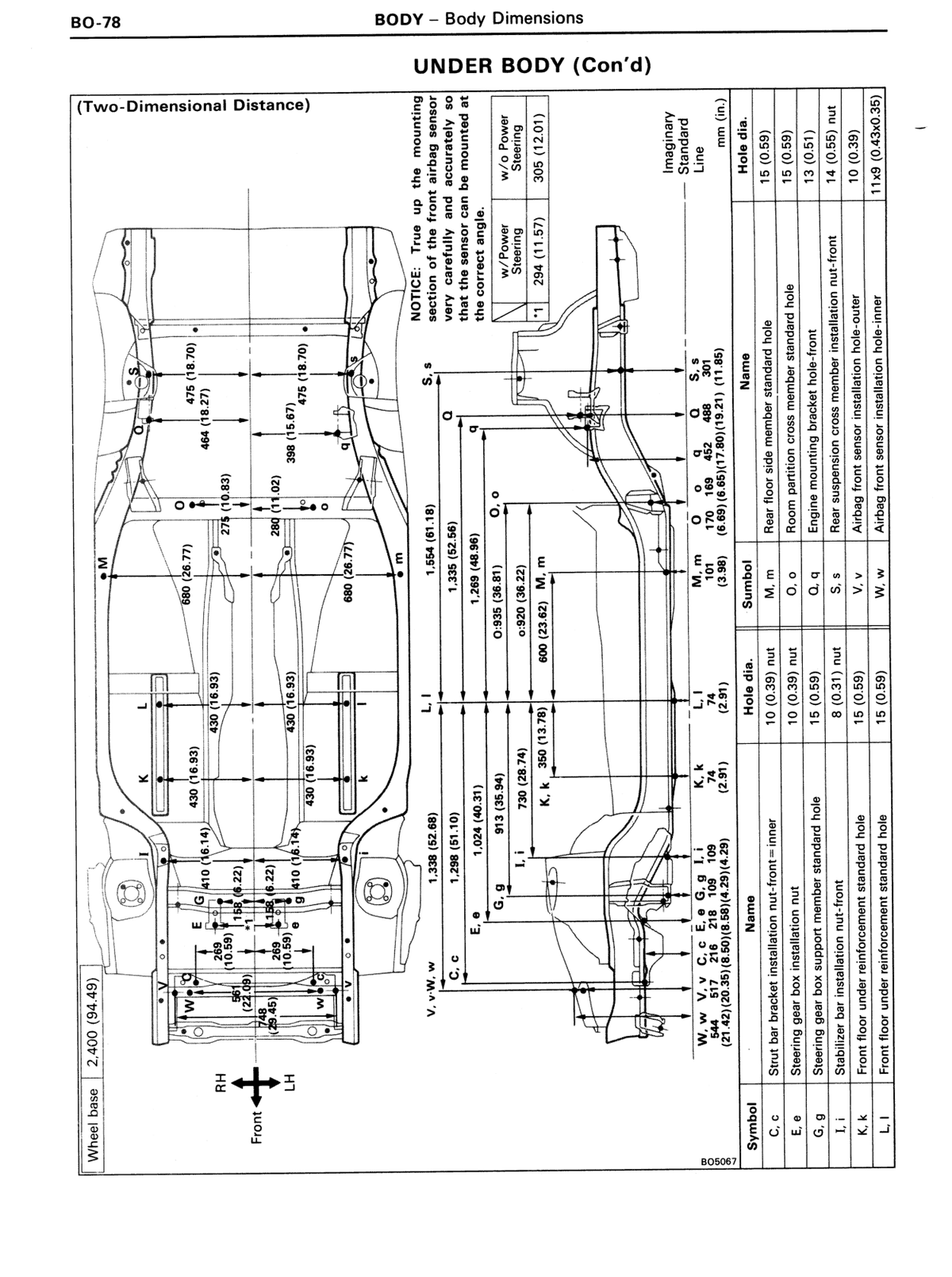

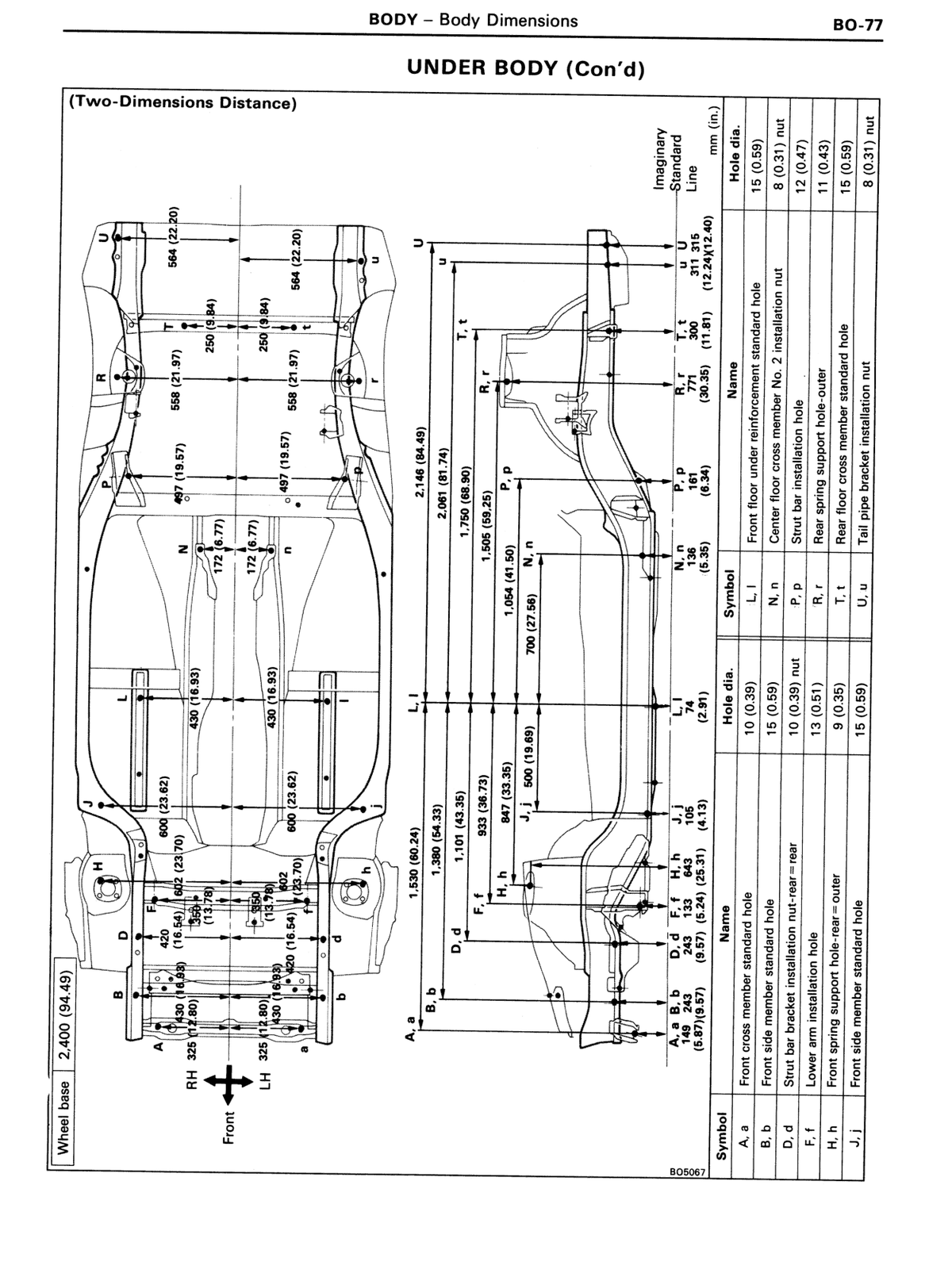

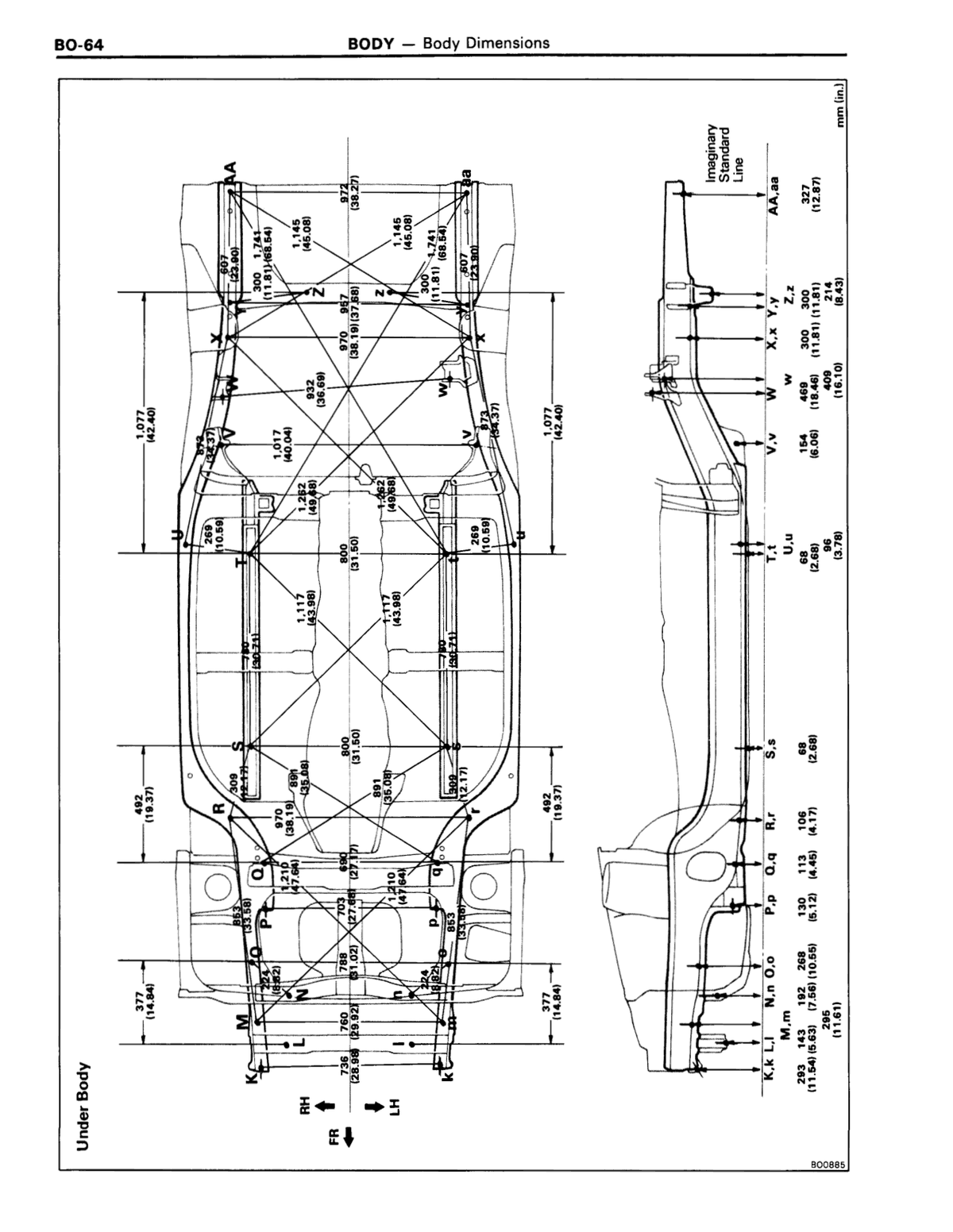

A, a — Front cross member standard hole (three-dimensional distance) 17.68 in 449 mm Body ↗ RM179U1_1991 · p1491 OEM manual
C, c — Strut bar bracket installation nut-front = inner 9.84 in 250 mm Body ↗ RM179U1_1991 · p1491 OEM manual
D, d — Strut bar bracket installation nut-rear = rear 24.65 in 626 mm Body ↗ RM179U1_1991 · p1491 OEM manual
G, g — Steering gear box support member standard hole 36.34 in; also listed as 9.23 (36.34) 923 mm Body ↗ RM179U1_1991 · p1491 OEM manual
I, i — Stabilizer bar installation nut-front 38.27 in; partially legible 962 mm Body ↗ RM179U1_1991 · p1491 OEM manual
S, s — Rear suspension cross member installation nut-front 44.53 in 1131 mm Body ↗ RM179U1_1991 · p1491 OEM manual
U, u — Tail pipe bracket installation nut 23.58 in; partially legible 598 mm Body ↗ RM179U1_1991 · p1491 OEM manual
A, a — Hole diameter (Front cross member standard hole) 0.39 in 10 mm Body ↗ RM179U1_1991 · p1491 OEM manual
C, c — Hole diameter (Strut bar bracket installation nut-front = inner) 0.39 in 10 mm Body ↗ RM179U1_1991 · p1491 OEM manual
D, d — Hole diameter (Strut bar bracket installation nut-rear = rear) 0.39 in 10 mm Body ↗ RM179U1_1991 · p1491 OEM manual
G, g — Hole diameter (Steering gear box support member standard hole) 0.59 in 15 mm Body ↗ RM179U1_1991 · p1491 OEM manual
I, i — Hole diameter (Stabilizer bar installation nut-front) 0.31 in; nut type 8 mm Body ↗ RM179U1_1991 · p1491 OEM manual
K, k — Hole diameter (Front floor under reinforcement standard hole) 0.59 in 15 mm Body ↗ RM179U1_1991 · p1491 OEM manual
M, m — Hole diameter (Rear floor side member standard hole) 0.59 in 15 mm Body ↗ RM179U1_1991 · p1491 OEM manual
O, q — Hole diameter (Engine mounting bracket hole-front) 0.51 in 13 mm Body ↗ RM179U1_1991 · p1491 OEM manual
S, s — Hole diameter (Rear suspension cross member installation nut-front) 0.55 in; nut type 14 mm Body ↗ RM179U1_1991 · p1491 OEM manual
U, u — Hole diameter (Tail pipe bracket installation nut) 0.31 in; nut type 8 mm Body ↗ RM179U1_1991 · p1491 OEM manual

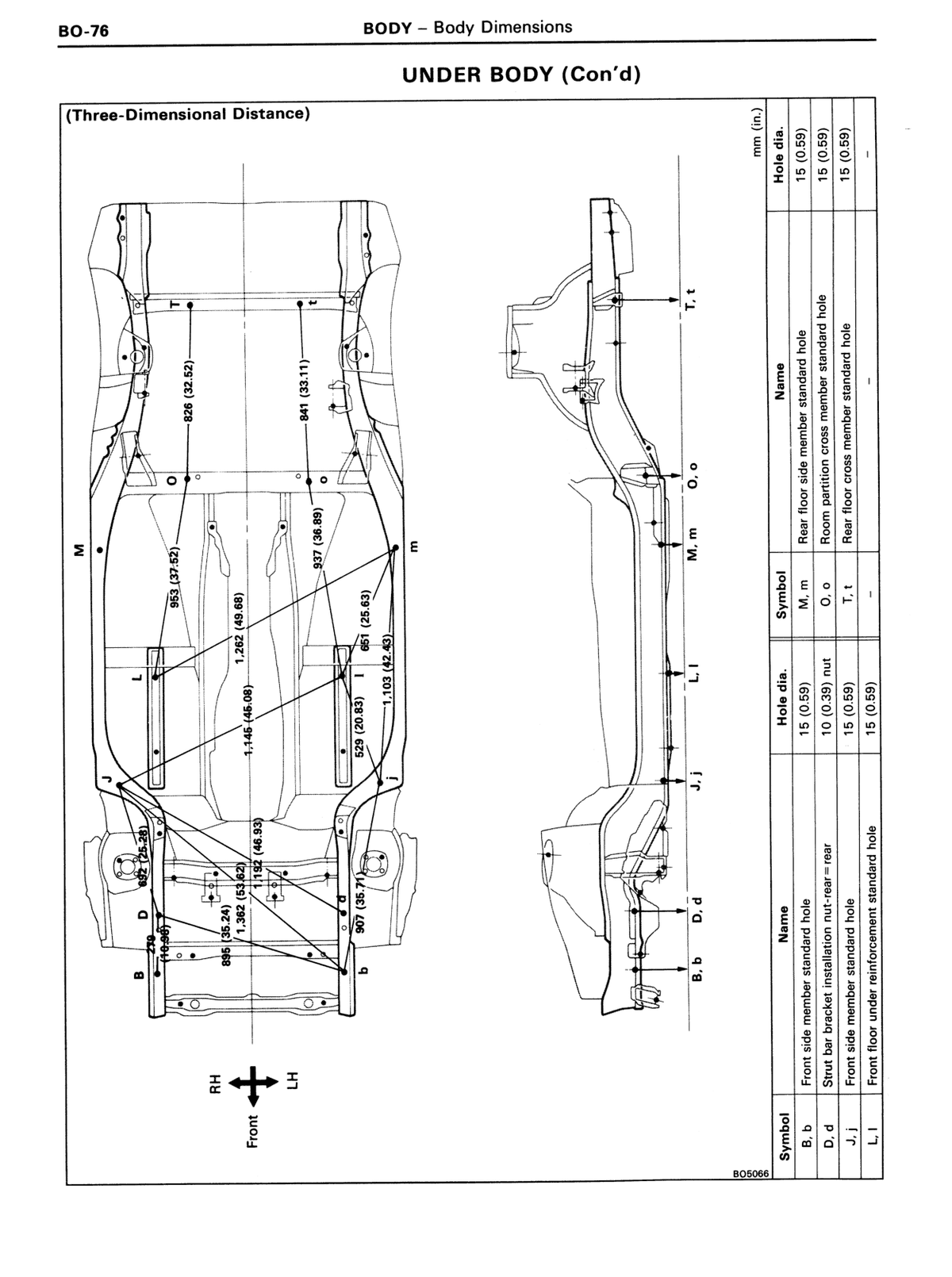

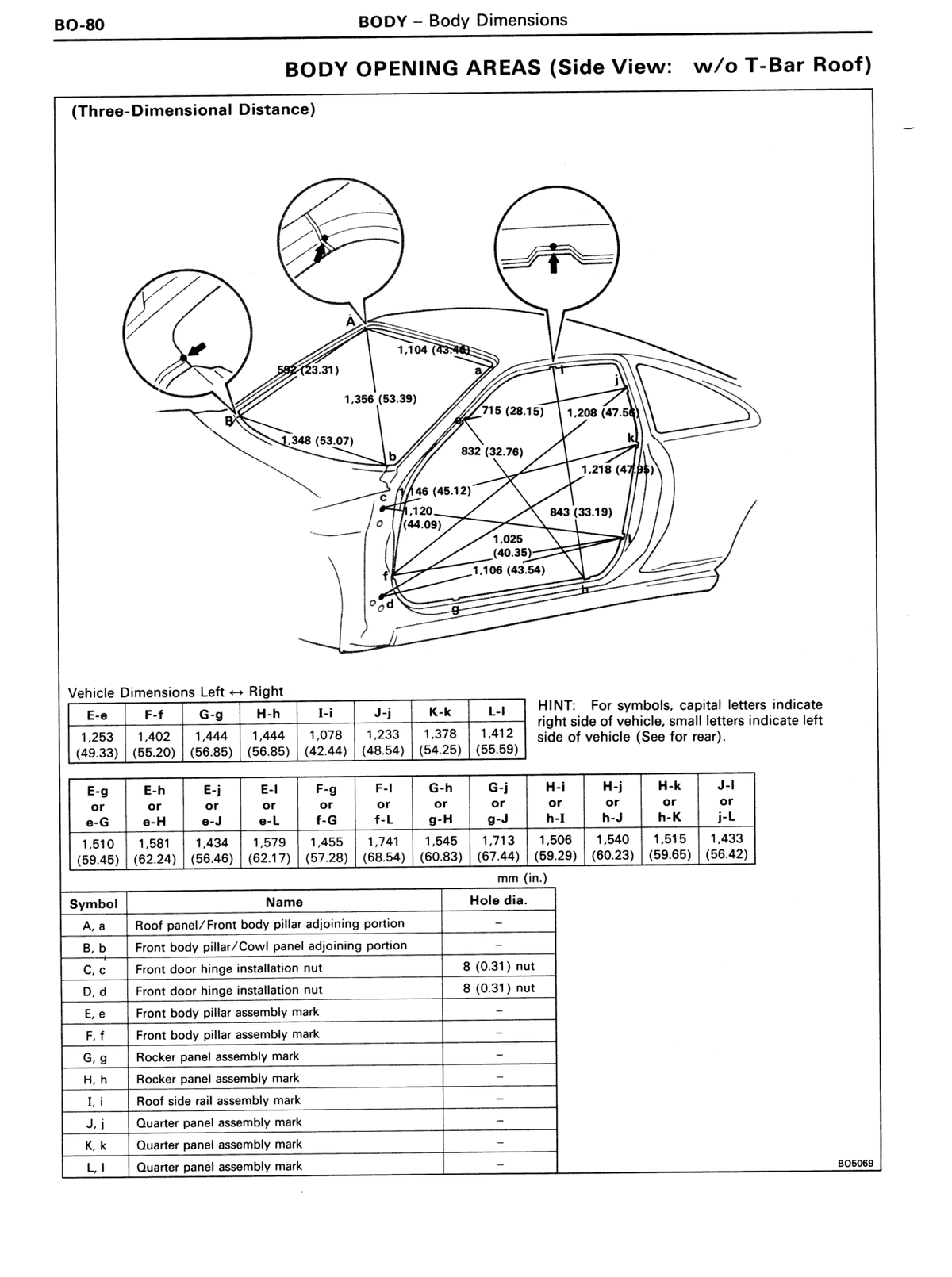

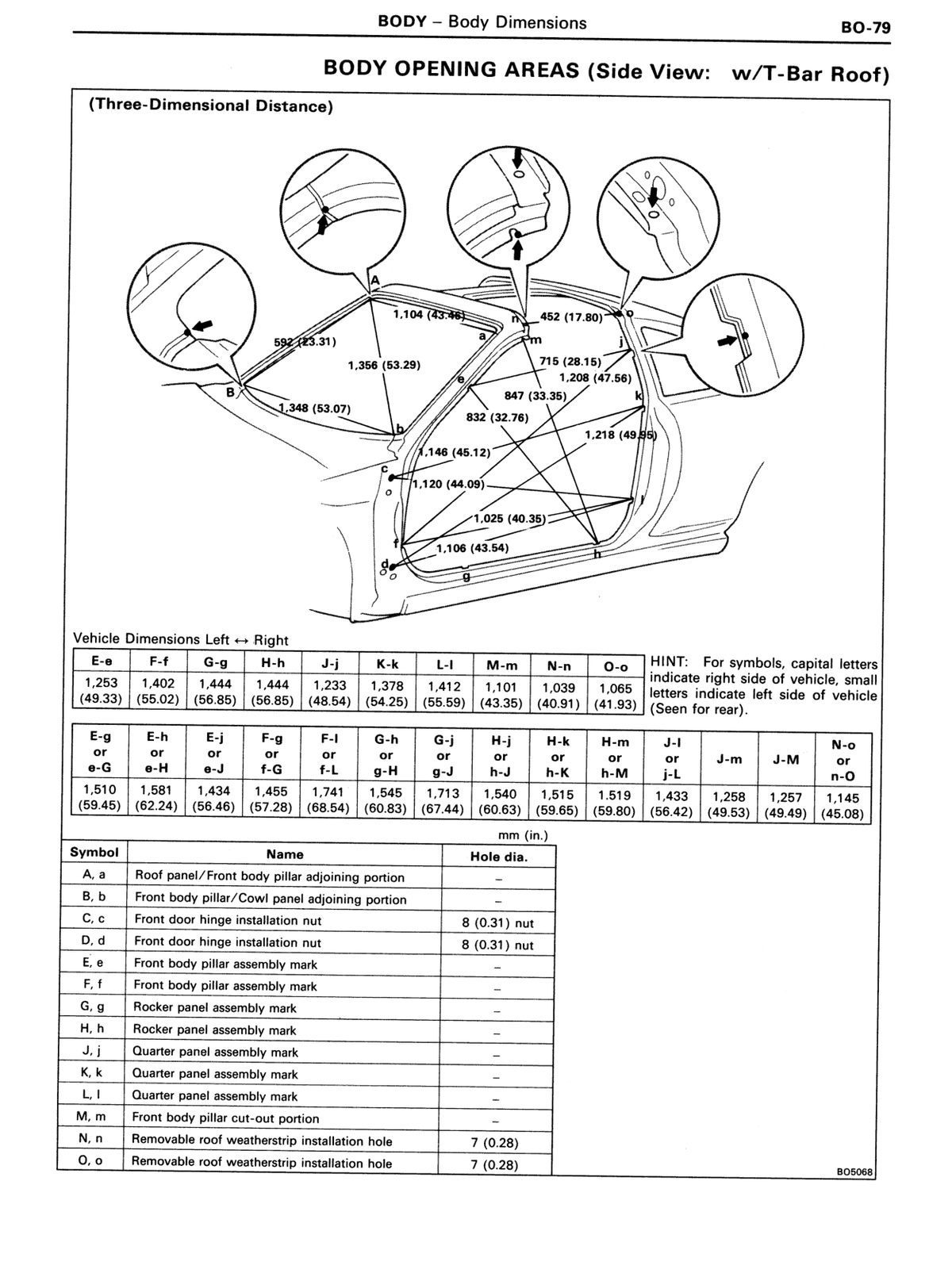

Three-dimensional distance — measurement 1,282 49.68 in 1282 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Three-dimensional distance — measurement 1,146 45.08 in 1146 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Three-dimensional distance — measurement 1,103 42.43 in 1103 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Three-dimensional distance — measurement 1,192 46.93 in 1192 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Three-dimensional distance — measurement 1,362 53.62 in 1362 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Symbol B,b — Front side member standard hole diameter 0.59 in hole dia. 15 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Symbol D,d — Strut bar bracket installation nut-rear=rear hole diameter 0.39 in nut hole dia. 10 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Symbol J,j — Front side member standard hole diameter 0.59 in hole dia. 15 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Symbol L,l — Front floor under reinforcement standard hole diameter 0.59 in hole dia. 15 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Symbol M,m — Rear floor side member standard hole diameter 0.59 in hole dia. 15 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Symbol O,o — Room partition cross member standard hole diameter 0.59 in hole dia. 15 mm Body ↗ RM179U1_1991 · p1492 OEM manual
Symbol T,t — Rear floor cross member standard hole diameter 0.59 in hole dia. 15 mm Body ↗ RM179U1_1991 · p1492 OEM manual
S,s — symmetrical width (front area alternate) 18.70 in 475 mm Body ↗ RM179U1_1991 · p1494 OEM manual
E,e — longitudinal dimension (front) 10.59 in, both sides 269 mm Body ↗ RM179U1_1991 · p1494 OEM manual
V,v — lateral dimension (front) 22.09 in? (partially legible: ~591) 591 mm Body ↗ RM179U1_1991 · p1494 OEM manual
C,c — longitudinal body reference (front floor area) approx 8.50 in per side, see table 518 mm Body ↗ RM179U1_1991 · p1494 OEM manual
W,w V,v — combined lateral (front floor) 21.42 in per diagram label (21.42)(20.35) 542 mm Body ↗ RM179U1_1991 · p1494 OEM manual
Longitudinal — V,vW,w C,c reference 8.50 in per table row (8.58) 216 mm Body ↗ RM179U1_1991 · p1494 OEM manual
C,c — longitudinal (front floor under reinforcement) 8.58 in approx per table 518 mm Body ↗ RM179U1_1991 · p1494 OEM manual

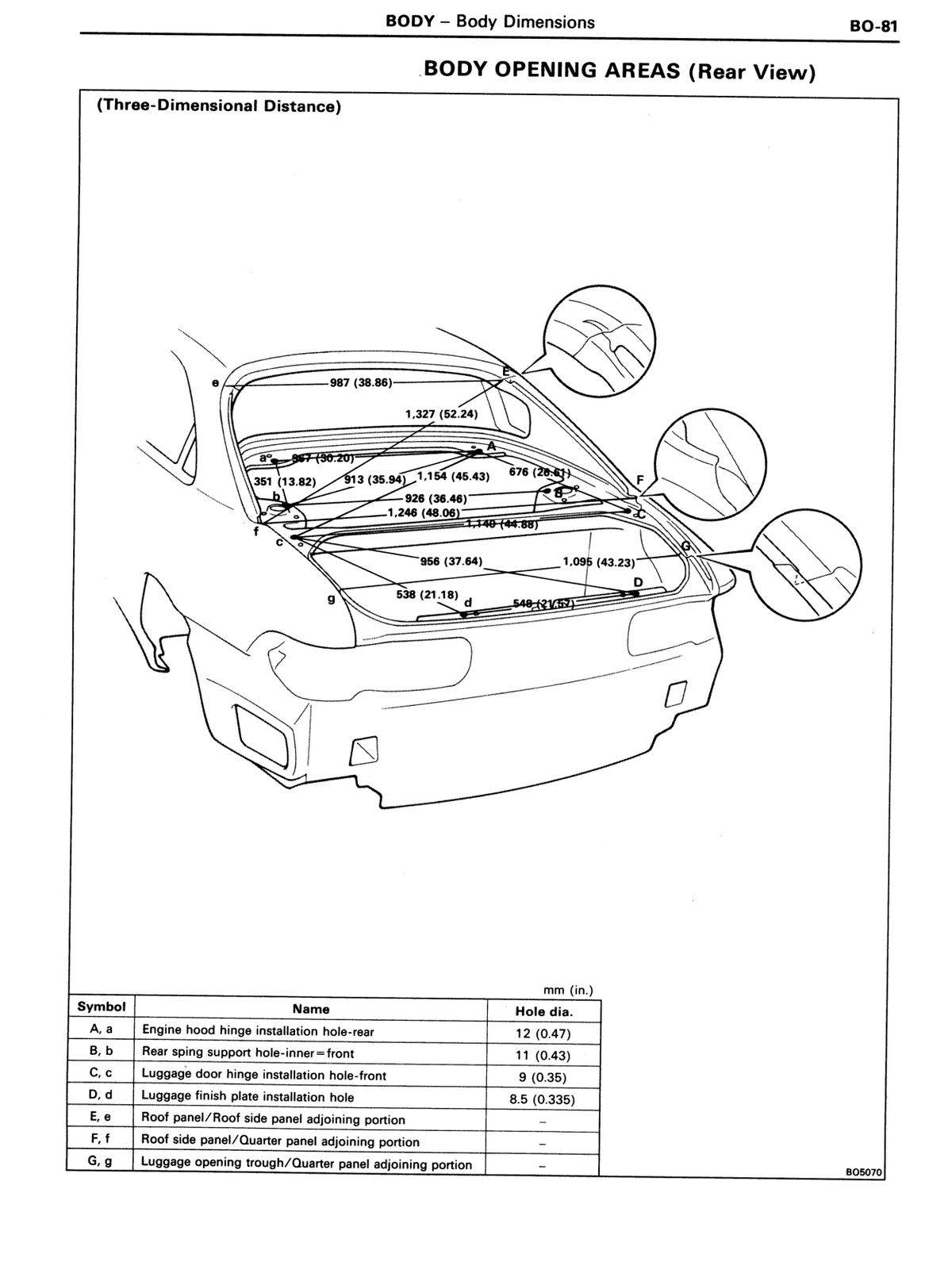

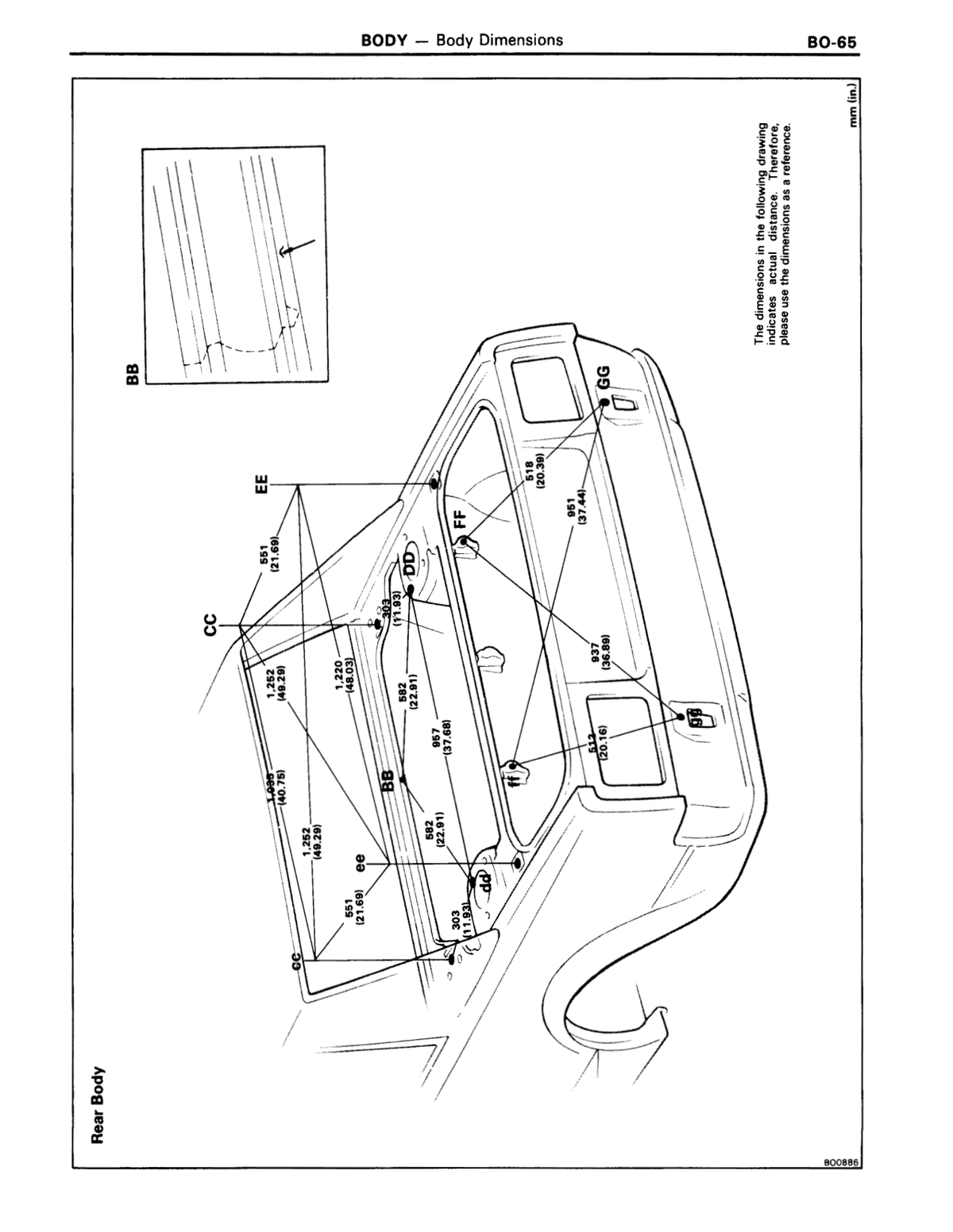

Rear view width — a° level 30.20 in (partially obscured) 967 mm Body ↗ RM179U1_1991 · p1497 OEM manual
Engine hood hinge installation hole-rear (A, a) diameter 0.47 in 12 mm Body ↗ RM179U1_1991 · p1497 OEM manual
Rear spring support hole-inner=front (B, b) diameter 0.43 in 11 mm Body ↗ RM179U1_1991 · p1497 OEM manual
Luggage door hinge installation hole-front (C, c) diameter 0.35 in 9 mm Body ↗ RM179U1_1991 · p1497 OEM manual
Luggage finish plate installation hole (D, d) diameter 0.335 in 8.5 mm Body ↗ RM179U1_1991 · p1497 OEM manual

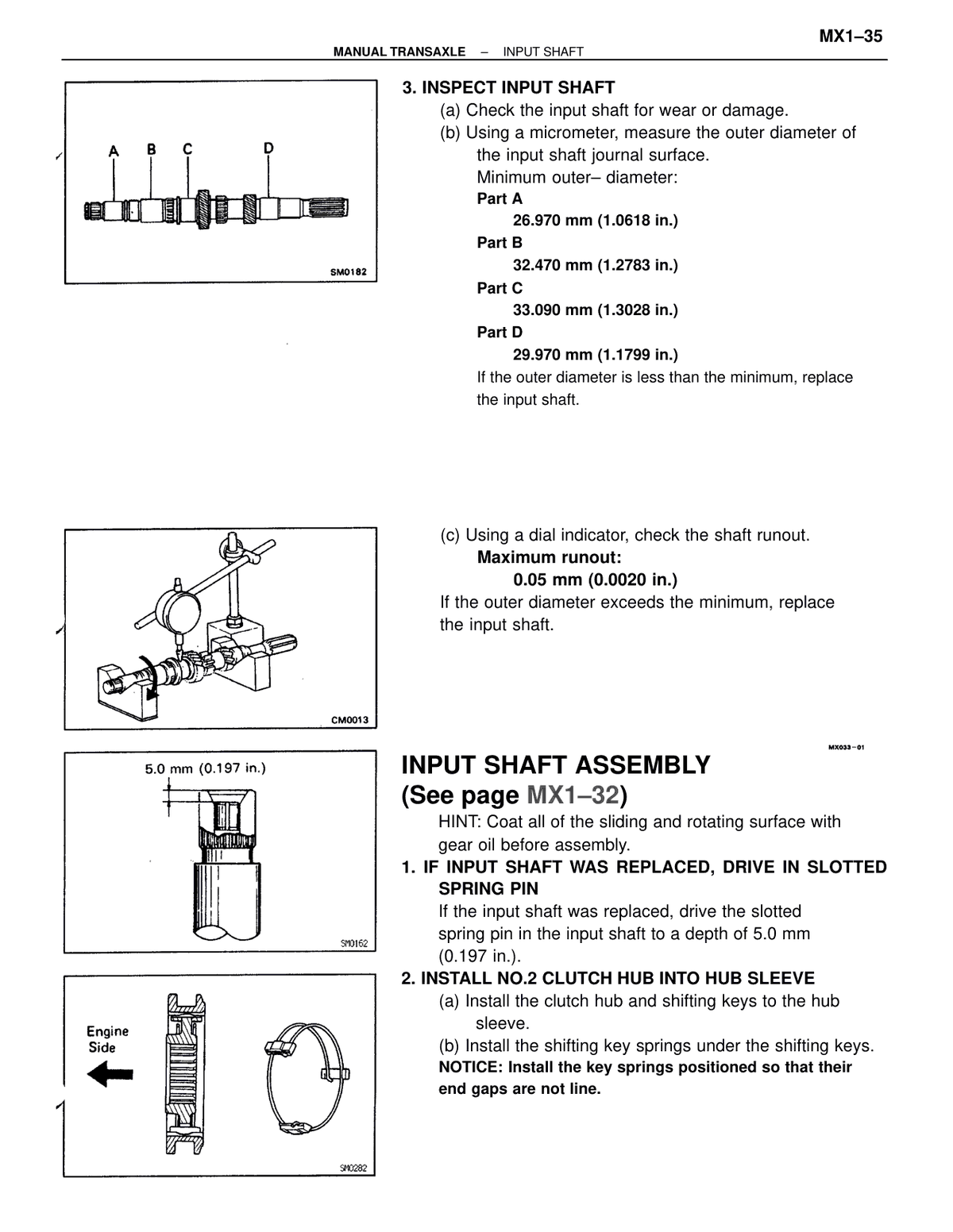

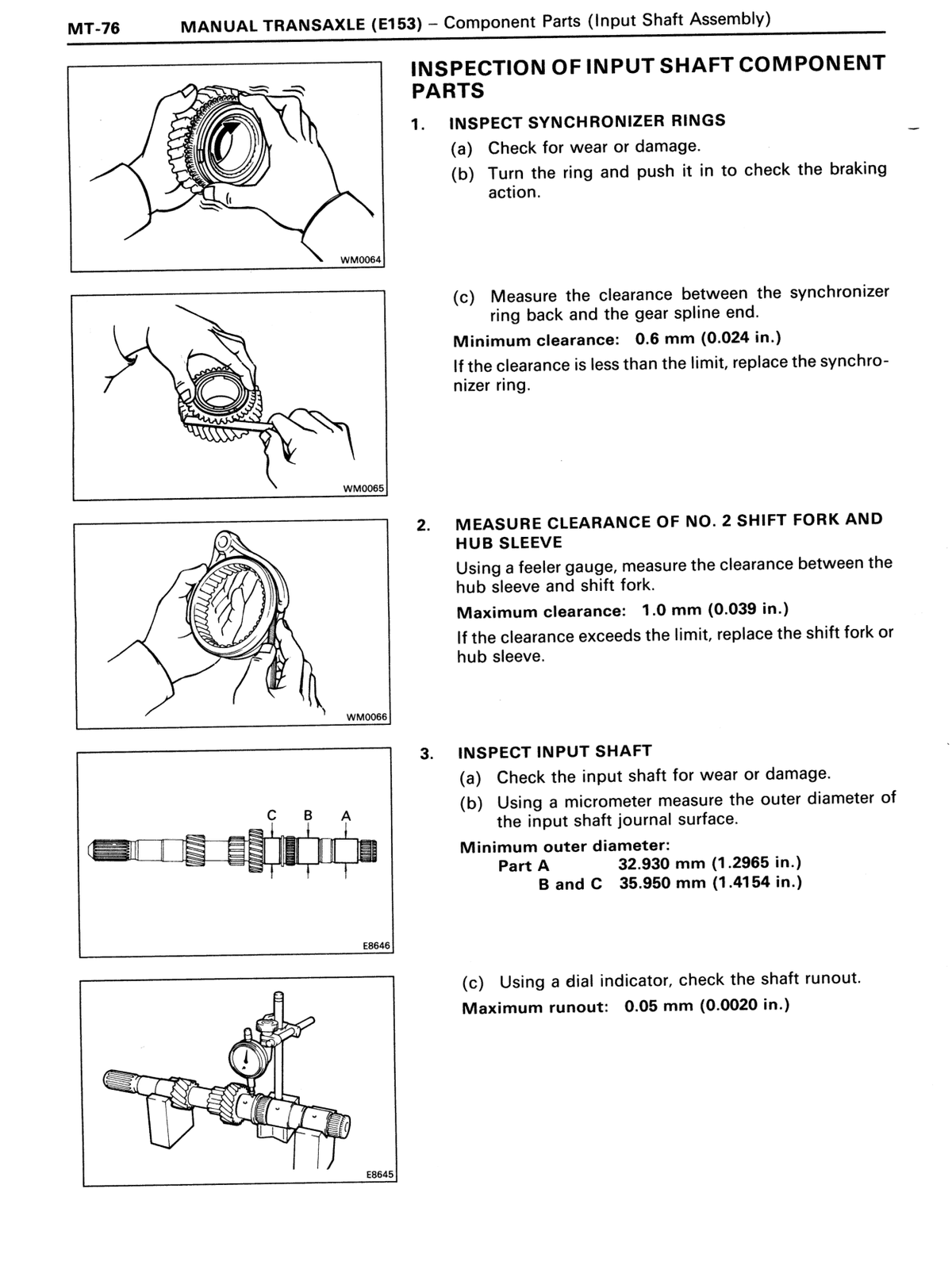

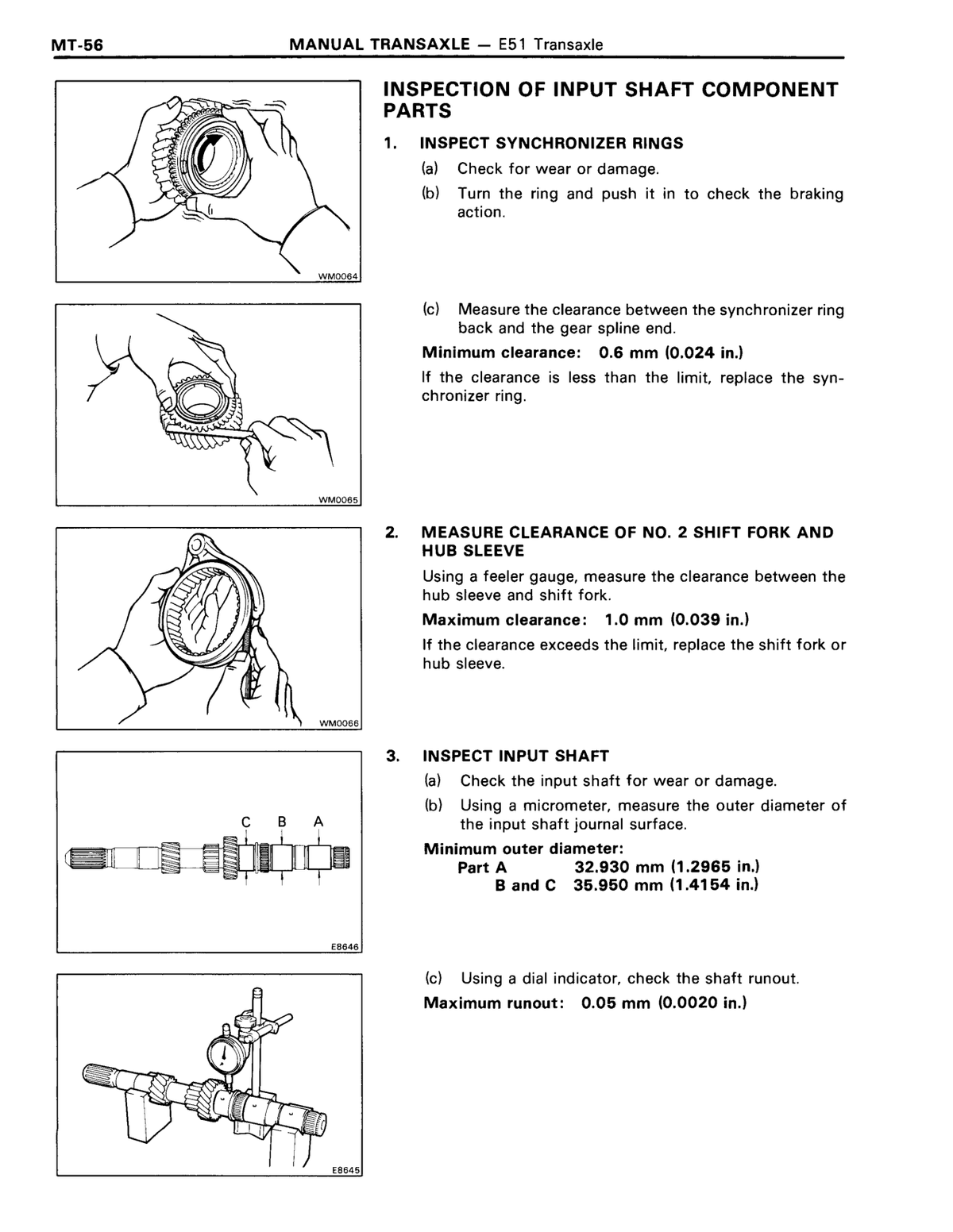

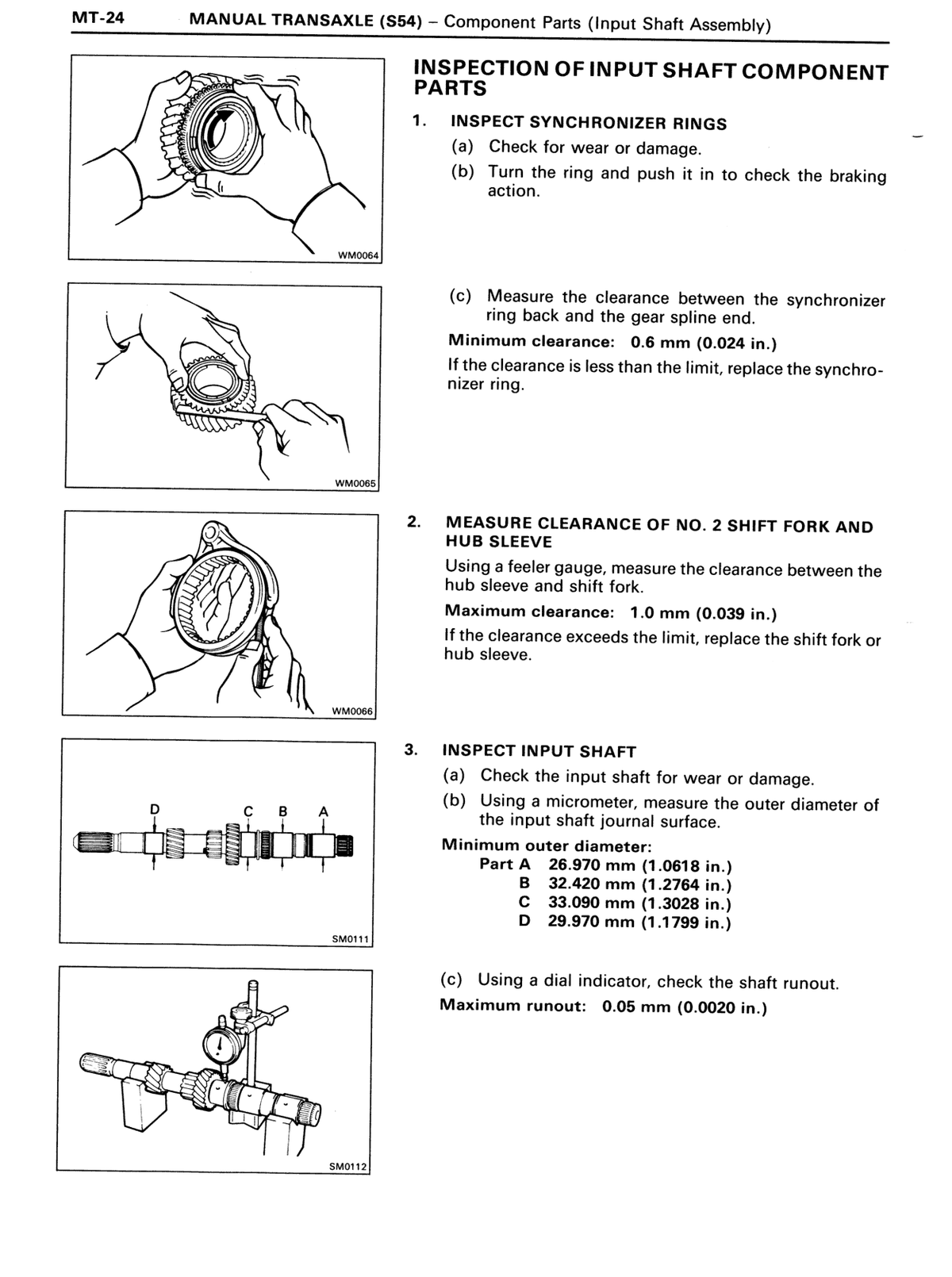

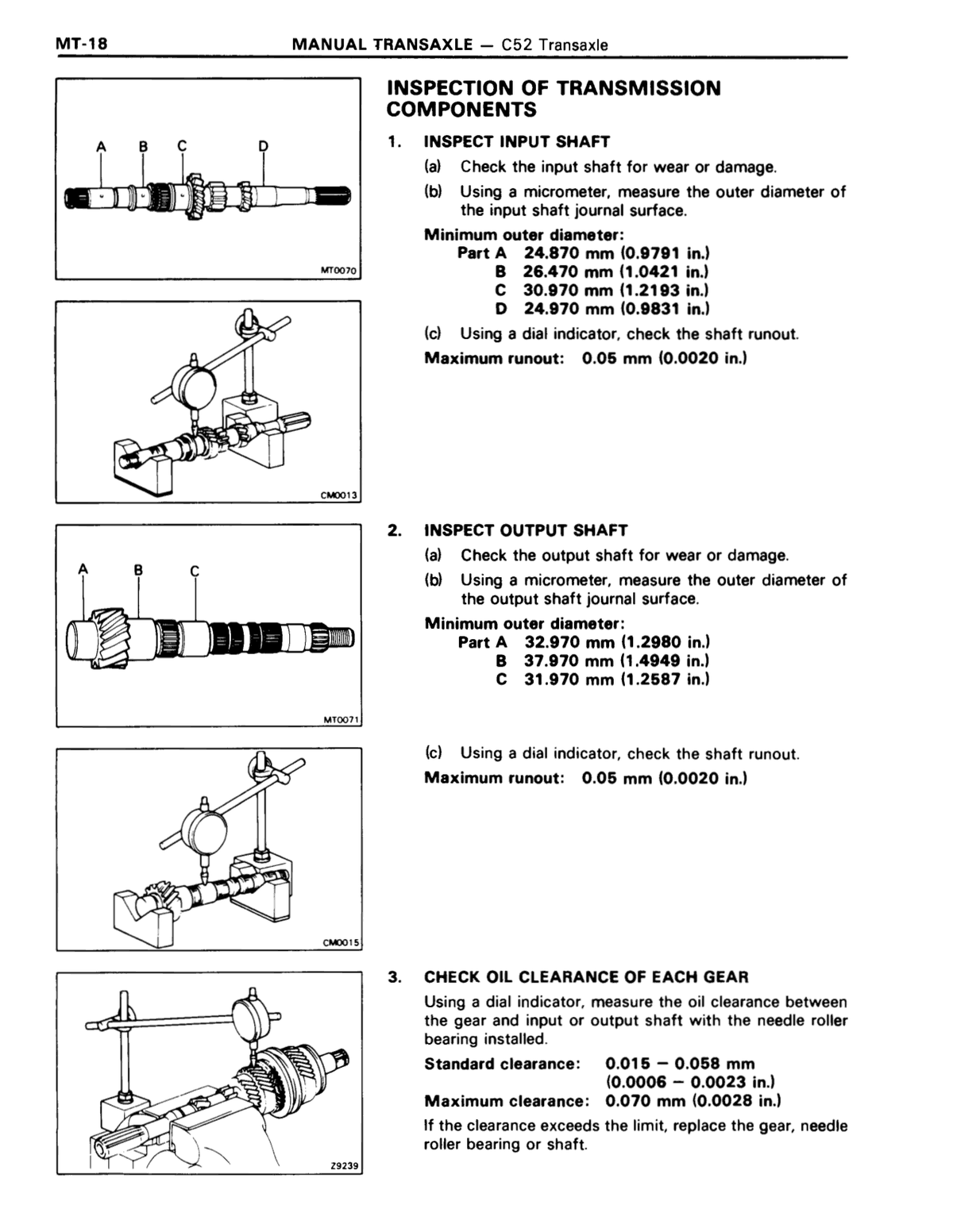

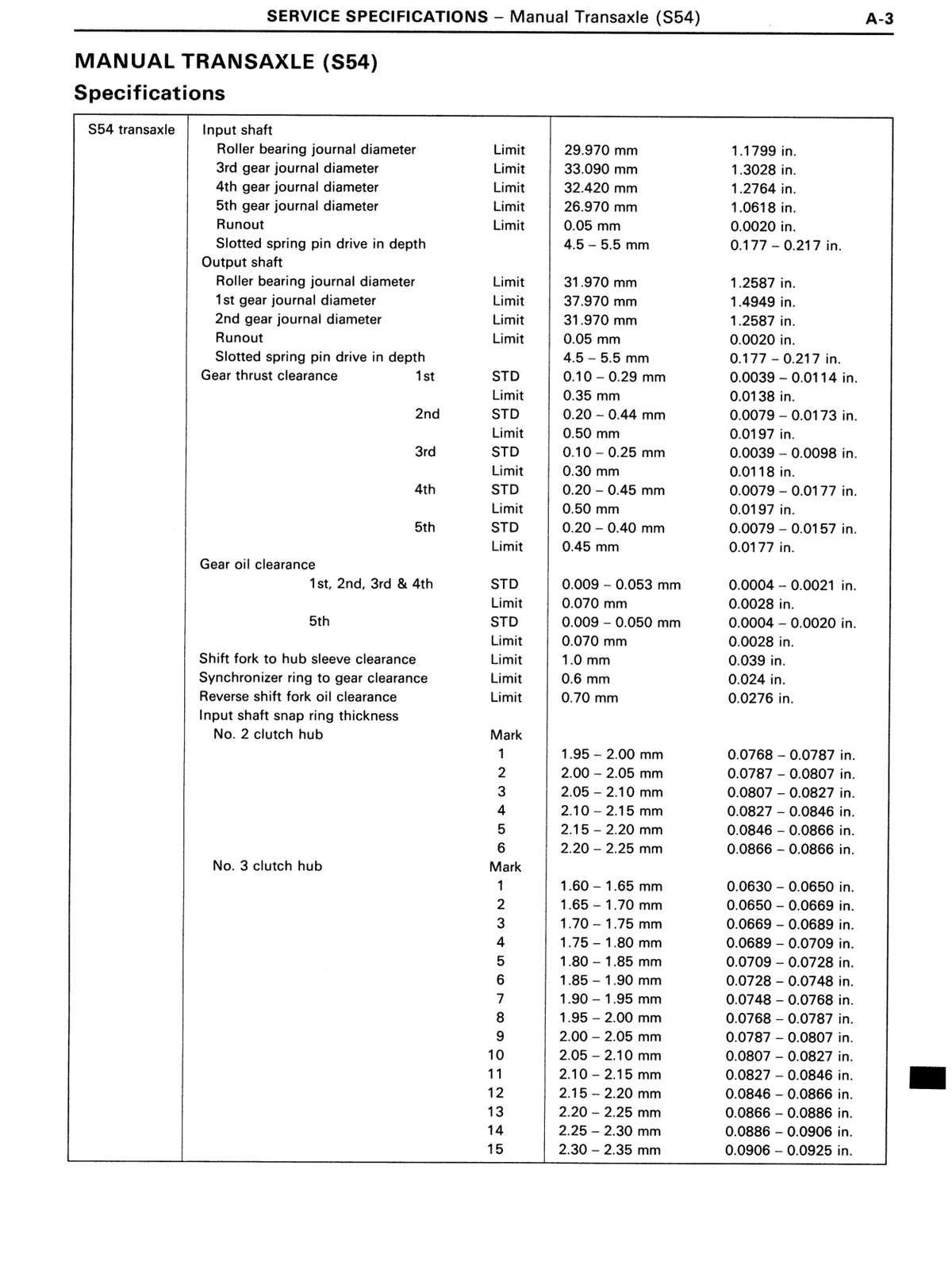

Input shaft — Roller bearing journal diameter (Limit) 1.1799 in. 29.97 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft — 3rd gear journal diameter (Limit) 1.3028 in. 33.09 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft — 4th gear journal diameter (Limit) 1.2764 in. 32.42 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft — 5th gear journal diameter (Limit) 1.0618 in. 26.97 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft — Runout (Limit) 0.0020 in. 0.05 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual

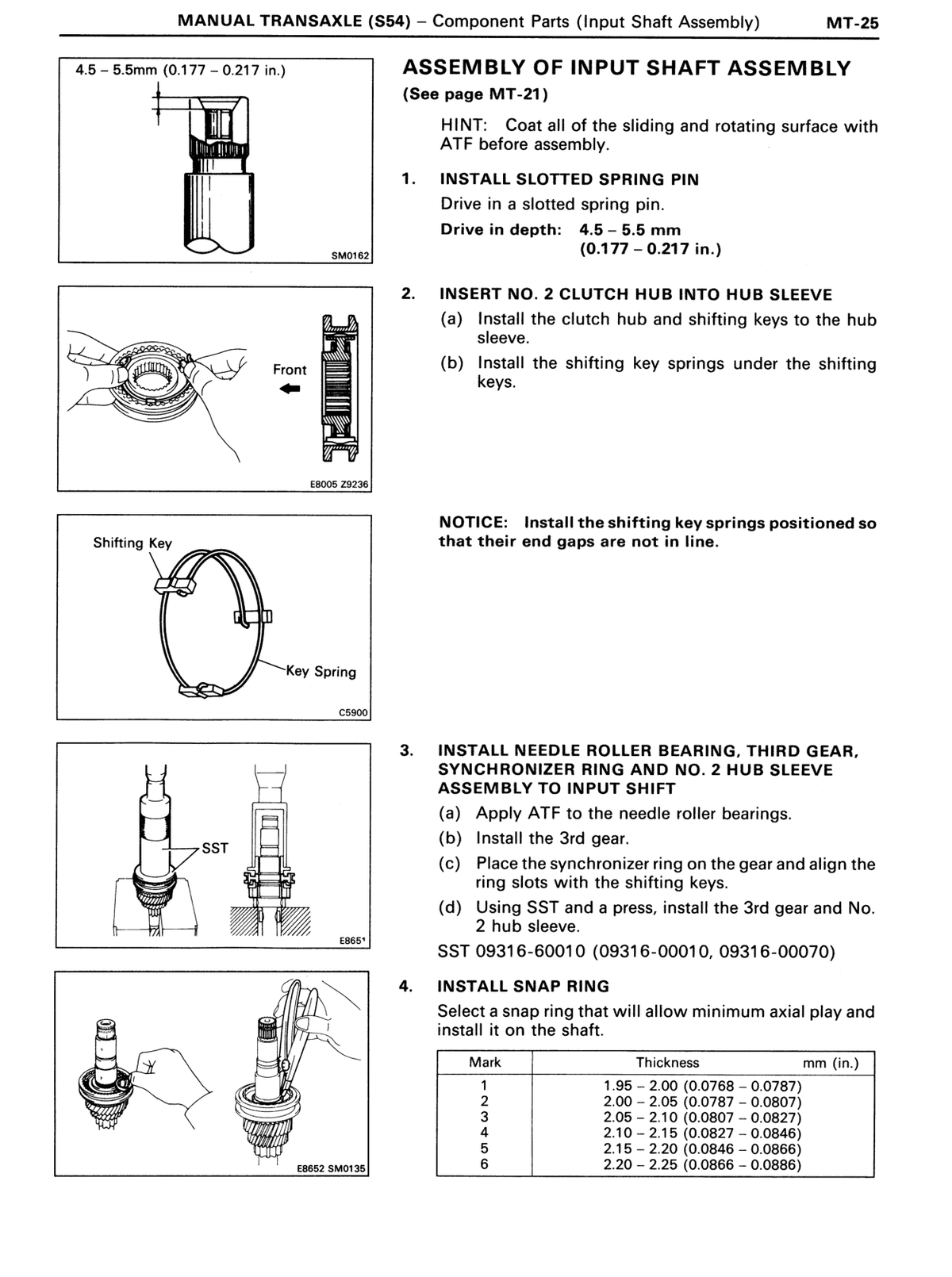

Input shaft — Slotted spring pin drive in depth 4.5 – 5.5 mm / 0.177 – 0.217 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual

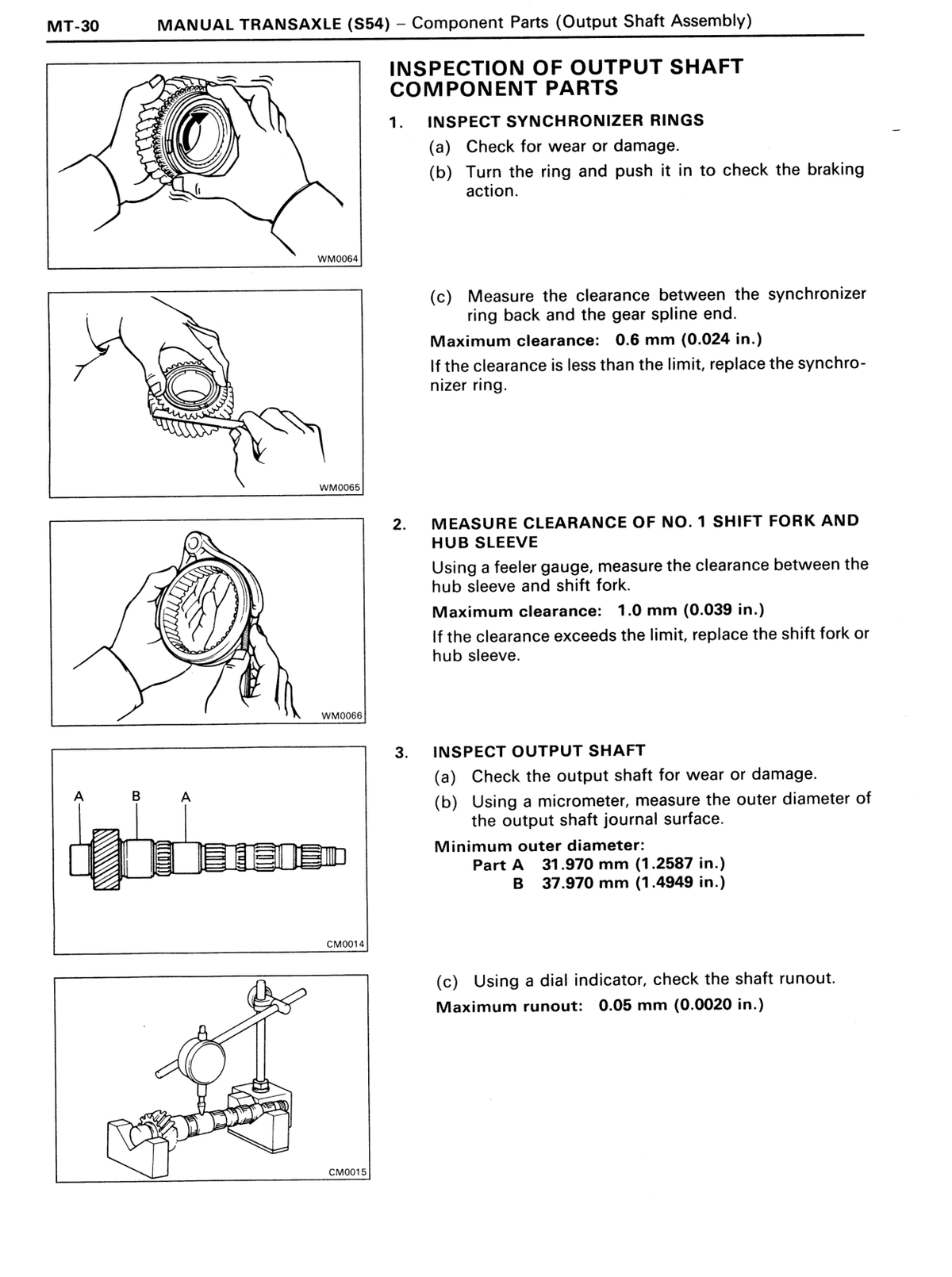

Output shaft — Roller bearing journal diameter (Limit) 1.2587 in. 31.97 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Output shaft — 1st gear journal diameter (Limit) 1.4949 in. 37.97 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Output shaft — 2nd gear journal diameter (Limit) 1.2587 in. 31.97 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Output shaft — Runout (Limit) 0.0020 in. 0.05 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual

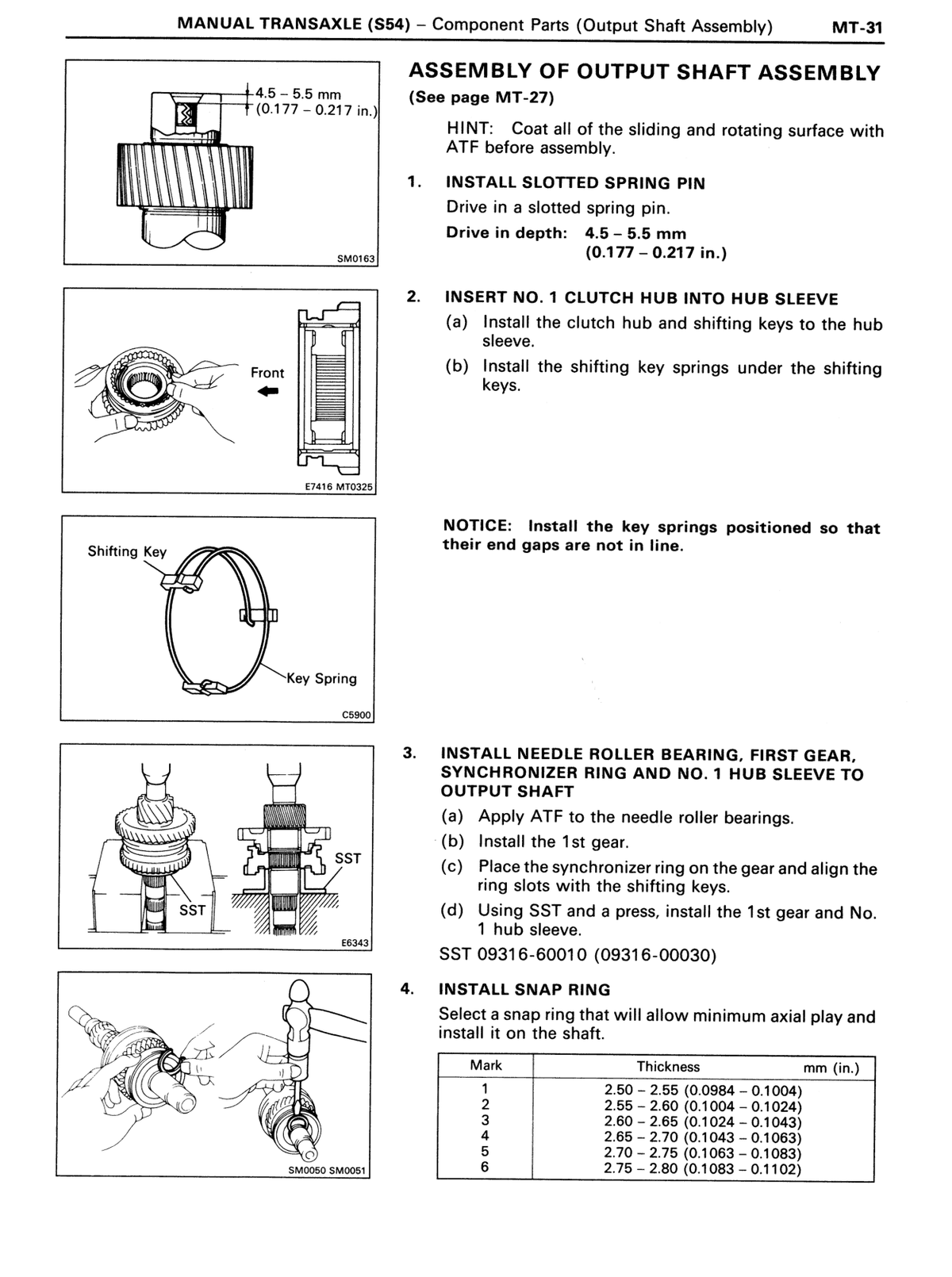

Output shaft — Slotted spring pin drive in depth 4.5 – 5.5 mm / 0.177 – 0.217 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark 1 1.95 – 2.00 mm / 0.0768 – 0.0787 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark 2 2.00 – 2.05 mm / 0.0787 – 0.0807 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark 3 2.05 – 2.10 mm / 0.0807 – 0.0827 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark 4 2.10 – 2.15 mm / 0.0827 – 0.0846 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark 5 2.15 – 2.20 mm / 0.0846 – 0.0866 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark 6 2.20 – 2.25 mm / 0.0866 – 0.0866 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 1 1.60 – 1.65 mm / 0.0630 – 0.0650 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 2 1.65 – 1.70 mm / 0.0650 – 0.0669 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 3 1.70 – 1.75 mm / 0.0669 – 0.0689 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 4 1.75 – 1.80 mm / 0.0689 – 0.0709 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 5 1.80 – 1.85 mm / 0.0709 – 0.0728 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 6 1.85 – 1.90 mm / 0.0728 – 0.0748 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 7 1.90 – 1.95 mm / 0.0748 – 0.0768 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 8 1.95 – 2.00 mm / 0.0768 – 0.0787 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 9 2.00 – 2.05 mm / 0.0787 – 0.0807 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 10 2.05 – 2.10 mm / 0.0807 – 0.0827 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 11 2.10 – 2.15 mm / 0.0827 – 0.0846 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 12 2.15 – 2.20 mm / 0.0846 – 0.0866 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 13 2.20 – 2.25 mm / 0.0866 – 0.0886 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 14 2.25 – 2.30 mm / 0.0886 – 0.0906 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual
Input shaft snap ring thickness — No. 3 clutch hub — Mark 15 2.30 – 2.35 mm / 0.0906 – 0.0925 in. 0 mm Transmission / transaxle ↗ RM179U1_1991 · p1547 OEM manual

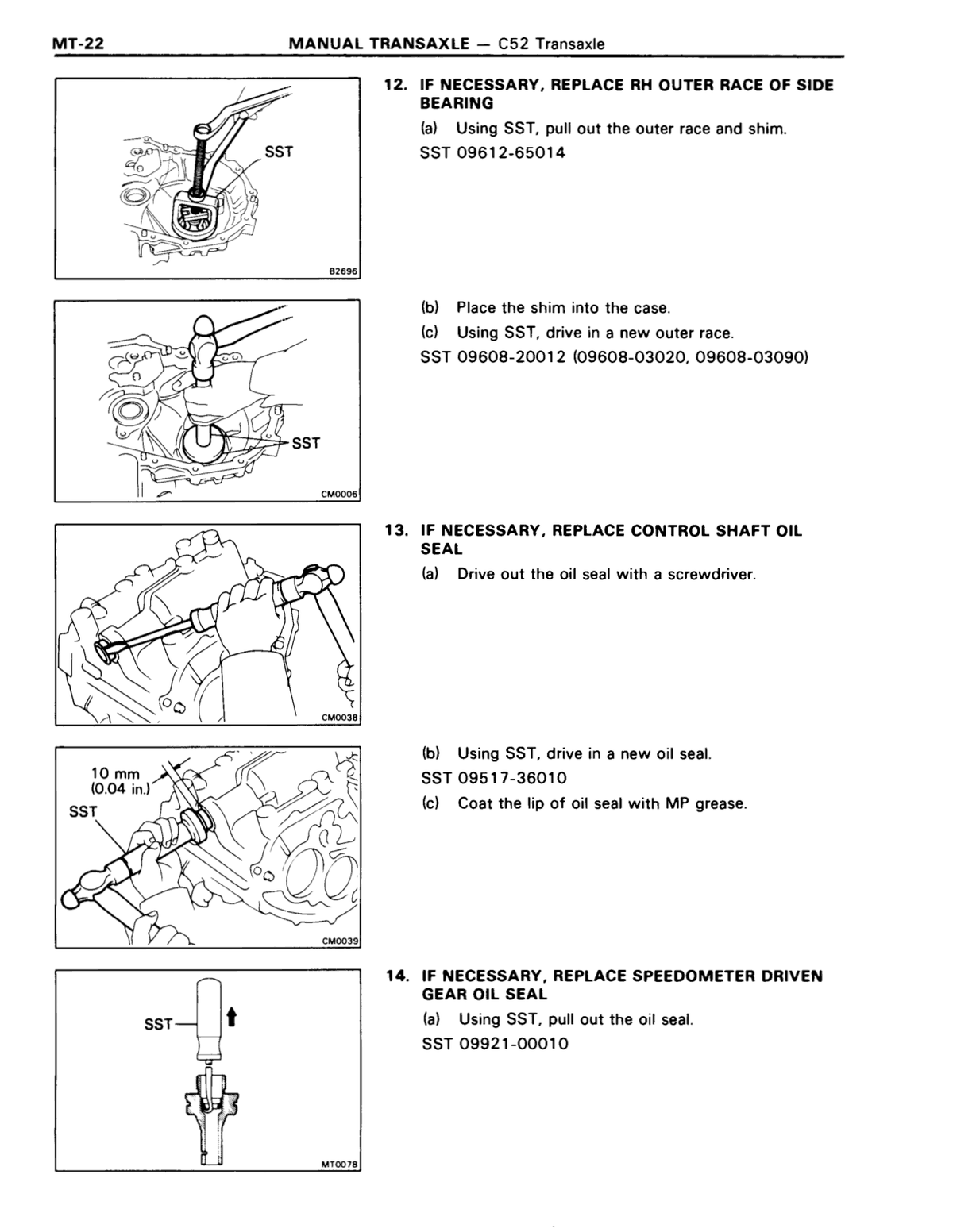

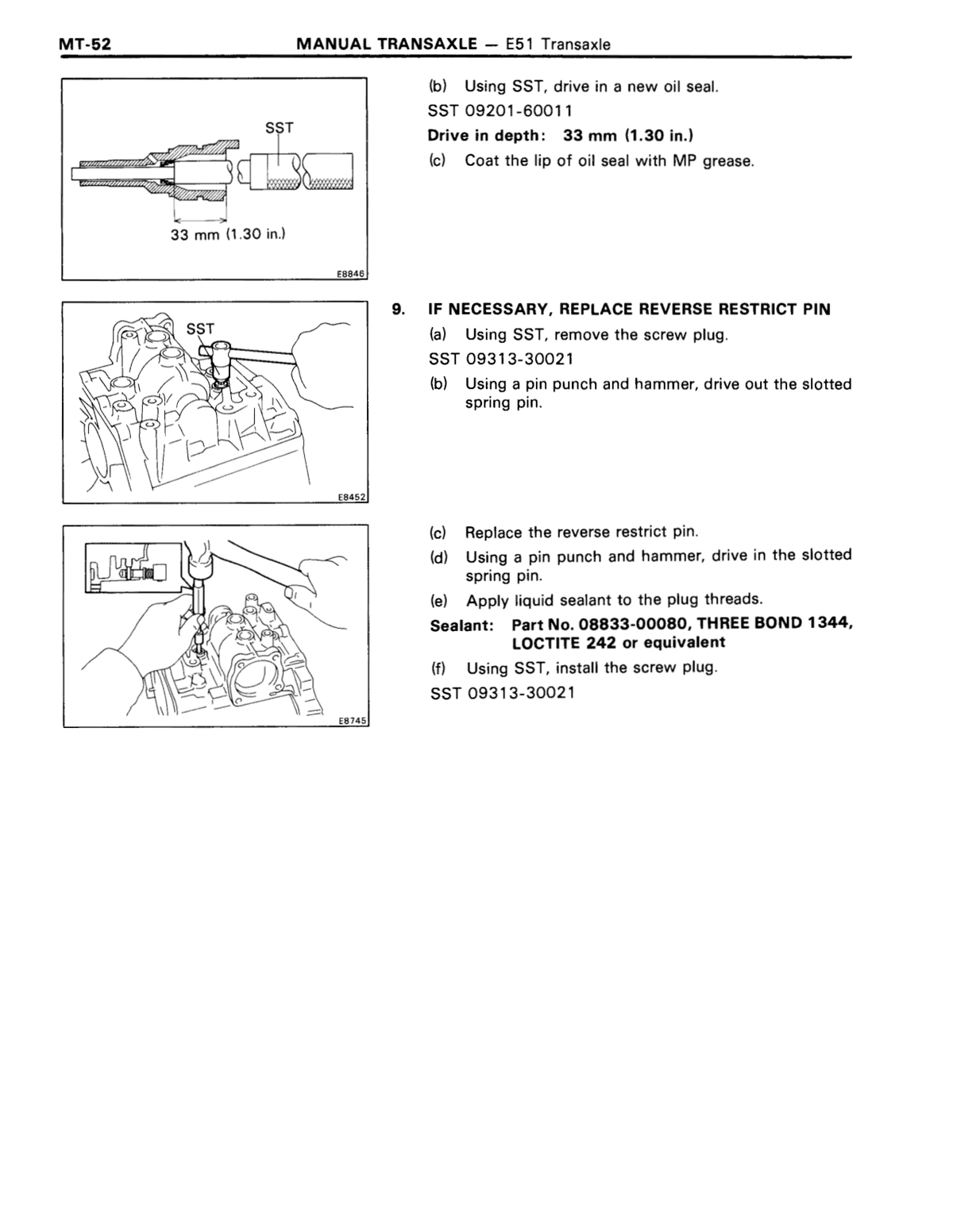

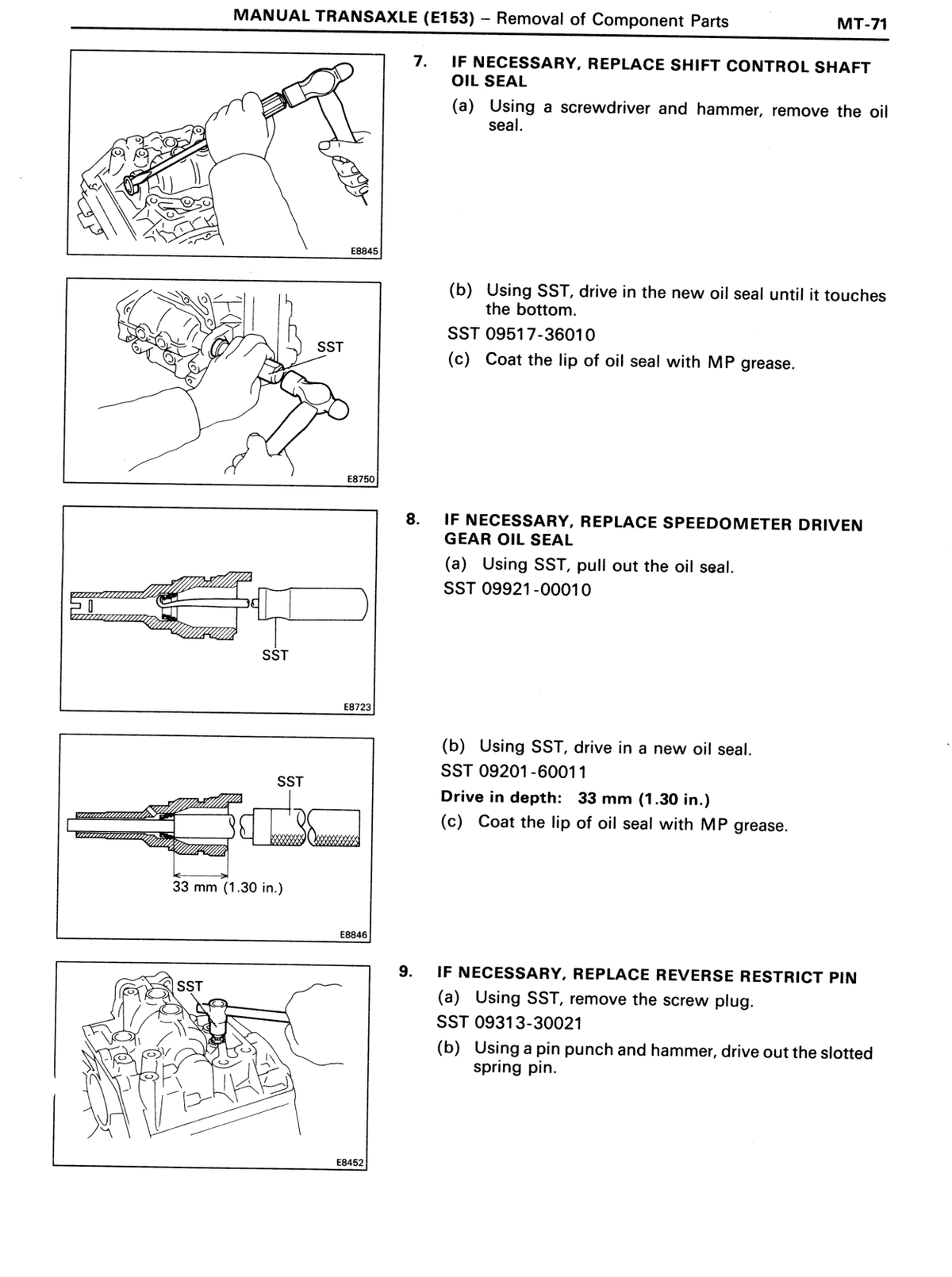

Speedometer driven gear oil seal drive in depth 1.30 in. 33 mm Transmission / transaxle ↗ RM179U1_1991 · p1550 OEM manual

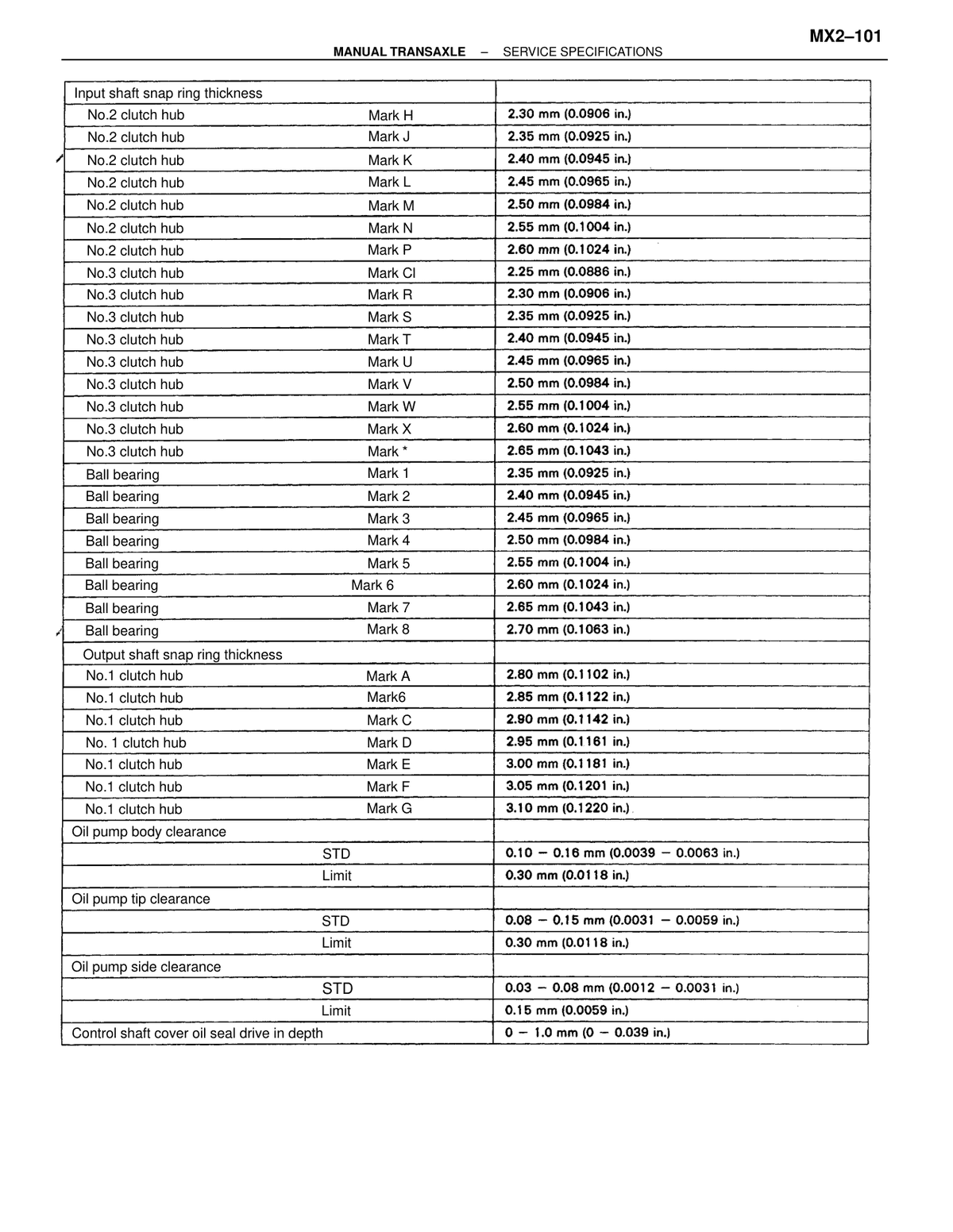

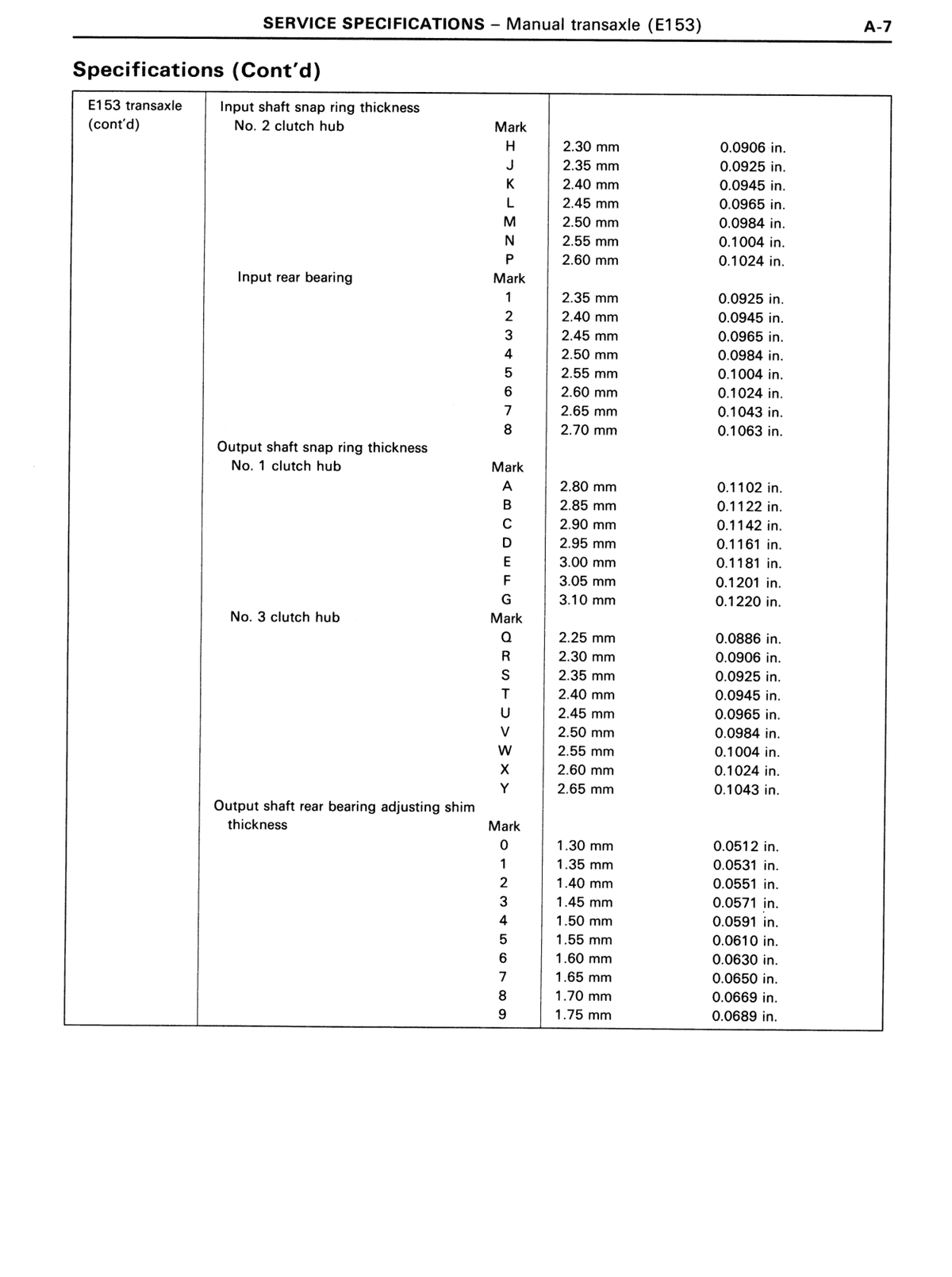

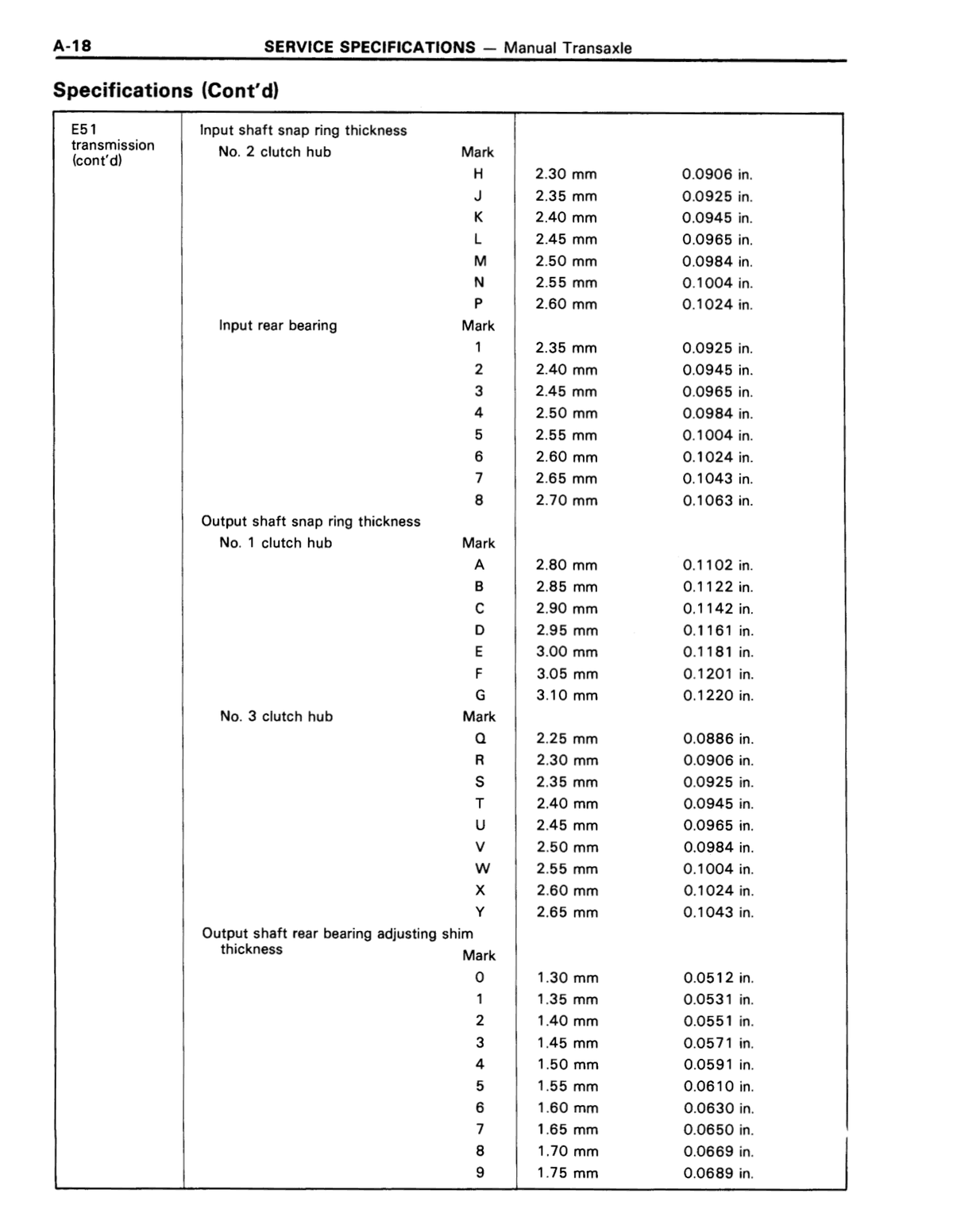

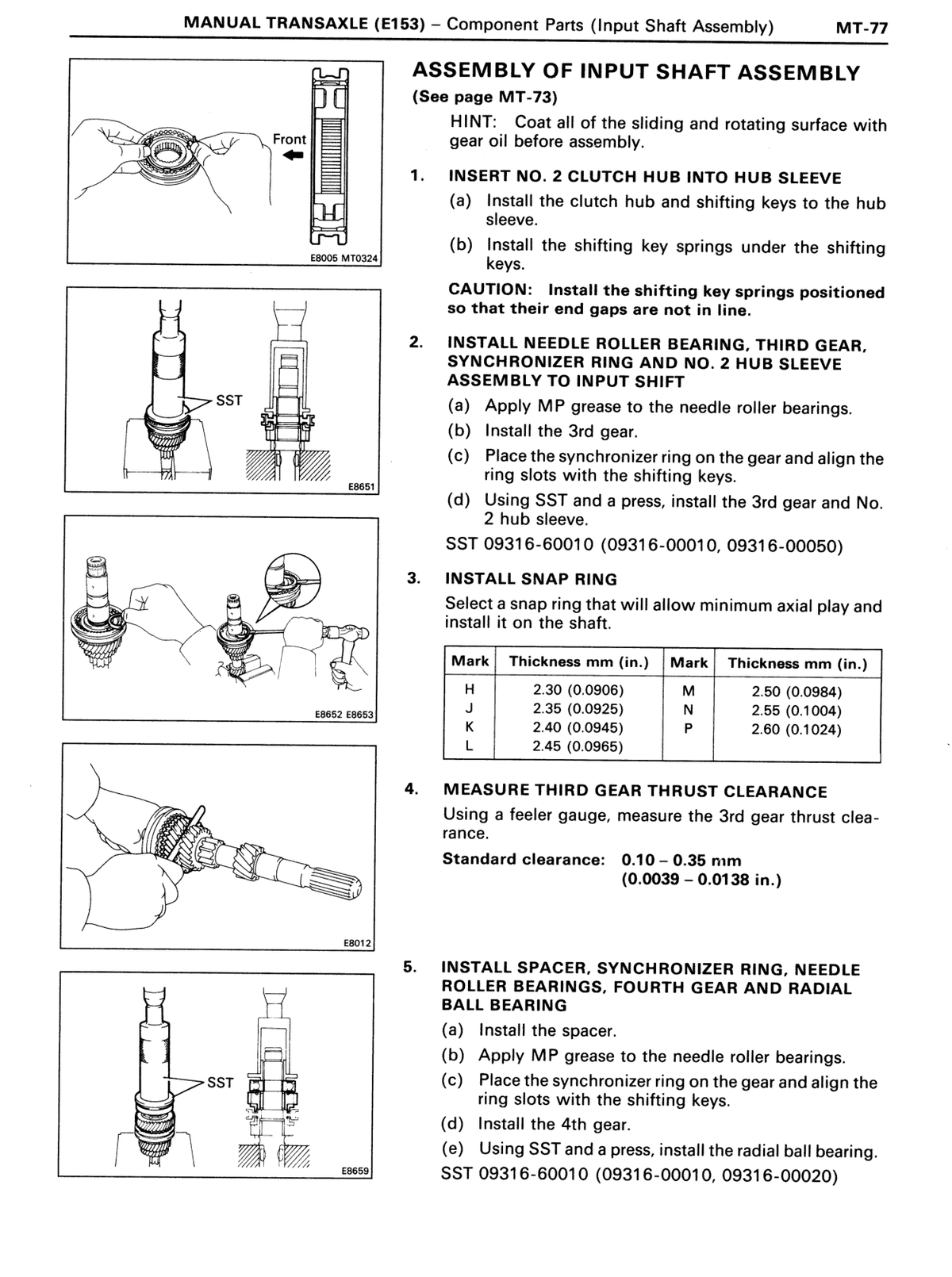

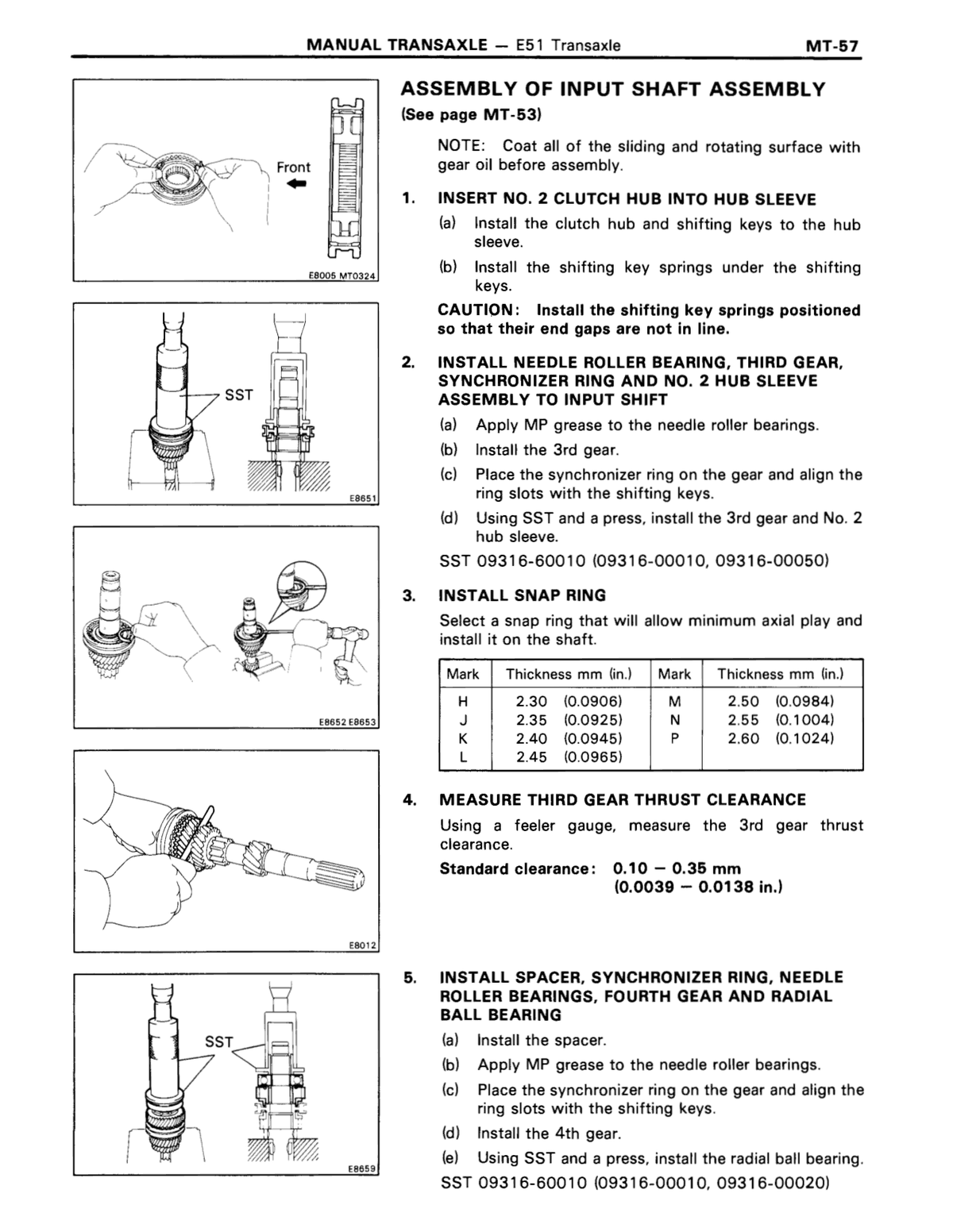

Input shaft snap ring thickness — No. 2 clutch hub — Mark H 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark J 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark K 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark L 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark M 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark N 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input shaft snap ring thickness — No. 2 clutch hub — Mark P 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual

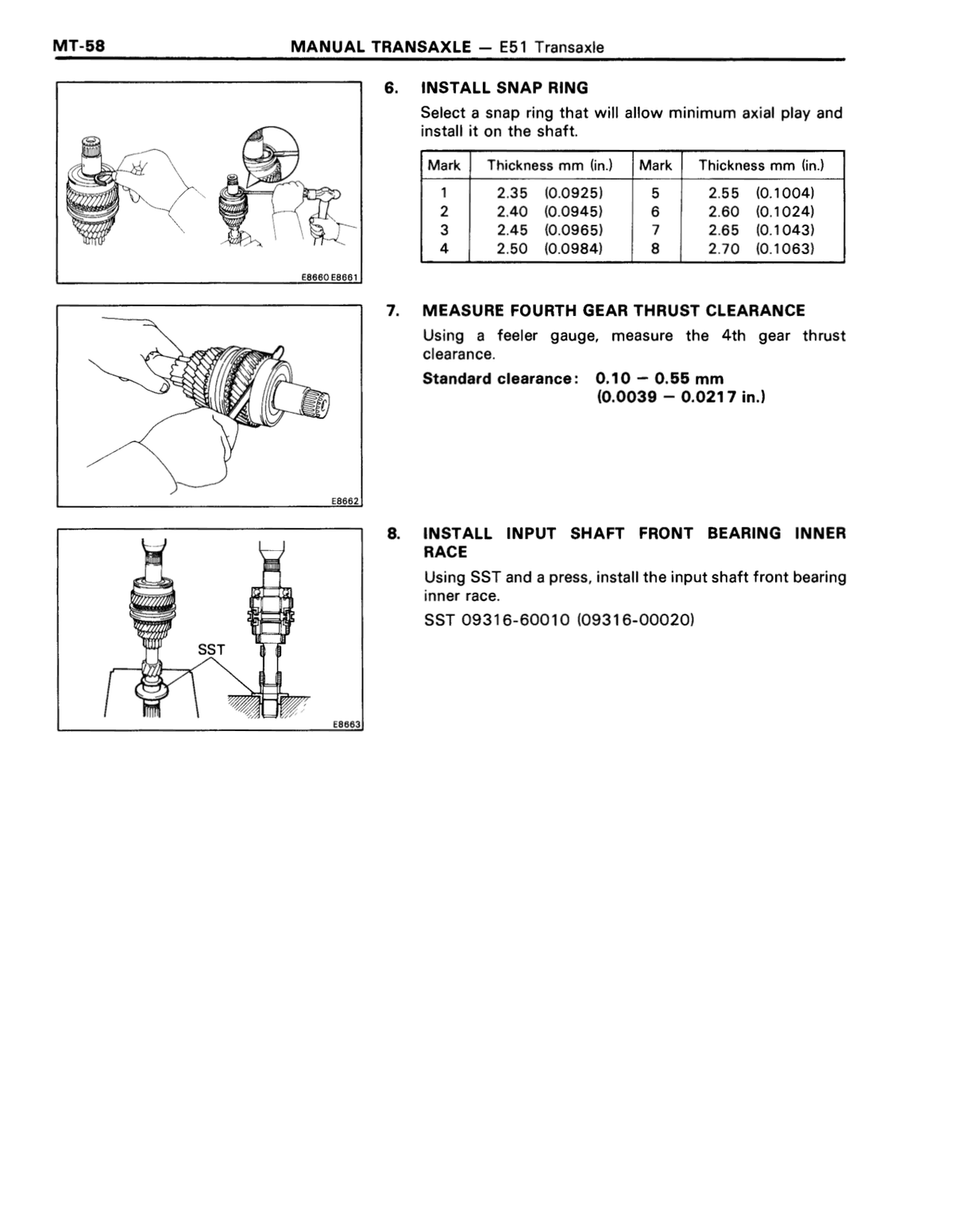

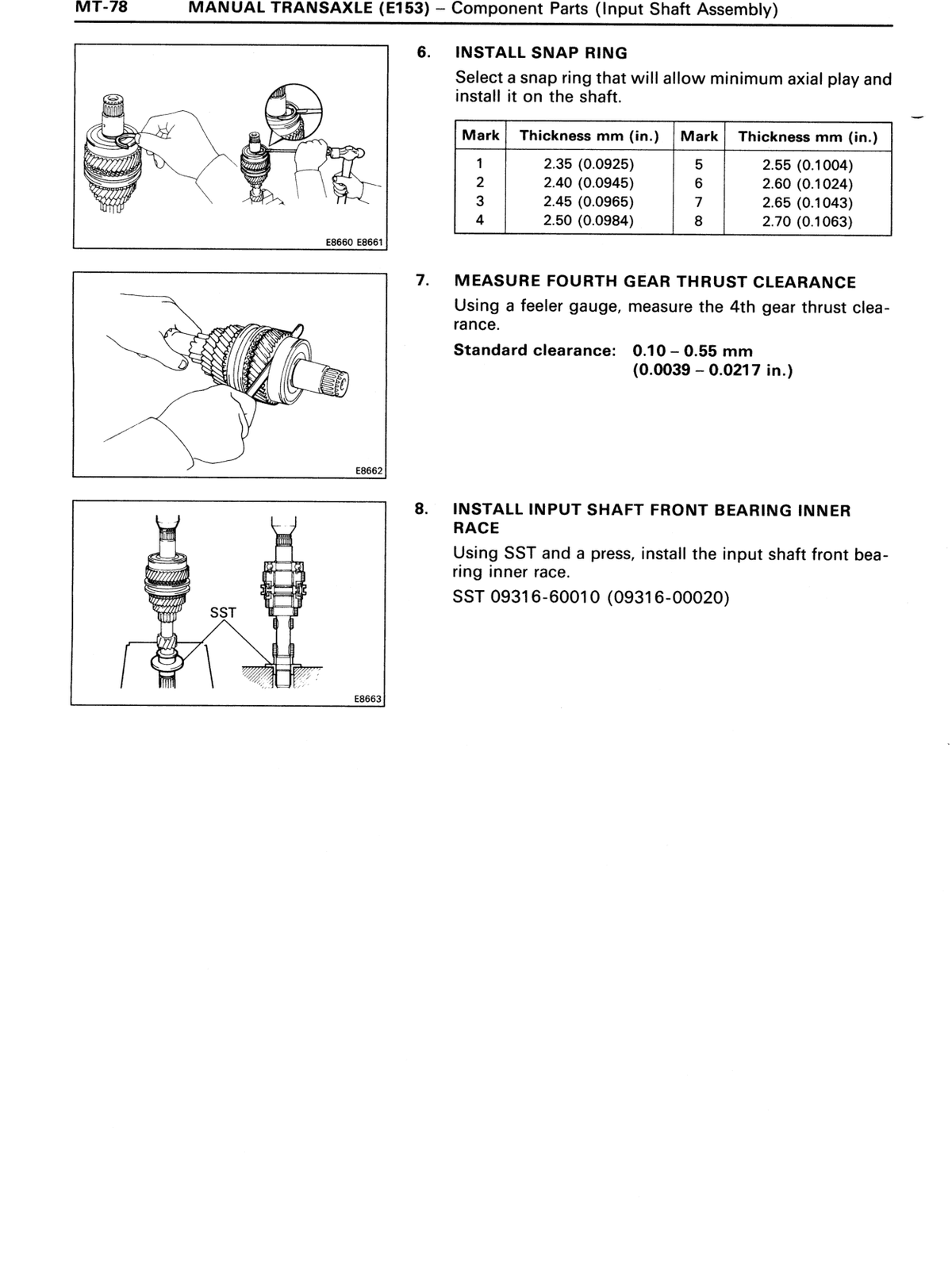

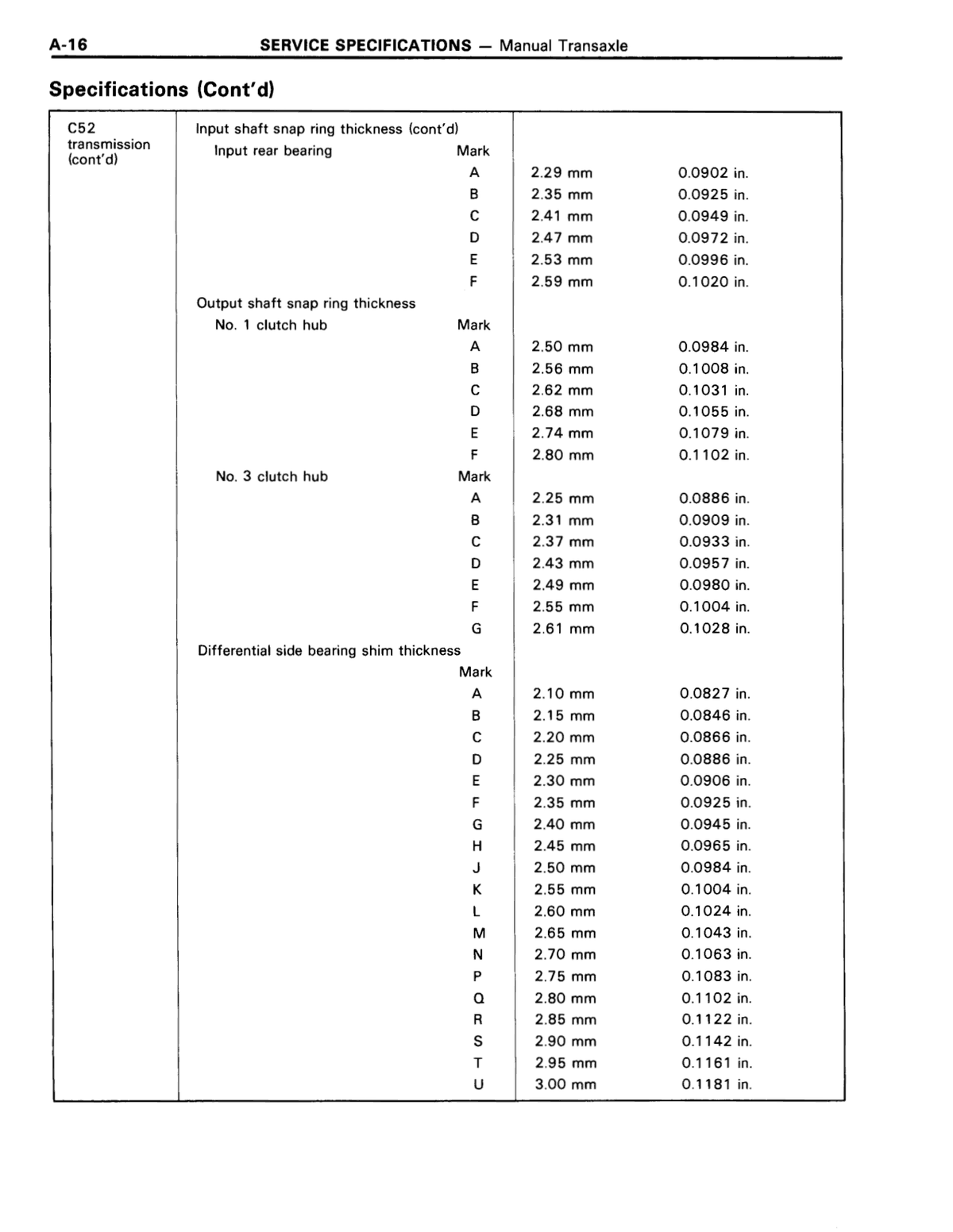

Input rear bearing — Mark 1 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input rear bearing — Mark 2 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input rear bearing — Mark 3 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input rear bearing — Mark 4 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input rear bearing — Mark 5 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input rear bearing — Mark 6 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input rear bearing — Mark 7 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Input rear bearing — Mark 8 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual

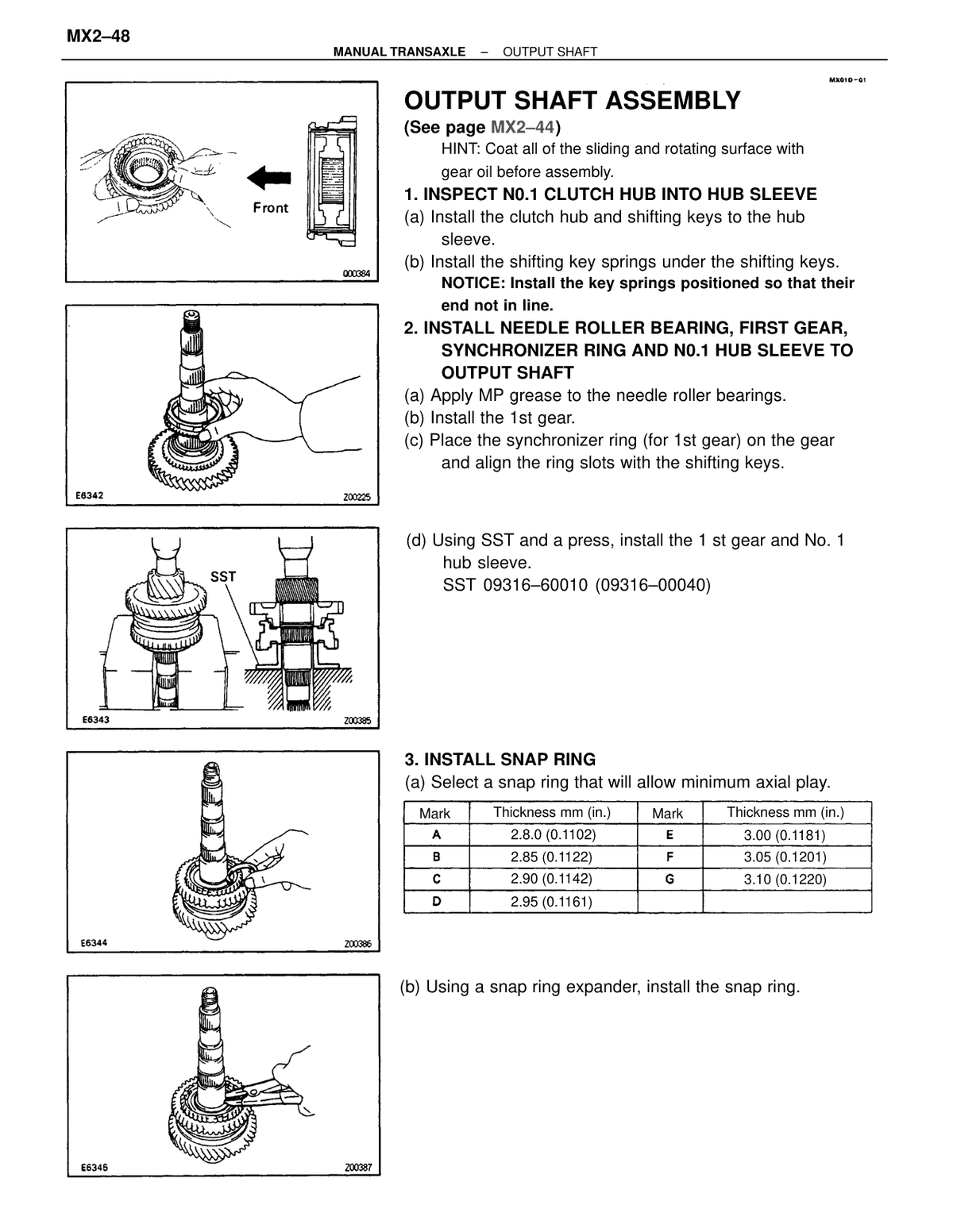

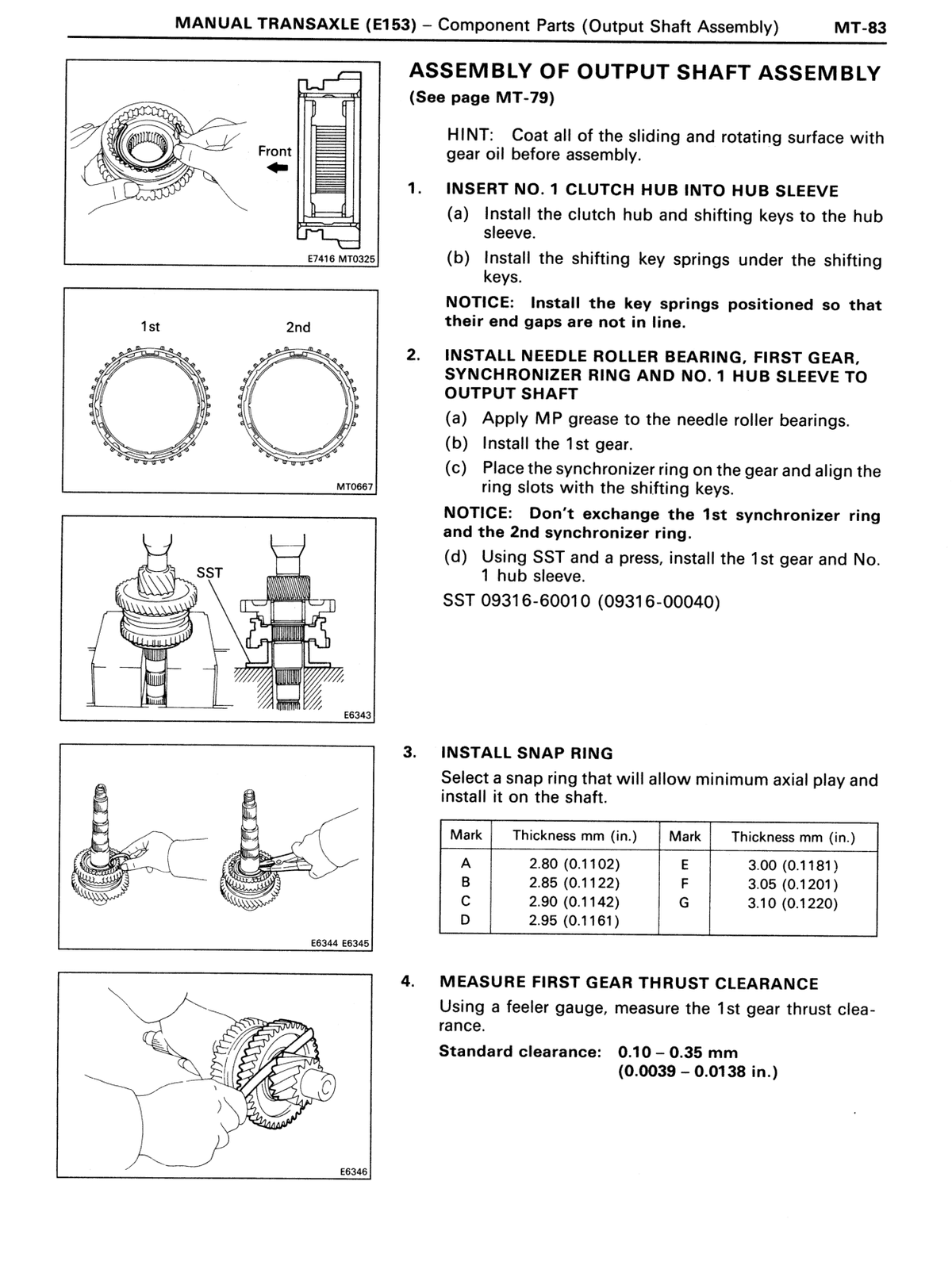

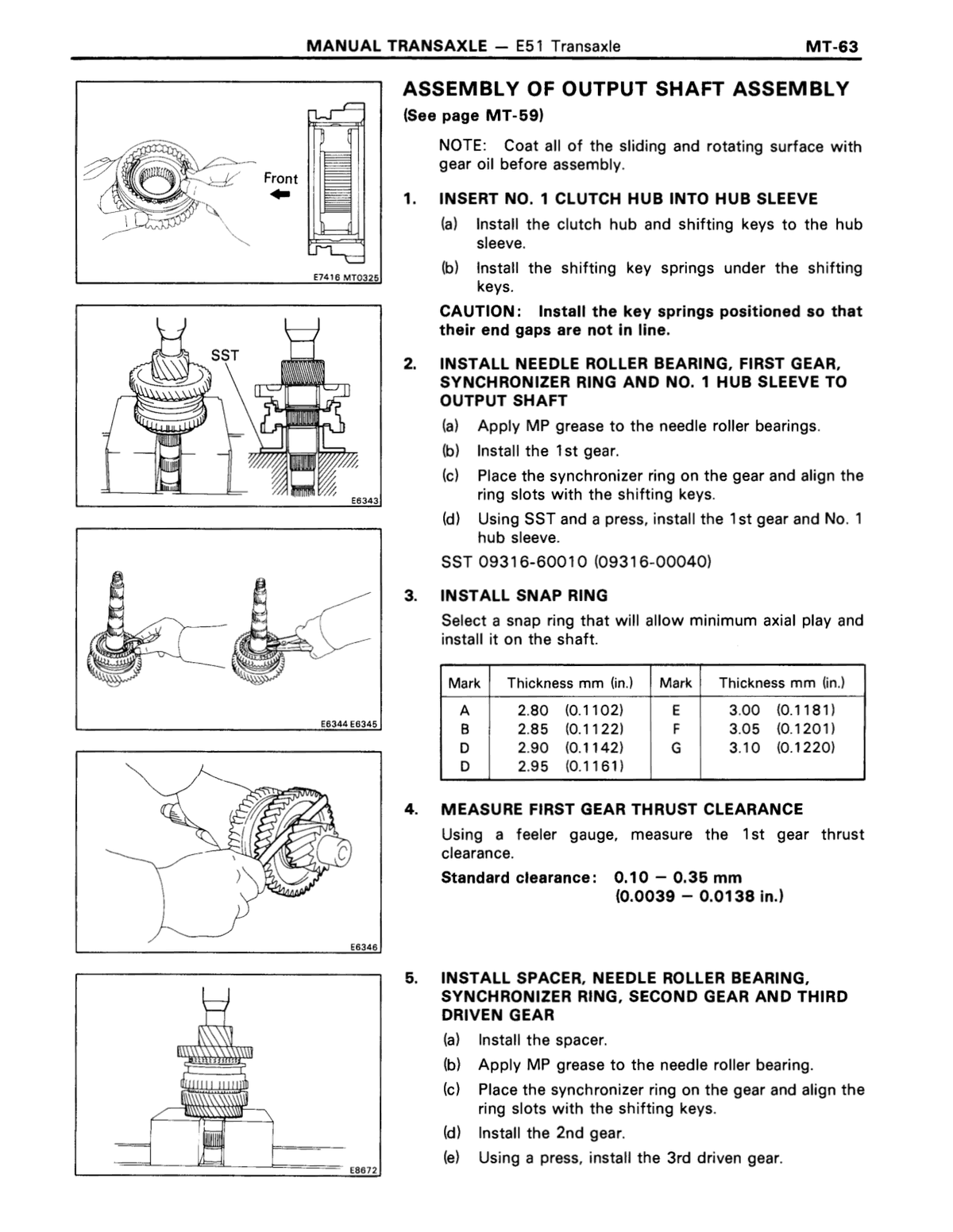

Output shaft snap ring thickness — No. 1 clutch hub — Mark A 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 1 clutch hub — Mark B 0.1122 in. 2.85 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 1 clutch hub — Mark C 0.1142 in. 2.9 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 1 clutch hub — Mark D 0.1161 in. 2.95 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 1 clutch hub — Mark E 0.1181 in. 3 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 1 clutch hub — Mark F 0.1201 in. 3.05 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 1 clutch hub — Mark G 0.1220 in. 3.1 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual

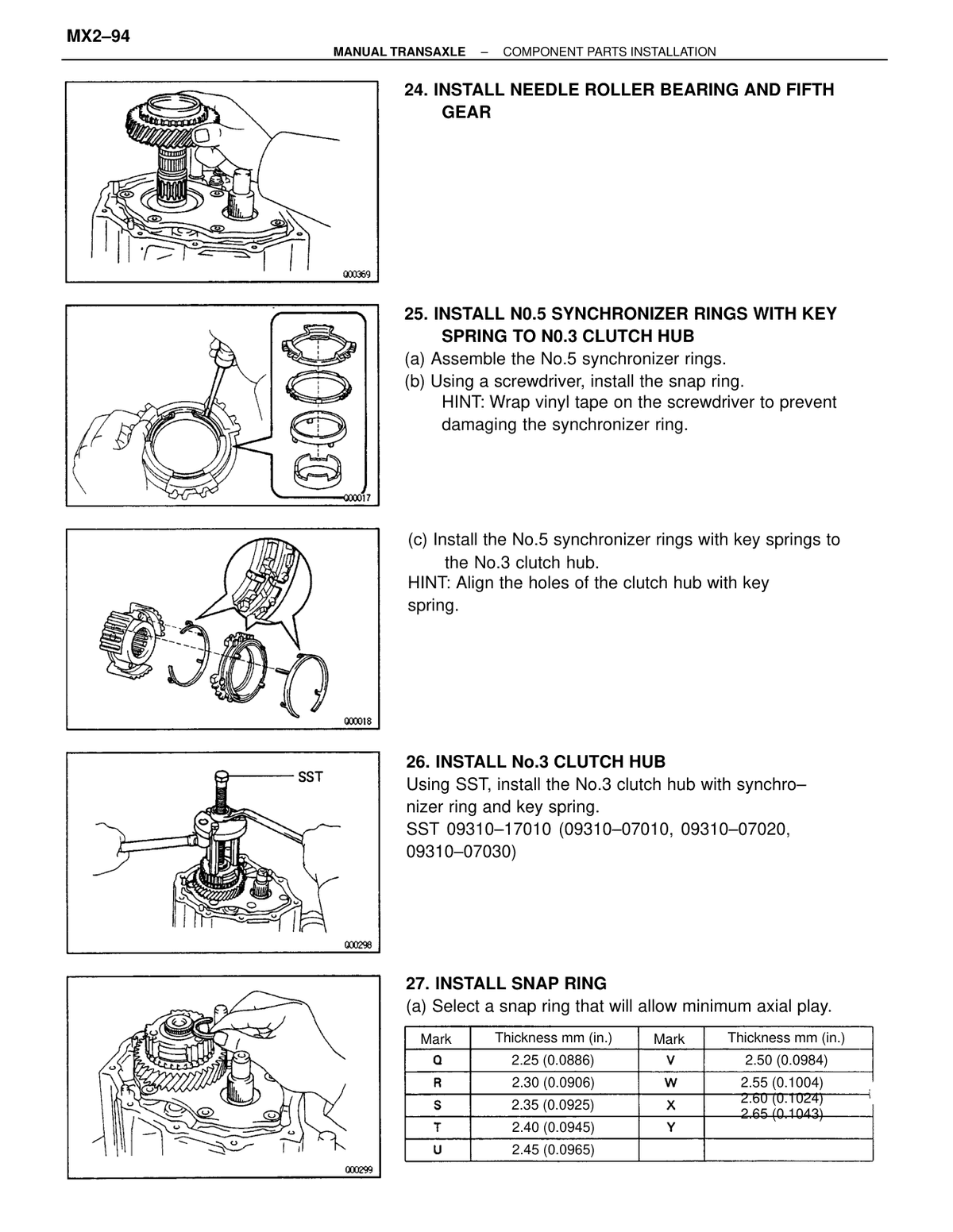

Output shaft snap ring thickness — No. 3 clutch hub — Mark Q 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 3 clutch hub — Mark R 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 3 clutch hub — Mark S 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 3 clutch hub — Mark T 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 3 clutch hub — Mark U 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 3 clutch hub — Mark V 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 3 clutch hub — Mark W 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 3 clutch hub — Mark X 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft snap ring thickness — No. 3 clutch hub — Mark Y 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual

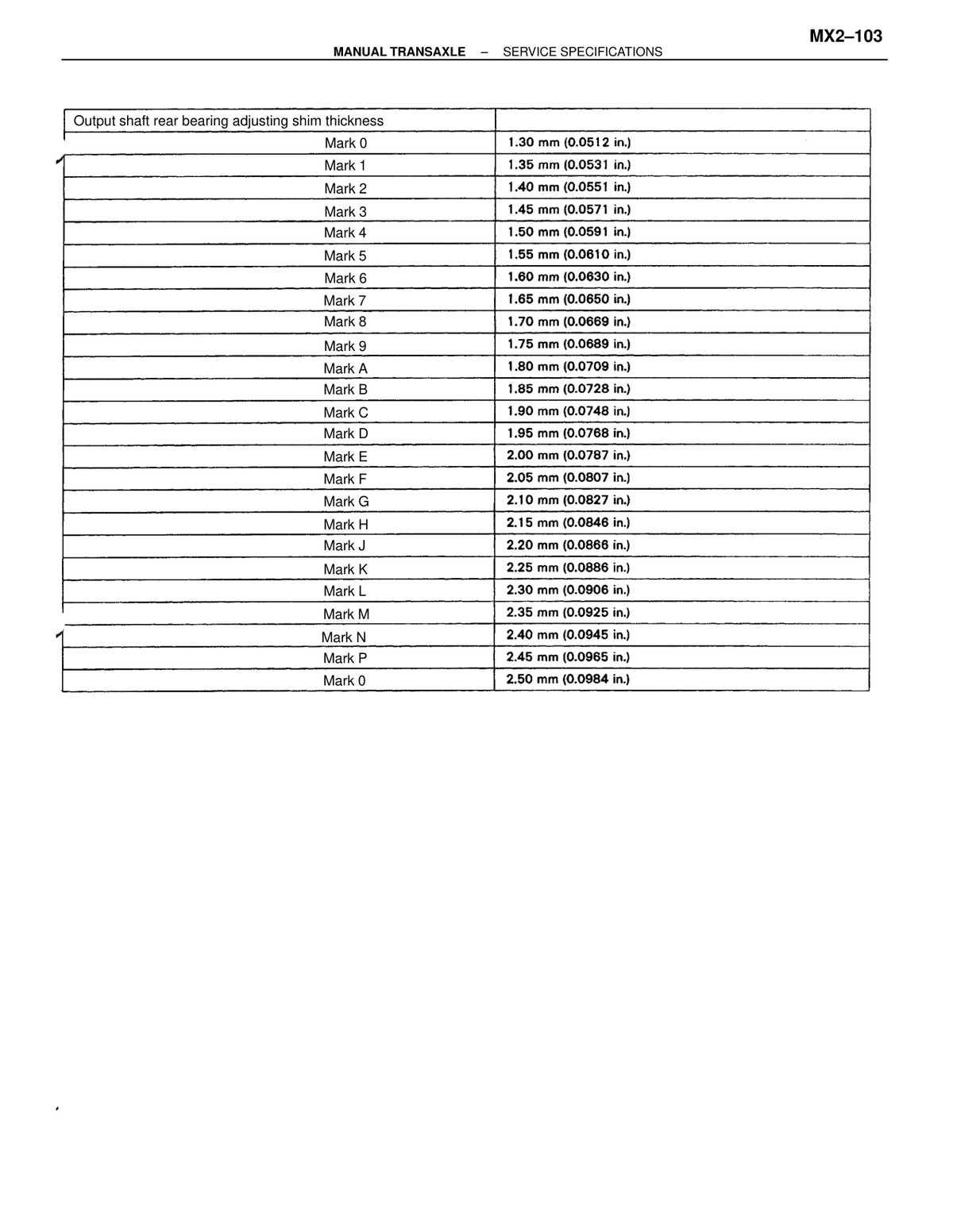

Output shaft rear bearing adjusting shim thickness — Mark 0 0.0512 in. 1.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 1 0.0531 in. 1.35 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 2 0.0551 in. 1.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 3 0.0571 in. 1.45 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 4 0.0591 in. 1.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 5 0.0610 in. 1.55 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 6 0.0630 in. 1.6 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 7 0.0650 in. 1.65 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 8 0.0669 in. 1.7 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 9 0.0689 in. 1.75 mm Transmission / transaxle ↗ RM179U1_1991 · p1551 OEM manual

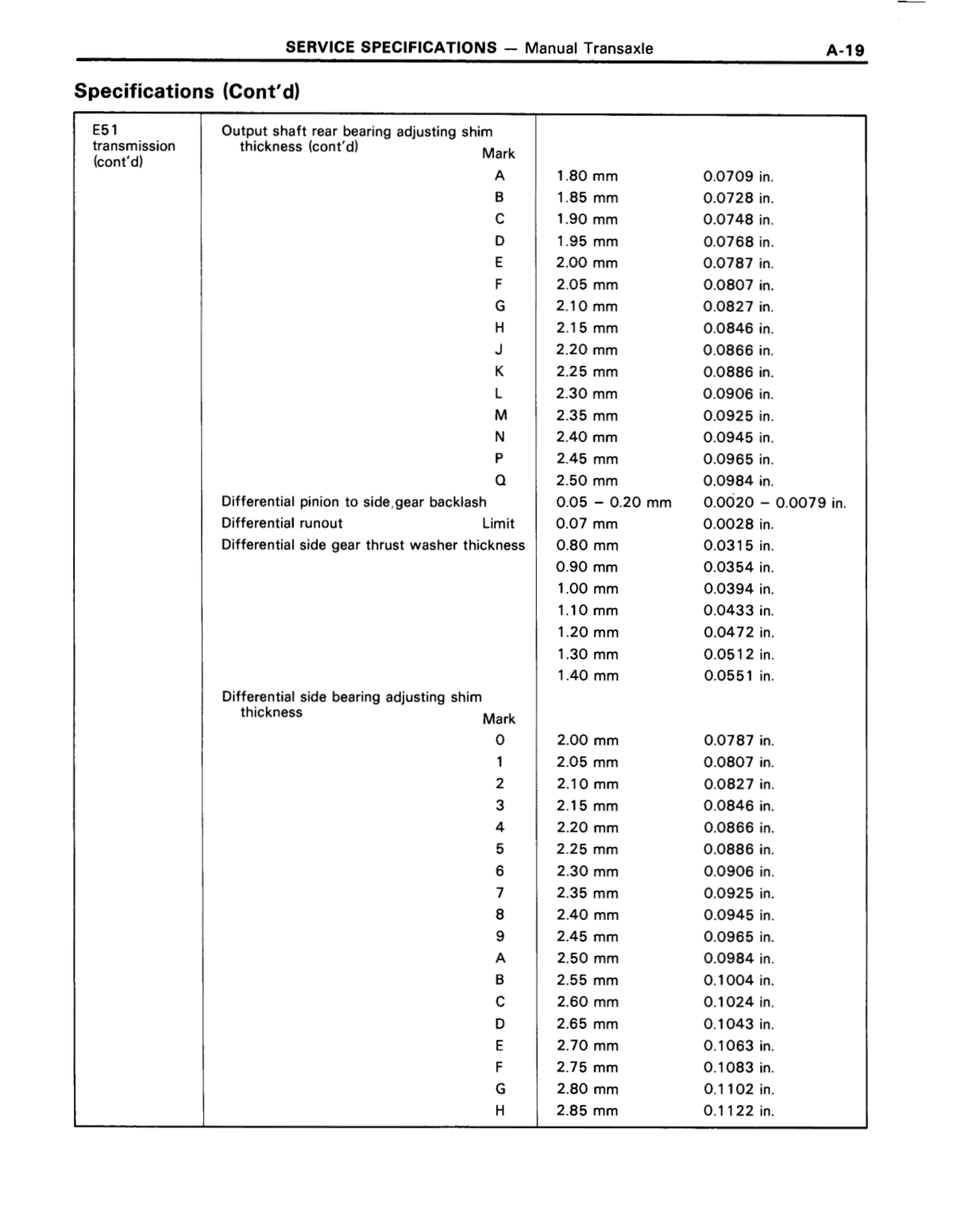

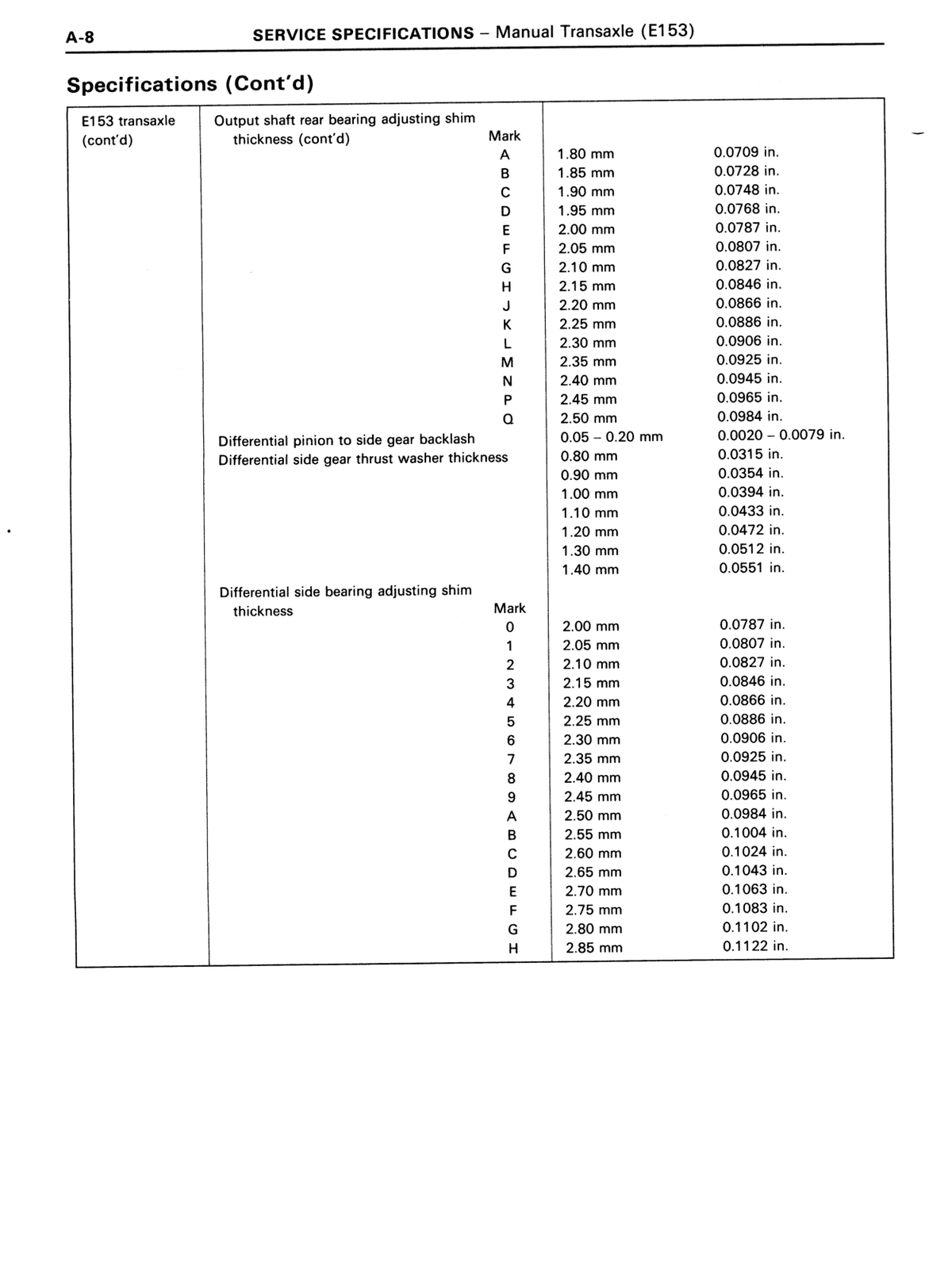

Output shaft rear bearing adjusting shim thickness — Mark A 0.0709 in. 1.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark B 0.0728 in. 1.85 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark C 0.0748 in. 1.9 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark D 0.0768 in. 1.95 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark E 0.0787 in. 2 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark F 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark G 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark H 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark J 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark K 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark L 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark M 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark N 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark P 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark Q 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side gear thrust washer thickness — 0.80 mm 0.0315 in. 0.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side gear thrust washer thickness — 0.90 mm 0.0354 in. 0.9 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side gear thrust washer thickness — 1.00 mm 0.0394 in. 1 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side gear thrust washer thickness — 1.10 mm 0.0433 in. 1.1 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side gear thrust washer thickness — 1.20 mm 0.0472 in. 1.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side gear thrust washer thickness — 1.30 mm 0.0512 in. 1.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side gear thrust washer thickness — 1.40 mm 0.0551 in. 1.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual

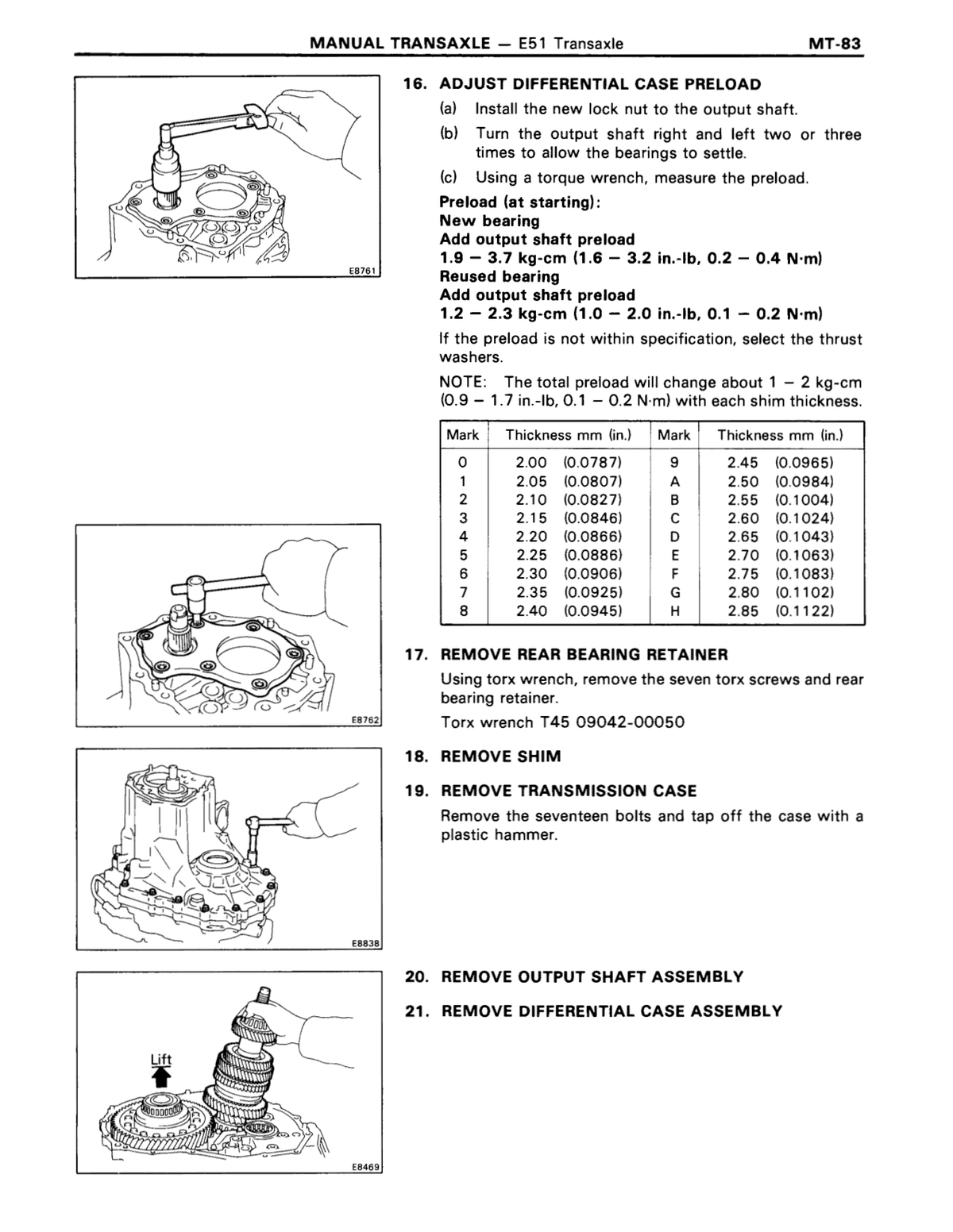

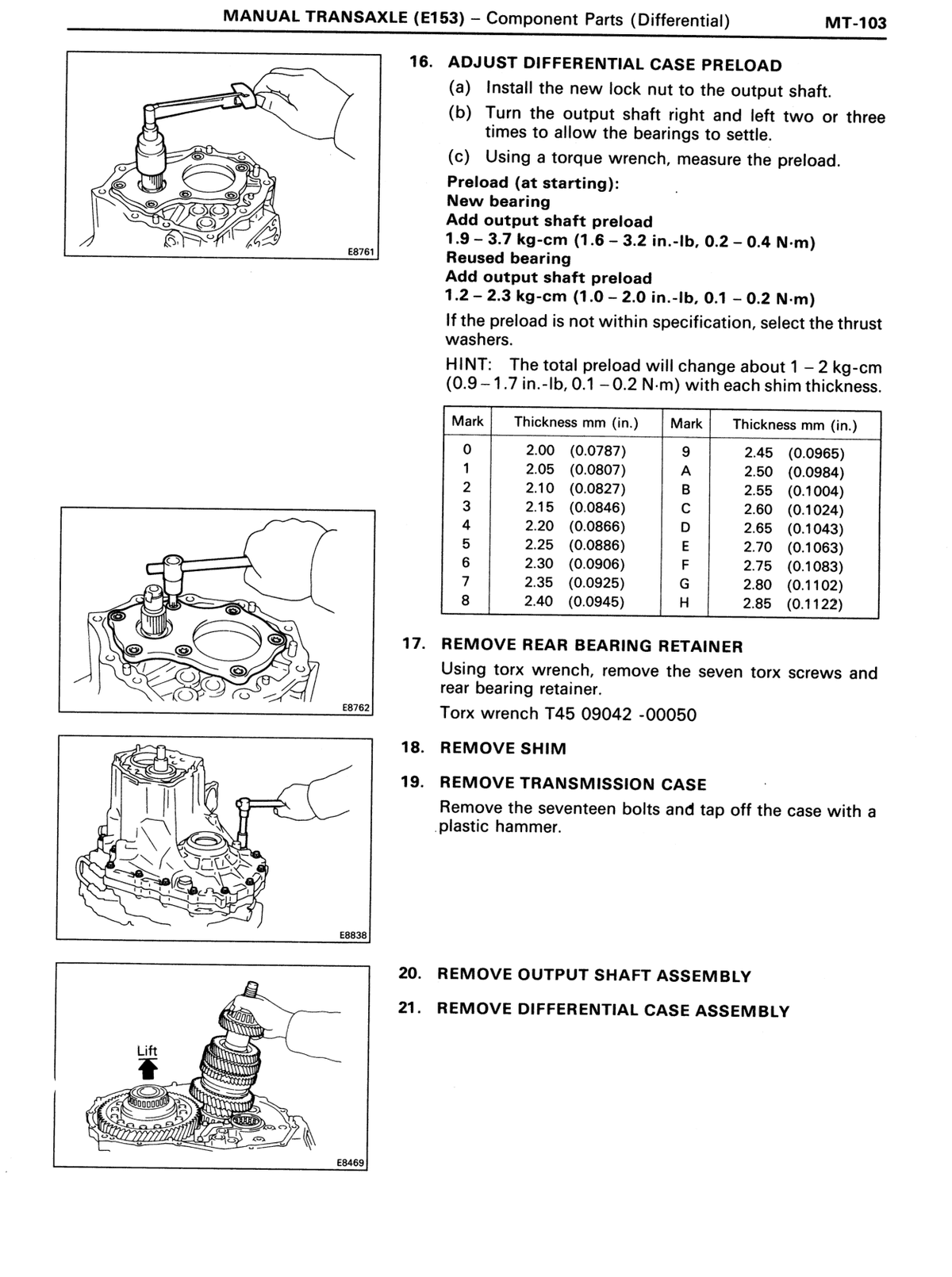

Differential side bearing adjusting shim thickness — Mark 0 0.0787 in. 2 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 1 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 2 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 3 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 4 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 5 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 6 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 7 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 8 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark 9 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark A 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark B 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark C 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark D 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark E 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark F 0.1083 in. 2.75 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark G 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual
Differential side bearing adjusting shim thickness — Mark H 0.1122 in. 2.85 mm Transmission / transaxle ↗ RM179U1_1991 · p1552 OEM manual

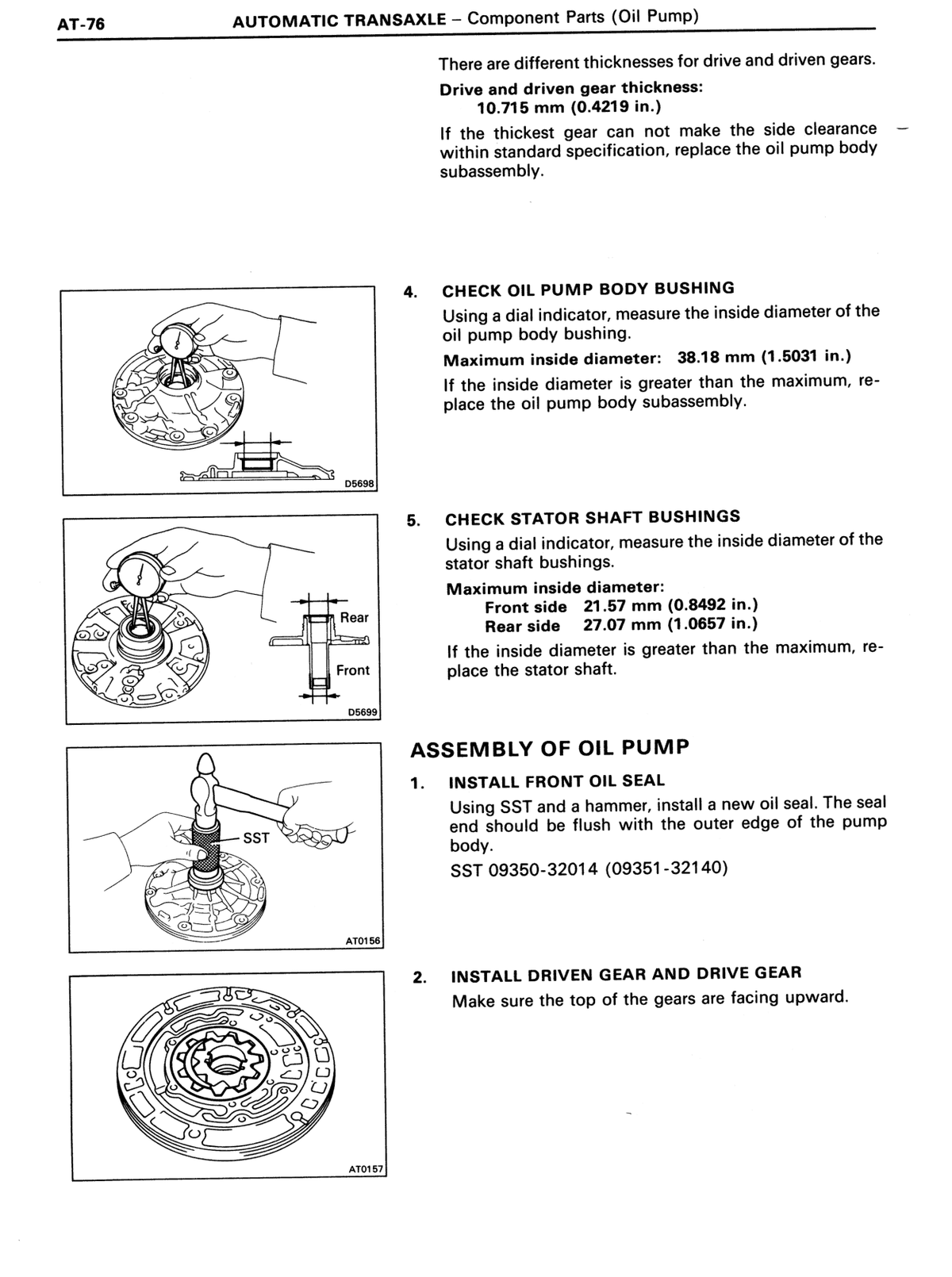

Oil pump body bushing inside diameter — Maximum 1.5031 in. 38.18 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual
Stator shaft bushing inside diameter — Front side — Maximum 0.8492 in. 21.57 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual
Stator shaft bushing inside diameter — Rear side — Maximum 1.0657 in. 27.07 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual

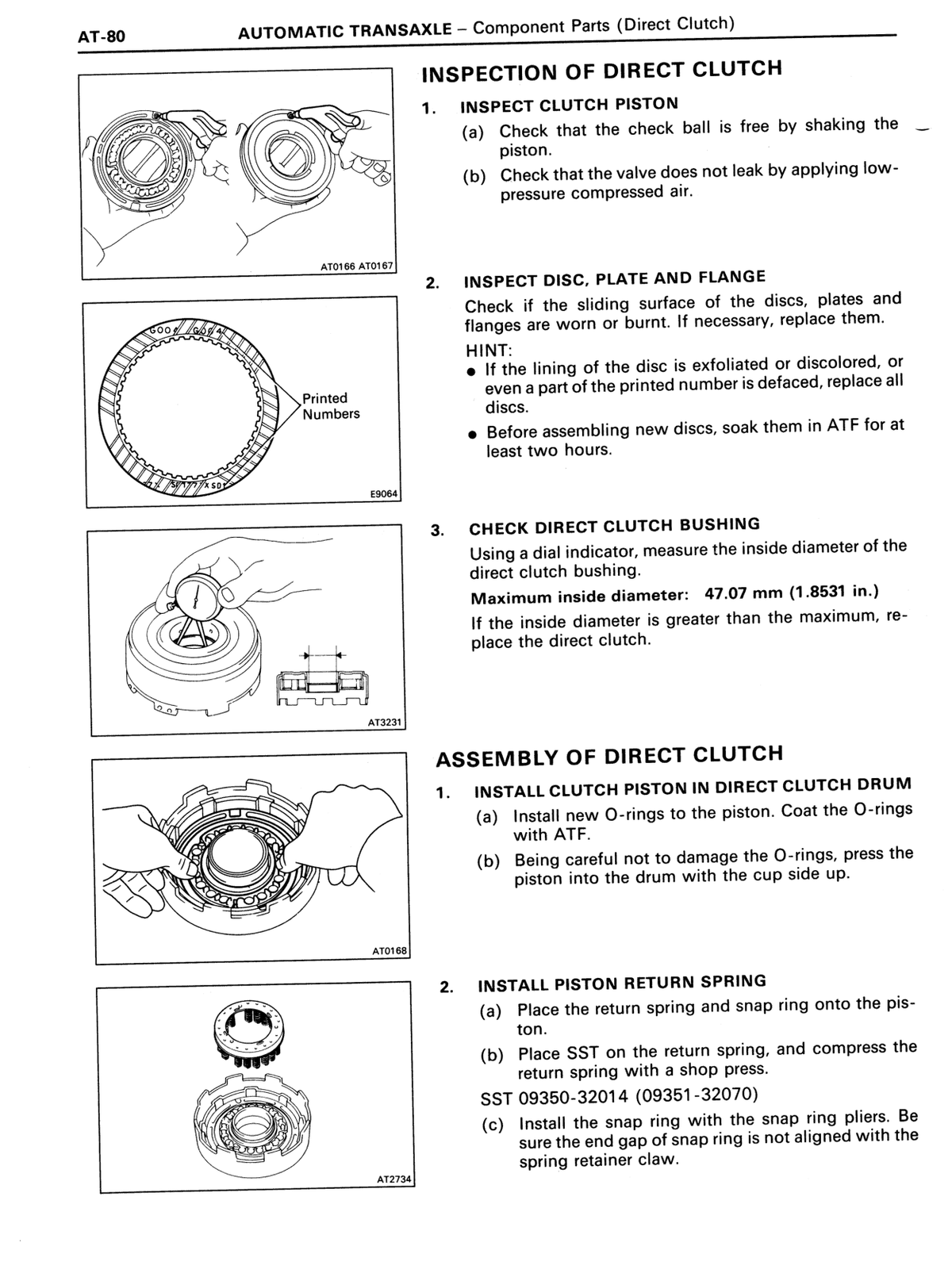

Direct clutch drum bushing inside diameter 1.8531 in. 47.07 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual

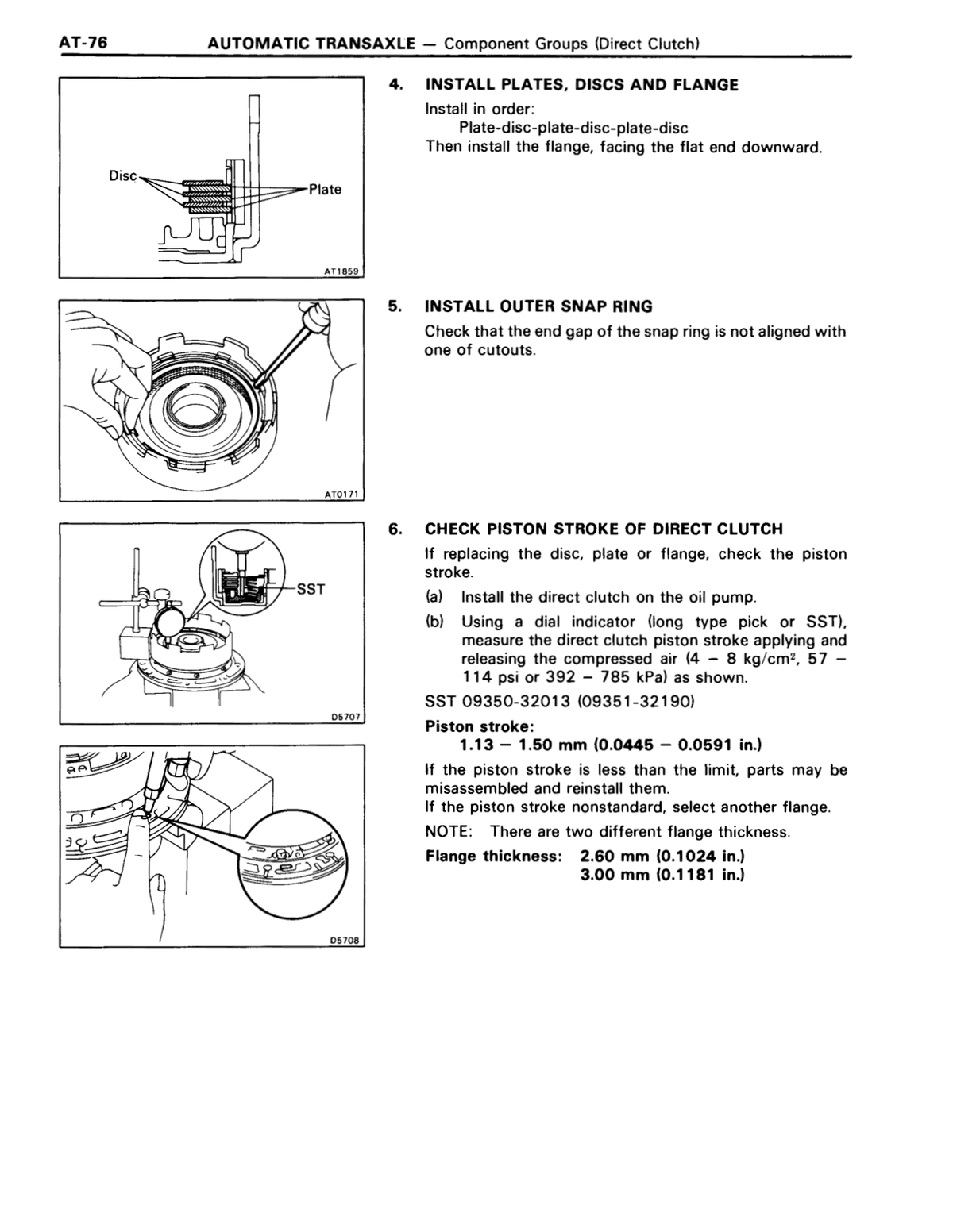

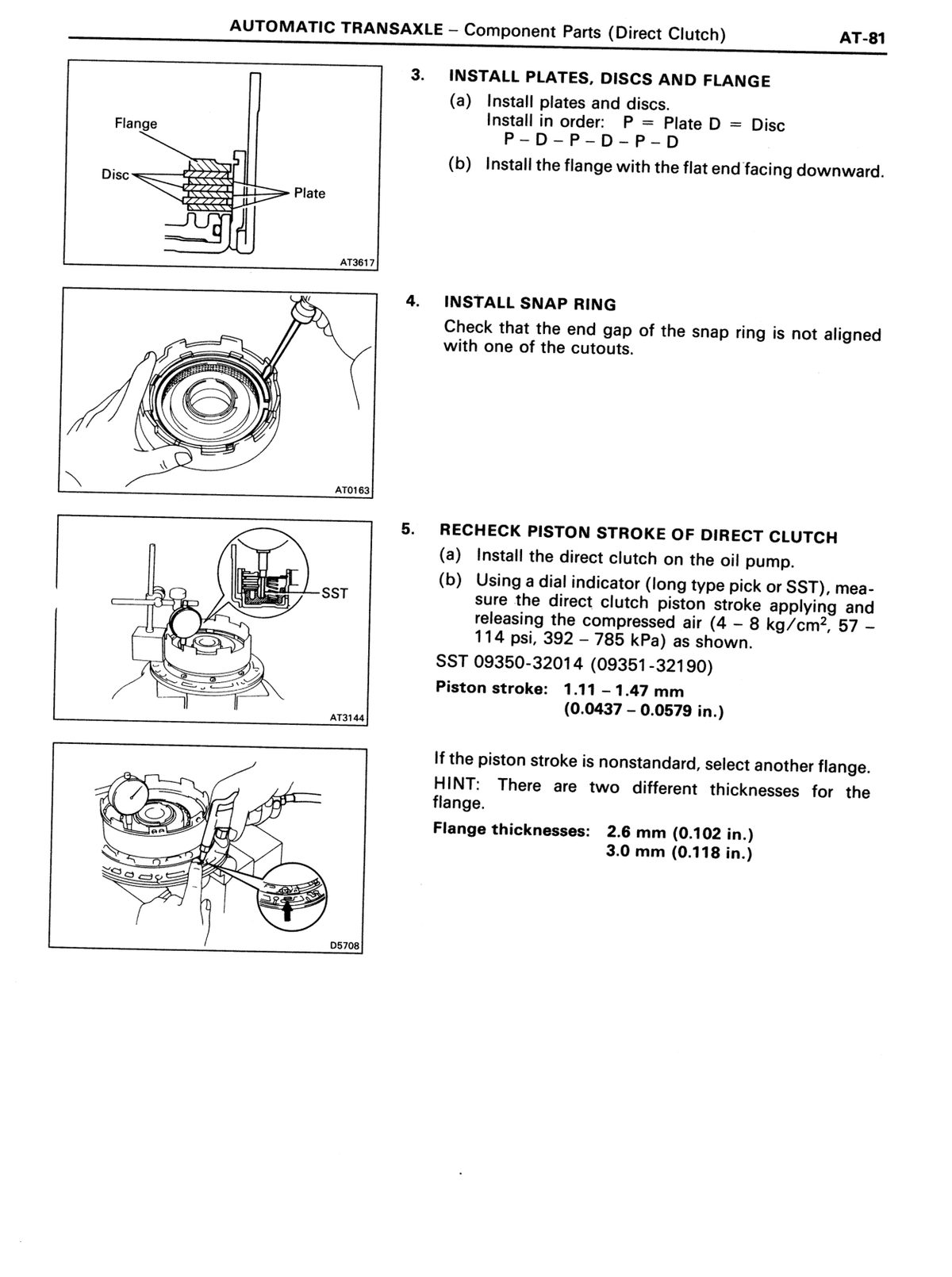

Direct clutch flange thickness — value 1 0.102 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual
Direct clutch flange thickness — value 2 0.118 in. 3 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual

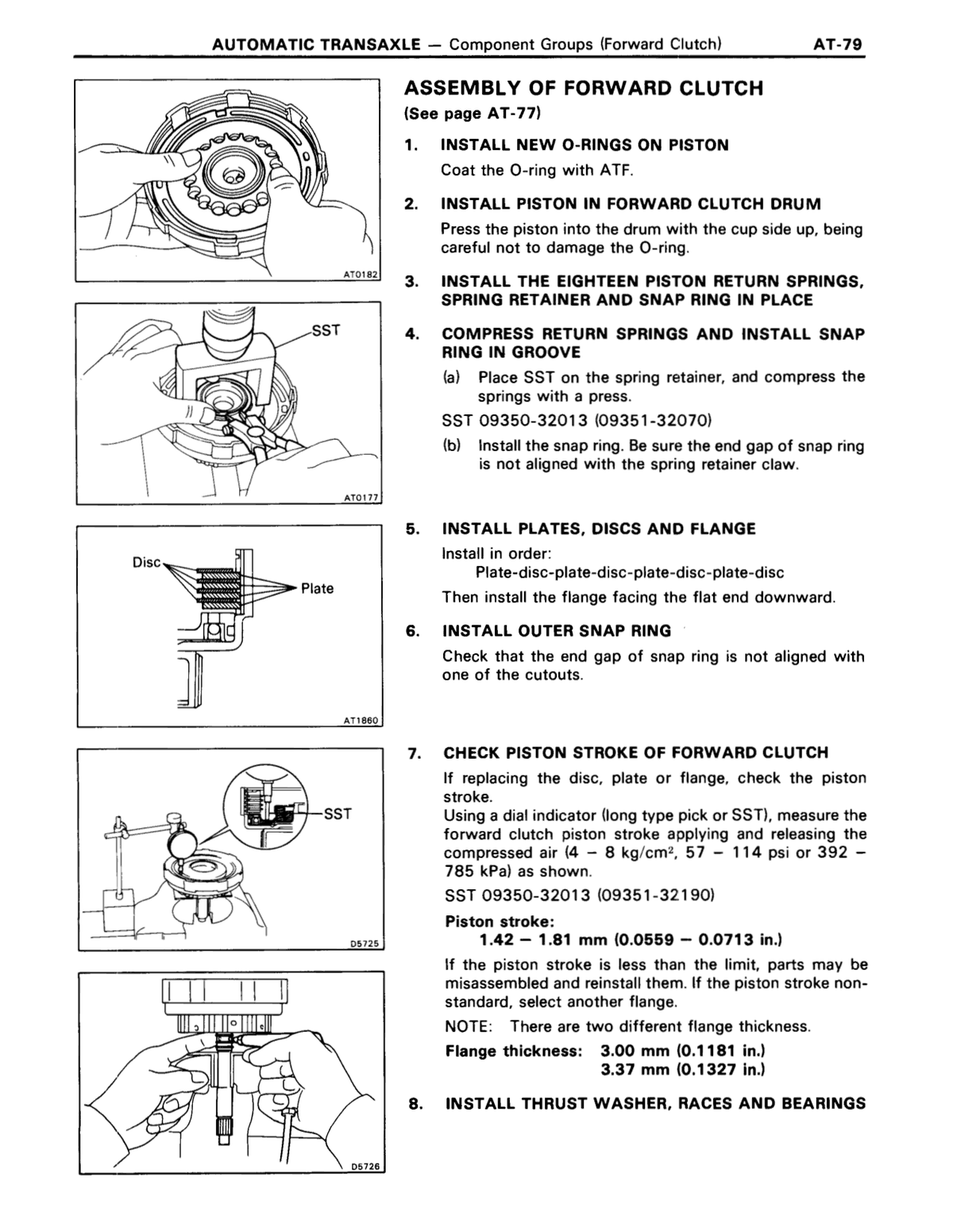

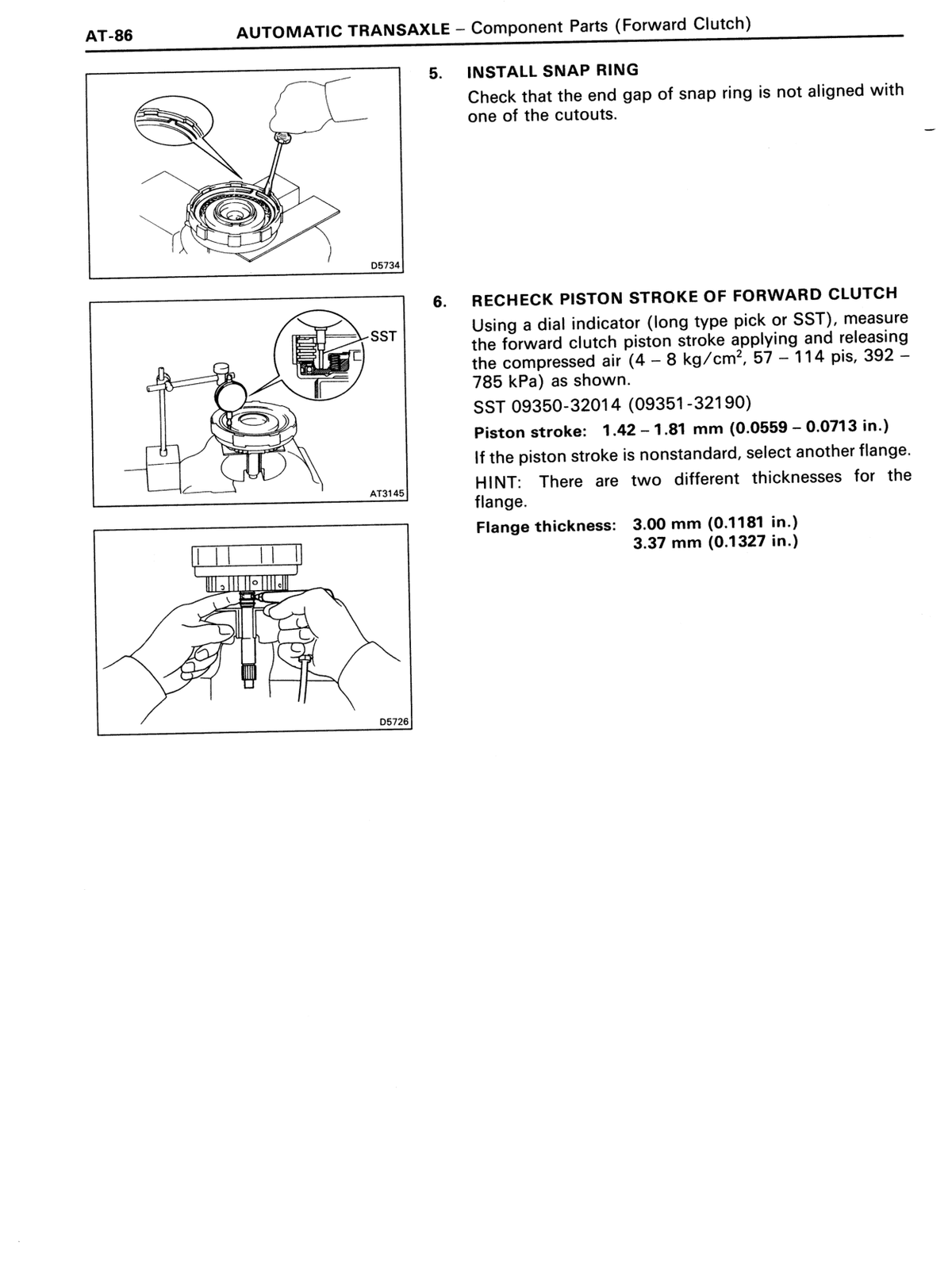

Forward clutch flange thickness — value 1 0.1181 in. 3 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual
Forward clutch flange thickness — value 2 0.1327 in. 3.37 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual

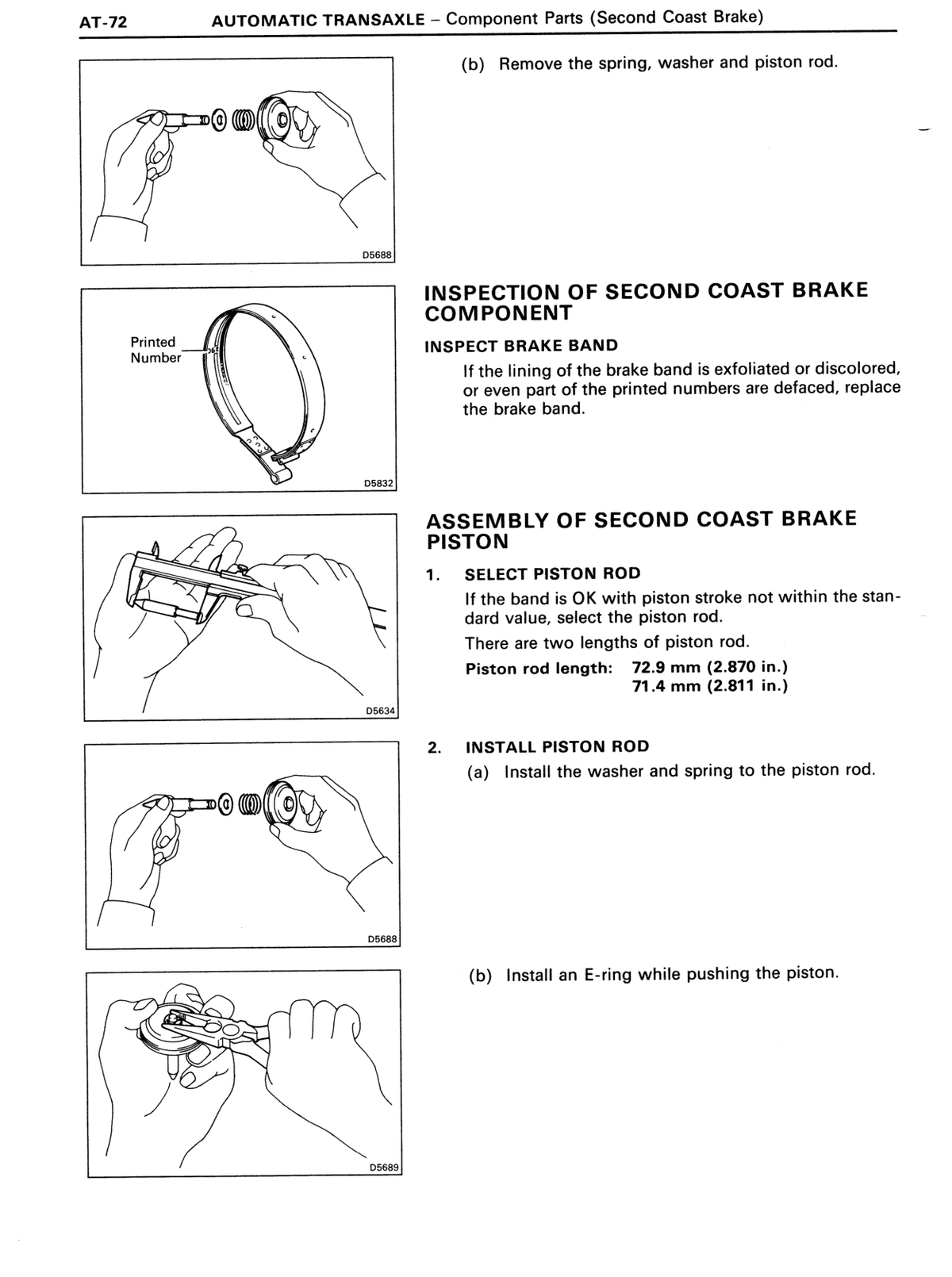

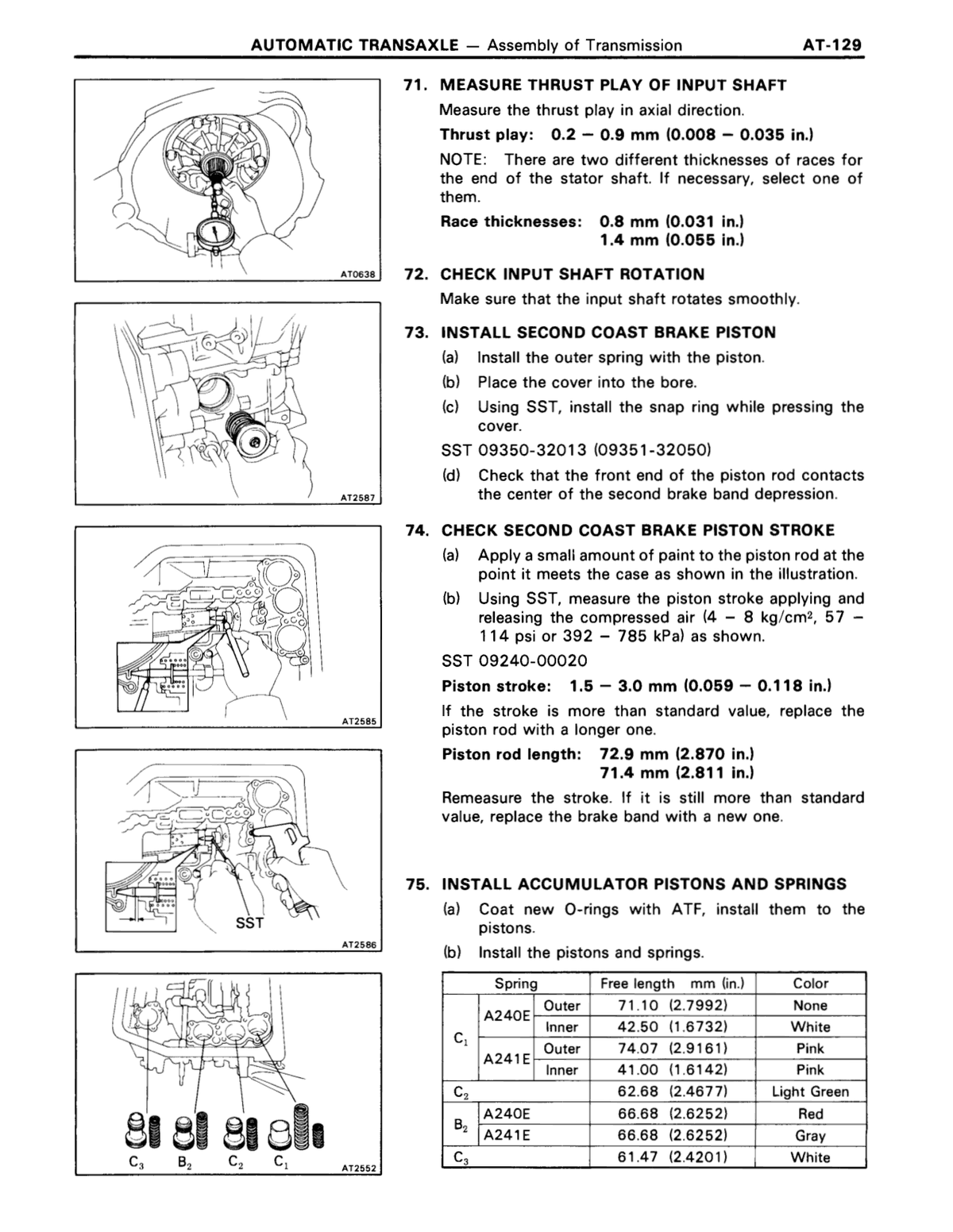

Second coast brake piston rod length — value 1 2.870 in. 72.9 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual
Second coast brake piston rod length — value 2 2.811 in. 71.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1554 OEM manual

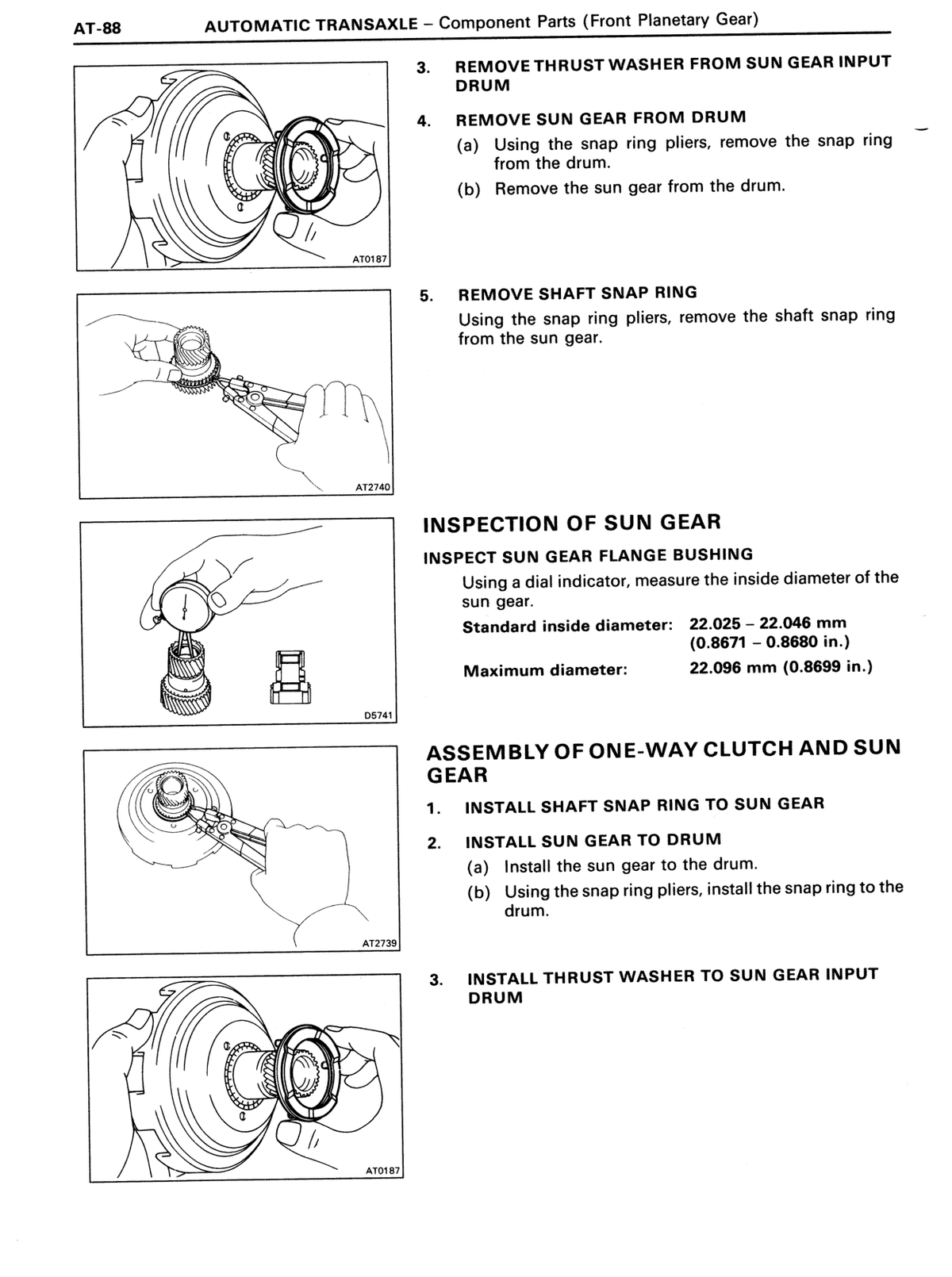

Front planetary gear — sun gear bushing inside diameter (standard) Range: 22.025–22.046 mm / 0.8671–0.8680 in. 22.025 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual
Front planetary gear — sun gear bushing inside diameter (maximum) 0.8699 in. 22.096 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual

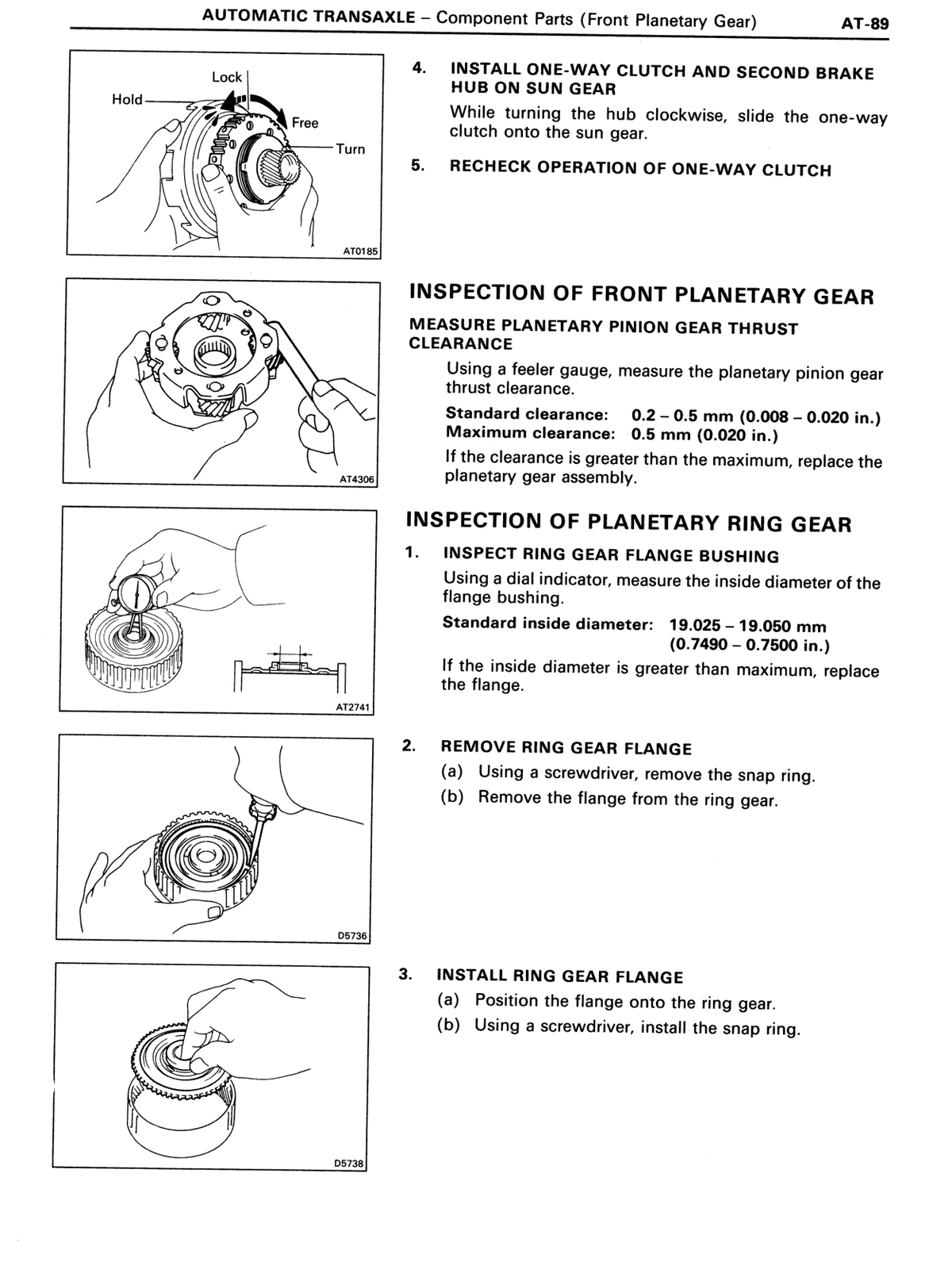

Front planetary gear — ring gear flange bushing inside diameter (standard) Range: 19.025–19.050 mm / 0.7490–0.7500 in. 19.025 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual
Counter shaft — planetary sun gear bushing inside diameter (standard) Range: 29.800–29.825 mm / 1.1732–1.1742 in. 29.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual
Counter shaft — planetary sun gear bushing inside diameter (maximum) 1.1760 in. 29.87 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual

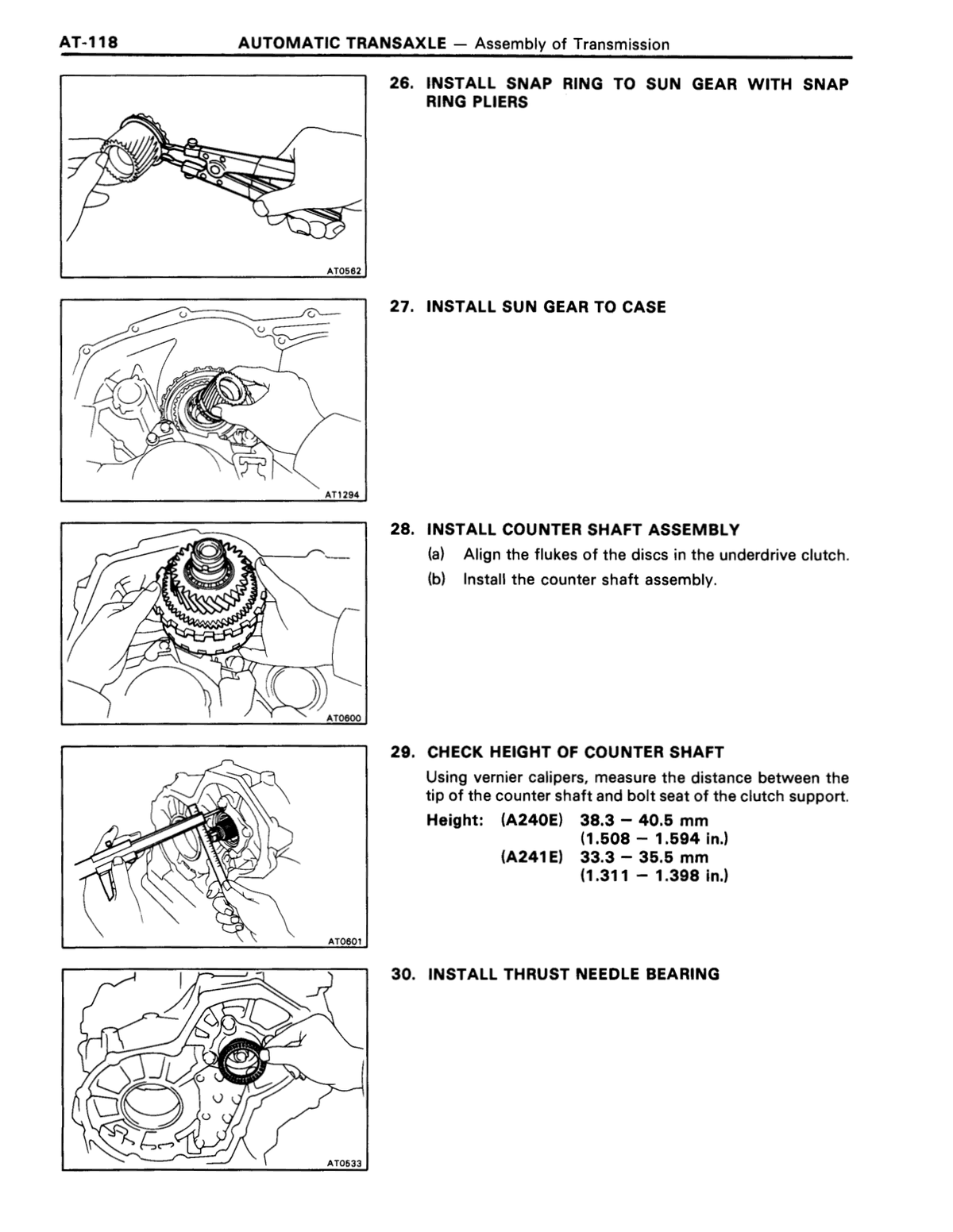

Counter shaft — height (distance between tip of counter shaft and bolt seat of clutch support) Range: 33.3–35.5 mm / 1.311–1.398 in. 33.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual

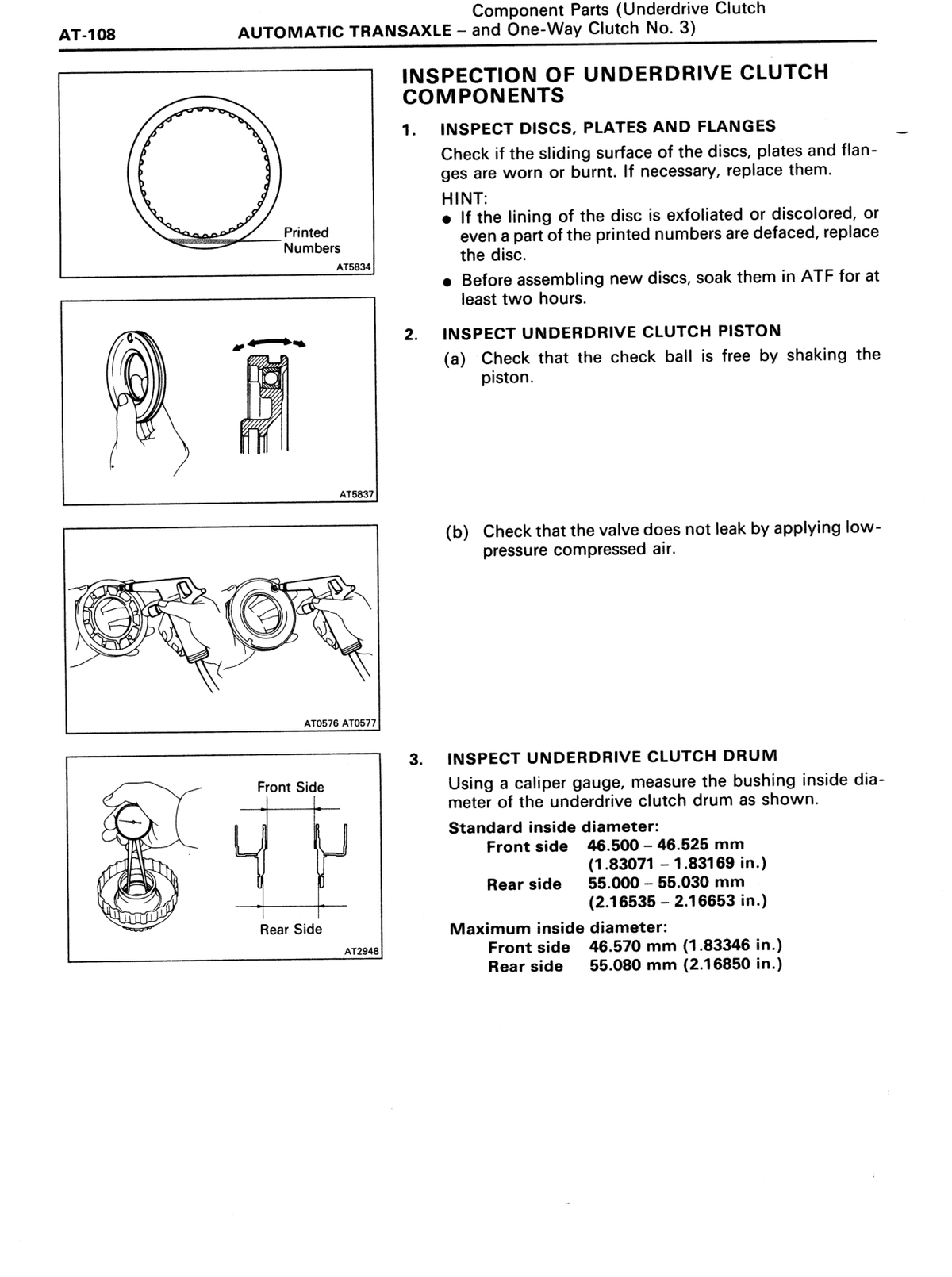

Underdrive clutch drum bushing inside diameter — front side (standard) Range: 46.500–46.525 mm / 1.8307–1.8317 in. 46.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual
Underdrive clutch drum bushing inside diameter — rear side (standard) Range: 55.000–55.030 mm / 2.1654–2.1665 in. 55 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual
Underdrive clutch drum bushing inside diameter — front side (maximum) 1.8335 in. 46.57 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual
Underdrive clutch drum bushing inside diameter — rear side (maximum) 2.1685 in. 55.08 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual

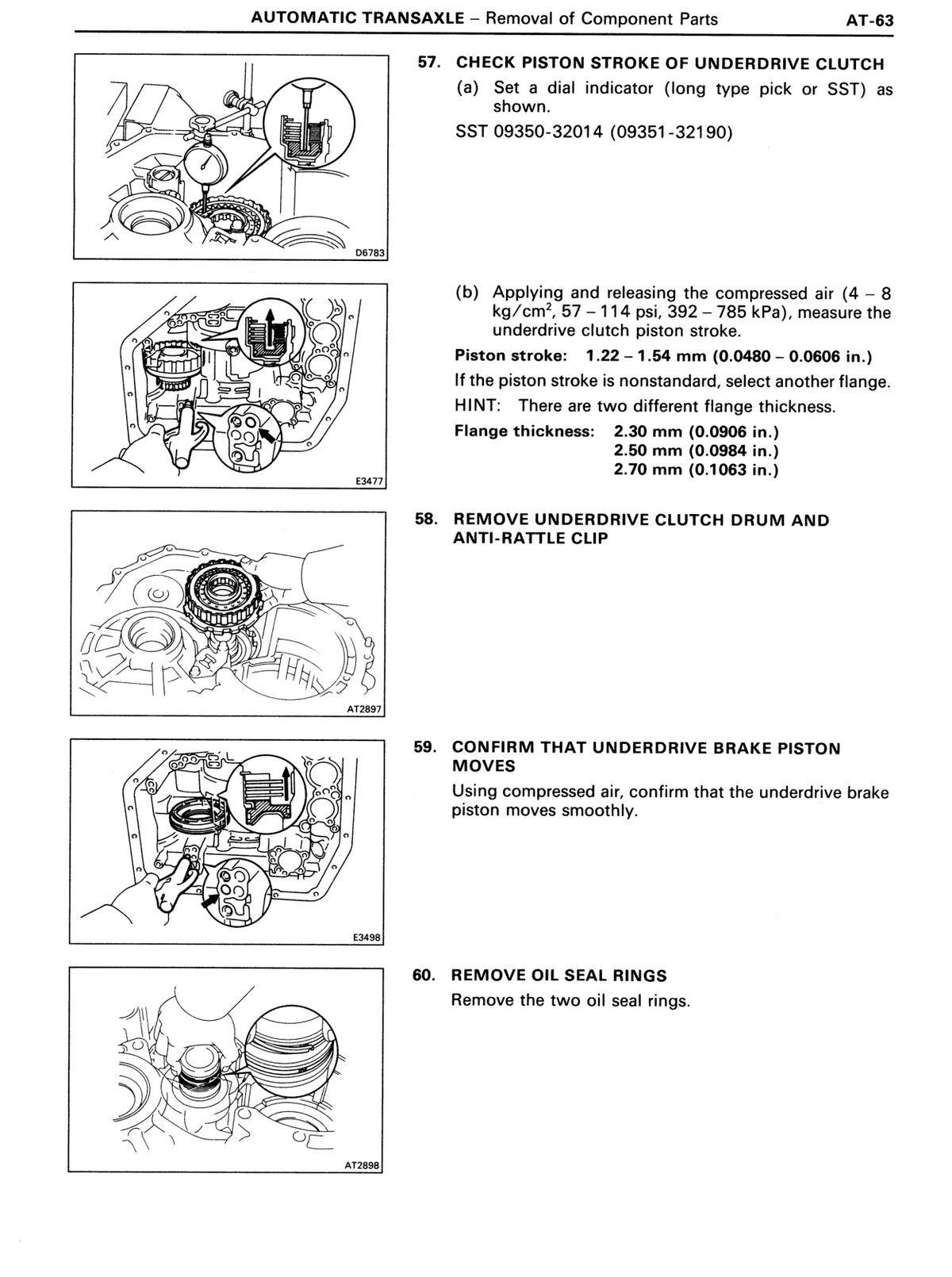

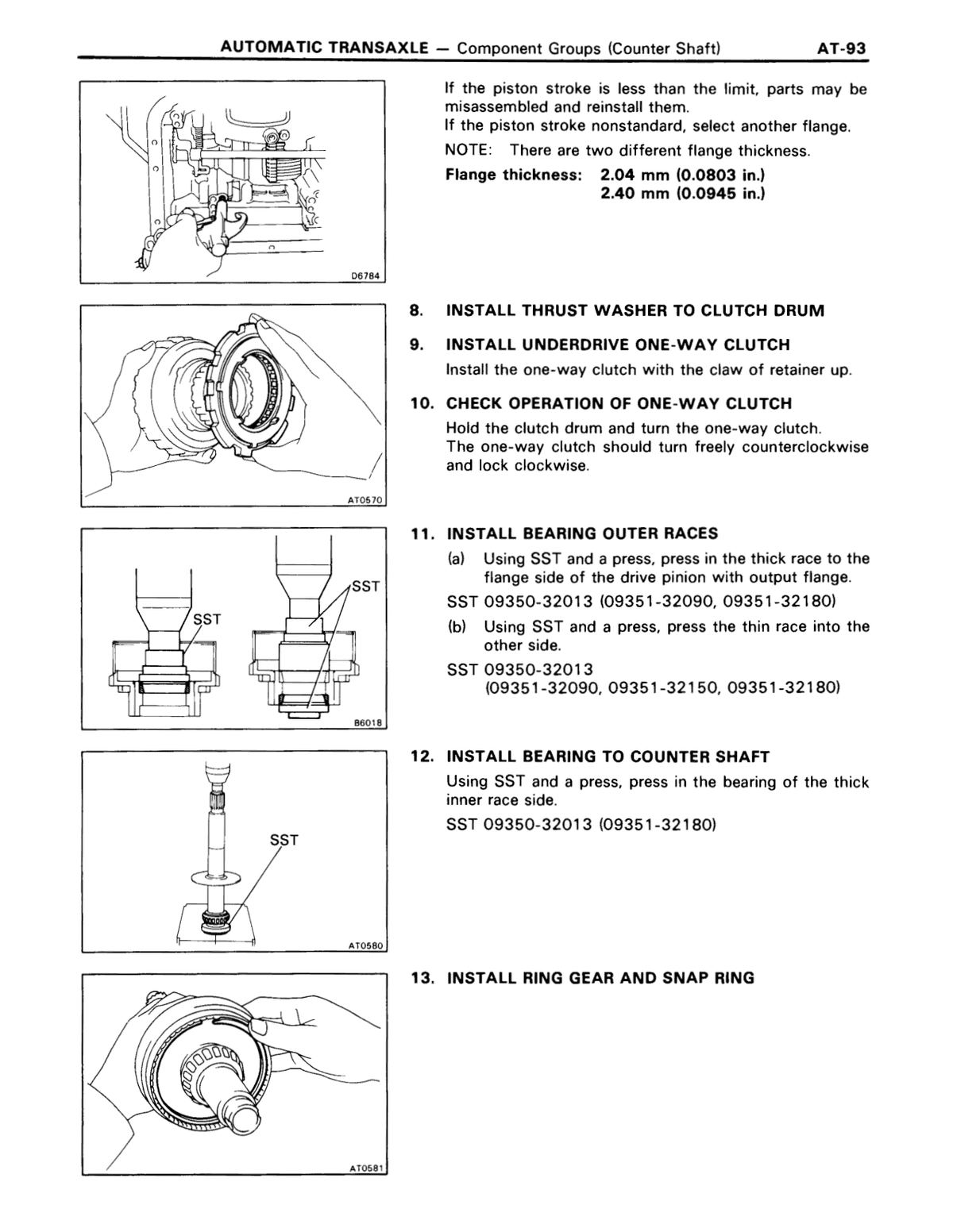

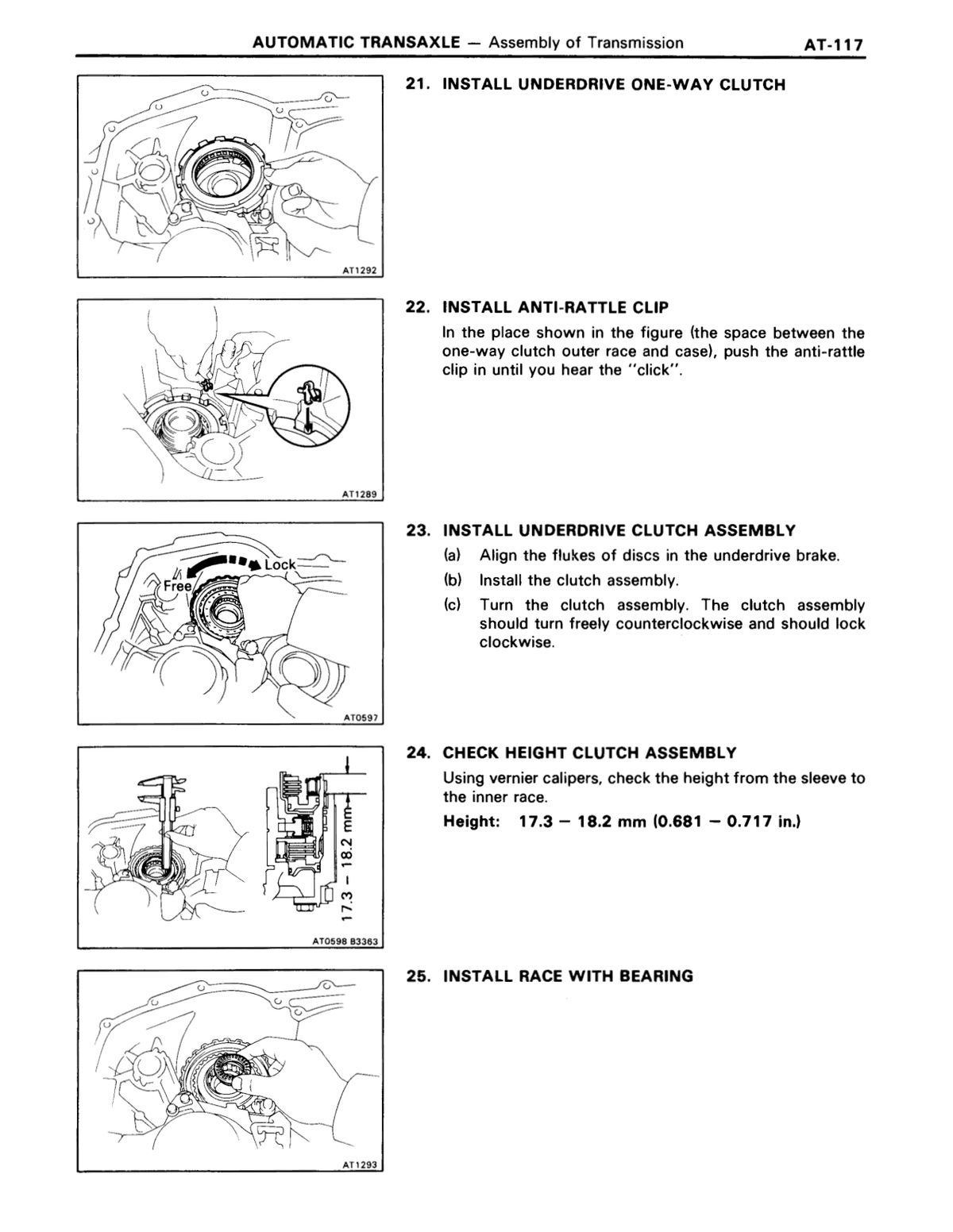

Underdrive clutch / one-way clutch No. 3 — flange thickness option 1 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual
Underdrive clutch / one-way clutch No. 3 — flange thickness option 2 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual
Underdrive clutch / one-way clutch No. 3 — flange thickness option 3 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual

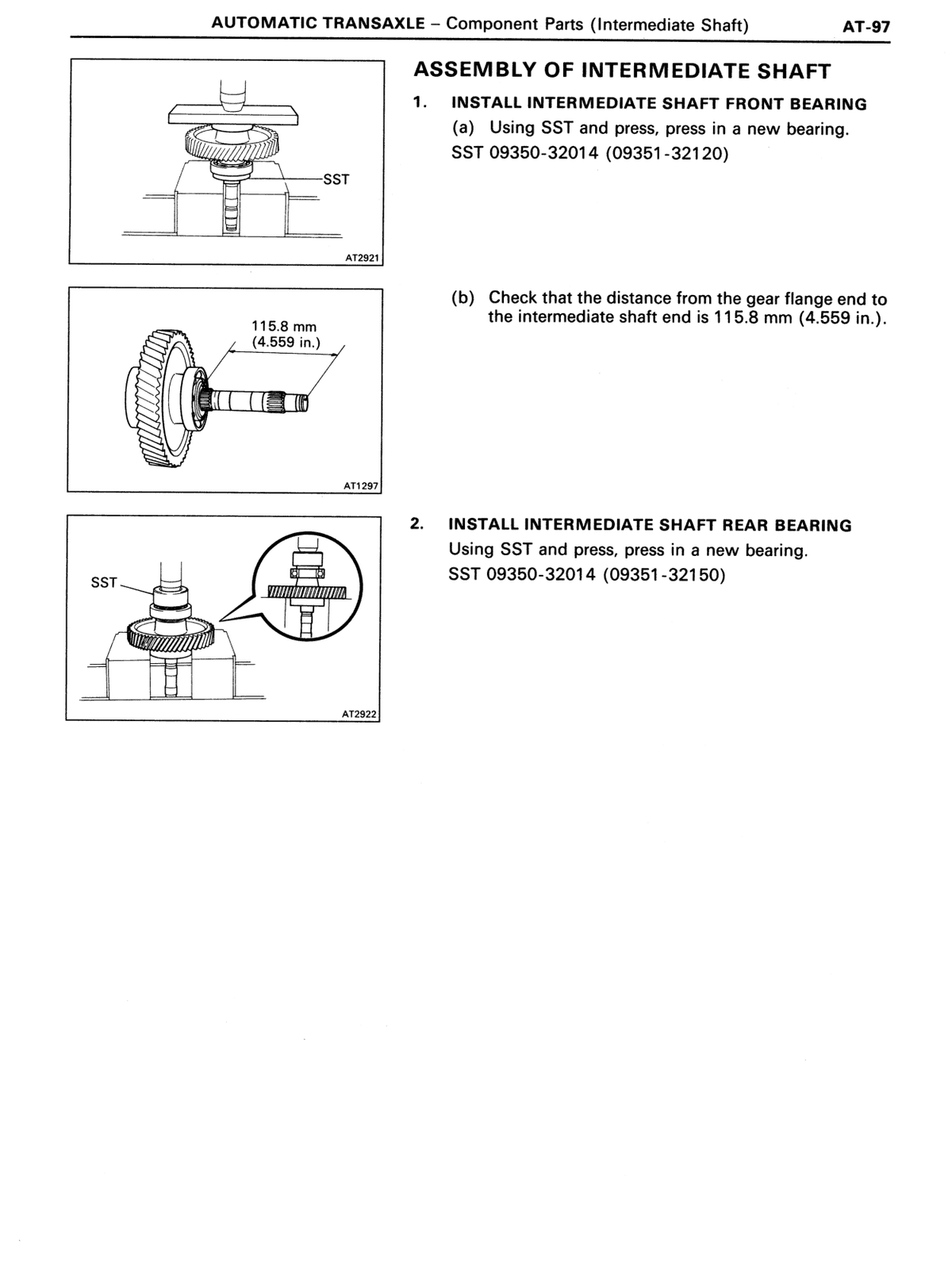

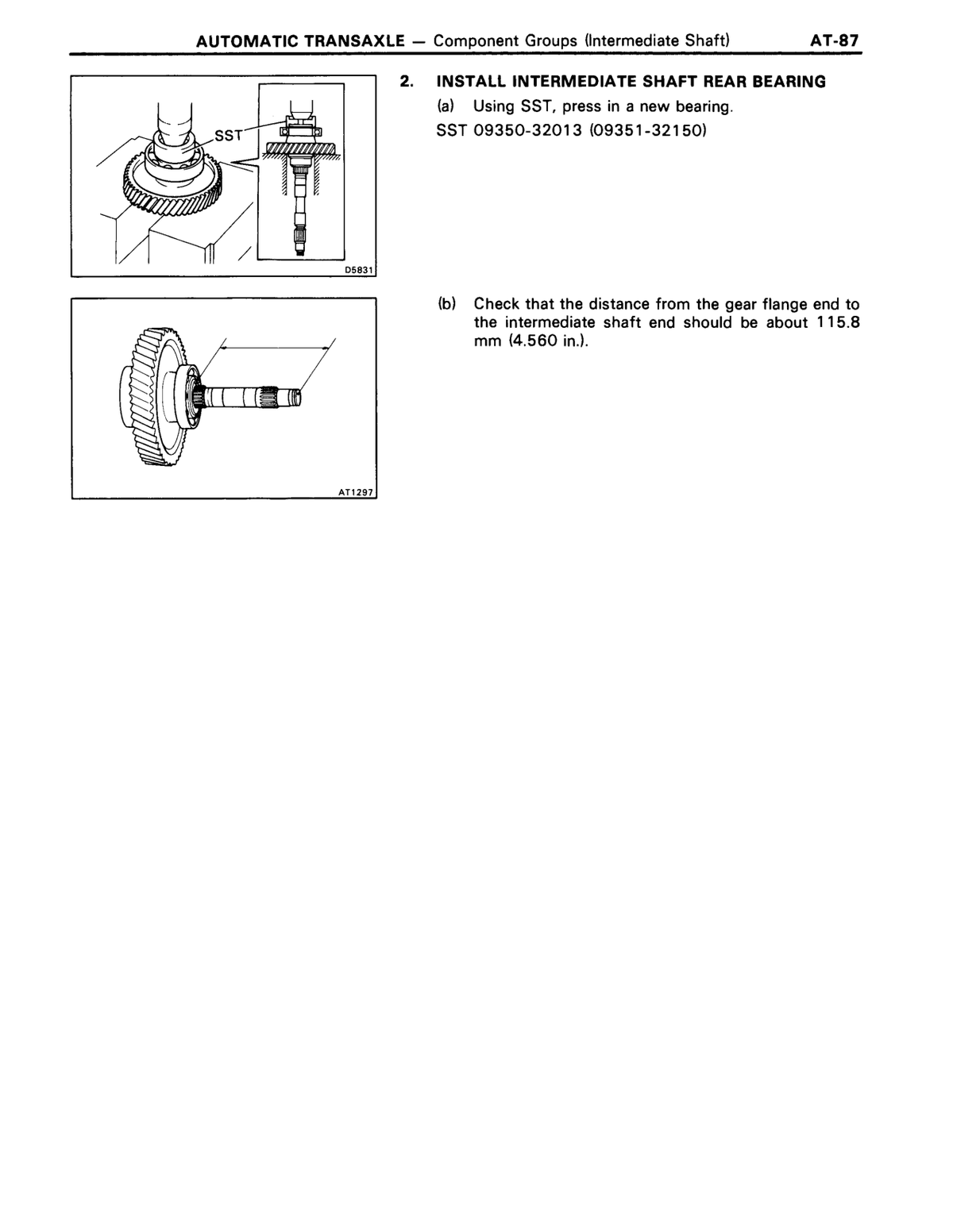

Intermediate shaft protrusion length (reference) 4.559 in. 115.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1555 OEM manual

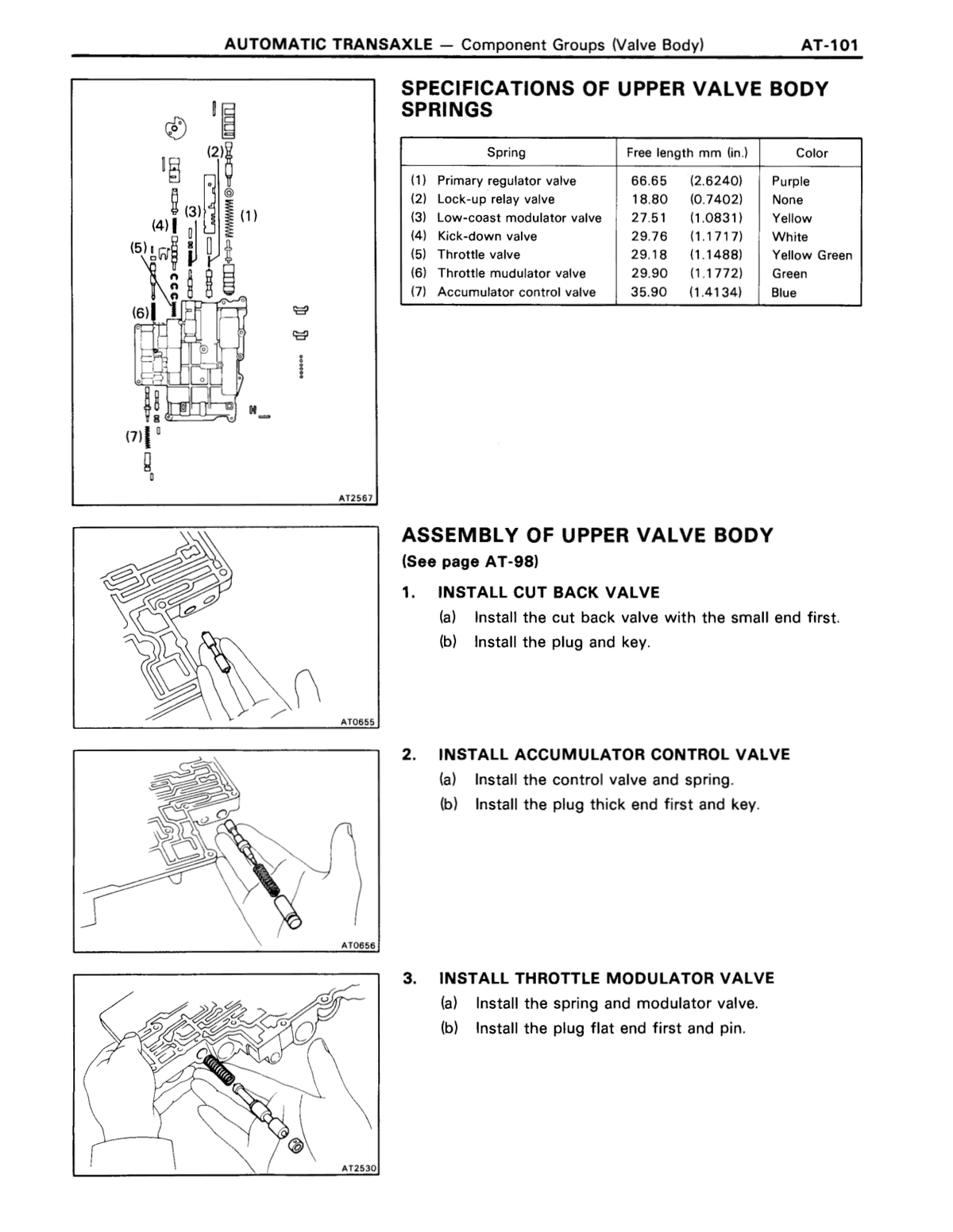

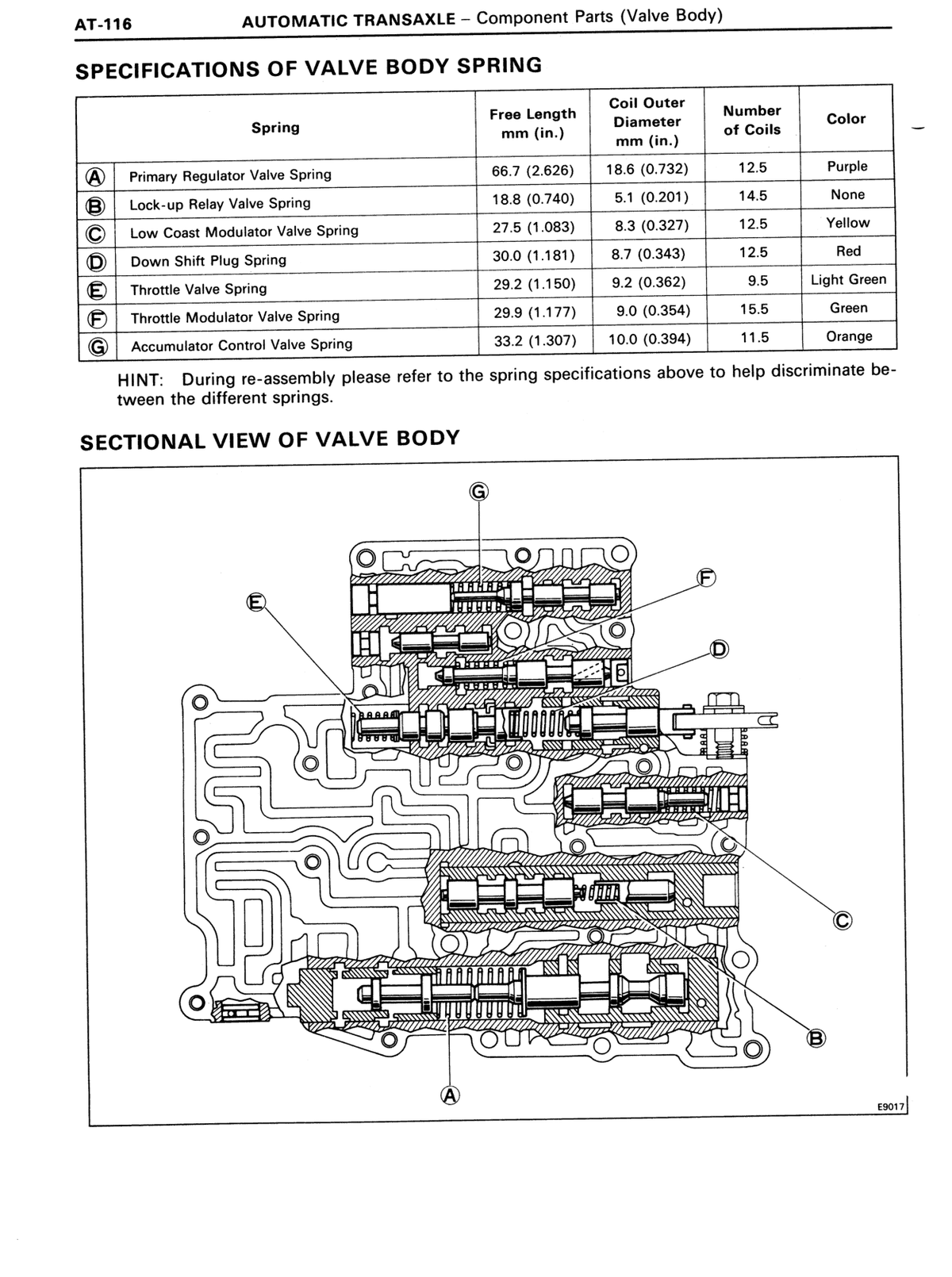

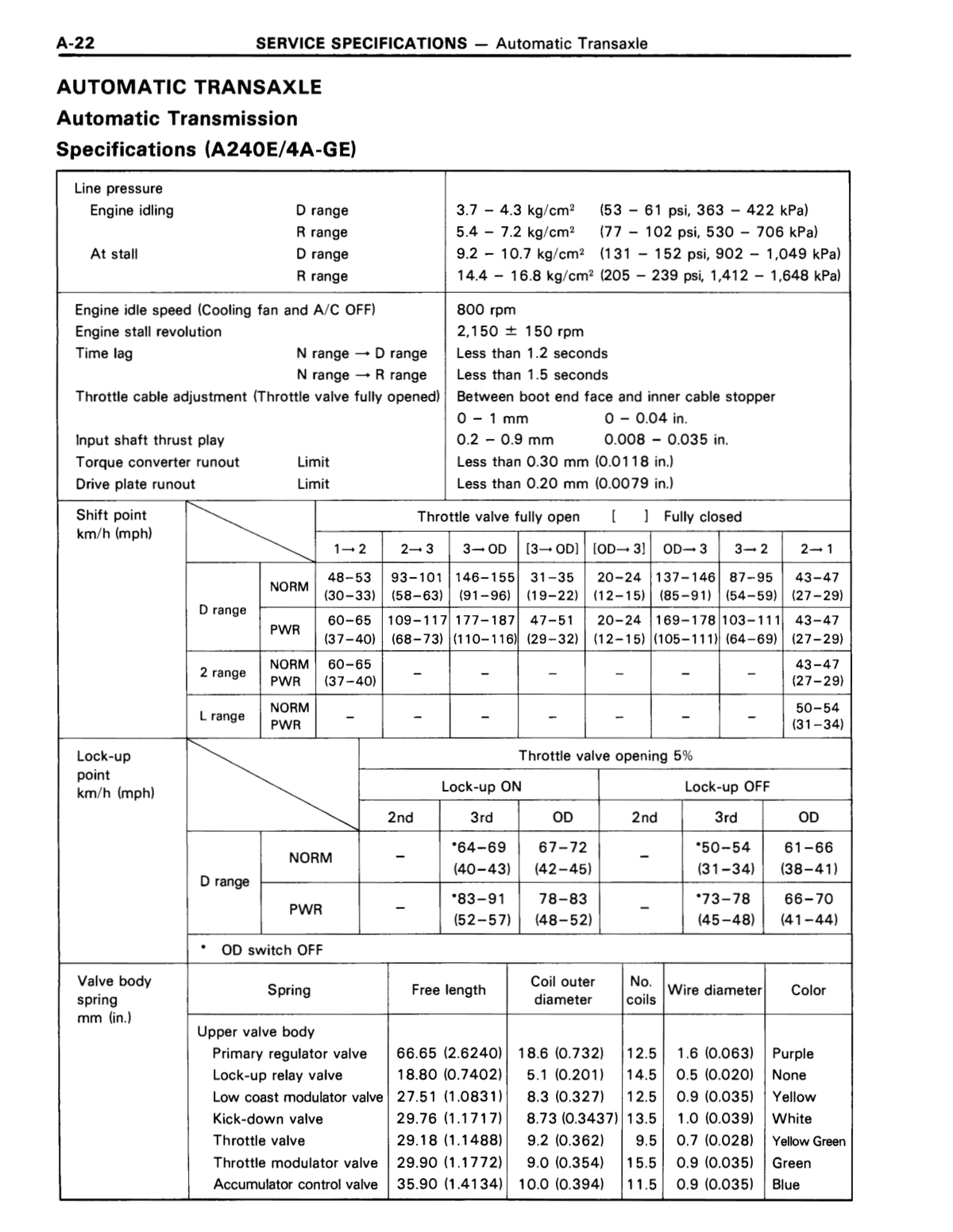

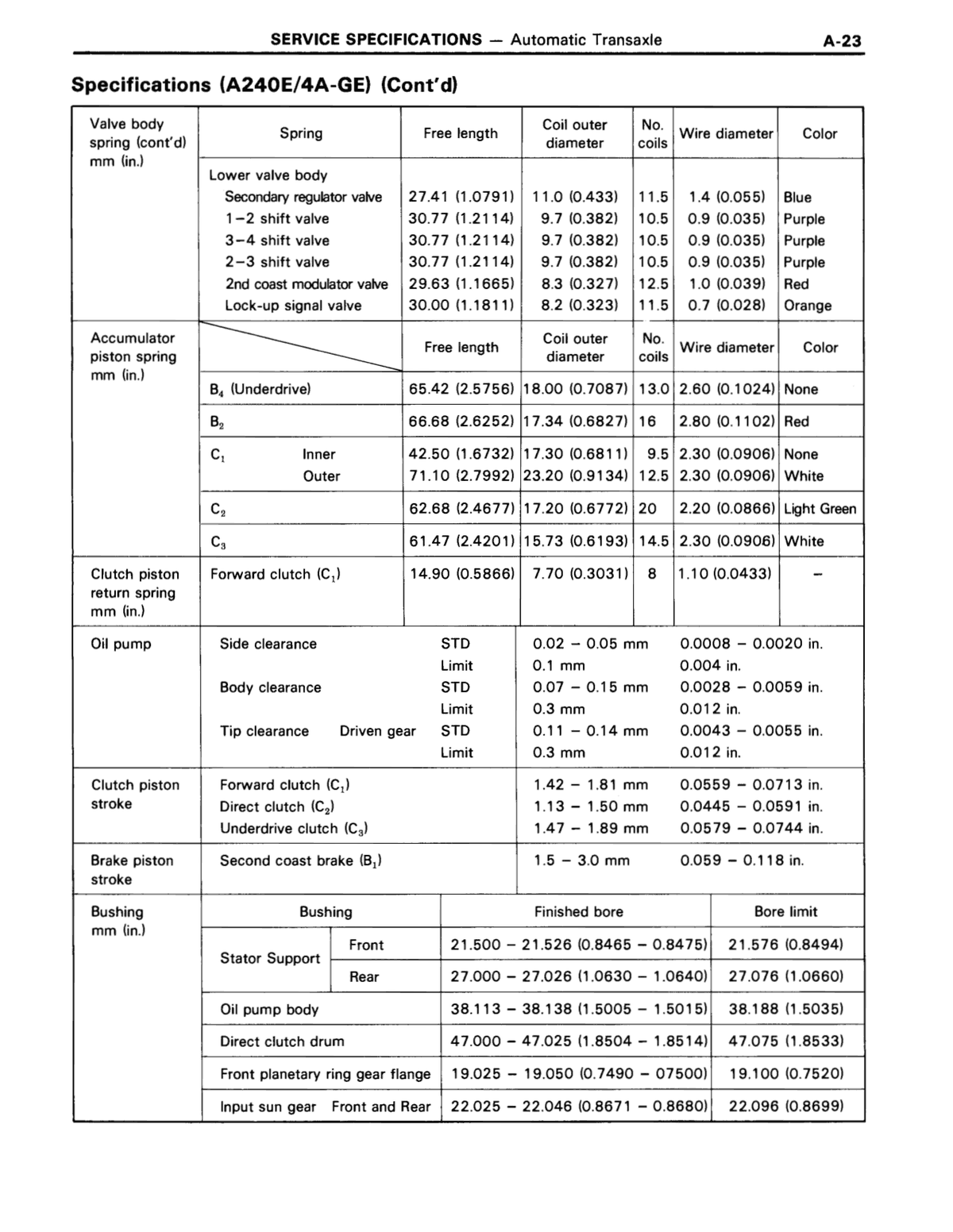

Valve body spring — Upper valve body — Primary regulator valve — Free length 2.626 in.; Coil outer diameter 18.6 mm (0.732 in.); Total coils 12.5; Color: Purple 66.7 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Upper valve body — Lock-up relay valve — Free length 0.740 in.; Coil outer diameter 5.1 mm (0.201 in.); Total coils 14.5; Color: None 18.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Upper valve body — Low coast modulator valve — Free length 1.083 in.; Coil outer diameter 8.3 mm (0.327 in.); Total coils 12.5; Color: Yellow 27.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Upper valve body — Down shift plug — Free length 1.181 in.; Coil outer diameter 8.7 mm (0.343 in.); Total coils 12.5; Color: Red 30 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Upper valve body — Throttle valve — Free length 1.150 in.; Coil outer diameter 9.2 mm (0.362 in.); Total coils 9.5; Color: Light Green 29.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Upper valve body — Throttle modulator valve — Free length 1.177 in.; Coil outer diameter 9.0 mm (0.354 in.); Total coils 15.5; Color: Green 29.9 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Upper valve body — Accumulator control valve — Free length 1.307 in.; Coil outer diameter 10.0 mm (0.394 in.); Total coils 11.5; Color: Orange 33.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual

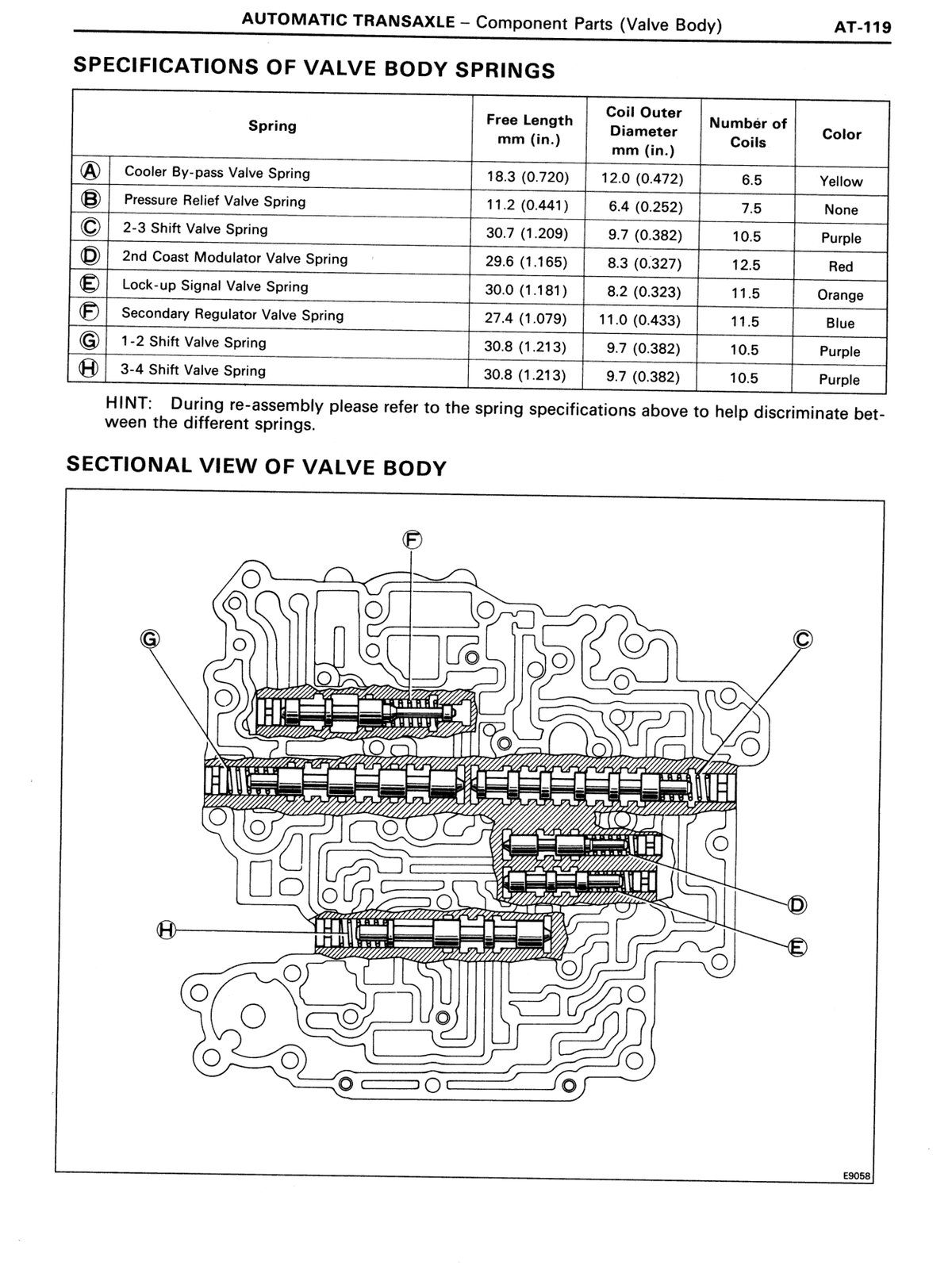

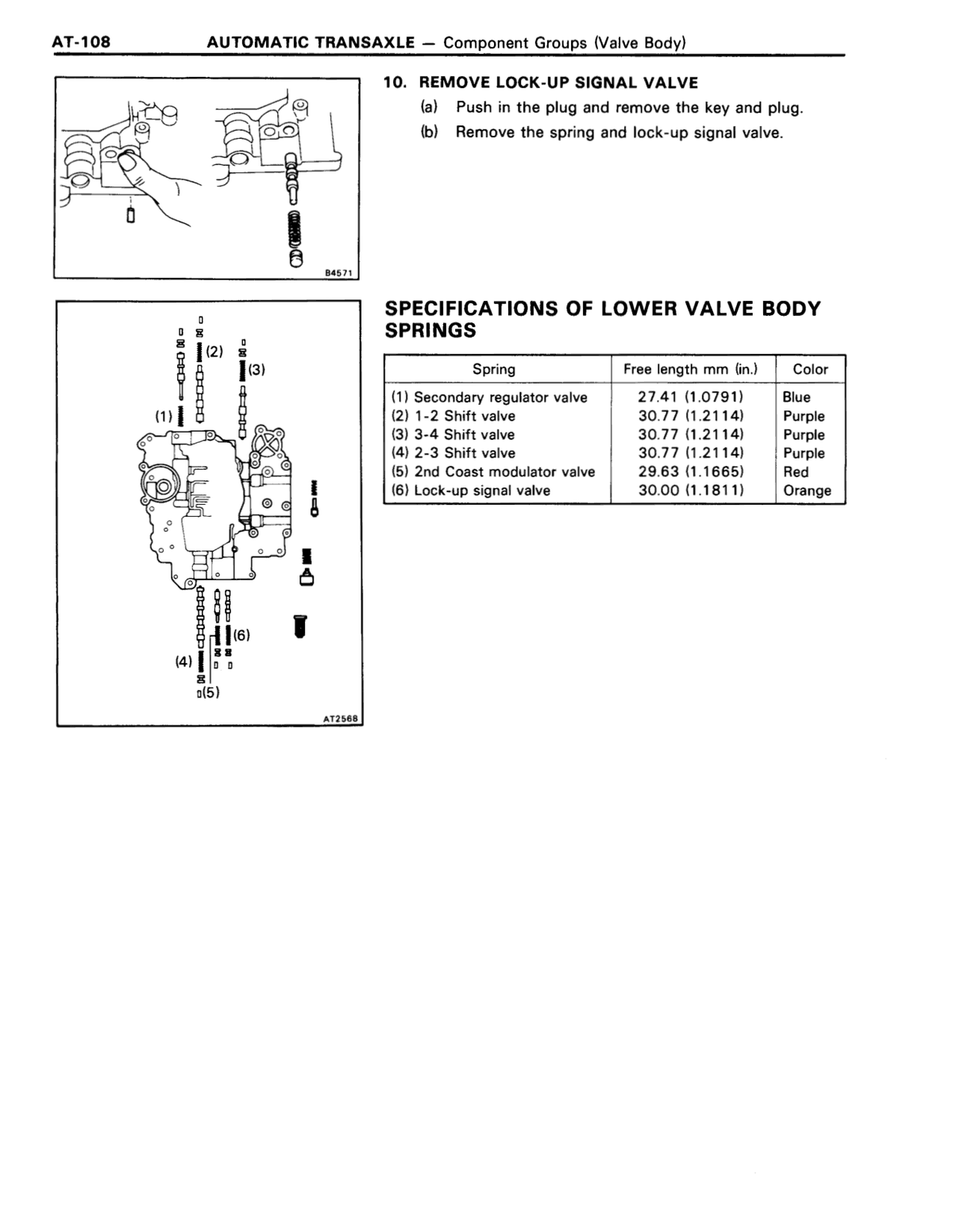

Valve body spring — Low valve body — Cooler by-pass valve — Free length 0.720 in.; Coil outer diameter 12.0 mm (0.472 in.); Total coils 6.5; Color: Yellow 18.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Low valve body — Pressure relief valve — Free length 0.441 in.; Coil outer diameter 6.4 mm (0.252 in.); Total coils 7.5; Color: None 11.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Low valve body — 2-3 shift valve — Free length 1.209 in.; Coil outer diameter 9.7 mm (0.382 in.); Total coils 10.5; Color: Purple 30.7 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Low valve body — 2nd coast modulator valve — Free length 1.165 in.; Coil outer diameter 8.3 mm (0.327 in.); Total coils 12.5; Color: Red 29.6 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Low valve body — Lock-up signal valve — Free length 1.181 in.; Coil outer diameter 8.2 mm (0.323 in.); Total coils 11.5; Color: Orange 30 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Low valve body — Secondary regulator valve — Free length 1.079 in.; Coil outer diameter 11.0 mm (0.433 in.); Total coils 11.5; Color: Blue 27.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Low valve body — 1-2 shift valve — Free length 1.213 in.; Coil outer diameter 9.7 mm (0.382 in.); Total coils 10.5; Color: Purple 30.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body spring — Low valve body — 3-4 shift valve — Free length 1.213 in.; Coil outer diameter 9.7 mm (0.382 in.); Total coils 10.5; Color: Purple 30.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual

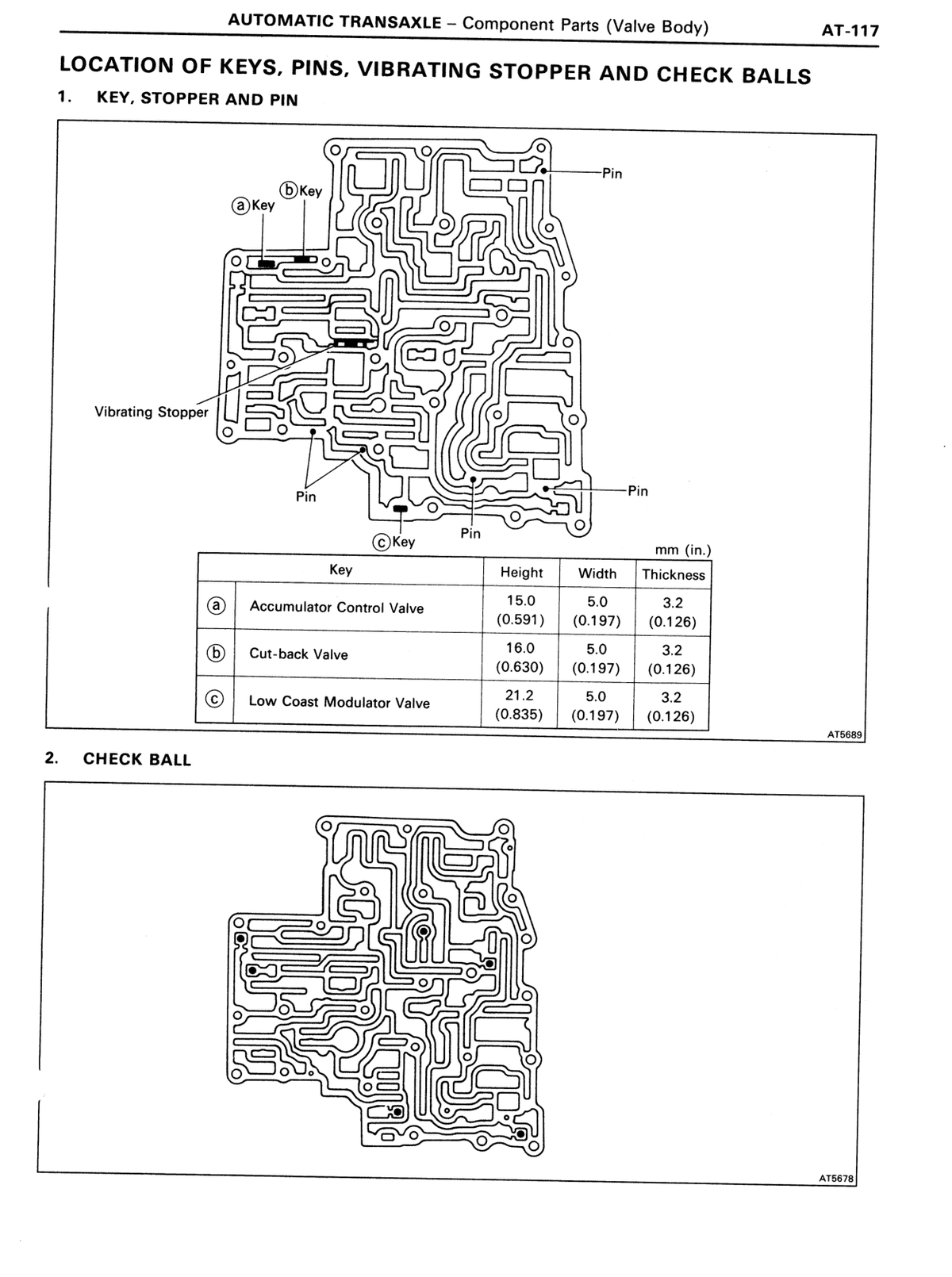

Valve body retainer — Upper valve body — Accumulator control valve — Height 0.591 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 15 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body retainer — Upper valve body — Cut-back valve — Height 0.630 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 16 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body retainer — Upper valve body — Low coast modulator valve — Height 0.835 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 21.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body retainer — Lower valve body — 2-3 shift valve — Height 0.453 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 11.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body retainer — Lower valve body — 2nd coast modulator valve — Height 0.453 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 11.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body retainer — Lower valve body — Lock-up signal valve — Height 0.453 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 11.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body retainer — Lower valve body — 1-2 shift valve — Height 0.453 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 11.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body retainer — Lower valve body — 3-4 shift valve — Height 0.453 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 11.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Valve body retainer — Lower valve body — Secondary regulator valve — Height 0.362 in.; Width 5.0 mm (0.197 in.); Thickness 3.2 mm (0.126 in.) 9.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual

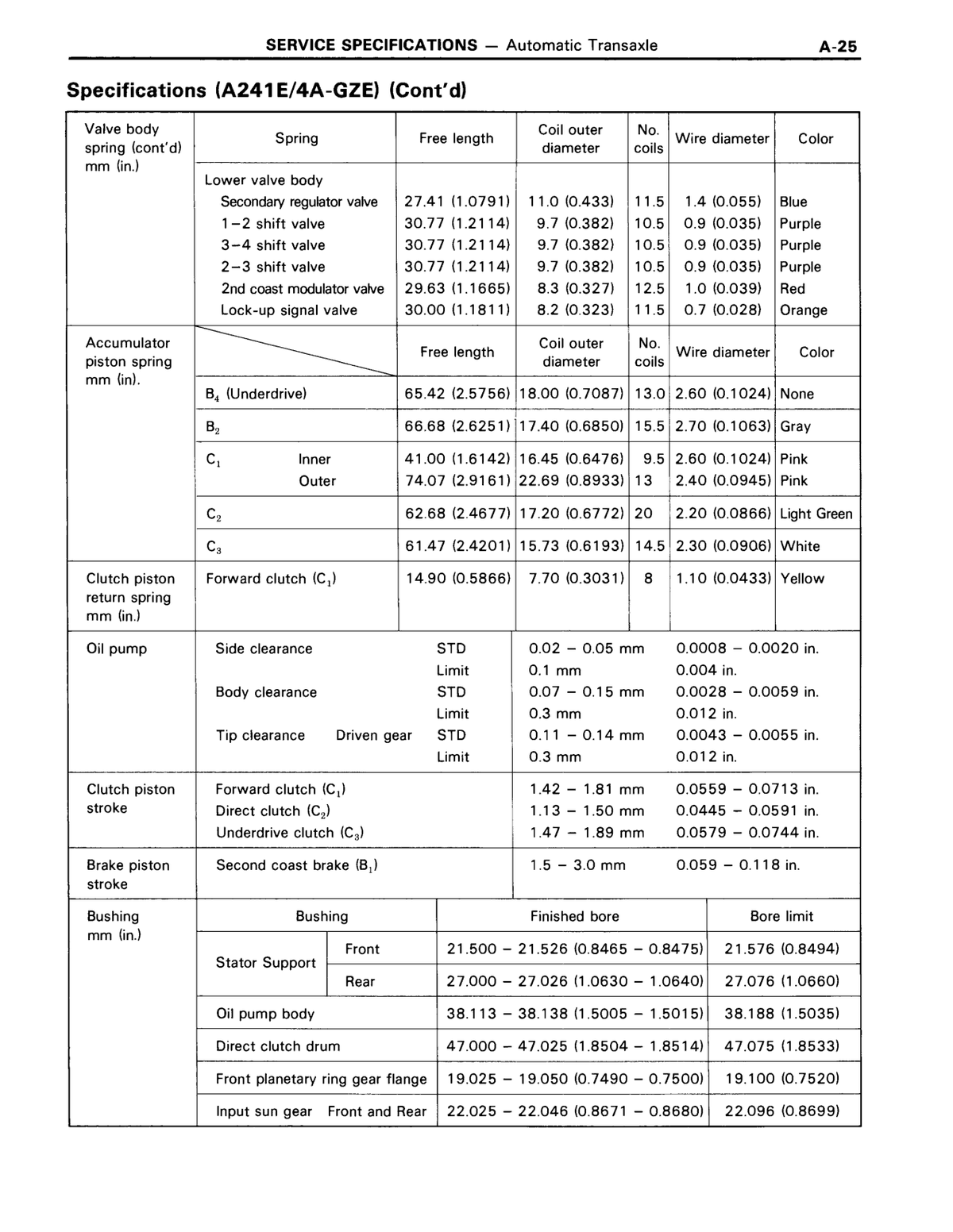

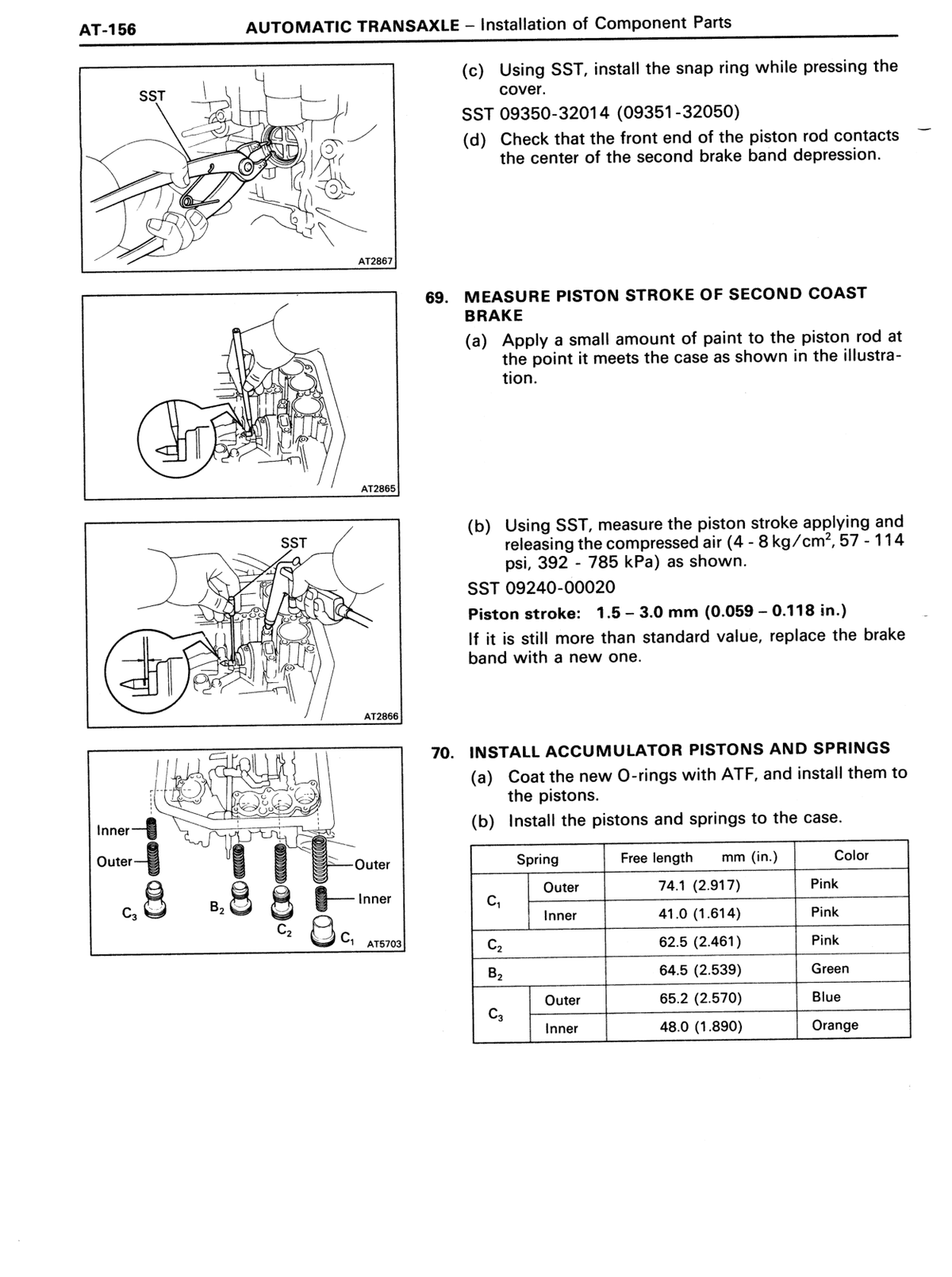

Accumulator spring — C1 Outer — Free length 2.917 in.; Color: Pink 74.1 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Accumulator spring — C1 Inner — Free length 1.614 in.; Color: Pink 41 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Accumulator spring — C2 — Free length 2.461 in.; Color: Pink 62.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Accumulator spring — C3 Outer — Free length 2.570 in.; Color: Blue 65.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Accumulator spring — C3 Inner — Free length 1.890 in.; Color: Orange 48 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Accumulator spring — B2 — Free length 2.539 in.; Color: Green 64.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual

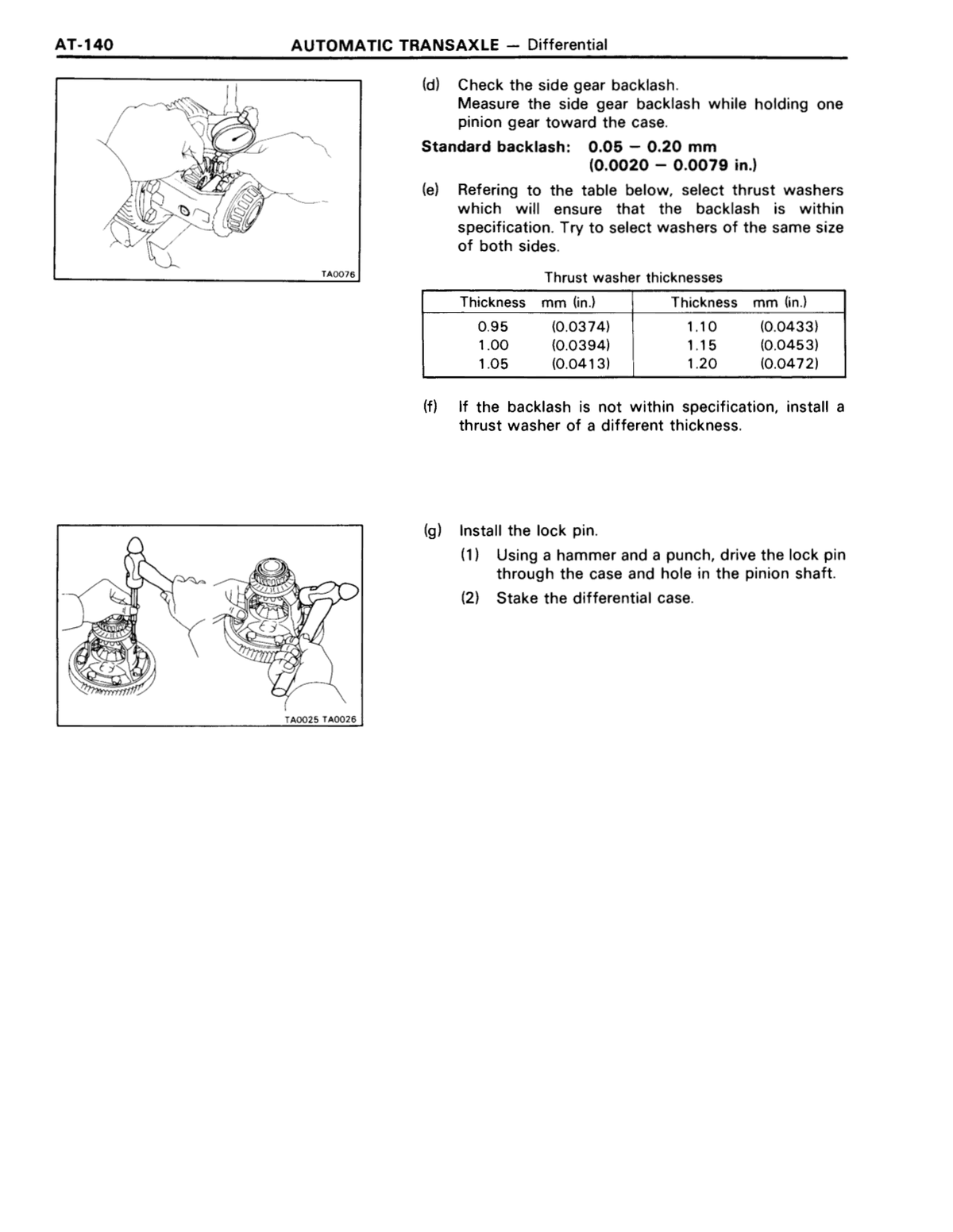

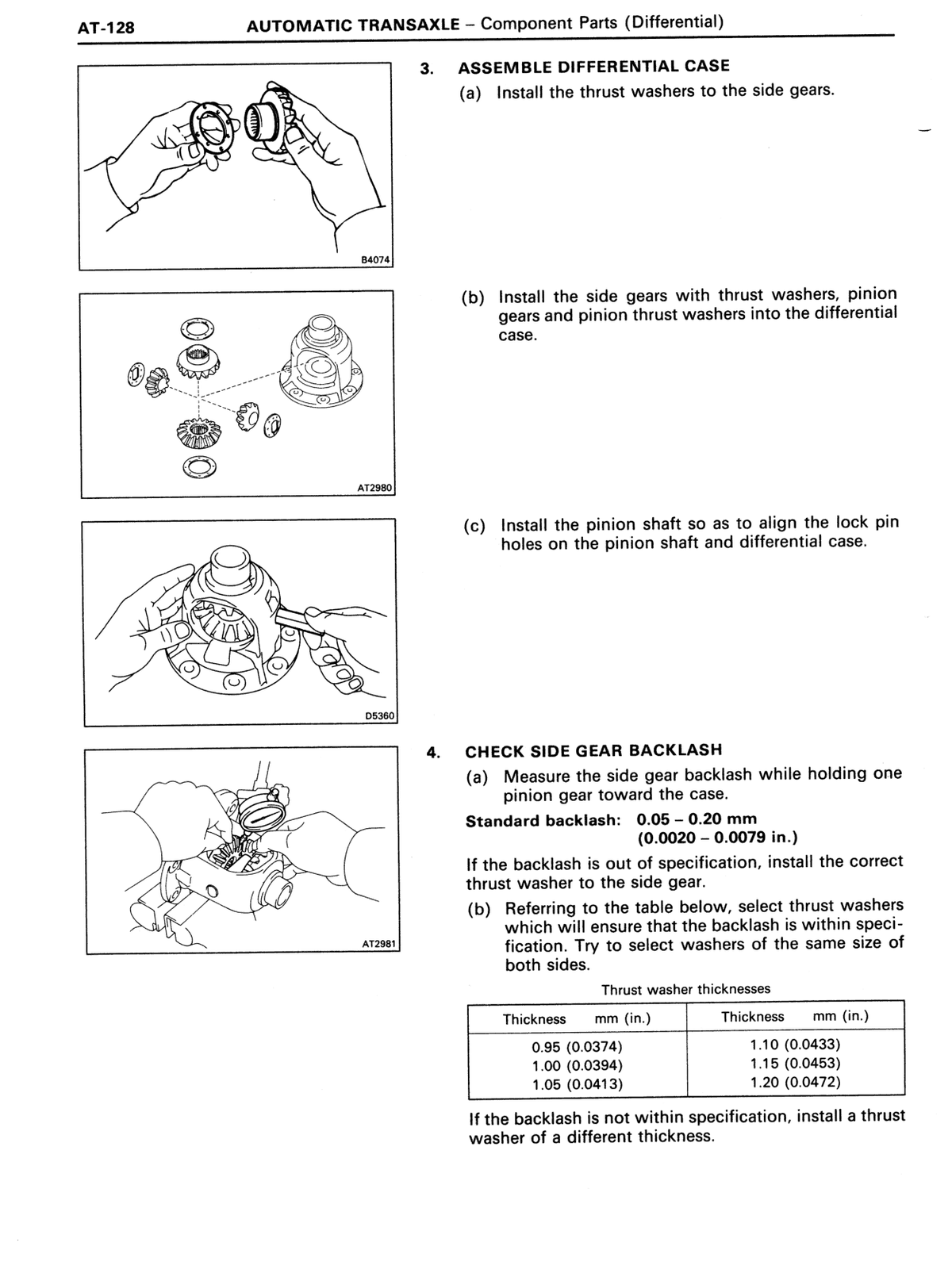

Side gear thrust washer thickness — option 1 0.0374 in. 0.95 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Side gear thrust washer thickness — option 2 0.0394 in. 1 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Side gear thrust washer thickness — option 3 0.0413 in. 1.05 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Side gear thrust washer thickness — option 4 0.0433 in. 1.1 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Side gear thrust washer thickness — option 5 0.0453 in. 1.15 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual
Side gear thrust washer thickness — option 6 0.0472 in. 1.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1556 OEM manual

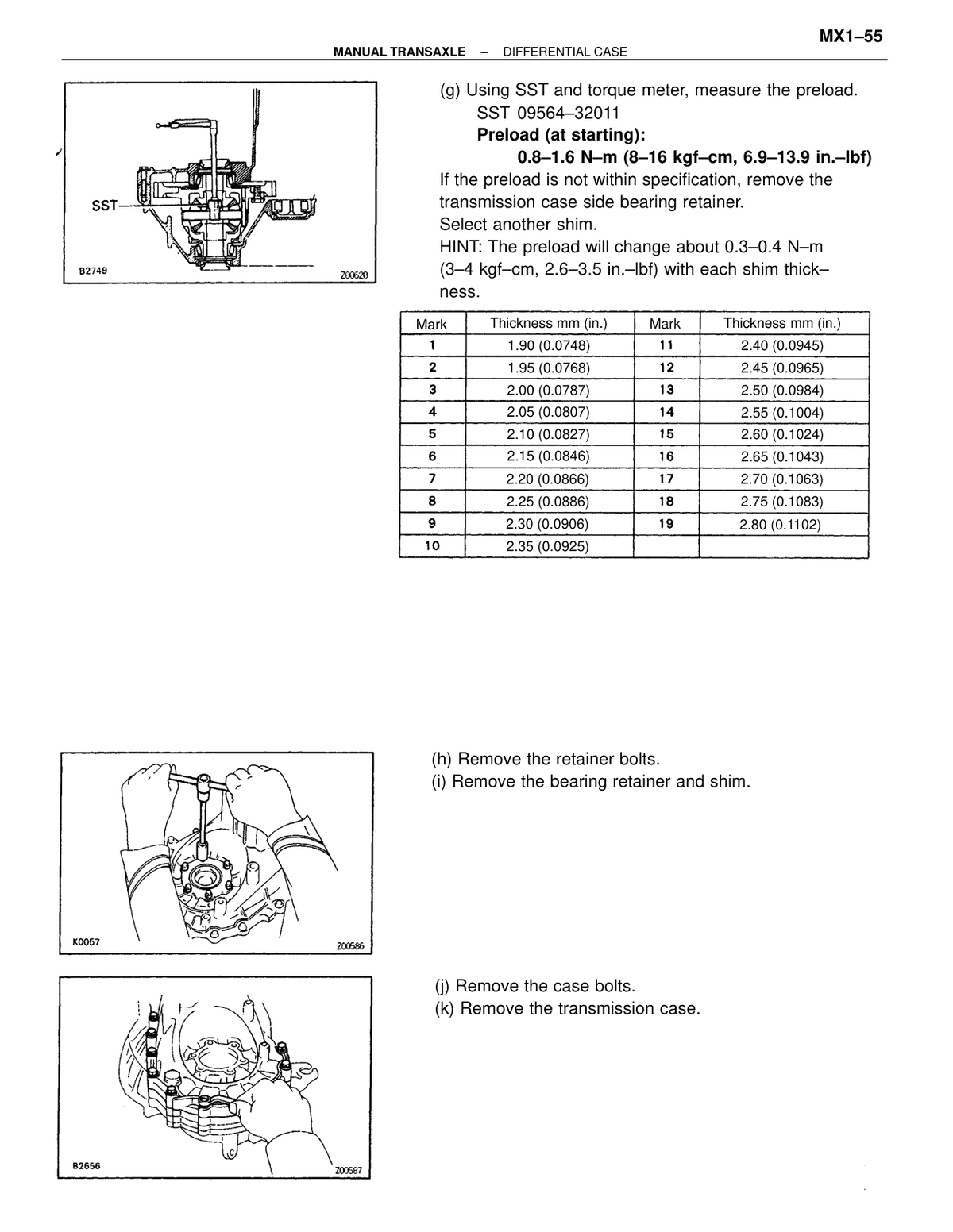

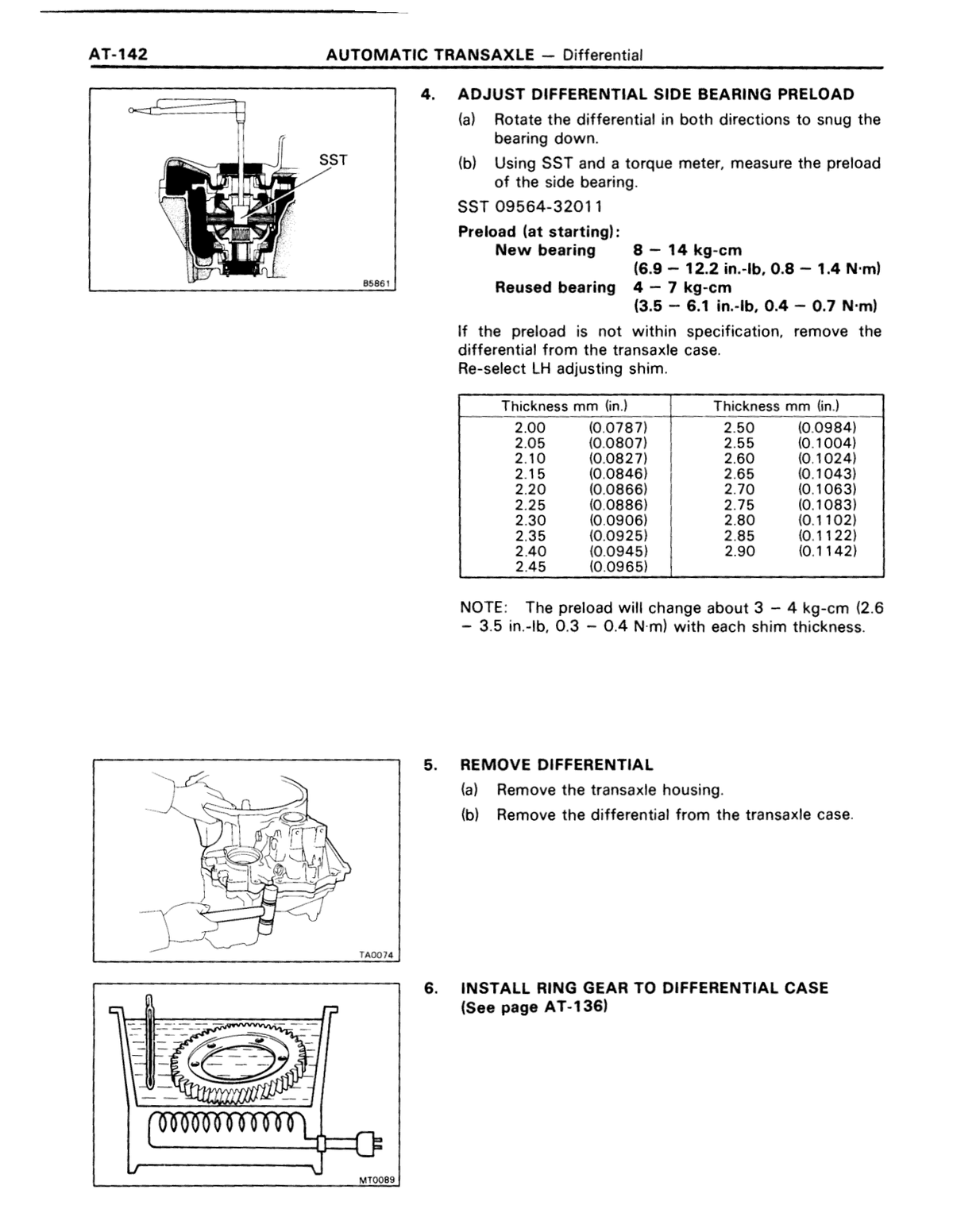

Side bearing adjusting shim thickness 0.0787 in. 2 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.1083 in. 2.75 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.1122 in. 2.85 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual
Side bearing adjusting shim thickness 0.1142 in. 2.9 mm Transmission / transaxle ↗ RM179U1_1991 · p1557 OEM manual

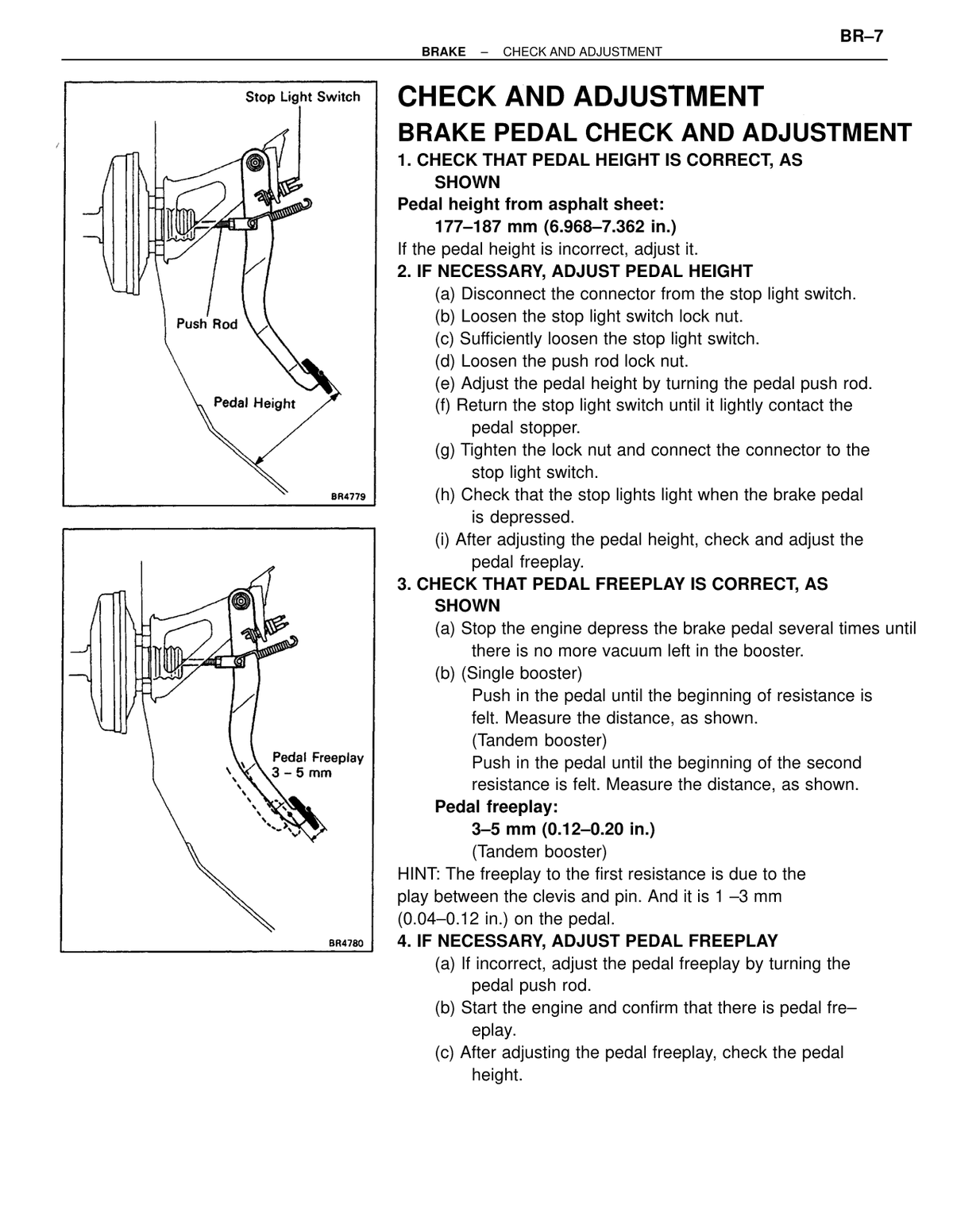

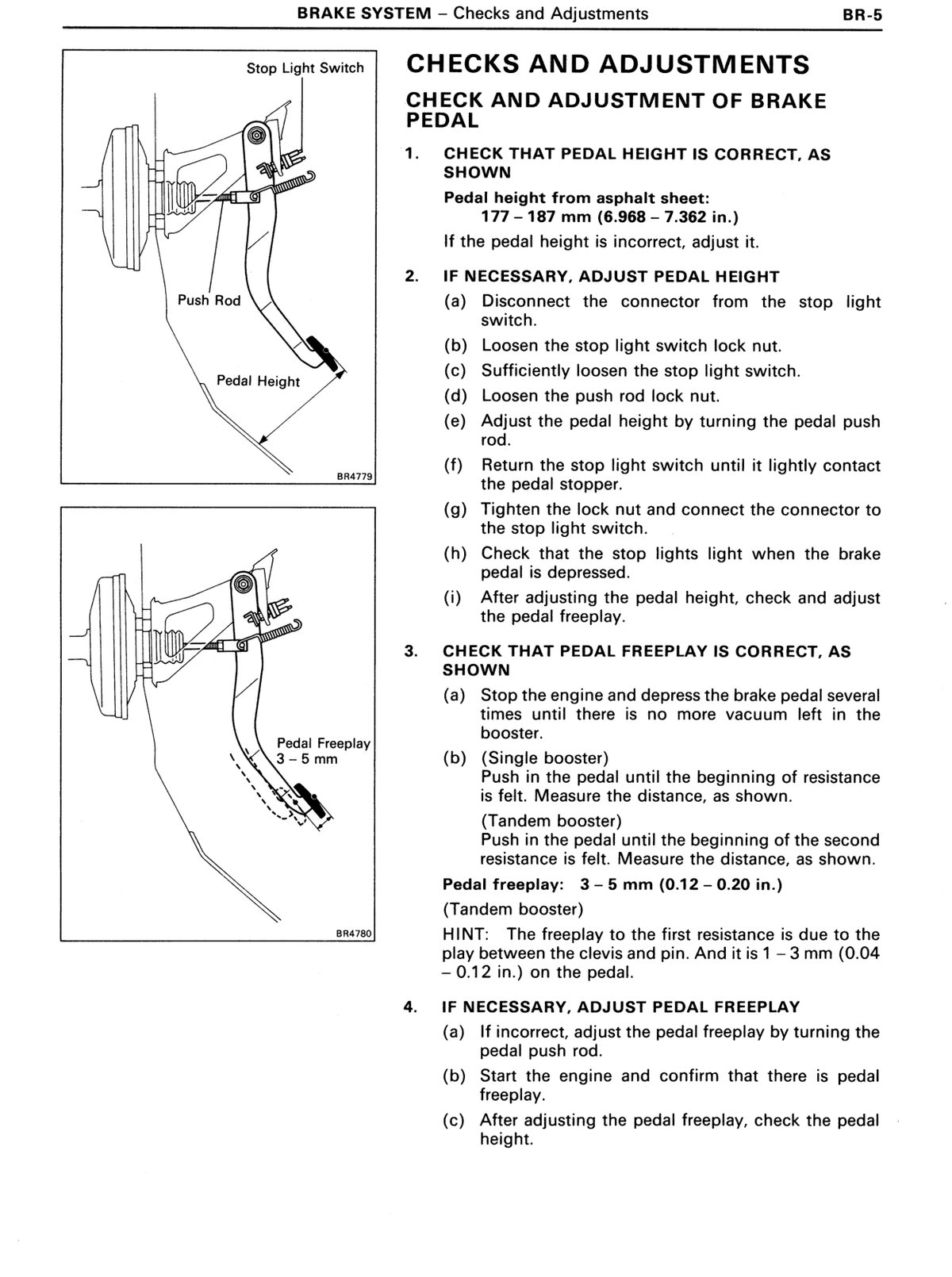

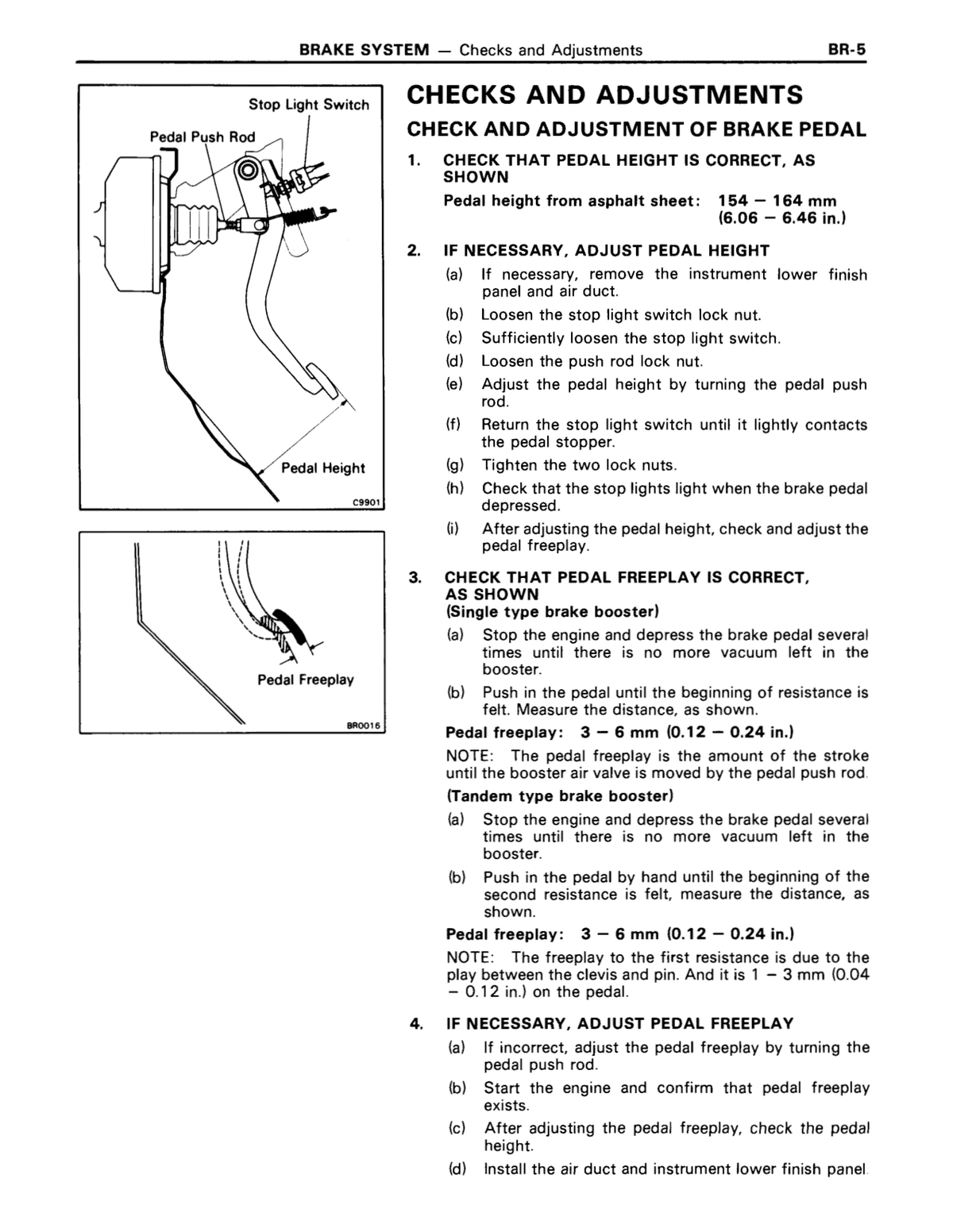

Brake pedal height from asphalt sheet 177–187 mm (6.968–7.362 in.) 177 mm Brakes ↗ RM179U1_1991 · p1560 OEM manual
Brake pedal reserve distance at 50 kg (110.2 lb, 490 N) More than 117 mm (4.61 in.) 117 mm Brakes ↗ RM179U1_1991 · p1560 OEM manual
Brake booster push rod to piston clearance (w/ SST) 0 mm (0 in.) 0 mm Brakes ↗ RM179U1_1991 · p1560 OEM manual
Parking brake lever travel at 20 kg (44.1 lb, 196 N) 5–8 clicks 5 clicks Brakes ↗ RM179U1_1991 · p1560 OEM manual

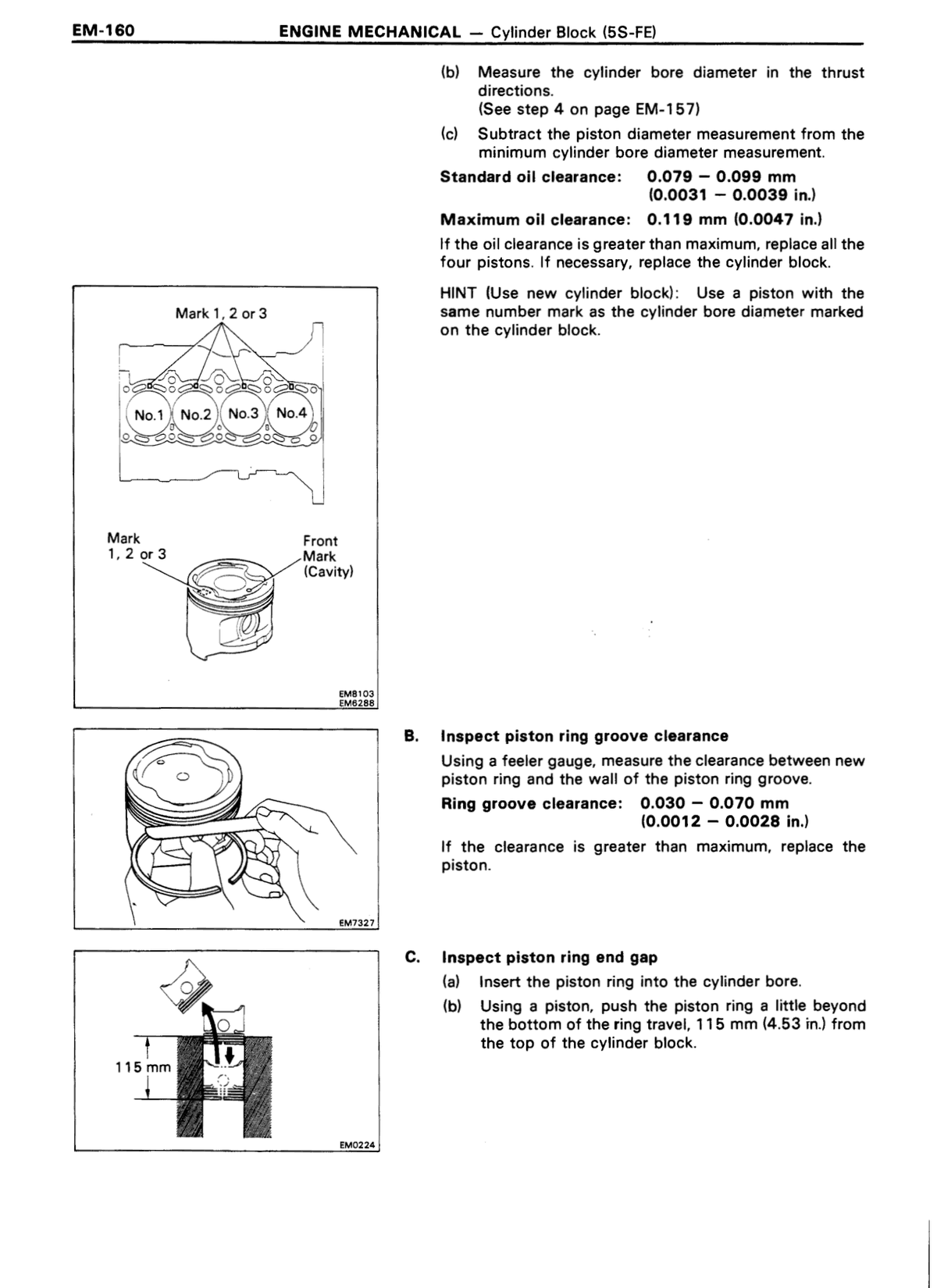

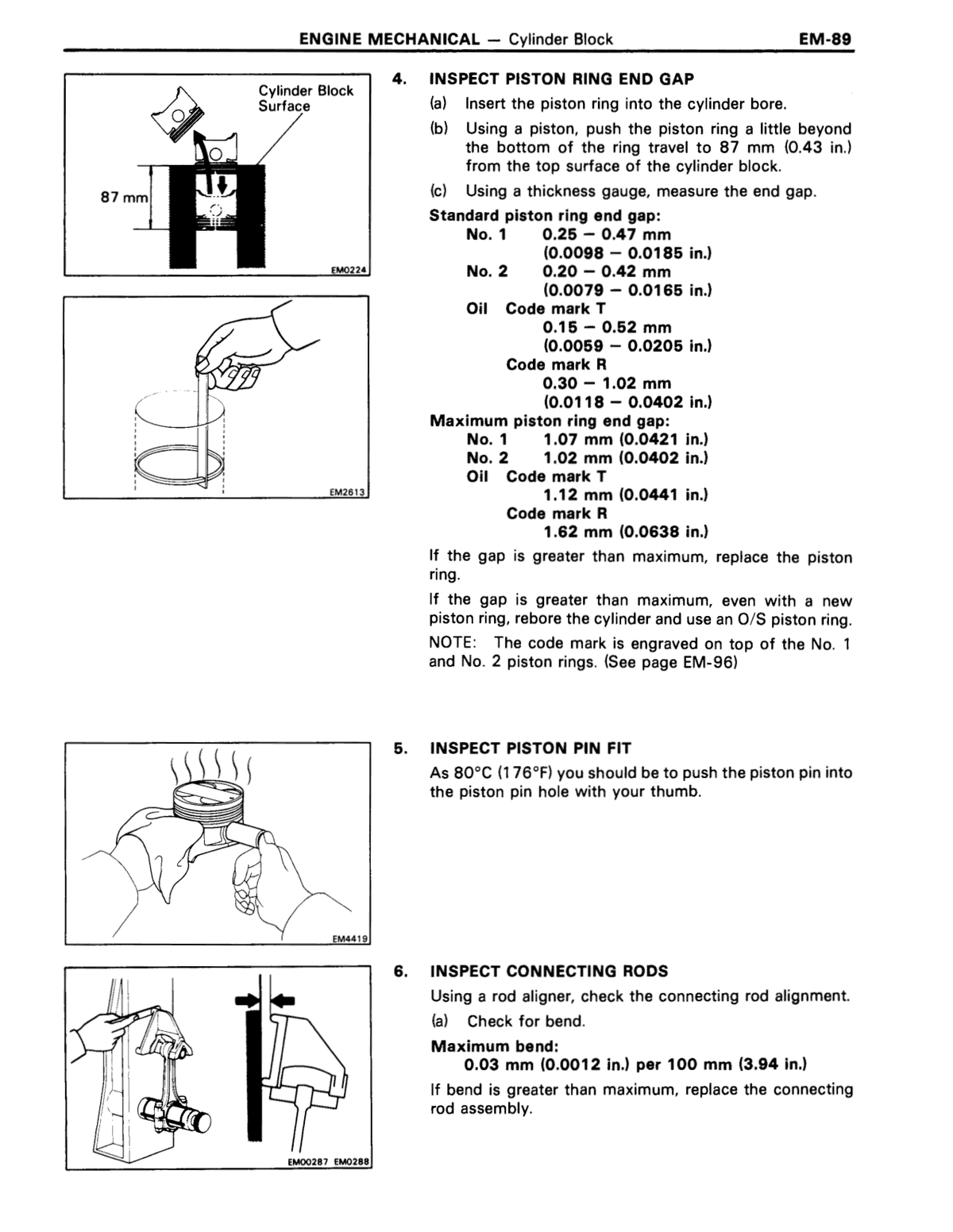

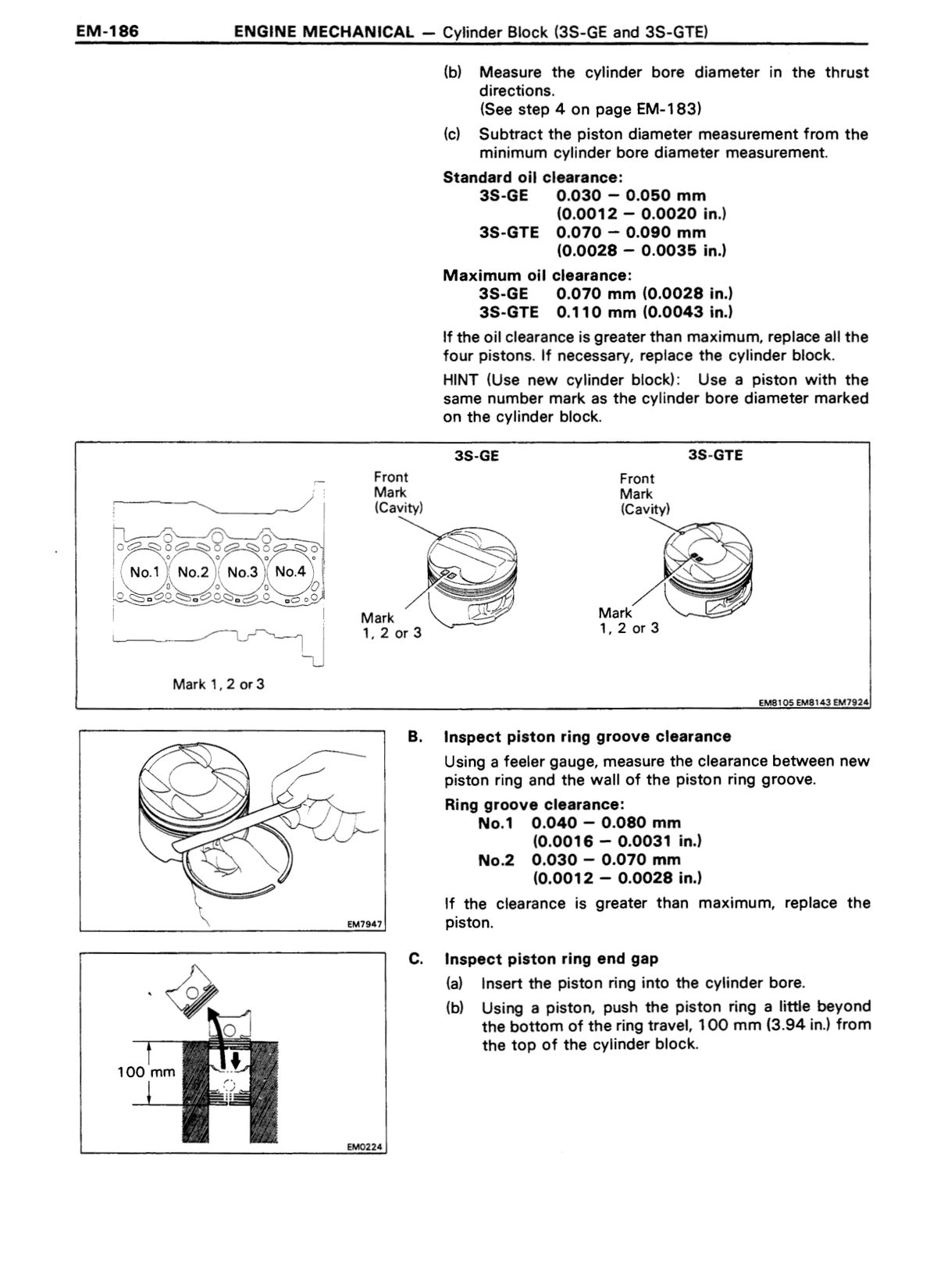

Piston ring end gap measurement depth from top of cylinder block 4.53 in. — position for end gap measurement 115 mm Engine — mechanical ↗ RM179U1_1991 · p185 OEM manual

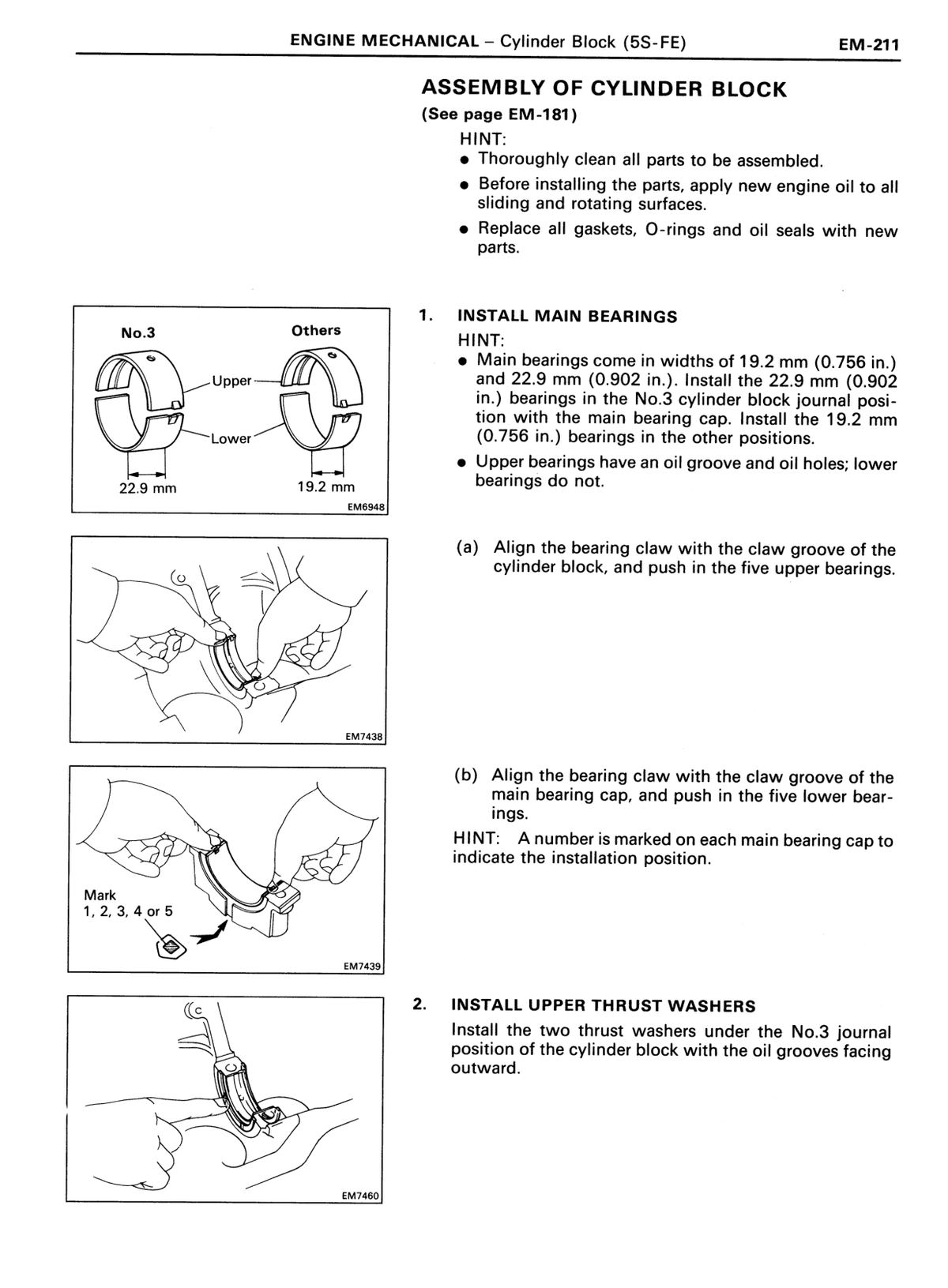

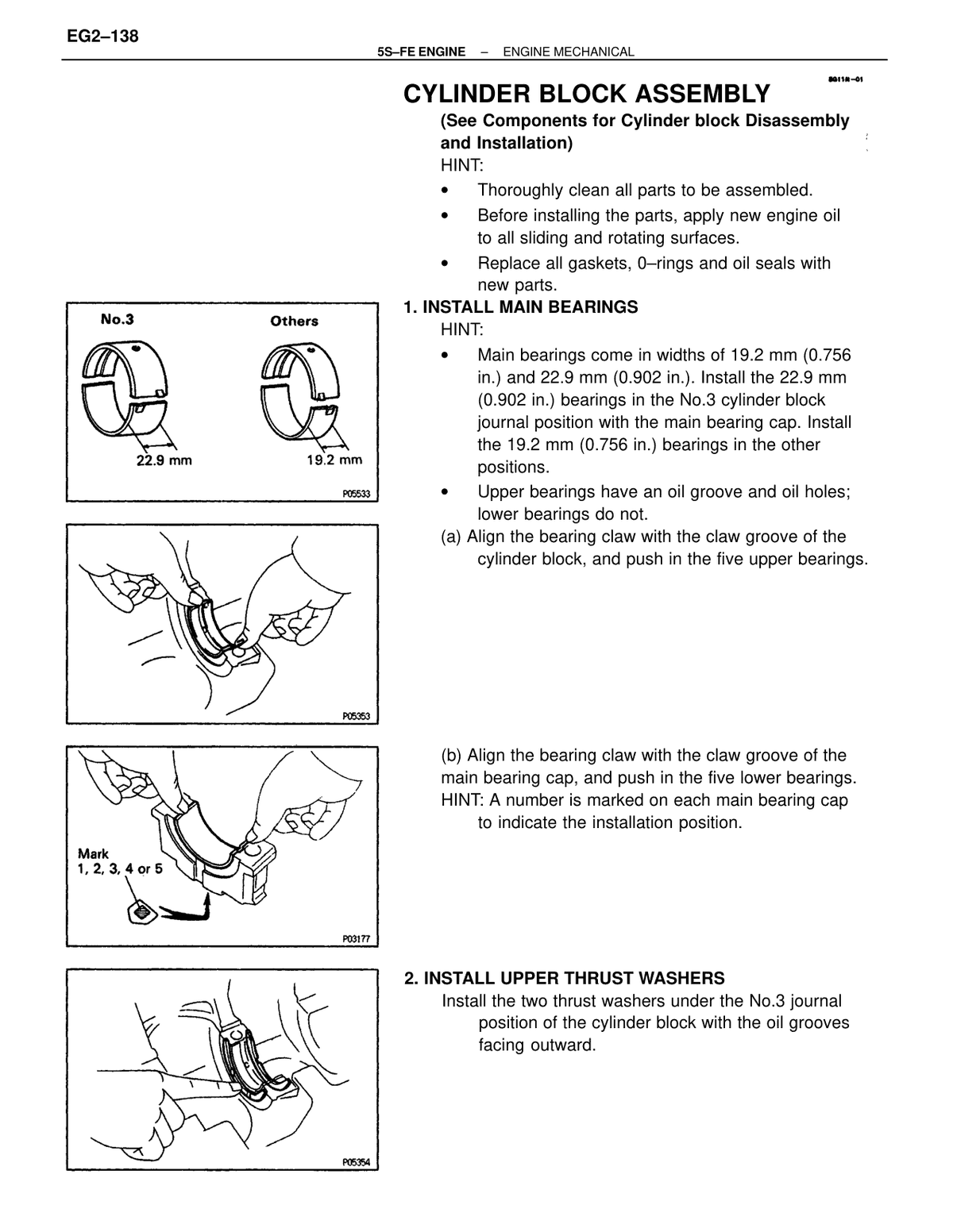

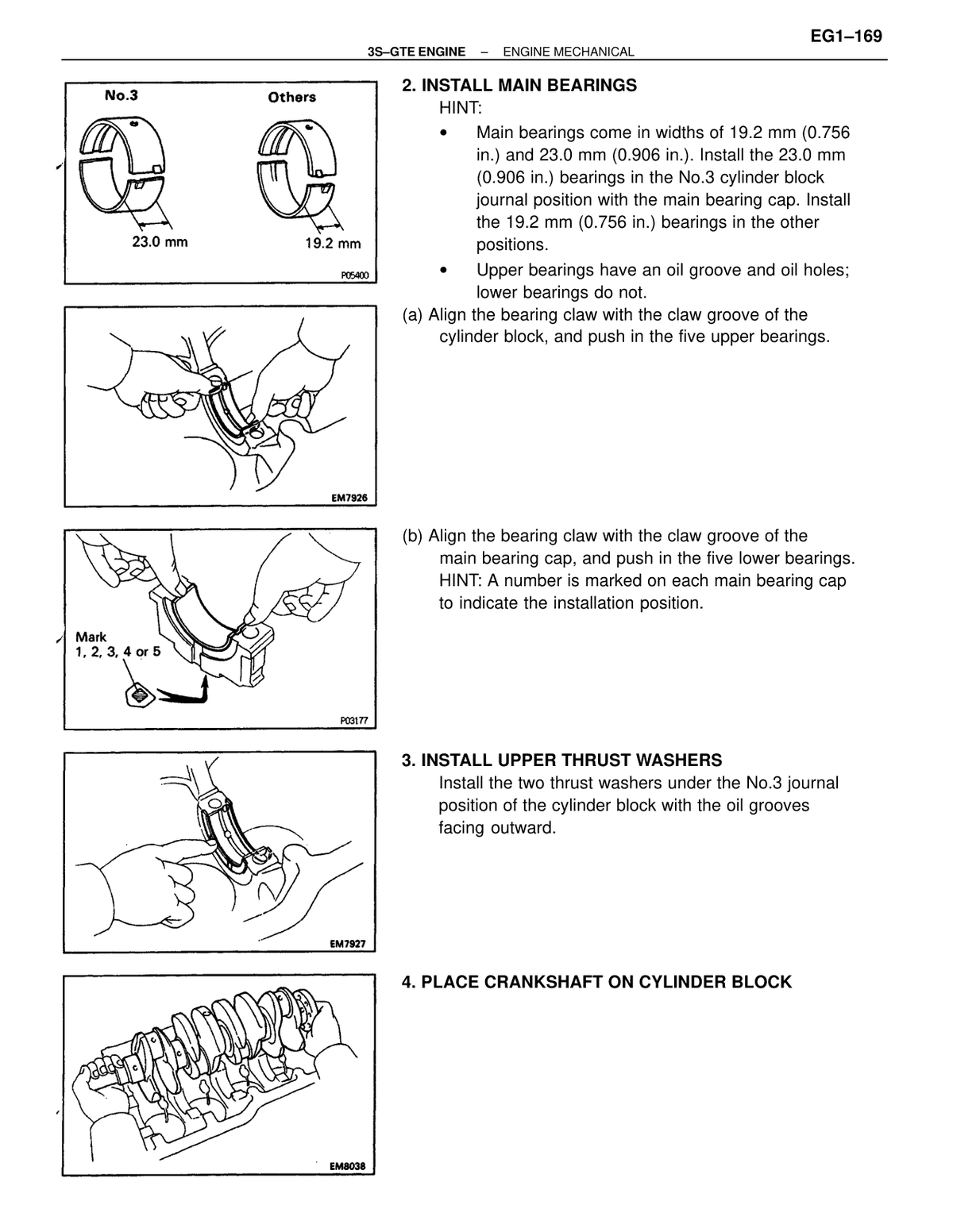

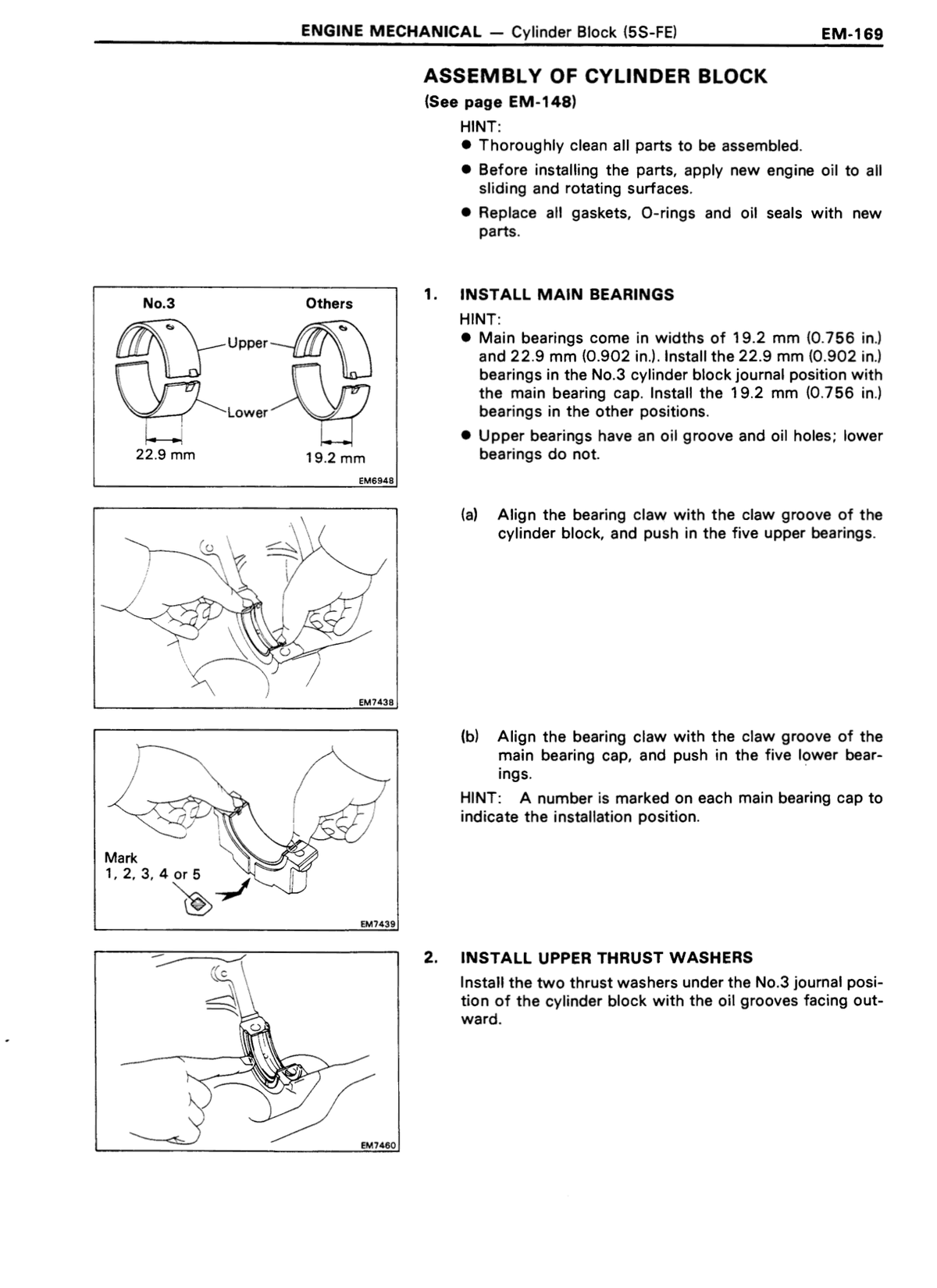

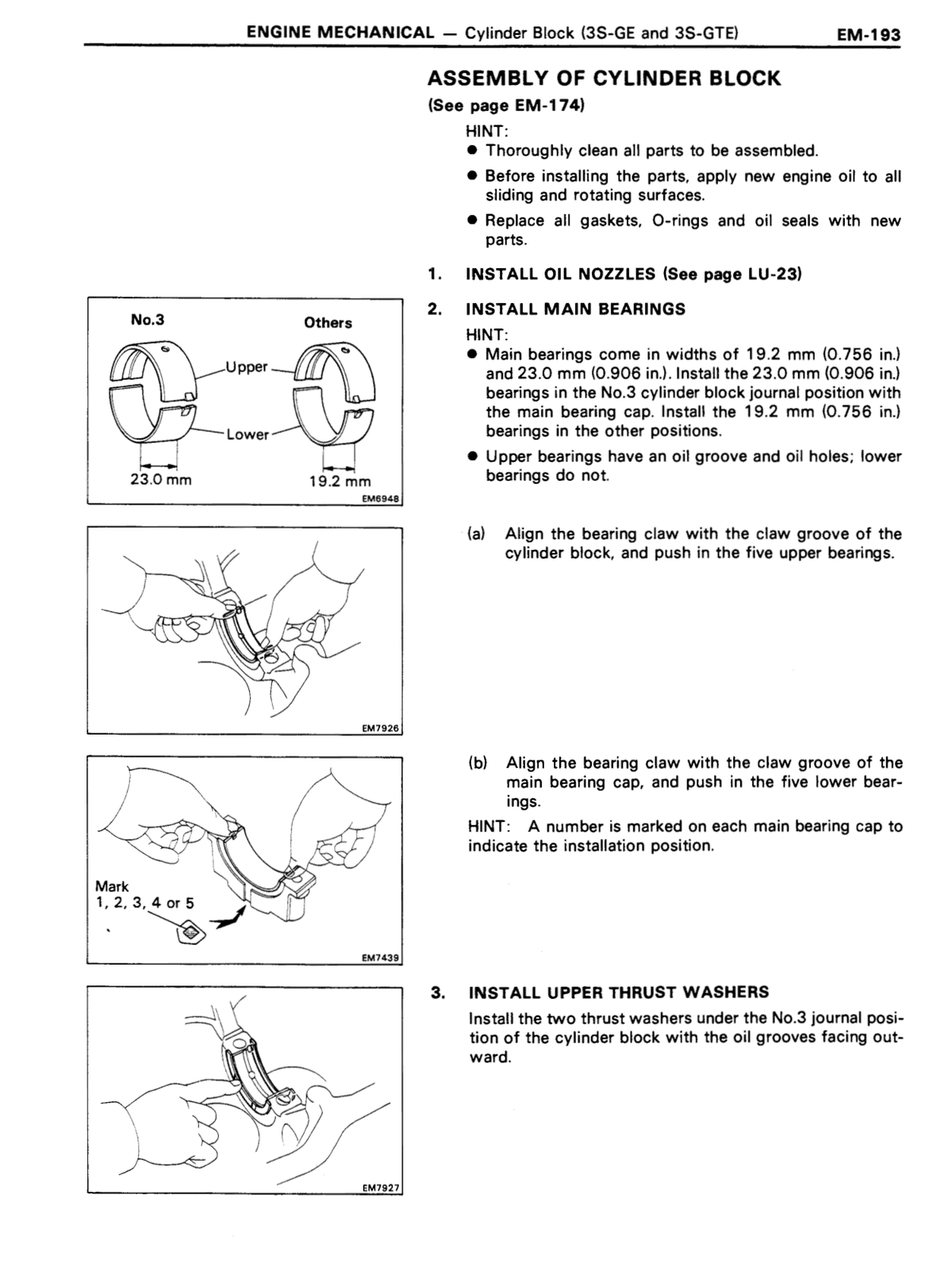

Main bearing width — No.3 journal position 0.902 in. — used at No.3 cylinder block journal position with main bearing cap 22.9 mm Engine — mechanical ↗ RM179U1_1991 · p241 OEM manual
Main bearing width — other positions 0.756 in. — used at all positions other than No.3 19.2 mm Engine — mechanical ↗ RM179U1_1991 · p241 OEM manual
Seal packing bead width along straight edges Approx. 5 mm (0.20 in.) seal at corners/edges of oil pan 5 mm Lubrication / oil ↗ RM179U1_1991 · p551 OEM manual

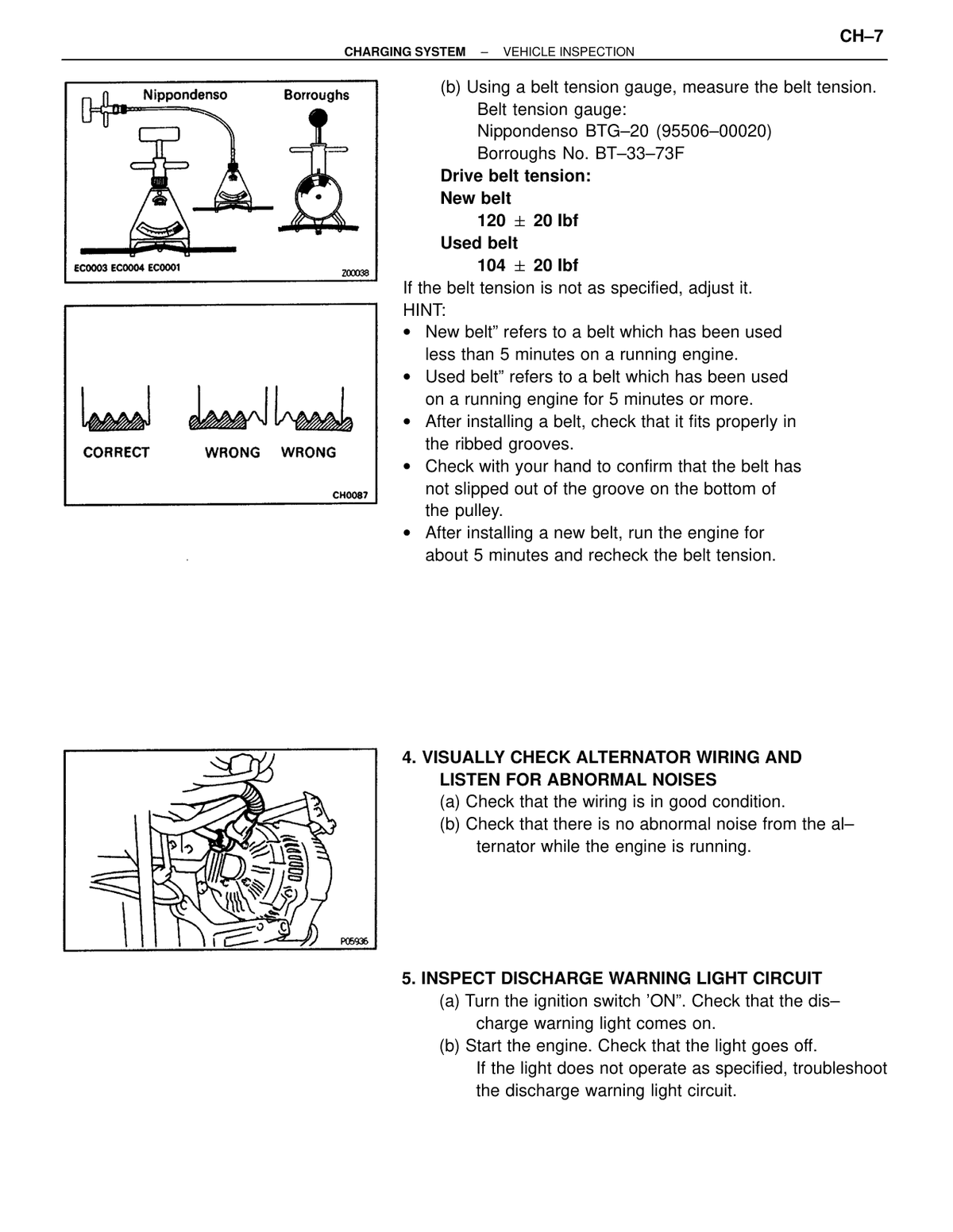

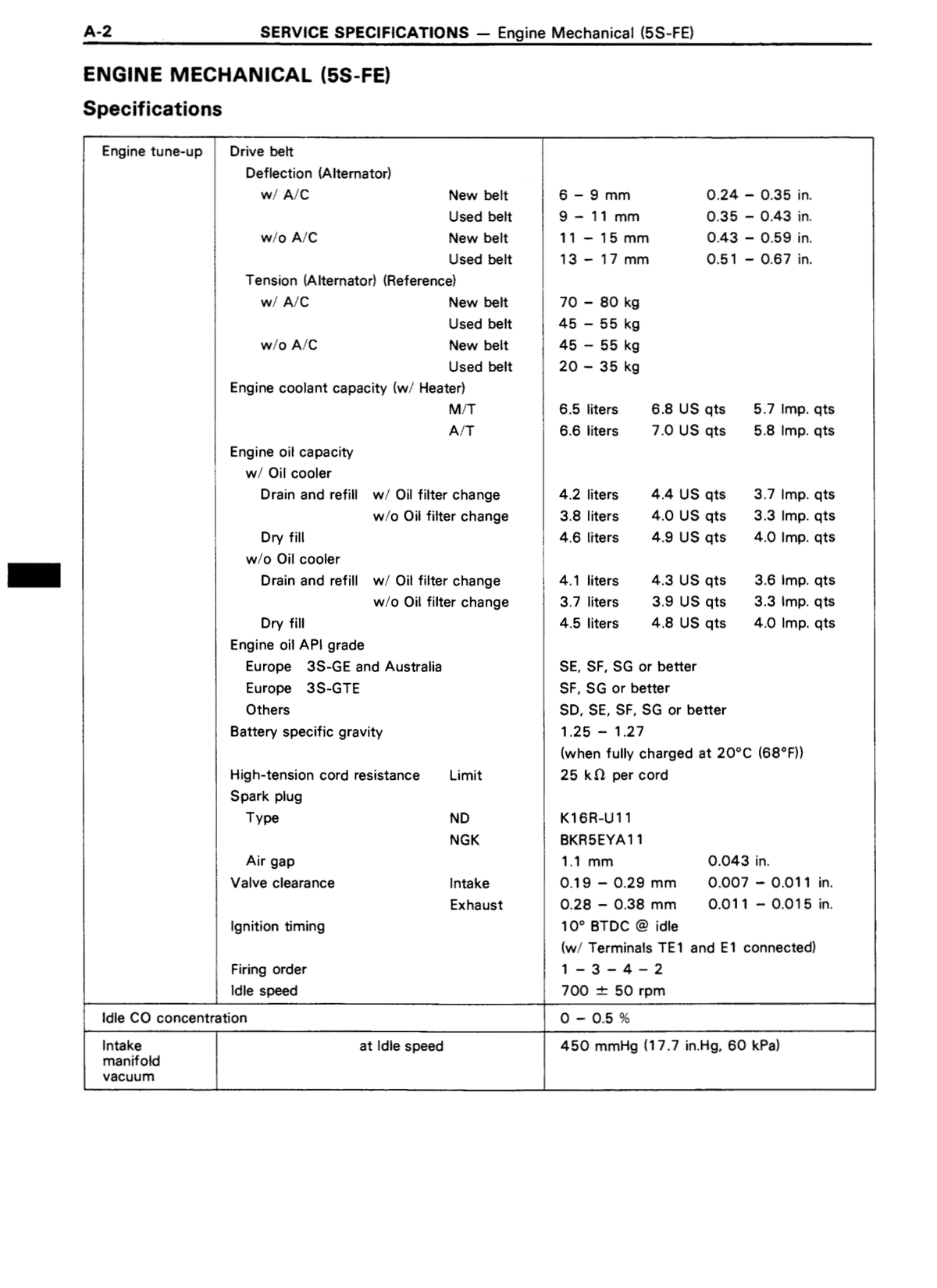

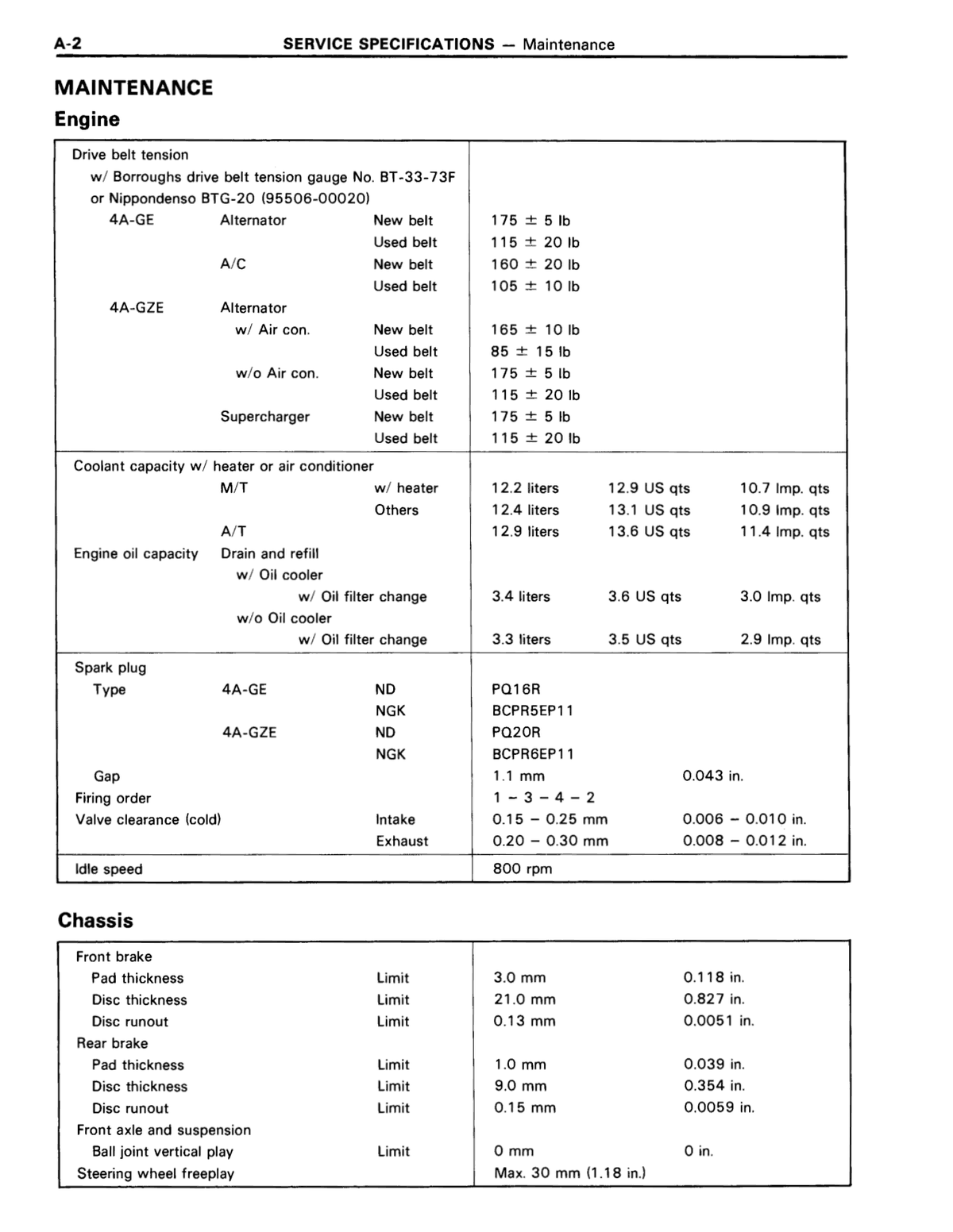

Drive belt tension — New belt ± 20 lb; belt used 5 min or less on running engine 120 lb Starting / charging ↗ RM179U1_1991 · p604 OEM manual
Drive belt tension — Used belt ± 20 lb; belt used on running engine for 5 min or more 104 lb Starting / charging ↗ RM179U1_1991 · p604 OEM manual

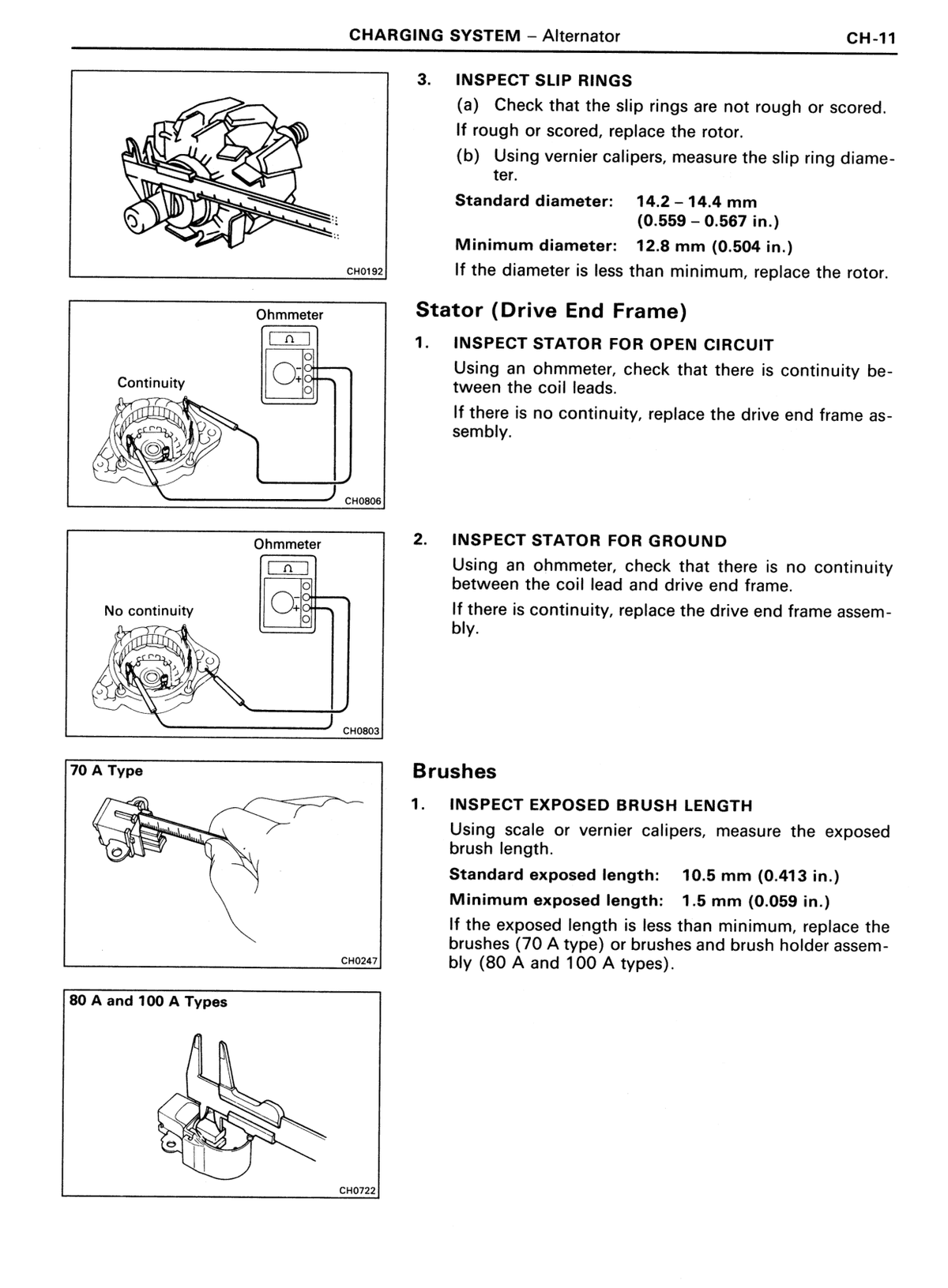

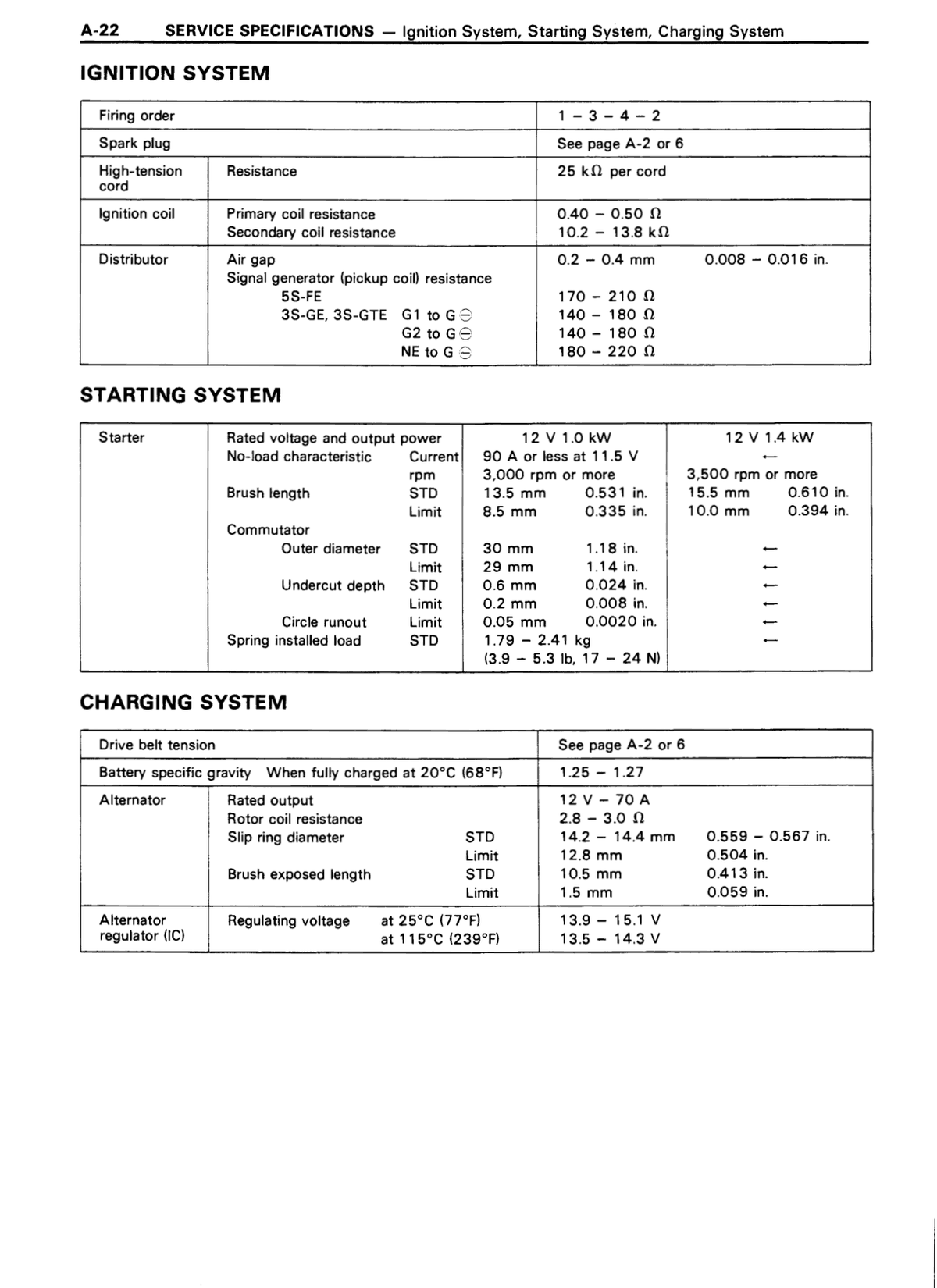

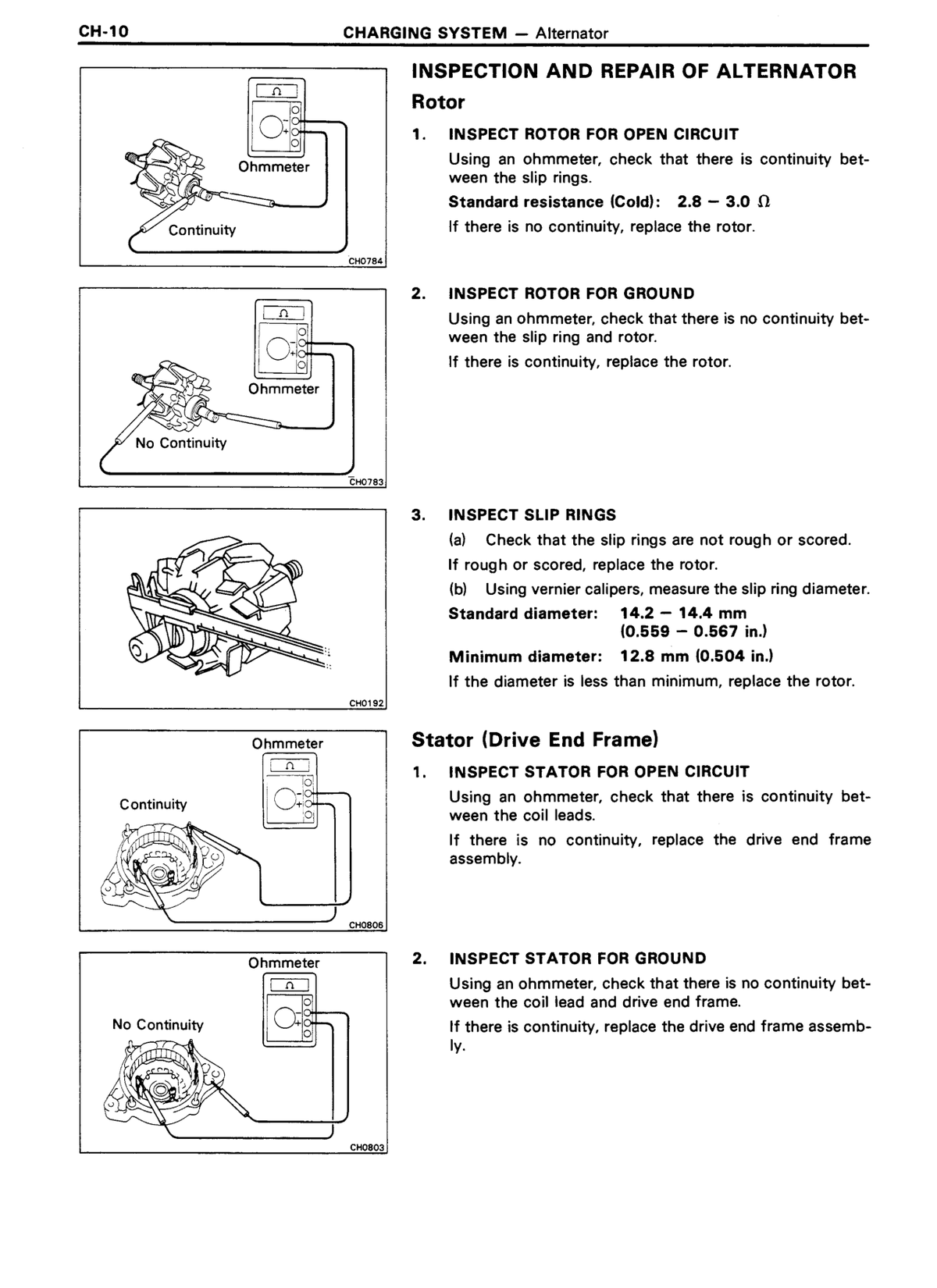

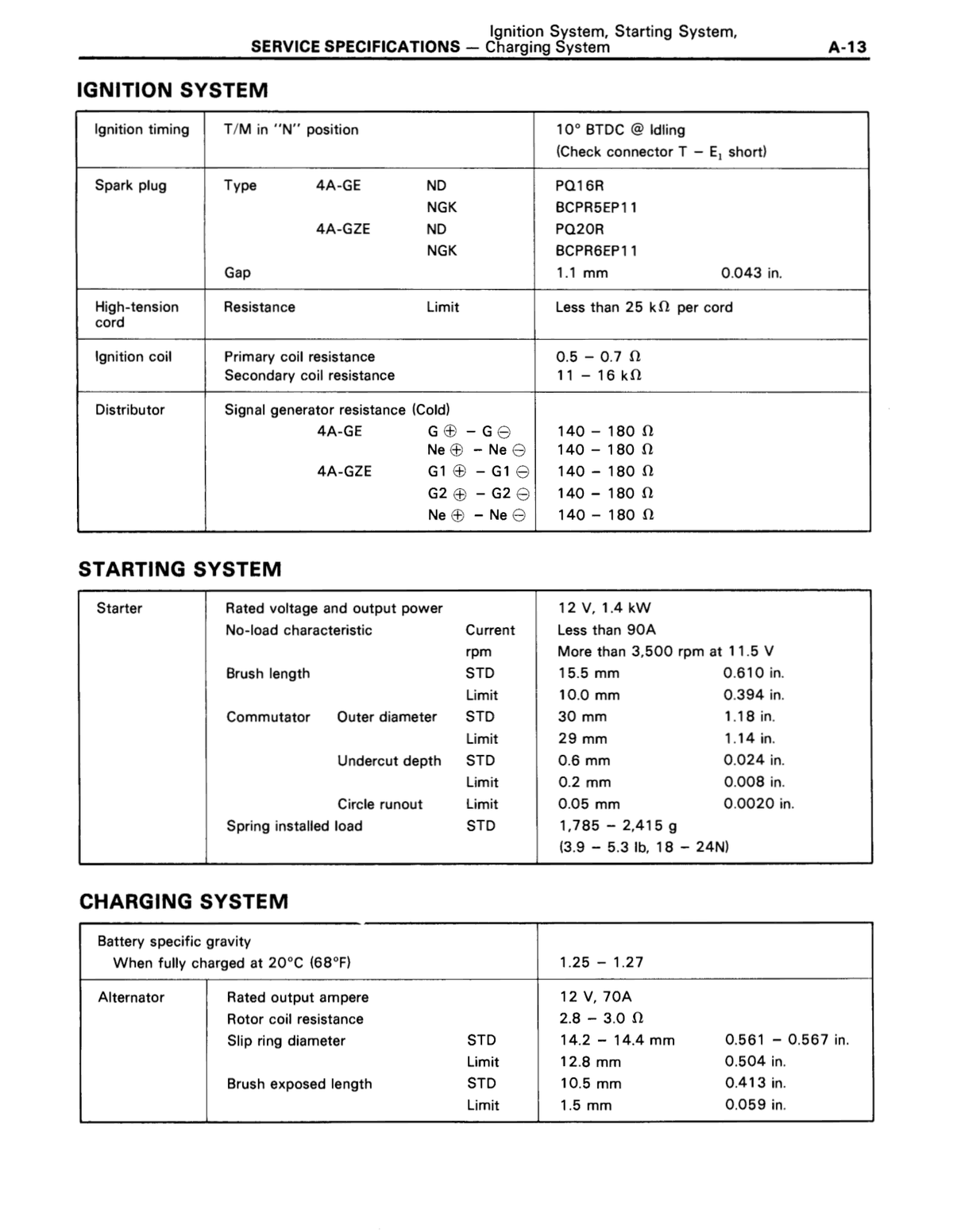

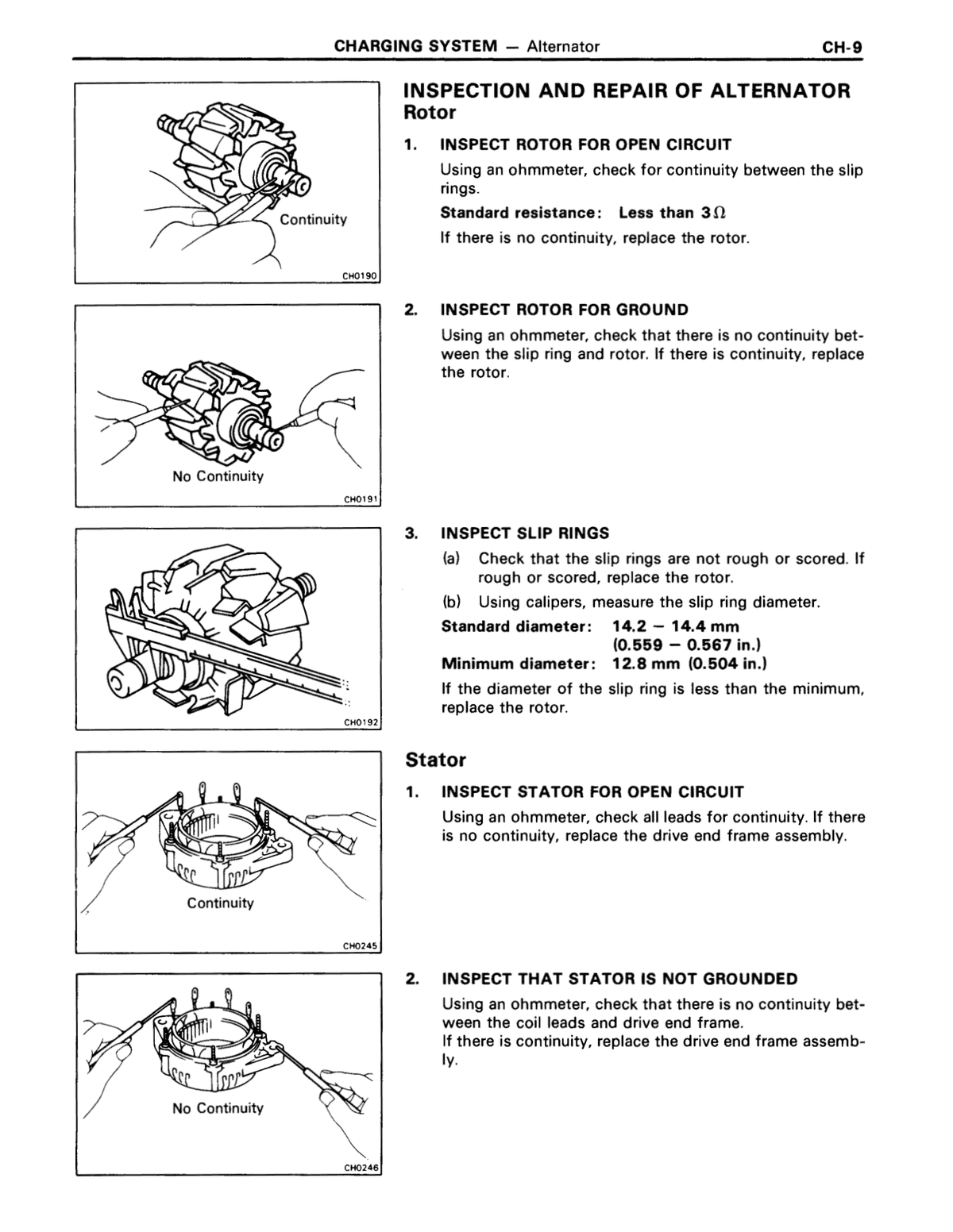

Slip ring diameter — standard range 14.2–14.4 mm (0.559–0.567 in.) 14.3 mm Starting / charging ↗ RM179U1_1991 · p612 OEM manual

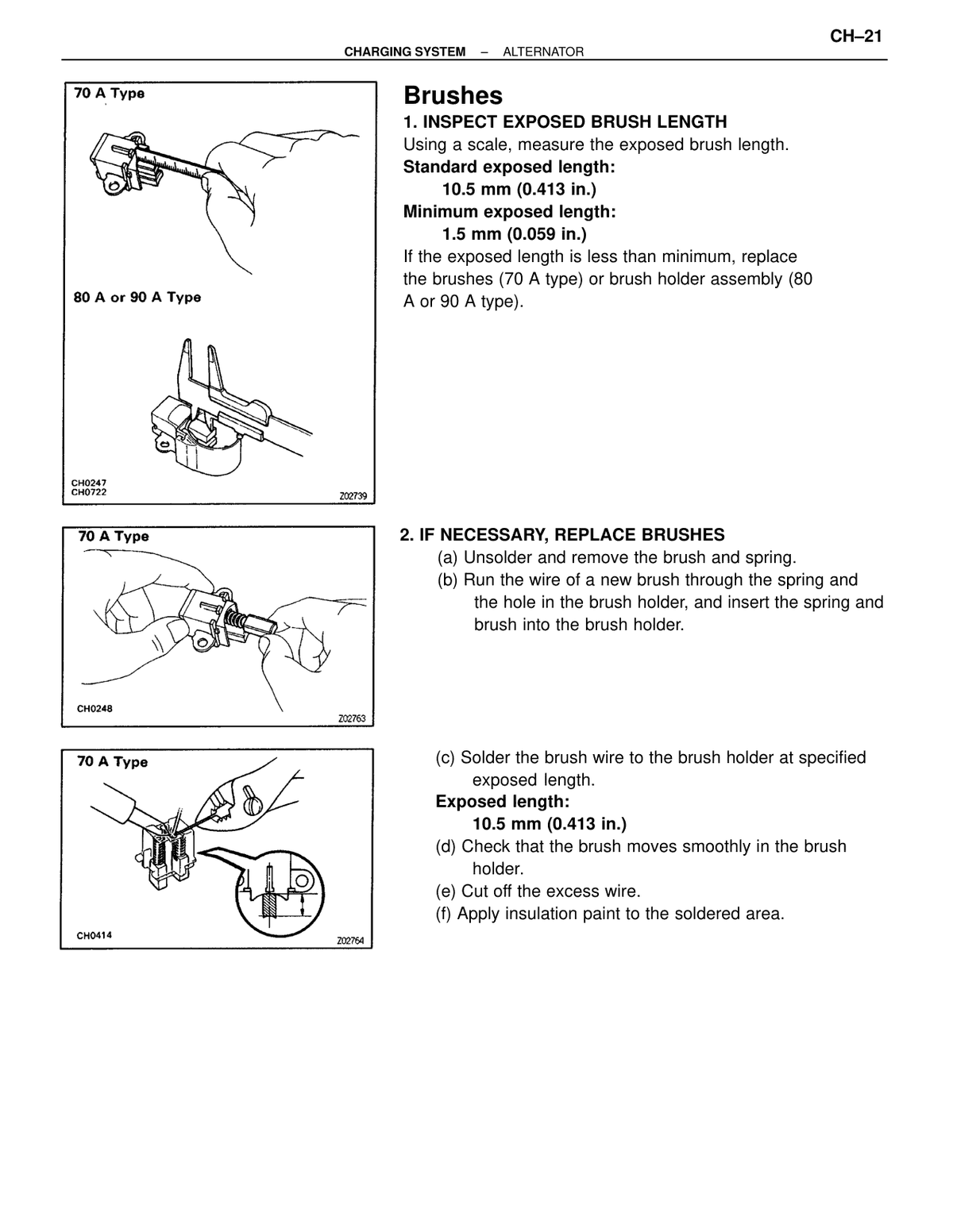

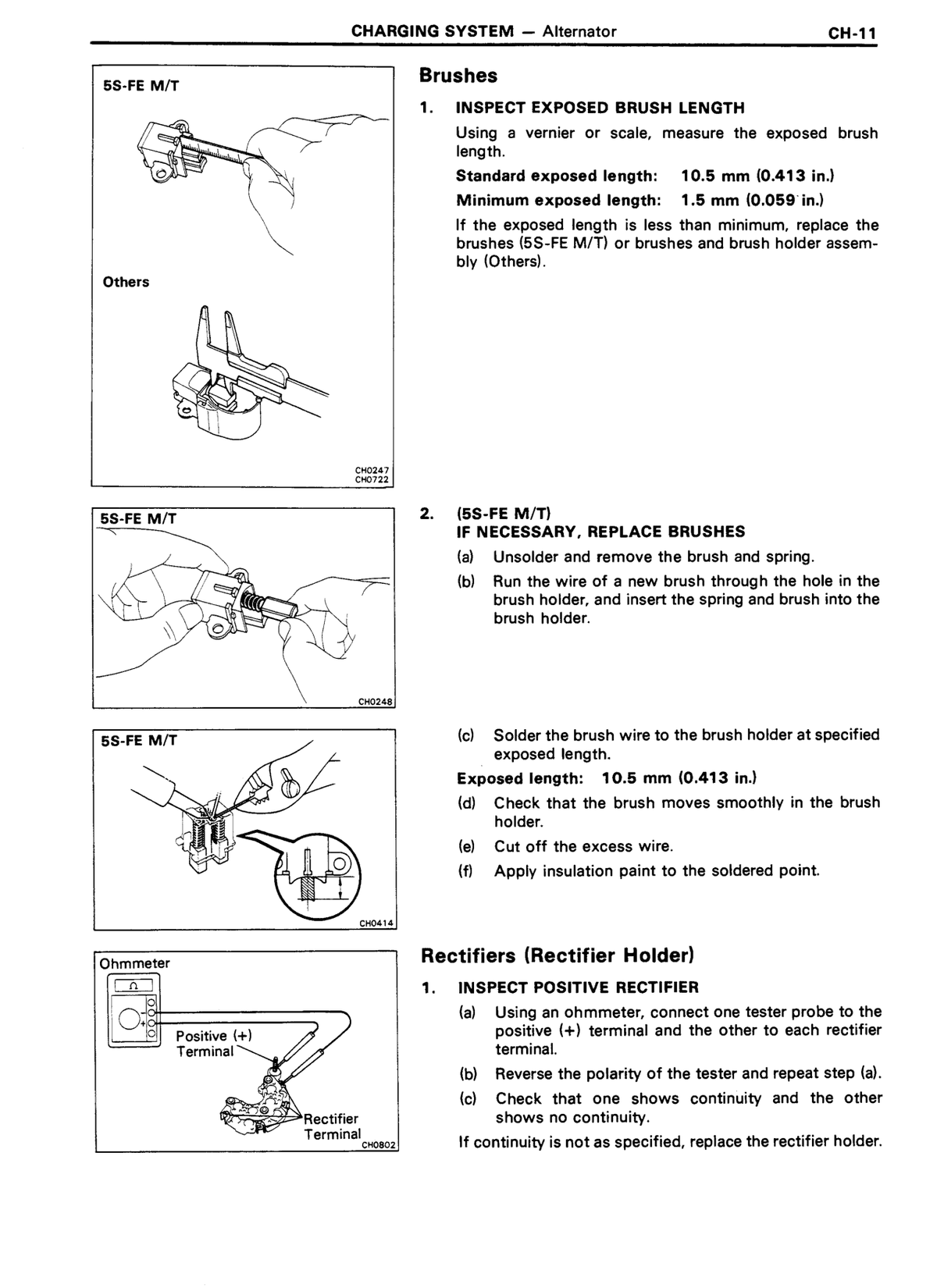

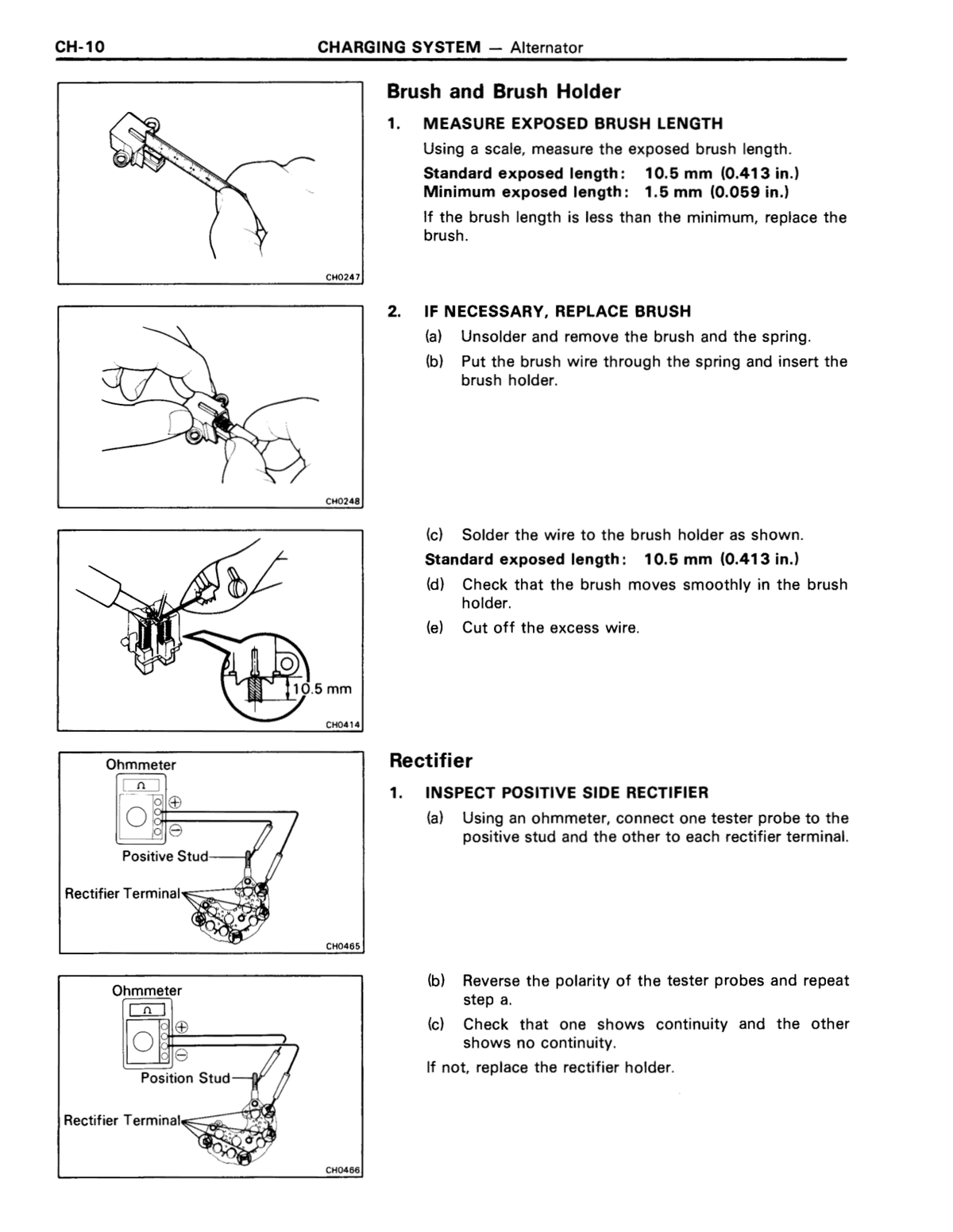

Brush exposed length — standard 0.413 in. 10.5 mm Starting / charging ↗ RM179U1_1991 · p612 OEM manual
Brush exposed length — minimum 0.059 in. 1.5 mm Starting / charging ↗ RM179U1_1991 · p612 OEM manual

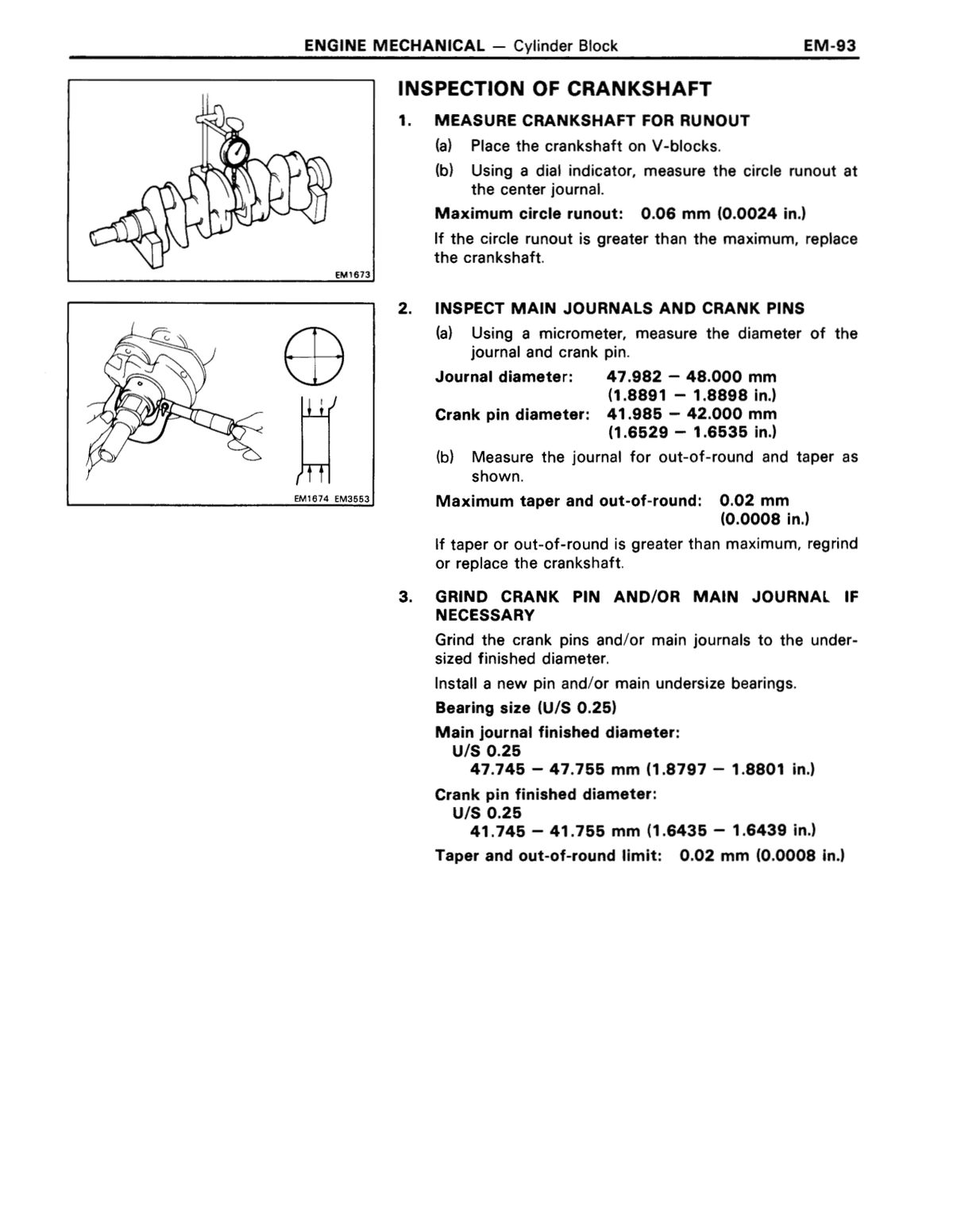

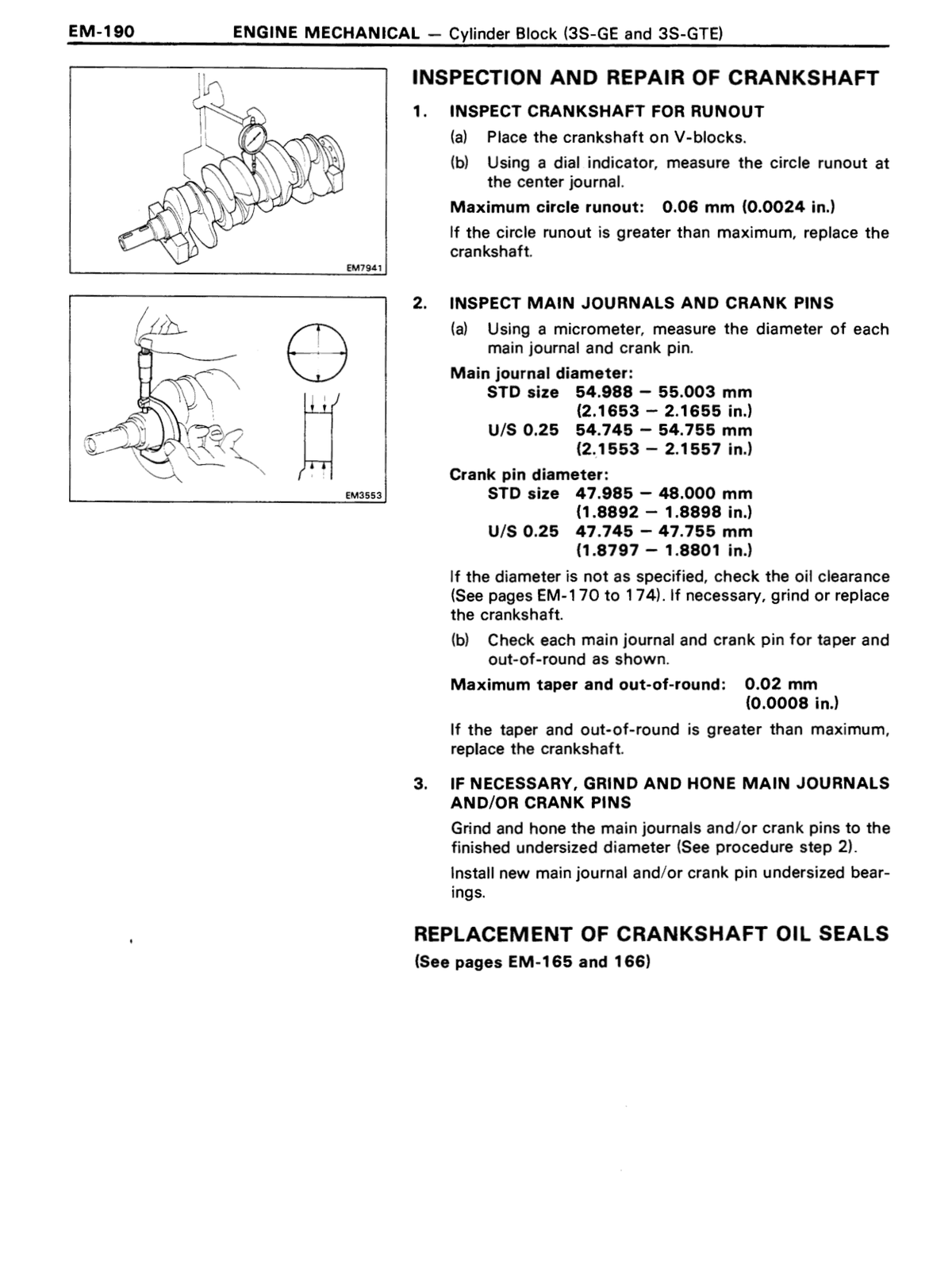

Main journal diameter — U/S 0.25 54.745-54.755 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual

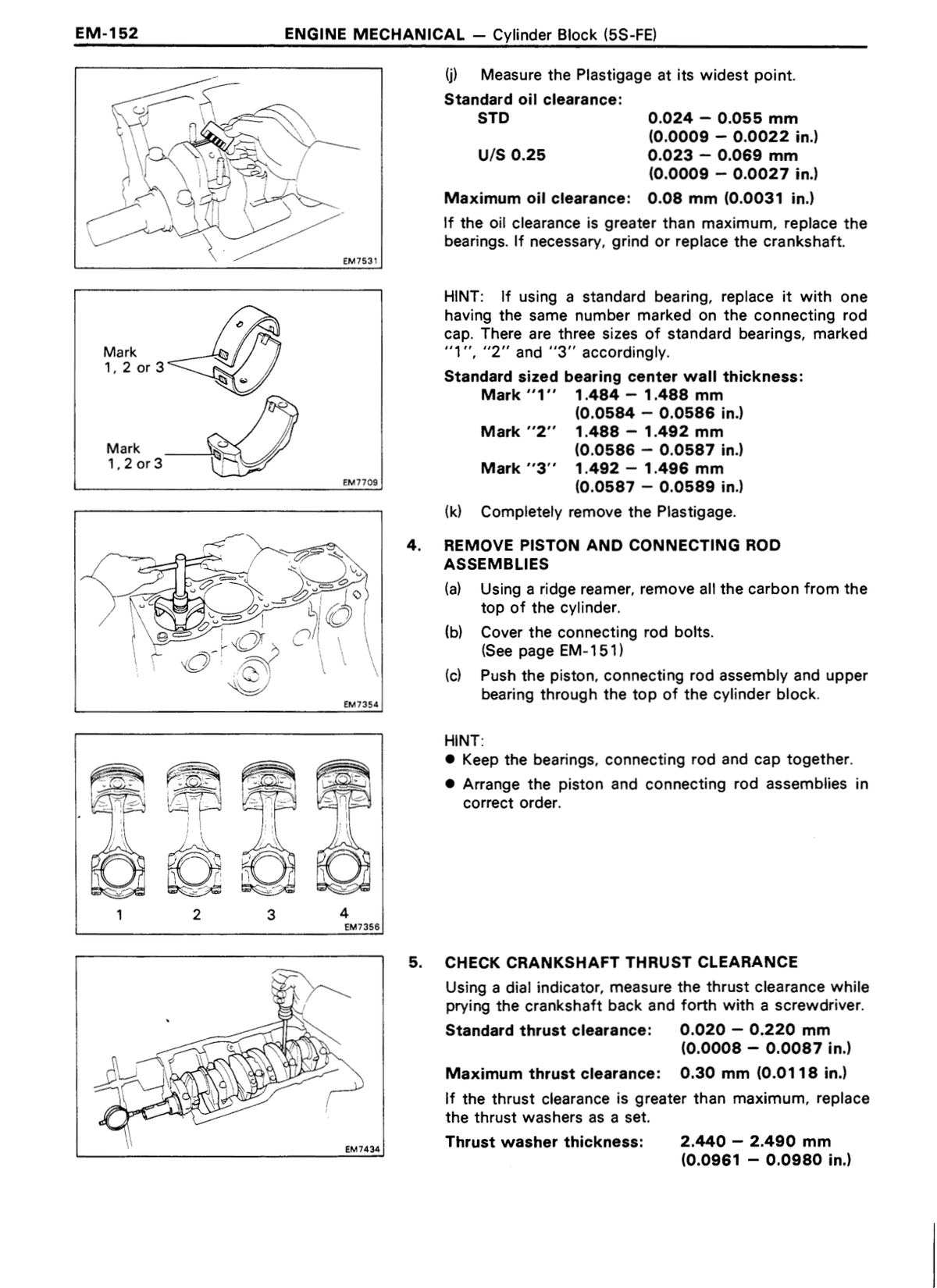

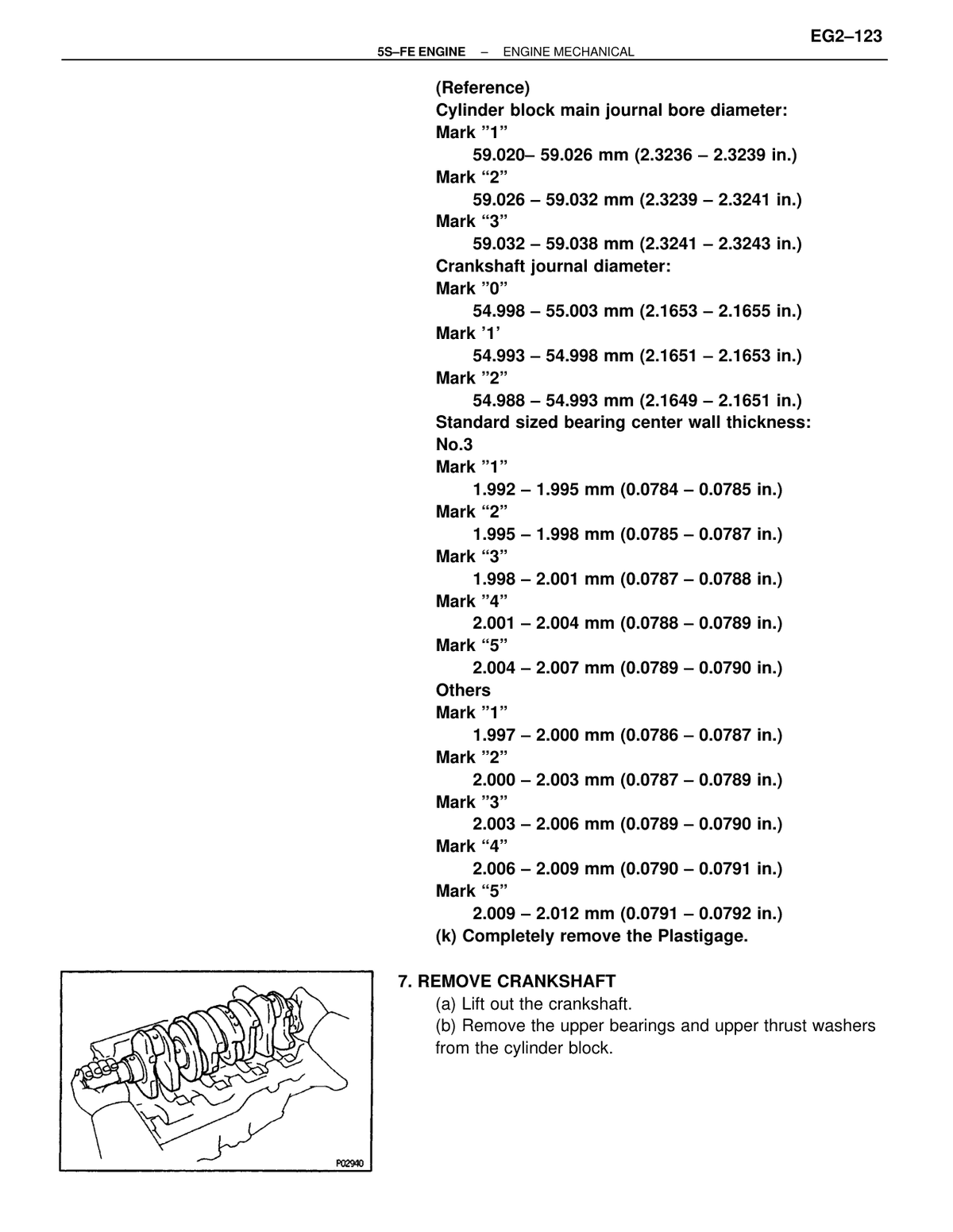

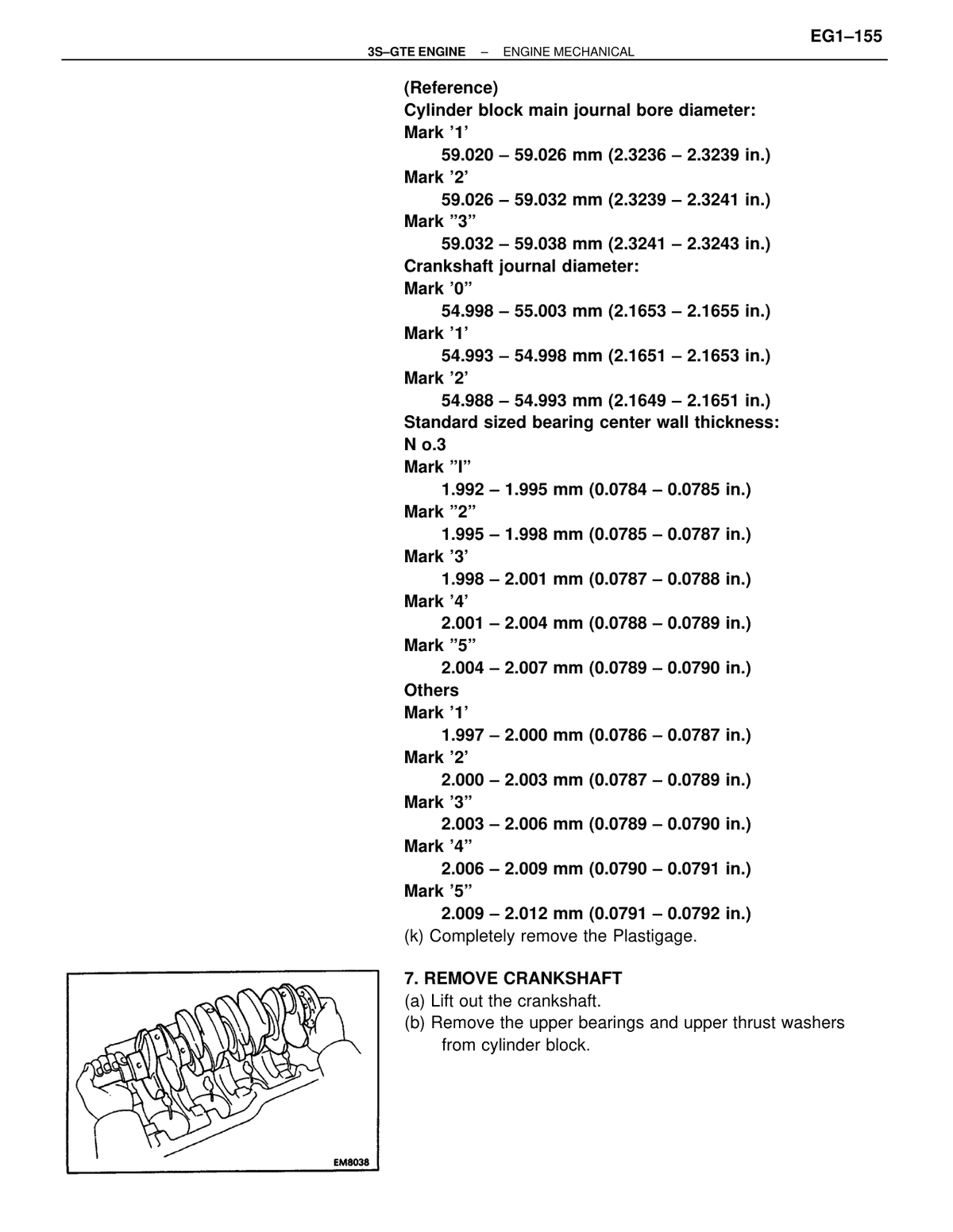

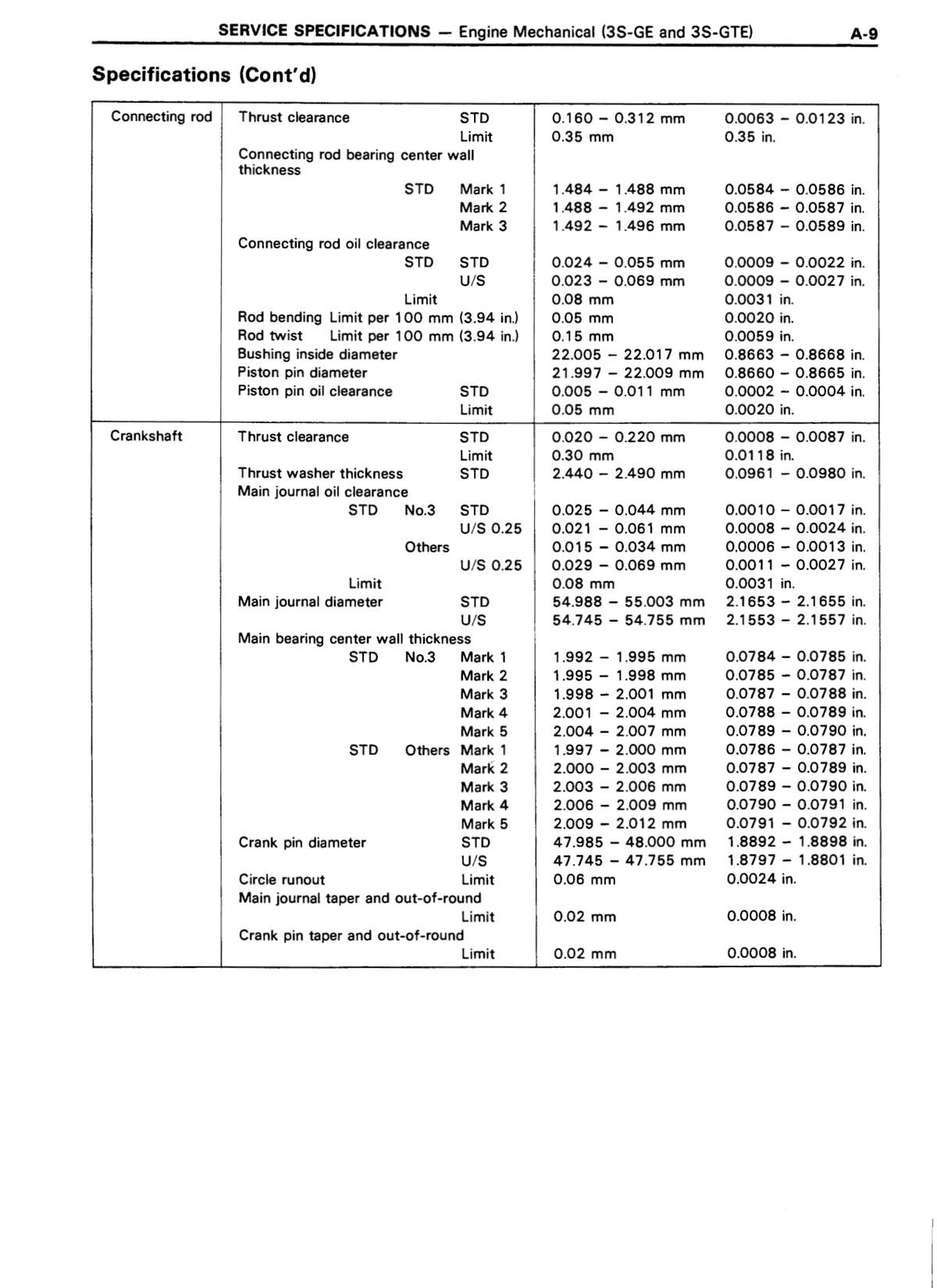

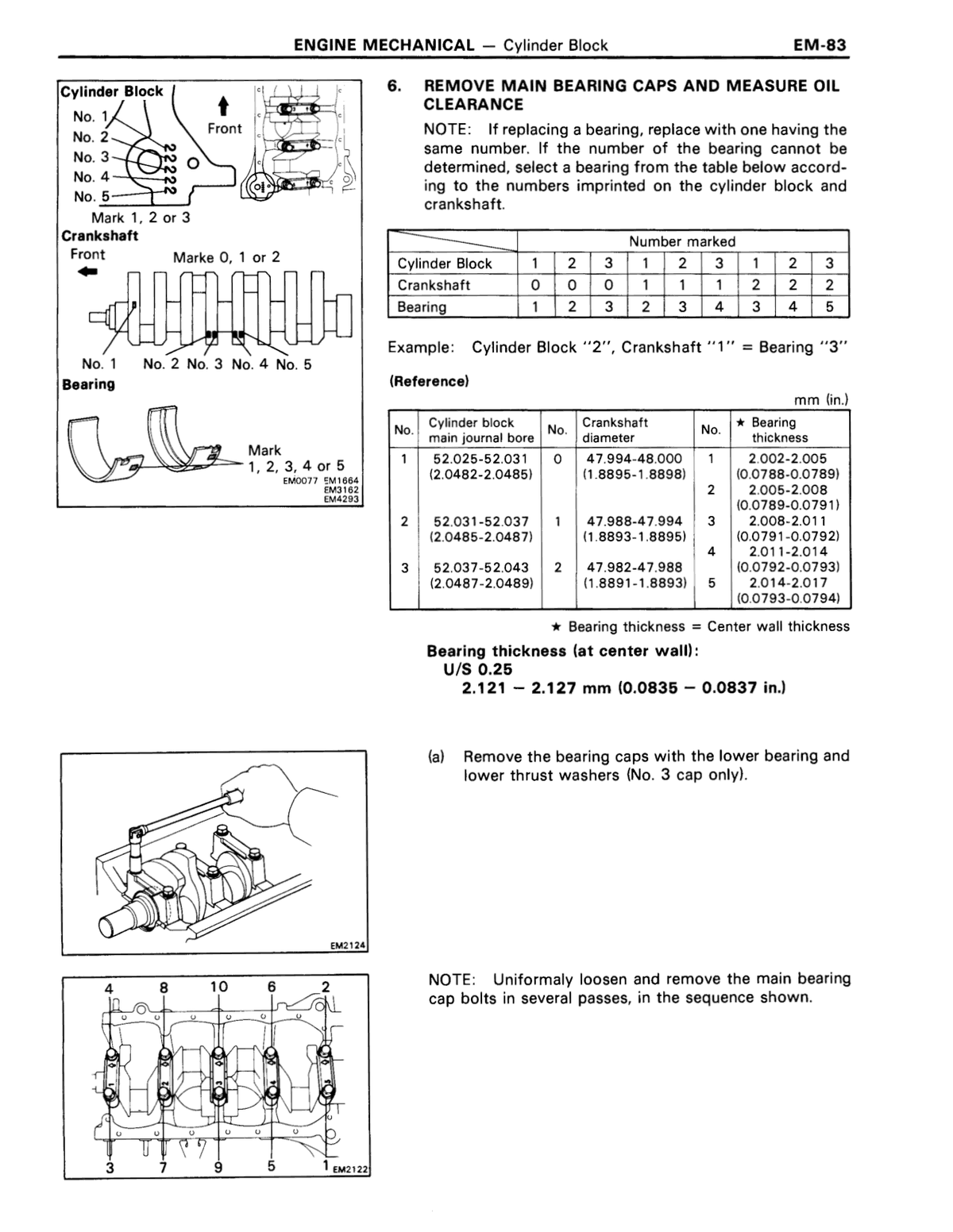

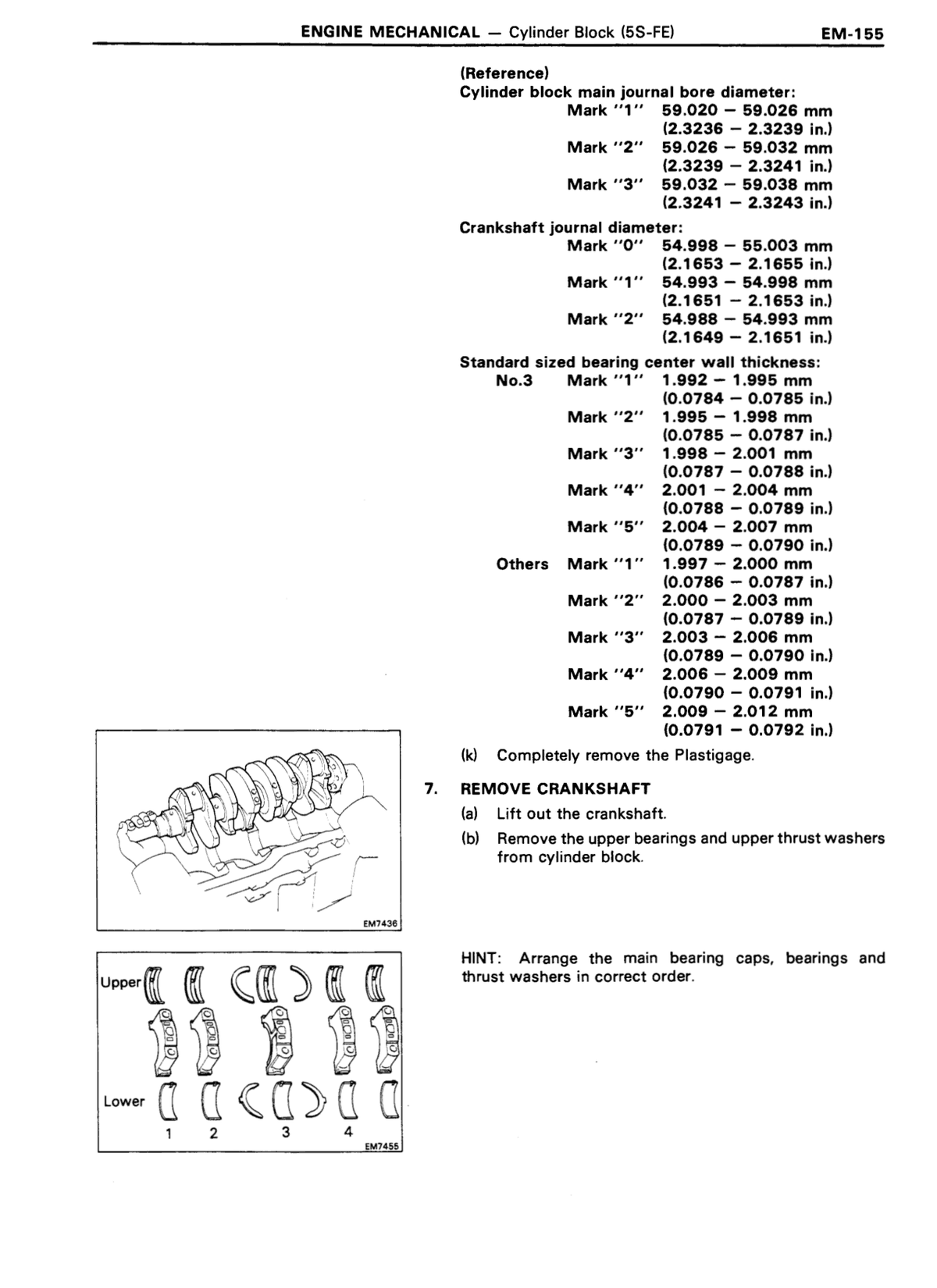

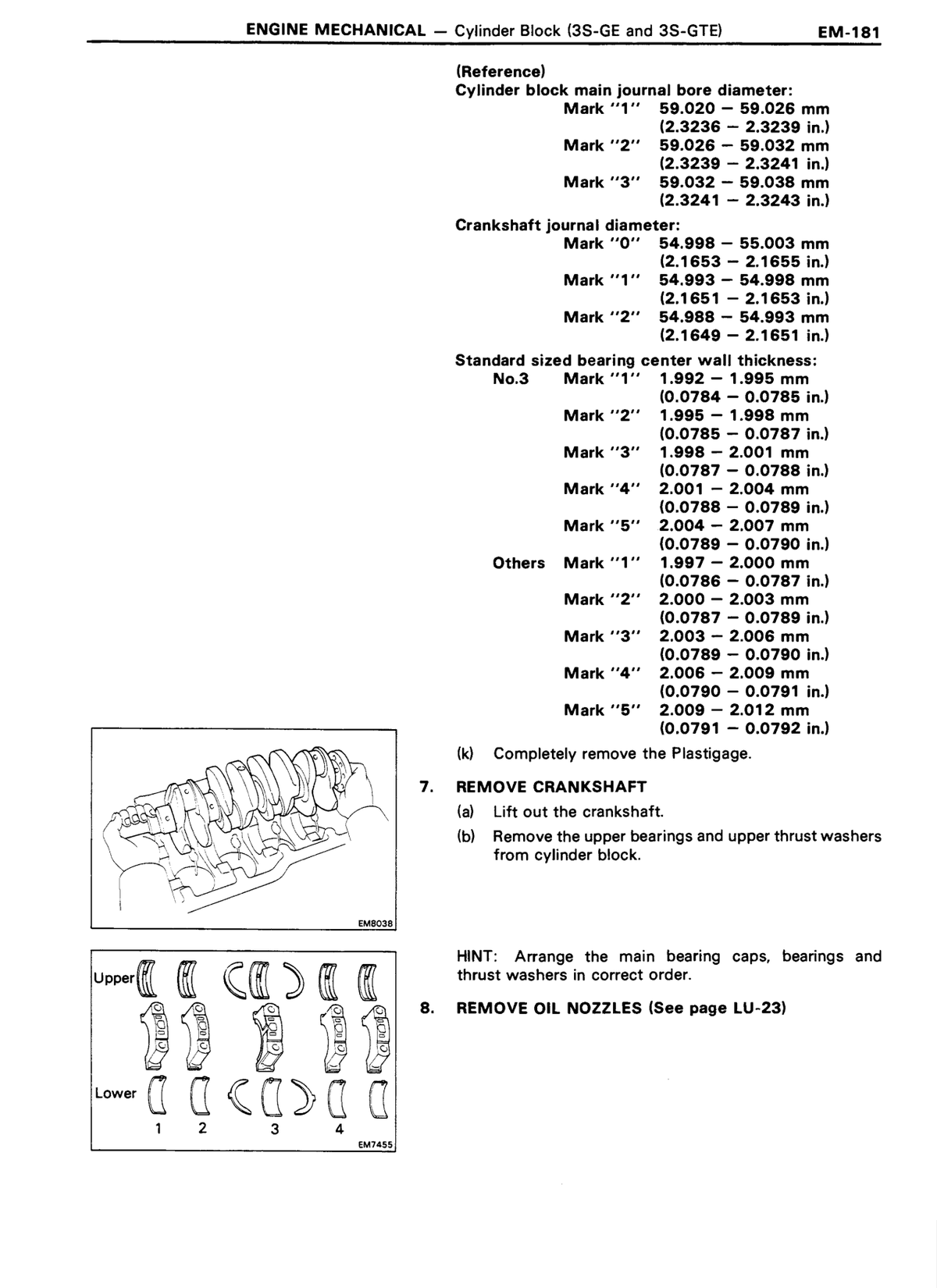

Main bearing center wall thickness — STD No.3 Mark 1 1.992-1.995 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD No.3 Mark 2 1.995-1.998 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD No.3 Mark 3 1.998-2.001 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD No.3 Mark 4 2.001-2.004 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD No.3 Mark 5 2.004-2.007 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD Others Mark 1 1.997-2.000 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD Others Mark 2 2.000-2.003 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD Others Mark 3 2.003-2.006 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD Others Mark 4 2.006-2.009 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Main bearing center wall thickness — STD Others Mark 5 2.009-2.012 mm Engine — mechanical ↗ RM179U1_1991 · p624 OEM manual
Reservoir tank spring pin protrusion 0.059-0.138 in. 1.5-3.5 mm Clutch ↗ RM179U1_1991 · p654 OEM manual

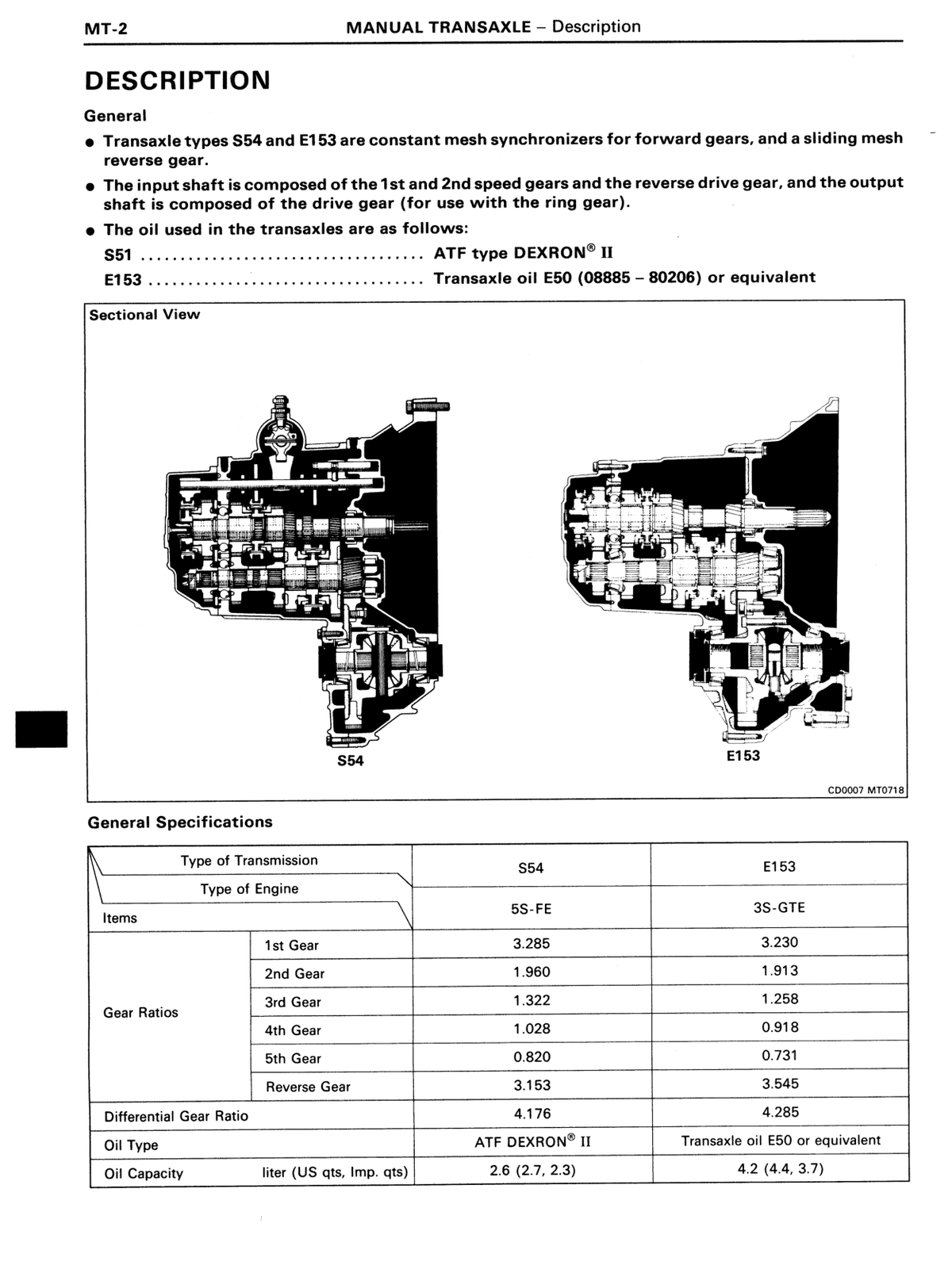

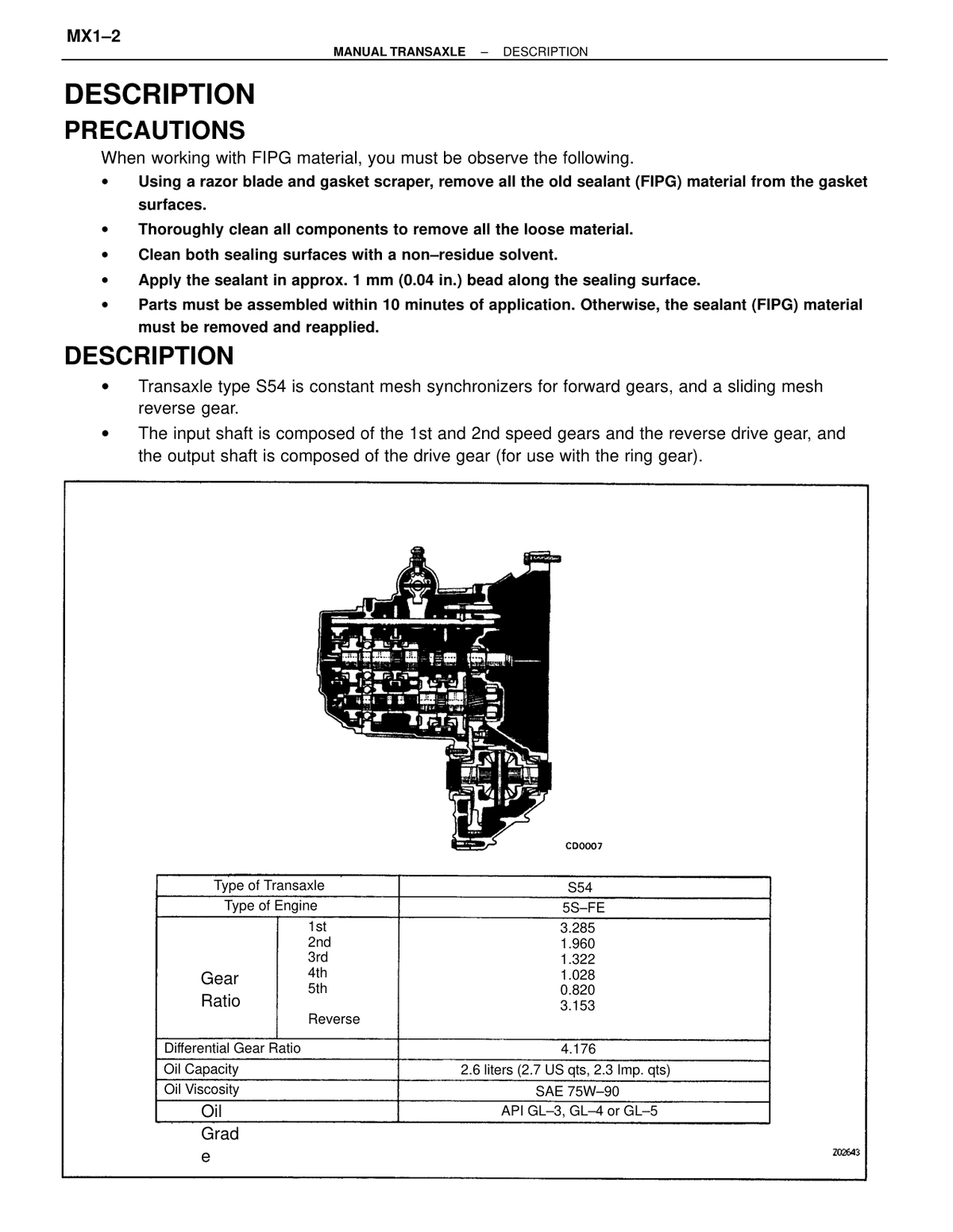

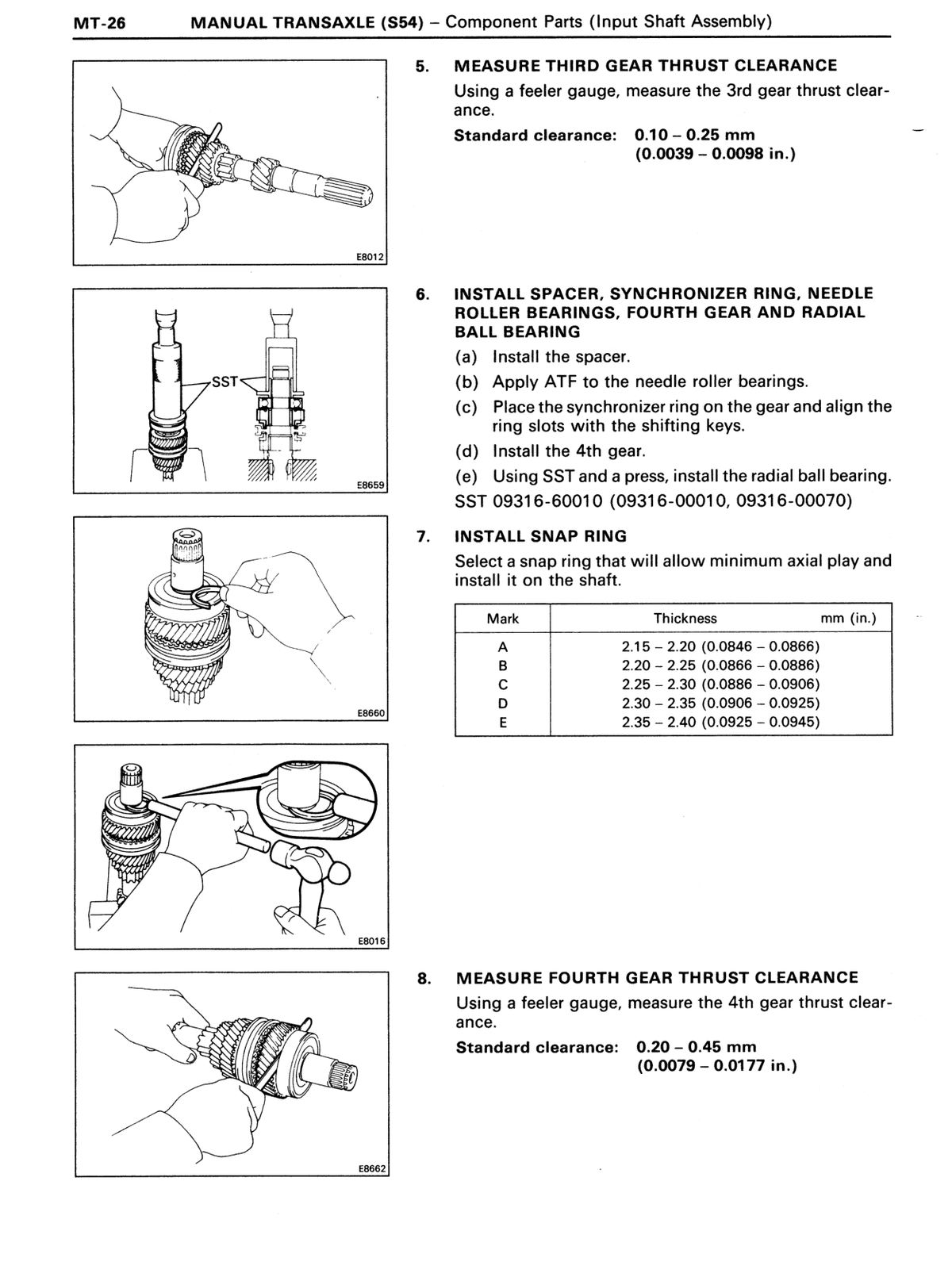

S54 1st Gear Ratio 5S-FE engine 3.285 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
S54 2nd Gear Ratio 5S-FE engine 1.96 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
S54 3rd Gear Ratio 5S-FE engine 1.322 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
S54 4th Gear Ratio 5S-FE engine 1.028 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
S54 5th Gear Ratio 5S-FE engine 0.82 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
S54 Reverse Gear Ratio 5S-FE engine 3.153 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
S54 Differential Gear Ratio 5S-FE engine 4.176 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual

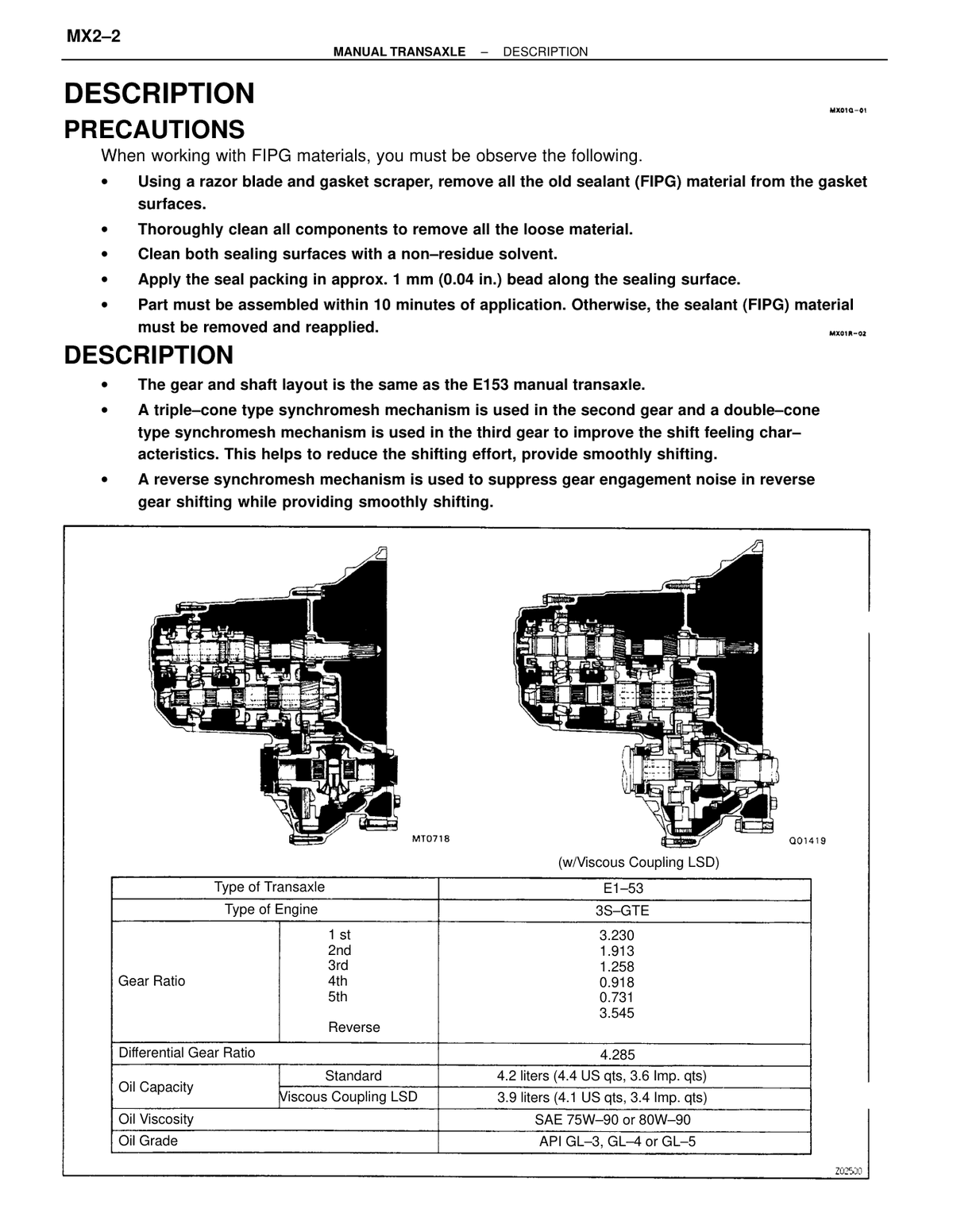

E153 1st Gear Ratio 3S-GTE engine 3.23 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
E153 2nd Gear Ratio 3S-GTE engine 1.913 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
E153 3rd Gear Ratio 3S-GTE engine 1.258 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
E153 4th Gear Ratio 3S-GTE engine 0.918 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
E153 5th Gear Ratio 3S-GTE engine 0.731 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
E153 Reverse Gear Ratio 3S-GTE engine 3.545 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
E153 Differential Gear Ratio 3S-GTE engine 4.285 ratio Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
Transaxle oil fluid level below filler hole Acceptable range 0–5 mm (0–0.0197 in.) below filler hole 0 mm Transmission / transaxle ↗ RM179U1_1991 · p666 OEM manual

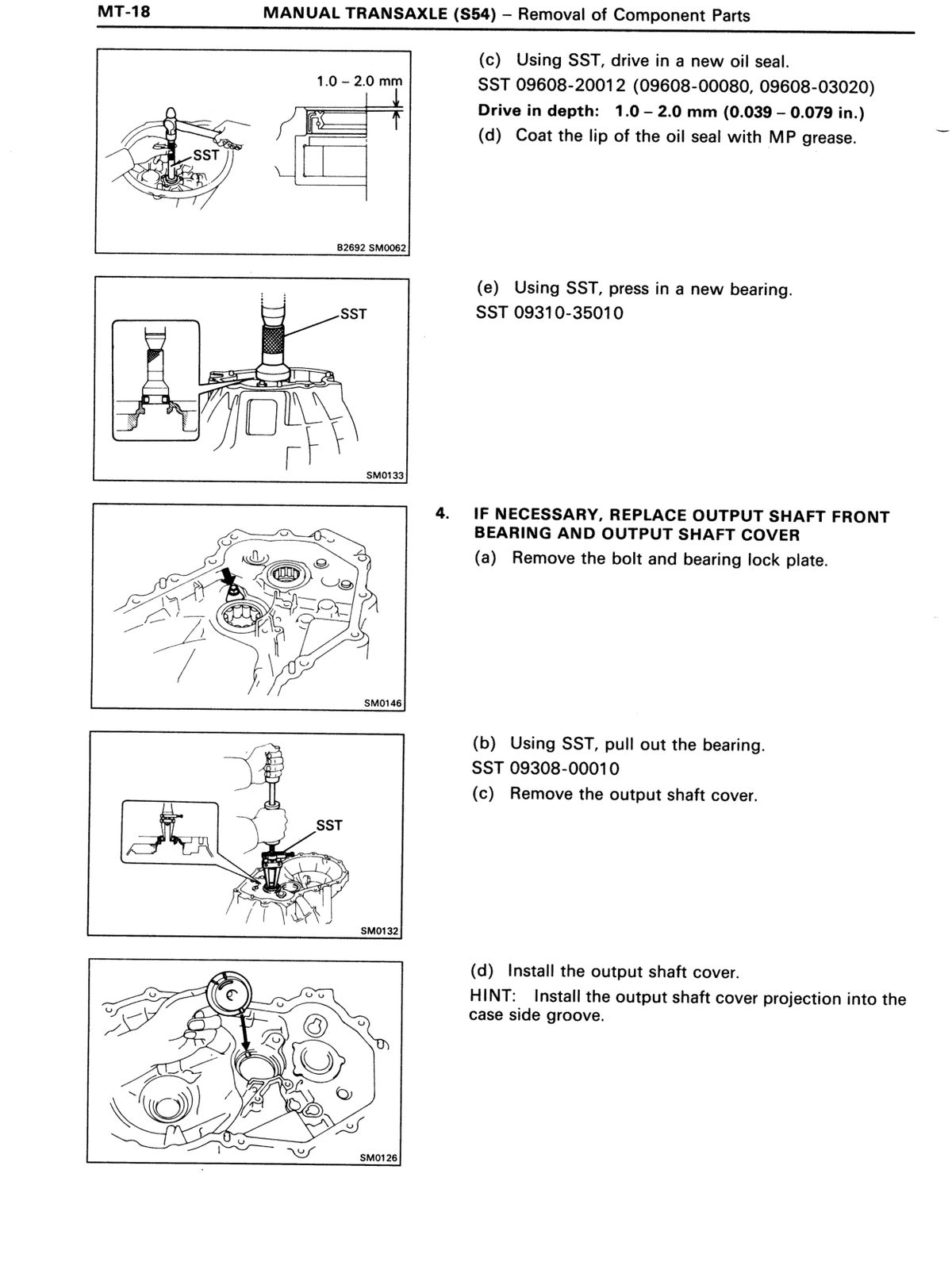

Oil seal drive-in depth range 1.0 – 2.0 mm (0.039 – 0.079 in.) 1.5 mm Transmission / transaxle ↗ RM179U1_1991 · p680 OEM manual
Slotted spring pin drive-in depth minimum; range 4.5 – 5.5 mm (0.177 – 0.217 in.) 4.5 mm Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
Slotted spring pin drive-in depth maximum; range 4.5 – 5.5 mm (0.177 – 0.217 in.) 5.5 mm Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
Snap ring thickness — Mark 1 1.95 – 2.00 mm (0.0768 – 0.0787 in.) 1.975 mm Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
Snap ring thickness — Mark 2 2.00 – 2.05 mm (0.0787 – 0.0807 in.) 2.025 mm Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
Snap ring thickness — Mark 3 2.05 – 2.10 mm (0.0807 – 0.0827 in.) 2.075 mm Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
Snap ring thickness — Mark 4 2.10 – 2.15 mm (0.0827 – 0.0846 in.) 2.125 mm Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
Snap ring thickness — Mark 5 2.15 – 2.20 mm (0.0846 – 0.0866 in.) 2.175 mm Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
Snap ring thickness — Mark 6 2.20 – 2.25 mm (0.0866 – 0.0886 in.) 2.225 mm Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual

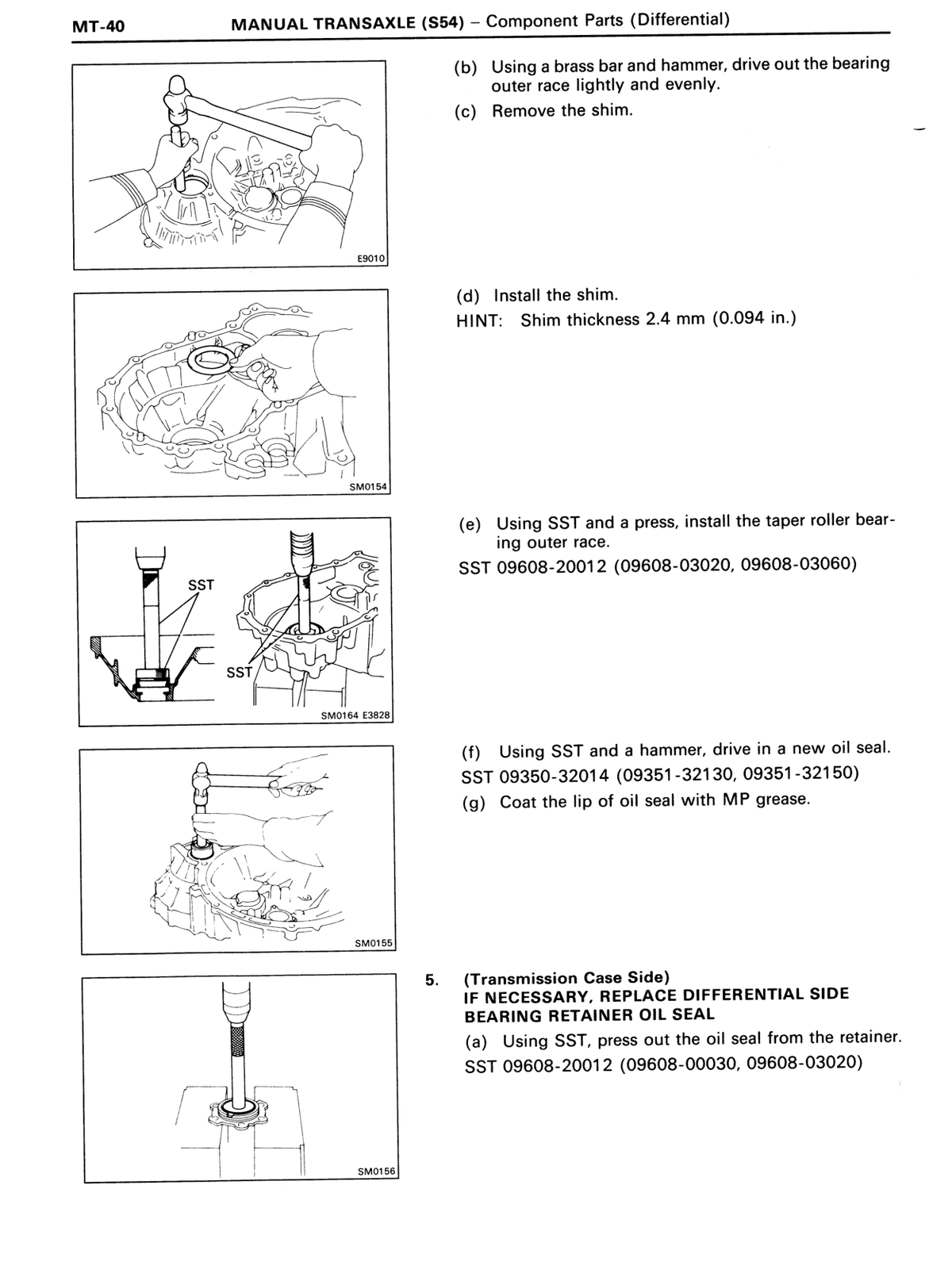

Shim thickness 0.094 in.; clutch housing side differential bearing 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p702 OEM manual

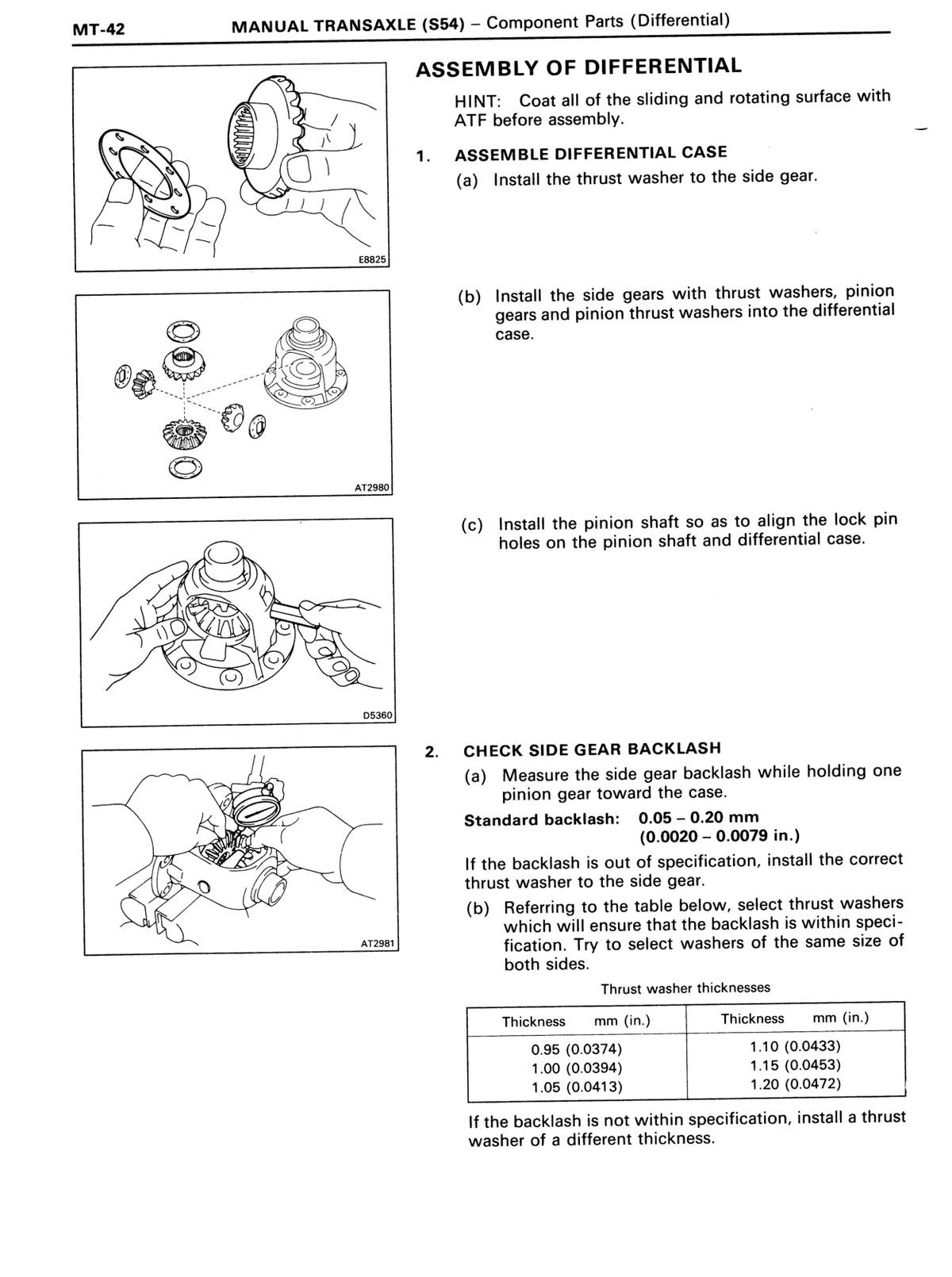

Thrust washer thickness 0.0374 in. 0.95 mm Transmission / transaxle ↗ RM179U1_1991 · p704 OEM manual
Thrust washer thickness 0.0413 in. 1.05 mm Transmission / transaxle ↗ RM179U1_1991 · p704 OEM manual
Thrust washer thickness 0.0453 in. 1.15 mm Transmission / transaxle ↗ RM179U1_1991 · p704 OEM manual
Adjusting shim Mark 1 thickness 0.0748 in. 1.9 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 2 thickness 0.0768 in. 1.95 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 3 thickness 0.0787 in. 2 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 4 thickness 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 5 thickness 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 6 thickness 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 7 thickness 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 8 thickness 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 9 thickness 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 10 thickness 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 11 thickness 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 12 thickness 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 13 thickness 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 14 thickness 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 15 thickness 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 16 thickness 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 17 thickness 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 18 thickness 0.1083 in. 2.75 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Adjusting shim Mark 19 thickness 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual
Seal packing breadth on transmission case approx. 1 mm (0.04 in.) 1 mm Transmission / transaxle ↗ RM179U1_1991 · p712 OEM manual
Snap ring Mark 1 thickness 0.0630-0.0650 in. 1.60-1.65 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 2 thickness 0.0650-0.0669 in. 1.65-1.70 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 3 thickness 0.0669-0.0689 in. 1.70-1.75 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 4 thickness 0.0689-0.0709 in. 1.75-1.80 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 5 thickness 0.0709-0.0728 in. 1.80-1.85 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 6 thickness 0.0728-0.0748 in. 1.85-1.90 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 7 thickness 0.0748-0.0768 in. 1.90-1.95 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 8 thickness 0.0768-0.0787 in. 1.95-2.00 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 9 thickness 0.0787-0.0807 in. 2.00-2.05 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 10 thickness 0.0807-0.0827 in. 2.05-2.10 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 11 thickness 0.0827-0.0846 in. 2.10-2.15 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 12 thickness 0.0846-0.0866 in. 2.15-2.20 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 13 thickness 0.0866-0.0886 in. 2.20-2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 14 thickness 0.0886-0.0906 in. 2.25-2.30 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Snap ring Mark 15 thickness 0.0906-0.0925 in. 2.30-2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
Input shaft journal outer diameter — Part A (minimum) 1.2965 in. 32.93 mm Transmission / transaxle ↗ RM179U1_1991 · p738 OEM manual
Input shaft journal outer diameter — Parts B and C (minimum) 1.4154 in. 35.95 mm Transmission / transaxle ↗ RM179U1_1991 · p738 OEM manual
Input shaft runout (maximum) 0.0020 in.; measured with dial indicator 0.05 mm Transmission / transaxle ↗ RM179U1_1991 · p738 OEM manual
Output shaft rear tapered roller bearing outer race depth Installation depth reference shown in diagram MT0668 3.7 mm Transmission / transaxle ↗ RM179U1_1991 · p764 OEM manual
Thrust washer shim mark 1 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark 2 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark 3 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark 4 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark 5 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark 6 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark 7 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark 8 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark 9 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark A 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark B 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark C 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark D 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark E 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark F 0.1083 in. 2.75 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark G 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Thrust washer shim mark H 0.1122 in. 2.85 mm Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
Seal packing breadth on transmission case approx. 0.04 in. 1 mm Transmission / transaxle ↗ RM179U1_1991 · p772 OEM manual
Snap ring mark Q thickness 0.0886 in 2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Snap ring mark R thickness 0.0906 in 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Snap ring mark S thickness 0.0925 in 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Snap ring mark T thickness 0.0945 in 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Snap ring mark U thickness 0.0965 in 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Snap ring mark V thickness 0.0984 in 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Snap ring mark W thickness 0.1004 in 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Snap ring mark X thickness 0.1024 in 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Snap ring mark Y thickness 0.1043 in 2.65 mm Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
Transmission case cover seal packing breadth approx. 0.04 in. 1 mm Transmission / transaxle ↗ RM179U1_1991 · p776 OEM manual

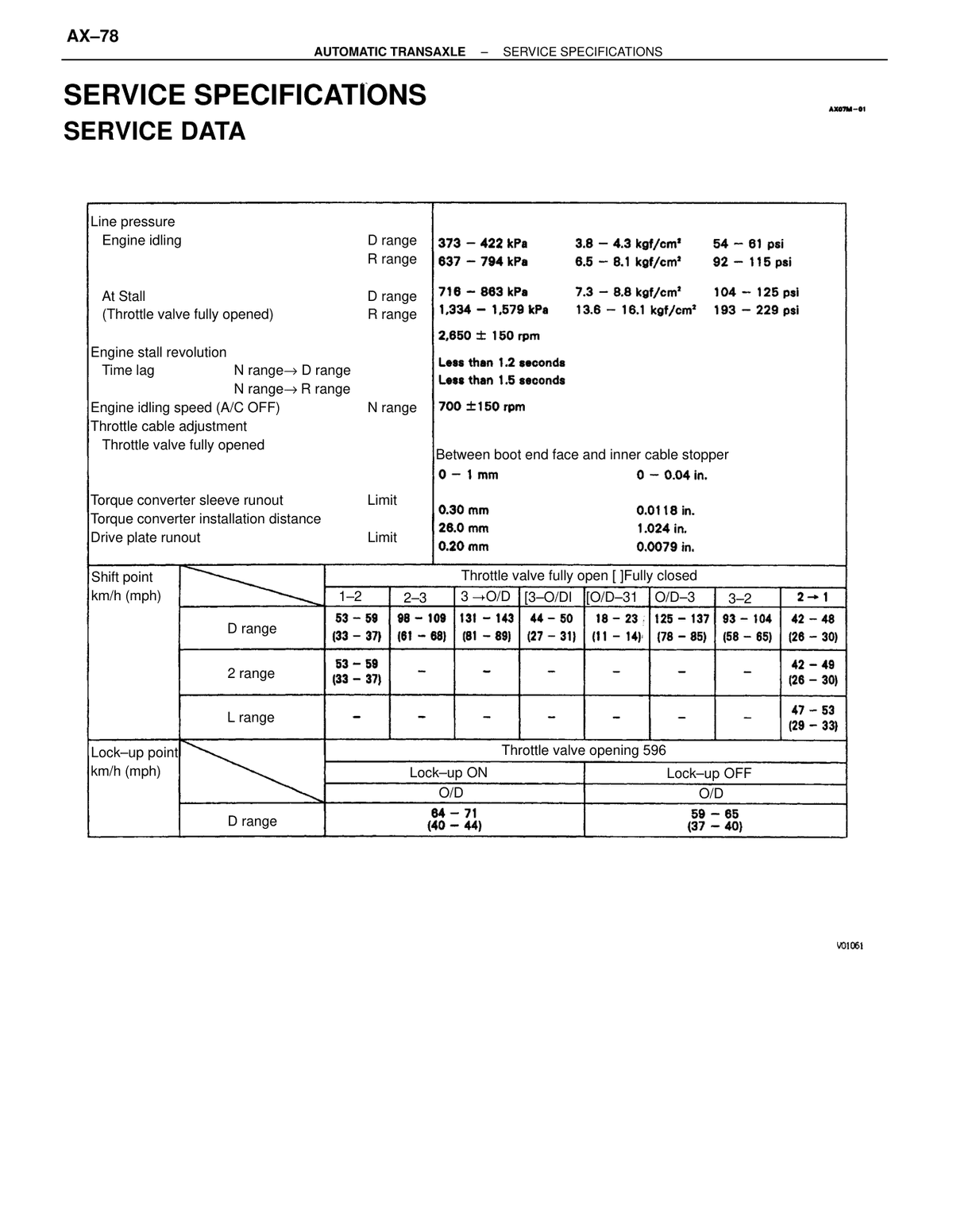

Torque converter installed depth from transaxle housing front surface minimum (0.51 in. or more) 13 mm Transmission / transaxle ↗ RM179U1_1991 · p821 OEM manual
Underdrive clutch flange thickness — option 1 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p842 OEM manual
Underdrive clutch flange thickness — option 2 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p842 OEM manual
Underdrive clutch flange thickness — option 3 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p842 OEM manual
Piston rod length (long) 2.870 in. 72.9 mm Transmission / transaxle ↗ RM179U1_1991 · p851 OEM manual
Piston rod length (short) 2.811 in. 71.4 mm Transmission / transaxle ↗ RM179U1_1991 · p851 OEM manual
Distance from gear flange end to intermediate shaft end 4.559 in.; checked after front bearing installation 115.8 mm Transmission / transaxle ↗ RM179U1_1991 · p876 OEM manual

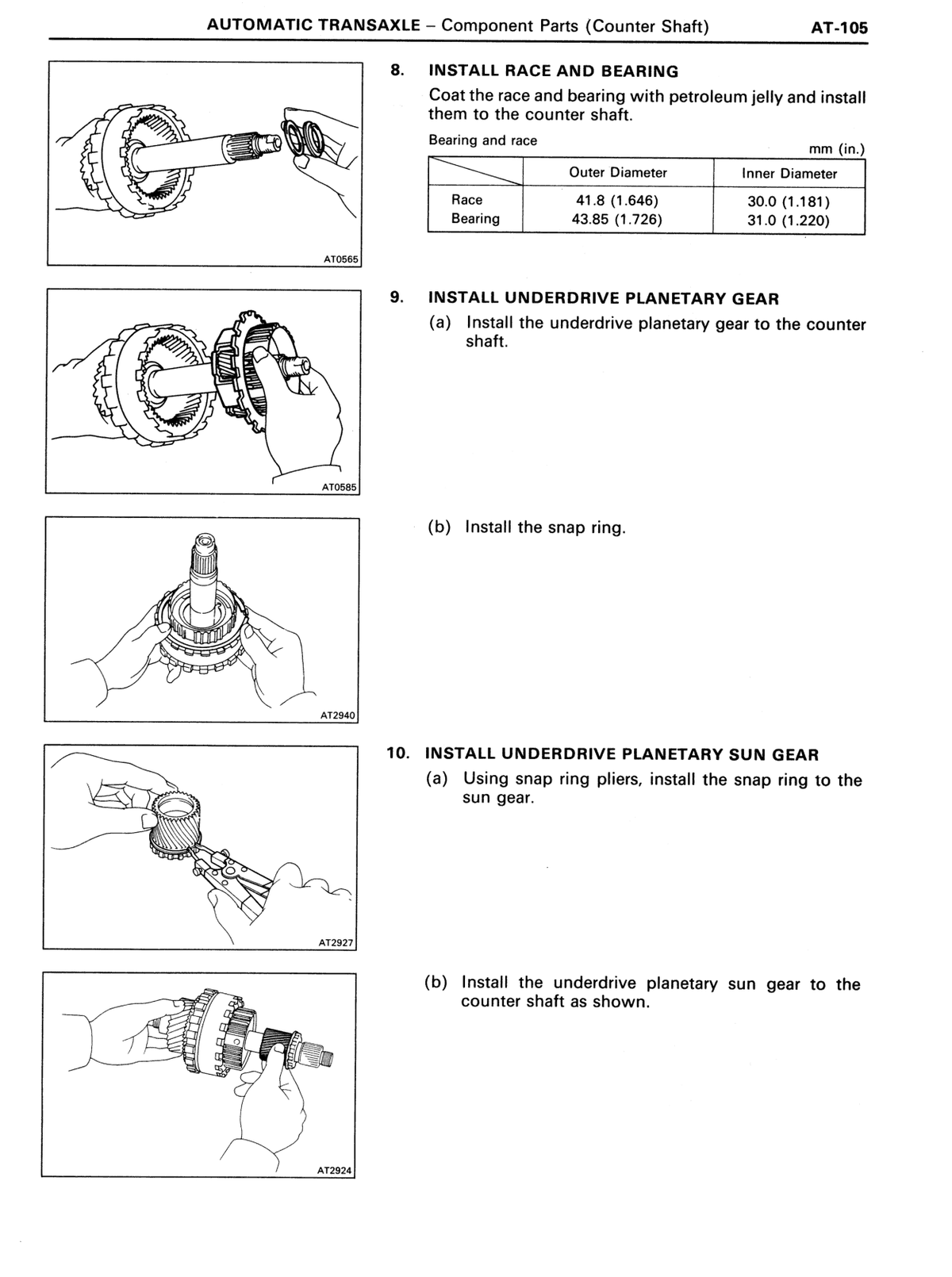

Bearing — Outer Diameter 1.726 in 43.85 mm Transmission / transaxle ↗ RM179U1_1991 · p884 OEM manual
Key (a) Accumulator Control Valve — Height (0.591 in.) 15 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual
Key (a) Accumulator Control Valve — Width (0.197 in.) 5 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual
Key (a) Accumulator Control Valve — Thickness (0.126 in.) 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual
Key (b) Cut-back Valve — Height (0.630 in.) 16 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual
Key (b) Cut-back Valve — Width (0.197 in.) 5 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual
Key (b) Cut-back Valve — Thickness (0.126 in.) 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual
Key (c) Low Coast Modulator Valve — Height (0.835 in.) 21.2 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual
Key (c) Low Coast Modulator Valve — Width (0.197 in.) 5 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual
Key (c) Low Coast Modulator Valve — Thickness (0.126 in.) 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p896 OEM manual

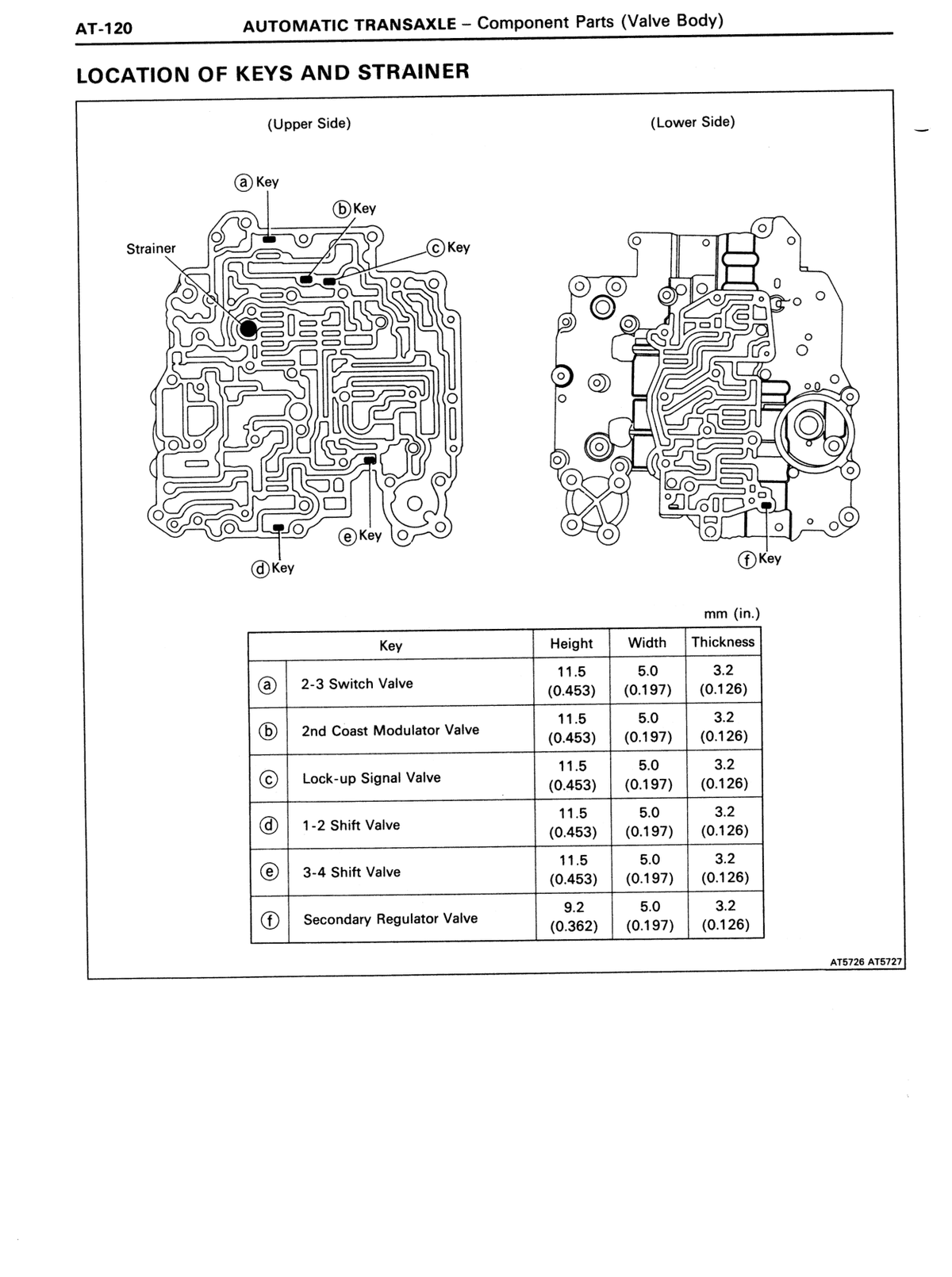

Key (a) 2-3 Switch Valve — Height 0.453 in. 11.5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (a) 2-3 Switch Valve — Width 0.197 in. 5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (a) 2-3 Switch Valve — Thickness 0.126 in. 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (b) 2nd Coast Modulator Valve — Height 0.453 in. 11.5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (b) 2nd Coast Modulator Valve — Width 0.197 in. 5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (b) 2nd Coast Modulator Valve — Thickness 0.126 in. 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (c) Lock-up Signal Valve — Height 0.453 in. 11.5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (c) Lock-up Signal Valve — Width 0.197 in. 5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (c) Lock-up Signal Valve — Thickness 0.126 in. 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (d) 1-2 Shift Valve — Height 0.453 in. 11.5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (d) 1-2 Shift Valve — Thickness 0.126 in. 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (e) 3-4 Shift Valve — Height 0.453 in. 11.5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (e) 3-4 Shift Valve — Thickness 0.126 in. 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (f) Secondary Regulator Valve — Height 0.362 in. 9.2 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (f) Secondary Regulator Valve — Width 0.197 in. 5 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual
Key (f) Secondary Regulator Valve — Thickness 0.126 in. 3.2 mm Engine — mechanical ↗ RM179U1_1991 · p899 OEM manual

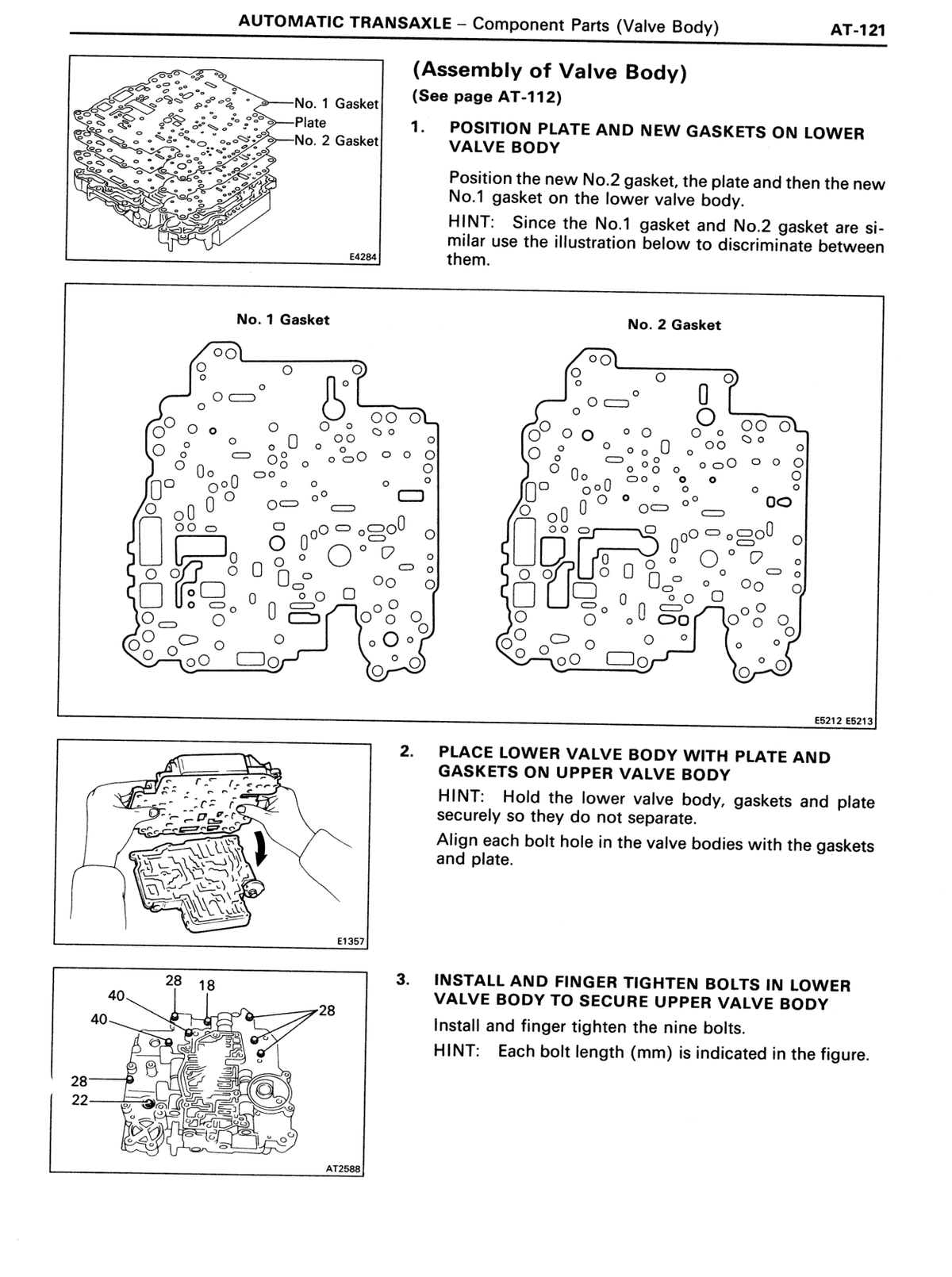

Valve body bolt length — position 28 Lower valve body to upper valve body securing bolt 28 mm Engine — mechanical ↗ RM179U1_1991 · p900 OEM manual
Valve body bolt length — position 18 Lower valve body to upper valve body securing bolt 18 mm Engine — mechanical ↗ RM179U1_1991 · p900 OEM manual
Valve body bolt length — position 40 Lower valve body to upper valve body securing bolt 40 mm Engine — mechanical ↗ RM179U1_1991 · p900 OEM manual
Valve body bolt length — position 22 Lower valve body to upper valve body securing bolt 22 mm Engine — mechanical ↗ RM179U1_1991 · p900 OEM manual
Thrust washer thickness — option 1 0.0374 in. 0.95 mm Transmission / transaxle ↗ RM179U1_1991 · p907 OEM manual
Thrust washer thickness — option 2 0.0394 in. 1 mm Transmission / transaxle ↗ RM179U1_1991 · p907 OEM manual
Thrust washer thickness — option 3 0.0413 in. 1.05 mm Transmission / transaxle ↗ RM179U1_1991 · p907 OEM manual
Thrust washer thickness — option 4 0.0433 in. 1.1 mm Transmission / transaxle ↗ RM179U1_1991 · p907 OEM manual
Thrust washer thickness — option 5 0.0453 in. 1.15 mm Transmission / transaxle ↗ RM179U1_1991 · p907 OEM manual
Thrust washer thickness — option 6 0.0472 in. 1.2 mm Transmission / transaxle ↗ RM179U1_1991 · p907 OEM manual
Transaxle case side adjusting shim thickness 0.0787 in. 2 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.1083 in. 2.75 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.1122 in. 2.85 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
Transaxle case side adjusting shim thickness 0.1142 in. 2.9 mm Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual

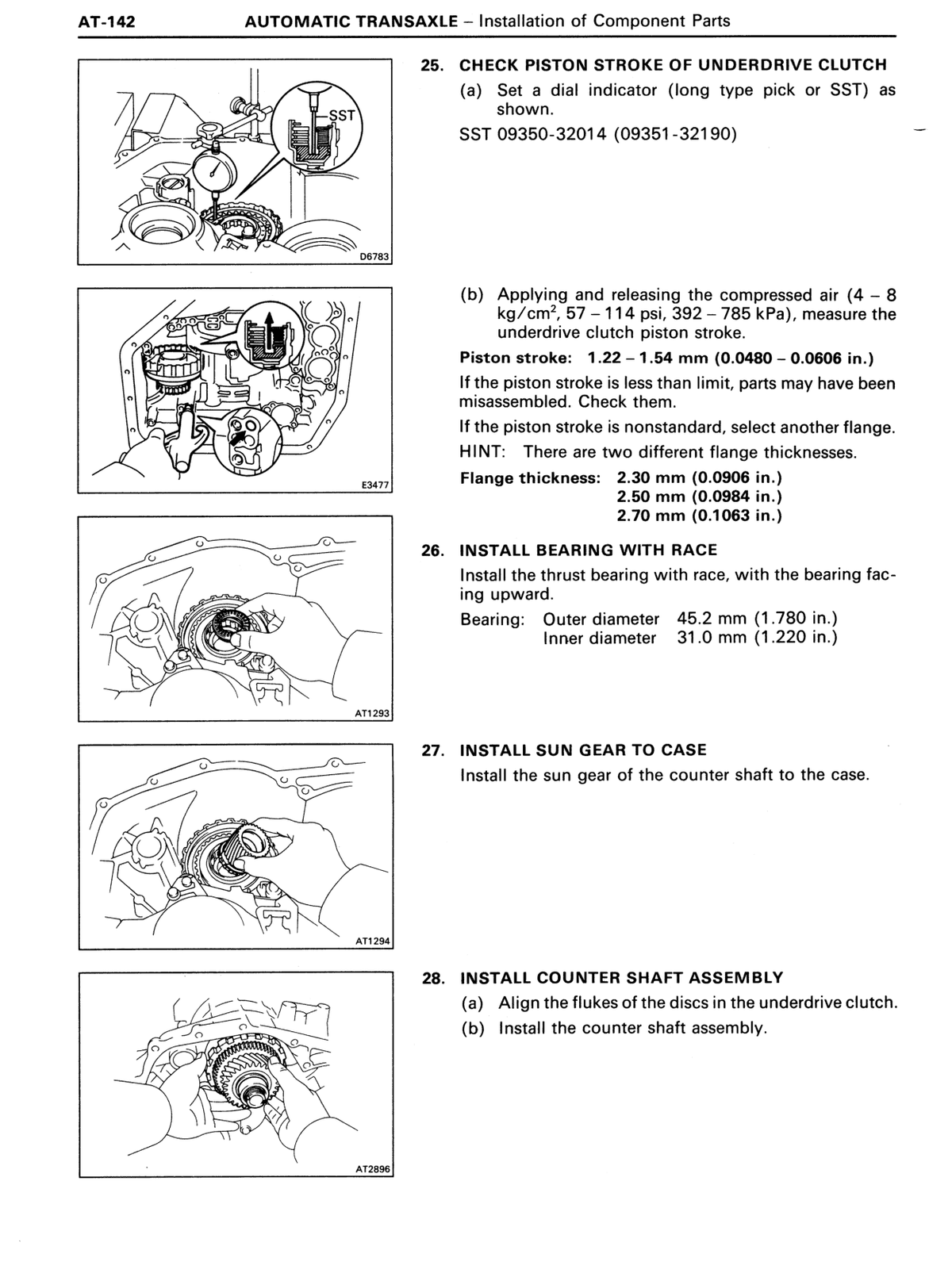

Underdrive clutch flange thickness — option 1 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM179U1_1991 · p921 OEM manual
Underdrive clutch flange thickness — option 2 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM179U1_1991 · p921 OEM manual
Underdrive clutch flange thickness — option 3 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM179U1_1991 · p921 OEM manual
Thrust bearing outer diameter 1.780 in. 45.2 mm Transmission / transaxle ↗ RM179U1_1991 · p921 OEM manual
Thrust bearing inner diameter 1.220 in. 31 mm Transmission / transaxle ↗ RM179U1_1991 · p921 OEM manual
Thrust needle bearing outer diameter Step 30 57.7 mm Transmission / transaxle ↗ RM179U1_1991 · p922 OEM manual
Thrust needle bearing inner diameter Step 30 41 mm Transmission / transaxle ↗ RM179U1_1991 · p922 OEM manual

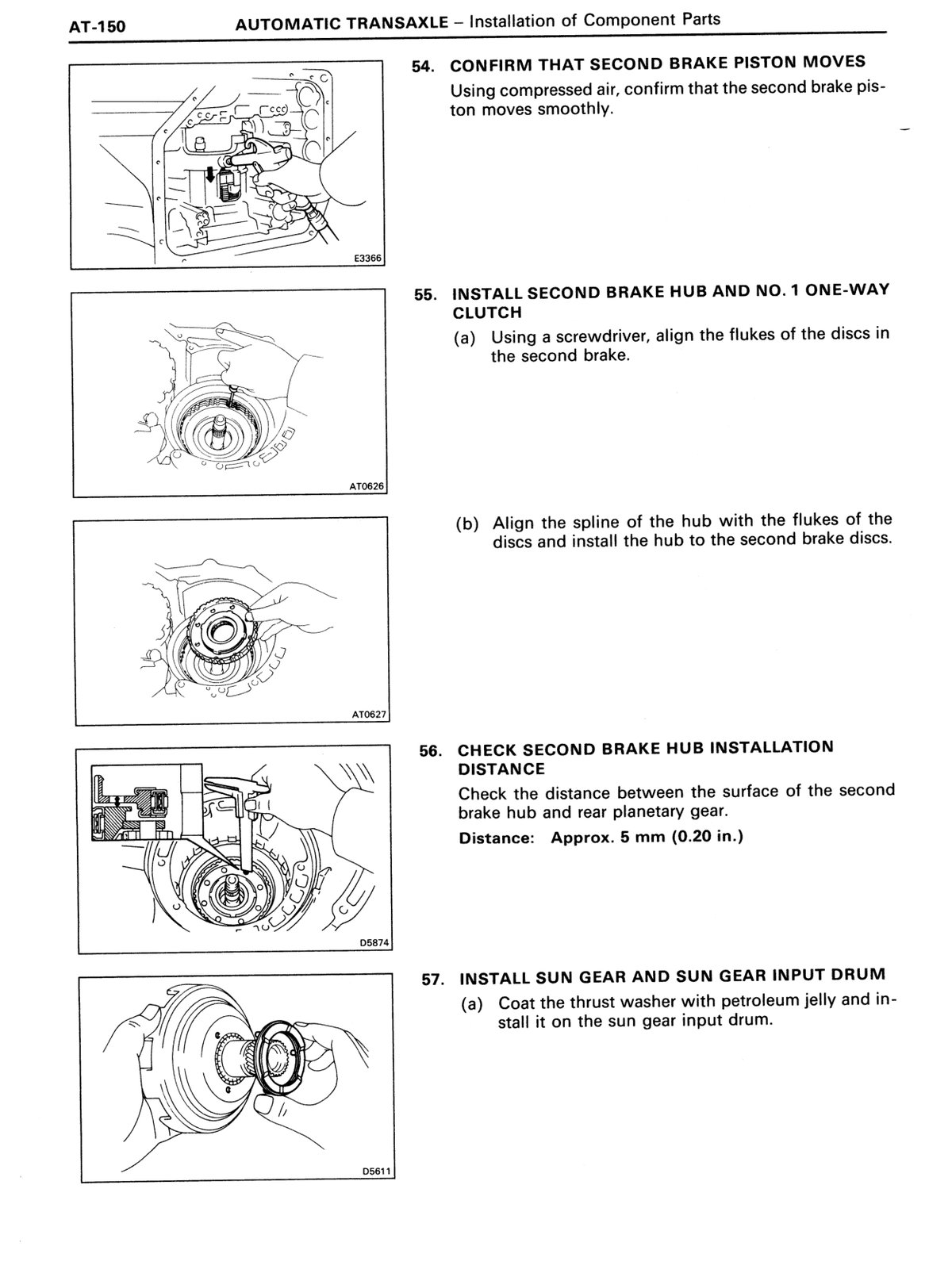

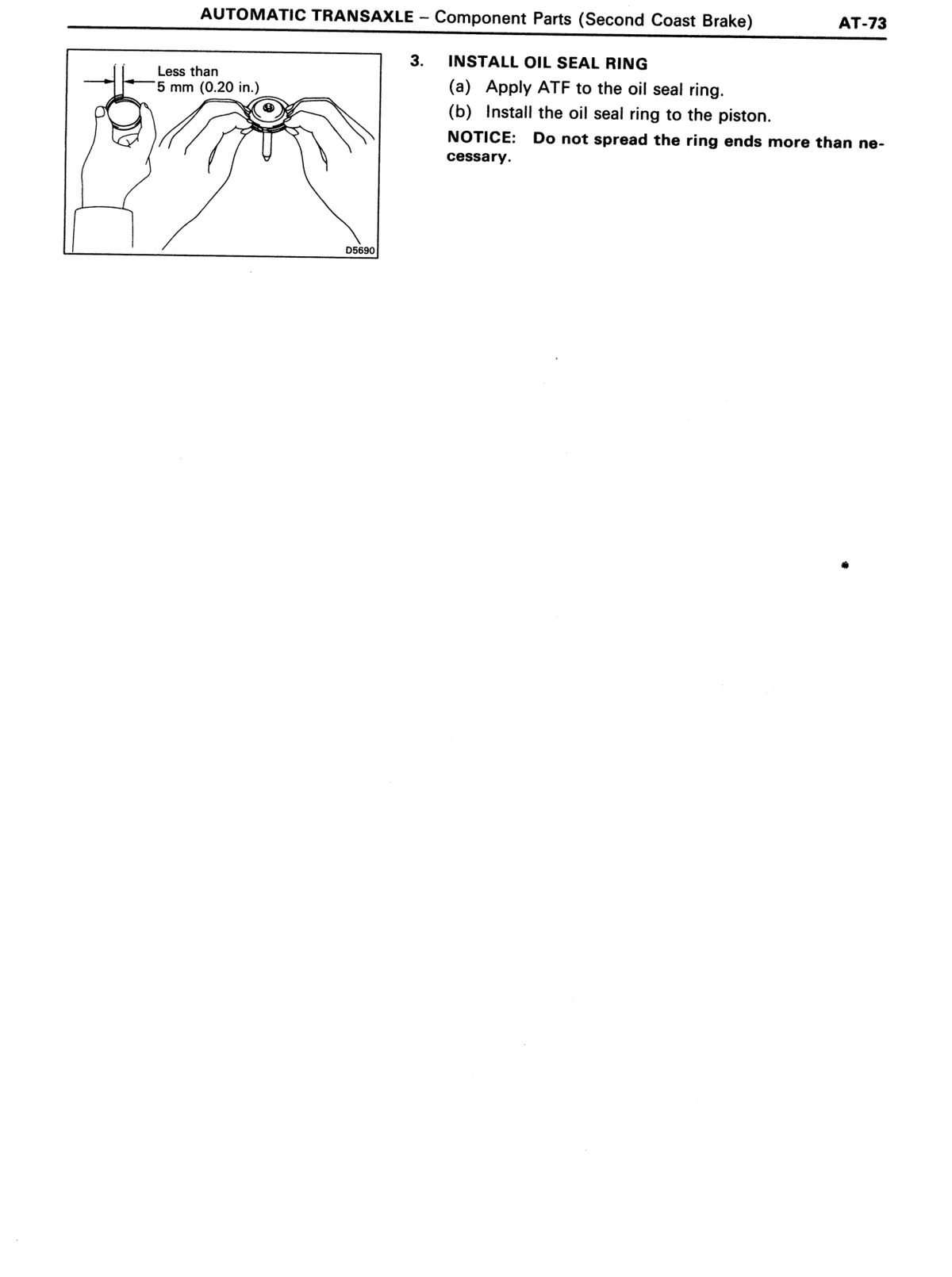

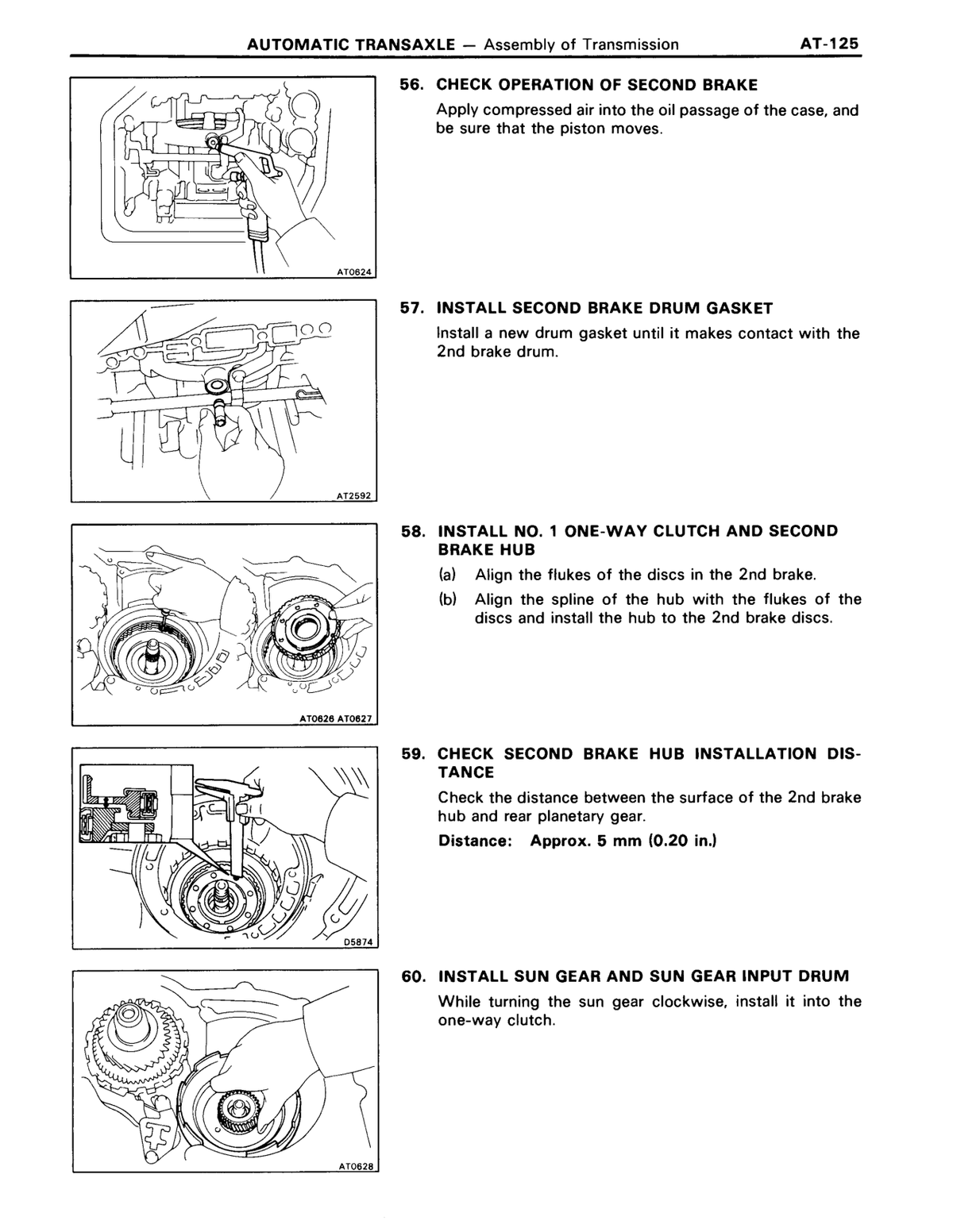

Second brake hub to rear planetary gear distance Approx. 0.20 in. 5 mm Transmission / transaxle ↗ RM179U1_1991 · p929 OEM manual

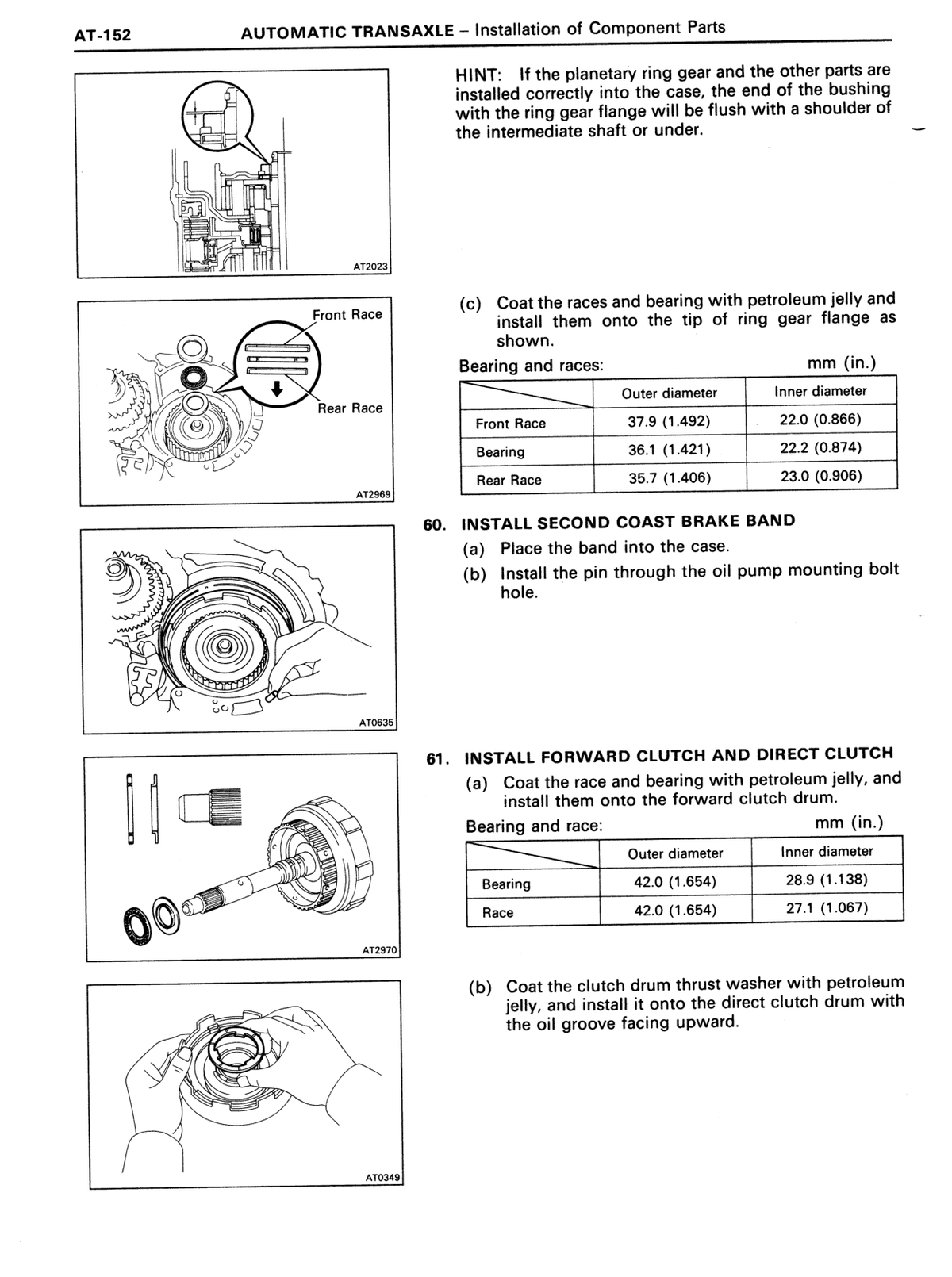

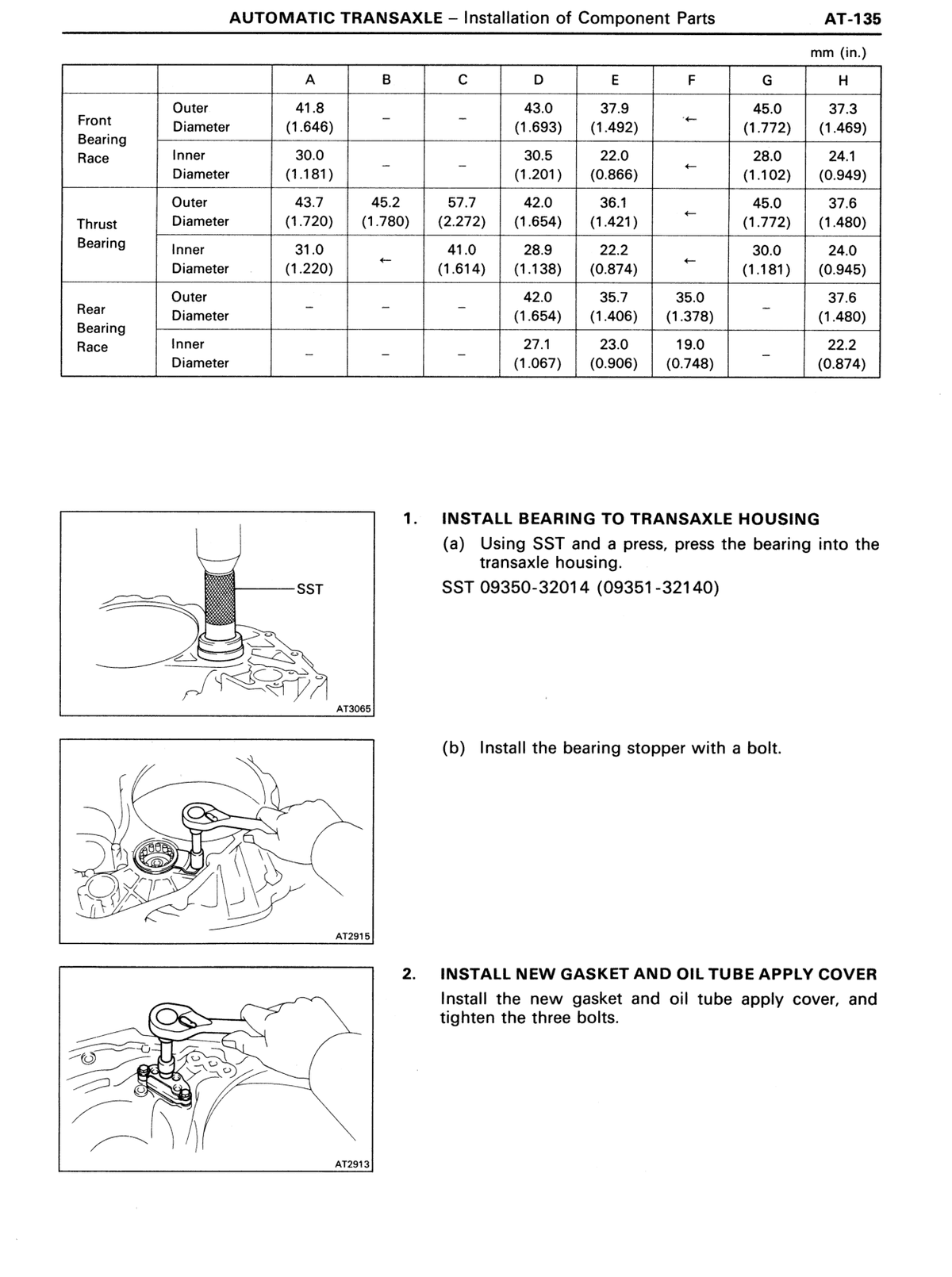

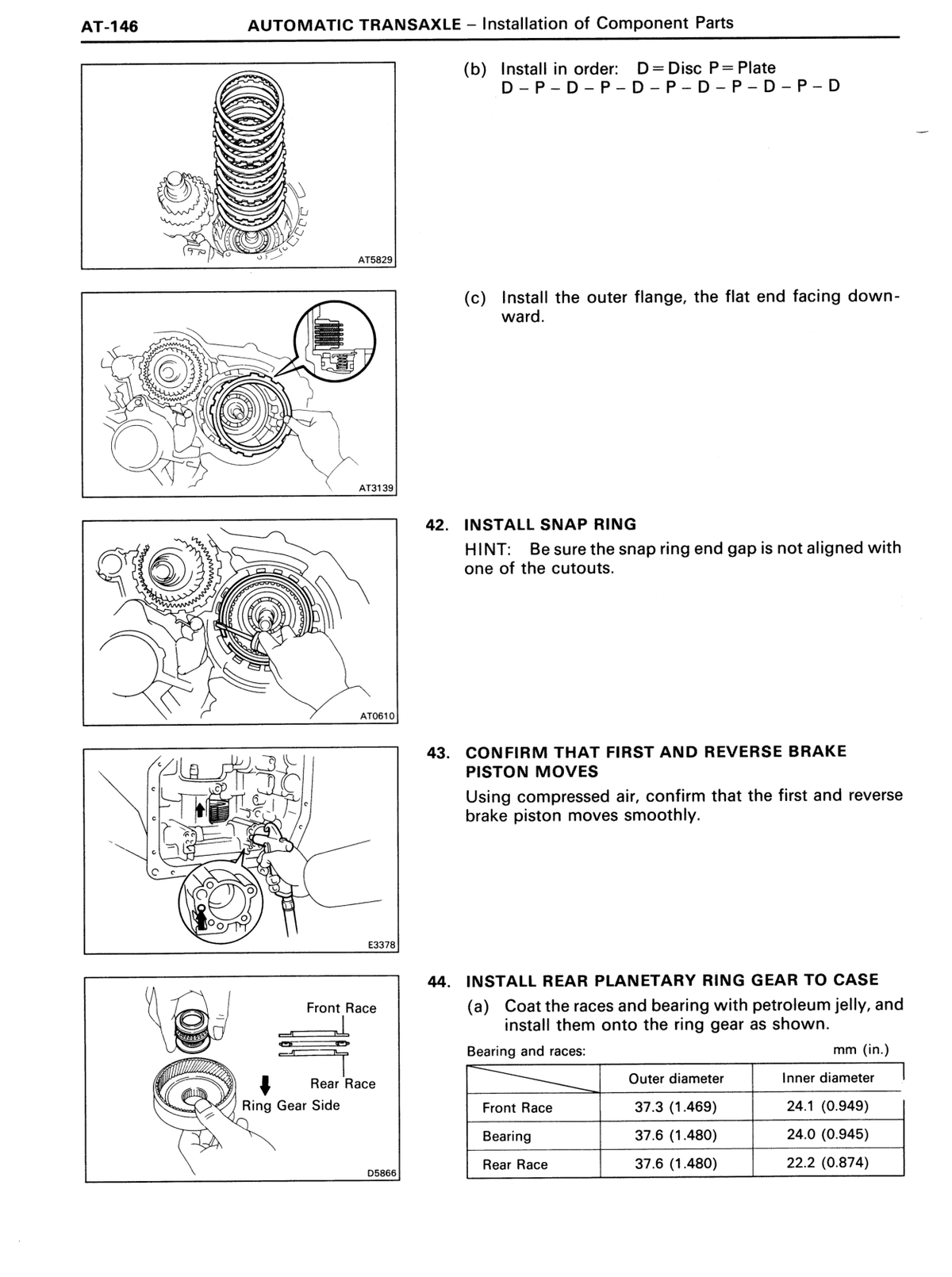

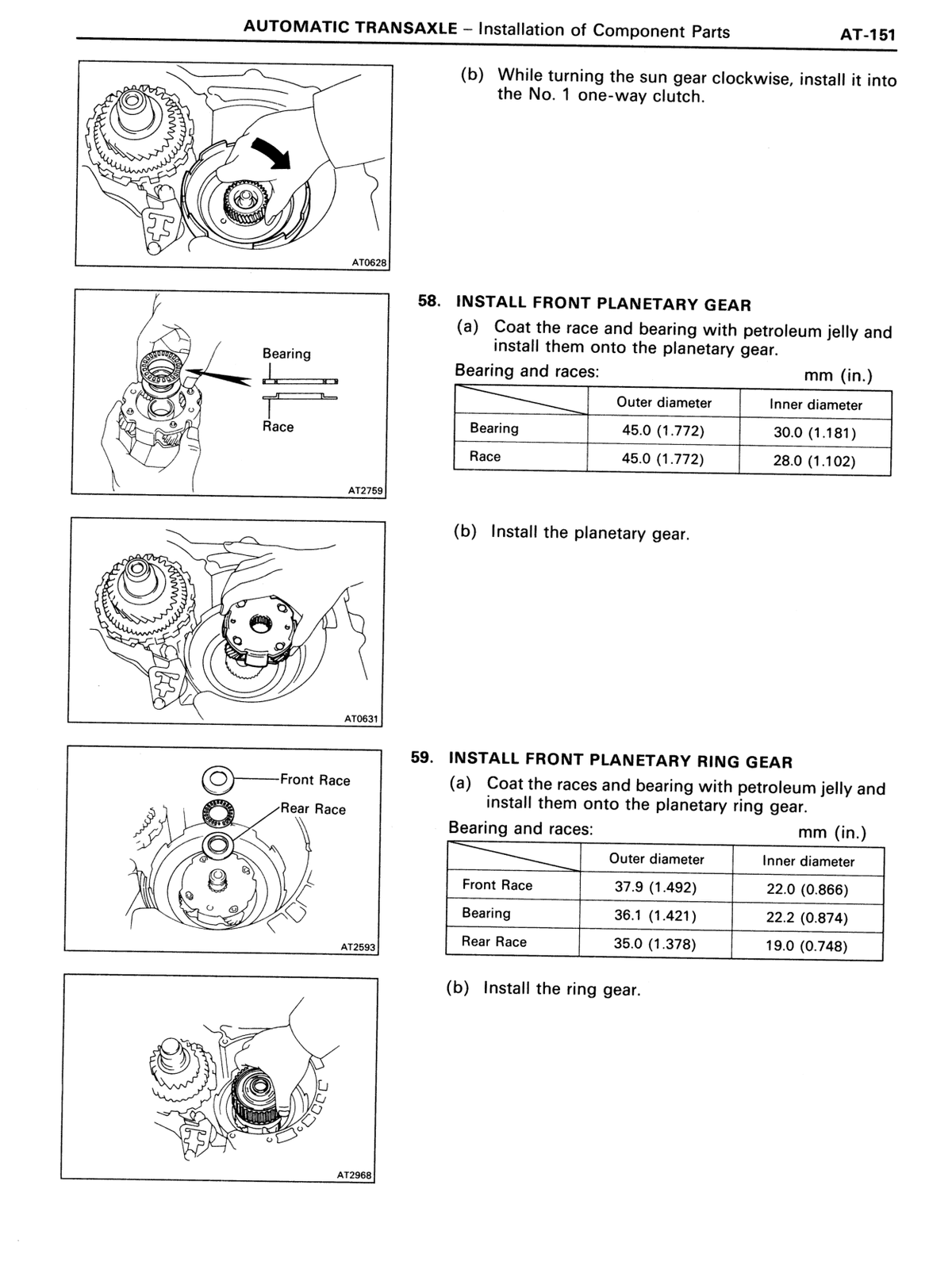

Front Race — outer diameter ring gear flange bearing assembly; 1.492 in. 37.9 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Front Race — inner diameter ring gear flange bearing assembly; 0.866 in. 22 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Bearing (ring gear flange) — outer diameter ring gear flange bearing assembly; 1.421 in. 36.1 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Bearing (ring gear flange) — inner diameter ring gear flange bearing assembly; 0.874 in. 22.2 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Rear Race — outer diameter ring gear flange bearing assembly; 1.406 in. 35.7 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Rear Race — inner diameter ring gear flange bearing assembly; 0.906 in. 23 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Bearing (forward clutch drum) — outer diameter forward clutch drum; 1.654 in. 42 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Bearing (forward clutch drum) — inner diameter forward clutch drum; 1.138 in. 28.9 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Race (forward clutch drum) — outer diameter forward clutch drum; 1.654 in. 42 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual
Race (forward clutch drum) — inner diameter forward clutch drum; 1.067 in. 27.1 mm Transmission / transaxle ↗ RM179U1_1991 · p931 OEM manual

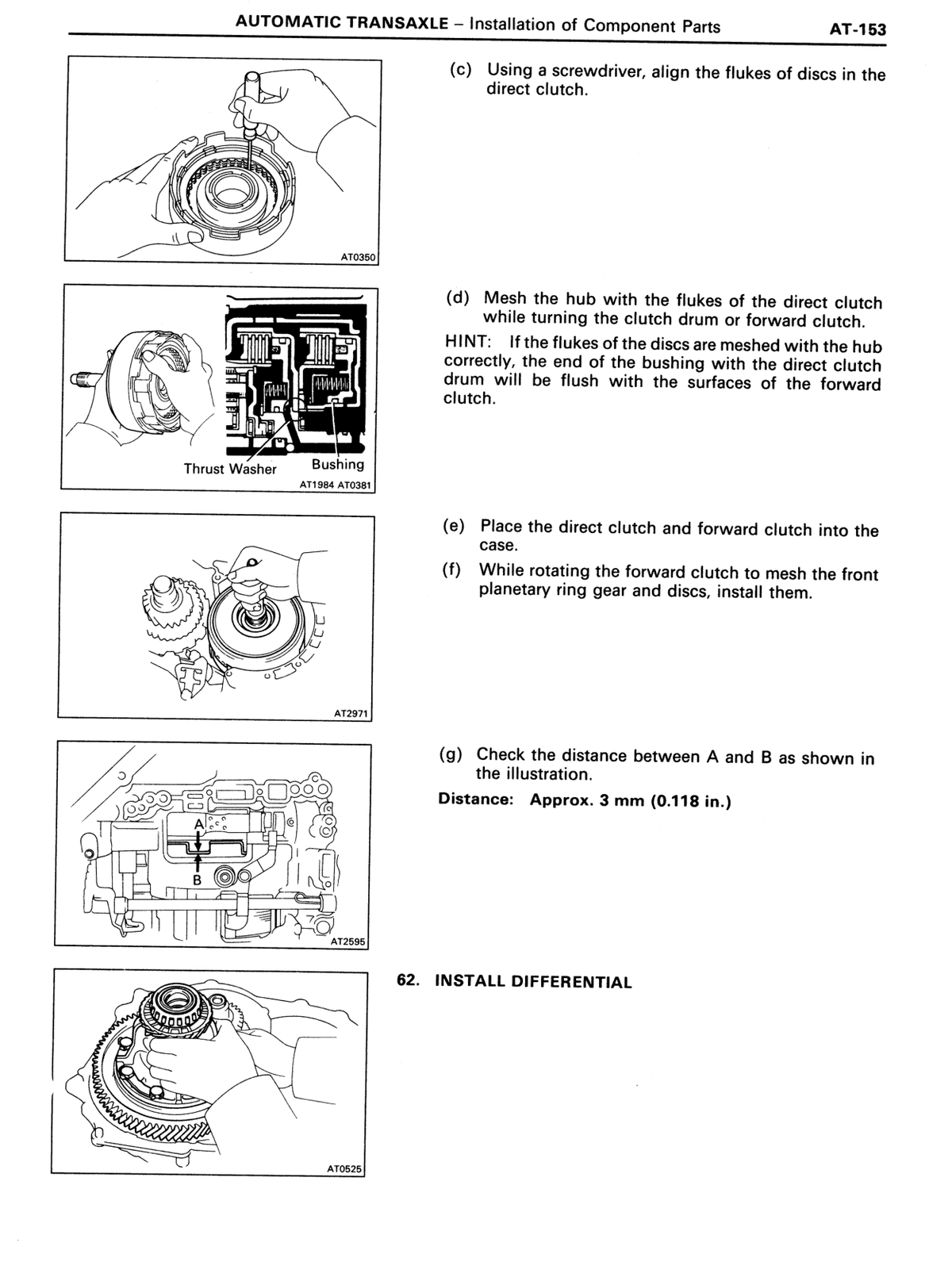

Distance between A and B (direct clutch / forward clutch installed) Approx. 3 mm (0.118 in.) 3 mm Transmission / transaxle ↗ RM179U1_1991 · p932 OEM manual
Race thickness — option 1 0.031 in.; stator shaft end race 0.8 mm Transmission / transaxle ↗ RM179U1_1991 · p934 OEM manual
Race thickness — option 2 0.055 in.; stator shaft end race 1.4 mm Transmission / transaxle ↗ RM179U1_1991 · p934 OEM manual
Accumulator spring C1 Outer — free length 2.917 in., Pink 74.1 mm Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
Accumulator spring C1 Inner — free length 1.614 in., Pink 41 mm Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
Accumulator spring C2 — free length 2.461 in., Pink 62.5 mm Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
Accumulator spring B2 — free length 2.539 in., Green 64.5 mm Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
Accumulator spring C3 Outer — free length 2.570 in., Blue 65.2 mm Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
Accumulator spring C3 Inner — free length 1.890 in., Orange 48 mm Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
Valve body bolt — position 20 bolt length 20 mm Transmission / transaxle ↗ RM179U1_1991 · p937 OEM manual
Valve body bolt — position 30 bolt length 30 mm Transmission / transaxle ↗ RM179U1_1991 · p937 OEM manual
Valve body bolt — position 47 bolt length 47 mm Transmission / transaxle ↗ RM179U1_1991 · p937 OEM manual
Manual detent spring cover bolt bolt length 16 mm Transmission / transaxle ↗ RM179U1_1991 · p937 OEM manual

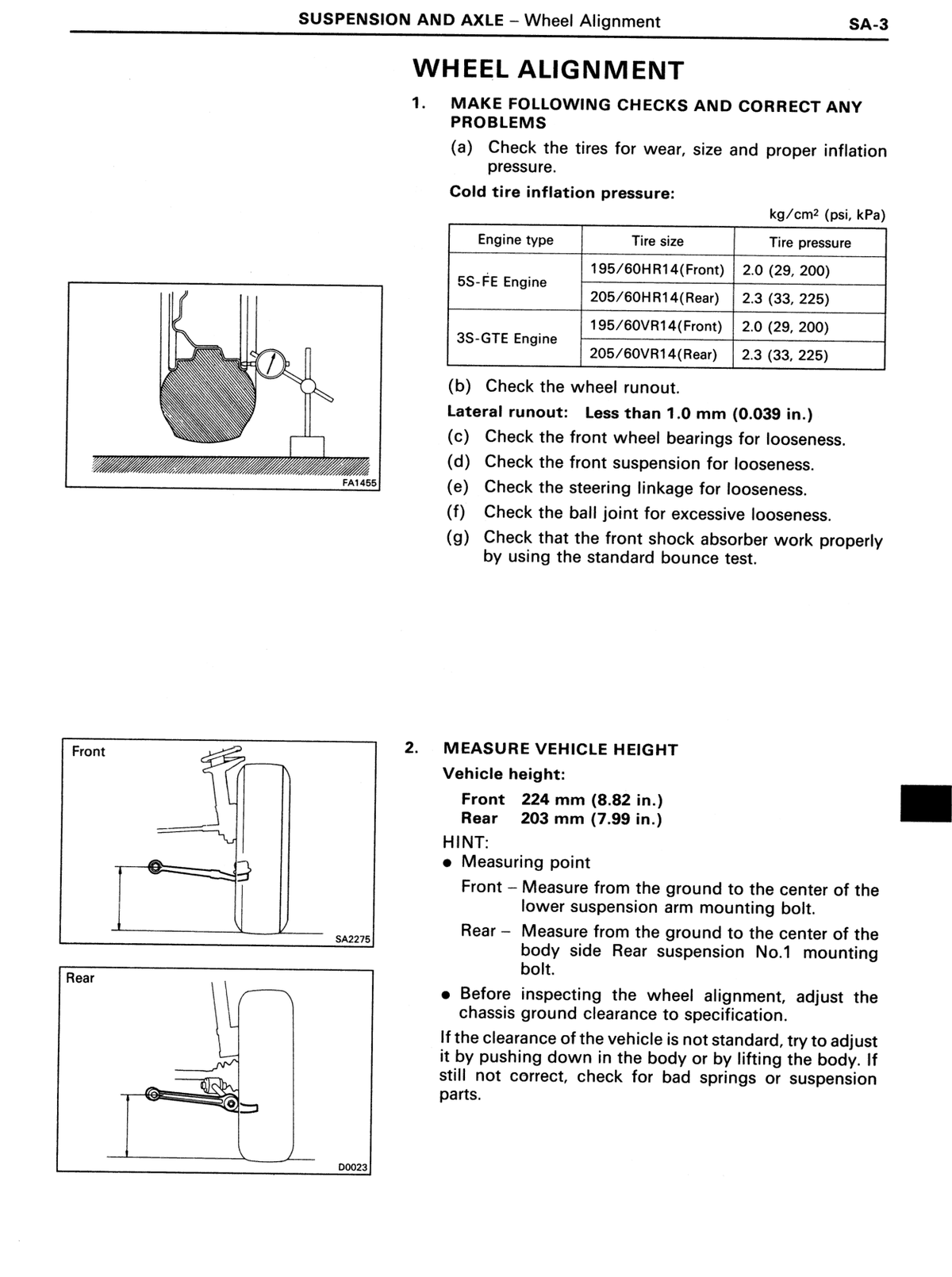

Vehicle height — Front 8.82 in. — measured from ground to center of lower suspension arm mounting bolt 224 mm Suspension & axle ↗ RM179U1_1991 · p947 OEM manual
Vehicle height — Rear 7.99 in. — measured from ground to center of body side Rear suspension No.1 mounting bolt 203 mm Suspension & axle ↗ RM179U1_1991 · p947 OEM manual

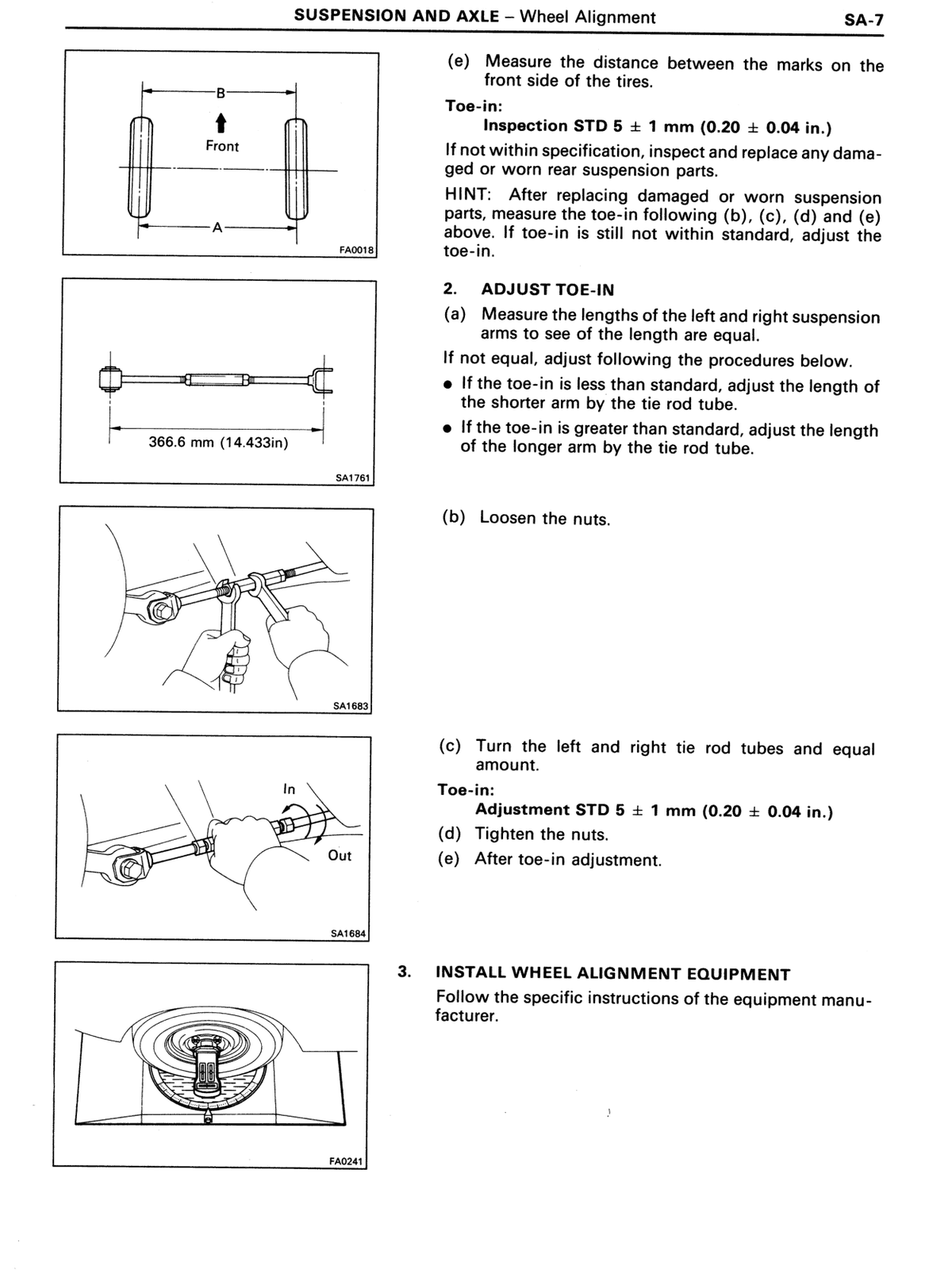

Suspension arm standard length 14.433 in. 366.6 mm Suspension & axle ↗ RM179U1_1991 · p951 OEM manual
Drive shaft standard length — LH ±5.0 mm (21.272 ±0.197 in.) 540.3 mm Suspension & axle ↗ RM179U1_1991 · p992 OEM manual
Drive shaft standard length — RH ±5.0 mm (32.732 ±0.197 in.) 831.4 mm Suspension & axle ↗ RM179U1_1991 · p992 OEM manual

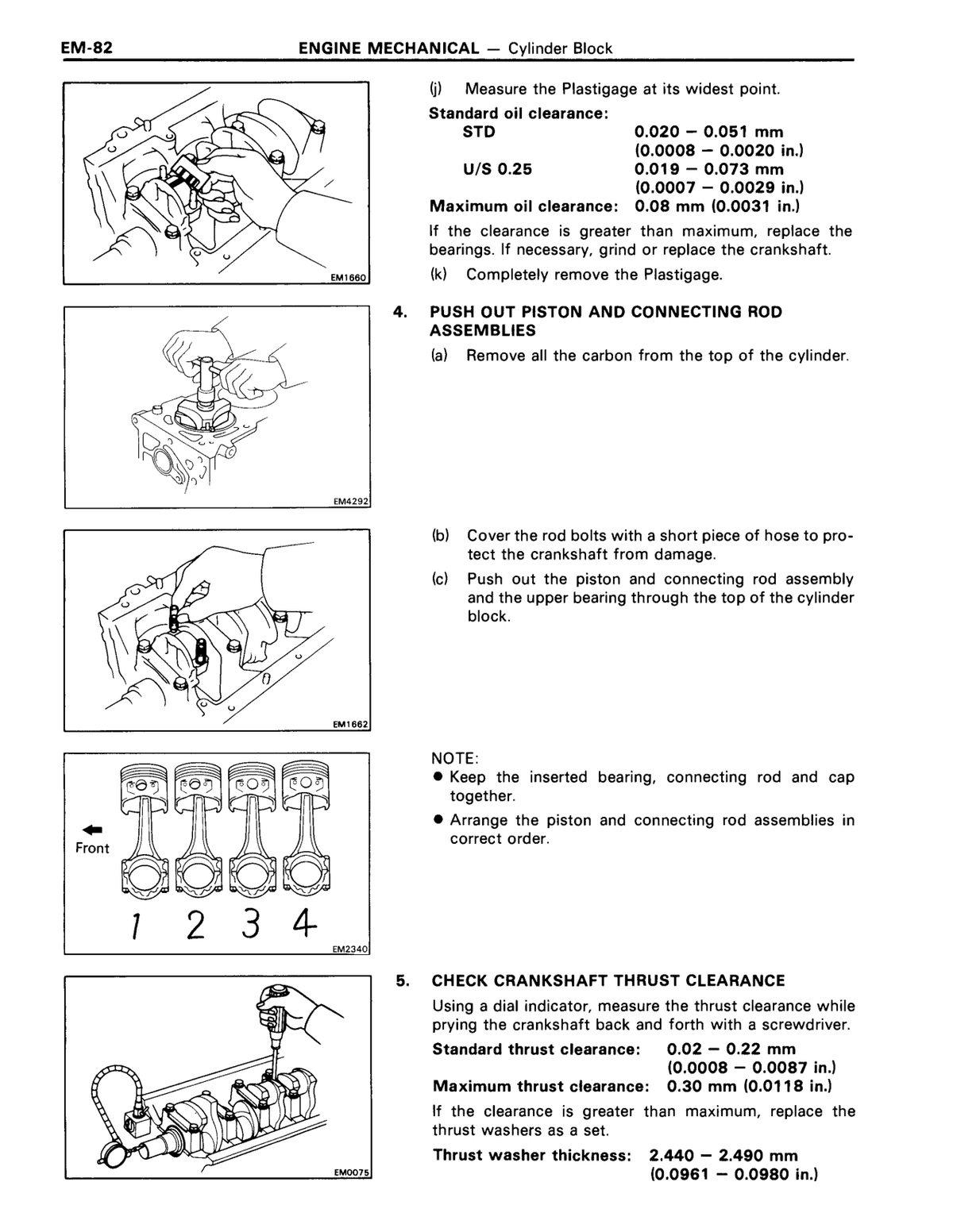

Thrust washer thickness Range: 2.440-2.490 mm (0.0961-0.0980 in.) 2.465 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p28 OEM manual
Cylinder block main journal bore diameter — Mark 1 2.3236-2.3239 in. 59.020-59.026 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Cylinder block main journal bore diameter — Mark 2 2.3239-2.3241 in. 59.026-59.032 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Cylinder block main journal bore diameter — Mark 3 2.3241-2.3243 in. 59.032-59.038 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Crankshaft journal diameter — Mark 0 2.1653-2.1655 in. 54.998-55.003 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Crankshaft journal diameter — Mark 1 2.1651-2.1653 in. 54.993-54.998 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Crankshaft journal diameter — Mark 2 2.1649-2.1651 in. 54.988-54.993 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark 1 0.0784-0.0785 in. 1.992-1.995 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark 2 0.0785-0.0787 in. 1.995-1.998 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark 3 0.0787-0.0788 in. 1.998-2.001 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark 4 0.0788-0.0789 in. 2.001-2.004 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark 5 0.0789-0.0790 in. 2.004-2.007 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark 1 0.0786-0.0787 in. 1.997-2.000 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark 2 0.0787-0.0789 in. 2.000-2.003 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark 3 0.0789-0.0790 in. 2.003-2.006 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark 4 0.0790-0.0791 in. 2.006-2.009 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark 5 0.0791-0.0792 in. 2.009-2.012 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p31 OEM manual

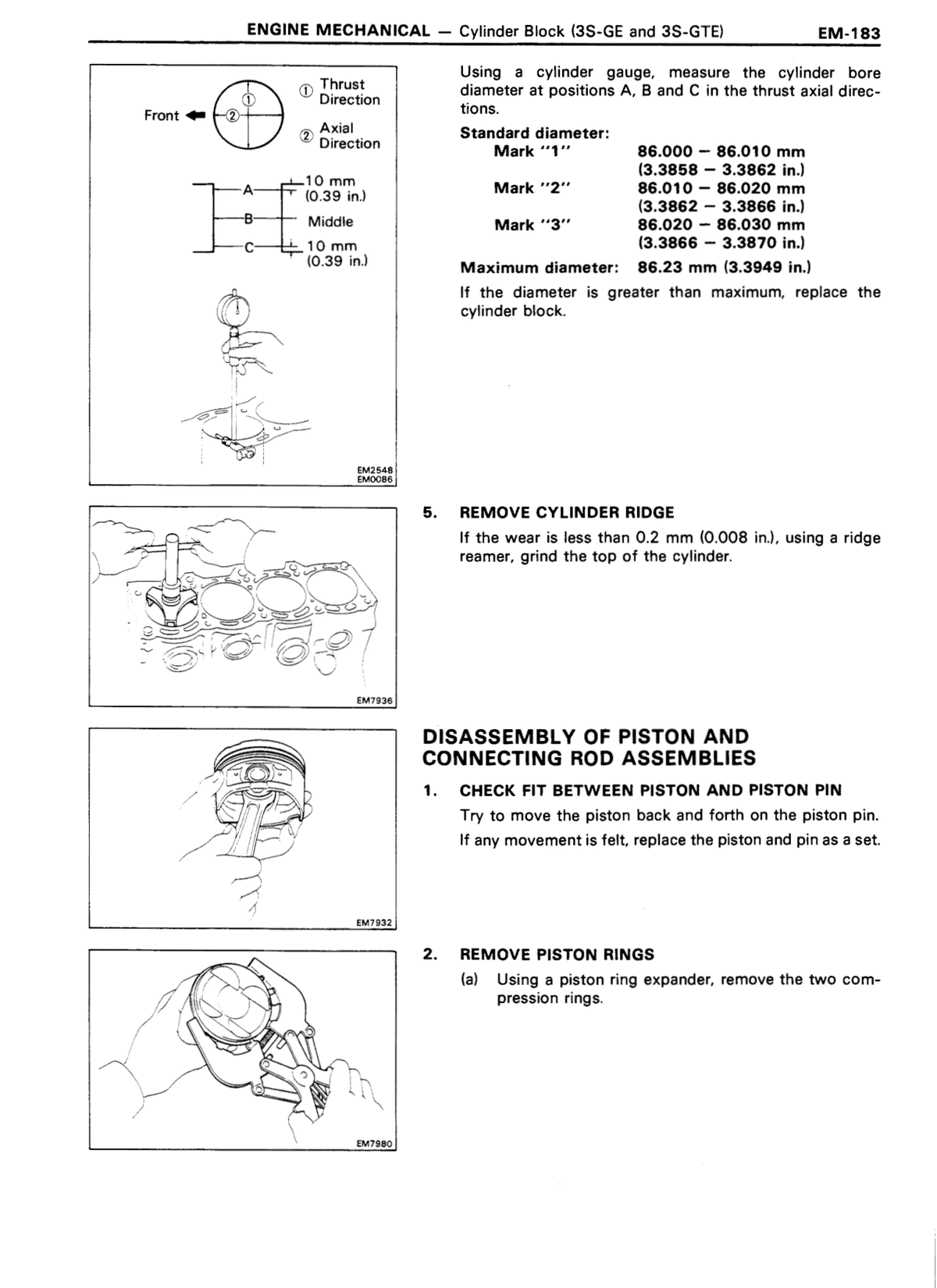

Cylinder bore diameter — Mark '1' standard 3.3858–3.3862 in. 86.000–86.010 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p33 OEM manual
Cylinder bore diameter — Mark '2' standard 3.3862–3.3866 in. 86.010–86.020 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p33 OEM manual
Cylinder bore diameter — Mark '3' standard 3.3866–3.3870 in. 86.020–86.030 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p33 OEM manual
Cylinder bore diameter — maximum 3.4342 in.; rebore all four cylinders if exceeded 86.23 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p33 OEM manual
Cylinder bore measurement position spacing (A to B, B to C) 0.39 in.; measured at positions A, B, C in thrust and axial directions 10 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p33 OEM manual

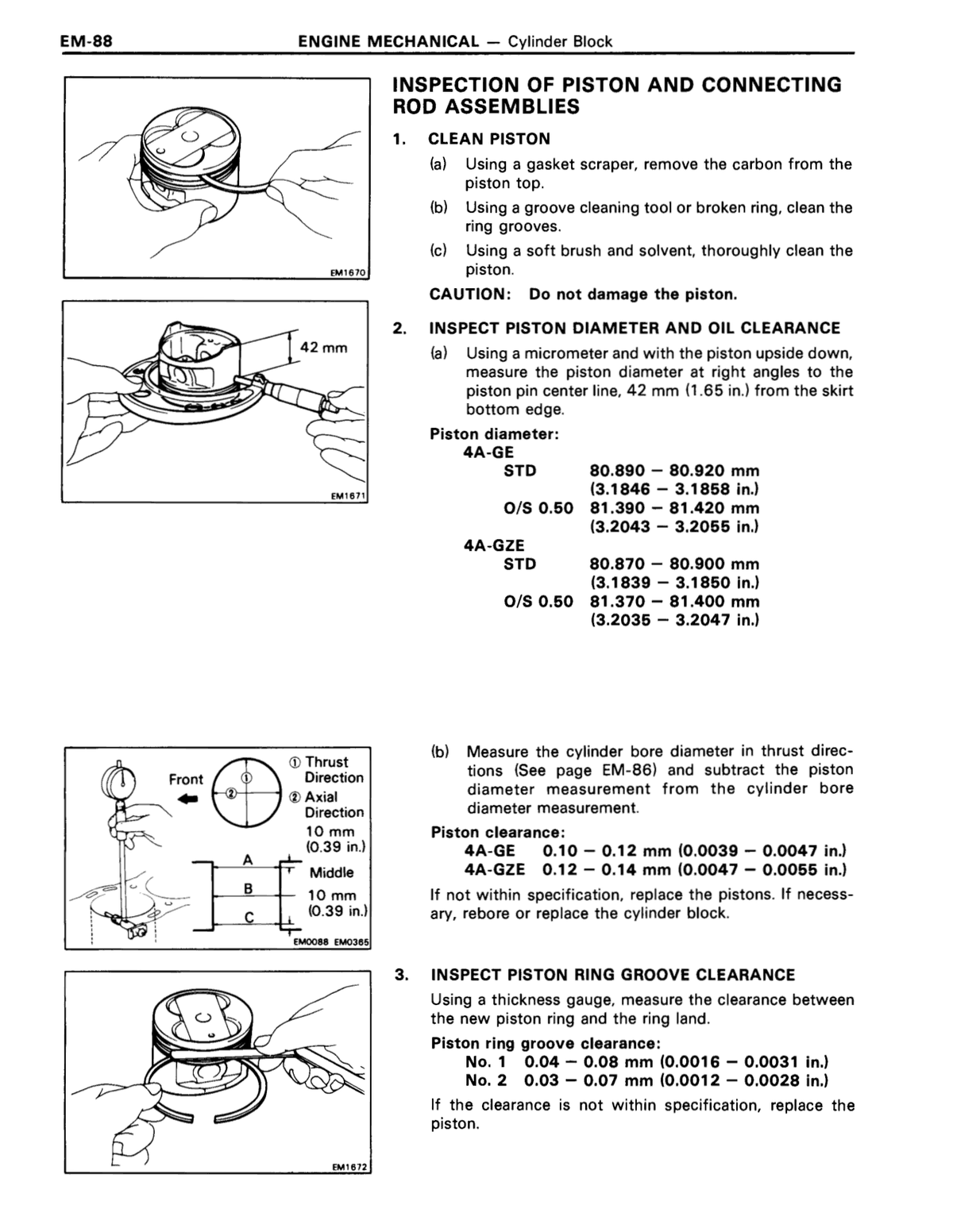

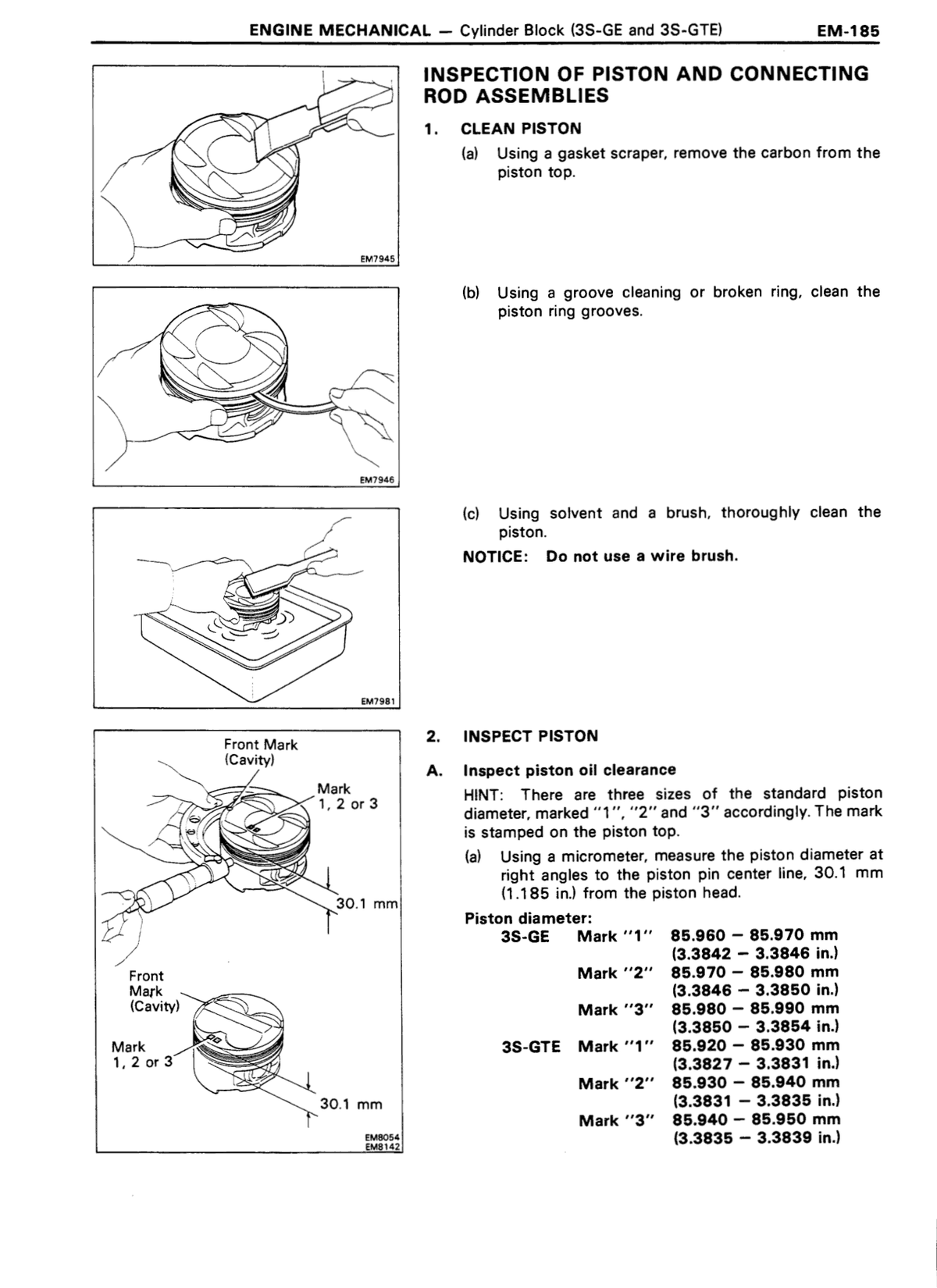

Piston diameter — Mark '1' Range: 85.920–85.930 mm (3.3827–3.3831 in.) 85.925 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p36 OEM manual
Piston diameter — Mark '2' Range: 85.930–85.940 mm (3.3831–3.3835 in.) 85.935 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p36 OEM manual
Piston diameter — Mark '3' Range: 85.940–85.950 mm (3.3835–3.3839 in.) 85.945 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p36 OEM manual
Piston diameter measurement location from piston head 1.185 in.; measured at right angles to piston pin center line 30.1 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p36 OEM manual
Main journal diameter — STD Range: 54.988–55.003 mm (2.1653–2.1655 in.) 54.988 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p40 OEM manual
Main journal diameter — U/S 0.25 Range: 54.745–54.755 mm (2.1553–2.1557 in.) 54.745 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p40 OEM manual
Crank pin diameter — STD Range: 47.985–48.000 mm (1.8892–1.8898 in.) 47.985 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p40 OEM manual
Crank pin diameter — U/S 0.25 Range: 47.745–47.755 mm (1.8797–1.8801 in.) 47.745 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p40 OEM manual
Main bearing width — No.3 journal position 0.906 in. 23 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p45 OEM manual
Main bearing width — other positions 0.756 in. 19.2 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p45 OEM manual

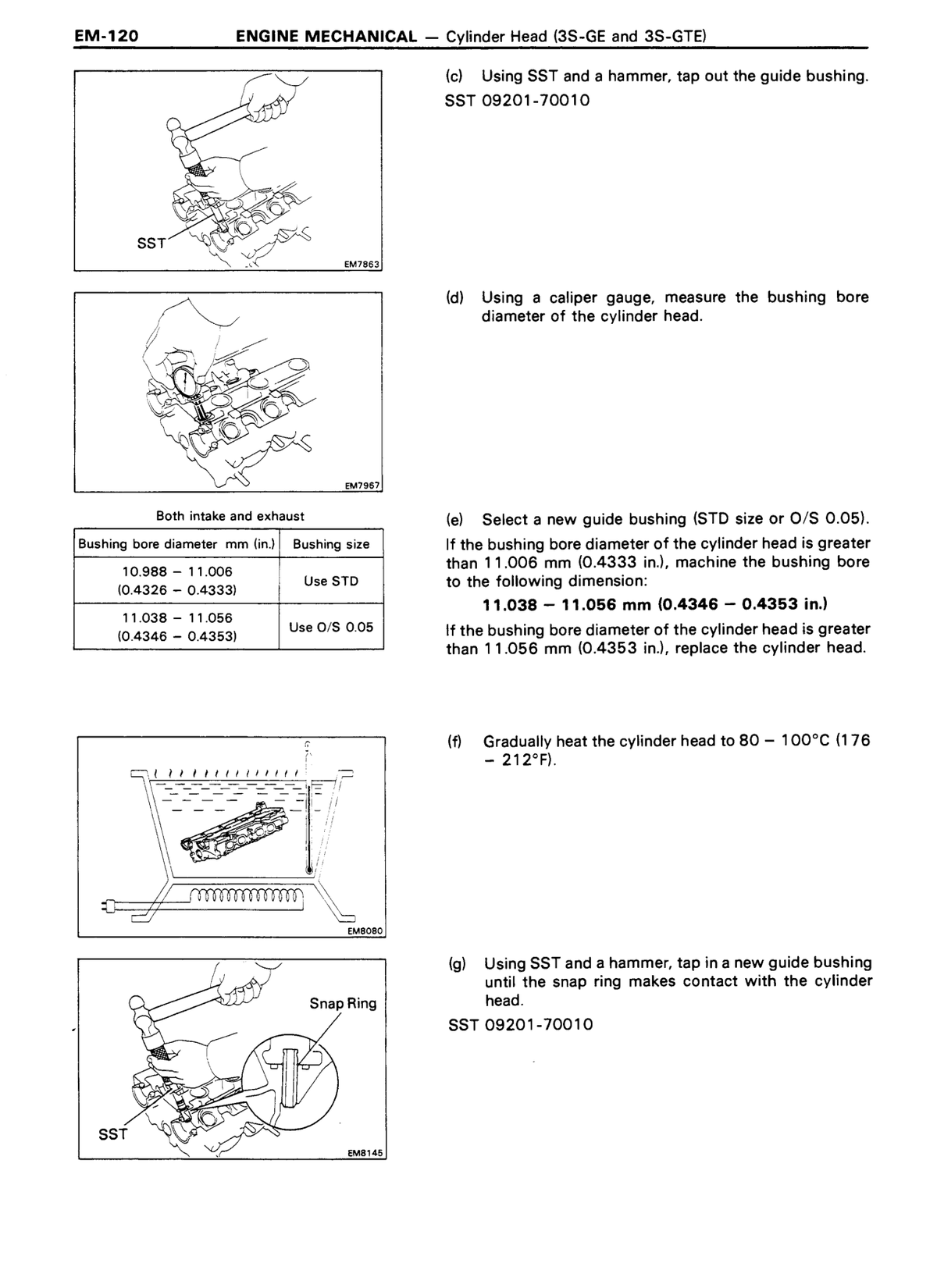

Valve guide bushing bore — Use STD bushing (both intake and exhaust) 0.432fi–0.4333 in. 10.988–11.006 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p90 OEM manual
Valve guide bushing bore — Use O/S 0.05 bushing (both intake and exhaust) 0.4346–0.4353 in. 11.038–11.056 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p90 OEM manual

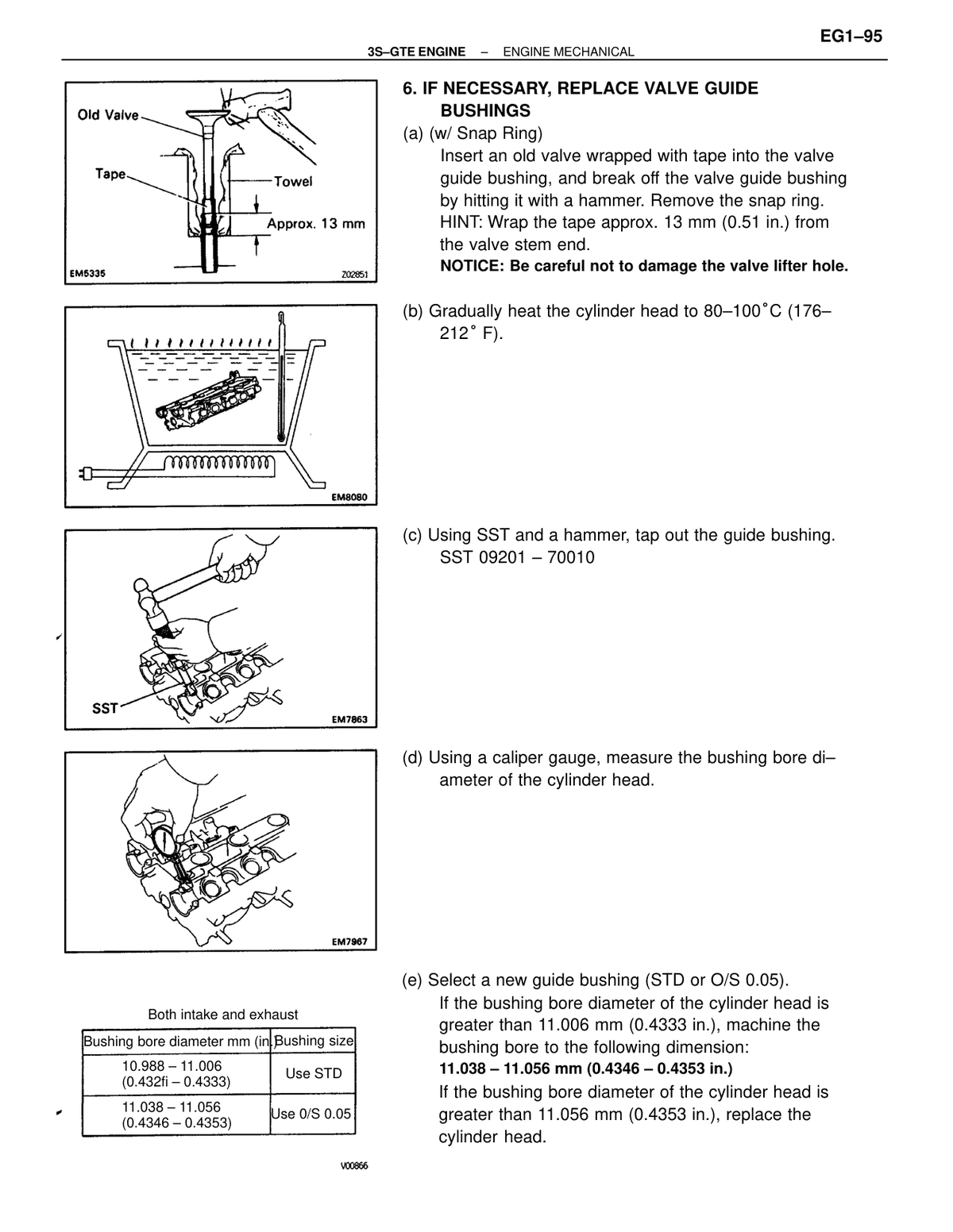

Machined bushing bore when original bore exceeds 11.006 mm 0.4346–0.4353 in.; machine before installing O/S 0.05 bushing 11.038–11.056 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p90 OEM manual
Tape wrap distance from valve stem end approx. 0.51 in. 13 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p90 OEM manual

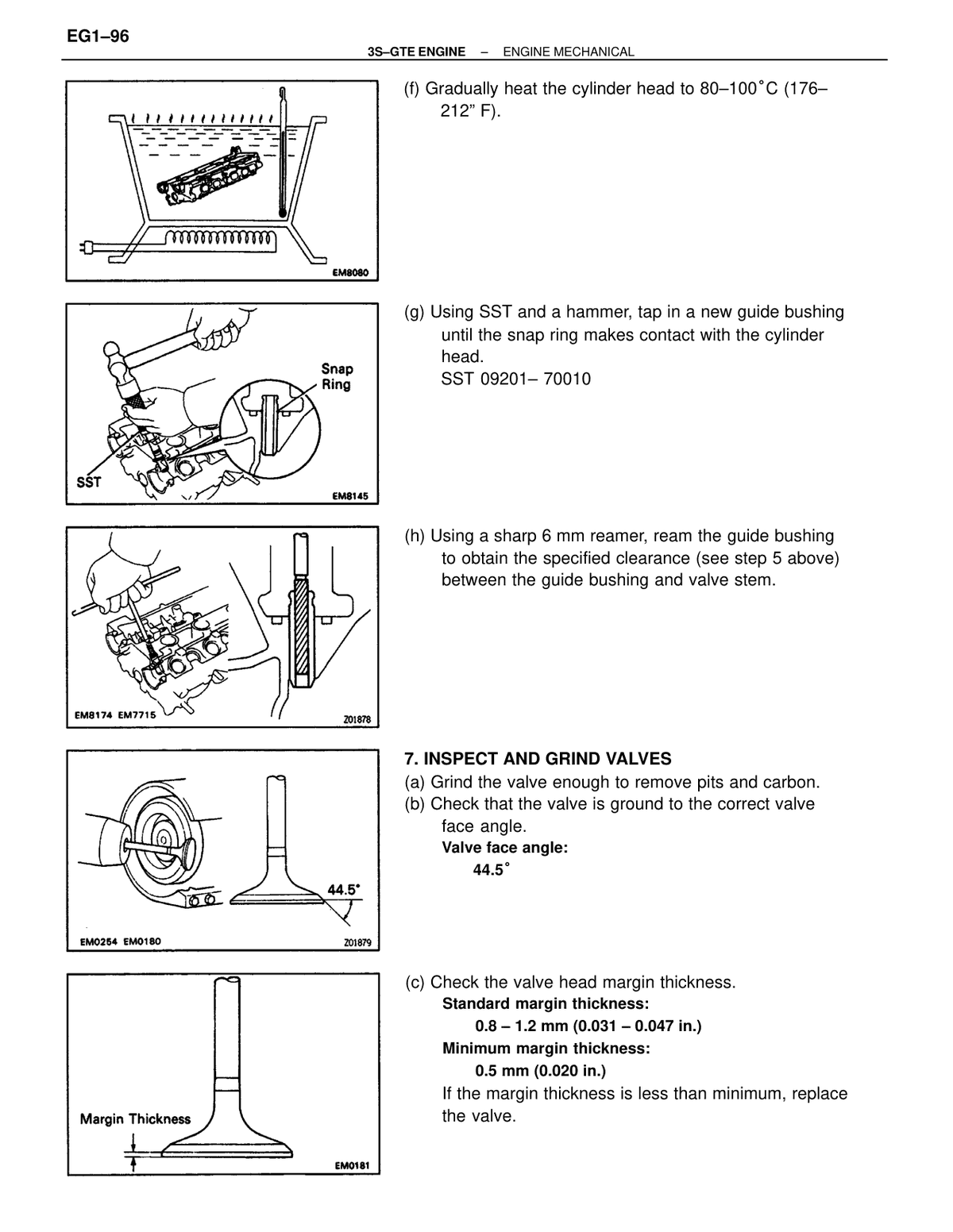

Cylinder head heating temperature for bushing replacement 176–212°F 80–100 °C Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p90 OEM manual

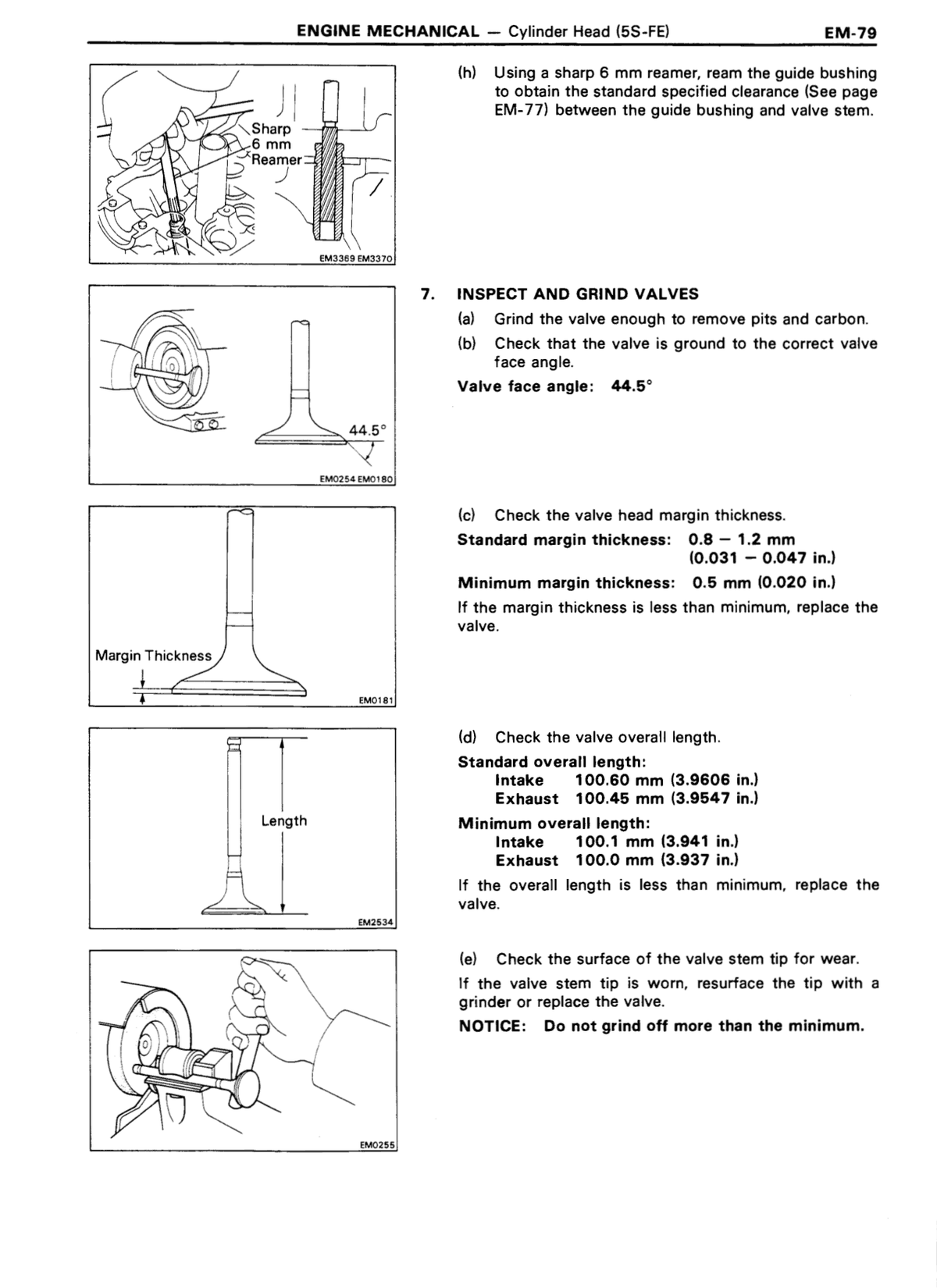

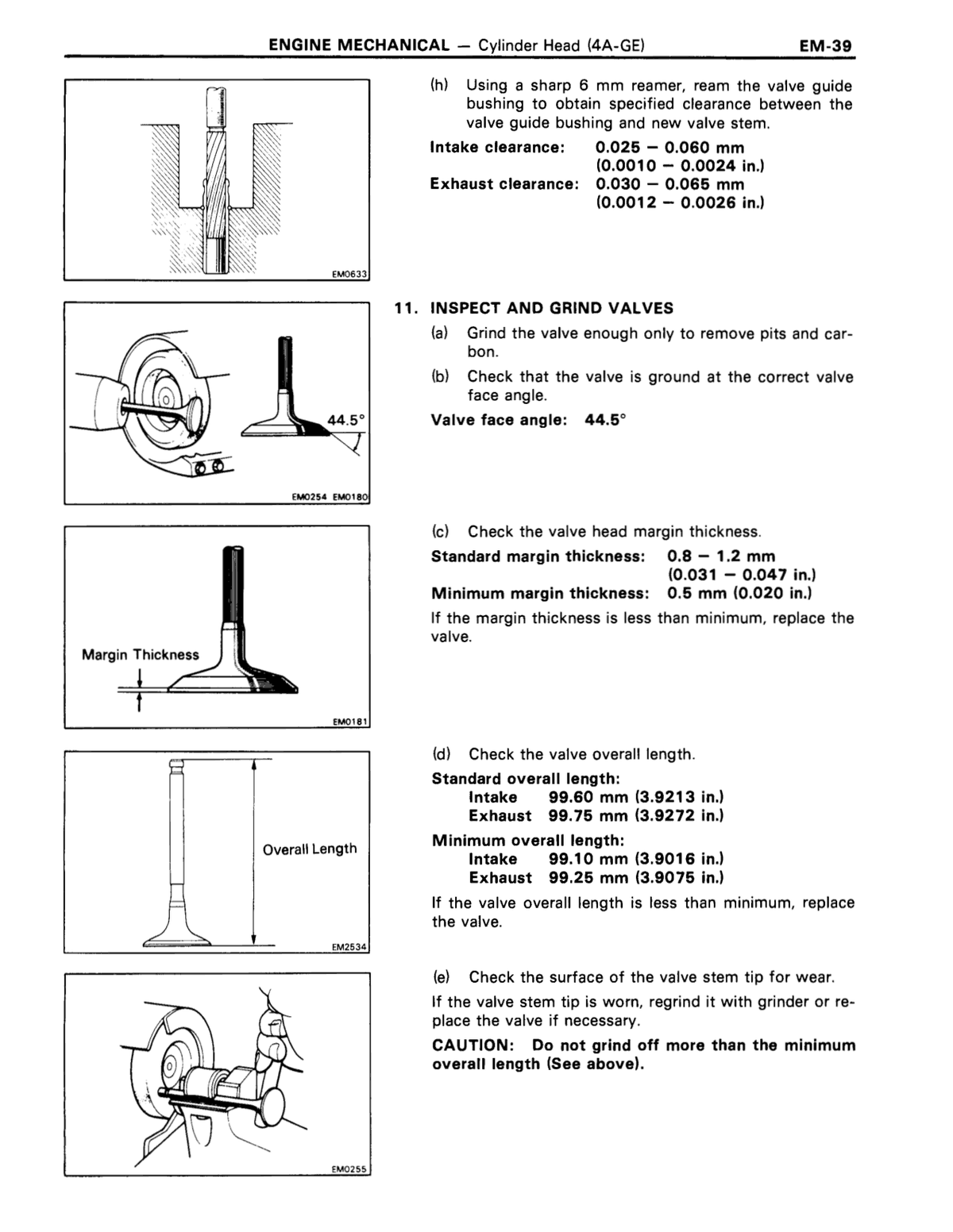

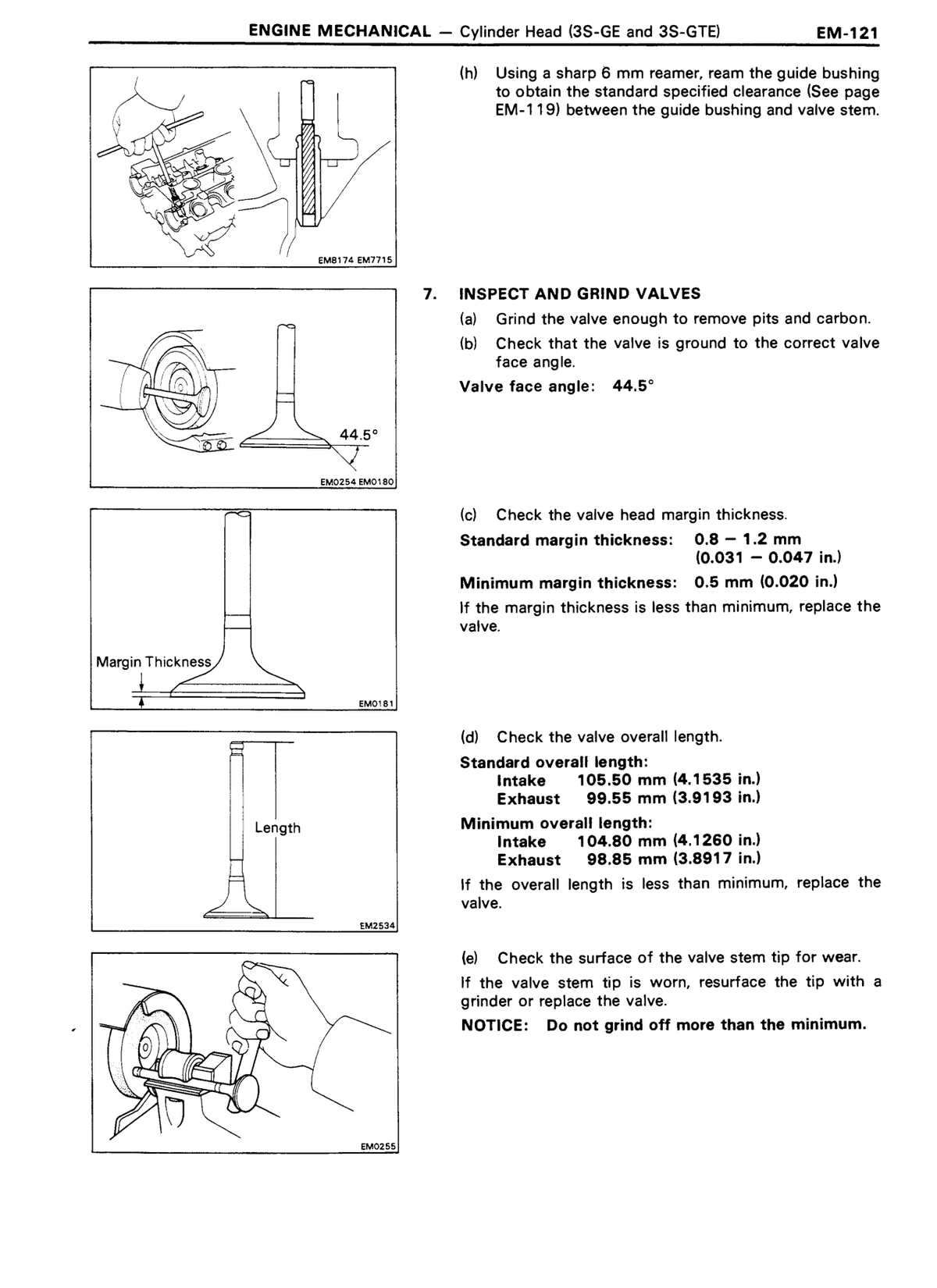

Valve face angle standard grind angle 44.5 degrees Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p91 OEM manual

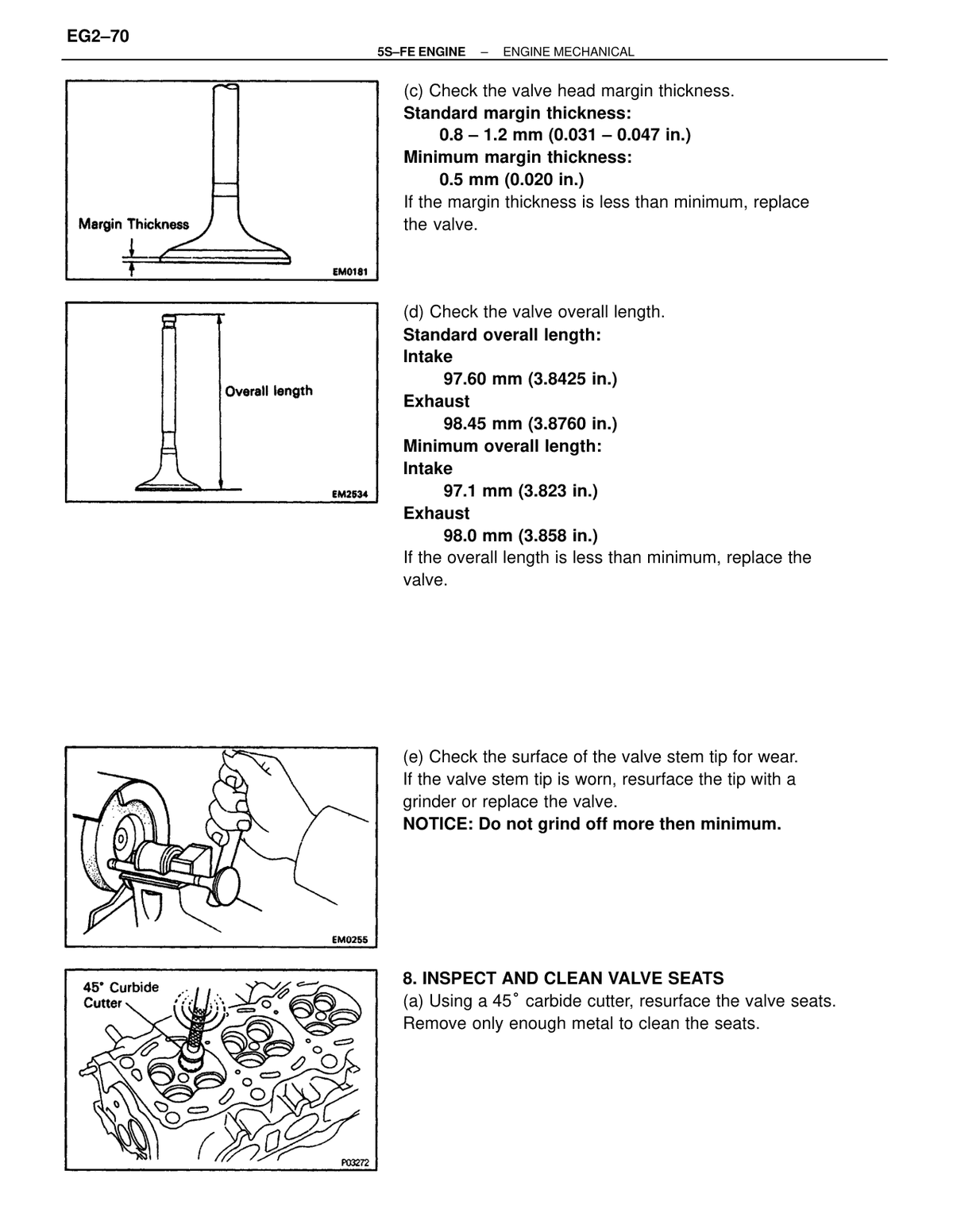

Valve head margin thickness — standard 0.031–0.047 in. 0.8–1.2 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p91 OEM manual
Valve head margin thickness — minimum 0.020 in.; replace valve if below this 0.5 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p91 OEM manual
Guide bushing reamer size sharp reamer required 6 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p91 OEM manual
Intake valve standard overall length standard; 4.1535 in. 105.5 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p92 OEM manual
Exhaust valve standard overall length standard; 3.9193 in. 99.55 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p92 OEM manual
Intake valve minimum overall length minimum; 4.1260 in. 104.8 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p92 OEM manual
Exhaust valve minimum overall length minimum; 3.8917 in. 98.85 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p92 OEM manual

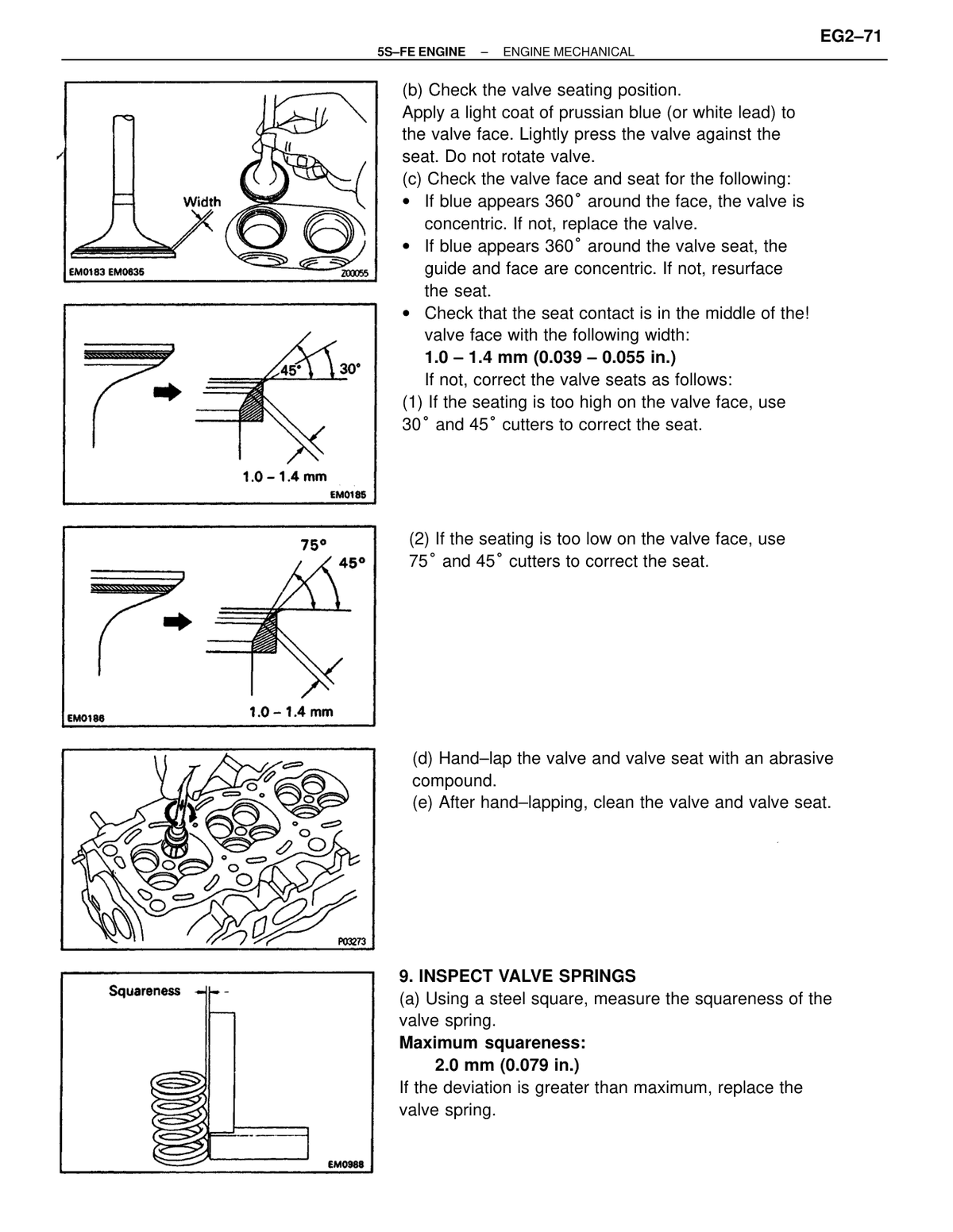

Valve seat contact width 0.039–0.055 in. 1.0-1.4 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p92 OEM manual
Valve seat contact width (corrected) Use 75° and 45° cutters if seating is too low 1.0-1.4 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p93 OEM manual
Valve spring squareness — maximum Replace if deviation exceeds maximum 2 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p93 OEM manual
Valve spring free length Replace if not as specified 44.43 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p93 OEM manual
Valve spring installed length (for tension test) 34.4 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p93 OEM manual

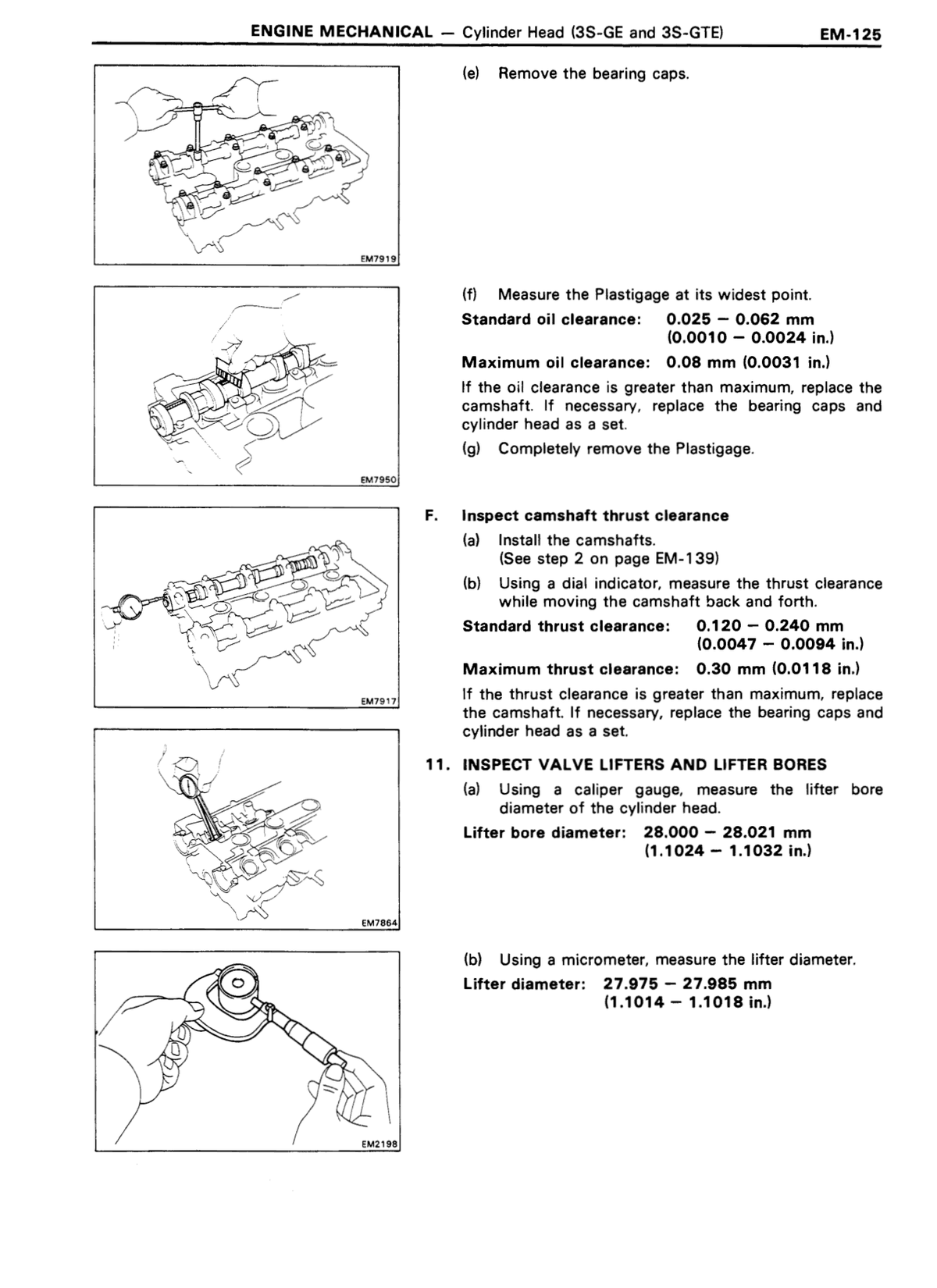

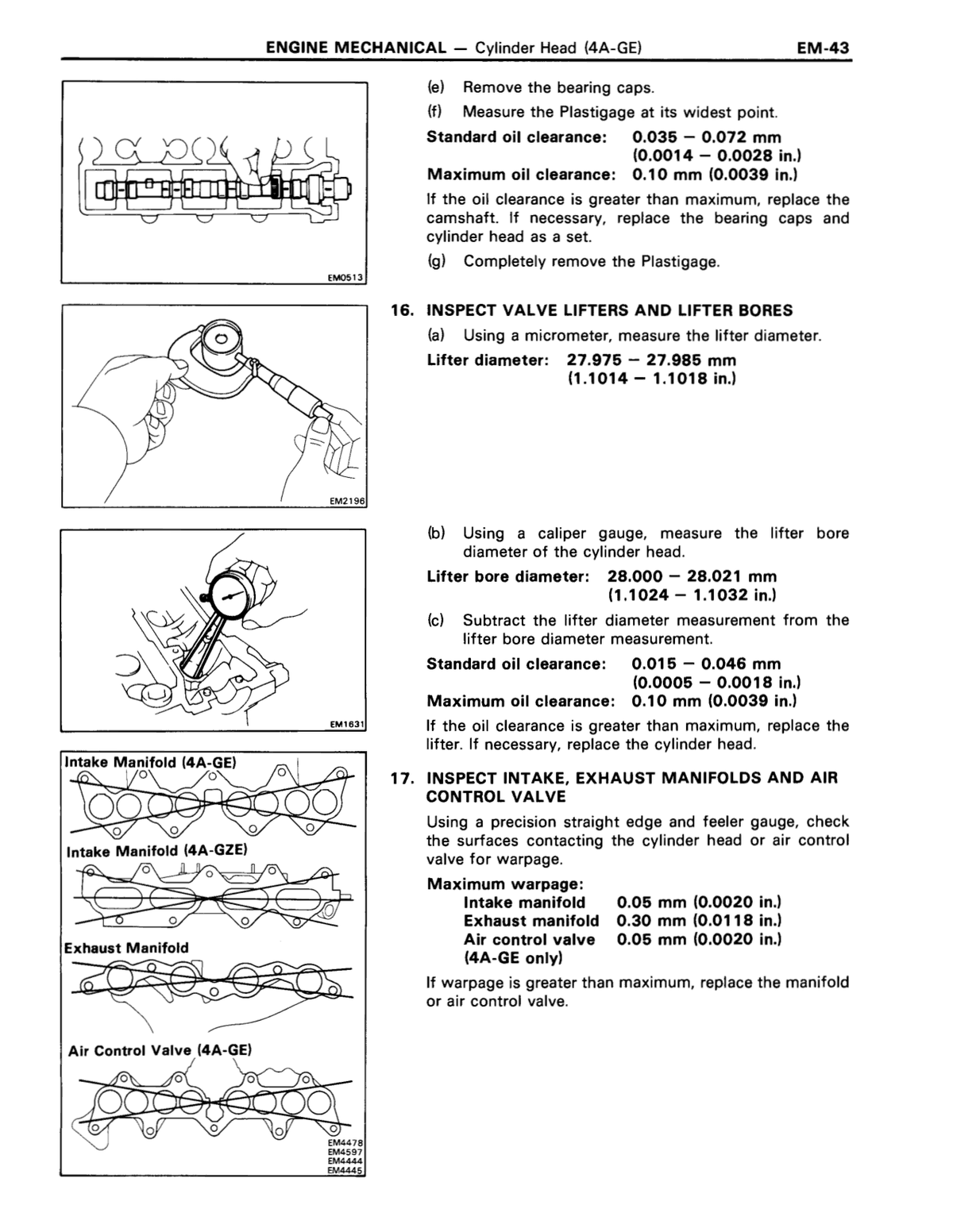

Lifter bore diameter range 28.000 – 28.021 mm (1.1024 – 1.1032 in.) 28 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p96 OEM manual
Lifter diameter range 27.975 – 27.985 mm (1.1014 – 1.1018 in.) 27.98 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p96 OEM manual
Intake manifold warpage — maximum 0.0079 in.; surface contacting T-VIS valve 0.2 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p96 OEM manual
Exhaust manifold warpage — maximum 0.0079 in.; surface contacting cylinder head 0.2 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p96 OEM manual
Throttle body upper bolt length 1.77 in. 45 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p112 OEM manual
Throttle body lower bolt length 2.76 in. 70 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p112 OEM manual
Battery specific gravity — fully charged when fully charged at 20°C (68°F) 1.25-1.27 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Alternator drive belt tension — New belt ±20 lbf 120 lbf Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Alternator drive belt tension — Used belt ±20 lbf 104 lbf Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual

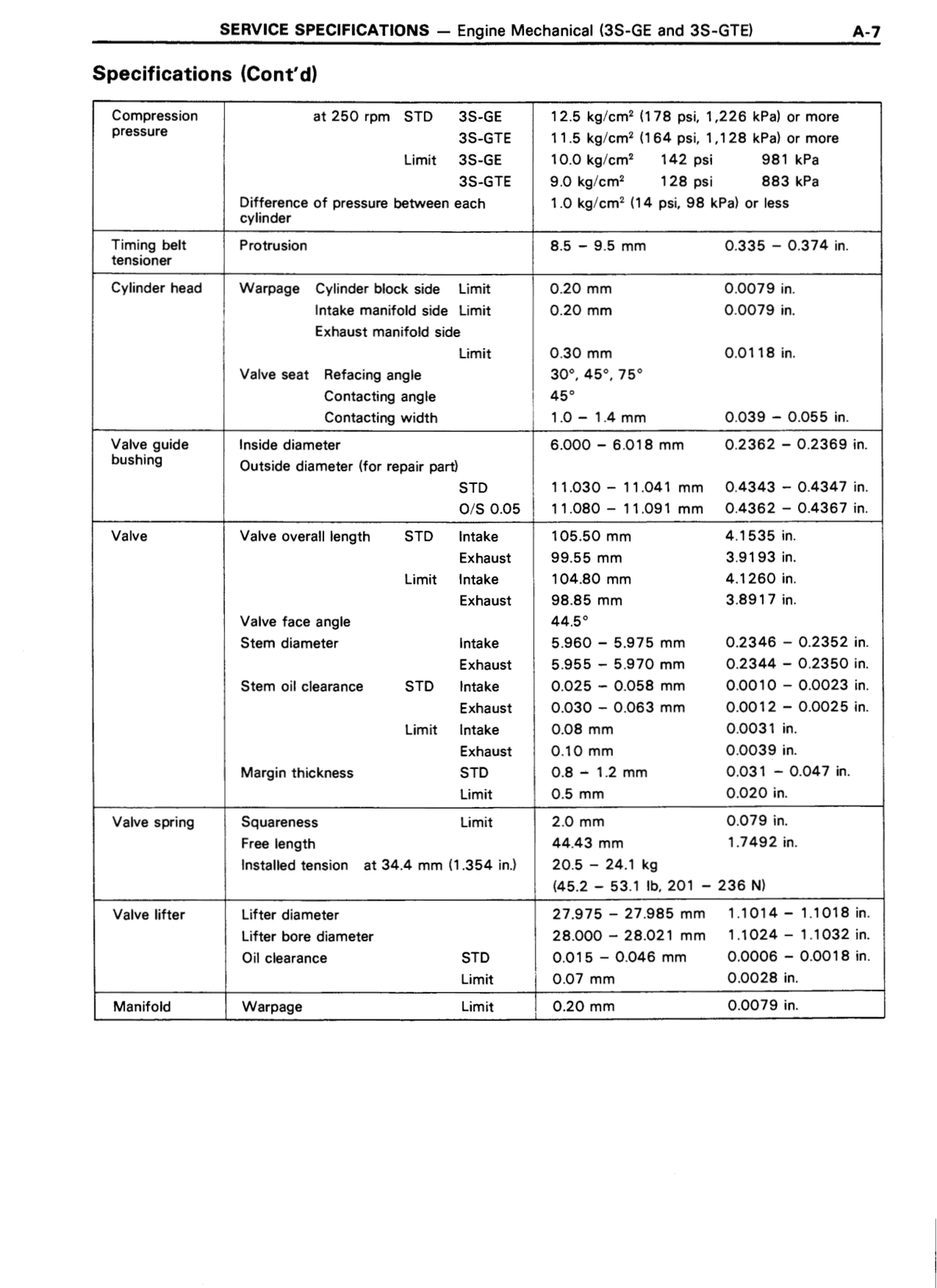

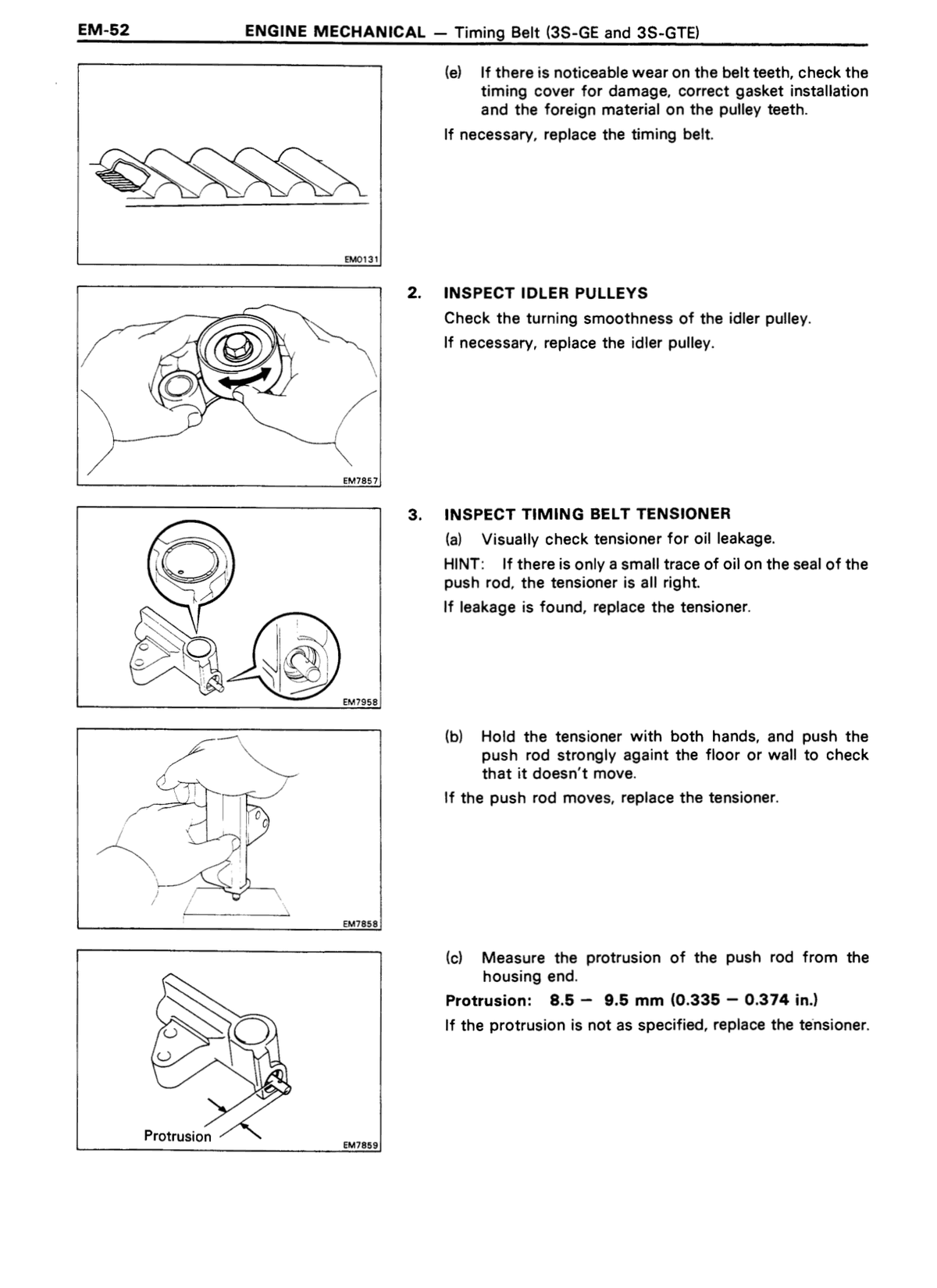

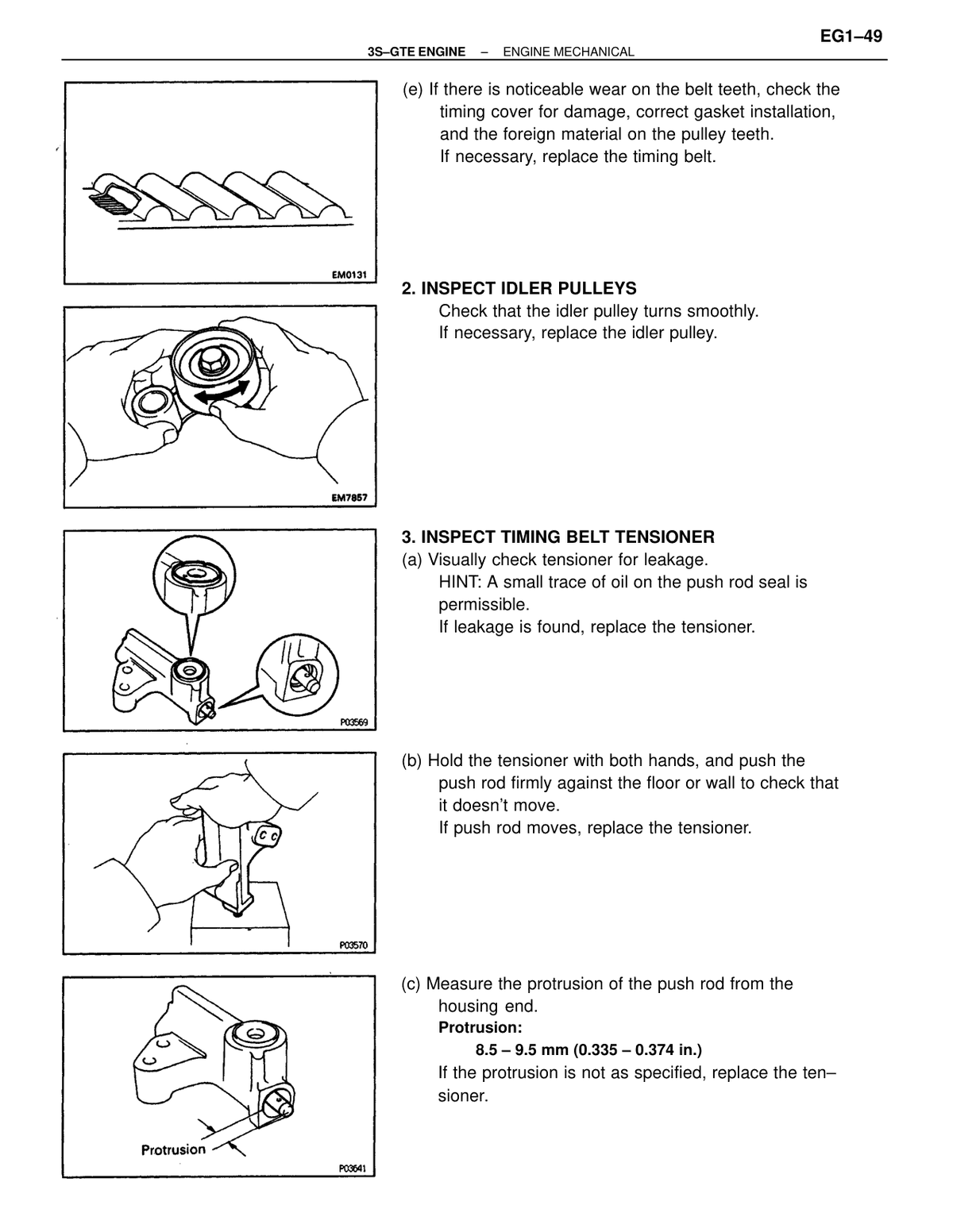

Timing belt tensioner protrusion 0.335-0.374 in. 8.5-9.5 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Cylinder head warpage — Cylinder block side (Limit) 0.0079 in. 0.20 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Cylinder head warpage — Intake manifold side (Limit) 0.0079 in. 0.20 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Cylinder head warpage — Exhaust manifold side (Limit) 0.0118 in. 0.30 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve seat — Contacting width 0.039-0.055 in. 1.0-1.4 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve guide bushing — Inside diameter 0.2362-0.2369 in. 6.000-6.018 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve guide bushing — Outside diameter (replacement part) STD 0.4326-0.4333 in. 10.988-11.006 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve guide bushing — Outside diameter (replacement part) O/S 0.05 0.4346-0.4353 in. 11.038-11.056 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual

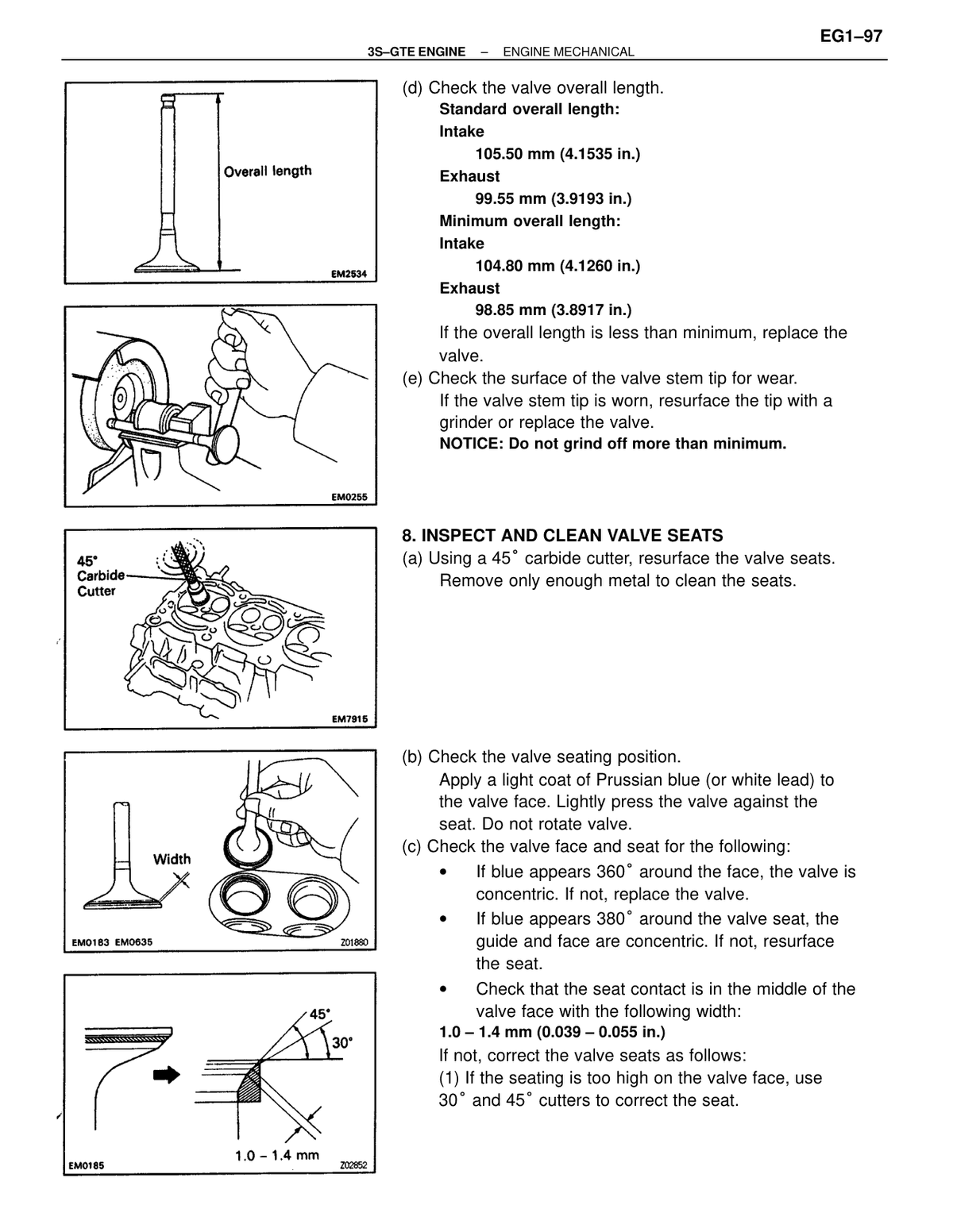

Valve overall length — STD (Intake) 4.1535 in. 105.50 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve overall length — STD (Exhaust) 3.9193 in. 99.55 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve overall length — Limit (Intake) 4.1260 in. 104.80 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve overall length — Limit (Exhaust) 3.8917 in. 98.85 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Stem diameter (Intake) 0.2346-0.2352 in. 5.960-5.975 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Stem diameter (Exhaust) 0.2344-0.2350 in. 5.955-5.970 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Margin thickness — STD 0.031-0.047 in. 0.8-1.2 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Margin thickness — Limit 0.020 in. 0.5 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual

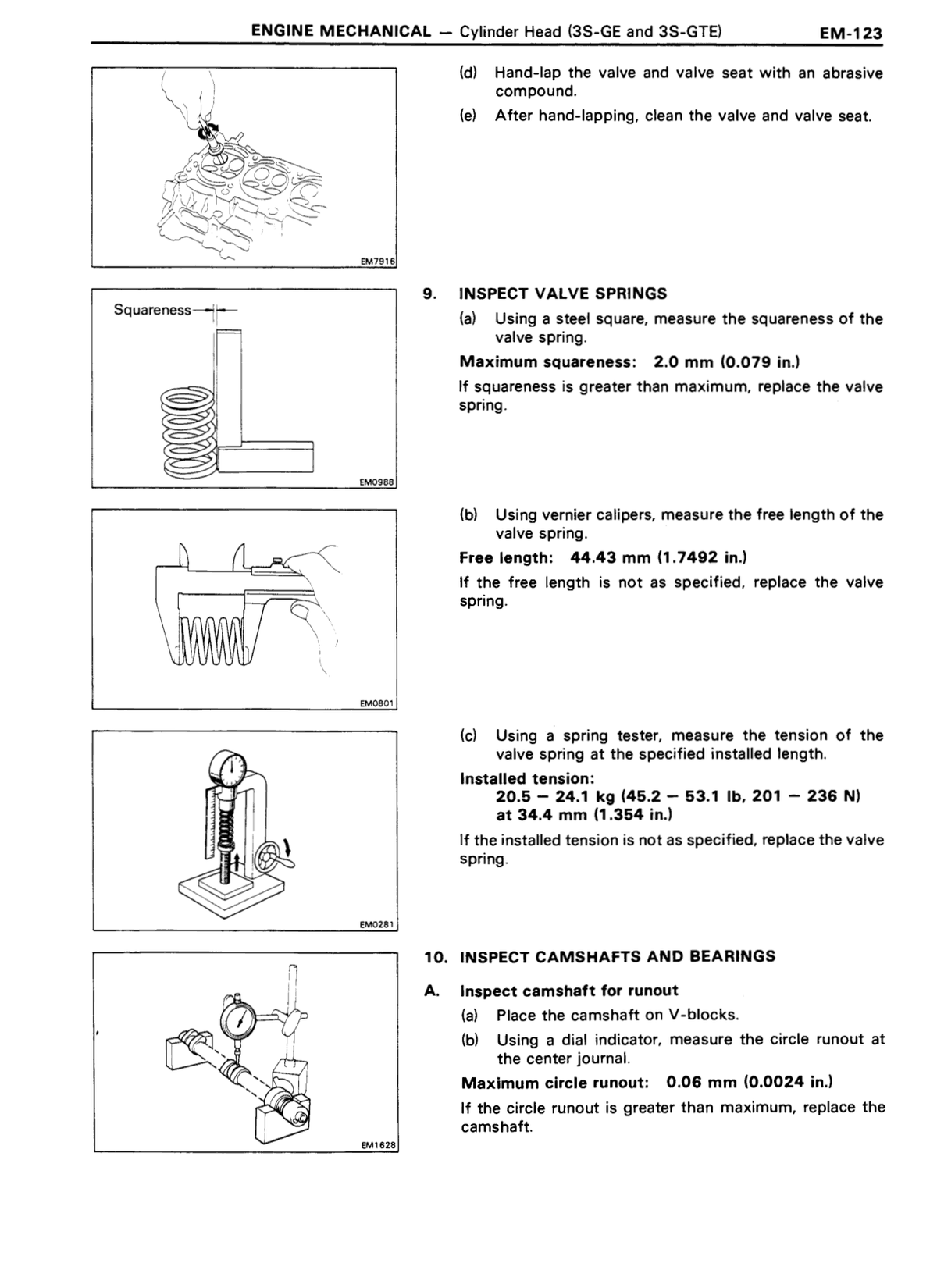

Valve spring squareness — Limit 0.079 in. 2.0 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual

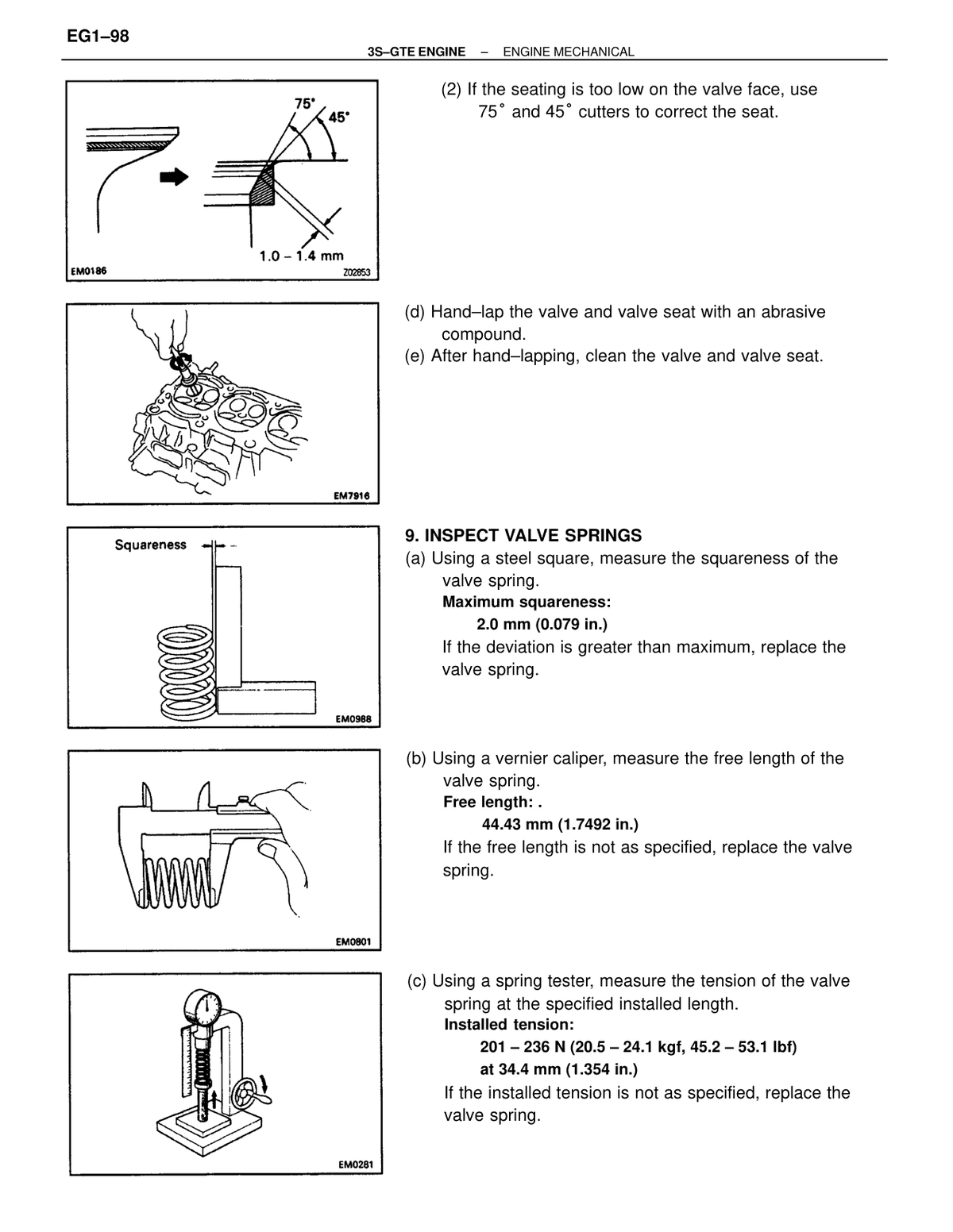

Valve spring free length 1.7492 in. 44.43 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve spring installed tension at 34.4 mm (1.354 in.) 20.5-24.1 kgf, 45.2-53.1 lbf 201-236 N Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
High-tension cord resistance — Limit 25 kΩ per cord Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve seat — Refacing angle 30, 45, 75 degrees Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve seat — Contacting angle 45 degrees Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p134 OEM manual
Valve lifter — Lifter diameter 27.975-27.985 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Valve lifter — Lifter bore diameter 28.000-28.021 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Camshaft — Journal diameter 26.959-26.975 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Camshaft — Cam lobe height STD 41.010-41.110 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Camshaft — Cam lobe height Limit 39.90 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Cylinder bore diameter STD Mark 1 86.000-86.010 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Cylinder bore diameter STD Mark 2 86.010-86.020 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Cylinder bore diameter STD Mark 3 86.020-86.030 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Cylinder bore diameter Limit 86.23 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Piston diameter STD Mark 1 85.920-85.930 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Piston diameter STD Mark 2 85.930-85.940 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Piston diameter STD Mark 3 85.840-85.950 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual

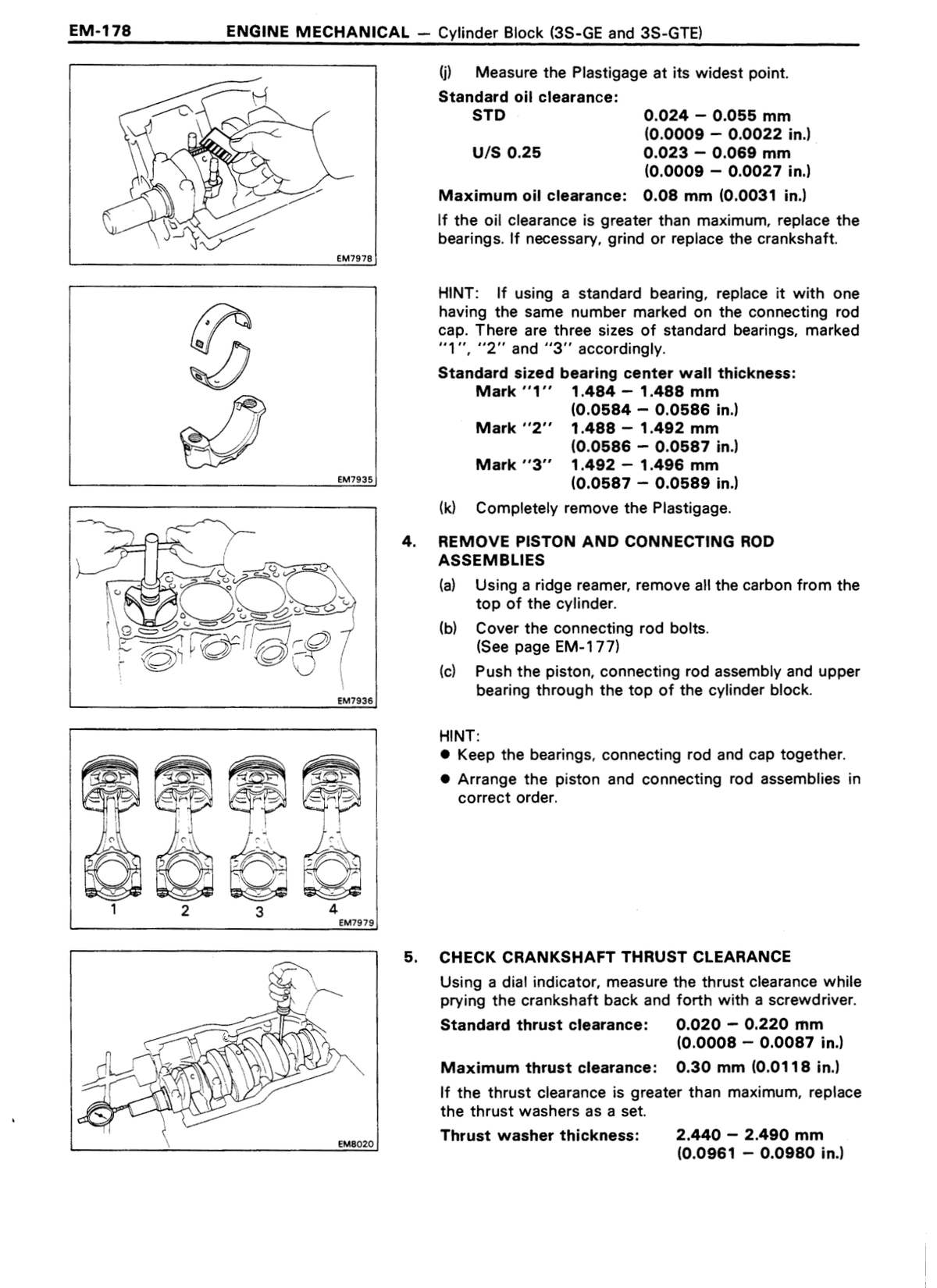

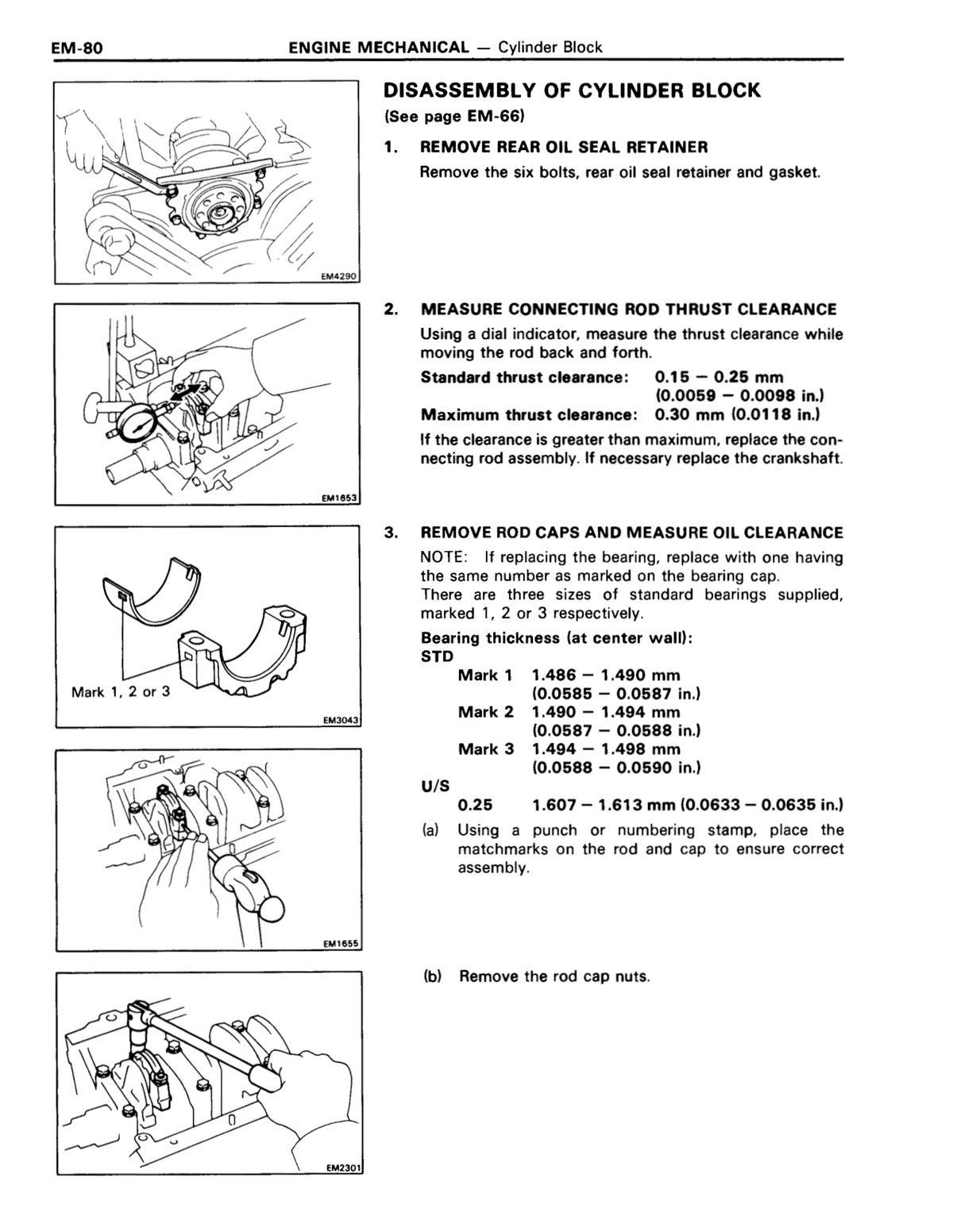

Connecting rod bearing center wall thickness STD Mark 1 1.484-1.488 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Connecting rod bearing center wall thickness STD Mark 2 1.488-1.492 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Connecting rod bearing center wall thickness STD Mark 3 1.492-1.496 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p135 OEM manual
Timing belt tensioner push rod protrusion from housing end 0.335-0.374 in. Replace tensioner if out of specification 8.5-9.5 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p154 OEM manual
Throttle body bolt length — upper side 1.77 in. 45 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p162 OEM manual
Throttle body bolt length — lower side 2.76 in. 70 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p162 OEM manual
Feeler gauge thickness — tensioner body to No.1 idler pulley stopper 0.075 in.; used in steps (h) and (k) 1.9 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p171 OEM manual
Hexagon wrench size for push rod setting Inserted through aligned holes of push rod and housing 1.27 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p171 OEM manual

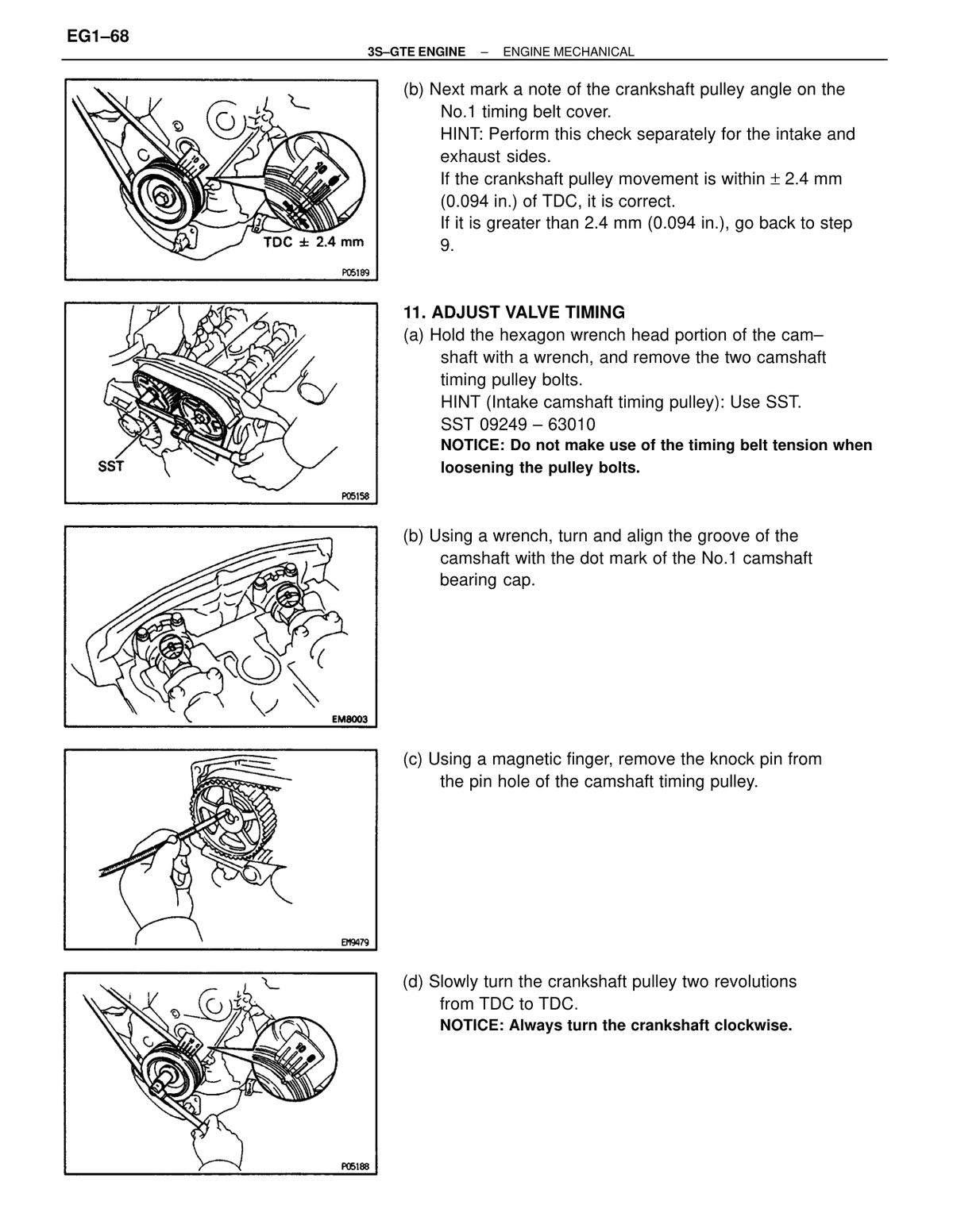

Crankshaft pulley TDC tolerance ±2.4 mm (0.094 in.) from TDC is acceptable 2.4 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p173 OEM manual

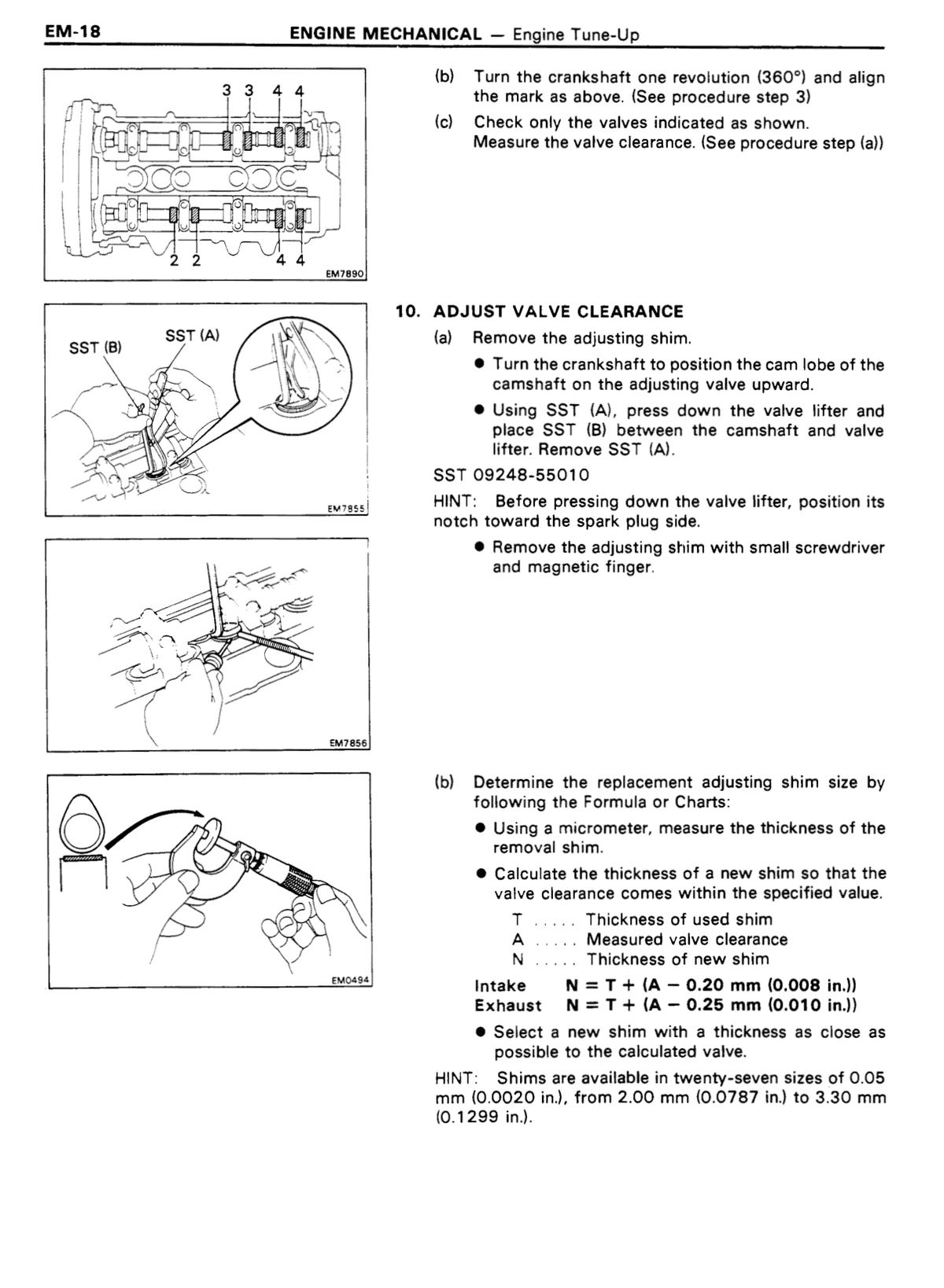

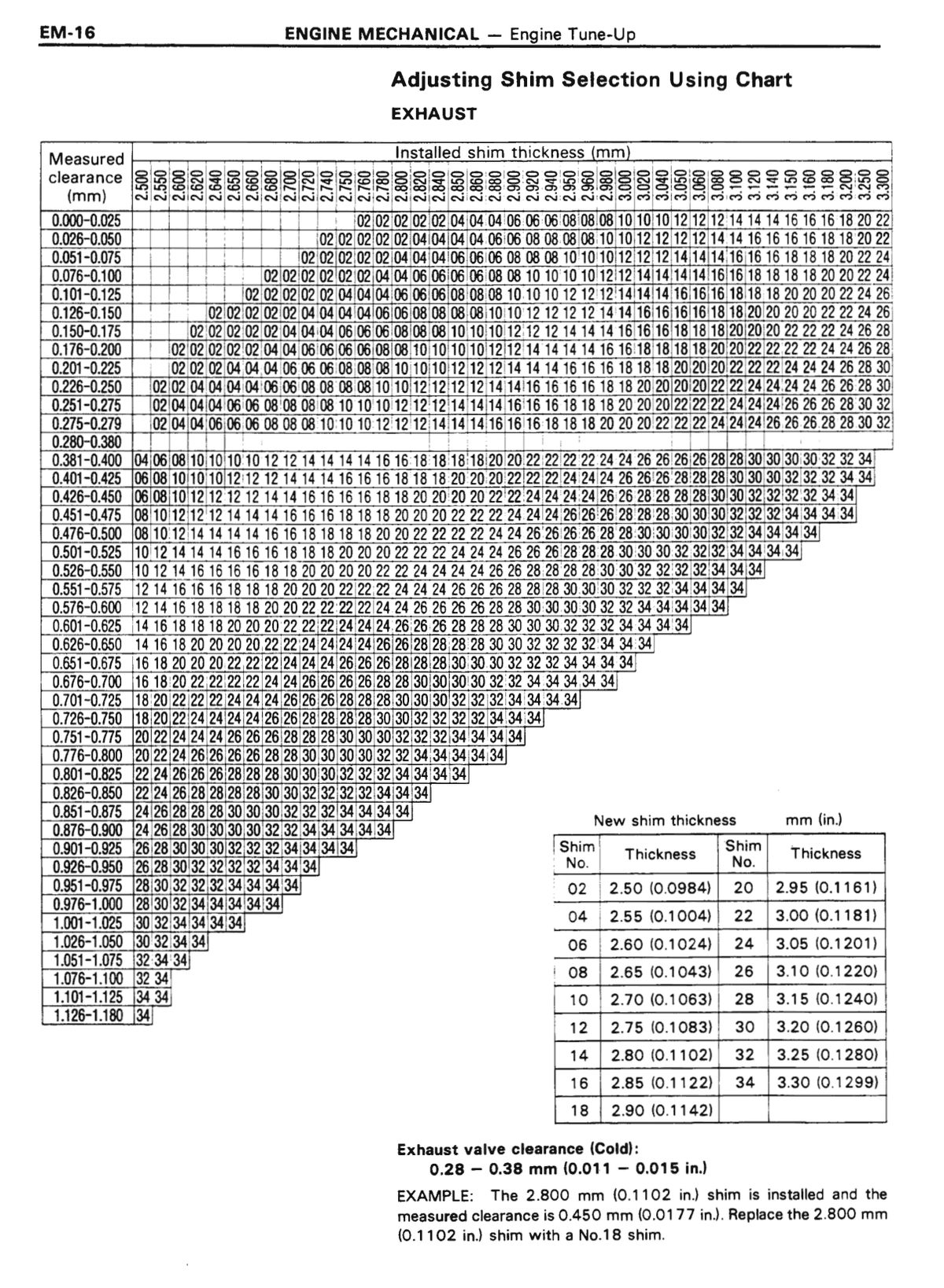

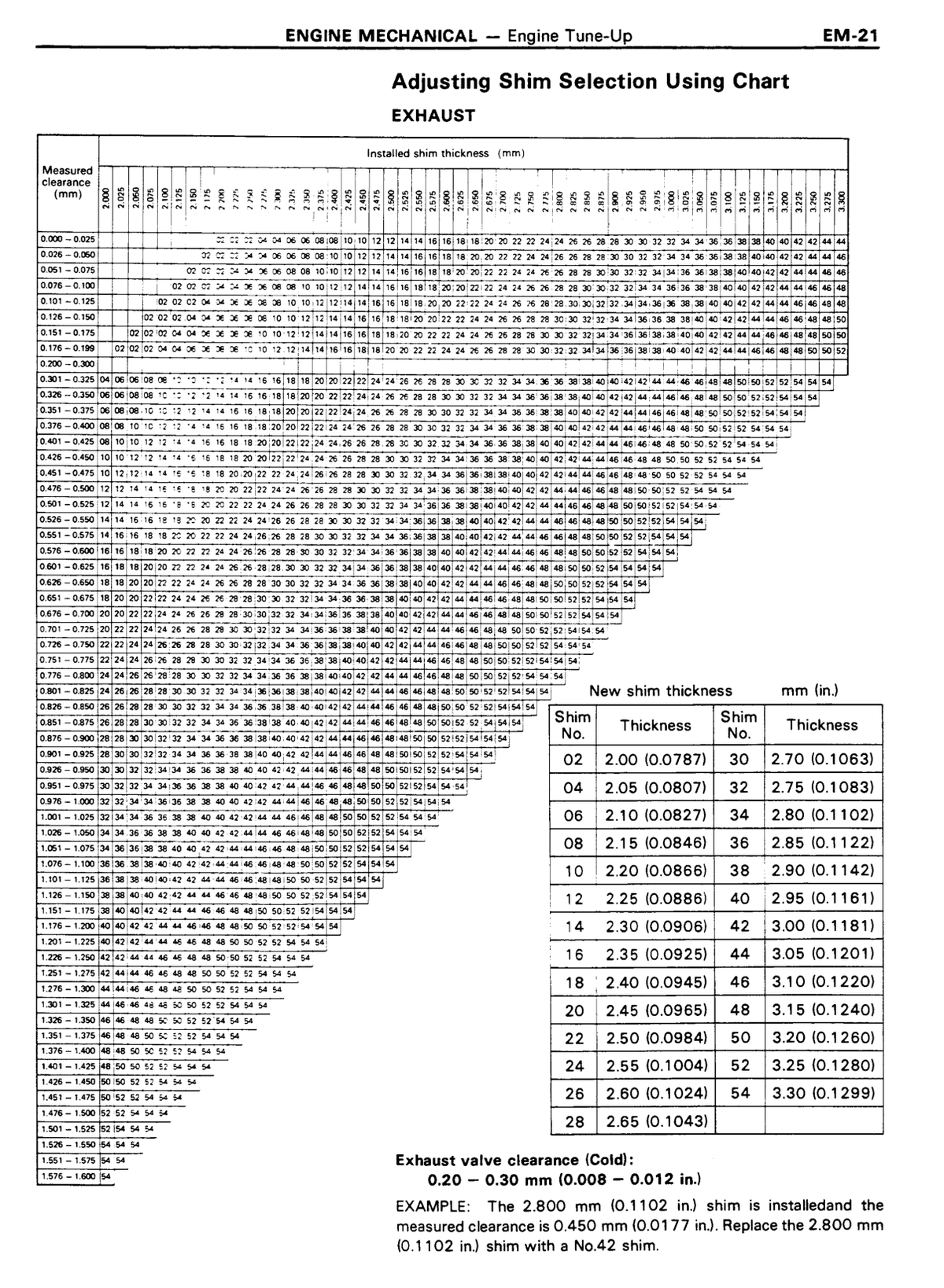

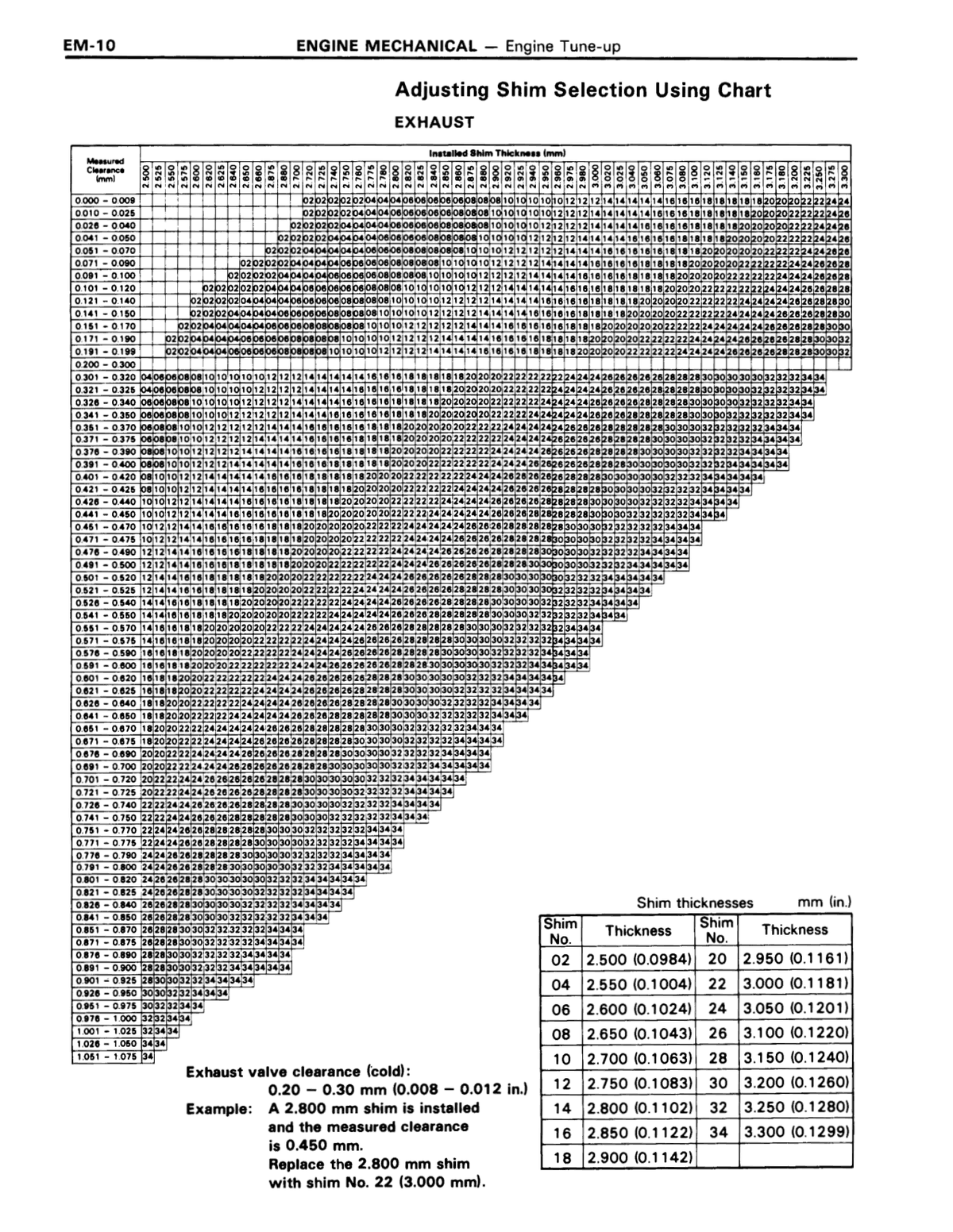

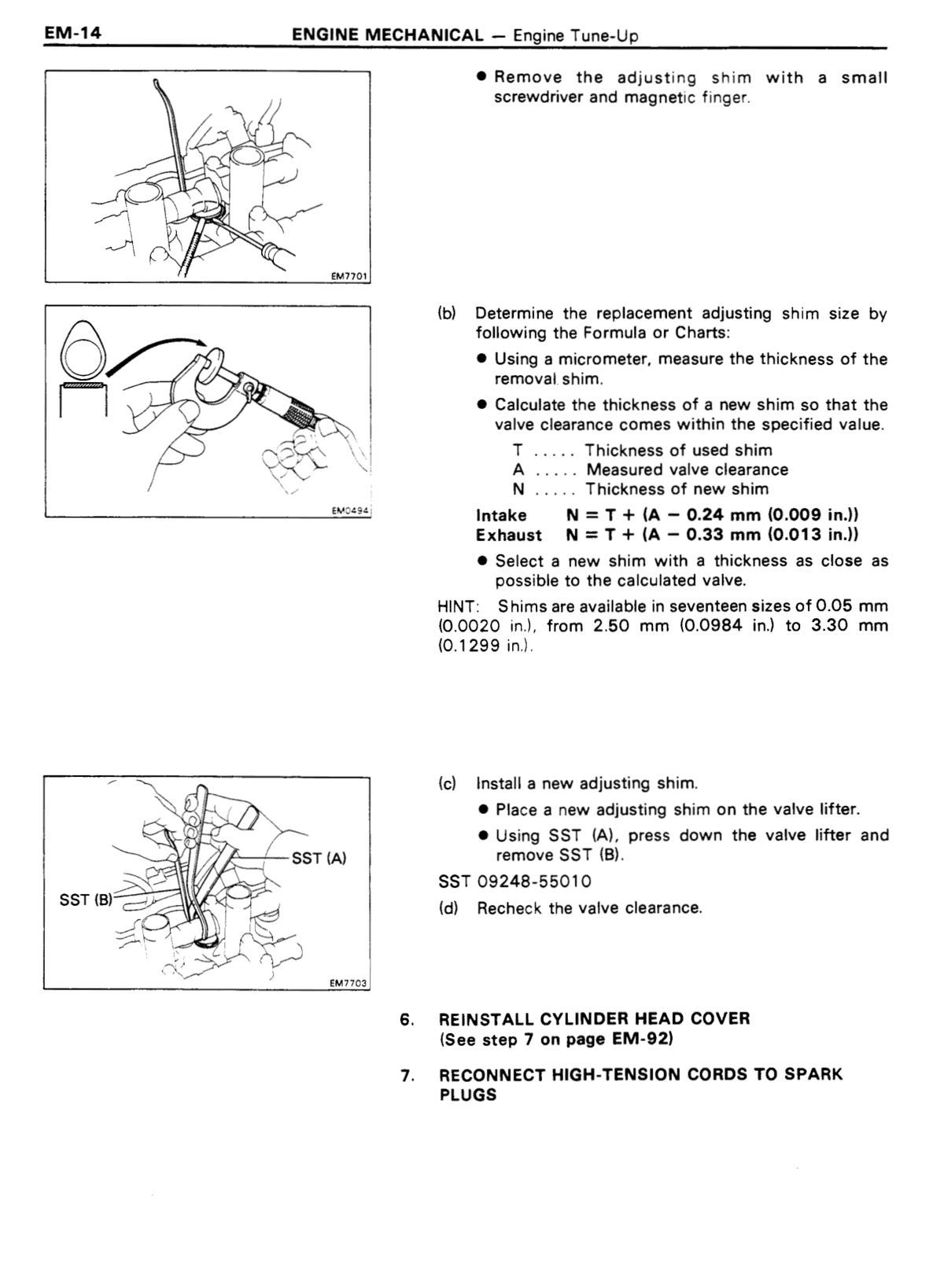

Adjusting shim thickness — minimum Available in 17 sizes in 0.05 mm increments 2.5 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p188 OEM manual
Adjusting shim thickness — maximum Available in 17 sizes in 0.05 mm increments 3.3 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p188 OEM manual
Adjusting shim thickness — increment 17 sizes available from 2.50 mm to 3.30 mm 0.05 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p188 OEM manual
New shim No. 1 thickness 0.0984 in. 2.5 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 2 thickness 0.1004 in. 2.55 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 3 thickness 0.1024 in. 2.6 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 4 thickness 0.1043 in. 2.65 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 5 thickness 0.1063 in. 2.7 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 6 thickness 0.1083 in. 2.75 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 7 thickness 0.1102 in. 2.8 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 8 thickness 0.1122 in. 2.85 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 9 thickness 0.1142 in. 2.9 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 10 thickness 0.1161 in. 2.95 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 11 thickness 0.1181 in. 3 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 12 thickness 0.1201 in. 3.05 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 13 thickness 0.1220 in. 3.1 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 14 thickness 0.1240 in. 3.15 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 15 thickness 0.1260 in. 3.2 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 16 thickness 0.1280 in. 3.25 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
New shim No. 17 thickness 0.1299 in. 3.3 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p190 OEM manual
Throttle body bolt length — upper side 1.77 in. 45 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p192 OEM manual
Throttle body bolt length — lower side 2.76 in. 70 mm Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p192 OEM manual
Hose overlap onto pipe (insertion depth) 0.08 – 0.28 in.; hose must overlap pipe by this amount 2-7 mm Unclassified ↗ RM285U_1993_5sfe_mpisyste · p48 OEM manual
Clip distance from hose end 0 – 0.12 in.; clip positioned from end of hose 0-3 mm Unclassified ↗ RM285U_1993_5sfe_mpisyste · p48 OEM manual
Throttle body bolt length — upper side 1.77 in. 45 mm Unclassified ↗ RM285U_1993_5sfe_mpisyste · p66 OEM manual
Throttle body bolt length — lower side 2.17 in. 55 mm Unclassified ↗ RM285U_1993_5sfe_mpisyste · p66 OEM manual
Torque wrench fulcrum length for flare nut tightening 111.81 in.; required when using SST 09631-22020 30 cm Unclassified ↗ RM285U_1993_5sfe_mpisyste · p86 OEM manual

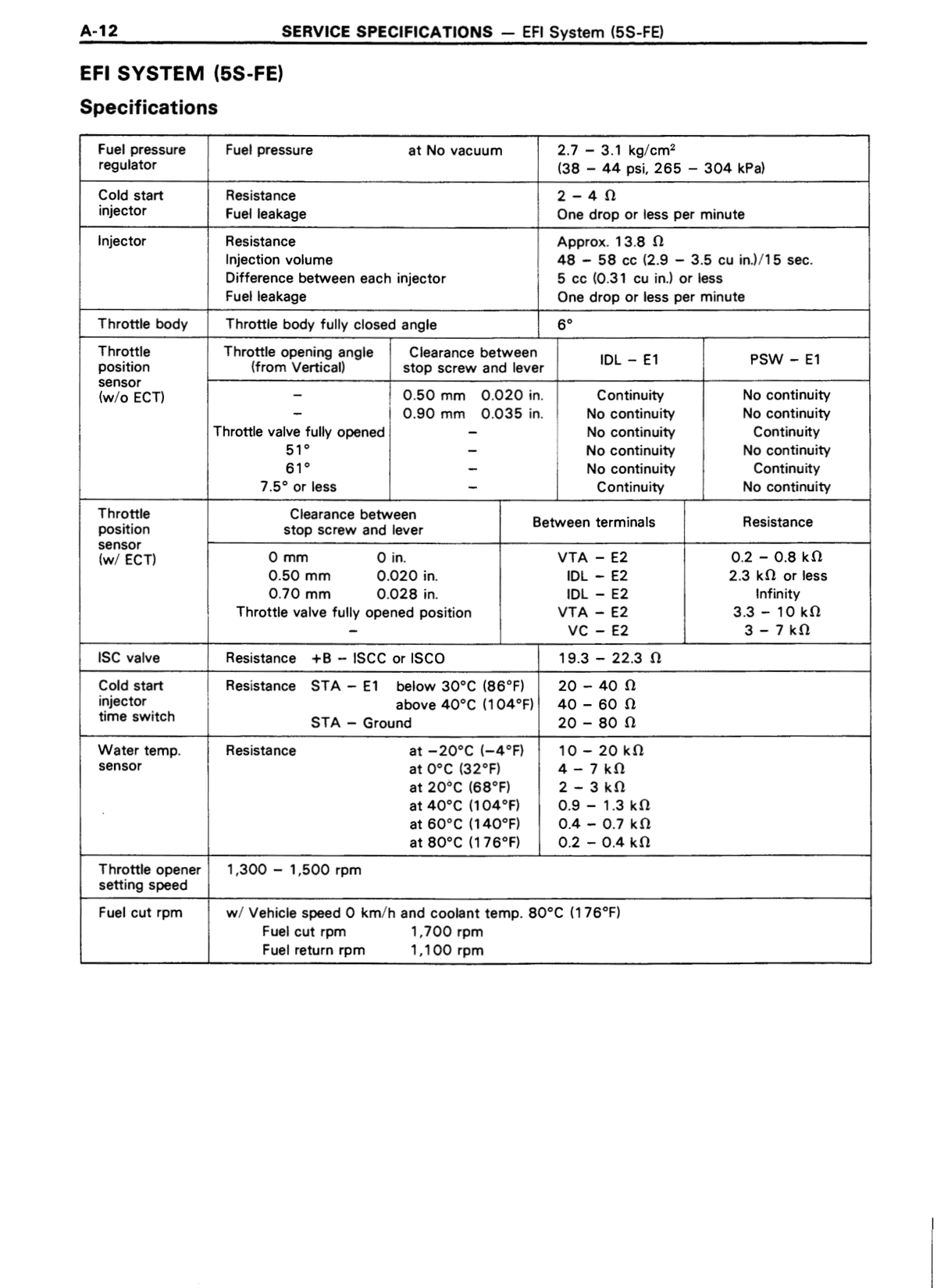

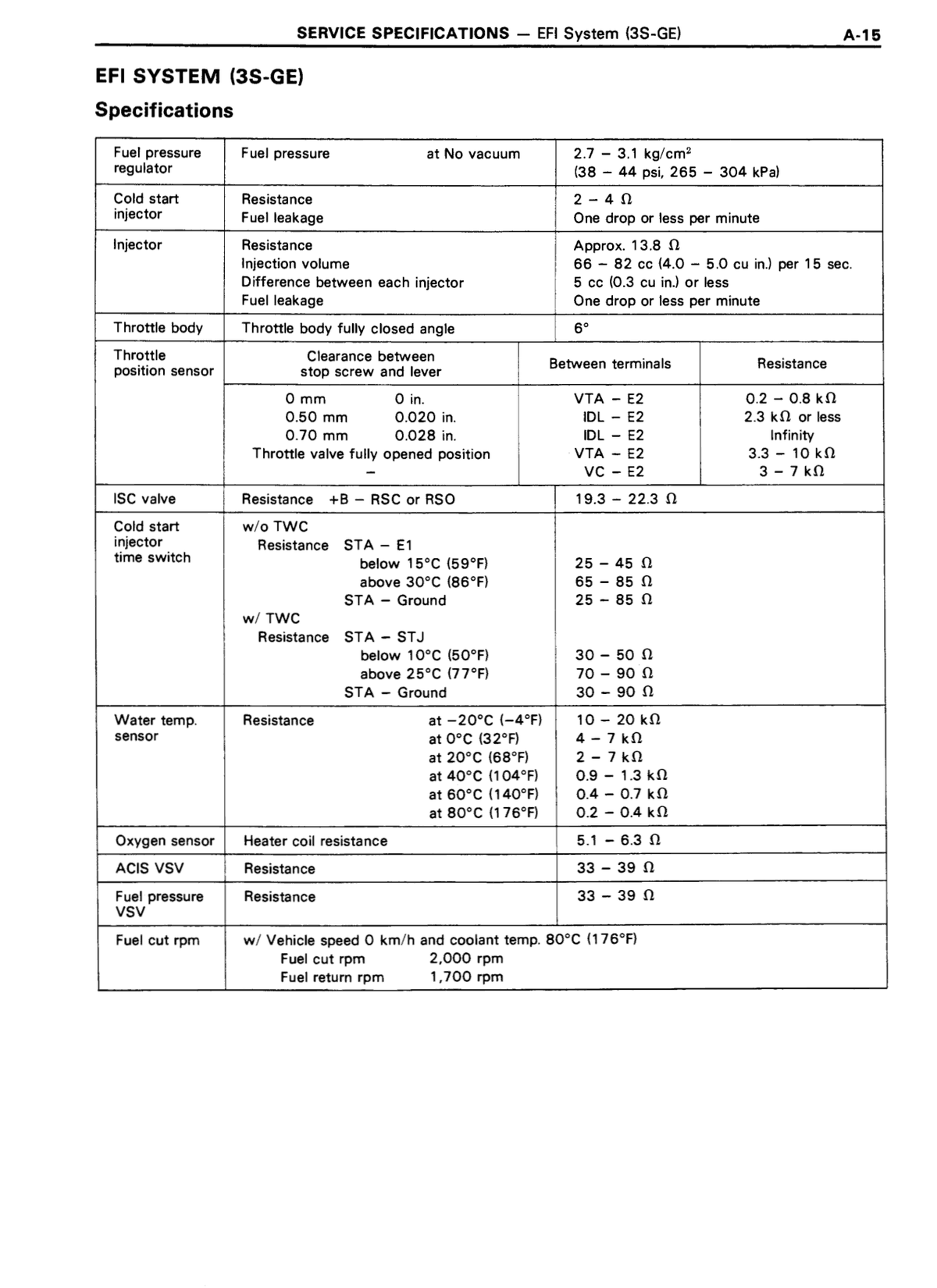

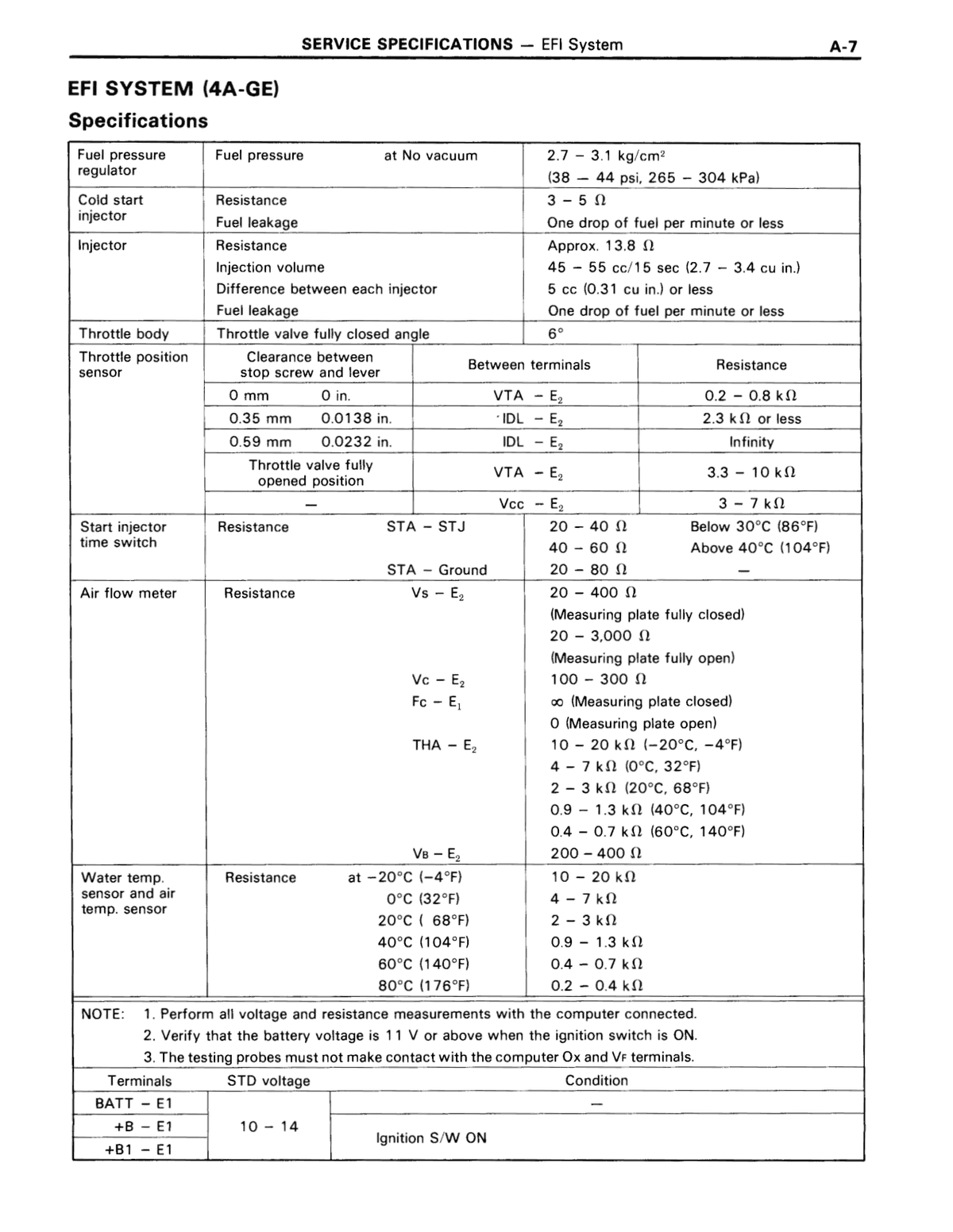

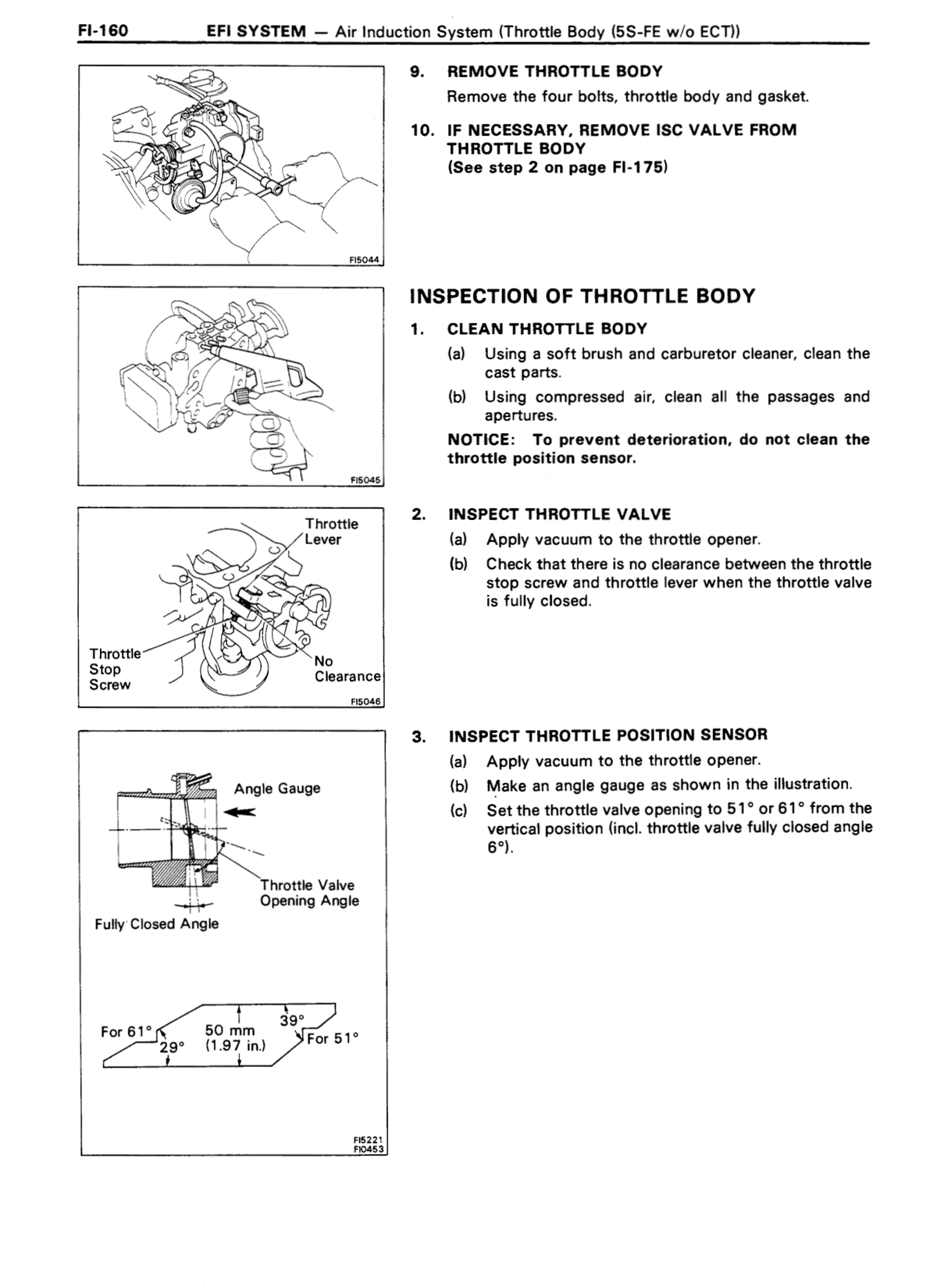

Resistance VTA-E2 at 0 mm clearance upper limit 5.7 kΩ 0.2 kΩ Body ↗ RM285U_1993_5sfe_mpisyste · p101 OEM manual
Resistance IDL-E2 at 0.50 mm clearance 2.3 kΩ or less 2.3 kΩ Body ↗ RM285U_1993_5sfe_mpisyste · p101 OEM manual
Resistance IDL-E2 at 0.70 mm clearance Infinity 0 kΩ Body ↗ RM285U_1993_5sfe_mpisyste · p101 OEM manual
Resistance VTA-E2 at throttle valve fully open upper limit 10.2 kΩ 2 kΩ Body ↗ RM285U_1993_5sfe_mpisyste · p101 OEM manual
Throttle body bolt length — upper side 1.77 in. 45 mm Body ↗ RM285U_1993_5sfe_mpisyste · p103 OEM manual
Throttle body bolt length — lower side 2.17 in. 55 mm Body ↗ RM285U_1993_5sfe_mpisyste · p103 OEM manual
Minimum disc thickness — Front 1.102 in. 28 mm Maintenance ↗ RM285U_1993_maintenance · p8 OEM manual
Maximum disc runout — Front 0.0028 in. 0.07 mm Maintenance ↗ RM285U_1993_maintenance · p8 OEM manual

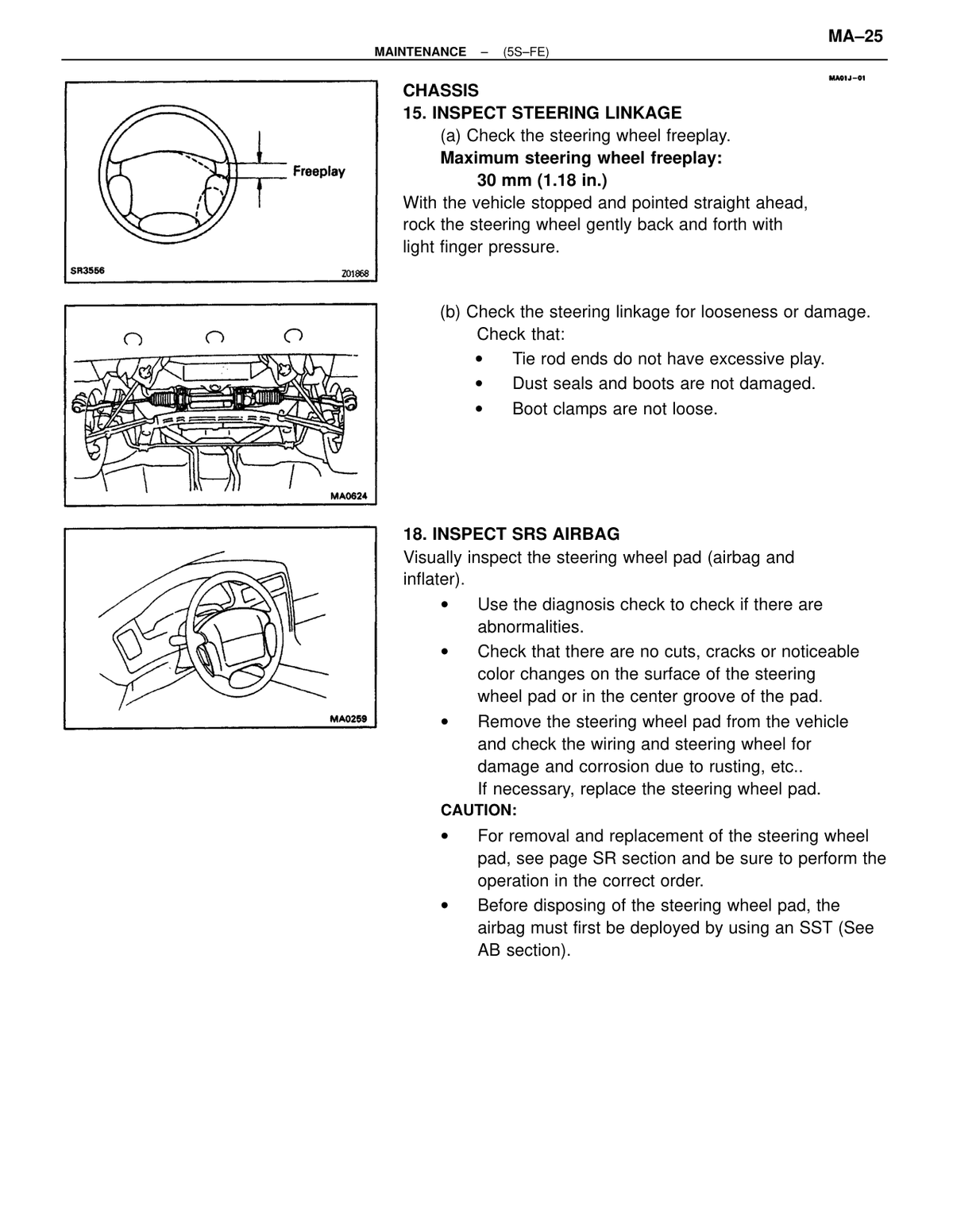

Maximum steering wheel freeplay 1.18 in. 30 mm Maintenance ↗ RM285U_1993_maintenance · p8 OEM manual
Drive belt tension — Alternator new belt ± 20 lbf 120 lbf Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Drive belt tension — Alternator used belt ± 20 lbf 104 lbf Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Drive belt tension — A/C compressor new belt ± 25 lbf 160 lbf Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Drive belt tension — A/C compressor used belt ± 20 lbf 100 lbf Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Front and rear brake pad thickness — minimum 0.039 in. 1 mm Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Disc thickness — Front minimum 1.102 in. 28 mm Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Disc thickness — Rear minimum 0.827 in. 21 mm Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Disc runout — Front maximum 0.0028 in. 0.07 mm Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Front axle and suspension ball joint vertical play — maximum 0 in. 0 mm Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Steering wheel freeplay — maximum 1.18 in. 30 mm Maintenance ↗ RM285U_1993_maintenance · p16 OEM manual
Pad wear indicator measurement reference 0.39 in. — shown in diagram 10 mm Brakes ↗ RM285U_1993_maintenance · p23 OEM manual
Maximum steering wheel freeplay 1.18 in. 30 mm Maintenance ↗ RM285U_1993_maintenance · p24 OEM manual
Wooden block height for ball joint inspection Range: 180–200 mm (7.09–7.87 in.) placed under front tires 180 mm Maintenance ↗ RM285U_1993_maintenance · p25 OEM manual
Drive belt tension — Alternator new belt ± 20 lbf 120 lbf Maintenance ↗ RM285U_1993_maintenance · p31 OEM manual
Drive belt tension — Alternator used belt ± 20 lbf 104 lbf Maintenance ↗ RM285U_1993_maintenance · p31 OEM manual
Drive belt tension — A/C compressor new belt ± 25 lbf 160 lbf Maintenance ↗ RM285U_1993_maintenance · p31 OEM manual
Drive belt tension — A/C compressor used belt ± 20 lbf 100 lbf Maintenance ↗ RM285U_1993_maintenance · p31 OEM manual
Brake pedal height (from asphalt sheet) 177 - 187 mm (6.968 - 7.362 in.) 177 mm Brakes ↗ RM285U_1993_brake · p20 OEM manual
Brake pedal reserve distance at 490 N (50 kgf, 110.2 lbf) More than 117 mm (4.61 in.) 117 mm Brakes ↗ RM285U_1993_brake · p20 OEM manual
Brake booster push rod to piston clearance (W/SST) 0 mm (0 in.) 0 mm Brakes ↗ RM285U_1993_brake · p20 OEM manual
Front brake disc thickness — STD (second entry) 0.984 in. 25 mm Brakes ↗ RM285U_1993_brake · p20 OEM manual
Front brake disc thickness — Limit (second entry) 0.945 in. 24 mm Brakes ↗ RM285U_1993_brake · p20 OEM manual
Front brake disc thickness — Limit (runout) 0.0028 in. 0.07 mm Brakes ↗ RM285U_1993_brake · p20 OEM manual
Rear brake disc thickness — STD (second entry) 0.630 in. 16 mm Brakes ↗ RM285U_1993_brake · p20 OEM manual
Rear brake disc thickness — Limit (second entry) 0.591 in. 15 mm Brakes ↗ RM285U_1993_brake · p20 OEM manual
Parking brake lever travel at 196 N (20 kgf, 44.1 lbf) 5 - 8 clicks 5 clicks Brakes ↗ RM285U_1993_brake · p20 OEM manual
Pedal height from asphalt sheet minimum; range 177–187 mm (6.968–7.362 in.) 177 mm Brakes ↗ RM285U_1993_brake · p30 OEM manual
Pedal freeplay (Tandem booster) range 3–5 mm (0.12–0.20 in.) 3 mm Brakes ↗ RM285U_1993_brake · p30 OEM manual
Freeplay to first resistance (clevis and pin play) range 1–3 mm (0.04–0.12 in.) 1 mm Brakes ↗ RM285U_1993_brake · p30 OEM manual
Pedal reserve distance from asphalt sheet at 490 N (50 kgf, 110.2 lbf) Minimum value: more than 117 mm (4.61 in.) 117 mm Brakes ↗ RM285U_1993_brake · p31 OEM manual
Brake pad minimum thickness minimum; equivalent to 0.039 in. 1 mm Brakes ↗ RM285U_1993_brake · p35 OEM manual
Pad lining thickness — minimum minimum; replace if below 1 mm Brakes ↗ RM285U_1993_brake · p39 OEM manual
Rotor disc thickness — minimum minimum; repair or replace if below 28 mm Brakes ↗ RM285U_1993_brake · p39 OEM manual
Rotor disc runout — maximum measured at 10 mm (0.39 in.) from outer edge; inspect/adjust if exceeded 0.07 mm Brakes ↗ RM285U_1993_brake · p39 OEM manual
Brake pad minimum thickness 0.039 in. — replace if below specification 1 mm Brakes ↗ RM285U_1993_brake · p43 OEM manual
Rotor disc runout — maximum 0.0028 in.; measured at 10 mm from outer edge 0.07 mm Brakes ↗ RM285U_1993_brake · p47 OEM manual
Distance (A) from rag to top of blocks (minimum) 3.94 in.; required clearance when tapping piston out of cylinder 100 mm Brakes ↗ RM285U_1993_brake · p55 OEM manual
Brake pad minimum lining thickness 0.039 in; minimum thickness 1 mm Brakes ↗ RM285U_1993_brake · p62 OEM manual
Rotor disc thickness — standard (3S-GTE Engine) 0.866 in. 22 mm Brakes ↗ RM285U_1993_brake · p69 OEM manual
Rotor disc thickness — minimum (3S-GTE Engine) 0.827 in. 21 mm Brakes ↗ RM285U_1993_brake · p69 OEM manual
Rotor disc thickness — standard (5S-FE Engine) 0.630 in. 16 mm Brakes ↗ RM285U_1993_brake · p69 OEM manual
Rotor disc thickness — minimum (5S-FE Engine) 0.591 in. 15 mm Brakes ↗ RM285U_1993_brake · p69 OEM manual
Rotor disc runout — maximum 0.0039 in.; measured at 10 mm (0.39 in.) from outer edge 0.1 mm Brakes ↗ RM285U_1993_brake · p69 OEM manual
Stopper pin protrusion 0.98 in.; stopper pin extends from brake cylinder after installation 25 mm Brakes ↗ RM285U_1993_brake · p70 OEM manual
Wooden block height for ball joint inspection Range 180–200 mm (7.09–7.87 in.) 180 mm Suspension & axle ↗ RM285U_1993_suspension · p12 OEM manual
Seal packing seal diameter 1.0-1.8 mm (0.039-0.071 in.) 1 mm Suspension & axle ↗ RM285U_1993_suspension · p56 OEM manual
Drive shaft length (standard) ±5.0 mm (15.343±0.197 in.) 389.7 mm Suspension & axle ↗ RM285U_1993_suspension · p57 OEM manual
Damper clamp position from inboard end 18.228 in. 463 mm Suspension & axle ↗ RM285U_1993_suspension · p73 OEM manual
Drive shaft standard length — LH tolerance ±5.0 mm (21.272±0.197 in.) 540.3 mm Suspension & axle ↗ RM285U_1993_suspension · p75 OEM manual
Drive shaft standard length — RH tolerance ±5.0 mm (32.732±0.197 in.) 831.4 mm Suspension & axle ↗ RM285U_1993_suspension · p75 OEM manual
Tie rod adjusting tube assembled length 18.272 in. 464.1 mm Suspension & axle ↗ RM285U_1993_suspension · p103 OEM manual

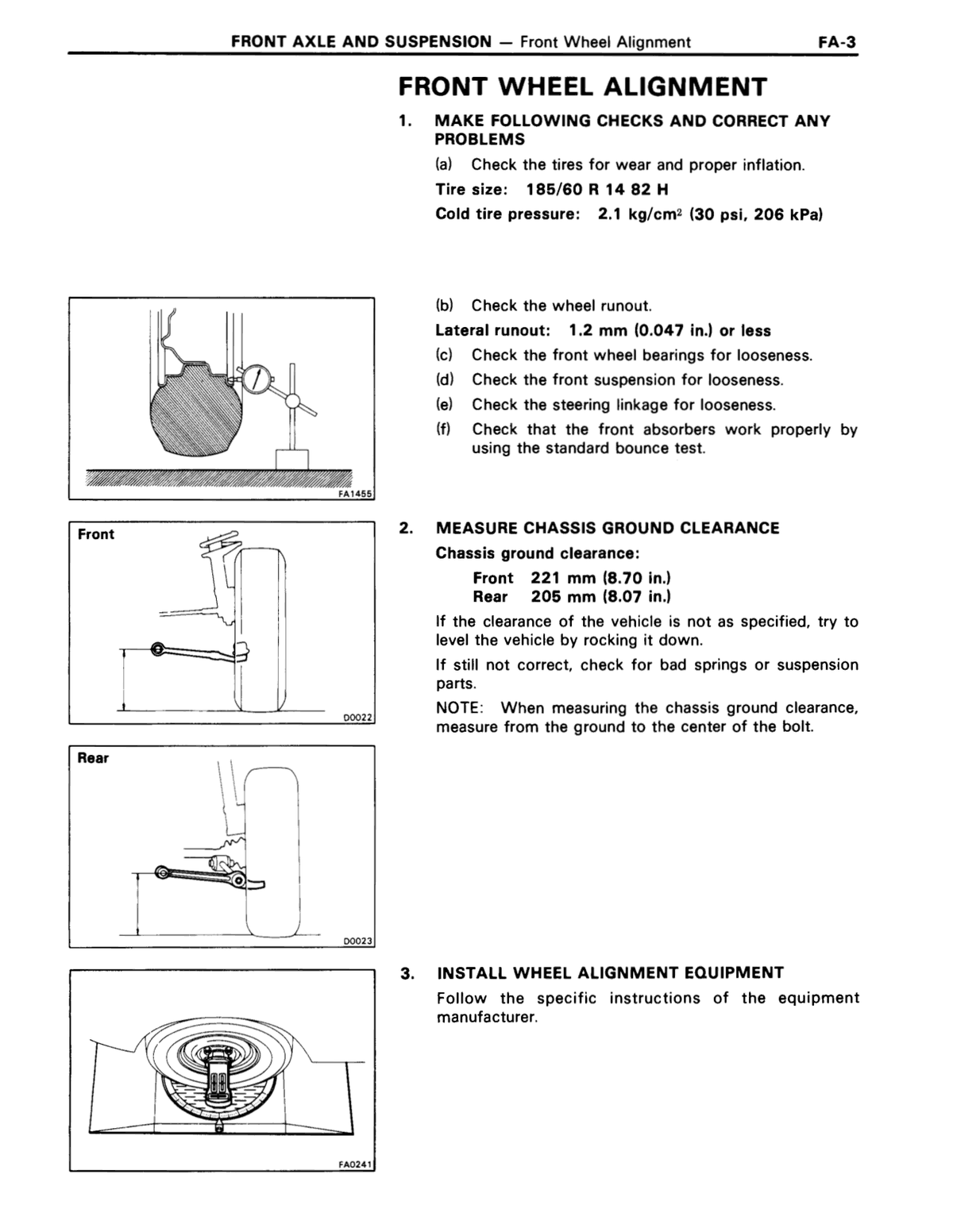

Chassis ground clearance — All models — Front 8.524 in. 216.5 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Chassis ground clearance — All models — Rear 7.614 in. 193.4 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Toe-in 0.04 ± 0.08 in., 0.1° ± 0.2° 1 ± 2 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Tie rod end length left-right error 0.039 in. or less 1.0 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Camber -1°00' ± 45' deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Cross camber 30' or less deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Caster 2°50' ± 45' deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Cross caster 30' or less deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Steering axis inclination 13°50' ± 45' deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Wheel angle (Maximum) Outside wheel 32°00' deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front wheel alignment — Wheel angle (Maximum) Inside wheel 37°00' ± 1°30' deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear wheel alignment — Toe-in 0.24 ± 0.04 in., 0.6° ± 0.1° 6 ± 1 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear wheel alignment — Tie rod end length left-right error 0.039 in. or less 1.0 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear wheel alignment — Camber -1°35' ± 45' deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear wheel alignment — Cross camber 30' or less deg Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Wheel lateral runout — Limit less than; 0.055 in. 1.4 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front axle and suspension — Hub bearing axial direction — Limit 0.0020 in. 0.5 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front axle and suspension — Ball joint vertical play — Limit 0 in. 0 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Front axle and suspension — Strut bar length 14.25 in. 362 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear axle and suspension — Hub bearing axial direction — Limit 0.0020 in. 0.5 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear axle and suspension — Ball joint vertical play — Limit 0 in. 0 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear axle and suspension — Drive shaft standard length — 5S-FE engine — LH 21.272 ± 0.197 in. 540.3 ± 5.0 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear axle and suspension — Drive shaft standard length — 5S-FE engine — RH 32.732 ± 0.197 in. 831.4 ± 5.0 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear axle and suspension — Drive shaft standard length — 3S-GTE engine — LH 15.343 ± 0.197 in. 389.7 ± 5.0 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear axle and suspension — Drive shaft standard length — 3S-GTE engine — RH 15.343 ± 0.197 in. 389.7 ± 5.0 mm Suspension & axle ↗ RM285U_1993_suspension · p105 OEM manual
Rear suspension arm standard length 18.272 in. 464.1 mm Suspension & axle ↗ RM285U_1993_suspension · p112 OEM manual
Vehicle height — Front 8.524 in.; measured from ground to center of lower suspension arm mounting bolt 216.5 mm Suspension & axle ↗ RM285U_1993_suspension · p113 OEM manual
Vehicle height — Rear 7.614 in.; measured from ground to center of body side Rear suspension No.1 mounting 193.4 mm Suspension & axle ↗ RM285U_1993_suspension · p113 OEM manual
Rear suspension arm / tie rod length 18.272 in; left and right must be equal 464.1 mm Suspension & axle ↗ RM285U_1993_suspension · p114 OEM manual
Reservoir tank spring pin protrusion range 1.5 – 3.5 mm (0.059 – 0.138 in.) 1.5 mm Clutch ↗ RM285U_1993_clutch · p3 OEM manual

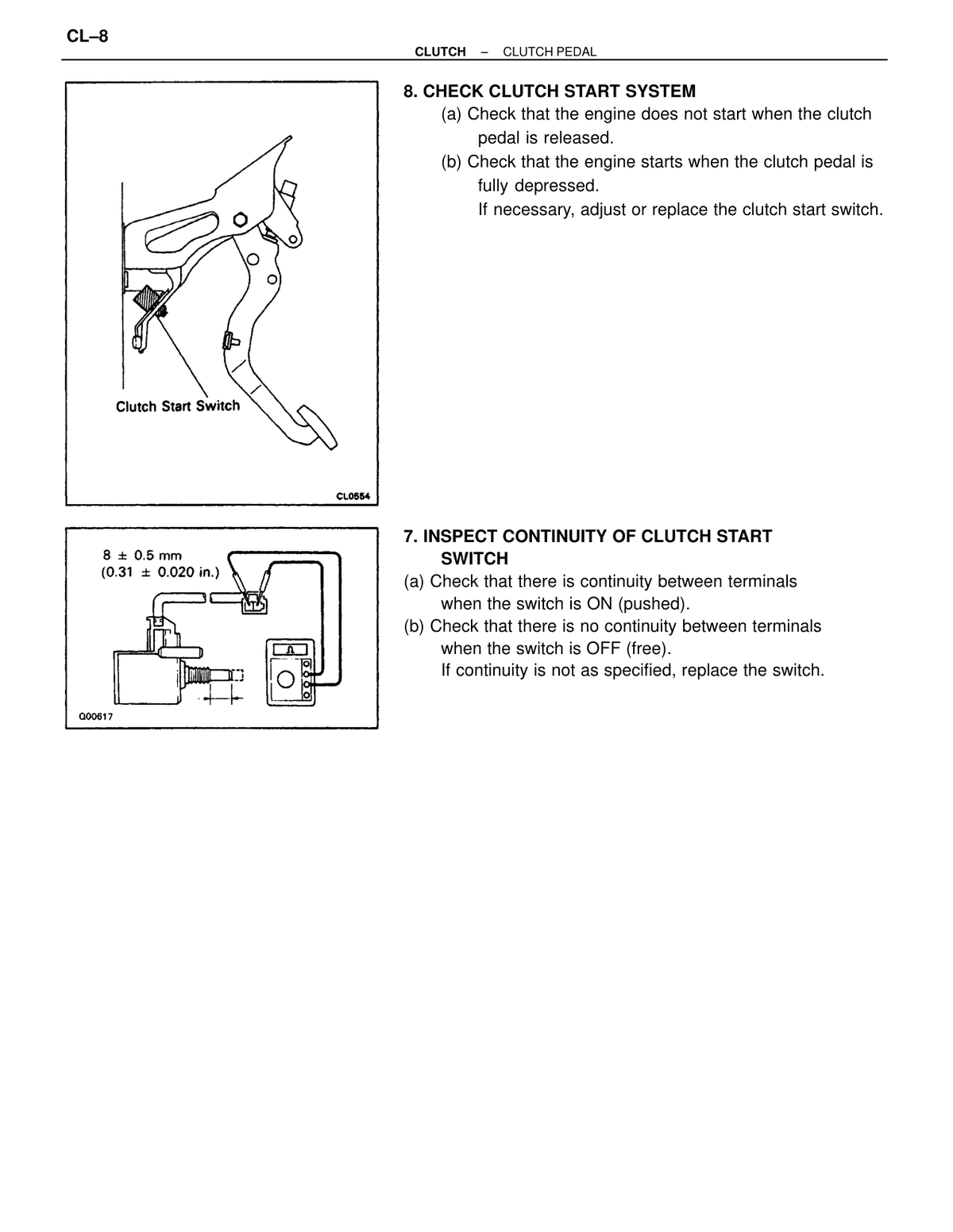

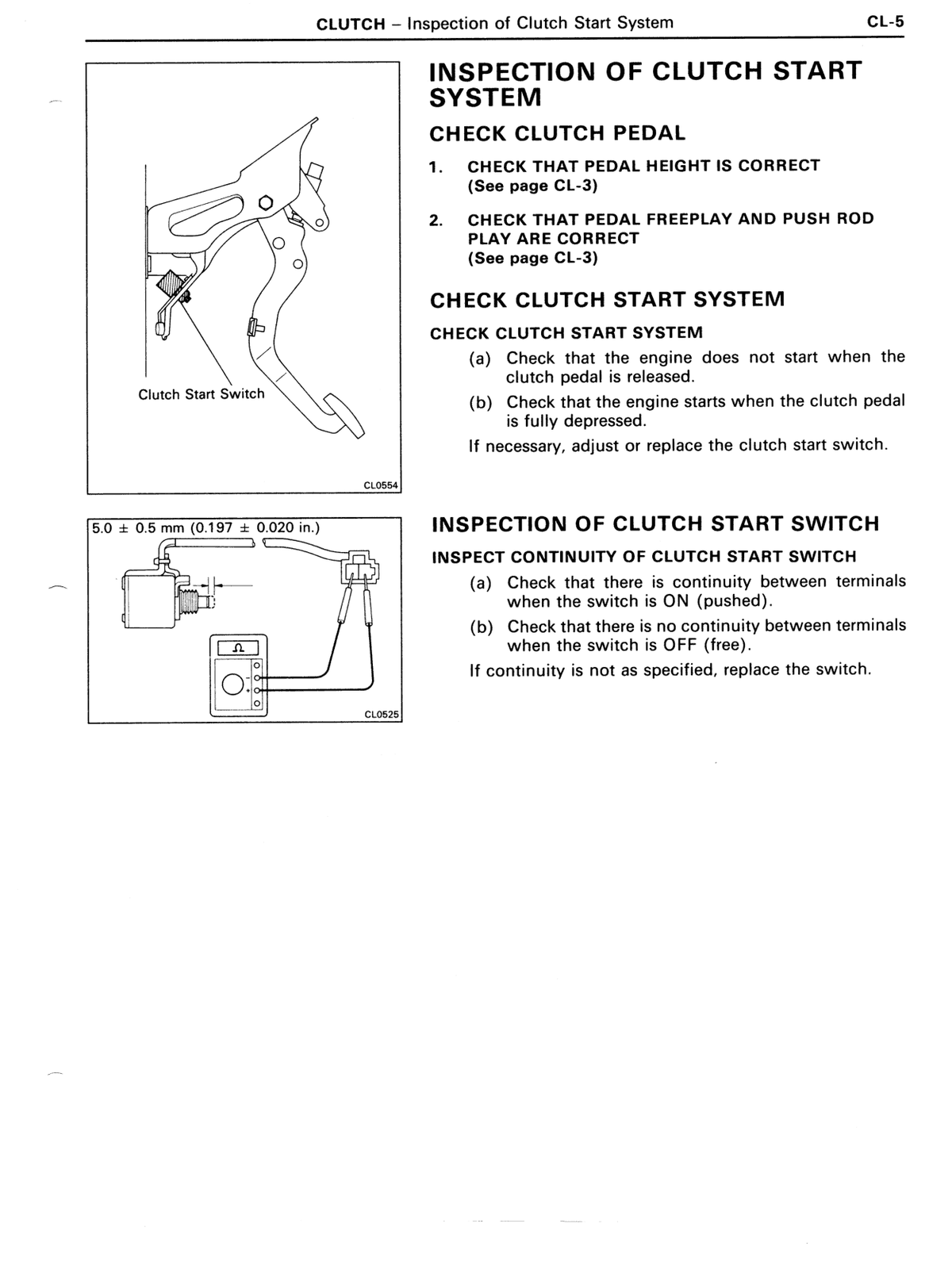

Clutch start switch plunger travel tolerance ± 0.5 mm (0.31 ± 0.020 in.) 8 mm Clutch ↗ RM285U_1993_clutch · p5 OEM manual
Slip ring standard diameter Standard range: 14.2–14.4 mm (0.559–0.567 in.) 14.2 mm Starting / charging ↗ RM285U_1993_charging · p11 OEM manual
Slip ring minimum diameter 0.504 in. 12.8 mm Starting / charging ↗ RM285U_1993_charging · p11 OEM manual

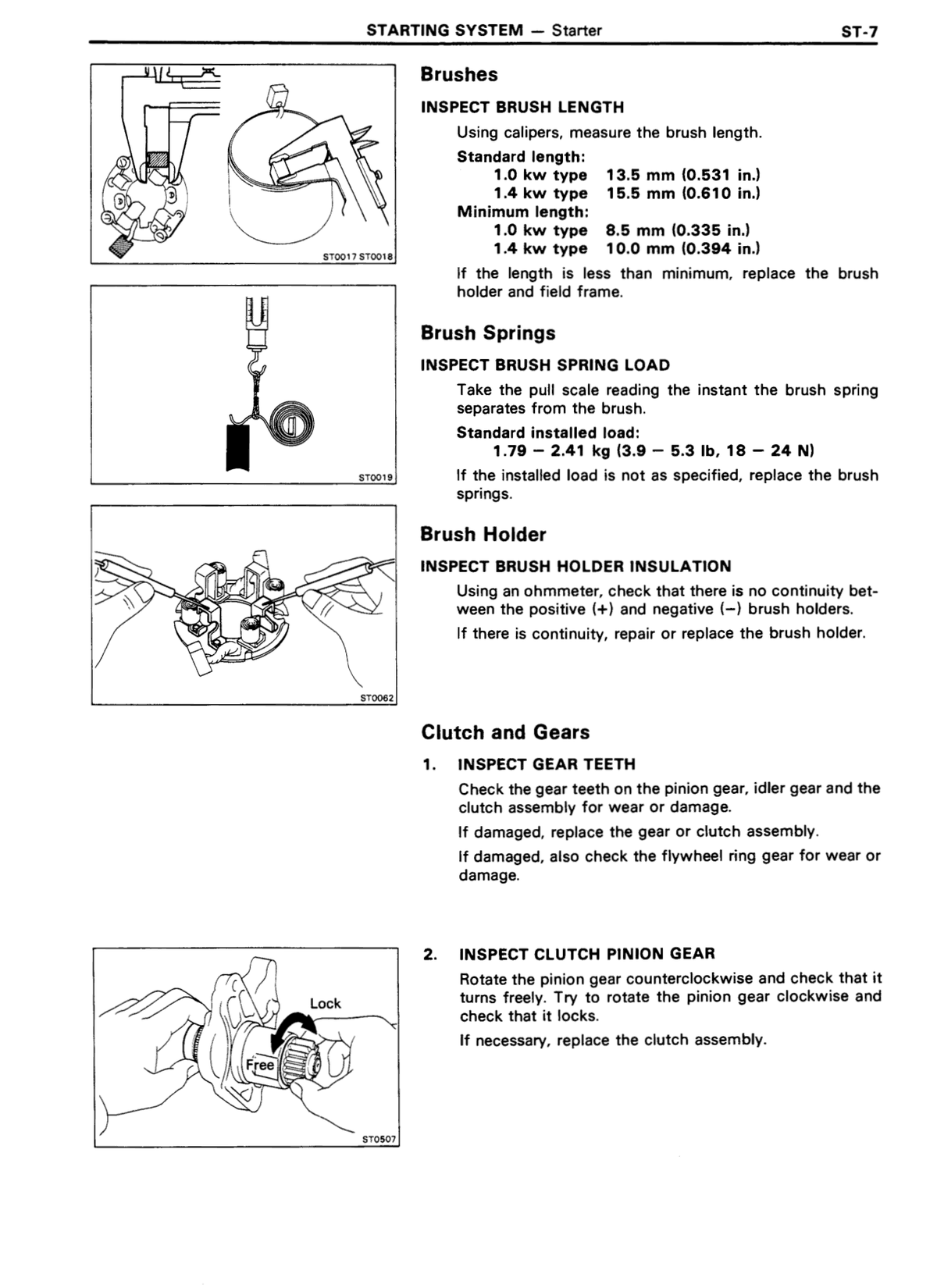

Brush exposed length — standard 0.413 in. 10.5 mm Starting / charging ↗ RM285U_1993_charging · p12 OEM manual
Brush exposed length — minimum 0.059 in.; replace if below this value 1.5 mm Starting / charging ↗ RM285U_1993_charging · p12 OEM manual
Drive belt tension — New belt ± 20 lbf 120 lbf Starting / charging ↗ RM285U_1993_charging · p26 OEM manual
Drive belt tension — Used belt ± 20 lbf 104 lbf Starting / charging ↗ RM285U_1993_charging · p26 OEM manual

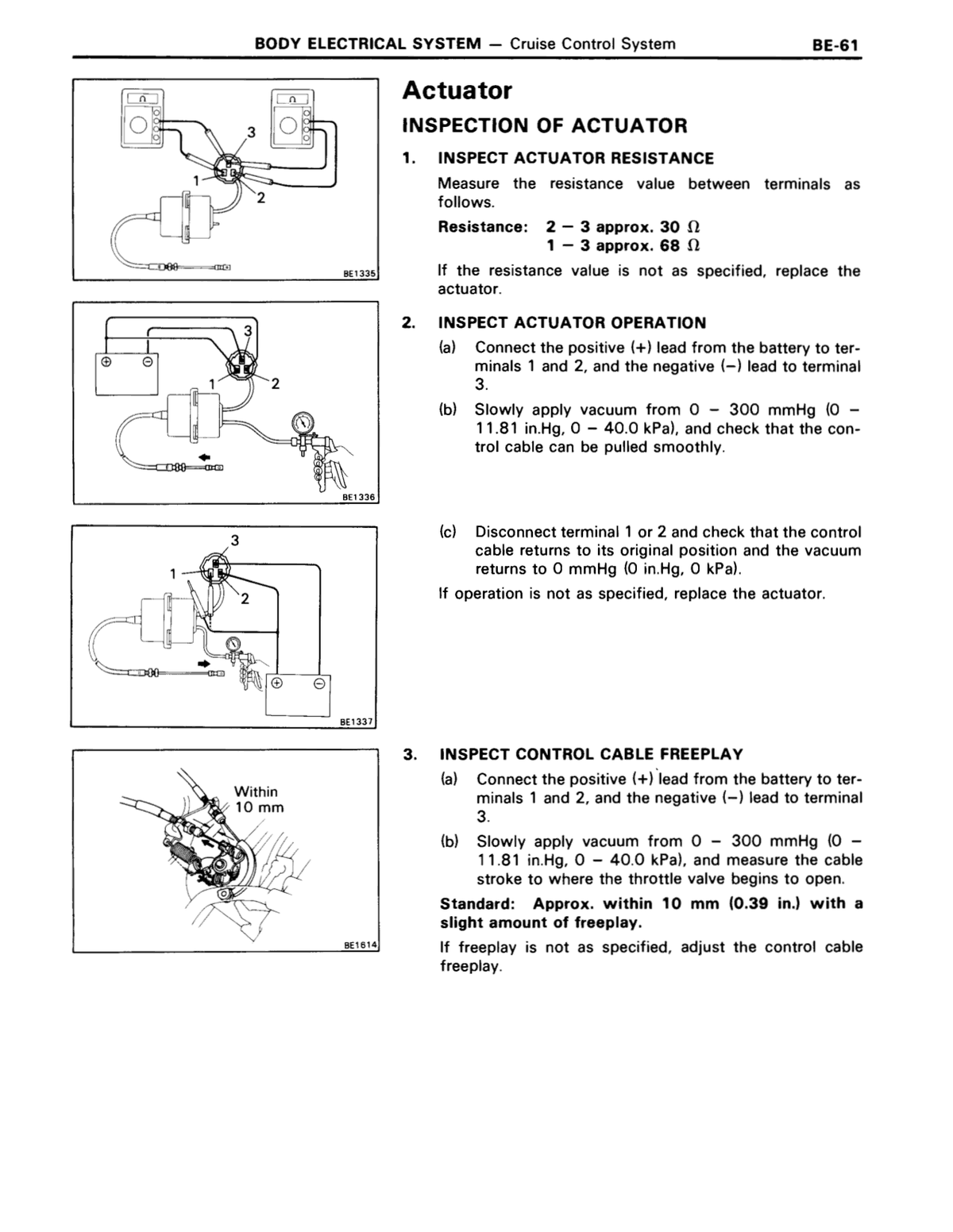

Position sensor resistance — terminals 1 and 3 Approx. 2 Ω 2 Ω Body electrical ↗ RM285U_1993_body_electrical · p85 OEM manual
Position sensor resistance — terminals 2 and 3 (arm moving closed to open) Resistance increases from approx. 0.5 to 1.7 kΩ as arm moves from closed to open position; replace motor if not as specified 0.5 to 1.7 kΩ Body electrical ↗ RM285U_1993_body_electrical · p85 OEM manual
Snap ring Mark 13 thickness range 2.20-2.25 mm (0.0866-0.0885 in.) 2.225 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 14 thickness range 2.25-2.30 mm (0.0885-0.0906 in.) 2.275 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 15 thickness range 2.30-2.35 mm (0.0906-0.0925 in.) 2.325 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 16 thickness range 2.35-2.40 mm (0.0925-0.0945 in.) 2.375 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 17 thickness range 2.40-2.45 mm (0.0945-0.0965 in.) 2.425 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 18 thickness range 2.45-2.50 mm (0.0965-0.0984 in.) 2.475 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 19 thickness range 2.50-2.55 mm (0.0984-0.1004 in.) 2.525 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 20 thickness range 2.55-2.60 mm (0.1004-0.1024 in.) 2.575 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 21 thickness range 2.60-2.65 mm (0.1024-0.1043 in.) 2.625 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 22 thickness range 2.65-2.70 mm (0.1043-0.1063 in.) 2.675 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 23 thickness range 2.70-2.75 mm (0.1063-0.1083 in.) 2.725 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 24 thickness range 2.75-2.80 mm (0.1083-0.1102 in.) 2.775 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 25 thickness range 2.80-2.85 mm (0.1102-0.1122 in.) 2.825 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 26 thickness range 2.85-2.90 mm (0.1122-0.1142 in.) 2.875 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Snap ring Mark 27 thickness range 2.90-2.95 mm (0.1142-0.1161 in.) 2.925 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
Slotted spring pin installation depth ± 0.5 mm tolerance 13.5 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p33 OEM manual
Gear Ratio — 1st Transaxle S54, Engine 5S-FE 3.285 ratio Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p35 OEM manual
Gear Ratio — 2nd Transaxle S54, Engine 5S-FE 1.96 ratio Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p35 OEM manual
Gear Ratio — 3rd Transaxle S54, Engine 5S-FE 1.322 ratio Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p35 OEM manual
Gear Ratio — 4th Transaxle S54, Engine 5S-FE 1.028 ratio Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p35 OEM manual
Gear Ratio — 5th Transaxle S54, Engine 5S-FE 0.82 ratio Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p35 OEM manual
Gear Ratio — Reverse Transaxle S54, Engine 5S-FE 3.153 ratio Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p35 OEM manual
Differential Gear Ratio Transaxle S54, Engine 5S-FE 4.176 ratio Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p35 OEM manual
Thrust washer thickness — option 1 0.0374 in. 0.95 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
Thrust washer thickness — option 2 0.0394 in. 1 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
Thrust washer thickness — option 3 0.0413 in. 1.05 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
Thrust washer thickness — option 4 0.0433 in. 1.1 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
Thrust washer thickness — option 5 0.0453 in. 1.15 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
Thrust washer thickness — option 6 0.0472 in. 1.2 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
Shim Mark 2 0.0768 in. 1.95 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 4 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 6 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 8 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 10 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 11 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 12 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 13 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 14 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 15 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 16 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 17 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 18 0.1083 in. 2.75 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Shim Mark 19 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
Input shaft journal outer diameter minimum — Part A 1.0618 in.; replace shaft if below this value 26.97 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p47 OEM manual
Input shaft journal outer diameter minimum — Part B 1.2783 in.; replace shaft if below this value 32.47 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p47 OEM manual
Input shaft journal outer diameter minimum — Part C 1.3028 in.; replace shaft if below this value 33.09 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p47 OEM manual
Input shaft journal outer diameter minimum — Part D 1.1799 in.; replace shaft if below this value 29.97 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p47 OEM manual
Input shaft maximum runout 0.0020 in.; replace shaft if exceeded 0.05 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p47 OEM manual
Slotted spring pin installation depth 0.197 in.; only if input shaft was replaced 5 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p47 OEM manual

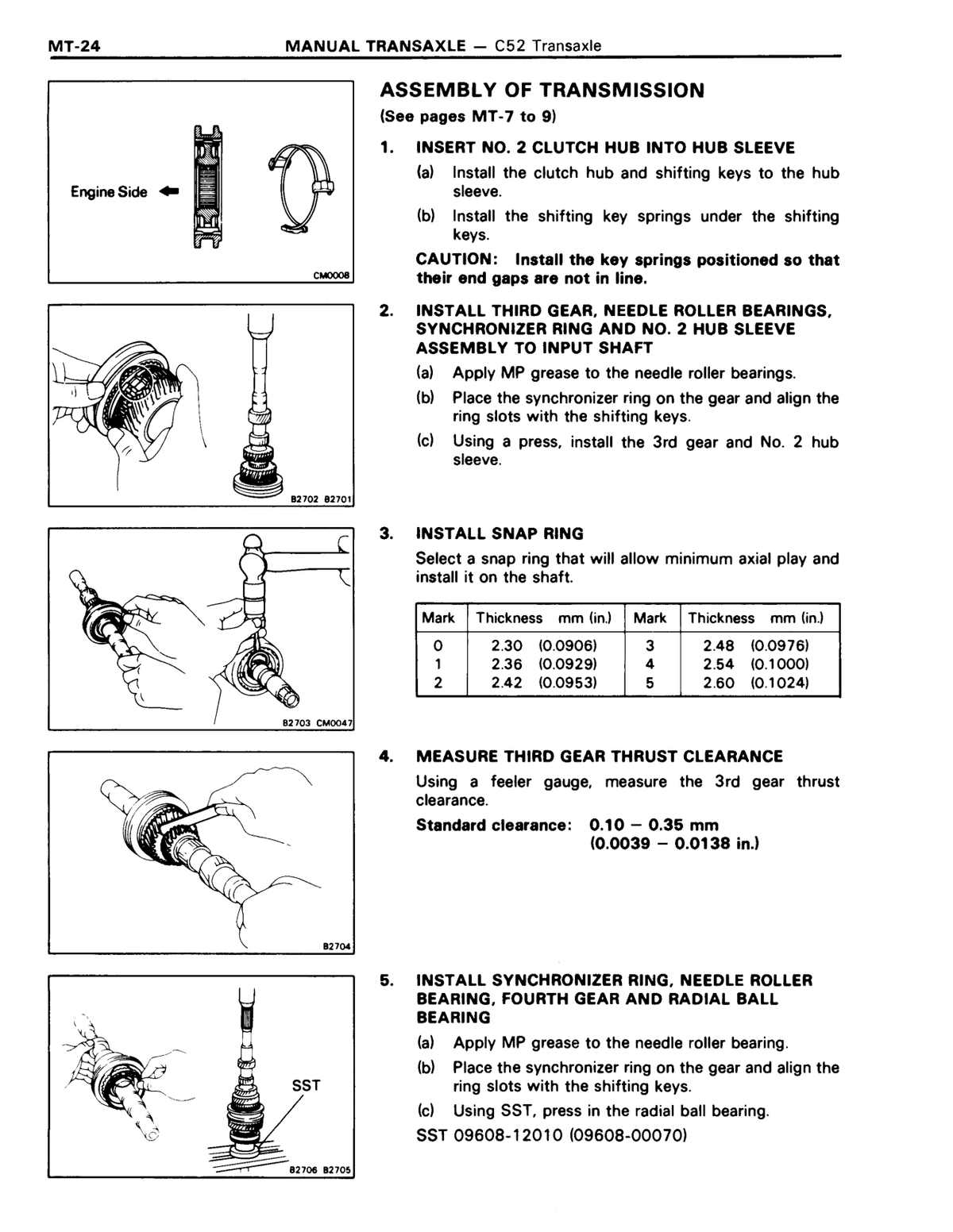

Snap ring Mark 1 thickness Range 1.95–2.00 mm (0.0768–0.0787 in.) 1.975 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p48 OEM manual
Snap ring Mark 2 thickness Range 2.00–2.05 mm (0.0787–0.0807 in.) 2.025 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p48 OEM manual
Snap ring Mark 3 thickness Range 2.05–2.10 mm (0.0807–0.0827 in.) 2.075 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p48 OEM manual
Snap ring Mark 4 thickness Range 2.10–2.15 mm (0.0827–0.0846 in.) 2.125 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p48 OEM manual
Snap ring Mark 5 thickness Range 2.15–2.20 mm (0.0846–0.0866 in.) 2.175 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p48 OEM manual
Snap ring Mark 6 thickness Range 2.20–2.25 mm (0.0866–0.0886 in.) 2.225 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p48 OEM manual

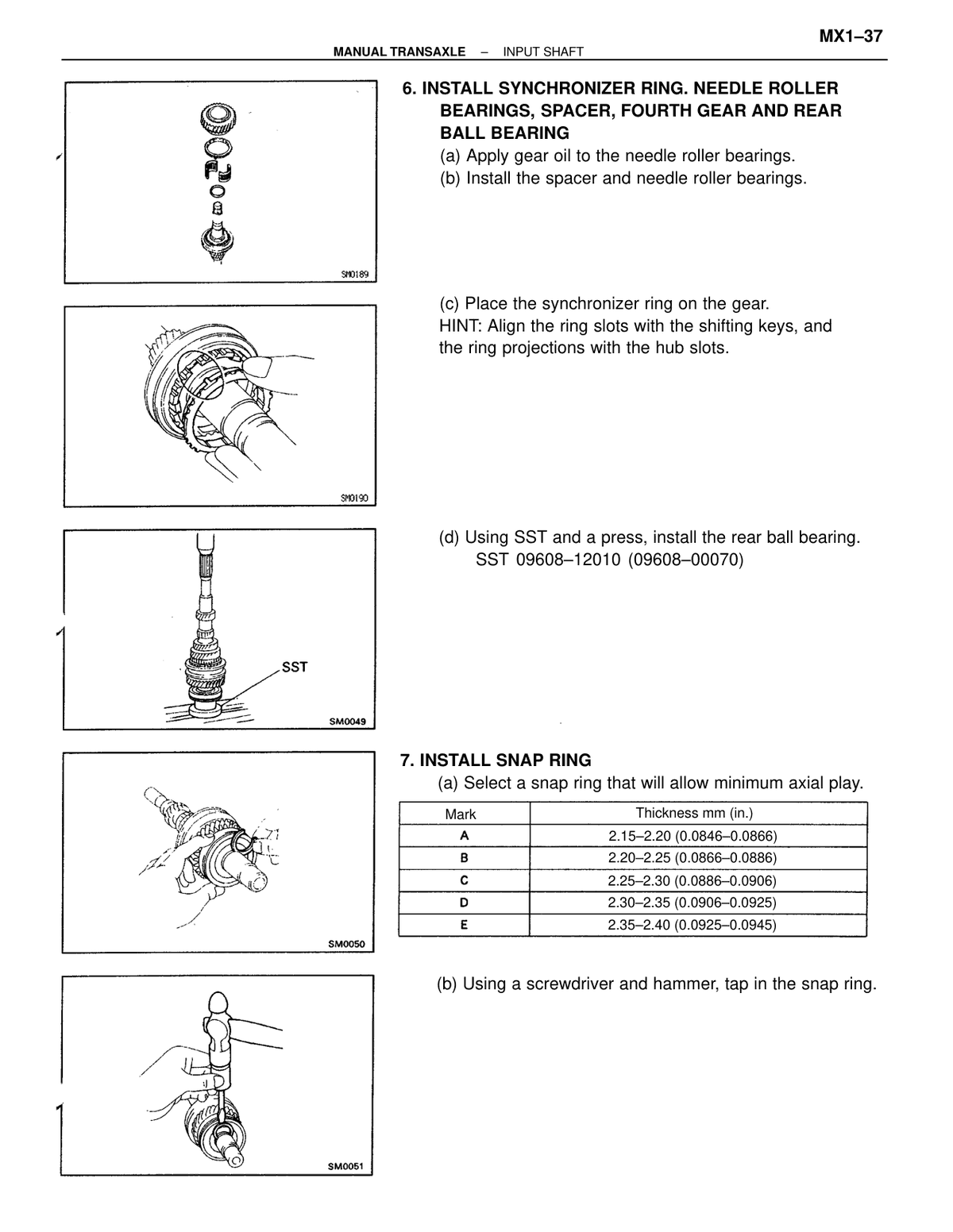

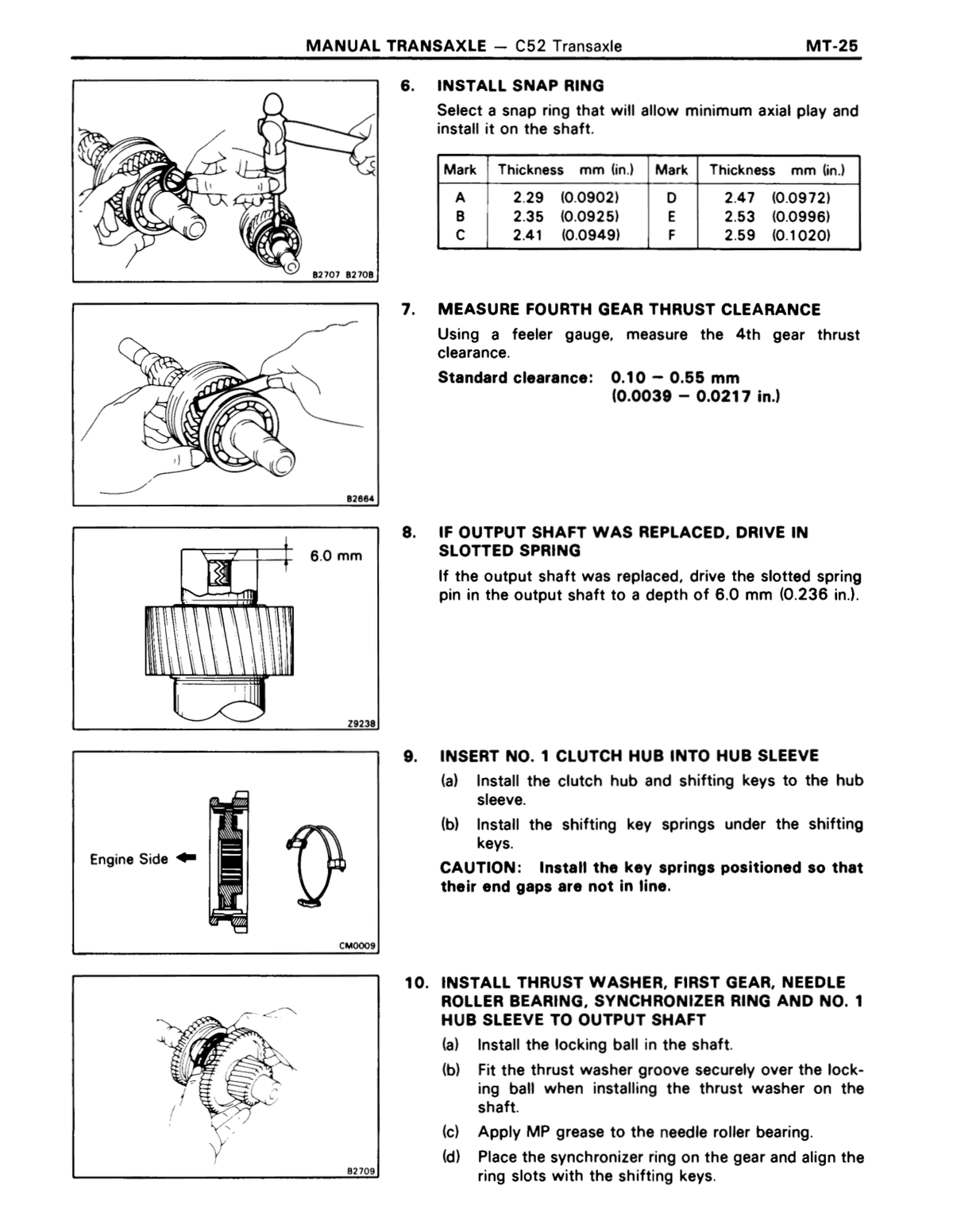

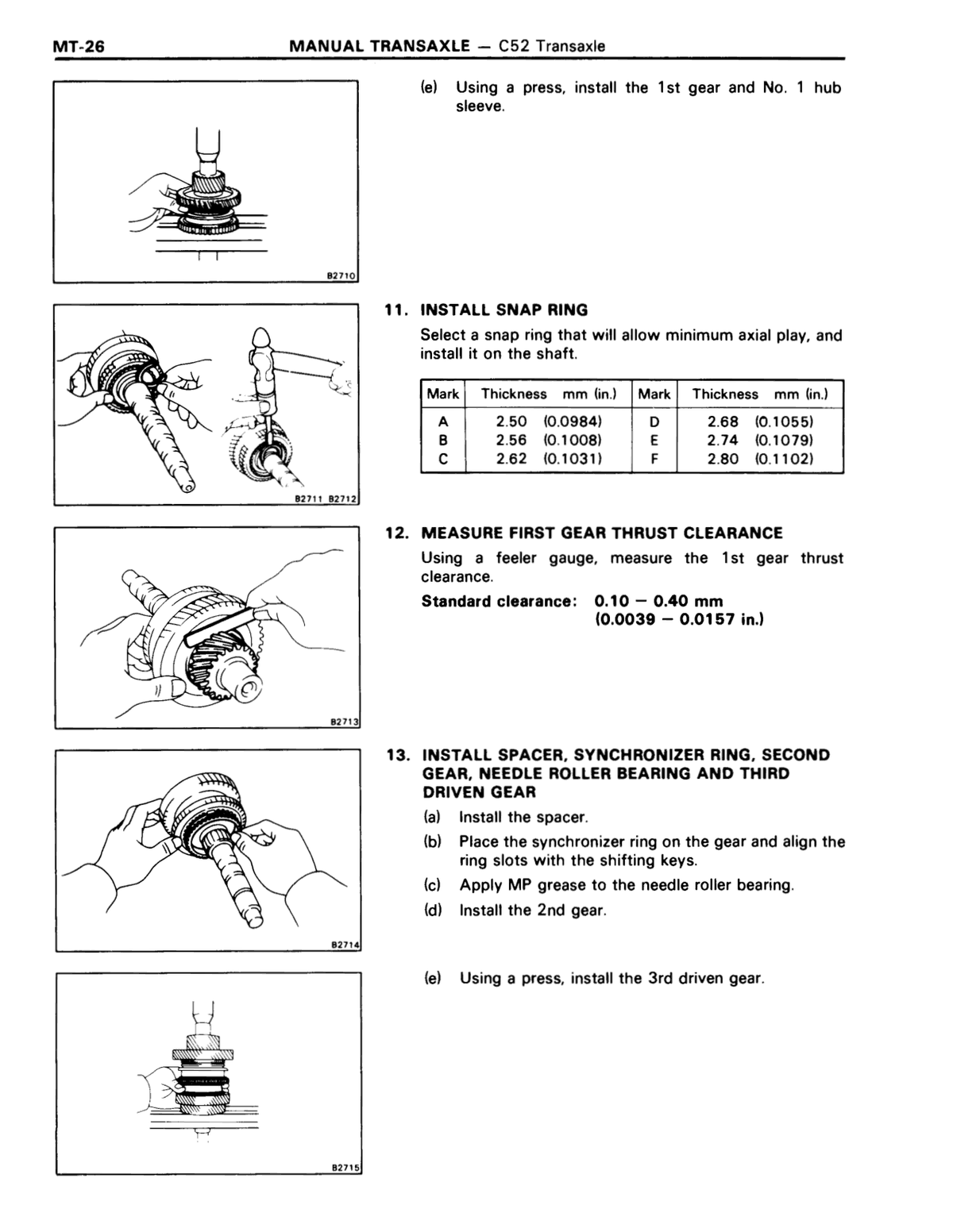

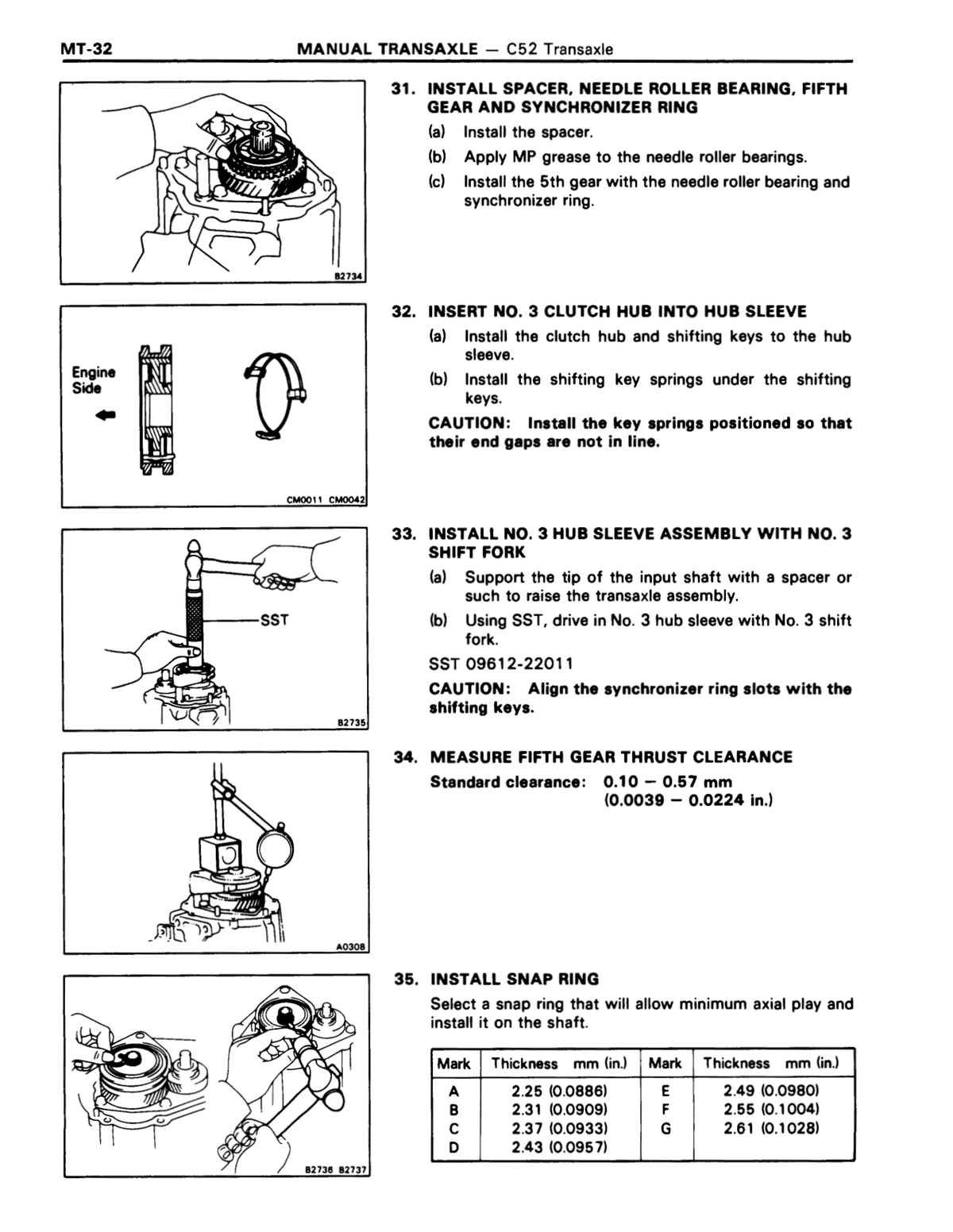

Snap ring thickness — Mark A Range 2.15–2.20 mm (0.0846–0.0866 in.) 2.175 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p49 OEM manual
Snap ring thickness — Mark B Range 2.20–2.25 mm (0.0866–0.0886 in.) 2.225 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p49 OEM manual
Snap ring thickness — Mark C Range 2.25–2.30 mm (0.0886–0.0906 in.) 2.275 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p49 OEM manual
Snap ring thickness — Mark D Range 2.30–2.35 mm (0.0906–0.0925 in.) 2.325 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p49 OEM manual
Snap ring thickness — Mark E Range 2.35–2.40 mm (0.0925–0.0945 in.) 2.375 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p49 OEM manual

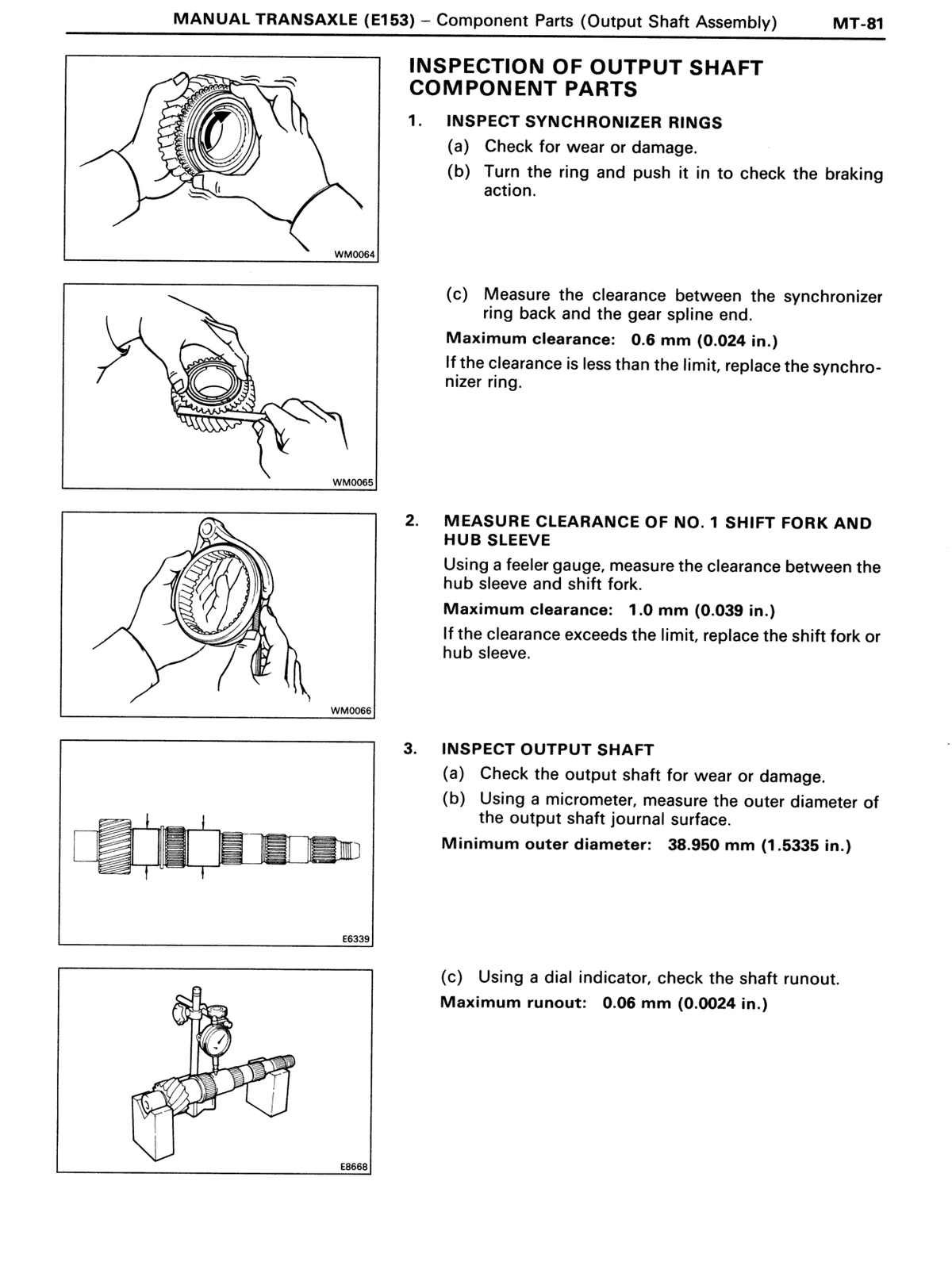

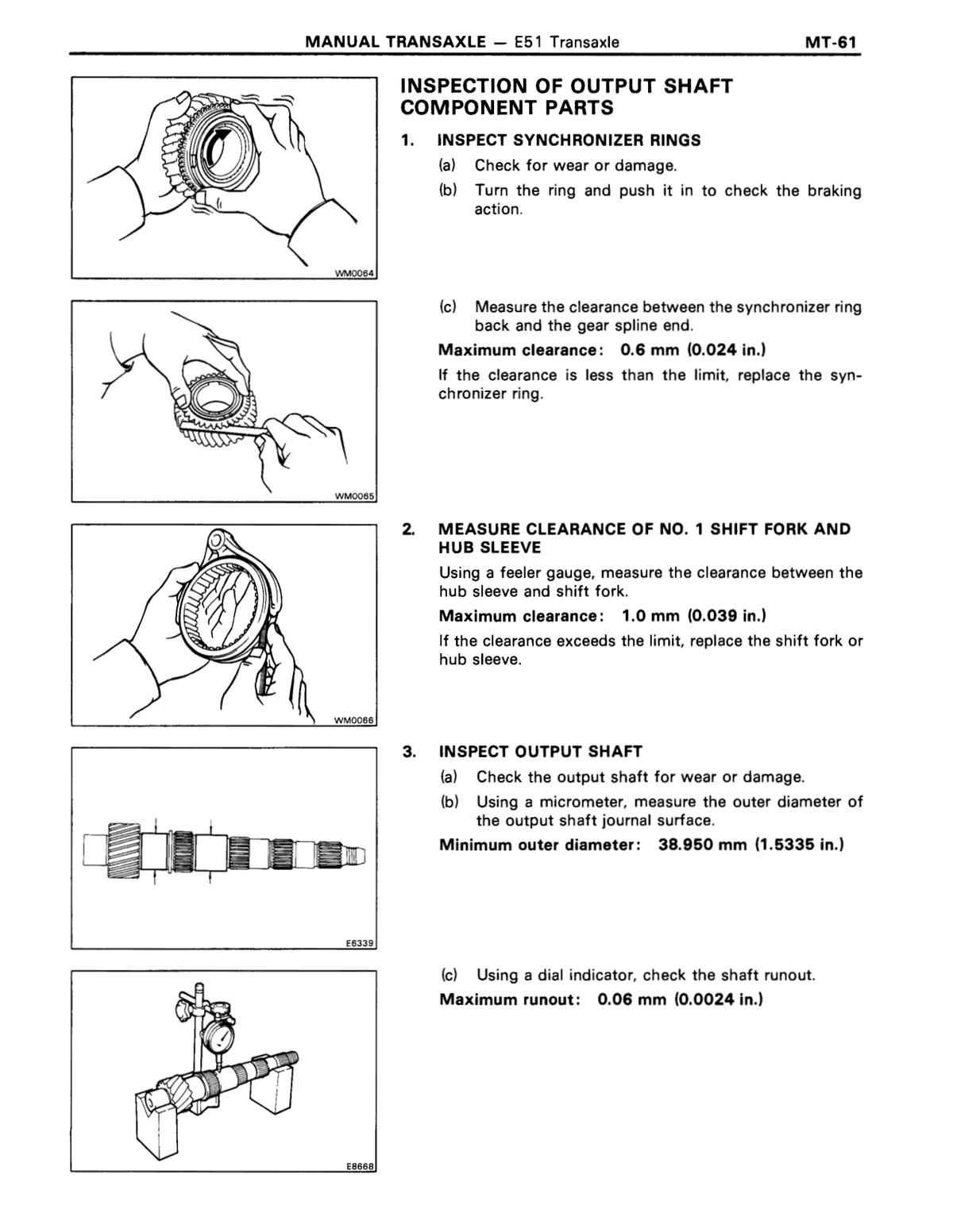

Output shaft journal outer diameter — Part A minimum 1.2587 in.; replace shaft if below minimum 31.97 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p55 OEM manual
Output shaft journal outer diameter — Part B minimum 1.4849 in.; replace shaft if below minimum 37.97 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p55 OEM manual
Output shaft journal outer diameter — Part C minimum 1.2594 in.; replace shaft if below minimum 31.99 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p55 OEM manual
Slotted spring pin installation depth 0.197 in.; applicable when output shaft is replaced 5 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p55 OEM manual
Input shaft roller bearing journal diameter — Limit 1.1799 in. 29.97 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual
Input shaft 3rd gear journal diameter — Limit 1.3028 in. 33.09 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual
Input shaft 4th gear journal diameter — Limit 1.2783 in. 32.47 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual
Input shaft 5th gear journal diameter — Limit 1.0618 in. 26.97 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual
Input shaft runout — Limit 0.0020 in. 0.05 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual
Output shaft roller bearing journal diameter — Limit 1.2587 in. 31.97 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual
Output shaft 1st gear journal diameter — Limit 1.4949 in. 37.97 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual
Output shaft 2nd gear journal diameter — Limit 1.2594 in. 31.99 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual
Output shaft runout — Limit 0.0020 in. 0.05 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p61 OEM manual

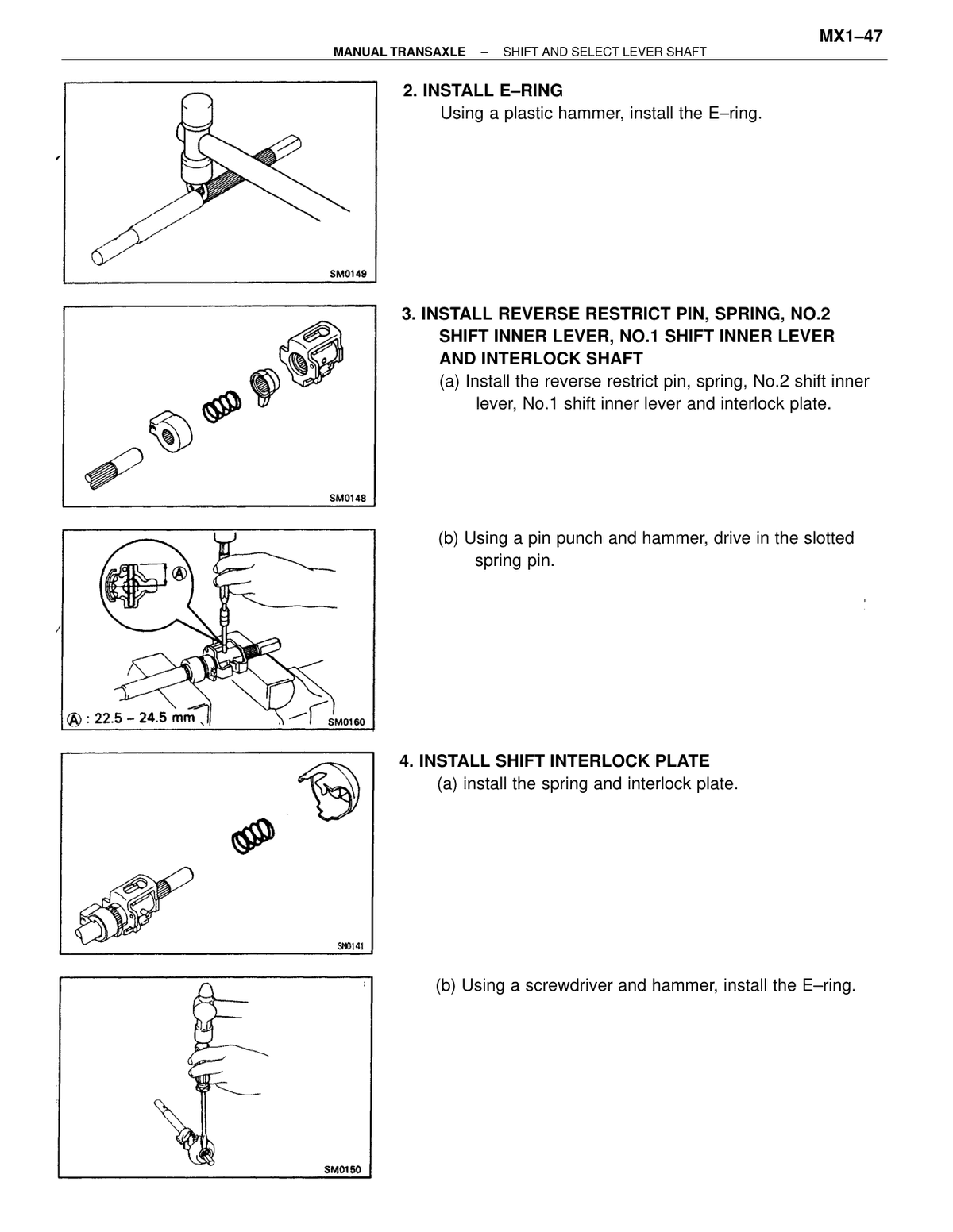

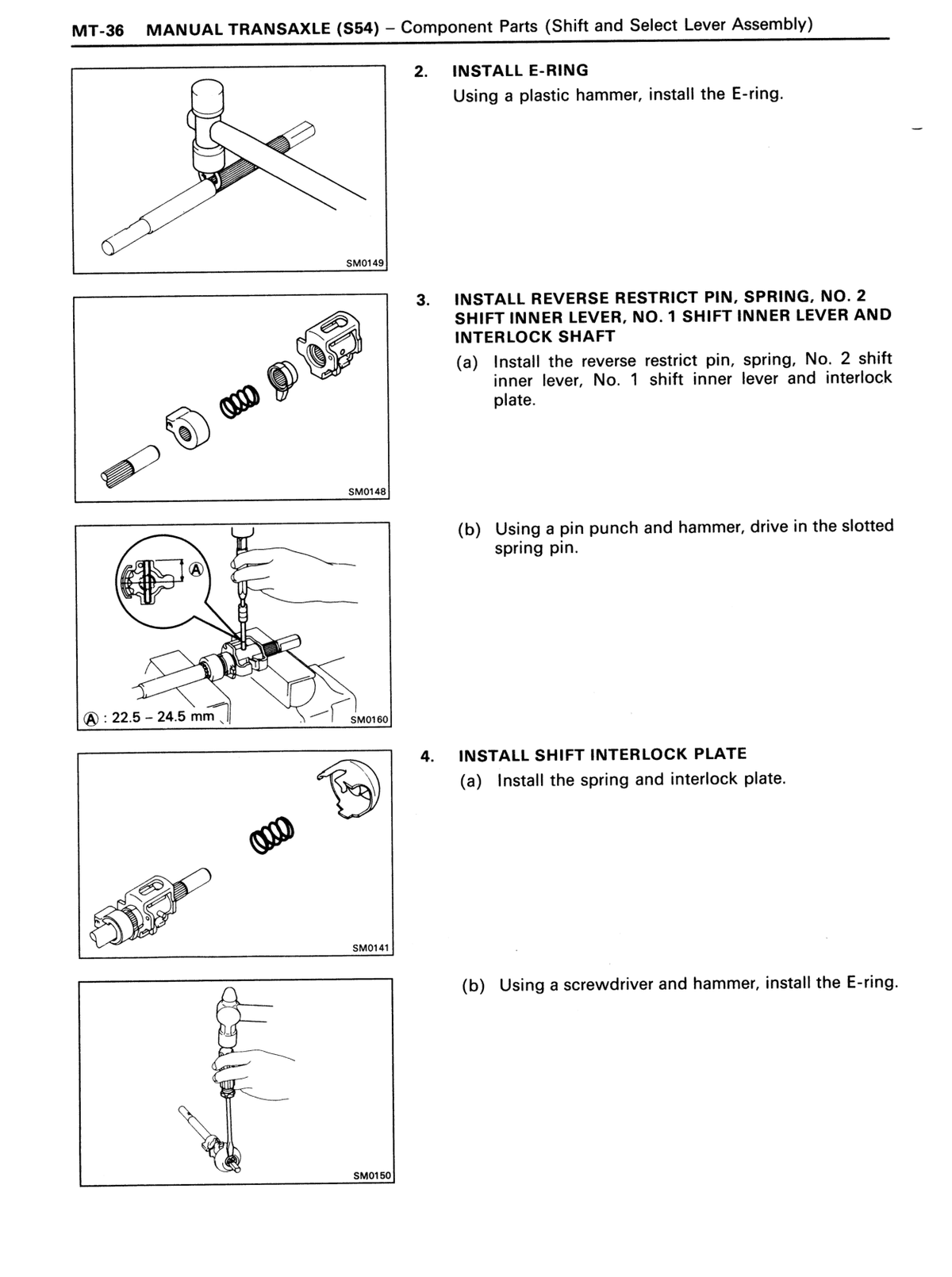

Slotted spring pin protrusion (dimension A) Range: 22.5 – 24.5 mm 22.5 mm Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p67 OEM manual
Tie rod end exposed thread length (left side) 2.40 in.; reference value — adjust toe-in before tightening lock nut 61 mm Steering ↗ RM285U_1993_steering · p5 OEM manual
Tie rod end exposed thread length (right side) 2.40 in.; reference value — adjust toe-in before tightening lock nut 61 mm Steering ↗ RM285U_1993_steering · p5 OEM manual

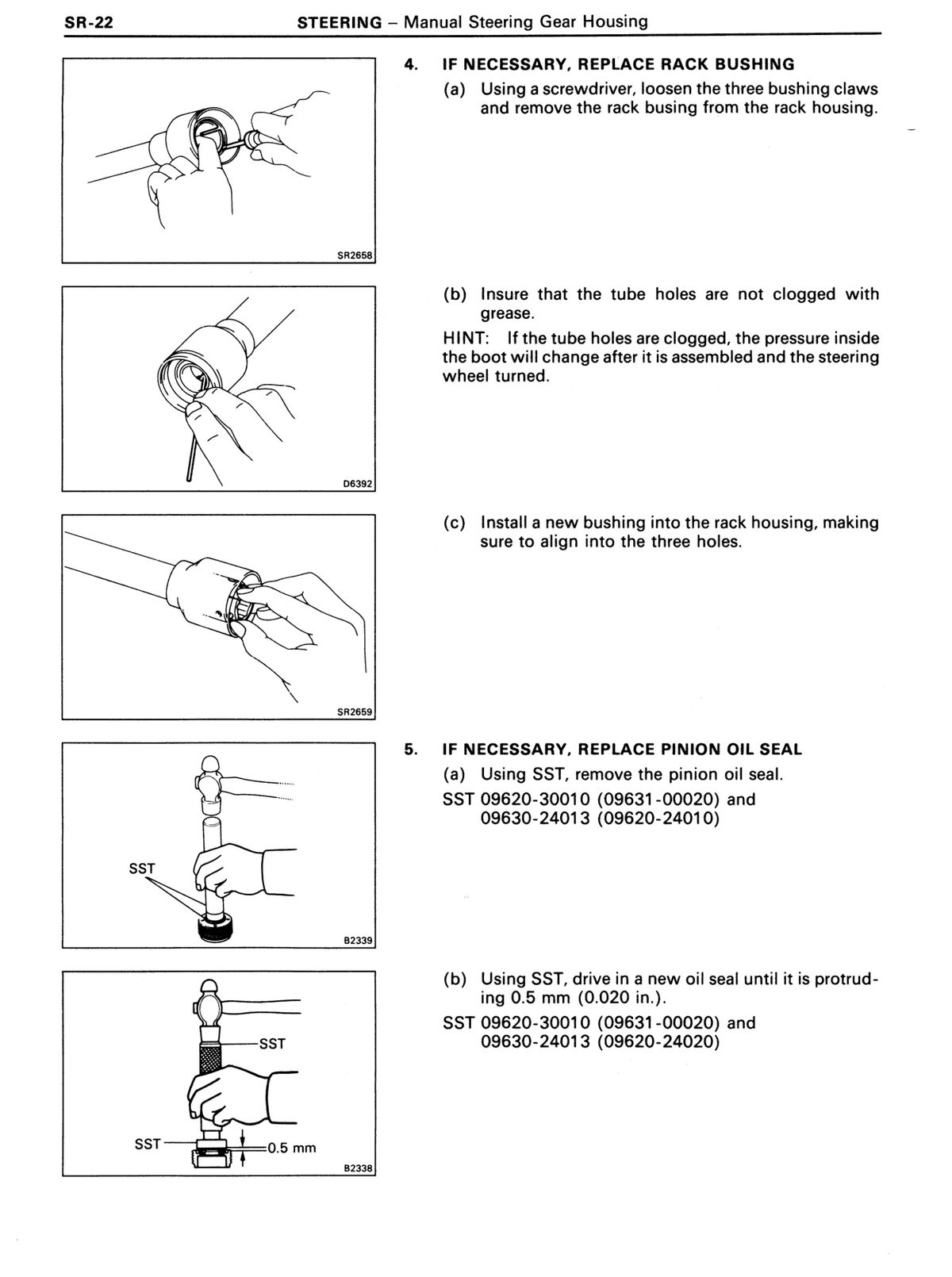

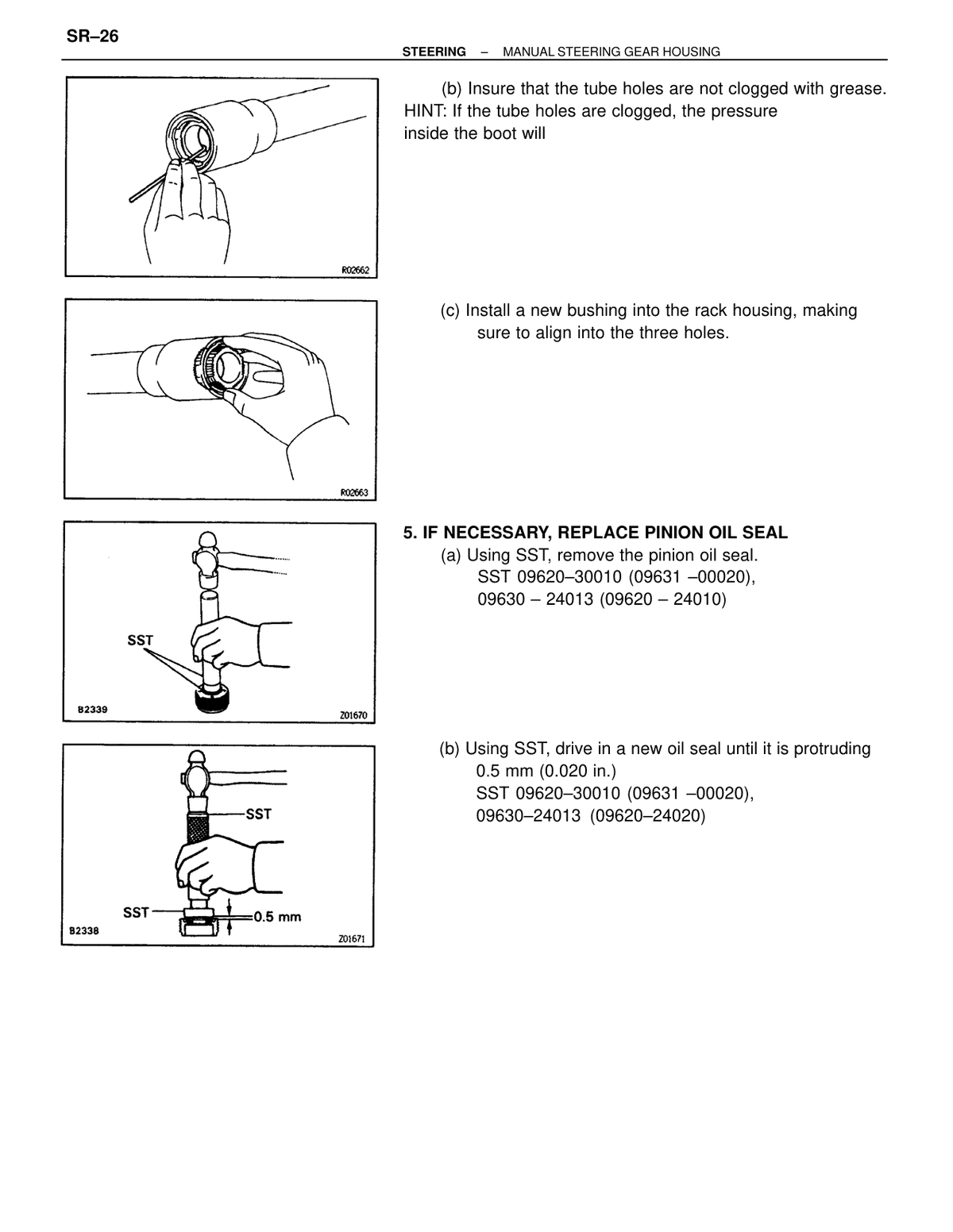

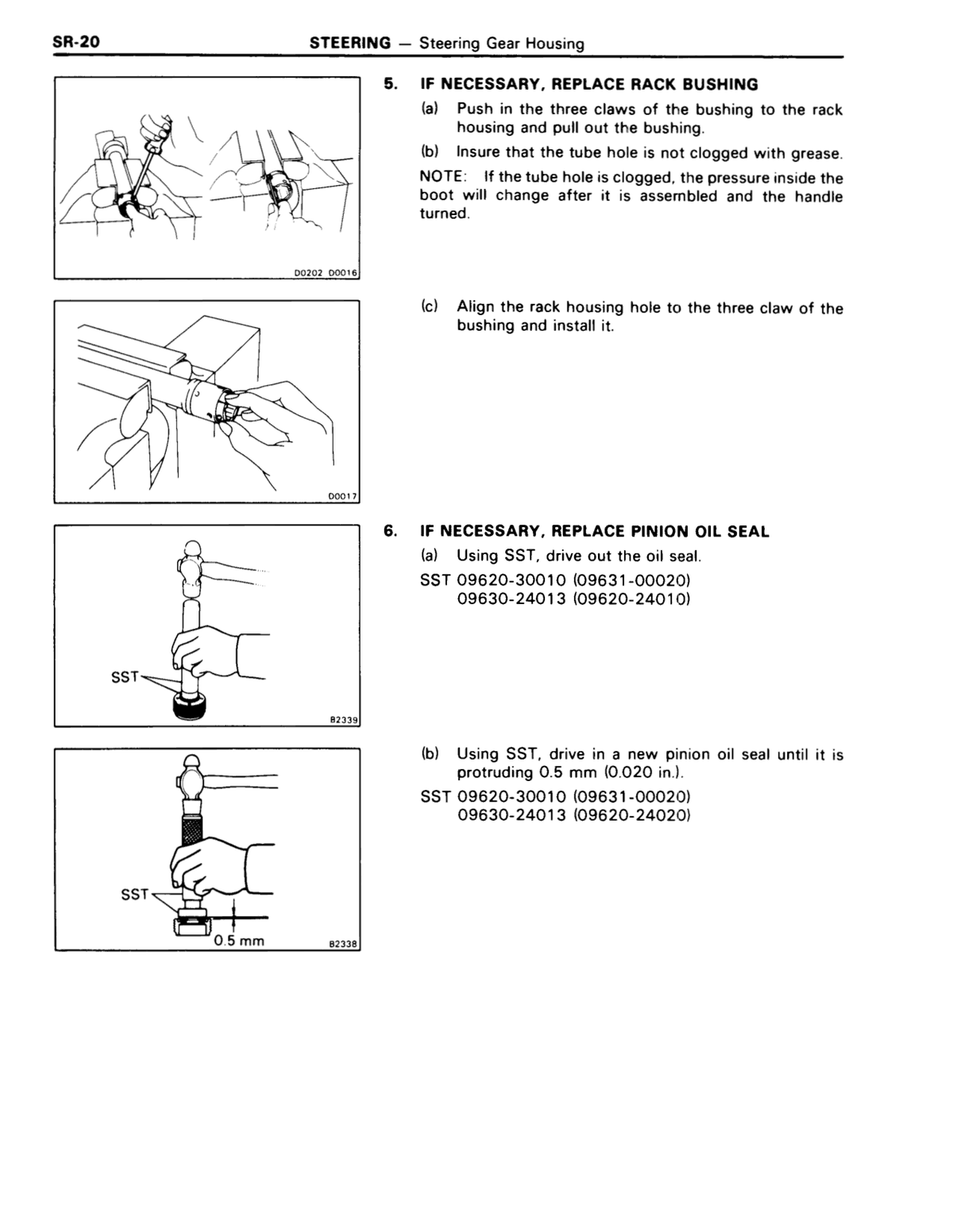

Pinion oil seal protrusion after installation 0.020 in. 0.5 mm Steering ↗ RM285U_1993_steering · p11 OEM manual
Boot clamp clearance 0 – 1 mm (0 – 0.04 in.) gap at boot clamp installation 0 mm Steering ↗ RM285U_1993_steering · p15 OEM manual
Tie rod end dimension — left side Reference value (2.34 in.); adjust toe-in before tightening lock nut 59.4 mm Steering ↗ RM285U_1993_steering · p36 OEM manual
Tie rod end dimension — right side Reference value (2.34 in.); adjust toe-in before tightening lock nut 59.4 mm Steering ↗ RM285U_1993_steering · p36 OEM manual
Rack center dimension Reference value (9.21 in.); rack housing overall reference measurement 234 mm Steering ↗ RM285U_1993_steering · p36 OEM manual
Boot clamp gap 0-1 mm (0-0.04 in.) gap at clip installation 0 mm Steering ↗ RM285U_1993_steering · p49 OEM manual
Power steering fluid level rise — engine stopped vs running (maximum) 0.20 in. 5 mm Steering ↗ RM285U_1993_steering · p52 OEM manual
Pinion preload (Turning) — Manual Steering Gear Housing Range: 0.2-0.3 N·m (2.3-3.3 kgf·cm, 2.0-2.9 in.-lbf) 0.2 N·m Steering ↗ RM285U_1993_steering · p59 OEM manual
Total preload (Turning) — Manual Steering Gear Housing Range: 0.8-1.2 N·m (6-12 kgf·cm, 5.2-10.4 in.-lbf) 0.8 N·m Steering ↗ RM285U_1993_steering · p59 OEM manual
Total preload (Turning) — PS Gear Housing Range: 0.9-1.5 N·m (9-15 kgf·cm, 7.8-13.0 in.-lbf) 0.9 N·m Steering ↗ RM285U_1993_steering · p59 OEM manual
Steering effort at idle speed (Maximum) 4.5 kgf, 9.9 lbf 44 N Steering ↗ RM285U_1993_steering · p59 OEM manual
Hose overlap onto pipe 0.08-0.28 in.; distance hose overlaps pipe at connection 2-7 mm Unclassified ↗ RM285U_1993_3sgte_smpisyst · p61 OEM manual
Clip position from hose end 0-0.12 in.; clip distance from end of hose 0-3 mm Unclassified ↗ RM285U_1993_3sgte_smpisyst · p61 OEM manual
Torque wrench fulcrum length for flare nut 111.81 in. 30 cm Unclassified ↗ RM285U_1993_3sgte_smpisyst · p98 OEM manual
Injector injection volume per 15 sec minimum; range 95-120 cm³ (5.8-7.3 cu in.) per 15 sec 95 cm³ Maintenance ↗ RM285U_1993_3sgte_smpisyst · p103 OEM manual
Injector injection volume per 15 sec maximum; range 95-120 cm³ (5.8-7.3 cu in.) per 15 sec 120 cm³ Maintenance ↗ RM285U_1993_3sgte_smpisyst · p103 OEM manual
Injector difference between each cylinder 0.3 cu in. or less 5 cm³ Maintenance ↗ RM285U_1993_3sgte_smpisyst · p103 OEM manual
Throttle body bolt length — upper side 1.77 in. 45 mm Unclassified ↗ RM285U_1993_3sgte_smpisyst · p116 OEM manual
Throttle body bolt length — lower side 2.76 in. 70 mm Unclassified ↗ RM285U_1993_3sgte_smpisyst · p116 OEM manual
Torque converter installation depth — installed surface to front surface of transaxle housing Correct distance: more than 23.0 mm (0.906 in.) 23 mm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p9 OEM manual

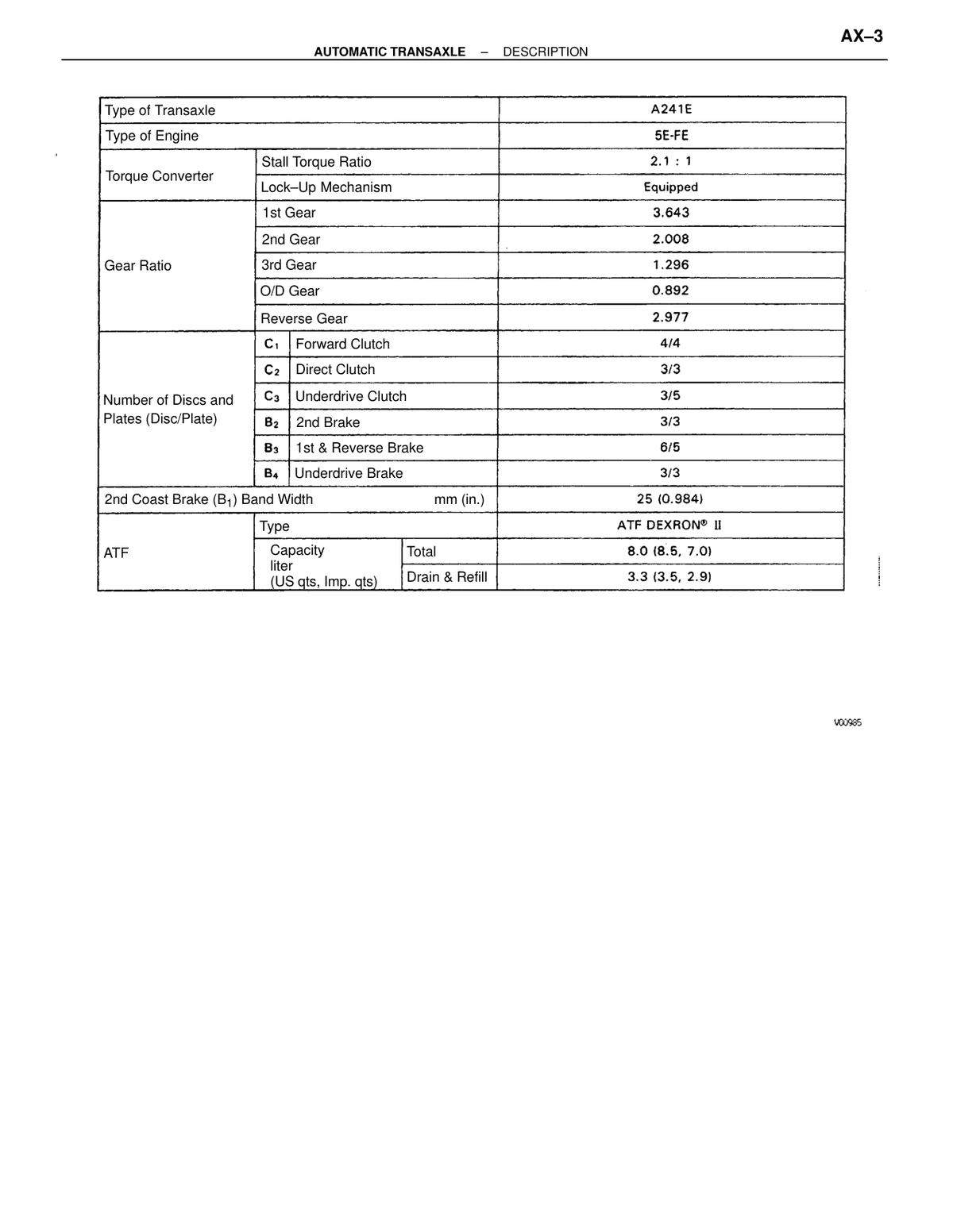

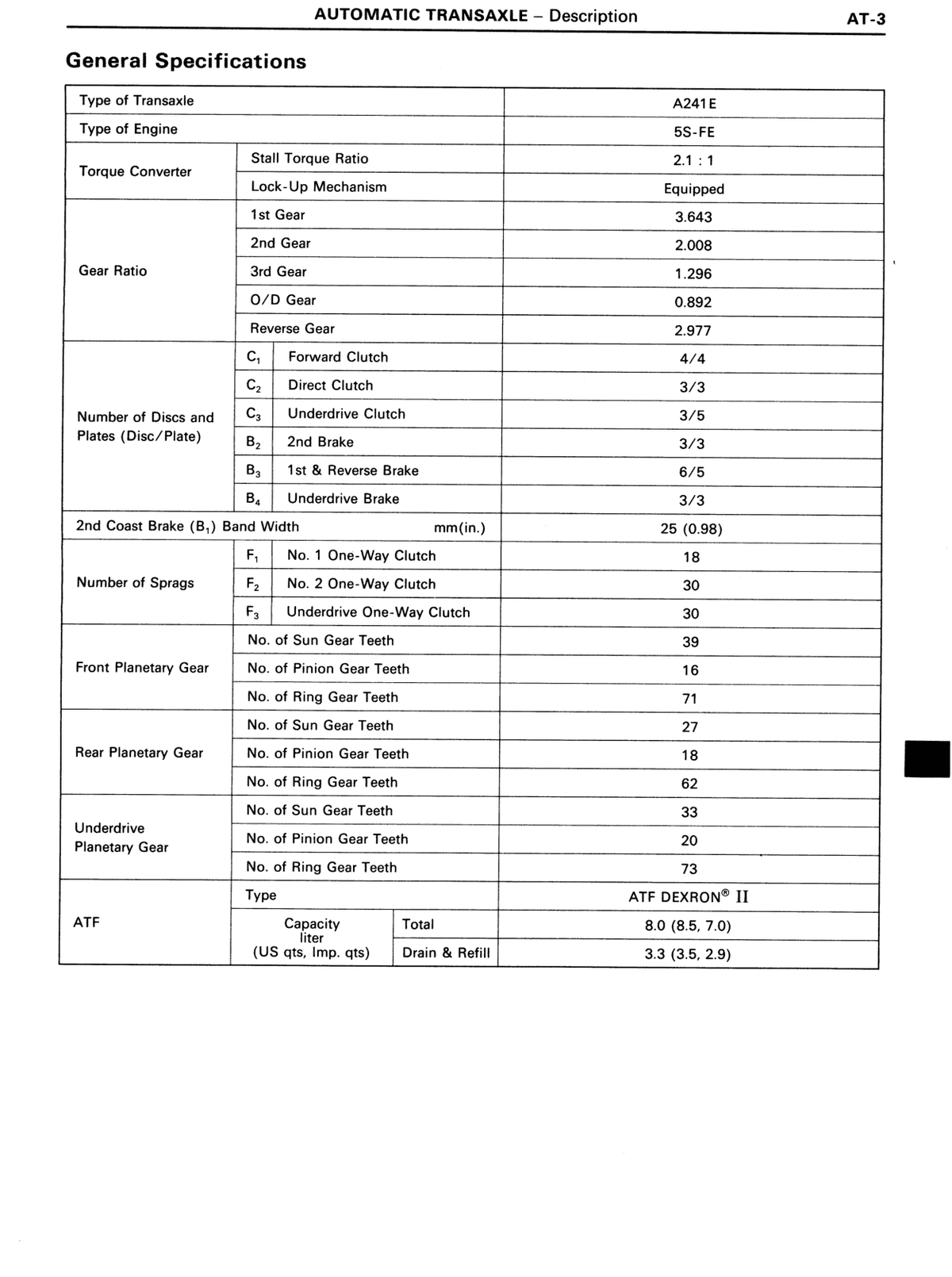

2nd Coast Brake (B1) Band Width 0.984 in 25 mm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p17 OEM manual
Engine stall revolution ±150 rpm 2650 rpm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Engine idling speed (A/C OFF) — N range ±150 rpm 700 rpm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Throttle cable adjustment — Throttle valve fully opened — between boot end face and inner cable stopper 0-0.04 in. 0-1 mm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Torque converter sleeve runout — Limit 0.0118 in. 0.3 mm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Torque converter installation distance 1.024 in. 26 mm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Drive plate runout — Limit 0.0079 in. 0.2 mm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual

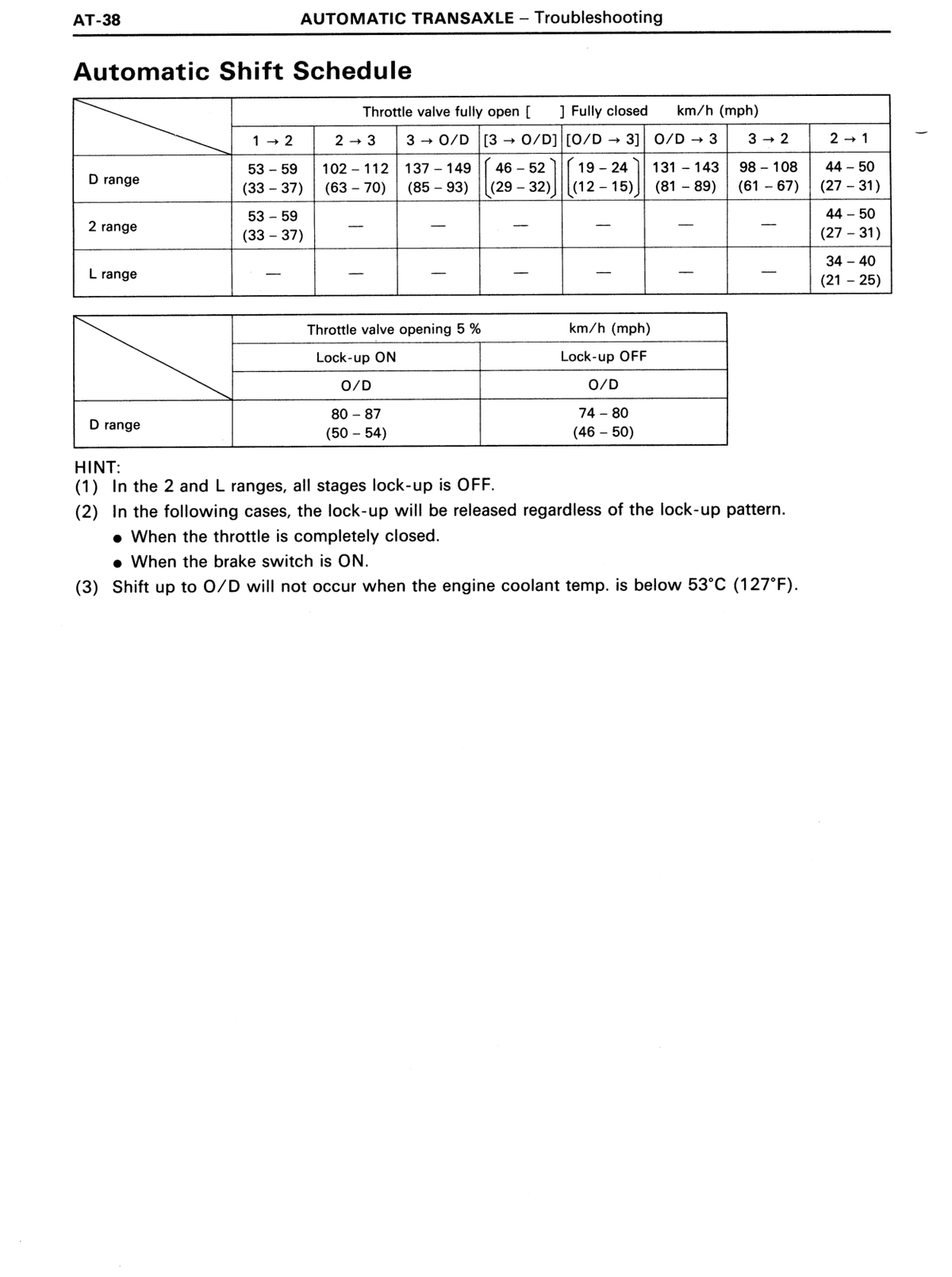

Shift point — D range — 1-2 (throttle fully open) 33-37 mph 53-59 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — D range — 2-3 (throttle fully open) 61-68 mph 98-109 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — D range — 3→O/D (throttle fully open) 81-89 mph 131-143 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — D range — 3-O/DI (throttle fully open) 27-31 mph 44-50 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — D range — [O/D-31 (throttle fully open) 11-14 mph 18-23 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — D range — O/D-3 (throttle fully open) 78-85 mph 125-137 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — D range — 3-2 (throttle fully open) 58-65 mph 93-104 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — D range — 2→1 (throttle fully open) 26-30 mph 42-48 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — 2 range — 1-2 (throttle fully open) 33-37 mph 53-59 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — 2 range — 2→1 (throttle fully open) 26-30 mph 42-49 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Shift point — L range — 2→1 (throttle fully open) 29-33 mph 47-53 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Lock-up point — D range — Lock-up ON — O/D (throttle valve opening 5%) 40-44 mph 64-71 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual
Lock-up point — D range — Lock-up OFF — O/D (throttle valve opening 5%) 37-40 mph 59-65 km/h Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p30 OEM manual

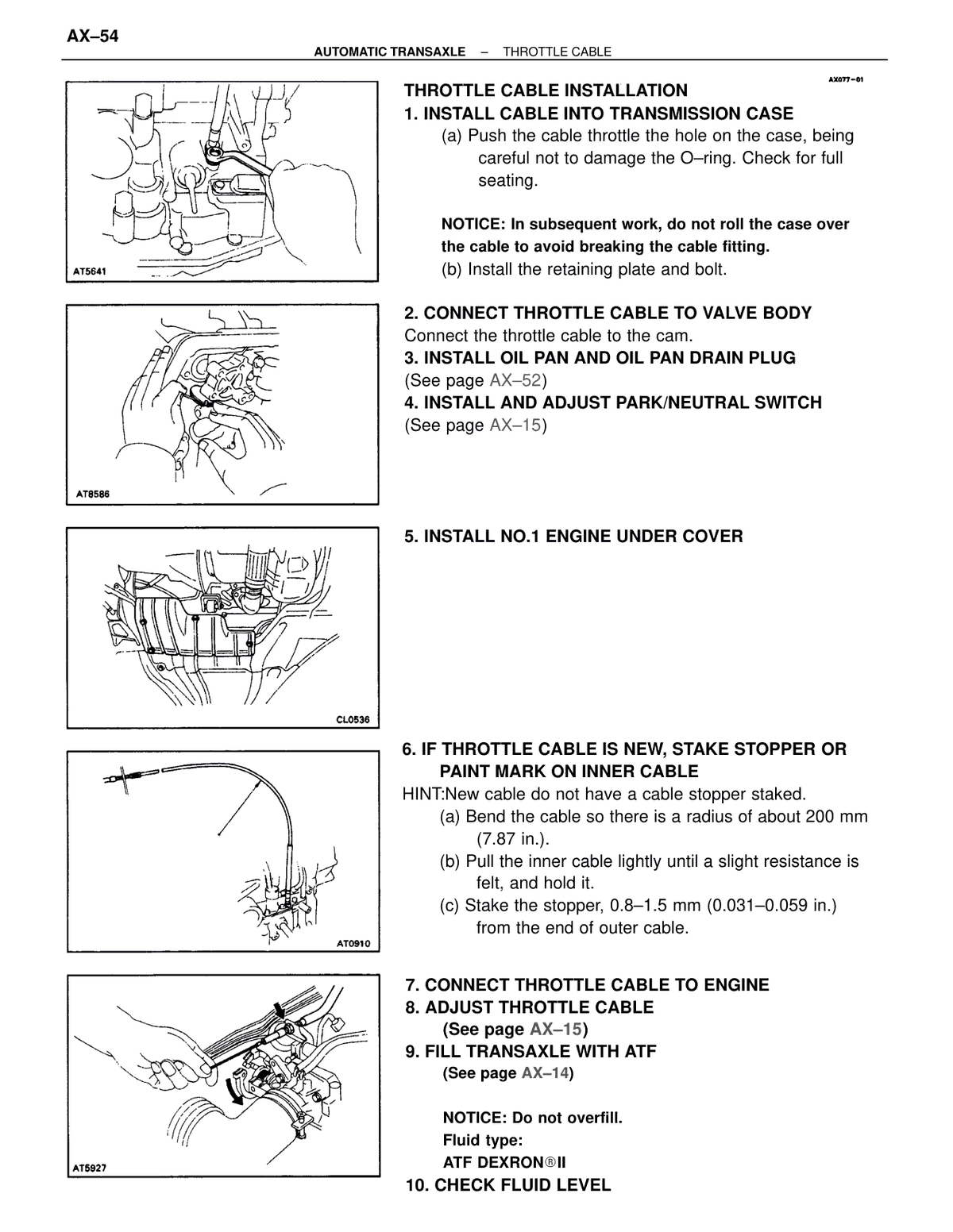

Throttle cable bend radius (new cable staking) 7.87 in. 200 mm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p37 OEM manual
Throttle cable stopper stake distance from end of outer cable 0.031-0.059 in. 0.8-1.5 mm Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p37 OEM manual

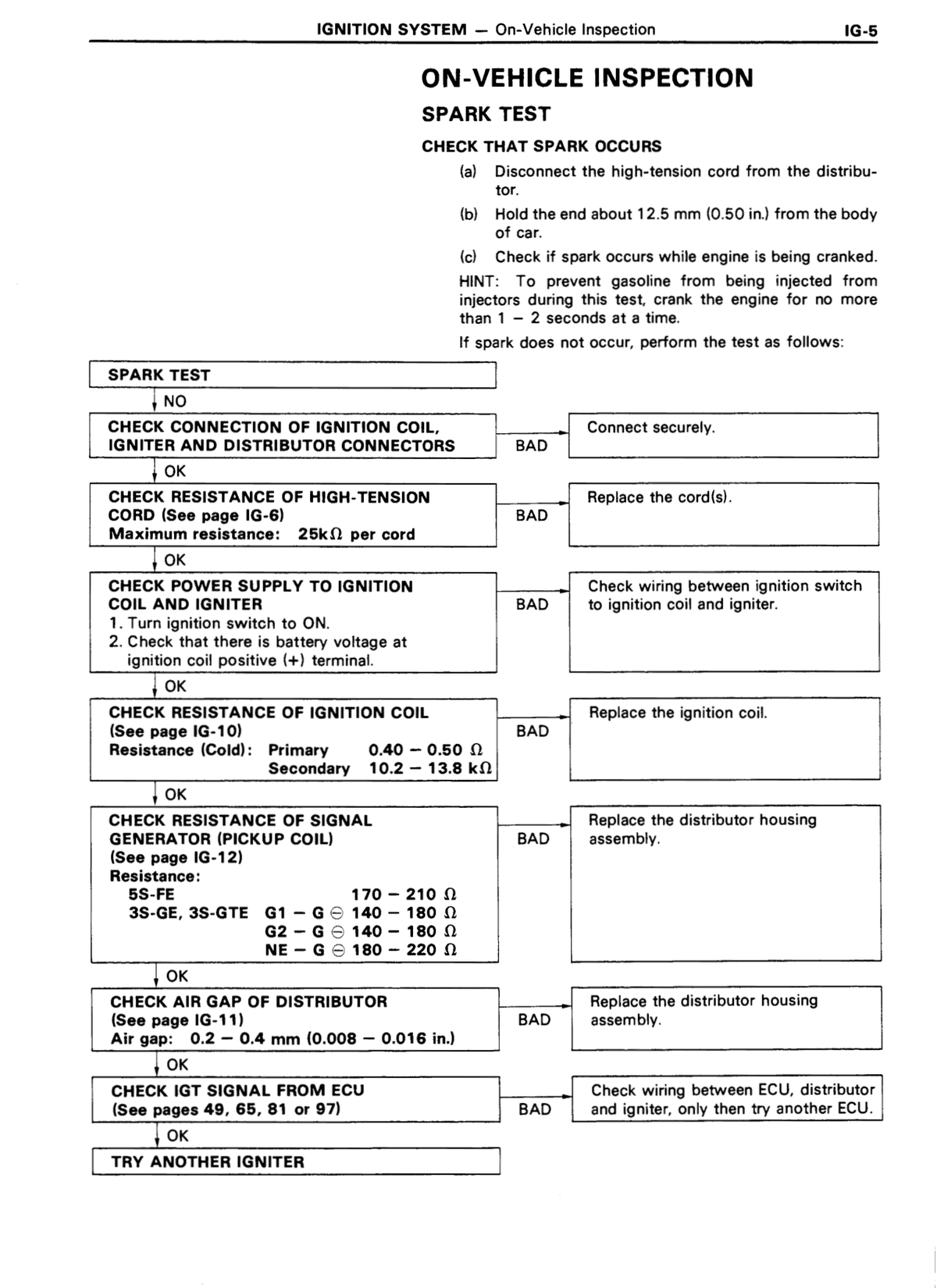

High-tension cord distance from body ground during spark test 0.50 in. 12.5 mm Ignition ↗ RM285U_1993_ignition · p11 OEM manual
Pickup coil resistance (Cold) — G1 and G(-) 125-200 Ω cold 125 Ω Ignition ↗ RM285U_1993_ignition · p17 OEM manual
Pickup coil resistance (Cold) — G2 and G(-) 125-200 Ω cold 125 Ω Ignition ↗ RM285U_1993_ignition · p17 OEM manual
Pickup coil resistance (Cold) — NE and G(-) 155-250 Ω cold 155 Ω Ignition ↗ RM285U_1993_ignition · p17 OEM manual
Pickup coil resistance (Hot) — G1 and G(-) 160-235 Ω hot 160 Ω Ignition ↗ RM285U_1993_ignition · p17 OEM manual
Pickup coil resistance (Hot) — G2 and G(-) 160-235 Ω hot 160 Ω Ignition ↗ RM285U_1993_ignition · p17 OEM manual
Pickup coil resistance (Hot) — NE and G(-) 190-290 Ω hot 190 Ω Ignition ↗ RM285U_1993_ignition · p17 OEM manual
High-tension cord resistance (Maximum) 25 kΩ per cord Ignition ↗ RM285U_1993_ignition · p33 OEM manual
Ignition coil primary coil resistance (Cold) range 0.36-0.55 Ω 0.36 Ω Ignition ↗ RM285U_1993_ignition · p33 OEM manual
Ignition coil primary coil resistance (Hot) range 0.45-0.65 Ω 0.45 Ω Ignition ↗ RM285U_1993_ignition · p33 OEM manual
Ignition coil secondary coil resistance (Cold) range 9.0-15.4 kΩ 9 kΩ Ignition ↗ RM285U_1993_ignition · p33 OEM manual
Ignition coil secondary coil resistance (Hot) range 11.4-18.1 kΩ 11.4 kΩ Ignition ↗ RM285U_1993_ignition · p33 OEM manual
Distributor signal generator (pickup coil) resistance (Cold) G(+) - G(-) range 185-275 Ω 185 Ω Ignition ↗ RM285U_1993_ignition · p33 OEM manual
Distributor signal generator (pickup coil) resistance (Cold) NE(+) - NE(-) range 370-550 Ω 370 Ω Ignition ↗ RM285U_1993_ignition · p33 OEM manual
Distributor signal generator (pickup coil) resistance (Hot) G(+) - G(-) range 240-325 Ω 240 Ω Ignition ↗ RM285U_1993_ignition · p33 OEM manual
Distributor signal generator (pickup coil) resistance (Hot) NE(+) - NE(-) range 475-650 Ω 475 Ω Ignition ↗ RM285U_1993_ignition · p33 OEM manual
High-tension cord maximum resistance per cord (25 kΩ) 25000 Ω Ignition ↗ RM285U_1993_ignition · p34 OEM manual
Ignition coil primary resistance (Cold) Cold 0.36-0.55 Ω Ignition ↗ RM285U_1993_ignition · p34 OEM manual
Ignition coil primary resistance (Hot) Hot 0.45-0.65 Ω Ignition ↗ RM285U_1993_ignition · p34 OEM manual
Ignition coil secondary resistance (Cold) Cold 9.0-15.4 kΩ Ignition ↗ RM285U_1993_ignition · p34 OEM manual
Ignition coil secondary resistance (Hot) Hot 11.4-18.1 kΩ Ignition ↗ RM285U_1993_ignition · p34 OEM manual
Signal generator G(+) and G(-) resistance (Cold) Cold 185-275 Ω Ignition ↗ RM285U_1993_ignition · p34 OEM manual
Signal generator G(+) and G(-) resistance (Hot) Hot 240-325 Ω Ignition ↗ RM285U_1993_ignition · p34 OEM manual
Signal generator NE(+) and NE(-) resistance (Cold) Cold 370-550 Ω Ignition ↗ RM285U_1993_ignition · p34 OEM manual
Signal generator NE(+) and NE(-) resistance (Hot) Hot 475-650 Ω Ignition ↗ RM285U_1993_ignition · p34 OEM manual
High-tension cord resistance (Maximum) 25 kΩ per cord Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Ignition coil primary coil resistance (Cold) range 0.36-0.55 Ω 0.36 Ω Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Ignition coil primary coil resistance (Hot) range 0.45-0.65 Ω 0.45 Ω Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Ignition coil secondary coil resistance (Cold) range 9.0-15.4 kΩ 9 kΩ Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Ignition coil secondary coil resistance (Hot) range 11.4-18.1 kΩ 11.4 kΩ Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Distributor signal generator (pickup coil) resistance (Cold) G(+)-G(-) range 185-275 Ω 185 Ω Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Distributor signal generator (pickup coil) resistance (Cold) NE(+)-NE(-) range 370-550 Ω 370 Ω Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Distributor signal generator (pickup coil) resistance (Hot) G(+)-G(-) range 240-325 Ω 240 Ω Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Distributor signal generator (pickup coil) resistance (Hot) NE(+)-NE(-) range 475-650 Ω 475 Ω Ignition ↗ RM285U_1993_ignition · p43 OEM manual
Thrust washer thickness Range: 2.440-2.490 mm (0.0961-0.0980 in.) 2.465 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p28 OEM manual
Cylinder block main journal bore diameter — Mark "1" range 59.020–59.026 mm (2.3236–2.3239 in.) 59.023 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Cylinder block main journal bore diameter — Mark "2" range 59.026–59.032 mm (2.3239–2.3241 in.) 59.029 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Cylinder block main journal bore diameter — Mark "3" range 59.032–59.038 mm (2.3241–2.3243 in.) 59.035 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Crankshaft journal diameter — Mark "0" range 54.998–55.003 mm (2.1653–2.1655 in.) 55.0005 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Crankshaft journal diameter — Mark "1" range 54.993–54.998 mm (2.1651–2.1653 in.) 54.9955 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Crankshaft journal diameter — Mark "2" range 54.988–54.993 mm (2.1649–2.1651 in.) 54.9905 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark "1" range 1.992–1.995 mm (0.0784–0.0785 in.) 1.9935 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark "2" range 1.995–1.998 mm (0.0785–0.0787 in.) 1.9965 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark "3" range 1.998–2.001 mm (0.0787–0.0788 in.) 1.9995 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark "4" range 2.001–2.004 mm (0.0788–0.0789 in.) 2.0025 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness No.3 — Mark "5" range 2.004–2.007 mm (0.0789–0.0790 in.) 2.0055 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark "1" range 1.997–2.000 mm (0.0786–0.0787 in.) 1.9985 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark "2" range 2.000–2.003 mm (0.0787–0.0789 in.) 2.0015 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark "3" range 2.003–2.006 mm (0.0789–0.0790 in.) 2.0045 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark "4" range 2.006–2.009 mm (0.0790–0.0791 in.) 2.0075 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual
Standard sized bearing center wall thickness Others — Mark "5" range 2.009–2.012 mm (0.0791–0.0792 in.) 2.0105 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p31 OEM manual

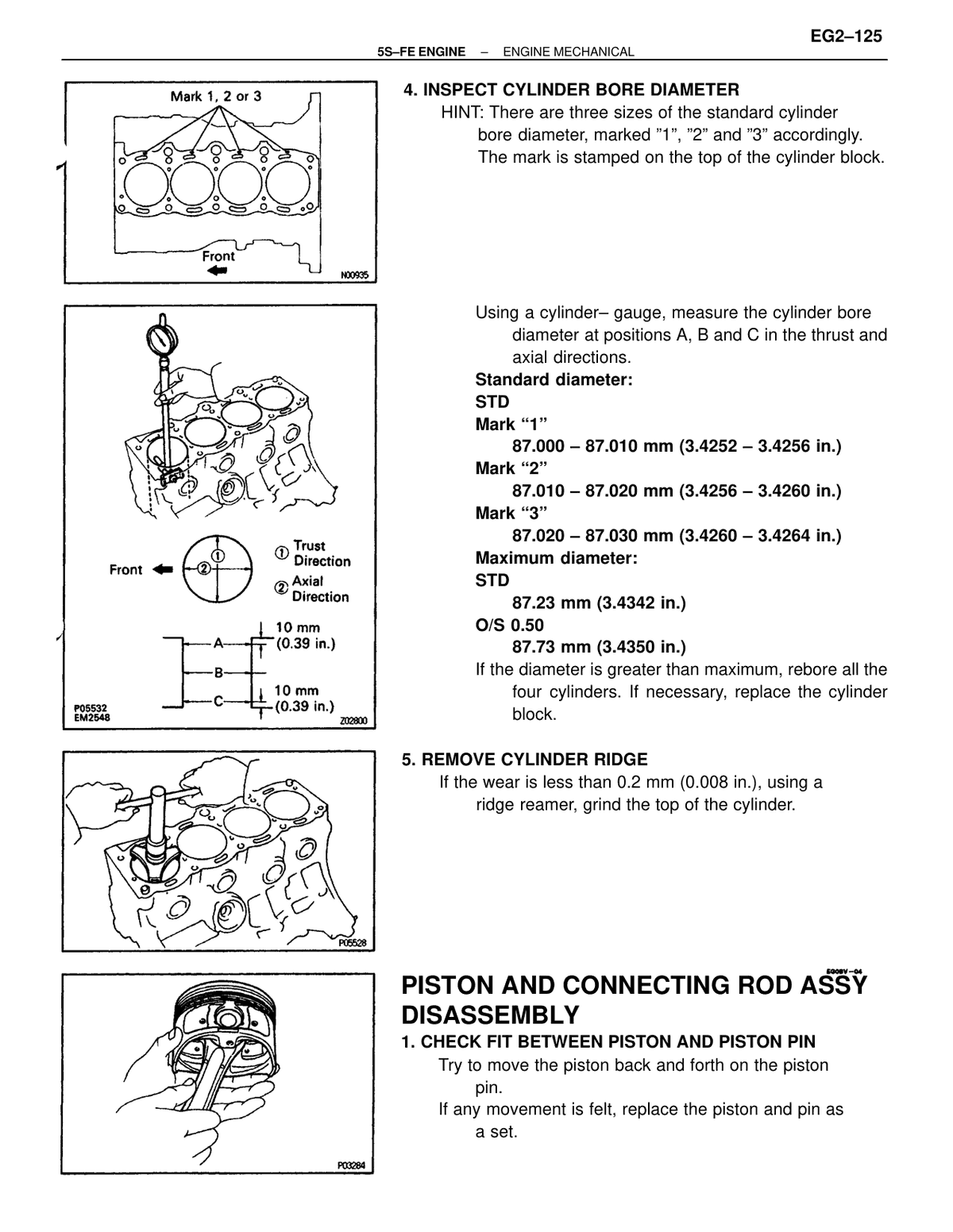

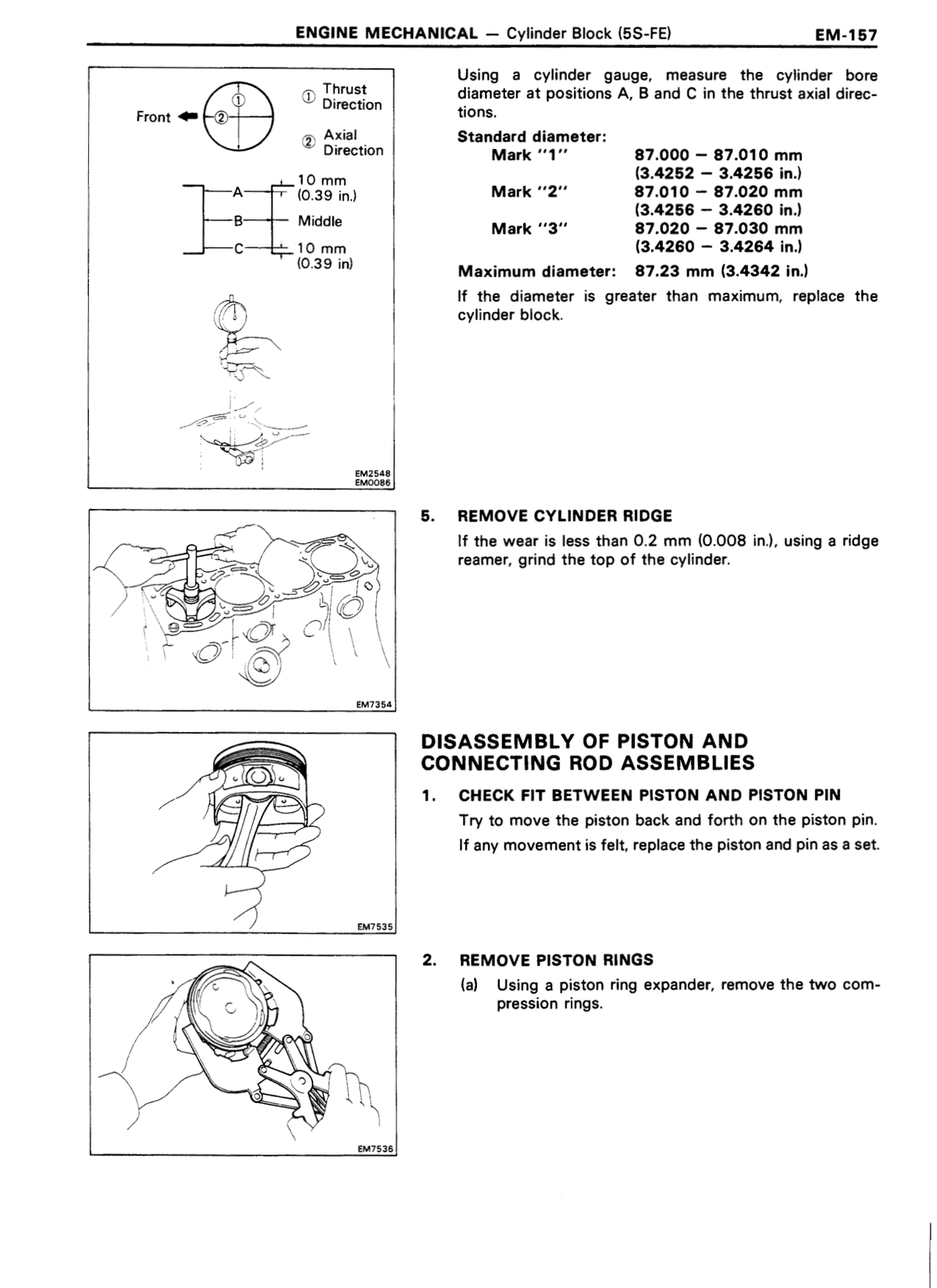

Cylinder bore — STD Mark 1 3.4252-3.4256 in. 87.000-87.010 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p33 OEM manual
Cylinder bore — STD Mark 2 3.4256-3.4260 in. 87.010-87.020 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p33 OEM manual
Cylinder bore — STD Mark 3 3.4260-3.4264 in. 87.020-87.030 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p33 OEM manual
Cylinder bore maximum diameter — STD 3.4342 in. 87.23 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p33 OEM manual
Cylinder bore maximum diameter — O/S 0.50 3.4350 in. 87.73 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p33 OEM manual

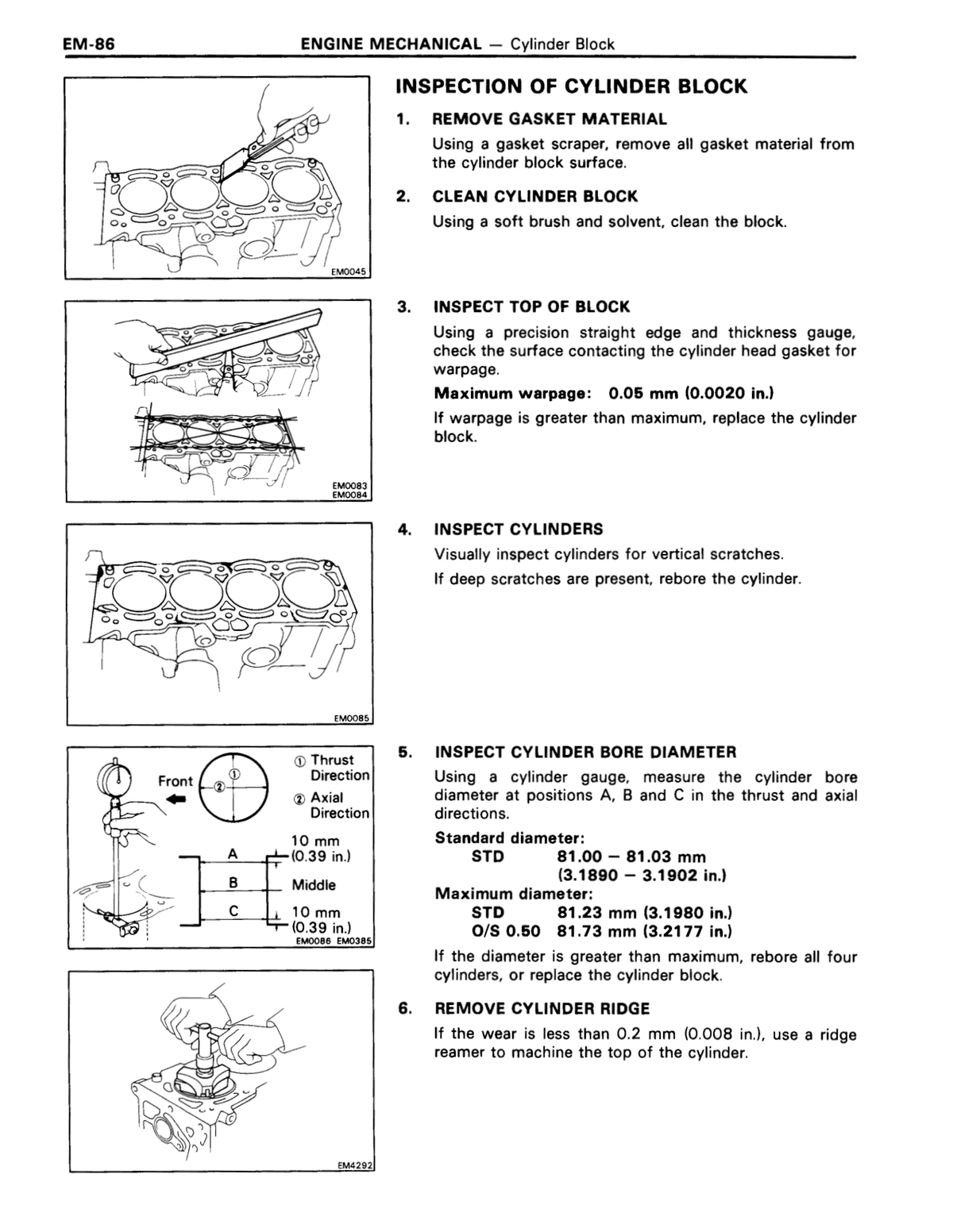

Cylinder ridge removal wear limit 0.008 in.; if wear is less than this, use ridge reamer 0.2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p33 OEM manual
Cylinder bore measurement position A from top 0.39 in. 10 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p33 OEM manual
Cylinder bore measurement position C from bottom of measured zone 0.39 in. 10 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p33 OEM manual

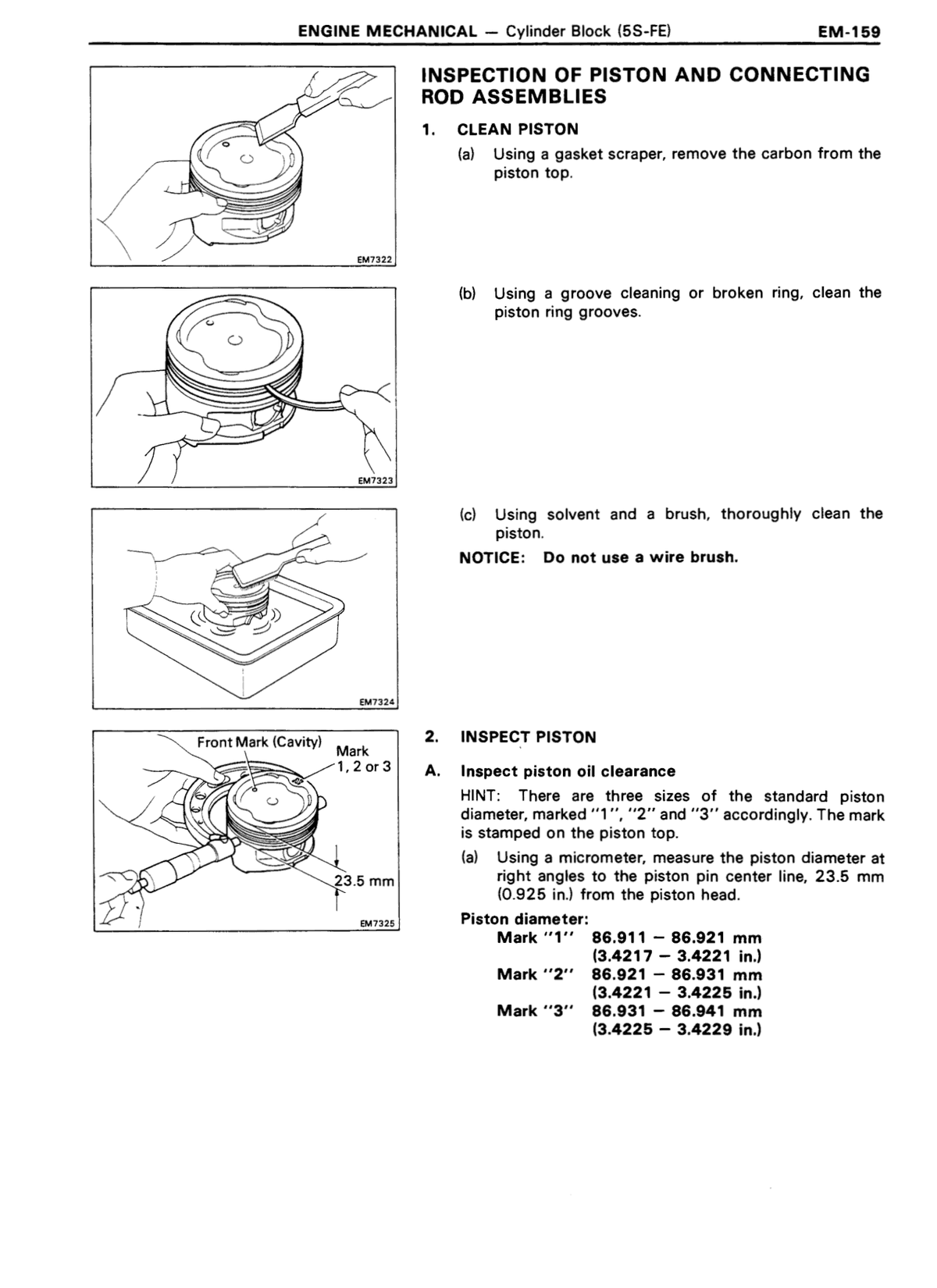

Piston diameter — STD Mark 1 3.4193–3.4197 in. 86.850-86.860 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p36 OEM manual
Piston diameter — STD Mark 2 3.4197–3.4201 in. 86.860-86.870 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p36 OEM manual
Piston diameter — STD Mark 3 3.4201–3.4205 in. 86.870-86.880 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p36 OEM manual
Piston diameter — O/S 0.50 3.4390–3.4402 in. 87.350-87.380 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p36 OEM manual
Piston diameter measurement location 0.925 in. from piston head, at right angles to piston pin center line 23.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p36 OEM manual
Piston ring positioning depth from top of cylinder block 4.53 in. — position for end gap measurement 115 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p37 OEM manual

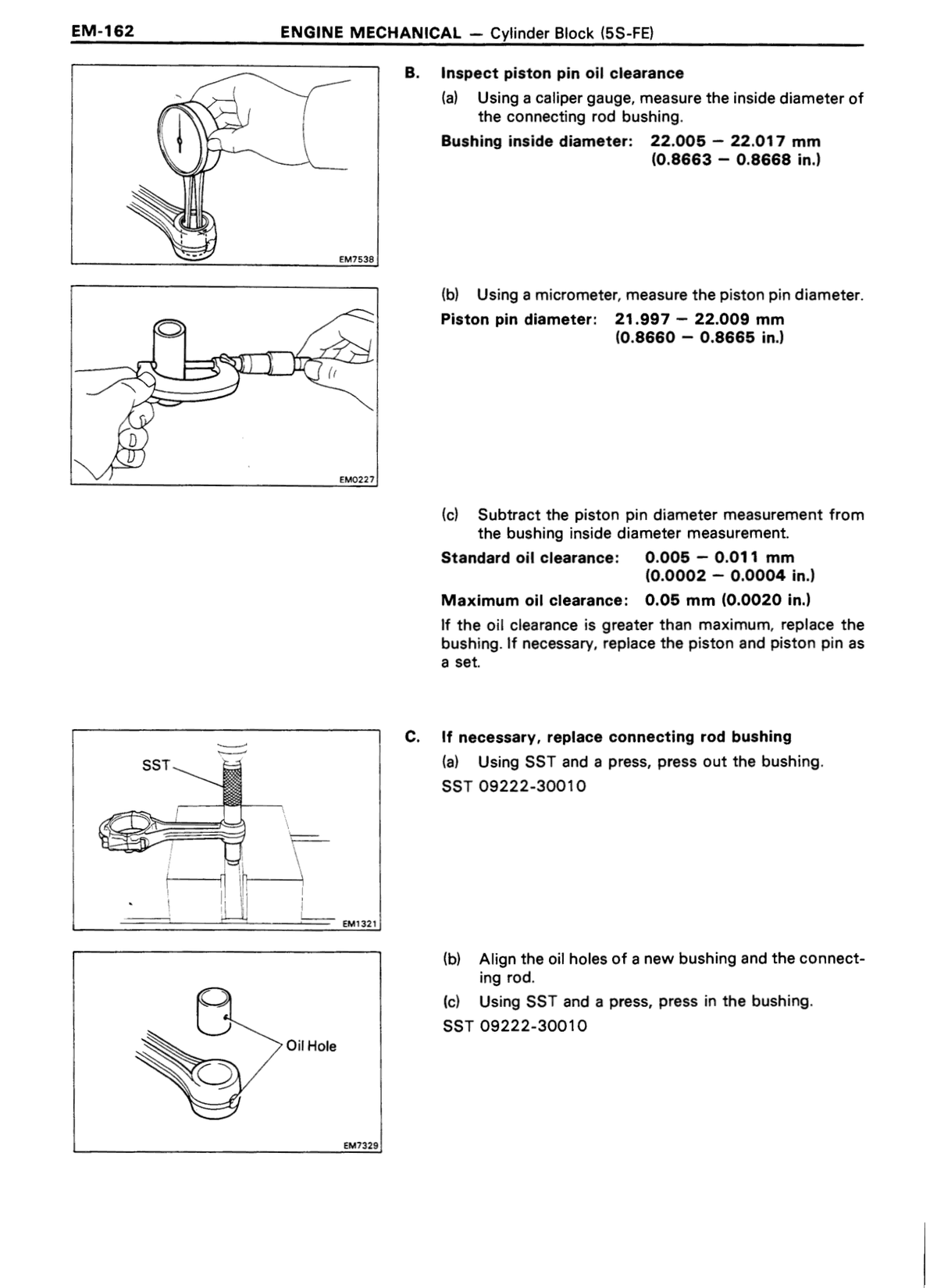

Connecting rod bushing inside diameter range 22.005 – 22.017 mm (0.8663 – 0.8668 in.) 22.005 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p38 OEM manual
Piston pin diameter range 21.997 – 22.009 mm (0.8660 – 0.8665 in.) 21.997 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p38 OEM manual

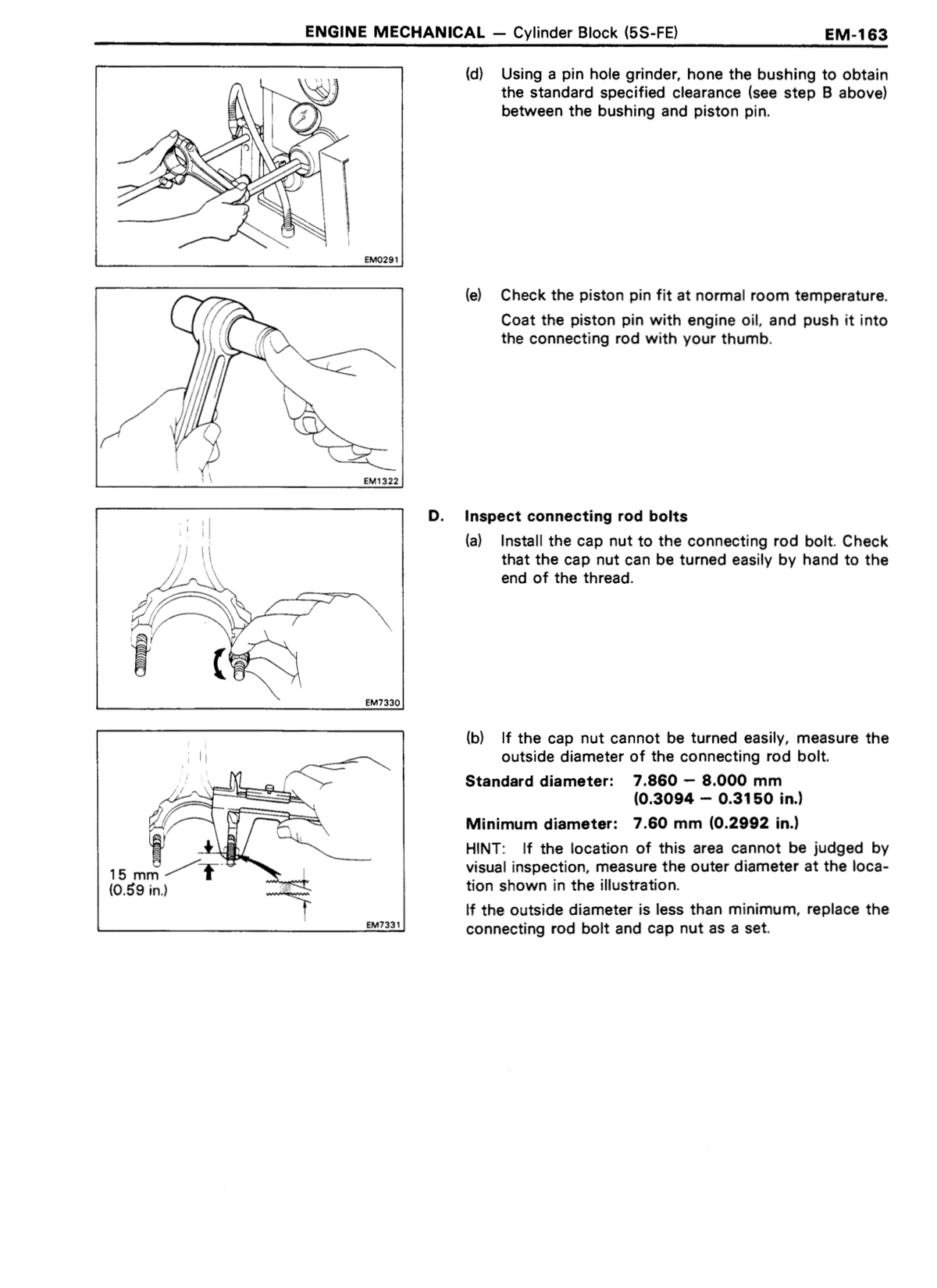

Connecting rod bolt standard outside diameter Standard diameter; 0.3094 – 0.3150 in. 7.860 – 8.000 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p40 OEM manual
Connecting rod bolt maximum outside diameter Minimum allowable; 0.2992 in. Replace bolt and nut as set if below this value. 7.60 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p40 OEM manual
Oversized piston diameter O/S 0.50 3.4390 – 3.4402 in. 87.350 – 87.380 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p40 OEM manual
Piston measurement location from piston head 0.925 in.; measured at right angles to piston pin center line 23.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p40 OEM manual
Connecting rod bolt measurement location from reference point 0.59 in.; location shown in illustration for outer diameter measurement 15 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p40 OEM manual
Main journal diameter — STD 2.1653-2.1655 in. 54.988-55.003 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p41 OEM manual
Main journal diameter — U/S 0.25 2.1553-2.1557 in. 54.745-54.755 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p41 OEM manual
Crank pin diameter — STD 2.0466-2.0472 in. 51.985-52.000 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p41 OEM manual
Crank pin diameter — U/S 0.25 2.0372-2.0376 in. 51.745-51.755 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p41 OEM manual
Main bearing width — No.3 position installed at No.3 cylinder block journal position with main bearing cap 22.9 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p46 OEM manual
Main bearing width — other positions installed at all positions other than No.3 19.2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p46 OEM manual

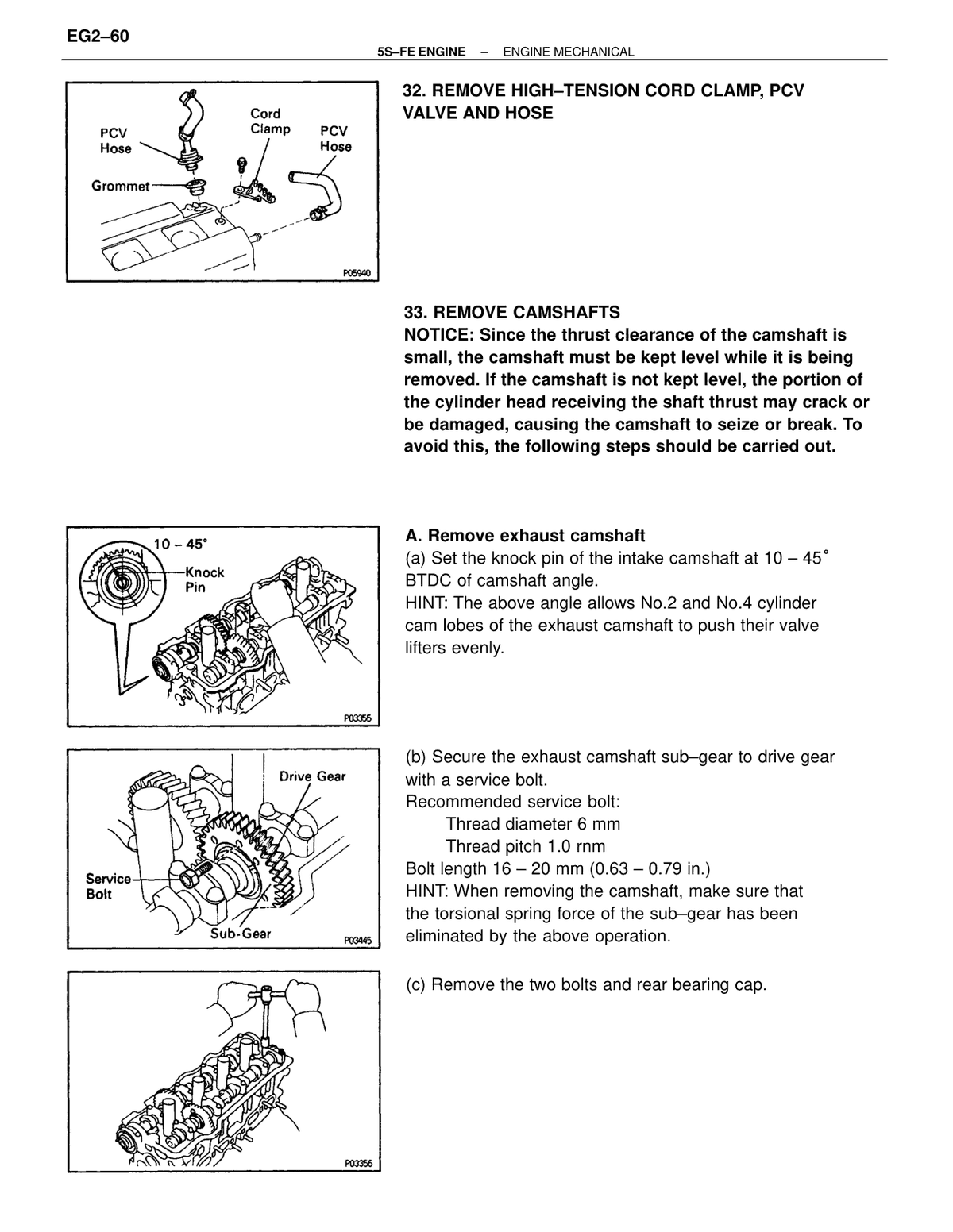

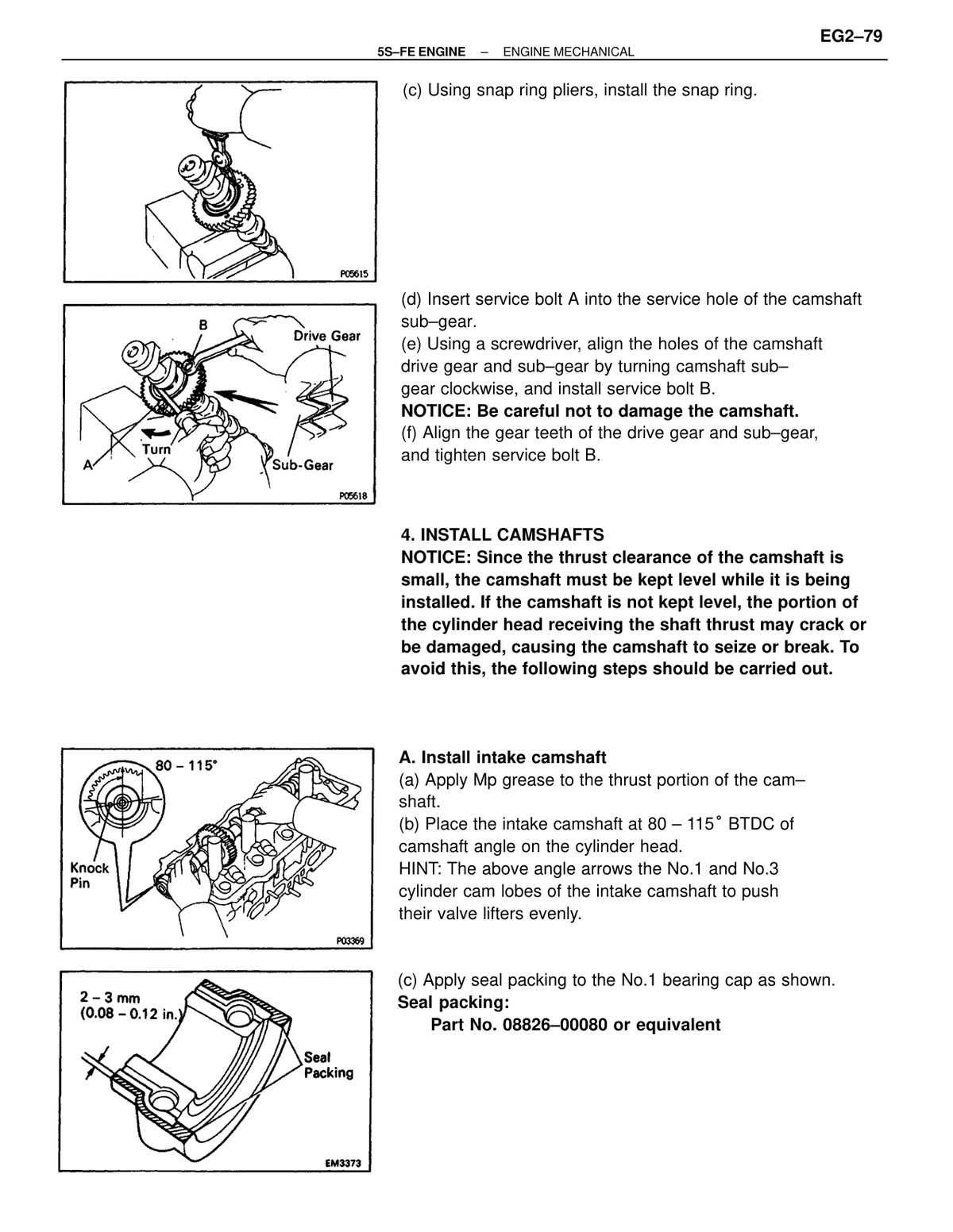

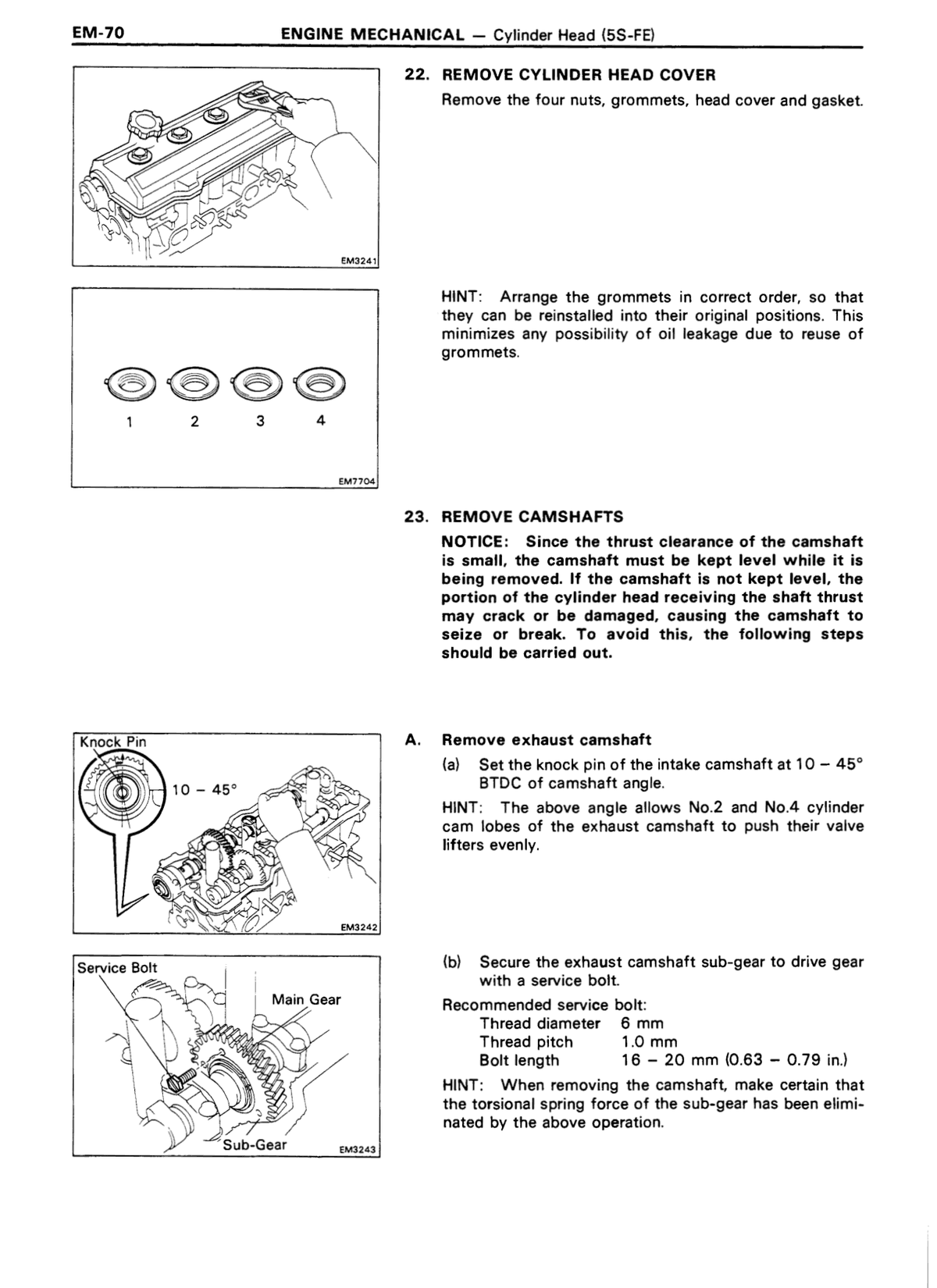

Service bolt thread diameter Used to secure exhaust camshaft sub-gear to drive gear during camshaft removal 6 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p81 OEM manual
Service bolt thread pitch Used to secure exhaust camshaft sub-gear to drive gear during camshaft removal 1 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p81 OEM manual
Service bolt length Range 16-20 mm (0.63-0.79 in.), used to secure exhaust camshaft sub-gear to drive gear 16 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p81 OEM manual

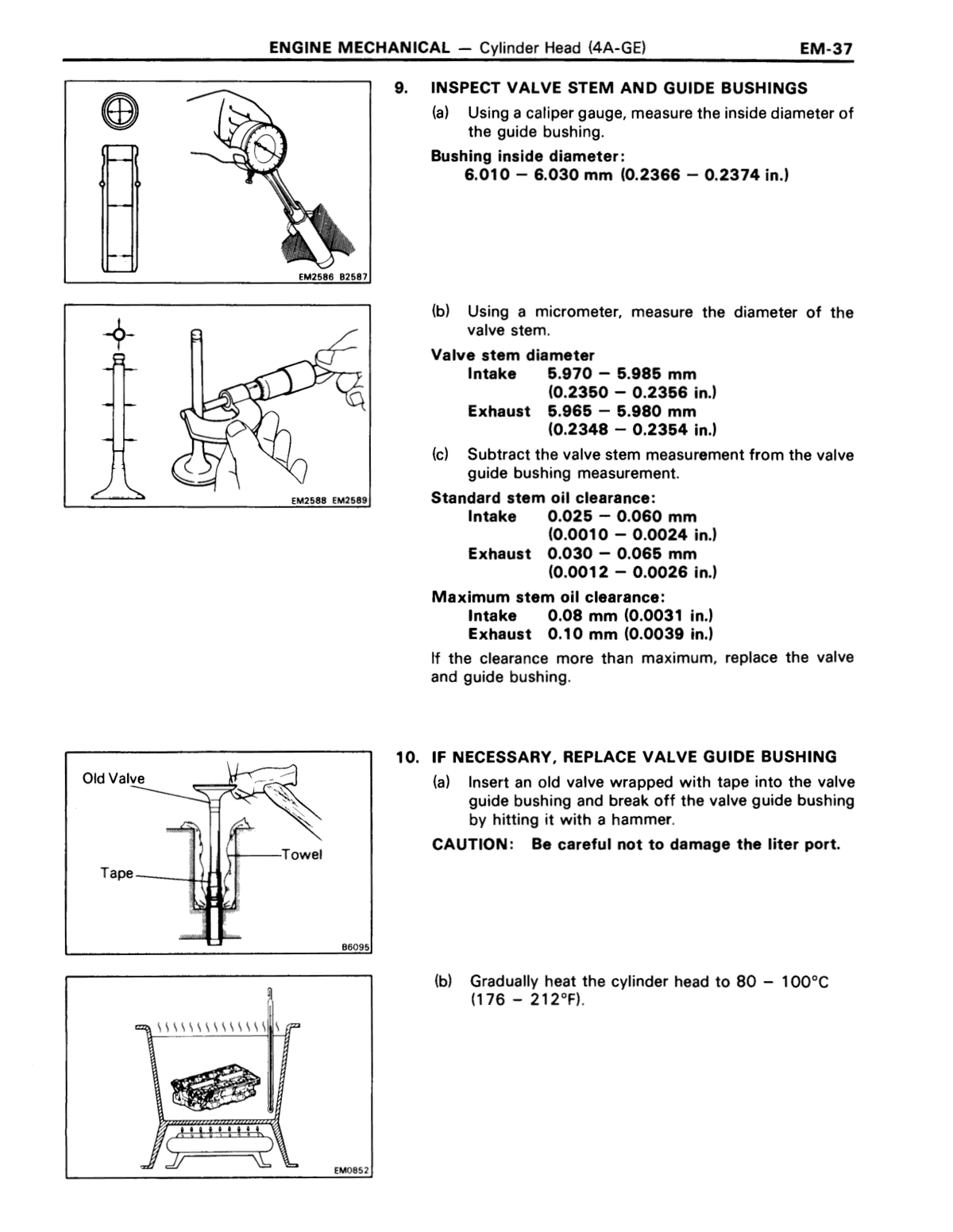

Bushing inside diameter 0.2366-0.2374 in. 6.010-6.030 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p88 OEM manual
Valve stem diameter — Intake 0.2350-0.2356 in. 5.970-5.985 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p88 OEM manual
Valve stem diameter — Exhaust 0.2348-0.2354 in. 5.965-5.980 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p88 OEM manual

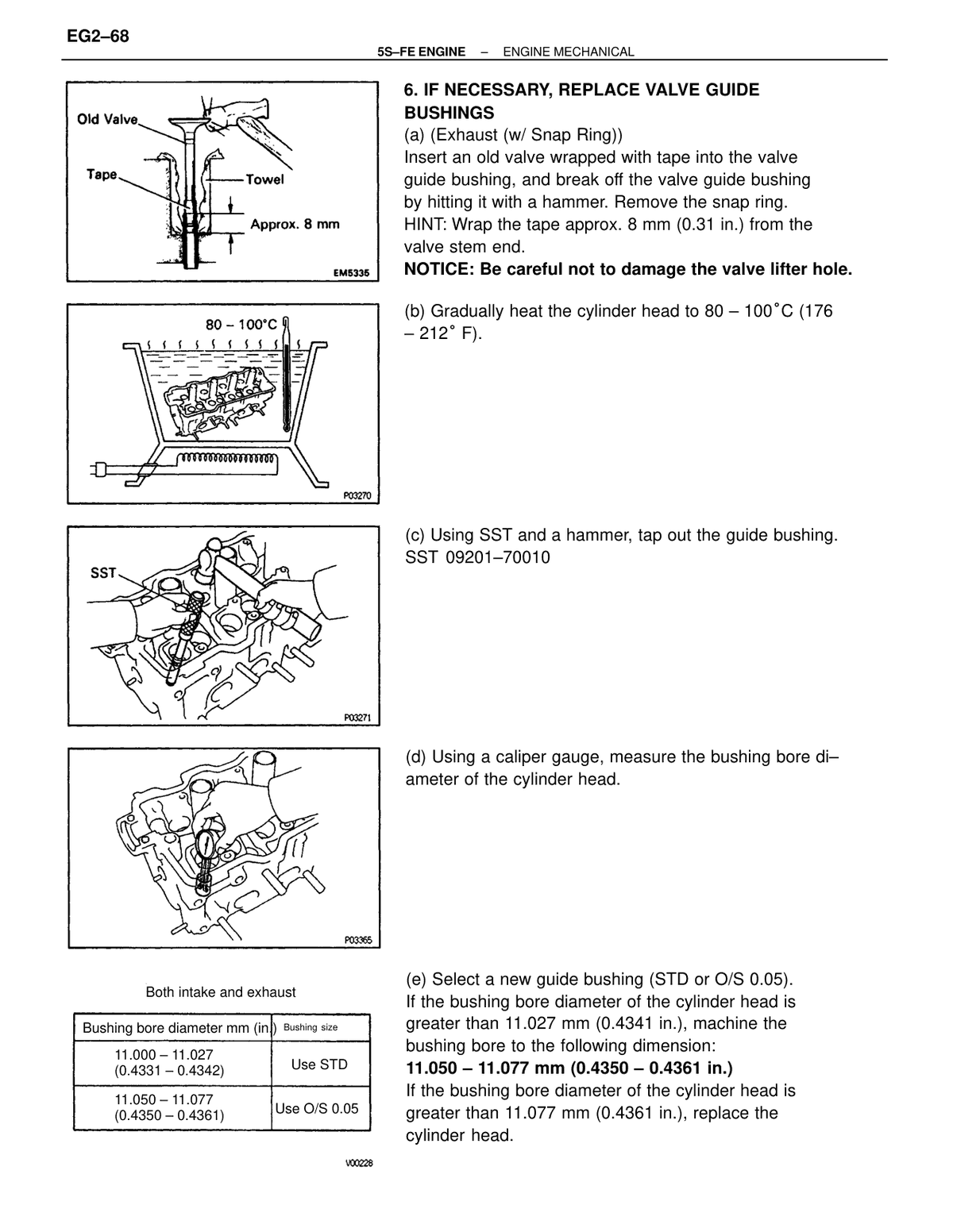

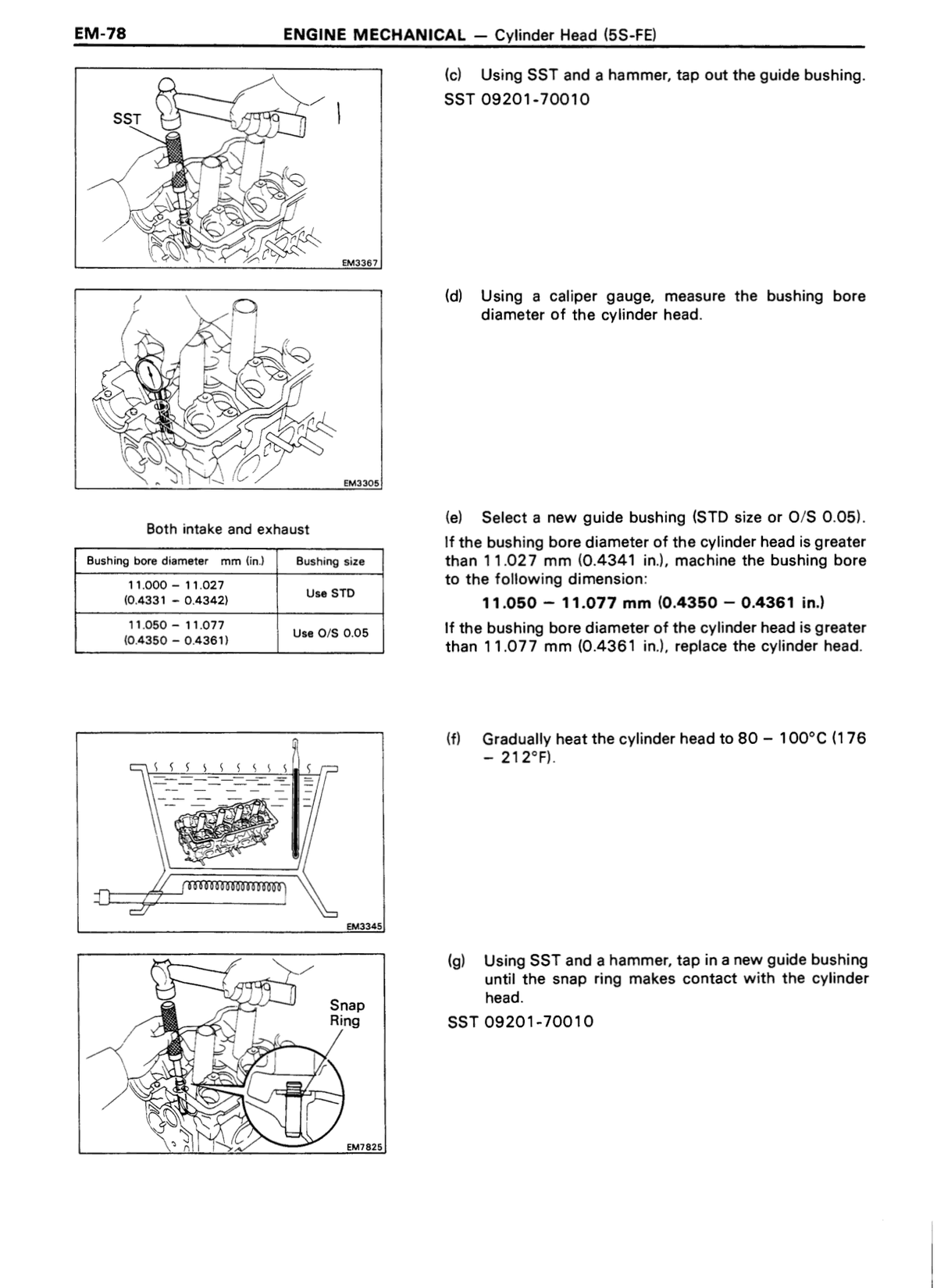

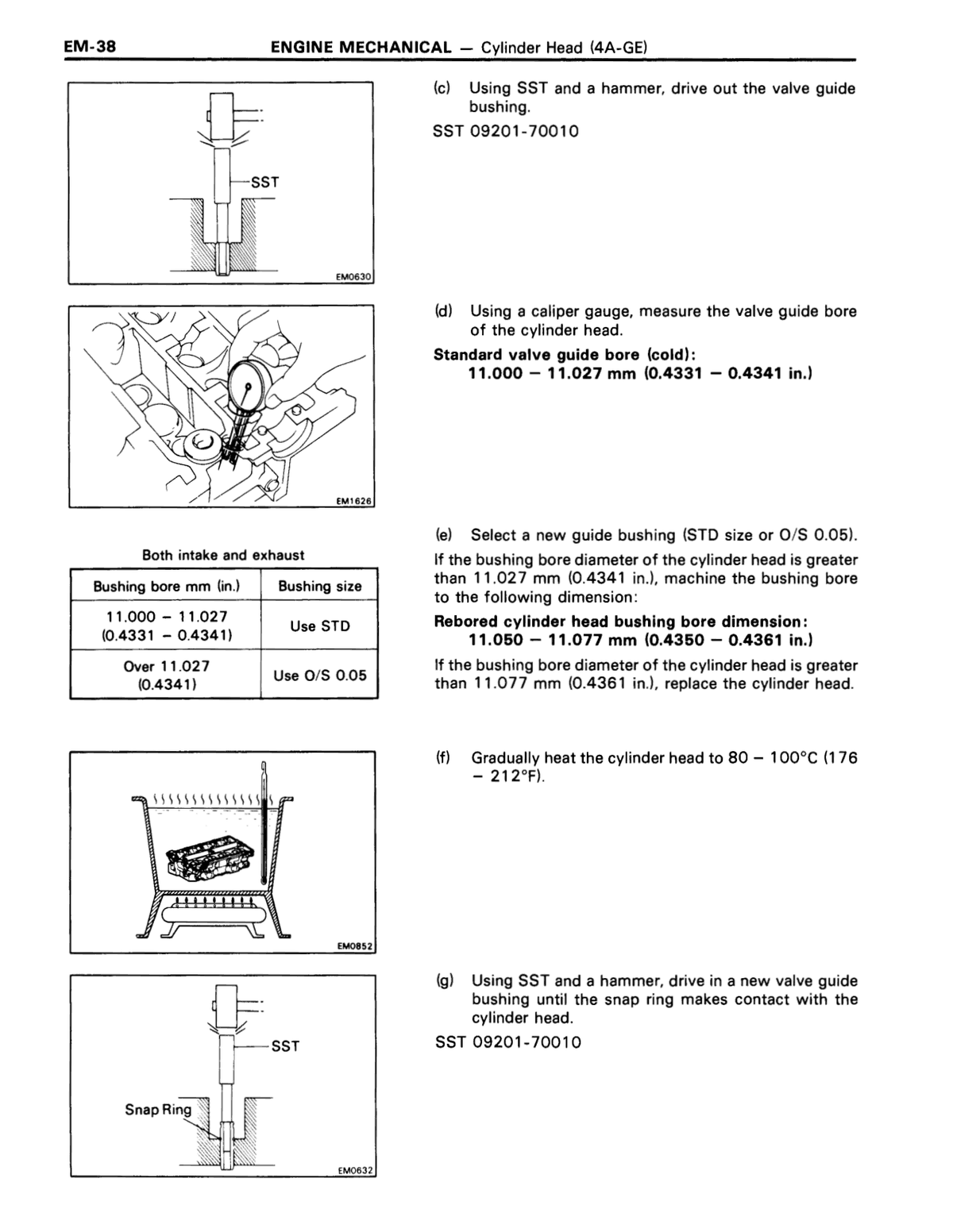

Bushing bore diameter — Use STD bushing (both intake and exhaust) 0.4331 – 0.4342 in. 11.000 – 11.027 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p89 OEM manual
Bushing bore diameter — Use O/S 0.05 bushing (both intake and exhaust) 0.4350 – 0.4361 in. 11.050 – 11.077 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p89 OEM manual
Machined bushing bore dimension when bore exceeds 11.027 mm 0.4350 – 0.4361 in.; required before fitting O/S 0.05 bushing 11.050 – 11.077 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p89 OEM manual
Tape wrap distance from valve stem end approx. 0.31 in.; for protecting valve stem during bushing removal 8 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p89 OEM manual

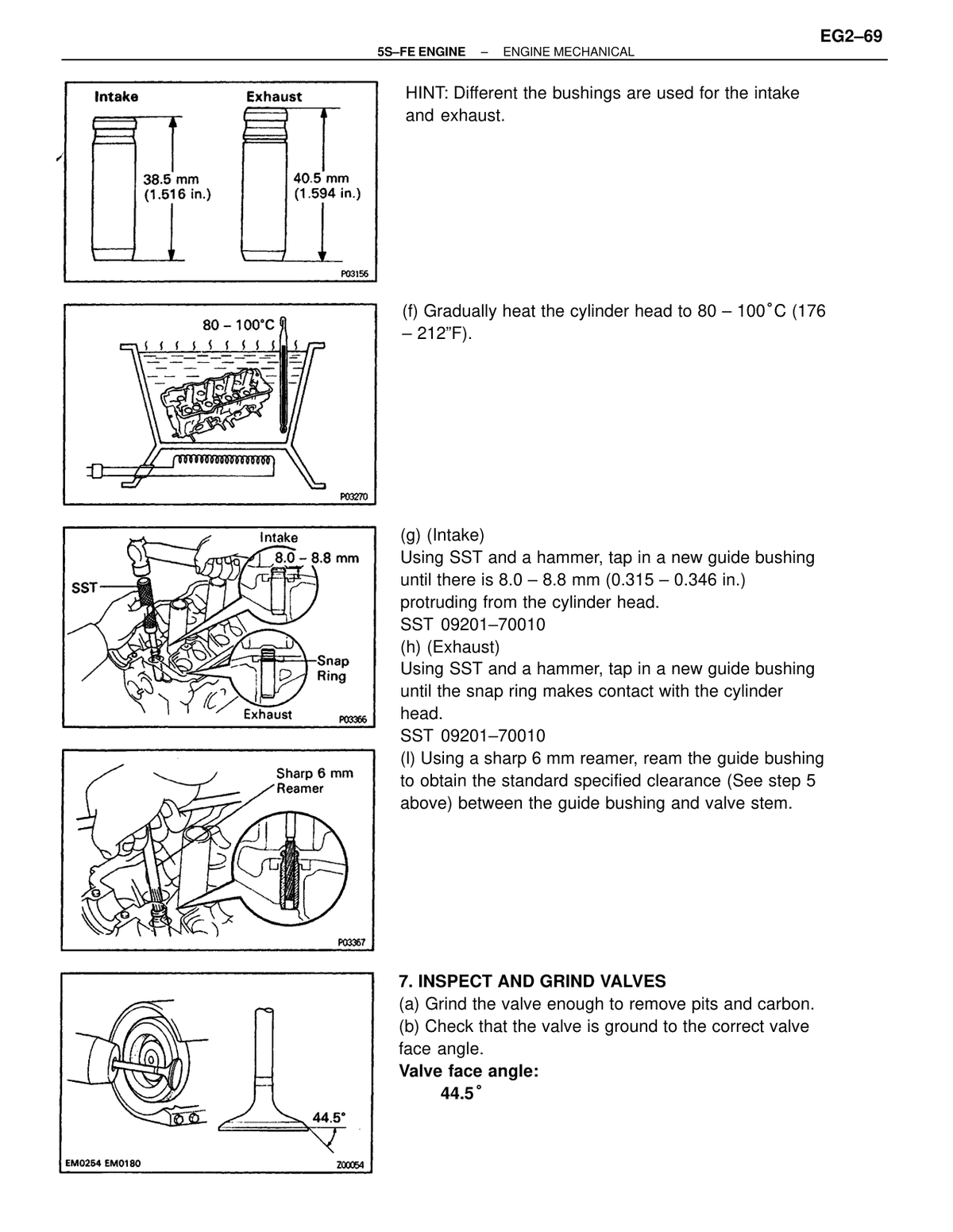

Intake guide bushing protrusion from cylinder head minimum; range 8.0–8.8 mm (0.315–0.346 in.) 8 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p90 OEM manual
Intake guide bushing protrusion from cylinder head — maximum maximum; range 8.0–8.8 mm (0.315–0.346 in.) 8.8 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p90 OEM manual
Intake valve guide bushing height 1.516 in. 38.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p90 OEM manual
Exhaust valve guide bushing height 1.594 in. 40.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p90 OEM manual
Valve face angle intake and exhaust 44.5 degrees Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p90 OEM manual
Valve head margin thickness — standard 0.031–0.047 in. 0.8-1.2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p91 OEM manual
Valve head margin thickness — minimum 0.020 in. 0.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p91 OEM manual
Valve overall length — intake standard 3.8425 in. 97.6 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p91 OEM manual
Valve overall length — exhaust standard 3.8760 in. 98.45 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p91 OEM manual
Valve overall length — intake minimum 3.823 in. 97.1 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p91 OEM manual
Valve overall length — exhaust minimum 3.858 in. 98 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p91 OEM manual
Valve seat contact width 0.039 – 0.055 in.; seat contact must be in middle of valve face 1.0-1.4 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p92 OEM manual

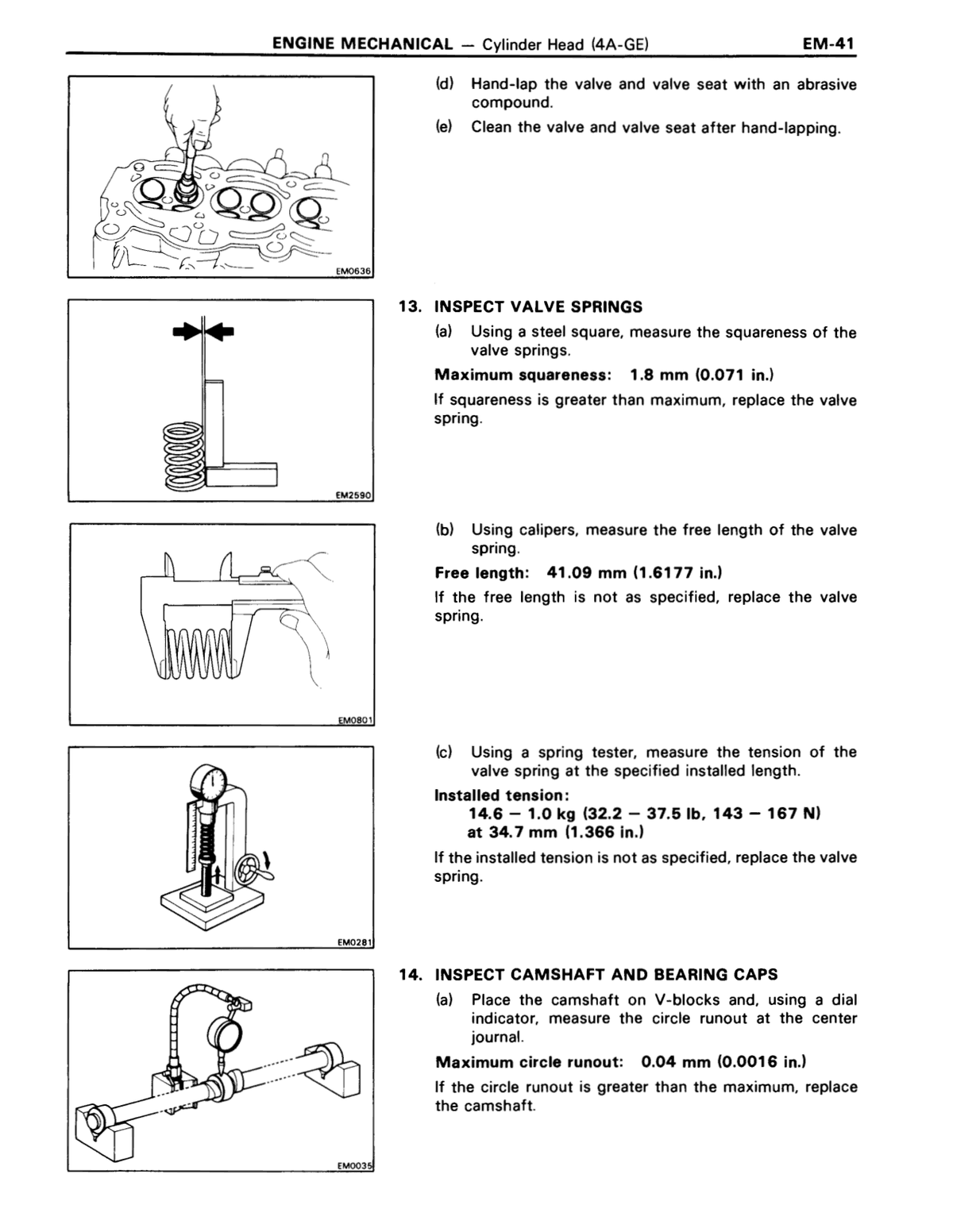

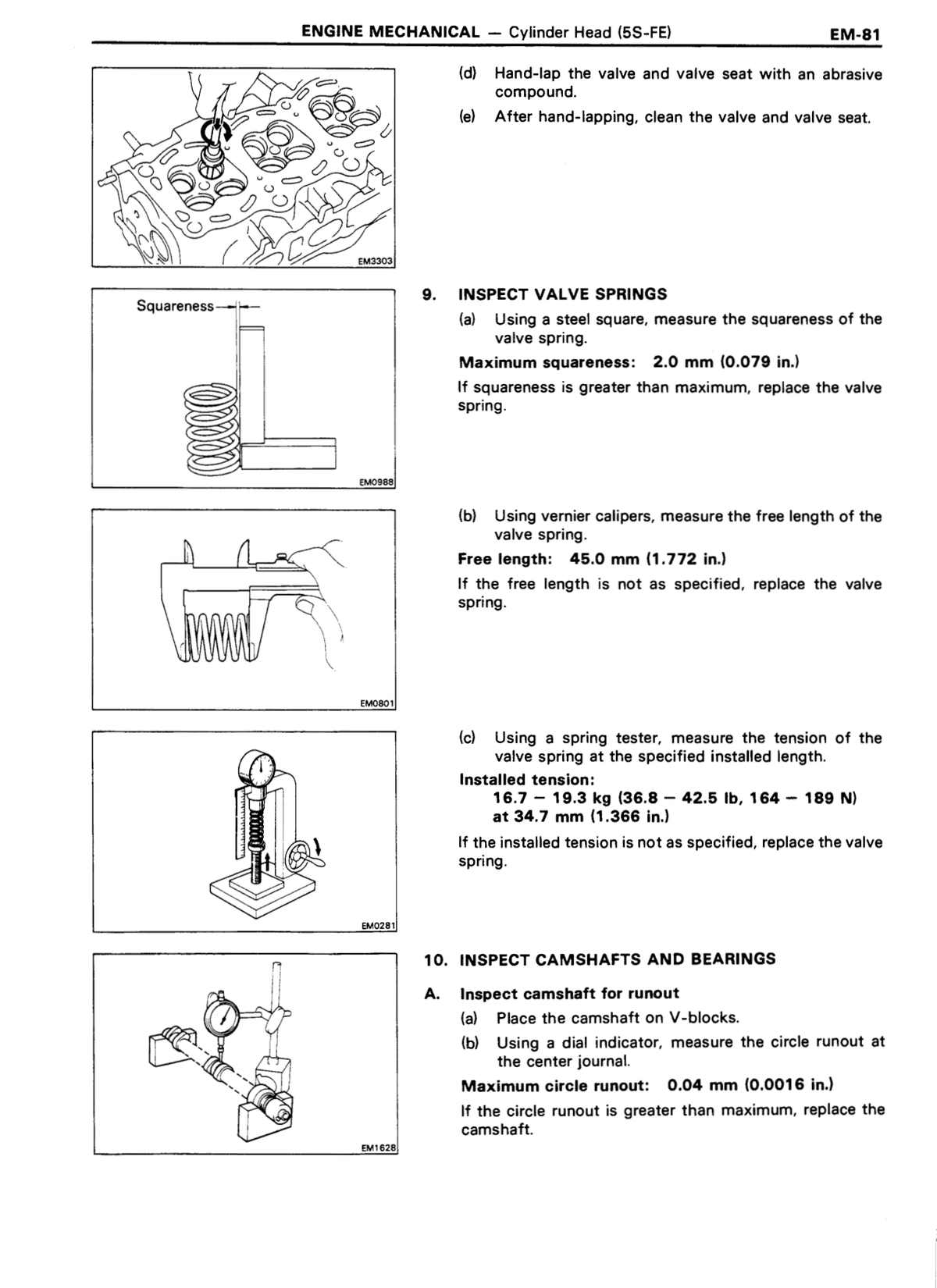

Valve spring squareness maximum deviation 0.079 in.; replace spring if exceeded 2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p92 OEM manual

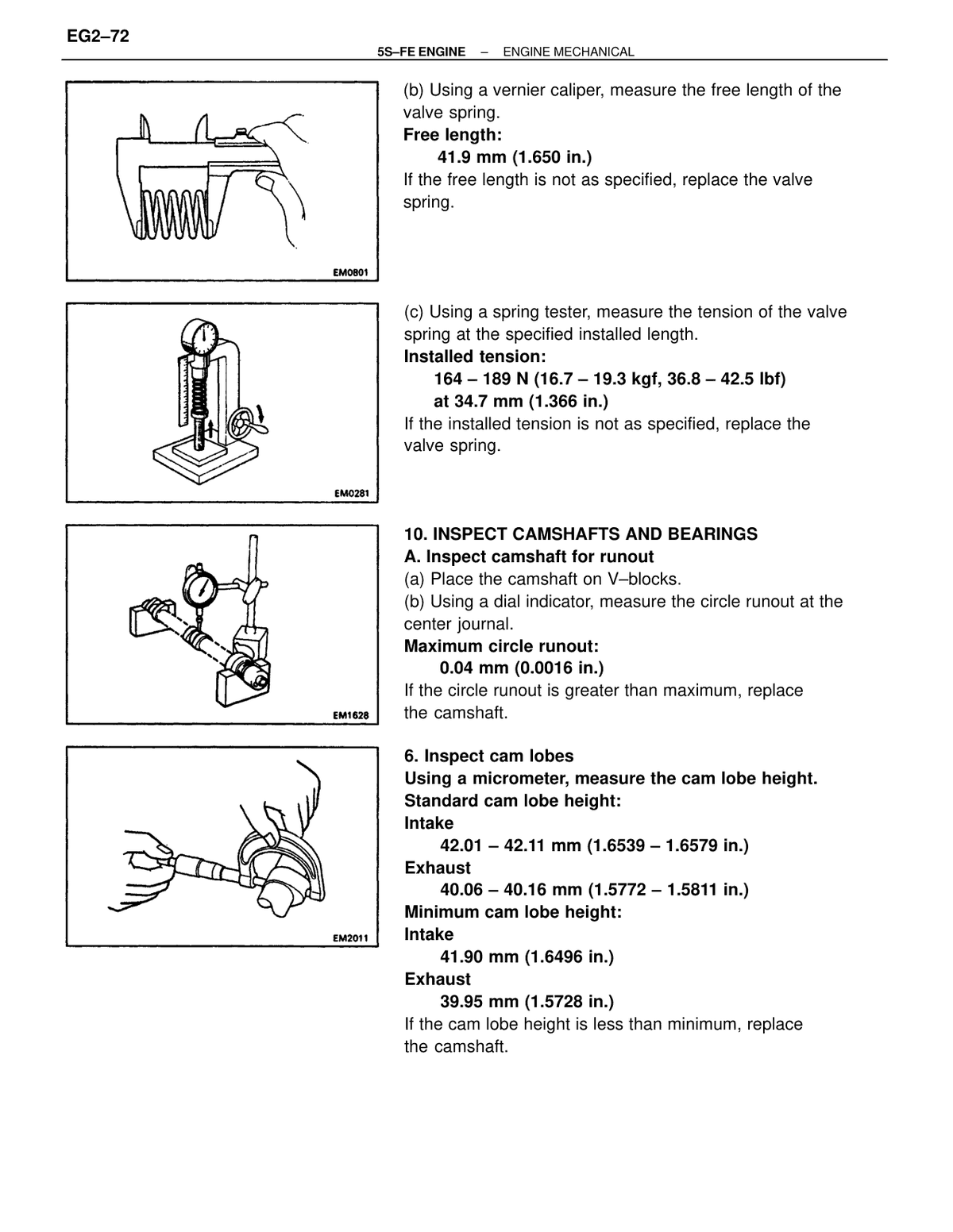

Valve spring free length Replace if not as specified 41.9 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p93 OEM manual
Valve spring installed length Reference length for tension measurement 34.7 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p93 OEM manual
Maximum camshaft circle runout Replace camshaft if greater than maximum 0.04 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p93 OEM manual
Standard cam lobe height — Intake 1.6539-1.6579 in. 42.01-42.11 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p93 OEM manual
Standard cam lobe height — Exhaust 1.5772-1.5811 in. 40.06-40.16 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p93 OEM manual
Minimum cam lobe height — Intake 1.6496 in. Replace camshaft if less than minimum 41.9 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p93 OEM manual
Minimum cam lobe height — Exhaust 1.5728 in. Replace camshaft if less than minimum 39.95 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p93 OEM manual

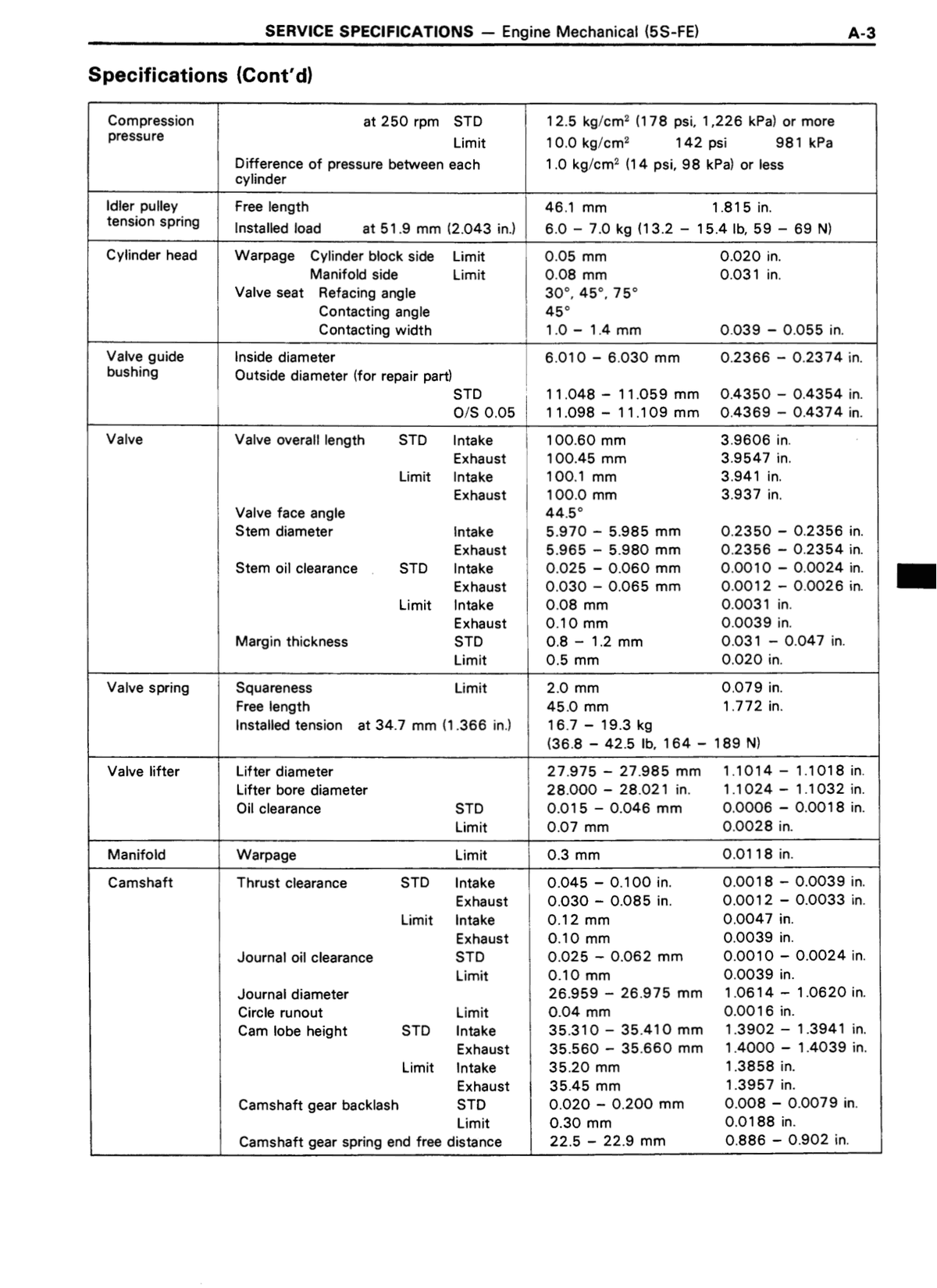

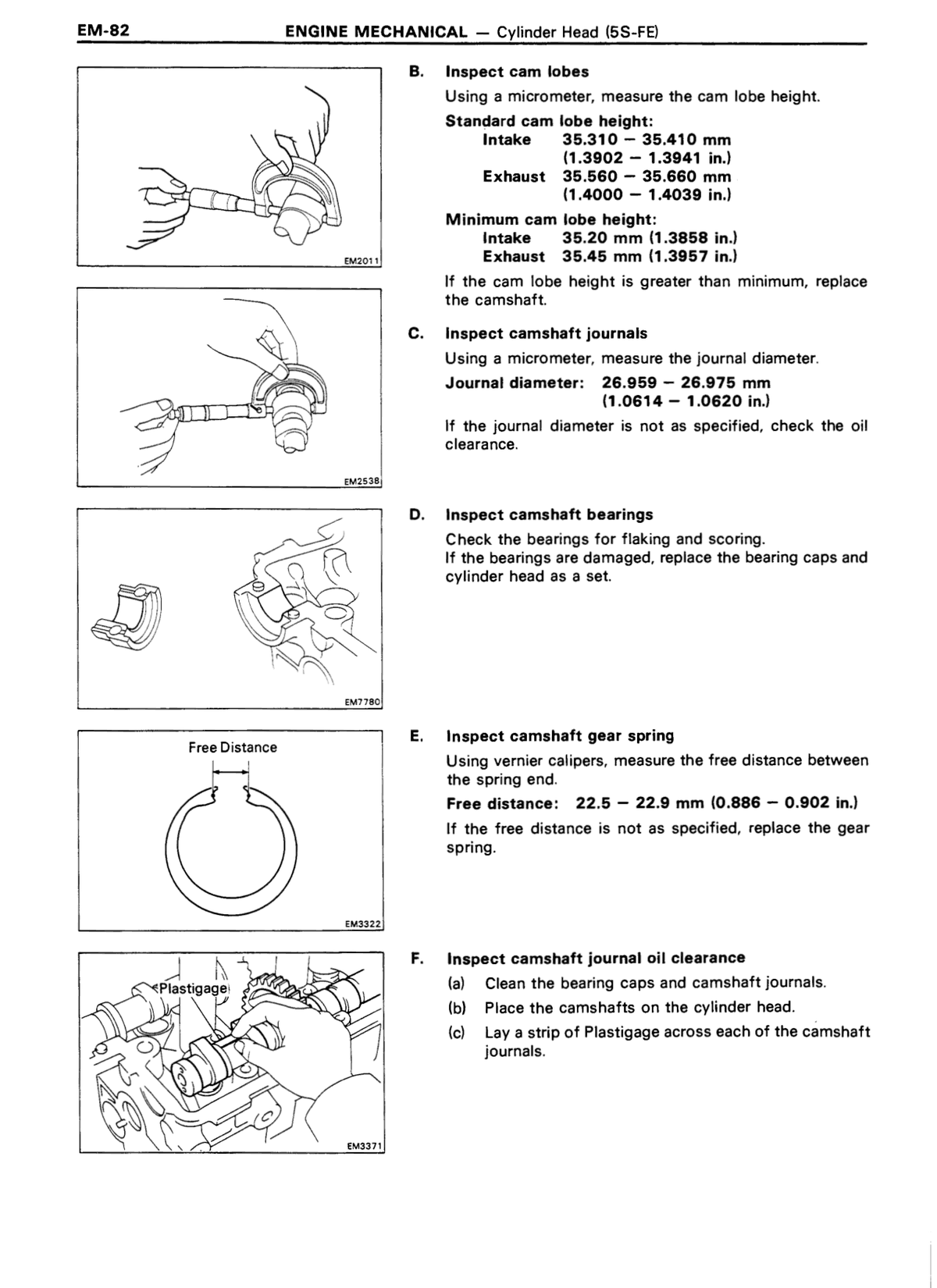

Camshaft journal diameter Range: 26.959 – 26.975 mm (1.0614 – 1.0620 in.) 26.959 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p94 OEM manual
Camshaft gear spring free distance Range: 22.5 – 22.9 mm (0.886 – 0.902 in.) 22.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p94 OEM manual
Seal packing bead width — No.1 bearing cap 2–3 mm (0.08–0.12 in.) 2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p100 OEM manual
Intake camshaft installation angle 80–115° BTDC camshaft angle; positions No.1 and No.3 cam lobes to push valve lifters evenly 80 deg BTDC Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p100 OEM manual
Throttle body bolt length — upper side 1.77 in. 45 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p109 OEM manual
Throttle body bolt length — lower side 2.17 in. 55 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p109 OEM manual
High-tension cord resistance — Limit 25 kΩ per cord 25000 Ω per cord Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Alternator drive belt tension — New belt ± 20 lbf 120 lbf Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Alternator drive belt tension — Used belt ± 20 lbf 104 lbf Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual

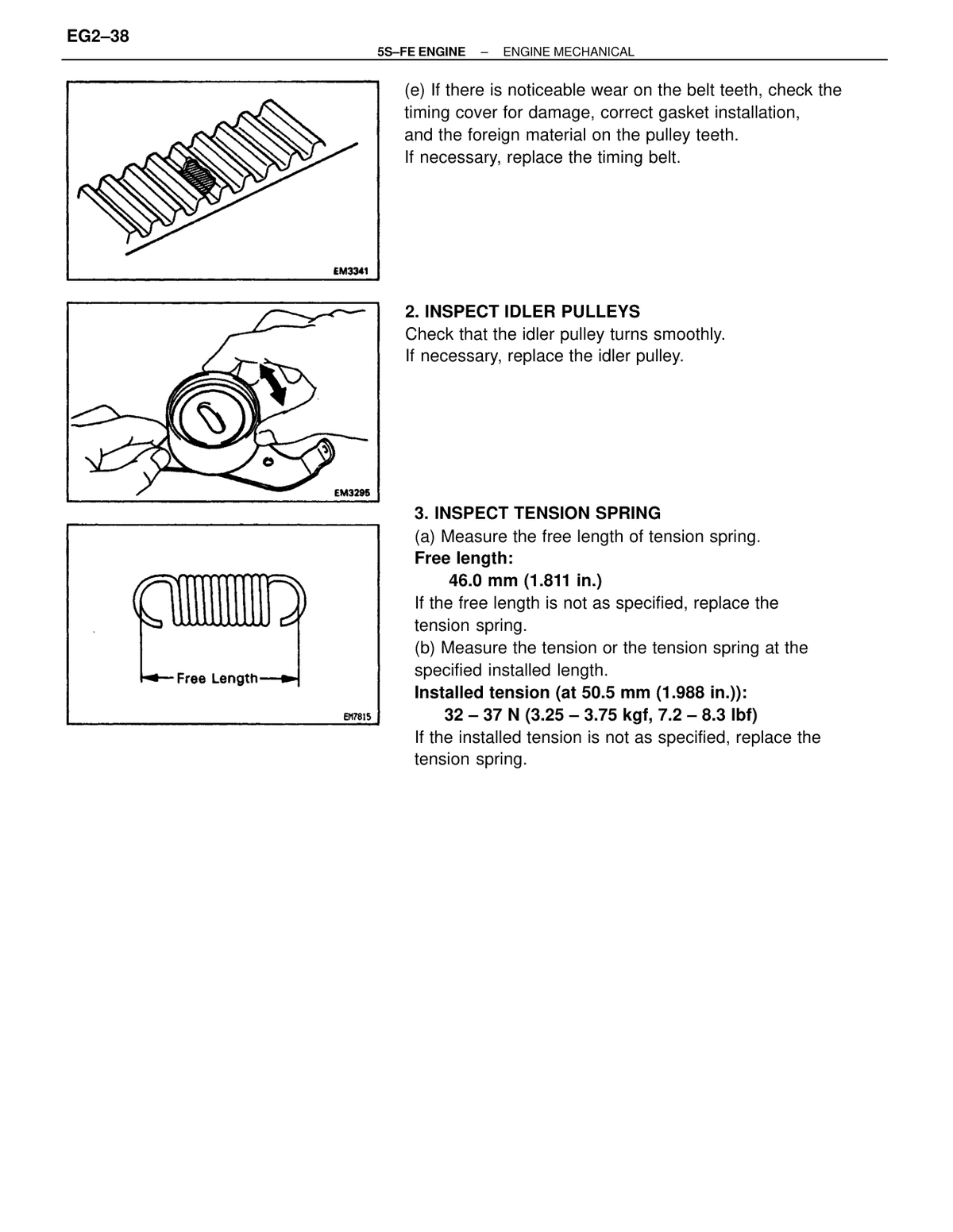

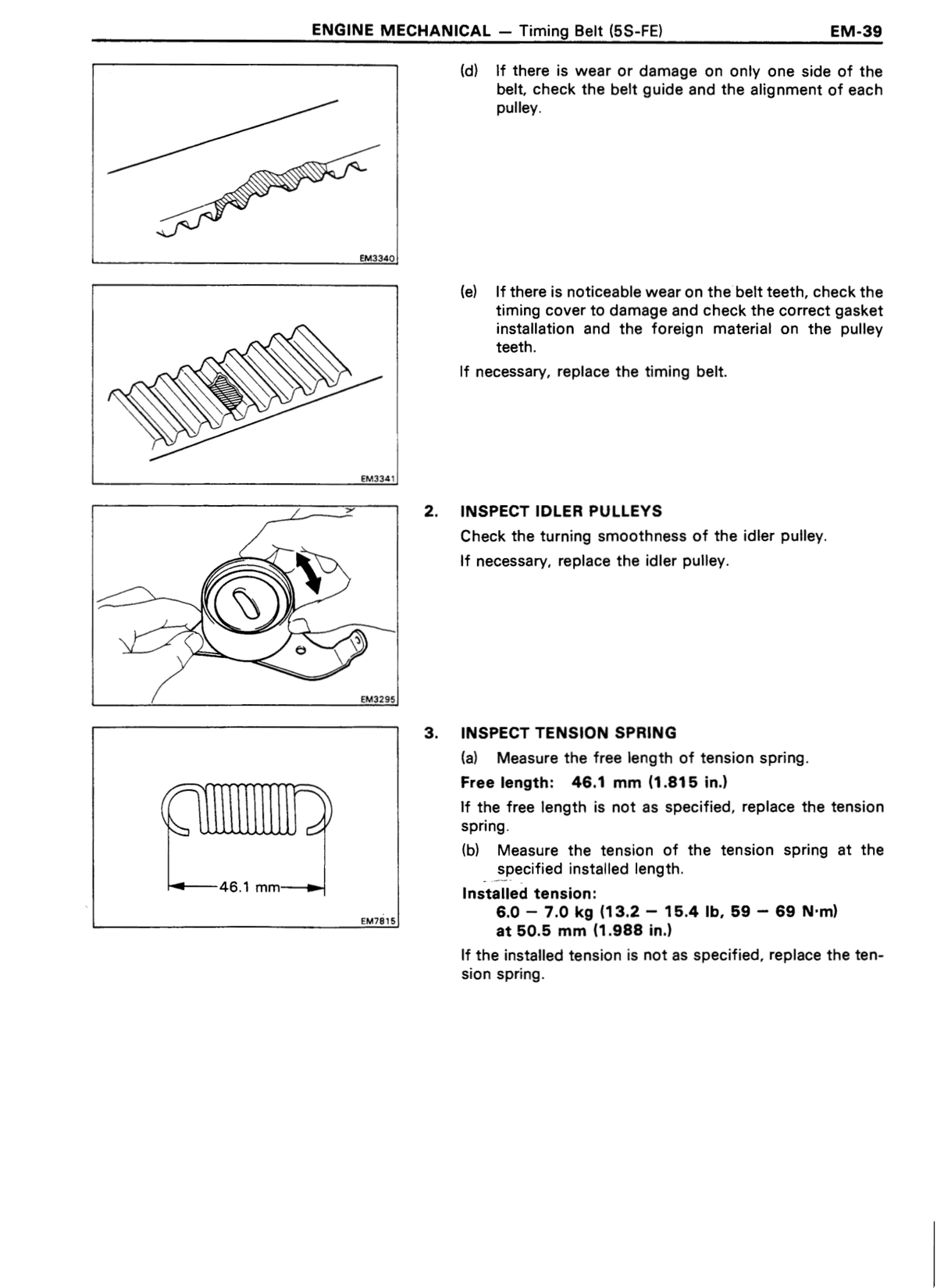

Idler pulley tension spring — Free length 1.811 in. 46 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Idler pulley tension spring — Installed load at 50.5 mm (1.988 in.) 3.25-3.75 kgf, 7.2-8.3 lbf 32-37 N Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Cylinder head warpage — Cylinder block side (Limit) 0.020 in. 0.05 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Cylinder head warpage — Manifold side (Limit) 0.031 in. 0.08 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve seat — Refacing angle 30°, 45°, 75° degrees Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve seat — Contacting angle 45 degrees Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve seat — Contacting width 0.039-0.055 in. 1.0-1.4 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve guide bushing — Inside diameter 0.2366-0.2374 in. 6.010-6.030 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve guide bushing — Outside diameter (for repair part) — STD 0.4331-0.4342 in. 11.000-11.027 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve guide bushing — Outside diameter (for repair part) — O/S 0.05 0.4350-0.4361 in. 11.050-11.077 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve overall length — STD (Intake) 3.8425 in. 97.6 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve overall length — STD (Exhaust) 3.8760 in. 98.45 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve overall length — Limit (Intake) 3.823 in. 97.1 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve overall length — Limit (Exhaust) 3.853 in. 98 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Stem diameter (Intake) 0.2350-0.2356 in. 5.970-5.985 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Stem diameter (Exhaust) 0.2348-0.2354 in. 5.965-5.980 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Margin thickness — STD 0.031-0.047 in. 0.8-1.2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Margin thickness — Limit 0.020 in. 0.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve spring squareness — Limit 0.079 in. 2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve spring free length 1.650 in. 41.9 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve spring installed tension at 34.7 mm (1.366 in.) 16.7-19.3 kgf, 36.8-42.5 lbf 164-189 N Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p128 OEM manual
Valve lifter — Lifter diameter 30.966-30.976 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Valve lifter — Lifter bore diameter 31.000-31.018 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Camshaft — Journal diameter 26.959-26.975 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Camshaft — Cam lobe height STD (Intake) 42.01-42.11 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Camshaft — Cam lobe height STD (Exhaust) 40.06-40.16 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Camshaft — Cam lobe height Limit (Intake) 41.90 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Camshaft — Cam lobe height Limit (Exhaust) 39.95 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Camshaft gear spring end free distance 22.5-22.9 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Cylinder block — Cylinder head surface warpage Limit 0.05 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Cylinder bore diameter STD (Mark 1) 87.000-87.010 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Cylinder bore diameter STD (Mark 2) 87.010-87.020 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Cylinder bore diameter STD (Mark 3) 87.020-87.030 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Cylinder bore diameter Limit (STD) 87.23 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Cylinder bore diameter Limit (O/S 0.50) 87.73 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Piston diameter STD (Mark 1) 86.850-86.860 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Piston diameter STD (Mark 2) 86.860-86.870 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Piston diameter STD (Mark 3) 86.870-86.880 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Piston diameter O/S 0.50 87.350-87.380 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p129 OEM manual
Main journal diameter — STD 54.988-55.003 mm (2.1653-2.1655 in.) 54.988 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main journal diameter — STD upper 54.988-55.003 mm (2.1653-2.1655 in.) 55.003 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main journal diameter — U/S 0.25 54.745-54.755 mm (2.1553-2.1557 in.) 54.745 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main journal diameter — U/S 0.25 upper 54.745-54.755 mm (2.1553-2.1557 in.) 54.755 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (No.3 — Mark 1) 1.992-1.995 mm (0.0784-0.0785 in.) 1.992 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (No.3 — Mark 2) 1.995-1.998 mm (0.0785-0.0787 in.) 1.995 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (No.3 — Mark 3) 1.998-2.001 mm (0.0787-0.0788 in.) 1.998 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (No.3 — Mark 4) 2.001-2.004 mm (0.0788-0.0789 in.) 2.001 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (No.3 — Mark 5) 2.004-2.007 mm (0.0789-0.0790 in.) 2.004 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (Others — Mark 1) 1.997-2.000 mm (0.0786-0.0787 in.) 1.997 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (Others — Mark 2) 2.000-2.003 mm (0.0787-0.0789 in.) 2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (Others — Mark 3) 2.003-2.006 mm (0.0789-0.0790 in.) 2.003 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (Others — Mark 4) 2.006-2.009 mm (0.0790-0.0791 in.) 2.006 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Main bearing center wall thickness — STD (Others — Mark 5) 2.009-2.012 mm (0.0791-0.0792 in.) 2.009 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Crank pin diameter — STD 51.985-52.000 mm (2.0466-2.0472 in.) 51.985 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual
Crank pin diameter — U/S 0.25 51.745-51.755 mm (2.0372-2.0376 in.) 51.745 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p130 OEM manual

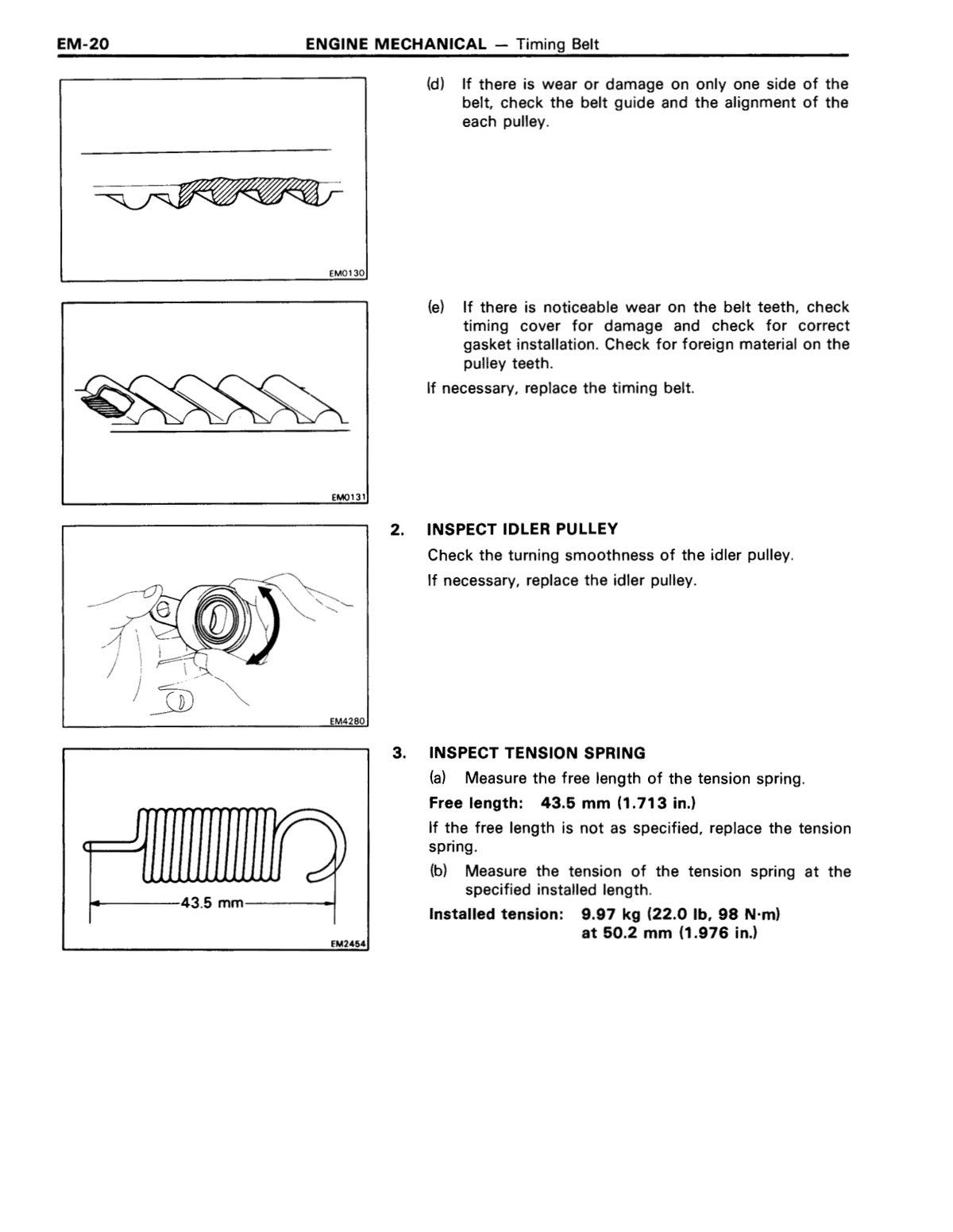

Tension spring free length 1.811 in.; replace if not as specified 46 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p143 OEM manual
Tension spring installed length (for tension check) 1.988 in. 50.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p143 OEM manual
No.2 idler pulley bolt length 1.38 in. 35 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p144 OEM manual
No.1 idler pulley bolt length 1.65 in. 42 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p144 OEM manual
Adjusting shim thickness — minimum Shims available in 17 sizes in 0.05 mm increments 2.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p160 OEM manual
Adjusting shim thickness — maximum Shims available in 17 sizes in 0.05 mm increments 3.3 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p160 OEM manual
Adjusting shim thickness increment 17 sizes available from 2.50 mm to 3.30 mm 0.05 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p160 OEM manual
Shim No. 1 thickness 0.0984 in. 2.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 2 thickness 0.1004 in. 2.55 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 3 thickness 0.1024 in. 2.6 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 4 thickness 0.1043 in. 2.65 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 5 thickness 0.1063 in. 2.7 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 6 thickness 0.1083 in. 2.75 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 7 thickness 0.1102 in. 2.8 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 8 thickness 0.1122 in. 2.85 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 9 thickness 0.1142 in. 2.9 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 10 thickness 0.1161 in. 2.95 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 11 thickness 0.1181 in. 3 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 12 thickness 0.1201 in. 3.05 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 13 thickness 0.1220 in. 3.1 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 14 thickness 0.1240 in. 3.15 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 15 thickness 0.1260 in. 3.2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 16 thickness 0.1280 in. 3.25 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 17 thickness 0.1299 in. 3.3 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p161 OEM manual
Shim No. 1 thickness 0.0984 in. 2.5 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 2 thickness 0.1004 in. 2.55 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 3 thickness 0.1024 in. 2.6 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 4 thickness 0.1043 in. 2.65 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 5 thickness 0.1063 in. 2.7 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 6 thickness 0.1083 in. 2.75 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 7 thickness 0.1102 in. 2.8 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 8 thickness 0.1122 in. 2.85 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 9 thickness 0.1142 in. 2.9 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 10 thickness 0.1161 in. 2.95 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 11 thickness 0.1181 in. 3 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 12 thickness 0.1201 in. 3.05 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 13 thickness 0.1220 in. 3.1 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 14 thickness 0.1240 in. 3.15 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 15 thickness 0.1260 in. 3.2 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 16 thickness 0.1280 in. 3.25 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Shim No. 17 thickness 0.1299 in. 3.3 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Example — installed shim thickness 0.1102 in.; measured clearance 0.450 mm (0.0177 in.); replace with new No. 9 shim 2.8 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Example — replacement shim (No. 9) thickness 0.1142 in. 2.9 mm Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p162 OEM manual
Oil pump long bolt length 1.38 in. 35 mm Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p32 OEM manual
Oil pump other bolt length 0.98 in. 25 mm Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p32 OEM manual
Oil pan seal packing width 3-5 mm (0.12-0.20 in.) nozzle opening 3 mm Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p33 OEM manual
Starter brush length (STD) 0.591 in. 15 mm Starting / charging ↗ RM285U_1993_starting · p7 OEM manual
Starter brush length (Minimum) 0.394 in. 10 mm Starting / charging ↗ RM285U_1993_starting · p7 OEM manual

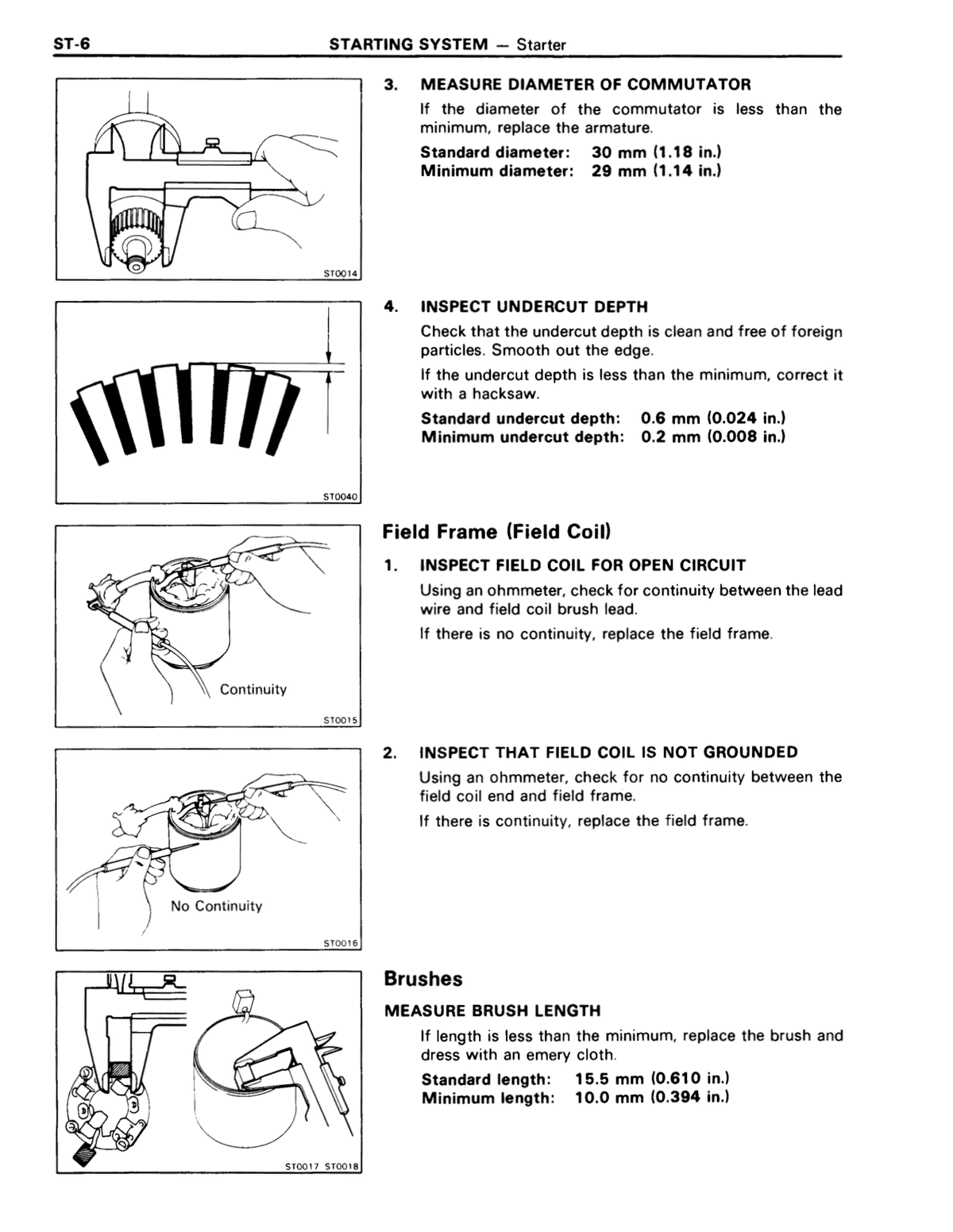

Starter commutator diameter (STD) 1.18 in. 30 mm Starting / charging ↗ RM285U_1993_starting · p7 OEM manual
Starter commutator diameter (Minimum) 1.14 in. 29 mm Starting / charging ↗ RM285U_1993_starting · p7 OEM manual
Starter commutator undercut depth (STD) 0.024 in. 0.6 mm Starting / charging ↗ RM285U_1993_starting · p7 OEM manual
Starter commutator undercut depth (Minimum) 0.008 in. 0.2 mm Starting / charging ↗ RM285U_1993_starting · p7 OEM manual
Starter commutator circle runout (Maximum) 0.0020 in. 0.05 mm Starting / charging ↗ RM285U_1993_starting · p7 OEM manual
Commutator diameter — standard 1.18 in. 30 mm Starting / charging ↗ RM285U_1993_starting · p15 OEM manual
Commutator diameter — minimum 1.14 in. 29 mm Starting / charging ↗ RM285U_1993_starting · p15 OEM manual
Shim thickness — Mark 0 0.0512 in. 1.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 1 0.0531 in. 1.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 2 0.0551 in. 1.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 3 0.0571 in. 1.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 4 0.0591 in. 1.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 5 0.0610 in. 1.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 6 0.0630 in. 1.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 7 0.0650 in. 1.65 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 8 0.0669 in. 1.7 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark 9 0.0689 in. 1.75 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark A 0.0709 in. 1.8 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark B 0.0728 in. 1.85 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark C 0.0748 in. 1.9 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark D 0.0768 in. 1.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark E 0.0787 in. 2 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark F 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark G 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark H 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark J 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark K 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark L 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark M 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark N 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark P 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Shim thickness — Mark Q 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
Seal breadth on transmission case approx. 1 mm (0.04 in.) 1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p19 OEM manual
Snap ring Mark Q thickness 0.0886 in. — for minimum axial play selection 2.25 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Snap ring Mark R thickness 0.0906 in. — for minimum axial play selection 2.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Snap ring Mark S thickness 0.0925 in. — for minimum axial play selection 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Snap ring Mark T thickness 0.0945 in. — for minimum axial play selection 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Snap ring Mark U thickness 0.0965 in. — for minimum axial play selection 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Snap ring Mark V thickness 0.0984 in. — for minimum axial play selection 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Snap ring Mark W thickness 0.1004 in. — for minimum axial play selection 2.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Snap ring Mark X thickness 0.1024 in. — for minimum axial play selection 2.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Snap ring Mark Y thickness 0.1043 in. — for minimum axial play selection 2.65 mm Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
Seal packing breadth — transmission case cover approx. 1 mm (0.04 in.) 1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p23 OEM manual
Gear Ratio — 1st Transaxle E1-53, Engine 3S-GTE 3.23 Transmission / transaxle ↗ RM285U_1993_e153 · p44 OEM manual
Gear Ratio — 2nd Transaxle E1-53, Engine 3S-GTE 1.913 Transmission / transaxle ↗ RM285U_1993_e153 · p44 OEM manual
Gear Ratio — 3rd Transaxle E1-53, Engine 3S-GTE 1.258 Transmission / transaxle ↗ RM285U_1993_e153 · p44 OEM manual
Gear Ratio — 4th Transaxle E1-53, Engine 3S-GTE 0.918 Transmission / transaxle ↗ RM285U_1993_e153 · p44 OEM manual
Gear Ratio — 5th Transaxle E1-53, Engine 3S-GTE 0.731 Transmission / transaxle ↗ RM285U_1993_e153 · p44 OEM manual
Gear Ratio — Reverse Transaxle E1-53, Engine 3S-GTE 3.545 Transmission / transaxle ↗ RM285U_1993_e153 · p44 OEM manual
Differential Gear Ratio Transaxle E1-53, Engine 3S-GTE 4.285 Transmission / transaxle ↗ RM285U_1993_e153 · p44 OEM manual
Thrust washer thickness — option 1 0.0315 in. 0.8 mm Transmission / transaxle ↗ RM285U_1993_e153 · p52 OEM manual
Thrust washer thickness — option 2 0.0354 in. 0.9 mm Transmission / transaxle ↗ RM285U_1993_e153 · p52 OEM manual
Thrust washer thickness — option 3 0.0394 in. 1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p52 OEM manual
Thrust washer thickness — option 4 0.0433 in. 1.1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p52 OEM manual
Thrust washer thickness — option 5 0.0472 in. 1.2 mm Transmission / transaxle ↗ RM285U_1993_e153 · p52 OEM manual
Thrust washer thickness — option 6 0.0512 in. 1.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p52 OEM manual
Thrust washer thickness — option 7 0.0551 in. 1.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p52 OEM manual
Output shaft rear tapered roller bearing outer race installation depth Reference dimension shown in illustration MT0668 3.7 mm Transmission / transaxle ↗ RM285U_1993_e153 · p55 OEM manual
Thrust washer Mark 1 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer Mark 3 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer Mark 5 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer Mark 7 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer Mark 9 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer Mark B 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer Mark D 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer Mark F 0.1083 in. 2.75 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer Mark H 0.1122 in. 2.85 mm Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
Thrust washer thickness — option 1 0.0315 in. 0.8 mm Transmission / transaxle ↗ RM285U_1993_e153 · p64 OEM manual
Thrust washer thickness — option 2 0.0354 in. 0.9 mm Transmission / transaxle ↗ RM285U_1993_e153 · p64 OEM manual
Thrust washer thickness — option 3 0.0394 in. 1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p64 OEM manual
Thrust washer thickness — option 4 0.0433 in. 1.1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p64 OEM manual
Thrust washer thickness — option 5 0.0472 in. 1.2 mm Transmission / transaxle ↗ RM285U_1993_e153 · p64 OEM manual
Thrust washer thickness — option 6 0.0512 in. 1.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p64 OEM manual
Thrust washer thickness — option 7 0.0551 in. 1.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p64 OEM manual
Shim Mark 1 thickness 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark 2 thickness 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark 3 thickness 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark 4 thickness 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark 5 thickness 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark 6 thickness 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark 7 thickness 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark 8 thickness 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark 9 thickness 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark A thickness 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark B thickness 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark C thickness 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark D thickness 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark E thickness 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark F thickness 0.1083 in. 2.75 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark G thickness 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Shim Mark H thickness 0.1122 in. 2.85 mm Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
Input shaft journal outer diameter — Part A — minimum 1.1004 in. 27.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p73 OEM manual
Input shaft journal outer diameter — Part B and C — minimum 1.4154 in. 35.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p73 OEM manual
Snap ring mark H thickness 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p74 OEM manual
Snap ring mark J thickness 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p74 OEM manual
Snap ring mark K thickness 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p74 OEM manual
Snap ring mark L thickness 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p74 OEM manual
Snap ring mark M thickness 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p74 OEM manual
Snap ring mark N thickness 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p74 OEM manual
Snap ring mark P thickness 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p74 OEM manual
Snap ring Mark 1 thickness 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
Snap ring Mark 2 thickness 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
Snap ring Mark 3 thickness 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
Snap ring Mark 4 thickness 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
Snap ring Mark 5 thickness 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
Snap ring Mark 6 thickness 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
Snap ring Mark 7 thickness 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
Snap ring Mark 8 thickness 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
Output shaft journal surface outer diameter — minimum 1.5335 in. 38.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p85 OEM manual
Output shaft runout — maximum 0.0024 in.; measured with dial indicator 0.06 mm Transmission / transaxle ↗ RM285U_1993_e153 · p85 OEM manual
Snap ring Mark A thickness 0.1102 in 2.8 mm Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
Snap ring Mark B thickness 0.1122 in 2.85 mm Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
Snap ring Mark C thickness 0.1142 in 2.9 mm Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
Snap ring Mark D thickness 0.1161 in 2.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
Snap ring Mark E thickness 0.1181 in 3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
Snap ring Mark F thickness 0.1201 in 3.05 mm Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
Snap ring Mark G thickness 0.1220 in 3.1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
Input shaft 3rd and 4th gear journal diameter — Limit 1.4154 in. 35.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p93 OEM manual
Input shaft 5th gear journal diameter — Limit 1.1004 in. 27.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p93 OEM manual
Input shaft runout — Limit 0.0020 in. 0.05 mm Transmission / transaxle ↗ RM285U_1993_e153 · p93 OEM manual
Output shaft 1st and 2nd gear journal diameter — Limit 1.5335 in. 38.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p93 OEM manual
Output shaft runout — Limit 0.0024 in. 0.06 mm Transmission / transaxle ↗ RM285U_1993_e153 · p93 OEM manual
Input shaft snap ring thickness — No.2 clutch hub — Mark H 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.2 clutch hub — Mark J 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.2 clutch hub — Mark K 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.2 clutch hub — Mark L 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.2 clutch hub — Mark M 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.2 clutch hub — Mark N 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.2 clutch hub — Mark P 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark CI 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark R 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark S 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark T 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark U 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark V 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark W 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark X 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — No.3 clutch hub — Mark * 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — Ball bearing — Mark 1 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — Ball bearing — Mark 2 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — Ball bearing — Mark 3 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — Ball bearing — Mark 4 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — Ball bearing — Mark 5 0.1004 in. 2.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — Ball bearing — Mark 6 0.1024 in. 2.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — Ball bearing — Mark 7 0.1043 in. 2.65 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Input shaft snap ring thickness — Ball bearing — Mark 8 0.1063 in. 2.7 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Output shaft snap ring thickness — No.1 clutch hub — Mark A 0.1102 in. 2.8 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Output shaft snap ring thickness — No.1 clutch hub — Mark 6 0.1122 in. 2.85 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Output shaft snap ring thickness — No.1 clutch hub — Mark C 0.1142 in. 2.9 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Output shaft snap ring thickness — No.1 clutch hub — Mark D 0.1161 in. 2.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Output shaft snap ring thickness — No.1 clutch hub — Mark E 0.1181 in. 3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Output shaft snap ring thickness — No.1 clutch hub — Mark F 0.1201 in. 3.05 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Output shaft snap ring thickness — No.1 clutch hub — Mark G 0.1220 in. 3.1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Oil pump body clearance — STD 0.0039-0.0063 in. 0.10-0.16 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Oil pump body clearance — Limit 0.0118 in. 0.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Oil pump tip clearance — STD 0.0031-0.0059 in. 0.08-0.15 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Oil pump tip clearance — Limit 0.0118 in. 0.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Oil pump side clearance — STD 0.0012-0.0031 in. 0.03-0.08 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Oil pump side clearance — Limit 0.0059 in. 0.15 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Control shaft cover oil seal drive in depth 0-0.039 in. 0-1.0 mm Transmission / transaxle ↗ RM285U_1993_e153 · p94 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 0 0.0512 in. 1.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 1 0.0531 in. 1.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 2 0.0551 in. 1.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 3 0.0571 in. 1.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 4 0.0591 in. 1.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 5 0.0610 in. 1.55 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 6 0.0630 in. 1.6 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 7 0.0650 in. 1.65 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 8 0.0669 in. 1.7 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 9 0.0689 in. 1.75 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark A 0.0709 in. 1.8 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark B 0.0728 in. 1.85 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark C 0.0748 in. 1.9 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark D 0.0768 in. 1.95 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark E 0.0787 in. 2 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark F 0.0807 in. 2.05 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark G 0.0827 in. 2.1 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark H 0.0846 in. 2.15 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark J 0.0866 in. 2.2 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark K 0.0886 in. 2.25 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark L 0.0906 in. 2.3 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark M 0.0925 in. 2.35 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark N 0.0945 in. 2.4 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark P 0.0965 in. 2.45 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
Output shaft rear bearing adjusting shim thickness — Mark 0 (second) 0.0984 in. 2.5 mm Transmission / transaxle ↗ RM285U_1993_e153 · p96 OEM manual
No matches.
