Part numbers.
3058 OEM part numbers from the manual, each with its description, the page it appears on, and the original source scan one click away.
Find a part number
Chassis
Section
Showing 3058 of 3058
Part number Description Section Source
RM179U2 Volume 2 — Chassis, Body and Electrical Service Procedures for 1991 MR2 Introduction ↗ RM179U1_1991 · p1 OEM manual

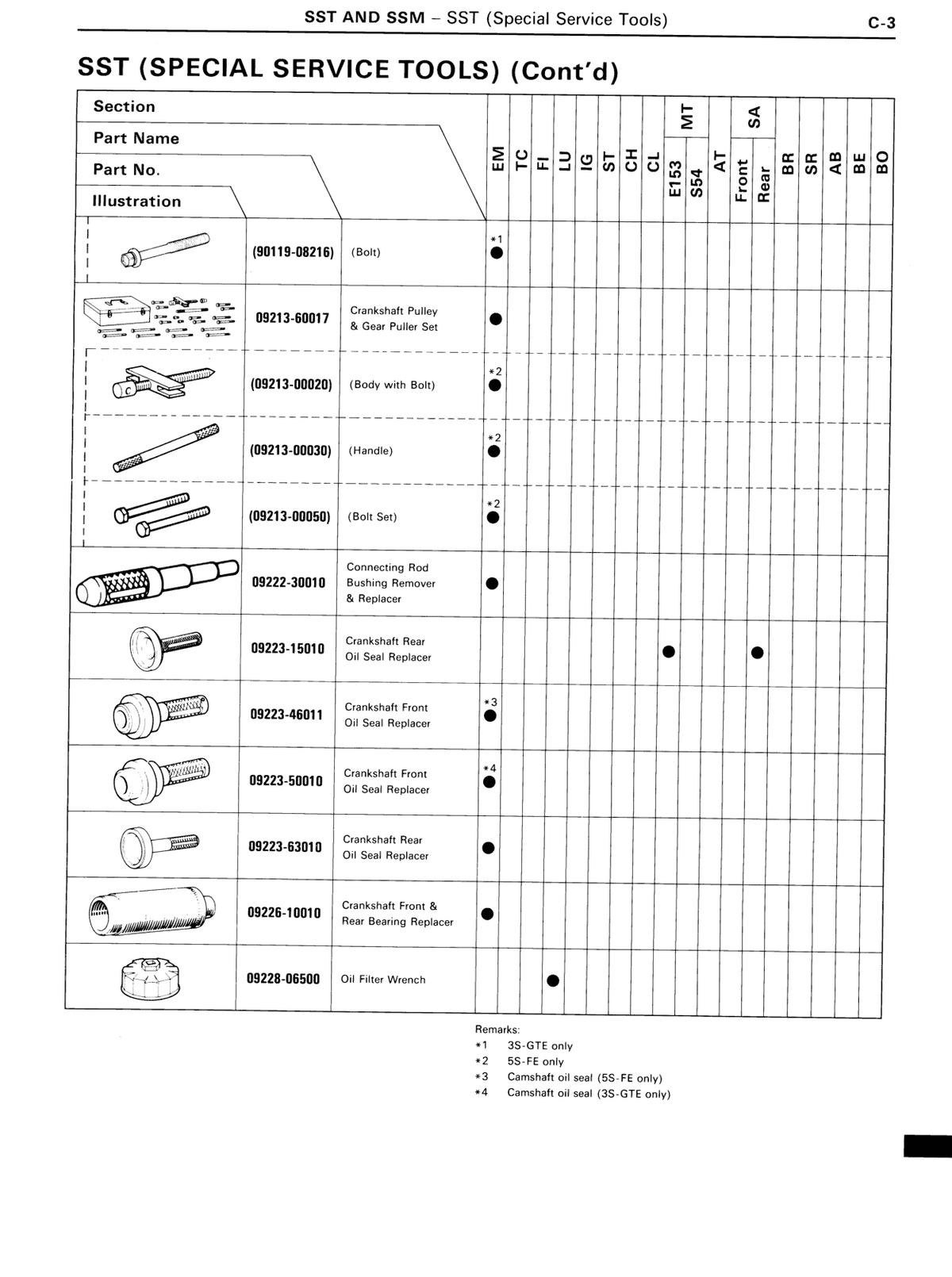

09350-30020 SST Set part No. for overdrive brake piston stroke check Component part No. 09350-06120 Introduction ↗ RM179U1_1991 · p5 OEM manual
09350-06120 SST Component part No. for overdrive brake piston stroke check Part of set 09350-30020 Introduction ↗ RM179U1_1991 · p5 OEM manual
95506-00020 Belt tension gauge Nippondenso BTG-20 For measuring drive belt tension Maintenance ↗ RM179U1_1991 · p19 OEM manual
BT-33-73F Belt tension gauge Borroughs No.BT-33-73F For measuring drive belt tension Maintenance ↗ RM179U1_1991 · p19 OEM manual
PK20R8 Spark plug — ND, 3S-GTE engine Electrode gap 0.8 mm Maintenance ↗ RM179U1_1991 · p20 OEM manual
BKR6EP8 Spark plug — NGK, 3S-GTE engine Electrode gap 0.8 mm Maintenance ↗ RM179U1_1991 · p20 OEM manual
K16R-U11 Spark plug — ND, 5S-FE engine Electrode gap 1.1 mm Maintenance ↗ RM179U1_1991 · p20 OEM manual
BKR5EYA11 Spark plug — NGK, 5S-FE engine Electrode gap 1.1 mm Maintenance ↗ RM179U1_1991 · p20 OEM manual
088885-80206 Transaxle oil E50 M/T 3S-GTE; or equivalent Maintenance ↗ RM179U1_1991 · p26 OEM manual
09248-55010 SST — Valve lifter press-down tool set (SST A and SST B) Used to depress valve lifter and hold position while removing adjusting shim Engine — mechanical ↗ RM179U1_1991 · p42 OEM manual
09616-30011 SST for oil pump pulley nut installation Special Service Tool Engine — mechanical ↗ RM179U1_1991 · p65 OEM manual
08833-00080 Adhesive (THREE BOND 1344 / LOCTITE 242 or equivalent) Apply to No.1 idler pulley pivot bolt threads Engine — mechanical ↗ RM179U1_1991 · p65 OEM manual
09213-54015 SST — Crankshaft pulley bolt installation tool Used with 90119-08216 Engine — mechanical ↗ RM179U1_1991 · p66 OEM manual
90119-08216 SST sub-component for crankshaft pulley bolt Used with 09213-54015 Engine — mechanical ↗ RM179U1_1991 · p66 OEM manual
09330-00021 SST — Crankshaft pulley holding tool Used in step 8(b) Engine — mechanical ↗ RM179U1_1991 · p66 OEM manual
09249-63010 SST for intake camshaft timing pulley installation Engine — mechanical ↗ RM179U1_1991 · p67 OEM manual
09249-63010 SST for intake camshaft timing pulley installation Special Service Tool Engine — mechanical ↗ RM179U1_1991 · p75 OEM manual
09213-54015 SST — crankshaft pulley bolt installation tool sub-tool 09214-00030 Engine — mechanical ↗ RM179U1_1991 · p86 OEM manual
09330-00021 SST — crankshaft pulley bolt installation tool Engine — mechanical ↗ RM179U1_1991 · p86 OEM manual
09249-63010 SST — camshaft timing pulley bolt installation tool Engine — mechanical ↗ RM179U1_1991 · p86 OEM manual
09278-54012 SST — camshaft timing pulley bolt installation tool Engine — mechanical ↗ RM179U1_1991 · p86 OEM manual
09726-10010 SST - Special Service Tool for inboard joint removal Sub-tool: 09726-00030 Suspension & axle ↗ RM179U1_1991 · p1002 OEM manual

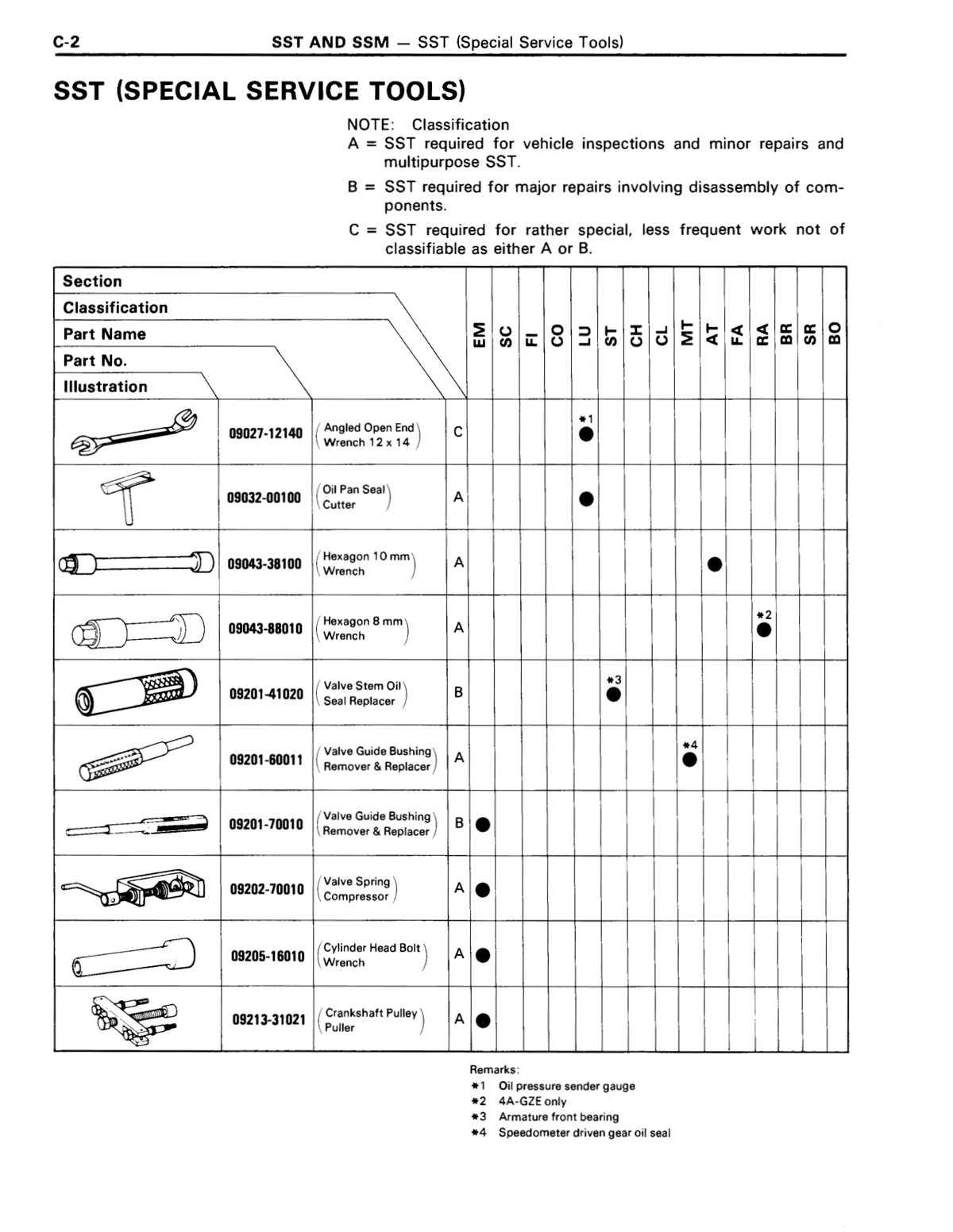

09043-88010 SST — used to temporarily tighten six hexagon bolts with three washers on inboard joint sub-assembly Suspension & axle ↗ RM179U1_1991 · p1008 OEM manual
09043-38100 SST — Cylinder head bolt removal/installation tool Special Service Tool Engine — mechanical ↗ RM179U1_1991 · p101 OEM manual
09043-88010 SST for inboard joint hexagon bolts Special Service Tool Suspension & axle ↗ RM179U1_1991 · p1012 OEM manual
09720-00012 SST — Ring nut wrench (set) Sub-tool 09721-00071 Suspension & axle ↗ RM179U1_1991 · p1016 OEM manual
09721-00071 SST — Ring nut wrench sub-tool Used with 09720-00012 Suspension & axle ↗ RM179U1_1991 · p1016 OEM manual
09727-30020 SST — Coil spring compressor Used to compress rear coil spring during assembly Suspension & axle ↗ RM179U1_1991 · p1016 OEM manual
09628-62011 SST — Ball joint separator tool Used to disconnect ball joint from lower arm Suspension & axle ↗ RM179U1_1991 · p1019 OEM manual
09628-62011 SST — Ball joint separator / lower arm disconnect tool Used in REMOVAL OF LOWER ARM step 1(b) Suspension & axle ↗ RM179U1_1991 · p1020 OEM manual
09751-36011 SST — brake tube union nut wrench Used to connect brake tubes to master cylinder Brakes ↗ RM179U1_1991 · p1045 OEM manual
09756-00010 SST — Special Service Tool for adjusting bolt removal Used in steps 6 and 7 Brakes ↗ RM179U1_1991 · p1069 OEM manual
09756-00010 SST — Special Service Tool for adjusting bolt sub assembly assembly Used in steps 9a and 9d Brakes ↗ RM179U1_1991 · p1074 OEM manual

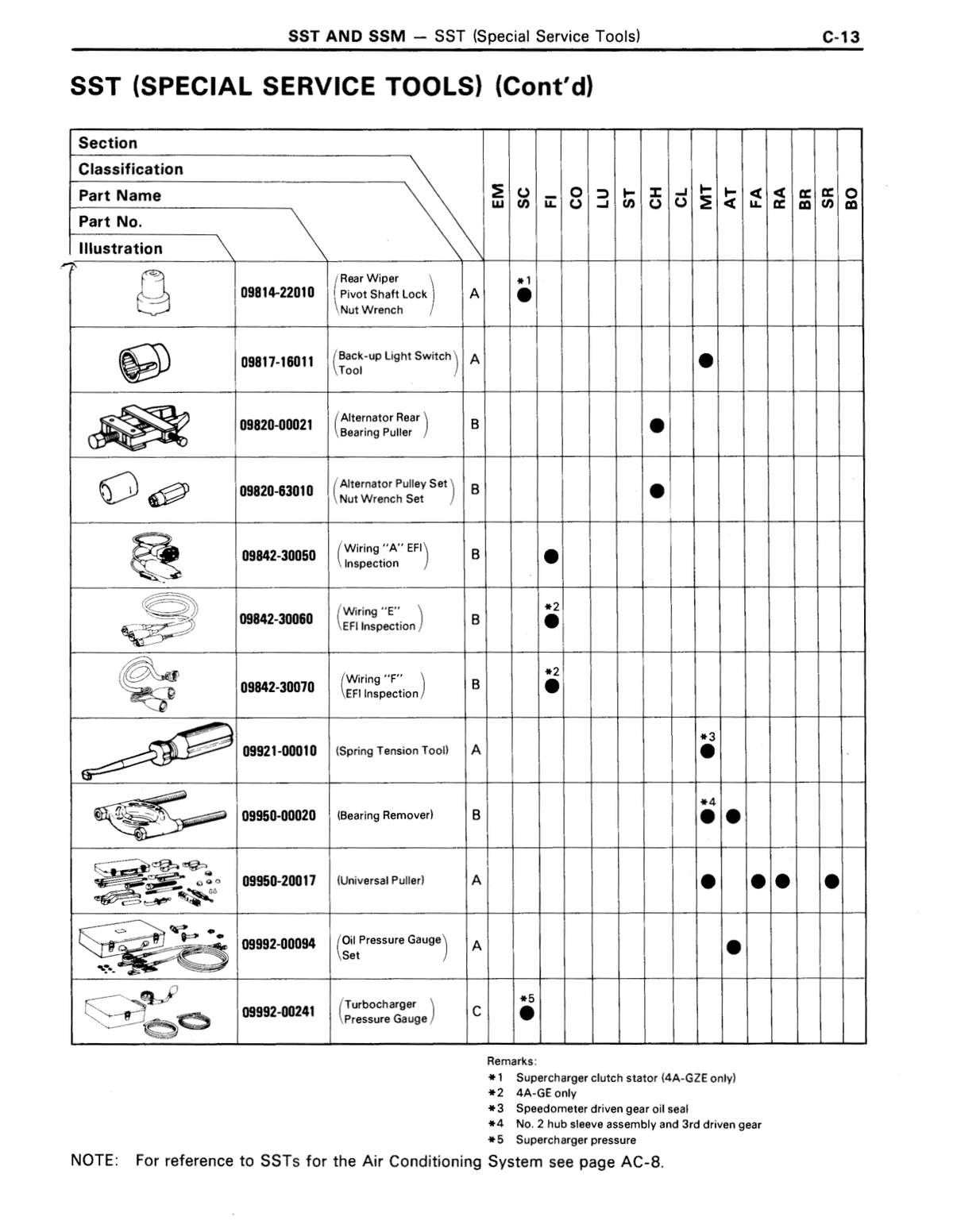

09843-18020 SST — check connector jumper tool Used to connect terminals E1, Tc, Ts of check connector Brakes ↗ RM179U1_1991 · p1092 OEM manual
09751-36011 SST — brake tube disconnect/connect tool Special Service Tool for ABS actuator brake tube Brakes ↗ RM179U1_1991 · p1097 OEM manual
09990-00150 Actuator checker SST (sub-wire harness) SST used to disconnect actuator and sub-wire harness from actuator Brakes ↗ RM179U1_1991 · p1099 OEM manual

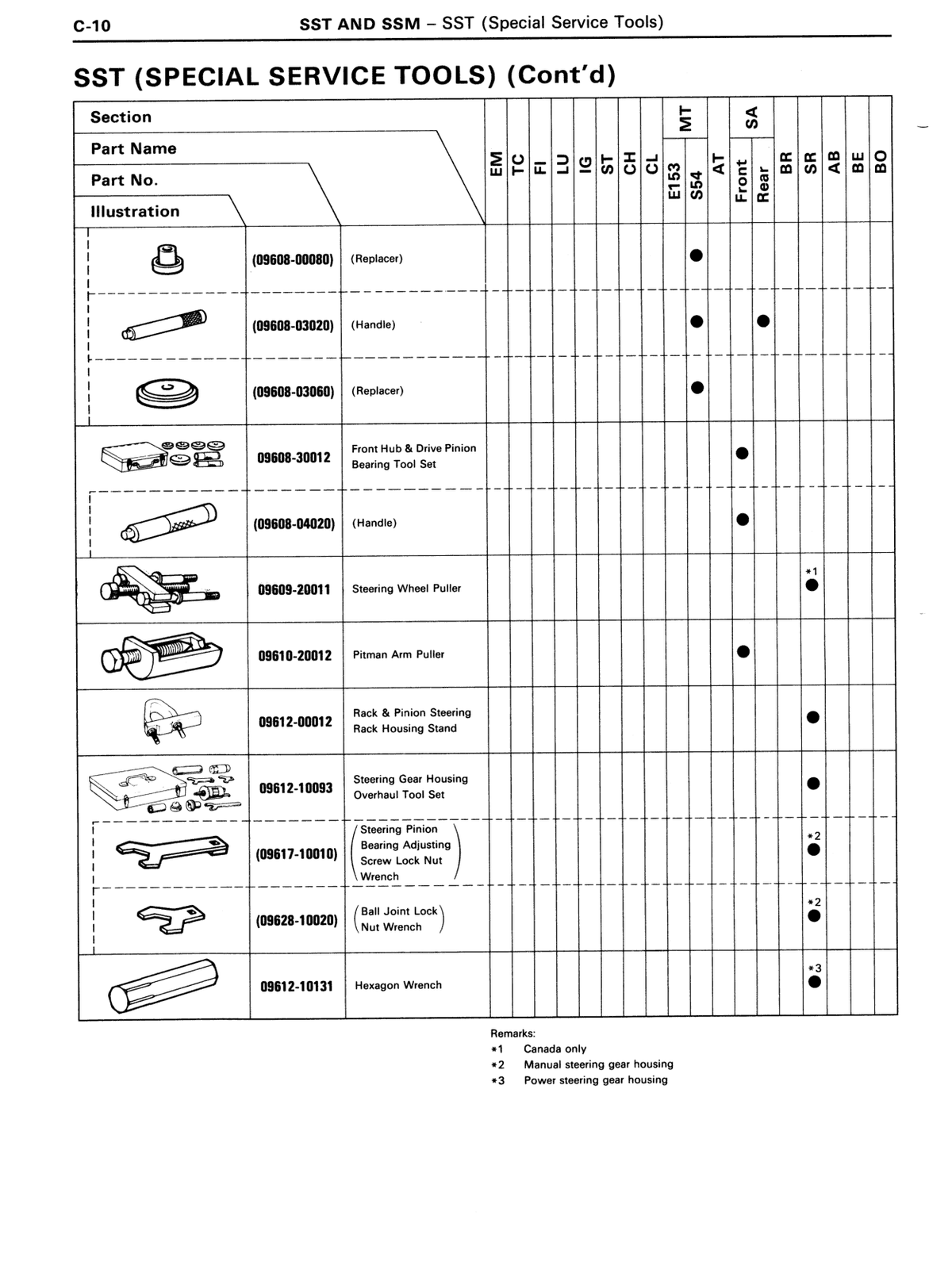

09042-00010 Torx wrench T30 (or locally manufactured tool) For steering wheel pad torx screws Steering ↗ RM179U1_1991 · p1111 OEM manual

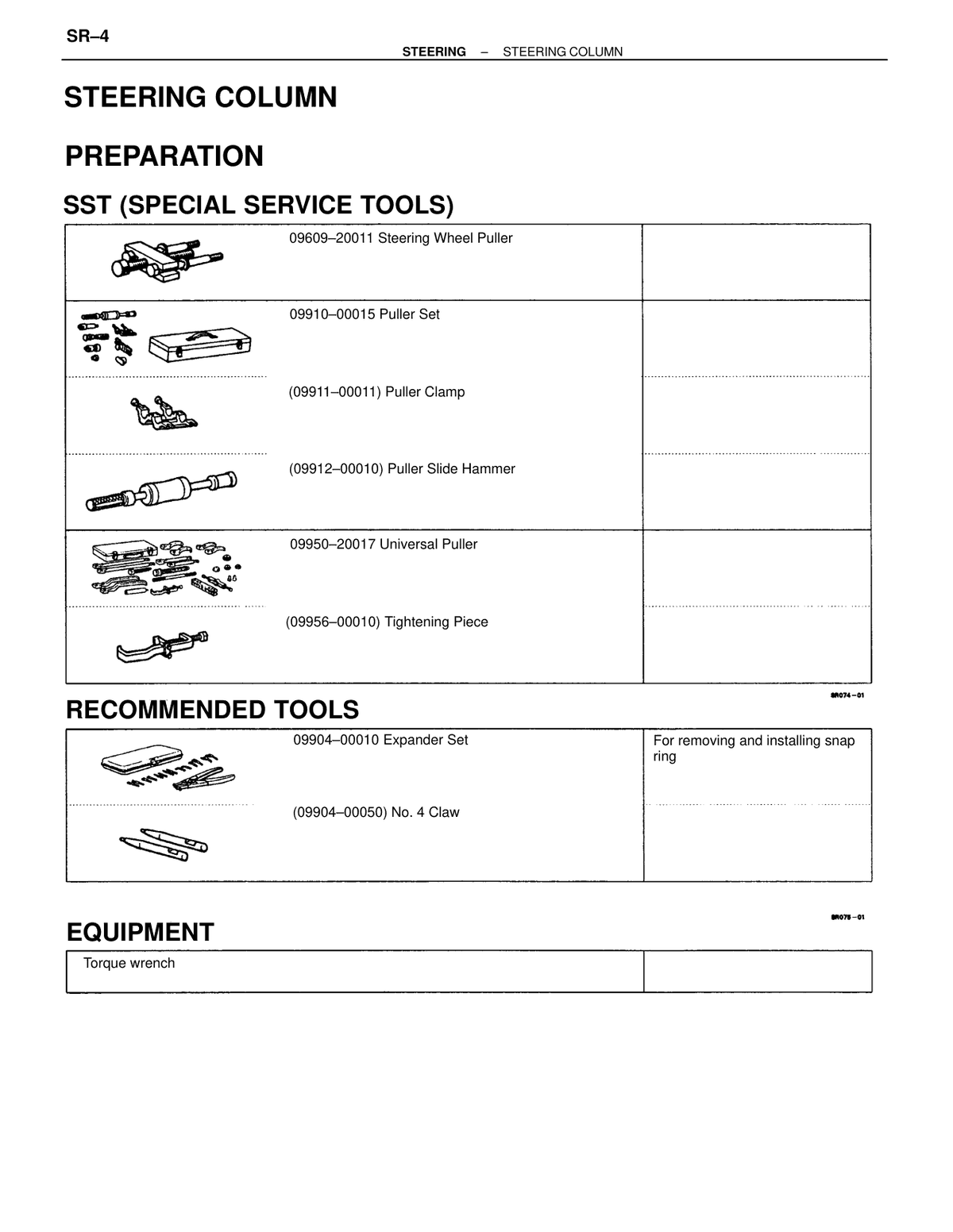

09609-20011 SST — Steering wheel puller Canada specification Steering ↗ RM179U1_1991 · p1112 OEM manual
09950-20017 SST — Main shaft spring compressor / snap ring tool Special Service Tool Steering ↗ RM179U1_1991 · p1116 OEM manual
09950-20017 SST — used to compress main shaft spring during snap ring installation Special Service Tool Steering ↗ RM179U1_1991 · p1117 OEM manual

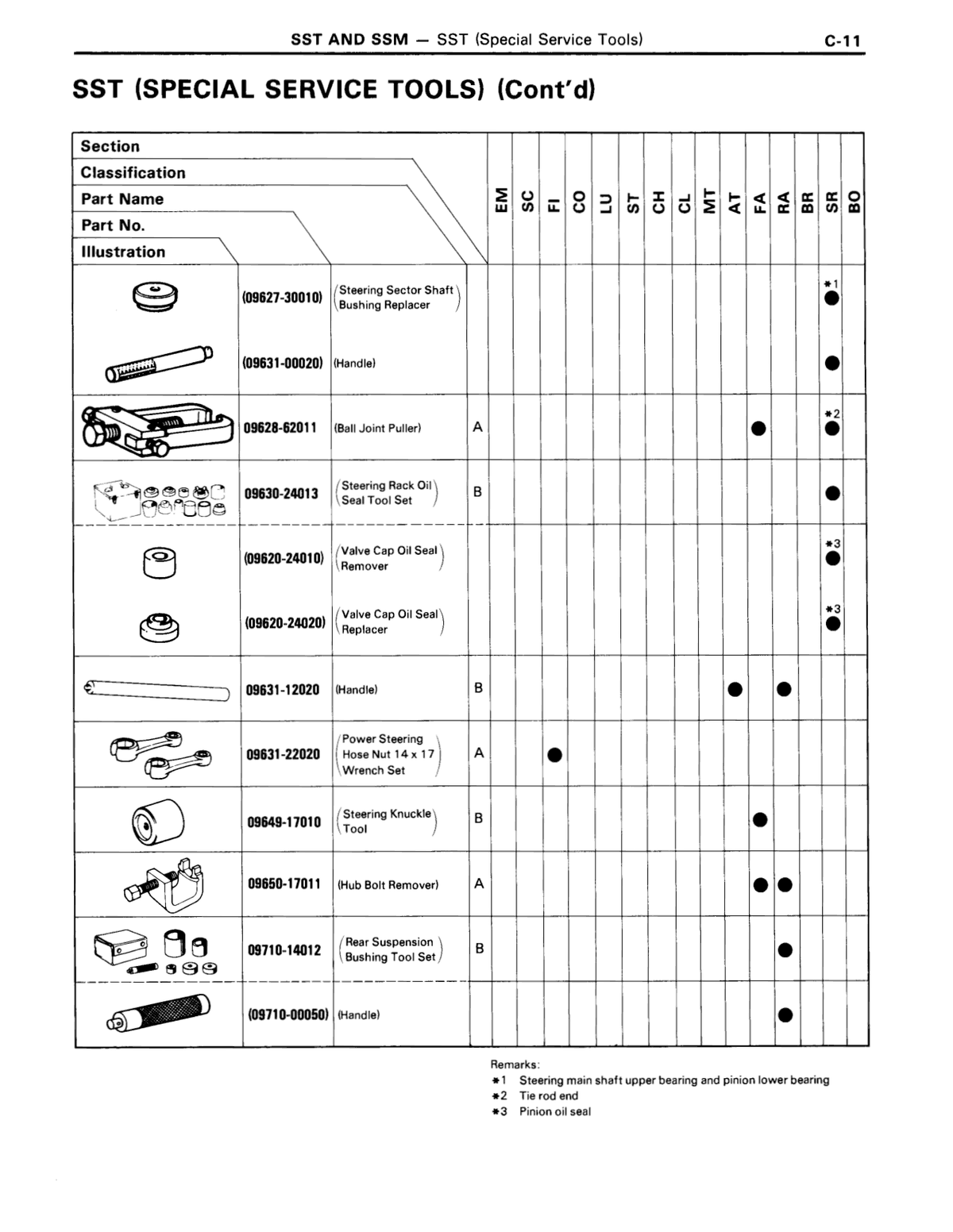

09628-62011 SST — Tie rod end disconnector Used to disconnect tie rod end from knuckle arm Steering ↗ RM179U1_1991 · p1122 OEM manual

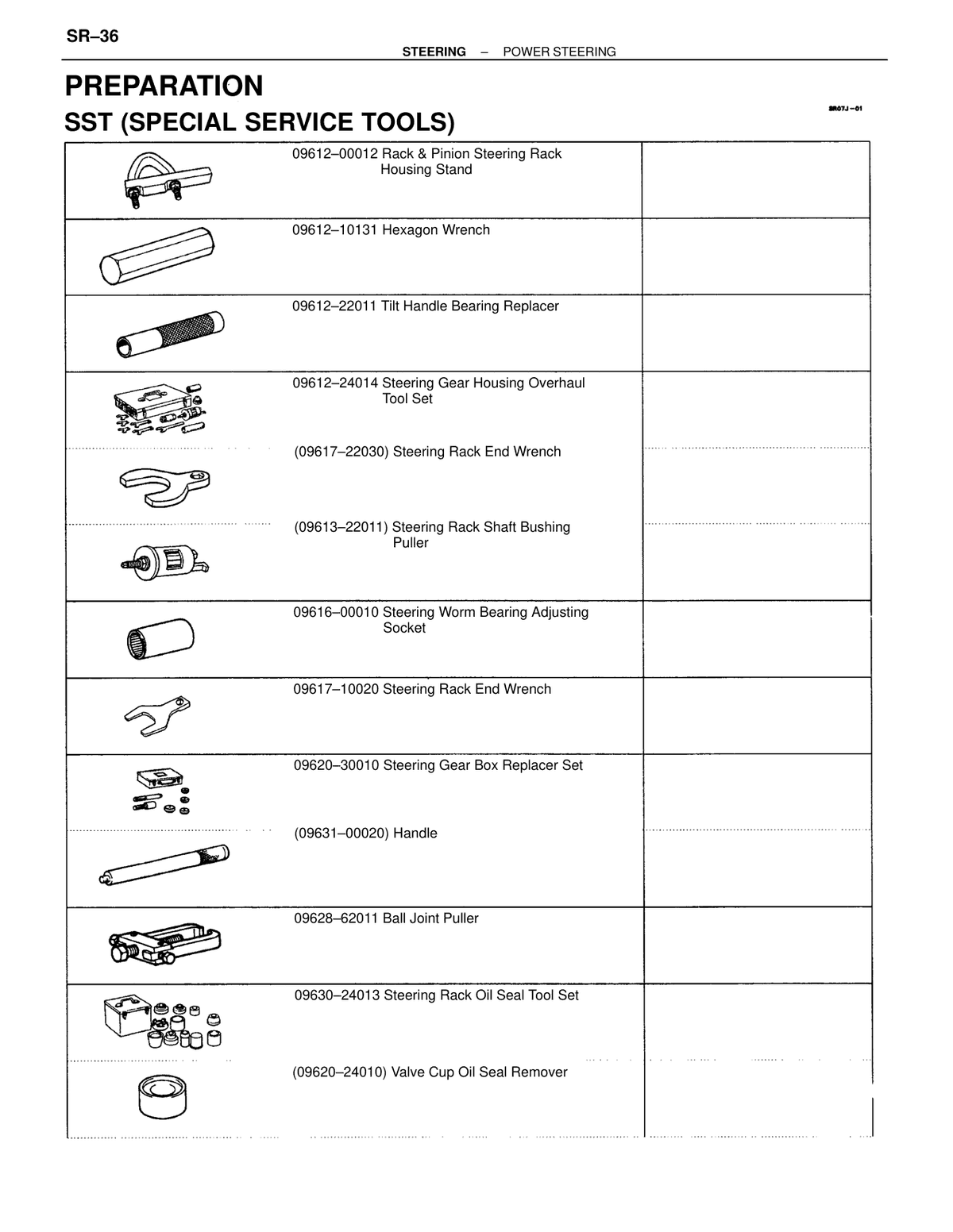

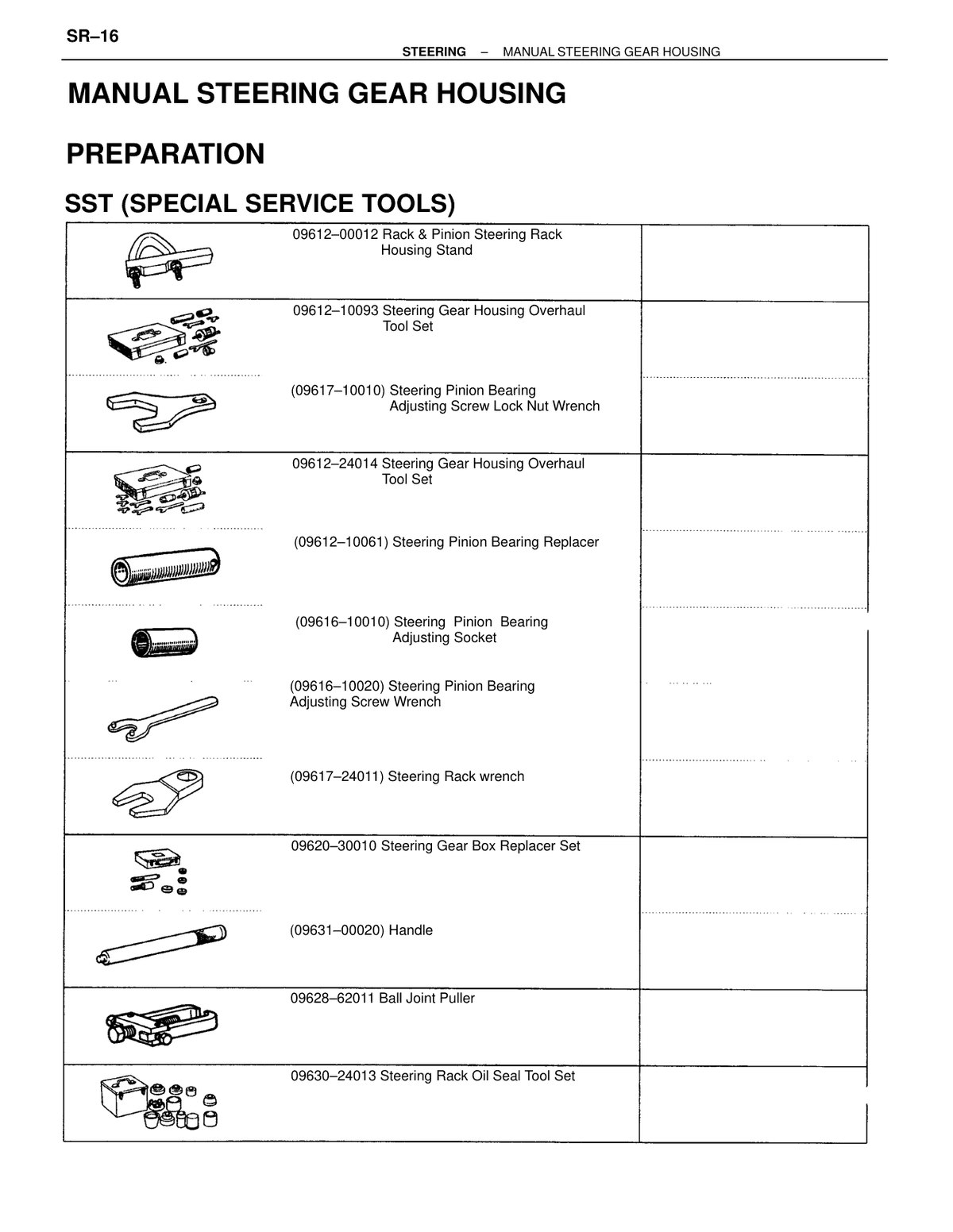

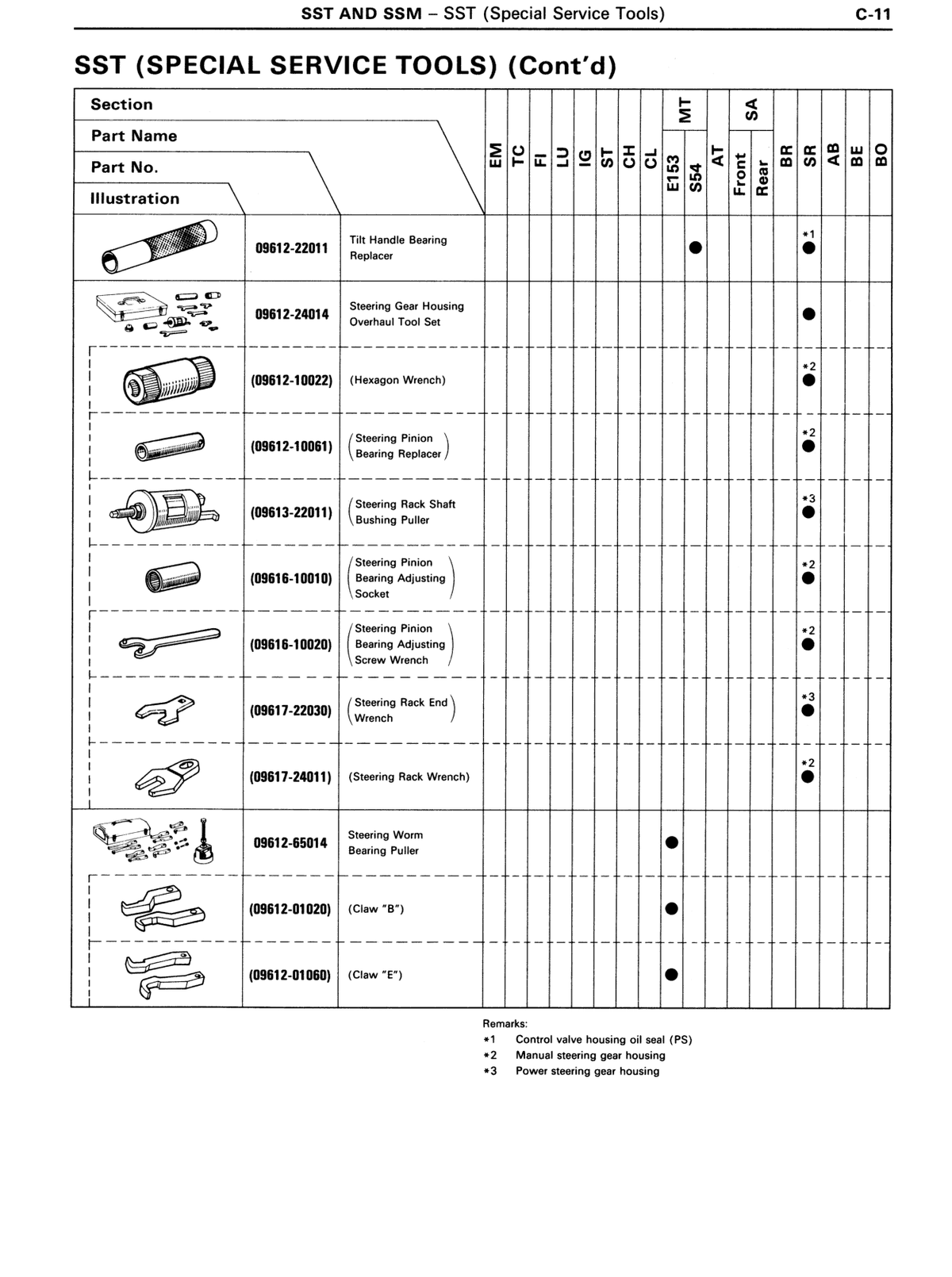

09612-24014 SST — Pinion upper bearing installer Sub-tool 09612-10061 Steering ↗ RM179U1_1991 · p1127 OEM manual
09620-30010 SST — Pinion lower bearing installer Sub-tool 09631-00020 Steering ↗ RM179U1_1991 · p1127 OEM manual
09630-24013 SST — Pinion lower bearing installer (additional) Sub-tool 09620-24030 Steering ↗ RM179U1_1991 · p1127 OEM manual
09620-30010 SST — pinion oil seal removal/installation tool sub-part 09631-00020 Steering ↗ RM179U1_1991 · p1128 OEM manual
09630-24013 SST — pinion oil seal removal/installation tool sub-part 09620-24010 (removal); sub-part 09620-24020 (installation) Steering ↗ RM179U1_1991 · p1128 OEM manual

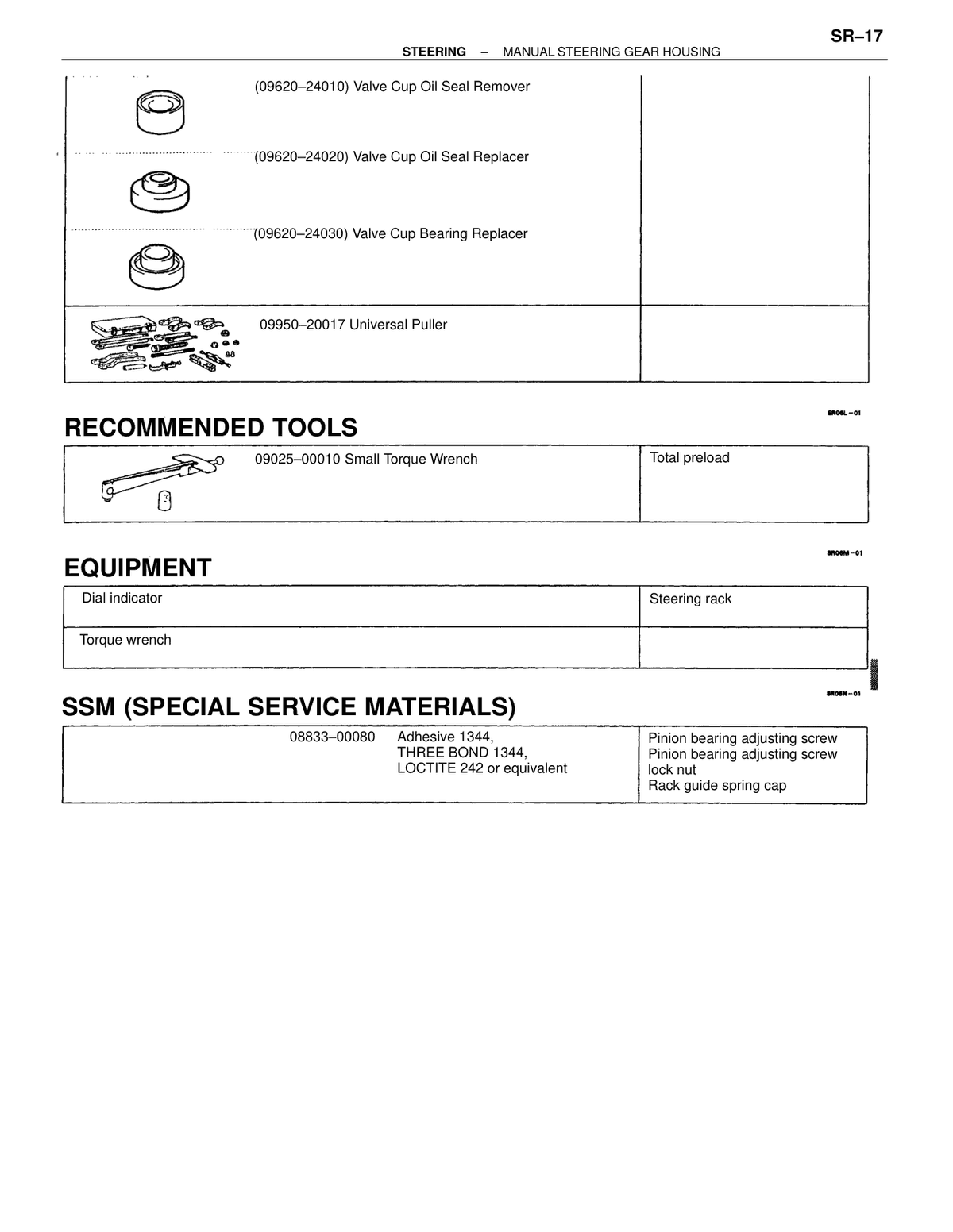

08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 equivalent) for pinion bearing adjusting screw threads Steering ↗ RM179U1_1991 · p1129 OEM manual
09612-24014 SST — Pinion bearing adjusting screw installer Sub-tool: 09616-10020 Steering ↗ RM179U1_1991 · p1129 OEM manual
08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Used on lock nut and rack guide spring cap threads Steering ↗ RM179U1_1991 · p1130 OEM manual
09631-22020 SST — Pressure gauge disconnect tool for PS pump pressure line Steering ↗ RM179U1_1991 · p1137 OEM manual
09631-22020 SST for disconnecting and connecting pressure line Steering ↗ RM179U1_1991 · p1139 OEM manual
09628-62011 SST — Tie rod end puller Used to disconnect tie rod end from knuckle arm Steering ↗ RM179U1_1991 · p1142 OEM manual
09631-20081 SST (Special Service Tool) for seating teflon rings on power steering gear housing Steering ↗ RM179U1_1991 · p1152 OEM manual

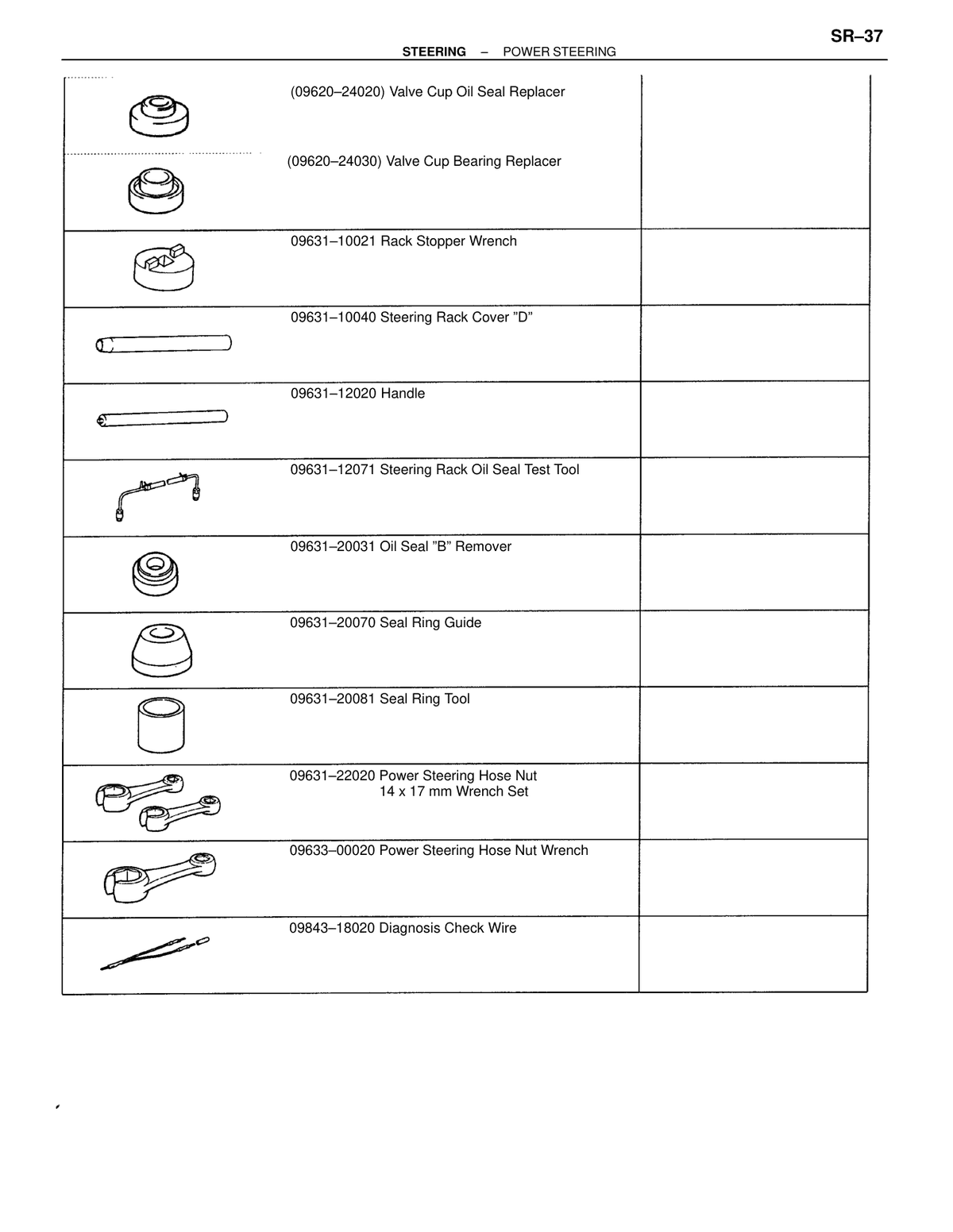

09620-24030 SST — rack housing oil seal driver sub-component Steering ↗ RM179U1_1991 · p1153 OEM manual
09631-12020 SST — rack housing oil seal driver sub-component Steering ↗ RM179U1_1991 · p1153 OEM manual

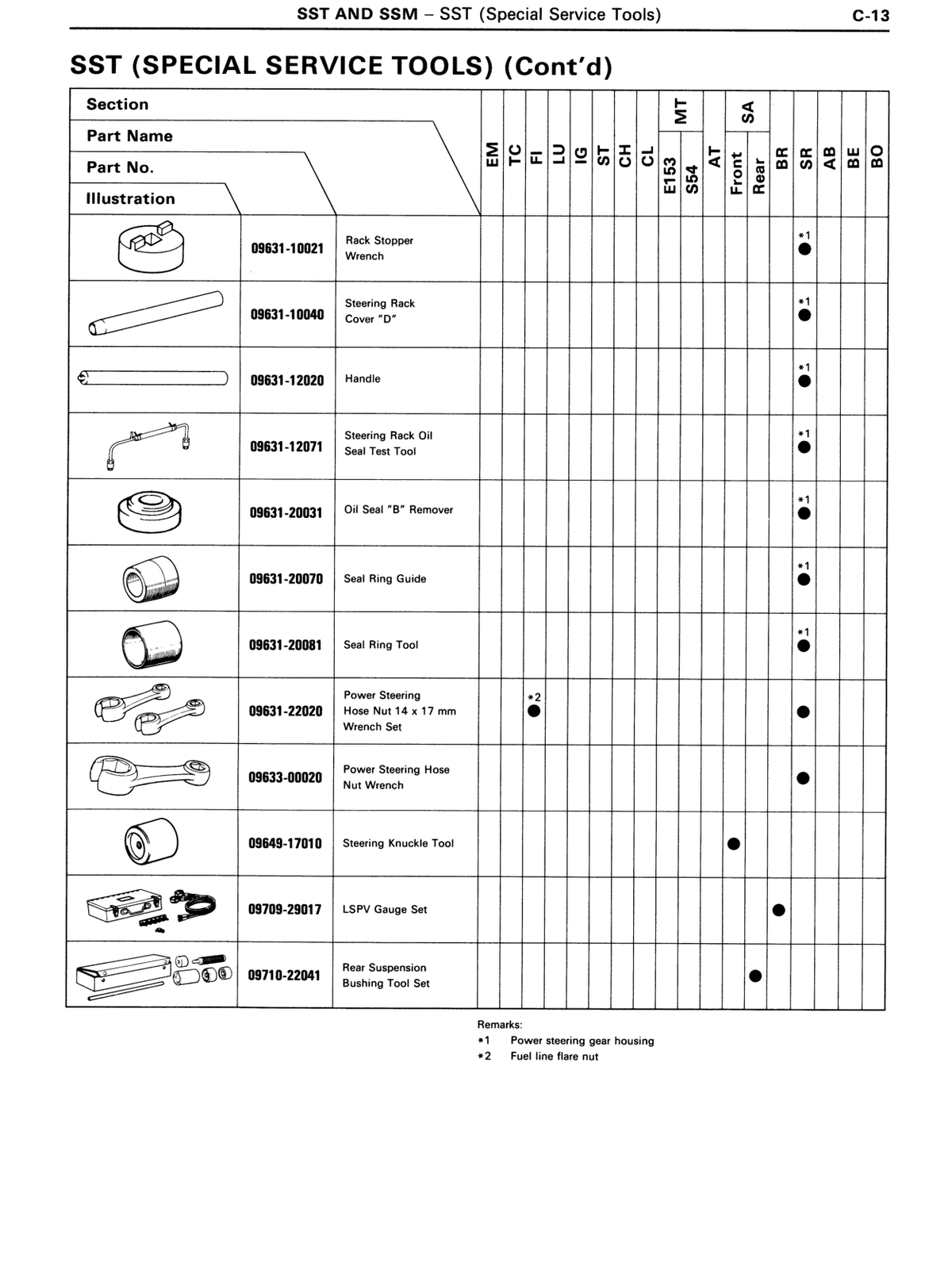

09631-10021 SST — Cylinder end stopper turning tool Step 5(c) Steering ↗ RM179U1_1991 · p1154 OEM manual
09631-12071 SST — Air tightness test tool for cylinder housing unions Step 6(a) Steering ↗ RM179U1_1991 · p1154 OEM manual
09616-00010 SST — Control valve holder Used to hold control valve while installing self-locking nut Steering ↗ RM179U1_1991 · p1155 OEM manual

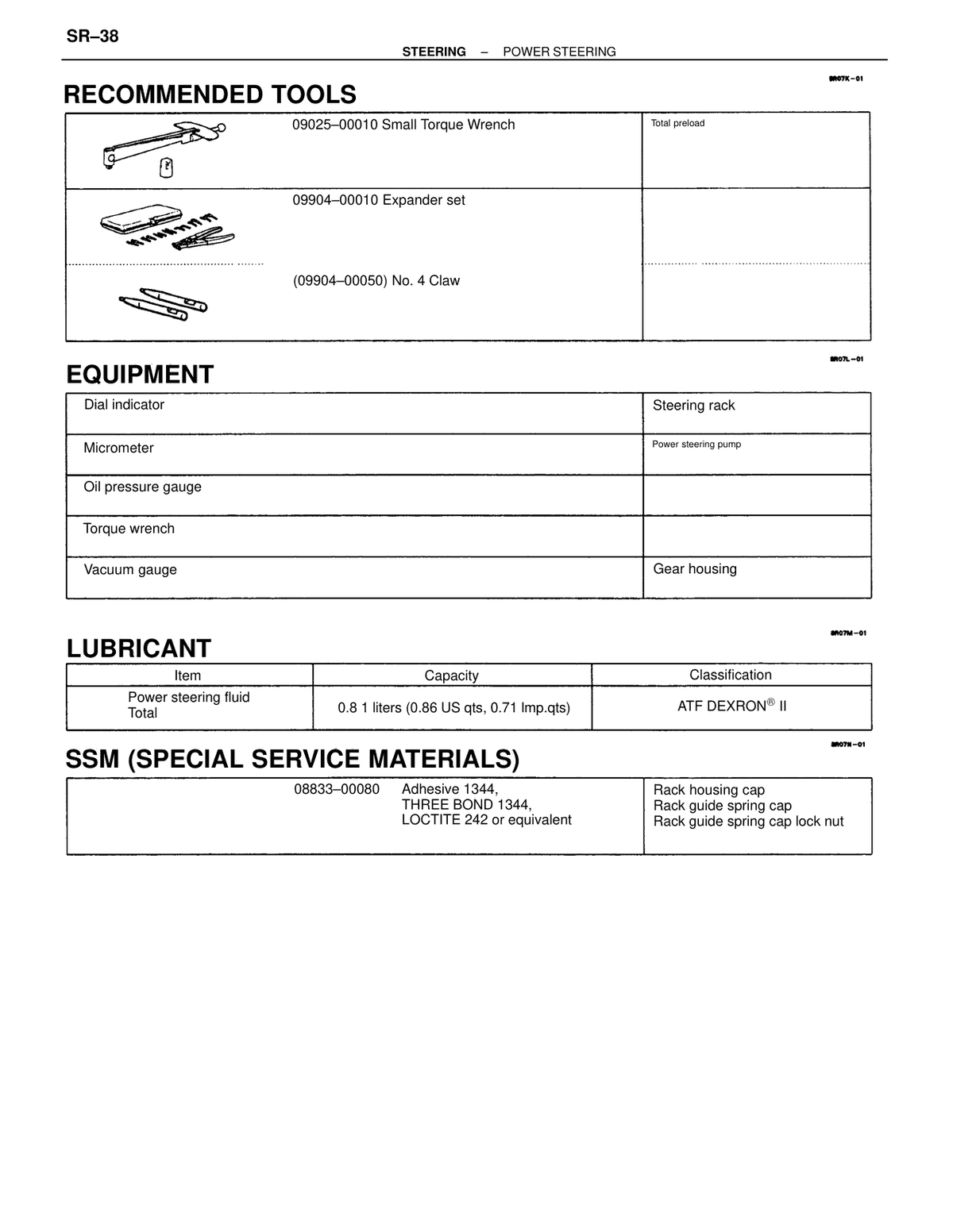

08833-00080 Sealant — THREE BOND 1344 / LOCTITE 242 or equivalent Apply to 2 or 3 threads of rack housing cap Steering ↗ RM179U1_1991 · p1155 OEM manual
08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Applied to rack guide spring cap and lock nut threads Steering ↗ RM179U1_1991 · p1156 OEM manual
09612-10131 SST — Rack guide spring cap installer/wrench Used in steps 13(b), 13(c), 13(f), 14(b) Steering ↗ RM179U1_1991 · p1156 OEM manual
09616-00010 SST — Control valve shaft turning tool Used in steps 13(d) and 13(f) Steering ↗ RM179U1_1991 · p1156 OEM manual
09612-24014 SST — Rack guide spring cap lock nut wrench Sub-part 09617-22030; used in step 14(b) Steering ↗ RM179U1_1991 · p1156 OEM manual
09617-10020 SST — Rack end installation tool Used to install and torque rack ends Steering ↗ RM179U1_1991 · p1157 OEM manual
08826-00080 Seal packing for No.1 bearing cap or equivalent Engine — mechanical ↗ RM179U1_1991 · p117 OEM manual
08826-00080 Seal packing for cylinder head cover or equivalent Engine — mechanical ↗ RM179U1_1991 · p118 OEM manual
09223-50010 SST — camshaft oil seal installer Used to tap in the two camshaft oil seals Engine — mechanical ↗ RM179U1_1991 · p118 OEM manual
09213-31021 SST — Steering wheel puller Used to remove steering wheel in Step 2(d) SRS / airbag ↗ RM179U1_1991 · p1183 OEM manual
09042-00020 Torx wrench T40 or locally manufactured tool SRS / airbag ↗ RM179U1_1991 · p1187 OEM manual
08833-00080 THREE BOND 1324 adhesive (or equivalent) — for oil pressure switch threads Step 16 Engine — mechanical ↗ RM179U1_1991 · p121 OEM manual
09843-18020 SST — check connector for Tc and E1 terminals Step 5 SRS / airbag ↗ RM179U1_1991 · p1213 OEM manual
09843-18020 SST check connector for terminals Tc and E1 Used in steps 5 and 6 SRS / airbag ↗ RM179U1_1991 · p1226 OEM manual
95506-00020 Belt tension gauge (Nippondenso BTG-20) Air conditioning ↗ RM179U1_1991 · p1511 OEM manual

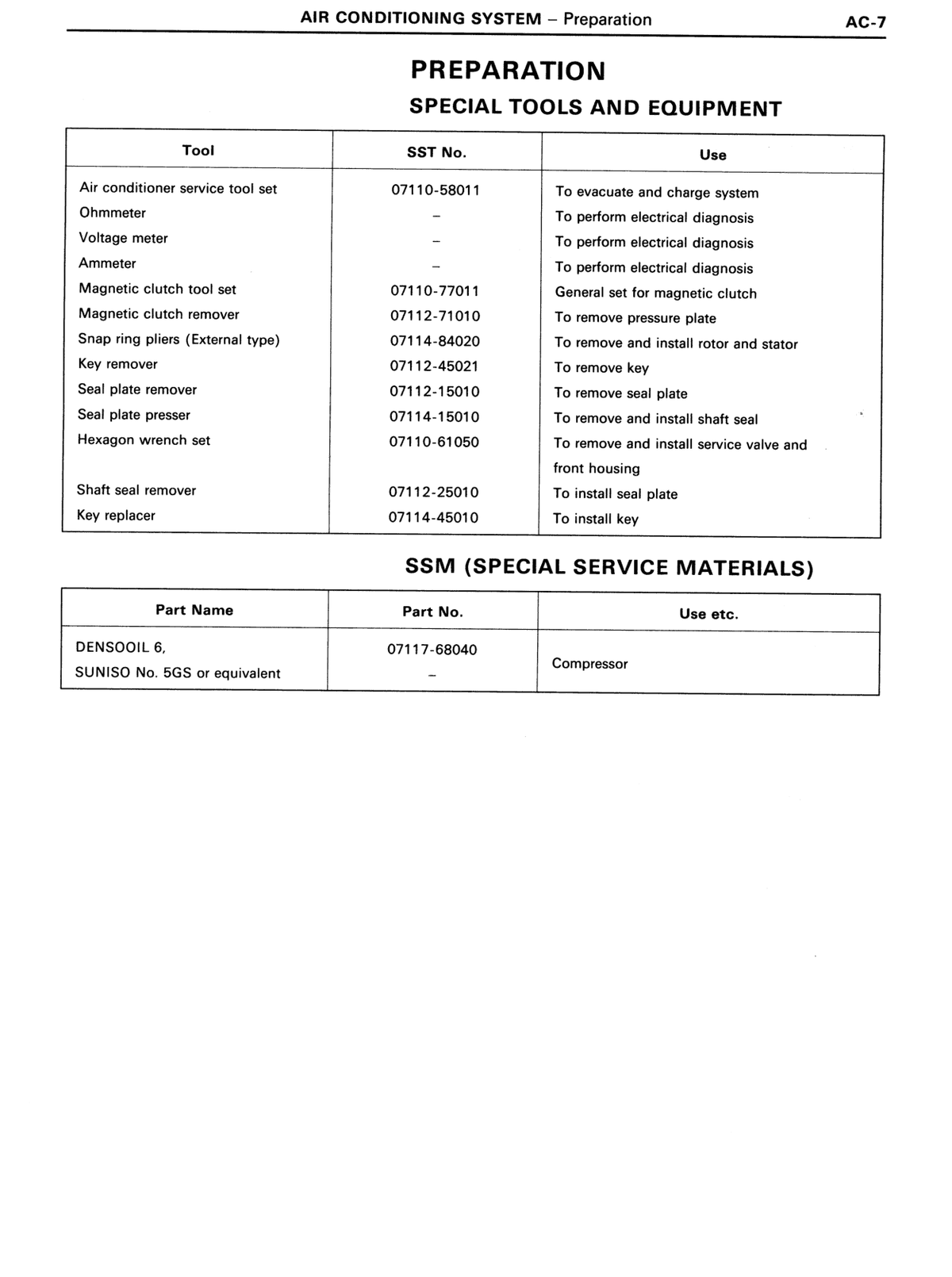

07112-76040 SST — shaft nut removal tool Used with socket to remove shaft nut Clutch ↗ RM179U1_1991 · p1515 OEM manual
07112-71010 SST — pressure plate removal tool Used with socket to remove pressure plate Clutch ↗ RM179U1_1991 · p1515 OEM manual
07114-84020 SST — Snap ring pliers Used for removing snap ring on rotor and stator Air conditioning ↗ RM179U1_1991 · p1516 OEM manual
07112-15010 SST — Seal plate holder ring tool Step 5 Air conditioning ↗ RM179U1_1991 · p1518 OEM manual
88376-17020 Inspection service valve — Suction side Air conditioning ↗ RM179U1_1991 · p1525 OEM manual
88376-22020 Inspection service valve — Discharge side Air conditioning ↗ RM179U1_1991 · p1525 OEM manual
08826-00080 Seal packing (FIPG) for cylinder head cover or equivalent Engine — mechanical ↗ RM179U1_1991 · p156 OEM manual
08833-00080 Adhesive THREE BOND 1324 for oil pressure switch or equivalent Engine — mechanical ↗ RM179U1_1991 · p156 OEM manual

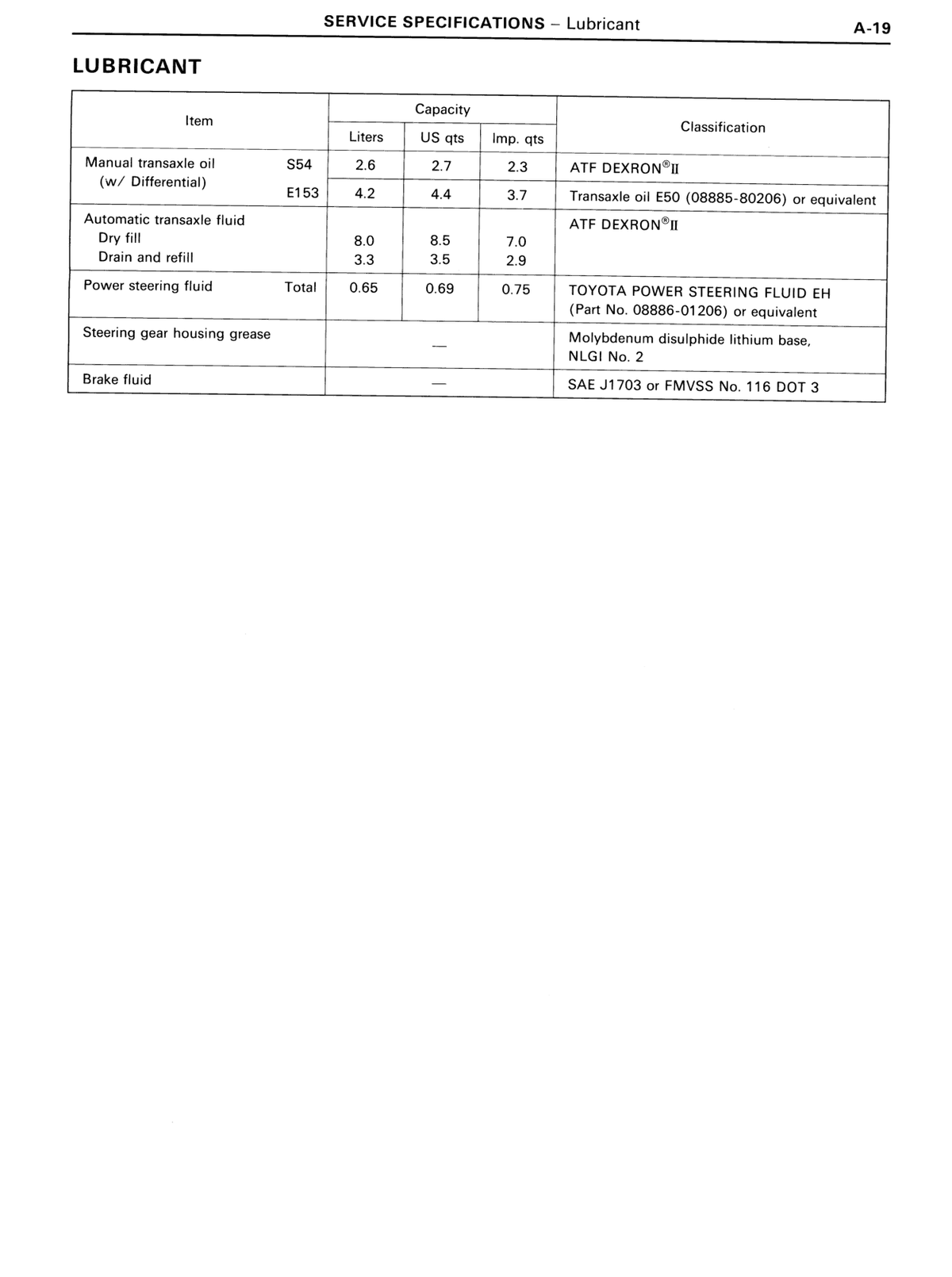

08885-80206 Transaxle oil E50 Manual transaxle E153 or equivalent Maintenance ↗ RM179U1_1991 · p1563 OEM manual

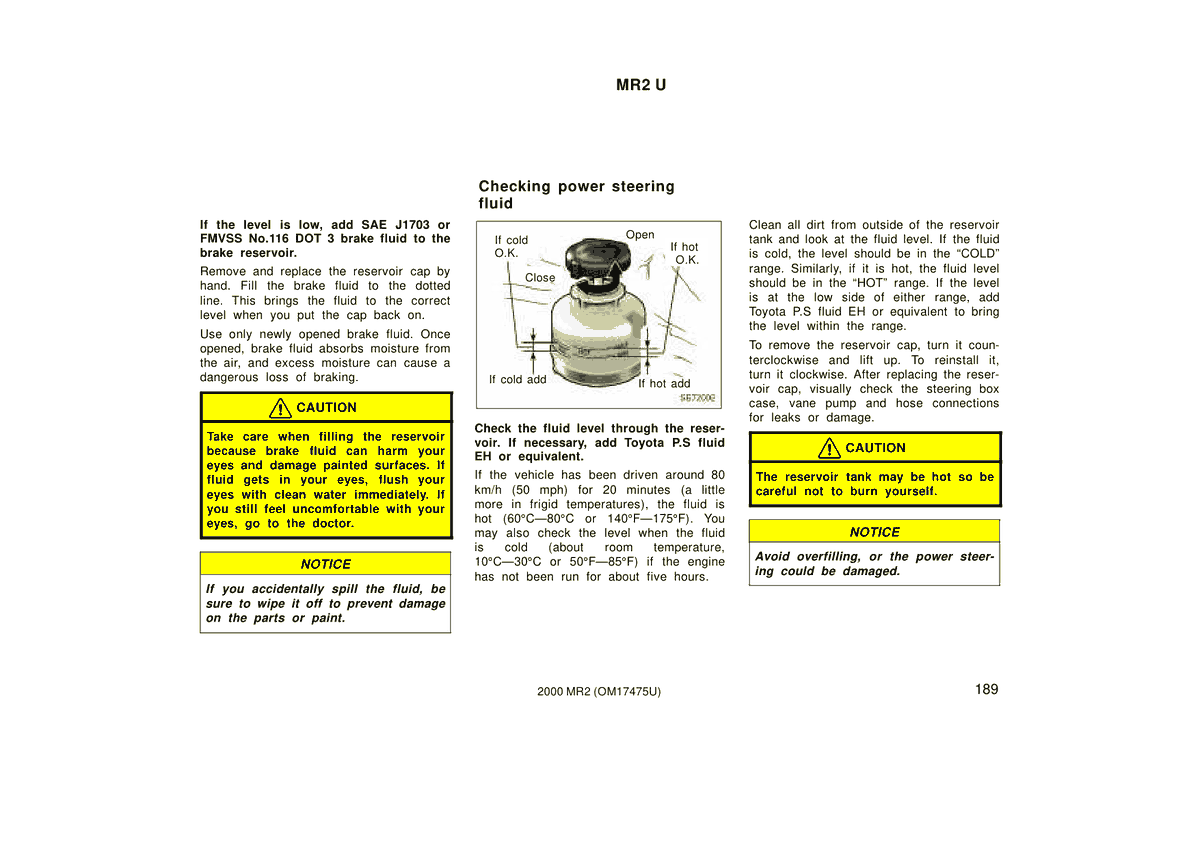

08886-01206 Toyota Power Steering Fluid EH or equivalent Maintenance ↗ RM179U1_1991 · p1563 OEM manual

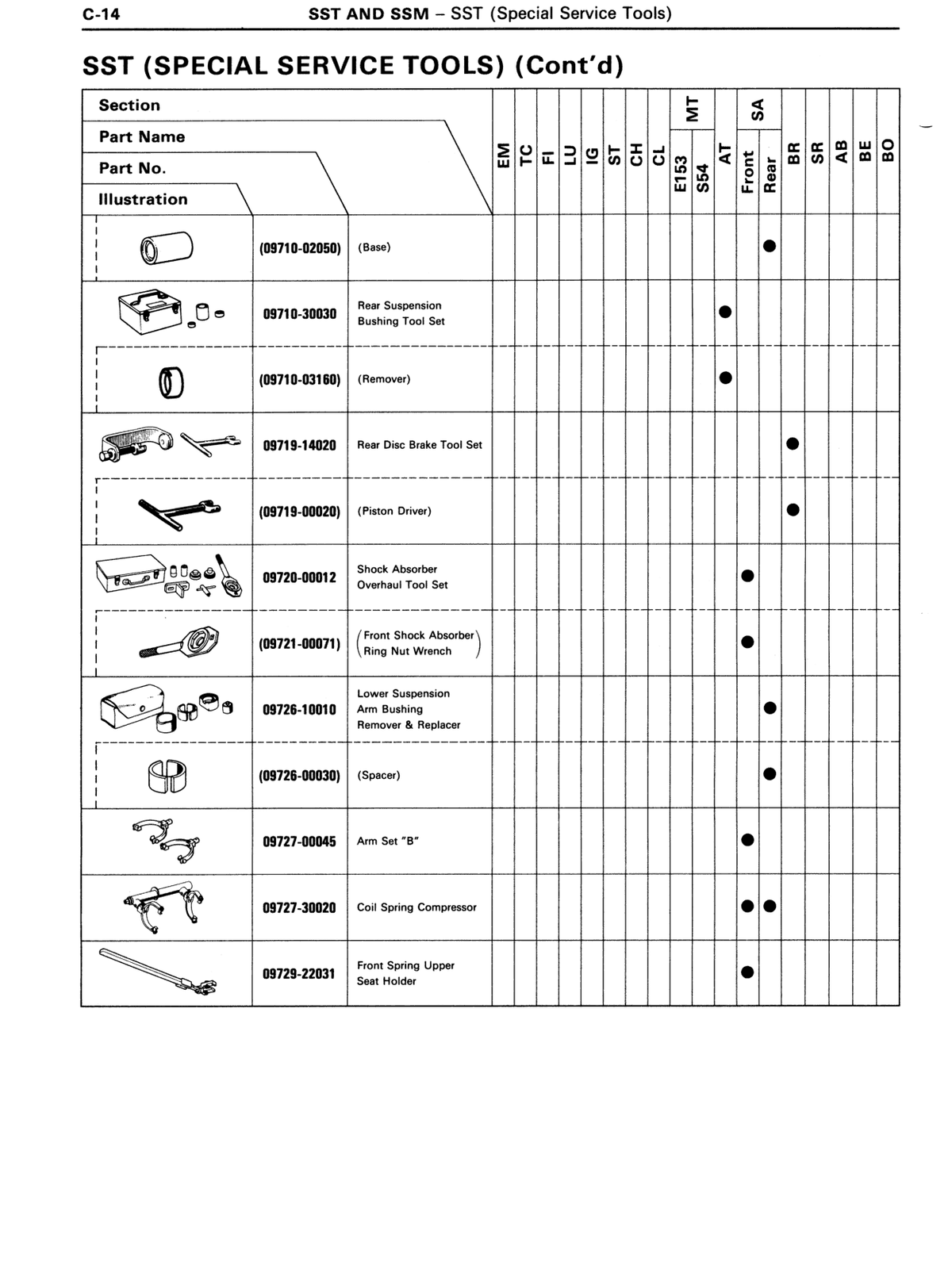

09710-02050 Base Sub-component of 09710-30030; SA Rear section Maintenance ↗ RM179U1_1991 · p1580 OEM manual
09710-30030 Rear Suspension Bushing Tool Set SA Rear section Maintenance ↗ RM179U1_1991 · p1580 OEM manual
09710-03160 Remover Sub-component of 09710-30030; SA Rear section Maintenance ↗ RM179U1_1991 · p1580 OEM manual

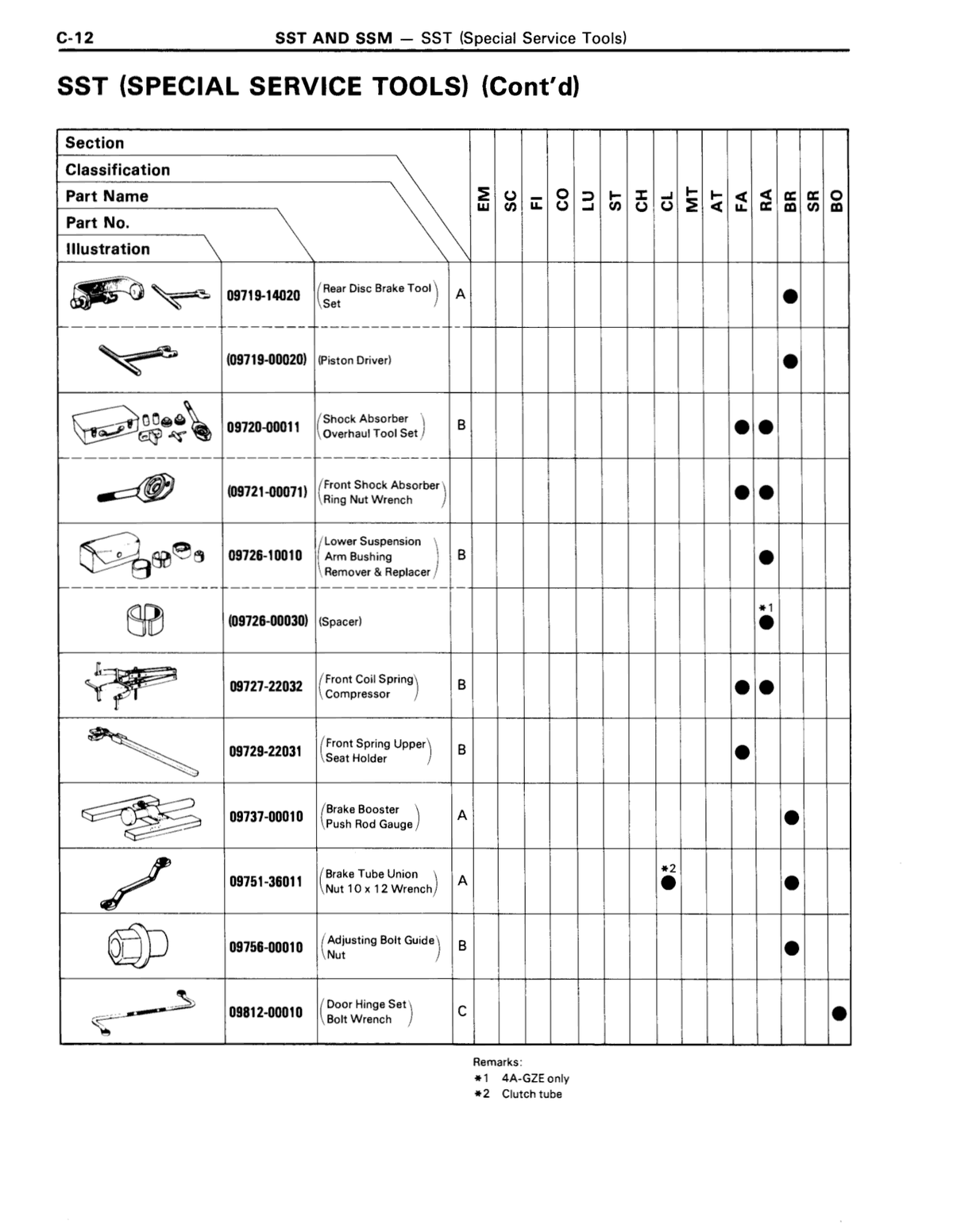

09719-00020 Piston Driver Sub-component of 09719-14020; BR section Maintenance ↗ RM179U1_1991 · p1580 OEM manual

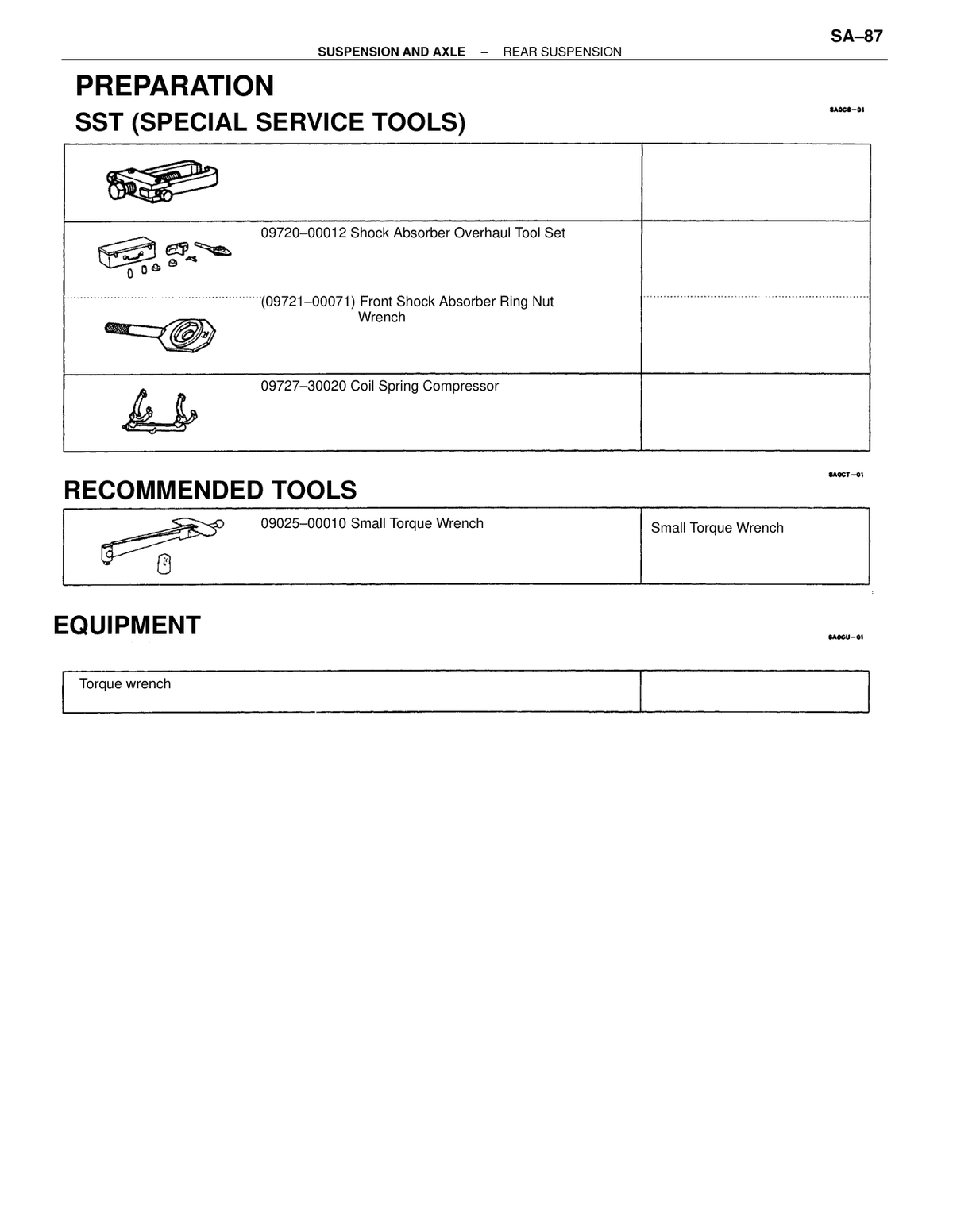

09720-00012 Shock Absorber Overhaul Tool Set SA Rear section Maintenance ↗ RM179U1_1991 · p1580 OEM manual
09721-00071 Front Shock Absorber Ring Nut Wrench Sub-component of 09720-00012; SA Rear section Maintenance ↗ RM179U1_1991 · p1580 OEM manual
09726-10010 Lower Suspension Arm Bushing Remover & Replacer SA Front section Maintenance ↗ RM179U1_1991 · p1580 OEM manual
09726-00030 Spacer Sub-component of 09726-10010; SA Front section Maintenance ↗ RM179U1_1991 · p1580 OEM manual
09727-30020 Coil Spring Compressor SA Front and SA Rear sections Maintenance ↗ RM179U1_1991 · p1580 OEM manual
09729-22031 Front Spring Upper Seat Holder SA Front section Maintenance ↗ RM179U1_1991 · p1580 OEM manual
09816-30010 SST — Knock sensor installer Step 1 Engine — mechanical ↗ RM179U1_1991 · p197 OEM manual
08833-00070 THREE BOND 1324 adhesive (or equivalent), applied to flywheel mount bolt threads Engine — mechanical ↗ RM179U1_1991 · p198 OEM manual
09011-38121 SST for connecting rod cap nut installation Special Service Tool Engine — mechanical ↗ RM179U1_1991 · p243 OEM manual
08833-00070 THREE BOND 1324 adhesive Applied to flywheel mount bolt threads Engine — mechanical ↗ RM179U1_1991 · p245 OEM manual
09842-30050 SST (A) — injector/cold start injector wiring connector inspection tool Used for both 3S-GTE and 5S-FE EFI / fuel injection ↗ RM179U1_1991 · p325 OEM manual
09842-30060 SST (B) — injector/cold start injector wiring connector inspection tool For 3S-GTE EFI / fuel injection ↗ RM179U1_1991 · p325 OEM manual
09842-30070 SST (C) — injector/cold start injector wiring connector inspection tool For 5S-FE EFI / fuel injection ↗ RM179U1_1991 · p325 OEM manual
09631-22020 SST — flare nut tightening tool Use with torque wrench, fulcrum length 30 cm EFI / fuel injection ↗ RM179U1_1991 · p325 OEM manual
09843-18020 SST — used for fuel system inspection EFI / fuel injection ↗ RM179U1_1991 · p327 OEM manual
09843-18020 SST — jumper tool for connecting TE1 and E1 terminals of check connector EFI / fuel injection ↗ RM179U1_1991 · p342 OEM manual
09843-18020 SST — Check connector jumper tool Used to connect terminals +B and FP of the check connector EFI / fuel injection ↗ RM179U1_1991 · p404 OEM manual

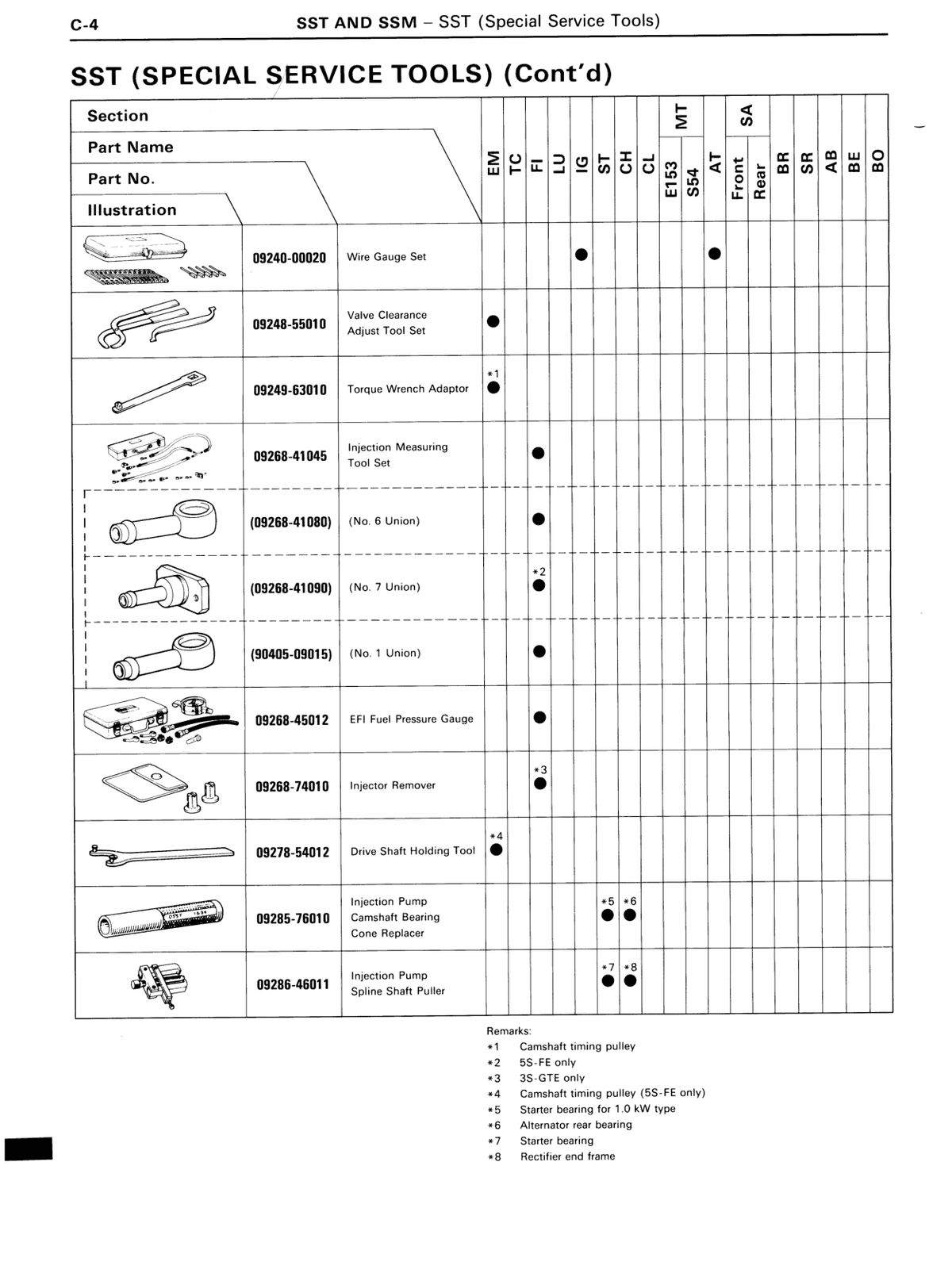

09268-45012 SST — Pressure gauge for delivery pipe EFI / fuel injection ↗ RM179U1_1991 · p405 OEM manual
09843-18020 SST — Terminal jumper for check connector (+B and FP) EFI / fuel injection ↗ RM179U1_1991 · p405 OEM manual
09268-45012 SST — Fuel pressure gauge Installed to delivery pipe for fuel pressure check EFI / fuel injection ↗ RM179U1_1991 · p407 OEM manual
09843-18020 SST — Check connector jumper tool (connects +B and FP terminals) Used to activate fuel pump via check connector EFI / fuel injection ↗ RM179U1_1991 · p407 OEM manual

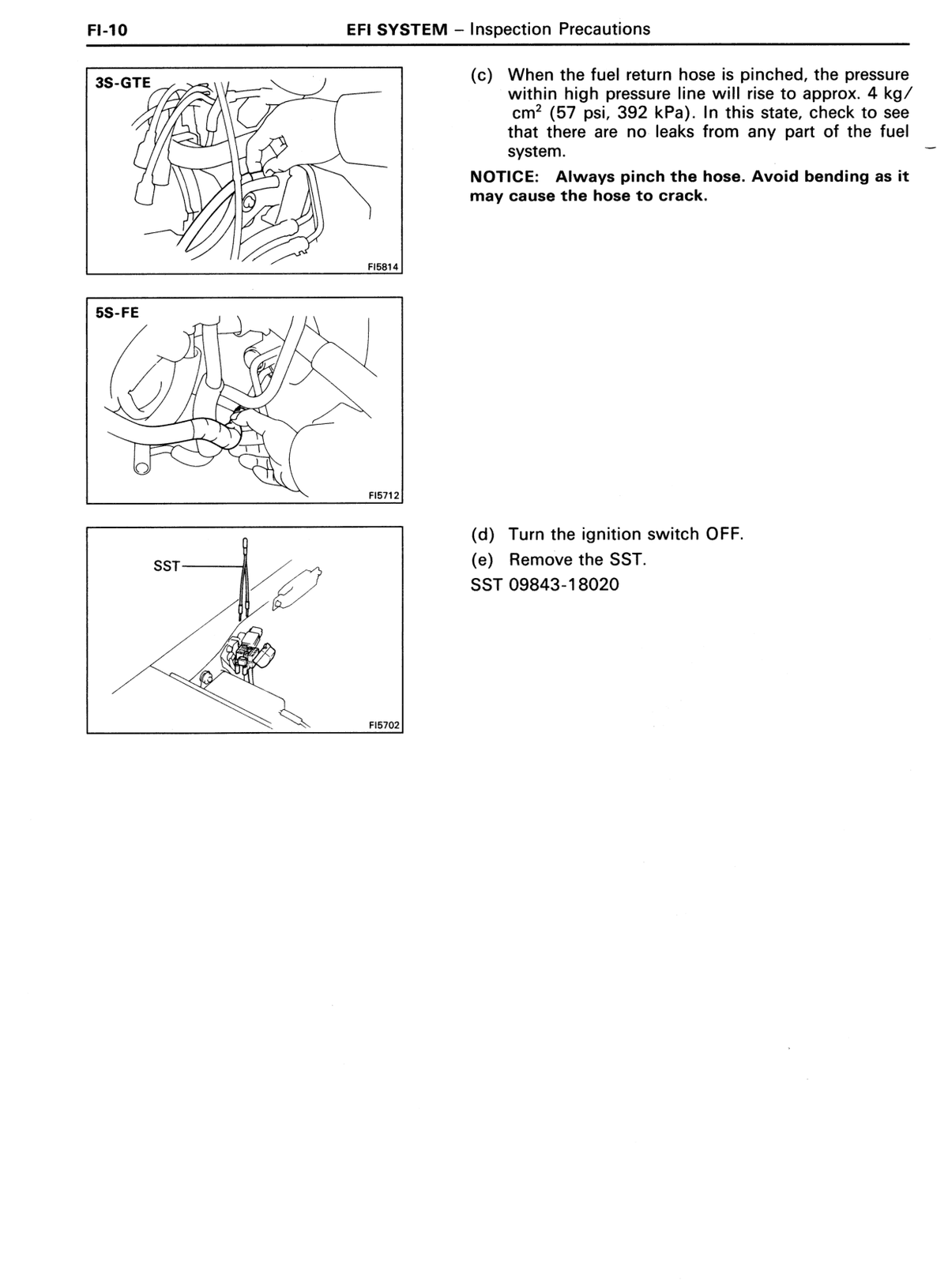

09843-18020 SST – Special Service Tool Remove in step (k) EFI / fuel injection ↗ RM179U1_1991 · p408 OEM manual
09268-45012 SST – Special Service Tool Remove after fuel pressure check in step (r) EFI / fuel injection ↗ RM179U1_1991 · p408 OEM manual
09268-41045 SST Union set (includes 09268-41080) Used to connect injector to delivery pipe EFI / fuel injection ↗ RM179U1_1991 · p417 OEM manual
09268-41080 SST Union (sub-part of 09268-41045) EFI / fuel injection ↗ RM179U1_1991 · p417 OEM manual
09842-30050 SST Wire Used to activate cold start injector during test EFI / fuel injection ↗ RM179U1_1991 · p417 OEM manual
09843-18020 SST for connecting +B and FP terminals of check connector EFI / fuel injection ↗ RM179U1_1991 · p417 OEM manual
09268-41045 SST — Union set (includes 09268-41080) Used to connect injector and delivery pipe during inspection EFI / fuel injection ↗ RM179U1_1991 · p420 OEM manual
09268-41080 SST — Union (sub-part of 09268-41045) EFI / fuel injection ↗ RM179U1_1991 · p420 OEM manual
09842-30050 SST — Wire for cold start injector test EFI / fuel injection ↗ RM179U1_1991 · p420 OEM manual
09843-18020 SST — Used to connect terminals +B and FP of check connector EFI / fuel injection ↗ RM179U1_1991 · p420 OEM manual
09268-74010 SST — injector removal tool Special Service Tool EFI / fuel injection ↗ RM179U1_1991 · p432 OEM manual
09268-41045 SST — Union and hose set for fuel system inspection Sub-components: 90405-09015, 09268-41090, 09268-41080 EFI / fuel injection ↗ RM179U1_1991 · p440 OEM manual
90405-09015 SST sub-component — union/hose for fuel filter outlet connection Part of SST 09268-41045 EFI / fuel injection ↗ RM179U1_1991 · p440 OEM manual
09268-41090 SST sub-component — union for pressure regulator fuel inlet Part of SST 09268-41045 EFI / fuel injection ↗ RM179U1_1991 · p440 OEM manual
09268-41080 SST sub-component — union for pressure regulator fuel outlet/return hose Part of SST 09268-41045 EFI / fuel injection ↗ RM179U1_1991 · p440 OEM manual
09843-18020 SST — used to connect terminals TE1 and E1 of check connector Special Service Tool Engine — mechanical ↗ RM179U1_1991 · p468 OEM manual

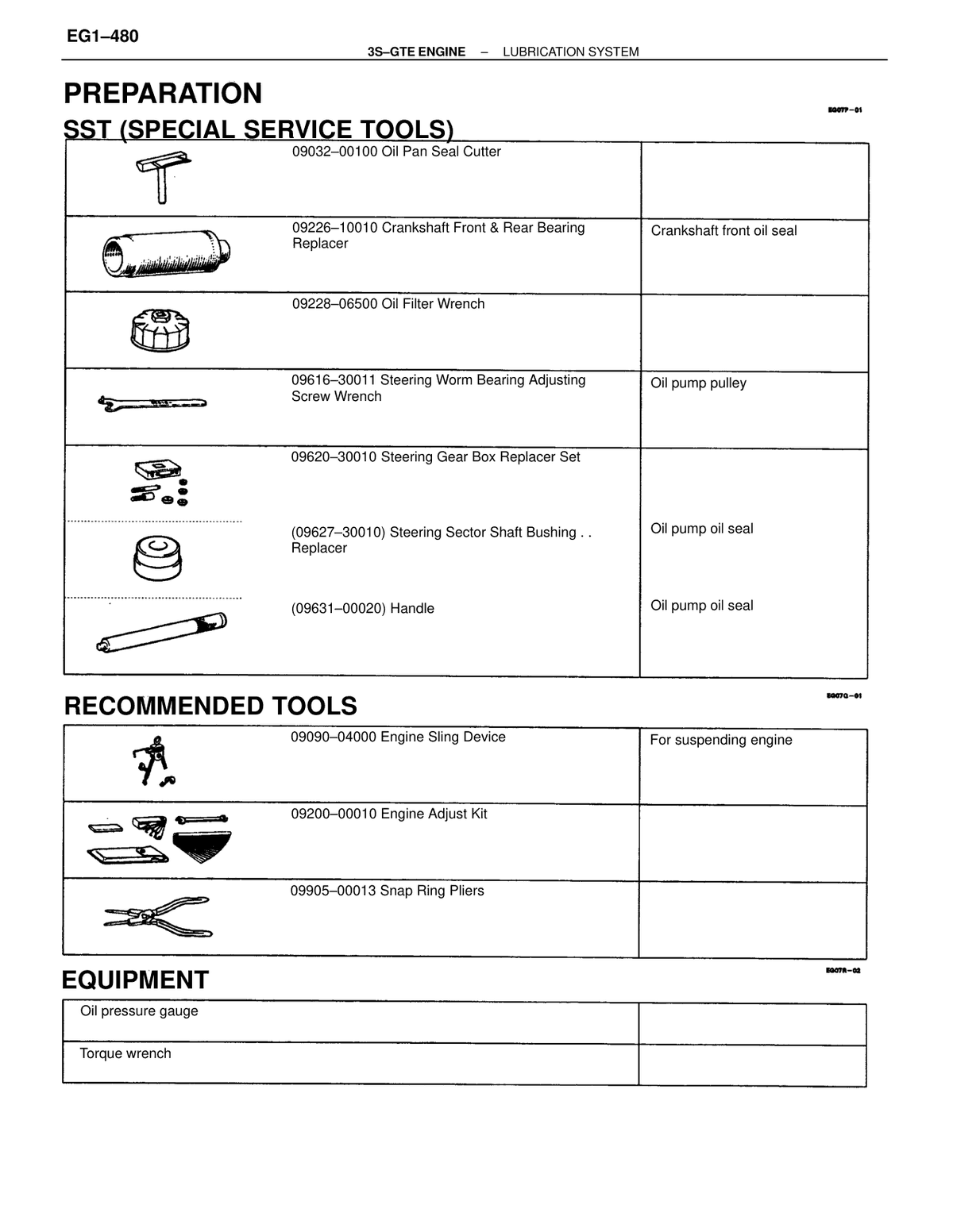

09228-06500 SST — Oil filter wrench Used to tighten oil filter additional 3/4 turn Lubrication / oil ↗ RM179U1_1991 · p543 OEM manual
09032-00100 SST — blade tool for cutting oil pan sealer Special Service Tool Lubrication / oil ↗ RM179U1_1991 · p546 OEM manual
09620-30010 SST — Oil seal installer set includes 09627-30010 and 09631-00020 Lubrication / oil ↗ RM179U1_1991 · p549 OEM manual
09627-30010 SST component — Oil seal installer sub-tool of 09620-30010 Lubrication / oil ↗ RM179U1_1991 · p549 OEM manual
09631-00020 SST component — Oil seal installer sub-tool of 09620-30010 Lubrication / oil ↗ RM179U1_1991 · p549 OEM manual

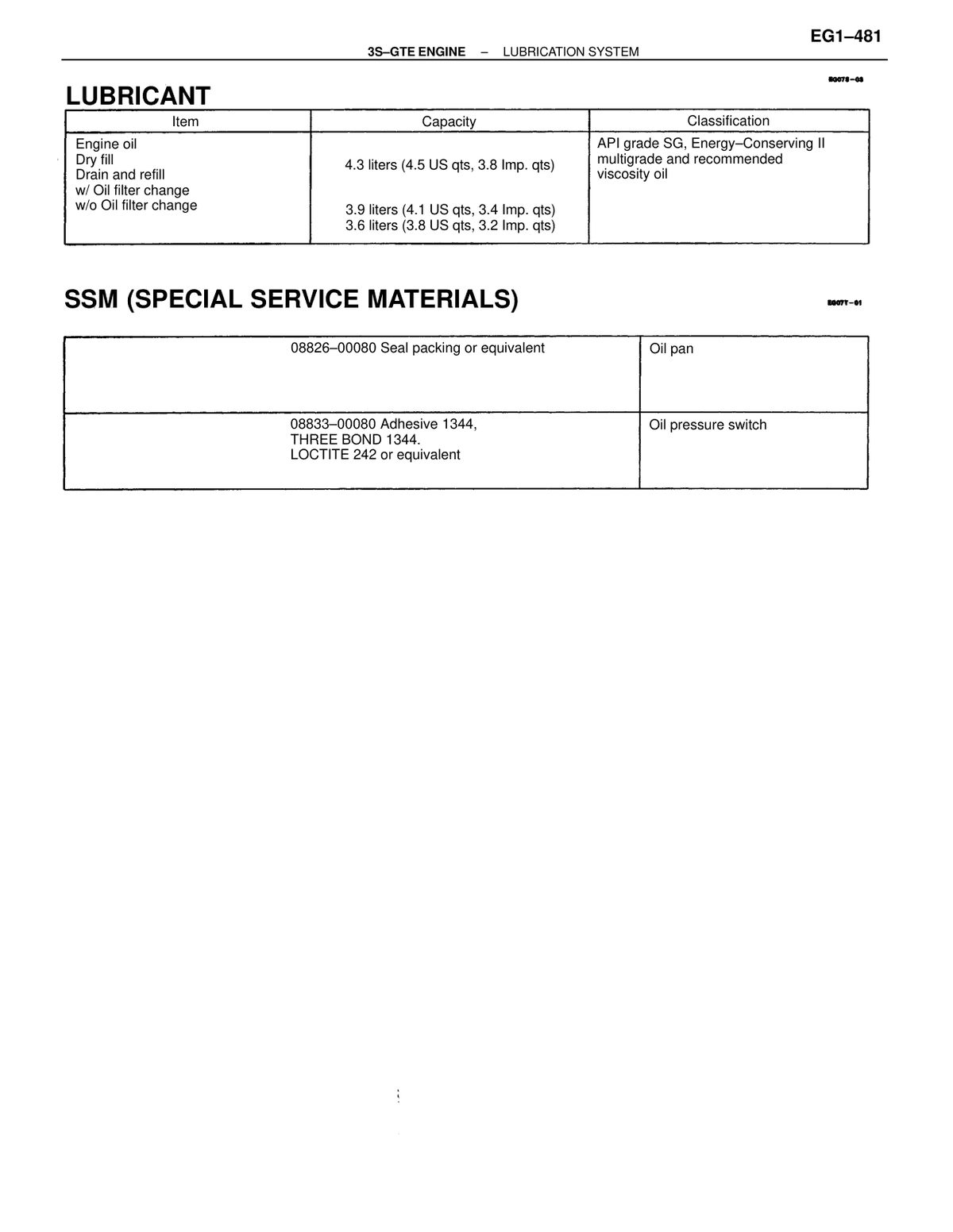

08826-00080 Seal packing for oil pan Or equivalent; nozzle cut to 3–5 mm (0.12–0.20 in.) opening Lubrication / oil ↗ RM179U1_1991 · p551 OEM manual
95506-00020 Belt tension gauge Nippondenso BTG-20 Starting / charging ↗ RM179U1_1991 · p604 OEM manual

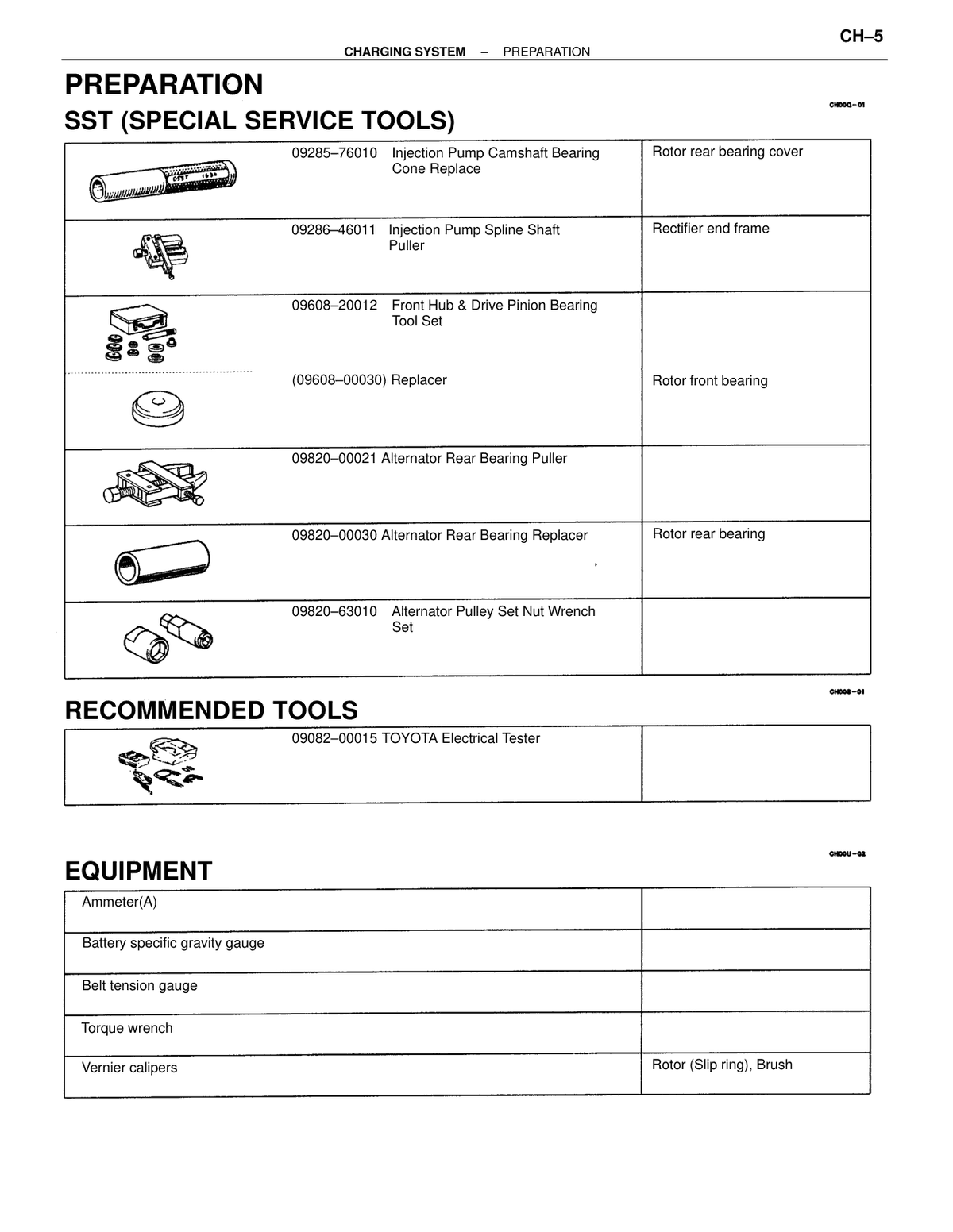

09820-63010 SST — Alternator pulley removal/installation tool Starting / charging ↗ RM179U1_1991 · p610 OEM manual

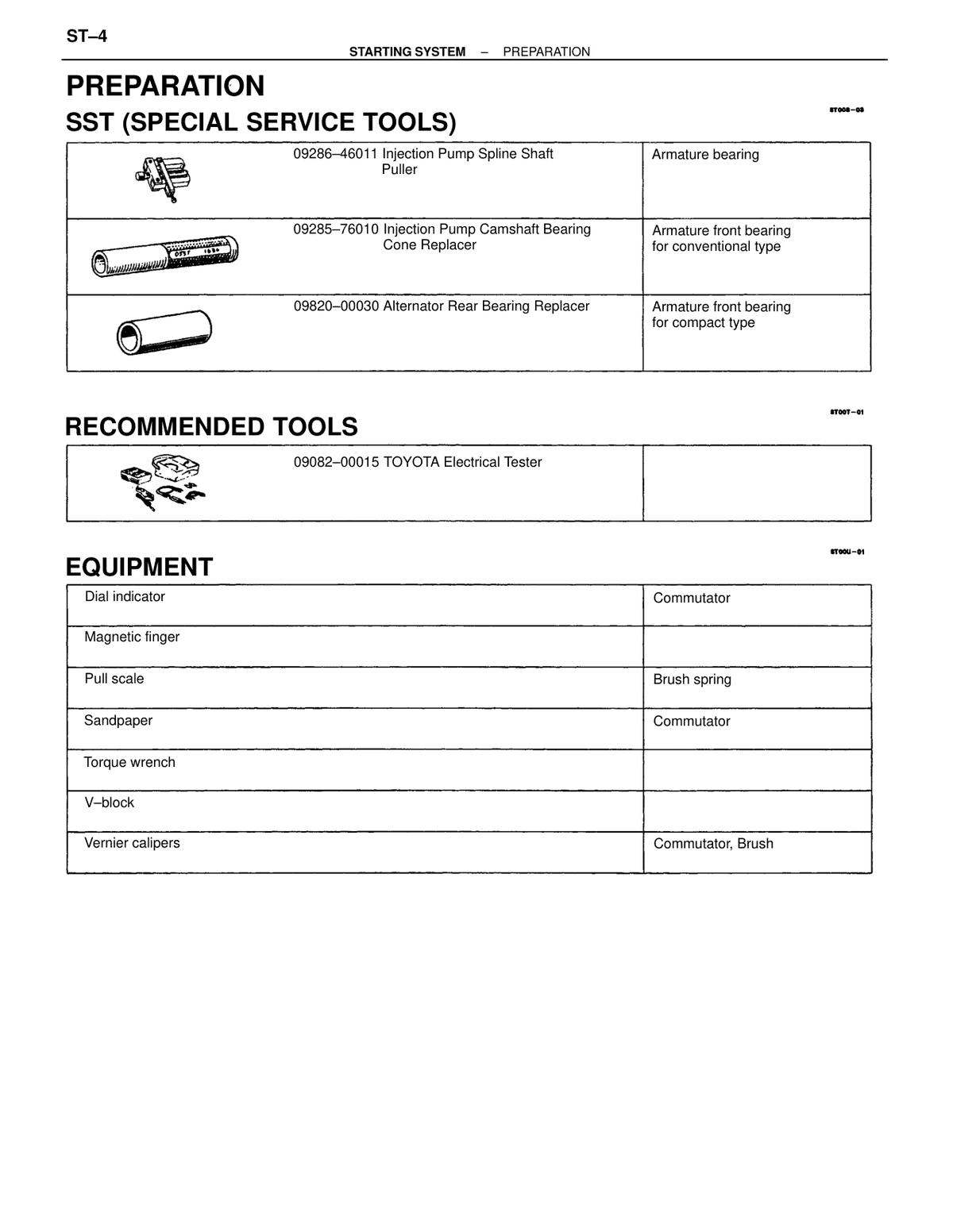

09286-46011 SST for removing rectifier end frame Starting / charging ↗ RM179U1_1991 · p611 OEM manual
09608-20012 SST — bearing press-in tool (front bearing replacement) Sub-component: 09608-00030 Starting / charging ↗ RM179U1_1991 · p614 OEM manual
09820-00021 SST — rear bearing cover and bearing removal tool Starting / charging ↗ RM179U1_1991 · p614 OEM manual
09285-76010 SST — bearing and bearing cover press-in tool Used to press in new bearing and bearing cover Starting / charging ↗ RM179U1_1991 · p615 OEM manual
09820-63010 SST — Pulley nut tightening tool set Used for alternator pulley installation Starting / charging ↗ RM179U1_1991 · p616 OEM manual

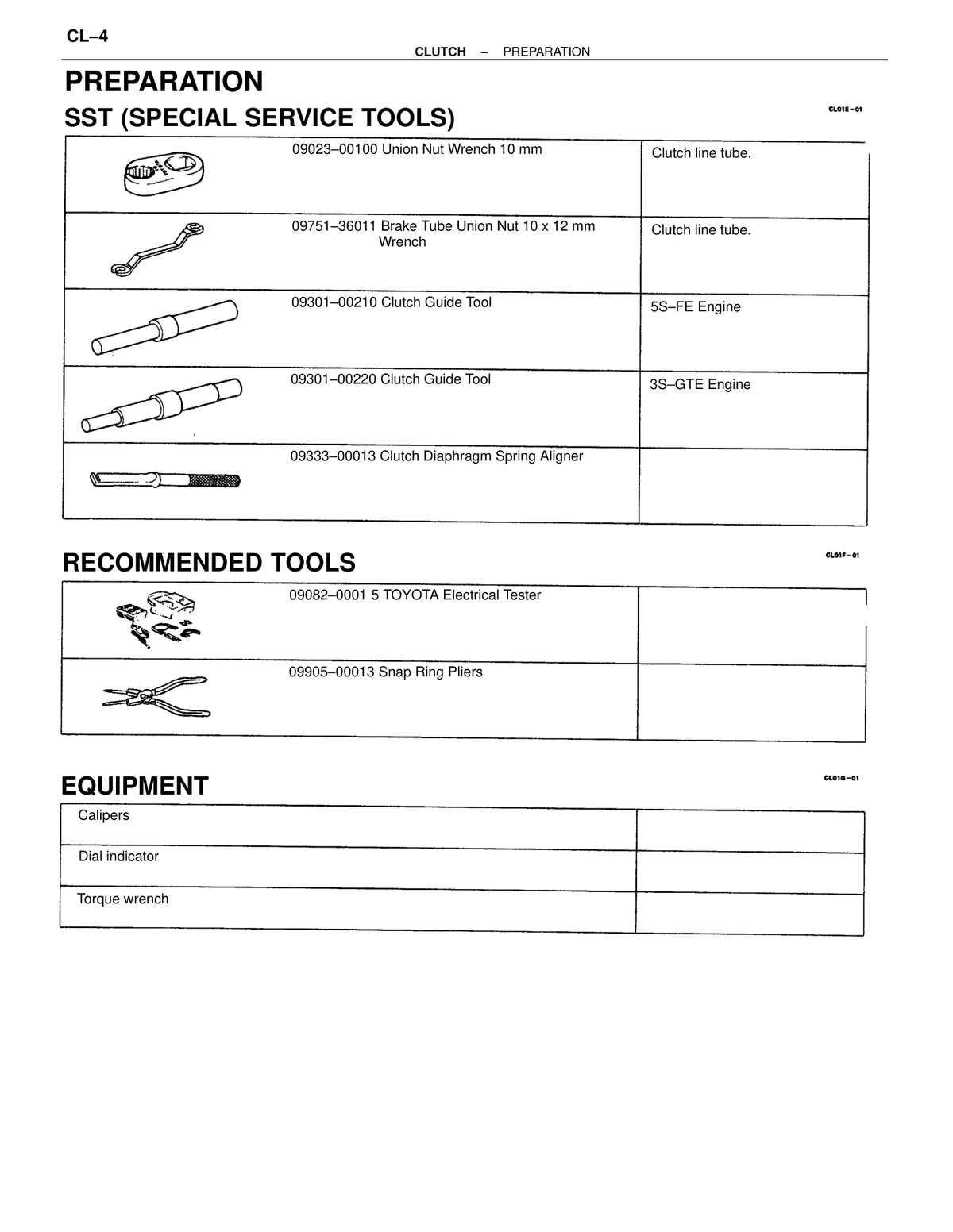

09751-36011 SST — Clutch line union nut disconnection tool Special Service Tool Clutch ↗ RM179U1_1991 · p652 OEM manual
09751-36011 SST for connecting clutch line union Special Service Tool Clutch ↗ RM179U1_1991 · p654 OEM manual
09751-36011 SST — Clutch line union tool Special Service Tool Clutch ↗ RM179U1_1991 · p658 OEM manual
08885-80206 Transaxle oil E50 E153 transaxle Transmission / transaxle ↗ RM179U1_1991 · p664 OEM manual
08885-80206 Transaxle oil E50 E153: 3S-GTE transaxle Transmission / transaxle ↗ RM179U1_1991 · p666 OEM manual
08885-80206 Transaxle oil E50 E153 transaxle; or equivalent Transmission / transaxle ↗ RM179U1_1991 · p667 OEM manual

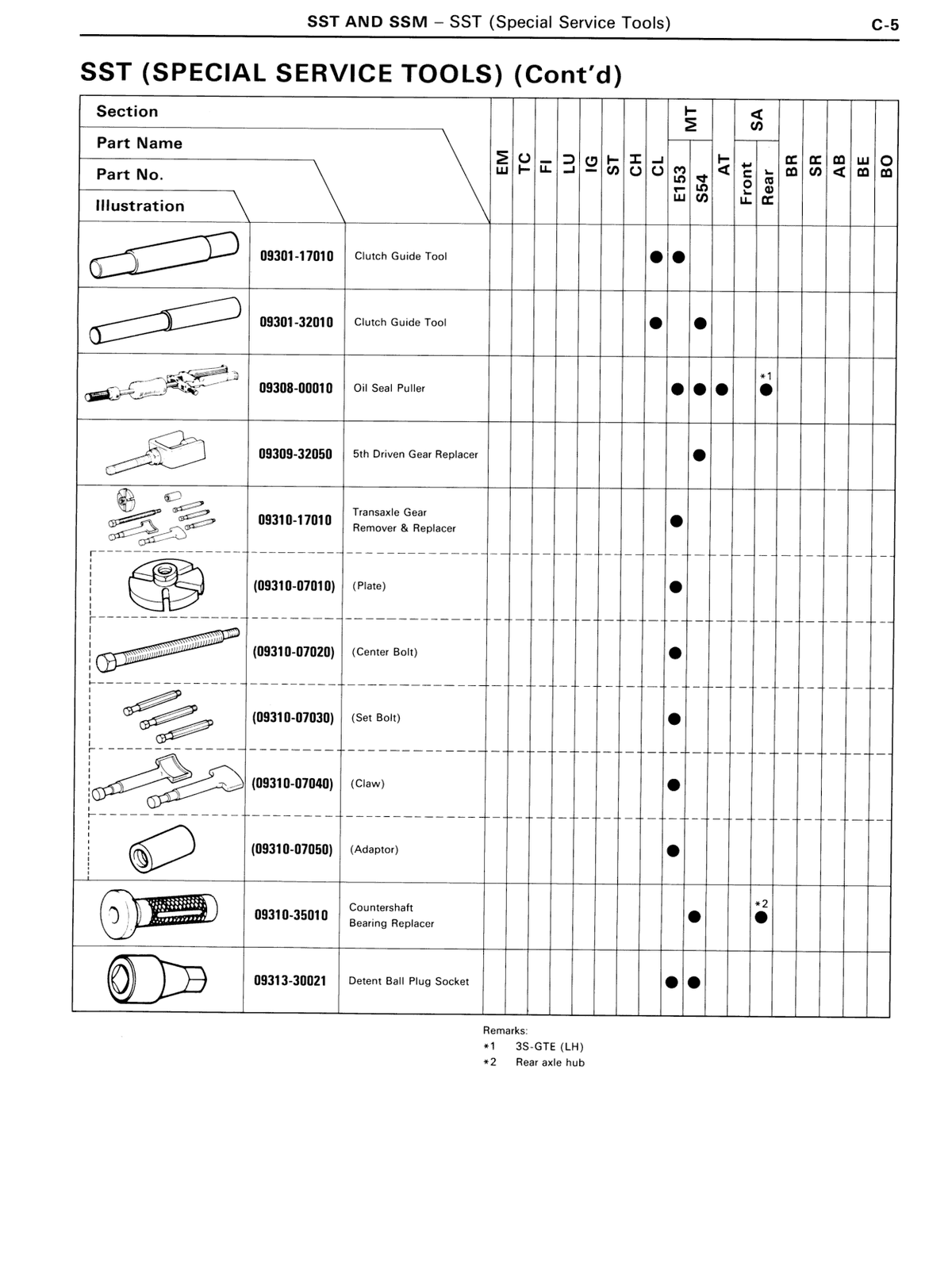

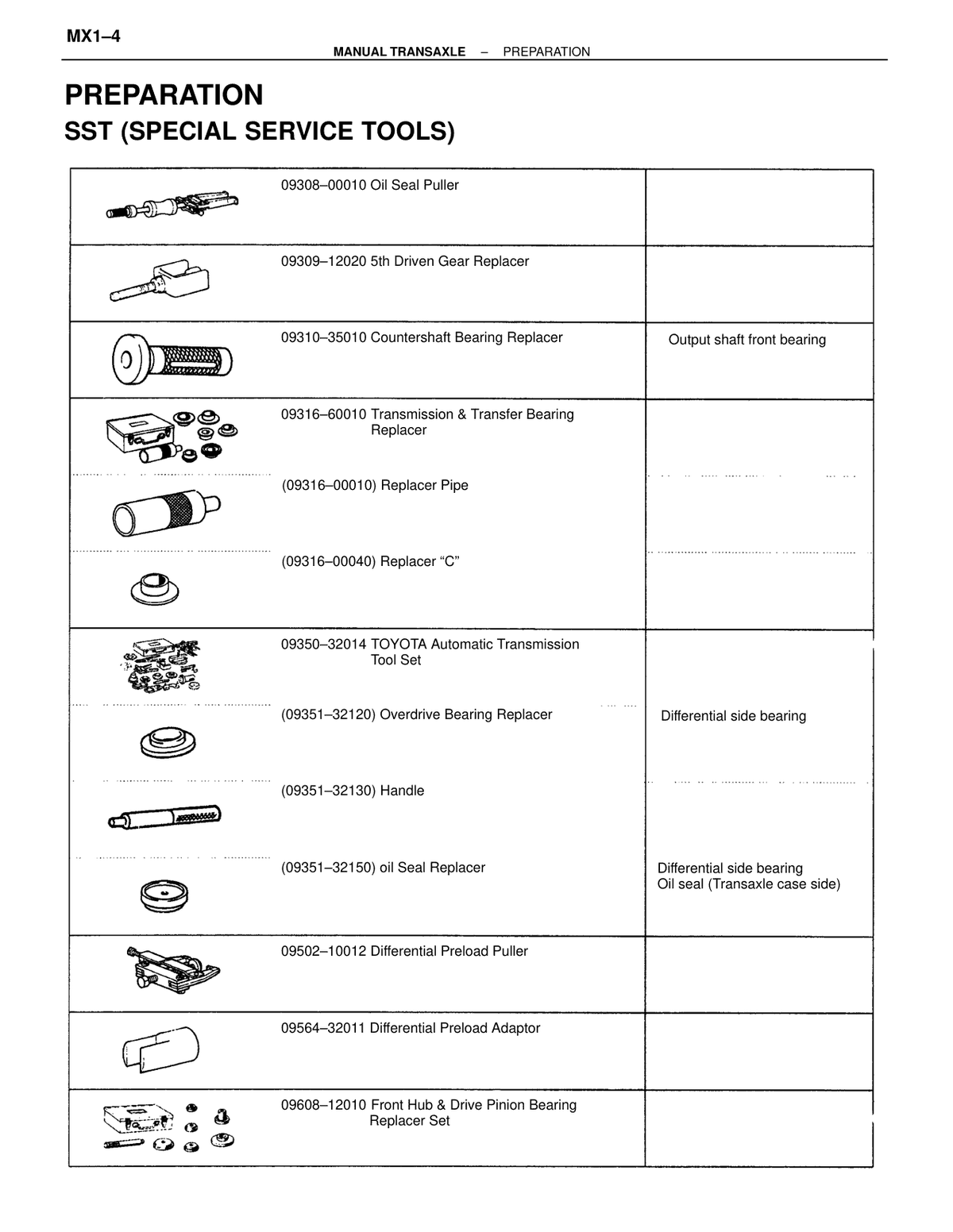

09308-00010 SST — Input shaft front bearing puller Transmission / transaxle ↗ RM179U1_1991 · p679 OEM manual

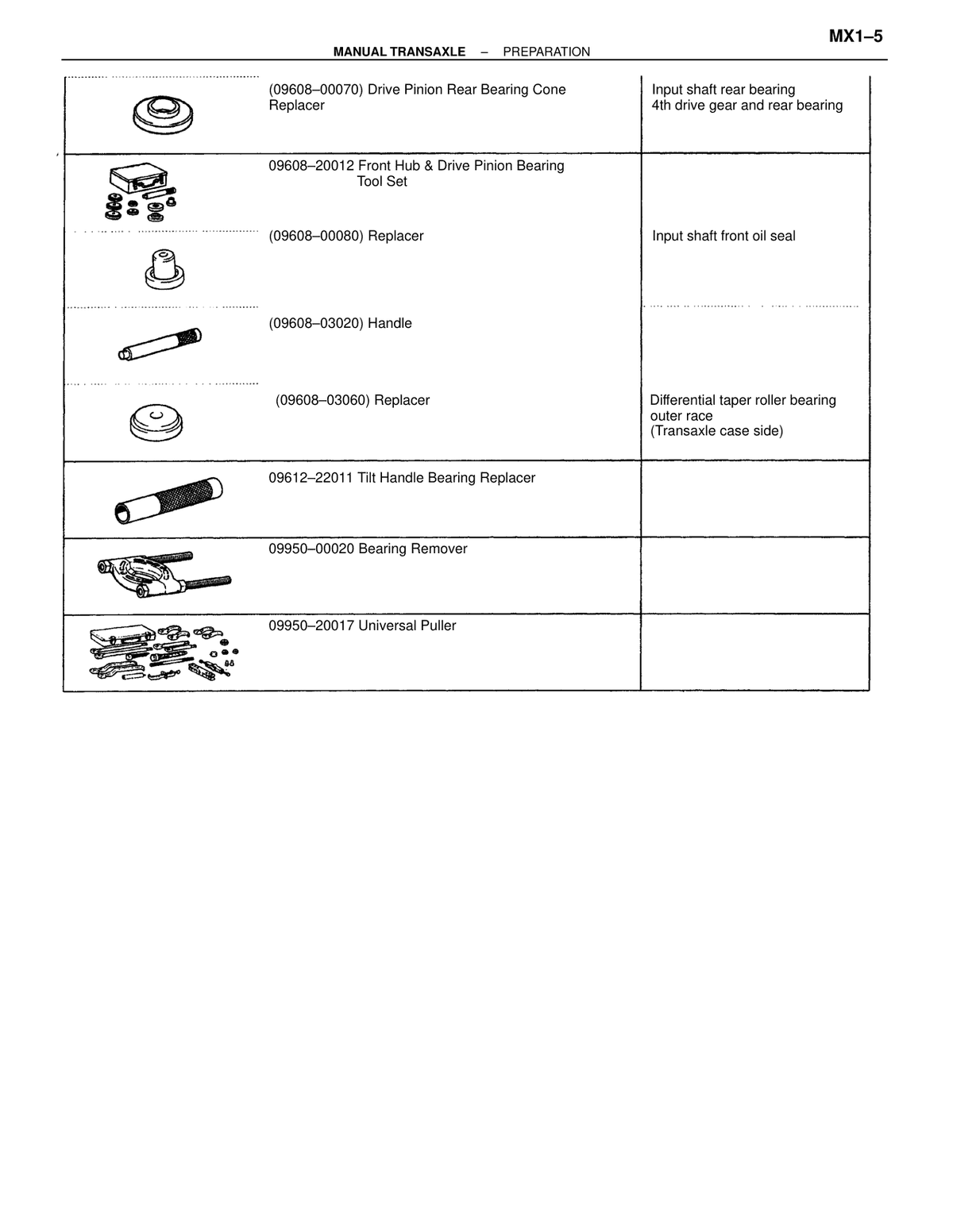

09608-20012 SST – Oil seal driver set includes 09608-00080, 09608-03020 Transmission / transaxle ↗ RM179U1_1991 · p680 OEM manual
09608-00080 SST – Oil seal driver sub-tool part of 09608-20012 set Transmission / transaxle ↗ RM179U1_1991 · p680 OEM manual
09608-03020 SST – Oil seal driver sub-tool part of 09608-20012 set Transmission / transaxle ↗ RM179U1_1991 · p680 OEM manual
09310-35010 SST – Bearing installer used to press in new bearing Transmission / transaxle ↗ RM179U1_1991 · p680 OEM manual
09308-00010 SST – Bearing puller used to pull out output shaft front bearing Transmission / transaxle ↗ RM179U1_1991 · p680 OEM manual

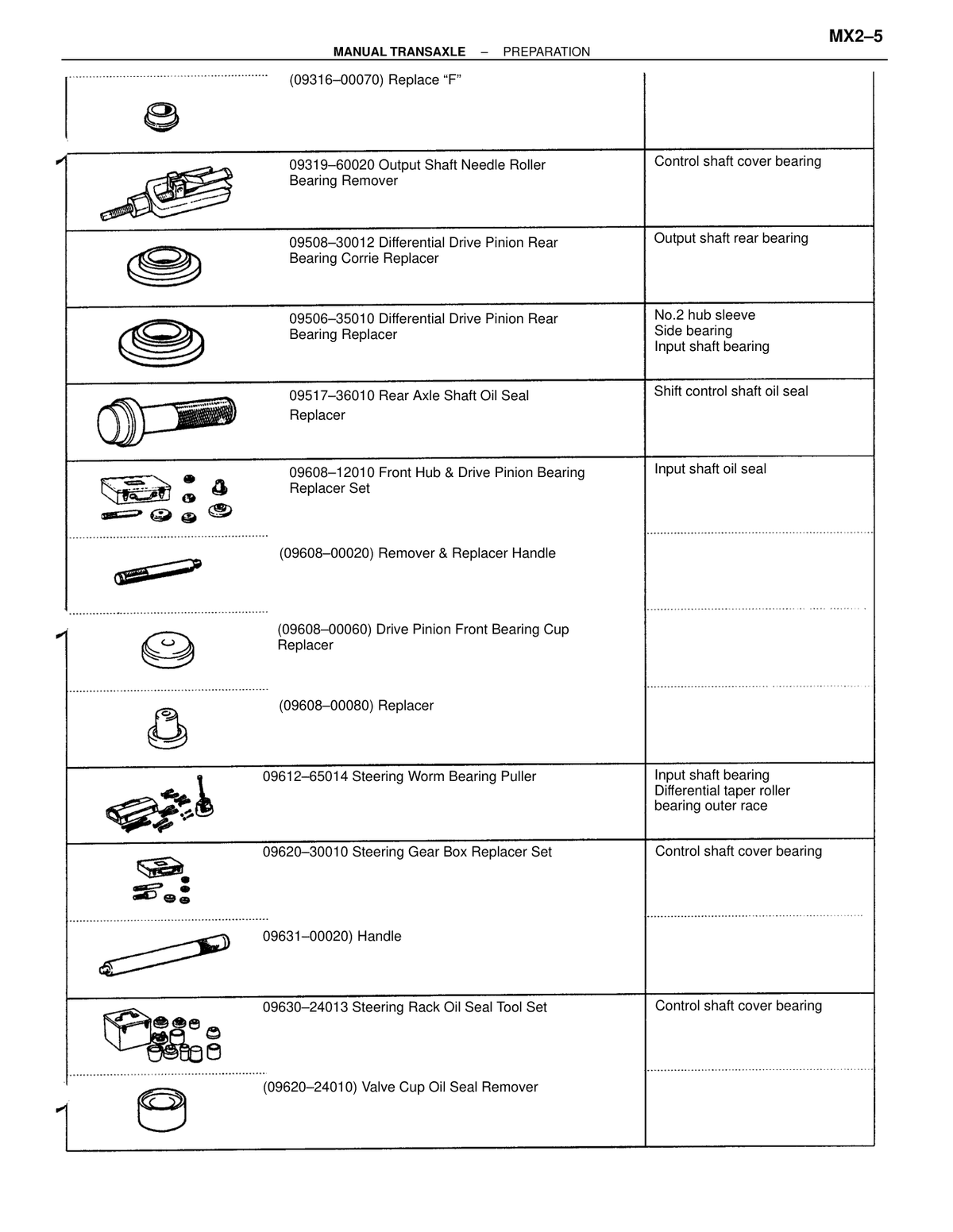

09316-60010 SST (set) includes 09316-00010 and 09316-00070 Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
09316-00010 SST component sub-tool of 09316-60010 Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
09316-00070 SST component sub-tool of 09316-60010 Transmission / transaxle ↗ RM179U1_1991 · p687 OEM manual
09515-10010 SST — Output Shaft Rear Bearing Installer Special Service Tool Transmission / transaxle ↗ RM179U1_1991 · p695 OEM manual

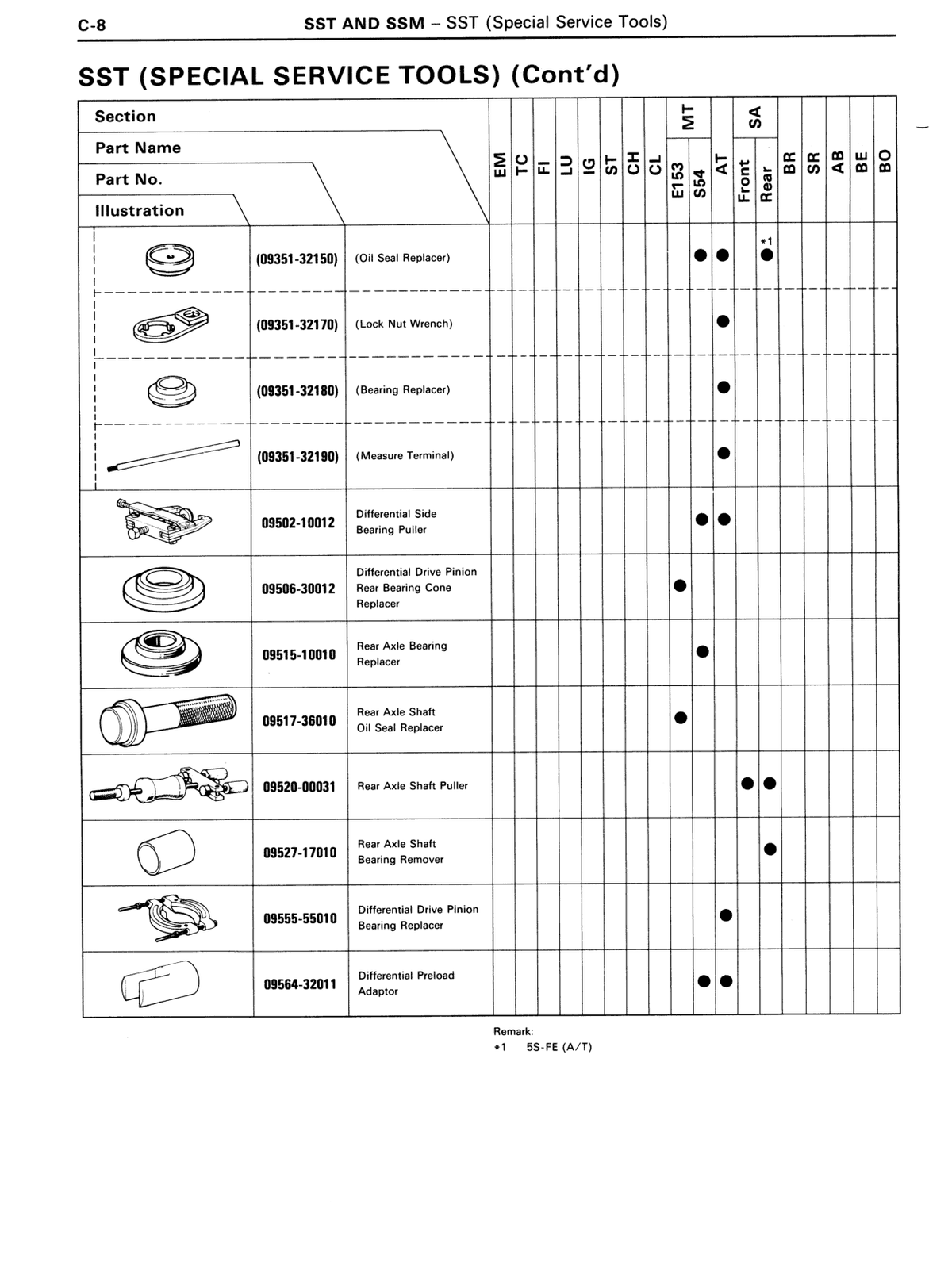

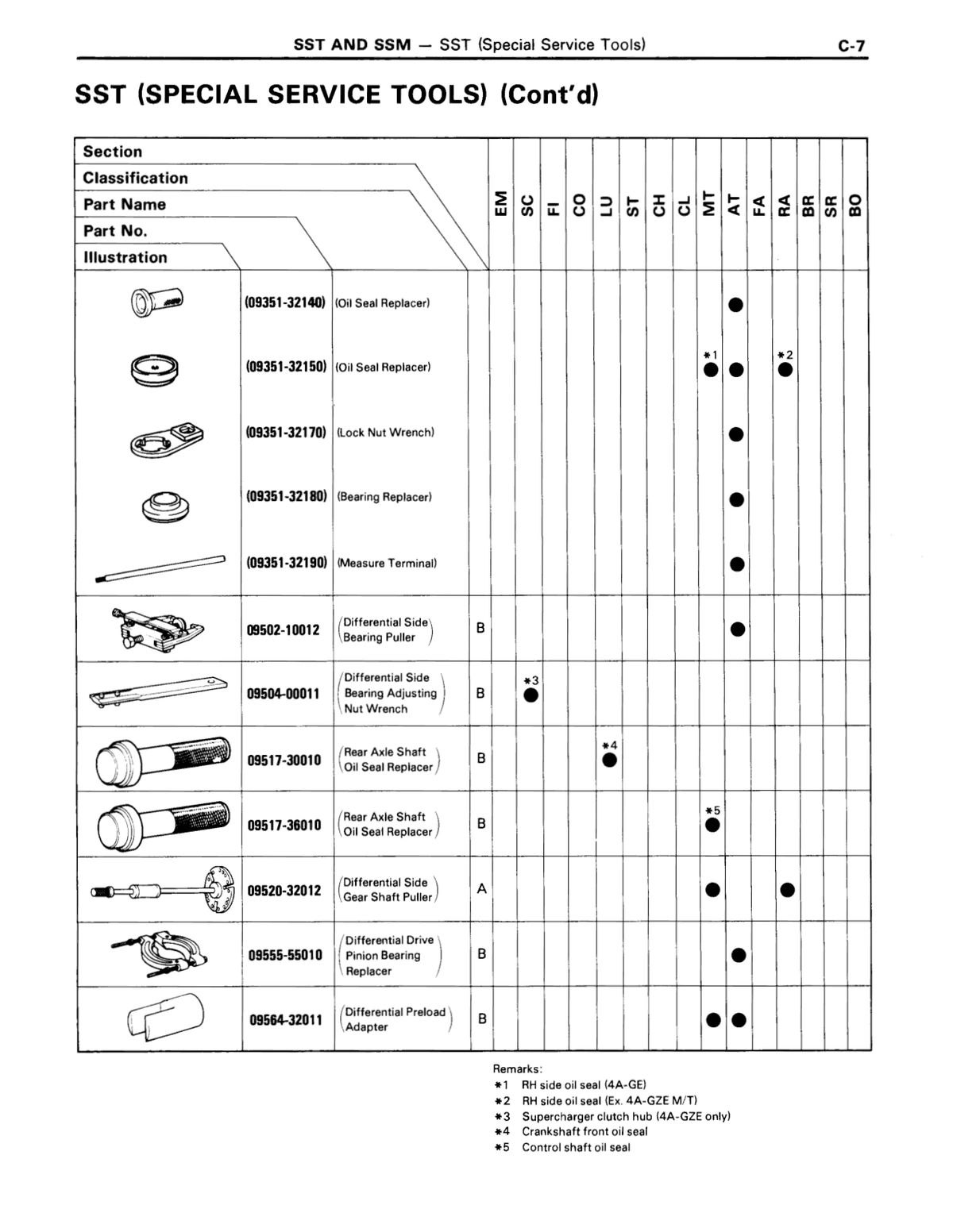

09502-10012 SST — Special Service Tool for removing differential bearing Used to set to cut-out portion on differential case Transmission / transaxle ↗ RM179U1_1991 · p701 OEM manual
09608-20012 SST — taper roller bearing outer race installer / oil seal remover Sub-parts: 09608-03020, 09608-03060 (installation); 09608-00030, 09608-03020 (removal) Transmission / transaxle ↗ RM179U1_1991 · p702 OEM manual
09350-32014 SST — oil seal driver Sub-parts: 09351-32130, 09351-32150 Transmission / transaxle ↗ RM179U1_1991 · p702 OEM manual
09710-30030 SST — side bearing installer (outer tool) sub-tool 09710-03160 Transmission / transaxle ↗ RM179U1_1991 · p705 OEM manual
09710-03160 SST — side bearing installer (inner component) used with 09710-30030 Transmission / transaxle ↗ RM179U1_1991 · p705 OEM manual
09350-32014 SST — side bearing installer set sub-tools 09351-32090, 09351-32120 Transmission / transaxle ↗ RM179U1_1991 · p705 OEM manual
09351-32090 SST — side bearing installer component used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p705 OEM manual
09351-32120 SST — side bearing installer component used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p705 OEM manual
09564-32011 SST — differential rotation and preload measurement tool Used in steps (e) and (f) Transmission / transaxle ↗ RM179U1_1991 · p707 OEM manual

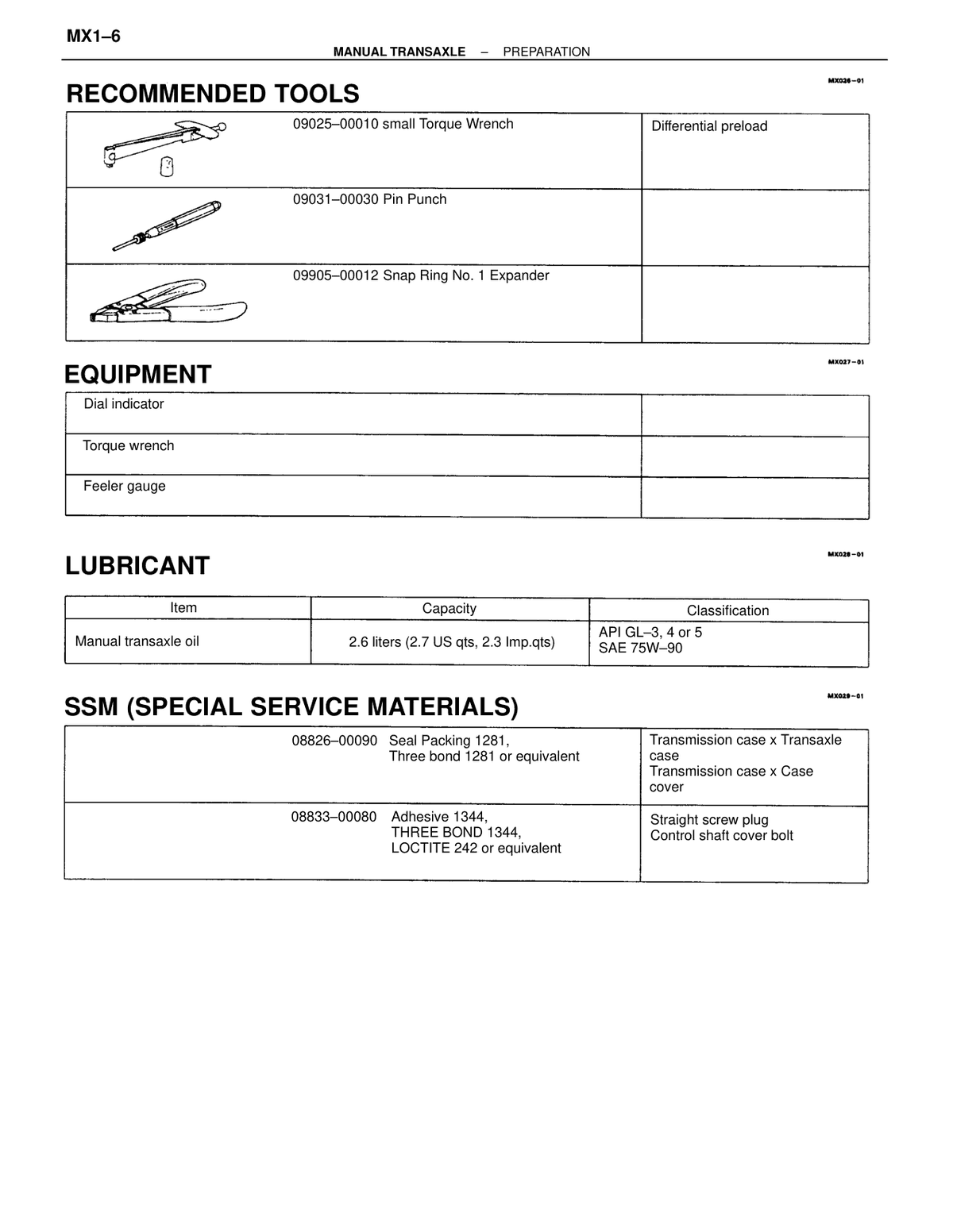

08826-00090 Seal packing (THREE BOND 1281 or equivalent) for transmission case Step 11(b) Transmission / transaxle ↗ RM179U1_1991 · p712 OEM manual
08833-00080 Sealant (THREE BOND 1344, LOCTITE 242 or equivalent) for reverse idler gear shaft lock bolt threads Step 12(a) Transmission / transaxle ↗ RM179U1_1991 · p712 OEM manual
08833-00080 Sealant — THREE BOND 1344 (or LOCTITE 242 equivalent) for side bearing retainer bolt threads Transmission / transaxle ↗ RM179U1_1991 · p713 OEM manual
08833-00070 Sealant — THREE BOND 1324 or equivalent for rear bearing retainer bolt threads Transmission / transaxle ↗ RM179U1_1991 · p713 OEM manual
09309-32050 SST — Special Service Tool for installing fifth driven gear Transmission / transaxle ↗ RM179U1_1991 · p713 OEM manual

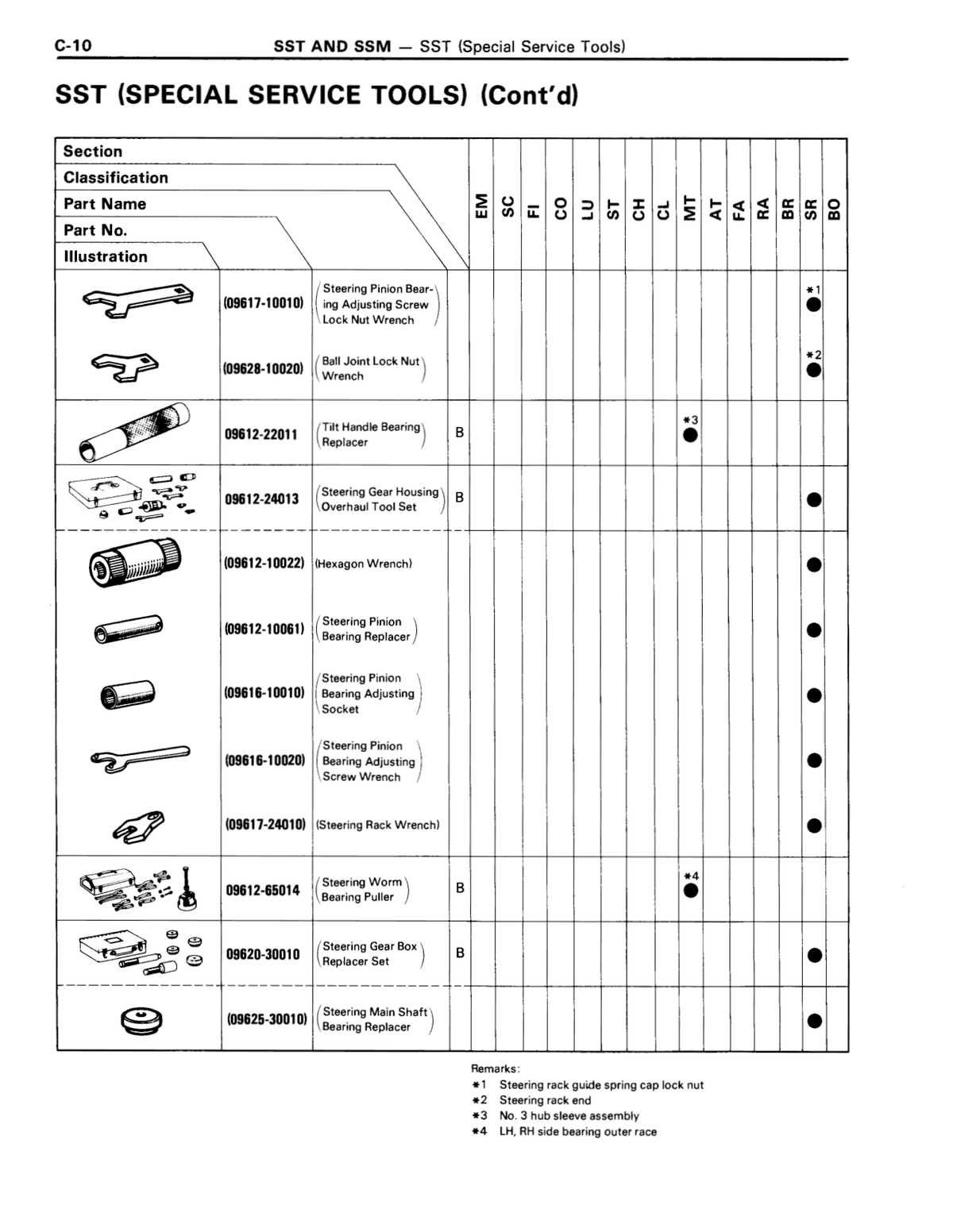

09612-22011 SST — used to drive in No. 3 hub sleeve with shift fork Special Service Tool Transmission / transaxle ↗ RM179U1_1991 · p714 OEM manual
08826-00090 Seal packing (THREE BOND 1281 or equivalent) Applied to transmission case cover mating surface Transmission / transaxle ↗ RM179U1_1991 · p715 OEM manual
08833-00080 THREE BOND 1344 sealant or equivalent (LOCTITE 242) Apply to bolt threads Transmission / transaxle ↗ RM179U1_1991 · p716 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Step 28(a) Transmission / transaxle ↗ RM179U1_1991 · p717 OEM manual
09313-30021 SST for No. 2 Lock Ball Assembly plug installation Step 28(b) Transmission / transaxle ↗ RM179U1_1991 · p717 OEM manual

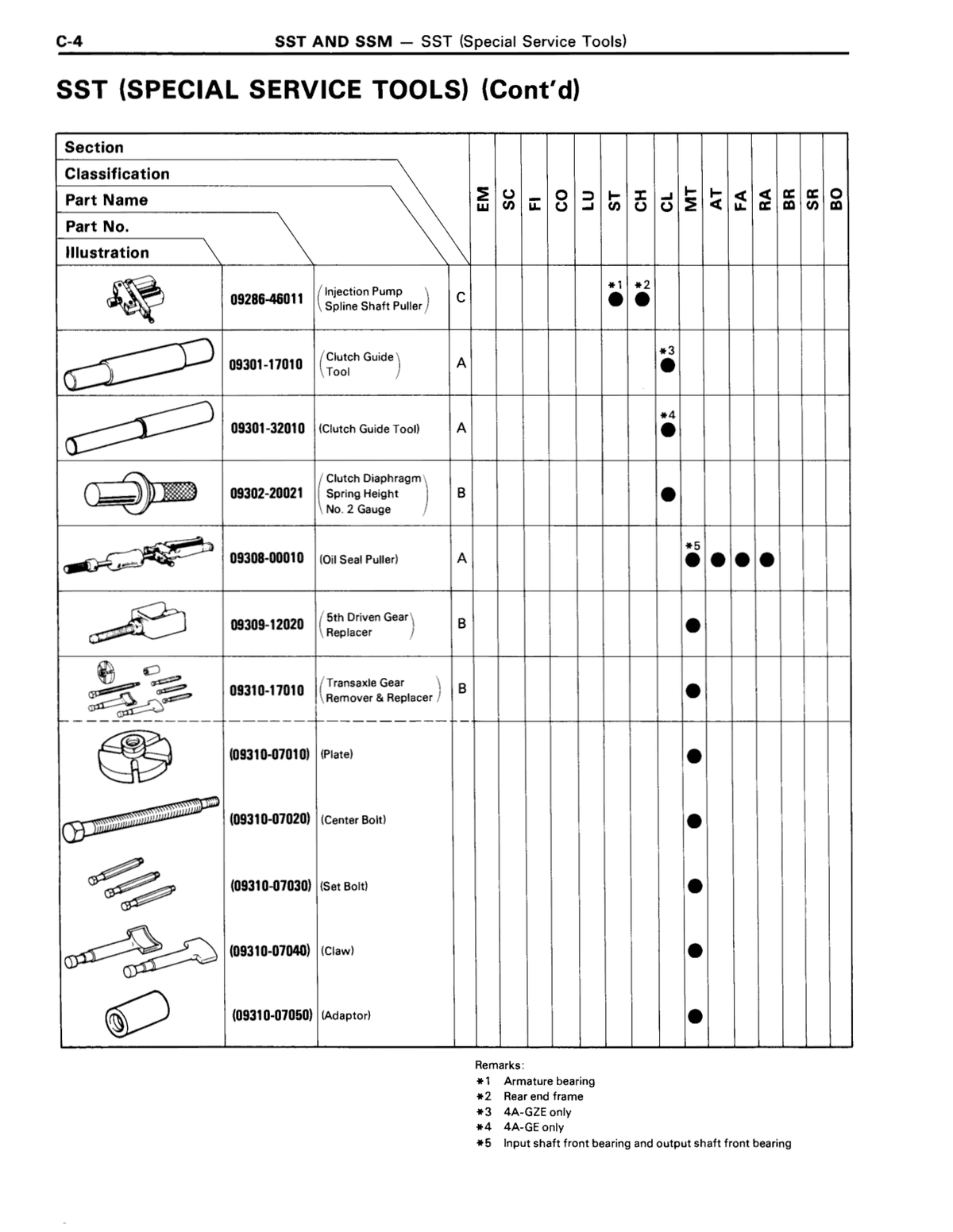

09310-17010 SST — clutch hub and 5th gear puller set Includes 09310-07010, 09310-07020, 09310-07040, 09310-07050 Transmission / transaxle ↗ RM179U1_1991 · p725 OEM manual
09310-07010 SST component — clutch hub puller Part of 09310-17010 set Transmission / transaxle ↗ RM179U1_1991 · p725 OEM manual
09310-07020 SST component — clutch hub puller Part of 09310-17010 set Transmission / transaxle ↗ RM179U1_1991 · p725 OEM manual
09310-07040 SST component — clutch hub puller Part of 09310-17010 set Transmission / transaxle ↗ RM179U1_1991 · p725 OEM manual
09310-07050 SST component — clutch hub puller Part of 09310-17010 set Transmission / transaxle ↗ RM179U1_1991 · p725 OEM manual
09042-00050 Torx wrench T45 — rear bearing retainer screws Transmission / transaxle ↗ RM179U1_1991 · p725 OEM manual

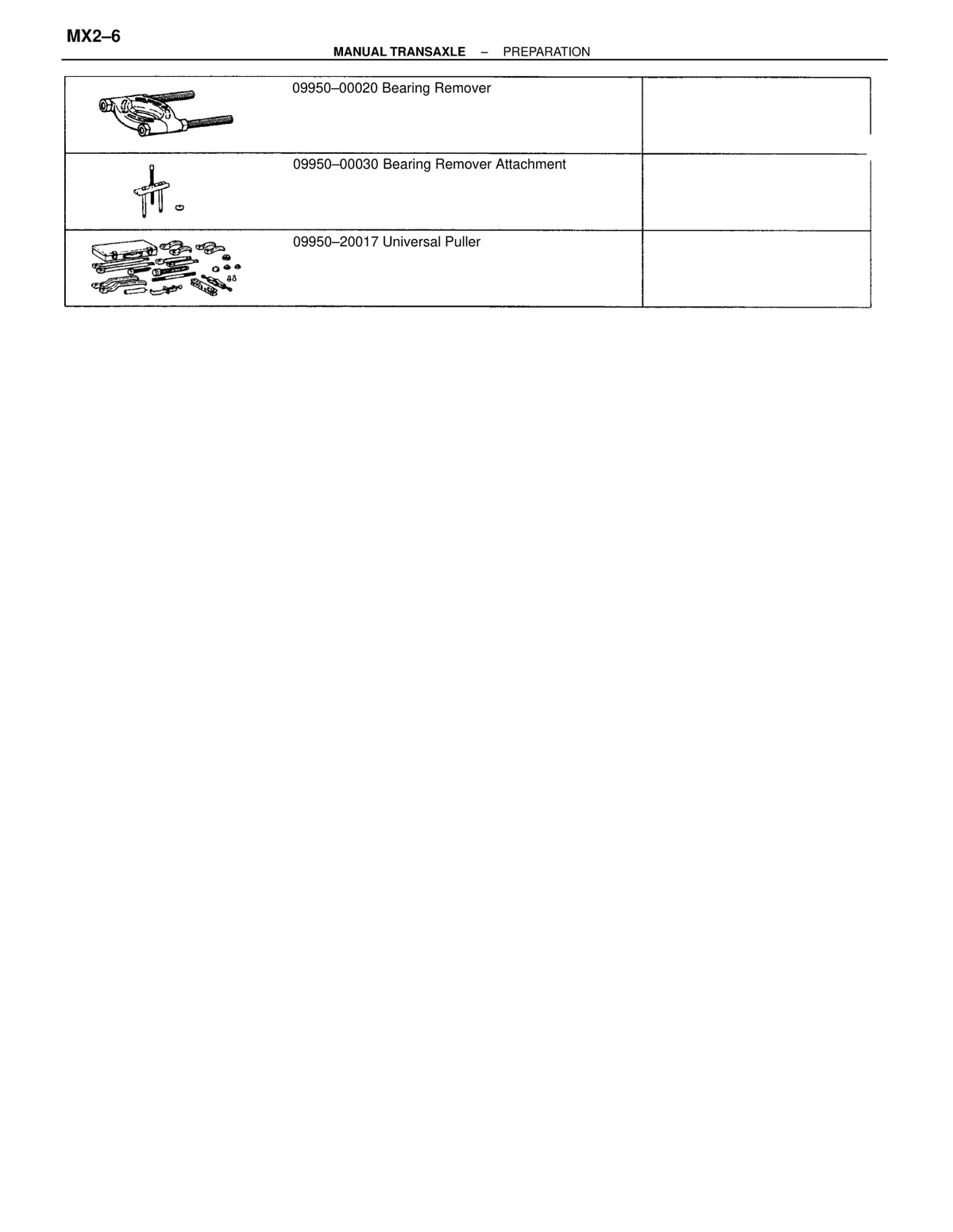

09950-00020 SST — Special Service Tool for removing input shaft front bearing inner race Transmission / transaxle ↗ RM179U1_1991 · p737 OEM manual
09316-60010 SST (Special Service Tool) for installing 1st gear and No. 1 hub sleeve Sub-tool 09316-00040 Transmission / transaxle ↗ RM179U1_1991 · p745 OEM manual
09506-30012 SST — Output shaft rear bearing installer Transmission / transaxle ↗ RM179U1_1991 · p746 OEM manual
09316-60010 SST — Output shaft front bearing installer Transmission / transaxle ↗ RM179U1_1991 · p746 OEM manual
09316-00070 SST — Output shaft front bearing installer (sub-tool) Transmission / transaxle ↗ RM179U1_1991 · p746 OEM manual
09950-20017 SST — bearing puller for side bearing removal Special Service Tool Transmission / transaxle ↗ RM179U1_1991 · p757 OEM manual
09316-60010 SST (set) for taper roller bearing outer race installation sub-parts: 09316-00010, 09316-00040 Transmission / transaxle ↗ RM179U1_1991 · p759 OEM manual
09316-00010 SST sub-part for taper roller bearing outer race installation part of 09316-60010 Transmission / transaxle ↗ RM179U1_1991 · p759 OEM manual
09316-00040 SST sub-part for taper roller bearing outer race installation part of 09316-60010 Transmission / transaxle ↗ RM179U1_1991 · p759 OEM manual

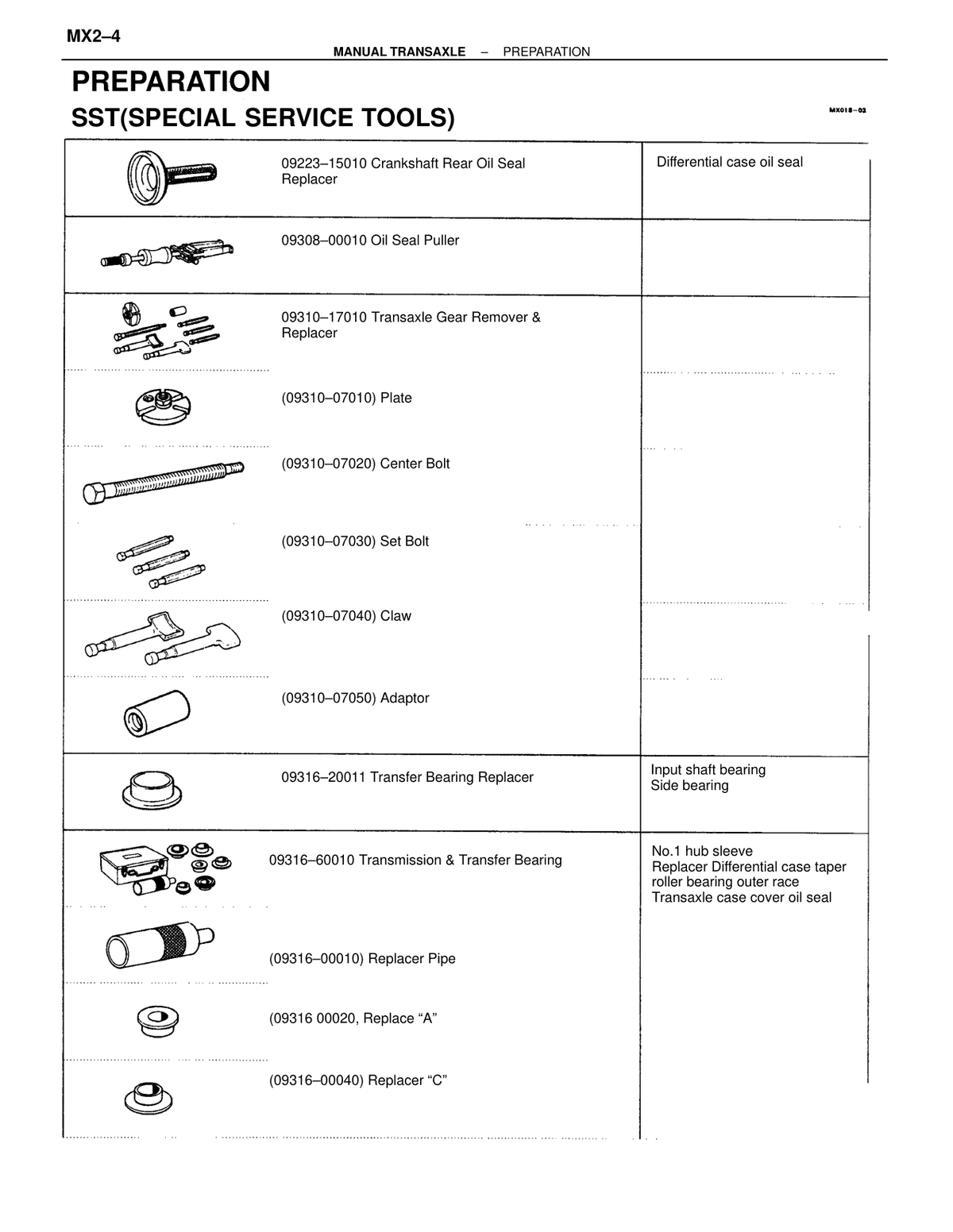

09223-15010 SST for driving in new oil seal Transmission / transaxle ↗ RM179U1_1991 · p759 OEM manual
09612-65014 SST — taper roller bearing outer race remover set sub-tool 09612-01020 Transmission / transaxle ↗ RM179U1_1991 · p760 OEM manual
09612-01020 SST — taper roller bearing outer race remover (sub-tool) used with 09612-65014 Transmission / transaxle ↗ RM179U1_1991 · p760 OEM manual
09316-60010 SST — bearing/oil seal installer set sub-tools 09316-00010, 09316-00040 Transmission / transaxle ↗ RM179U1_1991 · p760 OEM manual
09316-00010 SST — bearing/oil seal installer (sub-tool) used with 09316-60010 Transmission / transaxle ↗ RM179U1_1991 · p760 OEM manual
09316-00040 SST — bearing/oil seal installer (sub-tool) used with 09316-60010 Transmission / transaxle ↗ RM179U1_1991 · p760 OEM manual
09042-00040 Torx wrench T50 Used to torque sixteen differential case torx screws Transmission / transaxle ↗ RM179U1_1991 · p762 OEM manual
09316-60010 SST — Side bearing installer set includes 09316-00010 Transmission / transaxle ↗ RM179U1_1991 · p763 OEM manual
09316-00010 SST — Side bearing installer sub-tool used with 09316-60010 Transmission / transaxle ↗ RM179U1_1991 · p763 OEM manual
09316-60010 SST for output shaft rear tapered roller bearing outer race installation Sub-tool: 09316-00010 Transmission / transaxle ↗ RM179U1_1991 · p764 OEM manual
09042-00050 Torx wrench T45 for rear bearing retainer Transmission / transaxle ↗ RM179U1_1991 · p764 OEM manual
09042-00050 Torx wrench T45 Used to remove seven torx screws on rear bearing retainer Transmission / transaxle ↗ RM179U1_1991 · p765 OEM manual
09042-00050 Torx wrench T45 Used to remove seven torx screws and rear bearing retainer Transmission / transaxle ↗ RM179U1_1991 · p768 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Applied to two plugs in step 13(b) Transmission / transaxle ↗ RM179U1_1991 · p771 OEM manual
09313-30021 SST for installing locking ball plugs Step 13(c) Transmission / transaxle ↗ RM179U1_1991 · p771 OEM manual
08826-00090 Seal packing (THREE BOND 1281 or equivalent) Applied to transmission case mating surface Transmission / transaxle ↗ RM179U1_1991 · p772 OEM manual
08833-00070 Liquid sealant (THREE BOND 1324 or LOCTITE 242 equivalent) Used on rear bearing retainer torx screw threads Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
09042-00050 Torx wrench T45 Used for rear bearing retainer torx screws Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
09310-17010 SST set for No. 3 clutch hub installation Includes 09310-07010, 09310-07020, 09310-07030 Transmission / transaxle ↗ RM179U1_1991 · p774 OEM manual
09310-17010 SST – 5th driven gear installer (set) Comprises 09310-07010, 09310-07020, 09310-07040, 09310-07050 Transmission / transaxle ↗ RM179U1_1991 · p775 OEM manual

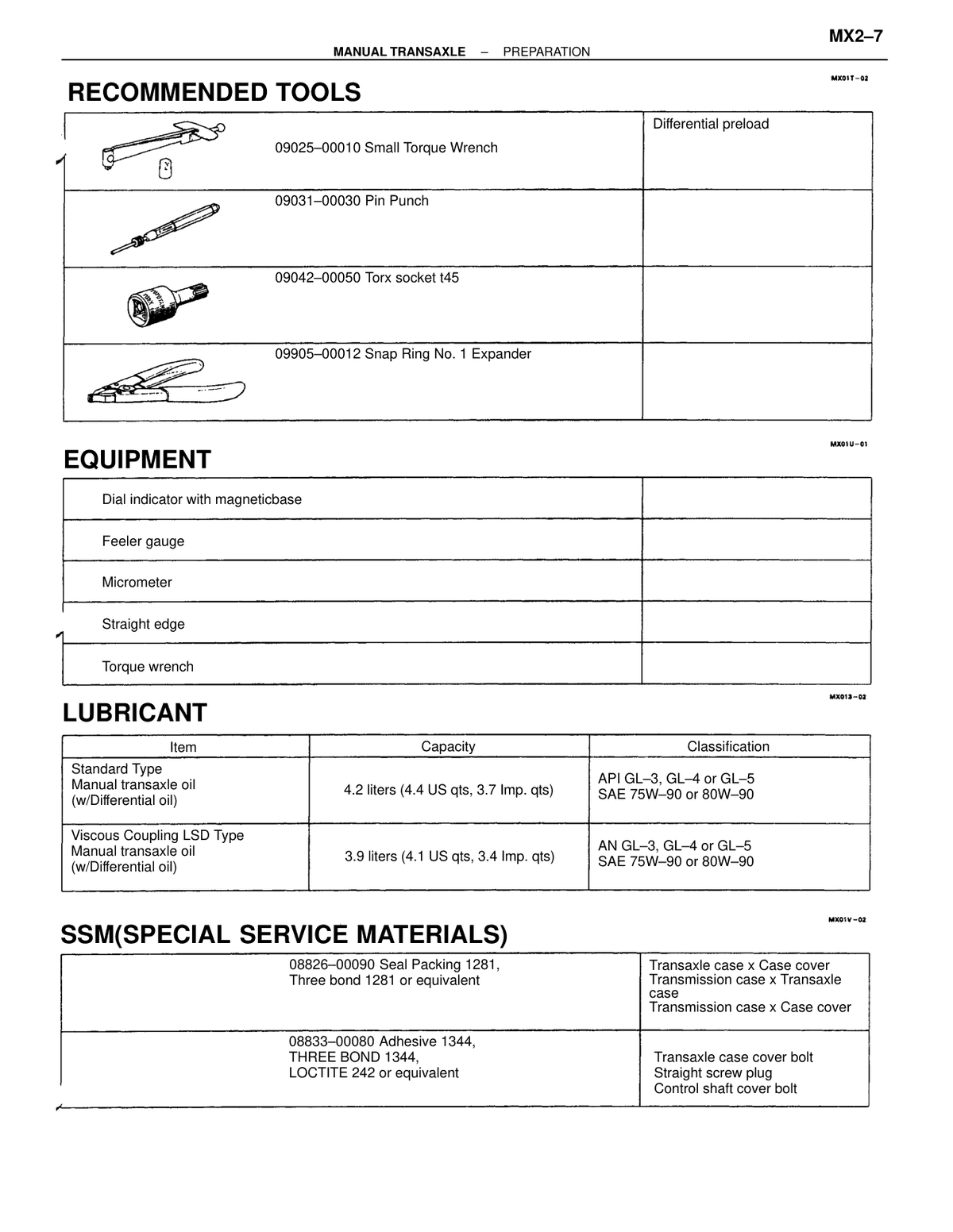

08826-00090 Seal packing (THREE BOND 1281) for transmission case cover Seal breadth approx. 1 mm (0.04 in.) Transmission / transaxle ↗ RM179U1_1991 · p776 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242) for control shaft cover bolt threads Transmission / transaxle ↗ RM179U1_1991 · p776 OEM manual

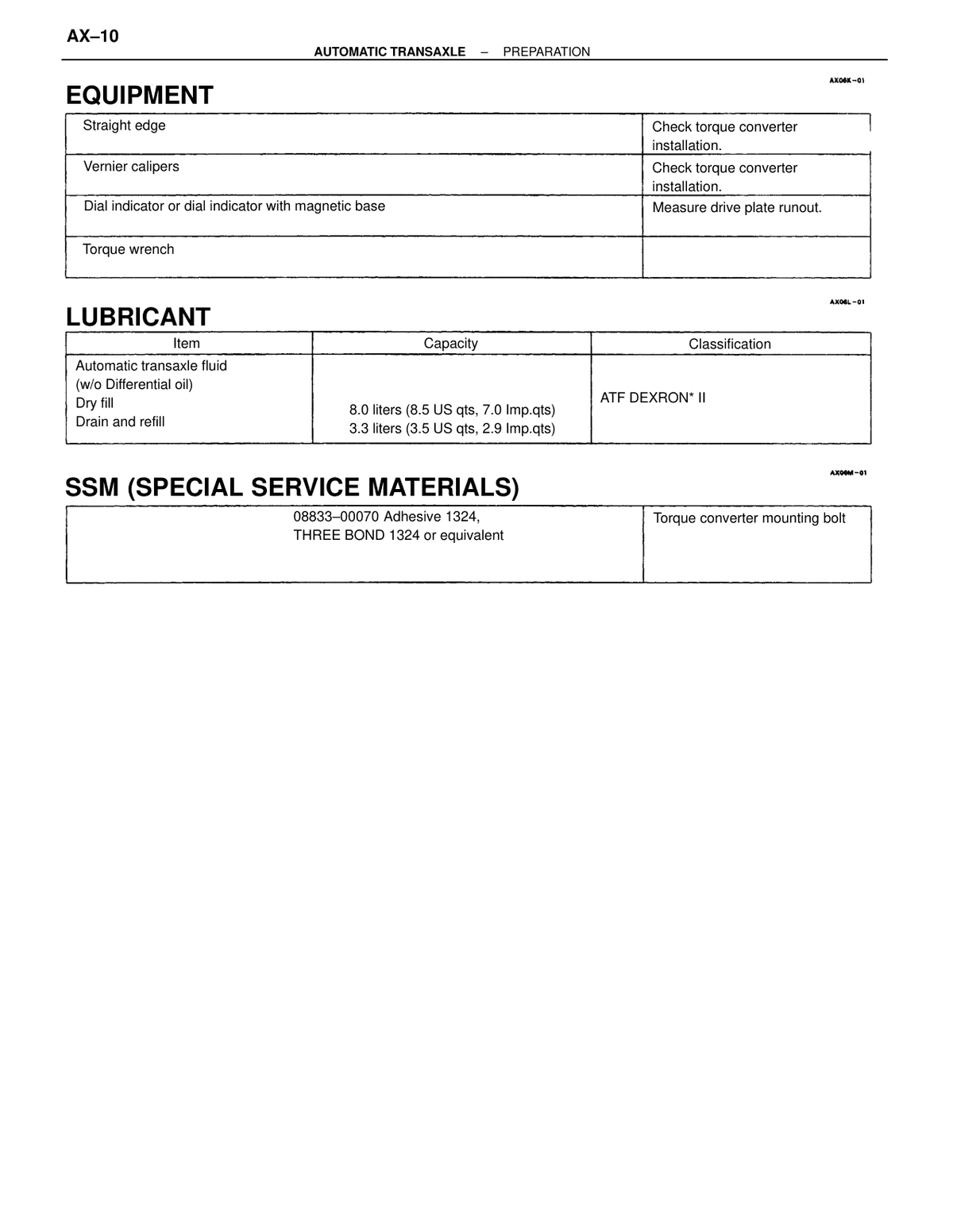

08833-00070 Sealer (THREE BOND 1324 or equivalent) for torque converter mounting bolt threads Transmission / transaxle ↗ RM179U1_1991 · p821 OEM manual

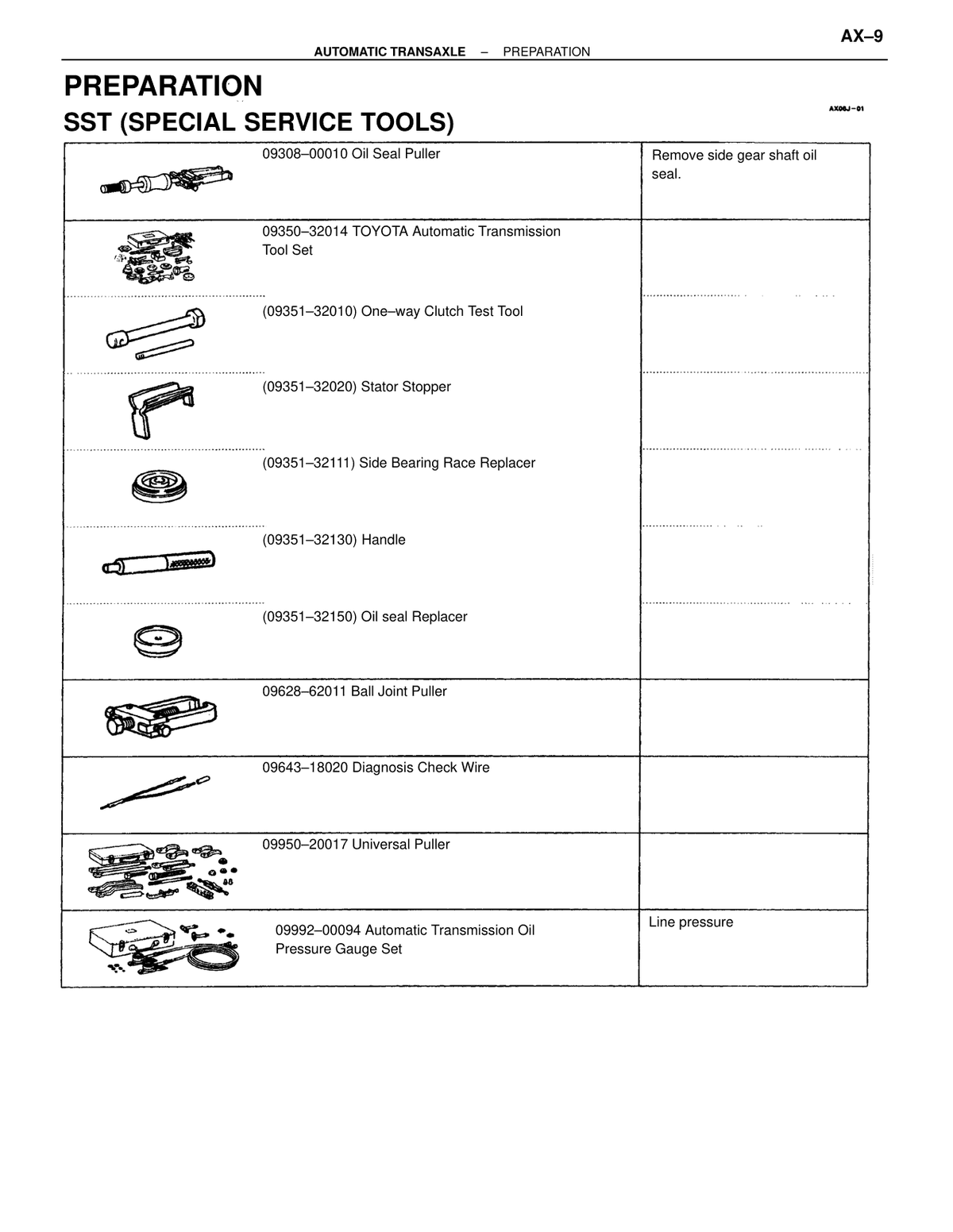

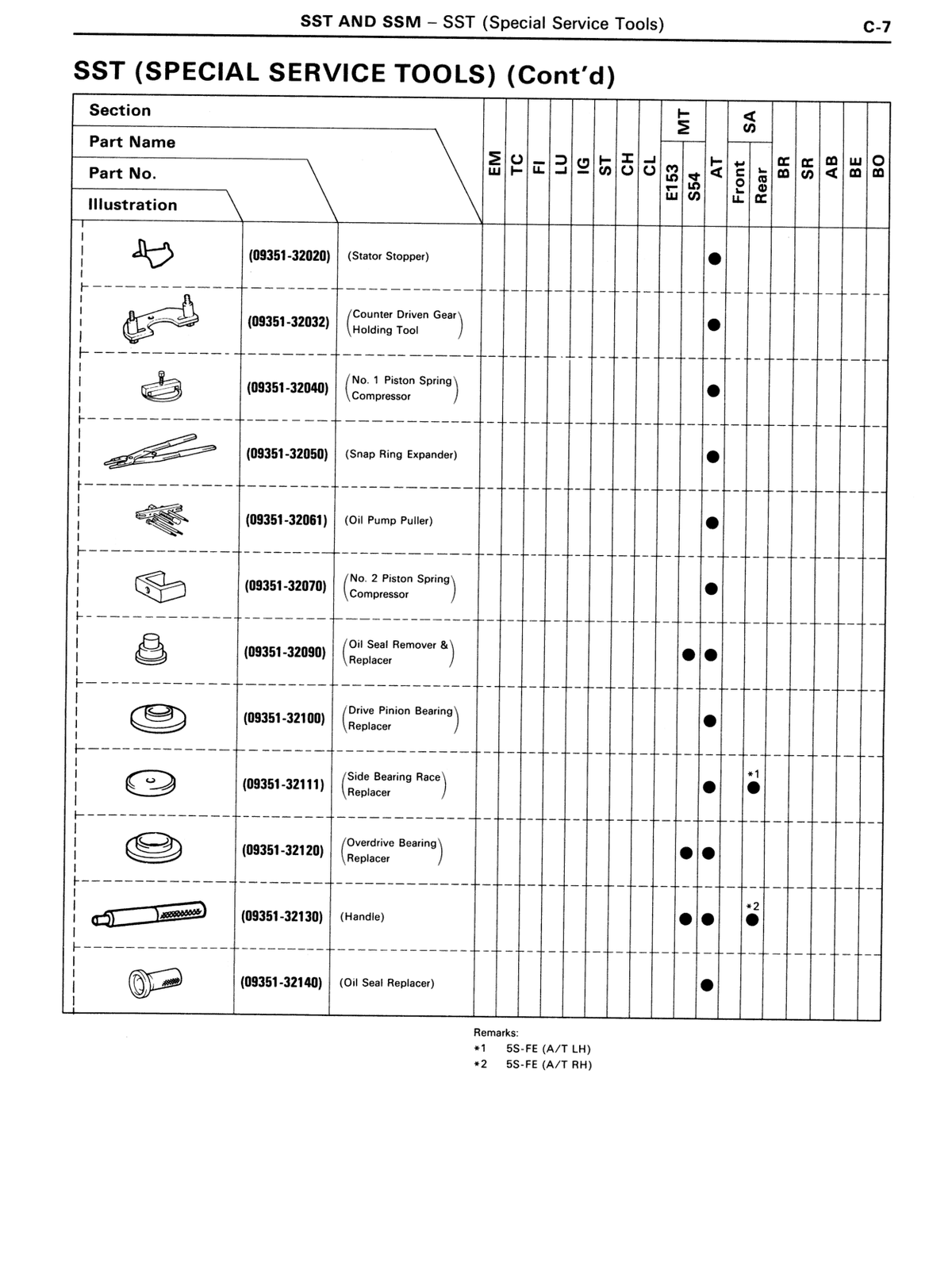

09350-32014 SST — Torque converter turning tool set Includes 09351-32010 and 09351-32020 Transmission / transaxle ↗ RM179U1_1991 · p822 OEM manual

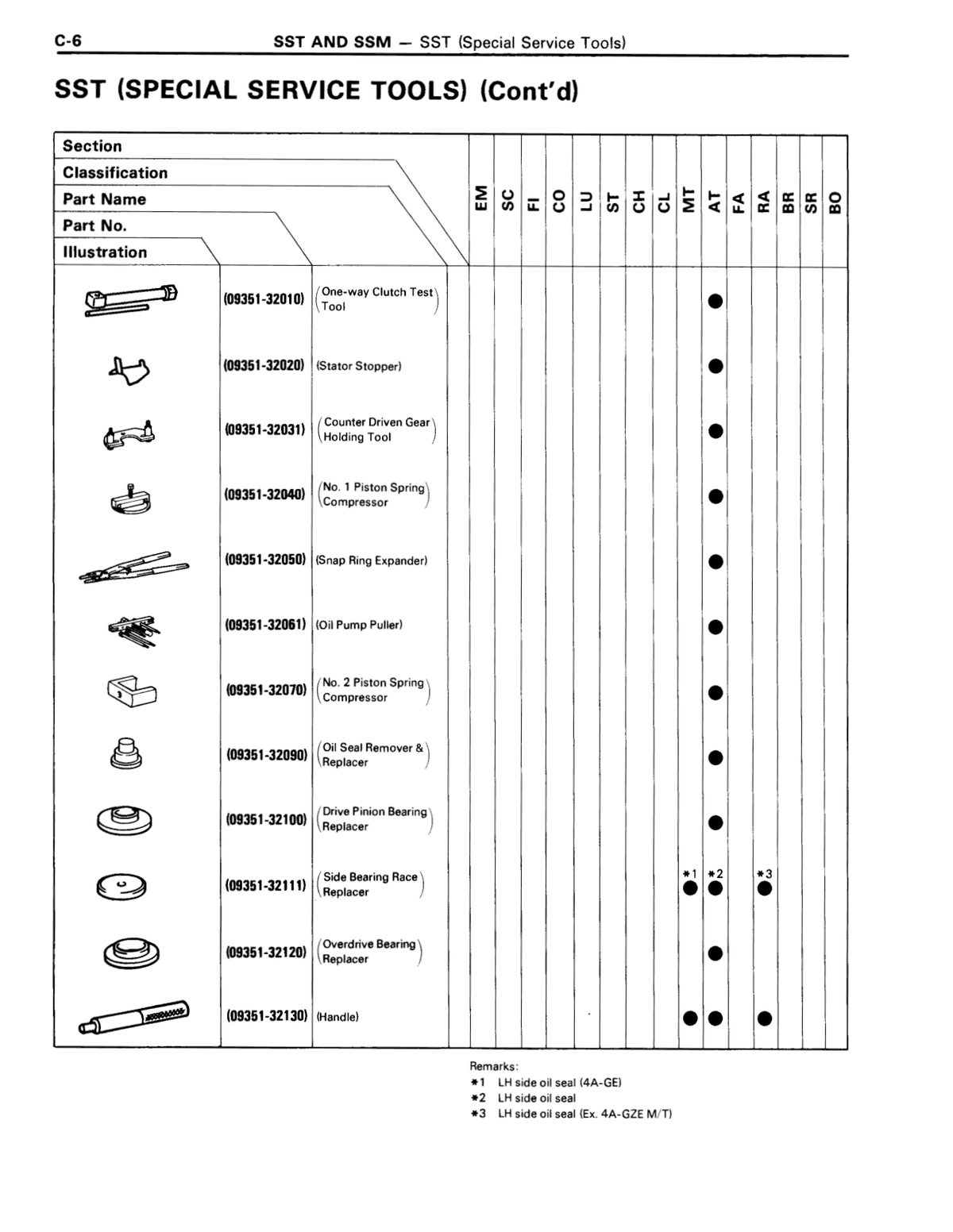

09351-32010 SST component — turning tool Part of 09350-32014 set Transmission / transaxle ↗ RM179U1_1991 · p822 OEM manual
09351-32020 SST component — stopper Part of 09350-32014 set Transmission / transaxle ↗ RM179U1_1991 · p822 OEM manual
09350-32014 SST dial indicator set (long type pick) Sub-part 09351-32190 Transmission / transaxle ↗ RM179U1_1991 · p842 OEM manual
09350-32014 SST for flange removal Sub-tool: 09351-32070 Transmission / transaxle ↗ RM179U1_1991 · p843 OEM manual
09308-00010 SST — Bearing remover Used in step 80 to remove bearing Transmission / transaxle ↗ RM179U1_1991 · p847 OEM manual
09350-32014 SST - Spring retainer compressor tool includes 09351-32070 Clutch ↗ RM179U1_1991 · p862 OEM manual
09350-32014 SST — dial indicator assembly for piston stroke measurement sub-tool 09351-32190 Clutch ↗ RM179U1_1991 · p865 OEM manual
09555-55010 SST — used to press out intermediate shaft front bearing and rear bearing Special Service Tool Transmission / transaxle ↗ RM179U1_1991 · p875 OEM manual
09350-32014 SST — used to press out intermediate shaft rear bearing Special Service Tool; sub-tool 09351-32090 Transmission / transaxle ↗ RM179U1_1991 · p875 OEM manual
09351-32090 SST sub-tool — used with 09350-32014 to press out intermediate shaft rear bearing Special Service Tool Transmission / transaxle ↗ RM179U1_1991 · p875 OEM manual
09350-32014 SST — Special Service Tool (base set) Used for both front and rear bearing installation Transmission / transaxle ↗ RM179U1_1991 · p876 OEM manual
09351-32120 SST sub-tool — front bearing installer Used with 09350-32014 for front bearing Transmission / transaxle ↗ RM179U1_1991 · p876 OEM manual
09351-32150 SST sub-tool — rear bearing installer Used with 09350-32014 for rear bearing Transmission / transaxle ↗ RM179U1_1991 · p876 OEM manual
09350-32014 SST (Special Service Tool) for counter shaft lock nut Sub-tool: 09351-32170 Transmission / transaxle ↗ RM179U1_1991 · p877 OEM manual
09351-32170 SST sub-component for counter shaft lock nut Used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p877 OEM manual
09350-32014 SST (Special Service Tool) for counter shaft lock nut and starting torque measurement Sub-tool 09351-32170 Transmission / transaxle ↗ RM179U1_1991 · p878 OEM manual
09351-32170 SST sub-tool for counter shaft Used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p878 OEM manual
09350-32014 SST — Bearing outer race installer set Used with sub-tools 09351-32090, 09351-32180, 09351-32150 Transmission / transaxle ↗ RM179U1_1991 · p881 OEM manual
09351-32090 SST sub-tool — thick race installer Used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p881 OEM manual
09351-32180 SST sub-tool — common component Used with 09350-32014 for both thick and thin race installation Transmission / transaxle ↗ RM179U1_1991 · p881 OEM manual
09351-32150 SST sub-tool — thin race installer Used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p881 OEM manual
09350-32014 SST — Spring seat compressor set Sub-tool 09351-32070 Clutch ↗ RM179U1_1991 · p888 OEM manual
09351-32070 SST — Spring seat compressor sub-tool Used with 09350-32014 Clutch ↗ RM179U1_1991 · p888 OEM manual
09710-30030 SST — side bearing installer (differential case) sub-tool 09710-03160 Transmission / transaxle ↗ RM179U1_1991 · p908 OEM manual
09710-03160 SST sub-tool — side bearing installer used with 09710-30030 Transmission / transaxle ↗ RM179U1_1991 · p908 OEM manual
09350-32014 SST — side bearing installer (differential case, second side) sub-tools 09351-32090, 09351-32120 Transmission / transaxle ↗ RM179U1_1991 · p908 OEM manual
09351-32090 SST sub-tool — side bearing installer used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p908 OEM manual
09351-32120 SST sub-tool — side bearing installer used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p908 OEM manual
09564-32011 SST — used to rotate differential and measure side bearing preload Transmission / transaxle ↗ RM179U1_1991 · p909 OEM manual
09350-32014 SST dial indicator set (long type pick) sub-tool 09351-32190 Transmission / transaxle ↗ RM179U1_1991 · p921 OEM manual
09350-32014 SST — Counter driven gear installation/lock nut holding tool set Sub-parts: 09351-32100, 09351-32140, 09351-32032 Transmission / transaxle ↗ RM179U1_1991 · p922 OEM manual
09330-00021 SST — Lock nut holding tool Used with 09350-32014 for lock nut torque Transmission / transaxle ↗ RM179U1_1991 · p922 OEM manual
09350-32014 SST for installing No. 2 one-way clutch onto inner race Sub-tool 09351-32050 Transmission / transaxle ↗ RM179U1_1991 · p927 OEM manual
09351-32050 SST sub-component for 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p927 OEM manual
09350-32014 SST — snap ring installer set sub-tool 09351-32050 Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
09351-32050 SST — snap ring installer sub-tool used with 09350-32014 Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
09240-00020 SST — piston stroke measurement tool Transmission / transaxle ↗ RM179U1_1991 · p935 OEM manual
09520-00031 SST — axle hub removal tool Special Service Tool Suspension & axle ↗ RM179U1_1991 · p956 OEM manual
09950-20017 SST — hub bearing inner race (outside) removal tool Suspension & axle ↗ RM179U1_1991 · p957 OEM manual
09608-30012 SST — hub bearing driver set includes sub-tool 09608-04020 Suspension & axle ↗ RM179U1_1991 · p957 OEM manual
09608-04020 SST — hub bearing driver sub-tool used with 09608-30012 Suspension & axle ↗ RM179U1_1991 · p957 OEM manual
09649-17010 SST — used to drive out hub bearing from steering knuckle Suspension & axle ↗ RM179U1_1991 · p957 OEM manual
09608-30012 SST — Axle hub installer / hub grease cap installer Sub-tool 09608-04020 Suspension & axle ↗ RM179U1_1991 · p958 OEM manual
09727-00045 SST — coil spring compressor Used in step 6(a) Suspension & axle ↗ RM179U1_1991 · p964 OEM manual
09727-30020 SST — coil spring compressor Used in step 6(a) Suspension & axle ↗ RM179U1_1991 · p964 OEM manual
09729-22031 SST — spring seat holder Used in step 6(b) Suspension & axle ↗ RM179U1_1991 · p964 OEM manual
09608-20012 SST — Bearing inner race (outside) remover set Step 5 Suspension & axle ↗ RM179U1_1991 · p978 OEM manual
09608-00040 SST — Sub-component of 09608-20012 Step 5 Suspension & axle ↗ RM179U1_1991 · p978 OEM manual
09608-03020 SST — Sub-component of 09608-20012 Step 5 Suspension & axle ↗ RM179U1_1991 · p978 OEM manual
09950-00020 SST — Sub-component of 09608-20012 set Step 5 Suspension & axle ↗ RM179U1_1991 · p978 OEM manual
09310-35010 SST — Axle bearing remover/installer Step 6 Suspension & axle ↗ RM179U1_1991 · p978 OEM manual
09527-17010 SST — Axle bearing remover/installer Step 6 Suspension & axle ↗ RM179U1_1991 · p978 OEM manual
09710-22041 SST — Bearing installer (outer tool) Step 1 — Install axle bearing Suspension & axle ↗ RM179U1_1991 · p979 OEM manual
09710-02050 SST — Bearing installer (inner component) Step 1 — Install axle bearing Suspension & axle ↗ RM179U1_1991 · p979 OEM manual
09310-35010 SST — Axle shaft installer Step 3 — Install axle shaft Suspension & axle ↗ RM179U1_1991 · p979 OEM manual
09315-00021 SST — Axle shaft installer (component) Step 3 — Install axle shaft Suspension & axle ↗ RM179U1_1991 · p979 OEM manual
09316-60010 SST — Dust deflector installer (set) Step 5 — Install dust deflector Suspension & axle ↗ RM179U1_1991 · p979 OEM manual
09316-00010 SST — Dust deflector installer (component) Step 5 — Install dust deflector Suspension & axle ↗ RM179U1_1991 · p979 OEM manual
09316-00040 SST — Dust deflector installer (component) Step 5 — Install dust deflector Suspension & axle ↗ RM179U1_1991 · p979 OEM manual
09628-10011 SST for removing rear axle shaft bolt Suspension & axle ↗ RM179U1_1991 · p981 OEM manual
09816-30010 SST — Knock Sensor Removal Tool Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p24 OEM manual
09222-30010 SST — Special Service Tool for connecting rod bushing press-out and press-in Used in steps (a) and (c) Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p39 OEM manual
09226-10010 SST — Special Service Tool for tapping in crankshaft front oil seal Used in Method B, step (d) Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p41 OEM manual
09223-63010 SST — Oil seal installer tool Used for both retainer-removed and retainer-installed procedures Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p42 OEM manual
09816-30010 SST — Knock sensor installation tool Step 1 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p48 OEM manual
08833-00070 Adhesive, THREE BOND 1324 or equivalent Apply to two or three threads of flywheel mounting bolt end Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p51 OEM manual
09301-17010 SST for clutch disc and cover installation Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p51 OEM manual
09228-06500 SST — Oil filter removal tool Used to remove oil filter in step 37(a) Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p80 OEM manual
09249-63010 SST for intake camshaft timing pulley removal Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p84 OEM manual
09043-38100 SST — Cylinder head bolt loosening/removal tool Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p85 OEM manual
09202-70010 SST — Valve spring compressor Used to compress valve spring and remove keepers Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p86 OEM manual
09201-70010 SST — Special Service Tool for tapping out valve guide bushing Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p90 OEM manual
09201-70010 SST — Guide bushing installation tool Used with hammer to tap in new valve guide bushing Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p91 OEM manual
09201-41020 SST for pushing in valve oil seal Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p99 OEM manual
09202-70010 SST — valve spring compressor Used to compress valve spring and place keepers around valve stem Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p100 OEM manual
08826-00080 Seal packing for No. 1 bearing cap or equivalent Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p102 OEM manual
09223-50010 SST — Camshaft oil seal installer Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p103 OEM manual
08833-00080 Adhesive — THREE BOND 1344 / LOCTITE 242 or equivalent Apply to two or three threads of No.1 idler pulley pivot bolt Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p103 OEM manual
08826-00080 Seal packing for cylinder head cover or equivalent Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p104 OEM manual
09249-63010 SST — used with torque wrench for intake camshaft timing pulley bolt Fulcrum length 340 mm (13.39 in.) Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p104 OEM manual
08833-00080 THREE BOND 1324 adhesive (or equivalent) for oil pressure switch threads Apply to two or three threads on oil pressure switch Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p109 OEM manual

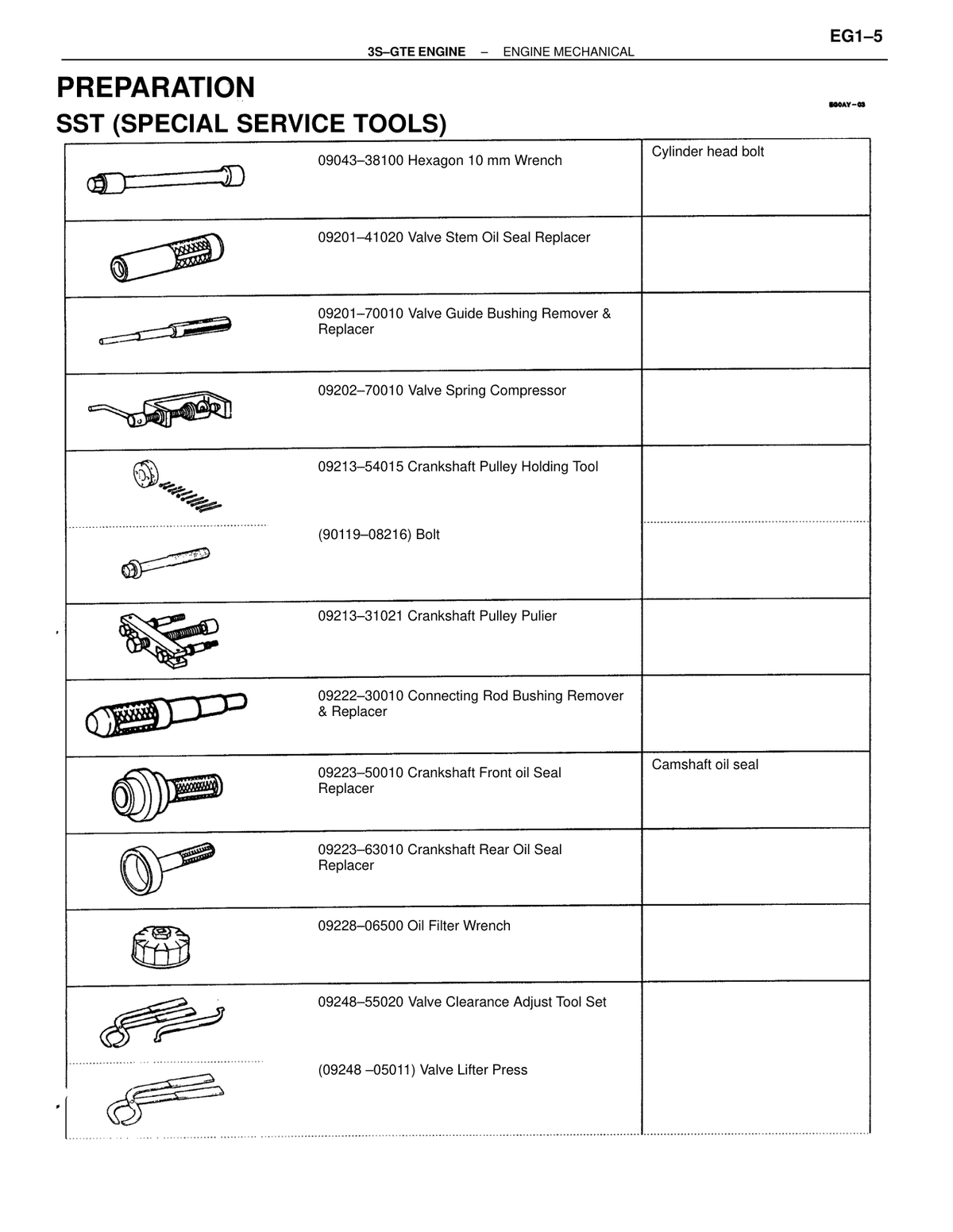

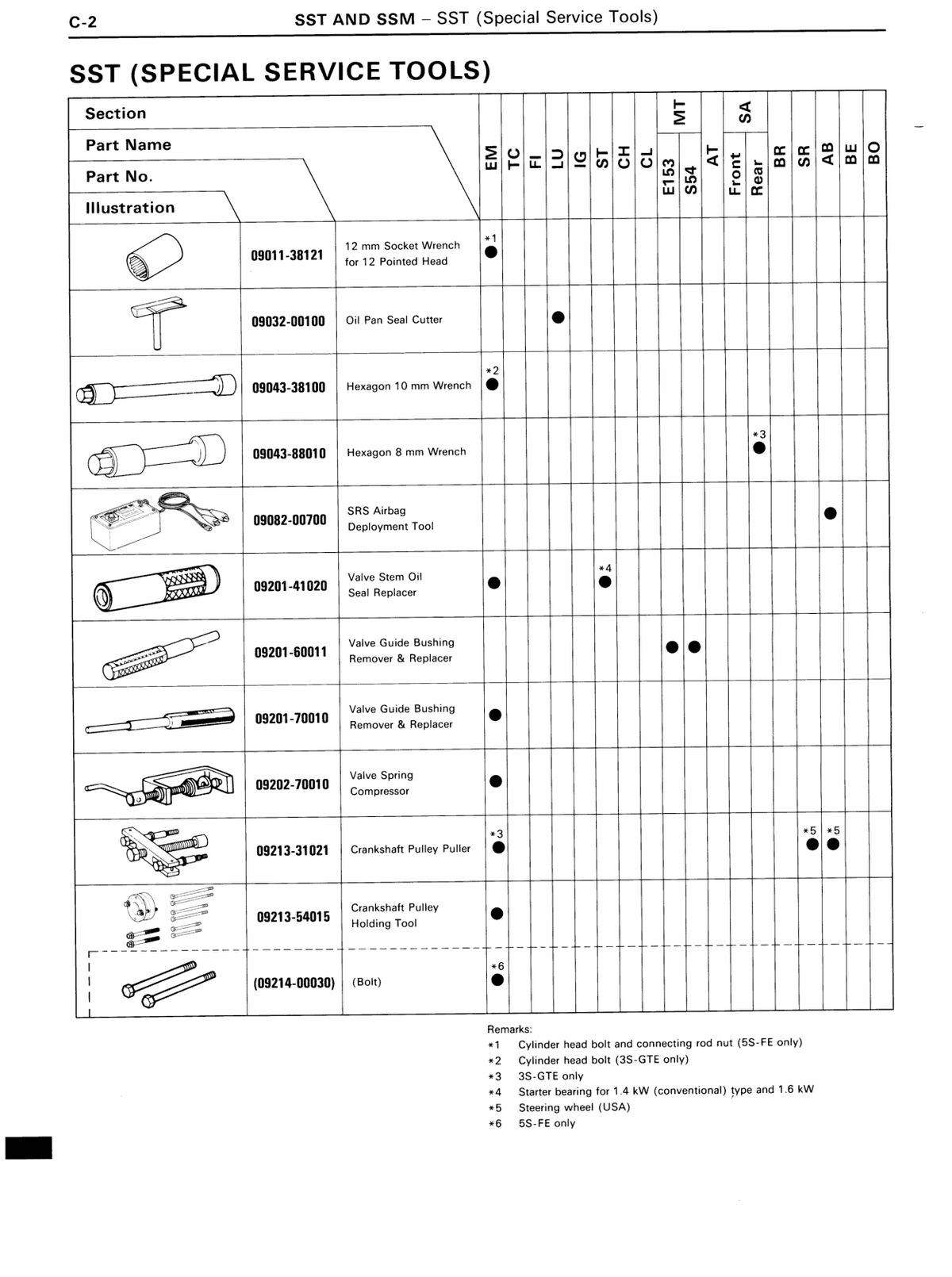

09043-38100 Hexagon 10 mm Wrench Cylinder head bolt Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual

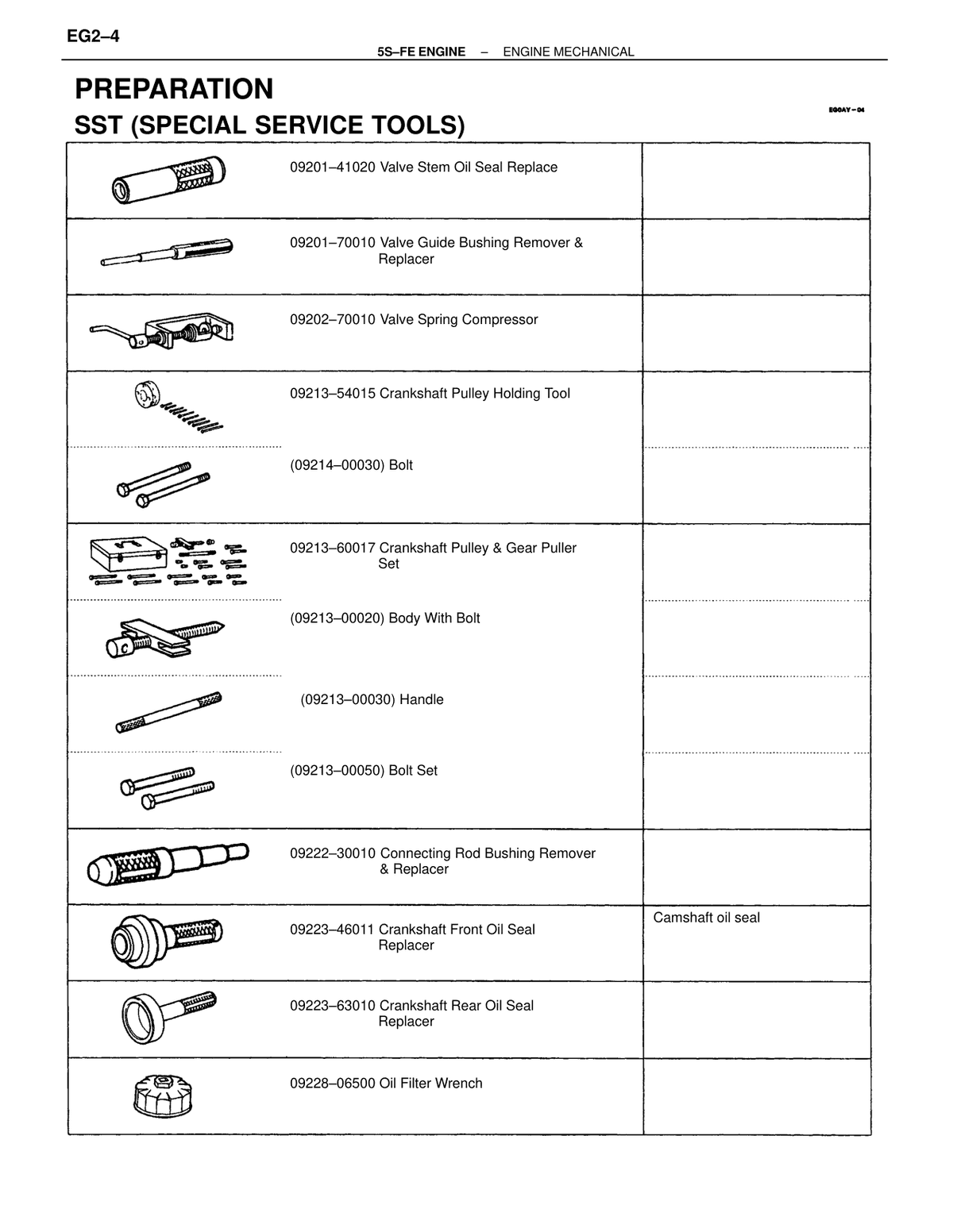

09201-41020 Valve Stem Oil Seal Replacer Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual
09201-70010 Valve Guide Bushing Remover & Replacer Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual
09202-70010 Valve Spring Compressor Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual

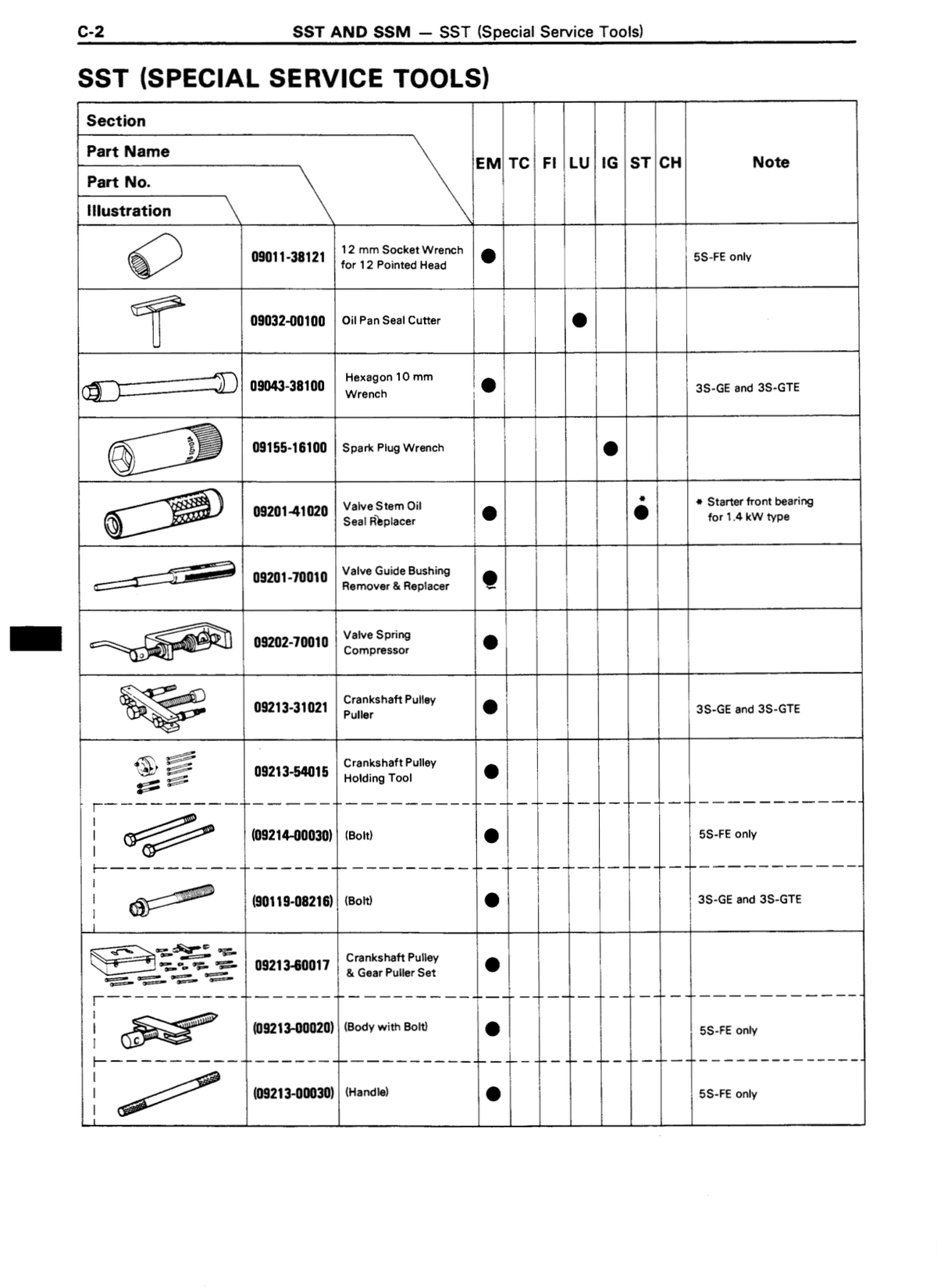

09213-54015 Crankshaft Pulley Holding Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual
90119-08216 Bolt Used with 09213-54015 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual
09213-31021 Crankshaft Pulley Puller Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual

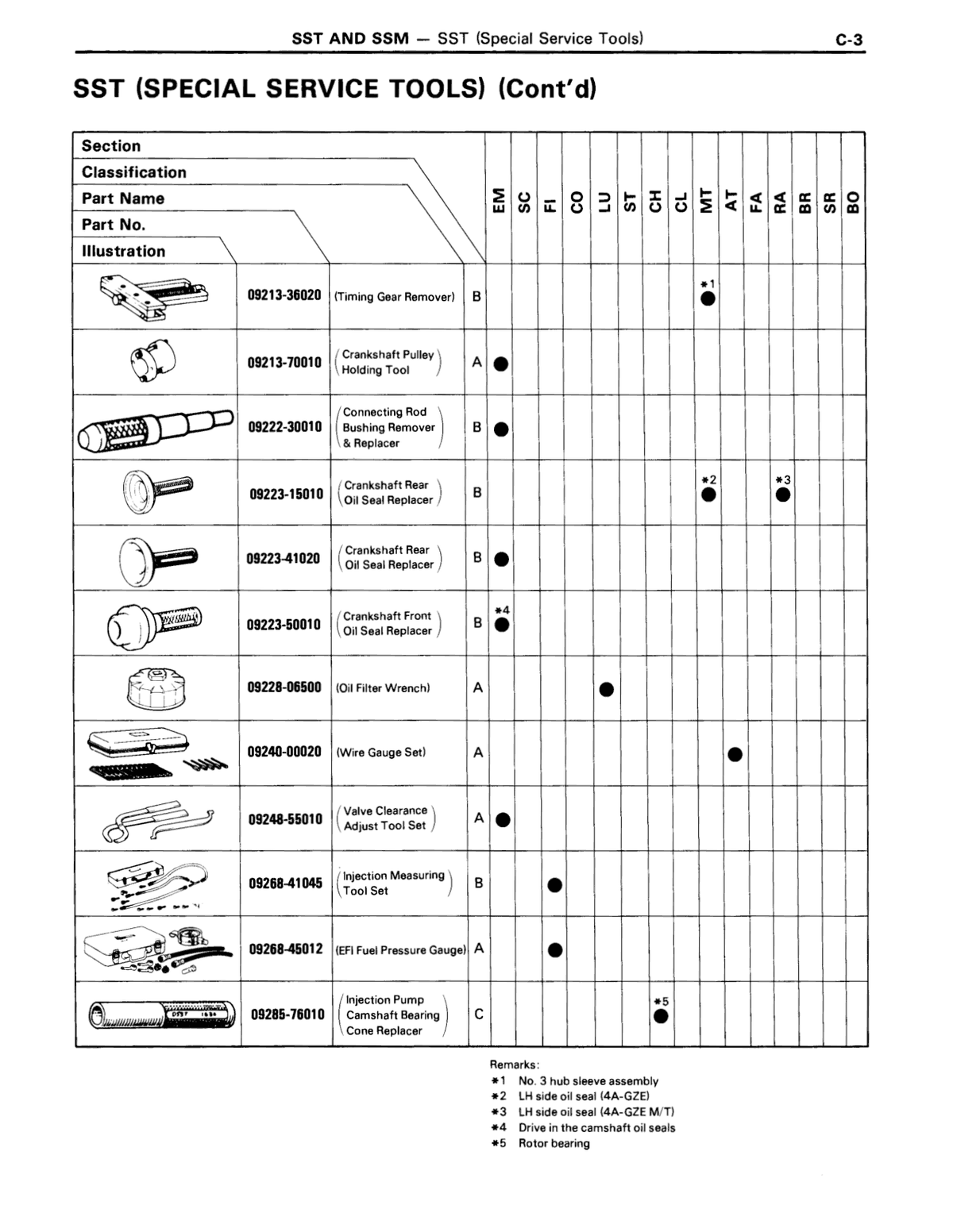

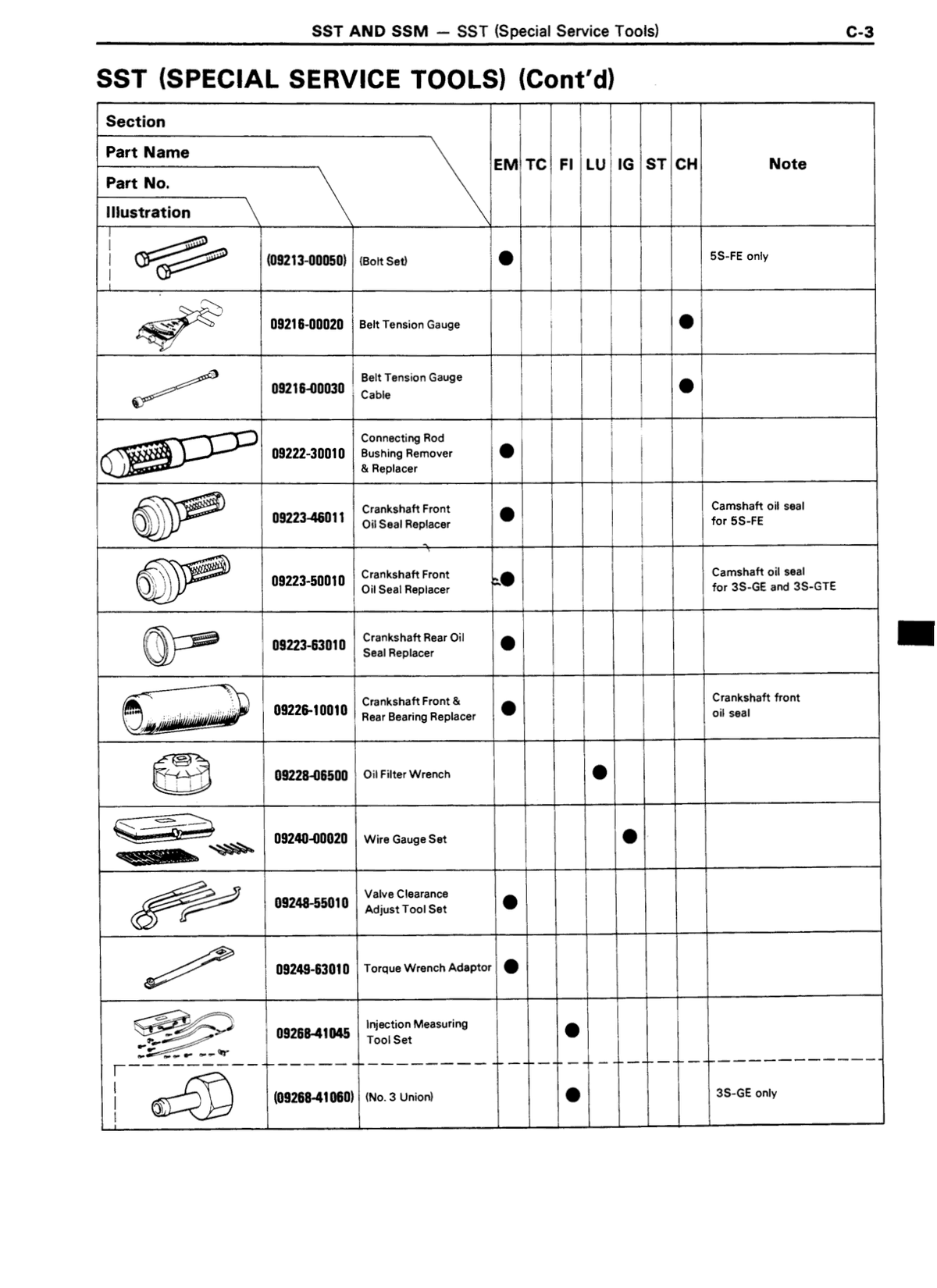

09222-30010 Connecting Rod Bushing Remover & Replacer Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual
09223-50010 Crankshaft Front Oil Seal Replacer Camshaft oil seal Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual
09223-63010 Crankshaft Rear Oil Seal Replacer Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual

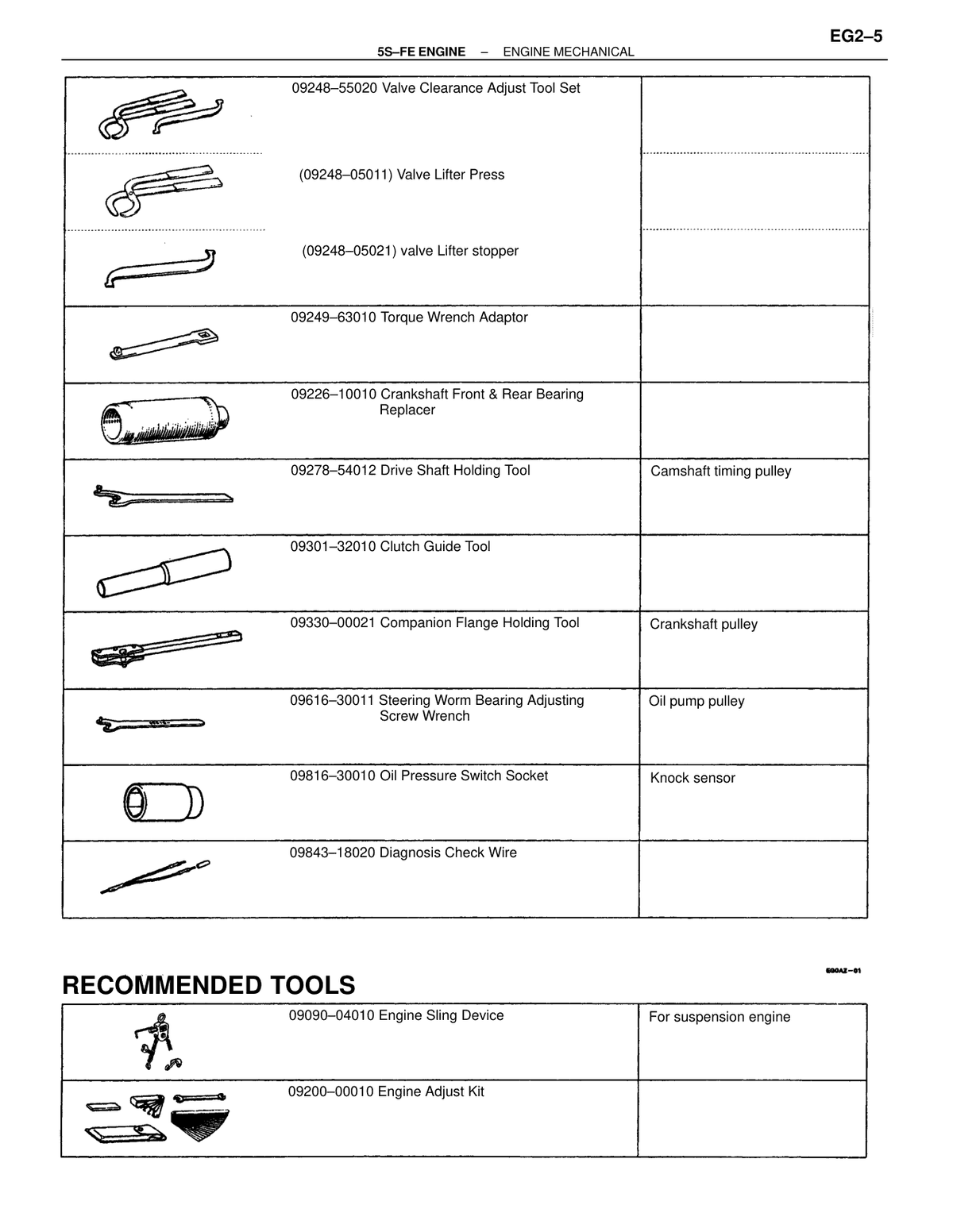

09248-55020 Valve Clearance Adjust Tool Set Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual
09248-05011 Valve Lifter Press Sub-tool of 09248-55020 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p130 OEM manual

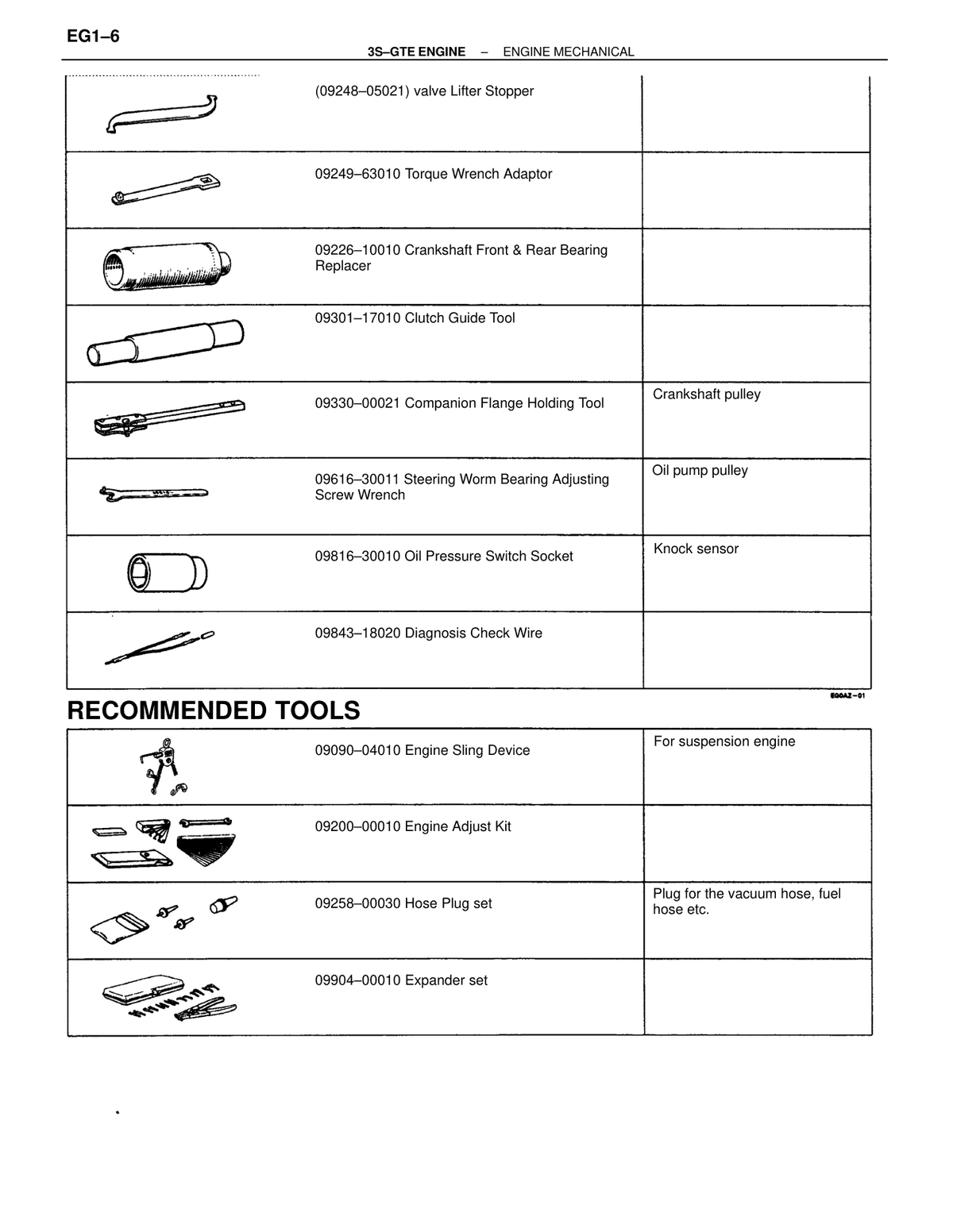

09249-63010 Torque Wrench Adaptor Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p131 OEM manual
09226-10010 Crankshaft Front & Rear Bearing Replacer Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p131 OEM manual
09330-00021 Companion Flange Holding Tool Crankshaft pulley Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p131 OEM manual

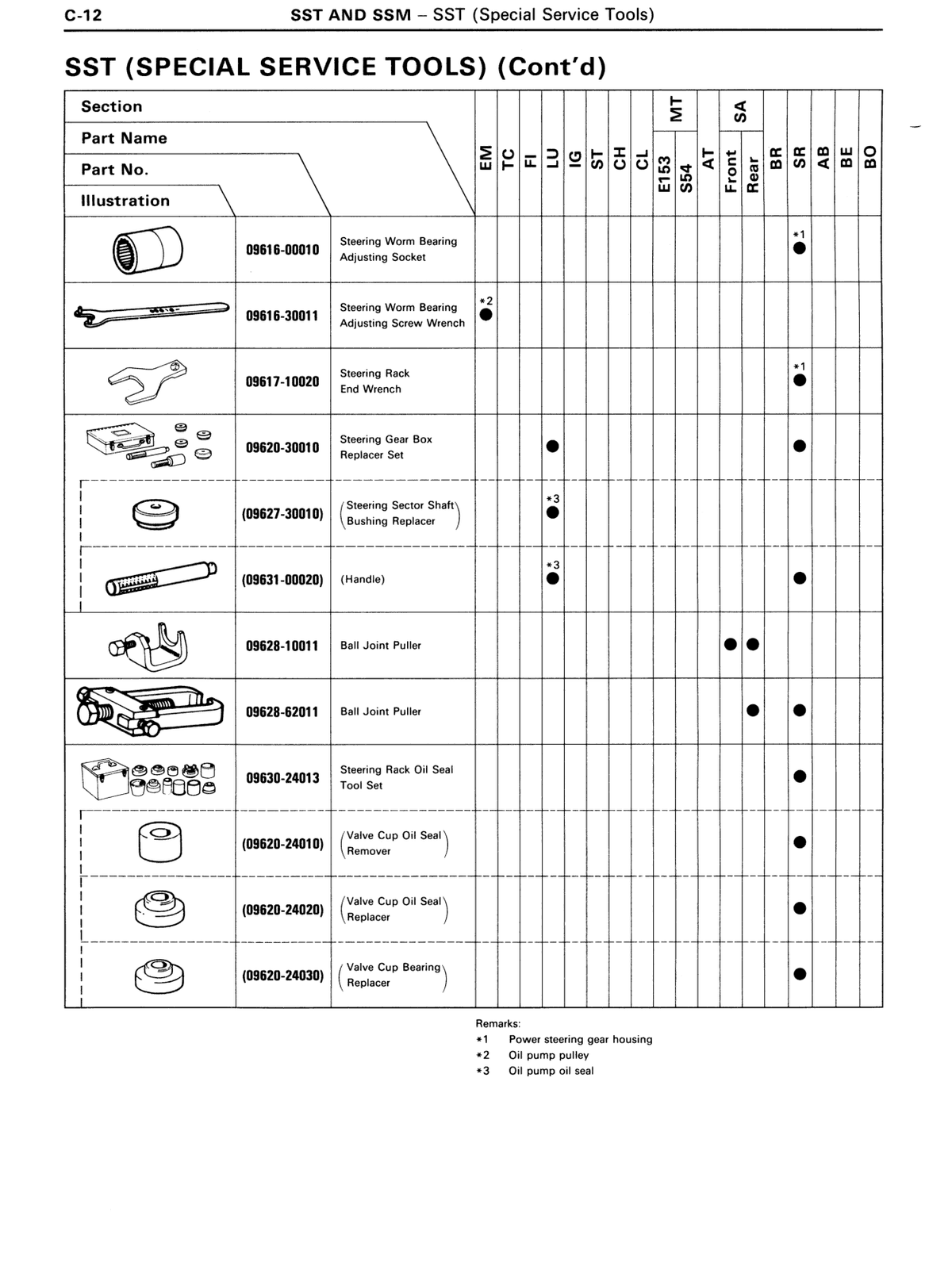

09616-30011 Steering Worm Bearing Adjusting Screw Wrench Oil pump pulley Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p131 OEM manual
09816-30010 Oil Pressure Switch Socket Knock sensor Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p131 OEM manual
09090-04010 Engine Sling Device For suspension engine Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p131 OEM manual

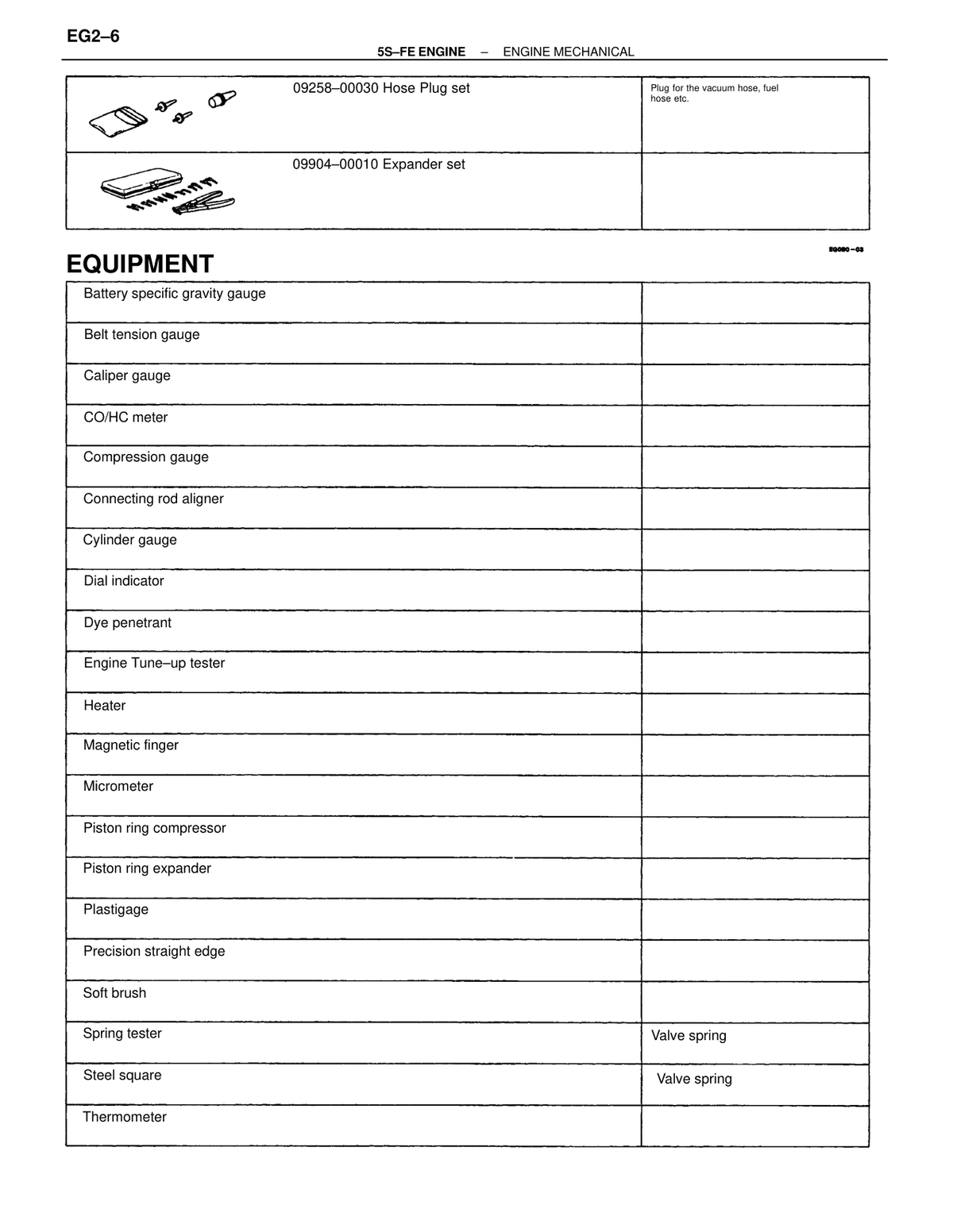

09258-00030 Hose Plug set Plug for the vacuum hose, fuel hose etc. Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p131 OEM manual

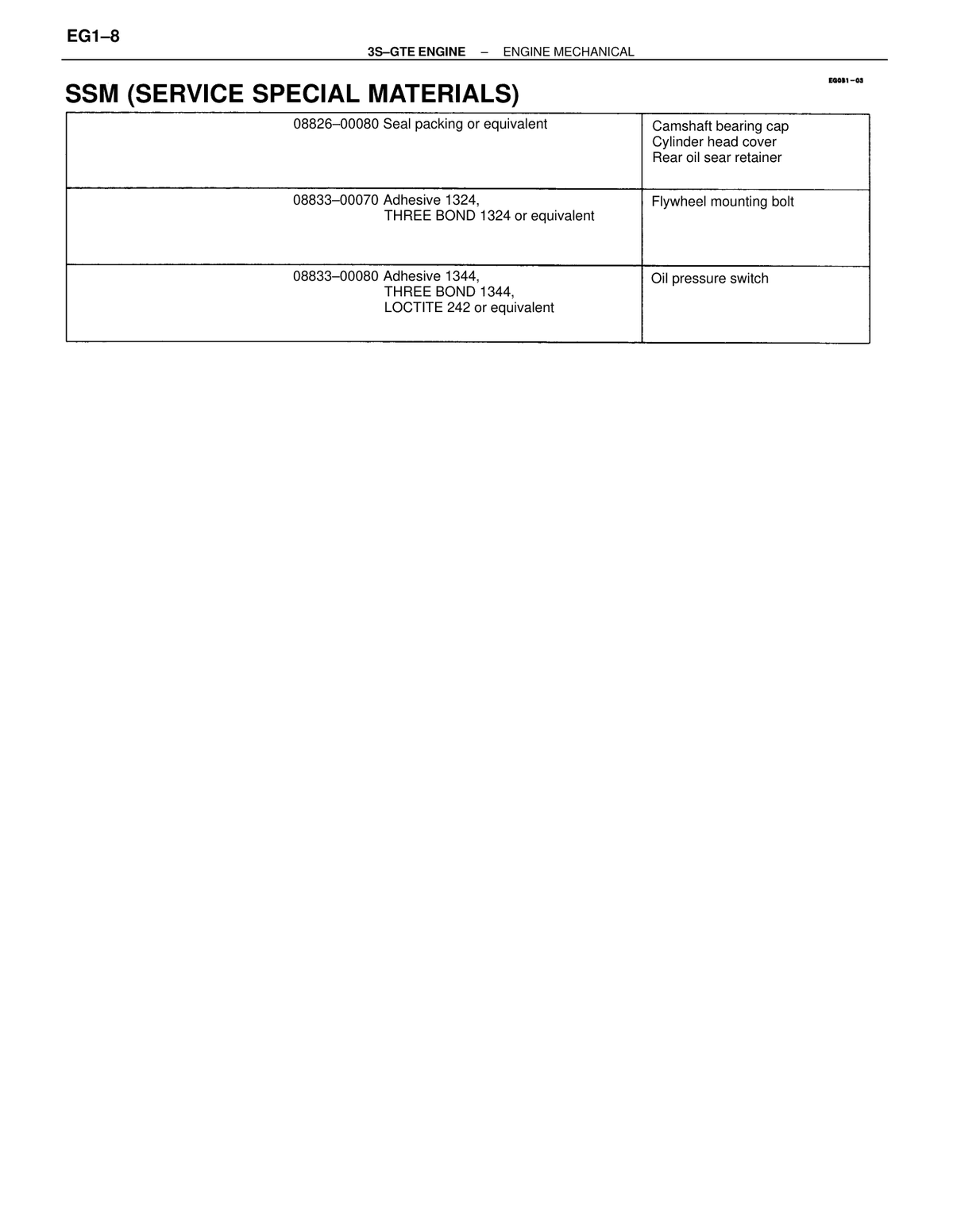

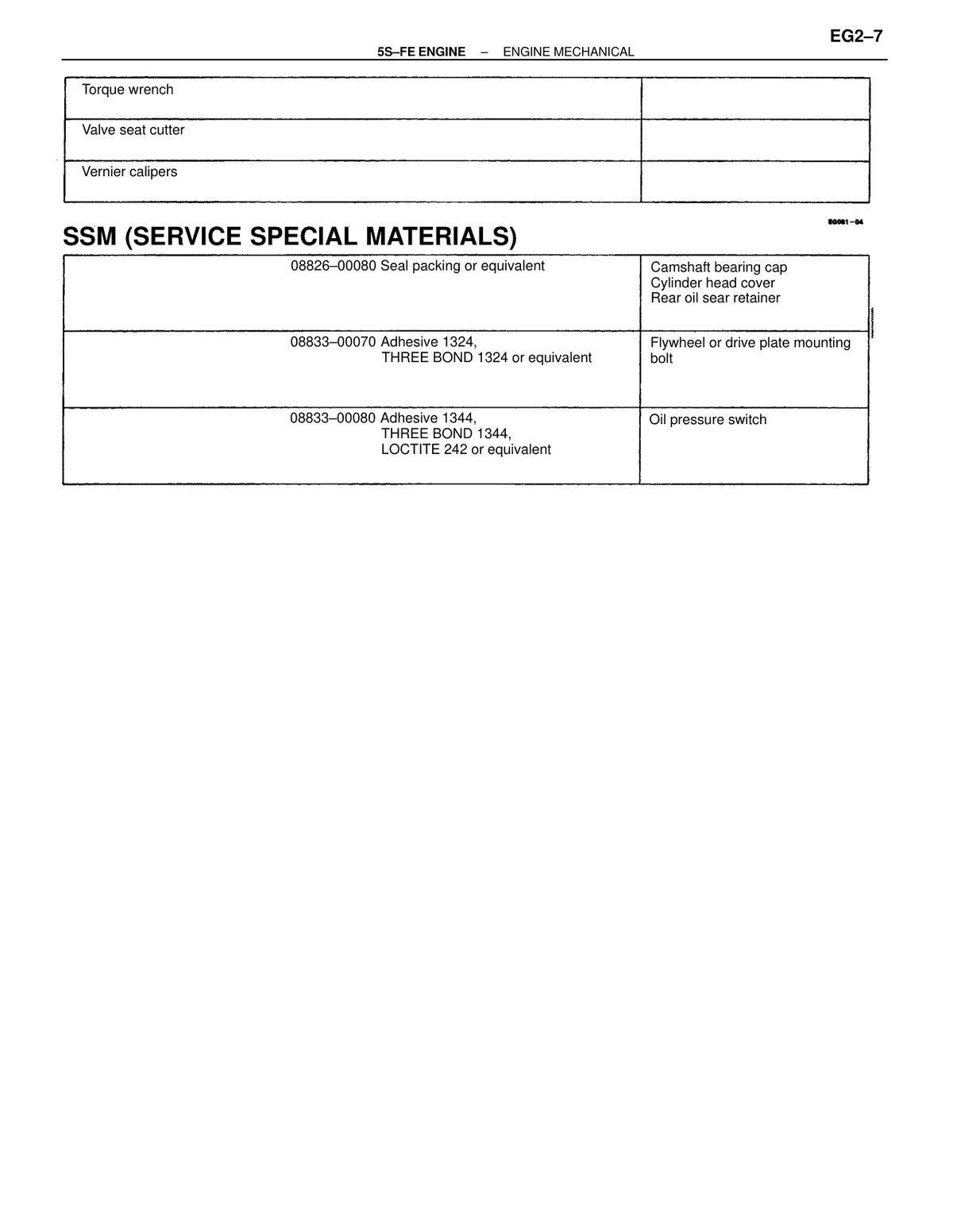

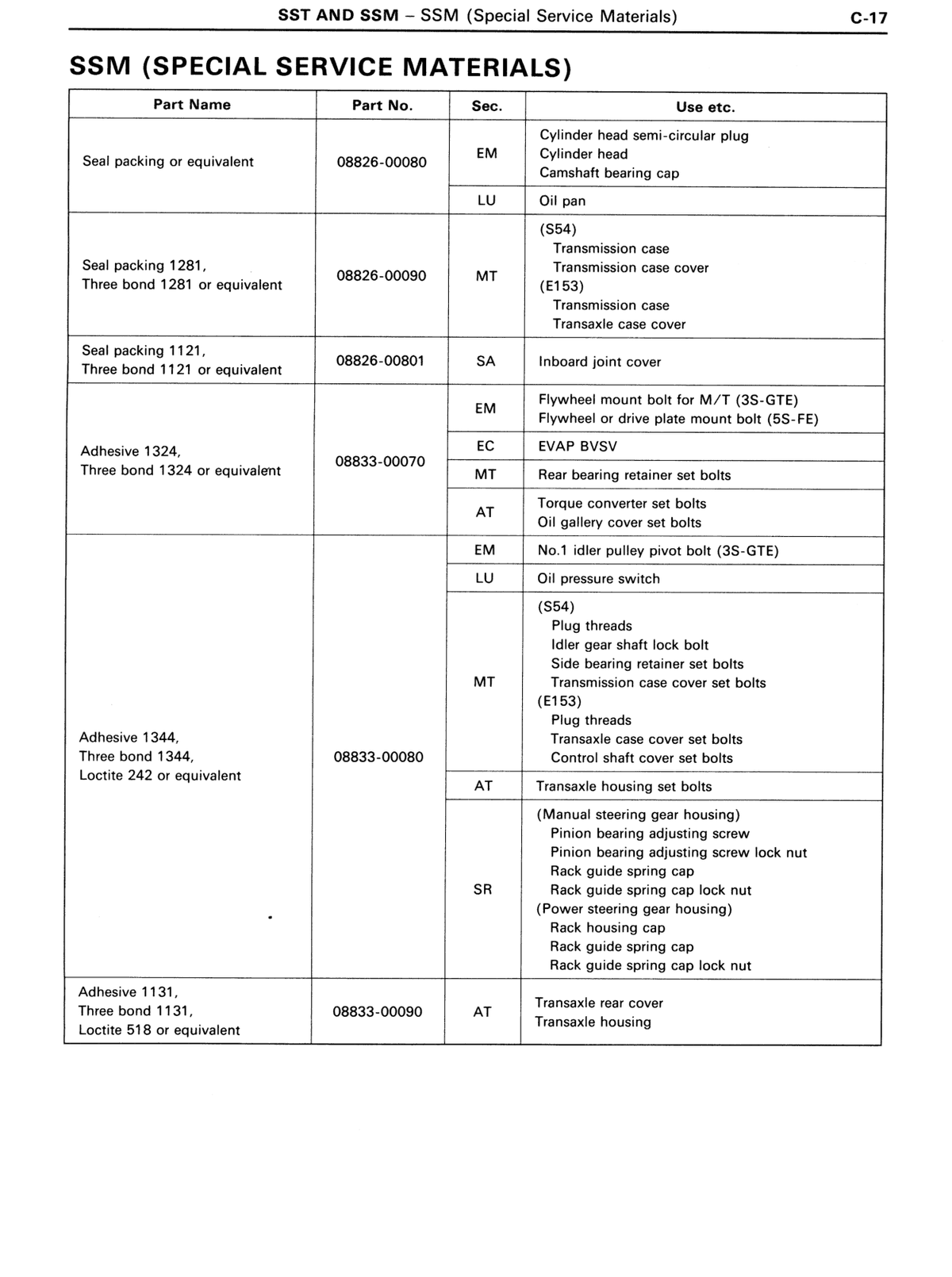

08826-00080 Seal packing or equivalent Used on: Camshaft bearing cap, Cylinder head cover, Rear oil seal retainer Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p133 OEM manual
08833-00070 Adhesive 1324, THREE BOND 1324 or equivalent Used on: Flywheel mounting bolt Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p133 OEM manual
08833-00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent Used on: Oil pressure switch Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p133 OEM manual
09249-63010 SST — for holding intake camshaft timing pulley during bolt loosening Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p149 OEM manual
09213-54015 SST - Crankshaft pulley bolt removal tool Sub-part 90119-08216 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p150 OEM manual
09330-00021 SST - Crankshaft pulley bolt removal tool (companion) Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p150 OEM manual
09213-31021 SST — Crankshaft pulley removal tool Used to remove crankshaft pulley Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p151 OEM manual
09616-30011 SST for oil pump pulley removal Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p152 OEM manual

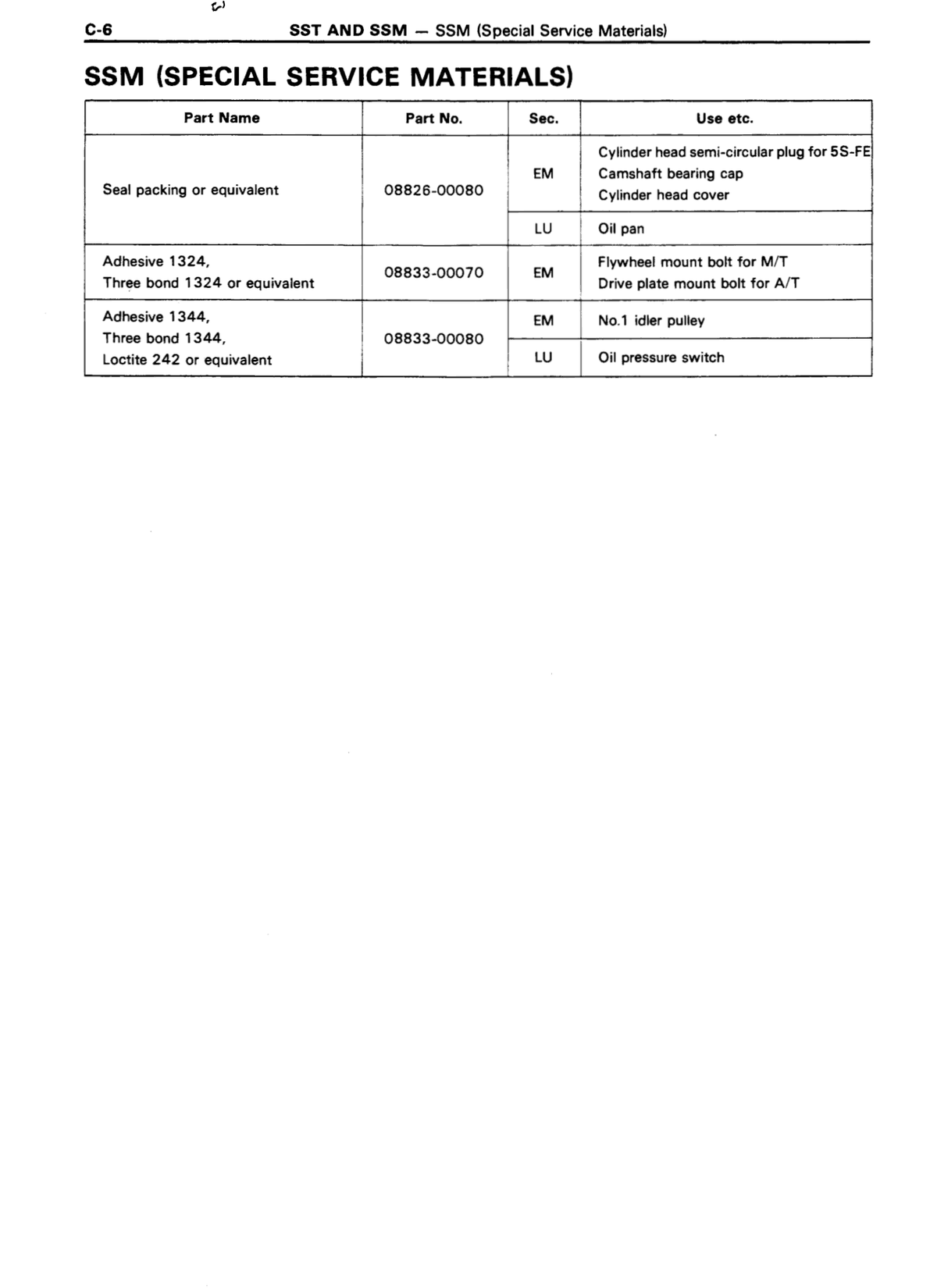

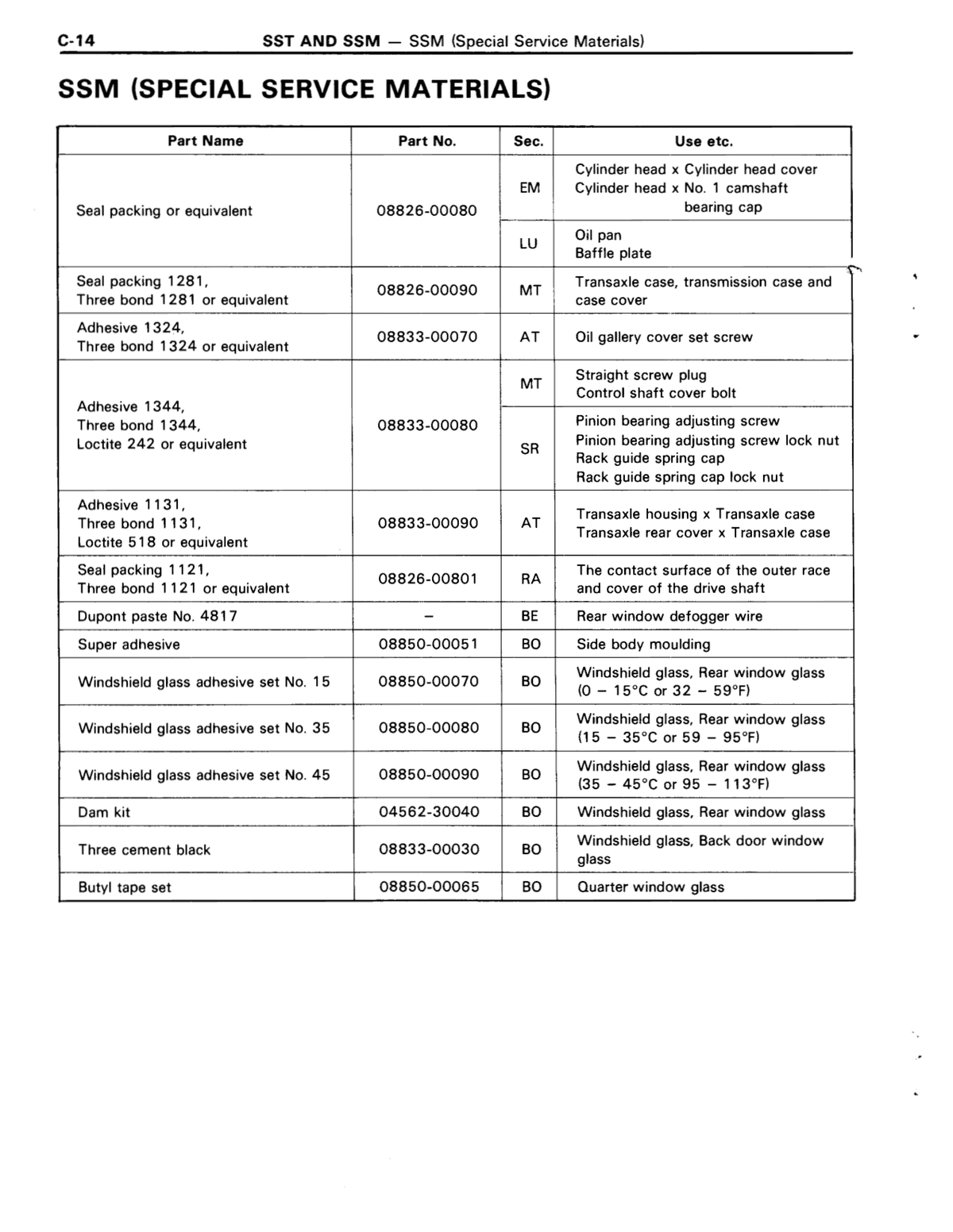

08833-00080 Adhesive — THREE BOND 1344, LOCTITE 242 or equivalent Apply to two or three threads of No.1 idler pulley pivot bolt Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p155 OEM manual
09616-30011 SST for oil pump pulley nut installation Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p155 OEM manual
09213-54015 SST — crankshaft pulley bolt installation tool Sub-tool 90119-08216 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p156 OEM manual
09330-00021 SST — crankshaft pulley bolt installation tool Used with 09213-54015 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p156 OEM manual
09249-63010 SST — Intake camshaft timing pulley holding tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p157 OEM manual
08826-00080 Seal packing (FIPG) for cylinder head cover or equivalent Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p160 OEM manual
09249-63010 SST — Intake camshaft timing pulley holding tool Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p173 OEM manual
09249-63010 SST — Intake camshaft timing pulley holding tool Used when tightening intake camshaft timing pulley bolts Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p174 OEM manual
95506-00020 Nippondenso Belt Tension Gauge BTG-20 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p183 OEM manual
09248-55020 SST valve lifter press-down tool set Includes 09248-05011 and 09248-05021 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p187 OEM manual
09248-05011 SST (A) — valve lifter press-down tool Sub-component of 09248-55020 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p187 OEM manual
09248-05021 SST (B) — retaining clip between camshaft and valve lifter Sub-component of 09248-55020 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p187 OEM manual
09248-55020 SST — Valve lifter press-down tool set Comprises 09248-05011 and 09248-05021 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p188 OEM manual
09248-05011 SST (A) — Valve lifter press-down tool Sub-component of 09248-55020 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p188 OEM manual
09248-05021 SST (B) — Shim removal tool Sub-component of 09248-55020 Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p188 OEM manual
08826-00080 Seal packing (FIPG) or equivalent; applied to cylinder head cover mating surface Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p191 OEM manual

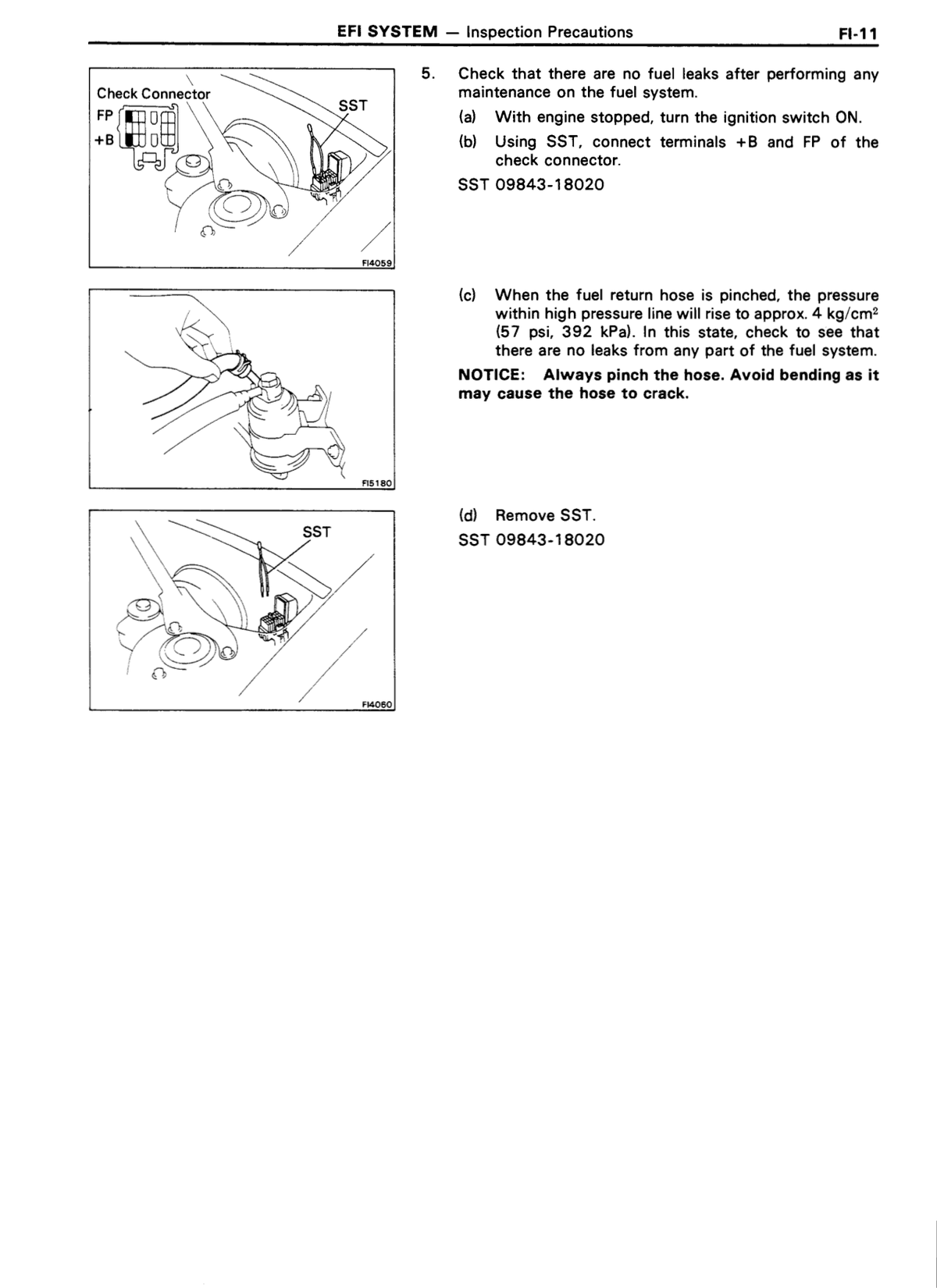

09843-18020 SST — used to connect terminals TE1 and E1 of data link connector 1 Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p194 OEM manual
09843-18020 SST for data link connector Special Service Tool Engine — mechanical ↗ RM285U_1993_3sgte_engineme · p195 OEM manual

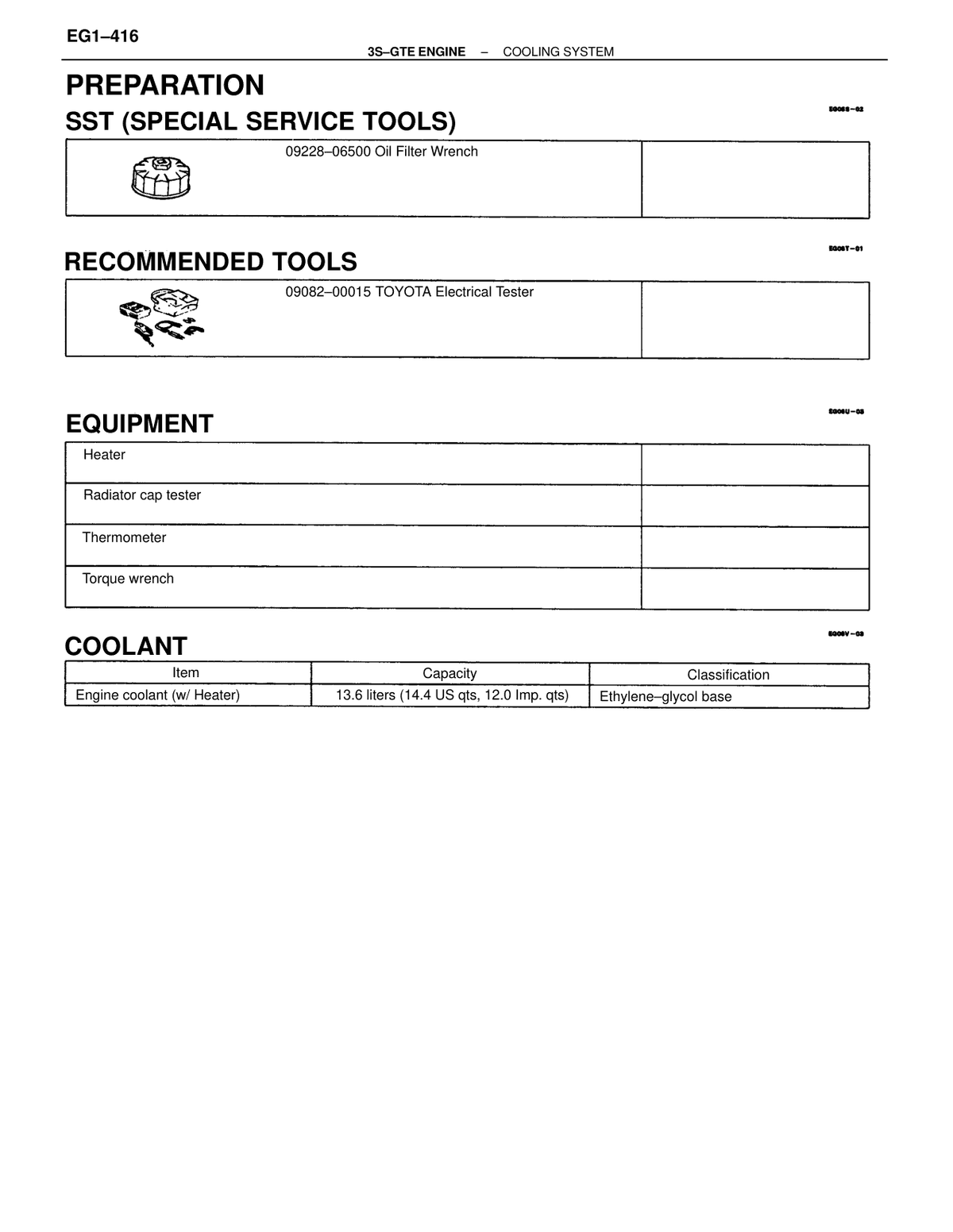

09082-00015 TOYOTA Electrical Tester Recommended Tool Cooling ↗ RM285U_1993_3sgte_coolings · p23 OEM manual
09843-18020 SST — jumper tool for connecting terminals TE1 and E1 of data link connector 1 Unclassified ↗ RM285U_1993_5sfe_mpisyste · p9 OEM manual
09843-18020 SST (Special Service Tool) for data link connector diagnosis Remove after diagnosis check Unclassified ↗ RM285U_1993_5sfe_mpisyste · p10 OEM manual
09843-18020 SST — used to connect TE2/E1 and TE1/E1 terminals of data link connector 1 Special Service Tool Unclassified ↗ RM285U_1993_5sfe_mpisyste · p11 OEM manual

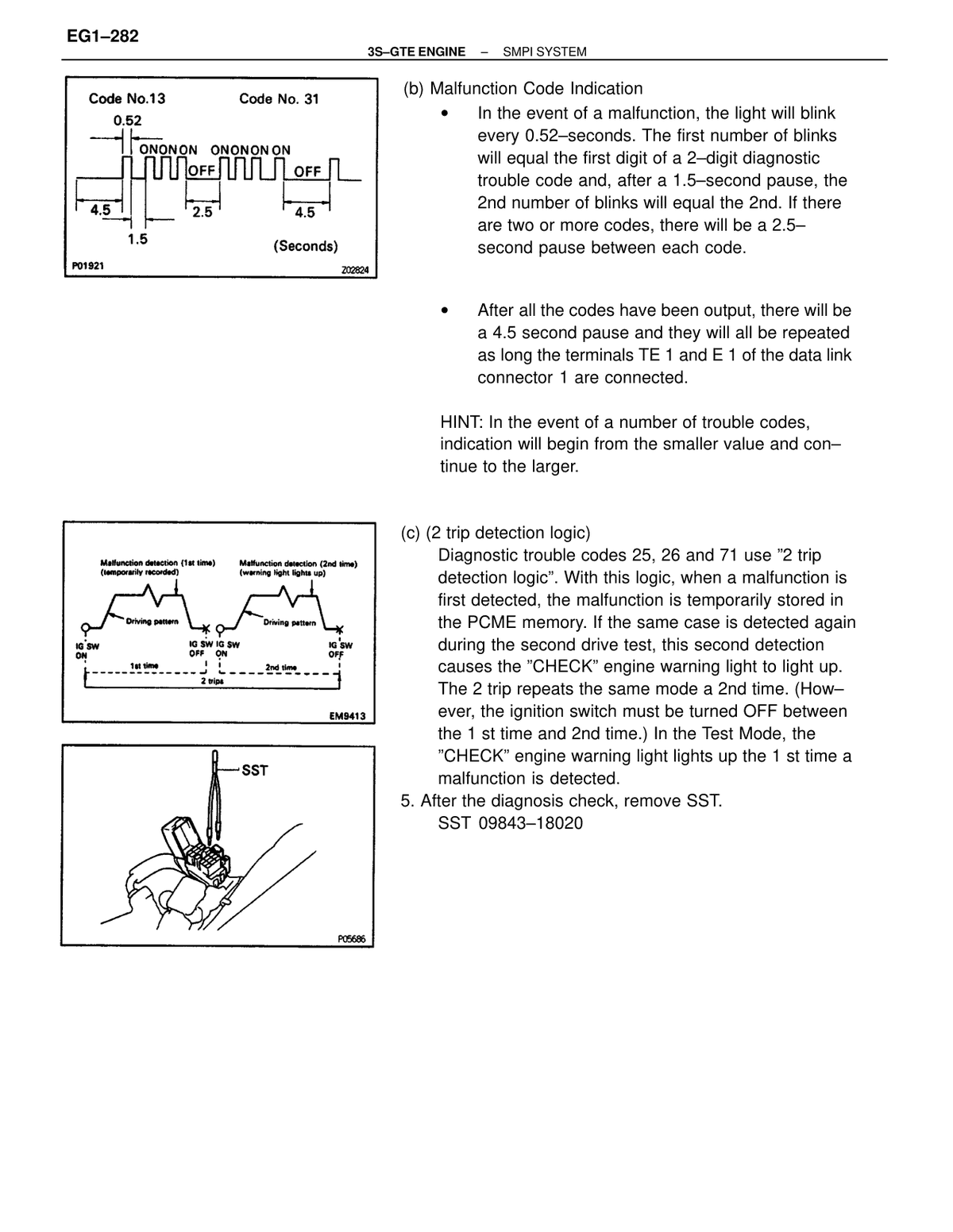

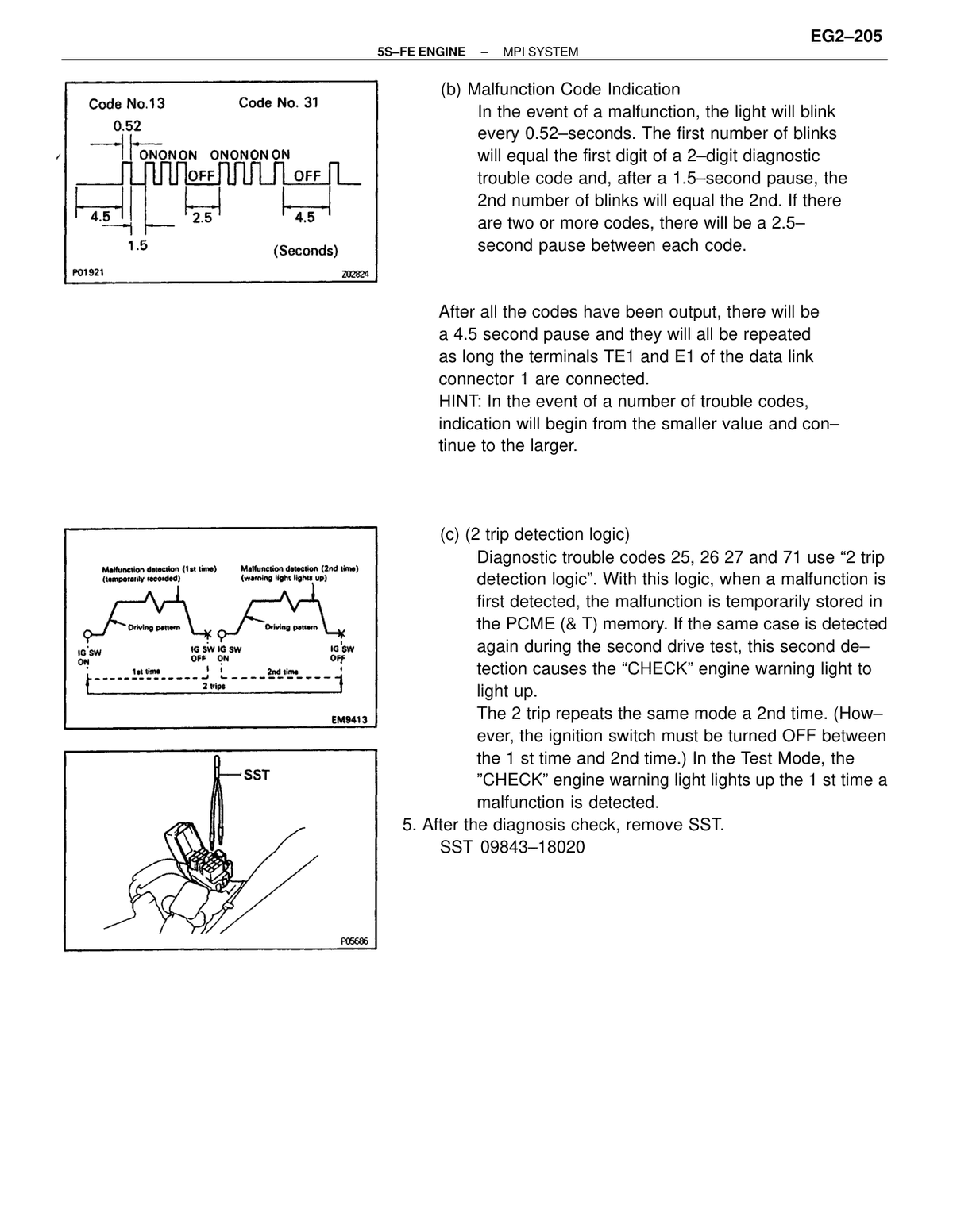

09843-18020 SST (Special Service Tool) used for diagnosis check Remove after diagnosis check Unclassified ↗ RM285U_1993_5sfe_mpisyste · p12 OEM manual
09843-18020 SST — used to connect terminals +B and FP of data link connector 1 for fuel pump operation check EFI / fuel injection ↗ RM285U_1993_5sfe_mpisyste · p30 OEM manual
09843-18020 SST for data link connector 1 Special Service Tool Unclassified ↗ RM285U_1993_5sfe_mpisyste · p31 OEM manual
09268-45012 SST — union bolt / pressure gauge set for fuel filter Unclassified ↗ RM285U_1993_5sfe_mpisyste · p32 OEM manual
09843-18020 SST — terminal jumper for data link connector 1 (+B and FP) Unclassified ↗ RM285U_1993_5sfe_mpisyste · p32 OEM manual
09483-18020 SST — Special Service Tool for data link connector 1 Removed in step (j) Unclassified ↗ RM285U_1993_5sfe_mpisyste · p33 OEM manual
09268-45012 SST — Fuel pressure gauge set Used to check fuel pressure; remove after testing Unclassified ↗ RM285U_1993_5sfe_mpisyste · p34 OEM manual
09631-22020 SST (Special Service Tool) for fuel line fitting torque Fulcrum length 30 cm (11.81 in.) Unclassified ↗ RM285U_1993_5sfe_mpisyste · p48 OEM manual
09843-18020 SST — Special Service Tool for connecting terminals TE1 and E1 of data link connector 1 Unclassified ↗ RM285U_1993_5sfe_mpisyste · p50 OEM manual
N/A Gasket (Non-reusable part) — Throttle Body to intake manifold Non-reusable part; marked with diamond symbol in diagram Unclassified ↗ RM285U_1993_5sfe_mpisyste · p51 OEM manual
N/A Gasket (Non-reusable part) — IACV to Throttle Body Non-reusable part; marked with diamond symbol in diagram Unclassified ↗ RM285U_1993_5sfe_mpisyste · p51 OEM manual
09268-41045 SST union and hose set Sub-set 90405-09015 EFI / fuel injection ↗ RM285U_1993_5sfe_mpisyste · p60 OEM manual
09268-41045 SST set (union, hose, clamp) Used for fuel inlet and return hose connections and injector testing Unclassified ↗ RM285U_1993_5sfe_mpisyste · p61 OEM manual
09268-41090 SST sub-component (union) for fuel inlet of pressure regulator Sub-part of SST 09268-41045 Unclassified ↗ RM285U_1993_5sfe_mpisyste · p61 OEM manual
09268-41080 SST sub-component (union) for fuel return hose Sub-part of SST 09268-41045 Unclassified ↗ RM285U_1993_5sfe_mpisyste · p61 OEM manual
09843-18020 SST for connecting terminals +B and FP of data link connector 1 Unclassified ↗ RM285U_1993_5sfe_mpisyste · p61 OEM manual
09842-30070 SST (Wire) — injector test tool Used for injection volume measurement and leakage inspection Unclassified ↗ RM285U_1993_5sfe_mpisyste · p62 OEM manual
09268-41045 SST — removal tool Used to remove SST after leakage inspection Unclassified ↗ RM285U_1993_5sfe_mpisyste · p62 OEM manual
09843-18020 SST — removal tool Used to remove SST after leakage inspection Unclassified ↗ RM285U_1993_5sfe_mpisyste · p62 OEM manual
09843-18020 SST — used to connect terminals TE1 and E1 of data link connector 1 Special Service Tool Unclassified ↗ RM285U_1993_5sfe_mpisyste · p75 OEM manual
09842-30070 SST — Injector / wiring connector inspection tool Unclassified ↗ RM285U_1993_5sfe_mpisyste · p86 OEM manual
09631-22020 SST — Flare nut tightening tool Use with torque wrench, fulcrum length 30 cm Unclassified ↗ RM285U_1993_5sfe_mpisyste · p86 OEM manual
09843-18020 SST — used to connect terminals +B and FP of data link connector 1 for fuel leak check Unclassified ↗ RM285U_1993_5sfe_mpisyste · p87 OEM manual

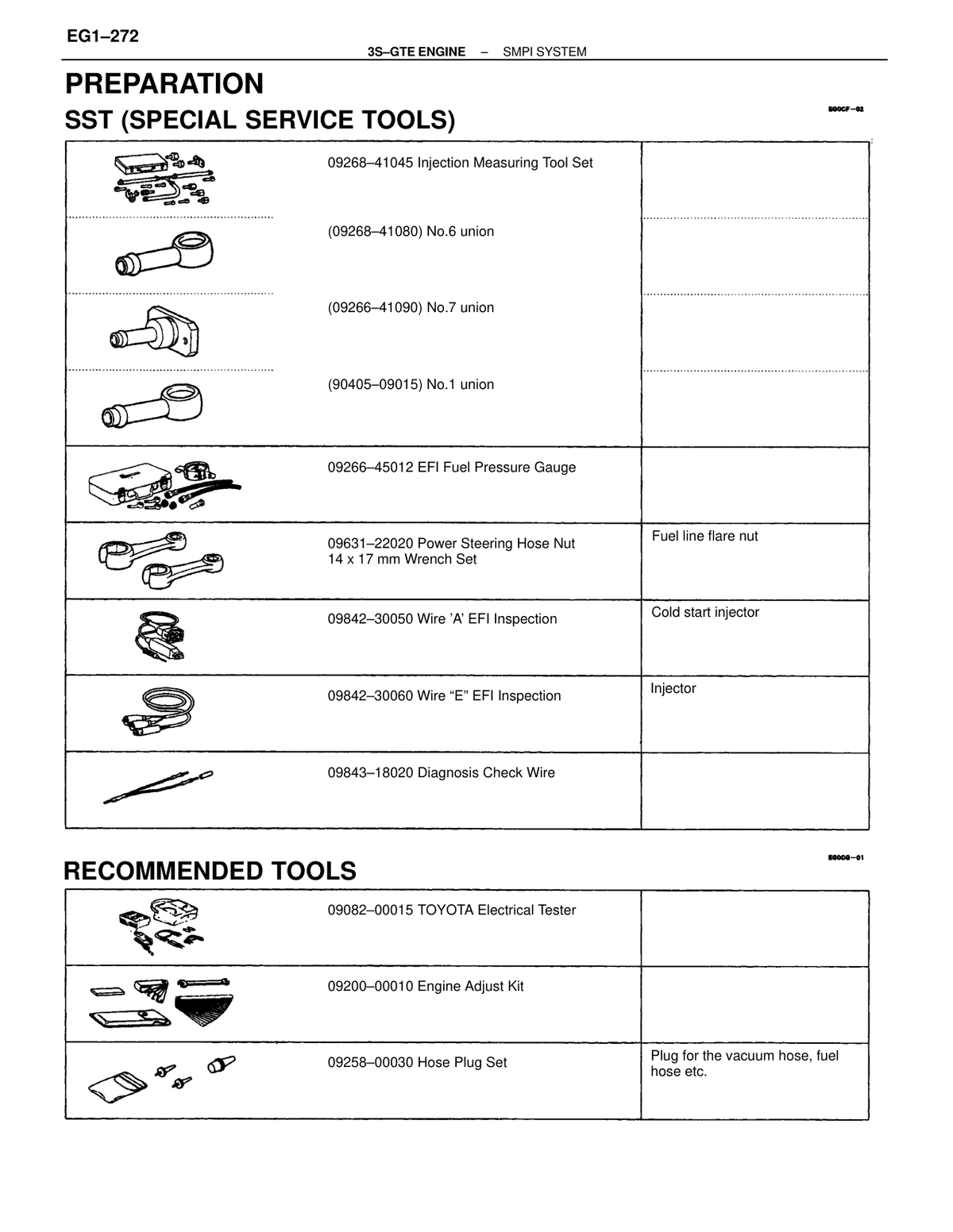

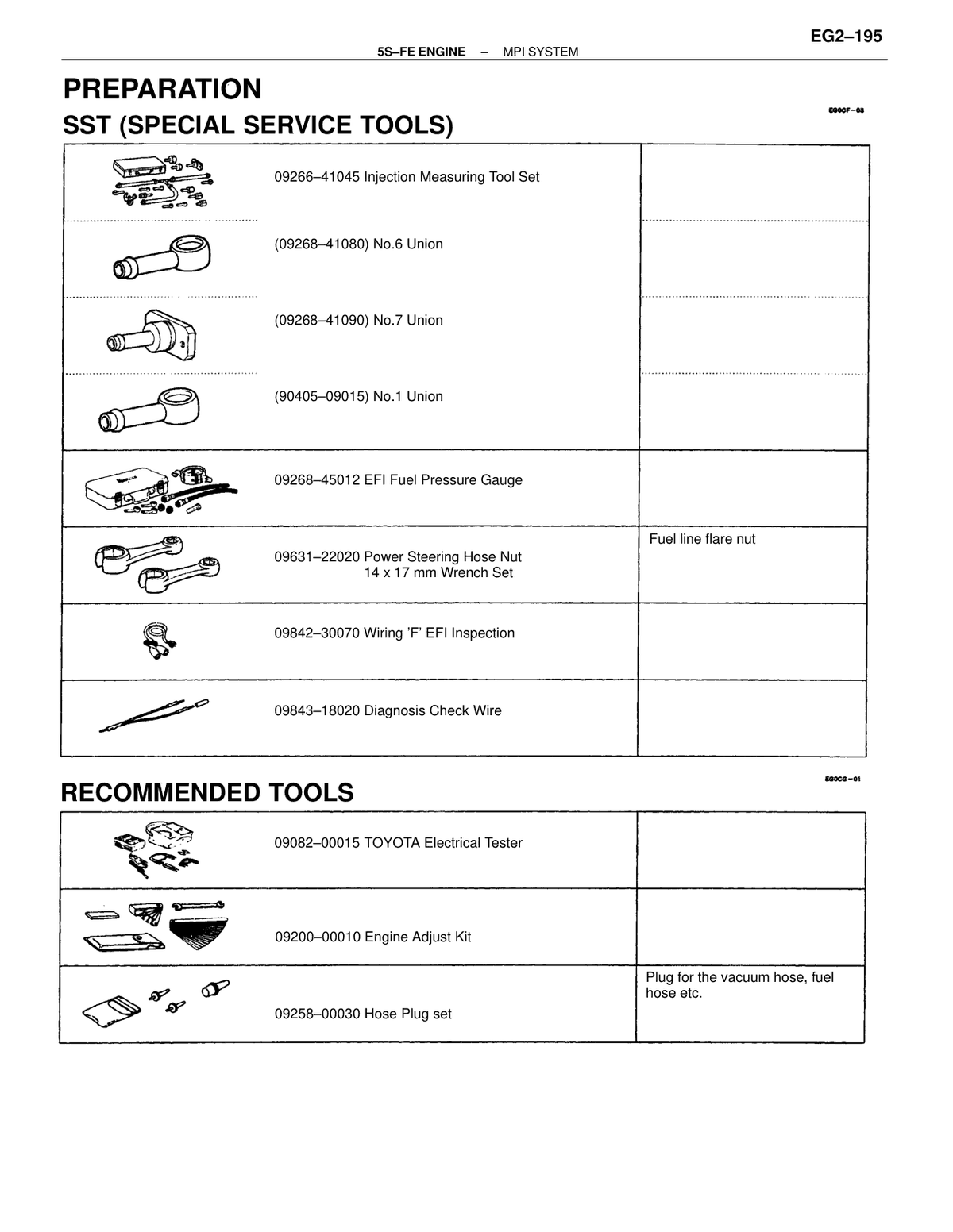

09266-41045 Injection Measuring Tool Set SST Unclassified ↗ RM285U_1993_5sfe_mpisyste · p89 OEM manual

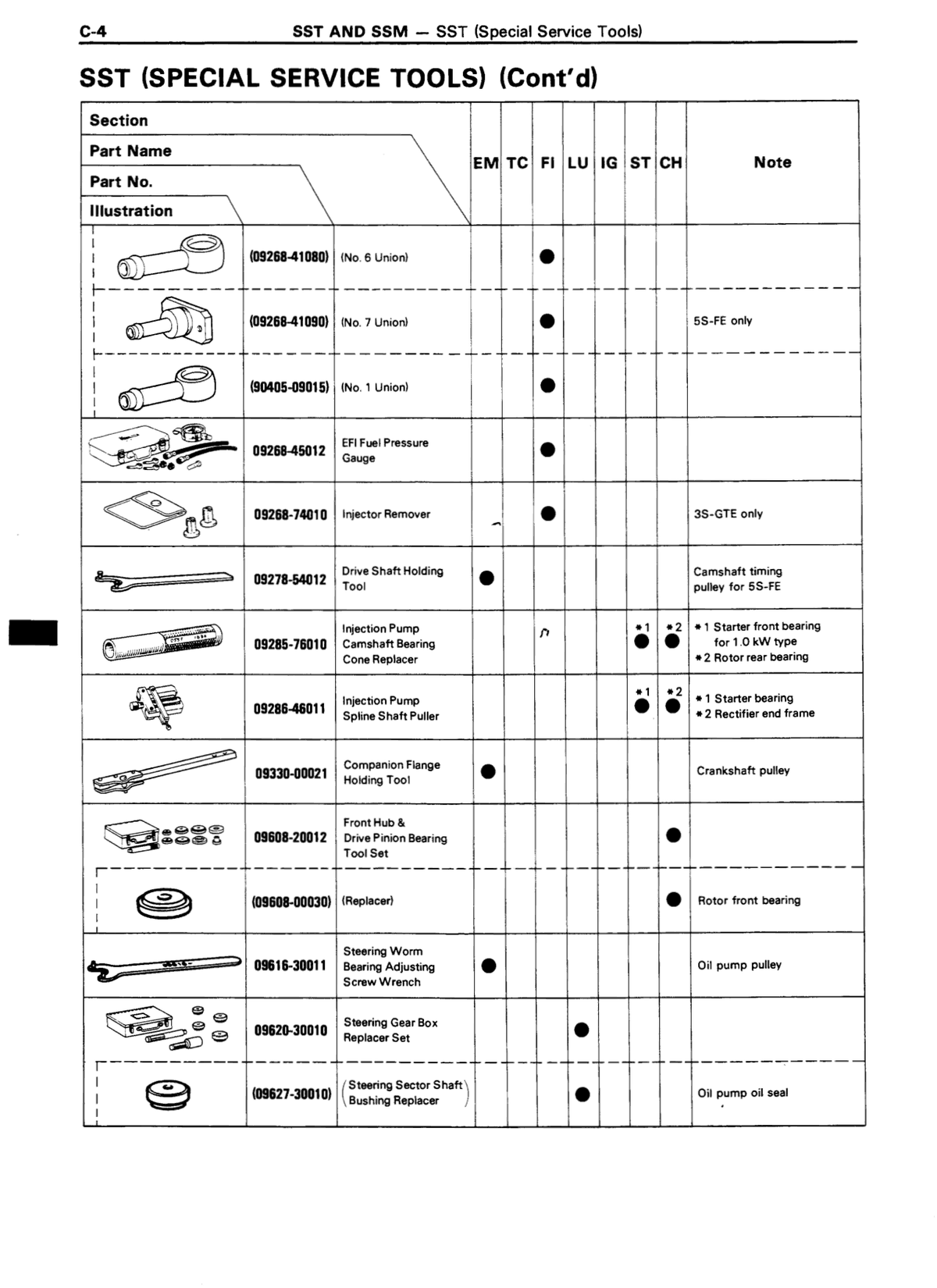

09268-41080 No.6 Union SST — component of Injection Measuring Tool Set Unclassified ↗ RM285U_1993_5sfe_mpisyste · p89 OEM manual
09268-41090 No.7 Union SST — component of Injection Measuring Tool Set Unclassified ↗ RM285U_1993_5sfe_mpisyste · p89 OEM manual
90405-09015 No.1 Union SST — component of Injection Measuring Tool Set Unclassified ↗ RM285U_1993_5sfe_mpisyste · p89 OEM manual

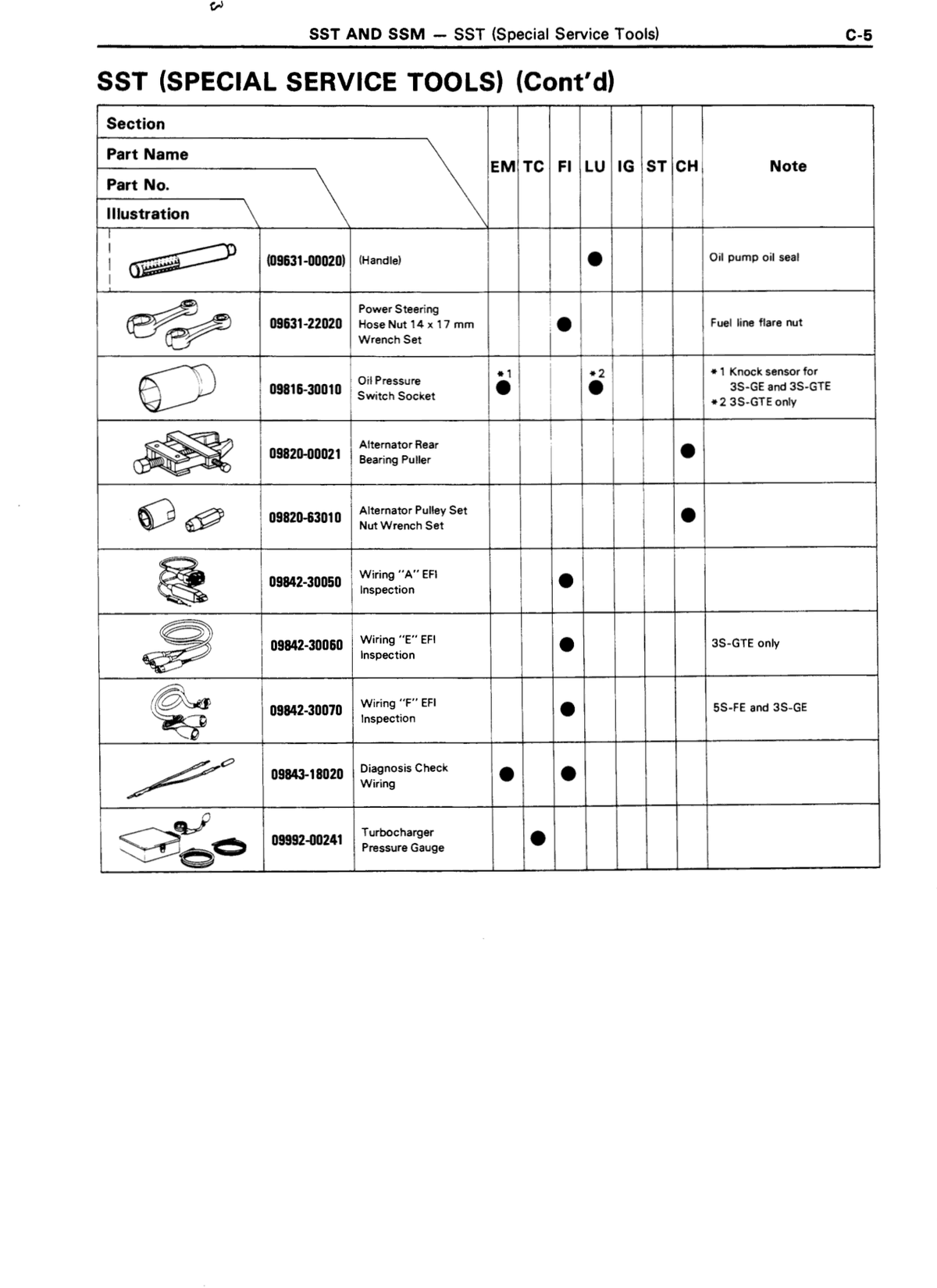

09631-22020 Power Steering Hose Nut 14 x 17 mm Wrench Set SST — used for fuel line flare nut Unclassified ↗ RM285U_1993_5sfe_mpisyste · p89 OEM manual

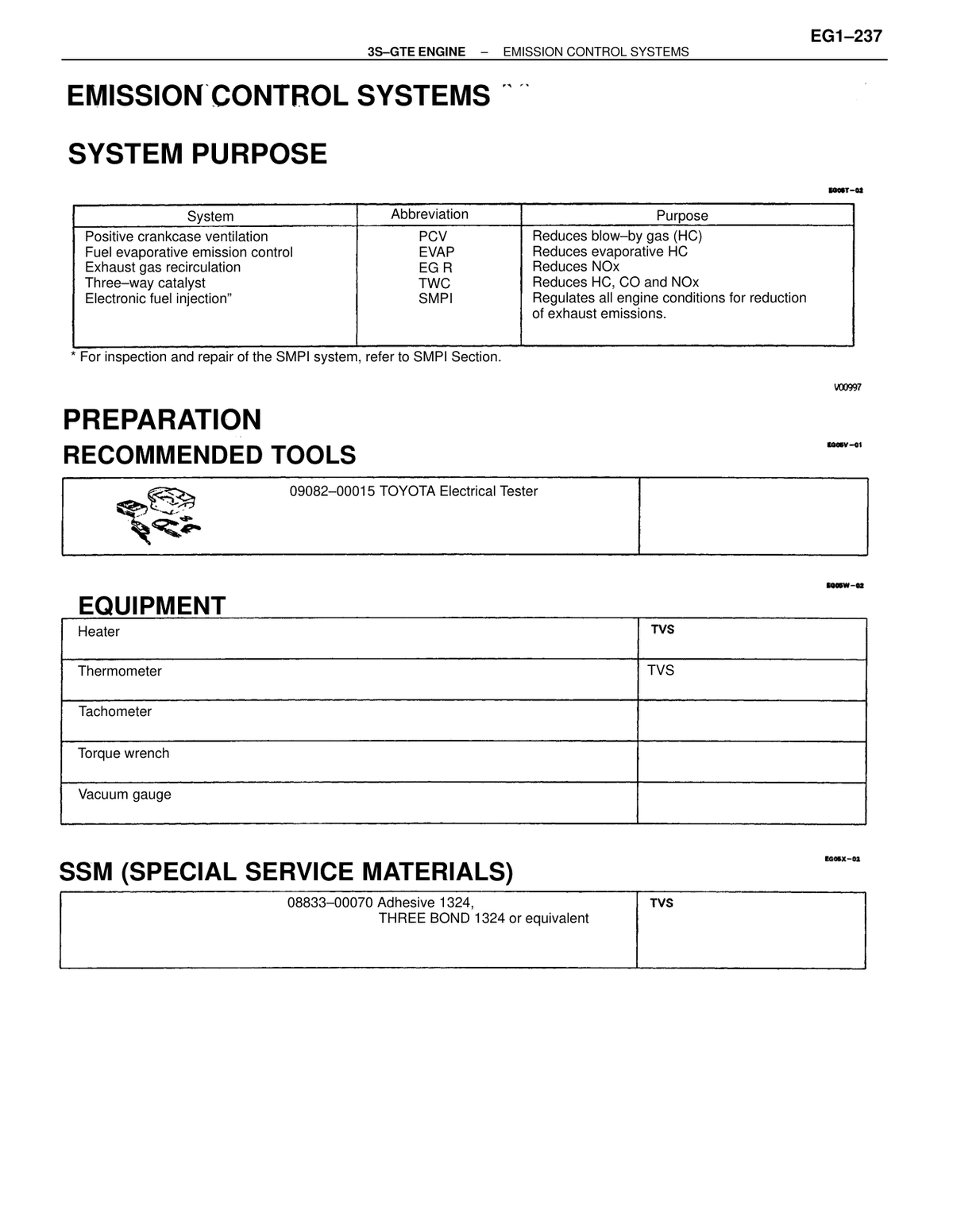

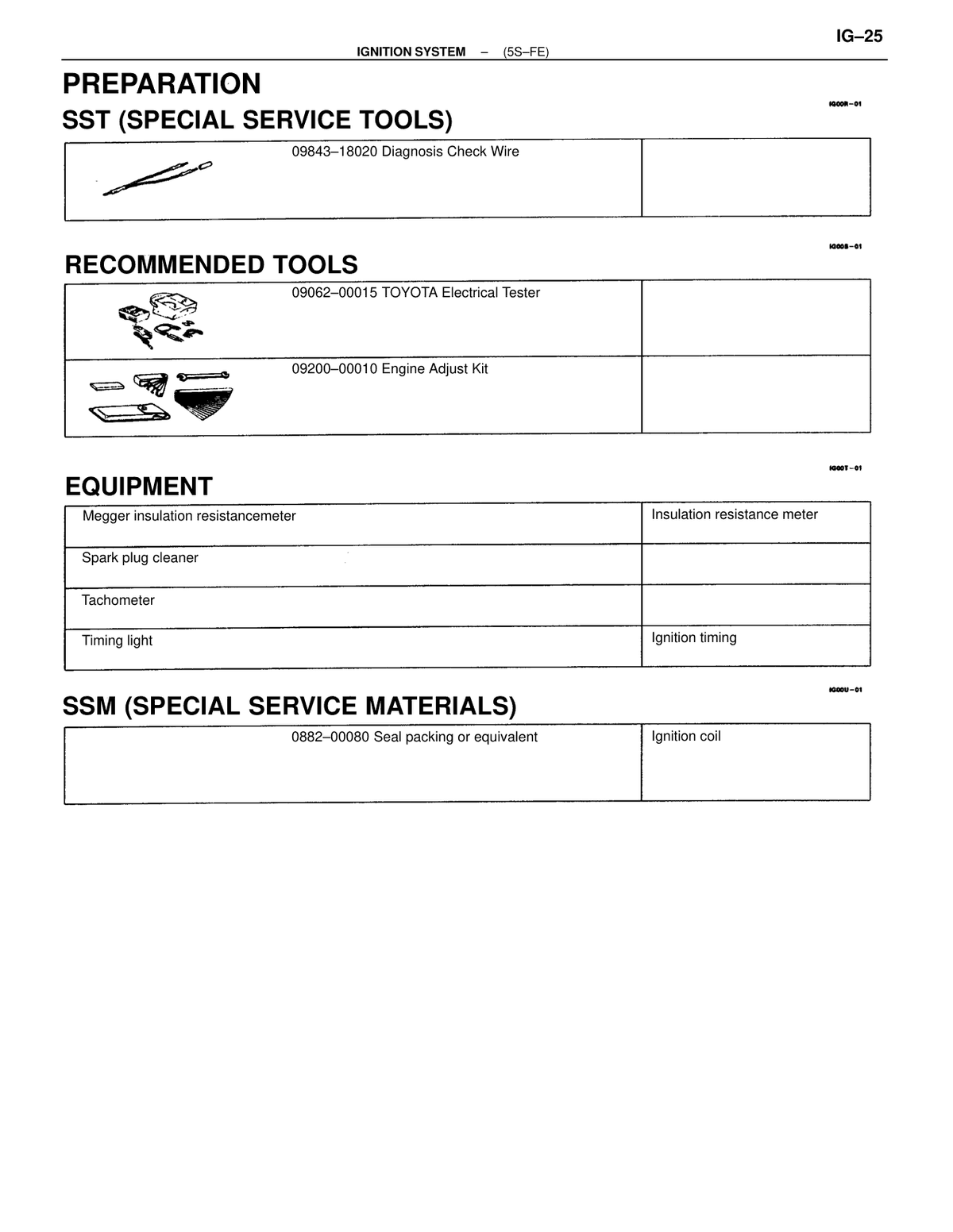

09082-00015 TOYOTA Electrical Tester Recommended tool Unclassified ↗ RM285U_1993_5sfe_mpisyste · p89 OEM manual
09200-00010 Engine Adjust Kit Recommended tool Unclassified ↗ RM285U_1993_5sfe_mpisyste · p89 OEM manual
09258-00030 Hose Plug set Recommended tool — plug for the vacuum hose, fuel hose etc. Unclassified ↗ RM285U_1993_5sfe_mpisyste · p89 OEM manual
95506-00020 Nippondenso BTG-20 Belt Tension Gauge Maintenance ↗ RM285U_1993_maintenance · p3 OEM manual
BKR6EP8 Spark plug (NGK) Recommended for 3S-GTE Maintenance ↗ RM285U_1993_maintenance · p5 OEM manual
95506-00020 Nippondenso BTG-20 Belt Tension Gauge Maintenance ↗ RM285U_1993_maintenance · p19 OEM manual
PK20R11 Spark plug (ND) Recommended spark plug for 5S-FE Maintenance ↗ RM285U_1993_maintenance · p20 OEM manual
BKR6EP-11 Spark plug (NGK) Recommended spark plug for 5S-FE Maintenance ↗ RM285U_1993_maintenance · p20 OEM manual

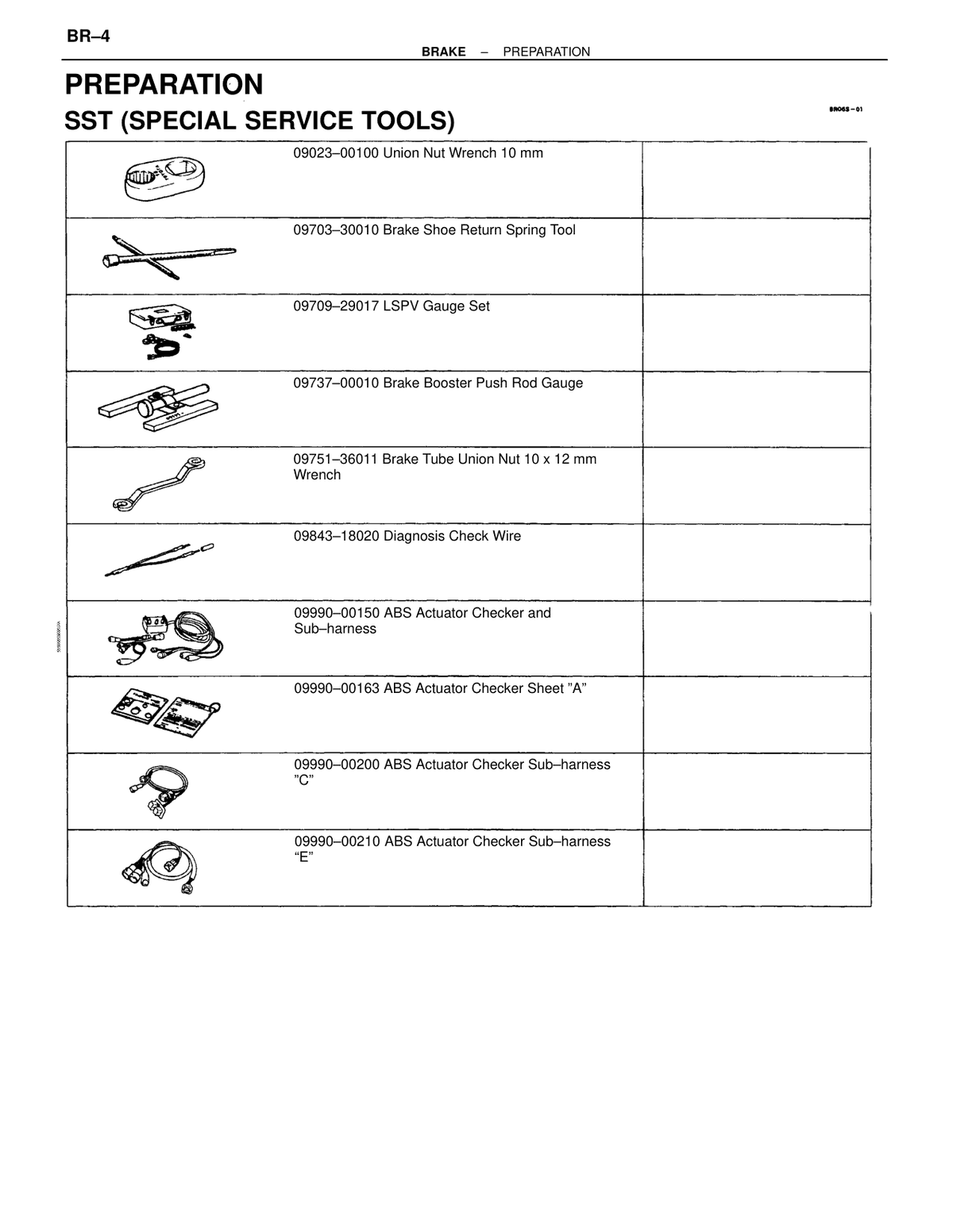

09751-3601 1 SST for disconnecting/connecting brake tubes to ABS actuator Brakes ↗ RM285U_1993_brake · p2 OEM manual

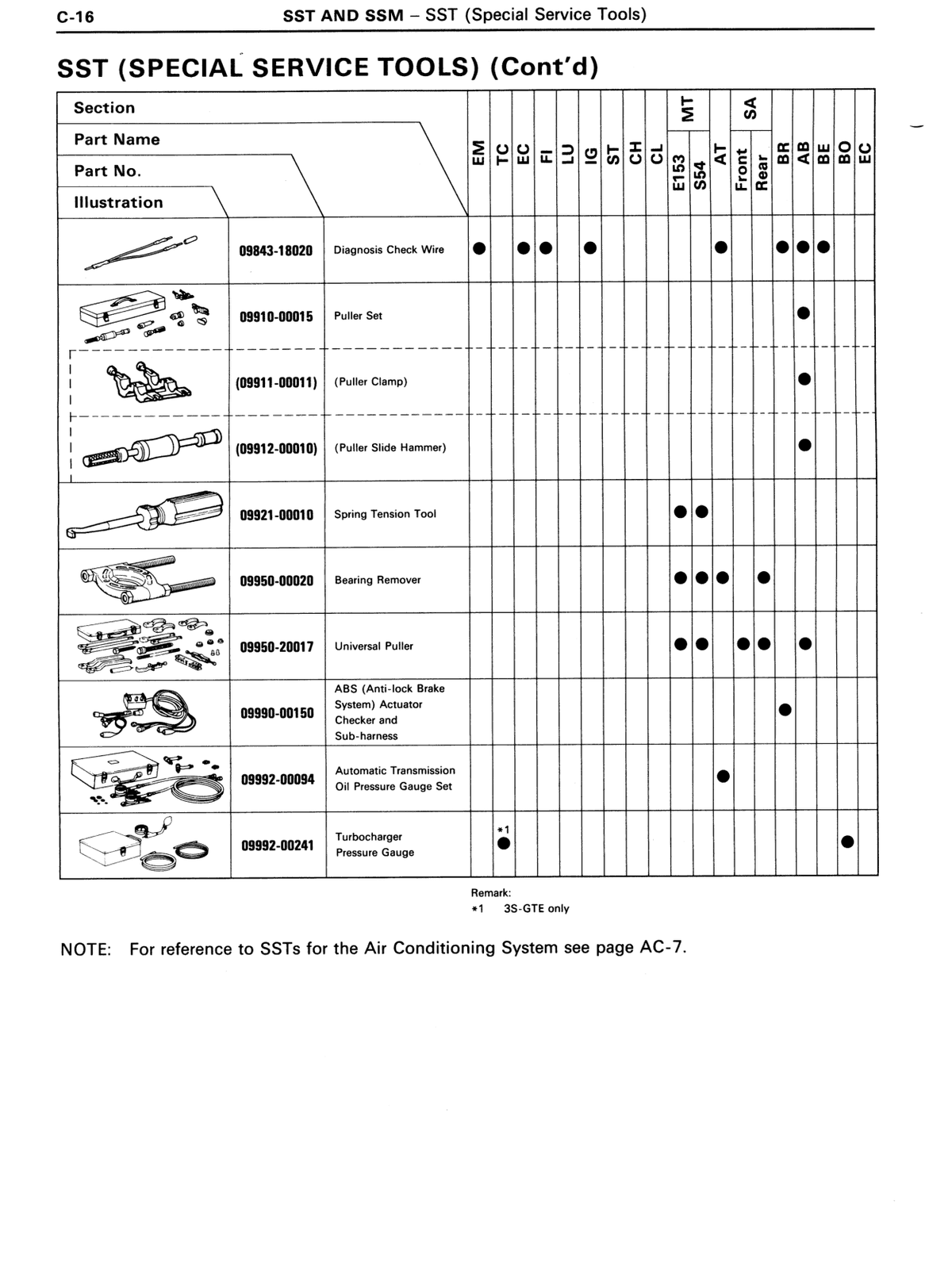

09990-00150 Actuator Checker (SST) / Sub-Wire Harness (SST) Special Service Tool for ABS actuator inspection Brakes ↗ RM285U_1993_brake · p3 OEM manual
09990-00150 Actuator Checker (SST) / sub-wire harness (SST) Special Service Tool Brakes ↗ RM285U_1993_brake · p4 OEM manual
09843-18020 SST — used to connect terminals Tc and E1 of the data link connector Brakes ↗ RM285U_1993_brake · p12 OEM manual
09843-18020 SST — Special Service Tool for data link connector terminals Te and E1 Brakes ↗ RM285U_1993_brake · p13 OEM manual
09843-18020 SST — used to connect terminals Tc and E1 of data link connector for ABS diagnostic code clearing Special Service Tool Brakes ↗ RM285U_1993_brake · p15 OEM manual
09843-18020 SST — used to connect terminals Ts/Tc and E1 of data link connector Special Service Tool Brakes ↗ RM285U_1993_brake · p21 OEM manual

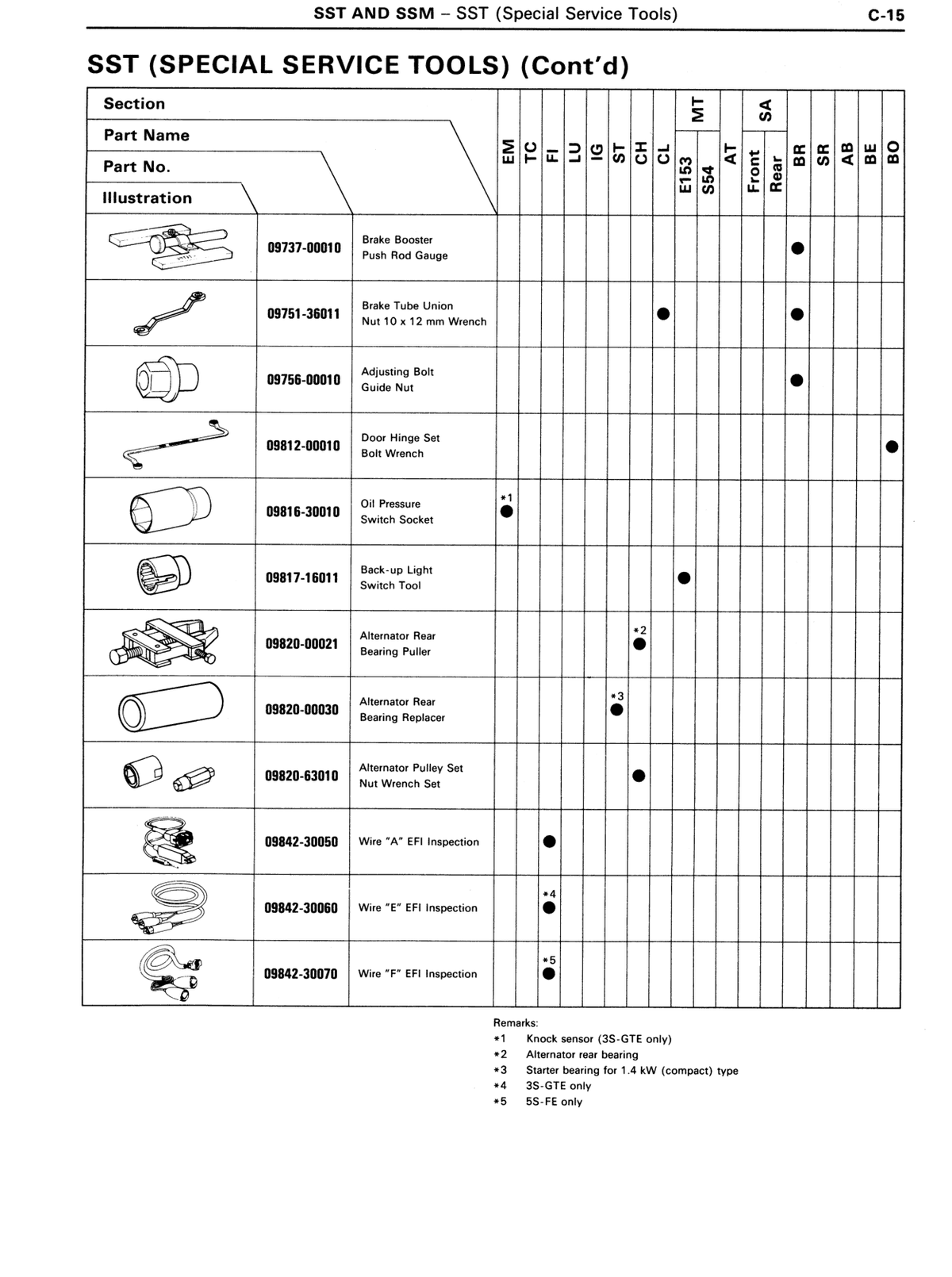

09737-00010 SST — Special Service Tool for booster push rod adjustment Brakes ↗ RM285U_1993_brake · p29 OEM manual
09751-3601 1 SST — Brake tube disconnection tool Used to disconnect brake tubes from master cylinder Brakes ↗ RM285U_1993_brake · p53 OEM manual
09751-36011 SST for connecting brake tubes to master cylinder Step 3 Brakes ↗ RM285U_1993_brake · p57 OEM manual
09709-29017 LSPV Gauge (SST) Special Service Tool for fluid pressure inspection Engine — mechanical ↗ RM285U_1993_brake · p61 OEM manual
09719-14020 SST — piston turning tool Sub-tool 09718-00020 Brakes ↗ RM285U_1993_brake · p64 OEM manual
09718-00020 SST — piston turning tool sub-component Used with 09719-14020 Brakes ↗ RM285U_1993_brake · p64 OEM manual
09719-14020 SST — Piston removal tool Used to turn piston counterclockwise for removal Brakes ↗ RM285U_1993_brake · p66 OEM manual
09756-00010 SST — used to set onto adjusting bolt during removal Step 6(a) Brakes ↗ RM285U_1993_brake · p67 OEM manual
09576-00010 SST — removed during adjusting bolt disassembly Step 7(a) Brakes ↗ RM285U_1993_brake · p67 OEM manual
09756-00010 SST — Special Service Tool for adjusting bolt sub assembly installation Used in step 8(a) and 8(d) Brakes ↗ RM285U_1993_brake · p72 OEM manual
09610-20012 SST — tie rod end puller Used to disconnect tie rod end from steering knuckle Suspension & axle ↗ RM285U_1993_suspension · p4 OEM manual
09520-00031 SST — Axle hub remover Step 5: Remove axle hub from steering knuckle Suspension & axle ↗ RM285U_1993_suspension · p5 OEM manual
09308-00010 SST — Oil seal remover Step 7: Remove oil seal from rear axle carrier Suspension & axle ↗ RM285U_1993_suspension · p5 OEM manual
09950-20017 SST — hub bearing inner race (outside) puller Special Service Tool Suspension & axle ↗ RM285U_1993_suspension · p6 OEM manual
09608-30012 SST — hub bearing driver set (removal) Used with 09608-04060 and 09649-17010 Suspension & axle ↗ RM285U_1993_suspension · p6 OEM manual
09608-04060 SST — hub bearing driver attachment (removal) Sub-tool of 09608-30012 Suspension & axle ↗ RM285U_1993_suspension · p6 OEM manual
09649-17010 SST — hub bearing driver attachment (removal) Sub-tool of 09608-30012 Suspension & axle ↗ RM285U_1993_suspension · p6 OEM manual
09608-04070 SST — hub bearing driver attachment (installation) Sub-tool of 09608-30012 Suspension & axle ↗ RM285U_1993_suspension · p6 OEM manual
09608–30012 SST – oil seal installer set sub-tool 09608–04020 Suspension & axle ↗ RM285U_1993_suspension · p7 OEM manual
09649–17010 SST – oil seal installer component used with 09608–30012 Suspension & axle ↗ RM285U_1993_suspension · p7 OEM manual
09608–34012 SST – axle hub installer sub-tool 09608–04020 Suspension & axle ↗ RM285U_1993_suspension · p7 OEM manual
09608–30012 SST – Hub grease cap installer (set) Sub-part: 09608–04020 Suspension & axle ↗ RM285U_1993_suspension · p8 OEM manual
09608–04020 SST – Hub grease cap installer (sub-part of 09608–30012) Suspension & axle ↗ RM285U_1993_suspension · p8 OEM manual
09649–17010 SST – Hub grease cap installer Suspension & axle ↗ RM285U_1993_suspension · p8 OEM manual
09628-1001 1 SST — axle hub bolt removal tool Step 4(b) Suspension & axle ↗ RM285U_1993_suspension · p10 OEM manual

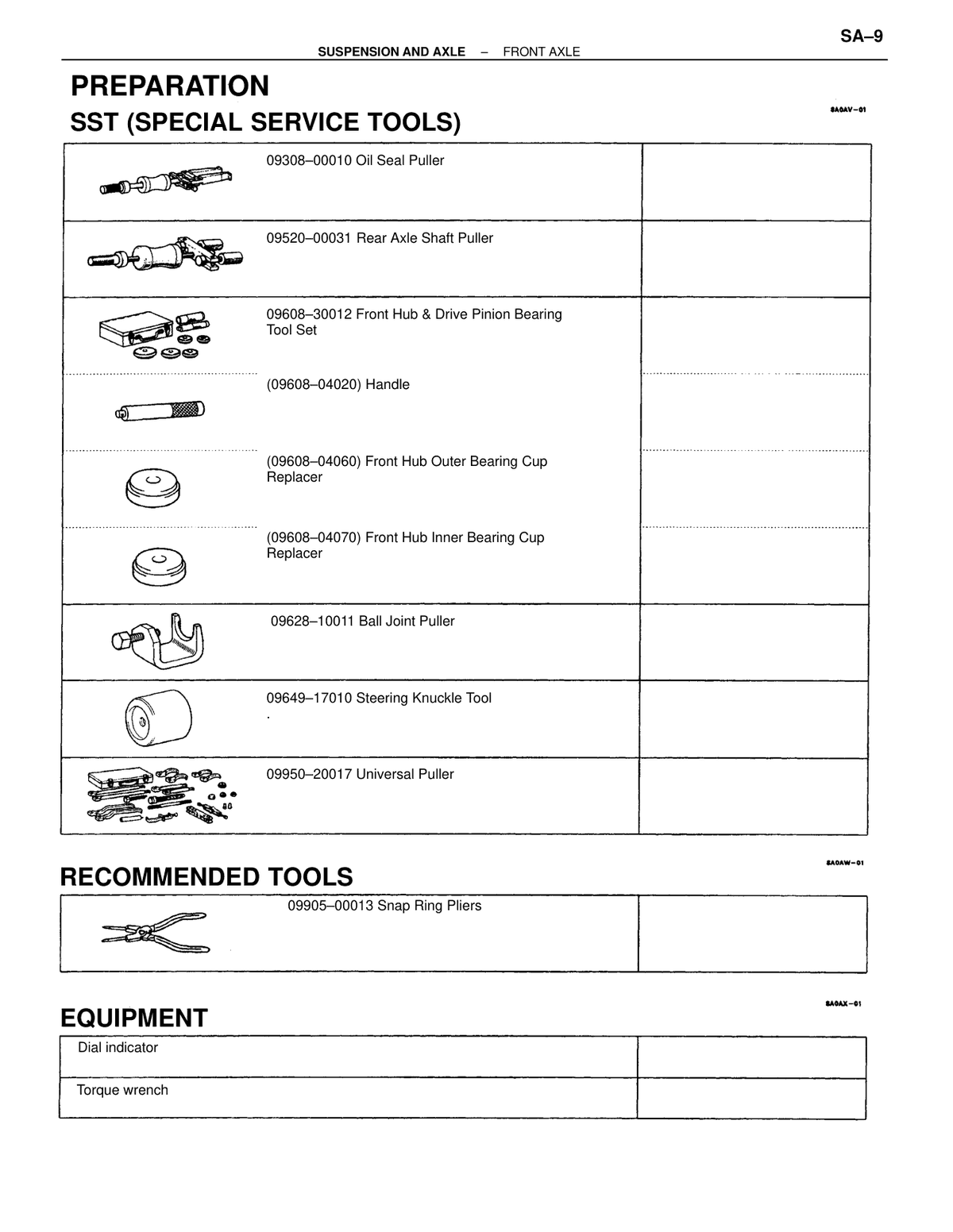

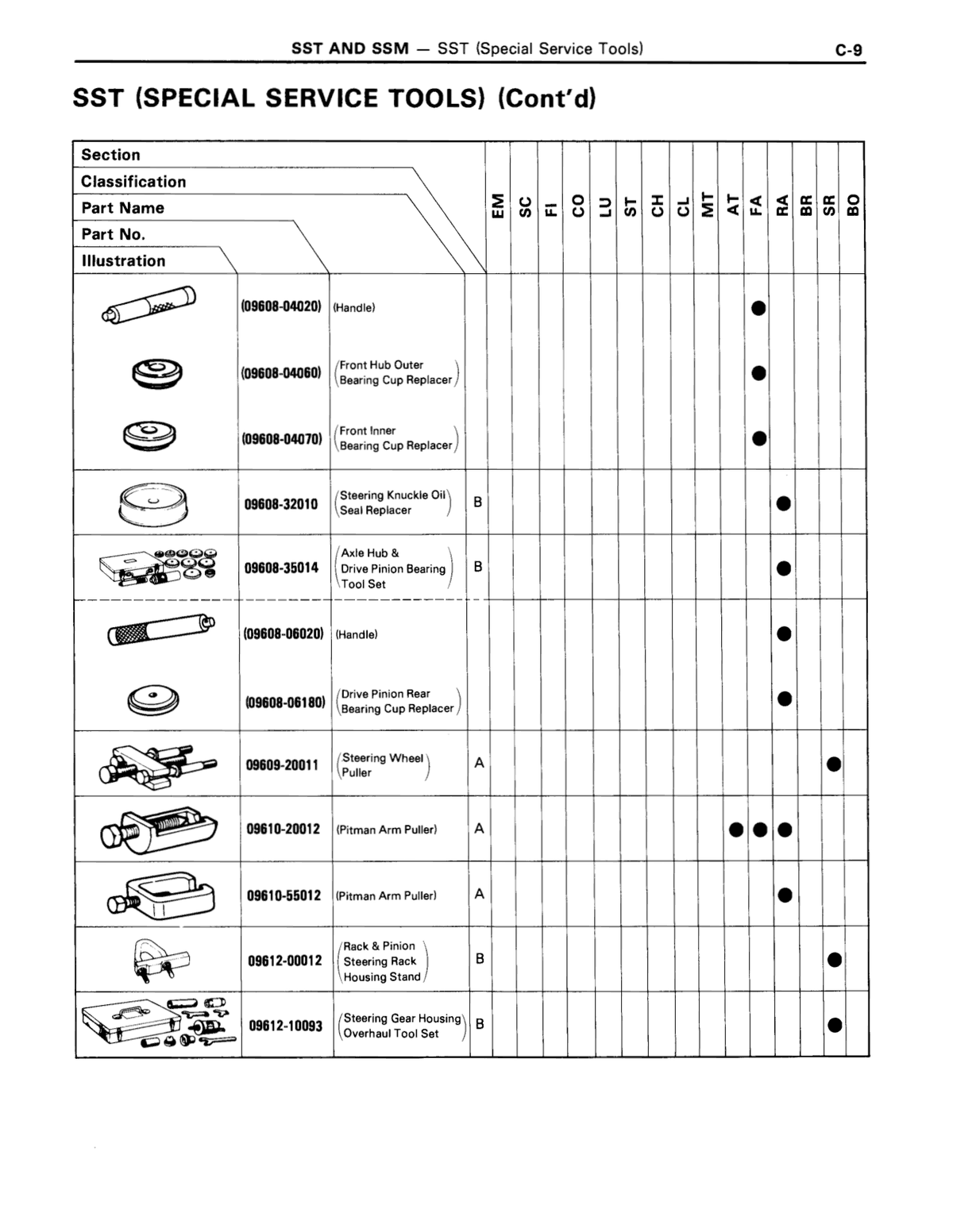

09608-30012 Front Hub & Drive Pinion Bearing Tool Set SST Suspension & axle ↗ RM285U_1993_suspension · p11 OEM manual
09608-04020 Handle SST — component of 09608-30012 Suspension & axle ↗ RM285U_1993_suspension · p11 OEM manual
09608-04060 Front Hub Outer Bearing Cup Replacer SST — component of 09608-30012 Suspension & axle ↗ RM285U_1993_suspension · p11 OEM manual
09608-04070 Front Hub Inner Bearing Cup Replacer SST — component of 09608-30012 Suspension & axle ↗ RM285U_1993_suspension · p11 OEM manual
09905-00013 Snap Ring Pliers Recommended Tool Suspension & axle ↗ RM285U_1993_suspension · p11 OEM manual
09610-20012 SST — Ball joint separator / lower arm disconnect tool Used to disconnect lower arm from ball joint Suspension & axle ↗ RM285U_1993_suspension · p13 OEM manual
09727-00045 SST — coil spring compressor Used to compress coil spring in step 8 Suspension & axle ↗ RM285U_1993_suspension · p18 OEM manual
09727-30020 SST — coil spring compressor attachment Used to compress coil spring in step 8 Suspension & axle ↗ RM285U_1993_suspension · p18 OEM manual
09729-22031 SST — Spring seat holding tool Used to hold spring seat while removing nut Suspension & axle ↗ RM285U_1993_suspension · p19 OEM manual
09720-00012 SST — Ring nut loosening tool for gas release Used before discarding shock absorber Suspension & axle ↗ RM285U_1993_suspension · p19 OEM manual
09727-00045 SST — Coil spring compressor Used to compress coil spring during installation Suspension & axle ↗ RM285U_1993_suspension · p19 OEM manual
09727-30020 SST — Coil spring compressor attachment Used to compress coil spring during installation Suspension & axle ↗ RM285U_1993_suspension · p19 OEM manual
09729-22031 SST — Suspension support nut installer/holder Special Service Tool Suspension & axle ↗ RM285U_1993_suspension · p20 OEM manual
09610-20012 SST — Ball joint separator tool Used to disconnect lower arm from ball joint Suspension & axle ↗ RM285U_1993_suspension · p22 OEM manual

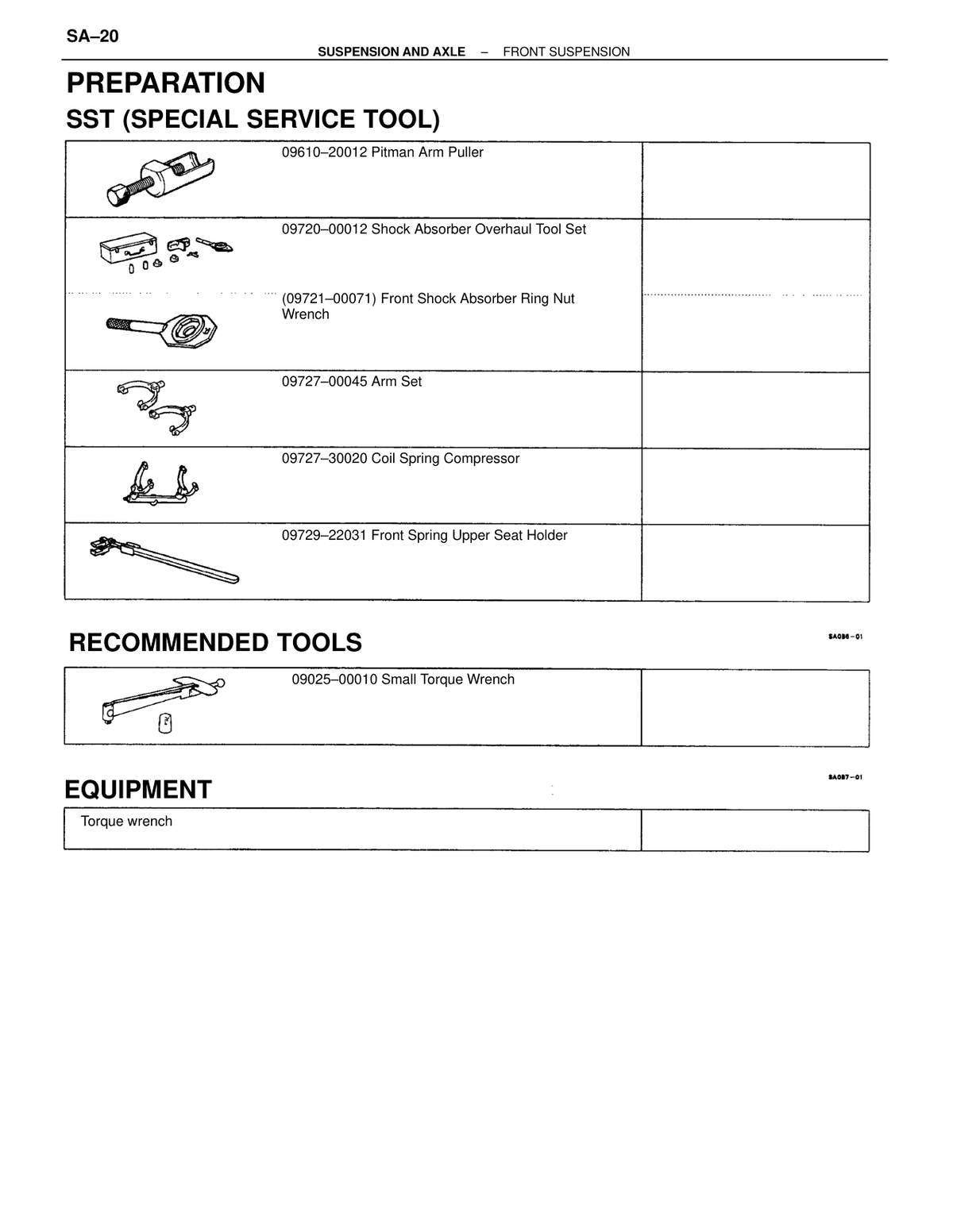

09720-00012 Shock Absorber Overhaul Tool Set SST Suspension & axle ↗ RM285U_1993_suspension · p25 OEM manual
09721-00071 Front Shock Absorber Ring Nut Wrench SST — sub-tool of 09720-00012 Suspension & axle ↗ RM285U_1993_suspension · p25 OEM manual
09729-22031 Front Spring Upper Seat Holder SST Suspension & axle ↗ RM285U_1993_suspension · p25 OEM manual
09025-00010 Small Torque Wrench Recommended Tool Suspension & axle ↗ RM285U_1993_suspension · p25 OEM manual

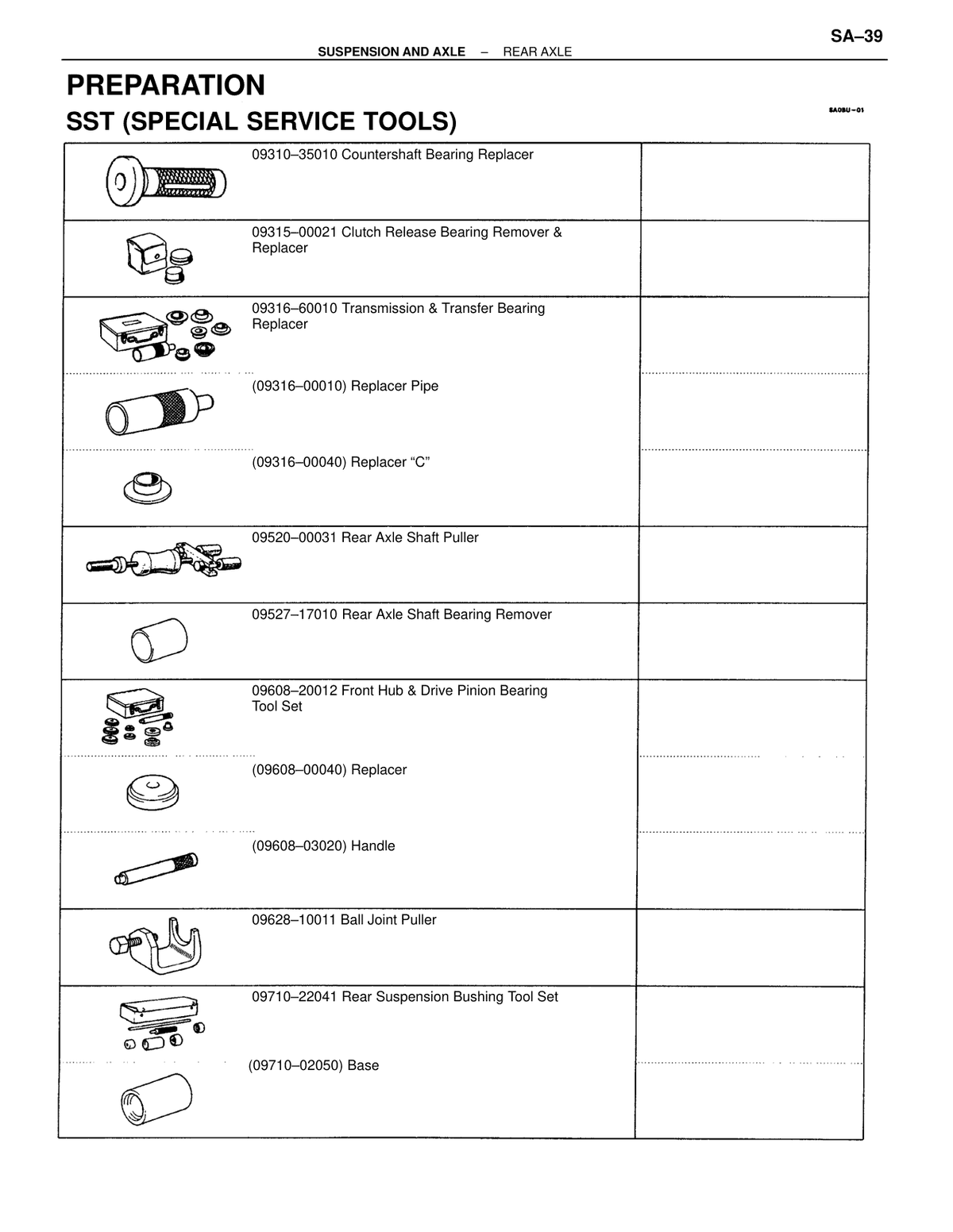

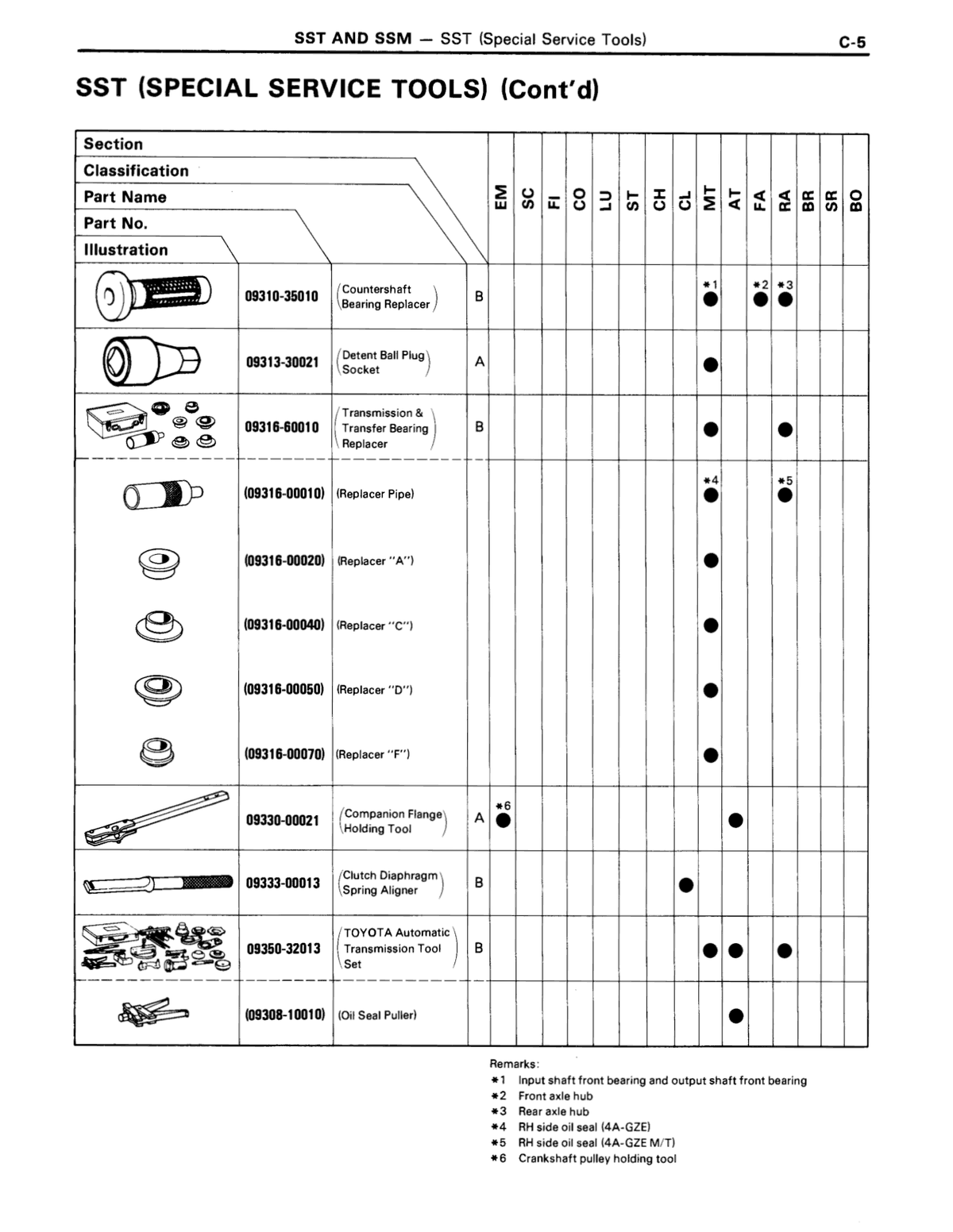

09310-35010 Countershaft Bearing Replacer Suspension & axle ↗ RM285U_1993_suspension · p32 OEM manual

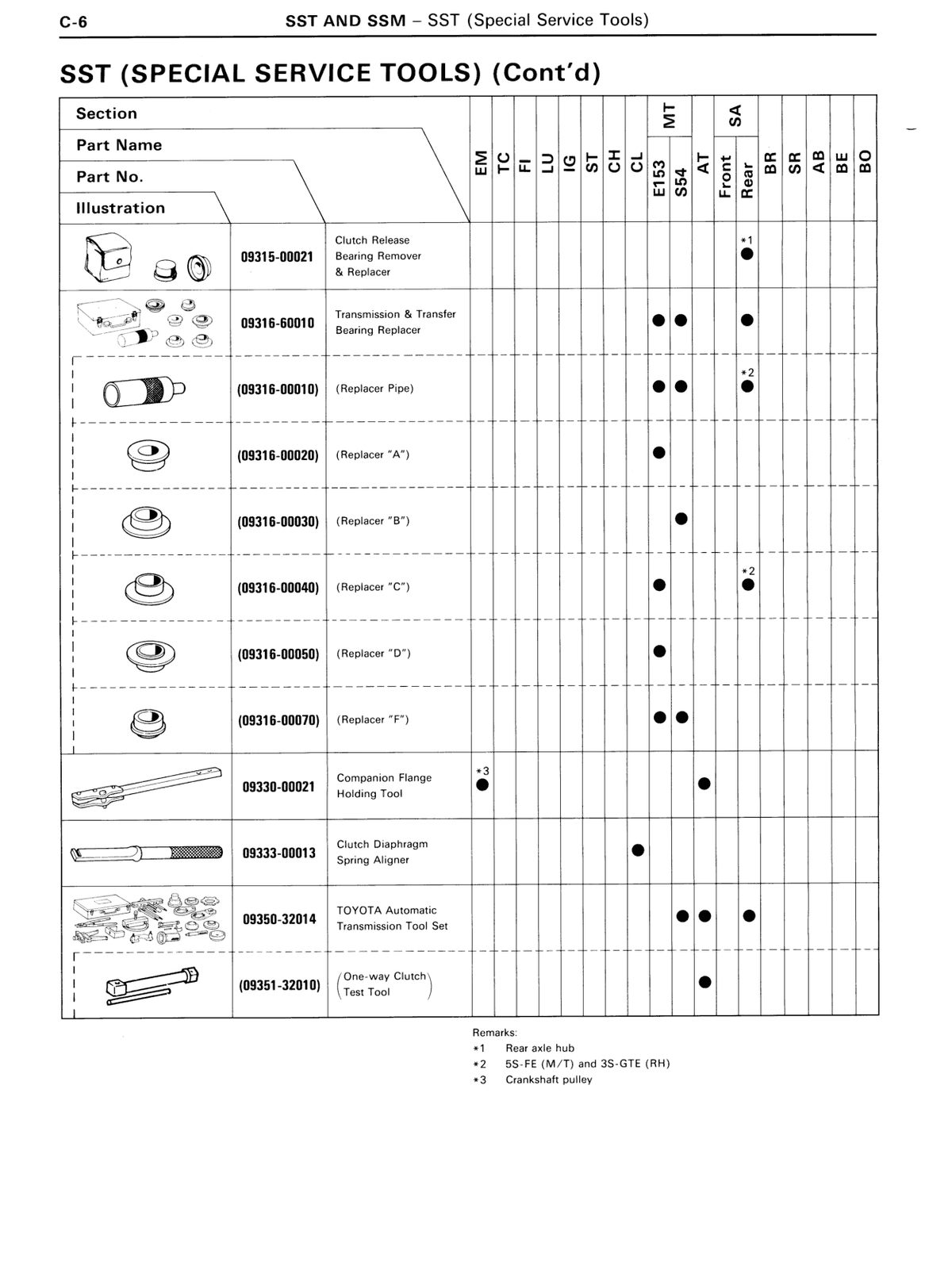

09315-00021 Clutch Release Bearing Remover & Replacer Suspension & axle ↗ RM285U_1993_suspension · p32 OEM manual
09316-60010 Transmission & Transfer Bearing Replacer Suspension & axle ↗ RM285U_1993_suspension · p32 OEM manual
09527-17010 Rear Axle Shaft Bearing Remover Suspension & axle ↗ RM285U_1993_suspension · p32 OEM manual

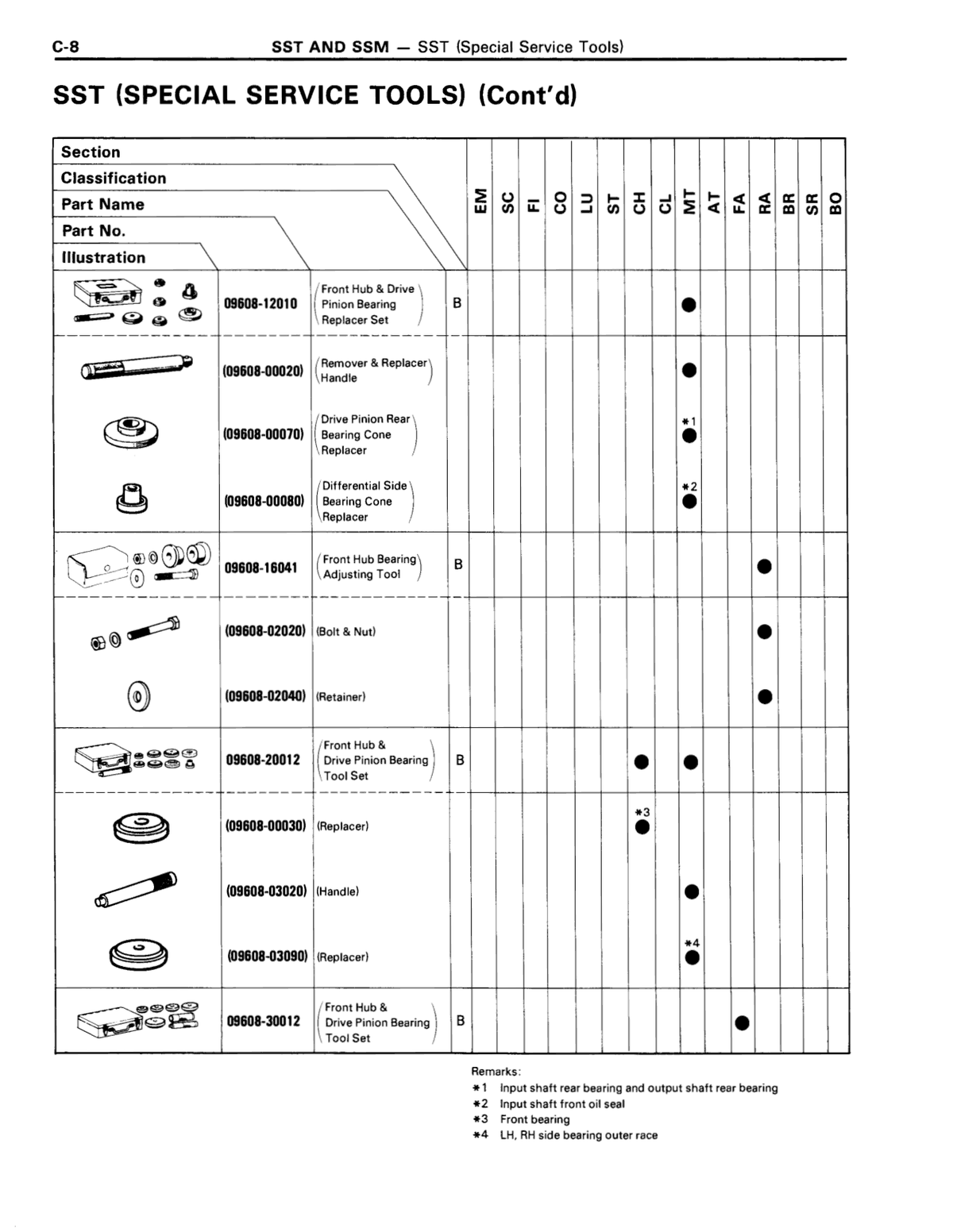

09608-20012 Front Hub & Drive Pinion Bearing Tool Set Suspension & axle ↗ RM285U_1993_suspension · p32 OEM manual
09710-22041 Rear Suspension Bushing Tool Set Suspension & axle ↗ RM285U_1993_suspension · p32 OEM manual

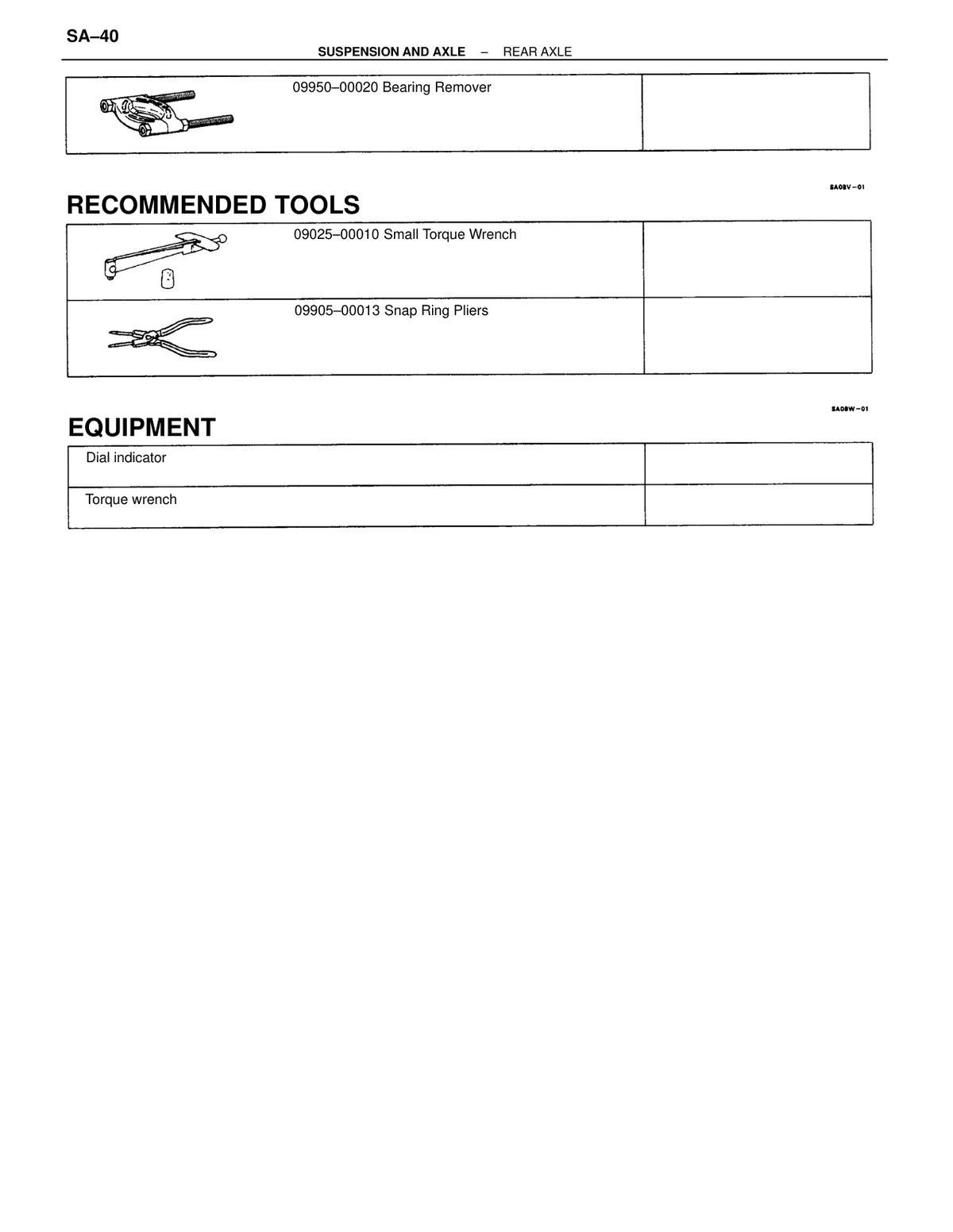

09025-00010 Small Torque Wrench Recommended Tool Suspension & axle ↗ RM285U_1993_suspension · p33 OEM manual
09905-00013 Snap Ring Pliers Recommended Tool Suspension & axle ↗ RM285U_1993_suspension · p33 OEM manual
09520-00031 SST — Axle shaft remover Step 3 Suspension & axle ↗ RM285U_1993_suspension · p37 OEM manual
09608-20012 SST — Bearing inner race (outside) remover set Step 6 Suspension & axle ↗ RM285U_1993_suspension · p37 OEM manual
09608-00040 SST — Component of 09608-20012 Step 6 Suspension & axle ↗ RM285U_1993_suspension · p37 OEM manual
09608-03020 SST — Component of 09608-20012 Step 6 Suspension & axle ↗ RM285U_1993_suspension · p37 OEM manual
09950-00020 SST — Bearing inner race (outside) remover component Step 6 Suspension & axle ↗ RM285U_1993_suspension · p37 OEM manual
09310-35010 SST — Remove/Install axle bearing and axle shaft Used in Remove Axle Bearing step (b) and Install Axle Shaft step 3 Suspension & axle ↗ RM285U_1993_suspension · p38 OEM manual
09527-17010 SST — Remove axle bearing Used in Remove Axle Bearing step (b) Suspension & axle ↗ RM285U_1993_suspension · p38 OEM manual
09710-22041 SST — Install axle bearing Used in Install Axle Bearing step 1 Suspension & axle ↗ RM285U_1993_suspension · p38 OEM manual
09710-02050 SST — Install axle bearing (sub-tool) Used in Install Axle Bearing step 1 Suspension & axle ↗ RM285U_1993_suspension · p38 OEM manual
09315-00021 SST — Install axle shaft Used in Install Axle Shaft step 3 Suspension & axle ↗ RM285U_1993_suspension · p38 OEM manual
09316-60010 SST set for dust deflector installation Includes 09316-00010 and 09316-00040 Suspension & axle ↗ RM285U_1993_suspension · p39 OEM manual
09316-00010 SST component for dust deflector installation Part of 09316-60010 set Suspension & axle ↗ RM285U_1993_suspension · p39 OEM manual
09316-00040 SST component for dust deflector installation Part of 09316-60010 set Suspension & axle ↗ RM285U_1993_suspension · p39 OEM manual
09628-1001 1 SST — axle shaft bolt removal tool Used in Step 4(b) Suspension & axle ↗ RM285U_1993_suspension · p41 OEM manual

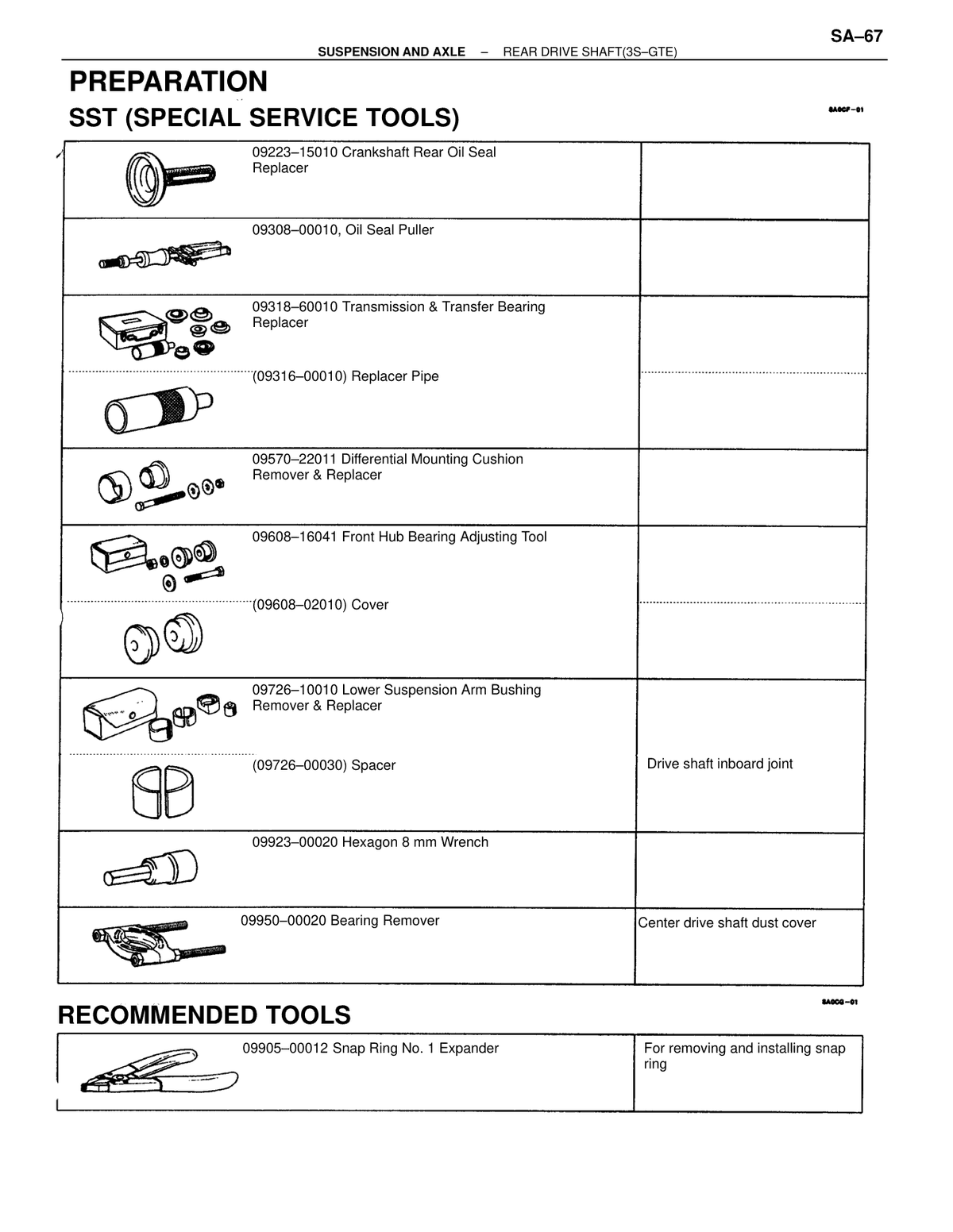

09223-15010 Crankshaft Rear Oil Seal Replacer Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual

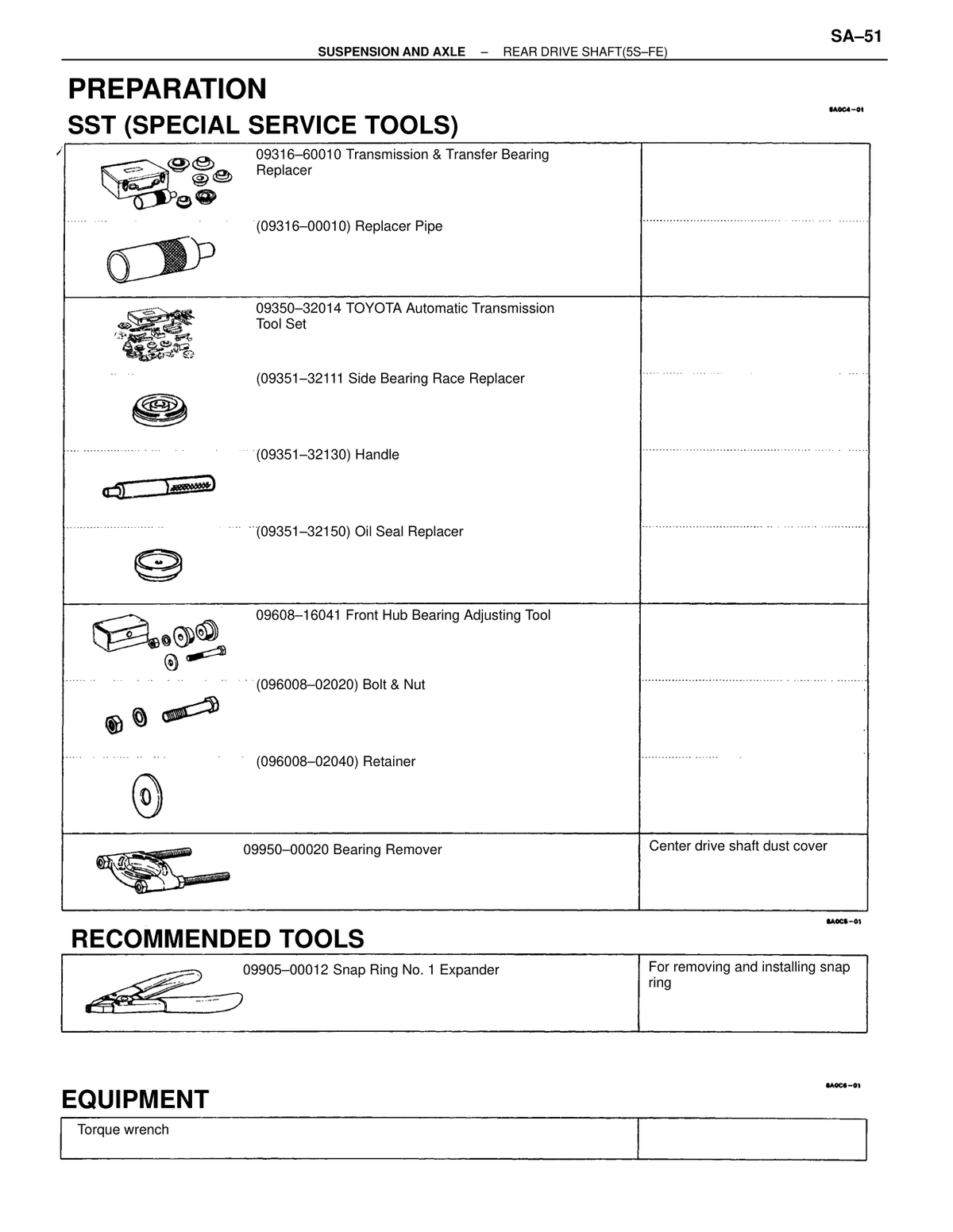

09318-60010 Transmission & Transfer Bearing Replacer Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual
09316-00010 Replacer Pipe Sub-component of 09318-60010 Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual

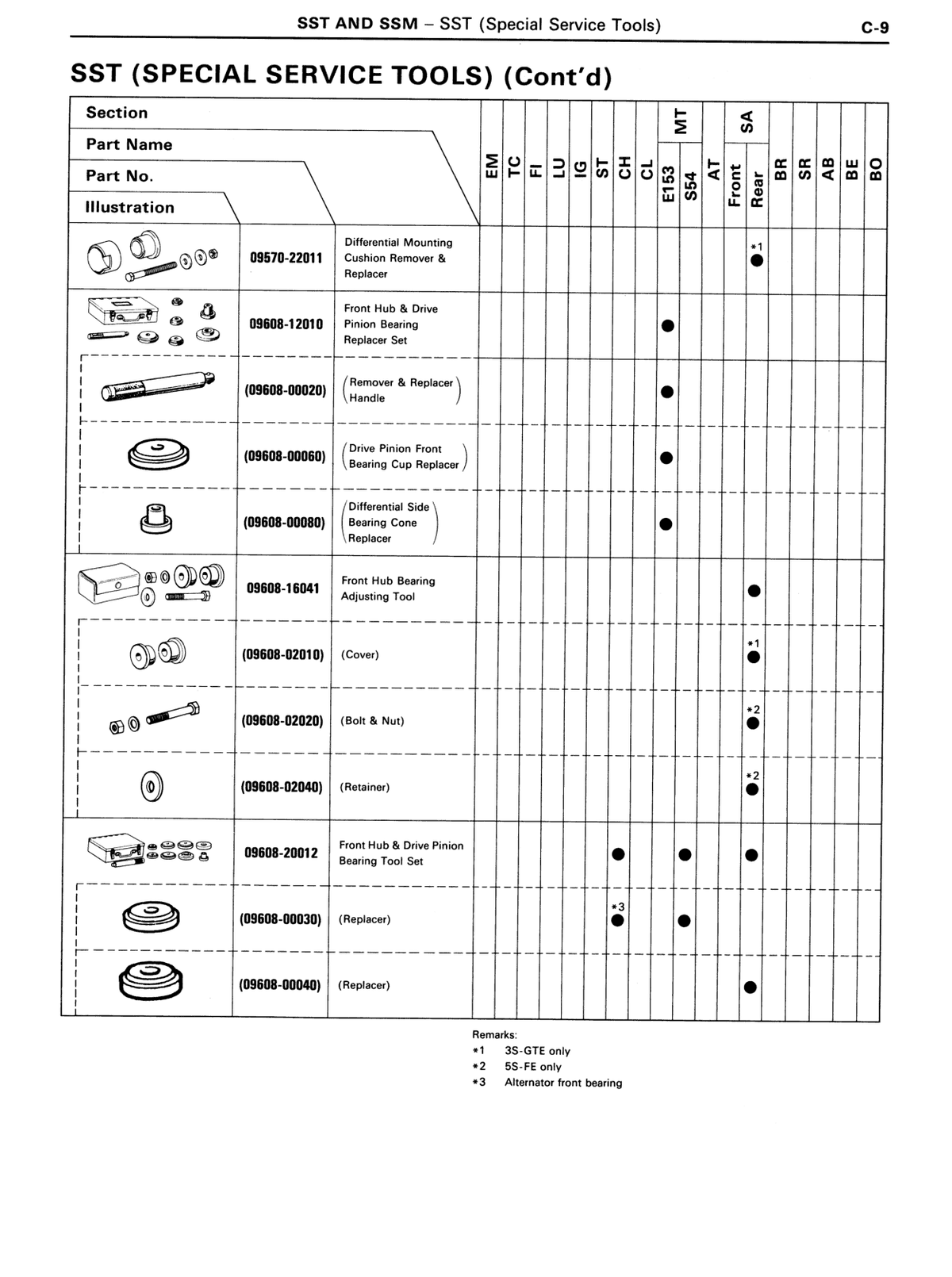

09570-22011 Differential Mounting Cushion Remover & Replacer Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual
09608-16041 Front Hub Bearing Adjusting Tool Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual
09608-02010 Cover Sub-component of 09608-16041 Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual
09726-10010 Lower Suspension Arm Bushing Remover & Replacer Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual
09726-00030 Spacer Sub-component of 09726-10010; used for drive shaft inboard joint Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual
09950-00020 Bearing Remover Used for center drive shaft dust cover Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual
09905-00012 Snap Ring No. 1 Expander Recommended tool; for removing and installing snap ring Suspension & axle ↗ RM285U_1993_suspension · p44 OEM manual

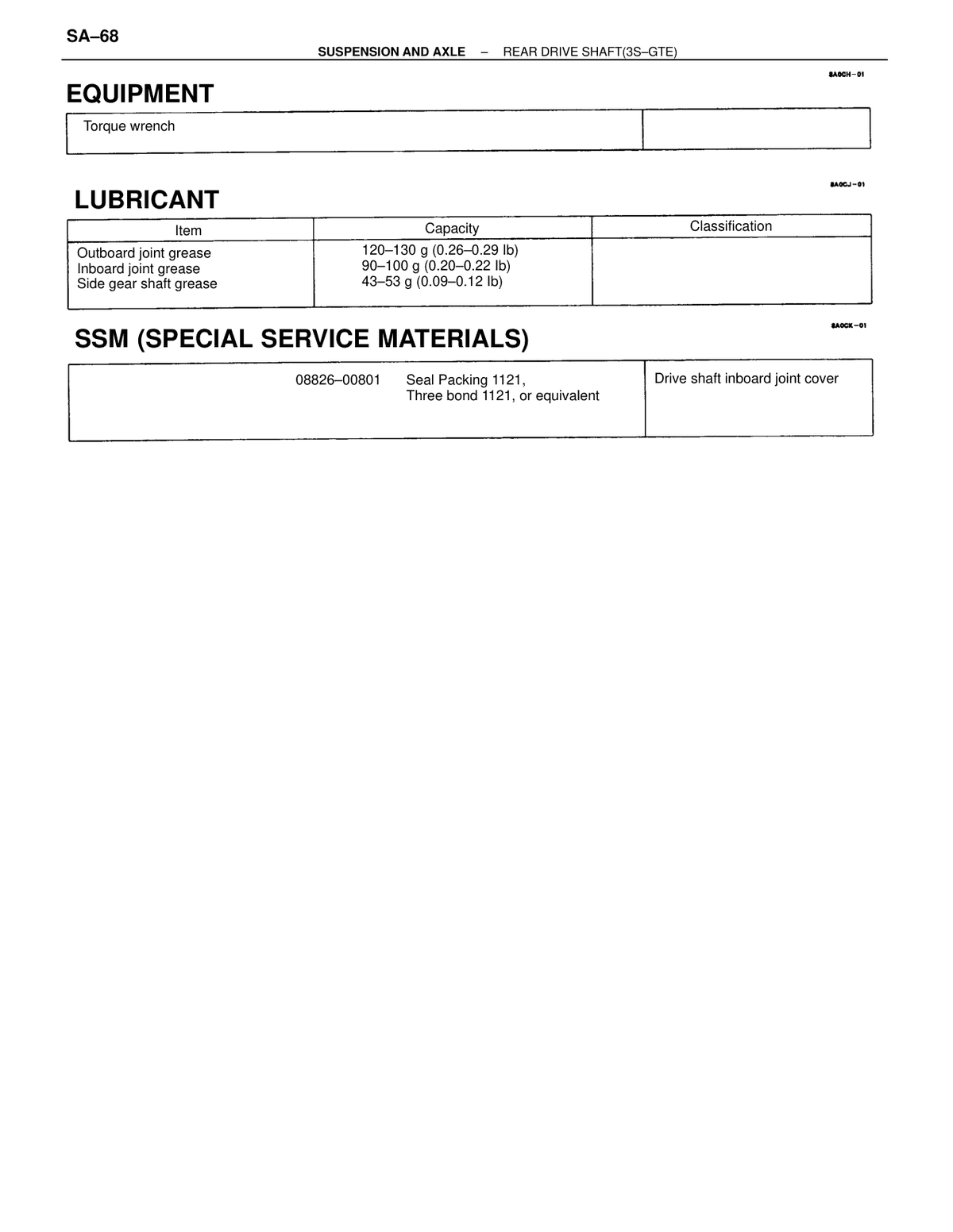

08826-00801 Seal Packing 1121, Three bond 1121, or equivalent Drive shaft inboard joint cover Suspension & axle ↗ RM285U_1993_suspension · p45 OEM manual
09570-22010 SST — axle bearing support tool Used to support axle bearing when vehicle weight must be placed on axle bearing with drive shaft removed Suspension & axle ↗ RM285U_1993_suspension · p47 OEM manual
09608-16041 SST — axle bearing support tool set Includes sub-part 09608-02010 Suspension & axle ↗ RM285U_1993_suspension · p47 OEM manual
09608-02010 SST — sub-part of 09608-16041 Suspension & axle ↗ RM285U_1993_suspension · p47 OEM manual
09923-00020 SST — hexagon bolt loosening tool Used to loosen six hexagon bolts holding drive shaft to differential side gear shaft or center drive shaft Suspension & axle ↗ RM285U_1993_suspension · p47 OEM manual
09950-20017 SST — Special Service Tool for disconnecting drive shaft from axle carrier Step 12 Suspension & axle ↗ RM285U_1993_suspension · p48 OEM manual
09308-00010 SST — Oil seal remover Remove oil seals Suspension & axle ↗ RM285U_1993_suspension · p50 OEM manual

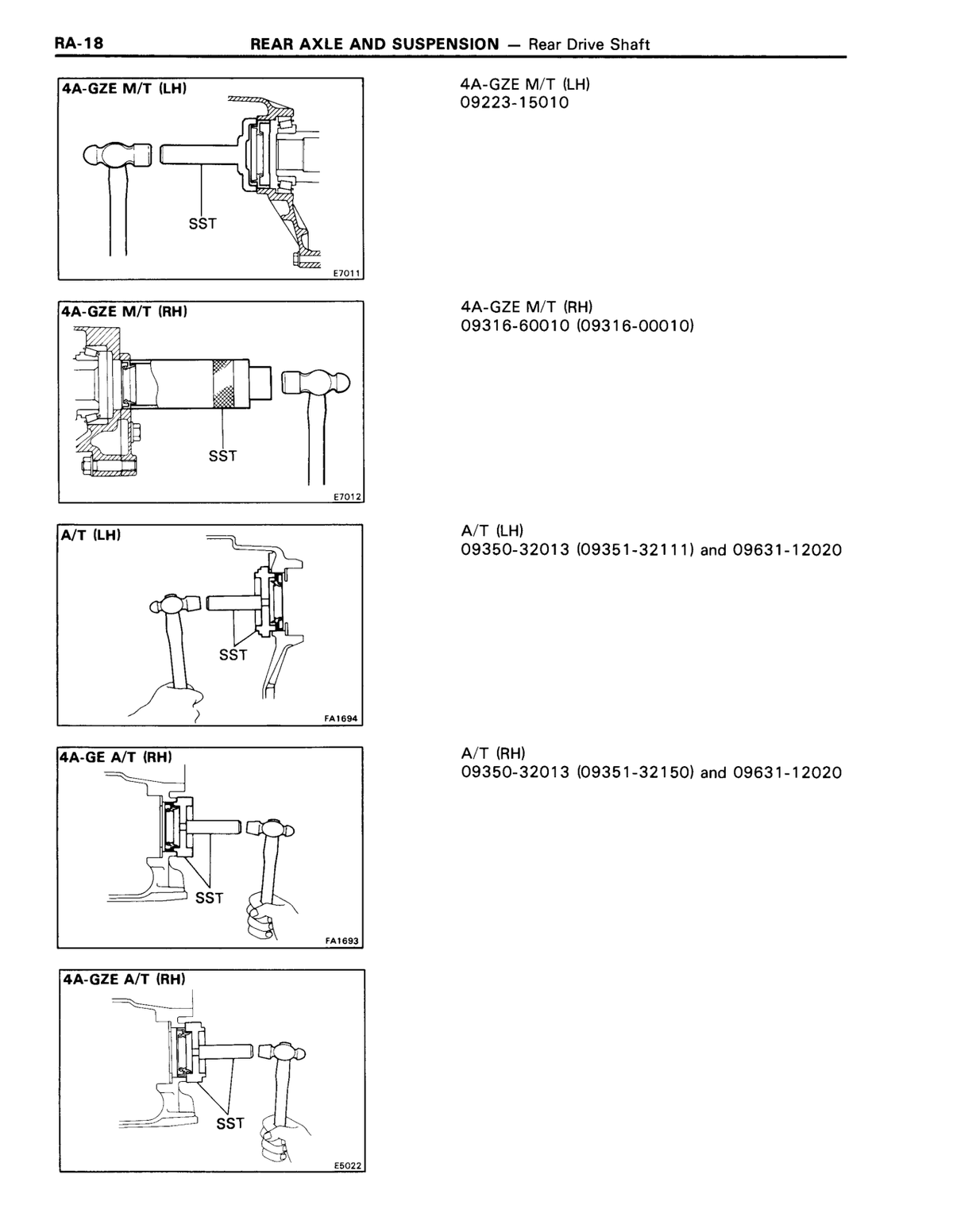

09223-15010 SST — LH oil seal installer Install new LH oil seal Suspension & axle ↗ RM285U_1993_suspension · p50 OEM manual
09316-60010 SST — RH oil seal installer (outer) Install new RH oil seal Suspension & axle ↗ RM285U_1993_suspension · p50 OEM manual
09316-00010 SST — RH oil seal installer (inner) Install new RH oil seal Suspension & axle ↗ RM285U_1993_suspension · p50 OEM manual
09923-00020 SST — Hexagon bolt socket Remove six hexagon bolts and three washers from side gear shaft Suspension & axle ↗ RM285U_1993_suspension · p50 OEM manual
09726-10010 SST — Special Service Tool for inboard joint removal Sub-tool: 09726-00030 Suspension & axle ↗ RM285U_1993_suspension · p52 OEM manual
09950-00020 SST — used to remove dust cover from center drive shaft inboard joint Special Service Tool Suspension & axle ↗ RM285U_1993_suspension · p54 OEM manual
08826-00801 Seal packing (THREE BOND 1121 or equivalent) Used for inboard joint cover Suspension & axle ↗ RM285U_1993_suspension · p56 OEM manual
09923-00020 SST — Special Service Tool for temporarily tightening hexagon bolts SST Suspension & axle ↗ RM285U_1993_suspension · p58 OEM manual
09316-60010 Transmission & Transfer Bearing Replacer SST Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09316-00010 Replacer Pipe SST component of 09316-60010 Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09350-32014 TOYOTA Automatic Transmission Tool Set SST Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09351-32111 Side Bearing Race Replacer SST component of 09350-32014 Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09351-32130 Handle SST component of 09350-32014 Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09351-32150 Oil Seal Replacer SST component of 09350-32014 Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09608-16041 Front Hub Bearing Adjusting Tool SST Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
096008-02020 Bolt & Nut SST component of 09608-16041 Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
096008-02040 Retainer SST component of 09608-16041 Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09950-00020 Bearing Remover SST — Center drive shaft dust cover Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09905-00012 Snap Ring No. 1 Expander Recommended tool — for removing and installing snap ring Suspension & axle ↗ RM285U_1993_suspension · p64 OEM manual
09608-16441 SST (Special Service Tool) — axle bearing support tool set Includes 09608-02020 and 09608-02040 Suspension & axle ↗ RM285U_1993_suspension · p67 OEM manual
09608-02020 SST sub-component of 09608-16441 Suspension & axle ↗ RM285U_1993_suspension · p67 OEM manual
09608-02040 SST sub-component of 09608-16441 Suspension & axle ↗ RM285U_1993_suspension · p67 OEM manual
09950-20017 SST — used to disconnect drive shaft from axle carrier Special Service Tool Suspension & axle ↗ RM285U_1993_suspension · p68 OEM manual
09308-00010 SST — Oil seal remover Used to drive out oil seal Suspension & axle ↗ RM285U_1993_suspension · p69 OEM manual
09316-60010 SST — Oil seal installer (set) M/T; sub-part 09316-00010 Suspension & axle ↗ RM285U_1993_suspension · p69 OEM manual
09316-00010 SST — Oil seal installer (sub-component) M/T; part of 09316-60010 set Suspension & axle ↗ RM285U_1993_suspension · p69 OEM manual
09350-32014 SST — Oil seal installer set Used for both LH and RH oil seal installation (A/T) Suspension & axle ↗ RM285U_1993_suspension · p70 OEM manual
09351-32111 SST sub-component — LH oil seal installer Used with 09350-32014 for LH oil seal Suspension & axle ↗ RM285U_1993_suspension · p70 OEM manual
09351-32150 SST sub-component — oil seal installer Used with 09350-32014 for both LH and RH oil seals Suspension & axle ↗ RM285U_1993_suspension · p70 OEM manual
09351-32130 SST sub-component — RH oil seal installer Used with 09350-32014 for RH oil seal Suspension & axle ↗ RM285U_1993_suspension · p70 OEM manual
09950-00020 SST — Special Service Tool for pressing dust cover from inboard joint tulip (LH Drive Shaft) Step 9(a) Suspension & axle ↗ RM285U_1993_suspension · p72 OEM manual
09628-62011 SST — Ball joint separator tool Used to disconnect ball joint from lower arm Suspension & axle ↗ RM285U_1993_suspension · p80 OEM manual
09628-62011 SST — ball joint separator for lower arm disconnection Special Service Tool Suspension & axle ↗ RM285U_1993_suspension · p85 OEM manual
09720-00012 Shock Absorber Overhaul Tool Set SST Suspension & axle ↗ RM285U_1993_suspension · p88 OEM manual
09721-00071 Front Shock Absorber Ring Nut Wrench SST — part of 09720-00012 set Suspension & axle ↗ RM285U_1993_suspension · p88 OEM manual
09025-00010 Small Torque Wrench Recommended Tool Suspension & axle ↗ RM285U_1993_suspension · p88 OEM manual
09727-30020 SST — Spring compressor Used to compress coil spring during rear shock absorber disassembly Suspension & axle ↗ RM285U_1993_suspension · p91 OEM manual
09720-00012 SST — ring nut loosening tool (for shock absorber gas release) Sub-tool 09721-00071 Suspension & axle ↗ RM285U_1993_suspension · p92 OEM manual
09721-00071 SST — sub-tool for 09720-00012 Suspension & axle ↗ RM285U_1993_suspension · p92 OEM manual
09727-30020 SST — coil spring compressor Used in step 1(b) Suspension & axle ↗ RM285U_1993_suspension · p92 OEM manual
09023-00100 SST — union nut wrench for clutch line disconnection Special Service Tool Clutch ↗ RM285U_1993_clutch · p1 OEM manual
09023-04100 SST — Clutch line union connector tool Used to connect clutch line union Clutch ↗ RM285U_1993_clutch · p3 OEM manual
09751-36011 SST — Clutch line union disconnect tool Used to disconnect clutch line union Clutch ↗ RM285U_1993_clutch · p7 OEM manual
09751-36011 SST — Union connector tool for clutch line Special Service Tool Clutch ↗ RM285U_1993_clutch · p9 OEM manual
09333-00013 SST — Diaphragm spring tip alignment adjuster Clutch ↗ RM285U_1993_clutch · p13 OEM manual
09751-36011 Brake Tube Union Nut 10 x 12 mm Wrench Clutch line tube Clutch ↗ RM285U_1993_clutch · p18 OEM manual

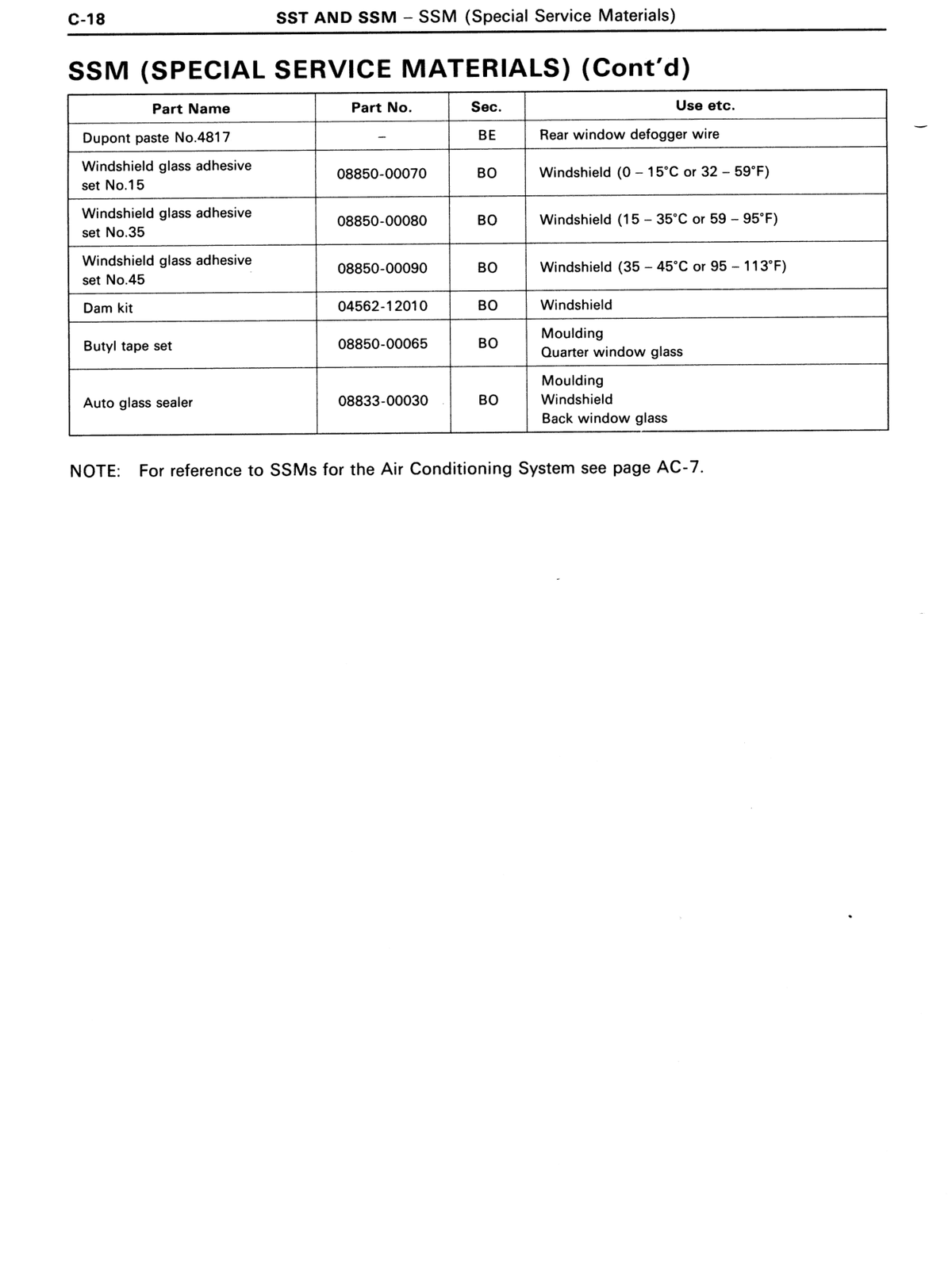

08850-00070 Windshield glass adhesive set No.15 Windshield (0-15°C or 32-59°F), Section BO Maintenance ↗ smoke_sw20_1991_vol2 · p939 OEM manual
08850-00080 Windshield glass adhesive set No.35 Windshield (15-35°C or 59-95°F), Section BO Maintenance ↗ smoke_sw20_1991_vol2 · p939 OEM manual
08850-00090 Windshield glass adhesive set No.45 Windshield (35-45°C or 95-113°F), Section BO Maintenance ↗ smoke_sw20_1991_vol2 · p939 OEM manual
08850-00065 Butyl tape set Moulding, Quarter window glass, Section BO Maintenance ↗ smoke_sw20_1991_vol2 · p939 OEM manual
08833-00030 Auto glass sealer Moulding, Windshield, Back window glass, Section BO Maintenance ↗ smoke_sw20_1991_vol2 · p939 OEM manual
08833-00070 THREE BOND 1324 adhesive (or equivalent) for TVS threads Apply to two or three threads of TVS before installation Emission control ↗ RM285U_1993_3sgte_emission · p8 OEM manual
09082-00015 TOYOTA Electrical Tester Recommended tool Emission control ↗ RM285U_1993_3sgte_emission · p11 OEM manual
08833-00070 Adhesive 1324, THREE BOND 1324 or equivalent Special Service Material (SSM); TVS Emission control ↗ RM285U_1993_3sgte_emission · p11 OEM manual
09082-00015 TOYOTA Electrical Tester Recommended tool Emission control ↗ RM285U_1993_3sgte_emission · p13 OEM manual
08833-00070 Adhesive 1324, THREE BOND 1324 or equivalent Special Service Material (SSM) Emission control ↗ RM285U_1993_3sgte_emission · p13 OEM manual
EWD035U 1988 MR 2 Electrical Wiring Diagram Manual Introduction ↗ smoke_aw11_1988_full · p1 OEM manual
36440A MR 2 Collision Damaged Body Repair Manual Introduction ↗ smoke_aw11_1988_full · p1 OEM manual
09820-63010 SST — Pulley removal special service tool Starting / charging ↗ RM285U_1993_charging · p9 OEM manual
09286-46011 SST for removing rectifier end frame Special Service Tool Starting / charging ↗ RM285U_1993_charging · p10 OEM manual
09608-20012 SST — Special Service Tool for pressing in new front bearing (includes 09608-00030) sub-tool 09608-00030 Starting / charging ↗ RM285U_1993_charging · p14 OEM manual
09820-00021 SST — Special Service Tool for removing rear bearing cover and bearing Starting / charging ↗ RM285U_1993_charging · p14 OEM manual
09820-00030 SST — bearing press tool Used to press in new bearing Starting / charging ↗ RM285U_1993_charging · p15 OEM manual
09285-76010 SST — bearing cover push-in tool Used to push in bearing cover Starting / charging ↗ RM285U_1993_charging · p15 OEM manual
09820-63010 SST for alternator pulley installation Special Service Tool Starting / charging ↗ RM285U_1993_charging · p16 OEM manual
95506-00020 Nippondenso BTG-20 Belt Tension Gauge Also referenced as Nippondenso BTG-20 Starting / charging ↗ RM285U_1993_charging · p26 OEM manual
09285-76010 Injection Pump Camshaft Bearing Cone Replace Rotor rear bearing cover Starting / charging ↗ RM285U_1993_charging · p31 OEM manual
09286-46011 Injection Pump Spline Shaft Puller Rectifier end frame Starting / charging ↗ RM285U_1993_charging · p31 OEM manual
09608-20012 Front Hub & Drive Pinion Bearing Tool Set Starting / charging ↗ RM285U_1993_charging · p31 OEM manual
09608-00030 Replacer Rotor front bearing Starting / charging ↗ RM285U_1993_charging · p31 OEM manual
09820-00021 Alternator Rear Bearing Puller Starting / charging ↗ RM285U_1993_charging · p31 OEM manual
09820-00030 Alternator Rear Bearing Replacer Rotor rear bearing Starting / charging ↗ RM285U_1993_charging · p31 OEM manual
09820-63010 Alternator Pulley Set Nut Wrench Set Starting / charging ↗ RM285U_1993_charging · p31 OEM manual
09082-00015 TOYOTA Electrical Tester Recommended Tool Starting / charging ↗ RM285U_1993_charging · p31 OEM manual
09992-00241 SST for applying pressure during turbo pressure sensor inspection Turbocharger ↗ RM285U_1993_body_electrical · p50 OEM manual
4817 Dupont paste repair agent for defogger wire Dupont paste No. 4817 Body electrical ↗ RM285U_1993_body_electrical · p90 OEM manual
08885-02106 Gear oil super (manual transaxle) Or equivalent Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p10 OEM manual
08833-00080 Sealant — THREE BOND 7344 / LOCTITE 242 equivalent for straight screw plug threads Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p14 OEM manual
08833-00090 Seal packing — THREE BOND 1281 or equivalent for transmission case Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p14 OEM manual
08833-00080 Sealant (THREE BOND 1344 or LOCTITE 242 equivalent) Applied to bolt threads of side bearing retainer Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p15 OEM manual
08833-00070 THREE BOND 1324 sealant or equivalent Apply to rear bearing retainer bolt threads, Step 14(a) Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p16 OEM manual
09309-12020 SST for installing 5th driven gear Step 15 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p16 OEM manual
09612-22011 SST — used to drive in No.3 hub sleeve with shift fork Special Service Tool Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p17 OEM manual
08833–00080 Sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Applied to No.2 lock ball assembly threads Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p19 OEM manual
08826–00090 Seal packing — THREE BOND 1281 or equivalent Transmission case cover Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p20 OEM manual
08833–00080 Sealant — THREE BOND 1344, LOCTITE 242 or equivalent Apply to bolt threads for transmission case cover Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p20 OEM manual
09950-20017 SST for removing 5th driven gear Special Service Tool Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p26 OEM manual
09308-00010 SST — bearing puller Used to pull out input shaft front bearing and output shaft front bearing Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p31 OEM manual
09310-35010 SST — bearing installer Used to press in new input shaft front bearing Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p31 OEM manual
09310-35010 SST — bearing installer Used to press in new bearing Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p32 OEM manual
09608-20012 SST — oil seal installer (set) Includes 09608-00080 and 09608-03020; used to drive in input shaft front oil seal Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p32 OEM manual
09608-00080 SST — oil seal installer component Sub-part of 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p32 OEM manual
09608-03020 SST — oil seal installer component Sub-part of 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p32 OEM manual
08833-00080 Sealant (THREE BOND 1344 or LOCTITE 242 equivalent) Apply to straight screw plug threads Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p33 OEM manual
09502-10012 SST — Side Bearing Remover Used for removing side bearings from differential case Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p36 OEM manual
09608-20012 SST – Oil seal removal tool set (includes 09608-03020, 09608-03060) Transmission case side bearing retainer oil seal removal Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p38 OEM manual
09608-03020 SST sub-component for 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p38 OEM manual
09608-03060 SST sub-component for 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p38 OEM manual
09350-32014 SST – Oil seal installation tool set (includes 09351-32130, 09351-32150) Used for both transmission case side and transaxle case side oil seal installation Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p38 OEM manual
09351-32130 SST sub-component for 09350-32014 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p38 OEM manual
09351-32150 SST sub-component for 09350-32014 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p38 OEM manual
09608–20012 SST – bearing outer race installer (set) Components: 09608–03020, 09608–03060 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p39 OEM manual
09608–03020 SST component for bearing outer race installation Part of SST 09608–20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p39 OEM manual
09608–03060 SST component for bearing outer race installation Part of SST 09608–20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p39 OEM manual
09608-20012 SST — bearing outer race installer (set) sub-tools 09608-03020, 09608-03060 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
09608-03020 SST sub-tool for bearing outer race installation part of set 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
09608-03060 SST sub-tool for bearing outer race installation part of set 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p40 OEM manual
09316-60010 SST — Side bearing installer (set) Sub-tool 09316-00010 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p41 OEM manual
09350-32014 SST — Side bearing installer Sub-tool 09351-32120 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p41 OEM manual
09316-60010 SST — Special Service Tool (set) Sub-tool 09613-00010 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p42 OEM manual
09350-32014 SST — Special Service Tool (set) Sub-tool 09351-32120 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p42 OEM manual
09564-32011 SST — torque meter tool for measuring differential bearing preload Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p43 OEM manual
09950-00020 SST — used to remove 4th gear/rear bearing and No.2 hub sleeve assembly Steps 4 and 6 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p45 OEM manual
09608-12010 SST — Special Service Tool for rear ball bearing installation Sub-tool 09608-00070 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p49 OEM manual
09950-00020 SST — used to press remove rear ball bearing, 4th driven gear, 3rd driven gear, and 2nd gear Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p53 OEM manual
09316-60010 SST (with sub-tool 09316-00040) for thrust washer installation Sub-tool: 09316-00040 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p56 OEM manual
09316-60010 SST for 3rd driven gear installation (set) Sub-tool 09316-00010 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p57 OEM manual
09316-00010 SST sub-tool for 3rd driven gear installation Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p57 OEM manual
09612-22011 SST for rear bearing installation Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p57 OEM manual
09309-12020 5th Driven Gear Replacer Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09310-35010 Countershaft Bearing Replacer Output shaft front bearing Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09316-60010 Transmission & Transfer Bearing Replacer Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09316-00010 Replacer Pipe Component of 09316-60010 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09316-00040 Replacer "C" Component of 09316-60010 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09350-32014 TOYOTA Automatic Transmission Tool Set Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09351-32120 Overdrive Bearing Replacer Differential side bearing; Component of 09350-32014 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09351-32130 Handle Component of 09350-32014 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09351-32150 Oil Seal Replacer Differential side bearing; Oil seal (Transaxle case side); Component of 09350-32014 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09502-10012 Differential Preload Puller Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09564-32011 Differential Preload Adaptor Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09608-12010 Front Hub & Drive Pinion Bearing Replacer Set Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p58 OEM manual
09608-00070 Drive Pinion Rear Bearing Cone Replacer — Input shaft rear bearing, 4th drive gear and rear bearing Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p59 OEM manual
09608-20012 Front Hub & Drive Pinion Bearing Tool Set Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p59 OEM manual
09608-00080 Replacer — Input shaft front oil seal sub-component of 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p59 OEM manual
09608-03020 Handle sub-component of 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p59 OEM manual
09608-03060 Replacer — Differential taper roller bearing outer race (Transaxle case side) sub-component of 09608-20012 Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p59 OEM manual
09612-22011 Tilt Handle Bearing Replacer Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p59 OEM manual
09025-00010 Small Torque Wrench — Differential preload Recommended tool Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p60 OEM manual
09031-00030 Pin Punch Recommended tool Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p60 OEM manual
09905-00012 Snap Ring No. 1 Expander Recommended tool Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p60 OEM manual
08826-00090 Seal Packing 1281, Three bond 1281 or equivalent — Transmission case x Transaxle case; Transmission case x Case cover SSM Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p60 OEM manual
08833-00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent — Straight screw plug; Control shaft cover bolt SSM Transmission / transaxle ↗ RM285U_1993_transaxle_s54 · p60 OEM manual
09628-62011 SST — Tie rod end puller / disconnector tool Used to disconnect tie rod end from knuckle arm Steering ↗ RM285U_1993_steering · p4 OEM manual
09612-00012 SST — Gear housing vise clamp Used to clamp gear housing in vise during disassembly Steering ↗ RM285U_1993_steering · p6 OEM manual
09612-10093 SST — rack end removal tool sub-part 09628-10020 Steering ↗ RM285U_1993_steering · p7 OEM manual
09612-24014 SST — rack end removal tool sub-part 09617-24011 Steering ↗ RM285U_1993_steering · p7 OEM manual
09612-10093 SST — Pinion Bearing Adjusting Screw Lock Nut removal tool Sub-tool 09617-10010 Steering ↗ RM285U_1993_steering · p8 OEM manual
09612-24014 SST — Pinion bearing adjusting screw removal tool Sub-tool 09616-10020 Steering ↗ RM285U_1993_steering · p9 OEM manual
09950-20017 SST — pinion upper bearing remover Step 2(a) Steering ↗ RM285U_1993_steering · p10 OEM manual
09612-24014 SST — pinion upper bearing installer (set) Step 2(b) Steering ↗ RM285U_1993_steering · p10 OEM manual
09612-10061 SST — pinion upper bearing installer (component) Step 2(b) Steering ↗ RM285U_1993_steering · p10 OEM manual
09620-30010 SST — pinion lower bearing installer (set) Step 3(d) Steering ↗ RM285U_1993_steering · p10 OEM manual
09631-00020 SST — pinion lower bearing installer (component) Step 3(d) Steering ↗ RM285U_1993_steering · p10 OEM manual
09630-24013 SST — pinion lower bearing installer (component) Step 3(d) Steering ↗ RM285U_1993_steering · p10 OEM manual
09620-24030 SST — pinion lower bearing installer (component) Step 3(d) Steering ↗ RM285U_1993_steering · p10 OEM manual
09620-30010 SST — Special Service Tool for pinion oil seal removal/installation Sub-component: 09631-00020 Steering ↗ RM285U_1993_steering · p11 OEM manual
09630-24013 SST — Special Service Tool for pinion oil seal removal/installation Sub-component: 09620-24010 (removal) / 09620-24020 (installation) Steering ↗ RM285U_1993_steering · p11 OEM manual
08833-00080 THREE BOND 1344 / LOCTITE 242 sealant or equivalent Applied to pinion bearing adjusting screw threads Steering ↗ RM285U_1993_steering · p12 OEM manual
09612-24014 SST — pinion bearing adjusting screw installer Sub-tool: 09616-10020 Steering ↗ RM285U_1993_steering · p12 OEM manual
08833–00080 Sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Apply to 2 or 3 threads of pinion bearing adjusting screw lock nut Steering ↗ RM285U_1993_steering · p13 OEM manual
09612–24014 SST — pinion bearing adjusting screw tool Used with 09616–10010 and 09616–10020 Steering ↗ RM285U_1993_steering · p13 OEM manual
09616–10010 SST sub-tool for pinion bearing adjusting screw Steering ↗ RM285U_1993_steering · p13 OEM manual
09616–10020 SST sub-tool for pinion bearing adjusting screw Steering ↗ RM285U_1993_steering · p13 OEM manual
09612–10093 SST — lock nut installation tool Used with 09617–10010 Steering ↗ RM285U_1993_steering · p13 OEM manual
09612–24012 SST — lock nut installation tool Used with 09616–10020 Steering ↗ RM285U_1993_steering · p13 OEM manual
09612-24014 SST — preload measurement tool Sub-tool: 09616-10010 Steering ↗ RM285U_1993_steering · p14 OEM manual
09612-10093 SST for rack end installation (set) Used with 09628-10020 Steering ↗ RM285U_1993_steering · p15 OEM manual
09628-10020 SST sub-component for rack end installation Used with 09612-10093 Steering ↗ RM285U_1993_steering · p15 OEM manual
09612-24014 SST for rack end installation (set) Used with 09617-24011 Steering ↗ RM285U_1993_steering · p15 OEM manual
09617-24011 SST sub-component for rack end installation Used with 09612-24014 Steering ↗ RM285U_1993_steering · p15 OEM manual
09612-00012 Rack & Pinion Steering Rack Housing Stand Steering ↗ RM285U_1993_steering · p16 OEM manual
09612-10093 Steering Gear Housing Overhaul Tool Set Steering ↗ RM285U_1993_steering · p16 OEM manual
09617-10010 Steering Pinion Bearing Adjusting Screw Lock Nut Wrench Steering ↗ RM285U_1993_steering · p16 OEM manual
09612-24014 Steering Gear Housing Overhaul Tool Set Steering ↗ RM285U_1993_steering · p16 OEM manual
09616-10010 Steering Pinion Bearing Adjusting Socket Steering ↗ RM285U_1993_steering · p16 OEM manual
09616-10020 Steering Pinion Bearing Adjusting Screw Wrench Steering ↗ RM285U_1993_steering · p16 OEM manual
09025-00010 Small Torque Wrench Recommended tool — Total preload Steering ↗ RM285U_1993_steering · p17 OEM manual
08833-00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent SSM — applied to Pinion bearing adjusting screw, Pinion bearing adjusting screw lock nut, Rack guide spring cap Steering ↗ RM285U_1993_steering · p17 OEM manual
09843-18020 SST — used to connect terminals Tc and E1 of the data link connector for steering sensor check Steering ↗ RM285U_1993_steering · p24 OEM manual
09843-18020 SST — connects terminals Te and E1 of data link connector for diagnostic code output Steering ↗ RM285U_1993_steering · p25 OEM manual
09628-62011 SST — Tie rod end puller Used to disconnect tie rod end from knuckle arm Steering ↗ RM285U_1993_steering · p35 OEM manual
09633-00020 SST — Pressure tube removal tool Step 2 Steering ↗ RM285U_1993_steering · p38 OEM manual
09617-10020 SST — Rack end removal tool Used to remove rack ends Steering ↗ RM285U_1993_steering · p39 OEM manual
09612-24014 SST — Rack guide spring cap lock nut removal tool Sub-tool 09617-22030 Steering ↗ RM285U_1993_steering · p39 OEM manual
09617-22030 SST — Sub-tool for rack guide spring cap lock nut Used with 09612-24014 Steering ↗ RM285U_1993_steering · p39 OEM manual
09612-10131 SST — Rack guide spring cap removal tool Used to remove rack guide spring cap Steering ↗ RM285U_1993_steering · p39 OEM manual
09616-00010 SST — used to hold control valve during self-locking nut removal Special Service Tool Steering ↗ RM285U_1993_steering · p40 OEM manual
09631-10021 SST — used to turn cylinder end stopper for wire removal Special Service Tool Steering ↗ RM285U_1993_steering · p40 OEM manual
09631-12020 SST — used to drive out rack housing spacer and oil seal Special Service Tool Steering ↗ RM285U_1993_steering · p41 OEM manual
09620-30010 SST — Special Service Tool (set) Used for pressing oil seal and bearings in/out of control valve housing Steering ↗ RM285U_1993_steering · p42 OEM manual
09631-00020 SST sub-tool for 09620-30010 Used for pressing oil seal and bearings Steering ↗ RM285U_1993_steering · p42 OEM manual
09630-24013 SST sub-tool Used for pressing oil seal and upper bearing Steering ↗ RM285U_1993_steering · p42 OEM manual
09620-24010 SST sub-tool for pressing out oil seal with bearing Sub-part of 09630-24013 for step 2(a) Steering ↗ RM285U_1993_steering · p42 OEM manual
09620-24013 SST sub-tool for pressing in new oil seal Sub-part of 09630-24013 for step 2(b) Steering ↗ RM285U_1993_steering · p42 OEM manual
09620-24020 SST sub-tool for pressing in new bearing Sub-part of 09630-24013 for step 2(c) Steering ↗ RM285U_1993_steering · p42 OEM manual
09620-30010 SST — press in new center bearing (set) Steering ↗ RM285U_1993_steering · p43 OEM manual
09631-00020 SST — press in new center bearing (sub) Steering ↗ RM285U_1993_steering · p43 OEM manual
09630-24013 SST — press in new center bearing (sub) Steering ↗ RM285U_1993_steering · p43 OEM manual
09620-24020 SST — press in new center bearing (sub) Steering ↗ RM285U_1993_steering · p43 OEM manual
09631-20070 SST — Special Service Tool for expanding control valve teflon rings Steering ↗ RM285U_1993_steering · p44 OEM manual
09631-10021 SST — cylinder end stopper turning tool Used to turn cylinder end stopper clockwise Steering ↗ RM285U_1993_steering · p46 OEM manual
09631-12071 SST — air tightness test tool for cylinder housing unions Used during air tightness test Steering ↗ RM285U_1993_steering · p46 OEM manual
09616-00010 SST — Control valve holder for self-locking nut installation Step 10 Steering ↗ RM285U_1993_steering · p47 OEM manual
08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Step 11(a) — apply to 2 or 3 threads of housing cap Steering ↗ RM285U_1993_steering · p47 OEM manual
08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Apply to rack guide spring cap threads Steering ↗ RM285U_1993_steering · p48 OEM manual
09633-00020 SST for installing right and left turn pressure tubes Steering ↗ RM285U_1993_steering · p50 OEM manual
08886-01206 TOYOTA POWER STEERING FLUID EH or equivalent Steering ↗ RM285U_1993_steering · p51 OEM manual
09631-22020 SST — pressure line disconnect tool for PS pump Steering ↗ RM285U_1993_steering · p52 OEM manual
09631-22020 SST for pressure line disconnect/connect Special Service Tool Steering ↗ RM285U_1993_steering · p54 OEM manual
09612-00012 Rack & Pinion Steering Rack Housing Stand Steering ↗ RM285U_1993_steering · p56 OEM manual
09612-24014 Steering Gear Housing Overhaul Tool Set Steering ↗ RM285U_1993_steering · p56 OEM manual
09631-22020 Power Steering Hose Nut 14 x 17 mm Wrench Set Steering ↗ RM285U_1993_steering · p57 OEM manual
09904-00050 No. 4 Claw Sub-component of Expander set Steering ↗ RM285U_1993_steering · p58 OEM manual
08833-00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent Used on: Rack housing cap, Rack guide spring cap, Rack guide spring cap lock nut Steering ↗ RM285U_1993_steering · p58 OEM manual
09042-00010 Torx wrench T30 Or locally manufactured tool Steering ↗ RM285U_1993_steering · p62 OEM manual
09213-31021 SST — Steering wheel puller Used to remove steering wheel Steering ↗ RM285U_1993_steering · p62 OEM manual
09910-00015 SST (set includes 09911-0001 1, 09912-00010) Used to remove tilt steering bolts Steering ↗ RM285U_1993_steering · p66 OEM manual
90170-10004 Nut (Reference) 10 mm diameter, 1.25 mm pitch Steering ↗ RM285U_1993_steering · p66 OEM manual
90201-10201 Plate washer 36 mm outer diameter (Reference) Steering ↗ RM285U_1993_steering · p66 OEM manual
91111-51050 Bolt 10 mm diameter, 1.25 mm pitch, 50 mm length (Reference) Steering ↗ RM285U_1993_steering · p66 OEM manual
09950-20017 SST — main shaft spring compressor Sub-tool 09956-00010 Steering ↗ RM285U_1993_steering · p67 OEM manual
09950-20017 SST — snap ring compression tool for main shaft spring Special Service Tool Steering ↗ RM285U_1993_steering · p68 OEM manual

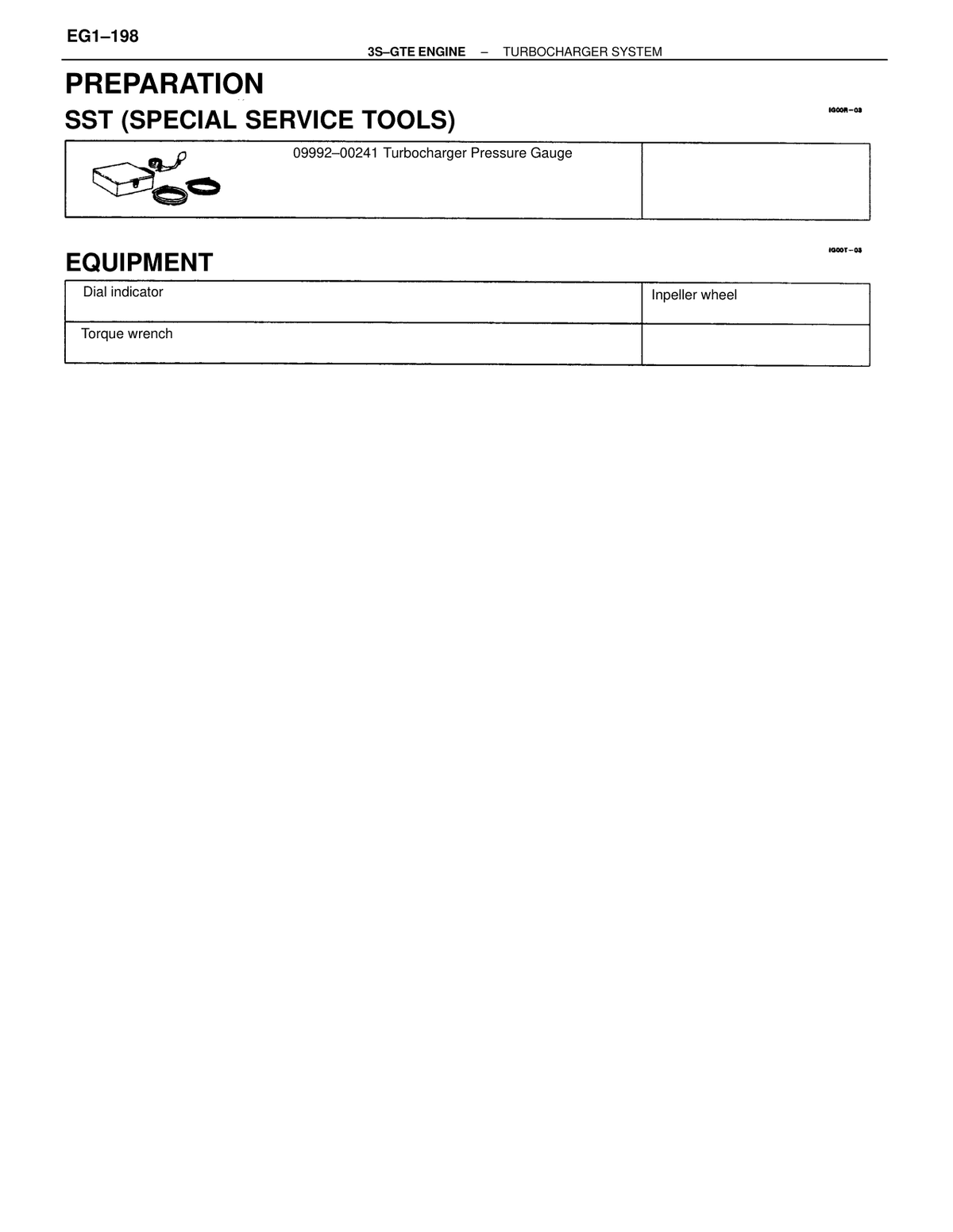

09992-00241 Turbocharger Pressure Gauge Special Service Tool (SST) Turbocharger ↗ RM285U_1993_3sgte_turbocha · p12 OEM manual
09992-00241 SST Turbocharger pressure gauge Used for actuator operation inspection and turbocharging pressure check Turbocharger ↗ RM285U_1993_3sgte_turbocha · p16 OEM manual
09268-41045 SST Union / Hose set for cold start injector inspection Also listed as 09268-41080 for union bolts EFI / fuel injection ↗ RM285U_1993_3sgte_smpisyst · p14 OEM manual
09268-41080 SST Union bolt set for cold start injector inspection Used with 09268-41045 EFI / fuel injection ↗ RM285U_1993_3sgte_smpisyst · p14 OEM manual
09842-30050 SST Wire for cold start injector inspection EFI / fuel injection ↗ RM285U_1993_3sgte_smpisyst · p14 OEM manual
09843-18020 SST — Data link connector jumper tool Connects terminals +B and FP Unclassified ↗ RM285U_1993_3sgte_smpisyst · p15 OEM manual
09842-30050 SST (Wire) — Injector test wire harness Used for fuel spray and leakage check Unclassified ↗ RM285U_1993_3sgte_smpisyst · p15 OEM manual
09268-41045 SST — Injector removal/installation tool Removed at end of procedure Unclassified ↗ RM285U_1993_3sgte_smpisyst · p15 OEM manual
09843-18020 SST — jumper tool for connecting terminals TE1 and E1 of data link connector 1 Unclassified ↗ RM285U_1993_3sgte_smpisyst · p20 OEM manual
09843-18020 SST (Special Service Tool) for data link connector diagnosis Remove after diagnosis check Unclassified ↗ RM285U_1993_3sgte_smpisyst · p21 OEM manual
09843-18020 SST — jumper wire tool for connecting DLC1 terminals Used to connect TE2 to E1 (step 2) and TE1 to E1 (step 6) Unclassified ↗ RM285U_1993_3sgte_smpisyst · p22 OEM manual
09843-18020 SST (Special Service Tool) for TE2/E1 terminal connection during diagnosis Remove after diagnosis check Unclassified ↗ RM285U_1993_3sgte_smpisyst · p23 OEM manual
09843-18020 SST — used to connect terminals +B and FP of data link connector 1 for fuel pump check EFI / fuel injection ↗ RM285U_1993_3sgte_smpisyst · p43 OEM manual
09843-18020 SST — Data link connector 1 jumper tool Unclassified ↗ RM285U_1993_3sgte_smpisyst · p44 OEM manual
09268-45012 SST — pressure gauge / union bolt set for fuel inlet hose installation Unclassified ↗ RM285U_1993_3sgte_smpisyst · p45 OEM manual
09843-18020 SST — jumper wire tool for connecting terminals +B and FP at DLC1 Unclassified ↗ RM285U_1993_3sgte_smpisyst · p45 OEM manual
09483-18020 SST — Data link connector special service tool Remove from data link connector 1 in step (j) Unclassified ↗ RM285U_1993_3sgte_smpisyst · p46 OEM manual
09268-45012 SST — fuel system pressure gauge / removal tool Unclassified ↗ RM285U_1993_3sgte_smpisyst · p47 OEM manual
09631-22020 SST (Special Service Tool) for fuel line connections Used with 30 cm fulcrum length Unclassified ↗ RM285U_1993_3sgte_smpisyst · p61 OEM manual
09268-41045 SST union and hose set Sub-parts: 90405-09015, 09268-41080 EFI / fuel injection ↗ RM285U_1993_3sgte_smpisyst · p74 OEM manual
90405-09015 SST hose Part of SST 09268-41045 EFI / fuel injection ↗ RM285U_1993_3sgte_smpisyst · p74 OEM manual
09268-41080 SST union Part of SST 09268-41045; used for delivery pipe connection EFI / fuel injection ↗ RM285U_1993_3sgte_smpisyst · p74 OEM manual
09843-18020 SST — Data link connector terminal jumper Connect terminals +B and FP of DLC1; also removed in final step Unclassified ↗ RM285U_1993_3sgte_smpisyst · p75 OEM manual
09842-30060 SST (Wire) — Injector test wire harness Used for injection volume and leakage inspection Unclassified ↗ RM285U_1993_3sgte_smpisyst · p75 OEM manual
09268-41045 SST — Removal tool Removed in final step (d) Unclassified ↗ RM285U_1993_3sgte_smpisyst · p75 OEM manual
09268-74010 SST — injector removal tool Used to lift up the four injectors from delivery pipe EFI / fuel injection ↗ RM285U_1993_3sgte_smpisyst · p76 OEM manual
09843-18020 SST — used to connect terminals TO and E1 of data link connector 1 Special Service Tool Unclassified ↗ RM285U_1993_3sgte_smpisyst · p88 OEM manual
09842-30050 SST (A) — cold start injector wiring connector test Unclassified ↗ RM285U_1993_3sgte_smpisyst · p98 OEM manual
09842-30060 SST (B) — injector wiring connector test Unclassified ↗ RM285U_1993_3sgte_smpisyst · p98 OEM manual
09631-22020 SST — flare nut tightening tool Unclassified ↗ RM285U_1993_3sgte_smpisyst · p98 OEM manual
09843-18020 SST — Data link connector jumper tool (+B to FP) Unclassified ↗ RM285U_1993_3sgte_smpisyst · p99 OEM manual
09843-18020 SST (Special Service Tool) for data link connector 1 Unclassified ↗ RM285U_1993_3sgte_smpisyst · p100 OEM manual
09268-41045 Injection Measuring Tool Set Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
09268-41080 No.6 union Sub-component of Injection Measuring Tool Set Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
09266-41090 No.7 union Sub-component of Injection Measuring Tool Set Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
90405-09015 No.1 union Sub-component of Injection Measuring Tool Set Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
09631-22020 Power Steering Hose Nut 14 x 17 mm Wrench Set For fuel line flare nut Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
09842-30050 Wire 'A' EFI Inspection For cold start injector Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
09842-30060 Wire "E" EFI Inspection For injector Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual

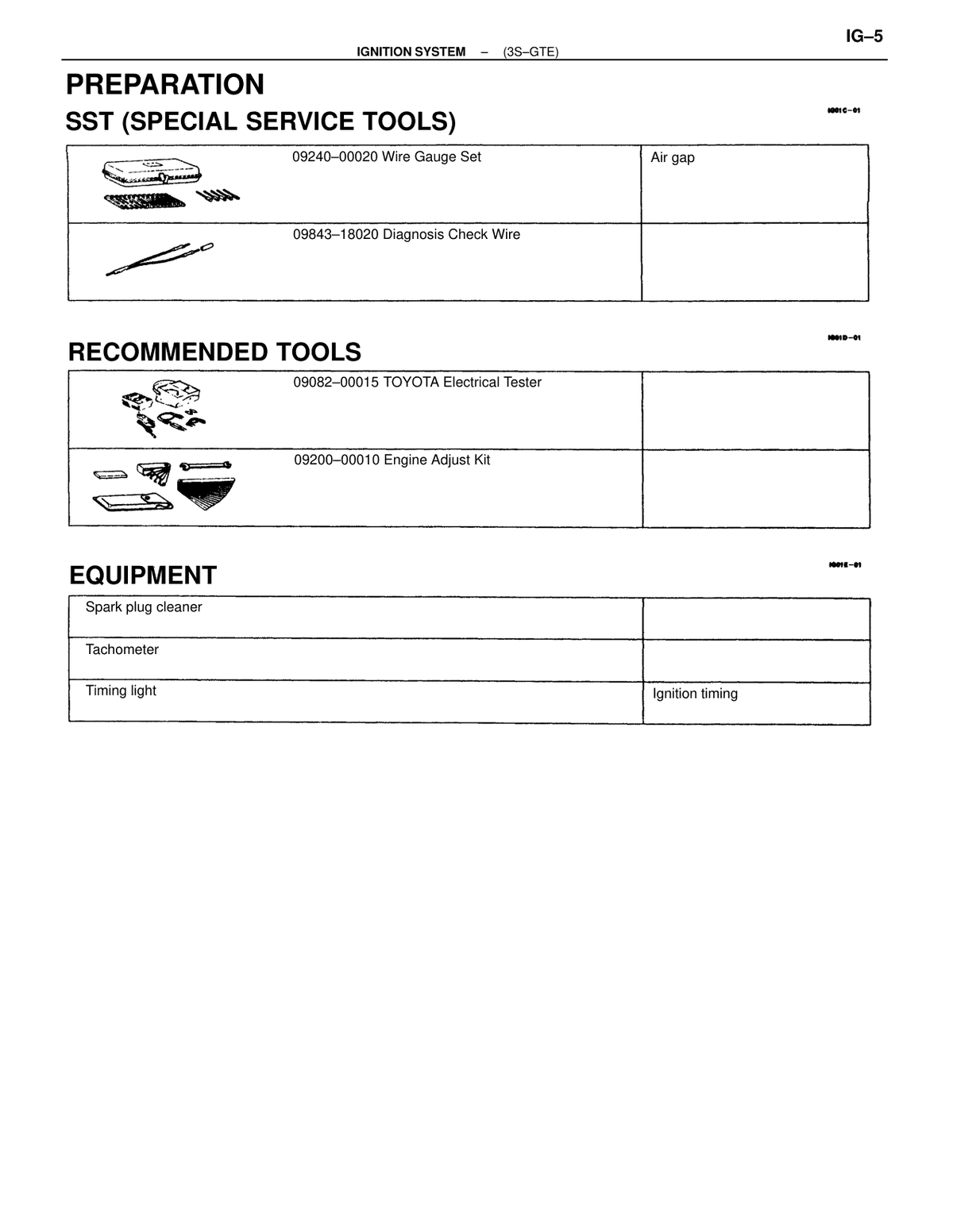

09082-00015 TOYOTA Electrical Tester Recommended tool Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
09200-00010 Engine Adjust Kit Recommended tool Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
09258-00030 Hose Plug Set Recommended tool; plug for the vacuum hose, fuel hose etc. Unclassified ↗ RM285U_1993_3sgte_smpisyst · p101 OEM manual
09350-30020 SST Set part No. for overdrive brake piston stroke check example from format illustration Introduction ↗ AW11_1988_full · p5 OEM manual
09350-06120 SST Component part No. for overdrive brake piston stroke check example from format illustration Introduction ↗ AW11_1988_full · p5 OEM manual
09248-55010 SST — Valve lifter press-down tool set (SST A and SST B) Used to depress valve lifter and hold SST B between camshaft and valve lifter Engine — mechanical ↗ AW11_1988_full · p30 OEM manual
09248-55010 SST — Special Service Tool for pressing down valve lifter during shim replacement Engine — mechanical ↗ AW11_1988_full · p31 OEM manual
02 Intake adjusting shim, thickness 2.500 mm (0.0984 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
04 Intake adjusting shim, thickness 2.550 mm (0.1004 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
06 Intake adjusting shim, thickness 2.600 mm (0.1024 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
08 Intake adjusting shim, thickness 2.650 mm (0.1043 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
10 Intake adjusting shim, thickness 2.700 mm (0.1063 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
12 Intake adjusting shim, thickness 2.750 mm (0.1083 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
14 Intake adjusting shim, thickness 2.800 mm (0.1102 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
16 Intake adjusting shim, thickness 2.850 mm (0.1122 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
18 Intake adjusting shim, thickness 2.900 mm (0.1142 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
20 Intake adjusting shim, thickness 2.950 mm (0.1161 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
22 Intake adjusting shim, thickness 3.000 mm (0.1181 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
24 Intake adjusting shim, thickness 3.050 mm (0.1201 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
26 Intake adjusting shim, thickness 3.100 mm (0.1220 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
28 Intake adjusting shim, thickness 3.150 mm (0.1240 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
30 Intake adjusting shim, thickness 3.200 mm (0.1260 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
32 Intake adjusting shim, thickness 3.250 mm (0.1280 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
34 Intake adjusting shim, thickness 3.300 mm (0.1299 in.) Engine — mechanical ↗ AW11_1988_full · p32 OEM manual
09213-70010 SST — Crankshaft pulley holding tool Used with 09330-00021 to hold crankshaft pulley Engine — mechanical ↗ AW11_1988_full · p39 OEM manual
09330-00021 SST — Crankshaft pulley holding tool (companion piece) Used with 09213-70010 to hold crankshaft pulley Engine — mechanical ↗ AW11_1988_full · p39 OEM manual
09248-55010 SST — Valve lifter press-down and retaining tool set (SST A and SST B) Used to depress valve lifter and retain with SST B for shim removal Engine — mechanical ↗ AW11_1988_full · p49 OEM manual
09248-55010 SST — Valve lifter press-down tool Used to press down valve lifter during shim replacement Engine — mechanical ↗ AW11_1988_full · p50 OEM manual
02 Intake adjusting shim 2.500 mm (0.0984 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
04 Intake adjusting shim 2.550 mm (0.1004 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
06 Intake adjusting shim 2.600 mm (0.1024 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
08 Intake adjusting shim 2.650 mm (0.1043 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
10 Intake adjusting shim 2.700 mm (0.1063 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
12 Intake adjusting shim 2.750 mm (0.1083 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
14 Intake adjusting shim 2.800 mm (0.1102 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
16 Intake adjusting shim 2.850 mm (0.1122 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
18 Intake adjusting shim 2.900 mm (0.1142 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
20 Intake adjusting shim 2.950 mm (0.1161 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
22 Intake adjusting shim 3.000 mm (0.1181 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
24 Intake adjusting shim 3.050 mm (0.1201 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
26 Intake adjusting shim 3.100 mm (0.1220 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
28 Intake adjusting shim 3.150 mm (0.1240 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
30 Intake adjusting shim 3.200 mm (0.1260 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
32 Intake adjusting shim 3.250 mm (0.1280 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
34 Intake adjusting shim 3.300 mm (0.1299 in.) Engine — mechanical ↗ AW11_1988_full · p51 OEM manual
09213-70010 SST — Crankshaft pulley holding tool Used with 09330-00021 to hold crankshaft pulley Engine — mechanical ↗ AW11_1988_full · p58 OEM manual
09330-00021 SST — Crankshaft pulley holding tool (companion) Used with 09213-70010 to hold crankshaft pulley Engine — mechanical ↗ AW11_1988_full · p58 OEM manual
09950-20017 SST — Crankshaft timing pulley remover Special Service Tool Engine — mechanical ↗ AW11_1988_full · p60 OEM manual
08826-00080 Seal packing for cylinder head covers or equivalent Engine — mechanical ↗ AW11_1988_full · p63 OEM manual
09213-70010 SST — Crankshaft pulley bolt installation tool Used with 09330-00021 Engine — mechanical ↗ AW11_1988_full · p67 OEM manual
09330-00021 SST — Crankshaft pulley bolt installation tool Used with 09213-70010 Engine — mechanical ↗ AW11_1988_full · p67 OEM manual
09205-16010 SST — Cylinder head bolt removal/installation tool Special Service Tool Engine — mechanical ↗ AW11_1988_full · p75 OEM manual
09202-70010 SST — Valve spring compressor Used to compress valve spring and remove keepers Engine — mechanical ↗ AW11_1988_full · p76 OEM manual
09201-70010 SST — Valve guide bushing driver tool Used for both removal and installation of valve guide bushing Engine — mechanical ↗ AW11_1988_full · p80 OEM manual
09202-70010 SST — Valve spring compressor Used to compress valve spring and place keepers Engine — mechanical ↗ AW11_1988_full · p87 OEM manual
09205-16010 SST — Cylinder head bolt socket tool Used for tightening cylinder head bolts Engine — mechanical ↗ AW11_1988_full · p88 OEM manual
08826-0080 Seal packing or equivalent; applied to cylinder head Engine — mechanical ↗ AW11_1988_full · p89 OEM manual
09027-12140 Angled Open End Wrench 12 x 14 Classification C; ST section (*1 Oil pressure sender gauge) Maintenance ↗ AW11_1988_full · p1016 OEM manual
09032-00100 Oil Pan Seal Cutter Classification A; CO section Maintenance ↗ AW11_1988_full · p1016 OEM manual
09043-38100 Hexagon 10mm Wrench Classification A; AT section Maintenance ↗ AW11_1988_full · p1016 OEM manual
09043-88010 Hexagon 8mm Wrench Classification A; BR section (*2 4A-GZE only) Maintenance ↗ AW11_1988_full · p1016 OEM manual
09201-41020 Valve Stem Oil Seal Replacer Classification B; ST section (*3 Armature front bearing) Maintenance ↗ AW11_1988_full · p1016 OEM manual
09201-60011 Valve Guide Bushing Remover & Replacer Classification A; CL section (*4 Speedometer driven gear oil seal) Maintenance ↗ AW11_1988_full · p1016 OEM manual
09201-70010 Valve Guide Bushing Remover & Replacer Classification B; EM section Maintenance ↗ AW11_1988_full · p1016 OEM manual
09202-70010 Valve Spring Compressor Classification A; EM section Maintenance ↗ AW11_1988_full · p1016 OEM manual
09205-16010 Cylinder Head Bolt Wrench Classification A; EM section Maintenance ↗ AW11_1988_full · p1016 OEM manual
09213-31021 Crankshaft Pulley Puller Classification A; EM section Maintenance ↗ AW11_1988_full · p1016 OEM manual
09213-36020 Timing Gear Remover Classification B; MT (*1 No. 3 hub sleeve assembly) Maintenance ↗ AW11_1988_full · p1017 OEM manual
09213-70010 Crankshaft Pulley Holding Tool Classification A; EM Maintenance ↗ AW11_1988_full · p1017 OEM manual
09222-30010 Connecting Rod Bushing Remover & Replacer Classification B; EM Maintenance ↗ AW11_1988_full · p1017 OEM manual
09223-15010 Crankshaft Rear Oil Seal Replacer Classification B; MT (*2 LH side oil seal 4A-GZE), BR (*3 LH side oil seal 4A-GZE M/T) Maintenance ↗ AW11_1988_full · p1017 OEM manual
09223-41020 Crankshaft Rear Oil Seal Replacer Classification B; EM Maintenance ↗ AW11_1988_full · p1017 OEM manual
09223-50010 Crankshaft Front Oil Seal Replacer Classification B; EM (*4 Drive in the camshaft oil seals) Maintenance ↗ AW11_1988_full · p1017 OEM manual
09248-55010 Valve Clearance Adjust Tool Set Classification A; EM Maintenance ↗ AW11_1988_full · p1017 OEM manual
09268-41045 Injection Measuring Tool Set Classification B; CO Maintenance ↗ AW11_1988_full · p1017 OEM manual
09268-45012 EFI Fuel Pressure Gauge Classification A; CO Maintenance ↗ AW11_1988_full · p1017 OEM manual
09285-76010 Injection Pump Camshaft Bearing Cone Replacer Classification C; ST (*5 Rotor bearing) Maintenance ↗ AW11_1988_full · p1017 OEM manual
09286-46011 Injection Pump Spline Shaft Puller Classification C; *1 Armature bearing (ST), *2 Rear end frame (CH) Maintenance ↗ AW11_1988_full · p1018 OEM manual
09301-17010 Clutch Guide Tool Classification A; *3 4A-GZE only (CL) Maintenance ↗ AW11_1988_full · p1018 OEM manual
09301-32010 Clutch Guide Tool Classification A; *4 4A-GE only (CL) Maintenance ↗ AW11_1988_full · p1018 OEM manual
09302-20021 Clutch Diaphragm Spring Height No. 2 Gauge Classification B; used in CL Maintenance ↗ AW11_1988_full · p1018 OEM manual
09308-00010 Oil Seal Puller Classification A; *5 Input shaft front bearing and output shaft front bearing (CL, MT, AT, FA) Maintenance ↗ AW11_1988_full · p1018 OEM manual
09309-12020 5th Driven Gear Replacer Classification B; used in MT Maintenance ↗ AW11_1988_full · p1018 OEM manual
09310-17010 Transaxle Gear Remover & Replacer Classification B; used in MT Maintenance ↗ AW11_1988_full · p1018 OEM manual
09310-07010 Plate (component of 09310-17010) used in MT Maintenance ↗ AW11_1988_full · p1018 OEM manual
09310-07020 Center Bolt (component of 09310-17010) used in MT Maintenance ↗ AW11_1988_full · p1018 OEM manual
09310-07030 Set Bolt (component of 09310-17010) used in MT Maintenance ↗ AW11_1988_full · p1018 OEM manual
09310-07040 Claw (component of 09310-17010) used in MT Maintenance ↗ AW11_1988_full · p1018 OEM manual
09310-07050 Adaptor (component of 09310-17010) used in MT Maintenance ↗ AW11_1988_full · p1018 OEM manual
09310-35010 Countershaft Bearing Replacer Classification B; MT input shaft front bearing and output shaft front bearing (*1), FA front axle hub (*2), BR rear axle hub (*3) Maintenance ↗ AW11_1988_full · p1019 OEM manual
09313-30021 Detent Ball Plug Socket Classification A; MT Maintenance ↗ AW11_1988_full · p1019 OEM manual
09316-60010 Transmission & Transfer Bearing Replacer Classification B; MT, FA Maintenance ↗ AW11_1988_full · p1019 OEM manual
09316-00010 Replacer Pipe Sub-component of 09316-60010; MT RH side oil seal 4A-GZE (*4), FA RH side oil seal 4A-GZE M/T (*5) Maintenance ↗ AW11_1988_full · p1019 OEM manual
09316-00020 Replacer "A" Sub-component of 09316-60010; MT Maintenance ↗ AW11_1988_full · p1019 OEM manual
09316-00040 Replacer "C" Sub-component of 09316-60010; MT Maintenance ↗ AW11_1988_full · p1019 OEM manual
09316-00050 Replacer "D" Sub-component of 09316-60010; MT Maintenance ↗ AW11_1988_full · p1019 OEM manual
09316-00070 Replacer "F" Sub-component of 09316-60010; MT Maintenance ↗ AW11_1988_full · p1019 OEM manual
09330-00021 Companion Flange Holding Tool Classification A; SC (*6 Crankshaft pulley holding tool), FA Maintenance ↗ AW11_1988_full · p1019 OEM manual
09333-00013 Clutch Diaphragm Spring Aligner Classification B; MT Maintenance ↗ AW11_1988_full · p1019 OEM manual
09350-32013 TOYOTA Automatic Transmission Tool Set Classification B; AT, MT, FA Maintenance ↗ AW11_1988_full · p1019 OEM manual
09308-10010 Oil Seal Puller Sub-component of 09350-32013; AT Maintenance ↗ AW11_1988_full · p1019 OEM manual
09351-32031 Counter Driven Gear Holding Tool AT section Maintenance ↗ AW11_1988_full · p1020 OEM manual
09351-32040 No. 1 Piston Spring Compressor AT section Maintenance ↗ AW11_1988_full · p1020 OEM manual
09351-32070 No. 2 Piston Spring Compressor AT section Maintenance ↗ AW11_1988_full · p1020 OEM manual
09351-32100 Drive Pinion Bearing Replacer AT section Maintenance ↗ AW11_1988_full · p1020 OEM manual
09351-32111 Side Bearing Race Replacer MT section (*1 LH side oil seal 4A-GE), AT section (*2 LH side oil seal), FA section (*3 LH side oil seal Ex. 4A-GZE M/T) Maintenance ↗ AW11_1988_full · p1020 OEM manual
09351-32150 Oil Seal Replacer MT (*1 RH side oil seal 4A-GE), AT (*1), RA (*2 RH side oil seal Ex. 4A-GZE M/T) Maintenance ↗ AW11_1988_full · p1021 OEM manual
09502-10012 Differential Side Bearing Puller Classification B; EM, MT sections Maintenance ↗ AW11_1988_full · p1021 OEM manual
09504-00011 Differential Side Bearing Adjusting Nut Wrench Classification B; EM, SC (*3 Supercharger clutch hub 4A-GZE only) sections Maintenance ↗ AW11_1988_full · p1021 OEM manual
09517-30010 Rear Axle Shaft Oil Seal Replacer Classification B; CO (*4 Crankshaft front oil seal) section Maintenance ↗ AW11_1988_full · p1021 OEM manual
09517-36010 Rear Axle Shaft Oil Seal Replacer Classification B; MT (*5 Control shaft oil seal) section Maintenance ↗ AW11_1988_full · p1021 OEM manual
09520-32012 Differential Side Gear Shaft Puller Classification A; MT, RA sections Maintenance ↗ AW11_1988_full · p1021 OEM manual
09555-55010 Differential Drive Pinion Bearing Replacer Classification B; MT section Maintenance ↗ AW11_1988_full · p1021 OEM manual
09564-32011 Differential Preload Adapter Classification B; MT, AT sections Maintenance ↗ AW11_1988_full · p1021 OEM manual
09608-12010 Front Hub & Drive Pinion Bearing Replacer Set Classification B; used in EM, MT Maintenance ↗ AW11_1988_full · p1022 OEM manual
09608-00070 Drive Pinion Rear Bearing Cone Replacer *1 Input shaft rear bearing and output shaft rear bearing; used in MT Maintenance ↗ AW11_1988_full · p1022 OEM manual
09608-00080 Differential Side Bearing Cone Replacer *2 Input shaft front oil seal; used in MT Maintenance ↗ AW11_1988_full · p1022 OEM manual
09608-16041 Front Hub Bearing Adjusting Tool Classification B; used in BR Maintenance ↗ AW11_1988_full · p1022 OEM manual
09608-20012 Front Hub & Drive Pinion Bearing Tool Set Classification B; used in ST, MT Maintenance ↗ AW11_1988_full · p1022 OEM manual
09608-03090 Replacer *4 LH, RH side bearing outer race; used in MT Maintenance ↗ AW11_1988_full · p1022 OEM manual
09608-30012 Front Hub & Drive Pinion Bearing Tool Set Classification B; used in BR Maintenance ↗ AW11_1988_full · p1022 OEM manual
09608-04060 Front Hub Outer Bearing Cup Replacer RA section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09608-04070 Front Inner Bearing Cup Replacer RA section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09608-32010 Steering Knuckle Oil Seal Replacer Classification B; RA section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09608-35014 Axle Hub & Drive Pinion Bearing Tool Set Classification B; RA section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09608-06180 Drive Pinion Rear Bearing Cup Replacer RA section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09609-20011 Steering Wheel Puller Classification A; SR section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09610-20012 Pitman Arm Puller Classification A; AT, FA, RA sections Maintenance ↗ AW11_1988_full · p1023 OEM manual
09610-55012 Pitman Arm Puller Classification A; RA section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09612-00012 Rack & Pinion Steering Rack Housing Stand Classification B; SR section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09612-10093 Steering Gear Housing Overhaul Tool Set Classification B; SR section Maintenance ↗ AW11_1988_full · p1023 OEM manual
09617-10010 Steering Pinion Bearing Adjusting Screw Lock Nut Wrench SR section; *1 Steering rack guide spring cap lock nut Maintenance ↗ AW11_1988_full · p1024 OEM manual
09628-10020 Ball Joint Lock Nut Wrench SR section; *2 Steering rack end Maintenance ↗ AW11_1988_full · p1024 OEM manual
09612-22011 Tilt Handle Bearing Replacer EM section (B); MT section *3 No. 3 hub sleeve assembly Maintenance ↗ AW11_1988_full · p1024 OEM manual
09612-24013 Steering Gear Housing Overhaul Tool Set EM section (B); SR section Maintenance ↗ AW11_1988_full · p1024 OEM manual
09612-10022 Hexagon Wrench SR section; component of 09612-24013 Maintenance ↗ AW11_1988_full · p1024 OEM manual
09612-10061 Steering Pinion Bearing Replacer SR section; component of 09612-24013 Maintenance ↗ AW11_1988_full · p1024 OEM manual
09616-10010 Steering Pinion Bearing Adjusting Socket SR section; component of 09612-24013 Maintenance ↗ AW11_1988_full · p1024 OEM manual
09616-10020 Steering Pinion Bearing Adjusting Screw Wrench SR section; component of 09612-24013 Maintenance ↗ AW11_1988_full · p1024 OEM manual
09617-24010 Steering Rack Wrench SR section; component of 09612-24013 Maintenance ↗ AW11_1988_full · p1024 OEM manual
09612-65014 Steering Worm Bearing Puller EM section (B); MT section *4 LH, RH side bearing outer race Maintenance ↗ AW11_1988_full · p1024 OEM manual
09620-30010 Steering Gear Box Replacer Set EM section (B); SR section Maintenance ↗ AW11_1988_full · p1024 OEM manual
09625-30010 Steering Main Shaft Bearing Replacer SR section Maintenance ↗ AW11_1988_full · p1024 OEM manual
09627-30010 Steering Sector Shaft Bushing Replacer SR section; *1 Steering main shaft upper bearing and pinion lower bearing Maintenance ↗ AW11_1988_full · p1025 OEM manual
09628-62011 Ball Joint Puller Classification A; RA and SR sections; *2 Tie rod end Maintenance ↗ AW11_1988_full · p1025 OEM manual
09630-24013 Steering Rack Oil Seal Tool Set Classification B; SR section Maintenance ↗ AW11_1988_full · p1025 OEM manual
09620-24010 Valve Cap Oil Seal Remover SR section; *3 Pinion oil seal Maintenance ↗ AW11_1988_full · p1025 OEM manual
09620-24020 Valve Cap Oil Seal Replacer SR section; *3 Pinion oil seal Maintenance ↗ AW11_1988_full · p1025 OEM manual
09631-12020 Handle Classification B; AT and RA sections Maintenance ↗ AW11_1988_full · p1025 OEM manual
09631-22020 Power Steering Hose Nut 14 x 17 Wrench Set Classification A; FI section Maintenance ↗ AW11_1988_full · p1025 OEM manual
09649-17010 Steering Knuckle Tool Classification B; RA section Maintenance ↗ AW11_1988_full · p1025 OEM manual
09650-17011 Hub Bolt Remover Classification A; RA and BR sections Maintenance ↗ AW11_1988_full · p1025 OEM manual
09710-14012 Rear Suspension Bushing Tool Set Classification B; RA section Maintenance ↗ AW11_1988_full · p1025 OEM manual
09719-14020 Rear Disc Brake Tool Set Classification A; BR Maintenance ↗ AW11_1988_full · p1026 OEM manual
09719-00020 Piston Driver Sub-component of 09719-14020; BR Maintenance ↗ AW11_1988_full · p1026 OEM manual
09720-00011 Shock Absorber Overhaul Tool Set Classification B; FA, RA Maintenance ↗ AW11_1988_full · p1026 OEM manual
09721-00071 Front Shock Absorber Ring Nut Wrench Sub-component; FA, RA Maintenance ↗ AW11_1988_full · p1026 OEM manual
09726-10010 Lower Suspension Arm Bushing Remover & Replacer Classification B; RA Maintenance ↗ AW11_1988_full · p1026 OEM manual
09726-00030 Spacer Sub-component of 09726-10010; RA; *1 4A-GZE only Maintenance ↗ AW11_1988_full · p1026 OEM manual
09727-22032 Front Coil Spring Compressor Classification B; FA, RA Maintenance ↗ AW11_1988_full · p1026 OEM manual
09729-22031 Front Spring Upper Seat Holder Classification B; FA Maintenance ↗ AW11_1988_full · p1026 OEM manual
09737-00010 Brake Booster Push Rod Gauge Classification A; BR Maintenance ↗ AW11_1988_full · p1026 OEM manual
09751-36011 Brake Tube Union Nut 10 x 12 Wrench Classification A; CL (*2 Clutch tube), BR Maintenance ↗ AW11_1988_full · p1026 OEM manual
09756-00010 Adjusting Bolt Guide Nut Classification B; BR Maintenance ↗ AW11_1988_full · p1026 OEM manual
09812-00010 Door Hinge Set Bolt Wrench Classification C; BO Maintenance ↗ AW11_1988_full · p1026 OEM manual
09814-22010 Rear Wiper Pivot Shaft Lock Nut Wrench Classification A; SC section; *1 Supercharger clutch stator (4A-GZE only) Maintenance ↗ AW11_1988_full · p1027 OEM manual
09817-16011 Back-up Light Switch Tool Classification A; MT section Maintenance ↗ AW11_1988_full · p1027 OEM manual
09820-00021 Alternator Rear Bearing Puller Classification B; CH section Maintenance ↗ AW11_1988_full · p1027 OEM manual
09820-63010 Alternator Pulley Set Nut Wrench Set Classification B; CH section Maintenance ↗ AW11_1988_full · p1027 OEM manual
09842-30050 Wiring "A" EFI Inspection Classification B; FI section Maintenance ↗ AW11_1988_full · p1027 OEM manual
09842-30060 Wiring "E" EFI Inspection Classification B; FI section; *2 4A-GE only Maintenance ↗ AW11_1988_full · p1027 OEM manual
09842-30070 Wiring "F" EFI Inspection Classification B; FI section; *2 4A-GE only Maintenance ↗ AW11_1988_full · p1027 OEM manual
09921-00010 Spring Tension Tool Classification A; MT section; *3 Speedometer driven gear oil seal Maintenance ↗ AW11_1988_full · p1027 OEM manual
09950-00020 Bearing Remover Classification B; MT and AT sections; *4 No. 2 hub sleeve assembly and 3rd driven gear Maintenance ↗ AW11_1988_full · p1027 OEM manual
09950-20017 Universal Puller Classification A; CH, FA, BR, BO sections Maintenance ↗ AW11_1988_full · p1027 OEM manual
09992-00094 Oil Pressure Gauge Set Classification A; AT section Maintenance ↗ AW11_1988_full · p1027 OEM manual
09992-00241 Turbocharger Pressure Gauge Classification C; SC section; *5 Supercharger pressure Maintenance ↗ AW11_1988_full · p1027 OEM manual
08826-00080 Seal packing or equivalent Cylinder head x Cylinder head cover; Cylinder head x No. 1 camshaft bearing cap; Oil pan; Baffle plate Maintenance ↗ AW11_1988_full · p1028 OEM manual
08826-00090 Seal packing 1281, Three bond 1281 or equivalent Transaxle case, transmission case and case cover Maintenance ↗ AW11_1988_full · p1028 OEM manual
08833-00070 Adhesive 1324, Three bond 1324 or equivalent Oil gallery cover set screw Maintenance ↗ AW11_1988_full · p1028 OEM manual
08833-00080 Adhesive 1344, Three bond 1344, Loctite 242 or equivalent Straight screw plug; Control shaft cover bolt; Pinion bearing adjusting screw; Pinion bearing adjusting screw lock nut; Rack guide spring cap; Rack guide spring cap lock nut Maintenance ↗ AW11_1988_full · p1028 OEM manual
08833-00090 Adhesive 1131, Three bond 1131, Loctite 518 or equivalent Transaxle housing x Transaxle case; Transaxle rear cover x Transaxle case Maintenance ↗ AW11_1988_full · p1028 OEM manual
08826-00801 Seal packing 1121, Three bond 1121 or equivalent The contact surface of the outer race and cover of the drive shaft Maintenance ↗ AW11_1988_full · p1028 OEM manual
08850-00070 Windshield glass adhesive set No. 15 Windshield glass, Rear window glass (0 - 15°C or 32 - 59°F) Maintenance ↗ AW11_1988_full · p1028 OEM manual
08850-00080 Windshield glass adhesive set No. 35 Windshield glass, Rear window glass (15 - 35°C or 59 - 95°F) Maintenance ↗ AW11_1988_full · p1028 OEM manual
08850-00090 Windshield glass adhesive set No. 45 Windshield glass, Rear window glass (35 - 45°C or 95 - 113°F) Maintenance ↗ AW11_1988_full · p1028 OEM manual
04562-30040 Dam kit Windshield glass, Rear window glass Maintenance ↗ AW11_1988_full · p1028 OEM manual
08833-00030 Three cement black Windshield glass, Back door window glass Maintenance ↗ AW11_1988_full · p1028 OEM manual
09222-30010 SST — Connecting rod bushing replacer Used to push out and press in connecting rod bushing Engine — mechanical ↗ AW11_1988_full · p133 OEM manual
09223-41020 SST — Rear oil seal installer Special Service Tool used for tapping in new rear oil seal Engine — mechanical ↗ AW11_1988_full · p136 OEM manual
09992-00241 SST turbocharger pressure gauge Installed between VSV and intake manifold with a three way Unclassified ↗ AW11_1988_full · p158 OEM manual
09504-00011 SST — Clutch hub removal tool Used to remove nut, clutch hub and shim Unclassified ↗ AW11_1988_full · p164 OEM manual
09814-22010 SST — Ring nut removal tool Used to remove clutch pulley ring nut Unclassified ↗ AW11_1988_full · p164 OEM manual
08833-00090 Sealant — THREE BOND 1131, LOCTITE 518 or equivalent Used for union and rear plate groove Unclassified ↗ AW11_1988_full · p167 OEM manual
08887-80109 Supercharger grease Housing front cover; 2 g capacity Unclassified ↗ AW11_1988_full · p168 OEM manual
09814-22010 SST — Ring nut installation tool (Clutch Pulley) Step 8 Unclassified ↗ AW11_1988_full · p169 OEM manual
09504-00011 SST — Clutch hub nut installation tool Step 9 Unclassified ↗ AW11_1988_full · p169 OEM manual
09842-30050 SST (A) — Injector/cold start injector wiring connector inspection tool (4A-GZE) EFI / fuel injection ↗ AW11_1988_full · p202 OEM manual
09842-30060 SST (B) — Injector/cold start injector wiring connector inspection tool (4A-GZE) EFI / fuel injection ↗ AW11_1988_full · p202 OEM manual
09842-30070 SST (C) — Injector/cold start injector wiring connector inspection tool (4A-GE) EFI / fuel injection ↗ AW11_1988_full · p202 OEM manual
09268-45012 SST — Fuel pressure gauge set for delivery pipe Special Service Tool EFI / fuel injection ↗ AW11_1988_full · p261 OEM manual
09268-45012 SST fuel pressure gauge set Used to measure fuel pressure at delivery pipe EFI / fuel injection ↗ AW11_1988_full · p264 OEM manual
09631-22020 SST — Special Service Tool for flare nut tightening EFI / fuel injection ↗ AW11_1988_full · p267 OEM manual
09268-41045 SST (Hose) — unions connection tool Used to connect SST hose from unions on cold start injector EFI / fuel injection ↗ AW11_1988_full · p270 OEM manual
09842-30050 SST (Wire) — injector/battery test probe tool Used to connect wire to injector and test probes to battery EFI / fuel injection ↗ AW11_1988_full · p270 OEM manual
09268-41045 SST (Union/Hose/Clamp set) for injector and fuel filter inspection Special Service Tool EFI / fuel injection ↗ AW11_1988_full · p279 OEM manual
09842-30070 SST (Resistor Wire) for injector volume and leakage test EFI / fuel injection ↗ AW11_1988_full · p280 OEM manual
09268-41045 SST for disconnecting service wire from terminals Fp and +B EFI / fuel injection ↗ AW11_1988_full · p280 OEM manual
09268-41045 SST (Union/Hose/Clamp set) for injector and fuel filter/pressure regulator testing Special Service Tool EFI / fuel injection ↗ AW11_1988_full · p281 OEM manual
09842-30060 SST (Resistor Wire) — used for injector injection volume and leakage test EFI / fuel injection ↗ AW11_1988_full · p282 OEM manual
09268-41045 SST — used to disconnect service wire from terminals Fp and +B EFI / fuel injection ↗ AW11_1988_full · p282 OEM manual
09027-12140 SST — Oil pressure sender gauge removal tool Lubrication / oil ↗ AW11_1988_full · p347 OEM manual
09228-06500 SST — Oil filter removal/installation tool Lubrication / oil ↗ AW11_1988_full · p348 OEM manual
09032-00100 SST — blade tool for cutting sealer between oil pan/baffle plate and block Used in steps 7 and 9 Lubrication / oil ↗ AW11_1988_full · p350 OEM manual
09517-30010 SST — Oil seal installer Used to tap in new oil seal during REPLACEMENT OF OIL SEAL Lubrication / oil ↗ AW11_1988_full · p353 OEM manual
08826-00080 Seal packing (FIPG) — used for baffle plate and oil pan or equivalent; nozzle cut to 5 mm opening; parts must be assembled within 3 minutes of application Lubrication / oil ↗ AW11_1988_full · p355 OEM manual
09228-06500 SST for oil filter removal Special Service Tool Lubrication / oil ↗ AW11_1988_full · p358 OEM manual
09201-41020 SST — Special Service Tool for installing large bearing onto shaft Starting / charging ↗ AW11_1988_full · p381 OEM manual
95506-00020 Nippondenso BTG-20 Belt Tension Gauge Starting / charging ↗ AW11_1988_full · p388 OEM manual
09820-63010 SST — Pulley removal tool set Used for Remove Pulley step Starting / charging ↗ AW11_1988_full · p393 OEM manual
09286-46011 SST — Rear end frame removal tool Used for Remove Rear End Frame step Starting / charging ↗ AW11_1988_full · p393 OEM manual
09608-20012 SST - front bearing press tool 09608-00030 sub-component Starting / charging ↗ AW11_1988_full · p397 OEM manual
09608-00030 SST - front bearing press tool sub-component Starting / charging ↗ AW11_1988_full · p397 OEM manual
09820-00021 SST - rear bearing cover removal tool Starting / charging ↗ AW11_1988_full · p397 OEM manual
09820-63010 SST — Pulley installation tool set Used for alternator pulley nut torquing Starting / charging ↗ AW11_1988_full · p398 OEM manual
95506-00020 Belt tension gauge Nippondenso BTG-20 Starting / charging ↗ AW11_1988_full · p400 OEM manual
09751-36011 SST — tube disconnection tool Used to disconnect clutch line and bleeder tubes Clutch ↗ AW11_1988_full · p410 OEM manual
09751-36011 SST — Special Service Tool for connecting clutch line and bleeder tubes Clutch ↗ AW11_1988_full · p412 OEM manual
09302-20021 SST — Diaphragm spring tip alignment check tool (4A-GE) Clutch ↗ AW11_1988_full · p415 OEM manual
09520-32012 SST — Side gear shaft removal tool Used for C52 M/T and E51 M/T Transmission / transaxle ↗ AW11_1988_full · p422 OEM manual
09817-16011 SST for removing back-up light switch Transmission / transaxle ↗ AW11_1988_full · p426 OEM manual
09213-36020 SST — 5th gear, No. 3 hub and synchronizer ring remover Step 12(d) Transmission / transaxle ↗ AW11_1988_full · p428 OEM manual
09950-20017 SST — 5th driven gear remover Step 14 Transmission / transaxle ↗ AW11_1988_full · p428 OEM manual
09313-30021 SST — plug and lock ball assembly remover Step 19(a) Transmission / transaxle ↗ AW11_1988_full · p428 OEM manual
09950-00020 SST — used for pressing radial ball bearings and hub sleeve assembly Steps 29, 31, 33 Transmission / transaxle ↗ AW11_1988_full · p431 OEM manual
09950-00020 SST — used to remove 3rd driven gear and 2nd gear Special Service Tool Transmission / transaxle ↗ AW11_1988_full · p432 OEM manual
09308-00010 SST — Input shaft front bearing puller Transmission / transaxle ↗ AW11_1988_full · p435 OEM manual
09310-35010 SST — Input shaft front bearing installer Transmission / transaxle ↗ AW11_1988_full · p435 OEM manual
09308-00010 SST — bearing puller for output shaft front bearing Step 7(b) Transmission / transaxle ↗ AW11_1988_full · p436 OEM manual
09310-35010 SST — bearing installer for output shaft front bearing Step 7(c) Transmission / transaxle ↗ AW11_1988_full · p436 OEM manual
09608-12010 SST — oil seal installer for input shaft front oil seal (set) Step 8(b) Transmission / transaxle ↗ AW11_1988_full · p436 OEM manual
09608-00020 SST — sub-component of 09608-12010 Step 8(b) Transmission / transaxle ↗ AW11_1988_full · p436 OEM manual
09608-00080 SST — sub-component of 09608-12010 Step 8(b) Transmission / transaxle ↗ AW11_1988_full · p436 OEM manual
09350-32013 SST - Oil seal installer set (includes 09351-32111, 09351-32130) LH side oil seal installation Transmission / transaxle ↗ AW11_1988_full · p437 OEM manual
09351-32111 SST sub-tool - Oil seal installer Part of SST 09350-32013 for LH side Transmission / transaxle ↗ AW11_1988_full · p437 OEM manual
09351-32130 SST sub-tool - Oil seal installer Part of SST 09350-32013 for LH and RH side Transmission / transaxle ↗ AW11_1988_full · p437 OEM manual
09351-32150 SST sub-tool - Oil seal installer Part of SST 09350-32013 for RH side Transmission / transaxle ↗ AW11_1988_full · p437 OEM manual
09612-65014 SST - Outer race puller LH outer race of side bearing removal Transmission / transaxle ↗ AW11_1988_full · p437 OEM manual
09608-20012 SST - Outer race installer set (includes 09608-03020, 09608-03090) LH outer race of side bearing installation Transmission / transaxle ↗ AW11_1988_full · p437 OEM manual
09608-03020 SST sub-tool - Outer race installer Part of SST 09608-20012 Transmission / transaxle ↗ AW11_1988_full · p437 OEM manual
09608-03090 SST sub-tool - Outer race installer Part of SST 09608-20012 Transmission / transaxle ↗ AW11_1988_full · p437 OEM manual
09612-65014 SST — Outer race and shim puller Step 12(a) Transmission / transaxle ↗ AW11_1988_full · p438 OEM manual
09608-20012 SST — Outer race driver set Step 12(c) Transmission / transaxle ↗ AW11_1988_full · p438 OEM manual
09608-03020 SST — Outer race driver component Step 12(c) Transmission / transaxle ↗ AW11_1988_full · p438 OEM manual
09608-03090 SST — Outer race driver component Step 12(c) Transmission / transaxle ↗ AW11_1988_full · p438 OEM manual
09517-36010 SST — Control shaft oil seal driver Step 13(b) Transmission / transaxle ↗ AW11_1988_full · p438 OEM manual
09921-00010 SST — Speedometer driven gear oil seal puller Step 14(a) Transmission / transaxle ↗ AW11_1988_full · p438 OEM manual
08833-00080 Liquid sealer (THREE BOND 1344 / LOCTITE 242 or equivalent) Applied to reverse restrict pin screw plug threads Transmission / transaxle ↗ AW11_1988_full · p439 OEM manual
09608-12010 SST — radial ball bearing installer Sub-tool 09608-00070 Transmission / transaxle ↗ AW11_1988_full · p440 OEM manual
09608-12010 SST — 4th driven gear and bearing press tool sub-tool 09608-00070 Transmission / transaxle ↗ AW11_1988_full · p443 OEM manual
09608-00070 SST sub-component for 09608-12010 Transmission / transaxle ↗ AW11_1988_full · p443 OEM manual
09608-20012 SST — side bearing outer race driver sub-tools 09608-03020, 09608-03090 Transmission / transaxle ↗ AW11_1988_full · p443 OEM manual
09608-03020 SST sub-component for 09608-20012 Transmission / transaxle ↗ AW11_1988_full · p443 OEM manual
09608-03090 SST sub-component for 09608-20012 Transmission / transaxle ↗ AW11_1988_full · p443 OEM manual
09564-32011 SST — Special Service Tool for measuring preload Transmission / transaxle ↗ AW11_1988_full · p444 OEM manual
08826-00090 Seal packing — THREE BOND 1281 or equivalent Used on transmission case mating surface Transmission / transaxle ↗ AW11_1988_full · p446 OEM manual
08833-00080 Liquid sealer (THREE BOND 1344 / LOCTITE 242 or equivalent) Apply to plugs and lock ball assembly Transmission / transaxle ↗ AW11_1988_full · p447 OEM manual
09313-30021 SST — for tightening plugs and lock ball assembly Transmission / transaxle ↗ AW11_1988_full · p447 OEM manual
09309-12020 SST — for installing 5th driven gear Transmission / transaxle ↗ AW11_1988_full · p447 OEM manual
09612-22011 SST — used to drive in No. 3 hub sleeve with No. 3 shift fork Special Service Tool Transmission / transaxle ↗ AW11_1988_full · p448 OEM manual
08833-00080 Liquid sealer (THREE BOND 1344 or LOCTITE 242 equivalent) Apply to control shaft cover bolt threads Transmission / transaxle ↗ AW11_1988_full · p450 OEM manual
08826-00090 Seal packing — THREE BOND 1281 or equivalent Used for transmission case cover Transmission / transaxle ↗ AW11_1988_full · p451 OEM manual
09817-16011 SST for back-up light switch installation Step 47 Transmission / transaxle ↗ AW11_1988_full · p452 OEM manual
09817-16011 SST for Back-up light switch removal Special Service Tool Transmission / transaxle ↗ AW11_1988_full · p457 OEM manual
09310-17010 SST — puller set (includes 09310-07010, 09310-07020, 09310-07040, 09310-07050) Used to remove 5th driven gear Transmission / transaxle ↗ AW11_1988_full · p459 OEM manual
09310-17010 SST — clutch hub/synchronizer ring/5th gear puller set includes 09310-07010, 09310-07020, 09310-07040, 09310-07050 Transmission / transaxle ↗ AW11_1988_full · p460 OEM manual
09310-07010 SST component part of 09310-17010 set Transmission / transaxle ↗ AW11_1988_full · p460 OEM manual
09310-07020 SST component part of 09310-17010 set Transmission / transaxle ↗ AW11_1988_full · p460 OEM manual
09310-07040 SST component part of 09310-17010 set Transmission / transaxle ↗ AW11_1988_full · p460 OEM manual
09310-07050 SST component part of 09310-17010 set Transmission / transaxle ↗ AW11_1988_full · p460 OEM manual
09042-00050 Torx socket wrench T45 for rear bearing retainer torx screws Transmission / transaxle ↗ AW11_1988_full · p460 OEM manual
09313-30021 SST — plug removal tool for locking ball plug removal Transmission / transaxle ↗ AW11_1988_full · p460 OEM manual
09313-30021 SST — plug removal tool for straight screw plugs Step 25(a) Transmission / transaxle ↗ AW11_1988_full · p462 OEM manual
09612-65014 SST — Input shaft bearing puller Used to pull out input shaft bearing Transmission / transaxle ↗ AW11_1988_full · p465 OEM manual
09608-12010 SST — drive in new oil seal / bearing includes 09608-00020, 09608-00080 for oil seal; 09608-00020, 09608-00060 for bearing Transmission / transaxle ↗ AW11_1988_full · p466 OEM manual
09608-00020 SST component — used with 09608-12010 Transmission / transaxle ↗ AW11_1988_full · p466 OEM manual
09608-00080 SST component — oil seal installation Transmission / transaxle ↗ AW11_1988_full · p466 OEM manual
09608-00060 SST component — bearing installation Transmission / transaxle ↗ AW11_1988_full · p466 OEM manual
09316-60010 SST set for pressing outer race includes 09316-00010, 09316-00020 Transmission / transaxle ↗ AW11_1988_full · p467 OEM manual
09316-00010 SST component for pressing outer race part of 09316-60010 Transmission / transaxle ↗ AW11_1988_full · p467 OEM manual
09316-00020 SST component for pressing outer race part of 09316-60010 Transmission / transaxle ↗ AW11_1988_full · p467 OEM manual
09517-36010 SST for driving in shift control shaft oil seal Transmission / transaxle ↗ AW11_1988_full · p467 OEM manual
09921-00010 SST for pulling out speedometer driven gear oil seal Transmission / transaxle ↗ AW11_1988_full · p467 OEM manual
09201-60011 SST — oil seal driver Drive in new oil seal to 33 mm depth Transmission / transaxle ↗ AW11_1988_full · p468 OEM manual
09313-30021 SST — screw plug tool for reverse restrict pin Used for removal and installation of screw plug Transmission / transaxle ↗ AW11_1988_full · p468 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Apply to plug threads before installation Transmission / transaxle ↗ AW11_1988_full · p468 OEM manual
09950-00020 SST — for removing radial ball bearing Special Service Tool Transmission / transaxle ↗ AW11_1988_full · p470 OEM manual
09950-00020 SST — used to remove input shaft front bearing inner race Special Service Tool Transmission / transaxle ↗ AW11_1988_full · p471 OEM manual
09316-60010 SST (Special Service Tool) set Sub-tools: 09316-00010, 09316-00050, 09316-00020 Transmission / transaxle ↗ AW11_1988_full · p473 OEM manual
09316-60010 SST — Input shaft front bearing inner race installer Sub-tool 09316-00020 Transmission / transaxle ↗ AW11_1988_full · p474 OEM manual
09307-12010 SST — bearing remover Used to remove output shaft front bearing Transmission / transaxle ↗ AW11_1988_full · p478 OEM manual
09950-00020 SST — bearing remover attachment Used to remove output shaft front bearing Transmission / transaxle ↗ AW11_1988_full · p478 OEM manual
09316-60010 SST — bearing installer Used to install output shaft front bearing Transmission / transaxle ↗ AW11_1988_full · p478 OEM manual
09316-00070 SST — bearing installer attachment Sub-part of 09316-60010 Transmission / transaxle ↗ AW11_1988_full · p478 OEM manual
09316-60010 SST — press tool for 1st gear and No. 1 hub sleeve installation Sub-tool: 09316-00040 Transmission / transaxle ↗ AW11_1988_full · p479 OEM manual
09506-30012 SST — Output shaft rear bearing installer Transmission / transaxle ↗ AW11_1988_full · p480 OEM manual
09950-20017 SST — Side bearing puller Special Service Tool for removing side bearings Transmission / transaxle ↗ AW11_1988_full · p491 OEM manual
09042-00040 Torx wrench T50 Used to remove sixteen torx screws on differential Transmission / transaxle ↗ AW11_1988_full · p492 OEM manual
09316-60010 SST for installing taper roller bearing outer race (includes 09316-00010 and 09316-00040) Sub-tools: 09316-00010, 09316-00040 Transmission / transaxle ↗ AW11_1988_full · p493 OEM manual
09316-00010 SST sub-tool for taper roller bearing outer race installation Part of SST 09316-60010 set Transmission / transaxle ↗ AW11_1988_full · p493 OEM manual
09316-00040 SST sub-tool for taper roller bearing outer race installation Part of SST 09316-60010 set Transmission / transaxle ↗ AW11_1988_full · p493 OEM manual
09223-15010 SST for driving in new oil seal Transmission / transaxle ↗ AW11_1988_full · p493 OEM manual
09612-65014 SST — taper roller bearing outer race removal tool Transmission / transaxle ↗ AW11_1988_full · p494 OEM manual
09316-60010 SST — taper roller bearing installer / oil seal driver includes 09316-00010 and 09316-00040 Transmission / transaxle ↗ AW11_1988_full · p494 OEM manual
09316-00010 SST sub-component for 09316-60010 Transmission / transaxle ↗ AW11_1988_full · p494 OEM manual
09316-00040 SST sub-component for 09316-60010 Transmission / transaxle ↗ AW11_1988_full · p494 OEM manual
08826-00090 Seal packing — THREE BOND 1281 or equivalent Apply to transaxle case cover Transmission / transaxle ↗ AW11_1988_full · p495 OEM manual
08833-00080 Sealant — THREE BOND 1344 / LOCTITE 242 or equivalent Apply to bolt threads Transmission / transaxle ↗ AW11_1988_full · p495 OEM manual
09042-00040 Torx wrench T50 Used to torque sixteen differential case torx screws Transmission / transaxle ↗ AW11_1988_full · p496 OEM manual
09316-60010 SST for side bearing installation 09316-00010 Transmission / transaxle ↗ AW11_1988_full · p497 OEM manual
09316-00010 SST for side bearing installation (sub-tool) Transmission / transaxle ↗ AW11_1988_full · p497 OEM manual
09042-00050 Torx wrench T45 Used for rear bearing retainer torx screws Transmission / transaxle ↗ AW11_1988_full · p498 OEM manual
09042-00050 Torx wrench T45 Used to remove rear bearing retainer torx screws Transmission / transaxle ↗ AW11_1988_full · p499 OEM manual
09042-00050 Torx wrench T45 Used for bearing retainer bolts Transmission / transaxle ↗ AW11_1988_full · p501 OEM manual
09042-00050 Torx wrench T45 Used to remove seven torx screws and rear bearing retainer Transmission / transaxle ↗ AW11_1988_full · p502 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Step 13(b) Transmission / transaxle ↗ AW11_1988_full · p505 OEM manual
09313-30021 SST — plug installation tool Step 13(c) Transmission / transaxle ↗ AW11_1988_full · p505 OEM manual
08826-00090 Seal packing — THREE BOND 1281 or equivalent Applied to transmission case mating surface Transmission / transaxle ↗ AW11_1988_full · p506 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Applied to plug Transmission / transaxle ↗ AW11_1988_full · p507 OEM manual
09313-30021 SST for installing and torquing plug Transmission / transaxle ↗ AW11_1988_full · p507 OEM manual
09310-17010 SST — clutch hub installer (set) Step 26 Transmission / transaxle ↗ AW11_1988_full · p508 OEM manual
09310-07010 SST component — clutch hub installer Part of 09310-17010 Transmission / transaxle ↗ AW11_1988_full · p508 OEM manual
09310-07020 SST component — clutch hub installer Part of 09310-17010 Transmission / transaxle ↗ AW11_1988_full · p508 OEM manual
09310-07030 SST component — clutch hub installer Part of 09310-17010 Transmission / transaxle ↗ AW11_1988_full · p508 OEM manual
09310-17010 SST set for 5th driven gear installation Includes 09310-07010, 09310-07020, 09310-07040, 09310-07050 Transmission / transaxle ↗ AW11_1988_full · p509 OEM manual
09310-07010 SST component for 5th driven gear installation Part of SST 09310-17010 Transmission / transaxle ↗ AW11_1988_full · p509 OEM manual
09310-07020 SST component for 5th driven gear installation Part of SST 09310-17010 Transmission / transaxle ↗ AW11_1988_full · p509 OEM manual
09310-07040 SST component for 5th driven gear installation Part of SST 09310-17010 Transmission / transaxle ↗ AW11_1988_full · p509 OEM manual
09310-07050 SST component for 5th driven gear installation Part of SST 09310-17010 Transmission / transaxle ↗ AW11_1988_full · p509 OEM manual
08826-00090 Seal packing — THREE BOND 1281 or equivalent Used for transmission case cover, Step 33(b) Transmission / transaxle ↗ AW11_1988_full · p510 OEM manual
08833-00080 Liquid sealant — THREE BOND 1344 / LOCTITE 242 or equivalent Applied to control shaft cover bolt threads, Step 35(c) Transmission / transaxle ↗ AW11_1988_full · p510 OEM manual
09817-16011 SST for back-up light switch installation Transmission / transaxle ↗ AW11_1988_full · p511 OEM manual
09520-32012 SST — Side gear shaft installation tool (C52 M/T) Step 1(b) Transmission / transaxle ↗ AW11_1988_full · p512 OEM manual
09043-38100 SST — filler tube tool for ATF replacement Transmission / transaxle ↗ AW11_1988_full · p522 OEM manual
09992-00094 Oil pressure gauge (SST) Used for hydraulic test Transmission / transaxle ↗ AW11_1988_full · p527 OEM manual
09043-38100 SST for drain plug installation Special Service Tool Transmission / transaxle ↗ AW11_1988_full · p560 OEM manual
09350-32013 SST — special service tool set Used for torque converter inspection and oil seal replacement Lubrication / oil ↗ AW11_1988_full · p565 OEM manual
09351-32010 SST component — turning tool inner race Sub-tool of 09350-32013 Lubrication / oil ↗ AW11_1988_full · p565 OEM manual
09351-32020 SST component — stopper Sub-tool of 09350-32013 Lubrication / oil ↗ AW11_1988_full · p565 OEM manual
09308-10010 SST component — oil seal remover Sub-tool of 09350-32013 Lubrication / oil ↗ AW11_1988_full · p565 OEM manual
09351-32140 SST component — oil seal installer Sub-tool of 09350-32013 Lubrication / oil ↗ AW11_1988_full · p565 OEM manual
09350-32013 SST — Oil pump puller Sub-tool 09351-32061 Lubrication / oil ↗ AW11_1988_full · p566 OEM manual
09240-00020 SST — piston stroke measurement tool Used to measure Second Coast Brake piston stroke Transmission / transaxle ↗ AW11_1988_full · p574 OEM manual
09350-32013 SST — oil pump puller Sub-tool 09351-32061 Transmission / transaxle ↗ AW11_1988_full · p574 OEM manual
09351-32061 SST — oil pump puller sub-tool Used with 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p574 OEM manual
09330-00021 SST — Counter shaft lock nut removal tool Used in steps 58b and 58c Transmission / transaxle ↗ AW11_1988_full · p581 OEM manual
09350-32013 SST — Base tool for counter shaft/driven gear removal Used in steps 58b, 58c, 59 Transmission / transaxle ↗ AW11_1988_full · p581 OEM manual
09351-32031 SST attachment — driven gear lock nut removal Used in steps 58b and 58c Transmission / transaxle ↗ AW11_1988_full · p581 OEM manual
09351-32170 SST attachment — driven gear holding Used in step 58c Transmission / transaxle ↗ AW11_1988_full · p581 OEM manual
09351-32061 SST attachment — counter driven gear removal Used in step 59 Transmission / transaxle ↗ AW11_1988_full · p581 OEM manual
09308-00010 SST — Bearing remover tool Used in step 80 to remove bearing Transmission / transaxle ↗ AW11_1988_full · p585 OEM manual
09308-00010 SST — Bearing remover tool Used in step 84(b) to remove bearing Transmission / transaxle ↗ AW11_1988_full · p586 OEM manual
09350-32013 SST — oil seal installer (set) sub-component 09351-32140 Lubrication / oil ↗ AW11_1988_full · p589 OEM manual
09351-32140 SST — oil seal installer (sub-component) used with 09350-32013 Lubrication / oil ↗ AW11_1988_full · p589 OEM manual
09350-32013 SST — Spring compressor set (includes 09351-32070) Used to compress piston return spring for snap ring removal Clutch ↗ AW11_1988_full · p591 OEM manual
09350-32013 SST Spring Compressor Set 09351-32070 sub-component Clutch ↗ AW11_1988_full · p592 OEM manual
09351-32070 SST Spring Compressor sub-component Part of 09350-32013 Clutch ↗ AW11_1988_full · p592 OEM manual
09350-32013 SST — dial indicator tool set for direct clutch piston stroke Sub-part: 09351-32190 Clutch ↗ AW11_1988_full · p593 OEM manual
09350-32013 SST - Spring compressor tool Sub-tool 09351-32070 Clutch ↗ AW11_1988_full · p595 OEM manual
09350-32013 SST — Spring retainer compressor / dial indicator adapter Sub-tool 09351-32070 for spring compression; sub-tool 09351-32190 for piston stroke measurement Clutch ↗ AW11_1988_full · p596 OEM manual
09350-32013 SST (Special Service Tool) for compressing return springs sub-part 09351-32040 Engine — mechanical ↗ AW11_1988_full · p601 OEM manual
09350-32013 SST (09351-32040) — Special Service Tool for piston return spring compression and snap ring installation Used in steps 3, 4, 5, 6 Engine — mechanical ↗ AW11_1988_full · p602 OEM manual
09555-55010 SST — Remove intermediate shaft front bearing / rear bearing Special Service Tool Transmission / transaxle ↗ AW11_1988_full · p603 OEM manual
09350-32013 SST — Install intermediate shaft front bearing / remove rear bearing Special Service Tool Transmission / transaxle ↗ AW11_1988_full · p603 OEM manual
09351-32120 SST attachment — Install intermediate shaft front bearing Sub-tool of 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p603 OEM manual
09351-32090 SST attachment — Remove intermediate shaft rear bearing Sub-tool of 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p603 OEM manual
09350-32013 SST — bearing installer set sub-tool 09351-32150 Transmission / transaxle ↗ AW11_1988_full · p604 OEM manual
09351-32150 SST — bearing installer sub-tool used with 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p604 OEM manual
09350-32013 SST — Drive pinion removal tool (set) includes 09351-32150 Transmission / transaxle ↗ AW11_1988_full · p606 OEM manual
09351-32150 SST — Drive pinion removal tool (sub-component of 09350-32013) Transmission / transaxle ↗ AW11_1988_full · p606 OEM manual
09555-55010 SST — Drive pinion removal tool Transmission / transaxle ↗ AW11_1988_full · p606 OEM manual
09950-00020 SST — bearing removal tool Used with press to remove bearing in step 10 Transmission / transaxle ↗ AW11_1988_full · p607 OEM manual
09350-32013 SST — Spring compressor set Sub-tool 09351-32070 Transmission / transaxle ↗ AW11_1988_full · p608 OEM manual
09350-32013 SST — Spring compressor set (used with 09351-32070 and 09351-32190) Steps 4 and 7 Transmission / transaxle ↗ AW11_1988_full · p609 OEM manual
09351-32070 SST attachment — for compressing return spring Step 4(a) Transmission / transaxle ↗ AW11_1988_full · p609 OEM manual
09351-32190 SST attachment — dial indicator pick for piston stroke measurement Step 7(b) Transmission / transaxle ↗ AW11_1988_full · p609 OEM manual
09350-32013 SST — Special Service Tool set for bearing/race installation Used with sub-tools 09351-32090, 09351-32150, 09351-32180 Transmission / transaxle ↗ AW11_1988_full · p610 OEM manual
09351-32090 SST sub-tool for bearing outer race installation Used with 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p610 OEM manual
09351-32150 SST sub-tool for thin bearing outer race installation Used with 09350-32013 step 11(b) Transmission / transaxle ↗ AW11_1988_full · p610 OEM manual
09351-32180 SST sub-tool for bearing installation Used with 09350-32013 steps 11 and 12 Transmission / transaxle ↗ AW11_1988_full · p610 OEM manual
09350-32013 SST — Special Service Tool for bearing installation Sub-tool 09351-32180 Transmission / transaxle ↗ AW11_1988_full · p611 OEM manual
09351-32180 SST sub-component for 09350-32013 Used in steps 15 and 16 Transmission / transaxle ↗ AW11_1988_full · p611 OEM manual
09350-32013 SST — Counter shaft lock nut tool set Sub-part 09351-32031 and 09351-32170 Transmission / transaxle ↗ AW11_1988_full · p612 OEM manual
09351-32031 SST sub-component — install SST to driven gear Used in step 2 Transmission / transaxle ↗ AW11_1988_full · p612 OEM manual
09351-32170 SST sub-component — tighten lock nut and measure starting torque Used in steps 3 and 4 Transmission / transaxle ↗ AW11_1988_full · p612 OEM manual
09350-32013 SST — Special Service Tool (bearing installer set) Sub-tools: 09351-32090, 09351-32150 Transmission / transaxle ↗ AW11_1988_full · p630 OEM manual
09351-32090 SST sub-tool for bearing installation Used with 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p630 OEM manual
09351-32150 SST sub-tool for bearing installation (transaxle housing only) Used with 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p630 OEM manual
08833-00070 Seal packing (THREE BOND 1324 or equivalent) Apply to three screws on oil gallery cover Transmission / transaxle ↗ AW11_1988_full · p631 OEM manual
09350-32013 SST — Special Service Tool (set) Includes 09351-32070 and 09351-32130; used to compress return spring Transmission / transaxle ↗ AW11_1988_full · p633 OEM manual
09351-32070 SST component — return spring compressor sub-tool Part of SST 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p633 OEM manual
09351-32130 SST component — return spring compressor sub-tool Part of SST 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p633 OEM manual
09350-32013 SST — counter driven gear press tool set sub-parts 09351-32100, 09351-32140 Transmission / transaxle ↗ AW11_1988_full · p636 OEM manual
09330-00021 SST — lock nut holder Step 32 Transmission / transaxle ↗ AW11_1988_full · p636 OEM manual
09351-32031 SST — sub-part for 09350-32013 Step 32 Transmission / transaxle ↗ AW11_1988_full · p636 OEM manual
08833-00090 Seal packing (THREE BOND 1131, LOCTITE 518 or equivalent) For transaxle rear cover Transmission / transaxle ↗ AW11_1988_full · p637 OEM manual
09350-32013 SST — One-way clutch installation tool Sub-tool 09351-32050 Transmission / transaxle ↗ AW11_1988_full · p640 OEM manual
08833-00090 Seal packing (THREE BOND 1131, LOCTITE 518 or equivalent) Apply to transaxle housing mating surface Transmission / transaxle ↗ AW11_1988_full · p645 OEM manual
09350-32013 SST — snap ring installer for second coast brake piston cover sub-tool 09351-32050 Transmission / transaxle ↗ AW11_1988_full · p646 OEM manual
09351-32050 SST sub-tool for 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p646 OEM manual
09240-00020 SST — compressed air gauge for piston stroke measurement Transmission / transaxle ↗ AW11_1988_full · p646 OEM manual
09350-32013 SST — Oil pump removal tool Sub-tool 09351-32061 Transmission / transaxle ↗ AW11_1988_full · p652 OEM manual
09502-10012 SST — bearing remover for differential side bearing Used to remove side bearings from differential case Transmission / transaxle ↗ AW11_1988_full · p653 OEM manual
09350-32013 SST — side bearing installer set Includes 09351-32090 and 09351-32120 Transmission / transaxle ↗ AW11_1988_full · p653 OEM manual
09351-32090 SST sub-component of 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p653 OEM manual
09351-32120 SST sub-component of 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p653 OEM manual
09350-32013 SST — Oil seal and outer race driver set sub-components: 09351-32130, 09351-32150 Transmission / transaxle ↗ AW11_1988_full · p654 OEM manual
09350-32013 SST set Used for driving outer race and oil seal Transmission / transaxle ↗ AW11_1988_full · p655 OEM manual
09351-32111 SST sub-component Used with 09350-32013 for driving outer race Transmission / transaxle ↗ AW11_1988_full · p655 OEM manual
09351-32130 SST sub-component Used with 09350-32013 for RH oil seal and outer race Transmission / transaxle ↗ AW11_1988_full · p655 OEM manual
09351-32150 SST sub-component Used with 09350-32013 for RH oil seal (A240E/A241E) Transmission / transaxle ↗ AW11_1988_full · p655 OEM manual
09351-32090 SST sub-component Used with 09350-32013 for driving out outer race and shim Transmission / transaxle ↗ AW11_1988_full · p655 OEM manual
09350-32013 SST set for driving out and pressing in outer race and shim Sub-tools: 09351-32130, 09351-32150 (drive out); 09351-32111, 09351-32130 (press in) Transmission / transaxle ↗ AW11_1988_full · p658 OEM manual
09351-32130 SST sub-tool — used for both driving out and pressing in outer race Part of SST 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p658 OEM manual
09351-32150 SST sub-tool — used for driving out outer race and shim Part of SST 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p658 OEM manual
09351-32111 SST sub-tool — used for pressing in outer race Part of SST 09350-32013 Transmission / transaxle ↗ AW11_1988_full · p658 OEM manual
09564-32011 SST — torque meter for differential side bearing preload measurement Transmission / transaxle ↗ AW11_1988_full · p659 OEM manual
08833-00090 Seal packing — THREE BOND 1131, LOCTITE 518 or equivalent Applied to transaxle housing mating surface Transmission / transaxle ↗ AW11_1988_full · p660 OEM manual
09628-62011 SST — tie rod end separator Used to disconnect tie rod end from steering knuckle Suspension & axle ↗ AW11_1988_full · p673 OEM manual
09950-20017 SST — axle hub puller Used to remove axle hub from steering knuckle Suspension & axle ↗ AW11_1988_full · p673 OEM manual
09308-00010 SST — Oil seal remover (for steering knuckle outer oil seal) Step 5 Suspension & axle ↗ AW11_1988_full · p674 OEM manual
09950-20017 SST — Hub bearing inner race (outside) puller Step 6 Suspension & axle ↗ AW11_1988_full · p674 OEM manual
09608-30012 SST — Hub bearing press-out tool Step 8 Suspension & axle ↗ AW11_1988_full · p674 OEM manual
09608-04060 SST — Hub bearing press-out tool attachment Step 8 Suspension & axle ↗ AW11_1988_full · p674 OEM manual
09649-17010 SST — Hub bearing press-out tool attachment Step 8 Suspension & axle ↗ AW11_1988_full · p674 OEM manual
09608-30012 SST — Hub bearing press tool used with 09608-04070 for hub bearing installation; used with 09608-04020 and 09649-17010 for outer oil seal installation Suspension & axle ↗ AW11_1988_full · p675 OEM manual
09608-04070 SST attachment — Hub bearing installation Suspension & axle ↗ AW11_1988_full · p675 OEM manual
09608-04020 SST attachment — Outer oil seal installation Suspension & axle ↗ AW11_1988_full · p675 OEM manual
09649-17010 SST — Oil seal and axle hub installation used in steps 3 and 5 Suspension & axle ↗ AW11_1988_full · p675 OEM manual
09310-35010 SST — Axle hub press tool used in step 5 Suspension & axle ↗ AW11_1988_full · p675 OEM manual
09608-30012 SST — hub grease cap installer includes 90608-04020 Suspension & axle ↗ AW11_1988_full · p676 OEM manual
09650-17011 SST — axle hub bolt removal tool Special Service Tool Suspension & axle ↗ AW11_1988_full · p678 OEM manual
09727-22032 SST — Coil spring compressor Used to compress coil spring during removal Suspension & axle ↗ AW11_1988_full · p680 OEM manual
09729-22031 SST — Spring seat holding tool Used to hold spring seat while removing nut Suspension & axle ↗ AW11_1988_full · p681 OEM manual
09720-00011 SST — Ring nut loosening tool (shock absorber disposal) Alternate: 09721-00071 Suspension & axle ↗ AW11_1988_full · p681 OEM manual
09721-00071 SST — Ring nut loosening tool (shock absorber disposal) Alternate to 09720-00011 Suspension & axle ↗ AW11_1988_full · p681 OEM manual
09727-22032 SST — coil spring compressor step 1(b) Suspension & axle ↗ AW11_1988_full · p682 OEM manual
09729-22031 SST — suspension support nut tool step 1(h) Suspension & axle ↗ AW11_1988_full · p682 OEM manual
09610-20012 SST — Ball joint separator for lower arm disconnect Suspension & axle ↗ AW11_1988_full · p685 OEM manual
09610-20012 SST — suspension arm disconnecting tool Used to disconnect suspension arm from rear axle carrier Suspension & axle ↗ AW11_1988_full · p697 OEM manual
09308-00010 SST — oil seal remover Used to remove inner oil seal from rear axle carrier Suspension & axle ↗ AW11_1988_full · p698 OEM manual
09950-20017 SST — used to remove axle hub and bearing inner race (outside) Special Service Tool Suspension & axle ↗ AW11_1988_full · p699 OEM manual
09308-00010 SST — used to remove outer oil seal Special Service Tool Suspension & axle ↗ AW11_1988_full · p699 OEM manual
09608-32010 SST — used for hub bearing installation, oil seal installation (outer and inner) Special Service Tool Suspension & axle ↗ AW11_1988_full · p700 OEM manual
09710-14012 SST — used with 09710-00050 for driving oil seal into rear axle carrier Special Service Tool; includes sub-tool 09710-00050 Suspension & axle ↗ AW11_1988_full · p700 OEM manual
09310-35010 SST — used for pressing axle hub into rear axle carrier Special Service Tool Suspension & axle ↗ AW11_1988_full · p700 OEM manual
09608-35014 SST — dust deflector installation tool Set includes 09608-06020 and 09608-06180 Suspension & axle ↗ AW11_1988_full · p701 OEM manual
09650-17010 SST — Axle hub bolt removal/installation tool Special Service Tool Suspension & axle ↗ AW11_1988_full · p703 OEM manual
09608-16041 SST — hub bearing support tool (set) includes 09608-02020, 09608-02040 Suspension & axle ↗ AW11_1988_full · p705 OEM manual
09608-02020 SST component — hub bearing support part of 09608-16041 Suspension & axle ↗ AW11_1988_full · p705 OEM manual
09608-02040 SST component — hub bearing support part of 09608-16041 Suspension & axle ↗ AW11_1988_full · p705 OEM manual
09610-20012 SST — suspension arm disconnect tool Suspension & axle ↗ AW11_1988_full · p705 OEM manual
09043-88010 SST — Special Service Tool for removing hexagon bolts on drive shaft SST Suspension & axle ↗ AW11_1988_full · p706 OEM manual
09520-32012 SST — side gear shaft removal tool Used to drive out side gear shaft Suspension & axle ↗ AW11_1988_full · p707 OEM manual
09308-00010 SST — oil seal removal tool Used to drive out oil seal Suspension & axle ↗ AW11_1988_full · p707 OEM manual
09350-32013 SST — oil seal installer (base) 4A-GE M/T LH and RH Suspension & axle ↗ AW11_1988_full · p707 OEM manual
09351-32111 SST — oil seal installer component 4A-GE M/T LH Suspension & axle ↗ AW11_1988_full · p707 OEM manual
09351-32130 SST — oil seal installer component 4A-GE M/T LH and RH Suspension & axle ↗ AW11_1988_full · p707 OEM manual
09351-32150 SST — oil seal installer component 4A-GE M/T RH Suspension & axle ↗ AW11_1988_full · p707 OEM manual
09223-15010 SST for 4A-GZE M/T LH rear drive shaft Suspension & axle ↗ AW11_1988_full · p708 OEM manual
09316-60010 SST for 4A-GZE M/T RH rear drive shaft Suspension & axle ↗ AW11_1988_full · p708 OEM manual
09316-00010 SST sub-tool for 4A-GZE M/T RH rear drive shaft sub-part of 09316-60010 Suspension & axle ↗ AW11_1988_full · p708 OEM manual
09350-32013 SST for A/T LH and A/T RH rear drive shaft Suspension & axle ↗ AW11_1988_full · p708 OEM manual
09351-32111 SST sub-tool for A/T LH rear drive shaft sub-part of 09350-32013 Suspension & axle ↗ AW11_1988_full · p708 OEM manual
09351-32150 SST sub-tool for 4A-GE A/T RH rear drive shaft sub-part of 09350-32013 Suspension & axle ↗ AW11_1988_full · p708 OEM manual
09631-12020 SST for A/T LH and A/T RH rear drive shaft used with 09350-32013 Suspension & axle ↗ AW11_1988_full · p708 OEM manual
09726-10010 SST — Special Service Tool for removing inboard joint from drive shaft Sub-tool: 09726-00030 Suspension & axle ↗ AW11_1988_full · p711 OEM manual
08826-00801 THREE BOND 1121 sealant or equivalent — inboard joint cover Suspension & axle ↗ AW11_1988_full · p714 OEM manual
90999-94028 Inboard joint boot grease (supply only) Suspension & axle ↗ AW11_1988_full · p716 OEM manual
90999-94029 Grease supply for side gear shaft (4A-GZE) Supply of grease only; also available in boot kit Suspension & axle ↗ AW11_1988_full · p717 OEM manual
09520-32012 SST — used to drive in side gear shaft (4A-GE) Special Service Tool Suspension & axle ↗ AW11_1988_full · p717 OEM manual
09043-88010 SST — used to torque inboard joint hexagon bolts (4A-GZE) Suspension & axle ↗ AW11_1988_full · p719 OEM manual
09727-22032 SST — Spring compressor for coil spring removal Suspension & axle ↗ AW11_1988_full · p721 OEM manual
09720-00011 SST — Ring nut loosening tool (shock absorber gas release) Sub-tool: 09721-00071 Suspension & axle ↗ AW11_1988_full · p722 OEM manual
09727-22032 SST — Coil spring compressor Used for rear shock absorber assembly Suspension & axle ↗ AW11_1988_full · p722 OEM manual
09610-55012 SST — Ball joint separator tool Used to disconnect ball joint from lower arm Suspension & axle ↗ AW11_1988_full · p725 OEM manual
09610-55012 SST — used to disconnect lower arm from ball joint Special Service Tool Suspension & axle ↗ AW11_1988_full · p726 OEM manual
09610-20012 SST — used to disconnect suspension arm from rear axle carrier Suspension & axle ↗ AW11_1988_full · p729 OEM manual
09751-36011 SST — brake tube disconnection tool Used to disconnect brake tubes from master cylinder Brakes ↗ AW11_1988_full · p739 OEM manual
09751-36011 SST — Brake tube union nut wrench Used to torque brake tube union nuts in Step 4 Brakes ↗ AW11_1988_full · p744 OEM manual
09719-14020 SST — Piston turning tool (set) Sub-tool: 09719-00020 Brakes ↗ AW11_1988_full · p758 OEM manual
09719-14020 SST — Special Service Tool for piston removal (counterclockwise) Superseded by 09719-00020 Brakes ↗ AW11_1988_full · p760 OEM manual
09719-00020 SST — Special Service Tool for piston removal (counterclockwise) Sub-part of 09719-14020 Brakes ↗ AW11_1988_full · p760 OEM manual
09756-00010 SST — Special Service Tool for adjusting bolt / snap ring removal Used in steps 6 and 8 Brakes ↗ AW11_1988_full · p761 OEM manual
09756-00010 SST (Special Service Tool) for adjusting bolt assembly Used in steps 10 and 11 Brakes ↗ AW11_1988_full · p766 OEM manual
09719-14020 SST — piston screw-in tool Sub-tool 09719-00020 Brakes ↗ AW11_1988_full · p767 OEM manual
09751-36011 SST — brake tube holding tool Used for hose and tube disconnect/connect Brakes ↗ AW11_1988_full · p770 OEM manual
09609-20011 SST — Steering wheel puller Special Service Tool Steering ↗ AW11_1988_full · p774 OEM manual
09620-30010 SST — Special Service Tool set for bearing removal/installation Used with sub-tools 09631-00020, 09627-30010, 09625-30010 Steering ↗ AW11_1988_full · p779 OEM manual
09631-00020 SST sub-tool — used with 09620-30010 for bearing removal and installation Steering ↗ AW11_1988_full · p779 OEM manual
09627-30010 SST sub-tool — used with 09620-30010 for upper bearing removal Steering ↗ AW11_1988_full · p779 OEM manual
09625-30010 SST sub-tool — used with 09620-30010 for upper bearing installation Steering ↗ AW11_1988_full · p779 OEM manual
09628-62011 SST — Tie rod end puller / knuckle arm separator Special Service Tool Steering ↗ AW11_1988_full · p785 OEM manual
09612-10093 SST — rack end removal / rack guide spring cap lock nut removal 09628-10020 / 09617-10010 Steering ↗ AW11_1988_full · p787 OEM manual
09612-24013 SST — rack end removal / rack guide spring cap removal 09617-24010 / 09612-10022 Steering ↗ AW11_1988_full · p787 OEM manual
09612-10093 SST — Pinion bearing adjusting screw lock nut removal tool Step 9 Steering ↗ AW11_1988_full · p788 OEM manual
09617-10010 SST — Pinion bearing adjusting screw lock nut removal tool (sub) Step 9 Steering ↗ AW11_1988_full · p788 OEM manual
09612-24013 SST — Pinion bearing adjusting screw removal tool Step 10 Steering ↗ AW11_1988_full · p788 OEM manual
09616-10020 SST — Pinion bearing adjusting screw removal tool (sub) Step 10 Steering ↗ AW11_1988_full · p788 OEM manual
09612-24013 SST — Install pinion upper bearing 09612-10061 Steering ↗ AW11_1988_full · p789 OEM manual
09620-30010 SST — Install pinion lower bearing 09627-30010, 09631-00020 Steering ↗ AW11_1988_full · p789 OEM manual
09620-30010 SST — Special Service Tool (handle) used for pinion oil seal removal and installation Steering ↗ AW11_1988_full · p790 OEM manual
09631-00020 SST — Special Service Tool component used for pinion oil seal removal Steering ↗ AW11_1988_full · p790 OEM manual
09630-24013 SST — Special Service Tool component used for pinion oil seal removal and installation Steering ↗ AW11_1988_full · p790 OEM manual
09620-24010 SST — Special Service Tool component used for pinion oil seal removal Steering ↗ AW11_1988_full · p790 OEM manual
09620-24020 SST — Special Service Tool component used for pinion oil seal installation Steering ↗ AW11_1988_full · p790 OEM manual
08833-00080 Liquid sealer (THREE BOND 1344, LOCTITE 242 or equivalent) Used on pinion bearing adjusting screw threads and lock nut contact surface Steering ↗ AW11_1988_full · p792 OEM manual
08833-00080 Liquid sealer (THREE BOND 1344 / LOCTITE 242 equivalent) Used on rack guide spring cap threads and lock nut thread/housing surface Steering ↗ AW11_1988_full · p793 OEM manual
09612-10093 SST — rack end torque tool (set) Sub-tool 09628-10020 Steering ↗ AW11_1988_full · p794 OEM manual
09612-24013 SST — rack end torque tool (set) Sub-tool 09617-24010 Steering ↗ AW11_1988_full · p794 OEM manual
4817 Dupont paste repair agent for defogger wires Dupont paste No. 4817 Body electrical ↗ AW11_1988_full · p827 OEM manual
09812-00010 SST — Special Service Tool for loosening body side hinge bolts Used in Step 1 Body ↗ AW11_1988_full · p886 OEM manual

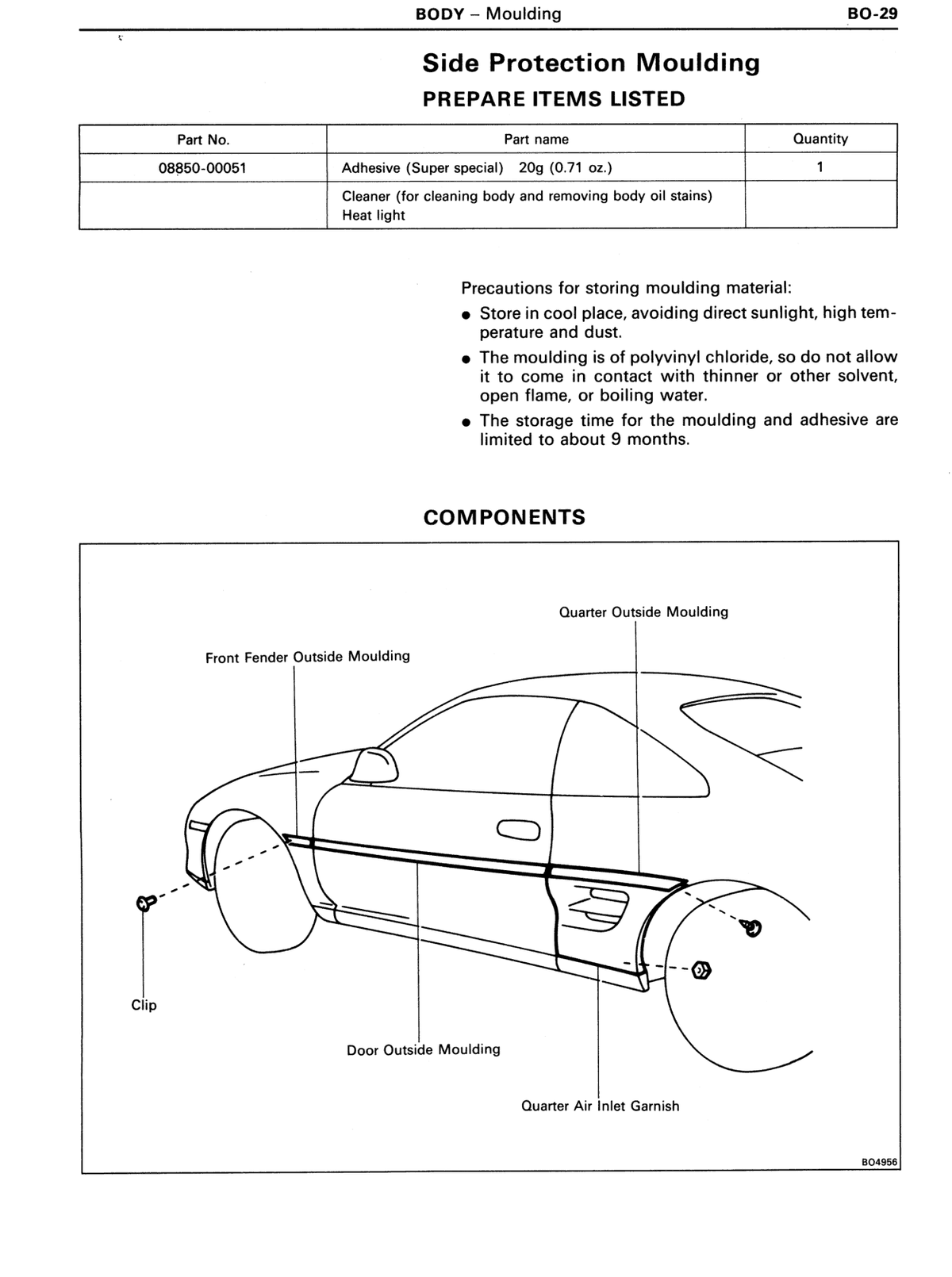

08850-00051 Adhesive (Super special) 20g (0.71 oz.) Quantity: 1 Body ↗ AW11_1988_full · p898 OEM manual
08850-00070 Windshield glass adhesive set No. 15 — Main agent 500g, Hardening agent 75g, Primer G 20g, Primer M 20g, Sponge x2, Piano wire 0.6mm dia x 1m, Cartridge. For ambient temp 0-15°C (32-59°F). 1 can main agent, 1 ea each other component Body ↗ AW11_1988_full · p903 OEM manual
08850-00080 Windshield glass adhesive set No. 35 — Main agent 500g, Hardening agent 75g, Primer G 20g, Primer M 20g, Sponge x2, Piano wire 0.6mm dia x 1m, Cartridge. For ambient temp 15-35°C (59-95°F). 1 can main agent, 1 ea each other component Body ↗ AW11_1988_full · p903 OEM manual
08850-00090 Windshield glass adhesive set No. 45 — Main agent 500g, Hardening agent 75g, Primer G 20g, Primer M 20g, Sponge x2, Piano wire 0.6mm dia x 1m, Cartridge. For ambient temp 35-45°C (95-113°F). 1 can main agent, 1 ea each other component Body ↗ AW11_1988_full · p903 OEM manual
04562-30040 Dam kit — Dam, Double-stick tape (for sticking on dam) Body ↗ AW11_1988_full · p903 OEM manual
08850-00065 Butyl tape set Contains: Butyl tape 9 mm dia. x 2,500 mm (0.35 x 98.43 in.), Primer 5 cc (0.17 fl.oz.), Sponge (for applying Primer), Piano wire 1 mm dia. x 600 mm (0.04 x 23.62 in.) for slicing off glass Body ↗ AW11_1988_full · p909 OEM manual
08833-00030 Adhesive for weatherstrip retainers or equivalent Body ↗ AW11_1988_full · p921 OEM manual
07710-58011 Manifold gauge set — To evacuate and charge system SST Air conditioning ↗ AW11_1988_full · p945 OEM manual
07110-77011 Magnetic clutch tool set — Includes the following 8 tools SST Air conditioning ↗ AW11_1988_full · p945 OEM manual
07112-71010 Pressure plate remover — To remove pressure plate SST Air conditioning ↗ AW11_1988_full · p945 OEM manual
07114-84020 Snap ring pliers — To remove and install rotor and stator SST Air conditioning ↗ AW11_1988_full · p945 OEM manual
07112-15010 Shaft plate remover — To remove shaft plate SST Air conditioning ↗ AW11_1988_full · p945 OEM manual
07114-15010 Shaft seal remover — To remove and install shaft seal SST Air conditioning ↗ AW11_1988_full · p945 OEM manual
07110-61050 Hexagon wrench set — To remove and install service valve and front housing SST Air conditioning ↗ AW11_1988_full · p945 OEM manual
07112-25010 Shaft plate installing tool — To install shaft plate SST Air conditioning ↗ AW11_1988_full · p945 OEM manual
95506-00020 Nippondenso BTG-20 Belt Tension Gauge Also referenced as BTG-20 Air conditioning ↗ AW11_1988_full · p950 OEM manual
BT-33-73F Borroughs Belt Tension Gauge Borroughs No. Air conditioning ↗ AW11_1988_full · p950 OEM manual
07110-77011 SST — shaft nut removal tool Used to remove compressor shaft nut Clutch ↗ AW11_1988_full · p955 OEM manual
07112-71010 SST — pressure plate removal tool Used to remove magnetic clutch pressure plate Clutch ↗ AW11_1988_full · p955 OEM manual
07114-84020 SST — snap ring removal tool Used for rotor snap ring and stator snap ring removal Air conditioning ↗ AW11_1988_full · p956 OEM manual
07110-77011 SST — bearing press tool Used to press out rotor bearings Air conditioning ↗ AW11_1988_full · p956 OEM manual
07114-84020 SST — Snap ring removal tool for compressor Used in step 2 of disassembly Air conditioning ↗ AW11_1988_full · p957 OEM manual
07110-61050 SST — Special Service Tool for service valve bolts and front housing through bolts Used in steps 7 and 10 Air conditioning ↗ AW11_1988_full · p959 OEM manual
07114-15010 SST — used to remove/insert bore component (counterclockwise while lightly pressing in, then pull up) Step prior to step 6 Air conditioning ↗ AW11_1988_full · p962 OEM manual
07112-25010 SST — used to press in shaft plate Step 6(b) Air conditioning ↗ AW11_1988_full · p962 OEM manual
07114-45010 SST — used with plastic hammer to tap key into shaft groove Step 7 Air conditioning ↗ AW11_1988_full · p962 OEM manual
07110-61050 SST for service valve bolt tightening Step 10 Air conditioning ↗ AW11_1988_full · p963 OEM manual
07110-77011 SST for pressing shield ring and bearings into rotor boss Magnetic clutch assembly step 1 Air conditioning ↗ AW11_1988_full · p963 OEM manual
07114-84020 SST for installing snap ring on stator Magnetic clutch assembly step 2 Air conditioning ↗ AW11_1988_full · p963 OEM manual
07110-77011 SST — shaft nut installer (used with torque wrench) Air conditioning ↗ AW11_1988_full · p964 OEM manual
88376-17020 Inspection Service Valve — Suction side Toyota supplied, for gas leakage test Air conditioning ↗ AW11_1988_full · p965 OEM manual
88376-22020 Inspection Service Valve — Discharge side Toyota supplied, for gas leakage test Air conditioning ↗ AW11_1988_full · p965 OEM manual
95506-00020 Nippondenso BTG-20 belt tension gauge Air conditioning ↗ AW11_1988_full · p966 OEM manual
09751-36011 SST for disconnecting clutch line union nut Special Service Tool Clutch ↗ RM179U2_1991_vol2 · p7 OEM manual
09751-36011 SST — Clutch line union disconnection tool Special Service Tool Clutch ↗ RM179U2_1991_vol2 · p11 OEM manual
09751-36011 SST — Clutch line union connection tool Special Service Tool Clutch ↗ RM179U2_1991_vol2 · p13 OEM manual
09333-00013 SST — Diaphragm spring tip alignment adjustment tool Clutch ↗ RM179U2_1991_vol2 · p16 OEM manual
08885-80206 Transaxle oil E50 E153 transaxle Transmission / transaxle ↗ RM179U2_1991_vol2 · p19 OEM manual
08885-80206 Transaxle oil E50 For E153 (3S-GTE) transaxle Transmission / transaxle ↗ RM179U2_1991_vol2 · p21 OEM manual
08885-80206 Transaxle oil E50 E153 transaxle Transmission / transaxle ↗ RM179U2_1991_vol2 · p22 OEM manual
09313-30021 SST — tool for removing No.2 lock ball Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p28 OEM manual
09950-20017 SST — Special Service Tool for removing fifth driven gear Step 15 Transmission / transaxle ↗ RM179U2_1991_vol2 · p30 OEM manual
09313-30021 SST — screw plug removal tool for No. 2 fork shaft Transmission / transaxle ↗ RM179U2_1991_vol2 · p32 OEM manual
09308-00010 SST — Input shaft front bearing puller Transmission / transaxle ↗ RM179U2_1991_vol2 · p34 OEM manual
09608-20012 SST – Oil seal driver set (includes 09608-00080, 09608-03020) Used to drive in new oil seal Transmission / transaxle ↗ RM179U2_1991_vol2 · p35 OEM manual
09608-00080 SST component – Oil seal driver Sub-tool of 09608-20012 Transmission / transaxle ↗ RM179U2_1991_vol2 · p35 OEM manual
09608-03020 SST component – Oil seal driver Sub-tool of 09608-20012 Transmission / transaxle ↗ RM179U2_1991_vol2 · p35 OEM manual
09310-35010 SST – Bearing installer Used to press in new bearing Transmission / transaxle ↗ RM179U2_1991_vol2 · p35 OEM manual
09308-00010 SST – Bearing puller Used to pull out output shaft front bearing Transmission / transaxle ↗ RM179U2_1991_vol2 · p35 OEM manual
09310-35010 SST — bearing installer Step 4(e) Transmission / transaxle ↗ RM179U2_1991_vol2 · p36 OEM manual
09921-00010 SST — speedometer driven gear oil seal puller Step 6(a) Transmission / transaxle ↗ RM179U2_1991_vol2 · p36 OEM manual
09201-60011 SST — oil seal driver Drive in new oil seal to 19 mm depth Transmission / transaxle ↗ RM179U2_1991_vol2 · p37 OEM manual
09313-30021 SST — screw plug removal/installation tool Used to remove and install reverse restrict pin screw plug Transmission / transaxle ↗ RM179U2_1991_vol2 · p37 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Apply to screw plug threads Transmission / transaxle ↗ RM179U2_1991_vol2 · p37 OEM manual
09950-00020 SST — for removing radial ball bearing and fourth gear Transmission / transaxle ↗ RM179U2_1991_vol2 · p39 OEM manual
09921-00010 SST – Slotted spring pin remover Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p40 OEM manual
09316-60010 SST — Input shaft assembly press tool set includes 09316-00010, 09316-00070 Transmission / transaxle ↗ RM179U2_1991_vol2 · p42 OEM manual
09316-00010 SST sub-tool for input shaft assembly part of 09316-60010 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p42 OEM manual
09316-00070 SST sub-tool for input shaft assembly part of 09316-60010 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p42 OEM manual
09316-60010 SST for radial ball bearing installation consists of 09316-00010 and 09316-00070 Transmission / transaxle ↗ RM179U2_1991_vol2 · p43 OEM manual
09921-00010 SST for removing slotted spring pin Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p46 OEM manual
09316-60010 SST – Special Service Tool for output shaft assembly Sub-tool 09316-00030 Transmission / transaxle ↗ RM179U2_1991_vol2 · p48 OEM manual
09515-10010 SST — Special Service Tool for installing output shaft rear bearing Transmission / transaxle ↗ RM179U2_1991_vol2 · p50 OEM manual
09502-10012 SST — bearing removal tool for differential side bearing Used to remove side bearing from differential case Transmission / transaxle ↗ RM179U2_1991_vol2 · p55 OEM manual
09502-10012 SST — Special Service Tool for bearing removal on differential case Used to remove bearing by setting to cut-out portion on differential case Transmission / transaxle ↗ RM179U2_1991_vol2 · p56 OEM manual
09608-20012 SST — bearing outer race installer / oil seal remover set Sub-parts: 09608-03020, 09608-03060; also used with 09608-00030 Transmission / transaxle ↗ RM179U2_1991_vol2 · p57 OEM manual
09608-03020 SST sub-component for 09608-20012 Transmission / transaxle ↗ RM179U2_1991_vol2 · p57 OEM manual
09608-03060 SST sub-component for 09608-20012 Used when installing taper roller bearing outer race Transmission / transaxle ↗ RM179U2_1991_vol2 · p57 OEM manual
09608-00030 SST sub-component for 09608-20012 Used when pressing out oil seal from retainer Transmission / transaxle ↗ RM179U2_1991_vol2 · p57 OEM manual
09350-32014 SST — oil seal driver set Sub-parts: 09351-32130, 09351-32150 Transmission / transaxle ↗ RM179U2_1991_vol2 · p57 OEM manual
09351-32130 SST sub-component for 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p57 OEM manual
09351-32150 SST sub-component for 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p57 OEM manual
09350-32014 SST — oil seal installer (set) sub-components: 09351-32130, 09351-32150 Transmission / transaxle ↗ RM179U2_1991_vol2 · p58 OEM manual
09351-32130 SST — oil seal installer sub-component Transmission / transaxle ↗ RM179U2_1991_vol2 · p58 OEM manual
09351-32150 SST — oil seal installer sub-component Transmission / transaxle ↗ RM179U2_1991_vol2 · p58 OEM manual
09608-20012 SST — taper roller bearing outer race installer (set) sub-components: 09608-03020, 09608-03060 Transmission / transaxle ↗ RM179U2_1991_vol2 · p58 OEM manual
09608-03020 SST — taper roller bearing outer race installer sub-component Transmission / transaxle ↗ RM179U2_1991_vol2 · p58 OEM manual
09608-03060 SST — taper roller bearing outer race installer sub-component Transmission / transaxle ↗ RM179U2_1991_vol2 · p58 OEM manual
09710-30030 SST - Side bearing installer (outer tool) Sub-part: 09710-03160 Transmission / transaxle ↗ RM179U2_1991_vol2 · p60 OEM manual
09710-03160 SST - Side bearing installer (inner tool) Used with 09710-30030 Transmission / transaxle ↗ RM179U2_1991_vol2 · p60 OEM manual
09350-32014 SST - Side bearing installer set Sub-parts: 09351-32090, 09351-32120 Transmission / transaxle ↗ RM179U2_1991_vol2 · p60 OEM manual
09351-32090 SST - Side bearing installer component Used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p60 OEM manual
09351-32120 SST - Side bearing installer component Used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p60 OEM manual
09564-32011 SST — used to rotate differential and measure side bearing preload Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p62 OEM manual
08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Applied to screw plug threads; Step 4(c) Transmission / transaxle ↗ RM179U2_1991_vol2 · p64 OEM manual
09313-30021 SST — used to install and torque screw plug for No. 2 fork shaft Step 4(d) Transmission / transaxle ↗ RM179U2_1991_vol2 · p64 OEM manual
08826-00090 Seal packing — THREE BOND 1281 Applied to transmission case mating surface Transmission / transaxle ↗ RM179U2_1991_vol2 · p67 OEM manual
08833-00080 Sealant — THREE BOND 1344 / LOCTITE 242 Applied to reverse idler gear shaft lock bolt threads Transmission / transaxle ↗ RM179U2_1991_vol2 · p67 OEM manual
08833-00080 Sealant — THREE BOND 1344 / LOCTITE 242 Side bearing retainer bolt threads Transmission / transaxle ↗ RM179U2_1991_vol2 · p68 OEM manual
08833-00070 Sealant — THREE BOND 1324 Rear bearing retainer bolt threads Transmission / transaxle ↗ RM179U2_1991_vol2 · p68 OEM manual
09309-32050 SST — Fifth driven gear installer Step 16 Transmission / transaxle ↗ RM179U2_1991_vol2 · p68 OEM manual
09612-22011 SST — used to drive in No. 3 hub sleeve with shift fork Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p69 OEM manual
08826-00090 Seal packing (THREE BOND 1281 or equivalent) for transmission case cover Transmission / transaxle ↗ RM179U2_1991_vol2 · p70 OEM manual
08833-00080 THREE BOND 1344 / LOCTITE 242 sealant for bolt threads Or equivalent Transmission / transaxle ↗ RM179U2_1991_vol2 · p71 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Step 28(a) Transmission / transaxle ↗ RM179U2_1991_vol2 · p72 OEM manual
09313-30021 SST for No. 2 Lock Ball Assembly plug installation Step 28(b) Transmission / transaxle ↗ RM179U2_1991_vol2 · p72 OEM manual
09817-16011 SST for back-up light switch removal Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p77 OEM manual
09310-17010 SST — puller set for 5th driven gear removal comprises 09310-07010, 09310-07020, 09310-07040, 09310-07050 Transmission / transaxle ↗ RM179U2_1991_vol2 · p79 OEM manual
09310-17010 SST set for clutch hub removal (includes 09310-07010, 09310-07020, 09310-07040, 09310-07050) Used to remove No. 3 clutch hub with synchronizer ring and 5th gear Transmission / transaxle ↗ RM179U2_1991_vol2 · p80 OEM manual
09310-07010 SST component for clutch hub removal Part of SST 09310-17010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p80 OEM manual
09310-07020 SST component for clutch hub removal Part of SST 09310-17010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p80 OEM manual
09310-07040 SST component for clutch hub removal Part of SST 09310-17010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p80 OEM manual
09310-07050 SST component for clutch hub removal Part of SST 09310-17010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p80 OEM manual
09042-00050 Torx wrench T45 Used to remove seven torx screws and bearing retainer Transmission / transaxle ↗ RM179U2_1991_vol2 · p80 OEM manual
09313-30021 SST for removing plug (REMOVE PLUG, SEAT, SPRING AND LOCKING BALL) Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p81 OEM manual
09316-60010 SST — output shaft rear tapered roller bearing outer race remover Sub-tool 09316-00010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p82 OEM manual
09316-00010 SST sub-tool for 09316-60010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p82 OEM manual
09313-30021 SST — straight screw plug remover Transmission / transaxle ↗ RM179U2_1991_vol2 · p82 OEM manual
09612-65014 SST — bearing puller set (input shaft bearing) Sub-tool: 09612-01060 Transmission / transaxle ↗ RM179U2_1991_vol2 · p86 OEM manual
09612-01060 SST sub-tool — bearing puller (input shaft bearing) Used with 09612-65014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p86 OEM manual
09608-12010 SST — oil seal driver set (input shaft oil seal) Sub-tools: 09608-00020, 09608-00080 Transmission / transaxle ↗ RM179U2_1991_vol2 · p86 OEM manual
09608-00020 SST sub-tool — oil seal driver (input shaft oil seal) Used with 09608-12010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p86 OEM manual
09608-00080 SST sub-tool — oil seal driver (input shaft oil seal) Used with 09608-12010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p86 OEM manual
09608-12010 SST set for driving in bearing includes 09608-00020, 09608-00060 Transmission / transaxle ↗ RM179U2_1991_vol2 · p87 OEM manual
09608-00020 SST component for bearing installation part of 09608-12010 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p87 OEM manual
09608-00060 SST component for bearing installation part of 09608-12010 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p87 OEM manual
09308-00010 SST for pulling out output shaft front outer race Transmission / transaxle ↗ RM179U2_1991_vol2 · p87 OEM manual
09316-60010 SST set for pressing in new outer race includes 09316-00010, 09316-00020 Transmission / transaxle ↗ RM179U2_1991_vol2 · p87 OEM manual
09316-00010 SST component for outer race installation part of 09316-60010 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p87 OEM manual
09316-00020 SST component for outer race installation part of 09316-60010 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p87 OEM manual
09517-36010 SST — Shift control shaft oil seal installer Step 7(b) Transmission / transaxle ↗ RM179U2_1991_vol2 · p88 OEM manual
09921-00010 SST — Speedometer driven gear oil seal puller Step 8(a) Transmission / transaxle ↗ RM179U2_1991_vol2 · p88 OEM manual
09201-60011 SST — Speedometer driven gear oil seal installer Step 8(b) Transmission / transaxle ↗ RM179U2_1991_vol2 · p88 OEM manual
09313-30021 SST — Reverse restrict pin screw plug remover Step 9(a) Transmission / transaxle ↗ RM179U2_1991_vol2 · p88 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Applied to screw plug threads Transmission / transaxle ↗ RM179U2_1991_vol2 · p89 OEM manual
09313-30021 SST — screw plug installer Special service tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p89 OEM manual
09950-00020 SST — used to remove radial ball bearing and fourth gear Transmission / transaxle ↗ RM179U2_1991_vol2 · p91 OEM manual
09950-00020 SST - Special Service Tool for removing input shaft front bearing inner race Transmission / transaxle ↗ RM179U2_1991_vol2 · p92 OEM manual
09316-60010 SST — press tool set Sub-tools: 09316-00010, 09316-00050, 09316-00020 Transmission / transaxle ↗ RM179U2_1991_vol2 · p94 OEM manual
09316-00010 SST sub-tool Used in steps 2 and 5 Transmission / transaxle ↗ RM179U2_1991_vol2 · p94 OEM manual
09316-00050 SST sub-tool Used in step 2 Transmission / transaxle ↗ RM179U2_1991_vol2 · p94 OEM manual
09316-00020 SST sub-tool Used in step 5 Transmission / transaxle ↗ RM179U2_1991_vol2 · p94 OEM manual
09316-60010 SST – Input shaft front bearing inner race installer (set) Sub-tool: 09316-00020 Transmission / transaxle ↗ RM179U2_1991_vol2 · p95 OEM manual
09316-00020 SST – Input shaft front bearing inner race installer (component) Used with 09316-60010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p95 OEM manual
09307-12010 SST — bearing removal tool Used to remove output shaft front bearing Transmission / transaxle ↗ RM179U2_1991_vol2 · p99 OEM manual
09950-00020 SST — bearing removal tool (supplementary) Used to remove output shaft front bearing Transmission / transaxle ↗ RM179U2_1991_vol2 · p99 OEM manual
09316-60010 SST — bearing installation tool Used to install new output shaft front bearing Transmission / transaxle ↗ RM179U2_1991_vol2 · p99 OEM manual
09316-00070 SST — bearing installation tool (sub-part) Sub-part of 09316-60010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p99 OEM manual
09316-60010 SST — Special Service Tool for installing 1st gear and No. 1 hub sleeve Sub-tool: 09316-00040 Transmission / transaxle ↗ RM179U2_1991_vol2 · p100 OEM manual
09506-30012 SST for output shaft rear bearing installation Transmission / transaxle ↗ RM179U2_1991_vol2 · p101 OEM manual
09316-60010 SST for output shaft front bearing installation Transmission / transaxle ↗ RM179U2_1991_vol2 · p101 OEM manual
09316-00070 SST sub-tool for output shaft front bearing installation Transmission / transaxle ↗ RM179U2_1991_vol2 · p101 OEM manual
09950-20017 SST — Side bearing remover Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p112 OEM manual
09042-00040 Torx wrench T50 Used to remove sixteen torx screws from differential case Transmission / transaxle ↗ RM179U2_1991_vol2 · p113 OEM manual
09316-60010 SST — taper roller bearing outer race installer set sub-tools: 09316-00010, 09316-00040 Transmission / transaxle ↗ RM179U2_1991_vol2 · p114 OEM manual
09316-00010 SST sub-tool for taper roller bearing outer race installation part of 09316-60010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p114 OEM manual
09316-00040 SST sub-tool for taper roller bearing outer race installation part of 09316-60010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p114 OEM manual
09223-15010 SST — oil seal driver used with hammer Transmission / transaxle ↗ RM179U2_1991_vol2 · p114 OEM manual
09612-65014 SST — taper roller bearing outer race removal tool sub-part 09612-01020 Transmission / transaxle ↗ RM179U2_1991_vol2 · p115 OEM manual
09316-60010 SST — taper roller bearing installer / oil seal driver sub-parts 09316-00010, 09316-00040 Transmission / transaxle ↗ RM179U2_1991_vol2 · p115 OEM manual
08826-00090 Seal packing — THREE BOND 1281 or equivalent Apply to transaxle case cover Transmission / transaxle ↗ RM179U2_1991_vol2 · p116 OEM manual
08833-00080 Liquid sealant — THREE BOND 1344, LOCTITE 242 or equivalent Apply to bolt threads Transmission / transaxle ↗ RM179U2_1991_vol2 · p116 OEM manual
09042-00040 Torx wrench T50 Used to torque sixteen differential case torx screws Transmission / transaxle ↗ RM179U2_1991_vol2 · p117 OEM manual
09316-60010 SST — Side bearing installer (set) includes 09316-00010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p118 OEM manual
09316-00010 SST — Side bearing installer (sub-tool) Transmission / transaxle ↗ RM179U2_1991_vol2 · p118 OEM manual
09316-60010 SST for output shaft rear tapered roller bearing outer race installation Sub-tool 09316-00010 Transmission / transaxle ↗ RM179U2_1991_vol2 · p119 OEM manual
09042-00050 Torx wrench T45 for rear bearing retainer screws Transmission / transaxle ↗ RM179U2_1991_vol2 · p119 OEM manual
09042-00050 Torx wrench T45 Used to remove seven torx screws on rear bearing retainer Transmission / transaxle ↗ RM179U2_1991_vol2 · p120 OEM manual
09042-00050 Torx wrench T45 Used to torque bearing retainer seven bolts Transmission / transaxle ↗ RM179U2_1991_vol2 · p122 OEM manual
09042-00050 Torx wrench T45 Used to remove seven torx screws and rear bearing retainer Transmission / transaxle ↗ RM179U2_1991_vol2 · p123 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Applied to two locking ball plugs Transmission / transaxle ↗ RM179U2_1991_vol2 · p126 OEM manual
09313-30021 SST for installing locking ball plugs Step 13(c) Transmission / transaxle ↗ RM179U2_1991_vol2 · p126 OEM manual
08826-00090 Seal packing (THREE BOND 1281 or equivalent) Applied to transmission case mating surface Transmission / transaxle ↗ RM179U2_1991_vol2 · p127 OEM manual
08833-00080 Liquid sealant (THREE BOND 1344 or LOCTITE 242 equivalent) Applied to plug in step 19(b) Transmission / transaxle ↗ RM179U2_1991_vol2 · p128 OEM manual
09313-30021 SST for installing and torquing the locking ball plug Used in step 19(c) Transmission / transaxle ↗ RM179U2_1991_vol2 · p128 OEM manual
08833-00070 Liquid sealant (THREE BOND 1324 or LOCTITE 242 equivalent) Applied to rear bearing retainer torx screw threads Transmission / transaxle ↗ RM179U2_1991_vol2 · p129 OEM manual
09042-00050 Torx wrench T45 Used for rear bearing retainer screws Transmission / transaxle ↗ RM179U2_1991_vol2 · p129 OEM manual
09310-17010 SST set for No. 3 clutch hub installation Consists of 09310-07010, 09310-07020, 09310-07030 Transmission / transaxle ↗ RM179U2_1991_vol2 · p129 OEM manual
09310-17010 SST set for 5th driven gear installation Includes 09310-07010, 09310-07020, 09310-07040, 09310-07050 Transmission / transaxle ↗ RM179U2_1991_vol2 · p130 OEM manual
08826-00090 Seal packing, THREE BOND 1281 or equivalent For transmission case cover Transmission / transaxle ↗ RM179U2_1991_vol2 · p131 OEM manual
08833-00080 Liquid sealant, THREE BOND 1344 / LOCTITE 242 or equivalent For control shaft cover bolt threads Transmission / transaxle ↗ RM179U2_1991_vol2 · p131 OEM manual
09843-18020 Service Wire (SST) — used to short T_T and E_1 terminals of check connector Used in steps 2 and 4 Transmission / transaxle ↗ RM179U2_1991_vol2 · p149 OEM manual
09992-00094 Oil pressure gauge (SST) Used for hydraulic line pressure test Transmission / transaxle ↗ RM179U2_1991_vol2 · p167 OEM manual
08833-00070 THREE BOND 1324 sealer for torque converter mounting bolt threads or equivalent Transmission / transaxle ↗ RM179U2_1991_vol2 · p176 OEM manual
09350-32014 SST set — torque converter turning tool Includes 09351-32010 and 09351-32020 Transmission / transaxle ↗ RM179U2_1991_vol2 · p177 OEM manual
09351-32010 SST component — turning tool inner piece Part of 09350-32014 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p177 OEM manual
09351-32020 SST component — turning tool outer piece Part of 09350-32014 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p177 OEM manual
09240-00020 SST — piston stroke measurement tool Used to measure second coast brake piston stroke Transmission / transaxle ↗ RM179U2_1991_vol2 · p187 OEM manual
09350-32014 SST — snap ring removal tool Sub-tool: 09351-32050; used to remove second coast brake piston snap ring Transmission / transaxle ↗ RM179U2_1991_vol2 · p187 OEM manual
09351-32050 SST — snap ring removal tool (sub-assembly) Used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p187 OEM manual
09350-32014 SST — Oil pump puller (outer) Used with 09351-32061 Transmission / transaxle ↗ RM179U2_1991_vol2 · p188 OEM manual
09351-32061 SST — Oil pump puller (inner) Used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p188 OEM manual
09330-00021 SST for counter shaft lock nut removal driven gear side Transmission / transaxle ↗ RM179U2_1991_vol2 · p195 OEM manual
09350-32014 SST for counter shaft lock nut removal driven gear side Transmission / transaxle ↗ RM179U2_1991_vol2 · p195 OEM manual
09351-32032 SST sub-component for counter shaft lock nut removal driven gear side Transmission / transaxle ↗ RM179U2_1991_vol2 · p195 OEM manual
09330-00021 SST — driven gear holding tool Used to hold driven gear while removing lock nut Transmission / transaxle ↗ RM179U2_1991_vol2 · p196 OEM manual
09350-32014 SST — driven gear removal tool set Sub-parts 09351-32032, 09351-32170 for lock nut removal; 09351-32061 for driven gear removal Transmission / transaxle ↗ RM179U2_1991_vol2 · p196 OEM manual
09350-32014 SST — Dial indicator set (long type pick) Sub-part: 09351-32190 Transmission / transaxle ↗ RM179U2_1991_vol2 · p197 OEM manual
09350-32014 SST — Special Service Tool for flange/snap ring removal Sub-tool 09351-32070 Transmission / transaxle ↗ RM179U2_1991_vol2 · p198 OEM manual
09351-32070 SST — Sub-tool for flange/snap ring removal Used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p198 OEM manual
09350-32014 SST (Spring Seat Compressor) Includes 09351-32040 Transmission / transaxle ↗ RM179U2_1991_vol2 · p199 OEM manual
09351-32040 SST sub-tool for 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p199 OEM manual
09308-00010 SST — Bearing remover tool Used in step 80 to remove bearing Transmission / transaxle ↗ RM179U2_1991_vol2 · p202 OEM manual
09308-00010 SST — Bearing remover tool Used to remove bearing in step 83(b) Transmission / transaxle ↗ RM179U2_1991_vol2 · p203 OEM manual
09350-32014 SST for installing front oil seal includes 09351-32140 Lubrication / oil ↗ RM179U2_1991_vol2 · p210 OEM manual
09351-32140 SST sub-tool for installing front oil seal part of 09350-32014 set Lubrication / oil ↗ RM179U2_1991_vol2 · p210 OEM manual
09350-32014 SST — Special Service Tool for direct clutch piston stroke measurement Sub-tool: 09351-32190 Clutch ↗ RM179U2_1991_vol2 · p212 OEM manual
09351-32190 SST sub-tool for direct clutch piston stroke measurement Used with 09350-32014 Clutch ↗ RM179U2_1991_vol2 · p212 OEM manual
09350-32014 SST — Spring retainer compressor (includes 09351-32070) Used to compress piston return springs Clutch ↗ RM179U2_1991_vol2 · p213 OEM manual
09350-32014 SST — spring compressor set includes 09351-32070 Clutch ↗ RM179U2_1991_vol2 · p214 OEM manual
09351-32070 SST — spring compressor sub-tool used with 09350-32014 Clutch ↗ RM179U2_1991_vol2 · p214 OEM manual
09350-32014 SST — dial indicator long type pick Sub-part: 09351-32190 Clutch ↗ RM179U2_1991_vol2 · p215 OEM manual
09350-32014 SST – Special Service Tool for forward clutch piston stroke measurement Sub-tool: 09351-32190 Clutch ↗ RM179U2_1991_vol2 · p216 OEM manual
09350-32014 SST — Spring retainer compressor (includes 09351-32070) Used to compress return springs during forward clutch disassembly Clutch ↗ RM179U2_1991_vol2 · p217 OEM manual
09350-32014 SST — Spring compressor tool Sub-tool: 09351-32070 Clutch ↗ RM179U2_1991_vol2 · p219 OEM manual
09350-32014 SST — dial indicator (long type pick) sub-tool 09351-32190 Clutch ↗ RM179U2_1991_vol2 · p220 OEM manual
09555-55010 SST — used for pressing out front bearing and rear bearing Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p230 OEM manual
09350-32014 SST — used for pressing out rear bearing Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p230 OEM manual
09351-32090 SST sub-tool — used for pressing out rear bearing Special Service Tool, used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p230 OEM manual
09350-32014 SST — Special Service Tool (base set) Used for pressing front and rear intermediate shaft bearings Transmission / transaxle ↗ RM179U2_1991_vol2 · p231 OEM manual
09351-32120 SST sub-tool — front bearing installer Used with 09350-32014 for front bearing installation Transmission / transaxle ↗ RM179U2_1991_vol2 · p231 OEM manual
09351-32150 SST sub-tool — rear bearing installer Used with 09350-32014 for rear bearing installation Transmission / transaxle ↗ RM179U2_1991_vol2 · p231 OEM manual
09350-32014 SST — Special Service Tool for counter shaft lock nut Sub-tool: 09351-32170 Transmission / transaxle ↗ RM179U2_1991_vol2 · p232 OEM manual
09350-32014 SST (09351-32170) — Counter shaft lock nut tool Used to measure starting torque and remove lock nut Transmission / transaxle ↗ RM179U2_1991_vol2 · p233 OEM manual
09351-32170 SST sub-part of 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p233 OEM manual
09350-32014 SST — Special Service Tool set for drive pinion removal includes 09351-32150, 09351-32130 Transmission / transaxle ↗ RM179U2_1991_vol2 · p234 OEM manual
09351-32150 SST component — part of 09350-32014 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p234 OEM manual
09351-32130 SST component — part of 09350-32014 set Transmission / transaxle ↗ RM179U2_1991_vol2 · p234 OEM manual
09555-55010 SST — press tool for drive pinion removal Transmission / transaxle ↗ RM179U2_1991_vol2 · p234 OEM manual
09950-00020 SST — bearing remover Used to remove bearing from counter shaft Transmission / transaxle ↗ RM179U2_1991_vol2 · p235 OEM manual
09350-32014 SST — bearing installer Used to press bearing onto counter shaft; sub-tool 09351-32180 Transmission / transaxle ↗ RM179U2_1991_vol2 · p235 OEM manual
09351-32180 SST sub-tool for 09350-32014 Used with 09350-32014 to install bearing to counter shaft Transmission / transaxle ↗ RM179U2_1991_vol2 · p235 OEM manual
09350-32014 SST set for pressing bearing outer races includes 09351-32090, 09351-32180, 09351-32150 Transmission / transaxle ↗ RM179U2_1991_vol2 · p236 OEM manual
09351-32090 SST component for thick race installation part of set 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p236 OEM manual
09351-32180 SST component used for both thick and thin race installation part of set 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p236 OEM manual
09351-32150 SST component for thin race installation part of set 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p236 OEM manual
09350-32014 SST — Special Service Tool (main body) Used with sub-tools 09351-32180, 09351-32100, 09351-32032 Transmission / transaxle ↗ RM179U2_1991_vol2 · p237 OEM manual
09351-32180 SST sub-tool — bearing installation (steps 5 & 6) Transmission / transaxle ↗ RM179U2_1991_vol2 · p237 OEM manual
09351-32100 SST sub-tool — counter driven gear press-in (step 7a) Transmission / transaxle ↗ RM179U2_1991_vol2 · p237 OEM manual
09351-32032 SST sub-tool — driven gear / vise fixture (steps 7b & 7c) Transmission / transaxle ↗ RM179U2_1991_vol2 · p237 OEM manual
09350-32014 SST — Counter shaft lock nut tool set Used with sub-tools 09351-32170, 09351-32032, 09351-32061 Transmission / transaxle ↗ RM179U2_1991_vol2 · p238 OEM manual
09351-32170 SST sub-tool — for starting torque measurement and lock nut tightening Transmission / transaxle ↗ RM179U2_1991_vol2 · p238 OEM manual
09351-32032 SST sub-tool — for removing SST from counter driven gear Transmission / transaxle ↗ RM179U2_1991_vol2 · p238 OEM manual
09351-32061 SST sub-tool — for removing counter driven gear Transmission / transaxle ↗ RM179U2_1991_vol2 · p238 OEM manual
09350-32014 SST (Special Service Tool) for compressing return spring retainer Sub-tool: 09351-32070 Clutch ↗ RM179U2_1991_vol2 · p241 OEM manual
09350-32014 SST — Spring seat compressor (set) Sub-tool 09351-32070 Clutch ↗ RM179U2_1991_vol2 · p243 OEM manual
09351-32070 SST — Spring seat compressor sub-tool Used with 09350-32014 Clutch ↗ RM179U2_1991_vol2 · p243 OEM manual
09502-10012 SST — Side bearing remover (used at cut-out portion of speedometer drive gear) Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p259 OEM manual
09502-10012 SST — bearing remover tool for differential case Special Service Tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p260 OEM manual
09350-32014 SST (with sub-tool 09351-32090) — for removing side bearing outer race of transaxle housing Step 5 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09351-32090 SST sub-tool — for removing side bearing outer race of transaxle housing Step 5 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09350-32014 SST (with sub-tools 09351-32130, 09351-32150) — for removing side bearing outer race of transaxle case Step 7 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09351-32130 SST sub-tool — for removing side bearing outer race of transaxle case Step 7 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09351-32150 SST sub-tool — for removing side bearing outer race of transaxle case Step 7 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09350-32014 SST (with sub-tools 09351-32111, 09351-32130) — for installing side bearing outer race of transaxle housing Assembly Step 1 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09351-32111 SST sub-tool — for installing side bearing outer race of transaxle housing Assembly Step 1 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09350-32014 SST (with sub-tools 09351-32111, 09351-32130) — for installing side bearing outer race of transaxle case Assembly Step 2 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09351-32130 SST sub-tool — for installing side bearing outer race into transaxle housing and case Assembly Steps 1 & 2 Transmission / transaxle ↗ RM179U2_1991_vol2 · p261 OEM manual
09710-30030 SST — Side bearing installer (outer tool) Sub-tool 09710-03160 Transmission / transaxle ↗ RM179U2_1991_vol2 · p263 OEM manual
09710-03160 SST — Side bearing installer (inner tool) Used with 09710-30030 Transmission / transaxle ↗ RM179U2_1991_vol2 · p263 OEM manual
09350-32014 SST — Side bearing installer set Sub-tools 09351-32090, 09351-32120 Transmission / transaxle ↗ RM179U2_1991_vol2 · p263 OEM manual
09351-32090 SST — Side bearing installer sub-tool Used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p263 OEM manual
09351-32120 SST — Side bearing installer sub-tool Used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p263 OEM manual
09564-32011 SST — used to rotate differential and measure side bearing preload Steps (e) and (f) Transmission / transaxle ↗ RM179U2_1991_vol2 · p264 OEM manual
09350-32014 SST set for oil seal installation Includes 09351-32130, 09351-32111 (transaxle case); includes 09351-32130, 09351-32150 (transaxle housing) Transmission / transaxle ↗ RM179U2_1991_vol2 · p266 OEM manual
09351-32130 SST sub-component for oil seal installation Used in both transaxle case and housing seal installation Transmission / transaxle ↗ RM179U2_1991_vol2 · p266 OEM manual
09351-32111 SST sub-component for transaxle case oil seal installation Transmission / transaxle ↗ RM179U2_1991_vol2 · p266 OEM manual
09351-32150 SST sub-component for transaxle housing oil seal installation Transmission / transaxle ↗ RM179U2_1991_vol2 · p266 OEM manual
09350-32014 SST — Bearing installer (set) sub-tool 09351-32140 Transmission / transaxle ↗ RM179U2_1991_vol2 · p269 OEM manual
09351-32140 SST — Bearing installer sub-component part of SST 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p269 OEM manual
09350-32014 SST — Special Service Tool for pressing bearing into transmission case Sub-tool: 09351-32090 Transmission / transaxle ↗ RM179U2_1991_vol2 · p270 OEM manual
08833-00070 Seal packing (THREE BOND 1324 or equivalent) Apply to six screws Transmission / transaxle ↗ RM179U2_1991_vol2 · p271 OEM manual
09350-32014 SST (Special Service Tool) — piston press tool Sub-tool: 09351-32040 Transmission / transaxle ↗ RM179U2_1991_vol2 · p273 OEM manual
09351-32040 SST sub-component for 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p273 OEM manual
09350-32014 SST — Special Service Tool for compressing flange Sub-tool 09351-32070 Transmission / transaxle ↗ RM179U2_1991_vol2 · p274 OEM manual
09350-32014 SST dial indicator set Sub-tool 09351-32190 Transmission / transaxle ↗ RM179U2_1991_vol2 · p276 OEM manual
09351-32190 SST dial indicator sub-component Used with 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p276 OEM manual
09350-32014 SST — counter driven gear installation / lock nut tightening Steps 31, 32; includes sub-parts 09351-32100, 09351-32140, 09351-32032 Transmission / transaxle ↗ RM179U2_1991_vol2 · p277 OEM manual
09351-32100 SST sub-part for 09350-32014 Step 31 Transmission / transaxle ↗ RM179U2_1991_vol2 · p277 OEM manual
09351-32140 SST sub-part for 09350-32014 Step 31 Transmission / transaxle ↗ RM179U2_1991_vol2 · p277 OEM manual
09330-00021 SST — hold driven gear during lock nut tightening Step 32 Transmission / transaxle ↗ RM179U2_1991_vol2 · p277 OEM manual
09351-32032 SST sub-part for 09350-32014 Step 32 Transmission / transaxle ↗ RM179U2_1991_vol2 · p277 OEM manual
08833-00090 Seal packing for transaxle rear cover THREE BOND 1131 or LOCTITE 518 are listed as equivalents Transmission / transaxle ↗ RM179U2_1991_vol2 · p278 OEM manual
09350-32014 SST (Special Service Tool) for one-way clutch installation Sub-tool 09351-32050 Transmission / transaxle ↗ RM179U2_1991_vol2 · p282 OEM manual
08833-00090 Seal packing (THREE BOND 1131, LOCTITE 518 or equivalent) Step 63(b) Transmission / transaxle ↗ RM179U2_1991_vol2 · p288 OEM manual
08833-00080 Sealant — adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent Step 63(c) Transmission / transaxle ↗ RM179U2_1991_vol2 · p288 OEM manual
09350-32014 SST — snap ring installation tool Sub-tool: 09351-32050 Transmission / transaxle ↗ RM179U2_1991_vol2 · p290 OEM manual
09351-32050 SST — snap ring installation tool (sub-assembly) Part of set 09350-32014 Transmission / transaxle ↗ RM179U2_1991_vol2 · p290 OEM manual
09240-00020 SST — piston stroke measurement tool Transmission / transaxle ↗ RM179U2_1991_vol2 · p290 OEM manual
09610-20012 SST — Tie rod end puller / disconnector Used to disconnect tie rod end from steering knuckle Suspension & axle ↗ RM179U2_1991_vol2 · p310 OEM manual
09520-00031 SST — used to remove axle hub from steering knuckle Special Service Tool Suspension & axle ↗ RM179U2_1991_vol2 · p311 OEM manual
09950-20017 SST — hub bearing inner race (outside) removal tool Suspension & axle ↗ RM179U2_1991_vol2 · p312 OEM manual
09608-30012 SST — hub bearing driver set includes sub-tool 09608-04020 Suspension & axle ↗ RM179U2_1991_vol2 · p312 OEM manual
09649-17010 SST — hub bearing removal from steering knuckle used with 09608-30012 Suspension & axle ↗ RM179U2_1991_vol2 · p312 OEM manual
09608-30012 SST — Axle hub installation / hub grease cap installation Sub-tool 09608-04020 Suspension & axle ↗ RM179U2_1991_vol2 · p313 OEM manual
09649-17010 SST — Hub grease cap installation Suspension & axle ↗ RM179U2_1991_vol2 · p313 OEM manual
09628-10011 SST for removing front axle hub bolt Suspension & axle ↗ RM179U2_1991_vol2 · p315 OEM manual
09727-00045 SST — Spring compressor Used to compress coil spring Suspension & axle ↗ RM179U2_1991_vol2 · p319 OEM manual
09727-30020 SST — Spring compressor attachment Used to compress coil spring Suspension & axle ↗ RM179U2_1991_vol2 · p319 OEM manual
09729-22031 SST — Spring seat holder Used to hold spring seat while removing nut Suspension & axle ↗ RM179U2_1991_vol2 · p319 OEM manual
09720-00012 SST — ring nut loosening tool sub-tool 09721-00071 Suspension & axle ↗ RM179U2_1991_vol2 · p320 OEM manual
09727-00045 SST — coil spring compressor used with 09727-30020 Suspension & axle ↗ RM179U2_1991_vol2 · p320 OEM manual
09727-30020 SST — coil spring compressor attachment used with 09727-00045 Suspension & axle ↗ RM179U2_1991_vol2 · p320 OEM manual
09729-22031 SST — suspension support nut wrench Suspension & axle ↗ RM179U2_1991_vol2 · p320 OEM manual
09610-20012 SST — Ball joint separator / lower arm disconnect tool Suspension & axle ↗ RM179U2_1991_vol2 · p324 OEM manual
09520-00031 SST — axle shaft remover Step 3(b) Suspension & axle ↗ RM179U2_1991_vol2 · p333 OEM manual
09608-20012 SST — bearing inner race (outside) remover set Step 5 Suspension & axle ↗ RM179U2_1991_vol2 · p333 OEM manual
09608-00040 SST — component of 09608-20012 Step 5 Suspension & axle ↗ RM179U2_1991_vol2 · p333 OEM manual
09608-03020 SST — component of 09608-20012 Step 5 Suspension & axle ↗ RM179U2_1991_vol2 · p333 OEM manual
09950-00020 SST — component used with 09608-20012 Step 5 Suspension & axle ↗ RM179U2_1991_vol2 · p333 OEM manual
09310-35010 SST — bearing remover/installer Step 6 Suspension & axle ↗ RM179U2_1991_vol2 · p333 OEM manual
09527-17010 SST — bearing remover/installer Step 6 Suspension & axle ↗ RM179U2_1991_vol2 · p333 OEM manual
09710-22041 SST — Bearing installer set sub-tool 09710-02050 Suspension & axle ↗ RM179U2_1991_vol2 · p334 OEM manual
09710-02050 SST — Bearing installer sub-tool used with 09710-22041 Suspension & axle ↗ RM179U2_1991_vol2 · p334 OEM manual
09310-35010 SST — Axle shaft installer used with 09315-00021 Suspension & axle ↗ RM179U2_1991_vol2 · p334 OEM manual
09315-00021 SST — Axle shaft installer sub-tool used with 09310-35010 Suspension & axle ↗ RM179U2_1991_vol2 · p334 OEM manual
09316-60010 SST — Dust deflector installer set sub-tools 09316-00010, 09316-00040 Suspension & axle ↗ RM179U2_1991_vol2 · p334 OEM manual
09316-00010 SST — Dust deflector installer sub-tool used with 09316-60010 Suspension & axle ↗ RM179U2_1991_vol2 · p334 OEM manual
09316-00040 SST — Dust deflector installer sub-tool used with 09316-60010 Suspension & axle ↗ RM179U2_1991_vol2 · p334 OEM manual
09628-10011 SST – Rear axle shaft bolt removal tool Suspension & axle ↗ RM179U2_1991_vol2 · p336 OEM manual
09608-16041 SST — axle bearing support tool (set) Includes 09608-02020 and 09608-02040 Suspension & axle ↗ RM179U2_1991_vol2 · p339 OEM manual
09608-02020 SST component — axle bearing support Sub-part of 09608-16041 Suspension & axle ↗ RM179U2_1991_vol2 · p339 OEM manual
09608-02040 SST component — axle bearing support Sub-part of 09608-16041 Suspension & axle ↗ RM179U2_1991_vol2 · p339 OEM manual
09950-20017 SST — drive shaft disconnection tool Used in step 10 Suspension & axle ↗ RM179U2_1991_vol2 · p340 OEM manual
09308-00010 SST — oil seal remover Used to drive out oil seal Suspension & axle ↗ RM179U2_1991_vol2 · p341 OEM manual
09316-60010 SST — oil seal installer (M/T) Sub-tool 09316-00010 Suspension & axle ↗ RM179U2_1991_vol2 · p341 OEM manual
09350-32014 SST — oil seal installer (A/T) Sub-tools: 09351-32111 and 09351-32150 (LH); 09351-32130 and 09351-32150 (RH) Suspension & axle ↗ RM179U2_1991_vol2 · p341 OEM manual
09950-00020 SST — Special Service Tool for pressing dust cover from inboard joint tulip (LH Drive Shaft) Step 9(a) Suspension & axle ↗ RM179U2_1991_vol2 · p344 OEM manual
09570-22010 SST — Axle bearing support tool Used to support axle bearing when vehicle weight must be applied with drive shaft removed Suspension & axle ↗ RM179U2_1991_vol2 · p352 OEM manual
09608-16041 SST — Axle bearing support tool (set) Used with 09608-02010 Suspension & axle ↗ RM179U2_1991_vol2 · p352 OEM manual
09608-02010 SST — Axle bearing support tool (sub-part) Used with 09608-16041 Suspension & axle ↗ RM179U2_1991_vol2 · p352 OEM manual
09043-88010 SST — Hexagon bolt loosening tool Used to loosen six hexagon bolts holding drive shaft to differential side gear shaft or center drive shaft Suspension & axle ↗ RM179U2_1991_vol2 · p352 OEM manual
09950-20017 SST — Special Service Tool for disconnecting drive shaft from axle carrier Step 11 Suspension & axle ↗ RM179U2_1991_vol2 · p353 OEM manual
09308-00010 SST — Oil seal remover Used to drive out differential side oil seal Suspension & axle ↗ RM179U2_1991_vol2 · p354 OEM manual
09223-15010 SST — LH oil seal installer Special Service Tool for LH rear drive shaft oil seal installation Suspension & axle ↗ RM179U2_1991_vol2 · p355 OEM manual
09316-60010 SST — RH oil seal installer Special Service Tool for RH rear drive shaft oil seal installation Suspension & axle ↗ RM179U2_1991_vol2 · p355 OEM manual
09316-00010 SST — RH oil seal installer (sub-tool) Sub-component of SST 09316-60010 Suspension & axle ↗ RM179U2_1991_vol2 · p355 OEM manual
09043-88010 SST — hexagon bolt removal tool for side gear shaft Suspension & axle ↗ RM179U2_1991_vol2 · p356 OEM manual
09726-10010 SST — Special Service Tool for inboard joint removal Sub-tool: 09726-00030 Suspension & axle ↗ RM179U2_1991_vol2 · p357 OEM manual
09950-00020 SST — used to remove dust cover from inboard joint of center drive shaft Special Service Tool Suspension & axle ↗ RM179U2_1991_vol2 · p359 OEM manual
08826-00801 Seal packing (THREE BOND 1121 or equivalent) for inboard joint cover Seal diameter 1.0–1.8 mm Suspension & axle ↗ RM179U2_1991_vol2 · p361 OEM manual
09043-88010 SST — used to temporarily tighten six hexagon bolts with three washers on inboard joint Suspension & axle ↗ RM179U2_1991_vol2 · p363 OEM manual
09043-88010 SST — Inboard joint hexagon bolt torque tool Step 12 Suspension & axle ↗ RM179U2_1991_vol2 · p367 OEM manual
09727-30020 SST — Spring compressor for coil spring Used to compress coil spring during disassembly Suspension & axle ↗ RM179U2_1991_vol2 · p370 OEM manual
09720-00012 SST — Spring seat/ring nut loosening tool Used to loosen ring nut before discarding shock absorber Suspension & axle ↗ RM179U2_1991_vol2 · p371 OEM manual
09727-30020 SST — Coil spring compressor Used to compress coil spring during assembly Suspension & axle ↗ RM179U2_1991_vol2 · p371 OEM manual
09628-62011 SST — Ball joint separator tool Used to disconnect ball joint from lower arm Suspension & axle ↗ RM179U2_1991_vol2 · p374 OEM manual
09628-62011 SST — Ball joint separator (lower arm disconnect) Suspension & axle ↗ RM179U2_1991_vol2 · p375 OEM manual
09751-36011 SST — brake tube disconnection tool Used to disconnect brake tubes from master cylinder Brakes ↗ RM179U2_1991_vol2 · p395 OEM manual
09751-36011 SST — Brake tube union nut wrench Used to connect brake tubes to master cylinder Brakes ↗ RM179U2_1991_vol2 · p400 OEM manual
09737-00010 SST — Brake booster push rod adjustment tool Used to measure clearance between push rod and pin head Brakes ↗ RM179U2_1991_vol2 · p402 OEM manual
09719-14020 SST — Piston turning tool (set) Sub-tool 09719-00020 Brakes ↗ RM179U2_1991_vol2 · p421 OEM manual
09719-14020 SST — Piston removal tool Sub-tool 09719-00020 Brakes ↗ RM179U2_1991_vol2 · p423 OEM manual
09756-00010 SST for adjusting bolt removal Special Service Tool Brakes ↗ RM179U2_1991_vol2 · p424 OEM manual
09756-00010 SST — Special Service Tool for adjusting bolt sub assembly installation Used in steps 9(a) and 9(d) Brakes ↗ RM179U2_1991_vol2 · p429 OEM manual
09709-29017 LSPV Gauge (SST) Special Service Tool for fluid pressure inspection Engine — mechanical ↗ RM179U2_1991_vol2 · p433 OEM manual
09843-18020 SST — used to connect terminals Tc and E1 of the check connector Brakes ↗ RM179U2_1991_vol2 · p437 OEM manual
09843-18020 SST — Special Service Tool for check connector terminals Tc and E1 Brakes ↗ RM179U2_1991_vol2 · p438 OEM manual
09843-18020 SST — used to connect terminals Tc and E1 of the check connector Special Service Tool Brakes ↗ RM179U2_1991_vol2 · p440 OEM manual
09843-18020 SST — Special Service Tool for connecting check connector terminals E1, Tc, Ts Brakes ↗ RM179U2_1991_vol2 · p447 OEM manual
09751-36011 SST — brake tube disconnect/connect tool Special Service Tool for brake tube removal/installation at ABS actuator Brakes ↗ RM179U2_1991_vol2 · p451 OEM manual
09751-36011 SST for brake tube disconnection/connection Special Service Tool Brakes ↗ RM179U2_1991_vol2 · p452 OEM manual
09990-00150 Actuator Checker (SST) Toyota A.B.S. (Anti-lock Brake System) Actuator Checker Brakes ↗ RM179U2_1991_vol2 · p453 OEM manual
09990-00150 Actuator Checker SST (sub-wire harness) SST used for ABS actuator inspection Brakes ↗ RM179U2_1991_vol2 · p454 OEM manual
09042-00010 Torx wrench T30 (or locally manufactured tool) Steering ↗ RM179U2_1991_vol2 · p466 OEM manual
09609-20011 SST — Steering wheel puller Canada spec removal Steering ↗ RM179U2_1991_vol2 · p467 OEM manual
09910-00015 SST (set) includes 09911-00011 and 09912-00010 Steering ↗ RM179U2_1991_vol2 · p470 OEM manual
90170-10004 Nut (reference) — 10 mm diameter, 1.25 mm pitch Steering ↗ RM179U2_1991_vol2 · p470 OEM manual
90201-10201 Plate washer (reference) — 36 mm outer diameter Steering ↗ RM179U2_1991_vol2 · p470 OEM manual
91111-51050 Bolt (reference) — 10 mm diameter, 1.25 mm pitch, 50 mm length Steering ↗ RM179U2_1991_vol2 · p470 OEM manual
09950-20017 SST — Special Service Tool for compressing main shaft spring Used to compress main shaft spring and remove snap ring with snap ring pliers Steering ↗ RM179U2_1991_vol2 · p471 OEM manual
09950-20017 SST — used to compress main shaft spring during snap ring installation Special Service Tool Steering ↗ RM179U2_1991_vol2 · p472 OEM manual
09628-62011 SST — Tie rod end puller Used to disconnect tie rod end from knuckle arm Steering ↗ RM179U2_1991_vol2 · p477 OEM manual
09628-62011 SST — Tie rod end puller (used to disconnect tie rod end from knuckle arm) Special Service Tool Steering ↗ RM179U2_1991_vol2 · p478 OEM manual
09612-00012 SST — Gear housing vise clamp Special Service Tool Steering ↗ RM179U2_1991_vol2 · p479 OEM manual
09612-10093 SST — rack end removal tool (set) sub-tool 09628-10020 Steering ↗ RM179U2_1991_vol2 · p480 OEM manual
09628-10020 SST sub-tool for rack end removal used with 09612-10093 Steering ↗ RM179U2_1991_vol2 · p480 OEM manual
09612-24014 SST — rack end / rack guide spring cap removal tool (set) sub-tool 09617-24011 for rack ends; sub-tool 09612-10022 for spring cap Steering ↗ RM179U2_1991_vol2 · p480 OEM manual
09617-24011 SST sub-tool for rack end removal used with 09612-24014 Steering ↗ RM179U2_1991_vol2 · p480 OEM manual
09617-10010 SST sub-tool for rack guide spring cap lock nut used with 09612-10093 Steering ↗ RM179U2_1991_vol2 · p480 OEM manual
09612-10022 SST sub-tool for rack guide spring cap used with 09612-24014 Steering ↗ RM179U2_1991_vol2 · p480 OEM manual
09612-10093 SST - Pinion bearing adjusting screw lock nut removal tool Sub-tool 09617-10010 Steering ↗ RM179U2_1991_vol2 · p481 OEM manual
09612-24014 SST - Pinion bearing adjusting screw removal tool Sub-tool 09616-10020 Steering ↗ RM179U2_1991_vol2 · p481 OEM manual
09612-24014 SST — Pinion upper bearing installation tool sub-tool 09612-10061 Steering ↗ RM179U2_1991_vol2 · p482 OEM manual
09620-30010 SST — Pinion lower bearing installation tool sub-tool 09631-00020 Steering ↗ RM179U2_1991_vol2 · p482 OEM manual
09630-24013 SST — Pinion lower bearing installation tool sub-tool 09620-24030 Steering ↗ RM179U2_1991_vol2 · p482 OEM manual
09620-30010 SST — Special Service Tool for pinion oil seal removal/installation Sub-tool 09631-00020 Steering ↗ RM179U2_1991_vol2 · p483 OEM manual
09630-24013 SST — Special Service Tool for pinion oil seal removal/installation Sub-tool 09620-24010 (removal) / 09620-24020 (installation) Steering ↗ RM179U2_1991_vol2 · p483 OEM manual
08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Applied to pinion bearing adjusting screw threads Steering ↗ RM179U2_1991_vol2 · p484 OEM manual
09612-24014 SST — Pinion bearing adjusting screw installer Sub-tool: 09616-10020 Steering ↗ RM179U2_1991_vol2 · p484 OEM manual
08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 equivalent) Used on lock nut and rack guide spring cap threads Steering ↗ RM179U2_1991_vol2 · p485 OEM manual
08833-00080 Sealant (THREE BOND 1344 or LOCTITE 242 equivalent) Applied to rack guide spring cap lock nut threads Steering ↗ RM179U2_1991_vol2 · p486 OEM manual
08886-01206 TOYOTA POWER STEERING FLUID EH Or equivalent Steering ↗ RM179U2_1991_vol2 · p491 OEM manual
09631-22020 SST — Pressure gauge disconnect tool for PS pump pressure line Steering ↗ RM179U2_1991_vol2 · p492 OEM manual
09631-22020 SST for disconnecting and connecting pressure line Special Service Tool Steering ↗ RM179U2_1991_vol2 · p494 OEM manual
09628-62011 SST — Tie rod end disconnecting tool Used to disconnect tie rod end from knuckle arm Steering ↗ RM179U2_1991_vol2 · p497 OEM manual
09612-00012 SST — Gear housing vise clamp tool Step 1 Steering ↗ RM179U2_1991_vol2 · p500 OEM manual
09612-24014 SST — Rack guide spring cap lock nut removal tool Steering ↗ RM179U2_1991_vol2 · p501 OEM manual
09617-22030 SST — Rack guide spring cap lock nut removal tool (sub) Steering ↗ RM179U2_1991_vol2 · p501 OEM manual
09616-00010 SST — Control valve holding tool Used in step 10 Steering ↗ RM179U2_1991_vol2 · p502 OEM manual
09631-10021 SST — Cylinder end stopper turning tool Used in step 13 Steering ↗ RM179U2_1991_vol2 · p502 OEM manual
09631-12020 SST for driving out rack housing oil seal and spacer Special Service Tool Steering ↗ RM179U2_1991_vol2 · p503 OEM manual
09620-24010 SST sub-tool Used when pressing out oil seal with bearing Steering ↗ RM179U2_1991_vol2 · p504 OEM manual
09620-24020 SST sub-tool Used when pressing in new oil seal or new bearing Steering ↗ RM179U2_1991_vol2 · p504 OEM manual
09620-30010 SST — Press in new center bearing (main tool) sub-tool 09631-00020 Steering ↗ RM179U2_1991_vol2 · p505 OEM manual
09631-00020 SST — Press in new center bearing (sub-tool) used with 09620-30010 Steering ↗ RM179U2_1991_vol2 · p505 OEM manual
09630-24013 SST — Press in new center bearing (main tool) sub-tool 09620-24020 Steering ↗ RM179U2_1991_vol2 · p505 OEM manual
09620-24020 SST — Press in new center bearing (sub-tool) used with 09630-24013 Steering ↗ RM179U2_1991_vol2 · p505 OEM manual
09620-30010 SST — Press in new lower bearing (main tool) sub-tool 09631-00020 Steering ↗ RM179U2_1991_vol2 · p505 OEM manual
09631-20031 SST — Press in new lower bearing (sub-tool) used with 09620-30010 Steering ↗ RM179U2_1991_vol2 · p505 OEM manual
09612-24014 SST — Remove oil seal (main tool) sub-tool 09613-22011 Steering ↗ RM179U2_1991_vol2 · p505 OEM manual
09613-22011 SST — Remove oil seal (sub-tool) used with 09612-24014 Steering ↗ RM179U2_1991_vol2 · p505 OEM manual
09631-20070 SST — Special Service Tool for expanding teflon rings onto control valve Used in step 6(b) Steering ↗ RM179U2_1991_vol2 · p506 OEM manual
09631-20081 SST — Teflon ring seating tool Used to seat teflon rings on power steering gear housing Steering ↗ RM179U2_1991_vol2 · p507 OEM manual
09631-10021 SST — cylinder end stopper turning tool Step 5(c) Steering ↗ RM179U2_1991_vol2 · p509 OEM manual
09631-12071 SST — air tightness test tool for cylinder housing unions Step 6(a) Steering ↗ RM179U2_1991_vol2 · p509 OEM manual
08833-00080 Sealant — THREE BOND 1344 / LOCTITE 242 or equivalent Apply to 2 or 3 threads of rack housing cap Steering ↗ RM179U2_1991_vol2 · p510 OEM manual
08833-00080 Sealant (THREE BOND 1344, LOCTITE 242 or equivalent) Apply to rack guide spring cap threads and lock nut threads Steering ↗ RM179U2_1991_vol2 · p511 OEM manual
09617-10020 SST for rack end installation Special Service Tool Steering ↗ RM179U2_1991_vol2 · p512 OEM manual
09633-00020 SST — tube installation tool Special Service Tool Steering ↗ RM179U2_1991_vol2 · p513 OEM manual
09843-18020 SST — Terminal connector tool for Tc and E1 check connector Used during Steering Sensor Check Steering ↗ RM179U2_1991_vol2 · p516 OEM manual
09843-18020 SST — Check connector jumper wire (connects Tc and E1 terminals) Steering ↗ RM179U2_1991_vol2 · p517 OEM manual
09042-00010 Torx wrench T30 or locally manufactured tool Steering ↗ RM179U2_1991_vol2 · p537 OEM manual
09213-31021 SST — Steering wheel puller Used to remove steering wheel SRS / airbag ↗ RM179U2_1991_vol2 · p538 OEM manual
09042-00020 Torx wrench T40 or locally manufactured tool SRS / airbag ↗ RM179U2_1991_vol2 · p542 OEM manual
82988-50010 Repair wire with two pressure-contact sleeves for front airbag sensor Exclusive use for repairing connector damage caused by frontal collision SRS / airbag ↗ RM179U2_1991_vol2 · p543 OEM manual
82999-12020 Blue pressure-contact sleeve Available as a solitary spare part SRS / airbag ↗ RM179U2_1991_vol2 · p543 OEM manual
169060 AMP Crimping Tool Used to crimp splice sleeves for front airbag sensor repair wire replacement SRS / airbag ↗ RM179U2_1991_vol2 · p544 OEM manual
08231-00045 Silicon tape 100 mm (3.94 in.) length required per join SRS / airbag ↗ RM179U2_1991_vol2 · p545 OEM manual
09843-18020 SST — Check connector tool for connecting terminals Tc and E1 Special Service Tool SRS / airbag ↗ RM179U2_1991_vol2 · p551 OEM manual
09843-18020 SST — Check connector terminal Tc and E1 connection tool Special Service Tool SRS / airbag ↗ RM179U2_1991_vol2 · p562 OEM manual
09843-18020 SST – check connector tool for connecting terminals Tc and E1 Special Service Tool SRS / airbag ↗ RM179U2_1991_vol2 · p563 OEM manual
09843-18020 SST — check connector for terminals Tc and E1 Used in step 5 SRS / airbag ↗ RM179U2_1991_vol2 · p568 OEM manual
09843-18020 SST — Special Service Tool for connecting terminals Tc and E1 of check connector Used in steps 3 and 4 SRS / airbag ↗ RM179U2_1991_vol2 · p573 OEM manual
09843-18020 SST — Check connector for connecting terminals Tc and E1 Used in steps 5 and 6 SRS / airbag ↗ RM179U2_1991_vol2 · p581 OEM manual
09843-18020 SST — Special Service Tool for connecting terminals Tc and E1 of check connector Used in Step 3 SRS / airbag ↗ RM179U2_1991_vol2 · p585 OEM manual
09843-18020 SST — used to connect terminals Tc and E1 of check connector Special Service Tool SRS / airbag ↗ RM179U2_1991_vol2 · p592 OEM manual
09843-18020 SST — Special Service Tool for connecting terminals Tc and E1 of check connector SRS / airbag ↗ RM179U2_1991_vol2 · p594 OEM manual
09843-18020 SST — used to connect terminals Tc and E1 of check connector for diagnostic code readout SRS / airbag ↗ RM179U2_1991_vol2 · p596 OEM manual
09082-00700 SRS AIRBAG DEPLOYMENT TOOL (SST) Required SST for airbag deployment procedure Steering ↗ RM179U2_1991_vol2 · p604 OEM manual
09082-00700 SST — Airbag deployment tool Used to remotely deploy airbag for disposal Steering ↗ RM179U2_1991_vol2 · p605 OEM manual
09082-00700 SST — Special Service Tool for airbag deployment Used to confirm functioning and deploy airbag for disposal Steering ↗ RM179U2_1991_vol2 · p608 OEM manual
09992-00241 SST — Special Service Tool for applying pressure to turbo pressure sensor Body electrical ↗ RM179U2_1991_vol2 · p672 OEM manual
4817 Dupont paste repair agent for defogger wires Dupont paste No. 4817 Body electrical ↗ RM179U2_1991_vol2 · p677 OEM manual
09812-00010 SST — Body side hinge bolt adjustment tool Used for forward/rearward and vertical door adjustment Body ↗ RM179U2_1991_vol2 · p781 OEM manual
08850-00065 Butyl tape set Contains: Butyl tape 9 mm dia. x 2,500 mm (0.35 x 98.43 in.), Primer 5 cc (0.17 fl.oz.), Sponge (for applying primer), Piano wire 1 mm dia. x 600 mm (0.04 x 23.62 in.) (for slicing off glass) Body ↗ RM179U2_1991_vol2 · p797 OEM manual
08850-00051 Adhesive (Super special) 20g (0.71 oz.) Quantity: 1 Body ↗ RM179U2_1991_vol2 · p800 OEM manual
08850-00070 Windshield glass adhesive set No.15 — Main agent 550g, Hardening agent 75g, Primer G 20g, Primer M 20g, Sponge x2, Piano wire 0.6mm dia. x 1m, Cartridge. For 0–15°C (32–59°F). Quantity: 1 ea. each component Body ↗ RM179U2_1991_vol2 · p806 OEM manual
08850-00080 Windshield glass adhesive set No.35 — Main agent 550g, Hardening agent 75g, Primer G 20g, Primer M 20g, Sponge x2, Piano wire 0.6mm dia. x 1m, Cartridge. For 15–35°C (59–95°F). Quantity: 1 ea. each component Body ↗ RM179U2_1991_vol2 · p806 OEM manual
08850-00090 Windshield glass adhesive set No.45 — Main agent 550g, Hardening agent 75g, Primer G 20g, Primer M 20g, Sponge x2, Piano wire 0.6mm dia. x 1m, Cartridge. For 35–45°C (95–113°F). Quantity: 1 ea. each component Body ↗ RM179U2_1991_vol2 · p806 OEM manual
04562-12010 Dam kit — Dam and double stick tape (for sticking on dam). Body ↗ RM179U2_1991_vol2 · p806 OEM manual
08850-00065 Butyl tape set Contains: Butyl tape 9 mm dia. x 2,500 mm (0.35 x 98.43 in.), Primer 5 cc (0.17 fl.oz.), Sponge (for applying primer), Piano wire 1 mm dia. x 600 mm (0.04 x 23.62 in.) (for slicing off glass) Body ↗ RM179U2_1991_vol2 · p812 OEM manual
07110-58011 Air conditioner service tool set — To evacuate and charge system Air conditioning ↗ RM179U2_1991_vol2 · p859 OEM manual
07110-77011 Magnetic clutch tool set — General set for magnetic clutch Air conditioning ↗ RM179U2_1991_vol2 · p859 OEM manual
07112-71010 Magnetic clutch remover — To remove pressure plate Air conditioning ↗ RM179U2_1991_vol2 · p859 OEM manual
07114-84020 Snap ring pliers (External type) — To remove and install rotor and stator Air conditioning ↗ RM179U2_1991_vol2 · p859 OEM manual
07112-15010 Seal plate remover — To remove seal plate Air conditioning ↗ RM179U2_1991_vol2 · p859 OEM manual
07114-15010 Seal plate presser — To remove and install shaft seal Air conditioning ↗ RM179U2_1991_vol2 · p859 OEM manual
07110-61050 Hexagon wrench set — To remove and install service valve and front housing Air conditioning ↗ RM179U2_1991_vol2 · p859 OEM manual
07112-25010 Shaft seal remover — To install seal plate Air conditioning ↗ RM179U2_1991_vol2 · p859 OEM manual
95506-00020 Nippondenso BTG-20 belt tension gauge Air conditioning ↗ RM179U2_1991_vol2 · p866 OEM manual
07112-76040 SST — shaft nut removal tool Used to remove pressure plate shaft nut Clutch ↗ RM179U2_1991_vol2 · p870 OEM manual
07112-71010 SST — pressure plate removal tool Used to remove pressure plate Clutch ↗ RM179U2_1991_vol2 · p870 OEM manual
07114-84020 SST — Snap ring pliers Used for removing snap ring on rotor and stator Air conditioning ↗ RM179U2_1991_vol2 · p871 OEM manual
07114-84020 SST — Snap ring removal tool Step 2 Air conditioning ↗ RM179U2_1991_vol2 · p873 OEM manual
07112-15010 SST — Seal plate removal tool Step 5 Air conditioning ↗ RM179U2_1991_vol2 · p873 OEM manual
07110-61050 SST — Used for removing service valve bolts and front housing through bolts Steps 7a, 9a Air conditioning ↗ RM179U2_1991_vol2 · p874 OEM manual
07110-61050 SST — used with torque wrench to tighten five through bolts Step 4 Air conditioning ↗ RM179U2_1991_vol2 · p877 OEM manual
07114-15010 SST — used to fit and install shaft seal Step 5 Air conditioning ↗ RM179U2_1991_vol2 · p877 OEM manual
07112-25010 SST — used to press in seal plate Step 6 Air conditioning ↗ RM179U2_1991_vol2 · p877 OEM manual
07114-45010 SST — for installing key in shaft groove Step 7 Air conditioning ↗ RM179U2_1991_vol2 · p878 OEM manual
07110-61050 SST — for installing service valve bolts Step 9(b) Air conditioning ↗ RM179U2_1991_vol2 · p878 OEM manual
88376-17020 Inspection Service Valve — Suction side Air conditioning ↗ RM179U2_1991_vol2 · p880 OEM manual
88376-22020 Inspection Service Valve — Discharge side Air conditioning ↗ RM179U2_1991_vol2 · p880 OEM manual
08885-80206 Transaxle oil E50 Manual transaxle E153 Maintenance ↗ RM179U2_1991_vol2 · p918 OEM manual
09011-38121 12 mm Socket Wrench for 12 Pointed Head *1 Cylinder head bolt and connecting rod nut (5S-FE only) Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09032-00100 Oil Pan Seal Cutter Used in FI section Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09043-38100 Hexagon 10 mm Wrench *2 Cylinder head bolt (3S-GTE only) Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09043-88010 Hexagon 8 mm Wrench *3 3S-GTE only; used in MT Front section Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09082-00700 SRS Airbag Deployment Tool Used in AB section Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09201-41020 Valve Stem Oil Seal Replacer *4 Starter bearing for 1.4 kW (conventional) type and 1.6 kW; used in EM and IG sections Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09201-60011 Valve Guide Bushing Remover & Replacer Used in E153 and S54 sections Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09201-70010 Valve Guide Bushing Remover & Replacer Used in EM section Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09202-70010 Valve Spring Compressor Used in EM section Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09213-31021 Crankshaft Pulley Puller *3 3S-GTE only; *5 Steering wheel (USA); used in EM, SR, and AB sections Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09213-54015 Crankshaft Pulley Holding Tool Used in EM section Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09214-00030 (Bolt) *6 5S-FE only; used in EM section Maintenance ↗ RM179U2_1991_vol2 · p923 OEM manual
09213-60017 Crankshaft Pulley & Gear Puller Set EM section Maintenance ↗ RM179U2_1991_vol2 · p924 OEM manual
09222-30010 Connecting Rod Bushing Remover & Replacer EM section Maintenance ↗ RM179U2_1991_vol2 · p924 OEM manual
09223-15010 Crankshaft Rear Oil Seal Replacer MT E153 and SA Rear sections Maintenance ↗ RM179U2_1991_vol2 · p924 OEM manual
09223-46011 Crankshaft Front Oil Seal Replacer Camshaft oil seal (5S-FE only); EM section Maintenance ↗ RM179U2_1991_vol2 · p924 OEM manual
09223-50010 Crankshaft Front Oil Seal Replacer Camshaft oil seal (3S-GTE only); EM section Maintenance ↗ RM179U2_1991_vol2 · p924 OEM manual
09223-63010 Crankshaft Rear Oil Seal Replacer EM section Maintenance ↗ RM179U2_1991_vol2 · p924 OEM manual
09226-10010 Crankshaft Front & Rear Bearing Replacer EM section Maintenance ↗ RM179U2_1991_vol2 · p924 OEM manual
09248-55010 Valve Clearance Adjust Tool Set Section: EM Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09249-63010 Torque Wrench Adaptor Section: EM; *1 Camshaft timing pulley Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09268-41045 Injection Measuring Tool Set Section: FI Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09268-41080 No. 6 Union Section: FI; sub-component of 09268-41045 Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09268-41090 No. 7 Union Section: FI; *2 5S-FE only; sub-component of 09268-41045 Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
90405-09015 No. 1 Union Section: FI; sub-component of 09268-41045 Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09268-74010 Injector Remover Section: FI; *3 3S-GTE only Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09278-54012 Drive Shaft Holding Tool Section: EM; *4 Camshaft timing pulley (5S-FE only) Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09285-76010 Injection Pump Camshaft Bearing Cone Replacer Sections: IG, ST; *5 Starter bearing for 1.0 kW type; *6 Alternator rear bearing Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09286-46011 Injection Pump Spline Shaft Puller Sections: IG, ST; *7 Starter bearing; *8 Rectifier end frame Maintenance ↗ RM179U2_1991_vol2 · p925 OEM manual
09301-17010 Clutch Guide Tool Used in CL, S54 sections Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09301-32010 Clutch Guide Tool Used in CL, AT sections Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09308-00010 Oil Seal Puller Used in CL, E153, S54, SA Front sections; *1 3S-GTE (LH) Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09309-32050 5th Driven Gear Replacer Used in S54 section Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09310-17010 Transaxle Gear Remover & Replacer Used in S54 section Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09310-07010 Plate (component of 09310-17010) Used in S54 section Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09310-07020 Center Bolt (component of 09310-17010) Used in S54 section Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09310-07030 Set Bolt (component of 09310-17010) Used in S54 section Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09310-07040 Claw (component of 09310-17010) Used in S54 section Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09310-07050 Adaptor (component of 09310-17010) Used in S54 section Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09310-35010 Countershaft Bearing Replacer Used in S54, SA Rear sections; *2 Rear axle hub Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09313-30021 Detent Ball Plug Socket Used in CL, S54 sections Maintenance ↗ RM179U2_1991_vol2 · p926 OEM manual
09315-00021 Clutch Release Bearing Remover & Replacer SA Rear axle hub (*1) Maintenance ↗ RM179U2_1991_vol2 · p927 OEM manual
09316-60010 Transmission & Transfer Bearing Replacer MT E153, MT S54, SA Front Maintenance ↗ RM179U2_1991_vol2 · p927 OEM manual
09316-00010 Replacer Pipe MT E153, MT S54, SA Rear *2 (5S-FE M/T and 3S-GTE RH) Maintenance ↗ RM179U2_1991_vol2 · p927 OEM manual
09316-00040 Replacer "C" MT E153, SA Rear *2 (5S-FE M/T and 3S-GTE RH) Maintenance ↗ RM179U2_1991_vol2 · p927 OEM manual
09330-00021 Companion Flange Holding Tool EM *3 (Crankshaft pulley), AT Front Maintenance ↗ RM179U2_1991_vol2 · p927 OEM manual
09350-32014 TOYOTA Automatic Transmission Tool Set MT E153, MT S54, SA Front Maintenance ↗ RM179U2_1991_vol2 · p927 OEM manual
09351-32032 Counter Driven Gear Holding Tool AT S54 Maintenance ↗ RM179U2_1991_vol2 · p928 OEM manual
09351-32090 Oil Seal Remover & Replacer AT E153, AT S54 Maintenance ↗ RM179U2_1991_vol2 · p928 OEM manual
09351-32111 Side Bearing Race Replacer AT S54; SA Front *1 (5S-FE A/T LH) Maintenance ↗ RM179U2_1991_vol2 · p928 OEM manual
09351-32120 Overdrive Bearing Replacer AT E153, AT S54 Maintenance ↗ RM179U2_1991_vol2 · p928 OEM manual
09351-32130 Handle AT E153, AT S54; SA Rear *2 (5S-FE A/T RH) Maintenance ↗ RM179U2_1991_vol2 · p928 OEM manual
09351-32150 Oil Seal Replacer Used in MT (E153, S54), SA Rear (*1: 5S-FE A/T) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09502-10012 Differential Side Bearing Puller Used in MT (E153, S54) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09506-30012 Differential Drive Pinion Rear Bearing Cone Replacer Used in MT (E153) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09515-10010 Rear Axle Bearing Replacer Used in MT (S54) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09517-36010 Rear Axle Shaft Oil Seal Replacer Used in MT (E153) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09520-00031 Rear Axle Shaft Puller Used in SA (Front, Rear) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09527-17010 Rear Axle Shaft Bearing Remover Used in SA (Rear) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09555-55010 Differential Drive Pinion Bearing Replacer Used in MT (S54) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09564-32011 Differential Preload Adaptor Used in MT (E153, S54) Maintenance ↗ RM179U2_1991_vol2 · p929 OEM manual
09570-22011 Differential Mounting Cushion Remover & Replacer *1 3S-GTE only — SA Rear Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-12010 Front Hub & Drive Pinion Bearing Replacer Set MT E153 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-00020 Remover & Replacer Handle MT E153 — sub-component of 09608-12010 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-00060 Drive Pinion Front Bearing Cup Replacer MT E153 — sub-component of 09608-12010 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-00080 Differential Side Bearing Cone Replacer MT E153 — sub-component of 09608-12010 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-16041 Front Hub Bearing Adjusting Tool SA Front Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-02010 Cover *1 3S-GTE only — SA Front — sub-component of 09608-16041 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-02020 Bolt & Nut *2 5S-FE only — SA Front — sub-component of 09608-16041 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-02040 Retainer *2 5S-FE only — SA Front — sub-component of 09608-16041 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-20012 Front Hub & Drive Pinion Bearing Tool Set ST, MT E153, SA Front Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-00030 Replacer *3 Alternator front bearing — ST; MT E153 — sub-component of 09608-20012 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-00040 Replacer SA Front — sub-component of 09608-20012 Maintenance ↗ RM179U2_1991_vol2 · p930 OEM manual
09608-30012 Front Hub & Drive Pinion Bearing Tool Set SA Front Maintenance ↗ RM179U2_1991_vol2 · p931 OEM manual
09609-20011 Steering Wheel Puller SR; *1 Canada only Maintenance ↗ RM179U2_1991_vol2 · p931 OEM manual
09612-00012 Rack & Pinion Steering Rack Housing Stand SR Maintenance ↗ RM179U2_1991_vol2 · p931 OEM manual
09612-10093 Steering Gear Housing Overhaul Tool Set SR Maintenance ↗ RM179U2_1991_vol2 · p931 OEM manual
09617-10010 Steering Pinion Bearing Adjusting Screw Lock Nut Wrench SR; *2 Manual steering gear housing Maintenance ↗ RM179U2_1991_vol2 · p931 OEM manual
09628-10020 Ball Joint Lock Nut Wrench SR; *2 Manual steering gear housing Maintenance ↗ RM179U2_1991_vol2 · p931 OEM manual
09612-10131 Hexagon Wrench SR; *3 Power steering gear housing Maintenance ↗ RM179U2_1991_vol2 · p931 OEM manual
09612-22011 Tilt Handle Bearing Replacer MT E153; SA Rear *1 (Control valve housing oil seal PS) Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09612-24014 Steering Gear Housing Overhaul Tool Set SR Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09612-10022 Hexagon Wrench SR *2 (Manual steering gear housing); component of 09612-24014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09612-10061 Steering Pinion Bearing Replacer SR *2 (Manual steering gear housing); component of 09612-24014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09613-22011 Steering Rack Shaft Bushing Puller SR *3 (Power steering gear housing); component of 09612-24014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09616-10010 Steering Pinion Bearing Adjusting Socket SR *2 (Manual steering gear housing); component of 09612-24014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09616-10020 Steering Pinion Bearing Adjusting Screw Wrench SR *2 (Manual steering gear housing); component of 09612-24014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09617-22030 Steering Rack End Wrench SR *3 (Power steering gear housing); component of 09612-24014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09617-24011 Steering Rack Wrench SR *2 (Manual steering gear housing); component of 09612-24014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09612-01020 Claw "B" MT S54; component of 09612-65014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09612-01060 Claw "E" MT S54; component of 09612-65014 Maintenance ↗ RM179U2_1991_vol2 · p932 OEM manual
09616-00010 Steering Worm Bearing Adjusting Socket *1 Power steering gear housing; used in SR section Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09616-30011 Steering Worm Bearing Adjusting Screw Wrench *2 Oil pump pulley; used in EM section Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09617-10020 Steering Rack End Wrench *1 Power steering gear housing; used in SR section Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09620-30010 Steering Gear Box Replacer Set Used in ST and SR sections Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09627-30010 Steering Sector Shaft Bushing Replacer *3 Oil pump oil seal; used in ST section; sub-component of 09620-30010 Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09631-00020 Handle *3 Oil pump oil seal; used in ST and SR sections; sub-component of 09620-30010 Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09628-10011 Ball Joint Puller Used in SA Front and SA Rear sections Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09628-62011 Ball Joint Puller Used in SA Rear and BR sections Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09630-24013 Steering Rack Oil Seal Tool Set Used in SR section Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09620-24010 Valve Cup Oil Seal Remover Used in SR section; sub-component of 09630-24013 Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09620-24020 Valve Cup Oil Seal Replacer Used in SR section; sub-component of 09630-24013 Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09620-24030 Valve Cup Bearing Replacer Used in SR section; sub-component of 09630-24013 Maintenance ↗ RM179U2_1991_vol2 · p933 OEM manual
09631-10021 Rack Stopper Wrench BR (*1 Power steering gear housing) Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09631-10040 Steering Rack Cover "D" BR (*1 Power steering gear housing) Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09631-12020 Handle BR (*1 Power steering gear housing) Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09631-12071 Steering Rack Oil Seal Test Tool BR (*1 Power steering gear housing) Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09631-20031 Oil Seal "B" Remover BR (*1 Power steering gear housing) Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09631-20070 Seal Ring Guide BR (*1 Power steering gear housing) Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09631-20081 Seal Ring Tool BR (*1 Power steering gear housing) Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09631-22020 Power Steering Hose Nut 14 x 17 mm Wrench Set FI (*2 Fuel line flare nut), BR Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09710-22041 Rear Suspension Bushing Tool Set SA Rear Maintenance ↗ RM179U2_1991_vol2 · p934 OEM manual
09710-02050 Base Sub-component of 09710-30030; SA Rear section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09710-30030 Rear Suspension Bushing Tool Set SA Rear section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09710-03160 Remover Sub-component of 09710-30030; SA Rear section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09719-00020 Piston Driver Sub-component of 09719-14020; BR section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09720-00012 Shock Absorber Overhaul Tool Set SA Front section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09721-00071 Front Shock Absorber Ring Nut Wrench Sub-component of 09720-00012; SA Front section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09726-10010 Lower Suspension Arm Bushing Remover & Replacer SA Front section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09726-00030 Spacer Sub-component of 09726-10010; SA Front section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09727-30020 Coil Spring Compressor SA Front and Rear sections Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09729-22031 Front Spring Upper Seat Holder SA Front section Maintenance ↗ RM179U2_1991_vol2 · p935 OEM manual
09737-00010 Brake Booster Push Rod Gauge BR section Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09751-36011 Brake Tube Union Nut 10 x 12 mm Wrench CL, BR sections Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09816-30010 Oil Pressure Switch Socket *1 Knock sensor (3S-GTE only); EM section Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09817-16011 Back-up Light Switch Tool E153 section Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09820-00021 Alternator Rear Bearing Puller *2 Alternator rear bearing; CH section Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09820-00030 Alternator Rear Bearing Replacer *3 Starter bearing for 1.4 kW (compact) type; ST section Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09820-63010 Alternator Pulley Set Nut Wrench Set CH section Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09842-30060 Wire "E" EFI Inspection *4 3S-GTE only; FI section Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09842-30070 Wire "F" EFI Inspection *5 5S-FE only; FI section Maintenance ↗ RM179U2_1991_vol2 · p936 OEM manual
09843-18020 Diagnosis Check Wire Used in sections: EM, TC, EC, FI, LU, AT, BR, AB, BE Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
09911-00011 Puller Clamp Sub-component of Puller Set; used in section: AB Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
09912-00010 Puller Slide Hammer Sub-component of Puller Set; used in section: AB Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
09921-00010 Spring Tension Tool Used in sections: MT E153, MT S54 Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
09950-00020 Bearing Remover Used in sections: MT E153, MT S54, AT, SA Front Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
09950-20017 Universal Puller Used in sections: MT E153, MT S54, SA Front, SA Rear, BE Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
09990-00150 ABS (Anti-lock Brake System) Actuator Checker and Sub-harness Used in section: BR Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
09992-00094 Automatic Transmission Oil Pressure Gauge Set Used in section: AT Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
09992-00241 Turbocharger Pressure Gauge Used in sections: EM (3S-GTE only), EC. Remark *1: 3S-GTE only Maintenance ↗ RM179U2_1991_vol2 · p937 OEM manual
08826-00080 Seal packing or equivalent EM: Cylinder head semi-circular plug, Cylinder head, Camshaft bearing cap; LU: Oil pan Maintenance ↗ RM179U2_1991_vol2 · p938 OEM manual
08826-00090 Seal packing 1281, Three bond 1281 or equivalent MT: (S54) Transmission case, Transmission case cover; (E153) Transmission case, Transaxle case cover Maintenance ↗ RM179U2_1991_vol2 · p938 OEM manual
08826-00801 Seal packing 1121, Three bond 1121 or equivalent SA: Inboard joint cover Maintenance ↗ RM179U2_1991_vol2 · p938 OEM manual
08833-00070 Adhesive 1324, Three bond 1324 or equivalent EM: Flywheel mount bolt for M/T (3S-GTE), Flywheel or drive plate mount bolt (5S-FE); EC: EVAP BVSV; MT: Rear bearing retainer set bolts; AT: Torque converter set bolts, Oil gallery cover set bolts Maintenance ↗ RM179U2_1991_vol2 · p938 OEM manual
08833-00080 Adhesive 1344, Three bond 1344, Loctite 242 or equivalent EM: No.1 idler pulley pivot bolt (3S-GTE); LU: Oil pressure switch; MT: (S54) Plug threads, Idler gear shaft lock bolt, Side bearing retainer set bolts, Transmission case cover set bolts; (E153) Plug threads, Transaxle case cover set bolts, Control shaft cover set bolts; AT: Transaxle housing set bolts; SR: (Manual steering gear housing) Pinion bearing adjusting screw, Pinion bearing adjusting screw lock nut, Rack guide spring cap, Rack guide spring cap lock nut; (Power steering gear housing) Rack housing cap, Rack guide spring cap, Rack guide spring cap lock nut Maintenance ↗ RM179U2_1991_vol2 · p938 OEM manual
08833-00090 Adhesive 1131, Three bond 1131, Loctite 518 or equivalent AT: Transaxle rear cover, Transaxle housing Maintenance ↗ RM179U2_1991_vol2 · p938 OEM manual
08850-00070 Windshield glass adhesive set No.15 Windshield (0 - 15°C or 32 - 59°F), Section BO Maintenance ↗ RM179U2_1991_vol2 · p939 OEM manual
08850-00080 Windshield glass adhesive set No.35 Windshield (15 - 35°C or 59 - 95°F), Section BO Maintenance ↗ RM179U2_1991_vol2 · p939 OEM manual
08850-00090 Windshield glass adhesive set No.45 Windshield (35 - 45°C or 95 - 113°F), Section BO Maintenance ↗ RM179U2_1991_vol2 · p939 OEM manual
08850-00065 Butyl tape set Moulding, Quarter window glass, Section BO Maintenance ↗ RM179U2_1991_vol2 · p939 OEM manual
08833-00030 Auto glass sealer Moulding, Windshield, Back window glass, Section BO Maintenance ↗ RM179U2_1991_vol2 · p939 OEM manual
09350-32014 SST — one-way clutch inspection tool set Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p7 OEM manual
09351-32010 SST — inner race of one-way clutch sub-component of 09350-32014 Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p7 OEM manual
09351-32020 SST — converter hub and outer race of one-way clutch sub-component of 09350-32014 Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p7 OEM manual
09308-00010 SST — oil seal remover (drive out both side oil seals) Used during removal Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p18 OEM manual
09350-32014 SST — oil seal installer (base tool, LH and RH side) Used with sub-tools 09351-32111 / 09351-32130 (LH) or 09351-32150 / 09351-32130 (RH) Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p18 OEM manual
09351-32111 SST sub-tool — LH side oil seal installer Used with 09350-32014 and 09351-32130 Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p18 OEM manual
09351-32130 SST sub-tool — common oil seal installer component (LH and RH) Used with 09350-32014 Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p18 OEM manual
09351-32150 SST sub-tool — RH side oil seal installer Used with 09350-32014 and 09351-32130 Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p18 OEM manual
09308-00010 Oil Seal Puller Remove side gear shaft oil seal Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p26 OEM manual
09350-32014 TOYOTA Automatic Transmission Tool Set Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p26 OEM manual
09351-32010 One-way Clutch Test Tool Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p26 OEM manual
09351-32111 Side Bearing Race Replacer Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p26 OEM manual
09351-32150 Oil Seal Replacer Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p26 OEM manual
09628-62011 Ball Joint Puller Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p26 OEM manual
09643-18020 Diagnosis Check Wire Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p26 OEM manual
09992-00094 Automatic Transmission Oil Pressure Gauge Set Line pressure Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p26 OEM manual
08833-00070 Adhesive 1324 (THREE BOND 1324 or equivalent) Torque converter mounting bolt Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p27 OEM manual
09843-18020 SST — used to connect TE and E1 terminals of data link connector Special Service Tool Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p45 OEM manual
09992-00094 Oil pressure gauge (SST) Used for hydraulic test Transmission / transaxle ↗ RM285U_1993_transaxle_auto · p67 OEM manual
09843-18020 SST — used to connect terminals TE1 and E1 of data link connector 1 for ignition timing adjustment Special Service Tool Ignition ↗ RM285U_1993_ignition · p8 OEM manual
09240-00020 SST for G1 and G2 pickups air gap measurement Special Service Tool Ignition ↗ RM285U_1993_ignition · p17 OEM manual
09082-00015 TOYOTA Electrical Tester Recommended tool Ignition ↗ RM285U_1993_ignition · p20 OEM manual
08826-00080 Seal packing (FIPG) for ignition coil installing surface or equivalent Ignition ↗ RM285U_1993_ignition · p28 OEM manual
09843-18020 SST — used to connect terminals TE1 and E1 of data link connector 1 Special Service Tool Ignition ↗ RM285U_1993_ignition · p31 OEM manual
09843-18020 SST — data link connector 1 jumper tool Remove after timing adjustment Ignition ↗ RM285U_1993_ignition · p32 OEM manual
ND PK20R11 Recommended spark plug (NipponDenso) 5S-FE engine Ignition ↗ RM285U_1993_ignition · p36 OEM manual
NGK BKR6EP-11 Recommended spark plug (NGK) 5S-FE engine Ignition ↗ RM285U_1993_ignition · p36 OEM manual
09843-18020 Diagnosis Check Wire SST - Special Service Tool Ignition ↗ RM285U_1993_ignition · p42 OEM manual
09062-00015 TOYOTA Electrical Tester Recommended Tool Ignition ↗ RM285U_1993_ignition · p42 OEM manual
0882-00080 Seal packing or equivalent SSM - Special Service Material; used on ignition coil Ignition ↗ RM285U_1993_ignition · p42 OEM manual
09213-54015 SST Set part No. for crankshaft pulley installation Component part No. 90119-08126 Introduction ↗ engine_3s_family · p5 OEM manual
90119-08126 SST Component part No. for crankshaft pulley installation Set part No. 09213-54015 Introduction ↗ engine_3s_family · p5 OEM manual
K16R-U11 Spark plug — 5S-FE (ND) Conventional Type only Engine — mechanical ↗ engine_3s_family · p20 OEM manual
BKR5EYA11 Spark plug — 5S-FE (NGK) Conventional Type only Engine — mechanical ↗ engine_3s_family · p20 OEM manual
K20R-U Spark plug — 3S-GE (ND) Conventional Type only Engine — mechanical ↗ engine_3s_family · p20 OEM manual
BKR6EYA Spark plug — 3S-GE (NGK) Conventional Type only Engine — mechanical ↗ engine_3s_family · p20 OEM manual
09248-55010 SST — Valve lifter press-down tool set SST (A) presses down valve lifter; SST (B) holds lifter depressed between camshaft and lifter Engine — mechanical ↗ engine_3s_family · p22 OEM manual
09248-55010 SST — Valve lifter press-down tool set Used to press down valve lifter during adjusting shim installation Engine — mechanical ↗ engine_3s_family · p23 OEM manual
02 Intake adjusting shim thickness 2.50 mm (0.0984 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
04 Intake adjusting shim thickness 2.55 mm (0.1004 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
06 Intake adjusting shim thickness 2.60 mm (0.1024 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
08 Intake adjusting shim thickness 2.65 mm (0.1043 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
10 Intake adjusting shim thickness 2.70 mm (0.1063 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
12 Intake adjusting shim thickness 2.75 mm (0.1083 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
14 Intake adjusting shim thickness 2.80 mm (0.1102 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
16 Intake adjusting shim thickness 2.85 mm (0.1122 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
18 Intake adjusting shim thickness 2.90 mm (0.1142 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
20 Intake adjusting shim thickness 2.95 mm (0.1161 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
22 Intake adjusting shim thickness 3.00 mm (0.1181 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
24 Intake adjusting shim thickness 3.05 mm (0.1201 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
26 Intake adjusting shim thickness 3.10 mm (0.1220 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
28 Intake adjusting shim thickness 3.15 mm (0.1240 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
30 Intake adjusting shim thickness 3.20 mm (0.1260 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
32 Intake adjusting shim thickness 3.25 mm (0.1280 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
34 Intake adjusting shim thickness 3.30 mm (0.1299 in.) Engine — mechanical ↗ engine_3s_family · p24 OEM manual
09248-55010 SST — Valve lifter press-down tool set (SST A and SST B) Used to press down valve lifter and retain with SST (B) between camshaft and valve lifter Engine — mechanical ↗ engine_3s_family · p27 OEM manual
09248-55010 SST — Valve lifter press-down tool (used with adjusting shim installation) Special Service Tool Engine — mechanical ↗ engine_3s_family · p28 OEM manual
09843-18020 SST — Jumper wire for connecting TE1 and E1 terminals of check connector Engine — mechanical ↗ engine_3s_family · p31 OEM manual
09843-18020 SST — jumper tool for connecting terminals TE1 and E1 of check connector Engine — mechanical ↗ engine_3s_family · p32 OEM manual
09843-18020 SST — jumper wire for connecting terminals TE1 and E1 of check connector Engine — mechanical ↗ engine_3s_family · p33 OEM manual
09843-18020 SST (Special Service Tool) Used in step (d) Remove SST Engine — mechanical ↗ engine_3s_family · p34 OEM manual
09843-18020 SST — check connector jumper tool for TE1-E1 and VF1 terminals Used in steps 2(a) and 2(e) Engine — mechanical ↗ engine_3s_family · p36 OEM manual
09843-18020 SST — used to connect terminals TE1 and E1 of the check connector Special Service Tool Engine — mechanical ↗ engine_3s_family · p38 OEM manual
09843-18020 SST (Special Service Tool) Used during idle HC/CO concentration check Engine — mechanical ↗ engine_3s_family · p39 OEM manual
09278-54012 SST (A) — Camshaft timing pulley holder Engine — mechanical ↗ engine_3s_family · p44 OEM manual
09249-63010 SST (B) — Camshaft timing pulley bolt remover Engine — mechanical ↗ engine_3s_family · p44 OEM manual
09213-54015 SST — Crankshaft pulley bolt remover used with 09214-00030 Engine — mechanical ↗ engine_3s_family · p44 OEM manual
09214-00030 SST — sub-tool for crankshaft pulley bolt remover used with 09213-54015 Engine — mechanical ↗ engine_3s_family · p44 OEM manual
09330-00021 SST — Crankshaft pulley holding tool Engine — mechanical ↗ engine_3s_family · p44 OEM manual
09213-60017 SST - Pulley removal tool (set) Includes 09213-00020, 09213-00030, 09213-00050 Engine — mechanical ↗ engine_3s_family · p45 OEM manual
09213-00020 SST component for pulley removal Part of SST 09213-60017 Engine — mechanical ↗ engine_3s_family · p45 OEM manual
09213-00030 SST component for pulley removal Part of SST 09213-60017 Engine — mechanical ↗ engine_3s_family · p45 OEM manual
09213-00050 SST component for pulley removal Part of SST 09213-60017 Engine — mechanical ↗ engine_3s_family · p45 OEM manual
09616-30011 SST — Oil pump pulley holding tool Used to remove oil pump pulley nut Engine — mechanical ↗ engine_3s_family · p47 OEM manual
09616-30011 SST for oil pump pulley nut installation Step 1(b) Engine — mechanical ↗ engine_3s_family · p49 OEM manual
09213-54015 SST — Crankshaft pulley bolt installation tool includes sub-tool 09214-00030 Engine — mechanical ↗ engine_3s_family · p50 OEM manual
09214-00030 SST sub-tool for crankshaft pulley installation used with 09213-54015 Engine — mechanical ↗ engine_3s_family · p50 OEM manual
09330-00021 SST — Crankshaft pulley bolt installation (companion tool) Engine — mechanical ↗ engine_3s_family · p50 OEM manual
09278-54012 SST (A) — Camshaft timing pulley bolt installation Engine — mechanical ↗ engine_3s_family · p50 OEM manual
09249-63010 SST (B) — Camshaft timing pulley bolt installation (on vehicle) Use with torque wrench fulcrum length 340 mm (13.39 in.) Engine — mechanical ↗ engine_3s_family · p50 OEM manual
09278-54012 SST — Camshaft turning tool Used to align camshaft timing pulley hole with bearing cap timing mark Engine — mechanical ↗ engine_3s_family · p51 OEM manual
09249-63010 SST for intake camshaft timing pulley removal (on vehicle) Special Service Tool Engine — mechanical ↗ engine_3s_family · p56 OEM manual
09213-54015 SST — Crankshaft pulley bolt removal tool includes 90119-08216 Engine — mechanical ↗ engine_3s_family · p57 OEM manual
90119-08216 SST sub-component for 09213-54015 Engine — mechanical ↗ engine_3s_family · p57 OEM manual
09330-00021 SST — Crankshaft pulley bolt removal tool (companion) Engine — mechanical ↗ engine_3s_family · p57 OEM manual
09213-31021 SST — Crankshaft pulley removal tool Special Service Tool Engine — mechanical ↗ engine_3s_family · p58 OEM manual
09616-30011 SST for oil pump pulley removal Step 21 Engine — mechanical ↗ engine_3s_family · p59 OEM manual
09616-30011 SST for oil pump pulley nut installation Special Service Tool Engine — mechanical ↗ engine_3s_family · p62 OEM manual
08833-00080 Adhesive (THREE BOND 1344 / LOCTITE 242 or equivalent) for No.1 idler pulley pivot bolt Apply to two or three threads of pivot bolt Engine — mechanical ↗ engine_3s_family · p62 OEM manual
09213-54015 SST — Crankshaft pulley holding tool Sub-part 90119-08216 Engine — mechanical ↗ engine_3s_family · p63 OEM manual
09330-00021 SST — Crankshaft pulley bolt torque tool Engine — mechanical ↗ engine_3s_family · p63 OEM manual
09249-63010 SST for intake camshaft timing pulley installation Used with torque wrench fulcrum length 340 mm (13.39 in.) Engine — mechanical ↗ engine_3s_family · p64 OEM manual
09249-63010 SST — Camshaft timing pulley holding tool For intake camshaft timing pulley on vehicle Engine — mechanical ↗ engine_3s_family · p71 OEM manual
09249-63010 SST — Special Service Tool for intake camshaft timing pulley bolt tightening Fulcrum length 340 mm (13.39 in.) Engine — mechanical ↗ engine_3s_family · p72 OEM manual
09011-38121 SST — Cylinder head bolt wrench Used to loosen/remove cylinder head bolts Engine — mechanical ↗ engine_3s_family · p82 OEM manual
09202-70010 SST — Valve spring compressor Used to compress valve spring and remove keepers Engine — mechanical ↗ engine_3s_family · p83 OEM manual
09201-41020 SST — oil seal installer Used to push in new valve oil seal Engine — mechanical ↗ engine_3s_family · p94 OEM manual
09202-70010 SST — valve spring compressor Used to compress valve spring and place keepers Engine — mechanical ↗ engine_3s_family · p94 OEM manual
09011-38121 SST — Cylinder head bolt socket Used for installing and torquing cylinder head bolts Engine — mechanical ↗ engine_3s_family · p96 OEM manual
08826-00080 Seal packing for No.1 bearing cap Apply 2–3 mm (0.08–0.12 in.) bead Engine — mechanical ↗ engine_3s_family · p98 OEM manual
09223-46011 SST for tapping in oil seal Special Service Tool Engine — mechanical ↗ engine_3s_family · p99 OEM manual
08826-00080 Seal packing for semi-circular plug groove or equivalent Engine — mechanical ↗ engine_3s_family · p100 OEM manual
08826-00080 Seal packing (FIPG) for cylinder head cover or equivalent Engine — mechanical ↗ engine_3s_family · p101 OEM manual
08833-00080 Adhesive THREE BOND 1324 for oil pressure switch threads or equivalent Engine — mechanical ↗ engine_3s_family · p101 OEM manual
09043-38100 SST — Cylinder head bolt removal tool Special Service Tool for removing cylinder head bolts Engine — mechanical ↗ engine_3s_family · p126 OEM manual
09202-70010 SST — valve spring compressor Used to compress valve spring and remove keepers Engine — mechanical ↗ engine_3s_family · p127 OEM manual
09201-70010 SST — Valve guide bushing removal/installation tool Used in steps (c) and (g) Engine — mechanical ↗ engine_3s_family · p131 OEM manual
09201-41020 SST — valve oil seal installer Special Service Tool Engine — mechanical ↗ engine_3s_family · p140 OEM manual
09202-70010 SST — Valve spring compressor Used to compress valve spring and place keepers Engine — mechanical ↗ engine_3s_family · p141 OEM manual
08826-00080 Seal packing for cylinder head cover or equivalent Engine — mechanical ↗ engine_3s_family · p142 OEM manual
08833-00080 THREE BOND 1324 adhesive — applied to oil pressure switch threads or equivalent Engine — mechanical ↗ engine_3s_family · p146 OEM manual
09043-38100 SST — Cylinder head bolt socket tool Special Service Tool for cylinder head bolt installation Engine — mechanical ↗ engine_3s_family · p149 OEM manual
08826-00080 Seal packing for No.1 bearing cap or equivalent Engine — mechanical ↗ engine_3s_family · p150 OEM manual
08826-00080 Seal packing for cylinder head cover or equivalent Engine — mechanical ↗ engine_3s_family · p151 OEM manual
09223-50010 SST — Camshaft oil seal installer Engine — mechanical ↗ engine_3s_family · p151 OEM manual
08833-00080 THREE BOND 1324 adhesive (or equivalent) — for oil pressure switch threads Step 16 — INSTALL OIL PRESSURE SWITCH Engine — mechanical ↗ engine_3s_family · p153 OEM manual
09011-38121 SST — Connecting rod cap nut removal tool Engine — mechanical ↗ engine_3s_family · p161 OEM manual
09222-30010 SST — connecting rod bushing press tool Used to press out and press in connecting rod bushing Engine — mechanical ↗ engine_3s_family · p173 OEM manual
09226-10010 SST — Oil seal installer tool Used for both Method A and Method B crankshaft front oil seal installation Engine — mechanical ↗ engine_3s_family · p176 OEM manual
09223-63010 SST — Rear oil seal installer Special Service Tool Engine — mechanical ↗ engine_3s_family · p177 OEM manual
09011-38121 SST — connecting rod cap nut installation tool Engine — mechanical ↗ engine_3s_family · p182 OEM manual
08833-00070 THREE BOND 1324 adhesive (or equivalent) Applied to flywheel mount bolt threads Engine — mechanical ↗ engine_3s_family · p184 OEM manual
09816-30010 SST — Knock Sensor Removal Tool Used to remove knock sensor in step 14 Engine — mechanical ↗ engine_3s_family · p186 OEM manual
09222-30010 SST for pressing connecting rod bushing in/out Engine — mechanical ↗ engine_3s_family · p199 OEM manual
09816-30010 SST — knock sensor installer Step 1 Engine — mechanical ↗ engine_3s_family · p207 OEM manual
08833-00070 THREE BOND 1324 adhesive (or equivalent) Applied to flywheel mount bolt threads Engine — mechanical ↗ engine_3s_family · p208 OEM manual
09992-00241 SST — Turbocharger pressure gauge Used for actuator operation check and turbocharging pressure check Turbocharger ↗ engine_3s_family · p217 OEM manual
09842-30050 SST (A) — injector/cold start injector wiring connector inspection tool 5S-FE, 3S-GE, 3S-GTE EFI / fuel injection ↗ engine_3s_family · p235 OEM manual
09842-30070 SST (C) — injector/cold start injector wiring connector inspection tool 5S-FE and 3S-GE EFI / fuel injection ↗ engine_3s_family · p235 OEM manual
09842-30060 SST (B) — injector/cold start injector wiring connector inspection tool 3S-GTE EFI / fuel injection ↗ engine_3s_family · p235 OEM manual
09631-22020 SST — flare nut tightening tool Use with torque wrench, fulcrum length 30 cm EFI / fuel injection ↗ engine_3s_family · p235 OEM manual
09843-18020 SST — used to connect terminals +B and FP of check connector for fuel leak inspection EFI / fuel injection ↗ engine_3s_family · p237 OEM manual
09843-18020 SST — used to connect terminals TE1 and E1 of the check connector EFI / fuel injection ↗ engine_3s_family · p254 OEM manual
09843-18020 SST — Special Service Tool for diagnostic check Remove after diagnostic check is complete EFI / fuel injection ↗ engine_3s_family · p256 OEM manual
09843-18020 SST — Check connector jumper tool for terminals +B and FP Used to activate fuel pump without starting engine EFI / fuel injection ↗ engine_3s_family · p333 OEM manual
09268-45012 SST — Pressure gauge for delivery pipe EFI / fuel injection ↗ engine_3s_family · p334 OEM manual
09843-18020 SST — Check connector jumper (terminals +B and FP) EFI / fuel injection ↗ engine_3s_family · p334 OEM manual
09268-45012 SST — Fuel pressure gauge set Used for fuel pressure measurement EFI / fuel injection ↗ engine_3s_family · p335 OEM manual
09843-18020 SST — Check connector jumper tool for +B and FP terminals Used for fuel pump operation check EFI / fuel injection ↗ engine_3s_family · p336 OEM manual
09268-45012 SST — Pressure gauge / fuel inlet hose adapter Used to connect pressure gauge at fuel filter outlet EFI / fuel injection ↗ engine_3s_family · p337 OEM manual
09843-18020 SST — Check connector jumper tool (terminals +B and FP) Used to activate fuel pump during pressure test EFI / fuel injection ↗ engine_3s_family · p337 OEM manual
09631-22020 SST for flare nut tightening Step 5(b) EFI / fuel injection ↗ engine_3s_family · p345 OEM manual
09268-41045 SST — Union (two unions for injector and delivery pipe) Also referenced as 09268-41080 EFI / fuel injection ↗ engine_3s_family · p354 OEM manual
09268-41080 SST — Union (sub-part of 09268-41045 set) EFI / fuel injection ↗ engine_3s_family · p354 OEM manual
09842-30050 SST — Wire (for cold start injector test) EFI / fuel injection ↗ engine_3s_family · p354 OEM manual
09843-18020 SST — Check connector jumper (connects terminals +B and FP) EFI / fuel injection ↗ engine_3s_family · p354 OEM manual
09842-30050 SST (Wire) — for cold start injector leakage inspection EFI / fuel injection ↗ engine_3s_family · p355 OEM manual
09268-41045 SST — for cold start injector removal/installation EFI / fuel injection ↗ engine_3s_family · p355 OEM manual
09843-18020 SST — for cold start injector removal/installation EFI / fuel injection ↗ engine_3s_family · p355 OEM manual
09268-41045 SST — Union set (includes 09268-41080, 09405-09015) Used for cold start injector inspection EFI / fuel injection ↗ engine_3s_family · p357 OEM manual
09268-41080 SST — Union sub-component Part of 09268-41045 set EFI / fuel injection ↗ engine_3s_family · p357 OEM manual
09405-09015 SST — Union sub-component Part of 09268-41045 set EFI / fuel injection ↗ engine_3s_family · p357 OEM manual
09842-30050 SST — Wire for injector connection Used for cold start injector inspection EFI / fuel injection ↗ engine_3s_family · p357 OEM manual
09843-18020 SST — Check connector terminal jumper Connects terminals +B and FP EFI / fuel injection ↗ engine_3s_family · p357 OEM manual
09842-30050 SST (Wire) for cold start injector test EFI / fuel injection ↗ engine_3s_family · p358 OEM manual
09268-41045 SST for cold start injector removal EFI / fuel injection ↗ engine_3s_family · p358 OEM manual
09843-18020 SST for cold start injector removal EFI / fuel injection ↗ engine_3s_family · p358 OEM manual
09268-41045 SST (Union / Hose) Cold start injector inspection EFI / fuel injection ↗ engine_3s_family · p360 OEM manual
09268-41080 SST (Union) Cold start injector inspection EFI / fuel injection ↗ engine_3s_family · p360 OEM manual
09842-30050 SST (Wire) Cold start injector inspection EFI / fuel injection ↗ engine_3s_family · p360 OEM manual
09843-18020 SST (Check connector jumper) Connect terminals +B and FP EFI / fuel injection ↗ engine_3s_family · p360 OEM manual
09842-30050 SST (Wire) for leakage inspection EFI / fuel injection ↗ engine_3s_family · p361 OEM manual
09268-41045 SST for cold start injector removal/installation EFI / fuel injection ↗ engine_3s_family · p361 OEM manual
09843-18020 SST for cold start injector removal/installation EFI / fuel injection ↗ engine_3s_family · p361 OEM manual
09268-41045 SST Union and Hose set for fuel filter/injector/pressure regulator connections Sub-components: 90405-09015, 09268-41090, 09268-41080 EFI / fuel injection ↗ engine_3s_family · p372 OEM manual
09843-18020 SST for connecting check connector terminals +B and FP EFI / fuel injection ↗ engine_3s_family · p372 OEM manual
09842-30070 SST (Wire) — injection volume and leakage test tool EFI / fuel injection ↗ engine_3s_family · p373 OEM manual
09268-41045 SST — injector removal/installation tool EFI / fuel injection ↗ engine_3s_family · p373 OEM manual
09843-18020 SST — injector removal/installation tool EFI / fuel injection ↗ engine_3s_family · p373 OEM manual
09268-41045 SST union and hose set includes 90405-09015 and 09268-41060 EFI / fuel injection ↗ engine_3s_family · p379 OEM manual
90405-09015 SST sub-component for 09268-41045 EFI / fuel injection ↗ engine_3s_family · p379 OEM manual
09268-41060 SST union sub-component for 09268-41045 EFI / fuel injection ↗ engine_3s_family · p379 OEM manual
09843-18020 SST — Check connector wire Connect terminals +B and FP EFI / fuel injection ↗ engine_3s_family · p380 OEM manual
09842-30070 SST (Wire) — Injector test harness Injection volume and leakage test EFI / fuel injection ↗ engine_3s_family · p380 OEM manual
09268-41045 SST — Injector removal/installation tool Remove after leakage inspection EFI / fuel injection ↗ engine_3s_family · p380 OEM manual
09268-41045 SST — union and hose set Sub-set: 09405-09015 EFI / fuel injection ↗ engine_3s_family · p386 OEM manual
09268-41080 SST — union (delivery pipe) Used with 09268-41045 and 90405-09015 EFI / fuel injection ↗ engine_3s_family · p386 OEM manual
90405-09015 SST — hose Used with 09268-41045 EFI / fuel injection ↗ engine_3s_family · p386 OEM manual
09843-18020 SST — Check connector terminal jumper tool Connect terminals +B and FP EFI / fuel injection ↗ engine_3s_family · p387 OEM manual
09842-30060 SST (wire) — Injector test wire harness Used for injection volume and leakage tests EFI / fuel injection ↗ engine_3s_family · p387 OEM manual
09268-41045 SST — Injector removal/installation tool Remove after leakage inspection EFI / fuel injection ↗ engine_3s_family · p387 OEM manual
09268-74010 SST — Injector puller from delivery pipe Used to remove injector from delivery pipe EFI / fuel injection ↗ engine_3s_family · p387 OEM manual
09843-18020 SST — check connector jumper tool for terminals TE1 and E1 Special Service Tool Engine — mechanical ↗ engine_3s_family · p409 OEM manual
09843-18020 SST — Check connector jumper tool (TE1 to E1) Used for ISC valve inspection Engine — mechanical ↗ engine_3s_family · p411 OEM manual
09843-18020 SST — jumper tool to connect terminals TE1 and E1 of check connector Emission control ↗ engine_3s_family · p438 OEM manual
09816-30010 SST for oil pressure switch removal (3S-GTE) Lubrication / oil ↗ engine_3s_family · p510 OEM manual
08833-00080 Adhesive (THREE BOND 1344 / LOCTITE 242 or equivalent) for oil pressure switch threads Lubrication / oil ↗ engine_3s_family · p510 OEM manual
09228-06500 SST — Oil filter removal/installation tool Used in steps 2(b) and 2(f) Lubrication / oil ↗ engine_3s_family · p511 OEM manual
09032-00100 SST — blade tool for cutting oil pan sealer Special Service Tool Lubrication / oil ↗ engine_3s_family · p514 OEM manual
09620-30010 SST — Oil seal installer set Includes 09627-30010, 09631-00020 Lubrication / oil ↗ engine_3s_family · p517 OEM manual
09627-30010 SST — Oil seal installer sub-component Part of 09620-30010 set Lubrication / oil ↗ engine_3s_family · p517 OEM manual
09631-00020 SST — Oil seal installer sub-component Part of 09620-30010 set Lubrication / oil ↗ engine_3s_family · p517 OEM manual
08826-00080 Seal packing (FIPG) for oil pan or equivalent; nozzle cut to 3-5 mm (0.12-0.20 in.) opening Lubrication / oil ↗ engine_3s_family · p518 OEM manual
09155-16100 SST — Spark plug removal/installation tool Ignition ↗ engine_3s_family · p539 OEM manual
PK20R8 Recommended spark plug — ND brand Platinum tipped type Ignition ↗ engine_3s_family · p540 OEM manual
BKR6EP8 Recommended spark plug — NGK brand Platinum tipped type Ignition ↗ engine_3s_family · p540 OEM manual
09240-00020 SST for G pickup (5S-FE) / G1 and G2 pickup (3S-GE, 3S-GTE) air gap measurement Special Service Tool Ignition ↗ engine_3s_family · p543 OEM manual
09286-46011 SST — bearing remover Used to remove starter bearing Starting / charging ↗ engine_3s_family · p556 OEM manual
09285-76010 SST — front bearing installer (1.0 kw type) Used with press to install new front bearing Starting / charging ↗ engine_3s_family · p556 OEM manual
09201-41020 SST — front bearing installer (1.4 kw type) Used with press to install new front bearing Starting / charging ↗ engine_3s_family · p556 OEM manual
09216-00020 SST A — Drive belt tension gauge Starting / charging ↗ engine_3s_family · p564 OEM manual
09216-00030 SST B — Drive belt tension gauge Starting / charging ↗ engine_3s_family · p564 OEM manual
09820-63010 SST — Pulley removal tool set Used to remove alternator pulley Starting / charging ↗ engine_3s_family · p568 OEM manual
09286-46011 SST — Special Service Tool for removing rectifier end frame Starting / charging ↗ engine_3s_family · p569 OEM manual
09608-20012 SST for pressing in front bearing Sub-tool 09608-00030 Starting / charging ↗ engine_3s_family · p572 OEM manual
09820-00021 SST — bearing cover and bearing removal tool Used to remove rear bearing cover and bearing Starting / charging ↗ engine_3s_family · p573 OEM manual
09285-76010 SST — bearing and bearing cover press-in tool Used to press in new bearing and bearing cover Starting / charging ↗ engine_3s_family · p573 OEM manual
09820-63010 SST — pulley holding/tightening tool Starting / charging ↗ engine_3s_family · p574 OEM manual
K20R-U Spark plug — Conventional type (ND) Air gap 0.8 mm / 0.031 in. Engine — mechanical ↗ engine_3s_family · p583 OEM manual
BKR6EYA Spark plug — Conventional type (NGK) Air gap 0.8 mm / 0.031 in. Engine — mechanical ↗ engine_3s_family · p583 OEM manual
PK20R8 Spark plug — Platinum tipped type (ND) Air gap 0.8 mm / 0.031 in. Engine — mechanical ↗ engine_3s_family · p583 OEM manual
BKR6EP8 Spark plug — Platinum tipped type (NGK) Air gap 0.8 mm / 0.031 in. Engine — mechanical ↗ engine_3s_family · p583 OEM manual
09011-38121 12 mm Socket Wrench for 12 Pointed Head 5S-FE only; EM section Maintenance ↗ engine_3s_family · p604 OEM manual
09043-38100 Hexagon 10 mm Wrench 3S-GE and 3S-GTE; EM section Maintenance ↗ engine_3s_family · p604 OEM manual
09201-41020 Valve Stem Oil Seal Replacer Starter front bearing for 1.4 kW type; EM and ST sections Maintenance ↗ engine_3s_family · p604 OEM manual
09201-70010 Valve Guide Bushing Remover & Replacer EM section Maintenance ↗ engine_3s_family · p604 OEM manual
09213-31021 Crankshaft Pulley Puller 3S-GE and 3S-GTE; EM section Maintenance ↗ engine_3s_family · p604 OEM manual
09213-54015 Crankshaft Pulley Holding Tool EM section Maintenance ↗ engine_3s_family · p604 OEM manual
09213-60017 Crankshaft Pulley & Gear Puller Set EM section Maintenance ↗ engine_3s_family · p604 OEM manual
09222-30010 Connecting Rod Bushing Remover & Replacer EM section Maintenance ↗ engine_3s_family · p605 OEM manual
09223-46011 Crankshaft Front Oil Seal Replacer EM section; Camshaft oil seal for 5S-FE Maintenance ↗ engine_3s_family · p605 OEM manual
09223-50010 Crankshaft Front Oil Seal Replacer EM section; Camshaft oil seal for 3S-GE and 3S-GTE Maintenance ↗ engine_3s_family · p605 OEM manual
09223-63010 Crankshaft Rear Oil Seal Replacer EM section Maintenance ↗ engine_3s_family · p605 OEM manual
09226-10010 Crankshaft Front & Rear Bearing Replacer EM section; Crankshaft front oil seal Maintenance ↗ engine_3s_family · p605 OEM manual
09248-55010 Valve Clearance Adjust Tool Set EM section Maintenance ↗ engine_3s_family · p605 OEM manual
09268-41045 Injection Measuring Tool Set FI section Maintenance ↗ engine_3s_family · p605 OEM manual
09268-74010 Injector Remover FI section; 3S-GTE only Maintenance ↗ engine_3s_family · p606 OEM manual
09278-54012 Drive Shaft Holding Tool EM section; Camshaft timing pulley for 5S-FE Maintenance ↗ engine_3s_family · p606 OEM manual
09285-76010 Injection Pump Camshaft Bearing Cone Replacer FI section (partial); ST section *1 Starter front bearing for 1.0 kW type; CH section *2 Rotor rear bearing Maintenance ↗ engine_3s_family · p606 OEM manual
09286-46011 Injection Pump Spline Shaft Puller ST section *1 Starter bearing; CH section *2 Rectifier end frame Maintenance ↗ engine_3s_family · p606 OEM manual
09330-00021 Companion Flange Holding Tool EM section; Crankshaft pulley Maintenance ↗ engine_3s_family · p606 OEM manual
09608-20012 Front Hub & Drive Pinion Bearing Tool Set ST section Maintenance ↗ engine_3s_family · p606 OEM manual
09608-00030 Replacer CH section; Rotor front bearing Maintenance ↗ engine_3s_family · p606 OEM manual
09616-30011 Steering Worm Bearing Adjusting Screw Wrench EM section; Oil pump pulley Maintenance ↗ engine_3s_family · p606 OEM manual
09620-30010 Steering Gear Box Replacer Set LU section Maintenance ↗ engine_3s_family · p606 OEM manual
09627-30010 Steering Sector Shaft Bushing Replacer LU section; Oil pump oil seal Maintenance ↗ engine_3s_family · p606 OEM manual
09631-22020 Power Steering Hose Nut 14 x 17 mm Wrench Set Fuel line flare nut; FI section Maintenance ↗ engine_3s_family · p607 OEM manual
09816-30010 Oil Pressure Switch Socket *1 Knock sensor for 3S-GE and 3S-GTE (EM section); *2 3S-GTE only (LU section) Maintenance ↗ engine_3s_family · p607 OEM manual
09820-00021 Alternator Rear Bearing Puller ST section Maintenance ↗ engine_3s_family · p607 OEM manual
09820-63010 Alternator Pulley Set Nut Wrench Set ST section Maintenance ↗ engine_3s_family · p607 OEM manual
09842-30060 Wiring "E" EFI Inspection 3S-GTE only; FI section Maintenance ↗ engine_3s_family · p607 OEM manual
09842-30070 Wiring "F" EFI Inspection 5S-FE and 3S-GE; FI section Maintenance ↗ engine_3s_family · p607 OEM manual
09843-18020 Diagnosis Check Wiring EM and FI sections Maintenance ↗ engine_3s_family · p607 OEM manual
08826-00080 Seal packing or equivalent EM: Cylinder head semi-circular plug for 5S-FE, Camshaft bearing cap, Cylinder head cover; LU: Oil pan Maintenance ↗ engine_3s_family · p608 OEM manual
08833-00070 Adhesive 1324, Three bond 1324 or equivalent EM: Flywheel mount bolt for M/T, Drive plate mount bolt for A/T Maintenance ↗ engine_3s_family · p608 OEM manual
08833-00080 Adhesive 1344, Three bond 1344, Loctite 242 or equivalent EM: No.1 idler pulley; LU: Oil pressure switch Maintenance ↗ engine_3s_family · p608 OEM manual
09228-06500 SST for oil filter removal Used in step 12(a) to remove oil filter Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p24 OEM manual
09816-30010 SST — Knock Sensor Removal Tool Used to remove knock sensor Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p25 OEM manual
09222-30010 SST — Connecting rod bushing press tool Used to press out and press in connecting rod bushing Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p39 OEM manual
09226-10010 SST — oil seal installer tool Used in both Method A and Method B for crankshaft front oil seal installation Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p42 OEM manual
09223-63010 SST — Rear oil seal installer Used for both retainer-removed and retainer-installed procedures Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p43 OEM manual
09011-38121 SST for installing and tightening connecting rod cap nuts Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p49 OEM manual
09816-30010 SST for knock sensor installation Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p50 OEM manual
08833-00070 THREE BOND 1324 adhesive (or equivalent) — applied to flywheel mounting bolt threads Step 12(a) Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p52 OEM manual
09301-32010 SST — Clutch disc alignment tool Step 1 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p53 OEM manual
08833-00070 THREE BOND 1324 adhesive or equivalent (for torque converter mounting bolt threads) Apply to two or three threads of mounting bolt end Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p54 OEM manual
09249-63010 SST — Camshaft timing pulley removal tool Used in step 26 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p79 OEM manual
09278-54012 SST — Camshaft timing pulley removal tool Used in step 26 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p79 OEM manual
09202-70010 SST — Valve spring compressor Used to compress valve spring and remove keepers Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p85 OEM manual
09201-70010 SST — Special Service Tool for tapping out valve guide bushing Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p89 OEM manual
09201-70010 SST — guide bushing installer tool used for both intake and exhaust guide bushing installation Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p90 OEM manual
09201-41020 SST — Oil seal installer (valve stem seal) Used to push in new valve oil seal Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p97 OEM manual
09202-70010 SST — Valve spring compressor Used to compress valve spring and place keepers Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p97 OEM manual
08826-00080 Seal packing for No.1 bearing cap or equivalent Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p100 OEM manual
09223-46011 SST — Oil seal installer Used to tap in camshaft oil seal Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p101 OEM manual
08826-00080 Seal packing (FIPG) — semi-circular plugs and cylinder head cover or equivalent Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p103 OEM manual
08833-00080 THREE BOND 1324 or equivalent — thread adhesive for oil pressure switch Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p104 OEM manual
09249-63010 SST — Camshaft timing pulley bolt installation tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p105 OEM manual
09278-54012 SST — Camshaft timing pulley bolt installation tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p105 OEM manual
09201-41020 Valve Stem Oil Seal Replacer Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09201-70010 Valve Guide Bushing Remover & Replacer Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09202-70010 Valve Spring Compressor Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09213-54015 Crankshaft Pulley Holding Tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09214-00030 Bolt component of 09213-54015 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09213-60017 Crankshaft Pulley & Gear Puller Set Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09213-00020 Body With Bolt component of 09213-60017 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09213-00030 Handle component of 09213-60017 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09213-00050 Bolt Set component of 09213-60017 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09222-30010 Connecting Rod Bushing Remover & Replacer Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09223-46011 Crankshaft Front Oil Seal Replacer Also used for Camshaft oil seal Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09223-63010 Crankshaft Rear Oil Seal Replacer Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p124 OEM manual
09248-55020 Valve Clearance Adjust Tool Set Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09248-05011 Valve Lifter Press sub-tool of 09248-55020 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09248-05021 Valve Lifter Stopper sub-tool of 09248-55020 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09226-10010 Crankshaft Front & Rear Bearing Replacer Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09278-54012 Drive Shaft Holding Tool Camshaft timing pulley Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09330-00021 Companion Flange Holding Tool Crankshaft pulley Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09616-30011 Steering Worm Bearing Adjusting Screw Wrench Oil pump pulley Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09816-30010 Oil Pressure Switch Socket Knock sensor Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09090-04010 Engine Sling Device For suspension engine — Recommended Tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09200-00010 Engine Adjust Kit Recommended Tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p125 OEM manual
09258-00030 Hose Plug set Plug for the vacuum hose, fuel hose etc. Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p126 OEM manual
08826-00080 Seal packing or equivalent — used on Camshaft bearing cap, Cylinder head cover, Rear oil seal retainer Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p127 OEM manual
08833-00070 Adhesive 1324, THREE BOND 1324 or equivalent — used on Flywheel or drive plate mounting bolt Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p127 OEM manual
08833-00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent — used on Oil pressure switch Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p127 OEM manual
09249-63010 SST for camshaft timing pulley removal Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p138 OEM manual
09278-54012 SST for camshaft timing pulley removal Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p138 OEM manual
09213-54015 SST for crankshaft pulley bolt removal Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p138 OEM manual
09214-00030 SST sub-tool for crankshaft pulley bolt removal Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p138 OEM manual
09330-00021 SST for crankshaft pulley bolt removal Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p138 OEM manual
0921360017 SST set for crankshaft pulley removal Comprises 09213-00020, 09213-00030, 09213-00050 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p140 OEM manual
09616-30011 SST for oil pump pulley removal Special Service Tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p141 OEM manual
09213-54015 SST — Crankshaft pulley bolt installation tool (set) Sub-tool 09214-00030 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p145 OEM manual
09330-00021 SST — Crankshaft pulley bolt installation tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p145 OEM manual
09249-63010 SST — Camshaft timing pulley bolt installation tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p146 OEM manual
09278-54012 SST — Camshaft turning tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p146 OEM manual
95506-00020 Nippondenso BTG-20 Belt Tension Gauge Alternative to Borroughs No. BT-33-73F Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p157 OEM manual
09248-55020 SST — Valve lifter press tool set Comprises 09248-05011 and 09248-05021 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p160 OEM manual
09248-05011 SST (A) — Valve lifter press tool Sub-part of SST 09248-55020 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p160 OEM manual
09248-05021 SST (B) — Stopper/spacer tool Sub-part of SST 09248-55020 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p160 OEM manual
08826-00080 Seal packing (FIPG) for cylinder head cover or equivalent Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p163 OEM manual
09843-18020 SST — jumper wire for connecting terminals TE1 and E1 of data link connector 1 Special Service Tool Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p164 OEM manual
09843-18020 SST — Special Service Tool for data link connector 1 Engine — mechanical ↗ RM285U_1993_5sfe_engineme · p165 OEM manual
08826-00080 Seal packing or equivalent EM: Cylinder head semi-circular plug for 5S-FE, Camshaft bearing cap, Cylinder head cover; LU: Oil pan Maintenance ↗ smoke_engine_3s_family · p608 OEM manual
08833-00070 Adhesive 1324, Three bond 1324 or equivalent EM: Flywheel mount bolt for M/T, Drive plate mount bolt for A/T Maintenance ↗ smoke_engine_3s_family · p608 OEM manual
08833-00080 Adhesive 1344, Three bond 1344, Loctite 242 or equivalent EM: No.1 idler pulley; LU: Oil pressure switch Maintenance ↗ smoke_engine_3s_family · p608 OEM manual
09228-06500 SST — Oil filter wrench Used to remove oil filter Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p2 OEM manual
09228-06500 SST — Oil filter wrench Used to tighten oil filter additional 3/4 turn Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p3 OEM manual
09228-06500 SST for oil filter removal Special Service Tool Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p8 OEM manual
08833-00080 Adhesive — THREE BOND 1344, LOCTITE 242 or equivalent Apply to oil pressure switch threads Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p16 OEM manual
09032-00100 SST — blade tool for cutting oil pan sealer Special Service Tool Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p26 OEM manual
09616-30011 SST — Oil pump pulley removal tool Used to remove nut and pulley in step 23 Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p27 OEM manual
09620-30010 SST — Oil seal installer set Used for oil pump oil seal installation Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p29 OEM manual
09627-30010 SST component — Oil seal installer Sub-part of SST 09620-30010 Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p29 OEM manual
09631-00020 SST component — Oil seal installer Sub-part of SST 09620-30010 Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p29 OEM manual
09226-10010 SST — Oil seal installer tool Used for tapping in crankshaft front oil seal Engine — mechanical ↗ RM285U_1993_3sgte_lubricat · p30 OEM manual
09616-30011 SST for oil pump pulley nut installation Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p32 OEM manual
08826-00080 Seal packing (FIPG) for oil pan or equivalent; seal width 3-5 mm Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p33 OEM manual
09226-10010 Crankshaft Front & Rear Bearing Replacer SST — Crankshaft front oil seal Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p43 OEM manual
09616-30011 Steering Worm Bearing Adjusting Screw Wrench SST — Oil pump pulley Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p43 OEM manual
09620-30010 Steering Gear Box Replacer Set SST Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p43 OEM manual
09627-30010 Steering Sector Shaft Bushing Replacer SST — Oil pump oil seal (component of 09620-30010) Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p43 OEM manual
09631-00020 Handle SST — Oil pump oil seal (component of 09620-30010) Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p43 OEM manual
09090-04000 Engine Sling Device Recommended tool — For suspending engine Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p43 OEM manual
09200-00010 Engine Adjust Kit Recommended tool Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p43 OEM manual
09905-00013 Snap Ring Pliers Recommended tool Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p43 OEM manual
08826-00080 Seal packing or equivalent Used for Oil pan Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p44 OEM manual
08833-00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent Used for Oil pressure switch Lubrication / oil ↗ RM285U_1993_3sgte_lubricat · p44 OEM manual
09286-46011 Injection Pump Spline Shaft Puller SST — Armature bearing Starting / charging ↗ RM285U_1993_starting · p6 OEM manual
09285-76010 Injection Pump Camshaft Bearing Cone Replacer SST — Armature front bearing for conventional type Starting / charging ↗ RM285U_1993_starting · p6 OEM manual
09820-00030 Alternator Rear Bearing Replacer SST — Armature front bearing for compact type Starting / charging ↗ RM285U_1993_starting · p6 OEM manual
09082-00015 TOYOTA Electrical Tester Recommended tool Starting / charging ↗ RM285U_1993_starting · p6 OEM manual
09286-46011 SST for removing front bearing Starting / charging ↗ RM285U_1993_starting · p20 OEM manual
09825-76010 SST for pressing in new bearing — Conventional type Starting / charging ↗ RM285U_1993_starting · p21 OEM manual
09820-00030 SST for pressing in new bearing — Compact type Be careful of the bearing installation direction Starting / charging ↗ RM285U_1993_starting · p21 OEM manual
09286-46011 SST for removing rear bearing Starting / charging ↗ RM285U_1993_starting · p21 OEM manual
08885-02106 Gear oil super Recommended transaxle gear oil or equivalent Transmission / transaxle ↗ RM285U_1993_e153 · p10 OEM manual
09042-00050 Torx wrench T45 Used to torque bearing retainer bolts Transmission / transaxle ↗ RM285U_1993_e153 · p13 OEM manual
09042-00050 Torx wrench T45 Used to remove seven torx screws and rear bearing retainer Transmission / transaxle ↗ RM285U_1993_e153 · p14 OEM manual
08833-00080 Sealant (THREE BOND 1344, LOC-TITE 242 or equivalent) Applied to two plugs Transmission / transaxle ↗ RM285U_1993_e153 · p18 OEM manual
08826-00090 Seal packing — THREE BOND 1281 or equivalent Apply to transmission case mating surface Transmission / transaxle ↗ RM285U_1993_e153 · p19 OEM manual
08833-00080 Sealant — THREE BOND 7344, LOC-TITE 242 or equivalent Apply to locking ball plug Transmission / transaxle ↗ RM285U_1993_e153 · p19 OEM manual
09042-00050 Torx wrench T45 Used for rear bearing retainer torx screws Transmission / transaxle ↗ RM285U_1993_e153 · p20 OEM manual
09310-17010 SST — clutch hub installer set includes 09310-07010, 09310-07020, 09310-07030 Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
09310-07010 SST component — clutch hub installer sub-tool of 09310-17010 Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
09310-07020 SST component — clutch hub installer sub-tool of 09310-17010 Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
09310-07030 SST component — clutch hub installer sub-tool of 09310-17010 Transmission / transaxle ↗ RM285U_1993_e153 · p21 OEM manual
09310-17010 SST set for 5th driven gear installation includes 09310-07010, 09310-07020, 09310-07040, 09310-07050 Transmission / transaxle ↗ RM285U_1993_e153 · p22 OEM manual
08826-00080 Seal packing — THREE BOND 1281 or equivalent Used for transmission case cover Transmission / transaxle ↗ RM285U_1993_e153 · p23 OEM manual
08833-00080 Sealant — THREE BOND 1344, LOC-TITE 242 or equivalent Applied to control shaft cover bolt threads Transmission / transaxle ↗ RM285U_1993_e153 · p23 OEM manual
09310-17010 SST — 5th driven gear puller set includes 09310-07010, 09310-07020, 09310-07040, 09310-07050 Transmission / transaxle ↗ RM285U_1993_e153 · p30 OEM manual
09310–17010 SST set for clutch hub removal (includes 09310–07010, 09310–07020, 09310–07030, 09310–07050) Used to remove No.3 clutch hub with synchronizer ring and 5th gear Transmission / transaxle ↗ RM285U_1993_e153 · p31 OEM manual
09042–00050 Torx wrench T45 Used to remove seven torx screws and bearing retainer Transmission / transaxle ↗ RM285U_1993_e153 · p31 OEM manual
09316-60010 SST — Output shaft rear tapered roller bearing outer race remover (set) Sub-tool: 09316-00010 Transmission / transaxle ↗ RM285U_1993_e153 · p33 OEM manual
09316-00010 SST — Output shaft rear tapered roller bearing outer race remover (component) Used with 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p33 OEM manual
09612-65014 SST — Input shaft bearing puller Special Service Tool for pulling out input shaft bearing Transmission / transaxle ↗ RM285U_1993_e153 · p37 OEM manual
09608-12010 SST — oil seal and bearing driver set Sub-tools: 09608-00020, 09608-00080, 09608-00060 Transmission / transaxle ↗ RM285U_1993_e153 · p38 OEM manual
09608-00020 SST sub-tool — used with 09608-12010 for oil seal and bearing installation Transmission / transaxle ↗ RM285U_1993_e153 · p38 OEM manual
09608-00080 SST sub-tool — used with 09608-12010 for oil seal installation Transmission / transaxle ↗ RM285U_1993_e153 · p38 OEM manual
09608-00060 SST sub-tool — used with 09608-12010 for bearing installation Transmission / transaxle ↗ RM285U_1993_e153 · p38 OEM manual
09950-00020 SST — inner race removal (used with press) Transmission / transaxle ↗ RM285U_1993_e153 · p38 OEM manual
09316-60010 SST — input shaft front bearing inner race installer / output shaft front bearing outer race driver sub-tool 09316-00020 or 09316-00010 Transmission / transaxle ↗ RM285U_1993_e153 · p39 OEM manual
09316-00020 SST sub-tool used with 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p39 OEM manual
09316-00010 SST sub-tool used with 09316-60010 for step (d) Transmission / transaxle ↗ RM285U_1993_e153 · p39 OEM manual
09308-00010 SST — output shaft front bearing outer race puller step (a) Transmission / transaxle ↗ RM285U_1993_e153 · p39 OEM manual
09950-00020 SST — output shaft front bearing remover step (e) Transmission / transaxle ↗ RM285U_1993_e153 · p39 OEM manual
09950-00030 SST — output shaft front bearing remover step (e) Transmission / transaxle ↗ RM285U_1993_e153 · p39 OEM manual
09316-60010 SST - Output shaft front bearing installer (set) sub-tool 09316-00070 Transmission / transaxle ↗ RM285U_1993_e153 · p40 OEM manual
09316-00070 SST - Output shaft front bearing installer (component) used with 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p40 OEM manual
09517-36010 SST - Shift control shaft oil seal installer Transmission / transaxle ↗ RM285U_1993_e153 · p40 OEM manual
08833-00080 Sealant (THREE BOND 1344 / LOCTITE 242 or equivalent) Apply to reverse restrict pin screw plug threads Transmission / transaxle ↗ RM285U_1993_e153 · p41 OEM manual
09319-60020 SST — used to remove needle roller bearing from transmission case and control shaft cover Special Service Tool Transmission / transaxle ↗ RM285U_1993_e153 · p41 OEM manual
09620-30010 SST (includes 09631-00020) Special Service Tool for pressing needle roller bearing Transmission / transaxle ↗ RM285U_1993_e153 · p42 OEM manual
09631-00020 SST sub-component of 09620-30010 Transmission / transaxle ↗ RM285U_1993_e153 · p42 OEM manual
09630-24013 SST (includes 09620-24010) Special Service Tool for pressing needle roller bearing Transmission / transaxle ↗ RM285U_1993_e153 · p42 OEM manual
09620-24010 SST sub-component of 09630-24013 Transmission / transaxle ↗ RM285U_1993_e153 · p42 OEM manual
09316–60010 SST — taper roller bearing outer race installer set sub-parts: 09316–00010, 09316–00040 Transmission / transaxle ↗ RM285U_1993_e153 · p49 OEM manual
09316–00010 SST sub-component for 09316–60010 Transmission / transaxle ↗ RM285U_1993_e153 · p49 OEM manual
09316–00040 SST sub-component for 09316–60010 Transmission / transaxle ↗ RM285U_1993_e153 · p49 OEM manual
08826–00090 Seal packing (THREE BOND 1281 or equivalent) Applied to transaxle case cover Transmission / transaxle ↗ RM285U_1993_e153 · p50 OEM manual
08833-00080 THREE BOND 1344 sealant / LOC-TITE 242 or equivalent Apply to bolt threads Transmission / transaxle ↗ RM285U_1993_e153 · p51 OEM manual
09316-20011 SST for RH side bearing installation Transmission / transaxle ↗ RM285U_1993_e153 · p54 OEM manual
09316-60010 SST for LH side bearing installation Sub-tool 09316-00010 Transmission / transaxle ↗ RM285U_1993_e153 · p54 OEM manual
09316-00010 SST sub-tool for LH side bearing installation Used with 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p54 OEM manual
09316-60010 SST — Output shaft rear tapered roller bearing outer race installer (set) Sub-tool: 09316-00010 Transmission / transaxle ↗ RM285U_1993_e153 · p55 OEM manual
09316-00010 SST sub-tool — Output shaft rear tapered roller bearing outer race installer Used with 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p55 OEM manual
09042-00050 Torx wrench T45 — Rear bearing retainer torx screws Transmission / transaxle ↗ RM285U_1993_e153 · p55 OEM manual
09042-00050 Torx wrench T45 Used to remove rear bearing retainer torx screws Transmission / transaxle ↗ RM285U_1993_e153 · p56 OEM manual
09950-20017 SST — Side bearing puller Used to remove two side bearings Transmission / transaxle ↗ RM285U_1993_e153 · p59 OEM manual
09042-00040 Torx wrench T50 Used to remove sixteen torx screws on differential case Transmission / transaxle ↗ RM285U_1993_e153 · p60 OEM manual
09316-60010 SST — taper roller bearing outer race installer (set) sub-components: 09316-00010, 09316-00040 Transmission / transaxle ↗ RM285U_1993_e153 · p61 OEM manual
09316-00010 SST — sub-component of 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p61 OEM manual
09316-00040 SST — sub-component of 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p61 OEM manual
09612-65014 SST — taper roller bearing outer race removal tool Transmission / transaxle ↗ RM285U_1993_e153 · p62 OEM manual
09316-60010 SST — taper roller bearing installation / oil seal driver set Transmission / transaxle ↗ RM285U_1993_e153 · p62 OEM manual
09316-00010 SST sub-component — bearing/seal driver part of 09316-60010 set Transmission / transaxle ↗ RM285U_1993_e153 · p62 OEM manual
09316-00040 SST sub-component — bearing/seal driver part of 09316-60010 set; used for bearing installation only Transmission / transaxle ↗ RM285U_1993_e153 · p62 OEM manual
08826-00090 Seal packing (THREE BOND 1281 or equivalent) — transaxle case cover Transmission / transaxle ↗ RM285U_1993_e153 · p63 OEM manual
08833-00080 Sealant (THREE BOND 1344, LOCTITE 242 or equivalent) — bolt threads Transmission / transaxle ↗ RM285U_1993_e153 · p63 OEM manual
09042-00040 Tom wrench T50 Used to install and torque torx screws on differential case Transmission / transaxle ↗ RM285U_1993_e153 · p65 OEM manual
09316-20011 SST — Side bearing installer Used with 09316-60010 (09316-00010) Transmission / transaxle ↗ RM285U_1993_e153 · p66 OEM manual
09316-60010 SST — Side bearing installer sub-tool Sub-part 09316-00010 Transmission / transaxle ↗ RM285U_1993_e153 · p66 OEM manual
09042-00050 Torx wrench T45 Used to install rear bearing retainer torx screws Transmission / transaxle ↗ RM285U_1993_e153 · p67 OEM manual
09042-00050 Torx wrench T45 Used to remove rear bearing retainer torx screws Transmission / transaxle ↗ RM285U_1993_e153 · p68 OEM manual
09950-00020 SST — Special Service Tool for removing radial ball bearing Used in step 4 Transmission / transaxle ↗ RM285U_1993_e153 · p71 OEM manual
09506-35010 SST — Special Service Tool for installing 3rd gear and No.2 hub sleeve Transmission / transaxle ↗ RM285U_1993_e153 · p74 OEM manual
09506-35010 SST for installing radial ball bearing Special Service Tool Transmission / transaxle ↗ RM285U_1993_e153 · p75 OEM manual
09950-00020 SST — Output shaft front bearing remover Used with 09950-00030 Transmission / transaxle ↗ RM285U_1993_e153 · p84 OEM manual
09950-00030 SST — Output shaft front bearing remover Used with 09950-00020 Transmission / transaxle ↗ RM285U_1993_e153 · p84 OEM manual
09316-60010 SST — press tool for 1st gear and No. 1 hub sleeve installation sub-tool 09316-00040 Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
09316-00040 SST sub-component for 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p86 OEM manual
09506-30012 SST for output shaft rear bearing installation Step 8 Transmission / transaxle ↗ RM285U_1993_e153 · p88 OEM manual
09316-60010 SST for output shaft front bearing installation Step 9; sub-tool 09316-00070 Transmission / transaxle ↗ RM285U_1993_e153 · p88 OEM manual
09316-00070 SST sub-tool for output shaft front bearing installation Step 9; used with 09316-60010 Transmission / transaxle ↗ RM285U_1993_e153 · p88 OEM manual
09223-15010 Crankshaft Rear Oil Seal Replacer — used for Differential case oil seal Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09310-17010 Transaxle Gear Remover & Replacer Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09310-07010 Plate (component of 09310-17010) Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09310-07020 Center Bolt (component of 09310-17010) Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09310-07030 Set Bolt (component of 09310-17010) Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09310-07040 Claw (component of 09310-17010) Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09310-07050 Adaptor (component of 09310-17010) Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09316-20011 Transfer Bearing Replacer — used for Input shaft bearing, Side bearing Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09316-60010 Transmission & Transfer Bearing Replacer — used for No.1 hub sleeve, Differential case taper roller bearing outer race, Transaxle case cover oil seal Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09316-00010 Replacer Pipe (component of 09316-60010) Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09316-00020 Replace "A" (component of 09316-60010) Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09316-00040 Replacer "C" (component of 09316-60010) Transmission / transaxle ↗ RM285U_1993_e153 · p89 OEM manual
09319-60020 Output Shaft Needle Roller Bearing Remover Used for control shaft cover bearing Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09508-30012 Differential Drive Pinion Rear Bearing Corrie Replacer Used for output shaft rear bearing Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09506-35010 Differential Drive Pinion Rear Bearing Replacer Used for No.2 hub sleeve, Side bearing, Input shaft bearing Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09517-36010 Rear Axle Shaft Oil Seal Replacer Used for shift control shaft oil seal Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09608-12010 Front Hub & Drive Pinion Bearing Replacer Set Used for input shaft oil seal Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09608-00020 Remover & Replacer Handle Sub-component of 09608-12010 Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09608-00060 Drive Pinion Front Bearing Cup Replacer Sub-component of 09608-12010 Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09608-00080 Replacer Sub-component of 09608-12010 Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09612-65014 Steering Worm Bearing Puller Used for input shaft bearing, Differential taper roller bearing outer race Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09620-30010 Steering Gear Box Replacer Set Used for control shaft cover bearing Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09631-00020 Handle Sub-component of 09620-30010 Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09630-24013 Steering Rack Oil Seal Tool Set Used for control shaft cover bearing Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09620-24010 Valve Cup Oil Seal Remover Sub-component of 09630-24013 Transmission / transaxle ↗ RM285U_1993_e153 · p90 OEM manual
09025-00010 Small Torque Wrench Recommended tool — Differential preload Transmission / transaxle ↗ RM285U_1993_e153 · p92 OEM manual
09042-00050 Torx socket t45 Recommended tool Transmission / transaxle ↗ RM285U_1993_e153 · p92 OEM manual
09905-00012 Snap Ring No. 1 Expander Recommended tool Transmission / transaxle ↗ RM285U_1993_e153 · p92 OEM manual
08826-00090 Seal Packing 1281, Three bond 1281 or equivalent SSM — Transaxle case x Case cover, Transmission case x Transaxle case, Transmission case x Case cover Transmission / transaxle ↗ RM285U_1993_e153 · p92 OEM manual
08833-00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent SSM — Transaxle case cover bolt, Straight screw plug, Control shaft cover bolt Transmission / transaxle ↗ RM285U_1993_e153 · p92 OEM manual
AM1 Fusible Link (Others) 80A (AE 4A-F), 80A (AT) Starting / charging ↗ engine_4age · p13 OEM manual
09286-46011 SST (Rectifier end frame removal tool) Starting / charging ↗ engine_4age · p18 OEM manual
SST 09820-63010 Pulley nut tool (SST A and SST B) Starting / charging ↗ engine_4age · p23 OEM manual
SST 09236-00101 pulley seat removal tool / water pump rotor and bearing removal tool / seal removal tool Cooling ↗ engine_4age · p38 OEM manual
FI-97 Vacuum Sensor (w/o Air Flow Meter) (Manifold Absolute Pressure Sensor) EFI / fuel injection ↗ engine_4age · p61 OEM manual
FI-100 Intake Air Temperature Sensor (w/o Air Flow Meter) EFI / fuel injection ↗ engine_4age · p61 OEM manual
FI-109 High-temperature Line Pressure Up System (Europe) EFI / fuel injection ↗ engine_4age · p61 OEM manual
F2497-08B31 Auxiliary Air Valve diagram reference EFI / fuel injection ↗ engine_4age · p147 OEM manual
F2495 Idle Speed Adjusting Screw diagram reference EFI / fuel injection ↗ engine_4age · p147 OEM manual
Q20R-U11 ND Recommended spark plugs: Conventional Tipped Type Engine — mechanical ↗ engine_4age · p177 OEM manual
BCPR6EY11 NGK Recommended spark plugs: Conventional Tipped Type Engine — mechanical ↗ engine_4age · p177 OEM manual
PQ16R ND Recommended spark plugs: Platinum Tipped Type Engine — mechanical ↗ engine_4age · p177 OEM manual
BCPR5EP11 NGK Recommended spark plugs: Platinum Tipped Type Engine — mechanical ↗ engine_4age · p177 OEM manual
Connecting Rod Bushing (4A-GE) Connecting Rod Bushing Engine — mechanical ↗ engine_4age · p189 OEM manual
SST 09221-25022 Special Service Tool (pressing tool) Engine — mechanical ↗ engine_4age · p207 OEM manual
UNREADABLE Valve Stem Oil Seal 1st 300 (22, 28) 2nd 90° turns Engine — mechanical ↗ engine_4age · p212 OEM manual
4A-GE Driven Gear / Drive Gear / Oil Pan Baffle Plate Lubrication / oil ↗ engine_4age · p265 OEM manual
09027-12140 Angled Open End Wrench 12 x 14 Classification: C, Note: 4A-GE Maintenance ↗ engine_4age · p292 OEM manual
09201-41020 (Valve Stem Oil Seal Replacer) Classification: B, Note: 4A-F Maintenance ↗ engine_4age · p292 OEM manual
09201-70010 (Valve Guide Bushing Remover & Replacer) Classification: B Maintenance ↗ engine_4age · p292 OEM manual
09205-16010 (Cylinder Head Bolt Wrench) Classification: A Maintenance ↗ engine_4age · p292 OEM manual
09213-14010 (Crankshaft Pulley Holding Tool) Classification: A, Note: 4A-F Maintenance ↗ engine_4age · p292 OEM manual
09213-31021 (Crankshaft Pulley Puller) Classification: A Maintenance ↗ engine_4age · p292 OEM manual
09213-70010 (Crankshaft Pulley Holding Tool) Classification: A, Note: 4A-GE Maintenance ↗ engine_4age · p292 OEM manual
09222-30010 (Connecting Rod Bushing Remover & Replacer) 4A-GE Maintenance ↗ engine_4age · p293 OEM manual
09223-46011 (Crankshaft Front Oil Seal Replacer) 4A-F for camshaft oil seal Maintenance ↗ engine_4age · p293 OEM manual
09223-50010 (Crankshaft Front Oil Seal Replacer) 4A-GE for camshaft oil seal Maintenance ↗ engine_4age · p293 OEM manual
09285-76010 (Injection Pump Camshaft Bearing Cone Replacer) *1 Starter front bearing for 1.0 kw type *2 Rear bearing Maintenance ↗ engine_4age · p294 OEM manual
09286-46011 (Injection Pump Spline Shaft Puller) *1 Starter front bearing for 1.0 kw type *2 Rectifier end frame Maintenance ↗ engine_4age · p294 OEM manual
09330-00021 Companion Flange Holding Tool Crankshaft pulley Maintenance ↗ engine_4age · p295 OEM manual
09517-30010 Rear Axle Shaft Oil Seal Replacer Crankshaft front oil seal Maintenance ↗ engine_4age · p295 OEM manual
(09552-10010) No. 2 Replacer Handle 4A-F for spark plug tube gasket Maintenance ↗ engine_4age · p295 OEM manual
09631-22020 Power Steering Hose Nut 14 x 17 Wrench Fuel line flare nut Maintenance ↗ engine_4age · p295 OEM manual
09842-30060 Wiring "E" EFI Inspection w/o Air flow meter Maintenance ↗ engine_4age · p295 OEM manual
08833-00070 Adhesive 1324, Three bond 1324 or equivalent Maintenance ↗ engine_4age · p296 OEM manual
ST-1 Page number/identifier for STARTING SYSTEM section Starting / charging ↗ engine_4age · p297 OEM manual
ST0481 Reduction Type Starter Components diagram ID Starting / charging ↗ engine_4age · p310 OEM manual
60190V02 PASSANGER'S SIDE KICK PANEL diagram reference Unclassified ↗ AW11_owners_manual · p104 OEM manual
60185W01 Fuse and circuit breaker locations diagram reference Unclassified ↗ AW11_owners_manual · p104 OEM manual
60190V03 ENGINE COMPARTMENT fuse box diagram reference Unclassified ↗ AW11_owners_manual · p104 OEM manual
60463V14 Removing and installing of the light cover Unclassified ↗ AW11_owners_manual · p115 OEM manual
R/B NO. 2 VENT FAN RELAY, EFI MAIN RELAY, CHARGE ENGINE EFI INJ, ENGINE MAIN RELAY, STARTER RELAY, HAZ-RADIO Unclassified ↗ AW11_uk_electrical · p45 OEM manual
R/B NO. 5 A/C FAN RELAY NO. 3, RADIATOR FAN RELAY NO. 1, DIMMER RELAY, A/C FAN RELAY NO. 2, HEAD LIGHT RELAY, FAN MAIN RELAY, HORN, RTR MTR, HEAD (LH-LWR), HEAD (RH-LWR), HEAD (LH-UPR), HEAD (RH-UPR) (EUR LHD) Unclassified ↗ AW11_uk_electrical · p45 OEM manual
J/B NO. 3 Connector block with ribbon wire connection to J/B NO. 4 Unclassified ↗ AW11_uk_electrical · p45 OEM manual
J/B NO. 4 Connector block with ribbon wire connection to J/B NO. 3 Unclassified ↗ AW11_uk_electrical · p45 OEM manual
RM 182E MR2 Repair Manual (USA and CANADA) M/Y Version Introduction ↗ sw20_body_1989 · p3 OEM manual
RM 182E MR2 Chassis and Body Repair Manual (Models except USA and CANADA) Introduction ↗ sw20_body_1989 · p3 OEM manual
EWD 082Y MR2 Electrical Wiring Diagrams Manual (USA and CANADA) (Models except USA and CANADA) M/Y Version Introduction ↗ sw20_body_1989 · p3 OEM manual
YRD 002E MRA (except USA and CANADA) Wiring Diagram Manual (USA and CANADA) Introduction ↗ sw20_body_1989 · p4 OEM manual
21 Cut and Join Location (Cut Location for Supply Parts) [Normal Roof] Body ↗ sw20_body_1989 · p44 OEM manual
15 Cut and Join Location (Cut Location for Supply Parts) [Normal Roof] Body ↗ sw20_body_1989 · p44 OEM manual
21 Cut and Join Location (Cut Location for Supply Parts) [T-Bar Roof] Body ↗ sw20_body_1989 · p44 OEM manual
9 Cut and Join Location (Cut Location for Supply Parts) [T-Bar Roof] Body ↗ sw20_body_1989 · p44 OEM manual
8 Cut and Join Location (Cut Location for Supply Parts) [T-Bar Roof] Body ↗ sw20_body_1989 · p44 OEM manual
15 Cut and Join Location (Cut Location for Supply Parts) [T-Bar Roof] Body ↗ sw20_body_1989 · p44 OEM manual
9 Braze [If replacing the luggage compartment door opening trough] Body ↗ sw20_body_1989 · p60 OEM manual
No matches.
